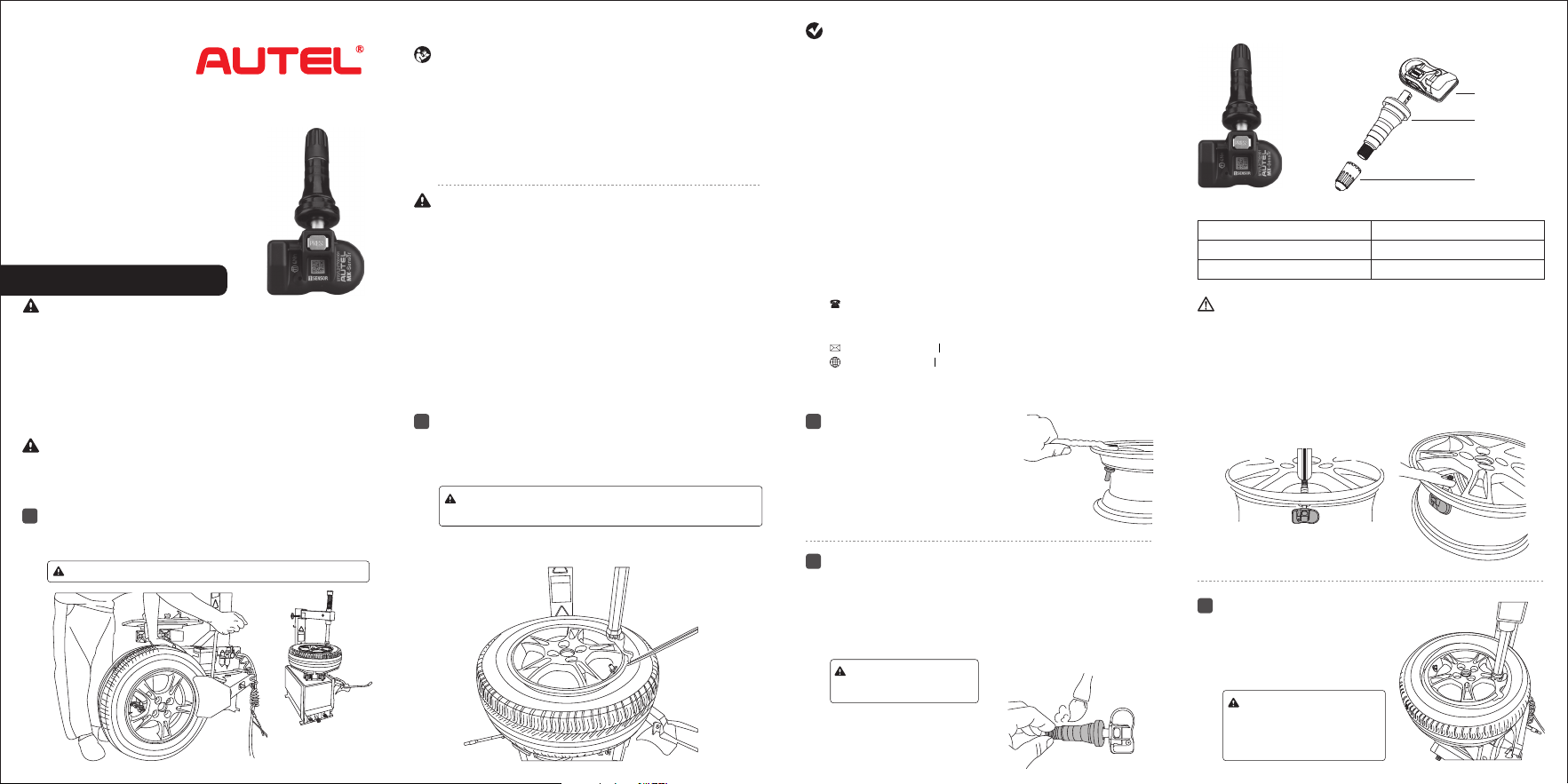

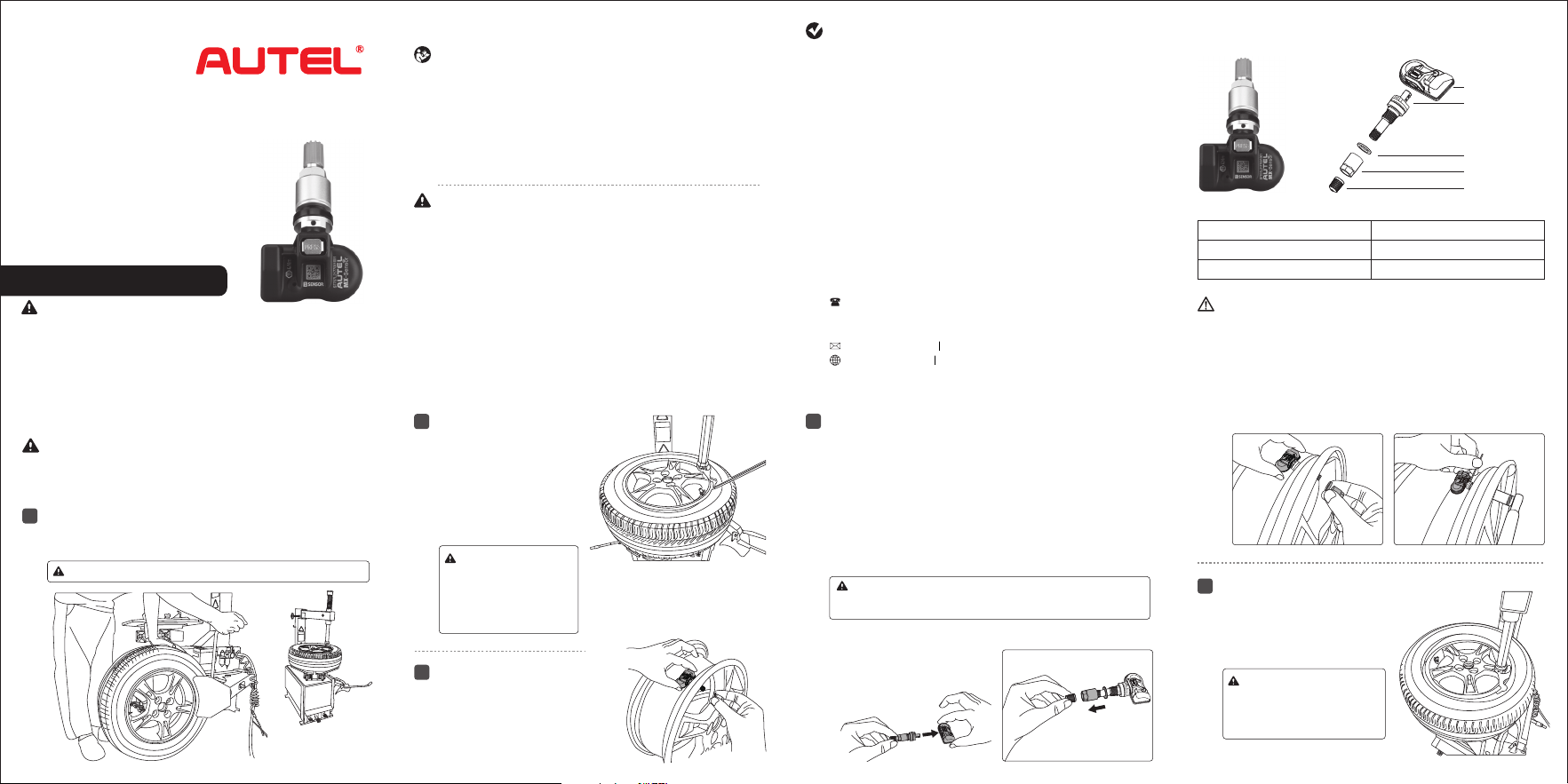

SAFETY INSTRUCTIONS
Before installing the sensor, read the installation and safety
instructions carefully. For reasons of safety and for optimal
operation, we recommend that any maintenance and repair
work be carried out by trained experts only, in accordance with
the guidelines of the vehicle manufacturer. The valves are
safety-relevant parts which are intended for professional
installation only. Failure to do so may result in the failure of the
TPMS sensor. AUTEL does not assume any liability in case of
faulty or incorrect installation of the product.
CAUTION
AUTEL guarantees that the sensor is free from material and
manufacturing defects for a period of twenty-four (24) months
or for 24,000 miles, whichever comes first. AUTEL will at its
discretion replace any merchandise during the warranty period.
The warranty shall be void if any of the following occurs:
1. Improper installation of products
2. Improper usage
3. Induction of defect by other products
4. Mishandling of products
5. Incorrect application
6. Damage due to collision or tire failure
7. Damage due to racing or competition
8. Exceeding specific limits of the product
WARRANTY
EXPLODED VIEW OF SENSOR
Technical data of the sensor
CAUTION: Each time a tire is serviced or dismounted, or if the
sensor is removed or replaced, it is mandatory to replace the
rubber grommet, washer, nut and valve core with our parts to
ensure proper sealing.
It is mandatory to replace the sensor if it is externally damaged.
Correct sensor nut torque: 4 Newton-meters.
Weight of sensor without valve 12 g
Dimensions approx. 42.2*27.9*17.4mm
Max. pressure range 800 kPa
Sensor body
Washer
Screw-nut
Cap
Valve stem,
rubber grommet
and valve
core assembly
INSTALLATION GUIDE
Loosening the tire
IMPORTANT: Before operating or maintaining this unit, please
read these instructions carefully and pay extra attention to the
safety warnings and precautions. Use this unit correctly and with
care. Failure to do so may cause damage and/or personal injury
and will void the warranty.
Remove the valve cap and core and deflate the tire.
Use the bead loosener to unseat the tire bead.
1
CAUTION: The bead loosener must be facing the valve.
Dismounting the sensor
Remove the cap, screw nut,
and washer from the valve
stem, and then remove the
sensor assembly from the
rim.
3
Mounting sensor and valve
Step 1
Step 3 Step 4
4
Step 2
Place the tire on the rim, make
sure that the valve faces the
separation head at an angle of
180
o
. Mount the tire over the rim.
Mounting the tire
5
CAUTION: The tire should
be mounted to the wheel
using tire changer manuf-
acturer’s instructions.
Dismounting the tire
Clamp the tire onto the tire
changer, and adjust the valve
at 1 o'clock relative to the tire
separation head. Insert the
tire tool and lift the tire bead
onto the mounting head to
dismount the bead.
2
• The TPMS sensor assemblies are replacement or maintenance
parts for vehicles with factory installed TPMS.
• Make sure to program the sensors by AUTEL sensor program-
ming tools by the specific vehicle make, model and year before
installation.
• Do not install programmed TPMS sensors in damaged wheels.
• In order to guarantee optimal function, the sensors may only be
installed with original valves and accessories provided by AUTEL.
• Upon completing the installation, test the vehicle's TPMS
following the procedures described in the original manufactur-
er's user guide to confirm proper installation.
CAUTION:
This starting position
must be o bserved
duri n g the wh o l e
dismounting process.
W e b : www.autel.com
www.maxitpms.com
Please ensure the sensor
body and valve stem are
firmly connected.
1-Sensor Metal Valve (Press-in)
PROGRAMMABLE
UNIVERSAL
TPMS SENSOR
MX-SENSOR
CUSTOMER & TECH SUPPORT
855-288-3587 (US)
0049 (0) 61032000522 (EU)
0086-755-86147779 (CN)
www.autel.com www.maxitpms.com
• Autel MX-Sensors arrive blank and must be programmed with Autel TPMS
tool, which recommended to program prior to installation.
• Do not race with the vehicle on which the Clamp-in MX-Sensor is
mounted, and always keep the drive speed under 240km/h.
CAUTION:
Step 1. Firmly connect the valve stem and the sensor body.
Note: ensure the assembly will not fall apart.
Step 2. Remove the cap, screw nut, and washer from the valve
stem one by one.
Step 3. Slide the valve stem through the valve hole of the rim
with the sensor on the inside of the rim, assemble the
two parts back on the stem in the order of washer,
screw nut.
Step 4. Tighten the screw nut with 4.0N·m with the help of the
fixed rod, then assemble the cap back on the stem.
WARNING: It's mandatory to use the fixed rod to install the clamp-in
MX-Sensor, else some unknown damages will be caused. The
washer, screw nut, and cap should be located outside of the rim.
W e b : www.autel.com
www.maxitpms.com
Sensor body
Cap
Rubber
valve stem
SAFETY INSTRUCTIONS
Before installing the sensor, read the installation and safety
instructions carefully. For reasons of safety and for optimal
operation, we recommend that any maintenance and repair
work be carried out by trained experts only, in accordance with
the guidelines of the vehicle manufacturer. The valves are
safety-relevant parts which are intended for professional
installation only. Failure to do so may result in the failure of the
TPMS sensor. AUTEL does not assume any liability in case of
faulty or incorrect installation of the product.
• The TPMS sensor assemblies are replacement or maintenance
parts for vehicles with factory installed TPMS.
• Make sure to program the sensors by AUTEL sensor program-
ming tools by the specific vehicle make, model and year before
installation.
• Do not install programmed TPMS sensors in damaged wheels.
• In order to guarantee optimal function, the sensors may only be
installed with original valves and accessories provided by AUTEL.
• Upon completing the installation, test the vehicle's TPMS
following the procedures described in the original manufactur-
er's user guide to confirm proper installation.
CAUTION
AUTEL guarantees that the sensor is free from material and
manufacturing defects for a period of twenty-four (24) months or
for 24,000 miles, whichever comes first. AUTEL will at its
discretion replace any merchandise during the warranty period.
The warranty shall be void if any of the following occurs:
1. Improper installation of products
2. Improper usage
3. Induction of defect by other products
4. Mishandling of products
5. Incorrect application
6. Damage due to collision or tire failure
7. Damage due to racing or competition
8. Exceeding specific limits of the product
WARRANTY
INSTALLATION GUIDE
Loosening the tire
IMPORTANT: Before operating or maintaining this unit, please
read these instructions carefully and pay extra attention to the
safety warnings and precautions. Use this unit correctly and with
care. Failure to do so may cause damage and/or personal injury
and will void the warranty.
Remove the valve cap and core and deflate the tire.
Use the bead loosener to unseat the tire bead.
1
CAUTION: The bead loosener must be facing the valve.
Dismounting the tire
Clamp the tire onto the tire changer, and adjust the valve at 1
o'clock relative to the tire separation head. Insert the tire tool and
lift the tire bead onto the mounting head to dismount the bead.
2
CAUTION: This starting position must be observed during
the whole dismounting process.
3
4
EXPLODED VIEW OF SENSOR
Technical data of the sensor
CAUTION: Each time a tire is serviced or dismounted, or if the
sensor is removed or replaced, it is mandatory to replace the
rubber valve stem and the plastic cap with our parts to ensure
proper sealing. Please avoid extreme temperatures.
Weight of sensor without valve
Dimensions
Max. pressure range 800 kPa
Dismounting the sensor
Depress the Press button on the
sensor body, carefully pull the sensor
body straight back off the valve.
Cut the rubber bulb and attach a
standard TTV tool to the valve.
Remove the valve from the rim by
pulling through the rim.
Step 1. Apply tire soap or lube solution to the rubber valve stem.
Step 2. Line the sensor up with rim hole and attach a standard
TTV pull in tool to the end of the valve.
Mounting sensor and valve
Step 1
CAUTION:
The valve and rim hole
should be concentric.
Place the tire on the rim, make
sure that the valve faces the
separation head at an angle of
180
o
.Mount the tire over the rim.
Mounting the tire
5
CAUTION: The tire should
be mounted to the wheel
using tire changer manuf-
acturer’s instructions.
Step 2 Step 3
12 g
approx. 42.2*27.9*17.4mm
Please ensure the sensor
body and valve stem are
firmly connected.
1-Sensor Rubber Valve (Press-in)
PROGRAMMABLE
UNIVERSAL
TPMS SENSOR
MX-SENSOR
CUSTOMER & TECH SUPPORT
855-288-3587 (US)
0049 (0) 61032000522 (EU)
0086-755-86147779 (CN)
www.autel.com www.maxitpms.com
• Autel MX-Sensors arrive blank and must be programmed with Autel TPMS
tool, which recommended to program prior to installation.
• Do not race with the vehicle on which the Snap-in MX-Sensor is mounted,
and always keep the drive speed under 210km/h.
CAUTION:
Step 3. Pull the valve stem straight through the valve hole. Note
the rubber bulb of the valve resting against the rim,
then assemble the cap back on the stem.
