1
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION OR USE.
BUILT-IN
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
INSTALLATION INSTRUCTIONS
AND OWNER’S MANUAL
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.
WARNING
Improper installation, adjustment, alteration,
service, or maintenance can cause injury or
property damage. For proper installation,
refer to the installation instructions. For
assistance or additional information,
consult a qualied professional service
technician or service agency.
Model w/ dual digital controls
and window shown
PLEASE READ AND FOLLOW
• Removing permanently axed rating warning
labels WILL void the warranty.
• Observe all local codes and ordinances when
installing this appliance. If no local codes are
applicable, wire unit in accordance with the
latest National Electrical Code, ANSI/NFPA
70, or the Canadian Electrical Code, CSA
C22.1, whichever is applicable.
WARNING
To minimize the risk of property damage
and/or personal injury, do not use a
flexible extension power-supply cord
unless it conforms with the specications
as listed in this manual (see IMPORTANT
SAFEGUARDS section).
NOT FOLLOWING THESE INSTRUCTIONS EXACTLY
WILL VOID THE MANUFACTURER'S WARRANTY.
WARNING
When connecting this appliance to a power
supply make sure that it is the same voltage
as the unit rating. Improper connection may
cause severe damage to the components or
decrease the performance of your Fire Magic
electric grill. A rating plate specifying voltage,
hertz, wattage, and amps is attached to the
rear of the unit and can be found in the MODEL
SPECIFICATIONS section. Also see the
IMPORTANT SAFEGUARDS section. To avoid
the risk of property damage and/or personal
injury, installation work and electrical wiring must
be performed by a qualied professional service
technician. This appliance must be installed in
accordance with this instruction.
SAFETY AND WARNING CODES
ONLY TO BE USED OUTDOORS
EL500i Series
Cooking Grid U.S. Patent Nos.
D857,453 D862,984
SCAN
RHP CONNECT
APP
Certied to:
ANSI/UL 1026
CSA C22.2 No. 60335-1
CSA C22.2 No. 60335-2-6
CSA C22.2 No. 60335-2-78
US
C
REV 2 - A - 2605060935
L-C2-699
2
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
AVERTISSEMENT
L'installation inexacte, l'ajustement, le
changement, le service, ou l'entretien peuvent
causer des dommages ou des dégats
matériels. Pour l'installation appropriée,
référez-vous aux instructions d'installation.
Pour de l'aide ou des renseignements
supplémentaires, consulter une agence de
technicien de maintenance ou de service
professionnel qualié.
Modèle avec commandes numériques
doubles et fenêtre illustrée
SVP LISEZ ET SUIVEZ
• L'enlèvement de manière permanente a apposé
des avertissements d'étiquette d'estimation
videra la garantie.
• Observez tous les codes et ordonnances
locaux en installant cet appareil. Si aucun code
local n'est applicable, unité de l selon le plus
défunt code électrique national, ANSI/NFPA 70,
ou le code électrique canadien, CSA C22.1,
celui qui est applicable.
AVERTISSEMENT
Pour réduire au minimum le risque de
dégats matériels et/ou de blessures,
n'employez pas une prolongation exible
puissance-fournissent la corde à moins
qu'elle se conforme aux caractéristiques
comme énuméré en ce manuel (voir la
section MISES EN GARDE IMPORTANT).
NON SUIVANT CES INSTRUCTIONS EXACTEMENT
VIDERONT LA GARANTIE DU FABRICANT.
AVERTISSEMENT
En reliant cet appareil à une alimentation d'énergie
assurez-vous que c'est la même tension que
l'estimation d'unité. Le raccordement inexact peut
endommager considérablement les composants
ou diminuer l'exécution de votre gril électrique de
Magic du feu. Une plaque signalétique spéciant
la tension, le hertz, la puissance et les ampères
est xée à l'arrière de l'appareil et se trouve
dans la section MODEL SPECIFICATIONS. Voir
aussi la section IMPORTANT SAFEGUARDS.
Pour éviter le risque de dommages aux biens et
/ ou des blessures, les travaux d'installation et
le câblage électrique doit être eectuée par un
technicien de service professionnel qualié. Cet
appareil doit être installé selon cette instruction.
SÛRETÉ ET CODES D'AVERTISSEMENT
À UTILISER UNIQUEMENT À L'EXTÉRIEUR
Grille de cuisson Numéros de brevets américains:
D857,453 D862,984
Certié à :
ANSI/UL 1026
CSA C22.2 No. 60335-1
CSA C22.2 No. 60335-2-6
CSA C22.2 No. 60335-2-78
US
C
REV 2 - A - 2605060935
L-C2-699
IMPORTANT: LISEZ CES INSTRUCTIONS SOIGNEUSEMENT AVANT DE COMMENCER L'INSTALLATION OU L'UTILISATION.
INSTRUCTIONS D'INSTALLATION
ET MANUEL DU PROPRIÉTAIRE
INSTALLATEUR : Laissez ces instructions avec le
consommateur.
CONSOMMATEUR : Maintenez pour la future référence.
Série EL500i
INTÉGRÉ
3
GETTING STARTED
GETTING STARTED
IMPORTANT SAFEGUARDS ������������������������������������������������������������������������������������������������������������������4

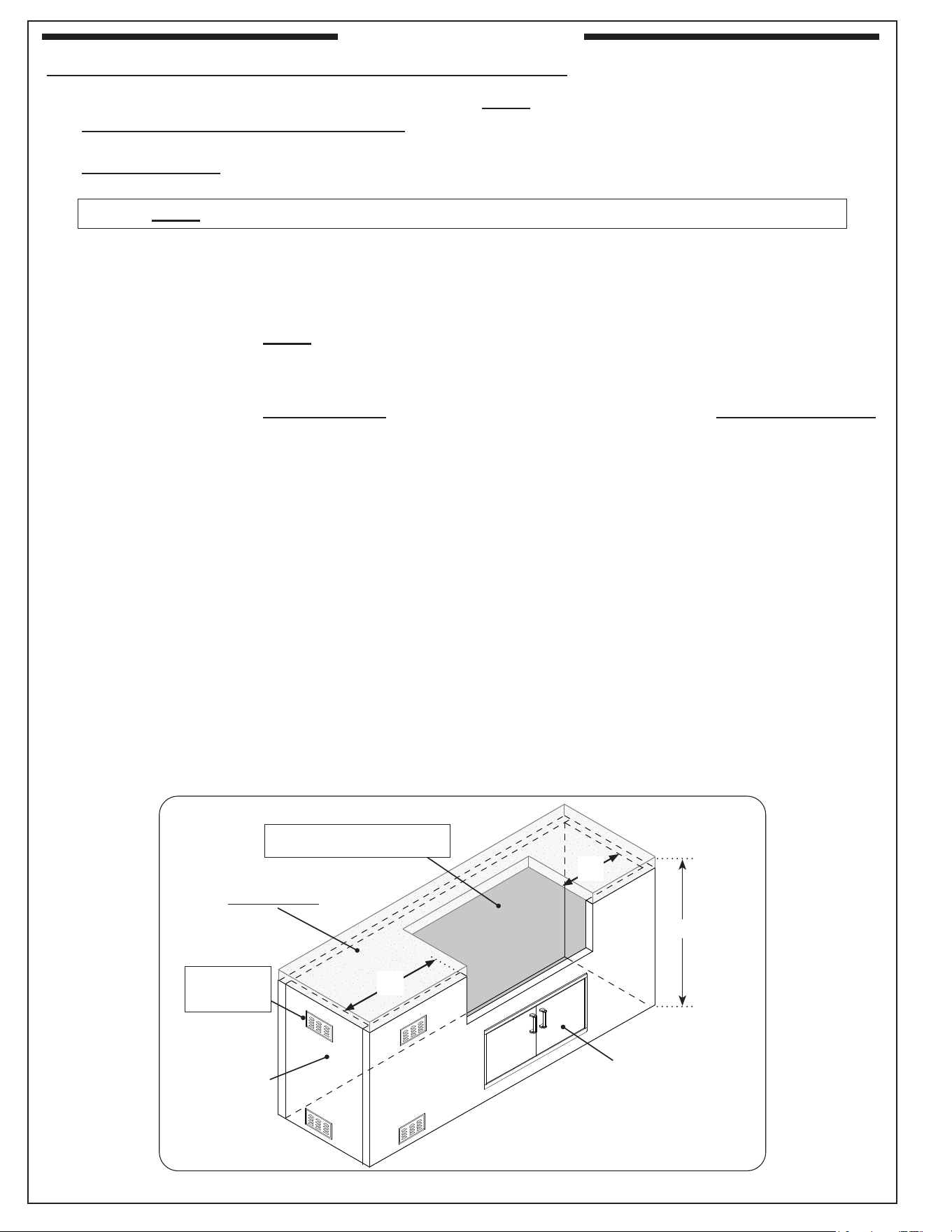

GRILL ENCLOSURE �����������������������������������������������������������������������������������������������������������������������������10
ENCLOSURE PARAMETERS ����������������������������������������������������������������������������������������������������������������� 10

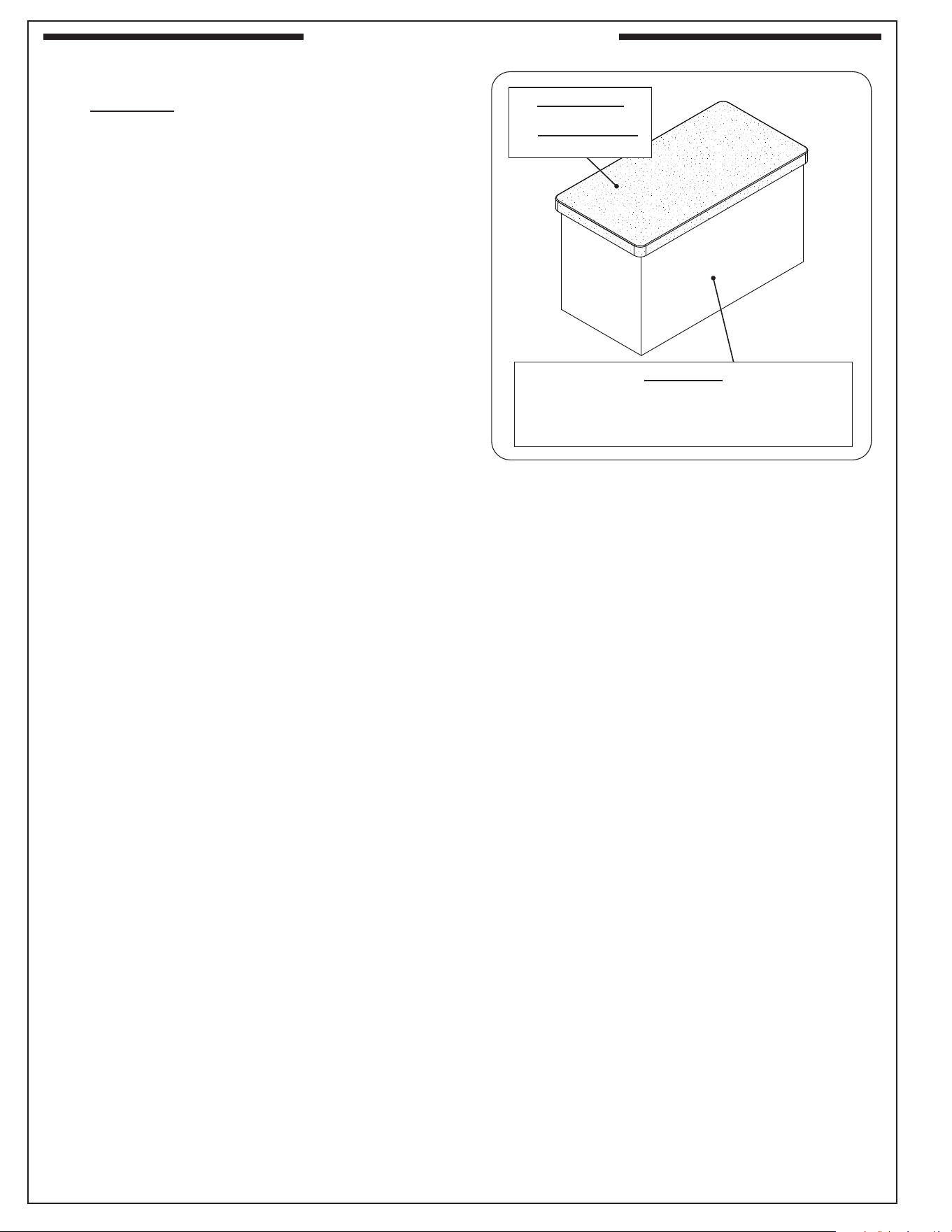

ENCLOSURE MATERIALS �������������������������������������������������������������������������������������������������������������������12
Cutout Dimensions ������������������������������������������������������������������������������������������������������������������������������� 13

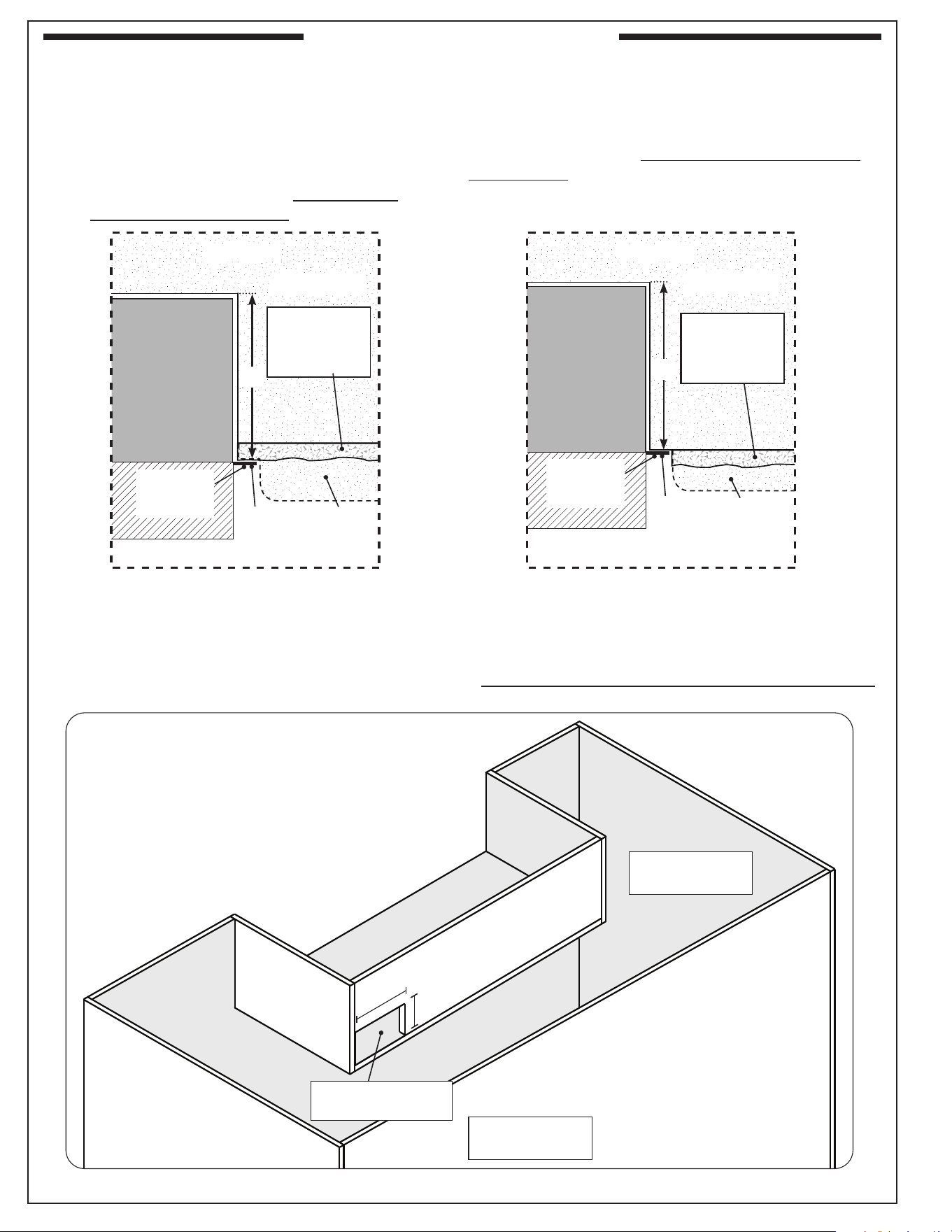

Countertop Overhang ���������������������������������������������������������������������������������������������������������������������������13
NOTES PAGE �����������������������������������������������������������������������������������������������������������������������������������������15
INSTALLATION REQUIREMENTS ������������������������������������������������������������������������������������������������������16

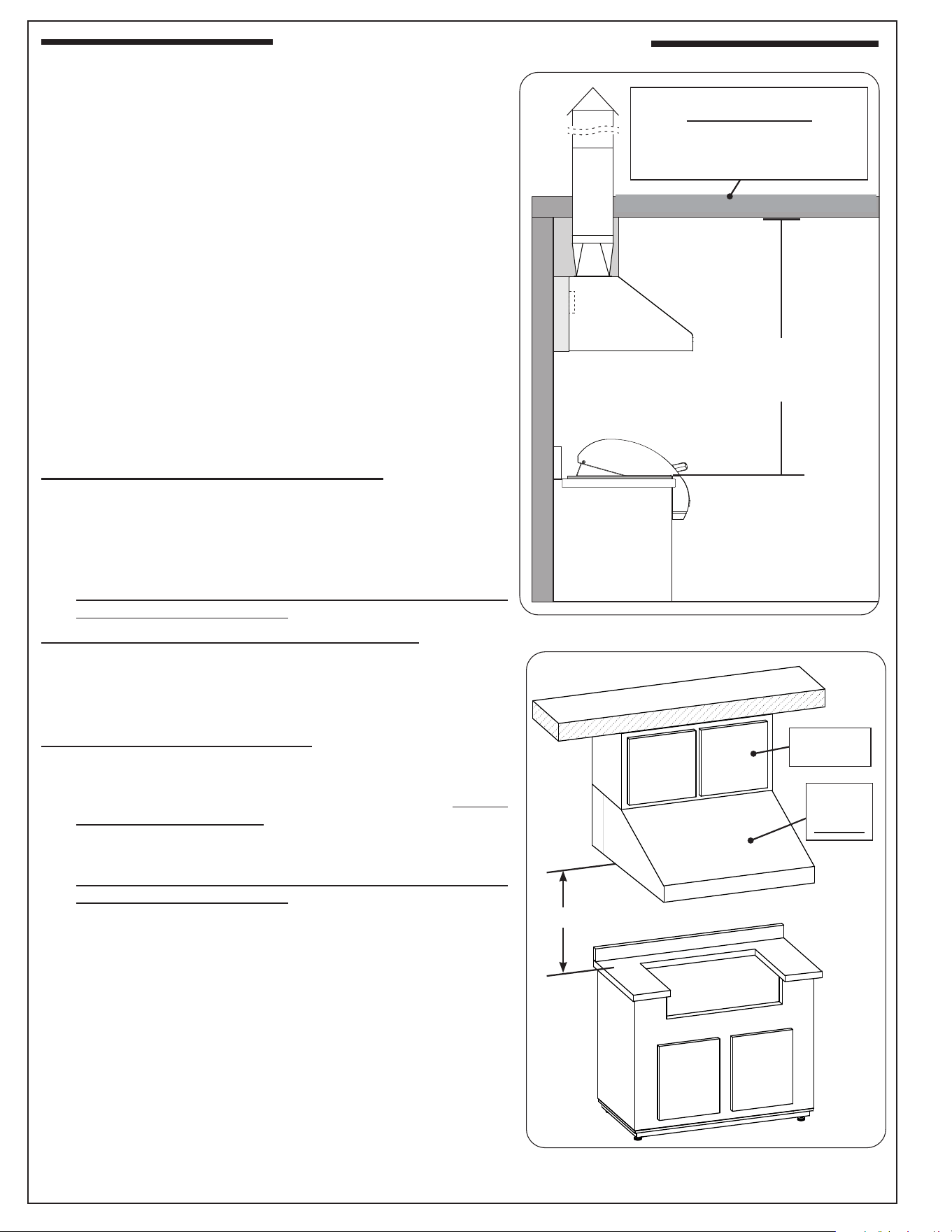

OVERHEAD CONSTRUCTION REQUIREMENTS ������������������������������������������������������������������������������������� 16
EXHAUST HOOD �������������������������������������������������������������������������������������������������������������������������������16

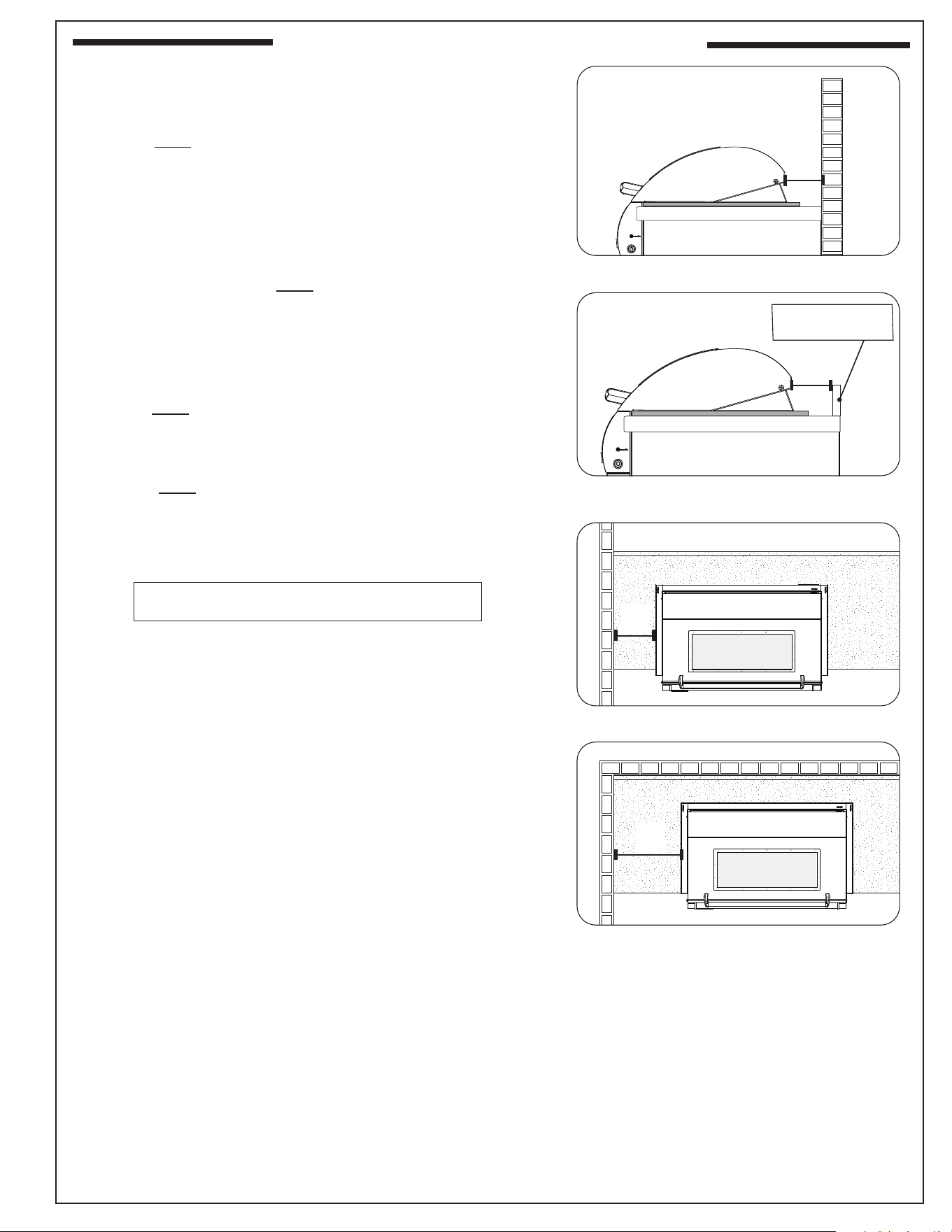

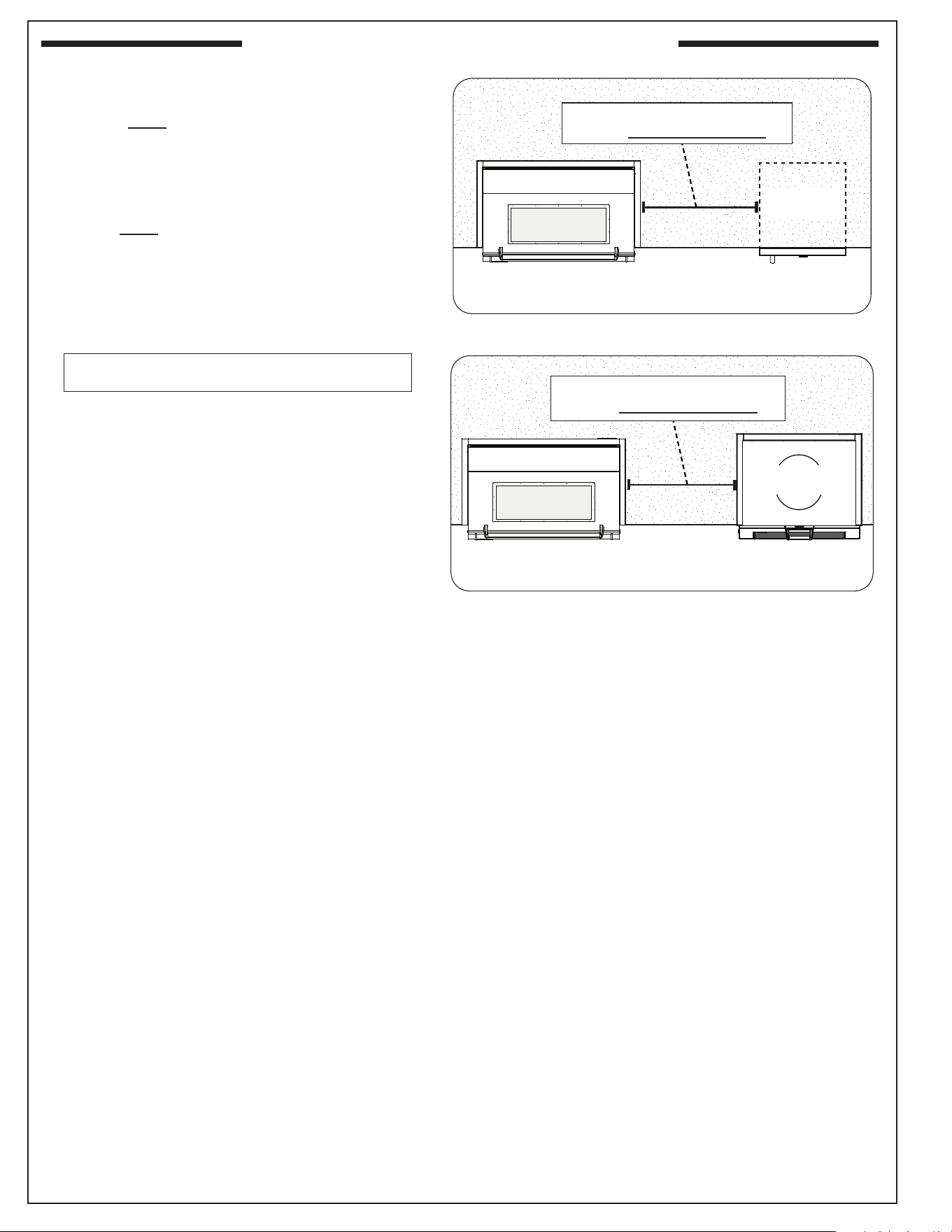

CLEARANCES ������������������������������������������������������������������������������������������������������������������������������������17
CONTROL PANEL CLEARANCES ����������������������������������������������������������������������������������������������������������19
BELOW UNIT CLEARANCE������������������������������������������������������������������������������������������������������������������19

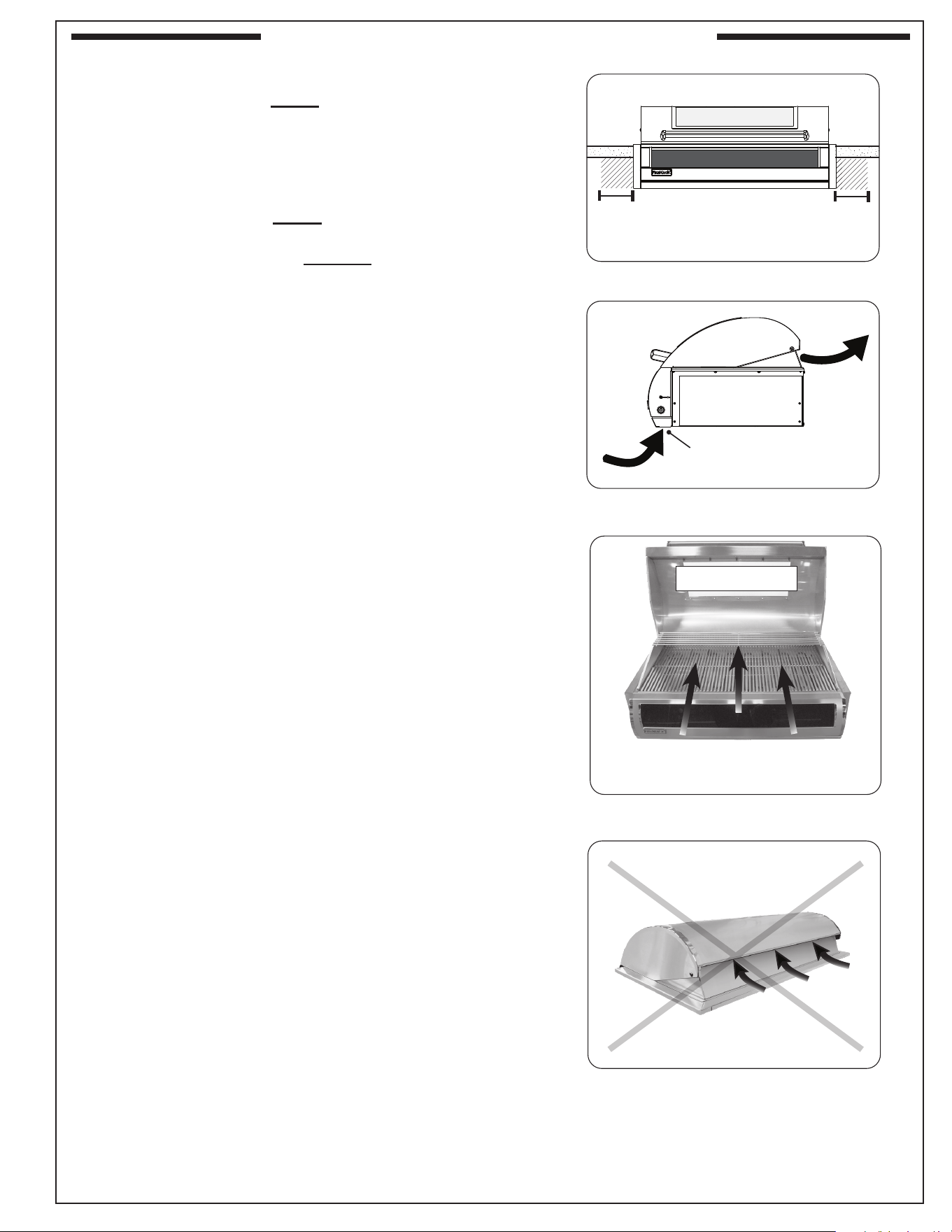

COOLING AIRFLOW ��������������������������������������������������������������������������������������������������������������������������� 19

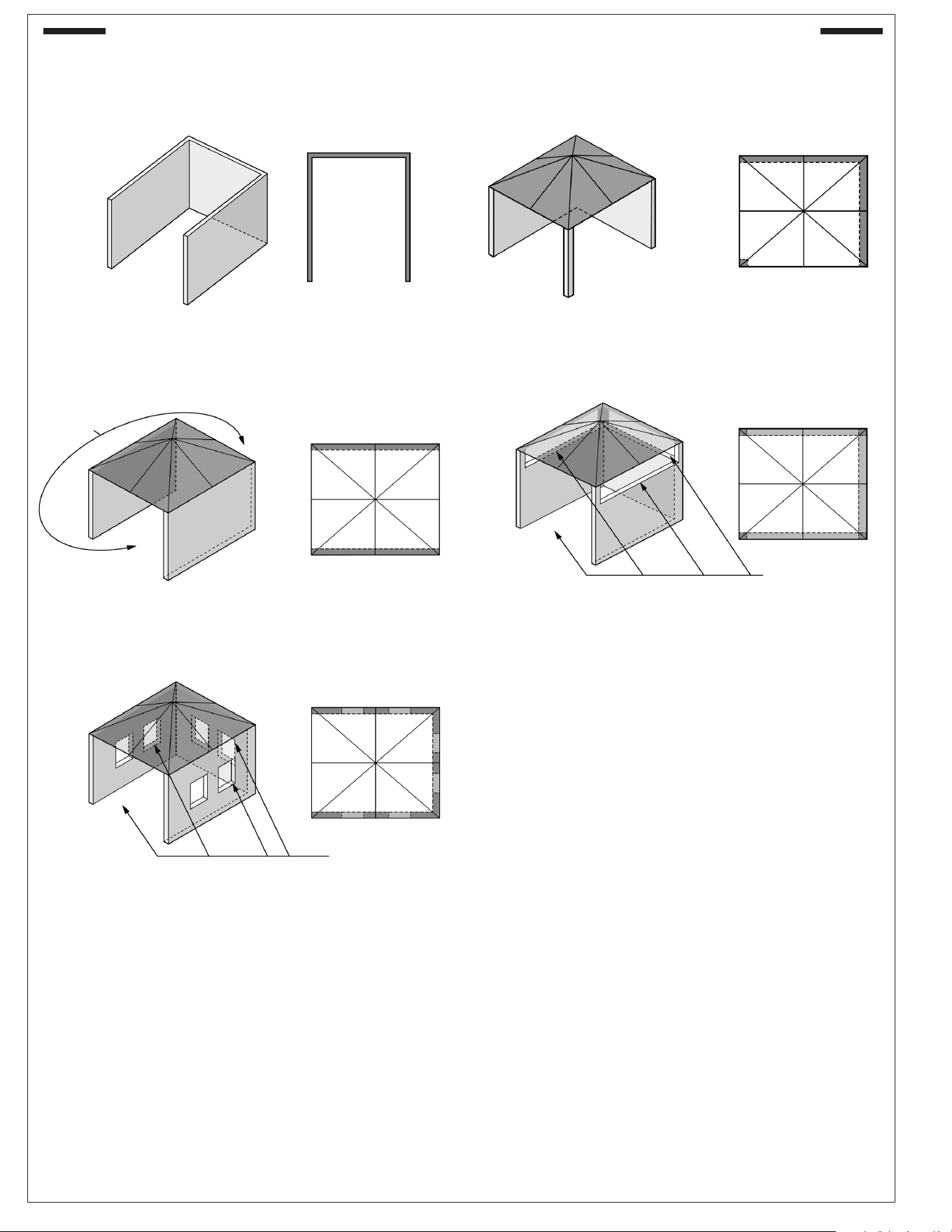

DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS ��������������������������������������������������20
ELECTRICAL SAFETY �������������������������������������������������������������������������������������������������������������������������21

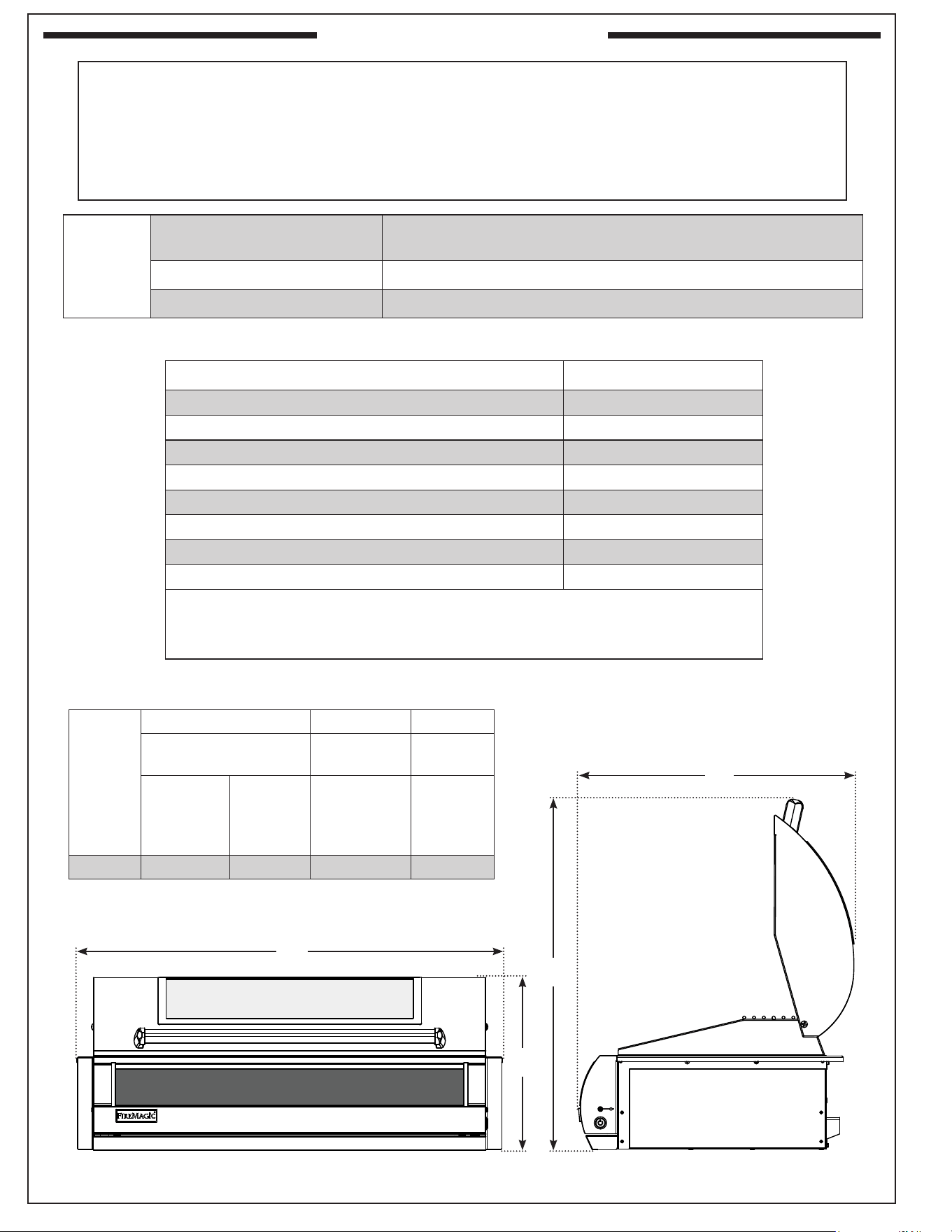

MODEL SPECIFICATIONS �������������������������������������������������������������������������������������������������������������������22
EL500i (single digital control models) WIRING DIAGRAM ��������������������������������������������������������������������������23

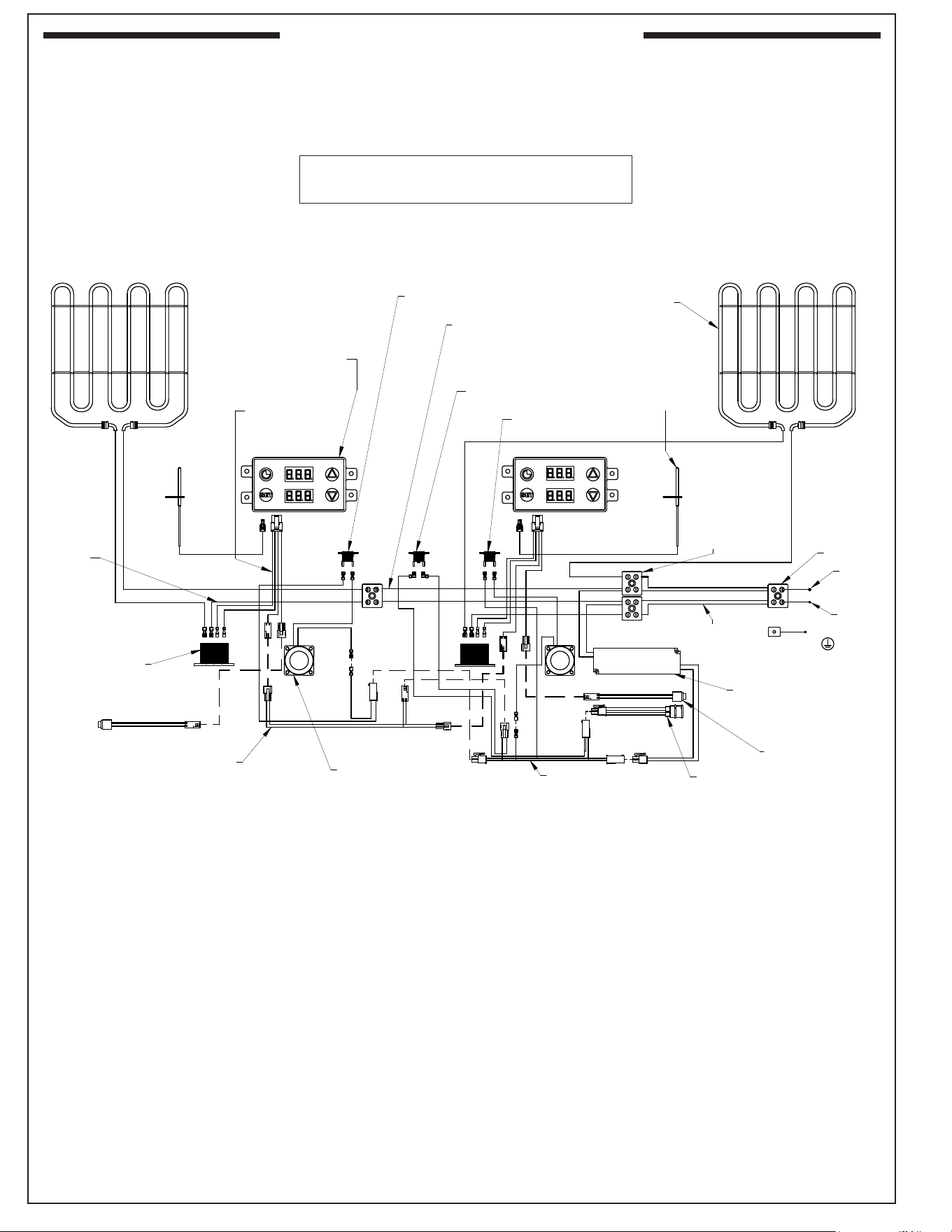

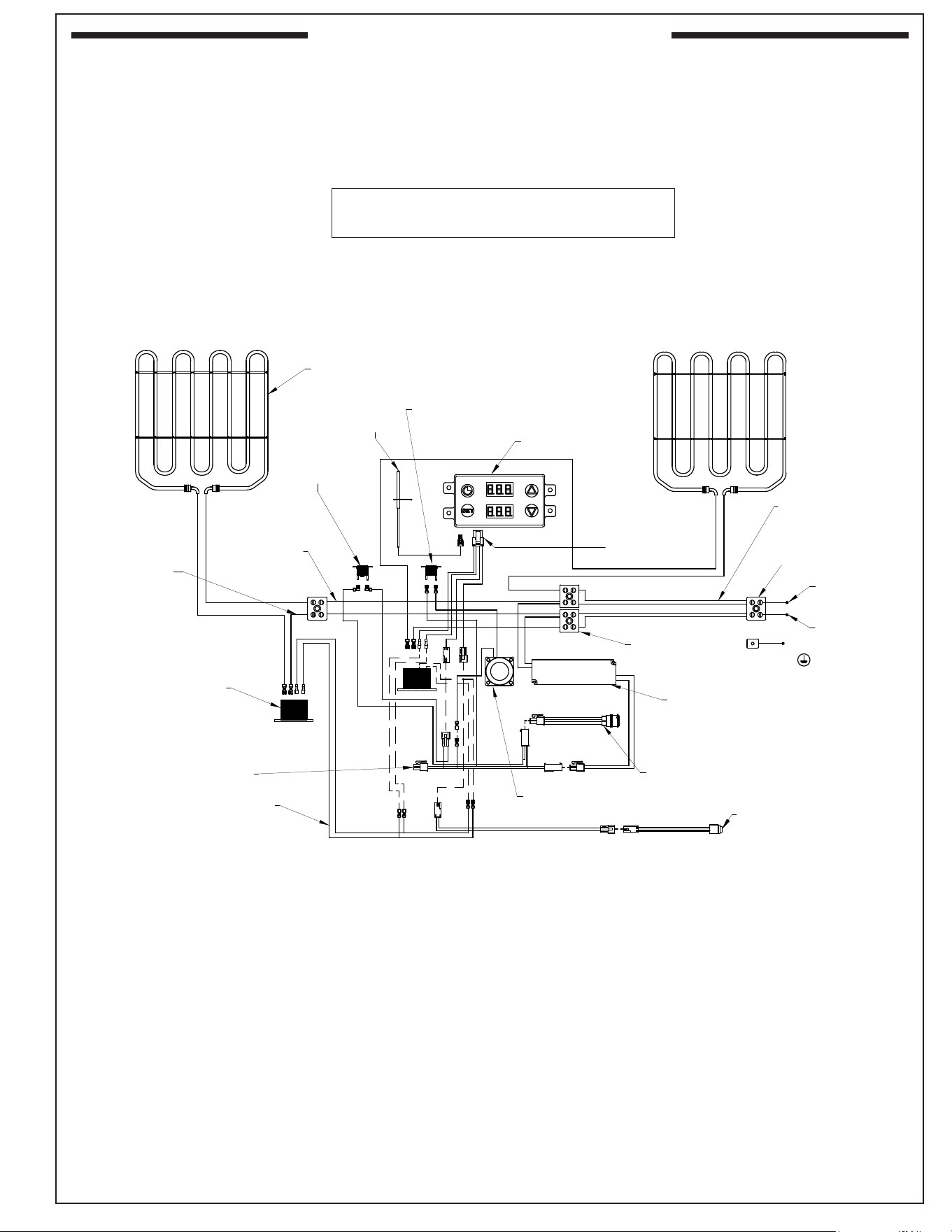

EL500i (dual digital control models) WIRING DIAGRAM ����������������������������������������������������������������������������24

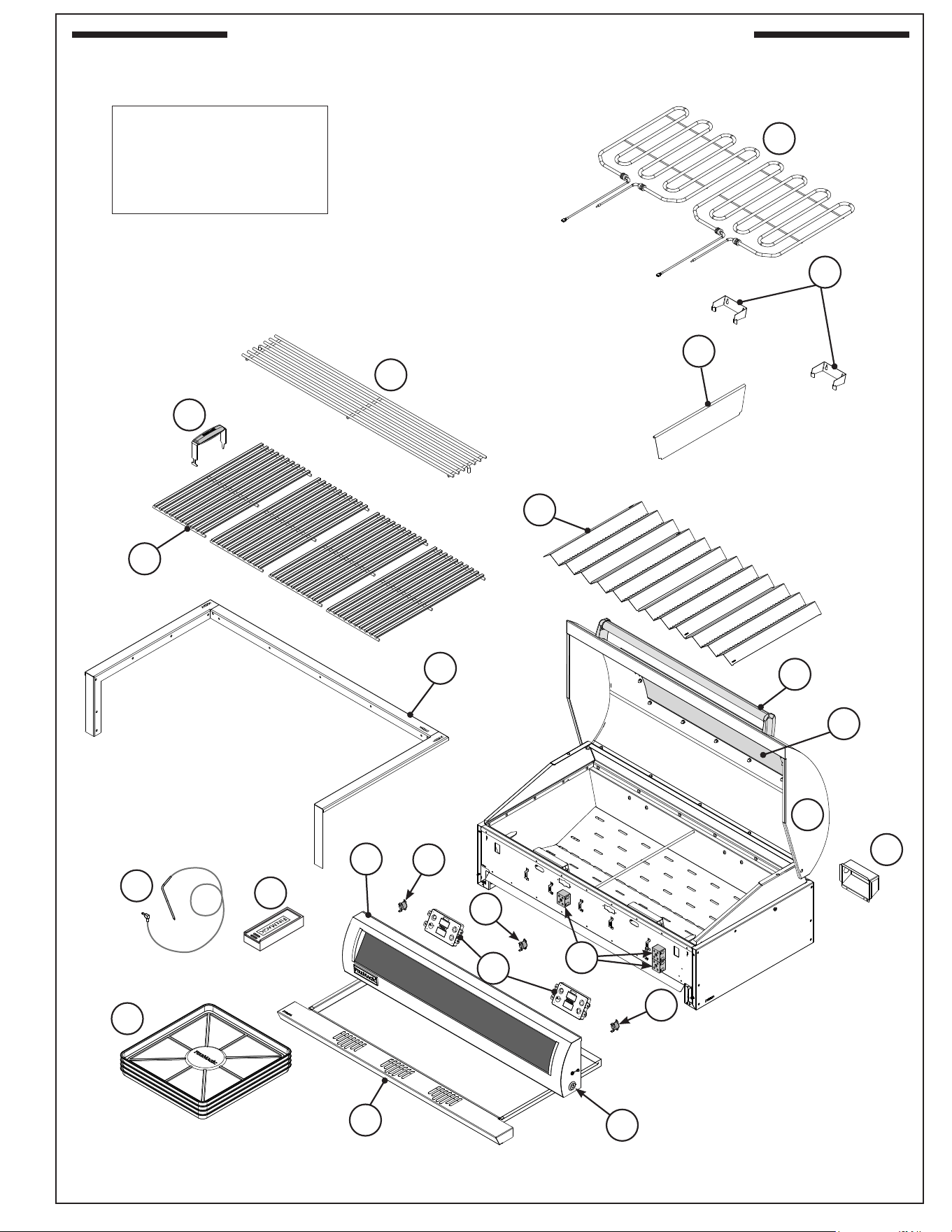

ELECTRIC GRILL REPLACEMENT PARTS LIST �������������������������������������������������������������������������������25
INSTALLATION
INSTALLATION ������������������������������������������������������������������������������������������������������������������������������������� 27
CONSTRUCT ENCLOSURE ������������������������������������������������������������������������������������������������������������������27
INSTALL INSULATING LINER (if applicable) �������������������������������������������������������������������������������������������27

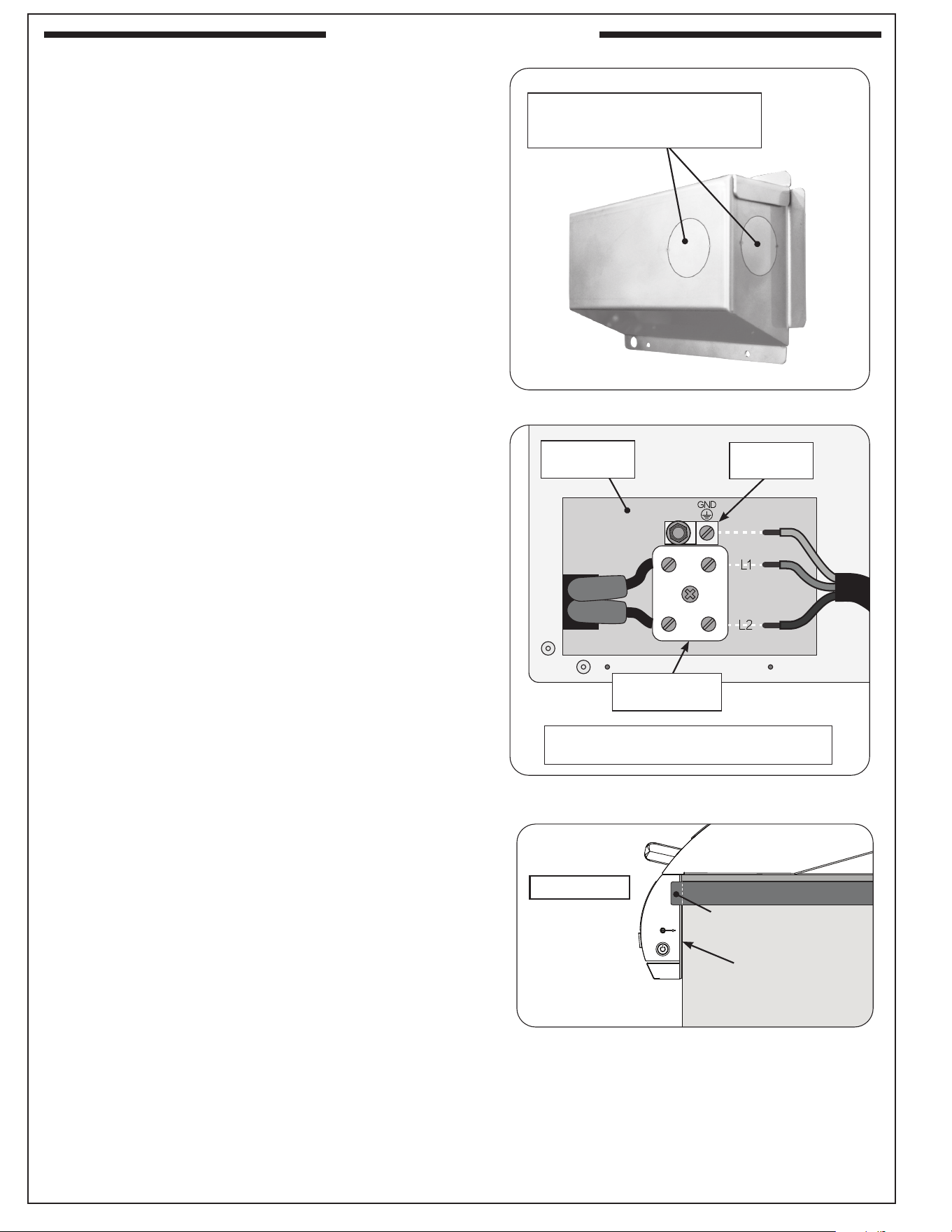

ELECTRICAL SETUP ��������������������������������������������������������������������������������������������������������������������������27
SLIDE UNIT COMPLETELY INTO ENCLOSURE CUTOUT ������������������������������������������������������������������������28
COMMON INSTALLATION ������������������������������������������������������������������������������������������������������������������29

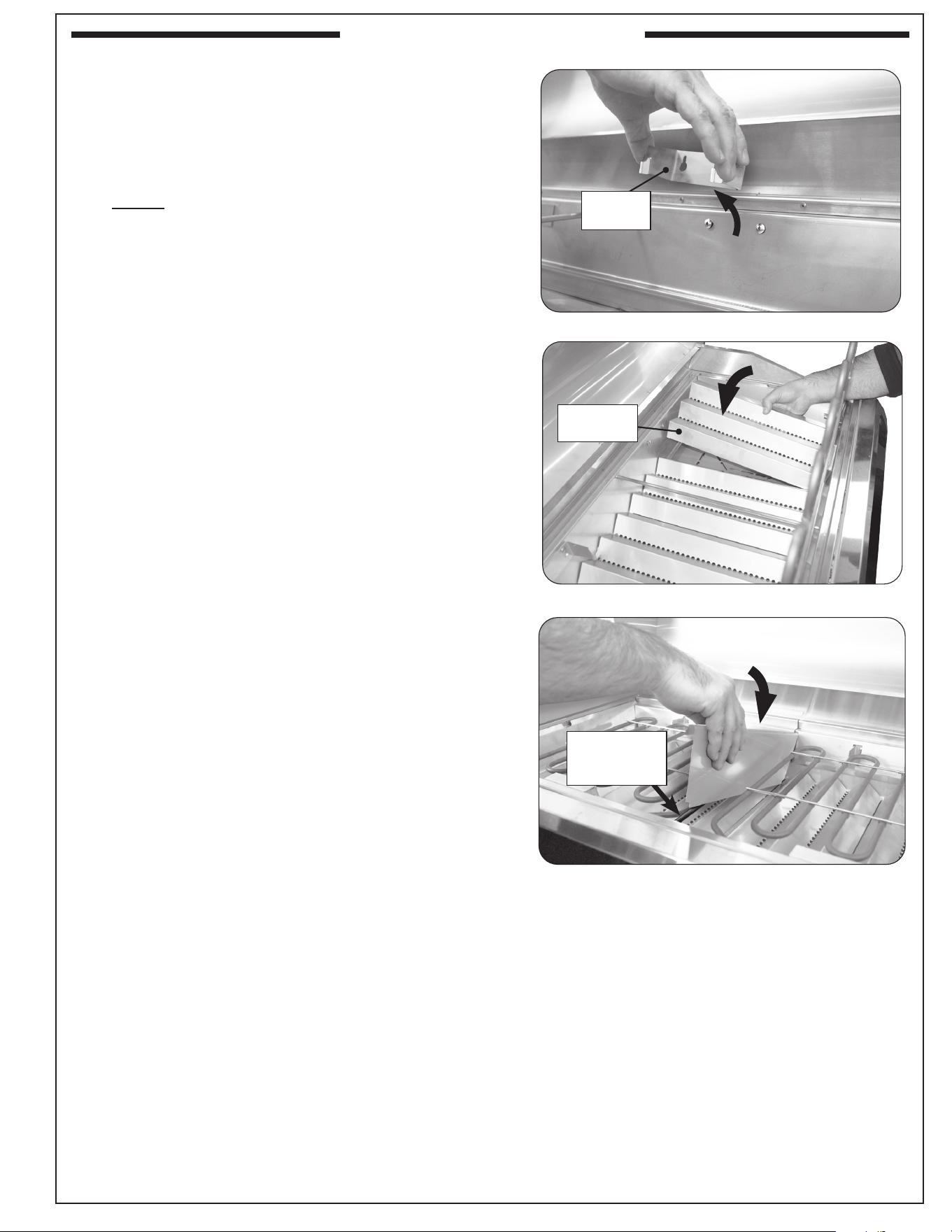

INSTALL VAPORIZER PANELS ��������������������������������������������������������������������������������������������������������������29
INSTALL ZONE DIVIDER (dual control models) ���������������������������������������������������������������������������������������� 29

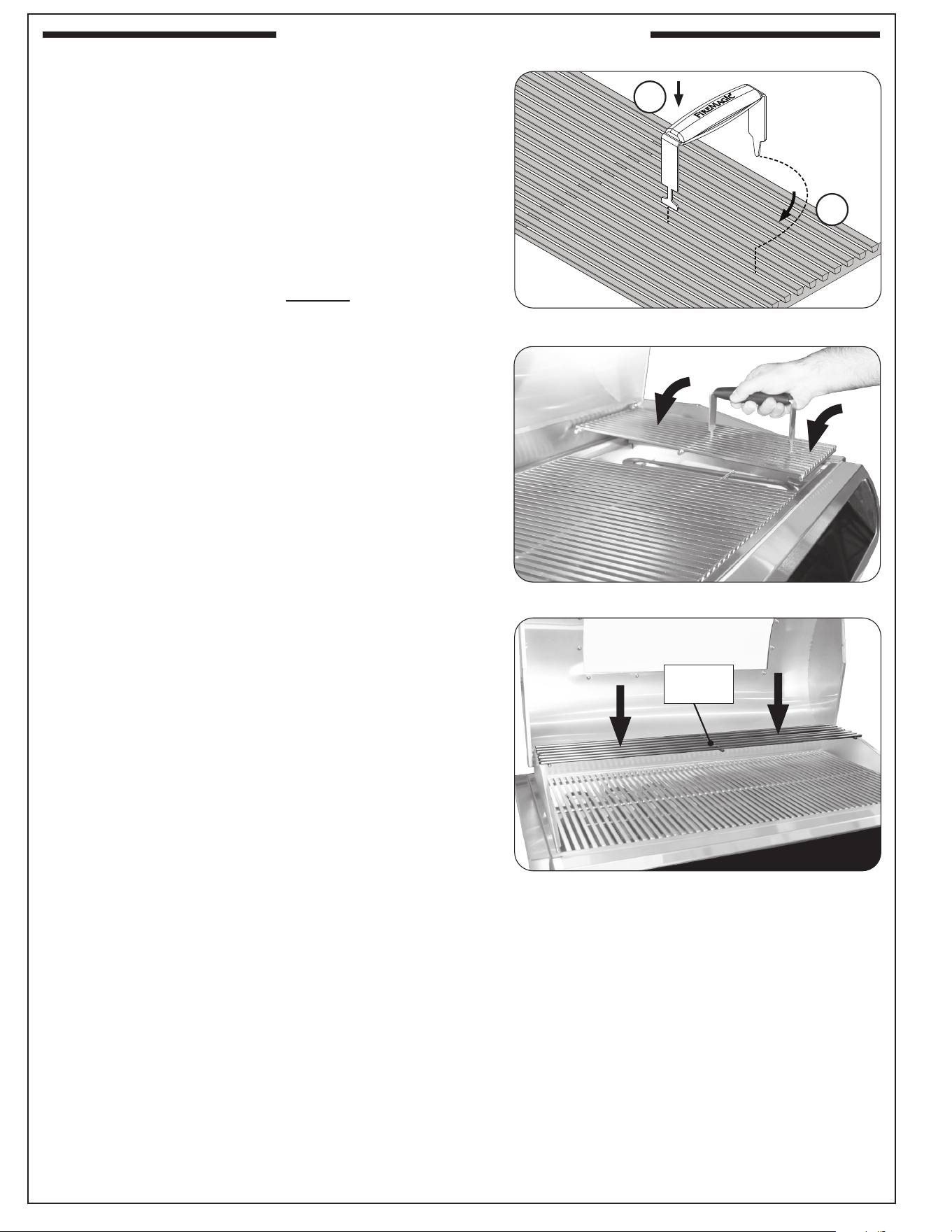

INSTALL COOKING GRIDS �����������������������������������������������������������������������������������������������������������������30
INSTALL WARMING RACK �������������������������������������������������������������������������������������������������������������������30

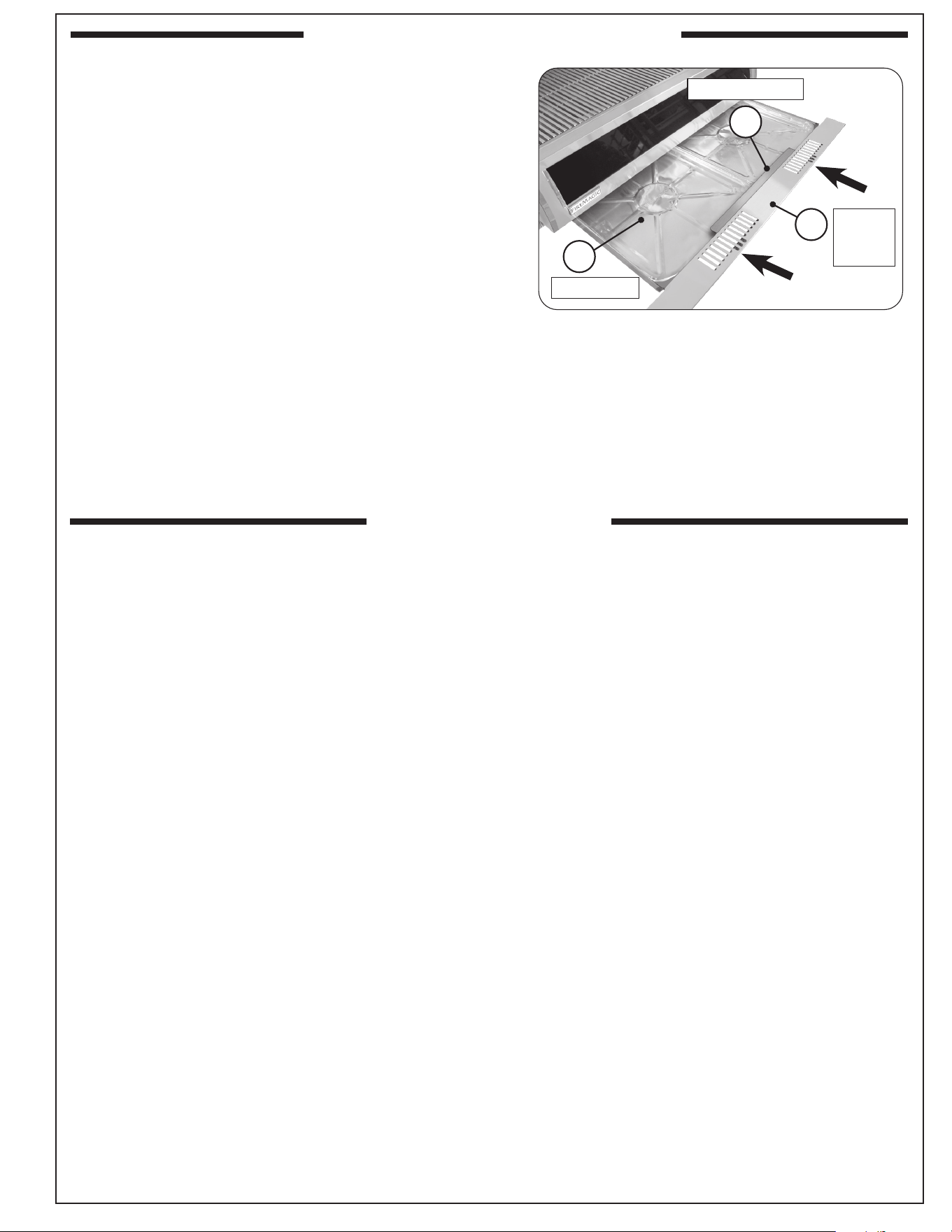

INSTALL DRIP TRAY ���������������������������������������������������������������������������������������������������������������������������31
OPERATION TEST ���������������������������������������������������������������������������������������������������������������������������������31
USE, CARE, & SERVICE
USING THE GRILL �������������������������������������������������������������������������������������������������������������������������������� 32
USING THE ELECTRIC GRILL ������������������������������������������������������������������������������������������������������������32

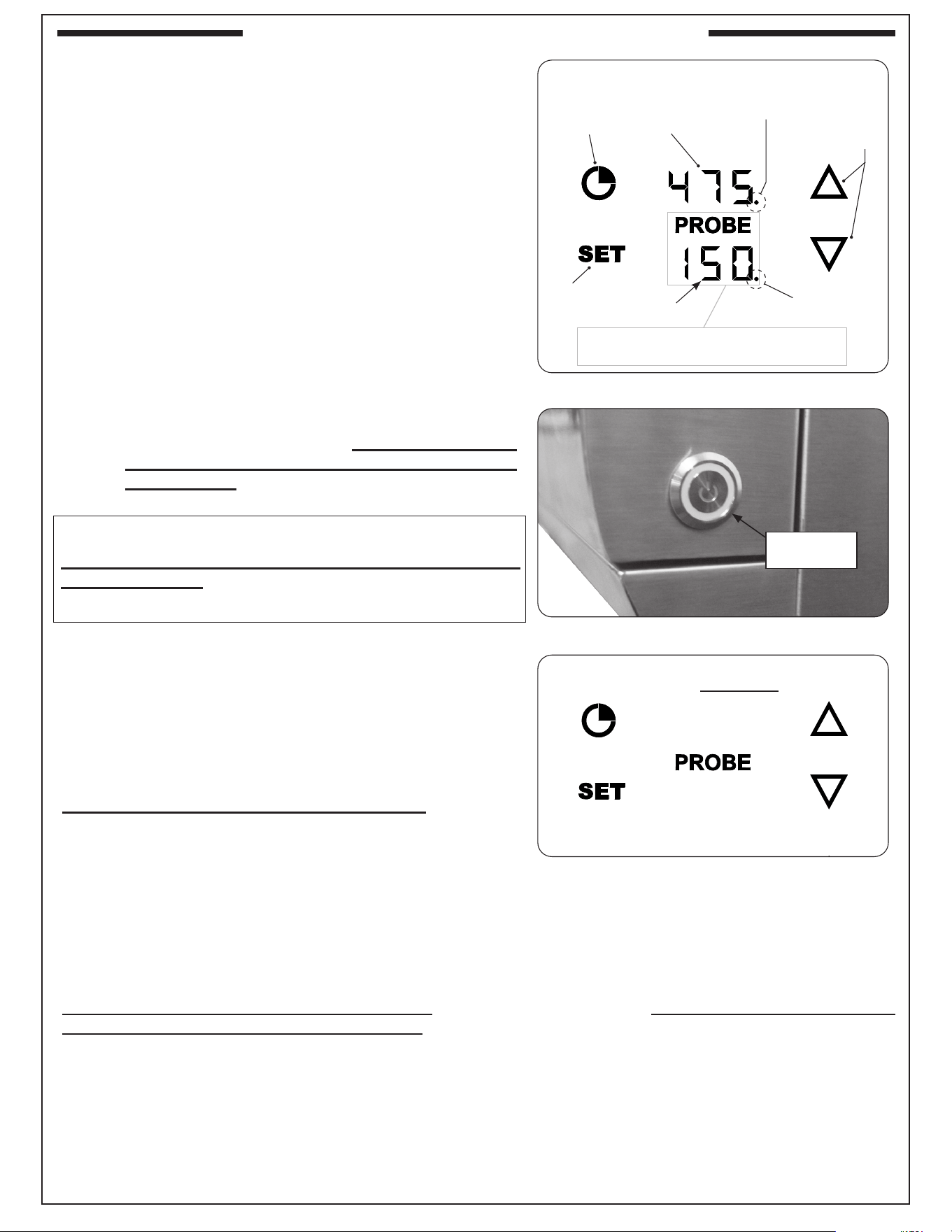

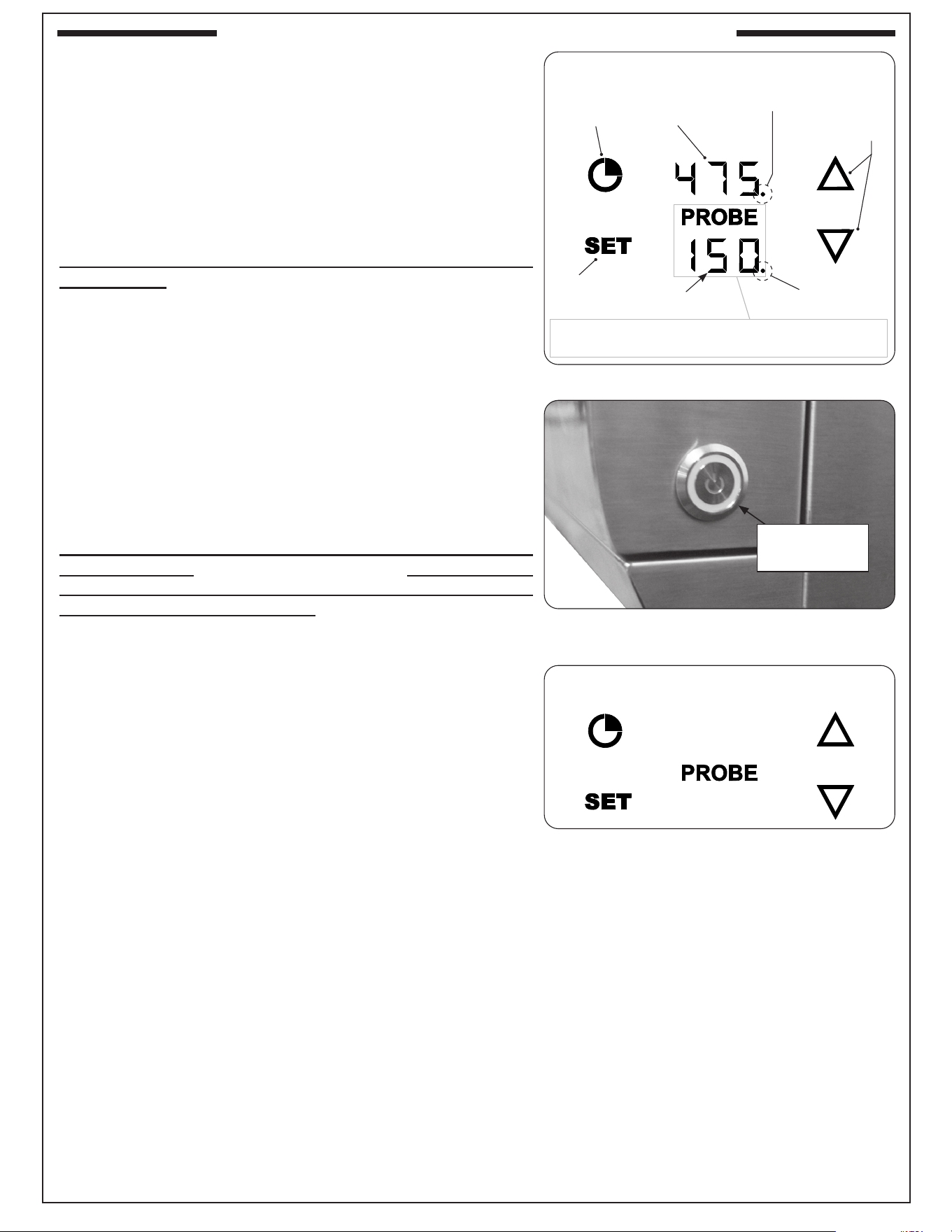

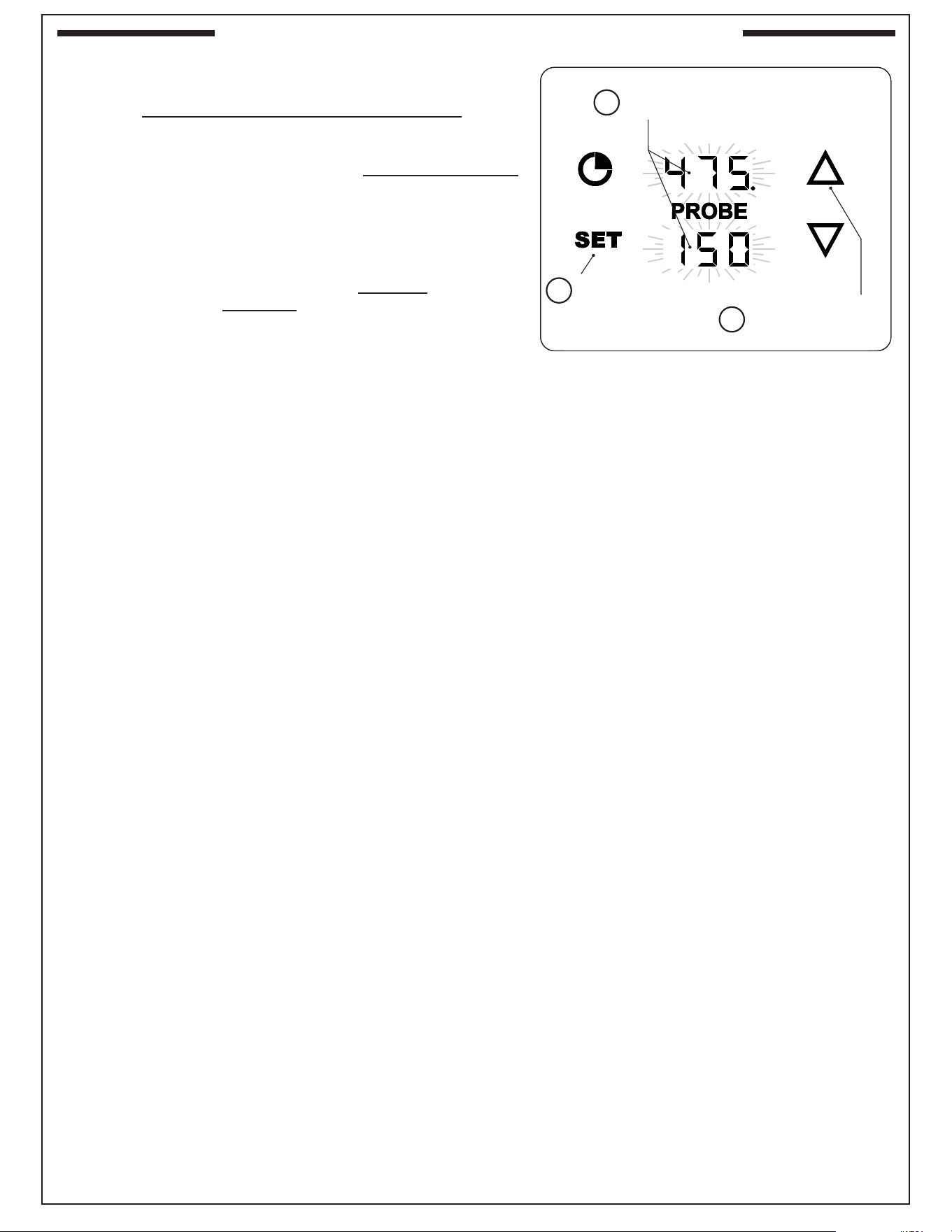

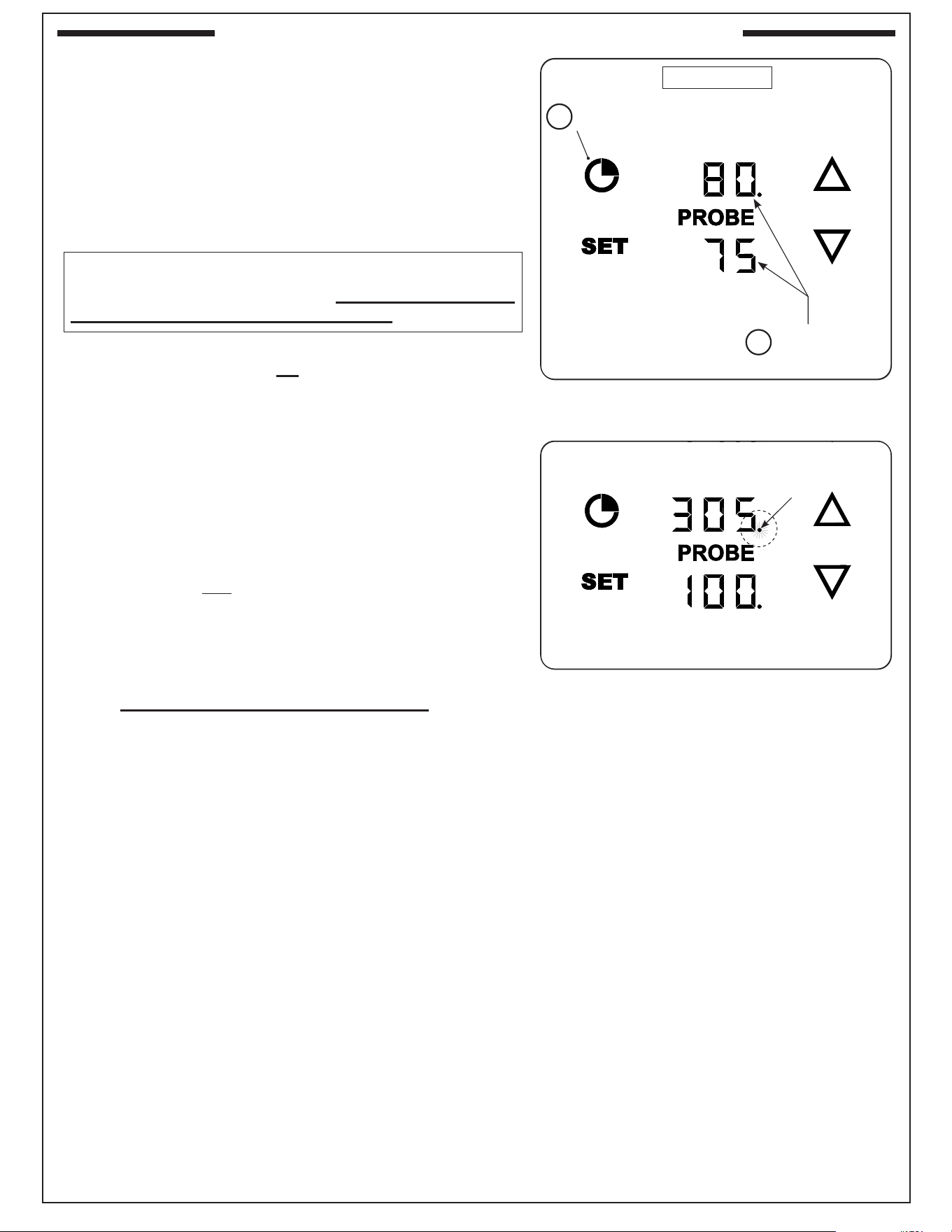

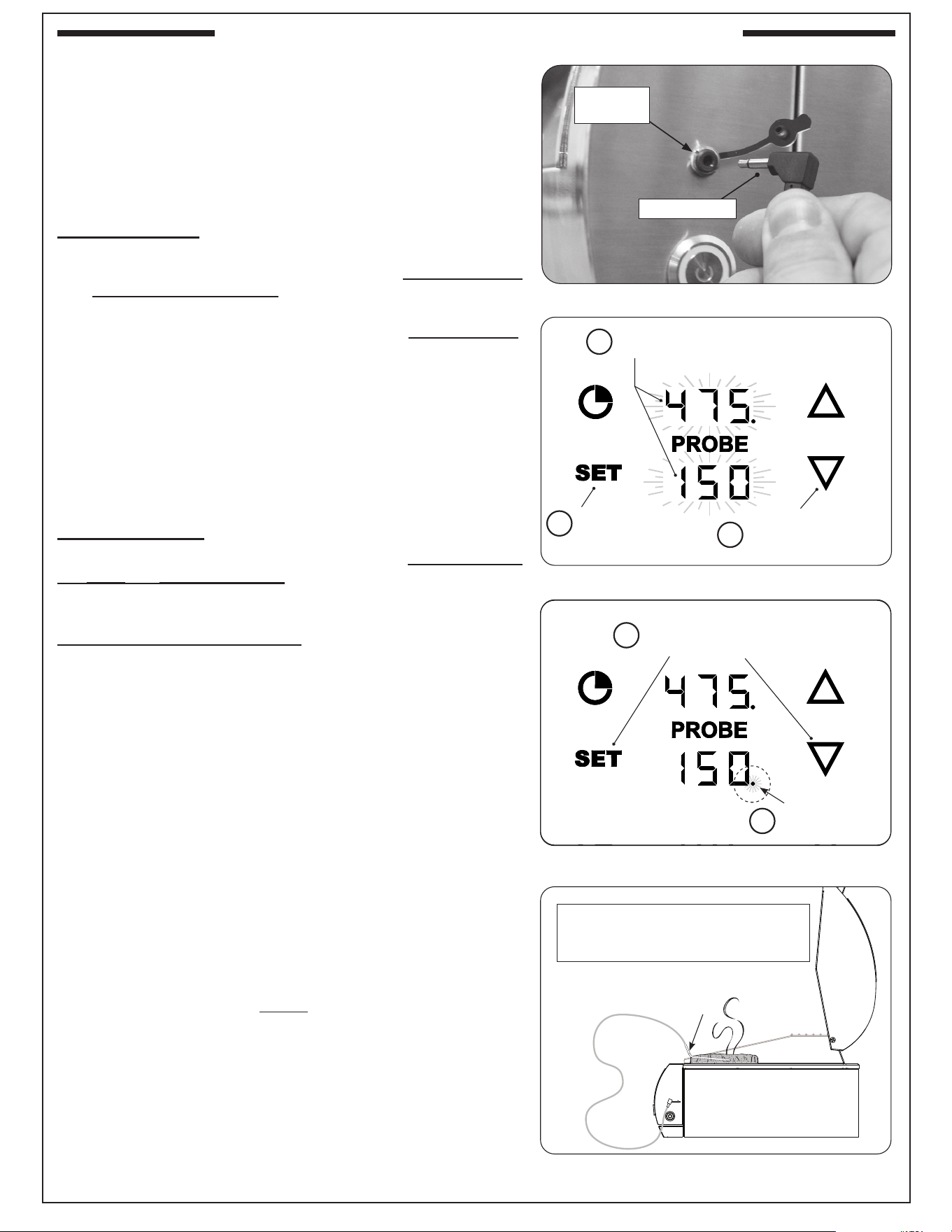

DIGITAL THERMOMETER / THERMOSTAT ���������������������������������������������������������������������������������������33
SERVICING AND CLEANING ��������������������������������������������������������������������������������������������������������������40
CLEANING YOUR ELECTRIC GRILL �����������������������������������������������������������������������������������������������������40
CONTROL PANEL REMOVAL ���������������������������������������������������������������������������������������������������������������42
TROUBLESHOOTING ���������������������������������������������������������������������������������������������������������������������������43
WARRANTY ������������������������������������������������������������������������������������������������������������������������������������������44
CONTENTS
REV 2 - A - 2605060935
L-C2-699
4
WARNING!
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions must always be followed including the
following:
1. Read all instructions.
2. This product is for household use.
3. Do not touch hot surfaces. Always use the handle.
4. During use the appliance becomes hot. Care should be taken to avoid touching heating elements
inside the oven.
5. To protect against electrical shock, do not immerse cord, plugs, meat probe or grill in water or
other liquids.
6. Close supervision is necessary when any appliance is used by or near children.
7. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
8. Children should be supervised to ensure that they do not play with the appliance.
9. Accessible parts may become hot during use. Young children should be kept away.
10. Allow the unit to cool before fully shutting o the main power source for cleaning, servicing,
taking o parts, or when unit will not be in use.
Note: After operating and turning o this unit, refrain from immediately disconnecting
or shutting o the main electrical supply. The electric fans continue operating to
cool the electronics rapidly. Always allow sucient cooling time prior to shutting o
the electric supply.
11. Do not operate any appliance with a damaged cord, plug, wiring or after the appliance malfunctions
or has been damaged in any manner. Regularly examine all electrical connections and contact
the nearest authorized service facility for repair or adjustment.
12. Approved electrical supply MUST be permanently anchored by an authorized installer.
13. The electrical supply must NOT be in contact with sharp points or edges.
14. Only use the temperature meat probe included with this appliance.
15. The use of accessory attachments not recommended by the appliance manufacturer may cause
injuries.
16. Before disconnecting from electrical supply, turn o unit via power switch, allow time for the
unit to cool completely, then shut-o electrical supply or remove plug from outlet as applicable.
17. Do not use appliance for other than intended use.
18. Charcoal or similar combustible fuels must not be used with this appliance.
REV 2 - A - 2605060935
L-C2-699
5
IMPORTANT
IN THE EVENT OF A GREASE FIRE, IMMEDIATELY CUT OFF THE POWER SOURCE.
KEEP THE LID OPEN AND ALLOW THE FIRE TO EXTINGUISH ITSELF. KEEP AT A SAFE
DISTANCE. A THOROUGH INSPECTION BY A QUALIFIED PROFESSIONAL SERVICE
TECHNICIAN SHOULD BE CONDUCTED BEFORE FUTURE USE OF YOUR UNIT. THE
SERVICE TECHNICIAN WILL CHECK ALL ELECTRICAL WIRING FOR DAMAGE. ALL
WIRING MUST BE REPAIRED PRIOR TO FUTURE USE.
IMPORTANT SAFEGUARDS (cont.)
19. This unit requires a dedicated Ground Fault Circuit Interrupter (GFCI) circuit breaker with
the addition of an electrical disconnect, or removable plug with receptacle (not included).
Use only a properly wired and inspected 230/240VAC (30 AMP minimum, single-phase)
GFCI GROUNDED 3-wire circuit breaker, electrical disconnect, or removable plug with
receptacle with this outdoor cooking appliance. The electrical disconnect, and plug with
receptacle MUST be outdoor-rated WEATHER-PROOF and IN-USE COVERED. Only use a
properly grounded outlet. Never remove the grounding plug or use with an adapter of 2 prongs.
Installation and equipment must be in compliance with the National Electric Code and
all local codes.
20. NEVER grill in the open rain or in standing water as this grill is an electric appliance.
21. FOR YOUR SAFETY, it is recommended to install the unit so that the recommended vent
openings and surrounding area of the unit enclosure remain clear and free at all times.
See the GRILL ENCLOSURE section for details.
22. Keep the appliance area clear and free from combustible materials, gasoline, and other ammable
vapors. ALL MINIMUM CLEARANCES STATED IN THE INSTALLATION REQUIREMENTS
SECTION MUST BE MAINTAINED.
23. The power to the unit must be made readily accessible to the operator through means of a
dedicated 30 AMP single-phase GFCI circuit breaker.
24. The provisions of the National Electric Code as well as any local codes must be observed
when installing the product.
25. NEVER cover more than 75% of the cooking or grill surface with griddles, pots or pans.
Overheating of the electronic components will occur.
26. This appliance MUST NOT be left in operation when unattended. This appliance is designed
as an attended appliance.
27. Use extreme caution when removing drip tray. Only handle the drip tray after the unit has fully
cooled down.
28. Do not clean this product with a water spray (or similar). Reference the SERVICING AND
CLEANING section for cleaning information.
29. Before obtaining access to terminals, all supply circuits must be disconnected.
30. Danger of re: Do not store items on the cooking surfaces.
31. The cooking process has to be supervised. A short term cooking process has to be supervised
continuously.
32. Unattended cooking with greasy food or oil can be dangerous and may result in a re.
SAVE THESE INSTRUCTIONS
REV 2 - A - 2605060935
L-C2-699
6
CAUTION, HOT SURFACE
WARNING:
• DO NOT TOUCH HOT SURFACES.
• TO PREVENT ELECTRIC SHOCK, UNPLUG OR DISCONNECT BEFORE
MAINTENANCE OR SERVICE.
• DO NOT IMMERSE IN WATER, DO NOT USE WHEN WET.
• OUTDOOR HOUSEHOLD USE ONLY.
• DO NOT INSTALL CLOSER THAN 8" TO A VERTICAL SURFACE.
• DO NOT INSTALL UNDER UNPROTECTED OVERHEAD COMBUSTIBLE
CONSTRUCTION.
• DO NOT INSTALL IN COMBUSTIBLE ENCLOSURE WITHOUT INSULATION
LINER.
FOR SUPPLY CONNECTIONS, USE 10AWG OR LARGER
WIRES SUITABLE FOR AT LEAST 105° C (221° F)
REMOVE PROTECTIVE COVERING FROM ALL EXTERIOR
SURFACES PRIOR TO USING. ALL EXTERIOR SURFACES
(EXCEPT GLASS) MAY BE CLEANED WITH STAINLESS STEEL
CLEANER.
IMPORTANT SAFEGUARDS (cont.)
WARNING: CHARCOAL OR SIMILAR COMBUSTIBLE FUELS MUST NOT BE USED
WITH THIS APPLIANCE.
WARNING: ACCESSIBLE PARTS MAY BECOME HOT DURING USE. YOUNG CHILDREN
SHOULD BE KEPT AWAY.
REV 2 - A - 2605060935
L-C2-699
7
AVERTISSEMENT!
Lors de l'utilisation d'appareils électriques, des précautions de sécurité de base doivent toujours être
suivies, y compris les suivantes :
1. Lisez toutes les instructions.
2. Ce produit est destiné à un usage domestique.
3. Ne touchez pas les surfaces chaudes. Utilisez toujours la poignée.
4. Lors de son utilisation, l'appareil devient chaud. Il convient de prendre des précautions pour éviter
de toucher les éléments chauants à l'intérieur du four.
5. Pour protéger contre les chocs électriques, ne plongez pas le cordon, les ches, la sonde à viande
ou le gril dans l'eau ou d'autres liquides.
6. Une surveillance étroite est nécessaire lorsque l'appareil est utilisé par ou à proximité d'enfants.
7. Cet appareil n'est pas destiné à être utilisé par des personnes (y compris les enfants) ayant
des capacités physiques, sensorielles ou mentales réduites, ou manquant d'expérience et de
connaissances, à moins qu'elles n'aient reçu une supervision ou des instructions concernant
l'utilisation de l'appareil par une personne responsable.
8. Les enfants doivent être supervisés an de s'assurer qu'ils ne jouent pas avec l'appareil.
9. Les parties accessibles peuvent devenir chaudes pendant l'utilisation. Les jeunes enfants doivent
être tenus à l'écart.
10. Laissez l'appareil refroidir avant de couper complètement la source d'alimentation principale pour
le nettoyage, l'entretien, le retrait des pièces ou lorsque l'appareil ne sera pas utilisé.
Note: Après avoir utilisé et éteint cet appareil, évitez de déconnecter ou de couper
immédiatement l'alimentation électrique principale. Les ventilateurs électriques
continuent de fonctionner pour refroidir rapidement les composants électroniques.
Laissez toujours suffisamment de temps pour le refroidissement avant de couper
l'alimentation électrique.
11. N'utilisez aucun appareil avec un cordon, une che, un câblage endommagés ou après un
dysfonctionnement ou tout autre dommage. Examinez régulièrement toutes les connexions
électriques et contactez le centre de service agréé le plus proche pour toute réparation ou tout
réglage.
12. L'alimentation électrique approuvée DOIT être xée de façon permanente par un installateur agréé.
13. L'alimentation électrique ne doit PAS être en contact avec des pointes ou des arêtes vives.
14. Utilisez uniquement la sonde à viande pour température fournie avec cet appareil.
15. L'utilisation d'accessoires non recommandés par le fabricant de l'appareil peut entraîner des
blessures.
16. Avant de déconnecter l'appareil de l'alimentation électrique, éteignez l'appareil à l'aide de
l'interrupteur, laissez-le refroidir complètement, puis coupez l'alimentation électrique ou retirez la
che de la prise, selon le cas.
17. N'utilisez pas l'appareil à d'autres ns que celles pour lesquelles il est destiné.
18. Le charbon de bois ou des combustibles similaires ne doivent pas être utilisés avec cet appareil.
19. Cet appareil nécessite un disjoncteur dédié avec protection contre les défauts de mise à la
terre (GFCI), accompagné d'un dispositif de déconnexion électrique, ou d'une che amovible
avec prise (non incluse). Utilisez uniquement un disjoncteur GFCI de 230/240VAC (minimum
30 AMP, monophasé), correctement inspecté, MIS À LA TERRE, À 3 FILS, dispositif de
déconnexion électrique ou che amovible avec prise pour cet appareil de cuisson extérieur.
Le dispositif de déconnexion électrique et la che avec prise DOIVENT être conçus pour une
utilisation en extérieur, résistants aux intempéries et avec un COUVERCLE POUR UTILISATION.
IMPORTANTES MESURES DE SÉCURITÉ
REV 2 - A - 2605060935
L-C2-699
8
IMPORTANT
EN CAS D'INCENDIE DE GRAISSE, COUPEZ IMMÉDIATEMENT L'ALIMENTATION
ÉLECTRIQUE. LAISSEZ LE COUVERCLE OUVERT ET LAISSEZ LE FEU S'ÉTEINDRE DE
LUI-MÊME. GARDEZ UNE DISTANCE SÛRE. UNE INSPECTION APPROFONDIE PAR UN
TECHNICIEN DE SERVICE QUALIFIÉ DOIT ÊTRE EFFECTUÉE AVANT UNE UTILISATION
FUTURE DE VOTRE APPAREIL. LE TECHNICIEN DE SERVICE VÉRIFIERA TOUT LE
CÂBLAGE ÉLECTRIQUE POUR DÉTECTER D'ÉVENTUELS DOMMAGES. TOUS LES
CÂBLAGES DOIVENT ÊTRE RÉPARÉS AVANT UNE UTILISATION FUTURE.
IMPORTANTES MESURES DE SÉCURITÉ (suite)
Utilisez uniquement une prise correctement mise à la terre. Ne retirez jamais la che de mise
à la terre ni n’utilisez un adaptateur à 2 ches. L'installation et l'équipement doivent être
conformes a u Code national de l'électricité et à tous les codes locaux.
20. N'utilisez JAMAIS le gril sous la pluie ou dans de l'eau stagnante, car cet appareil est un
appareil électrique.
21. POUR VOTRE SÉCURITÉ, il est recommandé d'installer l'appareil de manière à ce que
les ouvertures de ventilation recommandées et la zone environnante de l'enveloppe de
l'appareil restent dégagées et libres en tout temps. Consultez la section GRILL ENCLOSURE
pour plus de détails.
22. Gardez la zone de l'appareil dégagée et exempte de matériaux combustibles, d'essence et
d'autres vapeurs inammables. TOUTES LES MINIMUM CLEARANCES INDIQUÉES DANS
LA SECTION INSTALLATION REQUIREMENTS DOIVENT ÊTRE RESPECTÉES.
23. L'alimentation de l'appareil doit être facilement accessible à l'opérateur par l'intermédiaire d'un
disjoncteur GFCI monophasé de 30 AMP dédié.
24. Les dispositions du Code national de l'électricité ainsi que de tout code local doivent être
respectées lors de l'installation du produit.
25. N'IL FAUT JAMAIS couvrir plus de 75 % de la surface de cuisson ou du gril avec des
plaques, des casseroles ou des poêles. Cela entraînera une surchaue des composants
électroniques.
26. Cet appareil NE DOIT PAS être laissé en fonctionnement sans surveillance. Cet appareil est
conçu pour être utilisé sous surveillance
27. Faites preuve d'une extrême prudence lors du retrait du bac de récupération. Manipulez le bac
de récupération uniquement après que l'appareil soit complètement refroidi.
28. N'ayez pas recours à un jet d'eau (ou similaire) pour nettoyer ce produit. Reportez-vous à la
section SERVICING AND CLEANING pour les informations sur le nettoyage..
29. Avant d'accéder aux bornes, tous les circuits d'alimentation doivent être déconnectés.
30. Danger d'incendie : Ne rangez pas d'objets sur les surfaces de cuisson.
31. Le processus de cuisson doit être surveillé. Un processus de cuisson à court terme doit être
surveillé en continu.
32. La cuisson sans surveillance d'aliments gras ou d'huile peut être dangereuse et entraîner un
incendie.
CONSERVEZ CES INSTRUCTIONS
REV 2 - A - 2605060935
L-C2-699
9
IMPORTANTES MESURES DE SÉCURITÉ (suite)
AVERTISSEMENTS!
• NE TOUCHEZ PAS LES SURFACES CHAUDES.
• POUR PRÉVENIR LES CHOCS ÉLECTRIQUES, DÉBRANCHEZ OU
DÉCONNECTEZ AVANT TOUT ENTRETIEN OU SERVICE.
• NE PAS IMMERSIONNER DANS L'EAU, NE PAS UTILISER LORSQU'IL EST
MOUILLÉ.
• UTILISATION DOMESTIQUE EN EXTÉRIEUR UNIQUEMENT.
• NE PAS INSTALLER À MOINS DE 8" D'UNE SURFACE VERTICALE.
• NE PAS INSTALLER SOUS UNE CONSTRUCTION COMBUSTIBLE NON
PROTÉGÉE AU-DEDANS.
• NE PAS INSTALLER DANS UNE ENVELOPPE COMBUSTIBLE SANS
REVÊTEMENT ISOLANT.
• ATTENTION, SURFACES CHAUDES
• RETIREZ LE REVÊTEMENT DE PROTECTION DE TOUTES LES SURFACES
EXTÉRIEURES AVANT UTILISATION. TOUTES LES SURFACES EXTÉRIEURES (SAUF
LE VERRE) PEUVENT ÊTRE NETTOYÉES AVEC UN NETTOYANT POUR INOX.
• POUR LES CONNEXIONS D'ALIMENTATION, UTILISEZ DES FILS DE 10AWG OU
PLUS GRANDS, ADAPTÉS POUR UNE TEMPÉRATURE D'AU MOINS 105 °C (221 °F).
• AVERTISSEMENT: LE CHARBON DE BOIS OU DES COMBUSTIBLES SIMILAIRES
NE DOIVENT PAS ÊTRE UTILISÉS AVEC CET APPAREIL.
• AVERTISSEMENT: LES PARTIES ACCESSIBLES PEUVENT DEVENIR CHAUDES
PENDANT L'UTILISATION. LES JEUNES ENFANTS DOIVENT ÊTRE TENUS À
L'ÉCART.
REV 2 - A - 2605060935
L-C2-699
10
For general guidelines regarding custom-built enclosures, see below.
To ensure proper operation and safety, the enclosure MUST comply with the following:
• Proper construction and cutout openings - see INSTALLATION REQUIREMENTS and ENCLOSURE
PARAMETERS sections.
• Proper clearances - see INSTALLATION REQUIREMENTS section.
You MUST read and follow these sections for complete enclosure requirement details.
ENCLOSURE PARAMETERS
General Guidelines
The enclosure can be constructed according to your individual preference, while following all guidelines found in
this manual. The enclosure MUST (see Fig. 10-1):
• be installed on a hard and level surface
• have ventilation (see VENTILATION RECOMMENDATIONS section)
• have a countertop that is non-combustible (enclosure may be combustible construction with proper provision*)
• have an 8" min. clearance between the grill cutout side edge and the inner side wall (when free-standing,
away from walls)(see Fig. 10-1)
• comply with all applicable requirements in the INSTALLATION REQUIREMENTS section
• have the correct cutout dimensions (see CUTOUT DIMENSIONS section)
• be setup so that it can safely connect and disconnect to/from a properly wired and inspected 240VAC (30
AMP minimum, single-phase) GROUNDED three-wire dedicated GFCI circuit breaker with an in-line
electrical disconnect or removable plug with receptacle
• have access to the interior for ease of installation and service
• be setup so the unit is as close to the vent openings as possible
• be designed so that the grill is supported by the stainless-steel hanger extending from the upper portion of
the unit (rests on left, right, and back of countertop), and the control panel sits ush against the enclosure
front wall - see CUTOUT DIMENSIONS, COUNTERTOP OVERHANG, and SUBSTRATE sections
• have drainage cutouts (if needed) to prevent the accumulation of water within the enclosure
• meet all requirements found in Fig. 10-1 and the following sections
* When installing in a combustible enclosure, an approved insulating liner MUST be used. Reference
Table 3 in the MODEL SPECIFICATIONS section for liner model #.

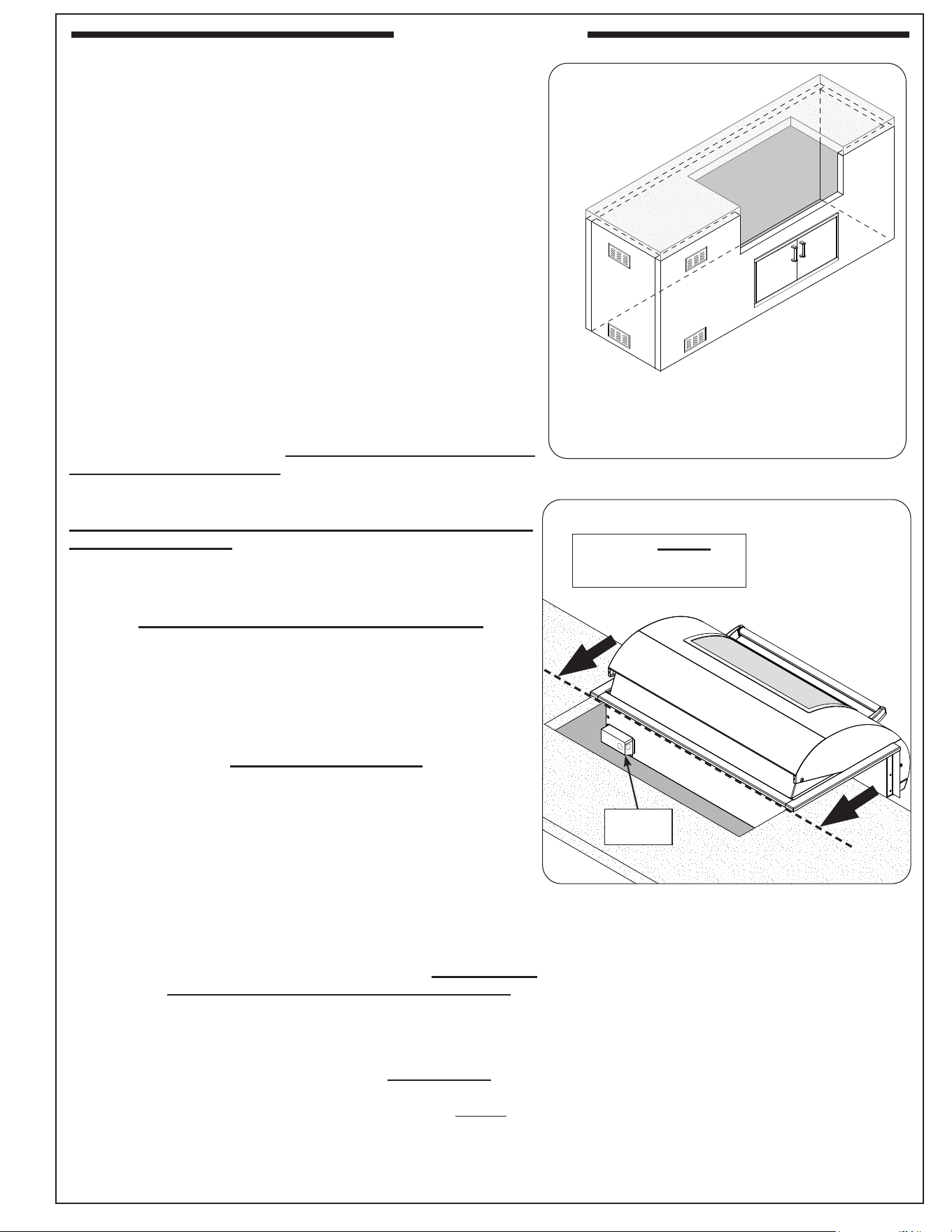

GRILL ENCLOSURE
Fig. 10-1 Enclosure specications
• Not to scale
• Example shown, design and location
of enclosure and its items may vary
Ventilation
(see following
section)
Access door
Countertop
(non-combustible)
Enclosure
(combustible* or
non-combustible)
* insulating liner required
(sold separately)
32-40"
Grill Cutout
(see Cutout Dimensions section)
8"
min.
t
8"
min.
t
t Countertop minimum width measures from
cutout edge to side wall inner dimension
11
• 6" min. clearance between all vent openings
and any items outside of enclosure
• 2" min. clearance between all vent openings
and any items within enclosure
Fig. 11-2 Vent openings clearance
2"
min.
(Side View)
6"
min.
Vent opening
VENTILATION RECOMMENDATIONS
FOR YOUR SAFETY, it is recommended to provide the
openings for replacement air and ventilation of the
enclosure (to prevent overheating).
2 (minimum) ventilation openings should be created
(reference Fig. 11-1 and Fig. 11-2):
• Each opening should have a minimum of 10 sq.
in. of free area. The openings should be equally
sized. (Total of 20 sq. in. free area.)
• The openings should remain unobstructed:
The clearance between the openings and any items
outside of the enclosure is a minimum of 6". The
clearance between the openings and any items within
the enclosure is a minimum of 2". See Fig. 11-2.
• Refer to national and local codes for additional
specications of openings.
It is acceptable to use RHP venting panels (PN 5510-01).
Contact your dealer.
Note: These same guidelines apply when multiple
appliances exist in the enclosure.
KEEP THE VENT OPENINGS AND SURROUNDING
AREA OF THE ENCLOSURE CLEAR AND FREE AT
ALL TIMES.
GRILL ENCLOSURE (Cont.)
Fig. 11-1 Ventilation detail
Ventilation Recommendations:
• Minimum 2 openings
• Each vent opening: min. 10 sq. in. of free area
(Total = 20 sq. in. free area)
• Refer to national and local codes for additional
specications of openings.
Keep surrounding area and vent
openings clear and free at all times.
Note: Vent openings example shown. Your design may vary.
Min.
90˚
Min.
90˚
Vent openings (2)
10 sq. in. of free area
min. (each)
(Total = 20 sq. in.)
12
GRILL ENCLOSURE (Cont.)
ENCLOSURE MATERIALS
The countertop and supporting materials MUST be
constructed of non-combustible materials.
The enclosure can be constructed of non-combustible
materials. Combustible materials are permitted with the
use of an insulating liner (see Table 3).
Fig. 12-1 Enclosure detail
ENCLOSURE
Can be constructed of non-combustible materials. If
using combustible materials, insulating liner required.
See Table 3.
COUNTERTOP
must be constructed
of non-combustible
materials
13
GRILL ENCLOSURE (Cont.)

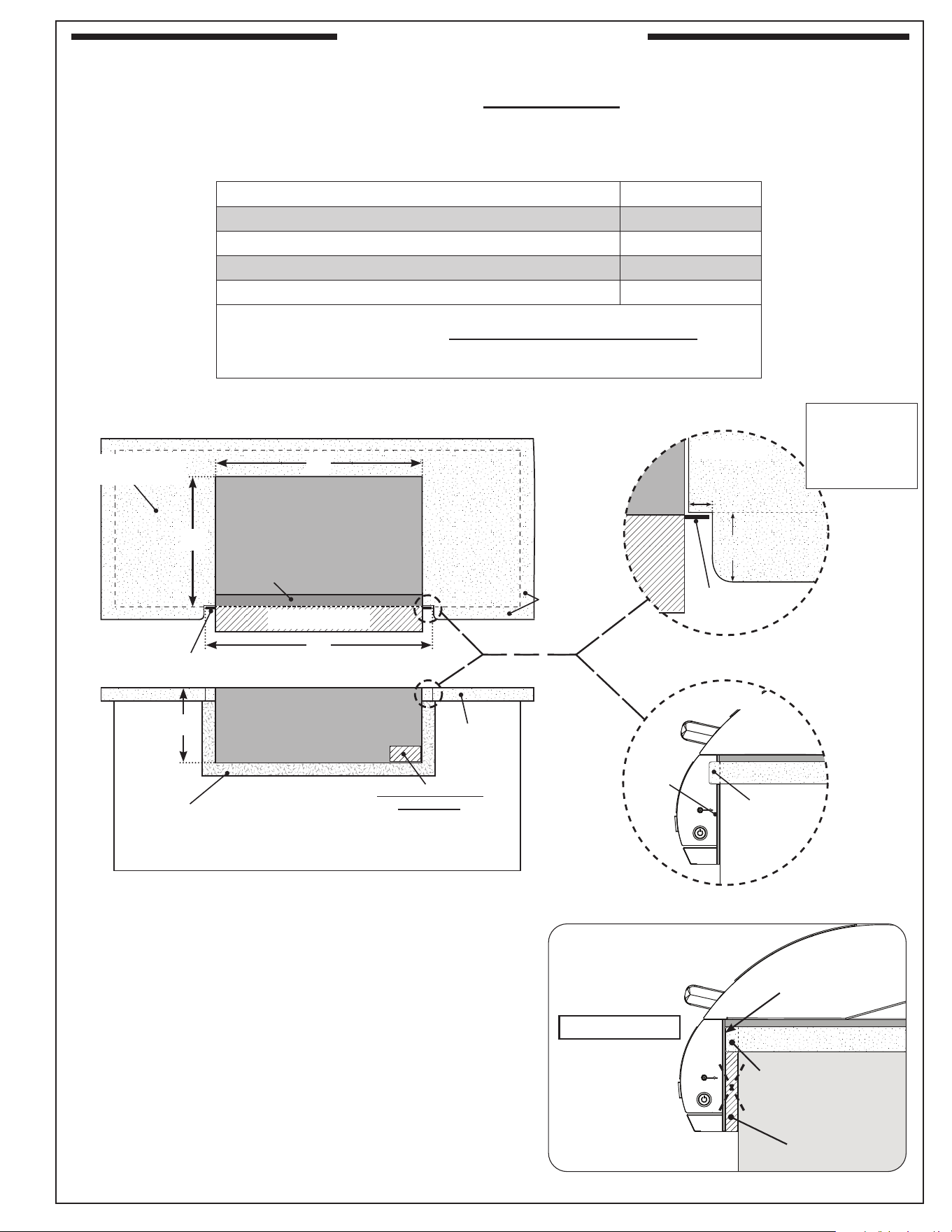

CUTOUT DIMENSIONS
Important: These cutout dimensions below are for non-combustible enclosures. If installing this grill in a
combustible enclosure, the correct insulating liner must be used (and the cutout dimensions
will dier). See Table 3. Refer to the instructions supplied with the liner for the correct cutout
dimensions.
COUNTERTOP OVERHANG
The control panel is designed to sit ush against the enclosure
front wall. If the countertop extends beyond the front wall,
creating a countertop overhang, it must be cut ush with the
front wall for the width of the control panel (and trim ange)
or a gap will be created exposing the forward portions of the
left and right side grill liner walls. See illustrations in Fig. 13-1
above for the correct setup, and Fig. 13-2 for an incorrect setup.
Description EL500i
A Countertop to unit bottom cutout 7
1
/4"
B Side to side cutout 33"
C Front to back cutout * 17
1
/2"
D Trim ange width cutout † 35
1
/2"
*
Includes any substrate at front wall of enclosure (in the area the trim ange [of the
control panel] is to sit ush against). See SUBSTRATE section on next page.
†
Only applicable for enclosures that have countertops with an overhang (see illustration
and section below).
Table 1 - Cutout Dimensions
TOP VIEW
Lower
support
Countertop
overhang
(Control panel)
GRILL ENCLOSURE
CUTOUT DIMENSIONS
Fig. 13-1
FRONT VIEW
B
C
D
See next page
for substrate
considerations
Countertop
overhang
X
TOP VIEW
SIDE VIEW
Countertop
overhang
(Trim
ange)
(Countertop)
Y
(Overhang)
X= 1
1
/4"
Y= Total
Countertop
Overhang
A
Trim
ange
Trim
ange
Non-combustible
Countertop
If a solid area exists
behind unit:
Opening for electrical is required
(see Electrical Supply Clearances
section on following page)
GAP
CREATED
Countertop
overhang
Countertop
INCORRECT
Fig. 13-2
Control panel
stops here
14
GRILL ENCLOSURE (Cont.)
SUBSTRATE
When adding any substrate to the enclosure front wall (including tiles, stone, etc.), consider the following:
Substrate Behind Trim Flange
Substrate Alongside Trim Flange
C
C
Trim ange
(both sides
and below)
(Countertop)
(Countertop)
Substrate
(includes tiles,
etc. at front of
enclosure)
Countertop
overhang
(if applicable)
Grill liner
Grill liner
Substrate
(includes tiles,
etc. at front of
enclosure)
Any additional substrate alongside the trim ange (of the
control panel) does not need to be considered in Dim.
C (see previous page).
Substrate
+
countertop "front to back" cutout
must equate to Dim. C (see previous page)
when the substrate sits ush behind the trim
ange (of the control panel).
Fig. 14-1 Fig. 14-2
Countertop
overhang
(if applicable)
TOP VIEW TOP VIEW
Flush
Trim ange
(both sides
and below)
Flush
Electrical Supply Clearances (if applicable)
If the enclosure cutout is framed or a solid area exists behind the grill, the rear wall of the framing MUST have
a cutout for the electrical supply. See Fig. 14-3.
Note: The junction box features a side and rear knockout. The rear knockout must be used for this type of setup.
Rectangular cutout
for junction box
3
1
/2"
5"
Fig. 14-3 Junction box cutout
(Rear view of
enclosure cavity)
(Countertop not
shown for clarity)
15
Please use this page to record any information about your unit that you may want to have at hand.
NOTES PAGE
16
Fig. 16-2 Overhead cabinetry requirements
30" Min.
Fig. 16-1 Overhead (roof) requirements
EXHAUST HOOD
Combustible
cabinetry
Exhaust
hood
required
Installation must be performed by a qualied professional
service technician.
Any constructed outdoor area in which the appliance is used
shall comply with one of the following:
• An outdoor area with walls on three sides, and no overhead
cover
• Within a partial outdoor area that includes an overhead
cover and no more than two walls. The sidewalls may be
parallel, as in a breezeway, or at right angles to each other
• Within a partial outdoor area that includes an overhead
cover with walls on three sides, and at least 30% or more
of the horizontal periphery of the enclosure that is open and
unrestricted
Note: All openings must be permanently open.
Note: Sliding doors, garage doors, windows, or screened
openings are not considered as permanent openings.
Refer to DIAGRAMMATICAL REPRESENTATIONS OF
OUTDOOR AREAS section.
OVERHEAD CONSTRUCTION REQUIREMENTS
Combustible overhead construction (roof):
• An exhaust hood is required. A minimum 5 foot clearance
is required between the countertop and the overhead
construction. (No combustible materials are allowed within
this area.) See Fig. 16-1.
• See EXHAUST HOOD section below for more details and
consult the instructions provided with the exhaust hood
for additional requirements.
Non-combustible overhead construction (roof):
• An exhaust hood is highly recommended. A minimum 5
foot clearance is required between the countertop and
the overhead construction. (No combustible materials are
allowed within this area.) See Fig. 16-1.
Combustible overhead cabinetry:
• An exhaust hood is required. A minimum clearance of
30" (Fig.16-2) is required between the countertop and the
exhaust hood. Any overhead cabinetry must be directly
above the exhaust hood. Cabinetry extending to the left
or right of the exhaust hood is not permitted.
• See EXHAUST HOOD section below for more details and
consult the instructions provided with the exhaust hood
for additional requirements.
EXHAUST HOOD
The exhaust hood helps extract smoke while cooking and
provides protection for the overhead construction.
When using an exhaust hood, the area above the cooking
surface of the grill must be covered with a hood larger than
the cooking area of the grill, and with a minimum of 1200 CFM
(cubic feet per minute) rated exhaust fan for proper outdoor
application.
Fire Magic vent hoods, spacers, and duct covers are available.
They meet all requirements. See Table 3 in the MODEL
SPECIFICATIONS section. Contact your local dealer.
For custom spacers, they must be constructed entirely of
non-combustible material only. For custom sots, they may
be constructed of wood, metal framing, etc.
Min. 5'
from countertop to
non-combustible overhead
construction
OVERHEAD CONSTRUCTION (ROOF)
Combustible overhead construction:
Exhaust hood required
Non-combustible overhead
construction:
Exhaust hood highly recommended
INSTALLATION REQUIREMENTS
17
CLEARANCES
Rear wall
The unit must have a minimum clearance of 8" from the rear
wall (see Fig. 17-1).
(To allow for proper ventilation and prevent dangerous
overheating.)
Backsplash (if applicable)
If a backsplash exists, it must be non-combustible and have
a minimum 4" clearance from the rear of the unit (to allow for
proper ventilation and prevent dangerous overheating). See
Fig. 17-2.
Side wall (if applicable)
The unit must have a minimum clearance of 18" from any side
walls. See Fig. 17-3.
Corner wall (if applicable)
The unit must have a minimum clearance of 24" from any
side walls (to account for variables in airow that could aect
performance). See Fig. 17-4.
Fig. 17-1 Clearance 'A' Diagram
Min.
8"
Fig. 17-2 Backsplash clearance
Non-combustible
backsplash
Min.
4"
(Clearance required
for rear wall)
Fig. 17-3 Side wall clearance
Min.
18"
Clearances continued on following page
Fig. 17-4 Corner wall clearance
Min.
24"
INSTALLATION REQUIREMENTS (Cont.)
18
Clearances continued on following page
Cooling appliances (if applicable)
The unit must have a minimum clearance of
14" from any refrigerators, kegerators, etc. See
Fig. 18-1.
Heating appliances (if applicable)
The unit must have a minimum clearance of 12"
from any pizza oven, griddle, power burner, etc.
See Fig. 18-2.
Fig. 18-1 Clearance to cooling appliances
Fig. 18-2 Clearance to heating appliances
(Refrigerator
shown here)
(Pizza Oven
shown here)
KEEP MINIMUM DISTANCE OF 12"
FROM HEATING APPLIANCES
KEEP MINIMUM DISTANCE OF 14"
FROM HEATING APPLIANCES
INSTALLATION REQUIREMENTS (Cont.)
19
CONTROL PANEL CLEARANCES
• The control panel MUST have a minimum side clearance
of 6" from any obstructions/side walls. See Fig. 19-1.
(To allow for control panel removal, access to the
thermometer power switch, and access to meat probe
jack[s].)
• The control panel MUST remain removable for servicing
(see CONTROL PANEL REMOVAL section). Any
adjacent countertops must not obstruct the panel from
being removed.
BELOW UNIT CLEARANCE
A minimum 2" clearance is required beneath the bottom of the
unit to ensure proper operation and ventilation.

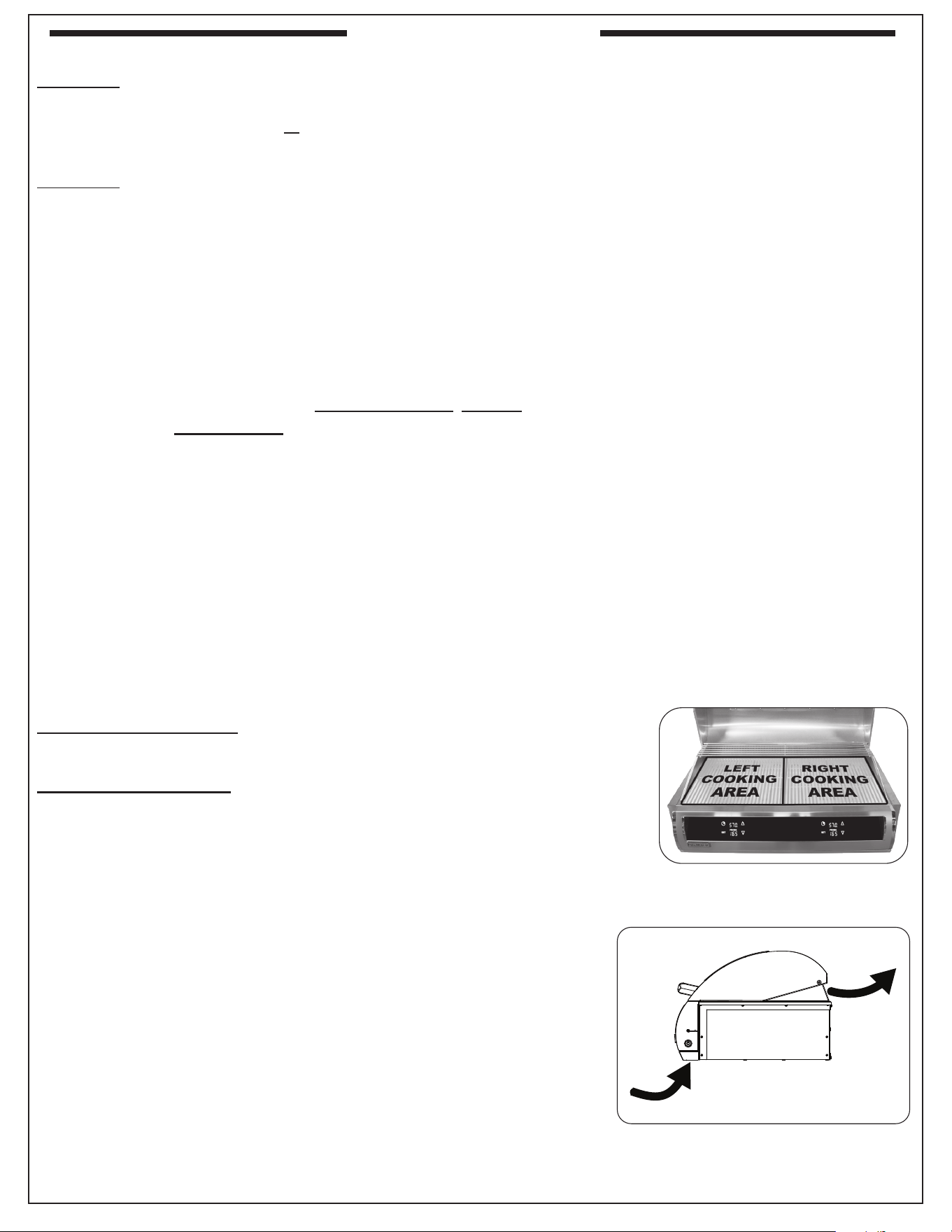

COOLING AIRFLOW
Proper airow (front-to-back, Fig. 19-2) MUST be maintained
for the unit to perform as it was designed. If airow is blocked,
overheating will result. Do not block the front air inlet along the
bottom of the control panel.
CAUTION: Install the grill so that the prevailing wind blows
toward the front of the grill (Fig. 19-3). Wind
blowing into or across the rear oven lid vent
(Fig. 19-4) can cause poor performance and/
or dangerous overheating. A wind deector is
available for purchase to assist in proper airow
during windy conditions, See Table 3 for more
information. Follow the instructions included
with the wind deector for installation.
Fig. 19-3 Airow direction - CORRECT
Front air inlet (do not block)
Fig. 19-2 Airow diagram
YOU MUST PROTECT
REAR OVEN VENT FROM
PREVAILING WIND
Rear oven lid vent
INCORRECT
Fig. 19-4 Airow direction - INCORRECT
Fig. 19-1 Control panel clearances
Min.
6"
Min.
6"
CORRECT
PLACE GRILL SO PREVAILING
WIND BLOWS TOWARD FRONT
OF GRILL
INSTALLATION REQUIREMENTS (Cont.)
20
The following gures are diagrammatical representations of outdoor areas. See INSTALLATION
REQUIREMENTS section.
Fig. 20-1 Outdoor area - Example 1
Fig. 20-2 Outdoor area - Example 2
Fig. 20-3 Outdoor area - Example 3 Fig. 20-4 Outdoor area - Example 4
Fig. 20-5 Outdoor area - Example 5
Both ends open
30% or more of the horizontal
periphery of the enclosure is
open and unrestricted
30% or more of the horizontal
periphery of the enclosure is
open and unrestricted
DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS
21
• To protect against electric shock, do not immerse electrical wires, cord or plugs (as applicable) in water or
other liquid.
• Allow the unit to cool before fully shutting o the main power source for cleaning, servicing, taking o parts
or when unit will not be in use.
• Do not operate any outdoor cooking appliance with damaged wiring, or after the appliance malfunctions or
has been damaged in any manner. Contact the manufacturer for repair.
• Do not use an outdoor cooking appliance for purposes other than intended.
• Use only a properly wired and inspected 240VAC (30 AMP minimum, single-phase) GROUNDED
three-wire dedicated Ground Fault Circuit Interrupter (GFCI) circuit breaker with the addition of an
in-line electrical disconnect OR removable plug with outlet with this outdoor cooking appliance. The
electrical disconnect, and plug with receptacle MUST be outdoor-rated WEATHER-PROOF and IN-
USE COVERED.
• Use only a GFCI circuit breaker rated for 30 AMPS with this outdoor cooking appliance.
• Use only 10AWG (or larger) wires suitable for at least 221° F (105° C).
• The provisions of the National Electric Code as well as any local codes must be observed when
installing the product.
ELECTRICAL SAFETY
22
MODEL SPECIFICATIONS
EL500i
Series
Input electrical requirements
230/240VAC / 30 AMP minimum / single-phase / 50/60 Hz
/ GFCI circuit breaker
Appliance rating 230/240VAC / 6,000 watts / 25 AMP / 50/60 Hz
Ingress protection IPX4
Table 2 - Product Specications
Height Width Depth
Bottom of ange to top (Left to right)
(Front to
back)
With oven
lid OPEN
(A)
With
oven lid
CLOSED
(B)
Maximum
width
(C)
Maximum
depth
(D)
EL500i 28" 14
1
/8" 35" 23
3
/4"
Table 4 - Grill Dimensions
D
C
B
A
Fig. 22-1
The unit rating label is located behind the unit. The unit serial number is located:
• on the underside of the drip tray handle (on a thermal label). It is recommended that the drip tray
rst be removed and cleaned / emptied of its contents, then turned over to view.
• axed to the grill body behind the control panel (on an aluminum tag)
• on the unit rating label located behind the unit
EL500i
Electric grill insulating liner model # *
†
3178-52
Wind deector model # * 23116-18
Protective cover 3662F
Cooking grid scraper 3502-E
Griddle accessory 3522
Fire Magic vent hood model # * 36-VH-7
ŧ
Fire Magic vent hood spacer model # * 36-VH-7-02
ŧ
Fire Magic vent hood duct cover model # * 36-VH-7-DC
ŧ
*
If applicable, not included
† If installing this grill in a combustible enclosure, the correct insulating liner must be used.
Consult liner instructions for counter cutout dimensions and installation.
ŧ This model meets the minimum size requirements; larger models are also acceptable.
Table 3 - Grill Supporting Products
23
MODEL SPECIFICATIONS (cont.)
Note: In addition, a wire diagram can be found axed to
the rear of the unit.
Digital thermometer /
thermostat
Fig. 23-1
Ceramic
terminal block
harness
Thermostat
manual reset
switch
Power
supply
Ceramic
terminal
block
Power input
block
Thermal
switch
Heating
element
Panel mount
relay
DC brushless fan
Thermostat wire
harness
Main wire
harness
Thermocouple
Relay
wire
Wire harness
extension
Meat probe
jack
Thermometer
power switch
Input wire
harness
GND
EL500i (single digital control models)
WIRING DIAGRAM
L1
~230/240
L2
24
Note: In addition, a wire diagram can be found axed to
the rear of the unit.
Digital thermometer /
thermostat
EL500i (dual digital control models)
WIRING DIAGRAM
Fig. 24-1
Ceramic terminal
block harness
Thermal switch
Power
supply
Ceramic
terminal
block
Power
input
block
Thermostat manual
reset switch
Thermal
switch
Heating
element
Panel mount
relay
DC brushless fan
Thermostat wire
harness
Main wire
harness
Thermocouple
Relay
wire
Wire harness
extension
Meat probe
jack
Thermometer
power switch
Input wire
harness
GND
MODEL SPECIFICATIONS (cont.)
L1
L2
~230/240
25
1
17
2
16
25
26
5
9
23
24
18
IMPORTANT
Remove all packing
material and discard
prior to use.
10
Replacement parts can
be ordered from your
local Fire Magic dealer.
19
15
29
ELECTRIC GRILL REPLACEMENT PARTS LIST
6
8
7
4
3
28
(Dual digital control
model shown)
27
27
26
EL500i
Item Description Part No. Qty.
1. Stainless cooking grid (set of 2) 3555-DS-2 2
2. Heating element 23116-16 2
3. Heating element rear support bracket 23115-52 2
4. Zone divider * 23116-02 1
5. Vaporizer panel (set of 4) 3066-S-4 1
6. Handle assy. 23116-03 1
7. Oven lid w/ window (only available on dual control models) 23116-04 1
or Oven lid w/o window 23116-12 1
8. Window glass w/ gasket* 23116-10 1
9. Warming rack 3681 1
10. Digital thermometer / thermostat 23115-55 1 or 2
▲
11. Wire harness adapter for digital thermometer / thermostat
t
24187-47 1 or 2
▲
12. Complete raceway w/ electronics (single control model)
t
23116-13 1
or Complete raceway w/ electronics (dual control model)
t
23116-05 1
13. Main harness
t
23116-06 1
14. Harness extension
t
23116-07 1
15. Control panel w/ raceway & electronics (single control model) 23116-14 1
or Control panel w/ raceway & electronics (dual control model) 23116-08 1
or Control panel w/ glass & no electronics (single control model) 23116-21 1
or Control panel w/ glass & no electronics (dual control model) 23116-22 1
16. Meat probe 24187-21 1
17. Drip tray 3097 1
18. Drip tray liners (set of 4) 3558 1
19. Thermometer power switch 24195-16 1
20.
Fan
t
23115-15 1 or 2
▲
21.
Relay
t
23115-16 2
22.
Power supply
t
24187-66 1
23.
Ceramic terminal block
24187-71 4
24.
Junction box
24187-70 1
25.
Hanger frame
23116-09 1
26. Grid lifter 3519H 1
27. Thermal switch 23116-11 1 or 2
▲
28. Thermostat manual reset switch 23116-20 1
29. Meat probe bamboo storage box 24187-21-SB 1
*
If equipped
t Not shown
▲
Single control model: qty 1, dual control model: qty 2
ELECTRIC GRILL REPLACEMENT PARTS LIST (cont.)
27
INSTALLATION
INSTALLATION
It is not required to remove the control panel to install this
unit.
DO NOT lift the unit from the control panel when installing.
CONSTRUCT ENCLOSURE
Construct the enclosure according to your individual install
preference, while following the guidelines found in the GRILL
ENCLOSURE and INSTALLATION REQUIREMENTS sections.
• Construct the enclosure in an appropriate location
(ensure all requirements of this manual and all local codes
are met when determining location).
• Follow all information regarding enclosure parameters,
ventilation, drainage, cutout dimensions, and
clearances listed in the GRILL ENCLOSURE and
INSTALLATION REQUIREMENTS sections. Failure to do
so will prevent proper operation and can cause dangerous
overheating.
INSTALL INSULATING LINER (if applicable)
If installing your unit in a combustible enclosure, the correct
insulating liner must be used (see Table 3 of the MODEL
SPECIFICATIONS section). Refer to the instructions supplied
with the liner for installation.
ELECTRICAL SETUP
All electrical setup of this unit MUST be performed by a
licensed electrician.
THIS UNIT IS DESIGNED TO BE HARD WIRED DIRECTLY
TO THE UNIT AND IS TO BE POWERED BY A DEDICATED
GFCI CIRCUIT BREAKER. The circuit breaker MUST be
rated for 230/240VAC / 30 AMP minimum / 50/60Hz.
• The external wiring source should be a flexible
conduit or an approved exible cable suitable for this
installation, and is of proper size to carry the load
(10AWG or larger, suitable for 221° F [105° C]).
• The appliance must be installed with the addition of
an independent electrical disconnect OR removable
plug with outlet that is easily accessible. The electrical
disconnect or plug conguration must be installed
in-line between the unit and circuit breaker. The
disconnect or plug conguration must be rated to
properly carry the load. See Table 2 in the MODEL
SPECIFICATIONS section, IMPORTANT SAFEGUARDS
section and the ELECTRICAL SAFETY section for all
requirements.
• The unit must be easily removable and disconnected
for future maintenance and servicing.
CAUTION: Installation MUST be performed by a qualied
professional service technician. Observe the
National Electric Code and all local codes.
CAUTION: THE GRILL IS HEAVY AND REQUIRES TWO OR
MORE PEOPLE FOR SAFE HANDLING.
1. Slide the unit approximately halfway (or more) into the
enclosure cutout so that the unit is resting safely while
providing space to access the unit's rear junction box. See
Fig. 27-2. (If the enclosure has a solid area behind the
unit, an opening for the electrical is required. Reference
the Electrical System Clearances section under the GRILL
ENCLOSURE section.)
Fig. 27-1 Enclosure construction overview
• Not to scale
• Example shown, design and location of enclosure and
its items may vary
• See ENCLOSURE REQUIREMENTS section for details
Fig. 27-2 Position unit for wiring
Slide in partially,
leaving room to make
electrical connections
Junction
box
28
INSTALLATION (cont.)
2. Remove the junction box located on the rear of the unit.
Select and remove a knockout from the junction box
that will best suit your electrical setup. Route the wiring
through the selected knockout opening. See Fig. 28-1.
Note: If the enclosure has a solid area behind the unit,
or if using an insulating liner, only the rear facing
knockout on the junction box can be used.
Note: Adding a strain relief bushing to the opening is
recommended (not included).
3. Connect the wires to the ceramic terminal block.
Reference the wiring information below and Fig. 28-2.
Line 1: Connect to L1 - top portion of ceramic terminal
block
Line 2: Connect to L2 - bottom portion of ceramic
terminal block
Ground: Connect to GND (ground) - aluminum
grounding lug
4. Ensure all wire connections are fully secure, switch
ON the electrical system and test the power to the unit.
5. Secure the junction box back onto the grill.
SLIDE UNIT COMPLETELY INTO ENCLOSURE
CUTOUT
Shut o the power to the unit, then carefully slide the
unit completely into the enclosure cutout.
• Ensure the junction box and all electrical wires are
clear, undamaged, and completely inserted into the
opening, and that the unit is correctly inserted without
any obstructions between it and the countertop.
• Ensure the unit fully slides in so that the control
panel sits ush against the enclosure front wall.
See the COUNTERTOP OVERHANG section in
ENCLOSURE REQUIREMENTS for details. See
Fig. 28-3.
• If installing on a countertop with an irregular/textured
surface, a bead of silicone sealer rated for 400° F
(204° C) or higher is recommended to protect from
the elements.
~ 230-240
Fig. 28-2 Wire connection diagram
Connections / Circuit breaker rating:
230/240VAC / 30 AMP minimum / 50/60 Hz
Junction box
opening
Grounding
lug
Fig. 28-1 Junction box knockouts
1. Select and remove a knockout
2. Feed wires through opening
3. Make connections to unit
Ceramic
terminal block
Ensure control
panel is ush
Countertop
Overhang
Fig. 28-3 Slide in unit (ensure ush)
SLIDE IN
29
INSTALL VAPORIZER PANELS
1. Pull and swing the heating element(s) to the "up position"
by lifting the rear-end of the element up and away from
the rear support bracket.
2. Locate the rear heating element support bracket and
slightly loosen the two screws. Detach and remove the
bracket by sliding it upward. See Fig. 29-1.
Note: It is only necessary to remove one support bracket
to give clearance for vaporizer installation.
3. With the support bracket removed, carefully place the
vaporizer panels down into the electric grill as shown
in Fig. 29-2.
4. Reinstall the rear support bracket.
INSTALL ZONE DIVIDER (dual control models)
Locate the zone divider and carefully hook it over the center
wire rod as shown in Fig. 29-3.
Fig. 29-1 Remove element support bracket
Fig. 29-2 Install vaporizer panels
Support
bracket
Vaporizer
panel
COMMON INSTALLATION
Fig. 29-3 Install zone divider
Hang zone
divider from
wire rod
30
COMMON INSTALLATION (cont.)
INSTALL COOKING GRIDS
Note: Wear heat-resistant gloves if necessary.
Note: Do not leave the lifter on any hot surfaces.
1. With the prongs facing downward, insert the notched-
end of the lifter between two grid rods, then rotate, as
shown in Fig. 30-1, A & B.
Note: To balance, insert the notched-end of the lifter in the
middle front half of the cooking grid.
2. Insert the rear pointed-end of the lifter between the same
two rods (Fig. 30-1, B) and carefully lift the cooking grid
and place onto the front and rear grid rests of the grill
(see Fig. 30-2). Repeat for all other cooking grids.
INSTALL WARMING RACK
Install the warming rack by carefully inserting the two feet
through the holes found on the raised walls of the unit (see
Fig. 30-3).
Fig. 30-2 Install cooking grids
Fig. 30-1 Install cooking grids
A
B
Fig. 30-3 Install warming rack
Warming
rack
31
COMMON INSTALLATION (cont.)
INSTALL DRIP TRAY
Your grill includes drip tray liners (4 pcs).
1. Take two liners and place into the drip tray . For easiest
drip tray liner installation:
• ensure the drip tray is fully removed from the grill
• Place the liners (Fig. 31-1, A) underneath the tab at
the front portion of the drip tray (Fig. 31-1, B)
• Position the rear portion of the liner to t under the
rear lip
2. Fully insert the drip tray with liners into the bottom front
opening of the electric grill (Fig. 31-1, C).
Note: For easiest drip tray assembly installation, insert the
tray in an upward angle to clear the bearings.
After installation, perform an operation test of the grill and its features/components. Refer to the following sections
for details.
OPERATION TEST
A
Place liners
Place under tab
C
Install
drip tray
assy
Fig. 31-1 Install drip tray
B
32
BEFORE INITIAL USE
Ensure that:
• the unit has been properly installed and tested by a qualied professional service technician and as instructed in this manual.
• you have read and understand all of the information in this manual.
BEFORE EACH USE
Ensure that:
• the recommended vent openings and surrounding area of the enclosure are clear at all times.
• the cooking area and drip tray are clean, and the drip tray is properly installed.
• you inspect all electrical connections for damage, cuts, wear, and tear. Replace any damaged components prior to use.
OPERATION
• The unit (including the window glass, if equipped) becomes HOT during use. NEVER touch any part of the cooking
area or surrounding hot surfaces with bare hands. Use long-handled insulated BBQ tools and wear an insulated glove
/ oven mitt.
• Always keep your face and body as far from the unit as possible during use. Avoid wearing loose-tting clothing as
they could ignite.
• This appliance is designed as an attended appliance. DO NOT leave this appliance in operation when unattended.
• NEVER cover more than 75% of the cooking surface with griddles, pots or pans to prevent overheating.
• After each use, press the thermometer power button to shut o the unit.
• The unit’s fans will stay in operation, even after the unit has been turned o to quickly cool down the electronics.
Important: DO NOT DISCONNECT THE UNIT FROM POWER UNTIL THE FANS SHUT OFF AUTOMATICALLY
AND THE ELECTRONICS HAVE COOLED DOWN TO A SAFE TEMPERATURE.
After reading and understanding all bullets above, follow these steps to start the heating elements and use your grill:
1. Begin heating the grill per the DIGITAL THERMOMETER / THERMOSTAT section. See the THERMOMETER/THERMOSTAT
& COOKING AREAS section below for additional details.
2. Set the element to the desired temperature (repeat for the second thermostat if applicable), close the hood, and allow the grill
to preheat for at least 15 minutes or until desired cooking temperature is reached.
3. Place the food on the grill and cook as desired. Monitor the temperature, and adjust the heat setting if necessary.
4. See the sections below and the following pages for all other information regarding use.
THERMOMETER/THERMOSTAT & COOKING AREAS
Models with single control: The heating element and meat probe are controlled by the
glass-touch digital thermometer/thermostat - see DIGITAL THERMOMETER/THERMOSTAT
section for operation.
Models with dual controls: Your grill is divided into two cooking areas and are controlled
independently by the two glass-touch digital thermometer/thermostats (Fig. 32-1). The left
digital thermometer controls and monitors the left heating element and left meat probe jack,
and the right digital thermometer controls and monitors the right heating element and right
meat probe jack - see DIGITAL THERMOMETER/THERMOSTAT section for operation.
WIND CONSIDERATIONS
Proper airow (front-to-back, Fig. 32-2) MUST be maintained for the unit to perform as it was
designed. See the INSTALLATION REQUIREMENTS section for details.
When using the unit in windy conditions, the wind can disrupt the airow and cause
overheating. To prevent overheating during windy conditions, do not leave the hood
closed with the element(s) on max setting for more than 15 minutes.
AFTER EACH USE
1. Operate at 700° F with hood closed for 10-15 minutes to burn o all grease.
2. Turn o the grill and brush/scrape the cooking grids to remove all residue.
CAUTION: Use long-handled insulated BBQ tools and wear an insulated glove
/ oven mitt.
3. When the grill is cool, check and clean the drip tray. Then cover the grill.
Note: For additional cleaning information, refer to the SERVICING AND CLEANING
section.

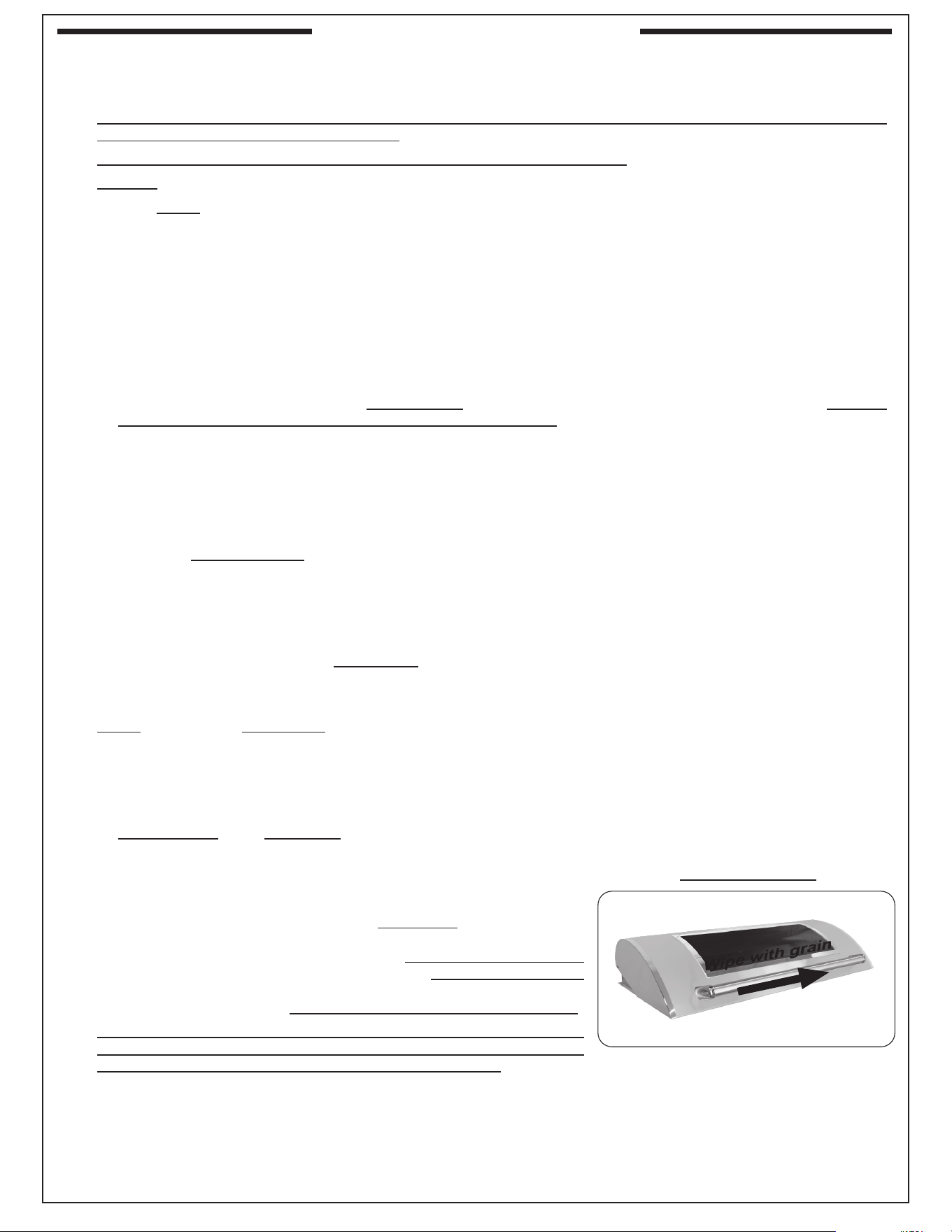

Fig. 32-2 Airow diagram
USING THE ELECTRIC GRILL
Fig. 32-1 Cooking areas
(dual control models)
USE, CARE, & SERVICE
USING THE GRILL
33
To operate the unit via the RHP Connect app, visit the link
below or scan the QR code on the cover page of this manual
to download the app onto your mobile device and for app
operating instructions.
https://remagicgrills.com/digital-touch-control/
Important: Ensure the thermometer rmware is up to date
using the RHP Connect app.
Models with a single control are equipped with a touch-panel
controlled digital thermometer/thermostat for temperature
adjustment, meat probe temperature monitoring, and timed
cooking.
Models with dual controls are equipped with two touch-panel
controlled digital thermometer/thermostats. Each side of the
grill has a dedicated temperature control, meat probe jack for
temperature monitoring, and timed cooking.
Note: The following information provides guidance on
operating a single thermometer/thermostat. For
models with dual controls, each thermometer/
thermostat is individually controlled for each
cooking area. See USING THE ELECTRIC GRILL
section.
Read the following sections completely regarding thermometer/
thermostat operation. Refer to Fig. 33-1 for thermometer
orientation and button locations.
Power ON / OFF
The thermometer power switch is located on the right side
of the control panel (Fig. 33-2). It controls the power to the
digital thermometer/thermostat.
Press thermometer power switch to turn ON: The digital
controls will illuminate and the thermometer/thermostat will
wait in “standby mode” until turned on for use. If the meat
probe is plugged in, PROBE will also illuminate. See Fig. 33-3.
• The thermometer/thermostat must to be turned on
manually via the touch controls before any functions on the grill can be used. To turn ON, see the Turn ON
Thermostat/Thermometer Functions section.
• If the unit remains in standby mode without any button presses for 10 minutes, the illuminated buttons will
turn o. To turn back on, swipe your hand across the general buttons area to illuminate the buttons.
Press thermometer power switch to turn OFF: The appliance will shut o. The power switch MUST be in
the OFF position when the grill is not in use.
• The fans will remain on to continue cooling the electronics, see OPERATION section under USING THE
GRILL section of this manual.
• To cut the grill completely from electrical power, it will need to be disconnected from the main power source
(via power cord, GFCI disconnect, or circuit breaker as applicable).
• Dual control models: To turn o ONE side of the grill (controls and heat) and keep controlling the other,
press and hold the TIMER and SET buttons (on the side you wish to turn o) until the temp. displays turn o.
Fig. 33-3 Standby mode
(Only these icons will be illuminated
when in standby mode)
Fig. 33-2 Press thermometer power switch
Thermometer
power switch
Grilling
temp.
Meat probe temp.
Fig. 33-1 Orientation (default screen)
Arrows for
adjusting
Alarm
ON
Heating
element ON
Timer
button
Set
button
Probe area only illuminates when a meat probe
is plugged into the corresponding jack
FOR OPTIMAL PERFORMANCE:
Keep the oven lid closed during cooking. This will maintain
the cooking temp. (Frequently opening or leaving the lid
open during cooking will result in greater temperature loss.)
DIGITAL THERMOMETER / THERMOSTAT
34
Turn ON Thermometer/Thermostat functions
1. Turn on the power source to the appliance.
2. Press the thermometer power switch.
3. Press and hold the TIMER button (Fig. 34-1, A) until the
remainder of the displays illuminate (Fig. 34-1, B). This is
the “default screen”. The default screen displays your
temperatures. The top display is the grilling temperature,
and the bottom display is the meat probe temperature (if
plugged in).
• The dot next to the grilling temp. indicates that the
heating element is on. The dot turns on and off
intermittently as the element maintains the set temp.
See Fig. 34-2.
• The unit automatically preheats to the default temperature
of 450° F. To set your desired temperature, see the Set
Grilling Temperature section on the following page.
• The thermometer/thermostat will automatically shut
o 4 hours from the time the thermometer/thermostat
functions are turned on. The thermometer/thermostat
sits in “idle mode” until it is turned back on for use. See
Idle Mode section for details.
• To turn o one of the thermometer/thermostats and
continue operating the other, choose the thermometer
you wish to turn o, press and hold the SET and TIMER
buttons until the temperature display turns o. The
thermometer and heating element are turned o. Press
and hold the TIMER button to turn back on if desired.
Note: Operating in cold weather conditions: If the unit is
powered on during cold weather (32° F or below) and
the TOP display reads “- - -”, Allow the unit sucient
time to preheat. The thermometer is not calibrated to
read temperatures at or below 32° F. Allow the heating
elements to warm up and the display will resume normal
functioning once the unit temp rises above 32° F.
CAUTION: ONCE THE THERMOMETER/THERMOSTAT
FUNCTIONS ARE TURNED ON, THE ELEMENT WILL
AUTOMATICALLY BEGIN TO PREHEAT!

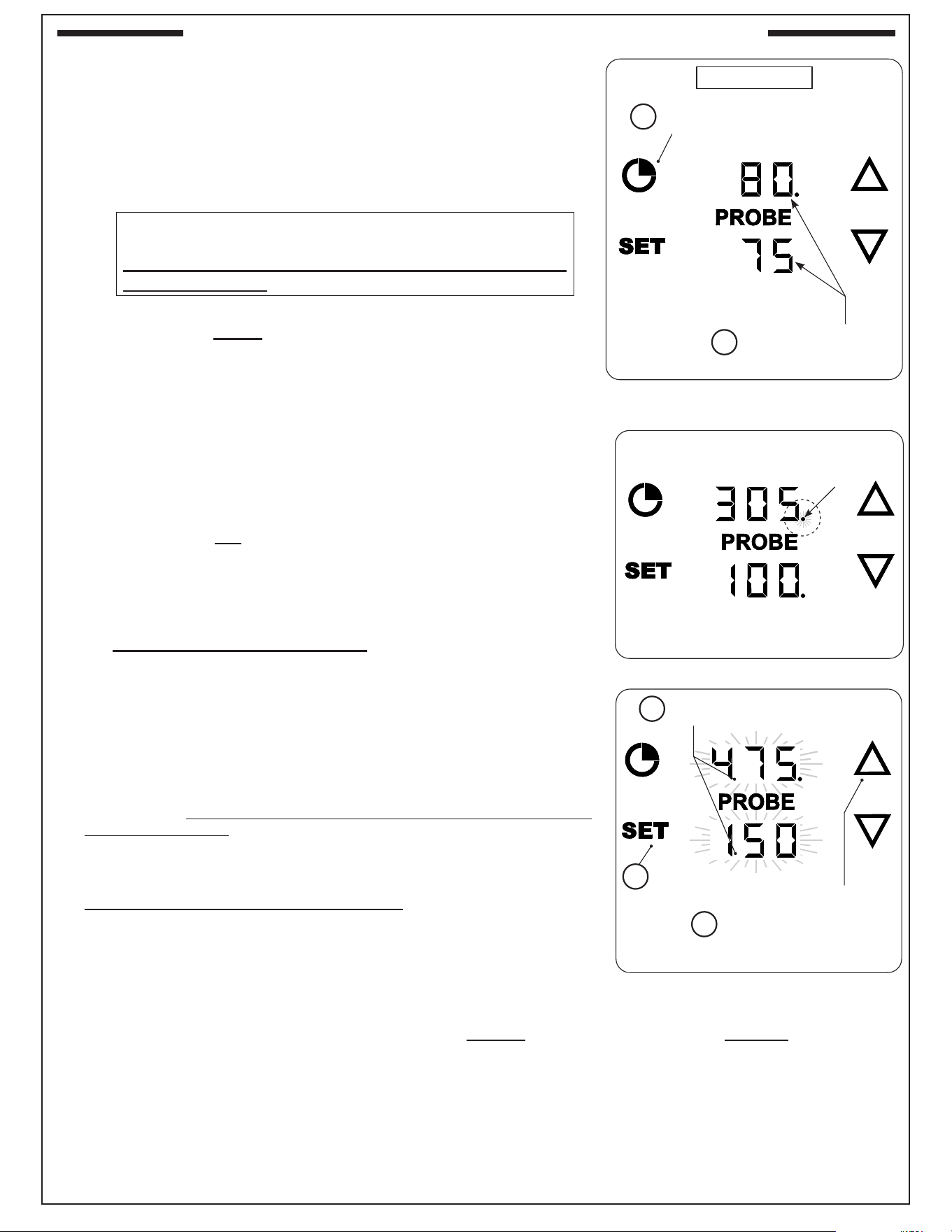

Fig. 34-1 Turn on thermometer/thermostat
Temp displays
will illuminate
Press and hold
TIMER button
A
B
Fig. 34-2 Heating element ON
Heating element
ON
(Default screen)
DIGITAL THERMOMETER / THERMOSTAT (CONT.)
35
Fig. 35-1 Set grilling temp.
Temp displays
will BLINK
Press
SET
A
B
Press UP ARROW,
then adjust grilling temp.
using UP or DOWN
C
Set Grilling Temperature
1. With the thermometer/thermostat on, press the SET button
once. The grilling and probe displays will blink. (While
blinking, either area can be selected to enter their settings.)
See Fig. 35-1, A and B.
2. Press the UP ARROW to select the grilling temp settings,
then use the up or down arrows to set the desired temp.
(Fig. 35-1, C).
Note: Short pressing the arrows will adjust in increments of
5°. Holding down an UP or DOWN arrow (for several
seconds) will adjust the temp. rapidly.
• The default setting is 450° F. The minimum temp setting
is 200° F. The maximum temp. setting is 700° F.
Note: The grilling temp controls the temperature inside of the
grill. (This is the thermostat function.)
3. Press the SET button to conrm (or wait 5 seconds to
conrm automatically). Once conrmed it will resume to
the “default screen”.
• The temp. display will climb until it reaches the set
temperature. Once reached, the set temp will remain
displayed regardless of the actual temperature although
frequent lid opening/closing, environmental conditions,
and cold food insertion causes the temp. to uctuate, the
set temp will display the target temp. until a new temp.
is set. The element dot will remain illuminated until the
targeted temp. is reached.
DIGITAL THERMOMETER / THERMOSTAT (CONT.)
36
Fig. 36-2 Set probe temperature
Temp displays
will BLINK
Press
SET
A
B
Press DOWN ARROW,
then adjust probe temp.
using UP or DOWN
C
Fig. 36-3 Set probe alarm
Probe alarm
dot will turn on
Press and hold
SET & DOWN ARROW
A
B
Fig. 36-4 Meat probe
Meat
probe
Wear heat-resistant gloves and use
extreme caution when handling the
hot meat probe.
Setting Meat Probe Temp. & Meat Probe Alarm
Plug the meat probe into the meat probe jack found on the right
side of the control panel as shown in Fig. 36-1. Dual control
models are equipped with two meat probe jacks (one on each
side of the control panel).
Note: The digital display does not illuminate any probe
information unless the meat probe is plugged in.
Meat probe temp:
1. With the thermometer/thermostat on and the meat probe
plugged in, press the SET button once. The grilling and
probe displays will blink. (While blinking, either area can
be selected to enter their settings.) See Fig. 36-2, A and B.
2. Press the DOWN ARROW to select the probe settings,
then you may use the up or down arrows to set the desired
temp (Fig. 36-2, C).
Note: Short pressing the arrows will adjust in increments of
1°. Holding down an UP or DOWN ARROW (for several
seconds) will adjust the temp. rapidly.
• The default probe setting is 160° F.
3. Press the SET button to conrm immediately or wait 5
seconds and it will conrm automatically. Once conrmed
it will resume to the “default screen”.
Meat probe alarm:
Once the desired probe temp. has been set, press and hold
the SET and DOWN ARROW until a dot appears next to the
PROBE temperature. The dot indicates the probe alarm is on.
See Fig. 36-3, A and B.
To disable the meat probe alarm, press and hold the SET and
DOWN ARROW until the dot disappears. The alarm is o.
• Inserting the meat probe into the cooking meat will give an
actual temp. reading. The display will ash and the alarm
will sound when the set temp. is reached.
• Press any of the four buttons to silence.
• The meat probe may be left attached to the meat for
long-term use with the oven hood closed.
• Probe tip must remain in the center of the thickest part of
the meat when in use. Leaving the meat probe protruding
through the meat while the oven hood is closed will damage
the meat probe. The probe is calibrated specically for use
at temperatures between 125˚F and 180˚F. Tip exposure
of 200˚F or more for extended time will damage probe and
it will need to be replaced.
• If wire shows visible damage, meat probe needs to be
replaced.
• Heat-resistant gloves MUST be worn when handling the
hot meat probe.
• Cleaning the meat probe under running water is permittable,
DO NOT fully submerge in water. It is NOT dishwasher-
safe.
• Meat probe must be dried completely before use.
• Meat probe must be stored in the bamboo storage box
when not in use.
Fig. 36-1 Plug in meat probe
MEAT PROBE
Meat probe
jack
DIGITAL THERMOMETER / THERMOSTAT (CONT.)
37
Setting the Timer
1. With the thermometer/thermostat on, press the TIMER
button once (Fig. 37-1, A). A zero will display indicating
that no timer is set.
2. Press the UP or DOWN arrows to enter the desired amount
of time or to modify an existing set time (Fig. 37-1, B).
Note: Short pressing the arrows will adjust in increments of
one minute. Holding down the UP or DOWN arrow (for
several seconds) will adjust the time rapidly.
3. Press the TIMER or SET button (or wait 5 seconds) to
conrm. The timer will start counting down and the display
will resume to the “default screen”.
• To check the timer status, press the TIMER button and the
display will show the live countdown (for 5 seconds then,
return to the default screen). See Fig. 37-2.
• The upper display indicates minutes and the lower display
indicates seconds (see Fig. 37-2).
• When the timer has 10 seconds left, the countdown will
display. Once the timer reaches zero the display will start
ashing and the alarm will sound.
• Press any of the four buttons to silence and return to the
“default screen”.
• To cancel an active timer: follow steps 1 and 2 above
and adjust the time down to zero.
Idle Mode
The thermometer/thermostat will automatically turn o and
enter “idle mode” after 2 hours from the time the thermometer/
thermostat functions are turned on. The heating elements and
all functions will turn o as a safety measure.
Similar to “standby mode”, idle mode screen appears the
same with the controls illuminated (Fig. 37-3), but this mode also
memorizes your last settings used (as long as the thermometer
power switch remains on). This will allow you to resume right
where you left o.
To exit idle mode and resume grilling: press and hold the
SET TIMER button until the remainder of the displays illuminate.
See Fig. 37-3. The displays will fully illuminate and the heating
element will turn back on.
Note: If the unit remains in idle mode without any button
presses for 10 minutes, the illuminated buttons will
turn o. To turn back on, swipe your hand across the
general button area to illuminate the buttons.
Changing Temperature Unit
1. Press and hold the UP and DOWN arrows until °F or °C is
displayed (Fig. 37-4, A).
2. Press the UP or DOWN arrow to select the desired temp
unit (Fig. 37-4, B).
3. Press SET (or wait 5 seconds) to conrm. The display will
return to the default screen with the newly set temperature
unit.
Fig. 37-3 Idle mode
Fig. 37-4 Change temp. unit
Use arrows to enter
desired temp. unit
(Fahrenheit unit
shown here)
Press and hold
UP & DOWN ARROWS
A
B

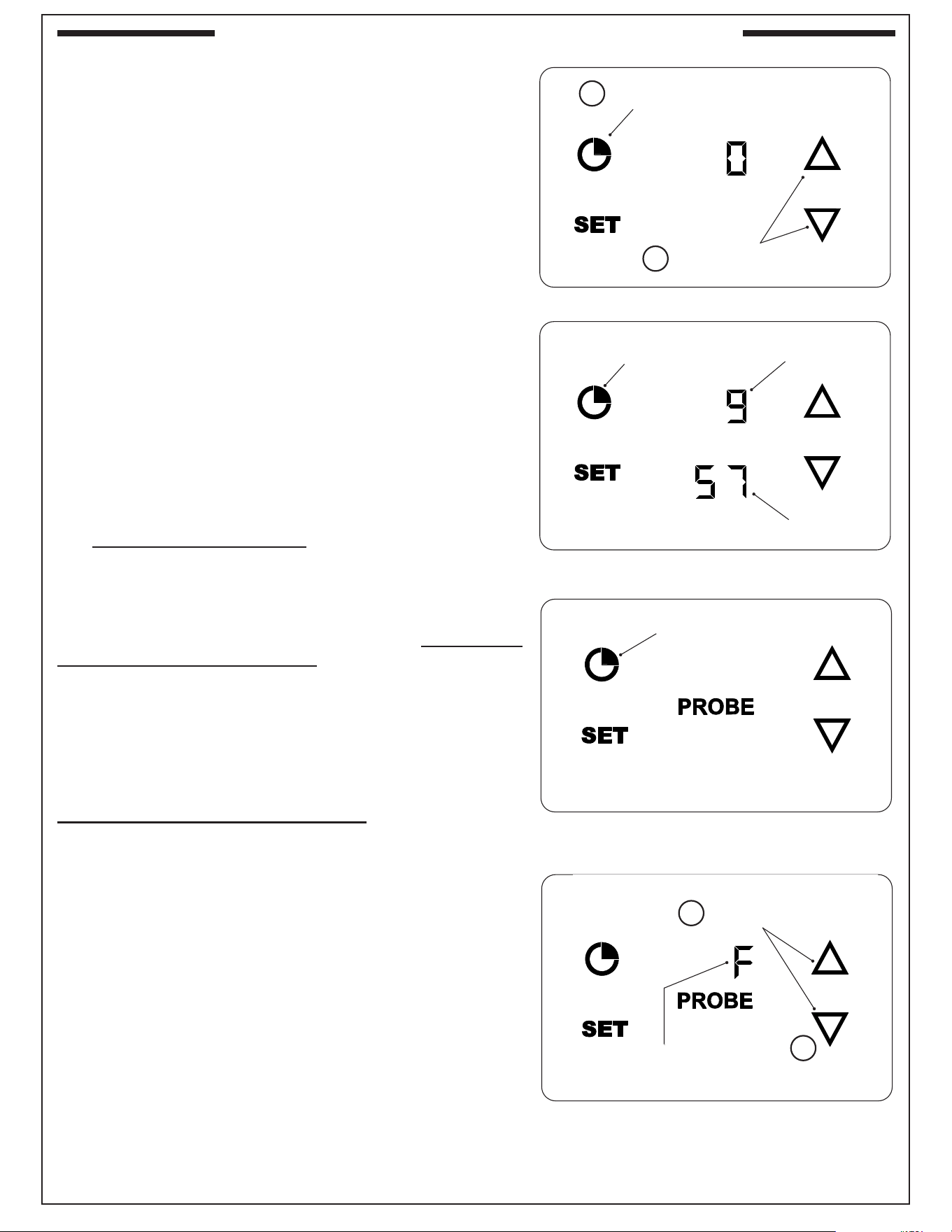

Fig. 37-1 Set timer
Use arrows to enter
desired amount of time
Press TIMER
button
A
B
Fig. 37-2 Check timer status
(Minutes)
(Seconds)
Press TIMER to
see status
To resume grilling, Press and
hold TIMER button
(Only these icons will be illuminated
when in idle mode)
DIGITAL THERMOMETER / THERMOSTAT (CONT.)
38
Lisez intégralement les sections suivantes concernant le
fonctionnement du thermomètre/thermostat. Référez-vous à la
Fig. 38-1 pour l’orientation du thermomètre et l’emplacement
des boutons.
COMMENT METTRE EN MARCHE ET ÉTEINDRE
L’interrupteur d’alimentation du thermomètre se trouve sur
le côté droit du panneau de commande (Fig. 38-2). Il contrôle
l’alimentation du thermomètre/thermostat numérique.
Appuyez sur l’interrupteur d’alimentation du thermomètre
pour allumer: Les commandes numériques s’allumeront, et
le thermomètre/thermostat restera en mode veille jusqu’à son
activation pour une utilisation. Si la sonde à viande est branchée,
PROBE s’allumera également. Voir Fig. 38-3.
• Le thermomètre/thermostat doit être activé manuellement
via les commandes tactiles avant de pouvoir utiliser les
fonctions du gril. Pour l’allumer, consultez la section ‘Activer
les fonctions du thermostat/thermomètre’.
• Si l’appareil reste en mode veille sans aucune pression
de bouton pendant 10 minutes, les boutons éclairés
s’éteindront. Pour les rallumer, passez votre main sur la
zone générale des boutons pour les illuminer.
Appuyez sur l’interrupteur d’alimentation du thermomètre
pour éteindre.: L’appareil s’éteindra. L’interrupteur
d’alimentation DOIT être en position OFF lorsque le gril
n’est pas en cours d’utilisation.
• Les ventilateurs resteront en marche pour continuer à
refroidir l’électronique, voir la section ‘OPERATION’ sous
la section ‘USING THE GRILL’ de ce manuel.
• Pour couper complètement l’alimentation électrique du gril, il
devra être déconnecté de la source d’alimentation principale
(via le cordon d’alimentation, la déconnexion GFCI, ou le
disjoncteur, selon le cas).
• Modèles de contrôle double: Pour éteindre UN côté du
gril (commandes et chaleur) tout en continuant à contrôler
l’autre, appuyez et maintenez enfoncés les boutons TIMER
et SET (du côté que vous souhaitez éteindre) jusqu’à ce
que les achages de température s’éteignent.
Température
de grillage
Température de la
sonde à viande
Fig. 38-1 Orientation (écran par défaut)
Fig. 38-2 Appuyez sur l’interrupteur
du thermomètre
Fig. 38-3 Mode veille
Flèches pour
ajuster
(Seuls ces icônes seront éclairés en mode veille)
Alarme
ACTIVÉE
Élément
chauant
ALLUMÉ
Bouton de
minuterie
Bouton de
réglage
Interrupteur
d’alimentation du
thermomètre
La zone de la sonde s’illumine uniquement lorsque la sonde
à viande est branchée dans la prise correspondante.
THERMOMÈTRE NUMÉRIQUE / THERMOSTAT
39
Activer Les Fonctions Du Thermomètre/Thermostat
1. Allumez la source d’alimentation de l’appareil.
2. Appuyez sur l’interrupteur d’alimentation du thermomètre.
3. Appuyez et maintenez enfoncé le bouton TIMER (Fig. 39-1, A) jusqu’à
ce que le reste des achages s’allume (Fig. 39-1, B). Il s’agit de l’écran
par défaut. L’écran par défaut ache vos températures. L’achage
supérieur est la température de cuisson, et l’achage inférieur est la
température de la sonde à viande (si elle est branchée).
• Le point à côté de la température de cuisson indique que l’élément
chauant est activé. Le point s’allume et s’éteint de manière
intermittente lorsque l’élément maintient la température réglée.
Voir Fig. 39-2.
• L’unité préchaue automatiquement à la température par défaut de
450 °F. Pour régler la température souhaitée, consultez la section
‘Réglage de la température de cuisson’ ci-dessous.
• Le thermomètre/thermostat s’éteindra automatiquement 2 heures
après que les fonctions du thermomètre/thermostat sont activées.
Le thermomètre/thermostat reste en ‘mode veille’ jusqu’à ce qu’il
soit à nouveau activé pour une utilisation. Consultez la section
Mode veille pour plus de détails.
• Pour éteindre l’un des thermomètres/thermostats et continuer à
utiliser l’autre, sélectionnez le thermomètre que vous souhaitez
éteindre, appuyez et maintenez les boutons SET et TIMER jusqu’à
ce que l’achage de la température s’éteigne. Le thermomètre et
l’élément chauant sont éteints. Appuyez et maintenez le bouton
TIMER pour le réactiver si nécessaire.
Note: Fonctionnement par temps froid: Si l’unité est allumée par temps
froid (32 °F ou moins) et que l’achage SUPÉRIEUR indique ‘- -
-’, laissez à l’unité susamment de temps pour préchauer. Le
thermomètre n’est pas calibré pour lire les températures à 32 °F
ou en dessous. Laissez les éléments chauants se réchauer,
et l’achage reprendra un fonctionnement normal une fois que
la température de l’unité dépassera 32 °F.
Réglage De La Température De Cuisson
1. Avec le thermomètre/thermostat allumé, appuyez une fois sur le
bouton SET. Les achages de la température de cuisson et de la
sonde clignoteront. (Pendant le clignotement, n’importe quelle zone
peut être sélectionnée pour entrer dans ses réglages.) Voir Fig. 39-3,
A et B.
2. Appuyez sur la FLÈCHE VERS LE HAUT pour sélectionner les
paramètres de la température de cuisson, puis utilisez les èches
vers le haut ou vers le bas pour régler la température souhaitée.
(Fig. 39-3, C).
Note: Appuyer brièvement sur les èches ajustera par incréments de
5°. Maintenir enfoncé une FLÈCHE VERS LE HAUT ou VERS
LE BAS (pendant plusieurs secondes) ajustera rapidement la
température.
• Le réglage par défaut est de 450 °F. Le réglage minimal est de 200 °F. Le réglage maximal est de 700 °F.
Note: La température de cuisson contrôle la température à l’intérieur du gril. (Il s’agit de la fonction du thermostat)
3. Appuyez sur le bouton SET pour conrmer (ou attendez 5 secondes pour une conrmation automatique). Une
fois conrmé, l’écran reviendra à l’écran par défaut.
• L’achage de la température augmentera jusqu’à atteindre la température réglée. Une fois atteinte, la
température réglée restera achée, indépendamment de la température réelle (bien que l’ouverture/
frermeture fréquente du couvercle, les conditions environnementales et l’insertion d’aliments froids puissent
faire uctuer la température, la température réglée achera la température cible jusqu’à ce qu’une nouvelle
température soit réglée). Le point de l’élément restera allumé jusqu’à ce que la température cible soit atteinte.
CAUTION: UNE FOIS QUE LES FONCTIONS DU
THERMOMÈTRE/THERMOSTAT SONT ACTIVÉES,
L’ÉLÉMENT COMMENCERA AUTOMATIQUEMENT À
PRÉCHAUFFER !
THERMOMÈTRE NUMÉRIQUE / THERMOSTAT (suite)
Fig. 39-1 Turn on thermometer/
Thermostat
Les achages de
température s’illumineront
Appuyez et maintenez
enfoncé le bouton TIMER
A
B
Fig. 39-2 Élément chauant ACTIVÉ
Élément chauant
ACTIVÉ
(Écran par défaut)
Fig. 39-3 Réglez température cuisson
Les achages de
température clignoteront
Appuyez
sur SET
A
B
C
Appuyez sur la FLÈCHE
VERS LE HAUT, puis ajustez
la température de cuisson en
utilisant les touches VERS LE
HAUT ou VERS LE BAS
40
SERVICING AND CLEANING
Your electric grill requires regular cleaning and maintenance. Refer to these instructions for details. Performing these
procedures will ensure proper operation, appearance, and safety.
WARNINGS
• Prior to servicing or cleaning make sure the unit is completely cool, the unit is o, and the power supply is disconnected
(as applicable and unless otherwise stated).
• Wear appropriate gloves and safety glasses during any servicing or cleaning.
• DO NOT spray any cleaner or liquids on the unit when hot.
• The unit MUST be cleaned regularly to prevent grease build-up and other food deposits. A clean and well maintained
unit prevents the risk of grease build-up and grease res.
• Verify proper operation after servicing or deep cleaning.
• See IMPORTANT SAFEGUARDS section for additional related information.
CLEANING YOUR ELECTRIC GRILL
Before Each Use
1. Inspect and clean the exterior surfaces of the unit: With a cool grill, clean any dust, grease, splatter, or spills as
needed with a damp clean cloth.
2. Clean the glass:
• Clean the glass control panel with a non-abrasive quality brand glass cleaner and a clean gentle cloth. DO NOT
use other cleaners or chemicals to prevent scratching the glass.
• Clean the Magic View Window (interior and exterior) with a quality brand glass cleaner and clean cloth.
After Each Use
1. Clean the cooking grids: Operate at 700° F with hood closed for 10-15 minutes to burn o all grease. Turn o the
grill and brush/scrape the cooking grids to remove all residue. Use long-handled insulated BBQ tools and wear an
insulated glove / oven mitt.
Important: The cooking element is self-cleaning (it does not require manual cleaning).
2. Check and clean your drip tray: When the unit is cool, carefully remove the drip tray and dispose of contents
appropriately. If tray is equipped with a liner, dispose of the liner. Clean tray in a soapy water solution if needed. For
tough deposits, a copper pad can be used. Rinse and dry completely. Replace a new liner and insert the tray back
into the electric grill. Order more drip tray liners through your dealer.
3. Cover your grill: Once the unit is dry and cool, cover your grill with a Fire Magic protective cover (not included).
Twice A Year (or as needed) - Deep Clean
1. Interior of grill: In addition to cleaning the cooking grids and drip tray, a deep clean of the interior and all components
MUST be performed twice a year (or as needed depending on use). Follow the steps below.
a. With a cool unit, open the oven lid and remove the cooking grids and inner liners. Clean all components in a soapy
water solution, rinse, dry, and set aside. For tough deposits, a copper pad can be used. The components can also
be cleaned in a dishwasher.
Note: Refer to the parts list and INNER LINER REMOVAL section as needed.
b. Grill inner walls: use a grill cleaner and a copper pad to scrub the inner walls. Fire Magic grill cleaner is recommended.
Follow instructions provided with the grill cleaner.
Wipe down the entire surface of the inner walls with a wet, clean, heavy-duty rag. Remove all cleaner.
c. Re-install all components removed during this process.
2. Exterior of grill: With a cool grill, use a grill cleaner (or a soapy water
solution) and a clean cloth to remove grease and dirt from the grill exterior.
For tough deposits, a copper pad can be used. Always wipe with the grain.
Rinse and dry completely. Then follow up with a stainless steel cleaner
and a clean cloth. To clean the magic view window (if equipped), use a
quality brand glass cleaner. DO NOT use other cleaners or chemicals.
If this routine cleaning is not performed, the stainless steel may become
dull and develop surface rust (due to use and atmospheric conditions).
If left uncleaned, signicant damage and pitting may occur.
Important: DO NOT use steel wool, any other metal tools, or any other cleaners/chemicals to clean the exterior other
than recommended above. Such items promote rust.
Note: Due to the nature of stainless steel, temperatures produced by the cooking process will cause discoloration. This
can be reduced by routine cleaning.
3. Glass surfaces: For hard water stains on glass, it is recommended to clean the glass using a white vinegar / water
solution and wiping clean with a soft cloth.
Wipe with grain
Fig. 40-1 Wipe with grain
41
For Environments High In Salt, Chloride, Or Other Corrosive Chemicals
When this grill is installed in a corrosive environment such as near the ocean (salt air), poolside (chlorine and/or
pool chemicals) or any other location with exposure to high salt/chloride content or corrosive chemicals/solutions,
it will be more susceptible to corrosion and MUST be maintained/cleaned more frequently.
• DO NOT store any corrosive chemicals (chlorine, hydrochloric acid, fertilizer, etc.) near your stainless steel unit.
• DO NOT allow any corrosive materials (masonry dust, debris, etc.) to settle on your stainless steel unit.
• These environments, chemicals, and materials may cause the 304 stainless steel to develop surface rust and
consequently pitting. Under these conditions the unit exterior MUST be cleaned at least monthly. Inspect your grill
often and clean accordingly.
Protecting Your Electric Grill
An optional Fire Magic protective cover will protect your grill when not in use. Install the cover on a cool and dry unit. DO
NOT cover a damp grill. During high humidity or after rainy conditions, remove the cover to dry trapped moisture if present.
(If the cover is installed over a damp unit it can cause surface rust.)
Ensure that the INSIDE of the cover is DRY before putting it back on the grill.
SERVICING AND CLEANING (Cont.)
42

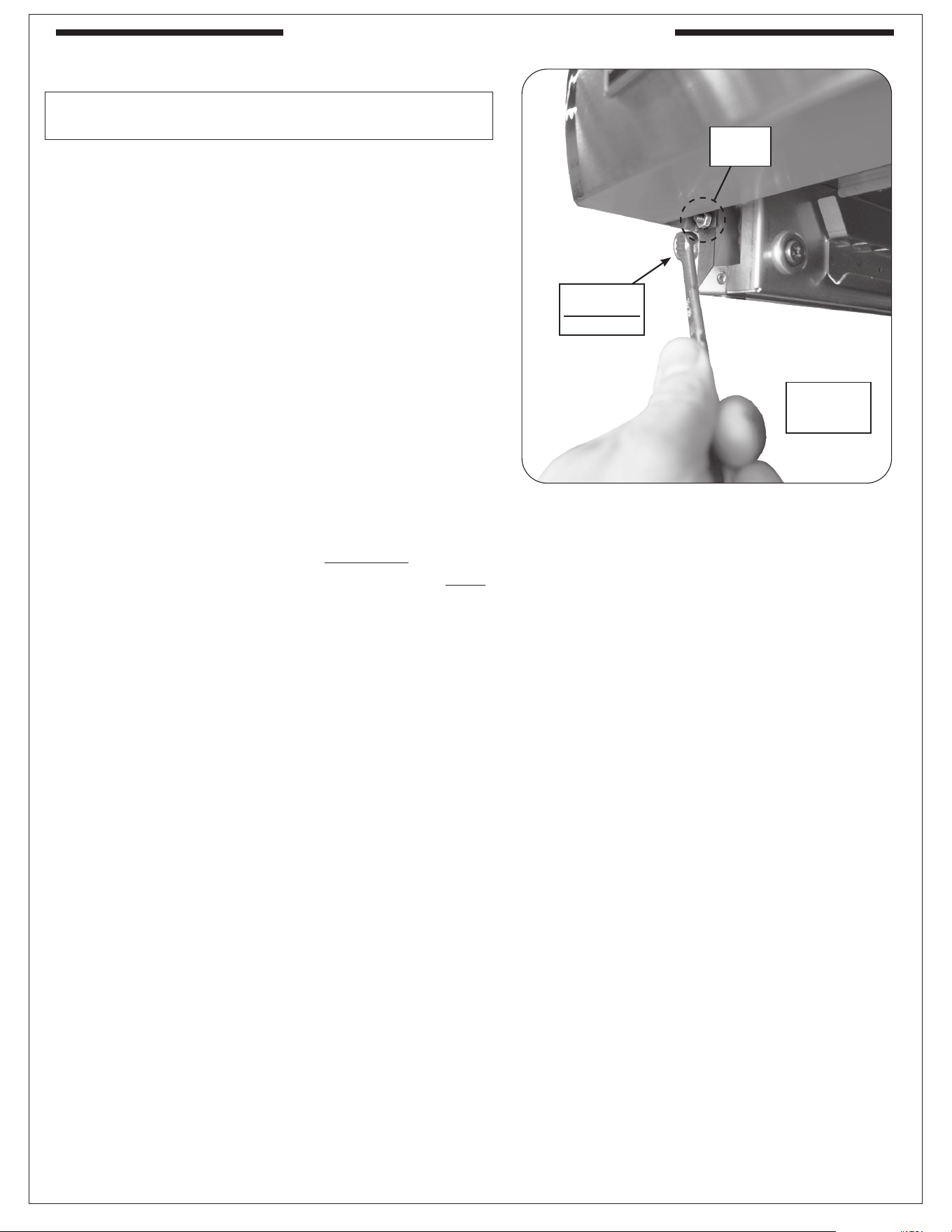

CONTROL PANEL REMOVAL
The interior of the control panel must only be accessed
by a qualied professional service technician.
1. Ensure the grill is completely cool and the
power to the unit is disconnected.
2. Slide the drip tray outward partially to allow enough
room to access the control panel securing nuts.
3. Loosen the nuts underneath the left and right sides
of the control panel with a
11
/
32
" wrench (see Fig.
42-1), then lift the panel until it is freed from the
screws. Carefully rest the bottom of the control
panel on the drip tray. The top of the control panel
is supported by the internal chains.
Important: When opening, take caution to not
damage any wiring.
4. If wire disconnections are required, reference the
wire diagram in the MODEL SPECIFICATIONS
section in this instruction manual or the wire diagram
label axed to the inside of the control panel.
Note: Whenever reconnecting any wires, apply a
small amount of dielectric grease to the male
connector, then make the connection. This will
ensure conductivity and prevent moisture from
aecting the contact.
Fig. 42-1 Remove control panel
Loosen
nuts
11
/32"
Closed-end
wrench
(Drip tray
removed for
clarity)
SERVICING AND CLEANING (Cont.)
43
If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the solutions
to the possible cause, you should be able to solve the problem. If this list does not cover your present problem,
or if you have other technical diculties with the unit, please contact your local dealer.
PROBLEM POSSIBLE CAUSE CORRECTION
Grill does not work
1. Power failure 1. Check if power is available.
2. Power not connected properly 2. Make sure the power source and powering
equipment is properly connected and tested.
3. Thermostat switch protection
engaged
3. Electronics overheated and activated
thermostat switch. A qualied professional
service technician must reset the thermal
switch and inspect the unit thoroughly.
4. GFCI or circuit breaker may be
tripped
4. Reset GFCI or circuit breaker.
Thermometer/
thermostat does not
work
1. No power to unit 1. Ensure power is available.
2. Unit timed-out after 2 hrs (idle mode) 2. Swipe hand over controls to illuminate buttons
and power on thermometer/thermostat.
3. Faulty thermometer/thermostat 3. Contact your dealer.
4. Display reads: OH 4. The PCB board overheated. Cause may be
due to wind entering rear of lid, or grease re.
Allow to cool and turn back on. Check fans are
working properly. If still no function, contact your
local dealer.
5. Display reads: Err 5. Thermocouple disconnected or faulty. Check
connection or replace if faulty.
6. Probe display reads: - - - 6. Meat probe temp. exceeded limit. Let cool
and retry, if still not functioning call dealer to
replace.
Cooking element
does not work
1. No power to unit 1. Ensure power is available.
2. Bad element 2. Contact your dealer.
TROUBLESHOOTING
44
R.H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
Quality Check
Date:______________
Electrical Leak Test: __________________________
Operation Test: __________________________
Inspector: __________________________
Model #:
Serial #:
A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED
This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained as
intended for single family residential usage (if the unit is installed in a commercial / multi-user setting, a separate Commercial / Multi-User Limited Warranty
applies and is available from RHP). This warranty is valid only with proof of purchase, commences on the date of purchase, and terminates (both as to original
and any replacement products) on the anniversary date of the original purchase of the product per the above schedules.
This warranty does not cover parts which become defective as a result of negligence, misuse, or use not in compliance with the Installation and Owner’s Manual,
accidental damage, improper handling, improper storage, improper installation, lack of required routine maintenance (as specied in the Installation and
Owner’s Manual), or electrical damage. Product must be installed as specied in the Installation and Owner’s Manual by a qualied professional installer.
This warranty does not apply to normal occurrences that may be expected with any outdoor product such as rust, corrosion, oxidation, or discoloration unless
the aected part becomes inoperable. RHP products including heating elements and controls are designed and certied to be used as a system. Modications
to products which are not specically authorized will void this warranty and could render the product to be unsafe. Heating elements, controls,Burners, valves,
parts, remotes, accessories, etc. used with this product must be RHP products or this warranty is void.
Warrantied items will be repaired or replaced at RHP's sole discretion. This warranty does not cover labor or labor related charges, except as provided by
separate specic written programs from RHP. All repair work must be performed by a qualied professional service person and requires prior approval of RHP.
RHP may require the defective product or part to be returned to the factory to determine the cause of failure. RHP will pay freight charges if the product or part
is determined to be defective. This warranty does not cover breakage in shipment from our independent distributor to its customer if the damage is determined
to have occurred during that shipment.
This warranty specically excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion or
limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specied legal rights, and you may
have other rights that vary from state to state or province.
For additional information regarding this warranty, or to place a warranty claim, contact the RHP dealer where the product was purchased.
When contacting your RHP dealer or the R.H. Peterson Co., please provide the following information:
- Your name, address, telephone number, e-mail
- Sales receipt showing where purchased and date purchased
- Model number, serial number of product, date code
- Relevant information: installer, additions, repairs, when defect was rst noted
TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,
AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.
PETERSON FIRE MAGIC GRILLS AND ACCESSORIES
LIMITED WARRANTY
R.H. Peterson Co. ("RHP") warrants your Fire Magic
®
grill to be free from defects in material and workmanship.
Fire Magic cast stainless-steel gas burners, Choice stainless steel U shaped burners, cooking grids, and Barbecue and vent hood housings are
warranted as long as the original purchaser owns them -- LIFETIME. (Except as described below.)
Fire Magic brass valves, manifold assemblies, inner liners, porcelain housings (including ovens and barbecue faces), and backburner assemblies
(except ignition systems) are warranted for FIFTEEN (15) YEARS.
Fire Magic built-in pizza ovens and griddles (except ignition system and thermostat) are warranted for TEN (10) YEARS.
Fire Magic heating elements, Infra-red burners, avor grids, and charcoal stainless steel grills are warranted for FIVE (5) YEARS; except for the
charcoal pan, charcoal grid, analog thermometer, and ash catch tray, which are warranted for ONE (1) YEAR.
Fire Magic side burners, induction cooktops, exterior Glass Fiber Reinforced Concrete (GFRC) grill island systems, and all other grill, vent hood,
pizza oven and griddle components (except ignition systems and electronic parts) are warranted for THREE (3) YEARS.
Fire Magic Echelon gas grill, pizza oven and EL500 electric grill under glass touch screen electronic controls are warranted for TWO (2) YEARS.
Fire Magic grill, pizza oven and griddle ignition systems (excluding batteries), electronic components (including lights, digital thermometers and
thermostats) and accessories are warranted for ONE (1) YEAR.
WARRANTY
