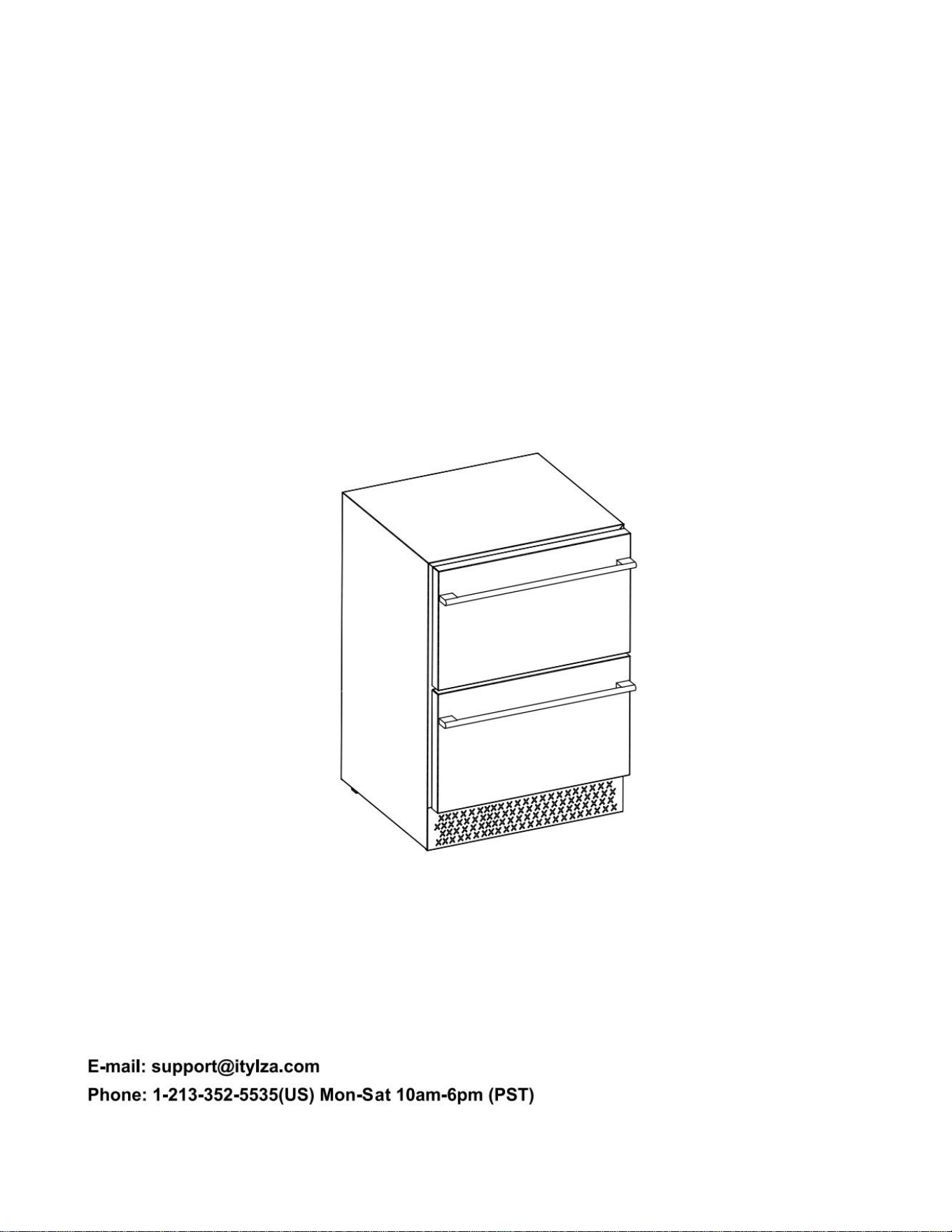

INSTRUCTION MANUAL
BUILT-IN BEVERAGE COOLER
MODEL:TYBC145
Read this manual and follow all safety rules and operating instructions before first use of this
Beverage cooler.
ＩＮＳＴＲＵＣＴＩＯＮ ＭＡＮＵＡＬ
ＴＹＬＺＡ
ＢＵＩＬＴ－ＩＮ ＢＥＶＥＲＡＧＥ ＣＯＯＬＥＲ
ＭＯＤＥＬ：ＴＹＢＣ１４５
Ｒｅａｄ ｔｈｉｓ ｍａｎｕａｌ ａｎｄ ｆｏｌｌｏｗ ａｌｌ ｓａｆｅｔｙ ｒｕｌｅｓ ａｎｄ ｏｐｅｒａｔｉｎｇ ｉｎｓｔｒｕｃｔｉｏｎｓ ｂｅｆｏｒｅ ｆｉｒｓｔ ｕｓｅ ｏｆ ｔｈｉｓ
Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ．
Ｅ－ｍａｉｌ： ｓｕｐｐｏｒｔ＠ｉｔｙｌｚａ．ｃｏｍ
Ｐｈｏｎｅ： １－２１３－３５２－５５３５（ＵＳ） Ｍｏｎ－Ｓａｔ １０ａｍ－６ｐｍ （ＰＳＴ）
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 3
PRODUCT DIAGRAM 5
INSTALLATION INSTRUCTIONS 6
Before Using Your Beverage cooler 6
To Install Stainless Steel Handle 6
To Install Your Beverage cooler 7
OPERATION INSTRUCTIONS 9
Controls 9
Storage 10
CARE & MAINTENANCE 11
Cleaning Your Beverage cooler 11
Power Failure 12
Vacation Time 12
Moving Your Beverage cooler 12
Energy Saving Tips 12
TROUBLESHOOTING GUIDE 13-14
WARRANTY TERMS 15
ＩＡＢＬＥ ＯＦ ＣＯＮＴＥＮＴＳ
ＩＭＰＯＲＴＡＮＴ ＳＡＦＥＴＹ ＩＮＳＴＲＵＣＴＩＯＮＳ
３
ＰＲＯＤＵＣＴ ＤＩＡＧＲＡＭ
５
ＩＮＳＴＡＬＬＡＴＩＯＮ ＩＮＳＴＲＵＣＴＩＯＮＳ
６
Ｂｅｆｏｒｅ Ｕｓｉｎｇ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
６
Ｔｏ Ｉｎｓｔａｌｌ Ｓｔａｉｎｌｅｓｓ Ｓｔｅｅｌ Ｈａｎｄｌｅ
６
Ｔｏ Ｉｎｓｔａｌｌ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
７
ＯＰＥＲＡＴＩＯＮ ＩＮＳＴＲＵＣＴＩＯＮＳ
９
Ｃｏｎｔｒｏｌｓ
９
Ｓｔｏｒａｇｅ
１０
ＣＡＲＥ ＆ ＭＡＩＮＴＥＮＡＮＣＥ
１１
Ｃｌｅａｎｉｎｇ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
１１
Ｐｏｗｅｒ Ｆａｉｌｕｒｅ
１２
Ｖａｃａｔｉｏｎ Ｔｉｍｅ
１２
Ｍｏｖｉｎｇ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
１２
Ｅｎｅｒｇｙ Ｓａｖｉｎｇ Ｔｉｐｓ
１２
ＴＲＯＵＢＬＥＳＨＯＯＴＩＮＧ ＧＵＩＤＥ
１３－１４
ＷＡＲＲＡＮＴＹ ＴＥＲＭＳ
１５
3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, electric shock, and personal injury.
Plug into its own individual electrical outlet with a voltage rating that matches the rating
label on the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that cannot be
turned off by a switch or pull chain. Be sure that the plug is fully inserted into the
receptacle.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third ground prong from the power cord supplied.
To protect against electric shock, do not immerse the Beverage cooler, plug or cord in
water or other liquids.
Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler,
always grip the plug firmly and pull straight out from the wall outlet.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler with wet hands, while standing on a wet surface or while standing in water.
Unplug the Beverage cooler or disconnect power before cleaning or servicing. Failure to
do so can result in electrical shock or death.
When moving the Beverage cooler, be careful not to roll over or damage the power cord.
Never clean Beverage cooler parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapor and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
An empty Beverage cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment
and suffocation. Never allow children to operate, play with or crawl inside this Beverage
cooler.
ＩＭＰＯＲＴＡＮＴ ＳＡＦＥＴＹ ＩＮＳＴＲＵＣＴＩＯＮＳ
Ｙｏｕｒ ｓａｆｅｔｙ ａｎｄ ｔｈｅ ｓａｆｅｔｙ ｏｆ ｏｔｈｅｒｓ ａｒｅ ｖｅｒｙ ｉｍｐｏｒｔａｎｔ．
Ｔｈｉｓ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｃｏｍｐｌｉｅｓ ｗｉｔｈ ｔｈｅ ａｐｐｌｉｃａｂｌｅ ｓａｆｅｔｙ ｒｅｑｕｉｒｅｍｅｎｔｓ ａｎｄ ｉｓ ｓａｆｅ ｆｏｒ ｄａｉｌｙ ｕｓｅ．
Ｈｏｗｅｖｅｒ， ｂａｓｉｃ ｓａｆｅｔｙ ｐｒｅｃａｕｔｉｏｎｓ ｓｈｏｕｌｄ ａｌｗａｙｓ ｂｅ ｆｏｌｌｏｗｅｄ ｗｈｅｎ ｕｓｉｎｇ ａｎ ｅｌｅｃｔｒｉｃａｌ ａｐｐｌｉａｎｃｅ，
ｔｏ ｒｅｄｕｃｅ ｔｈｅ ｒｉｓｋ ｏｆ ｆｉｒｅ， ｅｌｅｃｔｒｉｃ ｓｈｏｃｋ， ａｎｄ ｐｅｒｓｏｎａｌ ｉｎｊｕｒｙ．
ＤＡＮＧＥＲ
Ｐｌｕｇ ｉｎｔｏ ｉｔｓ ｏｗｎ ｉｎｄｉｖｉｄｕａｌ ｅｌｅｃｔｒｉｃａｌ ｏｕｔｌｅｔ ｗｉｔｈ ａ ｖｏｌｔａｇｅ ｒａｔｉｎｇ ｔｈａｔ ｍａｔｃｈｅｓ ｔｈｅ ｒａｔｉｎｇ
ｌａｂｅｌ ｏｎ ｔｈｅ ｃｏｏｌｅｒ （１１５／１２０Ｖ ＡＣ ｏｎｌｙ， ６０Ｈｚ， １０Ａ）． Ｕｓｅ ｒｅｃｅｐｔａｃｌｅｓ ｔｈａｔ ｃａｎｎｏｔ ｂｅ
ｔｕｒｎｅｄ ｏｆｆ ｂｙ ａ ｓｗｉｔｃｈ ｏｒ ｐｕｌｌ ｃｈａｉｎ． Ｂｅ ｓｕｒｅ ｔｈａｔ ｔｈｅ ｐｌｕｇ ｉｓ ｆｕｌｌｙ ｉｎｓｅｒｔｅｄ ｉｎｔｏ ｔｈｅ
ｒｅｃｅｐｔａｃｌｅ．
Ｐｌｕｇ ｉｎｔｏ ａ ｇｒｏｕｎｄｅｄ ３－ｐｒｏｎｇ ｏｕｔｌｅｔ． Ｄｏ ｎｏｔ ｕｎｄｅｒ ａｎｙ ｃｉｒｃｕｍｓｔａｎｃｅｓ ｃｕｔ ｏｒ ｒｅｍｏｖｅ ｔｈｅ
ｔｈｉｒｄ ｇｒｏｕｎｄ ｐｒｏｎｇ ｆｒｏｍ ｔｈｅ ｐｏｗｅｒ ｃｏｒｄ ｓｕｐｐｌｉｅｄ．
Ｔｏ ｐｒｏｔｅｃｔ ａｇａｉｎｓｔ ｅｌｅｃｔｒｉｃ ｓｈｏｃｋ， ｄｏ ｎｏｔ ｉｍｍｅｒｓｅ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ， ｐｌｕｇ ｏｒ ｃｏｒｄ ｉｎ
ｗａｔｅｒ ｏｒ ｏｔｈｅｒ ｌｉｑｕｉｄｓ．
Ｎｅｖｅｒ ｕｎｐｌｕｇ ｔｈｅ ｃｏｏｌｅｒ ｂｙ ｐｕｌｌｉｎｇ ｔｈｅ ｐｏｗｅｒ ｃｏｒｄ． Ｔｏ ｄｉｓｃｏｎｎｅｃｔ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ，
ａｌｗａｙｓ ｇｒｉｐ ｔｈｅ ｐｌｕｇ ｆｉｒｍｌｙ ａｎｄ ｐｕｌｌ ｓｔｒａｉｇｈｔ ｏｕｔ ｆｒｏｍ ｔｈｅ ｗａｌｌ ｏｕｔｌｅｔ．
Ｒｅｐａｉｒ ｏｒ ｒｅｐｌａｃｅ ｉｍｍｅｄｉａｔｅｌｙ ａｌｌ ｐｏｗｅｒ ｃｏｒｄｓ ｔｈａｔ ｈａｖｅ ｂｅｃｏｍｅ ｆｒａｙｅｄ ｏｒ ｏｔｈｅｒｗｉｓｅ
ｄａｍａｇｅｄ． Ｄｏ ｎｏｔ ｕｓｅ ａ ｃｏｒｄ ｔｈａｔ ｓｈｏｗｓ ｃｒａｃｋｓ ｏｒ ａｂｒａｓｉｏｎ ｄａｍａｇｅ ａｌｏｎｇ ｉｔｓ ｌｅｎｇｔｈ ｏｒ ａｔ
ｅｉｔｈｅｒ ｅｎｄ．
Ｄｏ ｎｏｔ ｃｏｎｎｅｃｔ ｏｒ ｄｉｓｃｏｎｎｅｃｔ ｔｈｅ ｅｌｅｃｔｒｉｃ ｐｌｕｇ ｗｈｅｎ ｙｏｕｒ ｈａｎｄｓ ａｒｅ ｗｅｔ． Ｄｏ ｎｏｔ ｏｐｅｒａｔｅ
ｔｈｅ ｃｏｏｌｅｒ ｗｉｔｈ ｗｅｔ ｈａｎｄｓ， ｗｈｉｌｅ ｓｔａｎｄｉｎｇ ｏｎ ａ ｗｅｔ ｓｕｒｆａｃｅ ｏｒ ｗｈｉｌｅ ｓｔａｎｄｉｎｇ ｉｎ ｗａｔｅｒ．
Ｕｎｐｌｕｇ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｏｒ ｄｉｓｃｏｎｎｅｃｔ ｐｏｗｅｒ ｂｅｆｏｒｅ ｃｌｅａｎｉｎｇ ｏｒ ｓｅｒｖｉｃｉｎｇ． Ｆａｉｌｕｒｅ ｔｏ
ｄｏ ｓｏ ｃａｎ ｒｅｓｕｌｔ ｉｎ ｅｌｅｃｔｒｉｃａｌ ｓｈｏｃｋ ｏｒ ｄｅａｔｈ．
Ｗｈｅｎ ｍｏｖｉｎｇ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ， ｂｅ ｃａｒｅｆｕｌ ｎｏｔ ｔｏ ｒｏｌｌ ｏｖｅｒ ｏｒ ｄａｍａｇｅ ｔｈｅ ｐｏｗｅｒ ｃｏｒｄ．
Ｎｅｖｅｒ ｃｌｅａｎ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｐａｒｔｓ ｗｉｔｈ ｆｌａｍｍａｂｌｅ ｆｌｕｉｄｓ． Ｔｈｅｓｅ ｆｕｍｅｓ ｃａｎ ｃｒｅａｔｅ ａ ｆｉｒｅ
ｈａｚａｒｄ ｏｒ ｅｘｐｌｏｓｉｏｎ． Ａｎｄ ｄｏ ｎｏｔ ｓｔｏｒｅ ｏｒ ｕｓｅ ｇａｓｏｌｉｎｅ ｏｒ ｏｔｈｅｒ ｆｌａｍｍａｂｌｅ ｖａｐｏｒ ａｎｄ
ｌｉｑｕｉｄｓ ｉｎ ｔｈｅ ｖｉｃｉｎｉｔｙ ｏｆ ｔｈｉｓ ｏｒ ａｎｙ ｏｔｈｅｒ ａｐｐｌｉａｎｃｅ． Ｔｈｅ ｆｕｍｅｓ ｃａｎ ｃｒｅａｔｅ ａ ｆｉｒｅ ｈａｚａｒｄ
ｏｒ ｅｘｐｌｏｓｉｏｎ．
Ｄｏ ｎｏｔ ａｔｔｅｍｐｔ ｔｏ ｒｅｐａｉｒ ｏｒ ｒｅｐｌａｃｅ ａｎｙ ｐａｒｔ ｏｆ ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｕｎｌｅｓｓ ｉｔ ｉｓ
ｓｐｅｃｉｆｉｃａｌｌｙ ｒｅｃｏｍｍｅｎｄｅｄ ｉｎ ｔｈｉｓ ｍａｎｕａｌ． Ａｌｌ ｏｔｈｅｒ ｓｅｒｖｉｃｉｎｇ ｓｈｏｕｌｄ ｂｅ ｒｅｆｅｒｒｅｄ ｔｏ ａ
ｑｕａｌｉｆｉｅｄ ｔｅｃｈｎｉｃｉａｎ．
Ａｎ ｅｍｐｔｙ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｃａｎ ｂｅ ｄａｎｇｅｒｏｕｓ ｔｏ ｃｈｉｌｄｒｅｎ． Ｒｅｍｏｖｅ ａｎｙ ｌａｔｃｈｅｓ， ｌｉｄｓ， ｌｏｃｋｓ，
ａｎｄ／ｏｒ ｄｏｏｒｓ ｆｒｏｍ ｕｎｕｓｅｄ ｏｒ ｄｉｓｃａｒｄｅｄ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒｓ ｔｏ ｐｒｅｖｅｎｔ ｃｈｉｌｄ ｅｎｔｒａｐｍｅｎｔ
ａｎｄ ｓｕｆｆｏｃａｔｉｏｎ． Ｎｅｖｅｒ ａｌｌｏｗ ｃｈｉｌｄｒｅｎ ｔｏ ｏｐｅｒａｔｅ， ｐｌａｙ ｗｉｔｈ ｏｒ ｃｒａｗｌ ｉｎｓｉｄｅ ｔｈｉｓ Ｂｅｖｅｒａｇｅ
ｃｏｏｌｅｒ．
３
4
Do not use this beverage cooler for other than its intended purpose. For indoor,
household use only.
Move this beverage cooler by 2 people. Failure to do so can result in injury.
Place this beverage cooler in a well-ventilated area with temperatures above 15°C (60°F)
and below 32°C (90°F).
To ensure proper ventilation for your beverage cooler, the front of the cooler must be
completely unobstructed.
This beverage cooler must be installed in an area away from wind, rain, water spray or
drips.
The beverage cooler should not be located next to ovens, grills or other sources of high
heat.
Do not kink or pinch the power supply cord of beverage cooler.
It is important for the beverage cooler to be leveled in order to work properly. You may
need to make several adjustments to level it.
This beverage cooler is designed for storing and cooling wines. Do not store perishable
food or medical products inside the cooler.
When disposing of refrigeration beverage coolers, special handling is often required. It is
the consumer’s responsibility to comply with federal and local regulations when
disposing of this product.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.
ＷＡＲＮＩＮＧ
Ｄｏ ｎｏｔ ｕｓｅ ｔｈｉｓ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｆｏｒ ｏｔｈｅｒ ｔｈａｎ ｉｔｓ ｉｎｔｅｎｄｅｄ ｐｕｒｐｏｓｅ． Ｆｏｒ ｉｎｄｏｏｒ，
ｈｏｕｓｅｈｏｌｄ ｕｓｅ ｏｎｌｙ．
Ｍｏｖｅ ｔｈｉｓ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｂｙ ２ ｐｅｏｐｌｅ． Ｆａｉｌｕｒｅ ｔｏ ｄｏ ｓｏ ｃａｎ ｒｅｓｕｌｔ ｉｎ ｉｎｊｕｒｙ．
Ｐｌａｃｅ ｔｈｉｓ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｎ ａ ｗｅｌｌ－ｖｅｎｔｉｌａｔｅｄ ａｒｅａ ｗｉｔｈ ｔｅｍｐｅｒａｔｕｒｅｓ ａｂｏｖｅ １５°Ｃ（６０°Ｆ）
ａｎｄ ｂｅｌｏｗ ３２°℃（９０°Ｆ）．
Ｔｏ ｅｎｓｕｒｅ ｐｒｏｐｅｒ ｖｅｎｔｉｌａｔｉｏｎ ｆｏｒ ｙｏｕｒ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ， ｔｈｅ ｆｒｏｎｔ ｏｆ ｔｈｅ ｃｏｏｌｅｒ ｍｕｓｔ ｂｅ
ｃｏｍｐｌｅｔｅｌｙ ｕｎｏｂｓｔｒｕｃｔｅｄ．
Ｔｈｉｓ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｍｕｓｔ ｂｅ ｉｎｓｔａｌｌｅｄ ｉｎ ａｎ ａｒｅａ ａｗａｙ ｆｒｏｍ ｗｉｎｄ， ｒａｉｎ， ｗａｔｅｒ ｓｐｒａｙ ｏｒ
ｄｒｉｐｓ．
Ｔｈｅ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｓｈｏｕｌｄ ｎｏｔ ｂｅ ｌｏｃａｔｅｄ ｎｅｘｔ ｔｏ ｏｖｅｎｓ， ｇｒｉｌｌｓ ｏｒ ｏｔｈｅｒ ｓｏｕｒｃｅｓ ｏｆ ｈｉｇｈ
ｈｅａｔ．
Ｄｏ ｎｏｔ ｋｉｎｋ ｏｒ ｐｉｎｃｈ ｔｈｅ ｐｏｗｅｒ ｓｕｐｐｌｙ ｃｏｒｄ ｏｆ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ．
Ｉｔ ｉｓ ｉｍｐｏｒｔａｎｔ ｆｏｒ ｔｈｅ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｔｏ ｂｅ ｌｅｖｅｌｅｄ ｉｎ ｏｒｄｅｒ ｔｏ ｗｏｒｋ ｐｒｏｐｅｒｌｙ． Ｙｏｕ ｍａｙ
ｎｅｅｄ ｔｏ ｍａｋｅ ｓｅｖｅｒａｌ ａｄｊｕｓｔｍｅｎｔｓ ｔｏ ｌｅｖｅｌ ｉｔ．
Ｔｈｉｓ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｓ ｄｅｓｉｇｎｅｄ ｆｏｒ ｓｔｏｒｉｎｇ ａｎｄ ｃｏｏｌｉｎｇ ｗｉｎｅｓ． Ｄｏ ｎｏｔ ｓｔｏｒｅ ｐｅｒｉｓｈａｂｌｅ
ｆｏｏｄ ｏｒ ｍｅｄｉｃａｌ ｐｒｏｄｕｃｔｓ ｉｎｓｉｄｅ ｔｈｅ ｃｏｏｌｅｒ．
Ｗｈｅｎ ｄｉｓｐｏｓｉｎｇ ｏｆ ｒｅｆｒｉｇｅｒａｔｉｏｎ ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒｓ， ｓｐｅｃｉａｌ ｈａｎｄｌｉｎｇ ｉｓ ｏｆｔｅｎ ｒｅｑｕｉｒｅｄ． Ｉｔ ｉｓ
ｔｈｅ ｃｏｎｓｕｍｅｒ＇ｓ ｒｅｓｐｏｎｓｉｂｉｌｉｔｙ ｔｏ ｃｏｍｐｌｙ ｗｉｔｈ ｆｅｄｅｒａｌ ａｎｄ ｌｏｃａｌ ｒｅｇｕｌａｔｉｏｎｓ ｗｈｅｎ
ｄｉｓｐｏｓｉｎｇ ｏｆ ｔｈｉｓ ｐｒｏｄｕｃｔ．
ＷＡＲＮＩＮＧ： Ｒｉｓｋ ｏｆ ｃｈｉｌｄ ｅｎｔｒａｐｍｅｎｔ ａｎｄ ｓｕｆｆｏｃａｔｉｏｎ． Ｂｅｆｏｒｅ ｙｏｕ ｔｈｒｏｗ ａｗａｙ ｔｈｉｓ ｏｒ ａｎ
ｏｌｄ ｃｏｏｌｅｒ， ｒｅｍｏｖｅ ｔｈｅ ｄｏｏｒ． Ｌｅａｖｅ ｔｈｅ ｓｈｅｌｖｅｓ ｉｎ ｐｌａｃｅ， ｓｏ ｔｈａｔ ｃｈｉｌｄｒｅｎ ｍａｙ ｎｏｔ ｅａｓｉｌｙ
ｃｌｉｍｂ ｉｎｓｉｄｅ．
４
5
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
PRODUCT DIAGRAM
1
Cabinet
3
Handle
2
Leveling Legs
4
Exhaust window
ＦＬＡＭＭＡＢＬＥ ＲＥＦＲＩＧＥＲＡＮＴ ＧＡＳ
ＤＡＮＧＥＲ － Ｒｉｓｋ ｏｆ ｆｉｒｅ ｏｒ ｅｘｐｌｏｓｉｏｎ． Ｆｌａｍｍａｂｌｅ ｒｅｆｒｉｇｅｒａｎｔ ｕｓｅｄ．
ＤＯ ＮＯＴ ｕｓｅ ｍｅｃｈａｎｉｃａｌ ｄｅｖｉｃｅｓ ｔｏ ｄｅｆｒｏｓｔ ｒｅｆｒｉｇｅｒａｔｏｒ． ＤＯ ＮＯＴ ｐｕｎｃｔｕｒｅ ｒｅｆｒｉｇｅｒａｎｔ
ｔｕｂｉｎｇ．
ＤＡＮＧＥＲ － Ｒｉｓｋ ｏｆ ｆｉｒｅ ｏｒ ｅｘｐｌｏｓｉｏｎ． Ｆｌａｍｍａｂｌｅ ｒｅｆｒｉｇｅｒａｎｔ ｕｓｅｄ． Ｔｏ ｂｅ ｒｅｐａｉｒｅｄ ｏｎｌｙ ｂｙ ｔｒａｉｎｅｄ
ｓｅｒｖｉｃｅ ｐｅｒｓｏｎｎｅｌ． ＤＯ ＮＯＴ ｐｕｎｃｔｕｒｅ ｒｅｆｒｉｇｅｒａｎｔ ｔｕｂｉｎｇ．
ＣＡＵＴＩＯＮ － Ｒｉｓｋ ｏｆ ｆｉｒｅ ｏｒ ｅｘｐｌｏｓｉｏｎ． Ｆｌａｍｍａｂｌｅ ｒｅｆｒｉｇｅｒａｎｔ ｕｓｅｄ． Ｃｏｎｓｕｌｔ ｒｅｐａｉｒ ｍａｎｕａｌ ／ ｏｗｎｅｒ＇ｓ
ｇｕｉｄｅ ｂｅｆｏｒｅ ａｔｔｅｍｐｔｉｎｇ ｔｏ ｓｅｒｖｉｃｅ ｔｈｉｓ ｐｒｏｄｕｃｔ． Ａｌｌ ｓａｆｅｔｙ ｐｒｅｃａｕｔｉｏｎｓ ｍｕｓｔ ｂｅ ｆｏｌｌｏｗｅｄ．
ＣＡＵＴＩＯＮ － Ｒｉｓｋ ｏｆ ｆｉｒｅ ｏｒ ｅｘｐｌｏｓｉｏｎ． Ｄｉｓｐｏｓｅ ｏｆ ｐｒｏｐｅｒｔｙ ｉｎ ａｃｃｏｒｄａｎｃｅ ｗｉｔｈ ｆｅｄｅｒａｌ ｏｒ ｌｏｃａｌ
ｒｅｇｕｌａｔｉｏｎｓ． Ｆｌａｍｍａｂｌｅ ｒｅｆｒｉｇｅｒａｎｔ ｕｓｅｄ．
ＣＡＵＴＩＯＮ － Ｒｉｓｋ ｏｆ ｆｉｒｅ ｏｒ ｅｘｐｌｏｓｉｏｎ ｄｕｅ ｔｏ ｐｕｎｃｔｕｒｅ ｏｆ ｒｅｆｒｉｇｅｒａｎｔ ｔｕｂｉｎｇ． Ｆｏｌｌｏｗ ｈａｎｄｌｉｎｇ
ｉｎｓｔｒｕｃｔｉｏｎｓ ｃａｒｅｆｕｌｌｙ． Ｆｌａｍｍａｂｌｅ ｒｅｆｒｉｇｅｒａｎｔ ｕｓｅｄ．
ＣＡＵＴＩＯＮ － Ｔｏ ｐｒｅｖｅｎｔ ａ ｃｈｉｌｄ ｆｒｏｍ ｂｅｉｎｇ ｅｎｔｒａｐｐｅｄ， ｋｅｅｐ ｏｕｔ ｏｆ ｒｅａｃｈ ｏｆ ｃｈｉｌｄｒｅｎ ａｎｄ ｎｏｔ ｉｎ ｔｈｅ
ｖｉｃｉｎｉｔｙ ｏｆ ｔｈｅ ｃｏｏｌｅｒ．
ＰＲＯＤＵＣＴ ＤＩＡＧＲＡＭ
①
②
③
④
１ Ｃａｂｉｎｅｔ
３ Ｈａｎｄｌｅ
２ Ｌｅｖｅｌｉｎｇ Ｌｅｇｓ
４ Ｅｘｈａｕｓｔ ｗｉｎｄｏｗ
５
6
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
Remove the exterior and interior packaging.
Check to be sure you have all of the following parts:
o
Instruction Manual
o
2 Extra Screws for Installing Handle
IMPORTANT: Before connecting this Beverage cooler to a power source, let it stand upright
for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.

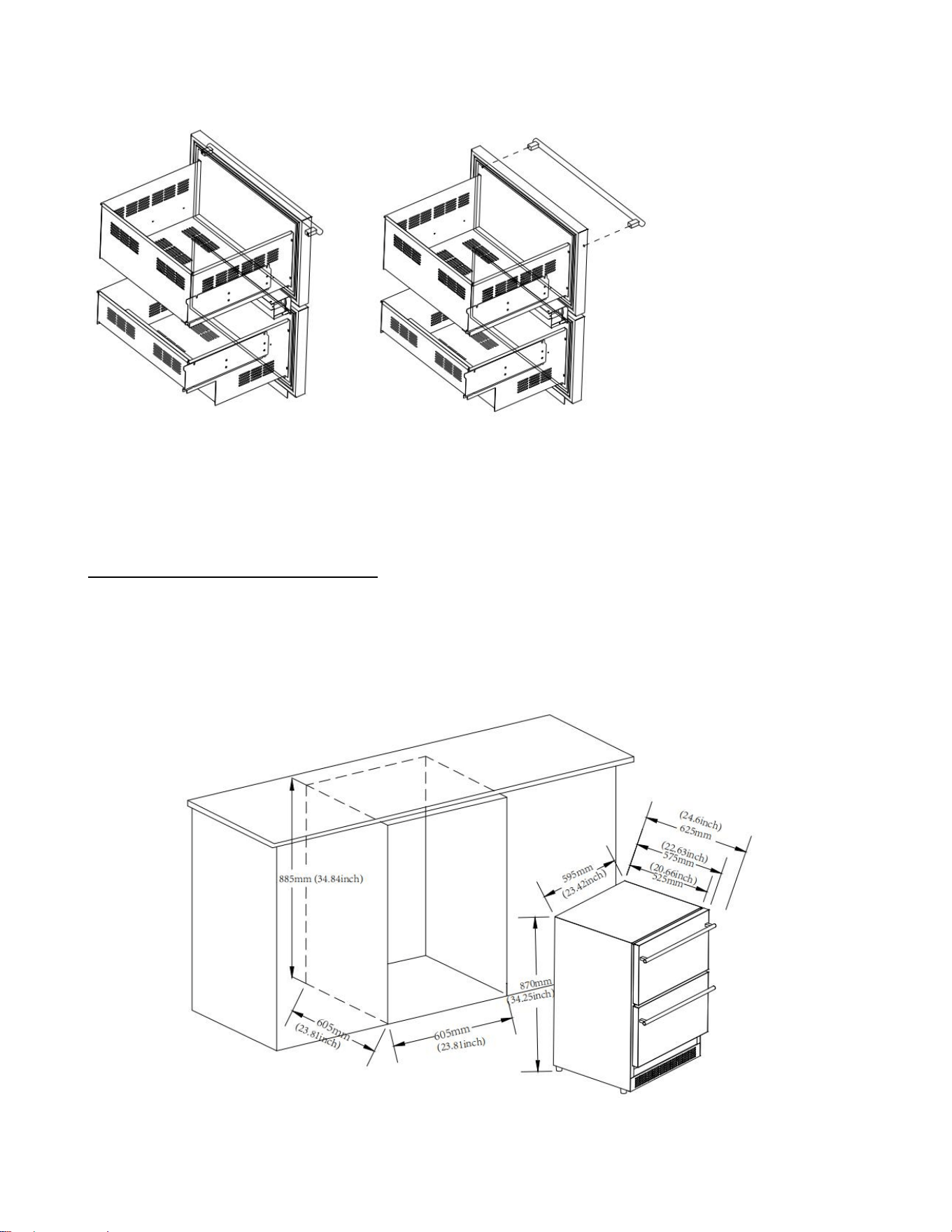

To Install Stainless Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
over tighten as this will cause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This Beverage cooler includes stainless steel handles that are not required to operate this
Beverage cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) into the
two holes separately. Continue on to step 3 to replace the door gasket to its original position.
ＩＮＳＴＡＬＬＡＴＩＯＮ ＩＮＳＴＲＵＣＴＩＯＮＳ
Ｂｅｆｏｒｅ Ｕｓｉｎｇ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
－ Ｒｅｍｏｖｅ ｔｈｅ ｅｘｔｅｒｉｏｒ ａｎｄ ｉｎｔｅｒｉｏｒ ｐａｃｋａｇｉｎｇ．
－ Ｃｈｅｃｋ ｔｏｂｅ ｕｒｅ ｙｏｕ ｈａｖｅ ｌｌ ｏｆ ｔｅ ｆｌｗｎｇ ｐａｒｔ：
ｏ Ｉｎｓｔｒｕｃｔｉｏｎ Ｍａｎｕａｌ
ｏ ２ Ｅｘｔｒａ Ｓｃｒｅｗｓ ｆｏｒ Ｉｎｓｔａｌｌｉｎｇ Ｈａｎｄｌｅ
ＩＭＰＯＲＴＡＮＴ： Ｂｅｆｏｒｅ ｃｏｎｎｅｃｔｉｎｇ ｔｈｉｓ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｔｏ ａ ｐｏｗｅｒ ｓｏｕｒｃｅ， ｌｅｔ ｉｔ ｓｔａｎｄ ｕｐｒｉｇｈｔ
ｆｏｒ ａｐｐｒｏｘｉｍａｔｅｌｙ ２４ ｈｏｕｒｓ． Ｔｈｉｓ ｗｉｌｌ ｒｅｄｕｃｅ ｔｈｅ ｐｏｓｓｉｂｉｌｉｔｙ ｏｆ ａ ｍａｌｆｕｎｃｔｉｏｎ ｉｎ ｔｈｅ ｃｏｏｌｉｎｇ
ｓｙｓｔｅｍ ｆｒｏｍ ｈａｎｄｌｉｎｇ ｄｕｒｉｎｇ ｔｒａｎｓｐｏｒｔａｔｉｏｎ．
－ Ｃｌｅａｎ ｔｈｅ ｉｔｒｉｏ ｕ ｃｅ ｗｉｌｕｅｗｍ ｕｉａ ｏｌｏｔ．
－ Ｉｎｓｔａｌｌ ｔｈｅ ｈａｎｄｌｅ ｏｎ ｈｅ ｌｅｆ ｉｄｅ ｏｆ ｔｈｅ ｄｏｏｒ．
Ｔｏ Ｉｎｓｔａｌｌ Ｓｔａｉｎｌｅｓｓ Ｓｔｅｅｌ Ｈａｎｄｌｅ
１） Ｐｕｌｌ ａｗａｙ ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ ｉｎ ｔｈｅ ａｒｅａ ｗｈｅｒｅ ｔｈｅ ｈａｎｄｌｅ ｉｓ ｔｏ ｂｅ ｉｎｓｔａｌｌｅｄ， ａｓ Ｉｌｌｕｓｔｒａｔｉｏｎ ＃１．
Ｔｈｅ ｇａｓｋｅｔ ｉｓ ｅａｓｉｌｙ ｒｅｍｏｖｅｄ ｂｙ ｈａｎｄ， ｎｏ ｔｏｏｌｓ ａｒｅ ｎｅｃｅｓｓａｒｙ．
２） Ａｌｉｇｎ ｔｈｅ ｈａｎｄｌｅ ｗｉｔｈ ｔｈｅ ｐｒｅ－ｉｎｓｔａｌｌｅｄ ｓｃｒｅｗｓ ｏｎ ｔｈｅ ｄｏｏｒ ｆｒａｍｅ． Ｔｉｇｈｔｅｎ ｔｈｅ ｓｃｒｅｗｓ ｗｉｔｈ ａ
ｓｃｒｅｗｄｒｉｖｅｒ ｕｎｔｉｌ ｔｈｅ ｈａｎｄｌｅｓ ｓｅｃｕｒｅ ｔｉｇｈｔｌｙ ａｇａｉｎｓｔ ｔｈｅ ｄｏｏｒ ｆｒａｍｅ， ａｓ Ｉｌｌｕｓｔｒａｔｉｏｎ ＃２．（Ｄｏ ＮＯＴ
ｏｖｅｒ ｔｉｇｈｔｅｎ ａｓ ｔｈｉｓ ｗｉｌｌ ｃａｕｓｅ ｄａｍａｇｅ ｔｏ ｔｈｅ ｈａｎｄｌｅ ａｓｓｅｍｂｌｙ）．
３） Ｒｅｐｌａｃｅ ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ ｔｏ ｉｔｓ ｏｒｉｇｉｎａｌ ｐｏｓｉｔｉｏｎ．
Ｎｏｔｅ： Ｔｈｉｓ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｎｃｌｕｄｅｓ ｓｔａｉｎｌｅｓｓ ｓｔｅｅｌ ｈａｎｄｌｅｓ ｔｈａｔ ａｒｅ ｎｏｔ ｒｅｑｕｉｒｅｄ ｔｏ ｏｐｅｒａｔｅ ｔｈｉｓ
Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ． Ｉｆ ｙｏｕ ｃｈｏｏｓｅ ｎｏｔ ｔｏ ｕｓｅ ｔｈｅ ｈａｎｄｌｅ ｓｕｐｐｌｉｅｄ， ｓｉｍｐｌｙ ｆｏｌｌｏｗ ｓｔｅｐ １ ｔｏ ａｃｃｅｓｓ ｔｈｅ
ｐｒｅ－ｉｎｓｔａｌｌｅｄ ｓｃｒｅｗｓ ａｎｄ ｒｅｍｏｖｅ ｔｈｅｍ ａｎｄ ｔｈｅｎ ｐｌａｃｅ ２ ｄｅｃｏｒａｔｉｖｅ ｐｌｕｇｓ （ＮＯＴ ｉｎｃｌｕｄｅｄ） ｉｎｔｏ ｔｈｅ
ｔｗｏ ｈｏｌｅｓ ｓｅｐａｒａｔｅｌｙ． Ｃｏｎｔｉｎｕｅ ｏｎ ｔｏ ｓｔｅｐ ３ ｔｏ ｒｅｐｌａｃｅ ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ ｔｏ ｉｔｓ ｏｒｉｇｉｎａｌ ｐｏｓｉｔｉｏｎ．
６
7
Illustration #1 Illustration #2
To Install Your Beverage cooler
This Beverage cooler is designed for free standing or built-in (fully recessed) installation.
1 Gasket
2 Screw
3 Screw Driver
4 Handle
Ｉｌｌｕｓｔｒａｔｉｏｎ ＃１
Ｉｌｌｕｓｔｒａｔｉｏｎ ＃２
１ Ｇａｓｋｅｔ
２Ｓｃｒｅｗ
３ Ｓｃｒｅｗ Ｄｒｉｖｅｒ
４ Ｈａｎｄｌｅ
Ｔｏ Ｉｎｓｔａｌｌ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
－ Ｔｈｉｓ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｓ ｄｅｓｉｇｎｅｄ ｆｏｒ ｆｒｅｅ ｓｔａｎｄｉｎｇ ｏｒ ｂｕｉｌｔ－ｉｎ （ｆｕｌｌｙ ｒｅｃｅｓｓｅｄ） ｉｎｓｔａｌｌａｔｉｏｎ．
８８５ｍｍ（３４．８４ｉｎｃｈ）
６０５ｍｍ
（２３．８１ｉｎｃｈ）
８７０ｍｍ
３４．２５ｉｎｃｈ
（２４．６ｉｎｃｈ
６２
（２２．６３ｉｎｃｈｌ
５
５２５
７
8
Place your Beverage cooler on a solid and level floor that is strong enough to support it when
it is fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling
legs in and out to stabilize the cooler horizontally. If the legs are not properly adjusted, the
cooler may be unstable and result in excess noise or vibration.
Locate the Beverage cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold ambient temperatures may also cause the cooler not
to perform properly.
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
It is recommended you install the Beverage cooler in a place with temperatures above 60°F
(15°C) and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is
above or below recommended temperatures, the performance of the cooler may be affected.
Placing your cooler in extremely cold or hot conditions may cause interior temperatures to
fluctuate, and the temperature range of 3ºC-18ºC (37ºF-65ºF) may not be reached.
Connect the Beverage cooler to an exclusive, properly grounded, standard electrical supply
(115 V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and
ordinances. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized products service center.
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
The Beverage cooler should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the Beverage cooler. This
provides the best performance and also prevents overloading house wiring circuits that
could cause a fire hazard from overheated.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
Ｐｌａｃｅ ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｏｎ ａ ｓｏｌｉｄ ａｎｄ ｌｅｖｅｌ ｆｌｏｏｒ ｔｈａｔ ｉｓ ｓｔｒｏｎｇ ｅｎｏｕｇｈ ｔｏ ｓｕｐｐｏｒｔ ｉｔ ｗｈｅｎ
ｉｔ ｉｓ ｆｕｌｌｙ ｌｏａｄｅｄ． Ｔｈｉｓ ｗｉｌｌ ｅｎｓｕｒｅ ａ ｖｉｂｒａｔｉｏｎ－ｆｒｅｅ ａｎｄ ｎｏｉｓｅ－ｆｒｅｅ ｏｐｅｒａｔｉｏｎ． Ａｄｊｕｓｔ ｔｈｅ ｌｅｖｅｌｉｎｇ
ｌｅｇｓ ｉｎ ａｎｄ ｏｕｔ ｔｏ ｓｔａｂｉｌｉｚｅ ｔｈｅ ｃｏｏｌｅｒ ｈｏｒｉｚｏｎｔａｌｌｙ． Ｉｆ ｔｈｅ ｌｅｇｓ ａｒｅ ｎｏｔ ｐｒｏｐｅｒｌｙ ａｄｊｕｓｔｅｄ， ｔｈｅ
ｃｏｏｌｅｒ ｍａｙ ｂｅ ｕｎｓｔａｂｌｅ ａｎｄ ｒｅｓｕｌｔ ｉｎ ｅｘｃｅｓｓ ｎｏｉｓｅ ｏｒ ｖｉｂｒａｔｉｏｎ．
－ Ｌｏｃａｔｅ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ａｗａｙ ｆｒｏｍ ｄｉｒｅｃｔ ｓｕｎｌｉｇｈｔ ａｎｄ ｓｏｕｒｃｅｓ ｏｆ ｈｅａｔ （ｓｔｏｖｅ， ｈｅａｔｅｒ，
ｒａｄｉａｔｏｒ， ｅｔｃ．）． Ｄｉｒｅｃｔ ｓｕｎｌｉｇｈｔ ｍａｙ ａｆｆｅｃｔ ｔｈｅ ａｃｒｙｌｉｃ ｃｏａｔｉｎｇ ａｎｄ ｈｅａｔ ｓｏｕｒｃｅｓ ｍａｙ ｉｎｃｒｅａｓｅ
ｅｌｅｃｔｒｉｃａｌ ｃｏｎｓｕｍｐｔｉｏｎ． Ｅｘｔｒｅｍｅｌｙ ｃｏｌｄ ａｍｂｉｅｎｔ ｔｅｍｐｅｒａｔｕｒｅｓ ｍａｙ ａｌｓｏ ｃａｕｓｅ ｔｈｅ ｃｏｏｌｅｒ ｎｏｔ
ｔｏ ｐｅｒｆｏｒｍ ｐｒｏｐｅｒｌｙ．
Ｉｔ ｉｓ ｎｏｔ ａｄｖｉｓａｂｌｅ ｔｏ ｉｎｓｔａｌｌ ｔｈｉｓ ｃｏｏｌｅｒ ｉｎ ｍｏｉｓｔ ａｒｅａｓ ｏｒ ｄｉｒｅｃｔｌｙ ａｄｊａｃｅｎｔ ｔｏ ａ ｋｉｔｃｈｅｎ ｓｉｎｋ， ａｓ
ｍｏｉｓｔｕｒｅ ｃｏｕｌｄ ｃａｕｓｅ ｐｒｅｍａｔｕｒｅ ｃｏｒｒｏｓｉｏｎ ｔｏ ｔｈｅ ｃｏｍｐｏｎｅｎｔｓ ｏｆ ｙｏｕｒ ｎｅｗ ｃｏｏｌｅｒ．
－ Ｉｔ ｉｓ ｒｅｃｏｍｍｅｎｄｅｄ ｙｏｕ ｉｎｓｔａｌｌ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｎ ａ ｐｌａｃｅ ｗｉｔｈ ｔｅｍｐｅｒａｔｕｒｅｓ ａｂｏｖｅ ６０°Ｆ
（１５°Ｃ） ａｎｄ ｂｅｌｏｗ ９０°Ｆ（３２°Ｃ），ａｎｄ ｈｕｍｉｄｉｔｙ ｉｓ ｕｎｄｅｒ ６０？Ｉｆ ｔｈｅ ａｍｂｉｅｎｔ ｔｅｍｐｅｒａｔｕｒｅ ｉｓ
ａｂｏｖｅ ｏｒ ｂｅｌｏｗ ｒｅｃｏｍｍｅｎｄｅｄ ｔｅｍｐｅｒａｔｕｒｅｓ， ｔｈｅ ｐｅｒｆｏｒｍａｎｃｅ ｏｆ ｔｈｅ ｃｏｏｌｅｒ ｍａｙ ｂｅ ａｆｆｅｃｔｅｄ．
Ｐｌａｃｉｎｇ ｙｏｕｒ ｃｏｏｌｅｒ ｉｎ ｅｘｔｒｅｍｅｌｙ ｃｏｌｄ ｏｒ ｈｏｔ ｃｏｎｄｉｔｉｏｎｓ ｍａｙ ｃａｕｓｅ ｉｎｔｅｒｉｏｒ ｔｅｍｐｅｒａｔｕｒｅｓ ｔｏ
ｆｌｕｃｔｕａｔｅ， ａｎｄ ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ ｒａｎｇｅ ｏｆ ３０Ｃ－１８０Ｃ（３７０Ｆ－６５０Ｆ） ｍａｙ ｎｏｔ ｂｅ ｒｅａｃｈｅｄ．
－ Ｃｏｎｎｅｃｔ ｔｅ Ｂｅｖｒａｇｅ ｏａｅｃｕｉ，ｐｅ ｇ ｅ， ｓａｄａｒｄ ｅｌｅｔｒｉｃａｌ ｕｐｐｙ
（１１５ Ｖ ＡＣ ｏｎｌｙ，６０ Ｈｚ）， ｉｎ ａｃｃｏｒｄａｎｃｅ ｗｉｔｈ ｔｈｅ Ｎａｔｉｏｎａｌ Ｅｌｅｃｔｒｉｃａｌ Ｃｏｄｅ ａｎｄ ｌｏｃａｌ ｃｏｄｅｓ ａｎｄ
ｏｒｄｉｎａｎｃｅｓ． Ａｎｙ ｑｕｅｓｔｉｏｎｓ ｃｏｎｃｅｒｎｉｎｇ ｐｏｗｅｒ ａｎｄ／ｏｒ ｇｒｏｕｎｄｉｎｇ ｓｈｏｕｌｄ ｂｅ ｄｉｒｅｃｔｅｄ ｔｏｗａｒｄ ａ
ｃｅｒｔｉｆｉｅｄ ｅｌｅｃｔｒｉｃｉａｎ ｏｒ ａｎ ａｕｔｈｏｒｉｚｅｄ ｐｒｏｄｕｃｔｓ ｓｅｒｖｉｃｅ ｃｅｎｔｅｒ．
ＭＷａｒｎｉｎｇＮ： Ｉｍｐｒｏｐｅｒ ｕｓｅ ｏｆ ｔｈｅ ｇｒｏｕｎｄｅｄ ｐｌｕｇ ｃａｎ ｒｅｓｕｌｔ ｉｎ ｔｈｅ ｒｉｓｋ ｏｆ ｅｌｅｃｔｒｉｃａｌ ｓｈｏｃｋ． Ｉｆ ｔｈｅ
ｐｏｗｅｒ ｃｏｒｄ ｉｓ ｄａｍａｇｅｄ， ｈａｖｅ ｉｔ ｒｅｐｌａｃｅｄ ｂｙ ａｎ ａｕｔｈｏｒｉｚｅｄ ｓｅｒｖｉｃｅ ｃｅｎｔｅｒ．
· Ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｓｈｏｕｌｄ ａｌｗａｙｓ ｂｅ ｐｌｕｇｇｅｄ ｉｎｔｏ ｉｔｓ ｏｗｎ ｉｎｄｉｖｉｄｕａｌ ｅｌｅｃｔｒｉｃａｌ ｏｕｔｌｅｔ
ｗｈｉｃｈ ｈａｓ ａ ｖｏｌｔａｇｅ ｒａｔｉｎｇ ｔｈａｔ ｍａｔｃｈｅｓ ｔｈｅ ｒａｔｉｎｇ ｌａｂｅｌ ｏｎ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ． Ｔｈｉｓ
ｐｒｏｖｉｄｅｓ ｔｈｅ ｂｅｓｔ ｐｅｒｆｏｒｍａｎｃｅ ａｎｄ ａｌｓｏ ｐｒｅｖｅｎｔｓ ｏｖｅｒｌｏａｄｉｎｇ ｈｏｕｓｅ ｗｉｒｉｎｇ ｃｉｒｃｕｉｔｓ ｔｈａｔ
ｃｏｕｌｄ ｃａｕｓｅ ａ ｆｉｒｅ ｈａｚａｒｄ ｆｒｏｍ ｏｖｅｒｈｅａｔｅｄ．
Ｄｏ ｎｏｔ ｕｎｄｅｒ ａｎｙ ｃｉｒｃｕｍｓｔａｎｃｅｓ ｃｕｔ ｏｒ ｒｅｍｏｖｅ ｔｈｅ ｔｈｉｒｄ ｇｒｏｕｎｄ ｐｒｏｎｇ ｆｒｏｍ ｔｈｅ ｐｏｗｅｒ
ｃｏｒｄ ｓｕｐｐｌｉｅｄ．
８
9
Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding type Beverage
cooler extension cord having a grounding type plug and outlet and that the electrical
rating of the cord is 10 amperes (minimum) and 120 volts.
Do not use a cord that shows cracks or abrasion damage along its length or at either end.
If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to protect the Beverage
cooler it is connected to. Damages due to power surges are not considered a
manufacturer covered defect and will void your product warranty.
OPERATION INSTRUCTIONS
TEMPERATURE SETTING RANGE：3°C(37°F) and 18°C ( 65°F)
Recommended temperature settings
Beverage: 3°C -10°C (37°F - 50°F)
Sparkling wines:5°C - 8°C (41°F - 46°F)
Dry/white wines: 9°C - 14°C (48°F - 57°F)
Rose Wines 10°C - 11°C ( 50°F - 52°F)
Red wines: 15°C - 18°C (59°F - 64°F)
Controls
After plugging the Beverage cooler into a wall outlet, the cooler would turn on automatically and
the LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours
before placing wine bottles in the Beverage cooler.
Ｄｏ ｎｏｔ ｕｓｅ ａｎ ｅｘｔｅｎｓｉｏｎ ｃｏｒｄ ｏｒ ａｄａｐｔｅｒ ｐｌｕｇ． Ｈｏｗｅｖｅｒ， ｉｆ ｙｏｕ ｍｕｓｔ ｕｓｅ ａｎ ｅｘｔｅｎｓｉｏｎ
ｃｏｒｄ， ｉｔ ｉｓ ａｂｓｏｌｕｔｅｌｙ ｎｅｃｅｓｓａｒｙ ｔｈａｔ ｉｔ ｂｅ ａ ＵＬ－ｌｉｓｔｅｄ， ３－ｗｉｒｅ ｇｒｏｕｎｄｉｎｇ ｔｙｐｅ Ｂｅｖｅｒａｇｅ
ｃｏｏｌｅｒ ｅｘｔｅｎｓｉｏｎ ｃｏｒｄ ｈａｖｉｎｇ ａ ｇｒｏｕｎｄｉｎｇ ｔｙｐｅ ｐｌｕｇ ａｎｄ ｏｕｔｌｅｔ ａｎｄ ｔｈａｔ ｔｈｅ ｅｌｅｃｔｒｉｃａｌ
ｒａｔｉｎｇ ｏｆ ｔｈｅ ｃｏｒｄ ｉｓ １０ ａｍｐｅｒｅｓ（ｍｉｎｉｍｕｍ） ａｎｄ １２０ ｖｏｌｔｓ．
Ｄｏ ｎｏｔ ｕｓｅ ａ ｃｏｒｄ ｔｈａｔ ｓｈｏｗｓ ｃｒａｃｋｓ ｏｒ ａｂｒａｓｉｏｎ ｄａｍａｇｅ ａｌｏｎｇ ｉｔｓ ｌｅｎｇｔｈ ｏｒ ａｔ ｅｉｔｈｅｒ ｅｎｄ．
Ｉｆ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｓ ｇｏｉｎｇ ｔｏ ｂｅ ｕｓｅｄ ｉｎ ａｎ ａｒｅａ ｔｈａｔ ｉｓ ｐｒｏｎｅ ｔｏ ｐｏｗｅｒ
ｓｕｒｇｅｓ／ｏｕｔａｇｅｓ， ｉｔ ｉｓ ｓｕｇｇｅｓｔｅｄ ｔｈａｔ ｙｏｕ ｕｓｅ ａ ｐｏｗｅｒ ｓｕｒｇｅ ｐｒｏｔｅｃｔｏｒ． Ｔｈｅ ｓｕｒｇｅ
ｐｒｏｔｅｃｔｏｒ ｔｈａｔ ｙｏｕ ｓｅｌｅｃｔ ｍｕｓｔ ｈａｖｅ ａ ｓｕｒｇｅ ｂｌｏｃｋ ｈｉｇｈ ｅｎｏｕｇｈ ｔｏ ｐｒｏｔｅｃｔ ｔｈｅ Ｂｅｖｅｒａｇｅ
ｃｏｏｌｅｒ ｉｔ ｉｓ ｃｏｎｎｅｃｔｅｄ ｔｏ． Ｄａｍａｇｅｓ ｄｕｅ ｔｏ ｐｏｗｅｒ ｓｕｒｇｅｓ ａｒｅ ｎｏｔ ｃｏｎｓｉｄｅｒｅｄ ａ
ｍａｎｕｆａｃｔｕｒｅｒ ｃｏｖｅｒｅｄ ｄｅｆｅｃｔ ａｎｄ ｗｉｌｌ ｖｏｉｄ ｙｏｕｒ ｐｒｏｄｕｃｔ ｗａｒｒａｎｔｙ．
ＯＰＥＲＡＴＩＯＮ ＩＮＳＴＲＵＣＴＩＯＮＳ
ＴＥＭＰＥＲＡＴＵＲＥ ＳＥＴＴＩＮＧ ＲＡＮＧＥ： ３Ｃ（３７°Ｆ） ａｎｄ １８°Ｃ（６５°Ｆ）
Ｒｅｃｏｍｍｅｎｄｅｄ ｔｅｍｐｅｒａｔｕｒｅ ｓｅｔｔｉｎｇｓ
Ｂｅｖｅｒａｇｅ：３°Ｃ－１０℃（３７°Ｆ－５０°Ｆ）
Ｓｐａｒｋｌｉｎｇ ｗｉｎｅｓ：５°Ｃ－８°Ｃ（４１°Ｆ－４６°Ｆ）
Ｄｒｙ／ｗｈｉｔｅ ｗｉｎｅｓ： ９°Ｃ－１４℃（４８°Ｆ－５７°Ｆ）
Ｒｏｓｅ Ｗｉｎｅｓ １０°Ｃ－１１℃（５０°Ｆ－５２°Ｆ）
Ｒｅｄ ｗｉｎｅｓ： １５°Ｃ－１８°℃（５９°Ｆ－６４°Ｆ）
Ｃｏｎｔｒｏｌｓ
Ａｆｔｅｒ ｐｌｕｇｇｉｎｇ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｎｔｏ ａ ｗａｌｌ ｏｕｔｌｅｔ， ｔｈｅ ｃｏｏｌｅｒ ｗｏｕｌｄ ｔｕｒｎ ｏｎ ａｕｔｏｍａｔｉｃａｌｌｙ ａｎｄ
ｔｈｅ ＬＣＤ ｓｃｒｅｅｎ ｗｏｕｌｄ ｓｈｏｗ ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ ｉｎｓｉｄｅ ｏｆ ｔｈｅ ｃｏｏｌｅｒ．
Ａｆｔｅｒ ｓｅｔｔｉｎｇ ｙｏｕｒ ｄｅｓｉｒｅｄ ｓｅｒｖｉｎｇ ｔｅｍｐｅｒａｔｕｒｅ， ａｌｌｏｗ ｔｈｅ ｃｏｏｌｅｒ ｔｏ ｃｏｏｌ ｄｏｗｎ ｆｏｒ ３ ｔｏ ４ ｈｏｕｒｓ
ｂｅｆｏｒｅ ｐｌａｃｉｎｇ ｗｉｎｅ ｂｏｔｔｌｅｓ ｉｎ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ．
９
10
Press once to turn ON the cooler. Press and hold about 3 seconds to turn
OFF the cooler.
Press once to turn the interior light ON or OFF.
Press to increase or press to decrease the temperature in 1 degree
increments between 3°C and 18°C or between 37°F and 65°F.
Toggles the temperature display between Celsius and Fahrenheit.
Press to begin adjusting the temperature.
Each drawer contains a movable grid organizer to
keep your food and drinks neat and tidy.
点
Ｐｒｅｓｓ ｏｎｃｅ ｔｏ ｔｕｒｎ ＯＮ ｔｈｅ ｃｏｏｌｅｒ． Ｐｒｅｓｓ ａｎｄ ｈｏｌｄ
ＯＦＦ ｔｈｅ ｃｏｏｌｅｒ．
ａｂｏｕｔ ３ ｓｅｃｏｎｄｓ ｔｏ ｔｕｒｎ
Ｐｒｅｓｓ
ｏｎｃｅ ｔｏ ｔｕｒｎ ｔｈｅ ｉｎｔｅｒｉｏｒ ｌｉｇｈｔ ＯＮ ｏｒ ＯＦＦ．
十
Ｐｒｅｓｓ
ｔｏ ｉｎｃｒｅａｓｅ ｏｒ ｐｒｅｓｓ
ｔｏ ｄｅｃｒｅａｓｅ ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ ｉｎ １ ｄｅｇｒｅｅ
ｉｎｃｒｅｍｅｎｔｓ ｂｅｔｗｅｅｎ ３°Ｃ ａｎｄ １８°Ｃ ｏｒ ｂｅｔｗｅｅｎ ３７°Ｆ ａｎｄ ６５°Ｆ．
℃
Ｔｏｇｇｌｅｓ ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ ｄｉｓｐｌａｙ ｂｅｔｗｅｅｎ Ｃｅｌｓｉｕｓ ａｎｄ Ｆａｈｒｅｎｈｅｉｔ．
Ｐｒｅｓｓ ｔｏ ｂｅｇｉｎ ａｄｊｕｓｔｉｎｇ ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ．
４７６．２ｍｍ
１８．７４ｉｎｃｈ
４７６．２ｍｍ
１８．７４ｉｎｃｈ
２２０ｍｍ
８６６ｉｎｄ
１３０ｍｍ
５．１ｌｉｎｃｈ
７ｉｎ
５０６．２ｍｍ
１９．９２ｉｎｃｈ
５０６．２ｍｍ
１９．９２ｉｎｃｈ
Ｅａｃｈ ｄｒａｗｅｒ ｃｏｎｔａｉｎｓ ａ ｍｏｖａｂｌｅ ｇｒｉｄ ｏｒｇａｎｉｚｅｒ ｔｏ
ｋｅｅｐ ｙｏｕｒ ｆｏｏｄ ａｎｄ ｄｒｉｎｋｓ ｎｅａｔ ａｎｄ ｔｉｄｙ．
１０
11
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary.
This model can store about 180 standard cans.
The standard can as below:
The stated loading capacity is
based on the standard-size
soda drink with 2.6” in
diameter and 4.84” in height.
CARE & MAINTENANCE
Cleaning Your Beverage cooler
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
Turn off the power, unplug the Beverage cooler, and remove all items including shelves.
Wash the inside surfaces with warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area near the controls,
or any electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless
steel, which will contaminate the stainless steel with steel particles and rusting may
occur.
Ｓｔｏｒａｇｅ
Ｍａｎｙ ｃａｎｓ ａｎｄ ｂｏｔｔｌｅｓ ｍａｙ ｄｉｆｆｅｒ ｉｎ ｓｉｚｅ ａｎｄ ｄｉｍｅｎｓｉｏｎｓ． Ａｓ ｓｕｃｈ ｔｈｅ ａｃｔｕａｌ ｎｕｍｂｅｒ ｏｆ ｂｏｔｔｌｅｓ
ｙｏｕ ｍａｙ ｂｅ ａｂｌｅ ｔｏ ｓｔｏｒｅ ｍａｙ ｖａｒｙ．
Ｔｈｉｓ ｍｏｄｅｌ ｃａｎ ｓｔｏｒｅ ａｂｏｕｔ １８０ ｓｔａｎｄａｒｄ ｃａｎｓ．
Ｔｈｅ ｓｔａｎｄａｒｄ ｃａｎ ａｓ ｂｅｌｏｗ：
２．６＂
４．８４＂
Ｔｈｅ ｓｔａｔｅｄ ｌｏａｄｉｎｇ ｃａｐａｃｉｔｙ ｉｓ
ｂａｓｅｄ ｏｎ ｔｈｅ ｓｔａｎｄａｒｄ－ｓｉｚｅ
ｓｏｄａ ｄｒｉｎｋ ｗｉｔｈ ２．６”ｉｎ
ｄｉａｍｅｔｅｒ ａｎｄ ４．８４＂ ｉｎ ｈｅｉｇｈｔ．
ＣＡＲＥ ＆ ＭＡＩＮＴＥＮＡＮＣＥ
Ｃｌｅａｎｉｎｇ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
ＩＭＰＯＲＴＡＮＴ： Ａｌｗａｙｓ ｕｎｐｌｕｇ ｔｈｅ ｃｏｏｌｅｒ ｂｅｆｏｒｅ ｃｌｅａｎｉｎｇ ｏｒ ｐｅｒｆｏｒｍｉｎｇ ｍａｉｎｔｅｎａｎｃｅ． Ｎｅｖｅｒ ｕｓｅ
ｈａｒｓｈ ｃｌｅａｎｓｅｒｓ ｏｒ ｓｃｏｕｒｉｎｇ ｐａｄｓ ｔｏ ｃｌｅａｎ ａｎｙ ｐａｒｔ ｏｆ ｔｈｅ ｃｏｏｌｅｒ．
· Ｔｕｒｎ ｏｆｆ ｔｈｅ ｐｏｗｅｒ， ｕｎｐｌｕｇ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ， ａｎｄ ｒｅｍｏｖｅ ａｌｌ ｉｔｅｍｓ ｉｎｃｌｕｄｉｎｇ ｓｈｅｌｖｅｓ．
· Ｗａｓｈ ｔｈｅ ｉｎｓｉｄｅ ｓｕｒｆａｃｅｓ ｗｉｔｈ ｗａｒｍ ｗａｔｅｒ ａｎｄ ｂａｋｉｎｇ ｓｏｄａ ｓｏｌｕｔｉｏｎ． Ｔｈｅ ｓｏｌｕｔｉｏｎ ｓｈｏｕｌｄ
ｂｅ ａｂｏｕｔ ２ ｔａｂｌｅｓｐｏｏｎｓ ｏｆ ｂａｋｉｎｇ ｓｏｄａ ｔｏ ａ ｑｕａｒｔ ｏｆ ｗａｔｅｒ．
· Ｗａｓｈ ｔｈｅ ｓｈｅｌｖｅｓ ｗｉｔｈ ａ ｍｉｌｄ ｄｅｔｅｒｇｅｎｔ ｓｏｌｕｔｉｏｎ．
· Ｗｒｉｎｇ ｅｘｃｅｓｓ ｗａｔｅｒ ｏｕｔ ｏｆ ｔｈｅ ｓｐｏｎｇｅ ｏｒ ｃｌｏｔｈ ｗｈｅｎ ｃｌｅａｎｉｎｇ ｔｈｅ ａｒｅａ ｎｅａｒ ｔｈｅ ｃｏｎｔｒｏｌｓ，
ｏｒ ａｎｙ ｅｌｅｃｔｒｉｃａｌ ｐａｒｔｓ．
Ｗａｓｈ ｔｈｅ ｏｕｔｓｉｄｅ ｃａｂｉｎｅｔ ｗｉｔｈ ｗａｒｍ ｗａｔｅｒ ａｎｄ ａ ｍｉｌｄ ｌｉｑｕｉｄ ｄｅｔｅｒｇｅｎｔ． Ｒｉｎｓｅ ｗｅｌｌ ａｎｄ
ｗｉｐｅ ｄｒｙ ｗｉｔｈ ａ ｃｌｅａｎ ｓｏｆｔ ｃｌｏｔｈ． Ｄｏ ｎｏｔ ｕｓｅ ｓｔｅｅｌ ｗｏｏｌ ｏｒ ｓｔｅｅｌ ｂｒｕｓｈ ｔｏ ｒｕｂ ｔｈｅ ｓｔａｉｎｌｅｓｓ
ｓｔｅｅｌ， ｗｈｉｃｈ ｗｉｌｌ ｃｏｎｔａｍｉｎａｔｅ ｔｈｅ ｓｔａｉｎｌｅｓｓ ｓｔｅｅｌ ｗｉｔｈ ｓｔｅｅｌ ｐａｒｔｉｃｌｅｓ ａｎｄ ｒｕｓｔｉｎｇ ｍａｙ
ｏｃｃｕｒ．
１１
12
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your Beverage cooler. If the power is off for an extended period of time, proper steps should be
taken to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three weeks. For periods
longer than this, turn the Beverage cooler off and leave the door slightly ajar to prevent odor
from building inside the Beverage cooler.
Moving Your Beverage cooler
Remove all items (bottles) from the cooler;
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the Beverage cooler stays securely in the upright position during transportation.
Protect the outside of the Beverage cooler with a blanket or a similar item.
Energy saving tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.
Ｐｏｗｅｒ ｆａｉｌｕｒｅ
Ｍｏｓｔ ｐｏｗｅｒ ｆａｉｌｕｒｅｓ ａｒｅ ｃｏｒｒｅｃｔｅｄ ｗｉｔｈｉｎ ａ ｆｅｗ ｈｏｕｒｓ ａｎｄ ｓｈｏｕｌｄ ｎｏｔ ａｆｆｅｃｔ ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ ｏｆ
ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ． Ｉｆ ｔｈｅ ｐｏｗｅｒ ｉｓ ｏｆｆ ｆｏｒ ａｎ ｅｘｔｅｎｄｅｄ ｐｅｒｉｏｄ ｏｆ ｔｉｍｅ， ｐｒｏｐｅｒ ｓｔｅｐｓ ｓｈｏｕｌｄ ｂｅ
ｔａｋｅｎ ｔｏ ｐｒｏｔｅｃｔ ｙｏｕｒ ｃｏｎｔｅｎｔｓ．
Ｖａｃａｔｉｏｎ Ｔｉｍｅ
Ｌｅａｖｅ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｏｐｅｒａｔｉｎｇ ｄｕｒｉｎｇ ｖａｃａｔｉｏｎｓ ｏｆ ｌｅｓｓ ｔｈａｎ ｔｈｒｅｅ ｗｅｅｋｓ． Ｆｏｒ ｐｅｒｉｏｄｓ
ｌｏｎｇｅｒ ｔｈａｎ ｔｈｉｓ， ｔｕｒｎ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｏｆｆ ａｎｄ ｌｅａｖｅ ｔｈｅ ｄｏｏｒ ｓｌｉｇｈｔｌｙ ａｊａｒ ｔｏ ｐｒｅｖｅｎｔ ｏｄｏｒ
ｆｒｏｍ ｂｕｉｌｄｉｎｇ ｉｎｓｉｄｅ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ．
Ｍｏｖｉｎｇ Ｙｏｕｒ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ
－ Ｒｅｍｏｖｅａｌ ｉｔｅｍｓ（ｂｏｔ ｅｏｏｌｅｒ；
－ Ｓｅｃｕｒｅｌｙ ａｐｅ ｄｏｗａｎ ｌ ｉｍ ｕ ａ ｅｌｖ， ｉｉ ｌ．
－ Ｔｕｒｎ ｔｈｅ ａｄｊｕｓｔａｂｌｅ ｌｅｇ ｕｐ ｔｏ ｔｈｅ ｂａｓｅ ｔｏ ａｖｏｉｄ ｄａｍａｇｅ．
－ Ｔａｐｅ ｔｈｅ ｄｏｏｒ ｓｈｕｔ．
－ Ｅｎｓｕｒｅ ｔｈａｔ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｓｔａｙｓ ｓｅｃｕｒｅｌｙ ｉｎ ｔｈｅ ｕｐｒｉｇｈｔ ｐｏｓｉｔｉｏｎ ｄｕｒｉｎｇ ｔｒａｎｓｐｏｒｔａｔｉｏｎ．
Ｐｒｏｔｅｃｔ ｔｈｅ ｏｕｔｓｉｄｅ ｏｆ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｗｉｔｈ ａ ｂｌａｎｋｅｔ ｏｒ ａ ｓｉｍｉｌａｒ ｉｔｅｍ．
Ｅｎｅｒｇｙ ｓａｖｉｎｇ ｔｉｐｓ
－Ｔｈｅ ｃｏｏｌｅｒ ｓｈｏｕｌｄ ｂｅ ｌｏｃａｔｅｄ ｉｎ ｔｈｅ ｃｏｏｌｅｓｔ ａｒｅａ ｏｆ ｔｈｅ ｒｏｏｍ ａｗａｙ ｆｒｏｍ ｈｅａｔ ｓｏｕｒｃｅｓ ｏｒ ｄｉｒｅｃｔ
ｓｕｎｌｉｇｈｔ．
－ Ｅｎｓｕｒｅ ｔｈａｔ ｔｈｅ ｃｏｏｌｅｒ ｉｓ ａｄｅｑｕａｔｅｌｙ ｖｅｎｔｉｌａｔｅｄ． Ｎｅｖｅｒ ｃｏｖｅｒ ａｉｒ ｖｅｎｔｓ．
－ Ｏｎｌｙ ｏｐｅｎ ｔｈｅ ｃｏｏｌ ｄｏｏ ａ ｌｏｇ ｅｃｅｓｓａｒｙ． Ｆｒｅｑｕｅｎｔ ｏｐｅｎｉｎｇ ｏｆ ｔｈｅ ｄｏｏｒ ｗｉｌｌ ａｆｆｅｃｔ
ｉｎｔｅｒｎａｌ ｔｅｍｐｅｒａｔｕｒｅ．
１２
13
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be loose.
Ensure the Beverage cooler has been
plugged in properly.
The Beverage cooler is turned off.
Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Beverage
cooler is not
cold enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for the temperature to stabilize.
The Beverage cooler has recently
been disconnected for a period of
time.
It takes 3-4 hours for the Beverage
cooler to cool down completely.
Prolonged or frequent door
openings.
Open the door less often.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is hotter than
normal.
It’s normal for the Beverage cooler to
work harder under these conditions.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
Beverage cooler to run more until the
desired temperature is reached.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check the
set temperature, and set the
temperature properly.
The door is not closed completely. Close the door properly.
The door gasket does not seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
ＩＲＯＵＢＬＥＳＨＯＯＴＩＮＧ ＧＵＩＤＥ
ＰＲＯＢＬＥＭ
ＰＯＳＳＩＢＬＥ ＣＡＵＳＥ
ＳＯＬＵＴＩＯＮ
Ｔｈｅ Ｂｅｖｅｒａｇｅ
Ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｍａｙ ｎｏｔ ｂｅ
ｐｌｕｇｇｅｄ ｉｎ， ｏｒ ｐｌｕｇ ｍａｙ ｂｅ ｌｏｏｓｅ．
Ｅｎｓｕｒｅ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｈａｓ ｂｅｅｎ
ｐｌｕｇｇｅｄ ｉｎ ｐｒｏｐｅｒｌｙ．
ｃｏｏｌｅｒ ｄｏｅｓ ｎｏｔ
Ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｉｓ ｔｕｒｎｅｄ ｏｆｆ．
Ｐｒｅｓｓ
ｔｏ ｔｕｒｎ ｏｎ ｔｈｅ ｃｏｏｌｅｒ．
ｒｕｎ．
Ｈｏｕｓｅ ｆｕｓｅ ｂｌｏｗｎ ｏｒ ｔｒｉｐｐｅｄ ｃｉｒｃｕｉｔ
ｂｒｅａｋｅｒ．
Ｃｈｅｃｋ／ｒｅｐｌａｃｅ ｆｕｓｅ． Ｒｅｓｅｔ ｃｉｒｃｕｉｔ
ｂｒｅａｋｅｒ．
Ｅｘｔｅｒｎａｌ ｅｎｖｉｒｏｎｍｅｎｔ ｍａｙ ｒｅｑｕｉｒｅ ａ
ｈｉｇｈｅｒ ｓｅｔｔｉｎｇ．
Ｓｅｔ ａ ｃｏｌｄｅｒ ｓｅｔｔｉｎｇ． Ａｌｌｏｗ ｓｅｖｅｒａｌ ｈｏｕｒｓ
ｆｏｒ ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ ｔｏ ｓｔａｂｉｌｉｚｅ．
Ｔｈｅ Ｂｅｖｅｒａｇｅ
ｃｏｏｌｅｒ ｉｓ ｎｏｔ
ｃｏｌｄ ｅｎｏｕｇｈ．
Ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｈａｓ ｒｅｃｅｎｔｌｙ
ｂｅｅｎ ｄｉｓｃｏｎｎｅｃｔｅｄ ｆｏｒ ａ ｐｅｒｉｏｄ ｏｆ
ｔｉｍｅ．
Ｉｔ ｔａｋｅｓ ３－４ ｈｏｕｒｓ ｆｏｒ ｔｈｅ Ｂｅｖｅｒａｇｅ
ｃｏｏｌｅｒ ｔｏ ｃｏｏｌ ｄｏｗｎ ｃｏｍｐｌｅｔｅｌｙ．
Ｐｒｏｌｏｎｇｅｄ ｏｒ ｆｒｅｑｕｅｎｔ ｄｏｏｒ
ｏｐｅｎｉｎｇｓ．
Ｏｐｅｎ ｔｈｅ ｄｏｏｒ ｌｅｓｓ ｏｆｔｅｎ．
Ｔｈｅ ｄｏｏｒ ｉｓ ｎｏｔ ｃｌｏｓｅｄ ｃｏｍｐｌｅｔｅｌｙ．
Ｃｌｏｓｅ ｔｈｅ ｄｏｏｒ ｐｒｏｐｅｒｌｙ．
Ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ ｄｏｅｓ ｎｏｔ ｓｅａｌ
ｐｒｏｐｅｒｌｙ．
Ｃｈｅｃｋ ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ． Ｃｌｅａｎ ｏｒ ｃｈａｎｇｅ
ｇａｓｋｅｔ ｉｆ ｎｅｃｅｓｓａｒｙ．
Ｔｈｅ ｒｏｏｍ ｔｅｍｐｅｒａｔｕｒｅ ｉｓ ｈｏｔｔｅｒ ｔｈａｎ
ｎｏｒｍａｌ．
Ｉｔ＇ｓ ｎｏｒｍａｌ ｆｏｒ ｔｈｅ Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｔｏ
ｗｏｒｋ ｈａｒｄｅｒ ｕｎｄｅｒ ｔｈｅｓｅ ｃｏｎｄｉｔｉｏｎｓ．
Ａ ｌａｒｇｅ ａｍｏｕｎｔ ｏｆ ｃｏｎｔｅｎｔｓ ｈａｓ ｂｅｅｎ
ａｄｄｅｄ ｔｏ ｔｈｅ ｃｏｏｌｅｒ．
Ａ ｌａｒｇｅ ａｍｏｕｎｔ ｏｆ ｃｏｎｔｅｎｔｓ ｃａｕｓｅ ｔｈｅ
Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ ｔｏ ｒｕｎ ｍｏｒｅ ｕｎｔｉｌ ｔｈｅ
ｄｅｓｉｒｅｄ ｔｅｍｐｅｒａｔｕｒｅ ｉｓ ｒｅａｃｈｅｄ．
Ｔｈｅ ｃｏｍｐｒｅｓｓｏｒ
ｔｕｒｎｓ ｏｎ ａｎｄ ｏｆｆ
Ｐｒｏｌｏｎｇｅｄ ｏｒ ｆｒｅｑｕｅｎｔ ｄｏｏｒ
ｏｐｅｎｉｎｇｓ．
Ｏｐｅｎ ｔｈｅ ｄｏｏｒ ｌｅｓｓ ｏｆｔｅｎ．
ｆｒｅｑｕｅｎｔｌｙ．
Ｔｈｅ ｔｅｍｐｅｒａｔｕｒｅ ｈａｓ ｎｏｔ ｂｅｅｎ ｓｅｔ
ｃｏｒｒｅｃｔｌｙ．
Ｐｒｅｓｓ ｅｉｔｈｅｒ
ｏｒ
ｔｏ ｃｈｅｃｋ ｔｈｅ
ｓｅｔ ｔｅｍｐｅｒａｔｕｒｅ， ａｎｄ ｓｅｔ ｔｈｅ
ｔｅｍｐｅｒａｔｕｒｅ ｐｒｏｐｅｒｌｙ．
Ｔｈｅ ｄｏｏｒ ｉｓ ｎｏｔ ｃｌｏｓｅｄ ｃｏｍｐｌｅｔｅｌｙ．
Ｃｌｏｓｅ ｔｈｅ ｄｏｏｒ ｐｒｏｐｅｒｌｙ．
Ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ ｄｏｅｓ ｎｏｔ ｓｅａｌ
ｐｒｏｐｅｒｌｙ．
Ｃｈｅｃｋ ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ． Ｃｌｅａｎ ｏｒ ｃｈａｎｇｅ
ｇａｓｋｅｔ ｉｆ ｎｅｃｅｓｓａｒｙ．
１３
14
PROBLEM POSSIBLE CAUSE SOLUTION
The light does not
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped
or a blown fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to turn the light ON.
Vibrations.
The cooler is not leveled. Check to assure that the cooler is level.
The bottles are vibrating.
Make sure the bottles don
’
t touch each
others.
There is an object under the
cooler.
Remove the object under the cooler.
The cooler seems to
make too much
noise.
The cooler is not level. Level the cooler.
Normal noise from the flow
of the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly installed.
Re-install the door properly.
The gasket is dirty. Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or frequent door
openings.
Open the door less often.
The door does not seal
completely.
Check door gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8
A sensor has failed. Contact the customer service
ＰＲＯＢＬＥＭ
ＰＯＳＳＩＢＬＥ ＣＡＵＳＥ
ＳＯＬＵＴＩＯＮ
Ｎｏｔ ｐｌｕｇｇｅｄ ｉｎ．
Ｐｌｕｇ ｔｈｅ ｃｏｏｌｅｒ ｉｎ．
Ｔｈｅ ｌｉｇｈｔ ｄｏｅｓ ｎｏｔ
ｗｏｒｋ．
Ｔｈｅ ｃｉｒｃｕｉｔ ｂｒｅａｋｅｒ ｔｒｉｐｐｅｄ
ｏｒ ａ ｂｌｏｗｎ ｆｕｓｅ．
Ｃｈｅｃｋ ｔｈｅ ｂｒｅａｋｅｒ ａｎｄ／ｏｒ ｆｕｓｅｓ．
Ｔｈｅ ｌｉｇｈｔ ｂｕｔｔｏｎ ｉｓ ＂ＯＦＦ＂．
Ｐｒｅｓｓ
ｔｏ ｔｕｒｎ ｔｈｅ ｌｉｇｈｔ ＯＮ．
Ｔｈｅ ｃｏｏｌｅｒ ｉｓ ｎｏｔ ｌｅｖｅｌｅｄ．
Ｃｈｅｃｋ ｔｏ ａｓｓｕｒｅ ｔｈａｔ ｔｈｅ ｃｏｏｌｅｒ ｉｓ ｌｅｖｅｌ．
Ｖｉｂｒａｔｉｏｎｓ．
Ｔｈｅ ｂｏｔｔｌｅｓ ａｒｅ ｖｉｂｒａｔｉｎｇ．
Ｍａｋｅ ｓｕｒｅ ｔｈｅ ｂｏｔｔｌｅｓ ｄｏｎ＇ｔ ｔｏｕｃｈ ｅａｃｈ
ｏｔｈｅｒｓ．
Ｔｈｅｒｅ ｉｓ ａｎ ｏｂｊｅｃｔ ｕｎｄｅｒ ｔｈｅ
ｃｏｏｌｅｒ．
Ｒｅｍｏｖｅ ｔｈｅ ｏｂｊｅｃｔ ｕｎｄｅｒ ｔｈｅ ｃｏｏｌｅｒ．
Ｔｈｅ ｃｏｏｌｅｒ ｉｓ ｎｏｔ ｌｅｖｅｌ．
Ｌｅｖｅｌ ｔｈｅ ｃｏｏｌｅｒ．
Ｔｈｅ ｃｏｏｌｅｒ ｓｅｅｍｓ ｔｏ
ｍａｋｅ ｔｏｏ ｍｕｃｈ
ｎｏｉｓｅ．
Ｎｏｒｍａｌ ｎｏｉｓｅ ｆｒｏｍ ｔｈｅ ｆｌｏｗ
ｏｆ ｔｈｅ ｒｅｆｒｉｇｅｒａｎｔ
Ｔｈｅ ｒａｔｔｌｉｎｇ ｎｏｉｓｅ ｍａｙ ｃｏｍｅ ｆｒｏｍ ｔｈｅ ｆｌｏｗ
ｏｆ ｔｈｅ ｒｅｆｒｉｇｅｒａｎｔ， ｗｈｉｃｈ ｉｓ ｎｏｒｍａｌ． Ａｓ ｅａｃｈ
ｃｙｃｌｅ ｅｎｄｓ， ｙｏｕ ｍａｙ ｈｅａｒ ｇｕｒｇｌｉｎｇ ｓｏｕｎｄｓ
ｃａｕｓｅｄ ｂｙ ｔｈｅ ｆｌｏｗ ｏｆ ｒｅｆｒｉｇｅｒａｎｔ ｉｎ ｙｏｕｒ
ｃｏｏｌｅｒ． Ｃｏｎｔｒａｃｔｉｏｎ ａｎｄ ｅｘｐａｎｓｉｏｎ ｏｆ ｔｈｅ
ｉｎｓｉｄｅ ｗａｌｌｓ ｍａｙ ｃａｕｓｅ ｐｏｐｐｉｎｇ ａｎｄ
ｃｒａｃｋｌｉｎｇ ｎｏｉｓｅｓ．
Ｔｈｅ ｃｏｏｌｅｒ ｉｓ ｎｏｔ ｌｅｖｅｌ．
Ｌｅｖｅｌ ｔｈｅ ｃｏｏｌｅｒ．
Ｔｈｅ ｄｏｏｒ ｗｉｌｌ ｎｏｔ
Ｔｈｅ ｄｏｏｒ ｗａｓ ｒｅｖｅｒｓｅｄ ａｎｄ
ｎｏｔ ｐｒｏｐｅｒｌｙ ｉｎｓｔａｌｌｅｄ．
Ｒｅ－ｉｎｓｔａｌｌ ｔｈｅ ｄｏｏｒ ｐｒｏｐｅｒｌｙ．
ｃｌｏｓｅ ｐｒｏｐｅｒｌｙ．
Ｔｈｅ ｇａｓｋｅｔ ｉｓ ｄｉｒｔｙ．
Ｃｌｅａｎ ｔｈｅ ｄｏｏｒ ｇａｓｋｅｔ．
Ｔｈｅ ｓｈｅｌｖｅｓ ａｒｅ ｏｕｔ ｏｆ
ｐｏｓｉｔｉｏｎ．
Ｐｌａｃｅ ｔｈｅ ｓｈｅｌｖｅｓ ｐｒｏｐｅｒｌｙ．
Ｔｈｉｓ ｉｓ ｎｏｒｍａｌ ｄｕｒｉｎｇ ｈｉｇｈ
ｈｕｍｉｄｉｔｙ ｐｅｒｉｏｄｓ．
Ｌｏｗｅｒ ｔｈｅ ｒｏｏｍ ｈｕｍｉｄｉｔｙ．
Ｍｏｉｓｔｕｒｅ ｂｕｉｌｄ ｕｐ ｏｎ
ｉｎｔｅｒｉｏｒ ｏｒ
Ｔｈｉｓ ｉｓ ｎｏｒｍａｌ ｉｎ ｈｉｇｈ
ｔｅｍｐｅｒａｔｕｒｅ ｅｎｖｉｒｏｎｍｅｎｔ．
Ｍｏｖｅ ｔｈｅ ｃｏｏｌｅｒ ｔｏ ａ ｃｏｏｌｅｒ ｐｌａｃｅ， ａｎｄ ａｖｏｉｄ
ｈｅａｔ ａｎｄ ｓｕｎｌｉｇｈｔ．
ｅｘｔｅｒｉｏｒ ｏｆ ｔｈｅ
Ｂｅｖｅｒａｇｅ ｃｏｏｌｅｒ．
Ｐｒｏｌｏｎｇｅｄ ｏｒ ｆｒｅｑｕｅｎｔ ｄｏｏｒ
ｏｐｅｎｉｎｇｓ．
Ｏｐｅｎ ｔｈｅ ｄｏｏｒ ｌｅｓｓ ｏｆｔｅｎ．
Ｔｈｅ ｄｏｏｒ ｄｏｅｓ ｎｏｔ ｓｅａｌ
ｃｏｍｐｌｅｔｅｌｙ．
Ｃｈｅｃｋ ｄｏｏｒ ｇａｓｋｅｔｓ ｆｏｒ ｐｒｏｐｅｒ ｓｅａｌ．
Ｅｒｒｏｒ Ｃｏｄｅ：
Ｅ１－Ｅ２－Ｅ３－Ｅ４－Ｅ７－Ｅ８
Ａ ｓｅｎｓｏｒ ｈａｓ ｆａｉｌｅｄ．
Ｃｏｎｔａｃｔ ｔｈｅ ｃｕｓｔｏｍｅｒ ｓｅｒｖｉｃｅ
１４
15
Ｗａｒｒａｎｔｙ Ｔｅｒｍｓ
Ｗａｒｒａｎｔｙ Ｐｅｒｉｏｄ
１． Ｃｕｓｔｏｍｅｒｓ ａｒｅ ｅｎｔｉｔｌｅｄ ｔｏ ｒｅｐｌａｃｅｍｅｎｔ ｏｒ ｆｒｅｅ ｒｅｐａｉｒ ｓｅｒｖｉｃｅ ｉｎ ｃａｓｅ ｏｆ ｑｕａｌｉｔｙ ｄｅｆｅｃｔ（ｓ） ｆｏｕｎｄ
ｉｎ ｔｈｅ ｐｒｏｄｕｃｔ ｗｉｔｈｉｎ １５ ｄａｙｓ ｕｐｏｎ ｒｅｃｅｉｐｔ ｏｆ ｔｈｅ ｐｒｏｄｕｃｔ．
２． Ｃｕｓｔｏｍｅｒｓ ａｒｅ ｅｎｔｉｔｌｅｄ ｔｏ ｆｒｅｅ ｒｅｐａｉｒ ｓｅｒｖｉｃｅ ｆｒｏｍ ＴＹＬＺＡ ｆｏｒ ａｎｙ ｐｒｏｄｕｃｔ ｐｒｏｖｅｎ ｄｅｆｅｃｔｉｖｅ ｉｎ
ｍａｔｅｒｉａｌ ｏｒ ｗｏｒｋｍａｎｓｈｉｐ ｔｈａｔ ｒｅｓｕｌｔｓ ｉｎ ｐｒｏｄｕｃｔ ｆａｉｌｕｒｅ ｄｕｒｉｎｇ ｎｏｒｍａｌ ｃｏｎｓｕｍｅｒ ｕｓａｇｅ ａｎｄ
ｃｏｎｄｉｔｉｏｎｓ ｗｉｔｈｉｎ ｔｈｅ ｖａｌｉｄ ｗａｒｒａｎｔｙ ｐｅｒｉｏｄ， ｗｈｉｃｈ ｉｓ １２ ｍｏｎｔｈｓ ｃｏｕｎｔｉｎｇ ｆｒｏｍ ｔｈｅ ｄａｔｅ ｏｆ ｓｅｌｌｉｎｇ．
Ｈｏｗｅｖｅｒ， ｗａｒｒａｎｔｙ ｐｅｒｉｏｄ ｖａｒｉｅｓ ｂｙ ｐｒｏｄｕｃｔ ｃｏｍｐｏｎｅｎｔ ａｎｄ ｃｏｕｎｔｒｙ ｏｆ ｐｕｒｃｈａｓｅ． Ｐｌｅａｓｅ ｃｏｎｔａｃｔ
ｏｕｒ ａｆｔｅｒ－ｓａｌｅｓ ｓｅｒｖｉｃｅ ｔｅａｍ ｖｉａ ｓｕｐｐｏｒｔ＠ｉｔｙｌｚａ．ｃｏｍ ｆｏｒ ｄｅｔａｉｌｅｄ ｗａｒｒａｎｔｙ ｉｎｆｏｒｍａｔｉｏｎ．
Ｗａｒｒａｎｔｙ Ｅｘｃｌｕｓｉｏｎｓ
１．Ｐｒｏｄｕｃｔｓ ｓｕｂｊｅｃｔｅｄ ｔｏ ｕｎａｕｔｈｏｒｉｚｅｄ ｒｅｐａｉｒ， ｍｉｓｕｓｅ， ｃｏｌｌｉｓｉｏｎ， ｎｅｇｌｅｃｔ， ｍｉｓｈａｎｄｌｉｎｇ， ｓｏａｋｉｎｇ，
ａｃｃｉｄｅｎｔ， ａｎｄ ｕｎａｕｔｈｏｒｉｚｅｄ ａｌｔｅｒａｔｉｏｎ．
２．Ｐｒｏｄｕｃｔｓ ｓｕｂｊｅｃｔｅｄ ｔｏ ｉｍｐｒｏｐｅｒ ｕｓｅ ｏｒ ｗｈｏｓｅ ｌａｂｅｌｓ ｏｒ ｓｅｃｕｒｉｔｙ ｔａｇｓ ｈａｖｅ ｂｅｅｎ ｔｏｒｎ ｏｆｆ ｏｒ
ａｌｔｅｒｅｄ．
３． Ｐｒｏｄｕｃｔｓ ｗｈｏｓｅ ｗａｒｒａｎｔｙ ｈａｓ ｅｘｐｉｒｅｄ．
４． Ｐｒｏｄｕｃｔｓ ｄａｍａｇｅｄ ｄｕｅ ｔｏ ｆｏｒｃｅ ｍａｊｅｕｒｅ， ｓｕｃｈ ａｓ ｆｉｒｅ， ｆｌｏｏｄ， ｌｉｇｈｔｅｎｉｎｇ， ｅｔｃ．
Ｗａｒｒａｎｔｙ Ｃｌａｉｍ Ｐｒｏｃｅｄｕｒｅ
１．Ｉｆ ｆａｉｌｕｒｅ ｏｒ ａｎｙ ｐｒｏｂｌｅｍ ｏｃｃｕｒｓ ｔｏ ｙｏｕｒ ｐｒｏｄｕｃｔ ａｆｔｅｒ ｐｕｒｃｈａｓｅ， ｐｌｅａｓｅ ｃｏｎｔａｃｔ ｕｓ ｏｎ Ａｍａｚｏｎ，
ｏｒ ｙｏｕ ｃａｎ ａｌｗａｙｓ ｃｏｎｔａｃｔ ＴＹＬＺＡ＇ｓ ｃｕｓｔｏｍｅｒ ｓｅｒｖｉｃｅ ｔｈｒｏｕｇｈ ｅｍａｉｌ ａｔ ｓｕｐｐｏｒｔ＠ｉｔｙｌｚａ．ｃｏｍ ｏｒ
ｗｅｂｓｉｔｅ ａｔ ｗｗｗ．ｉｔｙｌｚａ．ｃｏｍ．
２． ＴＹＬＺＡ＇ｓ ｃｕｓｔｏｍｅｒ ｓｅｒｖｉｃｅ ｗｉｌｌ ｇｕｉｄｅ ｙｏｕ ｔｈｒｏｕｇｈ ｔｈｅ ｗｈｏｌｅ ｓｅｒｖｉｃｅ ｐｒｏｃｅｄｕｒｅ ｒｅｇａｒｄｉｎｇ ａｎｙ
ｐｒｏｄｕｃｔ ｉｓｓｕｅ ｏｒ ｐｒｏｂｌｅｍ ｙｏｕ ｈａｖｅ ｅｎｃｏｕｎｔｅｒｅｄ．
ＴＹＬＺＡ ｒｅｓｅｒｖｅｓ ｔｈｅ ｒｉｇｈｔ ｔｏ ｒｅｅｘａｍｉｎｅ ｄａｍａｇｅｄ ｏｒ ｒｅｔｕｒｎｅｄ ｐｒｏｄｕｃｔｓ．
Ｃｏｎｔａｃｔ Ｃａｒｄ
Ｗｅｂ： ｗｗｗ．ｉｔｙｌｚａ．ｃｏｍ
Ｅ－ｍａｉｌ： ｓｕｐｐｏｒｔ＠ｉｔｙｌｚａ．ｃｏｍ
Ｐｈｏｎｅ： １－２１３－３５２－５５３５（ＵＳ） Ｍｏｎ－Ｓａｔ １０ａｍ－６ｐｍ （ＰＳＴ）
１５
Warranty Terms
Warranty Period
1. Customers are entitled to replacement or free repair service in case of quality defect(s) found
in the product within 15 days upon receipt of the product.
2. Customers are entitled to free repair service from TYLZA for any product proven defective in
material or workmanship that results in product failure during normal consumer usage and
conditions within the valid warranty period, which is 12 months counting from the date of selling.
However, warranty period varies by product component and country of purchase. Please contact
our after-sales service team via support@itylza.com for detailed warranty information.
Warranty Exclusions
1. Products subjected to unauthorized repair, misuse, collision, neglect, mishandling, soaking,
accident, and unauthorized alteration.
2. Products subjected to improper use or whose labels or security tags have been torn off or
altered.
3. Products whose warranty has expired.
4. Products damaged due to force majeure, such as fire, flood, lightening, etc.
Warranty Claim Procedure
1. If failure or any problem occurs to your product after purchase, please contact us on Amazon,
or you can always contact TYLZA’s customer service through email at support@itylza.com or
website at www.itylza.com.
2. TYLZA’s customer service will guide you through the whole service procedure regarding any
product issue or problem you have encountered.
TYLZA reserves the right to reexamine damaged or returned products.
Contact Card
