INSTRUCTION MANUAL
OUTDOOR BEVERAGE COOLER
MODEL:YD24
Read this manual and follow all safety rules and operating instructions before first use of this
Beverage cooler.
Support Email：[email protected]
Support Phone：(213)516-2282
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
3
PRODUCT DIAGRAM
6
INSTALLATION INSTRUCTIONS
7
Before Using Your Beverage cooler
7
To Install Stainless Steel Handle
7
To Install Your Beverage cooler
8
OPERATION INSTRUCTIONS
9
Controls
10
Storage
11
CARE & MAINTENANCE
12
Cleaning Your Beverage cooler
12
Power Failure
12
Vacation Time
12
Moving Your Beverage cooler
13
Energy Saving Tips
13
TROUBLESHOOTING GUIDE
14-15
3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, electric shock, and personal injury.
Plug into its own individual electrical outlet with a voltage rating that matches the rating
label on the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that cannot be
turned off by a switch or pull chain. Be sure that the plug is fully inserted into the
receptacle.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third ground prong from the power cord supplied.
To protect against electric shock, do not immerse the Beverage cooler, plug or cord in
water or other liquids.
Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler,
always grip the plug firmly and pull straight out from the wall outlet.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler with wet hands, while standing on a wet surface or while standing in water.
Unplug the Beverage cooler or disconnect power before cleaning or servicing. Failure to
do so can result in electrical shock or death.
When moving the Beverage cooler, be careful not to roll over or damage the power cord.
Never clean Beverage cooler parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapor and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
An empty Beverage cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment
and suffocation. Never allow children to operate, play with or crawl inside this Beverage
cooler.
4

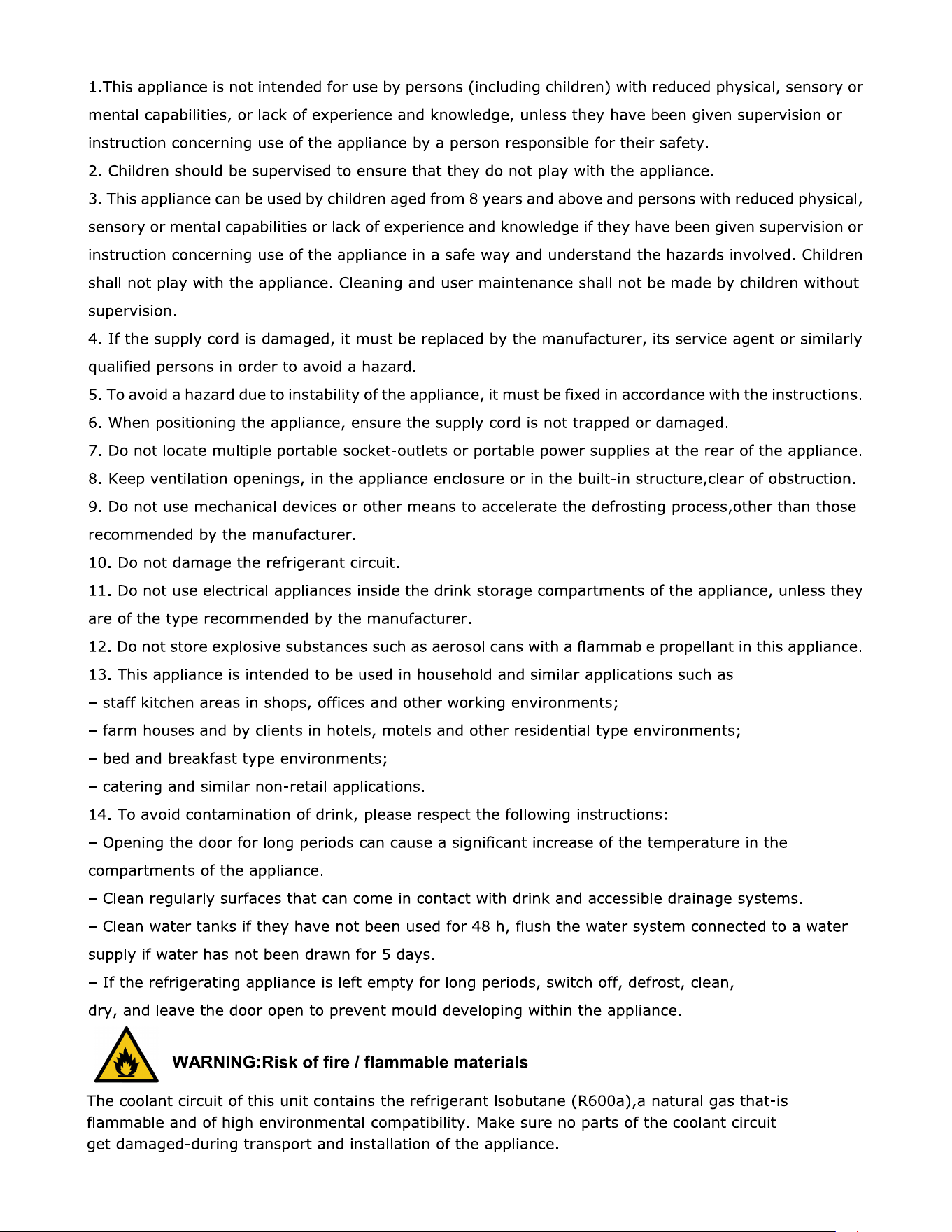

5
.
Do not use this beverage cooler for other than its intended purpose.
.
Move this beverage cooler by 2 people. Failure to do so can result in injury.
.
Place this beverage cooler in a well-ventilated area with tempera tures above 15°C (60°F)
and below 32°C (90°F).
.
To ensure proper ventilation for your beve rage cooler, the front of the cooler must be
completel y unobstructed.
.
The beverage cooler should not be located next to ovens, grills or other sources of high
heat.
.
Do not kink or pinch the power supply cord of beverage cooler.
.
It is important for the beverage cooler to be leveled in order to work properly. You may
need to make several adjustments to level it.
.
This beverage cooler is designed for storing and cooling . Do not store
perishable
food or medical products inside the cooler.
.
When disposing of refrigeration beverage coolers, special handling is often required. It is
the consumer’s responsibility to comply with federal and loca l reg
ulations when
disposing of this prod uct.
.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.
beverages
6
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precauti
ons must be followed.
CAUTION - Risk of fire or explosi on. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handlin g
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.

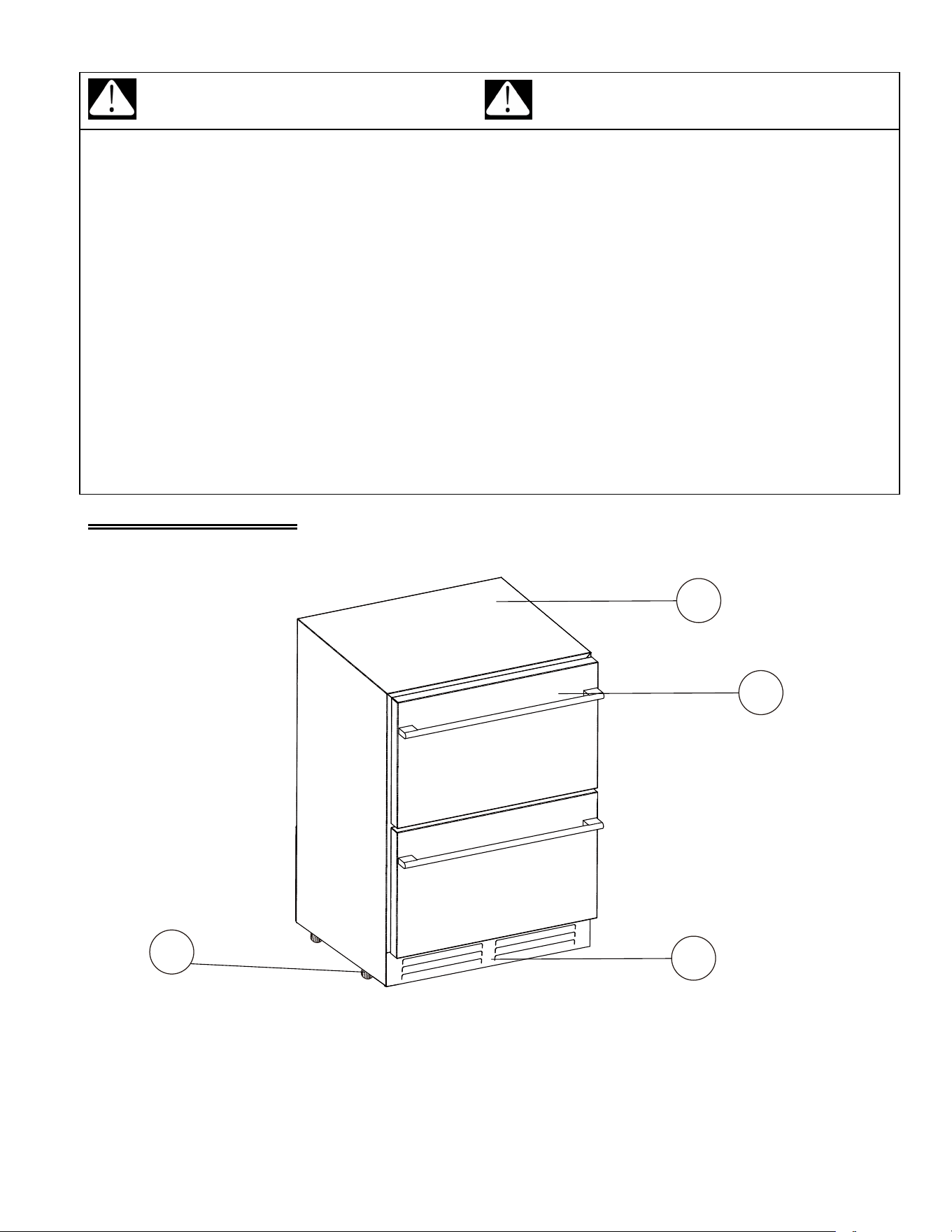

PRODUCT DIAGRAM
1
Cabinet
3
Door With Handle
2
Leveling Legs
4
Exhaust window
2
3
1
4
7
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
- Remove the exterior and interior packaging.
- Check to be sure you have all of the following parts:
o
Instruction Manual
o
2 Extra Screws for Installing Handle
- IMPORTANT: Before connecting this Beverag e cooler to a power source , let it stand upright
for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportat ion.
- Clean the interior surfac e with lukewarm water using a soft cloth.
- Install the handle
.

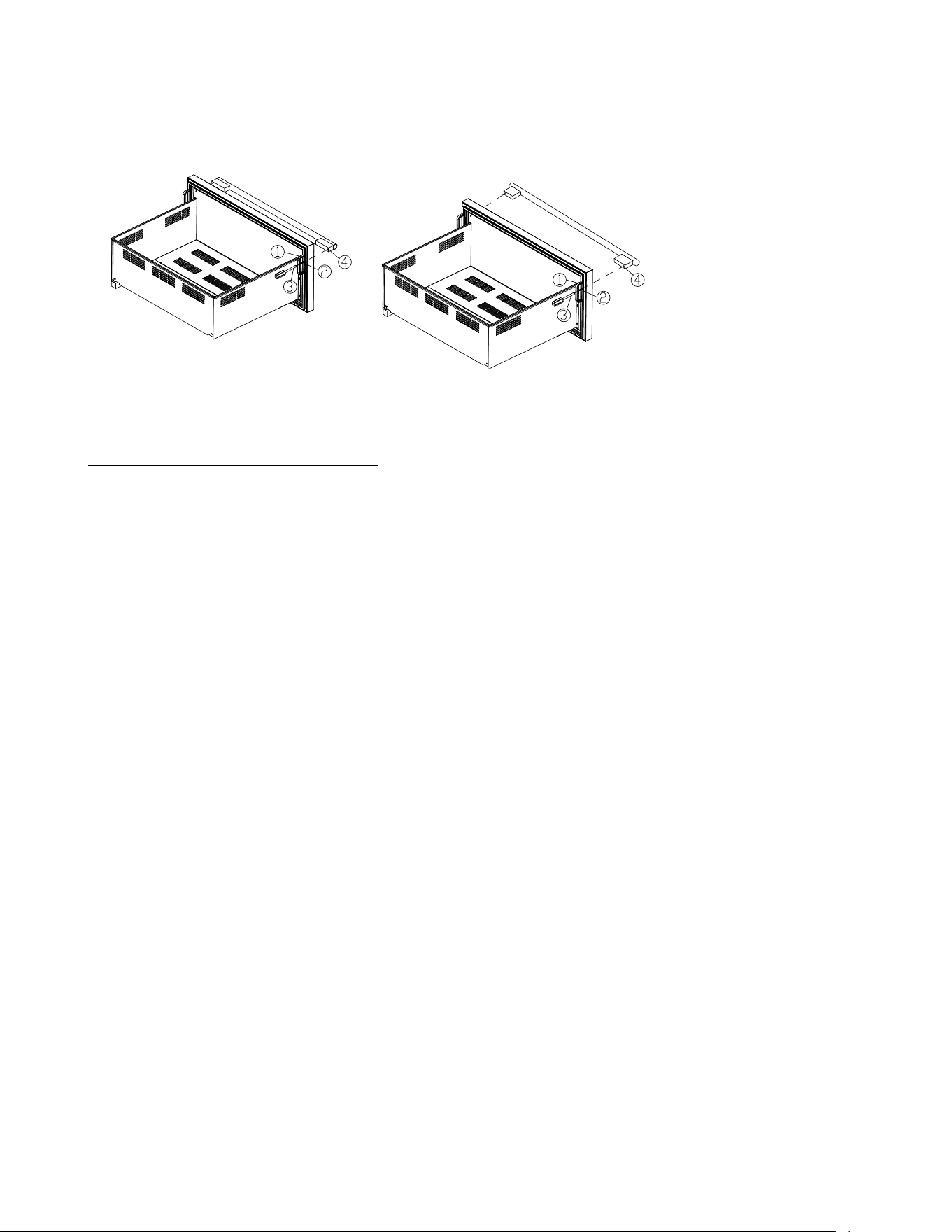

To Install Stainless Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessar y.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
over tighten as this will cause damage to the handle assembly).
3) Replace the door gasket to it
s original pos ition.
Note: This Beverage cooler includes stainless steel handles tha t are not required to o perate this
Beverage cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then pla ce 2 decorativ e plugs (NOT included) into the
two holes separat e ly. Continue o n to step 3 to replace the door gasket to its original position.
8
Illustration #1 Illustration #2
To Install Your Beverage cooler
-
This Beverage cooler is designed for free standing or built -in (fully recessed) installation.
-
Place your Beverage cooler on a solid and level floor that is strong enough to support it whe n
it is fully loaded. This will ensure a vibration-free and noise-free operation.
-
Locate the Beverage cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acry lic coating and heat sources may increase
electrical consum
ption. Extremely cold ambient temperatures may also caus e the cooler not
to perform properly.
-
It is not advisable to install this cooler in moist areas or directl y adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
-
It is recommended you install the Beverage cooler in a place with temperatures above 60°F
(15°C) and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is
above or below recommende
d temperatures, the performance of the cooler may be affected.
Placing your cooler in extremely cold or hot conditions m ay ca use interior temp e ratures to
1 Gasket
2 Screw
3 Screw Driver
4 Handle
fluctuate, and the tempe rature range of 3ºC-18ºC (37ºF-65ºF) may not be reached.
9
-
Connect the Beverage cooler to an exclusive, properly grounded, standard electrical supply
(115 V AC only, 60 Hz), in accordance with the National Electrical Code and local codes and
ordinances. Any questions concerning power and/or groun ding should be directed toward a
certified electrician or an authorized products service center.
Warning: Improper use of the grounded plug can resul t in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authoriz e d service center.
.
The Beverage cooler should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the Beverage cooler. This
provides the best performance and also prevents overloading house wiring circuits that
could cause a fire hazard from overheated.
.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
.
Do not use an extension cord or adapter plug. However, if you must use an extension
cord, it is absolutely nec e ssary that it be a UL-listed, 3-wire grounding type Beverage
cooler extension cord having a grounding type plug and outlet and that the electrical
rating of the cord is 10 amperes (m inimum) and 120 volts.
.
Do not use a cord that sho ws cracks or abrasion damage along its length or at either end.
. If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested tha t you use a power surge protector. The surge
protector that you select must have a surge block high enough to protect the Beverage
cooler it is connected to. Damages due to power surges are not considered a
manufacturer covered defect and will void your product warranty.
OPERATION INSTRUCTIONS
Recommended temperature settings
Beverage: 3°C -10°C (37°F - 50°F)
Sparkling wines:5°C - 8°C (41°F - 46°F)
Dry/white wines: 9°C - 14°C (48°F - 57°F)
Rose Wines 10°C - 11°C ( 50°F - 52°F)
Red wines: 15°C - 18°C (59°F - 65°F)
10
Controls
After plugging the Beverage cooler into a wal l outlet, the cooler would turn on automatically and
the LCD screen woul d sho w the temperature insid e of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 ho urs
before placing wine bottles in the Beverage cooler.

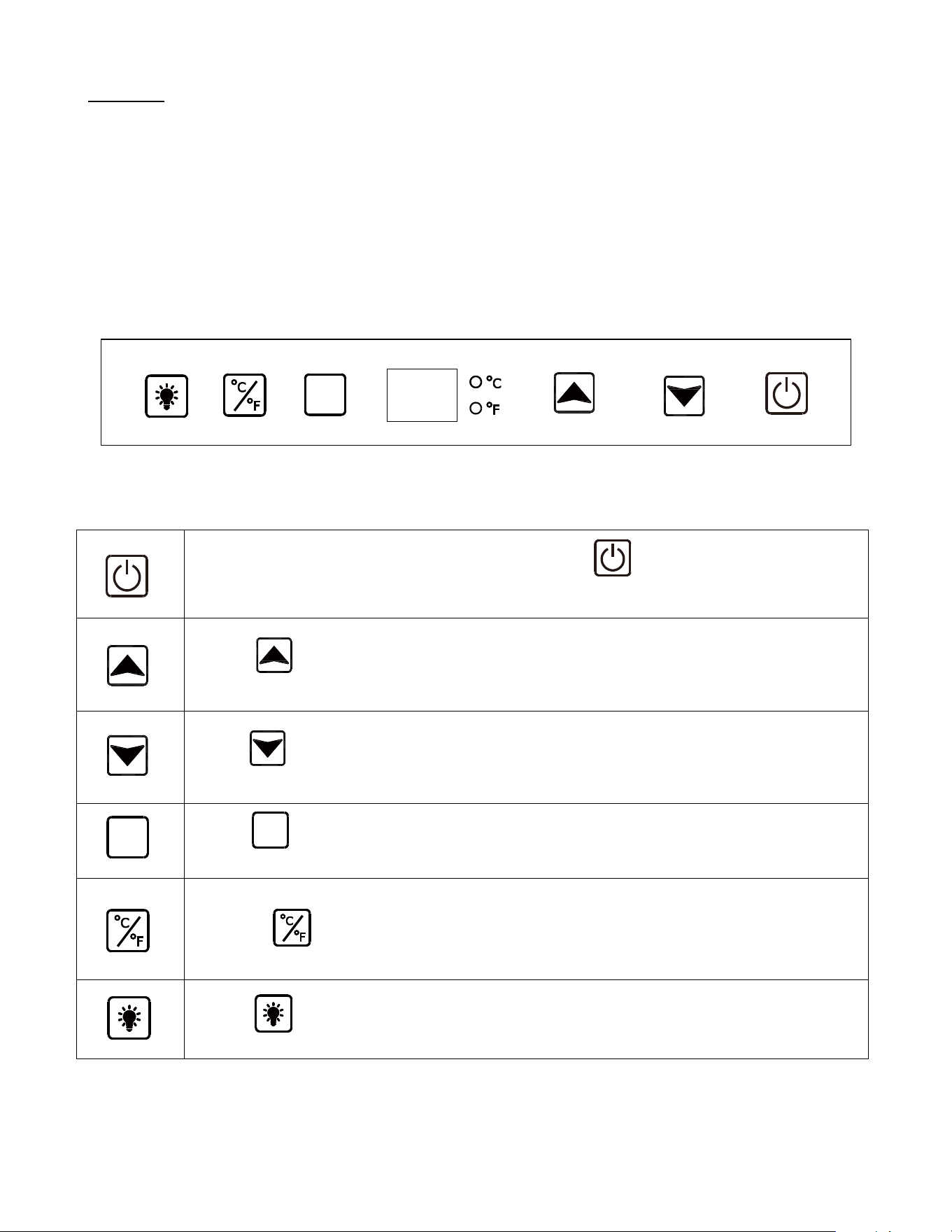

Press to begin adjusting the temperature
Press once to turn ON the cooler. Press and hold about 3 seconds to turn OFF
the cooler
Toggles the temperature display between Cel
sius and Fahrenheit
Temperature setting range：3-18℃(37℉-65℉)
Press the temperature in 1 degree increments
Press the temperature in 1 degree decrements
SET
Press once to turn the interior light ON or OFF
SET
SET
11
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary.
This model can store about 133 standard cans.
The standard can as below:
The stated loading capacity is
based on the standard-size
soda drink with 2.6” in
diameter and 4.84” in height.

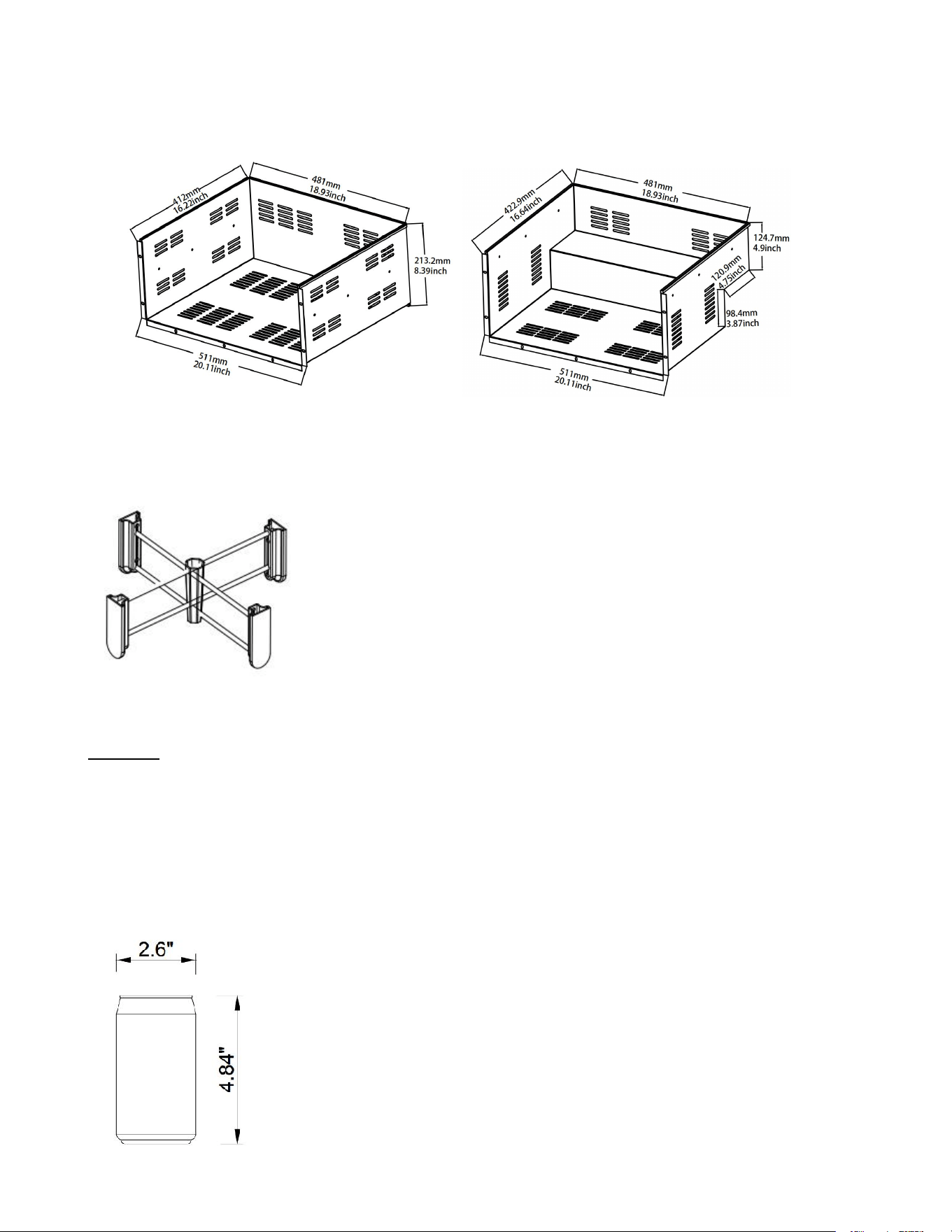

Each drawer contains a movable grid organizer to
keep your food and drinks neat and tidy.
12
CARE & MAINTENANCE
Cleaning Your Beverage cooler
IMPORTANT: Always unplug the cooler before cleaning or performing maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
Turn off the power, unplug the Beverage cooler, and remove all items including shelves.
Wash the inside surfaces with warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning the area near the controls,
or any electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless
steel, which will contaminate the stainless steel with steel particles and rusting may
occur.
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your Beverage cooler. If the power is off for an extended period of time, proper steps should be
taken to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three weeks. For periods
longer than this, turn the Beverage cooler off and leave the door slightly ajar to prevent odor
from building inside the Beverage cooler.
13
Moving Your Beverage cooler
-
Remove all items (bottle s) from the cooler;
-
Securely tape down any lo ose items, such as shelves, insid e the cooler.
-
Tape the door shut.
-
Ensure that the Beverag e cooler stays securely in the upright position during tra nsportation.
Protect the outside of the Beverag e cooler with a blanket or a similar item.
Energy saving tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door fo r as long as necessary. Frequen t open ing of the door will affect
internal temperature.
14
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be loose.
Ensure the Beverage cooler has been
plugged in properly.
The Beverage cooler is turned off.
Press to turn on the cooler.
House fuse blown or tripped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Beverage
cooler is not
cold enough.
External environment may require a
higher setting.
Set a colder setting. Allow several hours
for t
he temperature to stabilize.
The Beverage cooler has recently
been disconnected for a period of
time.
It takes 3-4 hours for the Beverage
cooler to cool down completely.
Prolonged or frequent door
openings.
Open the door less often.
The door is not closed comp l etely. Close the d oor properly.
The door gasket d oes not seal
properly.
Check the doo r gasket. Clean or change
gasket if necessary.
The compressor
turns on an d off
frequently.
The room temperature is hotter than
norma
l.
It’s normal for the Beverage cooler t o
work harder un der these conditions.
A large amount o f con tents has been
added to the cooler.
A large amount o f contents cause the
Beverage cooler to run more until the
desired temperature is re a ched.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not closed comp l etely. Close the d oor pr
operly.
The door gasket d oes not seal
properly.
Check the doo r gasket. Clean or change
gasket if necessary.
15
PROBLEM POSSIBLE CAUSE SOLUTION
The light do es not
work.
Not plugged in. Plug the cooler i n.
The circuit breaker tripped
or a blown fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to turn the light ON.
Vibrations.
The cooler is not leveled. Check to assur e that the cooler is level.
The bottles are vib r a tin g.
Make sure the bottles don
’
t touch each
others.
There is an object under the
cooler.
Remove the object under the cooler.
The cooler seems to
make too muc
h
noise.
The cooler is not level. Level the cooler.
Normal noise from the flow
of the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may hear gurgling sounds
caused by the flow of re frigerant in your
cooler. Contraction a nd expansion of the
inside walls may cause popping and
crackling noises.
The door will not
close properly.
The cooler is not level. Level the cooler.
The door was r eversed and
not properly instal
led.
Re-install the door properly.
The gasket is dir ty. Clean the doo r gasket.
The shelves are ou t of
position.
Place the shelves pr operly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunligh t.
Prolonged or frequent door
openings.
Open the door less often.
The door does not seal
compl
etely.
Check door gaskets for proper seal.
Error Code:
E1-E2-E3-E4-E7-E8
A sensor has failed. Contact the customer service
