These operating instructions apply to:
-
UBCgb 3731
1 Safety information and warnings
Keep this user information in a safe place so that you can
refer to it at any time.
If you pass on the appliance, pass this user information on
to subsequent owners.
To use the appliance properly and safely, read this user
information carefully before installation and use. Always
follow the instructions, safety instructions and warnings
contained therein. They are important so that you can install
and operate the appliance safely and properly.
1.1 Intended use
This appliance is suitable for use in commercial and retail
environments. It may be used for the storage, presentation
and sale of chilled packaged food and drinks. Designed for
the removal of chilled goods by customers.
This appliance is only designed for use in closed rooms.
All other types of application are impermissible.
1.2 Foreseeable erroneous use
The following applications are expressly prohibited:
-
Storage and cooling (freezing) of:
Safety information and warnings
2 * Depending on model and options
•
Chemically unstable, flammable or corrosive
substances
•
Medication, blood plasma, laboratory compounds or
similar substances and products subject to the
Medical Device Directive 2007/47/EC
-
Use in explosive areas
-
Use outdoors or in damp and splash water areas
Improper use of the appliance will result in damage or
spoilage of the stored goods.
1.3 Climate classes
Depending on its climate class, the appliance is designed
for operation within certain ambient temperature limits. The
climate class for your appliance is printed on the type plate.
Fig. 1 Type plate
(X)
This climate class indi‐
cates the ambient
conditions in which
the appliance can be
safely operated.
(Z) The temperature class
indicates the tempera‐
ture setting at which
the appliance works
perfectly.
(Y) This climate class
defines the maximum
conditions for the
appliance to function
properly.
Climate class (X) max. room tempera‐
ture
max. rel. humidity
3 +25°C 60%
4 +30°C 55%
5 +40°C 40%
7 +35°C 75%
Note
The minimum permissible room temperature at the installa‐
tion site is +10°C.
Under borderline conditions, slight condensation may form
on the glass door and on the side walls.
Climate class (Y) max. room tempera‐
ture
max. rel. humidity
CC1 +25.5°C 60%
CC2 +32.2°C 65%
CC3 +40.6°C 75%
Temperature class (Z) Temperature setting
K1 +3.5°C
K2 +2.5°C
K3 -1°C
K4 +5°C
L1 -18°C
M1 +5°C
M2 +7°C
1.4 User group
-
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowl‐
edge if they have been given supervision or instruction
concerning use of the appliance in a safe way and under‐
stand the hazards involved.
-
Children must not play with the appliance.
-
Children must not carry out cleaning and user mainte‐
nance without supervision.
1.5 Installation and commissioning
-
Only install and connect the appliance in accordance
with the instructions in the user information.
-
Install the appliance according to the instructions in the
user information to prevent the appliance from tipping
over.
-
Do not close the ventilation openings in the appliance
housing or in the installation housing.
-
Do not damage the mains cable. The appliance must not
be operated with a defective mains cable.
-
Do not place portable multiple sockets or power supply
units at the rear of the appliance.
-
It must be easy to access the socket so that the appli‐
ance can be quickly disconnected from the power supply
in case of an emergency. It must not be behind the appli‐
ance.
1.6 Safe handling of the appliance
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. These types of aerosol can be identified by the
list of contents printed on it, or by a flame symbol. Any
leaking gas may ignite due to electrical parts.
-
Keep burning candles, lamps and other objects with
naked flames away from the appliance, so that these do
not set fire to the appliance.
-
Alcoholic beverages and other containers bearing alcohol
must be sealed tight for storage. Any leaking alcohol may
ignite due to electrical parts.
-
Avoid prolonged skin contact with cold surfaces or with
cold/frozen food. Use gloves for protection, for example.
-
The refrigerant contained (information on the type plate)
is environmentally friendly but flammable. Leaking refrig‐
erant may ignite.
•
Do not damage the refrigeration circuit.
•
Do not use any ignition sources inside the appliance.
•
Do not use electrical appliances inside the appliance
(e.g. steam cleaners, heaters).
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer service.
-
Only open the door for a short time. This prevents the
temperature inside the appliance from rising.
-
Do not reach between the door and the appliance when
opening and closing. Fingers may become trapped.
-
The temperature in the warmest part of the appliance
may be higher than the set temperature.
1.7 Cleaning
-
Regularly clean surfaces that come into contact with
food.
-
Clean the defrost water drain regularly.
-
Do not use an electric heater or steam cleaner, naked
flames or defrost spray to speed up the defrosting
process.
-
Do not remove the ice with sharp objects.
Safety information and warnings
* Depending on model and options 3
1.8 Faults, damage and repairs
-
If the mains connection cable of the appliance is
damaged, replace the mains connection cable.
-
Repairs and interventions on the appliance may only be
carried out by the customer service or by other qualified
personnel trained for this purpose.
-
In the event of malfunctions and appliance faults, pull
out the mains plug or switch off the fuse. Always hold
the plug when pulling out the mains plug. Never tug on
the cable.
1.9 Disposal
-
The appliance contains valuable materials and is marked
with the appropriate symbol. (see 1.15 Symbols on the
appliance)
•
Do not dispose of the appliance in the household
waste.
•
Dispose of the appliance free of charge at your
local recycling centre using the Class 1 collection
containers.
•
When purchasing a new appliance, return the old
appliance to the retailer free of charge.
•
Provide information about return options.
-
Your appliance may contain personal data.
•
Delete personal data before disposal.
-
The appliance contains refrigerant (information on the
type plate) and oil. The refrigerant inside the appliance
is environmentally friendly, but flammable. The oil it
contains is also flammable. Escaping refrigerant and oil
can ignite in high concentrations and in contact with an
external heat source.
•
Do not damage the refrigeration circuit.
•
Only dispose of the appliance in accordance with the
instructions in the user information.
1.10 Conformity
The coolant circuit has been tested for leak-tightness. The
appliance complies with the relevant safety regulations and
directives.
EU Declaration of Conformity
Manufacturer/Exhibitor: LIEBHERR-HAUSGERÄTE
LIENZ GMBH
Address: A-9900 Lienz, Dr. Hans
Liebherr Straße 1
The designated product complies with the provisions of
the following European directives and regulations:
(EU) 2019/2020, (EU) 2019/2024, (EU) 2019/2018,
(EU) 2017/1369, 2006/42/EC, 2014/30/EU, 2009/125/EC,
2011/65/EU
The full text of the EU Declaration of Conformity is avail‐
able at the following web address: www.liebherr.com
1.11 Sound emission of the appliance
The A-weighted emission sound pressure level during oper‐
ation of the appliance is below 70 dB(A) (sound power
rel. 1 pW).
1.12 SVHC substances in accordance
with the REACH Regulation
You can use the following link to check whether your appli‐
ance contains SVHC substances in accordance with the
REACH Regulation:
home.liebherr.com/en/en/liebherr-experience/sustaina‐
bility/environment/scip/scip.html
1.13 Open source licences
The appliance contains software components that use open
source licences. Information on the open source licences
used can be found here:
home.liebherr.com/open-source-licences
1.14 Spare parts
The spare parts availability for functional parts and stock‐
able parts of the equipment is 15 years.

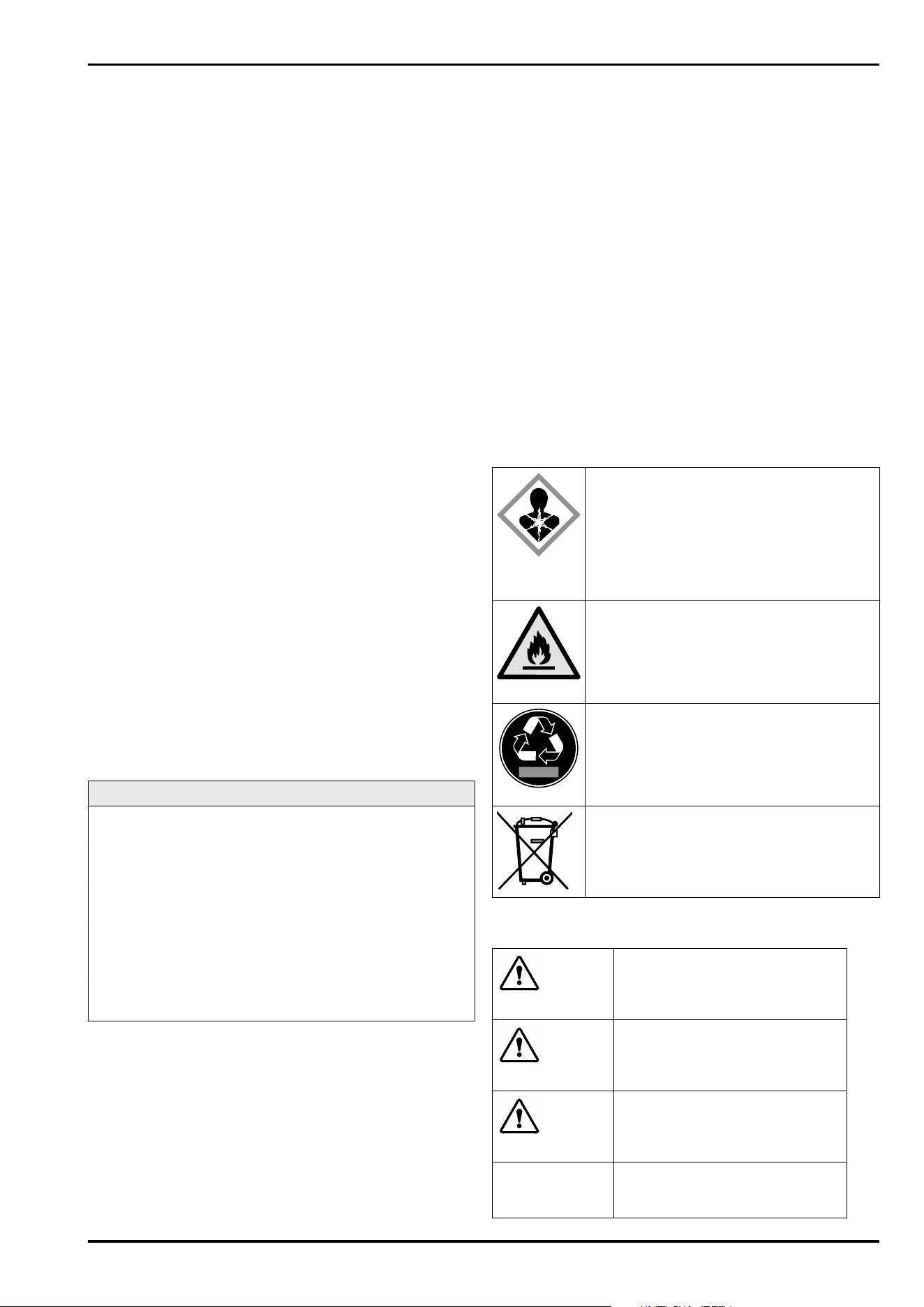

1.15 Symbols on the appliance
This symbol may be found on the
compressor. It pertains to the oil in the
compressor and indicates the following
danger: Can be fatal if swallowed or with
penetration of the respiratory tract. This
information is only significant for recycling.
No risk exists with normal use. Do not
remove this symbol.
Warning: Fire hazard due to flammable
substances. This symbol is located on the
compressor and can also be found in other
places on the appliance. This symbol warns
of flammable substances. Do not remove
this symbol.
This or a similar symbol may be on the rear
of the appliance. It indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
information is only significant for recycling.
Do not remove this symbol.
This symbol is located on the type plate.
It indicates that the appliance contains
valuable materials and that you must not
dispose of it with household waste.
(see 1.9Disposal)
1.16 Warning levels
DANGER
Identifies an immediately
dangerous situation that will
result in death or serious bodily
injuries if it is not prevented.
WARNING
Identifies a dangerous situation
that could result in death or
serious bodily injury if it is not
prevented.
CAUTION
Identifies an immediately
dangerous situation that could
result in slight or moderate injuries
if it is not prevented.
ATTENTION Identifies a hazardous situation
that could result in property
damage if it is not prevented.
Safety information and warnings
4 * Depending on model and options
Note Identifies useful information and
tips.
2 Appliance at a glance
2.1 Overview of the appliance and
equipment

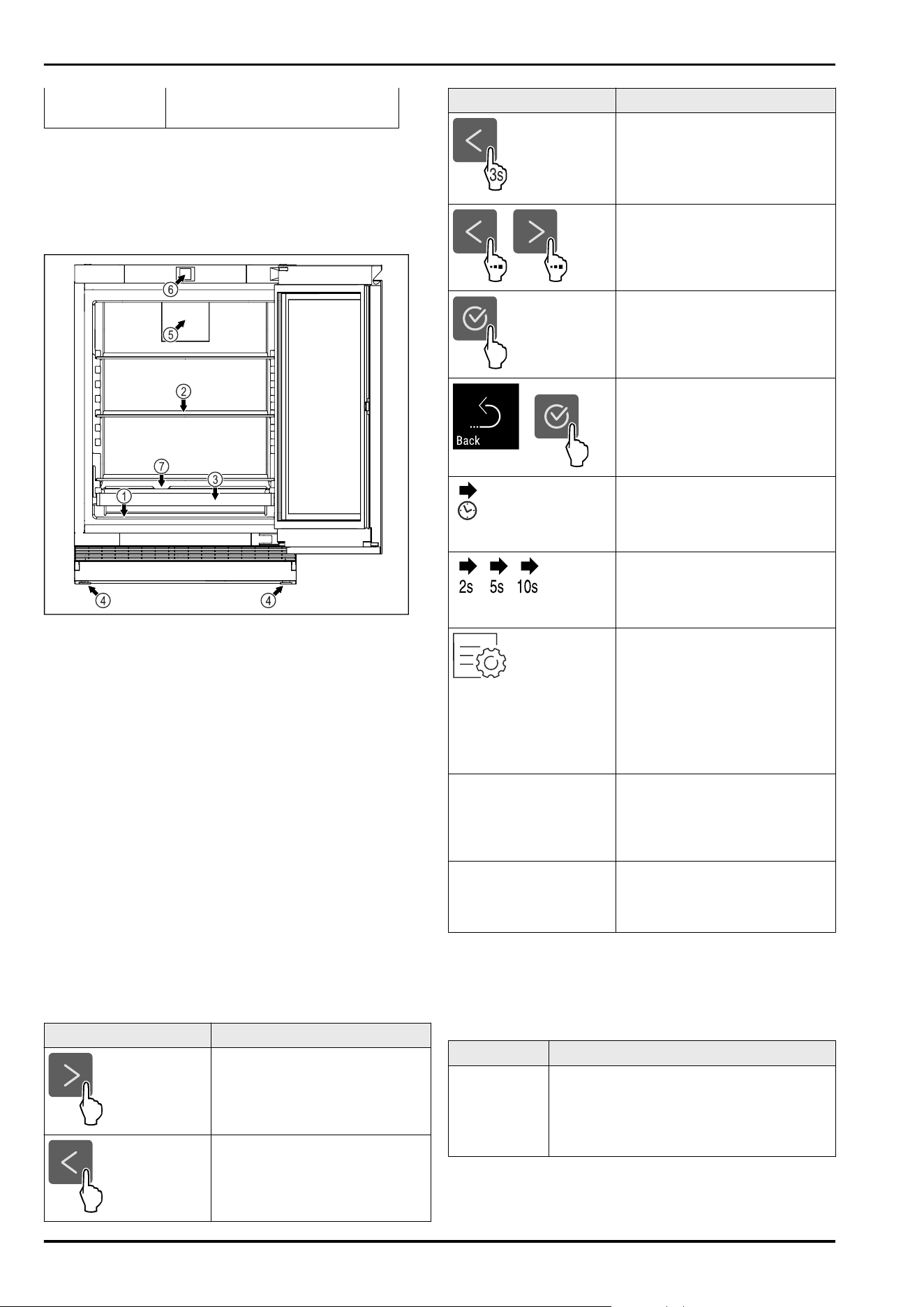

Fig. 2 Example illustration
Equipment
(1)
Type plate (5) Fan with FreshAir acti‐
vated charcoal filter
(2) Glass shelf (6) Controls and tempera‐
ture display
(3) Shelves (7) Condensation drainage
(4) Adjustable feet
3 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Symbol Description
Press and hold the Back naviga‐
tion arrow for 3seconds:
Jumps back to the status
display in the main menu or from
the Settings menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and imme‐
diately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Appliance at a glance
* Depending on model and options 5
Menu Description
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
3.2.1 Opening the Settings menu

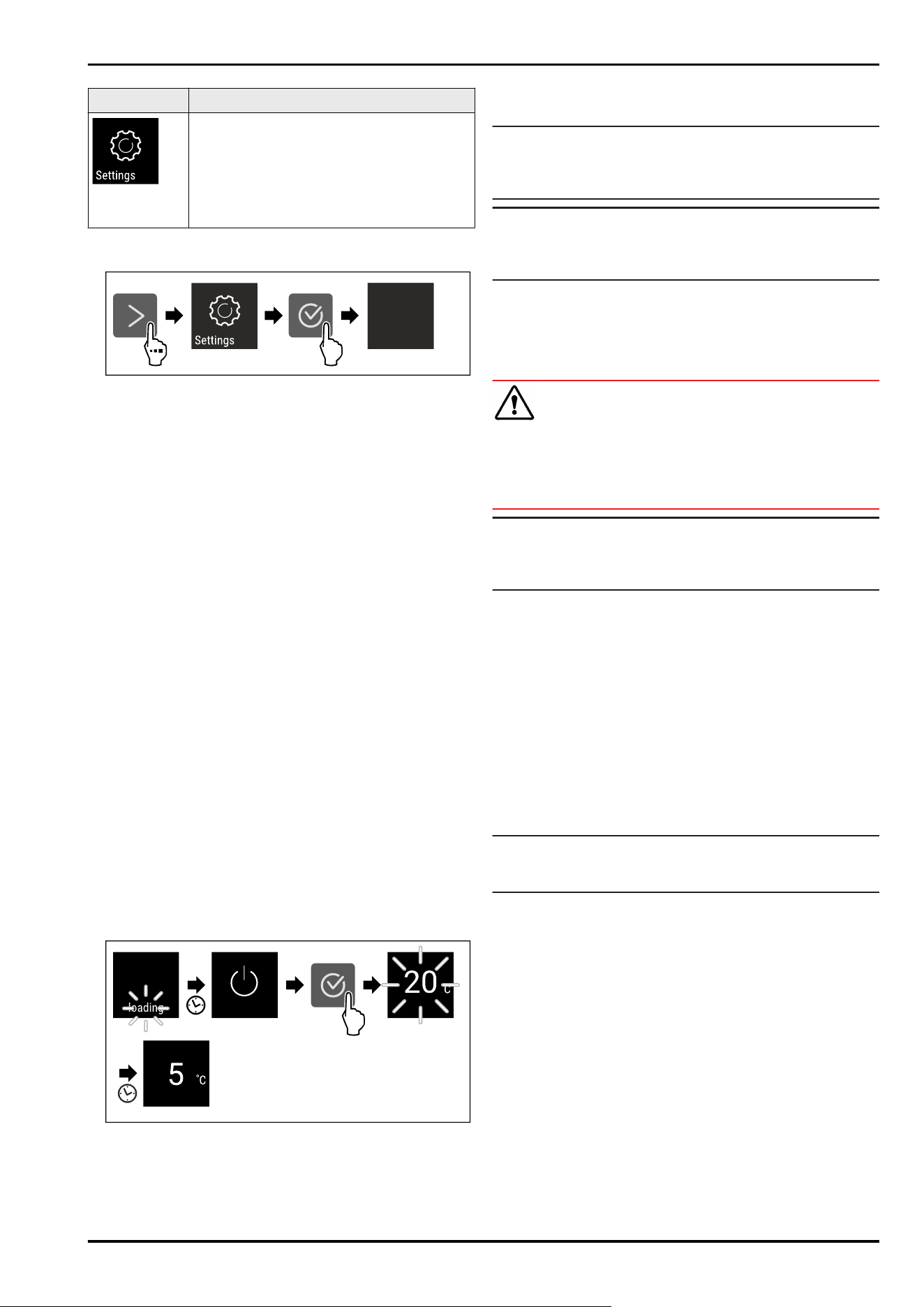

Fig. 3 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance is properly installed and connected
according to the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the Touch
display. (see3 Functionality of the Touch display)
Switch on the appliance using the Touch display:
► If the display is in sleep mode: Press the confirmation
symbol.
► Carry out action steps according to the illustration.
Fig. 4 Example illustration
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the SmartDevice for the first time. and (seeWiFi)
Note
The manufacturer recommends:
► Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
5 Storage
5.1 Information regarding storage
WARNING
Fire hazard from electrical appliances!
If you use electrical appliances in the food area of your
appliance, they can cause a fire.
► Do not use electrical appliances in the food area of the
appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
► Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
Putting into operation
6 * Depending on model and options
5.2 Arranging your food properly

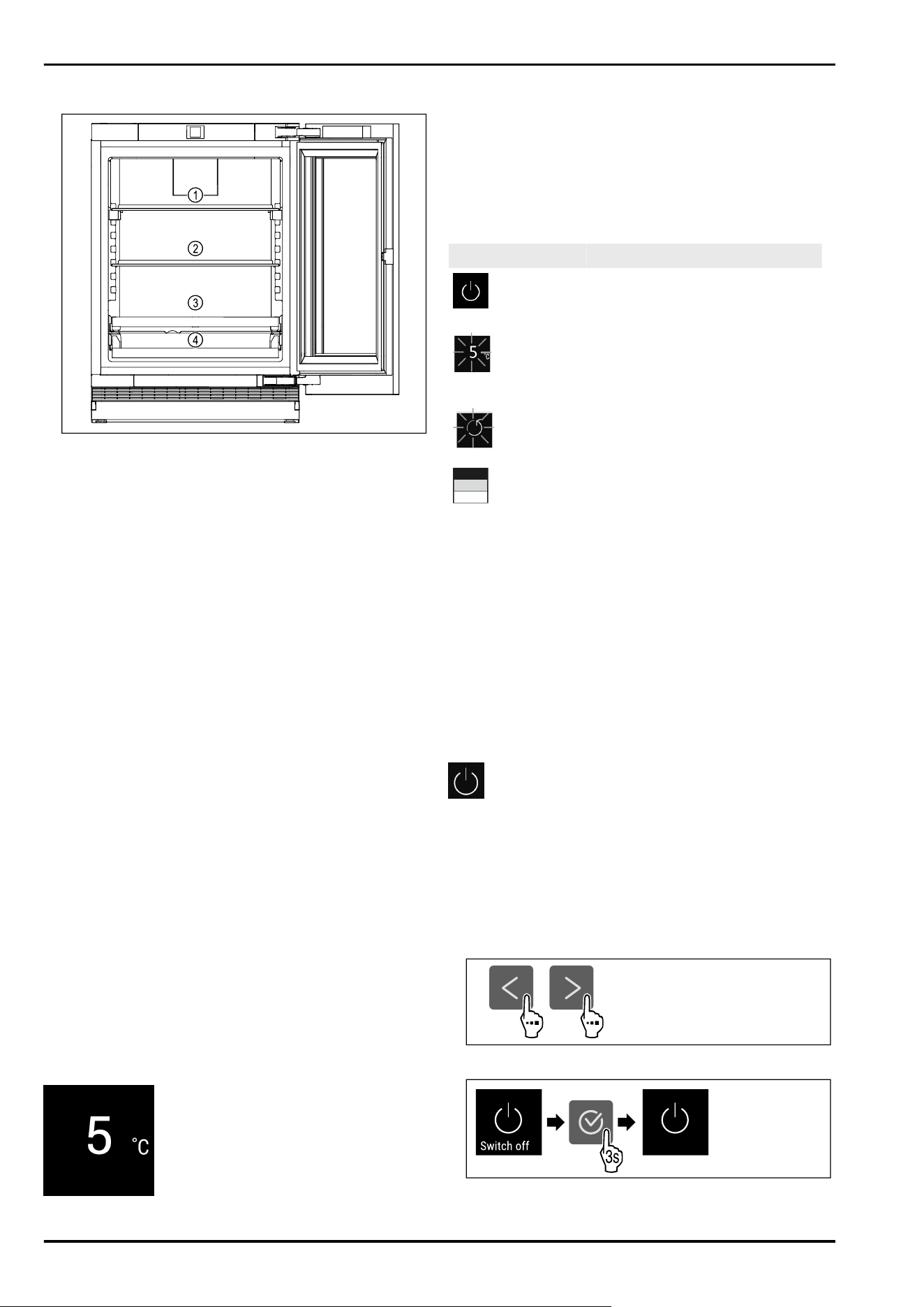

Fig. 5 Example illustration
► Upper area Fig.5(1): Store cans, smaller bottles.
► Middle area Fig.5(2): Store cans, smaller bottles.
► Lower area Fig.5(3): Store cans, smaller bottles.
► Drinks shelf (4): Store cans, smaller bottles.
5.3 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight or near
radiators or similar sources of heat.
-
If the appliance is installed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature . A warmer ambient
temperature can increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
7 Controls
7.1 Controls and displays
7.1.1 Status display
Fig.6
(1)
Temperature display of
the fridge section
The Status display shows the set temperature and is the
home display. From there, you can navigate to the options
and settings.
7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set value is
reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 3 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 10 Shutting down) are carried
out.
Fig.7
Fig.8
► Carry out action steps according to the illustration.
Saving energy
* Depending on model and options 7
▷ Appliance is switched off.
▷ The standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Press any navigation key.

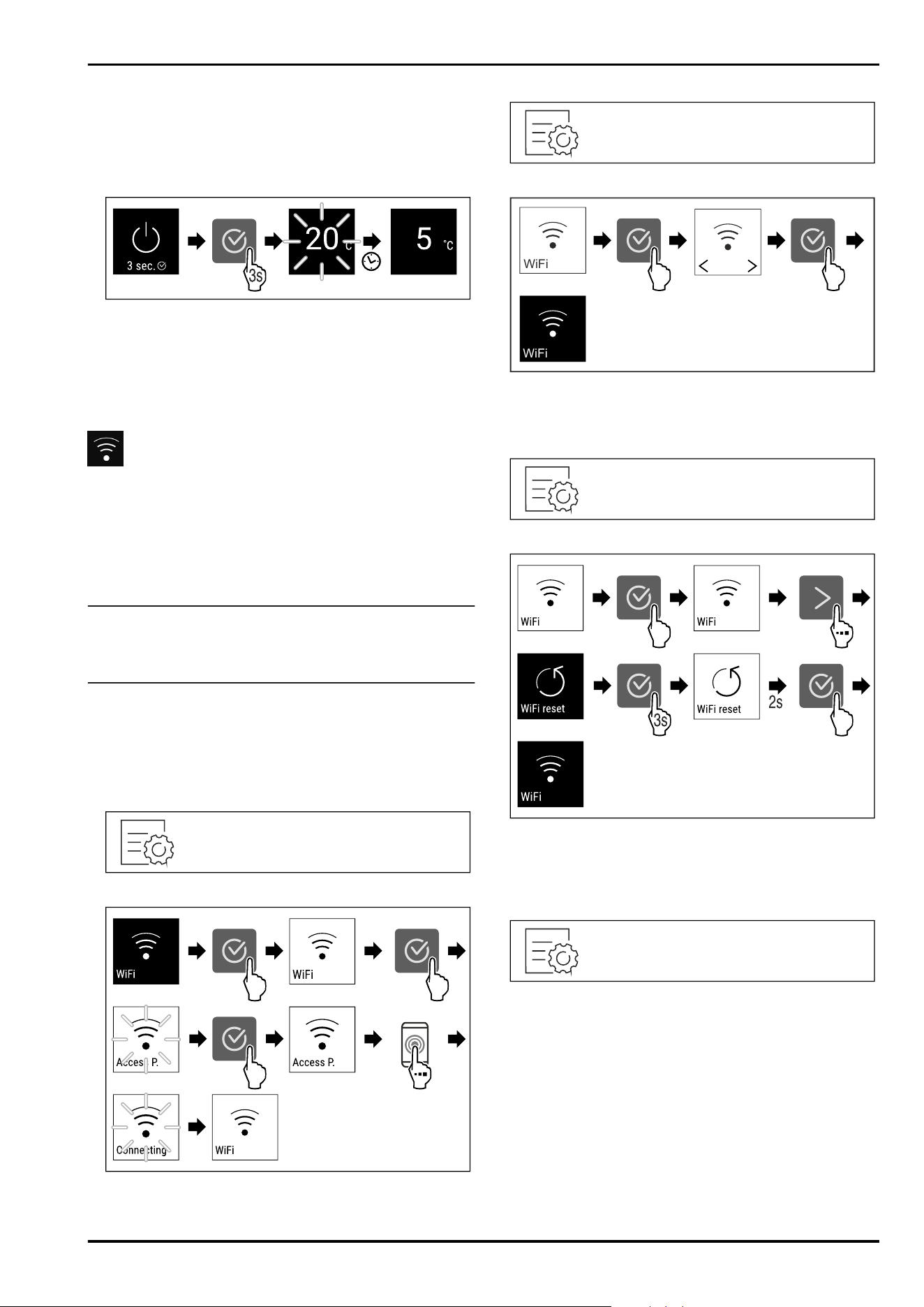

Fig. 9 Example illustration
► Carry out action steps according to the illustration.
When the appliance starts in demo mode:
► Deactivating demo mode. (see Deactivating demo mode)
▷ The appliance is switched on.
▷ Previous settings are restored.
▷ The appliance cools to the target temperature set.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice:
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig. 10
Fig.11
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig.12
WiFi
WiFi
Fig.13
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig. 14
Fig. 15
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 16
Controls
8 * Depending on model and options

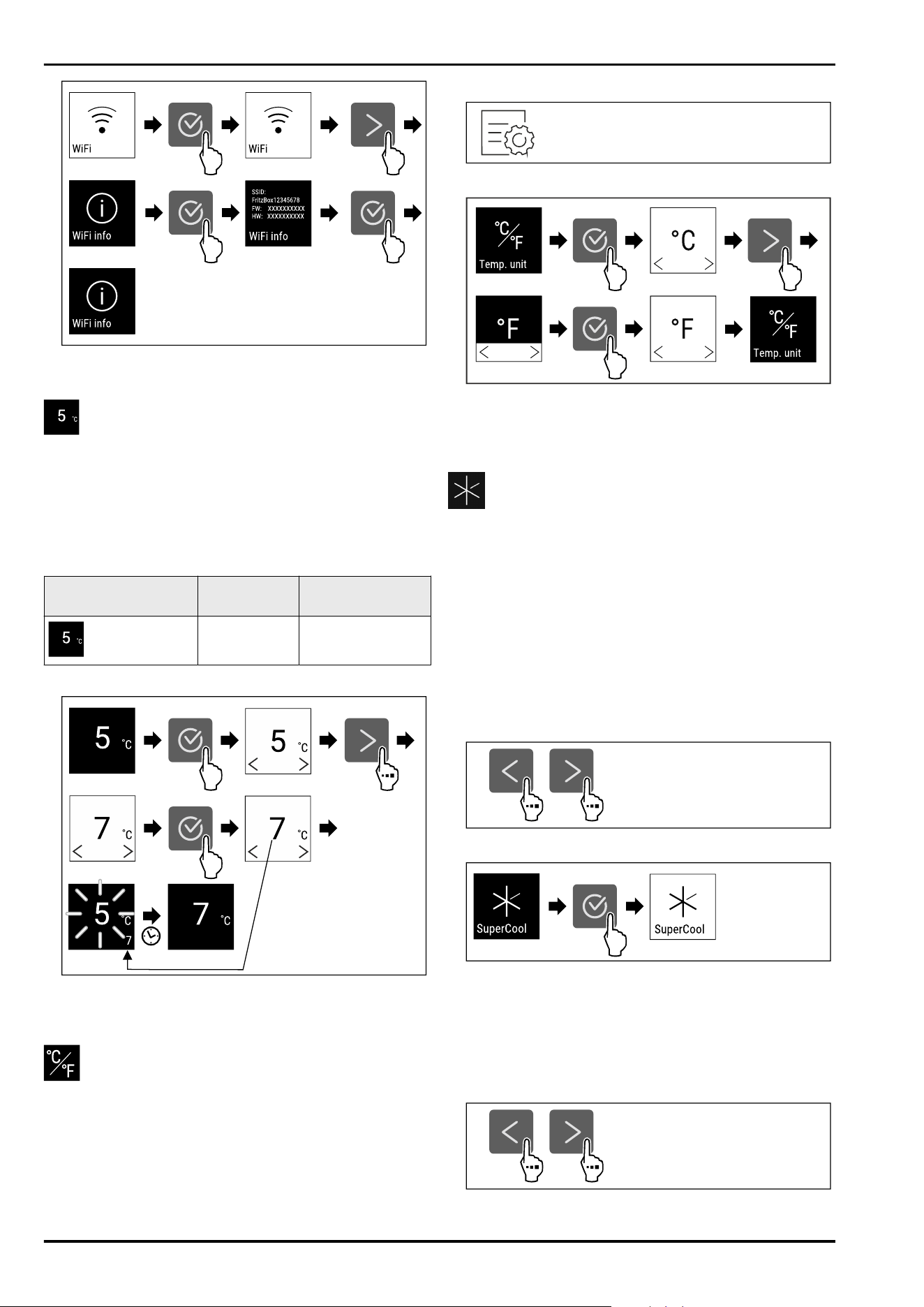

Fig.17
► Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Factory-set
temperature
Recommended
setting
Fridge section
4°C 4°C
Setting the temperature
Fig. 18 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig. 19
Fig. 20 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
SuperCool
You can use this function to activate or deactivate Super‐
Cool. If SuperCool is activated, then the appliance increases
the cooling capacity. It allows you to achieve lower cooling
temperatures. You can activate SuperCool when you would
like to cool a large quantity of food quickly.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperCool
Time for activation of the function:
-
When you would like to store fresh food in the fridge
section: Activate the function when inserting food.
Fig.21
Fig.22
► Carry out action steps according to the illustration.
▷ SuperCool is activated.
Deactivating SuperCool
SuperCool is deactivated automatically after 18 hours.
However, you can also deactivate SuperCool manually at
any time:
Fig.23
Controls
* Depending on model and options 9

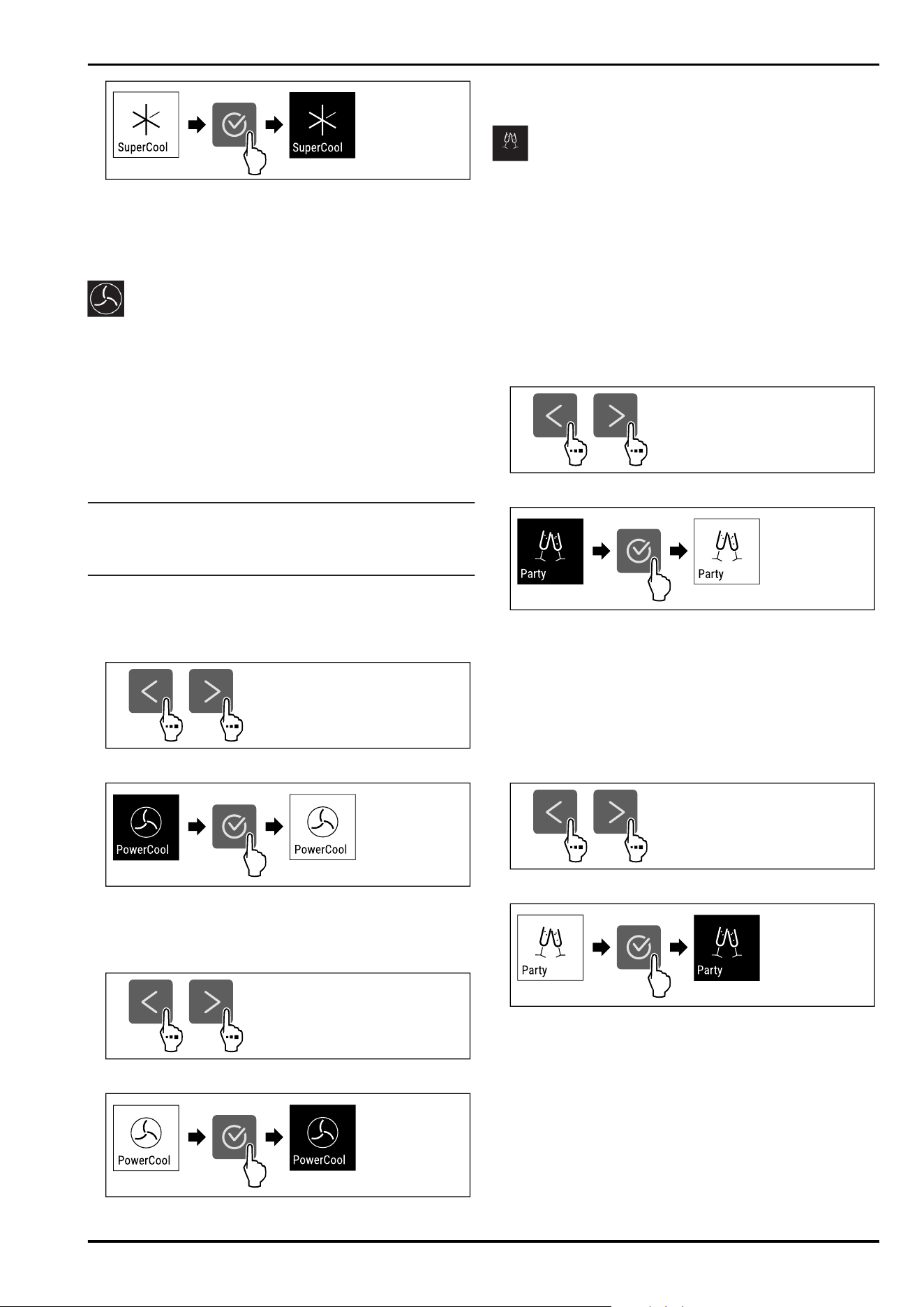

Fig. 24
► Carry out action steps according to the illustration.
▷ SuperCool is deactivated.
▷ The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.
PowerCool
You can use this function to activate or deactivate Power‐
Cool. PowerCool ensures optimised temperature layers for
cooling your food.
The function applies to the fridge section.
Application:
-
At higher room temperatures (as of approx.35°C)
-
At high humidity, e.g. on summer days
-
When storing moist food, in order to prevent condensate
forming in the interior
Note
The fan may also run even if the function is deactivated.
It therefore ensures even temperature distribution in the
appliance.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PowerCool
Fig.25
Fig. 26
► Carry out action steps according to the illustration.
▷ PowerCool is activated.
Deactivating PowerCool
Fig.27
Fig.28
►
Carry out action steps according to the illustration.
▷ PowerCool is deactivated.
PartyMode
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperCool (seeSuperCool)
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Fig.29
Fig.30
► Carry out action steps according to the illustration.
▷ PartyMode and the associated functions are activated.
▷ The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig.31
Fig.32
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
▷ The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.
Controls
10 * Depending on model and options

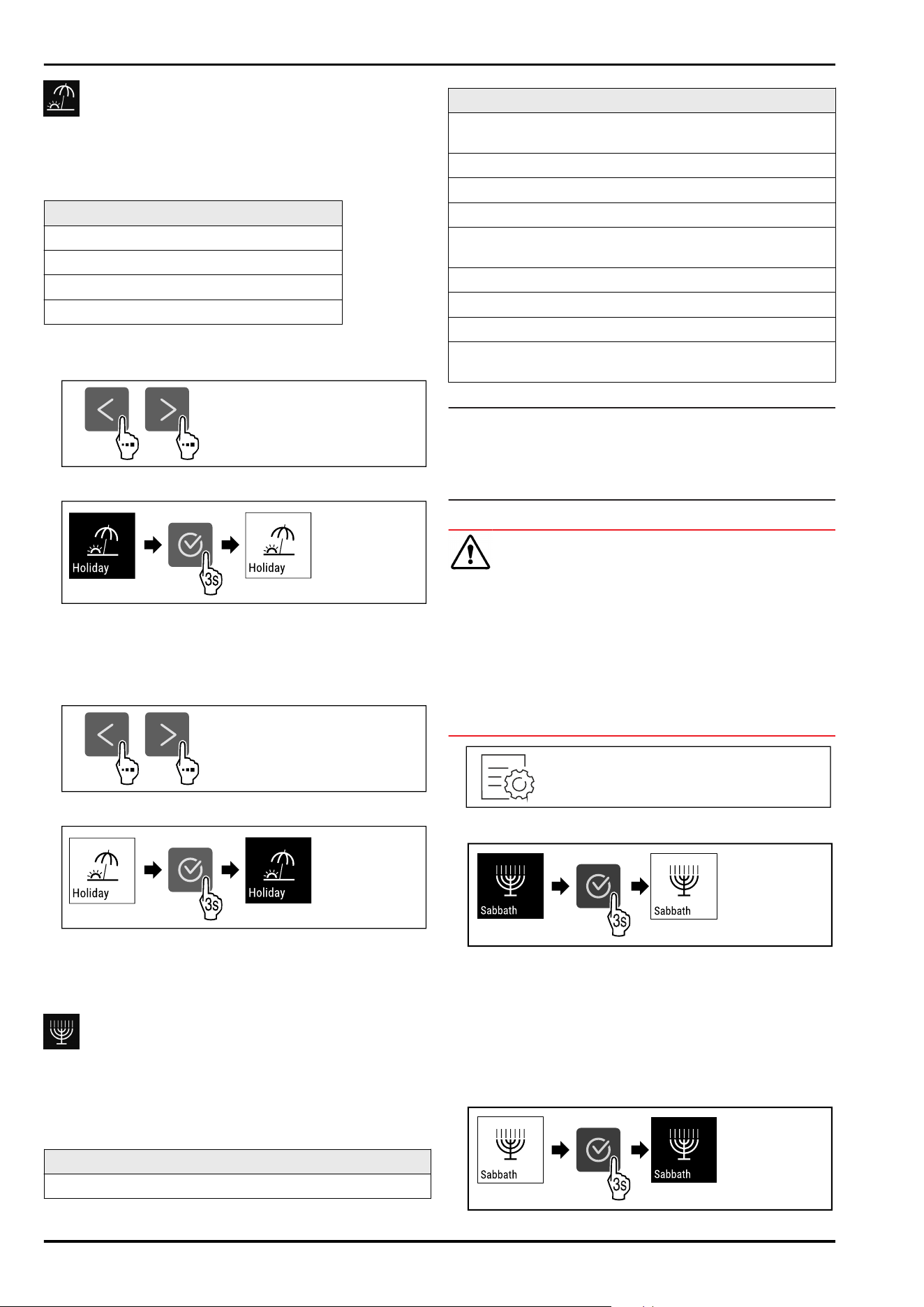

HolidayMode
You can use this function to activate or deactivate Holiday‐
Mode. If you activate HolidayMode, the fridge section is set
to 15 °C. This saves you energy during longer periods of
absence and prevents bad odours and growth of mould.
Appliance status when HolidayMode is active
Fridge section cools to 15°C.
PartyMode is deactivated.
SuperCool is deactivated.
PowerCool is deactivated.
Activating HolidayMode
► Empty the fridge section completely.
Fig.33
Fig.34
► Carry out action steps according to the illustration.
▷ HolidayMode is activated.
▷ Temperature display shows HolidayMode symbol.
Deactivating HolidayMode
Fig.35
Fig.36
► Carry out action steps according to the illustration.
▷ HolidayMode is deactivated.
▷ The appliance cools to the temperature set previously.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
Device status when SabbathMode is active
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that was frozen and has thawed
out.
Fig.37
Fig.38
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Controls
* Depending on model and options 11
Fig. 39
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
E-Saver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Temperature zone Recommended
setting
(see Setting the
temperature)
Temperature
with active E-
Saver
Fridge section
4°C 7°C
Temperatures
Activating E-Saver
Fig.40
Fig. 41
► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating E-Saver
Fig. 42
Fig.43
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
CleaningMode
You can use this function to activate or deactivate Cleaning‐
Mode. CleaningMode enables the appliance to be cleaned
conveniently.
This setting applies to the fridge section.
Application:
-
Clean the fridge section. (see 8.3Cleaning the appliance)
Device status when CleaningMode is active
The status display shows CleaningMode permanently.
The fridge section is switched off.
Interior lighting is activated.
The reminders and warnings are not displayed. No signal
tone sounds.
Device status

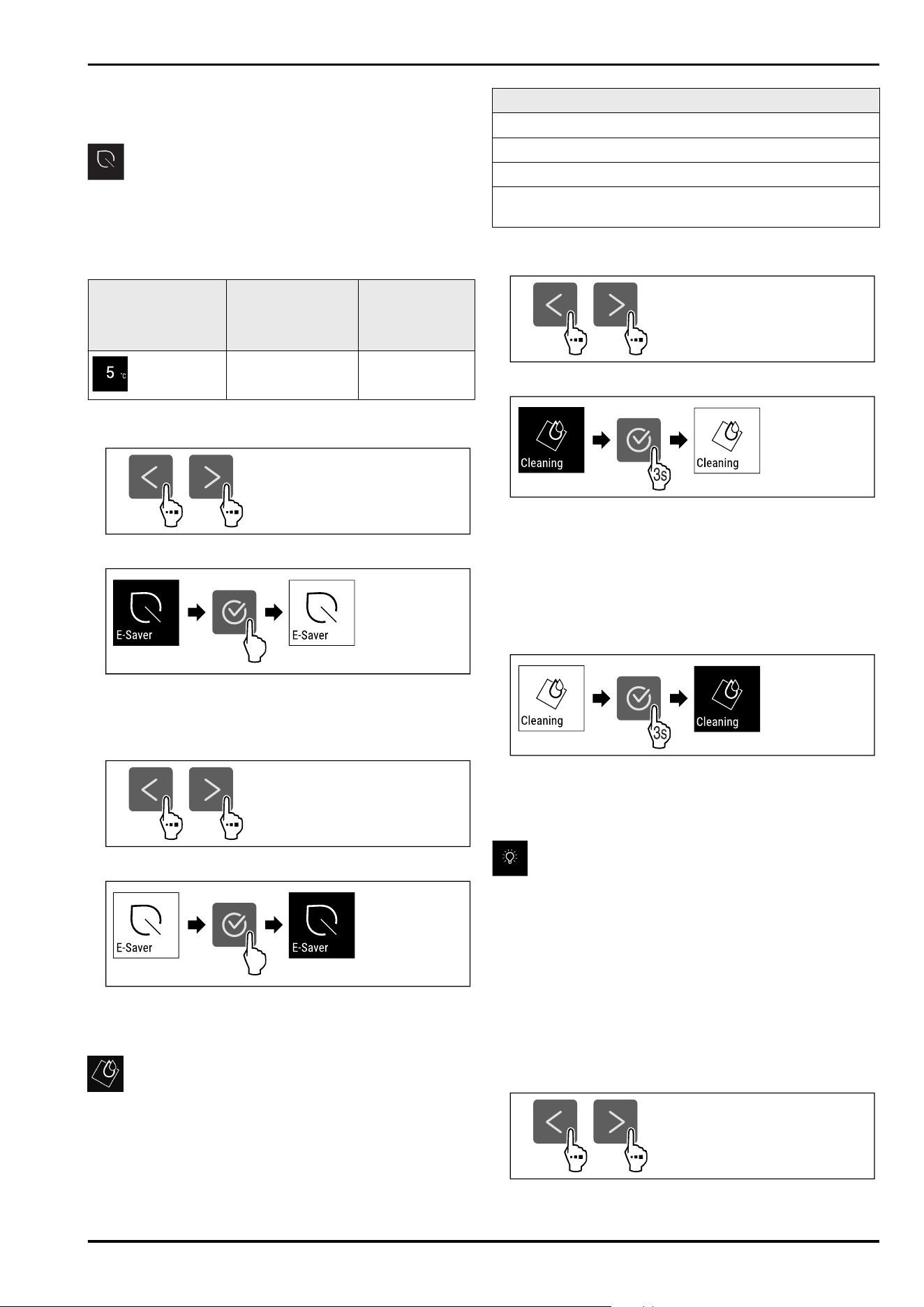

Activating CleaningMode
Fig.44
Fig.45
► Carry out action steps according to the illustration.
▷ CleaningMode is activated.
▷ The status display shows CleaningMode permanently.
Deactivating CleaningMode
CleaningMode is deactivated automatically after
60 minutes. However, you can also deactivate Cleaning‐
Mode manually at any time:
Fig.46
► Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance cools to the temperature set previously.
Lighting intensity
This setting allows the interior brightness to be adjusted
incrementally.
The following brightness values can be set:
-
Off
-
20%
-
40%
-
60%
-
80%
-
100% (default)
Setting lighting intensity
Fig. 47
Controls
12 * Depending on model and options

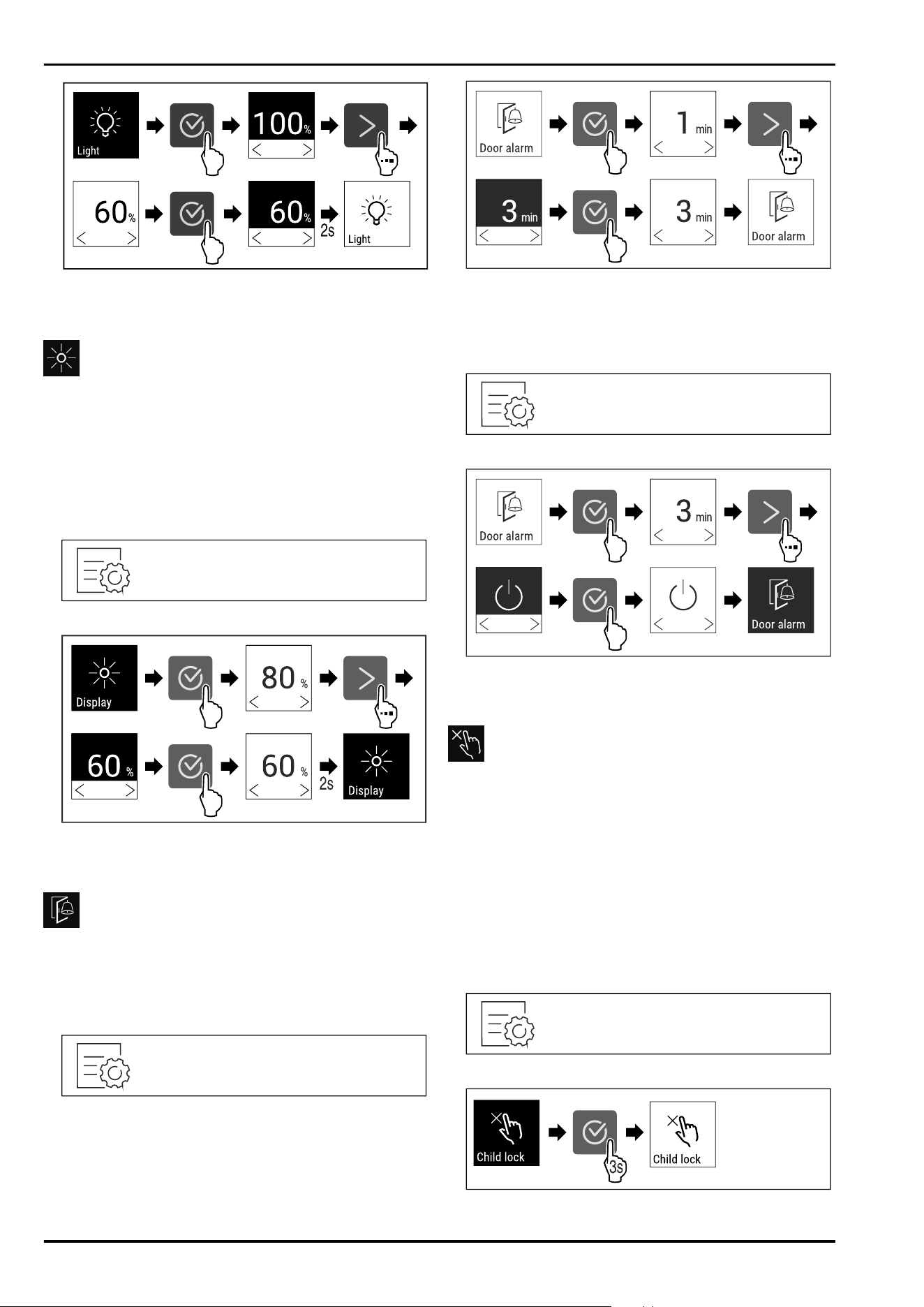

Fig.48
► Carry out action steps according to the illustration.
▷ The lighting intensity increases or decreases accordingly.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig. 49
Fig. 50 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ The brightness is set.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
Setting the door alarm
Fig.51
Fig. 52 Example illustration: Change door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig.53
Fig.54
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
Child lock
You can use this function to activate or deactivate the child
lock. The child lock prevents the appliance being operated
accidentally, e. g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the child lock
If you activate the child lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.55
Fig.56
Controls
* Depending on model and options 13
► Carry out action steps according to the illustration.
▷ Child lock is activated.

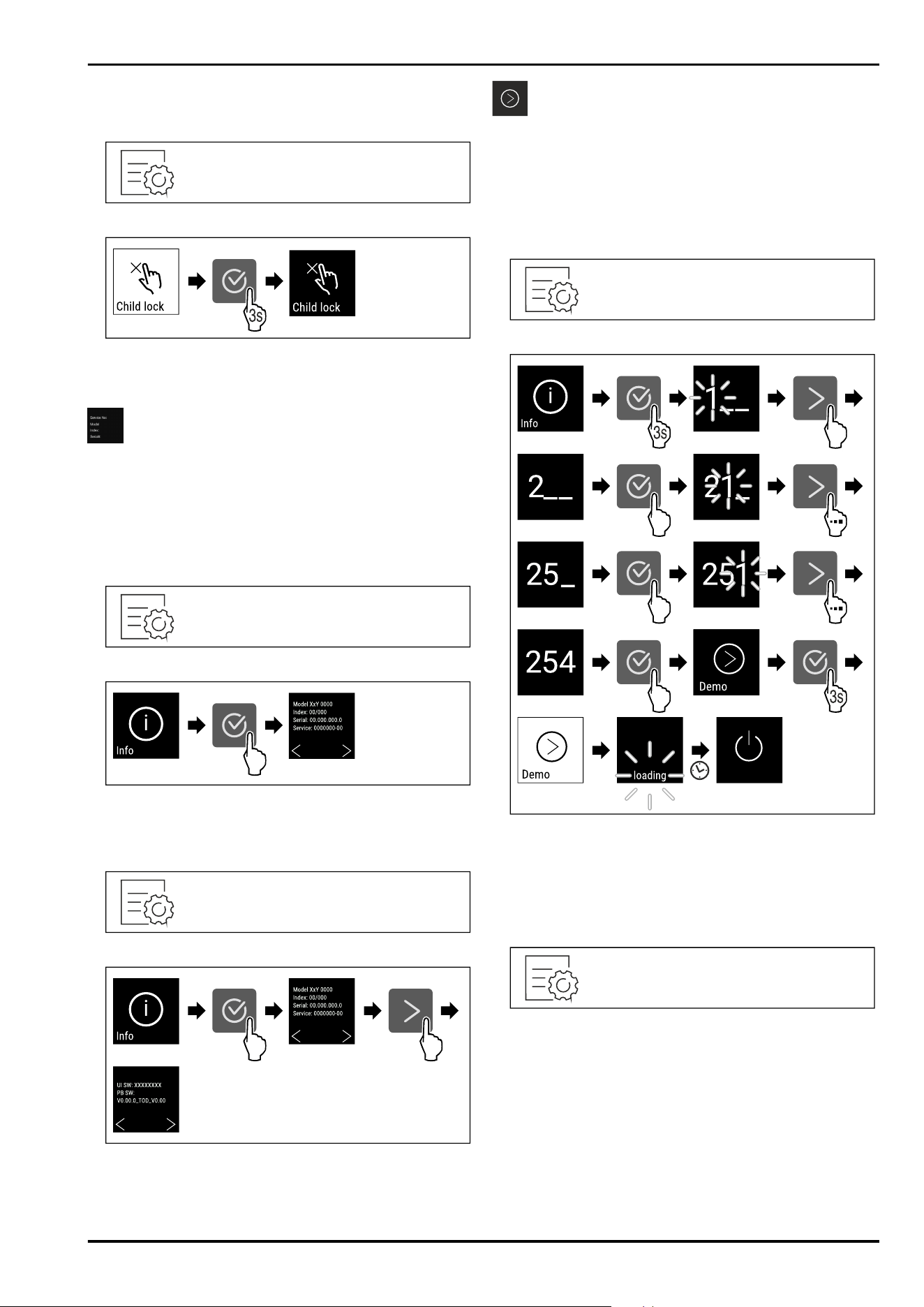

Deactivating the child lock
Fig.57
Fig.58
► Carry out action steps according to the illustration.
▷ Child lock is deactivated.
Appliance and software information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 9.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch display)
Indicating the device information
Fig. 59
Fig.60
► Carry out action steps according to the illustration.
▷ Display indicates device information.
Displaying software information
Fig.61
Fig. 62
► Carry out action steps according to the illustration.
▷ Display shows software information.

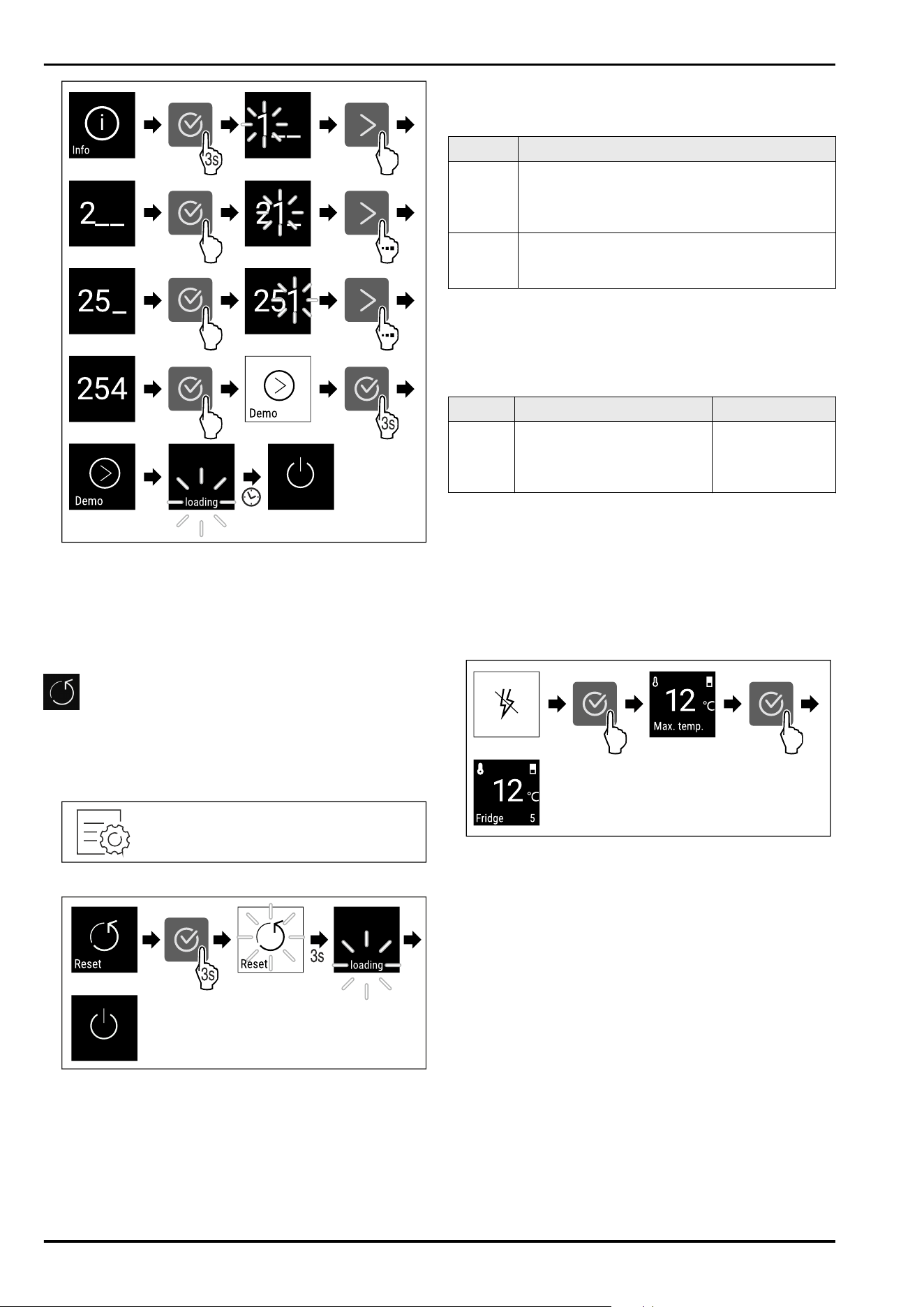

Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig.63
Fig.64
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
Deactivating demo mode
Fig.65
Controls
14 * Depending on model and options
Fig.66
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig. 67
Fig.68
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 4.1 Switching on appliance (first
use))
7.3 Messages
There are two categories of messages:
Category Importance
Warning Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 9.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
7.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
The alarm tone sounds at an ever-increasing volume.
-
The interior lighting pulsates for some warnings.
Message
Cause Exit the message
Error The message appears if
there is an appliance error. A
component of the appliance
has a fault.
Carry out action
steps (see Error) .
7.3.2 Ending warnings
Power outage alarm
This message is displayed for each temperature zone of
your appliance. When the power failure has ended, the
appliance will automatically cool down to the previously
set target temperature without you having to confirm the
message. You must confirm the message for it to disappear
from the display.
Fig. 69 Example illustration
► Press the confirmation symbol.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
► Check the food.
► Press the confirmation symbol.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Temperature alarm
This message is displayed for each temperature zone of
your appliance. You must confirm the message for it to
disappear from the display.
Temperature differences can be caused by:
-
You have put in warm, fresh food.
-
Too much warm air has got in while you were sorting out
the freezer or removing items.
-
There has been a longer power failure.
-
The appliance is faulty.
► Eliminate causes.
Controls
* Depending on model and options 15
▷ The appliance cools to the target temperature set previ‐
ously.
Fig. 70 Example illustration
► Press the confirmation symbol.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
► Check the food.
► Press the confirmation symbol.
▷ The display returns to the status indicator: Current
temperature and target temperature are displayed.
Error
Fig. 71 Example illustration
► Press the confirmation symbol.
▷ Error code is displayed.
► Note the error code.
► Press the confirmation symbol.
▷ The display returns to the status indicator.
► Contact Customer Service. (see 9.4 Customer Service)
7.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Alarm tone sounds.
-
The interior lighting pulsates for some reminders.
The following reminders can be deactivated :
Message
Cause Exit the message
Replace the Fres‐
hAir activated
carbon filter
The message
appears when
the FreshAir acti‐
vated carbon filter
needs to be
replaced.
Carry out
action steps
(see Replace the
FreshAir activated
carbon filter) .
7.3.4 Ending reminders
Replace the FreshAir activated carbon filter
Liebherr recommends: Replace the FreshAir activated
carbon filter every 6 months.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.

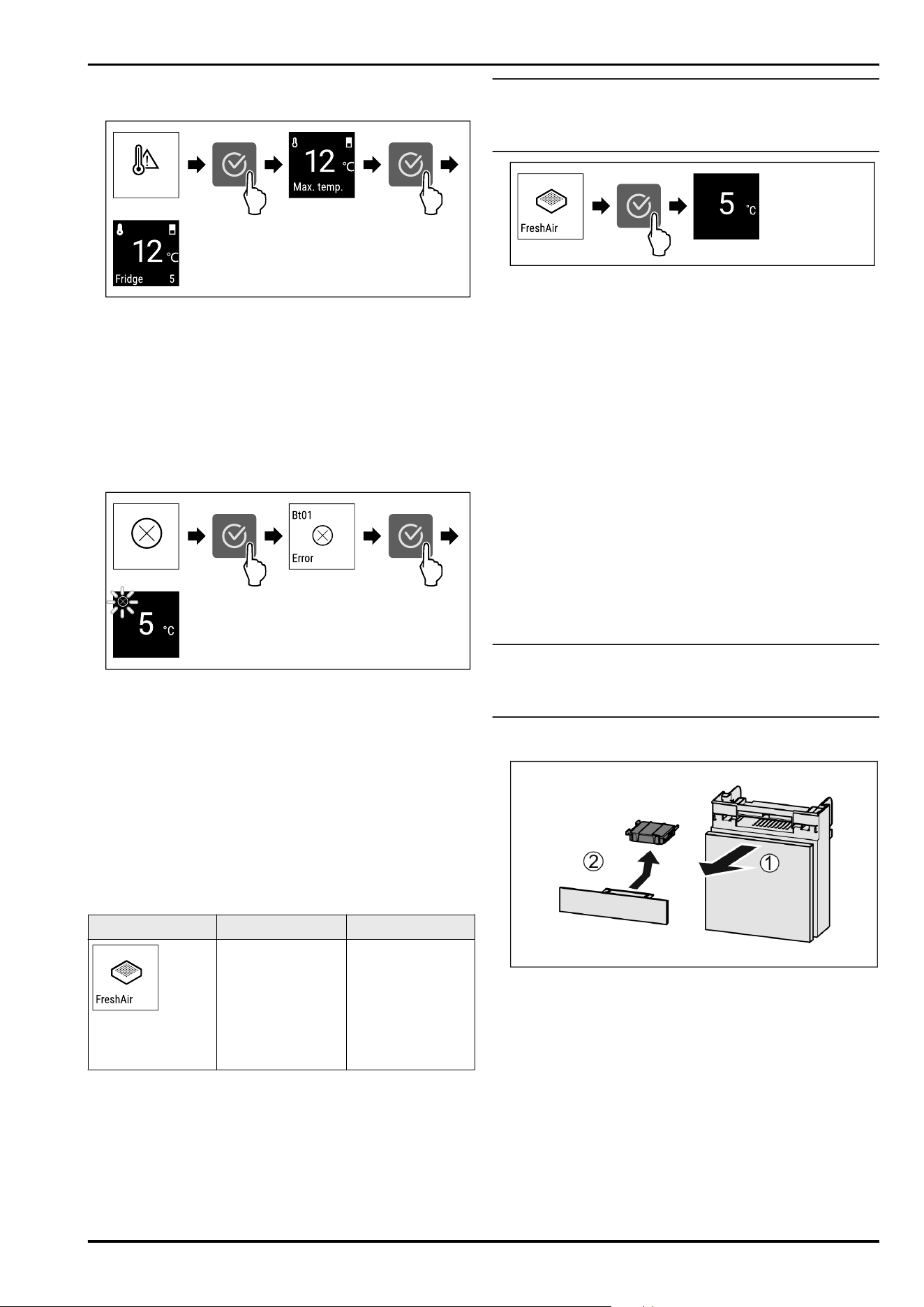

Fig. 72 Example illustration
► Replace the activated carbon filter. (see 8.1 FreshAir
carbon filter)
▷ Activated carbon filter ensures optimum air quality in the
cooling unit.
▷ Reminder appears again after 6 months.
If you no longer wish to receive this reminder, you can deac‐
tivate it.
8 Maintenance
8.1 FreshAir carbon filter
The FreshAir carbon filter is in the compartment above the
fan.
It guarantees the best air quality.
❑
Replace the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
❑
The carbon filter can be disposed of with the regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
8.1.1 Removing the FreshAir carbon filter
Fig.73
► Pull out the compartment Fig.73(1).
► Remove the carbon filter Fig.73(2).
Maintenance
16 * Depending on model and options

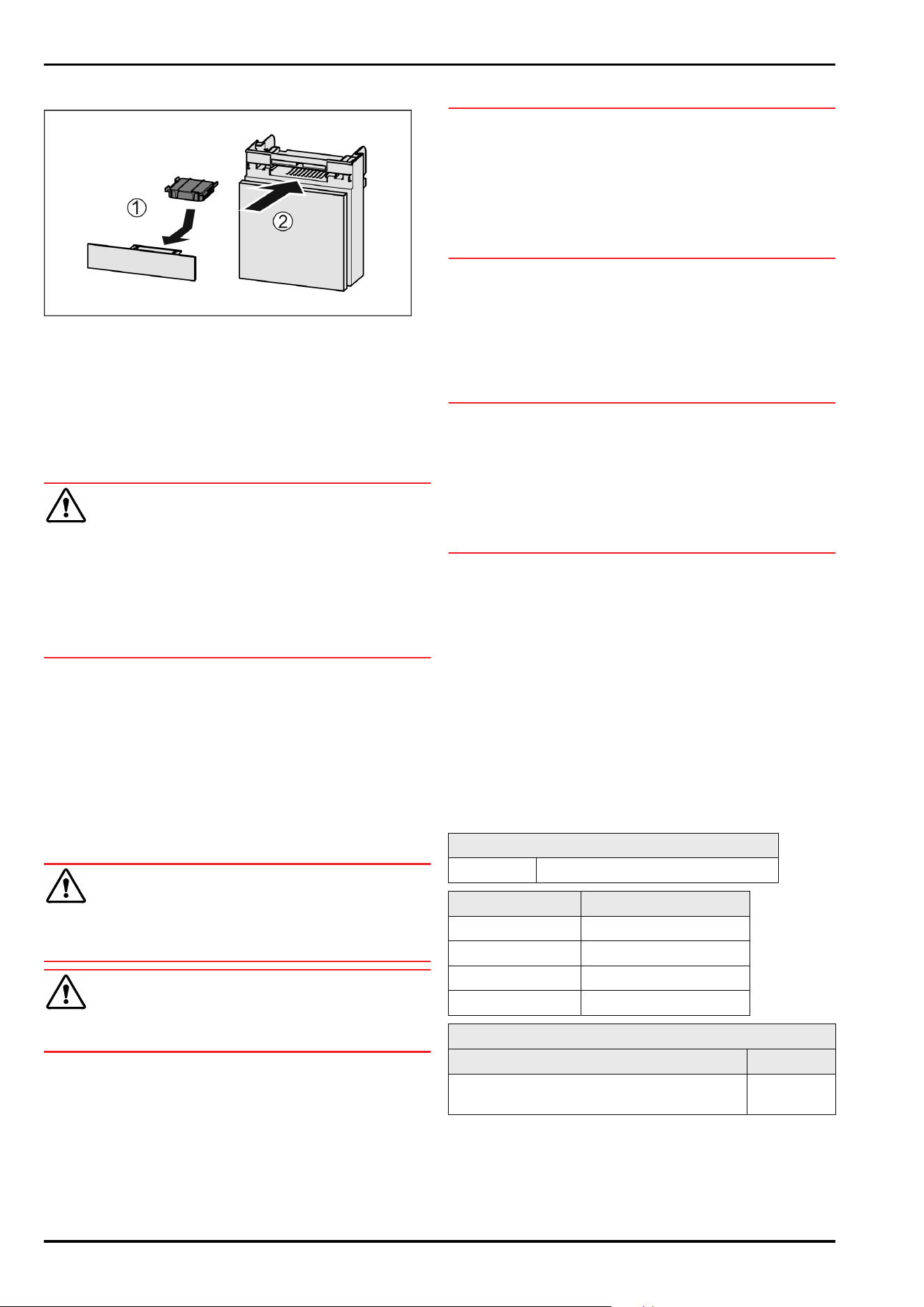

8.1.2 Inserting the FreshAir carbon filter
Fig. 74
► Insert the carbon filter as shown in the diagram
Fig. 74(1).
▷ The carbon filter clicks into place.
If the carbon filter is pointing downwards:
► Push the compartment in Fig. 74(2).
▷ The carbon filter is now ready for use.
8.2 Defrosting the appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
► Clean the drain opening at regular intervals.
(see 8.3Cleaning the appliance)
8.3 Cleaning the appliance
8.3.1 Ready
WARNING
Danger of electric shock!
► Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Remove mains connector.
-or-
► Activate CleaningMode. (seeCleaningMode)
8.3.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Drain hole: remove deposits using a thin item (for
example a cotton bud).
8.3.3 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Shelf
► To disassemble components: see the relevant section.
► Clean the components.
8.3.4 After cleaning
► Wipe the appliance and the components dry.
► Connect and switch on the appliance.
► Repeat cleaning regularly.
9 Customer help
9.1 Technical specifications
Temperature range
Cooling 2°C to 10°C
Equipment Maximum loading weight
Top area (per shelf) 15 kg
Middle area 40 kg
Lowest area 40 kg
Drinks shelf 30 kg
Lighting
Class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
Customer help
* Depending on model and options 17
Usable capacity
See usable capacity on the rating plate. (see 2.1 Overview
of the appliance and equipment)
9.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Noise Possible cause Type of noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
installation
Defective
noise
Check the
installation.
Level the
appliance.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
9.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
9.3.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
► Check the power plug.
→ There is something wrong with the
power outlet fuse.
► Check the fuse.
→ Power cut ► Keep the appliance closed.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close the appliance door.
→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
► Problem solution:
→ The appliance was opened too
many times or for too long.
► Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 9.4 Customer
Service)
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Move the appliance or the heat source.
→ The appliance was not correctly
installed in the recess.
► Check if the appliance was installed correctly and that
the door closes properly.
Customer help
18 * Depending on model and options
Defect Cause Remedy
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
► Contact Customer Service. (see 9.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
► Check that the door seal is well fitted in the groove.
9.3.2 Features
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on. ► Switch the appliance on.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 9.4 Customer Service)
9.4 Customer Service
First check whether you can rectify the fault yourself
(see 9 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see8 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
9.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Note down the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us to provide you with a faster, more accu‐
rate service.
► Follow further instructions from Customer Service.
9.5 Model plate

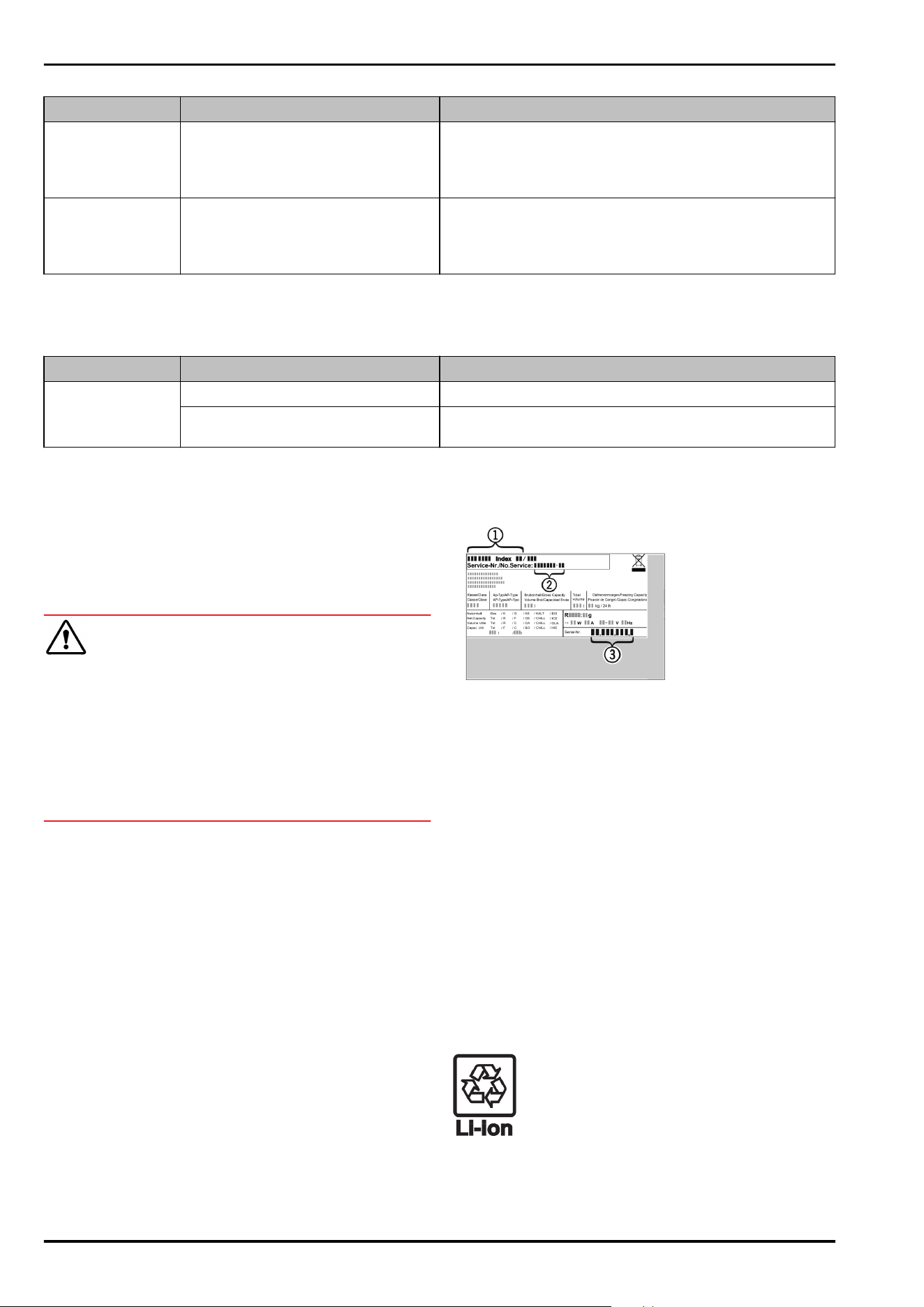

Fig.75
(1) Appliance description (3) Serial no.
(2) Service no.
► Note the data on the model plate.
10 Shutting down
► Empty the appliance.
► Switch off appliance. (see Switching the appliance off
and on)
► Pull the mains plug out of the socket.
► Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance. (see 8.3Cleaning the appliance)
► Leave the door open, so that no unpleasant odours arise.
11 Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
Shutting down
* Depending on model and options 19
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
► Observe the notes on transporting the appliance.
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
20 * Depending on model and options
Disposal
* Depending on model and options 21
home.liebherr.com/fridge-manuals
Under-worktop beverage cooler
Issue date: 20251017
Part number index: 7083740-00
Liebherr-Hausgeräte Ochsenhausen GmbH
Memminger Straße 77-79
88416Ochsenhausen
Deutschland
