User Manual V1.0
NANO
SERIES
THERMAL
IMAGING ATTACHMENT
WARNING
PLEASE READ BEFORE USE
EN
DE
IT
FR
ES
CZ
PL
SV
HU
PT

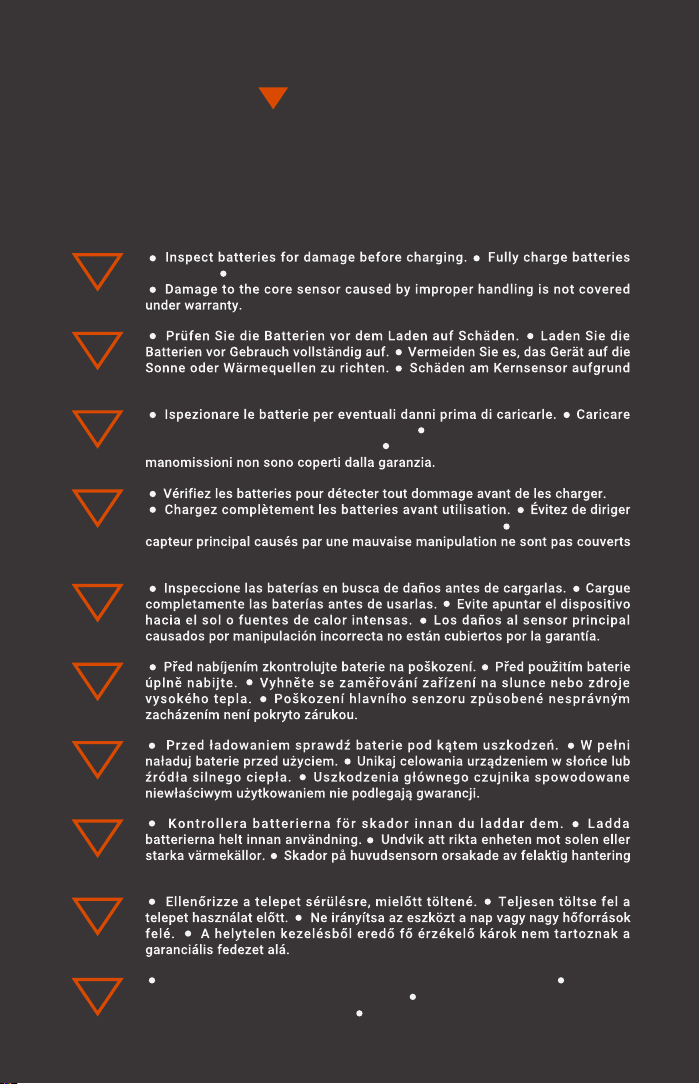

Verifique as baterias quanto a danos antes de carregá-las. Carregue
completamente as baterias antes do uso. Evite apontar o dispositivo para o
sol ou fontes de calor intensas. Danos ao sensor principal causados por
manuseio incorreto não estão cobertos pela garantia.
omfattas inte av garantin.
l'appareil vers le soleil ou des sources de chaleur intenses. Les dommages au
par la garantie.
completamente le batterie prima dell'uso. Evitare di puntare il dispositivo
verso il sole o fonti di calore intense. I danni al sensore centrale causati da
unsachgemäßer Handhabung sind nicht garantiert.
before use. Avoid pointing the device at the sun or high heat sources.
01
PRODUCT
FEATURES
EN
DE
IT
FR
ES
CZ
PL
SV
HU
PT
01
For more features, please use RIX+ app.
02
APP
DESCRIPTION
Download on the GET IT ON
As this product is an electronic device, it is recommended to read
or download the latest manual on the RIX website or RIX+ app to
obtain the most up-to-date product instructions.
·Compact: Most compact thermal imaging attachment,
small and space-saving.
·Light:Designed to be lightweight and easy to carry.
·Sensor resolution: N6:640*512
·Display screen:1920*1080
·18650 replaceable battery
·Clean interface with simple, intuitive operation
PRODUCT
PARAMETER
03
Resolution, pixels
Pixel pitch, μm
NETD, mK
Frame rate, Hz
Objective lens, mm
Magnification, x
FieldofView（H×V）, °
Exit pupil, mm
Eye relief, mm
Detection range, m/yd
35mm
Digital Zoom of monocular
mode
1-4x
Model
Sensor
Display
OLED 1920*1080
12 μm
50Hz
20mm
Max.measuring range,m
Wavelength,nm
640×512
2597m / 2840yd
1x
NANO N6
≤15mK
8.8°x6.6°
50mm , F1.0
1500m
905nm
02
Optics
Laser Rangefinder
Display
Model
Tips
The results of operating time is tested at 25°C/72°F using RIX batteries.
Battery life may vary based on temperature and usage conditions.
Video / Photo Resolution,
pixel
Video / Photo Format
1408*1080
Support
Video Recorder
Wi-Fi
Battery type 18650
Operating time on battery
pack (att=25°C / 72°F), h
External power supply, V
Dimensions,mm/inch
Weight,g/lb
5V (Type-C USB)
Max Recoil Power on Rifled
Weapon (Eo)
1000g / 6000J
L99.8×W90.8×H70.2mm/3.93×3.57×2.76inch
＜440g/0.97lb
Degree of Protection,
IP code
Opreating temperature
range,°C/°F
.mp4/.jpg
Built-in Memory
64 GB
4h
IP67
-20 to +50°C/-4 to 122°F
03
NANO N6
Environmental Characteristics
Connections and Compatibilities
Weight & Size

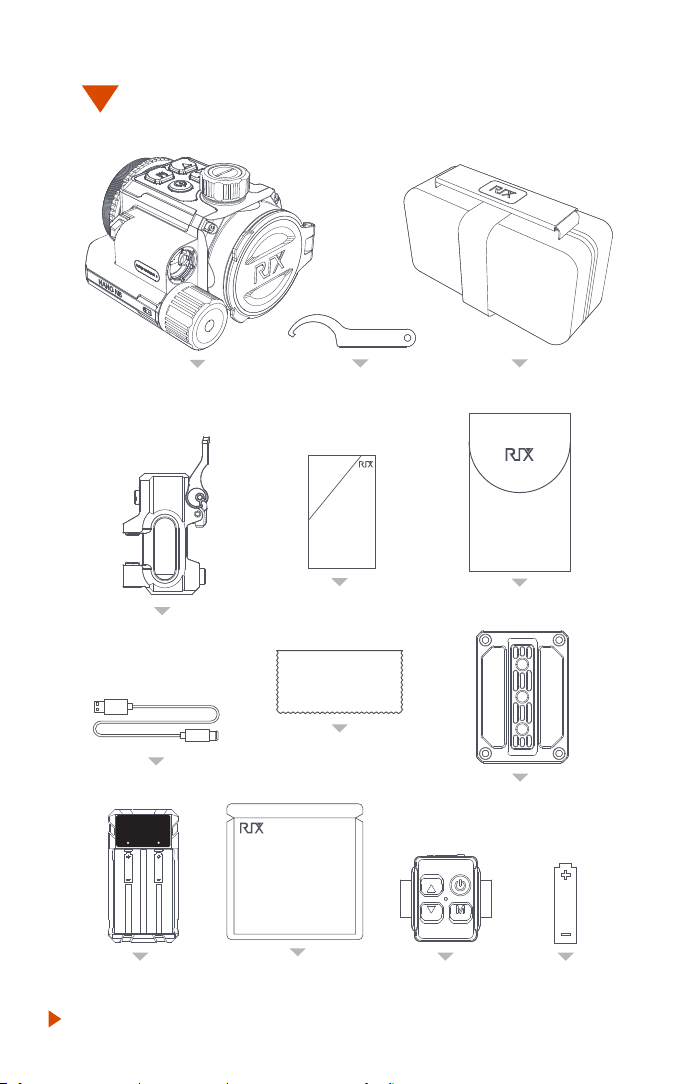

IN
THE BOX
04
Type-C Cable x1
04
Lens Cloth x1
18650 Battery x2
Battery Charger x1
Thermal Target x10
(1 package)
THERMAL TARGET
for Zeroing
Battery fireproof bag x1
Product manual x1
Wrench x1
Li-Po Safe Bag
The NANO series
thermal imaging attachment x1
Remote Control
Accessories x1
Protable bag x1
Heat Sink Base for QD
Flip-to-Side Picatinny
Mount x1(select models)
Quick-Detach Flip-to-Side
Picatinny Mount x1 (select
models)
PRODUCT
APPEARANCE
05
05
Eyepiece
Adaper locked ring
Power button
Up button
Menu button
Battery Compartment
Cover
Lens Cap
LRF
Down button
Lens focus knob
Type-C Port
M52 connection thread

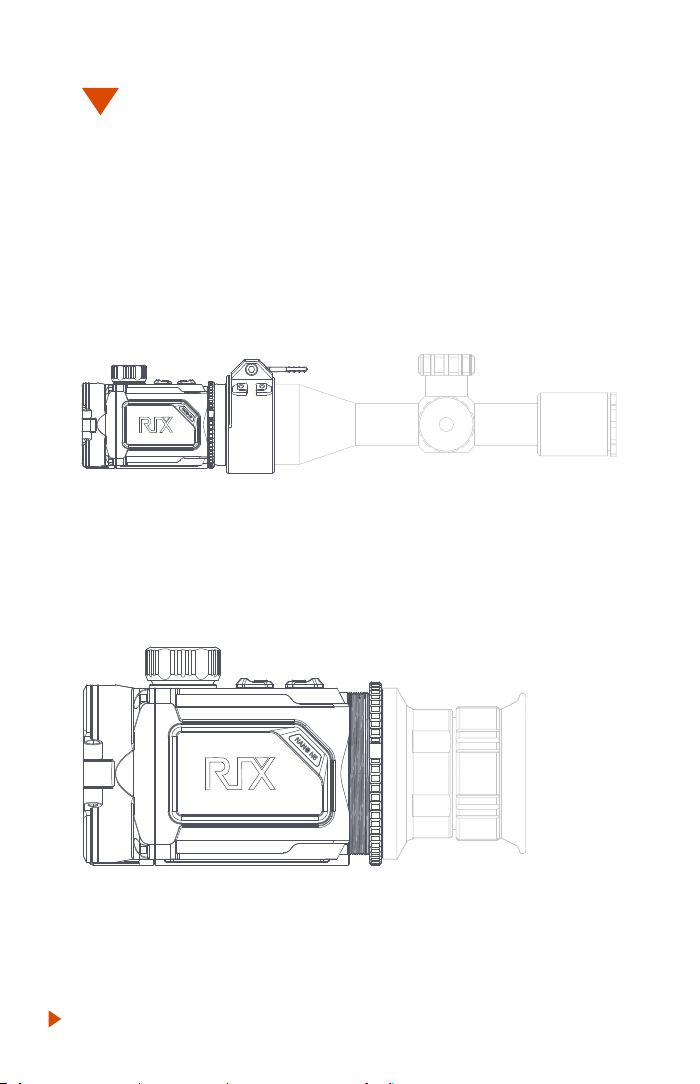

DEVICE
MODES
06
The NANO series can be used as a front-mounted attachment with
a daytime scope, or paired with a handheld eyepiece (available on
the official website or at local dealers) to be used as a handheld
monocular.
The eyepiece is available for purchase on the official website or through
local dealers.
Clip-On Mode
Monocular Mode
06
POWER
SUPPLY
07
Warning
07
·The NANO series is powered by a 18650 replaceable battery
·When the NANO series is connected via Type-C, the device
battery can be charged.

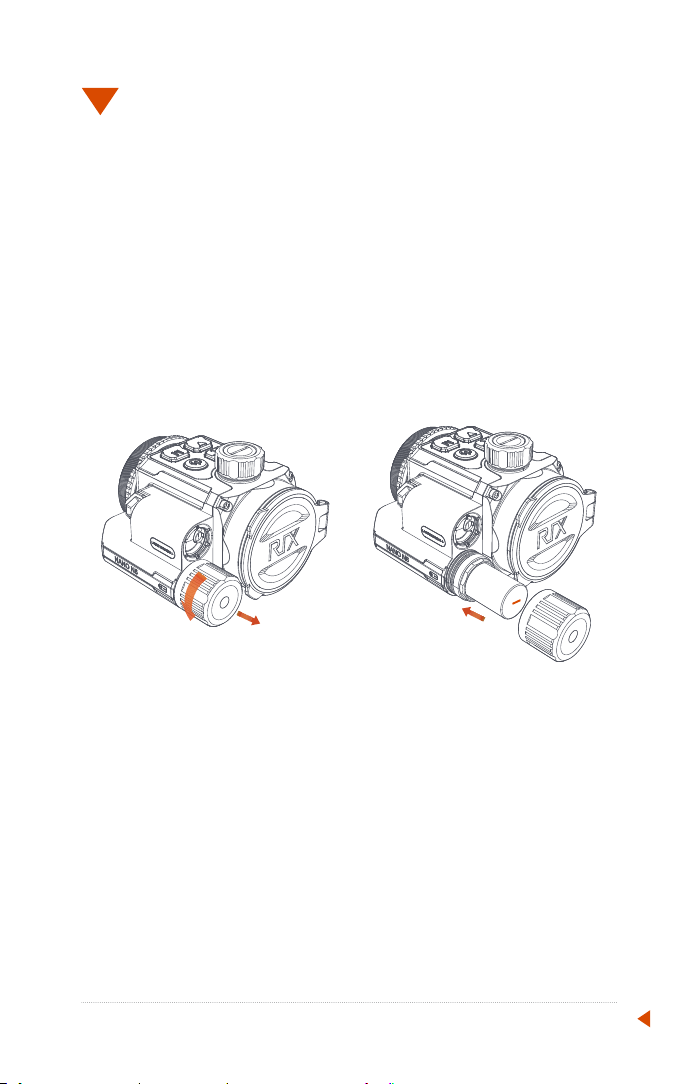

·Rotate the battery compartment cover until it is unscrewed.
·Install the battery into the compartment, positive (+) pole inward
and negative (-) pole outward, as indicated by the symbols outside
the battery compartment
·After inserting the battery, tighten the battery compartment
cover.
·Please remove the battery if the device is not in use for a long
time
·Do NOT power the device with a modified or damaged battery
·Do not use the battery at a temperture above 122 ° F as it may
reduce the service life of battery

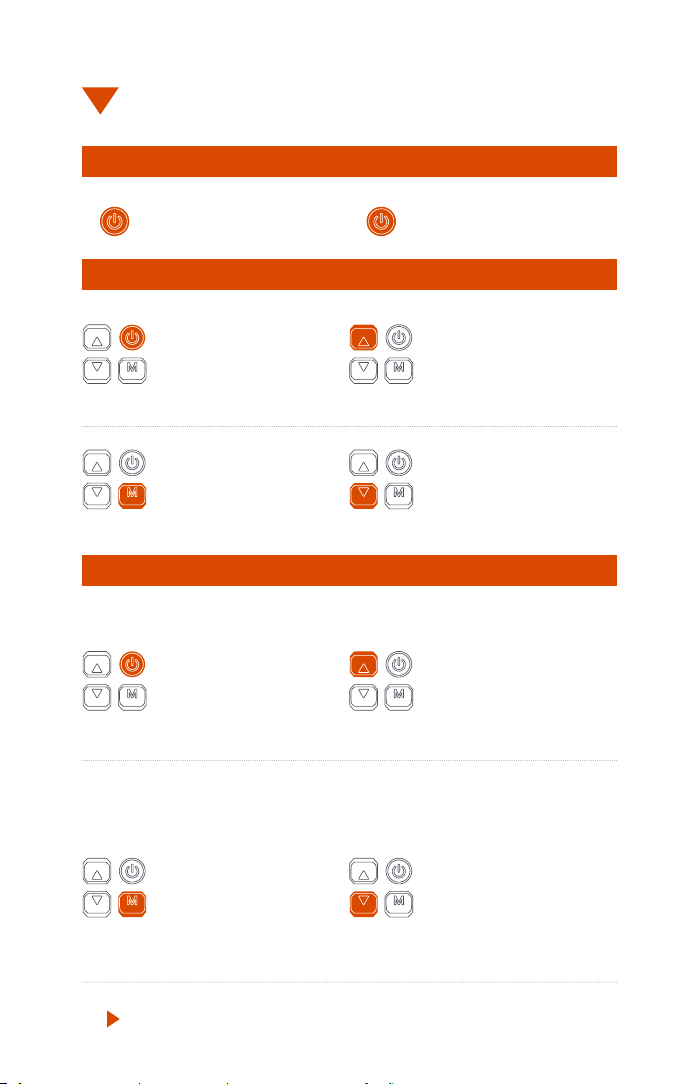

BUTTONS
OPERATION
08
Press
Image correction
Press & Hold
Standby/Power off
Press
Enter / Exit standby
Press
Open/Quit LRF
Press & Hold
UI zooming(clip-on)
Digital zoom(monocular)
Home Screen
Press & Hold
Power on /off the device
Shutdown Standby/Exit Standby
Setting menu
Press
Switch image mode
Press & Hold
Enter the setting menu
Press
start/stop Video recording
Press & Hold
Take a photo
Press
Exit to main screen /
previous menu
Press & Hold
Exit to main screen /
previous menu
Press
Scroll up
Press
Adjust the parameters of a
function/Enter the next
menu level / Confirm the
current setting.
Press & Hold
Return to the home screen
with saving changes
Press
Scroll/Down
08
SETTINGS
MENU
10
Icon
Function Function
Icon
Usage Mode Selection
RAV
Zeroing
Pixel Defect Correction
BC Profile
STATUS
BAR
09
09
Image Contrast
Screen Brightness
Sun/Rain
Automatic Standby
UI Auto Hide
Ref.Line
WiFi
Info
Ballistic Calculation
Settings
On the home screen, press and hold the Menu button to open the
main menu.
Zeroing distance
Zeroing Profile
Wi-Fi Status
Battery Status
Weather Mode
BC profile
Real-time Clock
LEGAL AND
REGULATORY INFORMATION
11
Environmental Influences
Never point the lens of the device directly at intense heat sources
such as the sun or laser equipment. The objective lens and
eyepiece can function as a burning glass and damage the interior
components.
Risk Of Swallowing
Do not place this device in the hands of small children. Incorrect
handling can cause small parts to come loose which may be
swallowed.
Wireless Transmitter Module Frequency Range
WLAN: 2.412-2.472GHz
ZIGBEE：2.4–2.5 GHz
Wireless transmitter module power < 20dBm We,
Visir Inc. hereby declares that the radio equipment
types NANO are in compliance
with the Directives 2014/53/EU and 2011/65/EU.
Safety Instructions For Use
Handle the device with care: rough handling may damage the
battery.
· Do not expose the device to fire or high temperatures.
· Install the batteries correctly according to the instruction on the
device. Reverse connection is prohibited.
· The battery capacity decreases when operated in a cold ambient
temperature. This is not a fault and occurs for technical reasons.
· Always store the device in a dry, well-ventilated space. For
prolonged storage, remove the batteries.
· The recommended temperature for using this product is -20℃ to
+50℃. Otherwise, it will affect the service life of the product.
· Do not store the device for long periods at temperatures below
20℃ or above 50℃, or this will permanently reduce the capacity of
the battery.
· If the device has been damaged or the battery is defective, send
the device to our after-sales service for repair.
10
Installing/Removing the battery
The NANO series uses a replaceable 18650 battery . Please refer to
the section of “Battery Install” section for instructions on replacing
the 18650 battery.
Labeling Requirements
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference
that may cause undesired operation.
FCC Statement
FCC ID:2A7ZZ-NN00-00
User information on the disposal of electrical and electronic
devices(private households)
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For
more information see: www.recyclethis.info
Disposal of batteries
2023/1542 (Battery Regulation): This product contains a battery
that cannot be disposed of as unsorted municipal waste in the
European Union. See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd),
lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection
point. For more information see: www.recyclethis.info
11
Information To The User
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
EMC Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure condition
without restriction.
INGESTION HAZARD: This product contains a button cell or coin battery.
DEATH or serious injury can occur if ingested.
A swallowed button cell or coin battery can cause Internal Chemical
Burns in as little as 2 hours.
KEEP new and used batteries OUT OF REACH Of CHILDREN
Seek immediate medical attention if a battery is suspected to be
swallowed or inserted inside any part of the body.
WARNING
12
13
a) Remove and immediately recycle or dispose of used
batteries according to local regulations and keep away from
children. Do NOT dispose of batteries in household trash or
incinerate.
b) Even used batteries may cause severe injury or death.
c) Call a local poison control center for treatment information.
d) Battery type: ML1220
e) Nominal voltage: 3V
f) Non-rechargeable batteries are not to be recharged.
g) Do not force discharge, recharge, disassemble, heat above
(manufacturer’ s specified temperature rating) or incinerate.
Doing so may result in injury due to venting, leakage or
explosion resulting in chemical burns.
h) The product contains a non-replaceable battery.
13
CLASS 1
LASER PRODUCT
Class 1 Consumer Laser Product
It is a Class l laser product that complies with 21 CFR 1040.10 and
1040.11 except for conformance with IEC 60825-1 & EN 50689.
Caution statement
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
Laser Warning
NANO N6
Tel: +1 (800) 580-5281
Web: www.rixoptics.com
Email: [email protected]
Addr.: 700 International Pkwy Ste 102, Richardson TX 75081
