36” Electric Range | RRE361TS
1
Rangaire: Product Installation
Product Installation & User Manual
Rangaire: 36” Electric Range | RRE
361TS
Safety Requirements ............................................................................... 1
INSTALLATION REQUIREMENTS .................................................................... 4
Safety Requirements ..................................................................................... 4
Parts Supplied ............................................................................................ 5
Ventilation Requirements ................................................................................ 6
Electrical Requirements ...................................................................................7
Tools and Parts ........................................................................................... 8

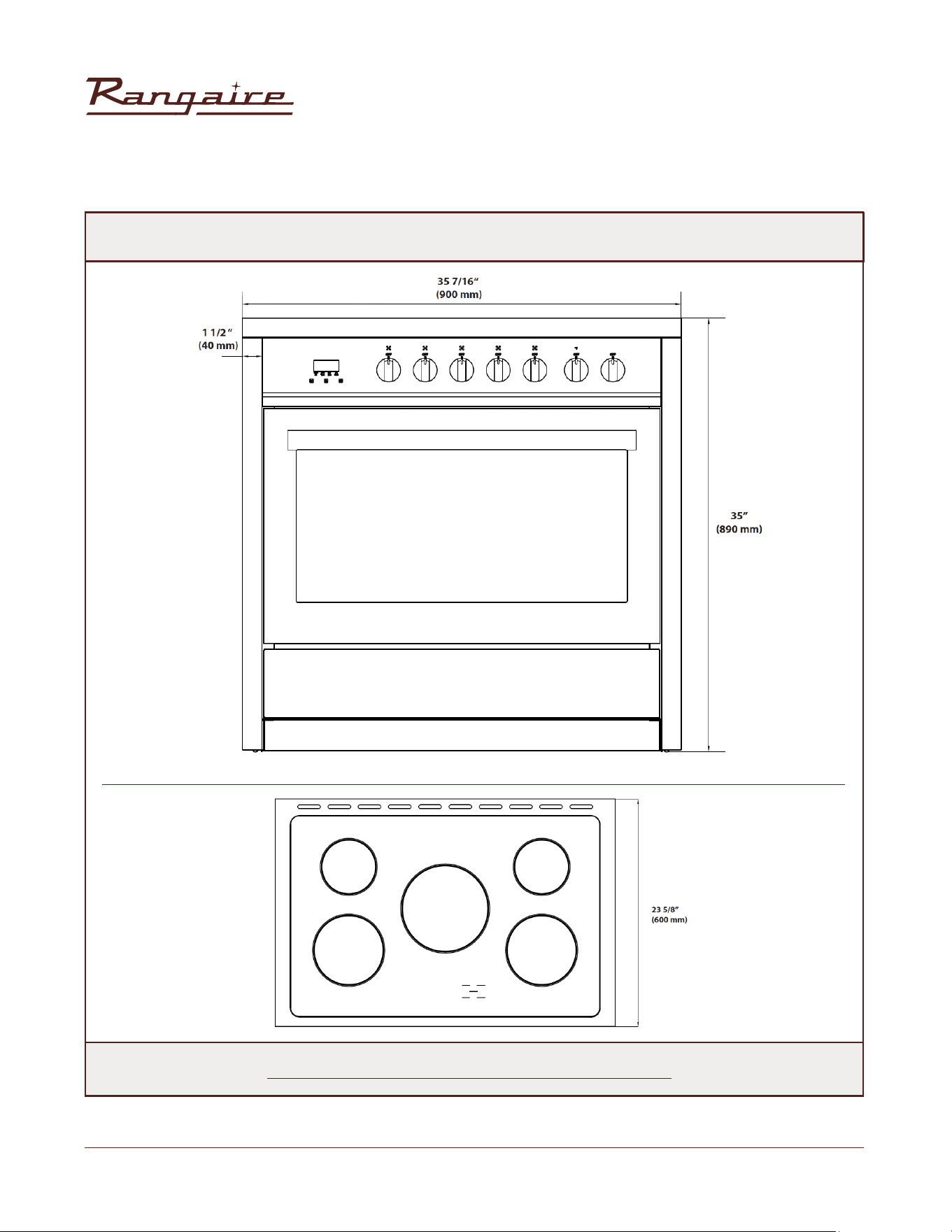

Range Dimensions ....................................................................................... 9
INSTALLATION INSTRUCTIONS .................................................................... 11
Unpack Range ...........................................................................................12
Install Leveling Feet and Back Panel ..................................................................... 12
Install Anti-Tip Bracket ..................................................................................13
Electrical Connection ....................................................................................14
Surface and Oven Cooking ....................................................................... 17

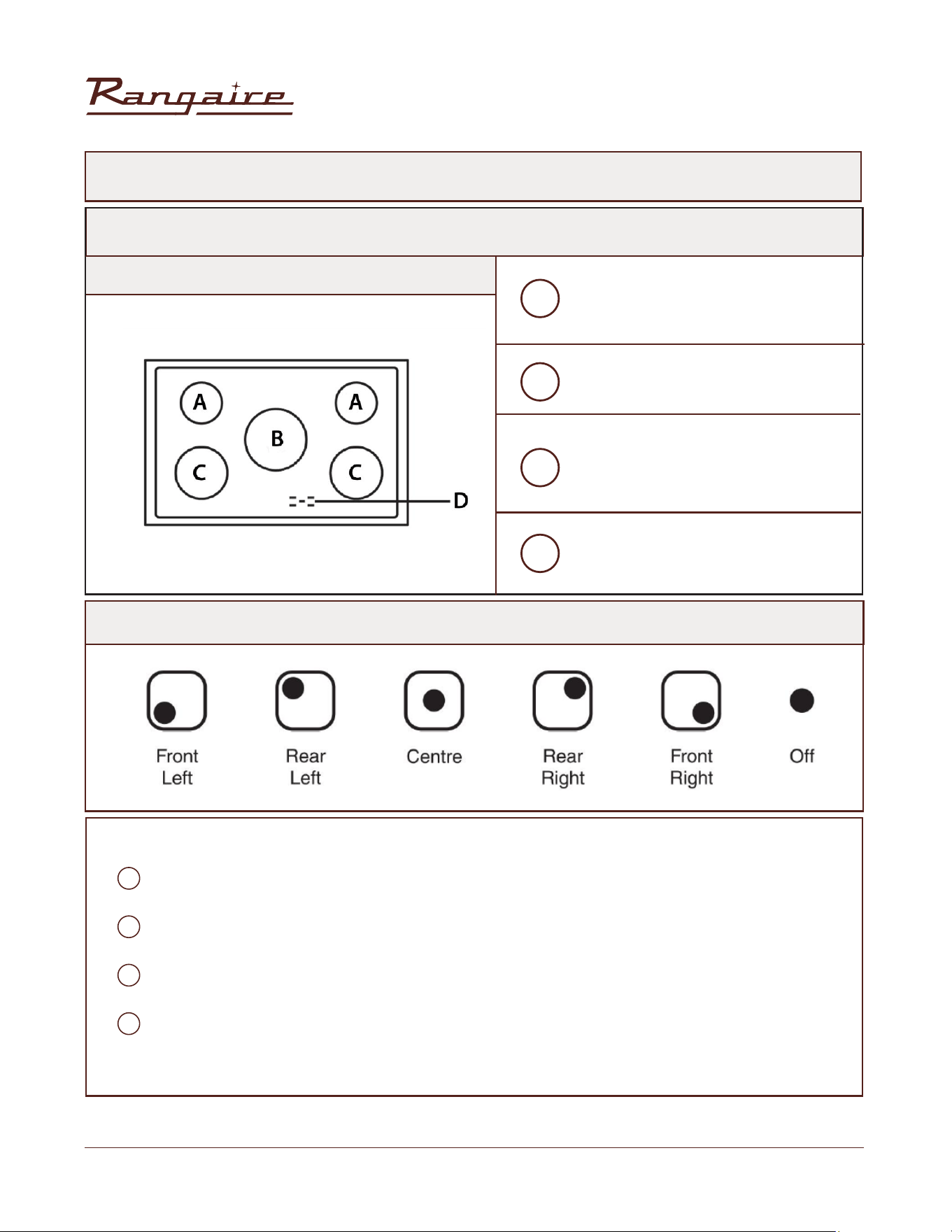

Location Of The Burners .................................................................................. 17
Description Of Symbols .................................................................................. 17

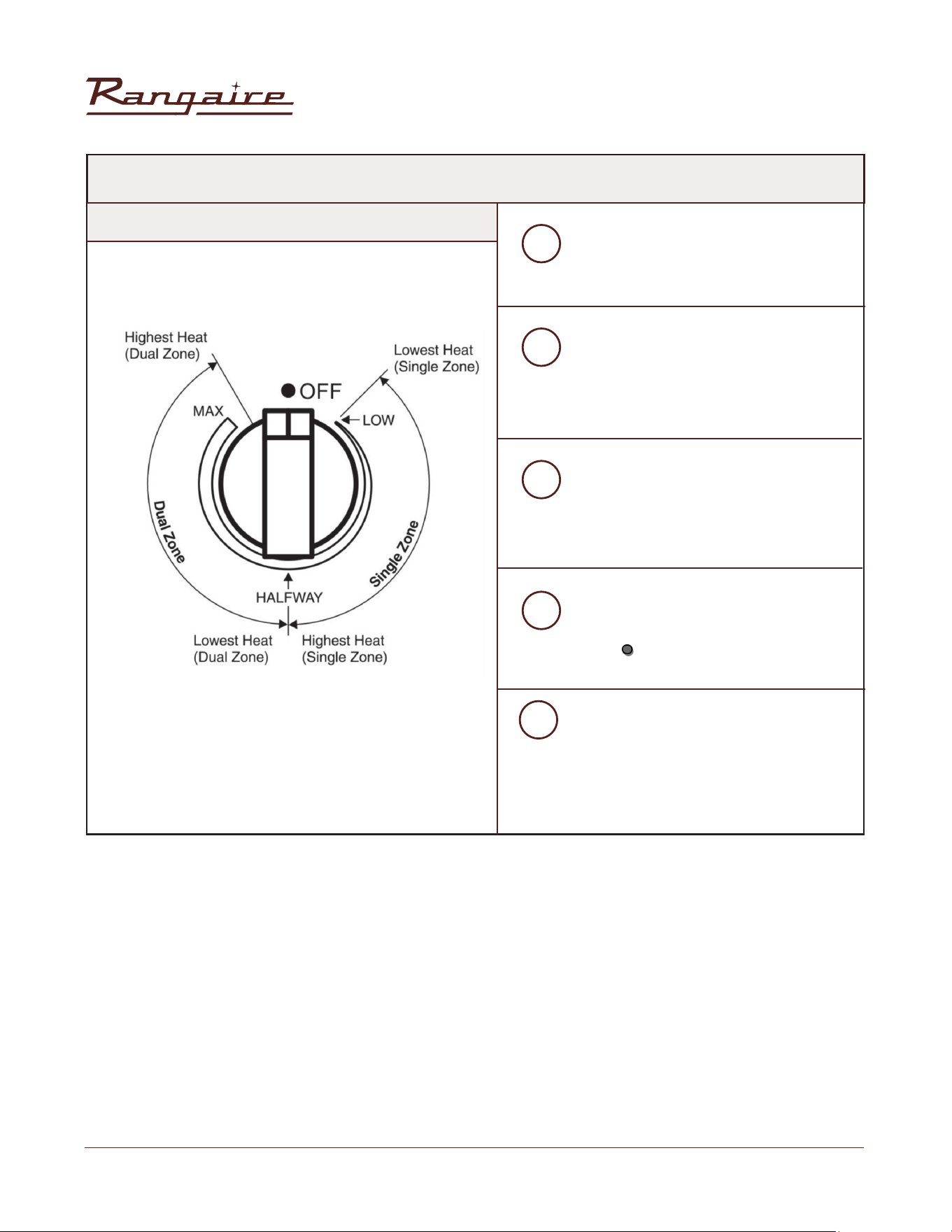

Setting Surface Controls ..................................................................................18
Surface Cooking Utensils ................................................................................19

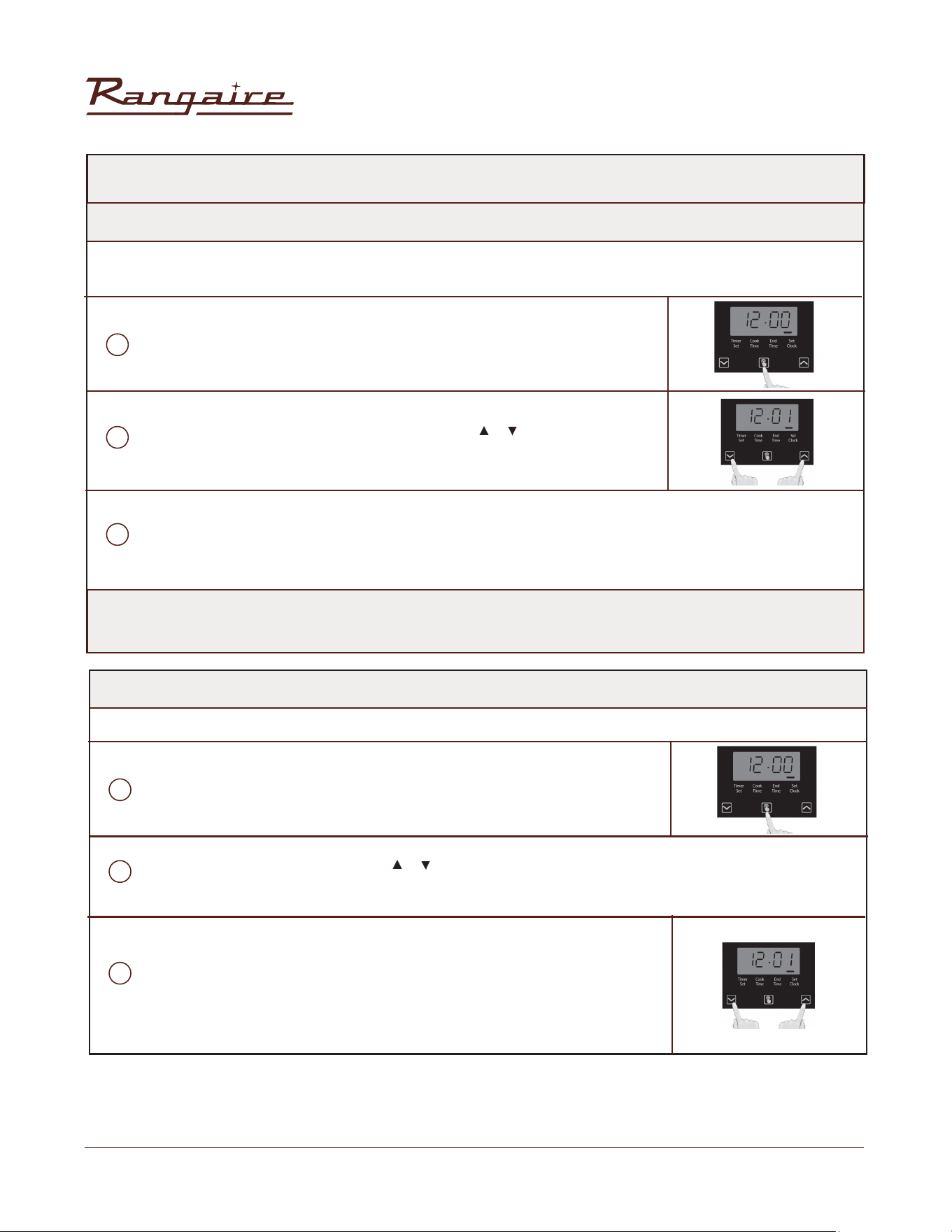

Setting Oven Clock and Timer ........................................................................... 20
Oven Cooking ............................................................................................21

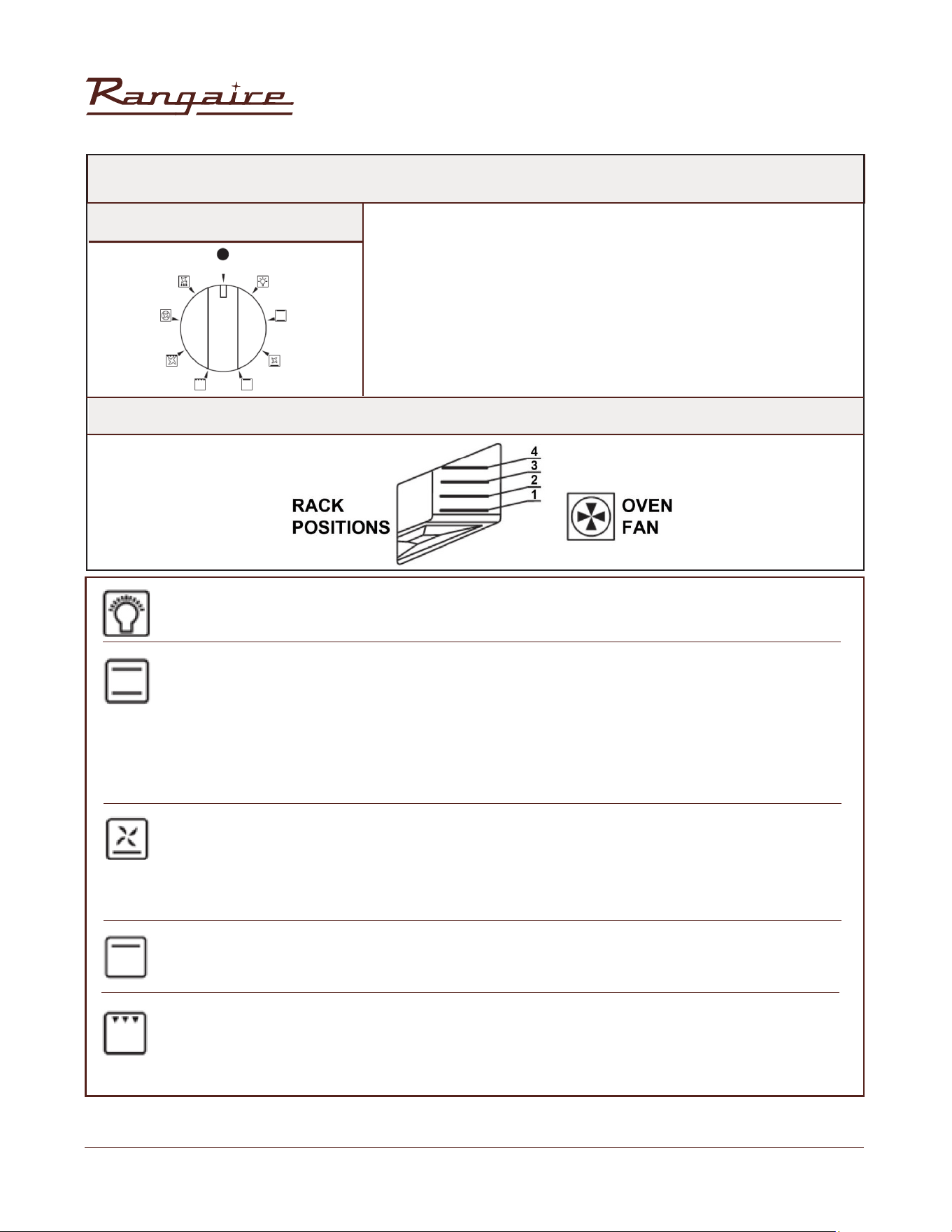

Setting Oven Controls ................................................................................... 22
Cooking Instructions ..................................................................................... 23

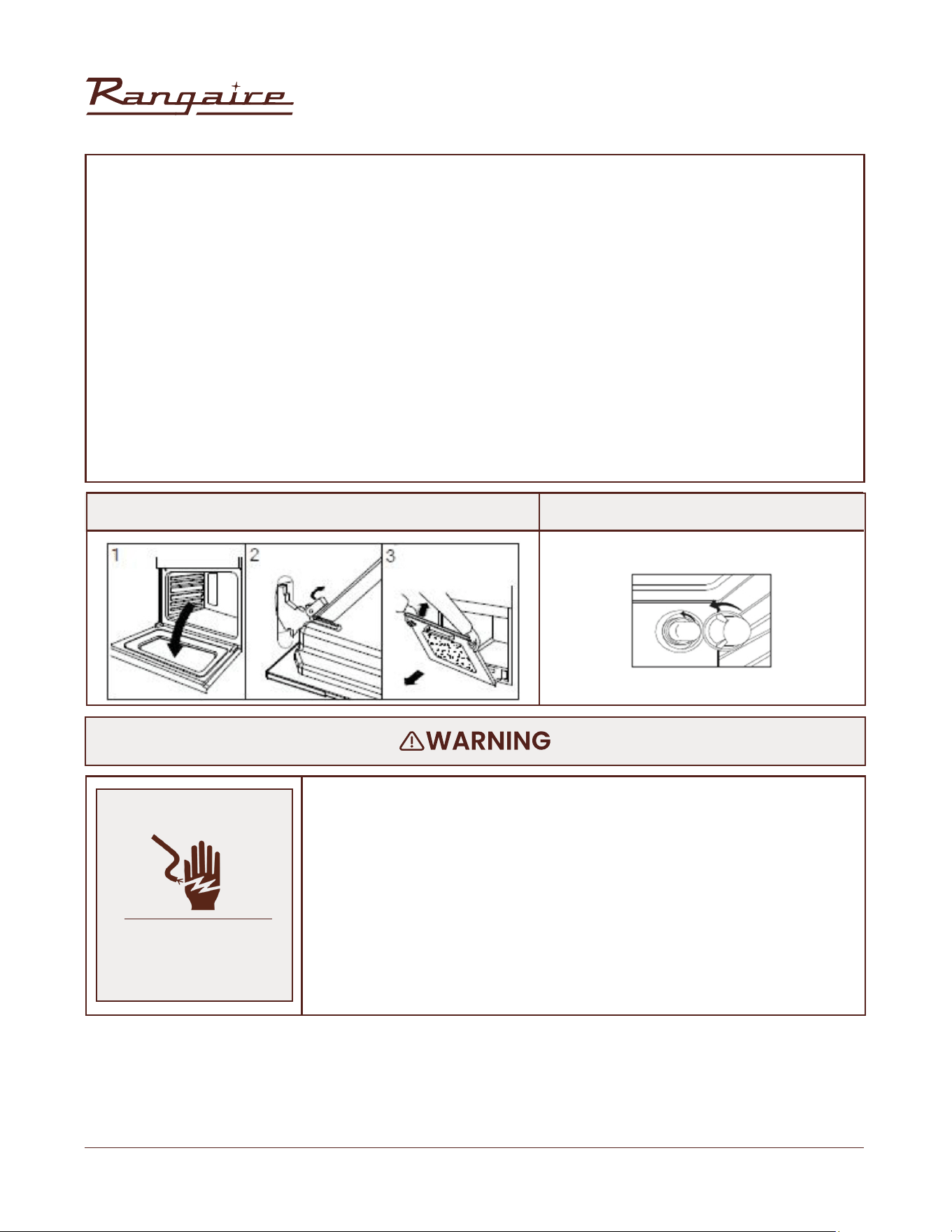

Care and Cleaning ...................................................................................... 25
Solutions To Common Problems ............................................................... 27
Warranty ................................................................................................ 29
36” Electric Range | RRE361TS
1
Rangaire: Product Installation
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others. All
safety messages will follow the safety alert symbol and either the word “DANGER”,
“WARNING” or “CAUTION”.
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
An imminently hazardous situation. You could be killed or seriously
injured if you don’t immediately follow instructions.
• Remove all tape and packaging before using the appliance. Never allow children to play with
packaging material. Do not remove the model/serial plate attached to the appliance.
• Be sure your appliance is properly installed and grounded by a QUALIFIED TECHNICIAN in accordance
with the National Fuel Gas Code ANSI Z223.1—latest edition in the United States, or in Canada CAN/
CGA B149.1, and CAN/CGA B149.2, and the National Electrical Code ANSI/NFPA No. 70—latest edition
in United States, or in Canada CSA Standard C22.1, Canadian Electrical Code, Part 1, and local code
requirements. Install only as per installation instructions provided in the literature package for this
appliance.
A potentially hazardous situation which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation which, if not avoided, may result in
moderate or minor injury.
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.
DANGER
WARNING
CAUTION
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
SAFETY REQUIREMENTS
36” Electric Range | RRE361TS
2
Rangaire: Product Installation
RANGE SAFETY
If the information in this manual is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
Do not store or use gasoline or other ammable vapors and liquids in the
vicinity of this or any other appliance.
Failure to follow this warning statement could result in re, explosion, or burn hazard that could cause
property damage, personal injury, or death.
If a re should occur, keep away from the appliance and immediately call your re department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
Never Operate the Top Surface Cooking Section of this Appliance Unattended
SAFETY REQUIREMENTS
36” Electric Range | RRE361TS
3
Rangaire: Product Installation
FOR YOUR SAFETY:
• Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
• Installation and service must be performed by a qualied installer. Ask your dealer to recommend a
qualied technician and an authorized repair service. Know how to disconnect the electrical power to
the appliance at the circuit breaker or fuse box in case of an emergency.
• Do not repair or replace any part of the appliance unless specically recommended in the manuals. All
other servicing should be done only by a qualied technician. This may reduce the risk of personal injury
and damage to the appliance.
• Proper Installation – The range, when installed, must be electrically grounded in accordance with local
codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70. In Canada, the
range must be electrically grounded in accordance with Canadian Electrical Code. Be sure the range is
properly installed and grounded by a qualied technician.
• Disconnect power before servicing.
• Never modify or alter the construction of the appliance by removing panels, wire covers or any other
part of the product.
• Injuries may result from the misuse of appliance doors or drawers such as stepping, leaning, or sitting
on the doors or drawers.
• Overhead range hoods, which operate by blowing a downward air ow on to a range, shall not be used
in conjunction with gas ranges other than when the hood and range have been designed, tested and
listed by an independent test laboratory for use in combination with each other.
• Ensure that the room is well ventilated by keeping the air intakes open and in good working order or
by installing an extractor hood with discharge pipe. If the appliance is used intensively for a long time
the effectiveness of the ventilation will have to be increased, for example by opening a window or
increasing the power of any electric extractor fan.
• Flammable materials should not be stored on the appliance or near surface units. This includes paper,
plastic and cloth items, such as cookbooks, plastic ware and towels, as well as ammable liquids. Do
not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode
and result in re or property damage.
• Maintenance – Keep range area clear and free from combustible materials, gasoline, and other
ammable vapors and liquids.
• Storage in or on the Range – Flammable materials should not be stored in an oven or near surface
units.
If the information in this manual is not followed exactly, a re or explosion may result
causing property damage, personal injury or death.
SAFETY REQUIREMENTS
36” Electric Range | RRE361TS
4
Rangaire: Product Installation
FOR YOUR SAFETY:
• DO NOT TOUCH THE COOKING SURFACE, THE BURNERS, GRATES OR ANY AREAS NEAR THEM. Surface
burners or appliance may be hot even though ames are not visible. Areas near surface burners or
appliance may become hot enough to cause burns. During and after use, do not touch, or let clothing
or other ammable materials touch these areas until they have had sufcient time to cool.
• Do not wear loose-tting or hanging garments while using the appliance. Do not let clothing or other
ammable materials contact hot surfaces.
• Smother grease res with a pan lid, or use baking soda, a dry chemical or foam-type extinguisher.
• Use an extinguisher ONLY if:
1. You know you have a Class A, B, C extinguisher, and you already know how to operate it.
2. The re is small and contained in the area where it is started.
3. The re department is being called.
4. You can ght the re with your back to an exit.
• When heating fat or grease, watch it closely. Fat or grease may catch re if allowed to become too hot.
• Use only dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do
not let potholders touch hot heating elements, the ame or burners. Do not use a towel or other bulky
cloth instead of a potholder.
• Do not heat unopened food containers. Buildup of pressure may cause the container to burstand result
in injury.
• Stepping, leaning or sitting on this appliance can result in serious injuries and also cause damage to
the appliance.
• Never use this appliance as a space heater to heat or warm the room. Doing so may result in carbon
monoxide poisoning and overheating of the oven.
• Know which knob controls which surface burner. Visually check that the burner has lit. Then adjust the
ame so it does not extend beyond the edge of the utensil.
Do not store items of interest to children in the cabinets above the appliance or on the
backguard of a range. Children should not be left alone or unattended in the area where
appliance is in use. Do not allow children to climb or play around the appliance. They should
never be allowed to sit or stand on any part of the appliance. Children climbing on the
appliance to reach items could be seriously injured.
SAFETY REQUIREMENTS
36” Electric Range | RRE361TS
5
Rangaire: Product Installation
FOR YOUR SAFETY:
• Clean the appliance regularly to keep all parts free of grease that could catch re. Exhaust fan
ventilation hoods and grease lters should be kept clean. Do not allow grease to accumulate on hood
or lter. Greasy deposits in the fan could catch re. When cooking food turn the hood, fan on. Refer to
hood manufacturer’s instructions for cleaning.
• Utensil handles should be turned inward and not extend over adjacent surface burners. To reduce the
risk of burns, ignition of ammable materials, and spillage due to unintentional contact with the utensil,
the handle of the utensil should be positioned so that it is turned inward, and does not extend over
adjacent surface burners.
• Never leave surface burners unattended at high heat settings. Boil overs cause smoke and greasy
spillovers that may ignite, or a pan that has boiled dry may melt.
• Do not use aluminum foil to line any part of the appliance. Use aluminum foil only to cover food during
cooking. Improper installation of these liners may result in risk of electric shock or re.
• Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are
suitable for appliance service without breaking due to the sudden change in temperature. Check the
manufacturer’s recommendations for appliance use.
• Do not use decorative surface burner covers. If a burner is accidentally turned on, the decorative cover
will become hot and possibly melt. You will not be able to see that the burner is on. Burns will occur if the
hot covers are touched. Damage may also be done to the range or burners because the covers may
cause overheating. Air will be blocked from the burner and cause combustion problems.
• Use the proper pan sizes. This appliance is equipped with surface units of different sizes. Select utensils
having at bottoms large enough to cover the surface unit. The use of undersized utensils will expose
a portion of the surface heating unit to direct contact and may result in ignition of clothing. Proper
relationship of utensil to the surface unit will also improve efciency.
TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK
FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR
RANGE FOOT IS UNDER ANTI-TIP BRACKET.
IMPORTANT
The range will not tip during normal use. However, the range can tip if you apply too much force
or weight to the open door without having the anti-tip bracket fastened down properly.
SAFETY REQUIREMENTS
36” Electric Range | RRE361TS
6
Rangaire: Product Installation

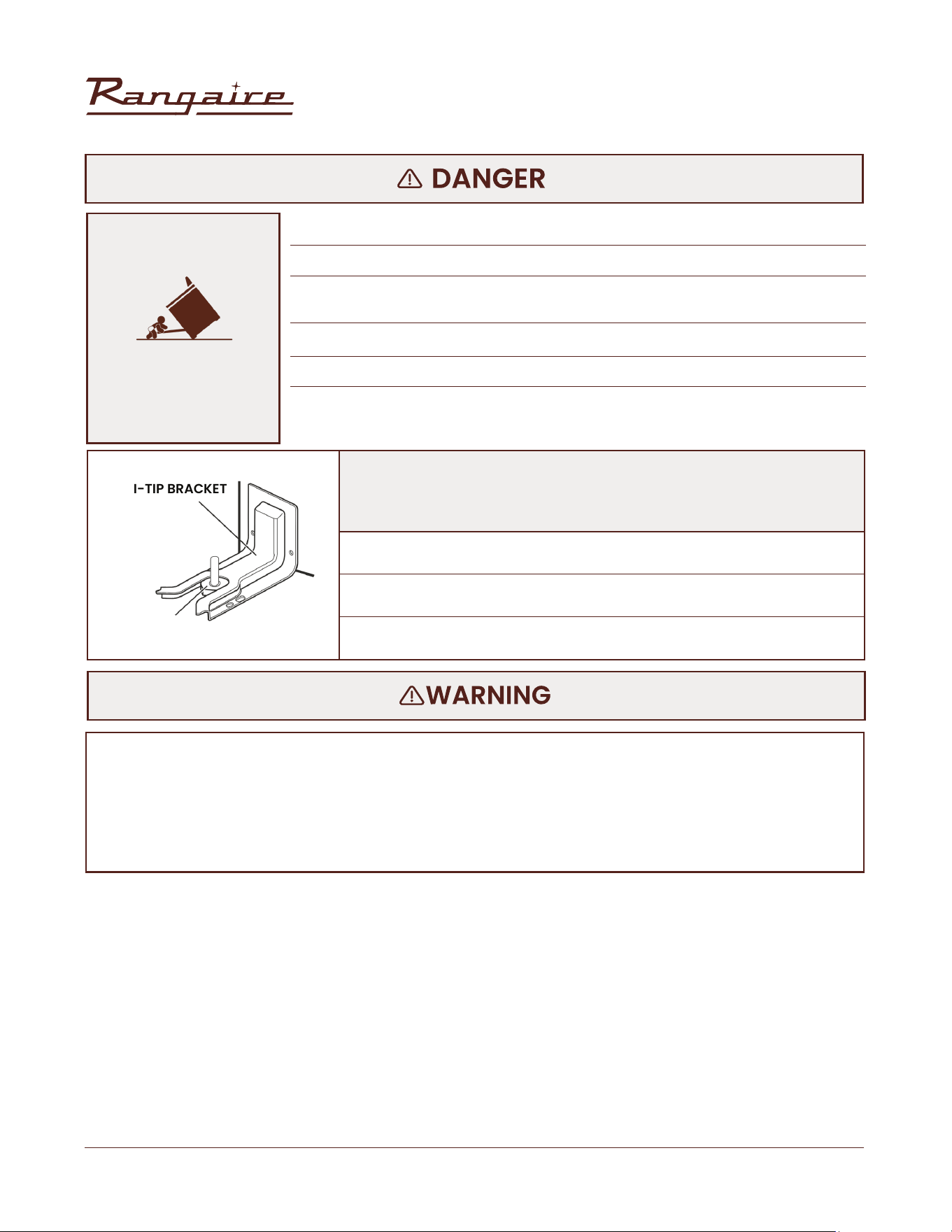

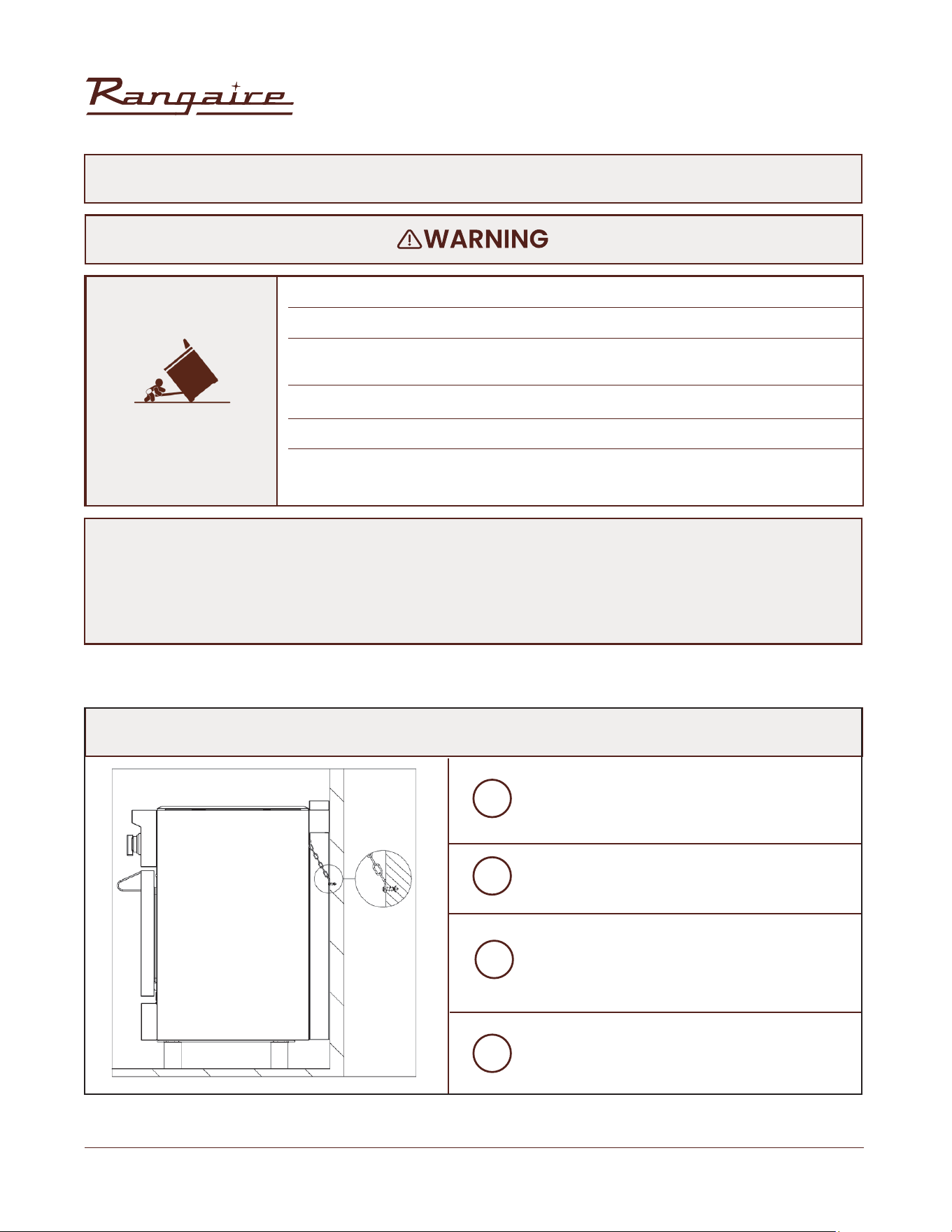

ANTI-TIP BRACKET
RANGE FOOT
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to oor or wall per installation instructions.
• Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults
• Slide range forward.
• Look for the anti-tip bracket securely attached to oor and wall.
• Slide range back so rear range foot is under anti-tip bracket.
Making sure the anti-tip bracket is installed:
TIP-OVER HAZARD
The range should have proper ventilation in order to keep the unit operating properly and maintain the
temperature of immediate surroundings within safe limits. Check your local building codes as they may
vary from the general rules outlined in this guide. It is recommended that a hood be installed above the
range that is rated no less than 400 CFM. This will provide adequate ventilation for this range. Mounting
distance of your ventilation is outlined by the manufacturer of your hood.
SAFETY REQUIREMENTS
36” Electric Range | RRE361TS
7
Rangaire: Product Installation

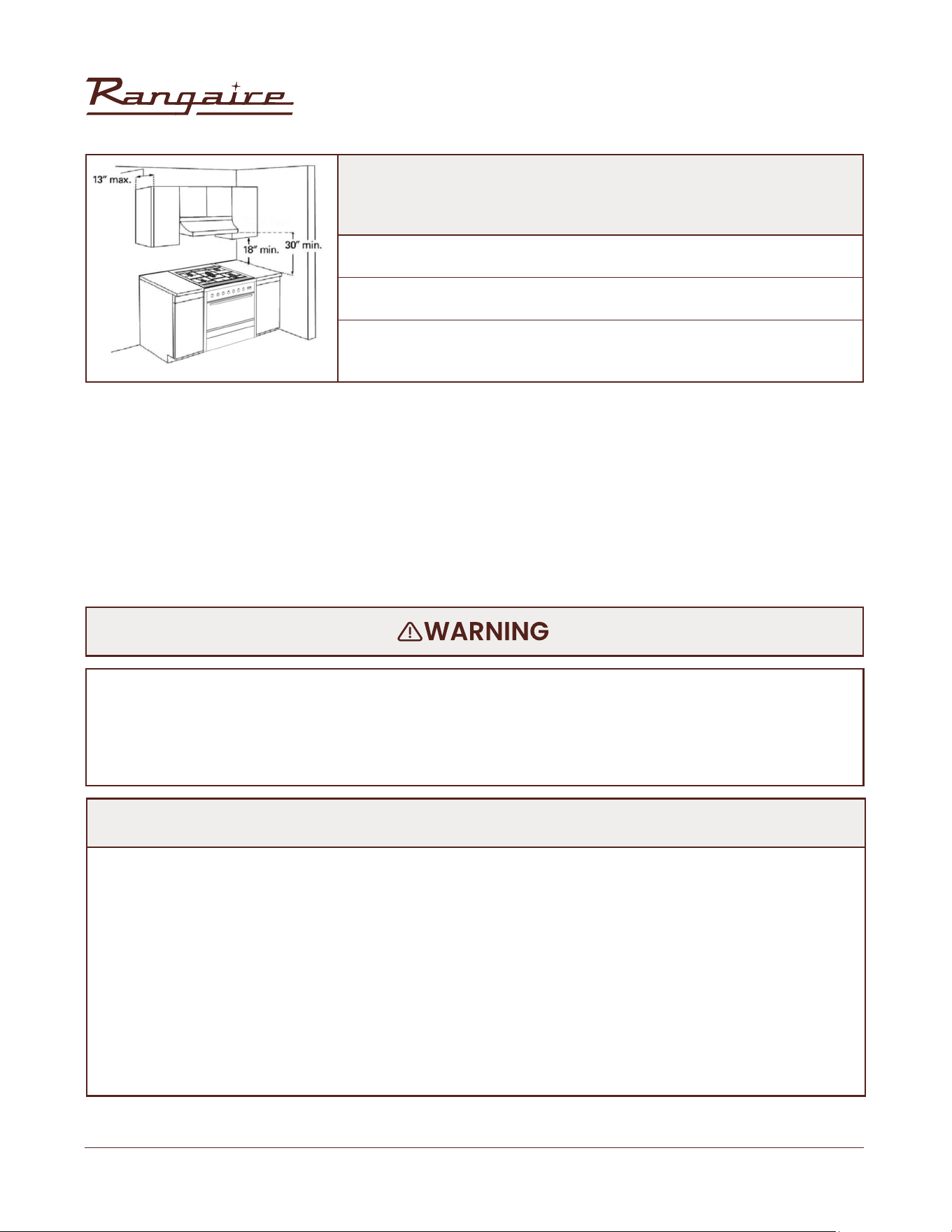

VENTING REQUIREMENTS
• Observe all governing codes and ordinances. Do not obstruct ow of combustion and ventilation
air.
• It is the installer’s responsibility to comply with installation clearances specied on the model/
serial rating plate.
• The range should be located for convenient use in the kitchen.
• Recessed installations must provide complete enclosure of the sides and rear of the range.
• To eliminate the risk of burns or re by reaching over heated surface units, cabinet storage space
located above the surface units should be avoided. If cabinet storage is to be provided, the risk
can be reduced by installing a range hood or microwave hood combination with minimum 400
CFM that projects horizontally a minimum of 5“ (12.7 cm) beyond the bottom of the cabinets. (See
Figure 1)
• If a range hood is installed above the appliance, maintain a 30” minimum clearance between
cooking surface and bottom of range hood. The range hood must be connected directly to ues or
to the outside. (See Figure 1)
• Avoid placing cabinetry directly above the appliance when possible. If cabinetry is used above the
cooking surface, use cabinets no more than 13“ deep. Make sure the wall coverings, countertop and
cabinets around the appliance can withstand heat up to 200º F (93°C) generated by the appliance.
(See Figure 1)
• Cabinet opening dimensions that are shown must be used. Given dimensions are minimum
clearances. (See Figure 1)
• Working areas adjacent to the range should have 18“ minimum clearance between countertop and
cabinet bottom. (See Figure 1)
• All openings in the wall or oor where range is to be installed must be sealed.
• Contact a qualied oor covering installer to check that the oor covering can withstand at least
200°F (93°C).
• Use an insulated pad or ¼“ (0.64 cm) plywood under range if installing range over carpeting.
• The oor anti-tip bracket must be installed. To install the anti-tip bracket shipped with the range,
see “Install Anti-Tip Bracket” section.
• Grounded electrical supply is required. See “Electrical Requirements” section.
INSTALLATION REQUIREMENTS
INSTALLATION REQUIREMENTS
36” Electric Range | RRE361TS
8
Rangaire: Product Installation
MOBILE HOME - ADDITIONAL INSTALLATION REQUIREMENTS
• The installation of this range must conform to the Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280). When such standard is not applicable, use the Standard for
Manufactured Home Installations, ANSI A225.1/NFPA 501A or with local codes.
• In Canada, the installation of this range must conform with the current standards CAN/CSAA240-
latest edition, or with local codes.
• When this range is installed in a mobile home, it must be secured to the oor during transit. Any
method of securing the range is adequate as long as it conforms to the standards listed above.
To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the
materials used will not discolor, delaminate or sustain other damage. This oven has been designed
in accordance with the requirements of UL and CSA International and complies with the maximum
allowable wood cabinet temperatures of 194°F (90°C).
• Use cabinets no more than 13“ deep.
• 18“ minimum clearance between countertop and cabinet bottom.
• 30” minimum clearance between cooking surface and bottom of
range hood.
FIGURE 1
INSTALLATION REQUIREMENTS
36” Electric Range | RRE361TS
9
Rangaire: Product Installation
DO NOT USE AN EXTENSION CORD.
Failure to do so can result in death, re or electrical shock.
• Any additions, changes or conversion required in order for this appliance to satisfactorily meet
the application needs must be made by a qualied service technician in accordance with the
manufacturer’s instructions and all codes and requirements of the authority having jurisdiction.
Failure to follow the instructions could result in serious injury or property damage. The qualied
agency performing this work assumes responsibility for the conversion.
• This appliance is not supplied with a plug. If you wish to install this appliance with a plug, it must
installed by a qualied service technician. The plug must be a 4-prong, 3- phase plug that is designed
specically for freestanding ranges.
• This appliance can be installed directly to the main (without a plug). To do so, follow instructions in
the “Electrical Connection” section. If you wish to install this appliance directly to the main (without a
plug), it must be installed by a qualied service technician.
• DO NOT operate this appliance using a 2-prong adapter or an extension cord. If a 2- prong wall
receptacle is the only available outlet, it is the personal responsibility of the consumer to have it
replaced with a properly grounded 4-prong wall receptacle installed by a qualied electrician.
• Severe shock, or damage to the range may occur if the range is not installed by a qualied installer
or electrician.
• It is 220-240V/50-60Hz. With recommendation to connect to a 50 Amp power supply.
• Total Input Power is 11.7kw (48.75A). A dedicated circuit, protected by a minimum 50 amp time delay
fuse or circuit breaker is required.
• For personal safety, the appliance must be properly grounded.
• See the “Installation Instructions” packaged with this appliance for complete installation and
grounding instructions.
ELECTRICAL SHOCK
HAZARD
Electrical Grounding Instructions
ELECTRICAL REQUIREMENTS
INSTALLATION REQUIREMENTS
36” Electric Range | RRE361TS
10
Rangaire: Product Installation
INSTALLATION REQUIREMENTS
RANGE DIMENSIONS
• Tape Measure
• Flat-Blade Screwdriver
• Phillips Screwdriver
• Level
• Hand or electric drill
• Wrench or Pliers
The anti-tip bracket must be securely mounted to the oor. Thickness of ooring may
require longer screws to anchor bracket to suboor.
Tools Needed:
• 1/8” at blade screwdriver
• 1/8” (3.2 mm) Drill Bit (for wood oors)
• Marker or Pencil
• 3/16” (4.8 mm) Carbide-Tipped Masonry Drill Bit (for concrete/
ceramic oors)
• 3 - Oven racks
• 1 Anti-tip brackets
• 2 plastic anchors
• 2 screws
Parts Supplied: Parts Needed:
Check local codes.
Check existing electrical supply.
See “Electrical Requirements” section.
Gather the required tools and parts before starting installation. Read and follow the
instructions provided with any tools listed here.
• Avoid placing cabinetry directly above the appliance when possible. If cabinetry is used above the
cooking surface, use cabinets no more than 13” deep. Make sure the wall coverings, countertop and
cabinets around the appliance can withstand heat up to 200º F (93°C) generated by the appliance.
(See Figures 1 and 2)
• Cabinet opening dimensions that are shown must be used. Given dimensions are minimum
clearances. (See Figures 1 and 2)
• Working areas adjacent to the range should have 18” minimum clearance between countertop and
cabinet bottom. (See Figures 1 and 2)
INSTALLATION REQUIREMENTS
36” Electric Range | RRE361TS
11
Rangaire: Product Installation
This height measurement does not include leveling feet.
FIGURE 2
INSTALLATION INSTRUCTIONS
36” Electric Range | RRE361TS
12
Rangaire: Product Installation

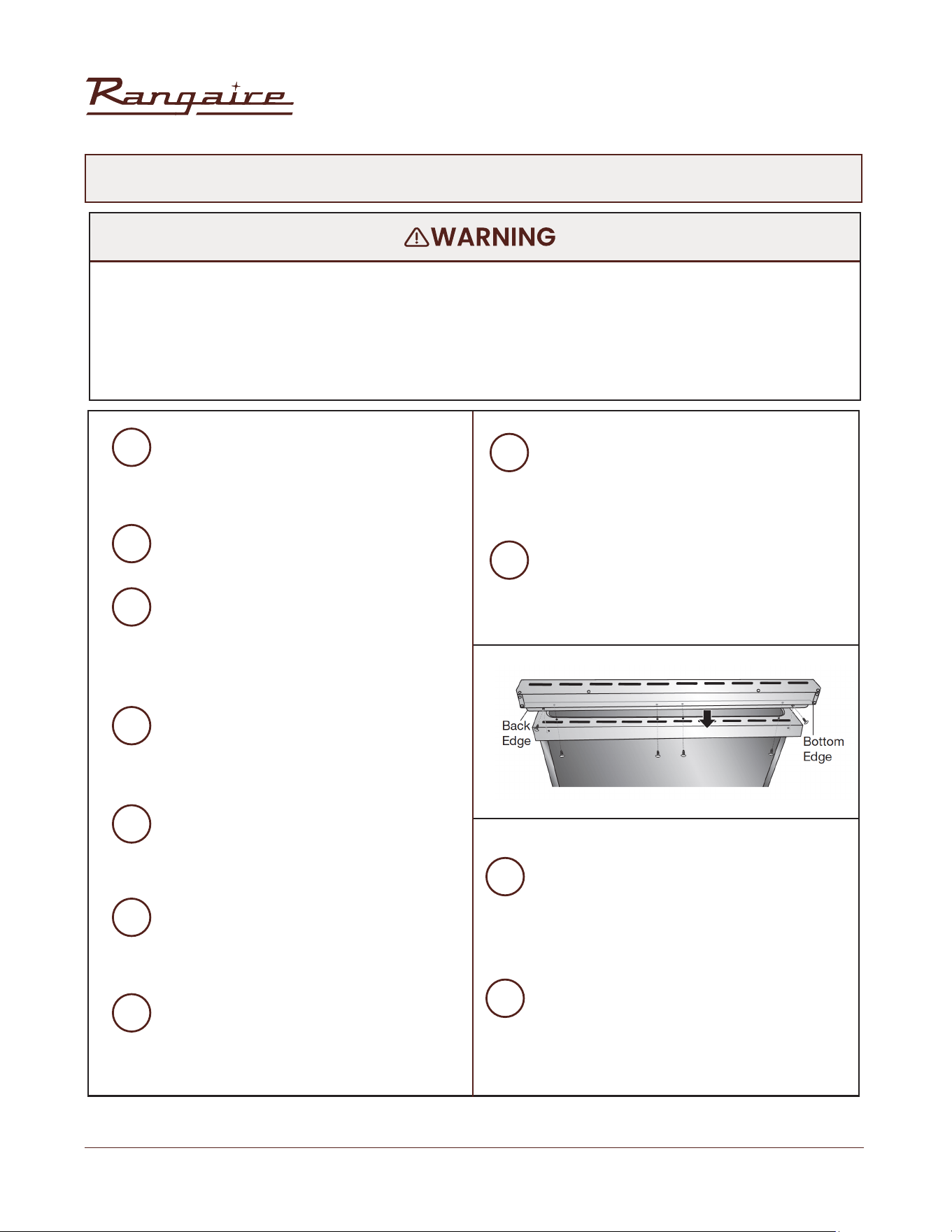

INSTALL LEVELING FEET AND BACK PANEL
• Excessive Weight Hazard
• Tip Over Hazard
• A child or adult can tip the range and be killed.
• Use two or more people to move and install range.
• Failure to follow these instructions can result in death or serious burns to children and adults.
1
3
4
5
6
7
8
9
10
11
2
Remove shipping materials from the
range. DO NOT remove protective lm
covering the appliance. DO NOT remove
tape securing the drawer.
Place range on its back; take four (4)
Lshaped cardboard corners from the
carton. Stack one cardboard corner on
top of another. Repeat with the other 2
corners.
Place the four (4) L-shaped cardboard
corners lengthwise on the oor behind
the range to support the range when it is
laid on its back.
Using 2 or more people rmly grasp the
range and gently lay it on its back on the
cardboard corners.
Install the leveling feet one at a time. The
leveling feet can be found in one of the
boxes that was inside the oven.
Place cardboard or hardboard in front of
range. Using 2 or more people, stand
range back up onto cardboard or
hardboard.
Remove the protective lm covering the
appliance. Remove tape securing the
drawer.
The stainless steel back panel can now
be installed. Align backsplash holes with
holes at the edge of the stovetop, which
extends past the back of the oven.
With one person holding the backsplash
and working from underneath the
extended rear edge, insert screws
through the bottom of the backsplash.
Tighten completely.
Insert the two screws on each side,
through the back edge of the backsplash
and into the cooktop. Tighten completely.
Remove oven racks and parts package
from inside oven.
INSTALLATION INSTRUCTIONS
36” Electric Range | RRE361TS
13
Rangaire: Product Installation
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to oor or wall per installation instructions.
• Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults
Contact a qualied oor covering installer for the procedure of drilling mounting holes
through your type of oor covering.
Assemble the required tools and parts before starting installation. Read and follow the
instructions provided with any tools listed here.
TIP-OVER HAZARD
INSTALL ANTI-TIP BRACKET
INSTALL ANTI-TIP CHAIN (WITH ROUND ADJUSTABLE LEGS)
Remove the anti-tip wall anchor hooks and
screws from the parts bag.
Drill an adequate hole at similar chain level
in the back wall.
Insert and screw in the wall anchor hooks
until it is rmly secured to the wall.
After moving the range to its nal position,
connect the chain to the hook.
1
2
3
4
INSTALLATION INSTRUCTIONS
36” Electric Range | RRE361TS
14
Rangaire: Product Installation
• Do not use an adapter
• Do not use an extension cord.
• Failure to follow these instructions can result in death, re, or electrical shock.
• Electrical connection must be performed by a qualied service technician in
accordance with the kit instructions and all local codes and requirements.
This appliance is not supplied with a plug and needs to be connected directly to the electrical mains.
If you wish to install this appliance with a plug, it must installed by a qualied service technician.The
plug must be a 4-prong, 3-phase power plug that is designed specically for ranges and ovens.
Electrical Requirements: 220-240V/50-60Hz.
With recommendation to connect to a 50 Amp power supply.
ELECTRICAL CONNECTION
ELECTRICAL SHOCK
HAZARD
ELECTRICAL SPECIFICATIONS
OVEN LIGHT
UPPER HEATING ELEMENT
BOTTOM HEATING ELEMENT
GRILL HEATING ELEMENT
CONVECTION HEATING ELEMENT
SYSTEM WATTAGE
2 X 25 W
2395 W
1960 W
3158 W
2 X 1250 W
INSTALLATION INSTRUCTIONS
36” Electric Range | RRE361TS
15
Rangaire: Product Installation
INSTALLATION REQUIREMENTS
INSTALLATION INSTRUCTIONS
BEFORE MAKING THE ELECTRICAL CONNECTION, MAKE SURE THAT:
• The safety circuit-breaker and the electrical system are able to with stand the load of the
appliance. See rating label on back of range.
• Rating plate is located on back of range should you need to verify any of the electrical
requirements.
• The power supply system has a ground connection in good working order in accordance with the
regulations in force.
• The electrical socket is easily accessible with the appliance installed. In all cases, the power
supply lead must be positioned so that it does not reach a temperature of 50oC above the room
temperature at any point.
• The manufacturer is not liable for any direct or indirect damage caused by faulty installation or
connection. It is therefore necessary that all installation and connection operations are carried out by
qualied personnel complying with the local and general regulations in force.
CONNECTION OF THE RANGE WIRES TO THE MAINS:
1
2
3
This appliance is equipped with the following wires:
• One black wire (L1 - Live) and one red wire (L2 - Live)
• One yellow /green (Ground)

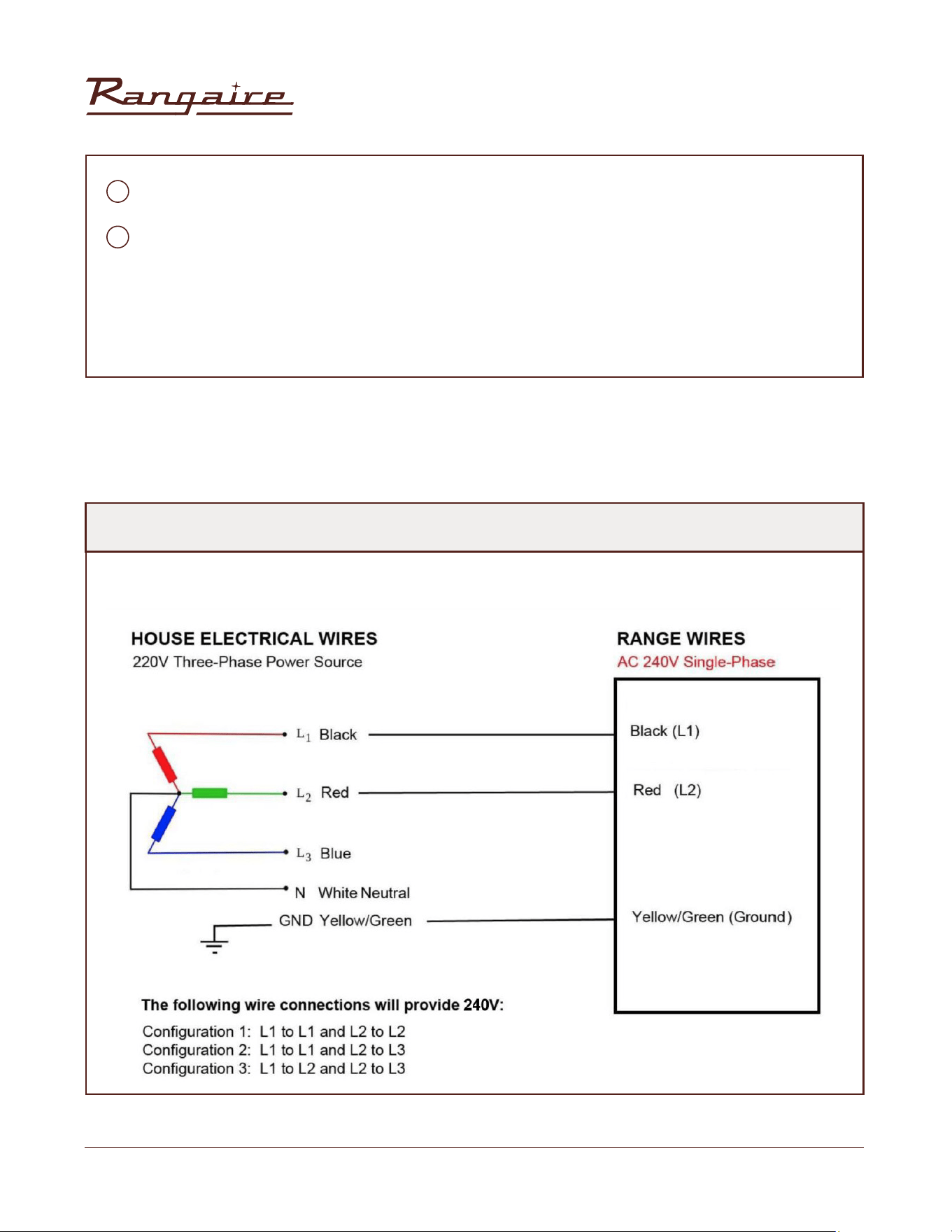

Follow the diagram below to know how to connect the freestanding range wires to the electrical
main wires of the home. (See Figure 8)
The black and red wires can be connected to the electrical main wires of the home in one of the
following three congurations:
• Conguration 1: L1 to L1 and L2 to L2
• Conguration 2: L1 to L1 and L2 to L3
• Conguration 3: L1 to L2 and L2 to L3
CONTINUED ON NEXT PAGE.
36” Electric Range | RRE361TS
16
Rangaire: Product Installation
Never use reductions, shunts, or adaptors which can cause overheating or burning.
After carrying out the connection to the mains, check that the supplying cable does not come
into contact with parts subject to heating.
4
5
FIGURE 8
INSTALLATION INSTRUCTIONS
36” Electric Range | RRE361TS
17
Rangaire: Product Installation
SURFACE COOKING
LOCATION OF THE BURNERS
BEFORE FIRST USE:
Before cooking for the rst time the ceramic glass has to be cleaned. Remove any labels and
protective sheeting.
Place a saucepan of water on each of the front burners and switch them on the high for at least
30 minutes.
After 30 minutes switch the front burners off, place a saucepan of water on each of the rear and
the center burners. Switch them on high for at least 30 minutes.
This procedure is necessary in order to evaporate any protective oils and humidity that may
have collected during the manufacturing process and it will enable the electronic control
circuits to operate properly.
DESCRIPTION OF SYMBOLS
Single cooking zone - 1200W
Single cooking zone - 2500W
Single cooking zone - 1800W
Power & Residual Heat Warning Lights
A
B
C
D
FIGURE 9
1
2
3
4
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
18
Rangaire: Product Installation
SETTING SURFACE CONTROLS
Turn the control knob to the desired
position (low to high). (See Figure 11)
Adjustment is continuous so the
cooking zone will operate at any
intermediate setting between low
and high.
Once the cooking zone is hot, the
LED corresponding to the zone
illuminates.
To switch off the cooking zone by
turn the knob, in either direction to
the “OFF” position.
The residual heat warning light
remains illuminated when the
temperature of the ceramic glass
surface is hot and will switch off once
the surface temperature has cooled.
1
2
3
4
5
FIGURE 11
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
19
Rangaire: Product Installation
NOTE:
Always use a utensil for its intended purpose. Follow manufacturer’s instructions. Some utensils were not
made to be used in the oven or on the cooking surface.
Do not place plastic items such as salt and pepper shakers, spoon holders or
plastic wrappings on top of the appliance when it is in use. These items could
melt or ignite. Potholders, towels or wood spoons could catch re if placed too
close to a heat.
SURFACE COOKING UTENSILS
• For best results and energy savings, only use pans suitable for electric cooking.
• The bottom of the pan must be very thick and perfectly at.
• Before placing on the burner, make sure that the pan and burner, are perfectly clean and dry.
• To avoid scratching of the ceramic glass surface, never use cast-iron pans or pans with a rough
bottom.
• To avoid wasting energy, make sure that the diameter of the pan bottom is 20mm bigger than the
circle marked on the hotplate.
• The pot sizes stated in the table below are suitable for your ceramic surface. Solids pots and pans
with at bottoms are recommended for efcient cooking. (See Figure 9)
POT SIZES
COOKING ZONE A
COOKING ZONE B
COOKING ZONE C
BURNER ZONE
165MM (6 1/2 INCHES)
250MM (9 13/16 INCHES)
200MM (7 7/8 INCHES)
MINIMUM DIAMETER OF PAN
140MM (5 1/2 INCHES)
225MM (8 7/8 INCHES)
175MM (7 INCHES)
ZONE DIAMETER
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
20
Rangaire: Product Installation

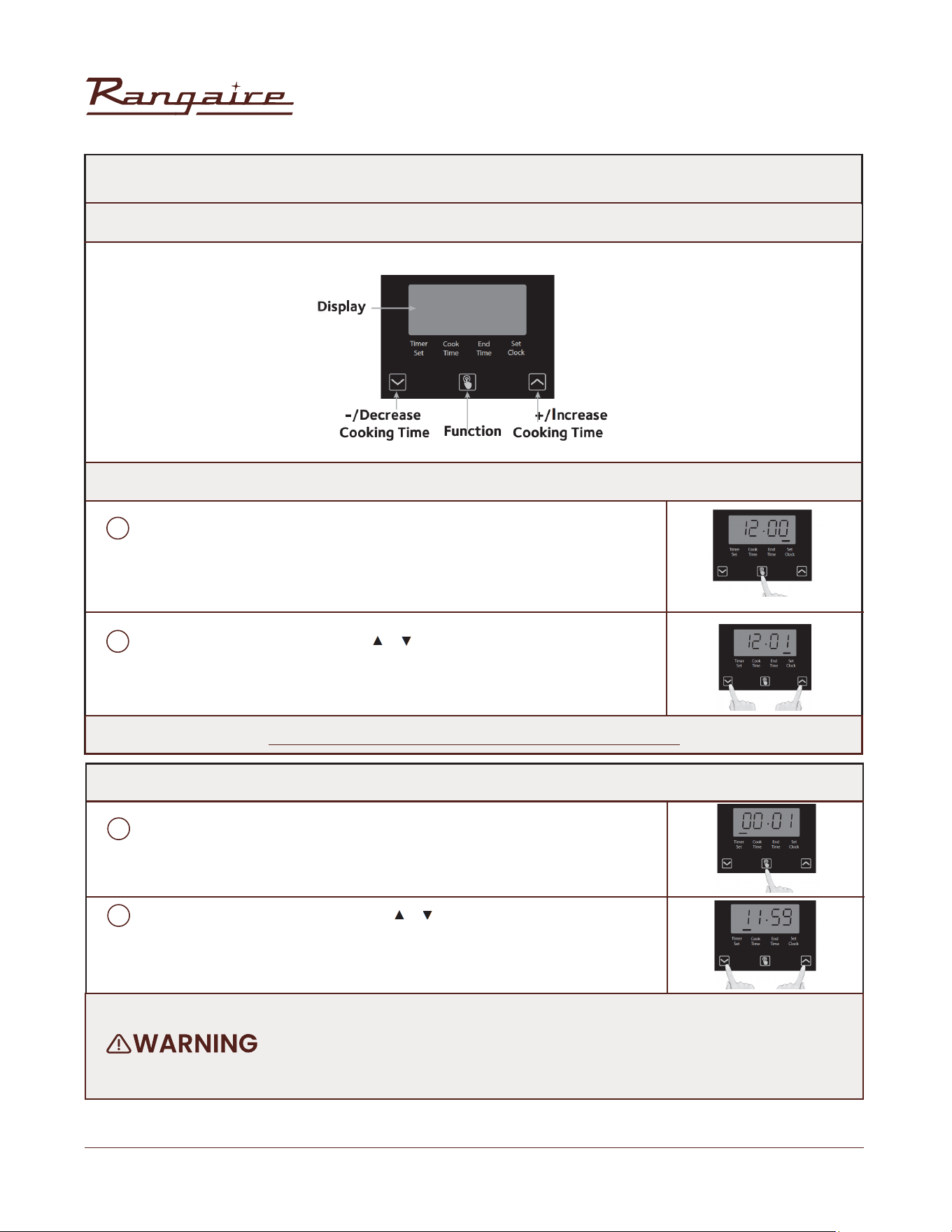

CLOCK AND TIMER
When rst connected to AC power or after a power outage, the display
will blink "12:00" and the Clock indicator will blink. You can enter the Time
Setting mode manually by pressing and releasing the Function button
until the Clock indicator blinks.
Enter the Time Setting mode by pressing the Function button once; the
Timer indicator will light.
To set the correct time, press the or button to advance forward or
backward until the correct time is displayed. When nished, press the
Function button, or wait ve seconds; the time will be then set.
Set the desired timer time using the or button to advance forward or
backward until the desired time is displayed. The timer will count down
and beep when it is nished.
SETTING THE CLOCK
SETTING THE TIMER
1
1
2
2
Clock must be set in order for the oven functions to work.
Use caution with the timed cooking. Use only when cooking cured or frozen
meats or most fruits and vegetables. Timer function should be used with
caution when cooking foods that can easily spoil, such as milk, eggs,
sh, meat or poultry. Eating spoiled food can result in sickness from food
poisoning.
FIGURE 12
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
21
Rangaire: Product Installation
OVEN COOKING
Press and release the Function button until the Start indicator blinks.
Press the Function button again until the End indicator blinks.
To start cooking time, set the TIMER to desired amount of time BEFORE setting oven
function and temperature.
To end cooking time, set the TIMER to desired shut off time:
Set the amount of time desired by pressing the or button until the
chosen timing is displayed, for a maximum of 10 hours.
Set the end timing by pressing the or button until the desired amount of time is displayed, for
a maximum of 11 hours 59 minutes. Press the Function button again to set.
Set the Temperature and Cooking knobs as desired (see "Setting Oven Controls") and place the
food in the oven.
When the end of timed cooking is reached, the unit will beep. Rotate the
Temperature and Cooking knobs to their OFF positions, and then press
the Function button to turn off the beeping.
OVEN TIMED COOKING - DELAYED START TIMING
OVEN TIMED COOKING - DELAYED START TIMING
Oven will not operate until the programmed Start Time is reached. To operate oven
before the Start Time, the Delay Start function must be cancelled.
1
1
2
2
3
3
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
22
Rangaire: Product Installation
SETTING OVEN CONTROLS
• Selection of cooking temperature is carried out by turning the
knob clockwise to the required temperature.
• The warning light will illuminate during the heating process.
• Once the oven reaches desired temperature, the light will go out.
• Regular ashing means that the oven temperature is being
maintained at the programmed level.
OVEN LIGHT INDICATOR - The lamp of the oven is on. During oven operation the lamp will always
remain on.
DELICATE COOKING (Lower element and Fan) - THERMOSTAT SELECTOR SWITCH FROM 60° C (140°
F) TO MAX Ideal for pastries and cakes with wet covering and little sugar and damp desserts in
moulds. Excellent results can also be achieved in completing cooking at the bottom and with
dishes requiring heat in the lower area in particular. The plate is best inserted at bottom level.
GRILL COOKING (Grill element) - THERMOSTAT SELECTOR SWITCH FROM 60° C (140° F) TO MAX The
use of the grill element is best reserved for: melting cheese, toasting, and browning. The cooking
time should be no longer than 5 minutes. To operate, please select Full Grill Function along with
the temperature.
UPPER ELEMENT COOKING - THERMOSTAT SELECTOR SWITCH FROM 60° C (140° F) TO MAX This is
best used to brown select dishes at the end of cooking.
TRADITIONAL COOKING (Upper and Lower element) - THERMOSTAT SELECTOR SWITCH FROM
60° C (140° F) TO MAX The heat is provided from the top and bottom elements. The oven must
be preheated before the food is placed inside. Static cooking provides optimum results with:
cakes, pizzas, bread and for gentle slow cooking of casseroles. Characteristics of static cooking:
heat provided from above and below, cooking is possible only on middle shelf and should be
centrally located in the oven.
FIGURE 11
FIGURE 14
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
23
Rangaire: Product Installation
FAN ASSISTED GRILL COOKING (Grill element and Fan) - THERMOSTAT SELECTOR SWITCH FROM
60° C (140° F) TO 200° C (392° F) Best used for grilling meats, vegetables, and poultry. Preheat
the oven, place food on a grilling rack or backing tray and place in the middle of the oven. Other
racks can be used simultaneously using this method.
CONVECTION COOKING (Cooking element & Fan) - THERMOSTAT SELECTOR SWITCH FROM 60°
C (140° F) TO MAX This method allows even-heat multi-rack cooking for various types of foods
with the appropriate cooking times for each dish. The oven must be preheated before the foods
are placed inside. Use the ‘Fan Forced’ function to operate.
DEFROST (Bottom fan) - All types of food can be defrosted by circulating air at room
temperature: cakes, cream, fruit, etc. For foods such as: meat, sh, and bread you will want to
set the fan temperature to 175-200° C (347-392° F).
COOKING INSTRUCTIONS
SETTING
TRADITIONAL
COOKING (ADD
TIME FOR PRE-
HEAT)
CONVECTION
COOKING (ADD
TIME FOR PRE-
HEAT)
FOOD
LASAGNA
DUCK
FRUIT CAKE
PORK
OVEN BAKED PASTA
GOOSE/TURKEY
BROWNING
CHICKEN
ROAST VEAL
LAMB
LASAGNA
DUCK
BEEF
FISH
OVEN BAKED PASTA
GOOSE/TURKEY
PORK
PIZZA
ROAST VEAL
LAMB
CHICKEN
SHORT PASTRY
BEEF
RACK LEVEL
2-3
2
1-2
2
2-3
1
3-4
2
2
2
2-3
2
2
1-2
2
2
2
1-2
2
2
2
1-2
2
410-450
340-400
340-400
300-325
410-450
280-340
140
350
350-400
340-400
375-410
325-350
410-460
340-400
375-410
300-325
340-400
410-450
300-350
300-350
340-400
340-400
350-375
30
45-60
20-30
70-100
40
45-60
5
70-90
30-40/LB
15/LB
20-25
100-160
30-40/LB
DEPENDS ON SIZE
25-30
160-240
30-40/LB
40-45
65-90
100-130
45-60
15-20
65-90
TEMP (FAHRENHEIT) TIME (MINS)
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
24
Rangaire: Product Installation
COOKING INSTRUCTIONS
CONVECTION
COOKING (ADD
TIME FOR PRE-
HEAT)
GRILL COOKING
SETTING
SETTING
FOOD
FISH
PORK CHOPS
SAUSAGES
PIZZA
FILLET (PORK)
MEATBALLS
SPONGE CAKE
FILLET (BEEF)
FISH FILLET
FRUIT CAKE
LIVER
TOAST
BREAD
VEAL
FOOD
CHICKEN
RACK LEVEL
2-3
4
4
2-3
3
4
2-3
3
4
2-3
4
4
1-2
4
RACK LEVEL
3
300-350
7-9
7-9
410-475
9-11
7-9
375-425
9-11
5-6
350-375
2-3
2-4
425-475
7-9
1ST SIDE COOK MINS
9-14
DEPENDS ON SIZE
5-7
5-6
30-50
5-9
5-6
25-35
9-11
3-4
40-50
2-3
2-3
7
5-7
2ND SIDE COOK MINS
9-11
TEMP (FAHRENHEIT) TIME (MINS)
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
25
Rangaire: Product Installation
CARE AND CLEANING
BURN HAZARD
To avoid possible burns use care when cleaning the appliance.
DO NOT attempt to clean the appliance whenever the oven or burner heads
are still hot.
To avoid possible burns DO NOT attempt any of the following cleaning
instructions before turning OFF ALL of the surface burners and allowing them
to cool.
IMPORTANT: Always follow label instructions on cleaning products.
ELECTRICAL SHOCK
HAZARD
CONTROL KNOBS
• For general cleaning, use hot, soapy water and a cloth.
• For more difcult soils and built-up grease, apply a liquid detergent directly onto the soil. Rinse with
a damp cloth and dry.
• DO NOT use steel wool or acidic cleaners on the knobs as they can scratch.
STAINLESS STEEL
• Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water and a cloth.
• Do not use cleaners with high concentrations of chlorides or chlorines. Do not use harsh scrubbing
cleaners. Only use kitchen cleaners that are especially made for cleaning stainless steel.
INSIDE OVEN
• This appliance does NOT have a self-cleaning feature.
• DO NOT attempt to clean the appliance whenever the oven is still hot.
• Use an appropriate cleaning product designed specically to clean the inside of ovens.
• IMPORTANT: Always follow label instructions on cleaning products.
STORAGE DRAWER
• Make sure drawer is cool and empty before cleaning.
• Use a mild detergent.
OVEN DOOR EXTERIOR
• Use a glass cleaner and a soft cloth or sponge.
• Apply glass cleaner to soft cloth or sponge, not directly on panel.
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
26
Rangaire: Product Installation
CHANGING THE INTERIOR OVEN LIGHT BULB
• Ensure that the appliance is switched off before replacing the lamp to
avoid possible electric shock.
• Remove the glass cover by turning counter clockwise. (See Figure 16)
• Replace bulb with a high temperature bulb able to withstand 600
degrees and that meets the following criteria:
• 240V
• 25W
• TYPE: E-14
REMOVING AND CLEANING THE OVEN DOOR
For normal range use, it is not suggested to remove the oven door. However, if removal is necessary,
make sure the oven is off and cool. The oven door is heavy. Follow these instructions.
• Open the door fully.
• Lift up and push the small levers located on the two hinges all the way back.
• While holding the door on each side, shut the door until it touches the levers.
• Then continue closing the door until it is about 4 inches (10cm) from being fully closed.
• Pull the door towards you, pulling it out of its seat. Door will gently come away from the oven. (See
Figure 15)
• To replace the door, perform the reverse of the above procedure.
• Note: If door does not come away from oven easily, do not force it.
FIGURE 15 FIGURE 16
ELECTRICAL SHOCK
HAZARD
SURFACE AND OVEN COOKING
36” Electric Range | RRE361TS
27
Rangaire: Product Installation
SOLUTIONS TO COMMON PROBLEMS
IMPORTANT
Before calling for service, review this list. It may save you both time and expense. This list includes
common experiences that are not the result of defective workmanship or material in your appliance.
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Failure to follow these instructions can result in death, re, or electrical shock.
ELECTRICAL SHOCK
HAZARD
NOTHING WILL OPERATE
• Is the electrical supply disconnected?
Verify that electrical wires are connected to the mains properly. See “Electrical Connection” section. If
the problem continues, contact a qualied technician.
• Household fuse blown or circuit breaker tripped?
Replace the fuse or reset the circuit breaker. If the problem continues, contact a qualied technician.
SURFACE BURNERS WILL NOT OPERATE
• Is the control knob set correctly?
Push in knob before turning to a setting.
EXCESS HEAT AROUND COOKWARE ON COOKING SURFACE
• Is the cookware the proper size?
Use cookware about the same size as the surface cooking area, element or surface burner. Cookware
should extend 20mm outside the cooking area.
SOLUTIONS TO COMMON PROBLEMS
36” Electric Range | RRE361TS
28
Rangaire: Product Installation
COOKTOP COOKING RESULTS NOT WHAT EXPECTED
• Is the proper cookware being used?
See “Surface Cooking Utensils” section.
• Is the control knob set to the proper heat level?
See “Setting Surface Controls” section.
• Is the range level?
Level the range. See the “Unpack Range / Install Leveling Feet and Back Panel” section.
OVEN WILL NOT OPERATE
• Are the oven controls set correctly?
See “Setting Oven Controls” section.
COOLING FAN RUNS DURING BAKING AND BROILING
• Is the cookware the proper size?
It is normal for the fan to automatically run while the oven is in use and for some time after to cool.
OVEN TEMPERATURE TOO HIGH OR TOO LOW
• Was the oven preheated?
See “Cooking Instructions” section.
• Are the racks positioned properly?
See “Cooking Instructions” section.
• Is there proper air circulation around bakeware?
See “Cooking Instructions” section.
• Is the batter evenly distributed in the pan?
Check that batter is level in the pan.
• Is the proper length of time being used?
Adjust cooking time.
• Has the oven door been opened while cooking?
Oven peeking releases oven heat and can result in longer cooking times.
• Are baked items too brown on the bottom?
Move rack to higher position in the oven.
• Are pie crust edges browning early?
Use aluminum foil to cover the edge of the crust and/or reduce baking temperature.
SOLUTIONS TO COMMON PROBLEMS
36” Electric Range | RRE361TS
29
Rangaire: Product Installation
LIMITED SERVICE WARRANTY
VALID ONLY IN THE UNITED STATES
1 YEAR PARTS AND LABOR WARRANTY
Unless otherwise stated, Rangaire warrants to the original purchaser of a new Rangaire electric range oven,
that such equipment will be free from defects in material and workmanship for a period of 1 year from the
date of delivery. Valid only in the Continental United States.
COVERAGE LIMITATIONS
The 1 year parts and labor warranty, Rangaire does not cover:
• Failure to install and/or use the equipment within proper operating conditions specied by Rangaire. This
includes but is not limited to residential, outdoor, or mobile applications.
• Any adjustments necessitated by improper operating conditions.
• Damage caused by improper electrical connection, power failure, or generators.
• Failure to properly maintain the unit including all preventive maintenance and cleaning.
• Equipment sold or used outside of United States, equipment purchased second-hand, equipment sold by
an unauthorized reseller, and equipment expressly sold without warranty coverage.
• Equipment without a valid serial number and proof of purchase, or other way to verify warranty coverage.
• Equipment that has not been used appropriately or was subject to misuse, neglect, abuse, accident,
alteration, negligence, damage during transit, delivery or installation, re, ood, or an act of God.
• Equipment that has been altered, modied, or repaired by anyone other than an authorized service
agency outside of preventative maintenance and cleaning.
• Parts deemed by Rangaire to be normal wear and tear parts, including hoses and select plastic or rubber
components.
FOR WARRANTY INQUIRIES OR SERVICE:
This warranty is only valid on equipment purchased from an authorized dealer.
Locate the model and serial number.
Next, visit www.rangaire.com or call (877) 793-2331. You must have the model and serial number when
contacting service technicians.
Failure to contact Rangaire prior to obtaining equipment service may void your warranty.
SOLUTIONS TO COMMON PROBLEMS
36” Electric Range | RRE361TS
30
Rangaire: Product Installation
Correct Disposal of this Product
This marking indicates that this appliance should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable resuse of material resources.
