Product Installation & User Manual
RANGE SAFETY ......................................................................................... 1
INSTALLATION REQUIREMENTS .................................................................... 4
Tools and Parts ........................................................................................... 4
Location Requirements .................................................................................. 5
Electrical Requirements ...................................................................................7
INSTALLATION INSTRUCTIONS .................................................................... 9
Unpack Range ........................................................................................... 9

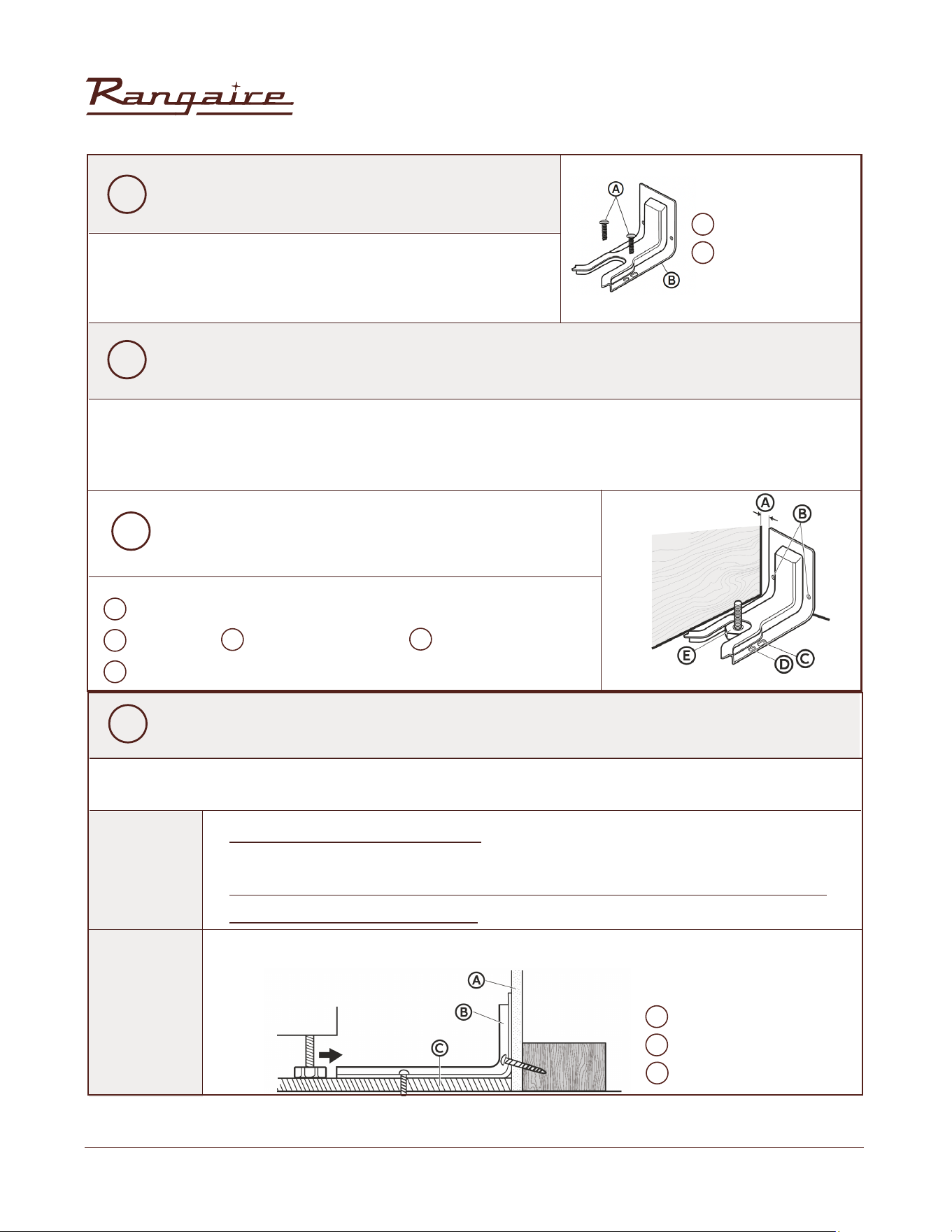

Install Anti-tip Device .................................................................................... 9
Make Electrical Connection ............................................................................. 11
Install Range .............................................................................................19
Complete Installation ...................................................................................19
PRODUCT INSTALLATION
Rangaire: 30” Electric Range | RRE
303TS
Rangaire: 30” Electric Range | RRE
303TS
RANGE SAFETY .........................................................................................21
Anti-Tip Device ........................................................................................... 26

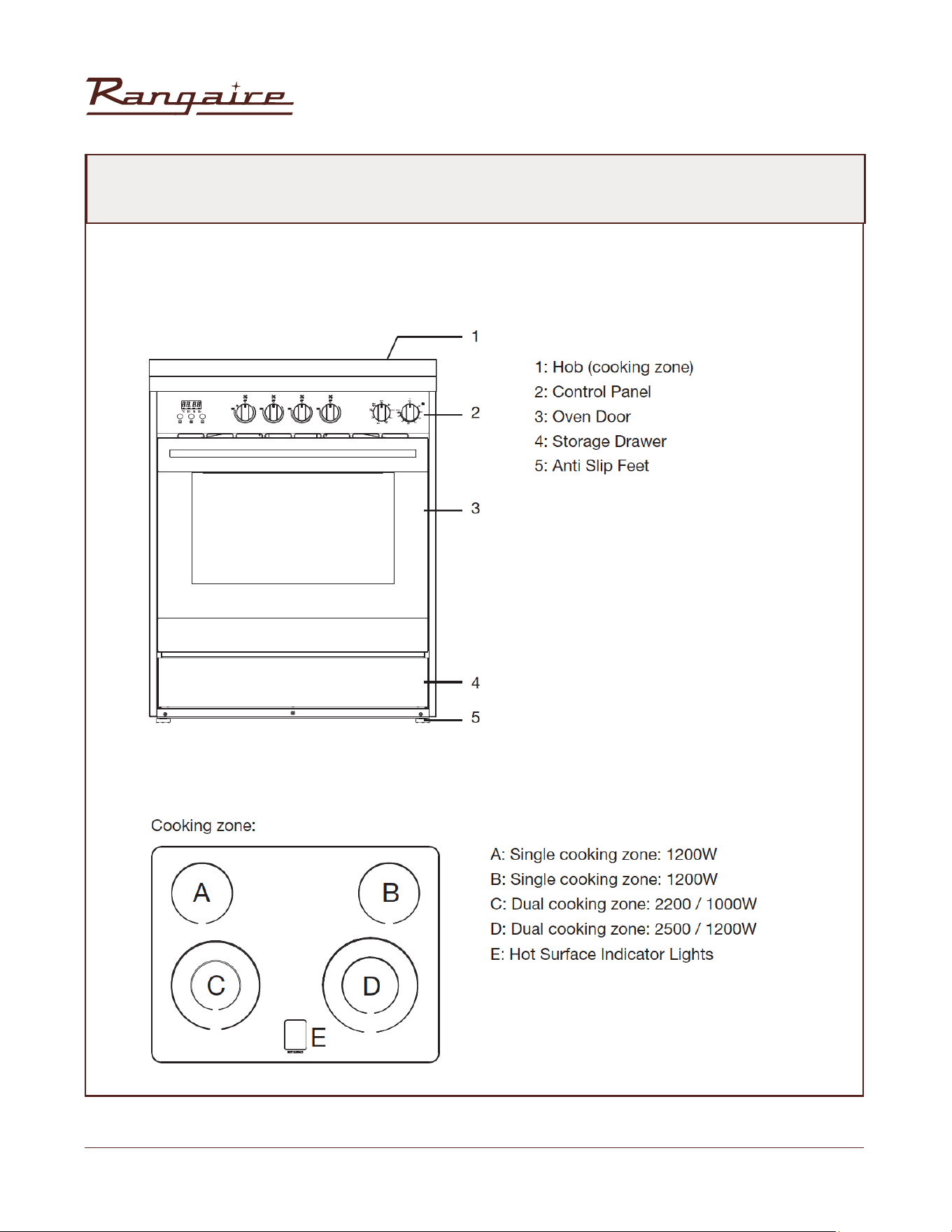

PARTS AND FEATURES ................................................................................. 27

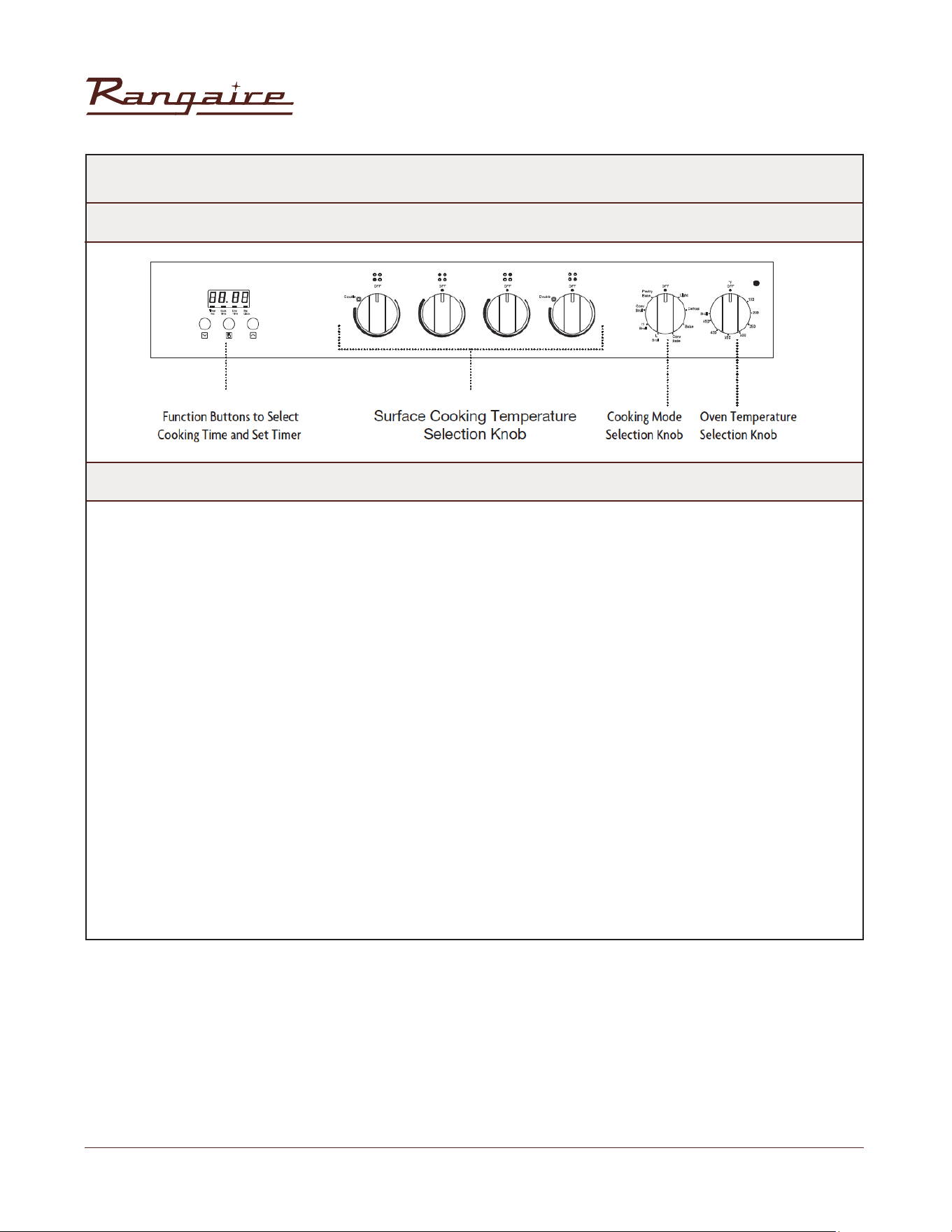

Control Panel ............................................................................................. 28
Display .................................................................................................... 28
Timer ..................................................................................................... 29
COOKTOP USE ......................................................................................... 33
OVEN USE ............................................................................................... 36
RANGE CARE ........................................................................................... 47
TROUBLESHOOTING ................................................................................... 53
PRODUCT USAGE & MAINTENANCE
30” Electric Range | RRE303TS
1
Rangaire: Product Installation
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others. All
safety messages will follow the safety alert symbol and either the word “DANGER”,
“WARNING” or “CAUTION”.
All safety messages will tell you what the potential hazard is, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are not followed.
An imminently hazardous situation. You could be killed or seriously
injured if you don’t immediately follow instructions.
• Remove all tape and packaging before using the appliance. Never allow children to play with
packaging material. Do not remove the model/serial plate attached to the appliance.
• Be sure your appliance is properly installed and grounded by a QUALIFIED TECHNICIAN in accordance
with the National Fuel Gas Code ANSI Z223.1—latest edition in the United States, or in Canada CAN/
CGA B149.1, and CAN/CGA B149.2, and the National Electrical Code ANSI/NFPA No. 70—latest edition
in United States, or in Canada CSA Standard C22.1, Canadian Electrical Code, Part 1, and local code
requirements. Install only as per installation instructions provided in the literature package for this
appliance.
A potentially hazardous situation which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation which, if not avoided, may result in
moderate or minor injury.
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT.
DANGER
WARNING
CAUTION
We have provided many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
SAFETY REQUIREMENTS
30” Electric Range | RRE303TS
2
Rangaire: Product Installation
RANGE SAFETY
If the information in this manual is not followed exactly, a re or explosion
may result causing property damage, personal injury or death.
Do not store or use gasoline or other ammable vapors and liquids in the
vicinity of this or any other appliance.
Failure to follow this warning statement could result in re, explosion, or burn hazard that could cause
property damage, personal injury, or death.
If a re should occur, keep away from the appliance and immediately call your re department.
DO NOT ATTEMPT TO EXTINGUISH AN OIL/GREASE FIRE WITH WATER.
Never Operate the Top Surface Cooking Section of this Appliance Unattended
SAFETY REQUIREMENTS
California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the State of California to cause birth
defects or other reproductive harm.
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
30” Electric Range | RRE303TS
3
Rangaire: Product Installation
VENTING REQUIREMENTS

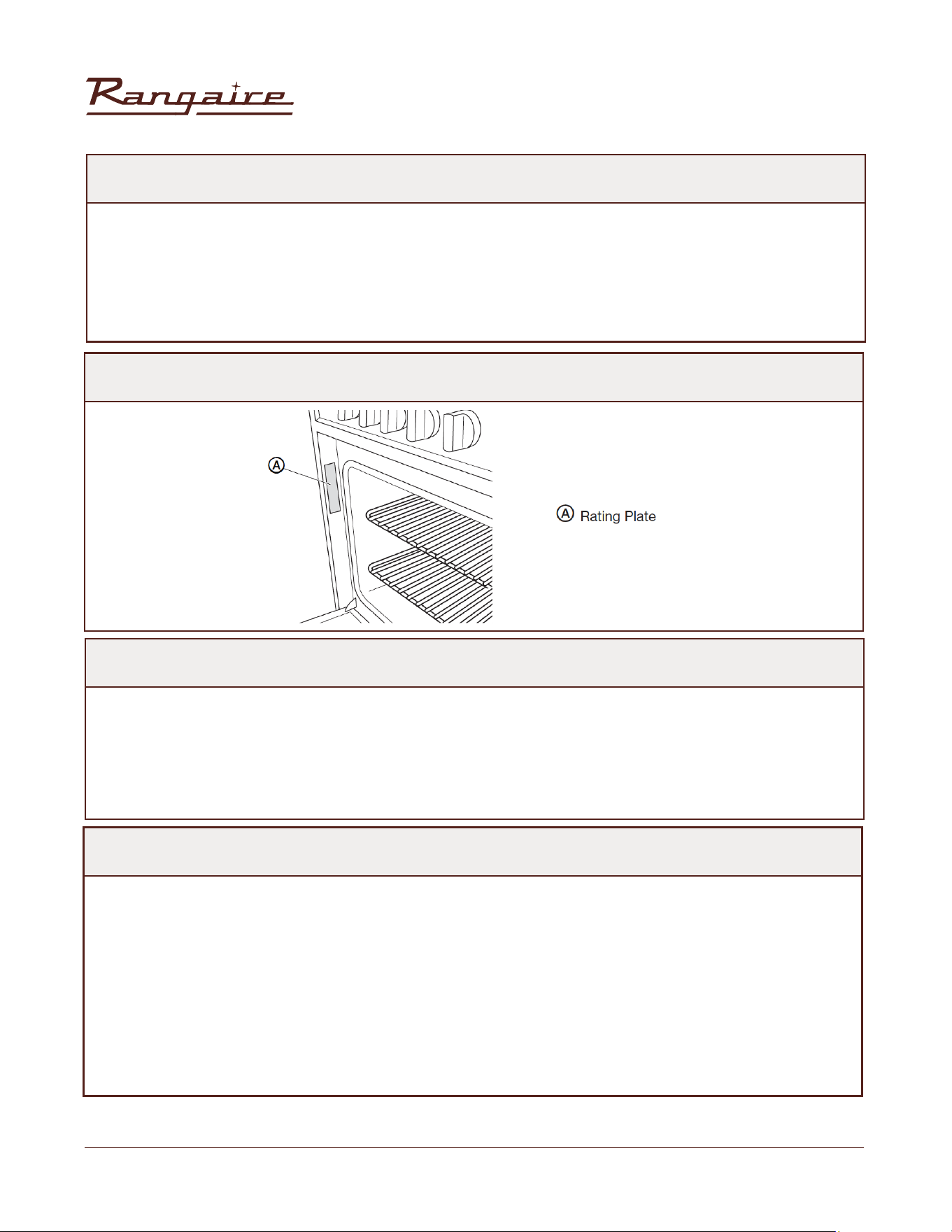

RATING PLATE
IMPORTANT: Observe all governing codes and ordinances.
• It is the installer’s responsibility to comply with installation clearances, if specied, on the model/serial
rating plate. The model/serial rating plate is located on the left-hand side of the oven frame. Open
oven door to view label. See label on back panel of range for additional element and oven
power ratings.
TEMPERATURE
GENERAL
IMPORTANT: Some cabinet and building materials are not designed to withstand the heat produced by
the oven for baking and self cleaning. Check with your builder or cabinet supplier to make sure that the
materials used will not discolor, deal minate or sustain other damage.
• Contact a qualied oor covering installer to check that the oor can withstand at least 200°F(93°C)
• Use an insulated pad or 1/4”(0.64cm) plywood under range if installing range over carpeting.
• The range should be located for convenient use in the kitchen.
• Recessed installations must provide complete enclosure of the sides and rear of the range.
• To eliminate the risk of burns or re by reaching over heated surface units, cabinet storage space
located above the surface units should be avoided. If cabinet storage is to be provided, the risk can
be reduced by installing a range hood or microwave hood combination that projects horizontally
a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.
• All openings in the wall or oor where range is to be installed must be sealed.
• Do not seal the range to the side cabinets.
• Grounded electrical supply is required. See “Electrical Requirements” section.
INSTALLATION REQUIREMENTS
30” Electric Range | RRE303TS
4
Rangaire: Product Installation
INSTALLATION REQUIREMENTS

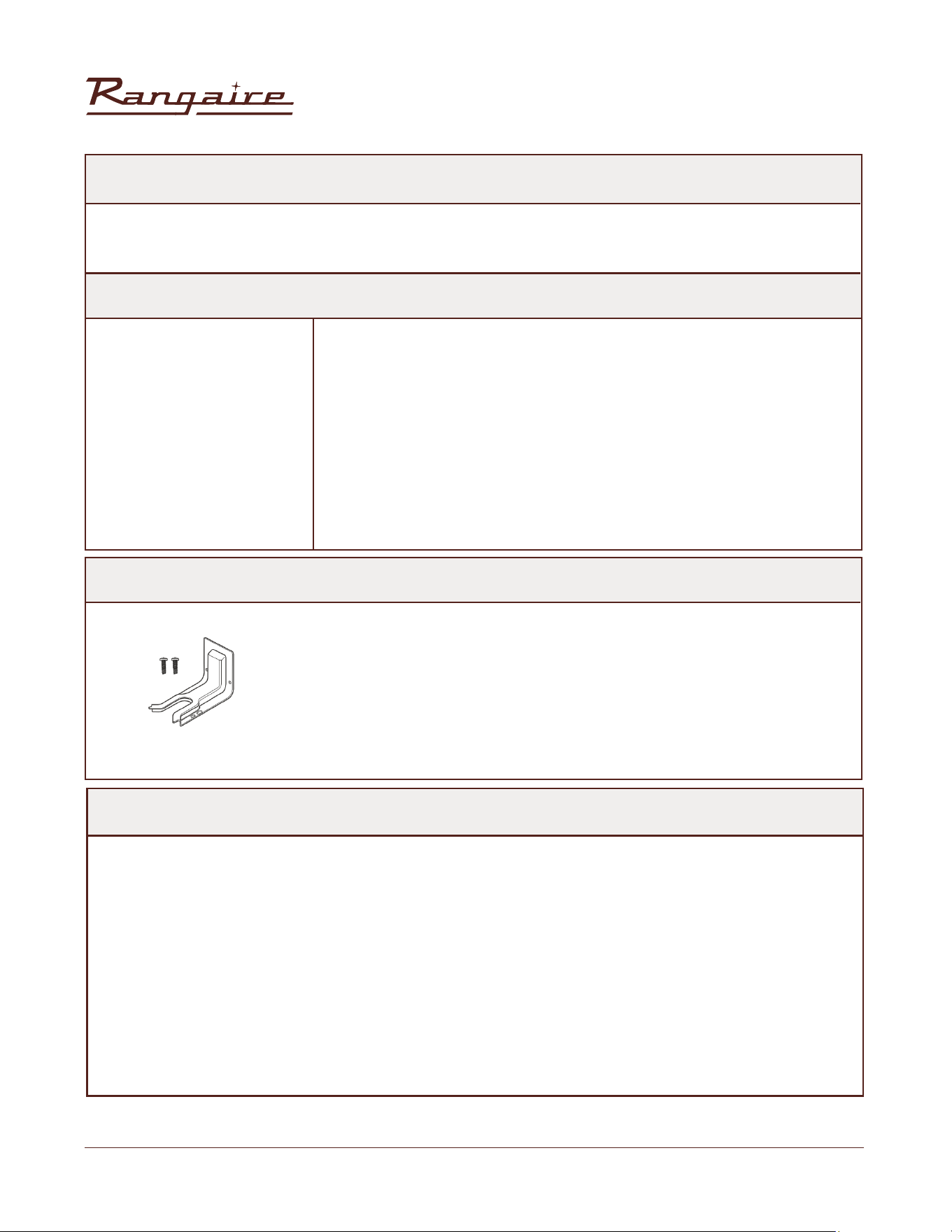

• Tape Measure
• Flat-Blade Screwdriver
• Phillips Screwdriver
• Level
• Drill
• Hammer
• Wrench or Pliers
• Metal Saw
Tools Needed:
• Metal Snips or Large Wire Cutters
• 15/16” (2.4 cm) Combination Wrench
• 3/8" Nut Driver
• 1/4" Nut Driver
• 1/8" (3.2 mm) Drill Bit (for wood oors)
•Marker or Pencil
• Masking Tape
Parts Supplied:
Parts Needed:
Anti-tip bracket + screws
Gather the required tools and parts before starting installation. Read and follow the
instructions provided with any tools listed here.
If using a power supply cord:
• A UL listed power supply cord kit marked for use with ranges. The cord should be rated at 250 volts
minimum, 40 amps or 50 amps that is marked for use with nominal 13/8" (3.5 cm) diameter connection
opening and must end in ring terminals or open-end spade terminals with upturned ends.
• A UL listed strain relief.
If direct wiring:
• Flexible Metal Conduit
• UL Listed Conduit Connector
• 4- ire or 3- ire Electrical Cable (where local codes permit a 3-wire connection).
• UL Listed Wire Connectors
Check local codes. Check existing electrical supply. See the appropriate “Electrical Requirements” section.
It is recommended that all electrical connections be made by a licensed, qualied electrical installer.

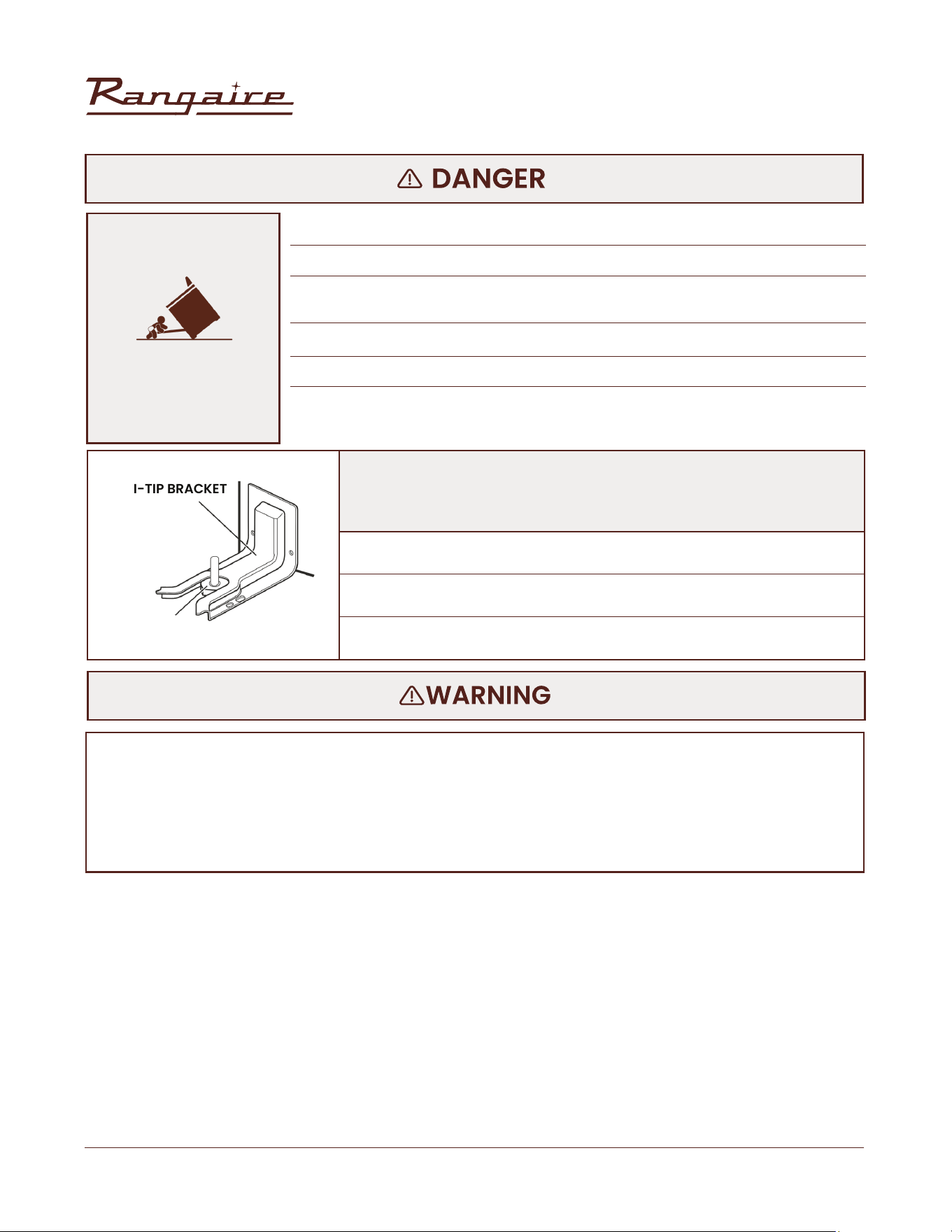

NOTE: The Anti-tip bracket must be securely mounted to the sub oor.
The thickness of the ooring may require longer screws to anchor bracket to
suboor. Longer screws are available from your local hardware store.
INSTALLATION REQUIREMENTS
30” Electric Range | RRE303TS
5
Rangaire: Product Installation
INSTALLATION REQUIREMENTS

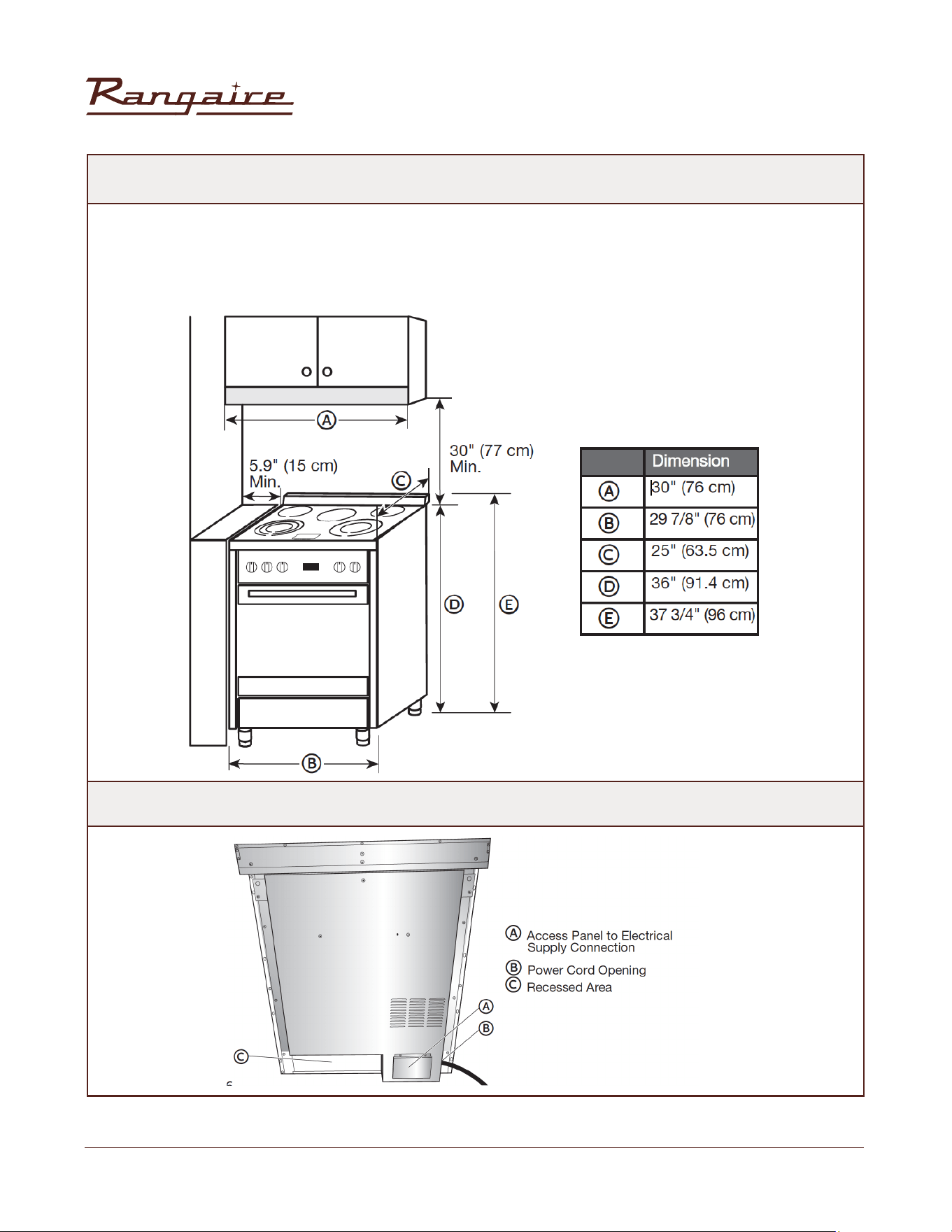

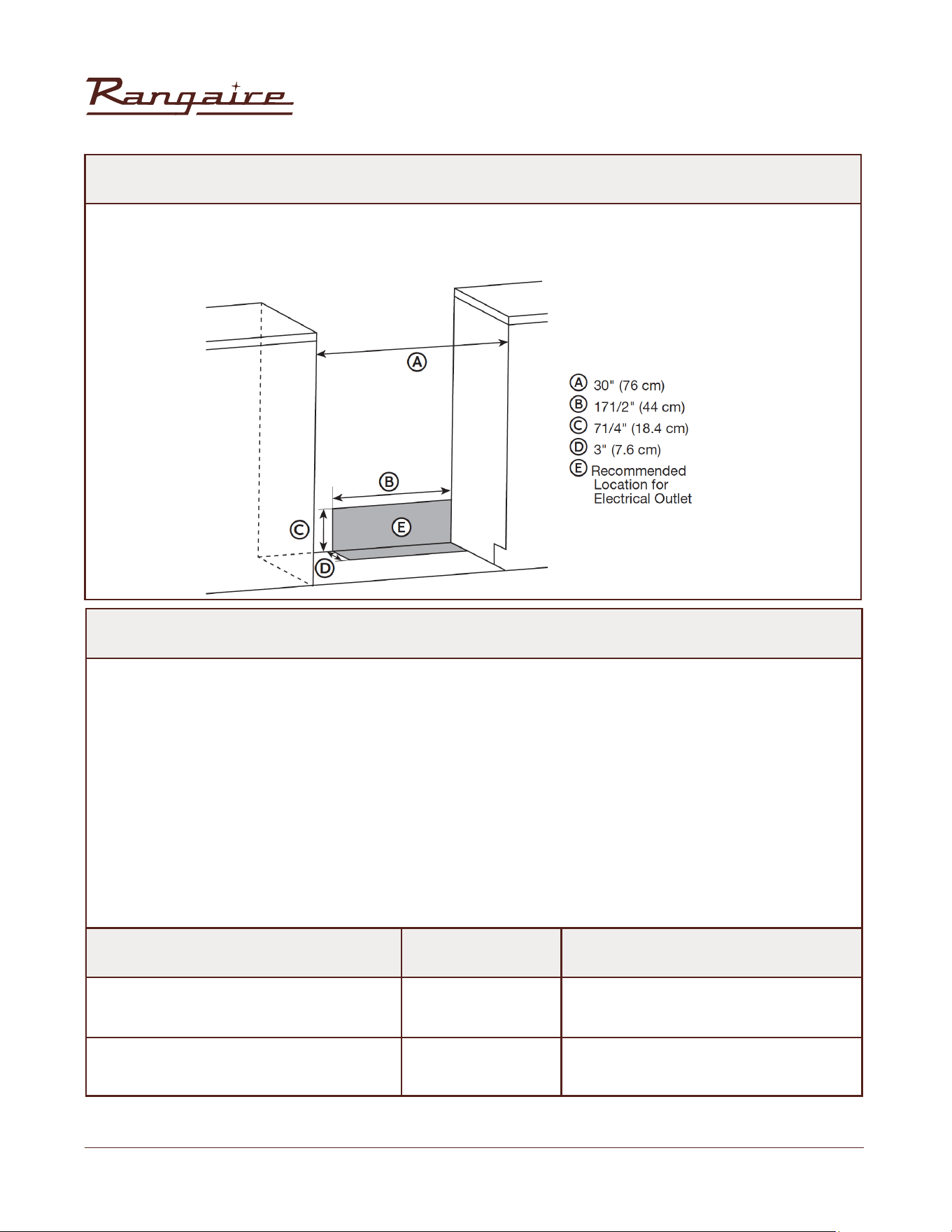

PRODUCT/OPENING
Opening dimensions shown are for 25" (64 cm) countertop depth, 24" (61 cm)
base cabinet depth and 36" (91.4 cm) countertop height.
NOTE: Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs. Front of door and
drawer may extend farther forward depending on styling.
INSTALLATION REQUIREMENTS
30” Electric Range | RRE303TS
6
Rangaire: Product Installation
INSTALLATION REQUIREMENTS
ELECTRICAL REQUIREMENTS
VOLTAGE AND FREQUENCY CIRCUIT REQUIREDAMPS
POWER SUPPLY
IMPORTANT: To connect to an outlet in the wall, the electrical outlet must be recessed. If the electrical outlet
is in the oor, it can be either recessed or surface mounted.
IMPORTANT: This appliance is manufactured with the chassis connected to the neutral by a green ground
jumper wire. Use a 3-wire, UL listed, 50-amp power supply cord (pigtail); or if local codes do not permit
ground through the neutral, use a 4-wire power supply cord rated at 250 volts, 50 amps and intended for
use with ranges. The ground must be revised so the green ground wire of the 4- wire power supply is con-
nected to the chassis. See “4-Wire Connection: “Power Supply Cord” and “Direct Wire - U.S.A. Only” “4-Wire
Connection (Ungrounded Neutral)” sections.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrical installer
determine that the ground path is adequate and wire gauge is in accordance with local codes.
To properly install your range, you must determine the type of electrical connection you will be using and
follow the instructions provided for it here.
• Range must be connected to the proper electrical voltage and frequency as specied on the model/
serial number rating plate. All models are dual rated, and designed to be connected to either 120/208 or
120/240V AC, 60Hz, 3- wire or 4-wire, single-phase power supply.
240V, 60 Hz 50A 50 AMP CIRCUIT
45 AMP CIRCUIT43A208V, 60 Hz
INSTALLATION REQUIREMENTS
30” Electric Range | RRE303TS
7
Rangaire: Product Installation
ELECTRICAL REQUIREMENTS
• When a 4-wire, single phase 120/240 volt, 60 Hz., AC only electrical supply is available, a 50-amp maxi-
mum circuit protection is required (or, if specied on the model/serial rating plate, when a 4-wire, single
phase 120/208 volt 60 Hz., AC only electrical supply is available, a 45-amp maximum circuit protection is
required).

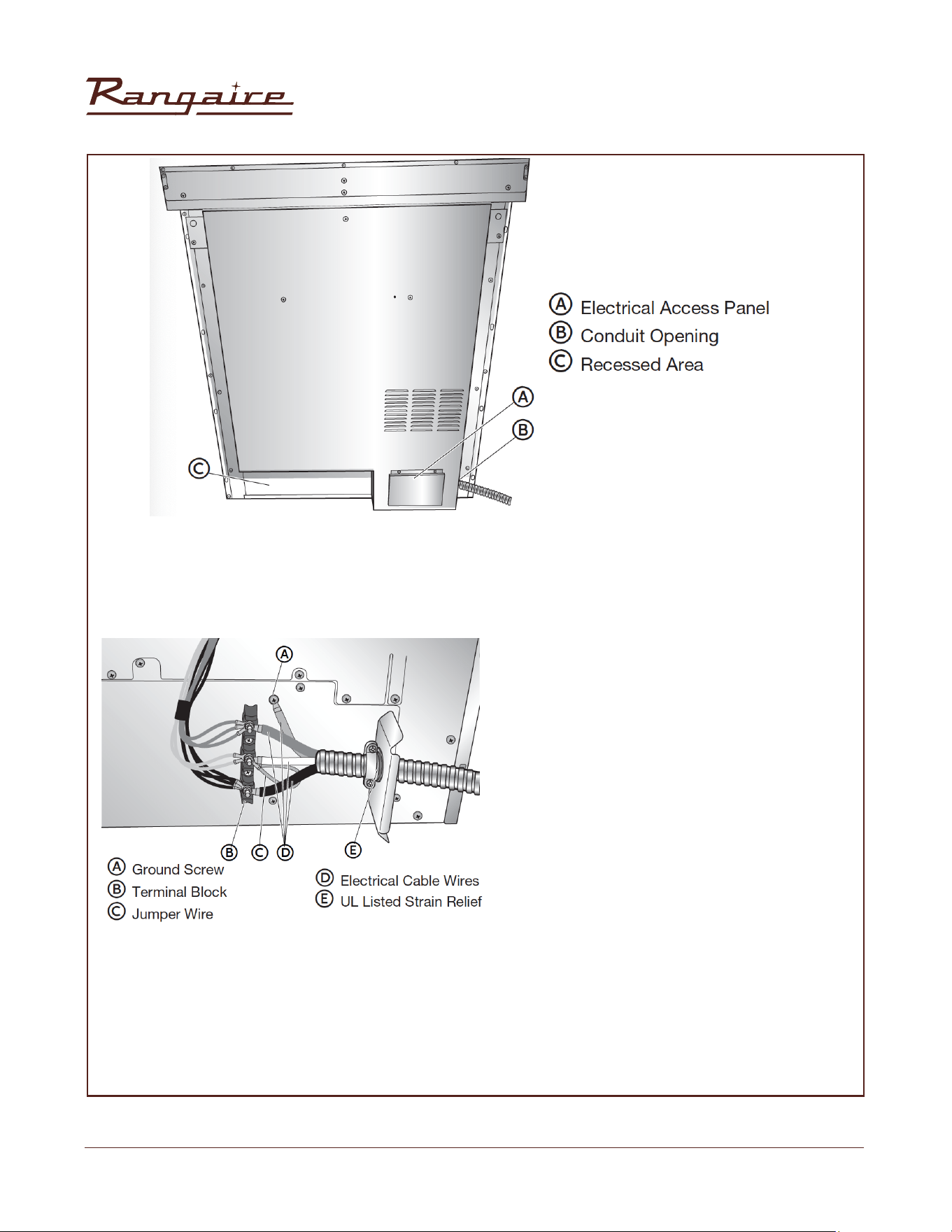

• For direct wire installations, install a suitable conduit box (not furnished). An appropriately sized, UL con-
duit connector must be used to correctly attach the conduit to the junction box.
IMPORTANT: Local Codes may vary; installation electrical connections and grounding must comply with all
applicable local codes.
ELECTRICAL REQUIREMENTS - U.S.A. ONLY
Be sure that the electrical connection and wire size are adequate and in conformance with the National
Electrical Code, ANSI/ NFPA No. 70-latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169

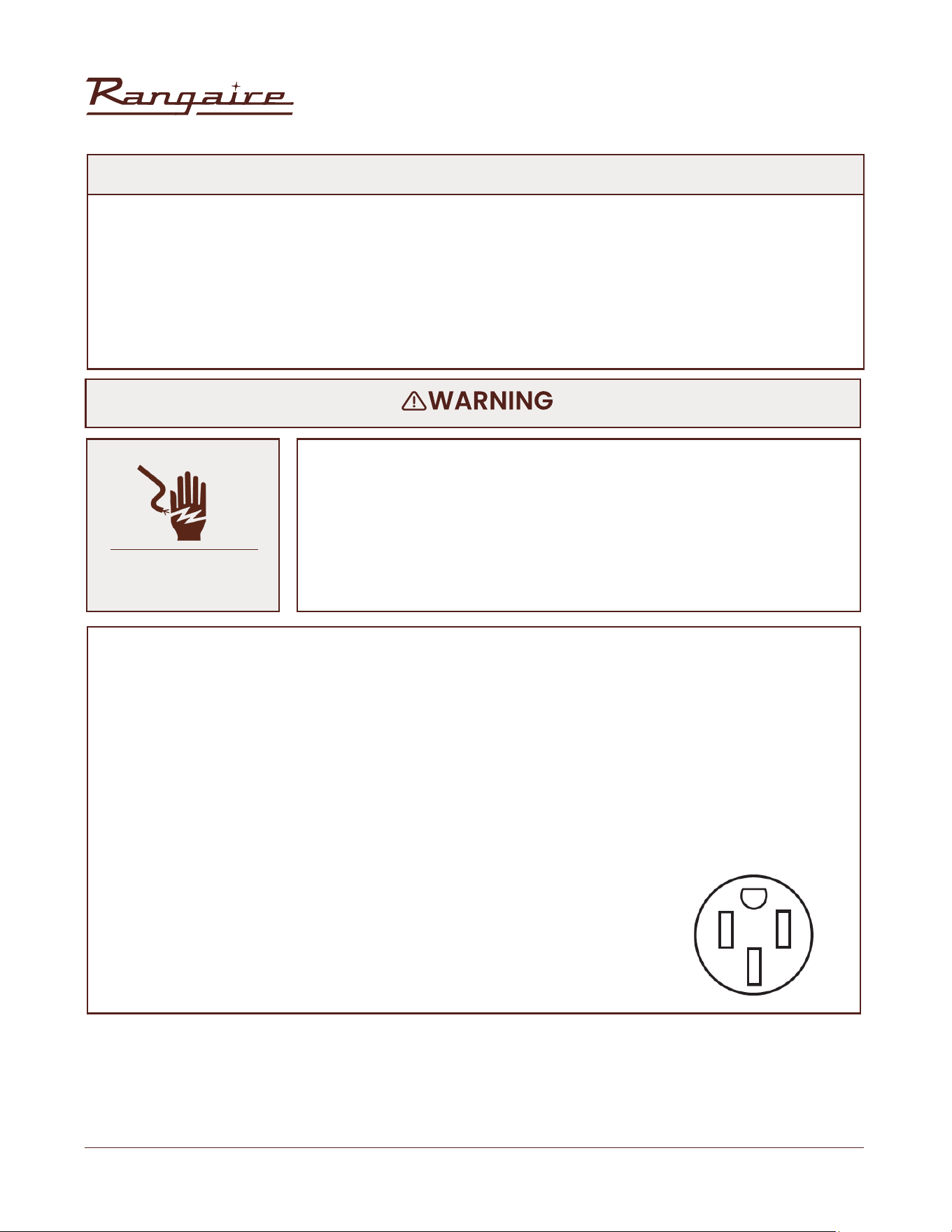

The electrical power to the oven branch circuit must be shut off while line
connections are being made.
Do not use an extension cord with this appliance.
Electrical ground is required on this appliance. The free end of the green wire
(the ground wire) must be connected to a suitable ground. This wire must
remain grounded to the oven.
If cold water pipe is interrupted by plastic, non metallic gaskets, union
connections or other insulating materials, DO NOT use for grounding.
DO NOT ground to a gas pipe.
DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL
or GROUNDING circuit could result in an electrical shock.
Check with a qualied electrician if you are in doubt as to whether the
appliance is properly grounded.
Failure to do so could result in death, re or electric shock.

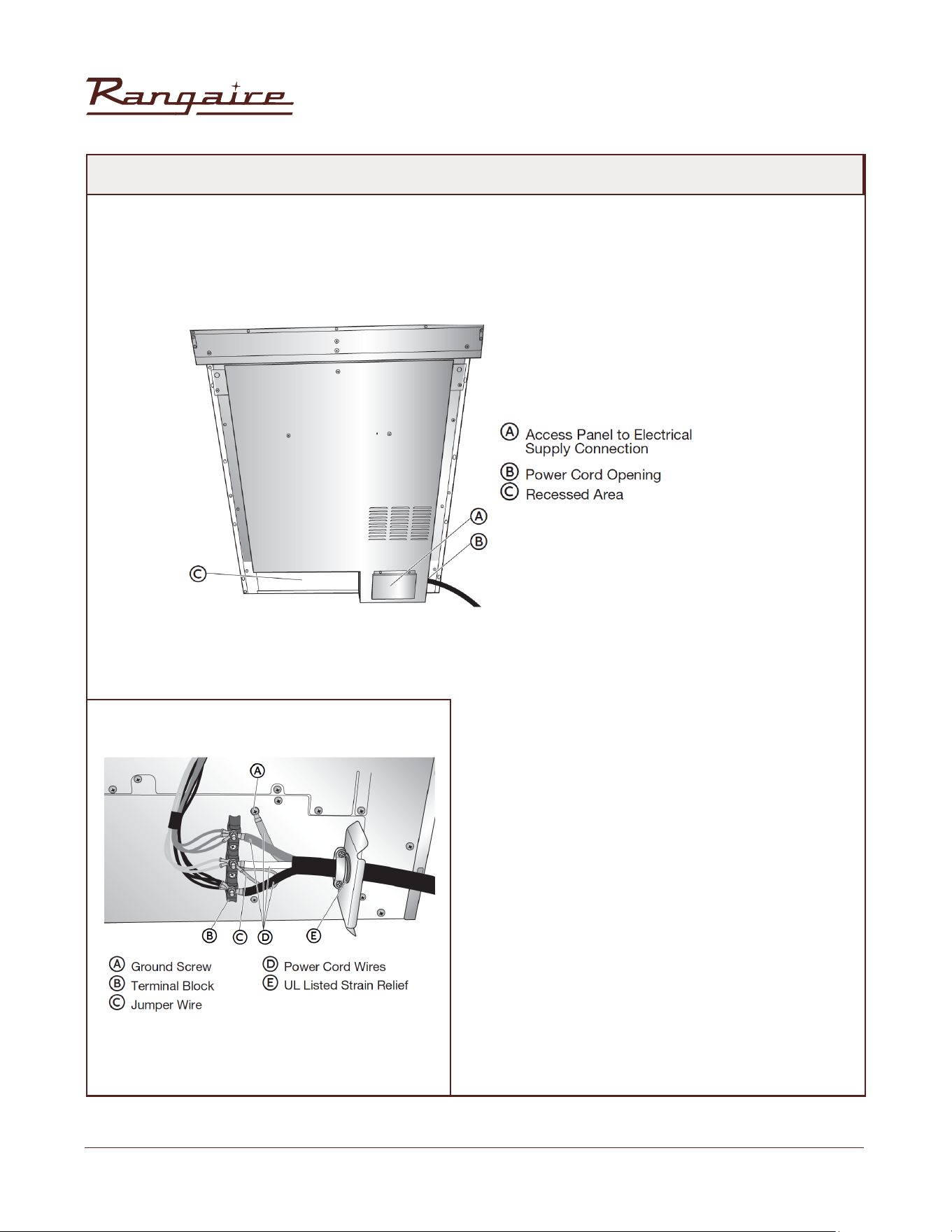

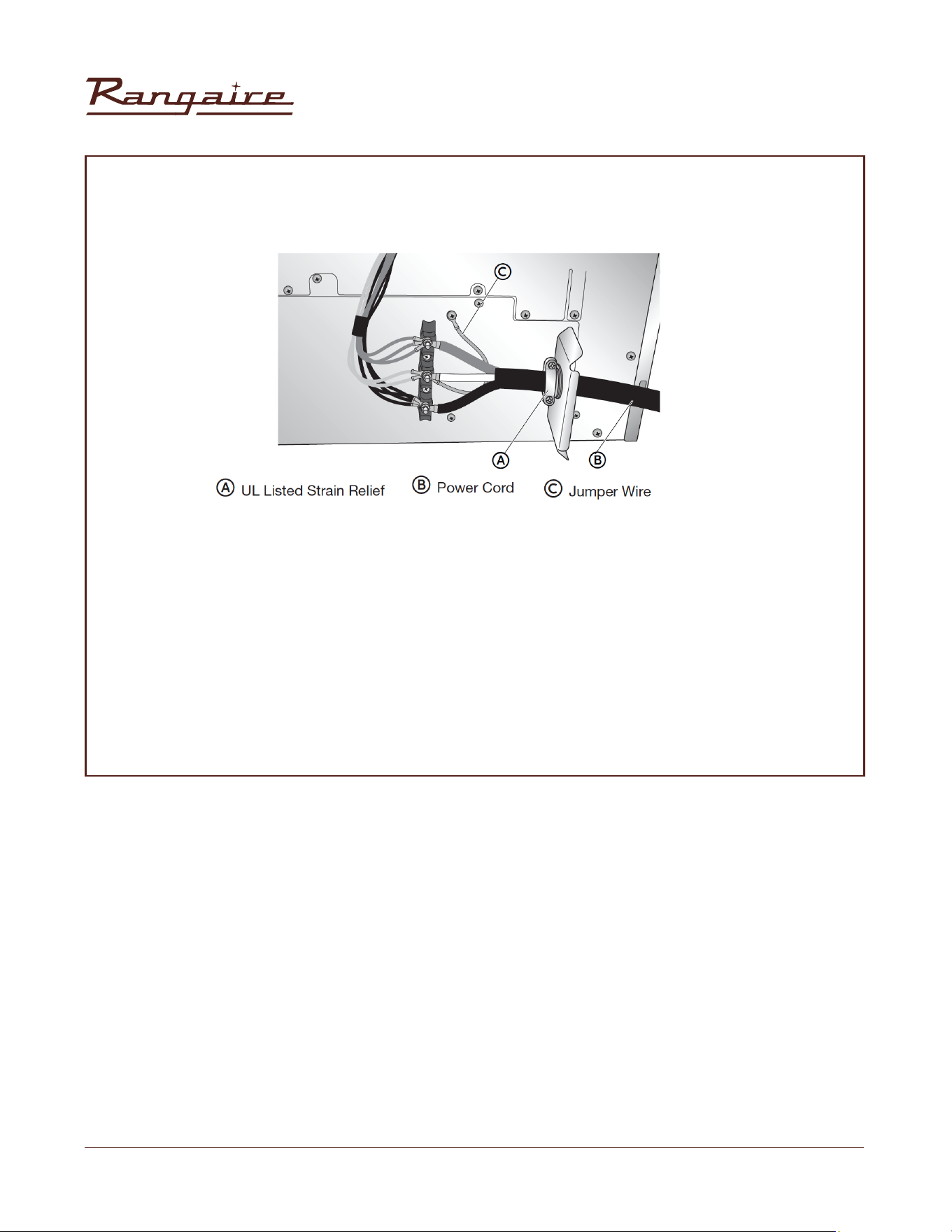

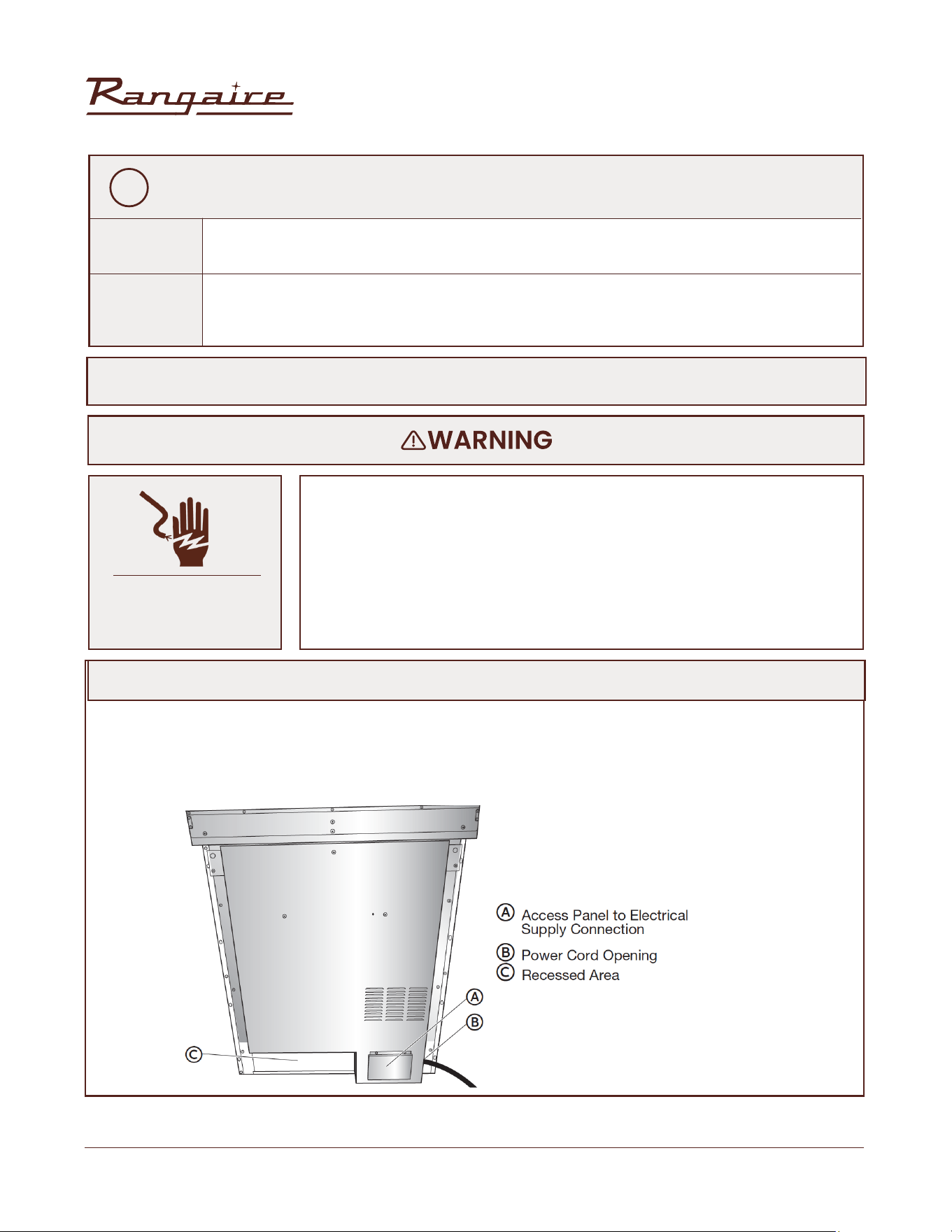

The range is not equipped with a power cord. The range can be tted with a 3 or 4-wire NEMA 14-50 or 10-50
type SRDT or ST (as required) power cord rated at 250 volt AC minimum, 50 amp, with 3 open-end spade
lug connectors with upturned ends or closed loop connectors and marked for use with ranges.
• A UL listed strain relief must be attached to the range to hold the power cord.
• Do not use an aluminum wire receptacle with copper-wired power cord and plug (or vice versa). The
proper wiring and receptacle is a copper-wired
power cord with a copper-wired receptacle.
• The electrical outlet should be located so that the power cord is accessible when the range is in the
installed position.
ELECTRICAL SHOCK
HAZARD
INSTALLATION REQUIREMENTS
30” Electric Range | RRE303TS
8
Rangaire: Product Installation
ELECTRICAL REQUIREMENTS - CANADA ONLY
Be sure that the electrical connection and wire size are adequate and in conformance with the CSA
Standard C22.1, Canadian Electrical Code, Part 1 - latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
Disconnect power before servicing.
Plug into a grounded outlet.
Do not use an extension cord.
Failure to do so can result in death, re, or electrical shock.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrical installer
determine that the ground path is adequate and wire gauge are in accordance with local codes.
Be sure that the electrical connection and wire size are adequate and in conformance with CSA Standard
C22.1, Canadian Electrical Code, Part 1 - latest edition, and all local codes and ordinances.
A copy of the above code standards can be obtained from:
Canadian Standards
Association 178 Rexdale Blvd.
Toronto, ON M9W 1R3
CANADA
• Check with a qualied electrical installer if you are not sure the range is properly grounded.
• This range is equipped with a CSA International Certied Power Cord intended to be plugged into a
standard 14-50R wall receptacle. Be sure the wall receptacle is within reach of range’s nal location.
• Do not use an extension cord.
IMPORTANT: This appliance shall be installed only by authorized persons and in
accordance with the manufacturer’s installation instructions, local gas tting
regulations, municipal building codes, electrical wiring regulations, local water
supply regulations.
ELECTRICAL SHOCK
HAZARD
INSTALLATION REQUIREMENTS
30” Electric Range | RRE303TS
9
Rangaire: Product Installation
STEP 1 - UNPACK RANGE
STEP 2 - INSTALL ANTI-TIP BRACKET
1. Remove shipping materials, tape and lm from the range. Keep cardboard bottom under range. Do not
dispose of anything until the installation is complete.
2. Remove oven racks and parts package from oven and shipping materials.
3. To remove cardboard bottom, rst take four cardboard corners from the carton. Stack one cardboard
corner on top of another. Repeat with the other two corners. Place them lengthwise on the oor behind
the range to support the range when it is laid on its back.

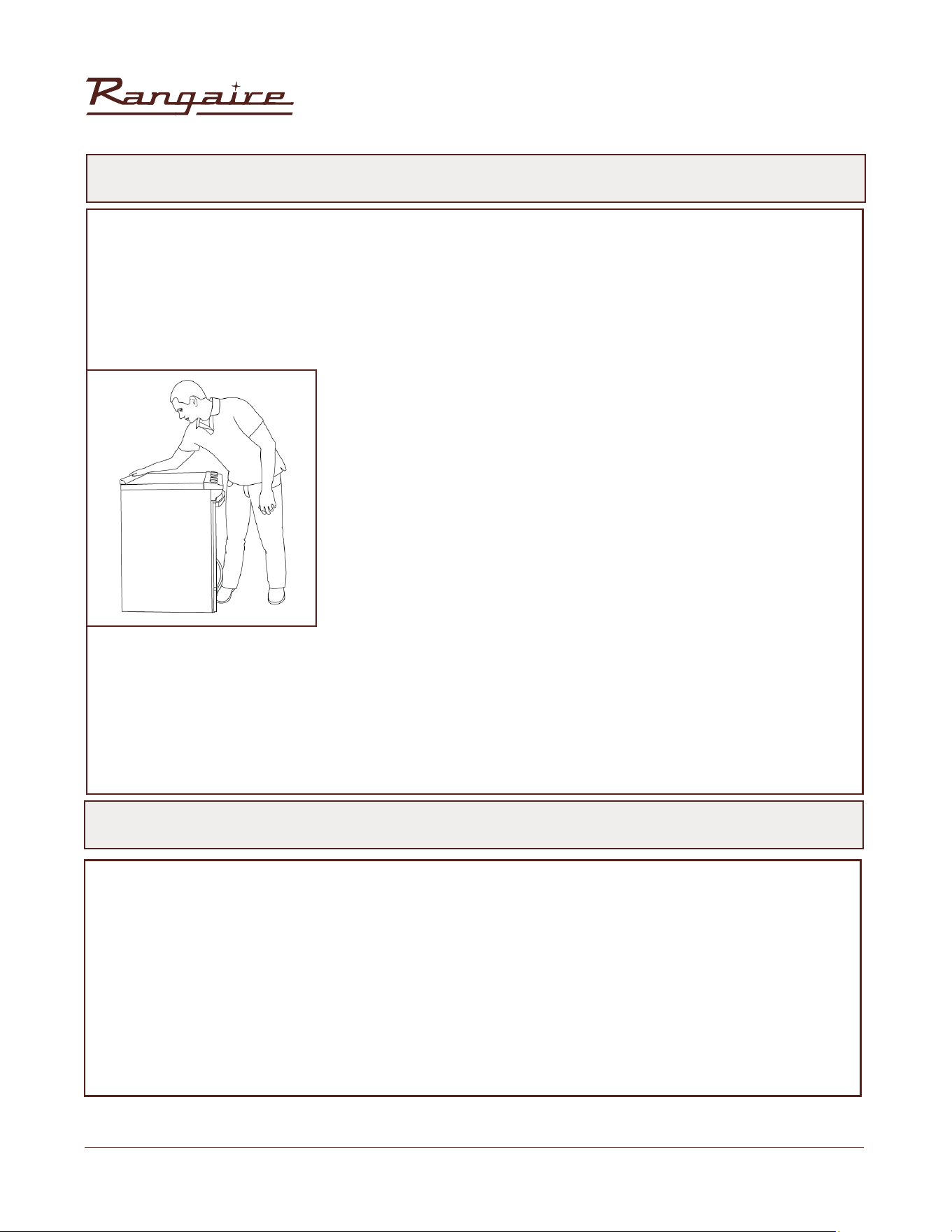

4. Using two or more people, rmly grasp the range and gently lay it on its back on the cardboard
corners.
5. Remove cardboard bottom.
NOTES:
• The leveling legs can be adjusted while the range is on its back.
• To place range back up into a standing position, put a sheet of cardboard or hardboard on the oor in
front of range to protect the ooring. Using two or more people, stand range back up onto the cardboard
or hardboard.
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install range.
Failure to do so can result in back or other injury.
IMPORTANT
• An anti-tip bracket is provided with the range. The anti-tip bracket uses a rear range foot to secure the
range to the oor or wall.
• Attach the anti-tip bracket to the oor or wall so that the rear range foot will be centered within the
bracket when the range is pushed into its nal position.
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to oor or wall per installation instructions.
• Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults
TIP-OVER HAZARD
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
10
Rangaire: Product Installation
NOTE: The anti-tip bracket must be securely mounted to the
suboor or wall. The ooring’s thickness may require longer
screws to anchor bracket to suboor.
Place the bracket so that the back of the bracket is against the rear wall and the side edge
of the bracket is 3/8” to 1/2” from the adjacent cabinet.
A
16 x 1
5/8
”
Screws (2)
Anti-tip Bracket
B
1
Remove the anti-tip bracket and screws from the
parts bag.
2
NOTE: If there is no adjacent cabinet, place the bracket so that the edge of the bracket is 3/8” to 1/2” in from
the range side panel. If the countertop overhangs the cabinet, offset the bracket from the cabinet by the
depth of the overhang plus an additional 3/8” to 1/2”.
3
Using the anti-tip bracket as a template, mark the two
holes for either a Floor Wood, Floor Concrete, or Wall
installation, as shown.
A
Distance from Adjacent Cabinet (3/8“ to 1/2“ [0.95 cm to 1.27 cm])
Wall Holes
C
D
E
B
Concrete Floor Holes
Wood Floor Holes
Rear Range Foot
Drill two pilot holes where marked. Follow the instructions specic to your construction.
Wood
Concrete
4
NOTE: A nail or awl may be used to create a pilot hole, if a drill is not available. For concrete construction
1/4” x 1 1⁄2” Lag Bolts and 1/2” O.D. Sleeve Anchors are required.
Floor: Drill a 1/8” pilot hole, as shown.
NOTE: Contact a qualied oor covering installer for the best procedure for drilling
mounting holes through your type of oor covering.
Wall: Drill a 1/8” pilot hole, as shown.
Drill the size hole recommended for the anchors into the concrete at the center of the
holes identied as Floor Concrete or Wall.
A
Wall
Anti-tip Bracket
C
B
Floor
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
11
Rangaire: Product Installation
Install the anti-tip bracket.
Wood
Concrete
5
Insert the sleeve anchor into the drilled holes and then insert the lag bolts through
the anti-tip bracket and into the oor or wall. The bolts must be properly tightened as
recommended for the hardware.
Using the two screws (provided) fasten the anti-tip bracket to the oor or wall.
NOTE: The screw must enter wood or metal.
STEP 3 - MAKE ELECTRICAL CONNECTION
Disconnect power before servicing.
Use a new 50 amp UL listed or CSA certied power supply cord. Plug into
a grounded outlet.
Do not use an extension cord.
Failure to do so can result in death, re, or electrical shock.
IMPORTANT: Use this method only if local codes permit connecting chassis ground conductor to neutral wire
of power supply cord.
1. Disconnect power.

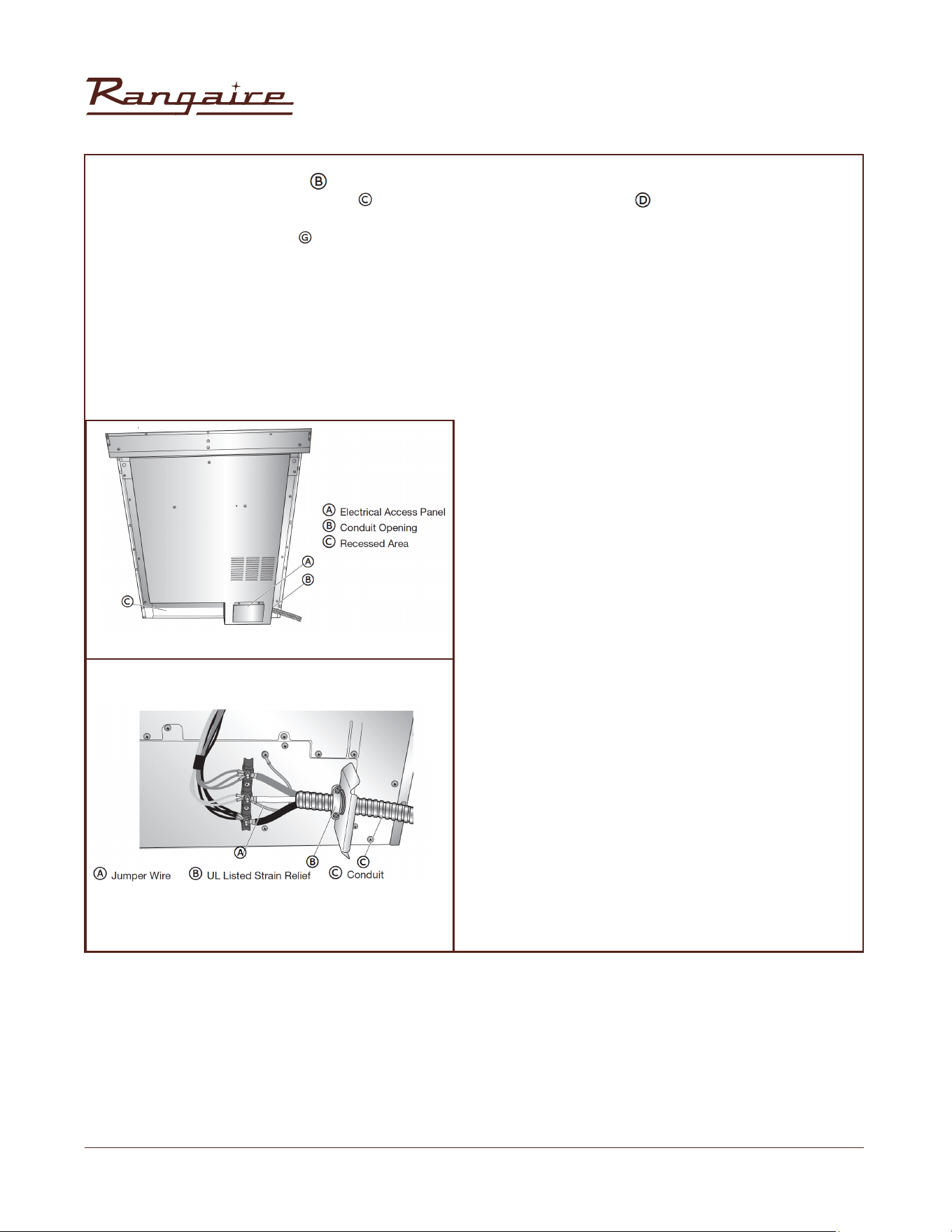

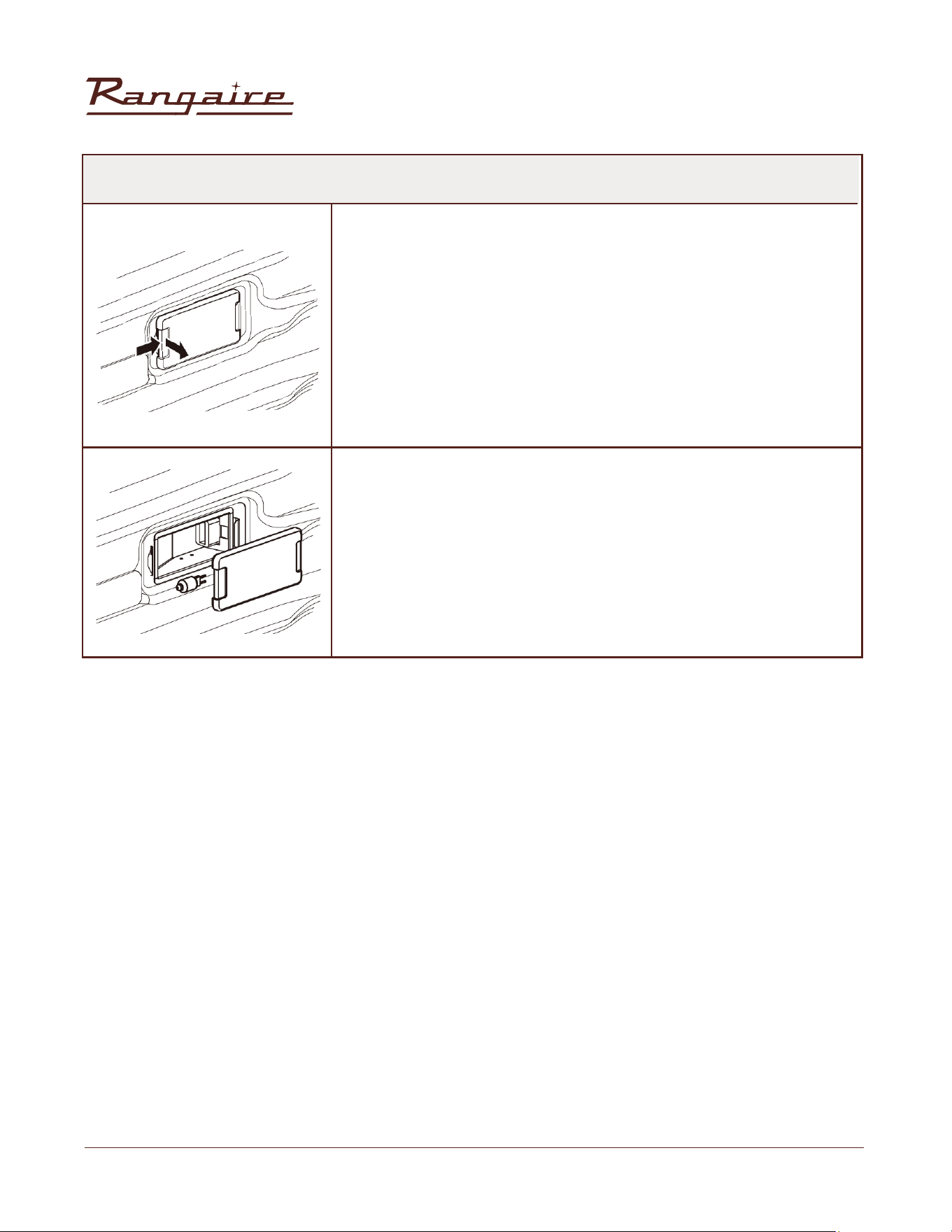

2. Remove the access panel located on the bottom right-hand side of the back panel to uncover the
electrical terminal block.
ELECTRICAL SHOCK
HAZARD
3-WIRE CONNECTION: POWER SUPPLY CORD
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
12
Rangaire: Product Installation
3. Install a UL listed strain relief (not provided) to the power cord opening in the bracket, and then completely
tighten the strain relief nut.
4. Thread the end of the power cord through the strain relief.
NOTE: Allow enough slack to connect the wires to the terminal block.
5. Using a 5/16" nut driver and one of the -0-32 hex nuts, connect the neutral (white) wire from the power
cord to the center terminal block post along with the green jumper wire from the range.
6. Using 10-32 hex nuts, connect the red and black wires from the power cord to the outer posts of the
terminal block with the corresponding red and black wires from the range.
7. Tighten the hex nuts completely, and then verify the connection.
NOTE: For power supply cord replacement, use only a power cord rated at 250 volts minimum, 50-amps that
is marked for use with nominal 1 3/8" (3.5 cm) diameter connection opening, with ring terminals and marked
for use with ranges.
8. Position the lower part of the strain relief under the power cord and tighten the strain relief screws.
NOTE: Before tightening, make sure the strain relief is positioned over the cord and NOT the wires.
9. Replace the electrical access panel.
10. Plug range into grounded outlet.
11. Tuck excess power cord into the recessed area of the back panel.
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
13
Rangaire: Product Installation
4-WIRE CONNECTION: POWER SUPPLY CORD
IMPORTANT: Use this method for new branch-circuit installations (1996 NEC), mobile homes, recreational
vehicles, or in an area where local codes prohibit grounding through the neutral.
1. Disconnect power.
2. Remove the access panel located on the bottom right-hand side of the back panel to expose the
electrical terminal block.
3. Install a UL listed strain relief to the power cord opening in the support bracket, and fully tighten the
strain relief nut.
4. Feed the power supply cord through the strain relief. Allow enough slack to easily attach the wiring to
the terminal block.
5. Remove the green jumper wire from under the
ground screw and replace with the green wire from
the power cord and tighten ground screw.
6. Loop the green jumper wire removed from the
ground screw back onto its end that is fastened to
the center post on the terminal block.
7. Use 5/16" nut driver to connect the neutral (white)
wire to the center terminal block post with one of
the 10-32 hex nuts.
8. Using 10-32 hex nuts, connect the red and black
wires from the power cord to the outer posts of
the terminal block with the corresponding red and
black wires from the range.
9. Tighten the hex nuts completely, and then verify the
connection.
NOTE: For power supply cord replacement, use only a
power cord rated at 2.0 volts minimum, .0-amps that
is marked for use with nominal 3/8" (3.. cm) diameter
connection opening, with ring terminals and marked for
use with ranges.
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
14
Rangaire: Product Installation
10. Position the lower part of the strain relief under the power cord and tighten the strain relief screws.
NOTE: Before tightening, make sure the strain relief is positioned over the cord and NOT the wires.
11. Replace the electrical access panel.
12. Plug range into grounded outlet.
13. Tuck excess power cord into the recessed area of the back panel.

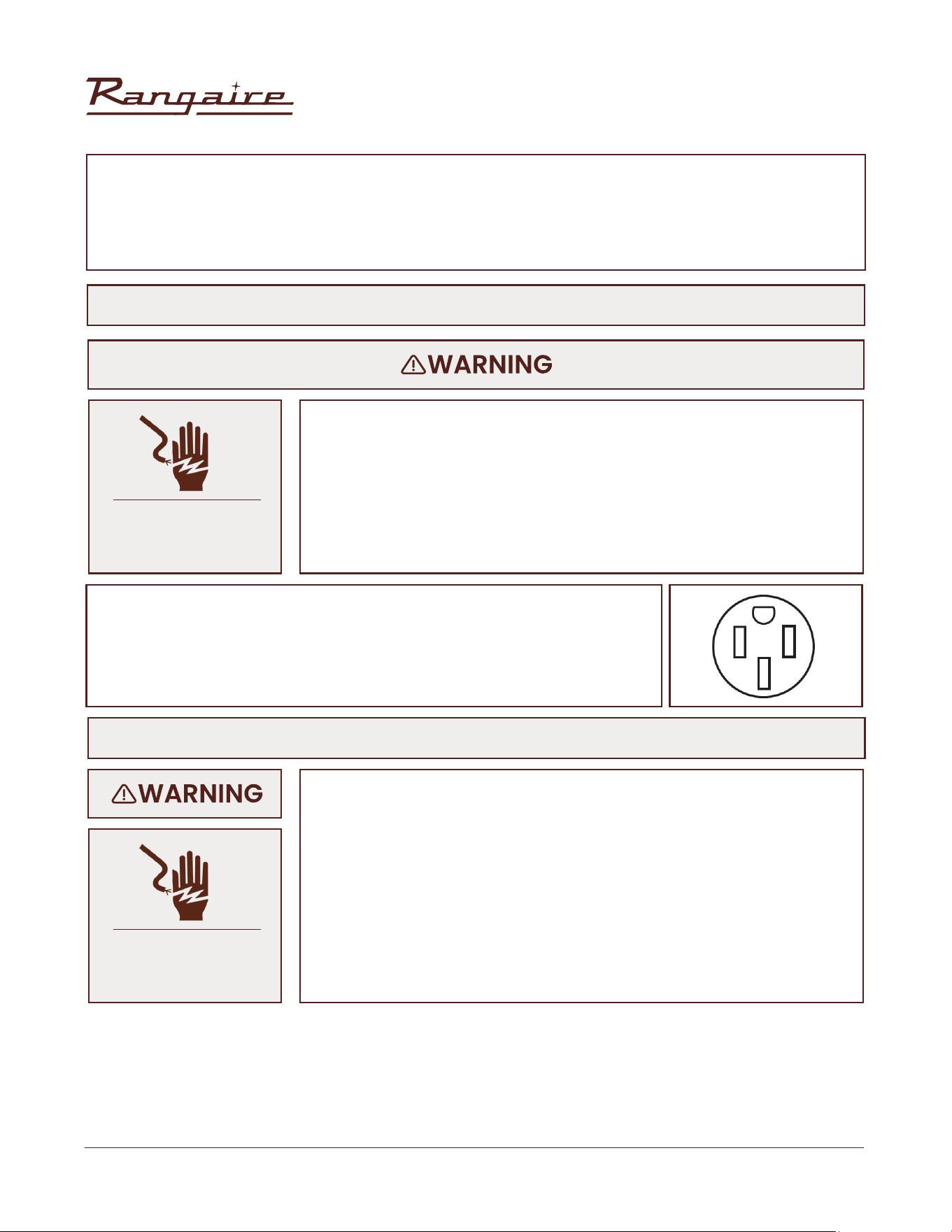

POWER CORD - CANADA ONLY
Plug into a grounded outlet.
Do not use an extension cord.
Failure to do so can result in death, re, or electrical shock.
Disconnect power before servicing.
Improper connection of aluminum house wiring and copper appliance leads
can result in an electrical hazard or re. If the home has aluminum wiring, only
use connectors designed and UL listed for joining copper to aluminum and
precisely follow the manufacturer's recommended procedure. Aluminum-to-
Copper connections must conform with local codes.
Use 8 gauge copper or 6 gauge aluminum wire.
Electrically ground range.
Failure to do so can result in death, re or electrical shock.
1. Plug into a standard 14-50R grounded wall receptacle.
2. Go to STEP 4 - INSTALL RANGE.
ELECTRICAL SHOCK
HAZARD
ELECTRICAL SHOCK
HAZARD
DIRECT WIRE - USA ONLY
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
15
Rangaire: Product Installation
Be sure your appliance is properly installed and grounded by a qualied technician. Ask your dealer to
recommend a qualied technician or an authorized repair service.
• A circuit breaker is recommended.
• The range can be connected directly to the circuit breaker box (or fused disconnect) through exible or
nonmetallic sheathed, copper or aluminum cable.
• Allow at least 6 ft (1.8 m) of slack in the line so that the range can be moved if servicing is ever necessary.
• A UL listed conduit connector must be provided at each end of the power supply cable (at the range and
at the junction box).
• Wire sizes and connections must conform with the rating of the range.
• The tech sheet and wiring diagram are included with the range.
This appliance is manufactured with the chassis connected to the neutral by a green ground jumper wire.
After making sure that the power has been turned off, connect the exible conduit from the oven to the
junction box using a UL listed conduit connector. The Grounded Neutral and Ungrounded Neutral Graphics
on the following pages and the instructions provided, present the most common way of connecting the
ovens. Your local codes and ordinances, of course, take precedence over these instructions. Complete
electrical connections according to local codes and ordinances.

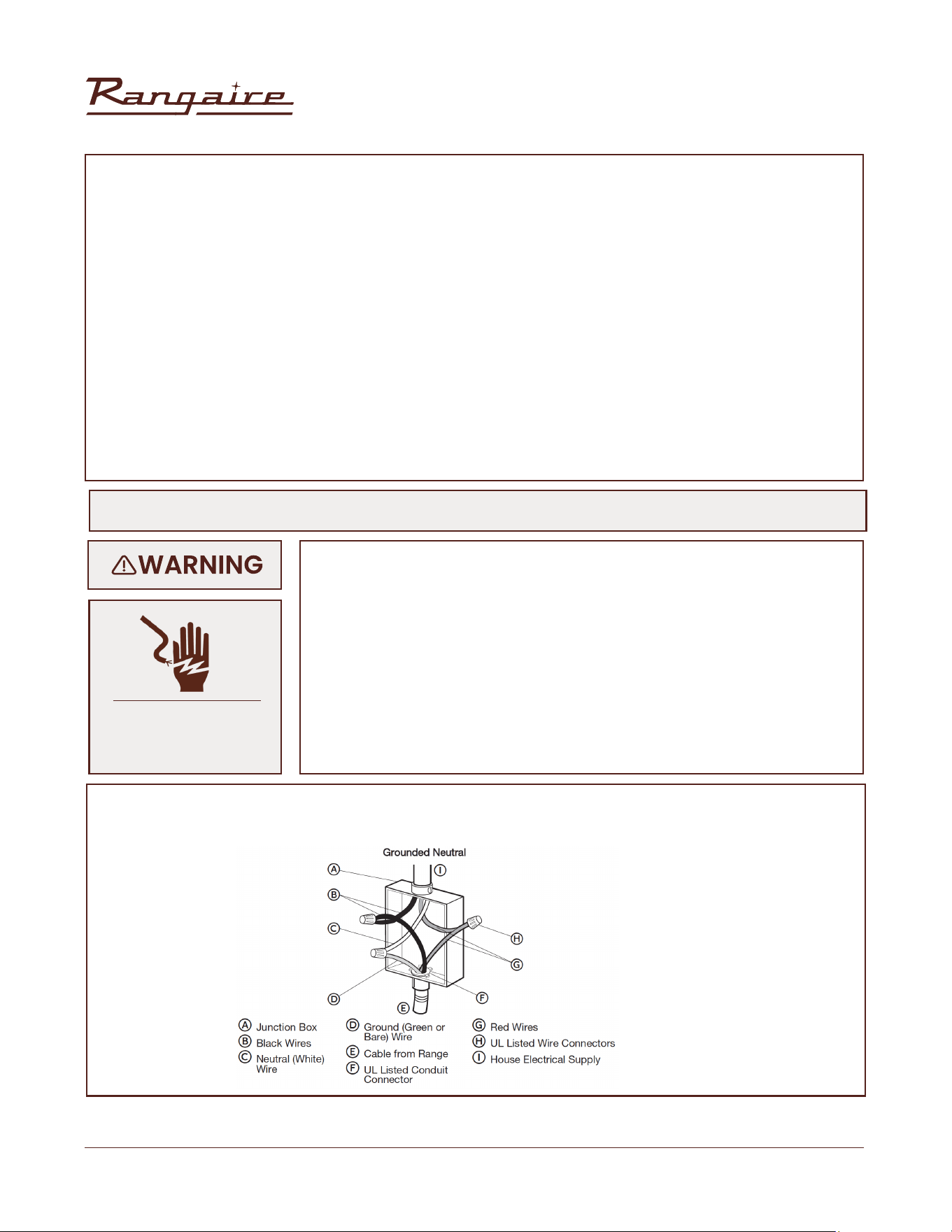

Connect to the House Electrical Supply
IMPORTANT: Use the 3-wire cable from home power supply where local codes permit a 3-wire connection.
1. Disconnect power.
3-WIRE CONNECTION (GROUNDED NEUTRAL)
Grounding through the neutral conductor is prohibited for new branch-circuit
installations (1996 NEC); mobile homes; and recreational vehicles, or in an
area where local codes prohibit grounding through the neutral conductor. For
installations where grounding through the neutral conductor is prohibited,
see the Ungrounded Neutral graphic.
Use grounding terminal or lead to ground unit.
Connect neutral terminal or lead to branch circuit neutral in usual manner.
Failure to do so could result in death, re or electric shock.
ELECTRICAL SHOCK
HAZARD
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
16
Rangaire: Product Installation
2. Connect the 2 black wires together using a UL listed wire connector.
3. Connect the neutral (white) wire and the ground (green or bare) wire (of the range cable) using a
UL listed wire connector.
4. Connect the 2 red wires together using a UL listed wire connector.
5. Install junction box cover.
Connect to the Range
IMPORTANT: Use this method only if local codes permit connecting chassis ground conductor to neutral wire
of power supply cord.
1. Feed the electric cable wires through the exible metal conduit.
NOTE: Allow enough slack to easily attach the wires to the terminal block.
2. Remove the access panel located on the bottom right-hand side of the back panel to uncover the
electrical terminal block.
3. Install a UL listed strain relief (not provided) to the
conduit opening in the bracket, and then completely
tighten the strain relief nut.
4. Thread the end of the conduit through the strain
relief.
NOTE: Allow enough slack to connect the wires to the
terminal block.
5. Using a 5/16" nut driver and one of the l0-32 hex nuts,
connect the ground (green or bare) wire from the
exible metal conduit to the center terminal block
post along with the green jumper wire from the
range.
6. Using 10-32 hex nuts, connect the red and black
wires from the power cord to the outer posts of the
terminal block with the corresponding red and black
wires from the range.
7. Tighten the hex nuts completely, and then verify the
connection.
8. Position the lower part of the strain relief under the
exible metal conduit and tighten the strain relief
screws.
NOTE: Before tightening, make sure the strain relief is
positioned over the exible metal conduit and NOT the
wires.
9. Replace the electrical access panel.
10. Tuck excess conduit into the recessed area of the
back panel.
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
17
Rangaire: Product Installation

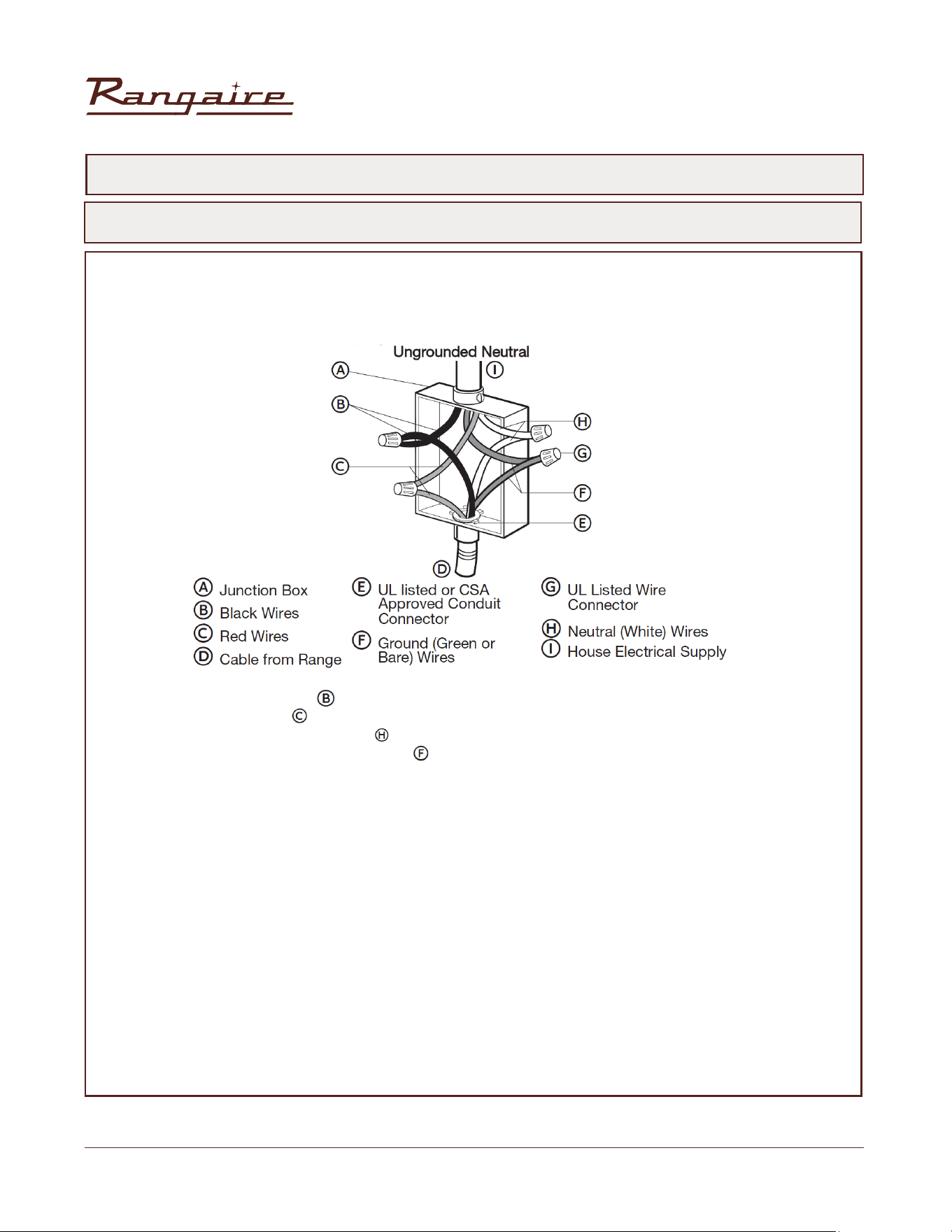

4-WIRE CONNECTION (UNGROUNDED NEUTRAL)
CONNECT TO THE HOUSE ELECTRICAL SUPPLY - USA ONLY
IMPORTANT: Use the 4-wire cable from home power supply in the U.S. where local codes do not allow grounding
through neutral, new branch circuit installations (l99e NEC), mobile homes and recreational vehicles, new
construction and in Canada.
1. 1. Connect the 2 black wires together using a UL listed wire connector.
2. Connect the 2 red wires together using a UL listed wire connector.
3. Connect the 2 neutral (white) wires together using a UL listed wire connector.
4. Connect the ground (green or bare) wire from the range cable to the ground (green or bare) wire (in
the junction box) using a UL listed wire connector.
5. Install junction box cover.
CONNECT TO THE RANGE
IMPORTANT: Use this method for new branch-circuit installations (1996 NEC), mobile homes, recreational
vehicles, or in an area where local codes prohibit grounding through the neutral.
1. Feed the electric cable wires through the exible metal conduit.
NOTE: Allow enough slack to easily attach the wires to the terminal block.
2. Remove the access panel located on the bottom right-hand side of the back panel to expose the
electrical terminal block.
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
18
Rangaire: Product Installation
3. Install a UL listed strain relief to the exible metal conduit opening in the support bracket, and fully tighten
the strain relief nut.
4. Feed the exible metal conduit through the strain relief. Allow enough slack to easily attach the wiring to
the terminal block.
5. Remove the green jumper wire from under the
ground screw and replace with the green wire
from the exible metal conduit and tighten
ground screw.
6. Loop the green jumper wire removed from the
ground screw back onto its end that is fastened
to the center post on the terminal block.
7. Use 5/16" nut driver to connect the neutral
(white) wire to the center terminal block post
with one of the 10-32 hex nuts.
8. Using 10-32 hex nuts, connect the red and black
wires from the power cord to the outer posts of
the terminal block with the corresponding red
and black wires from the range.
9. Tighten the hex nuts completely, and then
verify the connection.
10. Position the lower part of the strain relief under
the exible metal conduit and tighten the strain
relief screws.
NOTE: Before tightening, make sure the strain relief
is positioned over the exible metal conduit and
NOT the wires.
11. Replace the electrical access panel.
12. Tuck excess conduit into the recessed area of
the back panel.
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
19
Rangaire: Product Installation
STEP 4 - INSTALL RANGE
STEP 5 - COMPLETE INSTALLATION
IMPORTANT: If the range is moved to adjust the leveling legs, make sure when you move the range back into
its nal location that the anti-tip bracket is engaged by repeating steps 1 through 9.
1. Slide range into nal location, making sure rear leveling leg slides into antitip bracket. Leave a l" (2.e cm)
gap between the back of the range and the back wall.
2. Place the outside of your foot against the bottom front to keep the range from moving, and then grasp
the back of the range, as shown.
3. Slowly attempt to tilt the range forward. If you encounter immediate
resistance, the range foot is engaged in the anti-tip bracket. Go to Step
8.
4. If the rear of the range lifts more than 1/2" (l.3 cm) off the oor without
resistance, stop tilting the range and lower it gently back to the oor.
The range foot is not engaged in the anti-tip bracket.
IMPORTANT: If there is a snapping or popping sound when lifting the range,
the range may not be fully engaged in the bracket. Check to see if there
are obstructions keeping the range from sliding to the wall or keeping
the range foot from sliding into the bracket. Verify that the bracket is held
securely in place by the mounting screws.
5. Slide the range forward, and verify that the anti-tip bracket is securely
attached to the oor or wall.
6. Slide range back so the rear range foot is inserted into the slot of the anti-tip bracket.
7. Repeat steps 1 through 3 to ensure that the range foot is engaged in the anti-tip bracket.
If the rear of the range lifts more than 1/2" (l.3 cm) off the oor without resistance, the anti-tip bracket may not
be installed correctly. Do not operate the range without anti-tip bracket installed and engaged.
8. Move the range into its nal location. Check that the range is level by placing a level on the oven bottom.
NOTE: The range must be level for optimum cooking and baking performance.
9. If needed, use a wrench to adjust the height of the leveling legs until the range is level from side to side
and front to back.
1. Reconnect power at the circuit breaker or fuse box.
2. Turn on each element to check that it is heating correctly.
3. Turn on the oven to check that it is heating correctly.
NOTE: When the range has been on for 5 minutes, check for heat. If range is cold, turn off the range and
contact a qualied technician.
4. Check that the indicator lights on the control panel, and the interior oven lights illuminate correctly.
If the range does not operate correctly, check the following:
• Household fuse is intact and tight; or circuit breaker has not tripped.
• Range is plugged into a grounded outlet.
• Electrical supply is connected.
Contact a qualied electrician to verify the electrical supply.
INSTALLATION INSTRUCTIONS
30” Electric Range | RRE303TS
20
Rangaire: Product Installation
30” Electric Range | RRE303TS
21
Rangaire: Product Installation
To reduce the risk of re, electric shock, or serious personal injury, please read and save all instructions
before using the Electric Freestanding Range. When using this or any other electrical appliance, basic
safety precautions should be observed, including the following:
1. READ ALL INSTRUCTIONS BEFORE USE.
2. Have a qualied technician properly install and ground the appliance in accordance with the
National Fuel Gas Code ANSI Z223.1- latest edition in the United States, or in Canada CAN/CGA
B149.1, and CAN/ CGA B149.2, and the National Electrical Code ANSI/NFPA No. 70- latest edition in the
United States, or in Canada CSA Standard C22.1, Canadian Electrical Code, Part 1, and local code
requirements. Install only as per installation instructions provided in this manual.
3. This appliance is intended for household use only. DO NOT use the appliance outdoors or for any
other purpose.
4. Remove all tape and packaging before using the appliance. DO NOT allow children to play with
packaging material. DO NOT remove the model/series plate attached to the appliance.
5. To avoid the risk of electric shock, ALWAYS ensure the appliance is off and completely cool before
cleaning or doing any sort of maintenance.
6. DO NOT store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
7. Installation and service must be performed by a qualied technician. Know how to disconnect the
electrical power to the appliance at the circuit breaker or fuse box in case of emergency.
8. DO NOT repair or replace any part of the appliance unless specically recommended in the manual.
All other servicing should be done only by a qualied technician. This may reduce the risk of personal
injury and damage to the appliance.
9. Disconnect power before servicing.
10. Never modify or alter the construction of the appliance by removing panels, wire covers or any other
part of the appliance.
11. Injuries may result from the misuse of the appliance doors or drawers such as stepping, leaning, or
sitting on the doors or drawers.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
30” Electric Range | RRE303TS
22
Rangaire: Product Installation
12. Flammable materials should not be stored on or in the appliance or near surface units. This includes
paper, plastic and cloth items, such as cookbooks, plastic ware and towels, as well as ammable
liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials
may explode and result in re or property damage.
13. Keep range area clear and free from combustible materials, gasoline, and other ammable vapors
and liquids.
14. DO NOT store items of interest to children in the cabinets above the appliance or on the backsplash
of the range.
15. Children should not be left alone or unattended in the area when the appliance is in use. DO NOT
allow children to climb or play around the appliance. They should never be allowed to sit or stand
on any part of the appliance. Children climbing on the appliance to reach items could be seriously
injured.
16. DO NOT TOUCH THE COOKING SURFACE, THE BURNERS, GRATES OR ANY AREAS NEAR THEM. Surface
burners on appliance may be hot. Areas near surface burners or appliance may become hot enough
to cause burns. DO NOT touch or let clothing or other ammable materials touch these areas during
or after use until it has had sufcient time to cool.
17. DO NOT wear loose-tting or hanging garments while using the appliance. DO NOT let clothing or
other ammable materials contact hot surfaces.
18. DO NOT use water on grease res. Never pick up a aming pan. Smother grease res with a pan lid,
baking soda, a dry chemical or foam-type extinguisher.
19. If there is a re in the oven while baking, smother the re by closing the oven door and turning the
oven off or by using a dry chemical or foam-type extinguisher.
20. Use an extinguisher ONLY if:
a. You know you have a Class A, B, C extinguisher, and you already know how to operate it.
b. The re is small and contained in the area where it is started.
c. The re department is being called.
d. You can ght the re with your back to an exit.
21. When heating fat or grease, watch it closely. Fat or grease may catch re if allowed to become too
hot. Use a deep fat thermometer whenever possible to monitor oil temperature.
22. To avoid spillovers and res, use minimal amounts of oil when pan-frying in a shallow pan and avoid
cooking frozen foods with excessive amounts of ice.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
30” Electric Range | RRE303TS
23
Rangaire: Product Installation
1. Use only dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam.
DO NOT let potholders touch hot heating elements, the ame or burners. DO NOT use a towel or other
bulky cloth instead of a potholder.
2. DO NOT heat unopened food containers. Buildup of pressure may cause the container to burst and
result in injury.
3. Stepping, leaning or sitting on this appliance can result in serious injuries and also cause damage to
the appliance.
4. DO NOT use this appliance as a space heater to heat or warm the room.
5. Know which knob controls which surface burner. The burner will begin to turn red when it is on,
indicating it is heating up.
6. Clean the appliance regularly to keep all parts free of grease that could catch re. Exhaust fan
ventilation hoods and grease lters should be kept clean. DO NOT allow grease to accumulate on
hood or lter. Greasy deposits in the fan could catch re. When cooking food turn the hood fan on.
Refer to hood manufacturer’s instructions for cleaning.
7. To reduce the risk of burns, ignition of ammable materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be positioned so that it is turned inward, and does
not extend over adjacent surface burners.
8. Never leave surface burners unattended at high heat settings. Boil overs cause smoke and greasy
spillovers that may ignite, or a pan that has boiled dry may melt.
9. DO NOT use aluminum foil to line any part of the appliance. Use aluminum foil only to cover food
during cooking. Improper installation of these liners may result in risk of electric shock or re.
10. Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are
suitable for appliance service without breaking due to the sudden change in temperature. Check the
manufacturer’s recommendations for appliance use.
11. DO NOT use decorative surface burner covers. If a burner is accidentally turned on, the decorative
cover will become hot and possibly melt. You will not be able to see that the burner is on. Burns will
occur if the hot covers are touched. Damage may also be done to the range or burners because the
covers may cause overheating. Air will be blocked from the burner and cause combustion problems.
12. Use the proper pan sizes. This appliance is equipped with surface units of different sizes. Select
utensils having at bottoms large enough to cover the surface unit. The use of undersized utensils will
expose a portion of the surface heating unit to direct contact and may result in ignition of clothing.
Proper relationship of utensil to the surface unit will also improve efciency.
13. Ensure the anti-tip bracket is installed properly and engaged.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
30” Electric Range | RRE303TS
24
Rangaire: Product Installation
14. Avoid scratching or hitting the glass door, range, or control panels. This may lead to glass breakage.
DO NOT cook on an appliance with broken glass. Shock, re, or cuts may occur.
15. Have the fan hood on when preparing aming foods.
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Do not store items of interest to children in the cabinets above the appliance or on the
backguard of a range. Children should not be left alone or unattended in the area where
appliance is in use. Do not allow children to climb or play around the appliance. They should
never be allowed to sit or stand on any part of the appliance. Children climbing on the
appliance to reach items could be seriously injured.
30” Electric Range | RRE303TS
25
Rangaire: Product Installation
FOR YOUR SAFETY:
• Clean the appliance regularly to keep all parts free of grease that could catch re. Exhaust fan
ventilation hoods and grease lters should be kept clean. Do not allow grease to accumulate on hood
or lter. Greasy deposits in the fan could catch re. When cooking food turn the hood, fan on. Refer to
hood manufacturer’s instructions for cleaning.
• Utensil handles should be turned inward and not extend over adjacent surface burners. To reduce the
risk of burns, ignition of ammable materials, and spillage due to unintentional contact with the utensil,
the handle of the utensil should be positioned so that it is turned inward, and does not extend over
adjacent surface burners.
• Never leave surface burners unattended at high heat settings. Boil overs cause smoke and greasy
spillovers that may ignite, or a pan that has boiled dry may melt.
• Do not use aluminum foil to line any part of the appliance. Use aluminum foil only to cover food during
cooking. Improper installation of these liners may result in risk of electric shock or re.
• Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are
suitable for appliance service without breaking due to the sudden change in temperature. Check the
manufacturer’s recommendations for appliance use.
• Do not use decorative surface burner covers. If a burner is accidentally turned on, the decorative cover
will become hot and possibly melt. You will not be able to see that the burner is on. Burns will occur if the
hot covers are touched. Damage may also be done to the range or burners because the covers may
cause overheating. Air will be blocked from the burner and cause combustion problems.

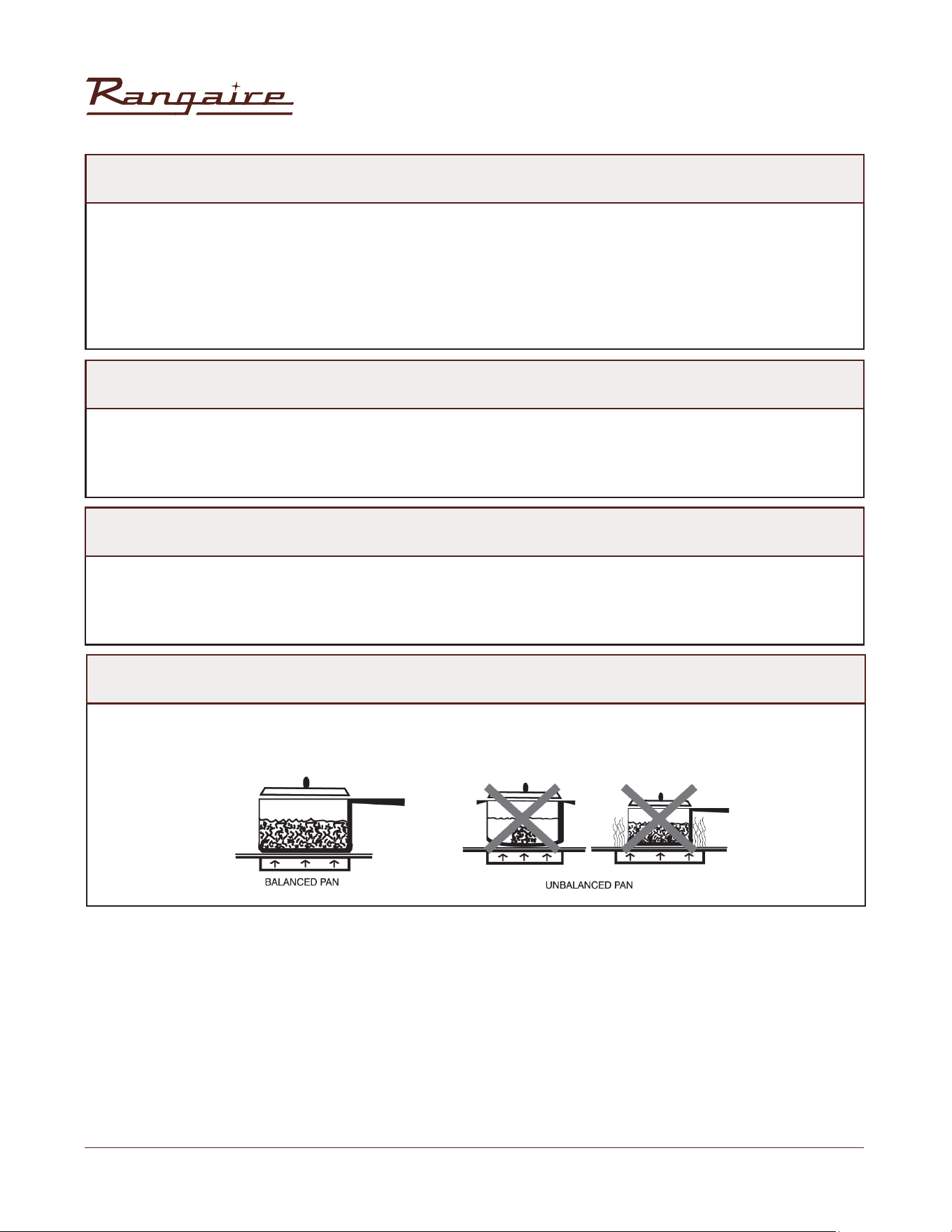

• Use the proper pan sizes. This appliance is equipped with surface units of different sizes. Select utensils
having at bottoms large enough to cover the surface unit. The use of undersized utensils will expose
a portion of the surface heating unit to direct contact and may result in ignition of clothing. Proper
relationship of utensil to the surface unit will also improve efciency.
TO REDUCE THE RISK OF TIPPING OF THE RANGE, THE RANGE MUST BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES ARE INSTALLED PROPERLY, SLIDE RANGE FORWARD, LOOK
FOR ANTI-TIP BRACKET SECURELY ATTACHED TO FLOOR OR WALL, AND SLIDE RANGE BACK SO REAR
RANGE FOOT IS UNDER ANTI-TIP BRACKET.
IMPORTANT
The range will not tip during normal use. However, the range can tip if you apply too much force
or weight to the open door without having the anti-tip bracket fastened down properly.
30” Electric Range | RRE303TS
26
Rangaire: Product Installation
ANTI-TIP BRACKET
RANGE FOOT
• A child or adult can tip the range and be killed.
• Install anti-tip bracket to oor or wall per installation instructions.
• Slide range back so rear range foot is engaged in the slot of the anti-tip
bracket.
• Re-engage the anti-tip bracket if range is moved.
• Do not operate the range without anti-tip bracket installed and engaged.
• Failure to follow these instructions can result in death or serious burns to
children and adults
• Slide range forward.
• Look for the anti-tip bracket securely attached to oor and wall.
• Slide range back so rear range foot is under anti-tip bracket.
Making sure the anti-tip bracket is installed:
TIP-OVER HAZARD
The range should have proper ventilation in order to keep the unit operating properly and maintain the
temperature of immediate surroundings within safe limits. Check your local building codes as they may
vary from the general rules outlined in this guide. It is recommended that a hood be installed above the
range that is rated no less than 400 CFM. This will provide adequate ventilation for this range. Mounting
distance of your ventilation is outlined by the manufacturer of your hood.
30” Electric Range | RRE303TS
27
Rangaire: Product Installation
PARTS AND FEATURES
This manual covers several different models. The range you have purchased may have some or all of the
items listed. The locations and appearances of the features shown here may not match those of your
model.
PARTS AND FEATURES
30” Electric Range | RRE303TS
28
Rangaire: Product Installation
PARTS AND FEATURES
OPERATION INSTRUCTIONS
• Oven Light: Turns the oven light on when selected.
• Bake: Used for traditional baking. The top and bottom heating elements are used along with natural
thermal convection currents to distribute the heat. It is best to bake on only one shelf at a time using this
function to ensure the best result.
• Pastry Bake: Similar to Bake but this setting also has a fan to circulate hot air around the oven. This is ideal
for food items that need a strong heat source on the bottom but still require some heat on the top, like pies,
cakes, and tarts.
• Low Broil: Perfect for browning dishes at the end of cooking. For optimal results, use in conjunction with
the Broil temperature setting.
• High Broil: Best for melting cheese, toasting and browning. This function should only be used for 5 minutes
or less. For optimal results, use in conjunction with the Broil temperature setting.
• Fan Grill: Utilizes a high heat grilling element and fan to circulate hot air throughout the oven. Ideal for
cooking large cuts of meats so that they are moist inside and crisp on the outside. Use a thermometer to
check the internal temperature.
NOTE: It is recommended to set the temperature no higher than 400°F.
• Convection Cooking: Utilizes the powerful heating element surrounding the fan to evenly distribute heat
throughout the oven. This is great for multi-shelf cooking because the fan ensures each rack is heated.
• Defrost: Circulates air at room temperature to defrost food.
COOKING MODES
OVEN CONTROLLER
30” Electric Range | RRE303TS
29
Rangaire: Product Installation
TIMER SETTINGS
1. Press the “ ” button repeatedly until the “ ” symbol above “ ” ashes.
2. Press “ + ” or “ - ” button until the time you wish shows on the display. The longest cooking time that can
be set is 23 hours and 59 minutes.
3. After setting the proper time (hour/minute), the “ ” symbol above the “ ” begins to ash.
4. The time countdown begins.
5. When it reaches the set time, the “ ” symbol above the “ ” ashes, and the alarm will ring.
6. To stop the alarm ringing, press any button.
FULL AUTOMATIC TIMER SETTING
1. Press the “ ” button repeatedly until the “ ” symbol above the “ ” ashes, and press “ + ” or “ - ”
button to set how long oven needs to cook.
2. Press the “ ” button repeatedly until the “ ” symbol above the “ ” ashes, and press “ + ” or “ - ”
button to set the time for oven to stop cooking and switch off.
3. Adjust knobs to select cooking mode and temperature.
4. The “ ” symbols above the “ ” and “ ” will ash. It indicates the cooking timer has been set. The
cooking will start and nish as per programmed into the timer.
1. Press the “ ” button repeatedly until the “ ” symbol above “ ” ashes, and set the time of baking
to 45 minutes.
2. Press the function button repeatedly until the “ ” symbol above “ ” ashed, and set the nish of
baking at “2:00”.
3. The proper time (hour/minute) and the “ ” symbol will show on the display. It indicates the setting of
cooking timer has been set.
For example, if the food is required to bake for 45 minutes, and it is supposed to stop at 2:00:
DIGITAL CLOCK
TIMER
1. Once the oven is connected to electrical power, the clock display will show “12:00” with the “ ” symbol
above “ ”.
2. Press the “ + ” or “ - ” button to increase or decrease the number until it reaches the right time.
3. After 5 seconds the clock will start automatically or you can press the “ ” button to make it work.
IMPORTANT
• The setting must be carried out in 5 seconds.
• If electricity fails suddenly, all the set procedure and the proper clock time (hour/minute) will
disappear.
• After electrical power is on again, “12:00” and the square symbol above “ ” will show on the display,
you will need to set it again.
PARTS AND FEATURES
30” Electric Range | RRE303TS
30
Rangaire: Product Installation
SEMI-AUTOMATIC TIMER SETTING
• SETTING TIMER FOR HOW LONG TO COOK
1. Longest time that can be set is 10 hours maximum.
2. Press the “ ” button repeatedly until the “ ” symbol above “ ” ashes. Press “ + ” or “ - ” button
and set the timer for how long the oven needs to cook.
3. Switch on the oven immediately, the “ ” symbol above “ ” begins to ash.
4. Adjust knobs to select cooking mode and temperature.
5. When the full amount of time set has passed, the cooking will stop and the oven will switch off
automatically.
6. The “ ” symbol above “ ” will ash and the alarm will ring.
7. To stop the alarm ringing, press any button.
• SETTING THE TIMER WITH THE END TIME OF COOKING
1. Longest time that can be set is 23 hours and 59 minutes.
2. Press the “ ” button repeatedly until the “ ” symbol above “ ” ashes. Press “ + ” or “ - ” button
and set the time for oven to stop cooking.
3. Switch on the oven immediately, the “ ” symbol above “ ” begins to ash.
4. Adjust knobs to select cooking mode and temperature.
5. When it reaches the time set, cooking will stop and the oven will switch off automatically.
6. The “ ” symbol above “ ” ashes, and the alarm will ring.
7. To stop the alarm ringing, press any button.
NOTE: The set timer procedure could be seen by pressing any function button repeatedly at any time.
NOTE: By adjusting the end time of cooking to the current time, the set timer procedure can be
cancelled.
1. When the clock shows “1:15”, the oven will switch on automatically and cooking will start.
2. During the cooking time, the “ ” symbol will keep ashing.
3. When the clock shows “2:00”, cooking will stop and the oven will switch off automatically, the alarm will
ring, and the “ ” symbol will ash.
4. To stop the alarm ringing, press any button.
PARTS AND FEATURES
30” Electric Range | RRE303TS
31
Rangaire: Product Installation

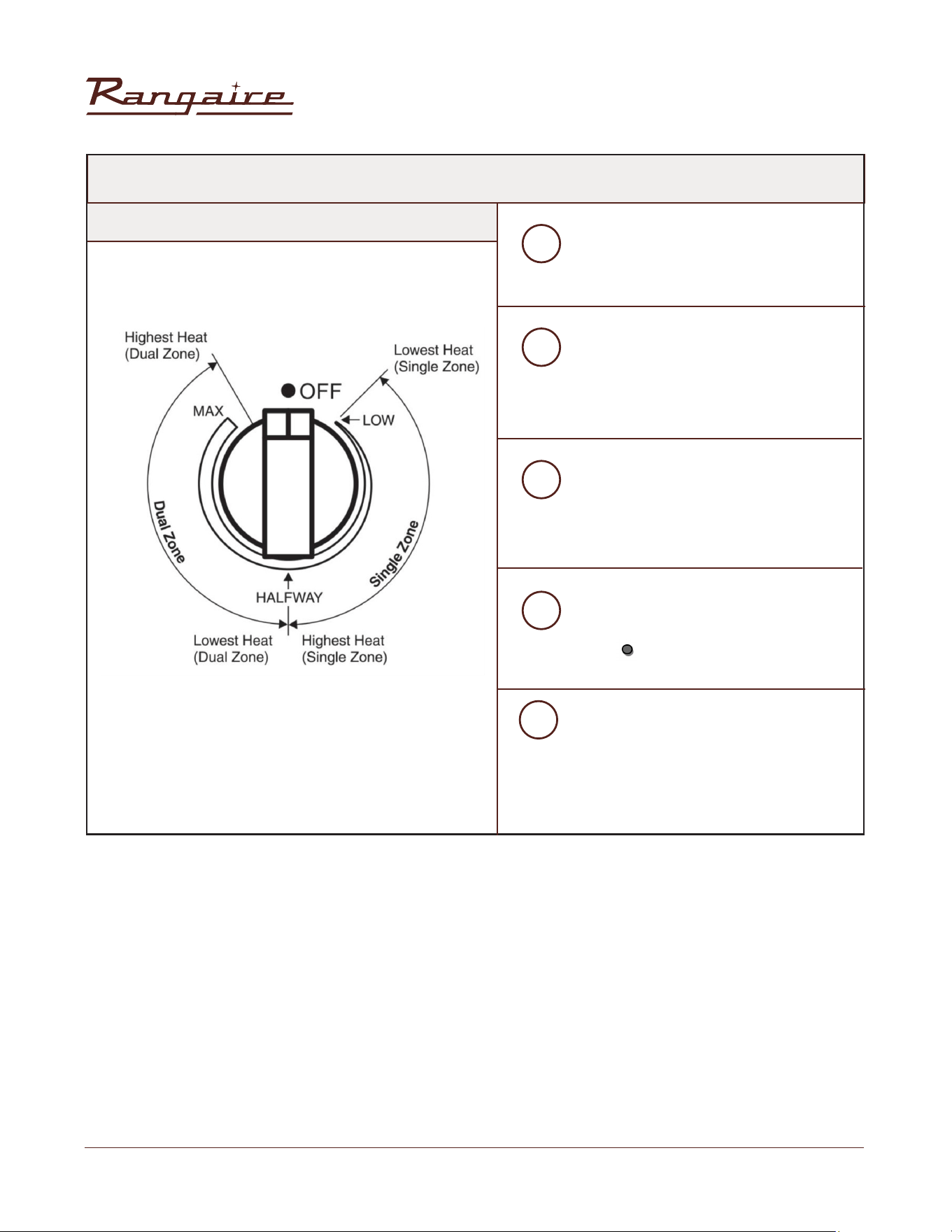

SETTING SURFACE CONTROLS
Turn the control knob to the desired
position (low to high).
Adjustment is continuous so the
cooking zone will operate at any
intermediate setting between low
and high.
Once the cooking zone is hot, the
LED corresponding to the zone
illuminates.
To switch off the cooking zone by
turn the knob, in either direction to
the “OFF” position.
The residual heat warning light
remains illuminated when the
temperature of the ceramic glass
surface is hot and will switch off once
the surface temperature has cooled.
1
2
3
4
5
FIGURE 11
PARTS AND FEATURES
30” Electric Range | RRE303TS
32
Rangaire: Product Installation

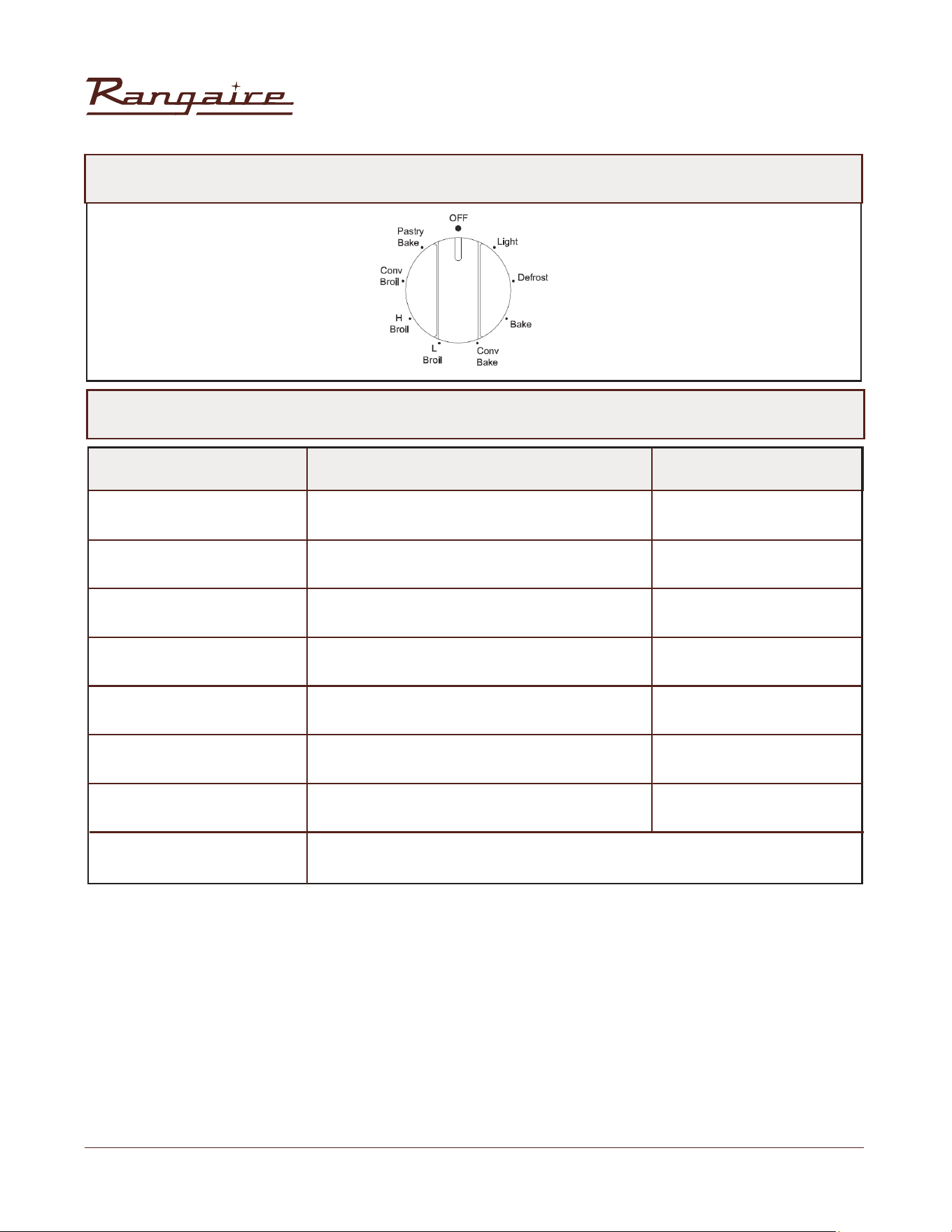

CONTROL PANEL
ELECTRICAL REQUIREMENTS: 240V/120V 60HZ
OVEN WORKING MODE
Light
Defrost
Bake
Conv Bake
L Broil
H Broil
Conv Broil
Pastry Bake
RATED POWER
50W
80W
3550W
2580W
2050W
3350W
3283W
3383W
WORKING STATUS OF OVEN PARTS
Light works
Light and convection fan work
The outer part of the top heating element,
bottom heating elementand light work
Back heating element, convection fan and
light work
The central part of the top heating element
and light work
The top heating element and
light work
The top heating element, convection fan and
light work
The bottom heating element, convection fan
and light work
PARTS AND FEATURES
30” Electric Range | RRE303TS
33
Rangaire: Product Installation
COOKTOP USE
BEFORE USE
The ceramic cooking area will glow red when a heating element is on. Some parts of the cooktop may
not glow red when an element is on. This is normal. The cooking area cycles off and on, even when set to
HI , to keep the cooktop glass from overheating. It is normal for the surface of ceramic glass to appear to
change color when surface cooking areas are hot. As the glass cools, it will return to its original color.
IMPORTANT: To avoid permanent damage from pitting or scratching and to condition to the cooktop
surface, clean the cooktop after each use. Ceramic glass cooktop cleaner and a cooktop scraper are
also recommended for stubborn soils. Do not use abrasive cleaners, cleaning pads or harsh chemicals
for cleaning. All of the items needed to clean and condition your ceramic glass cooktop are available at
most grocery stores. See the “Range Care” section for additional information.
• Make sure the bottoms of pots and pans are clean and dry before using them. Residue and water can
leave deposits when heated.
• Avoid storing jars or cans above the cooktop. Dropping a heavy or hard object onto the cooktop could
crack the cooktop.
• To avoid damage to the cooktop, do not leave a hot lid on the cooktop. As the cooktop cools, air can
become trapped between the lid and the cooktop, and the ceramic glass could break when the lid is
removed.
• For foods containing sugar in any form, clean up all spills as soon as possible. If sugary spills are al-
lowed to cool down, they can adhere to the cooktop and can cause pitting and permanent marks.
• Allow the cooktop to cool down slightly.
• While wearing oven mitts, remove the spill using a scraper while the surface is still warm.
• To avoid scratches, do not slide cookware or bakeware across the cooktop. Aluminum or copper
bottoms and rough nishes on cookware or bakeware could leave scratches or marks on the cooktop.
• Do not cook popcorn in prepackaged aluminum containers on the cooktop. They could leave aluminum
marks that cannot be removed completely.
• To avoid damage to the cooktop, do not allow objects that could melt, such as plastic or aluminum foil,
to touch any part of the entire cooktop.
• To avoid damage to the cooktop, do not use the cooktop as a cutting board.
• To avoid damage to the cooktop, do not cook foods directly on the cooktop.
1. If present, remove all packing and literature from the cooktop surface.
2. Clean your glass top. A thorough cleaning with a glass top cleaner is recommended. It only takes a
minute and puts a clean, shiny coating on the glass top before its initial use.
3. Place a saucepan of water on each of the front burners and turn them on HI heat for at least 30
minutes. Turn off the front burners.
4. Place a saucepan of water on each of the rear burners and turn them on HI heat for at least 30
minutes. Turn off the rear burners.
NOTES:
• This procedure evaporates any protective oils and humidity collected during the manufacturing
process, and enables the electronic control circuits to operate properly.
• There may be a slight odor during the rst several uses: this is normal and will dissipate.
• The cooking surface will hold the heat and remain hot over 20 minutes after the elements have been
turned off.
COOKTOP
30” Electric Range | RRE303TS
34
Rangaire: Product Installation
COOKTOP
HEATING ELEMENTS
HOT SURFACE INDICATOR LIGHT
DUAL-RING COOKING ELEMENT
COOKTOP USE
NOTES:
• For fastest boiling with pots 10" (25.4 cm) and larger, use the large Triple-ring element with all elements
set to “Hi.”
• For best low heat performance with pans 10" (25.4 cm) and larger, use the Dual-Size element set to
“Single Lo.”
• For best melting performance with small pans, use the Even-Heat™ element.
On ceramic glass cooktops the Hot Surface Indicator lights are located on the glass cooktop.
The Hot Surface Indicator Lights will glow as long as any cooking area is too hot to touch, even after the
surface cooking area is turned off.
The Dual-Size Cooking Element offers the exibility to use larger cookware.
• Single-size elements can be used in the same way as a regular element.
• The dual-size combines both the single and outer element and is recommended for larger size cookware.
MATCH PAN DIAMETER TO ELEMENT
The base of the pan should cover or match the diameter of the element being used.
30” Electric Range | RRE303TS
35
Rangaire: Product Installation
COOKTOP
COOKWARE CHARACTERISTICS
• Aluminum: heats and cools quickly. Frying, braising, roasting. May leave metal markings on glass.
• Cast Iron: on a glass cooktop heats and cools slowly, but retains heat and cooks evenly.
• Copper: tin heats and cools quickly. Best used for gourmet cooking, wine sauces, egg dishes.
• Enamel ware: response depends on base metal. Not recommended. Imperfections in enamel may
scratch cooktop.
• Glass Ceramic: heats and cools slowly. Not recommended. Heats too slowly. Imperfections in enamel
may scratch cooktop.
• Stainless Steel: heats and cools moderately. Soups, sauces, vegetables, and general cooking.
Safe canning requires that harmful micro organisms are destroyed and that the jars are sealed
completely. When canning foods in a water-bath canner, a gentle but steady boil must be maintained
for the required time. When canning foods in a pressure canner, the pressure must be maintained for the
required time. After you have adjusted the controls, it is very important to make sure the prescribed boil
or pressure levels are maintained for the required time. Failure to do so can result in food poisoning or
sickness.
Canning can be performed on a glass smooth top cooking surface or traditional coil element cooktop.
• When canning for long periods, alternate the use of surface cooking areas or elements between
batches. This allows time for the most recently used areas to cool.
• Center the canner on the largest surface cooking area or element. On electric cooktops, canners
should not extend more than ½" (1.3 cm) beyond the surface cooking area or element.
• Do not place canner on 2 surface cooking areas or elements at the same time.
• On ceramic glass models, use only at-bottomed canners to avoid damage to the cooktop and
elements.
For more information, contact your local agricultural extension ofce, or refer to published home canning
guides. Companies that manufacture home canning products can also offer assistance.
FOOD POISONING HAZARD
HOME CANNING
30” Electric Range | RRE303TS
36
Rangaire: Product Installation
OVEN
OVEN USE
BEFORE USING THE OVEN
GENERAL
This multi-function oven combines the functions of traditional oven modes with the functions of modern,
fan-assisted convection modes in a single oven. Use the Cooking Mode control, located on the control
panel, to select the oven mode.
IMPORTANT: During any cycle, the heating elements will turn off when the oven door is opened, and stay off
until the door is closed. To maintain oven temperature, limit door openings during cooking.
1. Close the oven door.
2. Press Bake.
3. Press 500°F (260°C) on the number keypad.
4. Press Start.
NOTE: Allow the oven to operate for 30 minutes with the door closed and no food in the cavity.
5. Turn off the oven, and then open the oven door to allow the oven to cool.
NOTE: Any odor that may be detected during this initial use is due to the evaporation of substances used to
protect the oven during storage.
IMPORTANT: Do not place anything, including dishes, foil and oven trays, on the bottom of the oven when it
is in operation to avoid damaging the enamel.
1. Place bakeware with food on one or both of the shelves provided with the oven.
2. Close the oven door,
NOTE: The oven cannot be set with the door open.
3. Press the desired oven mode ie. BAKE.
4. Set the oven to the desired temperature.
5. Press START.
30” Electric Range | RRE303TS
37
Rangaire: Product Installation
OVEN RACKS
OVEN MODES
OVEN USE
The oven racks can be placed in any of the six height positions within the oven. Oven racks have a stop to
keep them from being unintentionally withdrawn fully.
PREHEATING
When beginning a Bake, Convection Bake or Convection Roast cycle, the oven will begin preheating after
Start is pressed. The oven will take approximately 12 to 15 minutes to reach 350°F (177°C) with all of the
oven racks provided with your oven inside the oven cavity. Higher temperatures will take longer to preheat.
The preheat cycle rapidly increases the oven temperature. The actual oven temperature will go above
your set temperature to offset the heat lost when you open the oven door to place the food on the rack.
This ensures that cooking will begin at the proper temperature. Do not open the door while the oven is
preheating. When the oven has heated to the set temperature, a tone will sound. You can then open the
door and place food in the oven.
Baking is cooking with heated air. Both upper and lower elements in the oven are used to heat the air, but
the fan is used only during preheating.
Follow the recipe or convenience food directions for baking temperature, time and rack position. Baking
time will vary with the temperature of ingredients and the size, shape and nish of the baking utensil.
The temperature can be set from 170°F (77°C) to 500°F (260°C).
• For best results, bake food on a single rack with at least 1" - 1½" (2.5 - 4 cm) space between bakeware and
oven walls.
• Use one rack when selecting the bake mode.
• Check for doneness at the minimum time.
• Use metal bake ware (with or without a non stick nish), heatproof glass, glass ceramic, pottery or other
utensils suitable for the oven.
• When using heatproof glass, reduce temperature by 25°F (15°C) from recommended temperature.
• Use baking sheets with or without sides or jelly roll pans.
• Dark metal pans or nonstick coatings will cook faster with more browning. Insulated bake ware will slightly
lengthen the cooking time for most foods.
• Do not use aluminum foil or disposable aluminum trays to line any part of the oven. Foil is an excellent
heat insulator and heat will be trapped beneath it. This will alter the cooking performance and can
damage the nish of the oven.
• Avoid using the opened door as a shelf to place pans.
• See Troubleshooting for tips to Solving Baking and Roasting Problems.
OVEN
30” Electric Range | RRE303TS
38
Rangaire: Product Installation
TO BAKE
1. Close the oven door.
NOTE: The oven controls cannot be set if the oven door is open.
2. Press BAKE. “BAKE” will appear in the display, and 350°F (177°C) will be
displayed. “Set temp or START” will appear in the text area.
3. Press START, if you wish to bake at 350°F (177°C). OR Enter the desired temperature by pressing the
number keypad, and then press START. The temperature can be set from 170°F (77°C) to 500°F (260°C).
NOTES:
• The temperature may be changed at any time during cooking. Press CANCEL to clear the settings. Select
oven mode, then enter the desired temperature by pressing the number keypad, and then press START.
• After selecting an Oven Mode and Temperature, you have the option to
set a Cook Time and Start Time before pressing START. See “Cook Time” and “Start Time.”
4. Once START has been pressed, the oven will begin to preheat. When the oven has reached the set
temperature, a tone will sound.
BAKE CHART
FOOD ITEM
TEMP. °F (°C)
(PREHEATED OVEN)
RACK POSITION TIME (MIN)
2
2
2
2
2
2
2
1
2
2
1
2
2
2
350 (175)
350-375 (175-190)
375 (190)
400-450 (205-235)
375-400 (190-205)
350 (175)
350-375 (175-190)
375-400 (190-205)
475 (246)
375 (190)
350 (175)
350 (175)
375-400 (190-205)
425 (220)
19-22
8-10
18-22
23-26
45-50
40-45
8-13
12-15
15-18
68-78
35-39
29-36
7-9
15-19
Cake
Cookies
Breads
Pizza
Pie
Cupcakes
Sugar
Yeast bread loaf, 9x5
Frozen
2 crust, fresh, 9"
Bundt Cake
Bundt Cake
Yeast rolls
Fresh
2 crust, frozen fruit, 9"
Angel Food
Angel Food
Biscuits
Mufns
OVEN
30” Electric Range | RRE303TS
39
Rangaire: Product Installation
NOTE: If a Start Time was set, the oven will turn on at the set time. Place the food in the oven and close the
oven door when preheat is complete.
5. Press CANCEL when nished cooking, and remove food from the oven.
NOTE: If you used Cook Time or Start Time to set a cook time, the oven will turn off automatically.
BROIL
Broiling uses direct radiant heat to cook food. The lower the temperature, the slower the cooking. Thicker
cuts and unevenly shaped pieces of meat, sh and poultry may cook better at lower broiling temperatures.
NOTES:
• Before broiling, position rack according to the Broiling Chart.
• For best results, use a two-piece broiler pan with a grid (not provided). It is designed to drain juices which
helps to avoid spatter and smoke.
• For proper draining, do not cover the grid with foil. The bottom of the pan may be lined with aluminum foil
for easier cleaning.
• Trim excess fat to reduce spattering. Slit the remaining fat on the edges to avoid curling.
• Select HI Broil 550°F (288°C) for most broiling. Select LO Broil 450°F (232° C) for low-temperature broiling
for foods that take longer to cook, such as poultry, to avoid over browning.
• Pull out oven rack to stop position before turning or removing food. Use tongs to turn food to avoid the
loss of juices. Very thin cuts of sh, poultry or meat may not need to be turned.
• After broiling, remove the pan from the oven when removing the food. Drippings will bake on the pan if left
in the heated oven, making cleaning more difcult.
• Position food on grid in the broiler pan, then place it in the center of the oven rack. Close the oven door
and set the control.
The temperature can be set from 450°F (232°C) to 550°F (288°C).
1. Place the food in the oven, preheating is not necessary.
2. Close the oven door.
3. Press BROIL. “BROIL” and “Set temp or START” and “550ºF” (288ºC) will be displayed.
4. Press START, if you wish to broil at 550°F (288°C). OR Enter the desired temperature by pressing the
number keypad, and then press START. The temperature can be set from 450°F (232°C) to 550°F
(288°C).
NOTES:
• The temperature can be changed at any time during cooking. Press CANCEL to clear the settings. Select
oven mode, then enter the desired temperature by pressing the number keypad, and then press START.
• After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time
before pressing START. See “Cook Time” and “Start Time.”
5. BROIL will appear in the display after Start is pressed.
6. When cooking is nished, press CANCEL, and then remove food from the oven.
NOTE: If you used Cook Time or Delay Start to set a cook time, the oven will
turn off automatically.
OVEN
30” Electric Range | RRE303TS
40
Rangaire: Product Installation
WARM/PROOF
The Warm mode keeps hot, cooked foods at serving temperature.
The Proof mode prepares dough for baking by activating the yeast. Follow the recipe directions as a guide.
Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food
poisoning or sickness.
IMPORTANT: Food must be at serving temperature before placing it in the warmed oven. Food may be
held up to 1 hour; however, breads and casseroles may become too dry if left in the oven during the
Warm function. For best results, cover food.
1. Press WARM/PROOF, and then press WARM on the menu screen. “WARM” and “Set Temp or START”
and 140°F (60°C) will be displayed.
2. Press START, if you wish to Warm food at 140°F (60°C). OR Enter the desired temperature by pressing
the number keypad, and then press START. The temperature can be set from 140°F (60°C) to 210°F
(99°C).
3. “WARM” will appear in the display, once Start is pressed.
NOTE: After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start
Time before pressing START. See “Cook Time” and “Start Time.”
4. Place food in the oven and close the door.
5. Press CANCEL when nished, and remove food from the oven.
PROOF
Before proong, place the dough in a lightly greased bowl and cover loosely with wax paper, coated with
shortening.
1. Place on second rack from the bottom and close the oven door.
2. Press WARM/PROOF, and then press PROOF on the menu screen. “PROOF” and “Set Temp or START,”
and 100°F (38°C) will be displayed.
3. Press START, if you wish to Proof dough at 100°F (38°C). OR Enter the desired temperature by pressing
the number keypad, and then press START. The temperature can be set from 80°F (27°C) to 120°F
(49°C).
4. “PROOF” will appear in the display, once Start is pressed.
NOTE: After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start
Time before pressing START. See “Cook Time” and “Start Time.”
5. Let the dough rise until nearly doubled in size, checking after 20-25 minutes. Proong time may vary
depending on dough type and quantity.
6. Press CANCEL when nished.
7. Before second proong, shape the dough, place it in baking pan(s) and cover loosely with plastic
wrap, coated with cooking spray. Follow the same placement and control steps above. Before
baking, remove the plastic wrap.
WARNING - FOOD POISONING HAZARD
OVEN
30” Electric Range | RRE303TS
41
Rangaire: Product Installation
CONVECTION
FOODS RECOMMENDED FOR CONVECTION BAKE MODE:
During convection cooking, the fan provides hot air circulation throughout the oven. The movement of
heated air around the food can help to speed up cooking by penetrating the cooler outer surfaces. Food
cooks more evenly, browning and crisping outer surfaces while sealing moisture inside.
When the oven is set to the Convection function, the ring element, bake and broil elements, and the fan
operate to heat the oven cavity. If the oven door is opened during convection cooking or preheating, the
fan turns off immediately and the element(s) will turn off. Once the door is closed, the element(s) will
automatically turn on.
CONVECTION FAN
The convection fan operates during any convection mode. When the oven is
operating in convection mode, the fan will turn off automatically when the
door is opened. The convection fan may run in non-convection modes during
the preheat time.
CONVECTION BAKE
• Use Convection Bake for single or multiple rack baking. Reduce standard recipe baking temperature by
25°F (15°C).
• For best results, foods should be cooked uncovered, in low-sided pans to take advantage of the forced air
circulation. Use shiny aluminum pans for best results unless otherwise specied.
• Heatproof glass or ceramic can be used. Reduce temperature by another 25°F (15°C) when using
heatproof glass dishes for a total reduction of 50°F (30°C).
• Dark metal pans may be used. Note that food may brown faster when using dark metal bake ware.
• The number of racks used is determined by the height of the food to be cooked.
• Baked items, for the most part, cook extremely well in convection. Don’t try to convert recipes such
as custards, quiches, pumpkin pie, or cheesecakes, which do not benet from the convection-heating
process. Use the regular Bake mode for these foods.
• Multiple rack cooking for oven meals is done on rack positions 1, 2, 3 , 4 and
5. All ve positions can be used for cookies, biscuits and appetizers.
- 2 Rack baking: Use positions 1 and 3.
- 3 rack baking: Use positions 2, 3 and 4 or
1, 3 and 5.
• When baking four cake layers at the same time, stagger pans so that one pan is not directly above
another. For best results, place cakes on front of upper rack and back of lower rack.
Allow 1" - 1½" (2.5 - 4 cm) air space around pans.
Appetizers Biscuits Coffee Cakes
Cookies (2 to 4 racks) Yeast Breads
Cream Puffs
Popovers
Casseroles and One-Dish Entreés
Oven Meals (rack positions 1, 2, 3)
Air Leavened Foods (Soufés, Meringue, Meringue-Topped Desserts, Angel
Food Cakes, Chiffon Cakes)
OVEN
30” Electric Range | RRE303TS
42
Rangaire: Product Installation
OVEN USE
FOOD ITEM
TEMP. °F (°C)
(PREHEATED OVEN)
RACK POSITION
TIME (MIN)
2
2
2
2
2
2
2
1
2
2
1
2
2
2
350 (175)
350-375 (175-190)
375 (190)
400-450 (205-235)
375-400 (190-205)
350 (175)
350-375 (175-190)
375-400 (190-205)
475 (246)
375 (190)
350 (175)
350 (175)
375-400 (190-205)
425 (220)
19-22
8-10
18-22
23-26
45-50
40-45
8-13
12-15
15-18
68-78
35-39
29-36
7-9
15-19
Cake
Cookies
Breads
Pizza
Pie
Cupcakes
Sugar
Yeast bread loaf, 9x5
Frozen
2 crust, fresh, 9"
Bundt Cake
Bundt Cake
Yeast rolls
Fresh
2 crust, frozen fruit, 9"
Angel Food
Angel Food
Biscuits
Mufns
To Set Convection Bake:
1. Press Convection BAKE once. “Set Temp or START” and 325°F (162°C) will be displayed.
2. Press START If you wish to convection bake at 325°F (162°C). OR Enter the desired temperature by pressing
the number keypad, and then press START. The temperature can be set from 170°F (77°C) to 500°F(260°C).
NOTES:
• To change the set temperature press CANCEL. Press the number keypad to enter the desired temperature,
and then press START.
• After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time
before pressing START. See “Cook Time” and “Start Time.”
3. The oven will begin preheating once Start is pressed. A tone will sound when the oven is at the set tem-
perature.
4. Place the food in the oven and close the oven door when preheat is completed.
5. Press CANCEL when nished, and then remove food from the oven.
NOTE: If you used Cook Time or Start Time to set a cook time, the oven will turn off automatically.
OVEN
30” Electric Range | RRE303TS
43
Rangaire: Product Installation
OVEN USE
CONVECTION BROIL
GENERAL GUIDELINES
• Place rack in the required position needed before turning on the oven.
• Use Convection Broil mode with the oven door closed.
• When convection broiling, enter your normal broiling temperature.
• Do not preheat oven.
• Use the 2-piece broil pan.
• Turn meats once halfway through the cooking time. See the Convection Broil chart.
• Thicker cuts and unevenly shaped pieces of meat, sh and poultry may cook better at lower broiling
temperatures.
TO SET CONVECTION BROIL:
1. Place the food in the oven and close the oven door.
2. Press Convection BROIL once. “Set Temp or START” and 450°F (232°C) will be displayed.
3. Press START, if you wish to broil at 450°F (232°C). OR Enter the desired temperature by pressing the
number keypad, and then press START. The temperature can be set from 170°F (77°C) to 500°F (260°C).
• To change the set temperature press CANCEL. Press the number keypad to enter the desired temperature,
and then press START.
• After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time
before pressing START. See “Cook Time” and “Start Time.”
4. “Convect Broil” will be displayed, once Start is pressed.
5. Press CANCEL when cooking is nished, and then remove food from the oven.
FOOD AND THICKNESS
RACK
POSITION
BROIL SETTING
INTERNAL TEMP °F
(°C)
TIME SIDE 1
MIN
TIME SIDE 2
MIN
Steak (1½" or more)
Medium rare
Medium
Well
Hamburgers (more than 1")
Medium
Well
Chicken Quarters
Chicken Halves
Chicken Breasts
Pork Chops (1 ¼ or more)
Sausage - Fresh
4
4
4
4
4
4
3
4
4
4
Low
Low
Low
High
High
Low
Low
Low
Low
Low
145 (65)
160 (71)
170 (77)
160 (71)
170 (77)
180 (82)
180 (82)
170 (77)
160 (71)
160 (71)
9-12
11-13
18-20
8-11
11-13
16-18
25-27
13-15
12-14
4-6
8-10
10-12
16-17
5-7
8-10
10-13
15-18
9-13
11-13
3-5
OVEN
30” Electric Range | RRE303TS
44
Rangaire: Product Installation
OVEN USE
CONVECTION ROAST
When Convection roasting, enter your normal roasting temperature. The roasting time should be 15-30%
less than in conventional cooking. It is not necessary to preheat the oven for convection roast.
GENERAL GUIDELINES
• Do not preheat for Convection Roast.
• Roast in a low-sided, uncovered pan.
• When roasting whole chickens or turkey, tuck wings behind back and loosely tie legs with kitchen string.
• Use the 2-piece broil pan for roasting uncovered.
• Double-check the internal temperature of meat or poultry by inserting meat thermometer into another
position.
• Large poultry may need to be covered with foil (and pan roasted) during a portion of the roasting time to
prevent over-browning.
• The minimum safe temperature for stufng in poultry is 165ºF (75ºC).
• After removing the food from the oven, cover loosely with foil for 10 to 15 minutes before carving if
necessary to increase the nal foodstuff temperature by 5° to 10°F (3° to 6° C).
• Turn meats once halfway through the cooking time. See the Convection Broil chart.
• Thicker cuts and unevenly shaped pieces of meat, sh and poultry may cook better at lower broiling
temperatures.
MEATS
WEIGHT
(LB)
OVEN TEMP.
°F (°C)
RACK
POSITION
TIME MIN
PER LB
INTERNAL
TEMP °F (°C)
BEEF
PORK
POULTRY
LAMB
Rib Roast
Rib Eye Roast (Boneless)
Loin Roast
Shoulder
Chicken Whole
Turkey, Not Stuffed
Turkey, Not Stuffed
Turkey, Not Stuffed
Turkey Breast
Cornish Hen
Half Leg
Whole Leg
Tenderloin Roast
Rump, Eye, Tip, Sirloin
(Boneless)
4-6
4-6
5-8
3-6
3-4
12-15
16-20
21-25
3-8
1-1 ½
3-4
6-8
2-3
3-6
325 (160)
325 (160)
350 (175)
350 (175)
375 (190)
325 (160)
325 (160)
325 (160)
325 (160)
350 (175)
325 (160)
325 (160)
400 (205)
325 (160)
2
2
2
2
2
1
1
1
1
2
2
1
2
2
16-20
16-20
16-20
20-25
18-21
10-14
9-11
6-10
15-20
45-75
22-27
22-27
28-33
28-33
15-20
16-20
18-22
18-22
18-22
145(63) Medium Rare
145(63) Medium Rare
160(71) Medium
160(71) Medium
180(82)
180(82)
180(82)
180(82)
170(77)
180(82)
160(71) Medium
160(71) Medium
170(77) Well
170(77) Well
145(63) Medium Rare
145(63) Medium Rare
160 (71) Medium
160 (71) Medium
160 (71) Medium
OVEN
30” Electric Range | RRE303TS
45
Rangaire: Product Installation
To Set Convection Roast:
1. Place the food in the oven and close the oven door.
2. Press CONVECTION ROAST once. “Set Temp or START”, and 325°F (163° C) will be displayed.
3. Press START, if you wish to convection roast at 325°F (163°C). OR Enter the desired temperature by
pressing the number keypad, and then press START. The temperature can be set from 170°F (77°C) to
500°F (260°C).
NOTES:
• To change the set temperature during cooking, press CANCEL. Press the number keypad to enter the
desired temperature, and then press START.
• After selecting an Oven Mode and Temperature, you have the option to set a Cook Time and Start Time
before pressing START. See “Cook Time” and “Start Time.”
4. Press START. After pressing START, the oven will display ”CONVECT ROAST” while cooking.
5. Press CANCEL when nished, and then remove food from the oven.
NOTE: If you used Cook Time or Start Time to set a cook time, the oven will turn off automatically.
CONVECTION CONVERSION
When using a Convection Recipe, enter your normal cooking temperature and time. The Convection
Conversion mode will adjust the temperature and time for perfect cooking results.
IMPORTANT:
• The oven door must be closed before selecting a Convection Conversion oven mode.
• Setting Cook Time is required for a Convection Conversion oven mode. If Cook Time was not set, the
control will prompt you to Set Cook Time. See “Cook Time.”
NOTE: At the end of the set Cook Time, the oven will turn off automatically, the end of cycle tone will sound
and “Complete” will appear in the display.
BAKED GOODS
1. Press BAKED GOODS among the Convection Conversion controls.
2. Set the oven temperature.
NOTE: The temperature can be set from 170°F (77°C) to 500°F (260°C).
3. Press START. “Set Cook Time” will appear in the display.
4. Press the number keypad to enter the desired cook time. “Press START” will appear in the display.
NOTE: If a delayed start time is desired, Press START TIME, and then press the number keypad to enter the
desired start time. “Press START” will appear the display. Set Cook Time is mandatory for the Convection
Conversion oven mode. If Cook Time was not set, the control will prompt you to “Set Cook Time.”
5. Press START. The oven begins to preheat. Once the set temperature has been reached, a tone will
sound.
NOTE: If the recipe requires the food to be cooked in a preheated oven, add 15 minutes to Cook Time to
allow time for the oven to preheat. Once the oven is heated to the set temperature and the tone sounds,
place food in the oven.
6. At the end of the set Cook Time the oven will turn off automatically, the end of cycle tone will sound
and “Complete” will appear in the display.
OVEN
30” Electric Range | RRE303TS
46
Rangaire: Product Installation
MEATS
IMPORTANT: It is not necessary to preheat the oven for the convection conversion MEAT option.
1. Press MEATS among the Convection Conversion controls.
2. Set the oven temperature.
NOTE: The temperature can be set from 170°F (77°C) to 500°F (260°C).
3. Press START. “Set Cook Time” will appear in the display.
4. Press the number keypad to enter the desired cook time. “Press START” will appear in the display.
NOTE: Setting Cook Time is mandatory for the Convection Conversion oven mode.
5. At the end of the set Cook Time the oven will turn off automatically, the end of cycle tone will sound
and “Complete” will appear in the display.
OTHER FOODS
1. Press OTHER FOODS among the Convection Conversion controls.
2. Set the oven temperature.
NOTE: The temperature can be set from 170°F (77°C) to 500°F (260°C).
3. Press START. “Set Cook Time” will appear in the display.
4. Press the number keypad to enter the desired cook time. “Press START” will appear in the display.
NOTE: If a delayed start time is desired, Press START TIME, and then press the number keypad to enter
the time-of-day you want the oven to turn on. “Press START” will appear the display. Set Cook Time is
mandatory for the Convection Conversion oven mode. If Cook Time was not set, the control will prompt you
to Set Cook Time.
5. Once START has been pressed, the oven begins to preheat. Once the set temperature has been
reached, a tone will sound.
NOTE: If the recipe requires the food to be cooked in a preheated oven, add 15 minutes to Cook Time to
allow time for the oven to preheat. Once the oven is heated to the set temperature and the tone sounds,
place food in the oven.
6. At the end of the set Cook Time the oven will turn off automatically, the end of cycle tone will sound
and “Complete” will appear in the display.
OVEN
30” Electric Range | RRE303TS
47
Rangaire: Product Installation
CARE AND CLEANING
BURN HAZARD
To avoid possible burns use care when cleaning the appliance.
DO NOT attempt to clean the appliance whenever the oven or burner heads
are still hot.
To avoid possible burns DO NOT attempt any of the following cleaning
instructions before turning OFF ALL of the surface burners and allowing them
to cool.
IMPORTANT: Always follow label instructions on cleaning products.
ELECTRICAL SHOCK
HAZARD
CLEANING
IMPORTANT: Before cleaning, make sure all controls are turned off, and the oven and cooktop are cool.
Always follow label instructions on cleaning products. It is recommended that you rst use soap, water
and a soft cloth or sponge unless otherwise noted. Do not use abrasive cleaning products.
EXTERIOR PORCELAIN ENAMEL SURFACES
Food spills containing acids, such as vinegar and tomato, should be cleaned as soon as the entire
appliance is cool. These spills may affect the nish.
Cleaning Method:
Glass cleaner, mild liquid cleaner or nonabrasive scrubbing pad: Gently clean around the model and serial
number plate because scrubbing may remove numbers.
EXTERIOR STAINLESS STEEL
NOTE: Do not use soap-lled scouring pads, abrasive cleaners, cooktop polishing cream, steel-wool pads,
gritty washcloths or some paper towels. Damage may occur, even with one-time or limited use. Rub in
direction of grain to avoid damaging.
Cleaning Method:
Liquid detergent or all-purpose cleaner: Rinse well with clean water and dry with soft, lint-free cloth.
Stainless Steel Cleaner and Polish Vinegar for hard water spots
OVEN DOOR EXTERIOR
Cleaning Method:
Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass cleaner to soft cloth or
sponge, not directly on panel.
CERAMIC GLASS COOKTOP
IMPORTANT: To avoid damaging the cooktop, do not use steel wool, abrasive powder cleansers, chlorine
bleach, rust remover or ammonia. Ceramic
cooktop cleaning materials: cooktop cleaner, cooktop scraper and cooktop
cleaning pads are available at most grocery stores.
To Clean the Ceramic Glass Cooktop:
1. Remove food/residue with a cooktop scraper.
• For best results, use the cooktop scraper while the cooktop is still warm, but not hot to the touch.
RANGE CARE
30” Electric Range | RRE303TS
48
Rangaire: Product Installation
• It is recommended to wear an oven mitt while scraping the warm cooktop.
• Hold the cooktop scraper at approximately a 45° angle against the glass surface and scrape the residue.
It will be necessary to apply pressure in order to remove the residue.
• Allow the cooktop to cool down completely before proceeding to Step 2.
2. Apply a few dime-sized drops of cooktop cleaner to the affected areas.
• Rub cooktop cleaner onto the cooktop surface with a nylon or similar cooktop cleaning pad. Some
pressure is needed to remove stubborn stains.
• Allow the cleaner to dry to a white haze before proceeding to Step 3.
3. Polish with a clean, dry cloth or a clean, dry paper towel. SMUDGES FROM ALUMINUM BOTTOMED PANS
Cleaning Method:
A cloth dampened in vinegar.
COOKTOP CONTROL KNOBS
• Pull knobs straight out from the control panel to remove.
• When replacing knobs, make sure knobs are turned to the Off position.
Cleaning Method:
Soap and water or dishwasher:
NOTE: Do not use steel wool, abrasive cleansers or oven cleaner. Do not soak knobs.
CONTROL PANEL
Cleaning Method:
Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge, not directly on panel.
NOTE: Do not use abrasive cleaners, steel-wool pads, gritty washcloths or some paper towels. Damage
may occur.
OVEN CAVITY
Food spills should be cleaned when oven cools. At high temperatures, foods react with porcelain, so
staining, etching, pitting or faint white spots can result.
Cleaning Method:
Mild detergent and warm water.
NOTE: Do not use oven cleaners.
OVEN RACKS
Cleaning Method:
Steel-wool pad
RANGE CARE
30” Electric Range | RRE303TS
49
Rangaire: Product Installation
BURN HAZARD
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Failure to do so can result in burns.
BURN HAZARD
OVEN SELF CLEANING
The Self-Cleaning cycle uses very high temperatures, burning soil to a powdery ash.
IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning
cycle. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and
well-ventilated room.
NOTES:
• Self-clean the oven before it becomes heavily soiled. Heavy soil results in longer cleaning and more
smoke.
• Keep the kitchen well-ventilated during the Self-Cleaning cycle to help get rid of heat, odors, and smoke.
• Do not clean, rub, damage or move the oven gasket. The door gasket is essential for a good seal.
• Allow the oven to cool to room temperature before using the Self- Clean feature. If your oven cavity is
above 170°F (77°C), “Oven Cooling” will appear in the display and the Self-Clean cycle will not activate until
it cools down.
• The oven light will not work during the Self-Cleaning cycle. On some models, the surface elements will not
work during the Self-Cleaning cycle.
• When “LOCK” shows in the display, the oven door cannot be opened. To avoid damage to the door, do not
force the door open when “LOCK” is displayed.
Prepare Oven:
• Remove the broiler pan, cookware and bakeware and, on some models, the temperature probe from the
oven.
• Remove oven racks to keep them shiny and easy to slide. See “General Cleaning” section for more
information.
• Remove any foil from the oven because it may burn or melt, damaging the oven.
• Hand clean inside door edge and the 1½" (3.8 cm) area around the inside oven cavity frame, being certain
not to move or bend the gasket. This area does not get hot enough during self-cleaning to remove soil. Do
not let water, cleaner, etc., enter slots on door frame. Use a damp cloth to clean this area.
• Wipe out any loose soil to reduce smoke and avoid damage. At high temperatures, foods react with
porcelain. Staining, etching, pitting or faint white spots can result. This will not affect cooking performance.
To Self-Clean:
NOTE: The oven is preset for a 2.5 hour Cleaning cycle; however, the Cleaning time can be adjusted.
Suggested cleaning times are:
2 Hours - Light soil
RANGE CARE
30” Electric Range | RRE303TS
50
Rangaire: Product Installation
3 Hours - Average soil
3.5 Hours - Heavy soil.
1. Close the oven door.
NOTE: If an oven door is left open, “Door Open Clean Canceled” will appear in the display and a tone will
sound.
2. Press SELF CLEAN. “Remove Racks” will scroll in the selected oven text area for 5 seconds, followed by
“Select Option.” “Select Level” and “Press 1. Level 1 (Quick) 2. Level 2, 3. Level 3, 4. Level 4 (reg), 5. Level 5,
6. Level 6 (Maxi)” will scroll in the display text area.
3. Enter the desired Clean level by pressing the number keypad, and then press START.
NOTE: The oven door will lock. “SELF CLEAN” will scroll in the display panel until the clean cycle is nished.
When the self-clean cycle ends: “COMPLETE” appears in the display and the oven door unlocks
4. Open the oven door. Once the oven has completely cooled, remove ash with a damp cloth.
NOTE: Set Cooking Time is mandatory for the Convection Conversion oven mode.
To Delay Start Self-Clean:
1. Press START TIME.
2. “--:--” will be displayed, and “Set time to delay. Then Press START” will scroll from right to left in the
selected oven text area. Enter the time-of-day that you want oven cleaning to begin, by pressing the
number keypad.
3. Press START. “Select cooking/cleaning mode” will scroll in the selected oven text area.
4. Press SELF CLEAN. “Remove Racks” will scroll in the selected oven text area for 5 seconds, followed by
“Select Option.”
5. “Select Level” and “Press 1. Level 1 (Quick) 2. Level 2, 3. Level 3, 4. Level 4 (reg), 5. Level 5, 6. Level 6 (Maxi)”
will scroll in the display text area.
6. Enter the desired Clean level by pressing the corresponding number on the keypad.
7. Press START. The cleaning cycle will begin when the set Time is reached.
When the self-clean cycle ends:
“COMPLETE” appears in the display and the oven door unlocks.
8. Open the oven door. Once the oven has completely cooled, remove ash with a damp cloth.
NOTE: To avoid breaking the glass, do not apply a cool, damp cloth to the
inner door glass before it has completely cooled.
RANGE CARE
30” Electric Range | RRE303TS
51
Rangaire: Product Installation
• Make sure the oven and lights are cool and power to the oven has
been turned off before replacing the light bulb(s).
• The lenses must be in place when using the oven. The lenses
serve to protect the light bulb from breaking.
• The lenses are made of glass. Handle carefully to avoid breakage.
• Failure to do so could result in death, electric shock, cuts or burns.

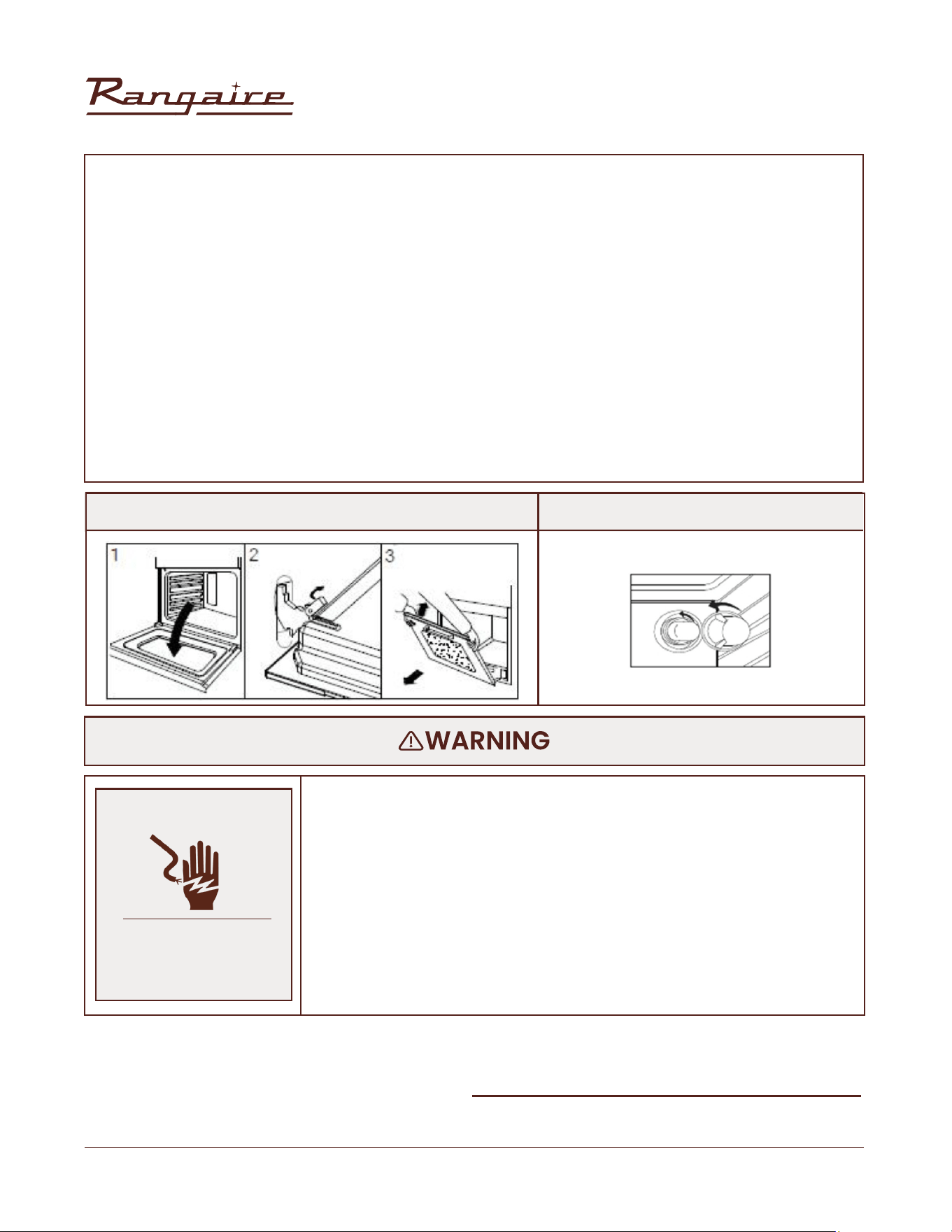

REMOVING AND CLEANING THE OVEN DOOR
For normal range use, it is not suggested to remove the oven door. However, if removal is necessary,
make sure the oven is off and cool. The oven door is heavy. Follow these instructions.
• Open the door fully.
• Lift up and push the small levers located on the two hinges all the way back.
• While holding the door on each side, shut the door until it touches the levers.
• Then continue closing the door until it is about 4 inches (10cm) from being fully closed.
• Pull the door towards you, pulling it out of its seat. Door will gently come away from the oven. (See
Figure 15)
• To replace the door, perform the reverse of the above procedure.
• Note: If door does not come away from oven easily, do not force it.
FIGURE 15 FIGURE 16
ELECTRICAL SHOCK
HAZARD
RANGE CARE
30” Electric Range | RRE303TS
52
Rangaire: Product Installation
REPLACING AN OVEN LIGHT
The oven light is a standard 25 watt (G9) appliance bulb.
IMPORTANT: Before replacing the bulb, make sure the oven is cool and
the controls are turned off.
1. Disconnect power at the main power supply (fuse or breaker box).
2. Remove the bulb cover by pulling it out of the opening.
3. Remove the burned out bulb from the socket.
NOTE: To avoid damage or decreasing the life of the new bulb, do not
touch bulb with bare ngers. Wear cotton gloves or use a tissue when
replacing the light bulb.
4. Replace the bulb, and then replace the bulb cover.
5. Reconnect power at the main power supply (fuse or breaker box).
RANGE CARE
30” Electric Range | RRE303TS
53
Rangaire: Product Installation
TROUBLESHOOTING
SOLUTIONS TO COMMON PROBLEMS
Before calling for service, review this list. It may save you both time and expense. This list includes
common experiences that are not the result of defective workmanship or material in your appliance.
BAKING PROBLEMS
With any oven setting poor results can occur for many reasons other than a malfunction of the oven.
Check the chart below for causes of the most common problems. Since the size, shape and material of
baking utensils directly affect the baking results, the best solution may be to replace old baking utensils
that have darkened and warped with age and use.
PROBLEM CAUSE
Food browns unevenly
Food too brown on
bottom
Food is dry or has
shrunk excessively
Food is baking or
roasting too slowly
Pie crusts do not
brown on bottom or
crust is soggy
Cakes pale, at and
may not be done
inside
Cakes high in middle
with crack on top
Pie crust edges too
brown
• Oven not preheated
• Aluminum foil on oven rack or oven bottom
• Baking utensil too large for recipe
• Pans touching each other or oven walls
• Oven not preheated
• Using glass, dull or darkened metal pans
• Incorrect rack position
• Pans touching each other or oven walls
• Oven temperature too high
• Baking time too long
• Oven door opened frequently
• Pan size too large
• Oven temperature too low
• Oven not preheated
• Oven door opened frequently
• Tightly sealed with aluminum foil
• Pan size too small
• Baking time not long enough
• Using shiny steel pans
• Incorrect rack position
• Oven temperature is too low
• Oven temperature too low
• Incorrect baking time
• Cake tested too soon
• Oven door opened too often
• Pan size may be too large
• Oven temperature too high
• Baking time too long
• Pans touching each other or oven walls
• Incorrect rack position
• Pan size too small
• Pan size may be too large
• Oven temperature too high
• Edges of crust too thin
30” Electric Range | RRE303TS
54
Rangaire: Product Installation
COOKTOP PROBLEMS
PROBLEM POSSIBLE CAUSE SOLUTION
Heating elements
and controls do not
work.
Heating elements do
not heat properly.
Heating elements
elements are turned
to their highest
settings.
Glass ceramic
surface is see
through or appears
to be red in color.
Fuse is blown or circuit
breaker is tripped.
No electricity to the
cooktop.
Replace the fuse or reset the circuit breaker. If the
problem continues, call an electrician.
Have electrician check your power supply.
Select proper cookware. See “Cookware.”
If the problem continues, call for service.
This is a normal operating condition, especially
during rapid heat-up operations. The element will
cycle back on automatically after it has cooled
sufciently
These are normal properties of black ceramic glass
panels.
Improper cookware is
being used.
Heating element
temperature limiters
are temporarily shutting
exceeding the maximum
allowable temperature.
Under direct or bright
lighting, you will
sometimes be able to
see through the glass
and into the chassis due
to its transparent quality.
You may also notice
a red tint under these
conditions
TROUBLESHOOTING
30” Electric Range | RRE303TS
55
Rangaire: Product Installation
OVEN PROBLEMS
PROBLEM POSSIBLE CAUSE SOLUTION
Oven is not heating
Oven is not cooking
evenly
Oven display stays off
Cooling fan continues
to run after oven is
turned off
Oven light is not
working properly
Oven light stays on
Cannot remove lens
cover
Clock and timer are
not working properly
Excessive Moisture
Porcelain Chips
Oven mode and
temperature controls
cannot be set.
No power to the range.
Check the circuit breaker or fuse box to your house.
Make sure there is proper electrical power to the
oven.
Refer to cook charts for recommended rack position.
Always reduce recipe temperature by 25 °F (15 °C)
when baking with Convention Bake mode.
Turn off power at the main power supply (fuse or
breaker box). Turn breaker back on. If condition
persists, call for service.
The fan will turn off automatically when the
electronic components have cooled sufciently.
Reinsert or replace the light bulb. Touching the bulb
with ngers may cause the bulb to burn out.
Check for obstruction in oven door. Check to see if
hinge is bent or door switch broken.
Wipe lens cover area with a clean, dry towel prior to
attempting to remove the lens cover.
Check the circuit breaker or fuse box to your house.
Make sure there is proper electrical power to the
oven.
When using bake mode, preheat the oven rst.
Convection Bake and Convection Roast will
eliminate any moisture in the oven.
When removing and replacing oven racks, always
tilt racks upward and do not force them to avoid
chipping the porcelain.
Close the oven door. The oven mode and
temperature controls cannot be set if the oven door
is open.
Make sure the oven temperature has
been selected.
Oven control not
turned on.
Not using the correct
bake ware or oven
rack position.
Power interruption.
The electronic
components have not
yet cooled sufciently.
Light bulb loose or
burned-out.
Door is not closing
completely.
Soil build-up around
the lens cover.
No power to the range.
Porcelain interior is
chipped by oven racks
The oven door is
open.
TROUBLESHOOTING
30” Electric Range | RRE303TS
56
Rangaire: Product Installation
Correct Disposal of this Product
This marking indicates that this appliance should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to
promote the sustainable resuse of material resources.
