BOOSTER BRRC1DMBK Remote Control User Manual

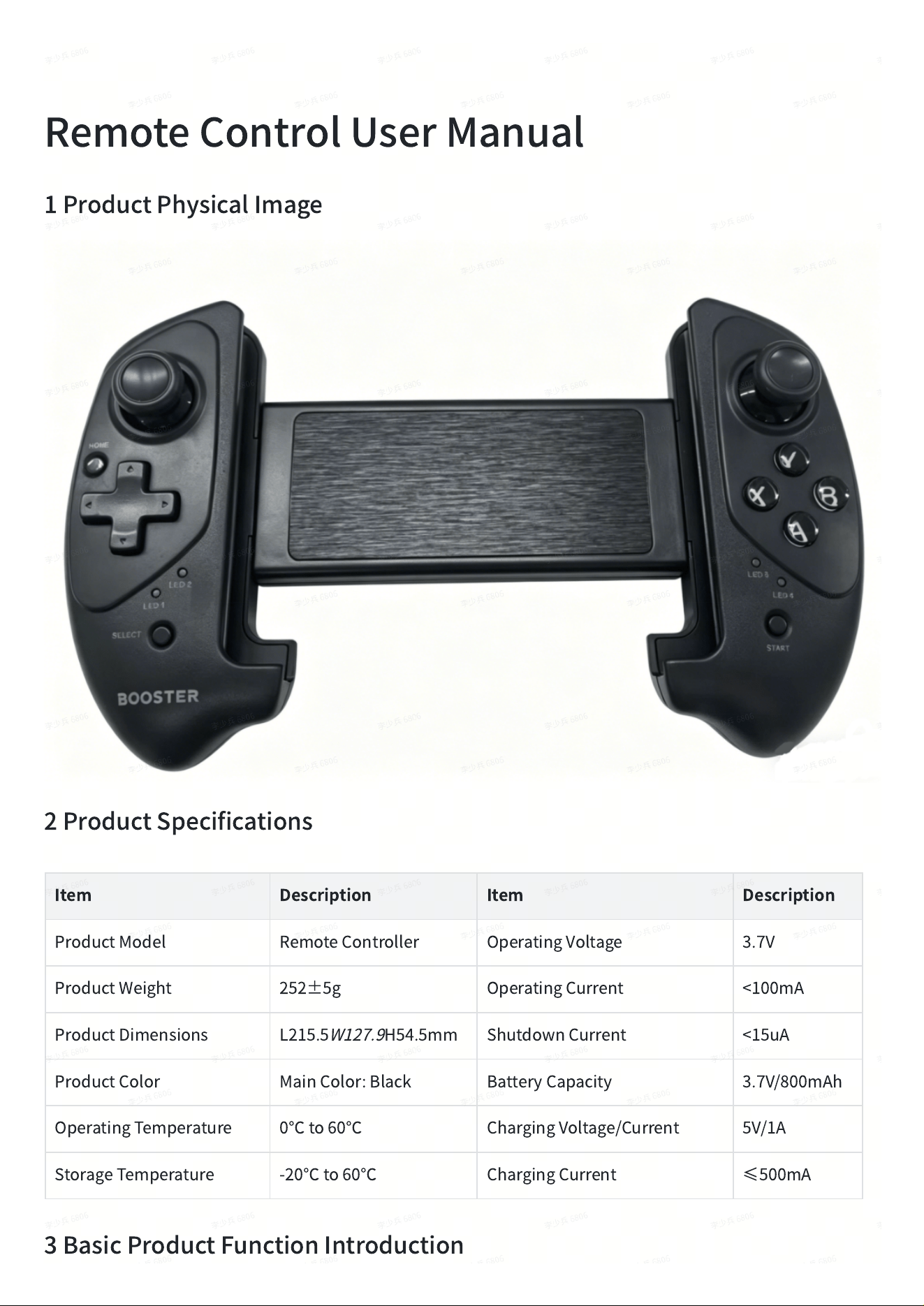

RemoteControlUserManual

1ProductPhysicalImage

2ProductSpecifications

Item



Description



Item



Description



ProductModel

RemoteController

OperatingVoltage

3.7V

ProductWeight

252±5g

OperatingCurrent

<100mA

ProductDimensions

L215.5

W127.9

H54.5mm

ShutdownCurrent

<15uA

ProductColor

MainColor:Black

BatteryCapacity

3.7V/800mAh

OperatingTemperature

℃

to60

℃



ChargingVoltage/Current

5V/1A

StorageTemperature

-20

℃

to60

℃



ChargingCurrent

≤

500mA

3BasicProductFunctionIntroduction

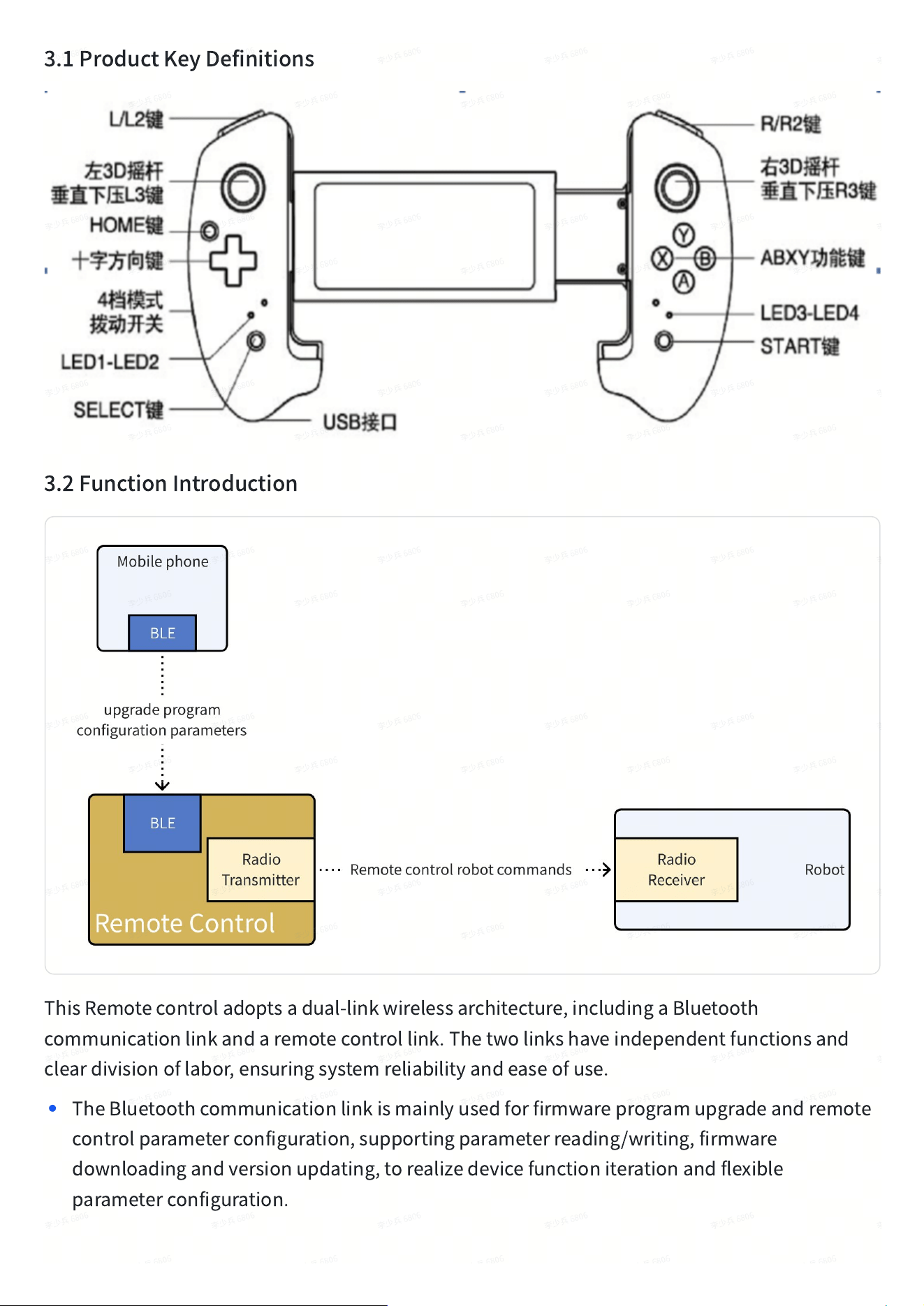

3.1ProductKeyDefinitions

3.2FunctionIntroduction

ThisRemotecontroladoptsadual-linkwirelessarchitecture,includingaBluetooth

communicationlinkandaremotecontrollink.Thetwolinkshaveindependentfunctionsand

cleardivisionoflabor,ensuringsystemreliabilityandeaseofuse.

•

TheBluetoothcommunicationlinkismainlyusedforfirmwareprogramupgradeandremote

controlparameterconfiguration,supportingparameterreading/writing,firmware

downloadingandversionupdating,torealizedevicefunctioniterationandflexible

parameterconfiguration.

•

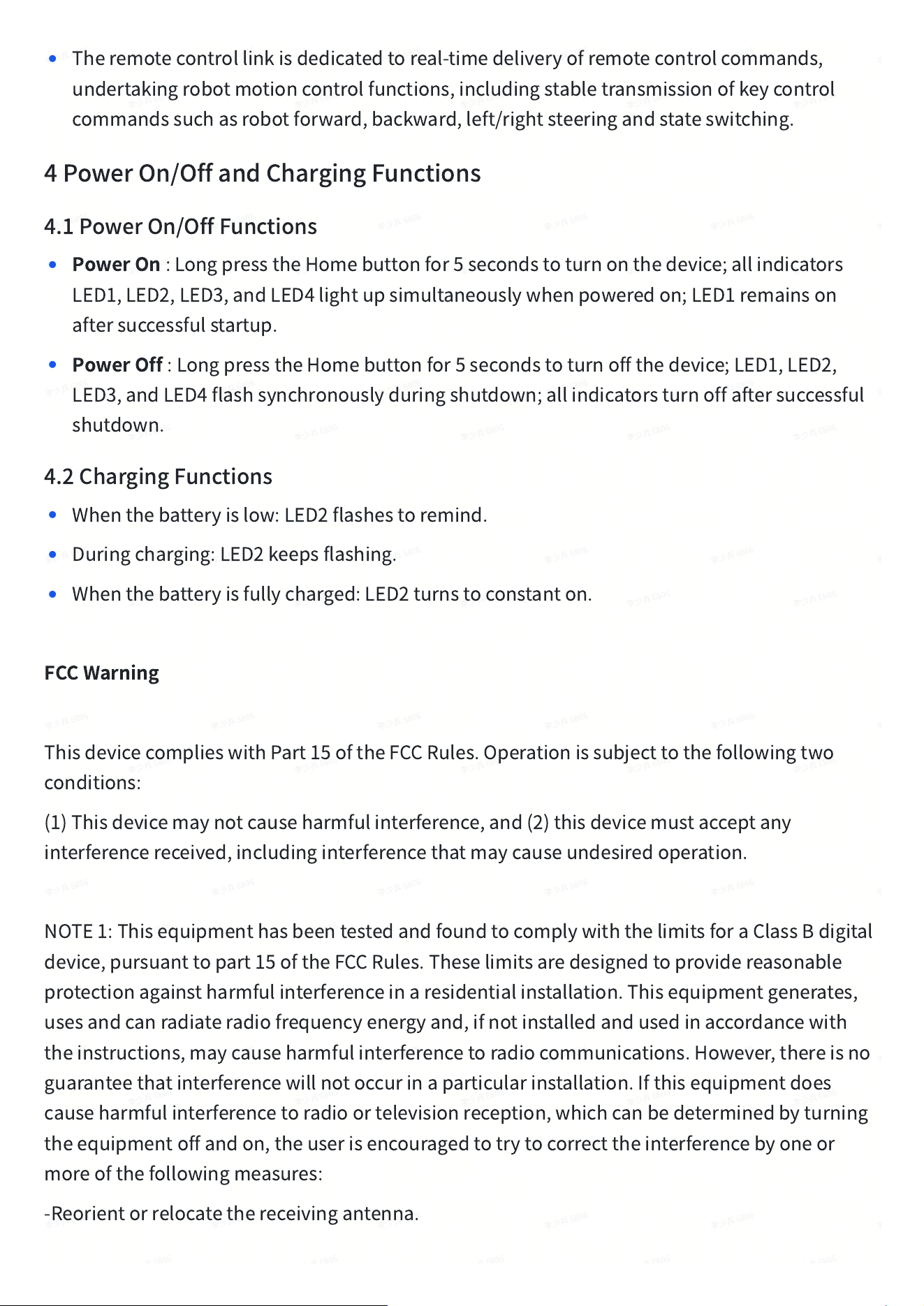

Theremotecontrollinkisdedicatedtoreal-timedeliveryofremotecontrolcommands,

undertakingrobotmotioncontrolfunctions,includingstabletransmissionofkeycontrol

commandssuchasrobotforward,backward,left/rightsteeringandstateswitching.

4PowerOn/OffandChargingFunctions

4.1PowerOn/OffFunctions

•

PowerOn

:LongpresstheHomebuttonfor5secondstoturnonthedevice;allindicators

LED1,LED2,LED3,andLED4lightupsimultaneouslywhenpoweredon;LED1remainson

aftersuccessfulstartup.

•

PowerOff

:LongpresstheHomebuttonfor5secondstoturnoffthedevice;LED1,LED2,

LED3,andLED4flashsynchronouslyduringshutdown;allindicatorsturnoffaftersuccessful

shutdown.

4.2ChargingFunctions

•

Whenthebatteryislow:LED2flashestoremind.

•

Duringcharging:LED2keepsflashing.

•

Whenthebatteryisfullycharged:LED2turnstoconstanton.

FCCWarning



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptany

interferencereceived,includinginterferencethatmaycauseundesiredoperation.



NOTE1:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,

usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith

theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno

guaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturning

theequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneor

moreofthefollowingmeasures:

-Reorientorrelocatethereceivingantenna.

-Increasetheseparationbetweentheequipmentandreceiver.

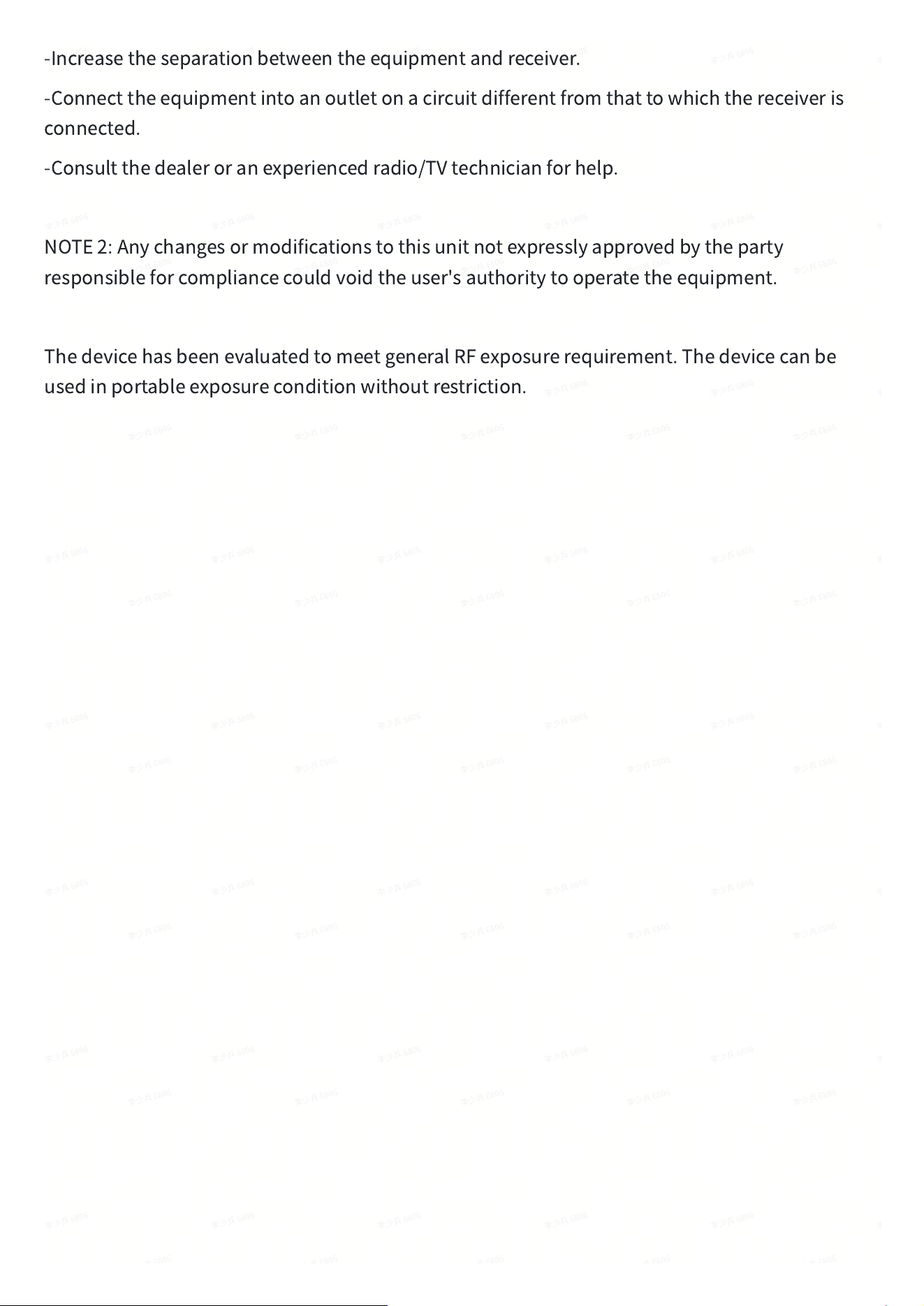

-Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

-Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



NOTE2:Anychangesormodificationstothisunitnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.



ThedevicehasbeenevaluatedtomeetgeneralRFexposurerequirement.Thedevicecanbe

usedinportableexposureconditionwithoutrestriction.
