Instant Color Picking 2
InstaPick 2 × 1
Calibration Cap (Ref. White) ×1
USB Type-C charging cable × 1
User manual × 1
Overview
Sensor
Calibration cap
Charging Method
Connect the Type-C cable to the charging port on the side
of the device.
Fully charge the device before first use.
Recharge the device when battery level is below 20%.
Indicator Light
Charging：LED blinking
Fully charged：LED solid
App Prompts
Bottom-left capsule shows battery %.
Red icon indicates low battery.
Charging Port
Charging Instructions
Color Judge 2
Color Judge 2Color Judge 2
System support
Color Judge 2 Supported OS
Android 10.0 or later
iOS 13.0 or later
Windows 10 or later
macOS 11.0 or later

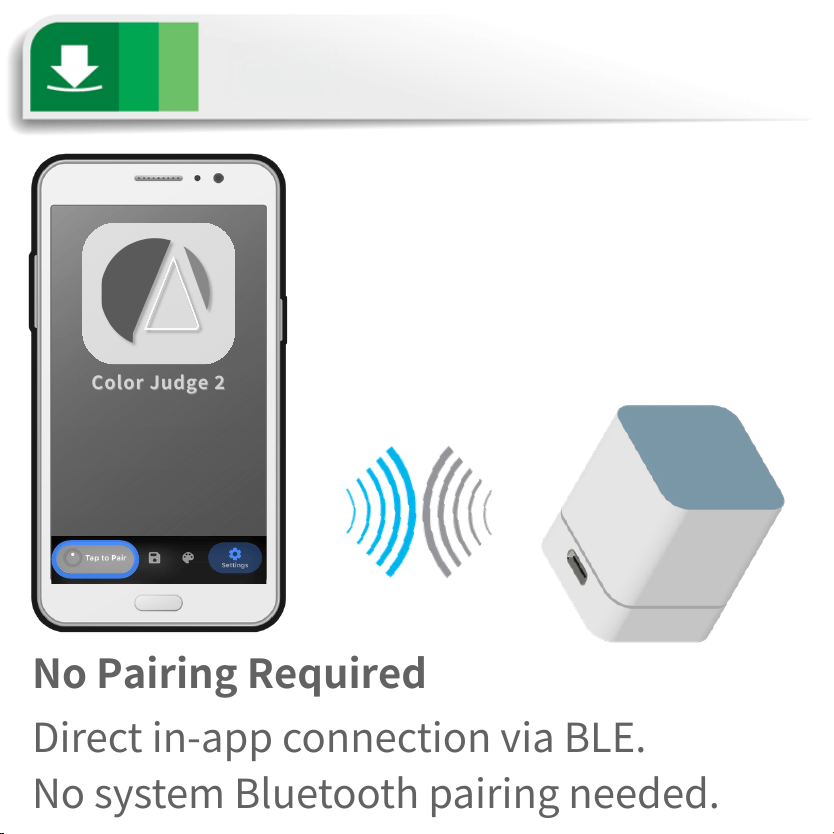

No Pairing Required
Direct in-app connection via BLE.
No system Bluetooth pairing needed.
Color Judge 2
Color Judge 2Color Judge 2
Color Judge 2
Color Judge 2Color Judge 2
Long
press
Press
First Time Usage
Download & Install App
Scan the QR code to download the app (Color Judge 2).
For more information: https://campsite.bio/ufroinstapick
1
2
( No system settings pairing required )
Enable Bluetooth
Ensure Bluetooth is enabled on your device.
3
Initial Pairing
Open the app.
Place the color picker near your device
press the button once.
( Enable Bluetooth and permissions )
Connected
Put on the calibration cap
→ Press once
→ Wait for calibration
When the app requests
white calibration
Align the sensor aperture with the target color.
Start Using
1
2
Press the device. Color appears in the app.
Press
Thank you for your interest in the InstaPick2
The information contained in this manual is necessary when using the InstaPick2.
Please read through the document before using the InstaPick2.
Operating environment
Device with Bluetooth® BLE
Windows 10 or later versions
MacOS 11.0 or later versions
Please refer to our website for information on compatible APPs
FCC warning
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
The environment and equipment described below is required to use this product.
Notice
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
About the RF Exposure
CE
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
This equipment complies with FCC / IC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency
(RF) Exposure rules.
This transmitter must not be co-located or operated in conjunction with
any other antenna or transmitter.
This product is in conformity with the relevant Union harmonization
legislation: Radio Equipment Directive: 2014/53/EU
With reference to the following standards applied:
EN 300 328 V2.2.2 (2019-07)
EN 62311:2008
EN 301 489-1 V2.2.3 (2019-11)
EN 301 489-17 V3.1.1 (2017-02)
The frequency and maximum transmitted power in EU are listed as below
2412-2472 MHz 4.21 dBM
Model Name: InstaPick 2 (CM210)
Size: 31.5x31.5x40mm
Material: PC+ABS Net
Weight: 27g
Make in Taiwan
Ufro Inc.
10F, No. 102, Sec. 1, Yanping N. Rd.，
Datong Dist., Taipei City 103012, Taiwan (R.O.C.)
