Introduction
The X-NUCLEO-WBA25A1 ARDUINO
®
interface board provides Bluetooth
®
LE connectivity for developer applications and can
be plugged into an STM32 Nucleo board, such as NUCLEO-U385RG-Q, using the ARDUINO
®
Uno V3 connectors.
The ARDUINO
®
interface board features the Bluetooth
®
v6.0-compliant and FCC-certified STM32WBA25CE SoC. This device
manages the complete Bluetooth
®
LE stack and protocols using its Arm
®
Cortex
®
-M33 core and programmable flash memory.
X-NUCLEO-WBA25A1 uses the universal asynchronous receiver transmitter (UART) interface to communicate with the STM32
Nucleo board. It supports operations with or without hardware flow control. A full-duplex serial peripheral interface (SPI) with an
interrupt line is also available. The firmware loaded on the module determines the host interface. To change the interface,
update the firmware without modifying the hardware.

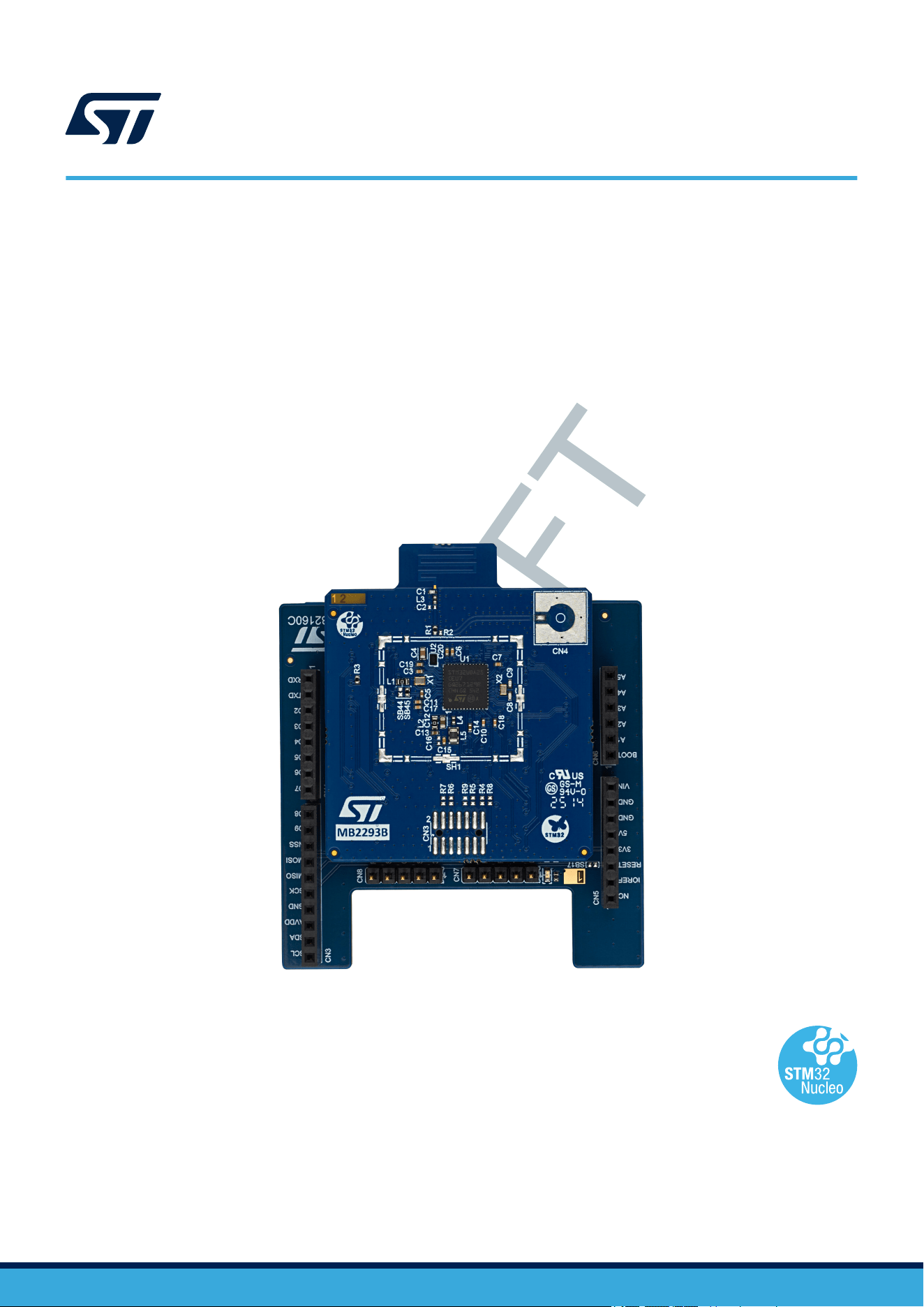

Figure 1. X-NUCLEO-WBA25A1 global view
DT80262V1
Picture is not contractual.
Bluetooth
®
LE expansion board based on the STM32WBA25CE MCU
for STM32 Nucleo boards
DRAFT
UM3608
User manual
UM3608 - Rev 1 - January 2026
For further information, contact your local STMicroelectronics sales office.
www.st.com
1 Typical application
The X-NUCLEO-WBA25A1 expansion board can be used for the evaluation of the STM32WBA25CE device in
many applications, such as:
• Point‑to‑point communication
• Sensor application
• Home automation and lighting
• Direct test mode (DTM)
DRAFT
UM3608
Typical application
UM3608 - Rev 1
page 2/25
2 Features
• Bluetooth
®
v6.0 compliant expansion board based on the STM32WBA25CE MCU and featuring preloaded
network coprocessor firmware with a UART interface
• Embedded MLPF-WB-04D3 impedance matching network and harmonics filter
• On-board PCB antenna
• Optional SPI through dedicated firmware
• ARDUINO
®
Uno V3 expansion connector
• Compatible with STM32 Nucleo boards
• Scalable solution, capable of cascading multiple boards for larger systems
• Free comprehensive development firmware library and examples, compatible with the X-CUBE-WBA
expansion software package for STM32Cube
Note: Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries or its affiliates) in the US and/or
elsewhere.
The Arm word and logo are trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere. All rights
reserved.
Note:
For information on Bluetooth
®
, refer to the www.bluetooth.com website
DRAFT
UM3608
Features
UM3608 - Rev 1
page 3/25
3 Ordering information
To order the X-NUCLEO-WBA25A1 expansion board, refer to Table 1. Additional information is available from the
datasheet and reference manual of the target STM32.
Table 1. Ordering information
Order code Board references Target STM32
X-NUCLEO-WBA25A1
• MB2160
(1)
• MB2293
(2)
STM32WBA25CE
1.
ARDUINO
®
interface board
2. MCU RF board
3.1 Codification
The meaning of the codification is explained in Table 2.
Table 2. Codification explanation
X-NUCLEO-XXXYYZT Description Example: X-NUCLEO-WBA25A1
X-NUCLEO Type of board STM32 Nucleo expansion board
XXX STM32 MCU series STM32WBA series
YY MCU product line in the series STM32WBA25 product line
Z
Type of connector:
• A for ARDUINO
®
ARDUINO
®
T Index
First generation of Bluetooth
®
LE expansion boards based on the
STM32WBA25CE MCU for STM32 Nucleo boards
DRAFT
UM3608
Ordering information
UM3608 - Rev 1
page 4/25
4 Conventions
Table 3. Conventions for solder bridges
Convention Definition
Solder bridge SBx ON SBx connections closed by 0 Ω resistor
Solder bridge SBx OFF SBx connections left open
DRAFT
UM3608
Conventions
UM3608 - Rev 1
page 5/25
5 Safety recommendations
5.1 Targeted audience
This product targets users with at least basic electronics or embedded software development knowledge like
engineers, technicians, or students.
This board is not a toy and is not suited for use by children.
5.2
Handling the board
This product contains a bare printed circuit board and like all products of this type, the user must be careful about
the following points:
• The connection pins on the board might be sharp. Be careful when handling the board to avoid injury.
• This board contains static sensitive devices. To avoid damaging it, handle the board in an ESD‑proof
environment.
• While powered, do not touch the electric connections on the board with your fingers or anything conductive.
The board operates at a voltage level that is not dangerous, but components might be damaged when
shorted.
• Do not put any liquid on the board and avoid operating it close to water or at a high humidity level.
• Do not operate the board if it is dirty or dusty.
• The pins of the board are exposed and must not come into contact with a metal surface, as this can
produce a short circuit and damage the board.
5.3 Delivery recommendations
Before the first use, inspect the board for any damage that may have occurred during shipment. Ensure that all
socketed components are securely fixed in their sockets and that nothing is loose in the plastic bag.
DRAFT
UM3608
Safety recommendations
UM3608 - Rev 1
page 6/25
6 Hardware requirements
The X-NUCLEO-WBA25A1 expansion board is designed for use with any STM32 Nucleo board equipped with an
ARDUINO
®
Uno V3 connector. The expansion board must be plugged into the matching pins of the STM32
Nucleo board connector.

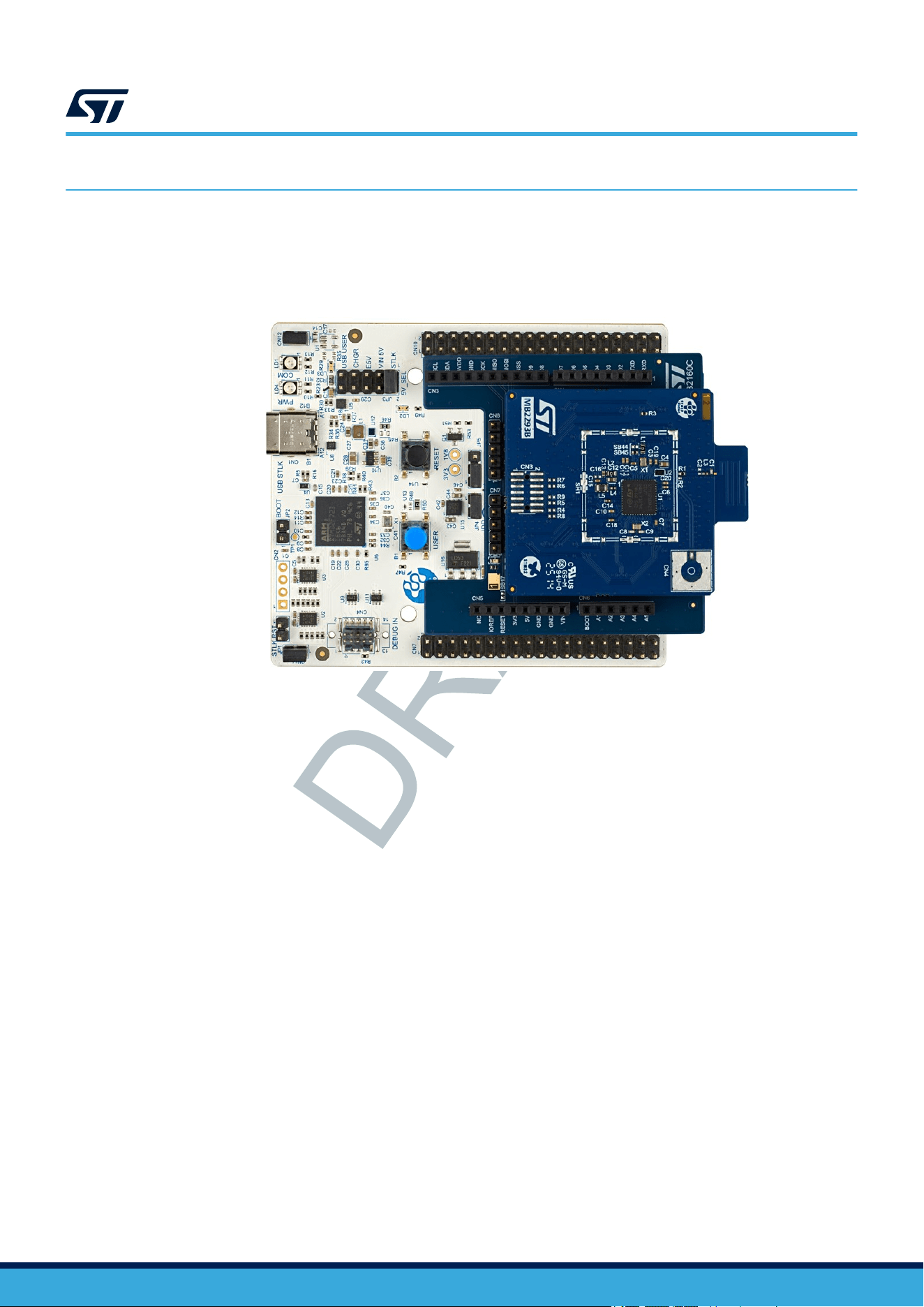

Figure 2. X-NUCLEO-WBA25A1 plugged into NUCLEO-U385RG-Q
DT80263V1
Completing the system setup requires the following:
• A host PC with Microsoft Windows 10 or above to install the software package (X-CUBE-WBA)
• A USB Type-A to USB Mini-B cable to connect the STM32 Nucleo board to the PC
• A 5‑pin connector programming wire connected to the SWD connector (CN3) of the X-NUCLEO-WBA25A1
expansion board to program it using the STM32 Nucleo board or an external ST-LINK device
DRAFT
UM3608
Hardware requirements
UM3608 - Rev 1
page 7/25
7 Quick start
1. Connect the X-NUCLEO-WBA25A1 expansion board to the STM32 Nucleo board as shown in Figure 2.
2. Connect the STM32 Nucleo board to the host PC.
3. Program the corresponding firmware onto the STM32 Nucleo board to use X-NUCLEO-WBA25A1 as a
network coprocessor.
The evaluation kit is ready to use.
DRAFT
UM3608
Quick start
UM3608 - Rev 1
page 8/25
8 Hardware layout and configuration
8.1 X-NUCLEO-WBA25A1 hardware layout
X-NUCLEO-WBA25A1 is designed around the STM32WBA25CE microcontroller. It includes two boards: one
ARDUINO
®
interface board and one MCU RF board. The ARDUINO
®
interface board is called MB2160. It
includes
ARDUINO
®
Uno V3 expansion connectors, an SWD connector, a UART connector, and one user LED,
and connects to the
MCU RF board using two 50‑pin connectors. The MCU RF board is called MB2293 and
embeds the STM32WBA25 application processor.
Figure 3 and Figure 4 show the location of the different components on X-NUCLEO-WBA25A1.

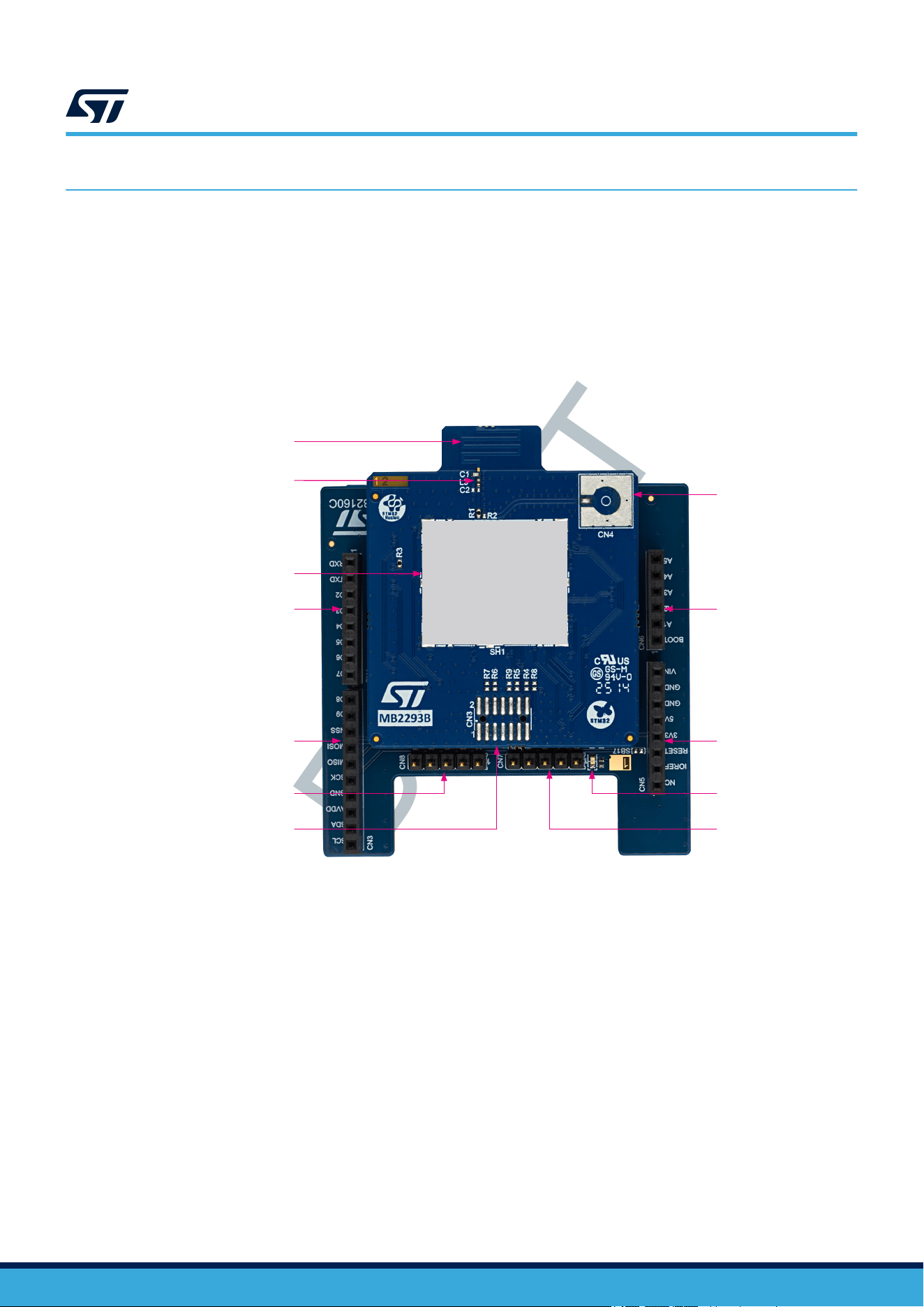

Figure 3. X-NUCLEO-WBA25A1 top view
DT80264V1
2.4 GHz PCB antenna
Matching network
RF shield
ARDUINO
®
connector
Digital (CN4)
ARDUINO
®
connector
Digital (CN3)
SWD connector (CN8)
MIPI10/STDC14
connector (CN3)
SMA RF connector
(CN4)
ARDUINO
®
connector
Power (CN6)
ARDUINO
®
connector
Analog (CN5)
User LED (LD1)
UART connector
(CN7)
DRAFT
UM3608
Hardware layout and configuration
UM3608 - Rev 1
page 9/25

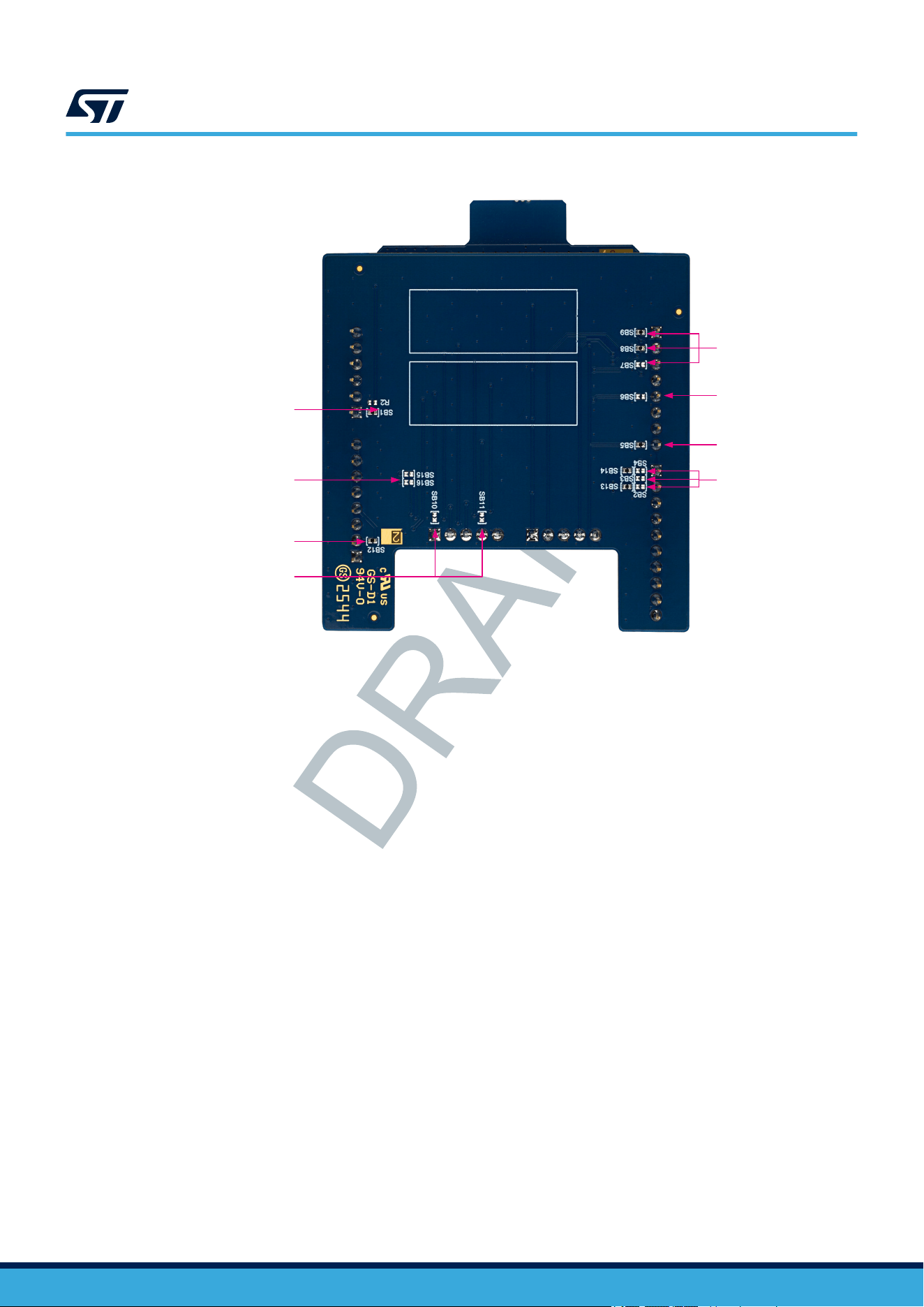

Figure 4. X-NUCLEO-WBA25A1 bottom view
DT80265V1
BOOT (SB1, R2)
UART Rx/Tx
(SB15, SB16)
IOREF (SB12)
UART RTS/CTS
(SB10, SB11)
UART Rx/Tx
(SB7, SB8, SB9)
LED (SB6)
RSTN (SB5)
UART Rx/Tx (SB2,
SB3, SB4, SB13,
SB14)
Pictures are not contractual.
8.2
Power supply
X-NUCLEO-WBA25A1 is powered by 3V3 from the STM32 Nucleo board through the ARDUINO
®
Uno V3
expansion connector.
VDD supplies of the STM32WBA25CE MCU are directly connected to 3V3.
8.3
User LED
One blue general-purpose LED (LD1) is available for user applications. It is connected to pin 5 of CN4 of X-
NUCLEO-WBA25A1 and it emits with a high level of the corresponding port of the host MCU connected to pin 5 of
CN4.
8.4
Interconnection details
The X-NUCLEO-WBA25A1 expansion board and the NUCLEO-U385RG-Q development board connection details
are listed in Table 4.
DRAFT
UM3608
Hardware layout and configuration
UM3608 - Rev 1
page 10/25
Table 4. X-NUCLEO-WBA25A1 and NUCLEO-U385RG-Q connection details
Left connectors Right connectors
X-NUCLEO
connector
Pin
number
Signal
name
X-NUCLEO-WBA25A1
signal
(1)
NUCLEO-U385RG-Q
MCU port
(1)
X-NUCLEO-WBA25A1
signal
(1)
NUCLEO-U385RG-Q
MCU port
(1)
Signal
name
Pin
number
X-NUCLEO
connector
- PB8 D15 10
CN3 Digital
- PB9 D14 9
- VREFP AVDD 8
GND GND GND 7
CN5 Power
1 - - 5V_IN test PA8/SPI3_SCK PA5/SPI_SCK D13 6
2 IOREF IOREF IOREF PA10/SPI3_MISO PA6/SPI_MISO D12 5
3 NRST RSTN NRST PA9/SPI3_MOSI PA7/SPI_MOSI D11 4
4 3V3 3V3 3V3 PA5/SPI3_NSS PC9/SPI_NSS D10 3
5 5V - 5V PA12/USART_RX
PC6
(2)
D9 2
6 GND GND GND PA6/USART_TX/
USART_RX
PC7
(2)
D8 1
7 GND GND GND
8 VIN - VIN RSTN PA8 D7 8
CN4 Digital
- PB10 D6 7
CN6 Analog
1 A0 PH3/BOOT/SPI_IRQ PA0 - PB4 D5 6
2 A1 - PA1 LED PB5 D4 5
3 A2 - PA4 - PB3 D3 4
4 A3 - PB0 PA6/UART_TX
PC8
(2)
D2 3
5 A4 - PC1 PA12/USART_RX PA2/USART_TX D1 2
6 A5 - PC0 PA6/USART_TX PA3/USART_RX D0 1
1. Default connected signals are shown in bold.
2. UART function not supported by NUCLEO-U385RG-Q.
UM3608
- Rev 1
page 11/25
DRAFT
UM3608
Hardware layout and configuration
8.5 UART/SPI connection options
UART interface options
X-NUCLEO-WBA25A1 interfaces with the microcontroller of the STM32 Nucleo board using UART (default) with
and without hardware flow control.
Several UART connection options between the STM32 Nucleo board and the X-NUCLEO-WBA25A1 expansion
board are available. The options depend on the Nucleo board used or if a signal conflict occurs when using other
expansion boards. To determine which UART signals to connect, first review the STM32 Nucleo schematics.
SPI interface option
X-NUCLEO-WBA25A1 can also interface with the STM32 Nucleo microcontroller using full duplex SPI with an
interrupt line. For
SPI connection details, refer to Table 4. X-NUCLEO-WBA25A1 and NUCLEO-U385RG-Q
connection details.
DRAFT
UM3608
Hardware layout and configuration
UM3608 - Rev 1
page 12/25
9 Board connectors
9.1 SWD connector (CN8)
X-NUCLEO-WBA25A1 has an SWD connector (CN8) for debugging and programming the STM32WBA25CE
MCU. The table below describes the SWD header and what each pin does. Table 5 provides the pinout for the
SWD connector.
Table 5. MB2160 debugging/programming connector pinout (CN8)
Pin CN8 Designation
1 3V3 VDD from application
2 SWCLK Target SWD clock
3 GND Ground
4 SWDIO Target SWDIO data input/output
5 RSTN RESET of target
9.2 UART connector (CN7)
X-NUCLEO-WBA25A1 can interface with the STM32 Nucleo microcontroller using a UART connector (CN7) with
hardware flow control.
Table 6 describes the UART connector pinout.
Table 6. MB2160 UART connector pinout (CN7)
Pin
CN7 Designation
1 T_UART_CTS Target UART_CTS (clear to send)
2 T_UART_TX Target UART_TX
3 T_UART_RX Target UART_RX
4 T_UART_RTS Target UART_RTS (request to send)
5 GND Ground
9.3
ARDUINO
®
Uno V3 connectors (CN3, CN4, CN5, CN6)
For the X-NUCLEO-WBA25A1 expansion board ARDUINO
®
Uno V3 connector pinout details, refer to Table 4. X-
NUCLEO-WBA25A1 and NUCLEO-U385RG-Q connection details.
DRAFT
UM3608
Board connectors
UM3608 - Rev 1
page 13/25
10 X-NUCLEO-WBA25A1 product information
10.1 Product marking
The product and each board composing the product are identified with one or several stickers. The stickers,
located on the top or bottom side of each PCB, provide product information:
• Main board featuring the target device: product order code, product identification, serial number, and board reference
with revision.

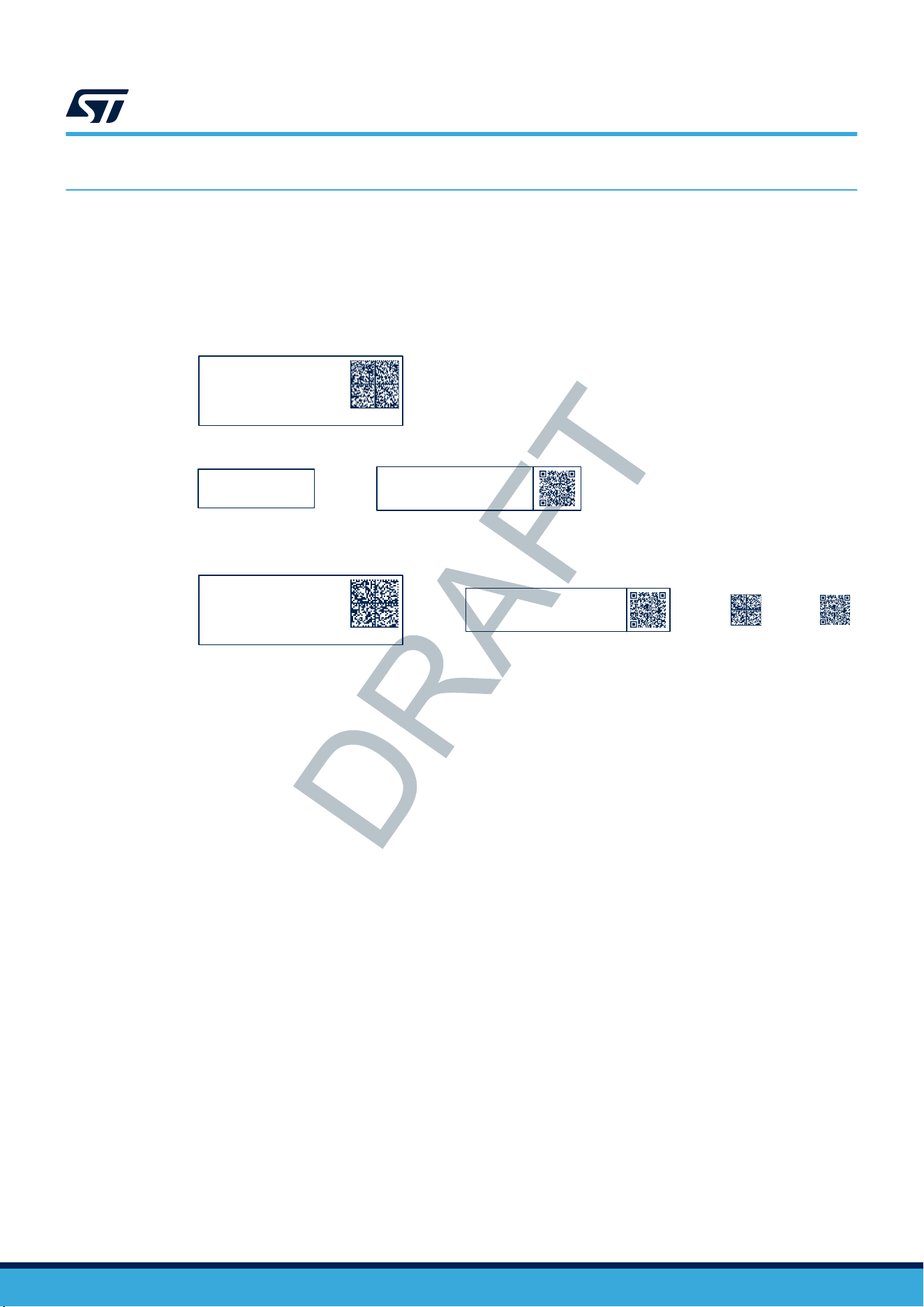

Single-sticker example:
DT73589V1
Product order code
Product identification
syywwxxxxx
MBxxxx-Variant-yzz
Dual-sticker example:
Product order code
Product identification
and
MBxxxx-Variant-yzz
syywwxxxxx
• Other boards if any: board reference with revision and serial number.
Examples:
DT76507V1
syywwxxxxx
MBxxxx-Variant-yzz
or
MBxxxx-Variant-yzz
syywwxxxxx
or
DT76508V1
or
On the main board sticker, the first line provides the product order code, and the second line the product
identification.
On all board stickers, the line formatted as “MBxxxx-Variant-yzz” shows the board reference “MBxxxx”, the
mounting variant “Variant” when several exist (optional), the PCB revision “y”, and the assembly revision “zz”, for
example B01. The other line shows the board serial number used for traceability.
Products and parts labeled as “ES” or “E” are not yet qualified or feature devices that are not yet qualified.
STMicroelectronics disclaims any responsibility for consequences arising from their use. Under no circumstances
will STMicroelectronics be liable for the customer's use of these engineering samples. Before deciding to use
these engineering samples for qualification activities, contact STMicroelectronics' quality department.
“ES” or “E” marking examples of location:
• On the targeted STM32 that is soldered on the board (for an illustration of STM32 marking, refer to the
STM32 datasheet Package information paragraph at the www.st.com website).
• Next to the ordering part number of the evaluation tool that is stuck, or silk-screen printed on the board.
Some boards feature a specific STM32 device version, which allows the operation of any bundled commercial
stack/library available. This STM32 device shows a
“U” marking option at the end of the standard part number
and is not available for sales.
To use the same commercial stack in their applications, the developers might need to purchase a part number
specific to this stack/library. The price of those part numbers includes the stack/library royalties.
DRAFT
UM3608
X-NUCLEO-WBA25A1 product information
UM3608 - Rev 1
page 14/25
10.2 X-NUCLEO-WBA25A1 product history
Table 7. Product history
Order
code
Product
identification
Product details Product change description Product limitations
X-NUCLEO-WBA25A1
XNWBA25A1$CZ1
MCU: STM32WBA25CEU7
silicon revision "Z"
Initial revision No limitation
MCU errata sheet:
STM32WBA2xxx device errata
(ES0673)
Boards:
• MB2160-WBA2-B01
(ARDUINO
®
interface
board)
• MB2293-WBA2-B08
(MCU RF board)
10.3 Board revision history
Table 8. Board revision history
Board reference Board variant and revision Board change description Board limitations
MB2160
(ARDUINO
®
interface board)
WBA2-B01 Initial revision No limitation
MB2293
(MCU RF board)
WBA2-B08 Initial revision No limitation
DRAFT
UM3608
X-NUCLEO-WBA25A1 product information
UM3608 - Rev 1
page 15/25
11 Compliance statements and conformity declarations
11.1 Federal Communications Commission (FCC) compliance statement
Product identification
• Identification of the product: X-NUCLEO-WBA25A1
FCC ID: YCP-MB229301
Part 15.19
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Part 15.21
Any changes or modifications to this equipment not expressly approved by STMicroelectronics may cause
harmful interference and void the user's authority to operate this equipment.
Part 15.105
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Note: Use only shielded cables.
To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between
the antenna of this device and persons during operation. To ensure compliance, operation at a closer distance
than this is not recommended. This transmitter must not be collocated or operating in conjunction with any other
antenna or transmitter.
Responsible Party - U.S. Contact Information:
Francesco Doddo
STMicroelectronics, Inc.
200 Summit Drive | Suite 405 | Burlington, MA 01803
USA
Telephone: +1 781-472-9634
11.2
Innovation, Science and Economic Development Canada (ISED) compliance
statement
Product identification
• Identification of the product: X-NUCLEO-WBA25A1
IC: 8976A-MB229301
DRAFT
UM3608
Compliance statements and conformity declarations
UM3608 - Rev 1
page 16/25
Compliance statement
Notice: This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
This device complies with ISED Canada RF radiation exposure limits set forth for general population for mobile
application (uncontrolled exposure).
To satisfy ISED RF exposure requirements, a separation distance of 20 cm or more should be maintained
between the antenna of this device and persons during operation. To ensure compliance, operation at a closer
distance than this is not recommended. This transmitter must not be collocated or operating in conjunction with
any other antenna or transmitter.
This product complies with the ICES-003 standard class B of the ISED regulation.
ISED Canada ICES-003 Compliance Label: CAN ICES (B)/NMB (B).
Note: Use only shielded cables.
Identification du produit
• Identification du produit : X-NUCLEO-WBA25A1
IC : 8976A-MB229301
Déclaration de conformité
Avis : Le présent appareil est conforme aux CNR d'ISDE Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
Cet appareil est conforme aux limites d'exposition aux rayonnements RF d'ISDE Canada établies pour la
population générale pour les applications mobiles (exposition non contrôlée).
Pour satisfaire aux exigences d'ISDE en matière d'exposition aux RF, une distance de séparation de 20 cm ou
plus doit être maintenue entre l'antenne de cet appareil et les personnes pendant son fonctionnement. Pour
garantir la conformité, il n'est pas recommandé de l'utiliser à une distance plus proche que celle-ci. Cet appareil
ne doit pas être placé à proximité ou fonctionner en conjonction avec une autre antenne ou un autre émetteur.
Ce produit est conforme à la norme NMB-003 classe B de la ISDE.
Étiquette de conformité à la NMB-003 d'ISDE Canada : CAN ICES (B) / NMB (B).
Note: Utiliser uniquement des câbles blindés.
11.3
UKCA conformity
Simplified UK declaration of conformity
Hereby, the manufacturer STMicroelectronics, declares that the radio equipment type X-NUCLEO-WBA25A1 is in
compliance with the UK Radio Equipment Regulations 2017 (UK S.I. 2017 No. 1206) and with the Restriction of
the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (UK SI 2012
No. 3032).
The full text of the UK declaration of conformity is available at the following internet address: www.st.com.
Note: Use only shielded cables.
11.4
CE conformity
11.4.1 Simplified EU declaration of conformity
Hereby, STMicroelectronics declares that the radio equipment type X-NUCLEO-WBA25A1 is in compliance with
directives 2011/53/EU and 2015/863/EU (RoHS), and 2014/53/EU (RED).
Frequency range used in transmission and maximal radiated power in this range for X-NUCLEO-WBA25A1:
• Frequency range: 2400 - 2483.5 MHz (Bluetooth
®
)
• Maximal power: 8 mW EIRP
DRAFT
UM3608
Compliance statements and conformity declarations
UM3608 - Rev 1
page 17/25
The full text of the EU declaration of conformity is available on demand at the following internet address:
www.st.com.
Note:
• RoHS: Restriction of hazardous substances
• RED: Radio equipment directive
Note:
Use only shielded cables.
11.4.2 Déclaration de conformité UE simplifiée
STMicroelectronics déclare que l'équipement radioélectrique du type X-NUCLEO-WBA25A1 est conforme aux
directives 2011/53/UE et 2015/863/UE (LdSD), et à la directive 2014/53/UE (RED).
Plage de fréquences utilisée en transmission et puissance rayonnée maximale dans cette plage pour X-
NUCLEO-WBA25A1 :
•
Plage de fréquences : 2400 - 2483,5 MHz (Bluetooth
®
)
• Puissance maximale : 8 mW PIRE
Le texte complet de la déclaration UE de conformité est disponible sur demande à l'adresse internet suivante :
www.st.com.
Note: • LdSD : directive sur la limitation de l'utilisation des substances dangereuses
• RED : directive sur les équipements radio-électriques
Note: Utiliser uniquement des câbles blindés.
DRAFT
UM3608
Compliance statements and conformity declarations
UM3608 - Rev 1
page 18/25
12 Product disposal
Disposal of this product: WEEE (Waste Electrical and Electronic Equipment)
(Applicable in Europe)
This symbol on the product, accessories, or accompanying documents indicates that the
product and its electronic accessories must not be disposed of with household waste at the
end of their working life.
To prevent possible harm to the environment and human health from uncontrolled waste
disposal, separate these items from other types of waste and recycle them responsibly at a
designated collection point to promote the sustainable reuse of material resources.
Household users:
Contact the retailer that you purchased the product from or your local authority for details of
your nearest designated collection point.
Business users:
Contact your dealer or supplier for further information.
DRAFT
UM3608
Product disposal
UM3608 - Rev 1
page 19/25
Revision history
Table 9. Document revision history
Date Revision Changes
23-Jan-2026 1 Initial release.
DRAFT
UM3608
UM3608 - Rev 1
page 20/25
Contents
1 Typical application.................................................................2
2 Features...........................................................................3
3 Ordering information ..............................................................4
3.1 Codification ...................................................................4
4 Conventions.......................................................................5
5 Safety recommendations ..........................................................6
5.1 Targeted audience..............................................................6
5.2 Handling the board .............................................................6
5.3 Delivery recommendations.......................................................6
6 Hardware requirements ............................................................7
7 Quick start ........................................................................8
8 Hardware layout and configuration.................................................9
8.1 X-NUCLEO-WBA25A1 hardware layout............................................9
8.2 Power supply .................................................................10
8.3 User LED ....................................................................10
8.4 Interconnection details .........................................................10
8.5 UART/SPI connection options ...................................................12
9 Board connectors ................................................................13
9.1 SWD connector (CN8) .........................................................13
9.2 UART connector (CN7) ........................................................13
9.3 ARDUINO
®
Uno V3 connectors (CN3, CN4, CN5, CN6) .............................13
10 X-NUCLEO-WBA25A1 product information ........................................14
10.1 Product marking ..............................................................14
10.2 X-NUCLEO-WBA25A1 product history............................................15
10.3 Board revision history ..........................................................15
11 Compliance statements and conformity declarations ..............................16
11.1 Federal Communications Commission (FCC) compliance statement ..................16
11.2 Innovation, Science and Economic Development Canada (ISED) compliance statement..16
11.3 UKCA conformity..............................................................17
11.4 CE conformity ................................................................17
11.4.1 Simplified EU declaration of conformity.......................................17
11.4.2 Déclaration de conformité UE simplifiée ......................................18
12 Product disposal .................................................................19
DRAFT
UM3608
Contents
UM3608 - Rev 1
page 21/25
Revision history .......................................................................20
List of tables ..........................................................................23
List of figures..........................................................................24
DRAFT
UM3608
Contents
UM3608 - Rev 1
page 22/25
List of tables
Table 1. Ordering information..................................................................4
Table 2. Codification explanation ...............................................................4
Table 3. Conventions for solder bridges ..........................................................5
Table 4. X-NUCLEO-WBA25A1 and NUCLEO-U385RG-Q connection details ............................... 11
Table 5. MB2160 debugging/programming connector pinout (CN8)....................................... 13
Table 6. MB2160 UART connector pinout (CN7)....................................................13
Table 7. Product history .................................................................... 15
Table 8. Board revision history ................................................................15
Table 9. Document revision history .............................................................20
DRAFT
UM3608
List of tables
UM3608 - Rev 1
page 23/25
List of figures
Figure 1. X-NUCLEO-WBA25A1 global view ......................................................1
Figure 2. X-NUCLEO-WBA25A1 plugged into NUCLEO-U385RG-Q ......................................7
Figure 3. X-NUCLEO-WBA25A1 top view ........................................................9
Figure 4. X-NUCLEO-WBA25A1 bottom view.....................................................10
DRAFT
UM3608
List of figures
UM3608 - Rev 1
page 24/25
IMPORTANT NOTICE – READ CAREFULLY
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST
products and/or to this document at any time without notice.
In the event of any conflict between the provisions of this document and the provisions of any contractual arrangement in force between the purchasers and
ST, the provisions of such contractual arrangement shall prevail.
The purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and
conditions of sale in place at the time of order acknowledgment.
The purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of
the purchasers’ products.
No license, express or implied, to any intellectual property right is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
If the purchasers identify an ST product that meets their functional and performance requirements but that is not designated for the purchasers' market
segment, the purchasers shall contact ST for more information.
ST and the ST logo are trademarks of ST. For additional information about ST trademarks, refer to www.st.com/trademarks. All other product or service names
are the property of their respective owners.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2026 STMicroelectronics – All rights reserved
DRAFT
UM3608
UM3608 - Rev 1
page 25/25
