1
User Guide
P30 Tablet Payment Terminal
Model: P30E01
2
Disclaimer
- This guide is the sole property of Fujian LANDI Commercial Equipment Co., Ltd.
(“LANDI”). Unauthorized reproduction, distribution, transfer, or sale of this document
or any part thereof is strictly prohibited without explicit authorization from LANDI.
LANDI reserves the right to take legal action for any infringement according to law.
- Every effort has been made to ensure the accuracy and completeness of the
information in this user guide. However, errors or omissions may exist.
- LANDI reserves the right to modify product software, hardware or documentation
without notice.
- Product details in this guide may differ from the actual product due to updates. Refer
to the physical product for authoritative information.
- LANDI shall not be held liable for damages, malfunctions, data loss or accessory
loss caused by operations not complying with instructions in this guide.
3
Use this Manual
Legend
Danger
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Warning
Indicates a potentially hazardous situation which, if not
avoided, may result in equipment damage, data loss,
performance degradation, or unexpected results.
Notes
Indicates important information that helps make better use of
the device and features.
4
Important Safety Information
Safety Rules
⚫ Power Supply
- Use only provided LANDI power adapter.
- Maintenance restricted to authorized LANDI technicians.
- Connect to properly rated electrical outlet.
- Ensure outlet is easily accessible and meets local regulations.
- Disconnect adapter from electrical mains network to power off.
- Shut down terminal after daily operations to save energy.
- Avoid connecting or disconnecting components while powered on.
⚫ Battery Safety
- Use only LANDI-approved batteries and chargers.
- Internal lithium button battery: service by qualified technician only.
- Avoid short-circuiting, crushing, puncturing, or dismantling the battery.
- Replacing the battery with an incorrect type can defeat its safeguards and risk
explosion.
- Disposing of a battery in fire or a hot oven can cause an explosion.
- Leaving a battery in extreme heat may cause an explosion or leakage of
flammable substances.
- Subjecting a battery to extremely low air pressure may cause an explosion or
leakage.
- Properly dispose of used batteries according to local environmental regulations.
5
⚫ Environmental Restrictions
- Avoid use in explosion-risk areas (chemical plants, fuel depots).
- Suspend use during thunderstorms.
- Use certified protective cover near fuel pumps.
- Remove battery when on aircraft.
- Avoid harsh environments with direct sunlight, high temperatures, humidity, or
dust.
- Operate and store the terminal only within the specified environmental limits:
◼ Operating Temperature:
Non-Battery Version: 0°C to +35°C (+32°F to +95°F)
Battery Version: -10°C to +50°C (+14°F to +122°F) for discharging; 0°C
to +35°C (+32°F to +95°F) for charging
◼ Storage Temperature:
Non-Battery Version: -20°C to +60°C (-4°F to 140°F)
Battery Version: -20°C to +70°C (-4°F to 158°F)
◼ Operating Humidity: 10% to 93% non-condensing
⚫ Health and Safety
- Radio transmission may interfere with medical devices.
- Consult healthcare providers regarding potential interference.
Usage Instructions
⚫ Terminal Security
- Verify PCI PTS security compliance.
- Regular inspection for tampering signs:
◼ Unauthorized wire connections
◼ Card reader condition
6
- Report "Warning Detected" messages immediately.
- Restrict access to verified trustworthy staff.
⚫ Customer Protection
- Never request PIN disclosure.
- Advise customers on PIN privacy.
- Maintain terminal visibility at all times.
- Secure terminal against theft or replacement.
⚫ Component Guidelines
- Keep SAM/SIM reader compartment cover in place.
⚫ Network Compliance
- Follow cellular network regulations.
- Non-compliance may result in service ban or legal action.
⚫ Abnormal Conditions
If any of the following phenomena occur during work:
- Stop operation immediately.
- Cut off power supply.
- Promptly report to service provider when:
1. Hearing sharp noises during operation
2. Impurities or water enter terminal
3. Unpleasant odors emit during operation
7
Contents
Disclaimer ....................................................................................................... 2
Use this Manual .............................................................................................. 3
Legend ........................................................................................................................... 3
Important Safety Information ........................................................................ 4
Safety Rules .................................................................................................................. 4
Usage Instructions ......................................................................................................... 5
1. Product Profile ................................................................................... 8
1.1. Introduction ........................................................................................................ 8
1.2. Unboxing Inspection .......................................................................................... 8
1.3. Overview ............................................................................................................ 9
2. Product Technical Features ............................................................ 12
3. Installation ....................................................................................... 14
3.1. SIM and MicroSD Card Installation ................................................................. 14

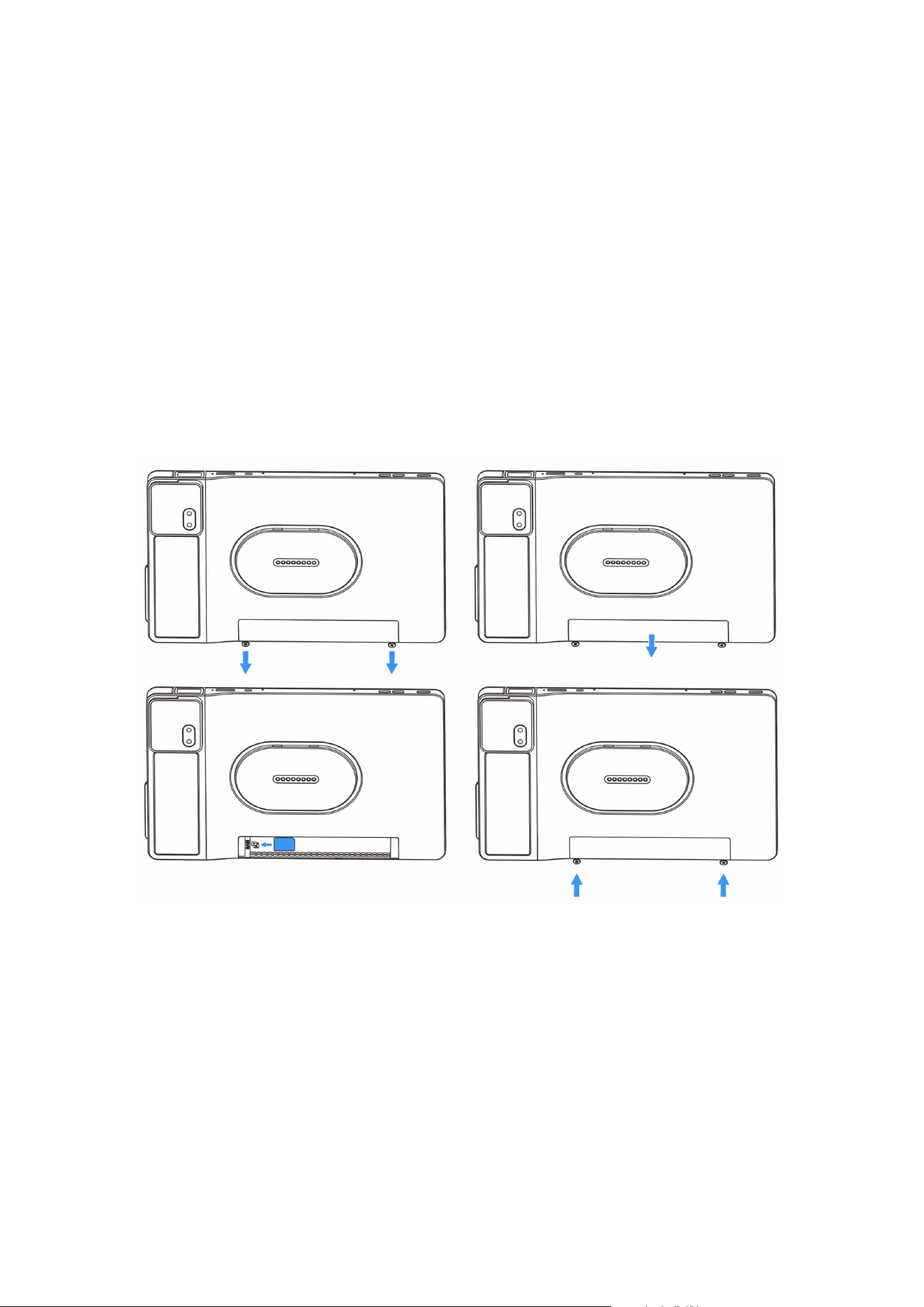

3.2. SAM Card Installation ...................................................................................... 15
3.3. Power Connection ........................................................................................... 15
4. Usage................................................................................................ 17
4.1. Power Operations ............................................................................................ 17

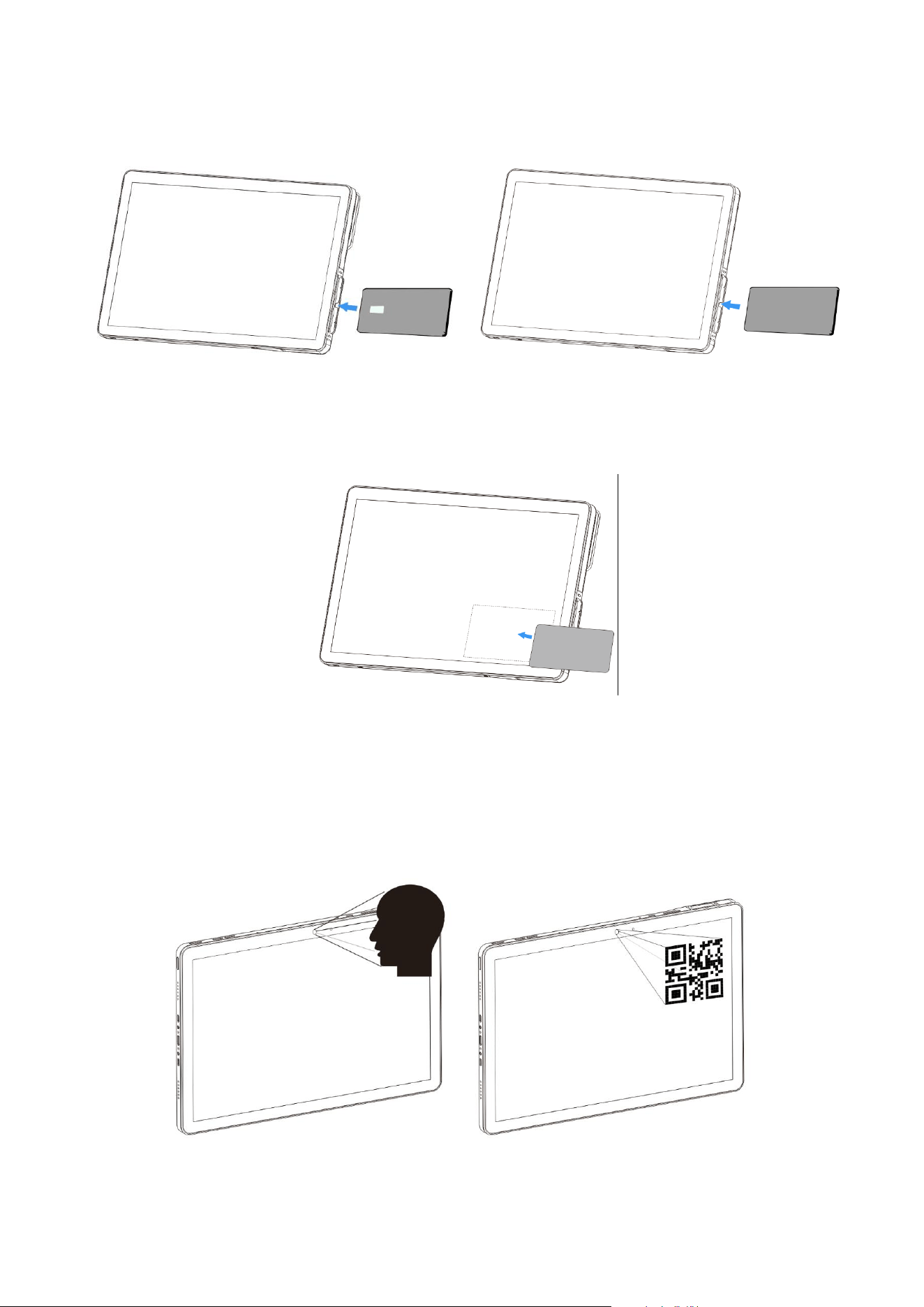

4.2. Card Reading................................................................................................... 17

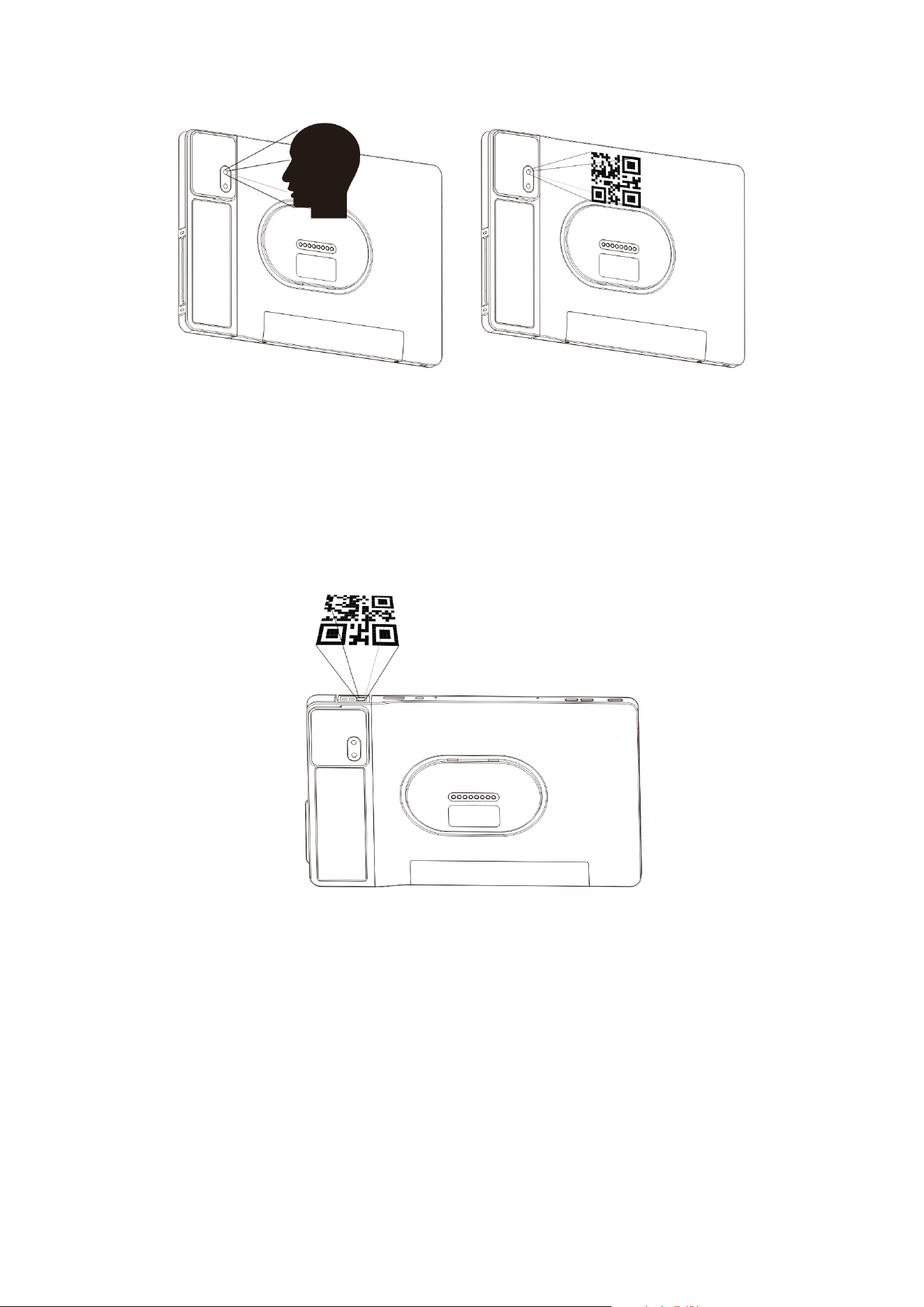

4.3. Using The Camera .......................................................................................... 18
4.4. Using the Scanner Module .............................................................................. 19
5. Maintenance ..................................................................................... 20
6. Transportation and Storage ............................................................ 21
7. FAQs ................................................................................................. 22
8. Frequency Bands and RF Output Power ....................................... 23
9. Standards ......................................................................................... 25
10. Customer Support ........................................................................... 33
8
1. Product Profile
1.1. Introduction
The P30 Tablet is a high-performance portable payment terminal running on Android 14.
Its key features include a 10.95-inch touchscreen, multi-method payment acceptance, and
a distinctive contactless payment area integrated into the lower-right corner of the screen.
For maximum operational flexibility, it offers comprehensive connectivity (4G, Wi-Fi 6E,
Bluetooth 5.3). Built for mobility with a long-duration battery, the P30 Tablet is fully
compliant with industry security standards for secure transaction processing.
1.2. Unboxing Inspection
Upon opening, inspect the terminal and optional accessories for any signs of disassembly
or transit damage. Check for:
- Terminal main unit
- (Optional) Battery pack
- Power adapter
- Quick start guide
- USB cable
- SIM ejector tool
Remove all plastic packaging from the terminal and accessories. Peel off the protective
film from the LCD screen. Retain the transit packaging for future transportation of the
terminal.
9

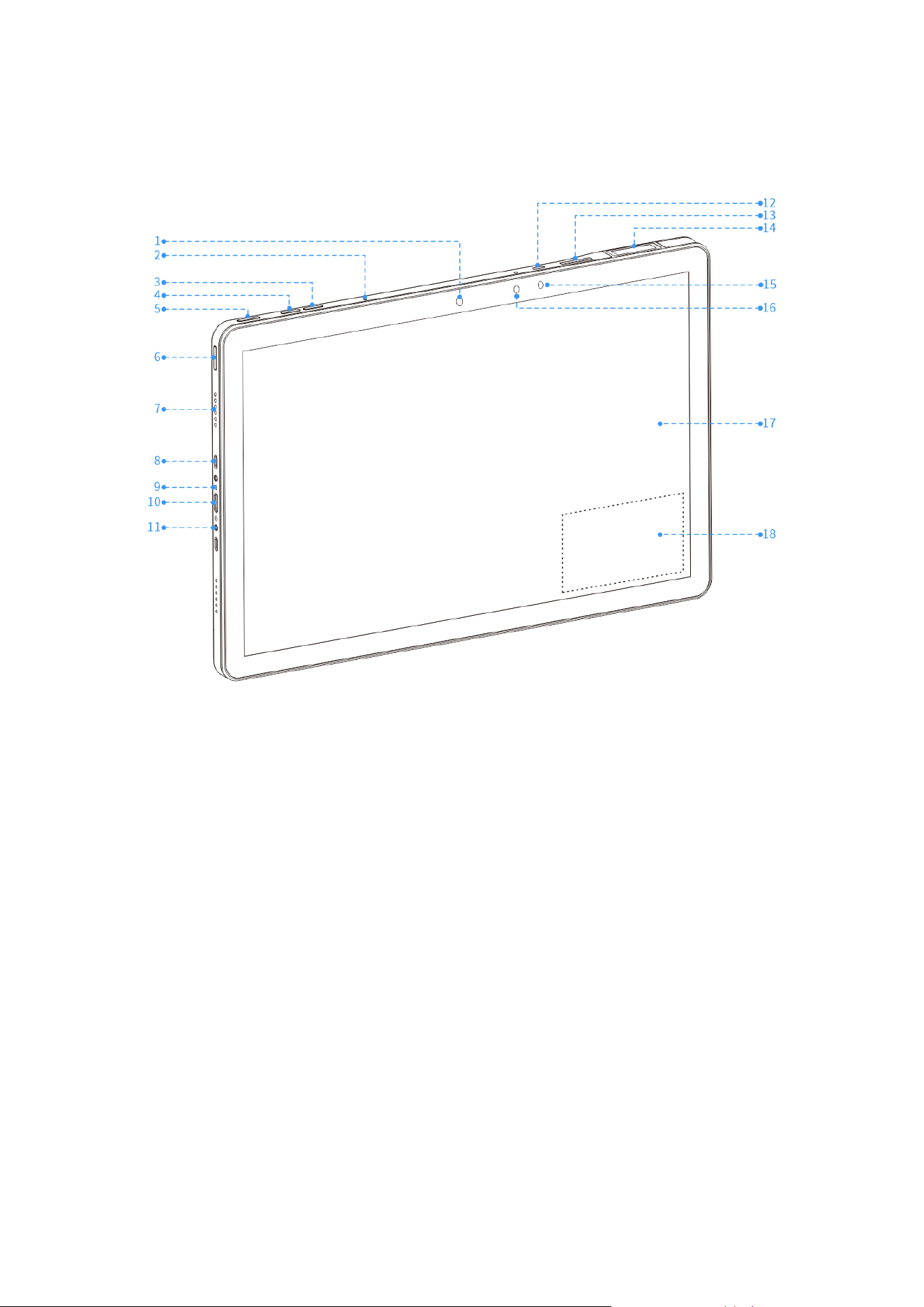

1.3. Overview
1. Front Camera
Scans QR codes/barcodes and takes photos.
2. Microphone
Inputs audio.
3. Volume- Button
Decreases the volume.
4. Volume+ Button
Increases the volume.
5. Power Button
Powers the terminal on/off (long press) or wakes/locks the screen (short press).
6. Function Button
Defaults to scan button on scanner-equipped models; user-programmable otherwise.
7. Speaker
10
Outputs audio.
8. Accessory Mounting Hole
Used for locating accessories.
9. Accessory Mounting Screw Hole
Used for fixing accessories.
10. USB Type-C Port
Supports charging and developer debugging.
11. Pogo Pins
Used for charging.
12. LED Status Indicator
Indicates system status.
13. Three-in-One Card Slot
Accepts two SIM cards and one MicroSD card.
14. Scanner Module
Scans QR codes and barcodes.
15. LED Status Indicator
Indicates system status.
16. Ambient Light Sensor
Detects ambient light to automatically adjust screen brightness.
17. LCD and Touch Screen
Displays content and accepts signature input.
18. Contactless Reader Area
Reads contactless cards (including membership cards).

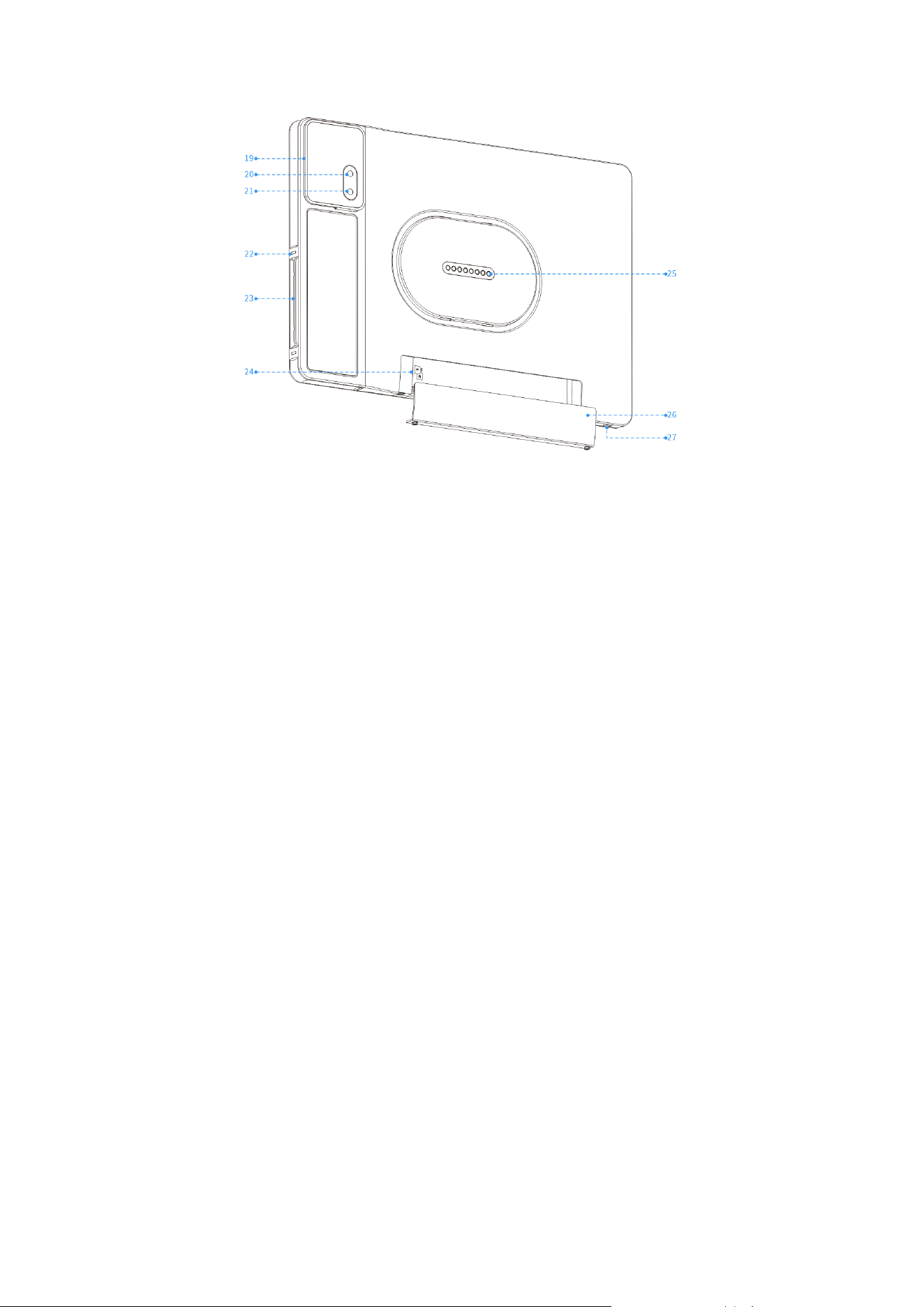

11
19. Magnetic Stripe Reader
Reads magnetic stripe cards (stripe facing the same direction as the screen).
20. Rear Camera
Scans QR codes/barcodes and takes photos.
21. Flashlight
Provides lighting for the camera.
22. LEDs for Smart Card
Indicates the smart card transaction status.
23. Smart Card Reader
Insert card horizontally.
24. Two-in-One SAM Card Slot
Accept two SAM cards.
25. Back Pogo Pins
Used for charging and connecting accessories.
26. Battery Cover
Provides access to the removable battery and SAM card compartment.
27. Kensington Nano Security Slot
Attaches a security cable and locks the terminal in place.
12
2. Product Technical Features
Processor
64-bit octa-core ARM Cortex (4x 2.4 GHz A73 + 4x 1.9 GHz
A55)
Operating System
Android 14
Memory
⚫ Internal: 4GB RAM + 64GB FLASH
⚫ Expansion: MicroSD card, up to 2TB
Display
10.95" IPS, 1920x1200, 500 nits, capacitive multi-touch
Buttons
Power, Volume Up/Down, Function
Camera
⚫ Front: 16MP with autofocus
⚫ Rear: 16MP with autofocus & flash
Scanner
(Optional) Professional scanner
Audio
Speaker * 2, Microphone * 2, Buzzer * 1, Headset via USB
Type-C port
Connectivity
⚫ WAN: 4G/3G/2G fallback
⚫ Wi-Fi: Wi-Fi 6E (802.11ax), 2.4Ghz/5Ghz/6Ghz, 2x2 MIMO
⚫ Bluetooth: Bluetooth 5.3, supports BLE
Positioning
GPS, GLONASS, BeiDou, Galileo
Ports
USB Type-C port * 1, Back pogo pin * 8, Side pogo pin (for
charging only) * 2
Power
⚫ Supply: 45W USB-C power adapter with PD (Power
Delivery) & QC (Quick Charge)
⚫ (Optional) Battery: 3.8V 8000mAh / 30.4Wh rechargeable
li-ion polymer, removable
Magnetic Stripe
Reader
ISO 1/2/3 track, bi-directional
Smart Card Reader
EMV Contact L1 & L2, ISO 7816, Dual-Chip
Contactless
Reader
EMV Contactless L1 & L2, ISO/IEC 14443 Type A/B, MIFARE,
FeliCa
SIM/SAM Slots
⚫ 2 SIM + 2 SAM
⚫ (Optional) 1 SIM + 1 eSIM + 3 SAM
Dimensions (L × W
× H)
262.3 × 172.8 × 9.5 mm
Weight
580g (Terminal only)
Operating
Temperature
⚫ Non-Battery Version: 0°C to +35°C (+32°F to +95°F)
⚫ Battery Version: -10°C to +50°C (+14°F to +122°F) for
discharging; 0°C to +35°C (+32°F to +95°F) for charging
13
Storage
Temperature
⚫ Non-Battery Version: -20°C to +60°C (-4°F to 140°F)
⚫ Battery Version: -20°C to +70°C (-4°F to 158°F)
Operating
Humidity
10% to 93% (Non-condensing)
Protection
IP54, IK04, 1m drop resistance
Certifications &
Compliance
⚫ PCI: PCI PTS 7.x
⚫ Payment: EMVCo Contact L1 & L2, EMVCo Contactless
L1 & L2, Mastercard PayPass, Visa payWave, JCB, UPI
qUICS, Amex ExpressPay, Discover D-PAS, TQM
⚫ Regulatory: CE, CB, FCC, IC, RoHS, WEEE, UN 38.3,
DGM
Accessories
(Optional)
Magic Hub, ECR Stand, Retail Adapter, Signature Stylus,
Straps (Neck, Hand, Rotating), Screen Protector
14
3. Installation
The product is available in four hardware configurations, distinguished by their Hardware
Version Identification Number (HVIN):
HVIN
Battery
Scanner
P3TBB/P3TBC
*Differs in scanner module supplier
√
√
P3TBA
√
×
P3TAB/P3TAC
*Differs in scanner module supplier
×
√
P3TAA
×
×
*The symbols in the table define the presence of optional components. For the Battery column, '√'
indicates the model includes a battery, while '×' indicates it is the no-battery version. Similarly, for the
Scanner column, '√' indicates the model is equipped with a scanner, and '×' indicates it is the version
without a scanner.
3.1. SIM and MicroSD Card Installation
The card tray, located on the top of the terminal, accommodates two SIM cards and one
MicroSD card.
1. Insert the eject tool into the pinhole to release the tray, then pull it out.
2. Place the SIM and MicroSD cards into the tray as shown in the diagram.
3. Re-insert the tray until it is flush with the terminal.
15
3.2. SAM Card Installation
The SAM card slot is located under the battery cover at the bottom rear of the terminal.
1. With the terminal face down, unfasten the battery cover screws (which are captive and
cannot be removed) and lift the cover.
2. Locate the SAM slot on the left. Insert the card as indicated by the diagram. For single
card use, prefer top slot (SAM 1).
3. Replace the battery cover and fasten the screws.
3.3. Power Connection
For Non-Battery Version
Connect the provided power adapter to the terminal's power port to begin operation.
For Battery Version
The battery is installed in the same compartment as the SAM card.
16

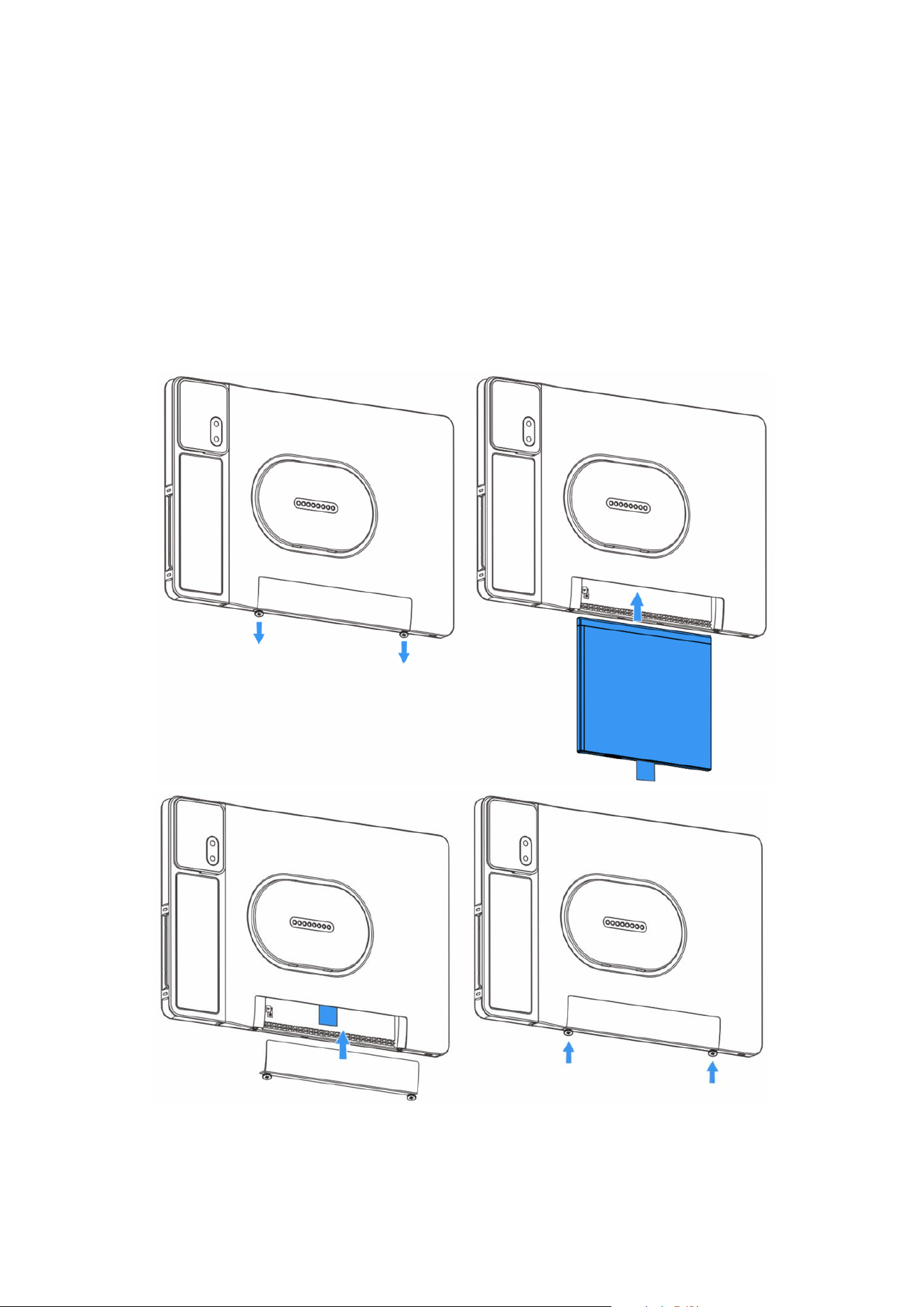

⚫ Installation: Remove the rear cover. Insert the battery with the metal contacts facing
down. Replace the cover and fasten the screws.
⚫ Removal: To remove the battery, pull the plastic tab at its base.
⚫ Charging:
1. Insert the cable into the terminal Type-C port.
2. Insert the adapter into the mains power outlet.
3. Verify charging status: Check for lightning bolt icon in screen’s upper right corner.
17
4. Usage
4.1. Power Operations
⚫ Power On
With battery properly installed, press the power button for 2–3 seconds until screen
activates.

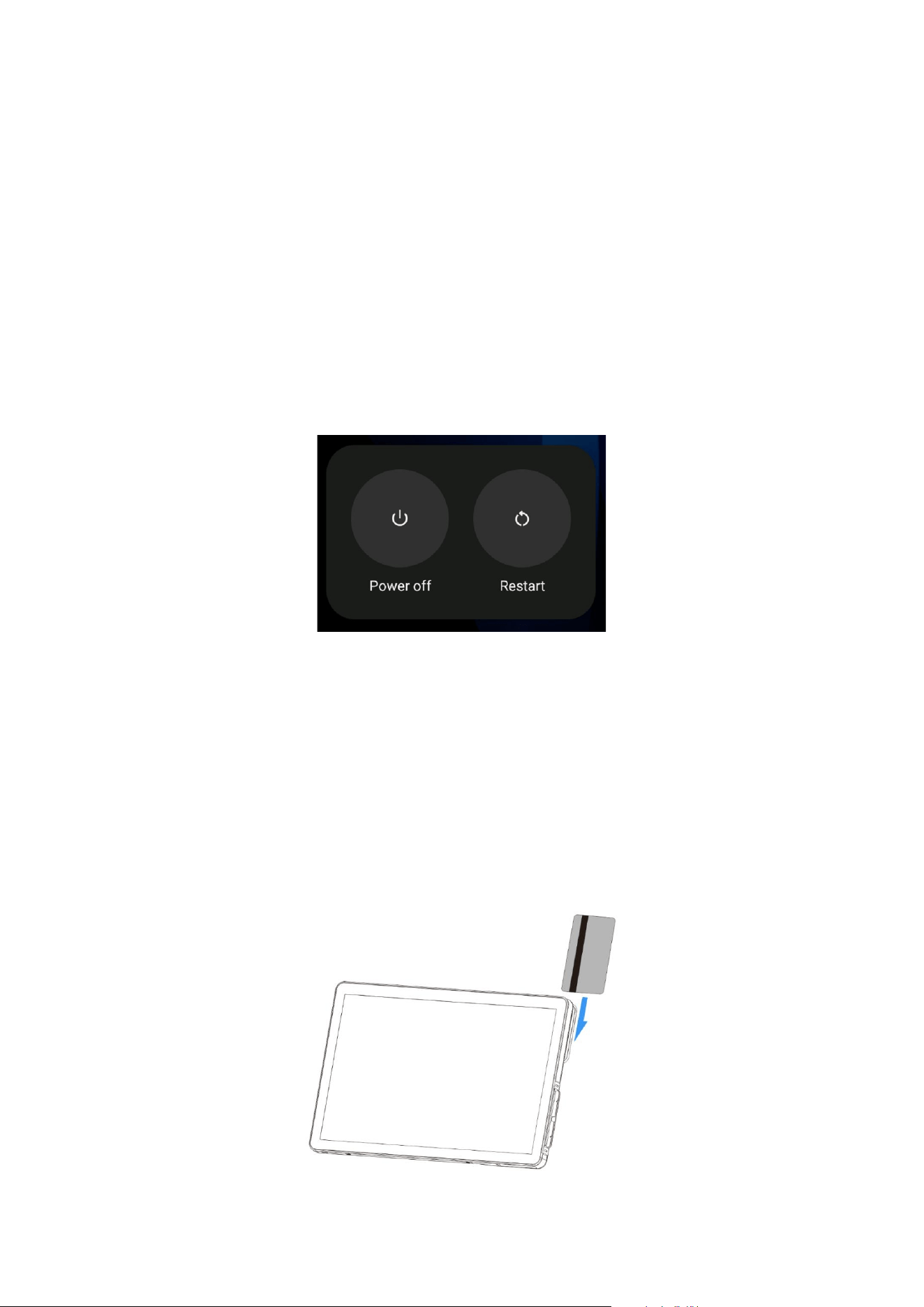

⚫ Power Off/Restart
Press the power button 2–3 seconds, select
Power off
or
Restart
from menu.
⚫ Screen Control
Short press the power button for 0.5 seconds to turn the display on or off.
4.2. Card Reading
⚫ Magnetic Card: Swipe in either direction with magnetic stripe facing the same
direction as the screen.
18
⚫ Smart Card: Insert horizontally and keep inserted during transaction.
⚫ Contactless Card: Hold card steady against reader area until transaction
completes.
4.3. Using The Camera
The terminal has a front camera and a rear camera, both of which can be used for scanning
QR codes/barcodes and taking photos.
Front Camera
19
Rear Camera
4.4. Using the Scanner Module
The terminal has a professional scanner module used for scanning QR codes/barcodes.
20
5. Maintenance
When cleaning, always disconnect the power source first. Wipe the exterior surfaces with
a soft, dry cloth.
⚫ For light dirt, dampen a clean cloth with 1–2 drops of mild, neutral cleaner. Never spray
cleaners or liquids directly onto the display screen and do not use an overly wet cloth.
⚫ For stubborn stains, gently wipe with isopropyl alcohol or an alcohol-based cleaner.
Do not use diluent thinners, trichloroethylene, ketone-based solvents or other strong
chemicals as these may damage plastic or rubber parts.
21
6. Transportation and Storage
⚫ Transportation
The terminal should be handled carefully to prevent damage from rain, snow, sunlight,
mechanical impacts, or dropping. The packaging must prevent crushing during transit to
avoid damage.
⚫ Storage
Store the product in its original packaging box. The storage area should be free of
hazardous gases, flammables, explosives, corrosives, strong vibrations, impacts, or
magnetic fields. Place the box at least 15 cm off the ground and 50 cm away from walls,
heat/cold sources, windows, or air intakes.
22
7. FAQs
Question: Why won’t my terminal start?
Answer:
1. Verify power supply/battery level.
2. Restart terminal.
3. If problem persists, contact customer service.
Question: Why did my transaction fail to process?
Answer:
1. Test multiple contactless cards.
2. Verify proper card swiping technique.
3. Try manual transaction mode.
4. Check card components:
⚫ SAM card installation
⚫ SIM card installation
5. Verify network connection.
6. Contact customer service if unresolved.
23
8. Frequency Bands and RF Output Power
The P30 Tablet terminal supports the following wireless specifications:
Network
Type
Band
TX Frequency
(MHz)
RX Frequency
(MHz)
Max RF Output
Power (dBm)
GSM
900
880 - 915
925 - 960
30.5
1800
1710 - 1785
1805 - 1880
27.5
WCDMA
I
1920 - 1980
2110 - 2170
23.5
VIII
880 - 915
925 - 960
23.5
LTE
B1
1920 - 1980
2110 - 2170
24
B3
1710 - 1785
1805 - 1880
24
B5
824 - 849
869 - 894
24
B7
2500 - 2570
2620 - 2690
24
B8
880 - 915
925 - 960
24
B20
832 - 862
791 - 821
24
B28
703 - 748
758 - 803
24
B38
2570 - 2620
2570 - 2620
24
B40
2300 - 2400
2300 - 2400
24
B41
2496 - 2690
2496 - 2690
24
Wireless Type
Frequency Range (MHz)
Max RF Output Power (dBm)
Bluetooth
2402 - 2480
10.49
Bluetooth LE
2402 - 2480
9.62
2.4 GHz Wi-Fi
2412 - 2472
2422 - 2462
19.93
5 GHz Wi-Fi
5150 – 5250
5250 – 5350
5470 - 5725
19.23
5.8 GHz Wi-Fi
5725 - 5850
13.69
6 GHz Wi-Fi
5945 - 6425
18.44
NFC
13.56
-7.62 dBuA/m@10m
GPS
1559 - 1610
N/A
24
ATTENTION
⚫ The device for operation in the band 5150-5250 MHz is only for indoor use to reduce
the potential for harmful interference to co-channel mobile satellite systems.
⚫ The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and
5470-5725 MHz shall comply with the e.i.r.p. Limit.
⚫ The maximum antenna gain permitted for devices in the band 5725-5825 MHz shall
comply with the e.i.r.p. Limits specified for point-to-point and non point-to-point
operation as appropriate.
⚫ Users should also be advised that high-power radars are allocated as primary users
(i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these
radars could cause interference and or damage to LE-LAN devices.
⚫ L'appareil fonctionnant dans la bande 5150-5250 MHz est destiné uniquement à une
utilisation en intérieur afin de réduire les risques d'interférences nuisibles aux
systèmes satellites mobiles utilisant le même canal.
⚫ Le gain maximal d'antenne autorisé pour les appareils fonctionnant dans les bandes
5250-5350 MHz et 5470-5725 MHz doit être conforme à la limite de p.i.r.e.
⚫ Le gain maximal d'antenne autorisé pour les appareils fonctionnant dans la bande
5725-5825 MHz doit être conforme aux limites de p.i.r.e. spécifiées pour
l'exploitation point à point et non point à point, selon le cas.
⚫ Les utilisateurs doivent également être informés que les radars de haute puissance
sont désignés comme utilisateurs principaux (c'est-à-dire utilisateurs prioritaires) des
bandes 5250-5350 MHz et 5650-5850 MHz, et que ces radars peuvent causer des
interférences et/ou endommager les appareils LE-LAN.
25
9. Standards
CE SAR Statement
This equipment complies with Directive 2014/53/EU radiation exposure limits set forth for
an uncontrolled environment. End user must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
The portable device is designed to meet the requirements for exposure to radio waves
established by European Union market (France). These requirements set an SAR limit of
2W/kg averaged over ten grams of tissue. When properly worn on the body, this product's
highest SAR value reported during certification is 1.36W/kg under this standard.
Hereby, LANDI declares that the radio equipment type P30E01 is in compliance with
Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the
following internet address: https://www.landiglobal.com/.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
⚫ This device may not cause harmful interference
⚫ This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
26
particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
⚫ Reorient or relocate the receiving antenna.
⚫ Increase the separation between the equipment and receiver.
⚫ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
⚫ Consult the dealer or an experienced radio/TV technician for help.
FCC SAR Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End user must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The portable device is designed to meet the requirements for exposure to radio waves
established by the Federal Communications Commission (USA). These requirements set
an SAR limit of 1.6W/kg averaged over one gram of tissue. When properly worn on the
body, this product's highest SAR value reported during certification is 1.04W/kg under this
standard. This equipment should be installed and operated with minimum distance 0mm
between the radiator and your body.
6G Wi-Fi Statement
Indoor Client 6XD statement
⚫ FCC regulations restrict the operation of this device to indoor use only.
⚫ The device will only associate and connect with a low-power indoor access point or
subordinate device and never directly connect to other client devices.
⚫ The device will always initiate transmission under the control of a low-power indoor
AP or subordinate except for brief transmissions before joining a network. These short
27
messages will only occur if the client has detected an indoor AP or subordinate
operating on a channel. These brief messages will have a time-out mechanism such
that if it does not receive a response from an AP it will not continually repeat the
request.
⚫ Transmissions will be lower or equal to the power advertised by the indoor low-power
access point or subordinate and never above the maximum output power allowed by
the FCC grant for equipment class 6XD.
⚫ The device is prohibited from control of or communications with unmanned aircraft
systems, including drones.
FCC regulations restrict the operation of this device to indoor use only. This device is
prohibited from being operated on oil platforms, cars, trains, boats, and aircraft, except it
can be operated in large aircraft while flying above 10,000 feet in the 5.925-6.425 GHz
band. Transmitters in the 5.925-7.125 GHz band are prohibited from operating to control
or communicate with unmanned aircraft systems.
ISED Compliance Statement
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s license-exempt RSS(s). Operation is
subject to the following two conditions:
⚫ This device may not cause interference.
⚫ This device must accept any interference, including interference that may cause
undesired operation of the device.
The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite systems.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme
aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux
28
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes:
⚫ L’appareil ne doit pas produire de brouillage
⚫ L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Le dispositif utilisé dans la bande 5150-5250 MHz est réservé à une utilisation en intérieur
afin de réduire le risque de brouillage préjudiciable aux systèmes mobiles par satellite dans
le même canal.
Wi-Fi 6E Statement
⚫ Transmitters in the 5.925-7.125 GHz band are prohibited from operating to control or
communicate with unmanned aircraft systems.
⚫ Devices shall not be used for control of or communications with unmanned aircraft
systems.
⚫ Devices shall not be used on oil platforms.
⚫ Devices shall not be used on aircraft, except for the low-power indoor access points,
indoor subordinate devices, low-power client devices, and very low-power devices
operating in the 5925-6425 MHz band, that may be used on large aircraft as defined
in the Canadian Aviation Regulations, while flying above 3,048 metres (10,000 feet).
⚫ Devices shall not be used on automobiles.
⚫ Devices shall not be used on trains.
⚫ Devices shall not be used on maritime vessels.
⚫ Il est interdit d’utiliser les émetteurs de la bande de 5,925 à 7,125 GHz pour contrôler
les systèmes d’aéronef sans pilote ou communiquer avec eux.
⚫ Les dispositifs ne doivent pas être utilisés pour contrôler ou communiquer avec des
systèmes d'aéronefs sans pilote.
⚫ Les dispositifs ne doivent pas être utilisés sur des plateformes pétrolières.
29
⚫ Les dispositifs ne doivent pas être utilisés sur les aéronefs, à l'exception des points
d'accès intérieurs à faible puissance, des dispositifs intérieurs subordonnés, des
dispositifs clients à faible puissance et des dispositifs à très faible puissance
fonctionnant dans la bande 5925-6425 MHz, qui peuvent être utilisés sur les grands
aéronefs tels que définis dans le Règlement de l'aviation canadien, au-dessus de 3
048 mètres (10 000 pieds).
⚫ Les dispositifs ne doivent pas être utilisés sur les automobiles.
⚫ Les dispositifs ne doivent pas être utilisés dans les trains.
⚫ Les dispositifs ne doivent pas être utilisés sur les navires maritimes.
IC SAR statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. End user must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
The portable device is designed to meet the requirements for exposure to radio waves
established by the ISED. These requirements set an SAR limit of 1.6W/kg averaged over
one gram of tissue. When properly worn on the body, this product's highest SAR value
reported during certification is 1.04W/kg under this standard. This equipment should be
installed and operated with minimum distance 0mm between the radiator and your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies
pour un environnement non contrôlé. L'utilisateur final doit suivre les instructions
d'utilisation spécifiques pour satisfaire la conformité à l'exposition RF. Cet émetteur ne doit
pas être co-situé ou fonctionner conjointement avec une autre antenne ou émetteur.
L'appareil portable est conçu pour répondre aux exigences d'exposition aux ondes radio
établies par l'ISDE. Ces exigences fixent une limite de DAS de 1,6 W/kg en moyenne sur
un gramme de tissu. Lorsqu'il est correctement porté sur le corps, la valeur DAS la plus
élevée signalée pour ce produit lors de la certification est de 1,04 W/kg, conformément à
30
cette norme. Cet équipement doit être installé et utilisé avec une distance minimale de 0
mm entre le radiateur et votre corps.
Environmental Compliance (WEEE and Packaging)
LANDI P30 Tablet is labeled in accordance with European Directives 2012/19/EU
concerning Waste Electrical and Electronic Equipment (WEEE) and 2013/56/EC
concerning Batteries and Accumulators. Those provisions are requiring producers and
manufacturers to become liable for take-back, treatment and recycling upon end of life of
equipment and batteries.

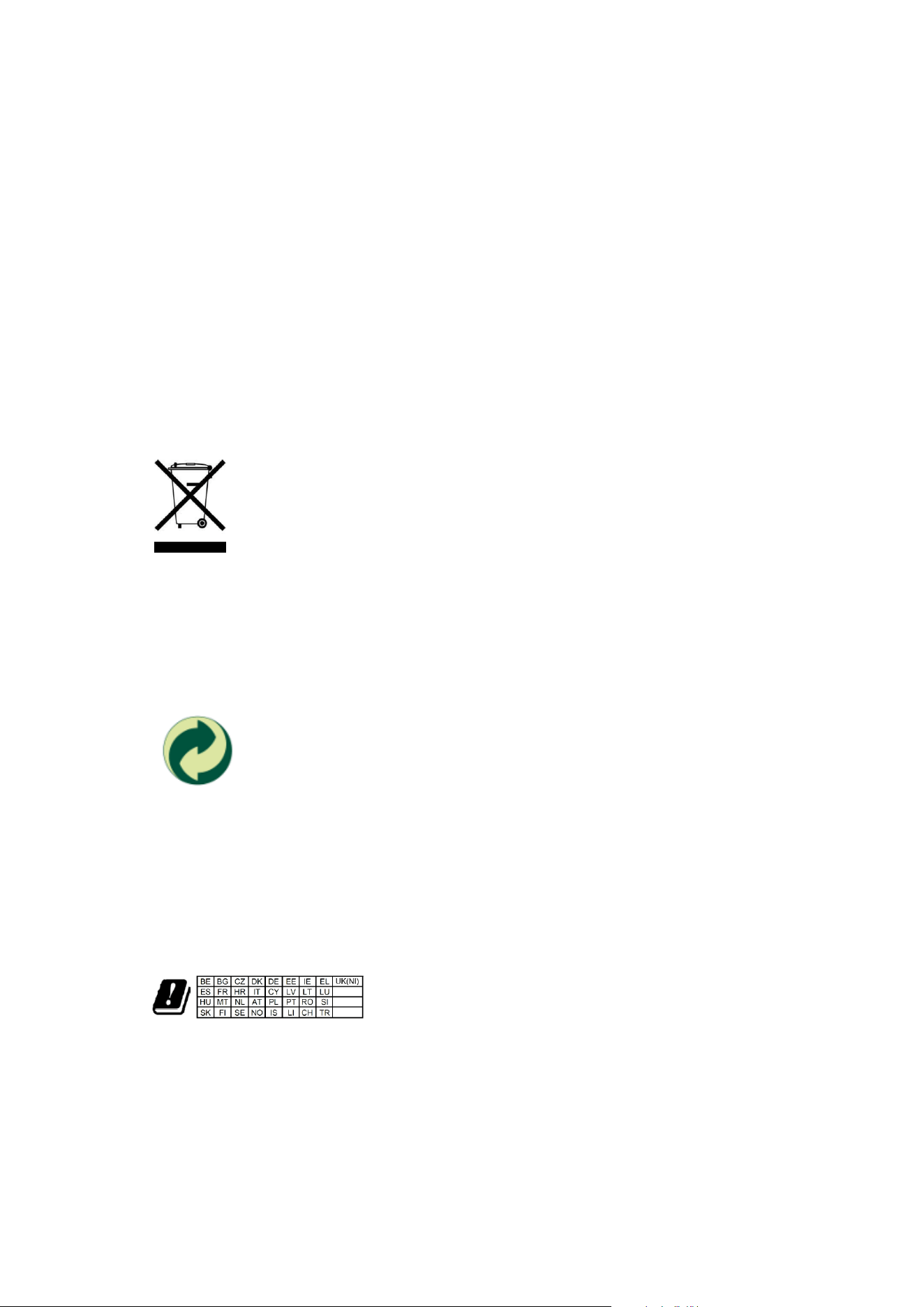

The crossed-out wheeled bin symbol on the product or accessories
indicates it is considered electronic equipment waste (WEEE) which
must be properly disposed of and should not be thrown away. Spent
batteries must also be collected separately for recycling.
Please contact your retailer for more details on the take-back and recycling program in
place for disposing of old equipment and batteries. Participating ensures their responsible
re-use and recycling, which benefits both the environment and human health.
The Green Dot symbol on the packaging confirms it complies with
Directive 94/62/EC concerning packaging and packaging waste.
Packaging bearing this symbol must be returned through collection
schemes managed by accredited Green Dot organizations for recovery
and recycling.
RF Compliance
The functions of Wireless Access Systems including
Radio Local Area Networks (WAS/RLANs) within the
band 5150-5350 MHz and 5945-6425 MHz for this
device are restricted to indoor use only within all
European Union countries.
31
Accessibility Compliance
LANDl P30 Tablet is certified under the EU Accessibility Directive (EU/2019/882) and
complies with EN 301 549 requirements. lt is compatible with standard Braille keyboards,
available for separate purchase.
Visually Impaired (VI) PIN Entry Service
This service offers multiple PIN entry methods for security and compliance.
⚫ General Interaction
- Navigation: Slide a finger across the screen to navigate; audio and tactile feedback
are provided on key contact.
- Input: Double-tap a key to enter the digit.

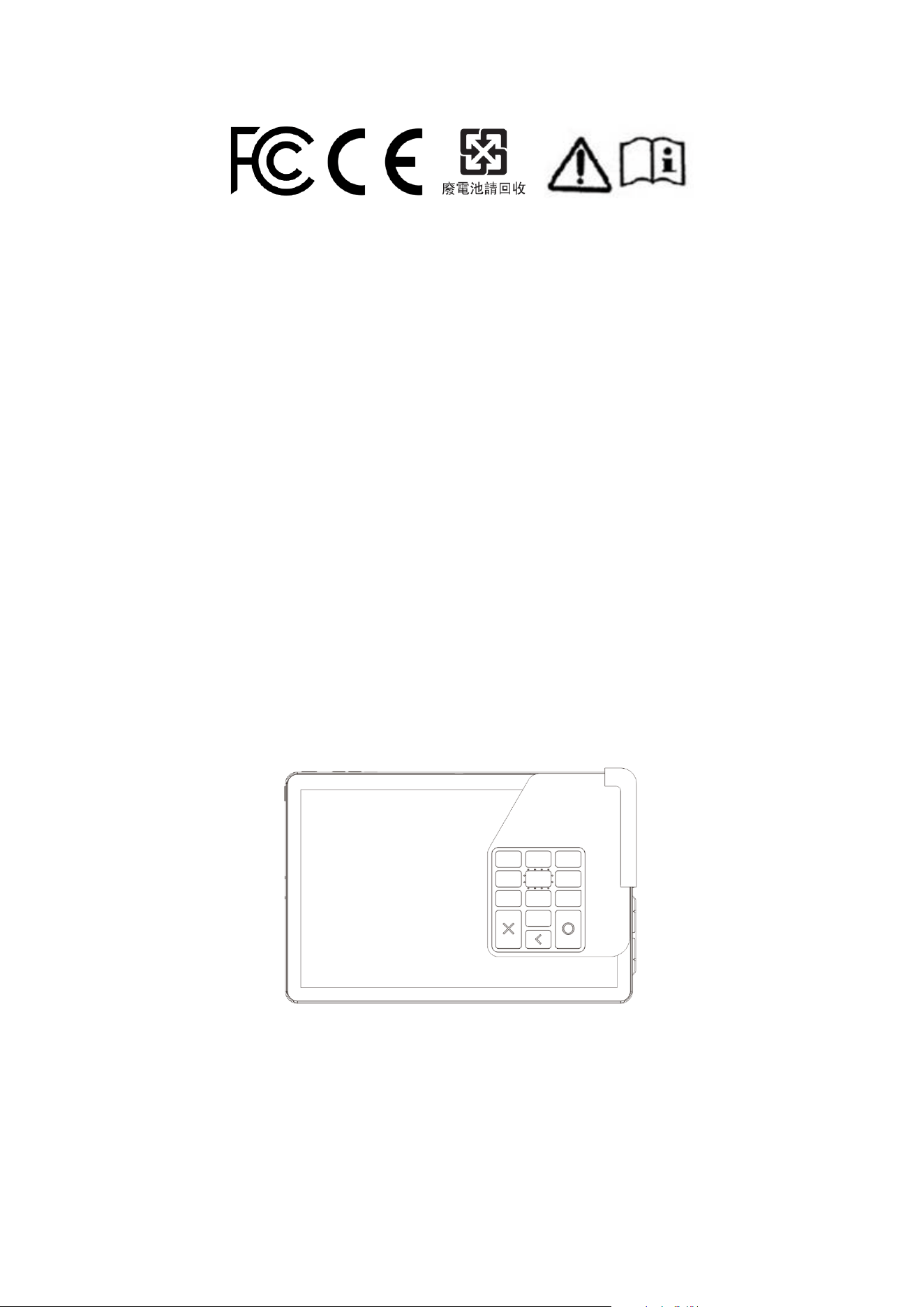

⚫ Physical VI PIN PAD Assistance
A dedicated physical keypad overlay can be placed on the screen, mapping its hardware
buttons to the screen's input zones to enable tactile entry.

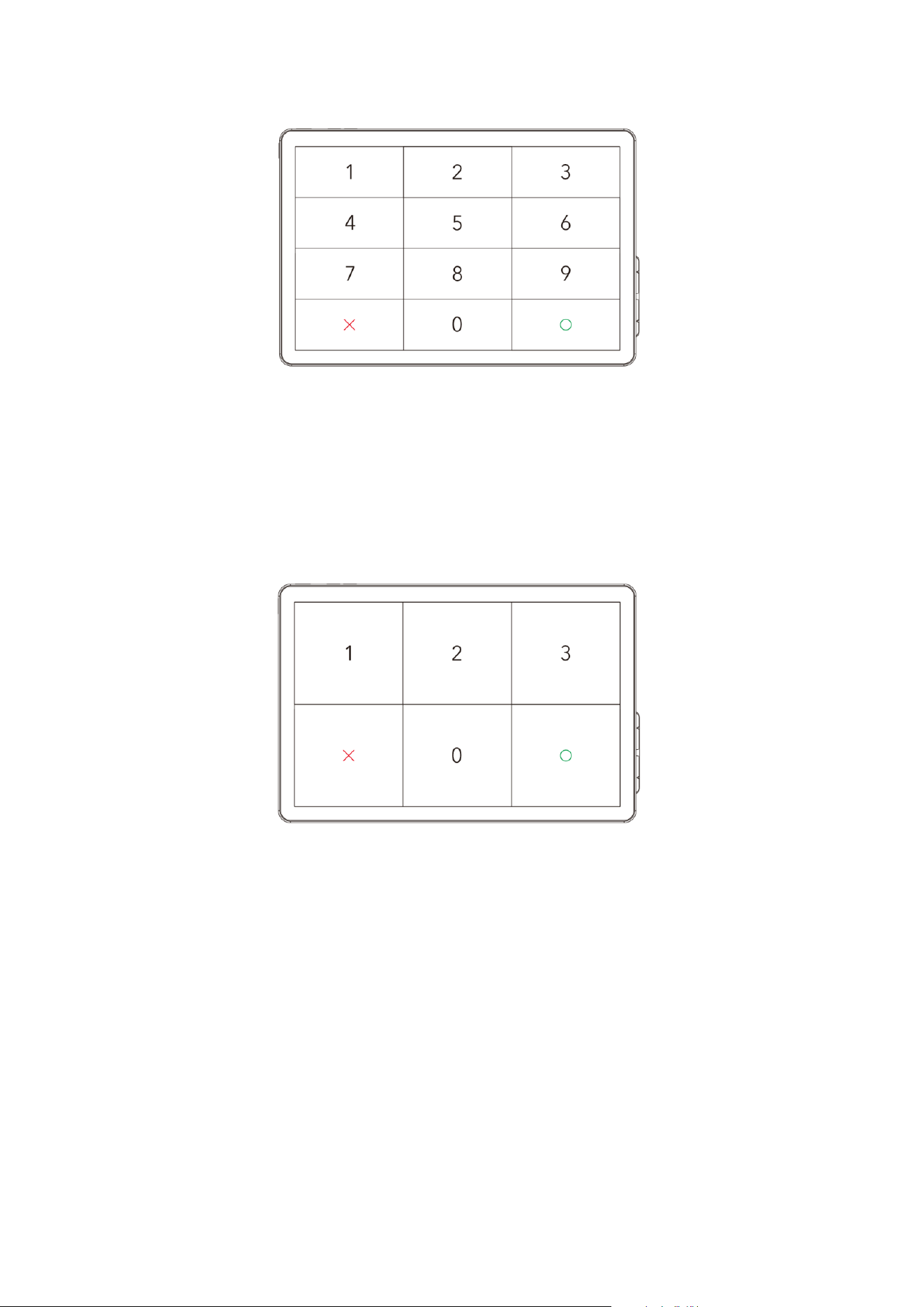

⚫ Full-Screen Interface
The entire display acts as a simplified input area containing all necessary keys (0-9,
Cancel, Confirm).
32
⚫ Paginated Interface
A three-page system for input:
- Page 1: Keys 1, 2, 3, 0, Cancel, Confirm.
- Page 2: Keys 4, 5, 6, 0, Cancel, Confirm.
- Page 3: Keys 7, 8, 9, 0, Cancel, Confirm.
This product is a non-self-service device intended for operation by staff. The transaction
process is completed under the guidance of an operator. Accessibility is applicable only to
the transaction phase, in compliance with EU Directive 2019/882 and standard EN 301
549. The respective parties are responsible for third-party software components, which
must also meet the corresponding accessibility requirements.
33
10.Customer Support
⚫ Data Backup
Please back up all terminal data before requesting any after-sales support. LANDI does
not back up data directly from terminals received for service work. We are not responsible
for any data loss or deletion that may occur.
⚫ Repairs
Please contact local distributors or LANDI after-sales team to arrange a repair. Be sure to
keep your invoice or other valid proof of purchase documentation and present it when
necessary.
⚫ Manufacturer
Fujian LANDI Commercial Equipment Co., Ltd.
Correspondence Address: 5th
& 6th Floor, Building 3A, Area A, Software Park, No.89,
Software Avenue, Gulou District, Fuzhou, Fujian, 350001, China
Registered Address: Building 17, Area A, Software Park, No.89, Software Avenue, Gulou
District, Fuzhou, Fujian, 350003, China
Phone: +86 0591-88077077, +86 400-658-0616
Fax: +86 0591-88077085
Website: http://www.landicorp.com
