CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Sinks manufactured by ADVANCE TABCO
®
are designed and constructed for the use of
liquid containment. Suggested applications: Hand Washing. ADVANCE TABCO
®
does not recommend
product use for activities employing harsh and active chemicals. Please consult factory regarding
unusual applications.
Installation Instructions for
WALL MOUNTED
HAND WASHING SINK
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the
State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
• (1) Hand Sink
• (1) Wall Mounting Clip
(Wall mounting hardware not included)
• (1) Drain Assembly (As required by model)
• (1) Faucet (As required by model)
Note: Electronic faucets are shipped separately
• Tape Measure
• Adjustable Wrench
• Drill Motor & Drill Bits
• Pipe Wrench
• Level
• Safety Glasses
CONTENTS INCLUDE:
TOOLS REQUIRED:
Step 2:
Install faucet and drain assembly to Hand Sink.
Step 3:
Position Hand Sink onto Wall Mounting Clip and secure to wall of
Keyhole Flange. (Hardware not provided)
Step 4:
Connect water and waste supply lines. Remove aerator and flush
water system. Check connection for leaks.
Step 1:

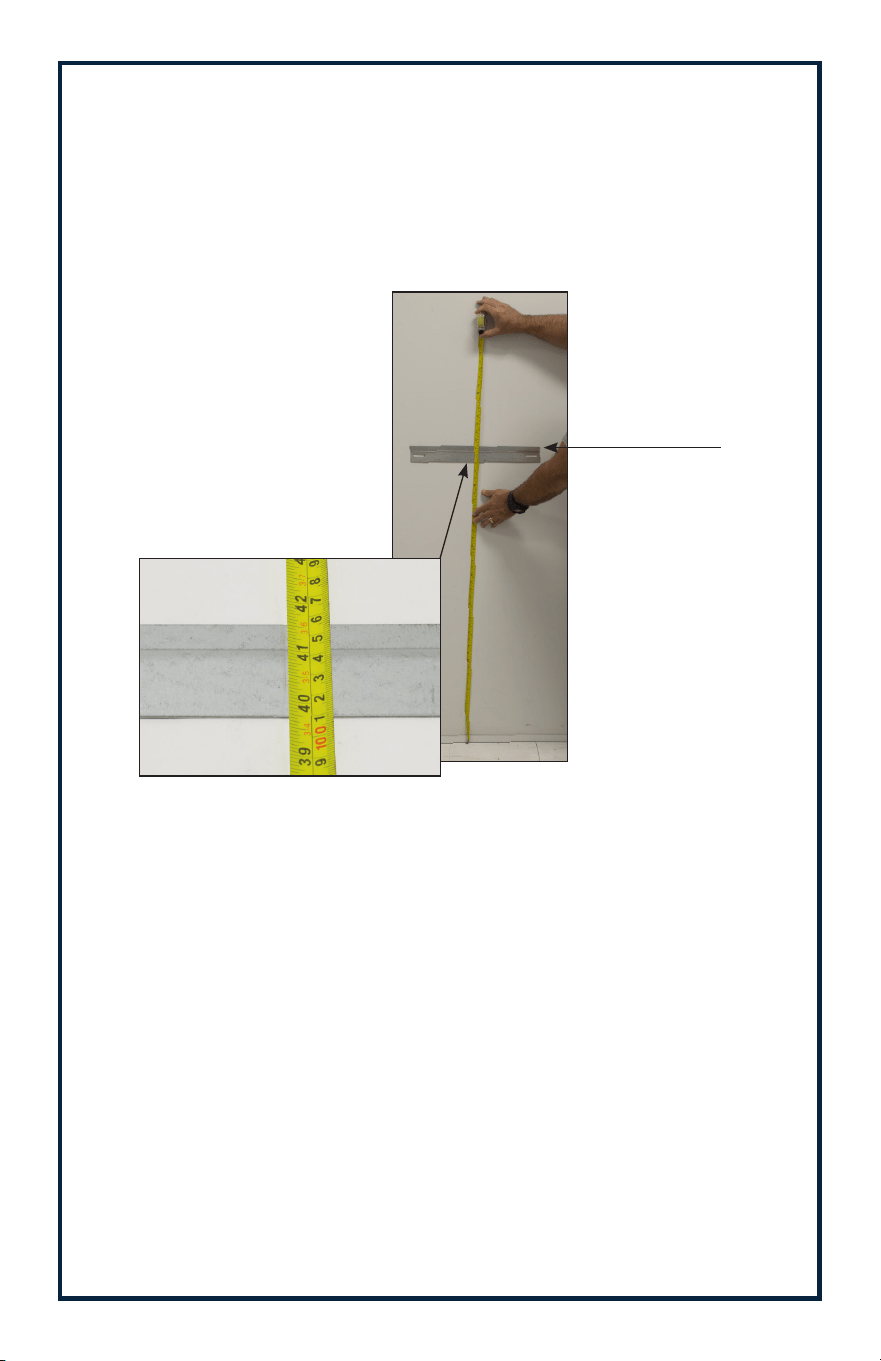

Identify Hand Sink location on wall. Measure 41-1/2” A.F.F. (Above
Finished Floor) and draw level line which will be the top edge of
wall mounting clip. Mark (2) slotted holes of wall mounting clip and
secure to wall (Illustration 1 & 1A).
(Hardware not provided)
41-1/2” Above
Finished Floor
Illustration 1
Illustration 1A
JUNE 2019
Step 1:
Follow steps 1 and 2 from preceding pages.
Step 2:
Position Hand Sink onto Wall Mounting Clip. Mark top of
Keyhole Slot at Flange (Rear or Bottom) of hand sink. Open
door to towel dispenser - mark top of Keyhole Slot. Remove
Hand Sink from Wall Mounting Clip & drill holes for securing.
Step 3:
Follow steps 4 and 5 of preceding page.
TOWEL DISPENSER UNITS
