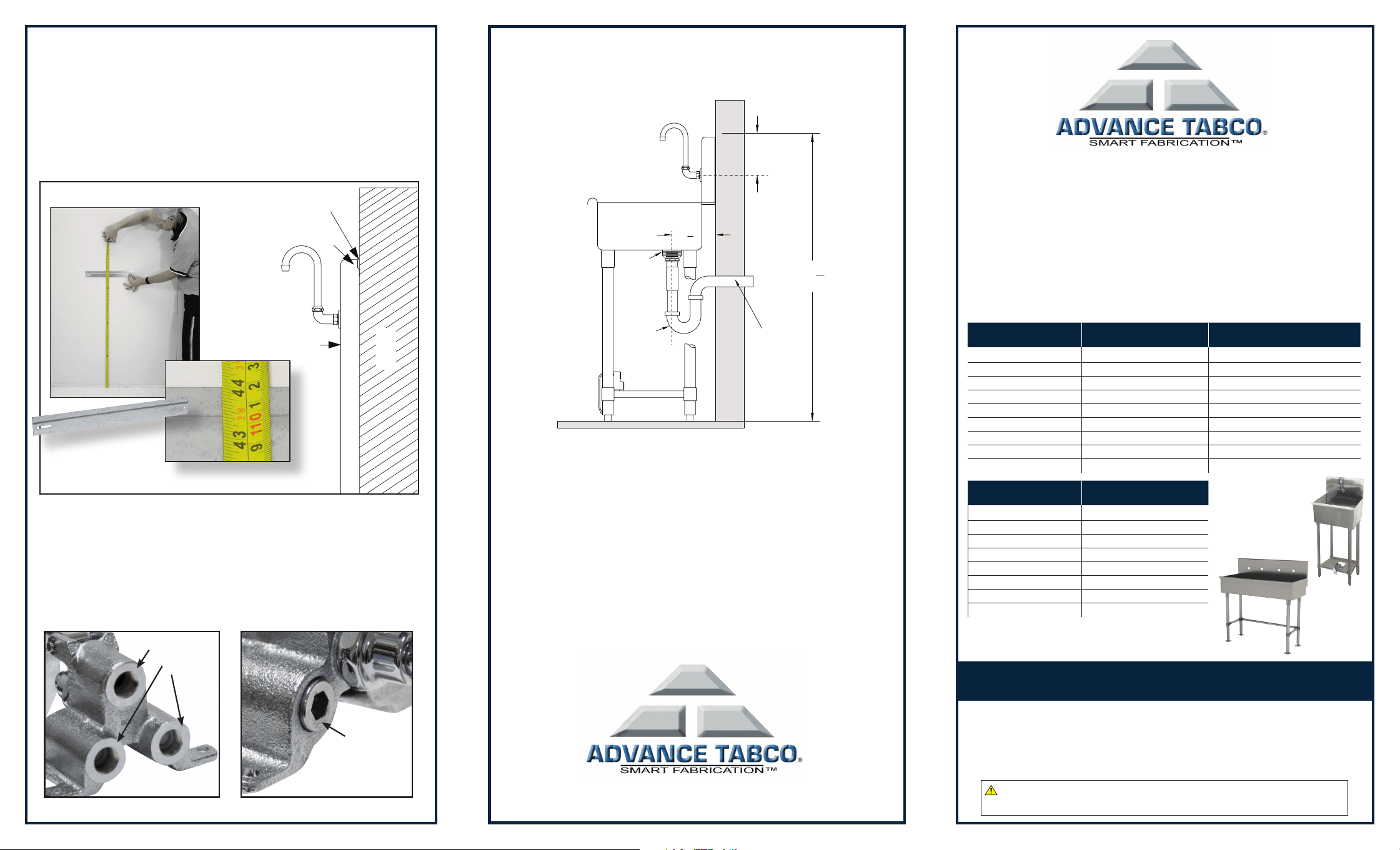

Suggested Rough Plumbing Dimensions
FOR KNEE VALVE (KV) OR TOE-PUSH VALVE (FV) MODELS:
Connect water supply lines to valve(s) and water supply
line(s) from valve(s) to faucet(s). Connect drain(s).
(Figure 6).
Adjust mixing valve at front of valve (Figure 7).
Figure 7Figure 6
3/8” NPT
Females
Mixing
Valve
5
"
L
C
P-Trap
Drain
To Waste Line
6
1
2
"
42
1
2
"
L
C
For Further Assistance
Contact Customer Service at:
800-645-3166
or
Figure 5
Back Splash
Silicone Sealer
"Z" Bracket
Wall
Actual “Z”
Bracket Shown
Figure 6
Installation Instructions for
FREE STANDING
MULTI-STATION
SQUARE CORNER SINKS
19-FM & WSS FM SERIES
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the
State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
WARNING: Faucets on this page may expose you to chemicals, including lead, that are known to the State of California to cause cancer or birth defects or other reproductive harm. For more Info.,visit www.p65warnings.ca.gov.
NO FAUCET
INCLUDED
MANUAL FAUCETS
INCLUDED
ELECTRONIC
OPERATED FAUCETS
Model # Model # Model #
19-FM-1-ADA 19-FM-1-ADA-F 19-FM-1-EFADA
19-FM-23/19-FM-23-ADA 19-FM-23-F/19-FM-23-ADA-F 19-FM-23EF/19-FM-23EFADA
19-FM-40/19-FM-40-ADA 19-FM-40-F/19-FM-40-ADA-F 19-FM-40EF/19-FM-40EFADA
19-FM-60/19-FM-60-ADA 19-FM-60-F/19-FM-60-ADA-F 19-FM-60EF/19-FM-60EFADA
19-FM-80/19-FM-80-ADA 19-FM-80-F/19-FM-80-ADA-F 19-FM-80EF/19-FM-80EFADA
19-FM-100/19-FM-100-ADA 19-FM-100-F/19-FM-100-ADA-F 19-FM-100EF/19-FM-100EFADA
19-FM-120/19-FM-120-ADA 19-FM-120-F/19-FM-120-ADA-F 19-FM-120EF/19-FM-120EFADA
WSS-14-21-FM/WSS-16-25-FM WSS-14-21-FM-F/WSS-16-25-FM-F WSS-14-21EF-FM/WSS-16-25EF-FM
WALL BRACKET(S) INSTALLATION
Mount the provided wall “Z” brackets to wood studs or
cement walls for strong support. Mount the bracket(s) at
recommended height of 42.5” from the finished floor to
the to the top of the bracket (Figure 6).
Slide the sink onto the wall brackets and be sure the sink
sits securely on them.
THIS CARTON CONTAINS:
TOE-PUSH OPERATED SERIES (FV Series)
# of
Stations
# of
Drains
# of
Spouts
# of
Toe-Push
Valves
# of Legs
1 1 1 1 4 Support Legs
2 1 2 2 4 Support Legs
3 1 3 3 4 Support Legs
4 1 4 4 4 Support Legs
5 2 5 5 8 Support Legs
6 2 6 6 8 Support Legs
TOOLS NEEDED (Not Included):
5/32” Allen Wrench
For Toe-Push Models (FV),
Be sure to clear the floor when
pedal is pushed in all the way
Level Undershelf
Toe-Push Model 19-FM-40 Shown

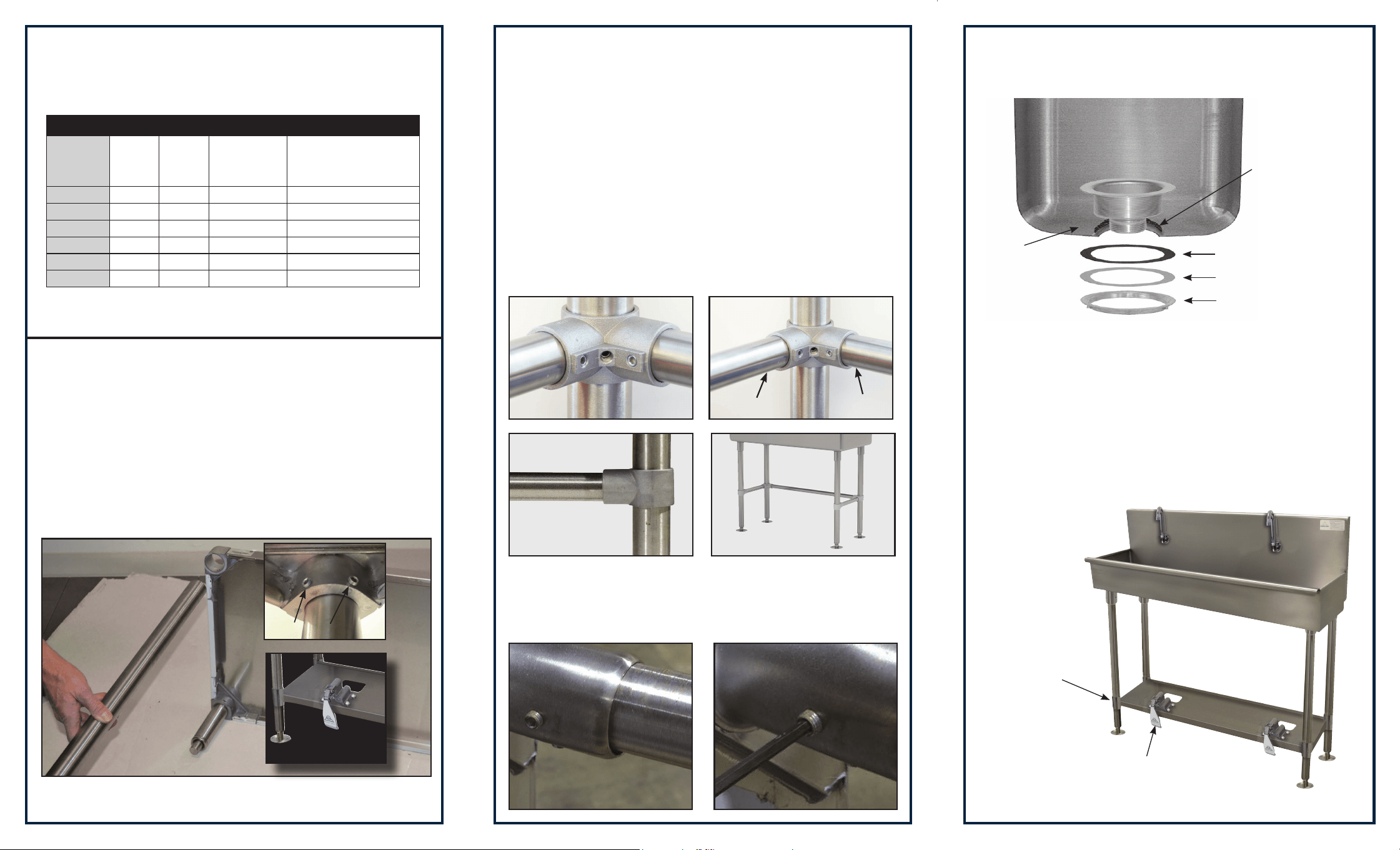

Carefully remove contents of carton/crate. Carefully
position sink upside down on a protected surface so you
can access the underside of the sink.
UNDERSHELF INSTALL FOR “FV” TOE-PUSH MODELS:
Insert top of legs into adjustable shelf corners (bottom of
undershelf). Slide legs leaving desired leg length below
the shelf (Figure 1). Insert Allen Head Set Screws into
adjustable shelf corner and lightly tighten (Figure 1a).
Do not over-tighten at this time.
Toe-Push
Shelf Shown
Hex Screws
Figure 1a
Figure 1
LEG TO SINK INSTALLATION (For All Models)
Slide tubular legs all the way into the gussets (Figure 5).
Tighten each Set Screw using Allen Wrench (Figure 6).
CROSS-BRACING INSTALL (EXCLUDES “FV” MODELS)
STEP 1
Insert the long tubular support for the rear (Figure A),
into the left and right Corner Cross-Bracing Clamps
(Figure 2).
Insert the 2 shorter tubular supports into the fronts of the
left and right Corner Cross-Bracing Clamps (Figure B).
STEP 2
Insert the front Cross-Bracing Clamps onto the ends of
the existing shorter tubular supports (Figure 3).
STEP 3
Slide entire bracing over the legs to desired height and
tighten with Allen Wrench (Figure 3).
Figure 5 Figure 6
Figure 2
Figure 3 Figure 4
Figure A
Figure B
DRAIN INSTALLATION
Install drain(s) and faucet(s) at this time. Your plumbing
contractor is responsible for local code requirements.
Sink
Bottom
K-6 Basket
Drain shown
1/4” continuous
bead of Plumber’s
Putty or Silicone
Sealer.
Rubber Washer
Paper Washer
Die Cast Nut
LEVELING AND ADJUSTMENTS
Stand up entire sink. Level undershelf at this time.
If necessary, gently loosen the set screws enough as to
not letting the shelf or cross-bracing to drop down.
FOR TOE-PUSH MODELS (FV):
Make sure foot pedal(s) are clear from rubbing against
the floor when pushed in all the way by pushing with your
toe. (Figure 5).
Once the undershelf is level, tighten all the undershelf
set screws.
(1) Sink, (2) “Z” Wall Brackets, Legs*, Faucet(s)*, Drain(s)*
*See Below For Proper Quantities Supplied Per # Of Stations:
