Please read this manual carefully before attempting to install the product
Every effort has been taken to ensure that these instructions are correct.
Mach Speakers A/S does not accept any liability for loss or damage caused or
alleged to be caused directly or indirectly by these instructions. The contents
of the instructions may be subject to change without notice. Mach Speakers
A/S makes no warranty of any kind with regard to these instructions.
Copyright 2004 Mach Speakers A/S, Denmark.
All rights reserved. No part of these instructions may be reproduced, in any
form or by any means, without permission in writing from Mach Speakers
A/S, Denmark.
Mach Speakers A/S • Perspektivvej 2 • 9900 Frederikshavn • Denmark
Tel: +45 72 15 08 52 • Fax: +45 98 43 14 15 • e−mail: Mach-Ser[email protected]
1
P/N 35020015, Rev C
Table of contents
Introduction ...................................................................................................................................................................................... 3
The C-range....................................................................................................................................................................................... 4
Contents of the box........................................................................................................................................................................ 4
Description of the C-range speakers........................................................................................................................................ 5
Installation ......................................................................................................................................................................................... 6
Mounting points on the cabinet..................................................................................................................................... 6
Spider bracket........................................................................................................................................................................ 7
How to install your C-range speaker on the optional Multibracket................................................................... 8
How to install your C-range speaker with the U-bracket .....................................................................................10
How to mount speaker with eyebolts.........................................................................................................................11
Rotatable horn.....................................................................................................................................................................12
Horn protection...................................................................................................................................................................12
Connection......................................................................................................................................................................................13
How to connect speaker cable to barrier strip terminals..................................................................................... 13
How to attach safety wire................................................................................................................................................13
Connecting to amplier..............................................................................................................................................................14
Cables......................................................................................................................................................................................14
Simple connection .............................................................................................................................................................14
Parallel system .....................................................................................................................................................................15
System conguration...................................................................................................................................................................16
Switching between Passive and Active mode.........................................................................................................17
Conguring your Mach CM system for active mode operation........................................................................18
Painting the speaker ....................................................................................................................................................................21
Maintenance of speakers ...........................................................................................................................................................22
How to remove grille.........................................................................................................................................................22
How to change drivers/woofers.................................................................................................................................... 22
How to remove spider bracket ......................................................................................................................................22
How to remove terminal module .................................................................................................................................22
How to change crossover ................................................................................................................................................22
Technical information..................................................................................................................................................................23
Specsheet CN7.....................................................................................................................................................................23
Specsheet CN8.....................................................................................................................................................................24
Specsheet CM7....................................................................................................................................................................25
Specsheet CM9....................................................................................................................................................................26
Warranty ...........................................................................................................................................................................................27
Declaration of conformity..........................................................................................................................................................27
Ordering spare parts.....................................................................................................................................................................28
C-range overview...........................................................................................................................................................................29
CI range overview .........................................................................................................................................................................31
2
3
Introduction
Thank you for purchasing a product from Mach Speakers A/S. Every effort has been made to ensure that our products
meet your requirements and we sincerely hope that we will live up to your expectations.
To get the most out of your Mach speakers and ensure an easy and trouble-free installation please read the manual
carefully and follow the instructions.
If you have any additional questions or comments please do not hesitate to contact our headquarters in Denmark
at the following address:
Mach Speakers A/S
Perspektivvej 2
DK-9900 Frederikshavn
Denmark
Tel: +45 72150852
http://www.mach.dk
Or send an e-mail to: machservice&support@martin.dk
2
3

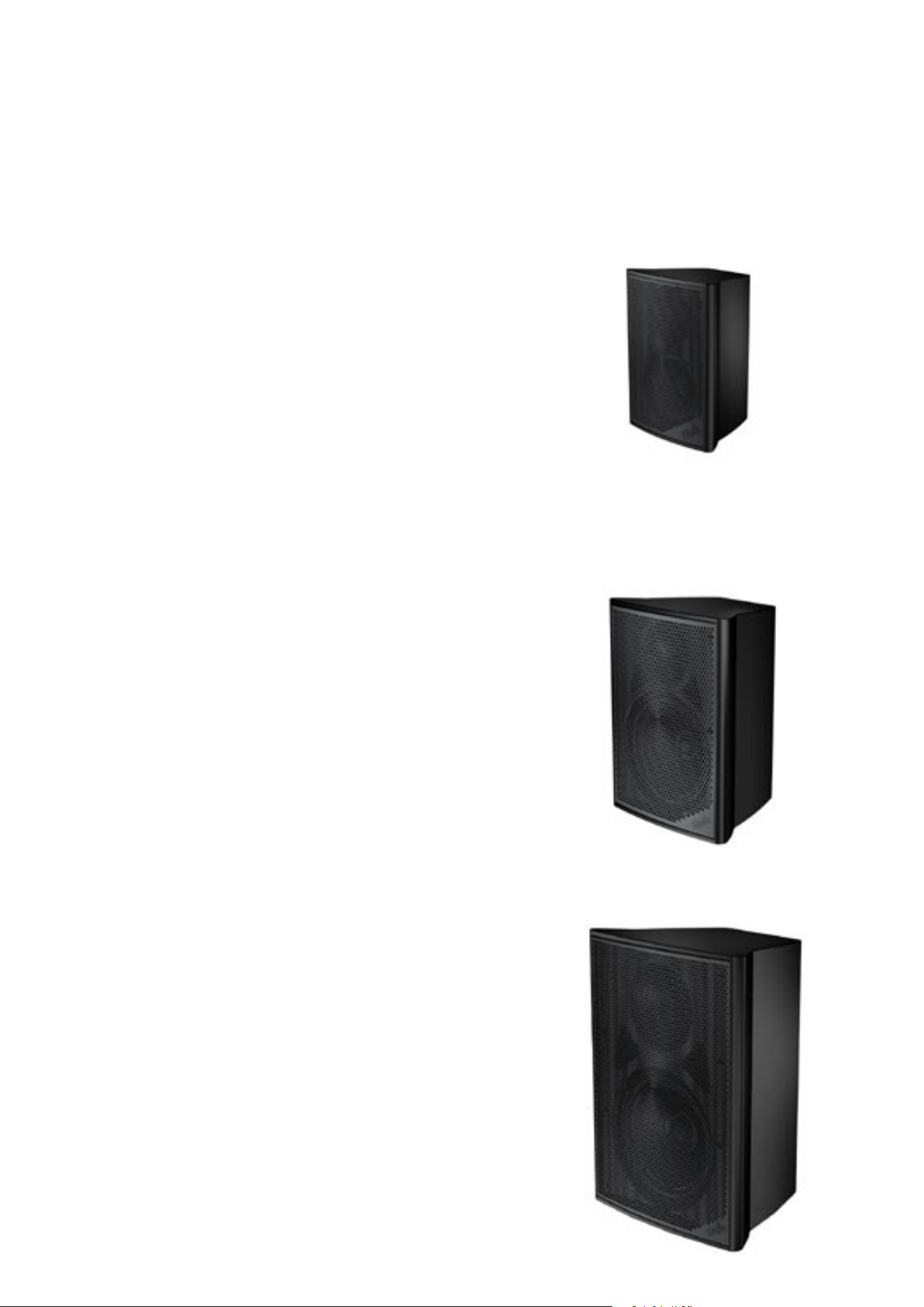

The C-range
The C-range has been designed specically for professional installations as a high quality, ultra-exible solution with
either a U-bracket or eyebolts included in one convenient package.
The cabinets have been shaped to achieve both an appealing and attractive appearance and very easy mounting
and positioning.
Special care has been taken to ensure that a minimum of tools (and time) is required for mounting and adjusting
the speakers.
The C-range has been designed for general purpose sound installations such as restaurants, night clubs, houses
of worship, theatres, auditoriums etc. To cover all individual requirements in each application the range consists of
many different models from compact two-way full-range near-eld speakers to full-scale night club dance systems.
All C-range products are made using only the very best materials and constructed for heavy-duty use in professional
environments.
All top boxes are constructed using specially designed extruded aluminium proles to give market-leading strength
and durability. The proles also enable the use of the innovative fully adjustable spider bracket that makes the
installation of the new C-range top boxes more exible than any other comparable product on the market.
To further aid installation, all boxes have at least 14 xed mounting points in addition to the 4 adjustable ones and
the 4 on the spider bracket.
Other ground-breaking features on the new C-range top boxes are recessed terminals with both NL-4 connectors
and barrier strip terminals for mounting ush against a wall and full enclosure coating in Mach Safecoat for
maximum scratch resistance.

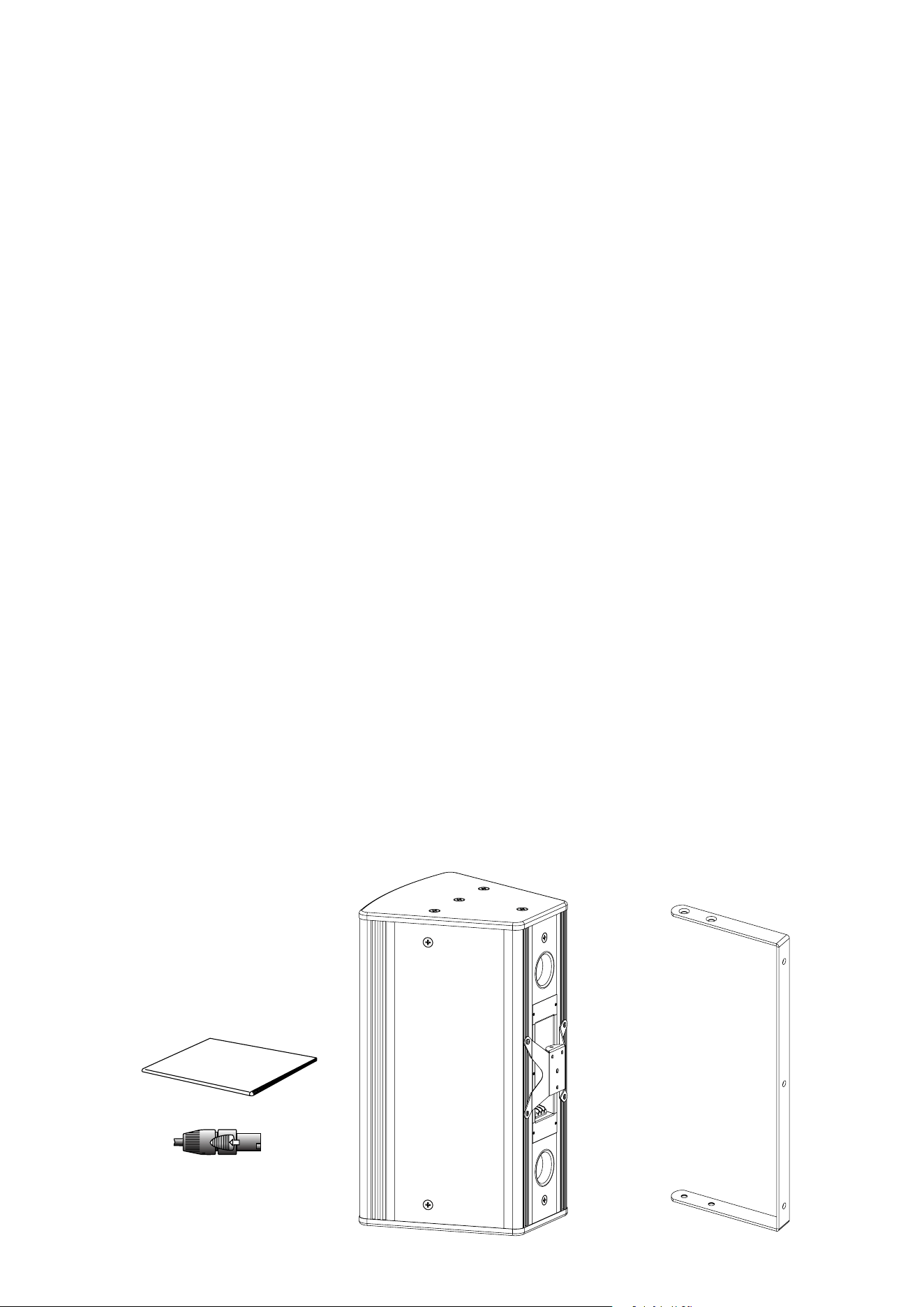

Contents of the box
The Mach C-range is supplied as a complete system and your package should contain the following items:
1 Speaker
1 Spider bracket (mounted on speaker cabinet)
1 U-bracket for CN-7, CN-8, CM-7, CM-9
1 Manual
1 Speakon connector
Speakon
4
5
Manual
Speaker
Spider bracket
U-bracket
Description of the C-range speakers
The range can be divided into 3 different groups of products:
- CN
o Near-eld top boxes and full-range speakers for medium SPL application where ultimate sound
quality is required at low-to-medium SPL with low-to-medium projection and with wide dispersion.
- CM
o Medium-throw top boxes and full-range speakers for high SPL applications where ultimate
sound quality is required at medium-to-high SPL with medium projection and with more focused
dispersion.
- CW
o Dedicated installation subwoofer to complement CN and CM top boxes
To illustrate the difference between a CN box and a CM box consider two typical installations:
• A small club with a large bar and entertainment area plus a small dance oor with low
ceiling.
• A medium-to-large dance club with a large dance oor and surrounding seating areas, high
ceiling and live DJ.
In the small club the ideal solution has good, tightly controlled distribution, high quality warm sound at low-to-
medium SPL, small cabinet size but still an output high enough for an intense dance experience. The system will
typically run at varied output levels between 30 and 80 % of maximum output.
In the larger dance club high SPL, clean, solid sound with minimum distortion and extreme endurance is an absolute
must. Good sound quality at low to medium SPL is less of an issue as the system will always run at close to 100 %
output.
In many venues the ideal solution will actually be a mixture of CN and CM boxes for different sections of the venue
thus the new C-range enables the building of a complete solution customized for the specic requirements of most
customers.
4
5
Installation
Your new Mach C-range speaker is one of the most versatile products on the market and every possible effort has
been made to make it quick and easy to install your product. The many different installation options available will
be described below.

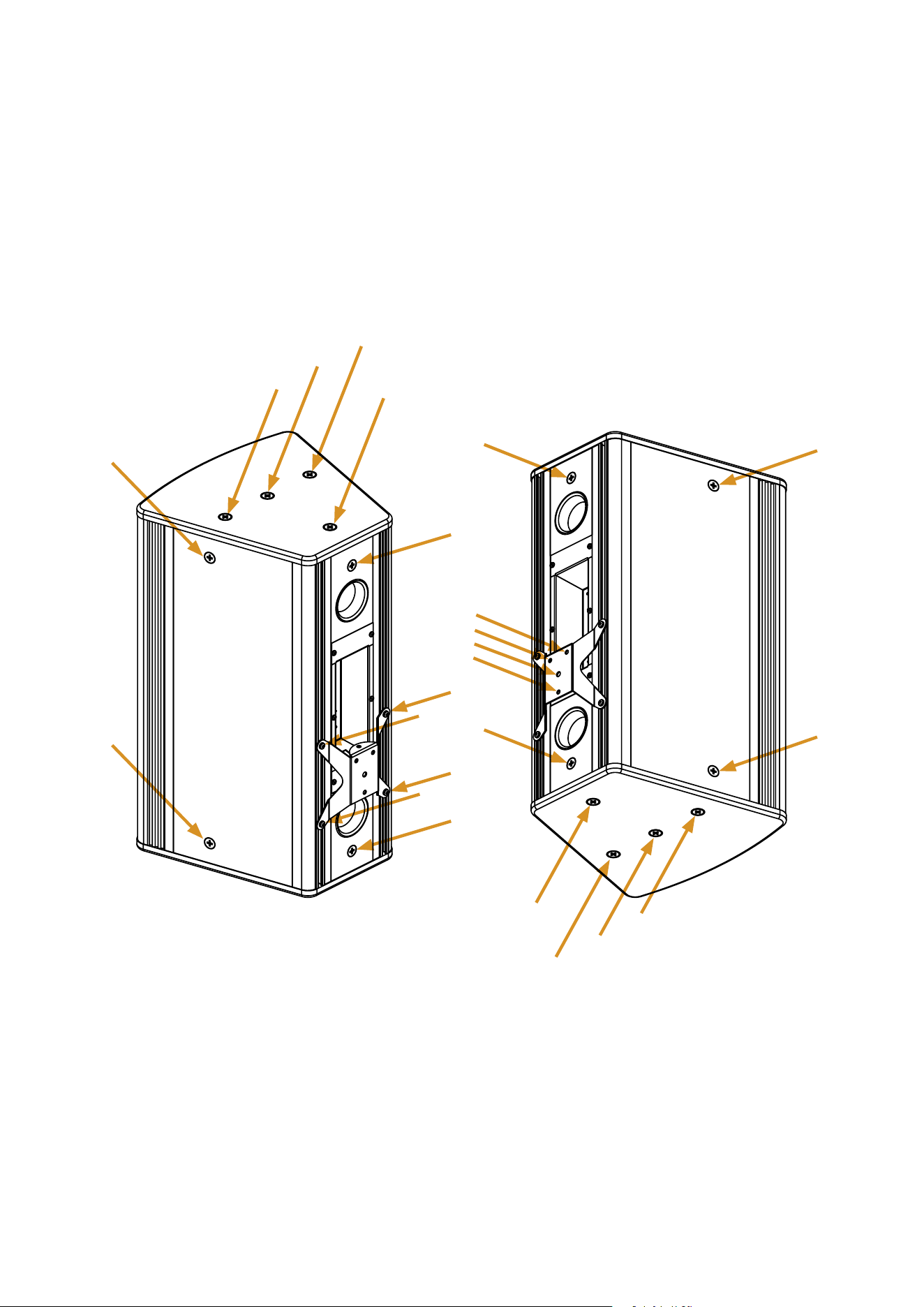

Mounting points on the cabinet
The mounting points on the cabinet for the CN and CM boxes are shown in the illustration below.
In total the cabinet has 18 mounting points four of which are vertically adjustable (A) . In addition, the spider bracket
has 4 mounting points that can be used for an eyebolt or the customized Multibracket (B).
A
A
A
A
B
6
7
Top view Bottom view

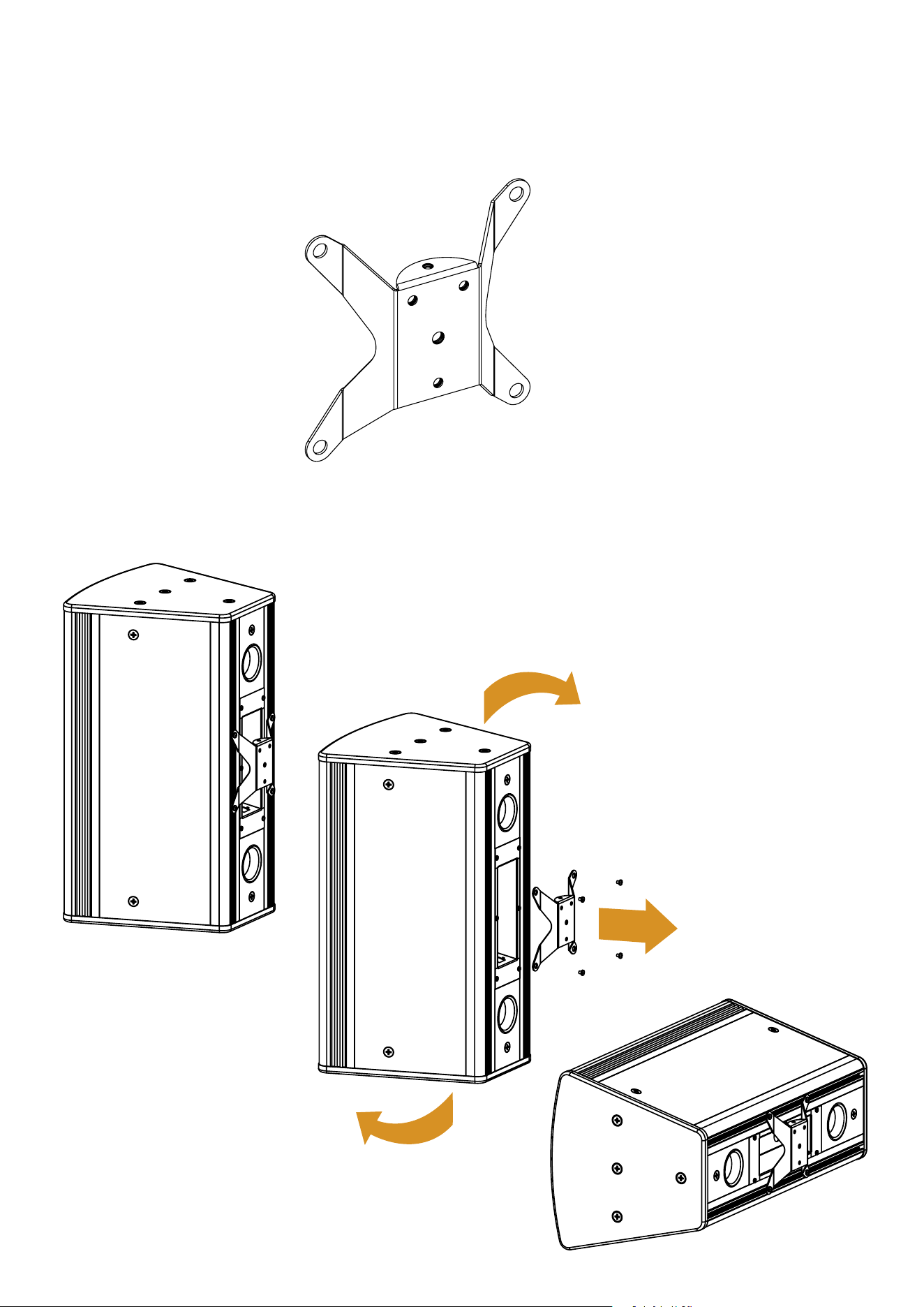

Spider bracket
All CN and CM speakers are supplied with the revolutionary spider bracket shown below.
The bracket can be mounted vertically and horizontally depending on the direction the speaker should be own
and enables easy mounting on the wall bracket with a minimum of time and effort.
1.
2.
3.
6
7
8
9

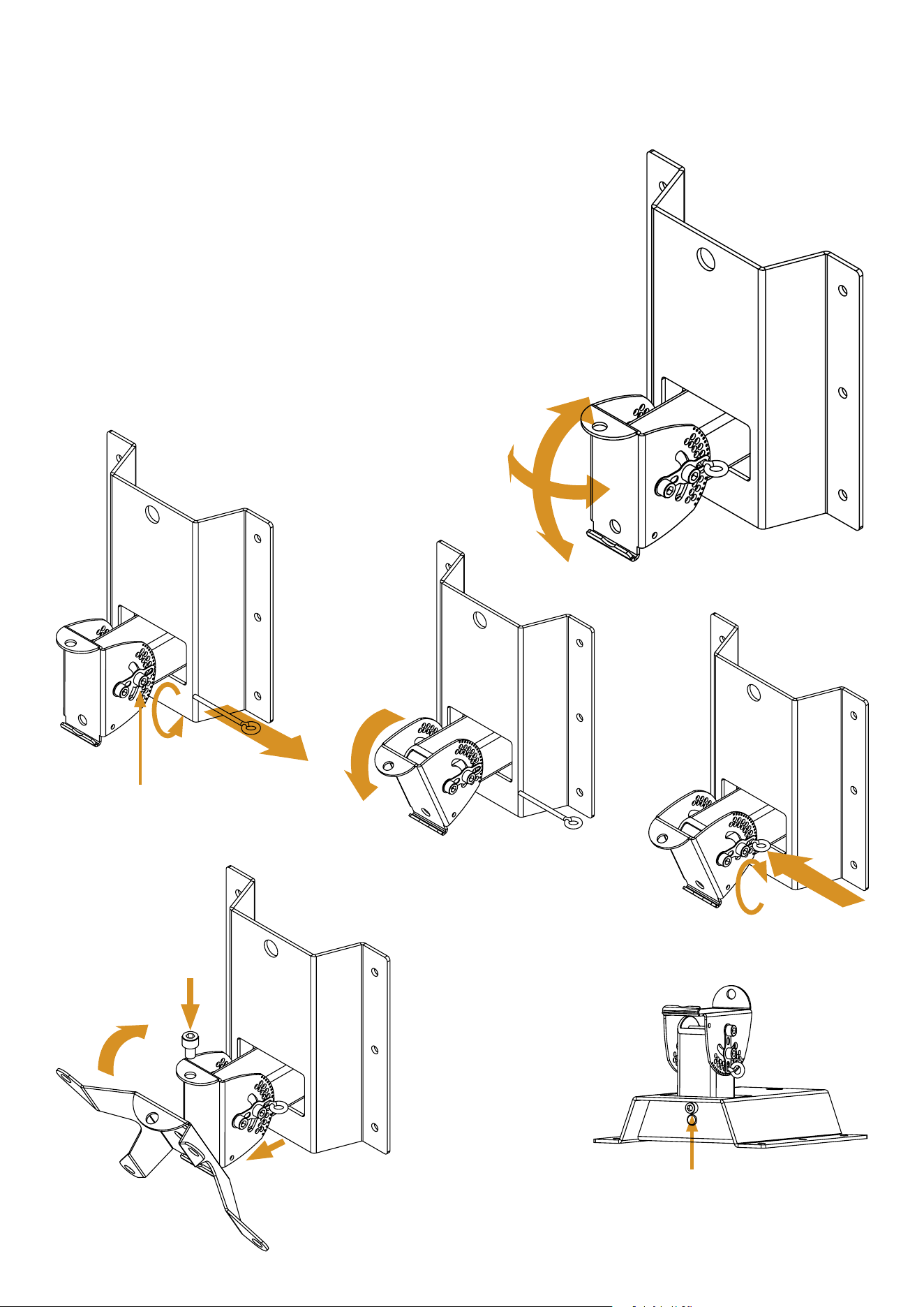

How to install your C-range speaker on the optional Multibracket
The C-range is available with an optional Multibracket that represents the optimum solution for many types of wall
and ceiling installations.
Adjusting the angle
Loosen the vertical adjustment locking bolt, remove the locking pin
and adjust the bracket to the required vertical position. Replace the
pin and tighten the locking bolt. Adjust the bracket horizontally and
tighten the locking bolt underneath the arm.
Mounting of spider illustrated without the speaker
1.
2.
3.
Insert and
tighten 8
mm bolt
Insert and
tighten 8
mm bolt
Horizontal locking bolt
Vertical locking bolt
4.
To mount a CN or CM cabinet on a wall please use the following procedure
1. Find the correct position on the wall and mark where the base of the bracket should be positioned
2. Take the bracket and hold the base at to the wall at the marked position.
3. Mark each hole with a marking tool or a pencil
4. Remove the bracket
5. Drill a hole of the diameter and depth appropriate for the rawplug you plan to insert
6. Insert a rawplug into each hole
7. Position the bracket so that the mounting holes align with the holes in the wall
8. Screw the bracket lightly to the wall in the corners
9. Align the bracket horizontally
10. Insert the last two screws and tighten all 6 screws appropriately. The bracket has been designed to carry a
speaker no larger than the CM 9 weighing no more than 40 kg (88 lbs)
Note! Proper backing or wall structure is required
The Multibracket is extremely versatile as illustrated and enables very exible adjustment of speaker orientation.
Ceiling mounting
Wall mounting
Horizontal
Vertical
Horizontal
Vertical
8
9

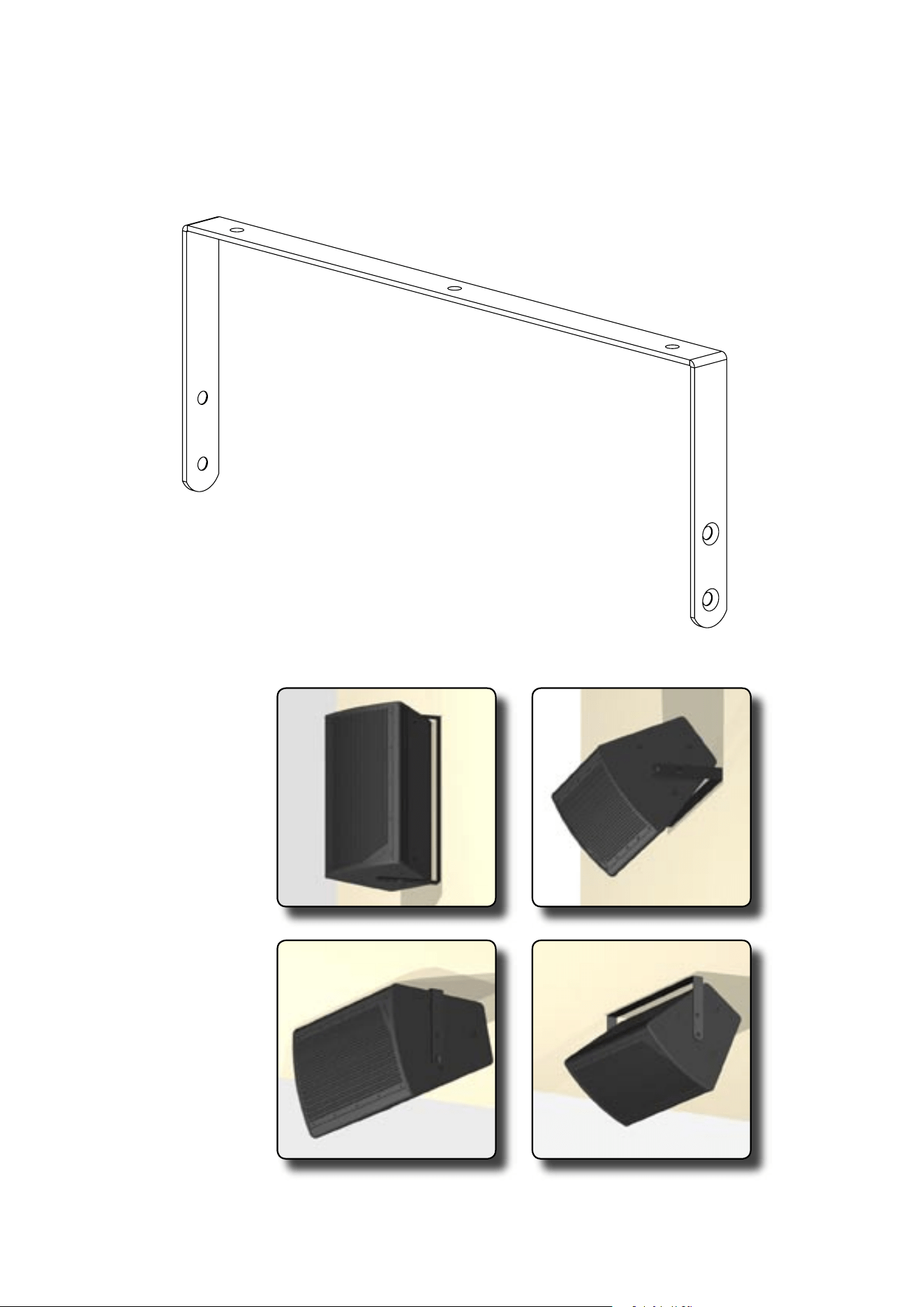

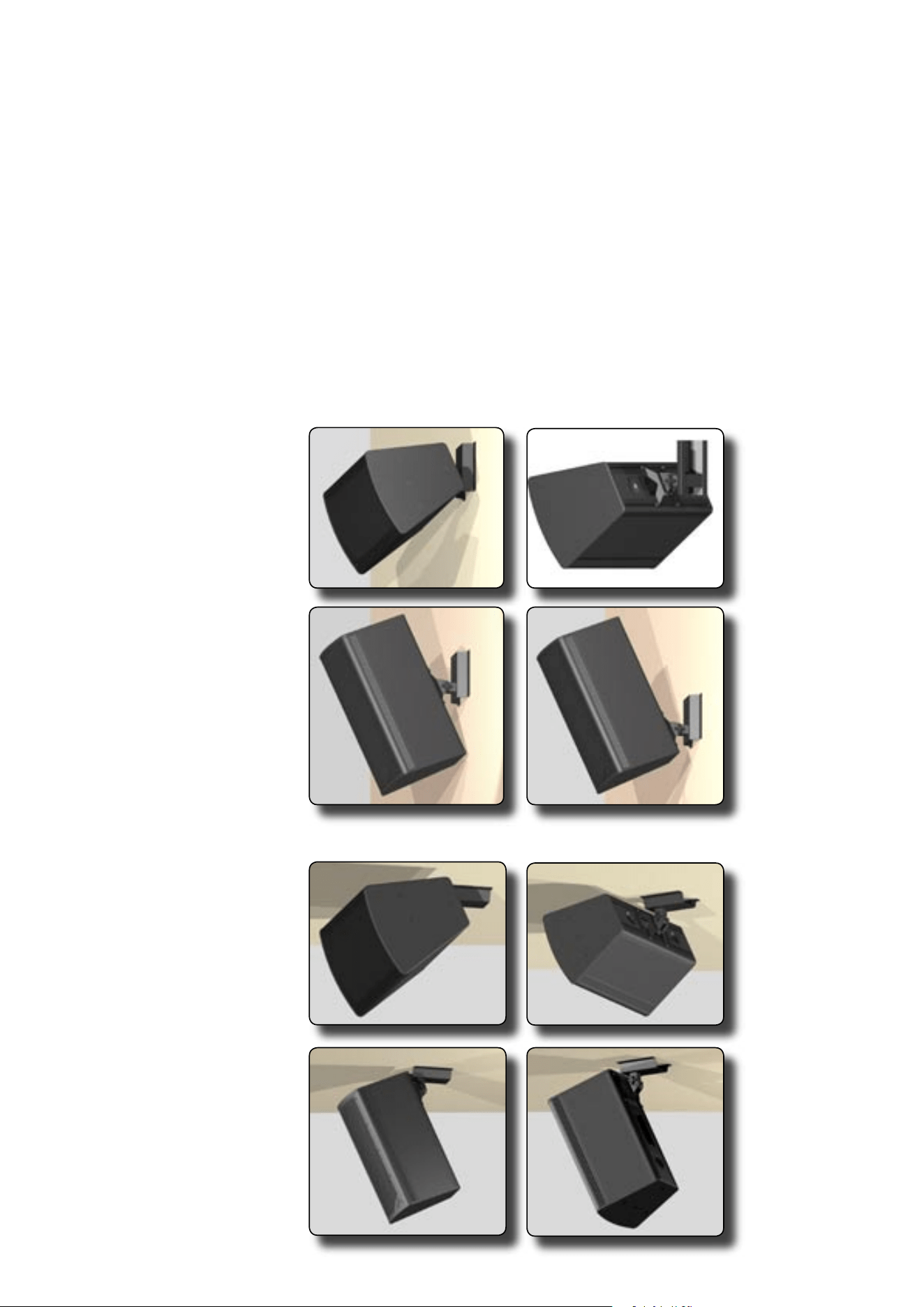

How to install your C-range speaker with the U-bracket
All the smaller models in the C-range are supplied with a U-bracket as standard. For many installation purposes this
bracket will be the optimum solution as it is very versatile and easy to use.
Illustrated below are a number of ways to use the U-Bracket.
10
11
Wall mounting
Ceiling mounting

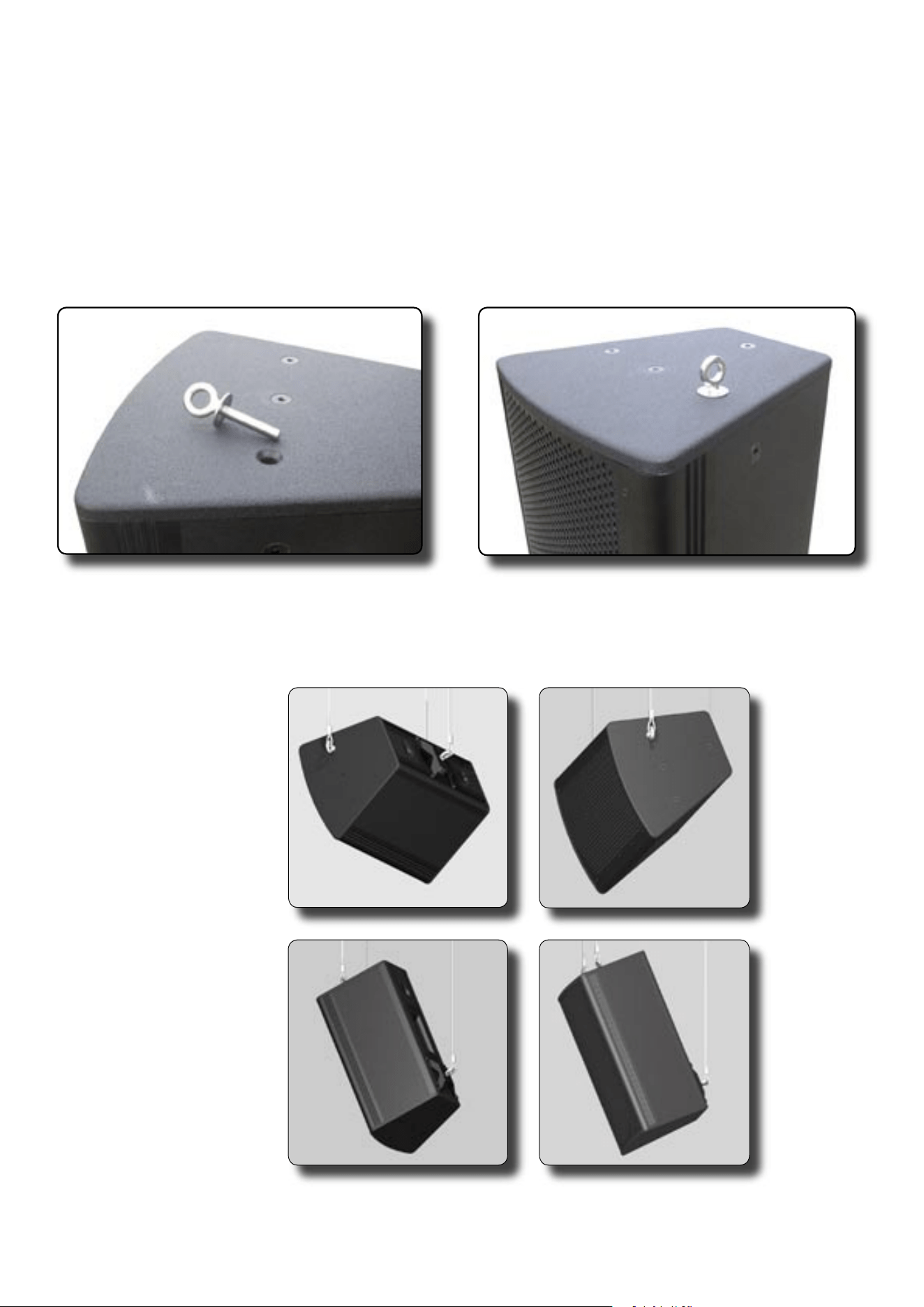

How to mount speaker with eyebolts
For some installations, especially of the larger speakers in the C-range, the ideal way to mount the speaker is by
hanging the cabinet in a wire or chain attached to the speaker with an eyebolt.
All mounting points use standard 10mm metric thread for maximum exibility. To screw an eyebolt into the cabinet,
rst select where to position the bolt and unscrew the blind bolt in already place. The eyebolt should be tightened
with no more than 5 NM (3.7 ft-lbs).
The certied load for the standard Mach eyebolt is 4000 kilograms (8800 lbs).
Warning! Make sure that you comply with all local health and safety regulations when you y a product.
10
11
Horizontal ying
Vertical ying

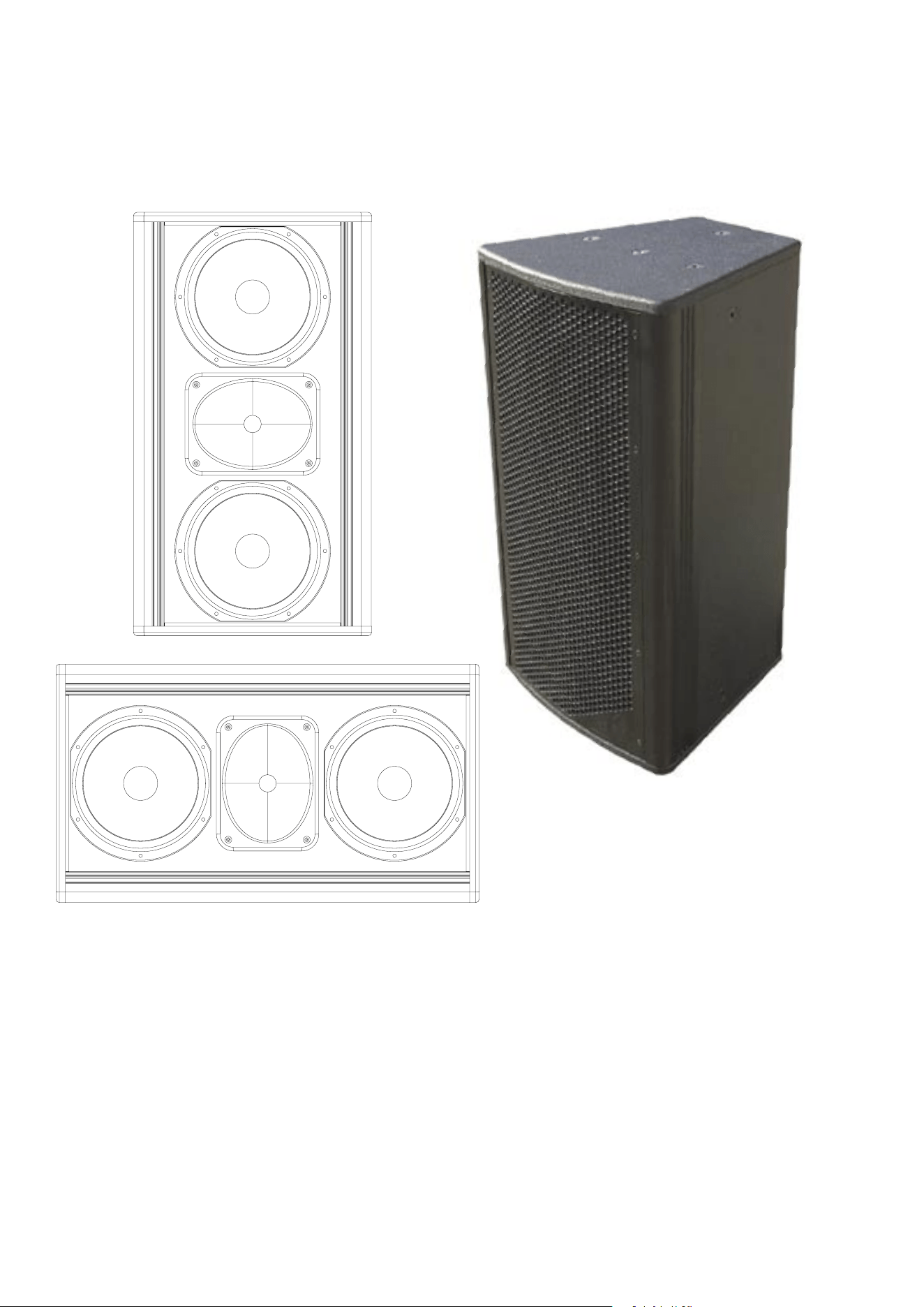

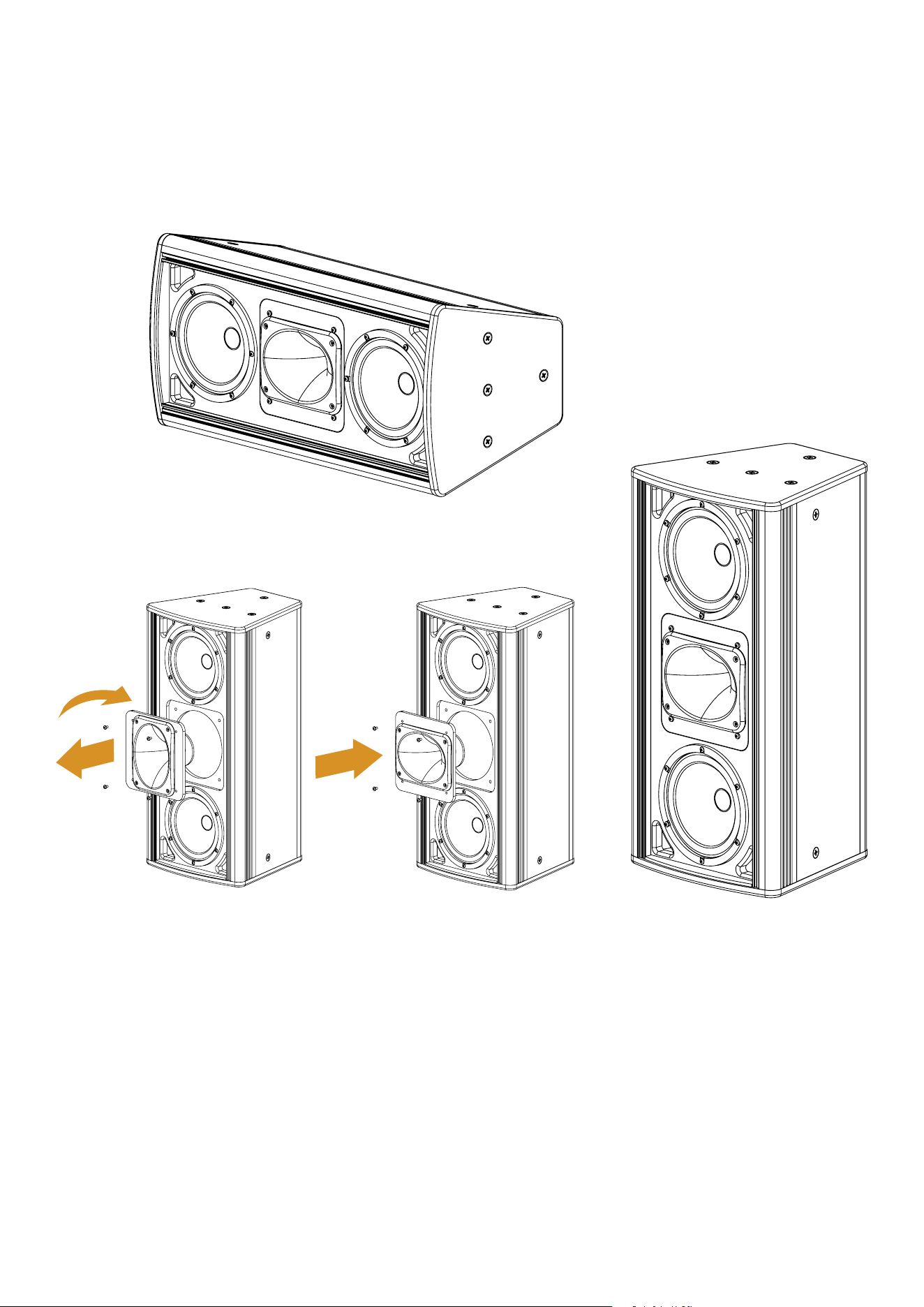

Rotatable horn
The CM-9 features a rotatable horn that allows the speaker to be own vertically or horizontally and still maintain the
required dispersion. The default positioning of the horn is for horizontal installation. If vertical installation is required
remove the grille and unscrew the horn base-plate. The horn can now be rotated 90 degrees to achieve the required
dispersion.
Horn protection
The horn features a thermal protection circuit that increases the impedance when the current exceeds a safe level.
The increased impedance reduces current to the horn, thus protecting it against damage. The audible result is lower
output from the horn. When this happens, do not increase the high frequency level on the EQ or tone control, as this may
cause damage to the protection circuit and possibly also the diaphragm.
When the current returns to a safe level, the protection circuit restores full signal current to the horn, and the audio
output returns to normal.
The thermal protection is very efcient as it combines good protection with excellent sound quality. The components
in the protection circuit are all linear and thus have no inuence on the sound when not engaged.
12
13

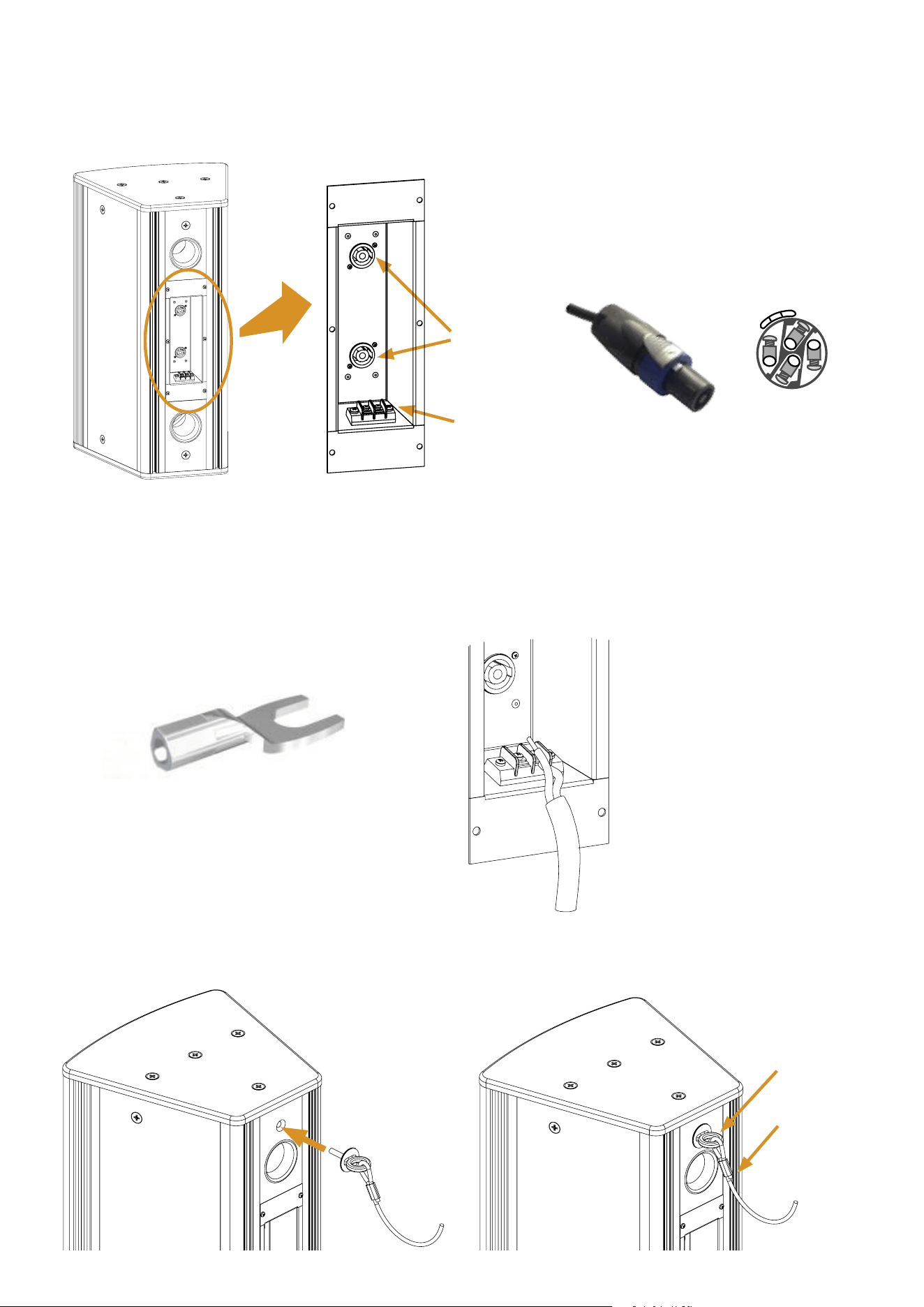

Connection
The C-range has a exible and user-friendly connection module with double connectors, which gives the user the
choice of using NL-4 connectors or screw terminals.
How to connect speaker cable to barrier strip terminals
The barrier strip terminals are a quick and easy way to connect the speaker to an amplier without using a connector.
When using the barrier strip terminals you can either connect a naked wire or t a U-type cable shoe on the end of
the wire as illustrated.
How to attach safety wire
The safety wire is attached to the speaker at one end and to the wall at the other. To mount the safety wire to the
speaker please follow the procedure sketched below.
12
13
1-
1+
2+
2
-
Safety wire
Eyebolt
Note! Barrier strip on terminal
is not available in active mode
Barrier strip
Speakon®
2-pole cable connector with latch lock. Suited
for 4-pole chassis connector using +1/-1
contacts.
Speakon
Cable shoe
Connecting to amplier
The way you connect your C-range speakers to your amplier depends on the type of installation that you are
making and the type of amplier used.
Cables
To get the best possible performance from your C-range speaker, use high quality cable. Cables with high
capacitance, high inductance and high impedance have a strong negative inuence on sound quality as well as
amplier reliability.
Mach Speakers A/S recommend 2x4 mm (11 AWG) or 4x4 mm (11 AWG) Mach speaker cable. This is a professional
rubber cable that is waterproof, has low impedance, low inductance and low capacitance. It also has a low sulfur
content that ensures minimum cable oxidation. The cable is very soft and easy to wind. For recommended cable
lengths, please see table.
Recommended cable lengths (damping factor = 50)

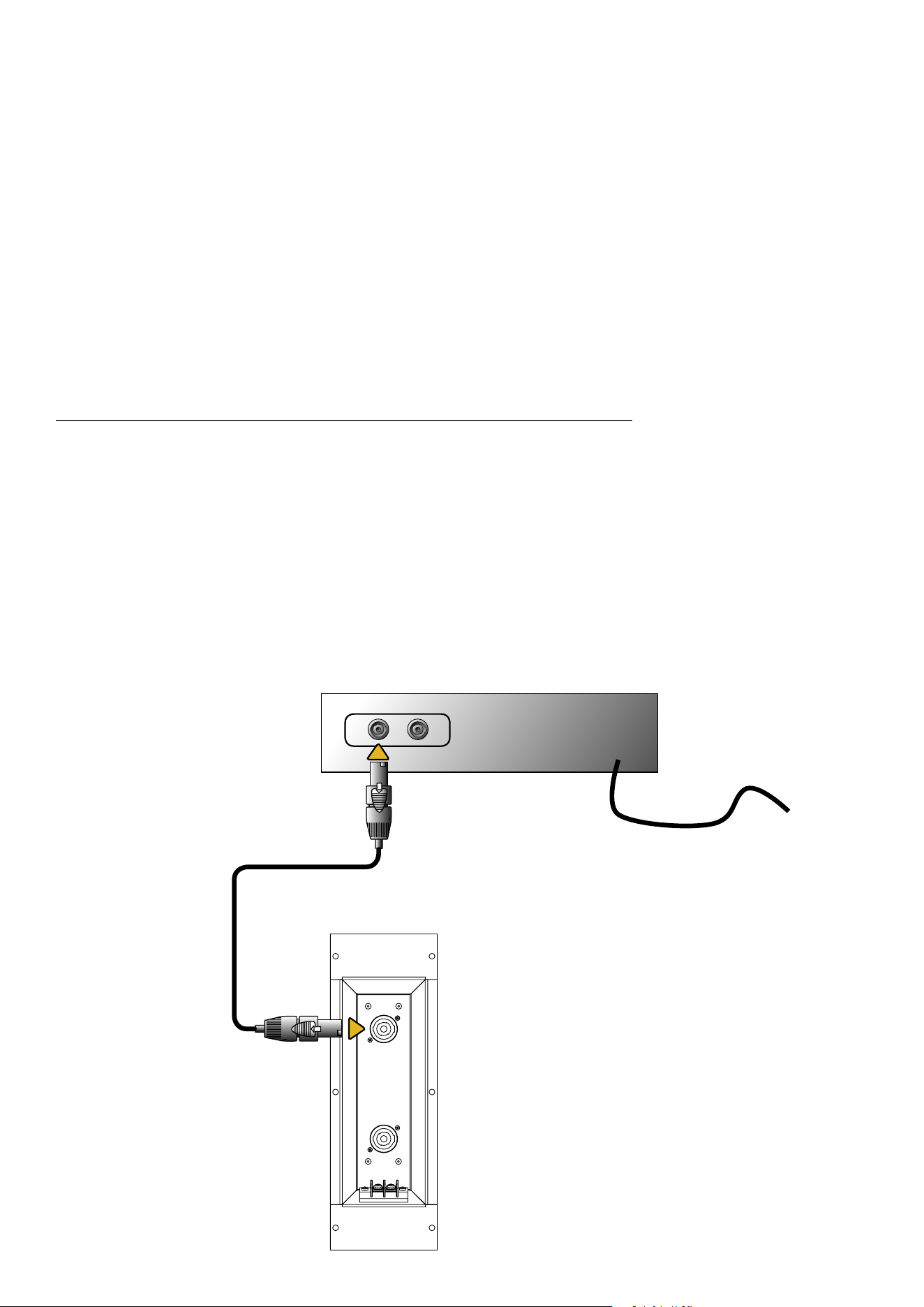

Simple connection
The most basic type of connection is a direct connection from one channel on the amplier to one speaker. In
this case connect the [+] terminal on the amplier to the [+] terminal on the speaker and the [-] terminal on the
amplier to the [-] terminal on the speaker.
Cable size/load 8 ohms 4 ohms 2 ohms
1.5# (16 AWG) 15 m (50 ft.) 7.5 m (25 ft.) 4 m (13 ft.)
2.5# (14 AWG) 30 m (100 ft.) 15 m (50 ft.) 7.5 m (25 ft.)
4.0# (12 AWG) 60 m (200 ft.) 30 m (100 ft.) 15 m (50 ft.)
Output
Note! All congurations are
illustrated with one channel
14
15
Amplier
In/Link
In/Link
Mains
In/Link

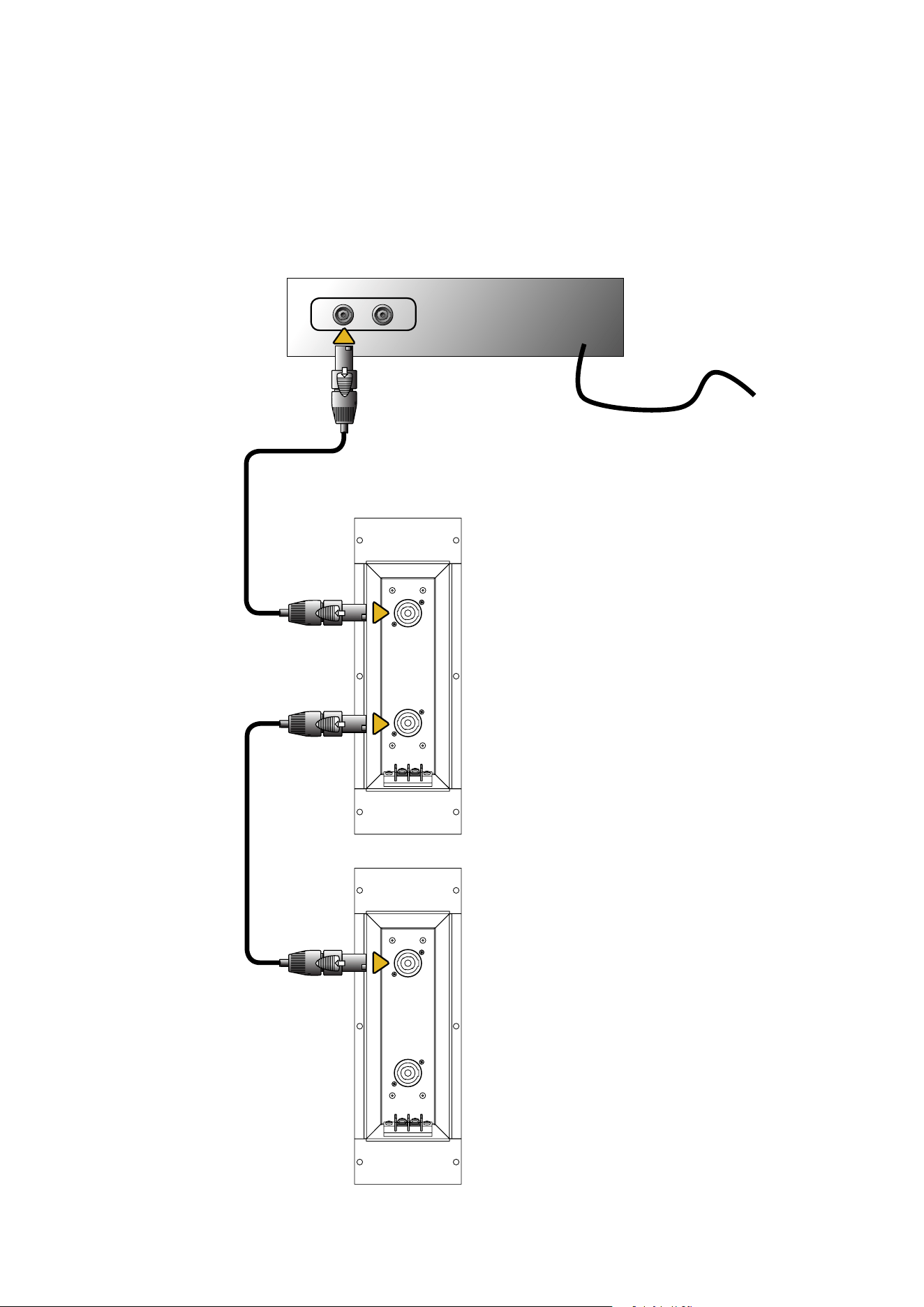

Parallel system
If you require more speakers for better sound distribution and you only have a limited number of output channels
on your amplier, you can connect more than one speaker to each channel. This can be done by linking the
speakers for each channel in parallel as illustrated. However, always remember to check the minimum loading
impedance specied for the amplier. The maximum number of identical C-range speakers that can be connected
to each amplier channel is the impedance of the speaker divided by the minimum specied speaker impedance
rating of the amplier (often 4 ohms).
Note!
CN8 and CM9 are 4 ohm
speakers. When running 2
speakers in parallel your
amplier should be able
to run in a 2 ohm load.
Output
14
15
Amplier
In/Link
In/Link
In/Link
In/Link
Mains
In/Link
In/Link
16
17

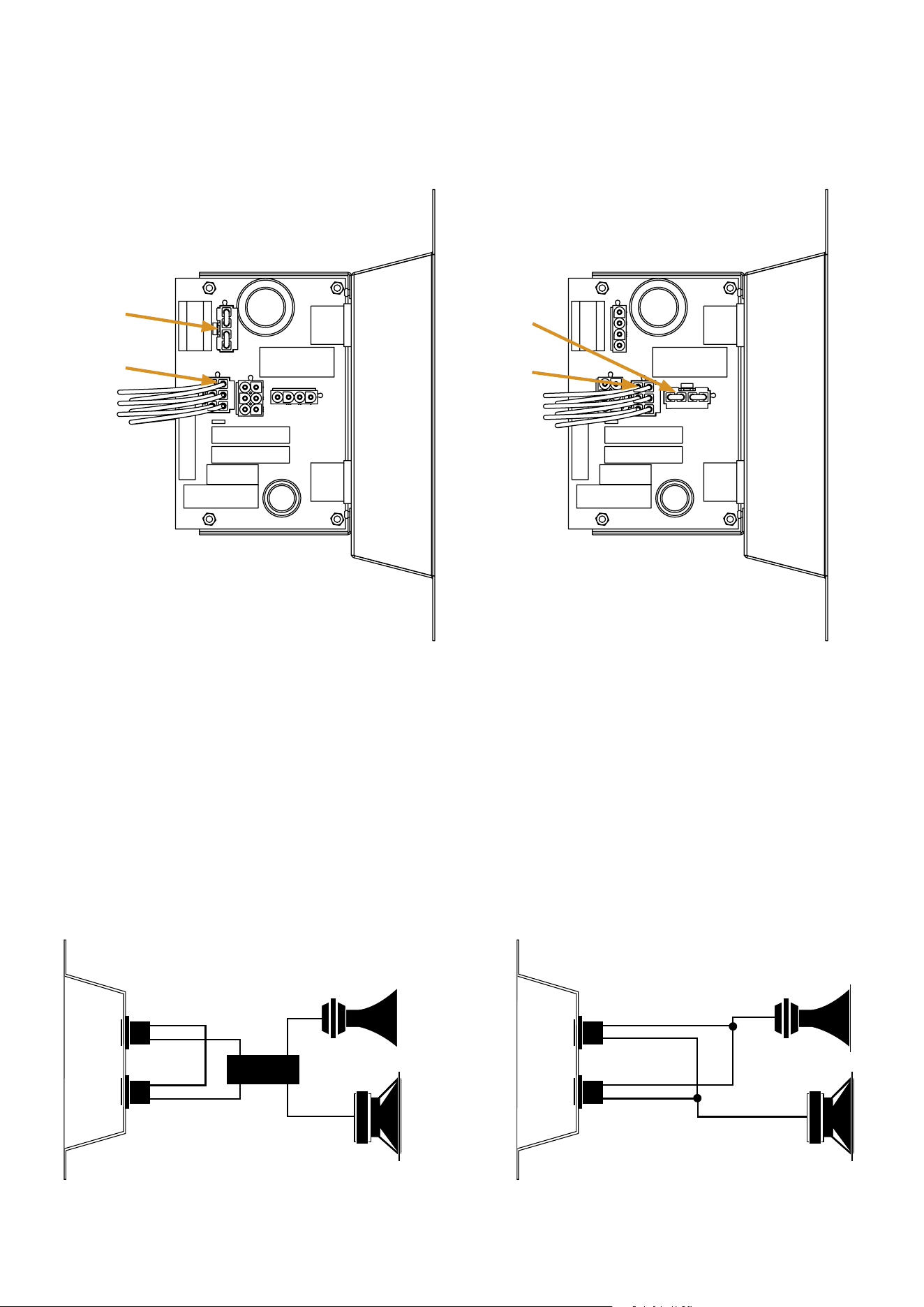

Passive mode Active mode
System conguration
For maximum exibility, all Mach CM speakers can run either passive, using the built-in crossover, or active/biamped
with direct drive of each transducer. The speakers are all set up as passive from the factory but can easily be switched
over to active mode at a later stage.
Active mode setup
Input LF 1+1-
Input HF 2+2-
While operating in active mode the connectors on
the terminal plate will work as shown below:
Passive mode setup
Input Speakon pin 1+1-
While operating in passive mode the connectors
on the terminal plate will work as shown below:
+-2
+-2
+-1
+-1
HF
LF
x-over
Terminal
In/Link
In/Link
+-2
+-2
+-1
+-1
HF
LF
Terminal
In/Link
In/Link
Jumper
Wires to
speakers
Jumper
Wires to
speakers
Note! Barrier strip on terminal
is not available in active mode
16
17
Passive mode
Active mode
1. 2.
3. 4.

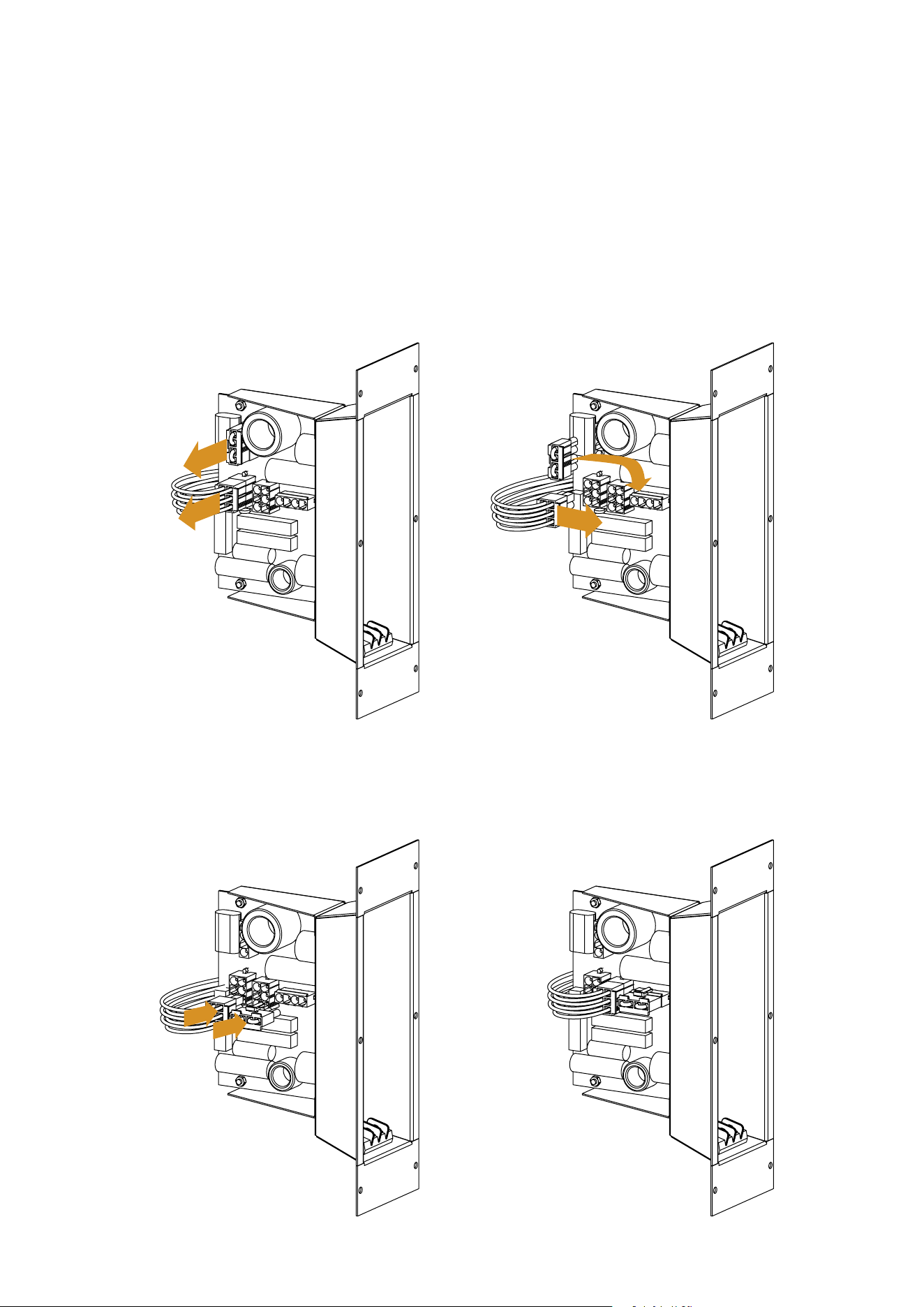

Switching between Passive and Active mode
For the CN7, CN8, CM7 and CM9 Mach has developed a completely new, extremely safe and user friendly way to
switch between Passive and Active mode. The procedure is very quick and simple:
1. Unscrew the terminal plate with the six screws
2. Remove the Molex speaker wire connector from the passive socket
3. Insert the Molex speaker wire connector into the active socket
4. Remove the jumper from the passive socket
5. Insert the jumper in the active socket
5. Reposition the terminal plate and tighten all screws
18
19
Amplier Sub
Terminal on speaker
Output
Amplier
Mains
Input
Output
Mains
Input
Crossover M.20.06
1+/1-
1+/1-
Output
Mains
Input
To Sub

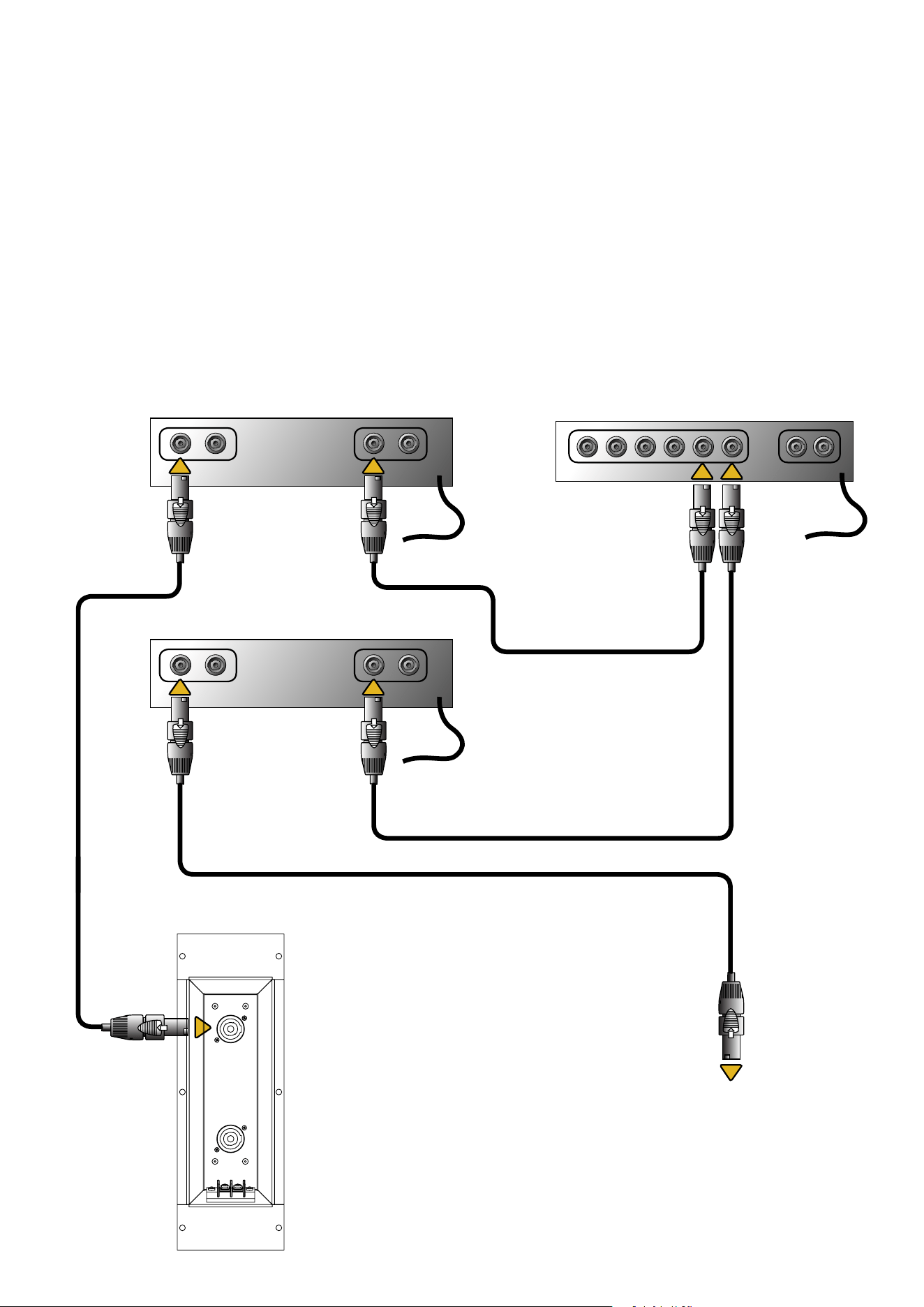

Bi-amp 3-way with Subwoofer
In a bi-amp 3-way system the internal crossover is used for mid/high frequencies and the M20.06 controller is used
to lter out the subwoofer signal to a separate amplier running the subwoofer.
Conguring your Mach CM system for active mode operation
The Mach CM products were designed with maximum exibility in mind, not only in terms of mounting and
adjustments but also in terms of connection and conguration. In the following some of the most common ways of
conguring your system for active mode operation will be illustrated. Please note that this manual does not go into
detail about the use of the Mach 20.06 controller, but all speaker presets for the Mach CM series are preloaded in new
or available for download for older controllers, making the conguration of the system quick and effortless.
In/Link
In/Link
In/Link
18
19

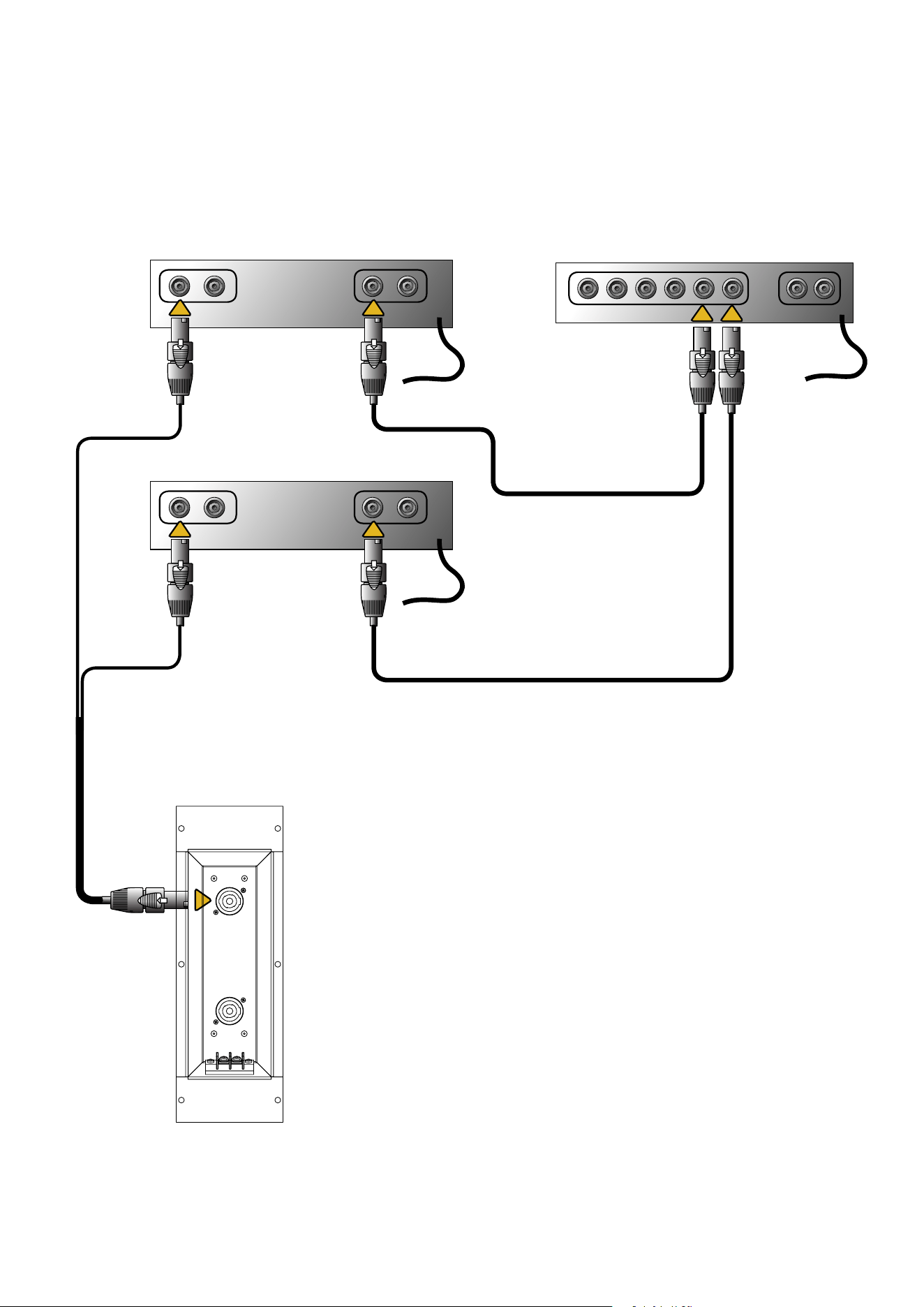

Bi-amp 2-way
In bi-amp 2-way congurations each transducer is driven by a separate amplier and the system is crossed over
directly by the M20.06 for 2-way full range output.
Amplier LF
Terminal on speaker
Output
Amplier HF
Mains
Input
Output
Mains
Input
Crossover M.20.06
1+/1-
2+/2-
Output
Mains
Input
In/Link
In/Link
In/Link
20
21
Amplier Sub
Terminal on speaker
Output
Amplier LF
Mains
Input
Output
Mains
Input
Crossover M.20.06
1+/1-
1+/1-
Output
Mains
Input
Output
Amplier HF
Mains
Input
2+/2-
To Sub

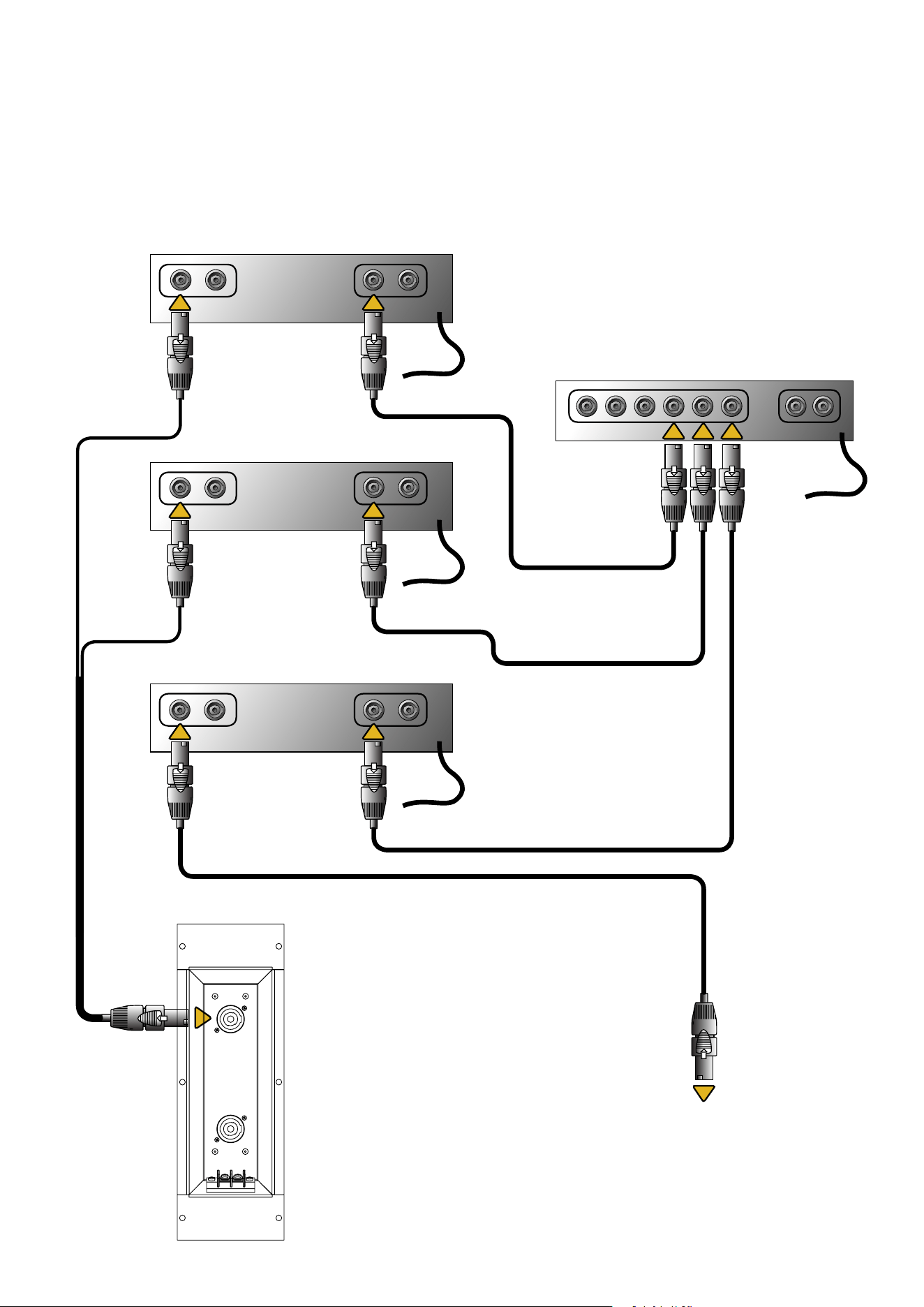

Triple-amp 3-way
In a triple-amp 3-way system each transducer is run by a separate amplier and all signal modulation is done by the
M20.06.
In/Link
In/Link
In/Link
Painting the speaker
The C-range cabinets are made of MDF coated with Mach Safecoat and can be painted easily to match the color
scheme of your venue.
To paint your speaker please follow the procedure below:
1. Remove the front grille
2. Degrease the cabinet on all surfaces with denatured alcohol/methylated spirit
Warning: Use of other types of cleaning chemicals can damage the cabinet and should be avoided
3. Mask all areas that should remain unpainted (tweeter, woofer, switch, terminals, reex port etc)
4. Paint the speaker with Etching primer 2K, P565-713, chromate-free, or a similar product
5. Let the primer dry
6. Apply paint in thin layers using a paint spraying device
7. When spraying the grille be very careful not to ll any holes, as this will have a serious impact on sound
quality
8. Let the paint dry
9. Remove masking
10. Put the grille back in place
20
21
Maintenance of speakers
Although speaker systems normally only require very limited maintenance there are several things you can do to
ensure that your Mach system sounds as good 3 years after installation as on the day you bought it:
Never overload your system – stay within the specied limits for power handling.
Always keep the speaker clean and dry.
As with any electrical product, currents will accelerate corrosion of metal surfaces. Therefore it is recommended to
check the terminals for corrosion at regular intervals, especially if the speaker is mounted in a hostile environment.
How to remove grille
Remove the screws in the grille and pull the grille out. When replacing the grille do not over-tighten the screws.
How to change drivers/woofers
Remove the grille, then remove the screws in the drivers/woofers and pull them out. Carefully disconnect the wires
and connect them to the new transducers, tighten the screws and ret the grille.
How to remove spider bracket
Unscrew the four bolts and remove the spider and the washer, then replace the bolts in the nuts and tighten.
How to remove terminal module
Loosen the six screws and pull the terminal out. Note the positions of the wires, then carefully disconnect the wires
from the transducers.
How to change crossover
Remove the terminal, note the position of the wires then carefully disconnect the wires from the transducers.
Loosen the two screws on each Speakon socket, undo the four screws from the crossover and remove the
crossover from the terminal.
22
23

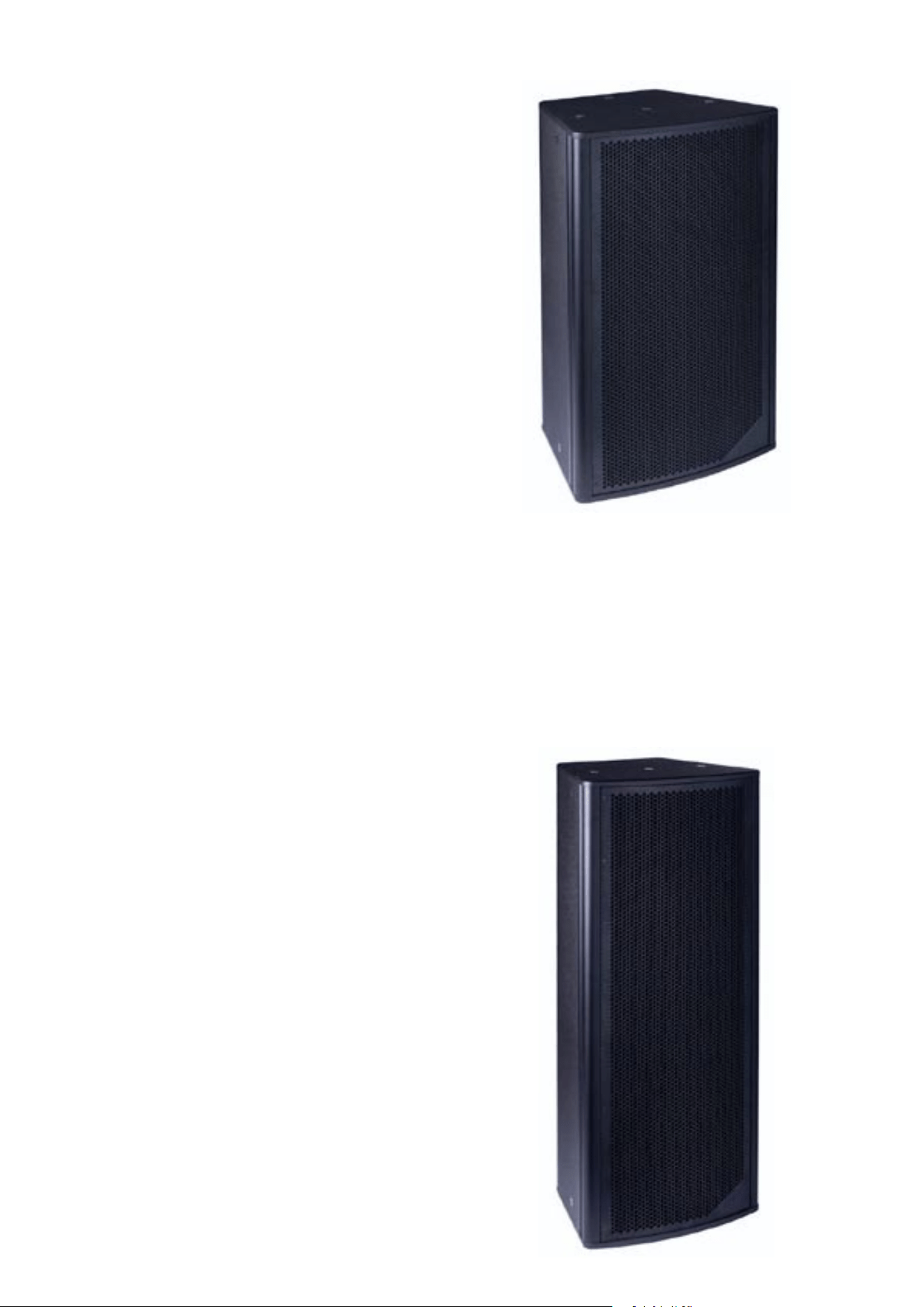

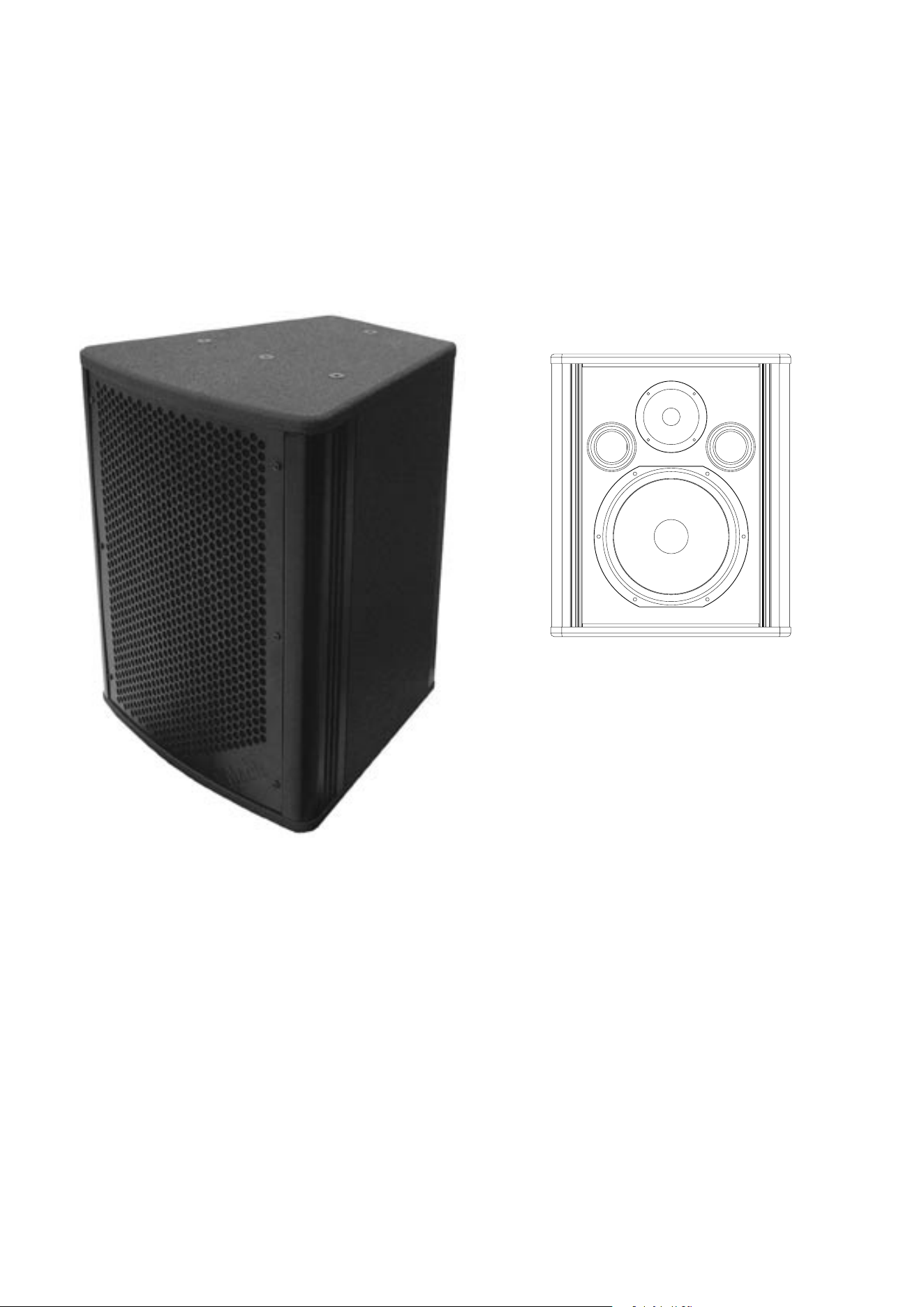

Technical information
C
N
7
A unique, full range near-eld speaker combining hi- properties with medium SPL in an ultra compact design.
Featuring 18 ying points - four of which are fully adjustable - and a customized U-bracket included as standard with
every speaker, the C-Range is an extremely versatile installation speaker series. The distinct new CN7 in the C-Range
speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose.
• Unique, full range near-eld speaker combining
hi- properties with medium SPL in an ultra-
compact design
• A 2-way speaker designed as a compact stand-alone
cabinet with a wide dispersion pattern
• One 8” woofer with extended frequency
response and 1” soft dome tweeter
• Designed specically for applications in which
clarity and speech intelligibility is needed
• Ideal for smaller venues (bars, cafés, etc.) or as in-
ll in seating areas. Can be used as a stand-alone
solution or in combination with a subwoofer
SPECIFICATIONS
Power rating IEC268: 150 watt
Power rating peak: 600 watt
Sensitivity 1w/1m: 92 dB
Max SPL, calculated long term: 114 dB
Max SPL, peak: 120 dB
Frequency response +/-3dB: 65 Hz - 17 kHz
Dispersion angle avg: H 100 x V 100 deg
Nominal impedance: 8 ohm
Recommended amplier: 200 watt in 8 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 41.5 x 34.9 x 33.8 cm
(16.3 x 13.7 x 13.3 inches)
Net weight: 15kg (33 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4,
and barrier strip terminals
Rigging hardware: U-bracket part no.
93943010, Eyebolt part no. 93940002
22
23
SPECIFICATIONS
Power rating IEC268: 300 watt
Power rating peak: 1200 watt
Sensitivity 1w/1m: 95 dB
Max SPL, calculated long term: 120 dB
Max SPL, peak: 126 dB
Frequency response +/-3dB: 65 Hz - 20 kHz
Dispersion Angle: H 90deg x V 60degrees
Nominal impedance: 4 ohm
Recommended amplier: 400 watt in 4 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 62 x 34.9 x 33.8cm
(24.4 x 13.7 x 13.3 inches)
Net weight: 22kg (48.5 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4
and barrier strip terminals
Rigging hardware: U-bracket part no. 93943010
Eyebolt part no. 93940002
• Unique, full range near-eld speaker combining hi-
properties with medium SPL in a compact design
• A 2-way speaker designed as a compact stand-alone
cabinet with a highly controlled dispersion pattern
• Two 8” woofers with an extended frequency
response and 1” compression driver with a constant
coverage horn
• Designed specically for applications in which clarity
and speech intelligibility are needed.
• Ideal for small to medium-sized venues (bars,
cafés, etc.) or as in-ll in seating areas. Can be used
as a stand-alone solution or in combination with a
subwoofer

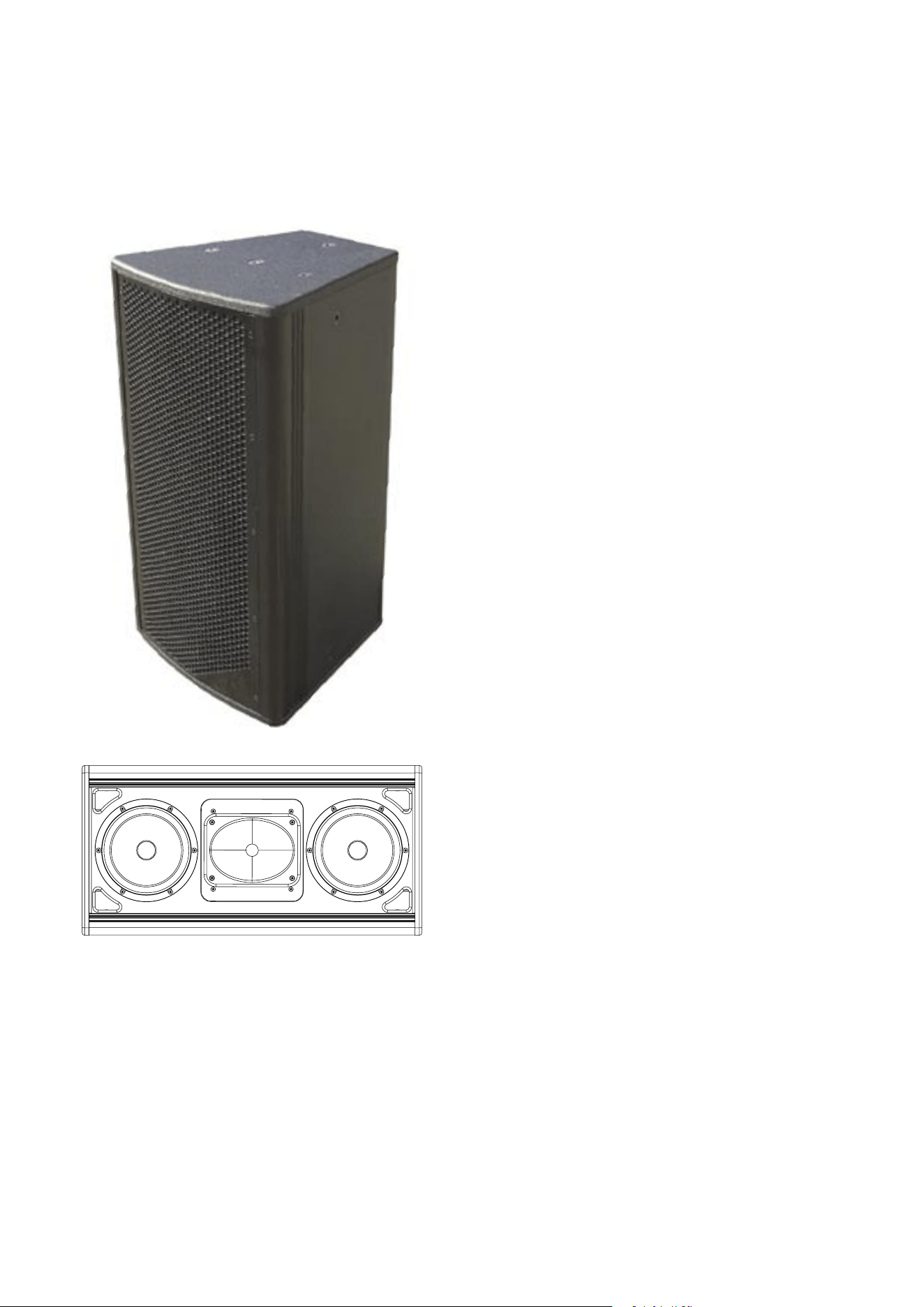

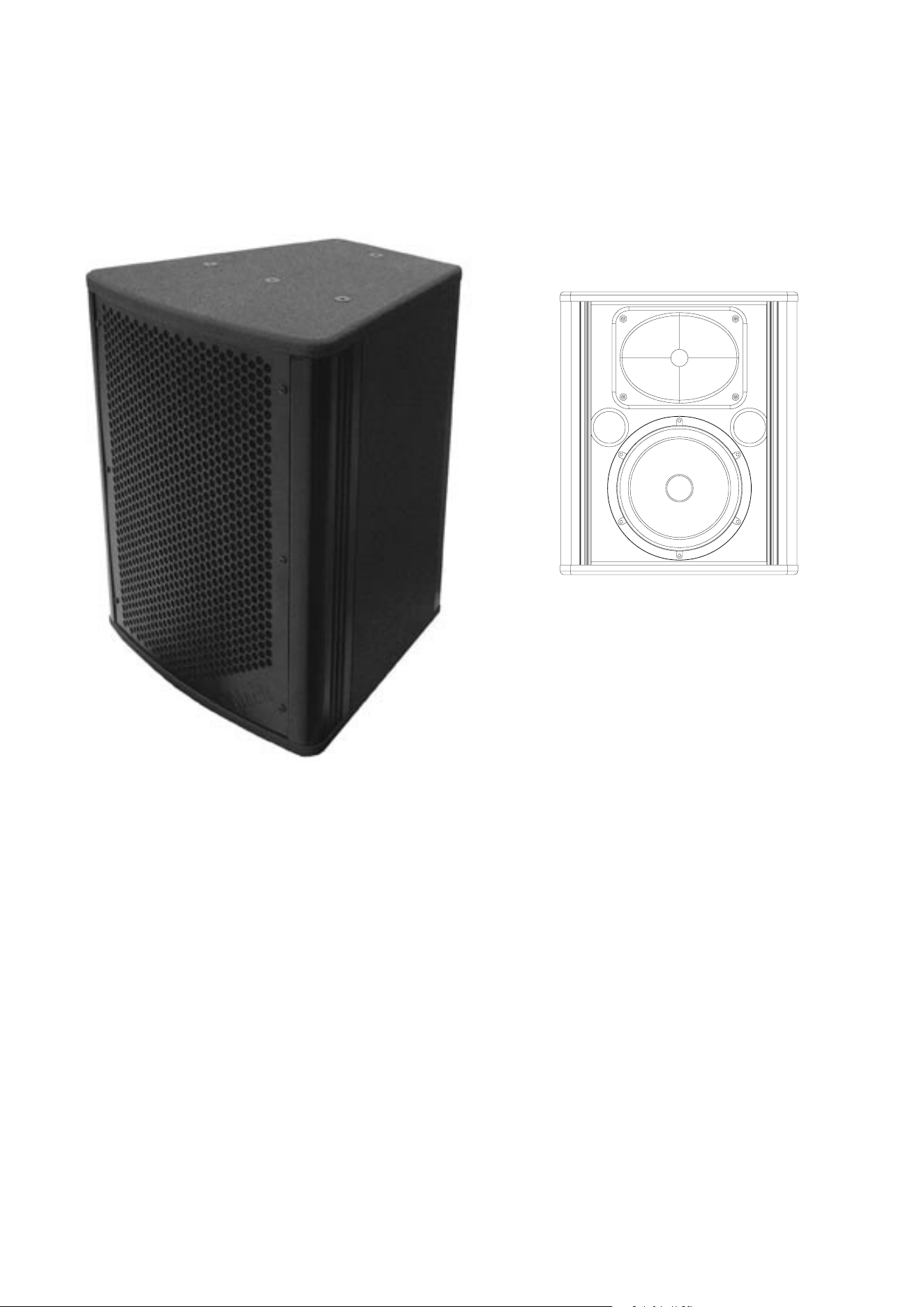

C
N
8
A unique, full range near-eld speaker combining hi- properties with medium SPL in a compact design. Featuring
18 ying points - four of which are fully adjustable - and a customized U-bracket included as standard with every
speaker, the C-Range is an extremely versatile installation speaker series. The distinct new CN8 in the C-Range
speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose.
24
25
SPECIFICATIONS
Power rating IEC268: 300 watt
Power rating peak: 1200 watt
Sensitivity 1w/1m: 96dB (avg.)
Max SPL, calculated long term: 121dB
Max SPL, peak: 127 dB
Frequency range +/-3dB: 80 Hz - 20 kHz
Dispersion angle avg: H 90 x V 60 degrees
Nominal impedance: 8 ohm
Recommended amplier: 400 watt in 8 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 41.5 x 34.9 x 33.8 cm
(16.3 x 13.7 x 13.3 inches)
Net weight: 15kg (33 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4 and
barrier strip terminals
Rigging hardware: U-bracket part no.
93943010, Eyebolt part no. 93940002
• Unique medium-throw speaker with very high SPL
in an ultra-compact design with constant coverage
•A 2-way speaker designed as a compact top box
with a controlled dispersion pattern
• One 8” mid-woofer with very low power
compression and high power handling
• The tweeter is a 1” compression driver with a
constant coverage horn
• Designed specically for applications in which high
SPL and clarity are required
• Ideal for small to medium-sized venues in
combination with a subwoofer or as a delay speaker
C
M
7
A unique medium-throw speaker with very high SPL in an ultra-compact design with constant coverage. Featuring
18 ying points - four of which are fully adjustable - and a customized U-bracket included as standard with every
speaker, the C-Range is an extremely versatile installation speaker series. The distinct new CM7 in the C-Range
speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose.
24
25
C
M
9
A unique, full range near-eld speaker combining hi- properties with medium SPL in a compact design. Featuring
18 ying points - four of which are fully adjustable - and a customized U-bracket included as standard with every
speaker, the C-Range is an extremely versatile installation speaker series. The distinct new CN8 in the C-Range
speaker series from MACH powerfully projects every nuance of pure sound in any environment you choose.
• Unique medium-throw speaker with very high SPL
in an ultra-compact design with constant coverage
• A 2-way speaker designed as a compact top box
with a controlled dispersion pattern
• Two 8” mid-woofers with very low power
compression and high power handling
• The tweeter is a 1” compression driver with a 90x60
degree rotatable constant coverage horn
• Designed specically for applications in which high
SPL and clarity are required
• Ideal for small to medium-sized venues in
combination with a subwoofer or as a delay speaker
SPECIFICATIONS
Power rating IEC268: 600 watt
Power rating peak: 2400 watt
Sensitivity 1w/1m: 99dB (avg.)
Max SPL, calculated long term: 127dB
Max SPL, peak: 133 dB
Frequency range +/-3dB: 70 Hz - 20 kHz
Dispersion angle avg: H 90 x V 60 degrees
Nominal impedance: 4 ohm
Recommended high pass lter: 100 Hz (24dB/octave)
Recommended amplier: 850 watt in 4 ohm
Drive units:
Woofer: 2x8” with interleaved sandwich voice coil
Nominal inmpedance: 4 ohm (2 pcs)
Powerhandling AES: 600 watt
Sensitivity 1w/1m: 98dB
Max SPL, peak: 132 dB
Recommended high pass lter: 100 Hz (24dB/octave)
Recommended amplier: 850 watt in 4 ohm
Compression driver: 1”
Nominal impedance: 8 ohm
Powerhandling: 50 watt above 2.5 Khz/24 dB/octave
Sensitivity 1w/1m: 108 dB
Max SPL, calc. long term: 125 dB
Max SPL, peak: 131 dB
Recommended crossover freq.: 2500 Hz/24 dB/octave
Recommended amplier: 75 watt in 8 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 70 x 34.9 x 33.8 cm
(27.6 x 13.7 x 13.3 inches)
Net weight: 25kg (55 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4 and
barrier strip terminals
Rigging hardware: U-bracket part no. 93943010,
Eyebolt part no. 93940002
26
27
Warranty
For information on the warranty conditions specic for your country please refer to the material handed to you by
your local Mach distributor.
Declaration of conformity
Manufacturer: MACH Speaker A/S
Perspektivvej 2
9900 Frederikshavn
Denmark
We, MACH Speakers A/S, declare under our responsibility that the following product(s)
Product: CN7/CN8/CM7/CM9
Type: Speaker
Are in conformity with:
- COUNCIL DIRECTIVE of 3 May 1989 on the approximation of the laws of the Member States relating to
electromagnetic compatibility (89/336/EEC)
Was manufactured in conformity with the following national standards that implements a harmonized standard:
EN 55013
Limits and methods of measurement of radio disturbance characteristics of broadcast receivers and associated equipment.
Michael Holmbo _________________ Date: 19 May 2004
26
27
Ordering spareparts
In the unlikely event of your speaker breaking down some of the components can be ordered as spare parts.
For information on how to order in your country please contact your local supplier or contact the head ofce in
Denmark at the following address:
Mach Speakers A/S
Perspektivvej 2
DK-9900 Frederikshavn
Denmark
Tel: +45 72150852
Or send an e-mail to: machservice&support@martin.dk
28
29
28
29
C
M
12
Specications:
Power rating IEC268: 325 watt
Power rating peak: 1300 watt
Sensitivity 1w/1m: 98.5 dB
Max SPL, calculated long term: 124 dB
Max SPL, peak: 130 dB
Frequency response +/-3dB: 70 Hz - 18 kHz
Dispersion Angle: H 90deg x V 75deg
Nominal impedance: 8 ohm
Recommended amplier: 450 watt in 8 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 62 x 43 x 35cm
(24.4 x 17 x 13.8 inches)
Net weight: 26.5kg (58.3 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4
and barrier strip terminals
Rigging hardware: Included U-bracket and eyebolts
Specications:
Power rating IEC268: 320 watt
Power rating peak: 1280 watt
Sensitivity 1w/1m: 97 dB
Max SPL, calculated long term: 122 dB
Max SPL, peak: 128 dB
Frequency response +/-3dB: 72 Hz - 18 kHz
Dispersion Angle: H 100deg x V 65deg
Nominal impedance: 8 ohm
Recommended amplier: 450 watt in 8 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 62 x 43 x 35cm
(24.4 x 16.9 x 13.8 inches)
Net weight: 26.5kg (58.3 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4
and barrier strip terminals
Rigging hardware: Included U-bracket and eyebolts
C
N
12

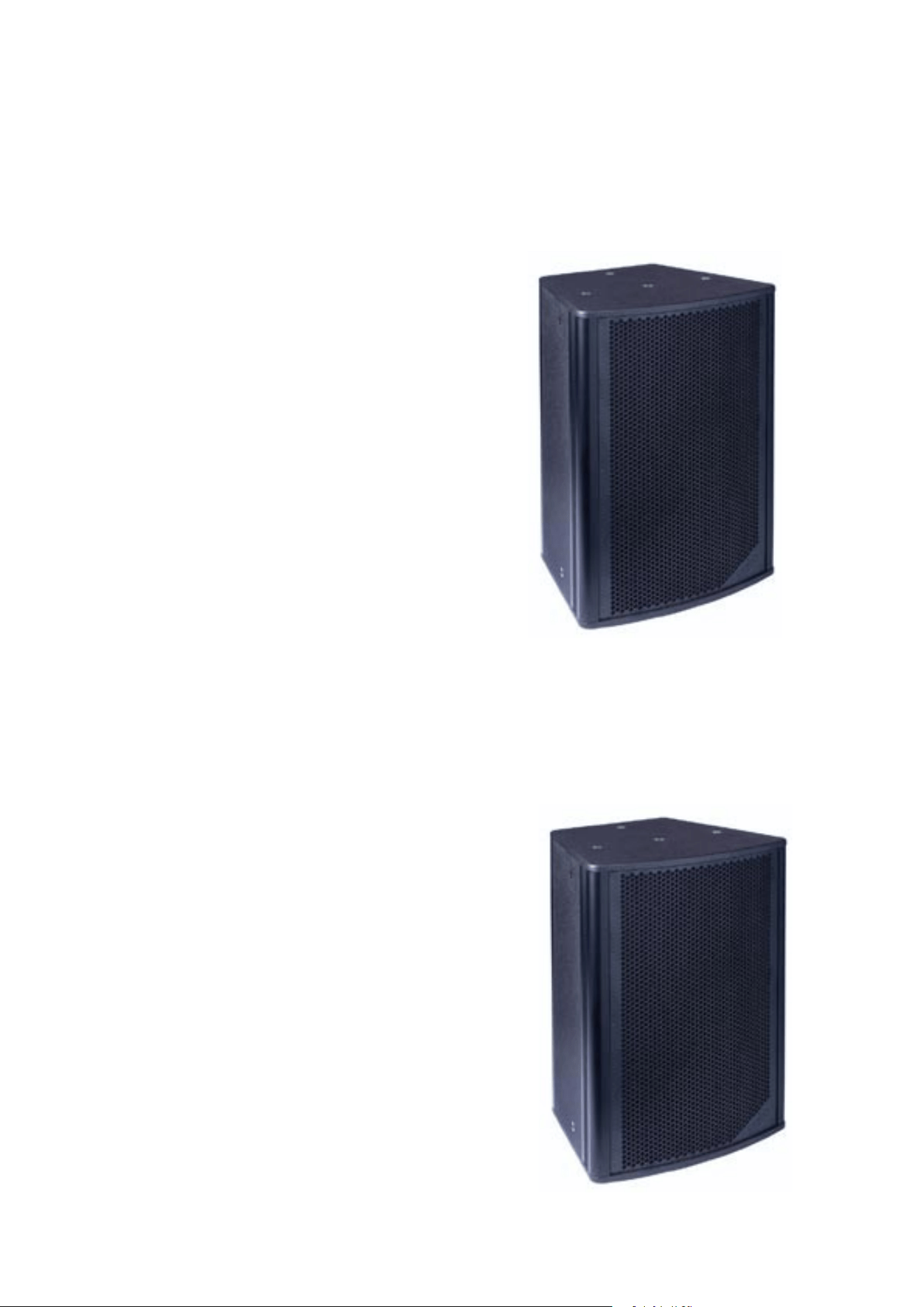

C-range overview
Co-designed by contractors for contractors, the C-range is a breakthrough in installation speaker design and offers
extraordinarily easy installation. From full range near-eld speakers to medium-throw speakers, the C-range is ideal
for many types of venues such as bars, cafés and large live or playback venues.
30
31
C
M
15
C
M
18
Specications:
Power rating IEC268: 450 watt
Power rating peak: 1800 watt
Sensitivity 1w/1m: 102 dB
Max SPL, calculated long term: 129 dB
Max SPL, peak: 135 dB
Frequency response +/-3dB: 58 Hz - 20 kHz
Dispersion Angle: H 90deg x V 55deg
Nominal impedance: 8 ohm
Recommended amplier: 650 watt in 8 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 83 x 50 x 40.5cm
(32.7 x 19.7 x 16 inches)
Net weight: 41.5 kg (91.3 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4
and barrier strip terminals
Rigging hardware: Included eyebolts
Specications:
Passive mode:
Power rating IEC268: 700 watt
Power rating peak: 2800 watt
Sensitivity 1w/1m: 102.5 dB
Max SPL, calculated long term: 131 dB
Max SPL, peak: 137 dB
Frequency response +/-3dB: 75 Hz - 20 kHz
Dispersion Angle: H 90deg x V 55deg
Nominal impedance: 4 ohm
Recommended amplier: 1000 watt in 4 ohm
WEIGHT & MEASUREMENTS:
Dimensions (HxWxD): 106 x 43 x 35cm
(41.7 x 17 x 13.8 inches)
Net weight: 45kg (99 lbs)
Finish: Black SafeCoat coating
with other colors optional
Grille: 2 mm steel with foam backing
Input connectors: 2 x Speakon® NL 4
and barrier strip terminals
Rigging hardware: Included eyebolts
CI range overview
A perfect complement to the C-range in most retail and club environments is the Mach CI series. All Mach CI in-ll
speakers have wide, even dispersion that ensures good coverage in low ceiling applications.
Specications:
Power rating IEC258 50 watt
Power rating peak 200 watt
Recommended amplier 70 watt
Freq. Range +/-3dB 120Hz-20KHz
Freq. Range +/-10dB 80Hz-20KHz
Sensitivity 1W/1m 87dB
Nominal impedance 8 ohm
Woofer 4”
Tweeter 3/4”
Dispersion Ø90°
Flying system TF bracket, Aux mounting bracket
Dimensions (H x W x D) 207x150x120mm
(8.15x5.91x4.72in)
Net weight 1.8 Kg (4 lbs)
Ci 4
Specications:
Power rating IEC258 65 watt
Power rating peak 260 watt
Recommended amplier 100 watt
Freq. Range +/-3dB 90Hz-20KHz
Freq. Range +/-10dB 70Hz-20KHz
Sensitivity 1W/1m 89dB
Nominal impedance 8 ohm
Woofer 6.5”
Tweeter 3/4”
Dispersion Ø90°
Flying system TF bracket, Aux mounting bracket
Dimensions (H x W x D) 275x200x160mm
(10.83x7.83x6.30in)
Net weight 2.7 Kg (5.9 lbs)
Ci 6
Specications:
Power rating IEC258 125 watt
Power rating peak 500 watt
Recommended amplier 175 watt
Freq. Range +/-3dB 70Hz-20KHz
Freq. Range +/-10dB 60Hz-20KHz
Sensitivity 1W/1m 93dB
Nominal impedance 8 ohm
Woofer 8”
Tweeter 1”
Dispersion Ø90°
Flying system TF bracket, Aux mounting bracket
Dimensions (H x W x D) 395x290x220mm
(15.55x11.42x8.66in)
Net weight 5.2 Kg (11.5 lbs)
Ci 8
30
31
32
Supplier
Mach Speakers A/S
www.mach.dk
