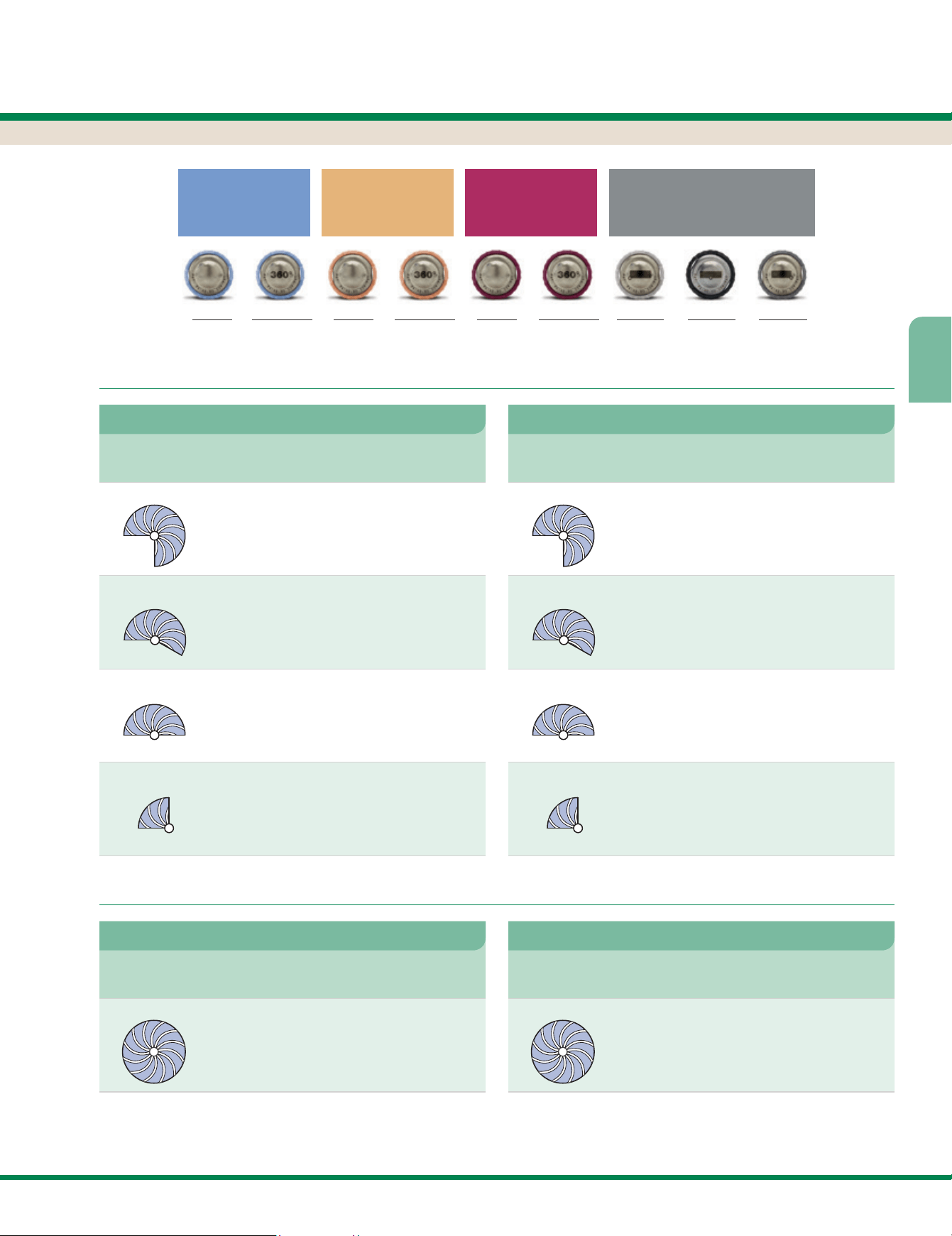

www.rainbird.com/sprays
17
www.rainbird.com
Spray & Rotary Nozzles
Rotary Nozzles
R-VAN Nozzles
R-VAN14 R-VAN14-360 R-VAN18 R-VAN18-360 R-VAN24 R-VAN24-360 R-VAN-LCS R-VAN-SST R-VAN-RCS
45° - 270° 360° 45° - 270° 360° 45° - 270° 360° 5' x 15'
Left Corner Strip
5' x 30'
Side Strip
5' x 15'
Right Corner Strip
8' to 14'
(2.4m to 4.6m)
13' to 18'
(4.0m to 5.5m)
17' to 24'
(5.2m to 7.3m)
Strip Nozzles
Note: All R-VAN nozzles tested on 4" (10.2 cm) pop-ups
n Square spacing based on 50% diameter of throw
s Triangular spacing based on 50% diameter of throw
Performance data taken in zero wind conditions
R-VAN24 and R-VAN24-360: “Do not reduce the radius below 17’ (5,2 m)
R-VAN18 and R-VAN18-360: “Do not reduce the radius below 13’ (4,0 m)
R-VAN14 and R-VAN18-360: “Do not reduce the radius below 8’ (2,4 m)
Nozzle
Pressure
psi
Radius
ft.
Flow
gpm
n
Precip
In/h
s
Precip
In/h
270°
30 13 0.84 0.64 0.76
35 13 0.87 0.66 0.74
40 14 0.92 0.60 0.71
45 14 0.94 0.62 0.70
50 15 1.11 0.63 0.73
55 15 1.17 0.67 0.77
210°
30 13 0.65 0.64 0.76
35 13 0.68 0.66 0.74
40 14 0.72 0.60 0.71
45 14 0.73 0.62 0.70
50 15 0.86 0.63 0.73
55 15 0.91 0.67 0.77
180°
30 13 0.56 0.64 0.76
35 13 0.58 0.66 0.74
40 14 0.61 0.60 0.71
45 14 0.63 0.62 0.70
50 15 0.74 0.63 0.73
55 15 0.78 0.67 0.77
90°
30 13 0.28 0.64 0.76
35 13 0.29 0.66 0.74
40 14 0.31 0.62 0.71
45 14 0.32 0.61 0.70
50 15 0.37 0.63 0.73
55 15 0.39 0.67 0.77
Nozzle
Pressure
psi
Radius
ft.
Flow
gpm
n
Precip
In/h
s
Precip
In/h
360°
30 13 1.10 0.63 0.72
35 13 1.12 0.64 0.74
40 14 1.22 0.60 0.69
45 14 1.27 0.62 0.72
50 15 1.41 0.60 0.70
55 15 1.45 0.62 0.72
Nozzle
Pressure
bar
Radius
m
Flow
l/m
n
Precip
mm/h
s
Precip
mm/h
360°
2.1 4.0 4.16 16 18
2.4 4.0 4.24 16 19
2.8 4.3 4.62 15 18
3.1 4.3 4.81 16 18
3.4 4.6 5.34 15 18
3.8 4.6 5.49 16 18
R-VAN14 8’ - 14’
R-VAN14-360 8’ - 14’ R-VAN14-360 2.4 to 4.6m METRIC
Nozzle
Pressure
bar
Radius
m
Flow
l/m
n
Precip
mm/h
s
Precip
mm/h
270°
2.1 4.0 3.18 16 19
2.4 4.0 3.29 17 19
2.8 4.3 3.48 15 18
3.1 4.3 3.56 16 18
3.4 4.6 4.20 16 19
3.8 4.6 4.43 17 20
210°
2.1 4.0 2.46 16 19
2.4 4.0 2.57 17 19
2.8 4.3 2.73 15 18
3.1 4.3 2.76 16 18
3.4 4.6 3.26 16 19
3.8 4.6 3.44 17 20
180°
2.1 4.0 2.12 16 19
2.4 4.0 2.20 17 19
2.8 4.3 2.31 15 18
3.1 4.3 2.38 16 18
3.4 4.6 2.80 16 19
3.8 4.6 2.95 17 20
90°
2.1 4.0 1.06 16 19
2.4 4.0 1.10 17 19
2.8 4.3 1.17 16 18
3.1 4.3 1.21 15 18
3.4 4.6 1.40 16 19
3.8 4.6 1.48 17 20
R-VAN14 2.4 to 4.6m METRIC
8’ - 14’ Adjustable Arc Nozzles (45° to 270°)
8’ - 14’ Full Circle Nozzles (360°)

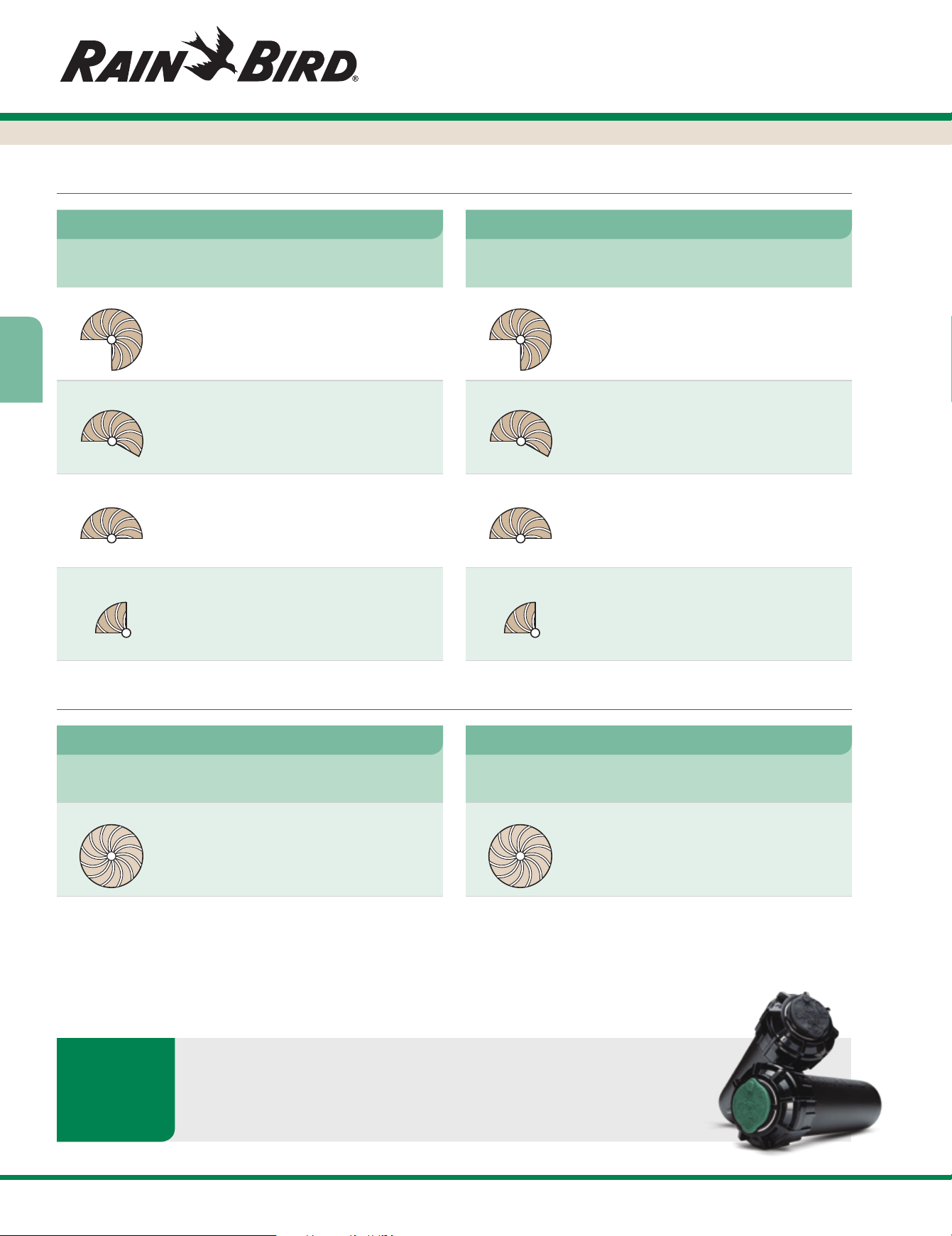

18
The Intelligent Use of Water.
™
Spray & Rotary Nozzles
Rotary Nozzles
R-VAN Nozzles
Note: All R-VAN nozzles tested on 4" (10.2 cm) pop-ups
n Square spacing based on 50% diameter of throw
s Triangular spacing based on 50% diameter of throw
Performance data taken in zero wind conditions
R-VAN24 and R-VAN24-360: “Do not reduce the radius below 17’ (5,2 m)
R-VAN18 and R-VAN18-360: “Do not reduce the radius below 13’ (4,0 m)
R-VAN14 and R-VAN18-360: “Do not reduce the radius below 8’ (2,4 m)
Nozzle
Pressure
psi
Radius
ft.
Flow
gpm
n
Precip
In/h
s
Precip
In/h
270°
30 16 1.26 0.65 0.75
35 16 1.35 0.64 0.74
40 17 1.42 0.63 0.73
45 17 1.51 0.64 0.73
50 18 1.57 0.60 0.69
55 18 1.62 0.60 0.69
210°
30 16 0.98 0.63 0.73
35 16 1.05 0.68 0.78
40 17 1.10 0.63 0.73
45 17 1.17 0.64 0.77
50 18 1.22 0.62 0.72
55 18 1.26 0.64 0.74
180°
30 16 0.85 0.65 0.75
35 16 0.91 0.64 0.74
40 17 0.98 0.63 0.73
45 17 1.01 0.64 0.73
50 18 1.07 0.60 0.69
55 18 1.09 0.60 0.69
90°
30 16 0.42 0.65 0.75
35 16 0.47 0.64 0.74
40 17 0.50 0.63 0.73
45 17 0.50 0.64 0.73
50 18 0.54 0.60 0.69
55 18 0.58 0.60 0.69
Nozzle
Pressure
psi
Radius
ft.
Flow
gpm
n
Precip
In/h
s
Precip
In/h
360°
30 16 1.65 0.62 0.72
35 16 1.67 0.63 0.73
40 17 1.80 0.60 0.69
45 17 1.85 0.62 0.71
50 18 2.05 0.61 0.70
55 18 2.11 0.63 0.72
Nozzle
Pressure
bar
Radius
m
Flow
l/m
n
Precip
mm/h
s
Precip
mm/h
360°
2.1 4.9 6.25 16 18
2.4 4.9 6.32 16 19
2.8 5.2 6.81 15 18
3.1 5.2 7.00 16 18
3.4 5.5 7.76 15 18
3.8 5.5 7.99 16 18
R-VAN18 13’ - 18’
R-VAN18-360 13’ - 18’ R-VAN18-360 4.0 to 5.5m METRIC
Nozzle
Pressure
bar
Radius
m
Flow
l/m
n
Precip
mm/h
s
Precip
mm/h
270°
2.1 4.9 4.77 17 19
2.4 4.9 5.11 16 19
2.8 5.2 5.38 16 19
3.1 5.2 5.72 16 19
3.4 5.5 5.94 15 18
3.8 5.5 6.13 0 18
210°
2.1 4.9 3.71 16 19
2.4 4.9 3.97 17 20
2.8 5.2 4.16 16 19
3.1 5.2 4.43 16 20
3.4 5.5 4.62 16 18
3.8 5.5 4.77 16 19
180°
2.1 4.9 3.22 17 19
2.4 4.9 3.44 16 19
2.8 5.2 3.71 16 19
3.1 5.2 3.82 16 19
3.4 5.5 4.05 15 18
3.8 5.5 4.13 15 18
90°
2.1 4.9 1.59 17 19
2.4 4.9 1.78 16 19
2.8 5.2 1.89 16 19
3.1 5.2 1.89 16 19
3.4 5.5 2.04 15 18
3.8 5.5 2.20 15 18
R-VAN18 4.0 to 5.5m METRIC
13’ - 18’ Adjustable Arc Nozzles (45° to 270°)
13’ - 18’ Full Circle Nozzles (360°)
You can use R-VAN Nozzles and 5000 Series MPR Rotors on the same zone!
• Matched precipitation rate (MPR) from 8' to 35‘
• Superior coverage – >0.70 DU[LQ]
• Thick, wind-resistant streams – near to far
Did you
know?

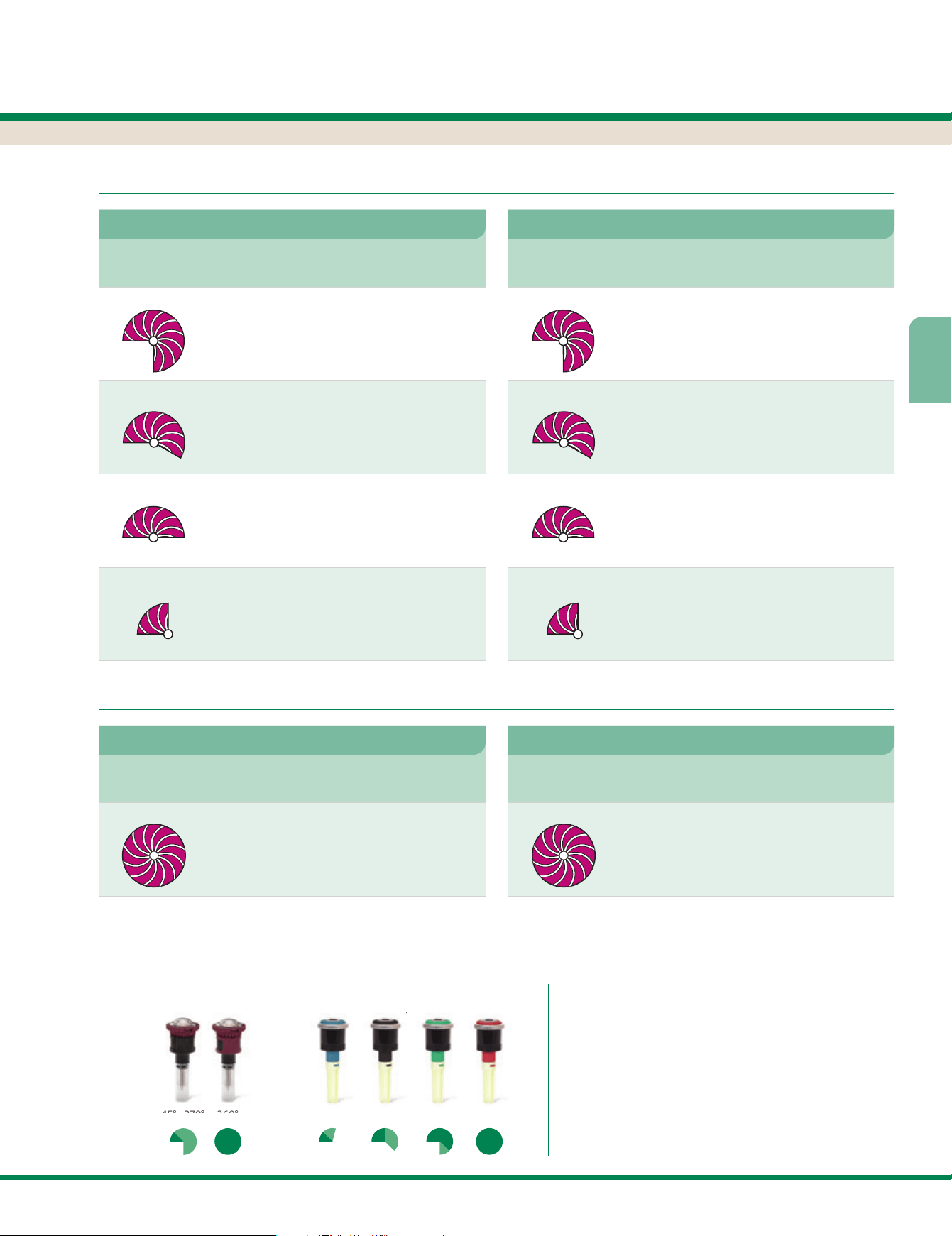

www.rainbird.com/sprays
19
www.rainbird.com
Spray & Rotary Nozzles
Rotary Nozzles
R-VAN Nozzles
Note: All R-VAN nozzles tested on 4" (10.2 cm) pop-ups
n Square spacing based on 50% diameter of throw
s Triangular spacing based on 50% diameter of throw
Performance data taken in zero wind conditions
R-VAN24 and R-VAN24-360: “Do not reduce the radius below 17’ (5,2 m)
R-VAN18 and R-VAN18-360: “Do not reduce the radius below 13’ (4,0 m)
R-VAN14 and R-VAN18-360: “Do not reduce the radius below 8’ (2,4 m)
Nozzle
Pressure
psi
Radius
ft.
Flow
gpm
n
Precip
In/h
s
Precip
In/h
270°
30 19 1.80 0.64 0.74
35 20 1.95 0.63 0.72
40 22 2.31 0.61 0.71
45 23 2.52 0.61 0.71
50 24 2.82 0.63 0.73
55 24 2.88 0.64 0.74
210°
30 19 1.40 0.64 0.74
35 20 1.52 0.63 0.72
40 22 1.80 0.61 0.71
45 23 1.96 0.61 0.71
50 24 2.19 0.63 0.73
55 24 2.24 0.64 0.74
180°
30 19 1.20 0.64 0.74
35 20 1.30 0.63 0.72
40 22 1.54 0.61 0.71
45 23 1.68 0.61 0.71
50 24 1.88 0.63 0.73
55 24 1.92 0.64 0.74
90°
30 19 0.60 0.64 0.74
35 20 0.65 0.63 0.72
40 22 0.77 0.61 0.71
45 23 0.84 0.61 0.71
50 24 0.94 0.63 0.73
55 24 0.96 0.64 0.74
Nozzle
Pressure
psi
Radius
ft.
Flow
gpm
n
Precip
In/h
s
Precip
In/h
360°
30 19 2.35 0.63 0.72
35 20 2.52 0.61 0.70
40 22 3.13 0.62 0.72
45 23 3.48 0.63 0.73
50 24 3.61 0.60 0.70
55 24 3.74 0.62 0.72
Nozzle
Pressure
bar
Radius
m
Flow
l/m
n
Precip
mm/h
s
Precip
mm/h
360°
2.1 5.8 8.90 16 18
2.4 6.1 9.54 15 18
2.8 6.7 11.85 16 18
3.1 7.0 13.17 16 19
3.4 7.3 13.67 15 18
3.8 7.3 14.16 16 18
R-VAN24 17’ - 24’
R-VAN24-360 17’ - 24’ R-VAN24-360 5.2 to 7.3m METRIC
Nozzle
Pressure
bar
Radius
m
Flow
l/m
n
Precip
mm/h
s
Precip
mm/h
270°
2.1 5.8 6.81 16 19
2.4 6.1 7.38 16 18
2.8 6.7 8.74 15 18
3.1 7.0 9.54 15 18
3.4 7.3 10.67 16 19
3.8 7.3 10.90 16 19
210°
2.1 5.8 5.30 16 19
2.4 6.1 5.75 16 18
2.8 6.7 6.81 15 18
3.1 7.0 7.42 15 18
3.4 7.3 8.29 16 19
3.8 7.3 8.48 16 19
180°
2.1 5.8 4.54 16 19
2.4 6.1 4.92 16 18
2.8 6.7 5.83 15 18
3.1 7.0 6.36 15 18
3.4 7.3 7.12 16 19
3.8 7.3 7.27 16 19
90°
2.1 5.8 2.27 16 19
2.4 6.1 2.46 16 18
2.8 6.7 2.91 15 18
3.1 7.0 3.18 15 18
3.4 7.3 3.56 16 19
3.8 7.3 3.63 16 19
R-VAN24 5.2 to 7.3m METRIC
17’ - 24’ Adjustable Arc Nozzles (45° to 270°)
17’ - 24’ Full Circle Nozzles (360°)
Oering Valuable Bottom-Line Savings
• Shorter zone run times save water and energy
• Lower precipitation rates reduce wasteful runo
and costly erosion
• Fewer nozzles needed to cover any area,
reducing your inventory costs
R-VAN Requires Half the Models to Cover 45° to 360°
45° - 105°45° - 270°
R-VA
NC
ompetitor
90° - 210°360° 210° - 270° 360°
45° 270
°
°
360°
°
p
p
p

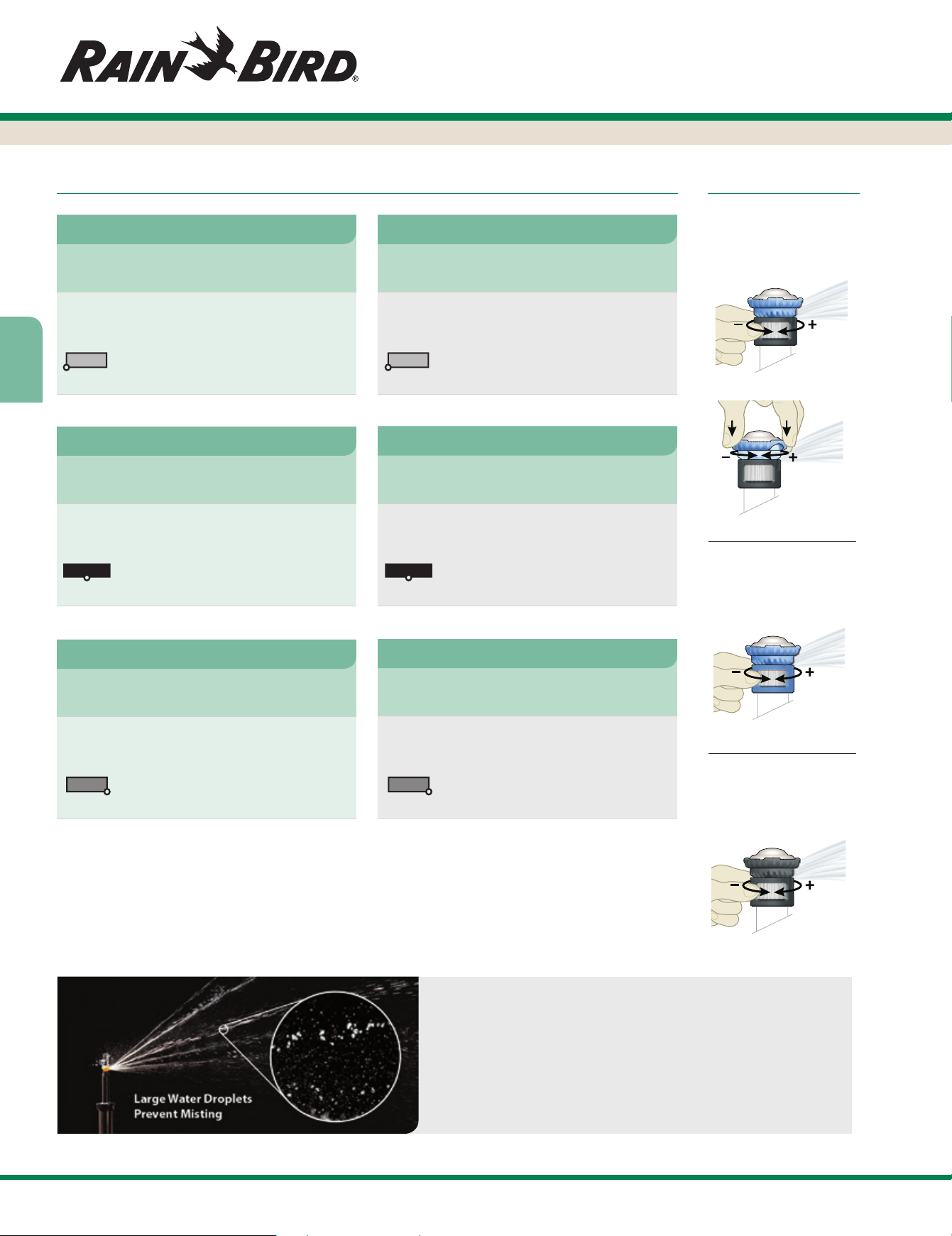

20
The Intelligent Use of Water.
™
Spray & Rotary Nozzles
Rotary Nozzles
R-VAN Nozzles
Improving Watering Eciencies Up to 30%
• Gentle, rotating streams create uniform coverage at lower
precipitation rates
• Multi-stream technology optimizes absorption for healthier lawns
• Larger droplets and thicker streams cut through wind and keep
water in target zone
Nozzle
Pressure
psi
Size
ft.
Flow
gpm
—
Precip
In/h
s
Precip
In/h
Left
Corner
Strip
30 4’x14’ 0.18 0.62 0.62
35 5’x15’ 0.22 0.56 0.56
40 5’x15’ 0.23 0.59 0.59
45 5’x15’ 0.24 0.62 0.62
50 5’x15’ 0.25 0.64 0.64
55 6’x16’ 0.28 0.56 0.56
Nozzle
Pressure
bar
Size
m
Flow
l/m
—
Precip
mm/h
s
Precip
mm/h
Left
Corner
Strip
2.1 1.2x4.3 0.68 16 16
2.4 1.5x4.6 0.83 14 14
2.8 1.5x4.6 0.87 15 15
3.1 1.5x4.6 0.91 16 16
3.4 1.5x4.6 0.95 16 16
3.8 1.8x4.9 1.06 14 14
Nozzle
Pressure
bar
Size
m
Flow
l/m
—
Precip
mm/h
s
Precip
mm/h
Side
Strip
2.1 1.2x8.5 1.36 16 16
2.4 1.5x9.1 1.67 14 14
2.8 1.5x9.1 1.74 15 15
3.1 1.5x9.1 1.82 16 16
3.4 1.5x9.1 1.89 16 16
3.8 1.8x9.8 2.12 14 14
Nozzle
Pressure
bar
Size
m
Flow
l/m
—
Precip
mm/h
s
Precip
mm/h
Right
Corner
Strip
2.1 1.2x4.3 0.68 16 16
2.4 1.5x4.6 0.83 14 14
2.8 1.5x4.6 0.87 15 15
3.1 1.5x4.6 0.91 16 16
3.4 1.5x4.6 0.95 16 16
3.8 1.8x4.9 1.06 14 14
Nozzle
Pressure
psi
Size
ft.
Flow
gpm
—
Precip
In/h
s
Precip
In/h
Side
Strip
30 4’x28’ 0.36 0.62 0.62
35 5’x30’ 0.44 0.56 0.56
40 5’x30’ 0.46 0.59 0.59
45 5’x30’ 0.48 0.62 0.62
50 5’x30’ 0.50 0.64 0.64
55 6’x32’ 0.56 0.56 0.56
Nozzle
Pressure
psi
Size
ft.
Flow
gpm
—
Precip
In/h
s
Precip
In/h
Right
Corner
Strip
30 4’x14’ 0.18 0.62 0.62
35 5’x15’ 0.22 0.56 0.56
40 5’x15’ 0.23 0.59 0.59
45 5’x15’ 0.24 0.62 0.62
50 5’x15’ 0.25 0.64 0.64
55 6’x16’ 0.28 0.56 0.56
R-VAN-LCS 5’ x 15’ R-VAN-LCS 1.5 x 4.6m METRIC
R-VAN-SST 1.5 x 9.1m METRIC
R-VAN-RCS 1.5 x 4.6m METRIC
R-VAN-SST 5’ x 30’
R-VAN-RCS 5’ x 15’
Note: All R-VAN nozzles tested on 4" (10.2 cm) pop-ups
Performance data taken in zero wind conditions
n
Straight-line spacing based on 50% overlap of throw for LCS, SST, and RCS
s Triangular spacing based on 50% overlap of throw for LCS, SST, and RCS
Strip Nozzles (Left Corner, Side, Right Corner) Easy Adjustments
Adjustable Arc Nozzles
R-VAN14, R-VAN18, R-VAN24
RADIUS ADJUSTMENT
ARC ADJUSTMENT
Full Circle Nozzles
R-VAN14-360, R-VAN18-360,
RVAN24-360
RADIUS ADJUSTMENT
Strip Nozzles
R-VAN-LCS, R-VAN-RCS,
R-VAN-SST
SIZE ADJUSTMENT
