HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
ITEM #5972310/5730165/9768058
MODEL #BRY52MBK3LR/BRY52MWW3LR/BRY52BNK3LR
Purchase Date
1
Español p. 18
SG24371
ATTACH YOUR RECEIPT HERE
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, missing parts?
Before returning contact us on:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday.
4007498
BRAYARD LED
CEILING FAN
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, (2) this device must accept any interference
received, including interference that may cause undesired operation.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 800-527-1292
NOTE: Dimmable to 10%.
SAFETY INFORMATION
2
Safety Information ................................................................................................................................... 2
Package Contents .................................................................................................................................
.
. 5
Hardware Contents .................................................................................................................................. 6
Preparation .........................................................................................................................................
.
..
.
. 6
Initial Installation ....................................................................................................................................... 6
Wiring .................................................................................................................................................
.
..
....
. 9
Final Installation ...................................................................................................................................... 11
Operating Instructions ............................................................................................................................ 14
Care and Maintenance .........................................................................................................................
.
. 15
Troubleshooting ..................................................................................................................................... 16
Limited Lifetime Warranty ...................................................................................................................... 17
Replacement Parts List ........................................................................................................................
.
. 17
TABLE OF CONTENTS
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate
the product. Review the accompanying assembly diagrams.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for repairs,
it must be shipped in its original packaging to ensure proper protection against damage that might
exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code
and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you
are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 13.67 lbs.
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support of
lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a plastic
outlet box. Secure the outlet box directly to the building structure. The outlet box and its support must
be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, lever wire connectors provided with this
fan are designed to accept only one 12-gauge house lever wire and one lead wire from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
WARNING
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the fan,
including the blades.
3
SAFETY INFORMATION
CAUTION
Be sure outlet box is properly grounded and that a ground wire (GREEN or BARE) is present.
Once installation is complete, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our
customer service department.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when installing or
balancing them or when cleaning the fan. Do not insert objects between the rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
4
The DC Motor will not operate until blades are installed.
5

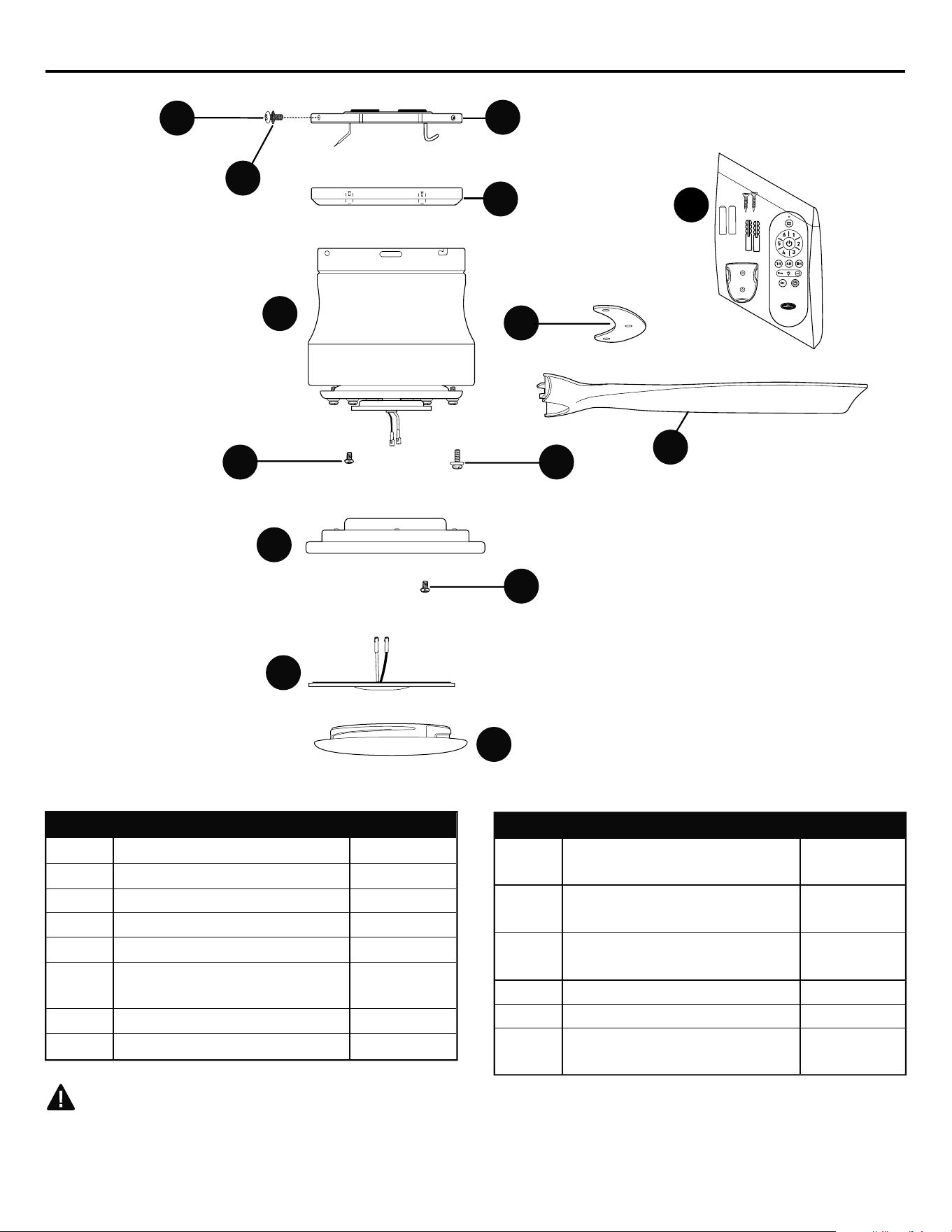

PACKAGE CONTENTS
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Mounting Plate 1
B Canopy Ring 1
C Motor Assembly 1
D Fitter Plate 1
E Shade 1
F Fitter Plate Screw 3
(preassembled)
G Blade 3
H LED Light Kit 1
PART DESCRIPTION QUANTITY
B
G
I
H
K
C
E
A
J
D
M
N
F
L
I Mounting Plate Lock 4
Washer (preassembled)
J Mounting Plate Screw 4
(preassembled)
K Motor Plate Screw 3
(preassembled)
L Remote Pack 1
M Blade Plate 3
N Motor Screw/Lock washer 9
(preassembled) + 1 extra
DESCRIPTIONPART
QUANTITY
AAA
AAA
HARDWARE CONTENTS (shown actual size)
6
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble
the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself-Wiring Handbook and Wire
Cutters

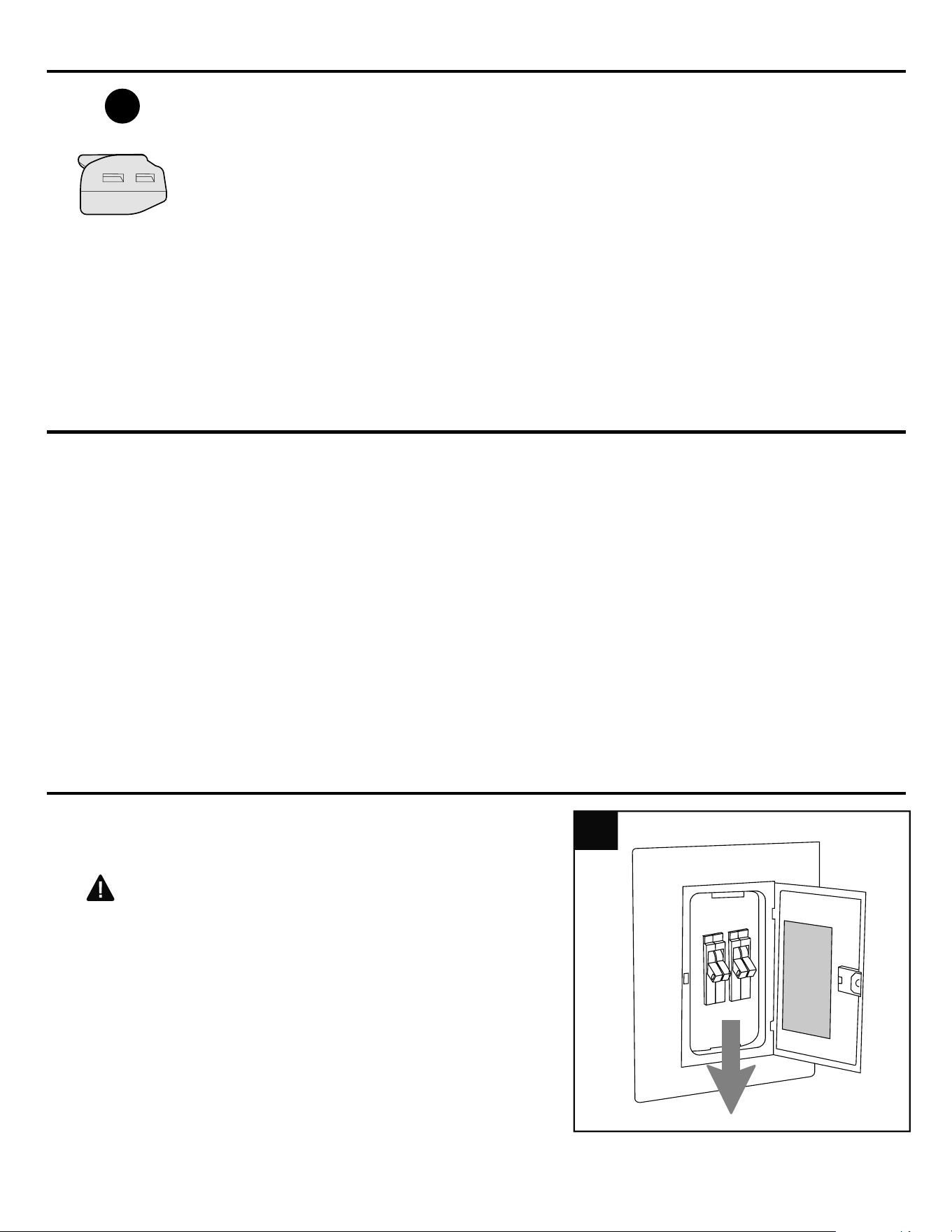

PREPARATION
AA
Lever Wire
Connector
Qty. 3
INITIAL INSTALLATION
Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
7

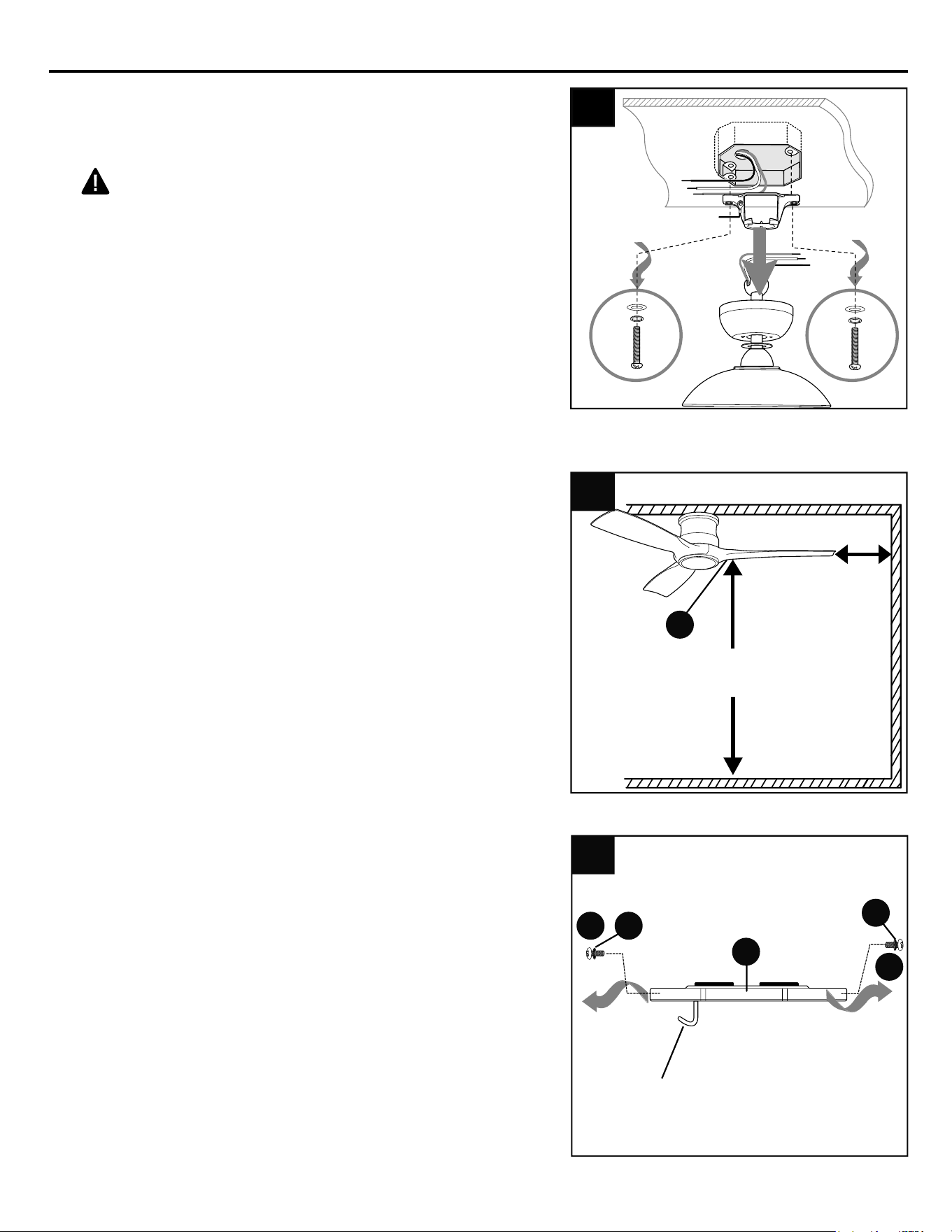

INITIAL INSTALLATION
"J" Hook
This fan can be mounted as a flushmount on a
regular (no-slope) ceiling only.
Check to make sure blades (G) will be at least
30 inches from any obstruction and at least 7 ft.
above the floor.
3.
3
4
Locate mounting plate screw (J) (with mounting
plate lock washer (I)) on outer edge of mounting
plate (A) that is closest to the j-hook and remove
that mounting plate screw (J) (with mounting
plate lock washer (I)). Also, remove mounting
plate screw (J) (with mounting plate lock washer
(I)) on outer edge of mounting plate (A) directly
opposite the one that was just removed. Partially
loosen the other two mounting plate screws (J)
(with mounting plate lock washers (I)).
4.
A
J
J
I
I
3
7 ft.
min.
30 in.
min.
G
2.
2
If applicable, remove existing fan, including the
mounting bracket, from outlet box and
disconnect all electrical wiring.
WARNING: To reduce the risk of personal
injury, use ONLY parts provided with your new
fan. The use of parts OTHER than those
provided with this fan will void the warranty.
Set aside screws, spring washers and flat
washers (provided with the outlet box) to be
used for fan installation.

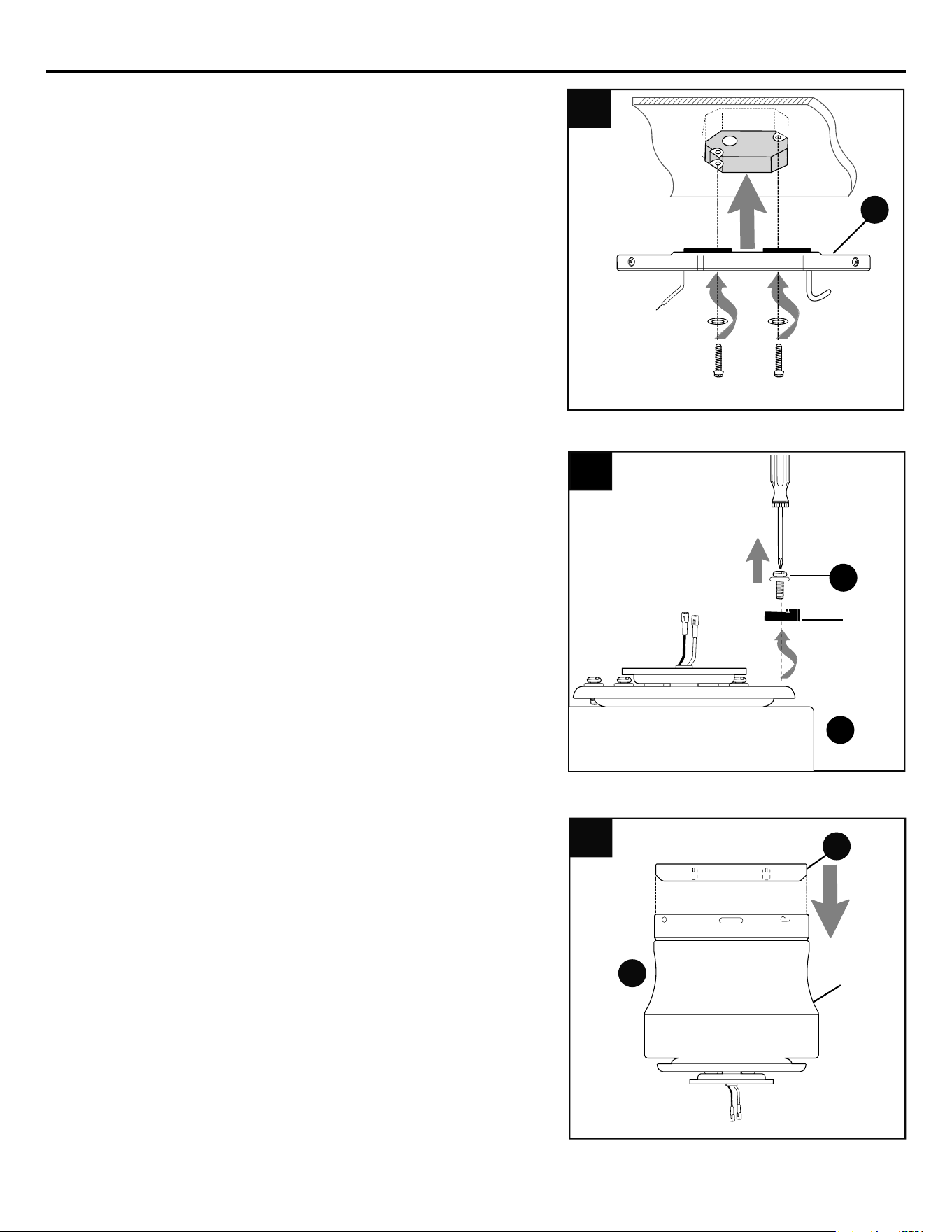

Secure mounting plate (A) to outlet box using
screws, spring washers, and flat washers
provided with the outlet box.
*NOTE: It is very important you use the
proper hardware when installing the mounting
plate (A) as this will support the fan.
Pull electrical wiring from outlet box through
center hole in the mounting plate (A).
5.
3
5
A
With wider opening facing up, place
canopy ring (B) over top of motor
assembly (C). Allow canopy ring (B) to rest
on top of motor assembly (C) for the time
being.
Motor
8
7.
INITIAL INSTALLATION
3
7
B
C
C
6.
Remove motor screws/lock washers (N)
from underside of motor assembly (C) and
save for blade (G) attachment later on.
[If there are plastic motor blocks installed
with the motor screws/lock washers (N),
discard the plastic motor blocks.]
N
6
Plastic
Motor
Block
INITIAL INSTALLATION

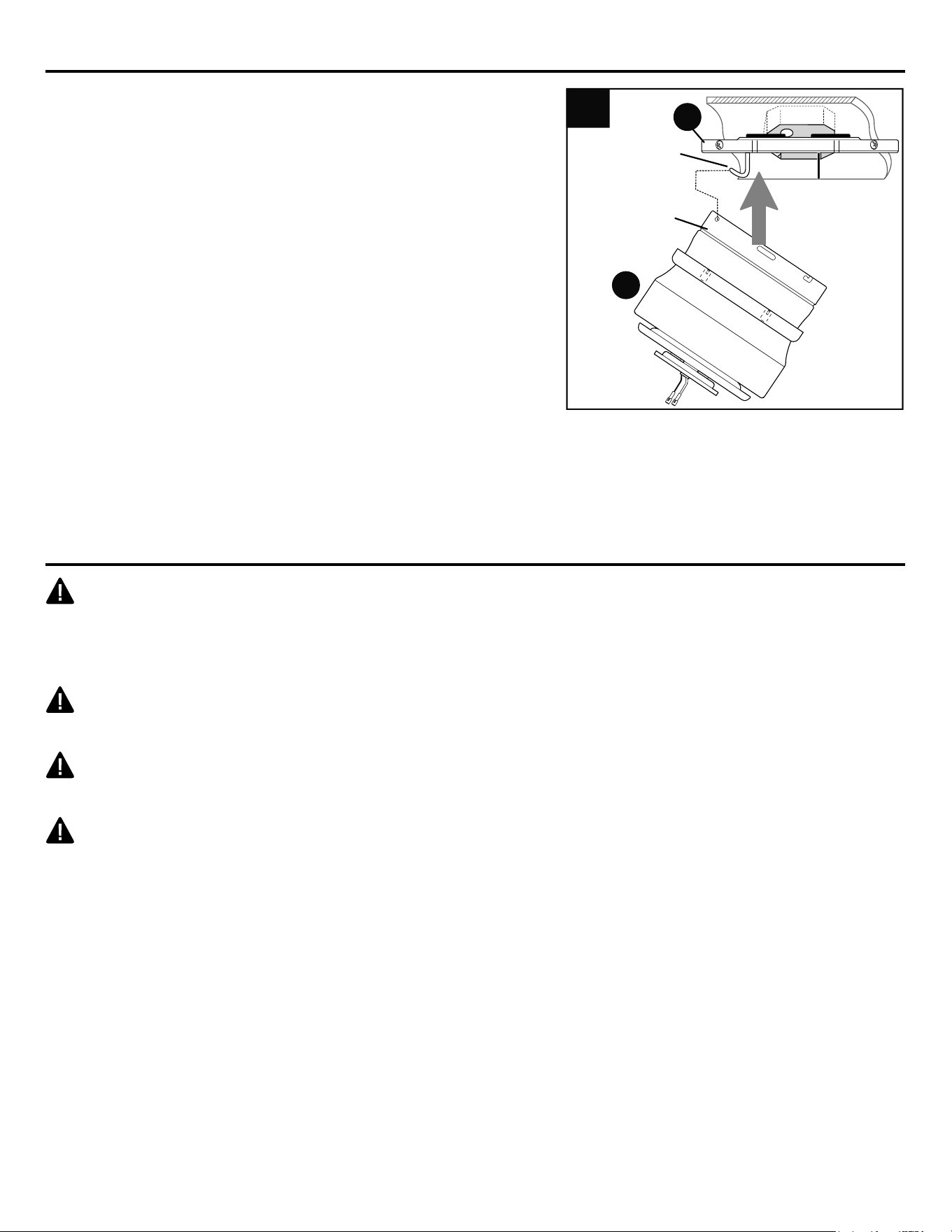

Lift motor assembly (C) to mounting plate (A).
Hang motor assembly (C) on j-hook on underside
of mounting plate (A). [IMPORTANT: Use one of
the non-slotted holes on the rim of the motor
assembly (C) to do so.]
This will allow motor assembly (C) to hang out of
the way while wiring.
WIRING
9
8.
3
8
Non-slotted
Hole
"J" Hook
C
A
WARNING: To reduce the risk of fire, electrical shock or personal injury, lever wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and one lead wire from the
fan. If your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size lever wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
WIRING
10
1b.
1a.

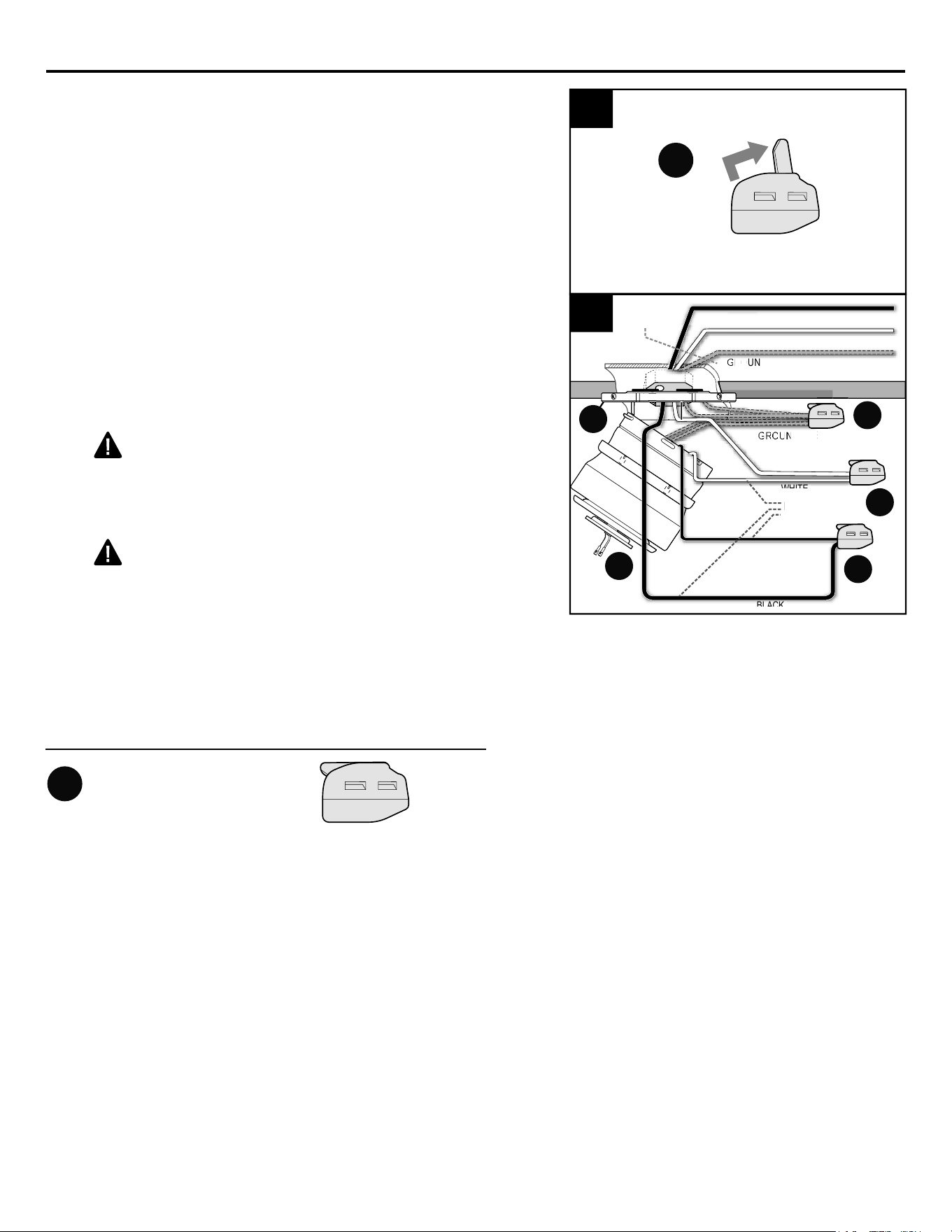

IMPORTANT: Each wire connection is made
by firmly raising the levers on each lever wire
connector (AA), as shown. Then, ONE wire is
inserted into each opening.
Insert each GROUND (GREEN) wire from fan
(two on motor assembly (C), one on mounting
plate (A)) and the BARE/GREEN wire from
ceiling into openings in lever wire connector
(AA) with five levers.
Insert BLACK wire from fan and BLACK wire
from ceiling into openings in lever wire
connector (AA). Insert WHITE wire from fan
and WHITE wire from ceiling into openings in
lever wire connector (AA).
WARNING: In order for wire connections
to be secure, all levers on the lever wire
connectors (AA) must be completely returned
to their original position as shown in Step 1b.
WARNING: GENTLY pull on wires in each
lever wire connector (AA) to confirm the lock is
engaged and that wires are secure.
NOTE: BLACK wire is hot power for fan.
WHITE wire is common for fan and light kit.
GREEN or BARE wire is ground.
ROUND/GREEN (BARE)
WHITE
BLACK
B
LA
C
K
WHITE
R
O
U
N
D
/GREE
N (
BAR
E)
D/GREEN
BLACK
WHITE
WHITE
FROM FAN
BLACK
WHITE
FR
O
M F
AN
WHITE
EN
EE
D/G
RE
WHITE
BLACK
120 V Power
from ceiling
1a
1b
C
A
Lever Wire Connector x 3
Hardware Used
AA
AA
AA
AA
AA
11

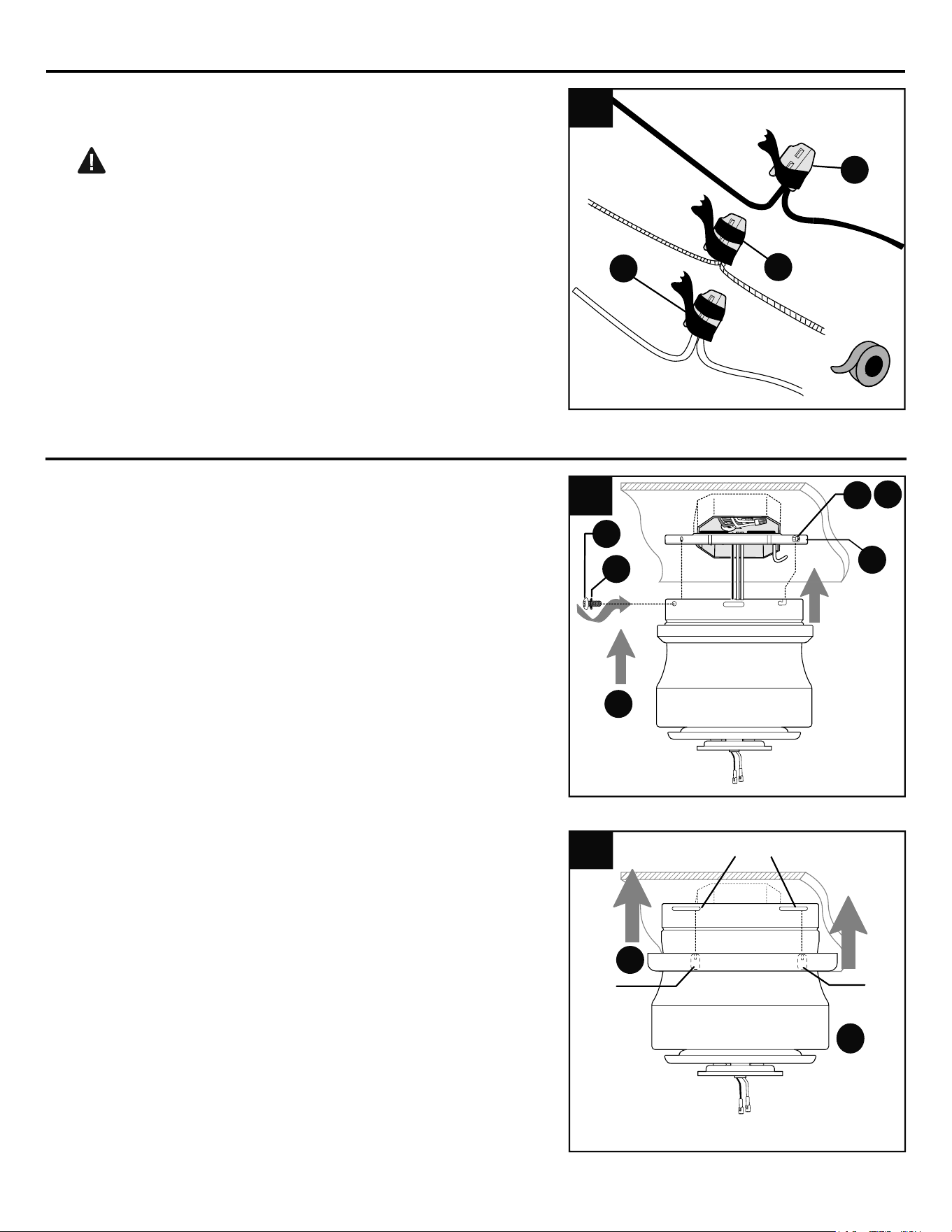

Locate four tabs inside canopy ring (B).
Align tabs in canopy ring (B) with four
grooves at top of motor assembly (C) and
raise canopy ring (B) until you hear tabs
snap into grooves.
NOTE: Canopy ring (B) should fit flush to
ceiling when done correctly.
Remove motor assembly (C) from "J" hook
and slide top of motor assembly (C) over
mounting plate (A), aligning slotted holes in
motor assembly (C) with loosened mounting
plate screws (J) (with mounting plate lock
washers (I)) in mounting plate (A). Twist
motor assembly (C) to lock. Re-insert the
other two mounting plate screws (J) (with
mounting plate lock washers (I)) previously
removed (Step 4, page 7) to secure motor
assembly (C). Tighten all mounting plate
screws (J) securely.
1.
2.
1
2
C
J
I
A
J
C
I
Grooves
Tab
Tab
B
WIRING
Wrap electrical tape around each individual lever
wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place green and white connections on opposite
side of box from the black and blue (if
applicable) connections.
Turn spliced/taped wires upward and gently
push wires and lever wire connectors (AA) into
outlet box.
2.
AA
2
AA
AA
FINAL INSTALLATION
FINAL INSTALLATION
12
C
4.

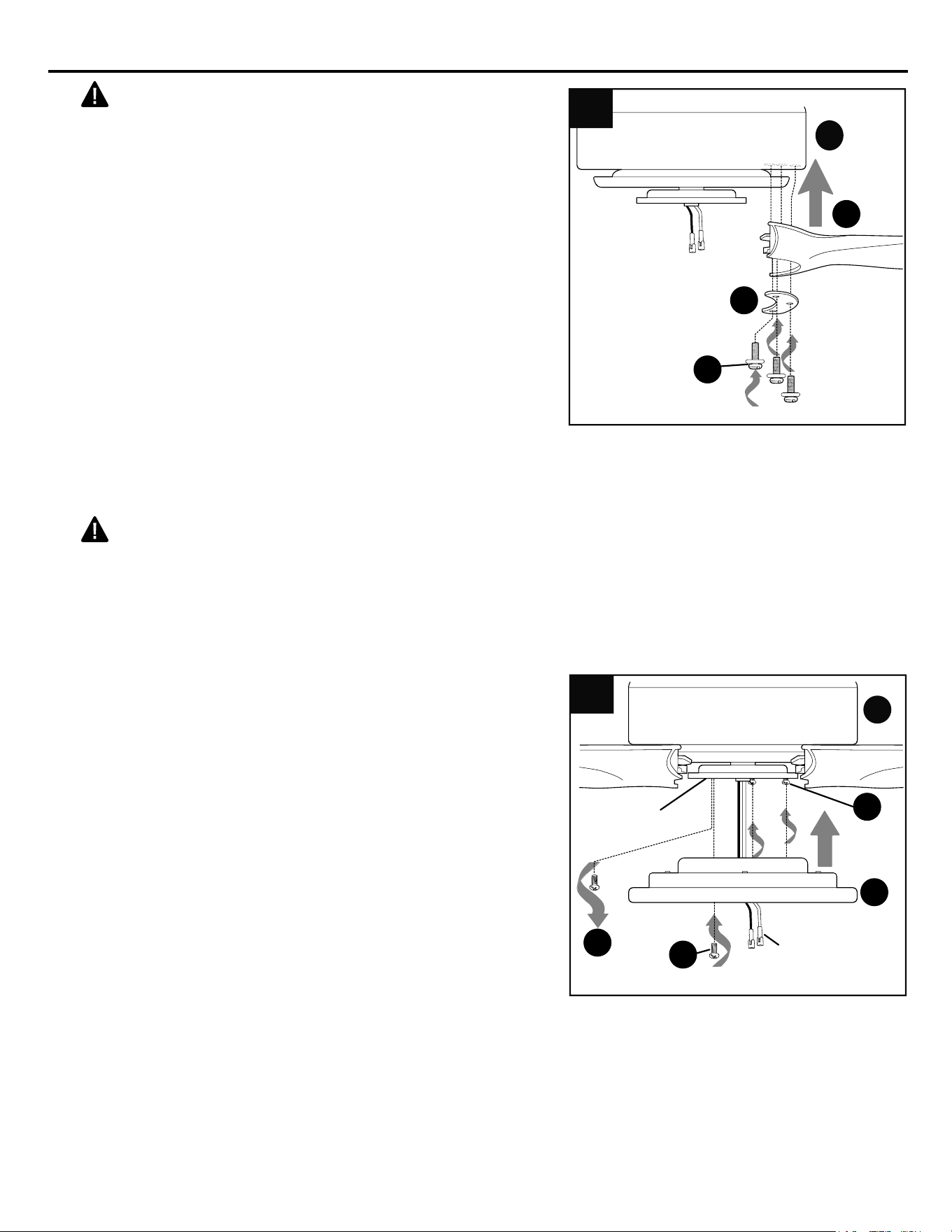

Remove one motor plate screw (K) from motor
plate preassembled on the underside of the motor
assembly (C) and partially loosen the other two
motor plate screws (K). Align slotted holes in fitter
plate (D) with loosened motor plate screws (K),
allowing molex connections from motor assembly
(C) to come through hole in fitter plate (D). Twist
fitter plate (D) to lock. Re-insert the motor plate
screw (K) that was removed and securely tighten
all three motor plate screws (K).
4
Molex
Connections
I
K
I
K
I
K
D
C
Motor
Plate
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If overtightened, blades (G) may crack
and break.
Noting the THIS SIDE UP label on blade (G),
place one blade plate (M) under blade (G),
aligning holes. Then, insert motor screw/lock
washers (N) previously removed (Step 6, Page 8)
into each of the holes at of the blade (G), turning
until the motor screw (N) comes through the other
side of the blade (G).
Align the protruding ends of the motor
screws/washers (N) with the corresponding holes
on the underside of the motor assembly (C).
Tighten all motor screws/lock washers (N).
Repeat Step 3 for the other two blades (G).
DANGER: To reduce the risk of personal
injury, make sure all blades (G) are
completely secure before proceeding.
3.
3
G
M
N
FINAL INSTALLATION
13

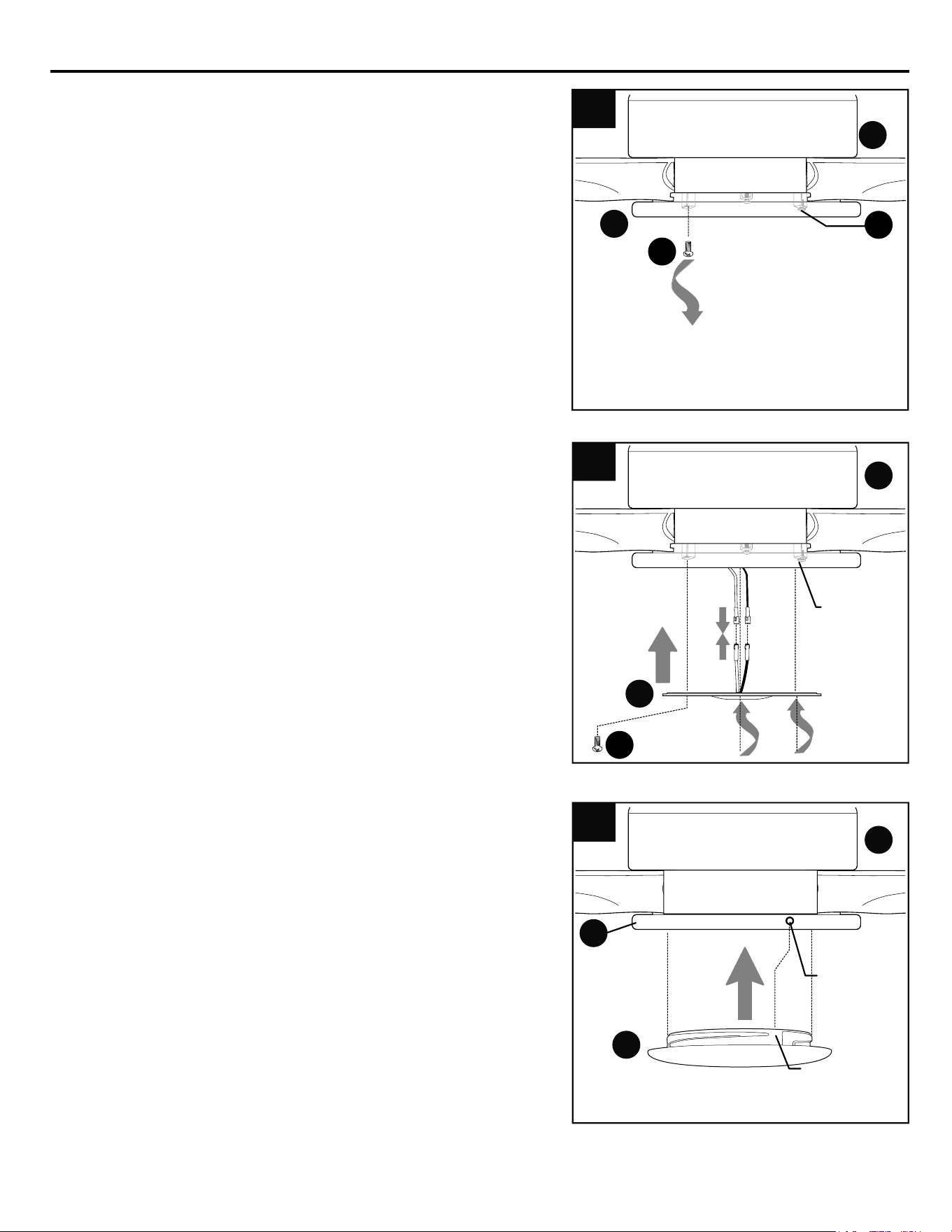

Connect WHITE wire from LED light kit (H) to
WHITE wire from motor assembly (C). Connect
BLUE wire from LED light kit (H) to BLUE wire
from motor assembly (C). Make sure molex
connections are secure.
Carefully arrange wires inside fitter plate (D).
Align slotted holes in LED light kit (H) with
loosened screws in fitter plate (D). Re-insert
fitter plate screw (F) previously removed.
Tighten all three fitter plate screws (F) securely.
6.
3
6
BLUE
WHITE
WHITE
BLUE
H
F
5.
Remove one fitter plate screw (F) from fitter
plate (D) and partially loosen the other two fitter
plate screws (F).
3
5
F
C
D
Align slots on shade (E) with protrusions on the
inside of the fitter plate (D). Turn shade (E) to
the right (clockwise) until it no longer turns.
NOTE: Pull down gently on the shade (E) to
make sure that it is secured completely.
7.
3
7
C
E
Protrusions
Slot
D
F
Loosened
Screws
C
14
OPERATING INSTRUCTIONS
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other programmable receiver or fan.
FCC Compliance Notice for Remote Control and LED light kit.
CAUTION: Changes or modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Locate remote control transmitter in remote pack (L).
Remove battery cover. Install two AAA batteries from
remote pack (L). Observe diagram inside battery
compartment to install batteries correctly.
WARNING: Batteries are to be inserted with
correct polarity.
WARNING: Choking/Ingestion Hazard - Small
parts. Keep batteries away from children.
NOTE: DO NOT mix old and new batteries; DO NOT
mix alkaline, standard (carbon - zinc) or rechargeable
(nickel - cadmium) batteries or equivalent.
NOTE: Batteries are NOT rechargeable. Remove
batteries with low or no charge and dispose of
properly.
1.
1
Battery
Cover
Remote Control
Transmitter (back side)
Batteries
AAA
-
+
-
+
AAA
L
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.”
- When disposing of household alkaline batteries, it is best to check with your local and state recycling
or household hazardous waste coordinators concerning the specifics of the program in your area. You
may also locate a recycling center by calling 1-800-8-BATTERY or 1-877-2-RECYCLE or visit
www.epa.gov/epawaste/index.htm or www.earth911.org for more information.
OPERATING INSTRUCTIONS
15
CARE AND MAINTENANCE
At least twice each year, check mounting plate screws (J) and then tighten all screws on the fan. Clean
motor assembly (C) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
(G) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 20 watts; do not attempt to replace the LEDs.
2.
Restore electrical power. Replace battery cover.
IMPORTANT: To prevent damage to remote
control transmitter, remove the battery if not used
for long periods. Store the remote control
transmitter away from excess heat or humidity.

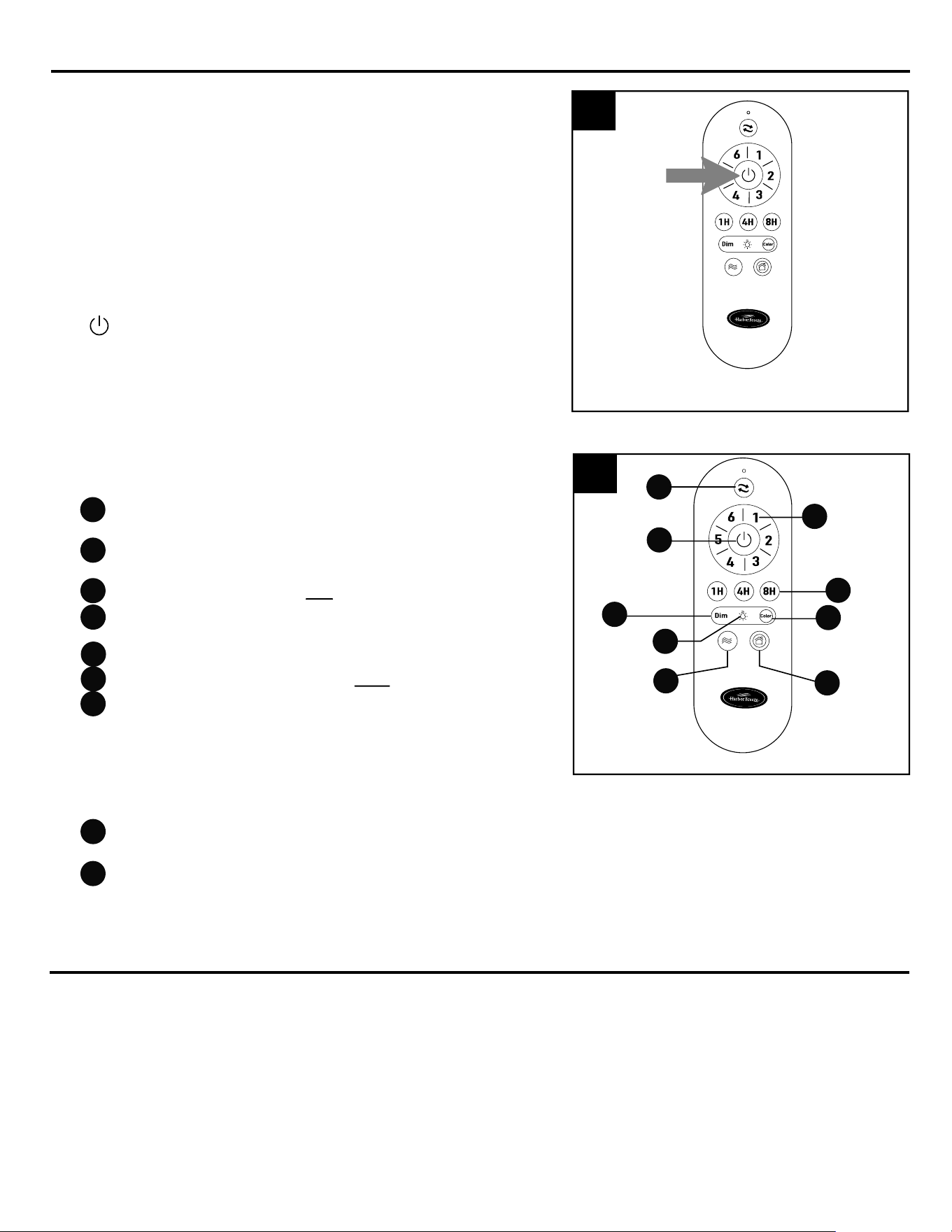

NOTE: If fan and/or remote control fail(s) to
operate or you have purchased a new remote
control transmitter, make sure to turn the power off
first. Restore electrical power. Within 30 seconds
of powering fan, press and hold ON/OFF button
( ) on remote control transmitter for 5 seconds
until fan beeps once in order to synchronize
remote with fan motor. Use the remote control
transmitter to test the light and fan functions to
confirm the learning process is complete.
Remote Control Transmitter
2
3.
Operation buttons on the front panel of the remote
control transmitter:
- Reverse function ─ fan must be set on low
before reversing blade direction
- Fan speeds: 1 (lowest) to 6 (highest) and
to turn fan ON
- OFF power button for fan.
- Timer mode: fan may be set to run for
– 1 hour / 4 hours / 8 hours
- Dimmer mode: press and hold to dim light
- ON / OFF, power button for light
- Color mode: change/select light color
– soft white
– warm white
– cool white
– daylight
– cool daylight
- Breeze mode: fan automatically cycles
between all 6 different speeds
- Vacation mode: light kit switches on for 5
minutes every 2 hours
3
1
2
4
5
6
8
9
7
Remote Control Transmitter
3
1
3
8
9
2
4
7
5
6
16
1. Refer to instructions in Step 2 on
page 15.
2. Check that batteries have been
installed with correct polarity.
3. Replace both batteries according to
instructions on page 14.
1. Remote control transmitter not
synced with fan.
2. Batteries not installed correctly.
3. Battery/Batteries no longer working.
Remote control
fails to operate.
1. Turn power on or check fuse at
circuit breaker.
2. Turn power off. Loosen motor
assembly and check all connections.
3. Turn off power and repeat
instructions in Step 2 on page 15.
4. Install all blades (see page 12).
1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter may
not have been successful and
learning code was not activated.
4. Blades are not installed.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
5. Motor assembly is loose.
1. Tighten all blade screws.
2. Replace blade.
3. Use only with included speed control
device.
4. Allow fan a “break in” period of a few
days, especially when running the
fan at Medium and High speeds.
5. Verify mounting plate screws are
secure according to instructions on
page 11.
TROUBLESHOOTING
Excessive wobbling.
1. Blades are loose.
2. Blade incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
1. Tighten all blade screws.
2. Re-install blades.
3. Switch one blade with a blade from
the opposite side.
4. Verify mounting plate is secure.
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 10.
2. Make sure wall switch to light is on.
3. Check that molex connections in
LED light kit are connected properly
according to instructions on page
13.
1. Wires in outlet box not wired
properly.
2. Wall switch to light is off.
3. Wires in fitter plate not wired
correctly.
Fan operates but
light fails.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.
9768058-A
9768058-B
9768058-D
9768058-G
LIMITED LIFETIME WARRANTY
D
G
A
B
17
Printed in China
GGLI2607
REPLACEMENT PARTS LIST
All parts are replaceable (see parts list in “Package Contents” on Page 5), however, only the parts listed
below are under warranty. For replacement parts, call our customer service department at
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday.
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects in
workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one year
after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product
through a store or contractor. Ceiling fan part defects must be reported within the first year from the date
of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are
not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within the
terms stated above. The manufacturer shall not be liable for any loss or damage of any kind, including
any incidental or consequential damages resulting directly or indirectly, from any breach of warranty,
express or implied, or any other failure of this product. Some states do not allow the exclusion or
limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, the manufacturer agrees to replace the
defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior
model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
A Mounting Plate
B Canopy Ring
D Fitter Plate
G Blade
5730165-A
5730165-B
5730165-D
5730165-G
5972310-A
5972310-B
5972310-D
5972310-G
#5972310
#5730165 #9768058
PART
#
PART
#
PART
#
PART DESCRIPTION
