Bearing Seal Installation
Driver Kit
User Manual
Read Carefully Before Use
Keep for Future Reference
V20230614
1
Safety Information
• The instructions provided herein are only for general information. ALWAYS perform all repairs
in full compliance with your vehicle’s service manual. After any repair, test your engine and
vehicle in your workshop and at low speed before returning to normal use. Failure to do so
may result in serious property damage and severe personal injury.
• DO NOT allow children or those unfamiliar with this product and its compatible brake
systems to use it. Do not use while under the inuence of alcohol, drugs, or any medication
that negatively aects your judgment or reexes. Keep children and bystanders away during
use.
• Keep your work site clean and well lit. Cluttered and dark work areas invite accidents.
• For best results, keep the kit clean and dry. Remove any uid, oil, or grease before and after
work, particularly from the handle and ttings.
• ALWAYS use personal protective equipment (PPE) suitable to your task. Always wear
ANSI-approved eye and hand protection while using this product. Nonslip footwear is also
highly recommended. Other equipment such as ear, head, and body protection may also be
necessary depending on your work and other equipment.
• Dress properly for automotive servicing. Do not wear loose clothing or jewelry and keep hair,
clothing, gloves, hoses, and tools away from any moving parts during use.
• ALWAYS know and understand the specic safety warnings and instructions for your vehicle
before using this kit. Use the correct uids, pressures, adapters, etc. for your vehicle. Make
sure the parking brake is activated before beginning any work. Use with jack and jack stands
able to fully support the necessary weight. Never touch any heated surface with exposed
skin.
• Do not overreach. Keep proper footing and balance at all times.
• DO NOT use excessive pressure with this product and do not force it or its attachments.
• Maintain this product. Check for misalignment, binding, wear, or other damage before use.
If any damage is detected, repair or replace the problematic components before further use.
In a large shop, mark such tools DO NOT USE until they have been repaired. Only replace
components with identical parts.
DANGER!
Specications
Material 6-61 Aluminum Alloy
Case Dimensions 10.8×8.6×2.4 in. 27.5×22×6.1 cm
Net Weight 2.6 lb. 1.2 kg
2

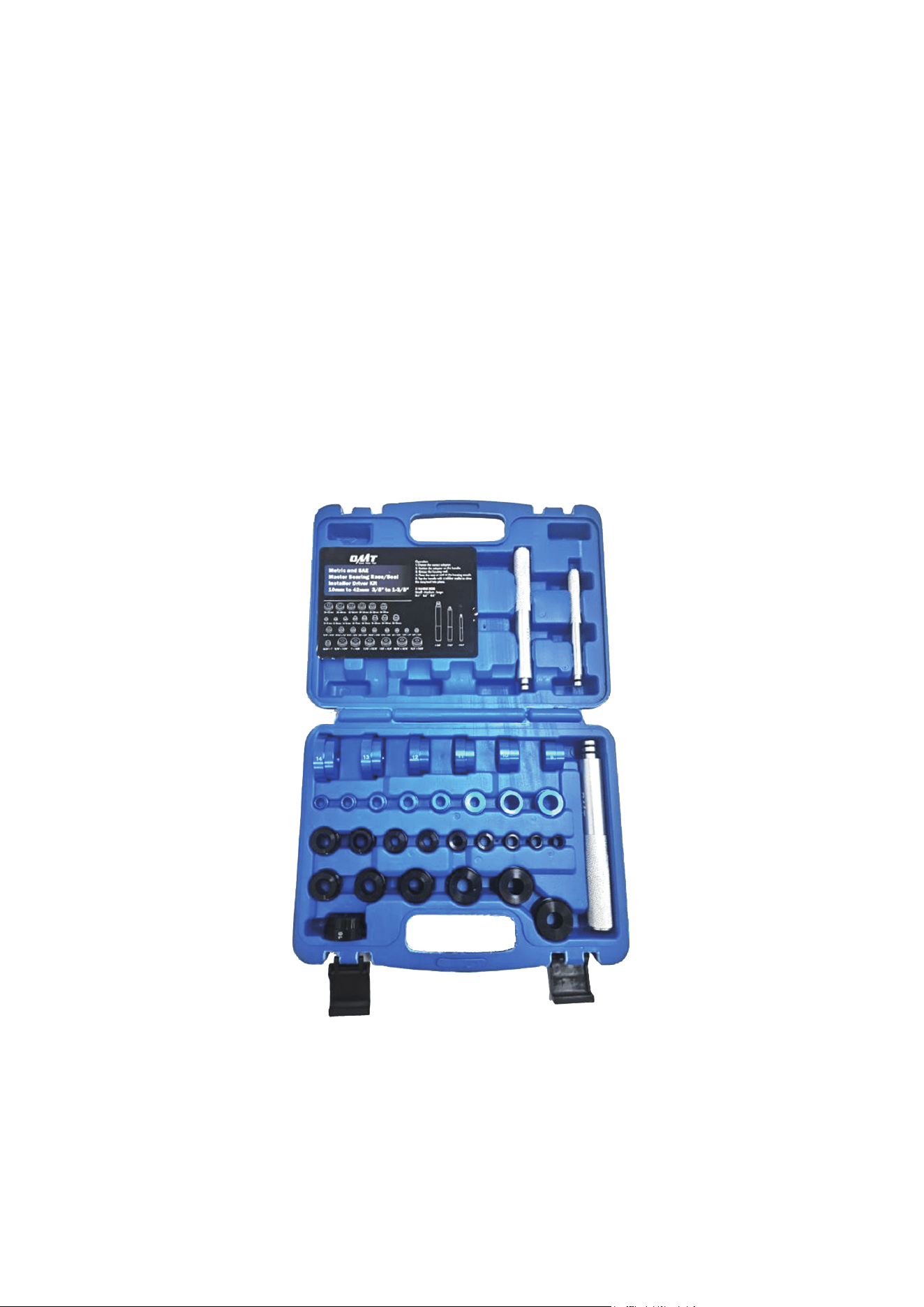

Package List
Handles × 3
Metric Drivers × 14
Imperial Drivers × 16
Operation
Installation
1. Choose the appropriate driver from the kit, selecting one that matches the outer diameter of
the seal you are working with. Attach it to the appropriate handle.
2. Prior to installation, apply a thin layer of suitable lubricant (not included) to the outer edge
of the seal Position the seal onto the shaft or housing where you want to install it, ensuring
proper alignment and an even placement.
3. Hold the tool handle rmly and align the driver with the center of the seal. With a controlled
and steady grip, apply gentle and even pressure on the driver using the handle. Use a
hammer to tap the handle slowly, driving the seal into place. Ensure the it is fully inserted and
seated correctly.
4. After installation, carefully inspect the seal to verify that it is properly seated. Check for any
misalignment, gaps, or irregularities. Verify that the seal is secure and does not move when
lightly pushed or rotated. If you have additional seals to install, repeat the process for each
one, using the appropriate driver size for each component.
Removal
1. Choose the appropriate driver from the kit, selecting one that matches the outer diameter of
the seal you are working with. Attach it to the appropriate handle.
2. Place the driver against the inner edge of the component and gently tap the handle with a
hammer to dislodge it from the shaft or housing. Repeat the process for each one, using the
appropriate driver size for each component.
Maintenance
• Clean the tools with a soft damp cloth using a mild detergent or solution after use. Do not
rinse them or use abrasive cleaners or caustic chemicals.
• For best results, lubricate the tools with high-quality anti-corrosive oil between uses.
• Check the tools periodically for any wear or damage. Repair or replace any problematic parts
before further use.
• If the tools will not be used for an extended period of time, clean and lubricate them and store
them in a cool dry place inaccessible to children.
3
Contact Us
Thank you for choosing our products! If you have any questions or
comments, contact us at [email protected] and we'll resolve
your issue ASAP!
For a .pdf copy of the latest version of these instructions, use the
appropriate app on your smartphone to scan the QR code to the right.
BJS-OS04-00
Rev. 14 Jun. 2023
