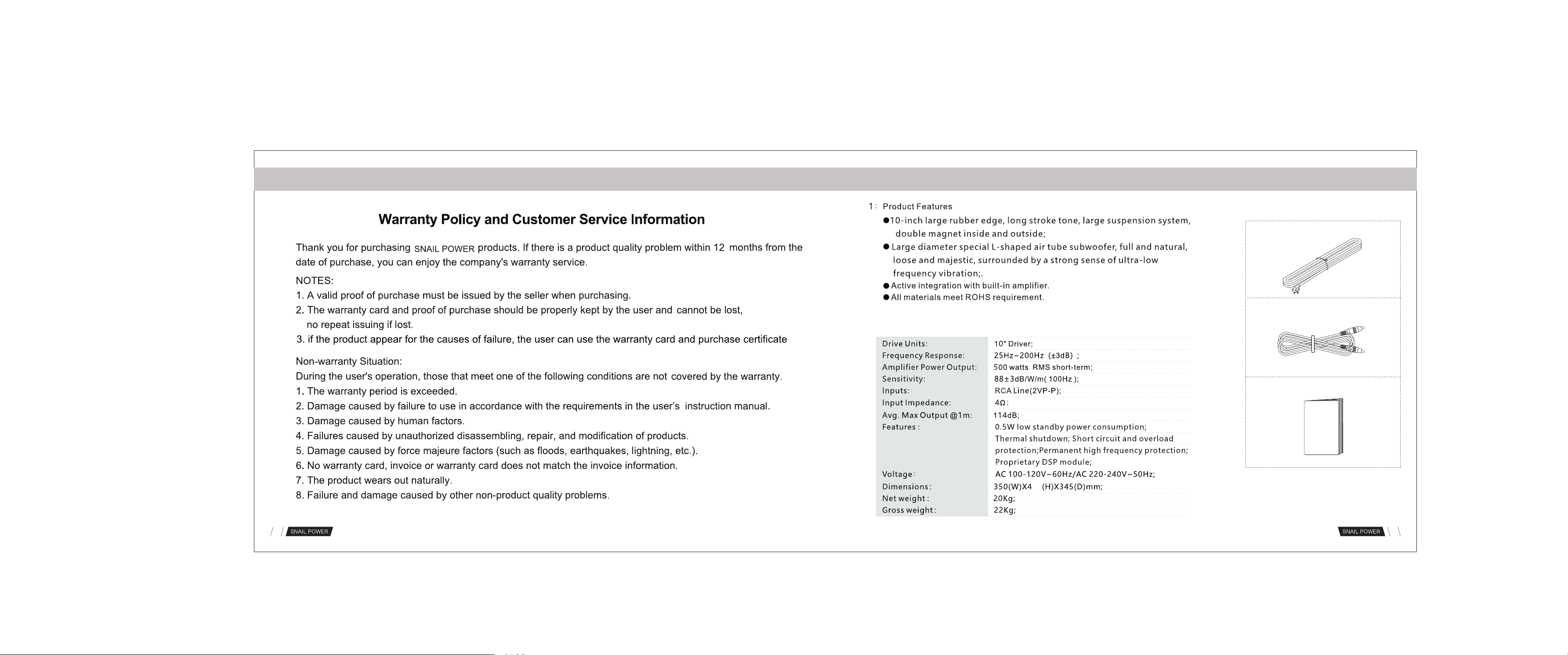

2：Technical parameters
3： roduct AccessoriesP
A Power Cord： * 1PC
C：User Manual
B：Coaxial Cable * 1PC
02
C110 C110
01
19
03
04
C110 C110

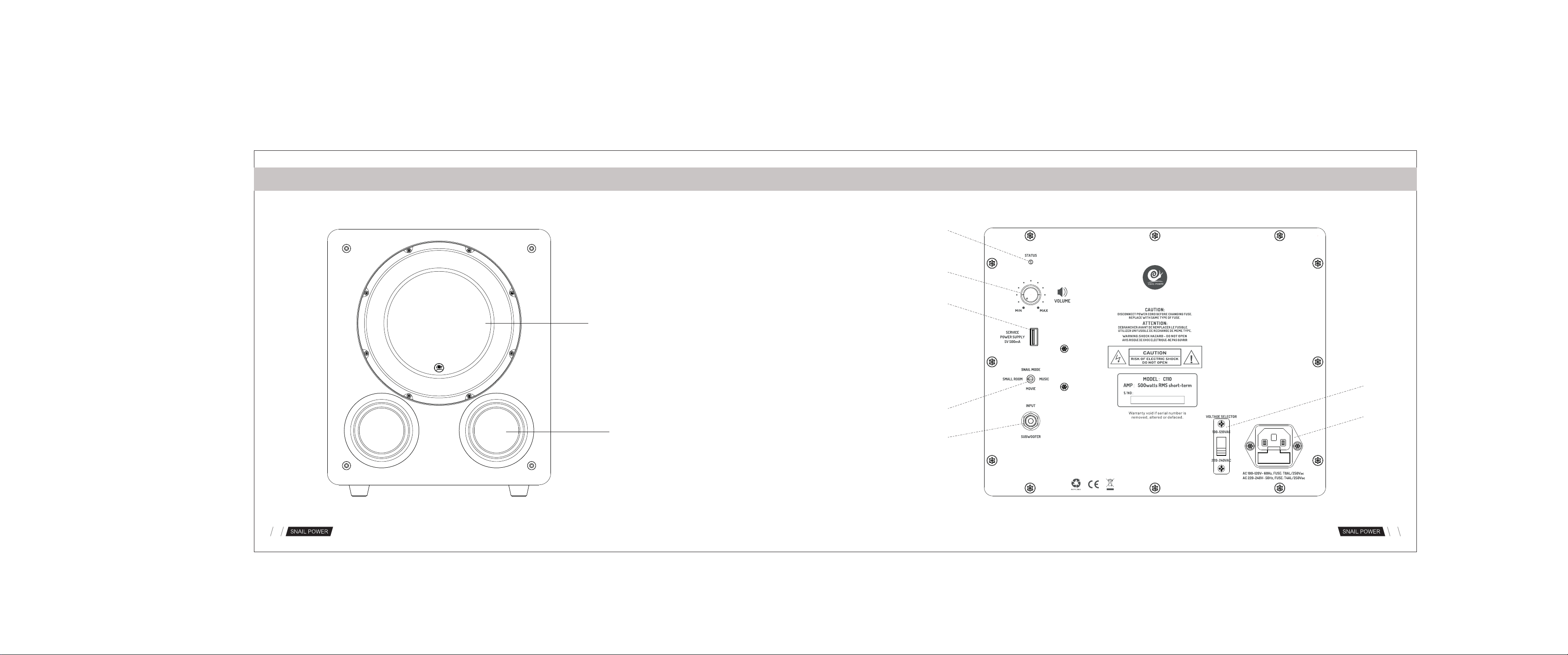

5：Front panel function

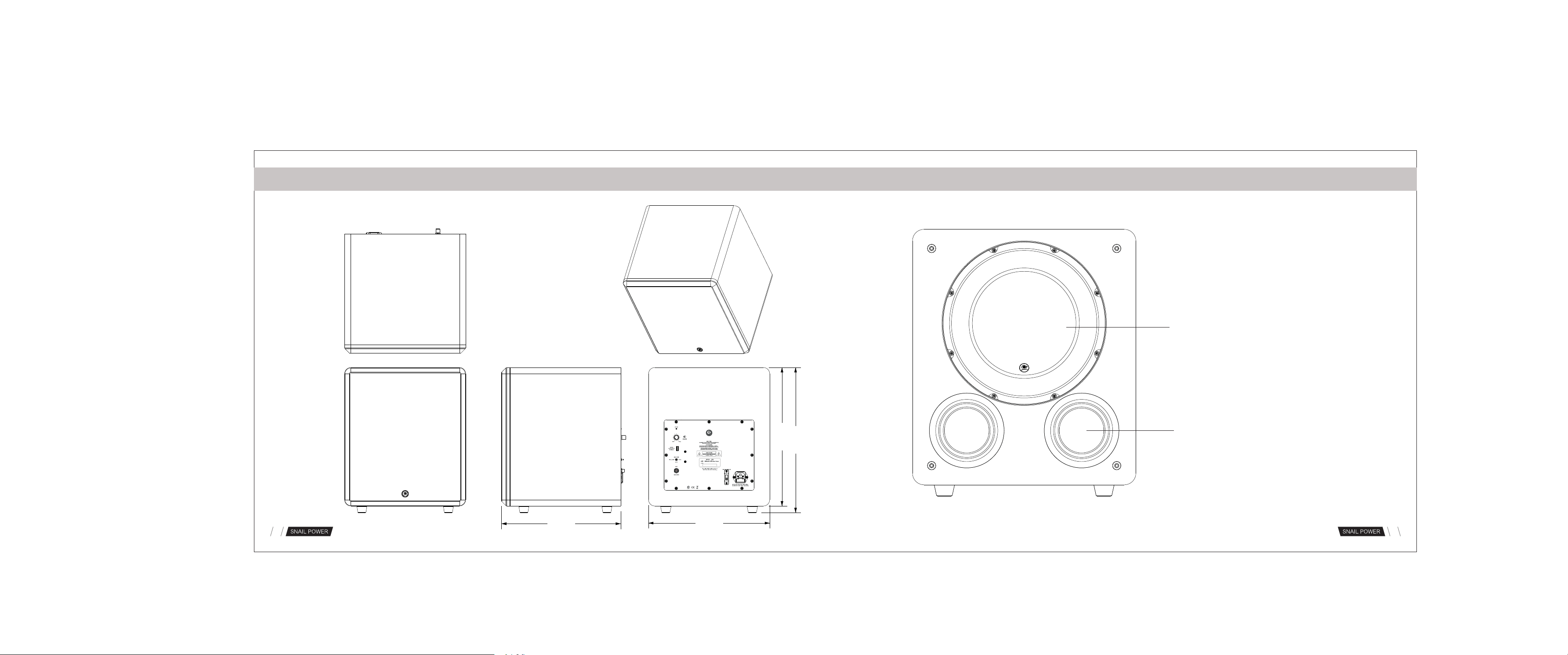

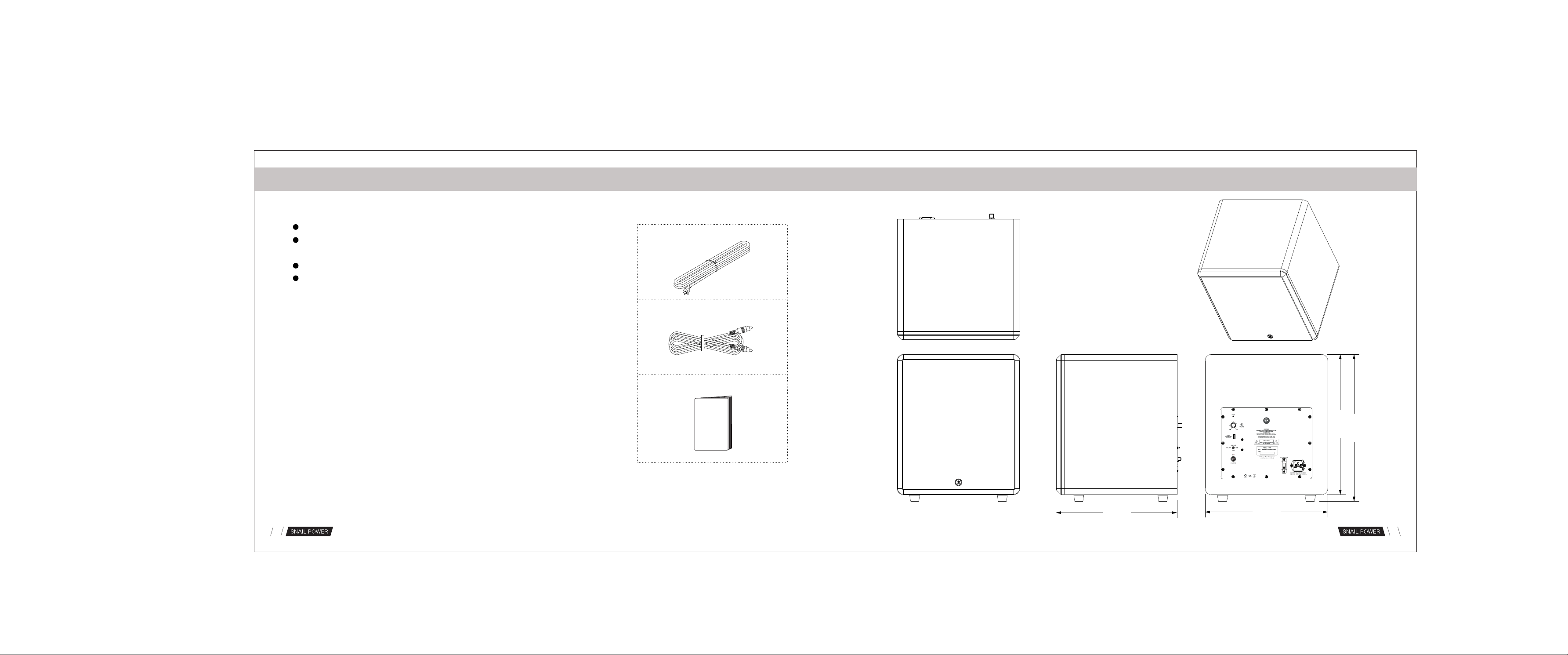

4：Finished dimension drawing
Subwoofer speaker unit: 10-inch large rubber
edge, long stroke tone, large suspension system,
double magnet inside and outside
Large diameter shaped L-shaped air duct *2Pcs
345 mm
350 mm
400 mm
419mm

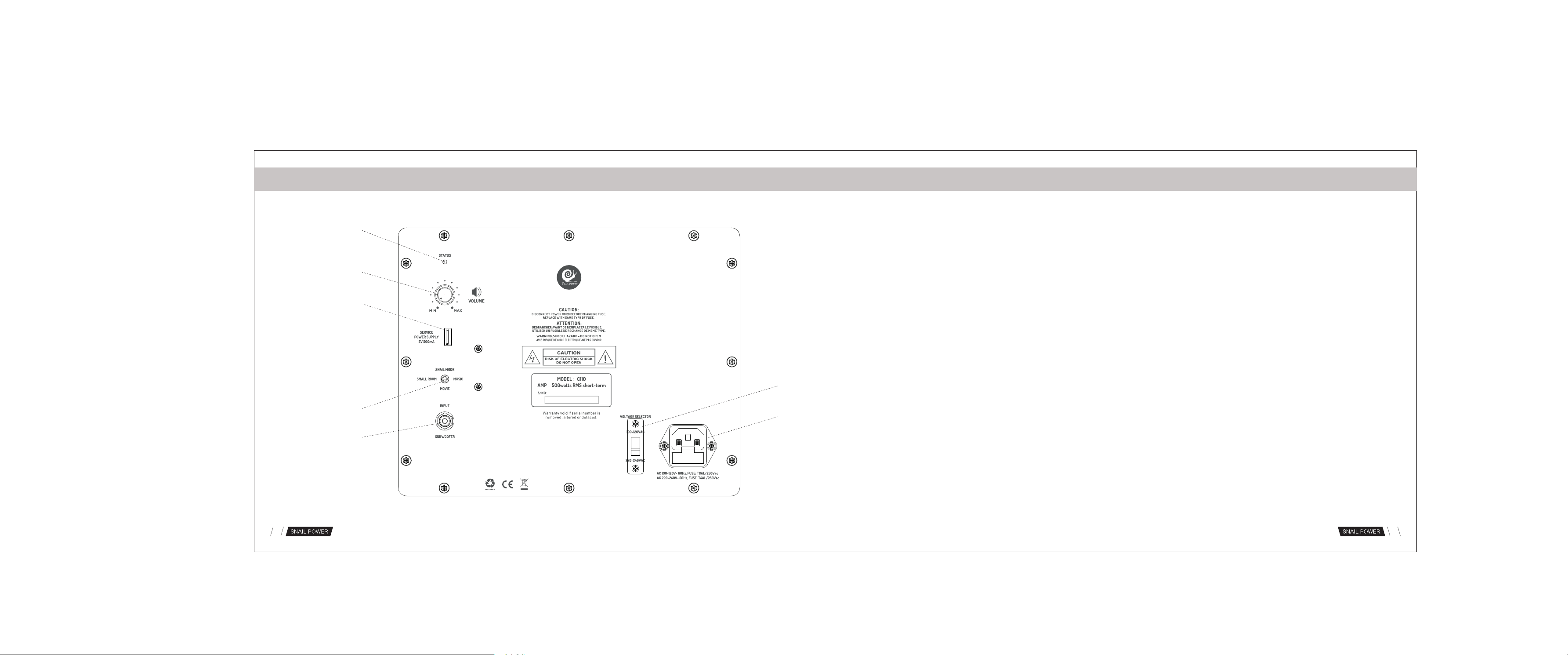

6 B： ack panel function Introduction
1
2
3
4
5
6
1.Status indicator
ON Green Detected audio input, triggered the power, in normal working mode.
STANDBY RED waiting for the audio signal to triggered Power, in standby mode.
OFF Non No power input.
This subwoofer can continue to work safely, if there is an audio signal input, the subwoofer will automatically turn on.
If we don't get a signal in 15 minutes or so,The subwoofer will automatically switch to standby mode (LED with red light).
In standby mode, your subwoofer uses minimal power.
2.Volume adjustment knob
Subwoofer volume adjustment, so that it reaches the appropriate volume.
3.USB JACK
USB Type A port: Used to update firmware and power USB devices, output voltage DC 5V/500mA.
4.SNAIL MODE
SMALL ROOM:It is recommended to use it in a 20 square meter closed space according to the scenario of small room.
MOVIE :According to the setting of the living room, it is recommended to use in more than 20 square meters or
Unconfined space.
MUSIC:Suitable for pure music, hi-fi music, listening to music in a variety of environments.
5.INPUT
RCA Input(2VP-P), DVD, CD, AV power amplifier SUB signal or audio output of other devices can be directly connected
to the subwoofer INPUT.
6.Power Cord Receptacle
The receptacle accepts the AC power cord，Input voltage AC220V~240V-50/60Hz;2PCS built-in fuse tube,
size T4AL/250V, ϕ 5x20mm.
7.Voltage selection switch
This machine can operate in an environment of 100-120V or 220-240V. Before using the machine,please make sure
the voltage switch is set to the correct position.
7
05
06
C110 C110

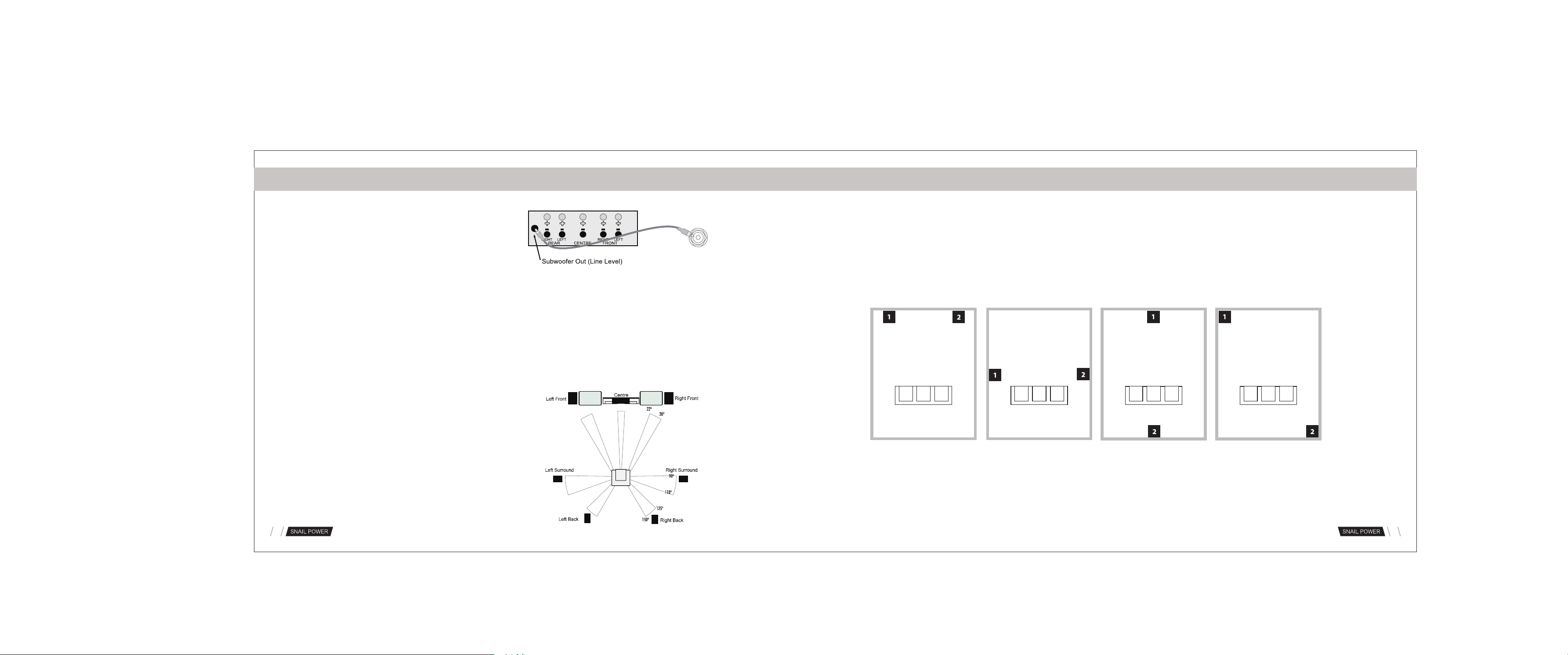

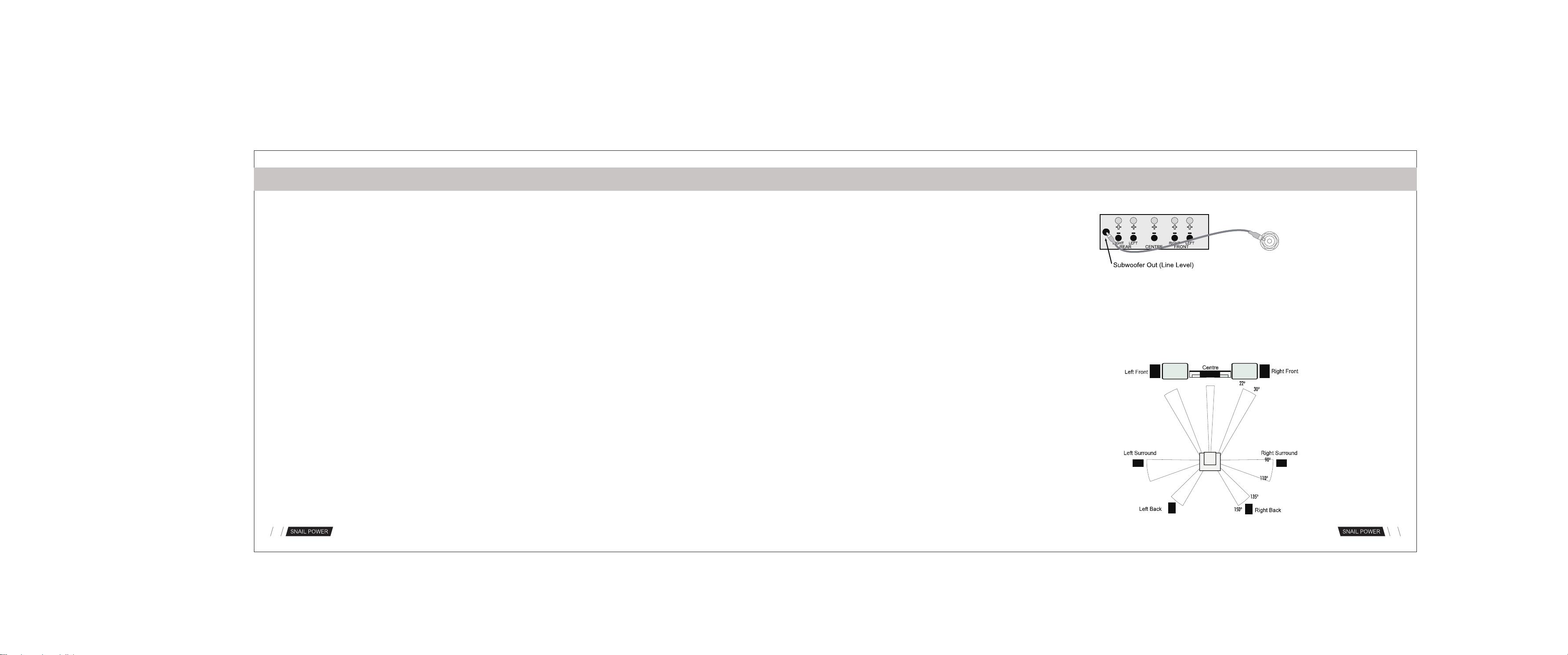

7：A/V Processor Connections
SNAIL S series, C Series, X series subwoofer is designed
to optimized with mainstream AV amplifier.
Use attached RCA cable to connect from AV
amplifier subwoofer Output pole with Subwoofer
Input. Refer drawing to connect the cable.
AV power amplifier
INPUT
SUBWOOFER
8：Setup Home Theater System
Home Theater Speaker: The two front speakers can be placed on two side of TV screen located at ¼ section of the front wall.
(as shown in the picture).The speaker is tilted slightly towards the listener. It is recommended to place the rear-surround
speaker in a higher position behind the listener's head. If the back wall far from the listener's seat, could consider using floor
stand. If the position of center speaker is too high or too low, tilt it slightly toward the listener's ear. The center speaker
should be further away from the direct line of surround speaker's front side. Using AV amplifier's automatic testing function
for calibration and adjustment.
Super Subwoofer: human ear cannot distinguish the direction of the bass, the Super Sub could be placed freely. The distance
of the Sub from the wall will affect the bass performance. Putting it in the corner might enhance the bass but may reduce the
clarity. If you use two super Sub same time, it will enhance the performance of your home theater system.
9：Multi-channel Placement
SUB
WOOFER
SUB
WOOFER
DolbyLabs, DTS, and THX provide 5.1 and 7.1 layouts. The
exact structure of these systems depends on the performance
of your processor, we will also provide some experimental
results for your reference.
With 5.1 and 7.1 system, the position of listener should notbe
too close to the rear wall.To fully perform the benefitsof these
systems, it is important to make sure that signals from all
speakers reach DolbyLabs' multi-channel home theater
system layout simultaneously.
10：Subwoofer installation
Using Two Subwoofer
When using two Subwoofer, try placement near the front corners of the room, at diagonally-opposite corners
of the room, or at the center points of opposing walls as shown at right.
Experimentation with subwoofer and listener placement is recommended to achieve the best results - the
benefts can be substantial.
High- resolution measurements and professional system calibration are recommended for the best possible
results & system performance.

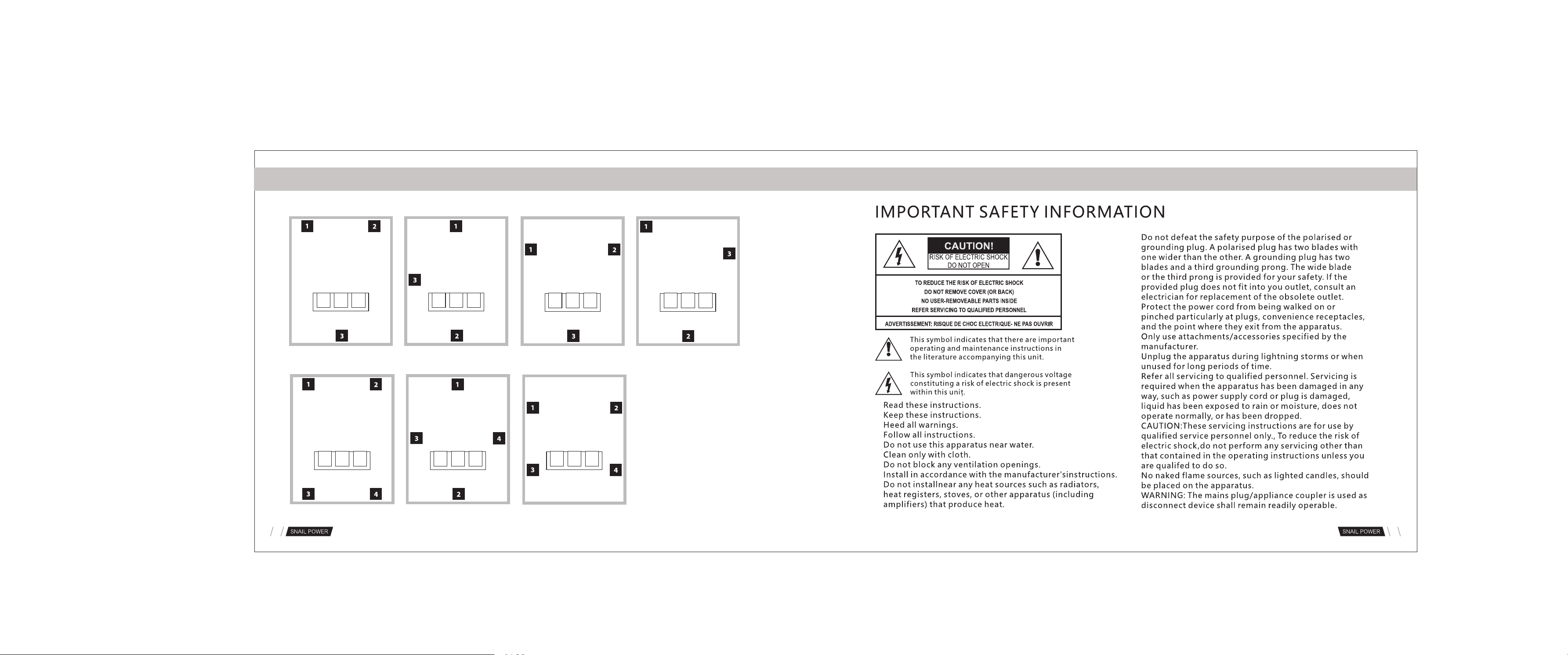

Recommended subwoofer Placement Options for Two Subwoofer
Research indicates that the smoothest bass response for a large listening area can be achieved using four subwoofers,
placing one at the midpoint of each of the four walls (although using two or three subwoofers can be almost as good).
Experimentation with subwoofer and listener placement is recommended to achieve the best results- the Benefts can
be substantial.
High- resolution measurements and professional system calibration are recommended for the best possible results &
system performance.
Using Three or Four Subwoofer
07
08
C110 C110

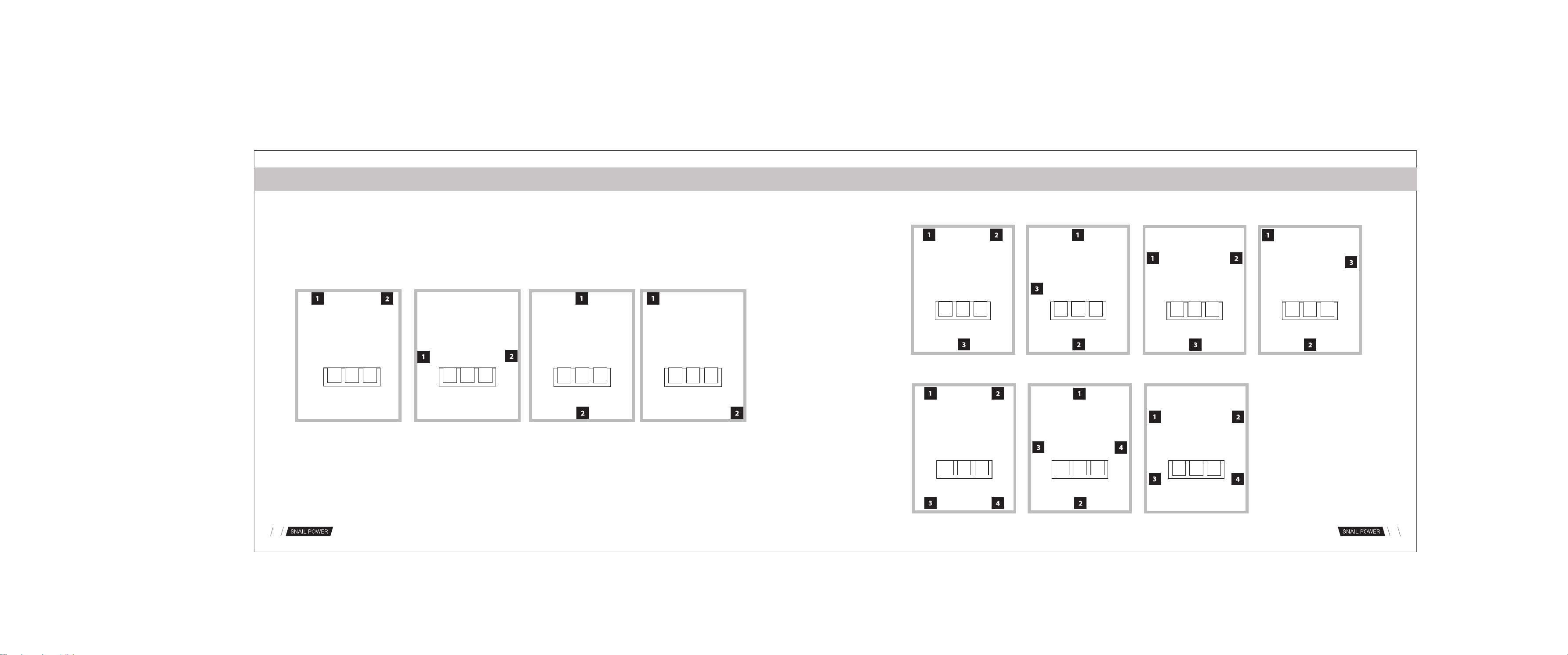

Recommended subwoofer Placement Options for Three Subwoofer
Recommended subwoofer Placement Options for Four Subwoofer
09
10
C110 C110
11
12
C110 C110
speaker
PCB board
Wire
Enclosure
Accessories
C110 C110
13
14
C110 C110 中文说明书
7
FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any inte rference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interferenceto radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
四：产品尺寸
15
16
C110 C110
345 mm
350 mm
400 mm
419mm
三：标配附件
一：产品特性
10寸大驱动单元, ;大橡胶边、长冲程音圈、大悬挂系统、内外双磁铁
超低音箱,丰满自然、宽松磅礴、包围感强烈的大口径异型L形风管
超低频振撼感;
有源一体化,内置放大器;
所用的材料均符合ROHS标准;
二：技术参数
喇叭单元: 10" Driver;
频响范围: 25Hz~200Hz（±3dB）;
功放输出功率: 5 ;00 watts RMS short-term
灵 敏 度: 88±3dB/W/m( 100Hz);
输入接口: (2VP-P);RCA线路输入
标称阻抗: 4Ω；
最大声压(@1m): 114dB;
功能特性: 0.5W低待机功耗;过热关机保护;短路和过载保护;
永久高频保护;专有的DSP模块;
使用电源: AC 100-120V~60Hz/AC 220-240V~50Hz;
成品尺寸: 350(W)X419(H)X345(D)mm
产品净重: 20Kg;
产品毛重: 22Kg;
A：电源线 * 1根
C：说明书
B： 轴线同 * 1根
六：后面板功能说明
1
2
3
4
5
6
7
17
18
C110 C110
五：前面板说明
低音炮喇叭单元：10寸大橡胶边、长冲程音圈、
大悬挂系统、内外双磁铁
大口径异型L形风管 *2个
七：A/V处理器连接
SNAIL S系列、C系列、X系列音箱是与主流AV功放最优搭配而设计。
AV功放的SUBWOOFER OUTPUT的输出接口与低音炮的
SUBWOOFER INPUT接口连接即可(机器内配置单声道信号屏蔽
的RCA导线），按右图将导线与音箱的低音效果信号输入端连接。
AV功放
超重低音输出(低电平)
INPUT
SUBWOOFER
八：家庭影院系统的设置
家庭影院音箱：前置主音箱可放在电视屏幕的两侧，音箱的位置约在前方的墙面1/4处（如图所示）。音箱稍微向听者位置倾斜摆放。建议将后环绕音箱
放在听者头部后方的一个较高位置。如果后墙和侧墙离听者座位较远，可考虑将音箱架在落地支架上。如果中置音箱过高或过低，将其稍微向听者耳朵
处倾斜。中置音箱离环绕音箱的前面板所在直线应尽可能远。调试应该使用AV功放的自动测试的功能进行校正和调整。
超重低音音箱：由于人耳无法分辨出较低沉的低音发出的方向，所以超重低音音箱可以自由摆放位置。音箱离墙壁的距离会影响低音效果。将其放在墙角
会增强低音但可能会使清晰度减弱。如果同时使用两个超重低音音箱，会增强家庭影院系统的演示效果。
九：多通道系统的摆放
DolbyLabs，DTS和THX提供了5.1和7.1布局。这些系统的精确结构取决
于您的处理器的性能，但我们会提供一些试验结果，以供您参考。
在5.1和7.1布局中，听者位置离后方墙壁不要太近。
为充分实现这些系统的优点，应尽量使所有音箱发出的信号同时到达听
DolbyLabs的多声道家庭影院系统摆放方案。
SUB
WOOFER
SUB
WOOFER
19
20
C110 C110
1: STATUS指示灯
开机 绿色 检测到音频信号输入，触发开机，处于正常工作状态
待机 红色 等待音频信号触发开机，处于待机状态
关闭 无 无电源输入
本超低音音箱可以持续安全工作，如果有音频信号输入时，超低音音箱会自动开启。如果15分钟左右都没有信号输入，
超低音音箱会自动切换到待机模式（LED显红灯）。在待机模式下，您的超低音音箱会消耗最小的功率。
2: VOLUME音量调节旋钮
低音炮音量调节，使其达到合适的音量。
3: USB插座
USB A型端口：用于固件更新和为USB设备供电，输出电压DC 5V/500mA。
4: SNAIL MODE模式选择开关
SMALL ROOM： 按小房间使用场景设置，建议在20平方密闭空间内使用。
MOVIE： 按客厅使用场景设置，建议在20平方以上或非密闭空间使用。
MUSIC： 适合纯音乐,高保真音乐，在各种环境中倾听音乐。
5: INPUT信号输入
RCA线路输入 DVD，CD，AV功放SUB 音源输出，可直接连接本产品输入端INPUT接口。(2VP-P)， 信号或其它设备
6: 电源线插座
插座接受交流电源线，输入电压AC220V~240V-50/60Hz；内置保险丝管2PCS,规格T4AL/250V，尺寸ϕ5x20mm。
: 7 电压选择开关
本机可在100-120V或220-240V的环境中运行。在使用机器之前，请确保电压开关拨到正确位置。
使用三个低音炮的推荐低音炮放置选项
使用四个低音炮的推荐低音炮放置选项
21
22
C110 C110
当使用两个低音炮时，试着放置在房间的前角附近，对角在房间的中心，或在相对的墙壁的中心点，如右边所示。
当使用两个低音炮
建议使用低音炮和听筒进行试验，以获得最佳效果——好处可以是实质性的。
为了获得最佳的结果和系统性能，建议进行高分辨率测量和专业的系统校准。
使用两个低音炮的推荐低音炮放置选择
研究表明，对于一个大的听区，使用四个低音炮可以达到最平稳的低音响应，将一个低音炮放置在四面墙的中间位置(尽管使用两个或
三个低音炮几乎可以达到同样的效果)。
建议使用低音炮和听筒进行试验，以获得最佳效果——好处可以是实质性的。
为了获得最佳的结果和系统性能，建议进行高分辨率测量和专业的系统校准。
当使用三个或者四个低音炮
十：低音炮音箱的安放
ROHS有害物质管理
有毒&有害物质
铅(Pb)
汞(Hg)
镉(Cd)
多溴联苯(PBB)
六价铬(Cr,Vi)
多溴联苯醚(PBDE)
喇 叭
电 线
汞(Hg)
镉(Cd)
多溴联苯(PBB)
六价铬(Cr,Vi)
多溴联苯醚(PBDE)
电 路 板
箱 体
附 件
表示该有毒有害物质在该部件所有均质材料中的含量均在GB/T26572011规定的限量要求以下。
23
24
C110 C110
