BONTECK PRECISION CO., LTD.
S U - S H I N , C H A N G P I N G , D O N G G U A N C I T Y, G U A N G D O N G
TEL
: 86.769.83818660
FAX
: 86.769.83819660
E-MAIL
: lew@ bonteck.com

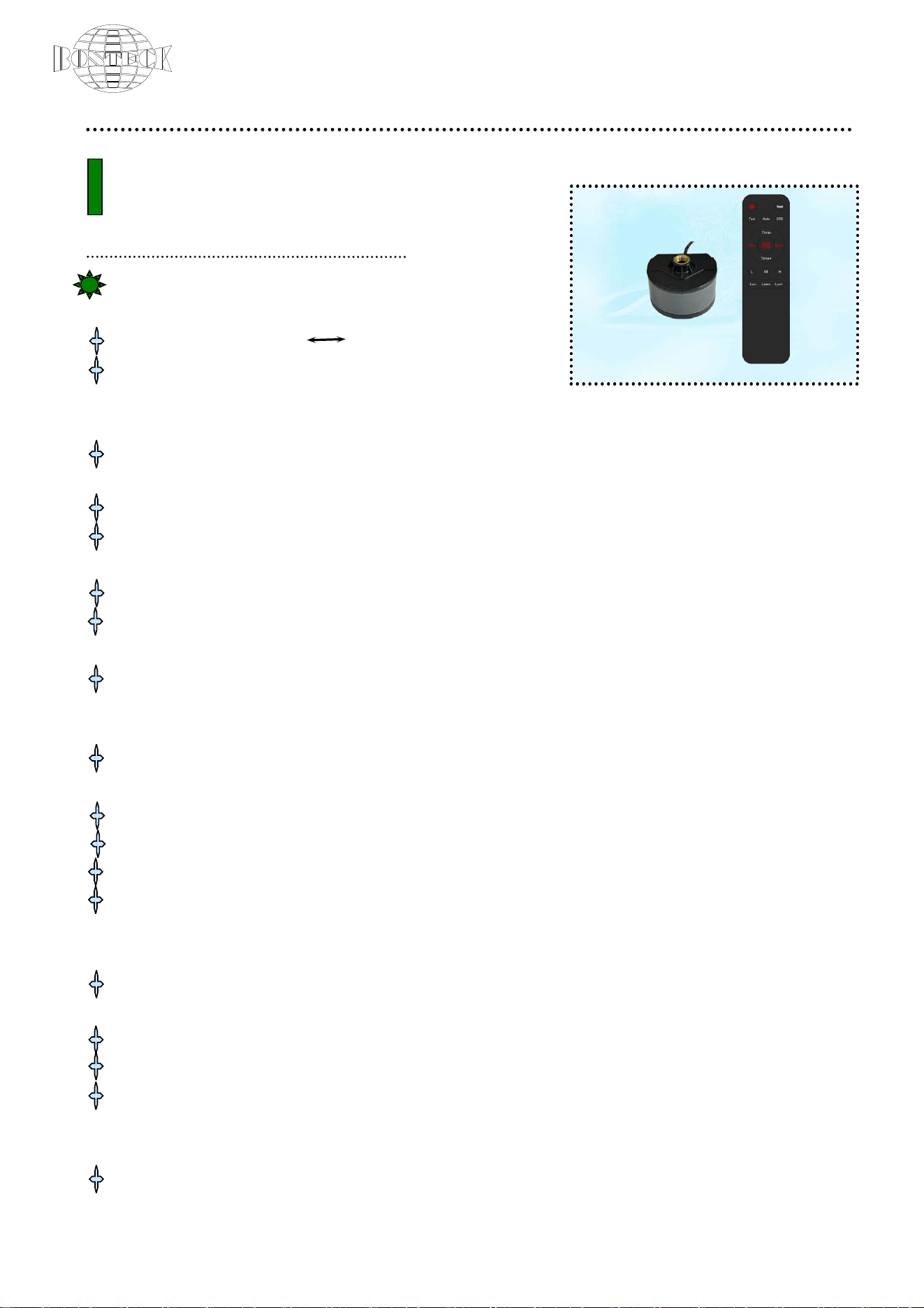

SPECIFICATION
PIR MOTION SENSOR with remote controller
MD.
ES-220PS-RM
（
ON/OFF
）
FEATURES
---Only sensor used
Test Mode + Auto Mode Manual Override
Test mode function: During the day or night, when
motion stops, the light will turn off in about 5 seconds.
The test mode has a period of 2minutes, and then automatically enters Auto mode.
Auto
Mode Function: At dusk, The light will stay ON as long as the motion is detected. when
people leaving, the light will turn on for 2 minutes, and then turn off automatically.
Switch the power switch three times in 5 seconds to restore the factory settings .
8hrs Auto re-set Manual Override or re-set by flipping the switch within 2".
---Sensor and remote control be used together
Test Mode + Auto Mode + DTD mode + ON/OFF mode can be set by remote controller
Test mode function: During the day or night, when motion stops, the light will turn off in about 5
seconds.
Auto Mode Function: At dusk, The light will be turned ON with high brightness as long as the motion is
detected. when people leaving, the light will turn on for the predetermined time you set (1 minute to 10
minutes adjustable), and then turn off automatically.
DTD mode Function: Turn on the light with high-level brightness at dusk and turn off at dawn
automatically.
ON/OFF mode
：
Turn on the light with high-level brightness or turn off it by remote controller.
Delay time can be set from 1 minute to 10 minutes by remote-controller in Auto Mode.
Sensitivity can be set at L(3 meters) or M(6 meters) or H(9 meters) by remote controller.
High brightness can be adjusted from 100% to 20% Cyclic regulation by remote-controller in
，
Test mode or Auto mode or DTD Mode or ON/OFF mode by “Dim+” and “Dim-” button on
remote-controller.
Activating light level can be adjusted from 15lux to 300lux Cyclic regulation,by “lux+” and “lux-”
button on remote-controller.
Activating light level can be set as required by “Learn” button on remote-controller
Detection range
：
Min.9M×220°detection range for wall use.
Switch the power switch three times in 5 seconds or press the "Reset" button on the remote
control to restore the factory settings, and enter the Auto mode 2minutes,Sensitivity H(9meters),
Activating light level 50lux .
Meet FCC requirements when full bright
（
@ON mode high brightness 100%
）
TECHNICAL DATA
DESCRIPTIONS SPECIFICATIONS
Input power
120 VAC±10
﹪
, 60Hz
Load Rating
Max.
1
0
0
Watts
Incandescent
;
or
Max
60W
dimmable
LED
bulb/LED
driver
;
or
Max
60W
dimmable
Fluorescent
Detection angle
2
2
0
°
(wall
installation)
Mounting height
Max.
2.2
m(
for
wall
use
)
Detect Range,(tangential)
Min.9
m
@25
℃
ambient
temperature
Delay time
1min
/
2min
/
3min
…
/
10min
@
Remote
control
2min
@
factory
setting
Detection sensitivity
10
0
%
(H)
/
6
0%
(M)
/
30
%
(L)
@
Remote
control
100%
@
factory
setting
Daylight sensor activate threshold
(OFF-ON)
1
5
LUX/
5
0
lux
/
1
00
lux
/
200
lux
/
3
00
lux
/Define
@
Remote
control
5
0
lux
@
factory
setting
Daylight sensor(ON-OFF)
Max.500LUX
high brightness dimming level
100%/90%/80%/70%/60%/50%/40%/30%/20%
Power Consumption
Max. 0.5 Watt when stand-by
Working Temp
- 30℃ ~ 50℃
IP rating
Wet location(Assembled into lighting)

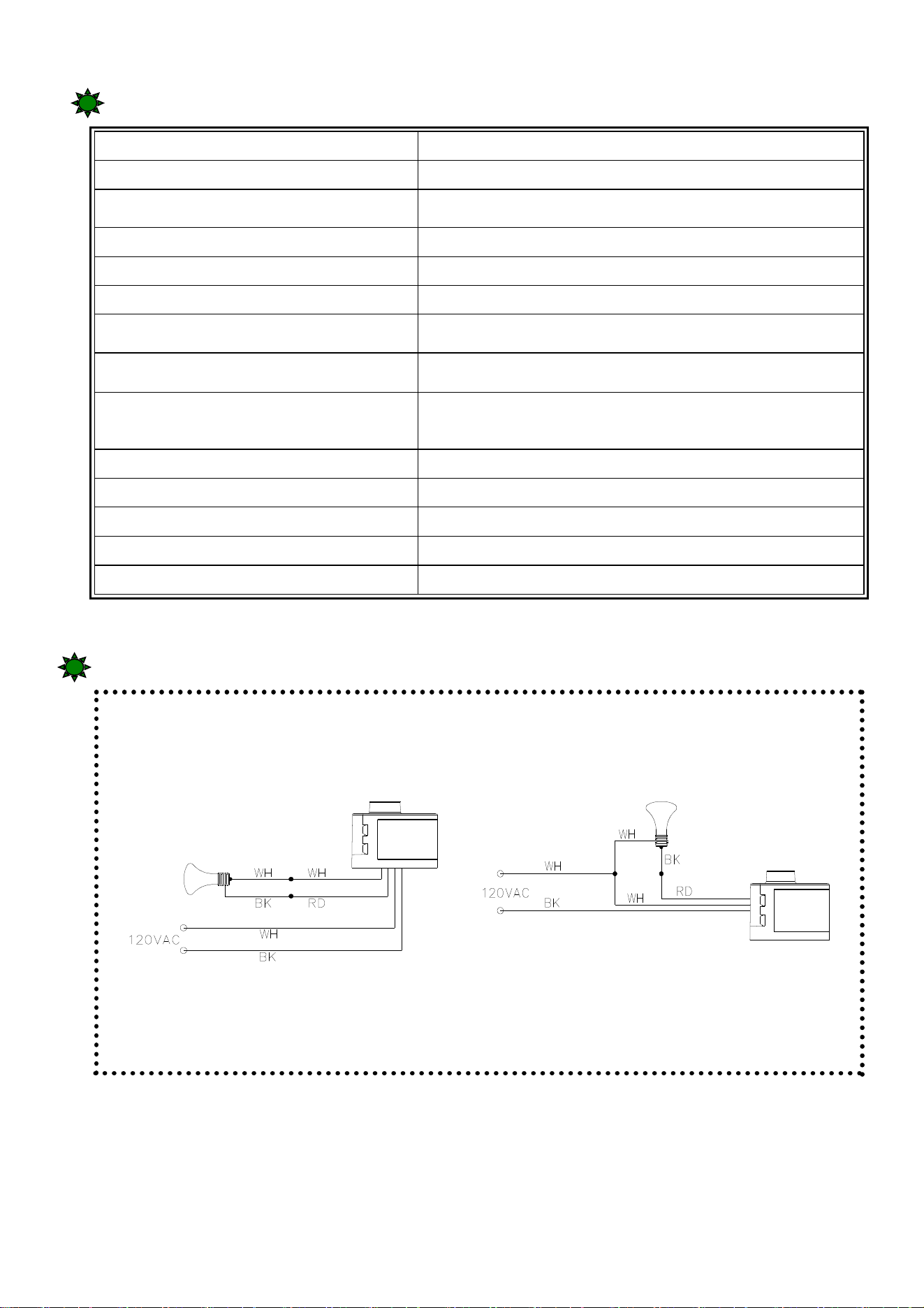

WIRING DIAGRAM & SIZE DWG

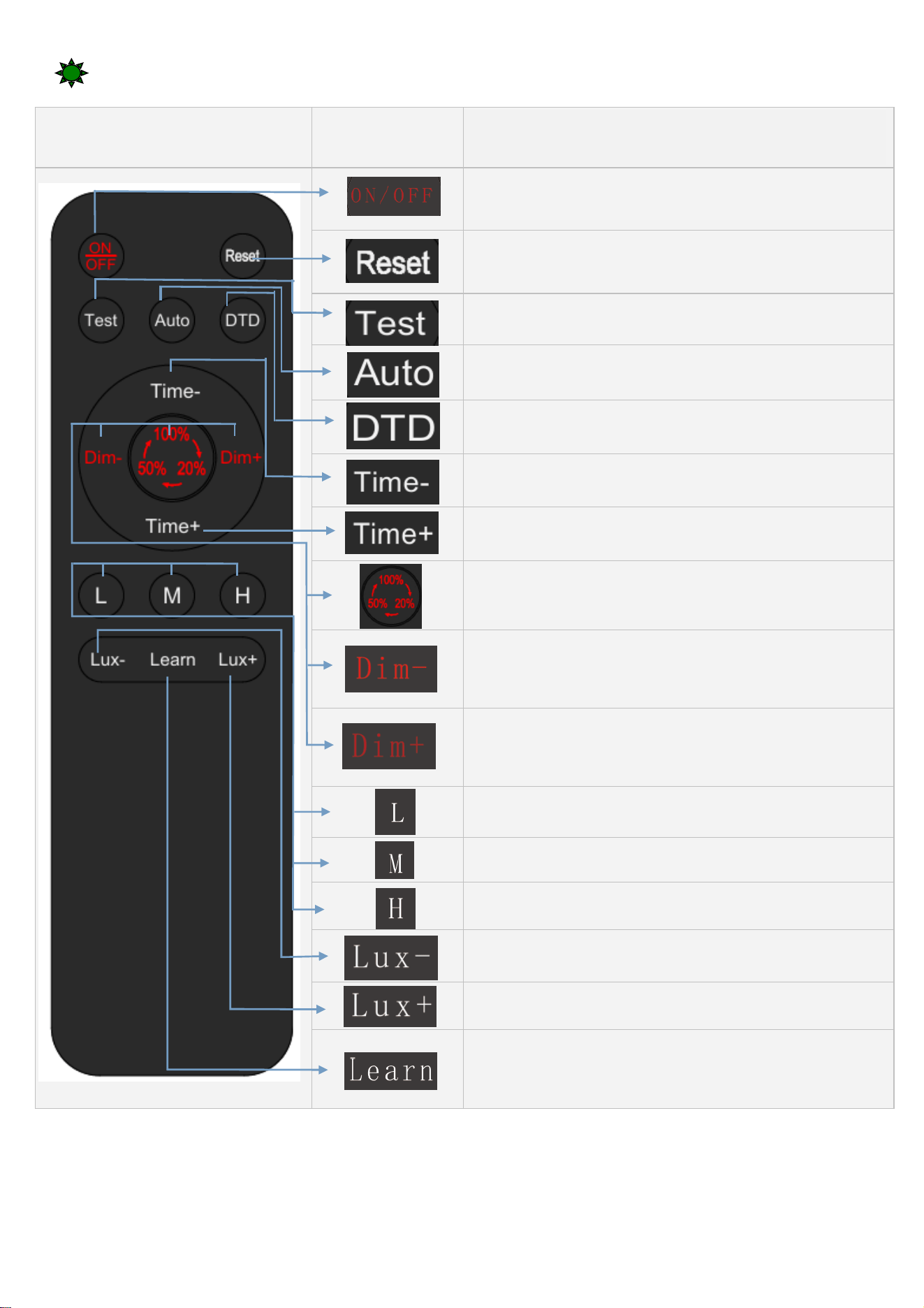

REMOTE CONTROL FUNCTION
File/ ES-220PS-RM
（
ON/OFF
）
V1.1
2025/07/28
Remote control setting Button
Function description
Press the "ON /OFF" button, the light goes to constant on mode, sensor is
disabled . Press "ON /OFF" button again to quit from this mode and the
sensor starts to work. With memory for ON/OFF setting after power off, on
mode will keep after restart power supply
Press "Reset" button to restore all parameters to factory settings.
Factory setting function: Sensor operates in "Auto" mode, Delay time is 2
minutes,and Daylight sensor activates light level is 50LUX,
Sensitivity H(9meters).
Press the "TEST" button can enter the test mode anytime .In the mode,
during the day or night, when motion stops, the light will turn off in about 5
seconds.
Press the "Auto" button, and the sensor can detect motion to control the
light to works at night.
Press the "DTD" button can enter the DTD mode, control the light to turn on
with high-level brightness at dusk and turn off at dawn automatically
Press the "Time-" button to set the delay time of Auto mode. Delay time is
reduced by one minute each time, and the adjustment range is 10Min to
1Min.
Press the "Time+" button to set the delay time of Auto mode. Delay time is
increased by one minute each time, and the adjustment range is 1Min to
10Min.
Press the "
100%
→
20%
→
50%
→
100%
" button to set the single-level
brightness of
100%
→
20%
→
50%
→
100%
.
In TEST mode, Auto mode, DTD mode and ON mode, press the "Dim-"
button to dim the brightness level by 10% at a time, and the adjustment
range is 100% ~ 20%.
In TEST mode, Auto mode, DTD mode and ON mode, press the "Dim+"
button to brighten the brightness level by 10% at a time, and the adjustment
range is 20% ~ 100%.
Press the" L "button to set 30% sensitivity, and the sensing distance is
3m±1.5m.
Press the" M "button to set 60% sensitivity, and the sensing distance is
6m±2m.
Press the" H "button to set 100% sensitivity, and the sensing distance is
Min.9m.
Press the "Lux-" button to Set up daylight sensor activates threshold ：
300LUX→200LUX→100LUX→50LUX→15LUX。
Press the "Lux+" button to Set up daylight sensor activates threshold ：
15LUX→50LUX→100LUX→200LUX→300LUX。
Press the "Learn" button for 3 seconds to automatically learn the ambient
light currently detected by the daylight sensor as the activate threshold.
When the ambient light is lower than this threshold, the sensor will start
working, and when it is higher than this threshold, the sensor will stop
working.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
BONTECK PRECISION CO., LTD.
S U - S H I N , C H A N G P I N G , D O N G G U A N C I T Y, G U A N G D O N G
TEL
: 86.769.83818660
FAX
: 86.769.83819660
E-MAIL
: lew@ bonteck.com

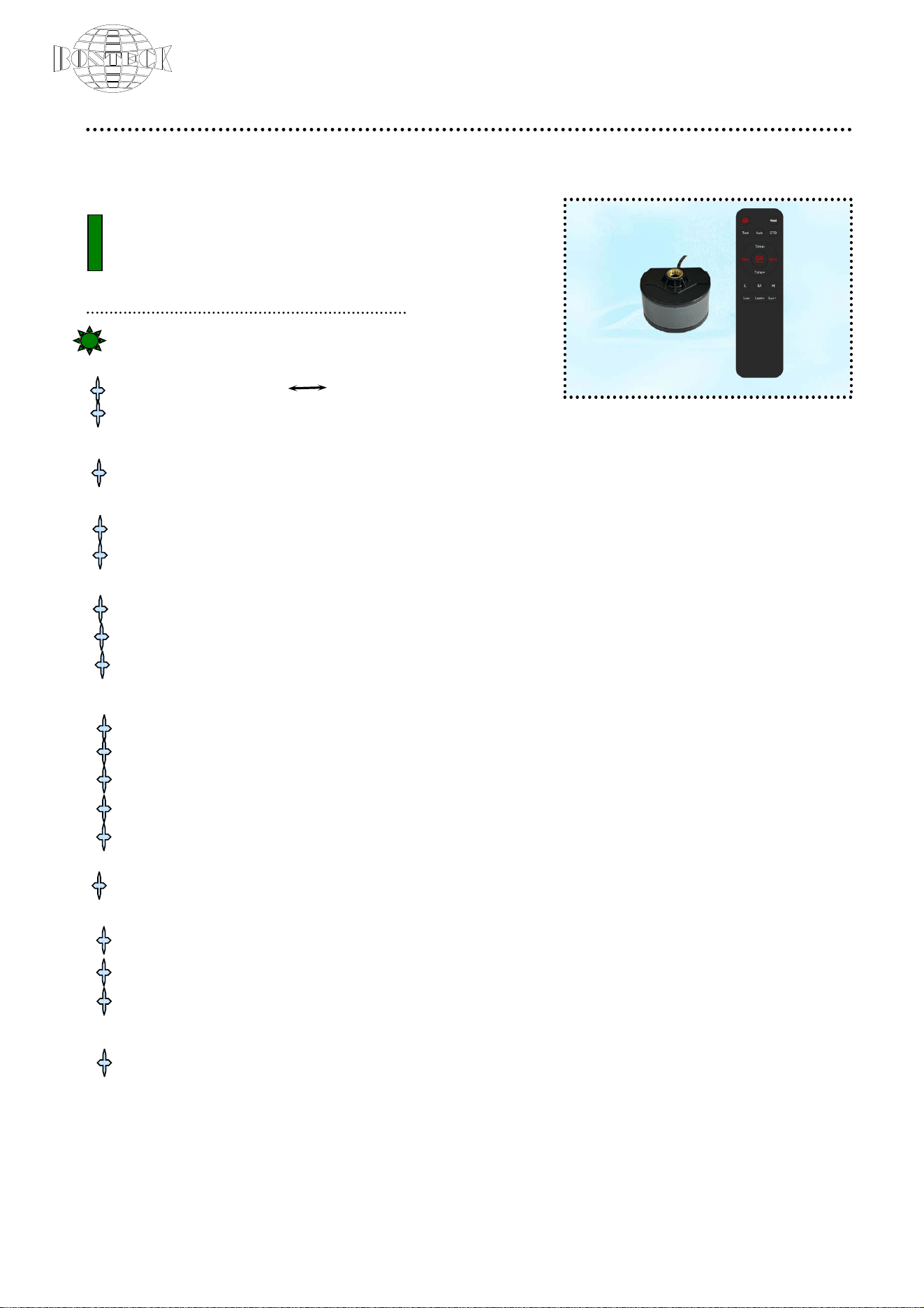

规格书
带遥控器的 PIR 运动感应器
MD.
ES-220PS-RM
（
ON/OFF
）
产品特征
---
仅使用感应器
测试模式 +自动模式 手动长亮模式
测试模式功能：
在白天或晚上，当运动停止时，灯将
在大约 5 秒后关闭。测试模式持续 2 分钟，然后自动进入自动模式。
自动模式功能：
黄昏时，只要检测到运动，灯就会一直亮着。当人们离开后，灯会在 2 分钟后
熄灭。
在 5 秒钟内切换电源开关三次以恢复出厂设置。
手动长亮模式，在 2 秒内切换电源开关一次，产品当晚点灯 8 小时。
---红外感应器和遥控器一起使用
测试模式 + 自动模式 + DTD 模式 + 开/关模式可通过遥控器设置
测试模式功能:
在白天或晚上，当运动停止时，灯将在大约 5 秒后关闭。
自动模式功能:
黄昏时，只要检测到运动，灯就会以高亮度打开。不再检测到运动后，灯将在
您预先设置的时间内点灯（1 分钟至 10 分钟可调），然后自动关闭。
DTD 模式功能:
黄昏时灯高亮度开启，黎明时自动关闭。
开/关模式：
用遥控器以高亮度打开/关闭灯具。
在 Auto 模式，可通过遥控器设置 1 分钟至 10 分钟的延迟时间。
灵敏度可以通过遥控器设置为 L（3 米）或 M（6 米）或 H（9 米）。
通过遥控器上的“Dim+”和“Dim-”按钮，在 Test 模式、Auto 模式、DTD 模式或 ON/OFF 模
式下，可以通过遥控器将高亮度从 100%调节到 20%循环调节。
通过遥控器上的“Lux+”和“Lux-”按钮，可以将光敏零件的激活亮度（启动 LUX）从 15Lux
调节到 300Lux 循环调节。
可通过遥控器上的“Learn” 按钮根据需要设置光敏零件激活灯的照度。
侦测范围： 壁挂安装使用时最小 9M×220°。
在 5 秒内切换电源开关三次或按遥控器上的“
Reset
” 按钮以恢复出厂设置，自动模式 2 分
钟、最远距离 H（9 米）、50Lux 档。
全亮符合 FCC 要求（@ON 模式 100%亮度）。
产品特性
项目 规格
输入功率 120 VAC±10﹪, 60Hz
额定负载
最大 100 瓦白炽灯；或者最大 60W 可调光 LED 灯泡/LED
驱动器；或最大 60W 可调光荧光灯
检测角度
220°(墙壁安装)
安装高度
Max.2.2m(墙壁安装)
侦测范围,(切向)
最小 9m @25℃ 环境温度
延迟时间
1min/2min/3min… /10min @遥控器控制
2min @出厂设置
检测灵敏度
100% (H)/60%(M) / 30% (L) @遥控器控制
100% @出厂设置
光敏零件激活阈值
(关-开)
15LUX/50lux /100lux /200lux / 300lux/自定义
@遥控器
50lux @出厂设置
光敏零件(开-关)
Max.500LUX
高亮度调光比例 100%/90%/80%/70%/60%/50%/40%/30%/20%
待机功耗 最大 0.5W 待机功率
工作温度 - 30℃ ~ 50℃
防水等级 UL1598 潮湿环境（组装在灯具里做好防水)

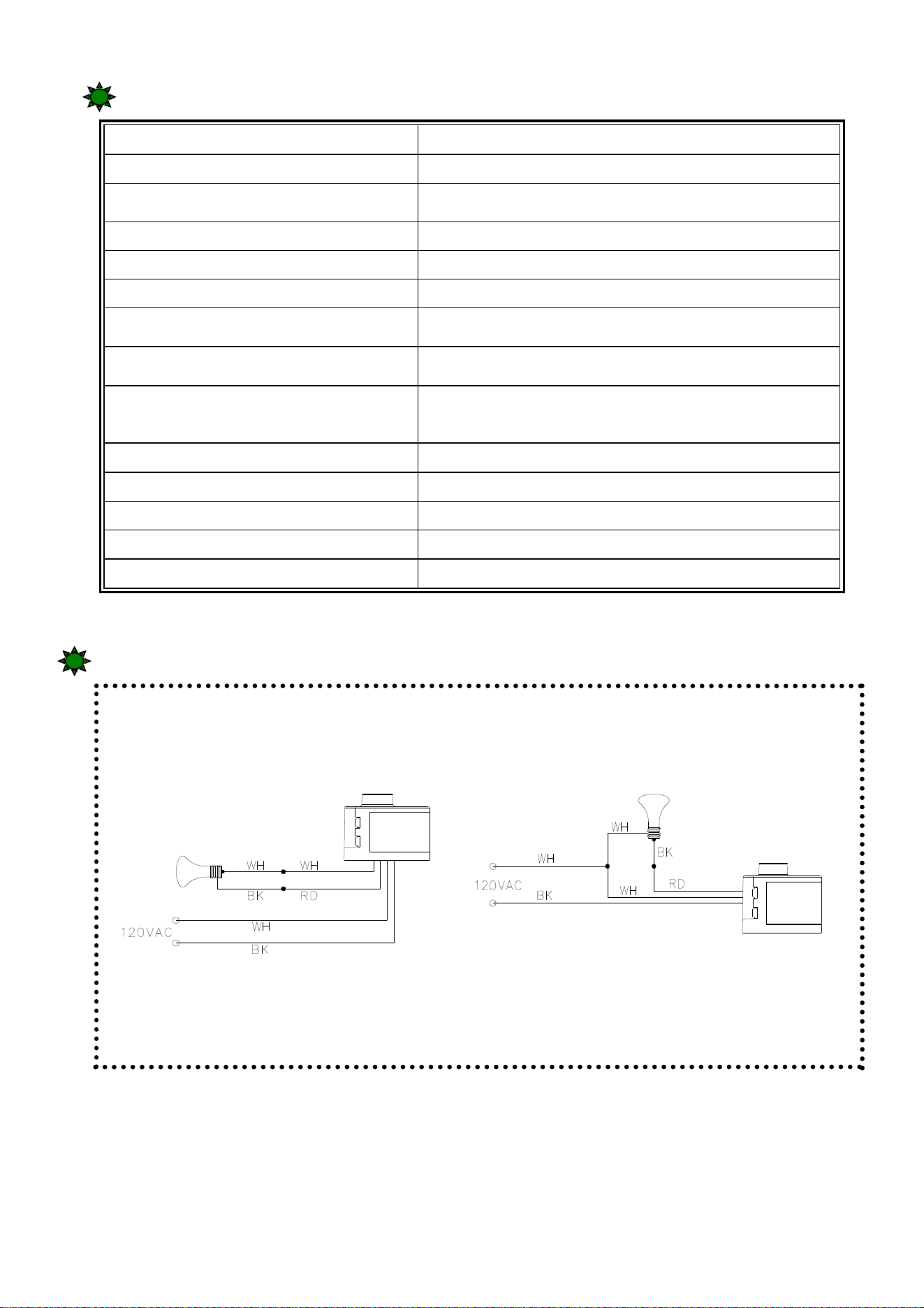

接线和尺寸图

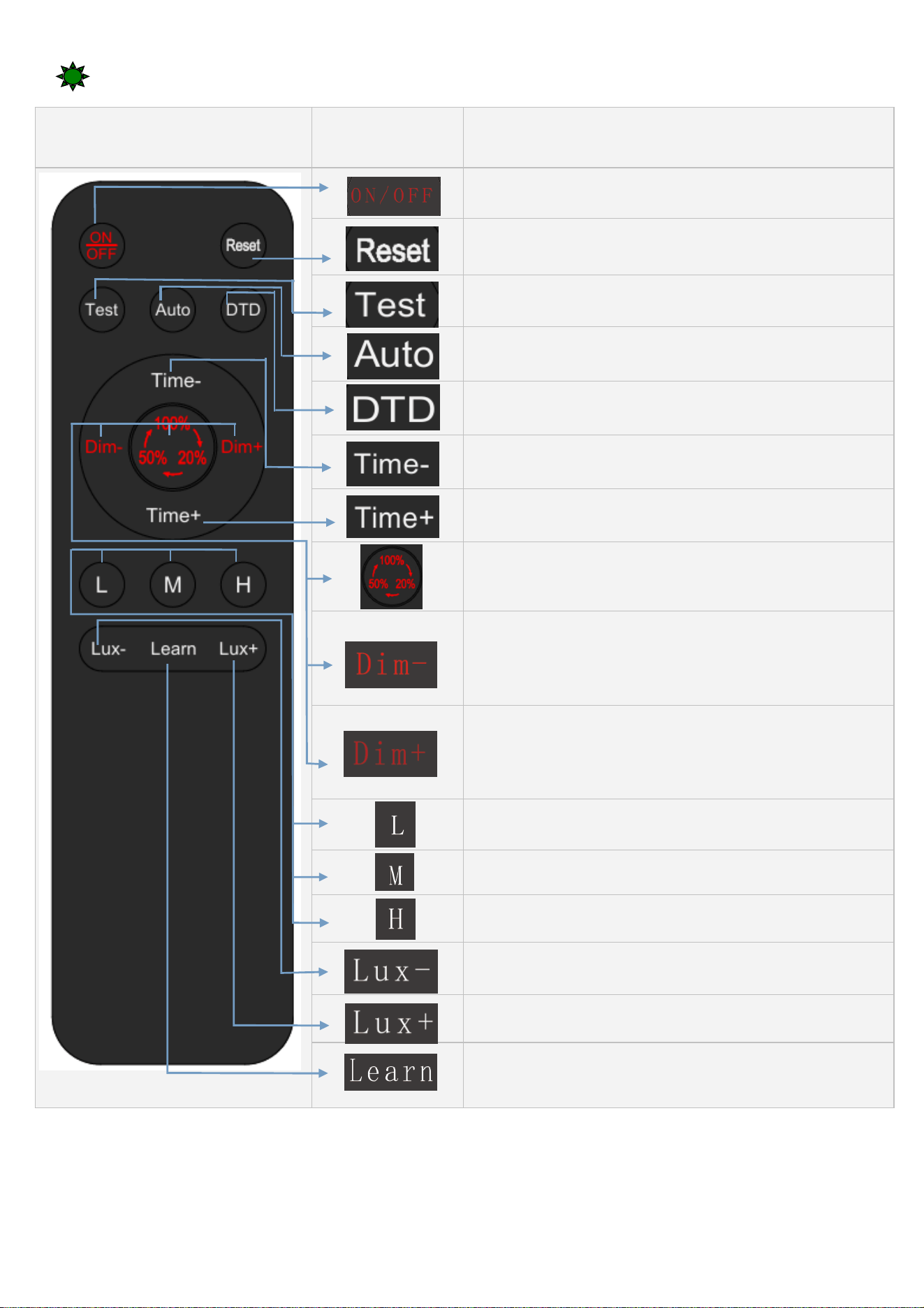

遥控功能说明
File/ ES-220PS-RM（ON/OFF） V1.1 2025/07/28
遥控器面板设置 按键 功能说明
按 ON/OFF 按键，进入 ON 模式，灯长亮；再按一次 ON/OFF 按
键退出 ON 模式回到操作 ON 按键之前的功能。有断电记忆功能。
按 Reset 按键，所有参数恢复出厂设置。
出厂设置功能：感应器处于 Auto 模式延时时间为 2 分，启动
LUX 为 50LUX,距离为 H 最远。
按 Test 按键，白天晚上都可以感应亮灯，人离开后延时 5 秒
灭灯。
按 Auto 按键，感应器只有晚上才可以侦测人活动控制灯具工
作。
按 DTD 按键，晚上亮灯，白天灭灯。
按 Time-按键，设置 Auto 模式的延迟时间，每按一次延迟时间
减一分钟，调节范围为 10Min 到 1Min。
按 Time+按键，设置 Auto 模式的延迟时间，每按一次延迟时
间加一分钟，调节范围为 1Min 到 10Min。
按 100%→20%→50%→100%键，快速设置全亮亮度 100%→20%
→50%→100%
在 TEST 模式、Auto 模式、DTD 模时和 ON 模式工作时，按 Dim-
按键，对灯光的亮度调节每次以 10%为单位调暗，调节范围为
100%～20%。
在 TEST 模式、Auto 模式、DTD 模时和 ON 模式工作时，按 Dim+
按键，对灯的亮度调节每次以 10%为单位调亮，调节范围为 20%
～100%。
按下 L 按键，设置 30%的灵敏度，感应距离 3 米±1.5 米。
按下 M 按键，设置 60%的灵敏度，感应距离 6 米±2 米。
按下 H 按键，设置 100%的灵敏度，感应距离最小 9 米。
Lux-按键，设置启动 LUX，300LUX→200LUX→100LUX→50LUX
→15LUX。
Lux+按键，设置启动 LUX，15LUX→50LUX→100LUX→200LUX→
300LUX。
Learn 按键，长按 3 秒才可以自动学习光敏零件当前侦测到的
环境光线作为启动 LUX，周围光线低于此阀值，感应器开始工
作，高于此阀值，感应器停止工作。
