Bluetooth Audio System
User’s Manual
REVISION HISTORY
Scope
This document outlines the function of the Bluetooth Audio System. Only a qualified engineer
or technician should follow the instructions provided in this document. This document is not
intended to be used by the end user of this product.

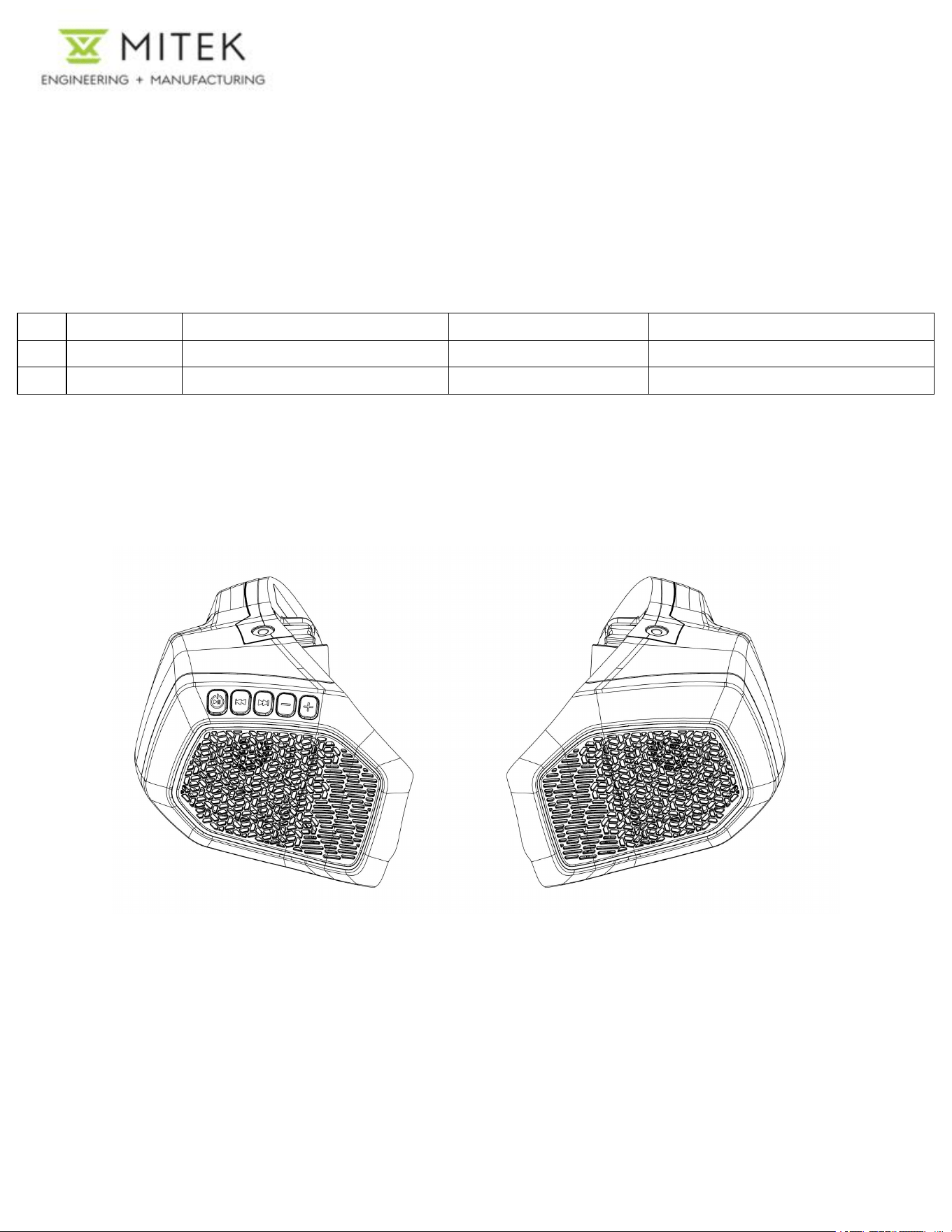

System Specifications
The Bluetooth Audio System is powered by the vehicle 12V power system.
The system connects to a user’s phone that is capable of Bluetooth 5.0
The audio amplifier provides a maximum of 50W RMS x 2 channels
Speakers consist of a 5” low-frequency driver and a tweeter per channel
Rev
Section
Description
Date
By
01
All
Initial Release
May 12, 2026
Erik Larsen
02
All
Updated to reflect full system
May 22, 2026
Chris Glassman
MiTek Confidential
P a g e 2 | 6

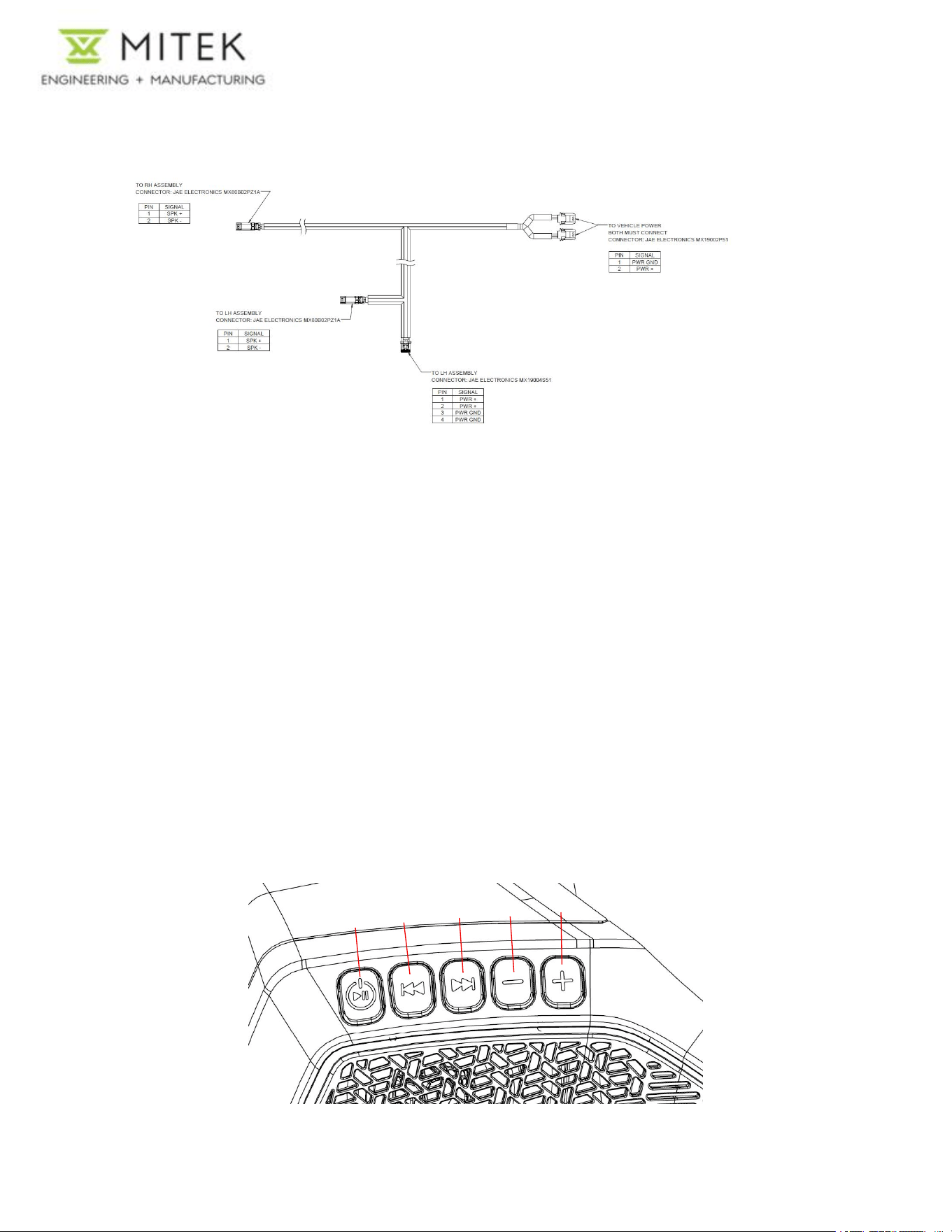

Connectors
Electrical Specifications
Audio input: Bluetooth only
Bluetooth revision: 5.0
Audio channels: 2
Amplifier output power: 50W RMS maximum
DC operating range: 7-17VDC
Current draw: 10A peak
Bluetooth Audio System User Interface

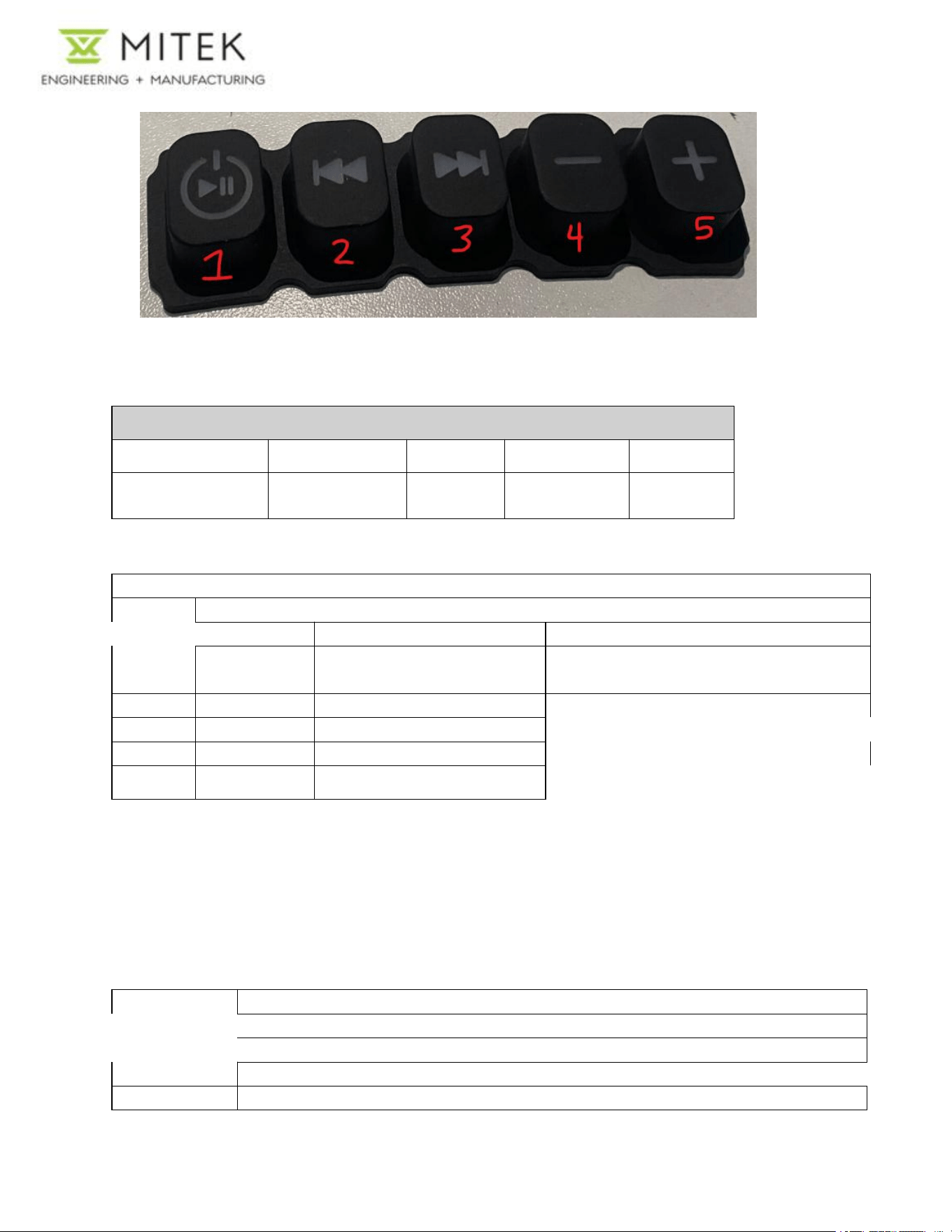

The Bluetooth Audio System user interface includes:
1. 5 Buttons
2. 5 LEDs (one for each button)
4
2
3
1
5
MiTek Confidential
P a g e 3 | 6
Buttons will be used to control the Bluetooth Amplifier
LEDs will provide information about the status/state of the Bluetooth Amplifier
Button Positions
1
2
3
4
5
Power/Play/Pause
Previous Track
Next
Track
Volume Down
Volume Up
Key Press Functions
Keypad Layout and Functions
Button
Position
Functions
Short Press
Long Press
Combined Press
1
Play/Pause
2 seconds: Power ON
4 seconds: Power OFF
N/A
2
Skip Back
Fast Rewind
N/A
3
Skip Forward
Fast Forward
4
Volume Down
2 seconds: 20% Volume
1 Second: Enter or Exit Pairing (pairing
toggle)
6 seconds: Clear Paired Devices
5
Volume Up
2 seconds: 100% Volume
User Interface Definition
Power ON
Power ON when vehicle power is supplied
Power ON when button #1 is pressed down for 2 seconds
Automatically sets the volume to 30% upon power ON
Power OFF
Power OFF when 14.4V is removed
MiTek Confidential
P a g e 4 | 6
Enter standby mode when button #1 is pressed down for 4 seconds
Automatically enter standby mode after 5 minutes if no devices are connected
Pairing
Enter pairing mode upon first power ON when there are no known paired devices
Reconnect to the last connected device upon power ON
Enter pairing mode if no device successfully connects within 30 seconds
Exit pairing mode if no device connects within 2 minutes
Keypad
Backlight
Backlight is ON when the unit is powered ON or in standby mode
Backlight flashes rapidly (3 Hz) in pairing mode
Audible Tone
Audible tone shall confirm unit powering ON
Double tone (low then high frequency (300/400Hz 150ms)) indicates successfully
paired/connected device
Double tone (constant frequency (500Hz 100ms) indicates 100% volume level reached.
Audio playback is reduced to 85% volume when tone is playing
Quadruple tone (high to low frequency (500/400/300/200Hz 50ms)) indicates paired
devices have been deleted
Note:
