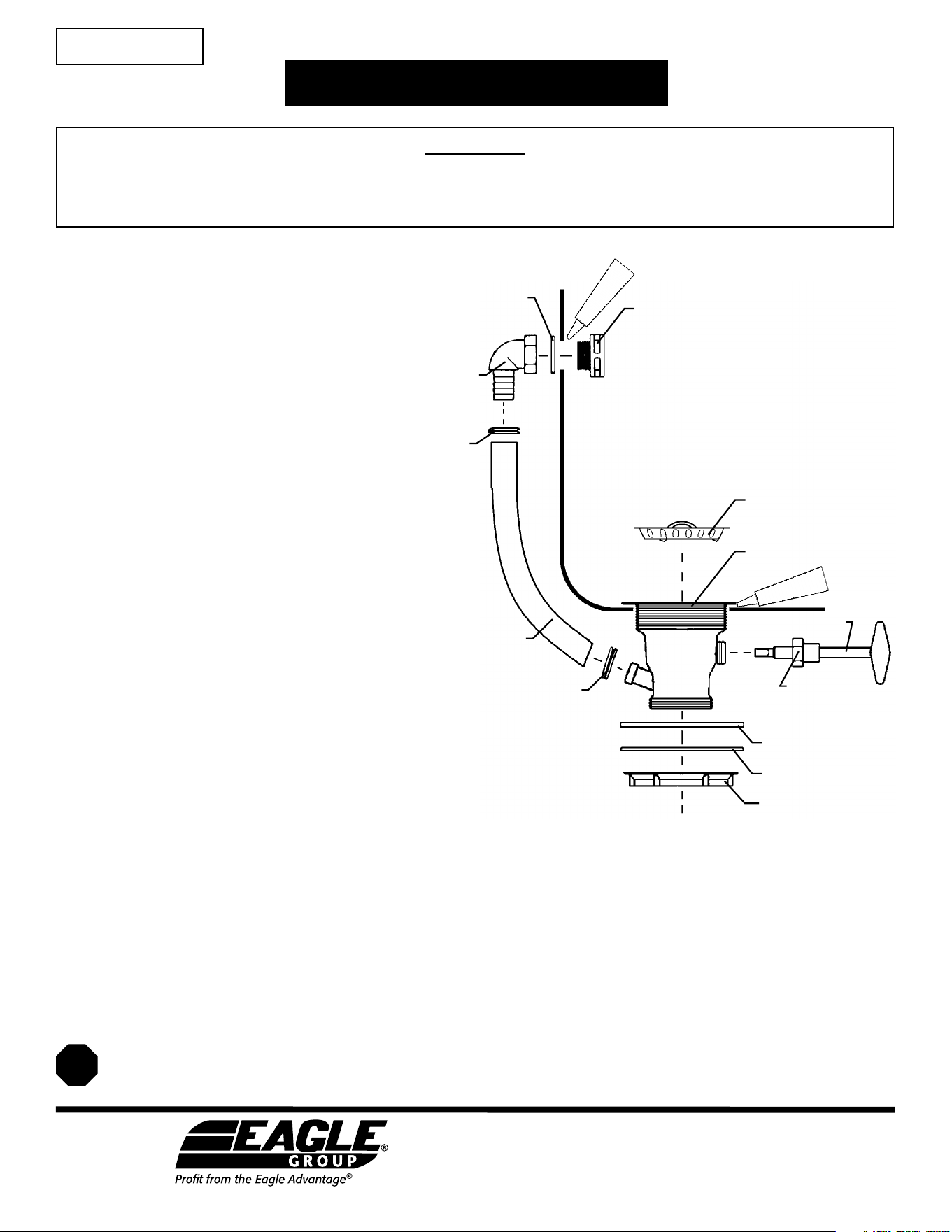

ASSEMBLY INSTRUCTIONS
Twist Lever Drain with Overflow
(End)
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG9886 Revised 02/24
Handle
• Disassemble overflow head (L), rubber gasket (K) and 90˚ elbow (J).
• Insert overflow head (L) through appropriate hole in rear sink wall,
using sealing compound between overflow head and sink wall.
• Assemble rubber gasket (K) and 90˚ elbow (J) to overflow head.
• Slip clamps (H) over ends of rubber hose (I).
• Slip hose over 90˚ elbow (J) and stem on drain body (B).
• Secure hose in place with clamps (H). Make sure hose is not kinked.
Overflow
Drain
2)
3)
1)
• Remove locknut (E), rubber gasket (C), and
paper washer (D) from drain body (B).
• Slip drain body into sink opening,
positioning handle hole toward front and
overflow stem toward rear.
• Apply sealing compound between flange
of drain body and sink.
• From bottom of sink, place rubber
gasket (C) over drain body.
• Place paper washer (D) over drain body.
• Make sure drain body is positioned
as desired, then secure in place with
locknut (E).
(A) STRAINER
(L) OVERFLOW HEAD
(H) CLAMP
(G) RETAINER
CAP
(F) HANDLE ARM
• Inside drain body (B) is a ball valve. On the ball
valve is a socket that accommodates handle arm.
Rotate ball valve until socket can be seen through
handle hole (positioned at front of drain body).
• Insert handle arm (F) through handle hole in drain body and
twist until handle arm goes into ball valve socket.
• Slide retainer cap (G) down handle arm and hand-tighten
onto threaded stem. DO NOT OVERTIGHTEN!
Set strainer (A) inside drain.
(B) DRAIN BODY
(C) RUBBER GASKET
(H) CLAMP
(J) 90˚ ELBOW
(K) OVERFLOW
HEAD
GASKET
(I) RUBBER
HOSE
(E) LOCKNUT
(D) PAPER WASHER
INSTRUCTION SHEET
#602360
