BD-90XKVEADM Hitachi 9kg Front Load Washing Machine User Manual

Washing Machine

Front Loading

Thank you for purchasing a Hitachi front loading washing

machine.

■

Please read this Instruction Manual carefully for proper

operation of the machine.

■

Please keep this Instruction Manual for future reference.

For household use only

BD-90XKVEADM

EN / 2

Please read this user manual first!

Dear Customer,

Thank you for choosing Hitachi product. We hope that you get the best results from your

product which has been manufactured with high quality and state-of-the-art technology.

Therefore, please read this entire user manual and all other accompanying documents

carefully before using the product.

Follow all warnings and information in the user manual. Thus, you protect yourself and

your product against possible dangers.

Keep the user manual. If you hand over the product to someone else, provide the user

manual as well. Warranty terms, usage and troubleshooting methods of your product are in

user guide.

Symbols and Definitions

The following symbols are used in the user guide:

Danger that could result in death or injury.

Important information or useful hints about usage.

Read the user manual.

Recyclable materials.

Hot surface warning.

WARNING Danger that may result in property damage to the product or its environment.

EN / 3

Table of Contents

1 Safety Instructions......................... 4

1.1 Intended Use.................................. 4

1.2 Safety of Children, Vulnerable

Persons and Pets ..........................

1.3 Electrical Safety............................. 5

1.4 Handling Safety ............................. 6

1.5 Installation Safety.......................... 6

1.6 Operational Safety......................... 8

1.7 Maintenance and Cleaning Safety 9

2 Important Instructions for Environ-

ment ..............................................

2.1 Compliance with WEEE Directive . 10

2.2 Package Information..................... 10

3 Technical Speciﬁcations ................ 11

4 Installation..................................... 12

4.1 Appropriate Installation Location. 12

4.2 Assembly of Bottom Panel Cov-

ers...................................................

4.3 Removing Transportation Safety

Bolts ...............................................

4.4 Connecting to Water Supply ......... 13

4.5 Connecting the Drain Hose to the

Drain ...............................................

4.6 Adjusting the Stands ..................... 14

4.7 Electrical Connection .................... 14

4.8 Start Up .......................................... 15

5 Preliminary Preparation ................. 15

5.1 Sorting the Laundry ....................... 15

5.2 Preparing Laundry for Washing.... 15

5.3 Tips for Energy and Water Saving 16

5.4 Loading the Laundry...................... 16

5.5 Correct Load Capacity .................. 16

5.6 Using Detergent and Softener ...... 16

5.6.1 Automatic Dosing ...................... 17

5.6.2 Dosage Selections, Cancella-

tion or Use of Powder Deter-

gent.............................................

5.6.3 Detergent and/or Softener Run-

ning Out ......................................

5.6.4 Filling Detergent or Softener

into the Wrong Compartment ...

5.7 Tips for Efficient Washing ............ 19

5.8 Displayed Programme Duration ... 20

6 Operating the Product.................... 20

6.1 Control Panel.................................. 21

6.2 Symbols on the Display ................. 22

6.3 Programme and Consumption

Table...............................................

6.4 Programme Selection.................... 24

6.5 Programmes .................................. 25

6.6 Temperature Selection .................. 28

6.7 Spin Speed Selection..................... 28

6.8 Auxiliary Function Selection.......... 29

6.8.1 Auxiliary Functions..................... 29

6.8.2 Functions/Programmes Selec-

ted by Pressing the Function

Keys for 3 Seconds ....................

6.9 End Time ........................................ 32

6.10 Starting the Programme................ 33

6.11 Loading Door Lock......................... 34

6.12 Changing the Selections After

Programme has Started ................

6.13 Cancelling the Programme ........... 35

6.14 End of Programme......................... 35

6.15 HomeWhiz Feature and Remote

Control Function ............................

6.15.1 HomeWhiz Setup........................ 36

6.15.2 Setting up a Washing Machine

Connected to Someone Else's

Account.......................................

6.15.3 Deleting the HomeWhiz Ac-

count Match................................

6.15.4 Remote Control Function and

Its Use .........................................

6.15.5 Troubleshooting ......................... 39

6.16 Drum Illumination .......................... 39

7 Maintenance and Cleaning............. 39

7.1 Cleaning the Detergent Drawer..... 39

7.2 Cleaning the Loading Door and

the Drum.........................................

7.3 Cleaning the Body and Control

Panel...............................................

7.4 Cleaning the Water Intake Filters.. 41

7.5 Draining Remaining Water and

Cleaning the Pump Filter ...............

8 Troubleshooting ............................ 42

EN / 4

1 Safety Instructions

This section includes the safety

instructions necessary to pre-

vent the risk of personal injury or

material damage.

Our company shall not be held

responsible for damages that

may occur if these instructions

are not observed.

• Installation and repair opera-

tions shall always be per-

formed by Authorised Service.

• Use original spare parts and

accessories only.

• Do not repair or replace any

component of the product un-

less it is clearly specified in the

user manual.

• Do not modify the product.

1.1 Intended Use

• This product has been de-

signed for domestic use. It is

not for commercial purposes

or it should not be used out of

its intended use.

• The product must only be used

for washing and rinsing of

laundry that are marked ac-

cordingly

• This appliance is intended to

be used in household and sim-

ilar applications. For example;

– Personnel kitchens of stores,

offices and other work envir-

onments;

– Ranches,

– By customers of hotels, mo-

tels and other accommoda-

tion facilities,

– Bed and breakfasts, hostel-

like environments,

– Common areas of apartment

blocks or laundries.

1.2 Safety of Children,

Vulnerable Persons

and Pets

• This product may be used by

children aged 8 years and

older and persons with under-

developed physical, sensory or

mental capabilities or lack of

experience and knowledge if

they have been given supervi-

sion or instruction concerning

use of the appliance in a the

product safe way and the haz-

ards involved.

• Children under the age of 3

should be kept away unless

continuously supervised.

• Electrical products are danger-

ous for children and pets. Chil-

dren or pets should not play

with, climb on top or inside the

product. Check inside the

product before use.

• Use child lock to prevent chil-

dren from intervening with the

product.

EN / 5

• Do not forget to close the load-

ing door when leaving the

room where the product is loc-

ated. Children and pets may

get locked inside and drown.

• Children should not perform

cleaning and user mainten-

ance works without an adult’s

supervision.

• Keep the packaging materials

away from children. Risk of in-

jury and suffocation.

• Keep all detergents and addit-

ives used for the product away

from children’s reach.

• Cut the power cable and break

and deactivate the locking

mechanism of the loading

door before disposing of the

product for children’s safety.

1.3 Electrical Safety

• Product should be unplugged

during installation, mainten-

ance, cleaning and repair pro-

cedures. Unplug the product or

turn off the fuse.

• Damaged power cables should

be replaced by the authorised

service in order to prevent pos-

sible danger.

• Do not tuck the power cord un-

der the product or to the rear

of the product. Do not put

heavy items on the power

cord. Do not over bend, crush

and touch the power cable to

sources of heat.

• Only use the original cable. Do

not use cut or damaged

cables.

• Do not use an extension cord,

multi-plug or adaptor to oper-

ate your product.

• Extension cords, multi-socket

outlets, adapters or portable

power supplies can overheat

and cause a fire. Make sure

not to place power sockets

and portable power supplies

near or behind the product.

• The plug shall be easily ac-

cessible. If this is not possible,

a mechanism that meets the

electrical legislation and that

disconnects all terminals from

the mains (fuse, switch, main

switch, etc.) shall be available

on the electrical installation.

• Do not touch the plug with wet

hands.

• When unplugging the appli-

ance, don't hold the power

cord, but the plug.

• Make sure the plug is not wet,

dirty or dusty.

• Never connect your product to

electricity saving devices. Such

systems are harmful to the

product.

EN / 6

1.4 Handling Safety

• Unplug the product before

moving, remove the water out-

let and water main connec-

tions. Drain any water left in-

side the product.

• This product is heavy, do not

handle it by yourself. It may

cause injuries if your product

falls on you. Do not hit and

drop the product while carry-

ing.

• Do not hold parts such as the

laundry loading door to lift and

move the product. The upper

tray should be tightly fixed for

moving.

• Carry the product in an upright

position. If it cannot be carried

upright, tilt it to the right side in

frontal view.

• Make sure that the hoses as

well as the power cable are not

folded, pinched or crushed

after the product is fitted into

its place after installation or

cleaning procedures.

1.5 Installation Safety

• Check the information on the

manual and installation in-

structions to prepare the

product for installation and

make sure the electrical mains,

clean water mains and water

outlet are suitable. If not, call a

qualified electrician and

plumber to have them make

the necessary arrangements.

These operations are the re-

sponsibility of the customer.

• Prior to commencing the in-

stallation, be sure to switch off

the fuse to deactivate the

power supply for the line to

which the product will be con-

nected.

• This product is intended for

use at altitudes not exceeding

2000 meters above sea level.

• Check for any damage on the

product before installing it. Do

not have the product installed

if it is damaged.

• Always wear personal protect-

ive equipment (gloves, etc.)

during product installation,

maintenance and repair. There

is a risk of injury.

• Injuries may occur if hands are

put into uncovered slots. Close

the holes of the transportation

safety bolts with plastic plugs.

• Do not install or leave the

product at locations where it

may be exposed to external en-

vironment conditions.

• Do not install the product at

locations where the temperat-

ure drops below 0 ºC.

EN / 7

• Do not place the product on a

carpet or similar surface. It

would create fire hazard since

it cannot receive air from un-

derneath.

• Place the product on a level

and hard surface and balance

with the adjustable legs.

• Connect the product to a

grounding plug protected by a

fuse suitable to the current val-

ues on the type label. Make

sure the grounding is carried

out by an expert electrician. Do

not use the product without

suitable grounding to local/na-

tional regulations.

• Plug the product in a socket

with voltage and frequency val-

ues suitable to those indicated

on the type label.

• Do not plug the product to

loose, broken, dirty, greasy

sockets or sockets that has

come out their seats or sock-

ets with a risk of water con-

tact.

• Use the new hose set provided

with the product. Do not re-use

old hose sets. Do not make ad-

ditions to the hoses.

• Connect the water inlet hose

directly to the water tap. The

pressure from the tap should

be minimum 0.1 MPa (1 bar)

and maximum 1MPa (10 bars).

10 to 80 litres of water should

be running from the tap in a

minute in order for the product

to function properly. If the wa-

ter pressure is above 1 MPa

(10 Bars), a pressure-reducing

valve should be fitted. The

maximum allowed temperat-

ure is 25°C.

• It is recommended to attach a

pressure reducing valve if you

experience overflow from the

detergent dispenser during wa-

ter fill between 3.5 to 10 bars

(0.35 to 1 MPa).

• Fit the end of the water dis-

charge hose to the dirty water

discharge drain, the sink or the

bathtub.

• Place the power cable and

hoses in locations without risk

of tripping.

• Do not install the product be-

hind a door, a sliding door or at

another location that will pre-

vent the door from opening

completely.

• If a drier is to be placed on the

product, fix with a suitable con-

nection apparatus obtained

from the authorised service.

• There is a risk of contact with

electrical pieces when the up-

per trays is removed. Do not

dismantle the upper tray of the

product.

EN / 8

• Place the product at least 1 cm

away from the edges of fur-

niture.

1.6 Operational Safety

• When you are using the appli-

ances, use only detergents,

softeners and supplements

suitable for washing ma-

chines.

• Do not use chemical solvents

on the product. These materi-

als contain an explosion risk.

• Do not operate defective or

damaged products. Unplug the

product (or turn off the fuse it

is connected to), turn off the

water tap and call an author-

ised service.

• Do not place sources of igni-

tion (burning candle, cigar-

ettes, etc.) or sources of heat

(irons, furnaces, ovens, etc.) on

top of or near the product. Do

not put inflammable/explosive

materials near the product.

• Do not get on the product.

• Unplug the product and turn

off the tap if you will not be us-

ing the product for long peri-

ods.

• Detergent/maintenance mater-

ials may splash out of the de-

tergent drawer if it is opened

while the machine is working

Contact of the detergent with

your skin and eyes is danger-

ous.

• Make sure pets do not climb

inside the product. Check in-

side the product before use.

• Do not force open the locked

loading door. The door will

open once the washing is com-

pleted. If the door does not

open, use the solutions for

“loading door does not open”

error in the Troubleshooting

section.

• Do not wash elements contam-

inated with gasoline, kerosene,

benzene, reducers, alcohol or

other inflammable or explosive

materials and industrial chem-

icals.

• Do not directly use dry clean-

ing detergent and do not wash,

rinse or spin laundry contamin-

ated with dry cleaning deter-

gent.

• Do not place your hands into

the rotating drum. Wait until

the drum no longer rotates.

• If washing laundry at high tem-

peratures, the discharged

washing water would burn your

skin if in contact with your

skin, for ex. when the draining

hose is connected to the tap.

Do not touch the discharge wa-

ter.

EN / 9

• Take the following precautions

to prevent formation of biofilm

and malodours:

– Make sure the room where

the washing machine is

placed is well ventilated.

– Wipe the door gasket and

loading door glass with a dry

and clean cloth at the end of

the programme.

• The glass of the loading door

will heat up when washing at

high temperatures. Therefore,

do not touch the loading door

glass while washing, especially

children.

• Before disposing of worn out

and no longer usable items:

1. Unplug the power plug and

remove it from the socket.

2. Cut the power cable and dis-

connect it with the plug from

the appliance.

3. Break the locking mechanism

of the loading door to render

it inoperable.

4. Do not allow children to play

with the outdated product.

1.7 Maintenance and

Cleaning Safety

• Before cleaning or servicing

the washing machine, unplug it

or cut the power at the fuse.

• If you need to move the

product for cleaning, do not

pull on the cover. The cover

can break and cause injury!

• Do not put hands, feet and

metal objects under or behind

your product. This can cause

jams, and any sharp edge can

cause personal injury.

• Use a clean, dry cloth to wipe

foreign material or dust from

the plug ends. When cleaning

the plug, do not use a wet or

damp cloth. Otherwise, there is

a risk of fire or electric shock.

• Do not wash the product with

pressure washers, by spraying

vapour, water or pouring water.

There is a risk of electrocution.

• Do not use sharp or abrasive

tools to clean the product. Do

not use household cleaners,

soap, detergent, gas, gasoline,

thinner, alcohol, varnish, etc.

while cleaning.

• Cleaning agents containing

solvents might reek poisonous

fumes( for ex. cleaning

solvent. Do not use cleaning

products containing solvents.

• There may be detergent

residues in the detergent

drawer when you open it for

cleaning.

• Do not dismantle the filter of

the discharge pump while the

product is running.

EN / 10

• The temperature in the ma-

chine may rise up to 90ºC.

Clean the filter after the water

in the machine cools down in

order to avoid risk of getting

burnt.

2 Important Instructions for Environment

2.1 Compliance with WEEE Direct-

ive

This product complies with EU

WEEE Directive (2012/19/EU).

This product bears a classifica-

tion symbol for waste electrical

and electronic equipment

(WEEE).

This product has been manufactured with

high quality parts and materials which can

be reused and are suitable for recycling. Do

not dispose of the waste product with nor-

mal domestic and other wastes at the end

of its service life. Take it to the collection

center for the recycling of electrical and

electronic equipment. Please consult your

local authorities to learn about these collec-

tion centers.

Compliance with RoHS Directive:

The product you have purchased complies

with EU RoHS Directive (2011/65/EU). It

does not contain harmful and prohibited

materials specified in the Directive.

2.2 Package Information

Packaging materials of the product are

manufactured from recyclable materials in

accordance with our National Environment

Regulations. Do not dispose of the pack-

aging materials together with the domestic

or other wastes. Take them to the pack-

aging material collection points designated

by the local authorities.

EN / 11

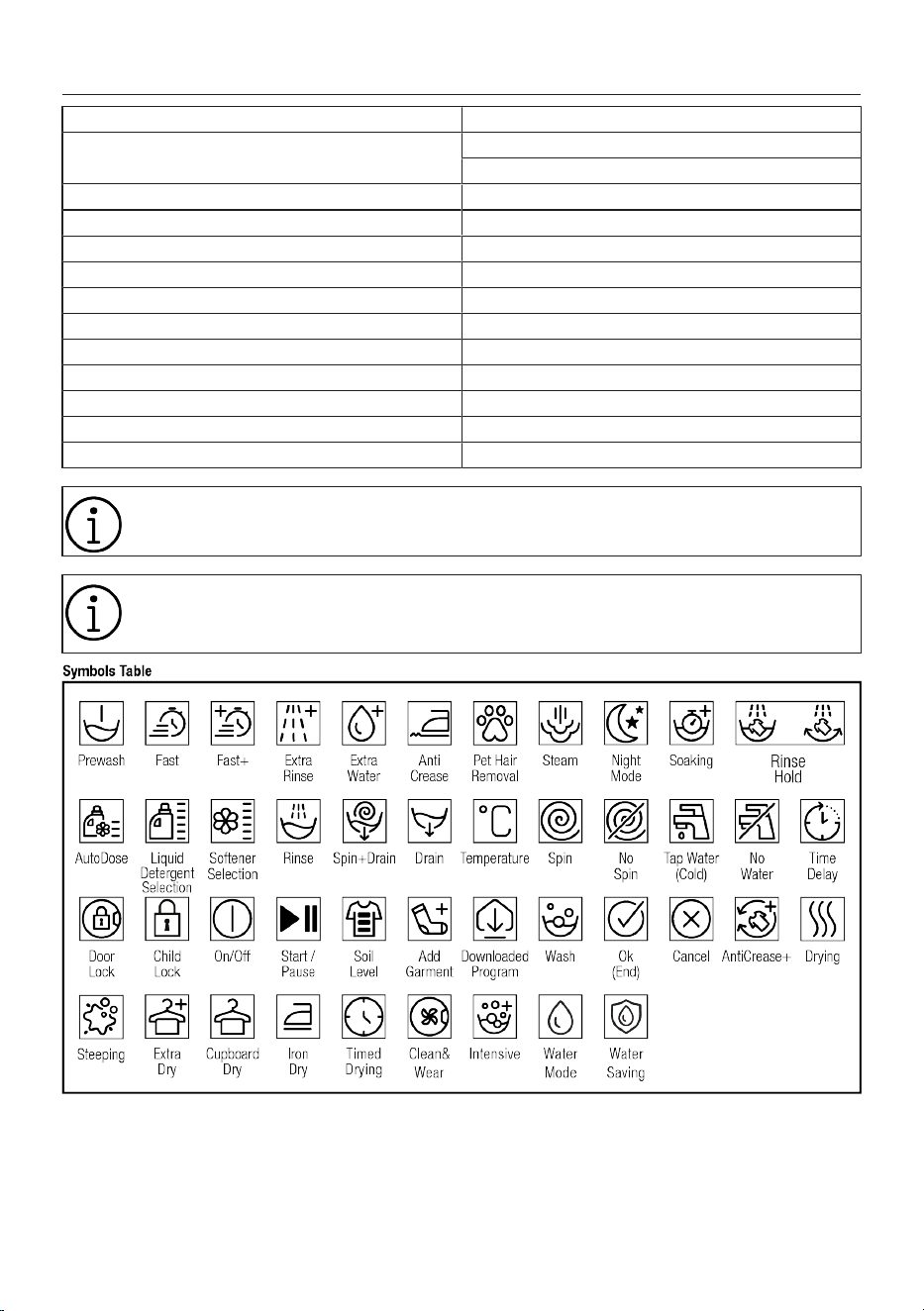

3 Technical Speciﬁcations

Supplier’s name or commercial brand Hitachi

Model name

BD-90XKVEADM

7177884800

Nominal Capacity (kg) 9

Maximum spin speed (cycle/min) 1600

Built-In No

Height (cm) 84,5

Width (cm) 60

Depth (cm) 58

Single Water inlet / Double Water inlet + / -

Electrical connection (V/Hz) 220-240 V / 50Hz

Total current (A) 10

Total power (W) 2000-2350

Main model code -

The consumption values apply when wireless network connection is turned off.

The defined cybersecurity-related software update support period of the product is

the warranty period of the product. After this period, cybersecurity-related software

updates are not guaranteed.

EN / 12

4 Installation

Please read the “Safety Instruc-

tions” section first!

Your washing machine automatic-

ally detects the amount of laundry

placed inside when selecting a pro-

gram.

While installing the product, before

the first use, calibration should be

done to ensure that the laundry

amount is detected in the most ac-

curate way.

To do this, select the Drum Clean-

ing* program and cancel the spin

function. Start the program without

laundry. Wait for the program to fin-

ish, which will take about 15

minutes.

*The program name may vary de-

pending on the model. For the ap-

propriate program selection, review

the program descriptions section.

• Preparation of the location and electrical,

tap water and waste water installations

at the place of installation is under cus-

tomer's responsibility.

• Make sure that the water inlet and dis-

charge hoses as well as the power cable

are not folded, pinched or crushed while

pushing the product into its place after

installation or cleaning procedures.

• Prior to installation, visually check if the

product has any defects on it. Do not

have the product installed if it is dam-

aged. Damaged products cause risks for

your safety.

4.1 Appropriate Installation Loca-

tion

• Place the product on a hard and level

floor. Do not place it onto a carpet with

high pile or other similar surfaces. Pla-

cing on an improper floor shall cause

noise and vibration problems.

• Total weight of the washing machine and

the dryer -with full load- when they are

placed on top of each other reaches to

approx. 180 kilograms. Place the product

on a solid and flat floor that has suffi-

cient load carrying capacity.

• Do not place the product on the power

cable.

• Do not install the product at places where

temperature may fall below 0 ºC. Freez-

ing might damage your product.

• Leave a minimum space of 1 cm

between the product and the furniture.

• If you will install the product on a surface

with steps, never place it close to the

edge.

• Do not place the product on any platform.

• Do not place heat sources such as

cooker, irons, ovens, heater etc. on the

appliance and do not use them on the

product.

4.2 Assembly of Bottom Panel Cov-

ers

With some models, the base parts

of the products are completely

closed. These products do not have

plugs and covers.

• In order to increase the sound comfort of

the product, attach cover A after remov-

ing the package foam.

Cover A

Tilt the machine back slightly. Rest the tabs

of Cover A against the lower panel. Com-

plete the assembly by rotating the cover.

EN / 13

• Cover B and the Cap are optional. If avail-

able, attach cover B and the Cap.

Cover B

Rest the tabs of Cover B against the lower

panel. Complete the assembly by rotating

the cover.

Cap

Insert the cap by pushing it with your finger.

4.3 Removing Transportation Safety

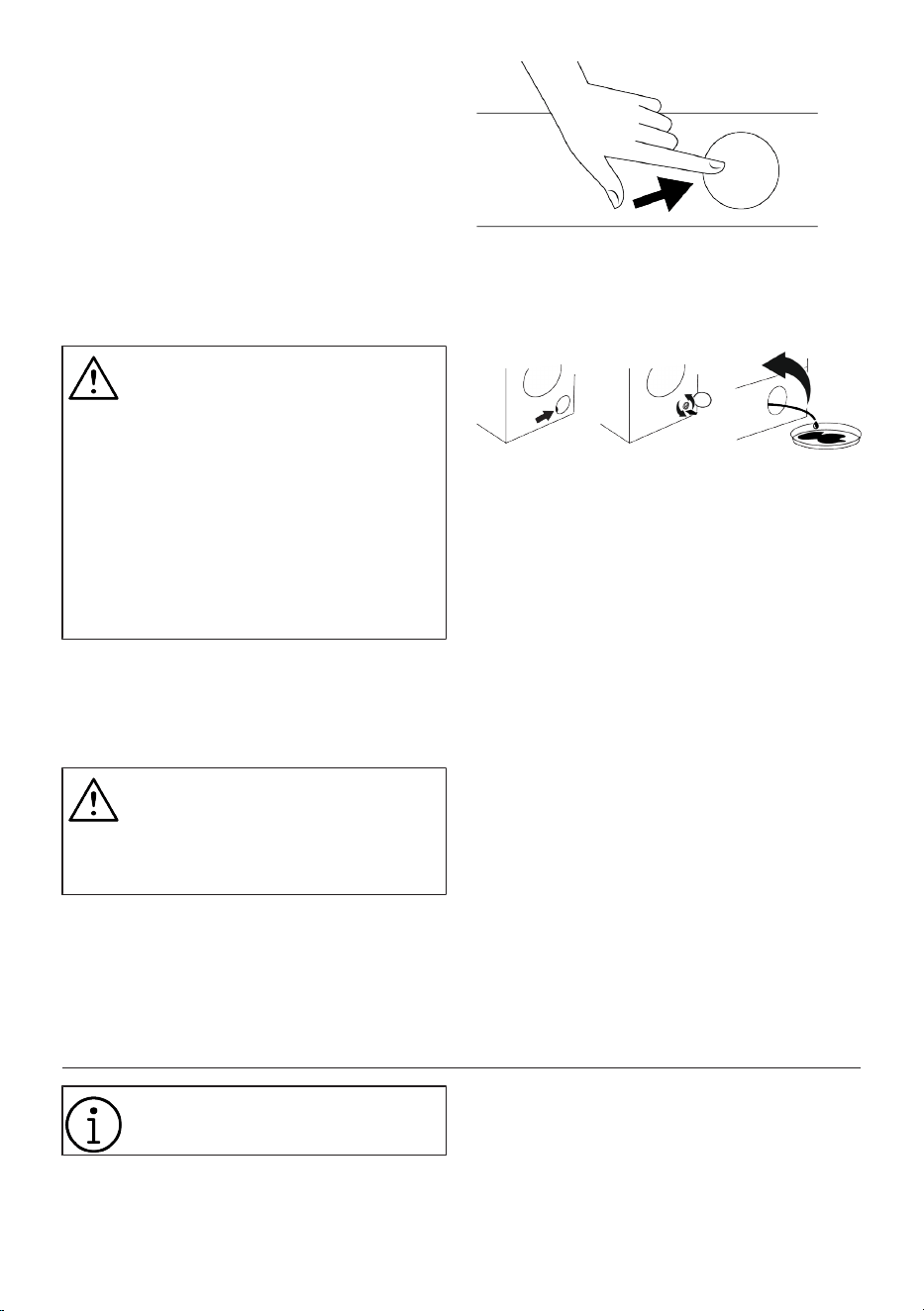

Bolts

1. Loosen all transportation safety bolts

with an appropriate wrench until they

turn freely.

2. Bend the inner part by pressing it at the

grip areas and pull the part out.

3. Attach the plastic covers supplied in the

User Manual bag into the holes on the

rear panel.

NOTICE

Remove the transportation safety

bolts before operating the product.

Otherwise, the product will get

damaged.

NOTICE

Keep the transportation safety

bolts in a safe place to reuse when

the product needs to be moved

again in the future.

Install the transportation safety

bolts in reverse order of the disas-

sembly procedure.

Never move the product without the

transportation safety bolts properly

fixed in place.

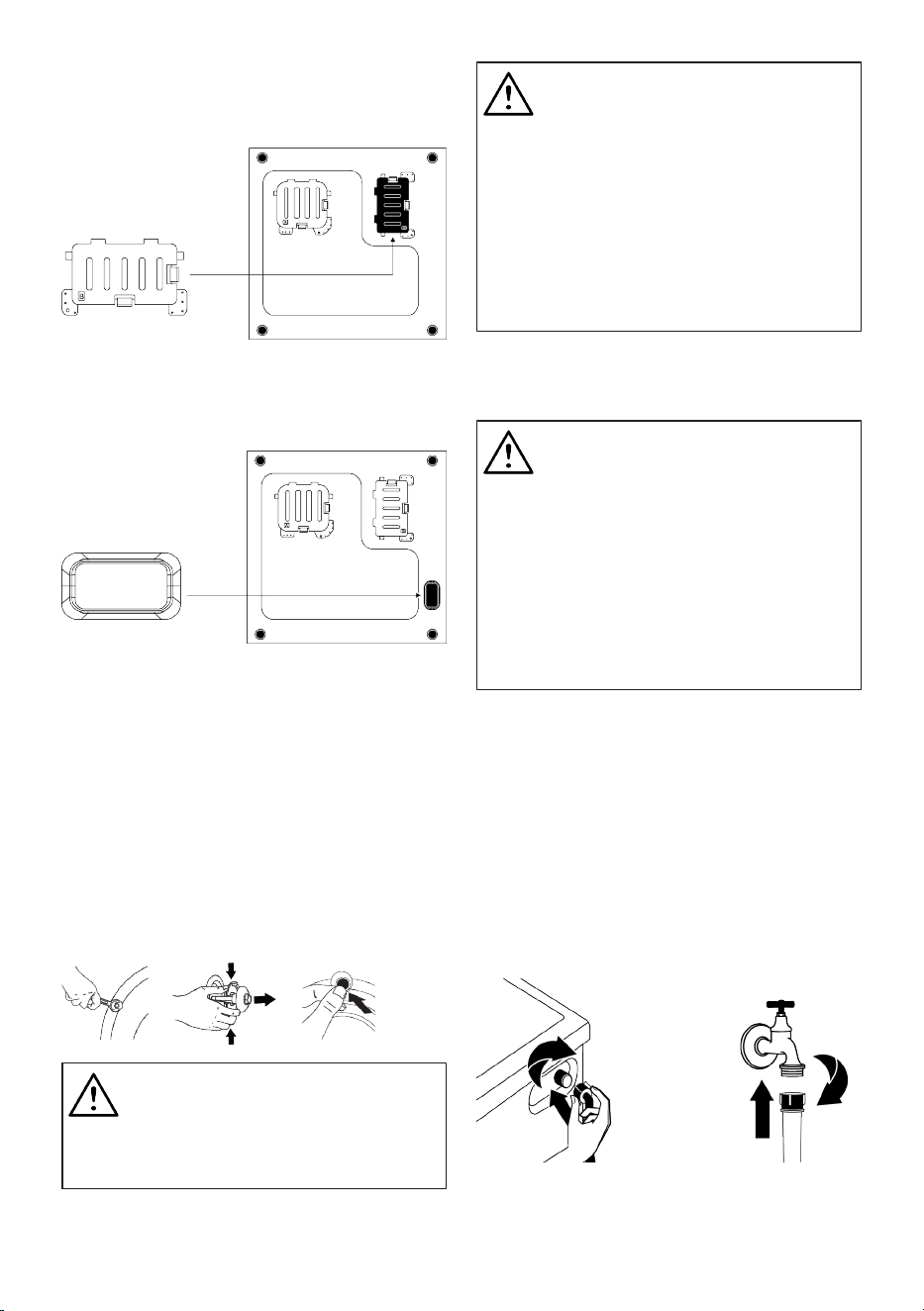

4.4 Connecting to Water Supply

NOTICE

Models with a single water inlet

shall not be connected to the hot

water tap. In such a case the laun-

dry will get damaged or the product

will switch to protection mode and

will not operate.

Do not use old or used water inlet

hoses on a new product. It may

cause water leakage from your ma-

chine and stain your laundry.

1. Tighten all hose nuts by hand. Never use

a tool when tightening the nuts.

2. Open the taps completely after making

the hose connection to check for water

leaks at the connection points. If any

leak occurs, turn off the tap and remove

the nut. Check the gasket and tighten

the nut carefully again. In order to pre-

vent the water leaks and resultant dam-

ages, keep the taps closed when you do

not use the product.

EN / 14

4.5 Connecting the Drain Hose to

the Drain

1. Attach the end of the drain hose directly

to waste water drain, washbasin or

bathtub.

Your house will be flooded if the

water draining hose is dislocated

during water draining. There is also

a risk of burning due to the high

washing temperatures. In order to

prevent such situations and make

sure that the product performs wa-

ter intake and drain processes

without any problem, fix the drain

hose securely.

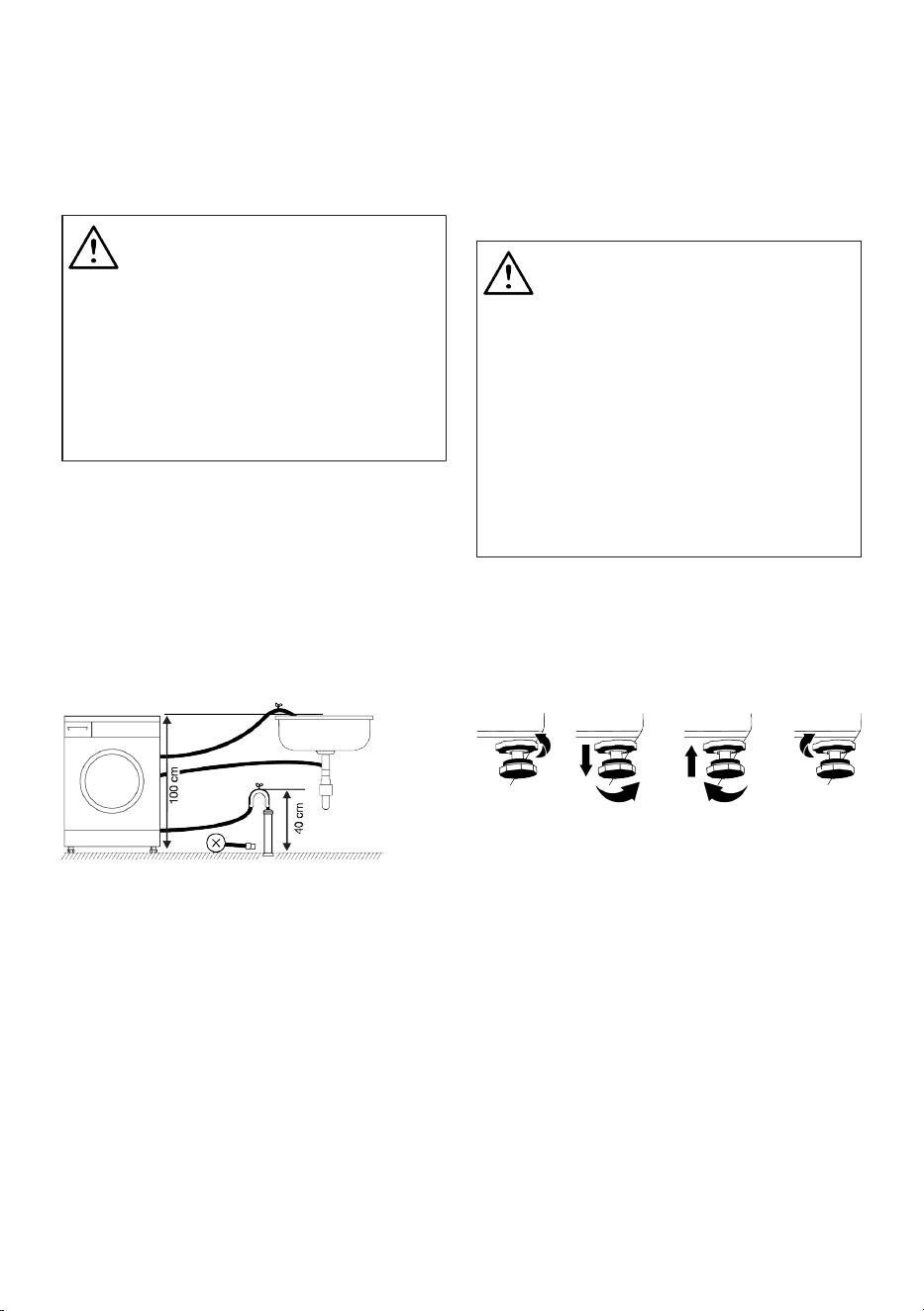

2. Connect the drain hose to a minimum

height of 40 cm and a maximum height

of 100 cm.

3. Installing the water draining hose at

ground level or close to the floor (40 cm

below) and then raising it makes water

discharge difficult and the laundry may

come out extremely wet. Thus, follow

the heights provided in the figure.

4. To prevent the waste water to go back

into the product again and to ensure

easy drainage, do not immerse the end

of the hose into the waste water or do

not insert it into the drain for more than

15 cm. If it is too long, cut it short.

5. The end of the hose should not be bent,

it should not be stepped on and the

hose must not be pinched between the

drain and the product. Otherwise, water

discharge issues may emerge.

6. If the length of the hose is too short, use

it by adding an original extension hose.

The overall length of the hose shall not

be longer than 3.2 m. To prevent water

leaks, always secure the connection

between the extension hose and the

draining hose of the product with a suit-

able clamp so that it does not come off

and cause leaks.

4.6 Adjusting the Stands

WARNING

In order to ensure that the product

operates more silently and vibra-

tion-free, it must stand level and

balanced on its feet. Ensure that

the product is balanced by adjust-

ing the feet. Otherwise, the product

may move from its place and cause

crushing, noise and vibration prob-

lems.

To avoid damaging the lock nuts,

do not use any tools to loosen the

nuts.

1. Loosen the lock nuts on the feet by

hand.

2. Adjust the feet until the product stands

level and balanced.

3. Tighten all lock nuts again by hand.

4.7 Electrical Connection

Connect the product to a grounded outlet

protected by a 16 A fuse. Our company

shall not be responsible for the damages

that shall be incurred due to using the

product without grounding according to

local regulations.

• Connection must comply with national

regulations.

• The electrical connection cable infra-

structure of the product must be ad-

equate and suitable for product require-

ments. It is recommended to use a resid-

ual current device.

• Power cable plug must be within easy

reach after installation.

EN / 15

• If the current supply to the fuse or

breaker in the house is less than 16

Amps, have a qualified electrician install

a 16 amp supply.

• The voltage specified in the "Technical

specifications" section must be equal to

your mains voltage.

• Do not make connections via extension

cables or multi-plugs. Overheating and

burning may occur due to the connecting

cable.

Damaged power cables should be

replaced by the authorised service

in order to prevent possible danger.

4.8 Start Up

Before starting to use the product make

sure that the preparations described in sec-

tion “Environmental instructions” and “In-

stallation”. To prepare the product for

washing laundry, perform first operation in

Drum Cleaning programme. If this pro-

gramme is not available in your product, ap-

ply the method which is described in sec-

tion "Cleaning the loading door and the

drum".

Some water has remained in the

product due to the quality control

processes in the production. It is

not harmful for the product.

5 Preliminary Preparation

Please read the “Safety Instruc-

tions” section first

5.1 Sorting the Laundry

• Sort laundry according to type of fabric,

colour, and degree of soiling and allow-

able water temperature.

• Always observe the instructions given on

the garment care labels.

5.2 Preparing Laundry for Washing

• Laundry items with metal attachments

such as, underwiring, belt buckles or

metal buttons will damage the product.

Remove the metal pieces or wash such

clothes by putting them in a laundry bag

or pillow case.

• Take out all substances in the pockets

such as coins, pens and paper clips, and

turn pockets inside out and brush. Such

objects may damage the product or

cause noise problem.

• Put small size clothes such as infant’s

socks and nylon stockings in a laundry

bag or pillow case.

• Place curtains in without compressing

them. Remove curtain attachment items.

Curtain attachment items may cause

pulling and tearing on the curtain.

• Fasten zippers, sew loose buttons and

mend rips and tears.

• Wash “Machine washable” or “Hand

washable” labelled products only with an

appropriate programme.

• Do not wash colours and whites together.

New, dark coloured cottons release a lot

of dye. Wash them separately.

• Tough stains must be treated properly

before washing.

• Wash trousers and delicate laundry

turned inside out.

• Laundry that are subjected to materials

such as flour, lime dust, milk powder, etc.

intensely must be shaken off before pla-

cing into the product. Such dusts and

powders on the laundry may build up on

the inner parts of the product in time and

can cause damage.

EN / 16

5.3 Tips for Energy and Water Sav-

ing

Following information will help you use the

product in an ecological and energy/water-

efficient manner.

• Operate the product in the highest load

capacity allowed for the programme you

have selected, but do not overload. See

"Programme and consumption table"

• Observe the temperature instructions on

the detergent packaging.

• Wash slightly soiled laundry at low tem-

peratures.

• Use faster programmes for small quantit-

ies of lightly soiled laundry.

• Do not use prewash and high temperat-

ures for laundry that is not heavily soiled

or stained.

• If you plan to dry your laundry in a dryer,

select the highest spin speed recommen-

ded during washing process.

• Do not use more detergent than the re-

commended amount on the detergent

packaging.

5.4 Loading the Laundry

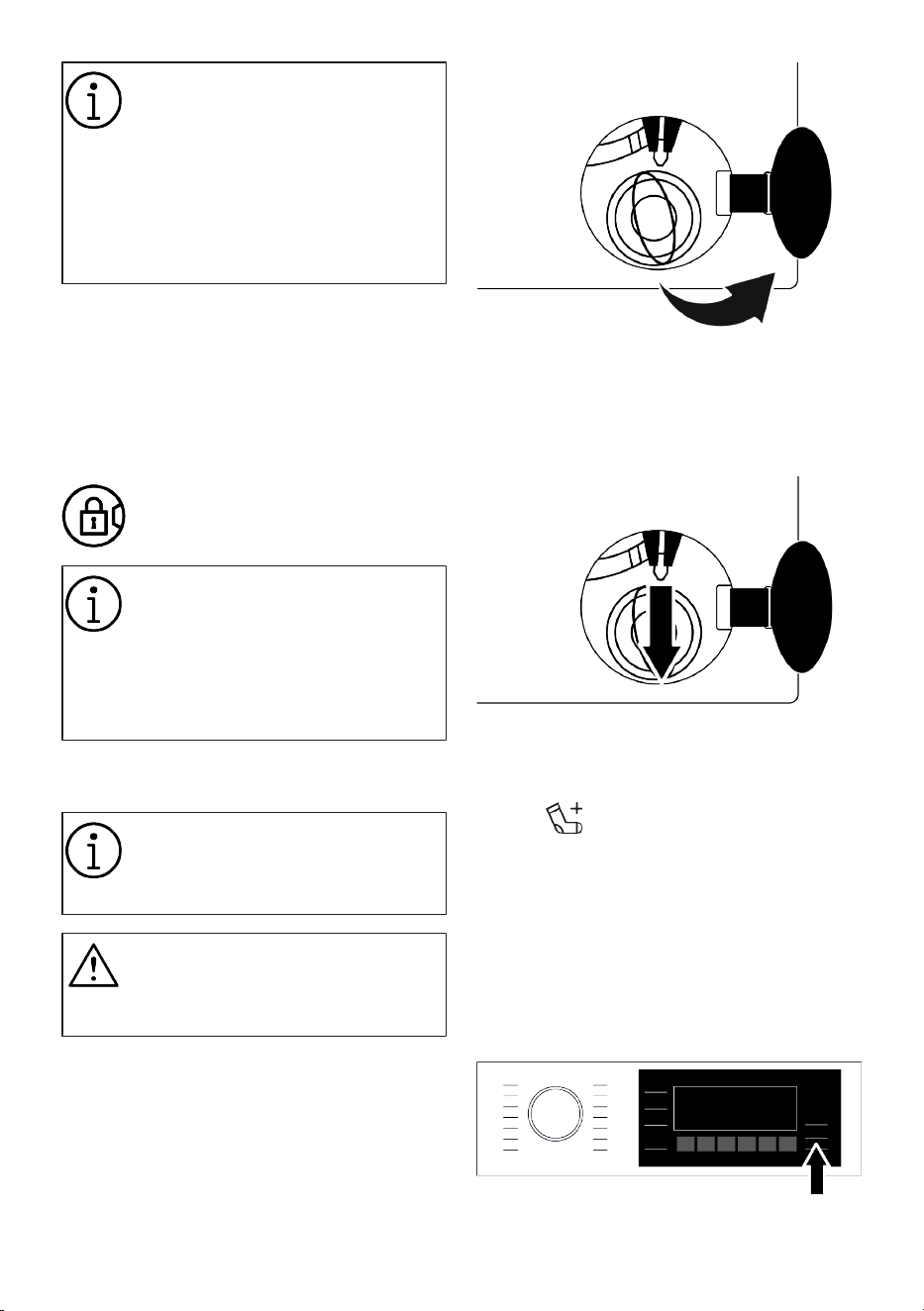

1. Open the loading door.

2. Put the laundry items into the product in

a loose manner.

3. Push the loading door to close until you

hear a locking sound. Ensure that no

items are caught in the door. The load-

ing door is locked while a programme is

running. The door lock will open once

the programme is completed. Then you

can open the loading door. If the door

does not open, apply the solutions

provided for “Loading door cannot be

opened” error in the Troubleshooting

section.

5.5 Correct Load Capacity

The maximum load capacity depends on

the type of laundry, the degree of soiling

and the desired washing programme.

The product automatically adjusts the wa-

ter amount according to the weight of the

laundry put inside it.

Follow the instructions in “Pro-

gramme and consumption table”.

When the appliances is overloaded

product’s washing performance will

drop. Moreover, noise and vibration

problems may occur.

5.6 Using Detergent and Softener

WARNING

Read the manufacturer instructions

on the package while using deter-

gents, softeners, starch, bleach and

decolourants, anti-limescale and

follow the dosage information

provided. Use a measuring cup, if

any.

Gel-like, non-fluid liquid detergents,

etc. cannot be used in the deter-

gent compartments or dosing

chambers.

Detergent, Softener and Other Cleaning

Agents

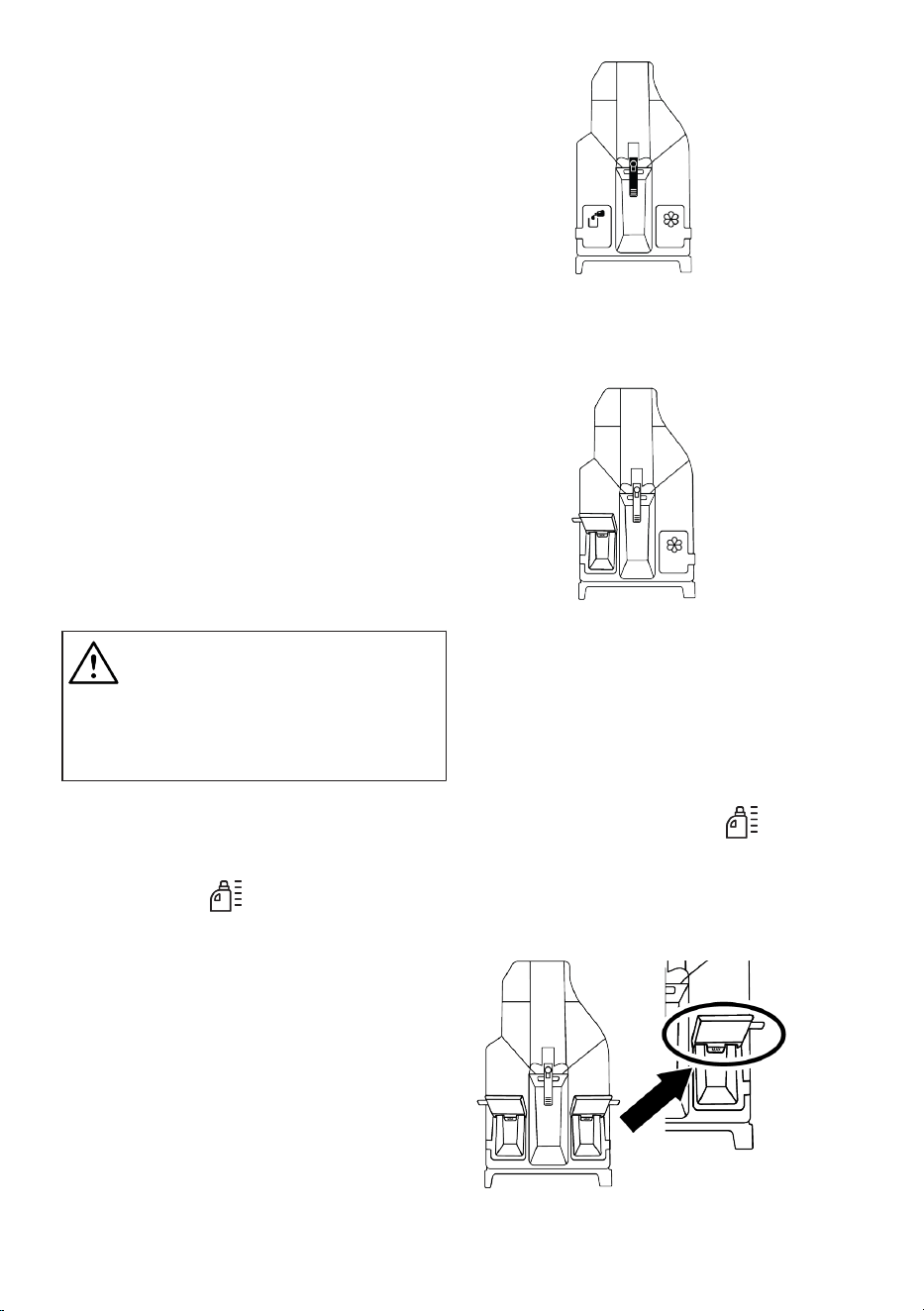

The detergent drawer comprises of three

compartments:

(1) Liquid detergent compartment

(2) Powder detergent compartment

(3) Softener compartment

• Add detergent and softener before start-

ing the washing programme.

• Do not leave the detergent drawer open

when the washing programme is on.

• Do not select a programme with pre-

washing if you are using a detergent pod

or dispensing ball. Place the detergent

pod or the dispensing ball directly among

the laundry in the product.

• Prewash compartment and prewash op-

tion is not available.

EN / 17

Choosing the Detergent type

Detergent type to be used depends on the

washing programme, fabric type and col-

our.

• Use different detergents for coloured and

white laundry.

• Wash your delicate clothes only with spe-

cial detergents (liquid detergent, wool

shampoo, etc.) intended solely for delic-

ate clothes and at suggested pro-

grammes.

• When washing dark coloured clothes and

quilts, it is recommended to use liquid

detergent.

• Wash woollens at suggested programme

with special detergent made specifically

for woollens.

• Please review the programme descrip-

tions part for suggested programme for

different textiles.

• All recommendations about detergents

are valid for selectable temperature

range of programmes.

Only detergents, softeners and ad-

ditives suitable for washing ma-

chines should be used. Do not use

liquid detergents or other cleaning

agents to soften the laundry.

Do not use soap powder.

5.6.1 Automatic Dosing

Initial Installation

Turn on the machine with On/Off button.

Dosage symbol (

) appears in programs

where detergent dosing is allowed. If the li-

quid detergent or softener compartments

are empty, the dosage symbol will flash in

programs where detergent dosing is al-

lowed.

Filling Liquid Detergent and Softener

1. Open the detergent compartment by

pulling it towards yourself.

2. To fill liquid detergent (left) and softener

(right), open the related tank’s lid by

pulling it upwards as shown in the pic-

ture.

3. Remember not to exceed the “Max” sign

when adding liquid detergent or

softener.

4. Close the lid of the compartment.

5. Close the detergent drawer by pushing

lightly.

6. After closing the detergent drawer, the

flashing dosage symbol (

) starts

lighting up continuously.

7. It indicates that the compartments are

filled successfully and the detergent

drawer is in its place.

EN / 18

We recommend filling the detergent com-

partment with liquid detergents that can be

used in common for coloured and white

laundry.

If the detergent symbol is flashing even

though the detergent compartments are

filled, the detergent drawer is not seated

properly. Push the drawer so that it is fully

seated.

WARNING

When the detergent drawer is filled

with detergent and/or softener; do

not pull or move the equipment,

and do not tilt it on either side or

back.

Before conducting these opera-

tions, the detergent drawer must al-

ways be removed from the ma-

chine.

If you wish to start the program

while there is no detergent in the

detergent drawer, liquid detergent

dosage must be cancelled and

washing with powder detergent is

required.

Only liquid detergent must be put

inside the liquid detergent dosing

tank and only softener must be put

in the softener dosing tank. Putting

all kinds of liquid and powder

chemicals together inside the tanks

may damage your laundry or your

machine.

5.6.2 Dosage Selections, Cancella-

tion or Use of Powder Deter-

gent

Liquid detergent cannot be selected in

some of the programs. Powder detergent

must be used in these cases. For more in-

formation, see Programme Table.

If powder detergent is to be used in pro-

grams where the detergent dosing system

is operating, desired amount of detergent is

put into the powder detergent compart-

ment. If the detergent compartment in the

middle is to be used, the automatic dosage

selection must be deactivated.

Machine measures the load and determ-

ines the right amount of detergent depend-

ing on the load amount and the selections

made previously. The detergent taken is

not visible while washing, it is taken directly

with water over the laundry.

If another liquid detergent with different

properties than the one in the liquid deter-

gent dosing tank is preferred to be used, li-

quid detergent with said different proper-

ties should be put in the powder detergent

compartment in the middle and the liquid

detergent dosage selection should be deac-

tivated.

Softener will be taken from the dosing sys-

tem.

Liquid detergent and softener dosing symbols become

active or inactive according to the program selected on

the screen.

First position on the display means liquid de-

tergent is active, softener is on. If the liquid de-

tergent and softener symbol is lit, it means

that liquid detergent and softener dosing is

active.

If the liquid detergent and softener symbols

are active on the screen; when you press the

Automatic Dosing key for the first time, the li-

quid detergent will turn on and the softener

EN / 19

will turn off. If the softener symbol is not lit, it

means that softener will not be used in the

rinsing step.

When you press the Automatic Dosing key for

the seconds time, the powder detergent and

the softener will turn on. If the liquid detergent

symbol is not lit, it means that it can be

washed with powder detergent.

When you press the Automatic Dosing key for

the third time, the powder detergent will turn

on and the softener will turn off. When you

press it for the fourth time, it will return to the

first position.

5.6.3 Detergent and/or Softener

Running Out

When the detergent or the softener put in-

side the detergent drawer finishes, the

dosage symbol in the display flashes.

When this symbol flashes, it is necessary to

add the decreasing detergent or softener to

the dosing tank. The product will be able to

dose enough for 2-3 more cycles from the

first moment the symbol flashes.

5.6.4 Filling Detergent or Softener

into the Wrong Compartment

In case you fill the detergent or the softener

in the wrong compartment, see "Cleaning

the Detergent Drawer".

5.7 Tips for Efficient Washing

Clothes

Light Colours and Whites Colours Black/Dark Colours

Delicates/Wool-

lens/Silks

(Recommended temperat-

ure range based on soil

level: 40-90 °C)

(Recommended temper-

ature range based on

soil level: cool -40 °C)

(Recommended

temperature range

based on soil level:

cool -40 °C)

(Recommended

temperature

range based on

soil level: cool -30

°C)

EN / 20

Soiling Level

Heavily Soiled

(difficult stains

such as grass,

coffee, fruits

and blood.)

It may be necessary to

pre-treat the stains or per-

form prewash.

Powder and liquid deter-

gents recommended for

whites can be used at

dosages recommended

for heavily soiled clothes.

It is recommended to use

powder detergents to

clean clay and soil stains

and the stains that are

sensitive to bleaches.

Powder and liquid deter-

gents recommended for

colours can be used at

dosages recommended

for heavily soiled

clothes. It is recommen-

ded to use powder de-

tergents to clean clay

and soil stains and the

stains that are sensitive

to bleaches. Detergents

which do not contain de-

colourant should be

used.

Liquid detergents

suitable for colours

and black/dark col-

ours can be used at

doses recommen-

ded for heavily

soiled clothes.

Prefer liquid deter-

gents produced

for delicate

clothes. Woollen

and silk clothes

must be washed

with special wool-

len detergents.

Normally

Soiled

(For example,

stains caused

by body on col-

lars and cuffs)

Powder and liquid deter-

gents recommended for

whites can be used at

dosages recommended

for normally soiled

clothes.

Powder and liquid deter-

gents recommended for

colours can be used at

dosages recommended

for normally soiled

clothes. Detergents

which do not contain de-

colourant should be

used.

Liquid detergents

suitable for colours

and black/dark col-

ours can be used at

doses recommen-

ded for moderately

soiled clothes.

Prefer liquid deter-

gents produced

for delicate

clothes. Woollen

and silk clothes

must be washed

with special wool-

len detergents.

Lightly Soiled

(No visible

stains exist.)

Powder and liquid deter-

gents recommended for

whites can be used at

dosages recommended

for lightly soiled clothes.

Powder and liquid deter-

gents recommended for

colours can be used at

dosages recommended

for lightly soiled clothes.

Detergents which do not

contain decolourant

should be used.

Liquid detergents

suitable for colours

and black/dark col-

ours can be used at

doses recommen-

ded for lightly

soiled clothes.

Prefer liquid deter-

gents produced

for delicate

clothes. Woollen

and silk clothes

must be washed

with special wool-

len detergents.

5.8 Displayed Programme Duration

You can view the programme duration on

the display of your machine while selecting

a programme. Depending on the amount of

laundry you have loaded into your machine,

foaming, unbalanced load conditions, fluc-

tuations in power supply, water pressure

and programme settings, the programme

duration is automatically adjusted while the

programme is running.

SPECIAL CASE: At programme start of Cot-

tons and Cotton Eco programmes, display

shows the duration of half load. It is the

most common use case. After programme

starts, in 20-25 minutes actual load is de-

tected by the machine. And if the detected

load is higher than half load; washing pro-

gramme will be adjusted accordingly and

programme duration increased automatic-

ally. You can follow this change on the dis-

play.

6 Operating the Product

Please read the “Safety Instruc-

tions” section first!

EN / 21

6.1 Control Panel

1 2 3 4

7891011121314

1 Programme Selection Button 2 Spin Speed Adjustment Button

3 Temperature Setting Button 4 Display

5 ON/OFF Button 6 Start/Pause Button

7 End Time Setting Button 8 Auxiliary Function Button 5

9 Auxiliary Function Button 4 10 Auxiliary Function Button 3

11 Auxiliary Function Button 2 12 Auxiliary Function Button 1

13 Remote Control Button 14 Programme selection LEDs

EN / 22

6.2 Symbols on the Display

1 2 3 4 5 6

8910111213141516

1 Temperature Indicator 2 Wireless Connection Indicator

3 Remote Control Indicator 4 Programme follow-up indicator

5 Dosing Unit Indicator 6 Duration information

7 Programme Start Indicator 8 Delayed Start Enabled Indicator

9 Door Lock Engaged Indicator 10 Auxiliary function (Dosing) Indicators

11 Child Lock Engaged Indicator 12 Auxiliary Function Indicators 4

13 No Water indicator 14 Auxiliary Function Indicators 3

15 Auxiliary Function Indicator 1 16 Auxiliary Function Indicator 2

17 Spin Speed Indicator

The visuals used for machine de-

scription in this section are schem-

atic and may not match exactly

with the features of your machine.

EN / 23

6.3 Programme and Consumption Table

Auxiliary functions

Program

Temperature °C

Maximum load

(kg)

Water consump-

tion (lt)

Energy con-

sumption (kWh)

Max RPM

Speedy/Intensive

Steam

Extra Rinse

Auto Dosing

Anti Crease+

Temperature °C

Cotton

90 9 98 2,75 1600 • • • • • Cold - 90

60 9 98 2,00 1600 • • • • • Cold - 90

40 9 95 1,20 1600 • • • • • Cold - 90

Cottons Eco 40** 9 77 0.762 1600 • Cold - 40

Synthetic

60 4 76 1,60 1200 • • • • • Cold - 60

40 4 74 1,10 1200 • • • • • Cold - 60

Rapid / Rapid 14

90 9 75 2,30 1200 • • • • • Cold - 90

60 9 75 1,30 1200 • • • • • Cold - 90

30 9 75 0,25 1200 • • • • • Cold - 90

Rapid / Rapid 14 + Speedy/In-

tensive

30 2 45 0,15 1200 • • • • • Cold - 90

Wool 40 2 60 0,60 1200 • • Cold - 40

Shirt 60 4 70 1,40 800 • * • • • Cold - 60

Tub Clean 90 - 80 2,60 600 * 90

Bedding 60 - 100 1,60 800 • • • Cold - 60

Hygiene 90 9 125 3,00 1600 * * • 20-90

Refreshing Steam 1 1,5 0,11 - * -

Auto Program 60 9 **** **** 1600 • • • Cold - 60

Download program *****

Stain Program 60 4,5 86 1,85 1600 • • 30-60

Outdoor/Sports 40 5 60 0,65 1200 • Cold - 40

Dark Care/Jeans 40 5 86 1,05 1200 • • * • • Cold - 40

Towel 60 4 115 1,60 800 • * • Cold - 40

Soft Toys 40 2 80 0,90 600 * • Cold - 40

• : Selectable.

* : Automatically selected, cannot be can-

celled.

** : Energy label programme (AS/NZS

2040)

**** : Programme detects the type and

quantity of the laundry to automatically ad-

just water and energy consumption and

programme duration.

***** : These programmes can be used with

the HomeWhiz application. Power con-

sumption may increase due to the connec-

tion.

- : See the programme description for max-

imum load.

EN / 24

Please read Installation section of

the manual before first use.

The auxiliary functions in the table

may vary according to the model of

your machine.

Water and energy consumption

may vary subject to the changes in

water pressure, water hardness and

temperature, ambient temperature,

type and amount of laundry, selec-

tion of auxiliary functions and spin

speed, and changes in electric

voltage.

Selection patterns for auxiliary

functions can be changed by the

manufacturer company. New selec-

tion patterns can be added or re-

moved.

The spin speed of your machine

may vary according to the pro-

gramme; this spin speed cannot ex-

ceed the max. spin speed of your

machine.

The amount of noise and humidity

varies according to the spin speed;

when the higher spin speed is se-

lected during the spinning phase,

the laundry contains less moisture

but higher noise occurs at the end

of the programme.

You can see the washing duration

on the display of your machine

while selecting a programme. De-

pending on the amount of laundry

you have loaded into your machine,

there may be a difference of 1-1.5

hours between the duration shown

on the display and the actual dura-

tion of the wash cycle. Duration will

be automatically updated soon

after the washing starts.

Always select the lowest appropri-

ate temperature. The most efficient

programmes in terms of energy

consumption are generally those

that wash at low temperatures for a

long time.

The spin speed information given

at the program table indicates spin

speed option shown on the control

panel.

6.4 Programme Selection

1. Determine the programme suitable for

the type, quantity and soiling level of the

laundry in accordance with "Programme

and consumption table".

Programmes are limited to the

highest spin speed appropriate for

that particular type of fabric.

When selecting a programme, al-

ways consider the type of fabric,

colour, soiling level and permissible

water temperature.

2. Select the desired programme with the

Programme Selection knob.

EN / 25

6.5 Programmes

• Automatic Extra Rinsing Feature

Your machine checks the water turbidity in

some rinsing steps and adds up to 2 extra

rinsing steps as needed to purify your

clothes from detergent.

• Cottons Eco

Use to wash your normally soiled, durable

cotton and linen laundry. Although it

washes longer than all other programmes,

it provides high energy and water savings.

Actual water temperature may be different

from the stated wash temperature. When

you load the machine with less laundry

(e.g. ½ capacity or less), periods in pro-

gramme stages may automatically get

shorter. In this case, energy and water con-

sumption will decrease.

Normally soiled laundry may be washed

with reduced amount of detergent to save

energy and protect the environment.

• Cotton

You can wash your durable cotton laundry

(sheets, bedlinen, towels, bathrobes, under-

wear etc.) in this programme. When the

quick wash function button is pressed, pro-

gramme duration becomes notably shorter

but effective washing performance is en-

sured with intense washing movements. If

the quick wash function is not selected, ef-

fective washing and rinsing performance is

ensured for your heavily soiled laundry.

• Synthetic

You can wash your laundry (such as shirts,

blouses, synthetic/cotton blended fabrics

etc.) in this programme. When the quick

wash function button is pressed, the pro-

gramme duration will be shortened signific-

antly and effective washing performance is

provided for your laundry that is not very

dirty. If the quick wash function is not se-

lected, effective washing and rinsing per-

formance is ensured for your heavily soiled

laundry.

• Wool

Use to wash your woollen/delicate laundry.

Select the appropriate temperature comply-

ing with the tag of your clothes. Your laun-

dry will be washed with a very gentle wash-

ing action in order not to damage the

clothes.

• Hygiene

Applying a steam step at the beginning of

the programme allows to soften the dirt

easily.

Use this programme for your laundry (baby

clothes, bed sheets, bedlinen, underwear,

etc. cotton items) that requires an anti-al-

lergic and hygienic washing at high temper-

ature with intensive and long washing

cycle. The high level of hygiene is ensured

thanks to the steam application before the

programme, long heating duration and ad-

ditional rinsing step.

• Bedding

Use this programme to wash your fibre

duvets that bear "machine washable" tag.

Check that you have loaded the duvet cor-

rectly in order not to damage the machine

and the duvet. Remove the duvet cover be-

fore loading the duvet into the machine.

Fold the duvet into two and load it into the

machine. Load the duvet into the machine

while paying attention that it will not con-

tact the door gasket or the glass.

Besides, use this programme to wash your

coats, vest, jackets etc. containing feathers

with a “machine washable” label on them.

EN / 26

Do not load more than 1 double

fibre duvet (200 x 200 cm).

Do not wash your duvets, pillows

and etc. that contain cotton filling

in the machine.

Do not use the washing machine to

wash materials such as carpets,

rugs etc. Otherwise, your machine

may be damaged permanently.

• Spin + Drain

You can use this program to remove the

water on the garment/inside the machine.

• Rinse

Use when you want to rinse or starch sep-

arately.

• Refreshing Steam

Use this programme to reduce the creases

and ironing times of a small amount of un-

spotted cotton, synthetic or mixed laundry.

This is not a washing programme.

Do not add chemicals such as de-

tergent, bleach, stain remover, etc.

to the detergent drawer during this

program.

• Shirt

This programme is used to wash the shirts

made from cotton, synthetic and synthetic

blended fabrics altogether. It reduces

wrinkles. Steam is applied at the end of the

programme to help the wrinkle reducing

function. The special spin profile and

steam applied at the end of the programme

reduce the wrinkles on your shirts. When

the quick wash function is selected, the

Pre-treatment algorithm is executed.

• Apply the pre-treatment chemical on your

garments directly or add it together with

the detergent in the powder detergent

compartment. Thus, you can obtain the

same performance as you obtain with

normal washing in a much shorter period

of time. Usage life of your shirts in-

creases. Do not use pre-wash detergent

if you are planning to use delay function

of your machine. Prewash detergent may

pour out on your clothes and cause

stains.

** It is recommended to operate the cycle

with no more than 6 shirts to minimize

wrinkles in your shirts using this cycle.

When washing more than 6 shirts, there

may be differences on the wrinkle levels

and humidity on shirts at the end of cycle.

• Rapid / Rapid 14

Use this programme to wash your lightly

soiled or unspotted cotton clothes in a

short time but not for towels or heavy cot-

tons. The programme duration can be re-

duced down to 14 minutes when the quick

wash function is selected. When the quick

wash function is selected, maximum 2

(two) kg of laundry must be washed.

• Dark Care/Jeans

Use this programme to protect the colour

of your dark-coloured garments or jeans. It

performs high performance washing with

special drum movement even if the temper-

ature is low. It is recommended to use li-

quid detergent or woollen shampoo for

dark coloured laundry. Do not wash your

delicate clothes containing wool or etc.

• Tub Clean

Regularly clean (once every 1 to 2 months)

the drum for ensuring the required hygiene.

Steam is applied before the programme to

soften the residues in the drum. Turn on

the programme when the machine is com-

pletely empty. For better results, use

powder anti-limescale (drum cleaning ma-

terials) suitable for washing machines

when the powder detergent function is se-

lected. Leave the loading door half closed

after the programme ends for the inside of

the machine to dry.

EN / 27

This is not a washing programme.

This is a maintenance programme.

Do not turn this programme on

when there is something inside the

machine. When you attempt to op-

erate, the machine automatically

senses that there is load inside, and

may quit or resume the programme

as per the model of your machine.

An effective cleaning is not

achieved if the programme is re-

sumed.

• Auto Program

Use to wash frequently washable cotton,

synthetic or blended (cotton+synthetic)

clothes. The programme senses the type,

amount and soiling level of the laundry you

put in the machine and automatically ad-

justs the water consumption, the pro-

gramme duration and the amount of deter-

gent if your product has an automatic dos-

ing feature.

WARNING

Do not wash your woollen and del-

icate clothes in this programme.

The maximum washing temperature in

Automatic programme depending on the

soiling level and laundry type is 60ºC.

Washing performance may not be at the

desired level for heavily soiled whites and

stubborn stains (collar, sock soil, perspira-

tion stain, etc.). In this case, it is recom-

mended to select Cottons programme with

prewash and set the temperature to

50-60°C.

Many types of clothing are correctly detec-

ted and safely washed in Automatic pro-

gramme.

• Outdoor/Sports

You can use this programme to wash

sports and outdoors garments that contain

cotton/synthetics mix and water repellent

covers such as gore-tex etc. It makes sure

your garments are washed gently thanks to

special rotating movements.

• Stain Program

The machine has a special stain pro-

gramme which enables the removal of dif-

ferent types of stains in the most effective

way. Use this programme only for durable

colourfast cotton laundry. Do not wash del-

icate and non-colourfast clothes and laun-

dry in this programme. Before washing, gar-

ment tags should be checked (recommen-

ded for cotton shirts, trousers, shorts, t-

shirts, baby clothes, pyjamas, aprons, table

clothes, bed sheets, duvet covers, pillow-

cases, bath-beach towels, towels, socks,

cotton underwear that are suitable for

washing at high temperature and long

time).

In the automatic stain programme, you can

wash 24 types of stains divided into three

different groups according to quick func-

tion selection. Depending on the selected

stain group, a special washing programme

for which duration of rinse hold, washing

action, washing and rinsing duration are

modified.

Below you can find the soil groups that

can be selected with the “Quick/Intens-

ive” setting button:

When “Intense” is selected;

Sweat, collar dirt, food, mayonnaise, salad

dressing, make-up, machine oil, baby food.

When “Quick/Intense” is not selected;

Blood, chocolate, pudding, grass, mud,

eggs, butter, curry.

When “Quick” is selected;

Tea, coffee, juice, ketchup, red wine, cola,

jam, coal

1. Select the stain programme.

2. Select the stain you want to clean by

locating it in the groups above and se-

lecting the related group with the Quick/

Intense auxiliary function button.

3. Read the garment tag carefully and en-

sure that correct temperature and spin

speed are selected.

EN / 28

• Download program

This is a special programme that allows

you to download different programmes

when you want to. At the start, there is a

programme you can see with the Home-

Whiz application as default. However, you

can use the HomeWhiz application to se-

lect a programme from the predetermined

programme set, and then change and use

it.

If you want to use HomeWhiz fea-

ture and Remote Control function,

you must select Downloaded Pro-

gramme. Detailed information can

be found in HomeWhiz Feature and

Remote Control Function.

• Soft Toys

Soft toys must be washed in a delicate pro-

gramme due to their delicate fabrics, and

the fibre and accessories they contain.

Thanks to its delicate washing movements

and spinning profile, the soft toys pro-

gramme protects the toys during washing.

It is recommended to use liquid detergent.

Fragile toys with hard surfaces

must not be washed under any cir-

cumstances.

Toys must not be washed together

with your garments since they may

harm laundry.

• Towel

Use this programme to wash durable cot-

ton laundry such as towels. Load the tow-

els into the machine paying attention to

place them in a way that they will not con-

tact the door gasket or the glass.

6.6 Temperature Selection

Whenever a new programme is selected,

the recommended temperature for the pro-

gramme appears on the temperature indic-

ator. It is possible that the recommended

temperature value is not the maximum

temperature that can be selected for the

current programme.

Press the Temperature Adjustment button

to change the temperature. Temperature

decreases gradually.

No change can be made in pro-

grammes where temperature ad-

justment is not allowed.

You can also change the temperature after

the washing starts. This change can be

made if the only washing steps allow it.

If you scroll to cold wash option

and press Temperature Adjustment

button again, the recommended

maximum temperature for the se-

lected programme appears on the

display. Press the Temperature Ad-

justment button again to decrease

the temperature.

6.7 Spin Speed Selection

Whenever a new programme is selected,

the recommended spin speed of the selec-

ted programme is displayed on the Spin

Speed indicator. It is possible that the re-

commended spin speed value is not the

maximum spin speed that can be selected

for the current programme.

Press the Spin Speed Adjustment button to

change the spin speed. Spin speed de-

creases gradually.

Then, depending on the model of the

product, “Rinse Hold l_l " and "No Spin _"

options appear on the display.

EN / 29

If you are not going to unload your laundry

immediately after the programme com-

pletes, you can use Rinse Hold function in

order to prevent them from getting wrinkled

when there is no water in the machine.

This function holds the laundry in the final

rinsing water. If you want to spin your laun-

dry after the Rinse Hold function:

1. Adjust the Spin Speed.

2. Press Start / Pause. The programme will

resume. Machine drains the water and

spins the laundry.

If you want to drain the water at the end of

the programme without spinning, use No

Spin function.

No change can be made in pro-

grammes where spin speed adjust-

ment is not allowed.

You can change the spin speed after the

washing starts if the washing steps allow it.

Changes cannot be made if the steps do

not allow it.

Rinse Hold

If you are not going to unload your clothes

immediately after the programme com-

pletes, you can use rinse hold function to

keep your laundry in the final rinsing water

in order to prevent them from getting

wrinkled when there is no water in the ma-

chine. Press Start/Pause button after this

process if you want to drain the water

without spinning your laundry. Programme

will resume and complete after draining the

water.

If you want to spin the laundry held in wa-

ter, adjust the Spin Speed and press Start/

Pause button. The programme will resume.

Water is drained, laundry is spun and the

programme is completed.

6.8 Auxiliary Function Selection

Select the desired auxiliary functions be-

fore starting the programme. Whenever a

programme is selected, icons of the auxili-

ary function symbol that is selected to-

gether with it illuminates.

Also the frames of the auxiliary functions

selected for the current programme after

the washing has started remain illumin-

ated.

When an auxiliary function button

that cannot be selected with the

current programme is pressed, the

washing machine will make a warn-

ing sound.

Some functions cannot be selected

together. If a second auxiliary func-

tion conflicting with the first one is

selected before starting the ma-

chine, the function selected first

will be cancelled and the second

auxiliary function selection will re-

main active. For example, if you

want to select Quick Wash after

you have selected the Additional

Water, Additional Water will be can-

celled and Quick Wash will remain

active.

An auxiliary function that is not

compatible with the programme

cannot be selected. (See "Pro-

gramme and consumption table")

Some programmes have auxiliary

functions that must be operated

simultaneously. Those functions

cannot be cancelled. The frame of

the auxiliary function will not be illu-

minated, only inner area will be illu-

minated.

6.8.1 Auxiliary Functions

• Speedy/Intensive

You can shorten or extend the programme

duration with this function. Depending on

the programme selection, there may be dif-

ferences in time increases and decreases.

In case the FAST or INTENSIVE led is not lit,

EN / 30

the appropriate programme duration is

shown for your normally soiled clothes/

laundry.

Depending on the programme selection, the

Intensive feature can be selected automat-

ically. In this case, the Intensive LED on the

panel will be lit. You can use the Intensive

selection to achieve a better washing per-

formance when washing heavily soiled

laundry.

You can reduce the time for your lightly

soiled laundry by pressing the Fast/Intens-

ive button in the programmes which come

with intense being selected. When you

press the button once, the LED will turn off

and you will reach the appropriate pro-

gramme duration for your normally soiled

clothes/laundry. When you press the same

button a second time, the fast LED will light

up, the time will decrease a little and it will

show the minimum programme duration,

which is suitable for your less soiled laun-

dry. The duration of programmes may

shorten by 50% when this function is selec-

ted. Thanks to optimized washing steps,

high mechanical agility and optimal water

consumption, high washing performance is

achieved despite the shorter duration.

• Extra Rinse

This function enables the product to make

additional rinsing in addition to the one

already made after the main wash. Thus,

the risk for sensitive skins (babies, allergic

skins, etc.) to be effected by the minimal

detergent remnants on the laundry can be

reduced.

• Steam

This function helps to reduce the creases

of your cotton, synthetic and mixed clothes,

shorten the ironing time and remove the

dirt by softening.

* Under conditions where the steam func-

tion is applied at the end of the programme,

your laundry may be warmer at the end of

the washing. This is expected within the

programme working conditions.

When you activate the steam func-

tion, do not use liquid detergent if

there is no liquid container or liquid

detergent dosing feature. There is

the risk of staining of the clothes.

• Auto Dosing

You can change your dosage and detergent

preferences with this auxiliary function but-

ton. For detailed information, see “Dosage

Selections, Cancellation or Use of Powder

Detergent”

• Auto Dosing Setting

You can use this function to change the

dosing amounts of the Liquid Detergent

and Softener. Press the Automatic Dosage

button to activate the function.

Take into account the amount of laundry,

the amount of soiling of the laundry and the

water hardness for the use of sufficient

amount of detergent in washing. For auto-

matic dosing, in order for your machine to

dose the appropriate amount of detergent,

you must define the recommended

amounts given on the package of the deter-

gent you use to the machine. For this, see

“Changing liquid detergent and softener

dosage settings” below.

You can find out the water hardness from

the water administration responsible for

your location, or you can determine it by ap-

plying the water hardness test. Detergent

manufacturers recommend using more de-

tergent when the water hardness is high.

Considering the water hardness, you can

define a reference value between 15 – 200

mL for 4-5 kg of medium soiled laundry.

The dosage amount will be adjusted auto-

matically based on the sensed laundry

characteristics.

For Soft / Medium water hardness:

Lightly Soiled: a mL.

Medium Soiled: b mL.

Heavily Soiled: c mL.

For hard water hardness:

Lightly Soiled: d mL.

Medium Soiled: e mL.

Heavily Soiled: f mL.

EN / 31

Detergent manufacturers provide usage re-

commendations similar to the table above.

The value you must define to the machine

is the medium soiled value. Based on the

water hardness, define b or e value to the

machine.

If the amount of laundry you will wash is

different from 4-5 kg, you do not need to

change the dosage setting. Your machine

automatically adjusts the dosage amount

based on the load amount.

If you change the detergent model

you use, we recommend that you

adjust the dosage again to achieve

the best results.

Programme Recommendation by Laun-

dry Soiling Level

You can use the "Fast" feature for your

lightly soiled laundry. When you select the

"Fast" feature, your machine will adjust the

detergent dosing for lightly soiled laundry.

You can use the "Intense" feature for your

heavily soiled laundry. When you select the

"Intense" feature, your machine will adjust

the detergent dosing for heavily soiled laun-

dry.

Soiling Level in Automatic Programme

In products that have the Automatic Addi-

tional Rinsing feature, soil detection is per-

formed as part of the Automatic Pro-

gramme. Programme duration and dosed

detergent amount will change based on the

sensed soiling.

Changing Liquid Detergent and Softener

Dosage Settings:

1. Press the Auto Dosage key. When the li-

quid detergent is on and the fabric

softener is off, the liquid detergent set-

ting screen becomes active. When the li-

quid detergent is off and the fabric

softener is on, the liquid detergent set-

ting screen becomes active. The LED of

the active setting screen lights up.

2. Press the "+" and "-" keys to change the

dosage reference values.

3. When dosage amount setting process is

completed, you can return to the main

menu by pressing any key. For all pro-

grammes, dosing will be performed

based on the latest settings you have

selected until you select a new setting.

• Remote Control

You can use this auxiliary function button

to connect your product to smart devices.

For detailed information, see HomeWhiz

Feature and Remote Control Function.

• Customized Program

This auxiliary function can only be used for

Cotton and Synthetic programmes together

with the HomeWhiz application. If this func-

tion is activated under the HomeWhiz “Per-

sonalize” menu, you can add up to five ad-

ditional rinsing steps to the program. You

can select and use some auxiliary func-

tions even though they are not found on

your product. You can increase and de-

crease the time of the Cotton and Synthetic

programmes within a safe range.

When the Specialised Programme

auxiliary function is selected, the

washing performance and energy

consumption will be different than

the declared value.

EN / 32

6.8.2 Functions/Programmes Selec-

ted by Pressing the Function

Keys for 3 Seconds

• Anti Crease+

This function is selected when the relevant

Auxiliary function button is pressed and

held for 3 seconds and the programme fol-

low-up light for the relevant step turns on.

When the function is selected, the drum ro-

tates for up to 8 hours for preventing the

laundry from creasing at the end of the pro-

gramme. You can cancel the programme

and take your laundry out at any time dur-

ing the 8-hour duration. Press the function

selection key or the machine on/off key to

cancel the function. The programme follow-

up light will remain on until the function is

cancelled or the step is complete. If the

function is not cancelled, it will be active in

the subsequent washing cycles as well.

• Child Lock

Use Child Lock function to prevent children

from tampering with the machine. Thus you

can avoid any changes in a running pro-

gramme.

You can switch on and off the ma-

chine with On / Off button when the

Child Lock is active. When you

switch on the machine again, pro-

gramme will resume from where it

has stopped.

When the Child Lock is enabled, an

audio warning will be given if the

buttons are pressed. Audio warning

will be cancelled if the buttons are

pressed five times consecutively.

To activate the child lock:

Press and hold the related auxiliary func-

tion button for 3 seconds. After the count-

down as “3-2-1" on the display is over, Child

Lock symbol appears on the display. When

this warning is displayed, you can release

the Auxiliary Function button 3.

To deactivate the child lock:

Press and hold the related auxiliary func-

tion button for 3 seconds. After the count-

down as “3-2-1" on the display is over, Child

Lock symbol disappears.

• Wireless Connection

You can match your machine and your

smart devices with the wireless connec-

tion. This way, you can use your smart

device to get information about your ma-

chine and control it.

To activate wireless connection:

Press and hold Remote Control button for 3

seconds. After countdown “3-2-1” on the

display ends, “On” symbol appears. When

this notification is displayed stop pressing

the remote control button. The wireless

connection icon blinks when the product is

connecting the internet. If connection is

successful, icon will remain on.

To deactivate wireless connection:

Press and hold Remote Control button for 3

seconds. Countdown “3-2-1” will be dis-

played, and then “Off” symbol will appear

on the display.

To be able to enable wireless con-

nection, machine setup should be

completed through HomeWhiz ap-

plication. After setup, wireless con-

nection will be enabled automatic-

ally if you press ”Remote Control”

button.

6.9 End Time

Time display

When the end time function is selected, the

remaining time until the programme starts

is shown in hours such as 1h, 2h, and the

remaining time to complete the programme

after your programme starts is shown in

hours and minutes as in the 01:30 example.

EN / 33

Programme duration may differ

from the values in section "Pro-

gramme and consumption table"

depending on the water pressure,

water hardness and temperature,

ambient temperature, amount and

the type of laundry, auxiliary func-

tions selected and the changes at

the mains voltage.

After a certain period of time after

the end time function is activated,

the machine goes into standby

mode and some LEDs on the

screen turn off. If there is any user

input, the LEDs will turn on again.

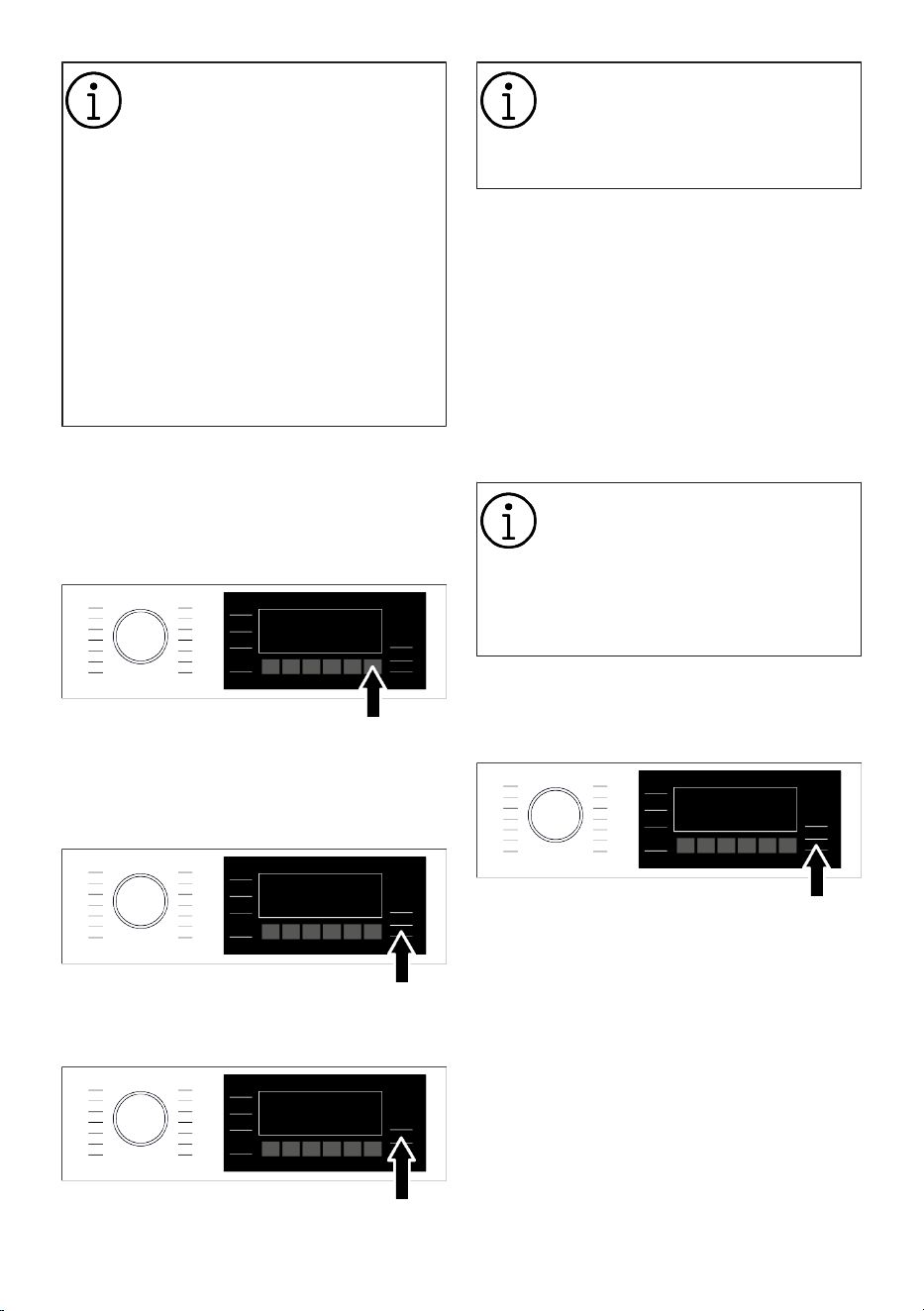

With the End Time function, the start-up of

the programme may be delayed up to 24

hours. After pressing End Time Setting but-

ton, the programme's estimated ending

time is displayed. If the End Time is set,

End Time Setting indicator is illuminated.

In order for the End Time function to be ac-

tivated and the programme to be com-

pleted at the end of the specified time, you

must press Start/Pause button after adjust-

ing the time.

If you want to cancel the End Time func-

tion, turn off and on the product by press-

ing the On/Off button.

When you have activated the End

Time function, do not add liquid de-

tergent in the powder detergent

compartment no 2. There is the risk

of staining of the clothes

1. Open the loading door, place the laundry

and put detergent, etc.

2. Select the washing programme, temper-

ature, spin speed and, if required, the

auxiliary functions.

3. Set the end time of your choice by

pressing the End Time Setting button.

End Time Setting indicator illuminates.

4. Press Start / Pause. Time countdown

starts.

Additional laundry can be added

into the machine during the End

Time countdown. At the end of the

countdown, End Time indicator

turns off, washing cycle starts and

the time of the selected pro-

gramme appears on the display.

6.10 Starting the Programme

1. Press Start / Pause button to start the

programme.

2. Loading door is locked. The door lock

symbol appears on the display after the

loading door is locked.

3. Programme follow-up indicator lights on

the display will show the current pro-

gramme step.

EN / 34

If no programme is started or no

button is pressed within 10 minutes

during programme selection pro-

cess, the product will automatically

turn off. Display and all indicators

turn off.

If you press On / Off button, the de-

fault selected programme informa-

tion is displayed.

6.11 Loading Door Lock

There is a locking system on the loading

door of the machine that prevents opening

of the loading door in cases when the water

level is unsuitable.

"Door Locked" symbol appears on the dis-

play when the loading door is locked.

If the Remote Control Function is

selected, the door will be locked. In

order to open the door you must de-

activate Remote Control Function

by either pressing the Remote Con-

trol button or changing the pro-

gramme position.

Opening the loading door in case of power

failure:

In case of power failure, you can

use the loading door emergency

handle under the pump filter cap to

open the loading door manually.

To avoid any water overflow before

opening the loading door, make

sure there is no water left inside the

machine.

1. Turn off and unplug the appliance.

2. Open the pump filter lid.

3. Pull down the loading door emergency

handle with a tool and release. Then

open the loading door.

4. If the loading door does not open then

repeat the previous step.

6.12 Changing the Selections After

Programme has Started

Adding laundry after the programme has

started

If the water level in the machine is suitable

when you press Start/Pause button, the

door lock will be deactivated and the door

will open, allowing you to add garments.

The door lock icon on the display goes off

when the door lock is deactivated. After

adding garments, close the door and press

Start/Pause button once again to resume

the washing cycle.

EN / 35

If the water level in the machine is not suit-

able when you press Start/Pause button,

the door lock cannot be deactivated and

the door lock icon on the display remains

on.

If the temperature of the water in-

side the machine is above 50°C,

you cannot deactivate the door lock

for safety reasons, even if the water

level is suitable.

Switching the machine to pause mode:

Press the Start/Pause button to switch the

machine to pause mode. Pause symbol will

flash on the display.

Changing the programme selection after

programme has started:

Programme cannot be changed when a

programme is running. You need to pause

the operating programme if the Child Lock

is not active and select a new programme.

This action will cancel the current pro-

gramme.

The selected programme starts

anew.

Changing the auxiliary function, speed and

temperature:

Depending on the step the programme has

reached, you can cancel or activate the aux-

iliary functions. See "Auxiliary Function Se-

lection"

You can also change the speed and tem-

perature settings. See "Spin Speed Selec-

tion" and "Temperature Selection".

It gives out an audio warning if

change is not allowed.

The loading door will not open if the

water temperature in the machine

is high or the water level is above

the loading door baseline.

6.13 Cancelling the Programme

When the machine is turn on and off the

programme gets cancelled. Press and hold

On/Off button for 3 seconds.

If you turn the programme selection

button when the Child Lock is en-

abled, the programme will not be

cancelled. You should cancel the

Child Lock first.

If you want to open the loading

door after you have cancelled the

programme but it is not possible to

open the loading door since the wa-

ter level in the machine is above the

loading door baseline, then turn the

Programme Selection knob to

Pump+Spin programme and drain

the water in the machine.

6.14 End of Programme

End warning appears on the display when

the programme is completed.

The product automatically shuts down if no

buttons are pressed for 10 minutes. Display

and all indicators are turned off.

Completed programme steps will be dis-

played if you press the On/Off button.

6.15 HomeWhiz Feature and Re-

mote Control Function

You can check your washing machine from

smart devices and get information about

the status of your machine thanks to the

HomeWhiz function. You can carry out

many operations on your machine from

EN / 36

your smart device by using the HomeWhiz

application. Moreover, you can use certain

properties only with the HomeWhiz Func-

tion.

You must download the HomeWhiz applica-

tion from the app store of your smart

device to use the Wifi feature of your ma-

chine.

To use the app, make sure your smart

device is connected to the internet.

If you are using the app for the first time,

complete user account registration by fol-

lowing the directions on the app. You can

use all HomeWhiz featured products in

your home through this account after regis-

tration is complete.

The , Bluetooth of your smart device should

be on and your device should be connected

to the internet during setup. Your smart

device should be close to the washing ma-

chine. After the setup, the Bluetooth can be

turned off or your smart device does not

need to be close to the washing machine.

You may use your product provided that

your smart device is connected to internet.

You can tap the “Devices” tab in the applic-

ation to view appliances paired with your

account. You may perform the user pairing

operation of these products on this page.

After the app is setup, with the HomeWhiz

Function, your washing machine can give

you instant status notifications via your

smart device.

Your washing machine will send you no-

tifications over HomeWhiz application in

the following cases:

• At the end of the programme,

• When the door of the washing machine is

opened,

• In case of water cut warning,

• In case of security warning,

To utilize the HomeWhiz feature,

ensure that the HomeWhiz app is

installed on your smart device and

that your washing machine is con-

nected to your home Wi-Fi network.

When your washing machine is not

connected to the network, it oper-

ates like a machine without Home-

Whiz function.

Your product shall run with a con-

nection to the wireless network in

your home network. The controls

made by means of the application

will be enabled through this net-

work. Therefore, the wireless signal

strength near the machine's loca-

tion must be adequate.

Operates at HomeWhiz 2.4 GHz fre-

quency band.

Please visit www.homewhiz.com link

to learn which Android and IOS ver-

sions are supported by HomeWhiz

application.

All safety measures described in

the "GENERAL SAFETY INSTRUC-

TIONS" titled section of the user

manual are also valid for remote

operation with HomeWhiz function.

6.15.1 HomeWhiz Setup

A connection should be set between your

product and the app in order for the app to

function. Follow the steps below to estab-

lish this connection.

1. If you are adding a device for the first

time, touch “Appliances” tab on the

HomeWhiz Application. Select “ADD AP-

PLIANCE” (touch here for setting up a

new appliance) button in the upper right

corner. Perform the setup by following

both the steps below and the steps in

the HomeWhiz Application.

2. To start the setup, make sure that your

machine is turned off. Press and hold

the On/Off button and the Remote Con-

EN / 37

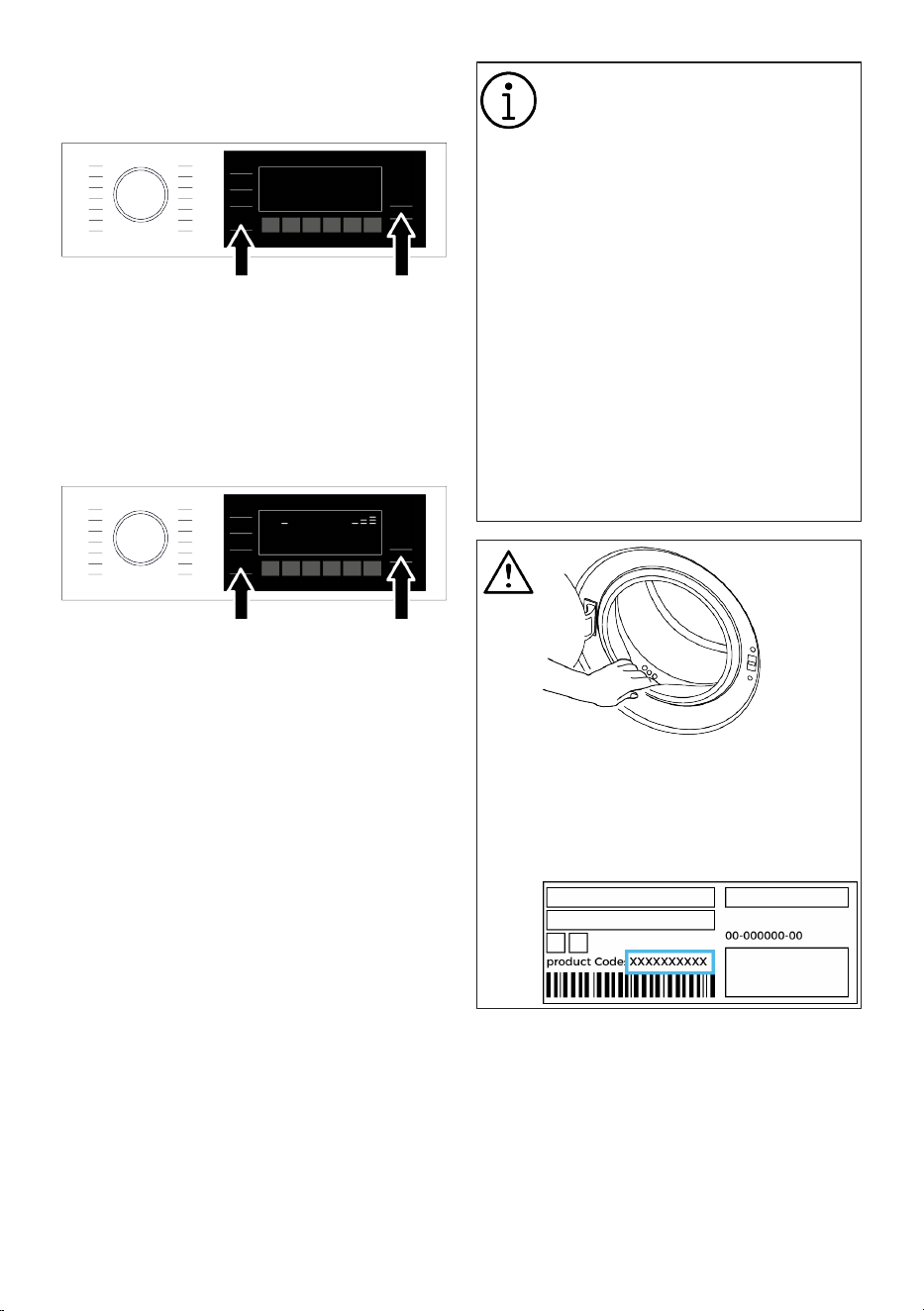

trol Function button simultaneously for

3 seconds to switch your machine to

HomeWhiz setup mode.

3. During the HomeWhiz setup process, an

animation will display on the screen, and

the Wireless Connection icon will con-

tinue to blink until your machine suc-

cessfully establishes an internet con-

nection. Only the On/Off button will be

active in this mode. Other buttons will

be inactive.

4. Follow the instructions on the display of

HomeWhiz application.

5. Wait until the installation is complete.

When setup is complete, give your

washing machine a name. Now, you can

see the product you have added to the

HomeWhiz Application.

Your washing machine will auto-

matically turn off if you cannot real-

ize the setup successfully within 5

minutes. In this case, you have to

start the setup process all over

again. If the problem continues,

please contact the Authorised Ser-

vice.

You can use your washing machine

with more than one smart device.

To do this, download the Home-

Whiz app on the other smart device

as well. When you launch the app,

you will need to log in with the ac-

count you previously created and

paired with your washing machine.

Otherwise, please read "Setting up

a washing machine that is connec-

ted to someone else's account".

HomeWhiz Application may require

you to type the product number

shown on the product label. You

can find the product label inside the

product door. The product number

will be shown on this label.

6.15.2 Setting up a Washing Ma-

chine Connected to Someone

Else's Account

If the washing machine you want to use

was previously introduced to the system

with someone else‘s account, you must es-

tablish a new connection between your

HomeWhiz Application and the product.

EN / 38

1. Download HomeWhiz Application on the

new smart device you want to use.

2. Create a new account and log in to this

account on the HomeWhiz app.

3. Follow the steps described in Home-

Whiz Setup Setup and proceed with the

setup procedure.

Given that your product's Home-

Whiz Feature and Remote Control

functionality operate via either

Bluetooth or Wi-Fi technology, de-

pending on your product model, it's

important to note that only one

HomeWhiz application can control

your product at any given moment.

6.15.3 Deleting the HomeWhiz Ac-

count Match

Follow the following steps in order to delete

a washing machine previously matched

with someone else’s account.

1. Turn on your machine by using the On/

Off button.

2. When your machine is running, push and

hold the Remote Control Function but-

ton and End Time Setting buttons for 5

seconds.

3. You will hear warning sound from the

product to notify your request after the

countdown on the screen. Deleting the

match will take a few seconds.

After this operation, you cannot use the

HomeWhiz function of your washing ma-

chine until you do another setup.

Your product does not need to be connec-

ted to the internet in order to delete an ac-

count matching. Your request will be re-

ceived. This matching will be automatically

deleted when the product is first connected

to the internet.

6.15.4 Remote Control Function

and Its Use

After HomeWhiz setup, Wifi will automatic-

ally turn on. To activate or deactivate the

Wifi connection, please see "Wireless Con-

nection".

If you turn off and on your machine while

wireless connection is active, it will auto-

matically reconnect. In cases of changing

your network password or turning the mo-

dem off, the wireless connection will auto-

matically turn off. For this reason, you will

need to turn on the wireless connection

again if you want to use the Remote Con-

trol function.

You can check the wireless connection

symbol on the display to track your connec-

tion status. If the symbol is continuously

on, it means you have internet connection.

If the symbol is blinking, it means the ma-

chine is trying to connect. If the symbol is

off, you have no connection.

When the wireless connection is on

in your product, Remote Control

function will be selectable.

If the Remote Control function can-

not be selected, check the connec-

tion status. If the connection can-

not be established, repeat the initial

setup settings on the appliance.

If you want to control your washing ma-

chine remotely, you must activate the re-

mote control function by pressing the Re-

mote Control button on the control panel.

Once access is established to the product,

you will see a screen similar to the one be-

low.

EN / 39

When the Remote Control is enabled, you

can only turn on the machine, turn it off and

follow the status through your washing ma-

chine. And all functions except child lock

can be managed through the application.

You can follow whether the Remote Control

function is on or off through the function in-

dicator on the display.

If the Remote Control function is Off, all the

operations are handled on the washing ma-

chine and only status follow-up is allowed

on the application.

Remote Control function may not be activ-

ated if the remote connection is off or the

product door is on.

Once you enable this feature on your wash-

ing machine, it stays active under most

conditions, providing you with the capability

to control your machine via the internet.

This functionality is available whether the

machine is powered on or off, and can be

accessed from any location.

In certain cases, it deactivates itself for

safety reasons:

• When your washing machine undergoes

a power interruption.

• When the door of the washing machine is

opened,.

• When programme knob is turned and a

different programme selected or appli-

ance is turned off.

6.15.5 Troubleshooting

Do the following if you have a problem with

controlling or connection. Observe whether

the problem persists or not after the action

you have performed.

1. Check whether your smart device is con-

nected to the relevant home network.

2. Restart the product application.

3. Turn Bluetooth or Wi-Fi off and on via

the control panel, depending on the

model of your product.

4. If the connection cannot be established

with the above processes, repeat the ini-

tial set-up settings on the washing ma-

chine.

If the problem persists, consult an Author-

ised Service Agent.

6.16 Drum Illumination

Drum illumination lamp of your machine

will light up during programme selection.

The light will turn off when you start the

programme. If no programme is started or

no key is pressed within 10 minutes during

programme selection process, the drum il-

lumination lamp will turn off.

Drum illumination lamp of your machine

will light up after the programme is com-

pleted. When you turn off your machine, the

lamp turns off. The drum illumination lamp

will turn off if you do not press any button

within 10 minutes after the programme has

ended.

7 Maintenance and Cleaning

Please read the “Safety Instruc-

tions” section first!

Service life of your product extends and fre-

quently experienced problems will be re-

duced if it is cleaned at regular intervals.

7.1 Cleaning the Detergent Drawer

When to clean

• When you open the dosing tank cover

and see a thickened non-fluid detergent

or softener,

• If you are not satisfied with the washing

results, it may be that the detergent or

softener has become stiff and therefore

cannot be taken into the washing area,

EN / 40

• If the liquid in the tank does not decrease

although dosing is selected and you do

not load detergents or softeners for a

long time,

• If you want to change the washing in-

gredients you have filled in the chamber

(for example, if you are not satisfied with

the detergent and do not want to use it)

or if you have done incorrect loading (for

example, if you have placed detergent or

softener in the detergent tank),

• If a different brand of detergent or

softener will be added,

• If a washing agent with different specific-

ations (e.g. if detergent is added for col-

oured ones when there is detergent in the

tank for whites) is added,

• If a different-concentration washing

agent is added (to avoid wasting the pre-

viously filled detergent, you can put them

in the powder detergent compartment in

the next washing and consume it by se-

lecting the «powder detergent active» po-

sition on the screen.)

• If the new softener has the same spe-

cifications but only a different scent, (it

should be noted that the scent of the

mixture will be different if it is added

without cleaning the remaining softener),

• If it is not going to be used for a long

time (e.g. at the time of moving to the

summer house and at the time of return,

for 3 months or more), the liquid washing

agent may become denser and may be-

come stiffer at the end, and may not

make dosing although the system indic-

ates full.

Cleaning:

Before starting cleaning, unplug your appli-

ance by pressing the On/Off button.

It is recommended to wear a suit-

able glove so that you do not come

into direct contact with the deter-

gent and other washing materials

that you will empty from the deter-

gent drawer.

1. Press the blue part in the middle of the

detergent drawer to pull it towards you

and remove it.

2. Remove the drain stick located at the

back of the drawer from its slot.

3. Place the slot behind the detergent

drawer to be emptied towards the inside

of the compartment to be emptied.

4. Gently push the drain stick into the slot

behind the detergent compartment.

5. The detergent will start to pour into the

container.

6. The same is carried out for the softener

compartment.

7. The guides holding the top cover of the

detergent drawer are removed with a

flathead screwdriver (there are total of 6

guides, two each on the right, left and

back of the drawer) and the inside of the

drawer is washed.

8. After the completion of the washing pro-

cess, the cover is inserted to the drawer.

Make sure that all guides are in place. If

the guides do not fit, liquid may spill

from the drawer, or the detergent box

EN / 41

may get trapped in the drawer rail or

move in difficulty. Therefore, make sure

that the guides are firmly seated.

9. Insert the drain stick back into its slot in

the back of the drawer.

10.Refit the drawer by paying attention to

its slot and slides and push the drawer

to close. Once detergents and softeners

are added, they will be ready for use in

dosed programs.

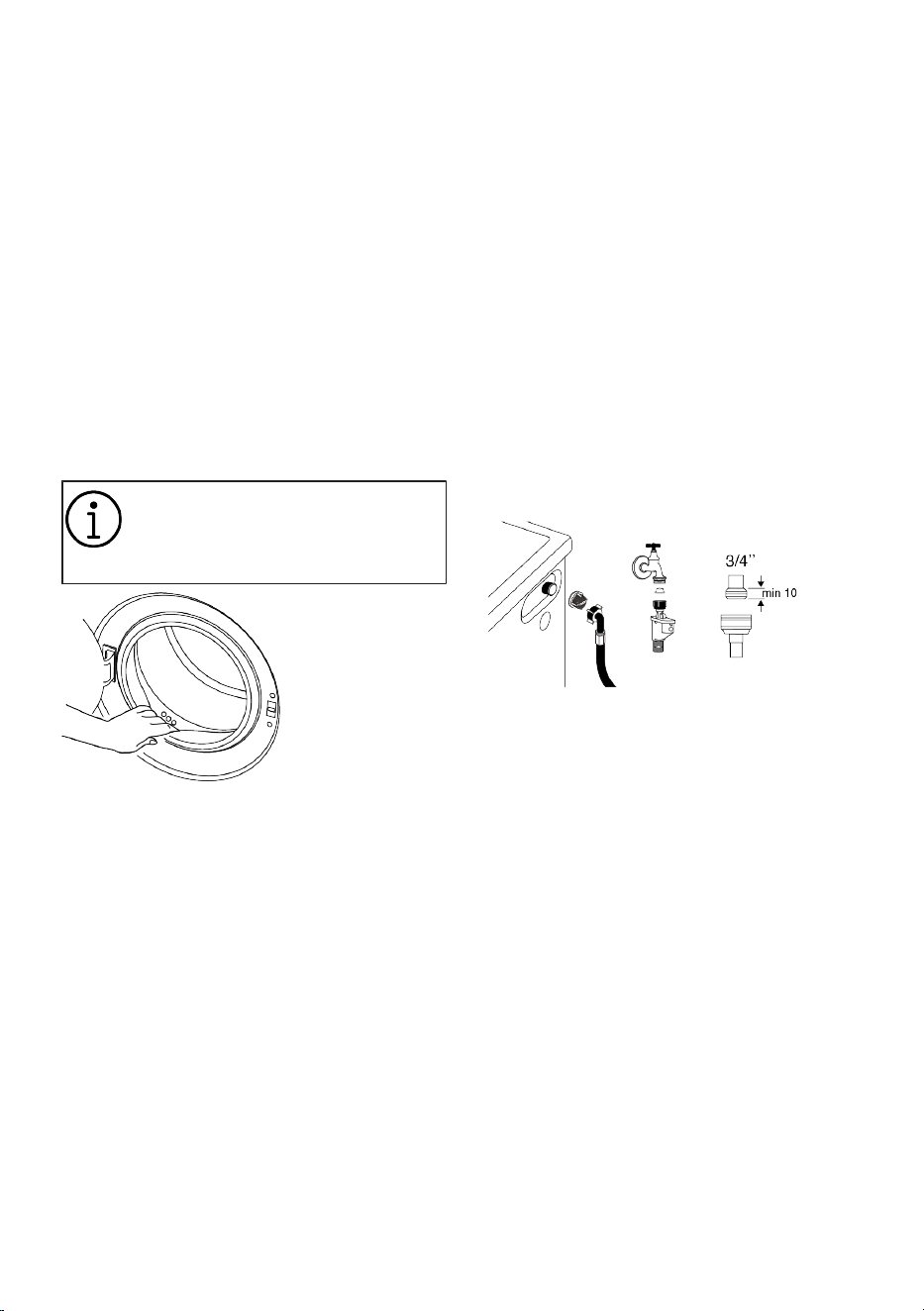

7.2 Cleaning the Loading Door and

the Drum

For products with drum cleaning pro-

gramme, please see the Operating the

product section.

Repeat Drum Cleaning process in

every 2 months.

NOTICE: Use an anti-limescale suit-

able for the washing machines.

After every washing make sure that no for-

eign substance is left in the product.

If the holes on the door gasket shown in the

figure is blocked, open the holes using a

toothpick.

Foreign metal substances will cause rust

stains in the drum. Clean the stains on the

drum surface by using cleaning agents for

stainless steel.

Never use steel wool or wire wool. These

will damage the painted, chrome coated

and plastic surfaces.

We recommend you to wipe the door gas-

ket with a dry and clean cloth at the end of

the programme. This will remove residues

on the door gasket in your machine and

prevent formation of malodours.

7.3 Cleaning the Body and Control

Panel

Wipe the body of the product with soapy

water or non-corrosive mild gel detergents

as necessary, and dry with a soft cloth.

Use only a soft and damp cloth to clean the

control panel. Do not use cleaning products

that contain bleach

7.4 Cleaning the Water Intake Fil-

ters

There is a filter at the end of each water in-

take valve at the rear of the product and

also at the end of each water intake hose

where they are connected to the tap. These

filters prevent foreign substances and dirt

in the water to enter the product. Filters

should be cleaned if they are dirty.

1. Close the taps.

2. Remove the nuts of the water intake

hoses to access the filters on the water

intake valves and clean them with an ap-

propriate brush. If the filters are too

dirty, remove them from their places

with a pliers and clean in this way.

3. Take out the filters on the flat ends of

the water intake hoses together with the

gaskets and clean thoroughly under run-

ning water.

4. Replace the gaskets and filters carefully

and tighten their nuts by hand.

7.5 Draining Remaining Water and

Cleaning the Pump Filter

The filter system in your product prevents

solid items such as buttons, coins and fab-

ric fibres clogging the pump impeller during

EN / 42

draining of washing water. Thus, the water

will be drained without any problem and the

service life of the pump will extend.

If the product fails to drain water inside it,

the pump filter is clogged. Filter must be

cleaned whenever it is clogged or in every 3

months. Water must be drained off first to

clean the pump filter.

In addition, prior to transporting the product

(e.g., when moving to another house) water

should be drained completely.

NOTE:

Foreign substances left in the

pump filter may damage your

product or may cause noise prob-

lem.

If you live in areas prone to frost, re-

member to turn off the water tap,

disconnect the main hose, and

drain the water from the product

when it's not in use.

After each use, turn off the tap to

which the mains hose is connected.

In order to clean the dirty filter and drain

the water:

1. Unplug the product to cut off the supply

power.

Temperature of the water inside the

product may rise up to 90 ºC. To

avoid the risk of scalding, clean the

filter after the water inside the

product is cooled down.

2. Open the filter cover.

3. Follow the below procedures in order to

drain water.

If the product has an emergency water

draining hose, in order to drain the water:

• Pull the emergency draining hose out of

its seat.

• Place the end of the hose in a large con-

tainer. Drain the water into the container

by pulling out the plug at the end of the

hose. When the container is filled, close

the end of the hose with the plug. Drain

all water by repeating the procedure spe-

cified above after draining the container.

• When the water drain is finished, close

the end with the plug again and fix the

hose in its place.

• Unscrew the pump filter.

1. Clean any residues inside the filter as

well as fibres, if any, around the pump

impeller region.

2. Replace the filter.

3. If the filter cap is composed of two

pieces, close the filter cap by pressing

on the tab. If it is one piece, seat the

tabs in the lower part into their places

first, and then press the upper part to

close.

8 Troubleshooting

Please read the “Safety Instruc-

tions” section first!

Programmes do not start after the loading

door is closed.

• Start / Pause /Cancel button might not

be pressed. >>> * Press the Start /

Pause /Cancel button.

EN / 43

• It may be difficult to close the loading

door in case of excessive loading. >>>

Reduce the amount of laundry and make

sure that the loading door is closed prop-

erly.

Programme cannot be started or selected.

• The product has switched to self-protec-

tion mode due to a supply problem (line

voltage, water pressure, etc.). >>> De-

pending on the product model, select an-

other program by turning the Program Se-

lection button or pressing and holding

the On/Off button for 3 seconds to can-

cel the program. Previous programme

will be cancelled. See Cancelling the Pro-

gramme

Water inside the product.

• Some water has remained in the product

due to the quality control processes in

the production. >>> This is not a failure;

water is not harmful to the product.

The product does not take water in.

• Tap is turned off. >>> Turn on the taps.

• Water inlet hose is bent. >>> Flatten the

hose.

• Water inlet filter is clogged. >>> Clean the

filter.

• Loading door is not closed. >>> Close the

door.

The product does not drain water.

• Water drain hose is clogged or twisted.

>>> Clean or flatten the hose.

• Pump filter is clogged. >>> Clean the

pump filter.

Product vibrates or makes noise.

• Product is standing unbalanced. >>> Ad-

just the stands to balance the product.

• A hard substance has entered into the

pump filter. >>> Clean the pump filter.

• Transportation safety bolts are not re-

moved. >>> Remove the transportation

safety bolts.

• Laundry quantity in the product is too

little. >>> Add more laundry to the

product.

• Excessive laundry is loaded in the

product. >>> Take out some of the laun-

dry from the product or distribute the

load by hand to balance it homogen-

eously in the product.

• Product is leaning on a rigid item. >>>

Make sure that the product is not leaning

on anything.

There is water leaking from the bottom of

the product.

• Water drain hose is clogged or twisted.

>>> Clean or flatten the hose.

• Pump filter is clogged. >>> Clean the

pump filter.

Product stopped shortly after the pro-

gramme started.

• Machine has stopped temporarily due to

low voltage. >>> Product will resume run-

ning when the voltage restores to the nor-

mal level.

Product directly drains the water it takes

in.

• Draining hose is not at adequate height.

>>> Connect the water draining hose as

described in the user manual.

No water can be seen in the product during

washing.

• Water is inside the invisible part of the

product. >>> This is not a failure.

Loading door cannot be opened.

• Loading door lock is activated because

of the water level in the product. >>>

Drain the water by running the Pump or

Spin programme.

• Product is heating up the water or it is at

the spinning cycle. >>> Wait until the pro-

gramme completes.

• Loading door may be stuck because of

the pressure it is subjected to. >>> Grab

the handle and push and pull the loading

door to release and open it.

• If there is no power, loading door of the

product will not open. >>> To open the

loading door, open the pump filter cap

and pull down the emergency handle po-

sitioned at the rear side of the said cap.

See Loading Door Lock [}34]

EN / 44

Washing takes longer than specified in the

user manual. (*)

• Water pressure is low. >>> Product waits

until taking in adequate amount of water

to prevent poor washing quality due to

the decreased amount of water. There-

fore, the washing time extends.

• Voltage is low. >>> Washing time is pro-

longed to avoid poor washing results

when the supply voltage is low.

• Input temperature of water is low. >>>

Required time to heat up the water ex-

tends in cold seasons. Also, washing

time can be lengthened to avoid poor

washing results.

• Number of rinses and/or amount of rins-

ing water have increased. >>> Product in-

creases the amount of rinsing water

when good rinsing is needed and adds an

extra rinsing step if necessary.

• Excessive foam has occurred and auto-

matic foam absorption system has been

activated due to too much detergent us-

age. >>> Use recommended amount of

detergent.

Programme duration does not countdown.

(On models with display) (*)

• Timer may stop during water intake. >>>

Timer indicator will not countdown until

the product takes in adequate amount of

water. The product will wait until there is

sufficient amount of water to avoid poor

washing results due to lack of water.

Timer indicator will resume countdown

after this.

• Timer may stop during heating step. >>>

Timer indicator will not countdown until

the product reaches the selected temper-

ature.

• Timer may stop during spinning step. >>>

Automatic unbalanced load detection

system is activated due to the unbal-

anced distribution of the laundry in the

product.

Programme duration does not countdown.

(*)

• There is unbalanced load in the product.

>>> Automatic unbalanced load detection

system is activated due to the unbal-

anced distribution of the laundry in the

product.

Product does not switch to spinning step.

(*)

• There is unbalanced load in the product.

>>> Automatic unbalanced load detection

system is activated due to the unbal-

anced distribution of the laundry in the

product.

• The product will not spin if water is not

drained completely. >>> Check the filter

and the draining hose.

• Excessive foam has occurred and auto-

matic foam absorption system has been

activated due to too much detergent us-

age. >>> Use recommended amount of

detergent.

Washing performance is poor: Laundry

turns gray. (**)

• Insufficient amount of detergent has

been used over a long period of time. >>>

Use the recommended amount of deter-

gent appropriate for water hardness and

the laundry.

• Washing has been made at low temperat-

ures for a long time. >>> Select the

proper temperature for the laundry to be

washed.

• Insufficient amount of detergent is used

with hard water. >>> Using insufficient

amount of detergent with hard water

causes the soil to stick on the cloth and

this turns the cloth into gray in time. It is

difficult to eliminate graying once it hap-

pens. Use the recommended amount of

detergent appropriate for water hardness

and the laundry.

• Excessive amount of detergent is used.

>>> Use the recommended amount of de-

tergent appropriate for water hardness

and the laundry.

EN / 45

Washing performance is poor: Stains per-

sist or the laundry is not whitened. (**)

• Insufficient amount of detergent is used.

>>> Use the recommended amount of de-

tergent appropriate for water hardness

and the laundry.

• Excessive laundry is loaded in. >>> Do

not load the product in excess. Load with

amounts recommended in the "Pro-

gramme and consumption table".

• Wrong programme and temperature were

selected. >>> Select the proper pro-

gramme and temperature for the laundry

to be washed.

• Wrong type of detergent is used. >>> Use

original detergent appropriate for the

product.

• Excessive amount of detergent is used.

>>> Put the detergent in the correct com-

partment. Do not mix the bleaching agent

and the detergent with each other.

Washing performance is poor: Oily stains

appeared on the laundry. (**)

• Regular drum cleaning is not applied. >>>

Clean the drum regularly. For this proced-

ure, see Cleaning the Loading Door and

the Drum [}41]

Washing performance is poor: Clothes

smell unpleasantly. (**)

• Odours and bacteria layers are formed on

the drum as a result of continuous wash-

ing at lower temperatures and/or in short

programmes. >>> Leave the detergent

drawer as well as the loading door of the

product ajar after each washing. Thus, a

humid environment favourable for bac-

teria cannot occur in the machine

Colour of the clothes faded. (**)

• Excessive laundry was loaded in. >>> Do

not load the product in excess.

• Detergent in use is damp. >>> Keep deter-

gents closed in an environment free of

humidity and do not expose them to ex-

cessive temperatures.

• A higher temperature was selected. >>>

Select the proper programme and tem-

perature according to the type and soiling

degree of the laundry.

Washing machine does not rinse well.

• The amount, brand and storage condi-

tions of the detergent used are inappro-

priate. >>> Use a detergent appropriate

for the washing machine and your laun-

dry. Keep detergents closed in an envir-

onment free of humidity and do not ex-

pose them to excessive temperatures.

• Detergent was put in the wrong compart-

ment. >>> If detergent is put in the pre-

wash compartment although prewash

cycle is not selected, the product can

take this detergent during rinsing or

softener step. Put the detergent in the

correct compartment.

• Pump filter is clogged. >>> Check the fil-

ter.

• Draining hose is folded. >>> Check the

drain hose.

Laundry became stiff after washing. (**)

• Insufficient amount of detergent is used.

>>> Using insufficient amount of deter-

gent for the water hardness can cause

the laundry to become stiff in time. Use

appropriate amount of detergent accord-

ing to the water hardness.

• Detergent was put in the wrong compart-

ment. >>> If detergent is put in the pre-

wash compartment although prewash

cycle is not selected, the product can

take this detergent during rinsing or

softener step. Put the detergent in the

correct compartment.

• Detergent was mixed with the softener.

>>> Do not mix the softener with deter-

gent. Wash and clean the drawer with hot

water.

Laundry does not smell like the softener.

(**)

• Detergent was put in the wrong compart-

ment. >>> If detergent is put in the pre-

wash compartment although prewash

cycle is not selected product, the can

take this detergent during rinsing or

softener step. Wash and clean the drawer

with hot water. Put the detergent in the

correct compartment.

EN / 46

• Detergent was mixed with the softener.

>>> Do not mix the softener with deter-

gent. Wash and clean the drawer with hot

water.

• Softener dosage setting may be in low

level. >>> Increase the softener dosage

amount by one level. See "Automatic

Dosage Setting".

Detergent residue in the detergent drawer.

(**)

• Detergent was put in wet drawer. >>> Dry

the detergent drawer before putting in de-

tergent.

• Detergent has gotten damp. >>> Keep de-

tergents closed in an environment free of

humidity and do not expose them to ex-

cessive temperatures.

• Water pressure is low. >>> Check the wa-

ter pressure.

• The detergent in the main wash compart-

ment got wet while taking in the prewash

water. Holes of the detergent compart-

ment are blocked. >>> Check the holes

and clean if they are clogged.

• There is a problem with the detergent

drawer valves. >>> Call the Authorised

Service Agent.

• Detergent was mixed with the softener.

>>> Do not mix the softener with deter-

gent. Wash and clean the drawer with hot

water.

• Regular drum cleaning is not applied. >>>

Clean the drum regularly. For this proced-

ure, see Cleaning the Loading Door and

the Drum [}41]

Too much foam forms inside the product.

(**)

• Improper detergents for the washing ma-

chine is used. >>> Use detergents appro-

priate for the washing machine.

• Excessive amount of detergent is used.

>>> Use only sufficient amount of deter-

gent.

• Detergent was stored under improper

conditions. >>> Store detergent in a

closed and dry location. Do not store in

excessively hot places.

• Some meshed laundry such as tulle may

foam too much because of their texture.

>>> Use smaller amounts of detergent for

this type of item.

• Detergent was put in the wrong compart-

ment. >>>Make sure you place the deter-

gent in the appropriate compartment.

Foam is overflowing from the detergent

drawer.

• Too much detergent is used. >>> Mix 1

tablespoonful softener and ½ l water and

pour into the main wash compartment of

the detergent drawer. >>> Put detergent

into the product suitable for the pro-

grammes and maximum loads indicated

in the “Programme and consumption

table”. When you use additional chemic-

als (stain removers, bleaches and etc.),

reduce the amount of detergent.

Laundry remains wet at the end of the pro-

gramme. (*)

• Excessive foam has occurred and auto-

matic foam absorption system has been

activated due to too much detergent us-

age. >>> Use recommended amount of

detergent.

(*) The product does not switch to spinning

step when the laundry is not evenly distrib-

uted in the drum to prevent any damage to

the product and to its surrounding environ-

ment. Laundry should be rearranged and re-

spun.

(**) Regular drum cleaning is not applied.

Clean the drum regularly. See Cleaning the

Loading Door and the Drum [}41]

If you cannot eliminate the problem

although you follow the instructions

in this section, consult your dealer

or the Authorised Service Agent.

Never try to repair a nonfunctional

product yourself.

Check the HomeWhiz section for

the relevant troubleshooting in-

formation.

Arcelik Hitachi Home Appliances (Thailand) Ltd.

Distributor Beko A&NZ Pty Ltd

2820532371/ EN/ / 15/10/2024 10:23

BD-90XKVEADM Hitachi 9kg Front Load Washing Machine with AutoDose

Product's Documents

BD-90XKVEADM - User Manual

Specifications

Hitachi BD-90XKVEADM Questions and Answers

Related Products

Hitachi SFP90CJ - 9kg Top Load Air Jet Washing Machine

Hitachi SFP90DJ 9kg Air Jet Top Load Washing Machine

Hitachi HWF800X 6.5kg Front Load Washing Machine

Hitachi HWF1200X 6.5kg Front Load Washing Machine

WFL85PLSW CHiQ 8.5kg Front Load Washing Machine

Fisher & Paykel Series 7 10kg Front Load Washing Machine with FlexiDose and Contemporary Design
