User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.................................. 2
2 Appliance at a glance............................................ 4
2.1 Scope of supply............................................................ 4

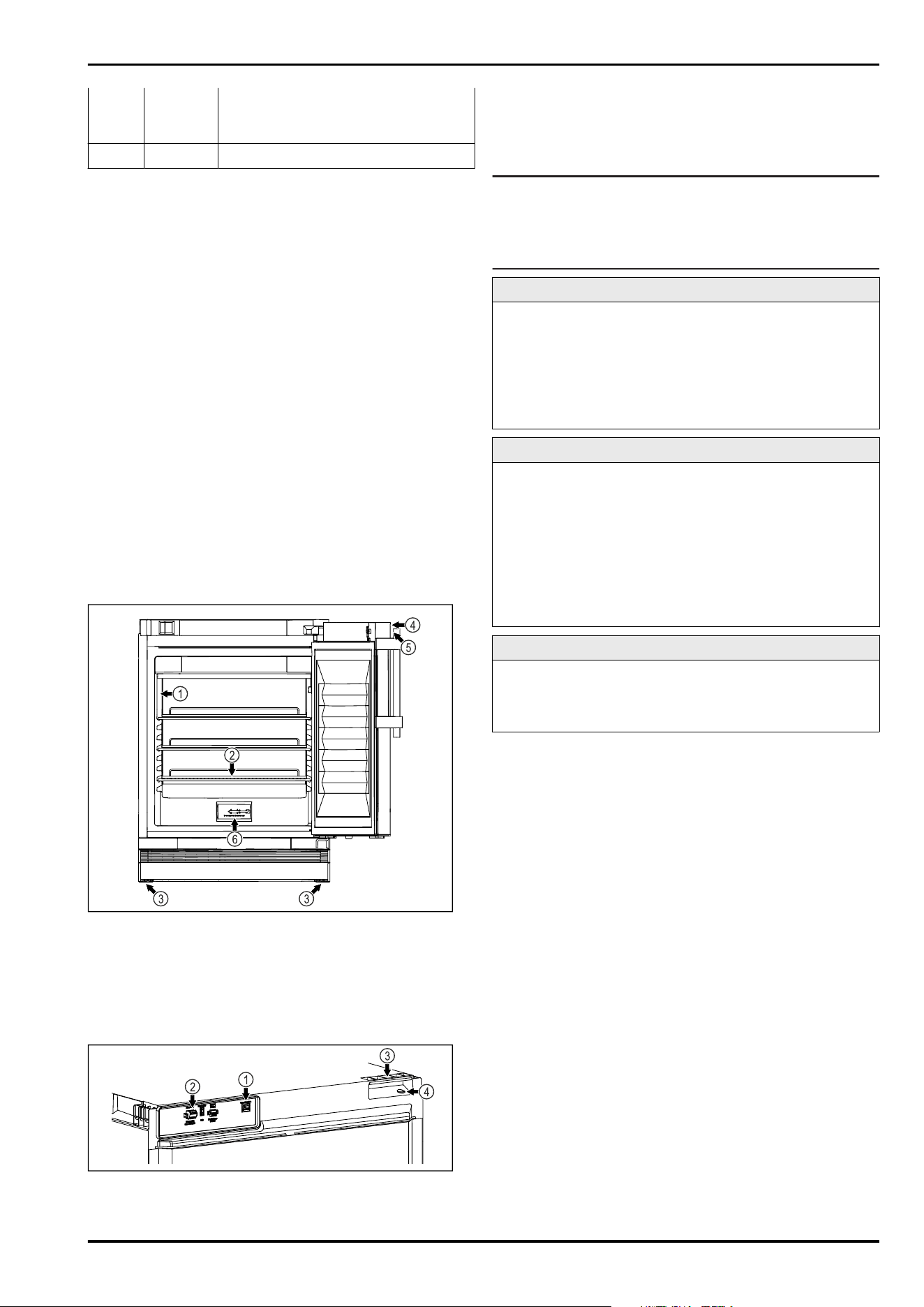

2.2 Overview of the appliance and equipment.............. 4
2.3 Special features........................................................... 4
2.4 Range of use of appliance.......................................... 4
2.5 Appliance noise emissions......................................... 5
2.6 Conformity..................................................................... 5
2.7 SVHC substances according to REACH regulation. 5
3 Functionality of the Touch display....................... 5

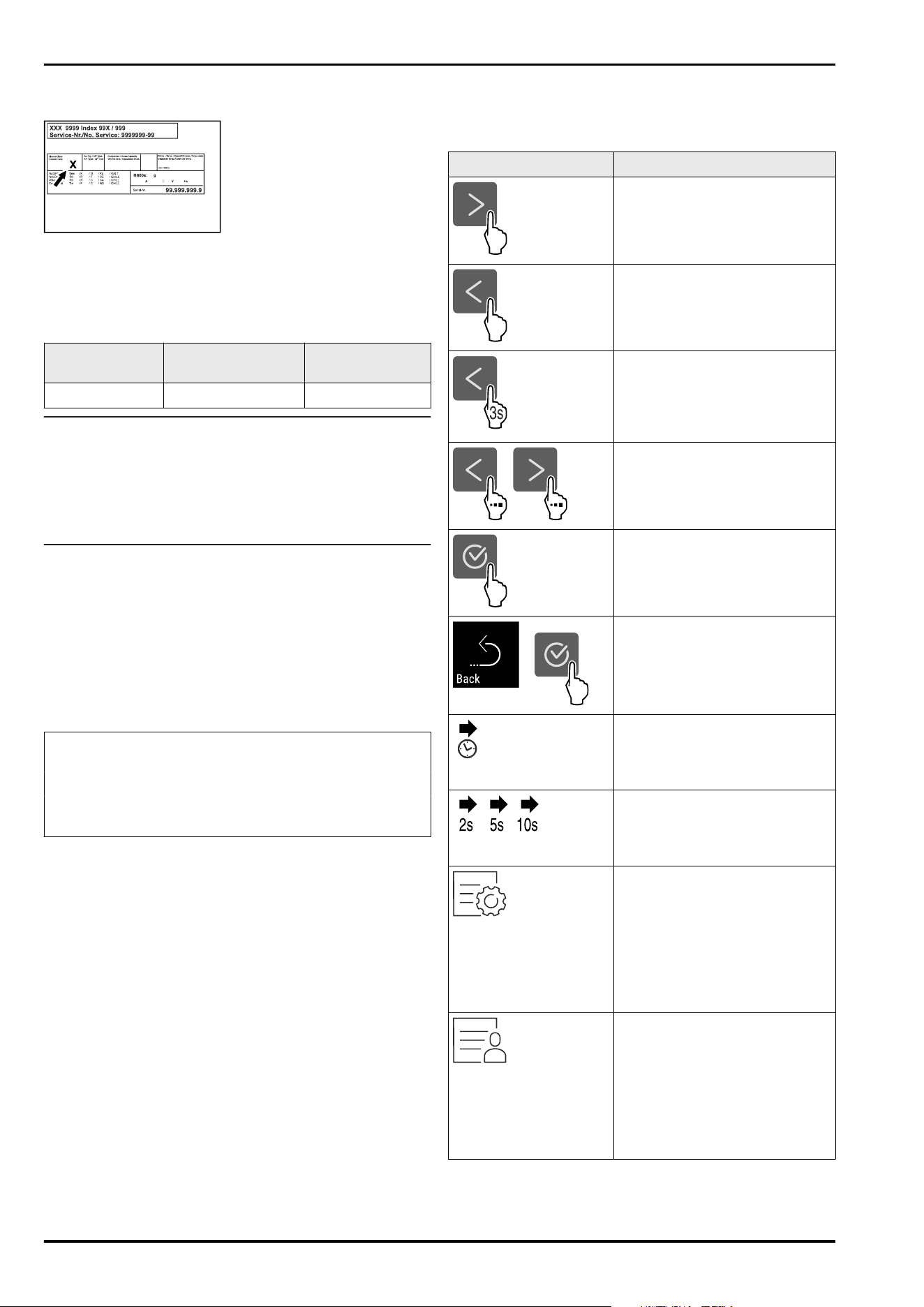

3.1 Navigation and symbol explanation......................... 5
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 6
4 Putting into operation........................................... 6
4.1 Switching on appliance (first use)............................ 6
5 Storage.................................................................. 7
5.1 Information regarding storage................................... 7
6 Controls................................................................. 7
6.1 Control and display elements.................................... 7

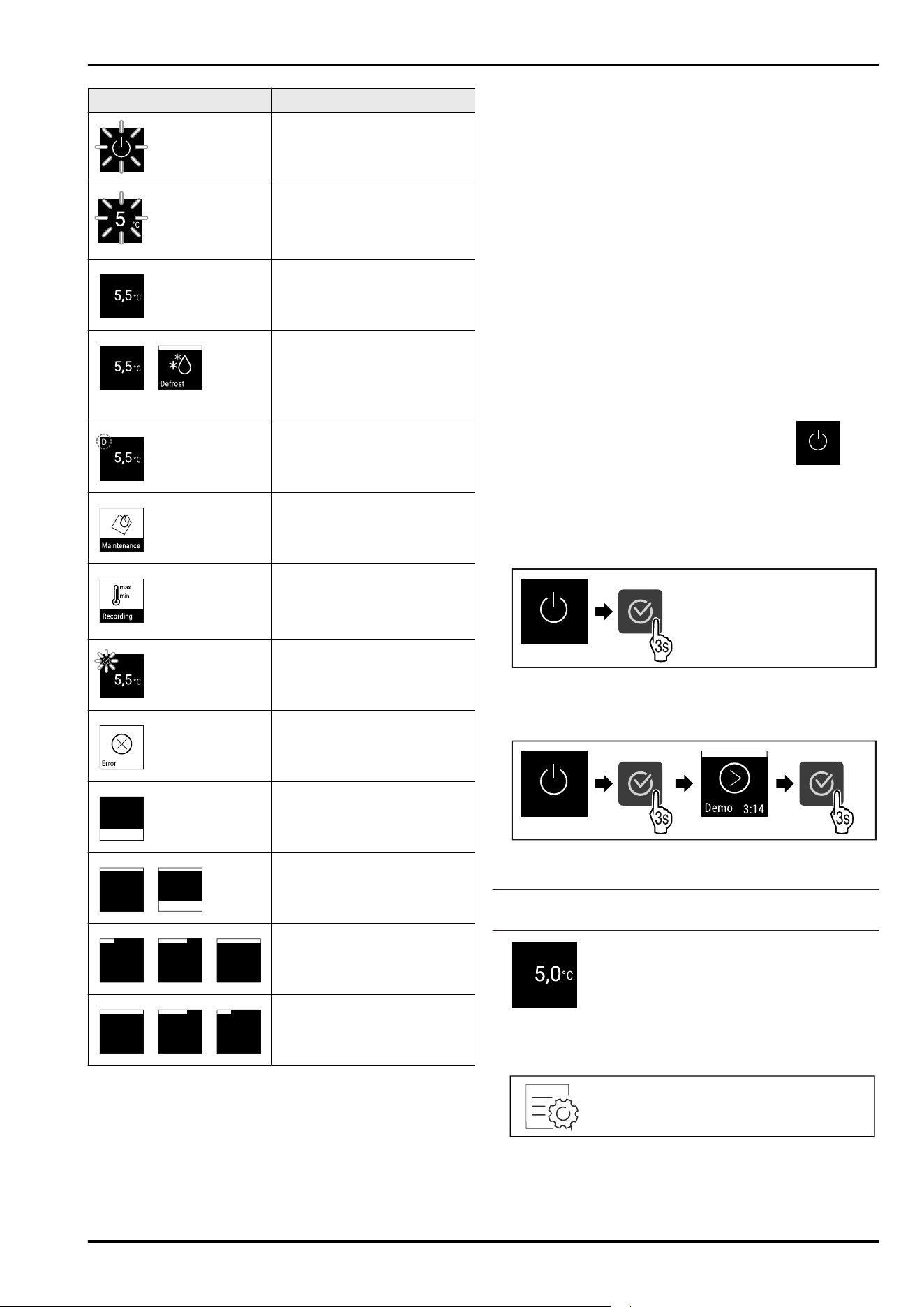

6.1.1 Status display..............................................................7
6.1.2 Display symbols.......................................................... 7
6.1.3 Acoustic signals..........................................................8
6.2 Appliance functions..................................................... 8
6.2.1 Notes on the appliance functions........................... 8
6.2.2 Switching appliance on and off .............................. 8
6.2.3 WiFi connection ......................................................... 9
6.2.4 LAN connection ........................................................10

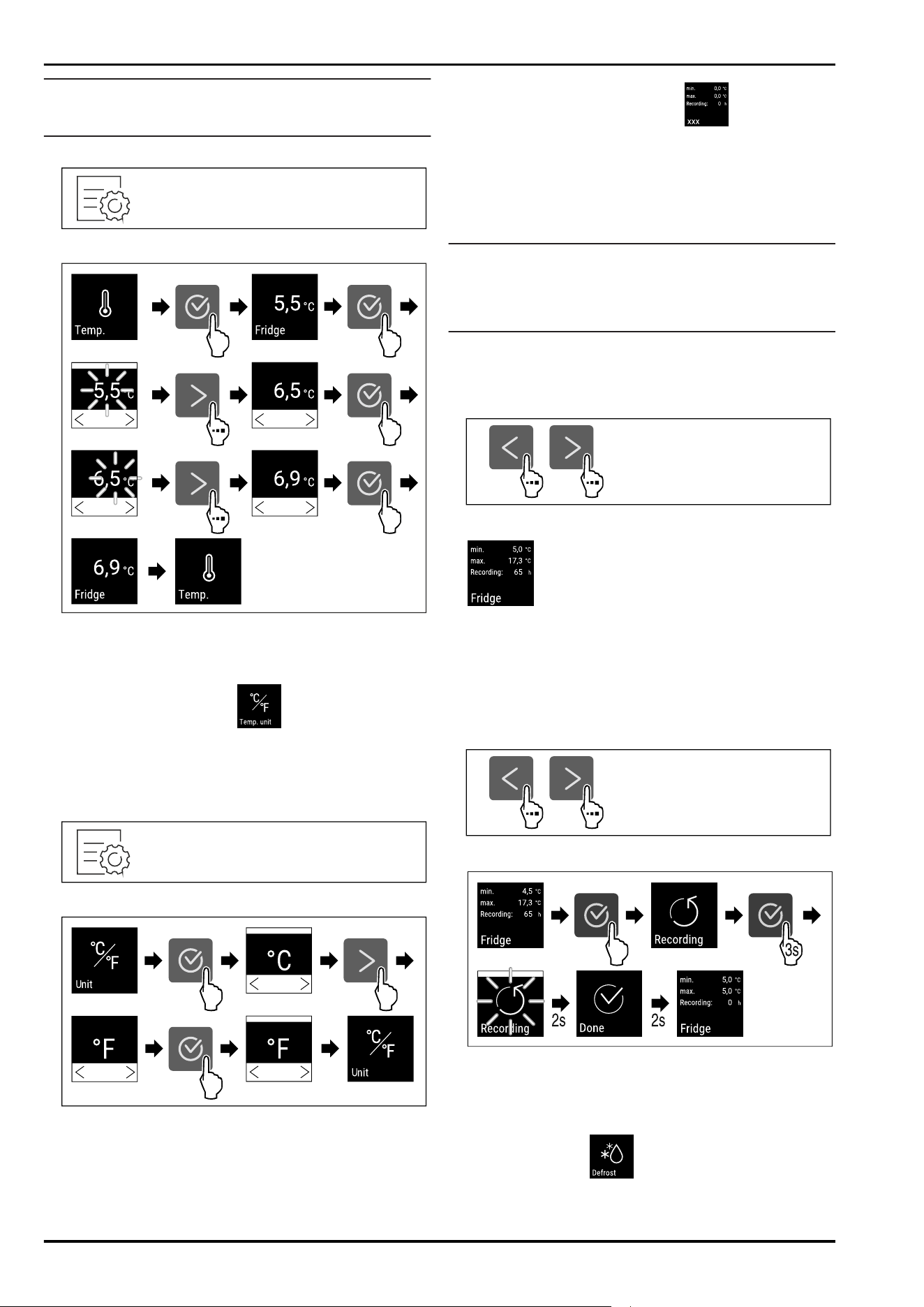

6.2.5 Temperature ..............................................................10
6.2.6 Temperature unit...................................................... 11
6.2.7 Temperature recording ............................................ 11
6.2.8 Defrosting ..................................................................11
6.2.9 Lighting *.................................................................... 12
6.2.10 Display brightness ..................................................13
6.2.11 Temperature alarm ...................................................13
6.2.12 Door alarm ................................................................14
6.2.13 Light alarm *.............................................................. 15
6.2.14 Alarm Sound...............................................................15
6.2.15 Key Sound...................................................................16
6.2.16 Access code...............................................................16
6.2.17 Language ................................................................... 17
6.2.18 Device information ..................................................17

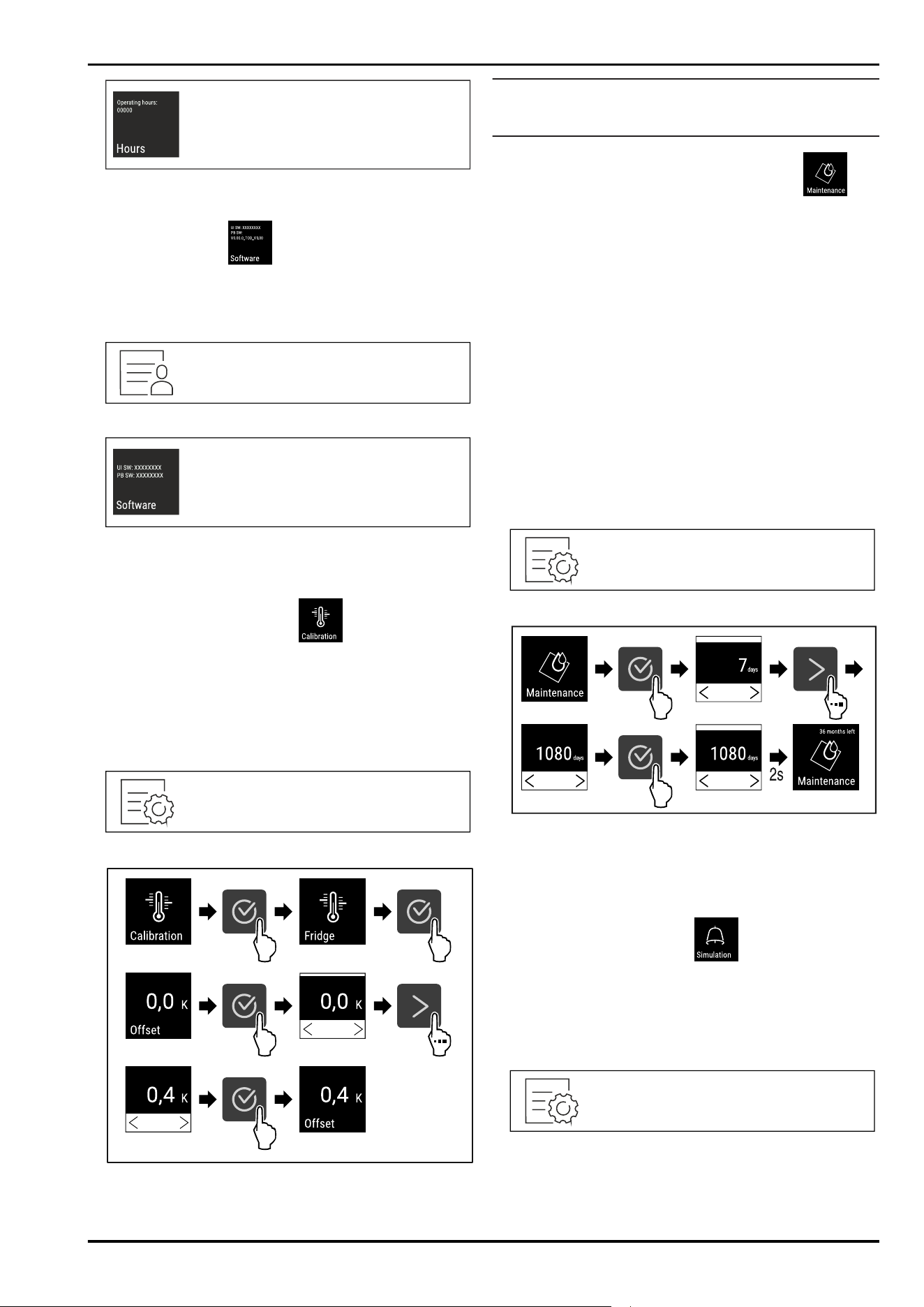

6.2.19 Operating hours ........................................................17
6.2.20 Software ...................................................................18
6.2.21 Sensor calibration ....................................................18
6.2.22 Maintenance interval reminder ..............................18

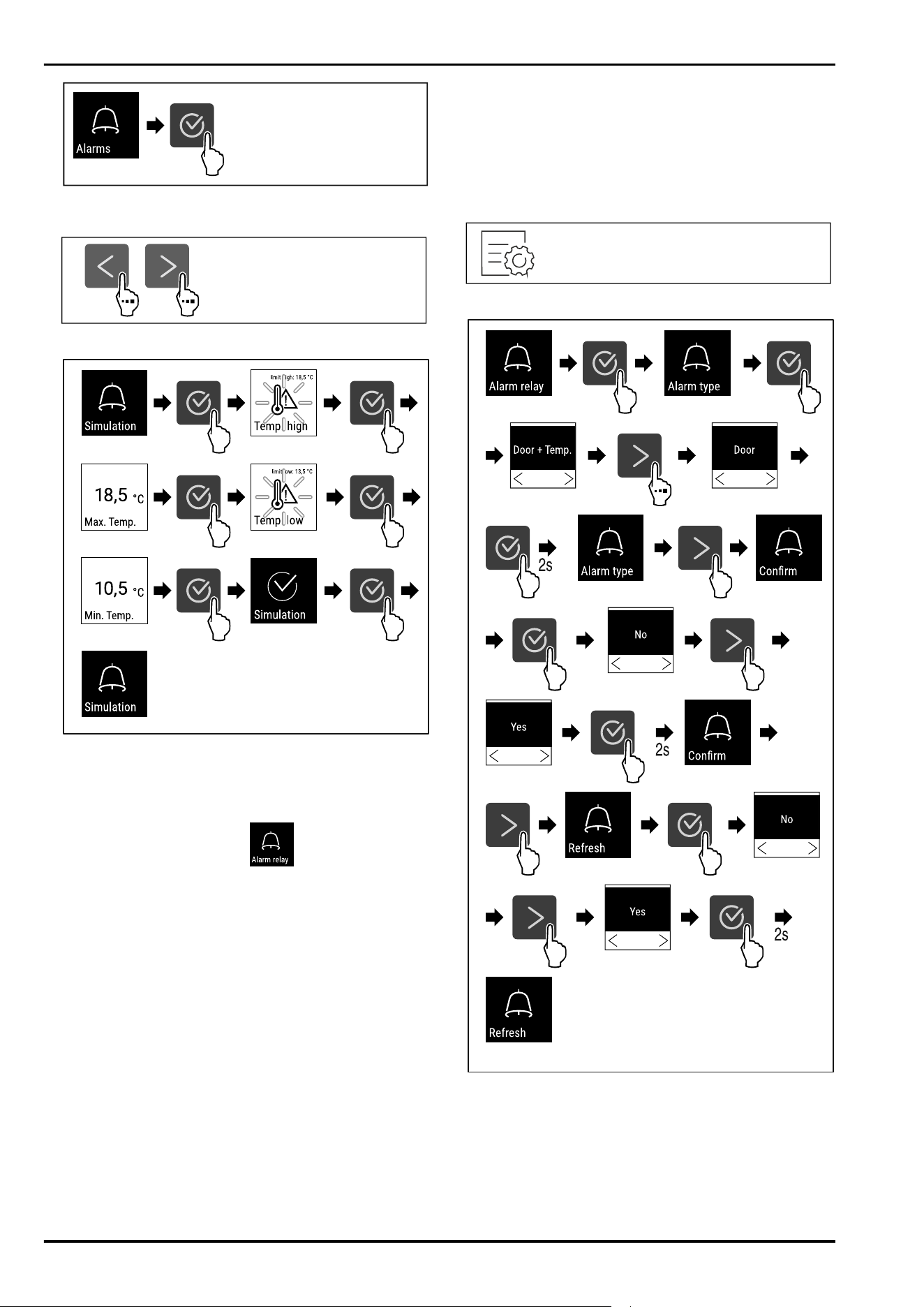

6.2.23 Alarm simulation ......................................................18
6.2.24 Alarm forwarding ......................................................19

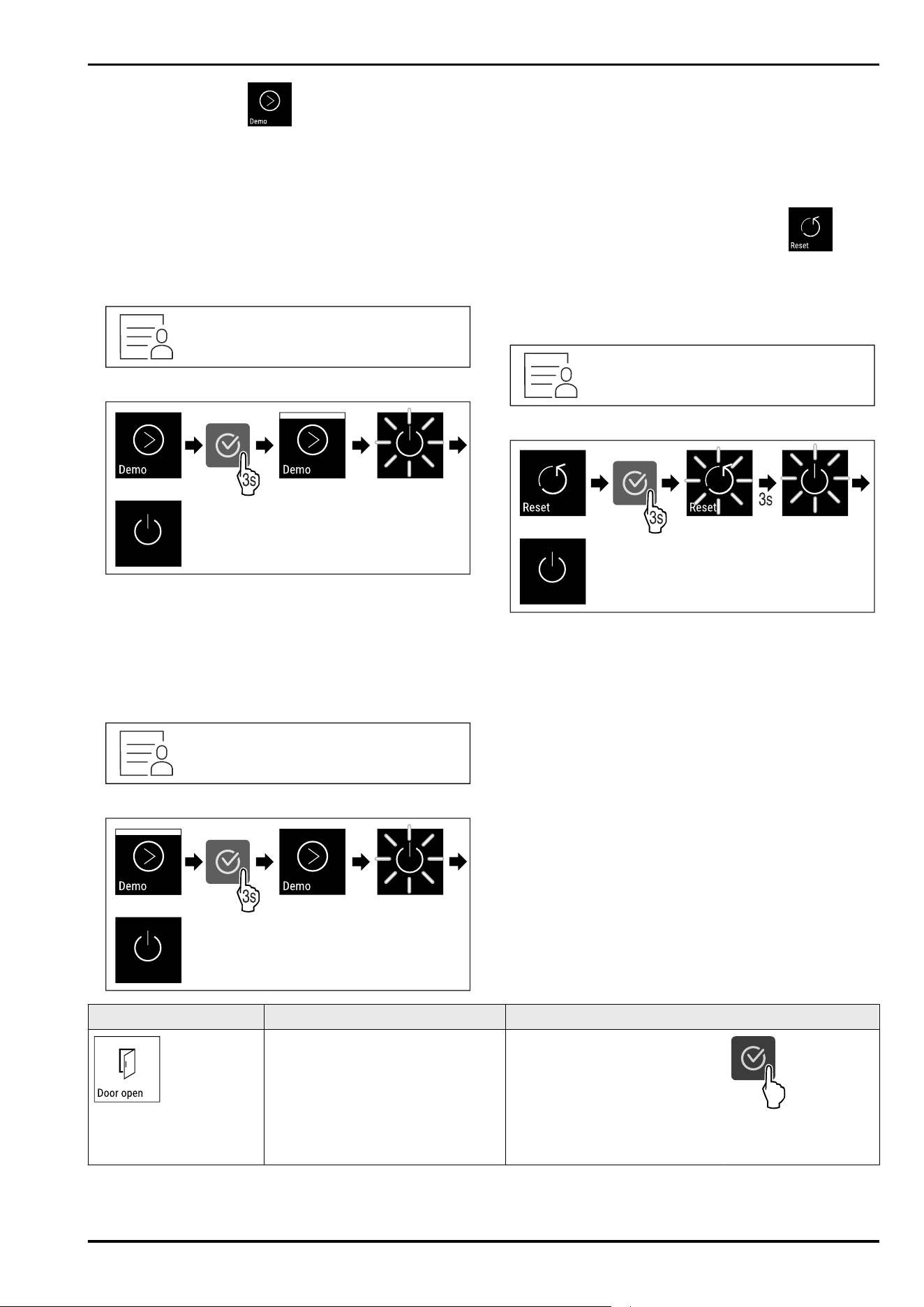

6.2.25 Demo mode.............................................................. 20
6.2.26 Resetting to factory settings ............................... 20
6.3 Messages...................................................................... 20

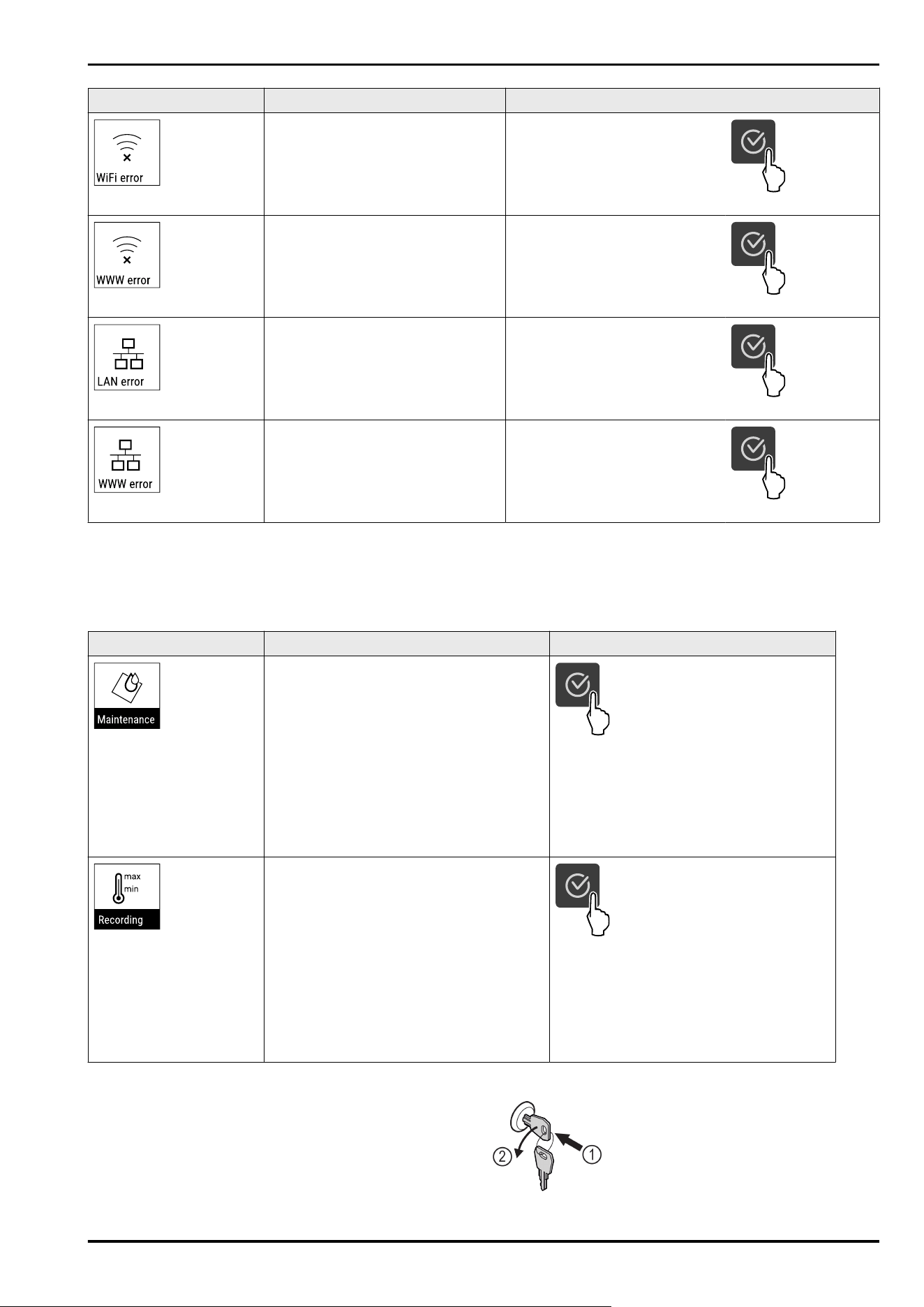

6.3.1 Warnings....................................................................20
6.3.2 Reminder.................................................................... 22
7 Features................................................................. 22
7.1 Safety lock.................................................................... 22
7.2 Sensors.......................................................................... 23
7.3 Interfaces...................................................................... 23
8 Maintenance.......................................................... 23
8.1 Maintenance schedule................................................ 23
8.2 Defrosting appliance................................................... 25
8.3 Cleaning the appliance............................................... 25
9 Customer help....................................................... 26
9.1 Technical specifications............................................. 26
9.2 Technical fault.............................................................. 26
9.3 Customer Service......................................................... 27

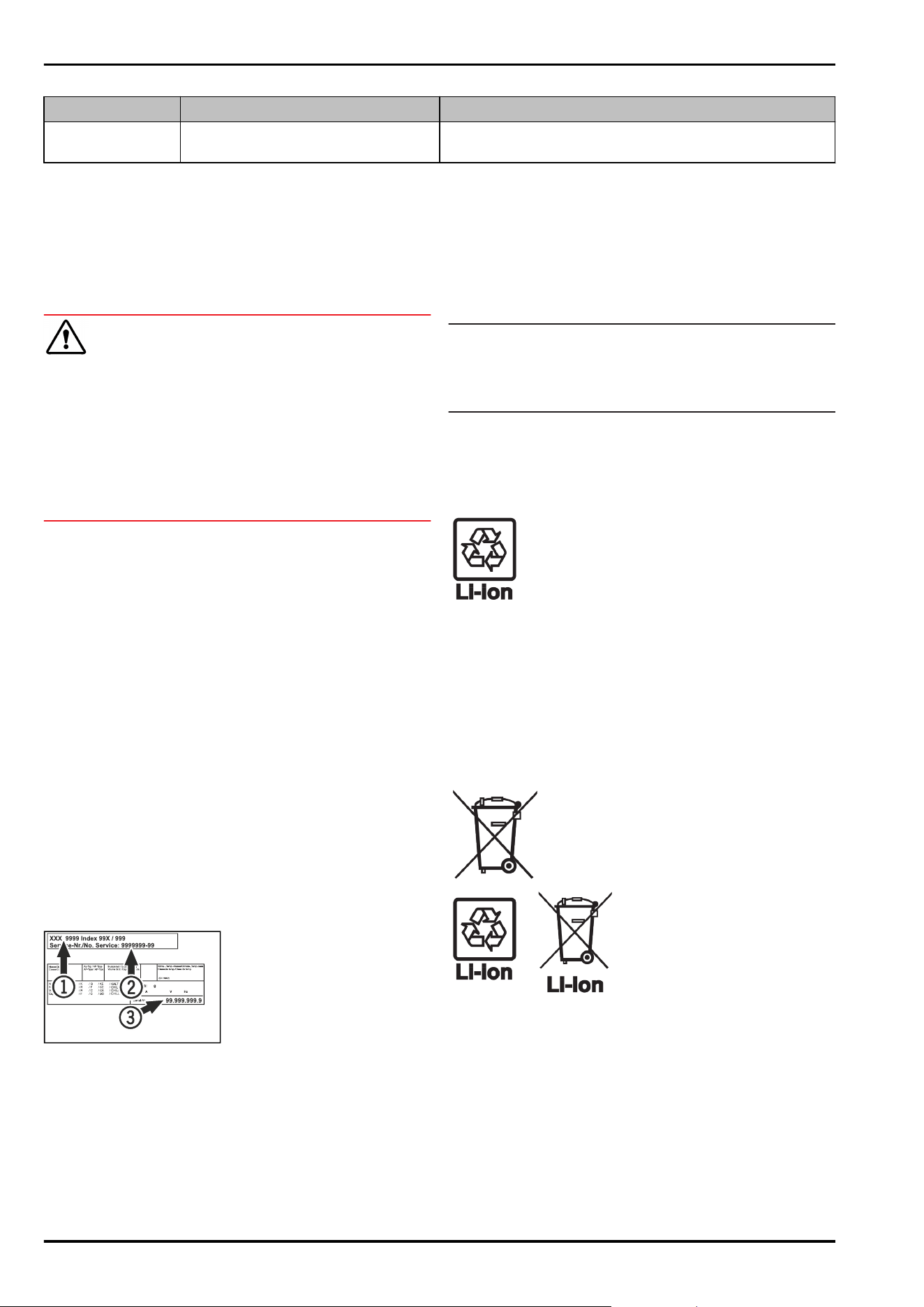

9.4 Type plate...................................................................... 27
10 Shutting down....................................................... 27
11 Disposal................................................................. 27
11.1 Preparing appliance for disposal.............................. 27
11.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 27
12 Additional information.......................................... 28
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.

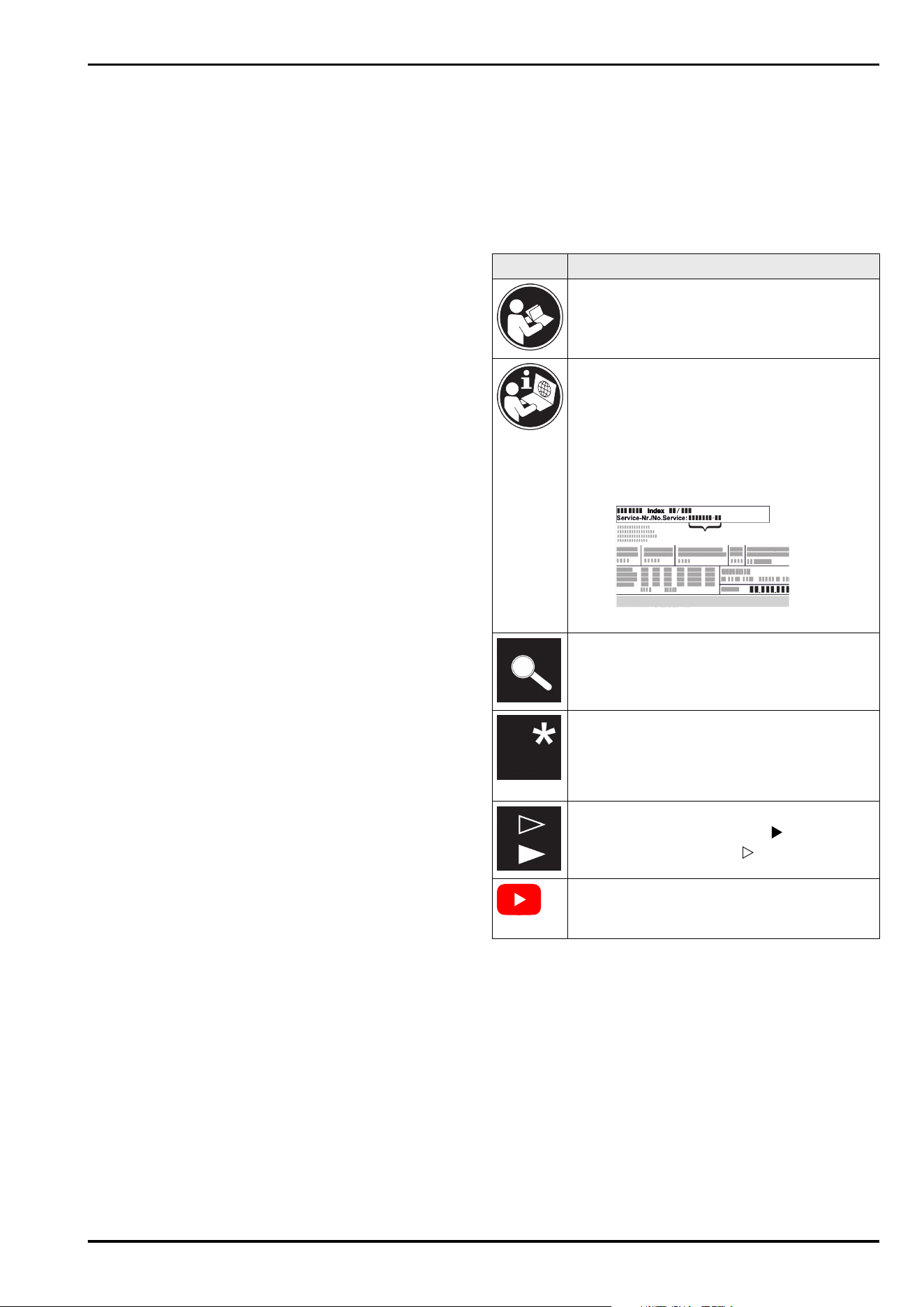

Symbol Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Additional information on the Internet
The digital manual with additional informa‐
tion and in other languages can be found
via the QR code on the front of the
manual or by entering the service number at
home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
Open source licences:
The appliance contains software components that use
open source licences. Information on the open source
licences used can be found here: home.liebherr.com/
open-source-licences
These operating instructions apply to:
-
SRUvg 1001
-
SRUvg 1011
1 General safety instructions
Please keep these operating instructions in a safe place so
you can refer back to them at any time.
If you pass the appliance on, please hand these operating
instructions to the next user.
General safety instructions
2 * Depending on model and options
Read these operating instructions carefully before use to
ensure safe and correct use of the appliance. Follow the
instructions, safety instructions and warning messages
included at all times. They are important for ensuring you
can operate and install the appliance safely and without any
problems.
Danger for the user:
-
This appliance may only be used by specialist and labora‐
tory personnel who have been trained for this purpose
and are familiar with all safety measures pertaining
to laboratory work. Children and persons with reduced
physical, sensory or mental capabilities or lack of expe‐
rience and knowledge must not commission or operate
this appliance.
-
The socket must be easily accessible so that the appli‐
ance can be disconnected quickly from the electricity
supply in an emergency. It must not be located in the
area behind the appliance.
-
When disconnecting the appliance from the supply,
always take hold of the plug. Do not pull the cable.
-
In the event of a fault pull out the mains plug or deacti‐
vate the fuse.
-
WARNING: Do not damage the mains power cable. Do
not operate the appliance with a defective mains power
cable.
-
WARNING: Multiple sockets/distributors and other elec‐
tronic equipment (such as halogen transformers) must
not be placed or operated at the rear of the appliance.
-
WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
-
Only customer service or other specially trained staff
may repair or perform other operations on the appliance.
-
Only assemble, connect and dispose of the appliance
according to the instructions.
Fire hazard
-
The coolant used (information on the model plate) is
ecofriendly but also flammable Any leaking coolant may
ignite.
•
WARNING: Do not damage refrigeration circuit.
•
Do not handle ignition sources inside the appliance.
•
WARNING: Do not use electrical appliances in the
fridge compartment which do not comply with the
design recommended by the manufacturer.
•
If the refrigerant leaks: remove any naked flames or
ignition sources from the vicinity of the leakage point.
Properly air the room. Inform customer services.
-
Do not operate the appliance close to explosive gases.
-
Do not store or use petrol or other flammable gases and
liquids close to the appliance.
-
Do not store any explosive substances, such as aerosol
containers with flammable propellant gas, in the appli‐
ance. To identify these spray cans, look for the list of
contents printed on the can, or a flame symbol. Gases
possibly escaping may ignite due to electrical compo‐
nents.
-
Keep burning candles, lamps and other items with naked
flames away from the appliance so that they do not set
the appliance on fire.
-
Alcoholic liquids or other containers with alcohol inside
must only be stored tightly sealed. Any alcohol that leaks
out may be ignited by electrical components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc. as a step or
for support.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or refri‐
gerated/frozen goods or take protective measures, e.g.
wear gloves.
Danger of injury and damage:
-
WARNING: Do not use mechanical equipment or other
methods to speed up the defrosting process other than
those recommended by the manufacturer.
-
WARNING: Risk of injury due to electric shock! There are
live electrical parts under the cover.
Only have the LED interior lighting replaced or repaired by
customer service or other suitably trained professionals.*
-
NOTICE: Appliance must only be used using original
manufacturer accessories or using accessories from
other providers approved by the manufacturer. The user
bears the risk of using accessories which are not
approved.
Risk of crushing
-
Do not hold the hinge when opening and closing the door.
Fingers may get caught.
Specialist personnel qualifications:
The appliance may only be installed, tested, maintained,
and commissioned by specialist personnel who are
familiar with the installation, commissioning, and opera‐
tion of the appliance.
Specialist personnel are persons who, on account of their
specialist training, knowledge and experience as well as
their knowledge of the relevant standards, are able to
assess and perform the work assigned to them and iden‐
tify potential hazards. They must have training, instruc‐
tion, and authorisation to work on the appliance.

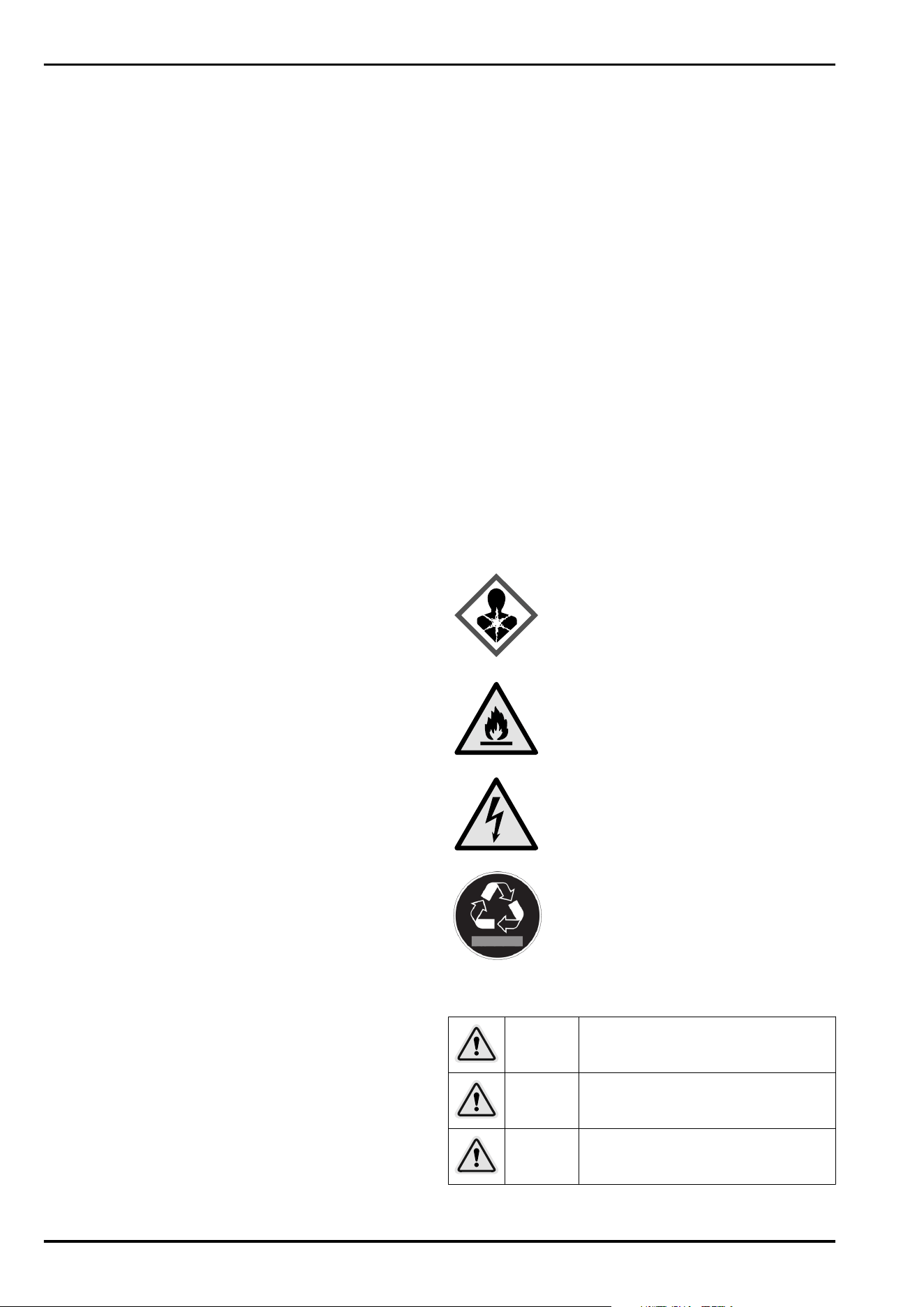

Symbols on the appliance:
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that:Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
WARNING: Danger of fire / flammable
materials. This symbol is located on the
compressor and indicates the danger of
flammable materials. Do not remove the
sticker.
The symbol is located on the back of the
appliance near the alarm relay and indi‐
cates the following danger: Electric shock!
Even if an appliance is disconnected from
the mains there may still be extraneous
voltage. Do not remove sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other specific
advice in the other chapters:
DANGER
Indicates an immediately hazardous
situation which will lead to death or
serious injuries if it is not avoided.
WARNING
Indicates a hazardous situation which
will lead to death or serious injuries if
it is not avoided.
CAUTION
Indicates a hazardous situation which
will lead to minor or moderate injuries
if it is not avoided.
General safety instructions
* Depending on model and options 3
NOTICE
Indicates a hazardous situation which
may lead to damage to property if it is
not avoided.
Note Indicates useful instructions and tips.
2 Appliance at a glance
2.1 Scope of supply
Check all parts for transport damage. If you have any
complaints, please contact your dealer or Customer Service.
(see 9.3 Customer Service)
The delivery comprises the following parts:
-
Free-standing appliance
-
Equipment *
-
Installation materials *
-
Operating instructions
-
Service brochure
-
Quality certificate *
-
Mains cable
2.2 Overview of the appliance and
equipment
SRUvg 1001
SRUvg 1011
Fig. 1 Example illustration, front end
Equipment
(1)
Type plate (4) Lock
(2) Shelves (5) Controls and tempera‐
ture display
(3) Adjustable foot /
roller*
(6) C sensor
Fig. 2 Example illustration, rear end
Equipment
(1)
LAN/WLAN interface* (3) Carry aid
(2) Potential-free alarm
output
(4) Sensor feed-through
2.3 Special features
Note
You can obtain accessories from customer service
(see 9.3 Customer Service) or from specialised dealers via
the dealer search on our service page on the Internet:
home.liebherr.com
SmartModule
The appliance can be equipped with a SmartModule.
It is a WLAN and LAN interface for the connection between
the appliance and an external documentation and alarm
system such as Liebherr SmartMonitoring dashboard.
Liebherr SmartMonitoring dashboard is not available
in all countries. Check availability via the QR code
(see 6.2.3WiFi connection ) by entering your model.
Retrofitting drawers
When retrofitting drawer systems in Liebherr refrigera‐
tors/freezers that are used to store temperature-sensitive
materials such as medicines requiring refrigeration and
refrigerated goods that are subject to special standard
requirements, a temperature qualification is required.
Retrofitting drawers in Liebherr refrigerators/freezers can
lead to spoilage of the stored goods or damage to
the stored goods. Therefore, retrofitting must only be
carried out by authorised service providers of the refriger‐
ator/freezer manufacturer.
Retrofitting of sensors
This appliance has a sensor feed-through on the rear side,
which is sealed with a plastic cover. You can use this
sensor feed-through for your own sensors. (see 2.2 Over‐
view of the appliance and equipment)
2.4 Range of use of appliance
Intended use
This laboratory refrigerator is suitable for professional
storage of products at temperatures between 3 °C and
16°C.
Typical products to be stored include research samples,
reagents, laboratory inventory etc.
The storage of temperature-sensitive substances requires
the use of an independent, continuous monitoring alarm
system. This alarm system must be designed in such a way
that a responsible person can register any alarm status so
that appropriate action can be taken.
Foreseeable incorrect use
Do not use the appliance for the following applications:
-
Storage and refrigeration of:
•
Chemically unstable, flammable or corrosive
substances
•
Blood, plasma or other body fluids for the purpose
of infusion, application or introduction in the human
body.
-
Use in potentially explosive atmospheres.
-
Use outdoors or in areas exposed to dampness and
splashing water.
Improper use of the appliances will result in goods stored
being damaged or spoiled.
Climate classes
Appliance at a glance
4 * Depending on model and options
The applicable climate class for your appliance is printed on
the type plate.
Fig. 3 Type plate
(X) This climate class indi‐
cates the ambient
conditions in which
the appliance can be
safely operated.
Climate class (X) max. room tempera‐
ture
max. rel. humidity
7 35°C 75%
Note
The minimum permitted room temperature at the setup
location is 10°C.
The internal temperature of the appliance never exceeds the
ambient temperature at the site of use.
Slight condensation may form at the limit conditions on the
glass door and on the side walls.
2.5 Appliance noise emissions
The A-weighted emission sound pressure level during oper‐
ation of the appliance is under 70 dB(A) (sound power rel.
1 pW).
2.6 Conformity
The coolant circuit has been tested for leak-tightness. The
appliance complies with the relevant safety regulations.
The designated product complies with the provisions of
the following European directives and regulations:
(EU) 2019/2020, 2014/35/EU, 2014/30/EU, 2011/65/EU
The full text of the EU Declaration of Conformity is avail‐
able at the following web address: www.liebherr.de
2.7 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
3 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10 seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press and hold the Back naviga‐
tion arrow for 3seconds:
Jumps back to the status
display in the main menu or from
the Settings menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10 seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 3.2.2 Opening the Advanced
menu)
Functionality of the Touch display
* Depending on model and options 5
Symbol Description
No action for
10seconds
If you do not perform any action
on the display for 10 seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Opening door and
closing it again
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Settings menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see 3.2.1 Opening the Settings menu)
Advanced
menu
The advanced menu contains special
appliance functions for setting up your
appliance. Access to the Advanced menu
is protected by the numerical code 151.
(see 3.2.2 Opening the Advanced menu)

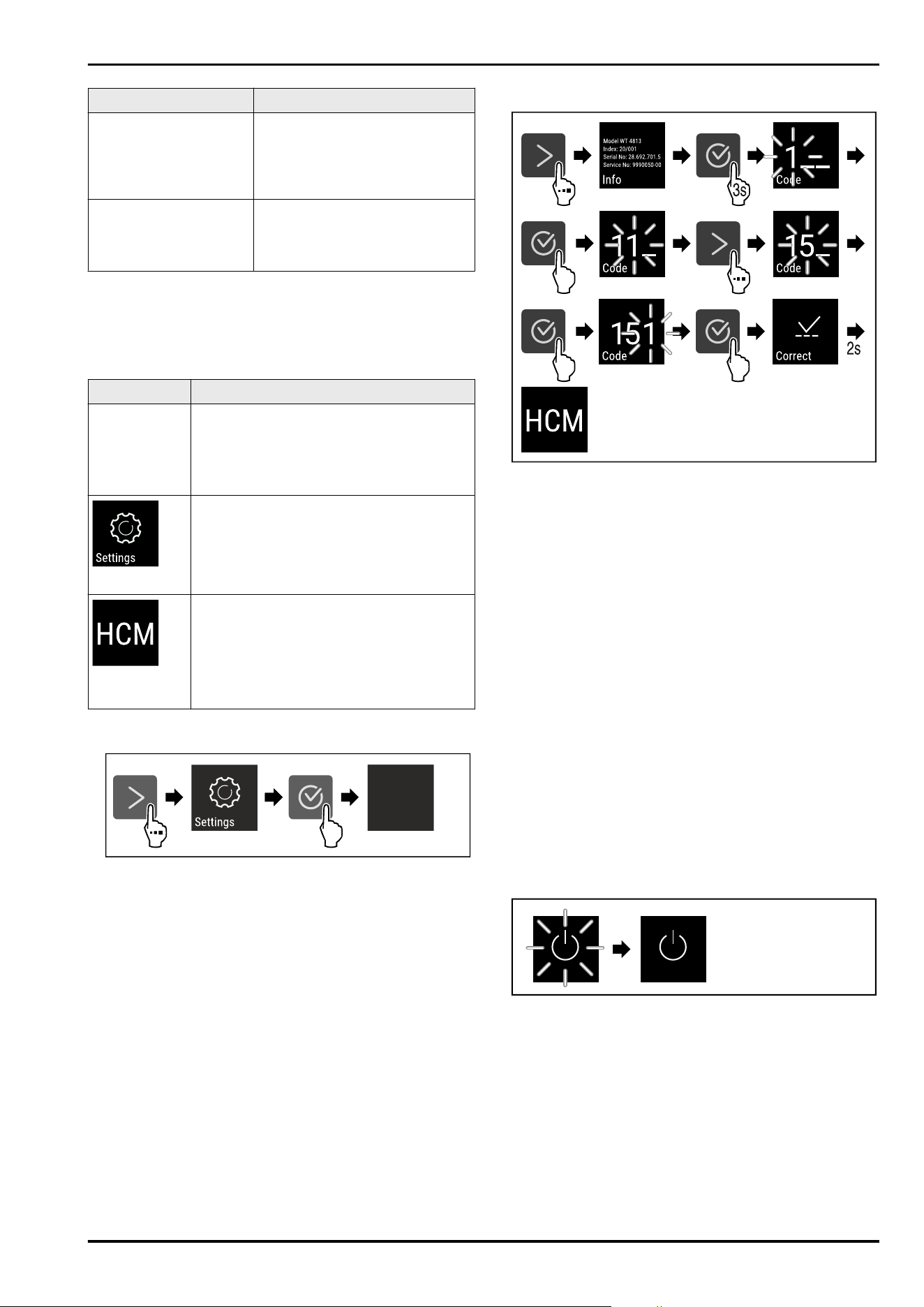

3.2.1 Opening the Settings menu
Fig. 4 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.2.2 Opening the Advanced menu
Fig.5Access with numerical code 151
► Carry out action steps according to the illustration.
▷ The expanded menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure the following prerequisites are met:
- Appliance is installed and connected.
- All adhesive strips, adhesive and protective films and
transport locks are removed from inside and outside the
appliance.
Fig. 6 Example illustration
The standby symbol flashes until the startup process is
complete.
The standby symbol is shown in the display.
If the appliance has been supplied with factory settings, the
screen language first needs to be selected when using for
the first time.
Putting into operation
6 * Depending on model and options
3s
Fig.7
► Carry out action steps according to the illustration.
Fig.8
▷ The appliance is switched on once the temperature
appears in the display.
▷ The temperature display flashes until the set tempera‐
ture is reached.
5 Storage
5.1 Information regarding storage
1
1
Fig. 9 Example illustration
Fig. 10
When stocking observe the following:
❑
If storage surfaces Fig. 9 (1) are movable, adjust them
according to height.
❑
Observe maximum load weight. (see 9.1 Technical specifi‐
cations)
❑
Do not load appliance until storage temperature has been
reached (maintain cold chain).
❑
Ventilation slots Fig. 10 (2) for recirculation fan in the
interior must be kept clear.
❑
Refrigerated goods must not touch the rear wall.
❑
Refrigerated items do not protrude beyond the shelves.
❑
Keep liquids in closed containers.
❑
Leave space when storing items for refrigeration to
ensure good air circulation.
❑
Do not stack refrigerated products above the indicated
height.
This is important for free air circulation and even temper‐
ature distribution in the interior.
6 Controls
6.1 Control and display elements
The display provides a quick overview of the current appli‐
ance status, the temperature setting, the status of func‐
tions and settings as well as alarm and error messages.
It is operated using the navigation arrows and confirmation
symbol.
Functions can be activated or deactivated and setting
values can be changed.
Fig.11Display
(1)
Status display (3) Forwards navigation
arrow
(2) Backwards navigation
arrow
(4) Confirm
6.1.1 Status display
Fig. 12 Status display with actual temperature
The status display shows the actual temperature and is
the home display. You navigate from here to the other func‐
tions and settings. The status display may show a range of
display symbols.
6.1.2 Display symbols
Display symbols provide information about the status of the
appliance.
Symbol
Appliance status
Standby
Appliance is switched off.
Storage
* Depending on model and options 7
Symbol Appliance status
Flashing standby symbol
Appliance is starting up.
Flashing temperature
Target temperature not yet
reached. Appliance cooling to
temperature set.
Temperature display
Displays the current interior
temperature
Display alternating between
temperature/defrost symbol
with white bar
Appliance is in manual
defrosting mode
D in the display
Appliance is in DemoMode.
Maintenance reminder
The time interval set has
expired.
Data memory full
The data memory (999 hours)
is full. From now, the oldest
data will be overwritten.
Flashing symbol
A fault is still active.
Error symbol
Appliance is in error state.
White bar at the bottom
Submenu
White bar at the top
Default, active setting or
active value
Increasing bar
Press button for 3 seconds to
activate setting.
Decreasing bar
Press button for 3 seconds to
deactivate setting.
Status display symbols
6.1.3 Acoustic signals
A signal sounds in the following cases:
-
If a function or a value is confirmed.
-
If a function or a value can either not be activated or not
deactivated.
-
As soon as an error occurs.
-
If there is an alarm message.
The alarms can be switched on and off in the customer
menu.
6.2 Appliance functions
6.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see 3 Functionality of the Touch
display)
❑
You have familiarised yourself with the operating and
display elements of your appliance. (see 6.1 Control and
display elements)
6.2.2 Switching appliance on and off
Using this setting the entire appliance can be switched on
and off.
Switching on appliance
Without activated DemoMode:
Fig.13
► Carry out action steps according to the illustration.
With activated DemoMode:
Fig. 14
► Carry out action steps according to the illustration.
Note
Deactivate DemoMode before countdown finishes.
Fig. 15
▷ The temperature appears in the display.

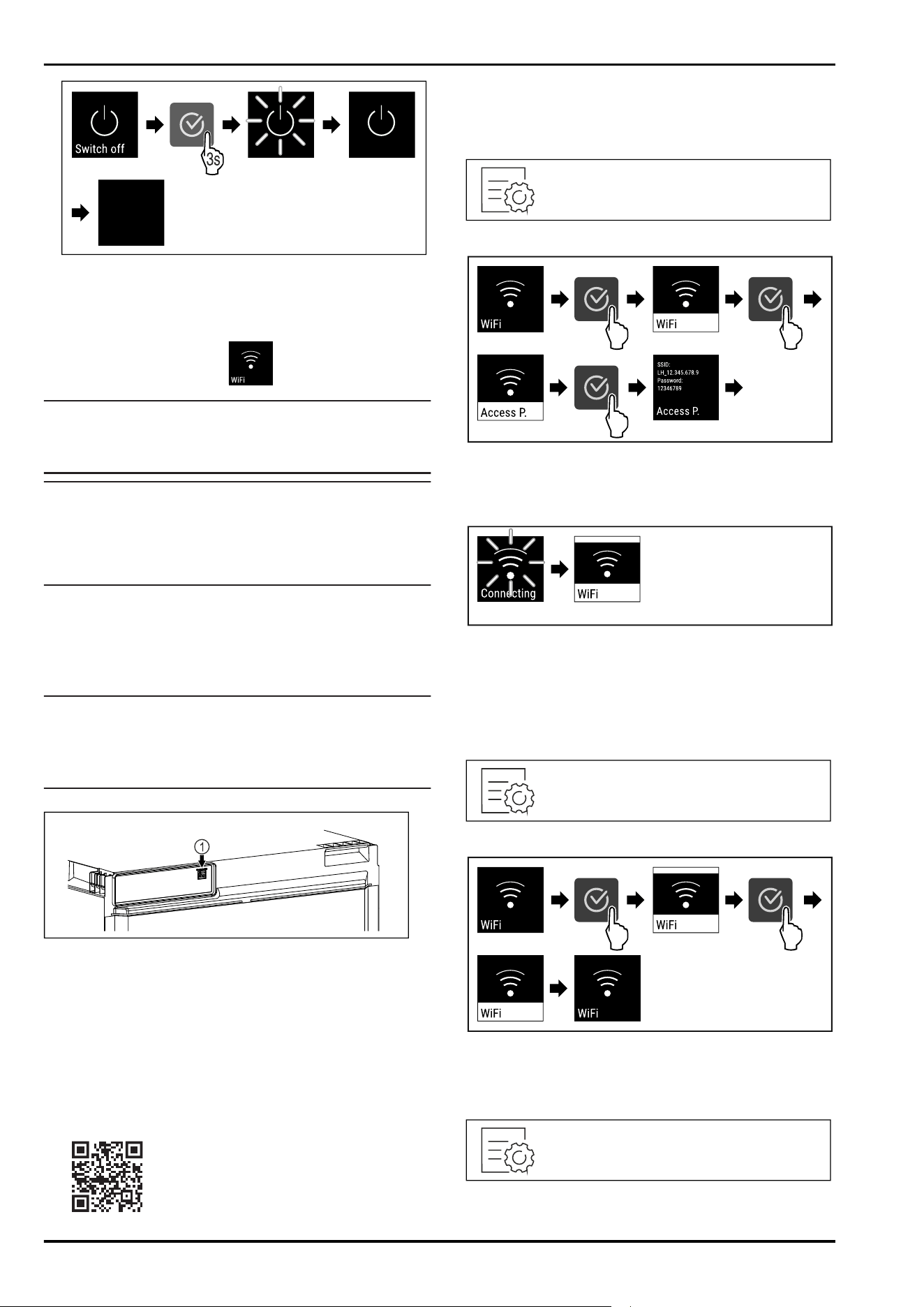

Switching off appliance
Fig. 16
Controls
8 * Depending on model and options
Fig.17
► Carry out action steps according to the illustration.
▷ Standby symbol is shown in the display.
▷ Display switches off after approximately 10 minutes.
6.2.3 WiFi connection
Note
Liebherr SmartMonitoring Dashboard is not available in all
countries. Check availability via the QR code by entering
your model.
Note
Use of the Liebherr SmartMonitoring Dashboard at https://
smartmonitoring.liebherr.com requires installation of a
SmartModule and a commercial MyLiebherr account. When
commissioning online you can register using the login data
you have, or register again and create a company account.
This setting establishes a wireless connection between the
appliance and the internet. The connection is controlled via
the SmartModule. The appliance can be integrated via the
browser-based Liebherr SmartMonitoring Dashboard and
advanced options as well as customised methods relating
to control, administration and monitoring can be used.
Note
You can obtain accessories from customer service
(see 9.3 Customer Service) or from specialised dealers via
the dealer search on our service page on the Internet:
home.liebherr.com
Fig. 18
Make sure that the following requirements are fulfilled:
❑
SmartModule Fig. 18(1) has been inserted.
Establishing connection
You commission and set up your SmartModule online via the
Liebherr SmartMonitoring Dashboard on your web-enabled
device.
On the Liebherr SmartMonitoring Dashboard, information is
also available about retrofitting the SmartModule.
Fig. 19
► Open the Liebherr SmartMonitoring Dashboard (see
Fig. 19) .
On the refrigerator or freezer:
Fig.20
Fig.21
► Carry out action steps according to the illustration.
► Continue the set-up procedure on your web-enabled
device: Liebherr SmartMonitoring Dashboard
Fig.22
► Connection is established.
▷ WiFi connecting appears. The symbol flashes.
► Follow the Liebherr SmartMonitoring Dashboard instruc‐
tions.
▷ Connection is established.
Disconnecting
Fig.23
Fig. 24
► Carry out action steps according to the illustration.
▷ There is no connection.

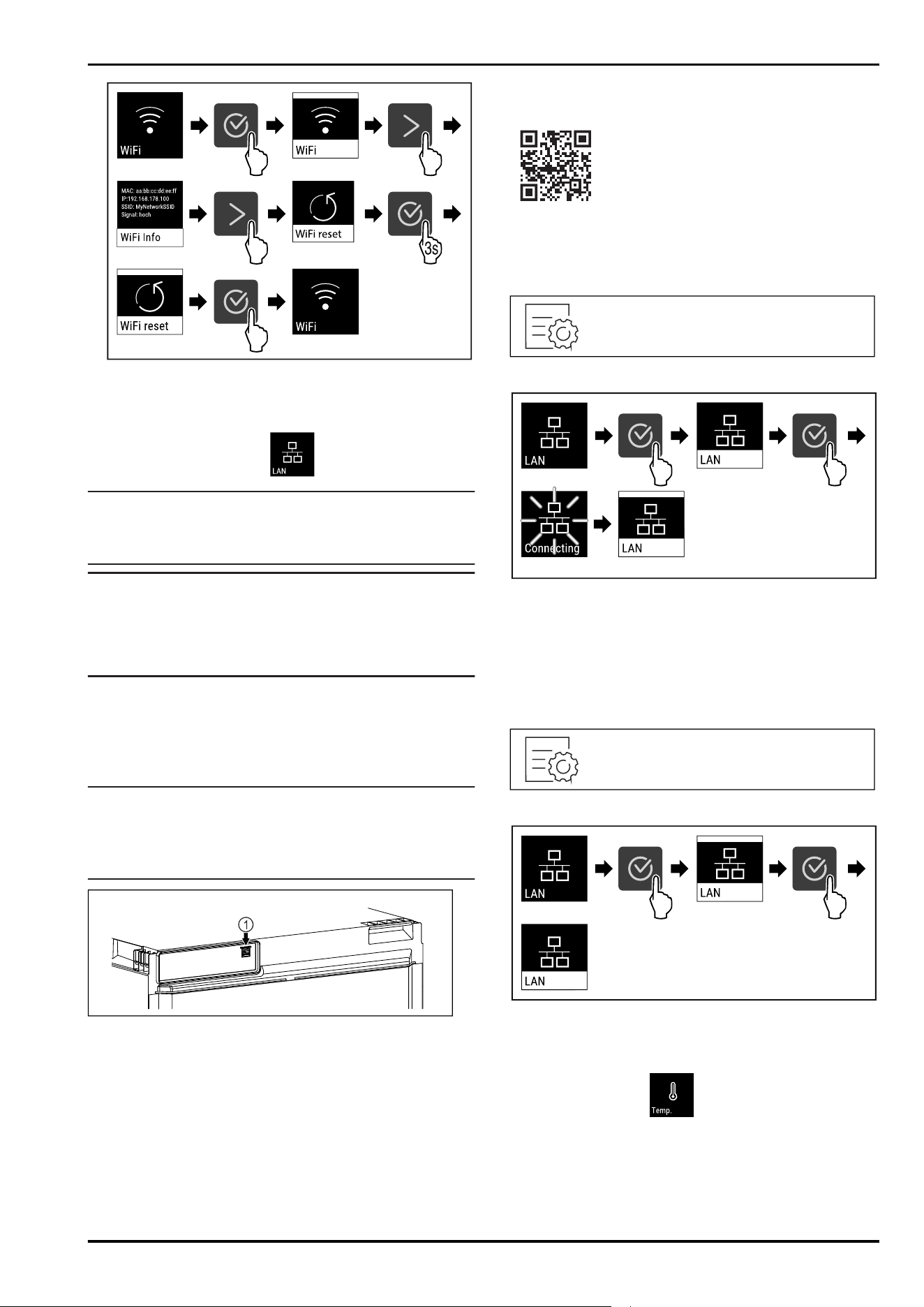

Resetting connection
Fig.25
Controls
* Depending on model and options 9
Fig. 26
► Carry out action steps according to the illustration.
▷ The WiFi settings are restored to the factory settings.
6.2.4 LAN connection
Note
Liebherr SmartMonitoring Dashboard is not available in all
countries. Check availability via the QR code by entering
your model.
Note
Use of the Liebherr SmartMonitoring Dashboard at https://
smartmonitoring.liebherr.com requires installation of a
SmartModule and a commercial MyLiebherr account. When
commissioning online you can register using the login data
you have, or register again and create a company account.
This setting establishes a wired connection between the
appliance and the internet. The connection is controlled via
the SmartModule. The appliance can be integrated via the
browser-based Liebherr SmartMonitoring Dashboard and
advanced options as well as customised methods relating
to control, administration and monitoring can be used.
Note
You can obtain accessories from customer service
(see 9.3 Customer Service) or from specialised dealers via
the dealer search on our service page on the Internet:
home.liebherr.com
Fig.27
Make sure that the following requirements are fulfilled:
❑
SmartModule Fig.27(1) has been inserted.
❑
A network cable is connected.
❑
The network is connected to the internet.
Establishing connection
You commission and set up your SmartModule online via the
Liebherr SmartMonitoring Dashboard on your web-enabled
device.
On the
Liebherr SmartMonitoring Dashboard, information is
also available about retrofitting the SmartModule.
Fig.28
► Open the Liebherr SmartMonitoring Dashboard (see
Fig.28) .
On the refrigerator or freezer:
Fig.29
Fig.30
► Carry out action steps according to the illustration.
▷ Connection is established: LAN connecting appears. The
symbol flashes.
► Follow the Liebherr SmartMonitoring Dashboard instruc‐
tions.
▷ Connection is established.
Disconnecting
Fig.31
Fig.32
► Carry out action steps according to the illustration.
▷ There is no connection.
6.2.5 Temperature
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of refrigerated items
Controls
10 * Depending on model and options
Note
The temperature may differ from the temperature displayed
in some areas of the interior.
Setting temperature
Fig.33
Fig. 34 Changing temperature from 5.5°C to 6.9°C
► Carry out action steps according to the illustration.
▷ Temperature is set.
6.2.6 Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.35
Fig. 36 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ The temperature unit is set.
6.2.7 Temperature recording
The appliance displays the minimum and maximum temper‐
atures of the interior. The recording of these temperatures
starts automatically after the appliance is switched on; they
are recorded at one minute intervals. A note indicating that
the data memory is full is displayed after 999 hours (approx.
40 days). The temperature recording should then be reset.
Note
We recommend resetting the temperature recording once
after reaching the set temperature when the appliance is
commissioned. This ensures that the value displayed for the
maximum temperature is a meaningful value.
Displaying temperature recording
The temperature recording displays the length of the
recording and the minimum and maximum temperatures
measured during this period of time.
Fig.37
Fig.38
▷ Status screen with the temperature recordings is
displayed.
Resetting temperature recording
The displayed minimum and maximum temperatures can be
reset at any time. This deletes the displayed values and the
recording interval starts again.
Fig. 39
Fig.40
► Carry out steps according to the illustration.
▷ Temperature recording is reset.
▷ Recording interval starts again.
6.2.8 Defrosting
The appliance defrosts automatically in normal operation.
Controls
* Depending on model and options 11
Application:
-
If there is heavy icing in the interior, the automatic
defrosting function can be started manually.

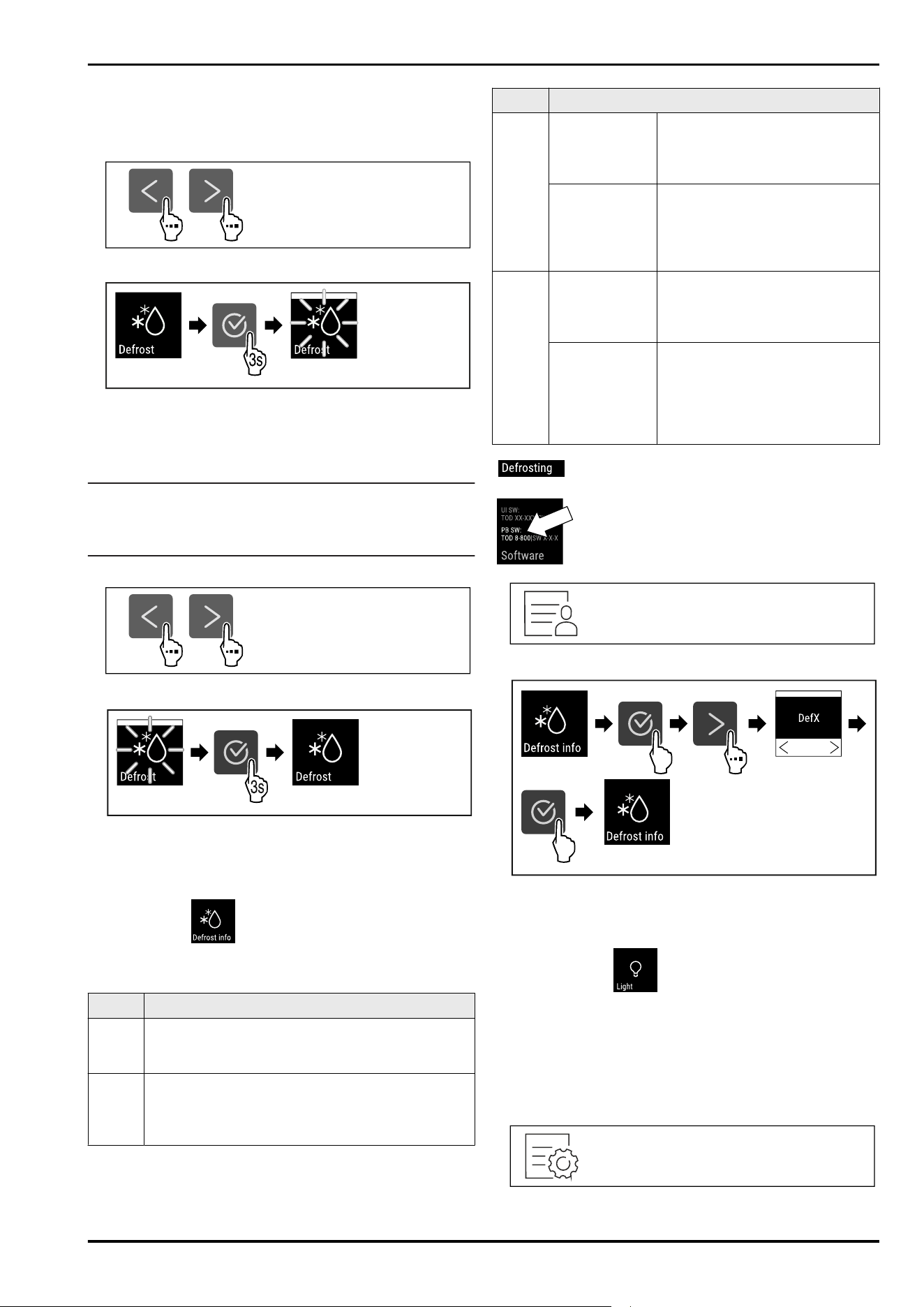

Starting automatic defrosting manually
Fig. 41
Fig. 42
► Carry out action steps according to the illustration.
▷ Automatic defrosting is started. When the defrosting
process is complete, the appliance automatically
switches back to normal operation.
Note
If there is still ice in the interior after the automatic
defrosting has been started several times, defrost the appli‐
ance manually. (see8.2 Defrosting appliance)
Cancelling a manually started defrosting
Fig.43
Fig.44
► Carry out action steps according to the illustration.
▷ Manually started defrosting is cancelled. The appliance
automatically switches back to normal operation.
Defrosting info
This setting adjusts the display during an automatic
defrosting.
Display
Description
Def1 The temperature display is not being updated. It
shows the last temperature before the automatic
defrosting process started.
Def2 “Automatic defrosting” icon is indicated on the
status display. The temperature display is contin‐
uously updated and displays the actual tempera‐
ture.
Display Description
Def3 With software
version PW SW
lower than
TOD8-800:
The temperature display is not
being updated. It shows the last
temperature before the auto‐
matic defrosting process started.
With software
version PW SW
equal to or
higher than
TOD8-800:
The temperature display is
continuously updated and
displays the actual temperature.
Def4 With software
version PW SW
lower than
TOD8-800:
The temperature display is not
being updated. It shows the last
temperature before the auto‐
matic defrosting process started.
With software
version PW SW
equal to or
higher than
TOD8-800:
“Automatic defrosting” notice is
indicated on the status display.
The temperature display is not
being updated. It shows the last
temperature before the auto‐
matic defrosting process started.
Display of the “automatic defrosting” in the
status display
Here you can see the software version
installed on your appliance PW SW:
(see6.2.20 Software )
Fig.45
Fig.46
► Carry out action steps according to the illustration.
▷ The desired display variant is selected.

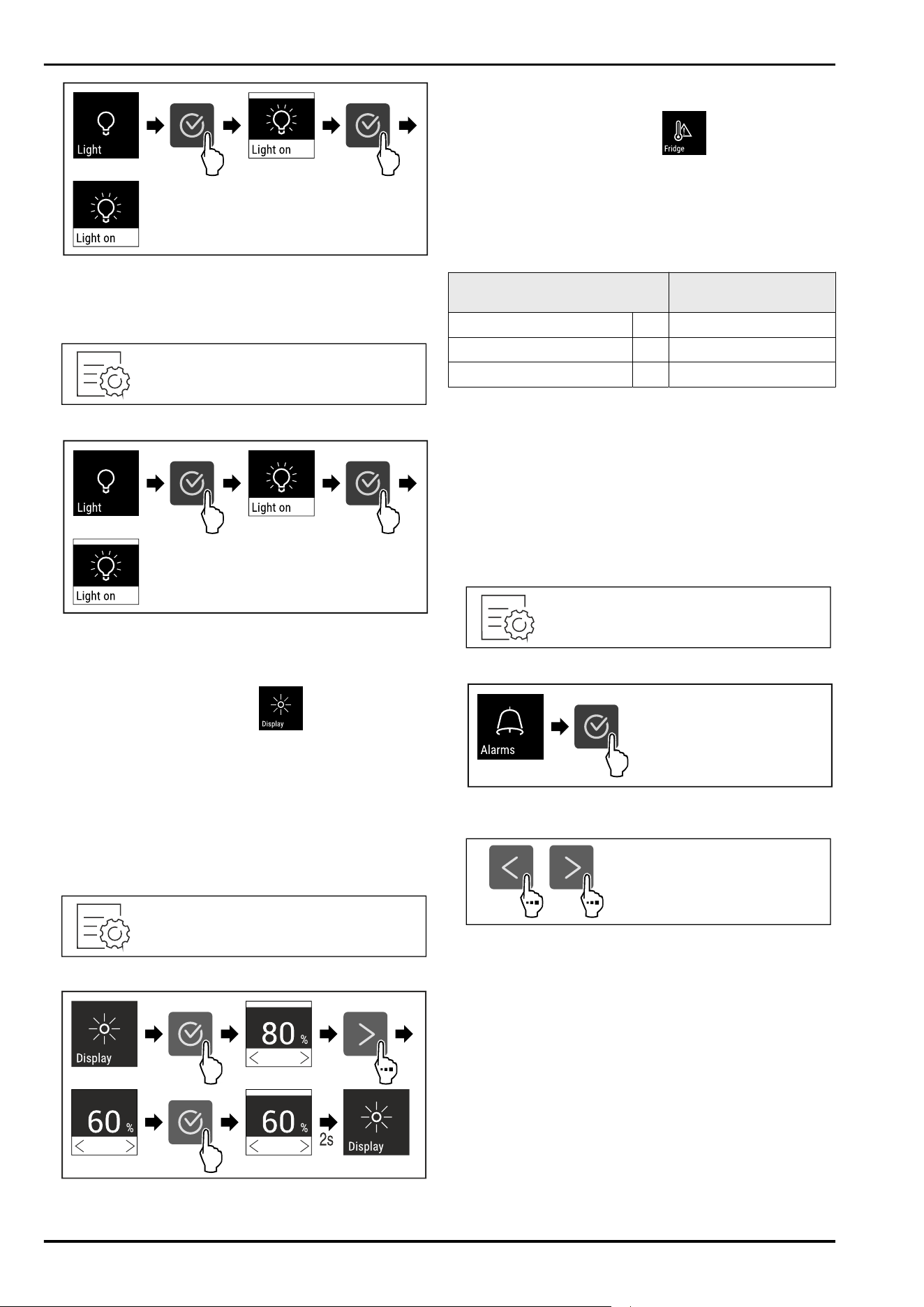

6.2.9 Lighting *
The appliance is fitted with interior lighting.
You can keep the interior lighting on continuously.
(see Switching on lighting*) *
When you open the appliance door, the interior lighting
switches on.
Switching off lighting*
Fig. 47
Controls
12 * Depending on model and options
Fig.48
► Carry out action steps according to the illustration.
▷ Lighting is switched off.
Switching on lighting*
Fig. 49
Fig.50
► Carry out action steps according to the illustration.
▷ Lighting is switched on.
6.2.10 Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig.51
Fig. 52 Example illustration: Switch from 80 % to 60%.
► Carry out action steps according to the illustration.
▷
The brightness is set.
6.2.11 Temperature alarm
Use this function to set the temperature alarm. You set
the upper and lower temperature limits with a differential
offset to the indoor temperature currently set. The tempera‐
ture alarm is triggered as soon as the indoor temperature
leaves the set temperature range and any set delay time
has elapsed.
Example Differential value to be
set
Current indoor temperature 5°C
Lower temperature limit 2°C -3°C
Upper temperature limit 8°C +3°C
The following values can be set:
-
Differential value for lower temperature limit in 0.1 °C
steps
-
Differential value for upper temperature limit in 0.1 °C
steps
-
Alarm delay time from 0 to 60 minutes (setting “0” means
no temperature alarm delay.)
-
Alarm repetition frequency from 0 to 30 minutes (setting
“0” means no alarm repetition after confirming the
alarm.)

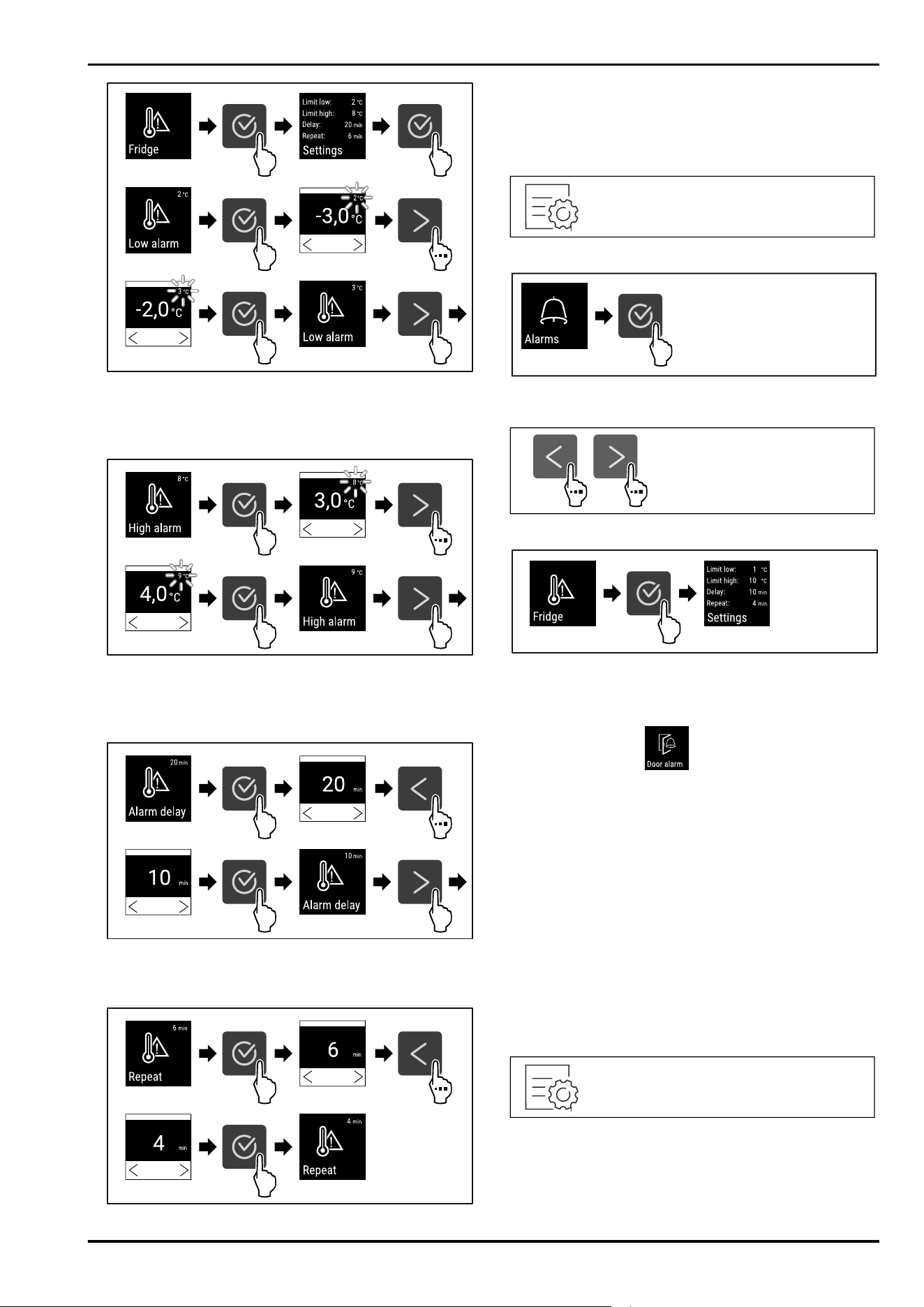

Setting temperature alarm
Fig.53
Fig.54
► Carry out action steps according to the illustration.
Fig.55
Controls
* Depending on model and options 13
Fig. 56 Example of setting the lower temperature limit
based on a set appliance temperature of 5°C.
► Carry out action steps according to the illustration.
▷ Lower temperature limit has been set.
Fig. 57 Example of setting the lower temperature limit
based on a set appliance temperature of 5°C.
► Carry out action steps according to the illustration.
▷ Upper temperature limit has been set.
Fig.58
► Carry out action steps according to the illustration.
▷ Alarm delay time has been set.
Fig. 59
► Carry out action steps according to the illustration.
▷ Alarm repetition interval has been set.
▷ Temperature alarm has been set.
Displaying set temperature alarm values
Fig.60
Fig.61
► Carry out action steps according to the illustration.
Fig. 62
Fig.63
► Carry out action steps according to the illustration.
▷ Set temperature alarm values are displayed.

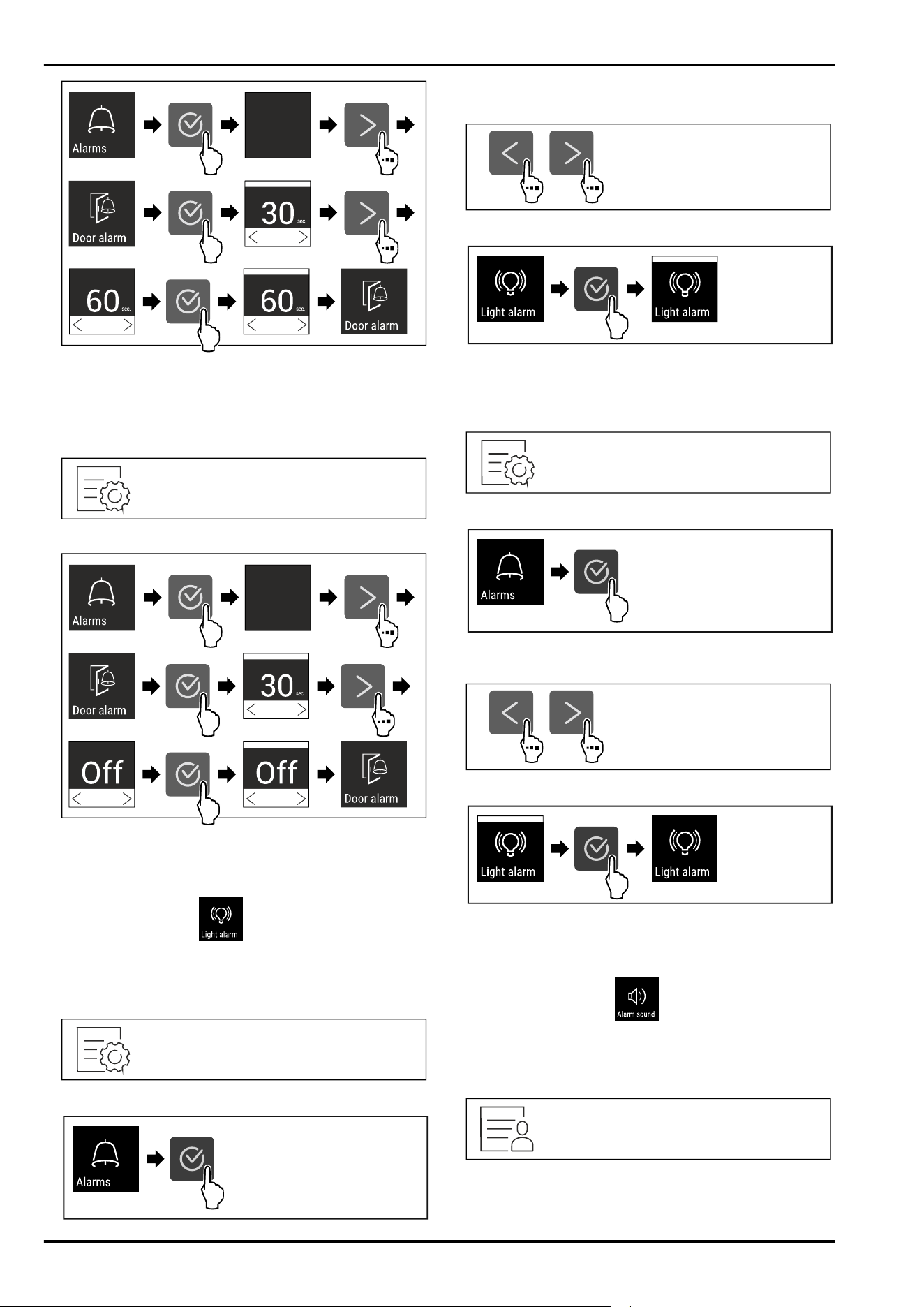

6.2.12 Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
15seconds
-
30seconds
-
60seconds
-
90seconds
-
120seconds
-
150seconds
-
180seconds
-
Off
Setting the door alarm
Fig.64
Controls
14 * Depending on model and options
Fig. 66 Example illustration: Switch door alarm from
30 seconds to 60seconds.
► Carry out action steps according to the illustration.
▷ The door alarm is set.
Deactivating the door alarm
Fig. 67
Fig.68
► Carry out action steps according to the illustration.
▷ The door alarm is deactivated.
6.2.13 Light alarm *
This setting allows the visual alarm messages in the display
to also be emphasised by flashing appliance lighting.
Activating light alarm
Fig. 69
Fig.70
► Carry out action steps according to the illustration.
Fig.71
Fig.72
► Carry out action steps according to the illustration.
▷ The light alarm is activated.
Deactivating light alarm
Fig.73
Fig. 74
► Carry out action steps according to the illustration.
Fig.75
Fig. 76
► Carry out action steps according to the illustration.
▷ The light alarm is activated.

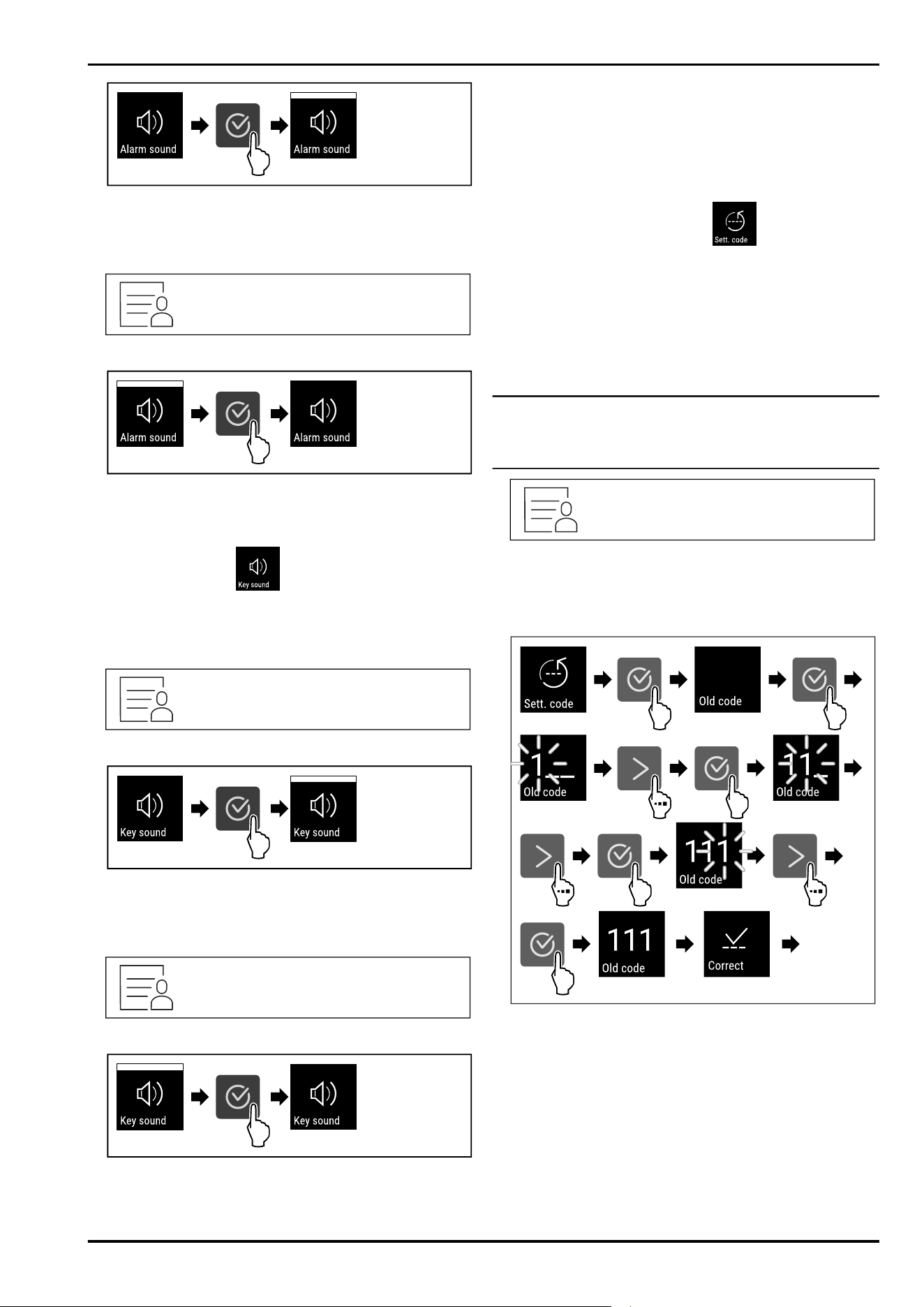

6.2.14 Alarm Sound
This function enables all alarm sounds, such as door alarm,
to be switched on and off.
Activating Alarm Sound
Fig.77
Controls
* Depending on model and options 15
Fig.78
► Carry out action steps according to the illustration.
▷ Alarm Sound is activated.
Deactivating Alarm Sound
Fig.79
Fig.80
► Carry out action steps according to the illustration.
▷ Alarm Sound is deactivated.
6.2.15 Key Sound
This function makes it possible to switch all confirmation
sounds and the Startsound on and off.
Activating Key Sound
Fig.81
Fig.82
► Carry out action steps according to the illustration.
▷ Key Sound is activated.
Deactivating Key Sound
Fig.83
Fig.84
► Carry out action steps according to the illustration.
▷ Key Sound is deactivated.
6.2.16 Access code
Various settings are possible.
Application:
-
Changing the settings code.
-
Resetting the settings code.
Settings menu access protection
Changing the settings code
This setting allows the settings code for settings menu
access protection to be changed.
The setting is made in 3 stages:
- Entering the old settings code
- Entering the new settings code
- Confirming the new settings code
Note
► In the following example, the default factory-set settings
code111 is changed.
► The new settings code is:234
Fig.85
The access protection for the settings menu must be
active.
► Tap the navigation arrow repeatedly until the corre‐
sponding function is displayed.
Fig.86
► Carry out action steps according to the illustration.
▷ Entry of the old settings code successful.
Controls
16 * Depending on model and options

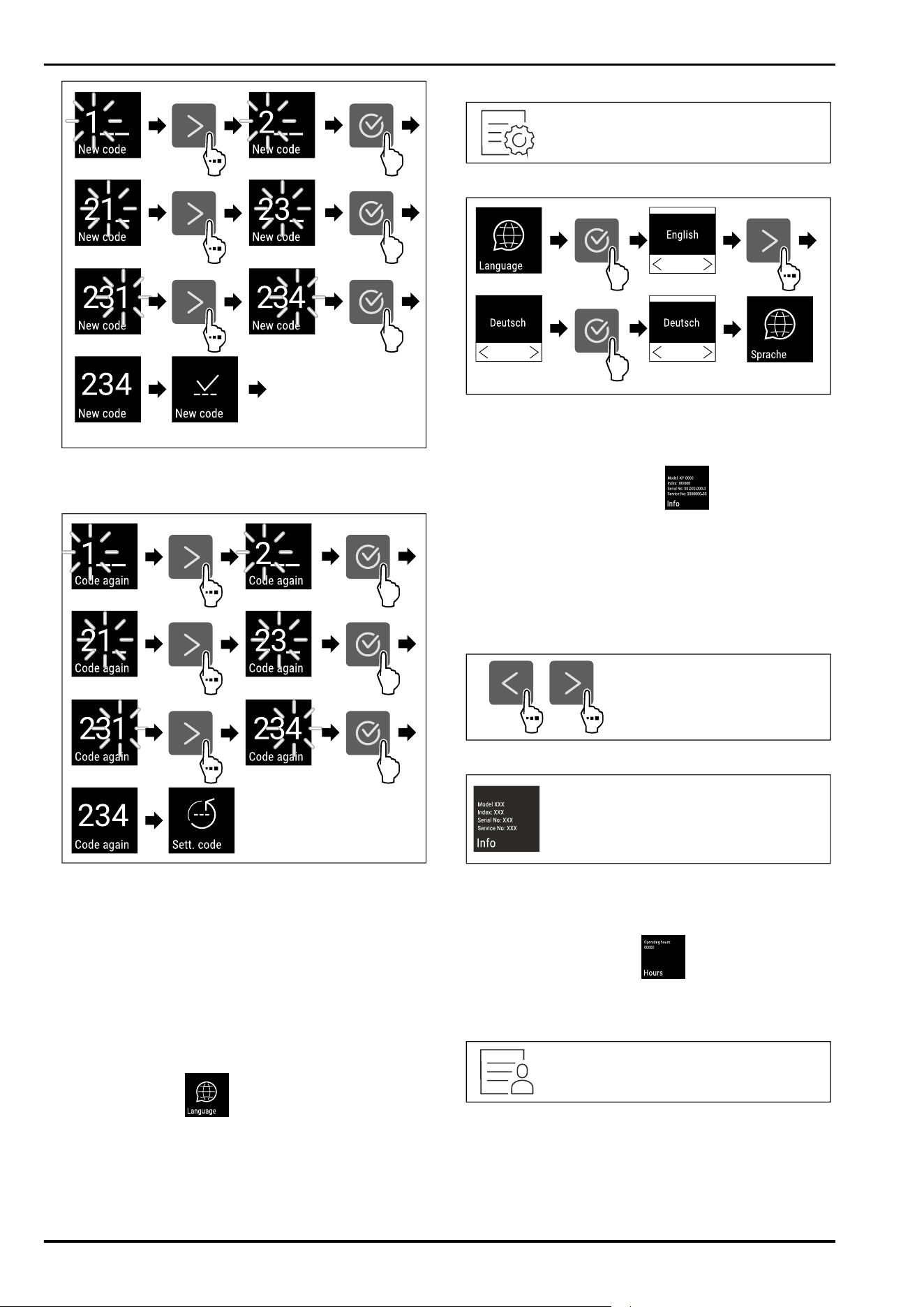

Fig. 87
► Carry out action steps according to the illustration.
▷ Entry of the new settings code successful.
Fig.88
► Carry out action steps according to the illustration.
▷ Confirmation of the new settings code successful.
▷ The settings code has been changed.
Resetting the settings code
The settings code for the settings menu access protection
has been forgotten or is not known.
► Reset appliance to factory settings (see 6.2.26 Resetting
to factory settings ) .
▷ The appliance is reset to the original settings.
▷ The factory-set settings code is:111
6.2.17 Language
This setting allows the display language to be set.
Setting language
Fig.89
Fig.90
► Carry out action steps according to the illustration.
▷ The selected language is set.
6.2.18 Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 9.3 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch display)
Indicating the device information
Fig. 91
Fig.92
► Carry out action steps according to the illustration.
▷ Display indicates device information.
6.2.19 Operating hours
The display shows the appliance operating hours.
Displaying operating hours
Fig. 93
Controls
* Depending on model and options 17
Fig. 94
▷ The operating hours appear.
6.2.20 Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.95
Fig.96
► Carry out action steps according to the illustration.
▷ Display indicates software version.
6.2.21 Sensor calibration
You can use sensor calibration to compensate for differ‐
ences between the set temperature and the actual existing
temperature. To do this, use calibrated measuring equip‐
ment to determine the actual existing temperature.
Setting range: +/- 3 Kelvin in 0.1 Kelvin increments.
Calibrating the sensor
Fig.97
Fig.98
► Carry out action steps according to the illustration.
▷ The sensor is calibrated.
Note
The calibrated temperature is indicated on the display
within two hours.
6.2.22 Maintenance interval reminder
Setting for the time interval after which a maintenance
reminder is issued.
The following values can be set:
-
7 days
-
14 days
-
30 days
-
60 days
-
90 days
-
180 days
-
360 days
-
720 days
-
1080 days
-
Off
Setting maintenance interval reminder
The following steps describe how the maintenance interval
is set.
Fig.99
Fig. 100
► Carry out action steps according to the illustration.
▷ The time interval, after which the maintenance reminder
is issued, is set.
▷ The remaining time is displayed.
6.2.23 Alarm simulation
You can use this function to simulate a temperature alarm in
the appliance, e.g. to check whether a safety device triggers
correctly. The safety device is connected to the potential-
free alarm output. (see 7.3 Interfaces)
Starting the alarm simulation
Fig. 101
Controls
18 * Depending on model and options
Fig. 102
► Carry out action steps according to the illustration.
Fig. 103
Fig. 104
► Carry out action steps according to the illustration.
▷ The simulation has been performed.
▷ Connected safety devices should have triggered.
6.2.24 Alarm forwarding
You can use this function to forward one or several
alarms to an external alarm receiver. The alarm receiver is
connected to the potential-free alarm output on the appli‐
ance. (see 7.3 Interfaces)
You can select the following settings:
-
Alarm type:
•
Door alarm
•
Temperature alarm
•
Door alarm and temperature alarm
•
All
-
Confirm:
•
Yes: The alarm is confirmed on the appliance and the
external, connected receiver.
•
No: The alarm is confirmed on the appliance and
remains active on the receiver until the fault is recti‐
fied.
-
Refresh (only visible if you select “Yes” when confirming):
•
Yes: Alarm repeats.
Temperature alarm
depending on the set time
(see6.2.11 Temperature alarm )
(If you set the alarm delay time to “0”, there is no
alarm repetition on the alarm relay.)
Door alarm after 1 or 4 minutes* (see 6.2.12 Door
alarm )
•
No: The alarm is confirmed permanently.
Activating alarm forwarding
Fig. 105
Fig. 106
► Carry out action steps according to the illustration.
▷ Alarm forwarding is set.
Controls
* Depending on model and options 19
6.2.25 Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and a “D” appears on the
status display, demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see 6.2.26 Resetting
to factory settings )
Activating demo mode
Fig. 107
Fig. 108
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ “D” appears in the status display.
Deactivating demo mode
Fig. 109
Fig. 110
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 4.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
6.2.26 Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.111
Fig.112
► Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
► Restart the device. (see 4.1 Switching on appliance (first
use))
6.3 Messages
6.3.1 Warnings
Warnings are issued by means of an audio signal and visu‐
ally via a symbol on the display. The signal gets louder until
the warning is acknowledged.
Message
Cause Remedy
Door open
This message appears if the door is
open for too long.
Close the door.
Press the confirmation button.
Alarm is ended.
Note
You can set how long it takes
for this message to appear
(see6.2.12Door alarm ) .
Controls
20 * Depending on model and options

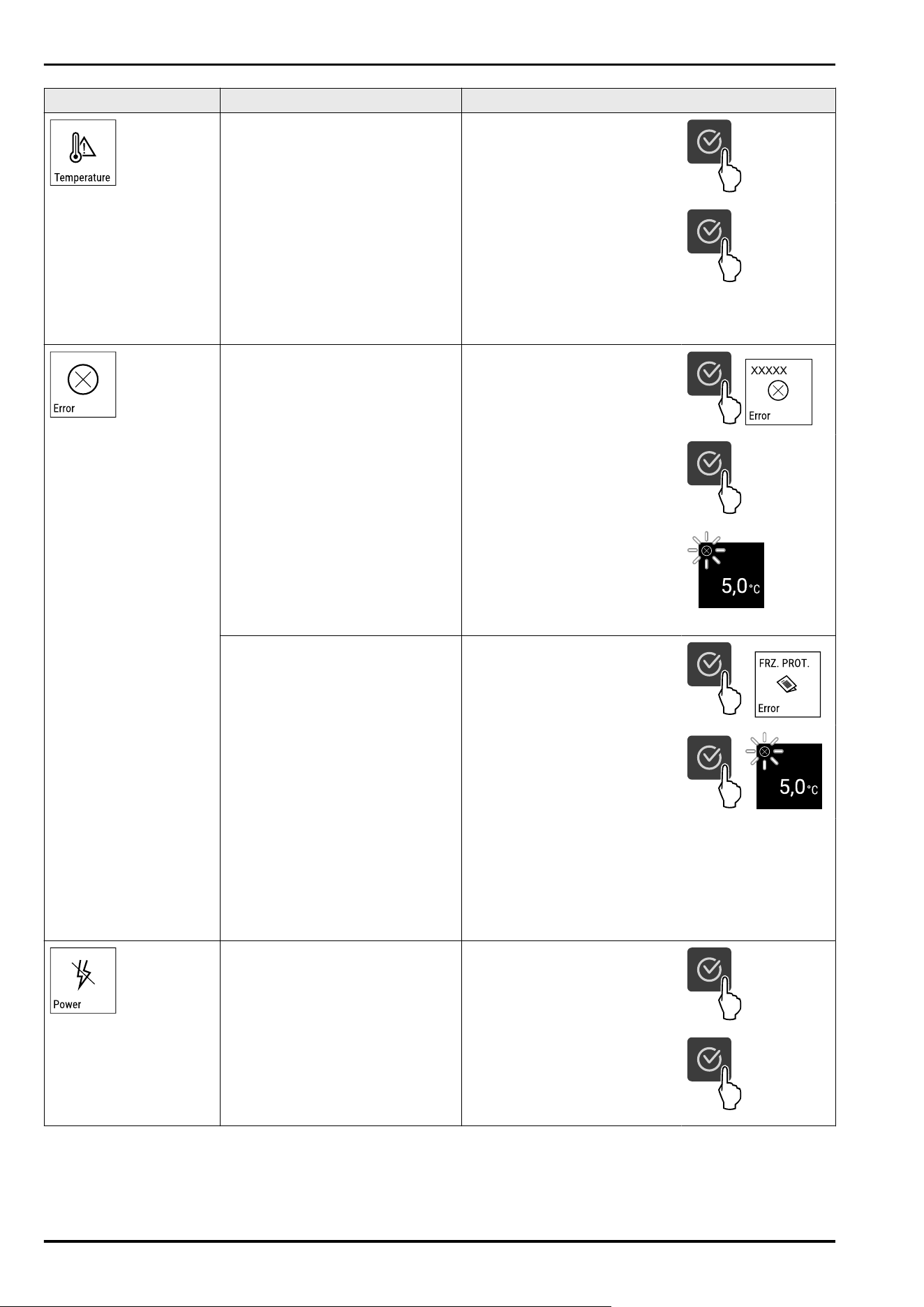

Message Cause Remedy
Temperature alarm
This message appears if the
temperature does not match the set
temperature. Reasons for the differ‐
ences in temperature can be:
⁃ Warm items for refrigeration have
been placed inside.
⁃ Too much warm room air flowed
in when rearranging and removing
refrigerated products.
The power was cut off for a
prolonged period.
Press the confirmation button.
Warmest temperature is
displayed.
Press the confirmation button.
The current temperature flashes
and the display alternates with
the temperature alarm symbol
until the set temperature is
reached.
Check the quality of the refriger‐
ated goods.
Error
The appliance is defective, there is
an appliance fault or a component
of the appliance is faulty.
Transfer refrigerated goods.
Press the confirmation button.
Error code is displayed.
Press the confirmation button.
If present, another error code is
indicated.
or
Status screen with flashing error
symbol is displayed
Pressing the navigation buttons
indicates error code(s) again.
Note the error code(s) and
contact customer service.
Message indicates that the freezer
protection mode is active (e.g.
due to frequent door openings or
loading with goods).
Press the confirmation button.
FRZ.PROT is displayed.
Press the confirmation button.
Status screen with flashing error
symbol is displayed
Pressing the navigation buttons displays the error code
again.
The appliance automatically switches to normal oper‐
ating mode after a few hours and the message disap‐
pears. If the message is displayed repeatedly and the
causes listed do not apply, contact customer service.
(see 9.3 Customer Service)
Power failure
The message appears after an
interruption in the power supply if
the temperature is above the alarm
limit when the power returns.
Press the confirmation button.
The warmest temperature is
displayed.
Press the confirmation button.
Alarm is cancelled and current
temperature is indicated.
Check the quality of the refriger‐
ated goods.
Controls
* Depending on model and options 21
Message Cause Remedy
WLAN error
WLAN connection is interrupted. Check the connection.
Press the confirmation button.
Alarm is ended.
WLAN WWW error
The message appears if there is no
Internet connection via WLAN.
Check the connection.
Press the confirmation button.
Alarm is ended.
LAN error
LAN connection is interrupted. Check connection and network
cable.
Press the confirmation button.
Alarm is ended.
LAN WWW error
The message appears if there is no
Internet connection via LAN.
Check the connection.
Press the confirmation button.
Alarm is ended.
6.3.2 Reminder
Reminders appear when you are being asked to do some‐
thing. They are issued by means of an audio signal and visu‐
ally via a symbol on the display. Acknowledge the message
by pressing the confirmation button.
Message Cause Remedy
Maintenance reminder
The message appears when the timer for
the set maintenance interval has expired.
Press the confirmation button.
Alarm is ended.
Note
The maintenance interval can be
set (see 6.2.22 Maintenance interval
reminder ) .
Recording reminder
This message appears when the tempera‐
ture recording memory (999 hours) is full.
Press the confirmation button.
Alarm is ended.
The oldest data is overwritten.
Note
The temperature recording can be reset
(see 6.2.7 Temperature recording ) .
7 Features
7.1 Safety lock
The lock in the appliance door is equipped with a safety
mechanism.
7.1.1 Locking appliance
Fig. 113 Example illustration
Features
22 * Depending on model and options

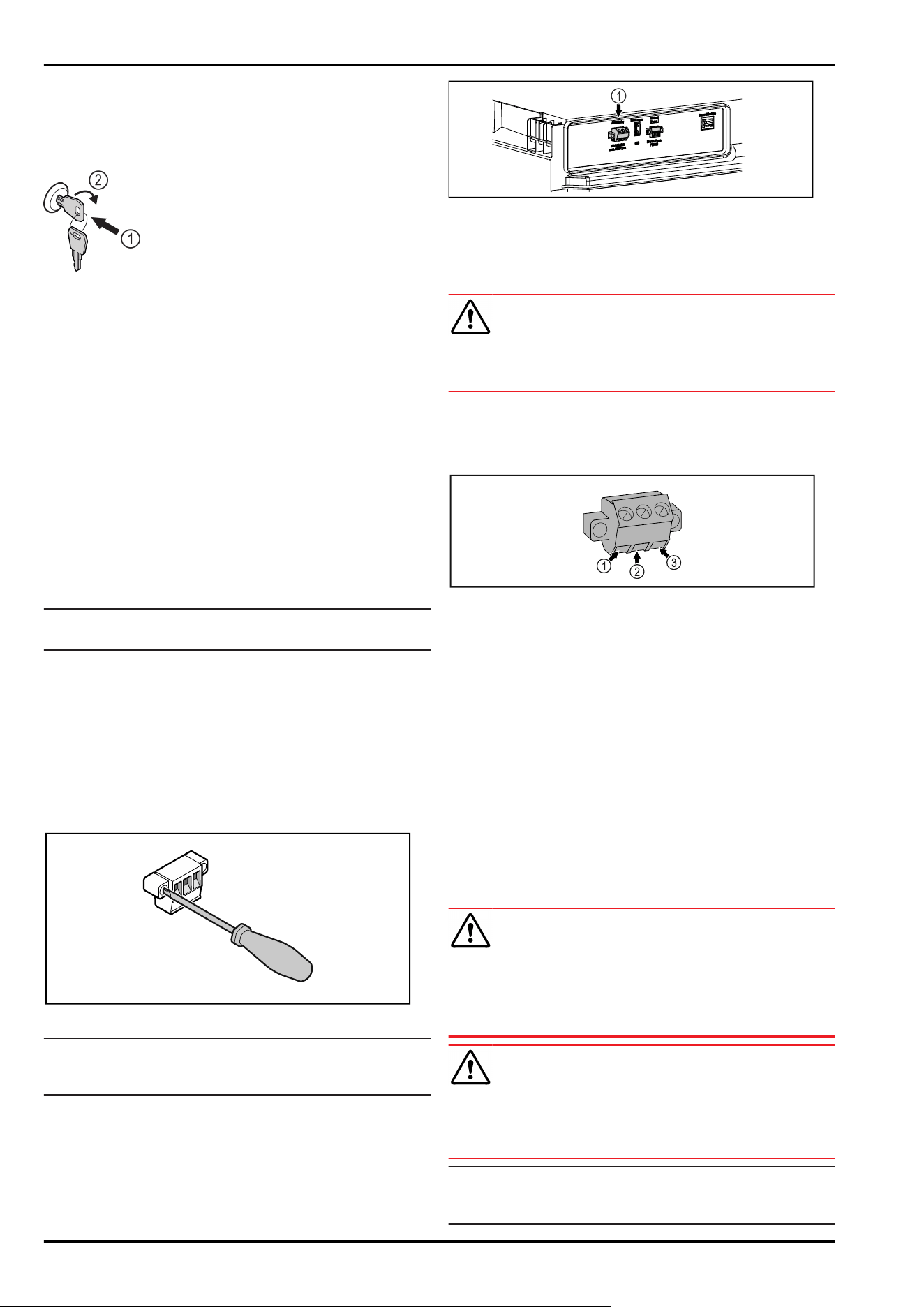

► Insert key.
► Turn key anticlockwise by 90°.
▷ The appliance is locked.
7.1.2 Unlocking appliance
Fig. 114 Example illustration
► Insert key Fig. 114(1).
► Turn key clockwise by 90° Fig. 114(2).
▷ The appliance is unlocked.
7.2 Sensors
The appliance can be equipped with the following sensors
for temperature monitoring:
-
Safety thermostat sensor
-
C sensor
7.2.1 Safety thermostat sensor
The safety thermostat sensor monitors the temperature
drop and thus protects against excessively low tempera‐
tures (Freeze Protect). If the temperature drops below the
threshold value, the appliance regulates the temperature
automatically. The error message FRZ. PROT (Freeze Protect)
(see 6.3Messages) appears.
Note
Do not cover the safety thermostat sensor.
7.2.2 C sensor (control sensor)
The C sensor is permanently installed and regulates the
interior temperature of the appliance. You can calibrate the
C sensor if necessary. (see6.2.21 Sensor calibration )
7.3 Interfaces
There are various connection options on the back of the
appliance.
Fig. 115
Note
Screws secure the plugs. To enable disconnection of the
plugs, loosen the screws on the left and right.
Fig. 116
(1) Potential-free alarm
output
7.3.1 Potential-free alarm output
WARNING
Risk of injury due to electric shock!
► The appliance may only be connected to an external
alarm device by trained specialist personnel.
These three contacts can be used to connect a visual or
an acoustic alarm device. The connection is designed for
a maximum of 30 V (DC) - 8 A from a safety low voltage
source SELV (minimum current 150mA).
Fig.117
(1)
NO (normally open)
Connection for indi‐
cator lamp, which is
active in normal opera‐
tion or when the appli‐
ance is switched off.
(3) NC (normally closed)
Connection for alarm
lamp or audible alarms,
which is active when
an alarm is triggered or
there is a lack of power
supply.
(2) COM (common)
External voltage
source
8 Maintenance
8.1 Maintenance schedule
Maintenance work is to be performed at regular intervals to
ensure proper appliance function.
CAUTION
Danger of injury and damage due to unprofessional mainte‐
nance work!
Personal injury and material damage.
► Maintenance work may only be performed by trained
specialist personnel.
WARNING
Short-circuit hazard due to live parts!
Electric shock or damage to the electronics.
► Switch off the appliance.
► Pull out mains plug or switch off fuse.
Note
A maintenance reminder function can be activated.
(see6.2.22 Maintenance interval reminder )
Maintenance
* Depending on model and options 23
Note
We recommend creating a maintenance log in which all
work (repairs, checks) performed is documented.
Note
Liebherr recommends yearly maintenance. For an individual
offer, please contact Customer Service (see 9.3 Customer
Service) .
Component Activity Maintenance interval
Sheet metal parts Check for damage and corrosion.
Replace damaged parts: (see 9.3 Customer Service)
Yearly
Door, hinges Check alignment , ease of movement, and tight fit. Yearly
Lock, door handle * Check for ease of movement and tight fit. Yearly
Door seal Check for damage, wear, and tight fit.
A replacement door seal is available via Customer
Service (see 9.3 Customer Service) .
Yearly
Sensor Calibrate sensor. (see6.2.21 Sensor calibration ) Yearly
Sensor feedthrough Check that the sealing compound is intact. Yearly
Surfaces Cleaning (see 8.3Cleaning the appliance) Recommendation: monthly or
as required/specified at instal‐
lation location
Surfaces Disinfection
Liebherr has tested the following disinfectants:
Dismozon pur 1 % Lösung (Bode Chemie), Suma
Quicksan (Diversey), Incidin Extra N (Ecolab Health‐
care), Acrylan (Antiseptica chem.-pharm. Produkte),
Buraton 10 F (Schülke und Mayr), Frankocid N
(Franken Chemie), Apesin DSR 50 (Tana), Nüscosept
Spray (Dr. Nüsken), Melsept SF (B. Braun Melsungen),
Kohrsolin (Bode Chemie), Neoquat S (Dr. Weigert),
Indicin Rapid (Ecolab Healthcare), Bacillocid Spezial
(Bode Chemie), Neoform K Spray (Dr. Weigert), Apesin
Desinf. Spray (Tana), Nüscosept 100 (Dr. Nüsken),
Antisept T (Fink Tec), Apesin AP 100 0,50% Lösung
(Tana), Perform Pulver 2% Lösung (Schülke und Mayr)
Observe the operating instructions of the respec‐
tive manufacturer. If disinfectants other than those
stated are used, test them on a less exposed area
first.
Recommendation: monthly or
as required/specified at instal‐
lation location
Installation location, appliance Decontamination
The appliance is suitable for room decontamination
with hydrogen peroxide H
2
O
2
.
In this context, the values of the following applica‐
tion specifications must not be exceeded:
Concentration: maximum 250 ppm.
Humidity: maximum 85%.
Maximum permissible room temperature as per
climate class. (see2.4 Range of use of appliance)
Recommendation: as required/
specified at installation location,
maximum 2x per year
Fan air slots Cleaning Yearly
Alarm relay Check plug connections for tight fit. Yearly
Network cable Check for damage. Yearly
or
When changing the location
Adjustable feet/rollers Check that it is working properly, undamaged and
that it is tight.
Replace damaged parts. (see 9.3 Customer Service)
Yearly
Maintenance
24 * Depending on model and options
8.2 Defrosting appliance
WARNING
Improper defrosting of the appliance!
Injuries and damage.
► Do not use mechanical equipment or other methods to
speed up the defrosting process other than those recom‐
mended by the manufacturer.
► Do not use electrical heating or steam-cleaning appli‐
ances, naked flames or defroster sprays to defrost.
► Do not use sharp objects to remove ice.
Defrosting is performed automatically. The defrost water
drains through the opening and evaporates.
To maintain the functionality of the appliance, we recom‐
mend defrosting it when there is a high buildup of ice.
Icing in the interior is determined by the location (e.g.
high humidity), settings on the appliance and incorrect user
behaviour.
If the automatic defrosting cycle is insufficient:
► Start automatic defrosting manually.
(see6.2.8 Defrosting )
If the problem persists, defrost the appliance manually:
► Switch off appliance. (see 6.2.2 Switching appliance on
and off )
► Pull out mains plug.
► Store refrigerated items elsewhere.
► Leave appliance door open during defrosting process.
► Soak up remaining defrost water with a cloth, clean drain
opening and the appliance.
8.3 Cleaning the appliance
8.3.1 Preparing
WARNING
Short-circuit hazard due to live parts!
Electric shock or damage to the electronics.
► Switch off the appliance.
► Pull out mains plug or switch off fuse.
WARNING
Risk of fire
► Do not damage the refrigeration circuit.
► Empty the appliance.
► Pull out the mains plug.
► Observe the notes on transporting the appliance.
8.3.2 Cleaning housing
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
NOTICE
Risk of damage due to short circuit.
► When cleaning the appliance, make sure no water gets
into the electrical components.
► Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
► Clean condenser coil each year. If the condenser coil is
not cleaned, this significantly reduces the efficiency of
the appliance.
8.3.3 Cleaning interior
WARNING
Short-circuit hazard due to live parts!
Electric shock or damage to the electronics.
► Switch off the appliance.
► Pull out mains plug or switch off fuse.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
► Do not use any steam cleaners!
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not uses abrasive sponges or steel wool which may
cause scratches.
► Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Note
► Defrost water drain (see 2.2 Overview of the appliance
and equipment) : Remove deposits using a thin material
(for example a cotton bud).
Note
Do not damage or remove the type plate on the inside of the
appliance. The type plate is important for Customer Service.
(see 9.3 Customer Service)
► Open the door.
► Empty the appliance.
► Clean interior and equipment parts with lukewarm water
and a little detergent. Do not use any gritty or acidic
cleaning agent or any chemical solvent.
8.3.4 After cleaning
► Wipe appliance and equipment parts dry.
► Connect and switch on appliance.
Once the temperature is sufficiently cold:
► put in items for refrigeration goods.
► Repeat cleaning regularly.
► Clean and remove dust from the refrigeration unit with
heat exchanger once a year.
Maintenance
* Depending on model and options 25
9 Customer help
9.1 Technical specifications
Temperature range
Cooling +3°C to +16°C
Maximum load per shelf
A)
Appliance width 550mm 600mm 750mm
Grid shelves -- 45 kg 60 kg
Glass shelf 40 kg 40 kg 40 kg
Drawer (freezer
appliances)
15 kg 15 kg 15 kg
A)
Heavier loads may result in a slight bending of the
shelves.
Net capacity
See net capacity on the type plate. (see 2.2 Overview of
the appliance and equipment)
Lighting*
Energy efficiency class
A)
*
Light source*
This product contains one or more energy
efficiency class F light sources
LED
A)
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency
class is indicated.
WLAN frequency specification
Frequency band 2.4GHz
Maximum radiated power <100 mW
WLAN frequency specification
Purpose of the wireless
equipment
Integration in the local WiFi
network for data communi‐
cation
Set-up conditions
Degrees of pollution (surrounding
the appliance)
PD2
Ambient temperature +10°C to +35°C
Maximum relative ambient moisture 75%, not condensing
Maximum operating elevation
(metres above sea level)
2000m
1500m(glass door)*
Electrical values
Nominal voltage 220-240 V~
Frequency 50Hz
Connected load 2,0A
Maximum mains fluctuation +/-10%
Overvoltage categories II
9.2 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether the
fault is due to an operating error. If this is the case, you will
be charged for the cost incurred even if this falls within the
warranty period.
You can fix the following faults yourself.
9.2.1 Appliance function
Defect
Cause Remedy
The appliance is
not working.
→ The appliance is not switched on. ► Switch on the appliance.
→ The mains plug is not properly
plugged into the socket.
► Check the mains plug.
→ There is something wrong with the
fuse in the socket.
► Check fuse.
→ Power cut ► Keep the appliance closed.
► If necessary move the refrigerated/frozen items to
another fridge or freezer if the power is off for a
prolonged period.
→ The IEC socket is not plugged into
the appliance correctly.
► Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
► Close appliance door.
→ Ventilation is not sufficient. ► Clear ventilation grille and clean it.
→ The ambient temperature is too
high.
► Ensure the correct ambient conditions: (see2.4 Range of
use of appliance)
→ The appliance was opened too
many times or for too long.
► Wait to see if the appliance goes back to the required
temperature by itself. If not, contact Customer Service.
(see 9.3 Customer Service)
→ The temperature is set incorrectly. ► Set a colder temperature and check after 24 hours.
Customer help
26 * Depending on model and options
Defect Cause Remedy
→ The appliance is too close to a heat
source (oven, radiator, etc).
► Change where the appliance or the heat source are
located.
9.3 Customer Service
First check whether you can remedy the fault yourself . If
this is not the case, please contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see8 Maintenance)
► A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► In the case of appliances with an IEC connector, the
change may be made by the customer.
9.3.1 Contacting Customer Service
Make sure you have the following appliance data at the
ready:
❑
Appliance name (model and index)
❑
Service no. (Service)
❑
Serial no. (S no.)
► Access the appliance information via the display
(see 6.2.18 Device information ) .
-or-
► Refer to the type plate for appliance information.
(see 9.4 Type plate)
► Note down appliance information.
► Inform Customer Service: Report faults and the appliance
information.
▷ This will help us to provide a fast and focussed service.
► Follow any further instructions provided by Customer
Service.
9.4 Type plate
The type plate is inside the appliance. See appliance over‐
view.
Fig. 118
(1)
Appliance designation (3) Serial No.
(2) Service No.
10 Shutting down
► Empty the appliance.
► Switch off the appliance.
► Pull the mains plug out of the socket.
►
Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
► Clean appliance (see 8.3Cleaning the appliance) .
► If present: Remove the covers and insulation from the
sensor feed-through to prevent mould forming.
► Leave the door open so that no bad odours form.
Note
Damage to the appliance and malfunctions!
► After shutting down, only store the appliance at the
permitted room temperature of between -10 °C and
+50°C.
11 Disposal
11.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
► Take the appliance out of operation.
► If possible: remove lamps without destroying them.
11.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
Shutting down
* Depending on model and options 27
For Germany: You can dispose of the appli‐
ance free of charge via the
class 1 collection containers
at the local recycling and
recyclable material collection
centres. When purchasing a new
fridge/freezer, if the sales area
> 400 m
2
, retailers will also take
back the old appliance free of
charge.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
► Do not damage the pipelines of the coolant circuit and
the compressor.
►
Observe the notes on transporting the appliance.
► Transport the appliance without damaging it.
► Dispose of batteries, lamps and the appliance according
to the above specifications.
12 Additional information
Further information on warranty conditions can be found in
the enclosed service brochure or on the Internet at https://
home.liebherr.com.
Additional information
28 * Depending on model and options
Additional information
* Depending on model and options 29
home.liebherr.com/fridge-manuals
base unit fridge
Issue date: 20260204
Part number index: 7083719-00
Liebherr Hausgeräte Lienz GmbH
Dr.-Hans-Liebherr-Strasse 1
A-9900Lienz
Österreich
