BG-EXH-8K50C
8K60/4K120 48Gbps HDMI 2.1 Extender Kit over CAT5E/6/7 with
Bi-Directional IR/PoC and HDR/VRR/ALLM Support up to 165ft
User Manual
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Supported Resolution Table 9
Operation Controls and Functions 10
EDID Logic 11
IR Pin Definition 12
Connection Diagram 13
Troubleshooting 14
Tech Support 15
Limited Product Warranty Terms 15
Mission Statement 16
Copyright 16
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Introduction
The BG-EXH-8K50C is a high-performance HDMI™ 2.1 extender set designed to
transmit ultra-high-definition video and audio signals over a single Cat6 cable up to
50 meters (164 feet). Supporting bandwidths up to 48Gbps FRL and 18Gbps TMDS,
the system enables full 8K@60Hz (4:2:0 12-bit) and 4K@120Hz (4:4:4 12-bit)
transmission with support for advanced formats including HDR10, HDR10+, Dolby
Vision, and HLG. Built-in HDMI™ re-clocking ensures stable signal integrity and
improved compatibility with HDCP 2.3 handshaking, making it suitable for
demanding professional AV environments.
The extender features bi-directional PoC (Power over Cable), allowing either the
transmitter or receiver to be powered with a single 12V supply, simplifying
installation and reducing cable clutter. It also supports bi-directional IR
pass-through and CEC control for seamless remote device management. With
support for a wide range of audio formats including Dolby Atmos and DTS:X, along
with VRR, ALLM, and other HDMI 2.1 gaming features, the BG-EXH-8K50C delivers
a flexible and reliable solution for residential, commercial, and professional AV
distribution systems.
Features
● HDMI 2.1 Compliance: Supports full HDMI™ 2.1 specification for next-generation
video formats and ultra-high bandwidth transmission.
● 8K Ultra HD Support: Transmits resolutions up to 8K@60Hz (4:2:0 12-bit) and
4K@120Hz (4:4:4 12-bit) over Cat6 cable.
● 48Gbps Video Bandwidth: Delivers up to 48Gbps FRL and 18Gbps TMDS for
uncompressed, high-quality video performance.
● Long-Distance Transmission: Extends HDMI™ signals up to 50m (164ft) over a
single Cat6 cable.
● Advanced HDR Support: Compatible with HDR10, HDR10+, Dolby Vision, and HLG
for enhanced dynamic range and color accuracy.
● Wide Audio Format Compatibility: Supports PCM, LPCM, Dolby Atmos, DTS:X,
and other advanced multichannel audio formats.
● Bi-directional PoC Power: Allows either transmitter or receiver to be powered using
a single 12V supply over the CAT cable.
● Bi-directional IR Pass-through: Enables remote control of source or display
devices from either end of the system.
● CEC Control Support: Allows connected HDMI™ devices to communicate and be
controlled through a single control interface.
● HDMI Re-clocking Technology: Stabilizes signal integrity and improves
compatibility by reducing HDCP and handshake issues.
● VRR / ALLM / Gaming Features: Supports Variable Refresh Rate, Auto Low
Latency Mode, and other HDMI 2.1 gaming enhancements.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
● HDCP 2.3 Compliance: Ensures secure content transmission with the latest copy
protection standards.
● Plug-and-Play Operation: No software required; simple installation with automatic
signal detection and configuration.
● Compact Metal Housing: Durable, low-profile metal enclosure designed for
professional and commercial installations.
Packing List
● 1× 8K60 HDMI™ Extender (TX)
● 1× 8K60 HDMI™ Extender (RX)
● 1× IR Blaster Cable (1.5m)
● 1× IR Wideband Receiver Cable (1.5m)
● 1× 12V/1A Multinational Power Supply
● 4× Mounting Ears
● 8× Machine Screws (KM3×4)
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Specifications
TECHNICAL
HDMI™ Compliance
HDMI™ 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48Gbps FRL / 18Gbps TMDS
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth
8 / 10 / 12-bit
HDR Support
HDR10, HDR10+, Dolby Vision, HLG
CEC Control
Supported
IR Level
5Vp-p
IR Frequency
20–60KHz (Wideband)
VIDEO RESOLUTIONS
Supported Formats
VGA–WUXGA, 480i–8K
HD / FHD
720p50/60, 1080i50/60, 1080p24–240Hz
4K UHD
3840×2160 up to 144Hz, 4096×2160 up to 144Hz
Ultra-Wide
5120×2160 up to 120Hz
8K UHD
7680×4320 up to 60Hz
AUDIO
Audio Formats
PCM 2.0, LPCM 5.1 / 7.1
Sampling Rates
32K–192KHz (16/20/24-bit)
Surround Sound
Dolby Digital, Dolby TrueHD, Dolby Atmos
DTS Support
DTS:X, DTS-HD Master Audio, DTS-HD HRA, DTS Express
TRANSMISSION
Distance
Up to 50m (164ft) over Cat6
HDMI Cable Distance
Up to 3m (9.8ft)
Method
Uncompressed HDMI over single Cat6
PoC
Bi-directional Power over Cable
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
CONNECTIONS
Transmitter Inputs
1× HDMI IN (Type A), 1× IR IN, 1× IR OUT
Transmitter Output
1× CAT OUT (RJ45)
Receiver Input
1× CAT IN (RJ45)
Receiver Output
1× HDMI OUT (Type A)
Service Port
1× USB-C (Firmware Upgrade)
MECHANICAL
Enclosure
Metal
Color
Black
Dimensions (W × D × H)
3.5in × 2.4in × 0.71in [88mm × 61mm × 18mm]
Weight
0.34lb [155g] (TX / RX each)
POWER
Power Supply
12V / 1A DC
Power Consumption
Max 8.8W
PoC Support
Yes (either TX or RX powered)
Input Voltage
AC 100–240V, 50/60Hz
ENVIRONMENTAL
Operating Temperature
32°F to 104°F / 0°C to 40°C
Storage Temperature
-4°F to 140°F / -20°C to 60°C
Operating Humidity
20%–80% RH (non-condensing)
Storage Humidity
10%–90% RH
PROTECTION
ESD Standard
IEC 61000-4-2
Air Discharge
±8kV
Contact Discharge
±4kV
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Supported Resolution Table
VGA / PC
Resolutions
640×480, 800×600, 1024×768, 1280×1024, 1360×768, 1440×900, 1440×1050,
1680×1050, 1920×1200 (all @ 60Hz)
SD Video
480i/p60, 576i/p50
HD Video
720p50/60, 1080i50/60
Full HD
1080p24/25/30/50/60/100/120/240Hz
4K UHD
3840×2160p24/25/30/50/60/100/120/144Hz
DCI 4K
4096×2160p24/25/30/50/60/100/120/144Hz
Ultra Wide
5120×2160p24/25/30/50/60/100/120Hz
8K UHD
7680×4320p24/25/30/60Hz
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel

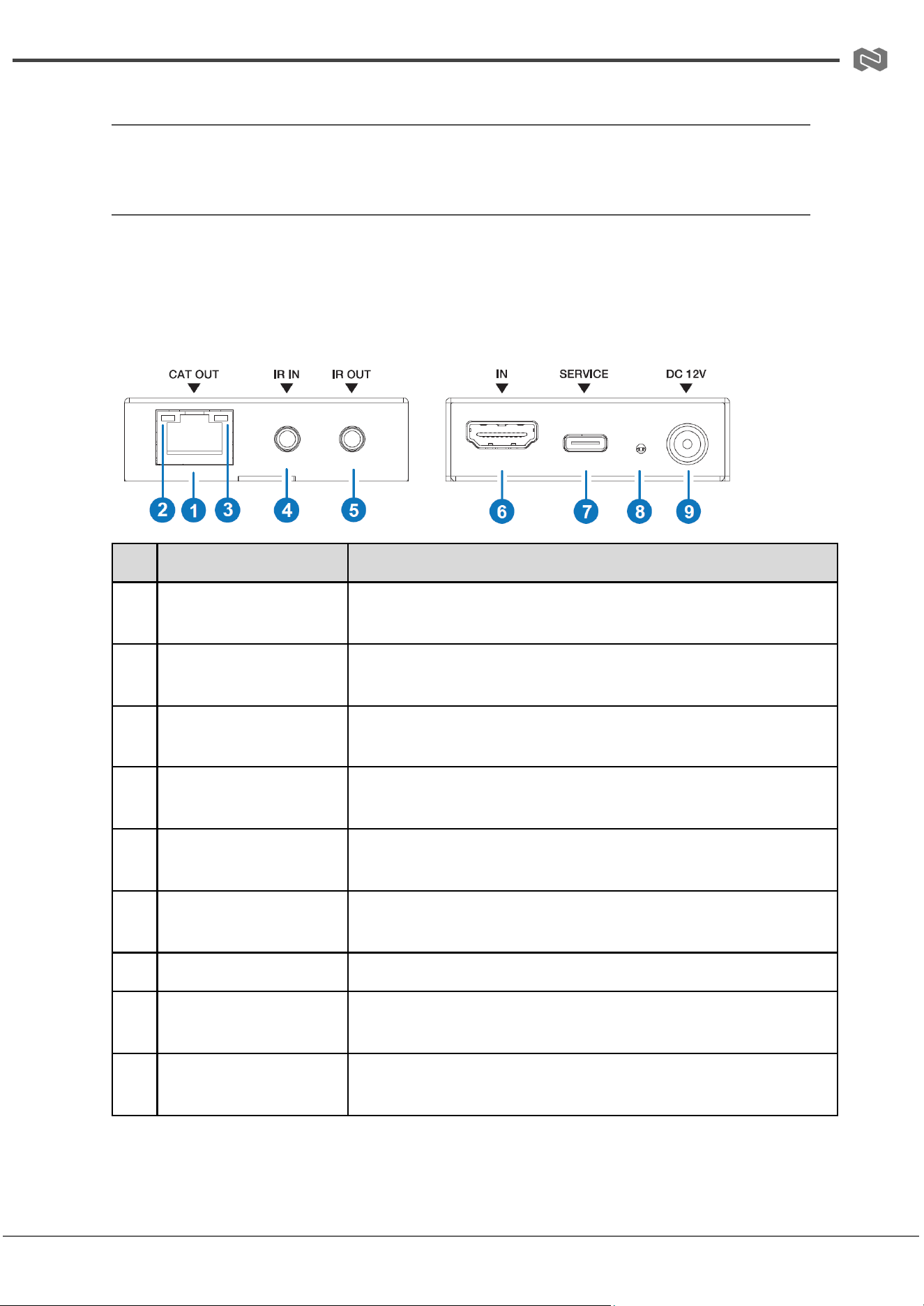

Transmitter Panel
No.
Name
Function Description
1
CAT OUT
Connects to the CAT IN port on the Receiver to transmit HDMI™
signals over Cat6 cable.
2
Link Status Indicator
(Green)
Illuminates when TX and RX are connected normally; turns off when
no link is detected.
3
HDCP Signal Indicator
(Yellow)
On: HDCP signal detected. Flashing: Non-HDCP HDMI signal
detected. Off: No HDMI signal.
4
IR IN
Accepts IR signal from the IR wideband receiver cable for remote
control pass-through.
5
IR OUT
Sends IR signal via IR blaster cable to control source or display
devices.
6
HDMI IN
Connects to HDMI™ source devices such as Blu-ray players, PCs,
or media players.
7
SERVICE (USB-C)
Firmware upgrade port for system maintenance and updates.
8
Power LED
Indicates power status of the transmitter when illuminated green.
9
DC 12V
Connects to the included 12V/1A power supply. Supports PoC
operation from either TX or RX side.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL

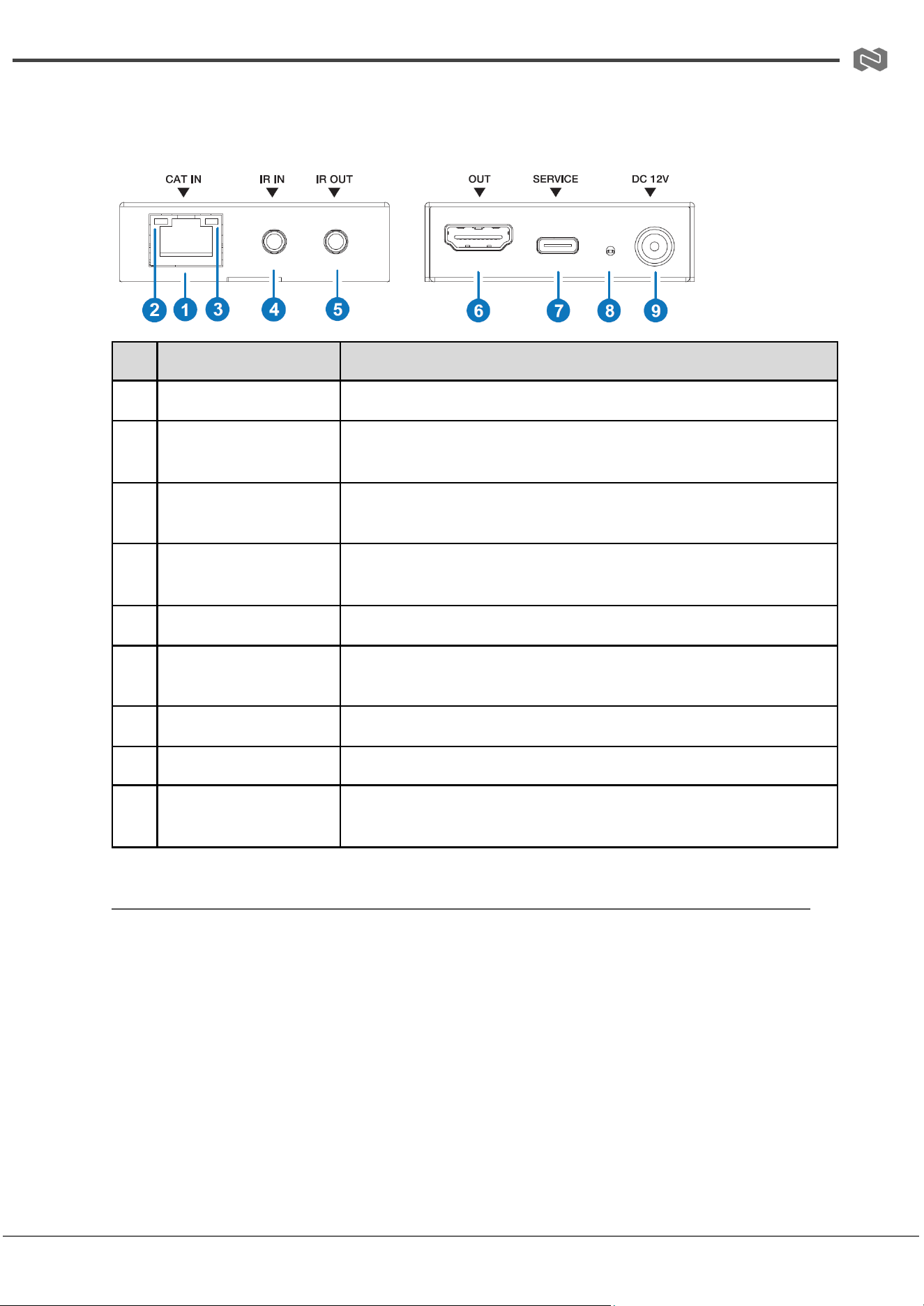

Receiver Panel
No.
Name
Function Description
1
CAT IN
Receives HDMI™ signal from the transmitter via Cat6 cable.
2
Link Status Indicator
(Green)
Illuminates when TX and RX are connected normally; flashes when
connection is unstable or not established.
3
HDCP Signal Indicator
(Yellow)
On: HDCP signal detected. Flashing: Non-HDCP HDMI signal
detected. Off: No HDMI signal.
4
IR IN
Accepts IR signal from IR receiver cable for remote control
pass-through.
5
IR OUT
Sends IR signal via IR blaster cable to connected devices.
6
HDMI OUT
Outputs HDMI™ signal to a display device such as a TV or monitor.
7
SERVICE (USB-C)
Firmware upgrade port for system maintenance and updates.
8
Power LED
Indicates power status of the receiver when illuminated green.
9
DC 12V
Connects to the included 12V/1A power supply. Supports PoC
operation from either TX or RX side.
EDID Logic
The BG-EXH-8K50C uses an intelligent EDID management system to ensure optimal
compatibility between the source device and the connected display. By default, the system
is set to 4K@60Hz 4:4:4 SDR 2CH EDID, providing a stable baseline configuration that
supports a wide range of HDMI™ sources without requiring manual setup.
In addition, the extender supports EDID copy from the RX (receiver) display device,
allowing the system to automatically read and apply the connected display’s native
capabilities. This ensures the source outputs the most compatible resolution, refresh rate,
and audio format, reducing handshake issues and improving overall system reliability in
mixed AV environments.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL

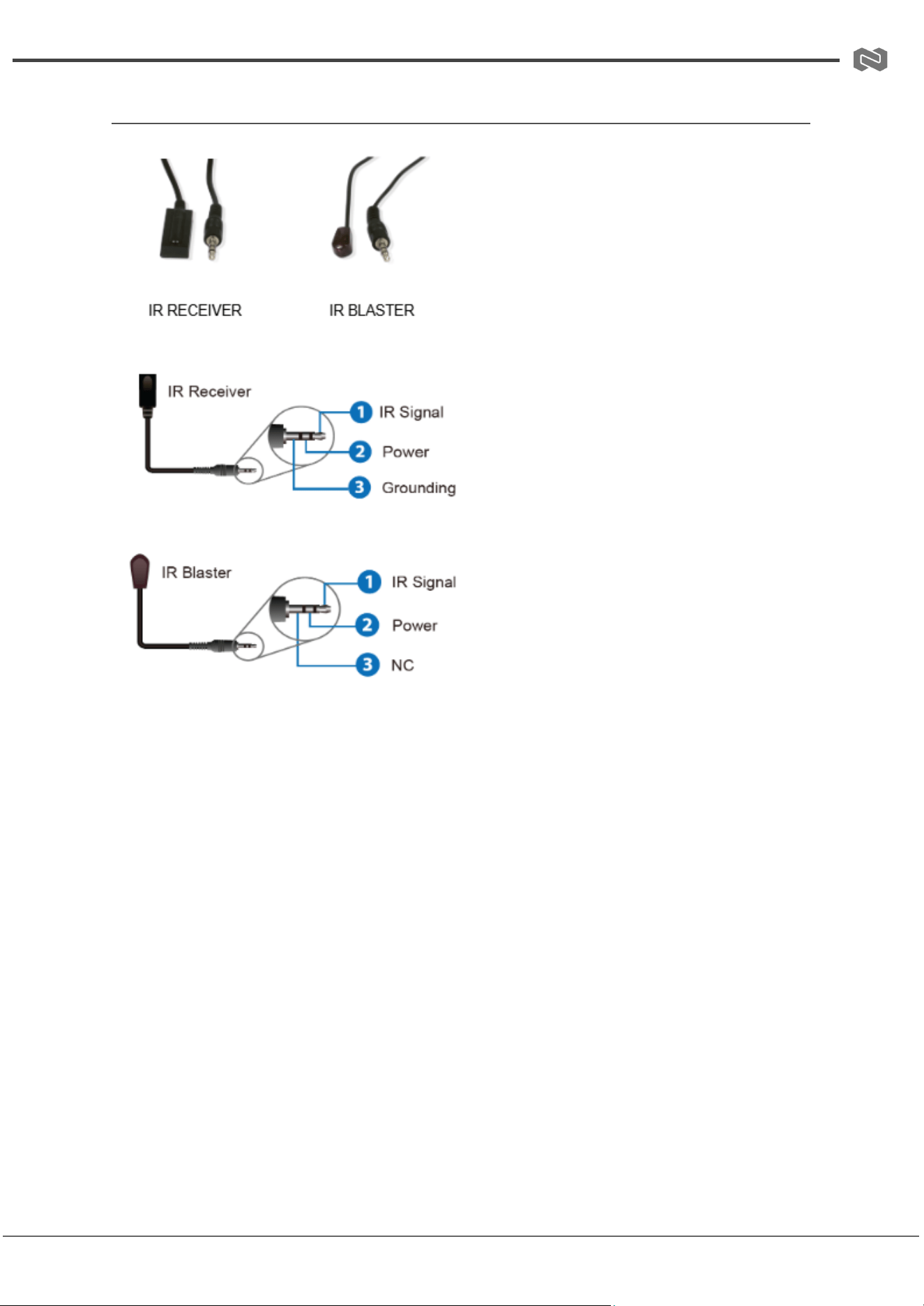

IR Pin Definition
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL

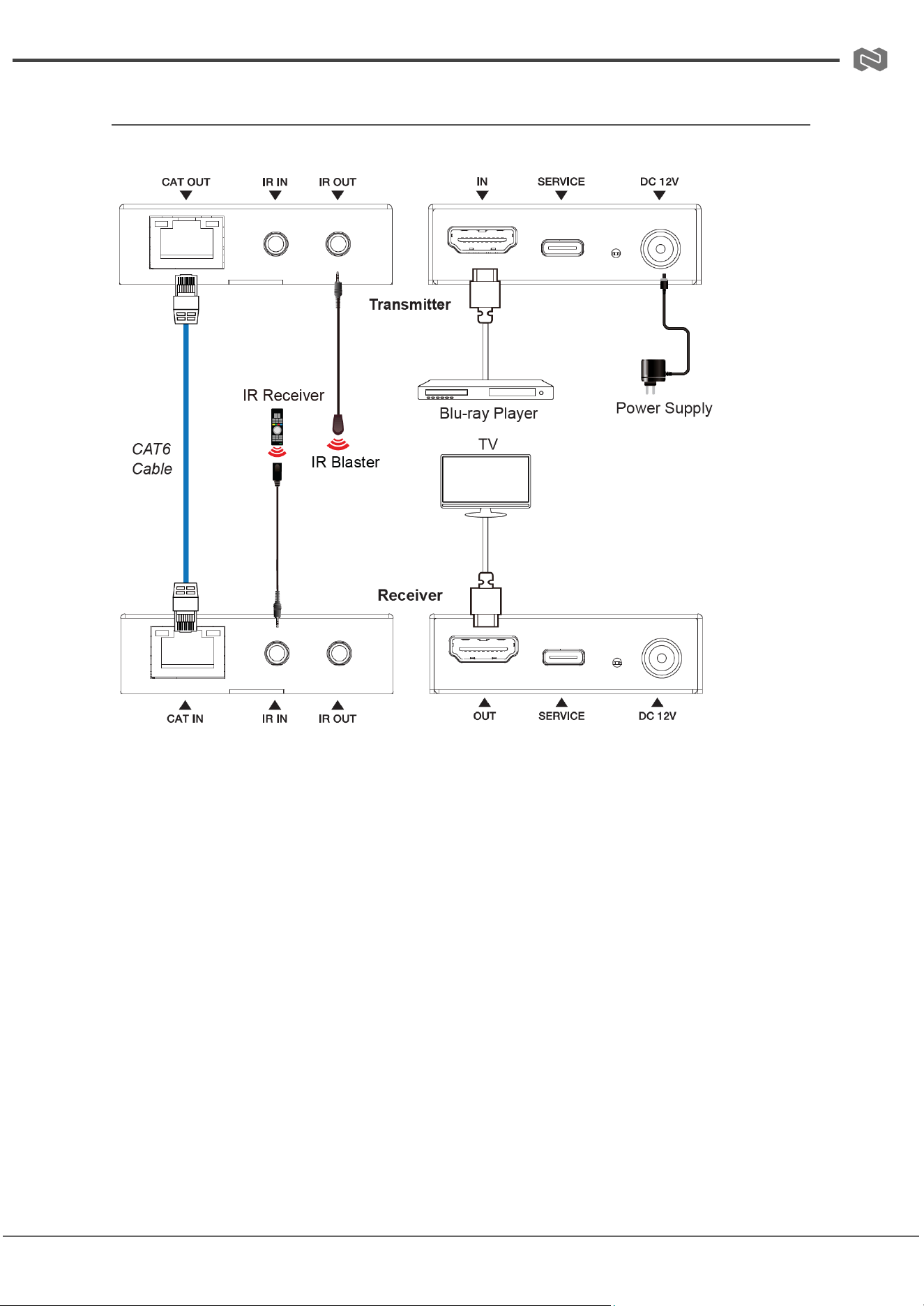

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 14
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 15
BZBGEAR BG-EXH-8K50C PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 16
