Assembly Instructions
OWNER’S MANUAL
V. SVKR1000-20240903
SVKR1000

Warning, Safety & Maintenance
2
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in death or
serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and warning labels are available from your
local Body-Solid dealer.
If you have any questions about the operation, set up or
maintenance of this machine please call our customer service
department at 1 (800) 556-3113.
Warning, Safety & Maintenance
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and labels are available from your local
Body-Solid dealer. If you have any questions about the
operation, set up or maintenance of this machine please call
our customer service department at 1 (800) 556-3113.
#DWRULE-4
Warning Label for Rules
#DWSM-5
Warning Label for Maintenance
Warning, Safety & Maintenance
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in serious injury.
It is imperative that you retain this Owner’s Manual and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and labels are available from your local
Body-Solid dealer. If you have any questions about the
operation, set up or maintenance of this machine please call
our customer service department at 1 (800) 556-3113.
#DWRULE-4
Warning Label for Rules
#DWSM-5
Warning Label for Maintenance

Table of Contents
3
• SAFETY INSTRUCTIONS.............................. PAGE 4
• PREPARATION............................................... PAGE 5
• HARDWARE LIST........................................... PAGE 6
• PARTS LIST.................................................... PAGE 7
• HARDWARE ILLUSTRATION........................ PAGE 8
• ASSEMBLY INSTRUCTIONS........................ PAGE 12
• EXPLODED VIEW......................................... PAGE 18
• CONTACT PAGE........................................... PAGE 20

Important Safety Instructions
4
Beforebeginninganytnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen sico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m ReadallinstructionsbeforeusingtheSVKR1000.
Theseinstructionsarewrittentoensureyoursafety
andtoprotecttheunit.
m Do not remove any safety labels from the
machine.
m Donotallowchildrenonorneartheequipment.
m Usetheequipmentonlyforitsintendedpurpose
asdescribedinthisguide.Donotuseaccessory
attachmentsthatarenotrecommendedbythe
manufacturer.Suchattachmentsmightcause
injuries.
m Wearproperexerciseclothingandshoesforyour
workout,nolooseclothing.
m Keephands,limbs,looseclothing,andlonghairwell
outofthewayofallmovingparts.
m Usecarewhengettingonorotheunit.
m Donotoverexertyourselforworktoexhaustion.
m Ifyoufeelanypainorabnormalsymptoms,stop
yourworkoutimmediatelyandconsultyour
physician.
m Neveroperateunitwhenithasbeendroppedor
damaged.Returntheequipmenttoaservice
centerforexaminationandrepair.
m Neverdroporinsertobjectsintoanyopeningin
theequipment.
m Alwayschecktheunitanditscablesbeforeeach
use.Makesurethatallfastenersandcablesare
secureandingoodworkingcondition.
m Donotusetheequipmentoutdoorsornearwater.
Personal Safety During Assembly
m Beforebeginningassembly,pleasetakethetime
toreadtheinstructionsthoroughly.
m Readeachstepintheassemblyinstructionsand
followthestepsinsequence.Donotskipahead.
Ifyouskipahead,youmaylearnlaterthatyou
havetodisassemblecomponentsandthatyou
mayhavedamagedtheequipment.
m Assembleandoperatethe SVKR1000onasolid,
level
surface.Locatetheunitafewfeetfromthewalls
orfurnituretoprovideeasyaccess.
TheSVKR1000 isdesignedforyourenjoyment.Byfol-
lowingtheseprecautionsandusingcommonsense,you
willhavemanysafeandpleasurablehoursof
healthfulexercisewithyourBody-Solid Pro Club
Vertical Knee Raise.
Afterassembly,youshouldcheckallfunctionsto
ensurecorrectoperation.Ifyouexperienceproblems,
rstrechecktheassemblyinstructionstolocateany
possibleerrorsmadeduringassembly.Ifyouareunable
tocorrecttheproblem,callthedealerfromwhomyou
purchasedthemachineorcall1-800-556-3113forthe
dealernearestyou.
Obtaining Service
PleaseusethisOwner’sManualtomakesurethatall
partshavebeenincludedinyourshipment.When
orderingparts,youmustusethepartnumberand
descriptionfromthisOwner’sManual.Useonly
Body-Solidreplacementpartswhenservicingthis
machine.Failuretodosowillvoidyourwarrantyand
couldresultinpersonalinjury.
Forinformationaboutproductoperationorservice,
checkouttheocialBody-Solidwebsiteat
www.bodysolid.comorcontactanauthorized
Body-SoliddealeroraBody-Solidfactory-authorized
servicecompanyorcontactBody-Solidcustomer
serviceatoneofthefollowing:
Toll Free: 1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Place of Purchase
3. Serial Number (S/N)
4. Part # and Description

Preparation
5
Thankyouforpurchasingthe
SVKR1000
.ThisbenchispartoftheBody-Solidlineofqualitystrengthtraining
machines,whichletsyoutargetspecicmusclegroupstoachievebettermuscletoneandoverallbody
conditioning. To maximize your use of the equipment please study this Owner’sManual thoroughly.
Body-Solidcontinuallyseekswaystoimprovetheperformance,specicationsandproductmanualsinordertoensurethatonly
superiorproductsarereleasedfromourfactories.Pleasetakethetimetocarefullyreadthroughthismanualthoroughly.Instructions
containedinthisdocumentarenotintendedtocoveralldetailsorvariationspossiblewithBody-Solidequipment,ortocoverevery
contingencythatmaybemetinconjunctionwithinstallation,operation,maintenanceortroubleshootingoftheequipment.Even
thoughwehavepreparedthismanualwithextremecare,neitherthepublishernortheauthorcanacceptresponsibilityforanyerrors
in,oromissionfrom,theinformationgiven.Shouldadditionalinformationberequired,orshouldsituationsarisethatarenotcovered
bythismanual,themattershouldbedirectedtoyourlocalBody-Solidrepresentative,ortheServiceDepartmentatBody-SolidInc.
inForestPark,Illinois.
Required Tools
Thebasictoolsthatyoumustobtainbeforeassembling
theSVKR1000includebutarenotlimitedto:
m MetricAllenKeySet
m StandardAllenKeySet
m StandardWrenchSet
m MetricWrenchSet
m AdjustableWrench
m Screwdriver(standardand/orphillips)
Installation Requirements
Followtheseinstallationrequirementswhenassembling
theSVKR1000:
SetuptheSVKR1000onasolid,atsurface.Asmooth,
atsurfaceunderthemachinehelpskeepitlevel.A
levelmachinehasfewermalfunctions.
Provideamplespacearoundthemachine.Open
spacearoundthemachineallowsforeasieraccess.
Insertallboltsinthesamedirection.Foraesthetic
purposes,insertallboltsinthesamedirectionunless
specied(intextorillustrations)todootherwise.
Leaveroomforadjustments.Tightenfastenerssuchas
bolts,nuts,andscrewssotheunitisstable,butleave
roomforadjustments.Donotfullytightenfasteners
untilinstructedintheassemblystepstodoso.
Fill out and mail the warranty card.
Assembly Tips
Readall“Notes”oneachpagebeforebeginningeach
step.
WhileyoumaybeabletoassembletheSVKR1000using
theillustrationsonly,importantsafetynotesandother
tipsareincludedinthetext.
Somepiecesmayhaveextraholesthatyouwillnotuse.
Useonlythoseholesindicatedintheinstructionsand
illustrations.
NOTE: Withsomanyassembledparts,proper
alignmentandadjustmentiscritical.While
tighteningthenutsandbolts,besuretoleave
roomforadjustments.
NOTE: Thebottlesthataremarked“Poison”isyour
touchuppaint.Keepawayfromchildren.
CAUTION: Obtainassistance!Ifyoufeellikeyoucan’t
assembletheSVKR1000byyourselfthendo
notattempttodosoasthiscouldresultin
injury.Reviewtheinstallationrequirements
beforeproceedingwiththefollowingsteps.
YourS/N#can
befoundhere
↑

6
SVKR1000 Hardware List
Part# Size Description Quantity
1
2
3
4
5
6
7
8
9
10
11
13
14
15
M12X130mm
M12X80mm
M12X30mm
M12X20mm
M10X25mm
M10X20mm
M8X70mm
M8X25mm
M4X3mm
M12
M12
M8
M8
M12
HEX HEAD BOLT
HEX HEAD BOLT
SOCKET HEAD CAP SCREW
HEX HEAD BOLT
FLAT HEAD CAP SCREW
SOCKET HEAD CAP SCREW
HEX HEAD BOLT
FLAT HEAD CAP SCREW
SET SCREW
FLAT WASHER
LOCK WASHER
FLAT WASHER
LOCK WASHER
NYLON LOCK NUT
20 PCS.
4 PCS.
4 PCS.
8 PCS.
4 PCS.
2 PCS.
6 PCS.
4 PCS.
28 PCS.
56 PCS.
4 PCS.
6 PCS.
6 PCS
24 PCS

7
SVKR1000 Parts List
Part# Description Quantity
A
B
C
D
E
F
G
H
J
K
L
M
17
18
19
20
21
22
23
24
25
26
27
28
BASE FRAME
LOWER UPRIGHT
BASE PLATE
CENTER FRAME
UPPER LEFT UPRIGHT
UPPER RIGHT UPRIGHT
LEFT ARM FRAME
RIGHT ARM FRAME
DIP HANDLE
PULL UP HANDLE
MOUNTING BRACKET
STEEL BRACKET
BACK PAD
BUSHING,
ø32xø25.4x18mm
ENDCAP,ø38mm
HANDGRIP,ø45xø38x200mm
RING,ø46xø39x9.5mm
ENDCAP,ø46xø39x19mm
HANDGRIP,ø38xø32x166mm
ARM PAD
ENDCAP,
ø39xø33x19mm
RING,ø39xø33x9.5mm
HANDGRIP,ø45xø38x210mm
ROCK CLIMBING GRIP
2 PCS.
2 PCS.
1 PCS.
1 PCS.
1 PCS.
1 PCS.
1 PCS.
1 PCS.
2 PCS.
1 PCS.
2 PCS.
2 PCS.
1 PCS.
8 PCS.
4 PCS.
2 PCS.
2 PCS.
2 PCS.
2 PCS.
2 PCS.
6 PCS.
4 PCS.
2 PCS.
2 PCS.

45
8
SVKR1000 Hardware Illustration
Part#1 HEX HEAD BOLTM12x130mm QTY.20
Part#2 HEX HEAD BOLTM12x80mm QTY.4
Part#3 SOCKETHEADCAPSCREWM12x30mm QTY.4
Part#4 HEXHEADBOLTM12x20mm QTY.8
Part#5 FLATHEADCAPSCREWM10x25mm QTY.4

45
9
SVKR1000 Hardware Illustration
Part#9 SETSCREWM4x3mm QTY.28
Part#10 FLATWASHERM12 QTY.56
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
PART #51 FLAT WASHER ij11Xij20X2 QTY.19
PART #52 FLAT WASHER ij13Xij24X2.5 QTY.16
PART #53 FLAT WASHER ij6.6Xij12X1.6 QTY.3
PART #54 FLAT WASHER ij9Xij16X1.6 QTY.8
PART #56 SPRING WASHER 1/2" QTY.1
PART #50 SPRING WASHER ij10 QTY. 5
PART #55 SPRING WASHER 3/8"
QTY.1
Part#6 SOCKETHEADCAPSCREWM10x20mm QTY.2
Part#7 HEXHEADBOLTM8x70mm QTY.6
Part#8 FLATHEADCAPSCREWM8x25mm QTY.4

45
10
SVKR1000 Hardware Illustration
Part#11 LOCKWASHERM12 QTY.4
Part#13 FLATWASHERM8 QTY.6
Part#15 NYLONLOCKNUTM12 QTY.24
Part#14 LOCKWASHERM8 QTY.6

11
Note

12
STEP
1
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware in this step. DO NOT wrench tighten unless instructed.
Some components may be pre-assembled. Nylon lock nuts will not fully screw onto
bolts, they must be wrench tighten to fully go on.

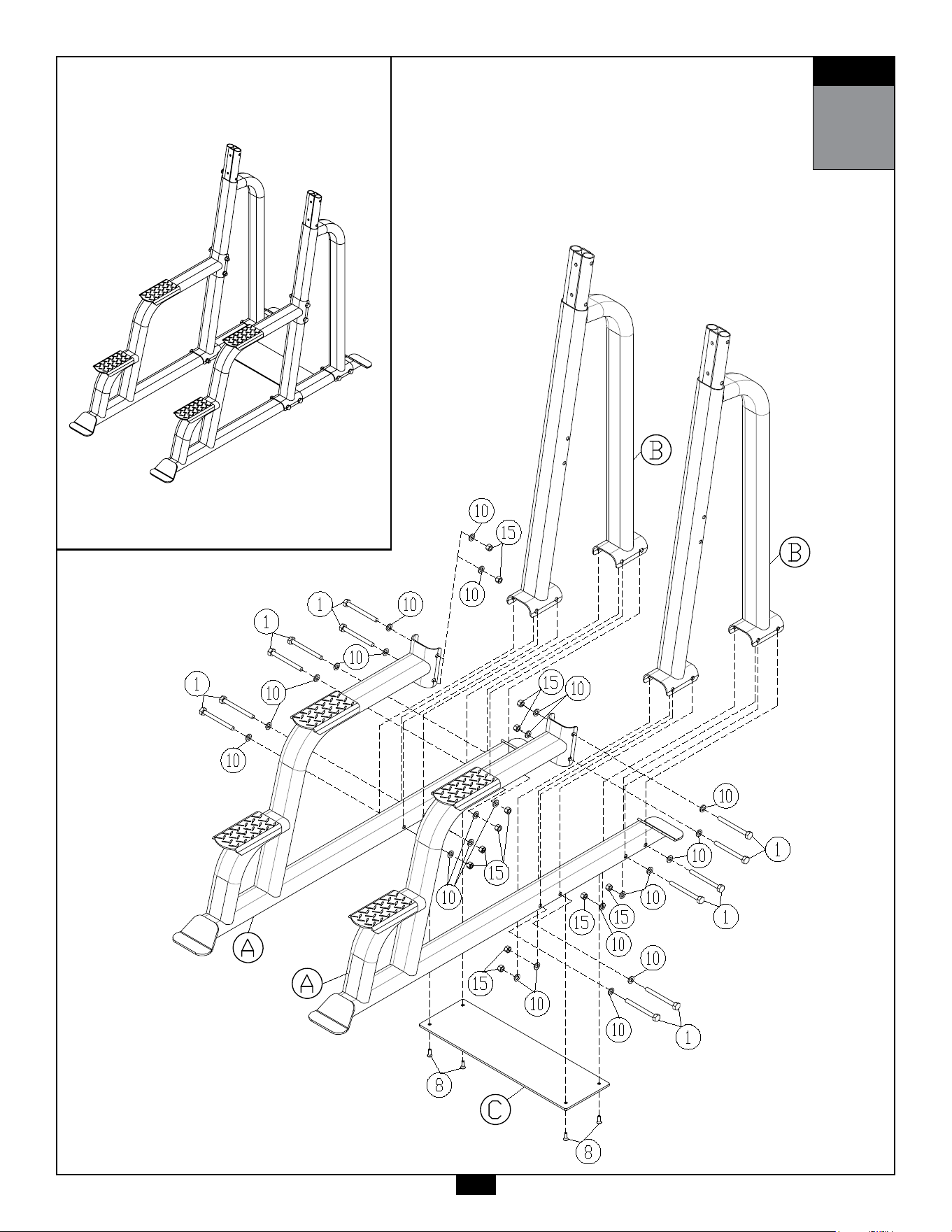

1A. AttachBasePlate(C)toBaseFrame(A) using:
4 - (#8) M8x25mm Flat Head Cap Screw
1B. AttachBaseFrames(A) to LowerUpright(B)using:
12 - (#1) M12x130mm Hex Head Bolt
24 - (#10) M12 Flat Washer
12 - (#15) M12 Nylon Lock Nut

STEP
1
AboveshowsStep1assembledandcompleted.
13

14
STEP
2
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Finger tighten all hardware rst in this step. Wrench tighten ALL hardware at the end of
and after STEP 2C. Some components may be pre-assembled. Nylon lock nuts will not
fully screw onto bolts, they must be wrench tighten to fully go on.
2A. AttachPullupHandle(K)toUpperUprights(E & F)using:
4 - (#2) M12x80mm Hex Head Bolt
8 - (#10) M12 Flat Washer
4 - (#15) M12 Nylon Lock Nut
2B. AttachUpperUprights(E &F)toLowerUprights(B)using:
8 - (#4) M12x20mm Hex Head Bolt
8 - (#10) M12 Flat Washer
NOTE:
1) When installing Upper Uprights , please carefully tip the machine to the
back side and telescope the Upper Uprights into Lower Uprights. See
Figure #1.
2) Two persons are recommended for Step 2B installation.
2C. AttachCenterFrame(D)toUpperUprights(E & F)using:
4 - (#1) M12x130mm Hex Head Bolt
8 - (#10) M12 Flat Washer
4 - (#15) M12 Nylon Lock Nut
2 - ( M ) Steel Bracket

15
STEP
2
AboveshowsStep2assembledandcompleted.
Figure # 1

16
STEP
3
Be careful to assemble all components
in the sequence they are presented.
NOTE:
Wrench tighten ALL hardware at the end of each step. Some components may be
pre-assembled. Nylon lock nuts will not fully screw onto bolts, they must be wrench
tighten to fully go on.
3A. AttachLeftArmFrame(G)toUpperLeftUpright(E)using:
2 - (#1) M12x130mm Hex Head Bolt
4 - (#10) M12 Flat Washer
2 - (#15) M12 Nylon Lock Nut
3B. AttachRightArmFrame(H)toUpperRightUpright(F)using:
2 - (#1) M12x130mm Hex Head Bolt
4 - (#10) M12 Flat Washer
2 - (#15) M12 Nylon Lock Nut
3C. AttachArmPads(#24)toArmFrames(G & H)using:
4 - (#7) M8x70mm Hex Head Bolt
4 - (#13) M8 Flat Washer
4 - (#14) M8 Lock Washer
3D. AttachBackPad(#17)toCenterFrame(D)using:
2 - (#7) M8x70mm Hex Head Bolt
2 - (#13) M8 Flat Washer
2 - (#14) M8 Lock Washer

17
STEP
3
AboveshowsStep3assembledandcompleted.

45
18

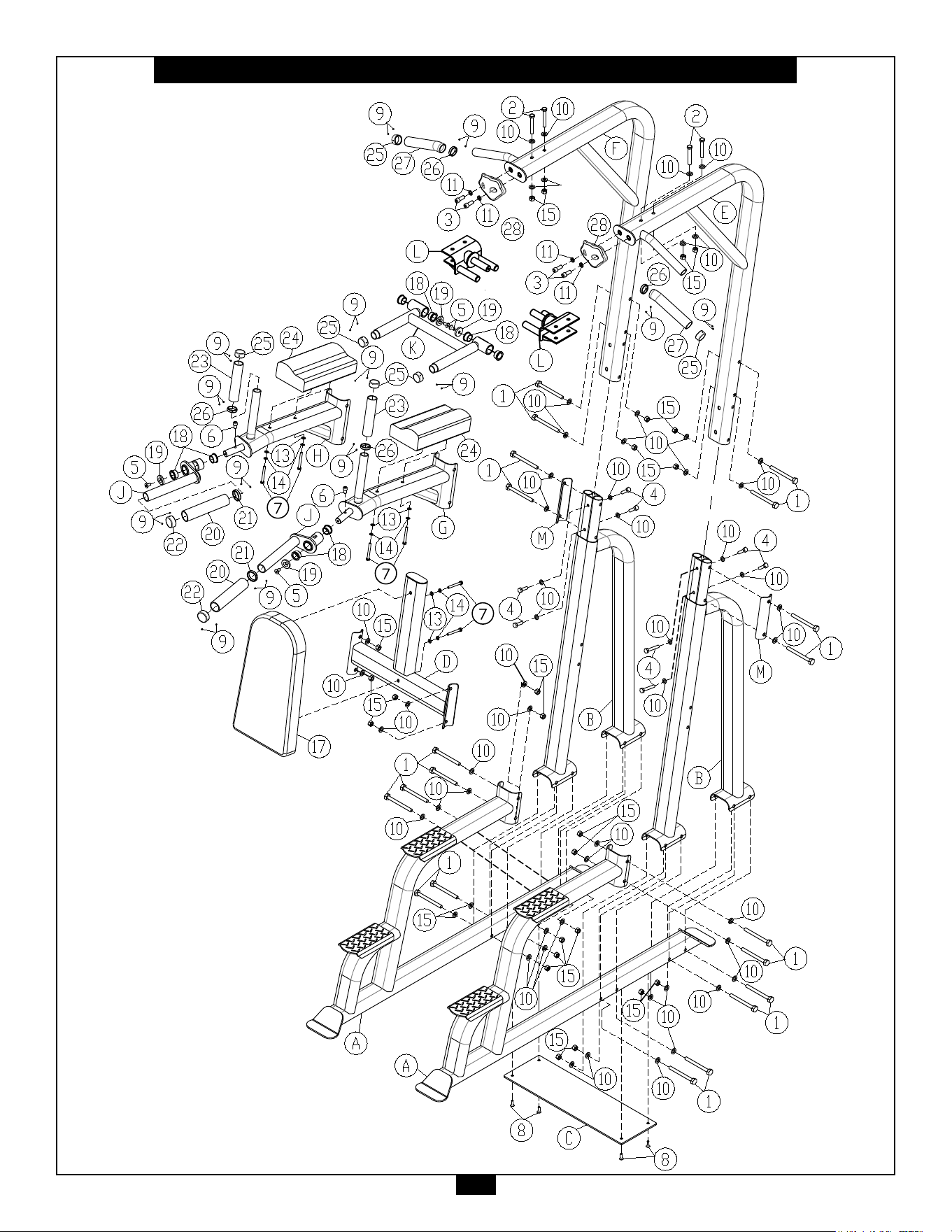

SVKR1000 Exploded View

19
Notes

1900S.DesPlainesAve.
ForestPark,Il60130
Phone:(708)427-3555
Fax:(708)427-3556
Hours:M-F8:30-5:00CST
www.bodysolid.com
Copyright 2009. Body-Solid. All rights reserved. Body-Solid reserves the right to change design and specications when we feel it will improve the product.
Body-Solid machines maintain several patented and patent pending features and designs. All rights reserved on all design patents and utility patents.
PLEASE WRITE YOUR SERIAL NUMBER IN THE BOXES BELOW
S/N# 010192-��-��-����-����
