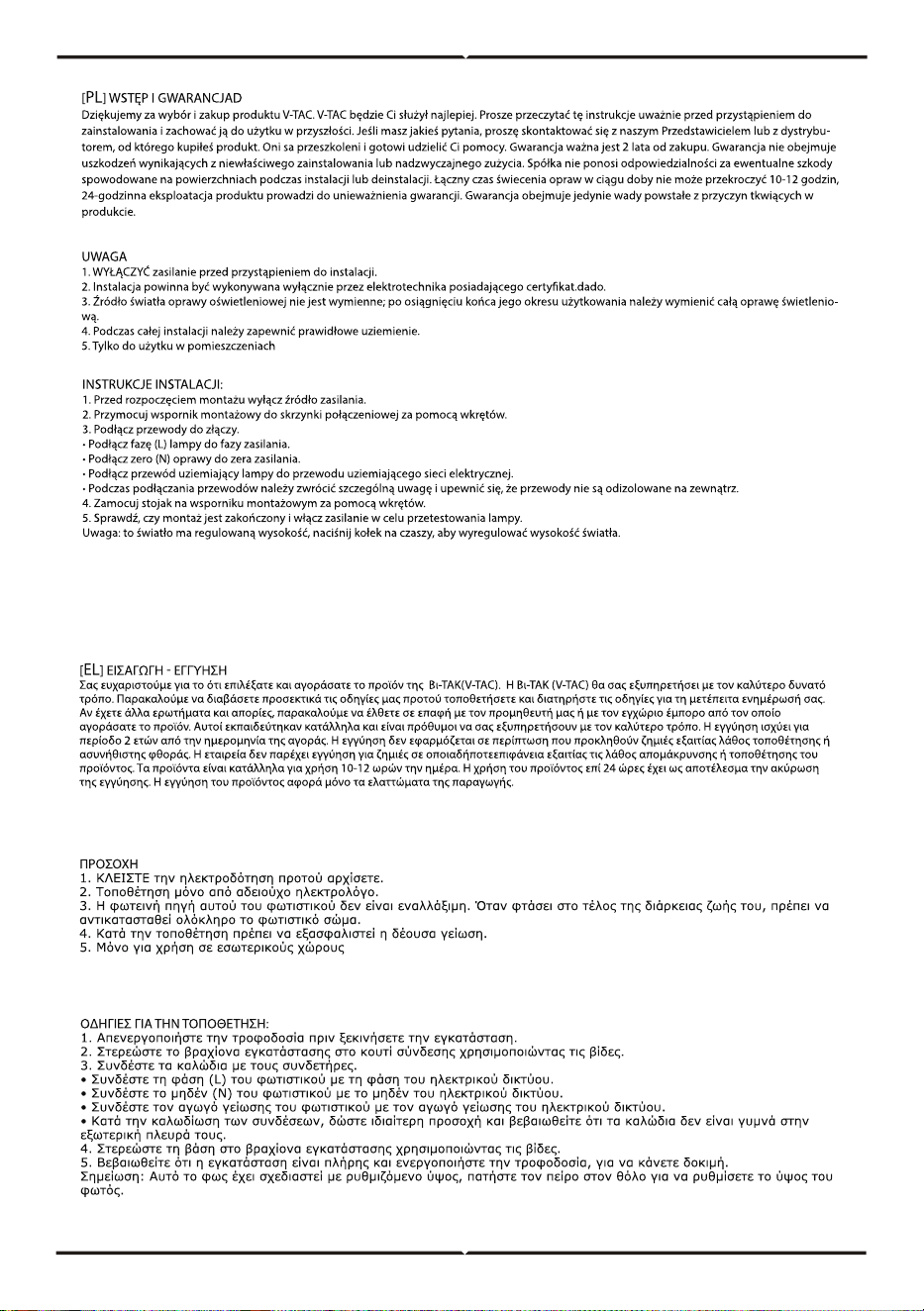

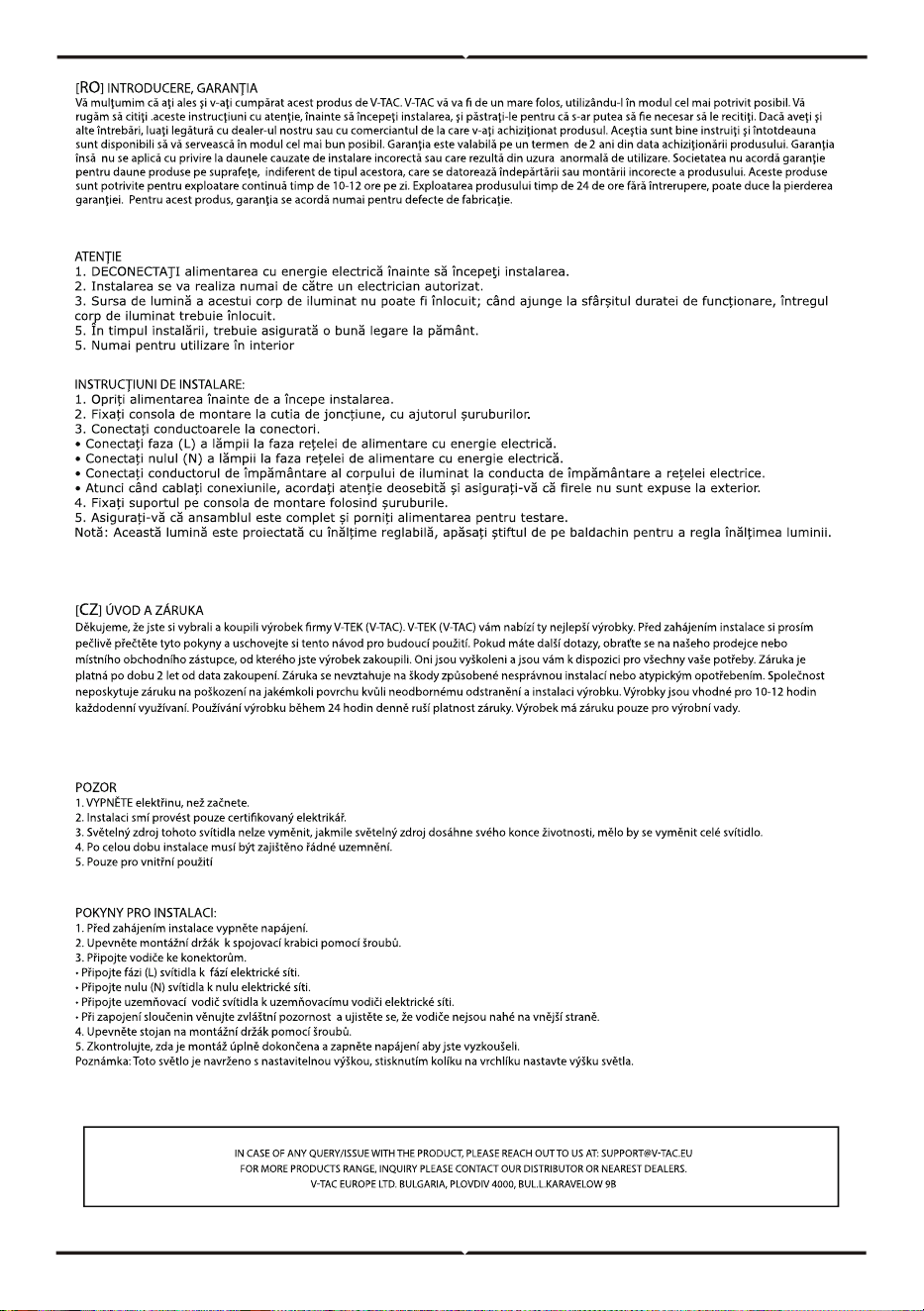

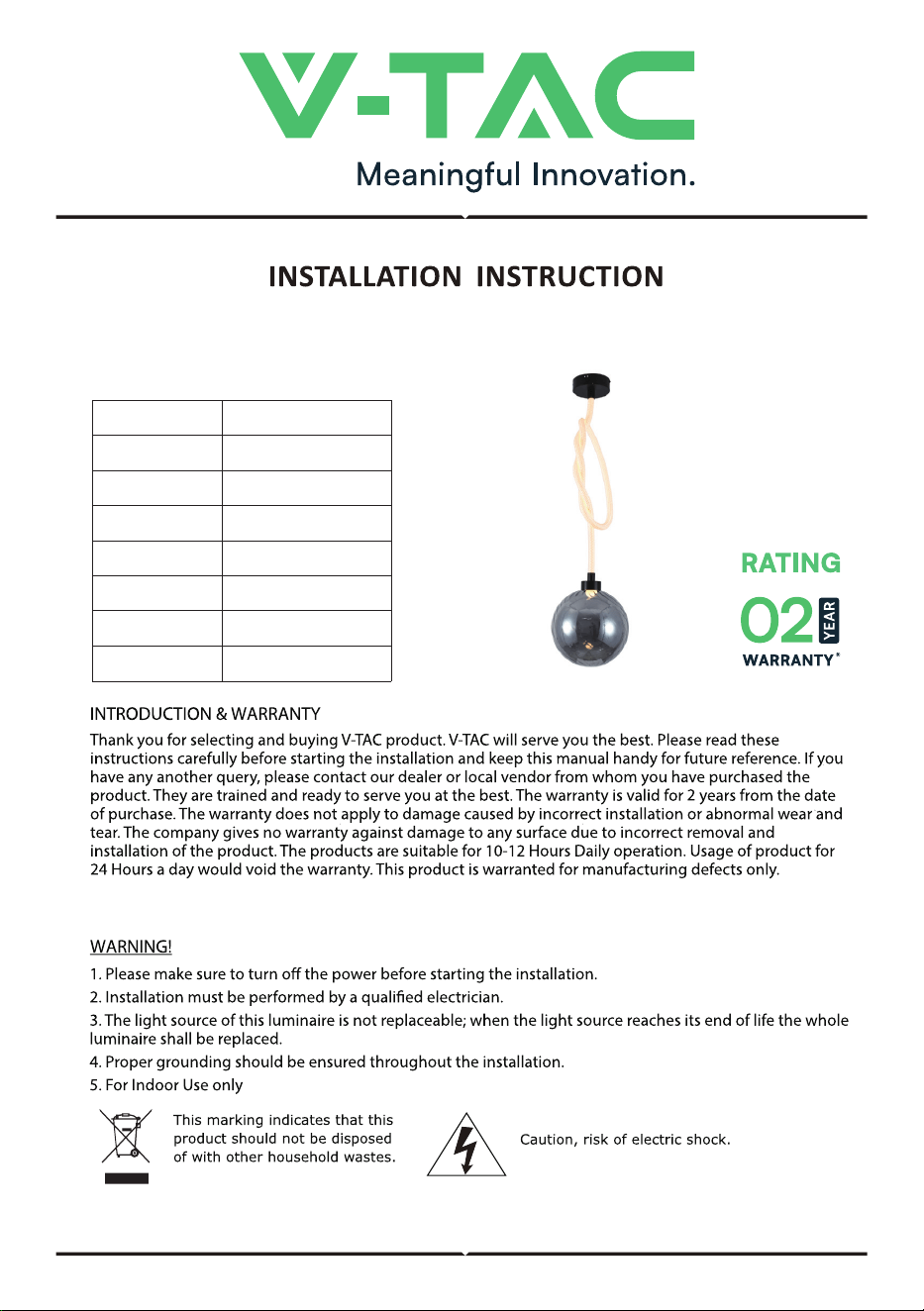

TECHNICAL DATA
SKU 24282/24283
LED DESIGNER HANGING LIGHT
MODEL VT-84037/VT-84038
WATTS 20W
LUMENS 1900 LM
BEAM ANGLE 360°
MATERIAL Metal+Glass
SIZE
SKU 24282:D230xH1800MM
SKU 24282:D120xH1800MM

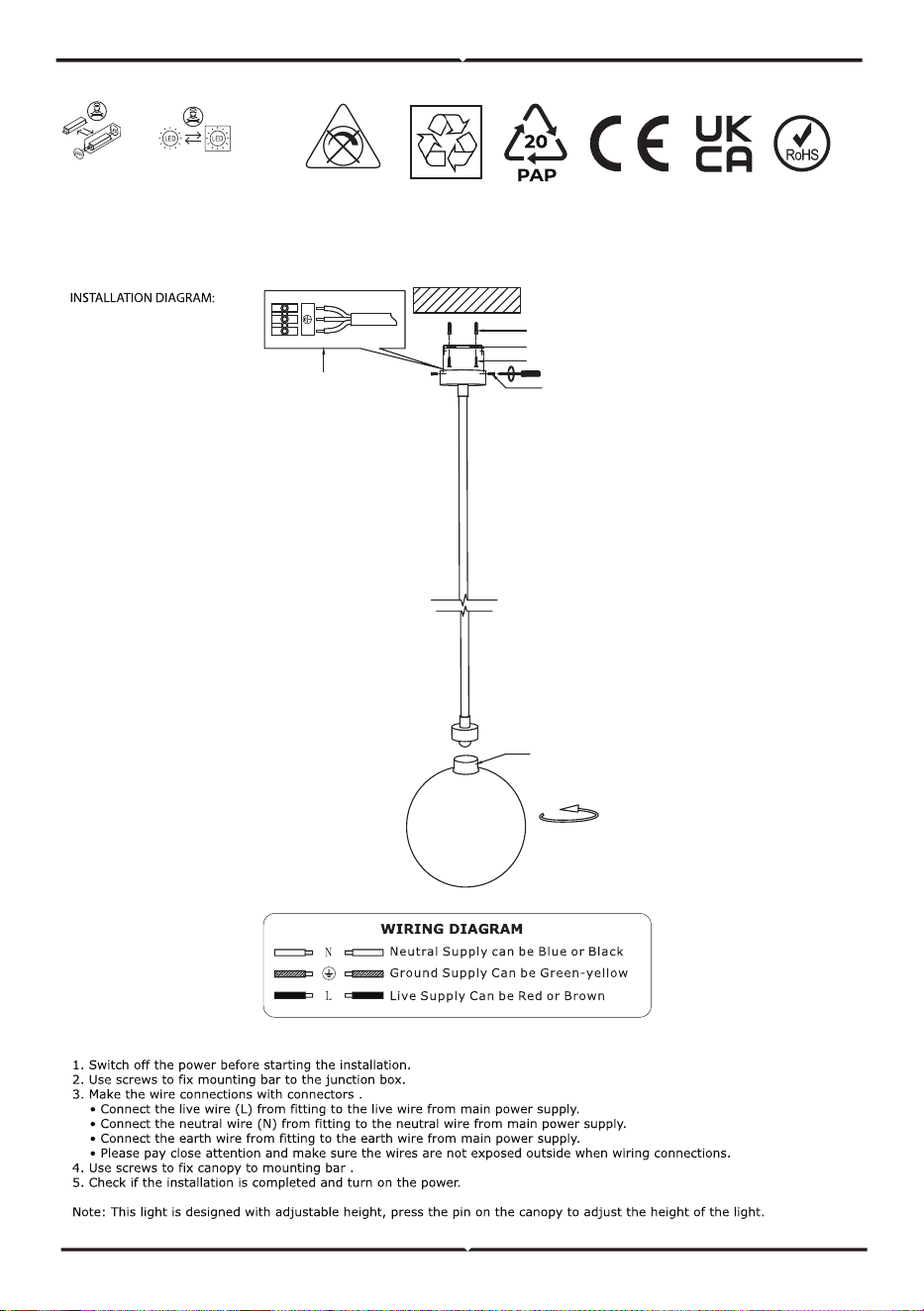

INPUT POWER AC220-240V,50/60Hz
IP20
Not Dimmable
Replaceable (LED only)
light source by a professional
Replaceable control
gear by a professional
1
2
3
4
5
6
NL

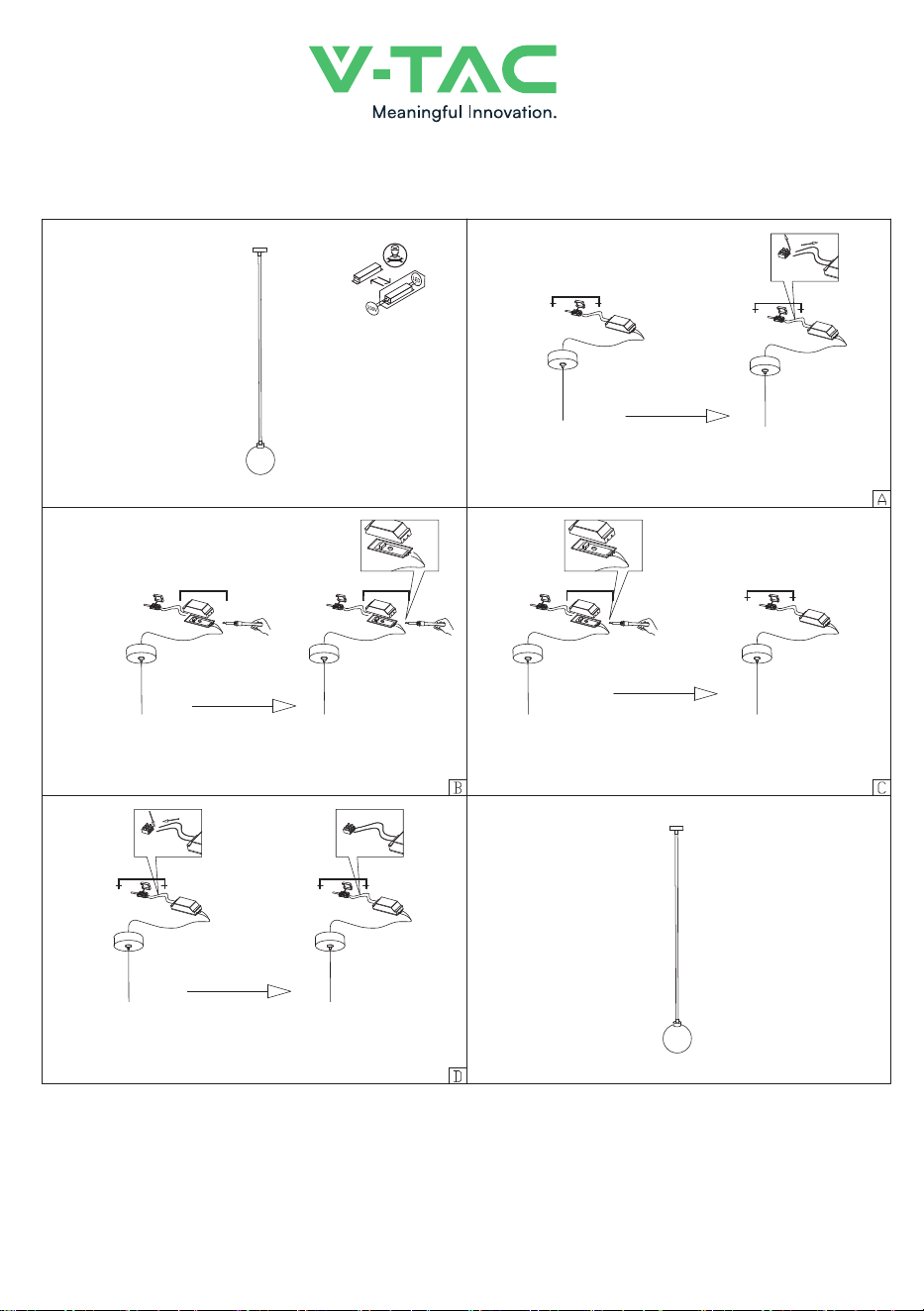

Replaceable control
gear by a professional
Loosen the screws on the L and N terminal blocks of
the LED pendant lamp and withdraw the L and N
wires.
Open the driver housing; melt the solder joints with
a soldering iron and remove the driver module.
Solder the driver’s “+ / –” pads to the corresponding
“+ / –” pads on the luminaire’s main PCB, then
re-seal the driver cover.
Re-insert the driver’s L and N leads into the terminal blocks
and tighten the screws with a screwdriver.
after treatment
after treatment
after treatment
after treatment
红
黑
L
N
红
黑
红
黑
红
黑
红
黑
红
黑
红
黑
红
黑
L
N
红
黑
L
N
红
黑

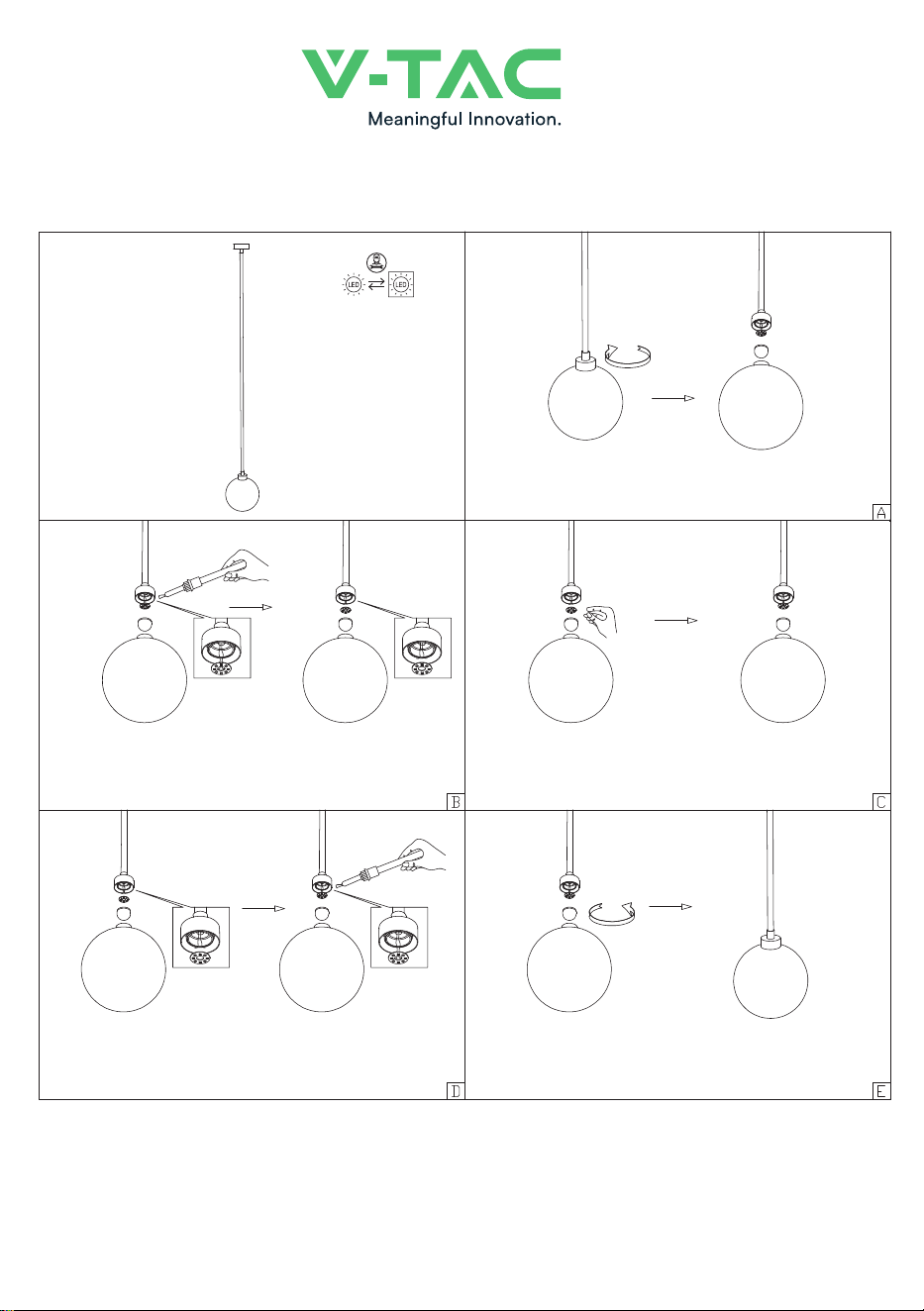

Take off the silicone cover
aer treatment
aer treatment
aer treatment
aer treatment
Use an electric soldering iron to melt
solder,then remove the strip light.
Remove the old strip light and replace
it with a new one
Use an electric soldering iron to connect
the strip'+-'pole with the wire '+ -'pole.
Use a screwdriver to lock the plasc screw and
install the silicone cover .
aer treatment
Replaceable (LED only)
light source by a professional
