iBasso Audio
USER GUIDE
用户手册
Contents
Android Basic Features Introduction
WiFi Connection/Bluetooth Connection
Package Components
Main Features
Specifications
Names of Parts & Functions
9-10
7-8
2-6
11-15
18-30
iBasso Mango Music Player Application
31-63
18-20
Charge
16-17
Application (APP) Installation/App， to Uninstall/USB Connections
21-23
Power Off/Reboot/System Switching
30
Playback Screen (home screen)
31-33

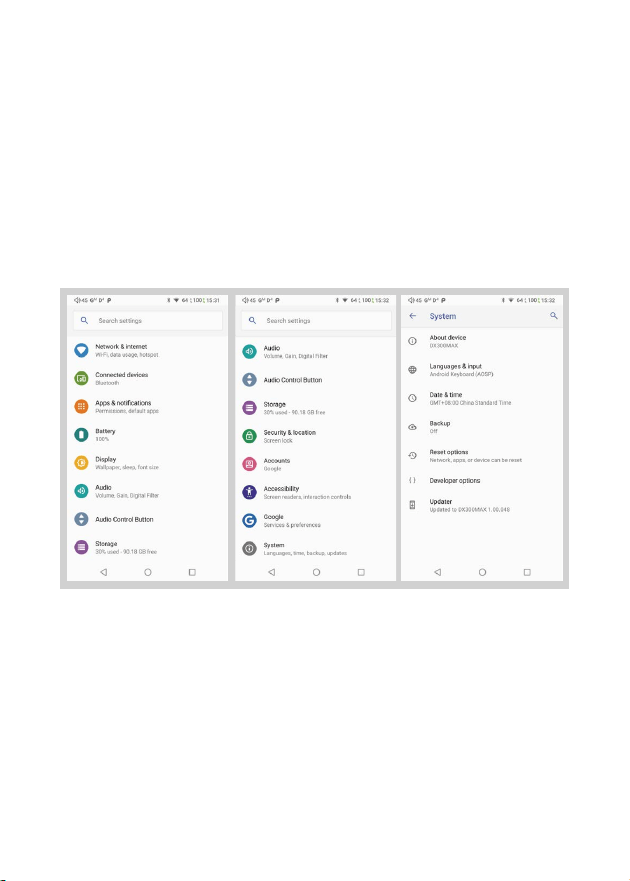

System Settings
24-29

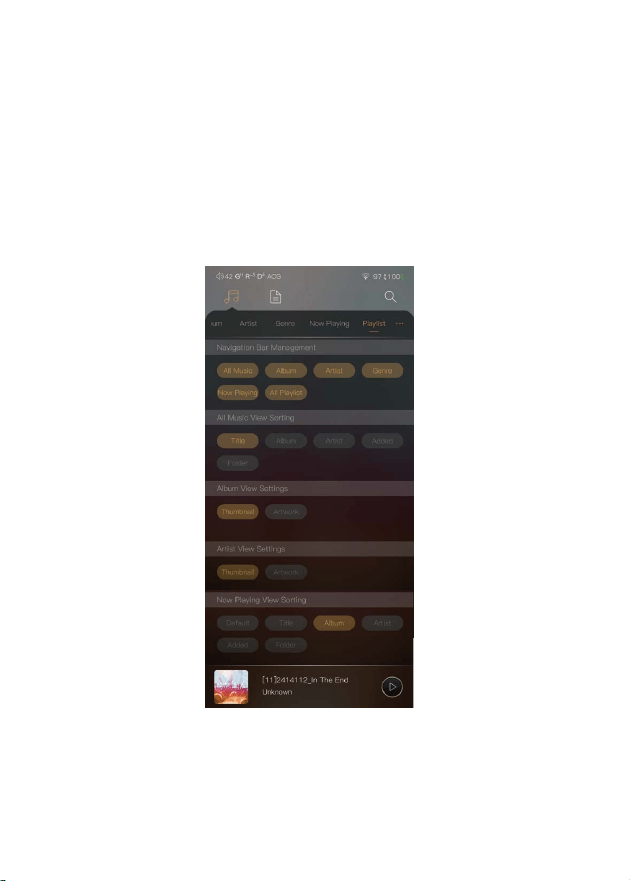

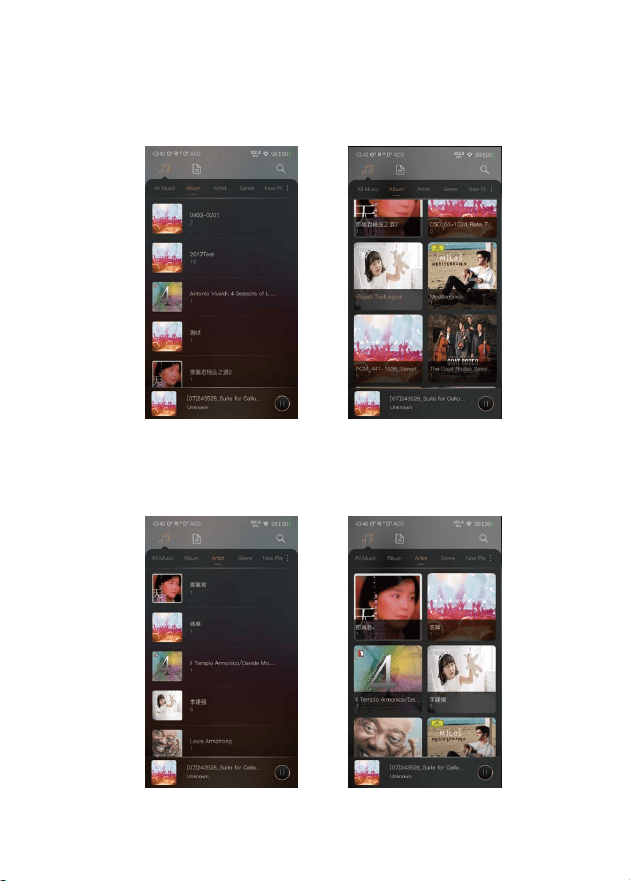

Music Screen
34-42
Settings Screen
43-63
System Switching
64
Mango OS
64-67
MQA
68

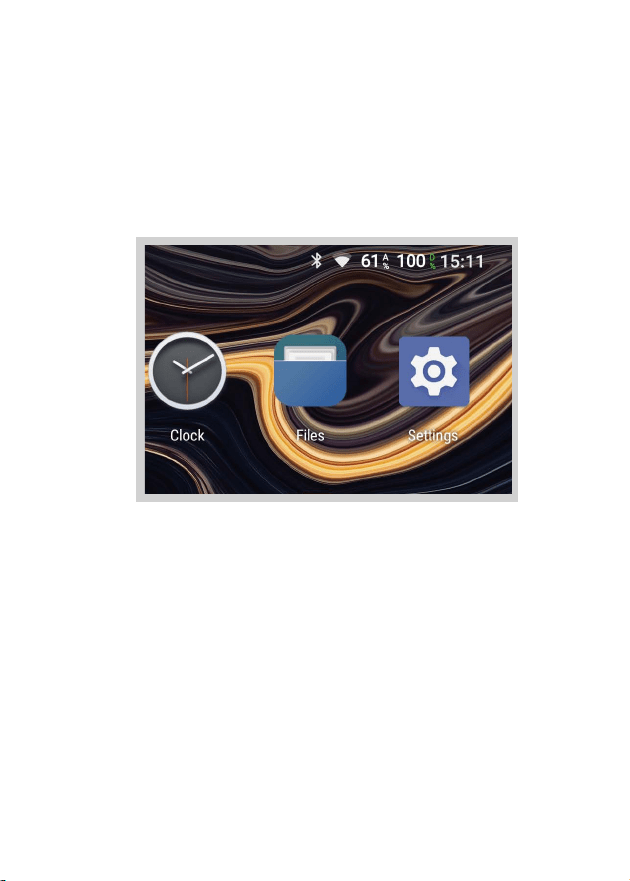

Mango OS User Interface
65
To Return to The Android System
66
MTP
67
2

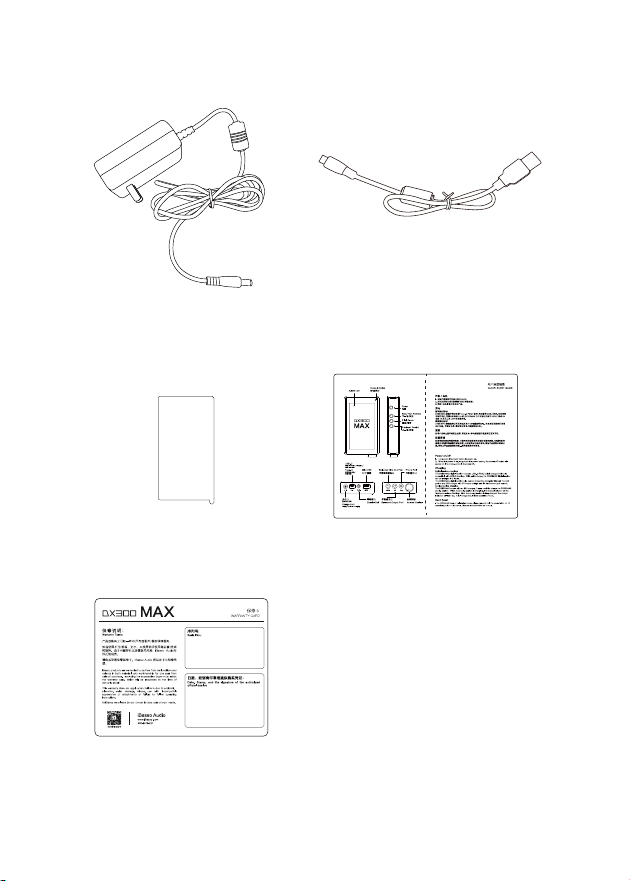

Package Components
DX300MAX player
4.4mm balanced to 3.5mm
single ended cable
CA02 2.5mm balanced to
4.4mm balanced adapter
Coaxial cable Balanced burn-in cable
Leather case
3
USB-C cable
Screen protector Quick start guide
Warranty card
AC adapter (12V/1.5A)
4
USB-C cable：
Coaxial cable：
Connect the coaxial cable to an external DAC, to allow the
DX300MAX working as a digital transport.
AC adapter (12V/1.5A)：
Use this AC adapter to charge the battery of the analog
section.
4.4mm balanced to 3.5mm single ended cable:
CA02 2.5mm balanced to 4.4mm balanced adapter:
To output a 3.5mm single ended line out from the 4.4mm
balanced line out port.Be aware that this cable is one
direction. It cannot be used for the output from a 3.5mm
port to a 4.4mm input.
Connect the USB-C cable to a computer for charging,
data transfer, and USB-DAC function.The USB-C cable
can also be used with a USB charger to charge the
battery of the digital section.
To convert a 2.5mm balanced plug to a 4.4mm balanced
plug.The furnished burn-in cable is 2.5mm.Therefore,
please use this CA02 with the 2.5mm balanced burn-in
cable when you want to burn-in the DX300MAX.
Balanced burn-in cable：
Plug the burn-in cable with the CA02 into the BAL output
socket, and keep playing music to burn-in the DX300MAX.
The burn-in process helps the DX300MAX's sound reach its
full potential by forming the capacitors and stabilizing the
electronic components used.
5
Leather case：
Use the leather case to protect the DX300MAX’s chassis
from scratches.
Screen protector：
Use the screen protector to protect the DX300MAX’s
screen from scratches.
Warranty card：
The warranty will be requested at the time of warranty
repair. Please retain the warranty card.
Quick start guide:
This reviews the basic functions of the DX300MAX.
6
Tips for burn-in
The use of the burn-in cable is very straightforward. The
burn-in cable is used to form the capacitors and to condition
the rest of the circuitry. The method for burn-in is to use
normal resolution music, as higher resolution causes more
heat due to the higher demand on the system. Also, use a
normal listening volume, as the higher volume will have a
higher power consumption therefore more heat will be
generated. While burning in the DX300MAX, both the
balanced and the single ended components are being
affected and burned in.
The burn-in time can be from 100 to 200 hours and the
burn-in doesn't have to be continual. You can power off the
player and continue the burn-in process after a few days. It
is also not mandatory to use the burn-in cable, we supply it
as a convenience for when you are not listening to the
DX300MAX and you would like to get your dap conditioned
as soon as possible. You can also just listen to the player
and enjoy the music as your player goes through this process
while playing through IEMs or headphones.
7
Main Features
-
The digital and analog sections of the DX300MAX are
powered separately, with each having an independent
charging system. The digital and analog hardware and signal
communications, adopt optocouplers and I2C isolators to
completely isolate the digital to analog sections from any
interference.
-
The AMP section is powered by a true +/- 8.4V battery
pack. No voltage boost is used, which ensures the highest
purity and current output.
-
An optimized super class A discrete amp circuit, based on
the AMP8 module, which eliminates the switching distortion
of transistors, while providing the sound signature of a class
A amplifier, that also significantly reduces heat generation,
is used.
-
The DX300MAX has versatile outputs that incorporate a
4.4mm balanced line out, 4.4mm balanced phone out, and a
3.5mm single ended phone out. The voltage output of the
3.5mm single ended is up to 4.4V RMS, and the balanced
phone out is up to 8.8V RMS.
-
Electrolytic capacitors are used in the DX300MAX.
-
A custom 4-wiper potentiometer that has less than +/-2dB
channel tolerance has been selected.
-
Dual AK4499EQ DAC Chips are incorporated.
-
Bit for Bit playback with support up to 32bit/768kHz.
-
Support of Native DSD up to 512x.
-
5.0" IPS screen (1080*1920), with On Cell capacitive touch
panel.
8
-
-
FPGA-Master, a dedicated control of the audio system.
Support of QC3.0 and PD3.0 quick charge for digital section.
-
2 Accusilicon ultra-low phase noise Femtosecond oscillators.
-
USB DAC function that supports up to 32bit/384kHz and DoP
DSD128.
-
14nm Octa-Core Qualcomm Snapdragon 660 SoC.
-
6GB LPDDR4X + 128GB ROM.
-
USB digital output that outputs up to PCM 32bit/384kHz,Na-
tive DSD256, and DoP DSD128.
-
Mini coaxial output that supports up to 24bit/384kHz and DoP
DSD128.
-
Support of 2.4G & 5G WiFi, Bluetooth 5.0.
-
Support of SDXC and SDHC Micro SD cards.
-
Support USB3.1 Superspeed transfer.
-
3 settings for hardware gain control.
-
Audio Formats Supported: MQA, APE, FLAC, WAV, WMA, AAC,
ALAC, AIFF, OGG, MP3, DFF, DSF, and DXD.
-
Support for M3U playlists.
9
Specifications
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
8.8VRMS (NO LOAD)
8.8VRMS (@300ohm)
6.5VRMS (@32ohm)
10Hz-40kHz (+/- 0.3dB)
125dB
125dB
-114dB (NO LOAD)(1k/48kHz/24bit,8.8VRMS, DAC100)
-111dB (@300ohm)(1k/48kHz/24bit,8.8VRMS, DAC100)
-101dB (@32ohm)(1k/48kHz/24bit,3VRMS, DAC81)
-110dB
4.4VRMS (NO LOAD)
4.4VRMS (@300ohm)
4.0VRMS (@32ohm)
10Hz-40kHz (+/- 0.3dB)
122dB
121dB
-111dB (NO LOAD)(1k/48kHz/24bit,4.4VRMS,DAC100)
-107dB (@300ohm)(1k/48kHz/24bit,4.4VRMS, DAC100)
-101dB (@32ohm)(1k/48kHz/24bit,1.5VRMS, DAC81)
-110dB
4.4mm Headphone Out :
3.5mm Headphone Out:
10
Output Level：
Frequency Response：
S/N：
Dynamic Range：
THD+N：
Crosstalk：
4.4VRMS (NO LOAD)
10Hz-40kHz (+/- 0.3dB)
125dB
125dB
-114dB (NO LOAD) (1k/48kHz/24bit,3VRMS, DAC93)
-108dB
16 hours (Standard mode)
11 hours (Ultimate mode)
(The play time varies with different
resolutions and headphone/IEM loads.)
4.4mm Line Out:
Average Play Time:
Charging time：
Digital Section Charging：
2 hours
3 hours
Analog Section Charging：
11
Names of Parts & Functions
5.0inch LCD Charge indicator
Power
Next/ Fast Forward
Play/ Pause
Previous/ Rewind
Single Ended PortMicro SD Balanced Line Out
Port
USB-C
Digital Section Charging/
Data Transfer
Charge Port Coaxial Out
Balanced Output Port Volume Control
Analog Section
Charging
12
Coaxial Output Port:
Use the furnished coaxial cable to play music stored in the
DX300MAX on an external device with a coaxial input port.
Coaxial output has the highest output priority which would close
the phone out or line out when coaxial cable plugged in. The
output of this port is up to 24bit/384kHz and DoP DSD128.
Volume Control
Turn clockwise to increase the volume, turn counterclockwise to
decrease the volume.
USB-C Port
Connect the DX300MAX to a computer or a USB charger to
charge the DX300MAX’s digital section.
Connect the DX300MAX to a computer to allow the DX300MAX
to work as a card reader or an external storage.
Connect the DX300MAX to an OTG storage device to play music
files stored in this OTG storage device.
Connect the DX300MAX to a PC or a Mac computer to work as
a USB DAC.
4.4mm Line Out Port:
Use a 4.4mm interconnect cable to play music stored in the
DX300MAX on an external amplifier with a balanced line in port.
Use the furnished 4.4mm to 3.5mm interconnect cable to play
music stored in the DX300MAX on an external amplifier with a
3.5mm single ended line in port.
Power/System Switching
Short Press， Power the LCD screen on and off.

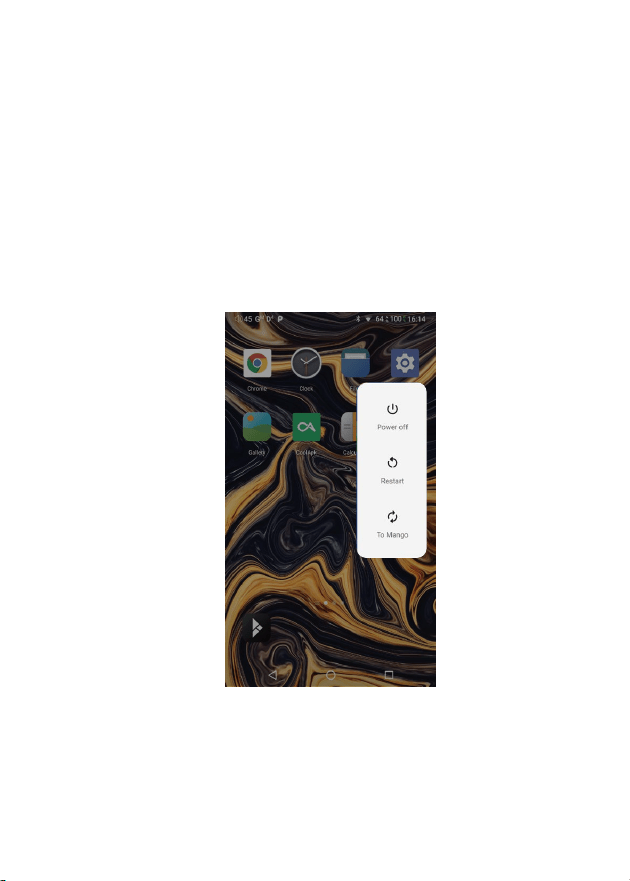

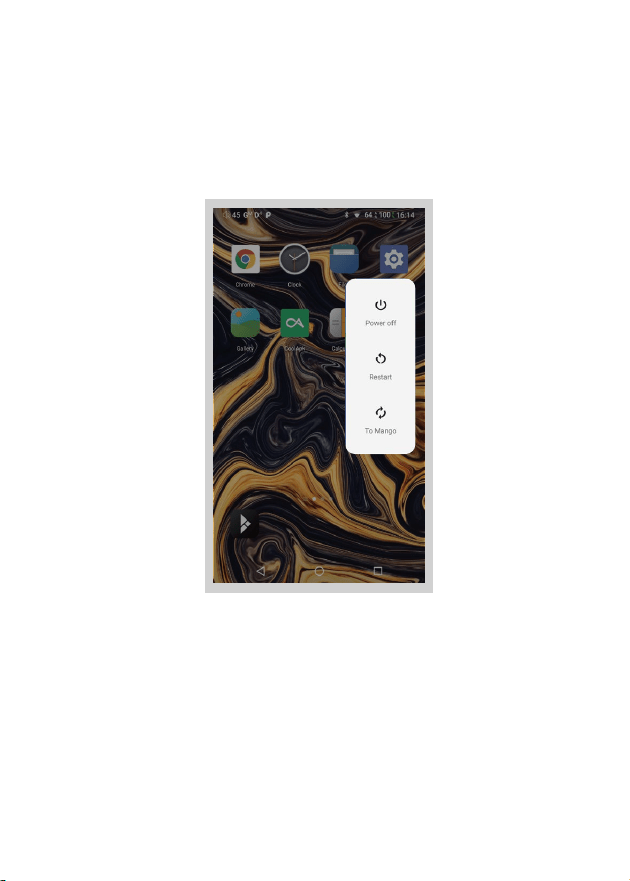

Long Press， To display the pop up window with three options that
are Power off, Reboot, and To Mango.
13
3.5mm Phone Out Port
Plug in the 3.5mm single-ended monitor and output sound
through the phone port.
4.4mm Balanced Phone Out Port:
Plug in the 4.4mm (2.5mm with adapter) balanced earphone and
output sound through the balanced phone port.
Micro SD Card Slot
Insert a Micro SD card into the DX300MAX to access its stored files.
14
Power on/off:
1. Press and hold the power button to power on.
2. After the DX300MAX has been powered on, a long press of the
Power button to display the pop up window, press Power Off button
to power off the DX300MAX.
Power on/off the screen:
Single press the power button to power on/off the screen after
the DX300MAX was powered on.
Reset:
When the DX300MAX stops unexpectedly during operation and the
keys are no longer responsive, press and hold the power button
for 10 seconds to reset the DX300MAX.
Connecting to a computer to work as a USB DAC:
Basic Operation:
The DX300MAX can work as a USB DAC for Windows PC,
Mac computer, and Linux computer. It is driver free. To turn the
DX300MAX into the USB DAC mode, connect the DX300MAX
to a computer via the USB-C cable. After the DX300MAX is
detected, the soundcard driver will be installed automatically.
Now, you can select the DX300MAX as the audio output device
and use it as the USB soundcard. The DX300MAX supports up
to 32bit/384kHz PCM, and DoP DSD up to 128x when be used
as a USB-DAC. On Windows OS, the USB DAC function supports
WASAPI.
15
The following are the instructions to function as a USB DAC.
USB DAC function that supports up to 32bit/384kHz and DoP
DSD128.
1. Power on the DX300MAX.
2. Press the DAC on button on Settings/DAC.
3. The“USB DAC”screen will be shown on the DX300MAX.
4. Connect the DX300MAX to a computer via the furnished
USB-C Cable.
5. Select “iBasso Audio HiFi device” as the audio output device.
Then one can play music on the computer and listen it via the
DX300MAX.
Charging the Analog Section:
Charge
16
With the furnished AC adapter (12V/1.5A), the analog section can
be fully charged in about 2 hours. The battery indicator and status
of the analog section is displayed in the upper left corner, the first
from the left is the battery indicator, the second one is the battery
status. The indicator will display the lightning symbol when
charging, and it will show a red exclamation mark when the
battery is empty. When the battery of the analog section is empty,
the amp function cannot be used. At this time, the digital section
would not be affected. But there will be no sound when using the
3.5mm phone out, 4.4mm balanced phone out, or 4.4mm line out.
D
%
17
Charging the Digital Section:
The digital section of the DX300MAX can be charged via the
USB-C port. The USB charge supports PD3.0, QC3.0, quick
charging protocols, and the charging time is about 3 hours. The
status bar of the digital section is located at the upper right.
The third from the right is the battery indicator, and the second
from the right is the battery status. When charging, the battery
icon will display a lightning icon. When the battery is 0%, the
DX300MAX will be powered off.
18
Battery indicator
for analog section
Battery indicator for
digital section
WIFI
Time
DAC Volume
Digital Filter
Gain
Android Basic Features
Introduction
19

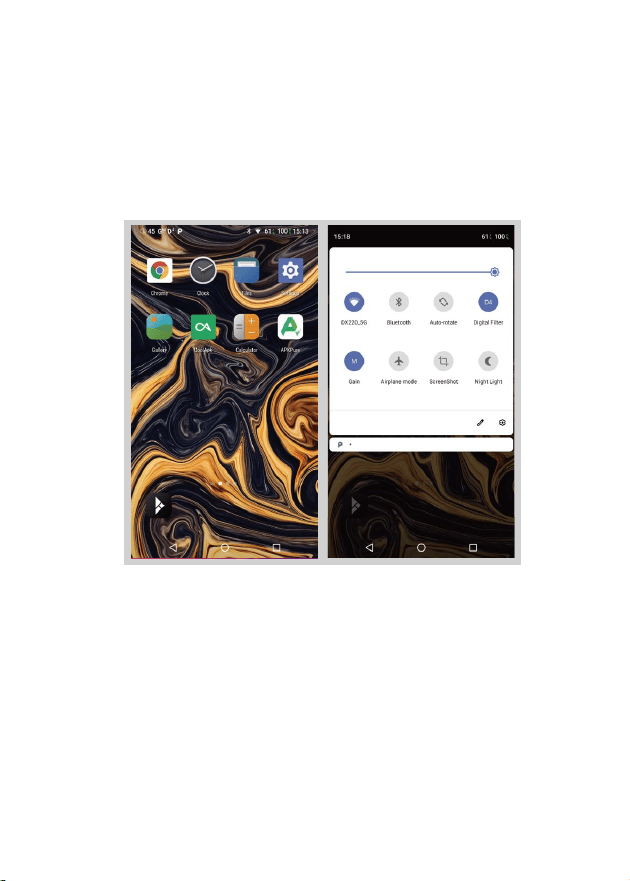

WiFi Connection:
① On the Android desktop, from the top, swipe down
the screen to display the notification bar.
② Press the Wireless local area network(WLAN) to turn
on the WiFi function. The first time you enter the WLAN,
you need to choose the hot spot you will be using and
enter the password. From this point forward your
password for this hotspot will be remembered and you
simply press the WLAN icon to connect to the WiFi
internet.
20

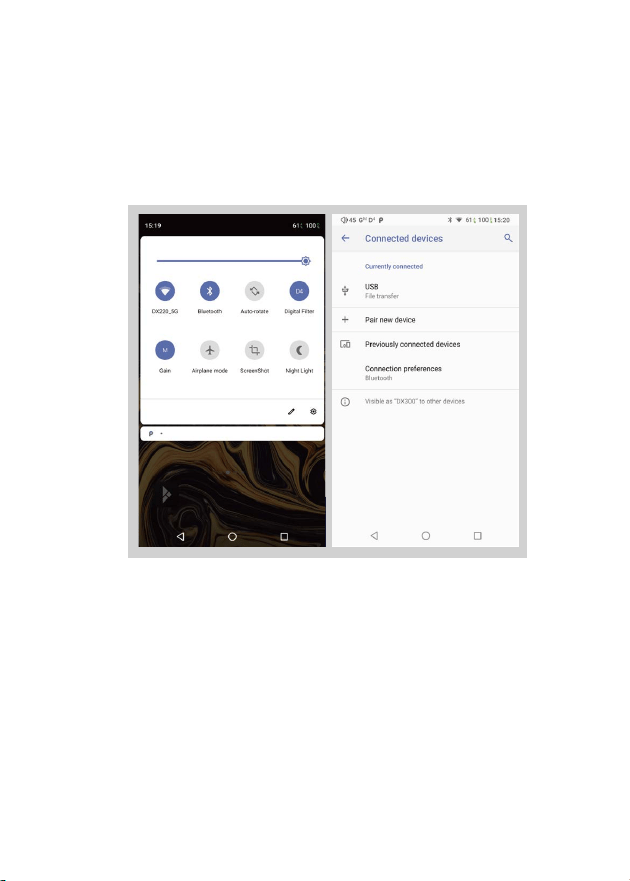

Bluetooth Connection:
① On the Android desktop, swipe down from the top
of the screen to display the notification bar.
② Press the Bluetooth icon to turn on the Bluetooth
function. The DX300MAX will automatically search for
the nearby Bluetooth device. At the same time, the
DX300MAX will be visible to the nearby devices.
Choose the device that you would like to pair with.
After the device has been paired, you can use the
DX300MAX in the Bluetooth mode.
APP Installation:
21
Method 1:
① APKPure and CoolAPK are pre-installed on the
DX300MAX. They are similar to Play Store.
② Launch one of them.
③ Search for the APP that you would like to install.
④ Download the APP and install it.

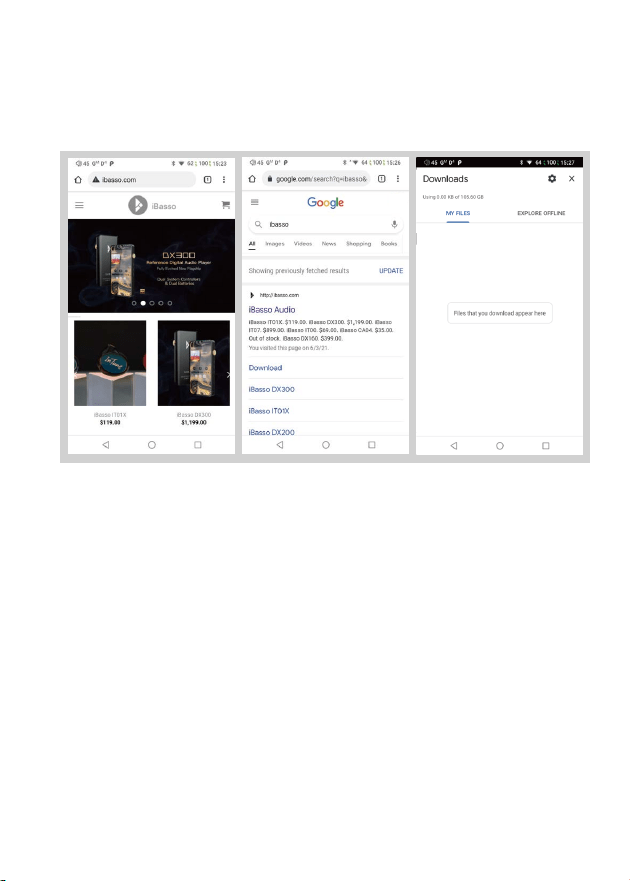

Method 2:
① Press the internet browser on the desktop.
② Enter the website address of the APP.
③ Find the download icon on the website and start
the download.
④ Return to the desktop and open download
manager.
⑤ Press the on downloaded app and install it.
App, to Uninstall:
22

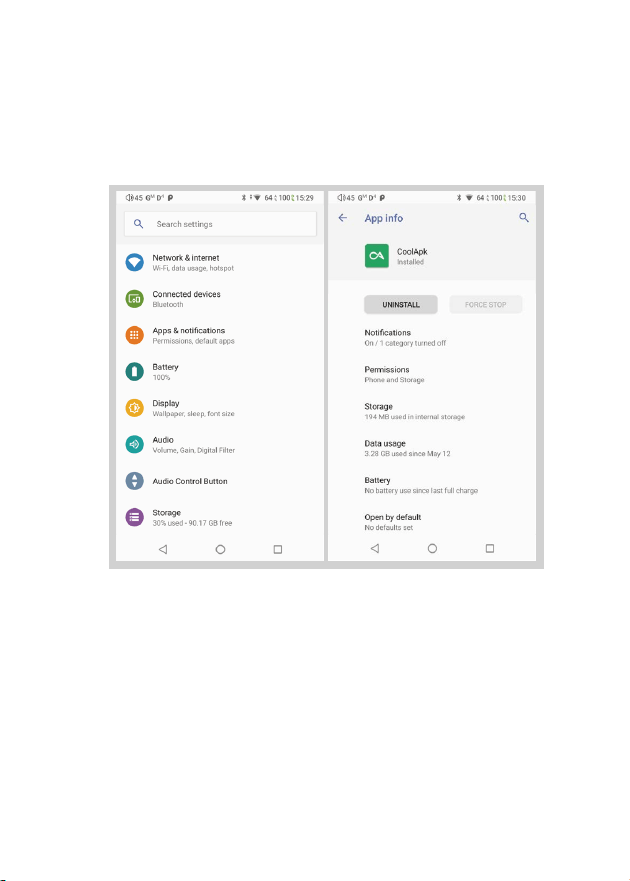

① Press the Settings icon on the desktop and scroll
down and press APPs.
② Press the APP that you would like to uninstall.
③ Press uninstall to delete the APP.
23
USB Connections:
Connect the DX300MAX to the computer using the furnished
USB-C cable. The DX300MAX will show on the computer as
an external storage. Users can transfer files by copying
and pasting.
*If you are using a Mac computer, please make sure the
MTP software Android File Transfer is installed.
24

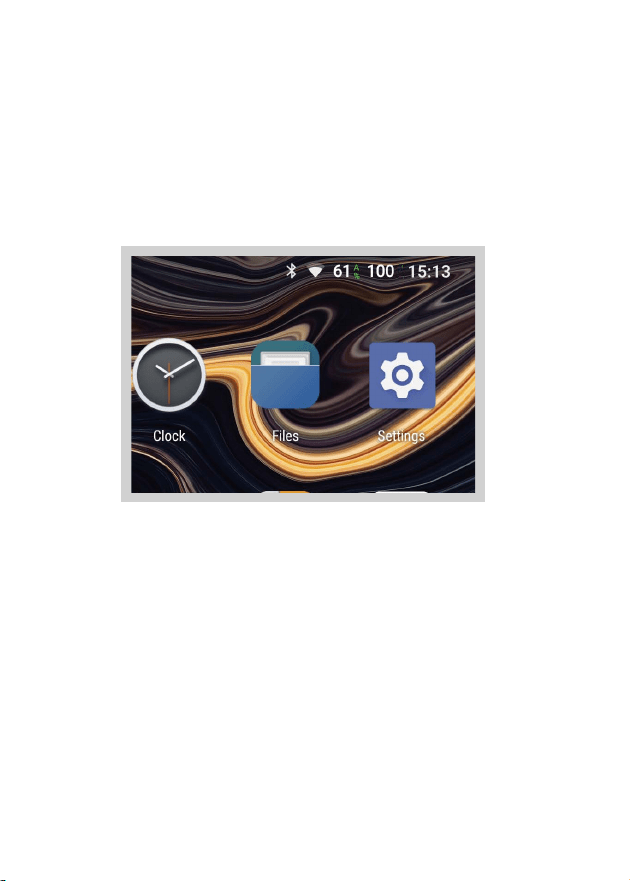

System Settings:
Press Settings icon on the DX300MAX desktop to go into system
settings.
25
Audio Settings:
① DAC Volume:
Set the output of the DAC. We recommend setting the value
between 80-100 to get the best result.
② Gain:
One of the three gains can be selected.
Press Settings Icon, then press Audio Settings.
2
Ultimate mode
26
③ Digital Filter:
A total of six filters are available for user setting.
④Volume Limitation:
This sets the volume to a maximumpresetpoint.
⑤ Ultimate mode:
When Ultimate mode is turned on, all 8 DAC channels of the
two AK4499 will be utilized. The current consumption will be
higher and due to this, playtime will be shortened when using
the battery and the heat generation will be higher, especially
when playing high resolution music. When Ultimate mode is
turned off, 2 DAC channels of each AK4499 will be utilized.
⑥ Volume Control Wheel:
Volume control wheel enabled after the screen is off.
Firmware Update:
27

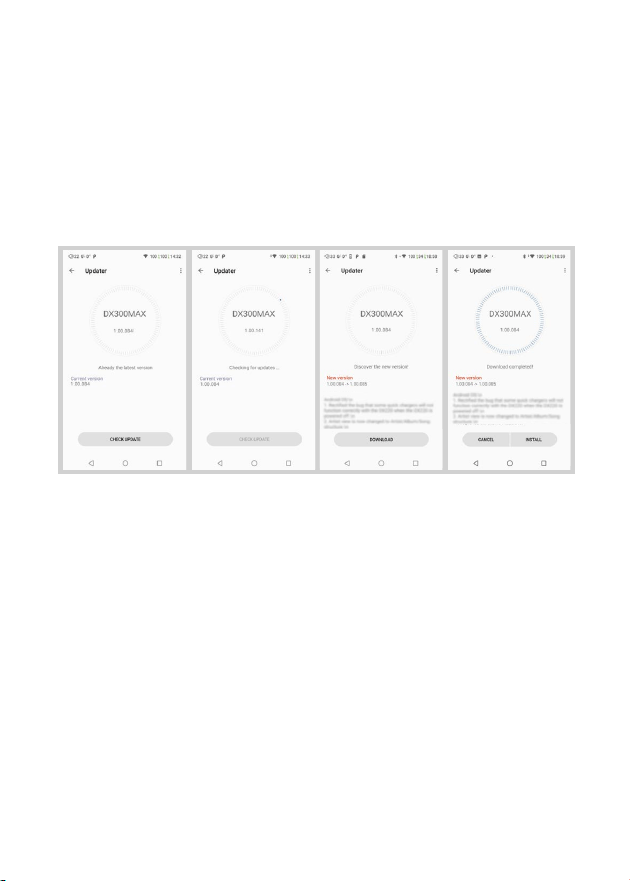

Online Update:
① Make sure the DX300MAX is connected to WiFi.
② After online update is selected, press Check Update.
③ Press Download, the DX300MAX will start downloading
the available update package.
④ After the download complete, press Update Now to
start the firmware update.
28

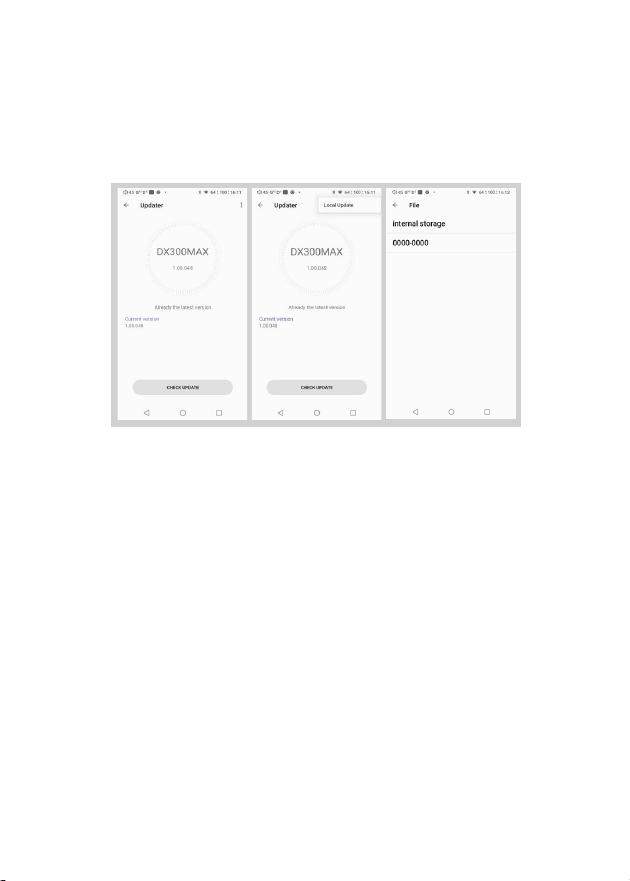

Local Update:
① Download the firmware file from our website.
If it is a rar file, extract it.
② Press the icon located on the top right corner,
then press Local Update.
③ Browse the folder where the firmware file is saved,
and select the firmware file.
④ Press Update Now to start the firmware update.
29
Firmware Version:
① Press Settings icon, System, About DX300MAX.
② Scroll down the page, the Build number is the
firmware version.
Power Off, Reboot, And
System Switching:
① Long press the power button for 3 seconds.
② There is a pop up window with three options.
③ When To Mango is selected, system will be
switched to Mango OS.

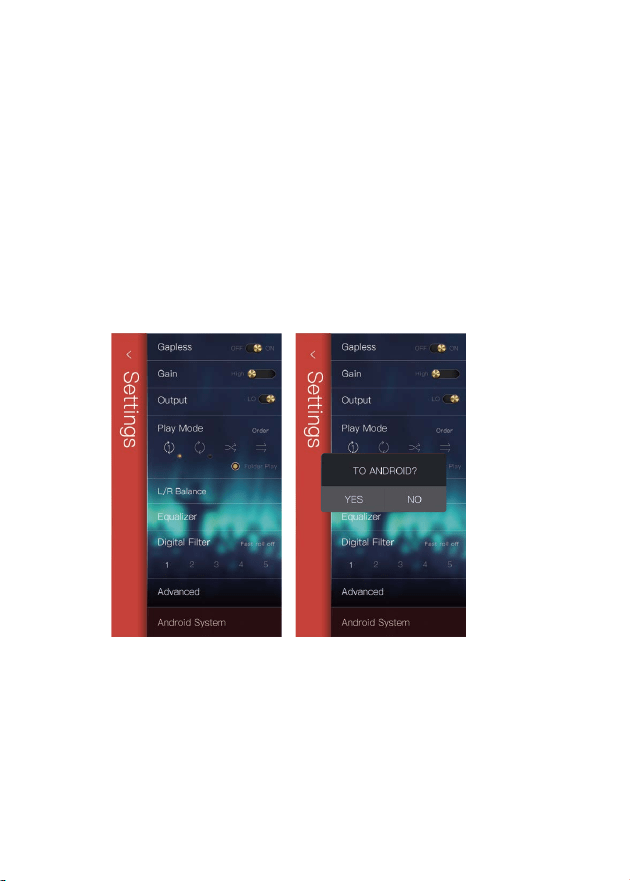

④ To return to the Android System, go into the
settings menu, press “Android System”, then
press “Yes”.
30
iBasso Mango Music Player
Application
31
iBasso Audio Mango music player is composed of the Playback
screen (home screen), Music screen and Settings.
When on the playback screen, one can swipe left and right on
the Album artwork area ③ to switch a song: Press the icon on
the top left corner ① to go into Music Screen.
Press the icon on the top right corner ② to go into Settings.
No matter which sub screens of the Music Screen you are
browsing, press the thumbnail icon on the bottom left to return
to the playback screen.
①
②
③
④
32
Playback Screen (home screen):
Music screen
Settings
Battery indicator for
digital section
Scanning
Volume
Battery indicator for
analog section
Gain
L/R Balance
Digital Filter
Equalizer
Bit rate
Track title
Artist name
Album name
Music info
Previous/Rewind
Play Mode
Next/Fast Forward
Play/Pause
33

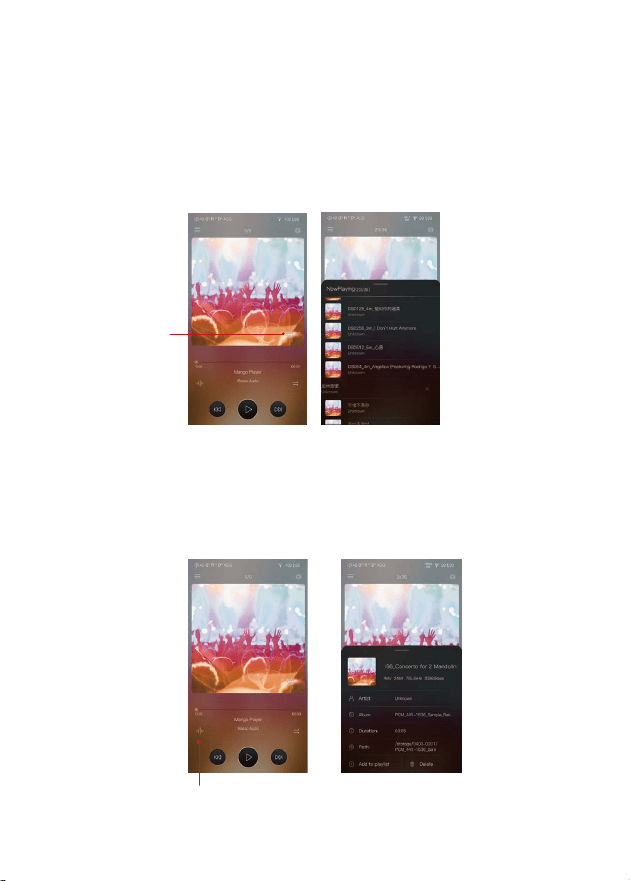

Now Playing Screen:
Music Info Screen:
Click on the track number icon ① to display the now playing screen.
One can swipe a song to the left to display the Delete button. Press
Delete to delete it from this playlist.
Press the Music info icon ②, the album artwork will show the
music info. Press the music info icon again, it will return to
album artwork.
①
②
6
Detail View:
Press the detail view icon to browse the scanned library.
Directory View:
Press the directory view icon to browse in file structure.
34
Music Screen:
Search bar ③
Directory view ②
Detail view ①
Navigation bar ④
Playback bar
Thumbnail artwork
⑦
Play/Pause
Track title and artist name
of the song that is playing.
Now playing
Music format
Long press
⑤
Music Info Screen
Music order
Tracktitle
/Artist name
Navigation bar
management
⑥
Search bar:
Press the search bar to go into the search page to search
the desired music or album.
Navigation Bar:
One can swipe it left or right to choose: All Music view,
Album view, Artist view, Genre view, Now Playing view,
or Playlist view.
Long Press:
Long pressing a song will pop up a window with more
options.
Navigation Bar Management:
To customize the navigation bar and music screen.
Thumbnail artwork:
Press to return to the playback screen.
35
Further Options:
Long Press of a song will pop up a window with further
options that allows to play this song, add this song to a
playlist, or delete this song.
Long Press Pop-up:
36
Artist View:
Thumbnail view Artwork view
Thumbnail view Artwork view
37
Album View:
38
Further Options:
A Long press of the playlist will pop-up a window with further
options, which allows renaming the playlist, exporting the
playlist, or deletion of the playlist.
The playlist can be found on the internal storage of the
iBasso/mango player folder, after the playlist has been
exported.
New Playlist:
Press the New Playlist to create a playlist. On the pop-up
window, one can name the playlist and add playlist description.
Playlist View:
39
Press the icon located on the right side of the navigation bar to
go into the navigation bar management and music sorting screen.
Navigation Bar Management Screen:
40
Navigation Bar Management:
One can customize the navigation bar. When selected,
the icon is highlighted. Press the icon again to unselect.
The selected icon will be shown on the navigation bar.
Otherwise, it will not be shown.
All Music View Sorting:
One can sort the all music view by title, album, artist,
added time, or folder.
Now Playing View Sorting:
One can sort the Now Playing by title, album, artist,
added time, or folder.
Album View Settings:
One can choose between the thumbnail view and
artwork view.
Artist View Settings:
One can choose between the thumbnail view and
artwork view.
41
Press the Directory View icon① to go into directory view.
Press the Directory View icon① to go into directory view.
One can browse the music files under internal storage and
SD card via folder structure.
Press Internal Storage② to see music files under internal
storage. Press SD Card③ to see music files under SD card.
Press the return button④ will move back one page at a time.
Directory View:
①
②
③
④
42

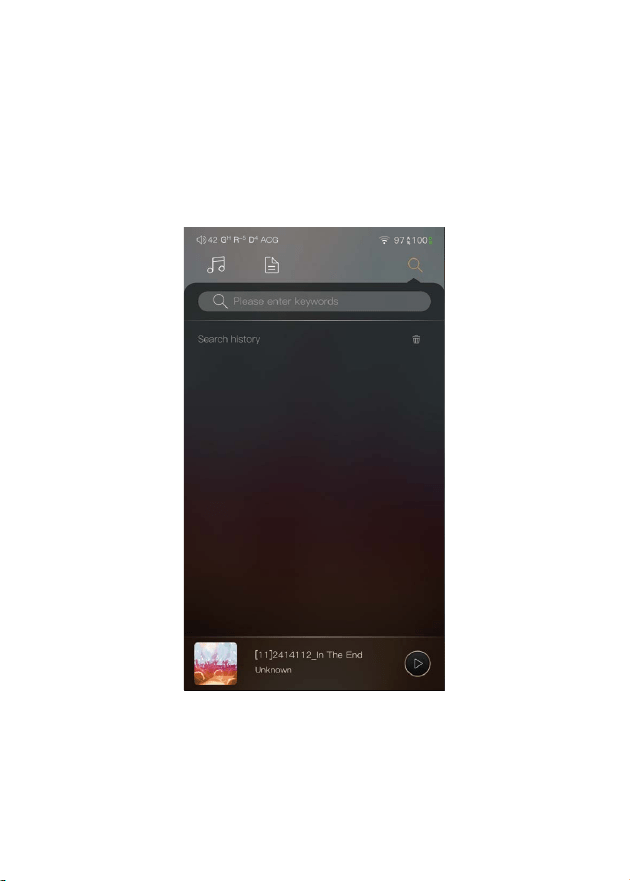

Input the keywords to search a track, an album, or an artist.
Search Screen:
43
Gapless:
One can enable the gapless to eliminate the gap between
two tracks.
Gain:
There are three gain settings. The low gain has the lowest
noise floor, it is good for ultra sensitive IEMs.
Settings Screen:
Press the Settings icon to go into settings screen.
44
Play Mode:
One can choose the desired play mode here.

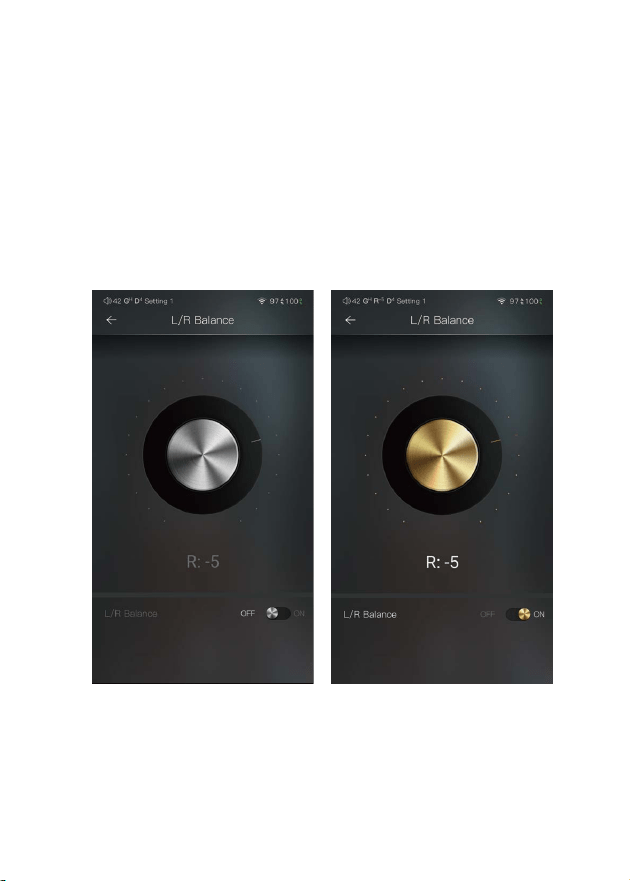

L/R Balance:
Press to go into the L/R balance setting page.
Digital Filter:
There are six filters, press the number to quickly
choose a filter.

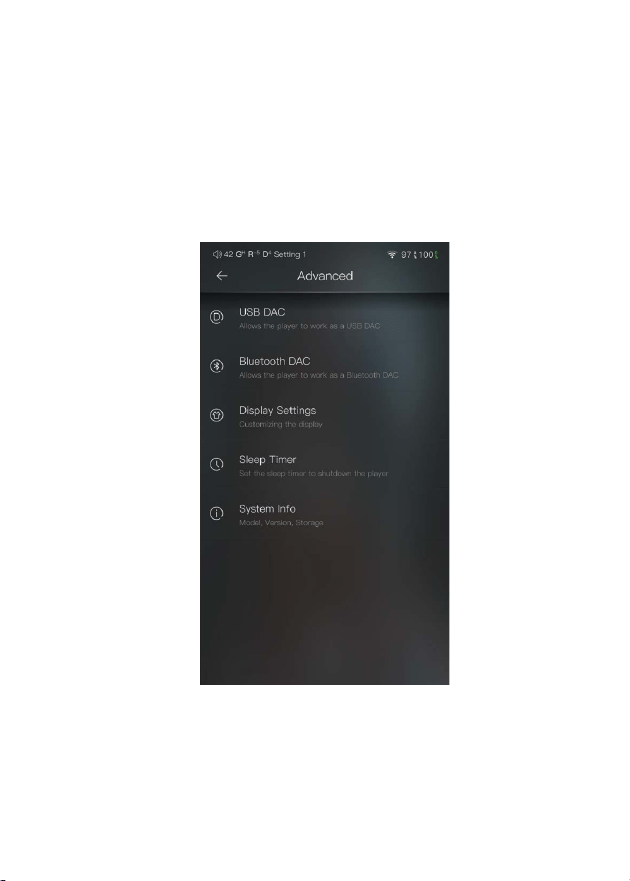

Advanced:
To access to more system settings.
45

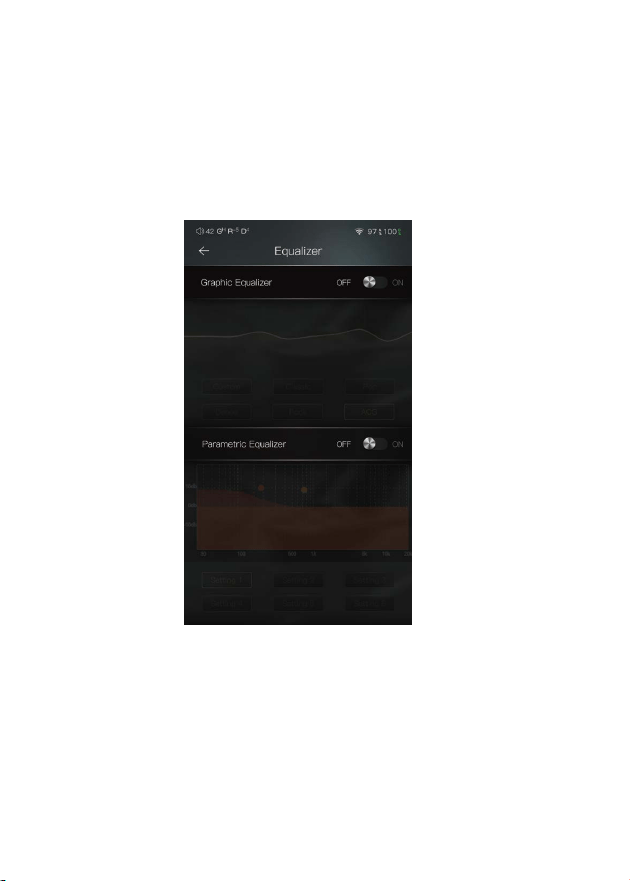

The DX300MAX has two types of Equalizer, Graphic EQ and
Parametric EQ.
Equalizer:
46
Pre-set EQ:
There are 5 kinds of pre-set EQ and a custom option.
One can quickly set the equalizer as desired by selecting
them.
How to Adjust The EQ Settings:
Press on the response curve, the 10 band slide bars will
show up. One can adjust the EQ settings by positioning
the bars up or down.
Press the button of the Graphic Equalizer to enable the
Graphic Equalizer.
Graphic Equalizer:
47
Parametric Equalizer:
Press the button of the Parametric Equalizer to
enable the it.
Parametric Equalizer:
How to Go Into The Parametric EQ Setting Screen:
Press the response curve to go into the parametric
EQ setting screen.
Press the button of the Parametric Equalizer to enable it.
48
① Settings on the Selection Bar:
One can swipe left and right to select a setting.
Parametric Equalizer Setting Screen:
③
④
⑤
⑥
⑦
②
①
49
③ Status:
Status of each filter. One can turn on or turn off
the selected filter.
④ Filter Type:
There are eight kinds of filters. Select one of the
filters.
⑤ Frequency:
This is the central frequency. Input a value between
33Hz to 16,000Hz.
This is the gain for each central frequency. Input a
value between -20dB to 20dB.
⑥ Gain:
This is the quality factor. Input a value between 0.3
to 20.
⑦ Q Factor:
② Filter Navigation Bar:
There are maximum of 6 filters allowed for each
setting. One can swipe left and right to select a
filter, then customize it.
50
Central Frequency (Fc):
The central frequency of each filter setting.
Gain:
The gain for the central frequency.
Quality Factor:
The range of effect of the filter.
As shown on the pictures below, the larger value of the
Q factor, the smaller the effect compared the central
frequency. The smaller value of the Q factor, the larger
the effect in relation to the central frequency.
The following are the curves of the filters
(Fc=100Hz, gain=4dB)
Parametric Equalizer Setting Instruction:
1. Low Pass Filter
The frequency higher than the central frequency will be affected.
Gain setting is ineffective with low pass filter.
2 3 4 56 10 20 30 100 200 1k
①. Q=0.7071 ②. Q=20
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
51
2. High Pass Filter
The frequency smaller than the central frequency will be affected.
Gain setting is ineffective with high pass filter.
3. All Pass Filter
There is no effect beside the central frequency. Gain setting is
ineffective with all pass filter.
③. Q=0.7071 ④. Q=20
2 3 4 56 10 20 30 100 200 1k
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
⑤.
2 3 4 56 10 20 30 100 200 1k
52
4. Band Filter
There is no a large effect on the central frequency. The frequency
beside the central frequency has similar effect. Gain setting is
ineffective with band filter.
5. Peak Filter
There is a large effect on the central frequency. The frequency beside
the central frequency has similar effect.
⑥. Q=0.7071 ⑦. Q=20
2 3 4 56 10 20 30 100 200 1k
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
⑧. Q=0.7071 ⑨. Q=20
4 5 6 78 9 10 20 30 40 50 100 200 300 1k
2 3 4 56 10 20 30 100 200 1k
53
6. Notch Filter
The central frequency has obvious reduction. The frequency beside
the central frequency has similar effect. Gain setting is ineffective
with notch filter.
7. High Shelf Filter
There is a wide effect on the frequency that is higher than the
central frequency.
2 3 4 56 10 20 30 100 200 1k
⑩. Q=0.7071 ⑪. Q=20
4 5 6 78 9 10 20 30 40 50 100 200
300 1k
⑫. Q=0.7071 ⑬. Q=20
4 5 6 78 9 10 20 30 40 50 100 200
300 1k
2 3 4 56 10 20 30 100 200 1k
54
8. Low Shelf Filter
There is a wide effect on the frequency that is lower than the central
frequency.
⑭. Q=0.7071 ⑮. Q=20
4 5 6 78 9 10 20 30 40 50 100 200
300 1k
2 3 4 56 10 20 30 100 200 1k
55
L/R Balance:
Rotate clockwise to decrease the volume in the right channel.
Rotate counterclockwise to decrease the volume of the left channel.
56
Digital Filter:
There are six digital filters available. Press a digital filter
to unfold the figure, and to open the filter effect.
Digital Filter:
57
To access more system settings.
Advanced
58
The DX300MAX can work as a USB DAC for Windows PC,
Mac computer, and Linux computer. It is driver free.
Turn the DX300MAX into the USB DAC mode, connect the
DX300MAX to a computer via the USB-C cable. After the
DX300MAX is detected, the soundcard driver will be installed
automatically. Now, you can select the DX300MAX as the
audio output device and use it as the USB soundcard.
The DX300MAX supports up to 32bit/384kHz PCM, and DoP
DSD up to 128x when be used as a USB-DAC. On
Windows OS, the USB DAC function supports WASAPI.
USB DAC:
The following are the instructions for USB DAC use:
① Power on the DX300MAX.
② Press the DAC On button on Settings/USB DAC.
③ The“USB DAC”screen will be shown on the DX300MAX.
④ Connect the DX300MAX to a computer via the furnished
USB-C Cable.
⑤ Select “iBasso Audio HiFi device” as the audio output
device. Then one can play music on the computer and
listen it via the DX300MAX, which will use the DX300MAX
day and amplifier. Or you can use the line out of the
DX300MAX into any amp of choice.
59
60
DX300MAX Bluetooth DAC.
After turning on the Bluetooth DAC, Bluetooth devices
such as a mobile phone can be paired with the DX300MAX.
The DX300MAX can now stream from the connected Bluetooth
device.
Note: When in Bluetooth DAC mode, the DX300MAX supports
AAC and SBC.
Bluetooth DAC：
61
Ambient mode:
Use album artwork as the background picture.
Normal mode:
Use the selected picture as the background picture.
Playback screen album artwork, choose to display rectangular
artwork or rounded artwork.
Lock screen artwork:
Display the album artwork on the lock screen.
Year tag:
Display year information of the ID3 on the playback screen.
Alphabetic scrolling bar:
Use alphabetic scrolling bar instead of the traditional
scrolling bar.
Display Settings:
62

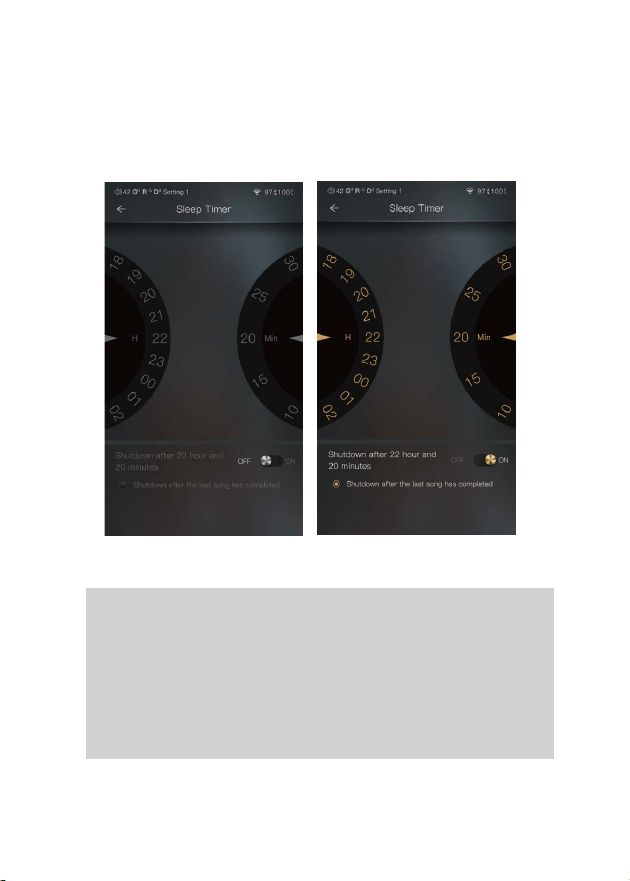

Set the count down sleep timer to power off the DX300MAX.
The left hand side is the number of hours. The right hand
side is the number of minutes. The DX300MAX will be
powered off after the counter has completed. If there are
any operations in the meanwhile, the DX300MAX will start
the counter again after the last operation.
Sleep Timer:
63

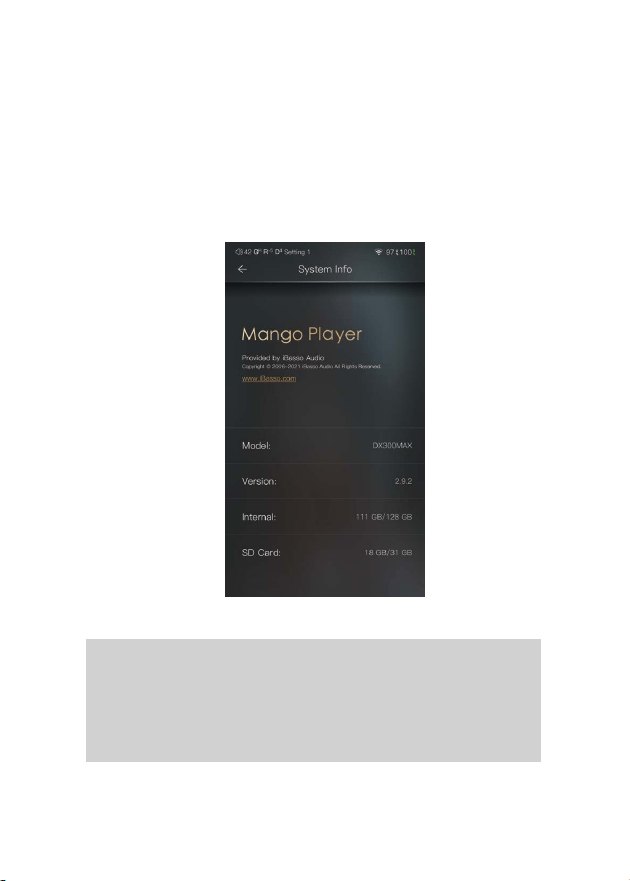

One can see the firmware version on this screen. Also,
one can see the space available of the internal memory
and SD card.
System Info:
64
Mango OS
To reboot to Mango OS from Android, first of all, long press
the power button for 3 seconds to pop up a window with three
options. When “To Mango” is selected, the system will switch
to the Mango OS.
65
The Mango OS User interface is composed of three parts:
Music playback screen (homepage), my music, and settings.
On the Music playback screen, press the icon① to go to My
Music, press the icon② to go to Settings.
① ②
* The Mango OS operation is similar to the iBasso
Mango APP, please refer to the iBasso Mango APP
instruction for any questions.
66
To return to the Android System, go into the settings menu,
press “Android System”, then press “Yes”.
67

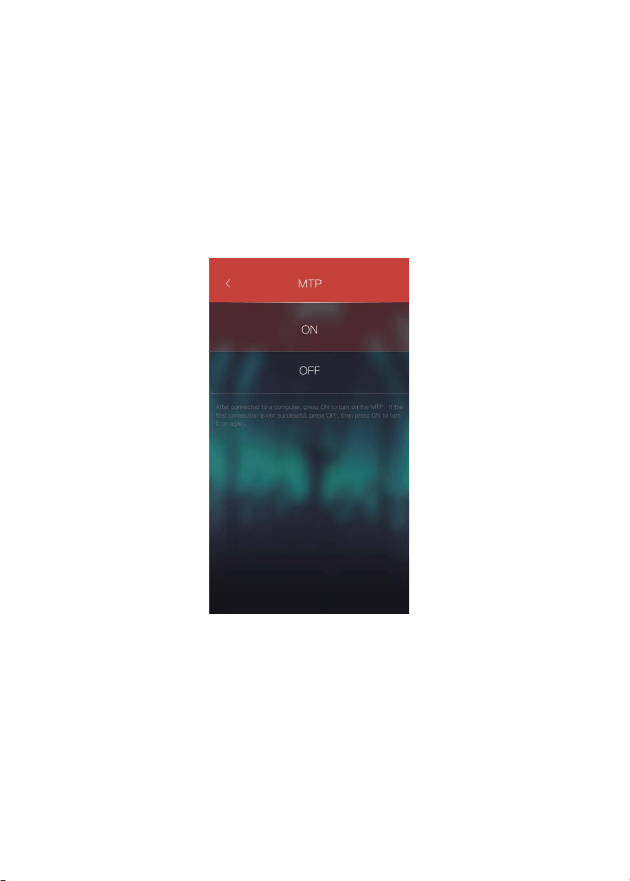

MTP (File Transfer)
After MTP is turned on, the DX300MAX can be connected
to a computer for file transfer.
68
MQA
‘MQA’ or ‘MQA.’ indicates that the product is decoding and
playing an MQA file, and denotes provenance to ensure that
the sound is identical to that of the source material. ‘MQA.’
indicates it is playing an MQA Studio file, which has either
been approved in the studio by the artist/producer or has
been verified by the copyright owner.
MQA is a registered trade mark of MQA Limited.© 2018
