User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Appliance at a glance............................................ 3
1.1 Scope of delivery.......................................................... 3
1.2 Overview of appliances and equipment................... 3
1.3 SmartDevice.................................................................. 3
1.4 Appliance range of use............................................... 4
1.5 Conformity..................................................................... 4
2 General safety instructions.................................. 4
3 Functionality of the Touch&Swipe display......... 6
3.1 Navigation and symbol explanation......................... 6
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 7
4 Putting into operation........................................... 7
4.1 Switching on appliance (first use)............................ 7
4.2 Starting the IceMaker for the first time................... 7
5 Storage.................................................................. 8
5.1 Information regarding storage................................... 8
5.2 Freezer compartment.................................................. 8
5.3 Storage times............................................................... 8
6 Saving energy........................................................ 9
7 Controls................................................................. 9
7.1 Controls and displays.................................................. 9
7.1.1 Status display..............................................................9
7.1.2 Display symbols.......................................................... 9
7.2 Appliance functions..................................................... 9
7.2.1 Notes on the appliance functions............................9
Switching the appliance off and on........................9
Switching temperature zone off and on.............. 10
WiFi............................................................................ 10
Temperature.............................................................. 11
Temperature unit......................................................12
SuperFrost.................................................................12
Start defrosting cycle..............................................12
PartyMode ................................................................ 13
SabbathMode............................................................13
EnergySaver .............................................................14
IceMaker / MaxIce .................................................. 14
IceMaker water supply............................................15
TubeClean .................................................................15
Display brightness...................................................16
Door alarm.................................................................16
Input lock...................................................................16
Language................................................................... 17
Device information...................................................17
Software.....................................................................17
Reminder................................................................... 18
Demo mode...............................................................18
Resetting to factory settings.................................19
7.3 Messages...................................................................... 19
7.3.1 Overview of warnings...............................................19
7.3.2 Ending warnings........................................................19
7.3.3 Overview of reminders.............................................20
7.3.4 Ending reminders..................................................... 20
8 Features................................................................. 21
8.1 Drawers.......................................................................... 21
8.2 IceMaker........................................................................ 22
8.3 VarioSpace.................................................................... 22
8.4 Flexible ice compartment divider.............................. 22
9 Maintenance.......................................................... 22
9.1 Air exchange through the FreshAir activated
charcoal filter............................................................... 22
9.2 Disassembling / assembling pull-out systems...... 23
9.3 Defrosting the appliance............................................ 24
9.4 Cleaning the appliance............................................... 24
10 Customer help....................................................... 25
10.1 Technical specifications............................................. 25
10.2 Operating noises.......................................................... 25
10.3 Technical fault.............................................................. 25
10.4 Customer Service......................................................... 27
10.5 Model plate................................................................... 27
11 Shutting down....................................................... 27
12 Disposal................................................................. 27
12.1 Preparing appliance for disposal.............................. 27
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 27
The manufacturer is continually working on the further
development of all types and models. Please be aware that
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
2 * Depending on model and options
Symbol Explanation
Additional information on the Internet
The digital manual with additional information
can be found via the QR code on the front of
the manual or by entering the service number
at home.liebherr.com/fridge-manuals.
The service number can be found on the serial
tag:

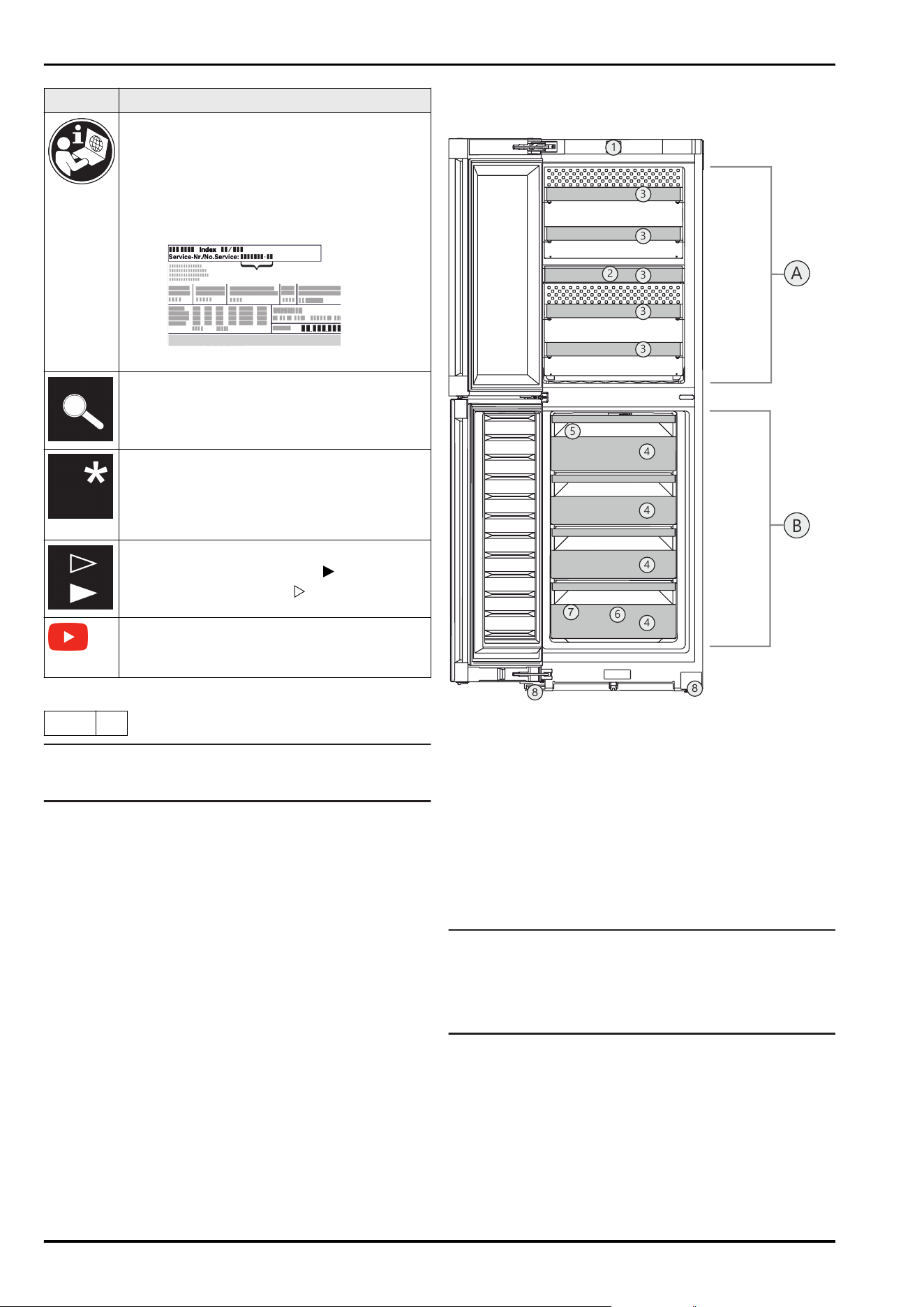

Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
These operating instructions apply to:
SWN...
52..
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.
1 Appliance at a glance
1.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
1.2 Overview of appliances and equip‐
ment
B
A
1
3
4
6
8
5
7
2
3
3
3
3
4
4
4
8
Fig. 1 Example illustration
Temperature range
(А)
Wine compartment (B) Freezing compartment
Equipment
(1)
Controls (5) IceMaker
(2) FreshAir activated
carbon filter
(6) Cold storage accumula‐
tors
(3) Storage shelf (7) Type plate
(4) Freezer drawer (8) Adjustable feet at the
front, transport castors
at the back, carrying
handle at the top (rear)
and bottom (front)
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
1.3 SmartDevice
SmartDevice is the networking solution for your wine
cabinet-freezer combination.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
Appliance at a glance
* Depending on model and options 3
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (seeWiFi) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
1.4 Appliance range of use
Intended use
The appliance must only be used in a
domestic or a normal household setting. Only
drinks such as wine must be stored in the
wine compartment. Only frozen food must
be stored in the freezer compartment. This
includes, for example, using
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.5 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2 General safety instructions
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they are
supervised or have received instruction in
the safe use of this device, and about the
resulting hazards.
Children must not play with this appliance.
Cleaning and user maintenance work must
not be carried out by children without adult
General safety instructions
4 * Depending on model and options
supervision. Children aged between 3 and
8 are allowed to load and unload the appli‐
ance. Children below the age of 3 must be
kept away from the appliance unless they
are under continuous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer or its
service agent.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the inte‐
rior of the appliance and are not suitable
for room lighting.
-
The manufacturer is not liable for damage
caused by a faulty fixed water connection.
Fire hazard:
-
This appliance contains a refrigerant
which is environmentally friendly, but flam‐
mable. Leaking refrigerant may ignite. It
is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland, the authorised
Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants,
to carry out Servicing or repairs where the
gas system is being opened or charged.
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
WARNING: Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.
-
WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
-
WARNING: Do not damage the refrigerant
circuit.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
-
Do not consume ice cream, water ice or
ice cubes immediately and do not consume
them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.

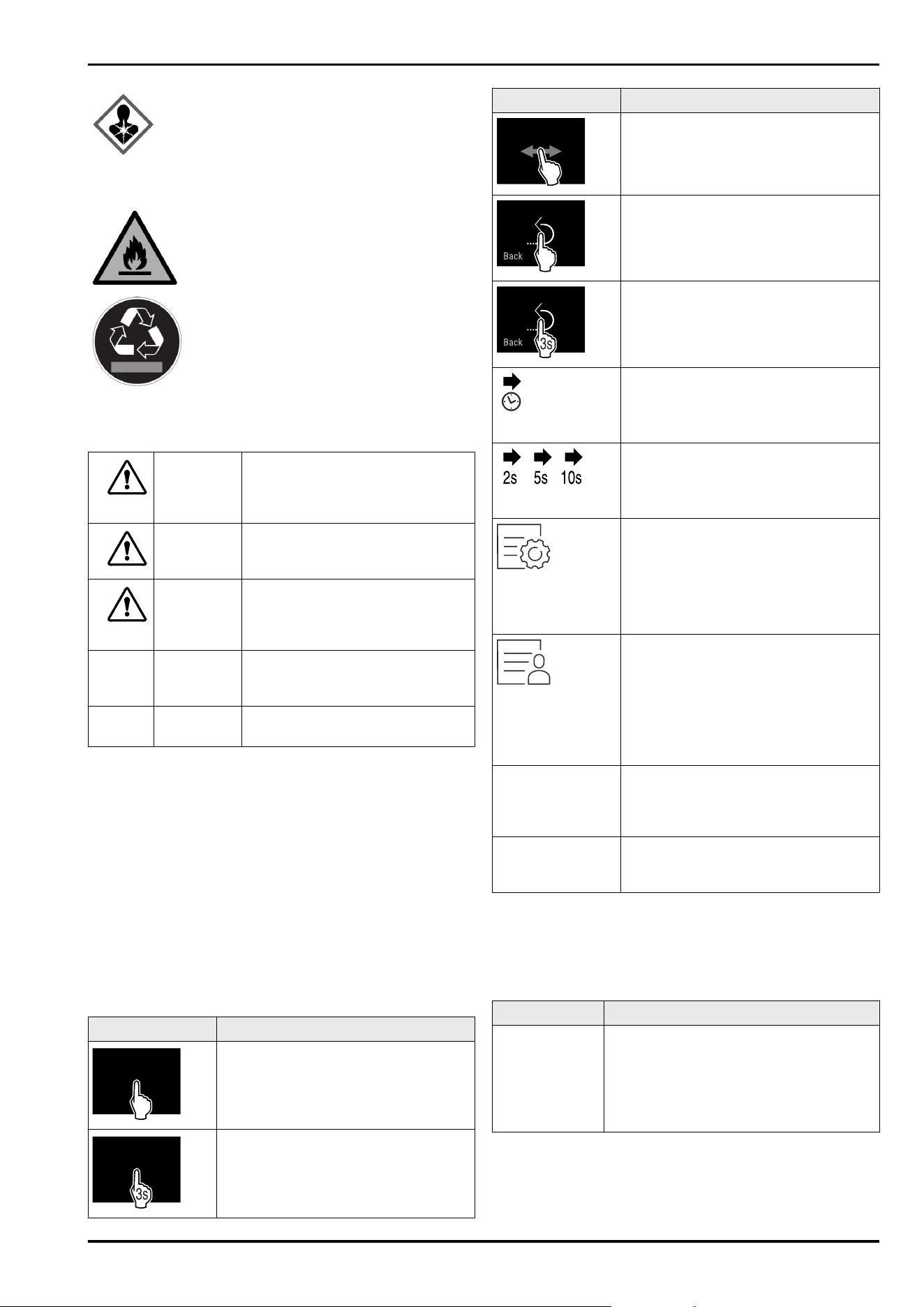

Symbols on the appliance:
General safety instructions
* Depending on model and options 5
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER
indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
3 Functionality of the
Touch&Swipe display
You operate your appliance using the Touch & Swipe display.
You select appliance functions in the Touch & Swipe display
(hereafter referred to as display) by tapping them. If you
do not perform any action on the display for 10 seconds,
the display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Briefly touch the display:
Activates/deactivates function.
Confirms selection.
Opens submenu.
Touch the display for a specified time
(e.g. 3seconds):
Activates/deactivates function or
value.
Symbol Description
Swipe left or right:
Navigate in the menu.
Briefly touch the Back symbol:
Jumps back one menu level.
Press and hold the Back symbol for
3seconds:
Jumps back to the status display.
Arrow with clock:
It takes more than 10 seconds for the
following message to appear in the
display.
Arrow with a time indication:
It takes the specified amount of time
until the following message appears in
the display.
“Open Settings menu” symbol:
Navigates to the Settings menu and
opens the settings menu.
If necessary: Navigate to the desired
function in the Settings menu.
(see 3.2.1 Opening the Settings menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu and
opens the advanced menu.
If necessary: Navigate to the desired
function in the Advanced menu.
(see 3.2.2 Opening the expanded
menu)
No action for
10seconds
If you do not perform any action on
the display for 10 seconds, the display
either jumps back to the higher-level
menu or directly to the status display.
Open door and
close it again.
If you open the door and immedi‐
ately close it again, the display jumps
directly back to the status display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions are distributed over various menus:
Menu
Description
Main menu When you switch the appliance on, you
are automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced
menu.
Functionality of the Touch&Swipe display
6 * Depending on model and options
Menu Description
Settings menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
Advanced menu The advanced menu contains special
appliance functions for setting up your
appliance. Access to the Advanced menu
is protected by the numerical code 151.

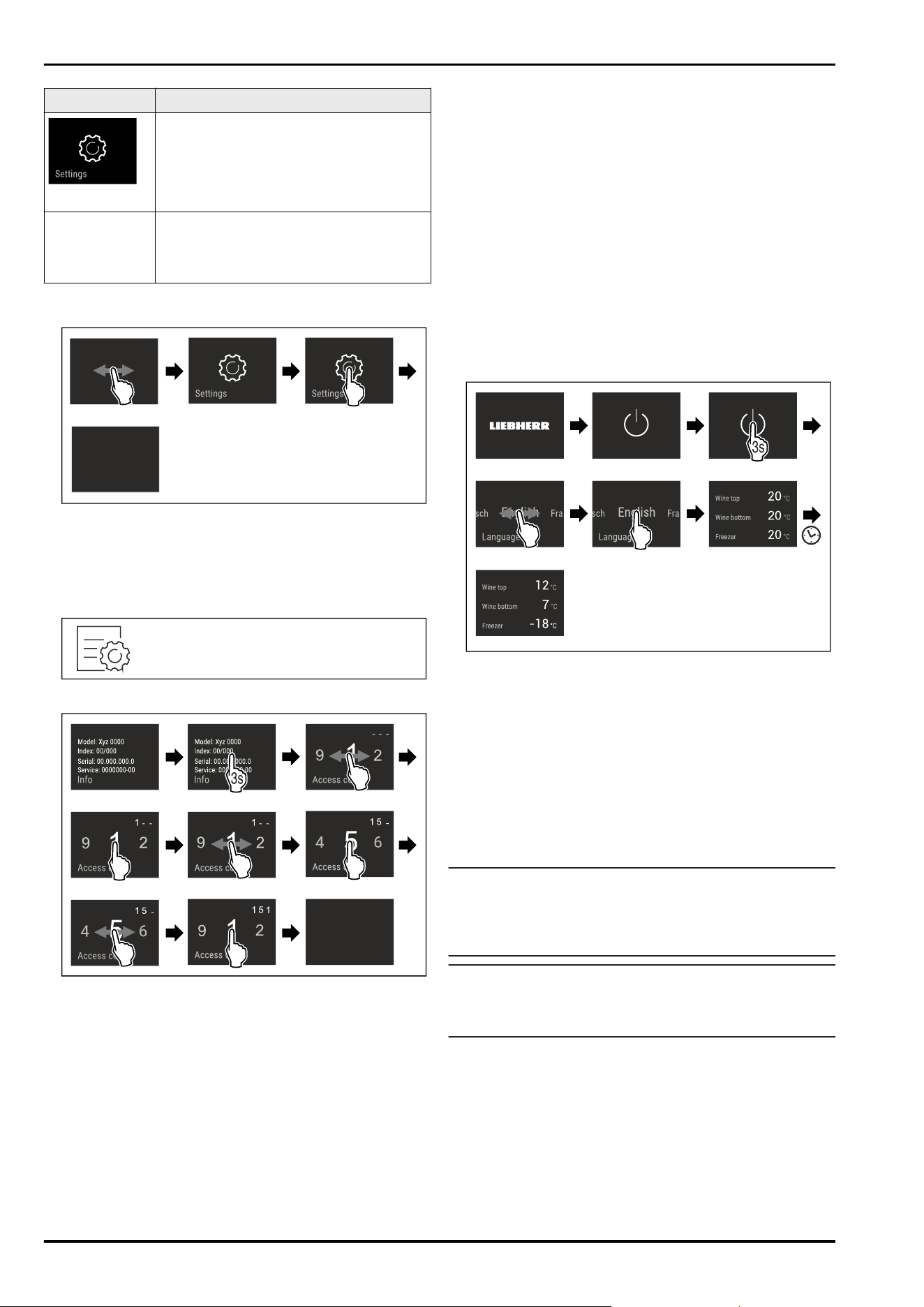

3.2.1 Opening the Settings menu
Fig. 2 Example illustration
u
Carry out action steps according to the illustration.
w
Settings menu is open.
u
If necessary: Navigate to the desired function.
3.2.2 Opening the expanded menu
Fig.3
Fig. 4 Example illustration, access with numerical code 151
u
Carry out action steps according to the illustration.
w
The expanded menu is open.
u
If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
u
Touch the display briefly with your finger.
w
Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
q
The appliance has been installed and connected in
accordance with the installation instructions.
q
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
q
All marketing leaflets are removed from the drawers.
q
You are familiar with the functionality of the
Touch & Swipe display. (see 3 Functionality of the
Touch&Swipe display)
Switch on the appliance using the Touch&Swipe display:
u
If the display is in sleep mode: Briefly touch the display.
u
Carry out action steps according to the illustration.
Fig. 5 Example illustration*
w
Status display appears.
w
The appliance cools to the temperature set at the factory.
w
The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the IceMaker for the first time. (see 4.2 Starting the
IceMaker for the first time)
-
Start the SmartDevice for the first time. (see 1.3 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
u
Store frozen foods at -18°C or colder.
u
Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
4.2 Starting the IceMaker for the first
time
If your appliance is equipped with IceMaker, you must clean
the IceMaker before using it for the first time.
Make sure that the following requirements are fulfilled:
q
The water supply has been connected. See Installation
Guide or mounting instructions.
q
The appliance is properly connected.
Putting into operation
* Depending on model and options 7
u
Clean the IceMaker. (see 9.4.6 Cleaning the IceMaker)
5 Storage
5.1 Information regarding storage
WARNING
Risk of fire
u
Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
-
In the freezer compartment: Package food properly.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
In the wine compartment: Position storage shelves
according to the height required.
-
In the wine compartment: Observe maximum load weight.
(see 10.1 Technical specifications)
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
5.2 Freezer compartment
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
5.2.1 Freezing food
Freezing quantity
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Freezing food using SuperFrost
Depending on the quantity to be frozen, you can activate
SuperFrost before freezing in order to achieve lower freezing
temperatures. (see SuperFrost)
u
Activate SuperFrost if the amount of food you have to
freeze is more than approx. 2 kg.
The time at which you activate SuperFrost depends on the
amount of food you have to freeze:
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Small amount of
food to freeze
Activate SuperFrost about 6 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Maximum
amount of food
to freeze
Activate SuperFrost about 24 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Arranging your food properly
CAUTION
Risk of injury from broken glass!
Bottles and cans with beverages can burst during freezing.
This applies in particular to carbonated beverages.
u
Only freeze bottles and cans with beverages if you have
activated the BottleTimer function in the SmartDevice
app.
Freezing quan‐
tity
Arranging your food properly
Small amount of
food to freeze
Place packaged food in the top drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
Maximum
amount of food
to freeze
Distribute packaged groceries
throughout all drawers, but only place
frozen food in the bottom drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
5.2.2 Defrosting food
WARNING
Risk of food poisoning!
u
Do not re-freeze thawed food.
u
Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In a fridge
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
u
Take out only as much food as necessary.
5.3 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
5.3.1 Freezer compartment
Recommended storage period for various types of food
Ice cream at -18°C 2 to 6 months
Sausages, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Storage
8 * Depending on model and options
Recommended storage period for various types of food
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not place the appliance in direct sunlight or near radi‐
ators or similar sources of heat.
-
If the appliance is placed directly next to an oven,
the energy consumption may increase slightly. This is
dependent on the service life and usage intensity of the
oven.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
7 Controls
7.1 Controls and displays
7.1.1 Status display

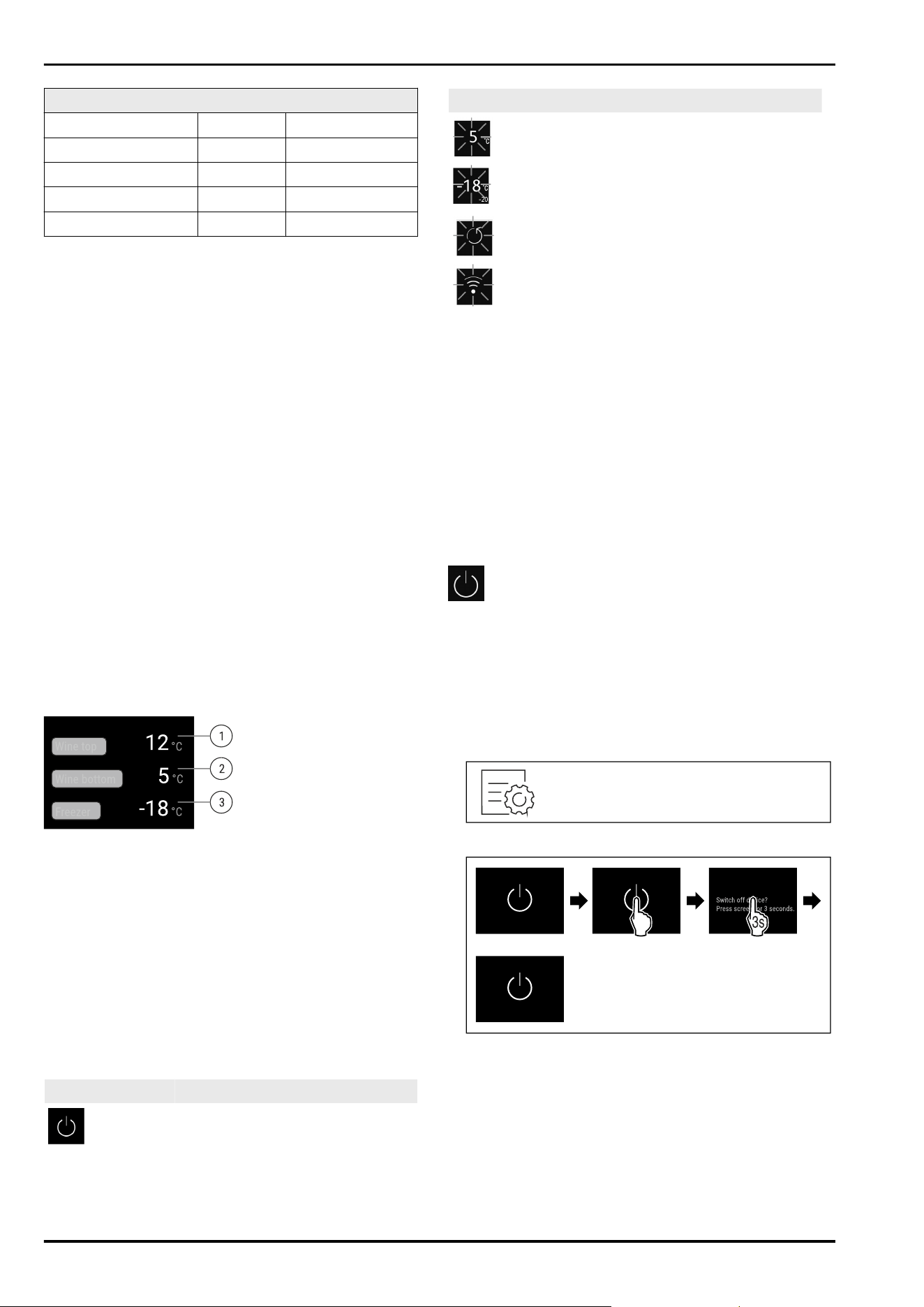

Fig. 6 The status display shows the actual temperature.
(1)
Upper wine compart‐
ment temperature
display
(3) Freezer compartment
temperature display
(2) Lower wine compart‐
ment temperature
display
The status display shows the actual temperature and is the
initial display. Navigation to the functions takes place from
there.
7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol
Appliance status
Standby
The appliance or temperature zone
is switched off.
Symbol Appliance status
Flashing number
Appliance is working. Temperature
flashes until the set temperature is
reached.
Flashing symbol
Appliance is working. Setting is
made.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
q
You have read and understood the descriptions of
how the display works. (see 3 Functionality of the
Touch&Swipe display)
q
You have familiarised yourself with the operating and
display elements of your appliance.
Switching the appliance off and on
Use this function to switch the entire appliance off and on.
Switching off the appliance
When you switch the appliance off, then the previously
saved settings are saved.
Make sure that the following requirements are fulfilled:
q
Handling instructions (see 11 Shutting down) are carried
out.
Fig.7
Fig.8
u
Carry out action steps according to the illustration.
w
Appliance is switched off.
w
The standby symbol appears in the display.
w
Display turns black.
Switching on the appliance
If the display is in sleep mode:
u
Briefly touch the display.
Saving energy
* Depending on model and options 9
Fig. 9 Example illustration
u
Carry out action steps according to the illustration.
When the appliance starts in demo mode:
u
Deactivating demo mode. (see Deactivating demo mode)
w
The appliance is switched on.
w
Previous settings are restored.
w
The appliance cools to the target temperature set.
Switching temperature zone off and on
You can switch temperature zones of the appliance off inde‐
pendently.
Application:
-
Cleaning
Switching the wine zone off
Make sure that the following requirements are fulfilled:
q
Wine zone has been emptied.

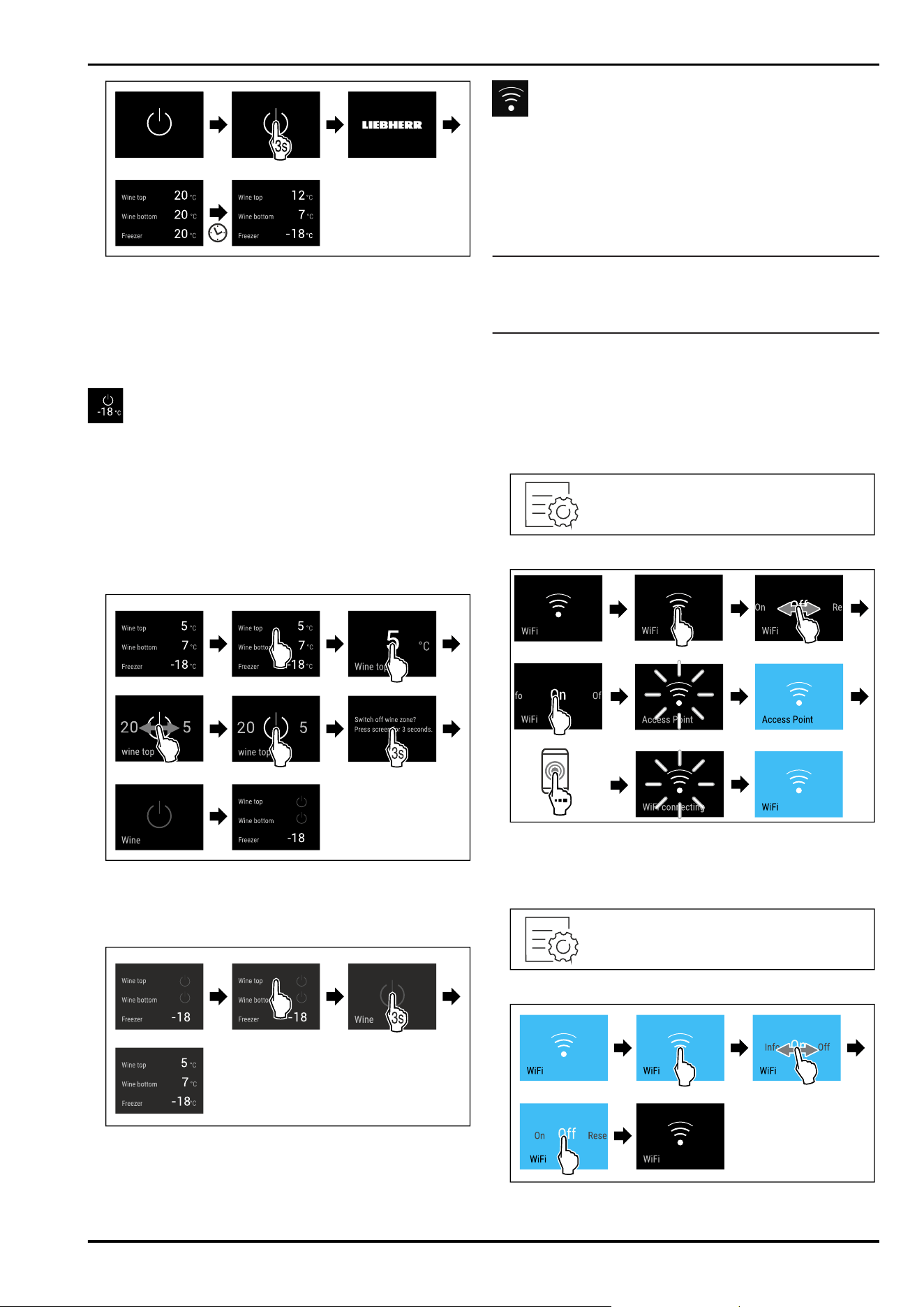

Fig. 10 Example illustration for wine zone above
u
Carry out action steps according to the illustration.
w
The entire wine zone is switched off.
Switching the wine zone on
Fig. 11 Example illustration for wine zone above
u
Carry out action steps according to the illustration.
w
Wine zone is switched on.
w
All wine zones cool to the last set temperature.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 1.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
q
You have purchased and inserted a SmartDeviceBox.
(see 1.3 SmartDevice)
q
You have installed the SmartDevice app (see
apps.home.liebherr.com).
q
Registration in the SmartDevice app is completed.
Fig.12
Fig.13
u
Carry out action steps according to the illustration.
w
Connection is established.
Disconnecting from the WiFi
Fig. 14
Fig. 15
u
Carry out action steps according to the illustration.
Controls
10 * Depending on model and options
w
There is no connection.

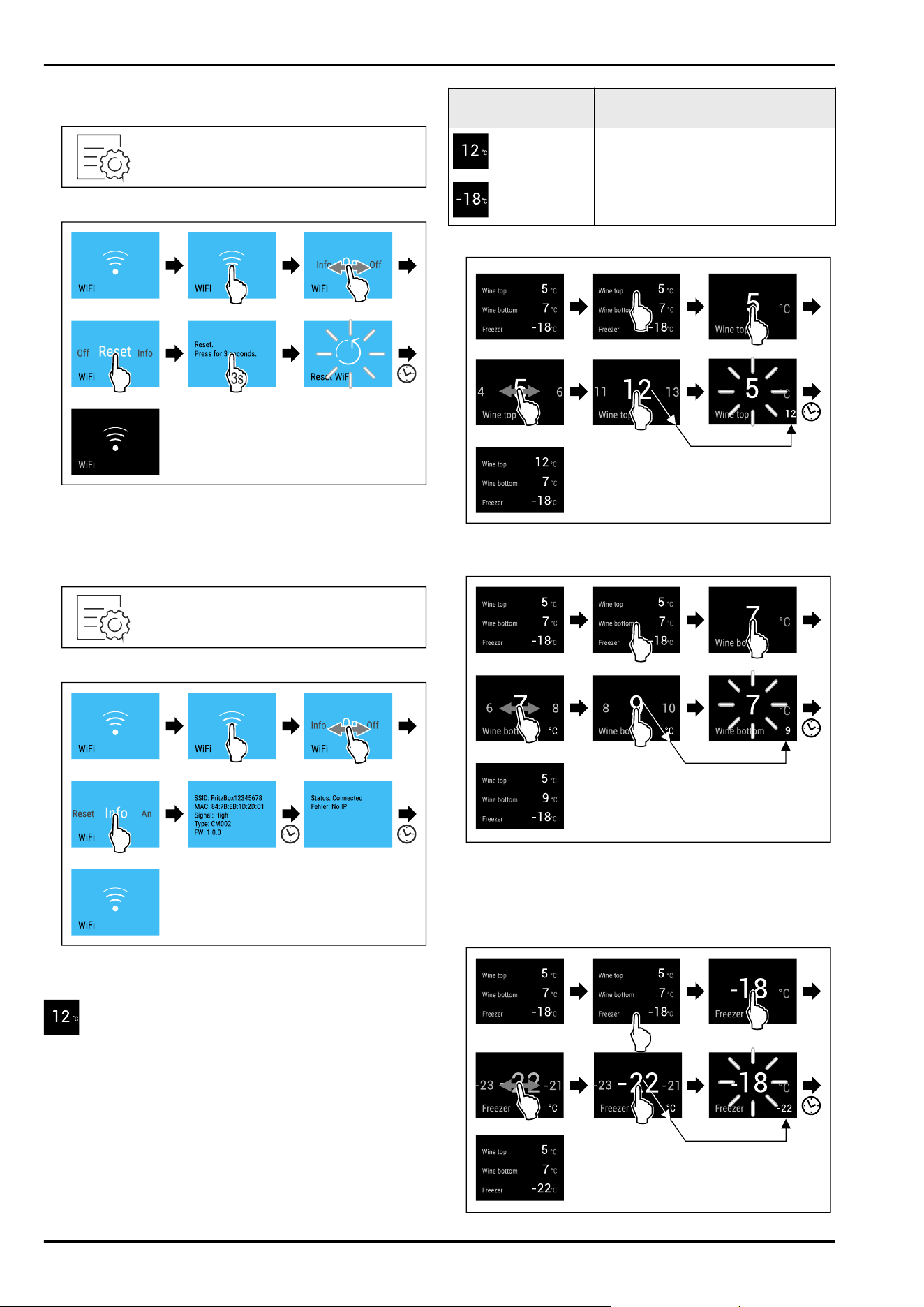

Resetting the WiFi connection
Fig. 16
Fig.17
u
Carry out action steps according to the illustration.
w
WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 18
Fig. 19
u
Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
Frequency of door opening
-
Duration of door opening
-
Room temperature of the installation site
-
Type, temperature and quantity of food
Temperature zone
Factory-set
temperature
Recommended
setting
Wine section
12°C Depending on the
type of wine
Freezer section
-18°C -18°C
Setting the temperature in the wine section
Fig. 20 Example illustration: Setting the temperature in the
upper wine section.
Fig. 21 Example illustration: Setting the temperature in the
lower wine section.
u
Carry out action steps according to the illustration.
w
Temperature is set.
Setting the temperature in the freezer section
Controls
* Depending on model and options 11
Fig. 22 Example illustration
u
Carry out action steps according to the illustration.
w
Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit

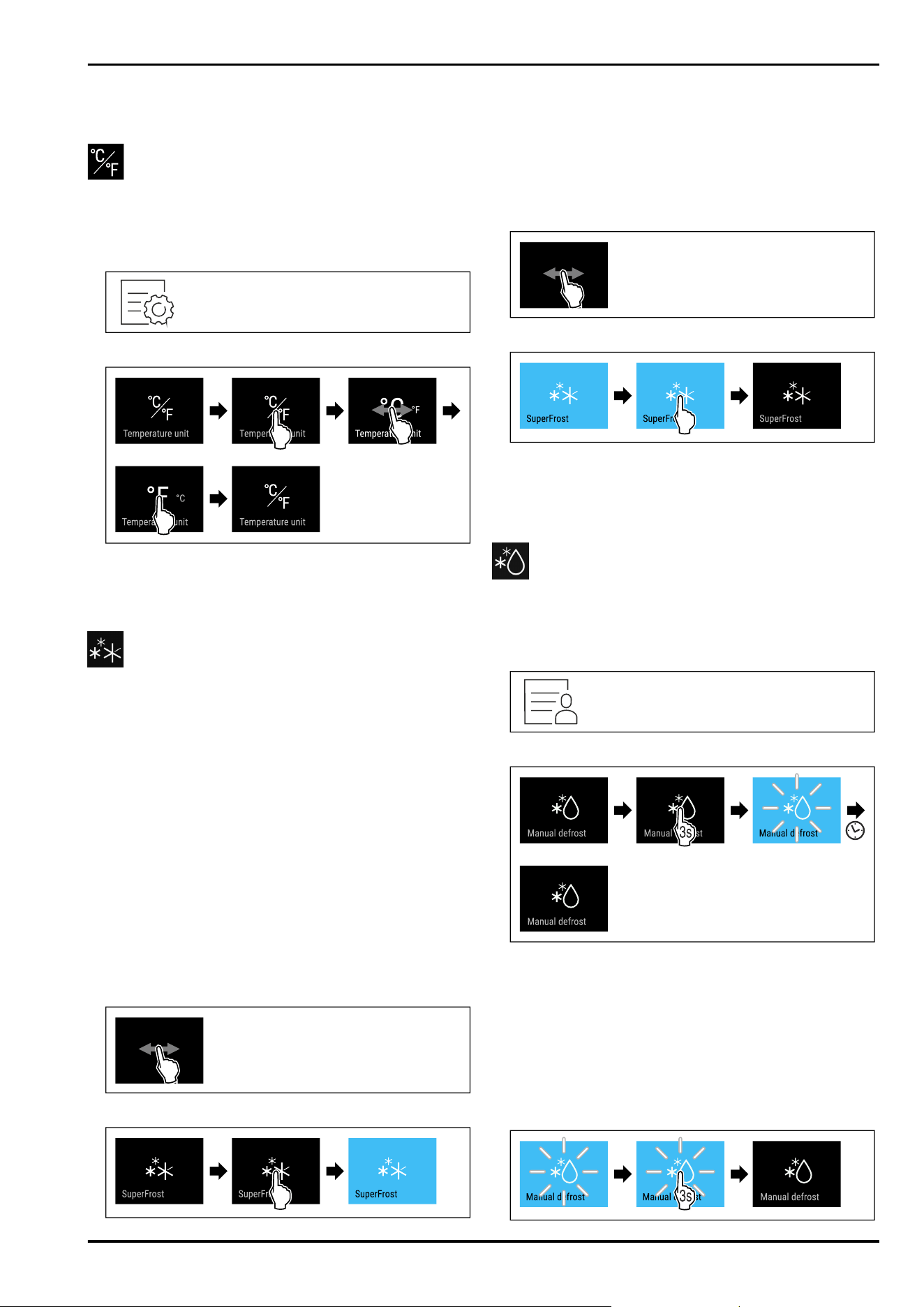

Fig.23
Fig. 24 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
u
Carry out action steps according to the illustration.
w
The temperature unit is set.
SuperFrost
You can use this function to activate or deactivate
SuperFrost. If SuperFrost is activated, then the appliance
increases the freezing capacity. It allows you to achieve
lower freezing temperatures.
Application:
-
Quickly freeze fresh food through to the core.
This ensures that the nutrition, appearance and taste of
frozen food is maintained.
-
Increase the cold reserve in stored frozen food before
defrosting the appliance.
If the function is active, the appliance operates at higher
power. As a result, the appliance's operating noise may be
temporarily louder and energy consumption will increase.
Activating SuperFrost
Make sure that the following requirements are fulfilled:
q
Freezing quantity and time for activation of SuperFrost
are taken into account. (see Freezing food using
SuperFrost)
Fig.25
Fig. 26
u
Carry out action steps according to the illustration.
w
SuperFrost is activated.
w
The temperature display turns blue.
Deactivating SuperFrost
SuperFrost is automatically deactivated after 56 to 72 hours
depending on the quantity of the food inserted. However,
you can also deactivate SuperFrost manually at any time:
Fig.27
Fig.28
u
Carry out action steps according to the illustration.
w
SuperFrost is deactivated.
w
The appliance continues to run in normal mode.
w
The appliance cools to the temperature set previously.
Start defrosting cycle
Use this function to start the automatic defrosting cycle
manually if it does not start automatically in the event of a
fault.
Starting defrosting cycle
Fig.29
Fig.30
u
Carry out action steps according to the illustration.
w
Defrosting cycle has started: Icon flashes until defrosting
cycle is automatically completed.
w
When defrosting cycle is finished: The device continues
to run in normal mode.
Cancelling defrosting cycle
The defrosting cycle will be stopped automatically. However,
you can also cancel the defrosting cycle at any time during
the defrosting process:
Controls
12 * Depending on model and options
Fig.31
u
Carry out action steps according to the illustration.
w
Defrosting cycle is cancelled.
w
The device continues to run in normal mode.

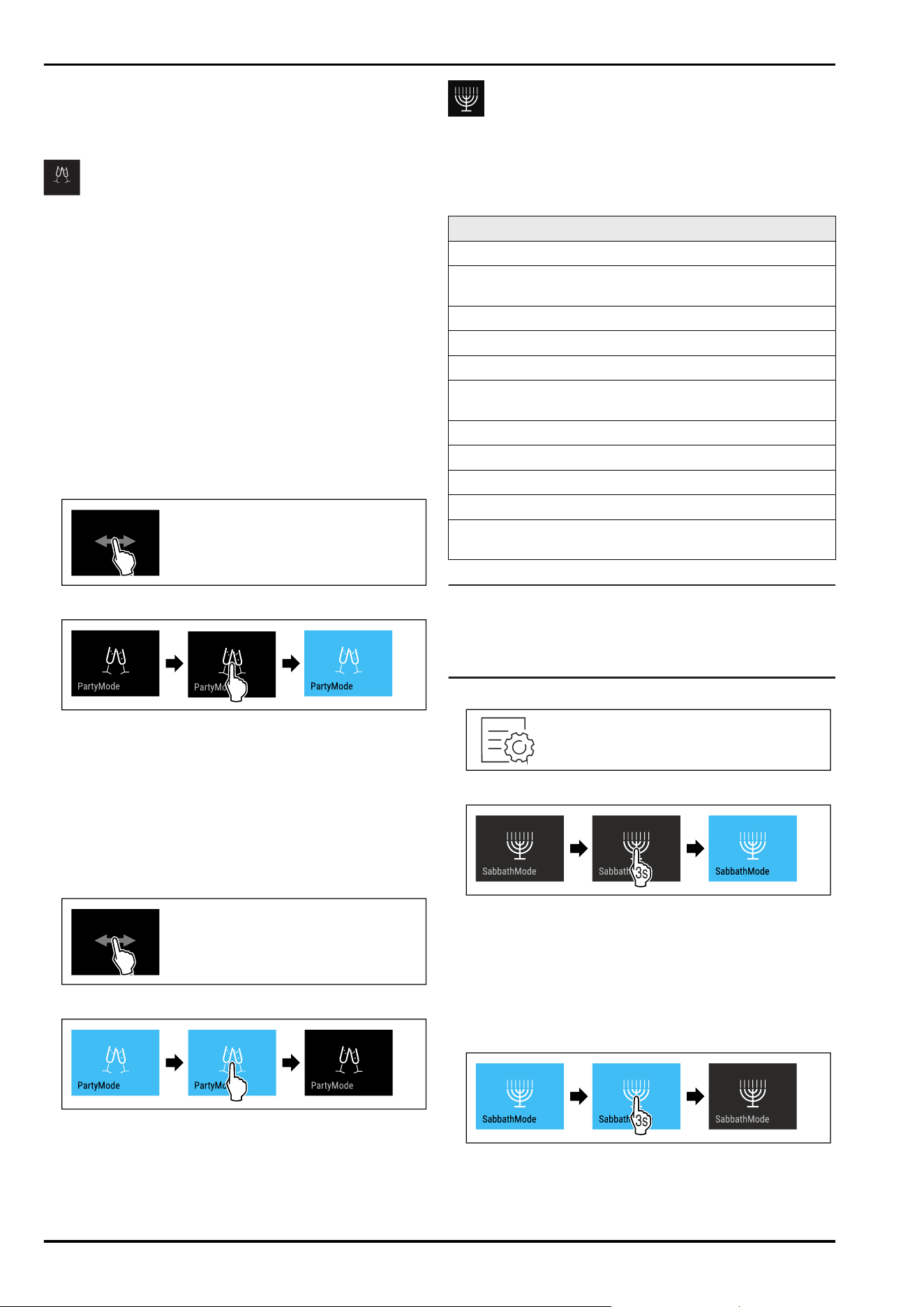

PartyMode
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperFrost (see SuperFrost)
-
IceMaker with MaxIce (see IceMaker / MaxIce )
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Make sure that the following requirements are fulfilled:
q
The IceMaker has been started. (see 4.2 Starting the
IceMaker for the first time)
Fig.32
Fig.33
u
Carry out action steps according to the illustration.
w
PartyMode and the associated functions are activated.
w
The temperature display turns blue.
w
The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig.34
Fig.35
u
Carry out action steps according to the illustration.
w
PartyMode is deactivated.
w
The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.
SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The IceMaker is switched off.
After a power failure, the appliance returns to
SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
Fig.36
Fig.37
u
Carry out action steps according to the illustration.
w
SabbathMode is activated.
w
The status display shows SabbathMode permanently.
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig.38
u
Carry out action steps according to the illustration.
w
SabbathMode is deactivated.
Controls
* Depending on model and options 13

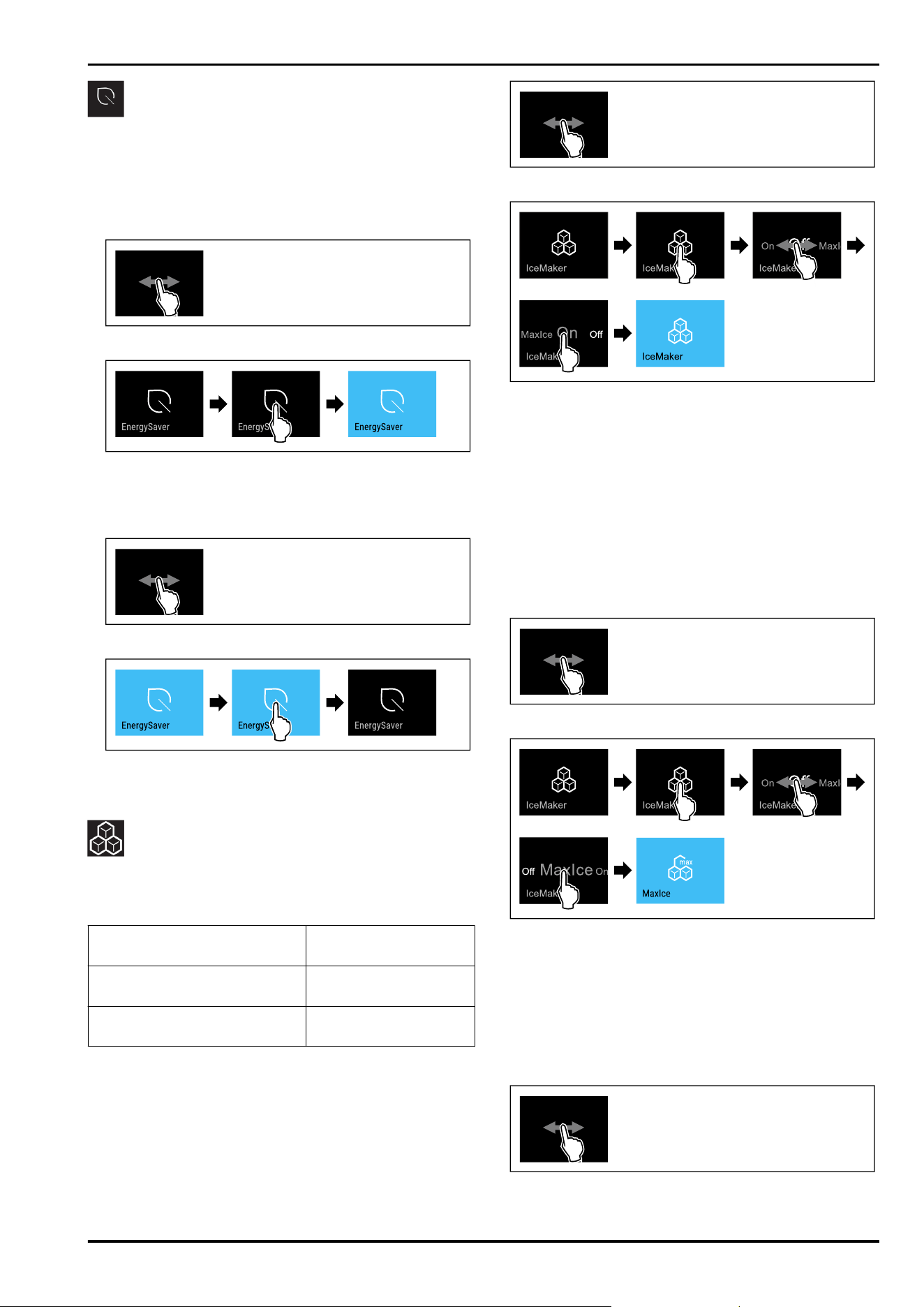

EnergySaver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Activating EnergySaver
Fig. 39
Fig.40
u
Carry out action steps according to the illustration.
w
Energy saving mode is activated.
Deactivating EnergySaver
Fig. 41
Fig. 42
u
Carry out action steps according to the illustration.
w
Energy saving mode is deactivated.
IceMaker / MaxIce
You can activate or deactivate ice cube production with the
IceMaker function. Use the MaxIce function to increase the
number of ice cubes in the IceMaker.
More information on the number
of ice cubes:
(see 10.1 Technical spec‐
ifications)
Further information on the
IceMaker water supply:
(see IceMaker water
supply)
More information on cleaning
the lines of the IceMaker:
(see TubeClean )
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating IceMaker
Make sure that the following requirements are fulfilled:
q
The water supply is established at the fixed water
connection. See installation instructions.
q
IceMaker is put into operation. (see8.2 IceMaker)
Fig.43
Fig.44
u
Carry out action steps according to the illustration.
-or-
u
Activate with the SmartDevice app.
w
IceMaker is activated. It can take up to 24 hours for the
IceMaker to produce the first ice cubes.
Activating the IceMaker with MaxIce
If you have not activated the IceMaker function before,
make sure that the following requirements are met:
q
The water supply is established at the fixed water
connection. See installation instructions.
q
IceMaker is put into operation. (see8.2 IceMaker)
Fig.45
Fig.46
u
Carry out action steps according to the illustration.
-or-
u
Activate with the SmartDevice app.
w
The IceMaker is activated with MaxIce.

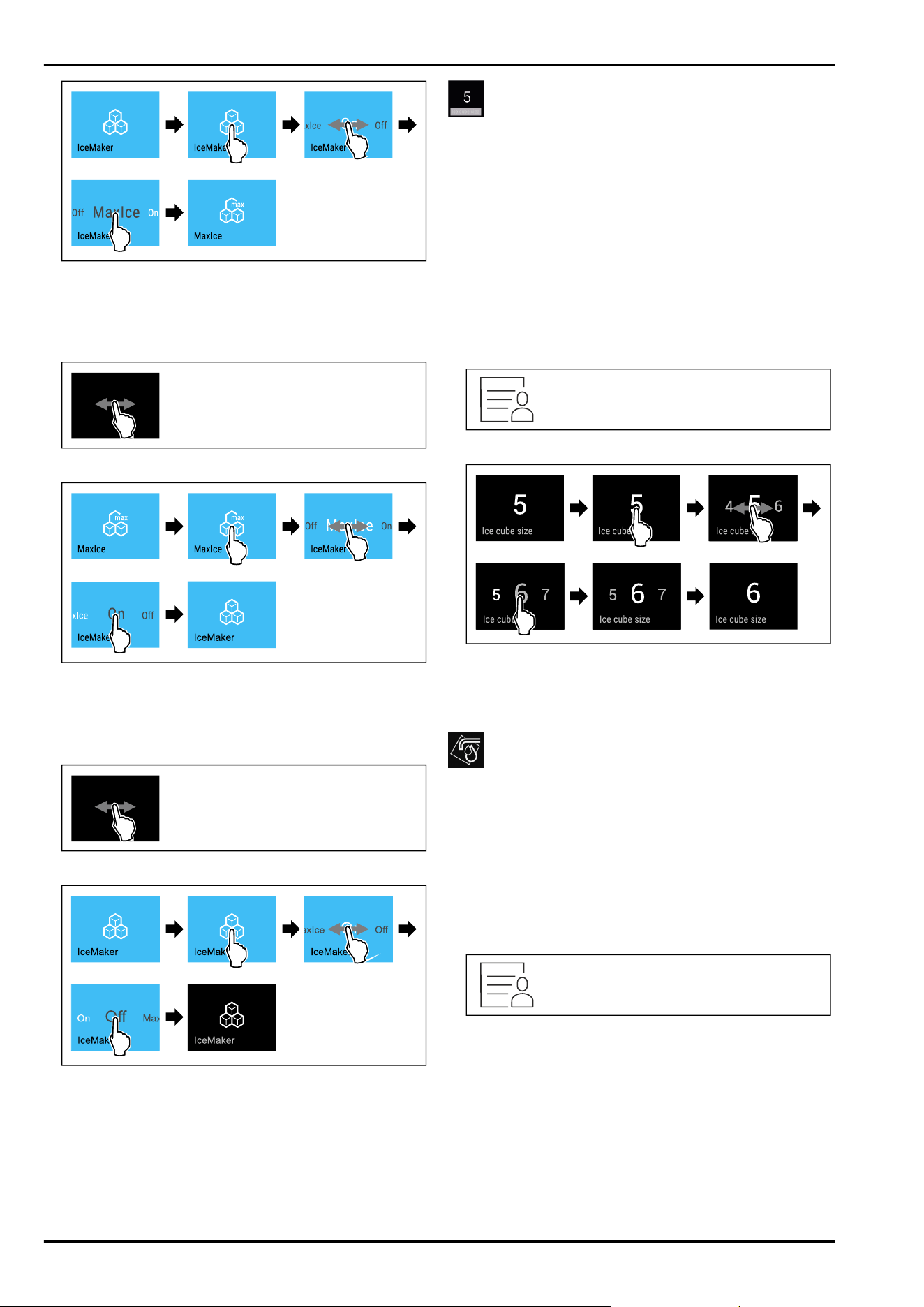

Changing between the IceMaker and MaxIce
If you have activated the IceMaker and would like to change
to MaxIce:
Fig. 47
Controls
14 * Depending on model and options
Fig.48
u
Carry out action steps according to the illustration.
w
The IceMaker is activated with MaxIce.
If you have activated MaxIce and would like to change to the
IceMaker:
Fig. 49
Fig.50
u
Carry out action steps according to the illustration.
w
IceMaker is activated.
w
MaxIce is deactivated.
Deactivating the IceMaker / MaxIce
Fig.51
Fig. 52 Example illustration of the active IceMaker function
u
Carry out action steps according to the illustration.
-or-
u
Deactivate with the SmartDevice app.
w
IceMaker and MaxIce are deactivated.
w
If ice cubes are currently being made, the system
completes the process.
w
The IceMaker goes off automatically.
IceMaker water supply
Use this function to set the IceMaker water supply. The
IceMaker water supply regulates the amount of water
supplied. The IceMaker water supply can be changed if the
water supply does not match the water pressure and the ice
cube size dispensed.
The IceMaker water supply is pre-set to value 5 as delivered.
A value from 1 (smallest inflow volume) to 8 (largest inflow
volume) can be selected.
Setting the IceMaker water supply
Make sure that the following requirements are fulfilled:
q
The IceMaker has been started. (see 4.2 Starting the
IceMaker for the first time)
q
IceMaker is activated. (see IceMaker / MaxIce )
Fig.53
Fig. 54 Example illustration: Switch from value 5 to
value6.
u
Carry out action steps according to the illustration.
w
IceMaker water supply is set.

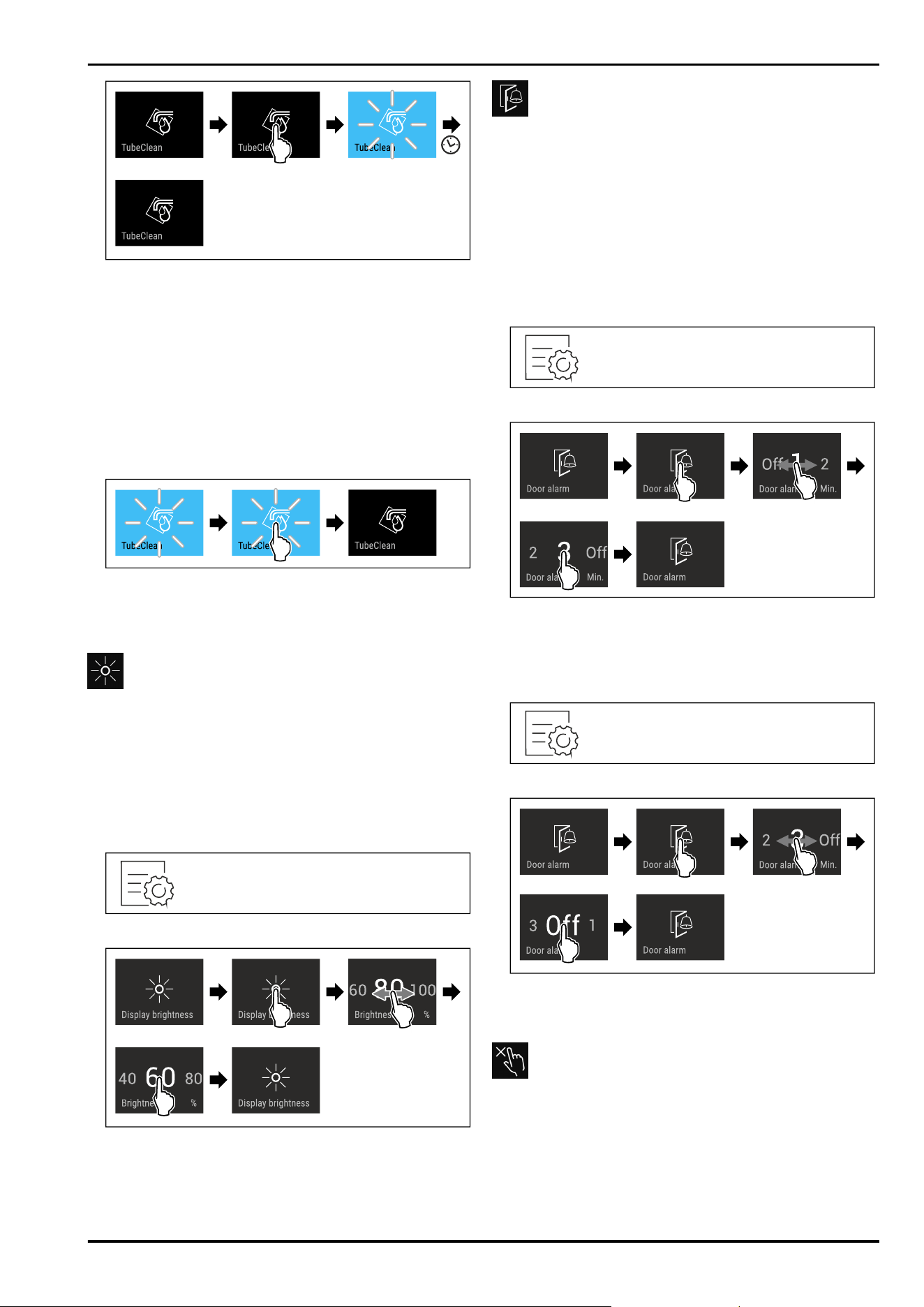

TubeClean
You can use this function to activate or deactivate Tube‐
Clean. If TubeClean is activated, it cleans the IceMaker lines.
Activating TubeClean
Make sure that the following requirements are fulfilled:
q
IceMaker cleaning is prepared. (see 9.4.6 Cleaning the
IceMaker)
q
Empty container with a capacity of 1.5 l and with a
maximum height of 10cm is ready.
u
Place the container in the drawer under the IceMaker.
Fig.55
Controls
* Depending on model and options 15
Fig.56
u
Carry out action steps according to the illustration.
w
TubeClean is activated.
w
The cleaning process has started: Icon flashes until
the cleaning process is automatically completed after
60 minutes.
w
When the cleaning process is complete: The device
continues to run in normal mode.
Deactivating TubeClean
TubeClean is automatically ended after 60 minutes.
However, TubeClean can also be deactivated at any time
during the cleaning process:
Fig.57
u
Carry out action steps according to the illustration.
w
TubeClean is deactivated: Cleaning process is aborted.
w
The device continues to run in normal mode.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the brightness
Fig.58
Fig. 59 Example illustration: Switch from 80 % to 60%.
u
Carry out action steps according to the illustration.
w
The brightness is set.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.60
Fig. 61 Example illustration: Change door alarm from
1 minute to 3 minutes.
u
Carry out action steps according to the illustration.
w
The door alarm is set.
Deactivating the door alarm
Fig.63
Fig.64
u
Carry out action steps according to the illustration.
w
The door alarm is deactivated.

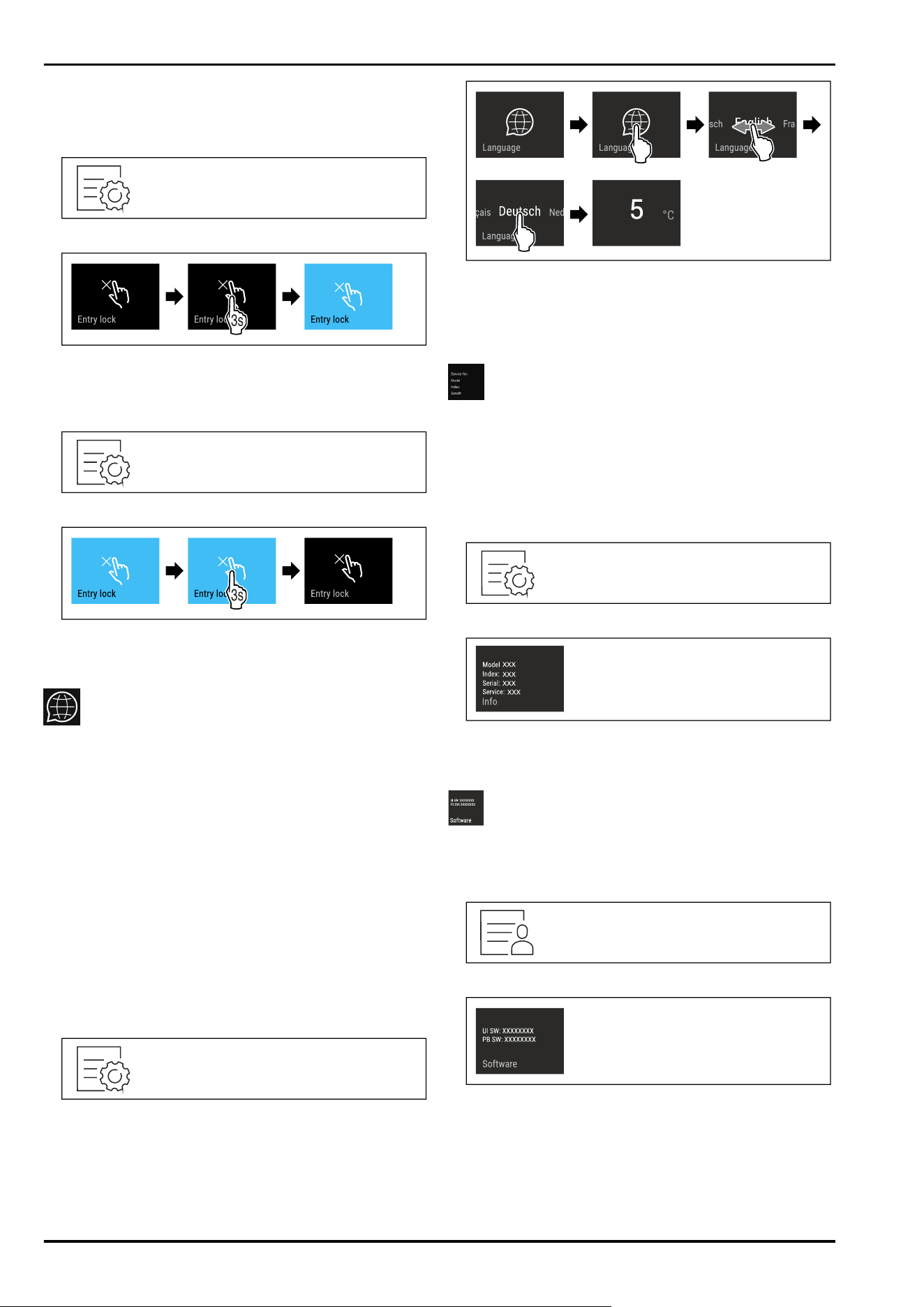

Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e.g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Controls
16 * Depending on model and options
Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.65
Fig.66
u
Carry out action steps according to the illustration.
w
Input lock is activated.
Deactivating the input lock
Fig. 67
Fig.68
u
Carry out action steps according to the illustration.
w
Input lock is deactivated.
Language
Use this function to set the display language.
You can select the following languages:
-
Deutsch
-
English
-
Français
-
Español
-
Italiano
-
Nederlands
-
Čeština
-
Polski
-
Português
-
Bulgarian
-
Русский
-
温度单位
Setting the language
Fig. 69
Fig. 70 Example illustration depending on the language
and temperature
u
Carry out action steps according to the illustration.
w
The language is set.
w
The display returns to the status display.
Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch&Swipe display)
Indicating the device information
Fig.71
Fig.72
u
Carry out action steps according to the illustration.
w
Display indicates device information.
Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.73
Fig. 74
u
Carry out action steps according to the illustration.
w
Display indicates software version.
Controls
* Depending on model and options 17

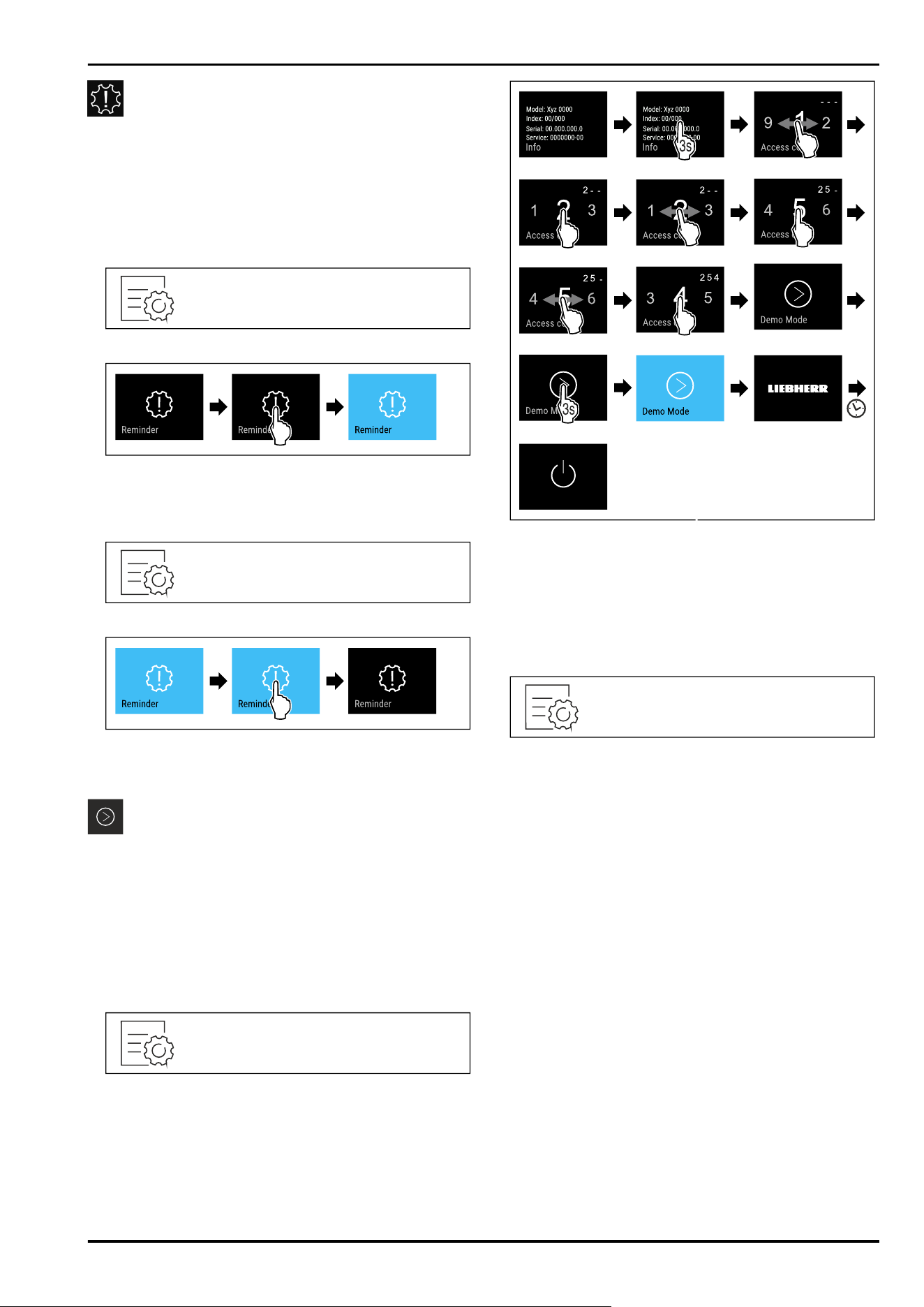

Reminder
Use this function to activate or deactivate the reminders.
The function is activated on delivery.
If the function is activated, the following reminders will
appear:
-
Replace the FreshAir activated carbon filter (see Replace
the FreshAir activated carbon filter)
Activating the reminder
Fig.75
Fig. 76
u
Carry out action steps according to the illustration.
w
Reminder is activated.
Deactivating the reminder
Fig.77
Fig.78
u
Carry out action steps according to the illustration.
w
Reminder is deactivated.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig.79
Fig.80
u
Carry out action steps according to the illustration.
w
Demo mode is activated.
w
Appliance is switched off.
u
Switch on the appliance. (see 4.1 Switching on appliance
(first use))
w
“DEMO” appears in the status display.

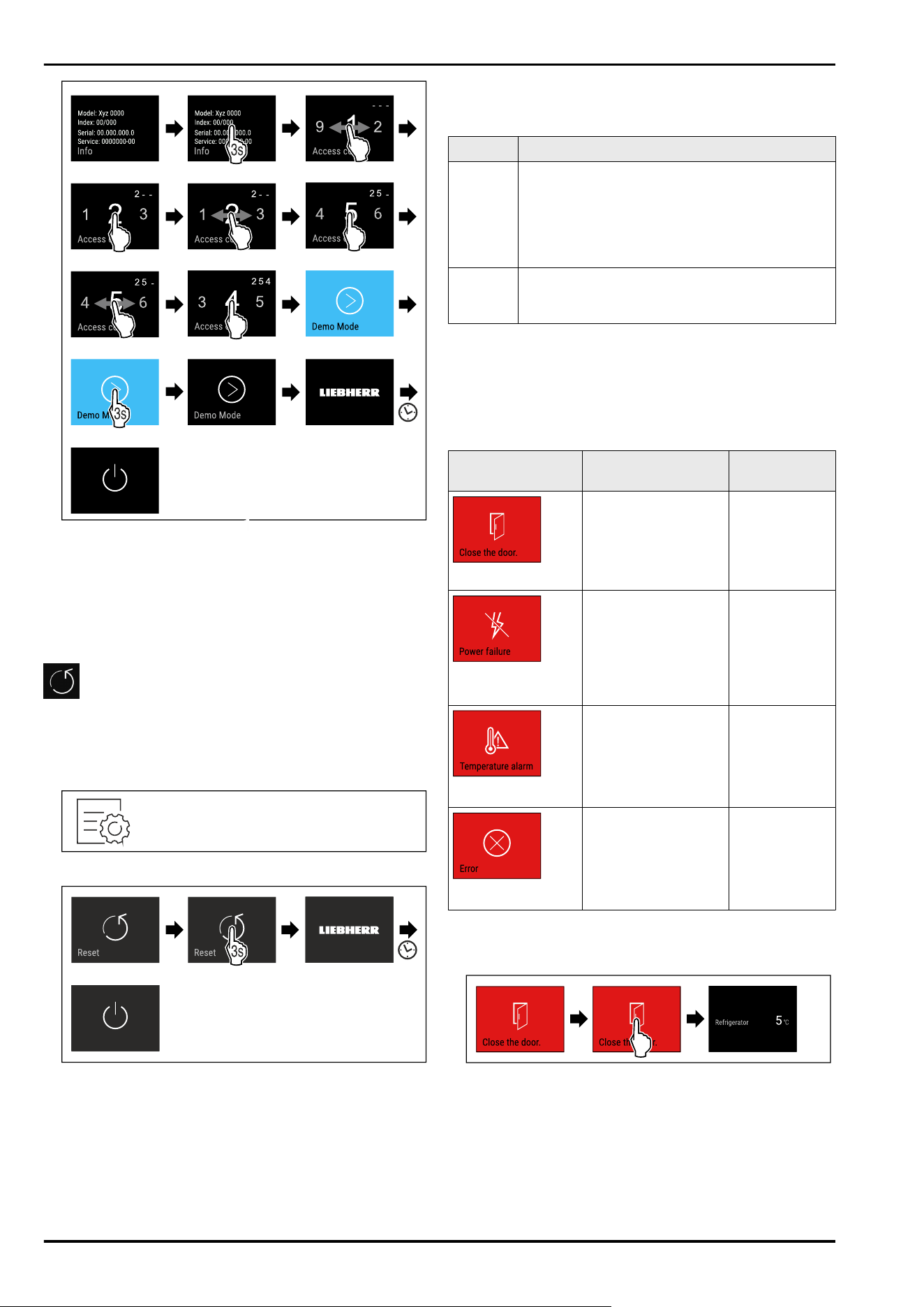

Deactivating demo mode
Fig.81
Controls
18 * Depending on model and options
Fig.82
u
Carry out action steps according to the illustration.
w
Demo mode is deactivated.
w
Appliance is switched off.
u
Switch on the appliance. (see 4.1 Switching on appliance
(first use))
w
Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.83
Fig.84
u
Carry out action steps according to the illustration.
w
Device is reset.
w
Device is switched off.
u
Restart the device. (see 4.1 Switching on appliance (first
use))
7.3 Messages
There are two categories of messages:
Category Importance
Warning Warnings appear in the event of a door alarm or
malfunction.
Simple warnings can be cancelled by yourself.
In the event of serious malfunctions, you must
contact customer service. (see 10.4 Customer
Service)
Reminder Reminders remind you of general processes.
You can carry out these operations to end the
message.
7.3.1 Overview of warnings
Behaviour of the appliance in the event of warnings:
-
Warning appears in red on the display.
-
The alarm tone sounds at an ever-increasing volume.
-
The interior lighting pulsates for some warnings.
Message
Cause Exit the
message
Door alarm
The message
appears if the door is
open for too long.
Carry out
action steps
(see Door
alarm) .
Power outage
alarm
The message
appears if the
freezing temperature
has risen due to a
power failure.
Carry out
action steps
(see Power
outage alarm) .
Temperature alarm
The message
appears if the
freezing temperature
does not correspond
to the set tempera‐
ture.
Carry out
action steps
(see Tempera‐
ture alarm) .
Error
The message
appears if there is
an appliance error.
A component of
the appliance has a
fault.
Carry out
action steps
(see Error) .
7.3.2 Ending warnings
Door alarm
Fig. 85 Example illustration
u
Carry out action steps according to the illustration.
-or-
u
Close the door.
w
The display returns to the status indicator.
You can set how long the door may be open before the door
alarm sounds. (see Setting the door alarm)
Controls
* Depending on model and options 19

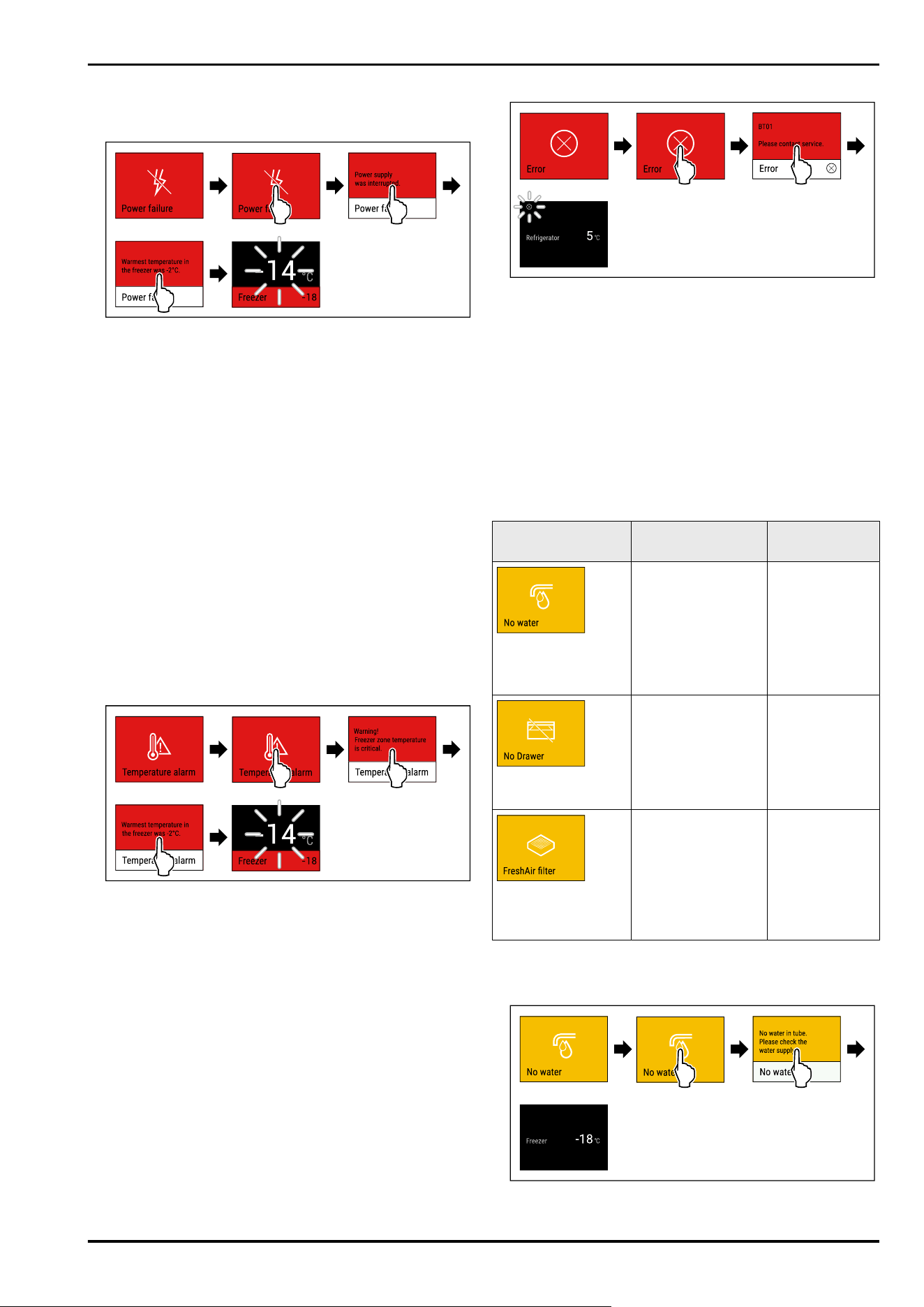

Power outage alarm
When the power failure has ended, the appliance cools
down to the previously set target temperature.
Fig. 86 Example illustration
u
Briefly touch the display.
w
Display shows information about the warning.
u
Briefly touch the display.
w
Warmest freezing temperature is displayed.
w
If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
u
Check the food.
u
Briefly touch the display.
w
The display returns to the status indicator: Current
temperature and target temperature are displayed.
Temperature alarm
Temperature differences can be caused by:
-
You have put in warm, fresh food.
-
Too much warm air has got in while you were sorting out
the freezer or removing items.
-
There has been a longer power failure.
-
The appliance is faulty.
u
Eliminate causes.
w
The appliance cools to the target temperature set previ‐
ously.
Fig. 87 Example illustration
u
Briefly touch the display.
w
Display shows information about the warning.
u
Briefly touch the display.
w
Warmest freezing temperature is displayed.
w
If the freezing temperature was below -9 °C: Food can
still be consumed.
If the freezing temperature has risen above -9°C:
u
Check the food.
u
Briefly touch the display.
w
The display returns to the status indicator: Current
temperature and target temperature are displayed.
Error
Fig. 88 Example illustration
u
Briefly touch the display.
w
Error code is displayed.
u
Note the error code.
u
Briefly touch the display.
w
The display returns to the status indicator.
u
Contact Customer Service. (see 10.4 Customer Service)
7.3.3 Overview of reminders
Behaviour of the appliance during reminders:
-
Reminder appears yellow on the display.
-
Alarm tone sounds.
-
The interior lighting pulsates for some reminders.
Message
Cause Exit the
message
Check the water
connection
The message
appears if the
IceMaker is acti‐
vated but the
IceMaker is not
being supplied with
water via the fixed
water connection.
Carry out action
steps
(see Check the
water connec‐
tion) .
Insert the IceMaker
drawer
The message
appears if the
IceMaker is acti‐
vated but the
IceMaker drawer is
open.
Carry out action
steps
(see Insert the
IceMaker
drawer) .
Replace the Fres‐
hAir activated
carbon filter
The message
appears when the
activated carbon
filter needs to be
replaced.
Carry out action
steps
(see Replace
the FreshAir
activated
carbon filter) .
7.3.4 Ending reminders
Check the water connection
Fig. 89 Example illustration
u
Briefly touch the display
Controls
20 * Depending on model and options
w
Display shows reminder information.
u
Briefly touch the display
u
Check the water connection.
-or-
u
Deactivate IceMaker. (see Deactivating the IceMaker /
MaxIce )
If water connection is checked and IceMaker is activated:
u
Clean the IceMaker. (see 9.4.6 Cleaning the IceMaker)
w
IceMaker produces ice cubes.

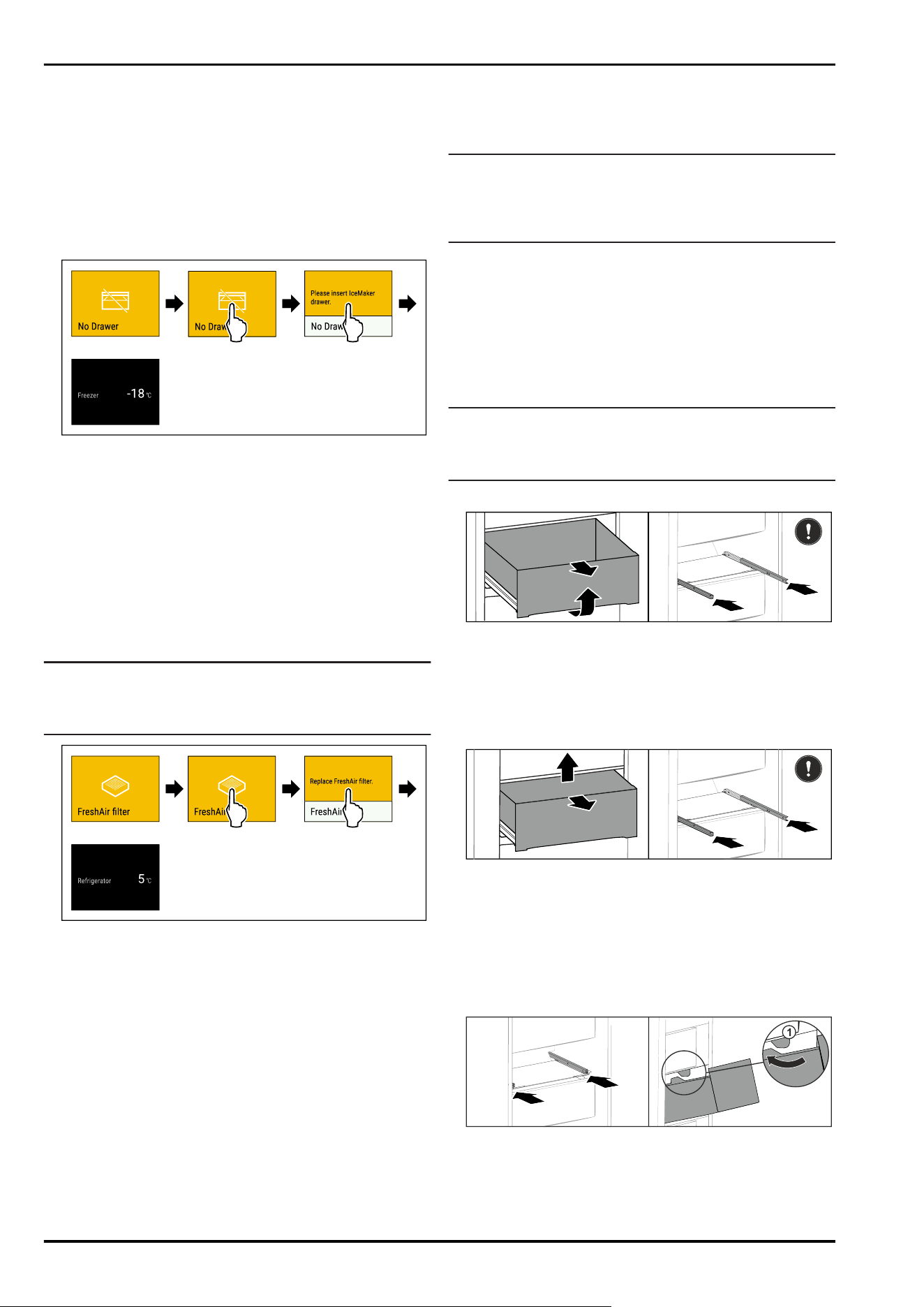

Insert the IceMaker drawer
Fig. 90 Example illustration
u
Briefly touch the display.
w
Display shows reminder information.
u
Briefly touch the display.
u
Insert the IceMaker drawer.
-or-
u
Deactivate IceMaker. (see IceMaker / MaxIce )
w
If IceMaker drawer is inserted and IceMaker is activated:
IceMaker produces ice cubes.
Replace the FreshAir activated carbon filter
Liebherr recommends: Replace the FreshAir activated
carbon filter every 6 months.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
Fig. 91 Example illustration
u
Briefly touch the display.
w
Display shows reminder information.
u
Briefly touch the display.
u
Replace the activated carbon filter. (see 9.1 Air exchange
through the FreshAir activated charcoal filter)
w
Activated carbon filter ensures optimum air quality in the
cooling unit.
w
Reminder appears again after 6 months.
If you no longer wish to receive this reminder, you can deac‐
tivate it. (see Deactivating the reminder)
8 Features

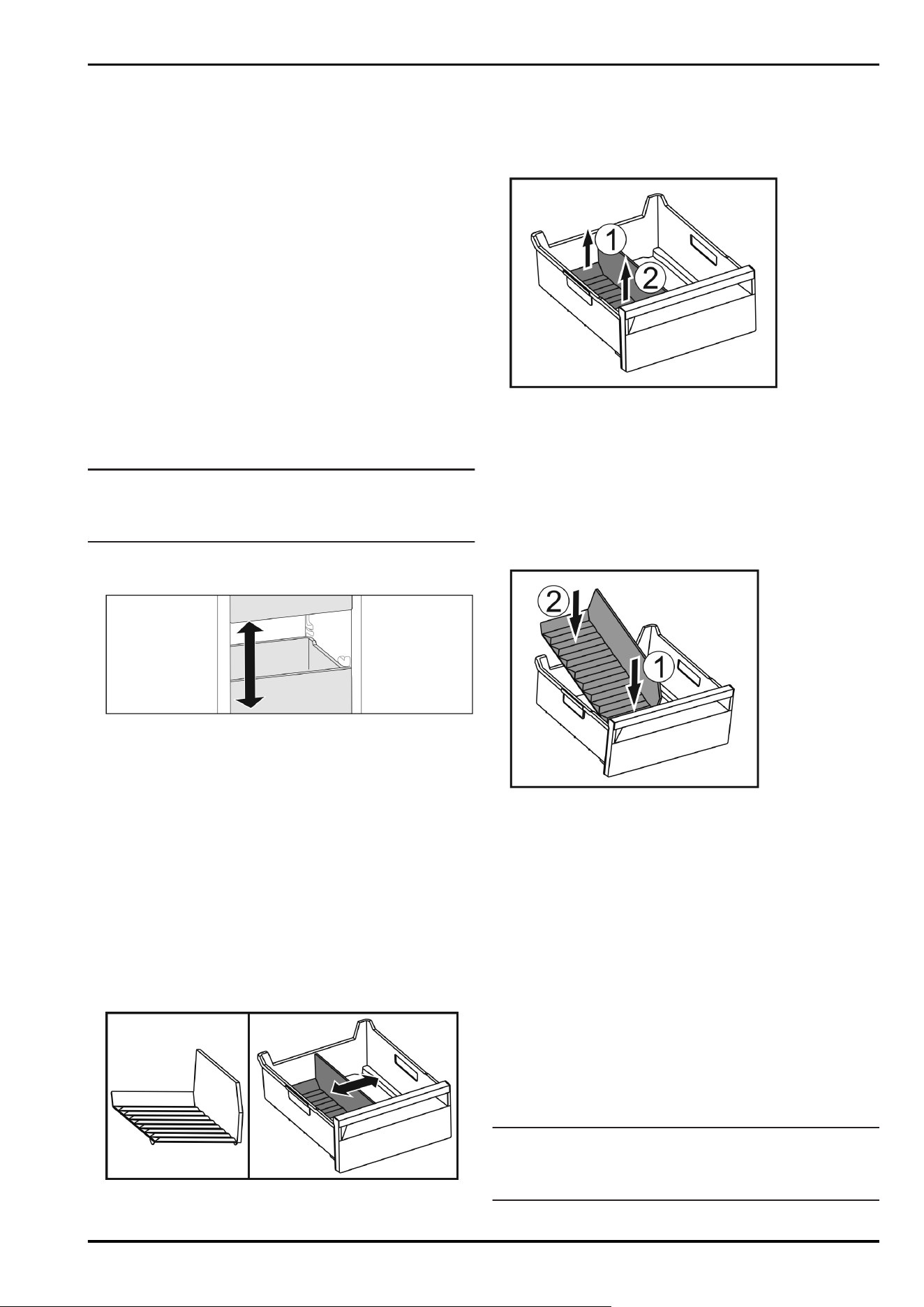

8.1 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Leave the bottom drawer in the appliance!
u
Always leave the fan air vents clear on the back wall!
8.1.1 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Partial pull-out freezer compartment
Note
If the magnet on the top drawer in the freezer compartment
is damaged or removed, the door sensors will malfunction.
u
Do not damage or remove the magnet.
Removing drawer
Fig.92
If the drawer is in the top freezer:
u
Pull out drawer as far as it will go.
u
Raise the drawer forwards.
u
Remove the drawer forwards.
u
Slide rails in.
-or-
Fig. 93
If the drawer is in the middle part of the freezer compart‐
ment:
u
Pull out drawer half-way.
u
Lift the drawer from the bottom rear.
u
Remove the drawer forwards.
u
Slide rails in.
Inserting drawer
Fig. 94
u
Slide rails in.
u
Guide drawer around the stoppers Fig. 94(1).
u
Place drawer on rails.
u
Slide in drawer to the back.
Features
* Depending on model and options 21
8.2 IceMaker
The IceMaker will produce ice cubes for household use only.
Ensure that the following conditions are met:
-
The IceMaker is clean. (see9 Maintenance)
-
IceMaker drawer is cleaned.
-
IceMaker drawer is fully inserted.
8.2.1 Producing ice cubes
The volume depends on the freezing temperature. The
colder the temperature, the more ice cubes the system can
produce in a certain time period.
After the IceMaker is turned on for the first time, it can take
up to 24 hours for the first ice cubes to be made.
u
Activate the IceMaker function.
u
Producing many ice cubes: Activate the MaxIce function.
u
To make a high number of ice cubes: Move the divider in
the IceMaker drawer or remove it completely.
u
Distribute the ice cubes evenly in the drawer to increase
the capacity.
u
Closing the drawer: IceMaker starts making ice cubes
again automatically.
Note
When a certain level is reached in the IceMaker drawer, it
stops producing ice cubes. The IceMaker does not fill the
drawer all the way to the top.
8.3 VarioSpace
Fig.95
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
u
Note the weight limits on the drawers and glass panels
(see 10.1 Technical specifications) .
8.4 Flexible ice compartment divider
The IceMaker’s ice cube drawer has a flexible ice compart‐
ment divider. This allows you to store larger quantities of ice
cubes or additional food items as needed. You can move or
remove the ice compartment divider.
8.4.1 Moving in the flexible ice compartment
divider
Fig. 96 Example illustration of the ice compartment divider
u
Move the ice compartment divider to the desired position.
8.4.2 Removing the flexible ice compartment
divider
Make sure that the following requirements are fulfilled:
q
Ice cube drawer is removed. (see8.1 Drawers)
Fig.97
u
Lift the rear part of the ice compartment divider.
Fig.97(1)
u
Remove the ice compartment divider upwards. Fig.97(2)
8.4.3 Putting in the flexible ice compartment
divider
Make sure that the following requirements are fulfilled:
q
Ice cube drawer is removed. (see8.1 Drawers)
Fig.98
u
Insert the front part of the ice compartment divider.
Fig.98(1)
u
Lower the rear part of the ice compartment divider to the
drawer bottom. Fig.98(2)
9 Maintenance
9.1 Air exchange through the FreshAir
activated charcoal filter
Wine is constantly developing according to its ambient
conditions, so air quality is essential for preservation.
The FreshAir activated charcoal filter guarantees optimal air
quality.
q
Change the activated charcoal filter every 6 months.
q
Dispose of the activated charcoal filter with regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at home.liebherr.com/
shop/de/deu/zubehor.html.
Maintenance
22 * Depending on model and options

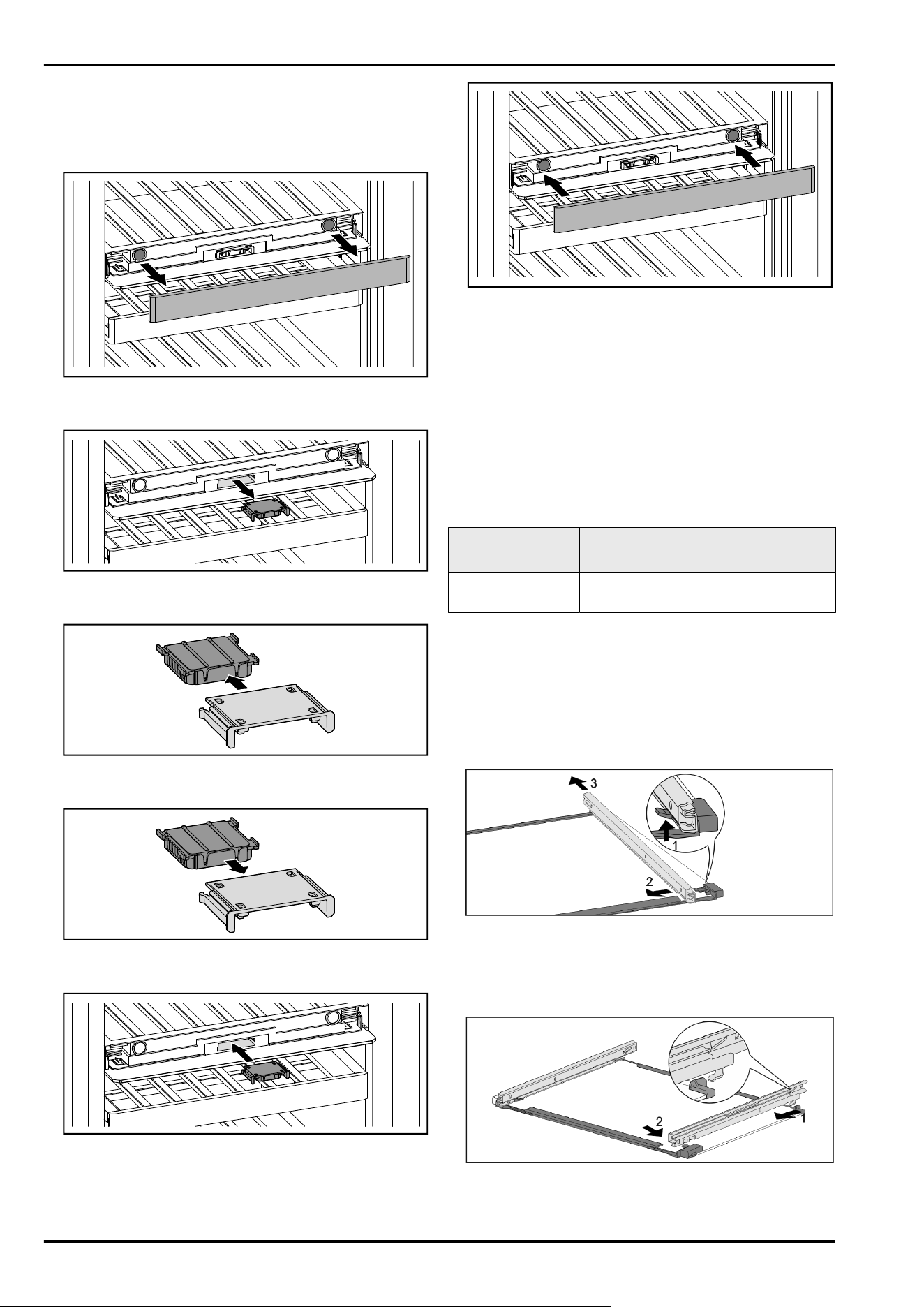

9.1.1 Replacing the FreshAir activated charcoal
filter
Must be carried out multiple times depending on the equip‐
ment.
Fig.99
u
Remove the panel.
Fig. 100
u
Pull the drawer out.
Fig. 101
u
Pull out the filter.
Fig. 102
u
Insert the new filter.
Fig. 103
u
Push the drawer in.
Fig. 104
u
Set the panel back in place.
9.2 Disassembling / assembling pull-
out systems
9.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Freezer section
partial pull-out
can be disassembled (see Partial pull-
out freezer compartment)
9.2.2 Drawer on telescopic rails
Partial pull-out freezer compartment
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed.
q
Glass shelf has been removed.
Fig. 105 Glass shelf with rails
u
Push up front click-in hooks. Fig. 105(1)
u
Move the pull-out rails to the side Fig. 105 (2) and to the
rear Fig. 105(3).
Installing pull-out system
Fig. 106 Glass shelf with rails
u
Hook in rail at the back. Fig. 106(1)
u
Hook in rail at the front. Fig. 106(2)
Maintenance
* Depending on model and options 23
9.3 Defrosting the appliance
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Water drops or a thin layer of frost or ice can form on the
back wall; this is a completely normal part of the applian‐
ce’s function. This must not be removed.
u
Clean the drain opening at regular intervals.
(see 9.4Cleaning the appliance)
9.3.2 Defrosting the freezer compartment with
NoFrost
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not have to be defrosted.
9.4 Cleaning the appliance
9.4.1 Ready
WARNING
Danger of electric shock!
u
Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
u
Do not damage the refrigeration circuit.
u
Empty the appliance.
u
Remove mains connector.
9.4.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
u
Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
9.4.3 Cleaning the mosquito screen
u
Clean the mosquito screens regularly with a vacuum
cleaner.
u
Remove stubborn stains with a soft cloth.
9.4.4 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
9.4.5 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Drawer
Please note: Do not remove the magnet on the drawer.
The magnet ensures the functionality of the IceMaker.
- Flexible ice compartment divider in the IceMaker's ice
cube drawer
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Clean with a dry lint-free cloth:
- Wooden grating
Wash in the dishwasher up to 60°C:
- Ice cube scoop
u
To disassemble components: see the relevant section.
u
Clean the components.
9.4.6 Cleaning the IceMaker
There are various options for cleaning the IceMaker.
Cleaning is required in the following cases:
q
Initial operation
q
With mains connection:
If out of use for more than 5 days.
Ensure that the following conditions are met:
q
IceMaker drawer is emptied.
q
IceMaker drawer is in place.
q
The IceMaker is activated.
First use or after a long period of non-use
Clean the IceMaker with the TubeClean function.
u
Put an empty 1.5 l vessel (max. height 10 cm) in the
drawer under the IceMaker.
u
Activate the TubeClean function.
w
The rinse process is prepared (max. 60 min.): Symbol
flashes.
w
Water pipes are rinsed: Symbol flashes.
w
Rinsing process is complete: Function turns off automati‐
cally.
Maintenance
24 * Depending on model and options
u
Remove the IceMaker drawer and remove the container.
u
Clean the IceMaker drawer with warm water and a little
detergent.
u
Push the IceMaker drawer in.
w
The system starts making ice cubes automatically.
u
Dispose of any ice cubes that were made 24 hours after
the first ice cubes.
If cleaning is required
Clean the IceMaker by hand.
u
Remove the IceMaker drawer and clean with warm water
and a little detergent.
u
Push the IceMaker drawer in.
w
The system starts making ice cubes automatically.
9.4.7 After cleaning
u
Wipe the appliance and the components dry.
u
Connect and switch on the appliance.
u
Activate SuperFrost (see 7.2Appliance functions) .
The temperature is cold enough:
u
Place the food inside.
u
Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Freeze -26°C to -15°C
Maximum freezing quantity/24h
Freezer compart‐
ment
See “Freezing capacity …/24 h” on
the type plate
Maximum component capacity*
Features* Appliance
width
550 mm
(see instal‐
lation
instruc‐
tions,
appliance
dimen‐
sions)*
Appliance
width
600 mm
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)*
Appliance
width
700 mm
(see instal‐
lation
instruc‐
tions, appli‐
ance
dimen‐
sions)*
Wooden grating 12 kg
Partial pull-out
freezer compart‐
ment
(see 8.1.1 Drawer
on telescopic rails)
12 kg 15 kg --
Ice cube production with IceMaker
Ice cube produc‐
tion/24h
At a temperature of -18 °C: 1.2 kg of
ice cubes
Maximum ice cube
production/24h
With the MaxIce function on: 1.5 kg of
ice cubes
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
Customer help
* Depending on model and options 25
10.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
u
Check the power plug.
→ There is something wrong with the
power outlet fuse.
u
Check the fuse.
→ Power cut
u
Keep the appliance closed.
u
Safeguarding food: Place cold packs on top of food or
use another freezer if the power cut lasts longer.
u
Do not re-freeze defrosted food,
→ The IEC socket is not plugged into
the appliance correctly.
u
Check the IEC socket.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
u
Close the appliance door.
→ Not enough ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Problem solution: (see1.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
u
Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ Too much fresh food was placed
inside without SuperFrost.
u
Solution: (see SuperFrost)
→ The temperature is set incorrectly.
u
Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
u
Move the appliance or the heat source.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
u
Check that the door seal is well fitted in the groove.
The appliance is
hot to touch on the
outside*.
→ The heat of the refrigeration circuit
is used to avoid condensation.
u
This is normal.
10.3.2 Features
Defect Cause Remedy
You cannot acti‐
vate the IceMaker.
→ The appliance and therefore the
IceMaker are not connected.
u
Connect the appliance (see the Installation Guide).
The IceMaker is
not producing ice
cubes.
→ The IceMaker is not on.
u
Activate the IceMaker.
→ The drawer of the IceMakers is not
connected properly.
u
Push the drawer in correctly.
→ The water connection is not open.
u
Open the water connection.
Mould on the wine
bottles
→ Similar to other types of bearing,
a slight layer of mould can form
depending on the type of adhesive
used for the label.
u
Remove any adhesive residues.
Customer help
26 * Depending on model and options
Defect Cause Remedy
The internal light
does not come on.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The door was open for longer than
15 minutes.
u
Interior lighting switches off automatically after
about 15 minutes when the door is open.
→ The LED interior light is faulty or
the lid is damaged.
u
Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
q
Appliance name (model and index)
q
Service no. (Service)
q
Serial no. (S no.)
u
Call up the appliance information via the display.
(see Device information)
-or-
u
Refer to the type plate for appliance information.
(see 10.5 Model plate)
u
Note down the appliance information.
u
Notify customer service: Report errors and the appliance
information.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow further instructions from Customer Service.

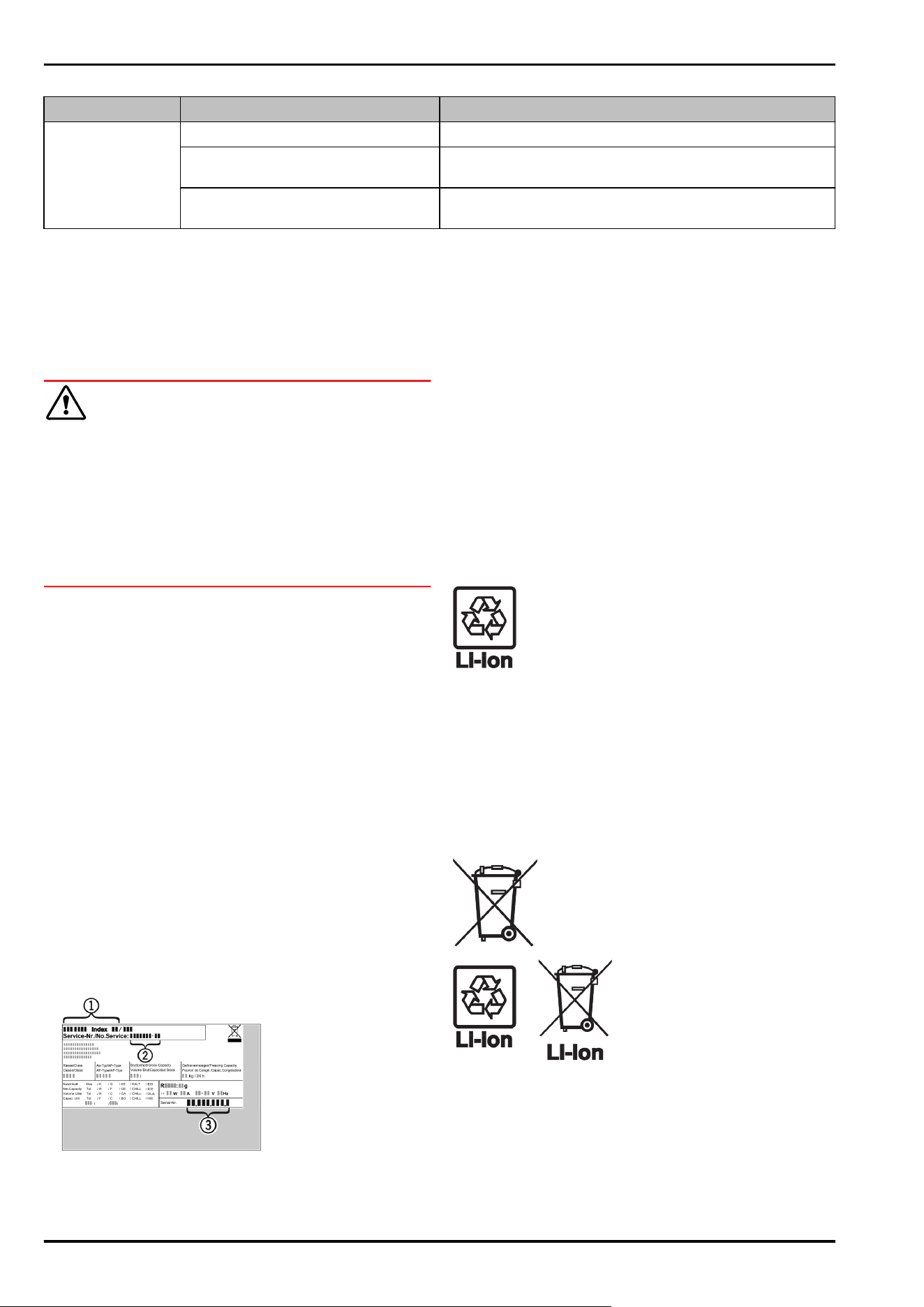

10.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 107
(1)
Appliance description (3) Serial no.
(2) Service no.
u
Note the data on the model plate.
11 Shutting down
u
Empty the appliance.
u
Deactivate IceMaker. (see Deactivating the IceMaker /
MaxIce )
u
Switch off appliance. (see Switching the appliance off
and on)
u
Pull the mains plug out of the socket.
u
Remove the IEC socket if required: Pull the IEC socket out
of the appliance plug and move it to the left and right at
the same time.
u
Clean appliance. (see 9.4Cleaning the appliance)
u
Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation.
u
If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
Shutting down
* Depending on model and options 27
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Observe the notes on transporting the appliance.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Disposal
28 * Depending on model and options
Disposal
* Depending on model and options 29
home.liebherr.com/fridge-manuals
Issue date: 20241003
Part number index: 7083366-00
