Instructions for
use and installa‐
tion
ORIGINAL OPERATOR'S MANUAL
Contents
1 General Safety Instructions.................................. 3
1.1 Proper use..................................................................... 3
1.2 User group..................................................................... 3
1.3 Hazards – Warnings for the User.............................. 3
1.4 Faults, damage and repairs........................................ 4
1.5 Disposal Instructions.................................................. 4
1.6 Conformity..................................................................... 4
1.7 Climate classes............................................................ 4
1.8 SVHC substances in accordance with the REACH
Regulation..................................................................... 4
1.9 EPREL Database........................................................... 4
1.10 Open-source licenses.................................................. 5
1.11 Spare parts.................................................................... 5
1.12 Warning levels.............................................................. 5
2 The appliance at a glance..................................... 5
2.1 Delivered contents....................................................... 5
2.2 SmartDevice.................................................................. 5
3 Setting up and connecting.................................... 5
3.1 Installation conditions................................................ 5
3.2 Weight of cabinet fronts............................................. 6
3.3 Transporting the appliance........................................ 6
3.4 Unpacking the appliance............................................ 6
3.5 Removing the transport retainer............................... 7
3.6 Explanation of the symbols used.............................. 7
3.7 Reversing the door....................................................... 7
3.8 Setting up several appliances................................... 9
3.9 Installing in the recess................................................ 9
3.10 Installing the appliance in a 30” recess................... 18
3.11 Limiting the door opening angle................................ 21
3.12 Cabinet fronts............................................................... 21
3.13 After installation.......................................................... 22
3.14 Connecting the appliance to the power supply...... 22
3.15 Disposal of packaging................................................. 23
4 Functionality of the Touch display....................... 23
4.1 Navigation and symbol explanation......................... 23
4.2 Menus............................................................................. 24
4.3 Sleep mode................................................................... 24
5 Start-up................................................................. 24
5.1 Switching on appliance (first use)............................ 24
6 Storage.................................................................. 25
6.1 Information regarding storage................................... 25
6.2 Fridge compartment.................................................... 25
6.3 EasyFresh..................................................................... 25
6.4 Freezer compartment.................................................. 25
6.5 Storage times............................................................... 26
7 Energy saving........................................................ 26
8 Use......................................................................... 26
8.1 Controls and displays.................................................. 26
8.1.1 Status display........................................................... 26
8.1.2 Display symbols........................................................26
8.2 Appliance functions..................................................... 27
8.2.1 Notes on the appliance functions..........................27
Switching appliance off and on.............................27
Switching temperature zone off and on.............. 27
Temperature............................................................. 28
D-Value......................................................................28
SuperCool................................................................. 28
PowerCool ................................................................29
SuperFrost................................................................ 29
PartyMode ................................................................30
HolidayMode.............................................................30
SabbathMode............................................................31
E-Saver ......................................................................31
CleaningMode...........................................................32
Input lock.................................................................. 32
Reminder................................................................... 32
Temperature unit..................................................... 33
Display Brightness.................................................. 33
WiFi............................................................................ 33
Appliance information............................................ 34
Software....................................................................34
Start defrost cycle...................................................35
Door alarm................................................................ 35
Demo mode...............................................................35
Resetting to factory settings.................................36
8.3 Messages...................................................................... 36
8.3.1 Overview of warnings.............................................. 36
8.3.2 Ending warnings........................................................37
8.3.3 Overview of reminders............................................. 37
8.3.4 Ending reminders......................................................38
9 Equipment............................................................. 38
9.1 Door racks..................................................................... 38
9.2 Shelves.......................................................................... 39
9.3 Drawers.......................................................................... 40
9.4 Lid for EasyFresh-safe................................................ 40
9.5 Glass shelves................................................................ 41
9.6 VarioSpace.................................................................... 41
9.7 Bottle rack..................................................................... 42
10 Maintenance.......................................................... 42
10.1 FreshAir carbon filter................................................... 42
10.2 Removing/inserting the bottle holder...................... 42
10.3 Disassembling / assembling pull-out systems...... 42
10.4 Lid for EasyFresh-safe................................................ 42
10.5 Defrosting the appliance............................................ 43
10.6 Cleaning the appliance............................................... 43
11 Customer support................................................. 44
11.1 Technical specifications............................................. 44
11.2 Operating noises.......................................................... 44
11.3 Technical faults............................................................ 45
11.4 Customer Service......................................................... 46
11.5 Rating plate................................................................... 46
12 Decommissioning.................................................. 46
2 * Depending on model and options
13 Disposal................................................................. 46
13.1 Preparing the appliance disposal.............................. 46
13.2 Environmentally friendly disposal of the
appliance....................................................................... 46
The manufacturer is constantly working to improve all types
and models. Therefore, please be aware that we reserve the
right to make changes to the shape, equipment and tech‐
nology.

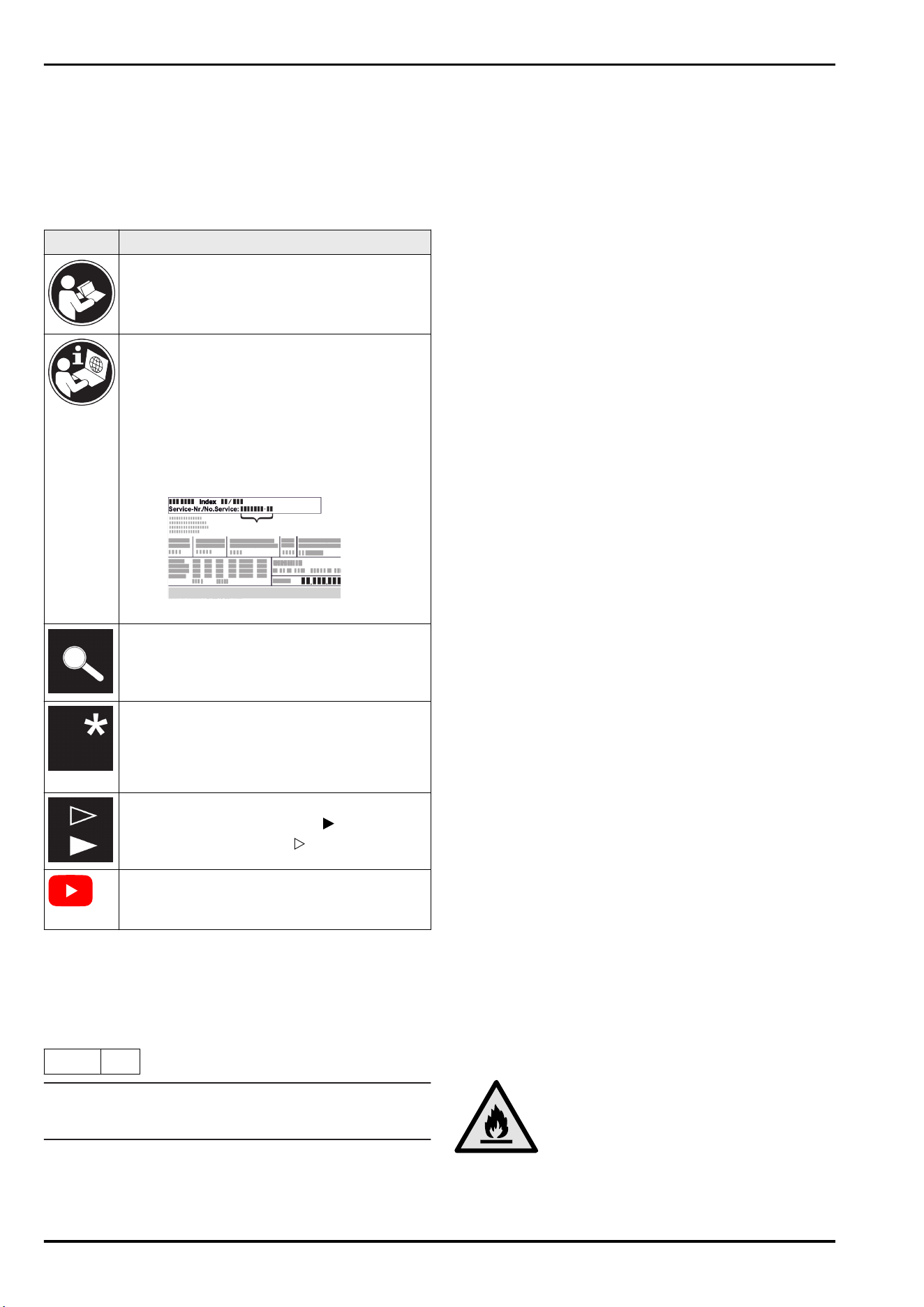

Symbol Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Additional information online
The digital manual with supplemental informa‐
tion and in additional languages can be found
online by scanning the QR code on the front
page of this manual or by entering the service
number at home.liebherr.com/fridge-
manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so there may be differences. Sections that
apply to certain models only are indicated by
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channel of Liebherr-Hausgeräte.
Open-source licenses:
The appliance includes software components that make
use of open-source licenses. You can find information on
the open-source licenses to be used here:
home.liebherr.com/open-source-licenses
These operating instructions apply to:
ICN(S)..
7603
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.
1 General Safety Instructions
Keep this user information in a safe place so that you can
access it at any time.
If you hand the appliance on to someone else, give this user
information to the next owner.
To use the appliance properly and safely, read this user
information carefully before installation and use. Always
follow the instructions, safety instructions and warnings
contained in it. The information is important and ensures
that you install and operate the appliance safely and
correctly.
1.1 Proper use
-
This appliance is designed for use in a household and in
similar areas of application, e.g.:
•
Staff kitchen areas in stores, offices and other work
areas
•
In agriculture and in hotels, motels and other accom‐
modation
•
Bed and breakfast locations
•
in catering and related wholesale use
-
Other uses:
•
No other application types are permitted.
1.2 User group
-
This appliance is not intended for use by persons
(including children) with reduced physical, sensory, or
mental capabilities, or by persons lacking experience and
knowledge, unless they are supervised or have been
instructed in the safe use of the appliance by a person
responsible for their safety. Children should be super‐
vised to ensure that they do not play with the appliance.
-
Children aged 3 to 8 years may load and unload the
refrigerator/freezer.
1.3 Hazards – Warnings for the User
-
WARNING: Keep ventilation openings in the appliance
housing or built-in structure free from obstructions.
-
WARNING: Do not use mechanical devices or other means
to accelerate defrosting other than those recommended
by the manufacturer.
-
WARNING: Do not damage the refrigerant circuit.
-
WARNING: Do not operate electrical appliances inside the
refrigerator/freezer compartment unless they are of a
type recommended by the manufacturer.
-
WARNING: When setting up the appliance, make sure that
the power cord is not jammed in or damaged.
-
WARNING: Do not position portable multiple sockets or
power adapters on the rear of the appliance.
After the appliance has been installed, it must still be
possible to disconnect the appliance from power.
-
Accessible power plug (located above, below, or beside
the appliance)
-
Triggering a fuse or circuit breaker in the building instal‐
lation in accordance with installation regulations.
WARNING: Fire hazard/fire-hazardous
materials.
You can find the symbol on the compressor
and it may also be on other places on the
appliance. It indicates a hazard due to flam‐
mable materials. Do not remove the label.
-
The more refrigerant there is in the appliance, the larger
the room in which the appliance is installed must be. If
the room is too small, a flammable gas/air mixture may
General Safety Instructions
* Depending on model and options 3
form in the event of a leak. Per 8g refrigerant, the instal‐
lation space must be at least 1m
3
in size. Information on
the refrigerant contained can be found on the type plate
inside the appliance.
-
Regularly clean the surfaces that come into contact with
food and accessible drainage systems.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
If the refrigerator/freezer is to remain empty for an
extended period, switch off the appliance, defrost it,
clean and dry it, and leave the door open to prevent mold
growth.
-
Avoid prolonged skin contact with cold surfaces or
chilled goods. For protection, wear e.g. gloves.
-
Make sure that alcoholic beverages or other containers
with alcohol are stored tightly sealed. Any leaking alcohol
may be ignited by electrical components.
-
Only open the door for a short time. This helps you
prevent the temperature from increasing in the applian‐
ce’s interior.
-
Do not reach between the door and the appliance when
opening and closing. Fingers may get jammed in.
-
Do not place any objects in the front area of the bottom
glass shelf to ensure that the appliance door closes
properly. (see6.2 Fridge compartment) (see 9.1Door
racks)
-
WARNING: Secure the appliance as described in the oper‐
ating instructions to prevent hazards caused by insuffi‐
cient stability.
-
Observe instructions on installation, securing and the
required dimensions and connections. (see3 Setting up
and connecting)
1.4 Faults, damage and repairs
-
Power connection with IEC appliance coupler:
If the power cord of this appliance is damaged, it must be
replaced with a special replacement cord available from
the manufacturer or its customer service department.
The customer may replace the cord himself/herself.
-
Repairs and work on the appliance are only to be under‐
taken by customer service or other trained specialists.
-
Pull the power plug or switch off the fuse in the event of
faults and appliance errors. Always hold it by the plug
when pulling out the power plug. Do not pull on the cord.
1.5 Disposal Instructions
The crossed-out wheeled bin symbol indi‐
cates that the appliance must not be
disposed of with unsorted municipal waste
and must be collected separately for
disposal. It contains valuable materials that
may be reused or recycled.
The symbol may be on the compressor. It
relates to the oil in the compressor and
indicates the following danger: May be
fatal if swallowed and if it enters the
respiratory tract. This note is only impor‐
tant for recycling. There is no danger in
normal operation.
This or a similar label may be on the rear of
the appliance. It indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
note is only important for recycling. Do not
remove the label.
-
End-of-life appliances must be disposed of properly in
accordance with all applicable local regulations and
legislation. During transport for disposal, do not damage
the refrigeration circuit on the appliance being disposed
of to prevent the refrigerant (see the type plate for
details) and the oil from escaping uncontrollably.
-
Please note that deleting any personal data stored on the
appliance is the customer’s responsibility.
-
For Germany: Dispose of the appliance of free of charge
at local recycling centers using the class 1 collection
containers. When purchasing a new refrigerator or
freezer from a retailer with a sales area exceeding
>400m
2
, the old appliance will also be accepted free of
charge.
-
EU: Please contact your local authorities for information
on the disposal of end-of-life appliances.
1.6 Conformity
The refrigerant circuit has been tested for leaks. In installed
state, the appliance complies with the relevant safety regu‐
lations as well as the corresponding directives.
For the EU
market:
The appliance complies with Directive
2014/53/EU.
For the GB
market:
The appliance complies with Radio
Equipment Regulations 2017 SI 2017 No.
1206.
The complete text of the EU Declaration of Conformity is
available online at: www.Liebherr.de
1.7 Climate classes
The appliance is designed for operation at limited ambient
temperatures depending on climate class. The climate class
that applies to your appliance is printed on the type plate.
Note
► To ensure flawless operation, observe the specified
ambient temperatures.
Climate class for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.8 SVHC substances in accordance
with the REACH Regulation
-
Use the link below to check whether you appliance
contains SVHC substances in accordance with the REACH
Regulation:
https://go.liebherr.com/z3eewm
1.9 EPREL Database
-
Information on energy consumption labeling and ecode‐
sign requirements has been available in the European
Product Database (EPREL) since March 1, 2021. Use the
following link to access the product database https://
eprel.ec.europa.eu/. There, you will be prompted to enter
the model ID. You can find the model ID on the type plate.
General Safety Instructions
4 * Depending on model and options
1.10 Open-source licenses
-
The appliance includes software components that make
use of open-source licenses. You can find information
about the open-source licenses to be used here:
home.liebherr.com/open-source-licenses
1.11 Spare parts
-
Spare parts for functional and storable parts of the
equipment are available for 15 years.
1.12 Warning levels
DANGER
Indicates an immediately
dangerous situation with, if not
avoided, potentially fatal conse‐
quences, or which might result in
severe injuries.
WARNING
Indicates a dangerous situation
with, if not avoided, potentially
fatal consequences, or which
might result in a severe injury.
CAUTION
Indicates a dangerous situation,
which, if not avoided, might result
in minor or medium injuries.
ATTENTION Indicates a dangerous situation,
which, if not avoided, might result
in property damage.
Note Refers to useful information and
tips.
2 The appliance at a glance
2.1 Delivered contents
Check all parts for transport damage. If you have any
complaints, please contact the retailer or customer service.
(see11.4 Customer Service)
Delivery contains the following parts:
-
Integrated appliance
-
Equipment (depending on your model)
-
Installation parts (depending on your model)
-
“Quick Start Guide”
-
“Installation Guide”*
-
Service brochure
2.2 SmartDevice

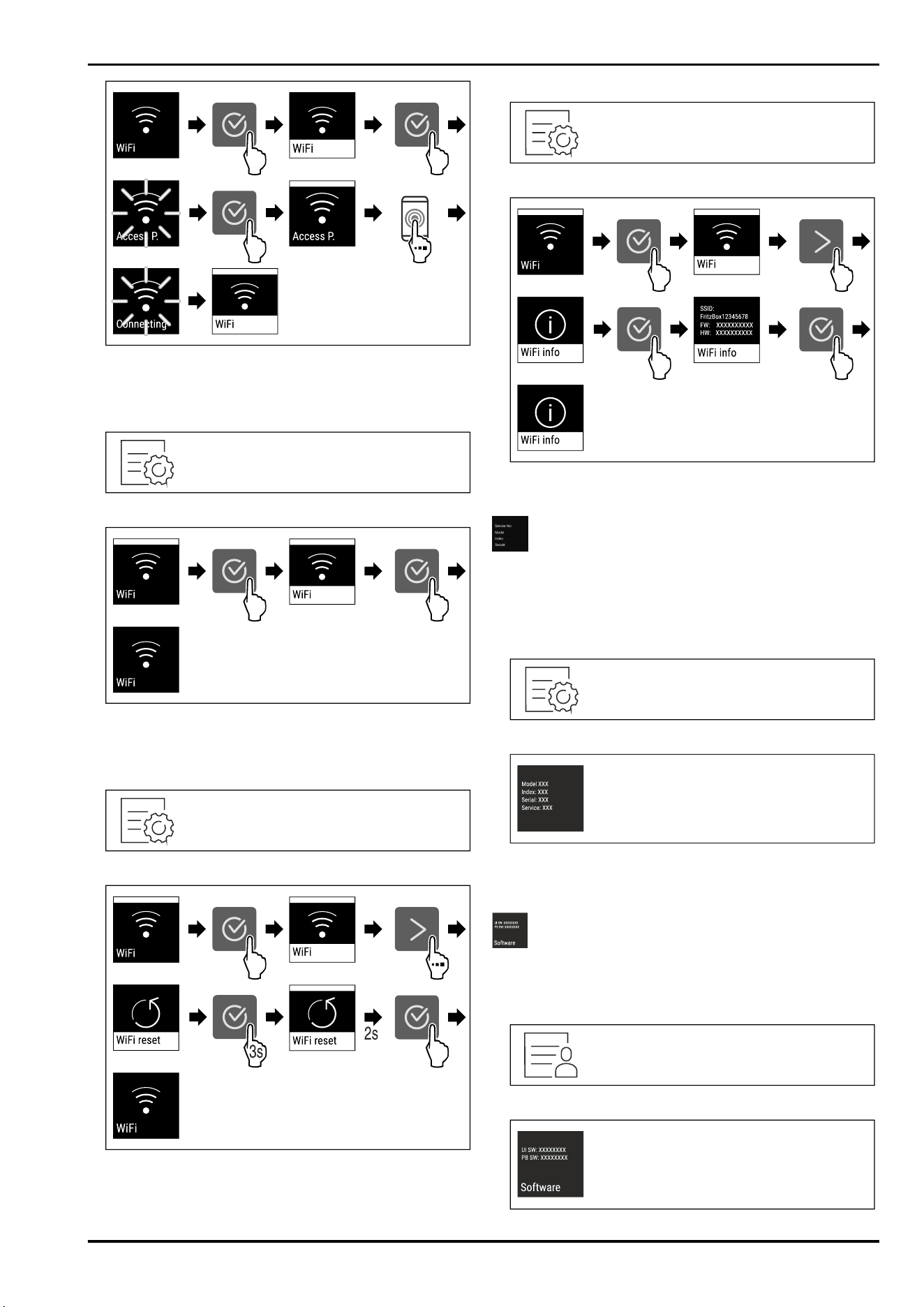

SmartDevice is the networking solution for your fridge-
freezer.
If your appliance is SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your WiFi.
With the SmartDevice app, you can operate your appliance
from a mobile device. Additional functions and setting
options are available in the SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchase the
SmartDeviceBox in
the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After you have installed and config‐
ured the SmartDevice app, you can
connect your appliance to your WLAN
using your SmartDevice app the
WLAN device function (seeWiFi) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
3 Setting up and connecting
3.1 Installation conditions
The installation conditions are crucial to ensure that you
can operate your appliance safely, efficiently, and trouble-
free.
-
Observe all safety instructions.
-
Observe the installation location and position in the
room.
WARNING
Danger of fire due to incorrect positioning!
If the power supply cable or plug touches the back of the
appliance, the vibration can damage the power supply cable
or the plug resulting in a short circuit.
► Make sure the power supply cable is not trapped under
the appliance when you position the appliance.
► Install the appliance so that it does not touch any plugs
or power cables.
► Do not connect any appliances to sockets in the area of
the back of the appliance.
► Do not place and operate power strips/power distribu‐
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
WARNING
Risk of fire due to moisture!
If live parts or the power cord get wet, this can cause a
short circuit.
► The appliance is designed for use in enclosed spaces. Do
not operate the appliance in open space or in damp areas
or where there is spray.
The appliance at a glance
* Depending on model and options 5
WARNING
Risk of fire due to escaping refrigerant and oil!
The refrigerant inside the appliance is environmentally
friendly, but flammable. The oil used is also flammable. If
the refrigerant and oil escape in high concentrations and
come into contact with an external heat source, they can
ignite.
► Avoid damaging the refrigerant lines and compressor.
3.1.1 Installation location
-
Only set up and used the appliance in enclosed spaces.
-
Only operate the appliance in installed condition.
-
If the appliance is set up in a very humid environment,
condensation may form on the outside of it.
Always ensure good ventilation at the installation loca‐
tion.
-
The more refrigerant there is in the appliance, the larger
the room in which the appliance is installed must be. If
the room is too small, a flammable gas/air mixture may
form in the event of a leak. Per 8g refrigerant, the instal‐
lation space must be at least 1m
3
in size. Information on
the refrigerant contained can be found on the type plate
inside the appliance.
-
The floor at the installation location must be horizontal
and level.
3.1.2 Position in the space
-
Do no install the appliance in an area with direct sunlight,
next to a heating unit or similar.
-
You can install the appliance directly next to an oven.
-
If you install the appliance directly next to an oven, its
energy consumption may increase slightly. This depends
on the service life and how often the oven is used.
-
Only fit the appliance into stable, solid cabinets.
-
Use in potentially explosive atmospheres is not
permitted.
3.1.2 Ventilation requirements
NOTICE
Covered vents!
Damage. Appliance can overheat, which can reduce the
service life of various parts of the appliance and lead to
functional impairments.
► Always ensure good ventilation.
► Always keep vents or ventilation grills in the appliance
housing and in the kitchen structure (built-in appliance)
unobstructed.
► Never block air vents of the fan.
Comply with the ventilation gaps:
-
The depth of the ventilation shaft at the back of the
cabinet must be at least 38mm.
-
At least 200cm
2
is required for the ventilation gap cross
sections in the plinth and the housing cabinet.
-
Basically, the larger the ventilation cross-section, the
more efficiently the appliance will run.
Sufficient ventilation is required for the operation of the
appliance. The ventilation grids provided ensure an effective
ventilation cross-section on the appliance of 200cm
2
. If you
replace the ventilation grids with a cover plate the ventila‐
tion cross-section must be as least as large as the ventila‐
tion grid provided by the manufacturer.
3.2 Weight of cabinet fronts
NOTICE
Risk of damage due to a heavy cabinet front!
If the cabinet front is too heavy, the hinges may be
damaged with the potential of malfunctions.
► Before installation, check the permissible weight of the
cabinet front and do not exceed it.
Recess height
(mm)
Maximum weight of the cabinet front
( kg)
Fridge section door Freezer section door
1940 21 16
Combinations 700mm width
3.3 Transporting the appliance
3.3.1 Transporting the appliance for initial
installation
Make sure that the following requirements are fulfilled:
❑
Appliance is packaged.
❑
The appliance is upright.
► Have two people transport the appliance.
► Unpack the appliance. (see 3.4 Unpacking the appliance)
3.3.2 Transporting the appliance after initial
installation
Observer the following instructions if you want to transport
or move the appliance after initial installation.
Make sure that the following requirements are fulfilled:
❑
Appliance is empty.
❑
The appliance is upright.
❑
Appliance with door(s): The door is secured against unde‐
sired opening.
❑
Appliance with pull-out cart: The pull-out cart is secured
against undesired opening.
❑
Appliance is unpacked.
► Have two people transport the appliance.
3.4 Unpacking the appliance
NOTICE
Risk of damage due to the appliance moving!
When moving the appliance on the floor without protection,
the appliance may damage the floor.
► Sufficiently cover the floor before removing the applian‐
ce’s packaging.
► Inspecting the appliance and packaging: If you suspect
transport damage, contact the supplier before
connecting the appliance.
NOTICE
Risk of property damage from pointed or sharp objects!
Using pointed or sharp objects to remove packaging mate‐
rials may damage the appliance.
► Do not use pointed or sharp objects to remove packaging
materials.
► Remove the packaging materials.
Setting up and connecting
6 * Depending on model and options
3.5 Removing the transport retainer
► Pull off the transport
safety from the appliance
door.
*
3.6 Explanation of the symbols used
There is a risk of injury when
performing this step! Observe the
safety instructions!
The instructions apply to several
models. Only do this step if it
applies to your appliance.
Please refer to the detailed
description in the text section of
the instructions for installation.
This section applies either to a
single-door appliance or a two-
door appliance.
Choose between the alternatives:
Appliance with door hinge on the
right or appliance with door hinge
on the left.
Installation step necessary for
IceMaker and/or InfinitySpring.
Only loosen the screws or slightly
tighten them.
Tighten the screw.
Check whether the following step
is necessary for your model.
Check to ensure the right installa‐
tion/the correct fit of the compo‐
nents used.
Re-measure the specified dimen‐
sion and correct if necessary.
Tools for installation: Measuring
rod
Tools for installation: Electric
screwdriver and insert
We recommend a longer bit insert
to reach the screws better.
Tools for installation: Level
Tools for installation: Open-end
wrench with wrench sizes 7 and 10
Two people are required for this
step.
This step is performed at the
marked spot on the appliance.
Aids needed for installation: String
Aids needed for installation:
Angular measure
Aids needed for installation:
Screwdriver
Aids needed for installation: Scis‐
sors
Aids needed for installation:
Marker, erasable
Enclosure: Remove components
Properly dispose of components no
longer needed.

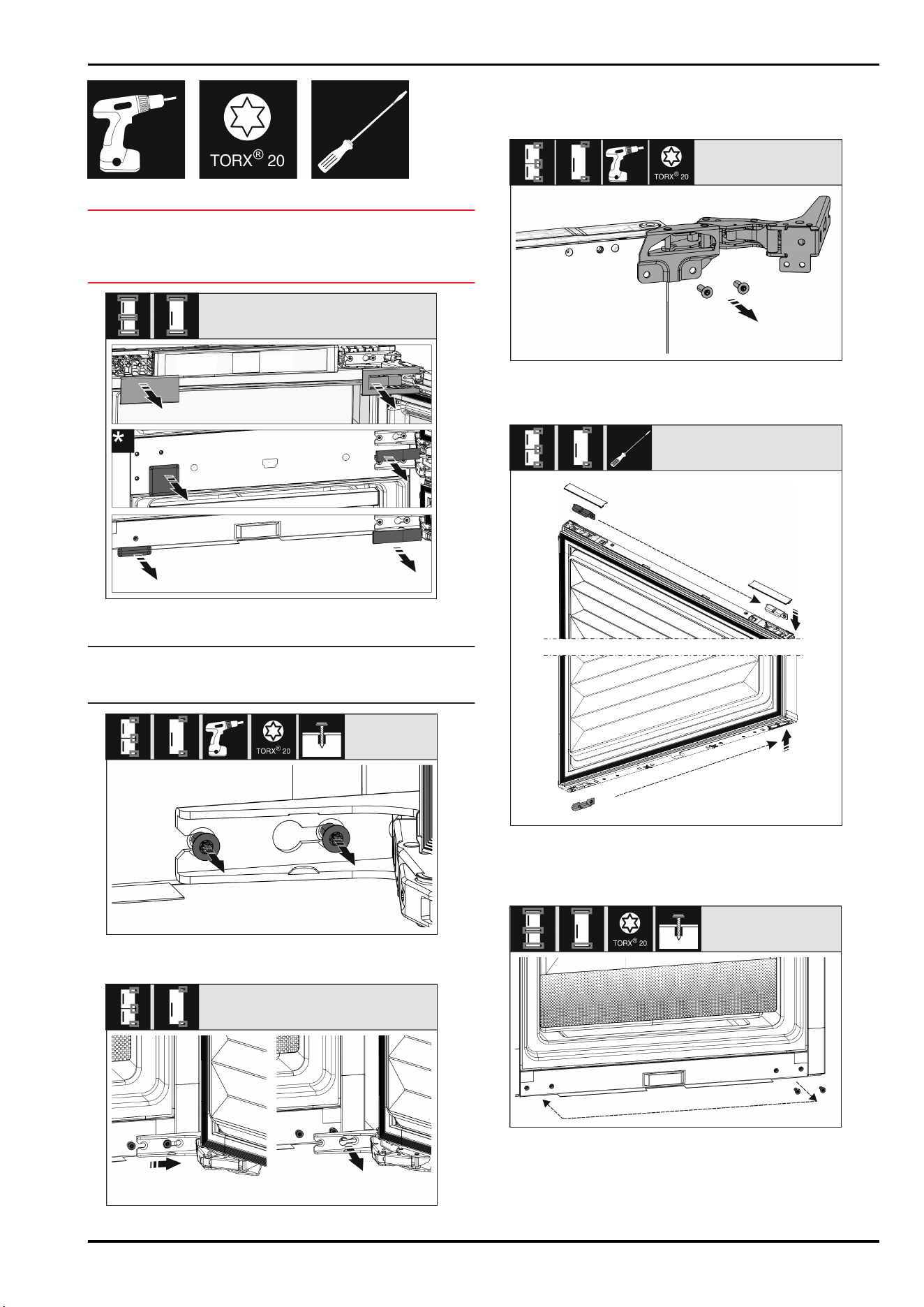

3.7 Reversing the door
Tool
Setting up and connecting
* Depending on model and options 7
Fig.1
NOTICE
Live parts!
Damage to electrical components.
► Pull the power plug before changing the door hinges.
Fig.2
► Remove covers.
Note
When removing the covers, make sure that the surface is
not scratched.
Fig.3
► Loosen the screws on all hinges but do not remove them.
Fig.4
► Remove the door: Push the door forward and then out,
unhook it and put it to one side.
Fig.5
► Unscrew all hinges and set aside together with the
screws.
Fig.6
► Loosen and shift the bracket at the top and bottom of the
door. The bracket must be shifted so you can screw on
the hinges.
Fig.7
► Shift the screws to fasten the hinge. Do not screw tightly
after shifting – you need to hang the hinges later.
Setting up and connecting
8 * Depending on model and options

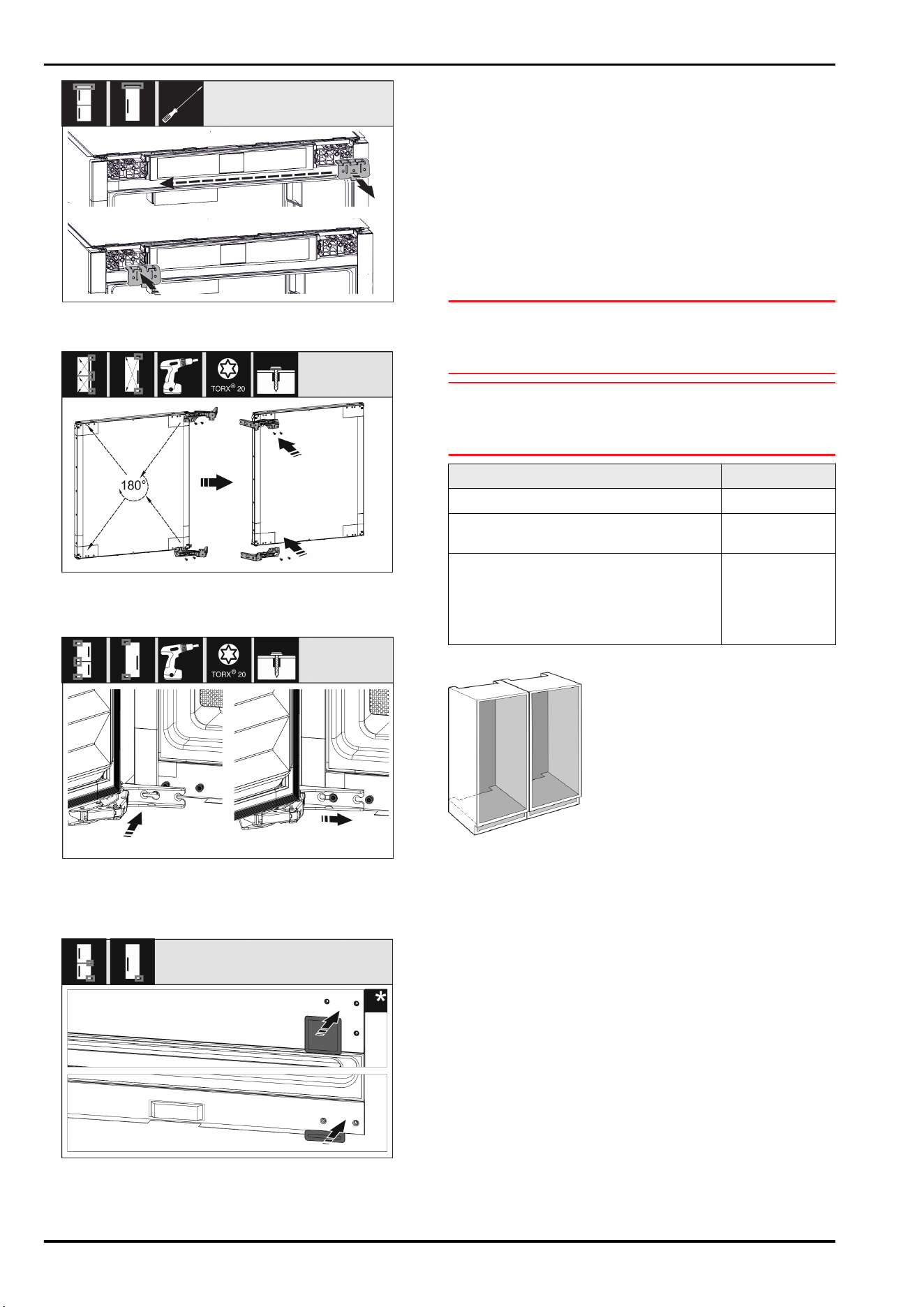

Fig.8
► Swap the fixing bracket to the opposite side.
Fig.9
► Turn all hinges 180° to the opposite side and screw
firmly.
Fig. 10
► Refitting the door: Hang the door with its hinges and
tighten the screws.
► Check all screws and retighten if necessary.
Fig.11
►
Reassemble the bottom and center cover. Only replace
the remaining covers after installing the appliance back
into the cabinet.
3.8 Setting up several appliances
The appliances were developed for different installation
options. If you want to install several appliances side by
side or on top of each other, make sure that the following
requirements are met:
❑
Only install those appliances side by side or on top of
each other that were developed for the purpose.
❑
Observe the instructions and the following table.
NOTICE
Risk of damage caused by water condensate!
► Do no set up the appliance next to another refrigeration/
freezer unit.
NOTICE
Risk of damage from condensation!
► Do no set up the appliance directly above another refrig‐
eration/freezer unit.
Model Installation type
All models individually
Models with a model designation that
starts with S....
Side-by-side
(SBS)
Models up to a maximum recess height
of 880mm and with heated ceiling can
be “set up” on top of each other.
Top appliance up to a maximum recess
height of 140mm
On top of each
other
Models and their installation type
Fig.12
Install each appliance in a separate cabinet recess.
3.9 Installing in the recess
Apply these main steps to install the appliance in the
recess:
-
Keep tools ready.
-
Check the mounting parts in the enclosed package.
-
Prepare the recess.
-
Prepare the water connection.
-
Prepare the power connection.
-
Prepare the appliance.
-
Align the appliance.
-
Secure the appliance.
-
Insert the leveling rail.
-
Mount the cabinet front.
-
Align the cabinet front.
-
Check the installation.
-
Attach the covers.
Setting up and connecting
* Depending on model and options 9

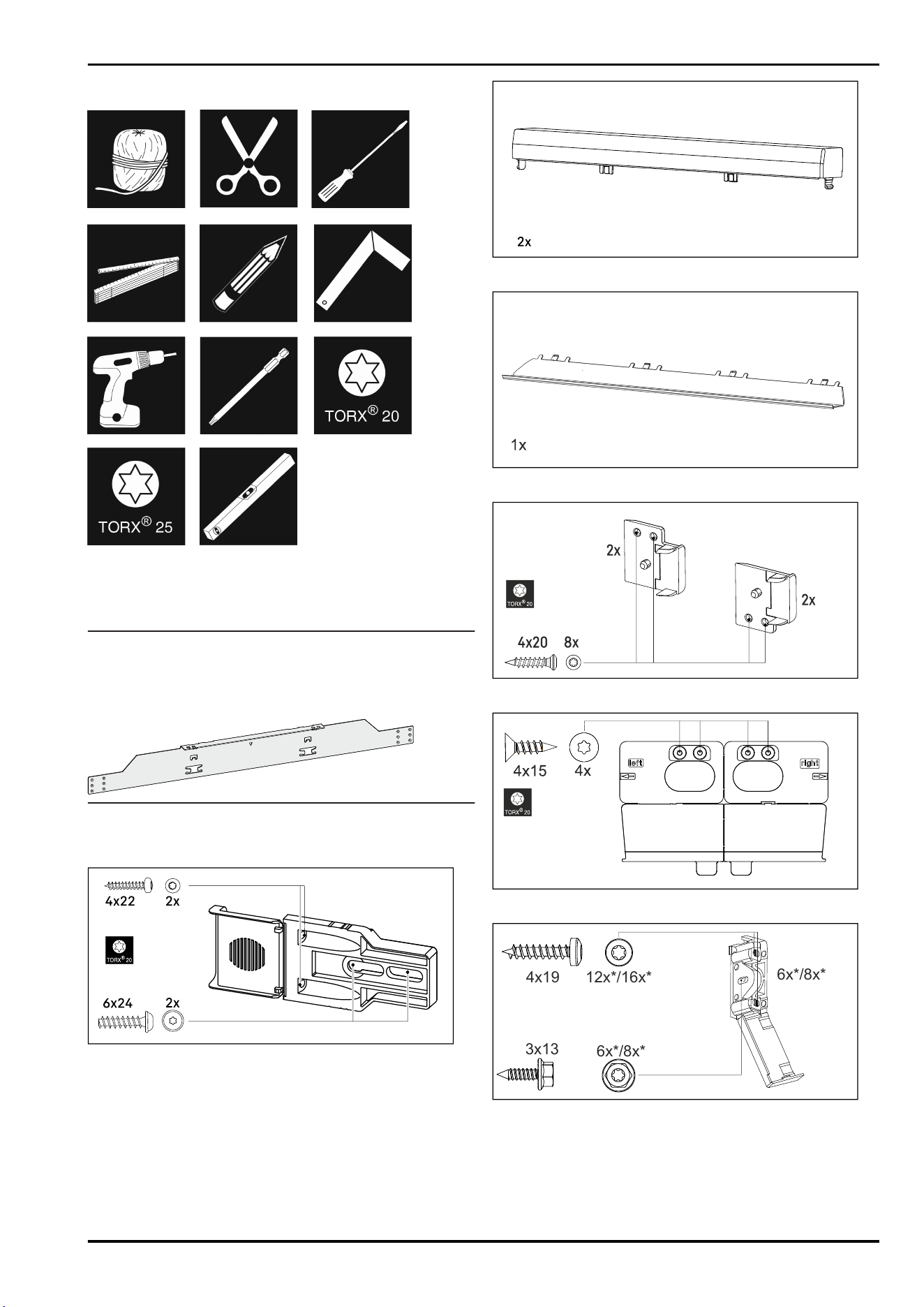

3.9.1 Keeping tools ready
Fig.13
3.9.2 Preparing accessories for the framed
cabinet door in a farmhouse-style kitchen*
Note
The fastening crossbar for framed cabinet doors in a farm‐
house-style kitchen can be purchased from the Liebherr-
Hausgeräte store at: home.liebherr.com/shop/de/deu/
zubehor.html
3.9.3 Checking the mounting parts in the
enclosed package
Fig. 14
Fig. 15*
Fig. 16
Fig.17*
Fig. 18
4x19
3x13
12x*/16x*
6x*/8x*
6x*/8x*

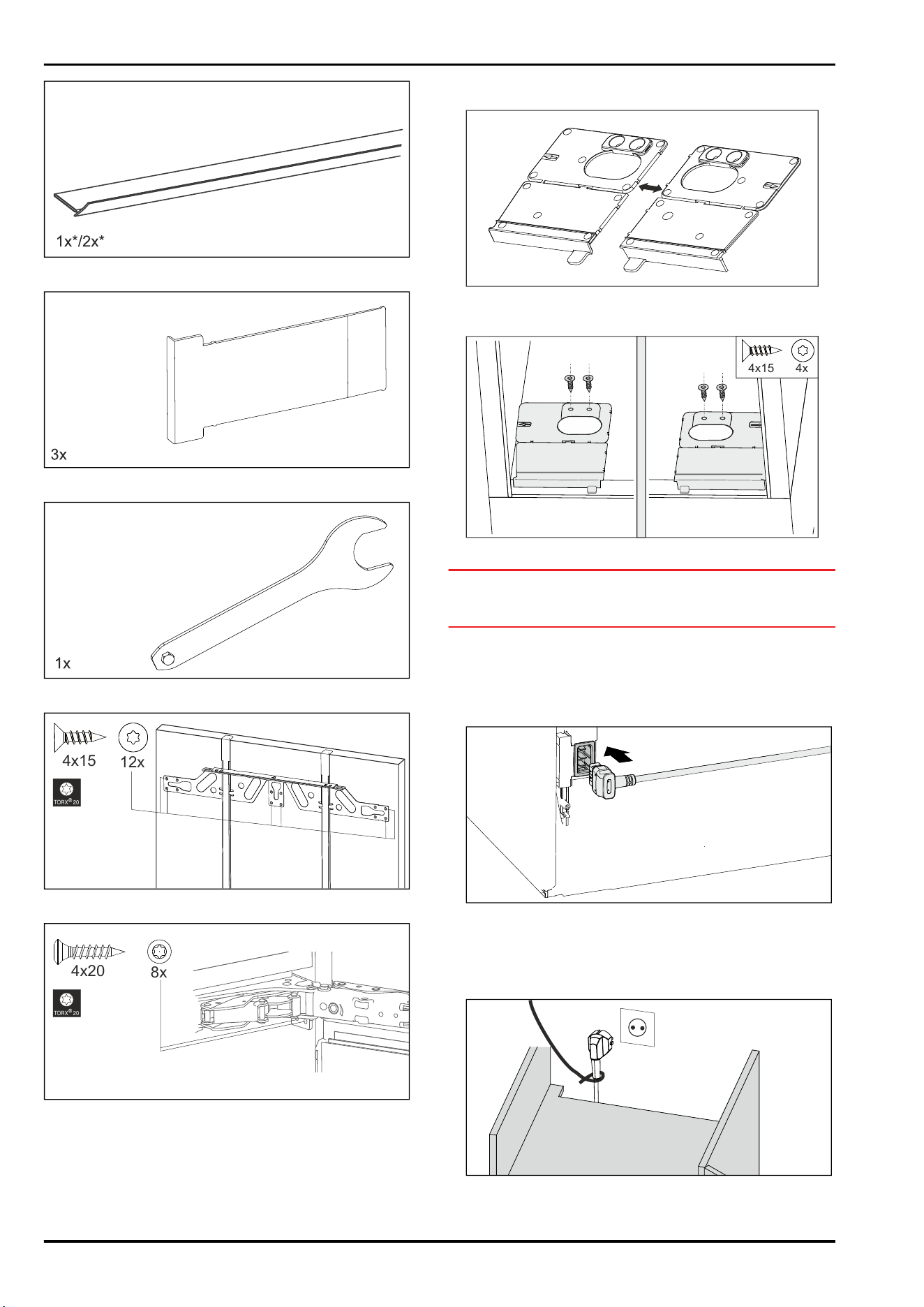

Fig. 19*
Setting up and connecting
10 * Depending on model and options
Fig.20
Fig.21*
Fig.22
12x
4x15
TORX 20
Fig.23*
TORX 20
4x20
8x
Fig. 24*

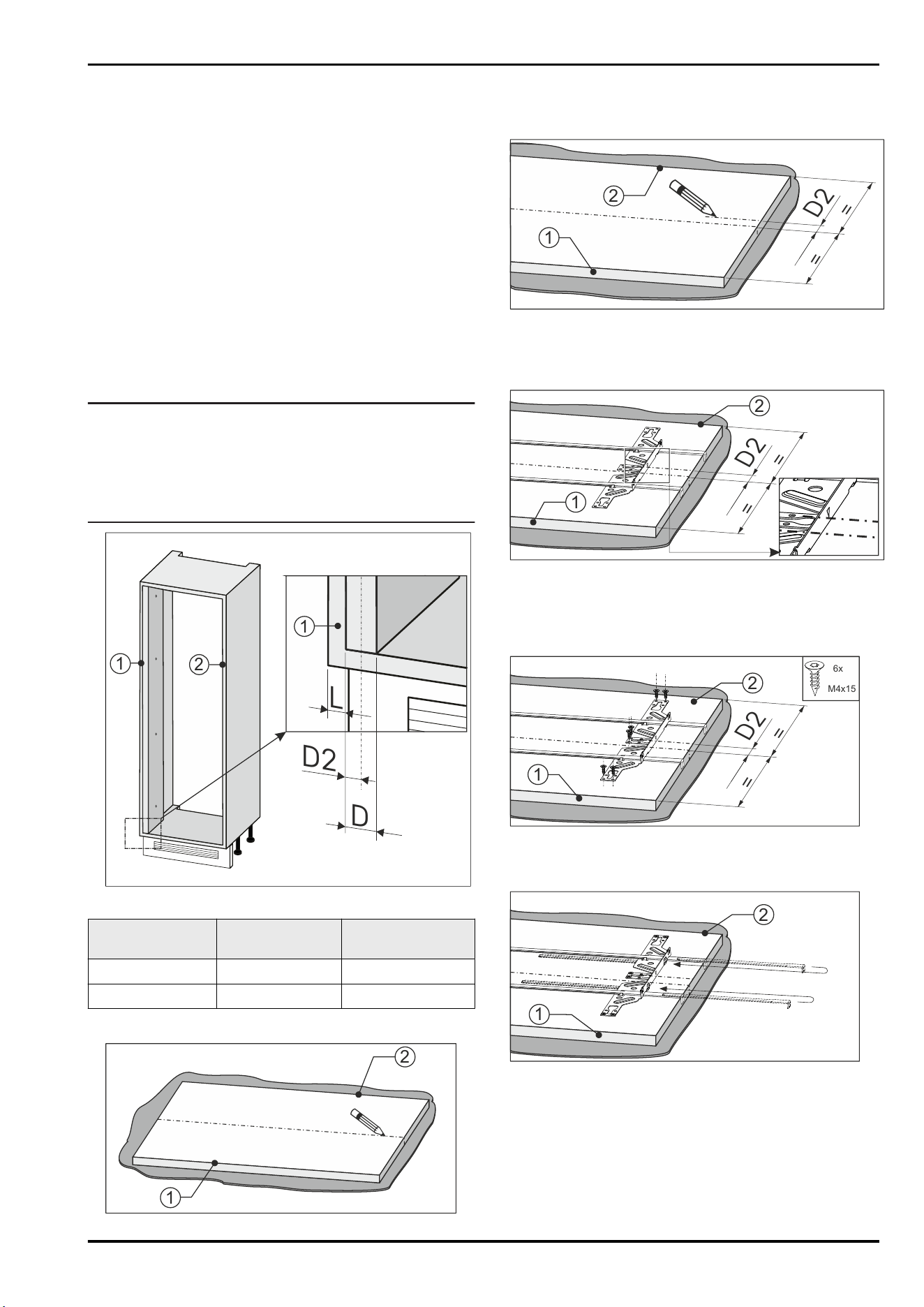

3.9.4 Preparing the recess
Fig.25
► Separate the assembly aid at the perforation.
4x15
4x
Fig. 26
NOTICE
Incorrect installation depth of the appliance.
► When installing the appliance: Use the assembly aid.
► Screw on the right and left assembly aid onto the floor of
the cabinet recess.
▷ The mounting brackets are flush on the cabinet side wall.
3.9.5 Preparing the power connection
Fig.27
► Remove the power cable from the enclosed package.
► Fully insert the IEC socket of the power cable completely
into the appliance plug on the rear side of the appliance.
▷ IEC socket fits firmly in the appliance plug.
Fig.28
Setting up and connecting
* Depending on model and options 11
► Use a string to route the power plug to a socket outlet
that is freely accessible.
▷ The power plug can be inserted in the socket outlet after
the appliance has been installed.
3.9.6 Preparing the appliance
Fig.29

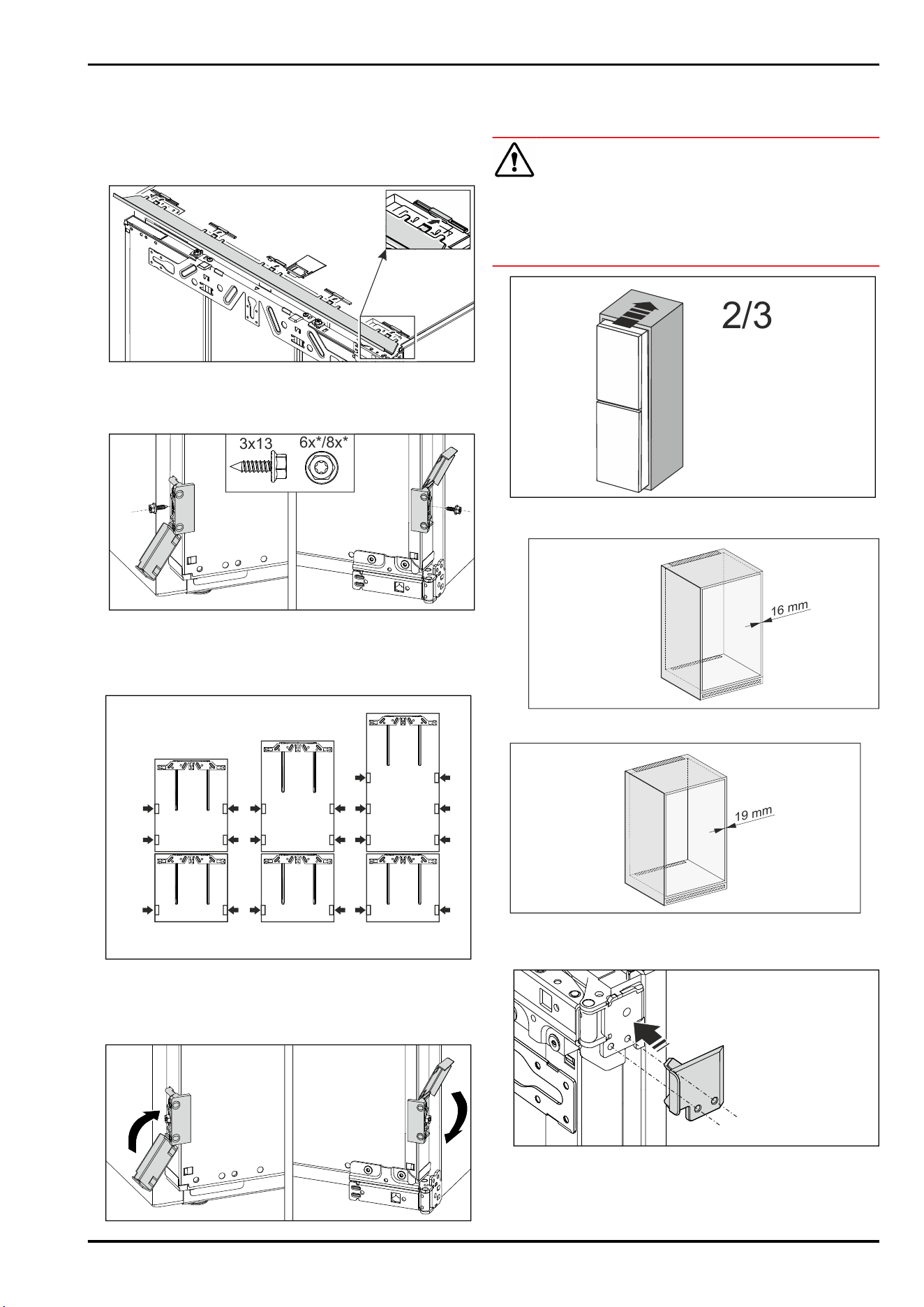

► Insert the compensation panel on the top of the appli‐
ance.
▷ The panel can be moved on either side.
3x13
6x*/8x*
Fig.30
If your cabinet fronts have cabinet door handles:
► Attach one pair of the side mounting brackets at the
height where the cabinet door handles will be later.
Fig.31
Attach another pair of mounting brackets for larger doors.
► Attach the side mounting brackets below the fastening
crossbeam.
Fig.32
► After assembly, fold the covers onto the mounting
brackets.
WARNING
Risk of fire from short circuit!
► If you are pushing the appliance into the recess: Do not
kink, trap, or damage the power cable.
► Do not operate the appliance with a defective power
cable.
2/3
Fig.33
► Push the appliance 2/3rds into the cabinet recess.
16 mm
Fig.34
19 mm
Fig.35
► Check to ensure that the cabinet side wall has a thick‐
ness of 16mm or 19mm.
Fig.36
Setting up and connecting
12 * Depending on model and options

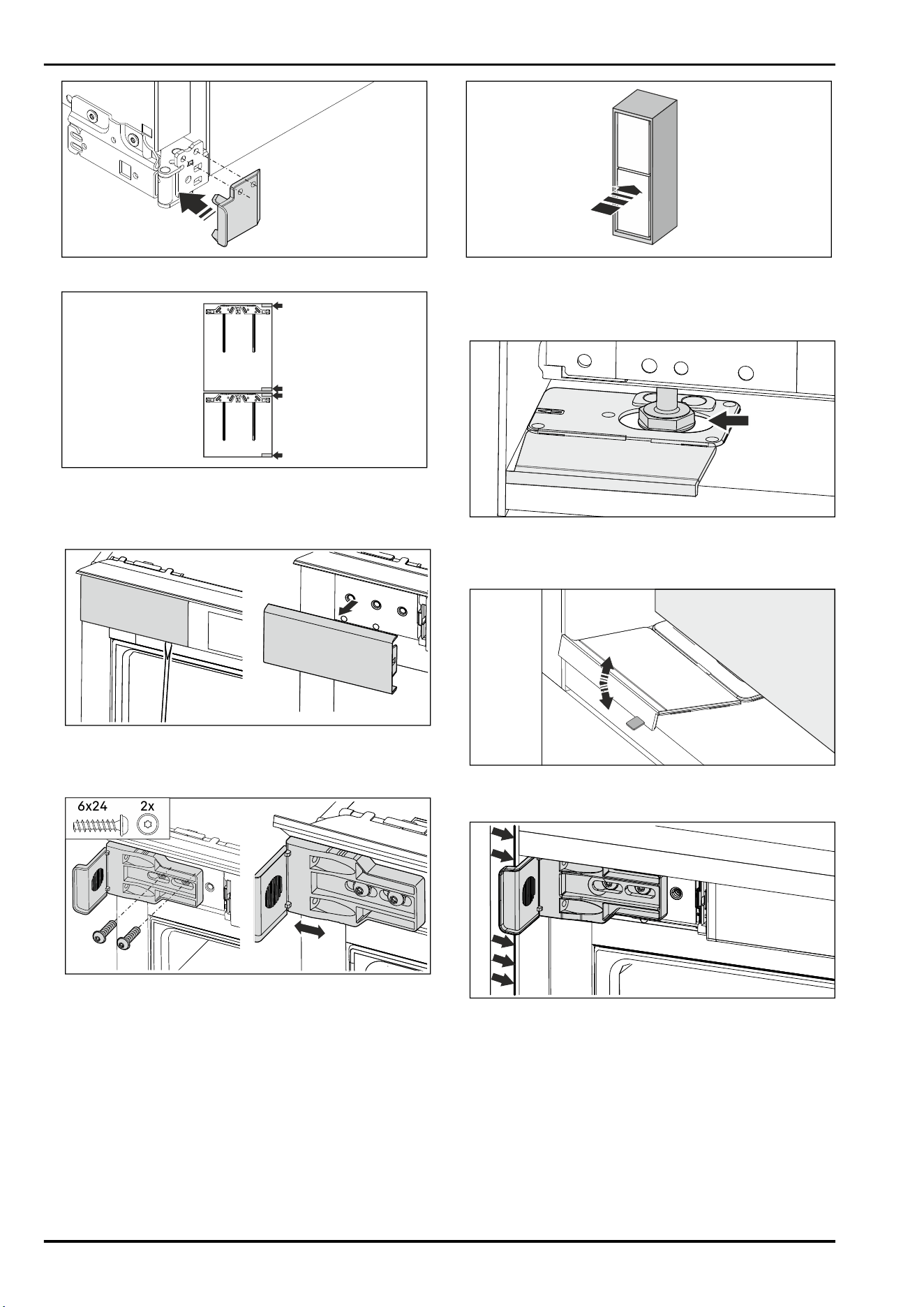

Fig.37
Fig.38*
► 16mm cabinet wall: Place the spacers on all hinges.
-or-
► 19mm cabinet wall: do not use any spacers.
Fig. 39
► Open the door.
► Release the top left cover.
► Remove the cover.
6 4x2
2x
Fig.40

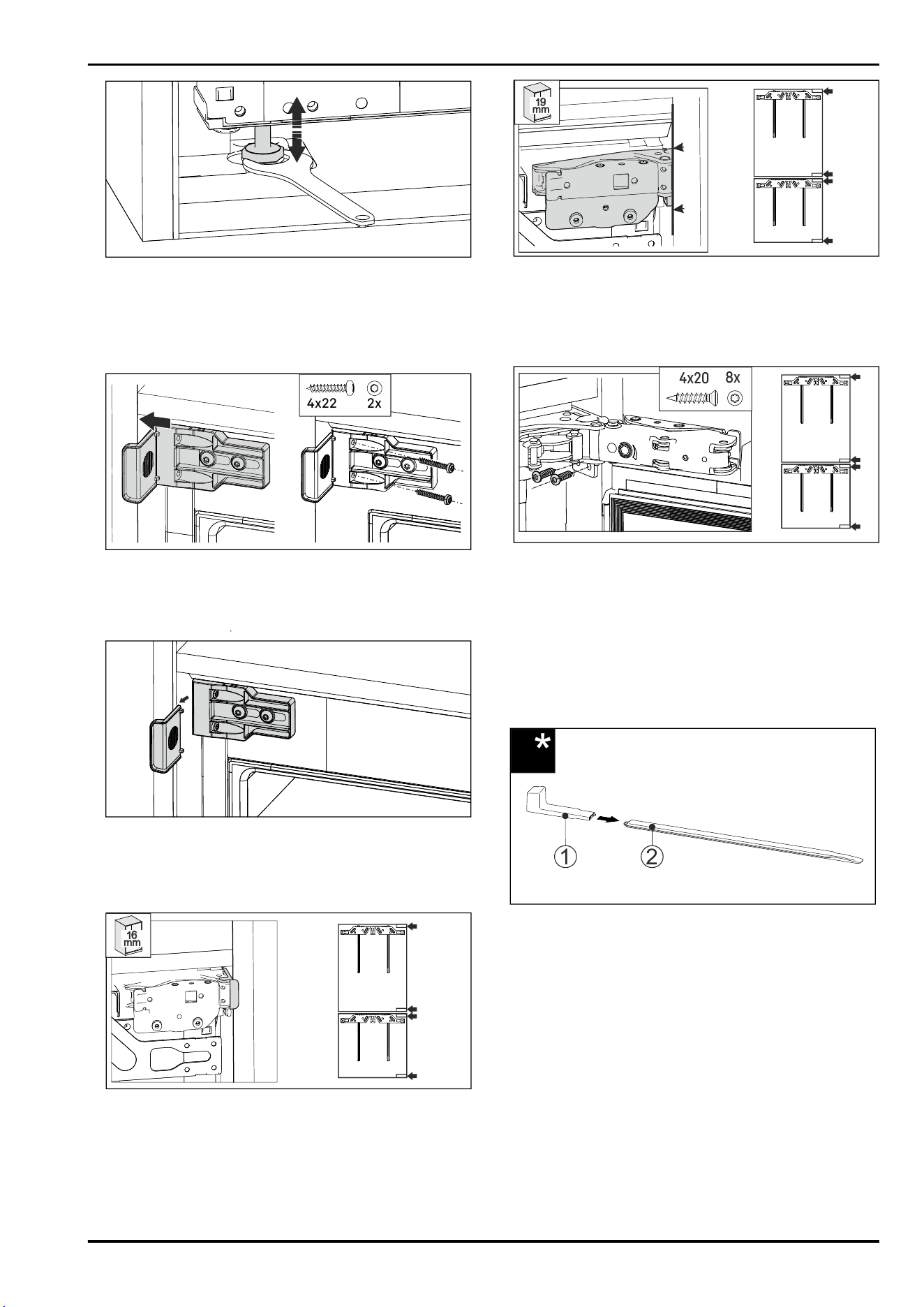

► Screw on the mounting bracket loosely.
▷ The bracket can be moved.
► Close the door.
Fig. 41
► Push the appliance all the way into the cabinet recess.
3.9.7 Aligning the appliance
Fig. 42
► Position the adjustable feet on both sides in the recess of
the mounting aid.
► Open the door.
Fig.43
► Move the stop of the assembly aid to loosen it.
► If necessary, tear off with pliers.
Fig.44
► Check whether the appliance is aligned level in the
cabinet recess.
▷ The mounting bracket at the top left rests firmly against
the side wall of the cabinet recess.
Setting up and connecting
* Depending on model and options 13
Fig.45
Align the tilt of the appliance using the adjustable feet.
► Turn the adjustable foot outward:
▷ The appliance tilts backward.
► Turn the adjustable foot inward:
▷ The appliance tilts forward.
4x22 2x
Fig.46
► Press the mounting bracket against the side wall of the
cabinet recess.
► Tighten the screws.
Fig. 47
► Cut off the stop from the bracket.
► Dispose of the stop.
► Close the door.
► Align the appliance using the adjustable feet. Fig. 42()
66
Fig.48*
▷ 16mm thick cabinet side wall: The spacers are positioned
on the hinge side against the side wall of the cabinet
recess. ()
99
Fig. 49*
▷ 19mm thick cabinet side wall: The front edge of the
hinges is aligned straight with the front side of the
cabinet side wall. Fig. 49()
3.9.8 Securing the appliance
8x
4x20
Fig.50*
► Open the door.
► Screw the appliance on from the hinge side.
3.9.9 Inserting the leveling rails
You must install leveling rails underneath the appliance for
any recess height that is greater than 1400mm. The
leveling rails minimize the sound level. Two leveling rails
and a mounting handle are included in the enclosed
package for recess heights above 1400mm.
*
1 2
Fig.51
► Insert the mounting handle Fig.51(1) into the leveling rail
Fig.51(2).
Setting up and connecting
14 * Depending on model and options
Fig.52
Fig.53
► Insert the leveling rail into the guide underneath the
appliance floor until it reaches the stop.
► Pull off the mounting handle and insert it into the second
leveling rail.
► Insert the second leveling rail into the guide underneath
the appliance floor until it reaches the stop.
► Pull off the mounting handle.
▷ Appliance is leveled.
3.9.10 Mounting the cabinet front
Note
The fastening crossbar for framed cabinet doors in a farm‐
house-style kitchen can be purchased from the Liebherr-
Hausgeräte store at: home.liebherr.com/shop/de/deu/
zubehor.html

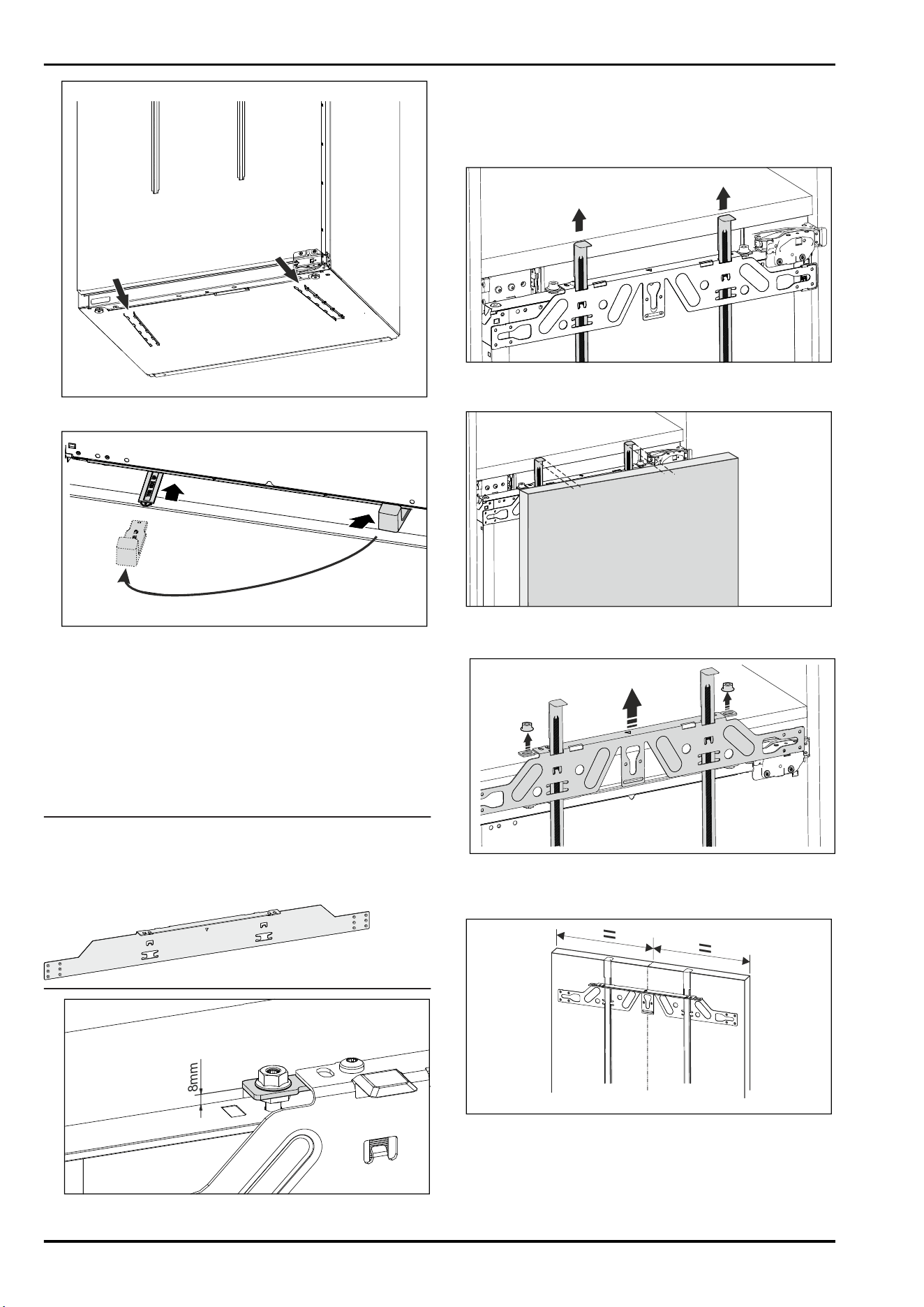

8mm
Fig.54
► Close the door.
► Verify the distance between the upper edge of the appli‐
ance door and the fastening crossbeam support.
▷ The distance between the upper edge of the appliance
door and the fastening crossbeam is 8mm.
Fig.55
► Slide up the assembly aid.
Fig.56
▷ Lower stop edge of the assembly aid is at the height of
the upper edge of the door being attached.
Fig.57
► Loosen the nuts.
► Remove the fastening crossbeam.
=
=
Fig.58
► Hang the fastening crossbeam on the inside of the
cabinet door.
▷ The fastening crossbeam is aligned centered.
Setting up and connecting
* Depending on model and options 15
4x15
12x

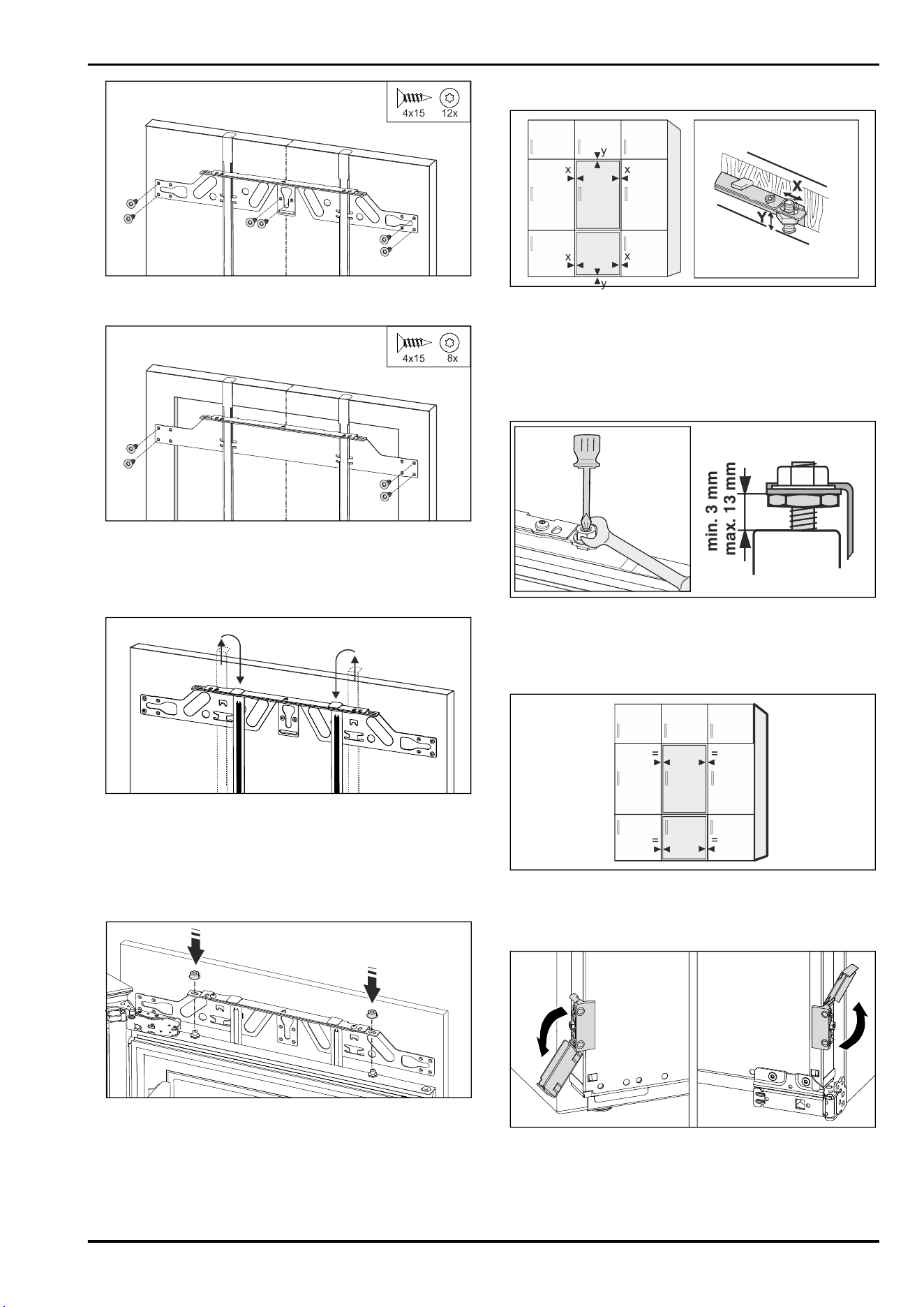

Fig. 59
► Secure the fastening crossbeam with 6 screws.
Fig.60
► Use at least 4 screws to attach the fastening crossbeam
for panel doors.
► Mount the screws on panel doors as far outward as
possible.
Fig.61
► Pull out the assembly aids.
► Insert the assembly aids into the adjacent mounting hole
on the fastening crossbar.
-or-
► Use the assembly aids to install the second cabinet
door.*
Fig. 62
► Hang the cabinet doors.*
► Loosely screw the nuts onto the pins.
3.9.11 Aligning the cabinet front
x
x
y
x
x
y
XX
YY
Fig.63*
Use the screws to align the cabinet doors in X and Y direc‐
tion:*
► Loosen the nuts.
► Align the cabinet door in X direction.
► Turn the screws up or down.
► Align the cabinet door in Y direction.
max. 13 mm
min. 3 mm
Fig.64
► Tighten the nuts.
► Check the adjustment height.
▷ Adjustment height is between 3mmand 13mm.
▷ The cabinet doors are aligned in X and Y direction.*
Fig.65*
► Check the door spacing to the surrounding unit doors.
▷ The distance between the cabinet doors and the appli‐
ance doors is evenly spaced all around.*
Fig.66
► Open the covers.
Setting up and connecting
16 * Depending on model and options
4x19
12x*/16x*
Fig. 67
► Align the front edge of the fastening bracket parallel to
the edge of the cabinet door.
► Screw the bracket in place.
Fig.68
► Fold up the covers.
Fig. 69
Align the cabinet doors in the Z direction using the slotted
holes:*
Fig.70
► Loosen the screws on the fastening crossbar.
Fig.71
►
Fold up the covers on the fastening brackets.
Fig.72
► Loosen the screws on all fastening brackets.
Z
Fig.73
► Move the door in the Z direction.
► Tighten the screws.
Fig. 74
► Fold up the covers.
► Close the door.
▷ The cabinet doors are aligned in Z direction.*
3.9.12 Checking the installation
► Check the following points to make sure that the appli‐
ance is properly installed. Otherwise, there might be ice
buildup and/or condensation that could cause malfunc‐
tions.
ca.ca. 2mm2mm
ca. 2mm
ca.ca. 2mm2mm
ca. 2mm
Fig.75
▷ The door closes properly.
▷ The cabinet door does not touch the cabinet body.
▷ The distance between the cabinet door the cabinet body
has been verified.
▷ All screws have been checked.
Setting up and connecting
* Depending on model and options 17

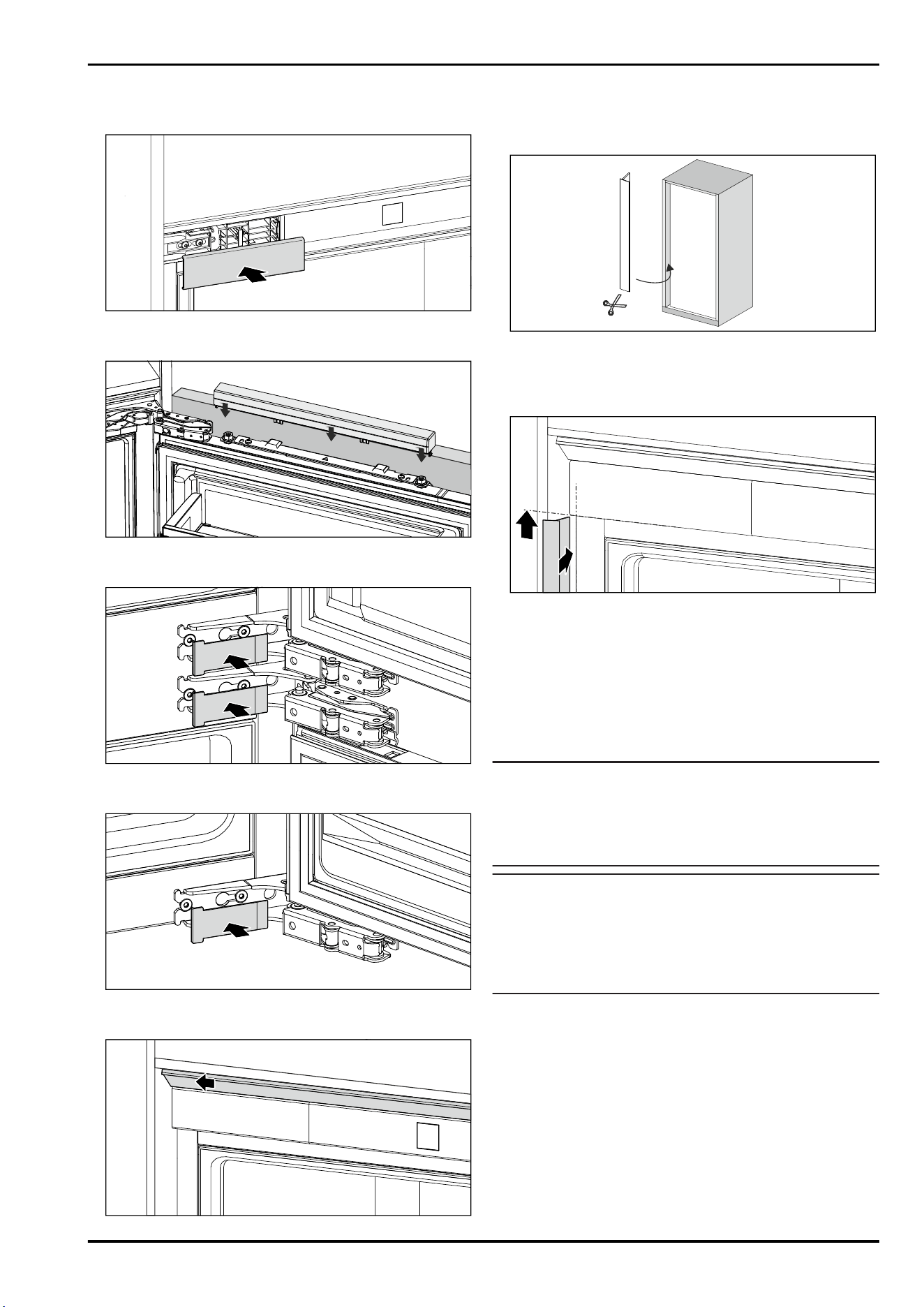

3.9.13 Attaching the covers
► Open the door.
Fig. 76
► Place the cover on the top left.
Fig.77
► Place the top covers on.*
Fig.78*
► Place the covers on the center hinges.*
Fig.79*
► Place the cover on the bottom hinge.*
Fig.80
► Move the compensating panel to the handle side.
▷ The compensating panel rests against the side wall of
the cabinet.
Fig.81
Attach the magnetic piping:
► If necessary: Cut the piping to the required length with
sharp scissors.
Fig.82
► Place the piping underneath the top left cover and press
down.
3.10 Installing the appliance in a 30”
recess
You can install the appliance in a 30” recess. To do this, first
adjust the recess to a standard size using a filler panel.
Note
Door hinge
These instructions describe the installation of an appliance
with a right-hand door hinge.
To install an appliance with a left-hand door hinge:
► Follow the steps and illustrations in mirror image.
Note
Door hinge — terminology
These instructions use the following terms:
Hinge side: Side of the appliance on which the door is
mounted.
Opening side: Side of the appliance from which the door is
opened.
Setting up and connecting
18 * Depending on model and options

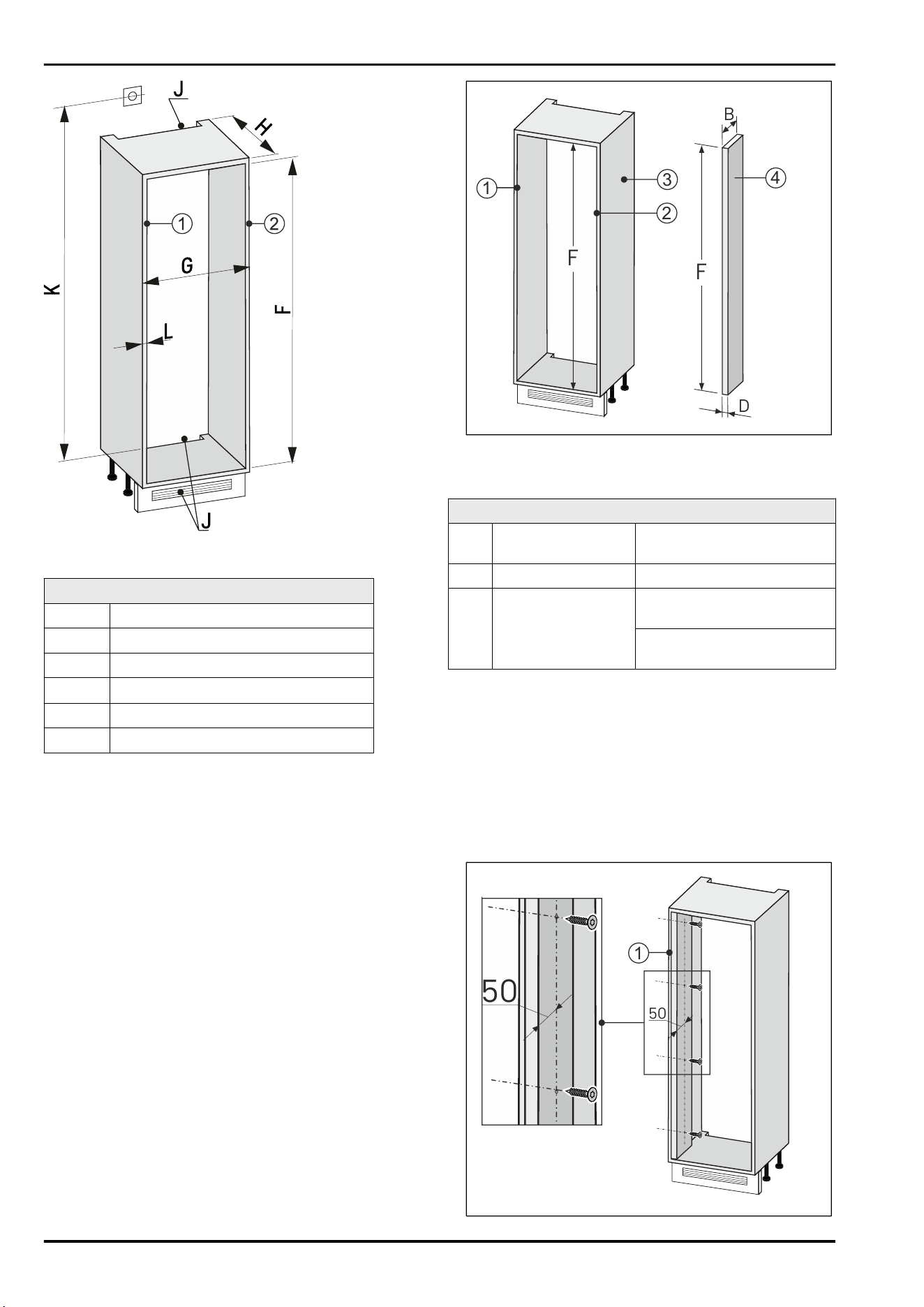

Fig. 83 30” recess
(1)
Opening side (2) Hinge side
Recess dimensions
F 1940mm to 1950mm
G max. 762mm (30”)
H min.560mm
J
At least200cm
2
K max.2245mm
L max.19mm
3.10.1 Creating a filler panel
The filler panel reduces the recess to a standard recess. You
must fabricate the filler panel yourself and provide suitable
mounting hardware.
Liebherr recommends the following materials:
-
Filler panel: same material as the recess
-
Mounting hardware: 4 x 22 particleboard screws
F
F
B
D
3
4
1
2
Fig.84
(1)
Opening side (3) 30” recess
(2) Hinge side (4) Filler panel
Filler panel dimensions
F Recess height/
height of filler panel
1940mm to 1950mm
B Depth of filler panel At least100mm
D
Filler panel thick‐
ness
16mm at a filler panel thick‐
ness of 16mm
12mm at a filler panel thick‐
ness of 19mm
► Measure the filler panel thickness Fig.83(L).
► Fabricate the filler panel Fig.84(4) based on the dimen‐
sions specified above.
▷ The filler panel fits into the 30” recess.
3.10.2 Installing the filler panel in the recess
Make sure that the following requirements are met:
-
The filler panel is fastened with at least 4 screws.
-
The distance between the front edge of the cabinet front
is at least 50mm.
50
50
1
Setting up and connecting
* Depending on model and options 19
Fig.85
► Align the filler panel flush with the front edge of the
cabinet recess.
► Secure the filler panel to the cabinet recess on the
opening side Fig.85(1).
▷ The 30” recess has been reduced to a standard recess.
3.10.3 Continue installing the appliance in the
recess
► Continue installation in the modified 30” recess as
described in the standard instructions.
(see 3.9.4 Preparing the recess)
3.10.4 Installing the cabinet front for a 30”
recess
► Prepare the fastening crossbeam as described in the
section Installing the cabinet front for a standard
recess. (see 3.9.10 Mounting the cabinet front)
Note
The installation of the cabinet front for a 30” recess differs
from that for a standard recess. For a standard recess,
install the cabinet front centered. For a 30” recess, install
the cabinet front offset toward the hinge side.
► Install the cabinet front for the 30” recess according to
the instructions.
D
D2
L
1
2
1
Fig.86
Cabinet wall thick‐
ness L(mm)
Filler panel thick‐
ness D(mm)
Half filler panel
width D2(mm)
16 16 8
19 12 6

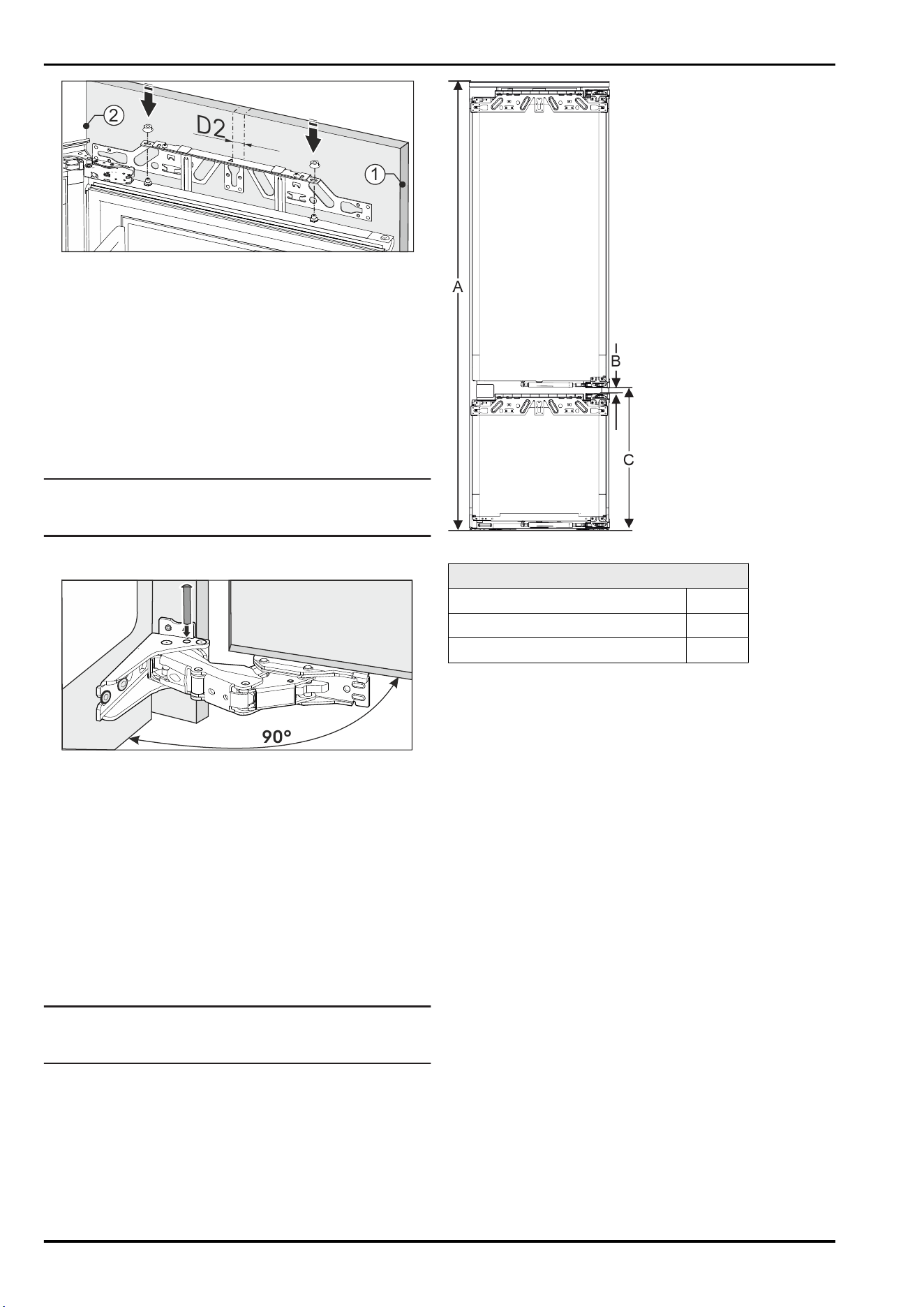

► Note half the width Fig.86(D2) of the filler panel.
!
1
2
Fig. 87
► Place the cabinet front on a suitable surface.
► Mark the center of the cabinet front on the inner side.
!
=
=
D2
1
2
Fig.88
► Measure Fig.88(D2) from the center of the cabinet front
toward the hinge side Fig.88(2).
► Place a mark.
=
=
D2
2
1
Fig.89
► Position the mounting rail on the inner side of the cabinet
front.
▷ Align the mark on the fastening crossbeam with the mark
Fig.89(D2) on the cabinet front.
6x
M4x15
=
=
D2
1
2
Fig.90
► Secure the fastening crossbeam with 6 screws.
▷ The cabinet front is prepared for further installation.
2
1
Fig. 91
► Pull out the assembly aids.
► Insert the assembly aids into the adjacent mounting hole
on the fastening crossbar.
-or-
► Use the assembly aids to install the second cabinet front.
Setting up and connecting
20 * Depending on model and options
D2
2
1
Fig.92
► Hang the cabinet fronts.
► Loosely screw the nuts onto the pins.
► Continue installation as described in the section Instal‐
ling the appliance in the recess. (see 3.9.11Aligning the
cabinet front)
3.11 Limiting the door opening angle
You can limit the door opening angle to 90° using a pin. This
is useful if, for example, the appliance is installed next to a
wall.
The pin is available as an accessory.
Note
Sie erhalten Zubehör im Liebherr-Hausgeräte-Shop unter
go.liebherr.com/47wtc4.
3.11.1 Inserting the pin
90°
Fig. 93
► Open the door 90°.
► Insert one pin each into the opening of the bottom
hinges.*
▷ One pin each is inserted in both bottom hinges.*
▷ Door opening is limited to 90°.
3.12 Cabinet fronts
3.12.1 Dimensions
Depending on the appliance variant, you will require one or
two cabinet doors. The size of the relevant cabinet door(s)
depends on the overall size of the recess and thickness of
the cabinet body.
Note
Observe the relevant appliance and recess dimensions as
well as the installation sketches.
General specifications:
-
Please note our recommendations for the specific appli‐
ance relating to size and weight for fixed door installa‐
tion.
-
The cabinet body thickness should be a minimum of
16mm and a maximum of 19mm.
-
For two-door cabinet door installation, observe the
groove position.
Fig. 94 Groove position two-door cabinet front
Recess height 194 with 3 drawers
Appliance height (A) (mm) 1938
Distance (B) (mm) 15
Groove position (C) fixed door (mm) 695 + 15
Other cabinet door above, below, or next to it:
-
The vertical gap dimension between the cabinet doors
must be 4mm.
-
The horizontal gap dimension between the cabinet doors
must be 4mm. Here, check the collision properties.
(see 3.12.3 Adjusting the joint gap without collision)
Weight and hinges:
-
For heavy cabinet fronts, the hinge is subject to a heavy
load. The hinge may be damaged. Here, observe the
maximum weight specifications for your appliance in the
cabinet front weights chapter .
-
If the cabinet front exceeds the maximum permitted
weight, an appliance with sliding door technology can
resolve the problem, ensuring that the weight is
supported by several cup hinges on the cabinet.
-
If you use long cabinet fronts that extend far beyond the
appliances, we recommend an additional door hinge (e.g.
Kamat), preferably with the same pivot point as the fixed
door hinge used on your appliance. By using another
hinge (Kamat), the weight is supported at several points.
We recommend using a milled compensation fitting for
high cabinet fronts to counteract warping (convex/
concave).
3.12.2 Mounting the cabinet front(s)
Observe the following during installation:
- The cabinet front must be installed symmetrically to the
door of the refrigeration units.
- The adjacent cabinet front is at exactly the same level.
- The adjacent cabinet front has the same edge radius as
the appliance front.
Setting up and connecting
* Depending on model and options 21
- Cabinet front is flush and tension-free.
- The cabinet front has a minimum depth setting of approx.
2mm to the body.
► Install the appliance in the recess.
► Fasten the cabinet front to the appliance door.
► Adjust the joint gap.
► Check the cabinet front for potential collision.
(see 3.12.3 Adjusting the joint gap without collision)

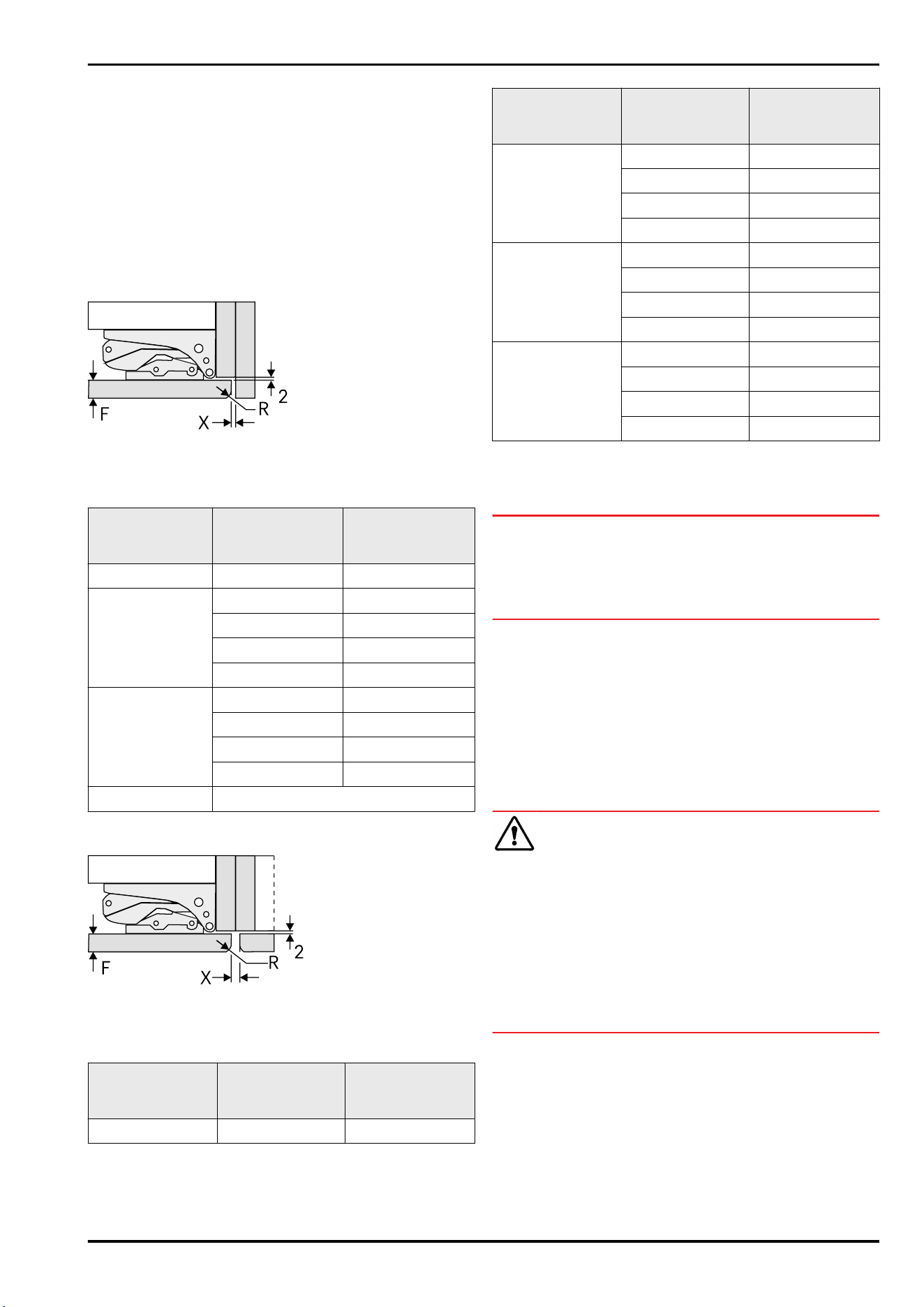

3.12.3 Adjusting the joint gap without collision
3.12.3 Joint gap to the adjacent cabinet side
panel
Fig. 95 Joint gap to the adjacent cabinet side panel
(F)
Front thickness (X) Min. joint gap
(R) Corner radius cabinet
front
Cabinet front
thickness F [mm]
Corner radius
cabinet front R
[mm]
Min. joint gap X
(vertical) [mm]
16 to 20 0 to 3 3
22 0 4
1 4
2 3
3 3
24 0 8
1 7
2 6
3 6
26 Not recommended.
3.12.3 Joint gap to the adjacent cabinet door
Fig. 96 Joint gap to the adjacent cabinet door
(F)
Front thickness (X) Min. joint gap
(R) Corner radius cabinet
front
Cabinet front
thickness F [mm]
Corner radius
cabinet front R
[mm]
Min. joint gap X
(vertical) [mm]
16 to 20 0 to 3 2
Cabinet front
thickness F [mm]
Corner radius
cabinet front R
[mm]
Min. joint gap X
(vertical) [mm]
22 0 4
1 3
2 3
3 2
24 0 6
1 5
2 5
3 4
26 0 8
1 7
2 7
3 6
3.13 After installation
► Remove all transport safety parts on the inside.
NOTICE
Risk of property damage from pointed or sharp objects!
Using pointed or sharp objects to remove packaging mate‐
rials may damage the appliance.
► Do not use pointed or sharp objects to remove packaging
materials.
► Remove the protective film on the inside: Peel the film
back flat along the component to minimize the film's
adhesive force.
► Clean the appliance. (see 10.6Cleaning the appliance)
► Make a note of the type (model, number), appliance
designation, appliance/serial number, date of purchase,
and the address of the retailer.
3.14 Connecting the appliance to the
power supply
WARNING
Danger of electric shock and injury due to damaged appli‐
ance or damaged mains cable!
Cuts and fatal injury. If the appliance or the mains cable is
damaged during transport, you may be electrocuted. You
could also cut yourself on damaged parts of the appliance
housing.
► Check the appliance and the mains cable for damage
after transport.
► Never put the appliance into operation if the appliance or
the mains cable are damaged.
► Contact Customer Service.
You can connect your appliance to the mains using the
power cable supplied separately. The mains power cable
has an appliance coupler at one end and a mains plug at the
other end.
Make sure that the following requirements are fulfilled:
-
The appliance and power cable are undamaged.
-
The appliance is installed in accordance with the regula‐
tions. (see 3.9 Installing in the recess)
-
Requirements for the electrical connection are met.
Setting up and connecting
22 * Depending on model and options
-
Dimensions for connection in accordance with regula‐
tions are known and observed.
-
Mains voltage and frequency correspond to the specifica‐
tions on the type plate.
-
The socket is grounded and fused in accordance with
regulations.
-
The tripping current for the fuse is between 10A and
16A.
-
Outlet is easily accessible and is not behind the appli‐
ance.

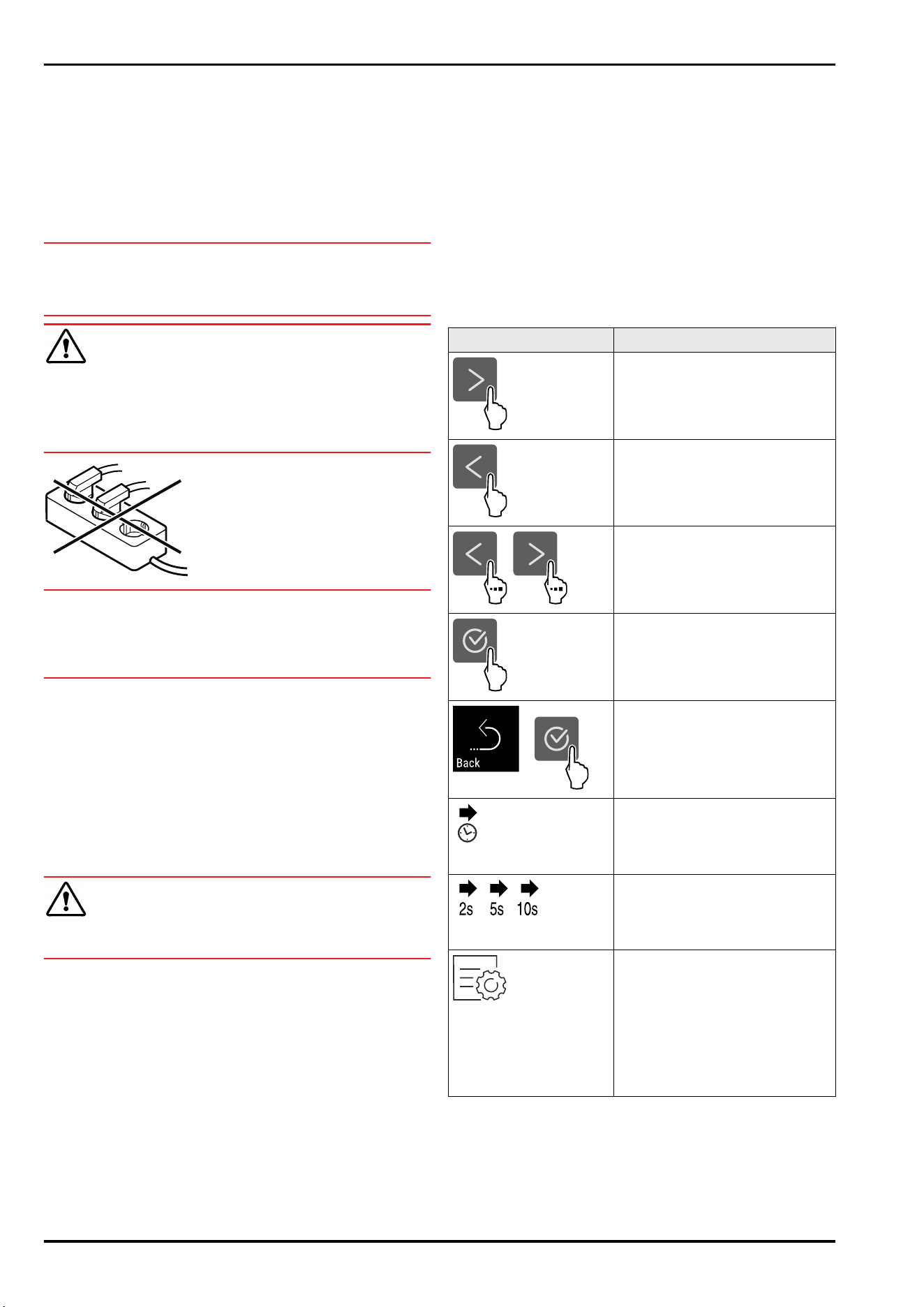

NOTICE
Danger of damage to incorrect operation!
Damage to the electrical components of the appliance.
► Only use the supplied power cable.
WARNING
Danger of fire due to incorrect connection!
Burns.
Damage to the appliance.
► Do not use an extension cord.
► Do not use a multipoint connector strip.
NOTICE
Danger of damage to incorrect connection!
Damage to the appliance.
► Do not connect the appliance to a stand-alone inverter,
e.g. solar power systems and petrol generators.
► Connect the mains plug of the power cord to the power
supply. Ensure the main plug is firmly plugged into the
outlet.
▷ The Liebherr logo appears in the display.
▷ The display switches to the standby symbol.
▷ If no action is taken within 60 seconds: Standby symbol
fades or disappears.
▷ Appliance is connected. For initial commissioning, see
the next chapter or the operating instructions.
3.15 Disposal of packaging
WARNING
Danger of suffocation from packaging materials and films!
► Do not allow children to play with packaging materials.
The packaging is made from recyclable materials:
-
Corrugated card/cardboard
-
Parts made of foamed polystyrene
-
Films and bags from polyethylene
-
Packing bands from polypropylene
-
Wood frame nailed together with a polyethylene window*
► Take the packaging material to an official collection
point.
4 Functionality of the Touch
display
You operate your appliance using the Touch display. You
select appliance functions in the Touch display (hereafter
referred to as display) by tapping them. If you do not
perform any action on the display for 10seconds, the
display either jumps back to the higher-level menu or
directly to the status display.
4.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol
Description
Press the Next navigation
arrow:
Navigates to the next option in
the menu.
Press the Back navigation
arrow:
Jumps back one option in the
menu.
Press the navigation arrow
several times in succession:
Navigates in the menu to the
desired function.
Press the Confirm symbol:
Activates/deactivates function.
Opens submenu.
Press the Confirm symbol
together with the back icon:
Jumps back one menu level.
Arrow with clock:
It takes more than 10seconds
for the following message to
appear in the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
“Open Settings menu” symbol:
Navigates to the Settings menu
and opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see4.2.1 Opening the Settings
menu)
Functionality of the Touch display
* Depending on model and options 23
Symbol Description
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see4.2.2 Opening the Advanced
menu)
No action for
10seconds
If you do not perform any action
on the display for 10seconds,
the display either jumps back to
the higher-level menu or directly
to the status display.
Close door and open it
again.
If you close the door and imme‐
diately open it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
4.2 Menus
The appliance functions can be found in various menus.
Menu
Description
Main menu When you switch the appliance on, you are
automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced menu.
Settings
menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
(see4.2.1 Opening the Settings menu)
Advanced
menu
The advanced menu contains special appli‐
ance functions for setting up your appli‐
ance. Access to the Advanced menu is
protected by the numerical code 151.
(see4.2.2 Opening the Advanced menu)

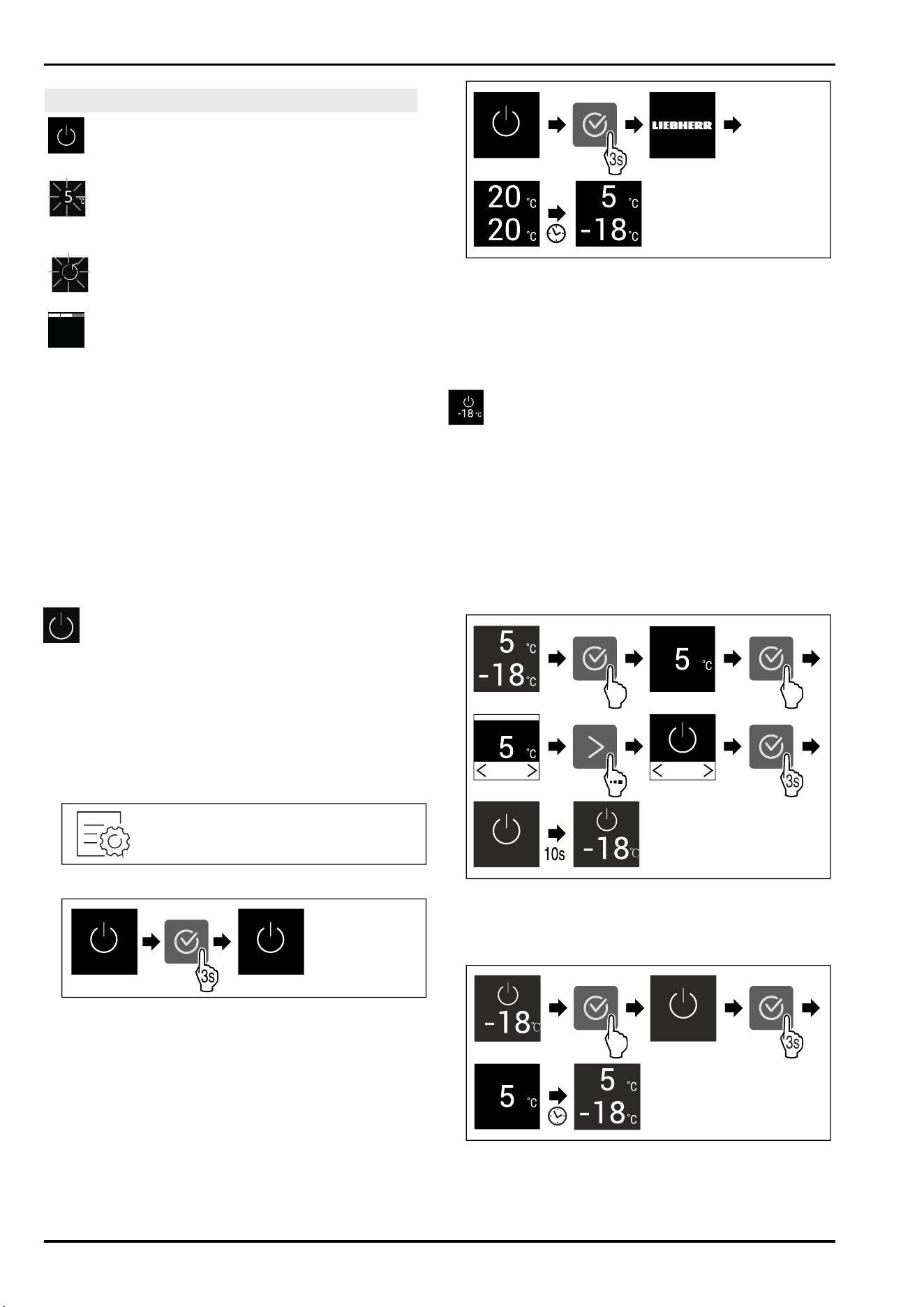

4.2.1 Opening the Settings menu
Fig. 97 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
4.2.2 Opening the Advanced menu
Fig.98
Fig. 99 Example illustration, access with numerical code
151
► Carry out action steps according to the illustration.
▷ Expanded menu is open.
► If necessary: Navigate to the desired function.
4.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
4.3.1 Ending sleep mode
► Press any navigation key.
▷ Sleep mode is ended.
5 Start-up
5.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance is properly installed and connected
according to the installation instructions.
❑
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the Touch
display. (see4 Functionality of the Touch display)
Switch on the appliance using the Touch display.
► If the display is in sleep mode: Press the Confirm symbol.
► Carry out action steps according to the illustration.
Fig. 100 Example illustration
▷ Status display appears.
▷ The appliance cools to the temperature set at the factory.
▷ The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
Start-up
24 * Depending on model and options
More information:
-
Start the SmartDevice for the first time. (see2.2 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
► Stock with food: Wait for around 6 hours until the set
temperature is reached.
► Store frozen foods at -18°C or colder.
► Observe the notes on storing food. (see6.1 Information
regarding storage)
Note
Sie erhalten Zubehör im Liebherr-Hausgeräte-Shop unter
go.liebherr.com/47wtc4.
6 Storage
6.1 Information regarding storage
WARNING
Risk of fire from electrical appliances!
If you use electrical devices in the food area of your appli‐
ance, they may case a fire.
► Do not use electrical devices in the food area of the
appliance if they have not been recommended by the
manufacturer.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating performance
► Always keep the air slots unobstructed.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
-
In the freezer compartment: Package food properly.
-
Package or cover foods that readily take on or give off
odors or taste in closed containers.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
6.2 Fridge compartment
The air circulation in the appliance creates different temper‐
ature zones. You will find the different temperature zones in
the appliance and equipment overview.
6.2.1 Arranging your food properly
CAUTION
Risk of damage and/or injury due to improperly placed food
or items!
If you place food or items on the lowest glass shelf, the door
may not close properly. This may cause the door rack to
break, allowing food or other items to fall out and cause
injury.
► Keep the front area of the lowest glass shelf clear.
1

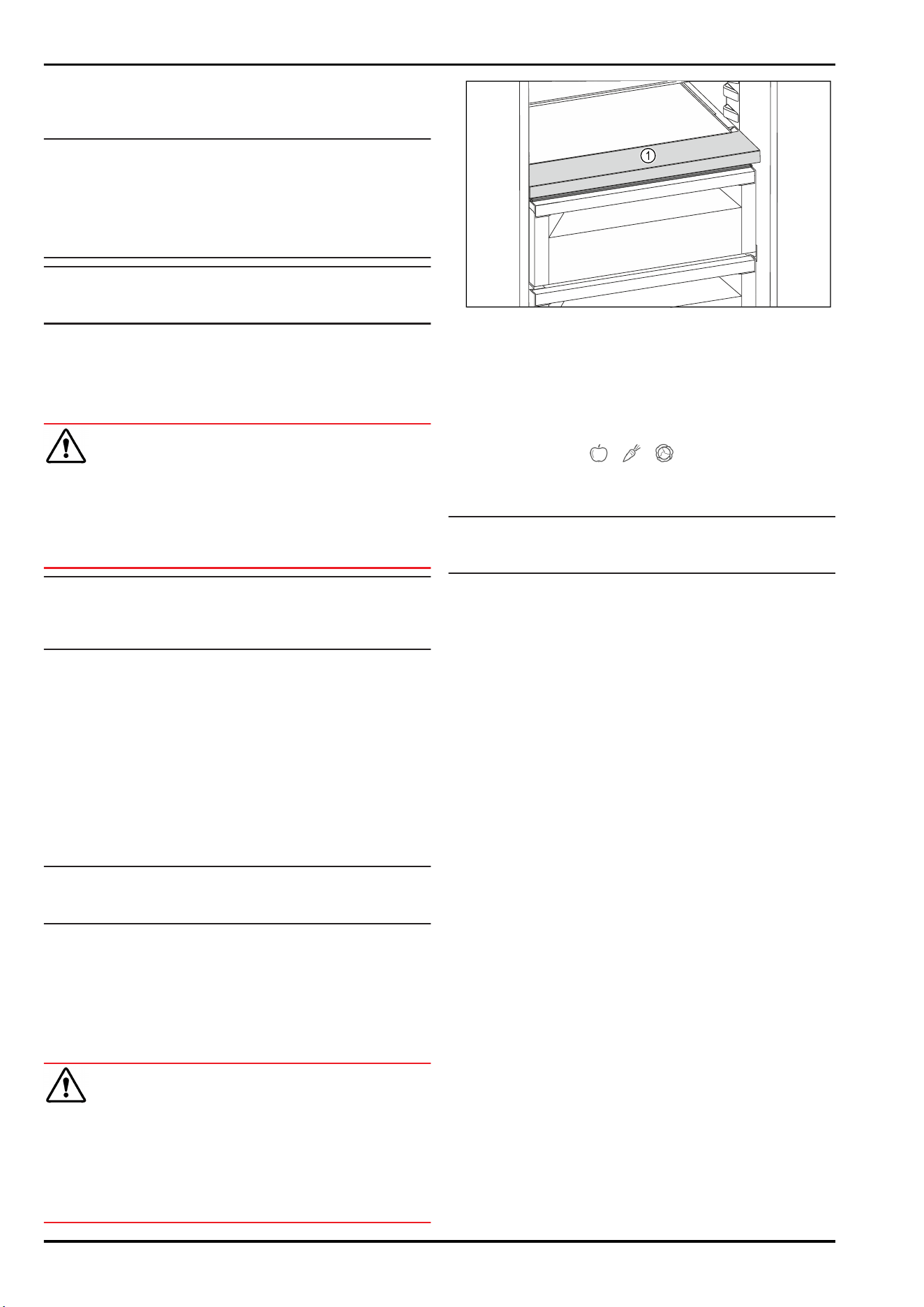

Fig. 101 Example illustration
(1)
Front area
► Upper area and door: Store butter, cheese, canned food
and tubes.
► Coldest temperature zone: Store perishable foods such
as pre-cooked meals, meat and lunch meats.
► Bottom shelf: Store raw meat or fish.
6.3 EasyFresh
EasyFresh is great for non-packaged foods, such as fruit
and vegetables.
Note
► Store sliced citrus fruits (e. g., lemon or orange slices) in
a container.
The humidity in the compartment depends on the moisture
content of the refrigerated goods and the frequency with
which it is opened. You can control the humidity. (see 9.4Lid
for EasyFresh-safe)
6.3.1 Arranging your food properly
► Store unpackaged fruit and vegetables.
If the humidity is too high:
► Regulate the humidity.
6.4 Freezer compartment
Here, a dry, frosty storage climate is created at -18°C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
6.4.1 Freezing food
Freezing quantity
The maximum amount of fresh food that you can freeze
within 24 hours is specified on the type plate
(see 11.5 Rating plate) under “Freezing capacity ... kg/24h.”
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Freezing food using SuperFrost
Depending on the amount of food to be frozen, you can acti‐
vate SuperFrost before freezing to reach lower freezing
temperatures. (see SuperFrost)
► Activate SuperFrost if the amount of food you have to
freeze is more than approx. 2 kg.
The time at which you activate SuperFrost depends on the
amount of food you have to freeze:
Storage
* Depending on model and options 25
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Small amount of
food to freeze
Activate SuperFrost about 6 hours
before freezing.
As soon as the appliance automatically
deactivates SuperFrost you can begin
rearranging your food items.
Maximum
amount of food
to freeze
Activate SuperFrost about 24 hours
before freezing.
As soon as the appliance automatically
deactivates SuperFrost you can begin
rearranging your food items.
Arranging your food properly
CAUTION
Risk of injury from broken glass!
Bottles and cans with beverages can burst during freezing.
This applies in particular to carbonated beverages.
► Only freeze bottles and cans with beverages if you have
activated the BottleTimer function in the SmartDevice
app.
Freezing quantity Arranging your food properly
Small amount of
food to freeze
Distribute packaged groceries
throughout all drawers.
If possible, place groceries at the back
of the drawer near the rear wall.
Maximum amount
of food to freeze
Distribute packaged groceries
throughout all drawers.
If possible, place groceries at the back
of the drawer near the rear wall.
6.4.2 Defrosting food
WARNING
Danger of food poisoning!
► Do not re-freeze defrosted food.
► Use defrosted foodstuff as quickly as possible.
You can defrost food in several ways:
-
In the fridge compartment
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
► Take out only as much food as necessary.
6.5 Storage times
The storage times given are guidelines
Food with a “use by” date must still be consumed by the
date indicated on the package
6.5.1 Fridge
The best-before date stated on the packaging applies.
6.5.2 Freezer
Guidelines for storage periods for various foods
Ice cream at -18°C 2 to 6 months
Sausage, ham at -18°C 2 to 3 months
Guidelines for storage periods for various foods
Bread, bakery prod‐
ucts
at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Fish, fatty at -18°C 2 to 6 months
Fish, lean at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
7 Energy saving
-
Always ensure good ventilation. Do not obstruct ventila‐
tion openings or grilles.
-
Never block air slits in the fan.
-
Do no install the appliance in an area with direct sunlight,
next to a heating unit or similar.
-
If you install the appliance directly next to an oven, its
energy consumption may increase slightly. This depends
on the service life and how often the oven is used.
-
Energy consumption depends on installation conditions
such as the ambient temperature . A warmer ambient
temperature can increase the energy consumption.
-
Avoid opening the appliance door for any longer then
necessary
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food items: home.liebherr.com/food.
-
All food stored in the appliance should be well wrapped
and covered. This prevents frost buildup.
-
Only take food out for as long as necessary so that it
does not get too warm.
-
Insertion of warm foods: first let the food cool down to
room temperature.
-
Defrost frozen food in the fridge
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
8 Use
8.1 Controls and displays
8.1.1 Status display
Fig. 102
(1)
Fridge compartment
temperature display
(2) Freezer compartment
temperature display
The Status display shows the set temperatures and is the
home display. From there, you can navigate to the options
and settings.

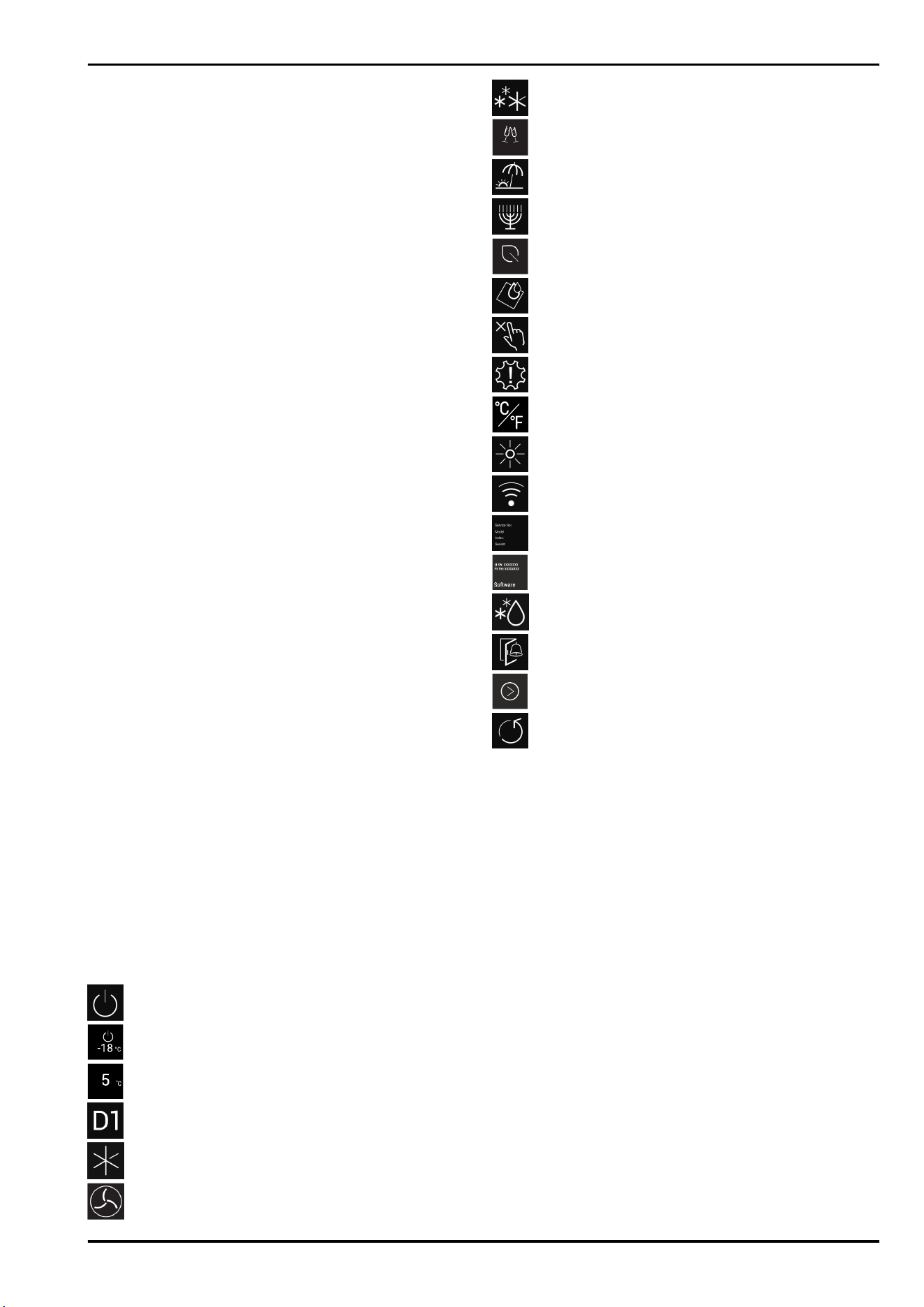

8.1.2 Display symbols
The display symbols provide information about the current
appliance status.
Energy saving
26 * Depending on model and options
Symbol Appliance status
Standby
The appliance or temperature zone
is turned off.
Flashing number
Appliance is working. Temperature
flashes, until the set value is
reached.
Flashing symbol
Appliance is working. Setting is
made.
Bar grows steadily
Function is activated.
8.2 Appliance functions
8.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Before you alter, activate or deactivate the appliance func‐
tions, make sure that the following requirements are met:
❑
You have read and understood the descriptions of how
the display works. (see4 Functionality of the Touch
display)
❑
You have familiarized yourself with the operating and
display elements of your appliance.
Switching appliance off and on
This function switches the entire appliance on and off.
Switching off the appliance
If you switch off the appliance, the settings that were made
before remain stored.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see12Decommissioning) have
been completed.
Fig. 103
Fig. 104
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ Standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Press any navigation key.
Fig. 105 Example illustration
► Carry out action steps according to the illustration.

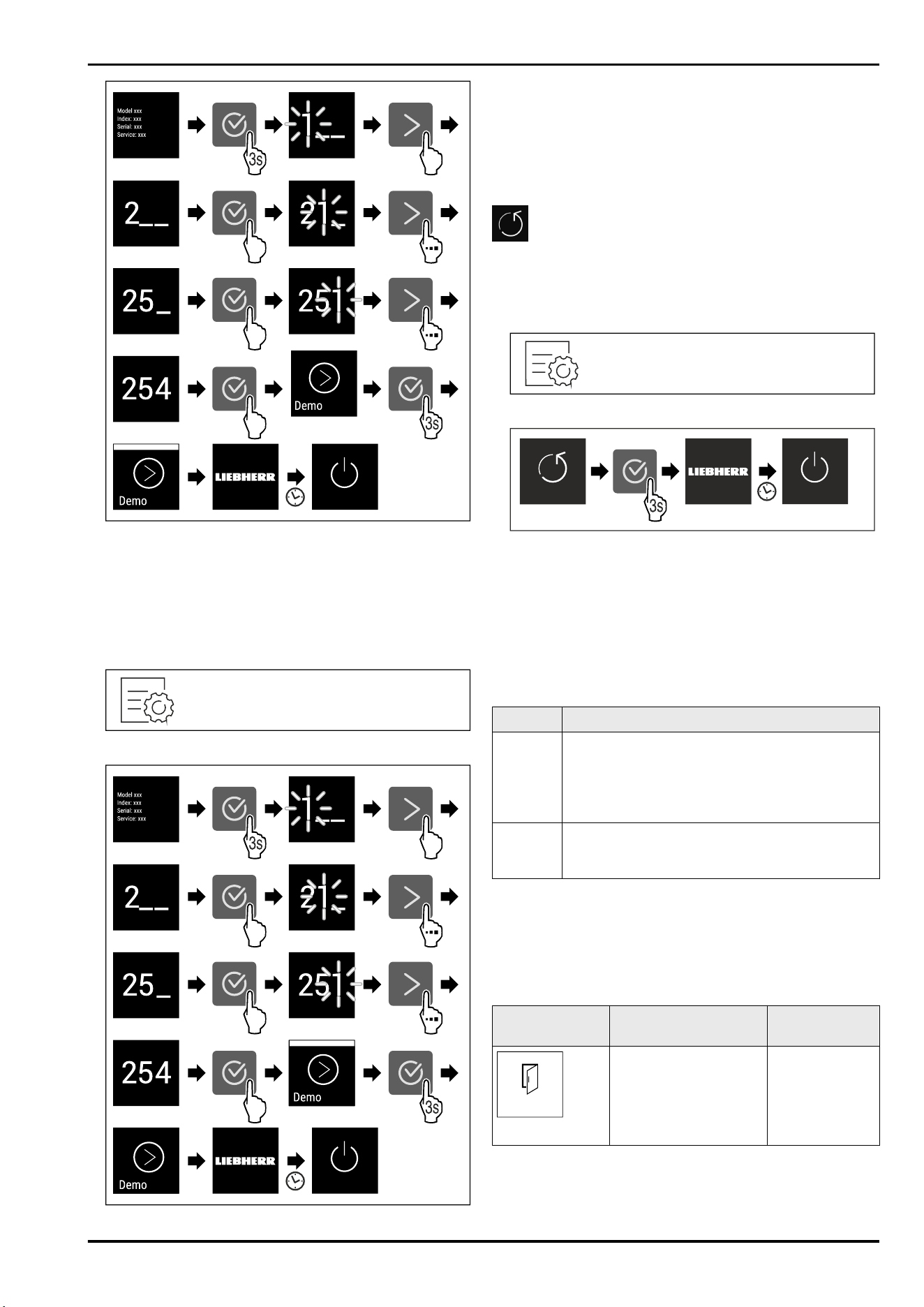

If the appliance starts in demo mode:
► Deactivate demo mode. (see Deactivating demo mode)
▷ Appliance is switched on.
▷ Previously made settings are re-established.
▷ The appliance cools to the set target temperature.
Switching temperature zone off and on
You can switch temperature zones of the appliance off inde‐
pendently.
Application:
-
Cleaning
-
Defrosting
Switching the fridge compartment off
Make sure that the following requirements are fulfilled:
❑
Refrigerator compartment has been emptied.
Fig. 106 Example illustration
► Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched off.
Switching the fridge compartment on
Fig. 107 Example illustration
► Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched on.
▷ The appliance cools to the last set temperature.
Use
* Depending on model and options 27

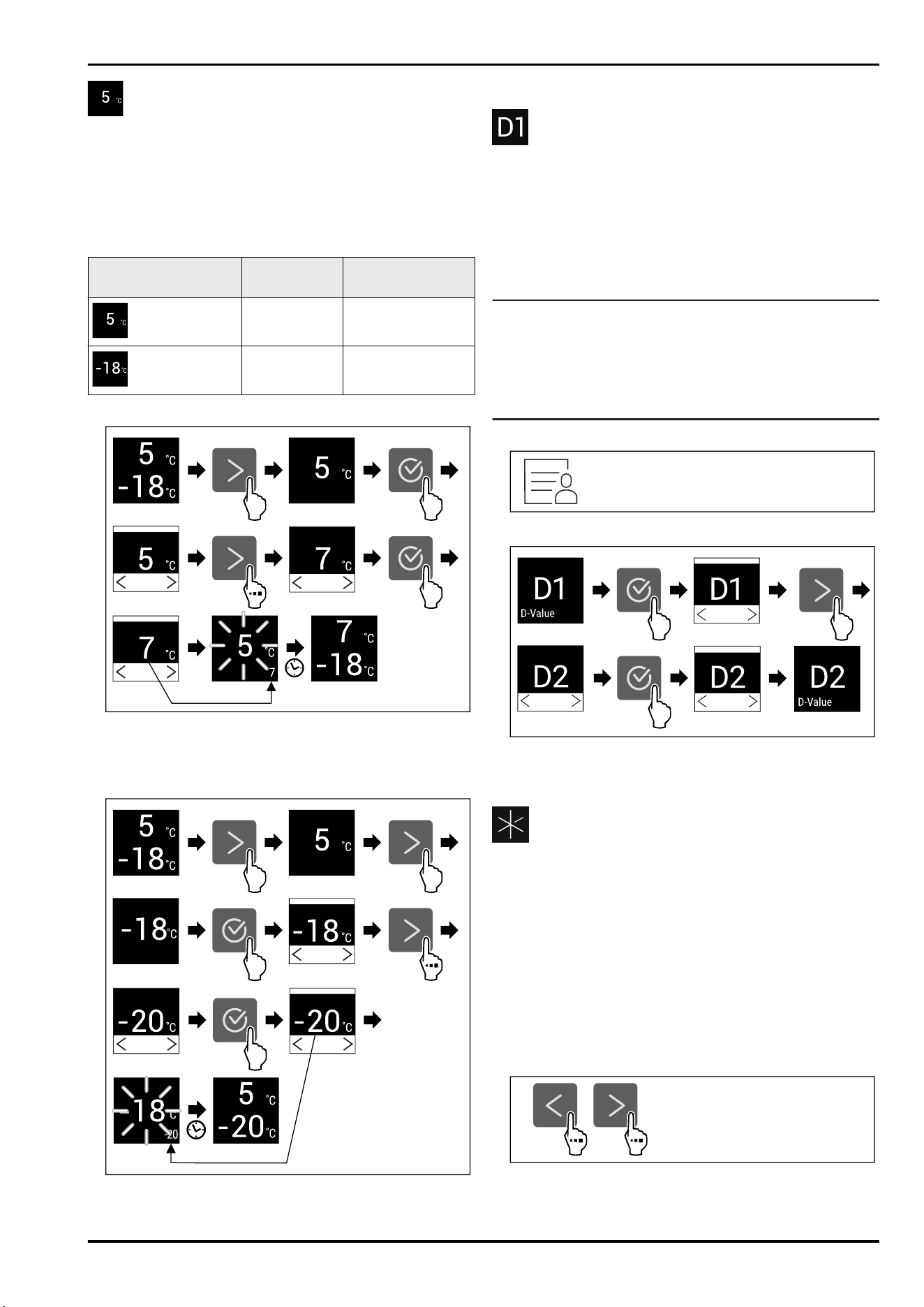

Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open
-
The room temperature of the installation site
-
Type, temperature and amount of food
Temperature zone Factory-set
temperature
Recommended
setting
Fridge section
5°C 4°C
Freezer section
-18°C -18°C
Setting the temperature in the fridge section
Fig. 108 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Setting the temperature in the freezer section
Fig. 109 Example illustration
► Carry out action steps according to the illustration.
▷
Temperature is set.
D-Value
Use this function to set the D-Value.
The D-Value indicates whether you are operating the fridge
section with a dry rear wall or without one. The rear wall is
installed in the appliance upon delivery. By default, the D-
Value is set to D1.
You can remove the rear wall for cleaning.
(see 10.6.3 Cleaning the dry rear panel) To operate the appli‐
ance without rear wall, you must set the D-Value to D2.
Note
The declared energy consumption was calculated without a
dry rear wall. The appliance is fully functional with the dry
rear wall, but with a slightly higher energy consumption.
Liebherr recommends:
► The appliance is operated with a dry rear wall to prevent
any visible condensate and product from frosting.
Setting the D-Value
Fig. 110
Fig. 111 Example illustration: Switching from D1 to D2.
► Carry out action steps according to the illustration.
▷ The D-Value is set.
SuperCool
This function activates or deactivates SuperCool. If you acti‐
vate SuperCool the appliance increases the cooling
capacity. This allows you to achieve lower cooling tempera‐
tures. You can activate SuperCool if you want to quickly cool
large volumes of food.
If the function is active, the appliance operates at a higher
output. As a result, the operating noise of the appliance may
be temporarily louder, while energy consumption increases.
Activating SuperCool
Time for activating the function:
-
If you want to store fresh food in the fridge section: Acti‐
vate the function when storing food.
Fig.113
Use
28 * Depending on model and options
Fig. 114
► Carry out action steps according to the illustration.
▷ SuperCool is activated.
Deactivating SuperCool
SuperCool is automatically deactivated after 18 hours.
However, you can also manually deactivate SuperCool at
any time:
Fig. 115
Fig. 116
► Carry out action steps according to the illustration.
▷ SuperCool is deactivated.
▷ Appliance continues to run in normal operation.
▷ The appliance first cools to the set temperature.
PowerCool
This function activates or deactivates PowerCool. Power‐
Cool ensures optimum temperature layers to keep your food
cool.
This function relates to the fridge compartment.
Application:
-
At high room temperature (starting at approx.35°C)
-
At high humidity, e. g. on summer days
-
While storing moist product to prevent condensation in
the interior
Note
The fan can run even if the function is deactivated. It
ensures optimum temperature distribution in the appliance.
If the function is active, the appliance operates at a higher
output. As a result, the operating noise of the appliance may
be temporarily louder, while energy consumption increases.
Activating PowerCool
Fig.117
Fig. 118
► Carry out action steps according to the illustration.
▷ PowerCool is activated.
Deactivating PowerCool
Fig. 119
Fig.120
► Carry out action steps according to the illustration.
▷ PowerCool is deactivated.
SuperFrost
This function activates or deactivates SuperFrost. Activating
SuperFrost the appliance increases the freezing capacity.
This allows you to achieve lower freezer temperatures.
Application:
-
Quickly freezing fresh food through to the core.
This ensures that the nutrition value, look, and taste of
the food is preserved.
-
Increasing cold reserves in stored frozen food before
defrosting the appliance.
If the function is active, the appliance operates at a higher
output. As a result, the operating noise of the appliance may
be temporarily louder, while energy consumption increases.
If the door is open for too long, e. g., because you are
storing food, the appliance checks automatically whether
the actual temperature in the appliance matches the appli‐
ance’s set temperature. If the difference exceeds a defined
value, the appliance cooling power is increased automati‐
cally. As a result, the temperature shown on the display may
be higher than the actual temperature inside the appliance.
This is normal and your appliance is working correctly.
Activating SuperFrost
Make sure that the following requirements are fulfilled:
❑
The freezing volume and time for SuperFrost activation
are taken into account. (see Freezing food using
SuperFrost)
Fig.121
Use
* Depending on model and options 29
Fig.122
► Carry out action steps according to the illustration.
▷ SuperFrost is activated.

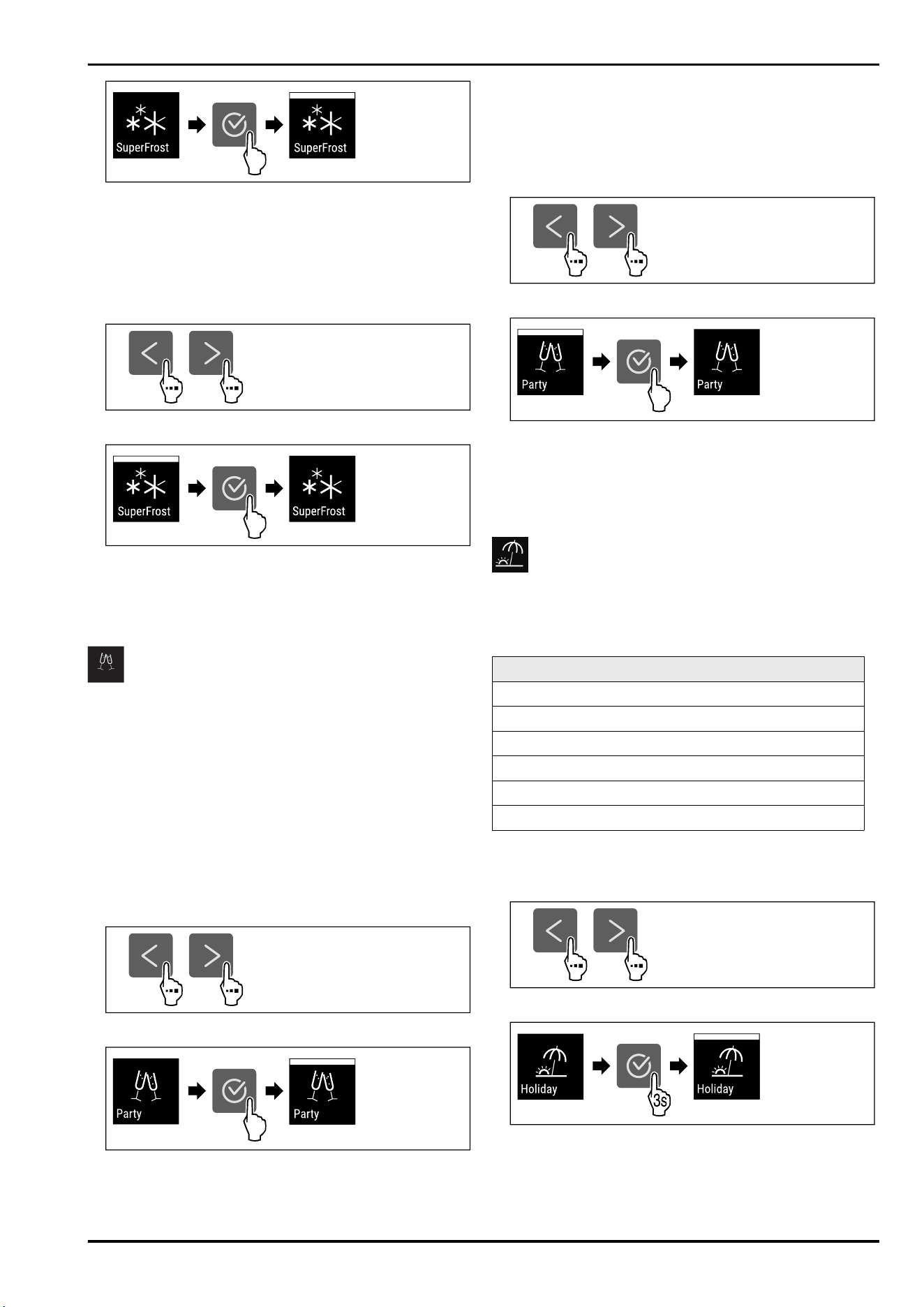

Deactivating SuperFrost
SuperFrost is automatically deactivated after 56 to 72 hours
depending on the volume of the stored food. However, you
can also manually deactivate SuperFrost at any time:
Fig.123
Fig. 124
► Carry out action steps according to the illustration.
▷ SuperFrost is deactivated.
▷ Appliance continues to run in normal operation.
▷ The appliance first cools to the set temperature.
PartyMode
This function activates and deactivates PartyMode. Party‐
Mode activates different functions that are useful for a
party.
PartyMode activates the following functions:
-
SuperCool (seeSuperCool)
-
SuperFrost (see SuperFrost)
You can set all listed functions individually and flexibly. By
deactivating PartyMode all changes are discarded.
If the function is active, the appliance operates at a higher
output. As a result, the operating noise of the appliance may
be temporarily louder, while energy consumption increases.
Activating PartyMode
Fig.125
Fig. 126
► Carry out action steps according to the illustration.
▷ PartyMode and the corresponding functions are acti‐
vated.
▷
The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
PartyMode is automatically deactivated after 24 hours.
However, you can also manually deactivate PartyMode at
any time:
Fig.127
Fig.128
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
▷ The appliance first cools to the set temperature: The
current temperature flashes until the target temperature
is reached.
HolidayMode
Use this function to activate or deactivate HolidayMode. If
you activate HolidayMode the fridge section is set to 15°C.
This helps you save energy if you are away for a longer
period of time and avoid bad smells and mold formation.
Appliance status with active HolidayMode
Fridge section cools to 15°C.
EasyFresh cools down to 15°C.
The set temperature is maintained in the freezer section.
PartyMode is deactivated.
SuperCool is deactivated.
PowerCool is deactivated.
Activating HolidayMode
► Empty the fridge section completely.
► Empty EasyFresh completely.
Fig.129
Fig.130
► Carry out action steps according to the illustration.
▷ HolidayMode is activated.
▷ Temperature display shows the HolidayMode symbol.
Use
30 * Depending on model and options

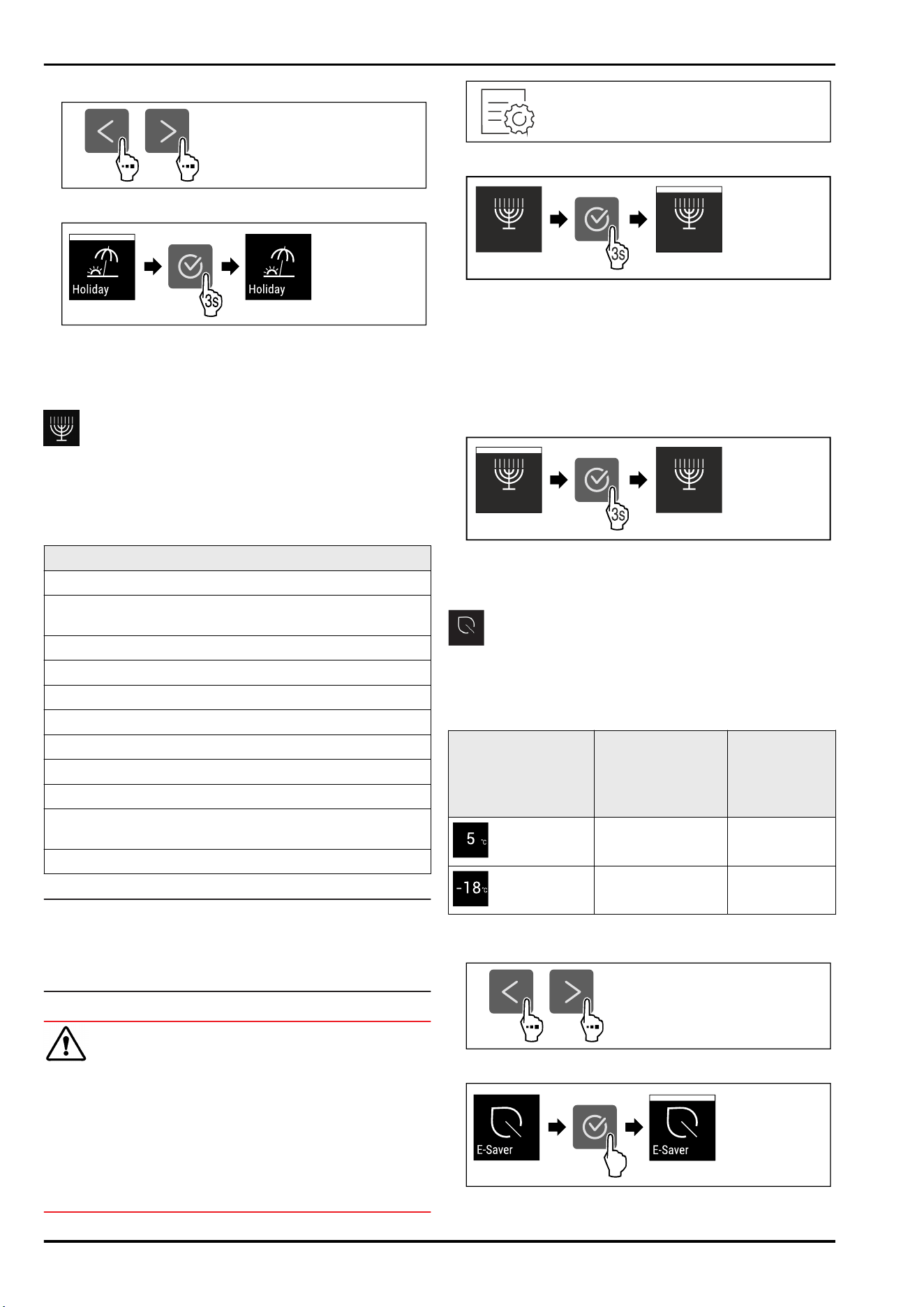

Deactivating HolidayMode
Fig.131
Fig.132
► Carry out action steps according to the illustration.
▷ HolidayMode is deactivated.
▷ The appliance first cools to the set temperature.
SabbathMode
This function activates and deactivates SabbathMode. If
you activate this function, some electronic functions are
switched off. Your appliance thereby meets the religious
requirements of Jewish holidays such as the Sabbath and
complies with STAR-K Kosher certification.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivating
SabbathMode function are disabled.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Memories are not listed. The set time interval is stopped.
Memories and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrost cycle operates only for the specified time
without taking into account the appliance usage.
After a power failure, the device returns to SabbathMode.
Appliance status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
► Do not consume food that has been frozen and thawed.
Fig.133
Fig.134
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ Status display continuously shows SabbathMode.
Deactivating SabbathMode
SabbathMode is automatically deactivated after 80 hours.
However, you can also manually deactivate SabbathMode at
any time:
Fig.135
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
E-Saver
Use this function to activate or deactivate energy saving
mode. If you activate energy saving mode, energy consump‐
tion drops and the temperature in the appliance increases.
Food remains fresh, but shelf life is reduced.
Temperature zone
Recommended
setting
(see Setting the
temperature in the
fridge section)
Temperature
while E-Saver
is active
Fridge section
4°C 7°C
Freezer section
-18°C -16°C
Temperatures

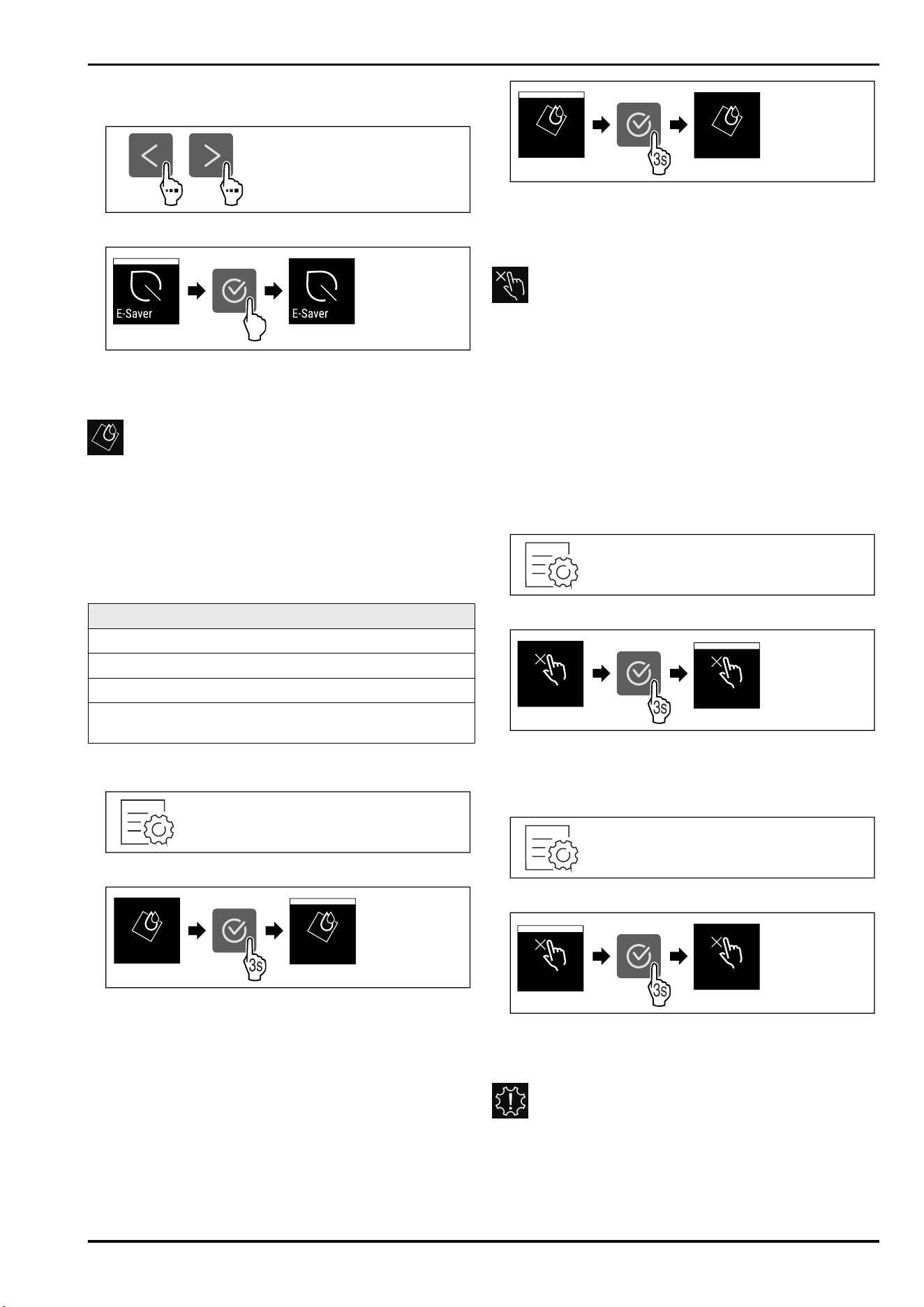

Activating E-Saver
Fig.136
Fig.137
► Carry out action steps according to the illustration.
Use
* Depending on model and options 31
▷ Energy saving mode is activated.
Deactivating E-Saver
Fig.138
Fig. 139
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.
CleaningMode
This function activates and deactivates CleaningMode.
CleaningMode enables you to comfortably clean the appli‐
ance.
This setting relates to the fridge compartment.
Application:
-
Clean the fridge compartment. (see 10.6Cleaning the
appliance)
Appliance status with active CleaningMode
The status display continuously shows CleaningMode.
The fridge section is switched off.
The interior lighting is activated.
Reminders and warnings are not displayed. No signal tone
is sounded.
Appliance status
Activating CleaningMode
Fig. 140
Fig. 141
► Carry out action steps according to the illustration.
▷ CleaningMode is activated.
▷ Status display continuously shows CleaningMode.
Deactivating CleaningMode
CleaningMode is automatically deactivated after
60 minutes. However, you can also manually deactivate
CleaningMode at any time:
Fig. 142
► Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance first cools to the set temperature.
Input lock
This function activates and deactivates the input lock. The
input lock prevents the appliance from being operated acci‐
dentally, e. g. by children.
Application:
-
Prevent unintentional changes of functions.
-
Prevent switching off of the appliance.
-
Prevent unintentional temperature setting.
Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus, however you cannot select or modify other
functions.
Fig. 143
3s
Displ. Lock
Displ. Lock
Fig. 144
► Carry out action steps according to the illustration.
▷ Input lock is activated.
Deactivating the input lock
Fig. 145
3s
Displ. Lock
Displ. Lock
Fig. 146
► Carry out action steps according to the illustration.
▷ Input lock is deactivated.
Reminder
Use this function to activate or deactivate reminder. This
function is activated upon delivery.
Use
32 * Depending on model and options
The following reminders will then appear if the function is
activated:
-
Replace the FreshAir activated charcoal filter
(see Replace FreshAir activated charcoal filter)
Activating reminder
Fig. 147
Fig. 148
► Carry out action steps according to the illustration.
▷ Reminder is activated.
Deactivating reminder
Fig. 149
Fig. 150
► Carry out action steps according to the illustration.
▷ Reminder is deactivated.

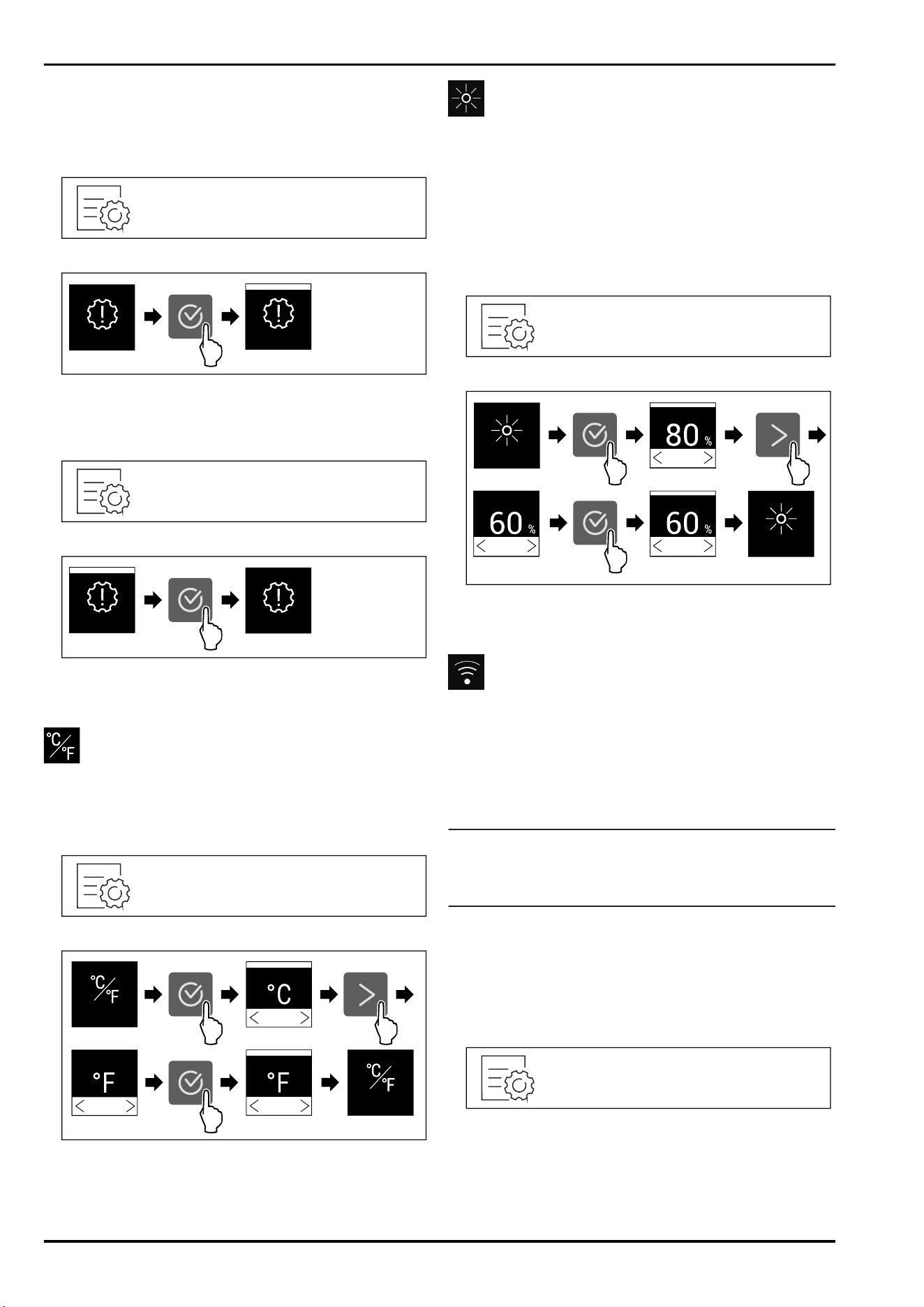

Temperature unit
Use this function to set the temperature unit. You can set
the temperature unit in either degreesCelsius or
degrees Fahrenheit.
Setting the temperature unit
Fig. 151
Fig. 152 Example illustration: Switching between
degrees Celsius or degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ Temperature unit is set.
Display Brightness
Use this function to set the brightness of the display gradu‐
ally.
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100% (default setting)
Setting the brightness
Fig. 153
Fig. 154 Example illustration: Switching from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ Brightness is set.
WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see2.2 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have purchased and inserted a SmartDeviceBox.
(see2.2 SmartDevice)
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig. 155
Use
* Depending on model and options 33
Fig. 156
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig. 157
Fig. 158
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig. 159
Fig. 160
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 161
Fig. 162
► Carry out action steps according to the illustration.
Appliance information
Use this function to display the model name, index, serial
number and service number of your appliance. You will need
the appliance information when you contact customer
service. (see11.4 Customer Service)
Display appliance information
Fig. 163
Fig. 164
► Carry out action steps according to the illustration.
▷ Display shows the appliance information.
Software
Use this function to display the software version of your
appliance.
Display software version
Fig. 165
Use
34 * Depending on model and options
Fig. 166
► Carry out action steps according to the illustration.
▷ Display indicates the software version.
Start defrost cycle
Use this function to start the automatic defrost cycle
manually if the defrost cycle does not start automatically in
case of an error.
Starting the defrost cycle
Fig. 167
Fig. 168
► Carry out action steps according to the illustration.
▷ Defrost cycle has started: Symbol flashes until the
defrost cycle is automatically completed.
▷ When the defrost cycle is completed: Appliance
continues to run in normal operation.
Canceling the defrost cycle
The defrost cycle is automatically completed. However, you
can also cancel the defrost cycle at any time during the
defrosting:
Fig. 169
► Carry out action steps according to the illustration.
▷ Defrost cycle is canceled.
▷ Appliance continues to run in normal operation.
Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated upon delivery. You can set how long
to door can remain open until the door alarm sounds.
You can set the following values:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.170
Fig. 171 Example illustration: Changing the door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ Door alarm is set.
Deactivating door alarm
Fig.173
Fig. 174
► Carry out action steps according to the illustration.
▷ Door alarm is deactivated.
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig.175
Use
* Depending on model and options 35
Fig. 176
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see 5.1 Switching on appliance
(first use))
▷ “DEMO” appears in the status display.
Deactivating demo mode
Fig.177
Fig.178
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see 5.1 Switching on appliance
(first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory settings. All
settings you have made so far are reset to their original
settings.
Performing a reset
Fig.179
Fig. 180
► Carry out action steps according to the illustration.
▷ Appliance is reset.
▷ Appliance is switched off.
► Restart the appliance. (see 5.1 Switching on appliance
(first use))
8.3 Messages
There are two categories of messages:
Category
Meaning
Warning Warnings are displayed if there is a door alarm
or a malfunction.
You can easily end warnings yourself. For any
major malfunction, you must contact Customer
Service. (see11.4 Customer Service)
Reminder Reminders remind you of general processes.
You can perform these processes and end the
message doing so.
8.3.1 Overview of warnings
The appliance’s behavior in the event of a warning:
-
Warning appears in the display.
-
Alarm sounds in increasing volume.
-
For some warnings the interior lighting pulses.
Message
Cause Ending the
message
Door alarm
The message appears
if the door is open for
too long.
Carry out action
steps.
(seeDoor
alarm)
Use
36 * Depending on model and options
Message Cause Ending the
message
Power failure
alarm
The message appears
if the freezing temper‐
ature increases due to
a power outage.
Carry out action
steps.
(see Power
failure alarm)
Temperature
alarm
The message appears
if the freezing temper‐
ature does not corre‐
spond to the set
temperature.
Carry out action
steps.
(see Tempera‐
ture alarm)
Error
This message appears
if there is an appliance
error. An appliance
module indicates an
error.
Carry out action
steps.
(see Error)

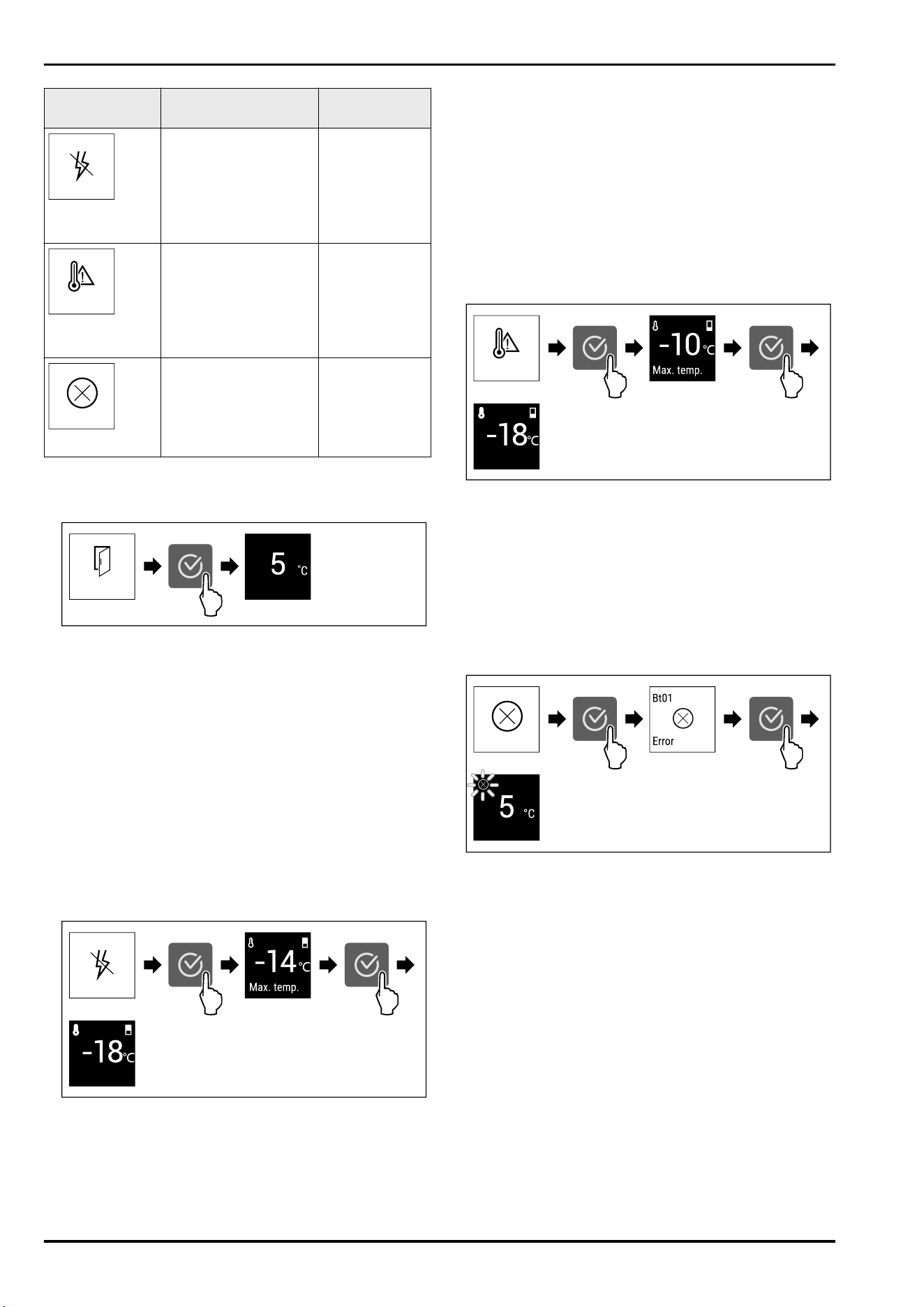

8.3.2 Ending warnings
Door alarm
Fig. 181 Example illustration
► Carry out action steps according to the illustration.
-or-
► Close the door.
▷ Display skips to status display.
▷ The appliance cools more intensely, so the temperature
shown on the display may be higher than the actual
temperature inside the appliance.
▷ Appliance noises may be louder.
You can set how long to door may remain open until the
door alarm sounds. (see Setting the door alarm)
Power failure alarm
Once the power failure has ended, the appliance automati‐
cally cools to the target temperature set earlier without you
having to confirm the message. But you must confirm it in
order for the message to disappear on the display.
Fig. 182 Example illustration
► Press the Confirm symbol.
▷ The warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9°C: Food can
still be eaten.
If the freezing temperature exceeded -9°C:
► Check the food.
►
Press the Confirm symbol.
▷ Display skips to status display: The current temperature
and target temperature are displayed.
Temperature alarm
Causes for the temperature differences may be:
-
You have put in warm, fresh food.
-
Too much warm room air has flowed in during the rear‐
rangement and removal of food.
-
The power has been out for a longer period of time.
-
The appliance is defective.
► Remedy the cause.
▷ The appliance cools to the target temperature set earlier:
Fig. 183 Example illustration
► Press the Confirm symbol.
▷ The warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9°C: Food can
still be eaten.
If the freezing temperature exceeded -9°C:
► Check the food.
► Press the Confirm symbol.
▷ Display skips to status display: The current temperature
and target temperature are displayed.
Error
Fig. 184 Example illustration
► Press the Confirm symbol.
▷ Error code is displayed.
► Make a note of the error code.
► Press the Confirm symbol.
▷ Display skips to status display.
► Contact Customer Service. (see11.4 Customer Service)
8.3.3 Overview of reminders
The appliance’s behavior in the event of a reminders:
-
Reminder appears in the display.
-
Alarm tone sounds.
-
For some reminders the interior lighting pulses.
You can deactivate the following reminders (seeDeacti‐
vating reminder) :
-
Replace FreshAir activated charcoal filter
Use
* Depending on model and options 37
Message Cause Ending the
message
Replace FreshAir
activated char‐
coal filter
This message
appears if you
have to replace
the FreshAir acti‐
vated charcoal
filter.
Carry out action
steps.
(see Replace Fres‐
hAir activated
charcoal filter)
8.3.4 Ending reminders

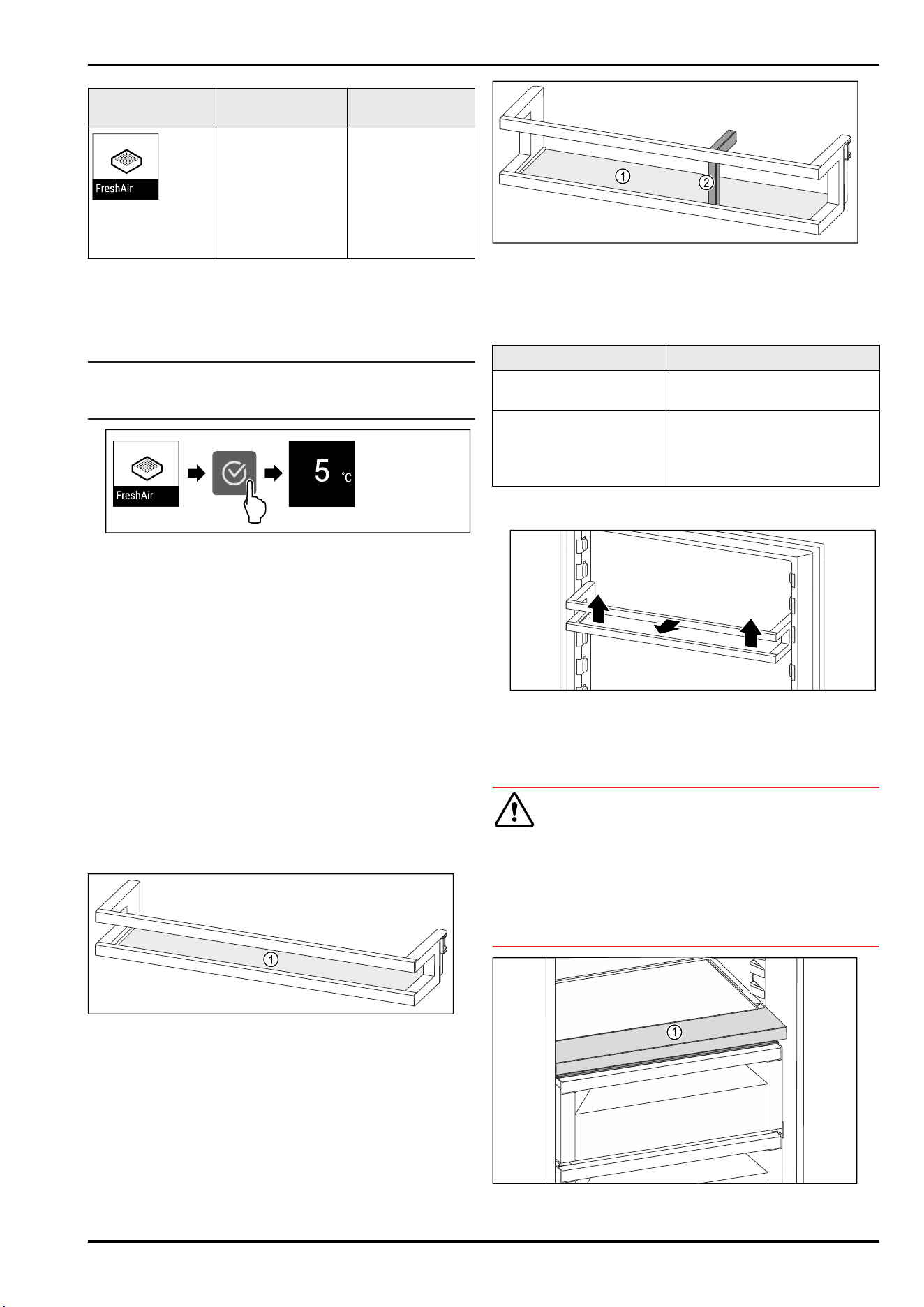

Replace FreshAir activated charcoal filter
Liebherr recommends: Replace the FreshAir activated char‐
coal filter every 6 months.
Note
Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-
Hausgeräte-Shop unter go.liebherr.com/47wtc4.
Fig. 185 Example illustration
► Press the Confirm symbol.
► Replace activated charcoal filter. (see 10.1 FreshAir
carbon filter)
▷ The activated charcoal filter ensures optimum air quality
in the refrigerator.
▷ Reminder appears again after 6 months.
If you no longer want to keep this reminder, you can deacti‐
vate the reminder. (see Deactivating reminder)
9 Equipment
9.1 Door racks
Door racks are suitable for storing beverages and food. You
can move door racks for use as individually needed and
disassemble them for cleaning. However, Liebherr recom‐
mends using the door racks in the position they are in when
delivered from the plant.
Fig. 186 Example illustration of the door racks
(1)
Shelf
Fig. 187 Example illustration of the door racks with bottle
holder
(1) Shelf (2) Bottle holder
The following table shows examples of what you can store
in each door rack.
Door racks
Food
Door racks (see Fig. 186) Butter, cheese, canned food,
tubes
Door racks with bottle
holder (see Fig. 187)
Bottles
Use the movable bottle holder
to secure the bottles in the
door rack.
9.1.1 Removing the door rack
Fig. 188 Example illustration
► Move the door rack up.
► Move the door rack to the front.
9.1.2 Inserting the door rack
CAUTION
Risk of damage and/or injury due to improperly placed food
or items!
If you place food or items on the lowest glass shelf, the door
may not close properly. This may cause the door rack to
break, allowing food or other items to fall out and cause
injury.
► Keep the front area of the lowest glass shelf clear.
1
Fig. 189 Example illustration
(1)
Front area
Equipment
38 * Depending on model and options
Fig. 190 Example illustration
► Insert the door rack.
► Press the door rack down.
9.2 Shelves
Different types of shelves are available depending on the
appliance model:
-
Single-piece shelf
-
Shelf above the EasyFresh safe
Fig. 191 Example illustration of shelf with retaining edge
(1)
Shelf (3) Retaining edge
(2) Pull-out stop
9.2.1 Using the shelves in the fridge section
You can reposition the shelves, remove them completely, or
remove them for cleaning.
Make sure that the following requirements are met:
❑
Shelves are empty.
Removing the shelf
The shelves are secured against unintentional removal by
pull-out stops.
Fig. 192
► Lift the shelf.
► Remove the shelf by pulling it forward.
-or-
Fig. 193
► For easier removal: Tilt the shelf and remove it toward
the front.
▷ The shelves have been removed.
▷ You can insert the shelves at a different height.
Inserting the shelves
Fig. 194
If the pull-out stops point downward:
► Slide in the shelf as far as it will go.
► Lower the shelf.
-or-
Fig. 195
► Insert the shelf at an angle and lower it.
▷ The pull-out stops are positioned behind the front
support surface.
9.2.2 Removing / inserting the shelf above the
EasyFresh safe
You can remove the shelf above the EasyFresh safe for
cleaning.
Removing the shelf
Make sure that the following requirements are met:
❑
The shelf is empty.
Equipment
* Depending on model and options 39

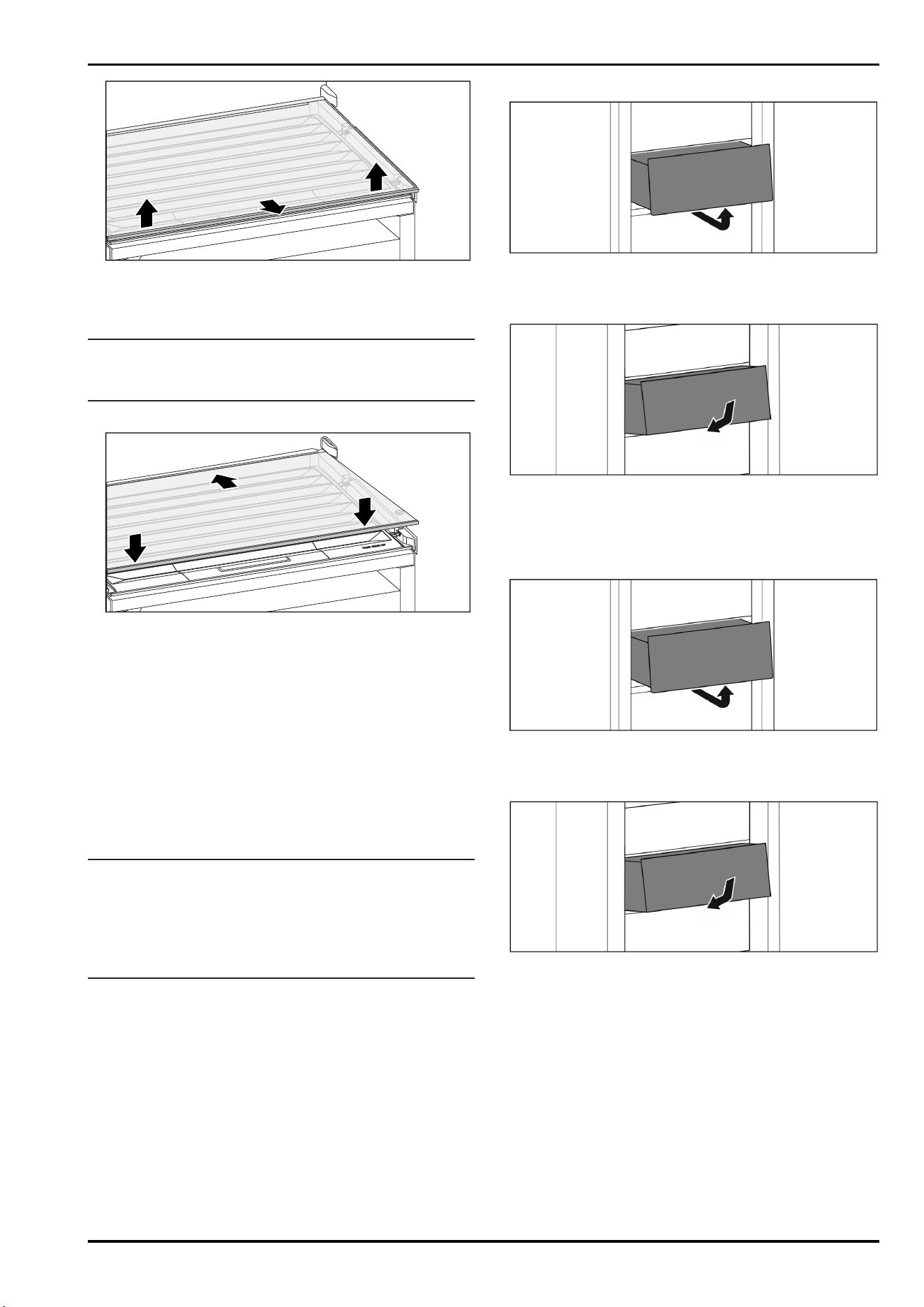

Fig. 196
► Lift the shelf at the front.
► Remove the shelf by pulling it forward.
▷ The compartment lid is visible.
Note
Liebherr recommends:
Do not store any product on the compartment lid below it.
Inserting the shelf
Fig. 197
If the pull-out stops point downward:
► Place the shelf at an angle, tilted back and down.
► Lower the front part downward.
▷ The pull-out stops are positioned behind the front
support surface.
9.3 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending on
the pull-out system. Your appliance can contain a variety of
pull-out systems.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating perform‐
ance.
► Leave the bottom drawer in the appliance.
► Always keep the fan air slots on the inside of the rear
wall clear.
9.3.1 Drawer on appliance base or glass shelf
The drawer runs directly on the appliance base or on a glass
shelf. There are no rails.
When you remove the drawers, you can use the glass
shelves below them as storage shelves.
Removing drawer
Fig. 198
► Remove drawer as shown in the diagram.
Inserting drawer
Fig. 199
► Insert drawer as shown in the diagram.
9.3.2 Drawer on glide rails
Removing drawer
Fig.200
► Remove drawer as shown in the diagram.
Inserting drawer
Fig.201
► Insert drawer as shown in the diagram.
9.4 Lid for EasyFresh-safe
The lid ensures constant levels of humidity.
The lid is located directly on the drawer and can be covered
by shelves or additional drawers.
Equipment
40 * Depending on model and options

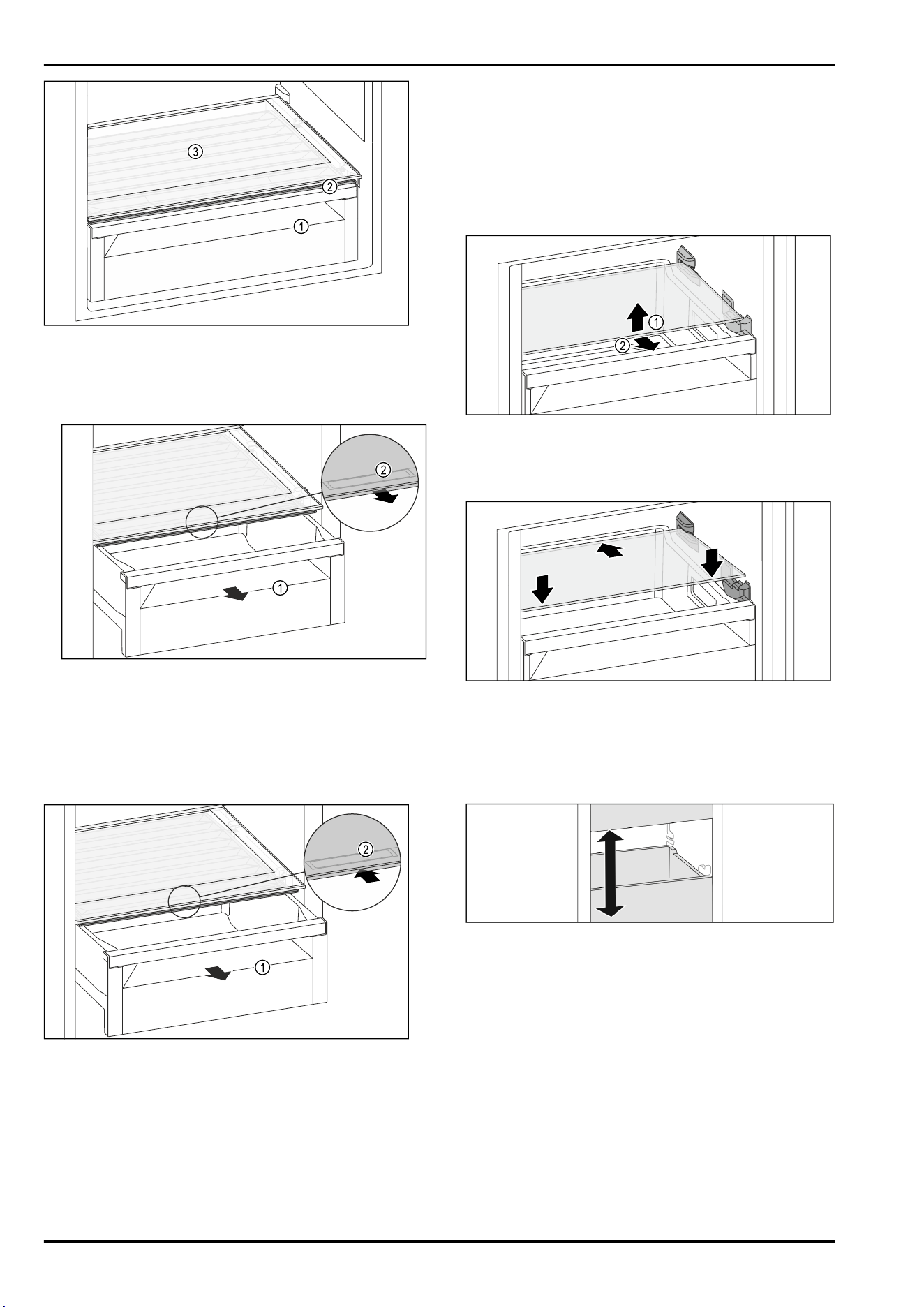

Fig. 202 Example illustration of the lid for EasyFresh-safe
(1)
EasyFresh-safe (3) Shelf
(2) Lid for EasyFresh-safe
9.4.1 Reducing humidity in the drawer
Fig.203
► Pull out the drawer Fig.203(1).
► Grip the handle recess Fig.203(2) on the lid while pulling
the lid forward at the same time.
▷ When the drawer is closed, there is a small gap between
the lid and the drawer.
9.4.2 Increasing humidity in the drawer
Fig.204
► Pull out the drawer Fig.204(1).
► Grip the handle recess Fig.204(2) on the lid while pulling
the lid backward at the same time.
▷ When the drawer is closed, the lid closes tightly with the
drawer.
9.5 Glass shelves
You can remove the glass shelf under the drawers for
cleaning.
You can remove the glass shelf under the drawers to use
VarioSpace.
9.5.1 Removing / inserting the glass shelf
Make sure that the following requirements are fulfilled:
❑
Glass shelf under the drawer: Drawer has been removed.
(see 9.3 Drawers)
Removing glass shelf
Fig. 205 Example illustration of the glass shelf
► Lift the front of the glass shelf.
► Remove the glass shelf from the front.
Inserting the glass shelf
Fig. 206 Example illustration of the glass shelf
► Set down the glass shelf diagonally behind the stoppers.
► Lower glass shelf.
► Slide in glass shelf to the back.
9.6 VarioSpace
Fig.207
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game and bulky baked goods.
You can then freeze these items whole for later preparation.
► Note the load limits on the drawers and glass panels
(see11.1 Technical specifications) .
Equipment
* Depending on model and options 41
9.7 Bottle rack
9.7.1 Using the bottle rack

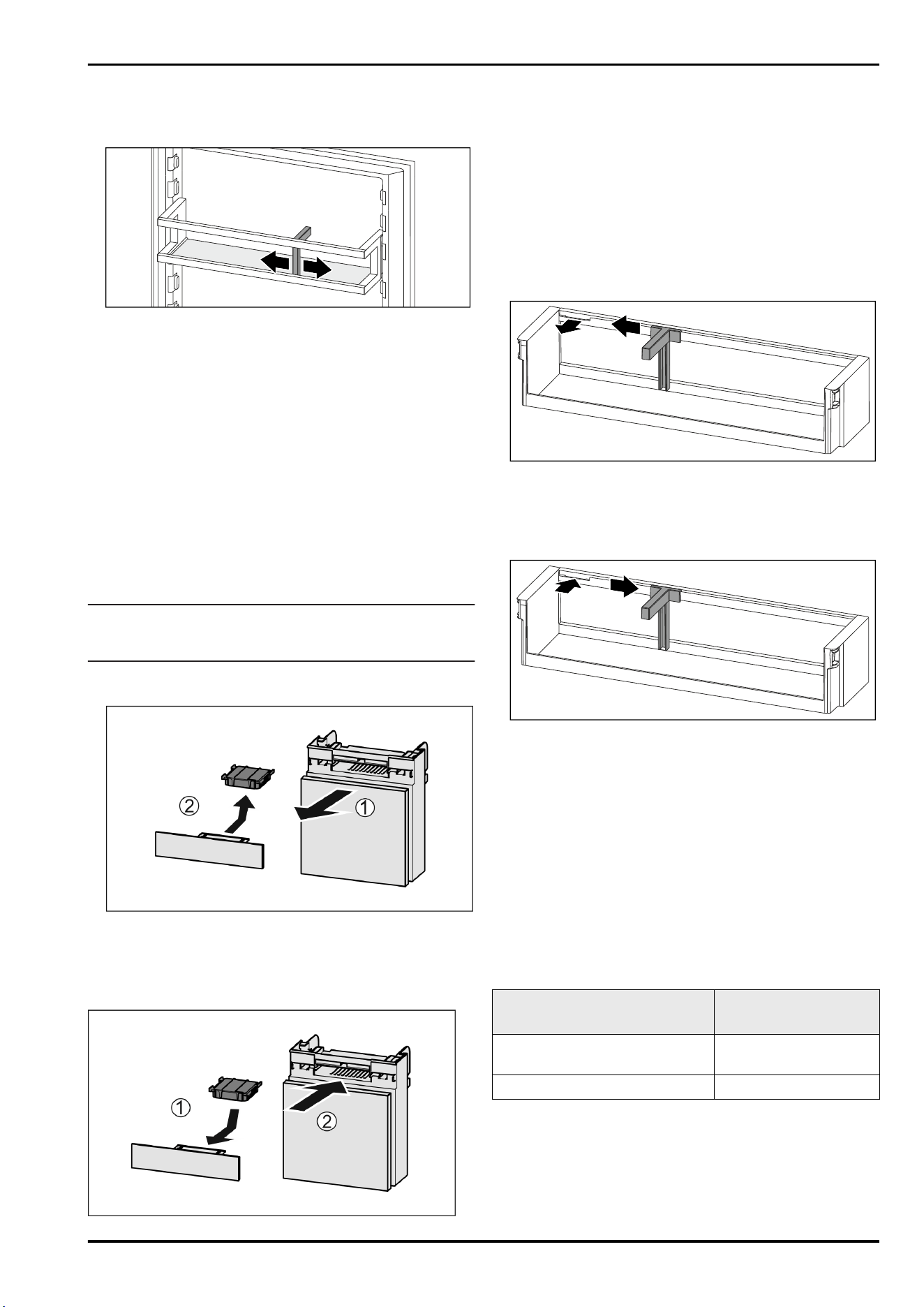

Fig.208
► Slide the bottle rack at the edges.
▷ Stops bottles from tipping over.
10 Maintenance
10.1 FreshAir carbon filter
The FreshAir carbon filter is located in the compartment
above the fan.
It guarantees the best air quality.
❑
Change the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
❑
You can dispose of the carbon filter with the regular
household waste.
Note
Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-
Hausgeräte-Shop unter go.liebherr.com/47wtc4.
10.1.1 Removing the FreshAir carbon filter
Fig.209
► Pull out the compartment Fig.209(1).
► Remove the carbon filter Fig.209(2).
10.1.2 Inserting the FreshAir carbon filter
Fig. 210
► Insert the carbon filter as shown in the diagram
Fig. 210(1).
▷ The carbon filter clicks into place.
If the carbon filter is pointing downwards:
► Push the compartment in Fig. 210(2).
▷ The carbon filter is now ready for use.
10.2 Removing/inserting the bottle
holder
10.2.1 Removing the bottle holder
Fig.211
► Push the bottle holder to the side up to the recess.
► Remove the bottle holder from the front.
10.2.2 Inserting the bottle holder
Fig.212
► Insert the bottle holder into the recess.
► Push the bottle holder to the side into the desired posi‐
tion.
10.3 Disassembling / assembling pull-
out systems
10.3.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Drawer on appliance base or
glass shelf
cannot be disassembled
Drawer on glide rails cannot be disassembled
10.4 Lid for EasyFresh-safe
You can remove the lid for cleaning.
Maintenance
42 * Depending on model and options
10.4.1 Removing the lid
Make sure that the following requirements are fulfilled:
❑
The shelf directly above the drawer has been removed.
(see 9.2 Shelves)
❑
The drawer directly below the lid has been removed.
(see 9.3 Drawers)

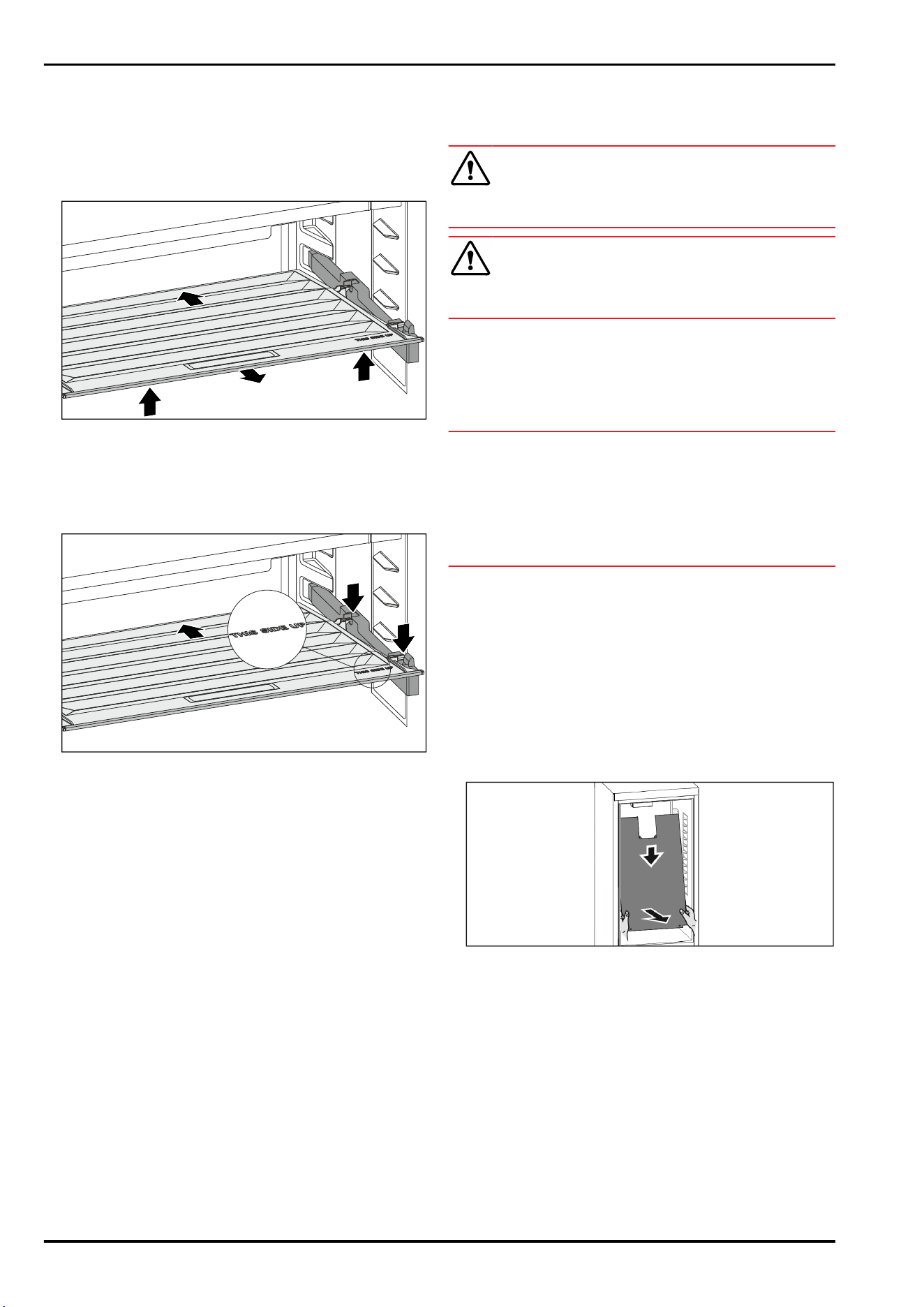

Fig.213
► Push the lid backward.
► Lift up the lid forward.
► Remove the front lid by lifting it up at an angle.
10.4.2 Inserting the lid
Fig. 214
If the lettering THIS SIDE UP is on top:
► Insert the rear bracket retainers in the corresponding rear
openings.
► Push the lid backward.
► Lower the lid at the front and latch the front bracket
retainers in the openings.
► Bring the lid to the desired position.
10.5 Defrosting the appliance
10.5.1 Defrosting the refrigerator compartment
Defrosting is performed automatically. The water from the
thawing process runs out via the drain opening and is
evaporated.
► Clean the drain hole regularly. (see 10.6Cleaning the
appliance)
10.5.2 Defrosting the freezer compartment
with NoFrost
Defrosting is performed automatically by the NoFrost
system. The moisture condenses on the evaporator and is
periodically defrosted and evaporated.
The appliance does not need to be defrosted.
10.6 Cleaning the appliance
10.6.1 Preparation
WARNING
Danger of electric shock.
► Unplug refrigerator or disconnect power.
WARNING
Risk of fire!
► Do not damage the refrigerant circuit.
► Empty the appliance.
► Pull out the power plug.
-or-
► Activate CleaningMode. (seeCleaningMode)
10.6.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not use steel wool or sponges that scour or scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
► Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
► Drain hole: remove any deposits with a thin item such as
a cotton bud.
10.6.3 Cleaning the dry rear panel
You can remove the dry rear panel for cleaning.
Removing the rear panel
► Remove all equipment parts.

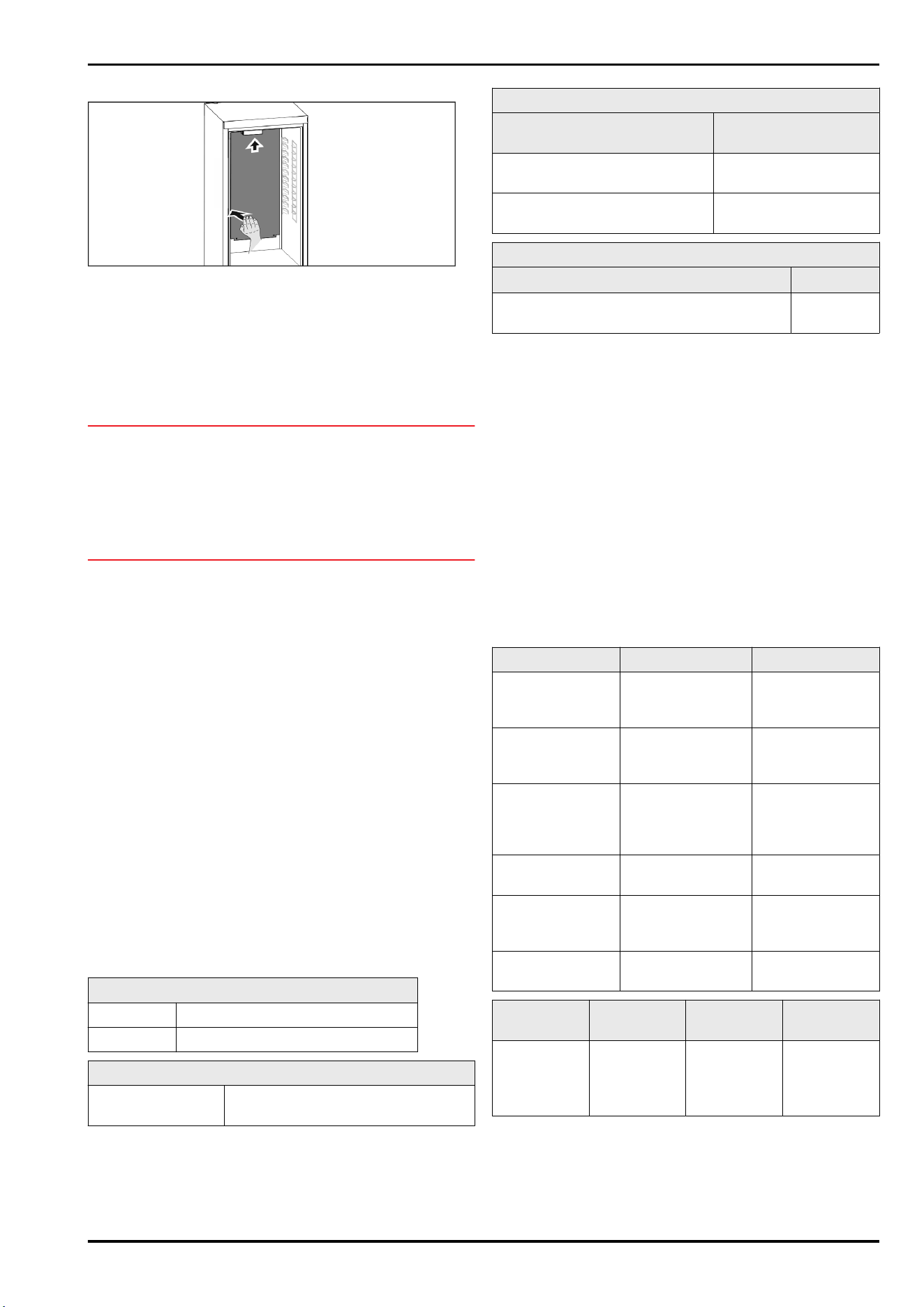

Fig. 215
► Hold the rear panel with both hands at the bottom and
pull it down forcefully.
► Pull the rear panel out to the front by the bottom end.
▷ The rear panel has been removed.
If you want to operate the appliance with the rear panel
removed:
► Set the D-Value to D2. (see D-Value)
Maintenance
* Depending on model and options 43
Inserting the rear panel
Fig. 216
► Make sure the appliance is completely empty.
► Push in the rear panel from the bottom to the top.
► Press the rear panel forcibly to the back at the left side.
▷ The rear panel latches audibly in place.
► Insert the equipment parts.
► Set the D-Value to D1. (see D-Value)
10.6.4 Cleaning the equipment
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
► Do not use steel wool or sponges that scour or scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
Clean with a soft, clean cloth, lukewarm water and a little
washing up liquid:
- Door racks
- Shelf
- Lid for EasyFresh-safe
- Drawer
Clean in the dishwasher up to 60°C:
- Bottle rack
► Disassemble the equipment: see the relevant section.
► Clean the equipment.
10.6.5 After cleaning
► Wipe dry the appliance and items of equipment
► Connect and switch on the appliance.
► Activate SuperFrost (see8.2Appliance functions) .
When the temperature is sufficiently cold
► Place the food inside.
► Repeat cleaning regularly.
11 Customer support
11.1 Technical specifications
Temperature zone
Cool: 2°C to 9°C
Freezing -26°C to -15°C
Maximum amount of food to freeze / 24 hours
Freezer See type plate under “freezer
capacity …/ 24 h”
Maximum loading weight of the freezer drawer
Drawer Maximum loading
weight
Top and center drawer (drawer
on glass shelf)
18 kg
Bottom drawer (drawer on the
appliance floor)
12 kg
Lighting
Energy efficiency class
1
Light source
This product contains one or more energy
efficiency class G light sources.
LED
1
The appliance may contain light sources with different
energy efficiency classes. The lowest energy efficiency class
is indicated.
11.2 Operating noises
The appliance makes noises while in operation.
-
At less cooling output the appliance saves energy but
takes longer to cool items. The volume is lower.
-
At a high cooling capacity, food cools faster. The noise
level is higher.
Examples:
•
Activated functions (see8.2Appliance functions)
•
Running fan
•
Freshly sorted food
•
High ambient temperature
•
Door opened for long periods
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant is flowing
into the cooling
circuit.
Normal noise
Spitting and
hissing
Coolant is spraying
into the cooling
circuit.
Normal noise
Humming The appliance
cools. The volume
depends on the
cooling output.
Normal noise
Whirring and
murmuring
The fan is running. Normal operating
noise
Clicking Components are
being switched on
and off.
Normal switching
noise
Rattling or
humming
Valves are active. Normal switching
noise
Noise Possible
cause
Type of noise How to
resolve
Vibration Unsuitable
installation
Error noise Check instal‐
lation.
Set up the
appliance.
Customer support
44 * Depending on model and options
Noise Possible
cause
Type of noise How to
resolve
Clattering Equipment,
Objects
inside the
appliance
Error noise Secure
equipment
parts.
Leave a gap
between
items.
11.3 Technical faults
Your appliance is designed and manufactured for reliable
operation and a long service life. If a malfunction nonethe‐
less occurs during operation, please check whether the
malfunction is due to an operating error. In this case, you
will have to be charged for the costs incurred, even during
the warranty period.
You may be able to rectify the following faults yourself.
11.3.1 Appliance function
Defect Cause Remedy
The appliance does
not work.
→ The appliance is not switched on. ► Switch on the appliance.
→ The power plug is not properly
inserted in the wall socket.
► Check the power plug.
→ The powerfuse in the wall socket is
not OK.
► Check the fuse.
→ Power failure. ► Keep the appliance closed.
► Protect food: Place cold storage batteries on the food or
use another freezer appliance if the power failure lasts
longer.
► Do not re-freeze defrosted food.
→ The IEC socket is not correctly
plugged into the appliance.
► Check the IEC socket.
The temperature is
not cold enough
→ This means that the door of the
appliance is not closed properly
► Close the appliance door
→ Insufficient ventilation ► Clear and clean the ventilation grille.
→ The ambient temperature is too
high
► Problem solution: (see 1.7 Climate classes)
→ The appliance was opened too
frequently or for too long
► Wait to see if the required temperature corrects itself. If
not, contact Customer Service. (see11.4 Customer
Service)
→ Too much fresh food was placed
inside without SuperFrost.
► Solution: (see SuperFrost)
→ The temperature is incorrectly set ► Set to a colder temperature and check after 24 hours.
→ The appliance is too near to a heat
source (stove, heater etc).
► Change location of appliance or the heat source.
→ The appliance was not properly
installed in the recess.
► Make sure the appliance was installed correctly and the
door closes properly.
The temperature
shown on the
display is higher
than the actual
temperature inside
the appliance.
→ The appliance door was open too
long, which automatically triggered
the door alarm. The appliance
cools more intensively as a result.
► Close the appliance door.
The door seal is
defective or should
be replaced for
other reasons.
→ The door seal is interchangeable.
You can replace it without the use
of any special tools.
► Contact Customer Service. (see11.4 Customer Service)
The appliance is
iced up or conden‐
sation is building.
→ The door seal may have slipped out
of its groove.
► Check the door seal is well placed in the groove.
Customer support
* Depending on model and options 45
11.3.2 Equipment
Defect Cause Remedy
The interior light
does not turn on.
→ The appliance is not switched on. ► Switch on the appliance.
→ The door was open for more than
15 minutes.
► If the door is open, the interior lighting switches off
automatically after about 15 minutes.
→ The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see11.4 Customer Service)
11.4 Customer Service
First check whether you can rectify the fault yourself
(see11 Customer support) . If you cannot rectify the
problem, contact Customer Service.
You can find the address in the enclosed brochure “Liebherr-
Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► Repairs and work on the appliance and the power supply
cable not described in the Manual (see 10 Maintenance)
should only be carried out by a qualified service provider.
► A damaged power cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
► For appliances with an IEC connector, the change can be
made by the customer.
11.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
❑
Appliance name (model and index)
❑
Service no. (service)
❑
Serial no. (S no.)
► Call up the appliance information via the display. (see
Appliance information)
-or-
► Refer to the type plate for appliance information.
(see 11.5 Rating plate)
► Take note of the appliance information.
► Notify customer service: Report errors and the appliance
information.
▷ This will help us give you fast and accurate support.
► Follow further instructions from Customer Service.
11.5 Rating plate
The nameplate is located behind the drawers on the inside
of the appliance.
Fig.217
(1)
Appliance name (3) Serial no.
(2) Service no.
► Information from the nameplate.
12 Decommissioning
► Empty appliance.
► Switch off appliance. (see Switching appliance off and
on)
► Pull the power plug from the outlet.
► If necessary, remove the IEC socket: Pull the IEC socket
out of the appliance plug while turning it to the left and
right at the same time.
► Clean appliance. (see 10.6Cleaning the appliance)
► Leave the door open to prevent unpleasant odors.
13 Disposal
Make sure that the following requirements are met:
❑
The meaning of the symbols on the appliance is known.
❑
The information about disposal is known.
(see 1.5 Disposal Instructions)
13.1 Preparing the appliance disposal
► Take the appliance out of operation. (see12Decommis‐
sioning)
13.2 Environmentally friendly disposal
of the appliance
WARNING
Risk of fire due to escaping refrigerant and oil!
The refrigerant inside the appliance is environmentally
friendly, but flammable. The oil used is also flammable. If
the refrigerant and oil escape in high concentrations and
come into contact with an external heat source, they can
ignite.
► Avoid damaging the refrigerant lines and compressor.
► Observe the notes on appliance transport. (see 3.3 Trans‐
porting the appliance)
► Transport the appliance away without damaging it.
► Dispose of the appliance as specified.
Decommissioning
46 * Depending on model and options
Disposal
* Depending on model and options 47
Scan QR Code and find
digital operating and
installation instructions.
⸺
home.liebherr.com
