36" Free-Standing Gas Range With Legs
Model : KM-FR36GL-SS
IMPORTANT SAFETY INSTRUCTIONS:
CAREFULLY READ THE IMPORTANT INFORMATION
R
EGARDING INSTALLATION, SAFETY AND MAINTENANCE.
K
EEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
LIMITED WARRANTY
LIMITED WARRANTY KOOLMORE SUPPLY, INC. warrants to the original consumer or purchaser this KOOLMORE
product is free from defects in material or workmanship for a period of One (1) year from the date of purchase. If
any such defect is discovered within the warranty period, KOOLMORE SUPPLY, INC., at its discretion, will repair
or replace the product at no cost or pay for replacement parts and repair labor to correct defects in materials or
workmanship that existed when this major appliance was purchased or that are the result of normal usage when
this major appliance is installed, operated and maintained according to instructions attached to or furnished with
the product,
At its sole discretion. Koolmore Supply Inc may determine to replace the product. In the event of product
replacement, your appliance will be warranted for the remaining term of the original unit's warranty period.
This limited warranty is good only to the original purchaser of the product and effective only when used in the
United States.
This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is
required to obtain service under this limited warranty.
YOU’RE SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS
PROVIDED HEREIN. Service must be provided by a Koolmore designated service company.
For warranty or repair service: Email us at [email protected] include your name, address, phone number,
warranty repair request, and a copy of your proof of purchase receipt.
You can also visit us at koolmore.com and use the contact us page.
KOOLMORE customer service will contact you and arrange prompt service for your appliance.
Thank you for choosing KOOLMORE.
THIS LIMITED WARRANTY DOES NOT APPLY TO
1.Failure of product to perform during power failures and interruptions or inadequate electrical service
2.Damage caused by transportation or handling.
3.Damage caused to the product by accident, vermin, lightnin winds, fire, floods, or acts of God.
4.Damage resulting from accident, alteration, misuse, abuse, or improper installation, repair, or maintenance.
Improper use includes using an external device that alters or converts the voltage or frequency of electricity
5.Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved
replacement parts.
6.Abnormal cleaning and maintenance as described in the user's manual.
7.Use of accessories or components that are not compatible with this product.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
2
WARRANTY
TABLE OF CONTENTS
RANGE SAFETY ...................................................................................................4
The Anti-tip Bracket ...................................................................................................... 6
PARTS AND FEATURES ..................................................................................... 11
ELECTRONIC CONTROL ................................................................................... 13

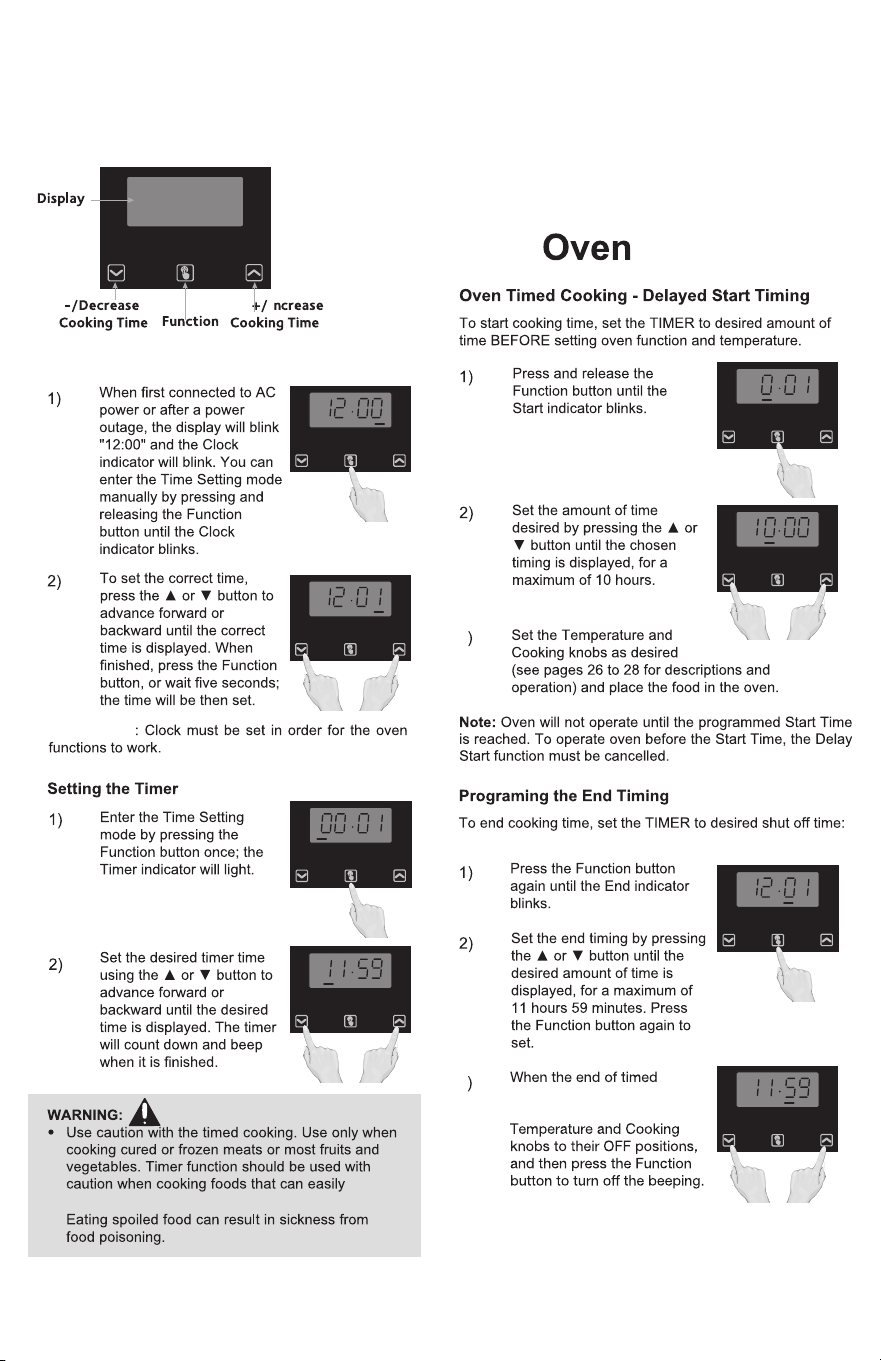

Setting the Clock and Timer .......................................................................................13
COOKTOP USE .................................................................................................. 15

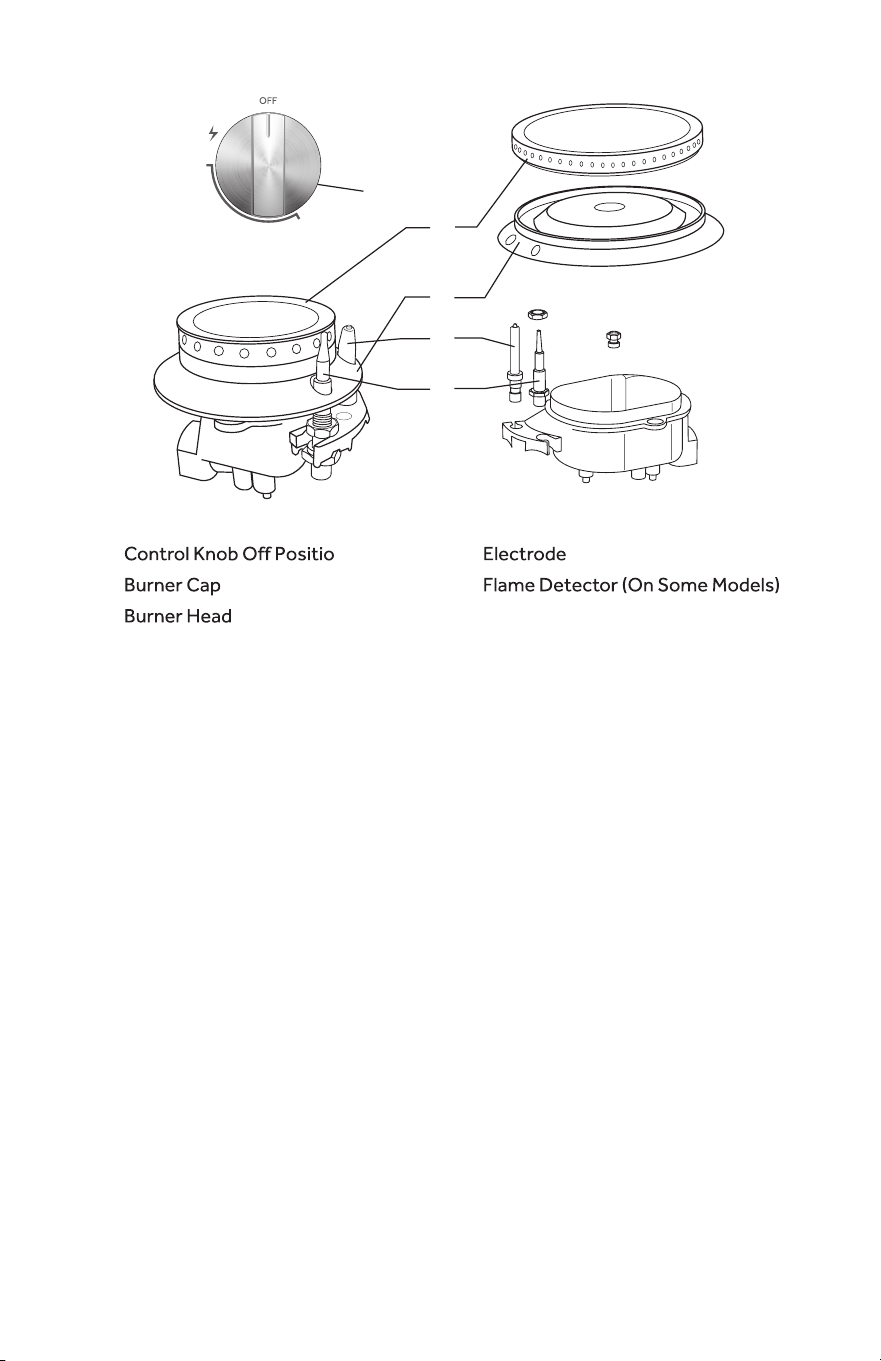

Ignition and Operation of the Burners ........................................................................ 15

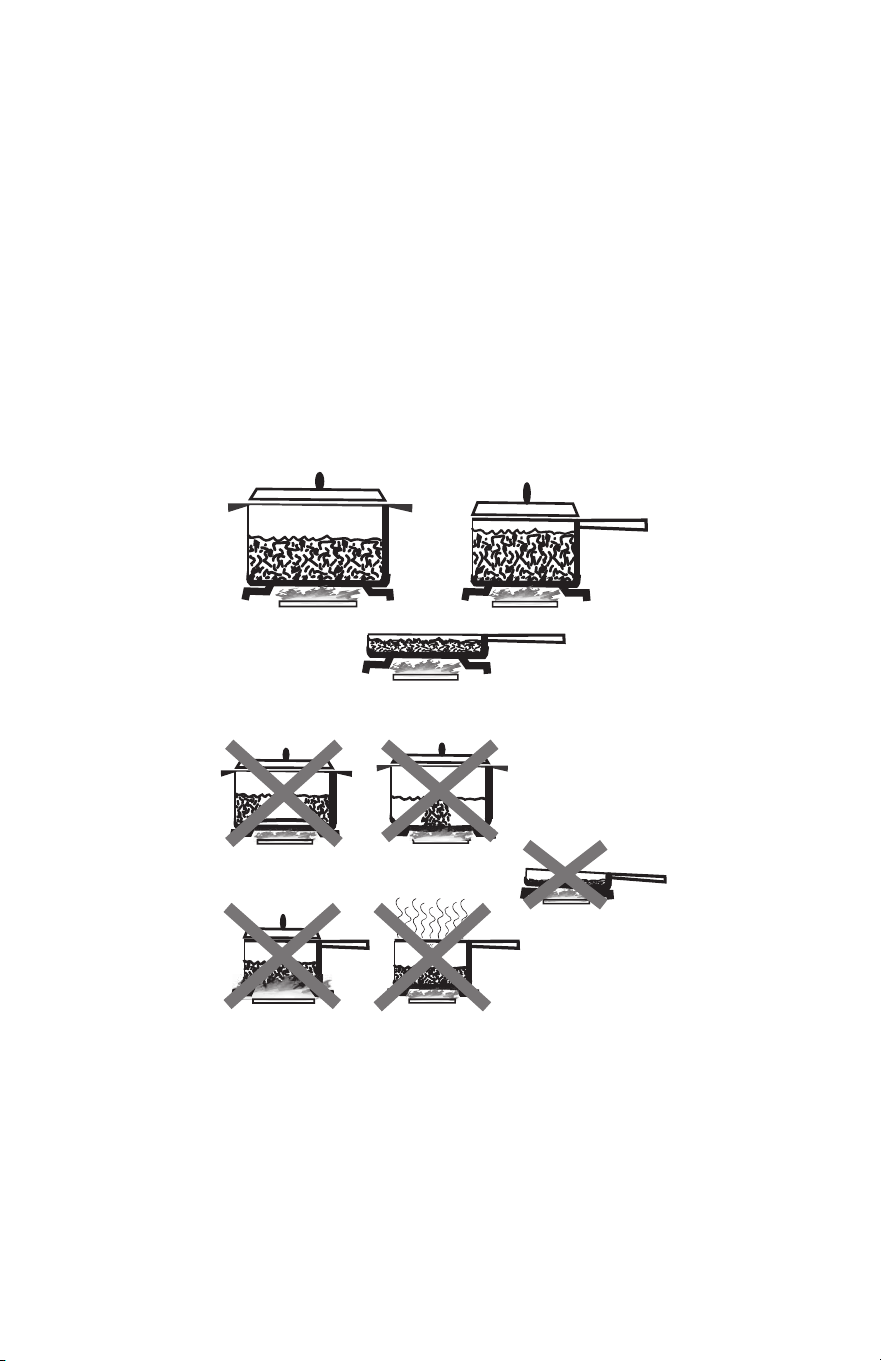

Cookware .....................................................................................................................16
OVEN USE ......................................................................................................... 17
Cooking with the Gas Oven ........................................................................................17
Oven Tips and Techniques ..........................................................................................18
RANGE CARE .................................................................................................... 21
Cleaning ....................................................................................................................... 21
TROUBLESHOOTING ........................................................................................ 23
Baking and Roasting Problems ....................................................................................23
Cooktop .......................................................................................................................24
Oven ............................................................................................................................. 25
3
RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and
on your appliance. Always read and obey all safety messages.
DANGER
WARNING
CAUTION
This is the safety alert symbol.
This symbol alerts you to potential hazards that can
kill or hurt you and others. All safety messages will
follow the safety alert symbol and either the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
An imminently hazardous situation. You
could be killed or seriously injured if you
don’t immediately follow instructions.
A potentially hazardous situation
which, if not avoided, could result in
death or serious bodily injury.
A potentially hazardous situation
which, if not avoided, may result in
moderate or minor injury.
All safety messages will tell you what the potential hazard is, tell you
how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
4
WARNING
Fire Hazard
If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or
death.
- Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer ,
service agency or the gas supplier.
State of California Proposition 65 Warnings:
WARNING: This product contains one or more chemicals known to the
State of California to cause cancer.
WARNING: This product contains one or more chemicals known to the
State of California to cause birth defects or other reproductive harm.
5
6
THE ANTI-TIP CHAIN
A child or adult can tip the range and be killed.
Install anti-tip device to range and / or struture per installation instructions.
Engage the range to the anti-tip device installed to the structure
Re-engage the anti-tip device if range is moved.
Failure to follow these instructions can result in death or serious burns to
children and adults.
Check to see that the Anti-Tip device is installed properly. Then grasp the
top rear edge of the range and carefully attempt to tilt it forward. Verify that
the Anti-Tip device is engaged.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING:
or damage when using the range, follow basic precautions, including
the following:
•
WARNING: TO REDUCE
THE RISK OF TIPPING OF
THE RANGE, THE RANGE
MUST BE SECURED BY
PROPERLY INSTALLED
ANTI-TIP DEVICES. TO
CHECK IF THE DEVICES
ARE INSTALLED PROPERLY,
SLIDE RANGE COMPLETELY
FORWARD, LOOK FOR ANTI-
TIP BRACKET SECURELY
ATTACHED TO THE FLOOR
BEHIND THE RANGE AND
SLIDE RANGE COMPLETELY
BACK UNTIL THE REAR
RANGE FOOT IS UNDER
ANTI-TIP BRACKET.
•
CAUTION: Do not store
items of interest to children
in cabinets above a range or
on the back guard of a range
– children climbing on the
range to reach items could be
seriously injured.
•
Do Not Leave Children Alone
– Children should not be left
alone or unattended in area
where the range is in use.
They should never be allowed
to sit or stand on any part of
the range.
•
Wear Proper Apparel – Loose-
should never be worn while
using the range.
•
User Servicing – Do not
repair or replace any part of
recommended in the manual.
All other servicing should
technician.
•
Storage in or on the Range –
Flammable materials should
not be stored in an oven or
near surface units.
•
Do Not Use Water on Grease
or use dry chemical or foam-
type extinguisher.
•
Use Only Dry Potholders –
Moist or damp potholders
on hot surfaces may result in
burns from steam. Do not let
potholder touch hot heating
elements. Do not use a towel
or other bulky cloth.
7
WARNING
NEVER use this appliance as a space heater to heat or
warm the room. Doing so may result in carbon monoxide
poisoning and overheating of the oven.
WARNING
NEVER cover any slots, holes or passages in the oven
bottom or cover an entire rack with materials such as
aluminum foil. Doing so blocks airflow through the oven
and may cause carbon monoxide poisoning. Aluminum foil
linings may also trap heat, causing a fire hazard.
8
IMPORTANT SAFETY
INSTRUCTIONS
• DO NOT TOUCH SURFACE
UNITS OR AREAS NEAR
UNITS – Surface units may be
hot even though they
are dark in color. Areas near
surface units may become hot
enough to cause burns.
During and after use, do not
touch, or let clothing or other
flammable materials ontact
surface units or areas near
units until they have had
sufficient time o cool. Among
those areas are the cooktop
and surfaces facing the
cooktop.
• Never Leave Surface Units
Unattended at High Heat
Settings – Boil over causes
smoking and greasy spillovers
that may ignite.
• Glazed Cooking Utensils –
Only certain types of glass,
glass/ceramic, ceramic,
earthenware, or other glazed
utensils are suitable for range-
top service without breaking
due to the sudden change in
temperature.
• Utensil Handles Should Be
Turned Inward and Not Extend
Over Adjacent Surface
Units – To reduce the risk of
burns, ignition of flammable
materials, and spillage due to
unintentional contact with the
utensil, the handle of a utensil
should be positioned so that it
is turned inward, and does not
extend over adjacent surface
units.
• Clean Cooktop With Caution
–
If a wet sponge or cloth is used
to wipe spills on a hot cooking
area, be careful to avoid steam
burn. Some cleaners can
produce noxious fumes if
applied to a hot surface.
• Use Care When Opening Door
– Let hot air or steam escape
before removing or replacing
food.
• Do Not Heat Unopened Food
Containers – Build-up of
pressure may cause container
to burst and result in injury.
• Keep Oven Vent Ducts
Unobstructed.
• Placement of Oven Racks –
Always place oven racks in
desired location while oven is
cool. If rack must be moved
while oven is hot, do not let
potholder contact hot heating
element in oven.
• DO NOT TOUCH HEATING
ELEMENTS OR INTERIOR
SURFACES OF OVEN –
Heating elements may be hot
even though they are dark
in color. Interior surfaces of an
oven become hot enough to
cause burns. During and after
use, do not touch, or let
clothing or other flammable
materials contact heating
elements or interior surfaces
of oven until they have had
sufficient time to cool. Other
surfaces of the appliance may
become hot enough to cause
burns – among these surfaces
are oven vent openings and
surfaces near these openings,
oven doors, and windows of
oven doors.
9
IMPORTANT SAFETY
INSTRUCTIONS
• Proper Installation – The
range, when installed, must
be electrically grounded in
accordance with local codes
or, in the absence of local
codes, with the National
Electrical Code, ANSI/NFPA
70. In Canada, the range
must be electrically
grounded in accordance with
Canadian Electrical Code. Be
sure the range is properly
installed and grounded by a
qualified technician.
•
Disconnect the electrical
supply before servicing the
appliance.
•
•
Injuries may result from the
misuse of appliance doors or
drawers such as stepping,
leaning, or sitting on the
doors or drawers.
Maintenance – Keep range
area clear and free from
gasoline, and other
flammable vapors and liquids.
•
Top burner flame size
should be adjusted so it
does not extend beyond
the edge of the cooking
utensil.
For self-cleaning ranges –
•
Do Not Clean Door Gasket –
The door gasket is essential
for a good seal. Care should
be taken not to rub, damage,
or move the gasket.
•
Do Not Use Oven Cleaners –
No commercial oven cleaner
or oven liner protective
coating of any kind should be
used in or around any part of
the oven.
•
•
Clean Only Parts Listed in
The broiler tray and utensils
must be removed from the
compartment and excessive
spillage wiped off before
initiating the cleaning cycle.
Manual.
For units with ventilating hood –
• Clean Ventilating Hoods
Frequently – Grease should
not be allowed to
accumulate on hood or filter.
•
When flambe cooking
under the vent hood, turn
the fan on.
READ AND SAVE THESE
INSTRUCTIONS
10
PARTS AND FEATURES
This manual covers several different models. The range you have purchased may
have some or all of the items listed. The locations and appearances of the
features shown here may not match those of your model.
c
c
a
a
b
b
e
e
f
f
g
g
h
i
j
h
k
i
l
j
k
l
d
d
Oven Door Window
Control Burner
Triplering
Auxiliary
Rapid
Semi-Rapid
Optional backsplash
Cast iron pan rack
Semi-Rapid
Wire Shelf
Shelf positions
Levelling Feet
11
MAX
MIN
a
b
c
d
e
a
b
c
d
e
12
CONTROL PANEL
CLOCK AND TIMER
Your model has a digital display, 12-hour clock with three Control buttons.
Burner Controller
Function Buttons
Clock and Timer
Oven Controller
IMPORTANT: In the event of a power failure, all settings including the time display
will be lost. When the power is returned, the bar above Timer Set and 12:00 will be
displayed.
13
Setting the Clock
cooking is reached, the unit
will beep. Rotate the
Timer
Set
Cook
Time
End
Time
Set
Clock
Timer
Set
Cook
Time
End
Time
Set
Clock
Timer
Set
Cook
Time
End
Time
Set
Clock
Timer
Set
Cook
Time
End
Time
Set
Clock
Timer
Set
Cook
Time
End
Time
Set
Clock
Timer
Set
Cook
Time
End
Time
Set
Clock
Timer
Set
Cook
Time
End
Time
Set
Clock
Timer
Set
Cook
Time
End
Time
Set
Clock
Cooking
TIME OF DAY
3
3
IMPORTANT
spoil,
such as milk, eggs, sh, meat or poultry.
I
Timer
Set
Cook
Time
End
Time
Set
Clock
14
COOKTOP USE
Read the instructions before installing or using this appliance.
1. This appliance shall be installed in accordance with the regulations in force and
only used in a well-ventilated space.
2. The use of a gas-cooking appliance results in the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is well
ventilated: keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood).
3. Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window, or more eective ventilation, for example
increasing the level of mechanical ventilation where present.
IGNITION AND OPERATION OF THE BURNERS
In order to ignite a burner, push down on the knob while rotating it counterclockwise,
until the knob indicator is aligned with the ignite icon .
For models with a safety valve - Once the flame is lit, hold the knob depressed
for about 3-4 seconds until the device keeps the burner automatically lit. If the
burner fails to ignite, wait one minute for the gas to dissipate before attempting to
reignite. Adjust the flame intensity by rotating the knob counterclockwise from
MAX (maximum) to MIN (minimum).
To turn off the burner, rotate the knob clockwise until the indicator on the knob is
aligned with OFF.
POWER FAILURE
In case of prolonged power failure, the surface burners can be lit manually. Hold a lit
match near a burner and turn knob counterclockwise until the indicator is aligned
with MAX. After the burner is lit, turn knob to desired setting.
In the case of unintentional flame extinguishing, the safety valve intervenes by
shutting off the gas to the burners.
The electric igniter must not be actuated for longer than 15 seconds. Should the
burner not light, or should the burner be unintentionally turned off, immediately
close the burner, and wait at least 1 minute before repeating. Once ignited, adjust
the flame as desired.
For lower gas consumption and a better result, use saucepans with a diameter
matching the diameter of the burner, to avoid the flame coming up around the sides
of the saucepan. See the Container Table. Use only flat-bottomed pans.
As soon as liquid starts to boil, turn the flame down to a level sufficient to maintain
boiling.
15
COOKWARE
MATCH PAN DIAMETER TO FLAME SIZE
The flame should be the same size as the bottom of the pan or smaller. Do not use
small pans with high flame setings as the flames can lick up the sides of the pan.
Oversize pans that span two burners are placed front to rear, not side to side.
USE BALANCED PANS
Pans must sit level on the cooktop grate without rocking. Center the pan over the
burner.
USE A LID THAT FITS PROPERLY
A well-fiting lid helps shorten the cooking time. Flat, heavy bottom pans provide
even heat and stability.
BALANCED PAN
UNBALANCED PAN
CONVEX
(ROUNDED)
CONCAVE
(HOLLOW)
FLAME TOO LARGE
FOR PAN SIZE
USE LIDS THAT
FIT PROPERLY
16
CONTAINER TABLE
Burner Min Saucepan Max Saucepan
Auxiliary 3.5” (9.0 cm) 6.3” (16 cm)
Semi-rapid 5.1” (13 cm) 7.1” (18 cm)
Rapid 5.9” (15 cm) 10.2” (26 cm)
Triple ring 8.3” (21 cm) 10.2” (26 cm)
OVEN USE
COOKING WITH THE GAS OVEN
BAKING AND ROASTING
This oven features a gas burner located under the oven cavity which provides evenly
distributed heat from the bottom of the oven. The heat rises naturally to bake food
evenly.
The heated air circulating naturally, cooks meats to a flavorful, crispiness outside
while keeping the inside tender and juicy.
BROILING
This oven features a gas burner located at the top of the oven cavity which provides
evenly distributed heat from the top of the oven.
The broil burner will remain on until the Oven Control knob is turned to the off
position.
TEMPERATURE CONTROL
The Temperature knob is used to select either the Bake or Broil Oven Mode.
BAKE
•
Push in on the Temperature knob, and then turn the knob counterclockwise to
automatically ignite the bake burner. Continue turning the knob to select the
required cooking temperature, between MIN (150°F) and MAX.
Oven Control Display
• Illuminates when the oven is preheating.
• Turns off when the selected cooking temperature has been reached.
BROIL
•
Push in on the Temperature control knob, and then turn the knob clockwise to
automatically ignite the broil burner.
NOTE: The broil burner will remain on until the Temperature control is returned
to the OFF position.
17
FEATURES CONTROL
Light
The oven cavity light turns ON automatically, when the Bake or Broil function is
selected, and remains on during operation.
Conv (Convection) Fan
During convection cooking, the fan provides hot air circulation throughout the
oven. The movement of heated air around the food can help to speed up cooking
by penetrating the cooler outer surfaces. Food cooks more evenly, browning and
crisping outer surfaces while sealing moisture inside.
OVEN TIPS AND TECHNIQUES
Baking is cooking with heated air. The lower bake burner is on which heats the air in
the oven cavity
, baking the food with naturally circulating hot air currents.
Follow the recipe or convenience food directions for baking temperature, time and
rack position. Baking time will vary with the temperature of ingredients and the
size, shape and finish of the baking utensil.
General Guidelines
• For best results, bake food on a single rack with at least 1” - 1 ½” (2,5 - 3 cm)
space between utensils and oven walls.
• Use one rack when selecting the bake mode.
• Check for doneness at the minimum time.
• Use metal bake ware (with or without a non stick finish), heat
proof glass,
glass-ceramic, pottery or other utensils suitable for the oven.
• When using heatproof glass, reduce temperature by 25°F (15°C) from
recommended temperature.
• Use baking sheets with or without sides or jelly roll pans.
• Dark metal pans or nonstick coatings will cook faster with more browning.
Insulated bake ware will slightly lengthen the cooking time for most foods.
• Do not use aluminum foil or disposable aluminum trays to line any part of the
oven. Foil is an excellent heat insulator and heat will be trapped beneath it.
This will alter the cooking performance and can damage the finish of the oven
• Avoid using the opened door as a shelf to place pans.
• See Troubleshooting for tips to Solving Baking and Roasting Problems.
18
BAKE CHART
FOOD ITEM
RACK
POSITION
TEMP. °F (°C)
(PREHEATED OVEN)
TIME (MIN)
Cake
Cupcakes
Bundt Cake
Angel Food
2
1
1
350 (175)
350 (175)
350 (175)
19-22
40-45
35-39
Pie
2 crust, fresh, 9”
2 400 (205) 45-50
Cookies
Sugar
Chocolate Chip
Brownies
2
2
2
350 (175)
350 (175)
350 (175)
8-10
8-13
29-36
Breads
Yeast rolls
Biscuits
2
2
400 (205)
400 (205)
12-15
7-9
Pizza
Frozen
Fresh
2
2
400-450 (205-235)
475 (246)
23-26
15-18
•
See Troubleshooting for tips to Solving Baking and Roasting Problems.
ROAST CHART
Roast should typically be 20 minutes per pound at 350°F (175°C).
MEATS
WEIGHT
(lb)
OVEN TEMP.
°F (°C)
RACK
POSITION
TIME
(min. per
lb)
INTERNAL
TEMP. °F (°C)
Beef
Rib Roast 4-6 350 (175) 2 16-20
18-22
145 (63)
medium rare
160 (71)
medium
Rib Eye Roast,
(boneless)
4-6 350 (175) 2 16-20
18-22
145 (63)
medium rare
160 (71)
medium
Rump, Eye, Tip,
Sirloin (boneless)
3-6 350 (175) 2 16-20
18-22
145 (63)
medium rare
160 (71)
medium
Tenderloin Roast 2-3 400 (205) 2 15-20 145 (63)
medium rare
19
MEATS
WEIGHT
(lb)
OVEN TEMP.
°F (°C)
RACK
POSITION
TIME
(min. per
lb)
INTERNAL
TEMP. °F (°C)
Pork
Loin Roast
(boneless or bone-
in)
5-8 350 (175) 2 16-20 160 (71)
medium
Shoulder 3-6 350 (175) 2 20-25 160 (71)
medium
Poultry
Chicken whole 3-4 400 (205) 2 18-21 180 (82)
12-15 350 (175) 1 10-14 180 (82)
16-20 350 (175) 1 9-11 180 (82)
21-25 350 (175) 1 6-10 180 (82)
Turkey Breast 3-8 350 (175) 1 15-20 170 (77)
Cornish Hen 1-1 ½ 350 (175) 2 45-75
total
180 (82)
Lamb
Half Leg 3-4 350 (175) 2 22-27
28-33
160 (71)
medium
170 (77) well
Whole Leg 6-8 350 (175) 1 22-27
28-33
160 (71)
medium
170 (77) well
WARNING
NEVER cover any slots, holes or passages in the oven
bottom or cover an entire rack with materials such as
aluminum foil. Doing so blocks airflow through the oven
and may cause carbon monoxide poisoning. Aluminum
foil linings may also trap heat, causing a fire hazard.
Reset all controls to the OFF position after using a
programmable timing operation.
No attempt should be made to operate the appliance
during power failure.
An air curtain or other overhead range hood, which
operates by blowing a downward airflow onto a range
shall not be used in conjunction with a gas range.
20
RANGE CARE
CLEANING
IMPORTANT:
cooktop are cool. Always follow label instructions on cleaning products. Soap, water
abrasive cleaning products.
EXTERIOR PORCELAIN ENAMEL SURFACES
Warning: Not obstructing the flow of combustion and ventilation air.
Food spills containing acids, such as vinegar and tomato, should be cleaned as soon
Cleaning Method:
Glass cleaner, mild liquid cleaner or nonabrasive scrubbing pad: Gently clean around
the model and serial number plate because scrubbing may remove numbers.
EXTERIOR STAINLESS STEEL
NOTE:
Cream, steel-wool pads, gritty washcloths or some paper towels. Damage may
occur, even with one-time or limited use.
Rub in direction of grain to avoid damaging.
Cleaning Methods:
Liquid detergent or all-purpose cleaner: Rinse well with clean water and dry with
soft, lint-free cloth.
Stainless Steel Cleaner and Polish
Vinegar for hard water spots
OVEN DOOR EXTERIOR
Cleaning Method:
Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass
cleaner to soft cloth or sponge, not directly on panel.
PORCELAIN-COATED GRATES AND CAPS
• Clean as soon as cooktop, grates and caps are cool.
• Food spills containing acids, such as vinegar and tomato, should be cleaned
as soon as the cooktop grates and caps are cool. These spills may affect the
finish.
• To avoid chipping, do not bang grates and caps against each other or hard
surfaces such as cast iron cookware.
• Do not reassemble caps on burners while wet.
Cleaning Method:
Nonabrasive plastic scrubbing pad and mildly abrasive cleanser.
21
BURNER SPREADER
Wash the burner spreader frequently with boiling water and detergent to remove
any deposits which could block the flame outlet.
Before reinstalling, dry the burner spreader thoroughly so the burner will ignite
properly.
COOKTOP CONTROL KNOBS
•
Pull knobs straight away from control panel to remove.
•
When replacing knobs, make sure knobs are in the Off position
Cleaning Method:
Soap and water or dishwasher:
NOTE: Do not use steel wool, abrasive cleansers or oven cleaner. Do not soak
knobs.
CONTROL PANEL
Cleaning Method:
Glass cleaner and soft cloth or sponge: Apply glass cleaner to soft cloth or sponge,
not directly on panel.
NOTE: Do not use abrasive cleaners, steel-wool pads, gritty washcloths or some
paper towels. Damage may occur.
OVEN CAVITY
Food spills should be cleaned when oven cools. At high temperatures, foods react
with porcelain, so staining, etching, pitting or faint white spots can result.
Cleaning Method:
Mild detergent and warm water.
NOTE: Do not use oven cleaners.
OVEN RACKS AND ROASTING RACKS
Cleaning Method:
Steel-wool pad
BROILER PAN
Cleaning Method:
Mildly abrasive cleanser: Scrub with wet scouring pad.
Solution of ½ cup (125 mL) ammonia to 1 gal. (3.75 L) water: Soak for 20 minutes,
and then scrub with scouring or steel-wool pad.
Oven cleaner: Follow product label instructions. Porcelain enamel only, not chrome
Dishwasher
21
22
TROUBLESHOOTING
First try the solutions suggested here to possibly avoid the cost of a service call.
BAKING AND ROASTING PROBLEMS
With any oven setting poor results can occur for many reasons other than a
malfunction of the oven. Check the chart below for causes of the most common
problems. Since the size, shape and material of baking utensils directly aect the
baking results, the best solution may be to replace old baking utensils that have
darkened and warped with age and use.
Baking Problem Cause
Food browns unevenly
•
Oven not preheated
•
Aluminum foil on oven rack or oven bottom
•
Baking utensil too large for recipe
•
Pans touching each other or oven walls
Food too brown on bottom
•
Oven not preheated
•
Using glass, dull or darkened metal pans
•
Incorrect rack position
•
Pans touching each other or oven walls
Food is dry or has shrunk
excessively
•
Oven temperature too high
•
Baking time too long
•
Oven door opened frequently
•
Pan size too large
Food is baking or roasting too
slowly
•
Oven temperature too low
•
Oven not preheated
•
Oven door opened frequently
•
Tightly sealed with aluminum foil
•
Pan size too small
Pie crusts do not brown on
bottom or crust is soggy
•
Baking time not long enough
•
Using shiny steel pans
•
Incorrect rack position
•
Oven temperature is too low
Cakes pale, flat and m y not be
done inside
•
Oven temperature too low
•
Incorrect baking time
•
Cake tested too soon
•
Oven door opened too often
•
Pan size may be too large
23
Cakes high in middle with crack
on top
•
Oven temperature too high
•
Baking time too long
•
Pans touching each other or oven walls
•
Incorrect rack position
•
Pan size too small
Pie crust edges too brown
•
Oven temperature too high
•
Edges of crust too thin
COOKTOP
PROBLEM POSSIBLE CAUSE SOLUTION
Burner will
not ignite
There is no power to
the cooktop
Plug into a grounded 3 prong outlet. Replace
fuse or reset circuit breaker.
Burner
will not
operate
First time use. Air
still in the gas line.
Turn on any one of the surface burner knobs
to release air from the gas lines.
Control knob is not
set correctly.
Push in knob before turning to a setting.
The burner port is
clogged.
Clean burner port opening using a sti, nylon
toothbrush or a straightened paper clip.
Burner
Flames are
uneven,
yellow and/
or noisy
Burner port(s) are
clogged.
Clean burner port opening using a sti, nylon
toothbrush or a straightened paper clip.
Burner caps are not
positioned properly.
Place burner caps so that the alignment pins
are properly aligned with the slots.
Propane gas is being
used.
The range should be converted to LP gas by
a qualified technician
Burner
ame is too
high or too
low
Cooktop gas supply
is not correct.
Ensure the range is set for the correct
gas type. It is factory set for natural gas. If
connected to LP gas the burners should be
converted to LP gas with the orifice/injec or
kit supplied and the pressure regulator
converted to the LP gas setting by a qualified
technician.
The gas pressure is
not correct.
Make sure the pressure regulator is installed
correctly and the gas line pressure is correct.
See Installation Instructions.
Burner
makes
popping
noises
The burner is wet. Allow the burner to dry before using.
The burner cap and/
or gas spreader
is not positioned
correctly.
Place burner caps so that the alignment pins
are properly aligned with the slots.
Excessive
heat
around
cookware
on cooktop
The cookware is not
the proper size for
the burner.
Use cookware with a bottom surface
approximately the same size as the cooking
area and burner. Cookware should not
extend more than 1” (2.5 cm) outside the
cooking area. Adjust the flame so that it
does not come up around the cookware.
21
24
Cooking
results are
not what
expected
Using incorrect
cookware
See the “Cookware” section.
The control knob is
not set to the proper
heat level.
See the “Controls” section.
OVEN
PROBLEM POSSIBLE CAUSE SOLUTION
Oven is not
heating
No power to the
oven
Reset the circuit breaker or replace the
fuse in the electrical box to your oven.
Oven control not
turned on
Make sure the oven temperature has
been selected.
Oven is not
cooking evenly
Not using the correct
bake ware or oven
rack position
Refer to cook charts for recommended
rack position. Always reduce recipe
temperature by 25 °F (15 °C) when
baking with Convention Bake mode.
Oven display
stays O.
Power interruption
Turn off power at the main power
supply (fuse or breaker box). Turn
breaker back on. If condition
persists, call for service.
Cooling fan
continues to
run after oven
is turned o
The electronic
components have
not yet cooled
sufficien y
The fan will turn off automatically
when the electronic components
have cooled sufficiently.
Oven light is
not working
properly
Light bulb loose or
burned-out.
Reinsert or replace the light bulb.
Touching the bulb with fingers
may cause the bulb to burn out.
Oven light
stays on
Door is not closing
completely
Check for obstruction in oven door.
Check to see if hinge is bent or door
switch broken.
Cannot remove
lens cover
Soil build-up around
the lens cover.
Wipe lens cover area with a clean, dry
towel prior to attempting to remove
the lens cover.
Clock and timer
are not working
properly
No power to the
oven
Reset the circuit breaker or replace the
fuse in the electrical box to your oven.
Excessive
Moisture
When using bake mode, preheat
the oven first. Convection Bake
and Convection Roast will
eliminate any moisture in the oven.
Porcelain Chips
Porcelain interior
is bumped by oven
racks
When removing and replacing oven
racks, always tilt racks upward and
do not force them to avoid chipping
the porcelain.
25
