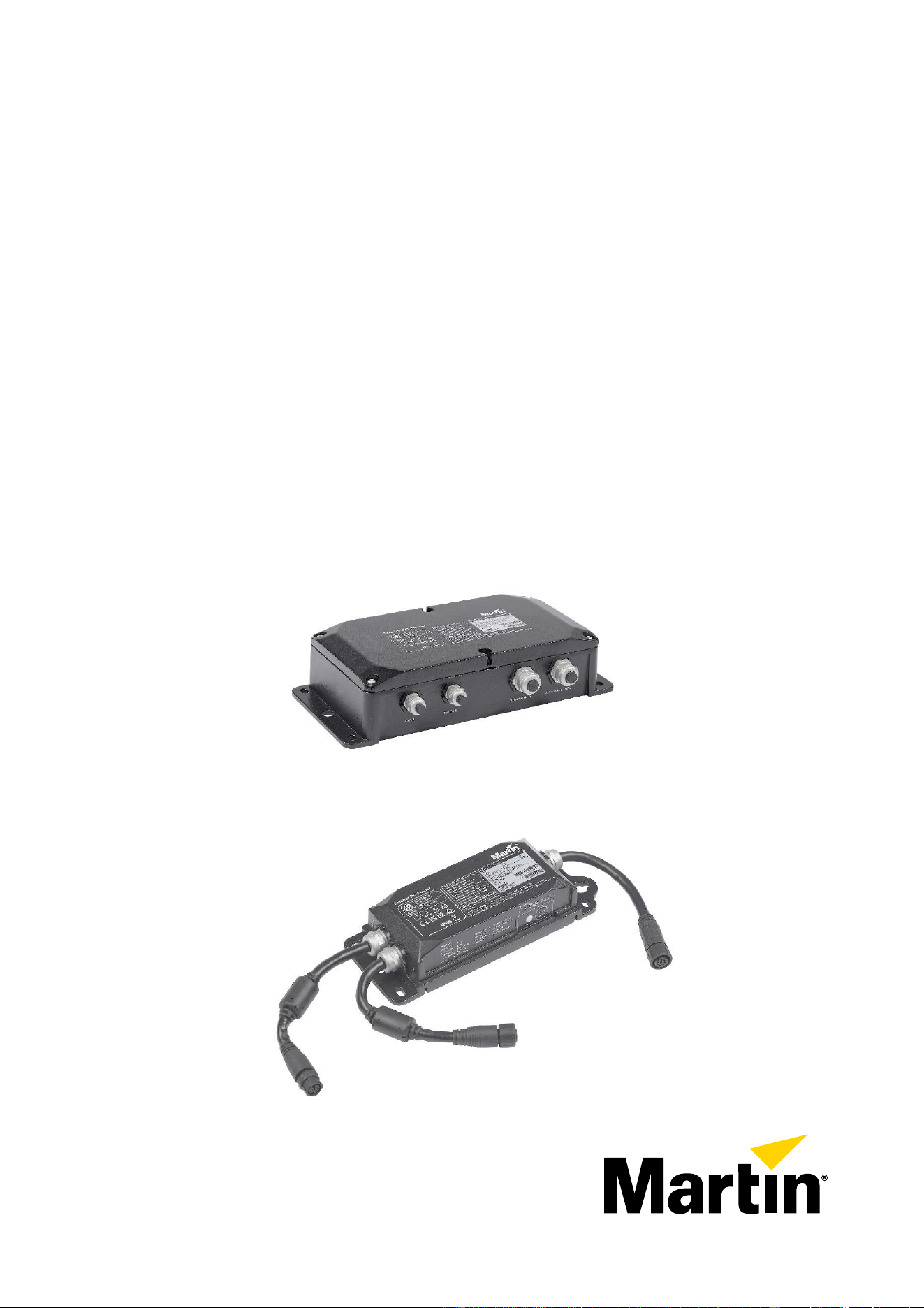

EXTERIOR AC-FEEDER photo

Exterior AC-Feeder/DC-Feeder - User, Safety and Installation manual

This is the main product document for model EXTERIOR AC-FEEDER.

The file format is pdf, 17 pages, you can download this manual here .

background
Exterior AC-Feeder
Exterior DC-Feeder
Safety, Installation and User Manual
Exterior AC-Feeder
Exterior DC-Feeder
background

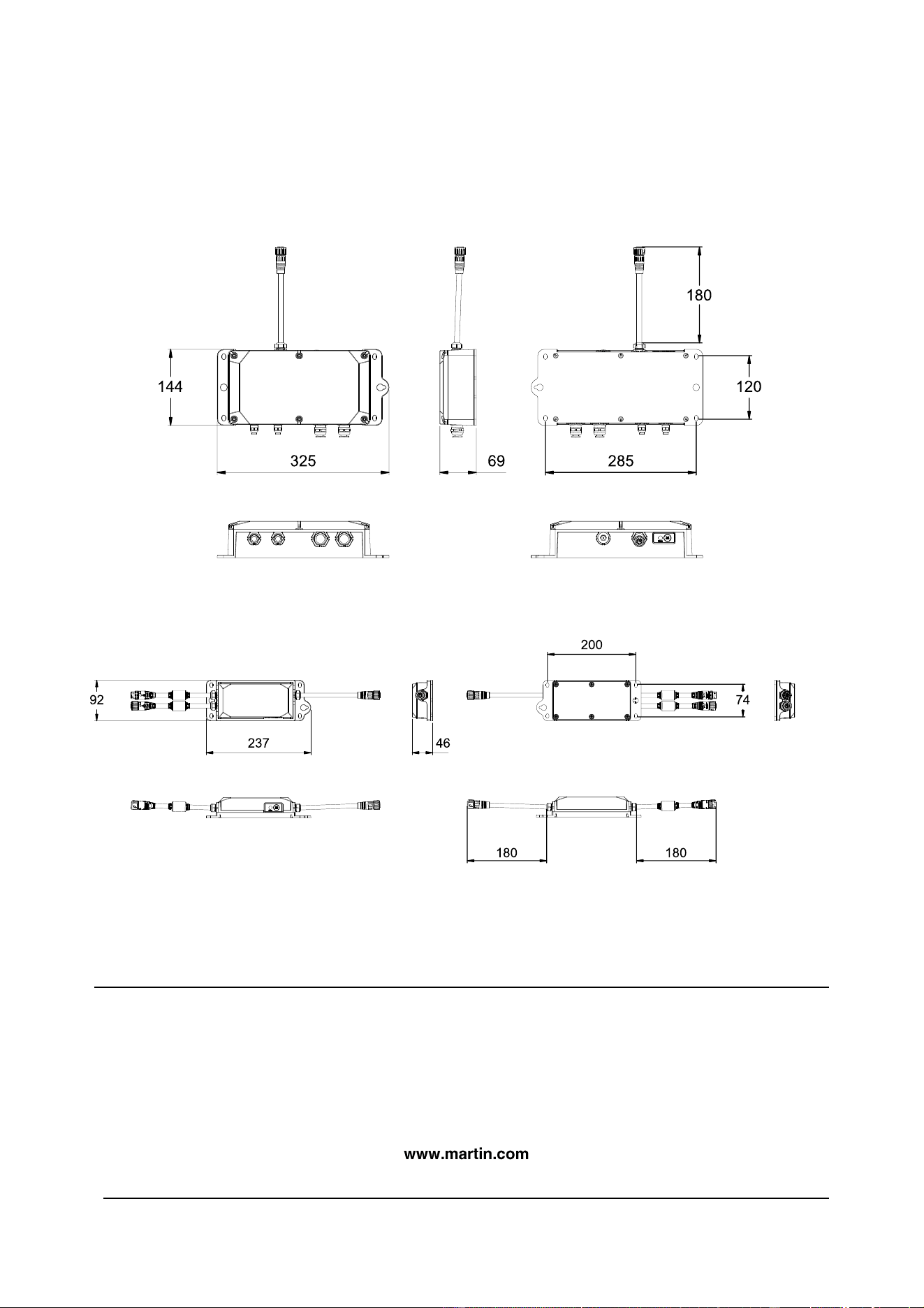

Dimensions
Exterior AC-Feeder
Exterior DC-Feeder
©2023-2024 HARMAN PROFESSIONAL DENMARK ApS. All rights reserved. Features, specifications and
appearance are subject to change without notice. HARMAN PROFESSIONAL DENMARK ApS and all affiliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document. Martin is a
registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other
countries.
HARMAN PROFESSIONAL DENMARK ApS, Olof Palmes Allé 44, 8200 Aarhus N, Denmark
HARMAN PROFESSIONAL, INC., 8500 Balboa Blvd., Northridge CA 91325, USA
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual, English, Rev. A,
All measurements are in millimeters
background
Contents
Dimensions ...................................................................................................................................... 2
Safety information ........................................................................................................................... 4
Introduction ...................................................................................................................................... 7
Unpacking .................................................................................................................................. 7
Exterior AC-Feeder ......................................................................................................................... 8
Overview .................................................................................................................................... 8
Installing ..................................................................................................................................... 9
Power management switch ...................................................................................................... 12
Exterior DC-Feeder ....................................................................................................................... 13
Overview .................................................................................................................................. 13
Installing ................................................................................................................................... 13
Test/Reset button and status LED ................................................................................................ 14
Service and maintenance .............................................................................................................. 15
Cleaning ................................................................................................................................... 15
Compliance and environmental ................................................................................................ 16
background
4 Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual
Safety information
WARNING!
Read the safety precautions in this section before installing,
operating or servicing this product.
The following symbols are used to identify important safety information on the product and in this manual:
Warning!
Safety hazard.
Risk of severe
injury or death.
Warning!
Hazardous
voltage. Risk of
lethal or severe
electric shock.
Warning!
See user
documentation.
background
Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual 5
Drip loop
background
6 Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual
background
Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual 7
Introduction
Thank you for selecting a product from the Martin® Creative LED range. This manual covers two products
that can be used to supply DC power and data to Martin Exterior Dot-1/4/9 Pro lighting fixtures:
Exterior AC Feeder accepts AC mains power at 100-120 / 200-277 V, 50 / 60 Hz and Martin P3 or
DMX/RDM data. The AC-Feeder sends 15 volt DC power and data to Martin Exterior Dot-1/4/9 Pro
fixtures.
Exterior DC-Feeder accepts DC power at 48 V from a Martin DCE PSU 240 IP, Martin P3
PowerPort or generic 48 V PSU and data from a Martin P3 or DMX/RDM source. The DC-Feeder
sends 15 volt DC power and data to Martin Exterior Dot-1/4/9 Pro fixtures.
The Exterior AC-Feeder and Exterior DC-Feeder will forward any Art-Net, sACN or Martin P3 data to the
fixtures connected to them.
For possible system layouts when using AC- Feeders and DC-Feeders with Martin Exterior Dot-1/4/9 Pro
fixtures, please see the user documentation for those fixtures and the system layout diagrams available on
the Martin website at www.martin.com. Martin user documentation is supplied with products and available
for download from the Martin website, where you can also find the latest specifications, firmware updates
and support information for all Martin products.
Unpacking
The following items are included with devices:
Exterior AC-Feeder
This manual
Blanking plugs in all pre-installed cable glands
Internal connectors for AC mains power, DC power and data
Pre-installed hybrid (DC power and data) output cable tail.
PDE hybrid mains power and data in and thru cable tails are available from Martin as optional accessories
for the Exterior AC-Feeder. Your Martin supplier can give details.
Exterior DC-Feeder
This manual
Pre-installed hybrid (DC power and data) input and thru cable tails.
Pre-installed hybrid (DC power and data) output cable tail.
background
8 Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual
Exterior AC-Feeder
Overview

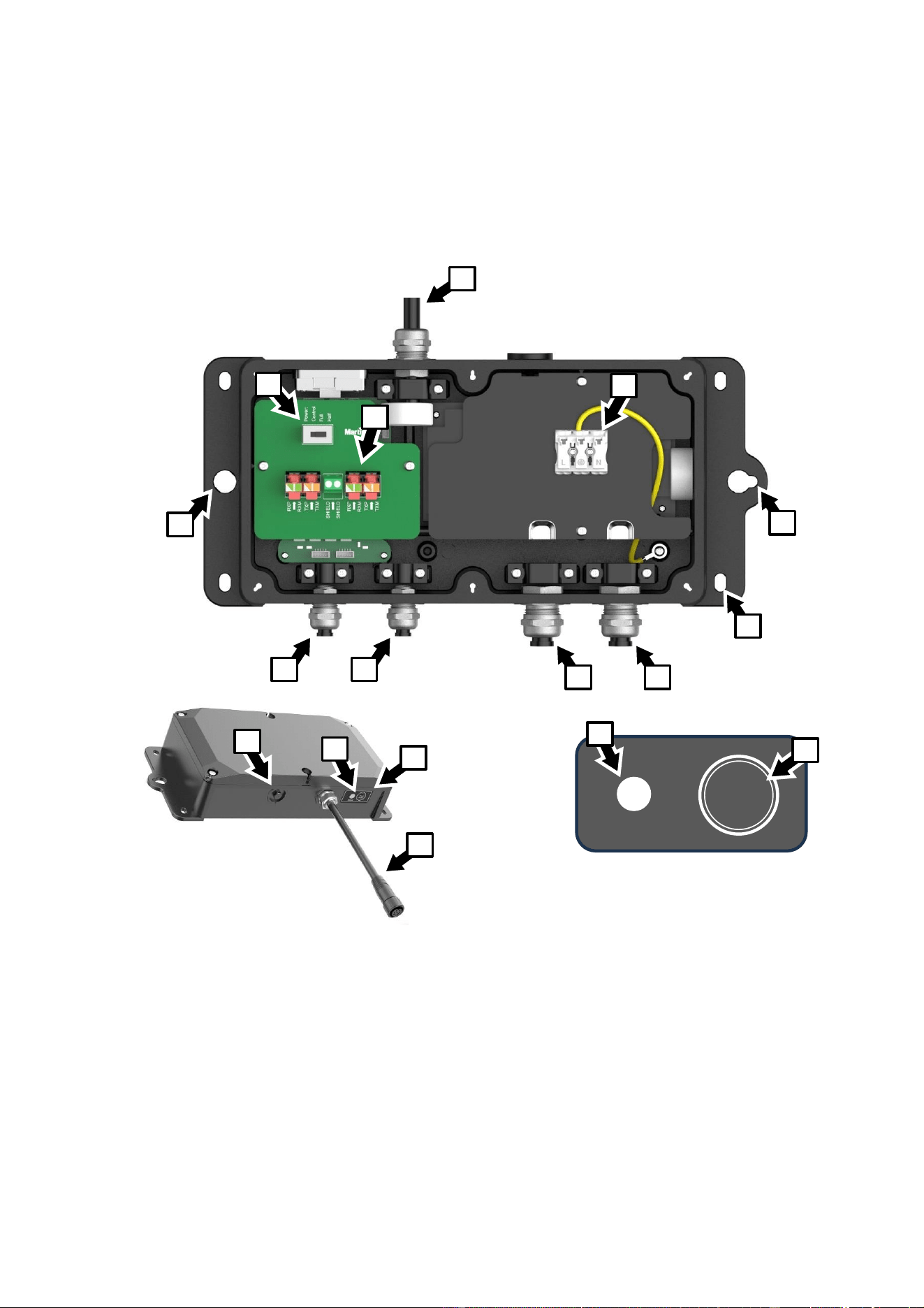

AC mains power input, AC mains power thru, network data input and network data thru connections are
made using connectors inside the device. The hybrid (DC power and data) output connection to a daisy-
chain of Martin lighting fixtures is made via a cable tail with a connector suitable for connection to Martin
Exterior Dot-1/4/9 fixtures.
A Hybrid output cable tail
B Power management switch
C Network data IN and THRU terminals
D AC mains power IN terminals
E Network data cable gland
F Network data cable gland
G AC mains power or hybrid PDE* cable
gland
H AC mains power or hybrid PDE* cable
gland
I Holes for M6 mounting fasteners (x4)
J Hole for M12 fastener on rigging clamp
and for safety cable attachment
K Status LED
L Test/Reset button
M Hybrid output cable tail
N Pressure equalization valve
*Mains power and Data via Ethernet
D
H
A
G
F
E
C
I
J
B
J
L
K
M
N
N
Status
Test/
Reset
K
L
background
Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual 9
Installing
Read the ‘Safety Information’ section starting on page 4 before installing, applying power to or operating
the device.
Physical installation
The Exterior AC-Feeder is designed to be mounted on a flat surface in any orientation with four M6 screws
or other suitable fasteners. Four holes (see I on previous page) for fasteners are provided in the flanges at
the corners of the device. Use fasteners that are suitable for the application and for the installation
environment.
The Exterior AC-Feeder can also be fastened to a rigging clamp with an M12 bolt passed through one of
the two holes J and installed on a rigging truss. If you install the AC-Feeder using a rigging clamp in a
location where it may cause injury or damage if it falls, attach a safety cable that is approved for the
weight of the device to one of the holes J and anchor the safety cable securely (by looping it around the
rigging truss, for example). Remove as much slack as possible from the safety cable, looping it more than
once around the truss if necessary. Make sure that the safety cable will catch the device if the rigging
clamp fails.
Using cable glands
Where cable glands are used for cable entry, follow the instructions in this section to ensure that the
product’s IP66-rating is maintained.

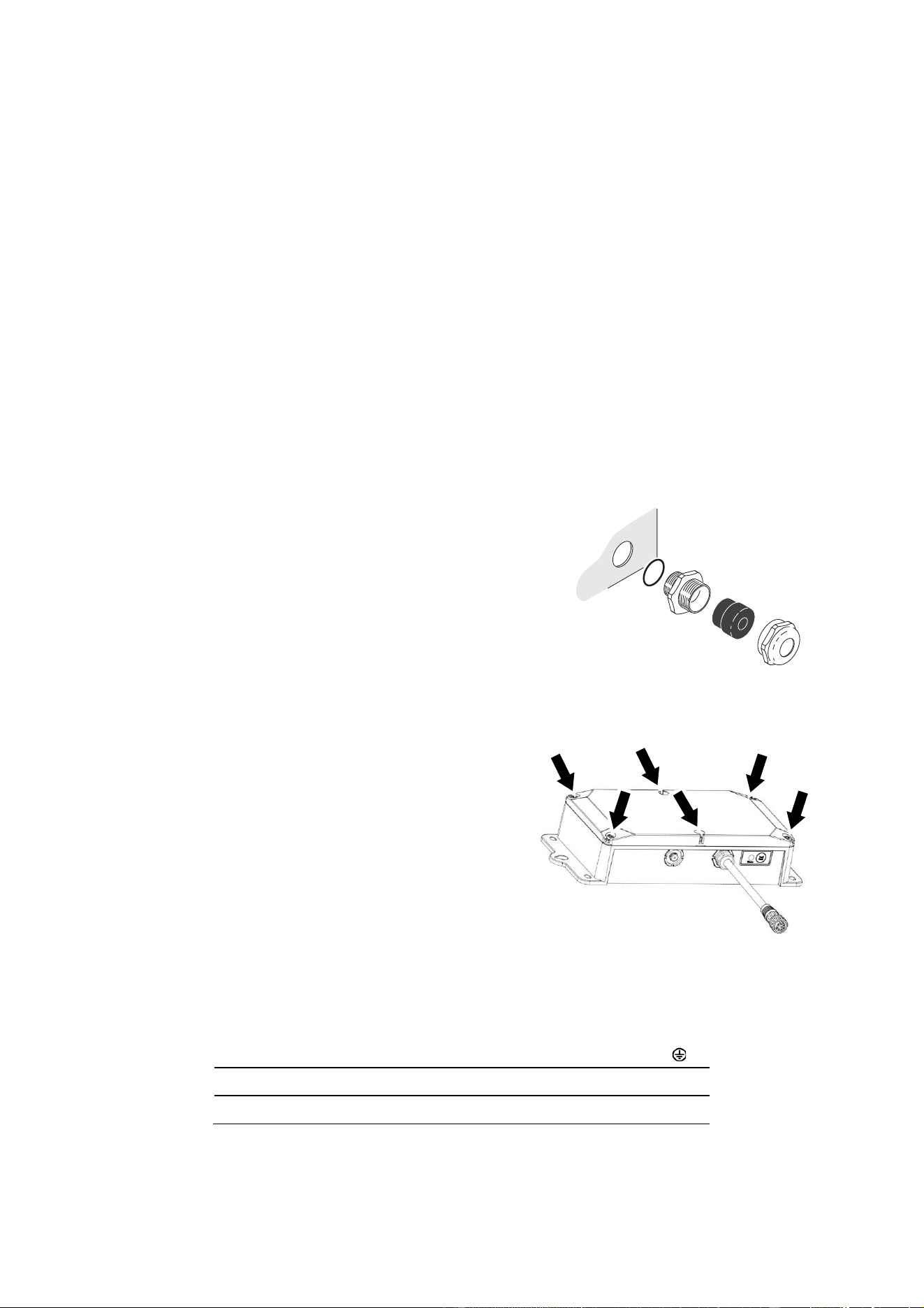

To install a cable using a cable gland:
1. Ensure that the installation is isolated from power.
2. See illustration on right. Holding the cable entry A to prevent
it from turning, loosen the compression nut B on the cable
gland.
3. Pass the cable through the cable gland and into the device.
When you have finished making the connections inside the
device, hold the cable entry A to prevent it from turning and
tighten the compression nut B until the cable is held securely
in the gland.
Opening and closing the Exterior AC-Feeder
To open the Exterior AC-Feeder, see drawing on right.
Remove the six screws (arrowed) from the Feeder’s cover
and remove the cover.
As soon as you have finished making connections, check
that the mating surface on the Exterior AC-Feeder and the
seal in the cover are clean, dry and in perfect condition,
then reinstall the cover using the original six screws. Use a
torque driver and tighten the screws to between 0.8 and
0.9 Nm in order to ensure that the cover is correctly sealed.
Making connections
Make sure that the weight of cable runs is supported so that lengths of cable do not hang from connectors.
Follow this color coding guide when connecting AC mains power cables:
Live or L
Neutral or N
Earth, Ground or
US system
Black
White
Green
EU system
Brown
Blue
Yellow/green
Cable gland
B
A
background
10 Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual
There are two options for connecting to AC mains power and data:

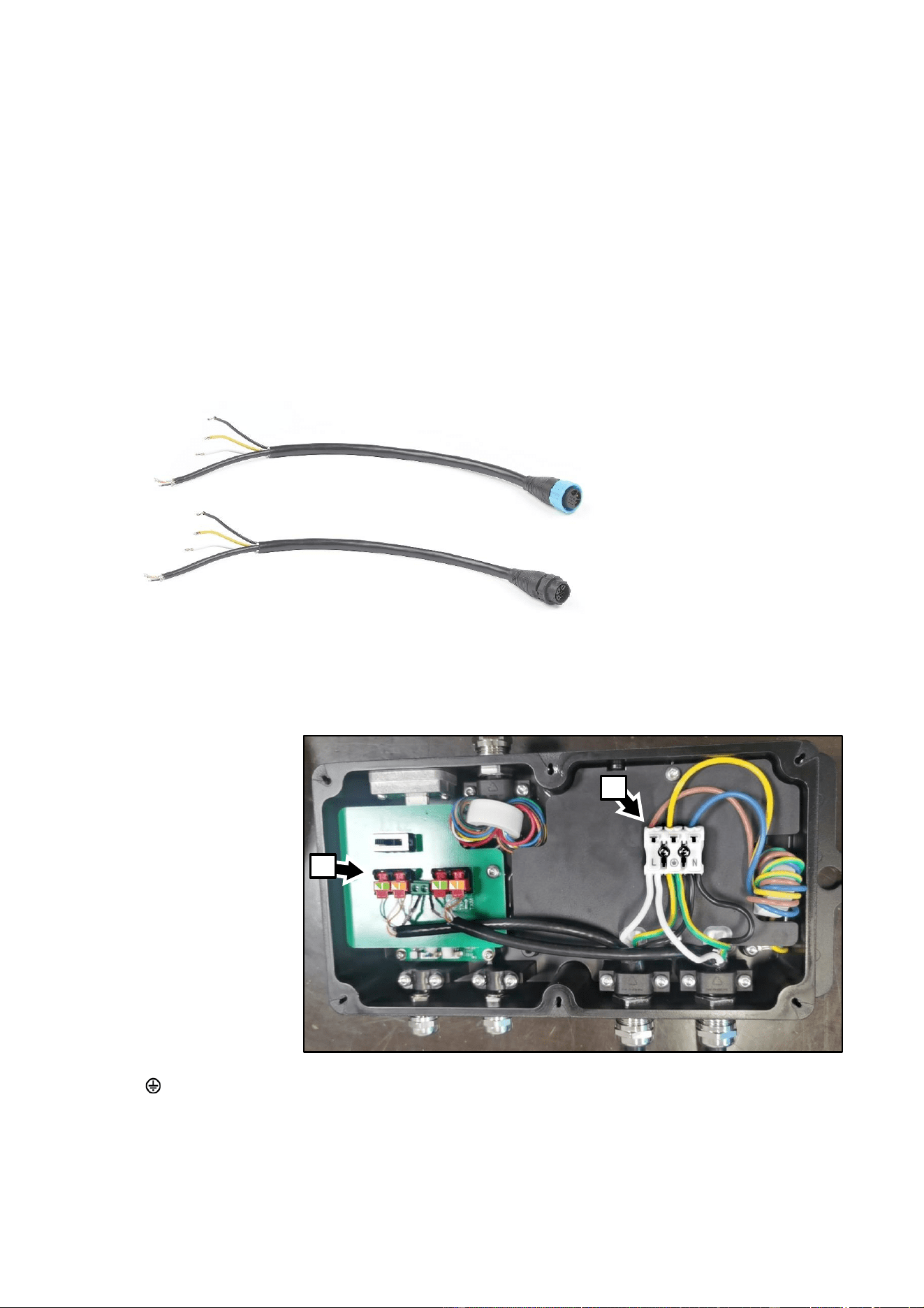

1. Connecting to separate AC mains power and data sources using the terminals inside the AC-Feeder
2. Connecting to AC mains power and data using the hybrid PDE cable tails available as an accessory
from Martin (your Martin supplier can provide details).
Option 1. Connecting to separate AC mains power and data sources
Check that AC mains power to the installation is shut down and cannot be reapplied during installation
work.
Connecting AC mains power
1. See the instructions on using cable glands in the
previous section of this manual. Loosen one of
the mains power input cable gland compression
nuts and pass the mains power input cable
through the cable gland and into the Exterior AC-
Feeder.

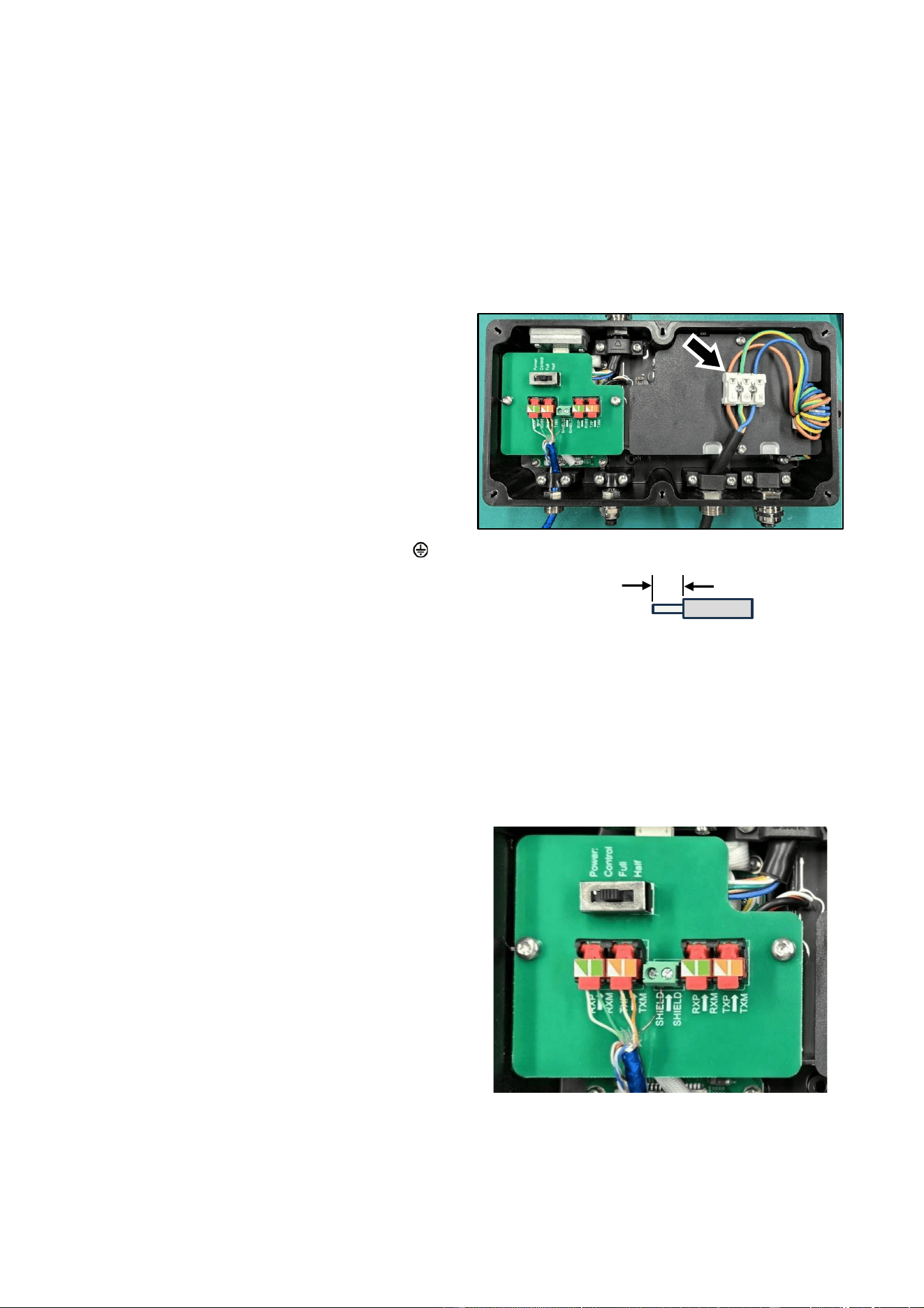

2. See illustration on right. Strip 8–9 mm (0.32–
0.35 in.) of insulation from the power cable wires
and fasten the wires into the mains power quick-
connectors (arrowed) as follows:
Live to the connector marked L
Neutral to the connector marked N
Ground/earth to the connector marked
To fasten a wire into a quick-connector, push
down the lever on the quick-connector, insert the
bare wire end into the connector, then release
the lever so that the connector grips the wire.
Check that the wire is held securely.
If you need to release a wire, push down on the
lever on the quick-connector.
3. Tighten the compression nut on the cable gland until the mains power input cable is held tightly.
To daisy-chain power to another Exterior AC-Feeder, pass the AC mains power output cable through the
unused AC mains power cable gland, strip 89 mm (0.320.35 in.) of insulation from the power output
cable wires and fasten the wires into the quick-connectors as described above for the power cable input
wires.
Connecting network data
1. See the instructions on using cable glands in the
previous section of this manual. Loosen the
compression nuts on one of the Ethernet cable
glands and pass the data input cable through the
gland and into the Exterior AC-Feeder.
2. Pass the data input cable through one of the data
cable glands and into the Exterior AC-Feeder.
3. Untwist the wires in the data cable. Do not strip
insulation from the wires.
4. See illustration on right. Fasten the shield wire (the
wire that has no insulation) into one of the screw
terminals marked SHIELD.
5. Lift the levers on one set of data quick-connectors
and slide the wires into the connectors as follows:
Green/white to RXP
Green to RXM
AC mains power input connections
89 mm (0.320.35 in.)
background
Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual 11
Orange/white to TXP
Orange to TXM.
6. Push the levers on the quick connectors all the way down firmly and check that the wires are held
securely.
7. Tighten the compression nut on the data cable gland until the mains power input cable is held tightly.
To daisy-chain data to another Exterior AC-Feeder, pass the data output cable through the unused data
cable gland and fasten the wires into the unused data connectors as described above.
When you have finished making connections, reinstall the cover on the Exterior AC-Feeder as described
earlier.
Option 2. Connecting to AC mains power and data via PDE cable tails
Check that AC mains power to the installation is shut down and cannot be reapplied during installation
work.
The PDE cable tail set (see illustration above) available as an optional accessory from Martin lets you set
up the Exterior AC-Feeder for quick connection and disconnection to AC mains power and data either
alone or as an element in a daisy-chain.
Connecting a PDE input cable tail
1. See the instructions on
using cable glands in
the previous section of
this manual. Loosen
one of the mains power
input cable gland
compression nuts and
pass the PDE input
cable tail through the
cable gland and into
the Exterior AC-Feeder.
2. Connect the thick
mains power wires in
the PDE input cable tail
to the quick-connectors
inside the AC-Feeder
as follows:
Yellow/green to the
connector marked
(protective
earth/ground)
White (Live) to the connector marked L
Black (Neutral) to the connector marked N
To fasten a wire into a quick-connector, push down the lever on the quick-connector, insert the bare
PDE cable tail connections
PDE input cable tail
PDE throughput cable tail
B
A
background
12 Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual
wire end into the connector, then release the lever so that the connector grips the wire. Check that the
wire is held securely.
If you need to release a wire, push down on the lever on the quick-connector.
3. Untwist the thin data wires in the PDE input cable tail. Do not strip insulation from the wires.
4. Fasten the shield wire (the wire that has no insulation) into one of the screw terminals marked
SHIELD.
5. Lift the levers on one set of data quick-connectors and slide the data wires into the connectors as
follows:
Green/white to RXP
Green to RXM
Orange/white to TXP
Orange to TXM.
6. Push the levers on the quick-connectors all the way down firmly and check that the wires are held
securely.
7. Tighten the compression nut on the cable gland until the PDE input cable is held tightly.
Connecting a PDE throughput cable tail
To connect a PDE throughput cable, follow the instructions above but pass the cable through the unused
mains power cable gland, use the same mains power quick-connectors as the PDE input cable, and
connect the data wires to the unused data connectors.
When you have finished making connections, reinstall the cover on the Exterior AC-Feeder as described
earlier.
Connecting hybrid (data and DC power) output to fixtures
The Exterior AC-Feeder is supplied with a cable tail for sending data and DC power to a daisy-chain of
Martin Exterior Dot-1/4/9 Pro fixtures.
Power management switch
The Exterior AC-Feeder features a POWER management switch on the PCB next to the network data
terminals. The switch has the following settings:
FULL
Forces the connected Martin lighting fixtures to run in full-power mode, overriding any
power mode commands from the P3 System Controller, Art-Net controller, sACN
controller or RDM controller.
HALF
Forces the connected Martin lighting fixtures to run in half-power mode, overriding any
power mode commands from the P3 System Controller, Art-Net controller, sACN
controller or RDM controller.
CONTROL
Allows the P3 System Controller, Art-Net controller, sACN controller or RDM controller to
set the Martin fixtures’ power modes.
Setting fixtures to HALF power can be useful for applications where full power is not needed or may be
undesirable. The HALF setting also lets you connect a higher number of fixtures to the hybrid output,
meaning that an installation will require fewer power supply and feeder devices.
Note that when the POWER management switch is set to FULL or HALF, it is not possible to adjust the
power mode from the P3 System Controller, Art-Net controller, sACN controller or RDM controller.
background
Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual 13
Exterior DC-Feeder
Overview
Installing
Physical installation
Read the Safety Information’ section starting on page 4 before installing, applying power to or operating
the device.
The Exterior DC-Feeder is designed to be mounted on a flat surface in any orientation with four M6
screws or other suitable fasteners. Four holes (see C above) for fasteners are provided in the flanges at
the corners of the device. Use fasteners that are suitable for the application and for the installation
environment.
The DC-Feeder can also be fastened to an approved rigging clamp with an M12 bolt passed through one
of the two holes provided (see B above) and installed on a rigging truss. If you install the DC-Feeder using
a rigging clamp in a location where it may cause injury or damage if it falls, attach a safety cable that is
approved for the weight of the device to the other hole B and anchor the safety cable securely (by looping
it around the rigging truss, for example). Remove as much slack as possible from the safety cable, looping
it more than once around the truss if necessary. Make sure that the safety cable will catch the device if the
rigging clamp fails.
Make sure that the weight of cable runs is supported so that lengths of cable do not hang from connectors.
Making connections
Connect the Exterior DC-Feeder as follows:
1. Connect to a source of 48 VDC power and data via one of the hybrid input cable tails (D in drawing
above).
2. Connect 15 VDC power and data output to one or two daisy chains of Martin Exterior Dot-1/4/9 Pro
fixtures via the hybrid power and data cable tail (A in drawing above).
E
F
A
D
C
B
B

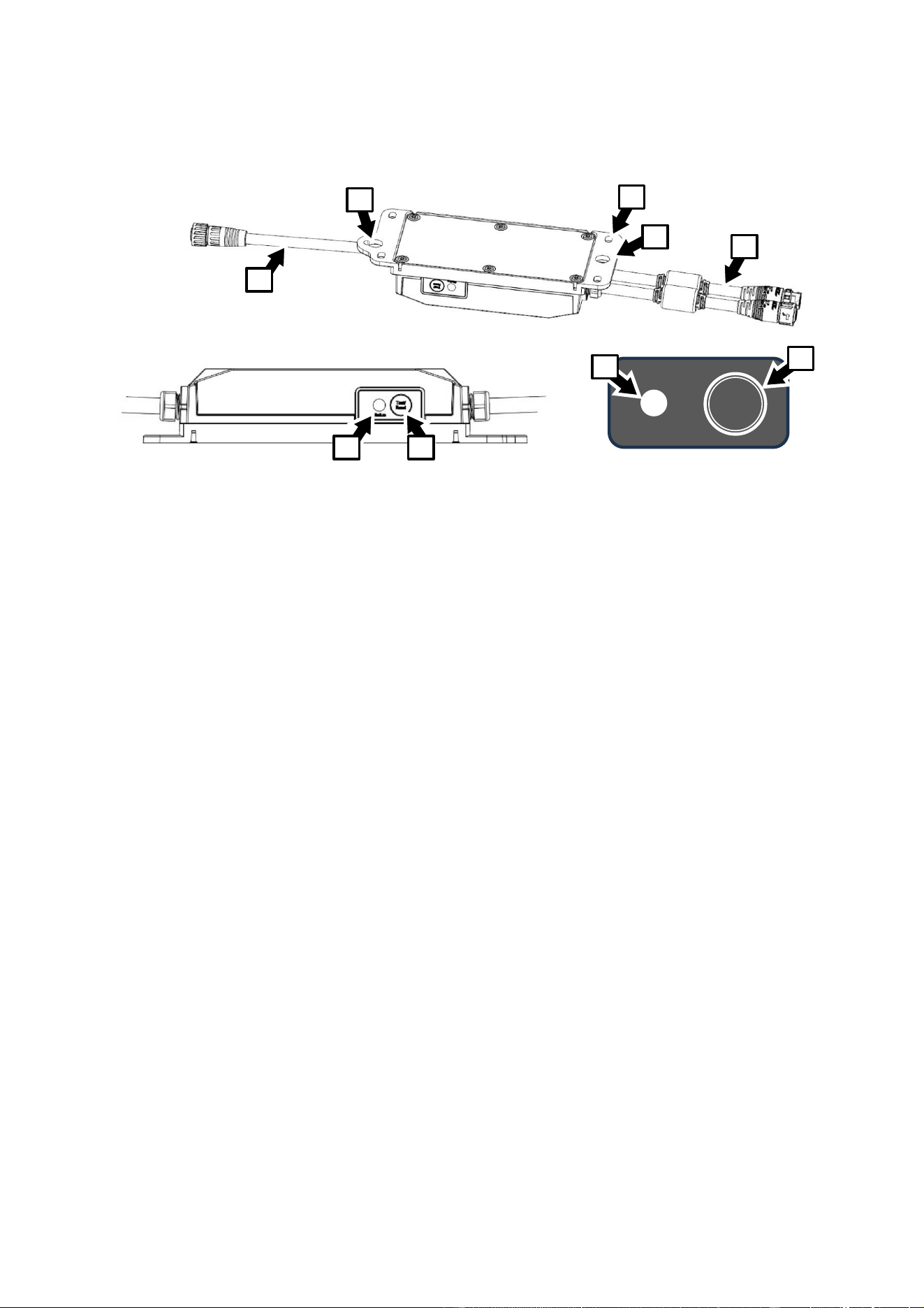

A Hybrid output cable tail with connector
B Holes for M12 fastener on rigging clamp and for safety
cable (x2)
C Holes for M6 fasteners (x4)
D Hybrid input and thru cable tails with DCE connectors
E Status LED
F Test/Reset button
Status
Test/
Reset
E
F
background
14 Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual
Test/Reset button and status LED
The Test/Reset button and the Status LED on both the AC-Feeder
and the DC-Feeder have the following functions:
Test/Reset button
Press once briefly Activate test patterns. Continue pressing
briefly to scroll through test patterns and de-activate.
Press and hold Reboot the device.
Status LED
Blue constant Busy.
Red constant Error.
Red flashing Data disconnected.
Green flashing P3 ready.
Green constant P3 running.
Magenta flashing ArtNet/sACN ready.
Magenta constant ArtNet/sACN running.
Fast RGB cycling Test patterns running.
Yellow constant Overtemperature protection.
Status
Test/
Reset
background
Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual 15
Service and maintenance
Warning! Read Safety information” on page 4 before carrying out service or maintenance
work.
Disconnect all devices from AC mains power before servicing.
Refer any service operation not described in this user manual to Martin Service or an
authorized Martin service agent.
Important! Excessive dirt buildup causes overheating and will damage the product. Damage
caused by inadequate cleaning is not covered by the product warranty.
The user will need to clean the device periodically. other service operations must be carried out by Martin
Professional or an authorized Martin service agent.
Installation, on-site service and maintenance can be provided worldwide by the Martin Professional Global
Service organization and its approved agents, giving owners access to Martin’s expertise and product
knowledge in a partnership that will ensure the highest level of performance throughout the product’s
lifetime. Please contact your Martin supplier for details.
Cleaning
Cleaning schedules vary greatly depending on the operating environment. It is therefore impossible to
specify precise cleaning intervals. Check products frequently and clean when necessary.
To clean an Exterior AC-Feeder or Exterior DC-Feeder:
1. Shut down power to the installation and allow devices to cool for at least 15 minutes.
2. Wipe the outside of the device with a cloth lightly moistened in a mild detergent solution. You can rinse
an IP66-rated device with water, but do not direct a high-pressure water jet at the device. Do not use
any product that contains abrasives or solvents.
3. Dry the device with a soft cloth before reapplying power.
background
16 Martin
®
Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual
Compliance and environmental
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Suppliers Declaration of Conformity
These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired
operation.
Canadian Interference-Causing Equipment Regulations
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Règlement sur le Matériel Brouilleur du Canada
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le Matériel
Brouilleur du Canada.
EU Declaration of Conformity
An EU Declaration of Conformity covering these products is available for download from the product’s
area of the Martin website at www.martin.com.
Disposing of the product
Martin products are supplied in compliance with Directive 2012/19/EC of the
European Parliament and of the Council of the European Union on WEEE (Waste
Electrical and Electronic Equipment), where applicable.
Help preserve the environment! Ensure that this product is recycled at the end of its
life. Your supplier can give details of local arrangements for the disposal of Martin
products
background
www.martin.com
Questions and Answers
