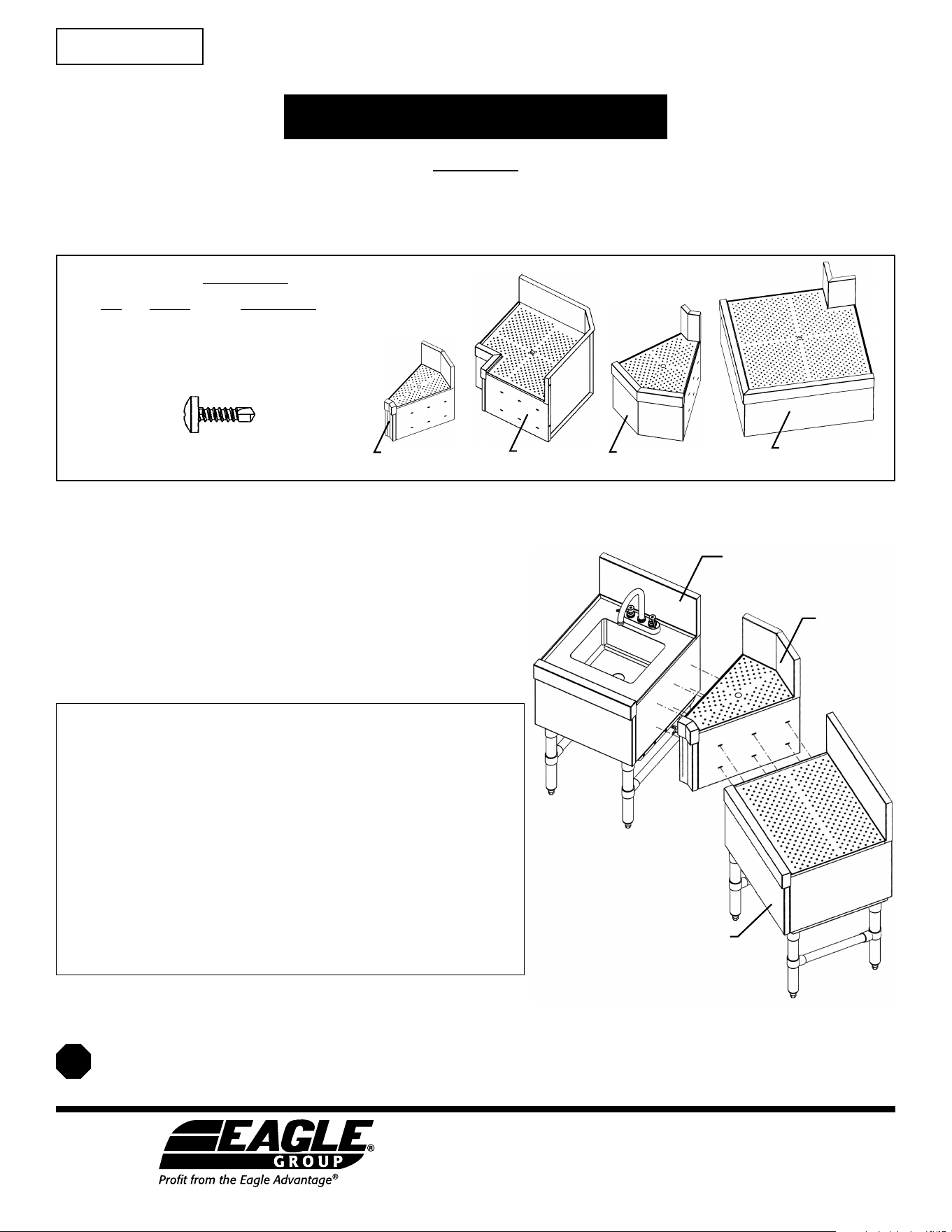

INSTALLATION INSTRUCTIONS
Spec-Bar
®
Corner/Angle Workboards
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING
CARRIER FOR ANY DAMAGE. SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
EG10064 Revised 09/23
Parts List
* Part number varies per order.
(actual size)
#300794
qty part # description
1 . . . * . . . . . . . . . workboard
12 . . . 300794 . . . . #8 x 1/2 drive screws
Step 1 - Align corner/angle workboard with adjacent unit.
• Line up both units so that the backsplashes and fronts are flush with
each other.
• If available, use a “C”-clamp to hold the units together temporarily.
Step 2 - Attach corner/angle workboard to adjoining unit.
• Using a drill, drive the self-tapping screws through the predrilled holes of
the workboard and into the side panel of the adjoining unit.
• Remove the “C”-clamp, if one has been applied.
Please note: Be sure to use all of the holes.
Note: Angle Workboards might not allow the use of a drill. Holes need
to be predrilled into adjoining unit. In place of screws provided, 1˝-long
hex-head bolts and nuts (sold separately) are required.
• Repeat Step 1.
• From underneath the angle workboard, mark hole locations with a marker.
• Set aside angle workboard.
• Drill 1/8˝-diameter holes into the adjoining unit.
• Line up angle workboard to adjoining unit, again using a “C”-clamp
if necessary.
• From underneath the adjoining unit, run bolt through each new hole,
through each predrilled hole of the angle workboard, and fasten with nut.
Repeat on all remaining holes. Tighten all hardware.
• Remove “C”-clamp, if one had been used.
INSTRUCTION SHEET
#375412
outer angle
workboard
inner angle
workboard
inner corner
workboard
outer corner
workboard
(
End
)
Spec-Bar
®
Inner Angle
Workboard
adjoining
Spec-Bar
®
Workboard
adjoining
Spec-Bar
®
Sink
Step 3 - Attach corner/angle workboard to second adjacent unit.
• Repeat Steps 1 & 2.
Installation is complete.
