• 8000-Watts Peak Power
• Sand Cast Aluminum Basket
• 6" High Temperature Aluminum Voice Coil
• Carbon and Glass Fiber Dust Cap with
Aluminum Honeycomb Center
• Available in 22" Round or 24" Square
Versions
JACKHAMMER SUPERWOOFERS
World’s Largest Production Subwoofers
PATENTED
TECHNOLOGY
SPIDER PLATEAU
VENTING
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
T9922-22 22" 8000 / 4000 Dual 2Ω 267.84 in
3
21.06"
TS9922-24 24" 8000 / 4000 Dual 2Ω 653.29 in
3
24.00"
As seen on TV and at car shows around the world, the MTX JackHammer subwoofers are the ultimate
symbol for bragging rights in any installation. This one is for people that only want the best and will
spend whatever money they need to get it. The JackHammer is available in a 22" round and a 24" square
version that are both designed to make you feel the bass as much as hear it.
5
mtx.com
• Cast Aluminum Basket
• Inverted Apex Surround Increases Surface
Diameter for Higher Volume Displacement
• 3-Way Thermal Management Reduces Distortion
• Spider Plateau Venting
• Integrated T-Yoke Heat Sink
• Integrated Voice Coil Heat Sink
• 4" High Temperature Aluminum Voice Coil
• Progressive Suspension Controls Excursion and
Reduces Distortion with No Break In Period
95 SERIES SUPERWOOFERS
The Legend Reborn
INVERTED APEX
SURROUND
PROGRESSIVE
SUSPENSION
SPIDER PLATEAU
VENTING
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
9515-22 15" 3000 / 1500 Dual 2Ω 173.7 in
3
10.25"
9512-22 12" 2400 / 1200 Dual 2Ω 114.42 in
3
8.937"
For over 10 years the MTX 95 name has been synonymous with unmatched SPL output and legendary
performance. The new 95 builds on that legacy with new technologies that take this SuperWoofer to
levels never before achieved. The 95 Series family is available in 15" and 12" subwoofer models that
feature dual 2Ω voice coil configurations and are capable of handling up to 1500-Watts RMS power.
6
Feel the Thunder
®
75 SERIES SUPERWOOFERS
Chest Pounding Bass
• Cast Aluminum Basket
• Inverted Apex Surround Increases Surface
Diameter for Higher Volume Displacement
• 2-Way Thermal Management Reduces Distortion
• Spider Plateau Venting
• Integrated T-Yoke Heat Sink
• 2.5" High Temperature Aluminum Voice Coil
• Progressive Suspension Controls Excursion and
Reduces Distortion with No Break In Period
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
7515-44 15" 1500 / 750 Dual 4Ω 91.66 in
3
8.375"
7515-22 15" 1500 / 750 Dual 2Ω 91.66 in
3
8.375"
7512-44 12" 1500 / 750 Dual 4Ω 57.49 in
3
7.437"
7512-22 12" 1500 / 750 Dual 2Ω 57.49 in
3
7.437"
The 75 Series subwoofer is the next evolution in high performance car subwoofers from MTX Audio.
This car subwoofer series incorporates new technologies that outperform the competition. The 75 Series
family is available in 15" and 12" models that feature either dual 4Ω or dual 2Ω voice coil configurations
and are capable of handling up to 750-Watts RMS power.
INVERTED APEX
SURROUND
PROGRESSIVE
SUSPENSION
SPIDER PLATEAU
VENTING
7
mtx.com
S65 SERIES SUBWOOFERS
Patented Technology Delivers More SPL
• Patented Surround Geometry US Patent
#7,275,620
• Surround Allows for Increased Xmax Resulting In
Higher SPL and Volume Displacement
• Spider Plateau Venting
• Radial Ribbed T-Yoke Dissipates Heat and
Decreases Distortion
• 2.0" High Temperature Voice Coil
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
S6512-44 12" 1000 / 500 Dual 4Ω 74.34 in
3
6.9"
S6510-44 10" 1000 / 500 Dual 4Ω 41.8 in
3
6.9"
The S65 Series is designed for enthusiasts that want to add extreme bass to their system. With more
surface area than a standard round subwoofer and patented corner geometry that increases Xmax,
the S65 Series square subwoofers deliver exceptional volume displacement that translates to extreme
SPL. The S65 Series family is available in 12" and 10" subwoofer models that feature dual 4Ω voice coil
configurations and are capable of handling up to 500-Watts RMS power.
PROGRESSIVE
SUSPENSION
SPIDER PLATEAU
VENTING
PATENTED
TECHNOLOGY
8
Feel the Thunder
®
55 SERIES SUBWOOFERS
Bringin' the Boom
• Stamped Steel Basket
• Inverted Apex Surround Increases Surface
Diameter for Higher Volume Displacement
• 2-Way Thermal Management Reduces Distortion
• Spider Plateau Venting
• Integrated T-Yoke Heat Sink
• 2.0" Copper Voice Coil
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
5515-44 15" 800 / 400 Dual 4Ω 85.43 in
3
8.00"
5515-22 15" 800 / 400 Dual 2Ω 85.43 in
3
8.00"
5512-44 12" 800 / 400 Dual 4Ω 52.46 in
3
6.187"
5512-22 12" 800 / 400 Dual 2Ω 52.46 in
3
6.187"
5510-44 10" 800 / 400 Dual 4Ω 35.0 in
3
5.625"
5510-22 10" 800 / 400 Dual 2Ω 35.0 in
3
5.625"
55 Series subwoofers are high SPL subwoofers that deliver the most bass for your buck, implementing
many of the same features found on our 75 & 95 Series subwoofers. The 55 Series family is available in
15", 12", and 10" subwoofer models that feature either dual 4Ω or dual 2Ω voice coil configurations and
are capable of handling up to 400-Watts RMS power.
INVERTED APEX
SURROUND
PROGRESSIVE
SUSPENSION
SPIDER PLATEAU
VENTING
9
mtx.com
35 SERIES SHALLOW MOUNT SUBWOOFERS
More Bass, Less Space
• Inverted Apex Surround Allows for Greater Xmax
• True Subwoofer Low Frequency Performance,
as Low as 23Hz
• Spider Plateau Venting Mechanically Targets
Cool Air at the Voice Coil
• Extended Xmax for Increased Volume
Displacement Up to 35.33 in
3
• 8 AWG Compression Terminals
• Available in 12" and 10" Models with
Single 4Ω Configuration
• Only 3.375" Deep
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
3512-04S 12" 600 / 300 Single 4Ω 35.33 in
3
3.375"
3510-04S 10" 600 / 300 Single 4Ω 24.48 in
3
3.375"
35 Series shallow mount subwoofers offer both the convenience of a shallow mount design with the
awesome low frequency bass output that MTX has built its reputation on over our 40 years in the
car audio industry. The 35 Series shallow subwoofers are only 3.375" deep, are optimized for sealed
enclosures, and require as little as 0.6 cu ft of air space to function.
SPIDER PLATEAU
VENTING
PATENTED
TECHNOLOGY
10
Feel the Thunder
®
35 SERIES SUBWOOFERS
More Than Expected
• Stamped Steel Basket
• Inverted Apex Surround Increases Surface
Diameter for Higher Volume Displacement
• Spider Plateau Venting
• 2" Copper Voice Coil
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
3512-04 12" 500 / 250 Single 4Ω 28.53 in
3
5.313"
3512-02 12" 500 / 250 Single 2Ω 28.53 in
3
5.313"
3510-04 10" 500 / 250 Single 4Ω 19.40 in
3
4.625"
3510-02 10" 500 / 250 Single 2Ω 19.40 in
3
4.625"
The 35 Series is the perfect subwoofer for anyone looking to add bass to their system at an unbeatable
price. The 35 Series family is available in 12" and 10" subwoofer models that feature either single 4Ω or
single 2Ω voice coil configurations and are capable of handling up to 250-Watts RMS power.
INVERTED APEX
SURROUND
PROGRESSIVE
SUSPENSION
SPIDER PLATEAU
VENTING
11
mtx.com
TERMINATOR SUBWOOFERS
Unbeatable Price and Performance
• Stamped Steel Basket
• Polypropylene Dust Cap
• Spider Plateau Venting
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE VOLUME DISPLACEMENT MOUNTING DEPTH
TN12-04 12" 400 / 200 Single 4Ω 30.92 in
3
5.44"
TN12-02 12" 400 / 200 Single 2Ω 30.92 in
3
5.44"
TN10-04 10" 300 / 150 Single 4Ω 21.21 in
3
4.86"
The classic Terminator subwoofer bangs out bass in rigs all over the world. The Terminator Series
family is available in 12" and 10" subwoofer models that feature either single 4Ω or single 2Ω voice coil
configurations and are capable of handling up to 200-Watts RMS power.
SPIDER PLATEAU
VENTING
12
Feel the Thunder
®
BASS PACKAGES
Simplified Bass Systems
TNP212D2
• Dual 12" Sealed Enclosure and Amplifier
• 800-Watts Peak Power Handling
•
5
/8" MDF Construction
• Carpeted Enclosure with Embroidered
Terminator Logo
• Single 2Ω Terminal Cup on Enclosure
• Also Available - TNE212D Enclosure
MB210SP
• Dual 10" Vented Enclosure and Amplifier
• 800-Watts Peak Power Handling
• Tuned for High Output
RTP8A
• 8" Vented Amplified Enclosure
• 240-Watts Peak Power Handling
• Integrated High Efficiency Amplifier
• High and Low Level Inputs
RT8PT
• 8" Vented Amplified Enclosure
• 240-Watts Peak Power Handling
• Integrated High Efficiency Amplifier
• High and Low Level Inputs
TNP212D2
13
mtx.com
THUNDERFORM

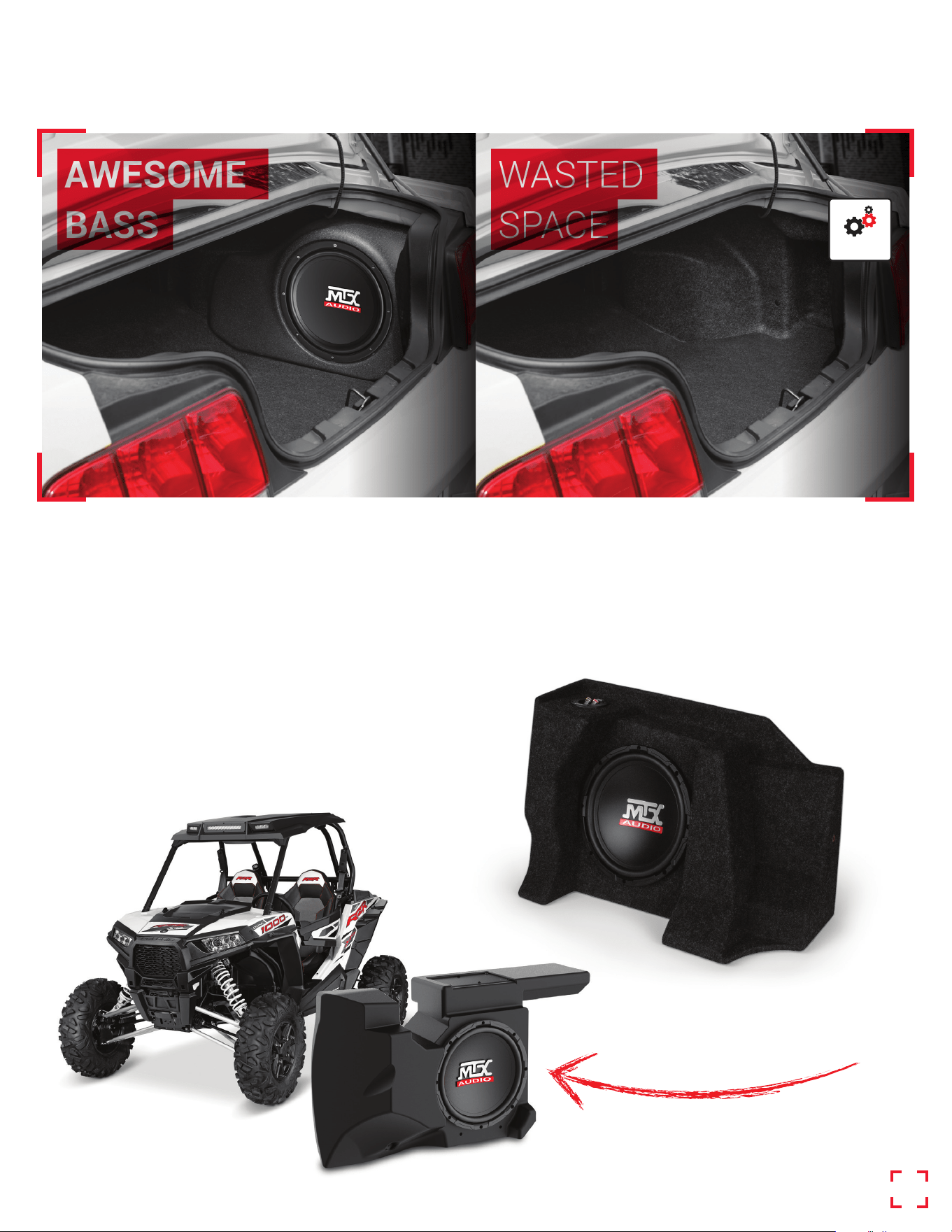

The ORIGINAL Vehicle Specific Subwoofer Enclosure
• Custom Install Look
• Utilize Unused Space in Vehicle
• Easily Integrates with Factory Audio System
• Durable and Rugged Construction
For over 20 years MTX has been manufacturing ThunderForm vehicle specific custom enclosures that
are designed to be installed in space that would otherwise go unused in your vehicle. ThunderForms are
the perfect way to give your system the extra bass it is missing without sacrificing space. Designed to
work with OEM or aftermarket source units, ThunderForms are the perfect addition to any system.
OEM FIT
AWESOME
WASTED
WASTEDAWESOME
BASS
SPACE
SPACEBASS
C1500EX-07L
Also available for the hottest
off-road vehicles!
RZRXP-10
14
Feel the Thunder
®
XTHUNDER AMPLIFIERS
Unbelievable Power
• Low Profile Design
• Cast Aluminum Top Cover Offers Excellent
Thermal Management
• Surface Mount Technology Resists Vibrations
Increasing Reliability
• Removable End-Cap Covers Allow Access to
Controls Even When Installed
MODEL XTHUNDER1500.1 XTHUNDER1200.1 XTHUNDER125.4 XTHUNDER800.5
# OF CHANNELS 1 1 4 5
MINIMUM SINGLE CHANNEL IMPEDANCE 1 1 2 2
DIMENSIONS (LENGTH X DEPTH X HEIGHT) 14.17" x 8.93" x 2.03" 14.17" x 8.93" x 2.03" 14.17" x 8.93" x 2.03" 14.17" x 8.93" x 2.03"
14.4VDC POWER
4Ω 600 x 1 RMS 400 x 1 RMS 90 x 4 RMS
75 x 4 RMS HF
300 X 1 RMS LF
2Ω 900 x 1 RMS 750 x 1 RMS 125 x 4 RMS
125 x 4 RMS HF
400 X 1 RMS LF
1Ω 1500 x 1 RMS 1200 x 1 RMS NA NA
4Ω BRIDGED NA NA 250 x 2 RMS 200 x 2 RMS
The XTHUNDER Series amplifiers are designed to provide high power to your high performance
subwoofers and high end speakers. These models feature a cast aluminum heatsink that efficiently
dissipates heat away from critical components enabling them to play louder and longer. Each model
includes a dual sided circuit board that utilizes surface mount technology to secure the components
to the PCB making them highly vibration resistant. All models use the same low-profile chassis making
them ideal for flush mounting in custom installations.
15
mtx.com
THUNDER AMPLIFIERS
Small Footprint, Big Power
• Small Chassis Design
• Extruded Aluminum Heat Sink
• Surface Mount Technology Resists Vibrations
Increasing Reliability
• Adjustable Crossovers Allow for Easy System
Tuning and Set-Up
• Available in Mono and 4-Channel Models
MODEL THUNDER1000.1 THUNDER500.1 THUNDER75.4
# OF CHANNELS 1 1 4
MINIMUM SINGLE CHANNEL IMPEDANCE 1 2 2
DIMENSIONS (LENGTH X DEPTH X HEIGHT) 12.13" x 6.31" x 2.25" 8.94" x 6.31" x 2.25" 12.13" x 6.31" x 2.25"
14.4VDC POWER
4Ω 350 x 1 RMS 300 x 1 RMS 75 x 4 RMS
2Ω 600 x 1 RMS 500 x 1 RMS 100 x 4 RMS
1Ω 1000 x 1 RMS NA NA
4Ω BRIDGED NA NA 200 x 2 RMS
THUNDER Series amplifiers provide exceptional power output for powering subwoofers or full range
speakers in a variety of applications. Small chassis size and easy connection terminals make the
THUNDER Series easy to install almost anywhere. Highly reliable platform ensures your music will
continue to play year after year.
16
Feel the Thunder
®
SIGNATURE SERIES SPEAKERS
Audiophile Quality, High End Design
• High Efficiency Glass Fiber Cone Delivers
Exceptional Output at All Power Levels
• 2-Way Thermal Management
• Spider Plateau Venting Mechanically Targets
Cooler Air at the Voice Coil
• Cast Aluminum Basket Dissipates Heat from
Voice Coil
• Pre-wired Crossover and Dual Mounting Options
Reduce Installation Time
• Teteron Tweeter Delivers Precise Sound at All
Volume Levels
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE FREQUENCY RESPONSE MOUNTING DEPTH
SS7 2-Way Components 6.5" 300 / 150 4Ω 31Hz - 30kHz 2.83"
SS5 2-Way Components 5.25" 250 / 125 4Ω 40Hz - 30kHz 2.83"
For over 40 years MTX founder Loyd Ivey has been pushing the envelope on sound quality and speaker
design. The Signature Series is the best sounding speaker MTX has ever produced.
17
mtx.com
THUNDER SPEAKERS
Bring Your Music to Life
• Designed for Extended Low Frequency
Reproduction
• Polypropylene Woofer and Soft Dome Tweeters
Deliver Realistic Sound
• Concave Cone Delivers Exceptional Off-Axis
Response
• Available in Multiple Sizes in Both Component
and Coaxial Styles
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE FREQUENCY RESPONSE MOUNTING DEPTH
THUNDER61 2-Way Components 6.5" 180 / 90 4Ω 44Hz - 20kHz 2.19"
THUNDER51 2-Way Components 5.25" 180 / 90 4Ω 51Hz - 20kHz 2.19"
THUNDER681 2-Way Components 5" x 7" 180 / 90 4Ω 46Hz - 20kHz 2.48"
THUNDER1 Tweeters 1" 180 / 90 4Ω 2.5kHz - 20kHz NA
THUNDER693 3-Way Coaxials 6" x 9" 200 / 100 4Ω 42Hz - 20kHz 3.00"
THUNDER68 2-Way Coaxials 5" x 7" 120 / 60 4Ω 45Hz - 20kHz 2.44"
THUNDER65 2-Way Coaxials 6.5" 120 / 60 4Ω 48Hz - 20kHz 2.063"
THUNDER52 2-Way Coaxials 5.25" 90 / 45 4Ω 55Hz - 20kHz 2.25"
THUNDER46 2-Way Coaxials 4" x 6" 80 / 40 4Ω 80Hz - 20kHz 2.00"
THUNDER40 2-Way Coaxials 4" 70 / 35 4Ω 75Hz - 20kHz 1.75"
THUNDER35 2-Way Coaxials 3.5" 50 / 25 4Ω 83Hz - 20kHz 1.50"
MTX THUNDER Series speakers are the perfect upgrade for your tired OEM speakers. When used with
a THUNDER Series amplifier, THUNDER speakers produce high quality sound and staging, that will
change the way you hear your music. Available in multiple sizes and in both coaxial and component
configurations, the THUNDER Series is the perfect choice for audio aficionados everywhere.
18
Feel the Thunder
®
TERMINATOR SPEAKERS
Easy Install, Custom Sound
• Designed as Perfect OEM Replacement or
Upgrade from Stock
• Polypropylene Woofer and Mylar Tweeters
• Shallow Mounting Depth
• Available in Multiple Sizes in Both Component
and Coaxial Styles
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE FREQUENCY RESPONSE MOUNTING DEPTH
TERMINATOR65 2-Way Components 6.5" 90 / 45 4Ω 54Hz - 20kHz 2.00"
TERMINATOR52 2-Way Components 5.25" 70 / 35 4Ω 58Hz - 20kHz 2.00"
TERMINATOR693 3-Way Triaxials 6" x 9" 120 / 60 4Ω 40Hz - 20kHz 2.73"
TERMINATOR573 3-Way Coaxials 5" x 7" 110 / 55 4Ω 46Hz - 20kHz 2.33"
TERMINATOR653 3-Way Triaxials 6.5" 90 / 45 4Ω 54Hz - 20kHz 2.00"
TERMINATOR522 2-Way Coaxials 5.25" 70 / 35 4Ω 54Hz - 20kHz 2.10"
TERMINATOR462 2-Way Coaxials 4" x 6" 80 / 40 4Ω 78Hz - 20kHz 2.00"
Terminator Series speakers are an easy and inexpensive way to get better sound from your system.
Available in multiple sizes and configurations, Terminator speakers offer quality construction and musical
reproduction that can be used with only a source unit or in conjunction with an amplifier for even better
performance.
19
mtx.com
ROADTHUNDER EXTREME SPEAKERS
The New Sound of Thunder
• Deliver Unmatched Volume Output
• High Efficiency Treated Paper Woofers and
Titanium Diaphragm Bullet Tweeters
• Large Magnets Allow for High Power Handling
• Single 8Ω Impedance Allows for Multi Speaker
Configuration Installs
• Available in Multiple Sizes to Compliment
Any Install
MODEL SIZE POWER (PEAK/RMS) IMPEDANCE FREQUENCY RESPONSE MOUNTING DEPTH
RTX128 Midbass Driver 12" 600 / 300 8Ω 66Hz - 5.2kHz 4.61"
RTX108 Midbass Driver 10" 500 / 250 8Ω 70Hz - 4.6kHz 4.02"
RTX88 Midbass Driver 8" 300 / 150 8Ω 82Hz - 6kHz 2.95"
RTX658 Midbass Driver 6.5" 200 / 100 8Ω 136Hz - 6.5kHz 2.64"
RTX4BT Bullet Tweeter 4" 400 / 200 8Ω 2.7kHz - 22.3kHz 2.10"
RTX2BT Bullet Tweeter 2" 200 / 100 8Ω 3.5kHz - 23.7kHz 2.12"
RoadThunder Extreme speakers are exactly what they say, extreme. These full range speakers include
midbass drivers and bullet tweeters designed to handle high amounts of power. Combined with their high
efficiency, these speakers are ideal for systems using multiple subwoofers to allow the high frequencies
to compete with the bass to ensure all the music sounds perfect.
MTX Audio, 4545 East Baseline Road, Phoenix, AZ 85042 © 2017 Mitek. All rights reserved. MTX, JackHammer, Thunder, Terminator, RoadThunder, ThunderForm,
StreetWires, StreetAudio, Stock to Rock, Feel the Thunder, Connected To the Street, Mud Nation, and Let's Do Something Dirty are trademarks of Mitek Corporation.
All other trademarks are the properties of their respective owners and no endorsement is implied.
Due to continual product development, specifications are subject to change without notice. MTX005634 RevA 10/17 480264
UTV
Marine
Motorcycle
UTV Audio
MTX offers a wide range of universal and custom t products for the top brands in the UTV world. From
sound bars and subwoofers to speakers and ampliers, MTX products are designed to be easy to install,
easy to use, and able to withstand the harshest environments you ride in.
Motorcycle Audio
There is no better feeling than riding the open road except riding the open road with an awesome
stereo. MTX motorcycle solutions including ampliers, speakers, and sound bars are designed to deliver
exceptional sound quality and tment on a variety of bikes.
Marine Audio
MTX marine audio solutions are constructed using the highest quality materials ensuring they will hold up
in both fresh and salt water applications. Available ampliers, speakers, subwoofers, and source units can
turn any watercraft into a party-craft whether you want to listen to your favorite songs while cruising with
the family or wake up the lake while wake boarding.
MTX Audio is not only a leading manufacturer of car audio, but also has an entire line of audio solutions
dedicated to motorsport and marine applications. Whether you are taking your UTV out on the trail, your
Harley out for a ride, or your boat out on the lake, MTX has what you need to bring your music to life.
