I ■ INTRODUCTION
Thank you for choosing this mobile air conditioner to provide you and your family with
all of the "Home Comfort" requirements for your home, cottage or oice. The appliance
can be moved from room to room within your home and set-up in just minutes.
It is a multi-functional room air exchanging, air-processing appliance, designed to oer
you the functions of cooli
ng,
d
ehumidiing and independent fan.
The external static pressure at which the appliance was tested is O Mpa.
This manual will provide you with valuable information necessary for the proper care
and maintenance for your new appliance. Please take a few moments and read the
instructions thoroughly. If properly
m
aintained, your appliance will give you many years
of trouble free operation.
ELECTRICAL SPECIFICATIONS
1. All wiring must comply with local and national electrical codes and be installed by a
qualified electrician. If you have any questions regarding the following instructions,
contact a qualified electrician.
2. Check available power supply and resolve any wiring problems before installation and
operation of this unit.
3. For your safety and protection, this unit is grounded through the power cord plug
when plugged into a matching wall outlet. If you are not sure whether the wall outlets
in your home are properly grounded, please consult an electrician. If supply cord is
damaged, it must be replaced by the manufacture, its service agent or similarly
qualified persons in order to avoid a hazard.
IMPORTANT SAFETY INSTRUCTIONS
�WARNING
To reduce the risk of fire, electrical shock or injury when using
your air conditioner, follow these basic precautions:
1. Plug into a grounded 3 prong outlet.
2. Do not remove ground prong.
3. Do not use an adapter.
4. Do not use an extension cord.
5. Unplug air conditioner before servicing.
6. Use two or more people to move and install air conditioner.
01
Caution Risk of fire
A2L
7. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
8. Children shall not play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
9. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
10. The appliance shall be installed in accordance with national wiring regulations.
11. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Young children should be supervised to ensure that
they do not play with the appliance.
12. Do not use means to accelerate the defrosting process or to clean, other than those
m
eans recommended by the manufacturer. The
appli
ance shall be stored in a
room
without
continuously operating ignition sources, for example
,
open flames, an
operating
gas appliance or an operating electric heater. Be aware that refrigerants may not
contain an odour. Do not pierce or burn.
13. When the machine malfunctions, do not repair it yourself. Please contact a profess
ional organization or a professional trained maintenance personnel or a service organ
ization recommended by the supplier for repair!
- the maximum refrigerant charge amount: 230g (
8
1 Oz)
14. Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
15. The appliance shall be stored in a room without continuously operating ignition
sources (for example: open flames, an operating gas appliance or an operating electric
heater.)
.
16. Do not pierce or burn.
17. Be aware that refrigerants may not contain an odour.
02
SAFETY INSTRUCTIONS DURING SERVICING
1. The manual shall contain specific information about the required qualification of the
working personnel for maintenance, service and repair operations. Every working proc
edure that aects safety means shall only be carried out by competent persons.
2. Prior to beginning work on systems containing FLAMMABLE REFRIGERANTS, safety
checks are necessary to ensure that the risk of ignition is minimised.
3. Work shall be undertaken under a controlled procedure so as to minimise the risk of
a flammable gas or vapour being present while the work is being performed.
4. All maintenance sta and others working in the local area shall be instructed on the
nature of work being carried out. Work in confined spaces shall be avoided.
5. The area shall be checked with an appropriate refrigerant detector prior to and during
work to ensure the technician is aware of potentially toxic or flammable atmospheres.
Ensure that the leak detection equipment being used is suitable r use with all applicable
refrigerants, i.e. non sparking, adequately sealed or intrinsically safe.
6. If any hot work is to be conducted on the refrigerating equipment or any associated
parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry
powder or C02 fire extinguisher adjacent to the charging area.
7. No person carrying out work in relation to a REFRIGERATING SYSTEM which involves
exposing any pipe work shall use any sources of ignition in such a manner that it may
lead to the risk of fire or explosion. All possible ignition sources, including cigarette
smoking, should be kept suiciently far away from the site of installation, repairing,
removal and disposal, during which refrigerant can possibly be released to the surro
unding space. Prior to work taking place, the area around the equipment is to be surveyed
to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs
shall be displayed.
8. Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue during
the period that the work is carried out. The ventilation should safely disperse any released
refrigerant and preferably expel it externally into the atmosphere.
9. Repair and maintenance to electrical components shall include initial safety checks
and component inspection procedures. If a fault exists that could compromise safety,
then no electrical supply shall be connected to the circuit until it is satisfactorily dealt
with. If the ult cannot be corrected immediately but it is necessary to continue operation,
an adequate temporary solution shall be used. This shall be reported to the owner of
the equipment so all parties are advised.
Initial safety checks shall include:
-that capacitors are discharged: this shall be done in a safe manner to avoid possibility
of sparking;
-that no live electrical components and wiring are exposed while charging, recovering
or purging the system;
-that there is continuity of earth bonding.
03
10. During repairs to sealed components, all electrical supplies shall be disconnected
from the equipment being worked upon prior to any removal of sealed covers, etc. If it
is absolutely necessary to have an electrical supply to equipment during servicing, then
a permanently operating form of leak detection shall be located at the most critical
point to warn of a potentially hazardous situation
.
11. Particular attention shall be paid to the following to ensure that by working on
electrical components the casing is not altered in such a way that the level of protection
is aected. This shall include damage to cables, excessive number of connections,
terminals not made to original specification, damage to seals, incorrect fitting of glands,
etc. Ensure that the apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded to the point that they no longer
serve the purpose of preventing the ingress of flammable atmospheres. Replacement
parts shall be in accordance with the manufacturer's specifications.
12. Do not apply any permanent inductive or capacitance loads to the circuit without
ensuring that this will not exceed the permissible voltage and current permitted for the
equipment in use.
13. Intrinsically safe components are the only types that can be worked on while living
in the presence of a flammable atmosphere. The test apparatus shall be at the
correct rating.
14. Replace components only with parts specified by the manufacturer. Other parts
may result in the ignition of refrigerant in the atmosphere from a leak.
15. Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental eects. The check shall also take into
account the eects of aging or continual vibration from sources such as compressors
or fans.
16. Under no circumstances shall potential sources of ignition be used in the searching
for or detection of refrigerant leaks. A halide torch (or any other detector using a naked
flame) shall not be used.
04

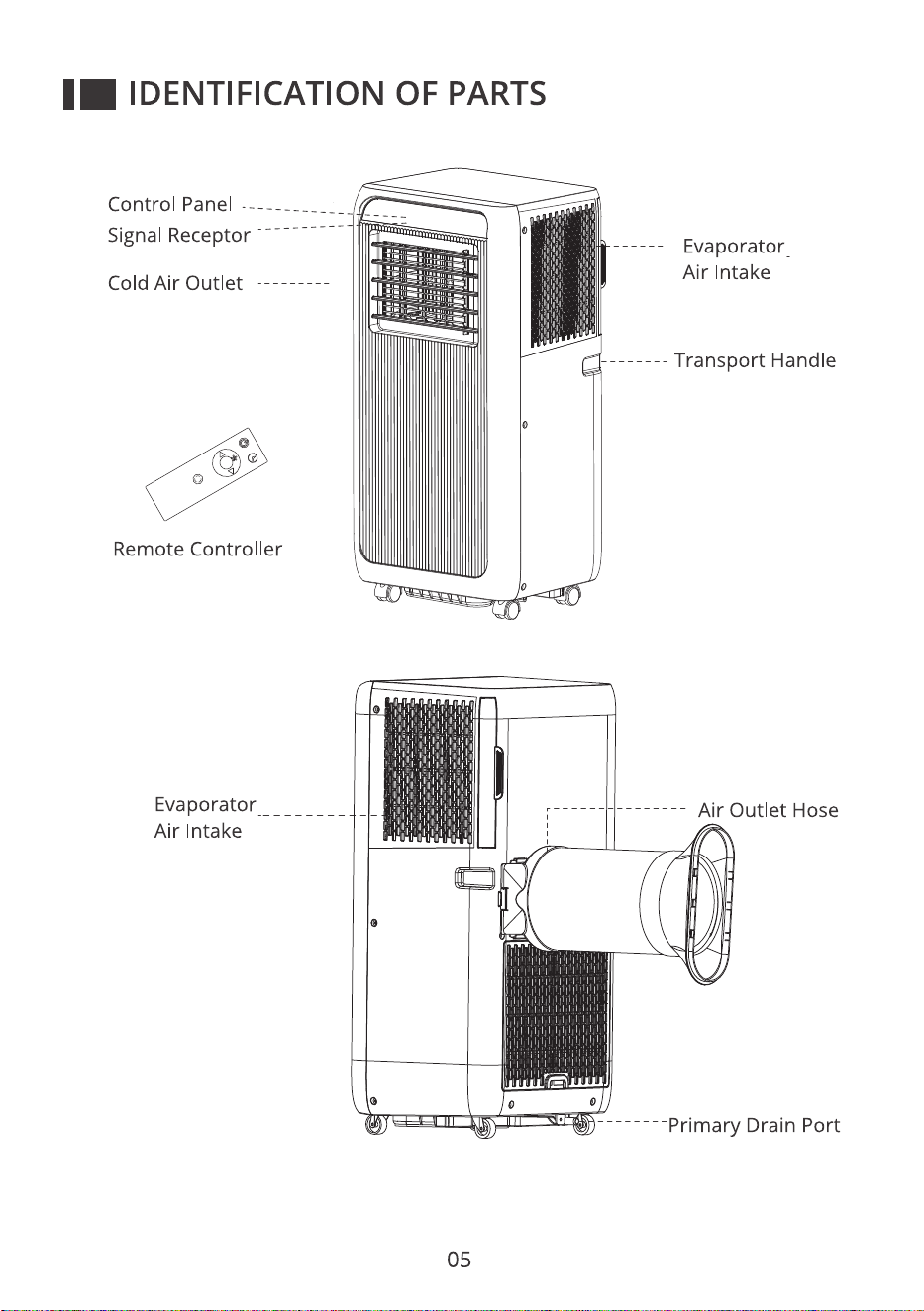

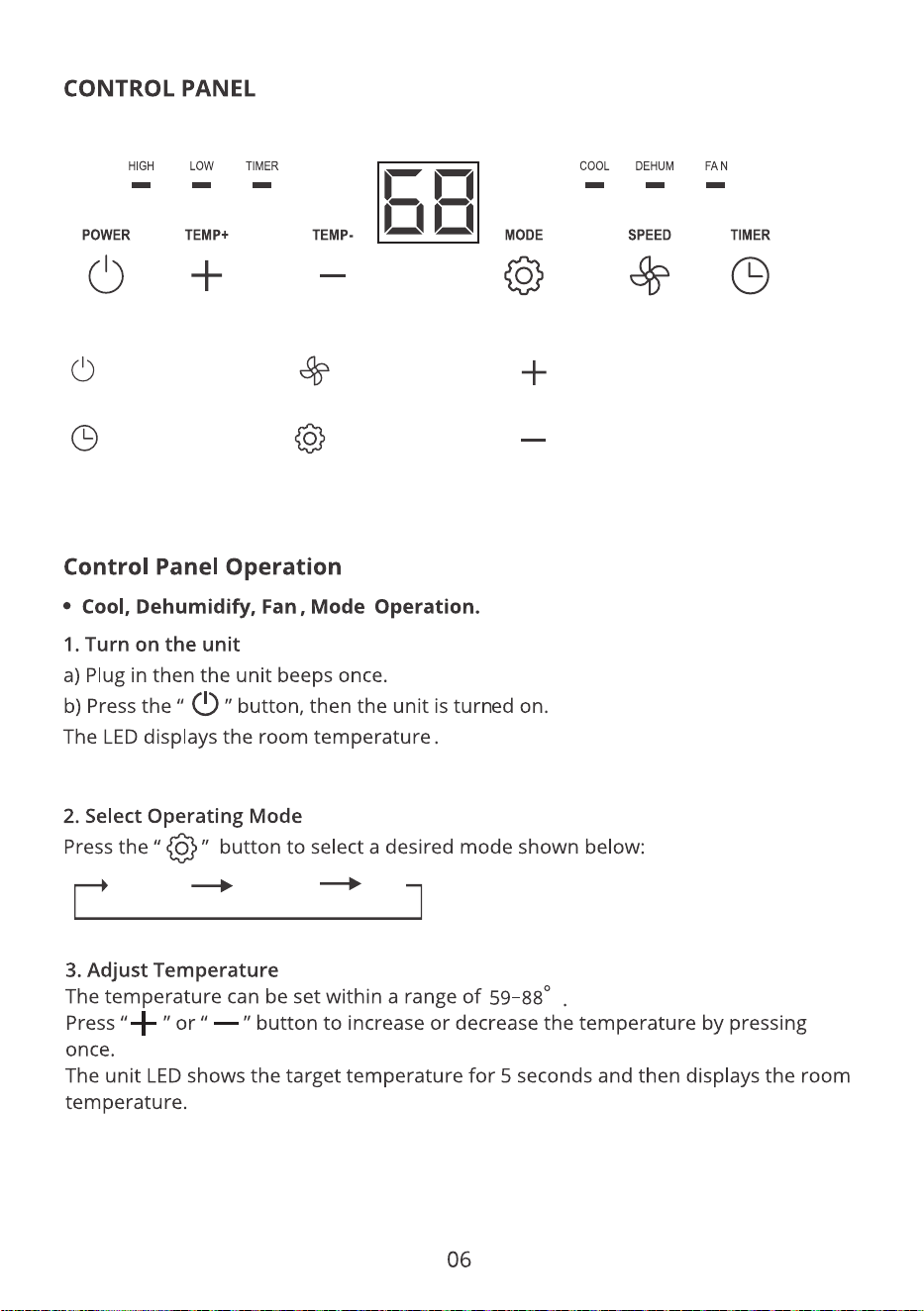

Timer/T emperature up Button
COOL DEHUM FAN
Timer/Temperature down Button
Power Button
Timer Button
Speed Button
Mode Button

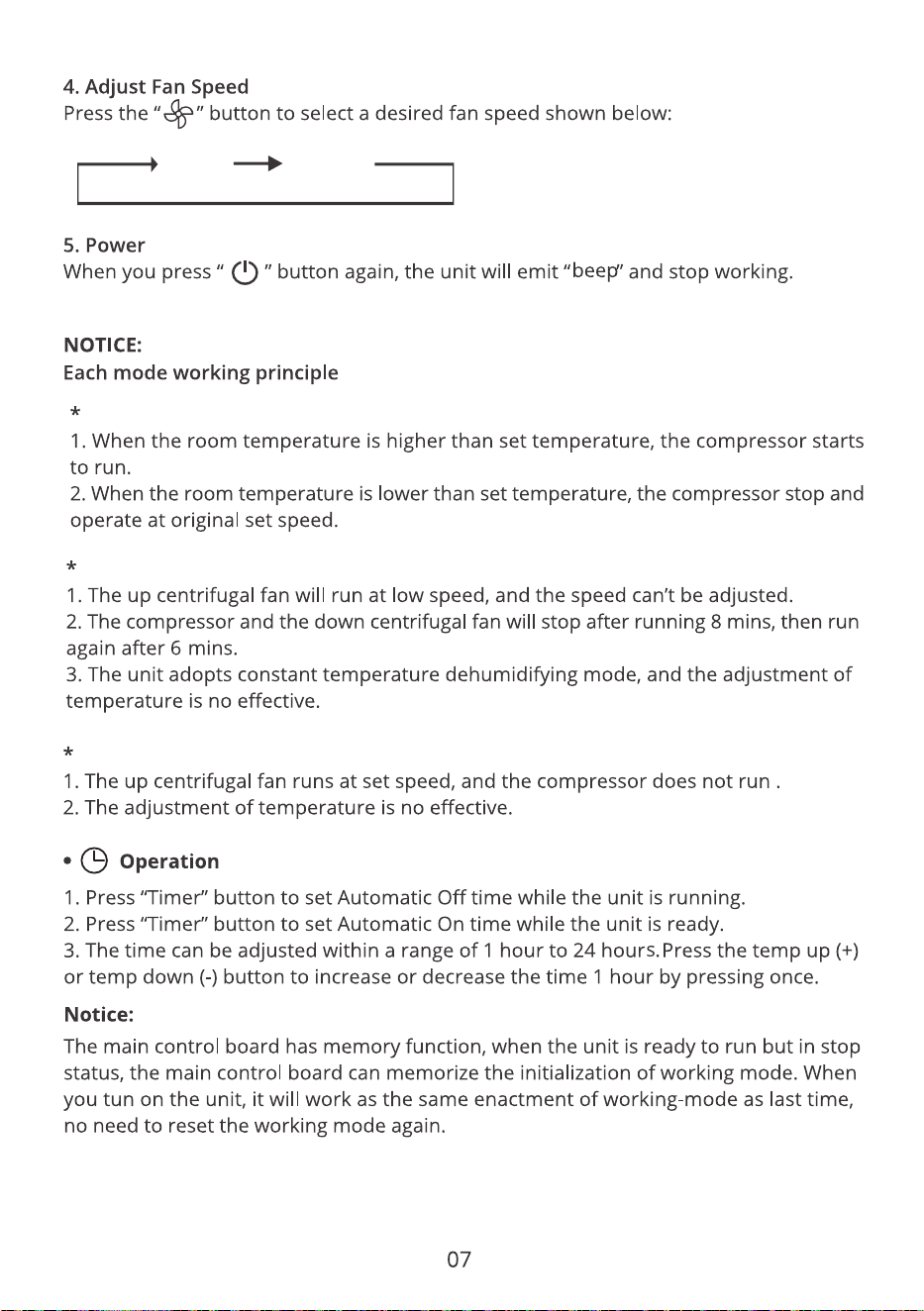

F
LOW
DEHUM Mode
FAN Mode
HIGH
COOL Mode
59 F
109 F
59 F
A
D
E
F
G
B
C
F
H

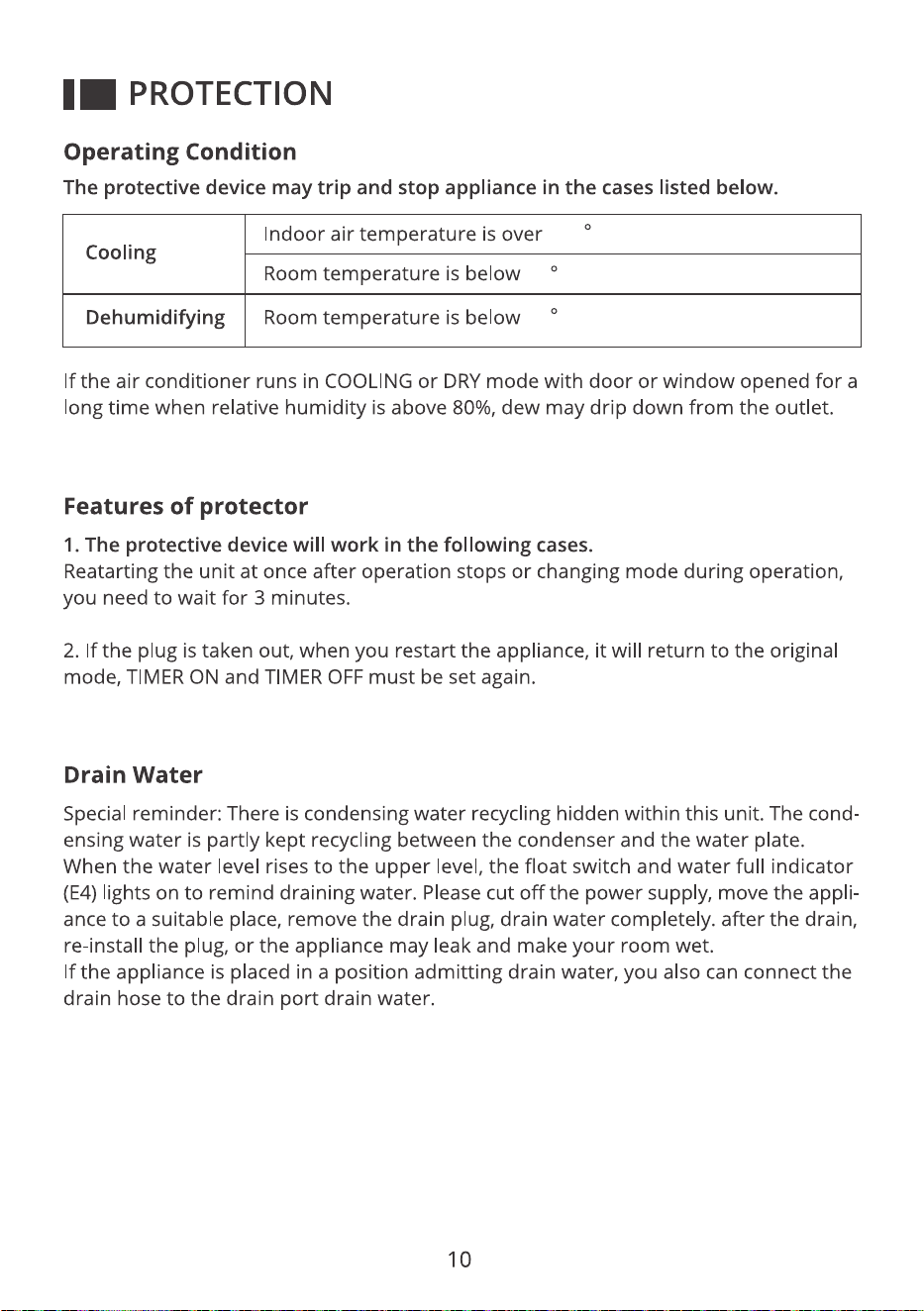

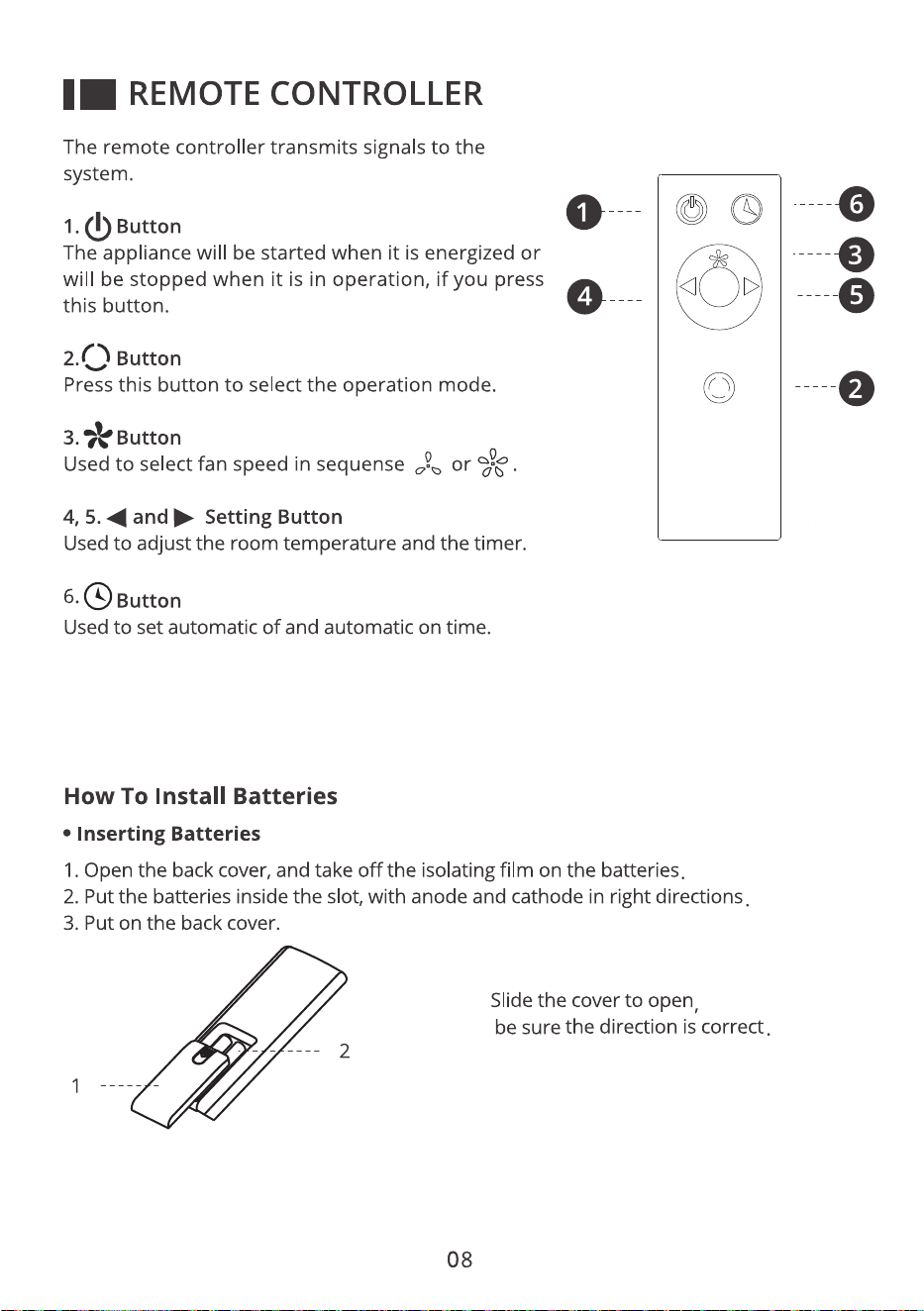

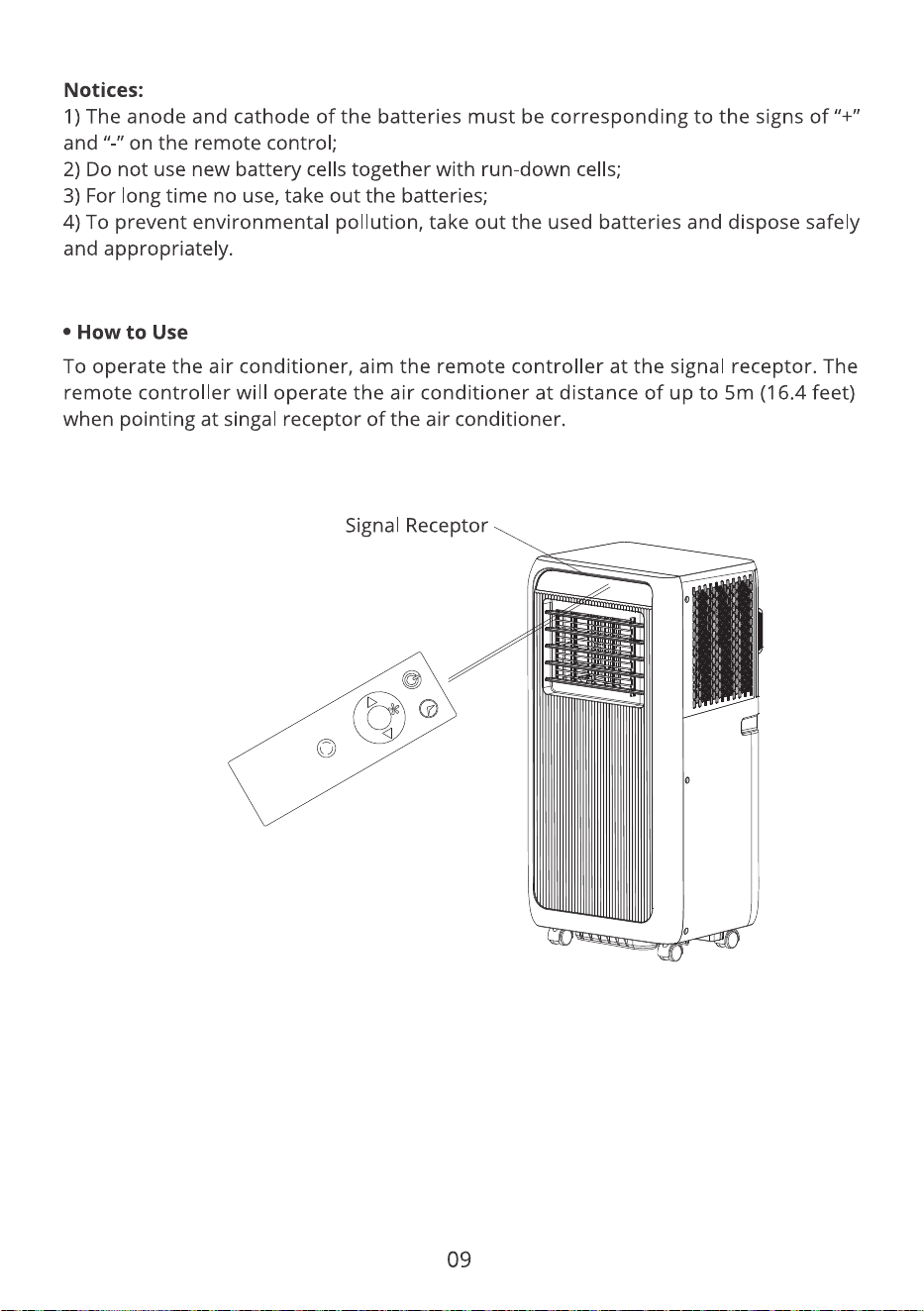

·Beside a window, a door or a French window.
·Keep the required distance from the return air outlet (refer to Fig. 9 on Page 13 ) to the wall or other obstacles
at least 60 cm (23.6"). Fix one end of the air hose (A) on the air outlet underside the appliance. (§ how to install

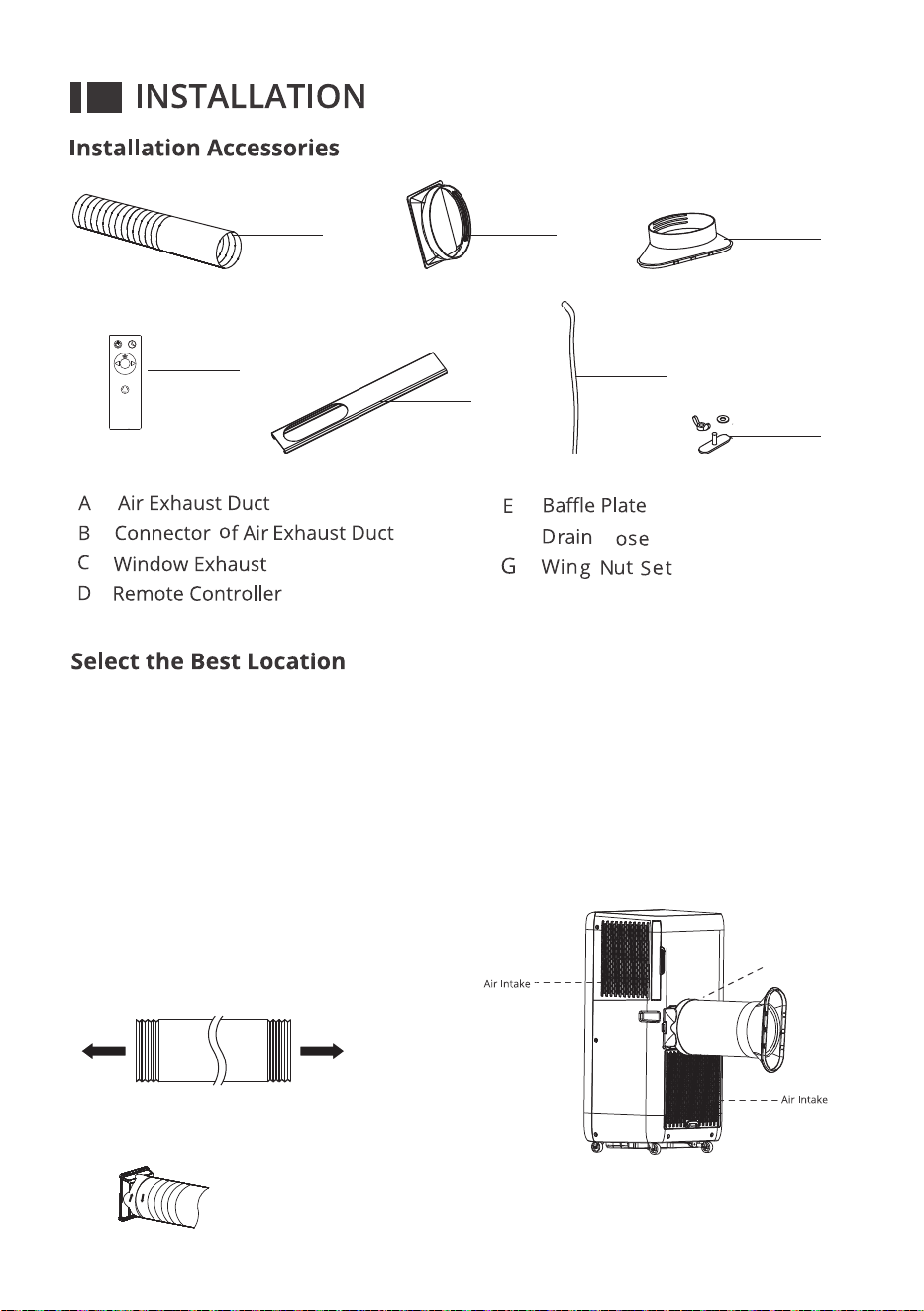

the Exhaust Hose and Adapter
·Extend the air hose to ensure that other end of the air hose has clearance between the window, door,
or Frenchwindow, or wall hole.
·Air outlet (refer to Fig. 9 on Page 13 ) or intake ( see below) can not be blocked by protective grid or any obstacle.
Install Exhaust Hose and Adapter
How to connect the connectors to the Air exhaust duct.
1. Extend the air exhaust duct (A) by drawing out
the two ends of the duct.
2. Screw the air exhaust duct (A) into the connector of air
exhaust duct (B). (anticlockwise)
11
Air outlet
Locking
system
B
A
B
B
A
A
B g
.
1
Fig. 2
3. Screw the connector of window ( C ) into the air exhaust duct (A). (anticlockwise)
4. Connect the connector of air exhaust duct (B) to the unit from top to bottom until it clicks into position.
If need to remove the hose please press the locking system and slide the connector from bottom to up.

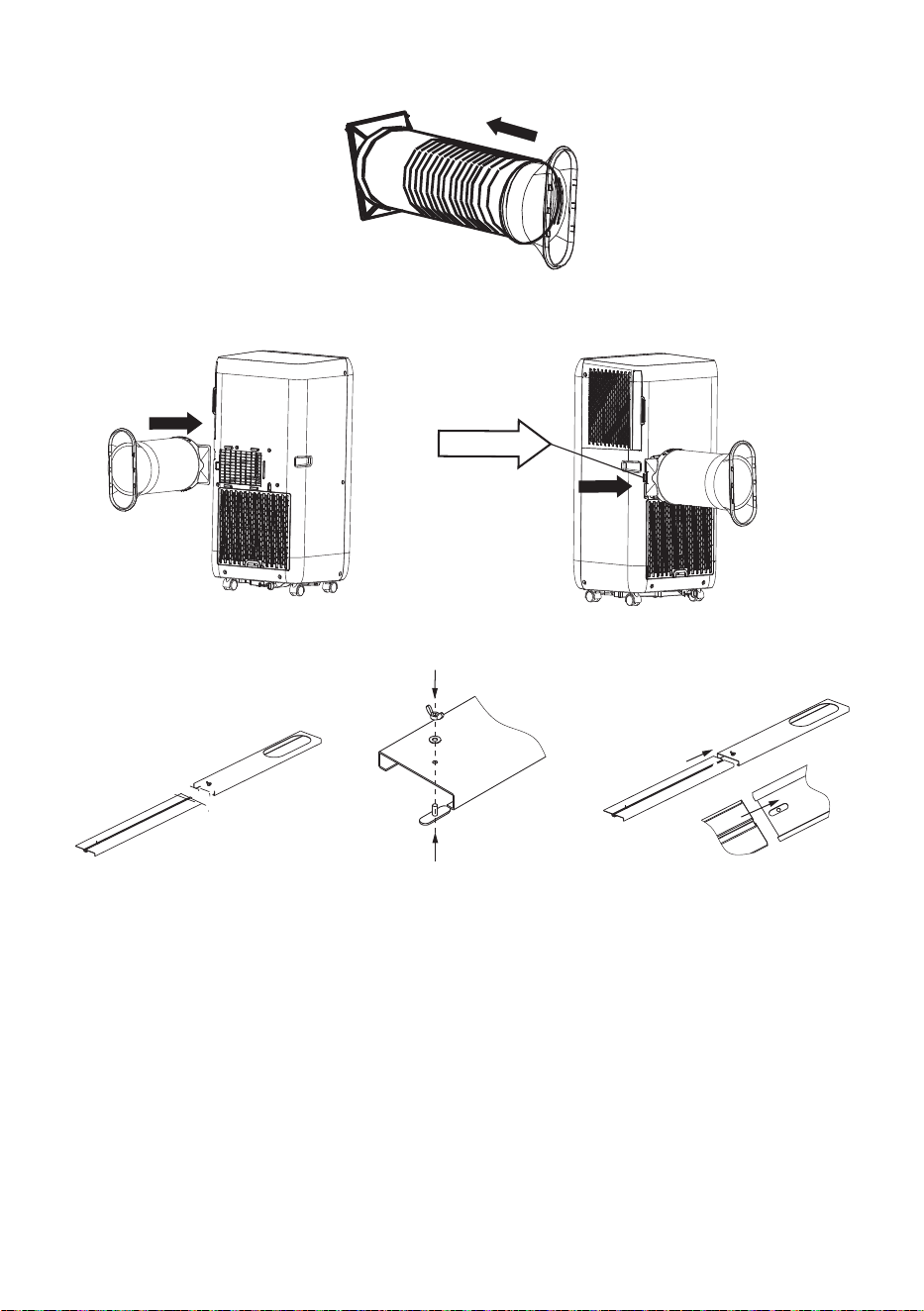

Install Window Kit
Fig. 1

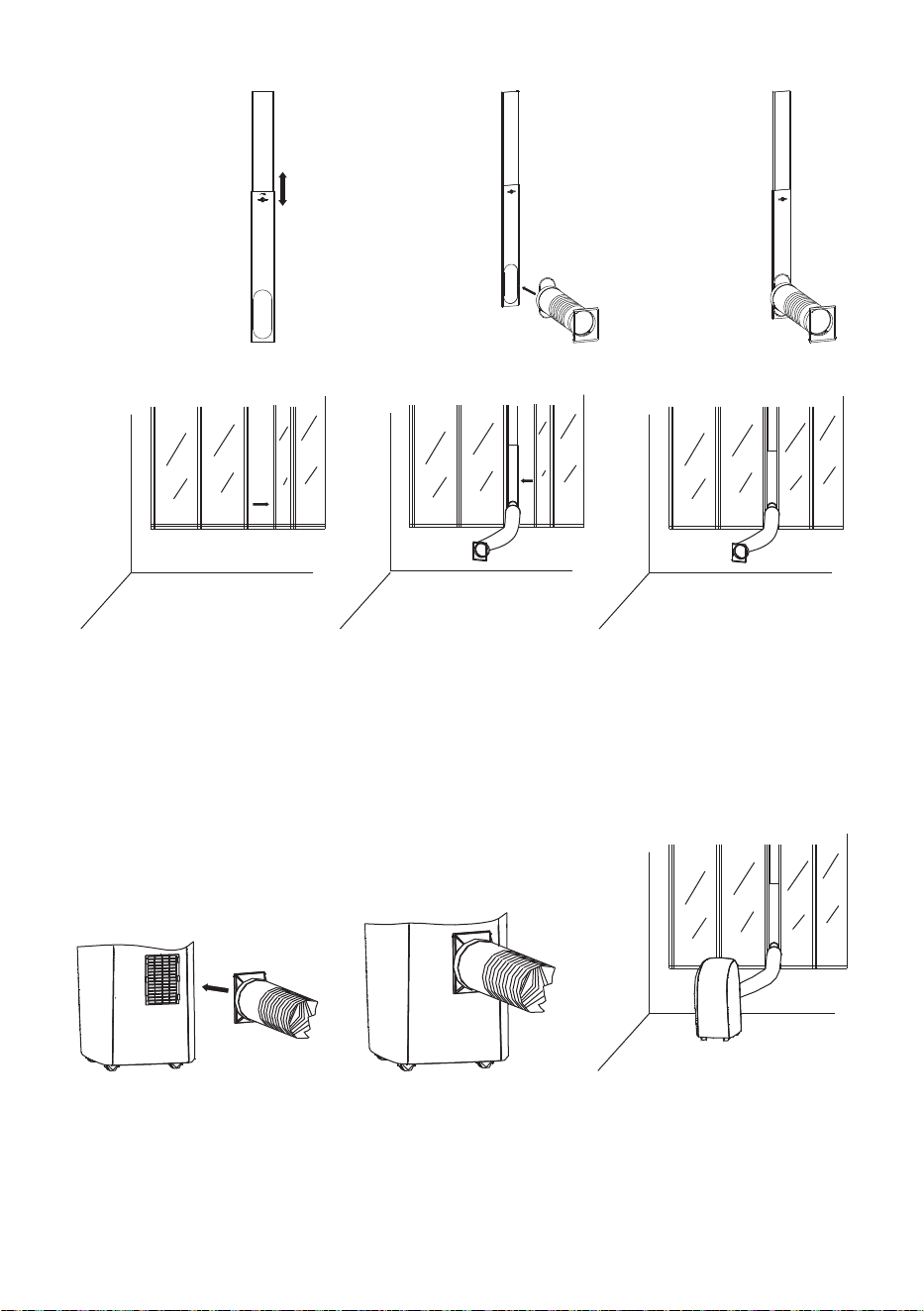

1. Separate both boards
A board, and B board
2. Screw the wing nut through
the B board. Leave 2/3
of free space.
3. Insert A board into B board
according to arrowhead
direction.
12
A
B
Fig. 3 Fig. 4 Fig. 5
Fig. 6 Fig. 7 Fig. 8
Fig. 9 Fig. 10 Fig. 11
you can adjust
4. Assembly finished,
A board up or
down, according
to height of the
window. Screw it
unit it is tight.
5. Install exhaust
air duct & its
accessories
into window
kit according
to arrowhead
direction.
6. Assembly finished.
7. Open the window where
need install exhaust air
duct, window kit and their
accessories.
8. Install exhaust air duct,
window kit and their
accessories onto window,
then close the window
according to arrowhead
direction in Fig7 drawing to
press window kit tightly.
9. Install exhaust air duct,
window kit and their
accessories onto window
according to Fig8 drawing
illustrated.
10. Connect another end of exhaust
air duct and its accessories onto
portable air conditioner.
11. Exhaust air duct & its
accessories assembly finished
as Fig10 drawing illustrated.
12. Whole unit assembly
well as Fig11 drawing
illustrated.
13
14
15
16

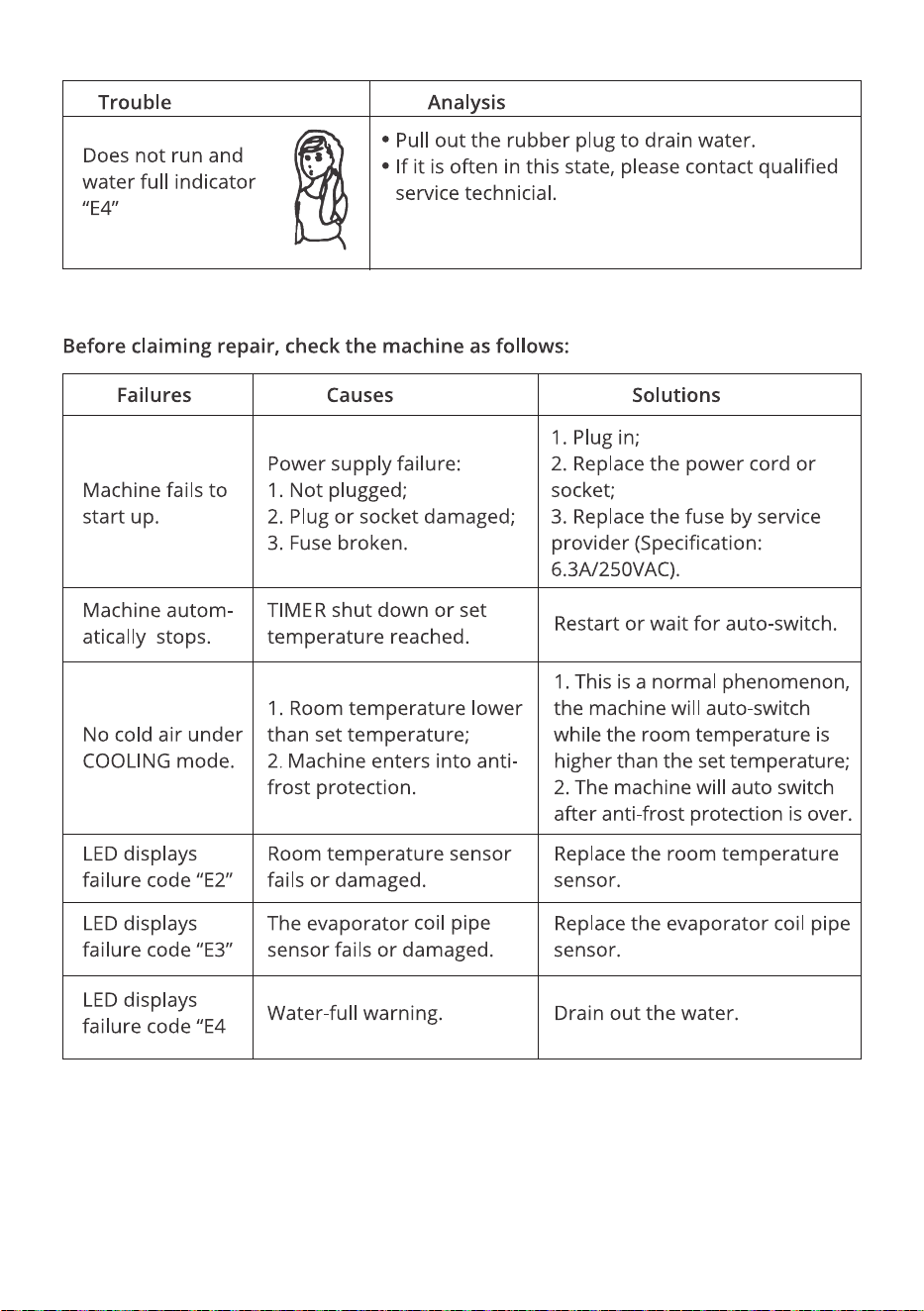

17

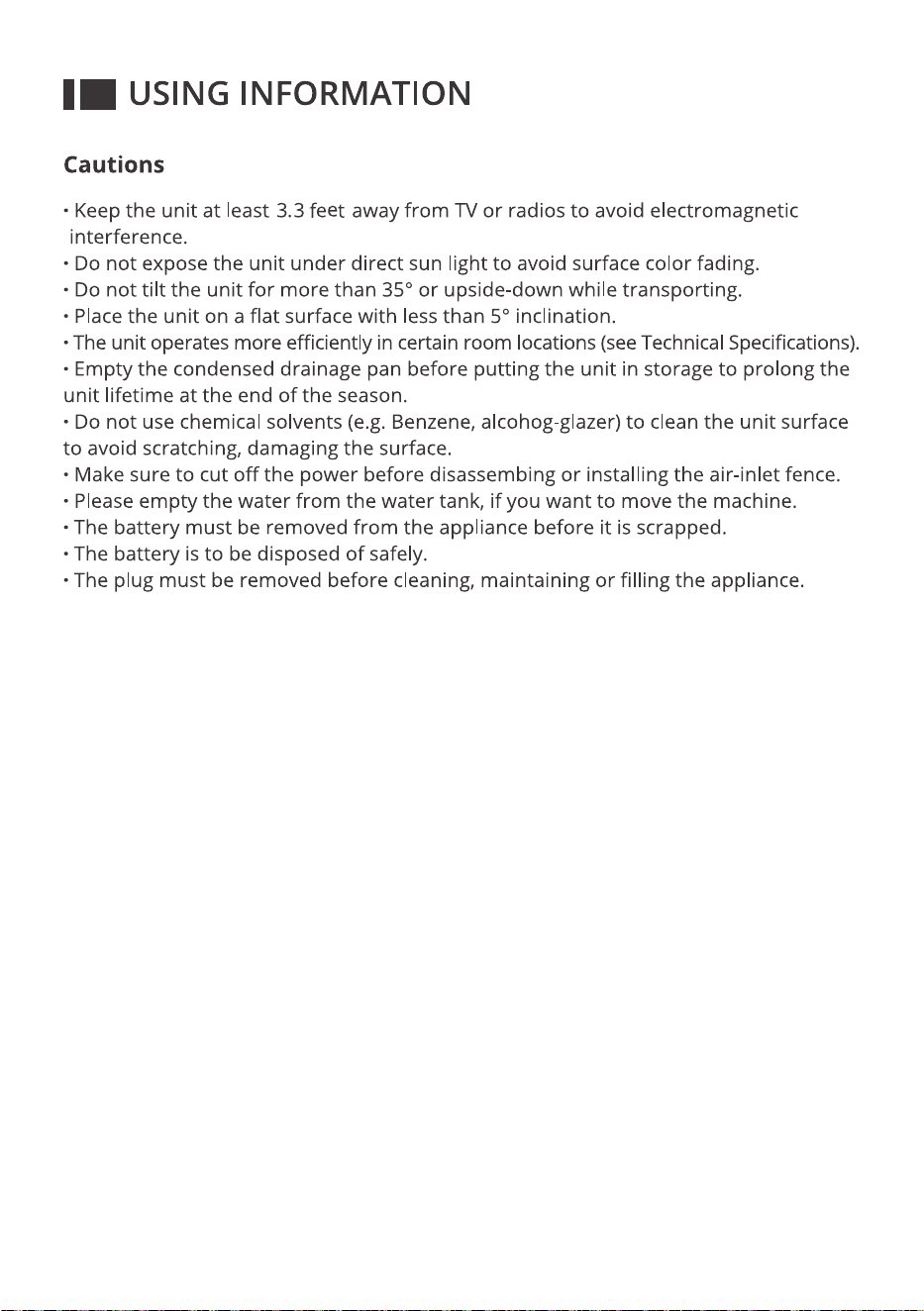

18
Thank you for purchasing this product! If you have any questions about
the product, such as missing parts, damaged products, product assembling,
and operation, please contact us via Amazon Message or customer service
number: 213-4467172 or 661-4358826.
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO
BAJO GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC
28407 Ascent Way, Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
