ASSEMBLY
AND USER’S GUIDE
SKU: 76061
SUBMERSIBLE SEWAGE PUMP
1/2HP CAST IRON SUMP 4860GPH MAX HTH 23FT
76061
1
TABLE OF CONTENT
TABLE OF CONTENTS
QUICK START
INTRODUCTION AND SAFETY
INTRODUCTION AND COMMISSIONING
OPERATION
1
2
6
8
9
TROUBLE SHOOTING
MAINTENANCE
10
11
SPECIFICATION
PARTS DIAGRAM
12
13
14
DISCLAIMER
15
CUSTOMER SERVICE
15
PARTS LIST
2

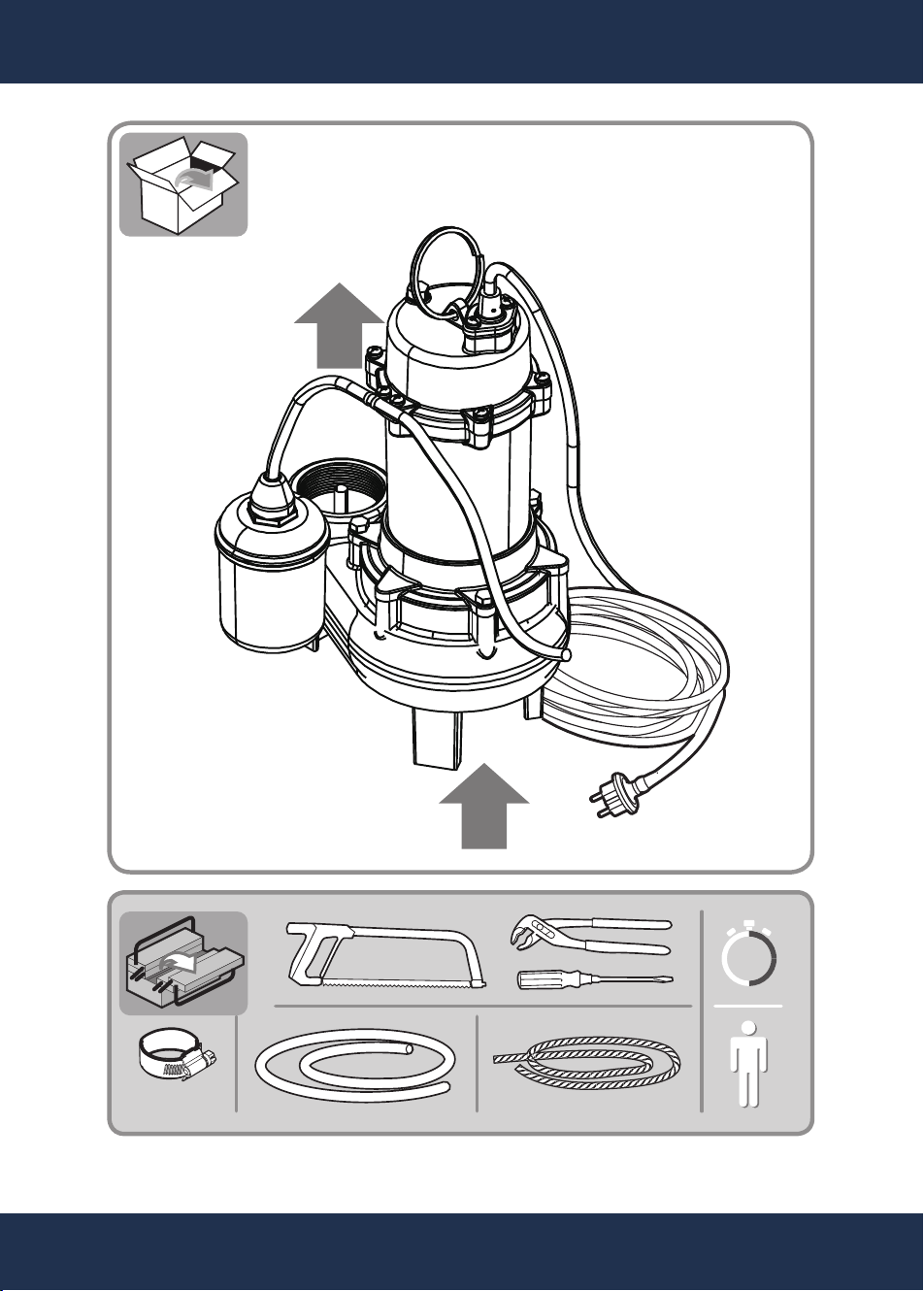

QUICK START
IN
X1
30’
OUT
3

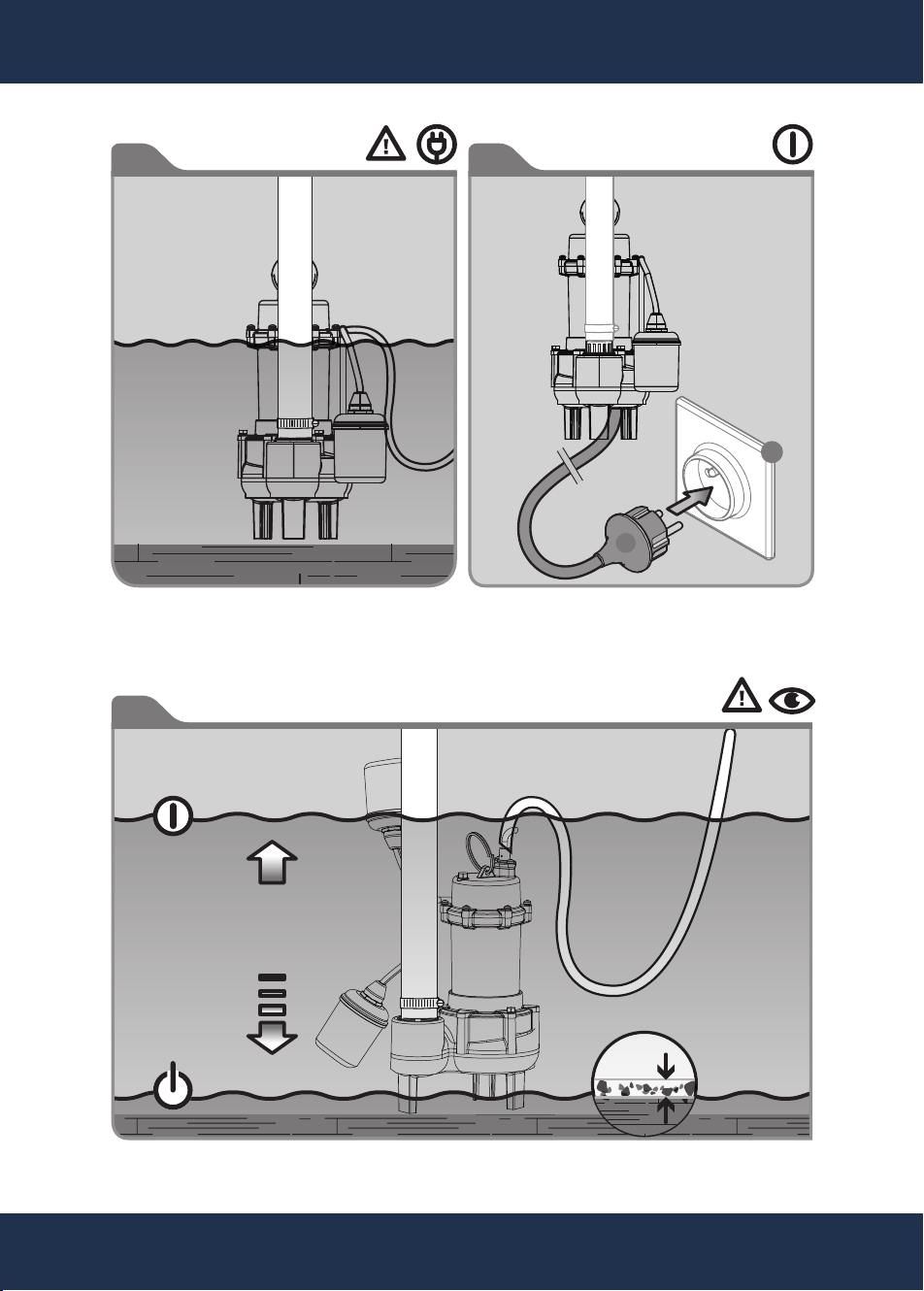

QUICK START

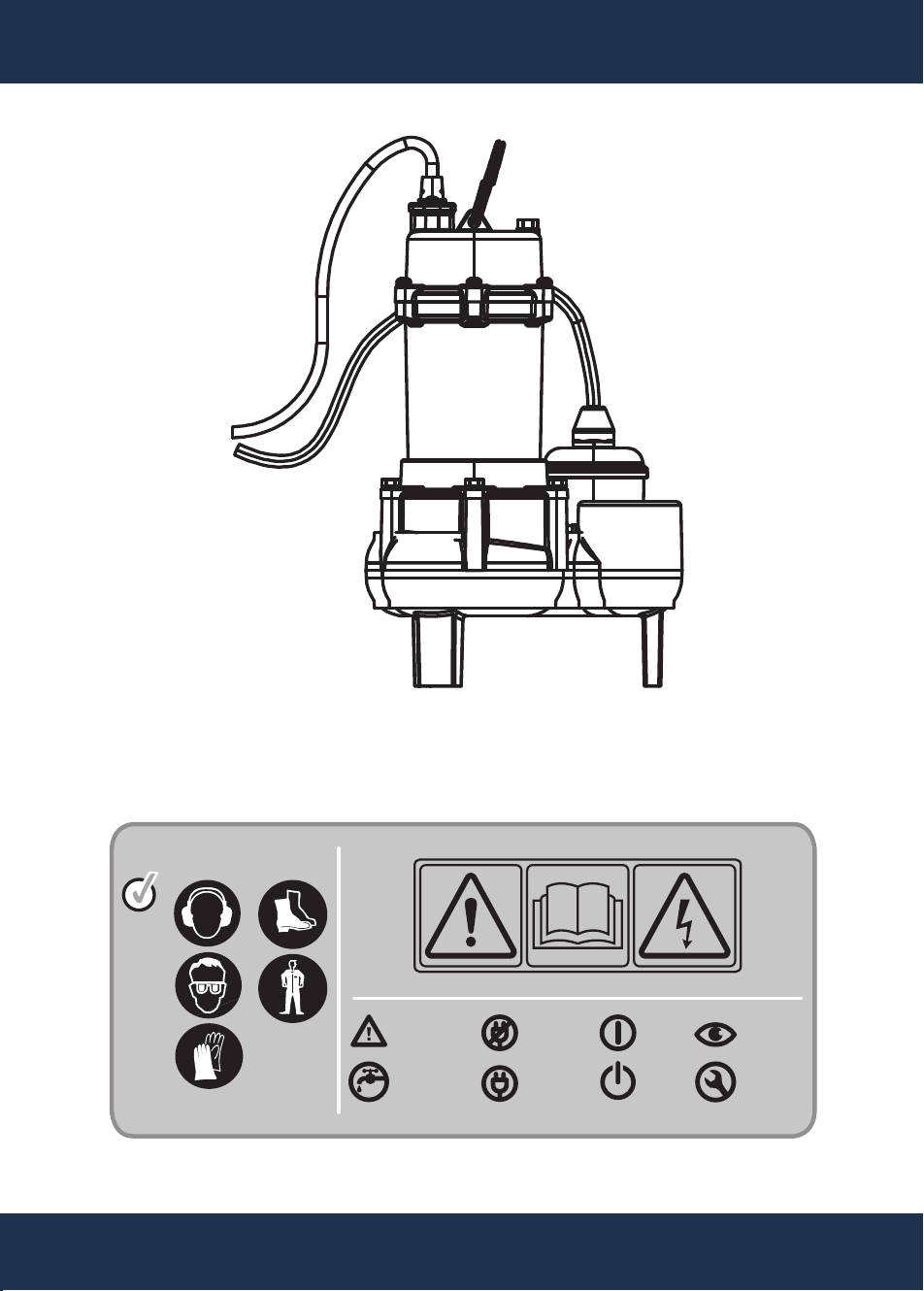

Attention danger
Observez
Not connected
Connected
Power up
Stop
Clean Water
Environment
Maintenance
4
QUICK START
2
1
NO
5

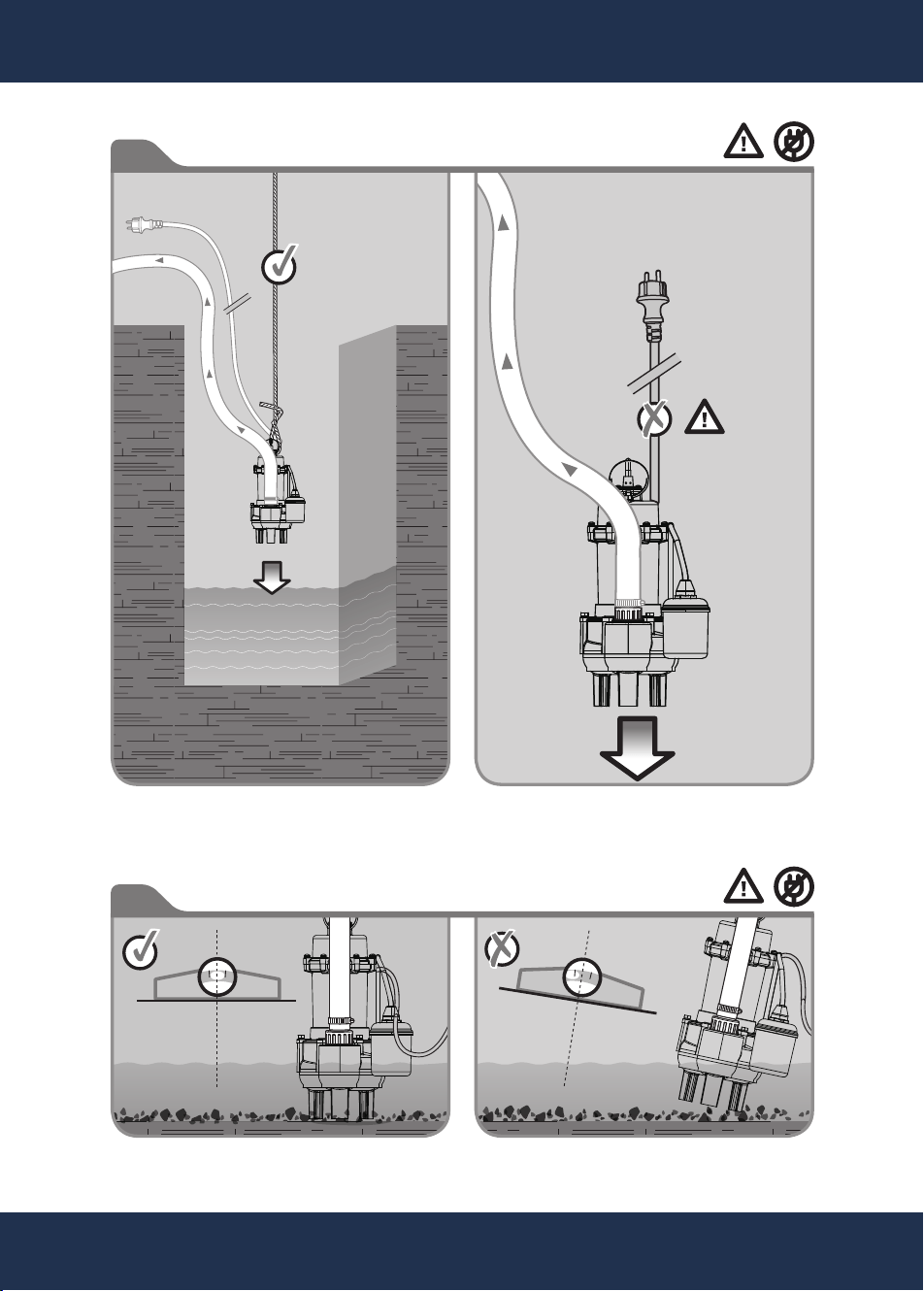

QUICK START
A
B
43
5
ON
OFF
Grain Size
2 INCH
6
INTRODUCTION AND SAFETY
Thank you for purchasing this product.Please read these
instructions, and keep them for future reference.
This tool is an electric pump. It is used for pumping water and
other similar water applications.
After opening the package, please ensure that the products are
complete (if any).
If the products are damaged or there is something missing,
please do not use it and bring it back to your dealer.
If you give this tool to another person, please give him this
instruction manual.
Safety Instruction
1.All electrical sockets must be earthed.
2.No power cord should be used for transporting or fixing the
equipment.
3.Don't pull the power cord on the sharp edge and don't press
the power cord.
4.The power supply voltage must be the same as the voltage
given on the model board.
5.To avoid hazards, all installation and replacement of compo-
nents can only be carried out by authorized customer service
personnel.
6.Electrical connections can only be performed by electrical
professionals, and please comply with state regulations for this.
7.The pump must be connected with a current type leakage
current breaker which carry a rated leakage current of no more
than 30 MA.
8.Check the connection of the plug before running. If the wire is
damaged, it must be replaced by the manufacturer, the agent or
the relevant technical personnel to avoid any danger.
2
7
INTRODUCTION AND SAFETY
9.The device is suitable for children at eight or older. People
with sensory or physical disabilities or deficiencies are required
to use under supervision or knowledge of safety, use and
danger. Children are not allowed to wash or maintain equipment
without supervision.
10.Liquid contamination may be caused by leakage of lubricat-
ing oil.
11.The water pump can be connected with a shock proof plug
installed in accordance with the regulations.
12.Do not use pumps when there is someone in the water.
13.When cleaning and maintaining, please disconnect the water
pump from the main power supply.
14.Please contact technical staff .
15.Connectors for power plugs and extension cables must be
made sure that they are watertight and must not be placed in
the water. Furthermore, connectors cannot be placed on
the ground. It is recommended to ensure that the outlet is at
least 60 mm from the ground.
Attention!
Danger!
None follow of the safety tips will have the life risk
brought by the current!
Danger type and source:
None follow of the safety tips will have the life risk
brought by the current!
Do not repair the power cord if there is any external
damage to the power cord or plug.
3
8
INSTALLATION AND COMMISSIONING
Long enough and strong ropes should be attached to thehandle
before the first use. When the pump is immersed into the liquid,
the rope along with a handle can be used to balance the pump.
Installation
The equipment requires an area of at least 2 x 2 FT.
Depth of equipment immersed in technical parameters.
When installing the equipment, make sure the open will not the
suction opening will not be blocked by foreign objects to keep
the equipment stable.
Attention!
Risk for equipment damage!
Do not lift the pump by cable or pressure hose,be-
cause these cables or pressure hoses are not
designed for tensile strength from pump weight.
The float switch must be able to move freely and the
submersible pump cannot be used in a dry environ-
ment.
Attention:
For rope handling: Do not operate the pump without
the pressure hose to prevent the pump from twist-
ing around its longitudinal axis. In continuous use
of a pump with a rope, the condition of the rope
must be checked periodically, as it may break with
increasing use time.
4
9
OPERATION
Connecting pressure pipe
- screw the pressure pipe onto the pressure connector. All joint
connections must be sealed with a threaded sealing stripe.
-When using the hose, screw the right hose adapter into the
pressure connector.
-Secure the hose firmly to the hose adapter and secure it with a
hose clamp.
If it is used occasionally, please use a suitable pipe. A rigid pipe
with a check valve is recommended for use in a fixed position.
This can be done at the close of the machine to prevent liquid
backflow.
Use a strong rope to connect the handle of the pump and dip it
into the liquid to be conveyed at a certain angle, so that the
lower side of the device has no bubble formation to prevent the
bubbles from being sucked in. Put the equipment down slowly,
and once the pump is submerged, it can be adjusted again. The
pump is arranged at the bottom of a liquid container, Fasten the
end of the rope after lowering so that the pump can also be
handled when hanging on the rope. The pump can work after
the device is connected to the main power source.
5
TROUBLE SHOOTING
Error
The pump
cannot
start
No water
The pump
cannot
close
Too small
flow rate
1.Unconnected power.
2.The float switch is
not turned on.
1.Inlet obstruction.
2.The pressure hose
is bent .
1.The floater cannot
sink.
1.Inlet obstruction.
2.Debris and particles
cause the wear of a
critical part of the
pump which reduces
the flow of the pump.
1.Check power supply.
2.Lift the float switch up.
1.Clean the inlet .
2.Adjusting hose .
1.Put the pump in the
vertical well bottom
correctly.
1.Clean the inlet.
2.Clean the pump and
replace worn parts.
Reasons Errorshooting
In most cases, you will be able to troubleshoot problems easily
by yourself. Before you contact us, please refer to the following
table for technical support. This will help you save a lot of work
and possible expenses.
1.If the water is too
dirty, the pump may
stall, and the heat
protector will cut off
the water pump motor
power supply .
2.If the water tempera-
ture is too high, the
heat protector will cut
off the water pump
motor power supply .
Close the
pump
after a
short
period
of time
1.Disconnect the main
power supply and clean
the water pump .
2.Ensure that the maxi-
mum water temperature is
not exceeded 95 °F.
10
6
MAINTENANCE
Clean the equipment from the outside.
Flush with clean water. Use brush and detergent to remove
stubborn pollution. Immerse the pump into a container with
clean water, open it for running a while, and flush it in the pump.
Storage
If there is a risk of frost, remove equipment and accessories,
and clean and store it a place protected from frost.
Using scope
The pump is mainly used in a basement. When installed at the
bottom of the shaft, the pump prevents seeper in the basement.
It can also be used for water supply and drainage, such as
household, agriculture, gardening, pipelines and other suitable
occasions.
Process equipment
Products marked with adjacent symbols shall not be treated as
domestic rubbish. You must deal with these old electrical and
electronic equipment separately.
Please contact local authorities to see if they can be handled
properly. Make the old equipment available for recycling,pro-
cessing, or other forms of second use by separate handling.
You can avoid polluting the environment by doing so.
Disposal packaging
The packing is made of cardboard and corresponding marking
plastic. These materials can be recycled.
Attention:
Before using the pump again, first "clean" to pre-
vent any possible dirt residue which could affect
the equipment operation.
Attention!
Risk for equipment damage!
Frost will destroy electrical appliances and
accessories, because they always contain water.
11
7
SPECIFICATION
12
Max.Medium
Temperature
Model
Nominal Voltage
Horsepower
Protection Type
Max. Flow Rate
Max. Head
Max.Grain Size
95 °F
76061
115 V / 60 HZ
1/2 HP
IPX 8
30 FT
4861 GPH
2 INCH
Attention!
Risk for equipment damage!
The particle size mentioned cannot be used for
simple gravel or stone, but suitable for soft, vari-
ability of particles or similar things which cannot
put into the water pump.
7

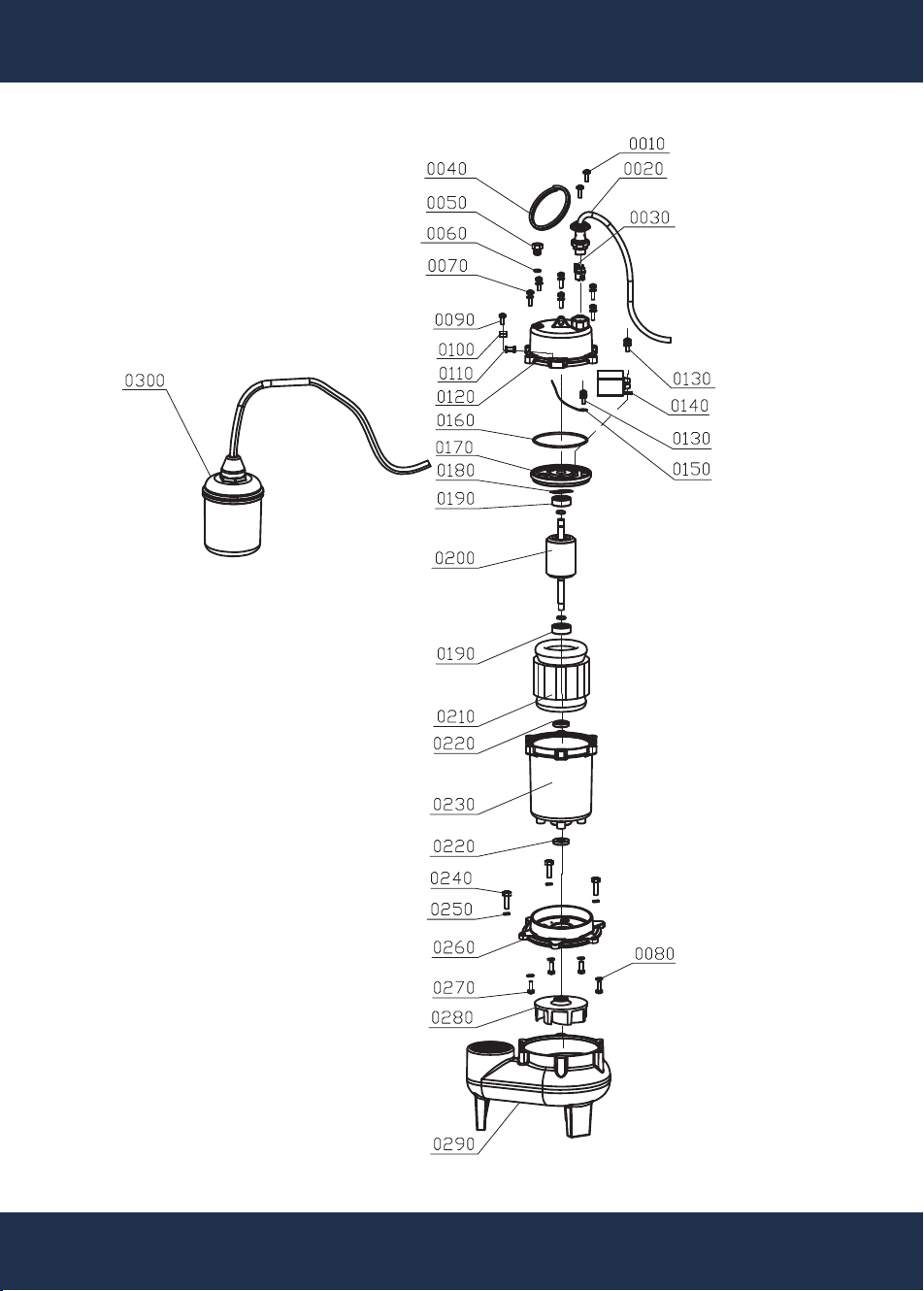

PARTS DIAGRAM
13
PARTS INFORMATION
14
Item
0010
0020
0030
0040
0050
0060
0070
0080
0090
0100
0110
0120
0130
0140
0150
0160
0170
0180
0190
0200
0210
0220
0230
0240
0250
0260
0270
0280
0290
0300
Parts No.
GB818 M4×15-201
JHCT087.48.043
JHCT077.03.009
JHCT002.11.009
JHCT077.01.020
JHCT051.01.224
GB/T9074.3-M5×20.0-
GB93 5-201
GB818 M4*10-201
JHCT012.03.001
JHCT052.01.048
JHCT003.06.025
GB9074.1 M4*8
JHCT084.06.006
JHBZ033.01.011
JHCT051.01.011
JHCT026.02.042
JHCT038.01.006
GB/T276 6200-2Z
JHCT023.01.408
JHCT022.02.335
JHCT051.03.012
JHCT024.16.023
GB/T5781 M6×16-201
GB93 6-201
JHCT006.12.070
GB818 M5*15-201
JHCT009.03.196
JHCT006.12.050
JHBZ007.01.054
Description
Cross Head Tapping Screw
Power Cord
Pin
Ring Handle
Sealing Bolt
O-Ring
Screw Assembly
Spring Washer
Cross Head Tapping Screw
Clip
Cable Sheath
Pump Upper Cover
Screw Assembly
Capacitor
Earthing Conductor
O-Ring
Aluminum Rear Cover
Corrugated Gasket
Bearing
Rotor
Stator
Skeleton Seal Ring
Motor Case
Hexagon Head Bolt
Spring Washer
Pump Case
Cross Head Tapping Screw
Impeller
Pump Base
Float Switch
Qty.
2
1
1
1
1
1
6
4
1
1
1
1
2
1
1
1
1
1
2
1
1
2
1
3
3
1
4
1
1
1
PCS
PC
PC
PC
PC
PC
PCS
PCS
PC
PC
PC
PC
PCS
PC
PC
PC
PC
PC
PCS
PC
PC
PCS
PC
PCS
PCS
PC
PCS
PC
PC
PCS
8
DISCLAIMER
15
CUSTOMER SERVICE
If you have any questions about ordering our outdoor furnitures and replacement parts or other furniture
products, please feel free to contact us using the following contact information:
Customer Service and Technical Support
Phone: (909) 628-0880
Email: [email protected]
Hours of Operation: Monday – Friday, 9AM – 4PM (CST)
DISCLAIMER
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for
reference purposes only. They do not make any representation or warranty to the buyer that they are qualified
to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor
expressly state that all repairs and parts replacements should be undertaken by certified and licensed
technicians, and not by the buyer.
The buyer assumes all risk and liability arising from their repairs to the original product or replacement parts
or arising from their installation of replacement parts. It is strongly advised that qualified professionals handle
any repairs or replacements to ensure safety and proper functioning of the product. Improper installation and
operation may result in injury, property damage, or voiding of warranty. The manufacturer and/or distributor
shall not be held responsible for any accidents, damages, or malfunctions resulting from the buyer's
installation and operation of the product. It is essential to follow all safety guidelines and recommendations
provided in this manual and to seek professional assistance if unsure about the installation or operation
procedures.
