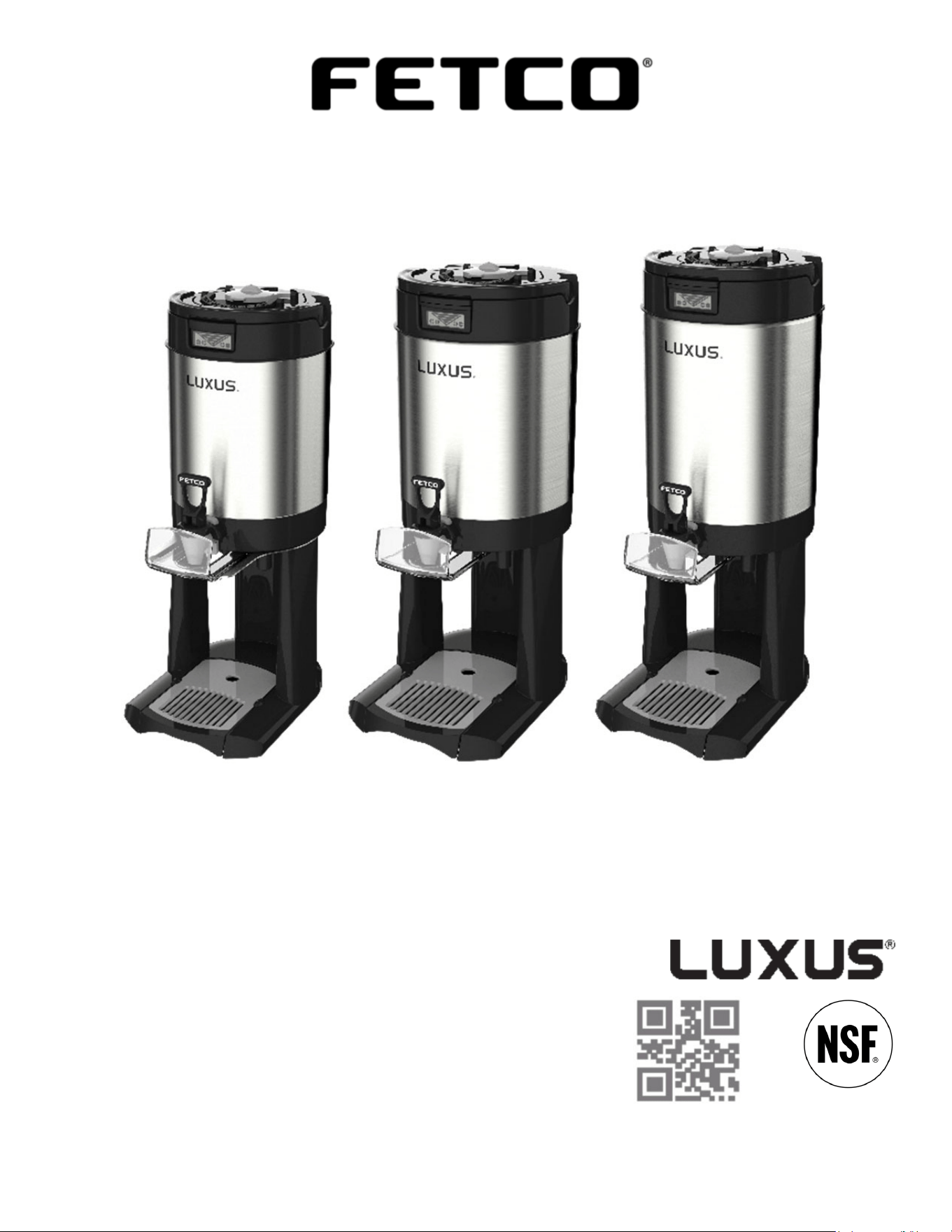

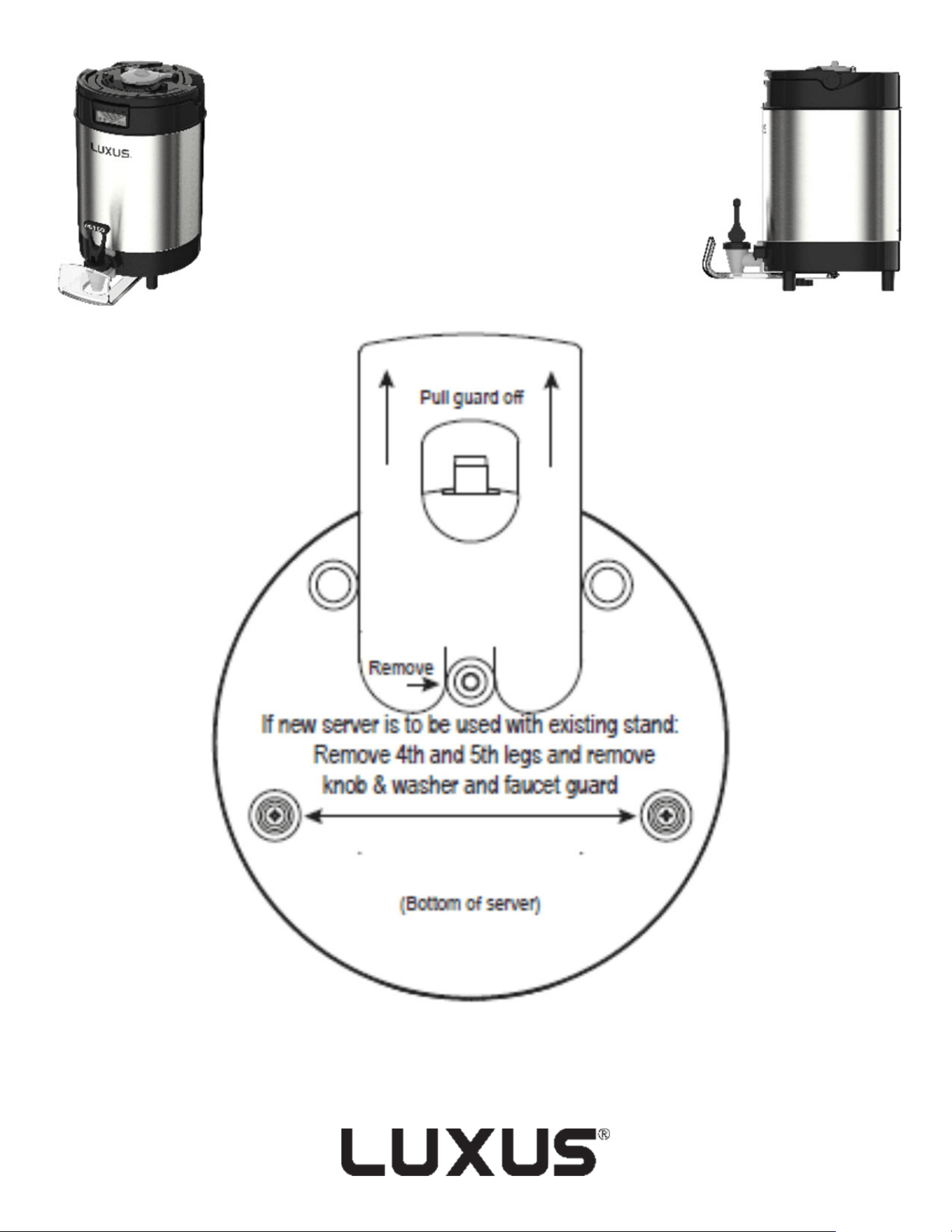

L4D-10 L4D-15 L4D-20
1 gallon 1½ gallon 2 gallon
D448 D449 D450
LUXUS
®
L4D & L4S Thermal Dispensers
User’s Guide
©2017-2020 Food Equipment Technolo
g
ies-FETCO
®
600 Rose Rd. Lake Zurich, IL 60047-0429 USA
: (800) 338-2699 or (847) 719-3000
website: www.fetco.com email: [email protected]
To purchase products or parts: orders@fetco.com
For parts or service inquires: techsu[email protected]om
PATENTED PATENTS: WWW.fetco.com/
p
atents P157 Rev.:001 Januar
y
2020
fetco.com

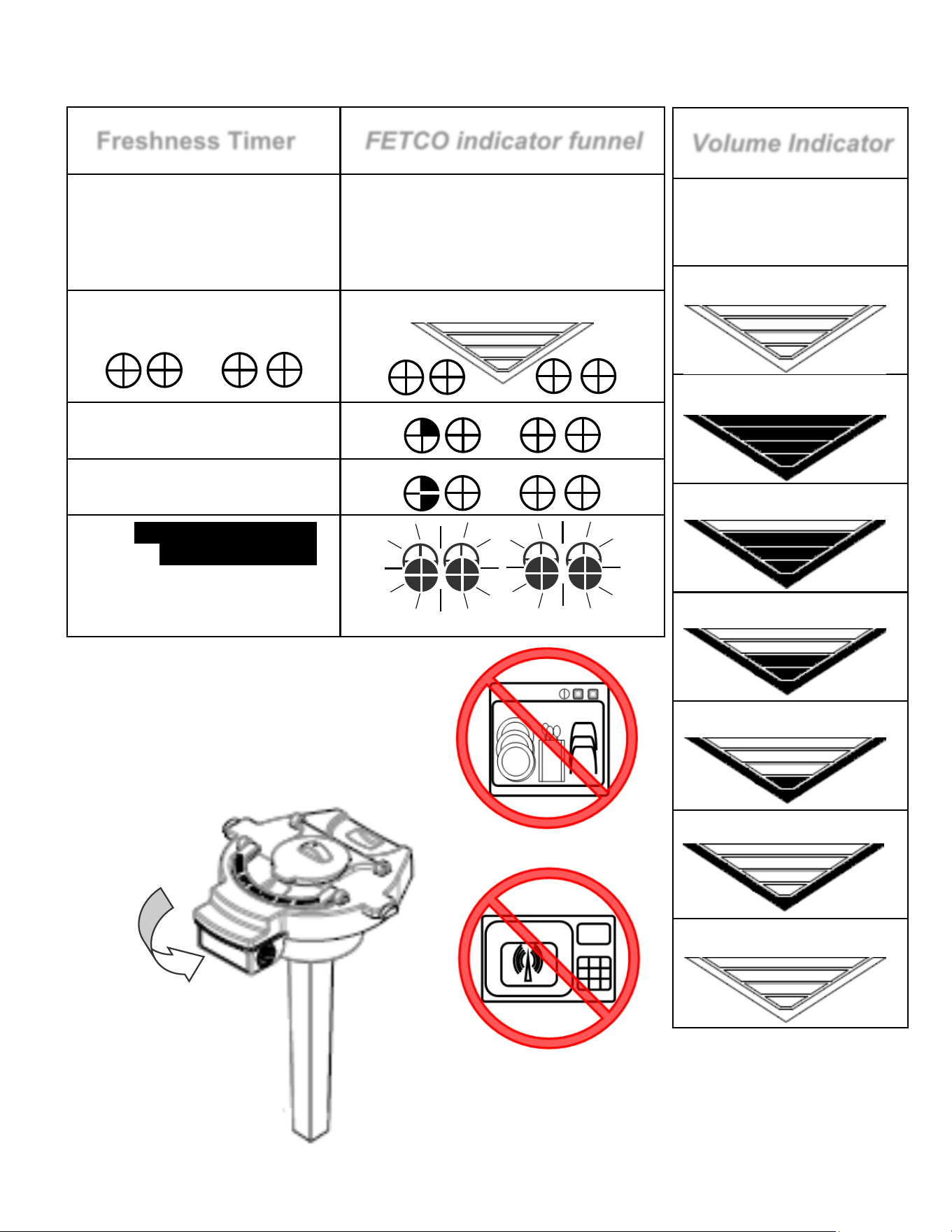

BREW FUNNEL DISPLAY
Volume Indicator
Lower “VEE”+ four upper
bars represent 20%
increments of fill level of
the dispenser
”READY” TO BREW”
Fifth Level-FULL
Fourth Level=80%filled
Third Level= 60% filled
Second Level=40% filled
First Level=20% filled
DISPENSER EMPTY
Freshness Timer
®
FETCO indicator funnel
Quad icons, each divided into
quarter hours segments—The
four icons represent a time
range of four hours
Blank indicator funnel display is
shown, dispenser is “Ready” for
brewing
BLANK: Empty—Ready To Brew
1-15…minute time range
16-30…minute time range
…Some displays are
omitted for clarity
Slowly pulsing display:
…more than 4 hours
…Active On & Off…
NO DISHWASHER
NO MICROWAVE
Clean and dry funnel
by hand only
Time is reset when dispenser is
completely emptied, when funnel is
removed, or when enough liquid is
added to increase the volume by at
least one level
FUNNEL
DISPLAY
Maintaining
The L4 Funnel

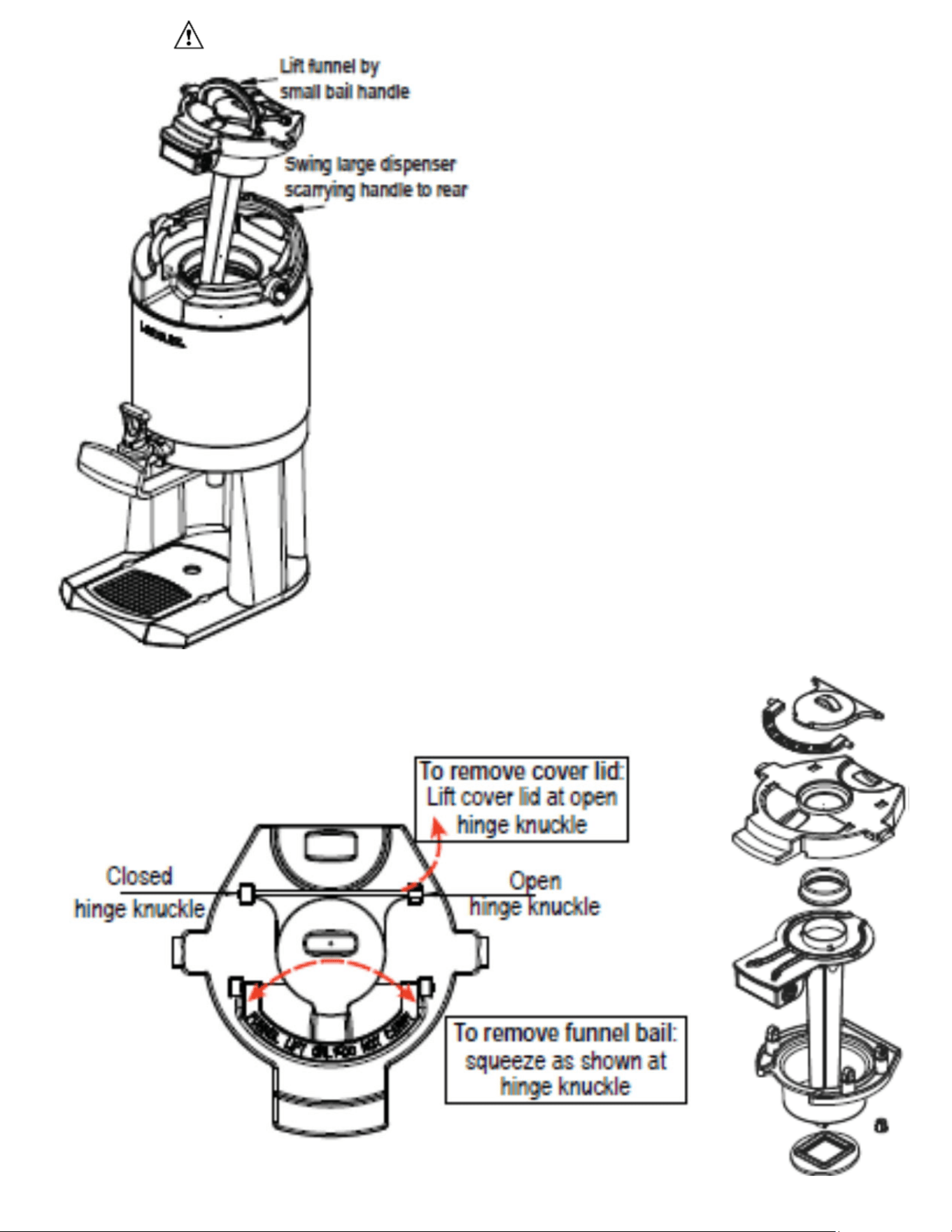

TO REMOVE FUNNEL ASSEMBLY
NOTE:
NEVER carry dispenser by the bail handle
-Swing large carrying handle to rear
-Lift funnel by small bail handle
Important Notice: To maintain proper
operation of the funnel display, clean
the funnel stem daily under running
water with detergent and sponge,
or non-abrasive pad or towel.
Do not submerge
Brew funnel must be removed for
manual filling of dispenser.
Removing the funnel resets timer.
To extend battery life, remove the
funnel when not in use.
(Battery cannot be replaced.)
TO ACCESS BREW FUNNEL
Remove both plug and bail handle
-Snap cover out at OPEN hinge knuckle
-Squeeze funnel bail inward at knuckles
to remove
IMPORTANT SAFEGUARDS
To prevent overflows, make sure the dispenser is completely
empty before brewing.
Always remove the funnel for manual filling of the dispenser.
Use only the large handle to lift or carry the dispenser.
NEVER use the small funnel bail to lift or carry the dispenser
Do not use the faucet guard to pull or lift the dispenser.
Do not submerge the brew funnel
Do not use bleach or cleaners containing chlorides.
Do not use solvent based cleaner or polish on this equipment
Never use a cleaner on any food equipment that contains the
solvent diethylene glycol butyl ether (DGBE) .
Use only non-metallic brushes and non-abrasive cleaning pads.
CLEANING AND MAINTENANCE
Detailed instructions are available on our web site, www.fetco.com.
Daily:
Important Notice: To maintain proper operation of the funnel
display, clean the funnel stem daily under running water with
detergent and a non-abrasive sponge or towel.
DO NOT SUBMERGE FUNNEL OR DISPENSER.
Use any commercial beverage urn cleaner to clean the inside of the
dispenser. Follow the cleaner manufacturer’s instructions. Make
sure to thoroughly rinse the dispenser after cleaning.
Wash the drip tray and other plastic parts with dish detergent.
Avoid abrasives.
To sanitize the dispenser before filling, brew a batch of water only
(no coffee) into the dispenser and allow it to rest for 10 minutes.
Weekly, or as needed:
Remove the faucet upper assembly and inspect the seat cup for
wear. Clean or replace if necessary.

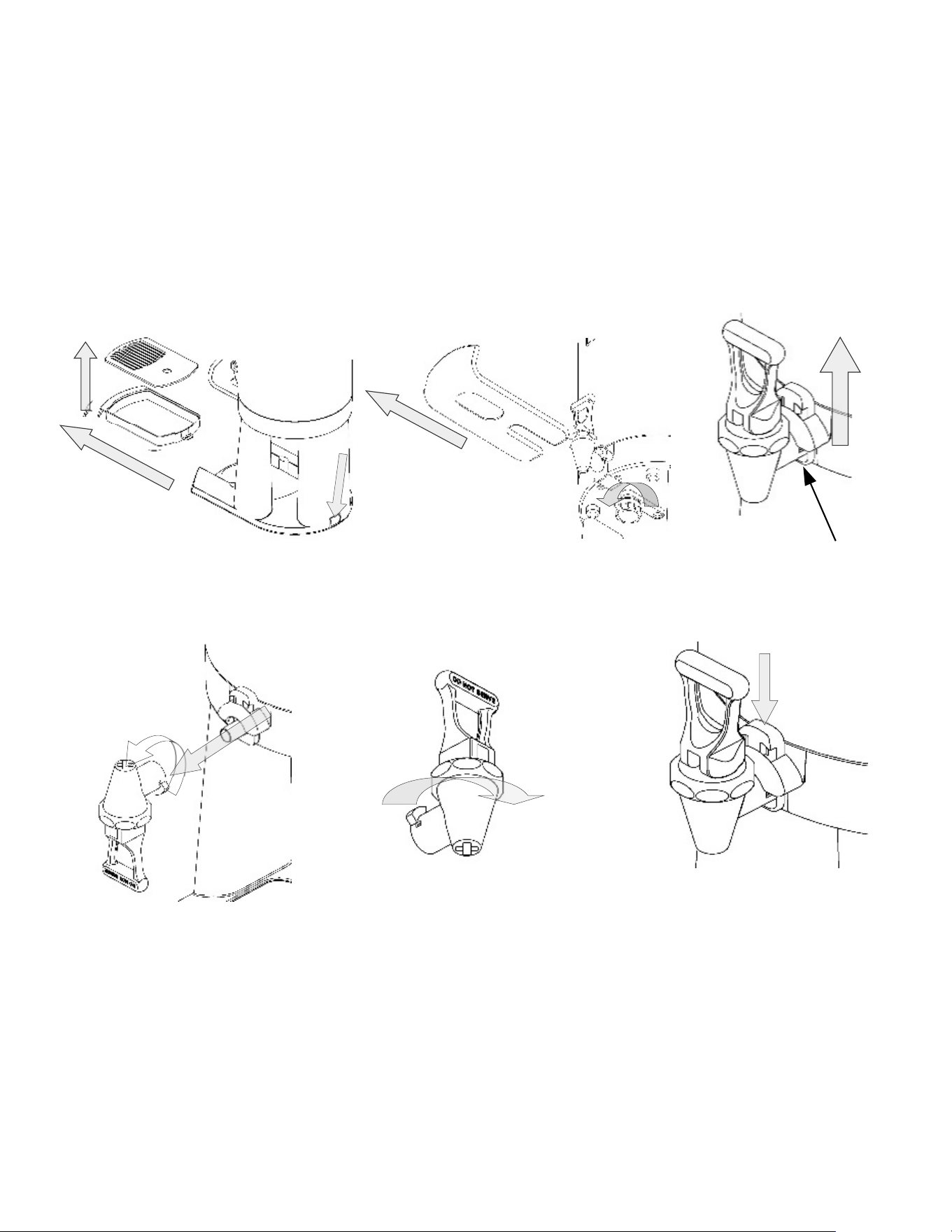

Accessing Dispenser Parts
REMOVING THE DRIP TRAY REMOVING THE FAUCET GUARD REMOVING THE FAUCET
1) Unscrew knob approximately
four turns
2) Slide faucet guard out.
Slide drip tray out
latch release knob Press faucet
release latch up.
Rotate faucet 180°
and pull it out
Unscrew faucet upper Reverse procedure to re-install
assembly to clean or faucet. Press release latch down
replace seat cup. to lock faucet into place--!!Click!!
Hand tighten only! Last: Reinstall faucet guard

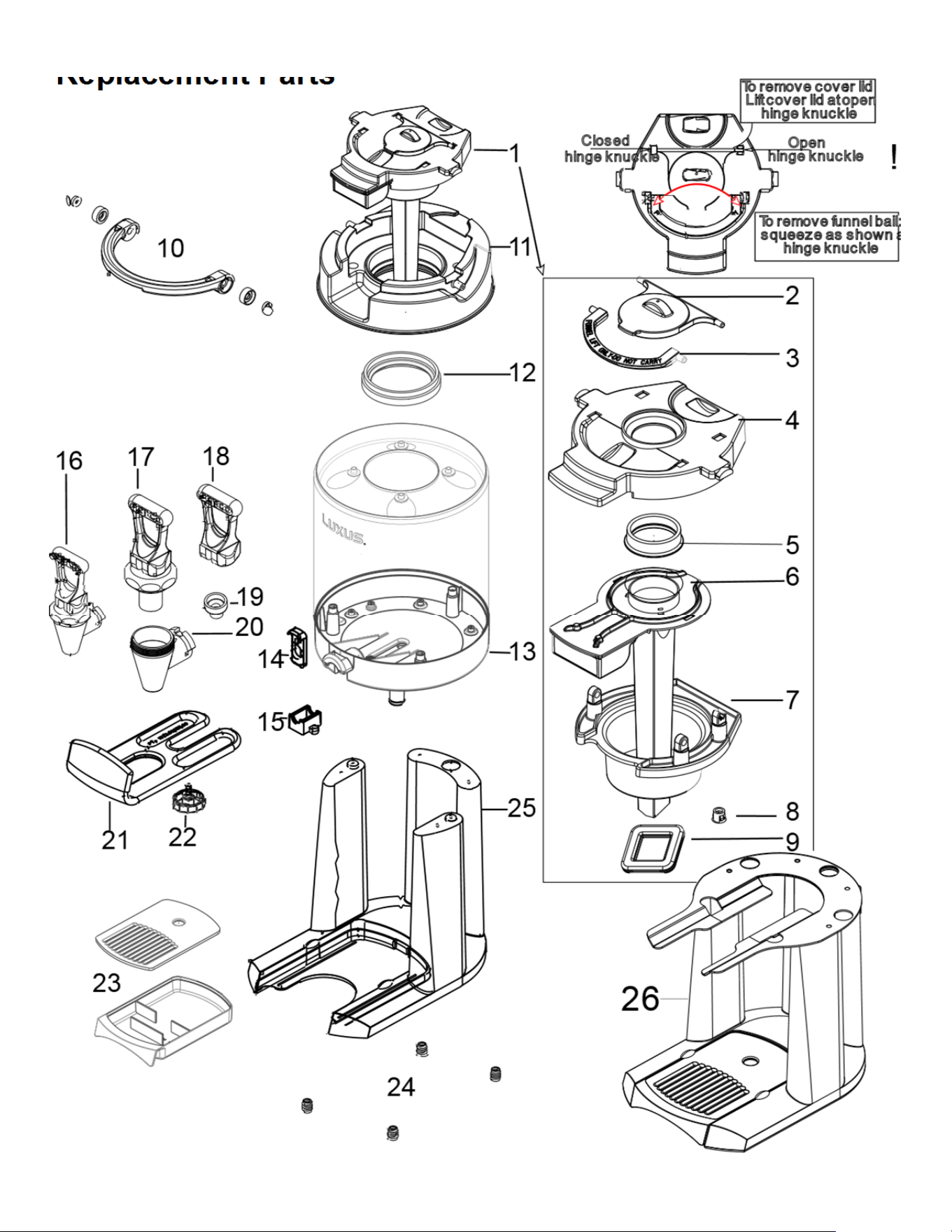

Replacement Parts
# Description
L4D10 & L4S10 L4D15 & L4S15 L4D20 & L4S20
1 Funnel Assembly complete Black plug 1.0 1102.00350.BK
1 Funnel Assembly complete Grey plug 1.0 1102.00350.GY
1 Funnel Assembly complete Black plug 1.5 1102.00347.BK
1 Funnel Assembly complete -Grey plug 1.5 1102.00347.GY
1 Funnel Assembly complete Black plug 2.0 1102.00366.BK
1 Funnel Assembly complete -Grey plug 2.0 1102.00366.GY
2 Plug Cover - Gray [GR] 1023.00277.GY 1023.00277.GY 1023.00277.GY
2 Plug Cover - Black [BK] 1023.00277.BK 1023.00277.BK 1023.00277.BK
3 Funnel Bail Handle 1023.00278.00 1023.00278.00 1023.00278.00
4 Funnel Top Cove
r
1023.00283.00 1023.00279.00 1023.00279.00
5 Funnel Top Gasket 1029.00014.00 1029.00016.00 1029.00016.00
6 Indicator Funnel (L410) 1102.00142.00
6 Indicator Funnel (L4S/L4D 15) 1102.00149.00
6 Indicator Funnel (L4S/L4D 20) 1102.00175.00
7 Funnel Cup (L410; L4S/L4D 15/20) 1023.00285.00 1023.00281.00 1023.00281.00
8 Funnel Plug 1029.00010.00 1029.00010.00 1029.00010.00
9 Funnel Bottom Gasket (L410; L4S/L4D 15/20) 1029.00013.00 1029.00015.00 1029.00015.00
10 Handle With Hardware (L410; L4S/L4D 15/20) 1000.00111.00 1000.00112.00 1000.00112.00
11 Top L4D (L4S/L4D 15/20) 1023.00286.00 1023.00282.00 1023.00282.00
12 Neck Gasket 1024.00070.00 1024.00070.00 1024.00070.00
13 Bottom (L410; L4S/L4D 15/20) 1102.00363.00 1102.00361.00 1102.00361.00
14 Faucet Lock 1023.00069.00 1023.00069.00 1023.00069.00
15 Insert, Bottom 1023.00083.00 1023.00067.00 1023.00067.00
16 Faucet Assembly Complete 1102.00055.00 1102.00055.00 1102.00055.00
17 Faucet Upper Assy Black (Standard) 1071.00020.00 1071.00020.00 1071.00020.00
*17B Faucet Upper Assy Orange Handle“DECAF” 1071.00030.00 1071.00030.00 1071.00030.00
*17C Faucet Upper Assy Green Handle 1071.00031.00 1071.00031.00 1071.00031.00
*17D Faucet Upper Assy Blue Handle 1071.00032.00 1071.00032.00 1071.00032.00
18 Faucet Handle, Black (Standard) 1071.00022.00 1071.00022.00 1071.00022.00
* 8B Faucet Handle, Red “HOT WATER” 1071.00040.00 1071.00040.00 1071.00040.00
19 Faucet Seat Cup 1071.00013.00 1071.00013.00 1071.00013.00
20 Faucet Housing Assy 1000.00012.00 1000.00012.00 1000.00012.00
21 Faucet Guard (L410; L4S/L4D 15/20) 1023.00076.00 1023.00055.00 1023.00055.00
22 Knob & Washer (Faucet Guard) 1000.00010.00 1000.00010.00 1000.00010.00
23 Drip Tray Assy (L410; L4S/L4D 15/20) 1000.00013.00 1000.00014.00 1000.00014.00
24
A
nti-Slip Foot 1024.00069.00 1024.00069.00 1024.00069.00
25 Stand Assy (L410; L4S/L4D 15/20) 1000.00015.00 1000.00016.00 1000.00016.00
26 Stand
A
ssy (L410; L4S/L4D 15/20) Single A14700000
A
15000000
A
15000000
*26B Stand Assy (L410; L4S/L4D 15/20)Twin A14800000
A
15100000
A
15100000
*26C Stand Assy (L410; L4S/L4D 15/20) Triple A14900000 A15200000 A15200000
* (NOT SHOWN)
