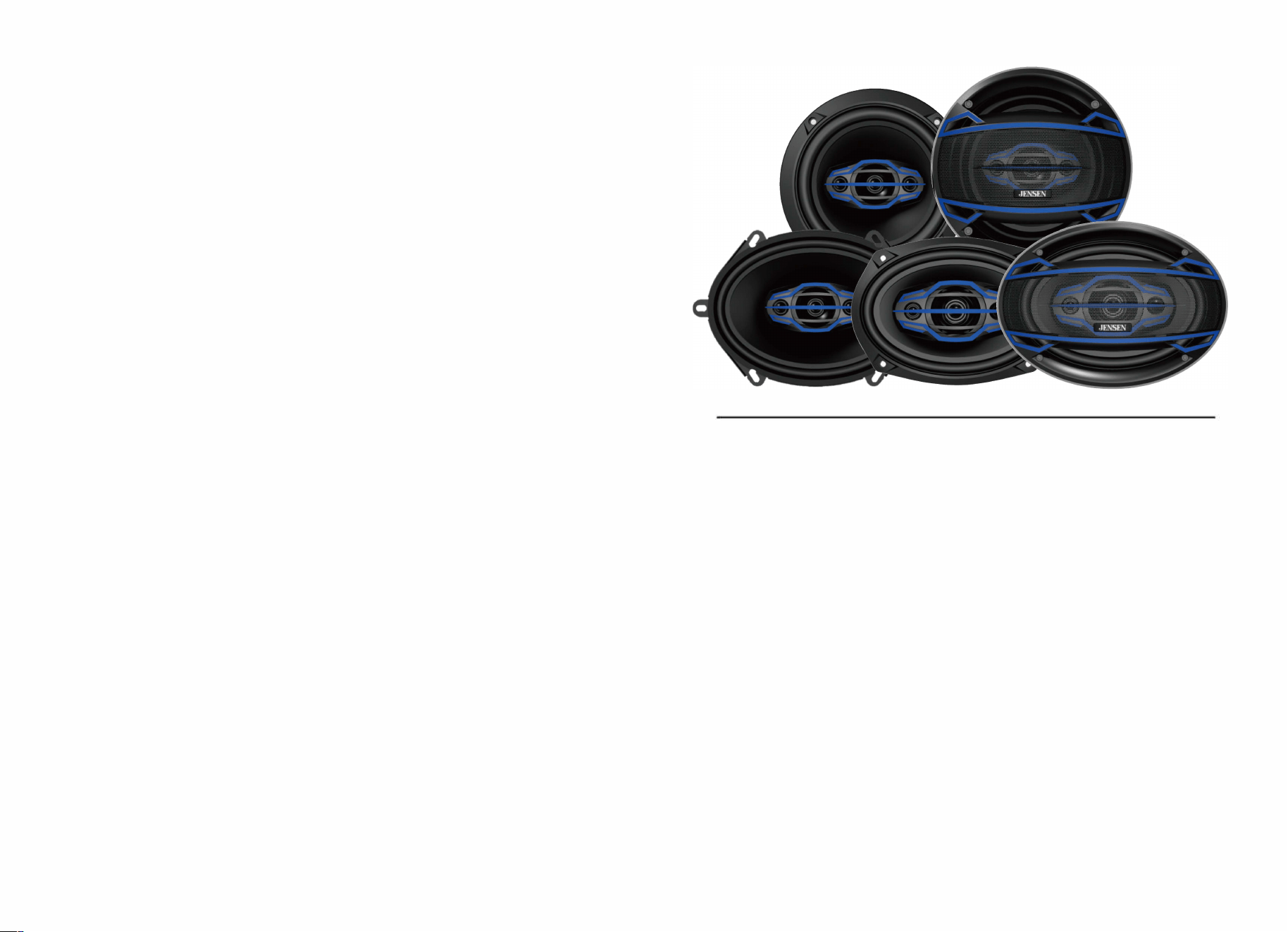

JS6504
JS6804
JS6904
INSTALLATION/OWNER
1
S MANUAL
r Audio Speake
JENSEN
®
JEEN·
Installation
Thank you for purchasing the
J
S Series car speakers. Although
J
ensen has attempted
to make sure all of the information contained within this manual is accurate. please
be aware that any part of it is subject to change without notice.
The following instructions should be used a general guideline only .
CAUTION
If you are unsure about performing any of the procedures listed
below. please consult a professional car audio installation center.
Be installation. please llow these guidelines,
1. Be sure to carefully read and understand the instructions before attempting to install
this product.
2. For safety. disconnect the negative terminal from the battery prior to beginning the
installation.
3. Use the highest quality connecto for a reliable installation and to minimize signal or
power loss.
4. Use caution before you drill or cut! Be careful not to cut or drill into gas tanks. fuel
lines. brake or hydraulic lines. vacuum lines or electrical wiring when working on any
vehicle.
5. Never run speaker wires underneath your vehicle. Running speaker wires inside the
vehicle provides the best protection from exhaust heat and environmental elements.
6. Avoid running wires over. near. or through sharp edged surfaces. Use rubber
grommets to protect any wires routed through metal.
7. When running the speaker cable from the amplifier. avoid running it near sources of
high current (i.e. wiring harnesses. battery cables).
2
JEEN·
Notes
7
JEEN·
Registtion
6
For ur Records
Please keep your original sales receipt and be prepared
to provide it in the event you require seice. Your original
receipt is considered the best proof of purchase and
indicates the date you purchased your Jensen product.
Dealer Name
Dealer Phone
Purchase Date __________ _
Register ur Pdu
Register your product on line at www.jensenmobile.com
JEEN·
Mounting
1. Determine where the speake will be mounted. Make sure the area is large enough
for the speaker to mount evenly. Also ensure the mounting location is deep enough for
the speaker to fit.
2. Refer to the specification chart to determine the proper diameter hole to cut for your
speaker model.
3. If needed. use the grille as a template to mark the locations for the mounting screws.
Drill the holes with a 3/32" bit.
4. Be sure to obsee proper polarity when connecting the wires. The speaker's positive
terminal is indicated with a "+" symbol.
5. Fit the speaker to the hole cut-out and mount using the supplied screws. If using the
speaker grille. insert 4 screws into the grille holes and mount the speaker.
JS6904
ti
tt .
JS6504
JS6804
3
JEEN·
Specifitions
-O OIAMER
TOP-MOUNTING OE BOOM-MOUNTING OE
The above diagram is to be used with the specifications matrix guide below.
Design and specifications subject to change without notice.
