T-01753A, T-02917
BUMP & FEED TRIMMER HEAD

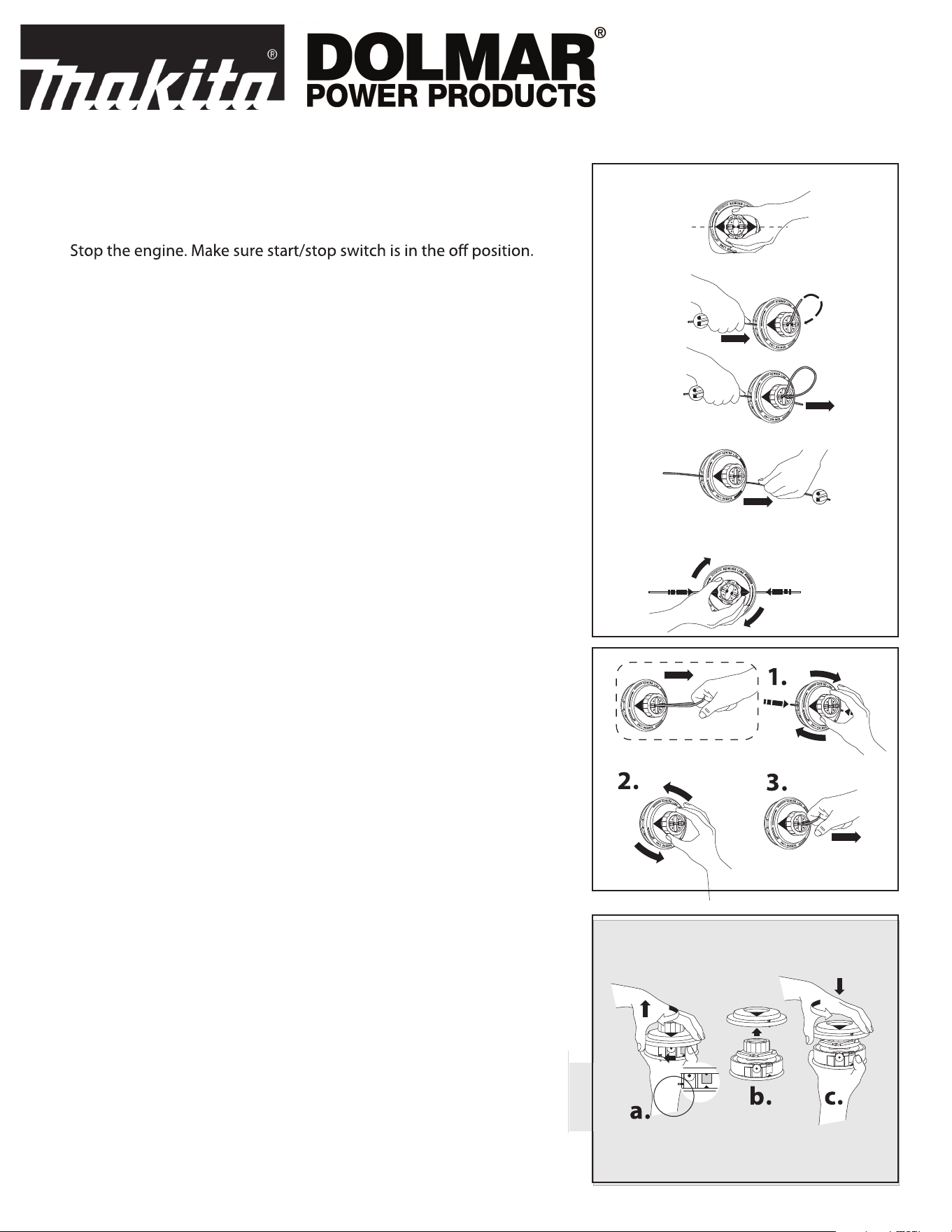

Align arrow on spool with eyelets on housing.
Insert two ends of one piece of nylon trimmer line into holes on top
of spool. Or insert one end of trimmer line into eyelet on the side of
housing, feed through hole on top of spool and then re-insert into
second hole on top of spool. Push line into holes until line feeds
through eyelets on side of housing.
Push line into holes feeding through eyelets on side of housing until
equal length on both sides.
Hold housing securely and turn spool clockwise to wind line into
spool.
REMOVAL OF LINE FROM HEAD:
HEAD DISASSEMBLY AND ASSEMBLY:
LINE LOADING INSTRUCTIONS:
Hold housing securely and turn spool clockwise until remaining line
retracts into housing, and turn back and forth to relieve line stress.
The trimmer head can be disassembled for replacement of worn parts
and/or loading of trimmer line while disassembled.
To disassemble; Press the tab on the side of the housing.
Rotate the cover clockwise to unlock.
Remove the cover.
Take care not to lose any parts.
Align the arrow on the housing with arrow on the cover.
Assure all the tabs slide into the cover.
Rotate the cover counter clockwise to lock it into place.
Grasp loop on top of spool and pull remaining line from spool
(1)
(2)
Line loading is easier if the end of the line is round and cut at an
angle to help guide through the trimmer head.
(3)
(1)
(2)
(1)
(1)
(2)
(3)
(2)
(3)
(4)
(5)
(4)
(5)
(6)
Assembly:
Disassembly:
