KOBE Range Hoods
Premium Series
CH22 SQB6-XX Series
Model No.:
Under Cabinet:
CH2230SQB6-XX (30”)
CH2236SQB6-XX (36”)
Wall Mount
CH2230SQB6-WM-XX (30”)
CH2236SQB6-WM-XX (36”)
INSTALLATION INSTRUCTIONS
AND OPERATION MANUAL
IMPORTANT
READ THIS FIRST
READ BEFORE INSTALLATION
1. Carefully check all contents of packages.
2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.
3. Have a certified contractor/electrician test the unit before installation.
IF THERE IS ANY PROBLEM:
1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL
PACKAGING MATERIAL.
2. Have your original invoice as proof of purchase and product serial
number ready.
3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.
4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to
customer.service@koberangehoods.com.
NO RETURN, NO REFUND, NO EXCHANGE IF:
1. PRODUCT HAS BEEN INSTALLED
2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED
3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS
[ENGLISH]
- READ AND SAVE THESE INSTRUCTIONS -
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ......................................................................... 1
COMPONENTS OF PACKAGE ....................................................................................... 3
INSTALLATION ............................................................................................................... 4
OPERATING INSTRUCTIONS...................................................................................... 11
MAINTENANCE ............................................................................................................ 14
SPECIFICATIONS ......................................................................................................... 15

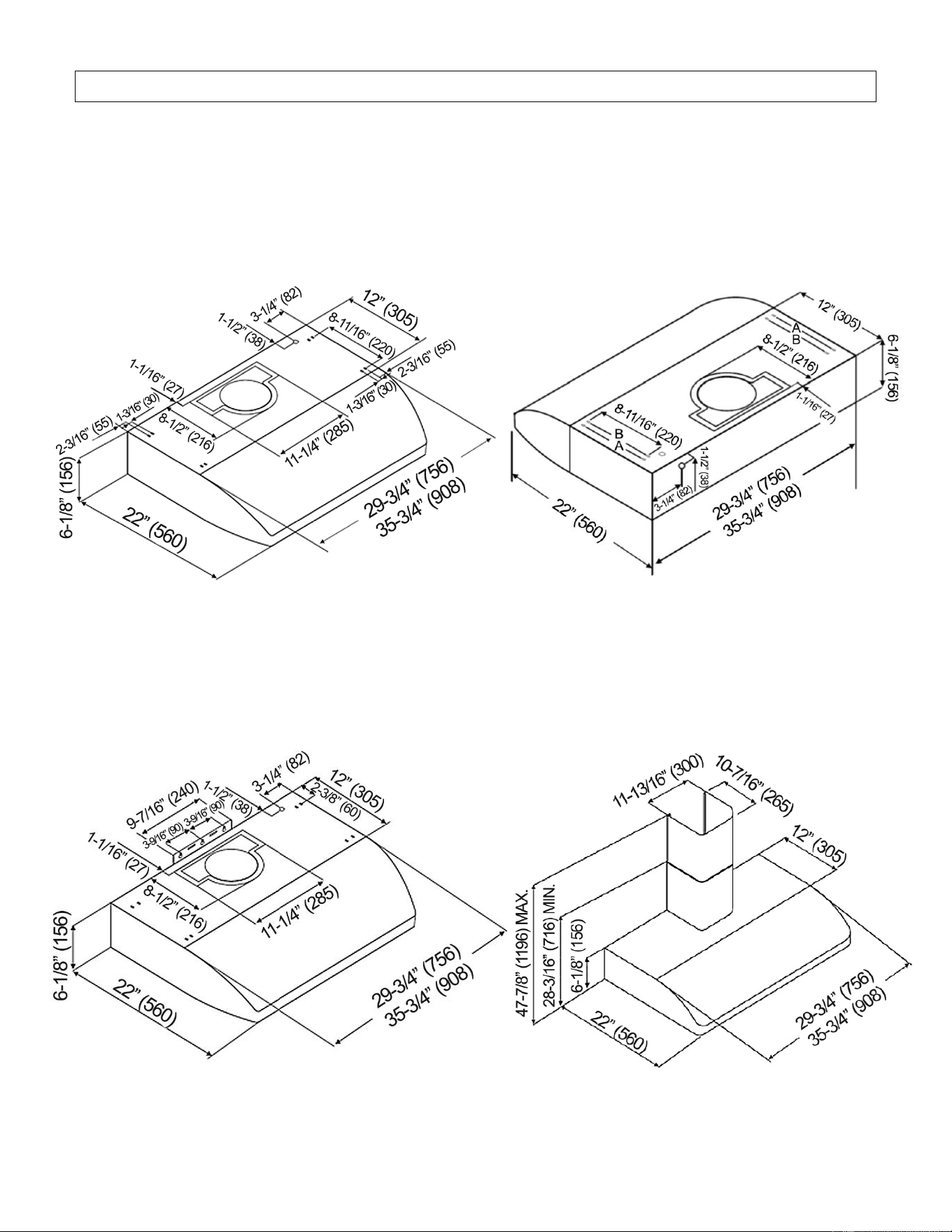

MEASUREMENTS & DIAGRAMS................................................................................. 16
PARTS LIST .................................................................................................................. 18
CIRCUIT DIAGRAM ...................................................................................................... 20
TROUBLE SHOOTING ................................................................................................. 21
WARRANTY .................................................................................................................. 22
WARRANTY INFORMATION FORM ............................................................................. 24
- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -
ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN
ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES
1
IMPORTANT SAFETY INSTRUCTIONS
- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING.
1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.
2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.
3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE
PANEL.
b) Clean all grease laden surfaces frequently. To reduce the risk of fire and disperse air properly,
make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.
NOTE
-
This warranty is void without an authorized agent’s receipt or if unit is
damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.
-
KOBE RANGE HOODS will not hold responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE
TOP GREASE FIRE:
1) Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.
2) Always turn hood ON when cooking.
3) Use high setting on cooking range ONLY when necessary.
4) Do not leave cooking range unattended when cooking.
5) Always use cookware and utensils appropriate for the type and amount of food prepared.
6) Use this unit only in the manner intended by the manufacturer.
7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.
8) Clean ventilating fan frequently.
2
What to Do In The Event Of a Range Top Grease Fire
1) SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not
go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
2) NEVER PICK UP A BURNING PAN – You May Get Burned.
3) DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.
4) Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.
What to Do If You Smell Gas
1) Extinguish any open flame.
2) Do not try to turn on the lights or any type of appliance.
3) Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.
CAUTION
1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.
2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion
and exhausting of gases through the flue (chimney) to prevent back drafting.
3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.
4) Activating any switch on may cause ignition or an explosion.
5) Due to the size and weight of this hood, installation by 2 persons is recommended.
ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amount of mercury, which must
be recycled or disposed of according to Local, State, and Federal Code.
3

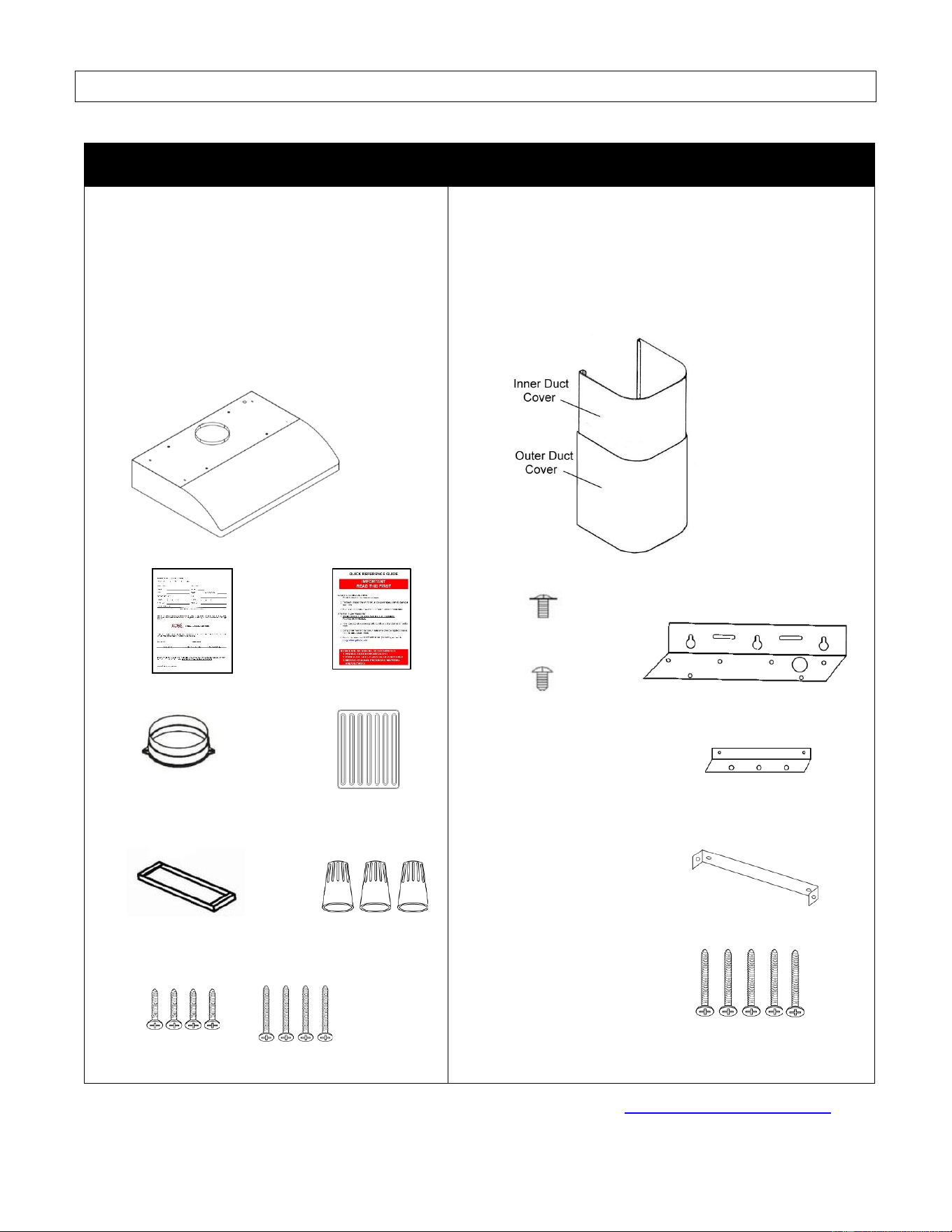

COMPONENETS OF PACKAGE
(Must keep all material for returns or refunds)
Range Hood Box
Duct Cover Box (Included in Wall Mount Hood ONLY)
CH1120DC-1
{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} 6” Round Plastic Collar
{E} Baffle Filters x 2 (30” hood)
x 3 (36” hood)
{F} Stainless Steel Spacer x 2 (30” hood)
{G} Wire Cap x 3
{H} Screws Package
{A}
{B} {C}
{D} {E}
{F} {G}
{H}
{I} Adjustable Duct Cover
{J} Screws Package
{K} Hood-Mounting Bracket
{L} Duct Cover Support x 2
{M} Duct Cover-Mounting Bracket
{N} Screws Package
{I}
{J} {K}
{L}
{M}
{N}
• FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR
CONTACT KOBE RANGE HOODS AT (626) 775-8880
2 PCS
3/16” x 3/8” (6 PCS)
4 x 6mm (4 PCS)
Knob attached
to baffle filter
Spacer attached
to hood (30” only)
Wire caps (3)
M4 x 3/4" (4)
M4 x 1-1/4” (4)
M4 x 1-1/2” (5)
4
INSTALLATION
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation
To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches).
- FOR UNDER THE CABINET -

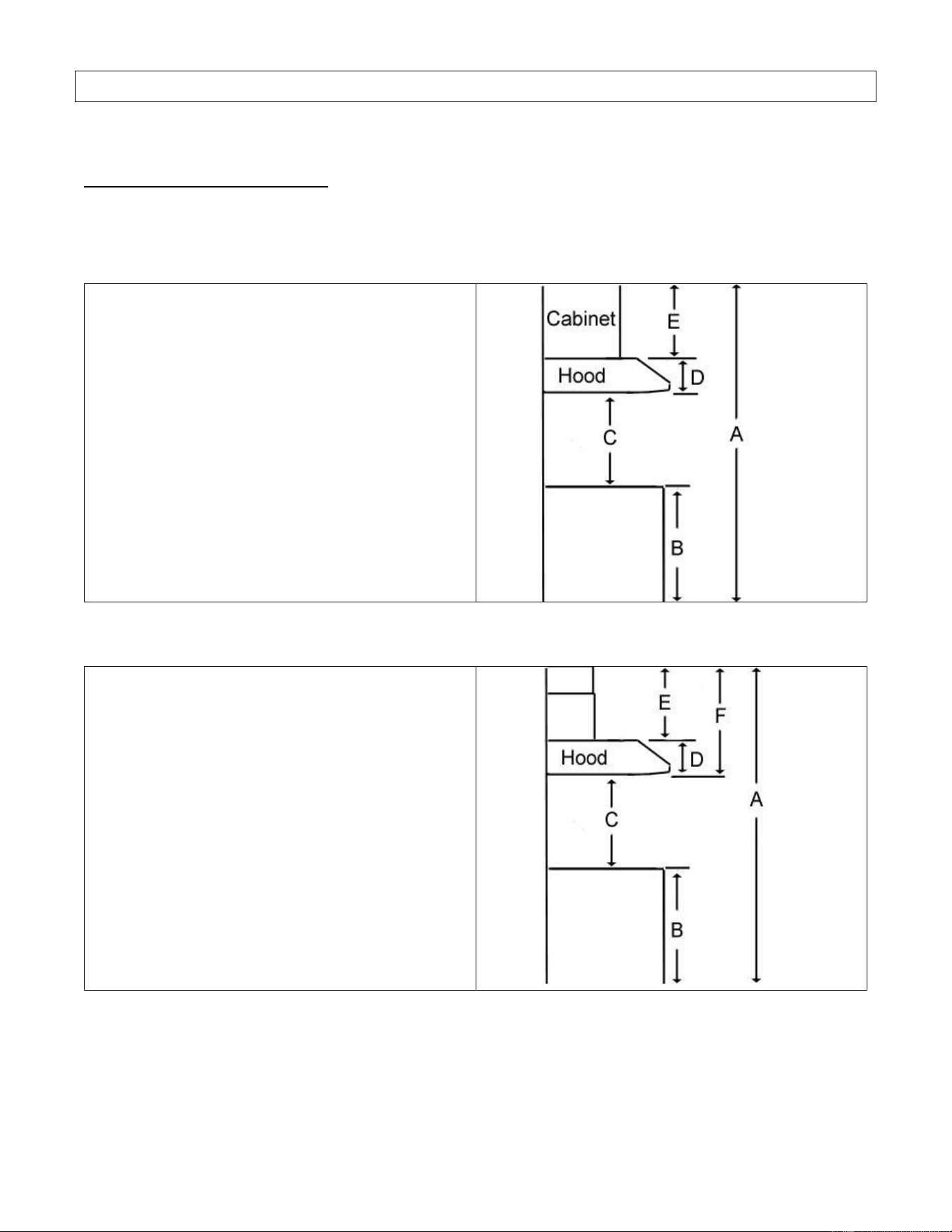

TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to
Hood Bottom (Minimum 26” to 30”)
D = Height of Hood
E =Height of the Cabinet
- FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36”)
C = Preferred Height of Counter Top to
Hood Bottom (Minimum 26” to 30”)
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]
5
SAFETY WARNING
HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCUR.
Installation Contents
Under Cabinet Installation ………………………………………………………...
Wall Mount Installation …………………………………………………………….
6
8
6
UNDER CABINET INSTALLATION
Preparation before Installation

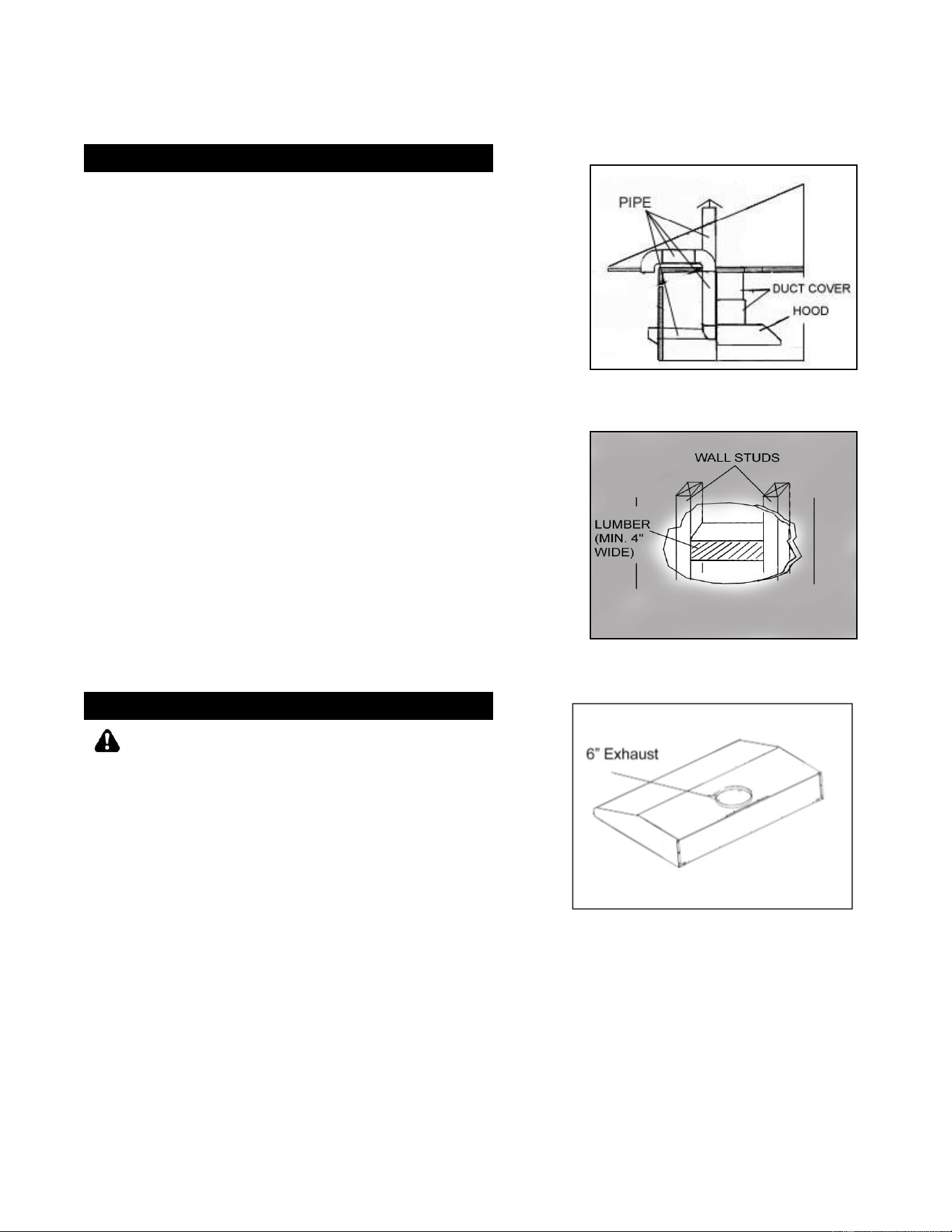

Figure 1
Figure 2
Figure 3
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.

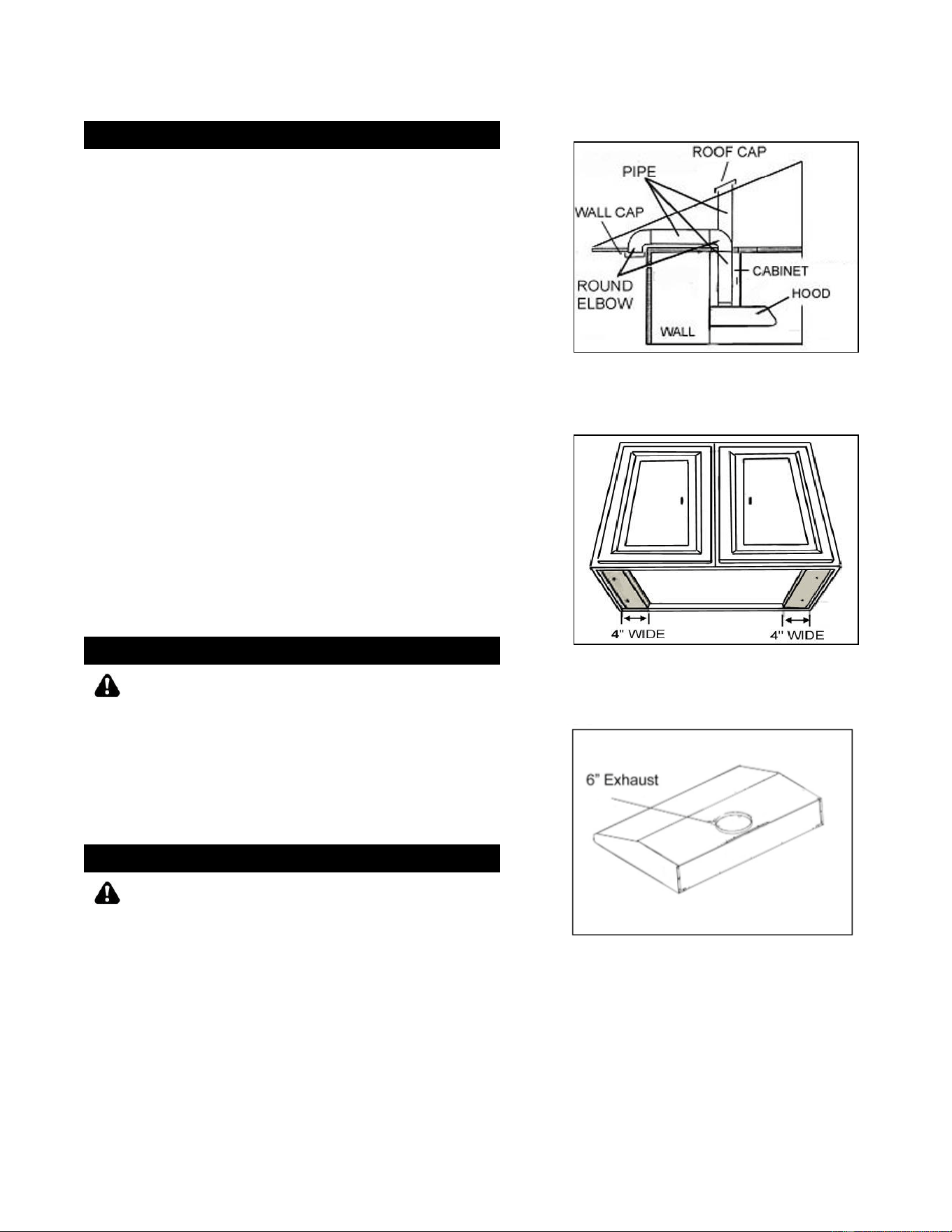

- Decide the location of the venting pipe from the hood
to the outside. (Figure 1)
- A straight, short vent run will allow the hood to
perform more efficiently.
- Try to avoid as many transactions, elbows, and long
run as possible. This may reduce the performance
of the hood.
- Temporarily wire the hood to test for proper
operation before installing. If the hood does not
operate, check the circuit breaker or house fuse. If
the hood is still not working, disconnect power
supply and check the continuity of all wire
connections.
- Peel protective film off the hood (if any).
- Use duct tape to seal joints between pipe sections.
- For installing under the cabinet with recessed
bottom, attached 4-inch wide wood filter strips (not
provided) on each side. (Figure 2)
- Using reference on Page 16 to measure and create
access opening for electrical wires and exhaust
under the cabinet.
Vent Installation
CAUTION: USE HAND TOOLS ONLY. DO NOT
OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE
TO THE HOOD.
1. For 6” Round vent installation:
• The 6” exhaust is already attached. (Figure 3)
Align and secure the 6” Round Plastic Collar {D}
to two screws on the hood.
Hood Installation
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
And use a protective covering to protect cooktop
and/or countertop from damage.
2. Remove the bottom casing or baffle filters / stainless
steel spacers if necessary; arrange the electrical
wires to run through the 1” diameter hold on the top
or the rear of the hood.
3. Using references on Table 1 and measurements on
Page 16, center the hood in place beneath the
cabinet and flush with the front of the cabinet.
7
4. Draw electrical wires through cabinet access
opening.
5. Use electrical drill to remove the knockout holes on
top of the range hood.
6. Place screws (provided) into the exact center of
each knockout hole. Make sure all screws are in
place before tightening screws.
CAUTION: MAKE SURE THE HOOD IS
SECURE BEFORE RELEASING.
Figure 4
Wiring to Power Supply
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
RISE OF ELECTRICAL SHOCK.
THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY A
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH
ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
PANEL AND LOCK SERVICE PANEL TO PROVENT
POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
7. If hood is operating normally, connect three wires
(black, white and green) to house wires and cap with
wire connectors.
8. Store wires in the wiring box.
NOTE: Range hood should have its own dedicated
circuit outlet. If sharing with other appliances, the range
hood may turn off itself due to mutual interference from
other appliances.
Ductwork Installation
9. Use steel pipe to connect the exhaust on the hood
to the ductwork. Use duct tape to make all joints
secure and air tight.
Install Accessories

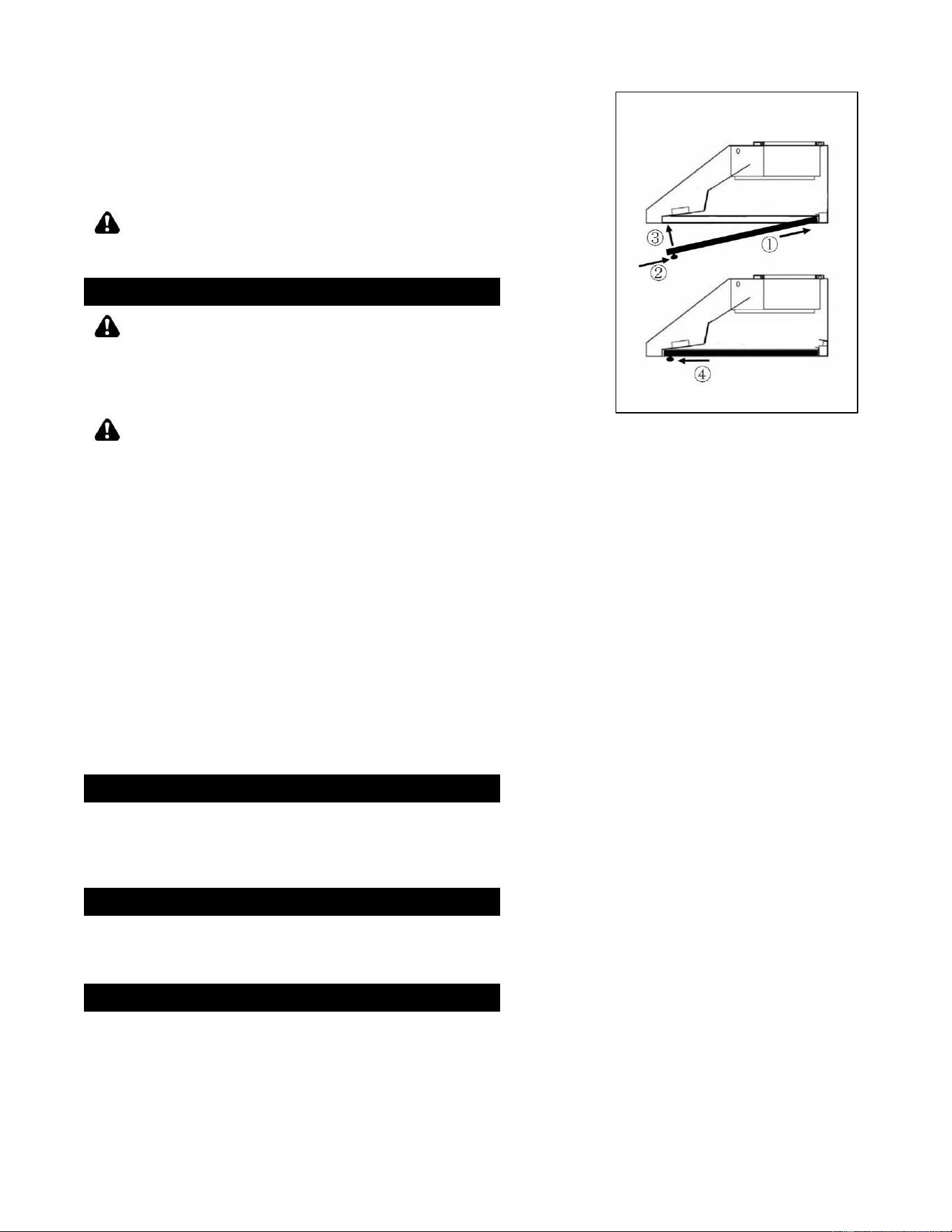

10. Place baffle filters and spacers underneath the
hood. (Figure 4)
Final Installation
11. Turn power ON in control panel. Check all lights and
fan operation.
12. Make sure to leave this manual for the homeowner.
8
WALL MOUNT INSTALLATION
**This installation required to have Duct Cover Model No.: CH1120DC-1
Preparation before Installation
Figure 5
Figure 6
Figure 7
NOTE: TO AVOID DAMAGE TO YOUR HOOD,
PREVENT DEBRIS FROM ENTERING
THE VENT OPENING.
- Decide the location of the venting pipe from the
hood to the outside. Refer to Figure 5.
- A straight, short vent run will allow the hood to
perform more efficiently.
- Try to avoid as many transitions, elbows, and
long run as possible. This may reduce the
performance of the hood.
- Temporarily wire the hood to test for proper
operation before installing. If the hood does not
operate, check the circuit breaker or house fuse.
If the hood is still not working, disconnect power
supply and check the continuity of all wire
connections.
- Peel protective film off the hood (if any).
- Use duct tape to seal the joints between pipe
sections.
- If necessary, prepare back wall frame with cross
framing lumber for secure installation. Using
references on Table 2 and measurements on
Page 16-17, decide the level of the lumber.
Refer to Figure 6.
Vent Installation
CAUTION: USE HAND TOOLS ONLY. DO
NOT OVER TIGHTEN SCREWS. IT MAY CAUSE
DAMAGE TO THE HOOD.
1. For 6” Round vent installation:
• The 6” exhaust is already attached. (Figure
7) Align and secure the 6” Round Plastic
Collar {D} to two screws on hood. Follow
instructions in Step 2 to attached Hood
Mounting Bracket {K} and two Duct Cover
Support {L} (Figure 8).
9
Hood Installation
Figure 8
Figure 9
Figure 10
Figure 11
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power
in an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE. And use a protective covering to
protect cooktop and/or countertop from damage.

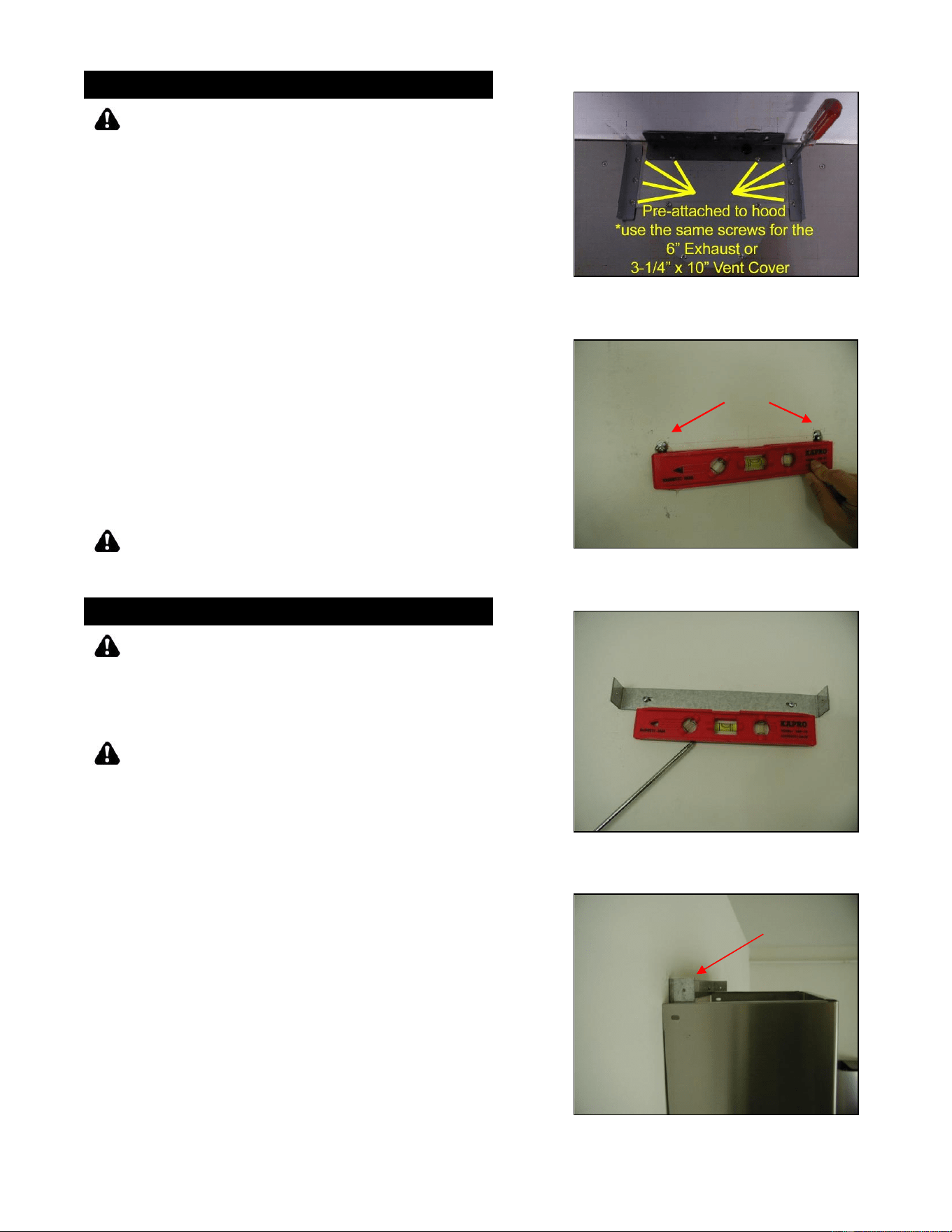

2. Secure Hood-Mounting Bracket {K} and two Duct
Cover Support {L} on top of the hood with eight
pre-attached screws. Use four 3/16” x 3/8”
screws {J} for Hood-Mounting Bracket {K}.
(Figure 8)
3. Using reference on Table 2 and measurements
on Page 16-17, mark the leveling point of the
hood. Position two mounting screws (provided)
on the wall, leveling 1/8” away from the wall as
shown in Figure 9.
4. Align Hood-Mounting Bracket {K} to the two
screws on the wall and hook hood into place.
Tighten screws to secure the hood to the wall.
CAUTION: MAKE SURE HOOD IS SECURE
BEFORE RELEASING.
Wiring to Power Supply
CAUTION: If moving the cooking range is
necessary to install the hood, turn off the power
in an electric range at the main electrical box.
SHUT OFF THE GAS BEFORE MOVING A GAS
RANGE. RISK OF ELECTRICAL SHOCK.
THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE
WITH ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE
PANEL AND LOCK SERVICE PANEL TO
PREVENT POWER FROM BEING SWITCHED ON
ACCIDENTALLY.
5. If hood is operating normally, connect three wires
(black, white and green to house wires and cap
with wire connectors.
6. Store wires in the wiring box.
NOTE: Range hood should have its own dedicated
circuit outlet. If sharing with other appliances, the
range hood may turn off itself due to mutual
interference from other appliances.
Mounting Screws
Attach Together
10
Ductwork Installation
Figure 12
7. Use steel pipe to connect the exhaust on the
hood to the ductwork. Use duct tape to make all
joints secure and air tight.
Duct Cover Installation
8. Mark the position of the Duct Cover-Mounting
Bracket {M}. Use reference E from Table 2 and
measurements on Page 16-17. Attach and
secure Duct Cover-Mounting Bracket {M} with
two screws (provided). (Figure 10) NOTE: Inner
duct cover will cover the duct cover-mounting
bracket.
9. Position the entire duct cover up onto the hood.
10. Secure the inner duct cover with two (3/16” x
3/8”) screws {J} to the duct cover-mounting
bracket. Shown in Figure 11.
11. Fasten outer duct cover to Duct Cover Support
{L} with four (4 x 6mm) screws {J}.
Install Accessories

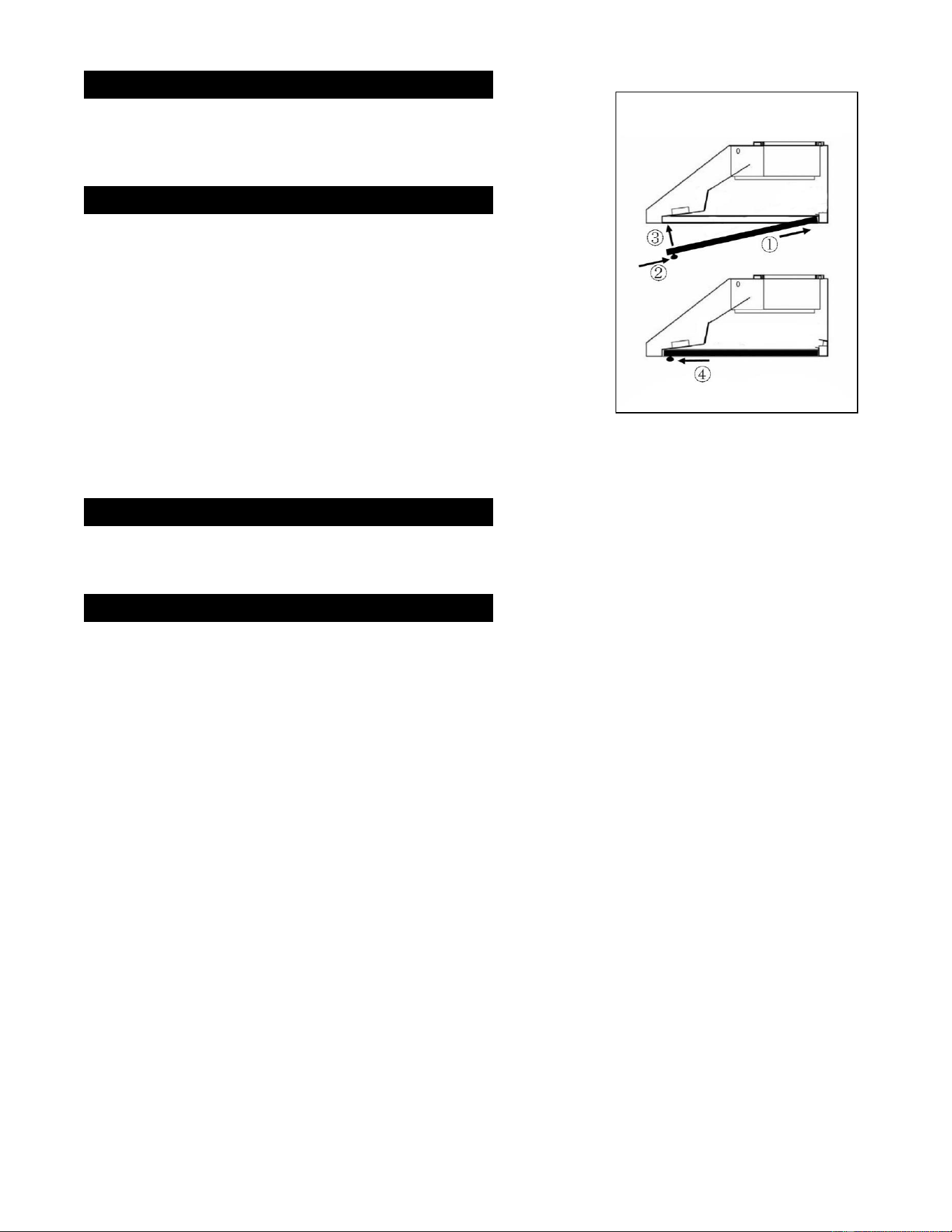

12. Place baffle filters and spacers underneath the
hood (Figure 12).
Final Installation
13. Turn power ON in control panel. Check all lights
and fan operation.
14. Make sure to leave this manual for the
homeowner.
11

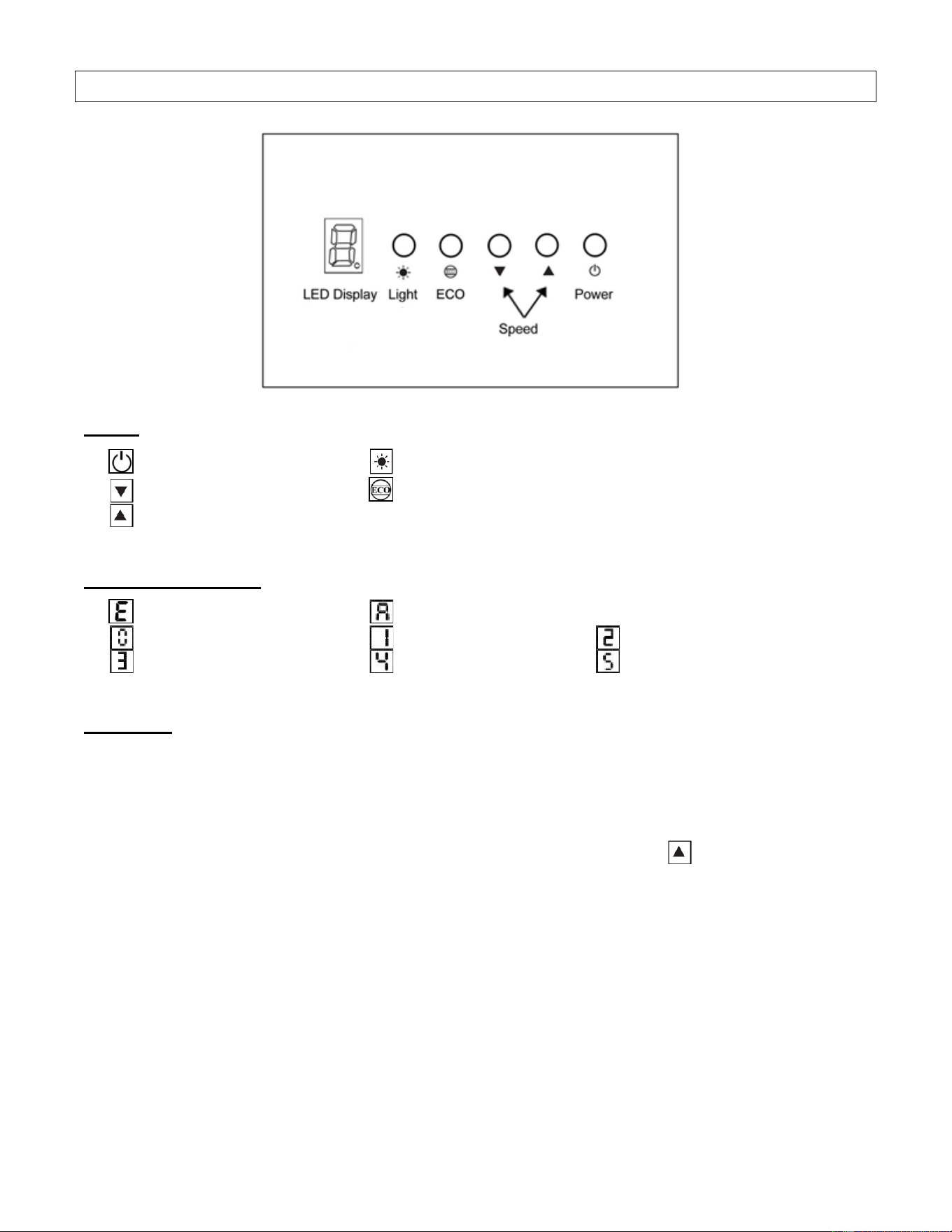

OPERATING INSTRUCTIONS
Button
Power
Light
Decrease Fan Speed
ECO Mode
Increase Fan Speed
LED Display Indicator
ECO Mode Icon
Auto Mode Icon
QuietMode™
Speed #1
Speed #2
Speed #3
Speed #4
Speed #5
Auto Mode
• The hood has advanced built-in flame and temperature sensors. When the sensor detects the
presence of a flame or fire, the hood will turn on automatically.
PLEASE NOTE: FOR THE BUILT-IN FLAME SENSORS, IT WILL ONLY FUNCTION WITH GAS
RANGES.
• To turn On/Off Auto Mode, press and hold the Increase Fan Speed button . LED Display will show
“A” when the Auto Mode is on. When you turn off the Auto Mode, it will default to fan speed 3.
o When the Auto Mode is on, only the light control and ECO Mode will work because
everything else is set to Auto. You need to turn off the Auto Mode in order to manually use
the Power and Speed Controls.
o Lights and ECO Mode can work independently and can still be turned on manually even if
Auto Mode is activated.
• The hood will automatically turn on to QuietMode™ when detecting a flame or fire, it will adjust to the
higher and lower speeds automatically depending on the temperature differential of ~7°F degrees**
between the hood and the surrounding environment.
**Please note: ~7°F degrees vary depending on the condition of your environment and stove/range
you use.
12
Delay Shut-off
• Automatic: After turning off your range and the temperature of the hood equals the surrounding room
temperature; the hood will automatically activate the 5-minute delay shut-off.
OR
Manual: To activate the 5-minute delay shut-off manually, press and hold the power button for about
3 seconds.
• After 5 minutes the fan will shut-off automatically. The lights work independently of the delay shut-off
and will not shut off automatically when the fan shuts off in delay shut-off.
*Once the delay shut-off has been activated, the LED display will flash continuously, and the fan
speed will change to speed 3. While the 5-minute countdown is running, the speed level can be
adjusted by pressing the increase/decrease fan speed buttons. To turn the fan off immediately, press
the power button a second time.
ECO Mode
• ECO Mode is set to turn the fan on QuietMode™ setting for 10 minutes every hour to remove excess
moisture, microscopic particles and odors for better kitchen air quality.
• ECO Mode is independent from the power control, delay shut-off and auto mode.
• ECO Mode can be activated while fan is running on or off. Press and hold the ECO button until the
“E” icon briefly appears in the LED display. While the fan is running, you can change the speed, use
delay shut-off or turn off the fan without disabling the ECO Mode.
• When the fan is off and ECO Mode has been activated, the “E” icon will appear in the LED display.
The “E” icon will flash while ECO Mode is operating on QuietMode™. To deactivate, press and hold
the ECO button until the “E” icon no longer appears in the LED display.
NOTE: Pressing the power button while ECO Mode is active will activate the regular fan function and the
speed will be displayed on the LED display.
WARNING: Make sure there is sufficient free-flowing air when ECO Mode is activated (e.g. open doors
and/or windows.)
Power
To turn the hood ON/OFF manually, press the power button once.
NOTE: You need to turn off the Auto Mode in order to manually use the Power and Speed Controls.
Please see Auto Mode section for further instructions.
Speed
The hood starts on speed 3 by default.
To decrease speed level, press the Decrease Fan Speed.
To increase speed level, press the Increase Fan Speed.
13

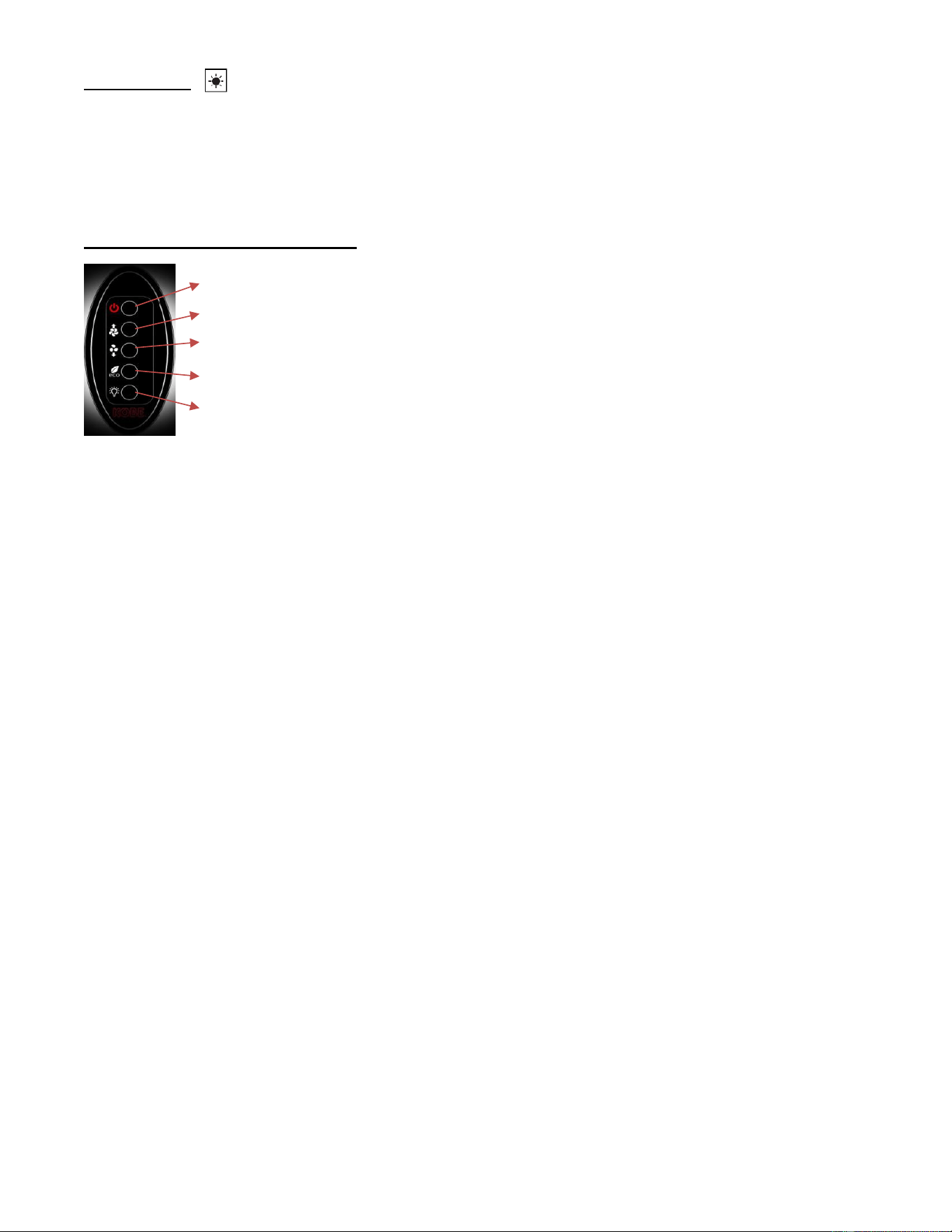

Light Control
Press the light button to turn the LED lights ON. Each press of the button will cycle the light intensity
through bright, medium bright, dim and off. Lights are controlled independently from power and speed
control. Lights will not turn off by itself in delay shut-off, so please be sure to turn them off first before
setting on delay shut-off mode.
Remote Control (Sold Separately)
Power control and 5-minute delay shutoff control (press and hold for 3 seconds)
Increase fan speed (Auto Mode can be turned on by pressing and holding for 5 seconds)
Decrease fan speed
ECO Mode control (press and hold for 3 seconds to activate ECO Mode)
Light control turns on brightest setting by default
*The remote control is magnetic to allow it to stick to a magnetic surface. Remote control uses CR2032
batteries (provided) and can be used up to 16 feet away.
14
MAINTENANCE
For optimal performance, clean the range hood surface and baffles regularly.
To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.
***Regular care will help preserve its fine appearance.
1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.
2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry towel to dry the hood.
3. DO NOT allow deposits to accumulate or remain on the hood.
4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.
5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel or extended periods. Many of these compounds contain chemicals, which
may be harmful to the hood. Rinse with water after exposure and wipe dry with a clean lint free
cloth.
For Baffle Filter Models only: to Clean Baffle Filters/Spacers
CAUTION: DRAIN OIL FROM BAFFLE FILTERS, SPACERS & OIL TUNNEL REGULARLY TO
PREVENT OVERFLOW.
1. Remove all the baffle filters, spacers and oil tunnel.
Note: Not all models have spacers and oil tunnel.
2. Using a sponge, wash with warn soapy water. Dry completely before returning into place.
CAUTION: SHARP EDGES (Note: Baffle Filters are top rack dishwasher safe)
15
SPECIFICATIONS
MODEL / SIZE
CH2230SQB6-XX / 30”
CH2236SQB6-XX / 36”
COLOR
18-Gauge Commercial Grade Stainless Steel
CONSUMPTION / AMPERE
360W / 3A
Power Rating
120V / 60Hz
NUMBER OF BLOWER
2
DESIGN
Seamless / Satin Finish
BLOWER TYPE
Twin Vertical Turbine Impeller
EXHAUST
Top:
6” Round
3-1/4” x 10” Rectangular
Rear:
3-1/4” x 10” Rectangular
CONTROL
6-Speed Electronic Control
with LED Display, Flame and Temperature Sensor
LIGHTS
3-Level Lighting
3-watt LED Light x 2 (30”, 36”)
ECO MODE
ECO Mode runs the range hood on QuietMode™ setting for 10 minutes
every hour to remove excess moisture, microscopic particles and odors
to promote a cleaner kitchen environment
HOOD DIMENSION
(W x D x H)
CH2230SQB6-XX 29-3/4” x 22” x 6-1/8”
CH2236SQB6-XX 35-3/4” x 22” x 6-1/8”
CH2230SQB6-WM-XX 29-3/4” x 22” x (28-3/16”~47-7/8”)
CH2236SQB6-WM-XX 35-3/4” x 22” x (28-3/16”~47-7/8”)
OPTIONAL ACCESSORIES
1) 30” Stainless Steel Back Panel
SSP30: 30” x 1/10” x 32”
2) 36” Stainless Steel Back Panel
SSP36: 36” x 1/10” x 32”
HOOD WEIGHT (lbs)
Net
Gross
CH2230SQB6-XX (30”)
34.2 lbs
43.8 lbs
CH2236SQB6-XX (36”)
39.7 lbs
48.9 lbs
SPEED
QuietMode™
Speed 1
Speed 2
Speed 3
Speed 4
Speed 5
Air Capacity (CFM)
270
370
450
530
580
680
Sone* (dB)
2.0
3.5
4.5
5.6
6.0
7.0
*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.
16

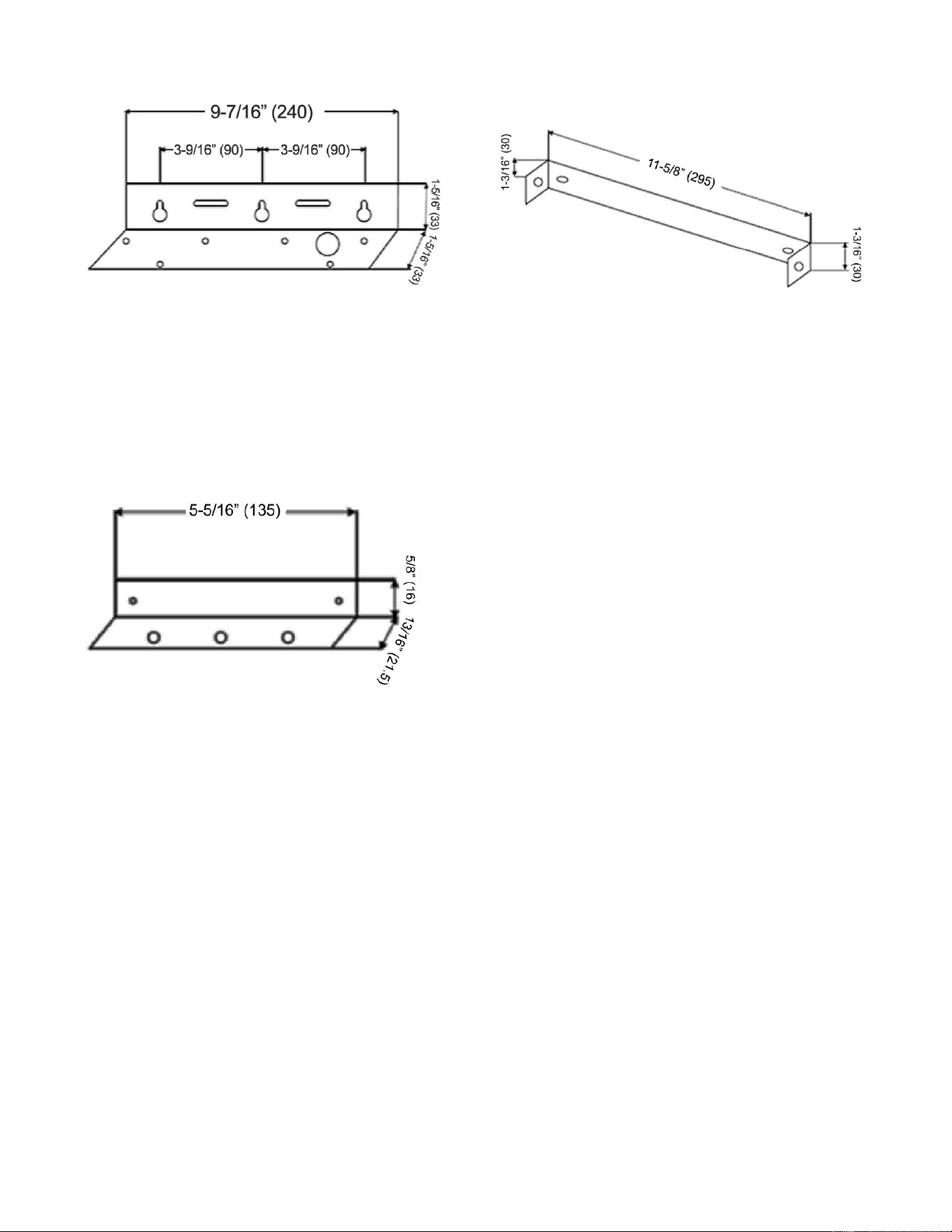

MEASUREMENTS & DIAGRAMS
***All inch measurements are converted from millimeters. Inch measurements are estimated.
***All measurements in ( ) are millimeters.
- FOR UNDER CABINET -
MODEL NO.:
CH2230SQB6-XX (30”)
CH2236SQB6-XX (36”)
- FOR WALL MOUNT (DUCT COVER IS REQUIRED) -
MODEL NO.:
CH2230SQB6-WM-XX (30”)
CH2236SQB6-WM-XX (36”)
17
***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket
***Duct Cover Support
18

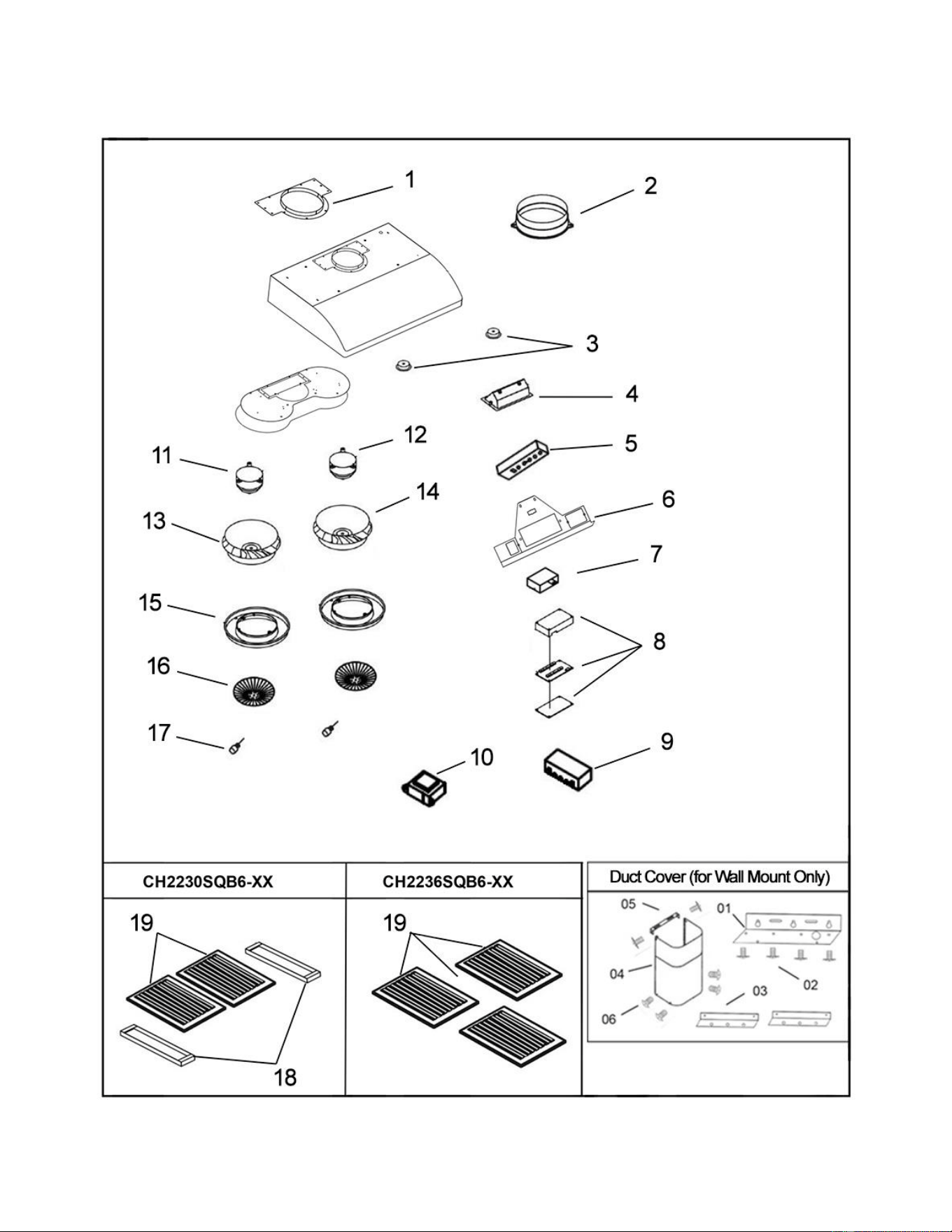

PARTS LIST
MODEL NO.:
CH2230SQB6-XX and CH2230SQB6-WM-XX (30”)
CH2236SQB6-XX and CH2236SQB6-WM-XX (36”)
NO.
DESCRIPTION
MODEL / SIZE
PART NO.
1
6” Exhaust Plate
L1-0241-0001-A
2
6” Round Plastic Exhaust
L1-0505-0003
3
LED Light (3W) x 2
L1-0403-0301
4
Control Panel Support
L1-0207-3830
5
Control Unit
L1-0404-F601-A
6
Capacitor Support
L1-0201-F2230
7
Capacitor (12uF + 12uF/250V)
L1-0401-0120-6F
8
Processor Board
L1-0404-F601-B
9
UV Sensor
L1-0404-F601-C
10
Transformer
L1-0402-6120-80V
11
Motor (B)
L1-0301-0120-121B
12
Motor (A)
L1-0301-0120-121A
13
Turbine Impeller (B)
L1-0251-0737-B
14
Turbine Impeller (A)
L1-0251-0737-A
15
Oil Tunnel
L1-0502-0101
16
Safety Screen
L1-0602-0101
17
Safety Screen Screws
L1-0705-0001
18
Spacer {2-13/16”(72) x 14-3/4”(375)}
CH2230SQB6-XX
B101-2230-15
19
Baffle Filter
L1-0214-0122
Duct Cover (Included in CH22 SQB6-WM-XX Series Only)
NO.
DESCRIPTION
MODEL /SIZE
PART NO.
01
Hood Mounting Bracket
L1-0221-1630
02
Screws (3/16”x3/8”)
L1-0707-0002
03
Duct Cover Support
L1-0208-1630
04
Duct Cover
CH1120DC-1
12-16300-61
05
Duct Cover- Mounting Bracket
L1-0203-0390
06
Screws (TS 4 x 6mm)
L1-0708-0002
19
MODEL NO.:
CH2230SQB6-XX and CH2230SQB6-WM-XX (30”)
CH2236SQB6-XX and CH2236SQB6-WM-XX (36”)
20
CIRCUIT DIAGRAM
MODEL NO.:
CH2230SQB6-XX and CH2230SQB6-WM-XX (30”)
CH2236SQB6-XX and CH2236SQB6-WM-XX (36”)
21
TROUBLE SHOOTING
Issue
Possible Cause
Solution
After
installation,
both motors
and lights are
not working.
The power is not on.
Make sure the circuit breaker and the
unit’s power is ON. Use a voltage
meter to check the power supply.
The wire connection is not secure.
Check and tighten wire connection.
The control panel and processor
board wiring are disconnected.
Check wire continuity from control
panel to processor board.
The control panel or processor
board is defective.
Replace the control panel or
processor board.
Lights are
working, but
motor(s) is
not.
The motor(s) is defective.
Replace the motor.
The capacitor(s) is defective.
Replace the capacitor(s).
The control panel or processor
board is defective.
Replace the control panel or
processor board.
The range
hood is
vibrating.
The blower system is not secure.
Tighten the turbine impeller/squirrel
cage and air chamber.
The turbine impeller/squirrel cage is
not balanced.
Replace the turbine impeller/squirrel
cage.
Hood is not secured in place.
Check the installation of hood, tighten
the mounting bracket.
The motor is
working, but
the lights are
not working.
LED light fixture(s) is defective.
Replace LED light fixture(s).
The light wiring(s) is loose.
Check wire continuity from processor
board to light transformer to LED light
fixture(s).
The control panel or processor
board is defective.
Replace the control panel or
processor board.
The range
hood is not
venting out
correctly.
The range hood is installed outside
of the manufacture recommended
clearance.
Adjust the clearance between the
range hood and cook top to 26” to 30”.
For island hood, the clearance
between the range hood and cook top
is 30” to 36”.
There is no make-up air inside the
house.
Open the window to enhance the
performance of the range hood by
creating a sufficient make-up air.
Obstacle blocking the pipe work.
Remove all obstacles from the duct
work.
The pipe size is smaller than the
suggested pipe size.
Change the ducting according to the
manufacture suggestion.
Cold air is
coming into
the home.
The pipe connection is not properly
sealed.
Check the pipe installation.
The damper is not properly installed
or is missing from the installation.
Check the damper installation.
The damper is not installed.
Installing the damper will help
eliminate air backflow.
22
WARRANTY
WARRANTY CERTIFICATE
In order to obtain warranty service, you must provide proof of original purchase from a
KOBE authorized dealer. Please keep a copy of your original invoice as proof of purchase.
TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES:
For two years from the date of your original invoice from a KOBE authorized dealer, we will repair
any parts or components free of charge that failed due to manufacturing defects. KOBE reserves
the right to replace, rather than repair the product free of charge at our sole discretion.
It is your sole responsibility to ensure the product is readily accessible for the service technician
to perform repairs. The service technician will not, under any circumstance, remove, alter
or modify any fixture built around and/or connected to the product to gain access to
perform repairs.
TWO-YEAR LIMITED PARTS WARRANTY ON KOBE PREMIUM SERIES.
For two years from the date of your original invoice from a KOBE authorized dealer, we will
provide non-consumable replacement parts or components free of charge that failed due to
manufacturing defects. Consumable parts such as light bulbs, filters, fuses, and oil cups are not
covered by this warranty.
WHAT IS COVERED:
This warranty is valid in the United States and Canada. It is non-transferable and applies only
to the original purchaser and does not extend to subsequent owner of this product. In Hawaii,
Alaska and Canada, this warranty is limited. There may be additional shipping charges for parts
and service technician travel costs in remote areas or location 30 miles outside of KOBE
authorized service area.
WHAT IS NOT COVERED:
1. Normal wear and tear, regular service and maintenance required for the product.
2. Consumable parts such as light bulbs, filters, and oil cups.
3. Chips, scratches or dents due to abuse or misuse of the product, use of corrosive and
abrasive cleaning products.
4. Damages caused by accident, fire, flood and other Acts of God.
5. Services in remote areas or locations 30 miles outside of KOBE authorized service area.
6. Labor cost incurred in connection with the removal of range hood, and reinstallation of
replacement range hood, nor does it cover any other contingent expenses.
7. Scratches inside the hood, back of the baffle filter, and inside the duct cover.
23
THIS WARRANTY WILL BE VOIDED BY:
1. Improper installation and failure to follow installation instructions.
2. Any repair, alteration, modification not authorized by KOBE.
3. Duct alteration, modification and connection.
4. Incorrect electric current, voltage or wiring.
5. Improper usage of the product such as commercial, outdoor or other usage other than
residential indoor usage.
6. Purchasing this product from an unauthorized KOBE dealer.
7. Damaging the product due to negligence, misuse, abuse or accident.
If we determine that the warranty exclusions listed above applies or if you fail to provide all
necessary documentation for warranty service, you will be responsible for all expense
associated with the requested service, including parts, labor, shipping, travelling, and any other
expense related to the service request.
TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS
SERVICE CENTER:
For the 48 contiguous states:
Email (best): [email protected]
Phone: 1-626-775-8880
Toll Free: 1-877-BUY-KOBE (289-5623)
From Alaska, Hawaii, and Canada:
Email (best): [email protected]
Phone: 1-626-775-8880
24
WARRANTY INFORMATION FORM
Fill in the blanks and keep this paper with the original invoice in a
safe place for future service purpose.
1. Date of purchase : ______________________________
2. Model No. : ______________________________
3. Serial No. : ______________________________
For warranty service or spare parts purchase in US, contact:
KOBE Service Center
Email (best): customer.service@koberangehoods.com
Phone: 1-626-775-8880
Toll Free: 1-877-BUY-KOBE (289-5623)
For warranty service or spare parts purchase in Canada, contact:
Email (best): customer.service@koberangehoods.com
Phone: 1-626-775-8880
KOBE Range Hoods
11775 Clark Street
Arcadia, CA 91006 USA
www.koberangehoods.com
This KOBE hood is made for use in the USA and CANADA only. We do not recommend
using this hood overseas as the power supply may not be compatible and may violate the
electrical code of that country. Using a KOBE hood overseas is at your own risk and
will void your warranty.
Cette hotte KOBE est fabriquée pour usage aux États-Unis et au Canada seulement. Il
n’est pas recommandé d’utiliser cette hotte à l’étranger puisque l’alimentation électrique
pourrait ne pas être compatible et enfreindre le code de l’électricité de ce pays. L’usage
de la hotte KOBE à l’étranger est à votre propre risque et la garantie sera annulée.
Esta campana de extracción KOBE ha sido fabricada para ser utilizada únicamente en
EE.UU. y CANADÁ. No recomendamos la utilización de esta campana en el extranjero
debido a que la fuente de energía podría no ser compatible y podría violar el código
eléctrico de dicho país. Utilizar una campana KOBE en el extranjero será a su propio
riesgo y anulará la garantía.
VER. 240123
Information subject to change without notice.
