GV-GNVRC0810-P
User’s Manual
GNVR-UM-A
© 2026 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: +886-2-8797-8377
Fax: +886-2-8797-8335
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows is the registered
trademark of Microsoft Corporation.
June 2026
Scan the following QR codes for product warranty and technical support
policy:
[Warranty] [Technical Support Policy]
i
Notes
⚫ Please read this user manual carefully to ensure that you can use the device correctly and
safely.
⚫ There may be several technically incorrect places or printing errors in this manual. The
updates will be added into the new version of this manual. The contents of this manual are
subject to change without notice.
⚫ This device should be operated only from the type of power source indicated on the marking
label. The voltage of the power must be verified before using the same. Kindly remove the cables
from the power source if the device is not to be used for a long period of time.
⚫ Do not install this device near any heat sources such as radiators, heat registers, stoves or
other devices that produce heat.
⚫ Do not install this device near water. Clean only with a dry cloth.
⚫ Do not block any ventilation openings and ensure proper ventilation around the machine.
⚫ Do not power off the device at normal recording condition.
⚫ This machine is for indoor use only. Do not expose the machine in rain or moist environment.
In case any solid or liquid get inside the machine’s case, please turn off the device immediately
and get it checked by a qualified technician.
⚫ Do not try to repair the device by yourself without technical aid or approval.
⚫ In this manual, the trademarks, product names, service names, company names, products that
are not owned by our company are the properties of their respective owners.
⚫ It is recommended to back up and clear the personal data stored in the device before the
device is returned to us for repair or replacement except those data that are essential for
purposes of repair or replacement. The device will be restored to the default factory settings and
all personal data will be cleared after repair or replacement. Our company ensures that the
customer’s data is not made available to third parties if the device is exchanged.
⚫ This manual is suitable for many models. All examples and pictures used in the manual are
from one of the models for reference purpose.
⚫ The local language versions of this manual will be provided to users in the corresponding
regions and countries.
ii
Disclaimer
⚫ With regard to the product with internet access, the use of product shall be wholly at your own
risks. Our company shall be irresponsible for abnormal operation, privacy leakage or other
damages resulting from cyber attack, hacker attack, virus inspection, or other internet security
risks; however, our company will provide timely technical support if necessary.
⚫ Surveillance laws vary from country to country. Check all laws in your local region before using
this product for surveillance purposes. We shall not take the responsibility for any consequences
resulting from illegal operations. In the event of any conflicts between this manual and the
applicable law, the later prevails.
⚫ The storage of the personal data depends on the capacity of the storage devices the users use
and all data stored in the device shall be handled by themselves. Our company shall not be
responsible for the data loss.
Cybersecurity Recommendations
⚫ Use a strong password. For login password requirements, including supported
non-alphanumeric characters, length, and character categories, see this technical notice.
⚫ Set the password expiration time and regularly change the passwords of your devices to
ensure that only authorized users can access the system. (recommended time is 90 days).
⚫ The system will automatically check the latest firmware version once a day. Once the latest
version is checked, you’d better update it to ensure the system is current with the latest security
patches and fixes.
⚫ It is recommended to change the service default ports (like HTTP-80, HTTPS-443, etc.) to
reduce the risk of outsiders being able to access.
⚫ It is recommended to set the firewall of your router. But note that some important ports cannot
be closed (like HTTP port, HTTPS port, Data Port).
⚫ It is not recommended to expose the device to the public network. When it is necessary to be
exposed to the public network, please set the external hardware firewall and the corresponding
firewall policy.
⚫ It is not recommended to use the v1 and v2 functions of SNMP.
⚫ In order to enhance the security of WEB client access, please create a TLS certificate to
enable HTTPS.
⚫ Use black and white list to filter the IP address. This will prevent everyone, except those
specified IP addresses from accessing the system.
⚫ If you add multiple users, please limit functions of guest accounts.
⚫ If you enable UPnP, it will automatically try to forward ports in your router or modem. It is really
very convenient for users, but this will increase the risk of data leakage when the system
automatically forwards ports. Disabling UPnP is recommended when the function is not used in
real applications.
⚫ Check the log. If you want to know whether your device has been accessed by unauthorized
users or not, you can check the log. The system log will show you which IP addresses were used
to log in your system and what was accessed.
iii
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
1. FCC compliance
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
⚫ Reorient or relocate the receiving antenna.
⚫ Increase the separation between the equipment and receiver.
⚫ Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
⚫ Consult the dealer or an experienced radio/TV technician for help.
2. FCC conditions:
⚫ This device complies with part 15 of the FCC Rules. Operation of this product is subject the
following two conditions:
⚫ This device may not cause harmful interface.
⚫ This device must accept any interference received, including interference that may cause
undesired operation.
CE Information
The products have been manufactured to comply with the following directives.
EMC Directive 2014/30/EU
RoHS
The products have been designed and manufactured in accordance with Directive EU RoHS
Directive 2011/65/EU and its amendment Directive EU 2015/863 on the restriction of the use of
certain hazardous substances in electrical and electronic equipment.
2012/19/EU (WEEE directive): The Directive on waste electrical and electronic equipment
(WEEE Directive). To improve the environmental management of WEEE, the improvement
of collection, treatment and recycling of electronics at the end of their life is essential.
iv
Therefore, the product marked with this symbol must be disposed of in a responsible manner.
Directive 94/62/EC: The Directive aims at the management of packaging and packaging waste
and environmental protection. The packaging and packaging waste of the product in this manual
refers to must be disposed of at designated collection points for proper recycling and
environmental protection.
REACH(EC1907/2006): REACH concerns the Registration, Evaluation, Authorization and
Restriction of Chemicals, which aims to ensure a high level of protection of human health and the
environment through better and earlier identification of the intrinsic properties of chemical
substances. The product in this manual refers to conforms to the rules and regulations of REACH.
For more information of REACH, please refer to DG GROWTH or ECHA websites.
v
Table of Contents
Notes ........................................................................................................................................... i
Disclaimer .................................................................................................................................. ii
Cybersecurity Recommendations ............................................................................................ ii
Regulatory Information ............................................................................................................ iii
Table of Contents ....................................................................................................................... v
1 Introduction ........................................................................................................................ 1
1.1 Summary ......................................................................................................................... 1
1.2 Features .......................................................................................................................... 1
1.3 Connections .................................................................................................................... 4
2 Basic Operation Guide ....................................................................................................... 5
2.1 Startup & Shutdown ........................................................................................................ 5
2.1.1 Startup ................................................................................................................... 5
2.1.2 Shutdown .............................................................................................................. 5
2.2 Mouse Control ................................................................................................................. 5
2.3 Text-input Instruction ....................................................................................................... 5
2.4 Common Button Operation .............................................................................................. 6
3 Wizard & Main Interface ..................................................................................................... 7
3.1 Startup Wizard ................................................................................................................ 7
3.2 Main Interface ............................................................................................................... 12
3.2.1 Main Interface Introduction .................................................................................. 12
3.2.2 Setup Panel ......................................................................................................... 14
3.2.3 Main Functions .................................................................................................... 15
4 Camera Management ....................................................................................................... 17
4.1 Add/Edit Camera ........................................................................................................... 17
4.1.1 Add Camera ........................................................................................................ 17
4.1.2 Edit Camera ........................................................................................................ 20
4.2 Add/Edit Camera Group ................................................................................................ 21
4.2.1 Add Camera Group .............................................................................................. 21
4.2.2 Edit Camera Group .............................................................................................. 22
4.2.3 IP Planning .......................................................................................................... 22
4.3 IP Speaker Management ............................................................................................... 23
5 Live View Introduction ..................................................................................................... 25
5.1 Live View Interface Introduction..................................................................................... 25
5.2 View Mode .................................................................................................................... 26
5.2.1 Preview by Display Mode .................................................................................... 26
5.2.2 Quick Sequence View .......................................................................................... 28
5.2.3 Camera Group View in Sequence ........................................................................ 28
5.2.4 Scheme View in Sequence .................................................................................. 29
5.3 POS Settings................................................................................................................. 31
5.4 Preview Image Configuration ........................................................................................ 32
5.4.1 OSD Settings ....................................................................................................... 32
5.4.2 Image Settings .................................................................................................... 33
5.4.3 Mask Settings ...................................................................................................... 33
5.4.4 Fisheye Settings .................................................................................................. 34
5.4.5 Smart Supplement Light ...................................................................................... 35
5.4.6 Splicing ................................................................................................................ 36
5.4.7 Image Adjustment ................................................................................................ 36
6 PTZ .................................................................................................................................... 40
6.1 PTZ Control Interface Introduction ................................................................................. 40
6.2 Preset Settings .............................................................................................................. 44
vi
6.3 Cruise Settings .............................................................................................................. 44
6.4 Cruise Group Settings ................................................................................................ 45
6.5 Trace Settings ............................................................................................................... 46
6.6 Task Settings ................................................................................................................. 46
6.7 Smart Tracking Settings ................................................................................................ 47
6.8 Protocol Settings ........................................................................................................... 48
6.9 Home Position Settings ................................................................................................. 49
7 Record & Disk Management ............................................................................................ 50
7.1 Record Configuration .................................................................................................... 50
7.1.1 Mode Configuration ............................................................................................. 50
7.1.2 Schedule Settings ................................................................................................ 51
7.1.3 Advanced Configuration ....................................................................................... 53
7.2 Encode Parameters Settings ......................................................................................... 54
7.3 Record Mode................................................................................................................. 54
7.3.1 Manual Recording ............................................................................................... 54
7.3.2 Timing Recording ................................................................................................. 55
7.3.3 Motion-based Recording ...................................................................................... 55
7.3.4 Sensor Based Recording ..................................................................................... 55
7.3.5 AI Event Recording .............................................................................................. 55
7.4 Disk ............................................................................................................................... 55
7.4.1 Disk Management ................................................................................................ 55

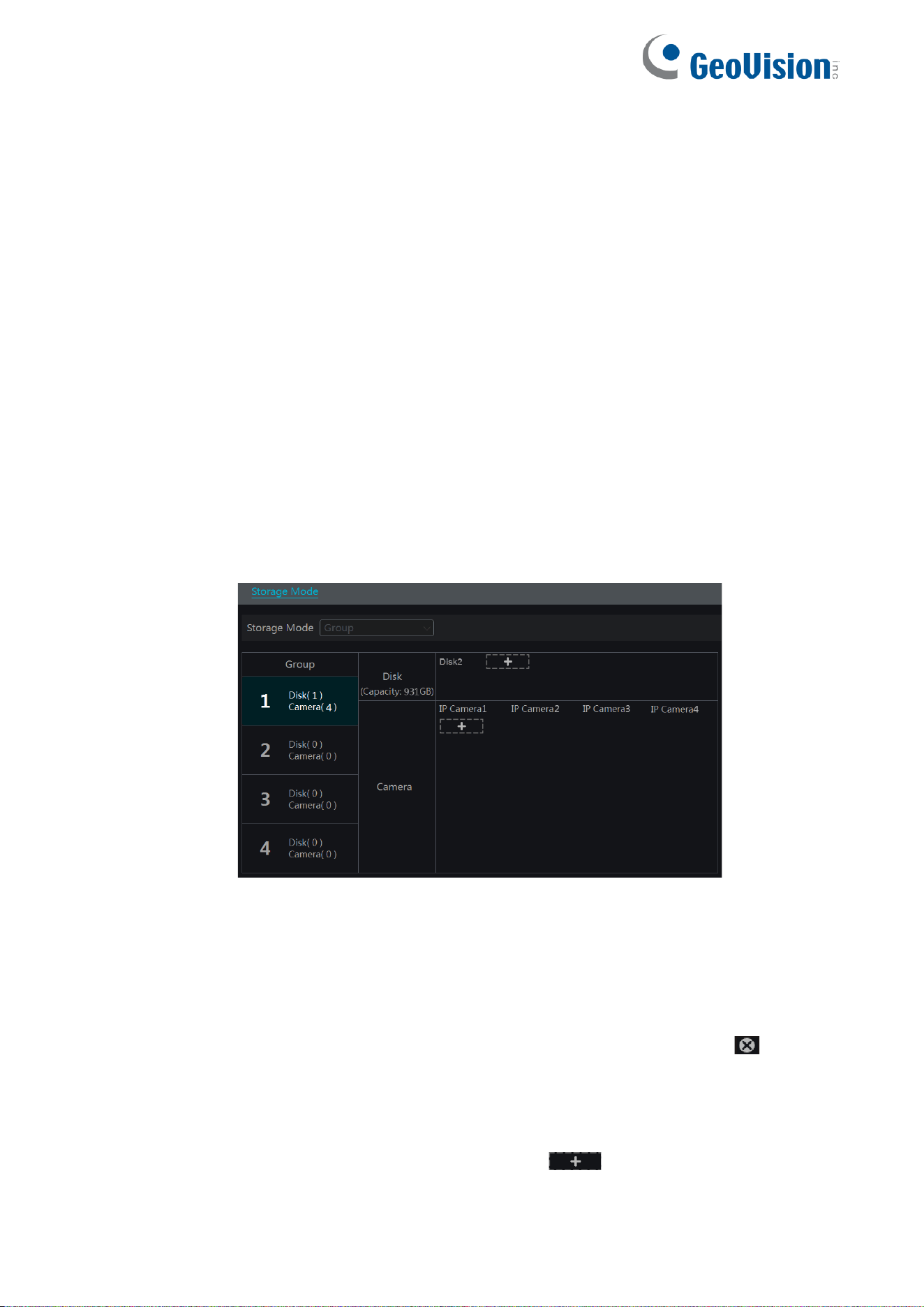

7.4.2 Storage Mode Configuration ................................................................................ 56
7.4.3 View Disk Information .......................................................................................... 57
8 Playback & Backup .......................................................................................................... 58
8.1 Instant Playback ............................................................................................................ 58
8.2 Playback Interface Introduction ..................................................................................... 58
8.3 Rules Playback ............................................................................................................. 62
8.4 Record Search, Playback & Backup .............................................................................. 63
8.4.1 Search, Playback & Backup by Time-sliced Image .............................................. 63
8.4.2 Search, Playback & Backup by Time ................................................................... 65
8.4.3 Search, Playback & Backup by Event ............................................................... 66
8.4.4 Search & Playback by Tag ................................................................................ 67
8.4.5 Image Management ............................................................................................. 67
8.4.6 View Backup Status ............................................................................................. 68
9 AI Event Management ...................................................................................................... 69
9.1 Face Detection .............................................................................................................. 69
9.1.1 Face Detection Settings ....................................................................................... 69
9.2 License Plate Recognition ............................................................................................. 72
9.2.1 License Plate Detection Settings ......................................................................... 72
9.2.2 Plate Database Management .............................................................................. 73
9.2.3 License Plate Recognition Settings ..................................................................... 73
9.3 Video Metadata ............................................................................................................. 74
9.4 Perimeter Detection....................................................................................................... 77
9.4.1 Line Crossing Detection ....................................................................................... 77
9.4.2 Region Intrusion Detection .................................................................................. 78
9.4.3 Region Entrance Detection .................................................................................. 79
9.4.4 Region Exiting Detection ..................................................................................... 79
9.5 Loitering Detection ........................................................................................................ 79
9.6 Illegal Parking Detection ................................................................................................ 80
9.7 Target Counting by Line ................................................................................................ 81
9.8 Target Counting by Area ................................................................................................ 82
9.9 Fire Detection ................................................................................................................ 83
9.10 Temperature Detection ................................................................................................ 84
9.11 Abandoned/Missing Object Detection .......................................................................... 85
9.12 Crowd Density Detection ............................................................................................. 86
9.13 Audio Exception ........................................................................................................... 87
9.14 Heat Map ..................................................................................................................... 88
9.15 People Counting .......................................................................................................... 89
9.16 Video Exception .......................................................................................................... 91
10 Intelligent Analytics ....................................................................................................... 92
vii
10.1 Target Detection View .................................................................................................. 92
10.1.1 People/Vehicle Detection View .......................................................................... 92
10.1.2 License Plate Detection/Recognition View ......................................................... 93
10.1.3 Object Attribute View .......................................................................................... 94
10.2 Smart Search .............................................................................................................. 94
10.2.1 Face Search ...................................................................................................... 94
10.2.2 People Search ................................................................................................... 97
10.2.3 Human Attribute Search ..................................................................................... 97
10.2.4 Vehicle Search ................................................................................................... 97
10.3 View Statistical Information .......................................................................................... 98
10.4 Enabling AI Mode ........................................................................................................ 99
11 General Event Management ........................................................................................ 101
11.1 Motion Alarm ............................................................................................................. 101
11.1.1 Motion Configuration ........................................................................................ 101
11.1.2 Motion Alarm Handling Configuration ............................................................... 101
11.2 Sensor Alarm ............................................................................................................. 102
11.3 Combination Alarm .................................................................................................... 103
11.4 Exception Alarm ......................................................................................................... 104
11.4.1 Camera Offline Settings ................................................................................... 104
11.4.2 Exception Alarm Settings ................................................................................. 104
11.5 Alarm Event Notification ............................................................................................. 104
11.5.1 Alarm-out ......................................................................................................... 104
11.5.2 E-mail .............................................................................................................. 105
11.5.3 Display ............................................................................................................. 105
11.5.4 Buzzer ............................................................................................................. 105
11.5.5 Push ................................................................................................................ 105
11.5.6 Audio................................................................................................................ 105
11.5.7 Light ................................................................................................................. 107
11.5.8 Alarm Server .................................................................................................... 108
11.6 Manual Alarm ............................................................................................................ 108
11.7 View Alarm Status ..................................................................................................... 108
11.8 System Disarming ..................................................................................................... 109
12 Application ................................................................................................................... 111
12.1 Parking Lot Settings .................................................................................................. 111
12.1.1 Basic Settings .................................................................................................. 111
12.1.2 Parking Space Settings .................................................................................... 111
12.1.3 Entrance/Exit Management .............................................................................. 112
12.1.4 Parking Lot Management ................................................................................. 112
12.1.5 Search Vehicle Entry/Exiting Records .............................................................. 114
12.2 Access Control Management ..................................................................................... 114
12.2.1 Access Control Settings ................................................................................... 115
12.2.2 Open the Door Manually .................................................................................. 115
12.3 People Flow............................................................................................................... 116
13 Account & Permission Management .......................................................................... 118
13.1 Account Management ................................................................................................ 118
13.1.1 Add User .......................................................................................................... 118
13.1.2 Edit User .......................................................................................................... 119
13.2 User Login & Logout .................................................................................................. 120
13.3 Permission Management ........................................................................................... 120
13.3.1 Add Permission Group ..................................................................................... 120
13.3.2 Edit Permission Group ..................................................................................... 121
13.4 Black and White List .................................................................................................. 121
13.5 Preview on Logout ..................................................................................................... 122
13.6 Network Security ....................................................................................................... 122
13.7 Password Security ..................................................................................................... 123
13.8 Password Retrieval Settings ...................................................................................... 123
13.9 Double Verification..................................................................................................... 123
13.10 View Online User ..................................................................................................... 124
14 Device Management .................................................................................................... 125
viii
14.1 Network Configuration ............................................................................................... 125
14.1.1 TCP/IP Configuration ....................................................................................... 125
14.1.2 Port Configuration ............................................................................................ 127
14.1.3 PPPoE Configuration ....................................................................................... 130
14.1.4 DDNS Configuration ........................................................................................ 130
14.1.5 E-mail Configuration ........................................................................................ 132
14.1.6 UPnP Configuration ......................................................................................... 133
14.1.7 802.1X ............................................................................................................. 133
14.1.8 Mobile App ....................................................................................................... 134
14.1.9 FTP Configuration ............................................................................................ 134
14.1.10 SNMP ............................................................................................................ 135
14.1.11 GV-VPN ......................................................................................................... 136
14.1.12 ONVIF ............................................................................................................ 137
14.1.13 UPnP Report Access ...................................................................................... 137
14.1.14 HTTP POST ................................................................................................... 137
14.1.15 Network Status ............................................................................................... 138
14.2 Basic Configuration ................................................................................................... 138
14.2.1 Common Configuration .................................................................................... 138
14.2.2 Date and Time Configuration ........................................................................... 139
14.2.3 Recorder OSD Settings ................................................................................... 139
14.2.4 PoE Power Management ................................................................................. 139
14.3 Factory Default .......................................................................................................... 140
14.4 Device Software Upgrade .......................................................................................... 141
14.5 Backup and Restore .................................................................................................. 142
14.6 Restart Automatically ................................................................................................. 142
14.7 View Log ................................................................................................................... 142
14.8 View System Information ........................................................................................... 143
14.9 Diagnostic Data ......................................................................................................... 143
15 Remote Surveillance ................................................................................................... 144
15.1 Web LAN Access ....................................................................................................... 144
15.2 Web WAN Access ..................................................................................................... 144
15.3 Web Remote Control ................................................................................................. 145
15.3.1 Remote Preview .............................................................................................. 146
15.3.2 Remote Playback ............................................................................................. 149
15.3.3 Remote Search and Backup ............................................................................ 150
15.3.4 Intelligent Analysis ........................................................................................... 150
15.3.5 Application ....................................................................................................... 150
15.3.6 Remote Configuration ................................................................................... 150
16 Service ......................................................................................................................... 152
16.1 GV-Cloud VMS .......................................................................................................... 152
16.2 GV-Center V2 ............................................................................................................ 153
Appendix A FAQ .................................................................................................................. 154
Appendix B Calculate Recording Capacity ....................................................................... 159
1
1 Introduction
1.1 Summary
Based on the advanced SOC technology and embedded system in the field, this series of the
NVR adopt the new designed human interface and support the smart management of the IP
camera and the record search of slice. This series of the NVR which are powerful and easy to use
are provided with excellent image quality and stable system. They are centralized monitoring
management products with high performance and high quality specially designed for network
video monitoring field.
This series of the NVR can be widely used to security system of banks at home and abroad,
schools, intelligent mansions, traffic, environmental protection, supermarkets, petrol service
stations, residential quarters and factories and so on.
1.2 Features
Basic Functions
⚫ Supports network device access including our company’s and third-party IP cameras
⚫ Some NVRs support the H.265S/H.265+/ H.265 and H.264S/H.264+/ H.264 IP cameras
⚫ Supports standard ONVIF protocol
⚫ Supports dual stream recording for each camera
⚫ Supports the addition of IP cameras both automatically and manually
⚫ Supports collective or individual configuration of the cameras’ OSD, video parameters, mask,
motion and so on
⚫ Supports multiple smart detection access and linkage for IPC’s, such as scene change, video
color cast detection, video blur detection, intrusion detection (region entrance/exiting detection),
target counting, abandoned object detection, missing object detection, crowd density detection,
face detection, license plate detection, smart tracking, fire detection, temperature detection, video
metadata, etc.
⚫ Supports playback and backup
⚫ Supports multiple user permission groups, including Administrator, Advanced and common,
which are the default permission groups of the system
⚫ Supports multiple web client logins by using one username at the same time and the ability to
enable or disable user permissions
⚫ Supports multiple web client logins at the same time
⚫ Supports binding NVR to the account of the mobile APP
⚫ Supports parking lot management
Live View
⚫ Supports 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high
definition synchronous display
⚫ Supports multi-screen modes such as 1/4/6/8/9/13/16/25/36 (varies by model)
⚫ Some models support license plate recognition view, people/motor vehicle /non-motor vehicle
view
⚫ Supports auto adjustment of the camera’s image display proportion
⚫ Supports enabling or disabling audio monitoring of a camera
⚫ Supports manual snapshot of a camera live view
2
⚫ Supports camera sequence adjustment
⚫ Supports adding and saving display modes, and saved modes can be recalled directly
⚫ Supports quick tool bar operation from the preview window
⚫ Supports camera group view and scheme view in sequence, quick sequence view and dwell
time setting
⚫ Supports motion detection and video masking
⚫ Supports multiple popular PTZ control protocols and setup of preset and cruise
⚫ Supports direct mouse control of the IP dome including rotating, zoom, focusing and so on
⚫ Supports the zoom of a single camera image by sliding the scroll wheel of the mouse
⚫ Supports the zoom of any area of a camera image up to a maximum of 16 times of the current
size
⚫ Supports image and lens adjustment (only available with some cameras)
⚫ Supports quick camera addition in the camera window of the live view interface
⚫ The live camera sequence of the web client will stay consistent with the NVR after adjusting
the live camera sequence of the NVR, but the live camera sequence of the NVR will not be
changed if the web client is changed
Record Configuration
⚫ Supports main stream and sub stream recording, as well as collective or individual
configuration of the recording stream
⚫ Supports custom and auto recording modes
⚫ Supports schedule recording, sensor alarm recording and motion detection recording, etc
⚫ Supports schedule recording and event recording setting with different recording streams
⚫ Supports recording schedule setting and recycle recording
⚫ Supports pre-recording and delay recording configuration of an event
Record Playback
⚫ Supports time scale operation in quick playback and the playback date and time can be set
randomly by scrolling the mouse; the time interval of the time scale can be zoomed
⚫ Supports record searching by time slice/time/event/tag
⚫ Supports smart playback by drawing grid, line or quadrilateral and vehicle smart playback
(some models also support smart playback by face)
⚫ Supports time view and camera view in searching by time slice mode
⚫ Supports time slice searching by month, by day, by hour and by minute and time slice to be
displayed with camera thumbnail
⚫ Supports a maximum of 4/8/16 cameras to be searched at a time (varies by unit channel size)
⚫ Supports event search by manual/motion/sensor/intelligent events
⚫ Supports tag searching by the manual added tags

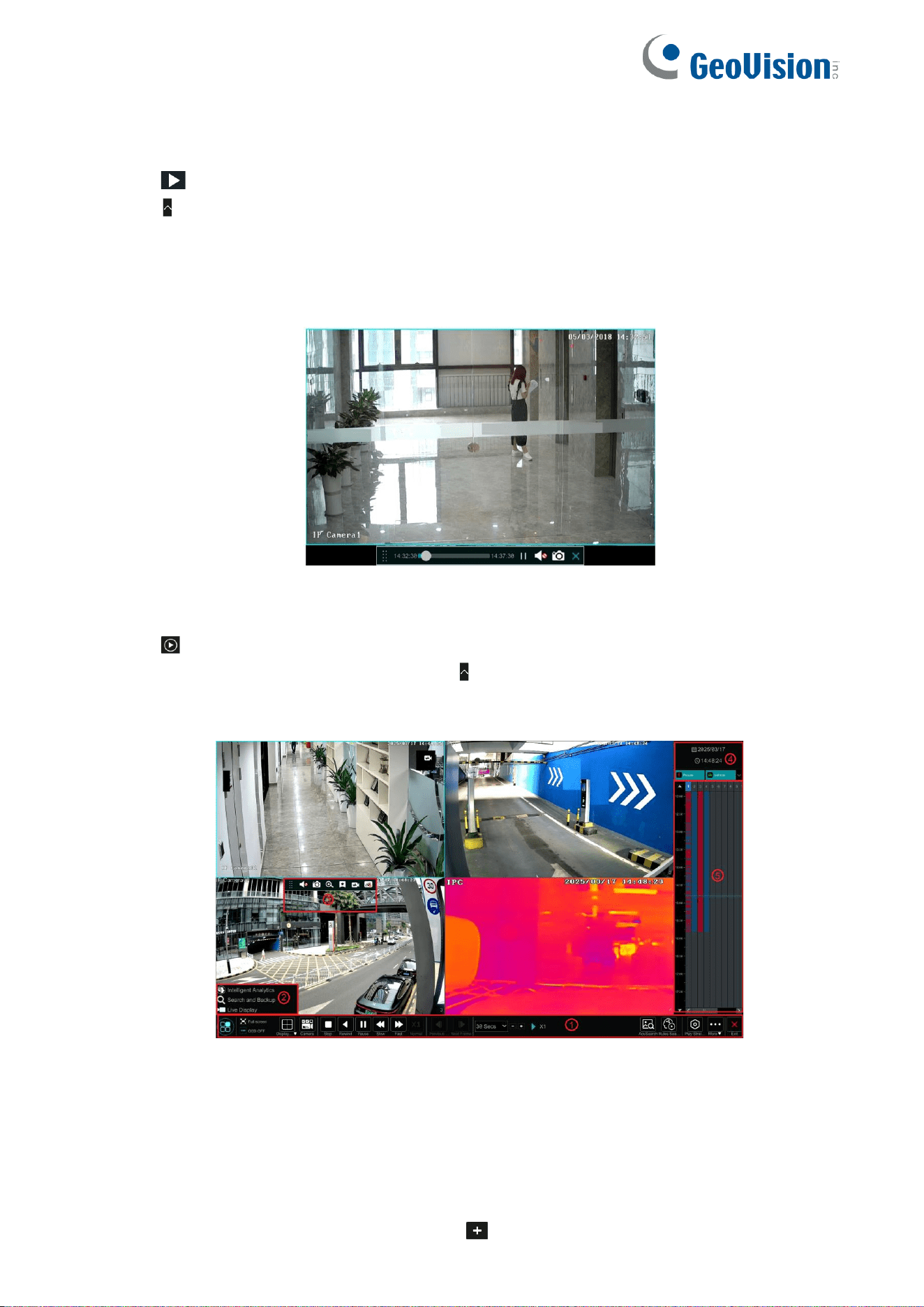

⚫ Supports instant playback of the selected camera in the live view interface
⚫ Supports a maximum of 16 synchronous playback cameras
⚫ Supports acceleration (to a maximum 32 times the normal speed), deceleration (to a minimum
1/32 times the normal speed) and 30s’ addition or reduction to current playing time

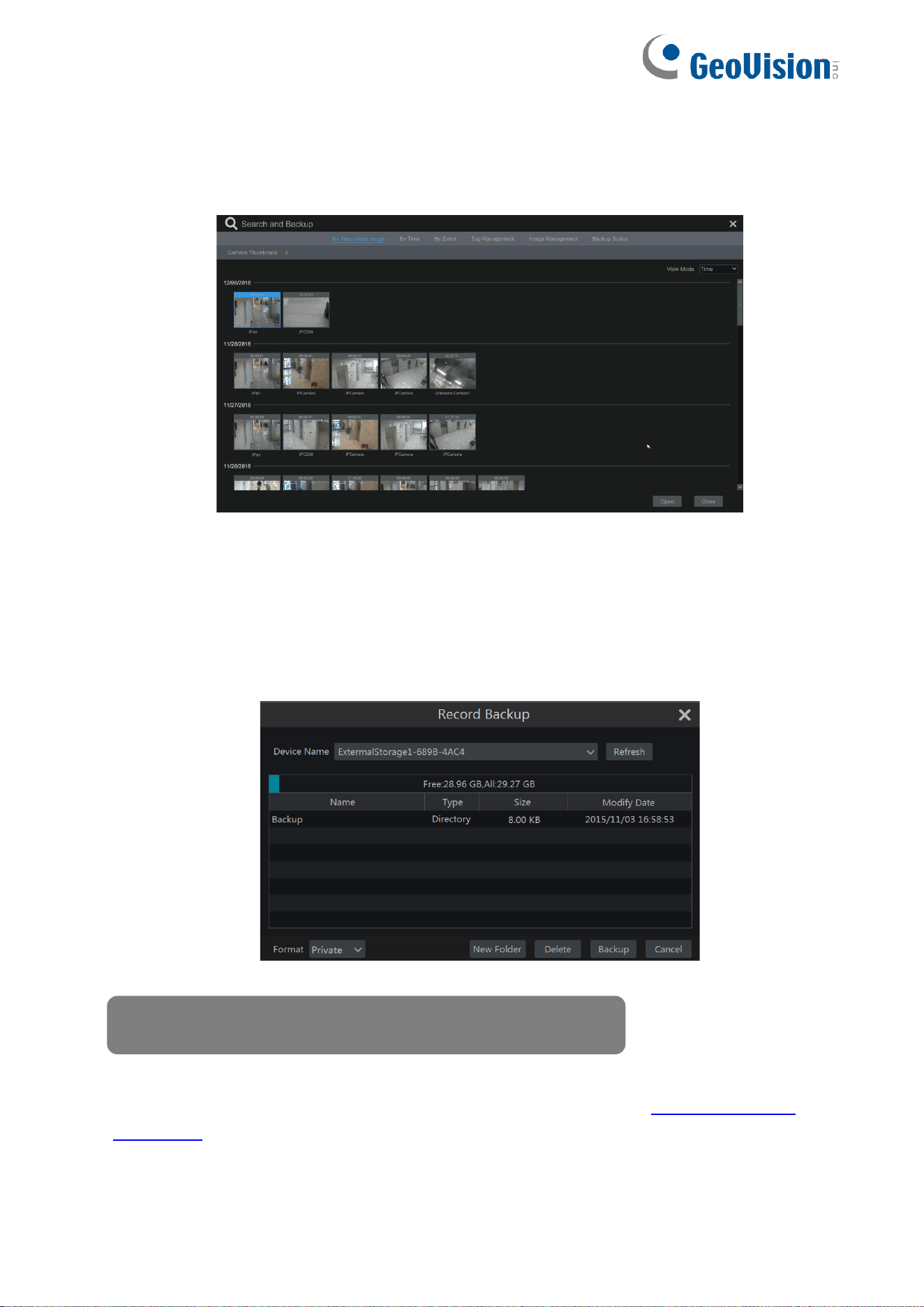

Record Backup
⚫ Supports backup of a recording through USB (U disk, mobile HDD)
3
⚫ Supports backup of a recording by time/event/image search
⚫ Supports record cutting for backing up when playing back
⚫ Supports multiple backup tasks in background and backup status viewing
Event Management
⚫ Supports alarm schedule setting
⚫ Supports enabling or disabling of the motion detection, combination alarm, intelligent alarm
and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no
disk alarm, illegal access alarm, network disconnection alarm, camera offline alarm and so on,
alarm trigger configuration supportable
⚫ Supports camera offline alarm trigger configuration of PTZ, snap, pop-up video, etc.
⚫ Supports event notification modes of alarm-out, pop-up video, pop-up message box, buzzer,
e-mail and so on

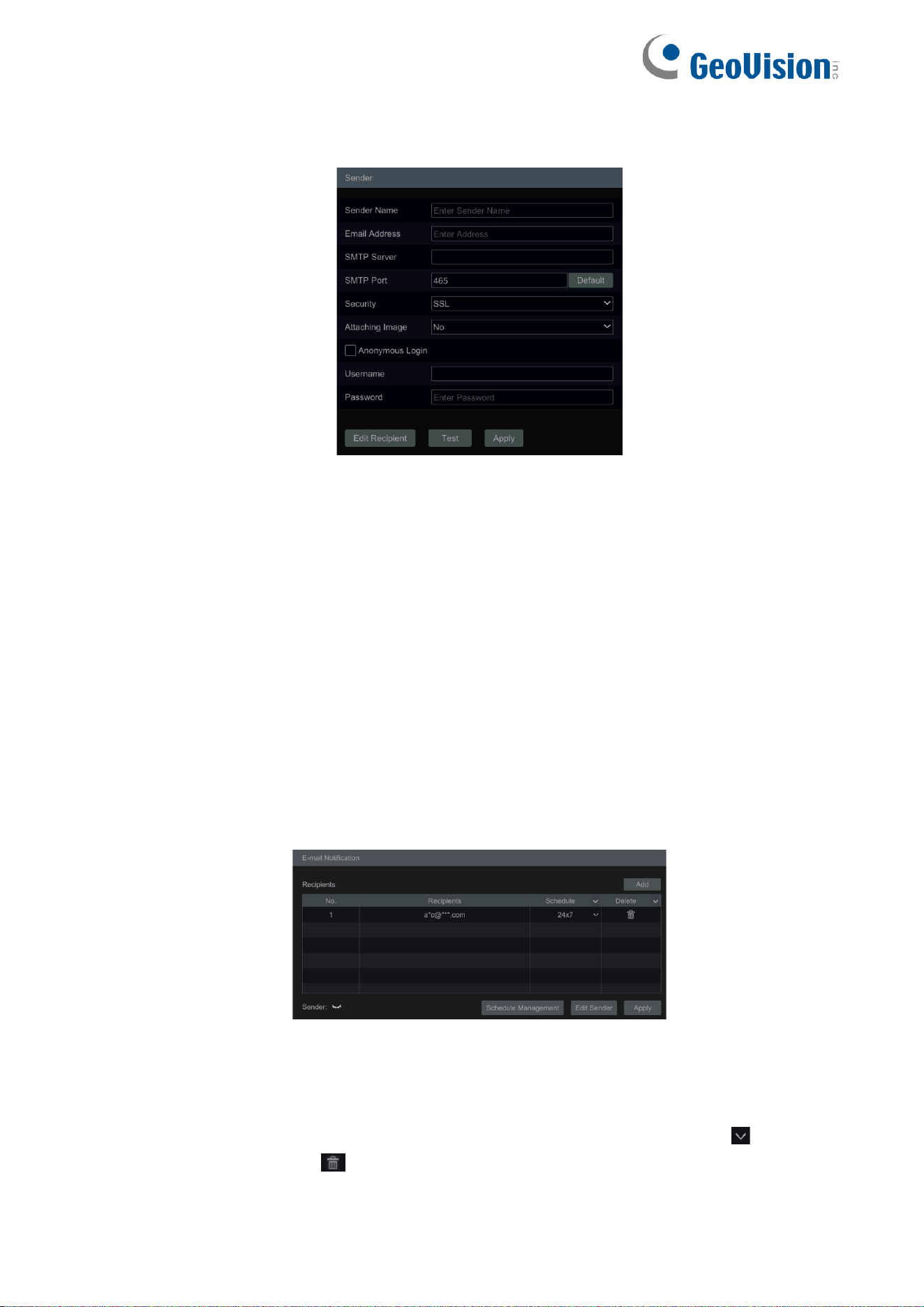

⚫ Captured images can be attached to an e-mail when an alarm is triggered
⚫ Supports alarm status view of alarm-in, alarm-out, motion detection and exception alarm
⚫ Supports triggering and clearing an alarm manually
⚫ Supports auto-reboot of the system when an exception happens
⚫ Supports alarm linkage based on face detection, vehicle detection and license plate
recognition

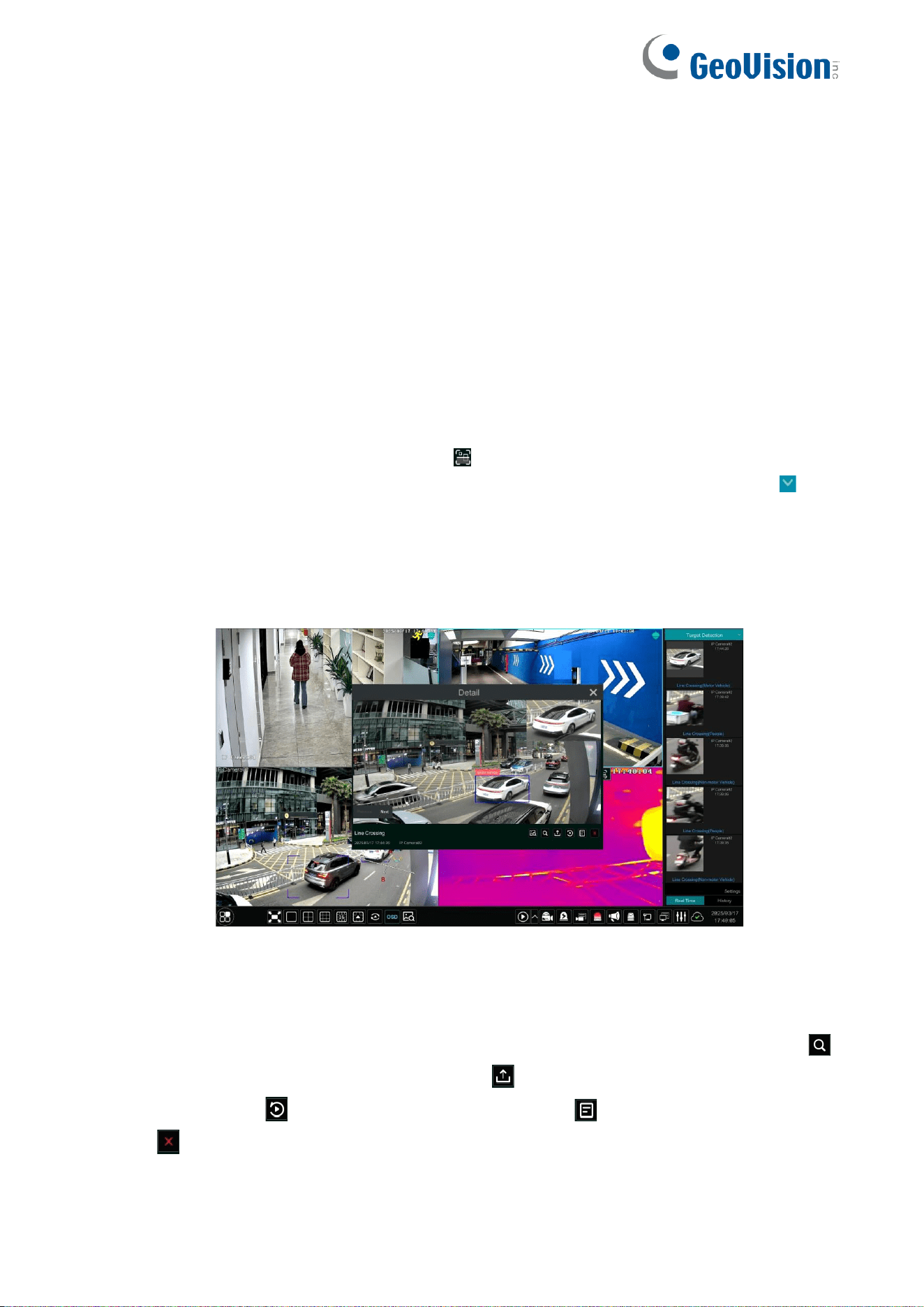

Face Detection
⚫ Supports face detection
⚫ Supports face search
⚫ Supports face information statistics
Application
⚫ Supports parking lot management (with GV-LPR4913 camera)
⚫ Supports people flow statistics (with GV-3D People Counter V3)
Network Functions

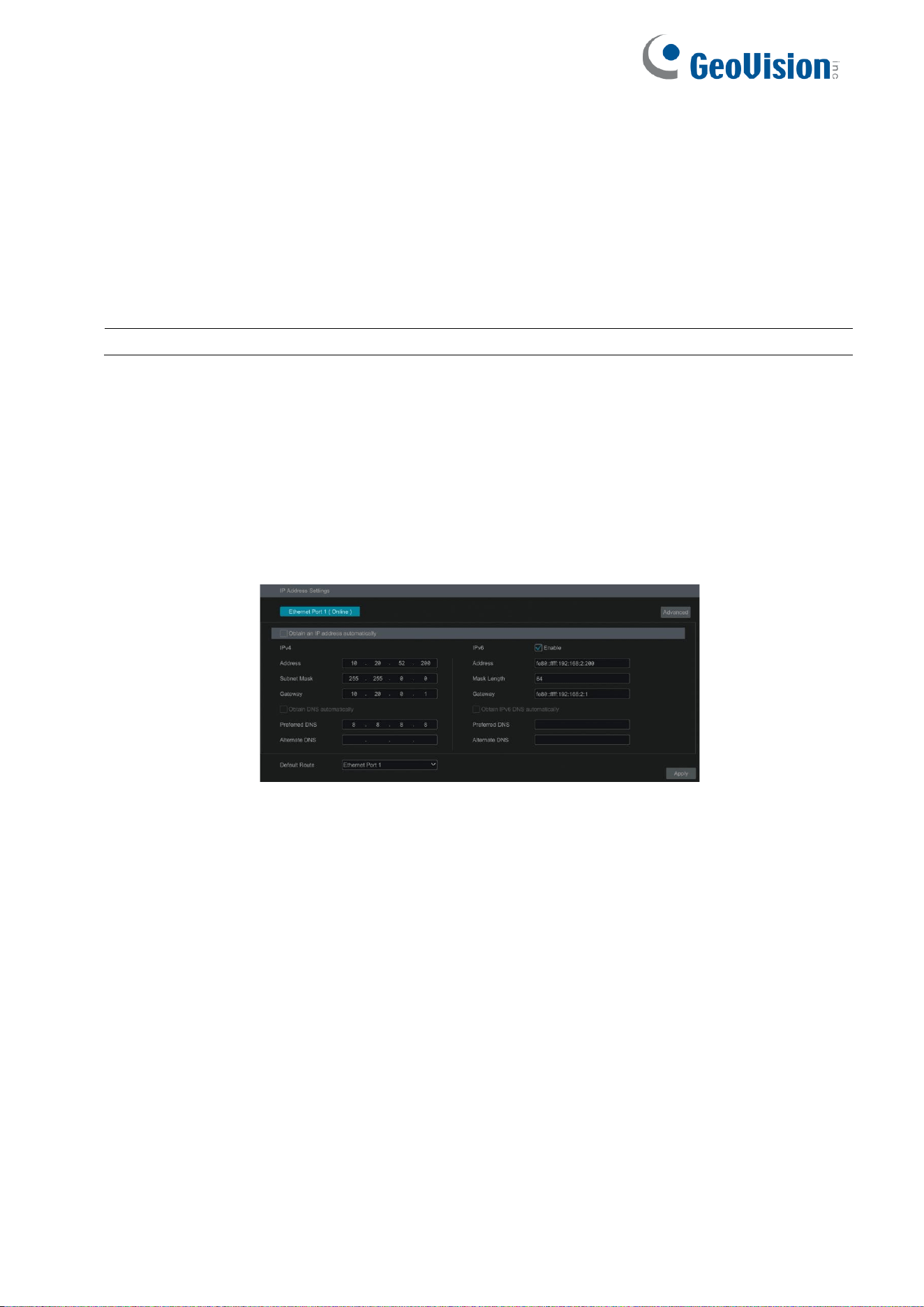

⚫ Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on
⚫ Supports allow and block list function and the allow and block IP address/IP segment address
can be set
⚫ Supports multiple browsers including Firefox, Chrome, Edge, and Safari
⚫ Supports remote configuration, import and export of the NVR parameters and other system
maintenance operations including remote upgrading and system restart
⚫ Supports remote camera configuration through the NVR including video parameters, image
quality and so on
⚫ Supports remote search, playback and backup through the NVR
⚫ Supports triggering and clearing manual alarms remotely
⚫ Motorized zoom cameras can be adjusted through the web client
⚫ Supports NVMS or other platform management software to access the NVR and manage it
⚫ Supports QR Code scanning by mobile phones and tablets
⚫ Supports mobile surveillance by phones or tablets with iOS or Android OS
4
⚫ If one camera recording is enabled or disabled manually through the web client, it will be
simultaneously enabled or disabled on the NVR
⚫ Supports direct jumping from NVR web client to IPC web client
⚫ The installation mode and display mode of the fisheye camera can be set via Web client
Other Functions
⚫ The NVR can be controlled and operated by the mouse
⚫ Setup interfaces can be conveniently switched by clicking the main menus at the top
⚫ Supports NVR information viewing including basic, camera status, alarm status, record status,
network status, disk and backup status
⚫ Supports factory restore, import and export of the system configuration, log view and export
and local upgrading by USB mobile device
⚫ Supports auto recognition of the displayer’s resolution
⚫ You can click the right mouse button at any interface to go back to the upper interface
⚫ You can click the mouse wheel at any interface to go to the live view interface
⚫ The display language and video format of the NVR will not be changed and the system logs will
be preserved if you restore to the default parameters
⚫ Press and hold the right mouse button for 5 seconds in any interface to switch the output
cyclically.
1.3 Connections
⚫ Video Connections
Video Output: Supports VGA/HDMI video output. You can connect to a monitor through these
video output interfaces simultaneously or independently.
⚫ Audio Connections
Audio Input: Connect to microphone, pickup, etc.
Audio Output: Connect to headphone, powered speaker (ex, ASPC20), amplifier, or other audio
output devices.
5
2 Basic Operation Guide
2.1 Startup & Shutdown
Please make sure all the connections are done properly before you power on the unit. Proper
startup and shutdown are crucial to extending the life of your device.
2.1.1 Startup
① Connect the output display device to the VGA/HDMI interface of the NVR.
② Connect the mouse and power. When powered on, the device will boot and the power LED
would turn blue.
③ After you read the privacy statement, a WIZARD window will pop up (you should select the
display language the first time you use the NVR). Refer to Startup Wizard for details.
2.1.2 Shutdown
You can power off the device by using a mouse.
By mouse:
① Click Start
→
Shutdown to open the Shutdown window. Select “Shutdown” in the window. The
unit will power off after clicking the “OK” button and verifying the username and password.
② Disconnect the power according to the prompt shown on the screen.
2.2 Mouse Control
➢ Mouse control in Live Display & Playback interface
In the live display & playback interface, double click on any camera window to show the window
in single screen mode; double click the window again to restore it to the previous size.
In the live display & playback interface, if the interfaces display in full screen, move the mouse to
the top of the interface to have the tool bar appear. The tool bar will disappear automatically after
you move the mouse away from it; move the mouse to the right side of the interface to pop up a
panel and the panel will disappear automatically after you move the mouse away from it.
➢ Mouse control in text-input
Move the mouse to the text-input box and then click the box. The input keyboard will pop up
automatically.
2.3 Text-input Instruction
Note: Mouse is the default tool for all operations unless an exception is indicated.
6

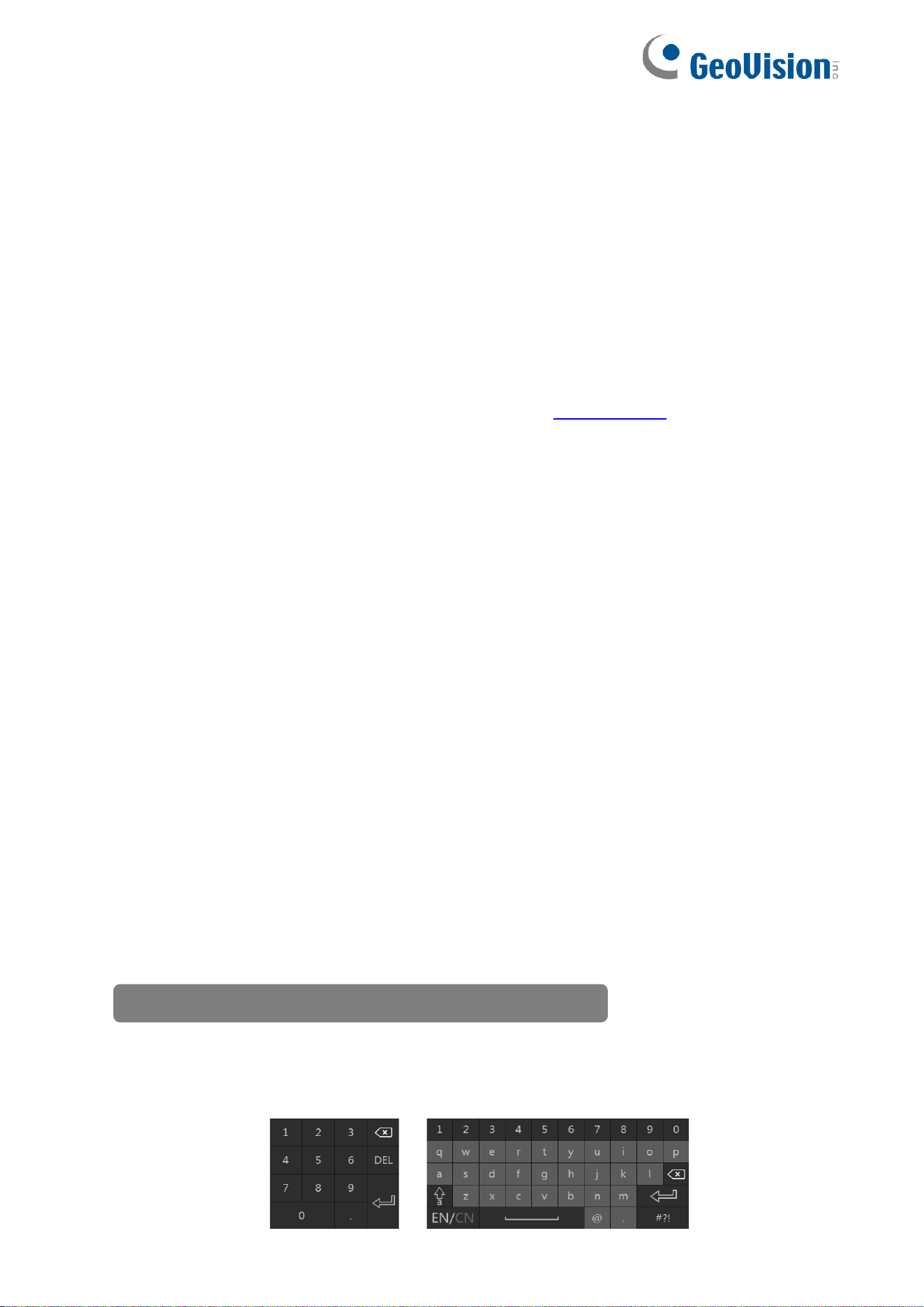

The interface has two types of input boxes. Refer to the above pictures. The left box is the number-only input box
and the right box provides inputs of numbers, letters and punctuation characters. The introductions of keys on the
input boxes are shown below.

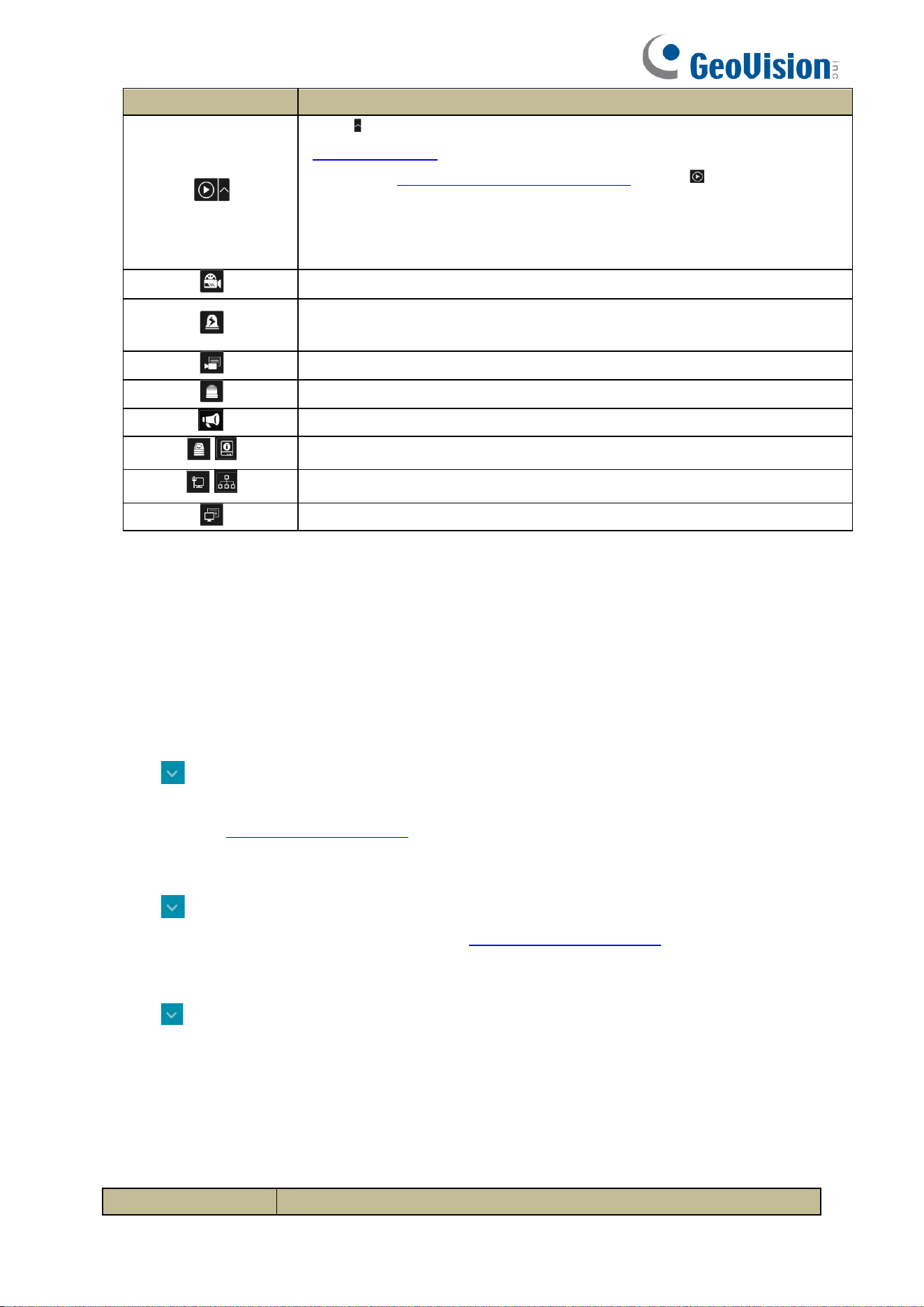

Button
Meaning
Button
Meaning
Backspace key
Switch keyboard to
see more punctuation
characters
Delete Key
Enter key
Switch between
upper and lower
letter
Space key
Switch language
2.4 Common Button Operation
Button
Meaning
Click to show the menu list.
Click to change the sequence of the list.
Click to change the camera displaying
mode.
Click to close the current interface.
Click to go to the earliest date of camera
recording.
Click to go to the latest date of camera
recording.
7
3 Wizard & Main Interface

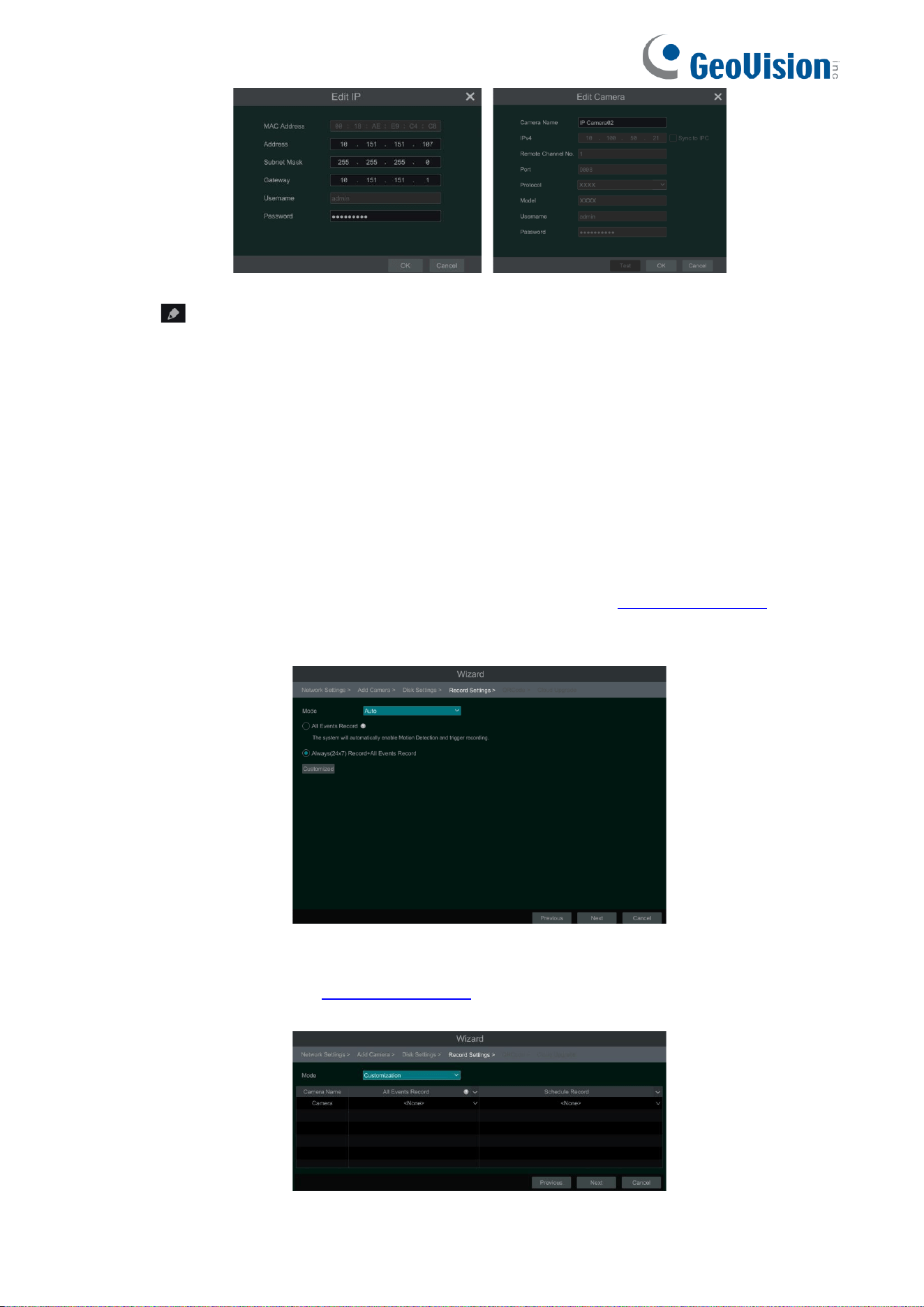

3.1 Startup Wizard
The disk icons will be shown on the top of the startup interface. You can view the number and
status of each disk quickly and conveniently through these icons ( : no disk; : unavailable disk;
: RW available disk).
You can quickly configure the NVR by wizard setup to make the NVR work normally. You must
configure the wizard if you start the NVR for the first time (or click “Skip” to cancel the wizard until
the next time you login). Maybe different versions have different wizard steps. The following
wizard steps are for reference only.
① Choose the language and locality as needed if it is the first time for you to use the wizard and
then read the privacy statement, checkmark “I have read and agree” and click “OK”.

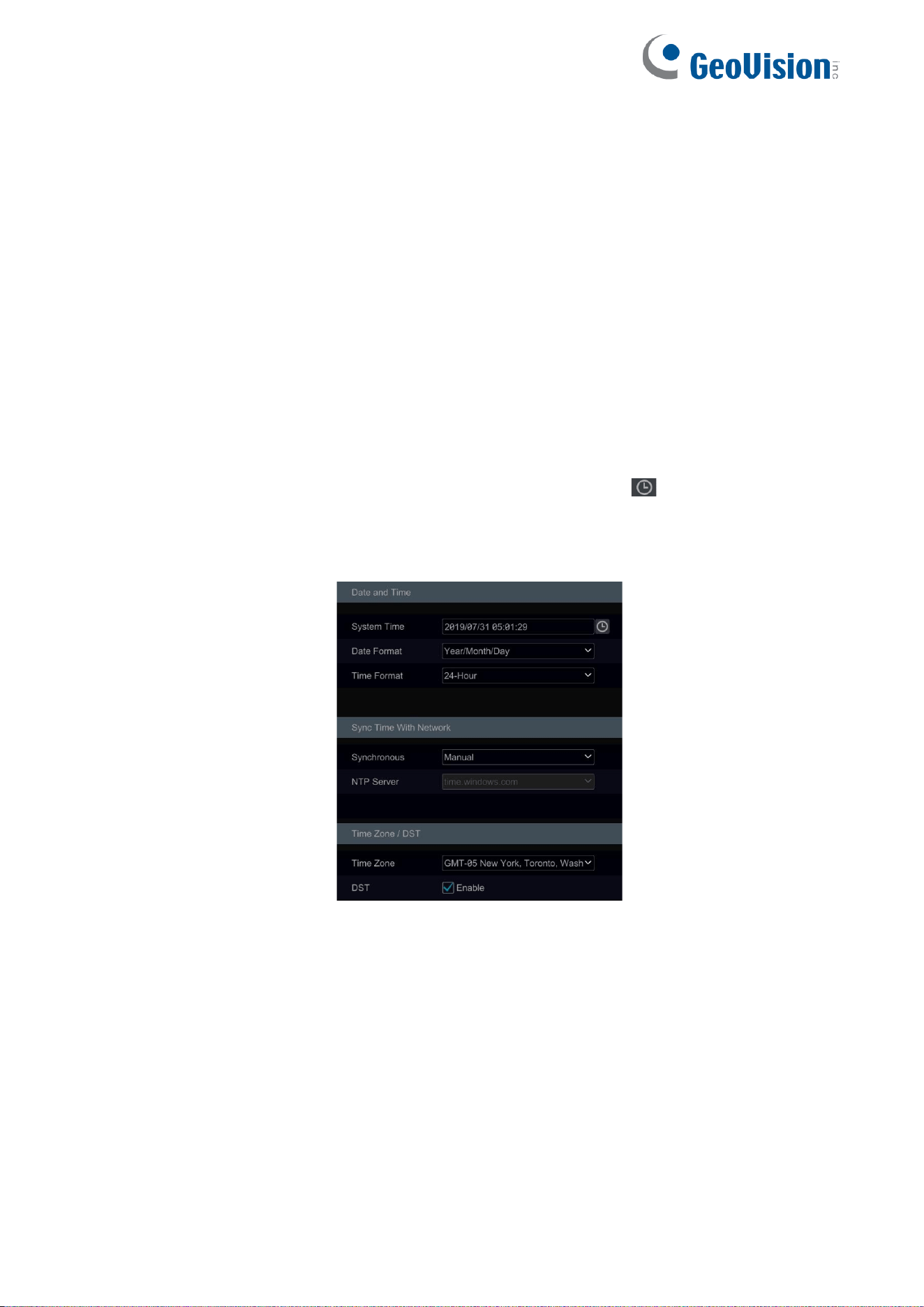

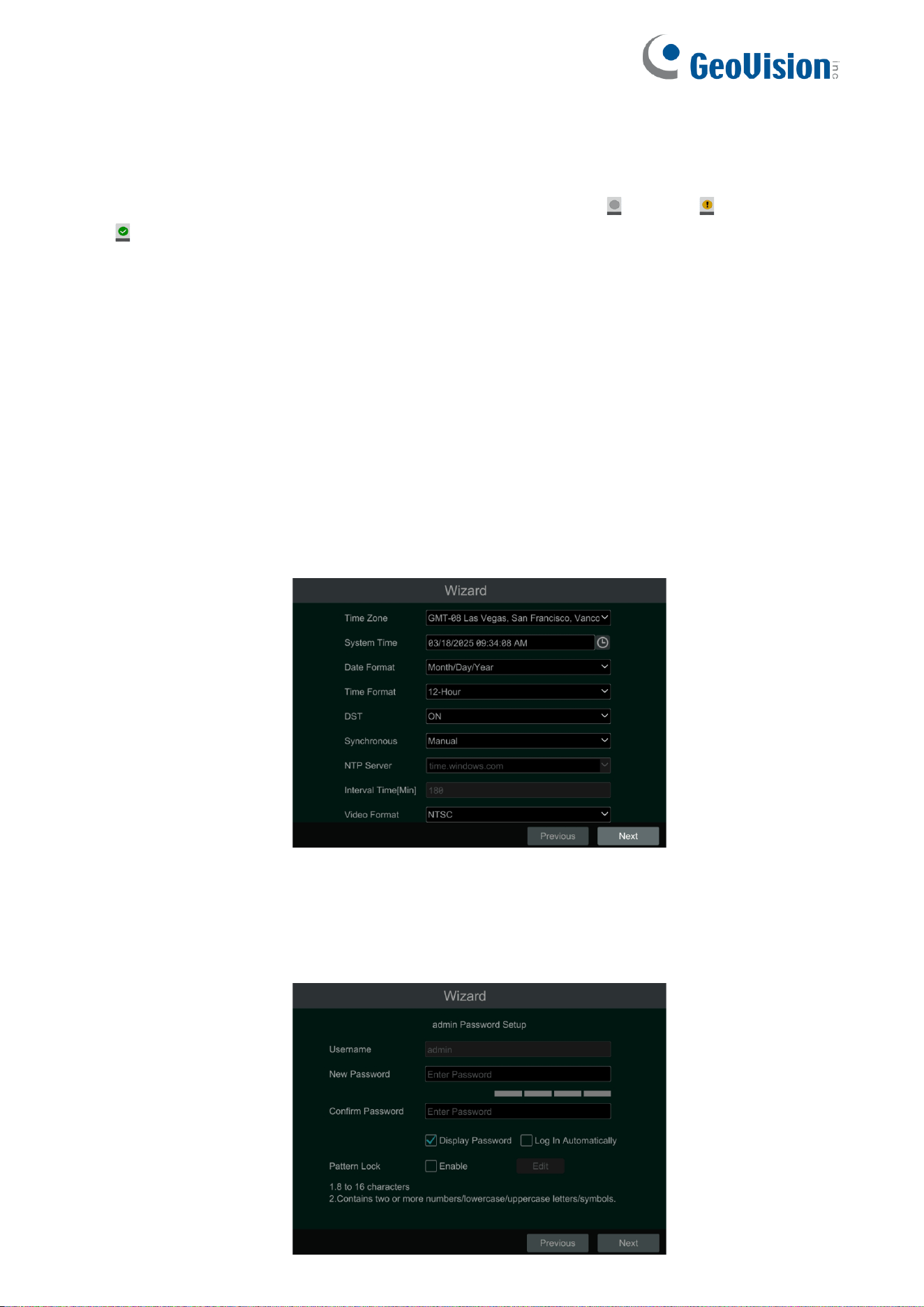

② Date and Time Configuration. The date and time of the system need to be set up if you use
the wizard for the first time. Refer to the following figure. Set the time zone, system time, date
format, time format and video format. The DST will be enabled by default if the time zone selected
includes DST. Click “Next” to continue.
③ System Login. Set your own password when you use the wizard for the first time (the default
username of the system is admin); select the login username and enter the corresponding
password next time.
8

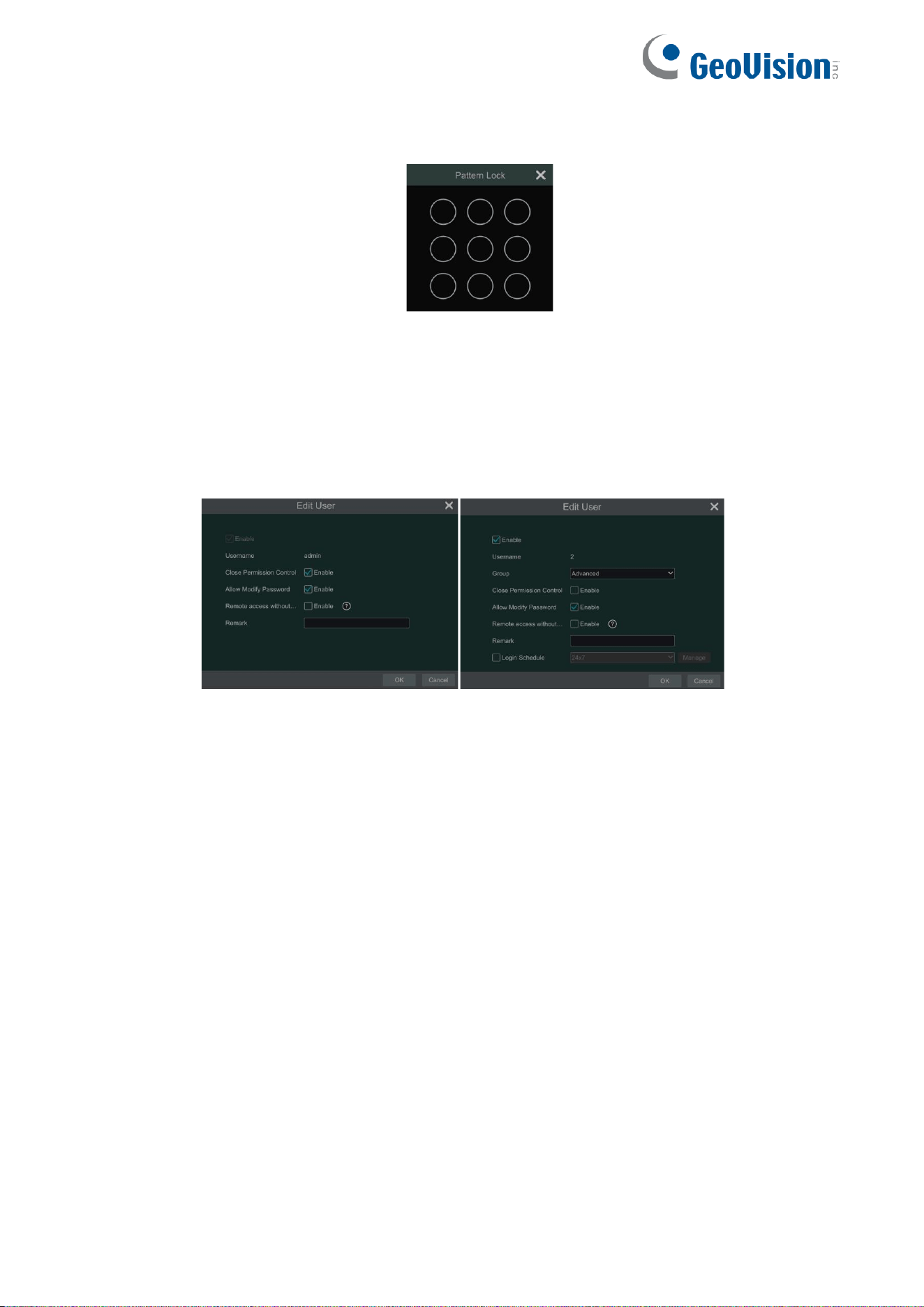

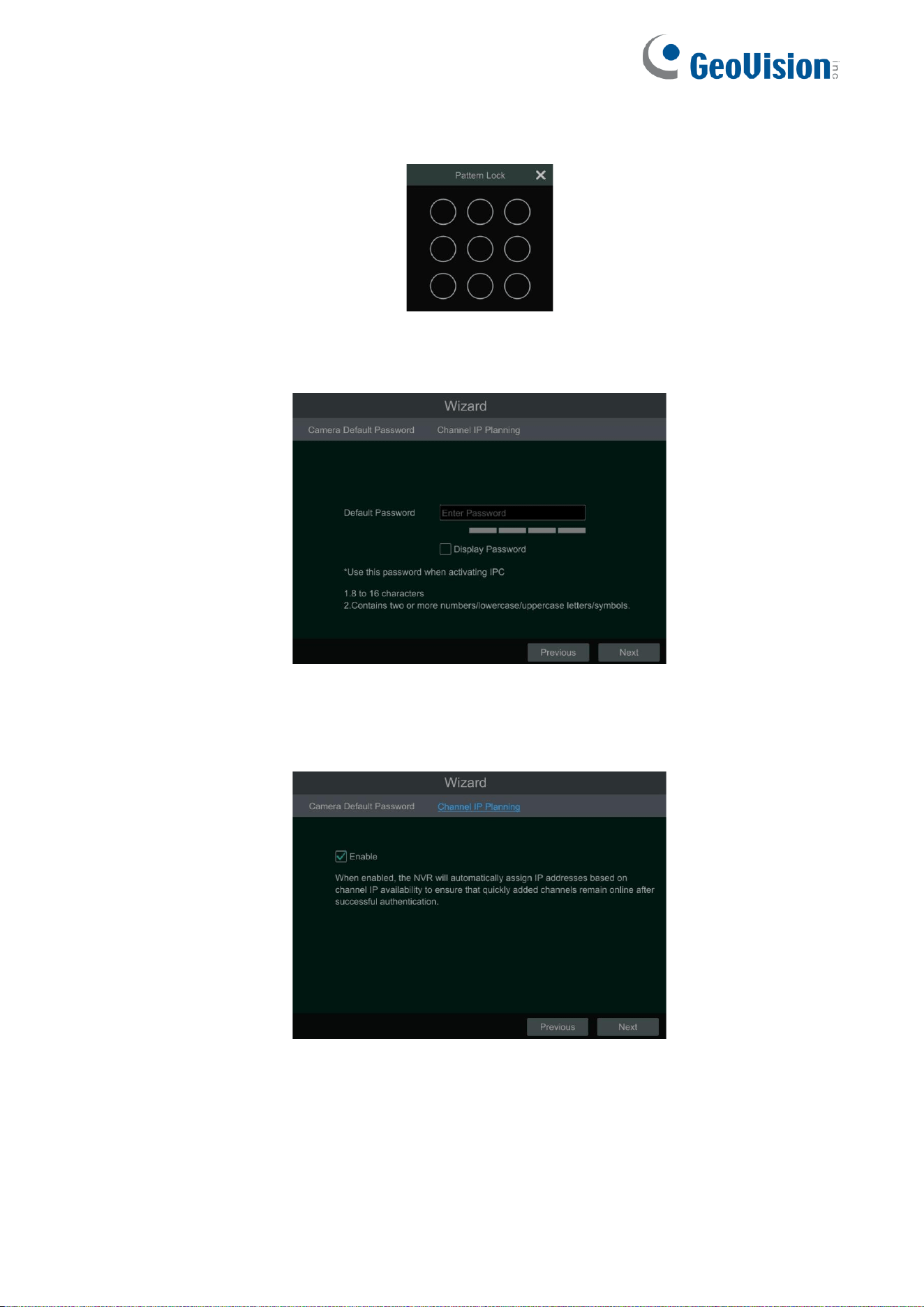

Enable pattern lock and click “Edit” to set the pattern lock.
Click “Next” to set the default password which is used to activate IPC.
Click “Channel IP Planning” to enable the channel IP planning as needed. If enabled, the NVR will
automatically assign IP addresses to ensure quickly added cameras are online after successful
authentication when the cameras and the NVR are not in the same network segment.
Click “Next” to set questions and answers for password reset of admin. If you forget the password,
you can reset the password via security question or dynamic password. See Question 4 in
Appendix A FAQ for details.
Click “Next” to continue. Then click “Wizard Setup”.

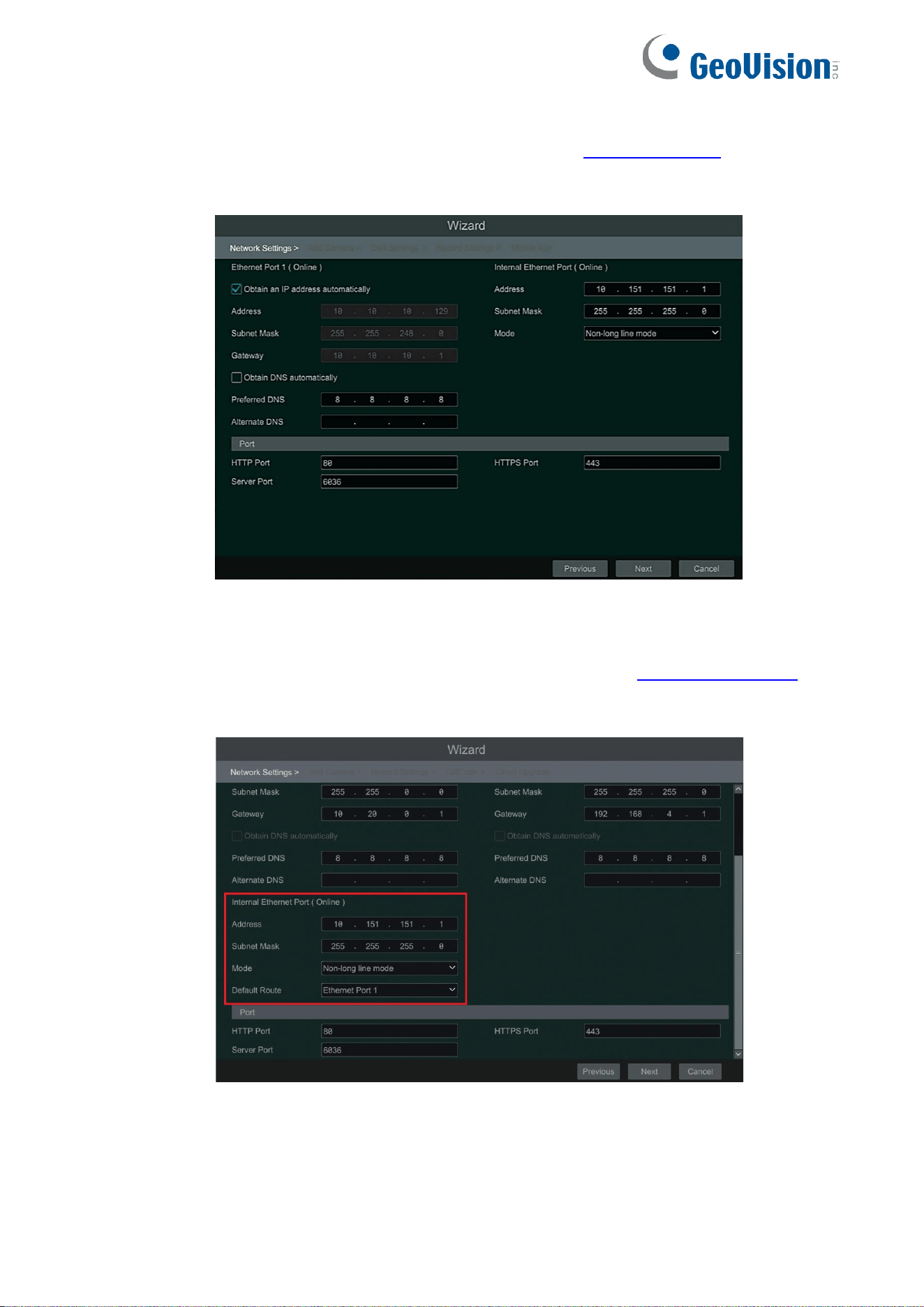

④ Network Settings. Configure the network settings as required. By default, “Obtain an IP
address automatically” and “Obtain DNS automatically” are enabled, allowing the NVR to obtain
9
the IP address and DNS settings automatically (the DHCP function of the router on the same LAN
must also be enabled). Optionally disable these settings and fill in the network information
manually. Configure the HTTP, HTTPS, and Server ports (see Port Configuration for details).
Click “Next” to continue.
Note:

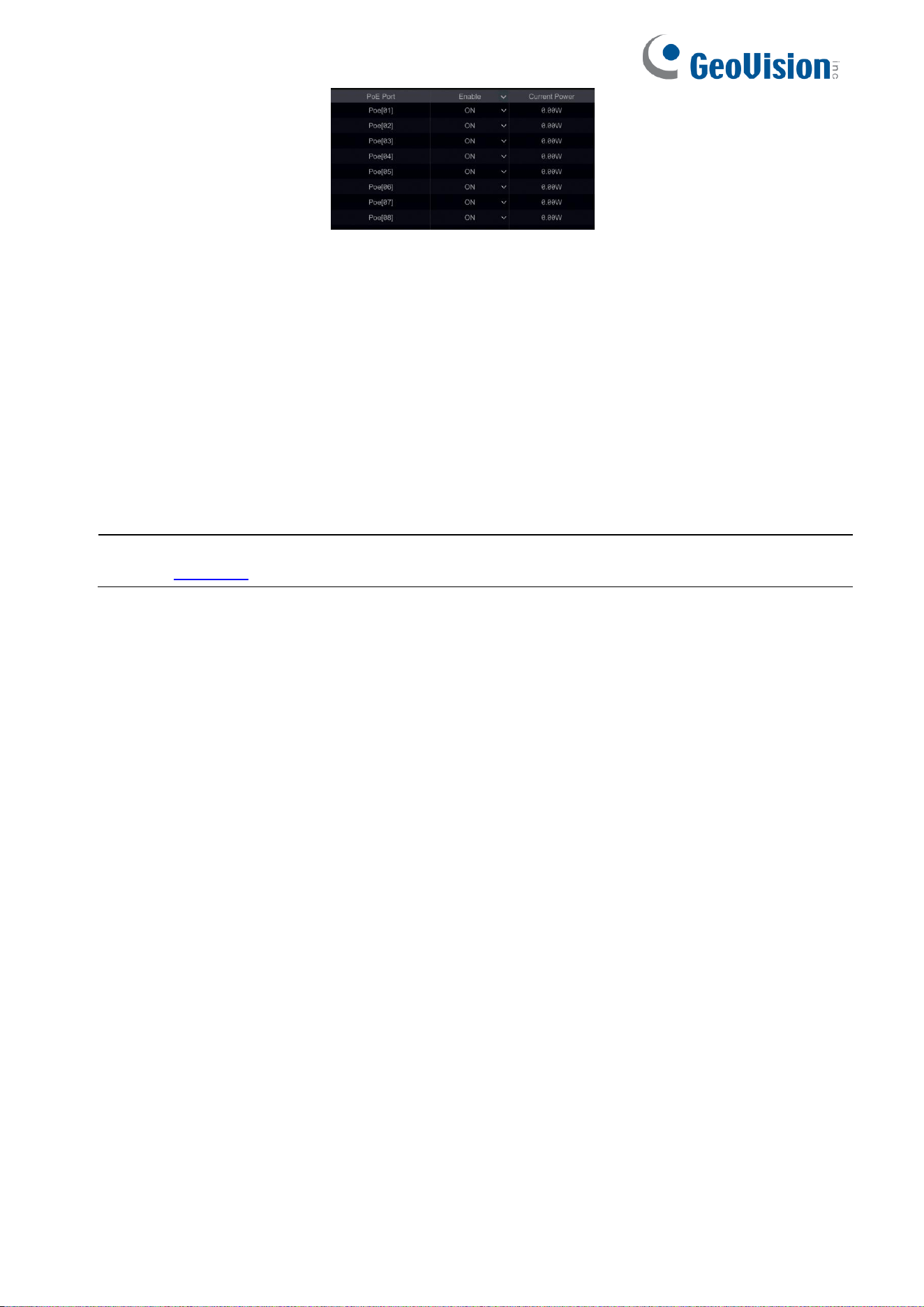

➢ If you use the NVR with the PoE network ports, the online state of the internal Ethernet port will
be shown on the interface. Refer to the picture below. Please refer to TCP/IP Configuration for
detail introduction of the internal Ethernet port.

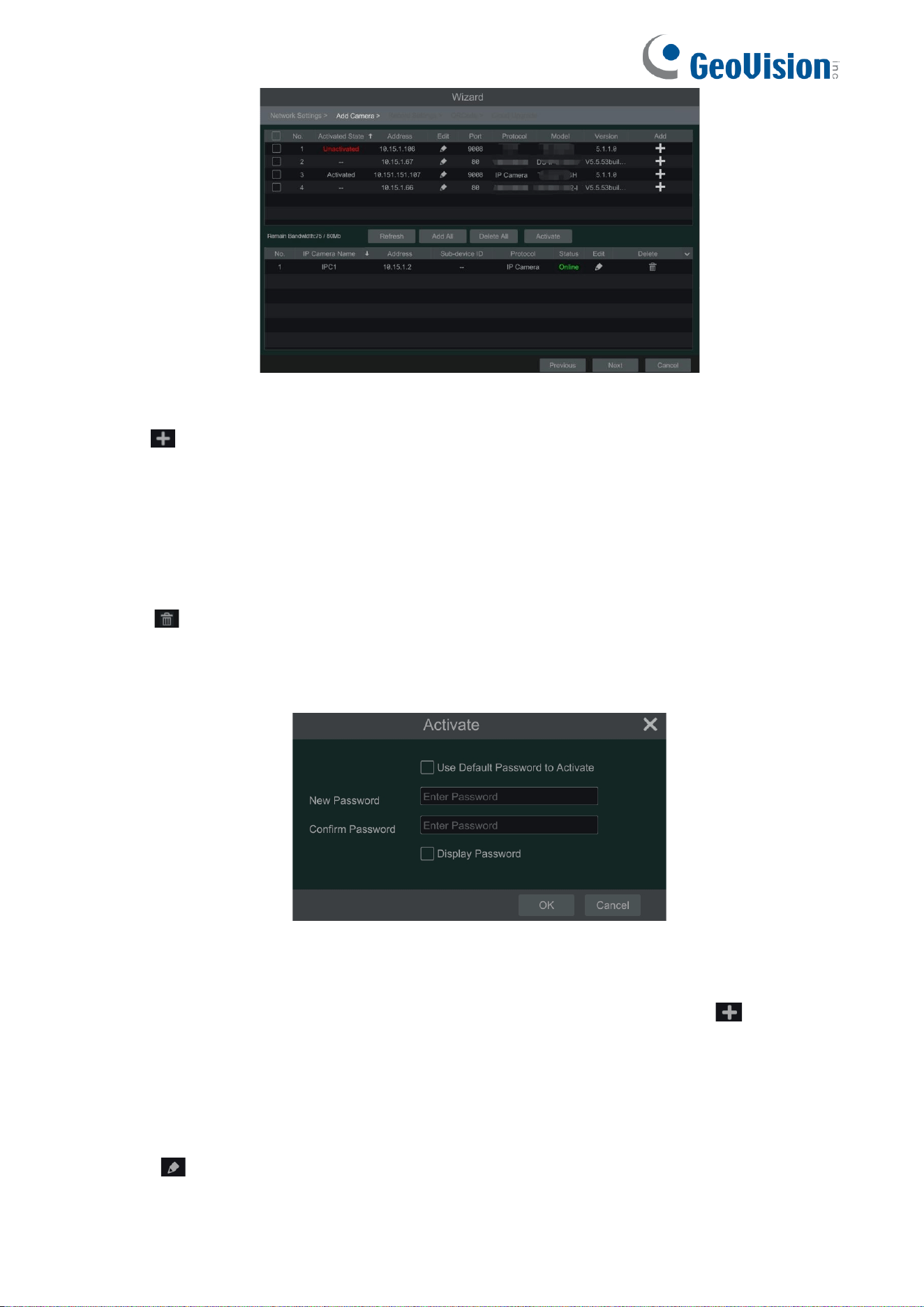

⑤ Add Camera. Click “Refresh” to refresh the list of online IP cameras which are in the same
local network with NVR.
10
In the above interface, the device activation state can be viewed. For the activated device, you can
click to add the searched camera. Click “Add All” to add cameras in batches.
If the IP addresses of the added IPCs are not in the same local network segment as the NVR’s, the
NVR will automatically assign the IP addresses in the same local network segment for the added
IPCs. Note that the prerequisite for successfully assigning IP addresses for IPCs and adding is
that the password of the IPCs must be the same as the set default activation password in the NVR
and the channel IP planning function is enabled.
If the default password is not used by the activated device, you need to modify it manually.
Click to delete the added camera. Click “Delete All” to delete all the added cameras.
For the unactivated devices, you can activate one by one or in batches. Check the unactivated
device and click “Activate” to pop up an activation box.
You can use default password to activate.
If your camera needs to be activated by self-defined password, you need to manually enter the
password to activate.
For unactivated private protocol IPCs (not the third-party device), you can click to directly
add and the IPCs will be automatically activated through the default password; If multiple IPCs
have the same IP address and are not activated, you can also click “Add All” to automatically
activate and add. In addition, the NVR will automatically assign IP addresses for them (IP channel
planning should be enabled first).
Note: During the activation, the device cannot disconnect with the NVR, or the activation will fail.
Click to edit the searched IP camera as shown on the below left. Enter the new IP address,
subnet mask, gateway, username and the password of the camera. Click “OK” to save the
settings.
11
Click to edit the added camera as shown on the above right. Enter the new camera name, IP
address, port, username and the password of the camera. You can check “Sync to IPC” to modify
the IP address of the IPC via different network segments for being in the same network segment
with the NVR. Then click “Test” to test the connection. Click “OK” to save the settings. You can
change the IP camera name only when the added camera is online. Click “Next” to continue.
⑥ Disk Settings. You can view the disk number, disk capacity of the NVR and serial number,
R&W status of the disk. Click “Format” to format the disk. Click “Next” to continue.

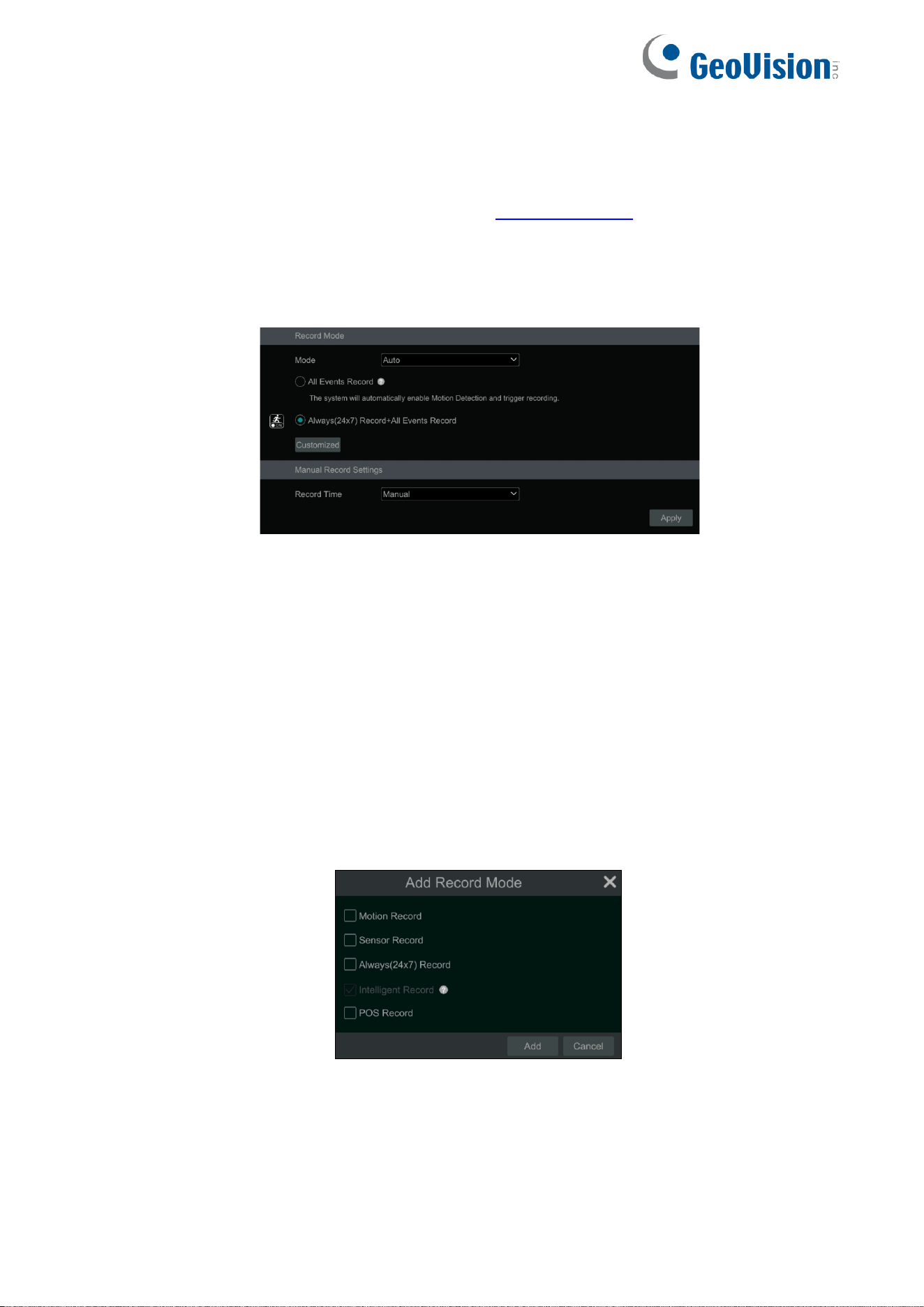

⑦ Record Settings. Two record modes are available: auto and customization.
Auto: Select one auto mode in the interface as shown below and then click the “Next” to save
the settings. Click “Customized” to self-define record mode. See Mode Configuration for
details.
Customization: Set the “All events record”, and “Schedule Record” of each camera. Click “OK”
to save the settings. See Mode Configuration for details.

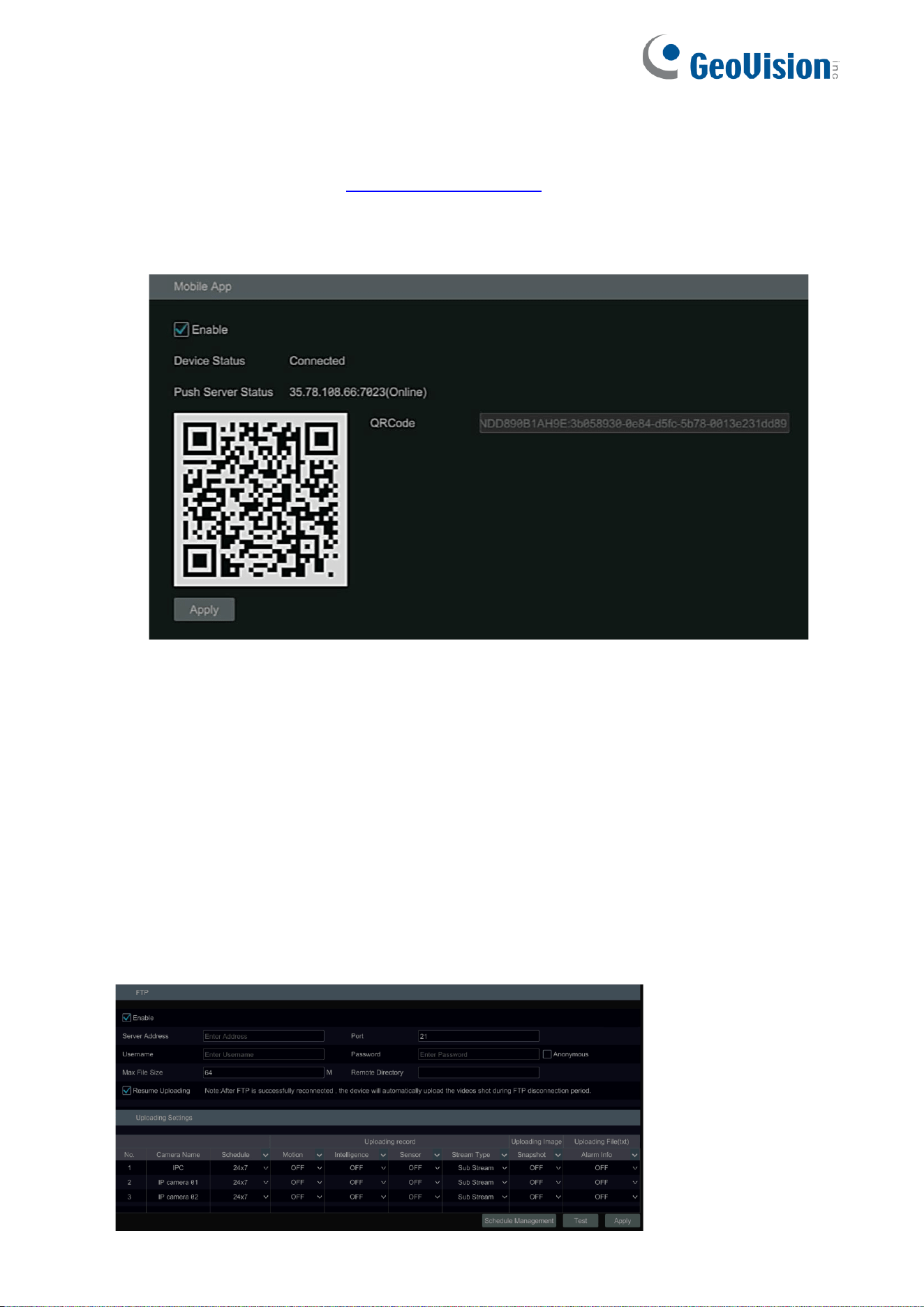

⑧ Mobile App. By default, the Mobile App function is enabled. Verify that it remains enabled, or
12
configure it later in the network settings after exiting the wizard (refer to Mobile App for details).
You can scan this QR code with the GV-Eye mobile app to remote view the NVR. Click “OK” to
save the settings.

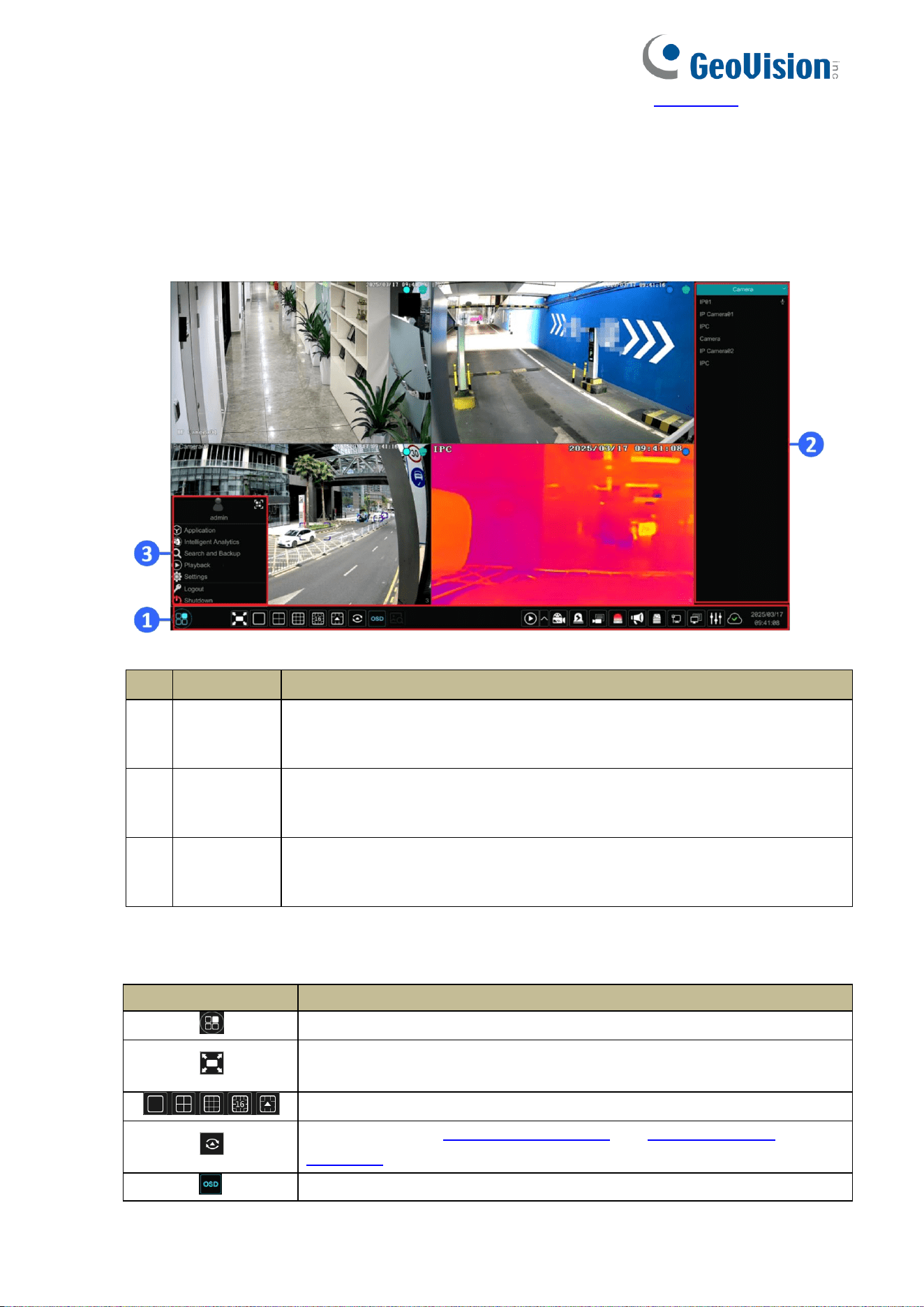

3.2 Main Interface
3.2.1 Main Interface Introduction
No.
Name
Description
1
Live View
Toolbar
Provides quick access to commonly used live monitoring functions, such
as screen layout, playback, recording, alarms, system status, and display
controls.
2
Navigation
Panel
Displays cameras, camera groups, display modes, and target detection
results. Use this panel to select cameras, switch display modes, and
access related monitoring views.
3
Main Menu
Provides access to major system functions, including intelligent analytics,
playback, search and backup, system settings, user management, and
power options.
The buttons in area ① are described in the table below.
Button
Meaning
Start button. Click to pop up area ③.
Full screen button. Click to show full screen; click it again to exit the full
screen.
Screen mode button.
Dwell button (see Quick Sequence View and Scheme View In
Sequence for details).
Click to enable OSD; click again to disable OSD.
13
Button
Meaning
Click to set the default playback time before starting instant playback
(Instant Playback) or going to the playback interface for playback
operations (Playback Interface Introduction); click to go to the
playback interface. For instance, if you choose “5 minutes ago” as the
default playback time, you can playback the recording from the past five
minutes.
Manual record button. Click to enable/disable record.
Manual alarm button. Click to trigger or clear the alarm-out manually in
the popup window.
Record status button. Click to view the record status.
Alarm status button. Click to view the alarm status.
Voice broadcast button. Click to select the channel to broadcast.
/
Disk status button. Click to view the disk status.
/
Network status button. Click to view the network status.
Information button. Click to view system information.
Note: Different models may have different buttons on the live view interface. All pictures in this
manual are for reference only; the real product shall prevail.
Introduction of area ②:
Area ② is hidden by default. Move the cursor to the right to reveal this area. Click “Camera” to
view all the added cameras in the camera list. Select one camera window on the left side of the
interface and then double click one camera in the list to preview the camera image in the selected
window.
Click on the top right corner and then select “Single Channel Sequences” to view all the
added groups in the group list; click one group in the list to view all the added cameras in the
group (refer to Add/Edit Camera Group for detail configuration of the camera group). Select one
camera window on the left side of the interface and then double click one group in the group list to
preview the cameras’ images one by one in the selected window.
Click on the top right corner and then select “Customize Display Modes” to view all the
display modes in the display mode list (refer to Preview by Display Mode for detail configuration
of the display mode). Double click one display mode in the list to switch to the display mode for
previewing.

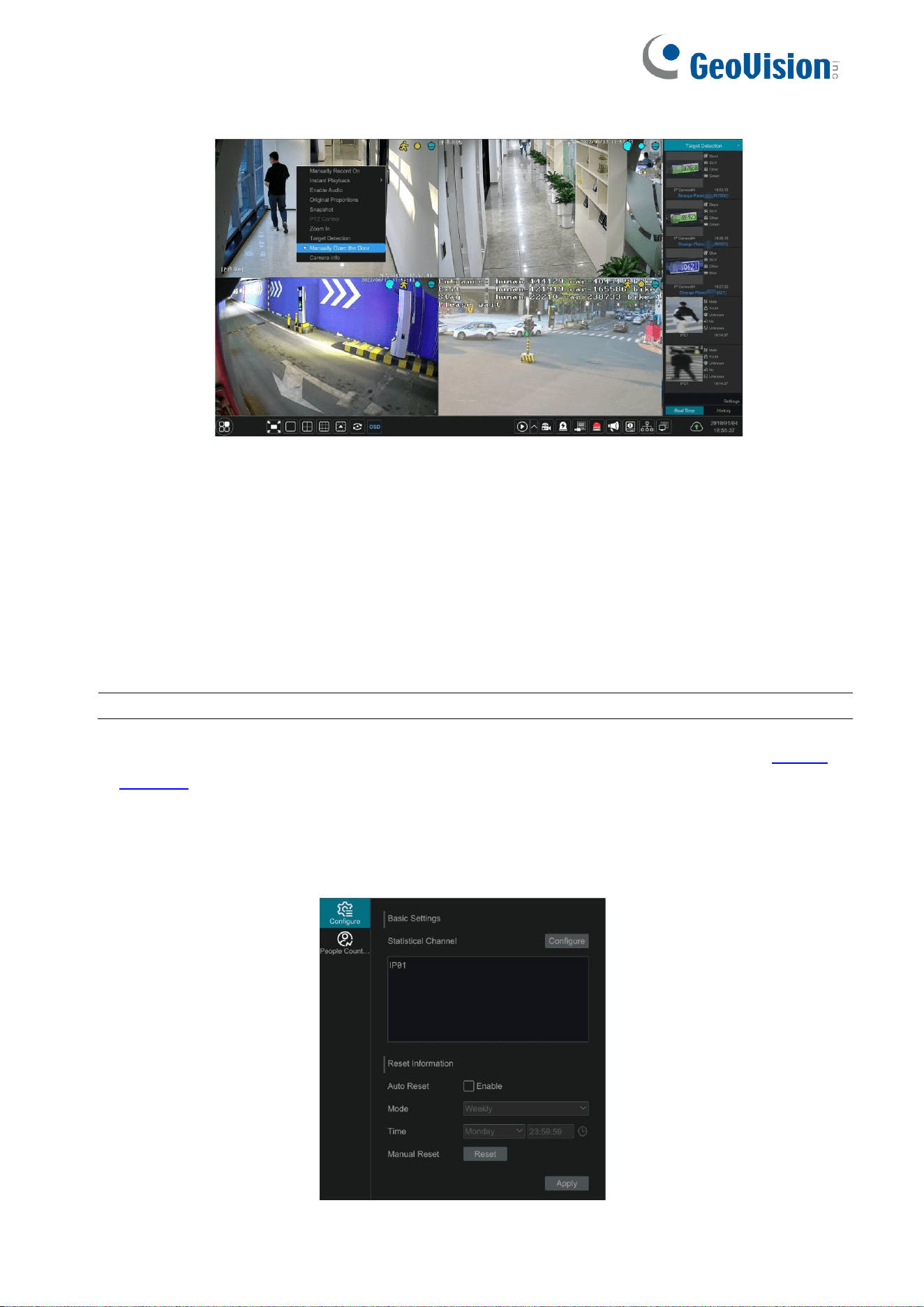

Click on the top right corner and then select “Target Detection” to go to target detection
interface. This tab will show the captured images of people, vehicles, and license plates. (This
function is only available for some models). Note that only some models support multi-channel
target detection display.
Introduction of area ③:

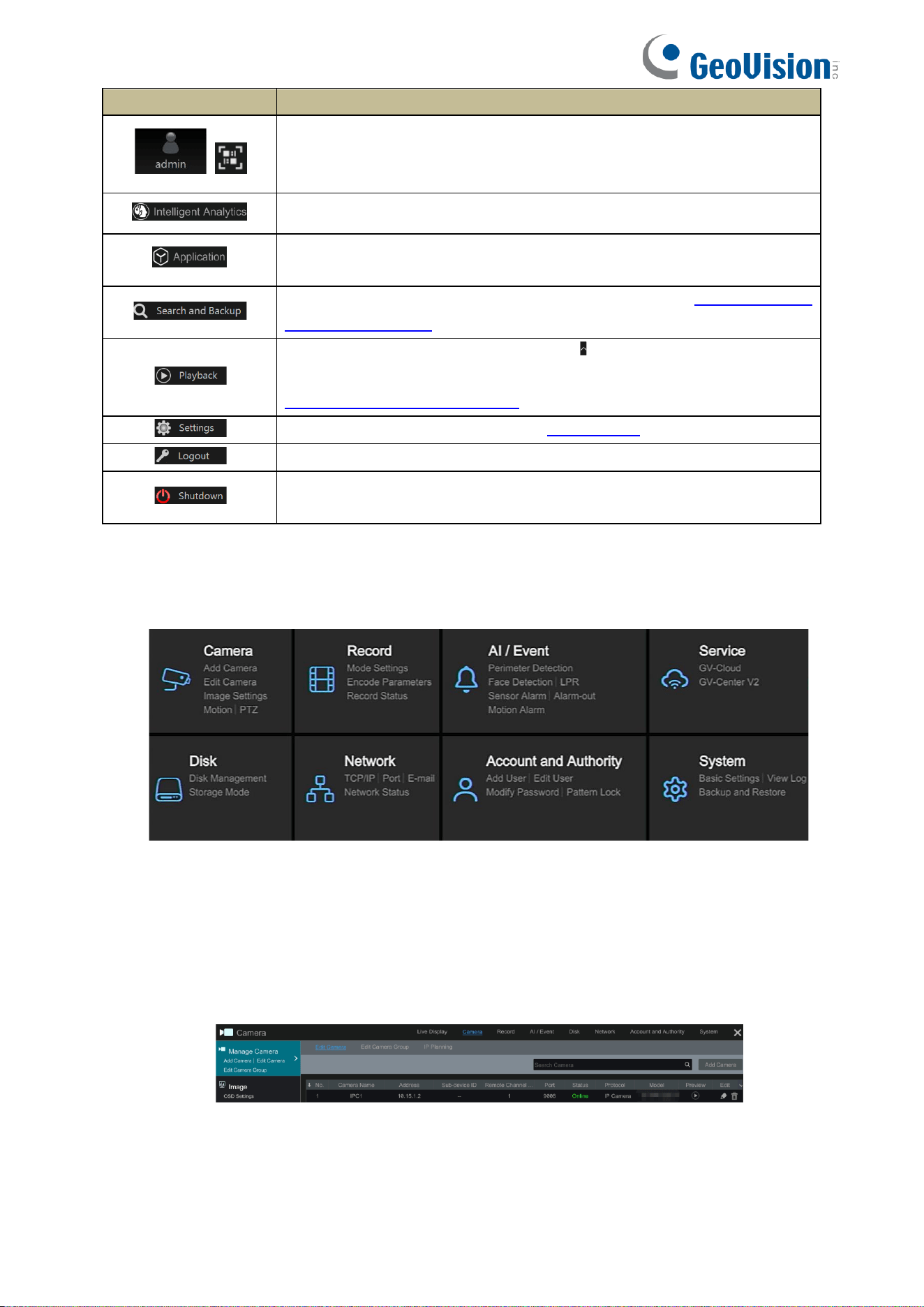

Icon / Button
Meaning
14
Icon / Button
Meaning
It shows the current login user. Click the QR code icon to view the QR
code and security code. User can quickly add the NVR to the server
list of the mobile app by scanning this QR code.
Click to go to the intelligent analytics interface.
Click to access parking lot management, access control management,
and people flow statistics (varies by models)
Click to go to record search and backup interface, see Record Search,
Playback & Backup for details.
Click to go to playback interface (click on the tool bar at the bottom
of the live view interface to set the default playback time), see
Playback Interface Introduction for details.
Click to open the setup panel, see Setup Panel for details.
Click to log out of the system.
Click it and then select “Logout”, “Reboot” or “Shutdown” in the popup
window.
3.2.2 Setup Panel
Click Start
→
Settings to open the setup panel as shown below.
The setup panel includes eight modules. Each module provides some function entries with links
for convenient operation.
Here we take Camera module as an example. The Camera module provides convenient links
such as “Add Camera”, “Edit Camera”, “Image Settings”, “Motion” and “PTZ”. Click Camera to go
to the camera management interface as shown below.
There are some function items on the left side of the camera management interface. Click each
item to go to corresponding interface or window. For instance, click “Add Camera” to open the
window as shown below.
15
Click the main menus on the top of the camera management interface to go to corresponding
interfaces. Refer to the picture below. For instance, you can go to system setup interface by
clicking “System” tag.
3.2.3 Main Functions
➢ Camera
The module covers the functions such as Camera Management (see Camera Management for
details), Image Settings (see Preview Image Configuration for details), Motion (see Motion
Alarm for details), and PTZ (see PTZ for details) and so on.
➢ Record
The module covers the functions such as Encode Parameters and Record Schedule and so on.
Please see Record & Disk Management for details.
➢ AI/Event
The module covers the functions such as Smart Event, Combination Alarm, Exception,
Sensor and Motion Alarm Handling and Alarm Out Settings. Please see AI Event
Management and General Event Management for details.
➢ Disk
The module covers the functions such as Disk Management, Storage Mode and Disk
Information and so on. Please see Record & Disk Management for details.
➢ Network
The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and
so on. Please see Network Configuration for details.
➢ Account and Authority
The module covers the functions such as Account Management (see Account Management for
details) and Permission Management (see Permission Management for details) and so on.
➢ System
The module covers the functions such as Basic Configuration (see Basic Configuration for
details), Device Information (see View System Information for details), Log Information (see
17
4 Camera Management
4.1 Add/Edit Camera
4.1.1 Add Camera
The network parameters of the NVR should be set before adding an IP camera (see TCP/IP
Configuration for details).

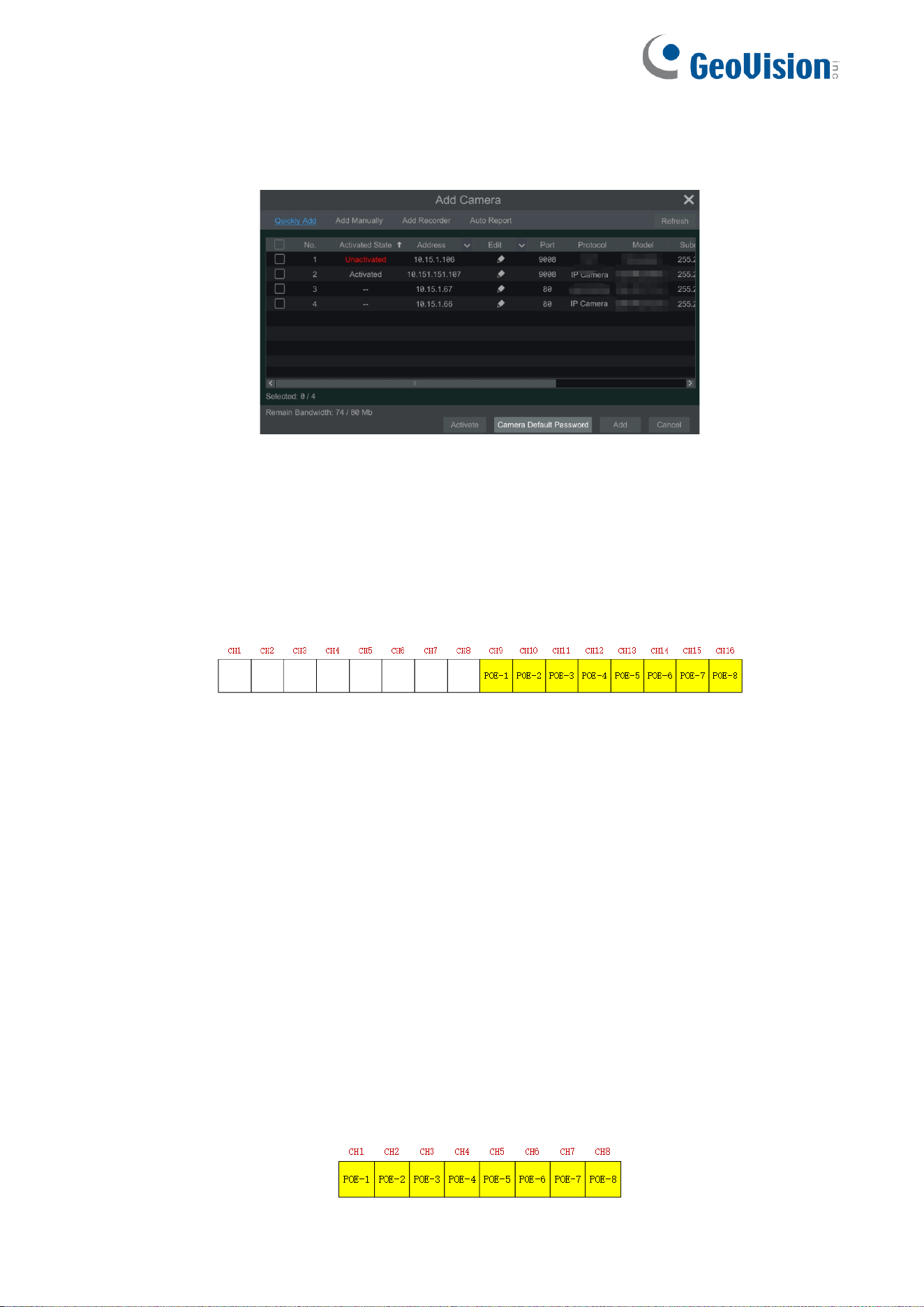

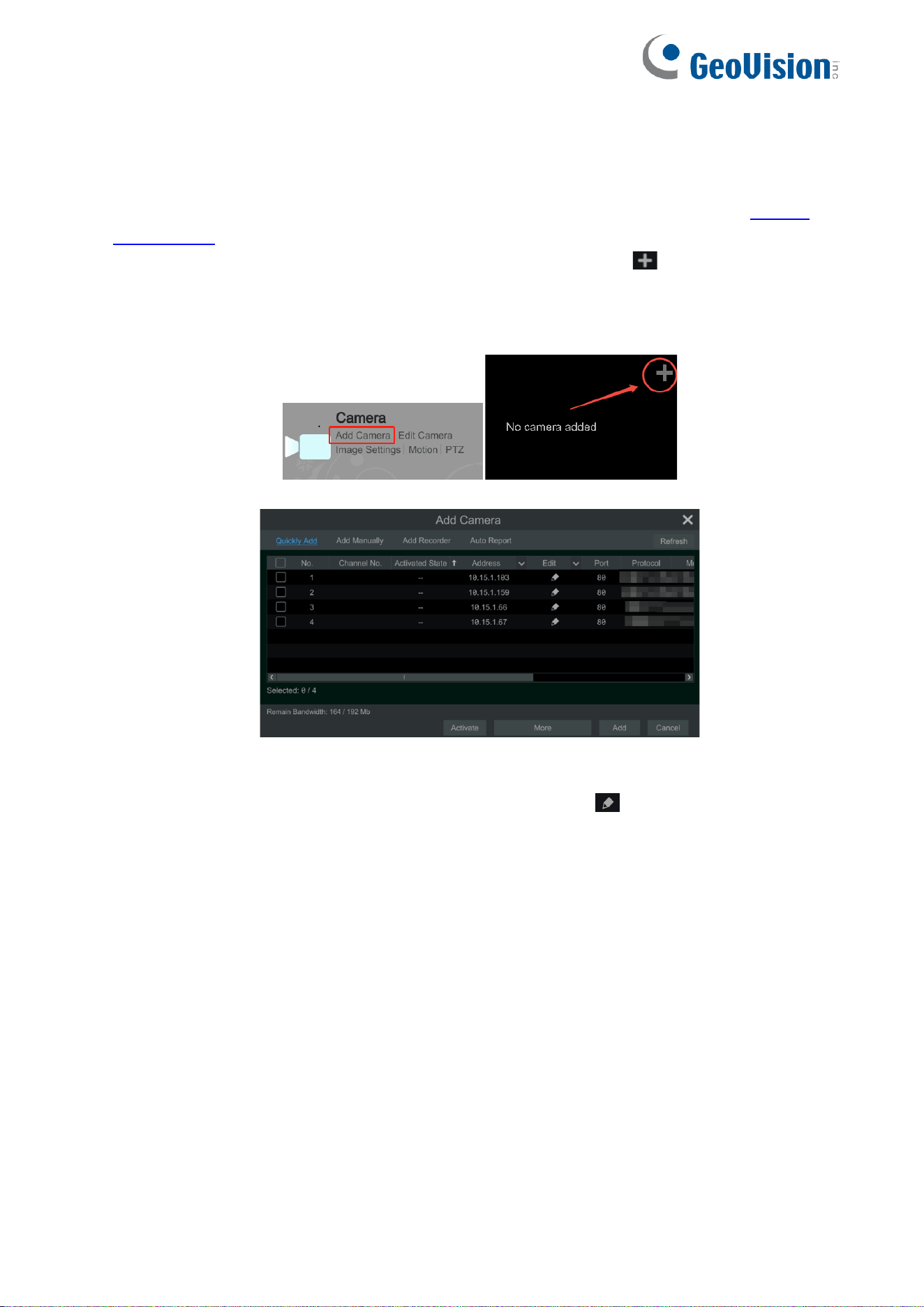

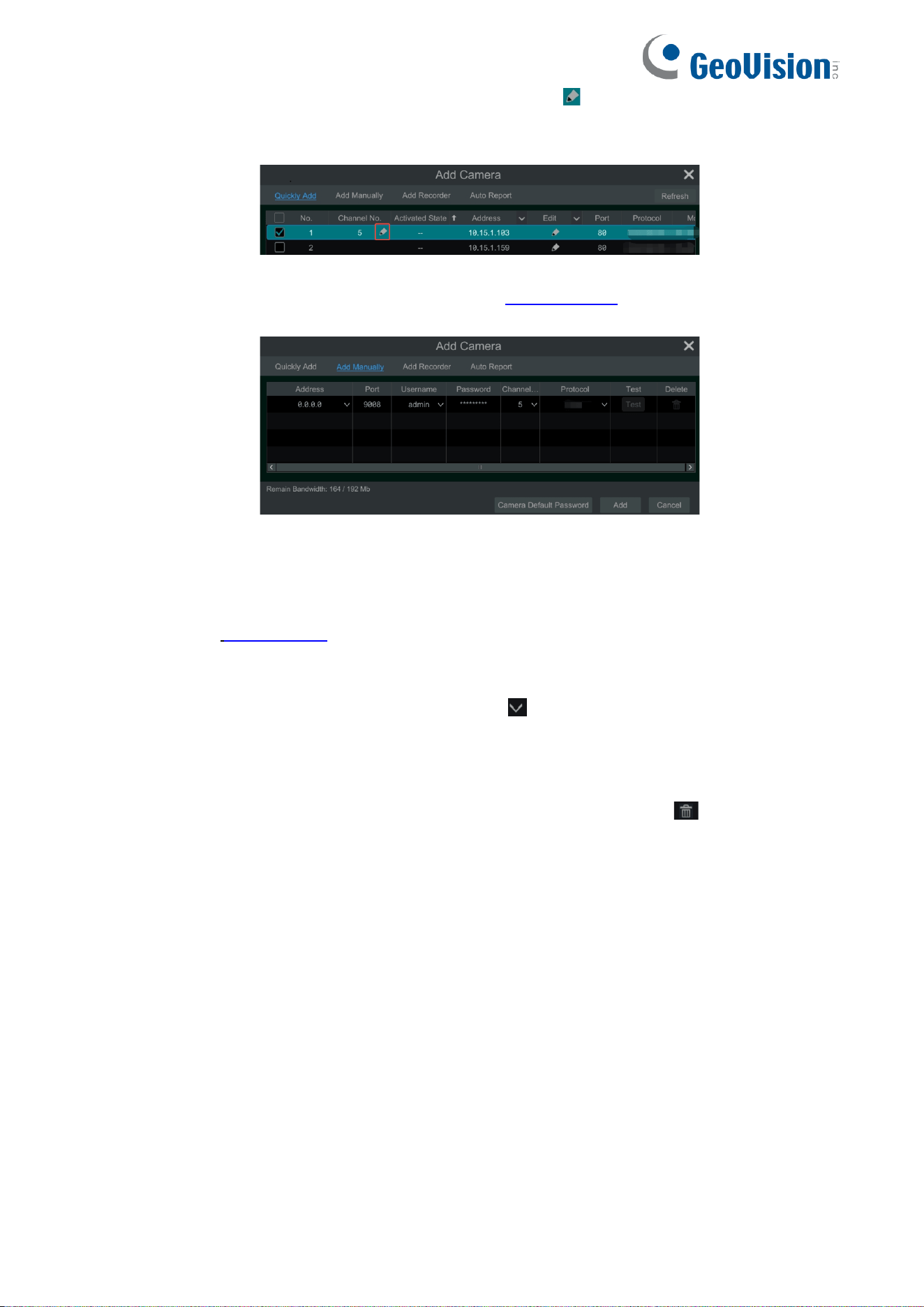

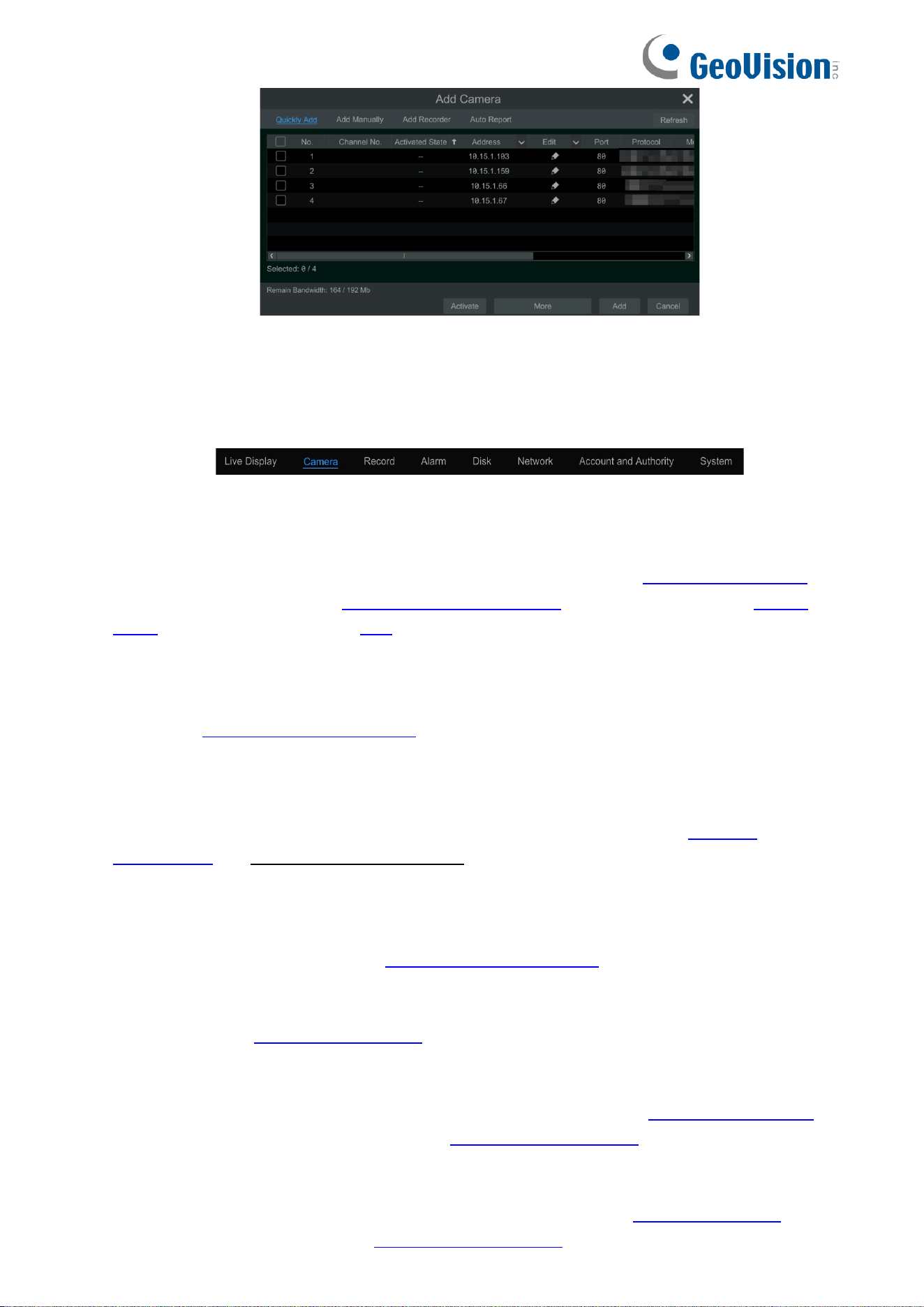

Refer to the pictures below. Click Add Camera in the setup panel or in the top right corner of
the preview window to open the “Add Camera” window as shown below. You can quickly add from
a list, or add the IP camera manually.
➢ Quickly Add
Check the cameras and then click “Add” to add cameras. Click to edit the camera’s IP
address, subnet mask and so on. Click “Refresh” to refresh the device list. If the activation state is
“Unactivated”, you can check the device and click “Activate” to activate it. Click “More” and select
“Camera Default Password” to set the default username and password of each camera. Click
“More” and select “Channel IP Planning” to enable the channel IP planning as needed. If enabled,
the NVR will automatically assign IP addresses to ensure quickly added cameras are online after
successful authentication when the cameras and the NVR are not in the same network segment.
Descriptions of the Channel Numbers:
a. For PoE models, when quickly or manually adding cameras, the channel number will be started
from No.1. If a channel number is occupied by a manually added camera and another PoE
camera is connected to the PoE port whose port number is the same with the channel number, an
occupied prompt will appear. You need to delete the manually added camera and then the PoE
camera can be added successfully.
b. If the channel number is occupied by a PoE camera which is directly connected through PoE
port of the PoE NVR, this channel number cannot be selected when manually adding other
cameras.
c. The channel number will not be shown when quickly adding cameras. Only when a channel is
18
checked, can its channel number be viewed. You can click next to the channel number to
change the channel number as needed.
For other detailed operations of quickly adding, see Startup Wizard.

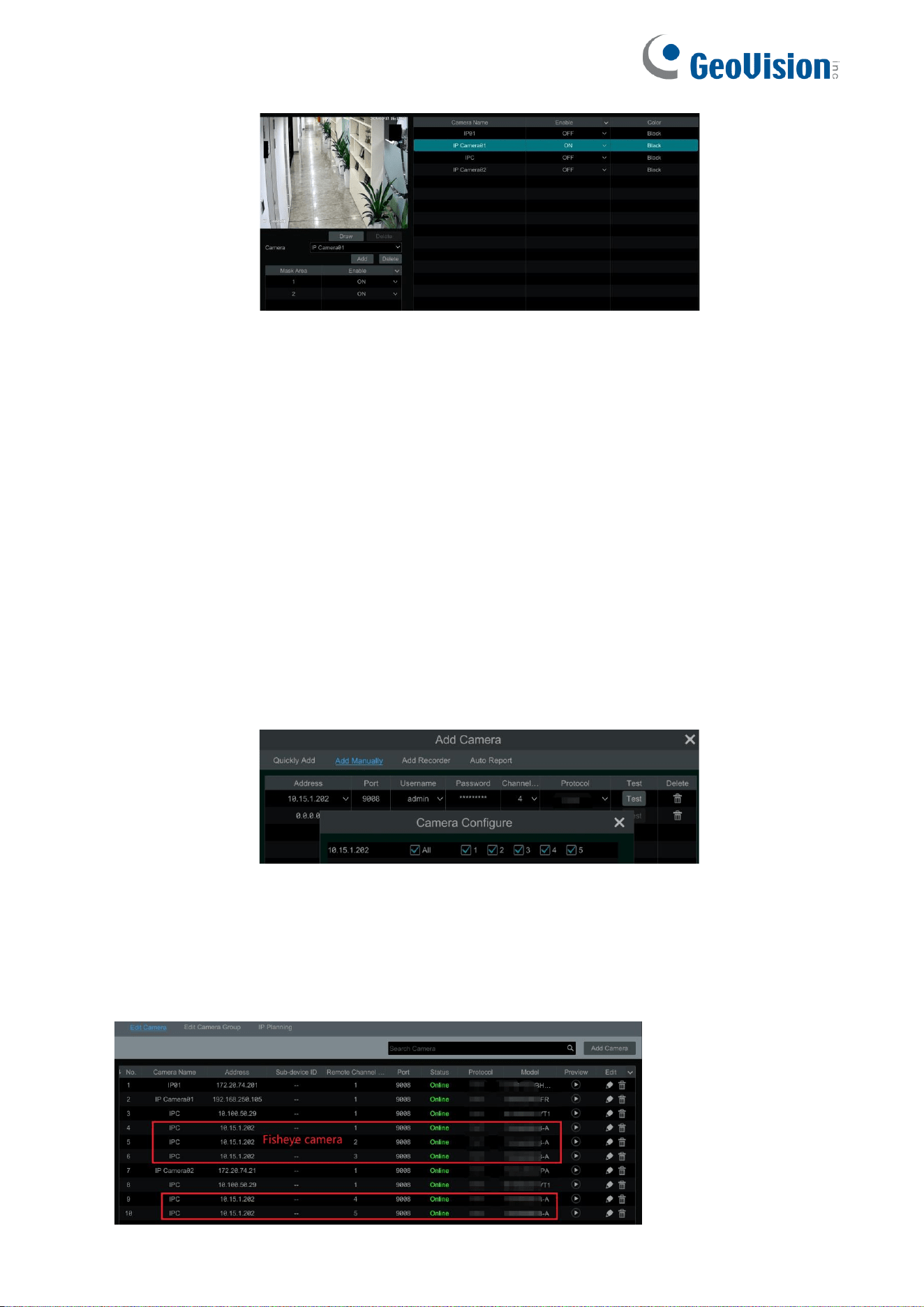

Note: If you quickly add a network camera with multiple channels (eg. thermal and optical network
cameras, fisheye cameras, dual-lens dome network cameras), you can only add one channel of
the camera by default. If you want to add multiple channels of the camera, you must add them
manually. See Add manually for details.
➢ Add Manually
Enter the IPv4/IPv6 address or domain name (click in the IP address column to open the
IPv4/IPv6/domain name input window), port, username and password of the camera and then
select the channel no. and the protocol. Click “Test” to test the accuracy of the input information
and then click the “Add” button (you can input one camera’s information or above such as IP
address, username and password before clicking the “Add” button). Click to delete the
camera. Click “Default Password” to set the default username and password of each camera.
Note: Some models may not support this function.
Click Start
→
Settings
→
System
→
Basic
→
General Settings to check “Enable Add IPC by Zero
Operation”. If the NVR has unoccupied channels, it can add IPC without any operation by
restarting.
If you want to add a camera with multiple channels, you need to check the desired channels
after entering the relevant information of the camera.
19
➢ Add Recorder
⚫ Quickly Add：Select the searched NVR/NVR and the click “Add” to add NVR in the same
local network.
⚫ Manually Add：Click “Manual Add” and then enter the IP address or domain name, port,
username and password of the NVR/NVR. Check the added remote channel number and
click “Test”. Then click “OK” to return to the previous interface.
Note: IPC from other NVR/DVR on the same local network can only be added if your NVR has open channels
and the added IPCs support previewing and recording.
20
➢ Auto Report
You can add IPCs in the NVR by auto report.

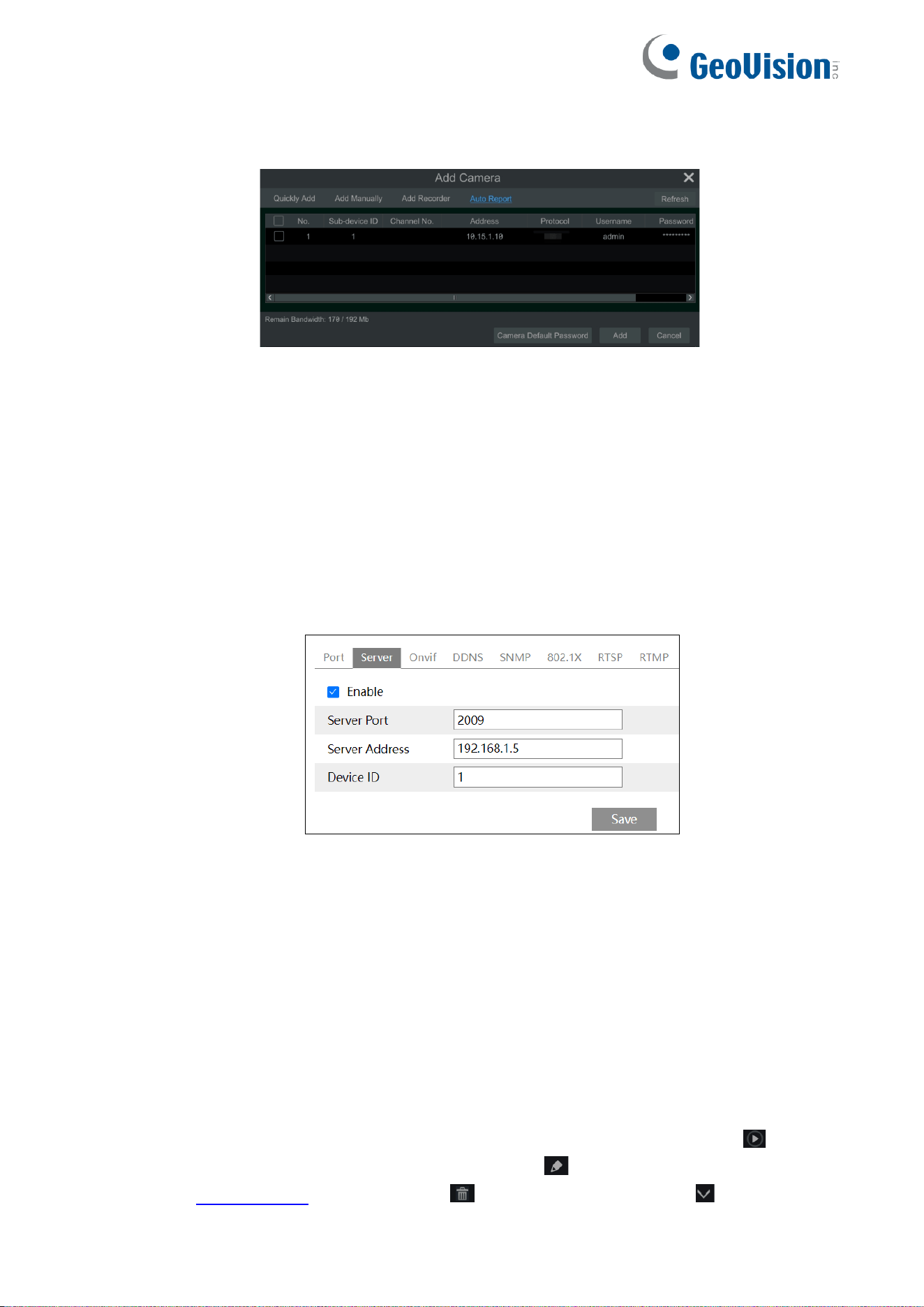

Click the “Auto Report” tab to enter auto report interface. You can view the IPCs reported
automatically. Select a camera and click “Test” to test the connection. If the login password of the
IPC is the same with the camera default password, you can directly click [Add] to add it. If the
password is not the same one, you need modify the password and then add it.
IPC auto report settings:
Here taking the IPC of our company as an example.
1. Log in the web client of the IPC. Click Config
→
Network
→
Server to enter the server
configuration interface.
2. Check “Enable”.
3. Enter server port, server address and device.
Server Port: the auto report port of NVR, 2009 by default. You can go to
Start
→
Settings
→
Network
→
Port interface to view in the NVR.
Server Address: the IP address of NVR.
Device ID: set it as needed. It is the sub ID in the NVR.
4. Click “Save” to save the settings.
After that, you can view the IPC in the auto report interface
4.1.2 Edit Camera
Click “Edit Camera” in the setup panel to go to the interface as shown below. Click to view
the live image of the camera in the popup window. Click to edit the camera (see Add
camera in Startup Wizard for details). Click to delete the camera. Click in the “Edit”
header line and then click “Modify IPC Password” to open a window(check the IPCs in the window,
set the new password and then click “OK”; only the online IPCs’ passwords can be modified and a
21
batch of IPCs’ passwords can be modified at the same time). Click to upgrade an online IPC
( or click in the “Upgrade” header line and then click “IPC Batch Upgrade” to upgrade a batch
of IPCs), select the device which stores the upgrade file in the “Device Name” item of the popup
window and the upgrade file in the list(you should select the upgrade IPC model in the window if a
batch of IPCs’ passwords need to be modified) and then click “Upgrade” to start upgrading(the
IPC will restart automatically after the upgrade is completed successfully).
Note:

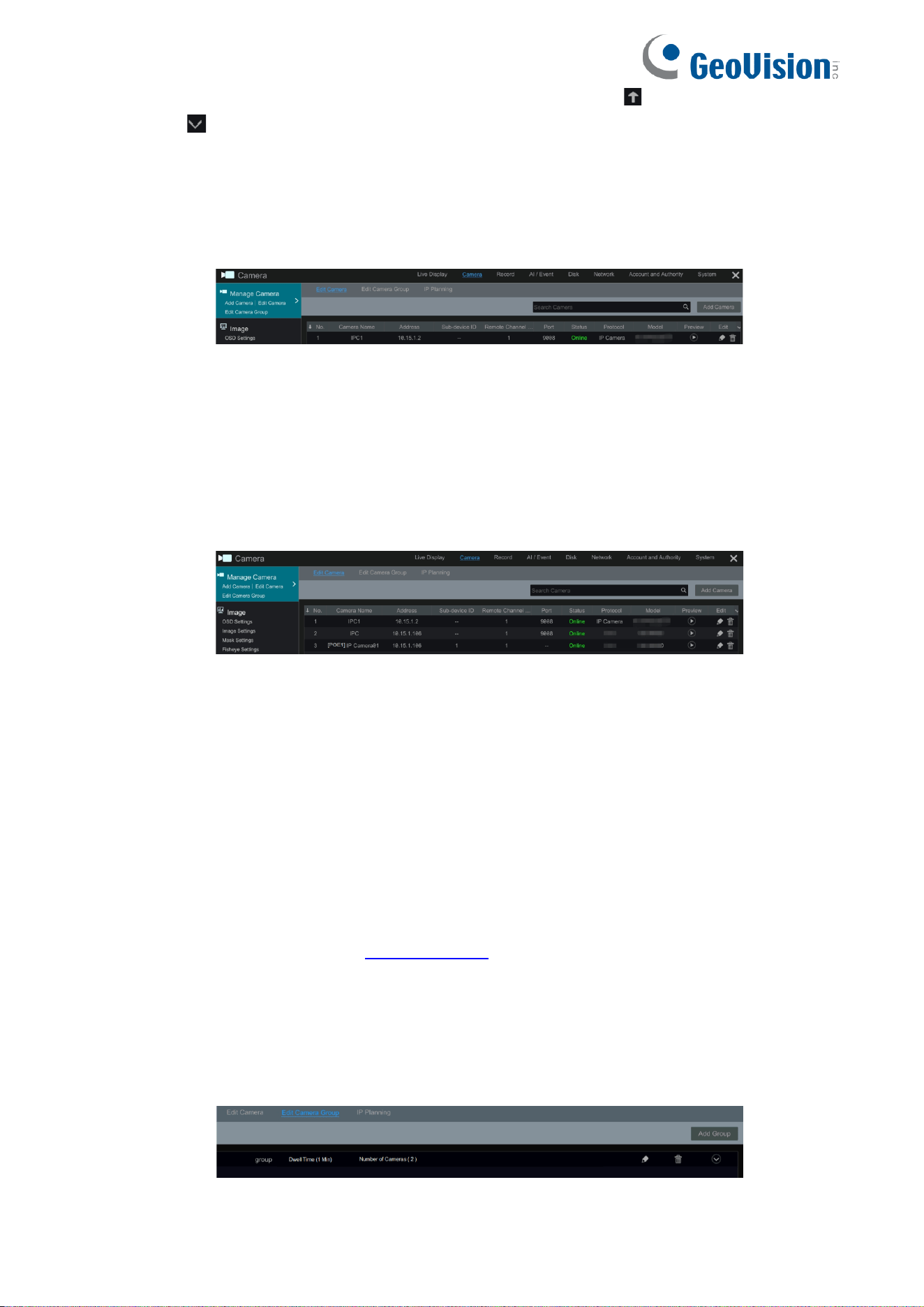

If you use the NVR with the PoE network ports, the IP cameras (with PoE function) which are
directly connected to the PoE port of the NVR will be displayed automatically in the camera list.

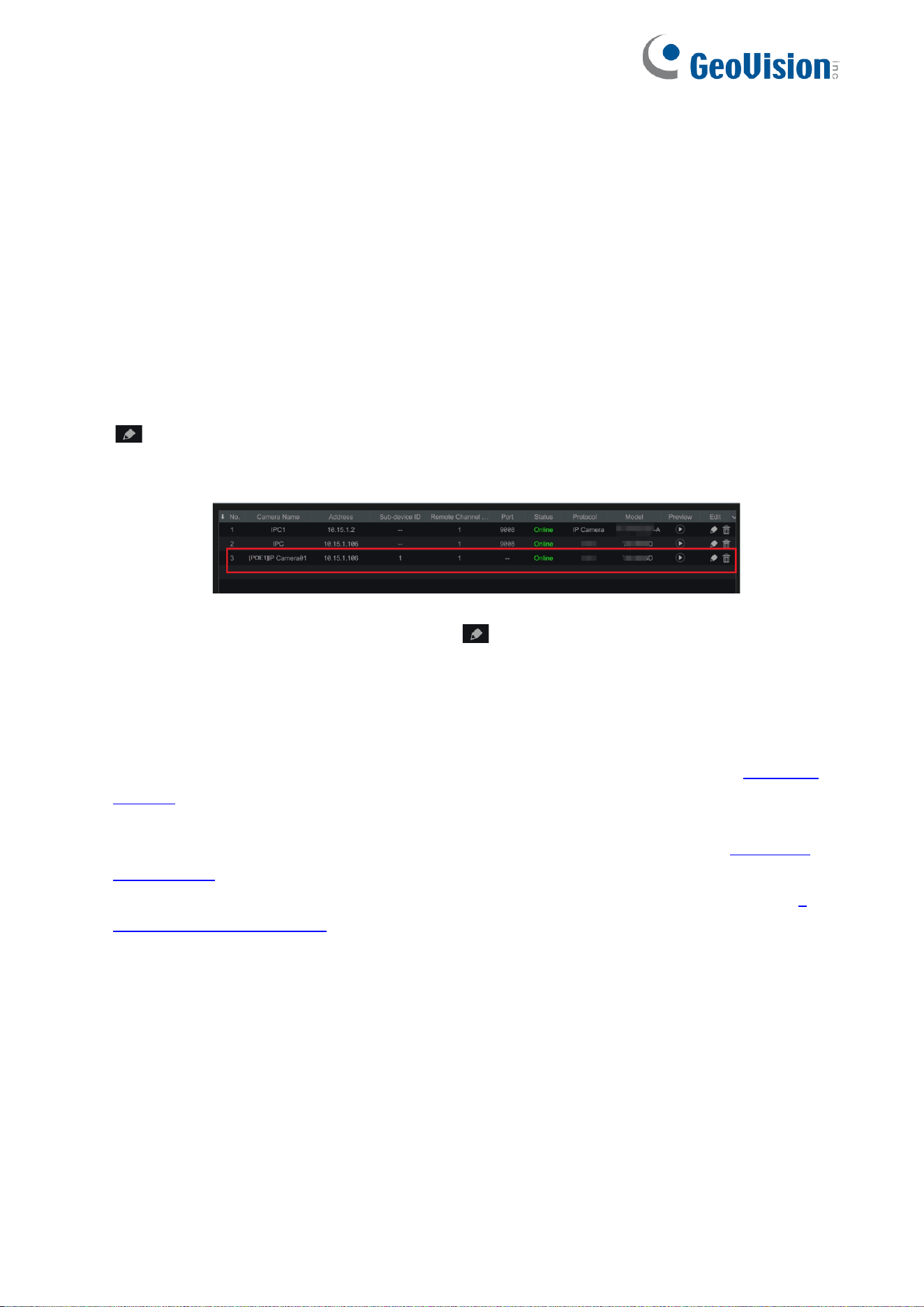

Refer to the picture below. The PoE camera directly connected to the PoE port has a prefix shown
before its camera name. The prefix consists of PoE plus PoE port number. A PoE camera directly
connected to the PoE port cannot be deleted from the camera list manually.
⚫ An IP camera directly connected to the PoE port of the NVR through private protocol will be
shown automatically in the camera list.
⚫ One of the two conditions must be met if an IP camera directly connected to the PoE port of the
NVR through ONVIF protocol to be shown automatically in the camera list.
✓ The IP camera which is directly connected to the PoE port is in the same network
segment with the internal Ethernet port.
✓ The DHCP (obtain an IP address automatically) of the IP camera which is directly
connected to the PoE port is enabled.
If the IP camera which is connected to the PoE port cannot be displayed automatically in the
camera list, please refer to Q6 in Appendix A FAQ for details.
4.2 Add/Edit Camera Group
4.2.1 Add Camera Group
Click “Edit Camera Group” in the above interface to go to the interface as shown below.

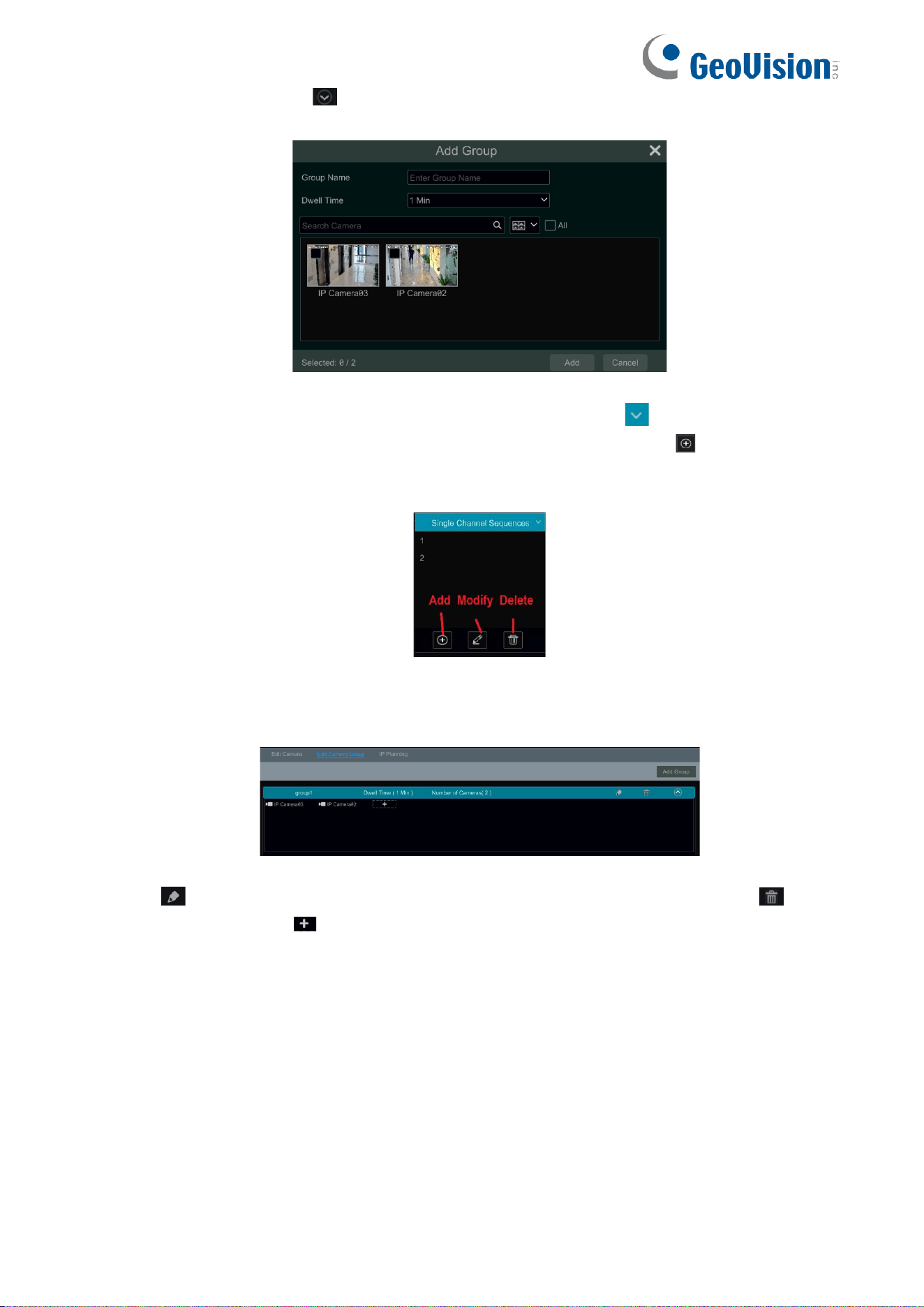

Click “Add Group” to open the window as shown below. Set the group name and dwell time (the
dwell time of the camera group sequence view) in the window. Check the cameras and then click
22
“Add” to add group. Click to view the cameras in the group after adding group.
You can also add the camera group in the live view interface. Click on the top right corner of
the live view interface and then select “Single Channel Sequences”. Click to add the camera
group
4.2.2 Edit Camera Group
Click to modify the group information such as group name and dwell time. Click to
delete the group. Click to add cameras to the group.
4.2.3 IP Planning
Some models may not support this function.
Click “IP Planning” to go to the interface as shown below. This function supports searching other
NVRs/DVRs that is in the same local network as the local NVR. You may add the IPC of other
NVRs/DVRs into the unoccupied channels of the local NVR.
For the searched channel, if its state is “unactivated”, you can activate it first and then add it.
23
Click to edit the IP address, user name or password and other information of the NVRs.
Click behind the “Add” button to add the IPC selected and the user may edit the IP address,
user name or password by clicking behind the “Edit” button.
4.3 IP Speaker Management
You can add IP Speaker to the NVR via ONVIF protocol and bind the added IP speaker to the
corresponding IPC or NVR for two-way talk or audio alarm. After enabling two-way talk or audio
alarm, the built-in speaker or external audio output of the IPC or NVR will not take effect.
Go to Start
→
Settings
→
Camera
→

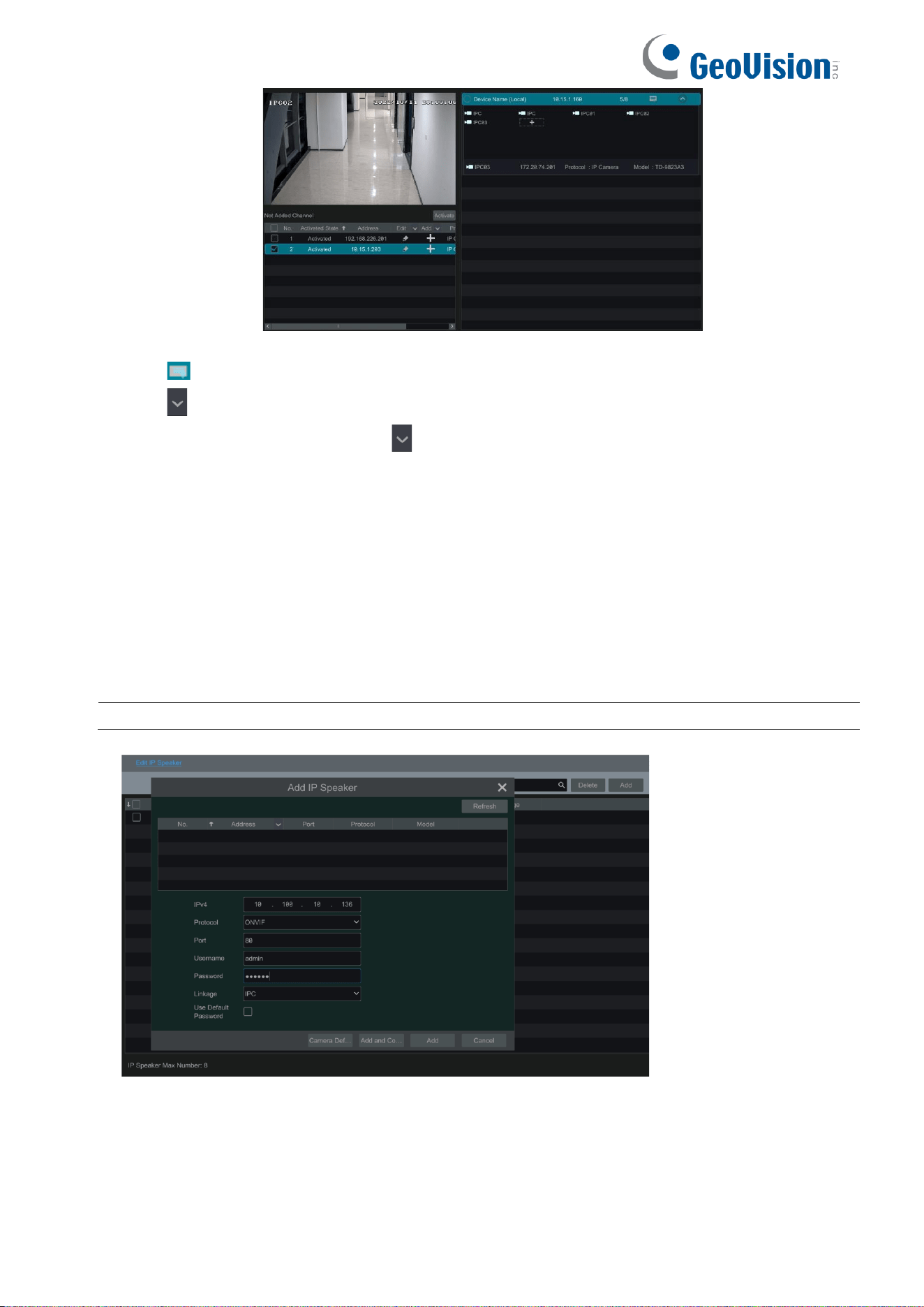

IP Speaker interface and click “Add” to add an IP speaker.
Note: IP Speaker Management is not supported for GV-IPSH30 V2.0 / IPSH30 V2.0 / IPSS40 V2.0.
IPv4: enter the IPv4 address of the IP Speaker you want to add.
Protocol: ONVIF
Port: 80 by default.
Username and Password: the login user name and password of the IP Speaker
Linkage: select the camera or NVR you want to link with the IP Speaker

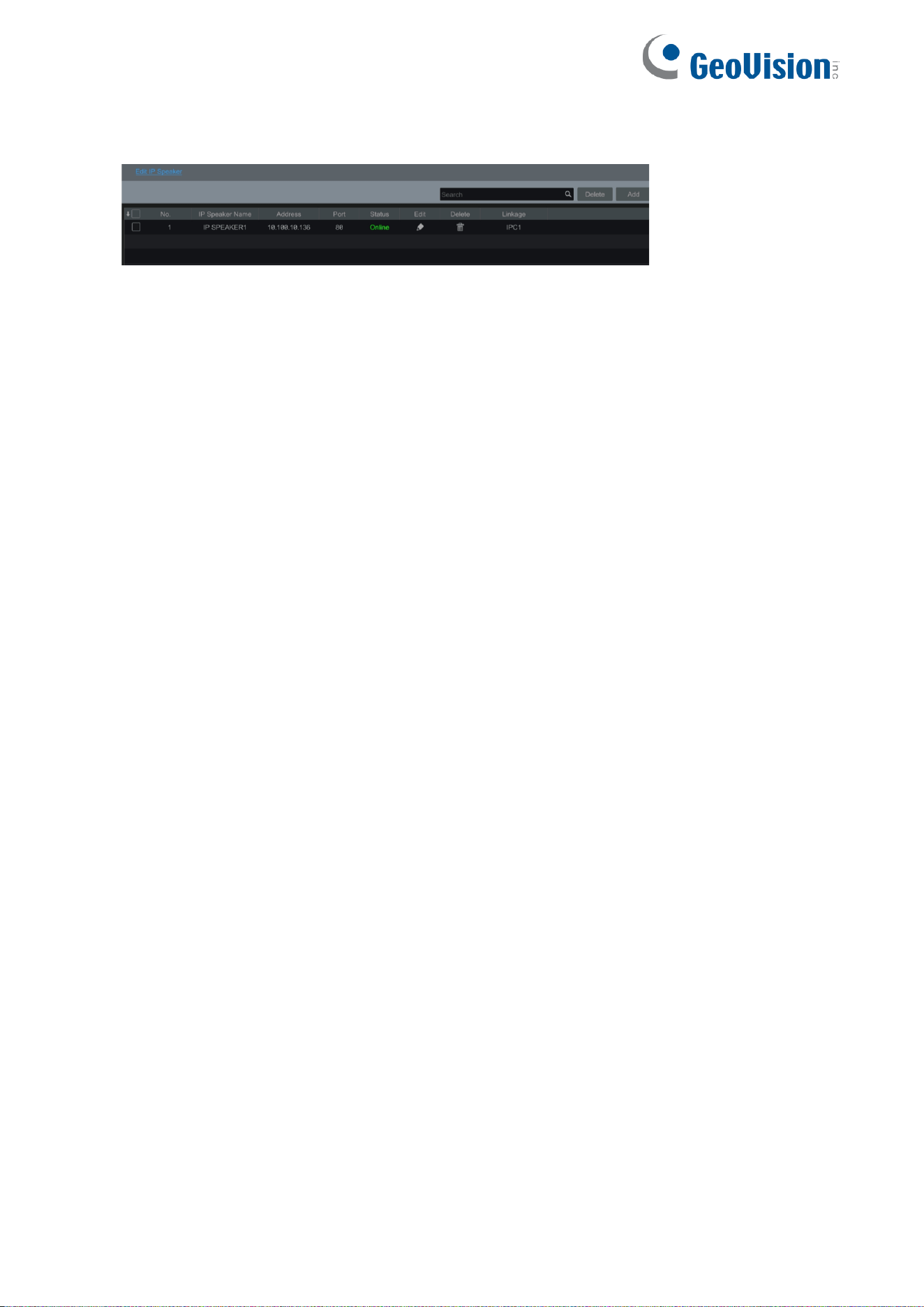

After the IP Speaker is successfully added and linked, you can view it in the IP Speaker
24
interface.
In addition, you can modify the IP Speaker name or change the linkage item as needed.
25

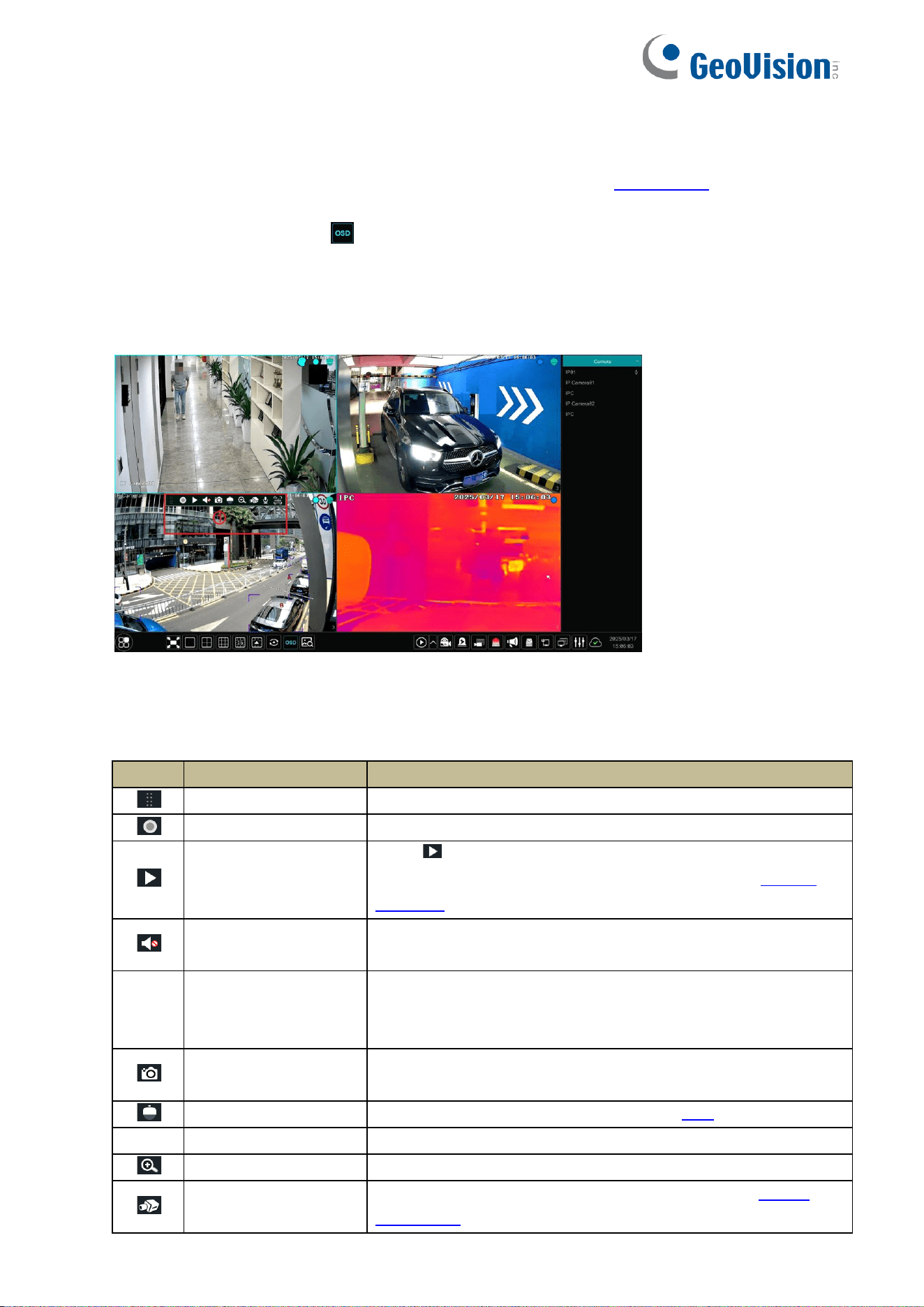

5 Live View Introduction
5.1 Live View Interface Introduction
You should add a camera when first logging on to the system (see Add Camera for details). Refer
to the interface as shown below and drag one camera in the preview window to another window
to exchange windows. Click button and then you can view the record symbols. The record
symbols with different colors in the live view window refer to different record types when recording:
green stands for manual record, red stands for sensor based record, yellow stands for
motion-based record, blue stands for schedule record and cyan stands for AI record.
Click the preview window to show the tool bar as shown in area ①; right click the preview window
to show the menu list. The tool bar and menu list are introduced in the table below.
Button
Menu List
Meaning
--
Move tool. Click to move the tool bar anywhere.
Manually Record On
Click to start recording.
Instant Playback
Click to playback the record; click “Instant Playback” to
select or self-define the instant playback time. See Instant
Playback for details.
Enable Audio
Click to enable audio. You can listen to the camera audio by
enabling audio.
--
Original
Proportions/
Overspread window
Click to select the display proportion of the window.
Snapshot
Click to pop up the snap window. Click “Save” in the window to
save the image. Click “Export” to export the image.
PTZ Control
Click to go to PTZ control interface. See PTZ for details.
--
Wiper
Click to start or stop wiper for some PTZ cameras
Zoom In
Click to go to single channel amplification interface.
--
Click to go to image adjustment interface. Refer to Image
Adjustment for details.
26
Button
Menu List
Meaning
Start/Close Talk
Click to start talk.
Target detection
Click to go to single channel target detection interface; the
target includes faces, people and vehicles. (only some
models support)
--
Camera Info
Click to view the camera information.

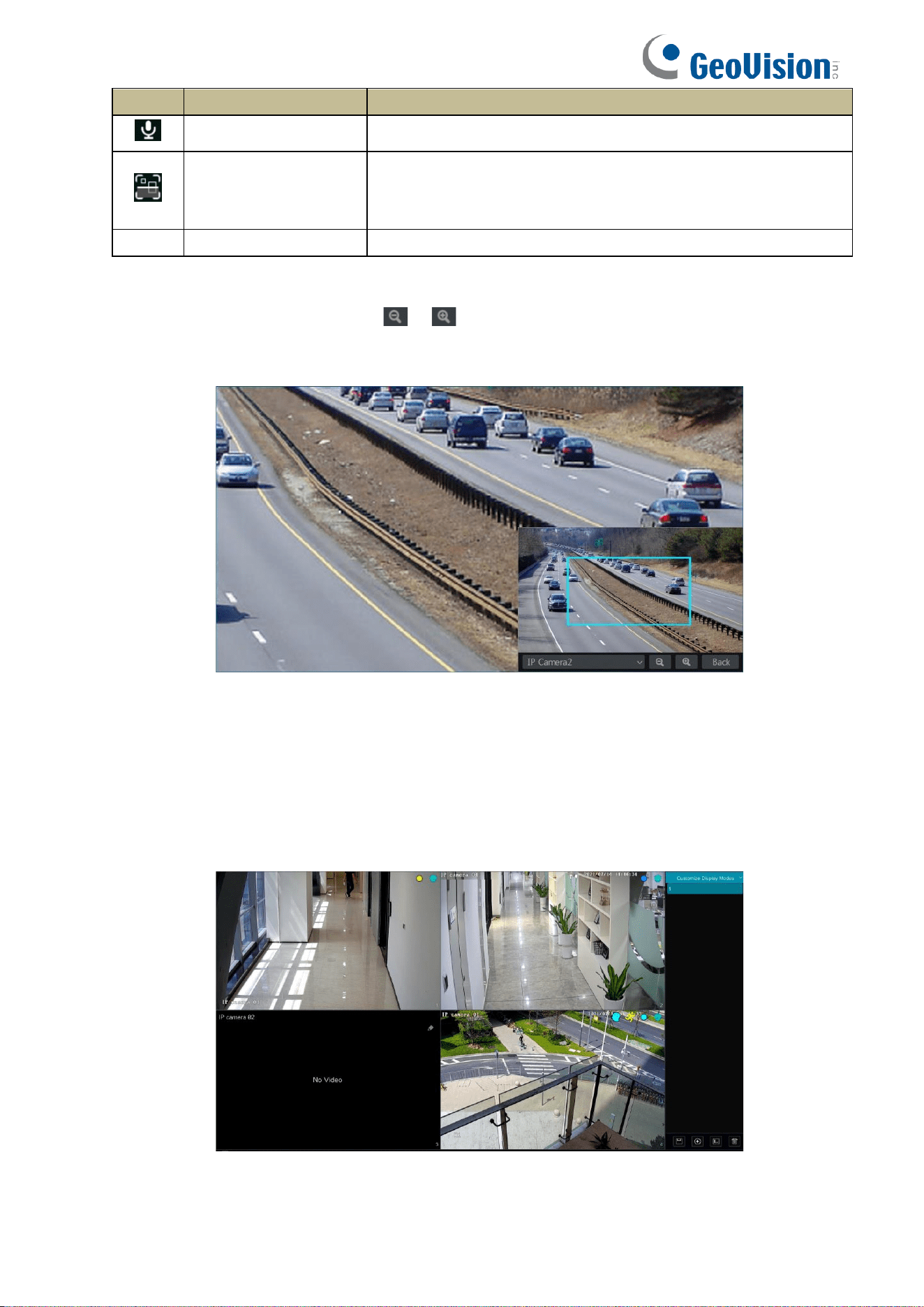

The single channel zoom amplification interface is as shown below. Press and drag the blue box
to select the area to zoom in. Click / to zoom the image. Click the camera selection box
to select other cameras for amplification. Click “Back” to return to the live view interface.
5.2 View Mode
5.2.1 Preview by Display Mode
Set different screen modes and camera display sequences as needed and then save the display
modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double
click one display mode in the display mode list to view the live images in this mode.
➢ Add Display Mode
Method One:
① Click “Customize Display Modes” in the above interface
27
② Click to add a display mode name and then set the screen mode.
③ Add the cameras and adjust the cameras’ display sequence as required.
④ Click under the display mode list.
Method Two:

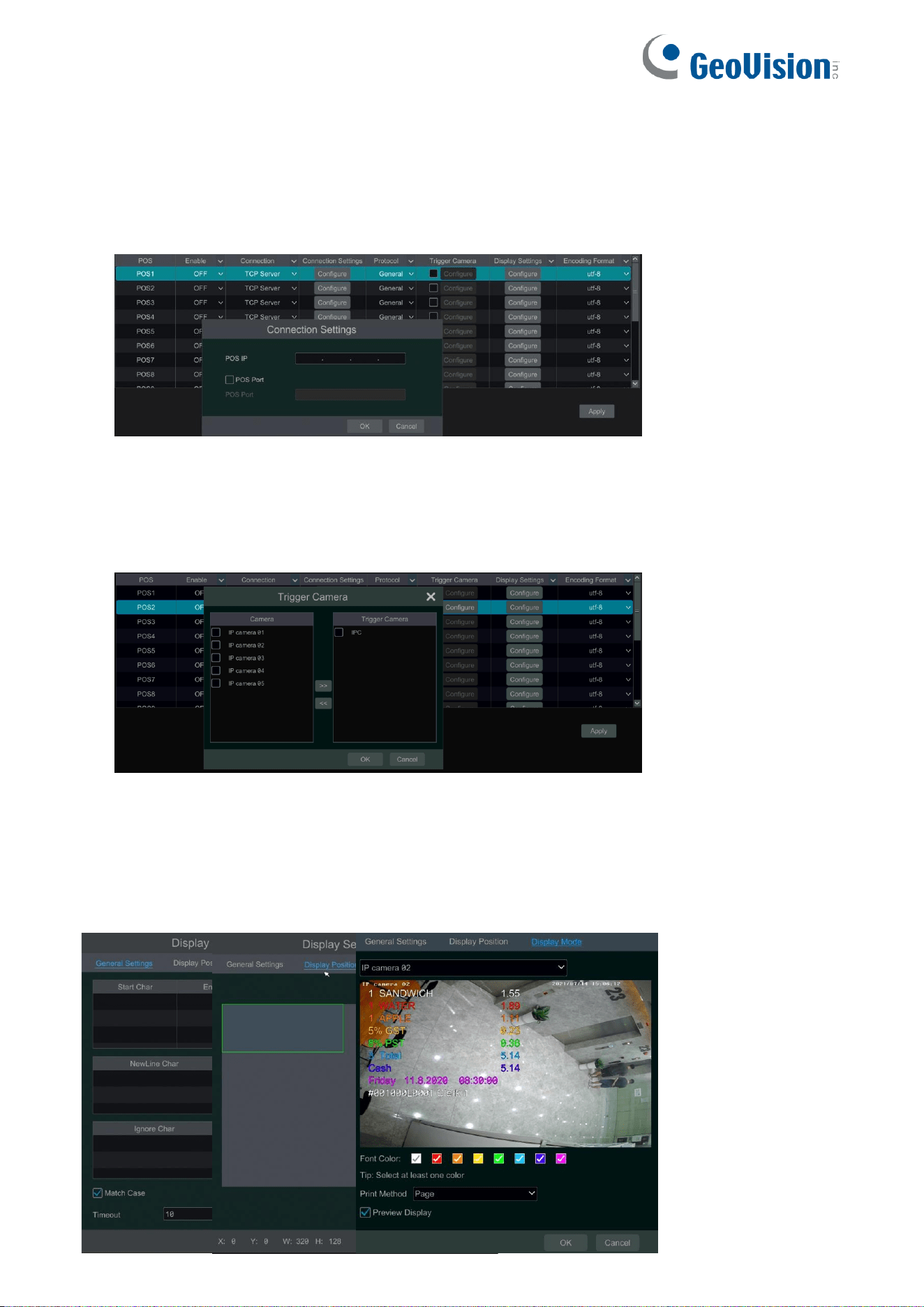

① Click Start
→
Settings
→
System
→
Basic
→
Output Settings to go to the interface and then set
the screen mode.
② Double click the camera or camera group in the list to add them to the selected window.
③ Click to save the current display mode (refer to Scheme View In Sequence for detail
configurations). The display mode will be saved and displayed in the display mode list in the live
view interface.

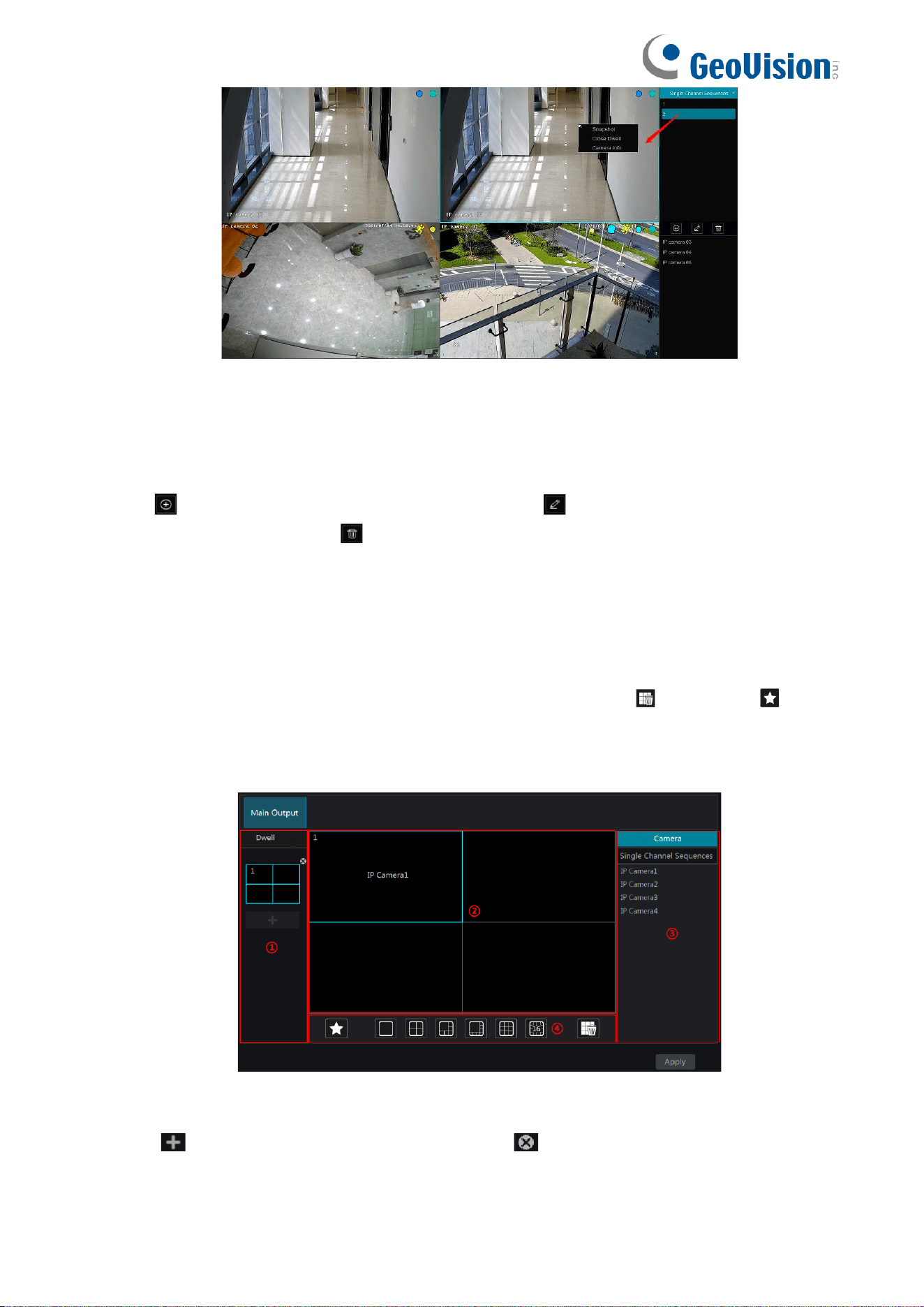

➢ Edit Display Mode
Click “Customize Display Modes” tab in the live view interface and then select one display mode
in the list. Click to edit the display mode name; click to delete the display mode.

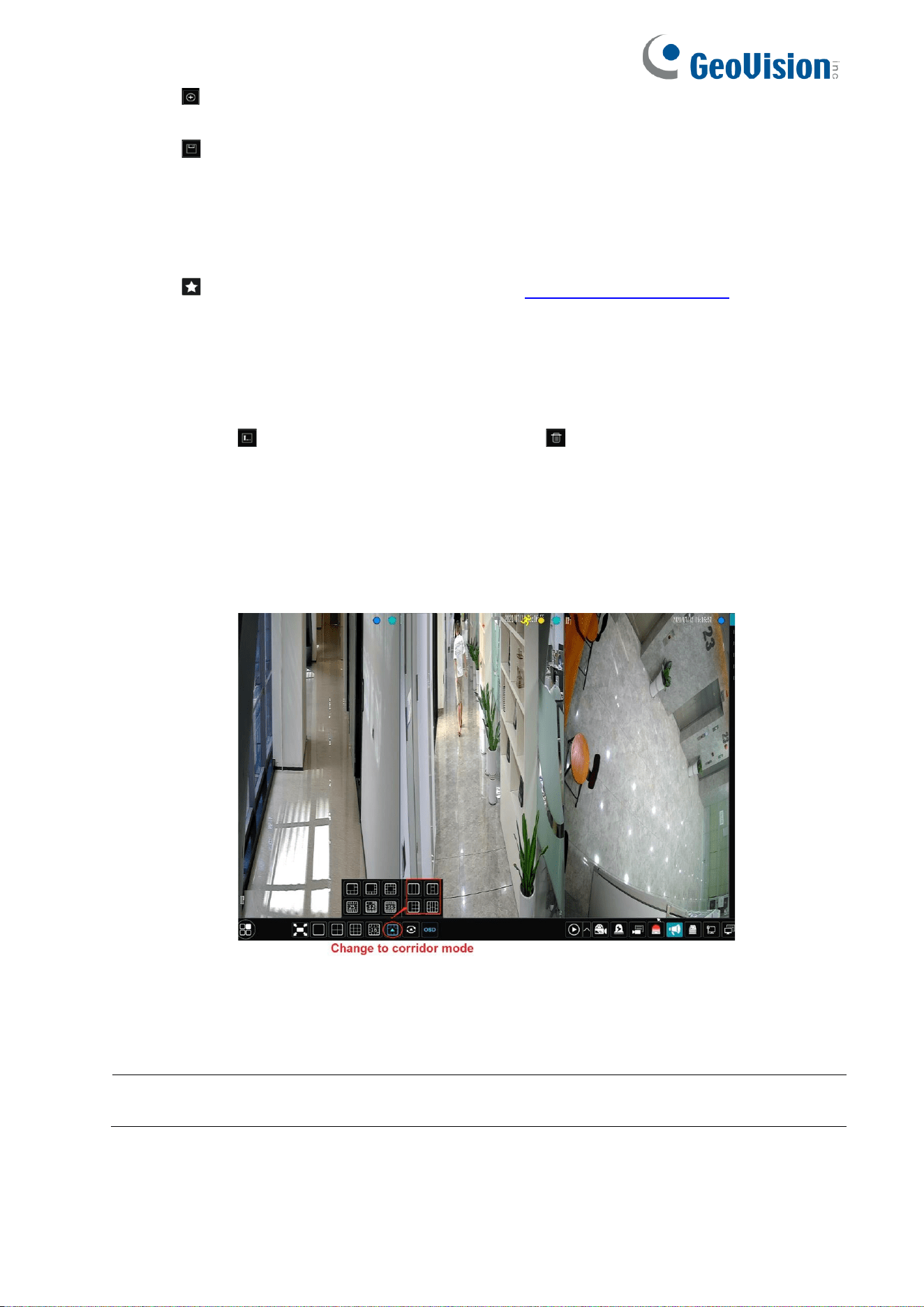

➢ Corridor Pattern
Some models may not support this function.
Select corridor pattern in display mode. You can change the direction of the video image by
using this function. Please refer to User Manual of relevant camera.

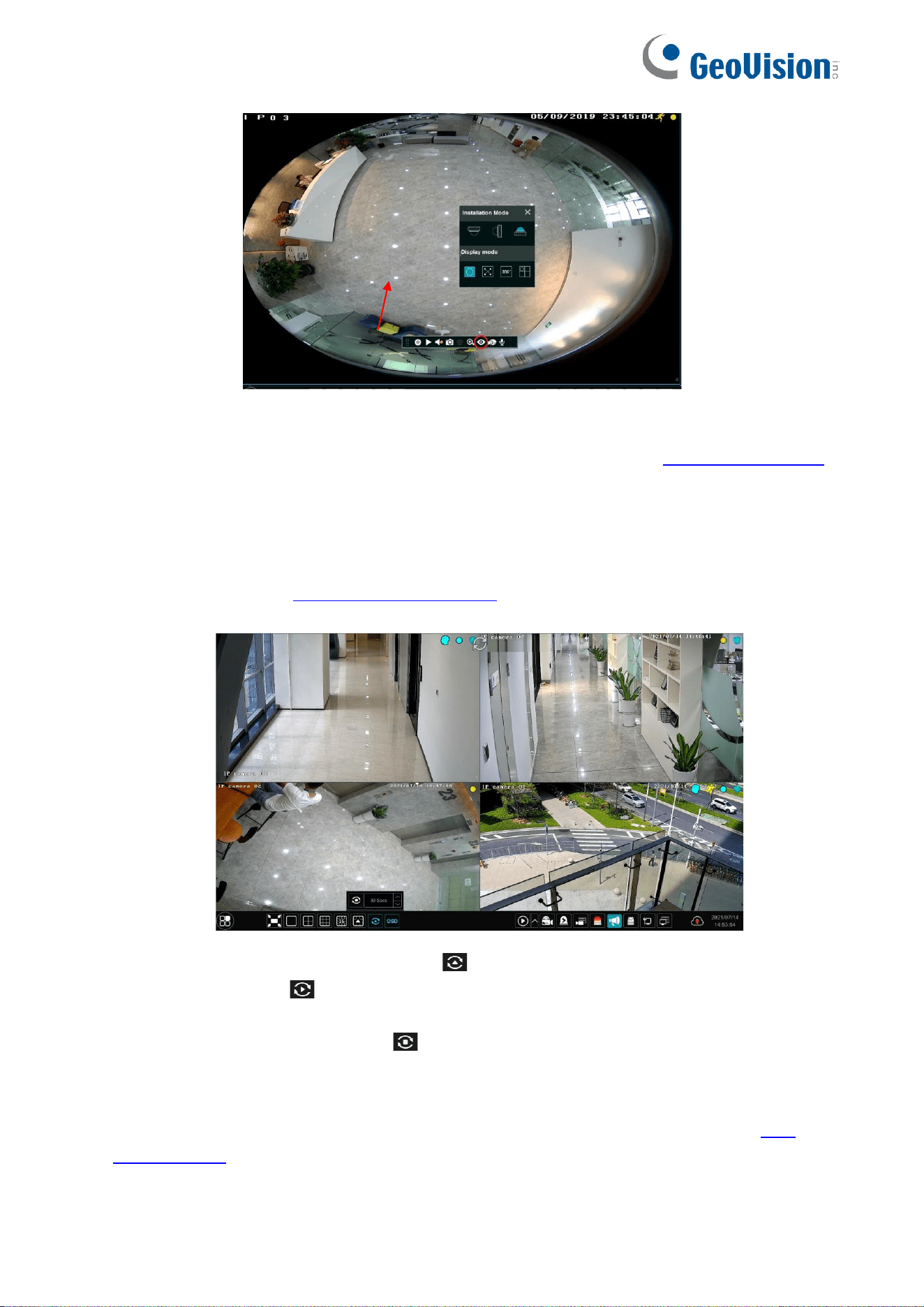

➢ Fisheye Mode
Some models may not support this function.
Note: Local fisheye dewarping is not supported, but dewarping is available through the Web
Client.
In the live view interface, select the view mode according to the installation mode and display
mode of the fisheye camera. Please refer to User Manual of the relevant fisheye camera.
Note: If multiple channels of one fisheye camera are added, only fisheye channel supports the
adjustment of installation mode and display mode.
28
In addition, if this function is unavailable in the device, you can set the display mode and the
installation mode via Web Client. To log in the web client, please refer to Remote Surveillance for
details.
5.2.2 Quick Sequence View
You can start quick sequence view if the scheme has not been created. If the scheme has been
created, please refer to Scheme View in Sequence for details.
Go to the live view interface and then click to open a small window. Set the dwell time in the
window and then click to view the live group by group according to the camera number of
the current screen mode. Double click the sequence view interface to pause the view; double
click again to restore the view. Click to stop the view.
5.2.3 Camera Group View in Sequence
You can start camera group view in sequence if camera group has been created (see Add
Camera Group for details).
① Go to the live view interface and then select a camera window.
29
② Double click one camera group on the right side of the interface. The cameras in the group will
start camera group view one by one in the selected camera window.
You can also drag the group directly to any preview window. Right click on the group view window
and then click “Close Dwell” to stop the view.
Click to add camera group. Select a group and click to modify the group name and dwell
time; Select a group and click to delete the group.
5.2.4 Scheme View in Sequence
Click Start
→
Settings
→
System
→
Basic
→
Output Settings to go to the interface as shown
below.
Area ① displays all the dwell schemes; area ② shows the detailed information of the scheme;
area ③ displays all the cameras and groups; area ④ is the tool bar ( : clear button; : favorite
button, click to open a window, enter the display mode name in the window and then click “OK” to
save the current display mode; other buttons are screen mode buttons).
➢ Add Scheme
Click in area ① to create a new scheme. Click on the top right corner of the scheme to
delete it.
➢ Configure Scheme
a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the
30
screen mode of the scheme.
b) Select a camera window in area ② and then double click the camera or group in area ③. The
camera or group will be added into the selected window. You cannot repeat a camera in the same
scheme. You can click the right-click menu “Clear” in area ② to remove a single camera or click
to remove all the cameras.
c) Click “Apply” to save the settings.
➢ Start Sequence View
Go to the live view interface and then click to open a window. Set the dwell time in the
window and then click to start scheme view in sequence. Double click the sequence view
interface to pause the view; double click again to restore the view. Click to stop the view.
Note:

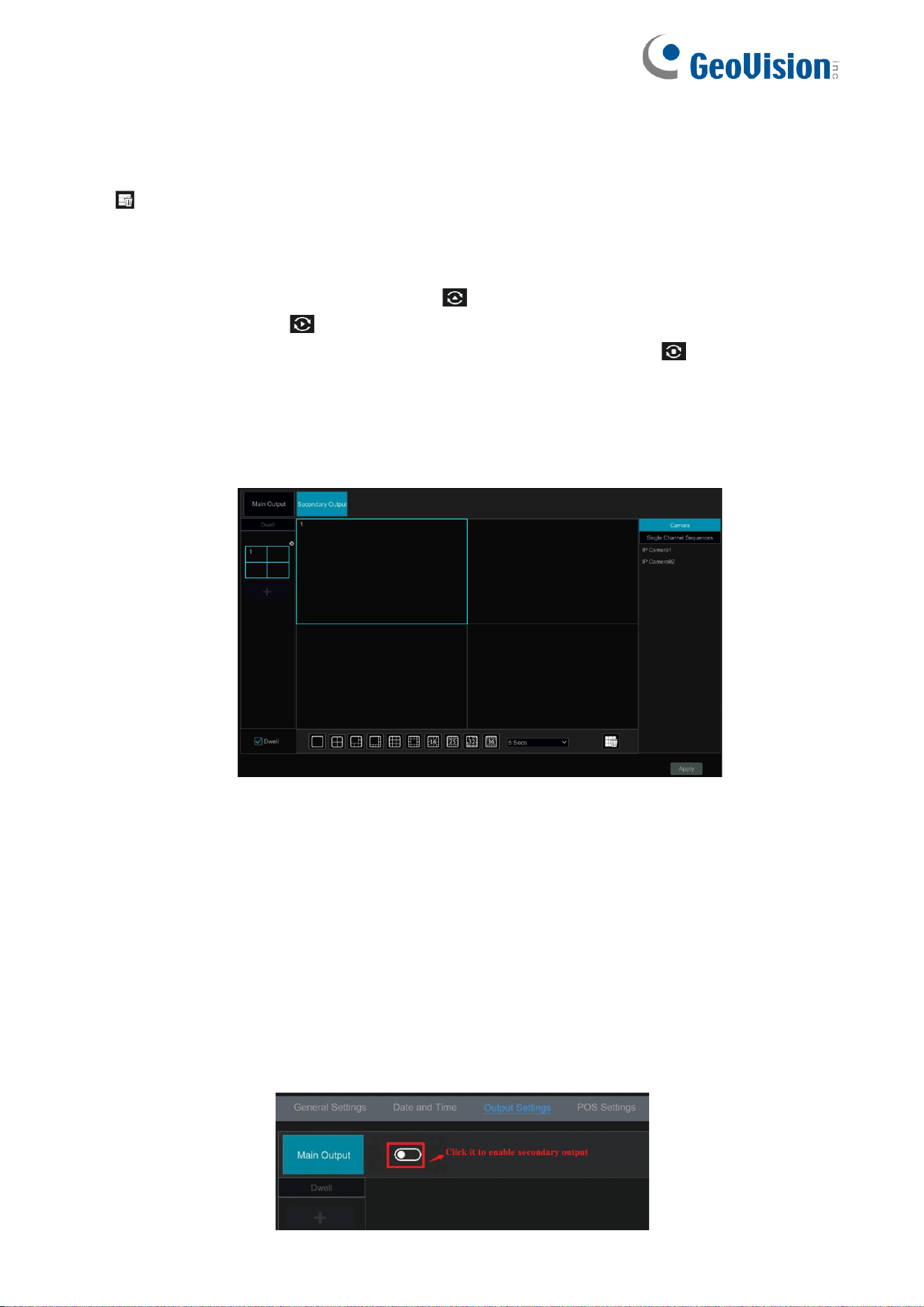

You can set the secondary output preview if the NVR has dual outputs. Refer to the interface as
shown below.
Check “Dwell” and then set scheme view in sequence of the adjuvant output. The setting steps
are similar to that of the main output.
Set quick sequence view if “Dwell” is not checked. The setting steps are as follows:
① Set screen mode by clicking the relevant buttons on the tool bar.
② Select one window and then double click one camera or group in the list.
③ Click “Apply” to save the settings after adding cameras or groups to the windows.
For some devices with multi-output mode and AI mode, the secondary output may be unavailable
after AI mode is enabled. If you want to enable secondary output, please click
Start
→
System
→
Output Settings.
31
5.3 POS Settings
① Click Start
→
Settings
→
Basic
→
POS Settings to go to the interface.
② Enable POS and click “Configure” under “Connection Settings” to go to the following interface.
The connection way includes TCP Server, TCP Client, UDP and Multicast.
③ Enter IP address of the POS you want to add.
④ Check “POS port” and then enter POS port.
⑤ Select the POS protocol.
⑥ Check “Trigger Camera” and click “Configure” under it to bind POS to the camera. One POS
can be bound to multiple channels, but one channel can only be bound to one POS.
⑦ Click “Configure” under “Display Settings” to set the general settings, the position and display
color of the POS information. Set the start character and the end character and display time-out
period in the general settings interface. Drag your mouse to set the position of the POS
information in the display position interface. Then click “OK” to confirm your settings.
32
Click the “Display Color” tag and then choose the color you want to display on the screen.
Multi-color can be selected at the same time. In addition, print method and preview display can
be set here. If “Preview Display” is enabled, the POS contents can be displayed on the live
view/playback interface.
⑧ Select the encoding format as needed.
⑨ Choose the manufacturer of the POS device.
⑩ Click “Apply” to save the settings and then the transaction information will be displayed on the
preview image in real-time.
One POS is bound to one camera:
One POS is bound to multiple cameras:
5.4 Preview Image Configuration
5.4.1 OSD Settings
Click Start
→
Settings
→
Camera
→
→
OSD Settings to go to the interface as shown below.
33

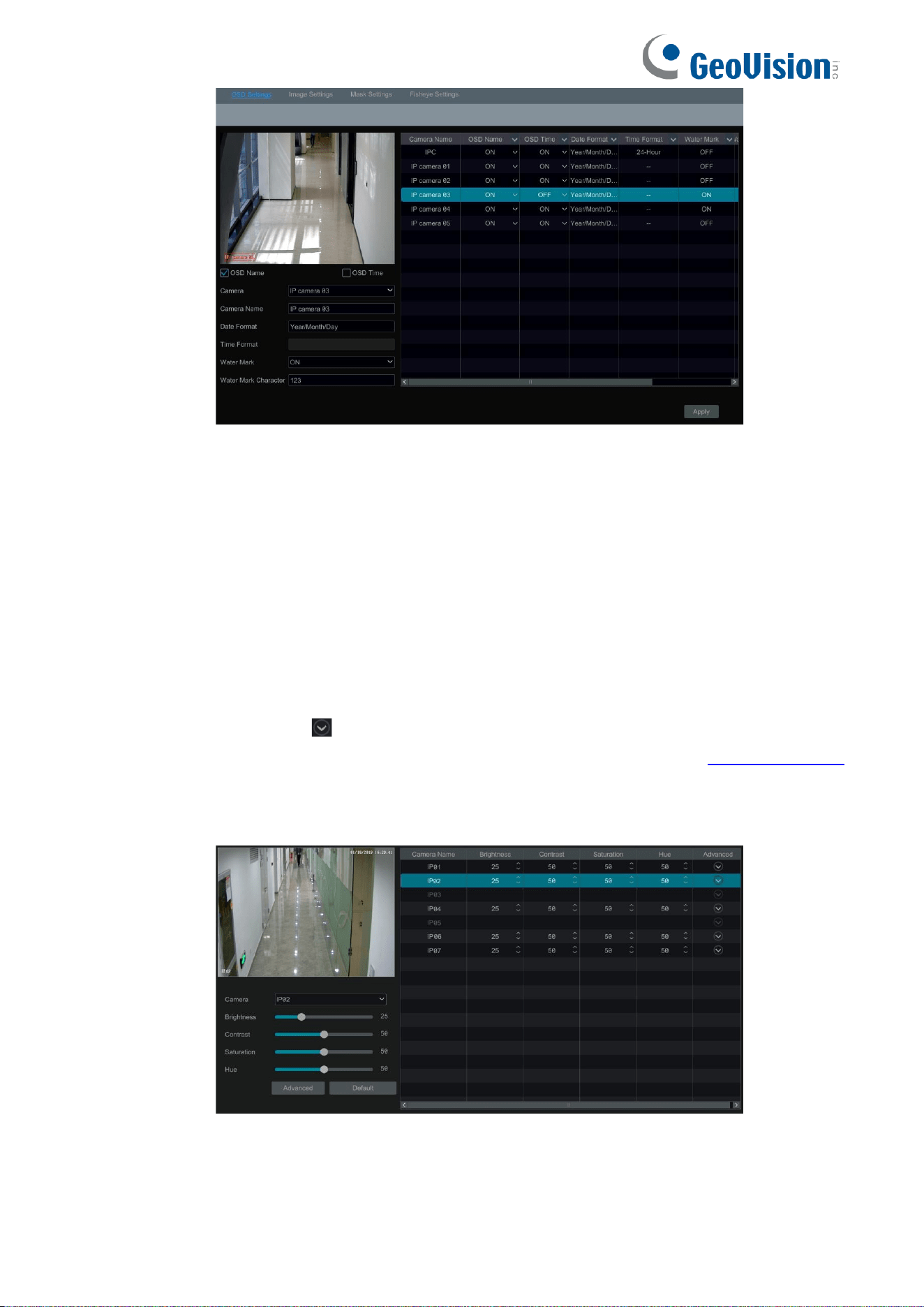

Select the camera, enter the camera name (or double click the camera name in the camera list to
change the camera name), enable or disable the name and time OSDs (if enabled, drag the red
name and time OSDs directly in the image view area to change the OSDs’ display position) and
select the date and time format (24h or12h is optional). Additionally, water mark can be enabled
or disabled here. Having enabled the water mark function, you can enter the information of the
water mark as needed. Finally, click “Apply” to save the settings.
5.4.2 Image Settings
Click Start
→
Settings
→
Camera
→
→
Image Settings to go to the following interface.
Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click
the “Advanced” button or in the camera list on the right side of the interface to open the
“Image Adjust” interface and then set the relevant setting items. Please refer to Image Adjustment
for detailed introductions of these items.
You can click “Default” to restore the image settings to the default factory settings.
5.4.3 Mask Settings
Some areas of the image can be masked for privacy. Up to four mask areas can be set for each
camera. Click Start
→
Settings
→
Camera
→
→
Mask Settings to go to the interface as
shown below.
34
Select the camera and click the “Draw” button and then drag the mouse on the image area to set
the mask area; if the mask area is not satisfactory, you can click the “Delete” button to delete the
mask areas. After the mask area is set successfully, click “Add” to add the mask area. In the mask
area table, you can enable or disable the mask area as needed. Choose a mask area and click
“Delete” to delete the mask area.
5.4.4 Fisheye Settings
Some models may not support this function.
➢ Add Fisheye Camera
You can add a fisheye camera through quickly adding/manually adding/auto report/POE direct
connection (only PoE NVR supported).
If you add a fisheye camera through quickly adding/auto report/POE direct connection, the first
channel under the current stream mode of the fisheye camera will be added by default.
You can add a fisheye camera through manually adding as shown above. For example, the
current stream mode of the fisheye camera is “Fisheye + panoramic view + 3PTZ” mode, so the
channel 1 is fisheye channel, the channel 2 is panoramic view and the remaining channels are
PTZ channels. After it is added successfully, it will show as below.
35
Remote Channel: if a network camera you have added has multiple channels, the system will
automatically assign the remote channel number for each channel of this camera. If a network
camera you have added has only one channel, the remote channel is “1” by default.

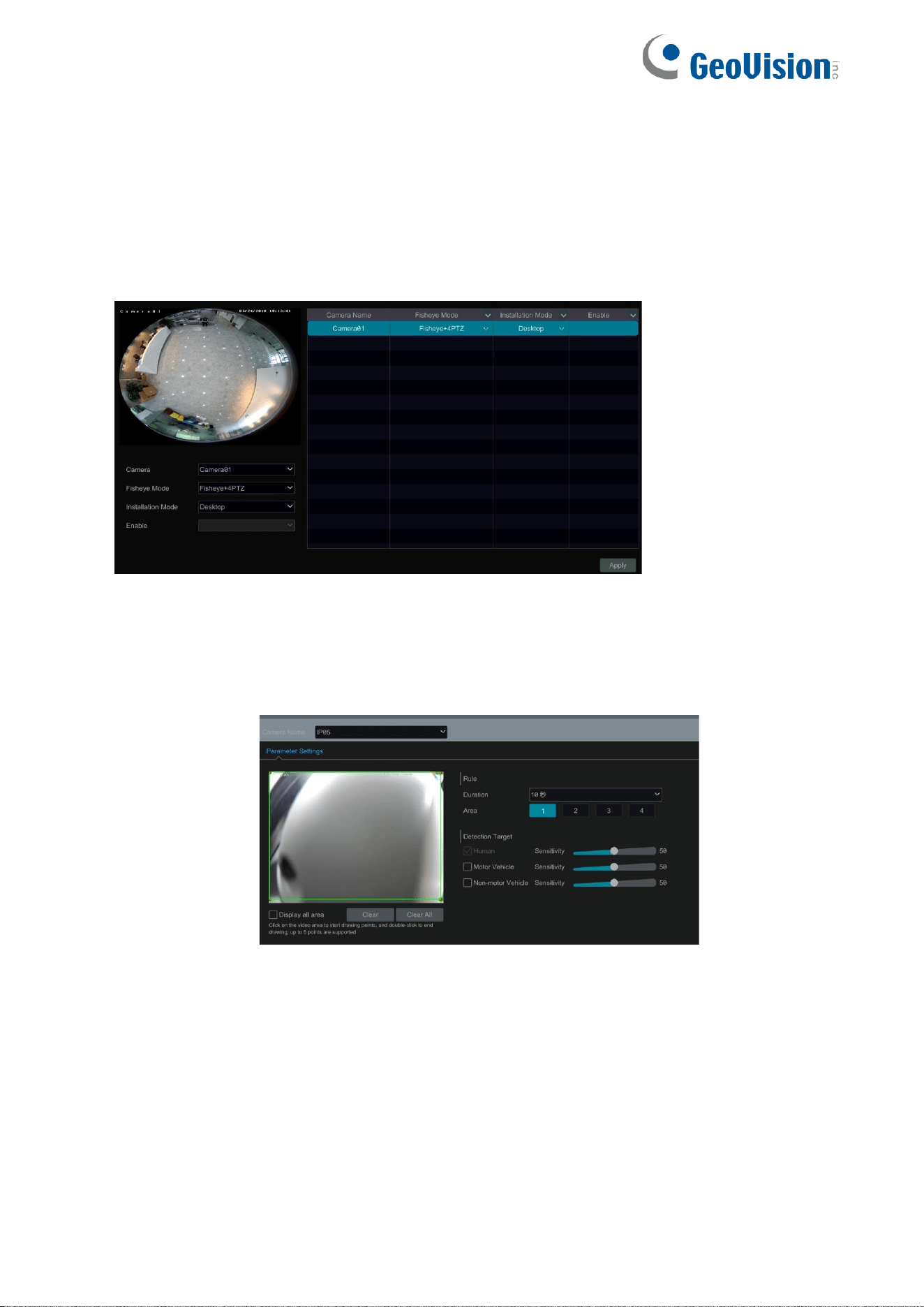

➢ Fisheye Settings
Click Start
→
Settings
→
Camera
→
→
Fisheye Settings to go to the interface as shown
below. Select the camera and the mode of fisheye and installation.
5.4.5 Smart Supplement Light
After you add the camera with smart supplement light function, you can go to the smart
supplement light interface by clicking Start
→
Settings
→
Camera
→
Smart Supplement Light.
1. Set the duration of the white light. In low ambient light, the system will automatically turn on the
visible infrared light. Once there are people/vehicles appearing in the set alarm area, it will
automatically switch to full-brightness visible white light. When people/vehicles leaving the alarm
area exceed the set duration and no other persons/vehicles are detected during the period, it will
resume to infrared light.
Note: If the people/vehicles staying and not moving in the detection area exceed the set duration,
it will resume to infrared light too.
2. Set alarm areas. Select the alarm area number. Four alarm areas can be added.
Click around the area where you want to set as the alarm area in the image (the alarm area
should be a closed area). Click “Clear” to clear the set area; click “Clear All” to clear all set areas.
3. Set the detection target and sensitivity. “People” is selected by default. You can also select
36
“Motor Vehicle” or “Non-motor Vehicle” as needed.
Sensitivity: The higher the value is, the easier the white light will be triggered by targets.
4. Click “Apply” to save the settings.

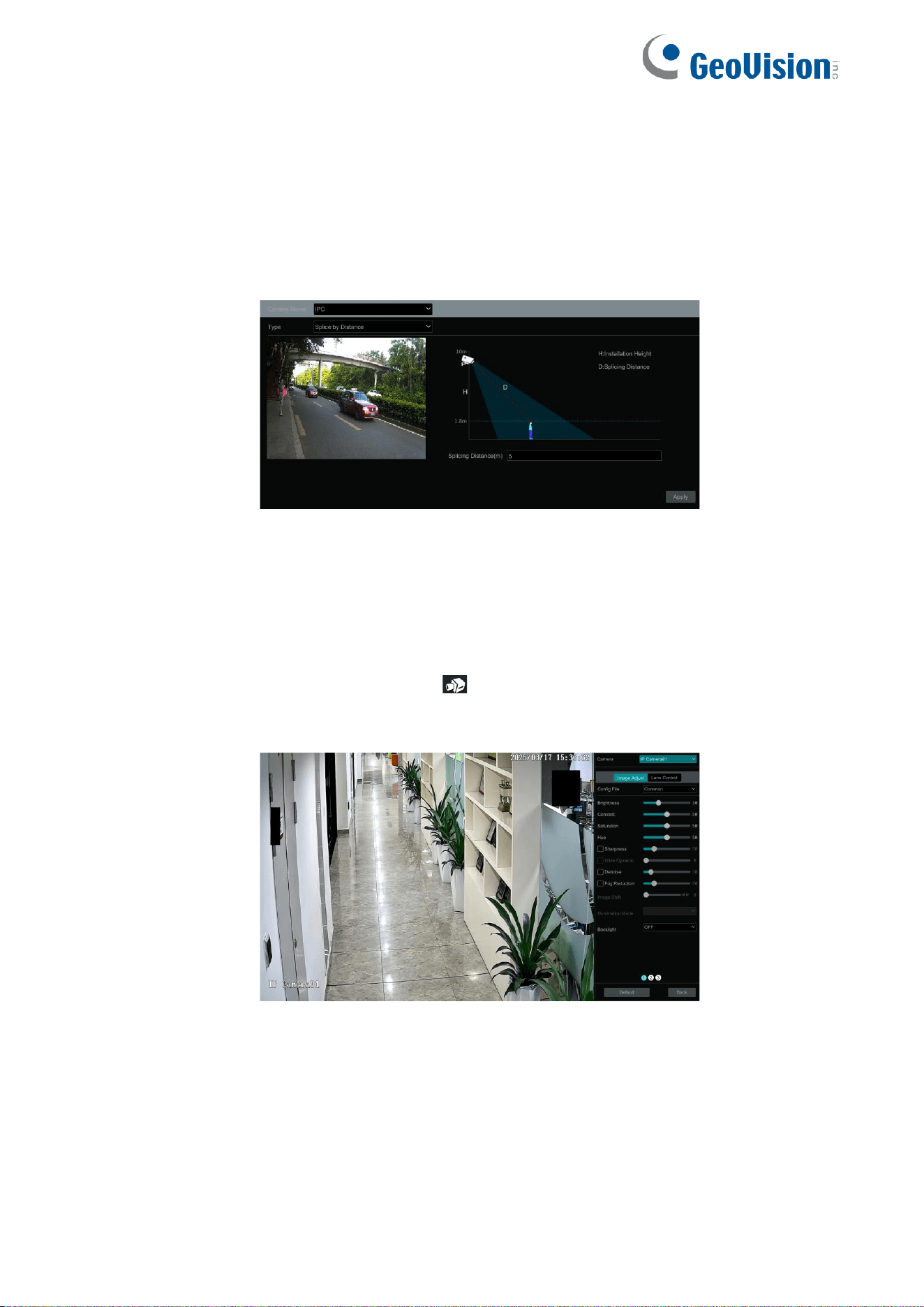

5.4.6 Splicing
After a splicing network camera is added to the NVR, you can set the splicing parameters as
needed by going to Start
→
Settings
→
Camera
→
Splicing.
1. Select the type. The default setting is “Splice by Distance”.
2. Set the slicing distance. Please set it according to the actual situation.
3. Click “Apply” to save the settings.
5.4.7 Image Adjustment
Go to the live view interface and then click button on the tool bar under the camera window
to go to the image adjustment interface.
➢ Image Adjustment
Select the camera and then click “Image Adjustment” to go to image adjustment tab. Refer to the
picture above. Drag the slider to set the camera’s brightness, contrast, saturation and hue value.
Check sharpness, wide dynamic and denoise and then drag the slider to set the value. Click
“Default” button to set these parameters to default values.
Note: For some IPCs, if you have set HWDR in the NVR, these IPCs will automatically reboot
after setting the following image parameters, including exposure/shutter mode, gain mode, gain,
corridor pattern or smart IR. After these IPCs successfully reboot, HWDR will be disabled.
The introductions of these parameters are as follows:
37
Parameter
Meaning
Brightness
The brightness level of the camera’s image.
Contrast
The color difference between the brightest and darkest parts.
Saturation
The degree of color purity. The image appears brighter the purer the color is.
Hue
Relates to the total color degree of the image.
Sharpness
Relates to the resolution level of the image plane and the sharpness level of the
image edge.
Wide Dynamic
The wide dynamic range (WDR) function helps the camera provide clear
images even under back light circumstances. When there are both very bright
and very dark areas simultaneously in the field of view, WDR balances the
brightness level of the whole image and provide clear images with details.
Denoise
Decrease the noise and make the image more thorough. Increasing the value
will make the noise reduction effect better but it will reduce the image
resolution.
White Balance
Adjust the color temperature according to the environment automatically.
BLC
HLC: lowers the brightness of the entire image by suppressing the brightness
of the image’s bright area and reducing the size of the halo area.
BLC: If enabled, the auto exposure will activate according to the scene so that
the object of the image in the darkest area will be seen clearly.
Corridor Pattern
0°, 90°, 180° or 270° can be selected. (Only some cameras support this
pattern)
Image Mirror
Turn the current video image horizontally.
Image Flip
Turn the current video image vertically.
High FPS Mode
High frame rate mode, if is it enabled, the frame rate of the camera’s main
stream can be set to 1080P/720P @60fps/50fps. (Only some cameras support
this mode)
Gain Mode
Choose “Auto” or “Manual”. If “Auto” is selected, the gain value will be
automatically adjusted according to the actual situation. If “Manual” is selected,
the gain value shall be set manually. The higher the value is, the brighter the
image is.
Infrared Mode
Choose “Auto”, “On” or “Off” as needed.
Shutter Mode
Choose “Auto” or “Manual”. If manual is chosen, the digital shutter speed can
be adjusted.
Day & Night Mode
Choose “Auto”, “Day”, “Night” or “Timing” as needed.
White Light Mode
“Auto”, “Manual” or “Off” can be selected. (Only some cameras support this
mode).
EIS
Electronic image stabilization; increase the stability of video image by using
jitter compensation technology (only some IPCs support this function)
Digital Zoom
Please select it as needed (only some PTZ cameras support this function)
Supplement Light
Mode
Choose “White Light”, “Infrared Light” or “Smart Supplement Light” as needed
(this function is only available for dual-illumination cameras)
Note: The above-mentioned descriptions of the image parameters are for reference only. The
cameras made by different manufacturers may have different parameter settings.
38

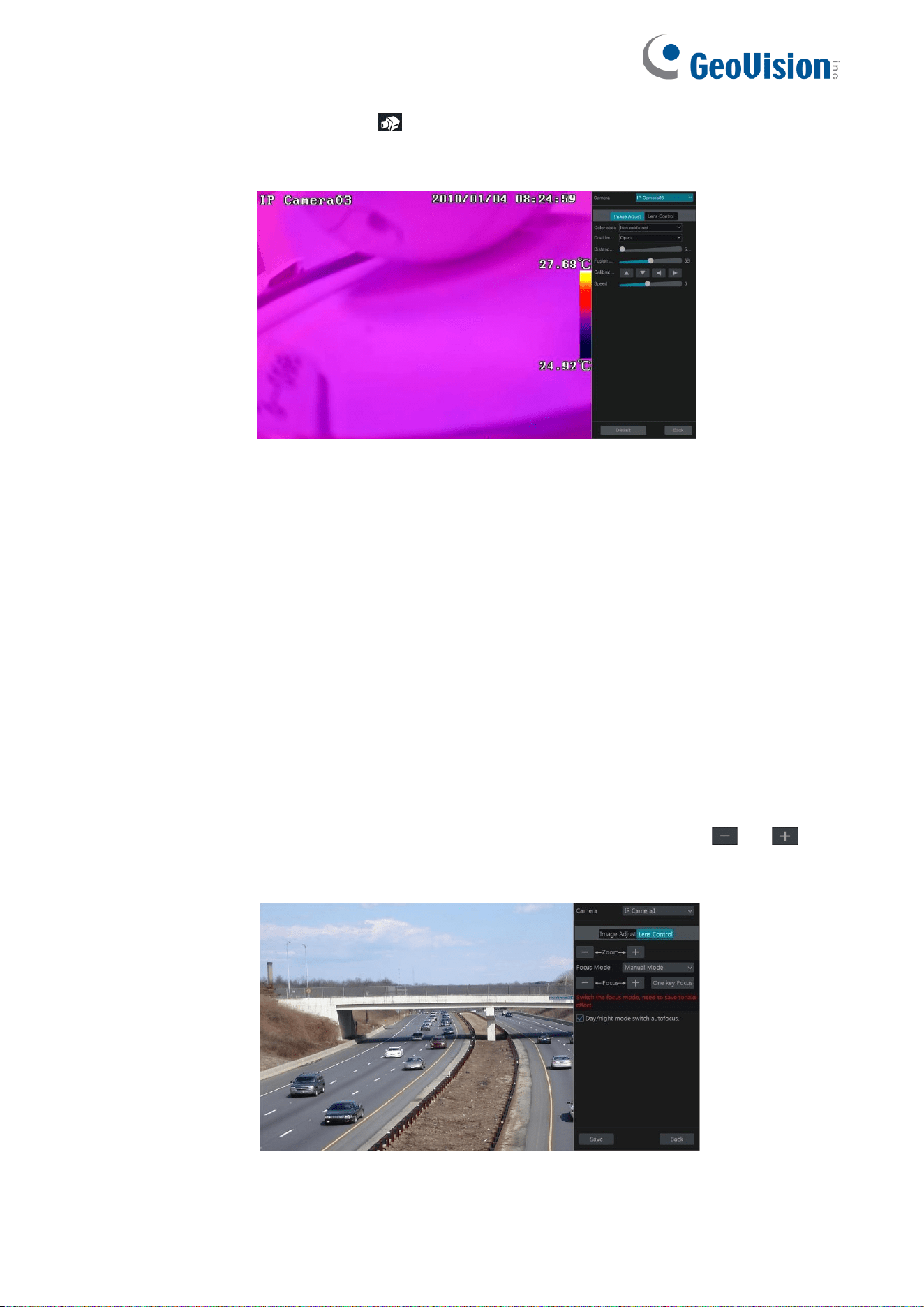

Thermal image adjustment: click on the toolbar of the thermal camera window to enter the
image adjustment interface.
Color code: set the display color of the thermal image as needed. The thermal colors vary by
models.
Dual image fusion: overlay the images of two channels (thermal and optical image channels).
Distance: set the value according to the distance between the lens of the camera and the main
target. The fusion distance between optical image and thermal image will be adjusted along with
the adjustment of the distance. The system will automatically adjust the image effect of fusion
according to the fusion distance.
Fusion Level: the lower the value is, the clearer the optical image is. The higher the value is, the
clearer the thermal image is.
Calibration Adjustment: correct the distance between optical image and thermal image by
clicking the direction buttons.
Speed: the speed of image movement after clicking a direction button.

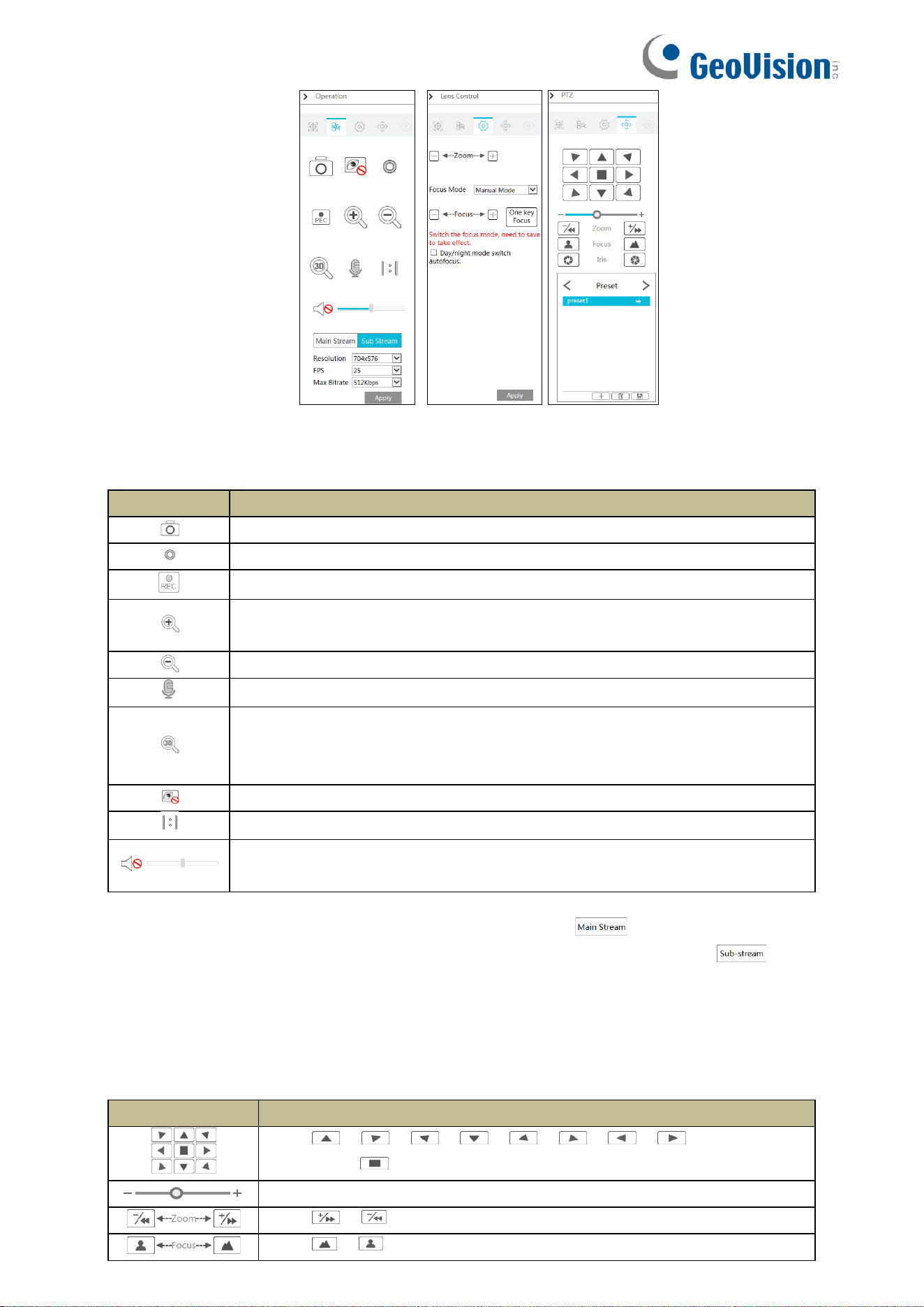

➢ Lens Control
Select the camera and then click “Lens Control” to go to lens control tab. Click or to
adjust the zoom and focus parameters of the camera’s lens. Click “Save” to save the settings.
The introductions of these parameters and buttons are as follows.
39
Button/Parameter
Meaning
Click / to zoom in/out the image.
Focus Mode
If manual mode is selected, focus button & “One Key Focus” &
“Day/night mode switch autofocus” will be available; if auto mode is
selected, the time interval setup will be available.
Click / to increase/decrease the focal length.
Click to focus instantly.
Day/night mode switch
autofocus
If checked, the lens will focus automatically when the camera is
switching day/night mode.
Time Interval
It is the time interval when camera lens is auto focusing. The
interval can be set in the drop-down list.
Note: This function is only available for motorized zoom cameras.
40
6 PTZ

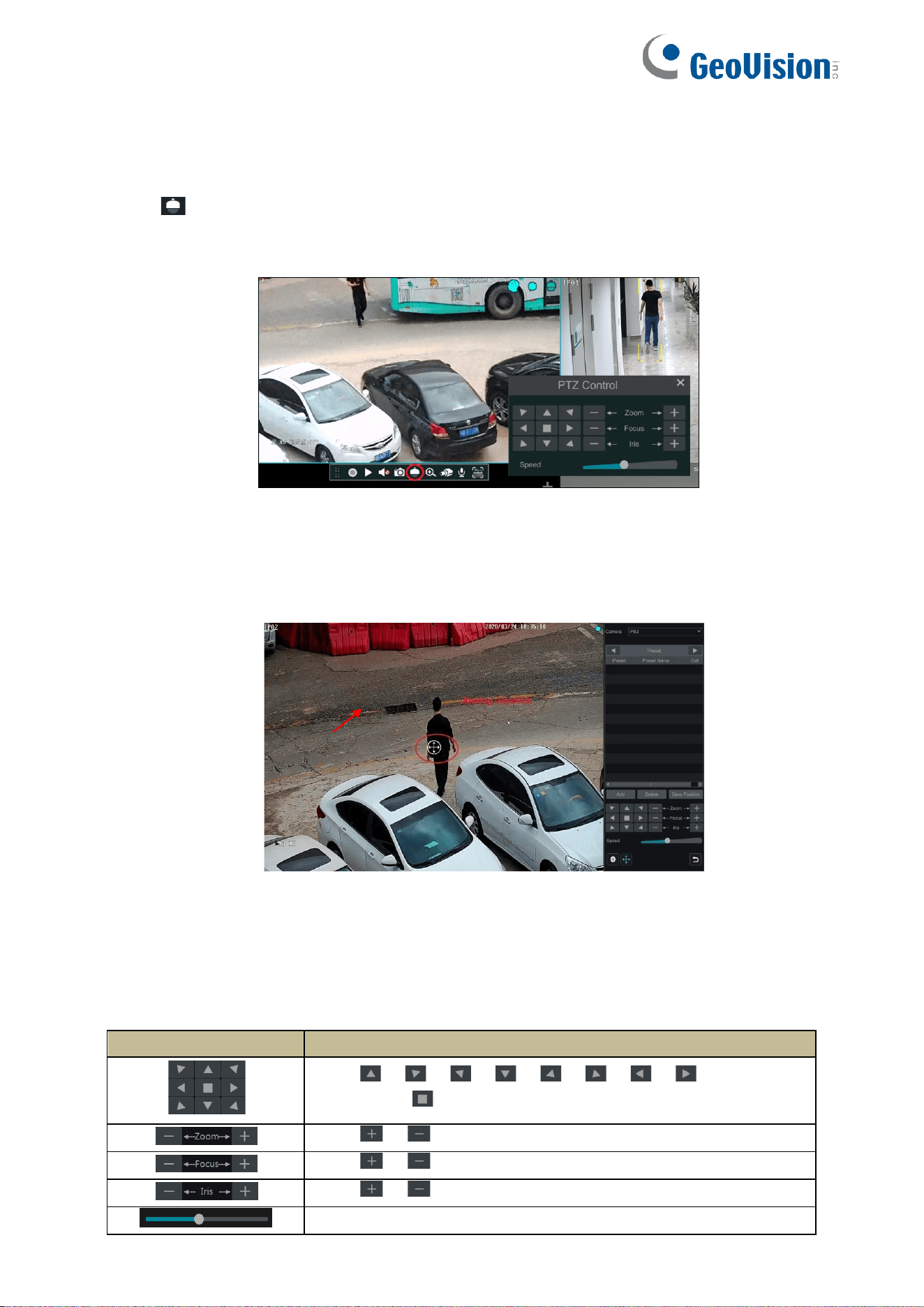

6.1 PTZ Control Interface Introduction
You can control the IP dome or PTZ connected to the IP camera for PTZ control.
Click on the tool bar at the bottom of the live preview window to go to the PTZ control
interface as shown below.
The direction, zoom, focus, iris and speed can be controlled in the small PTZ control window.
Right click the PTZ/speed dome camera window and select “PTZ Control” to go to the PTZ
control panel as shown below.
Introductions of the buttons on the bottom right of the interface:
Button
Meaning
Click / / / / / / / to rotate the
dome. Click to stop rotating the dome.
Click / to zoom in / out the camera image.
Click / to increase / decrease the focal length.
Click / to increase / decrease the iris of the dome.
Drag the slider to adjust the rotating speed of the dome.
41
Button
Meaning
/
Click / to start / stop recording.
/
Click / to hide / show the analog joystick.
Click to return to the live view interface.
➢ Analog Joystick Control
The analog joystick on the left side of the interface provides quick PTZ control. The dome or PTZ
will rotate when you drag the analog joystick. The farther you drag the analog joystick from the
middle of the image, the faster the dome or PTZ rotates. The dome or PTZ will stop rotating when
you stop dragging the analog joystick.
➢ 3D Control
Click the camera image on any area and then the image will be centered on the clicked point.

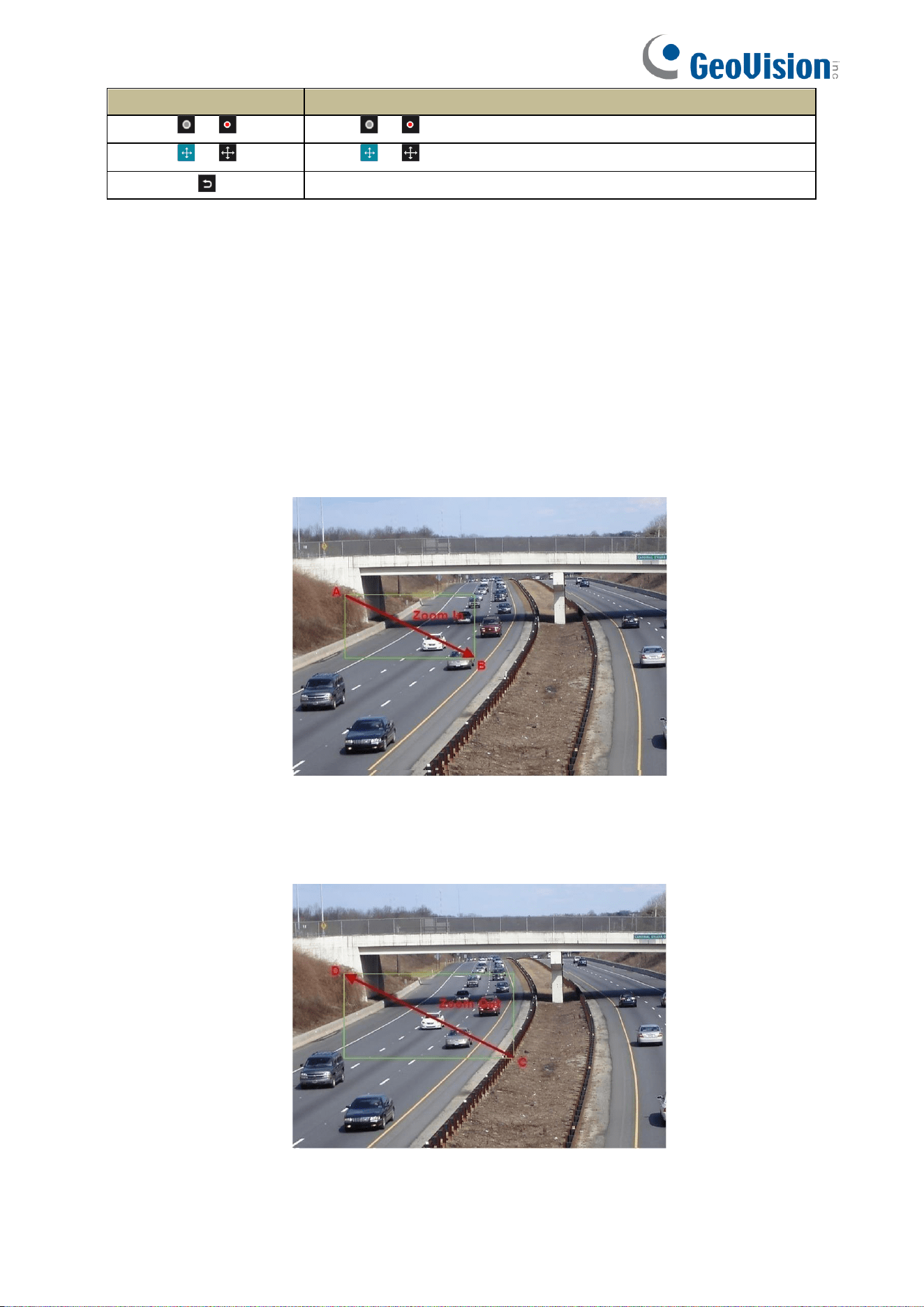

Refer to the picture as shown below. Drag the mouse from A to B to get a green rectangle and the
rectangle area will be zoomed in.
Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the
rectangle area will be zoomed out.
➢ Advanced 3D Control
Double click the left button of the mouse on any area of the camera image and then the image
size will be doubled and centered on the clicked point.
42
Press and hold the left button of the mouse on any area of the camera image to zoom in the
image; press and hold the right button to zoom out the image.
Move the cursor of the mouse to the camera image and then slide the scroll wheel of the mouse
forward to zoom in the image, slide the scroll wheel of the mouse backward to zoom out the
image.
➢ Preset Settings
Click “Preset” to go to preset operation tab and then click “Add” to open the window as shown
below. Select the preset and then enter the preset name in the window; finally click “OK” to save
the settings.
Adjust the dome’s direction and then click “Save Position” to save the current preset position (you
can also click another preset in the preset list and then save the preset position after adjusting the
dome’s direction); click in the preset list to call the preset; click “Delete” to delete the
selected preset.
You can also go to preset setting interface for preset setting, see Preset Setting for details.

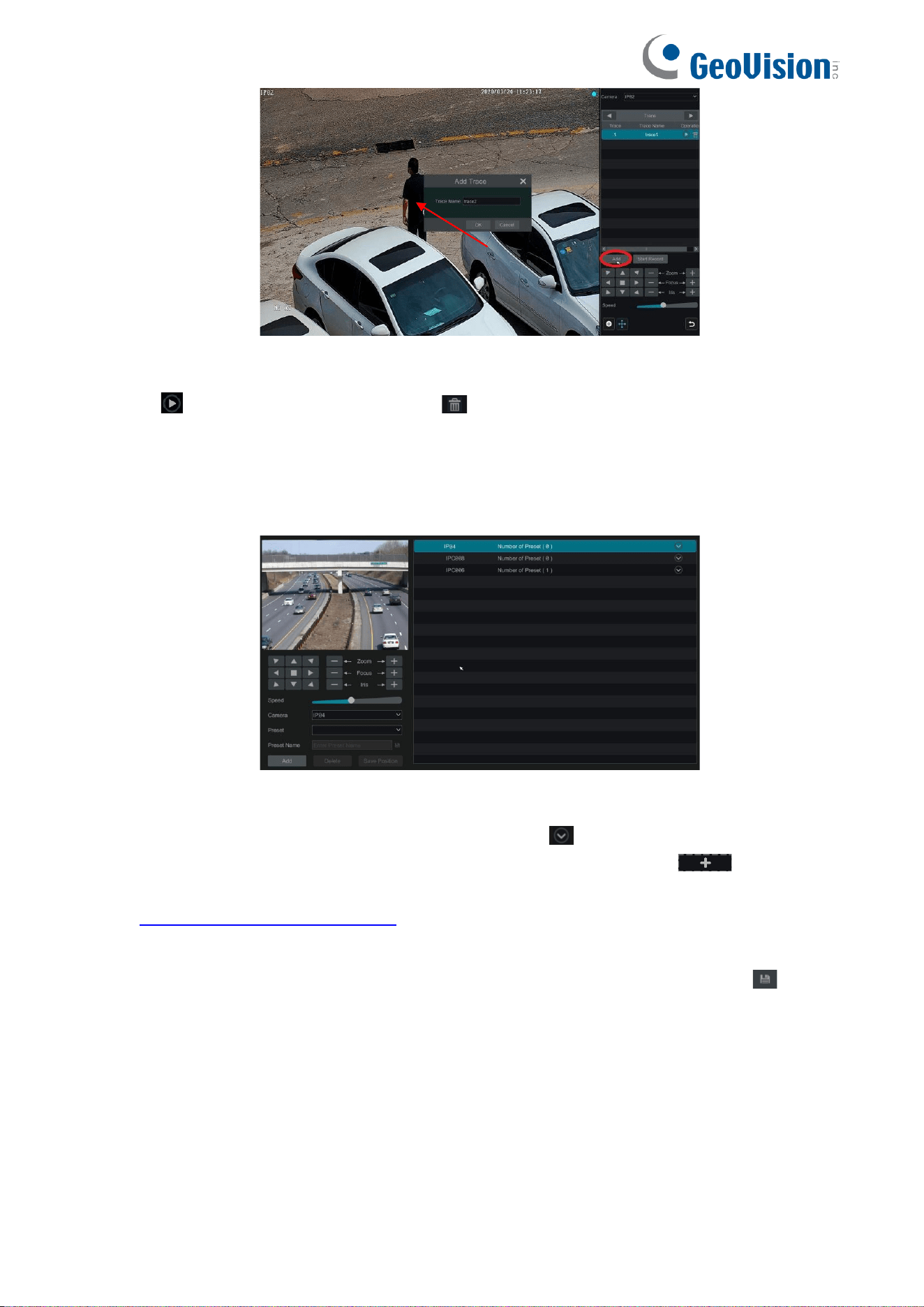

➢ Cruise Settings
On the right panel, click to go to cruise operation tab and then click “Add” to open the window
as shown below. You can add up to 8 cruises for each dome.
43

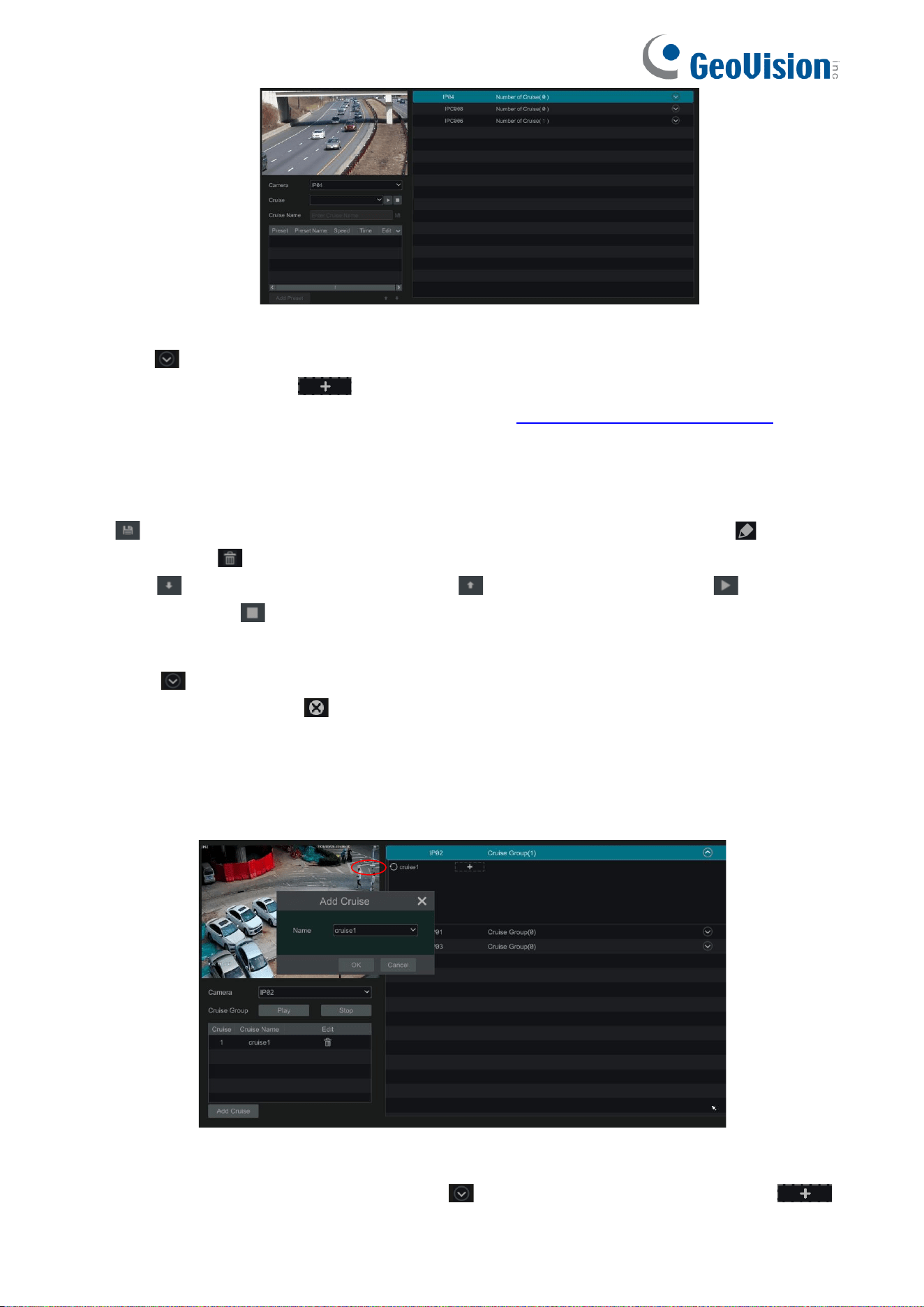

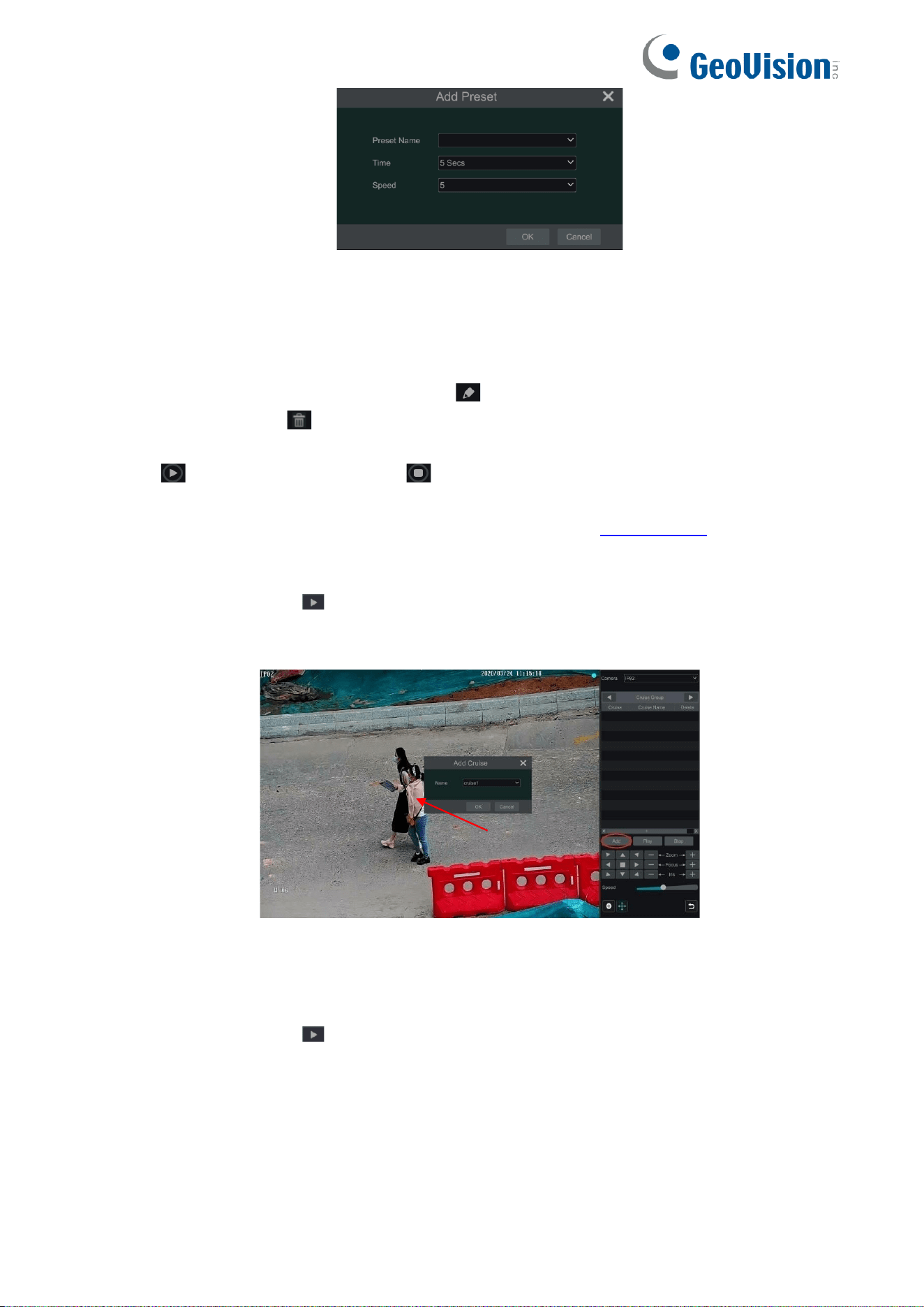

① Enter the cruise name in the “Add Cruise” window and then click “Add preset” to open the “Add
Preset” window (Before adding preset to the cruise, please add preset of the dome first).
② In the “Add Preset” window, select the preset name, preset time and preset speed and then
click “OK”.
③ In the “Add Cruise” window, you can click to reselect the preset, then change the preset
time and speed. Click to delete the preset. Click “Add” to save the cruise.
Click to start the cruise and click to stop the cruise in the cruise list of the cruise
operation tab; click “Delete” to delete the selected cruise.
You can also go to cruise setting interface for cruise setting, see Cruise Setting for details.
➢ Cruise Group Settings
On the right panel, click to go to the cruise group setting tab. Click “Add” to add a cruise
group as shown below.
In the “Add Cruise” window, select the cruise group name. After that, click “Play” to play the cruise
groups in sequence.
➢ Trace Settings
On the right panel, click to go to the trace setting tab. Click “Add” to add the trace name.
Then click “OK” to save this name. Please refer to the following picture.
44
After that, click “Start Record” to record the trace. Then click “Stop Record” to finish recording.
Click to play the recorded trace. Click to delete the trace.
6.2 Preset Settings
Click Start
→
Settings
→
Camera
→
PTZ
→
Preset to go to the interface as shown below.
➢ Add preset
Select camera and then click “Add” to add preset; or click in the camera list on the right side
of the interface to display the preset information of the dome and then click to add preset.
The operations of the “Add Preset” window are similar to that of the PTZ control interface; please
see PTZ Control Interface Introduction for details.
➢ Edit preset
Select camera and preset. You can enter the new name of the preset and then click to save
the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and
then click “Save Position” to save the preset.
➢ Delete Preset
Select camera and preset and then click “Delete” to delete the preset.
6.3 Cruise Settings
Click Start
→
Settings
→
Camera
→
PTZ
→
Cruise to go to the interface as shown below.
45
➢ Add Cruise
Click in the camera list on the right side of the interface to display the cruise information of
the dome and then click to add cruise. The operations of the “Add Cruise” window are
similar to that of the PTZ control interface; please see PTZ Control Interface Introduction for
details.
➢ Edit Cruise
Select the camera and cruise in the “Cruise” interface. Enter the new cruise name and then click
to save the cruise name. Click “Add Preset” to add preset to the cruise. Click to edit the
preset. Click to delete the preset from the cruise. Click one preset in the preset list and then
click to move down the preset and click to move up the preset. Click to start the
cruise and click to stop it.
➢ Delete Cruise
Click in the camera list on the right side of the interface to display the cruise information of
the dome and then click on the top right corner of the cruise to delete the cruise.
6.4 Cruise Group Settings
Click Start
→
Settings
→
Camera
→
PTZ
→
Cruise Group to go to the interface as shown below.
➢ Add Cruise Group
Click “Add Cruise” to add the cruise, or click to extend the cruise list and then click
to add the cruise. After that, click “Play” on the left panel as shown below to play the cruise lines in
sequence.
46
➢ Delete Cruise
In the cruise list, click to delete the cruise.
6.5 Trace Settings
Click Start
→
Settings
→
Camera
→
PTZ
→
Trace to go to the interface as shown below.

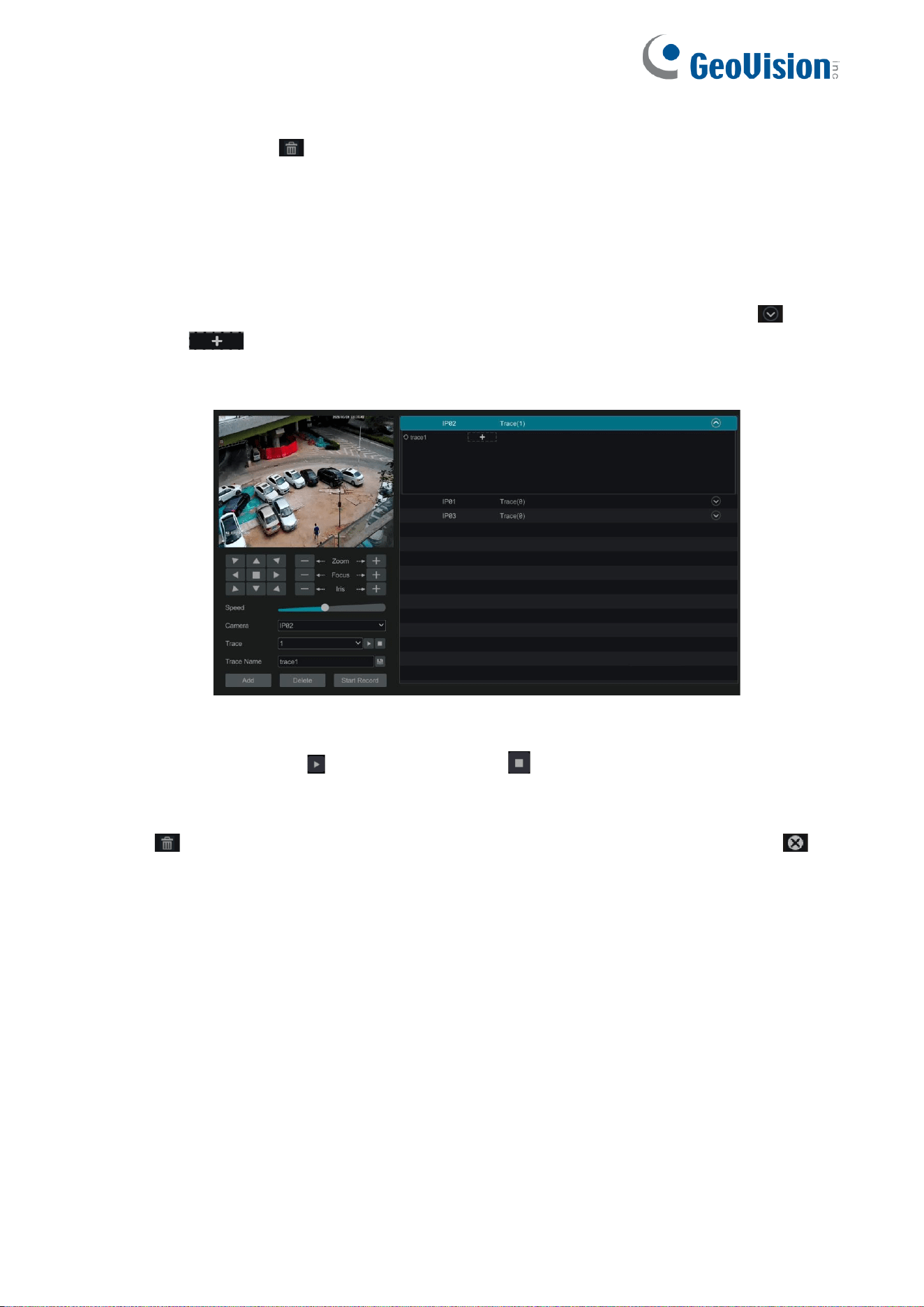

➢ Trace Record
Select the PTZ camera and then click “Add” or extend the IPC information by clicking and
then click to add a trace name. After that, click “Start Record” and move the speed dome
to change its position and set its trace. Then click “Stop Record” to complete the trace record.
➢ Play or Stop Trace
Select the trace and click to play the trace; click to stop the trace.
➢ Delete the Trace
Click to delete the trace. Or put the cursor on the trace name (right panel) and then will
appear on the right corner of the trace name; click to delete this trace.

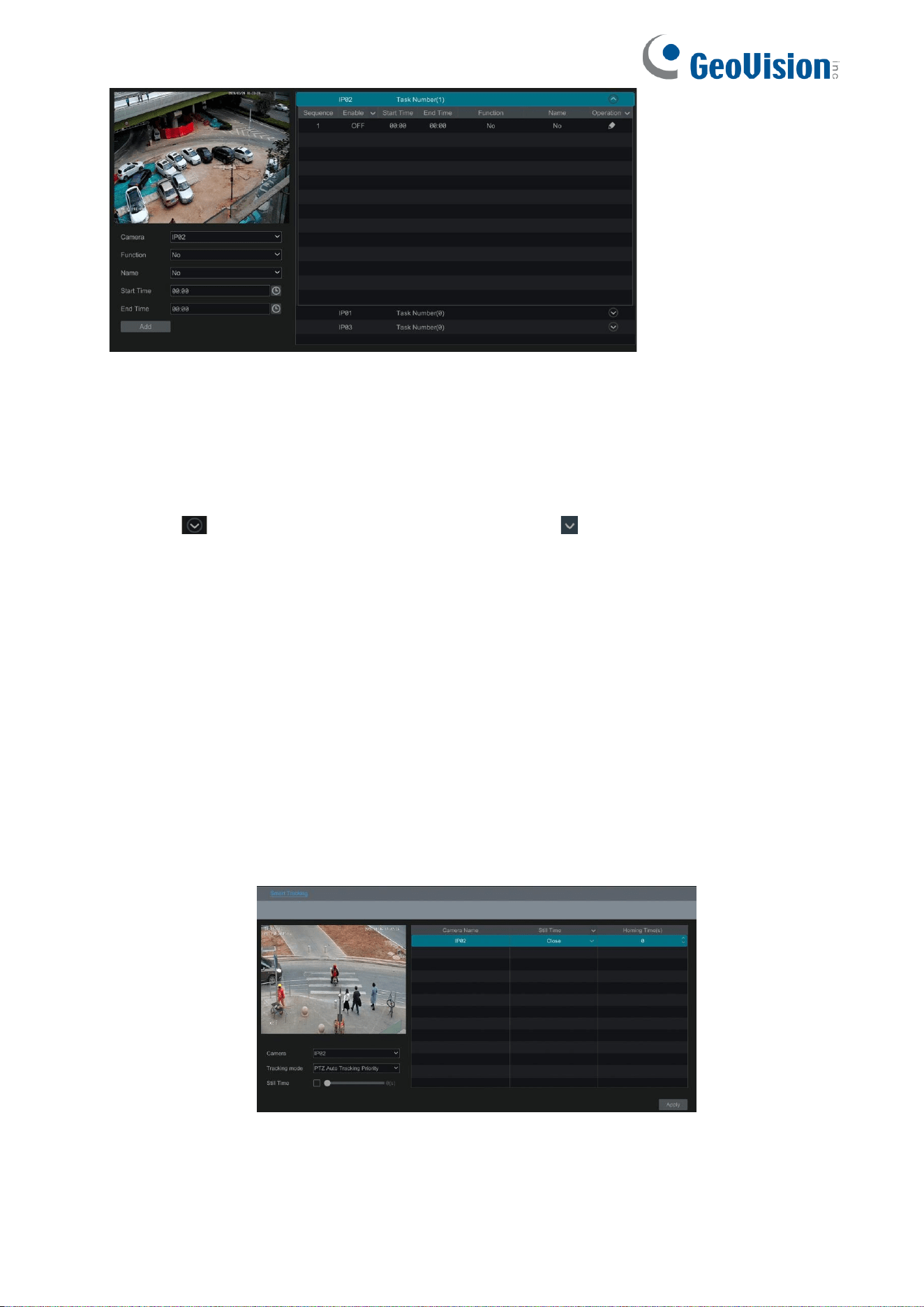

6.6 Task Settings
Click Start
→
Settings
→
Camera
→
PTZ
→
Task to go to the interface as shown below.
47
① Select a PTZ camera.
② Select function, such as preset, cruise, trace, random scanning, etc.
③ Select a name, such as preset name, cruise name, etc.
④ Select the start and end time.
⑤ Click “Add” to add the task.
⑥ Click to extend the tasks of the PTZ camera. Click beside “Enable” to enable the task.
After the task is enabled, the PTZ camera will start the specific task at the specified time.
6.7 Smart Tracking Settings
This function is only available for AI PTZ camera. Please add an AI PTZ camera to the NVR
for this function to take effect.
Smart Tracking: When people or vehicle cross the alarm line or intrude the predefined area, the
PTZ camera can automatically track them and the target image will be automatically zoomed in
and centered on the screen until the target disappears from the screen. After that, the PTZ camera
will return to the tracking start position.
To set smart tracking:
1. Click Settings
→
Camera
→
Smart Tracking to go to the smart tracking interface.
2. Select the tracking mode and set the “still time” as needed.
Tracking Mode: choose “PTZ Auto Tracking Priority” or “Manual PTZ Control Priority”
PTZ Tracking Priority: if this mode is selected, after enabling “Trigger track” in one of the
48
following events, you cannot control PTZ by clicking the buttons on the PTZ control panel in the
live view interface.
Manual PTZ Control Priority: if this mode is selected, after enabling “Trigger track” in one of the
following events, you can control PTZ by clicking the buttons on the PTZ control panel in the live
view interface during the process of smart tracking. After you stop controlling for 5 seconds, the
PTZ camera will return to the pre-defined detection area and start tracking again when detecting a
target.
Still time: If it is enabled and the time is set, when the target stops, the PTZ camera will return to
the tracking start position after the set time expires. During this time, if the target moves, the PTZ
will continue tracking. If it is not enabled, when the target stops for 5 seconds, the PTZ camera
will return to the start tracking position.
For example: At the stoplight, if a car is waiting for the red light for 30 seconds, and the still time is
set as 20 seconds, the tracking will stop following; however, if the still time is set as 40 seconds,
when the red light changes to green and the car starts to move, the PTZ will continue tracking this
car.

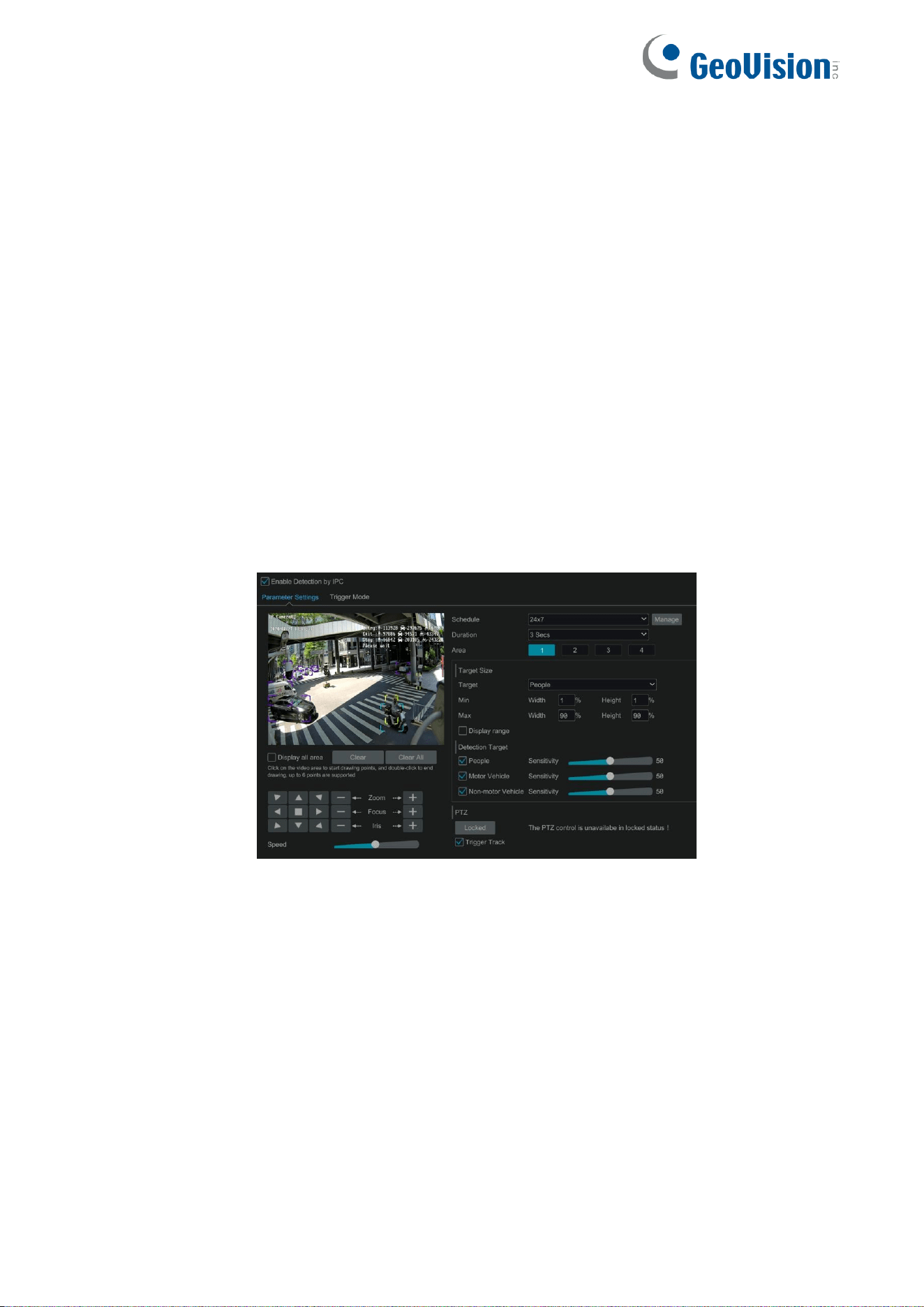

3. Click Settings
→
AI/Event
→
AI Event. Select the AI PTZ camera and the event as needed For
example: Region intrusion.
4. Enable the event, set the rule and then click “Locked”. This button will be changed to “Unlock”.
Now the PTZ control panel in the above interface will be activated. Set the detection area by
clicking the directional buttons in the above interface. After that, click “Unlock” to lock the detection
area.
Note: The home position of the PTZ must be locked, or the smart tracking cannot take effect.
5. Click “Draw area” and then draw the area of the region intrusion on the screen.
6. Set the detection target and target size.
7. Check “Trigger Track”.
8. Click “Apply” to save settings. After that, the PTZ can start smart tracking when detecting a
target.

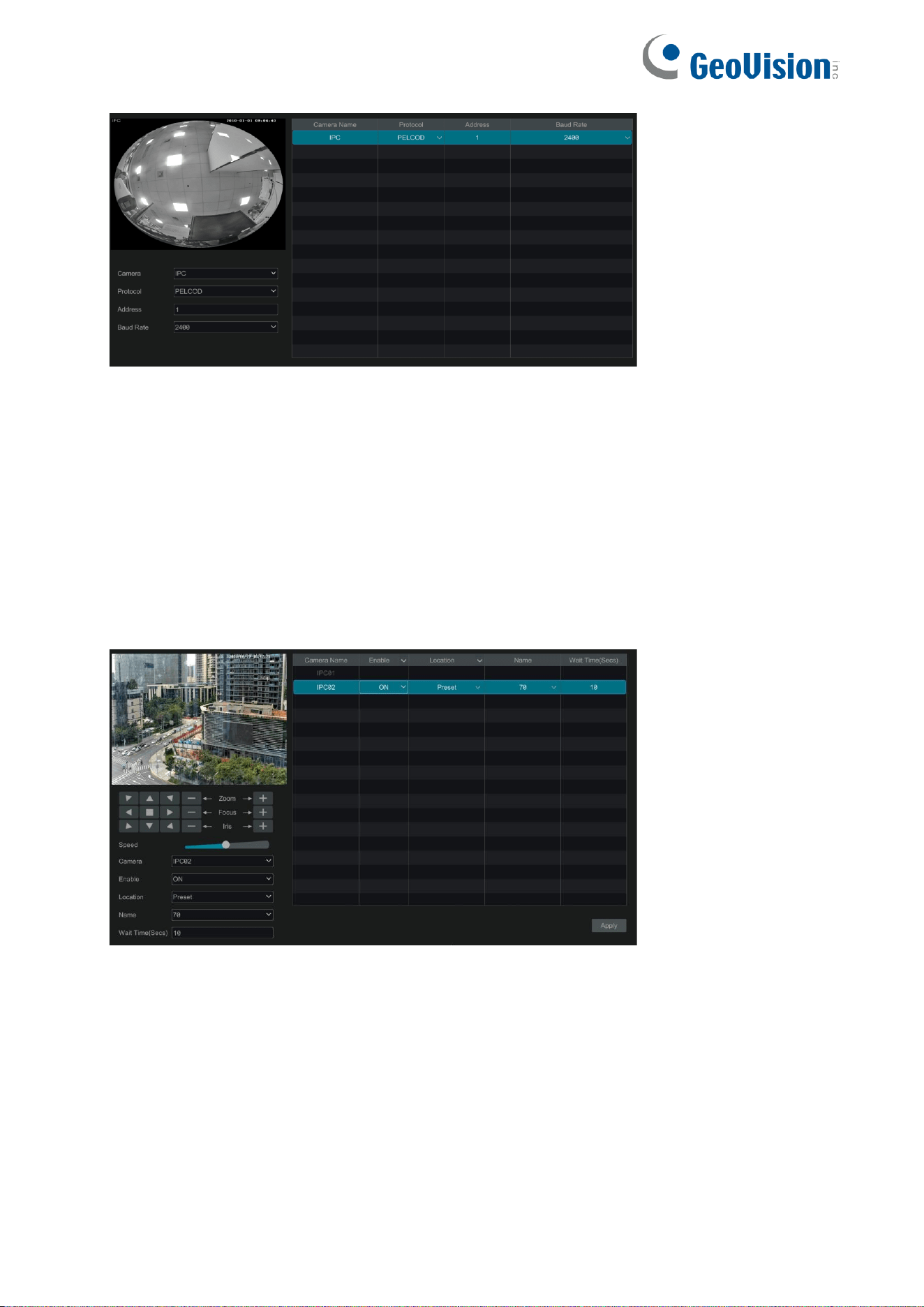

6.8 Protocol Settings
This series of products support remote configuration of the PTZ protocol of the added IPC.
Note: Only when the added camera supports PTZ protocol settings, can this function be available.
49
6.9 Home Position Settings
Click Settings
→
Camera
→
Home Position to go to the home position setup interface.
The setup steps are as follows:
① Select “On” to enable the home position and select the location (like preset) and name.
② Select the wait time (range from 007s to 180s) and apply the settings.
When the stand-by time of the PTZ camera exceeds the wait time, the camera will automatically
execute the command to monitor the selected home position.
50
7 Record & Disk Management
7.1 Record Configuration

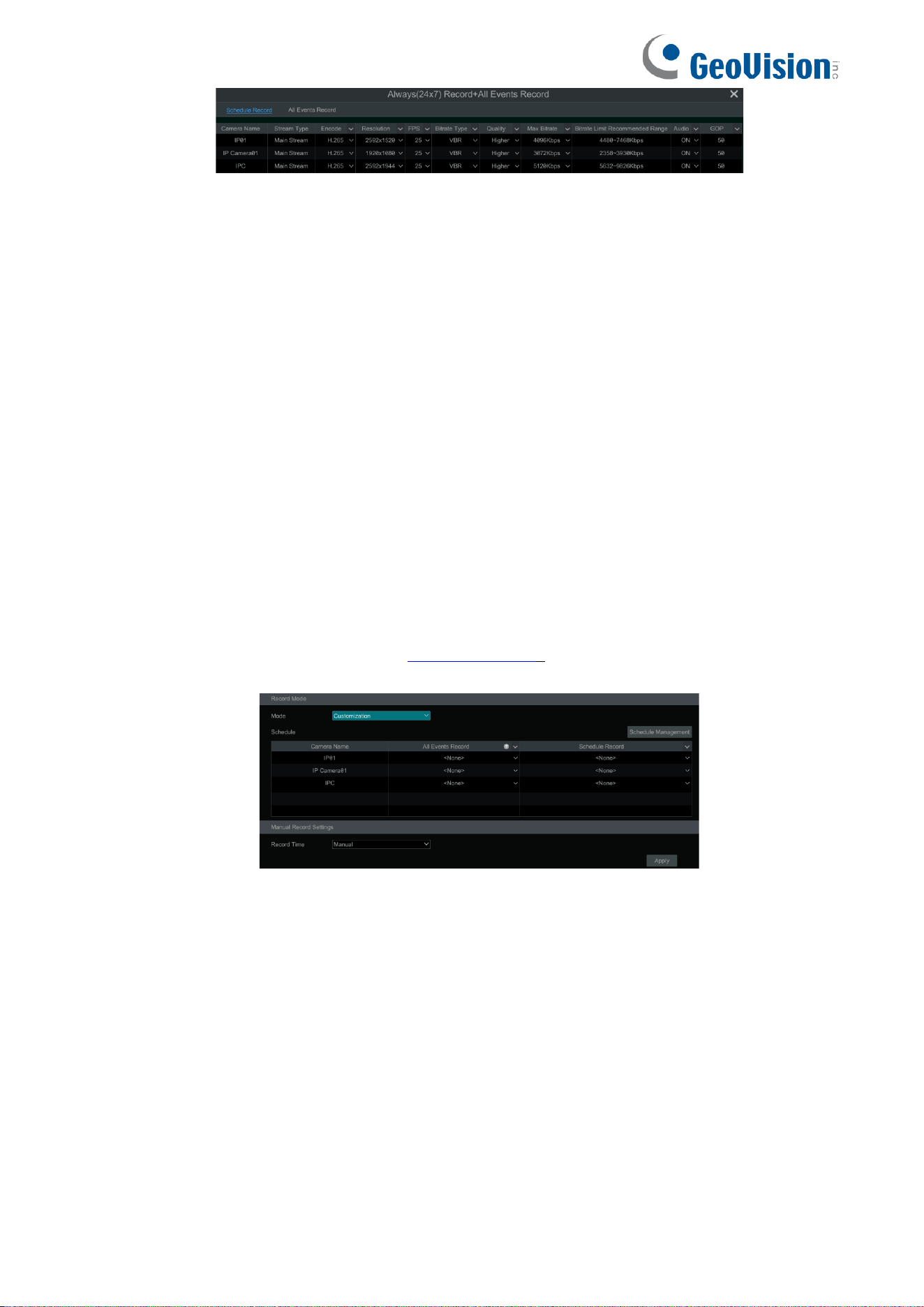

7.1.1 Mode Configuration
Please format the HDDs before recording (refer to Disk Management for details). Click
Start
→
Settings
→
Record
→
Mode Settings to go to the mode settings interface. You can set the
record time under the “Manual Record Settings” and then click “Apply” to save the settings. There
are two record modes: auto mode and customization mode.
➢ Auto Mode
All Events Record: motion/sensor/AI events record will be enabled when motion/sensor/AI event
alarm happens.
Always(24
ⅹ
7) Record + All Events Record: Normal record is enabled all the time;
motion/sensor /AI event alarm record will be enabled when motion/sensor/AI event alarm
happens.
You can add more auto record modes. Click “Customized” to pop up a window as shown below.
Check the modes in the window and then click “Add” to show the modes in the record mode list
(in the window, the checked modes can be shown in the record mode list while the unchecked
modes cannot). The intelligent record is checked by default.
Select one auto mode for the corresponding window to open. Set the encode, GOP,
resolution, FPS, bitrate type, quality, max bitrate and audio of each camera and then click
“OK” to save your settings. Please adjust the parameters according to the actual condition.
51
Video Encode: the available options will be H.265S, H.265+, H.265 and H.264 depending on
what the camera supports.
Resolution: the higher the resolution is, the clearer the image is.
FPS: the higher the frame rate is, the more fluency the video has, with the tradeoff of using more
storage.
Bitrate Type: CBR and VBR are optional. CBR means that no matter how much change is seen
in the video scene, the compression bitrate will be kept constant. VBR means that the
compression bitrate will be adjusted according scene changes. For example, for scenes that do
not have much movement, the bitrate will be kept at a lower value. This will help to optimize the
network bandwidth.
Quality: when VBR is selected, you need to choose image quality. The higher the image quality
you choose, the more bitrate will be required.
Max Bitrate: 32Kbps ~10240Kbps are optional.
GOP: group of pictures.
➢ Customization Mode
If the customization mode is selected, you need to set the schedule of AI events record and
schedule record for each camera. See Schedule Settings for details.
In this interface, you can also set the record period of the manual record in the live view interface.
7.1.2 Schedule Settings
➢ Add Schedule
Click Start
→
Settings
→
Record
→
Mode Setting to go to the mode setting interface. Then select

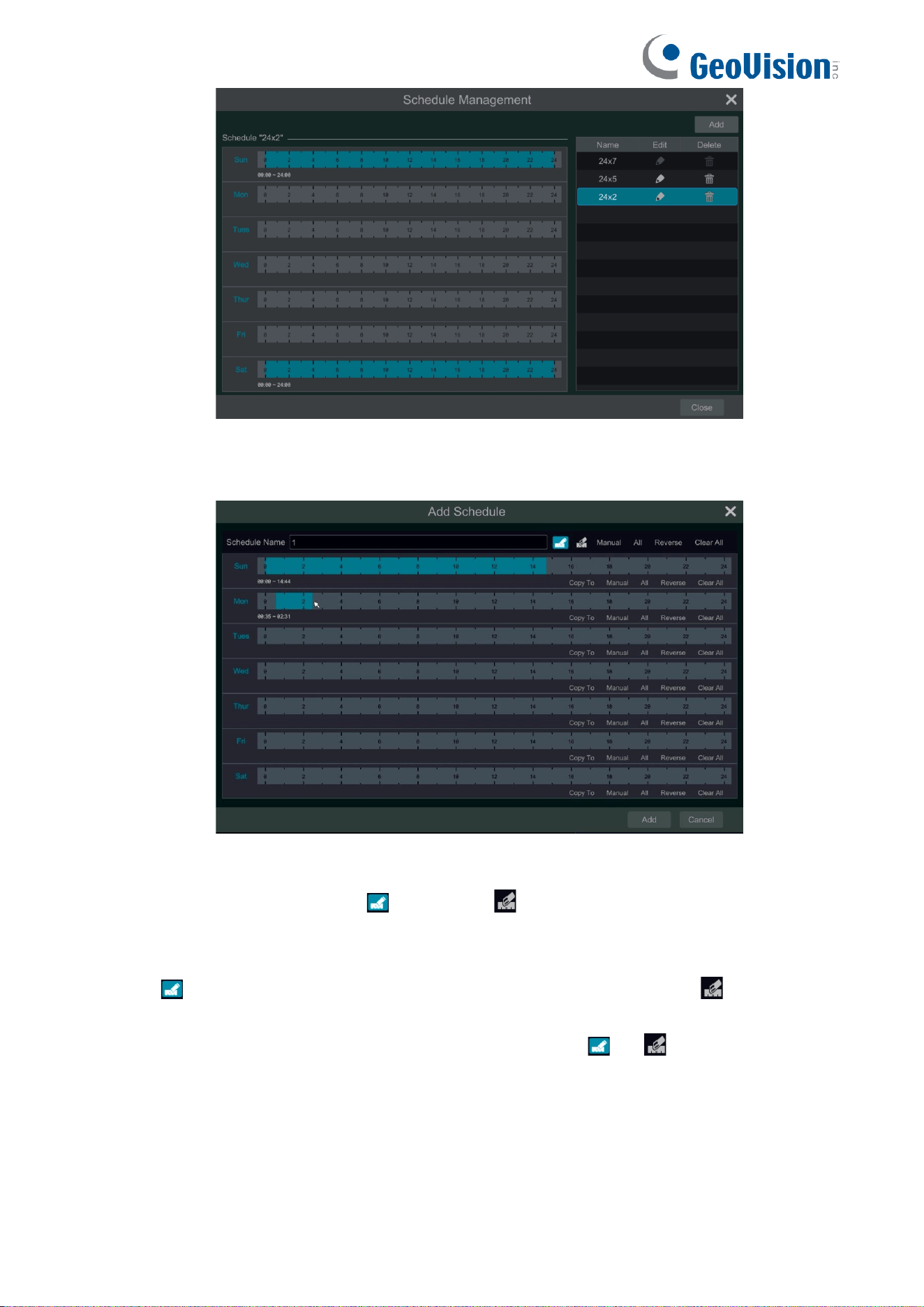

“Customization” mode and click “Schedule Management” to set the schedule as shown below. “24
ⅹ7”, “24ⅹ5” and “24ⅹ2” are the default schedules; you cannot edit or delete “24ⅹ7” while “24ⅹ5”
and “24ⅹ2” can be edited and deleted. Click the schedule name to display the detailed schedule
information on the left side of the interface. The seven rows stand for the seven days in a week
and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for
unselected time.
52
Click “Add” to add a new schedule. Refer to the picture below.
Set the schedule name and schedule time and then click “Add” to save the schedule. You can set
day schedule or week schedule. : add button; : delete button.
➢ Set Day Schedule
Click and then drag the cursor on the time scale to set record time; click and then drag
the cursor on the time scale to delete the selected area.
You can manually set the record start time and end time. Click or and then click “Manual”
on each day to open a window as shown below. Set the start and end time in the window and then
click “OK” to save the settings.
53

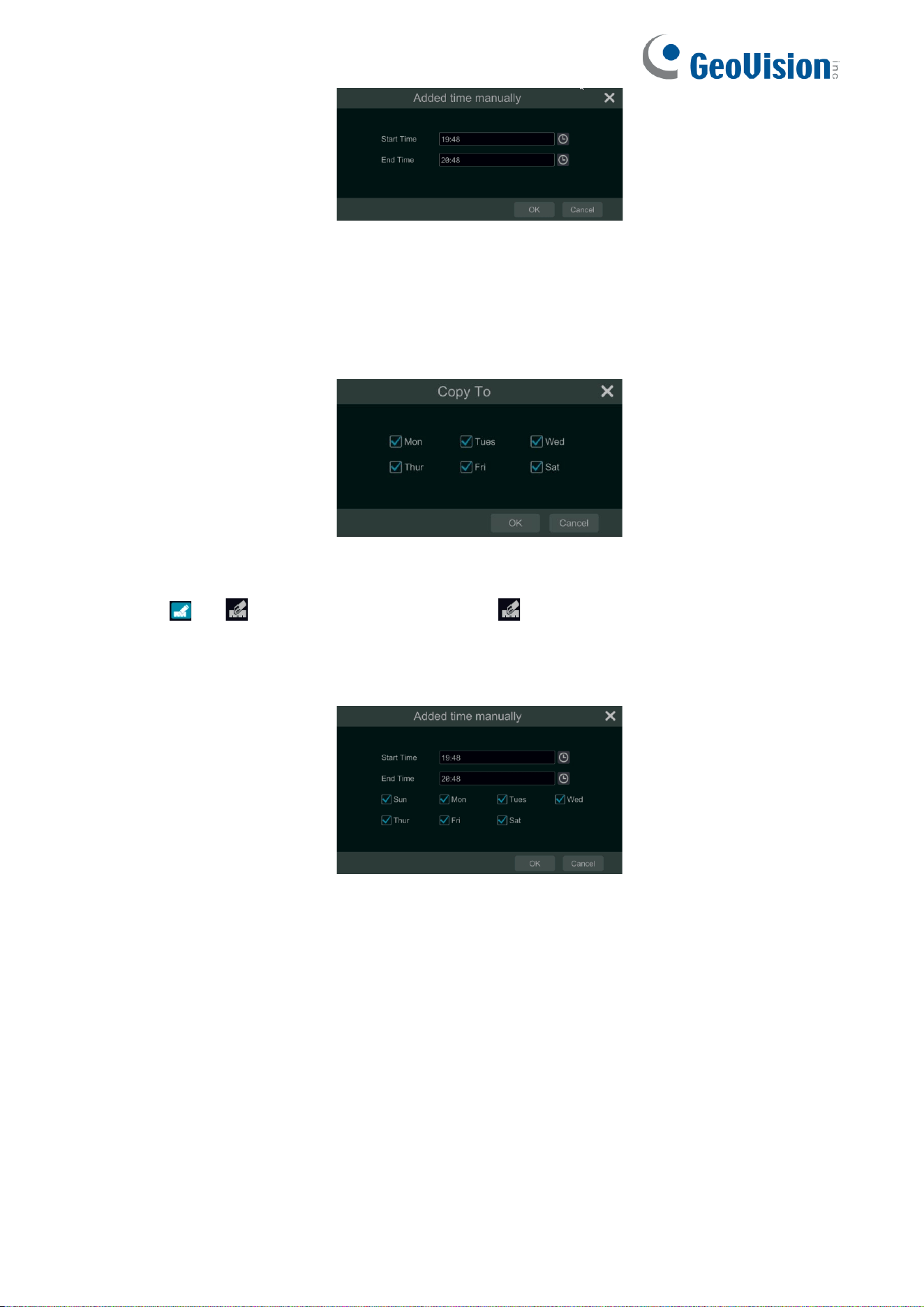

Click “All” to set all day recording; click “Reverse” to swap the selected and unselected time in a
day; click “Clear All” to clear all the selected area in a day.
Click “Copy To” to copy the schedule of the day to other days. Refer to the picture below. Check
the days in the window and then click “OK” to save the settings.
➢ Set Week Schedule
Click or and then click “Manual” beside to set the week schedule. Refer to the
picture below. Set the start and end time, check the days in the window and then click “OK” to
save the settings.
Click “All” to set all week recording; click “Reverse” to swap the selected and unselected time in a
week; click “Clear All” to clear all the selected area in a week.

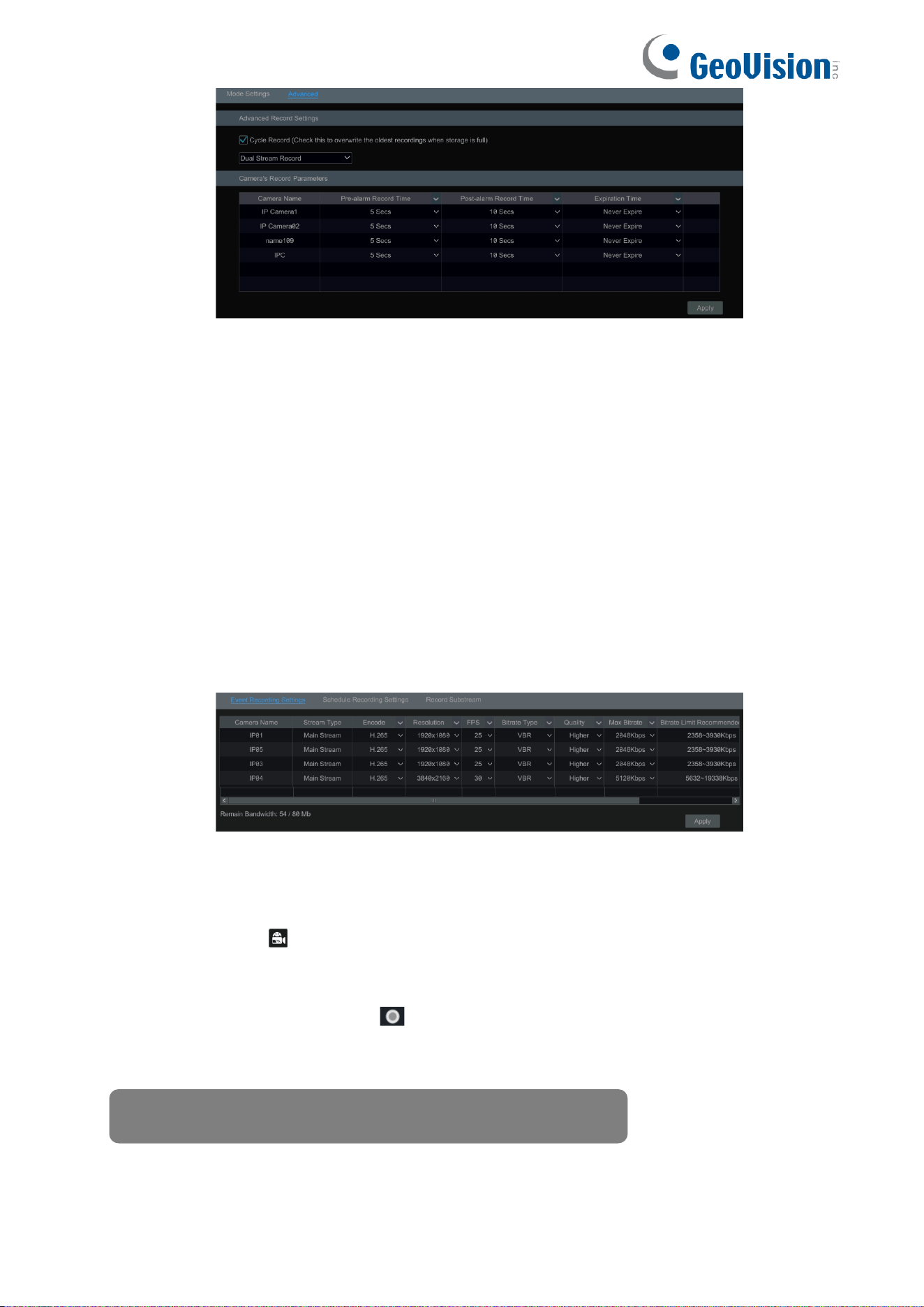

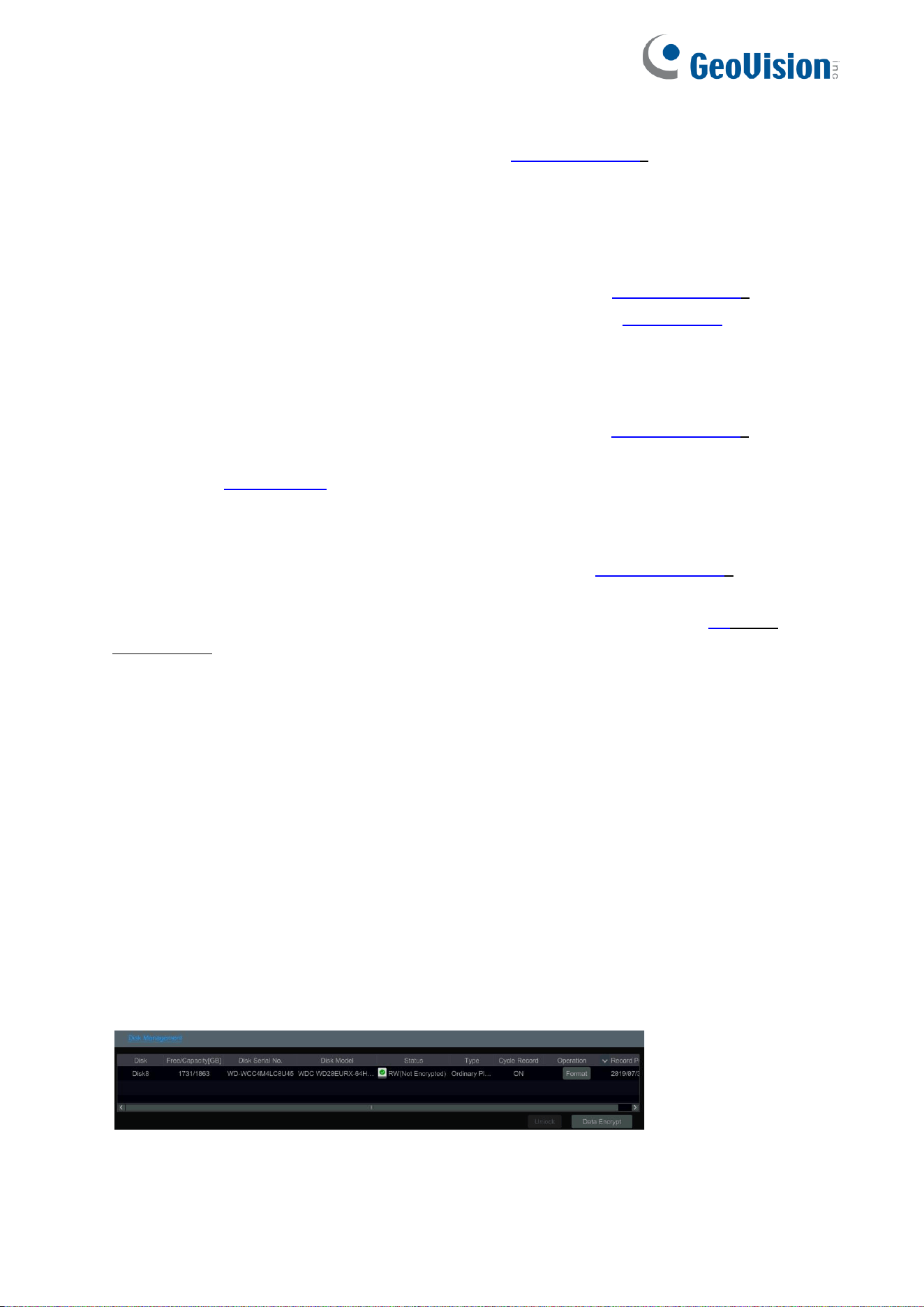

7.1.3 Advanced Configuration
Click Start
→
Settings
→
Record
→
Advanced to go to the following interface. Enable or disable
cycle record (cycle record: the earliest record data will be replaced by the latest when the disks
are full). Choose the record stream. Set the pre-alarm record time, post-alarm record time and
expiration time of each camera and then click “Apply” to save the settings.
54
Pre-alarm Record Time: set the time to record before the actual recording begins.
Post-alarm Record Time: set the time to record after the actual recording is finished.
Expiration Time: set the expiration time for recorded video. If the set date is overdue, the
recorded data will be deleted automatically.
7.2 Encode Parameters Settings
Click Start
→
Settings
→
Record
→
Encode Parameters to go to the interface as shown below.
Set the encode, resolution, FPS, GOP, bitrate type, quality, max bitrate and audio of main stream
for each camera in “Event Recording Settings” and “Schedule Recording Settings” interfaces.
Additionally, the record sub stream of each camera can be viewed. Click “Apply” to save the
settings. You can set the record stream of each camera one by one or set them in batches for all
cameras.
7.3 Record Mode
7.3.1 Manual Recording
Method One: Click on the tool bar at the bottom of the live view interface to enable recording
of the camera.
Method Two: Go to the live view interface and then click the right-click menu “Manually Record
On” in the camera window or click on the tool bar under the camera window to start
recording.
Note: Click Start
→
Settings
→
Record
→
Mode Settings and then set the manual record time
in the interface. Click “Apply” to save the settings.
55
7.3.2 Timing Recording
Timing Recording: the system will record automatically according to the schedule.
Set the timing record schedule of each camera. See Schedule Settings for details.
7.3.3 Motion-based Recording
Motion-based Recording: the system will start motion-based recording when the motion object
appears in the setup schedule. The setup steps are as follows:
① Set the motion-based recording schedule of each camera. See Schedule Settings for details.
② Enable the motion and set the motion area of each camera. See Motion Alarm for details.
The camera will start motion-based recording once you finish the above settings.
7.3.4 Sensor Based Recording
① Set the sensor based recording schedule of each camera. See Schedule Settings for details.
② Set the NO/NC type of the sensor, enable the sensor alarm and then check and configure the
“Record”. See Sensor Alarm for details.
7.3.5 AI Event Recording
① Set the analytics recording schedule of each IP camera. See Schedule Settings for details.
② Enable the intelligent alarm detection (object detection, exception, line crossing, intrusion or
face detection) and draw alert surface or warning area of each IP camera. See AI Event
Management for details.
The camera will start analytic recording once you finish the above steps. This function is only
available for some IPCs.
7.4 Disk
7.4.1 Disk Management
The HDD can be plugged in or pulled out when the NVR is on. When the HDD is in abnormal
status, the abnormal information will be prompted on the screen (such as “No HDD”, “Only read”,
“Unformatted”, “The HDD is unavailable”, etc.)
➢ Disk Management
Click Start
→
Settings
→
Disk
→
Disk Management to go to disk management interface. You can
view the NVR’s disk number and disk status and so on in the interface. Click “Format” to format
the HDD.
Data Encryption:
① Click “Data Encrypt”.
② Enter the username and password used to log into the NVR. This username and password
must have the permission of disk management.
56
③ Check the disk you want to encrypt and then enter the password.
After you encrypt the data of a disk, this disk cannot be read by other NVRs unless it is unlocked.
Data Decryption:
① Click “Change Encryption”.
② Enter the username and password used to log into the NVR. This user must have the
permission of disk management.
③ Check the disk you want to decrypt and then clear the password.
④ Click “Close Encryption”.
Unlock the disk: when one encrypted disk is transferred from another NVR to this NVR, it will be
locked. You can select this locked disk and click “Unlock”. After you enter the password of its
data encryption, its status will be “Read Only”. Now you can read the data of this disk but nothing
can be written to it.
7.4.2 Storage Mode Configuration
Click Start
→
Settings
→
Disk
→
Storage Mode to go to the interface as shown below.
By using disk group, you can correspond a camera to disk (the record data of the camera in the
group will be stored into the disks in the same group). The NVR with e-SATA interface supports
e-SATA recording.
The added disks and cameras will be added into group one automatically. The disks and cameras
in the groups can be deleted except group one (select a disk group and then click on the top
right corner of the added disk or camera to delete it from the group). The deleted disks and
cameras will be moved into group one automatically.
Each group can add disks and cameras from other groups. Each disk and camera can only be
added into one group. Select a disk group and then click in the disk or camera row to
open a window. Check the disks or cameras in the window and then click “Add”.
Note: Each HDD can only exist in one group.
57
7.4.3 View Disk Information
Click Start
→
Settings
→
Disk
→

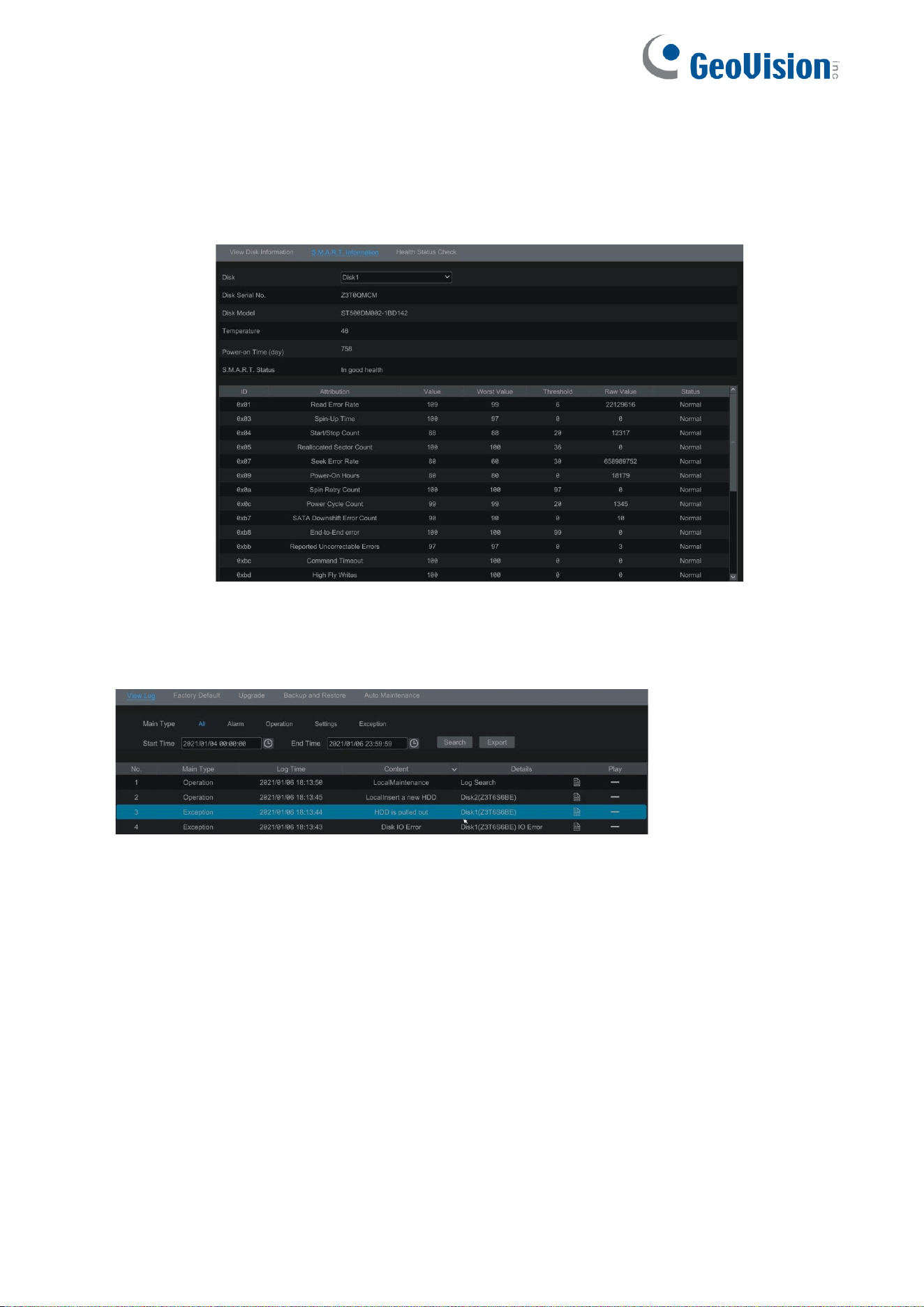

View Disk Information to view the HDD information; click
“S.M.A.R.T. Information” to view the working status of the HDD (refer to the picture below); click
“Health Status Check” to check the western digital purple disks’ health status.
In addition, you can view the plug-in or pull-out details of the HDD from the logs to check whether
someone moves your HDD or not. Click Start
→
Settings
→
System
→
View Log.
58
8 Playback & Backup

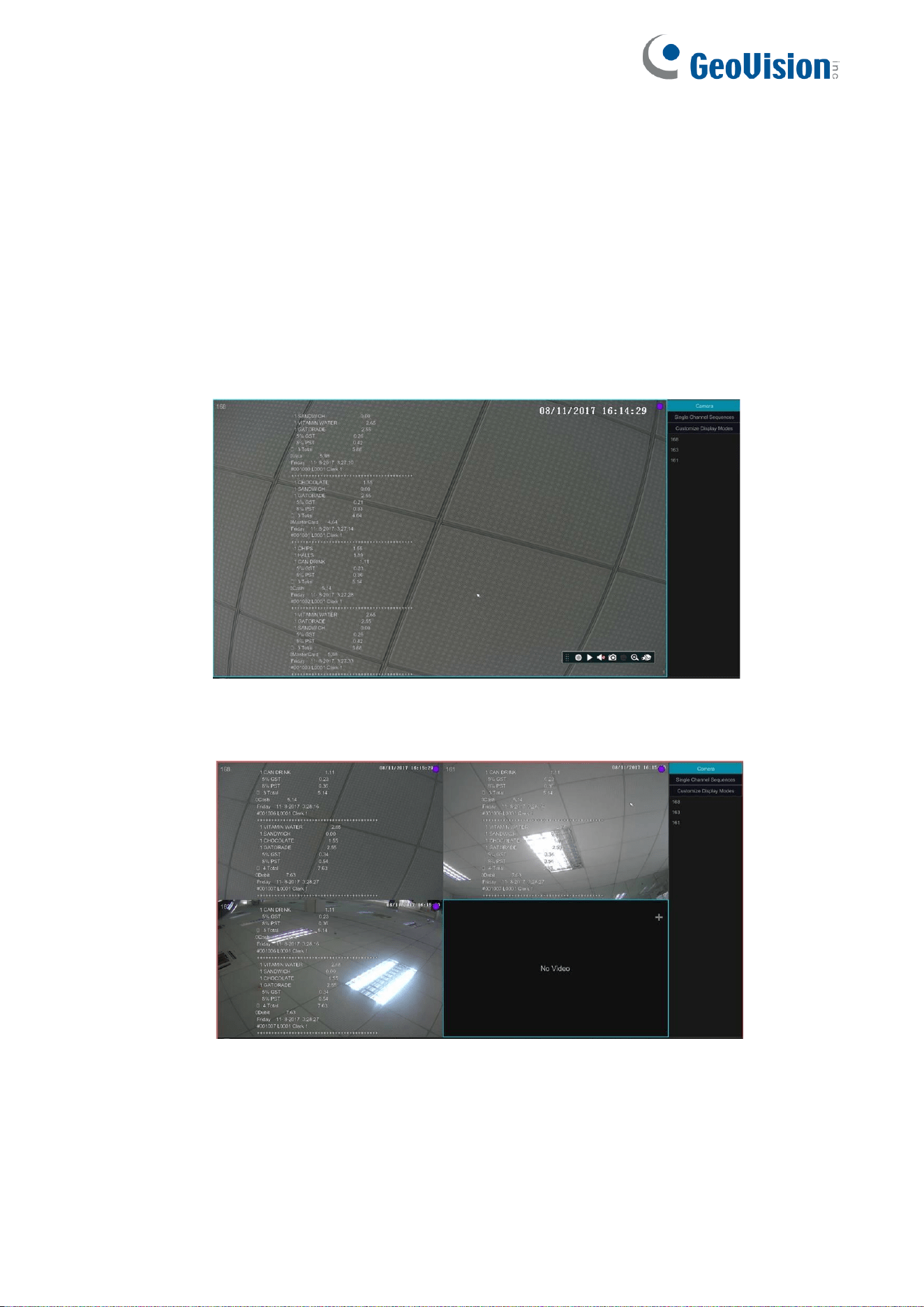

8.1 Instant Playback
Click on the tool bar at the bottom of the preview camera window to play back the record
(click on the tool bar at the bottom of the live view interface to set the default playback time).
Refer to the picture below. Drag the playback progress bar to change the playback time. You can
also click the right-click menu “Instant Playback” in the camera window and then set the instant
playback time to play back the record.

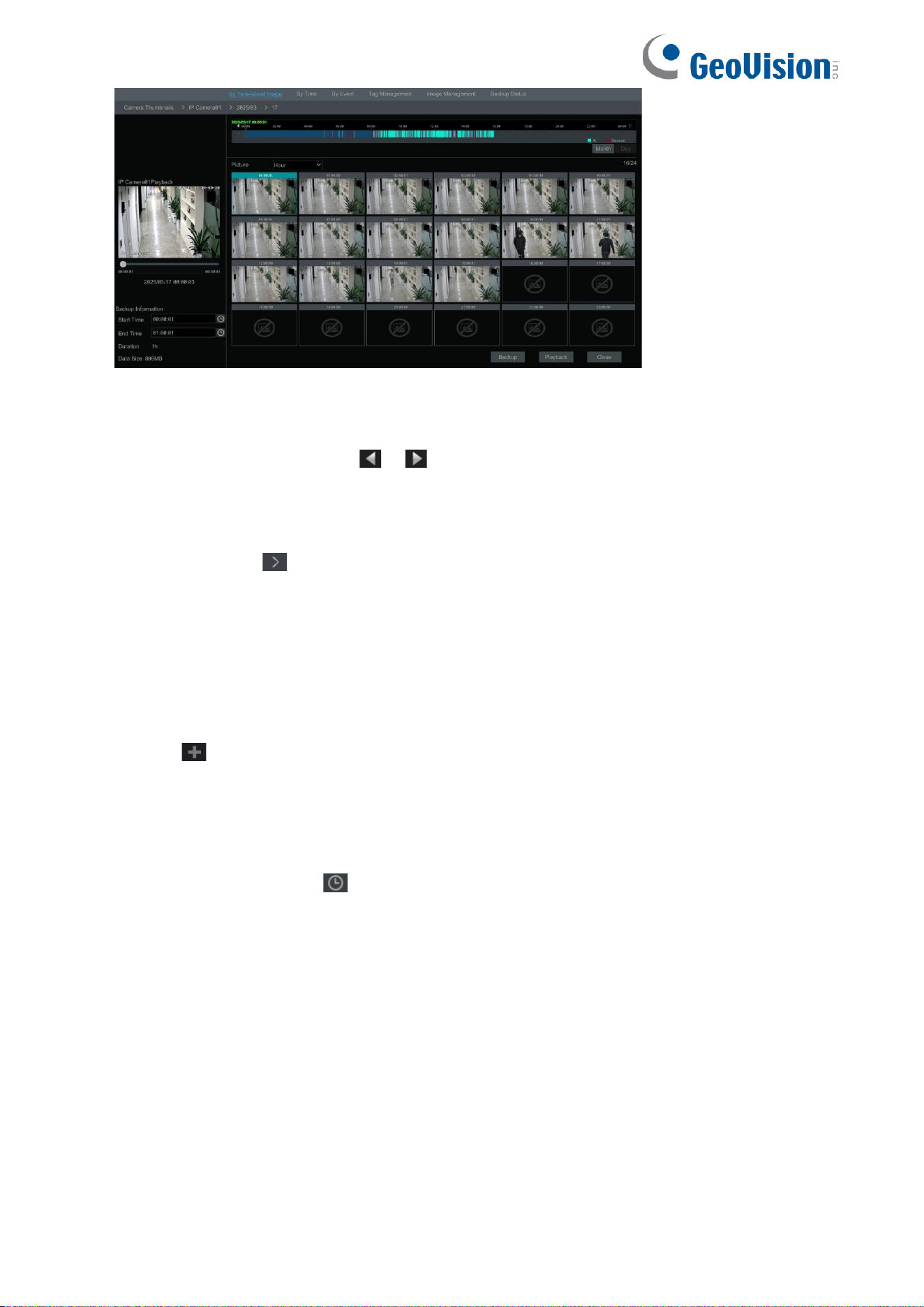

8.2 Playback Interface Introduction
Click on the tool bar at the bottom of the live view interface or click Start
→
Playback to go to
the playback interface as shown below (click on the tool bar at the bottom of the live view
interface to set the default playback time).
The panel on the right will show you the channel number and the recorded data coded by color.
The bar that runs across them represents the playback time being viewed. You can move this bar
around. To export, highlight a section of the desired recording, click export and follow the prompts.
You can export single or multiple channels at the same time.
The added cameras will playback their recordings in the playback interface automatically. You can
also add the playback camera manually. Click in the playback window to open the “Add
59
Camera” window. Check the cameras in the window and then click “Add” to add playback camera.
The system supports a maximum of 16 synchronous playback cameras.

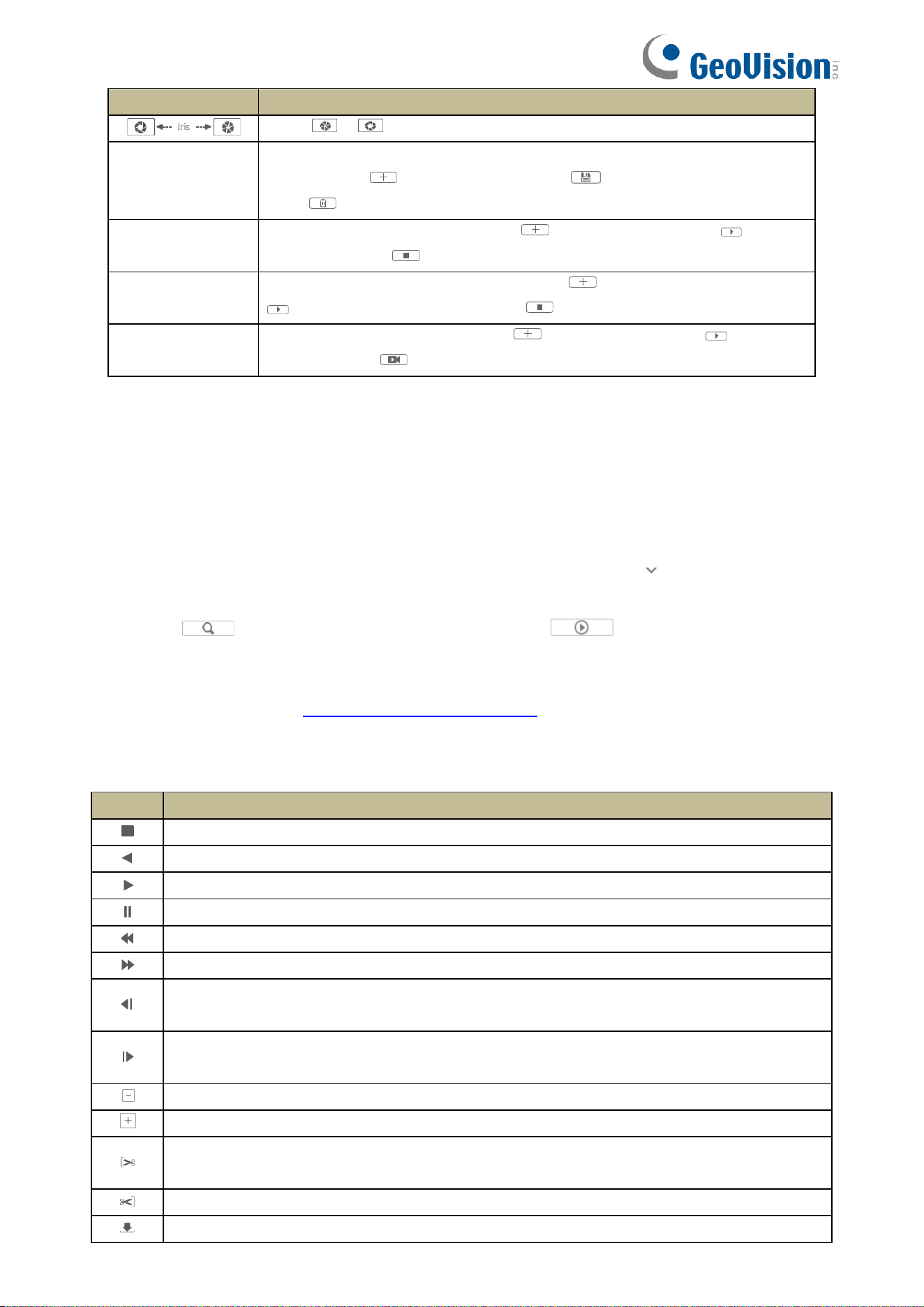

The buttons on the tool bar (area ①) at the bottom of the playback interface are introduced in the
table below.
Button
Meaning
Start button. Click to pop up area ②.
Full screen button. Click to show full screen; click again to exit the full screen.
Screen display mode button. 1/4/9/16 screen display mode can be selected
(depending on models); in addition, the playback channel will be switched by
continuous selection of the same screen display mode, for example, after
selecting 1-screen display mode, click this mode again and then the current
playback channel will switch to the next playback channel.
OSD ON button. Click to enable OSD; click again to disable OSD.
Quick channel selection button
Stop button.
Rewind button. Click to play video backward.
Play button. Click to play video forward.
Pause button.
Slow Play button. Click to decrease the playing speed.
Fast Play button. Click to increase the playing speed
Normal speed. Click to restore the normal speed after fast forwarding or
rewinding.
Previous frame button. It works only when the forward playing is paused in
single screen mode.
Next frame button. It works only when the forward playing is paused in single
screen mode.
Select the time, for example 30s, and click to step backward 30s
Select the time, for example 30s, and click to step forward 30s.
Click to enter the rules search interface
Play strategy button. You can enable “Play filtered recording only”.
Tag button. Click to view the tag information.
Watermark button. Click to enable watermark; click it again to disable
watermark.
Open/close POS information
Backup status button. Click to view the backup status.
Backup button. Drag the mouse on the time scale to select the time periods
and cameras, and then click the button to back up the record.
Back button. Click to return.

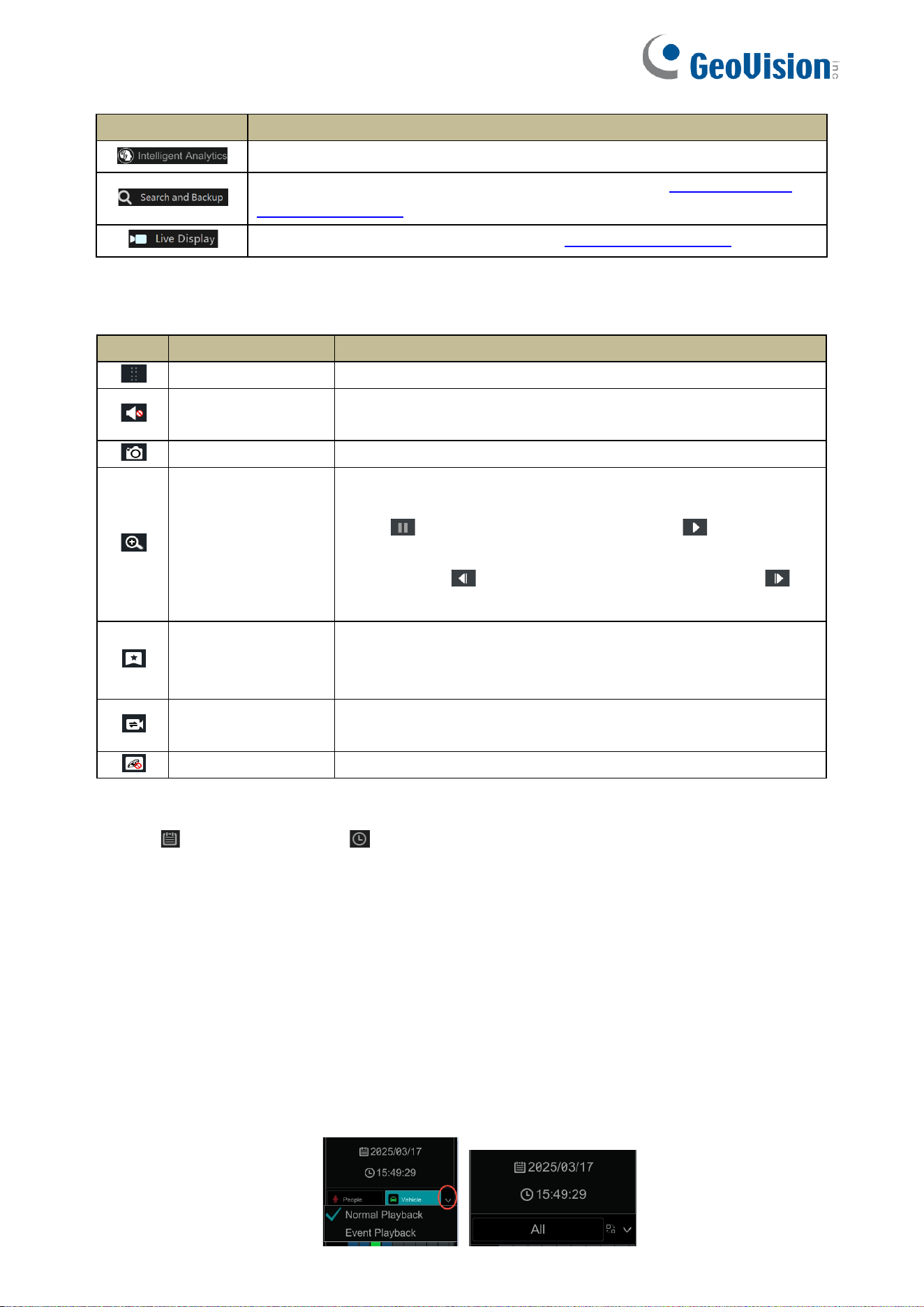

Introduction of area ②:
60
Button
Meaning
Click to go to the intelligent analytics interface.
Click to go to record search and backup interface; see Record Search,
Playback & Backup for details.
Click to go to the live view interface; see Live View Introduction for details.
Click on the playback window to show the tool bar as shown in area ③; right click on the window
to show the menu list. The tool bar and menu list are introduced in the table below.
Button
Menu List
Meaning
--
Move tool. Click to move the tool bar anywhere.
Enable Audio
Click to enable audio. You can listen to the camera audio by
enabling audio.
Snap
Click to take a snapshot.
Zoom In
Click to go to the zoom in interface. The zoom in interface is
similar to that of the camera window in the live view interface.
Click to pause the record playing; click to play the
record. When the record is paused in forward playing mode,
you can click to view the previous frame and click to
view the next frame.
Add Tag
Click to add tag. You can play back the record by searching the
added tag. Click and then enter the tag name in the popup
window. Click “Add” to add tag.
Switch Camera
Click to switch the playback camera. Click it and then check the
camera in the popup window. Click “OK” to change the camera.
Close Camera
Click to close the playback camera.
Introduction of area ④:
Click to set the date; click to set the time and then the playback camera will play the
record from the time you set.
There are two type of playback: Normal Playback and Event Playback.
⚫ Normal Playback
Normal playback is the default playback type. In normal playback mode, you can play the
recorded videos by filtering people or vehicle. The record time scale shows different record types
with different colors. Red stands for AI record based on people; Green stands for AI record based
on vehicle; Blue stands for other records (without people/vehicle classification).
⚫ Event Playback:
61
Click as shown above and select “Event Playback”. In event playback mode, you can choose
different event type as needed. All events are selected by default. Click “All” to display an event
filtering window. Select the desired event type (for example, general events, perimeter detection,
etc.). Click to view the color meanings. Different event types have different colors. In addition,
you can choose view records by event or by category.
Finally, click in the playback window to add camera for playback (the record time scale will
show the record data of the checked record type only after the above operations).
Introduction of the record time scale (area ⑤):
A tool bar will appear after moving the mouse to the record time scale. Click / to zoom
the timeline; click to recover the timeline to 24 hours’ ratio. Drag the timeline or slide the
scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the
timeline. You can also click to show the hidden time on the top of the timeline or click to
show the hidden time on the bottom of the timeline. Drag the slider at the bottom of the time scale
to show the hidden playback cameras.
The record time scale shows different record types with different colors. Click the record block to
set the time and then the playback camera will play the record from the time you set.

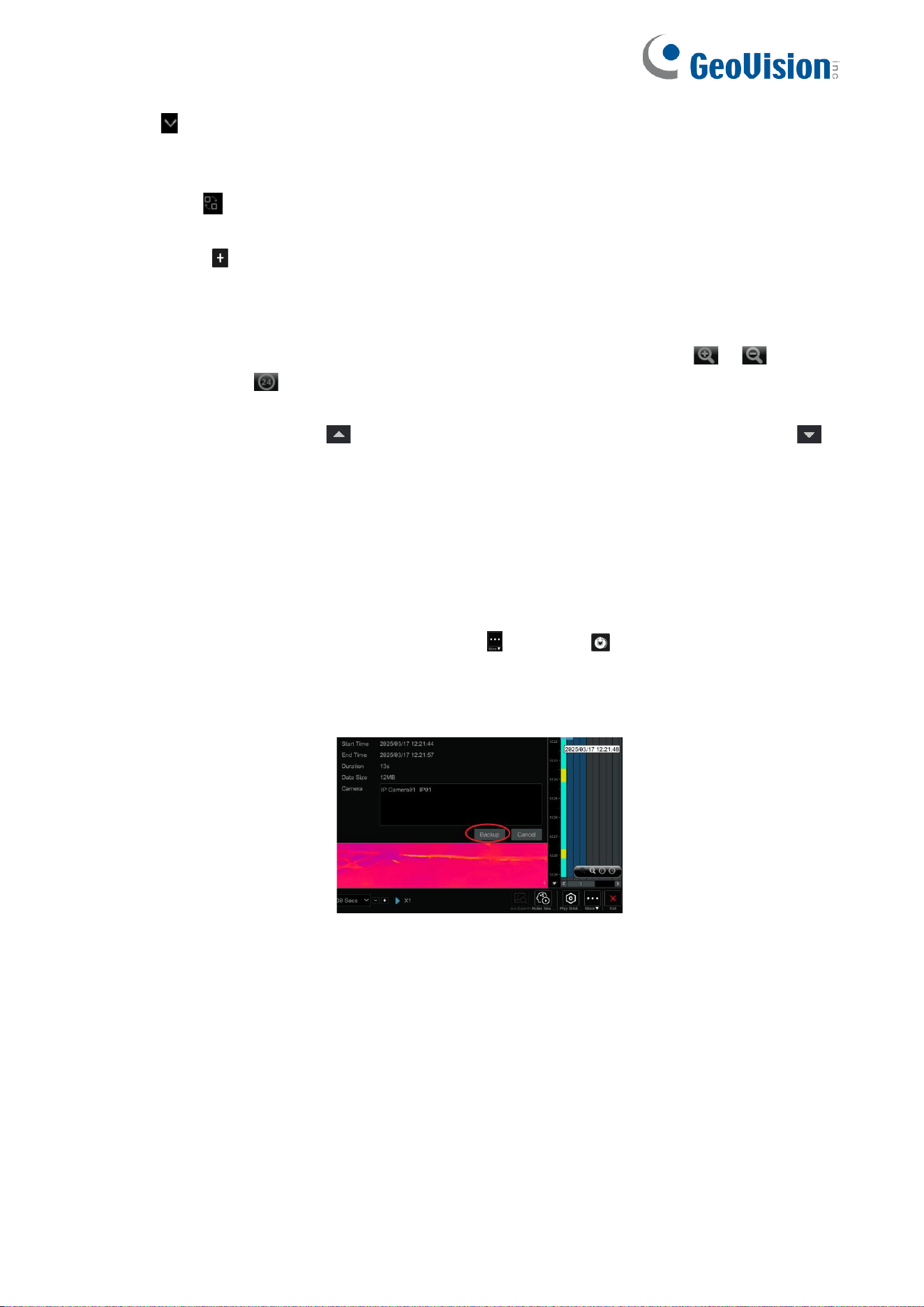

Backup Introduction:
Insert the storage device into the device. Drag the color block on the time scale to select the
backup area and then right click the area or click and select to pop up a backup
information window. Click the “Backup” button in the window to pop up the backup window. Select
the device, backup path and backup format and then click the “Backup” button.
In the backup window, you can select backup path and format. Then click “Backup”.
Backup format: Private, AVI or MP4.

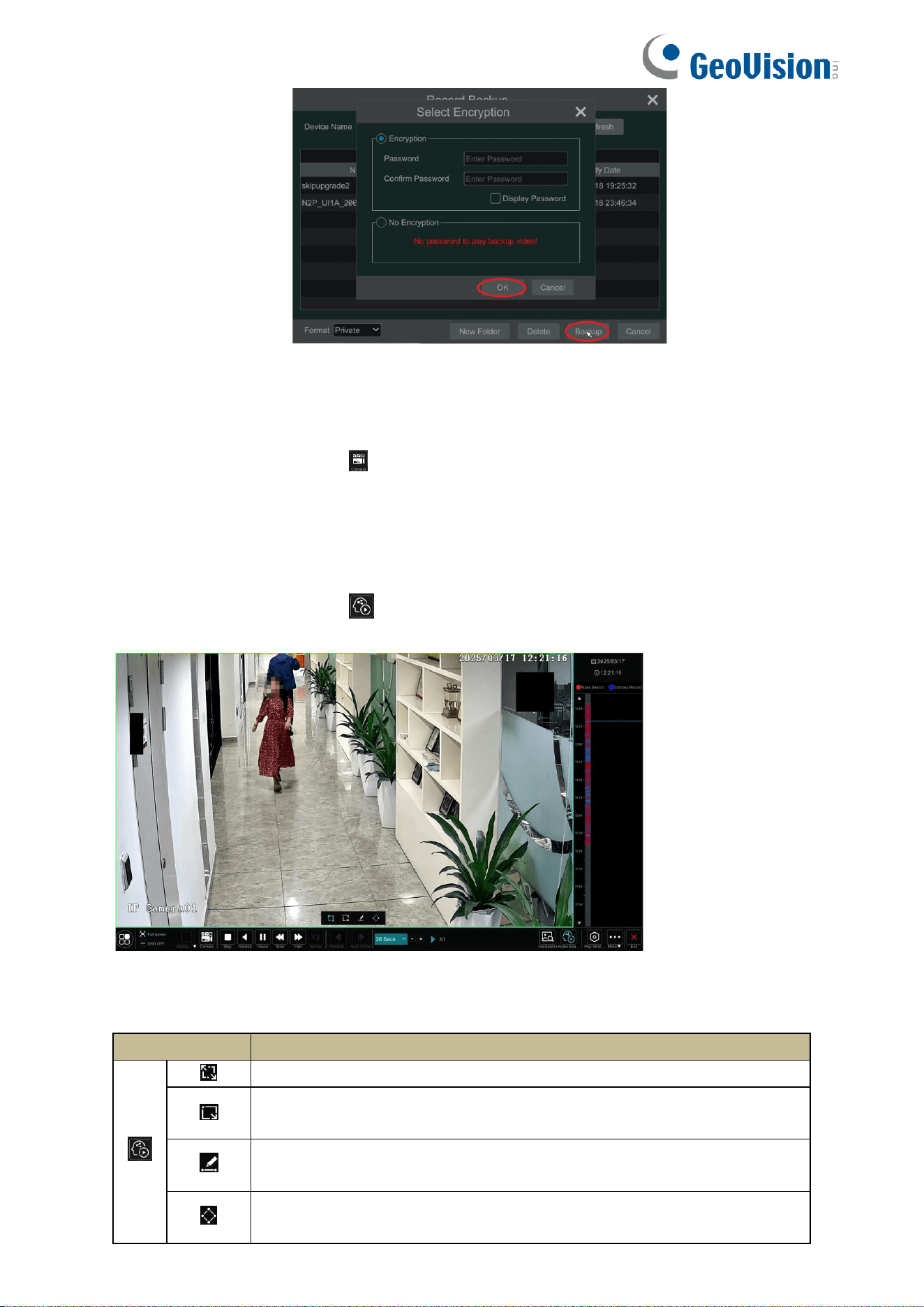

Please select “Encryption” or “No Encryption” as needed. After that, click “OK”.
62
After that, you can click “More” and select the “Backup Status” to view the backup progress.
Delete the video record of backup disk group
In the playback interface, click to select the backup disk group. Then use the left mouse
button to drag on the timetable to select the records you want to delete. Then right click and
select [Delete] to delete it.
8.3 Rules Playback
In the playback interface, click to go to the smart playback interface as shown below.
The descriptions of buttons in the smart playback interface
Button
Description
Full screen motion button.
Draw grid. You can search the record of motion detection in the
pre-defined area.
Draw line. You can search the record of crossing the line after drawing
the line.
Draw quadrilateral. You can search the record in this quadrilateral after
drawing it.
63

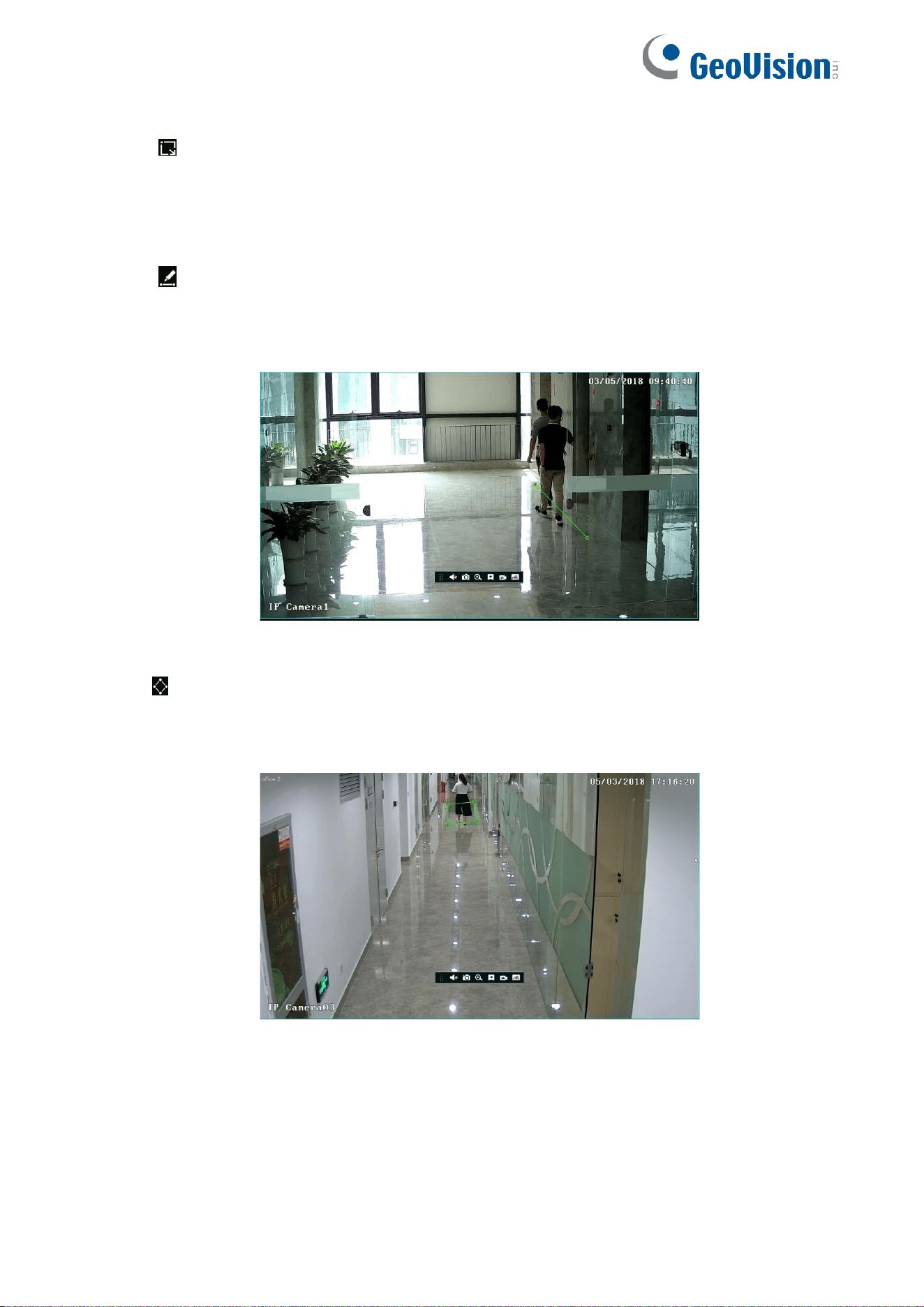

⚫ Smart Playback by Drawing Grid
Click and draw a rectangle in the desired area. The system will automatically search the
record files of this area. The cyan blocks indicate that there are intelligent recording files. Move
the cursor to such block and click to play the recording.
⚫ Smart Playback by Drawing Line
Click and draw a line in the desired area. Then the system will automatically search for the
record files where this line was crossed. The cyan blocks indicate that there are intelligent
recording files. Move the cursor to such block and click to play the recording.
⚫ Smart Playback by Drawing Quadrilateral
Click and draw a quadrangle in the desired area. Then the system will automatically search the
record files of this area. The cyan blocks indicate that there are intelligent recording files. Move the
cursor to such block and click to play the recording.
8.4 Record Search, Playback & Backup
The record data and the captured pictures can be backed up through the network or USB (U disk
or USB mobile HDD). The file system of the backup devices should be FAT32 format.
8.4.1 Search, Playback & Backup by Time-sliced Image
① Click Start
→
Search and Backup
→
By Time-sliced Image to go to “By Time-sliced Image”
tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64
64
camera thumbnails can be shown. If the camera thumbnail number is more than 64, the cameras
will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names
can be listed. If the camera names exceed 196, the time view mode will be disabled and only the
camera view mode will be available.
② Select one camera in the interface and then click the “Open” button.
③ Click the image box to play the recording in the small playback box on the left side of the
interface (the box which has image inside indicates that the recording data exist).
④ Refer to the picture below. Drag the color blocks on the time scale to select the recording data
and then click the “Backup” button to open the “Record Backup” window as shown below. Select
the device name, backup format and path and then click the “Backup” button to start the backup.
⑤ Click “Playback” to play the record in the playback interface (refer to Playback Interface
Introduction for details). Click “Close” to close the interface.
Note: If you back up the record in private format, the system will back up a RPAS player
to USB device automatically. The private format record can be played by RPAS player
only.
65
Time Slice Search:
Method One: Click “Year”, “Month” or “Day” button under the record time scale to select the time
slice mode. In “Day” mode, click / on the left/right side of the time scale to view the
record of the last/next day; click “Minute” in the “Picture” option under the time scale to select
“Minute” mode (in “Minute” mode, click the time scale to change the time of the 60 display
windows) and click “Hour” to select “Hour” mode.
Method Two: Click beside “Camera Thumbnail” on the left top corner of the interface to
select the time slice mode.
Method Three: Right-click the mouse on any area of the time-sliced interface to go back to the
upper interface.
8.4.2 Search, Playback & Backup by Time
① Click Start
→
Search and Backup
→
By Time to go to “By Time” tab as shown below.
② Click on the bottom of the interface to add playback camera. A maximum of 16 cameras
can be added for playback. Click “Modify” on the top right corner of the camera window to change
the camera and click “Clear” to remove the camera.
③ Click the camera window to play the recording in the small playback box on the left side of the
interface. You can set the date on the top left of the interface, check the event type as needed and
click the time scale or click under the time scale to set the time. The camera window will play
the recording according to the time and event type you set.
④ Drag the color blocks on the time scale to select the record data (or click “Set Backup Time” on
the bottom left corner of the interface to set the backup start time and end time) and then click
“Backup” for record backup. Click “Playback” to play the recording in the playback interface. Click
“Delete” to delete the selected record file.
66

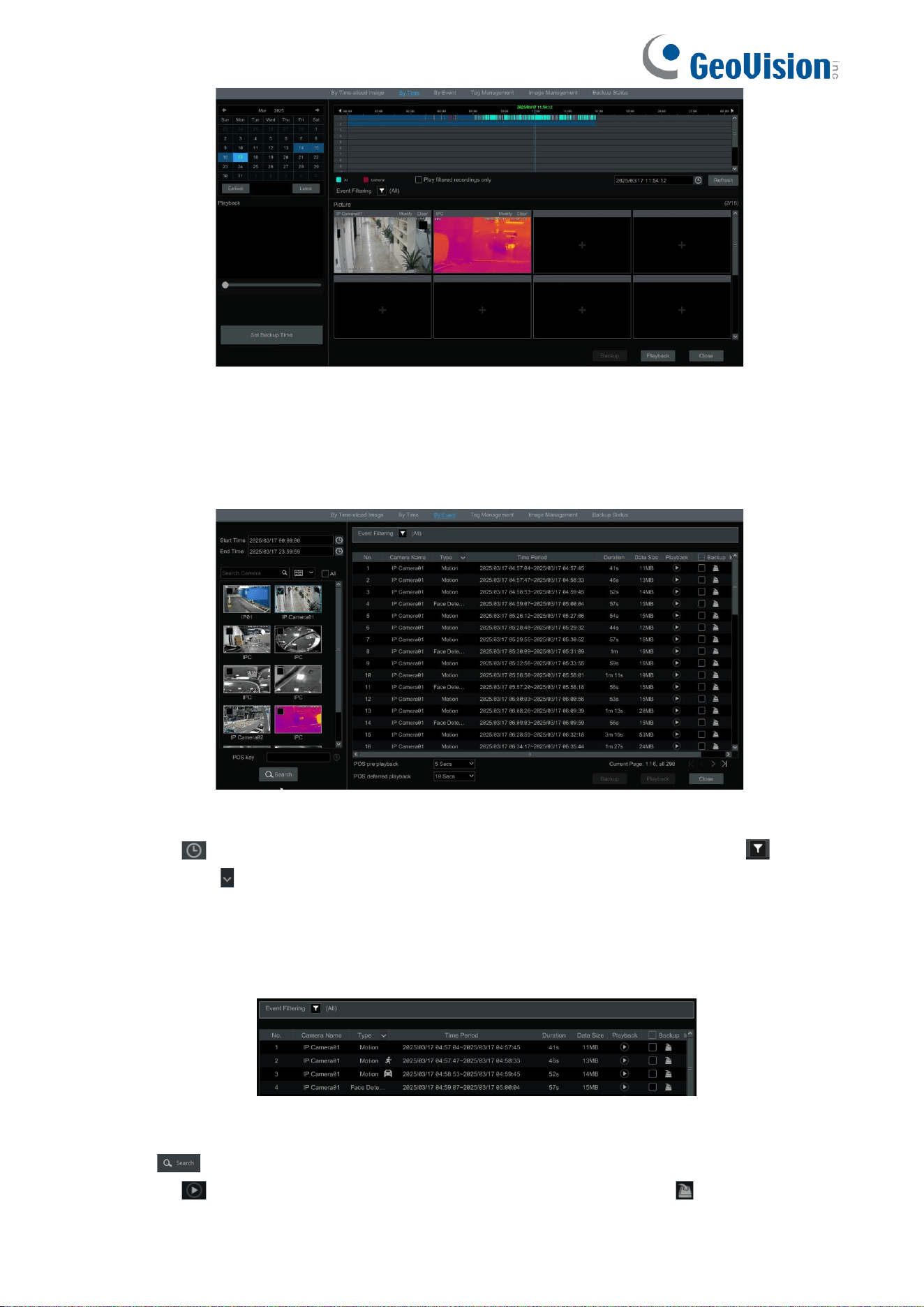

8.4.3 Search, Playback & Backup by Event
Some models may support searching POS event.
① Click Start
→
Search and Backup
→
By Event to go to “By Event” tab as shown below.
② Check the event type in the interface as needed.
③ Click to set the start time and end time on the top left of the interface. Click to filter
events. Click next to “Type” to select “People” or “Motor Vehicle” to show motion (people) or
(motor vehicle) as shown below. If “None” is selected, all events will be searched except motion
(people) or (motor vehicle).
Note: Only the camera with SMD function has the data of motion (people/vehicle classification).
④ Check cameras on the left side of the interface or check “All” to select all the cameras and then
click to search the record. The searched record will be displayed in the list.
⑤ Click in the list to play back the record in the popup window. Click to back up one
record data or check multiple record data in the list and then click “Backup” for record batch
backup.
67
⑥ Select one record data in the list and then click “Playback” to play the record in the playback
interface.
8.4.4 Search & Playback by Tag
Only if you add the tags can you play the record by tag search. Click Start
→
Playback to go to the
playback interface and then click on the bottom of the camera window to add tag when you
want to mark the playback time point of the selected camera.
Click Start
→
Search and Backup
→
Tag Management to go to “Tag Management” tab.
Click in the interface to play the record. Click to edit the tag name. Click to delete
the tag.

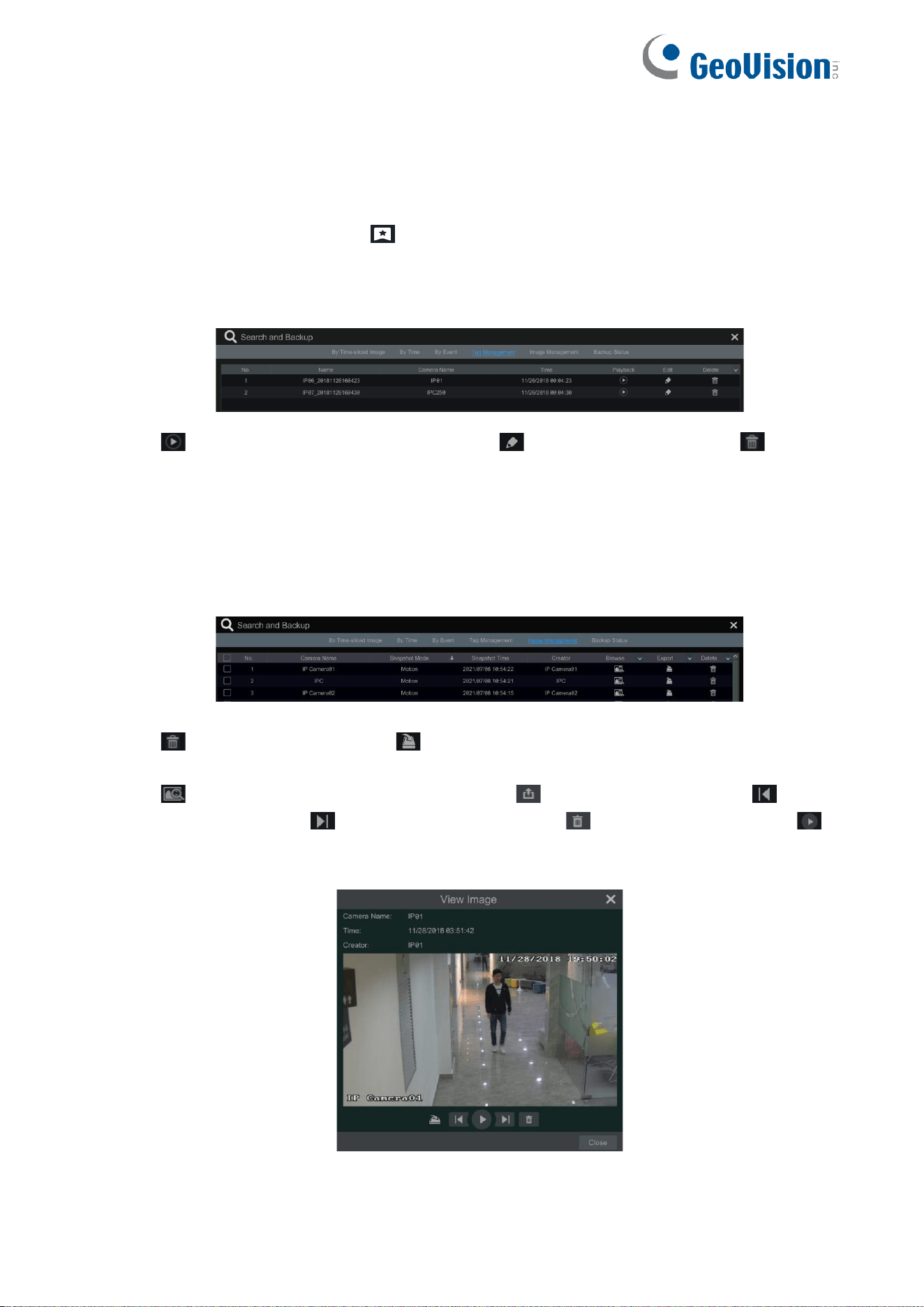

8.4.5 Image Management
Click Start
→
Search and Backup
→
Image Management to go to “Image Management” tab. The
system will display all the snapped images automatically in the list.
Click to delete the image. Click to open the “Export” window. Select the device name
and save path in the window and then click the “Save” button.
Click to pop up the “View Image” window. Click to export the image. Click to view
the previous image; click to view the next image; click to delete the image; click to
play all the images.
68
8.4.6 View Backup Status
Click Start
→
Search and Backup
→
Backup Status or click on the tool bar at the bottom of
the playback interface to view the backup status.
69

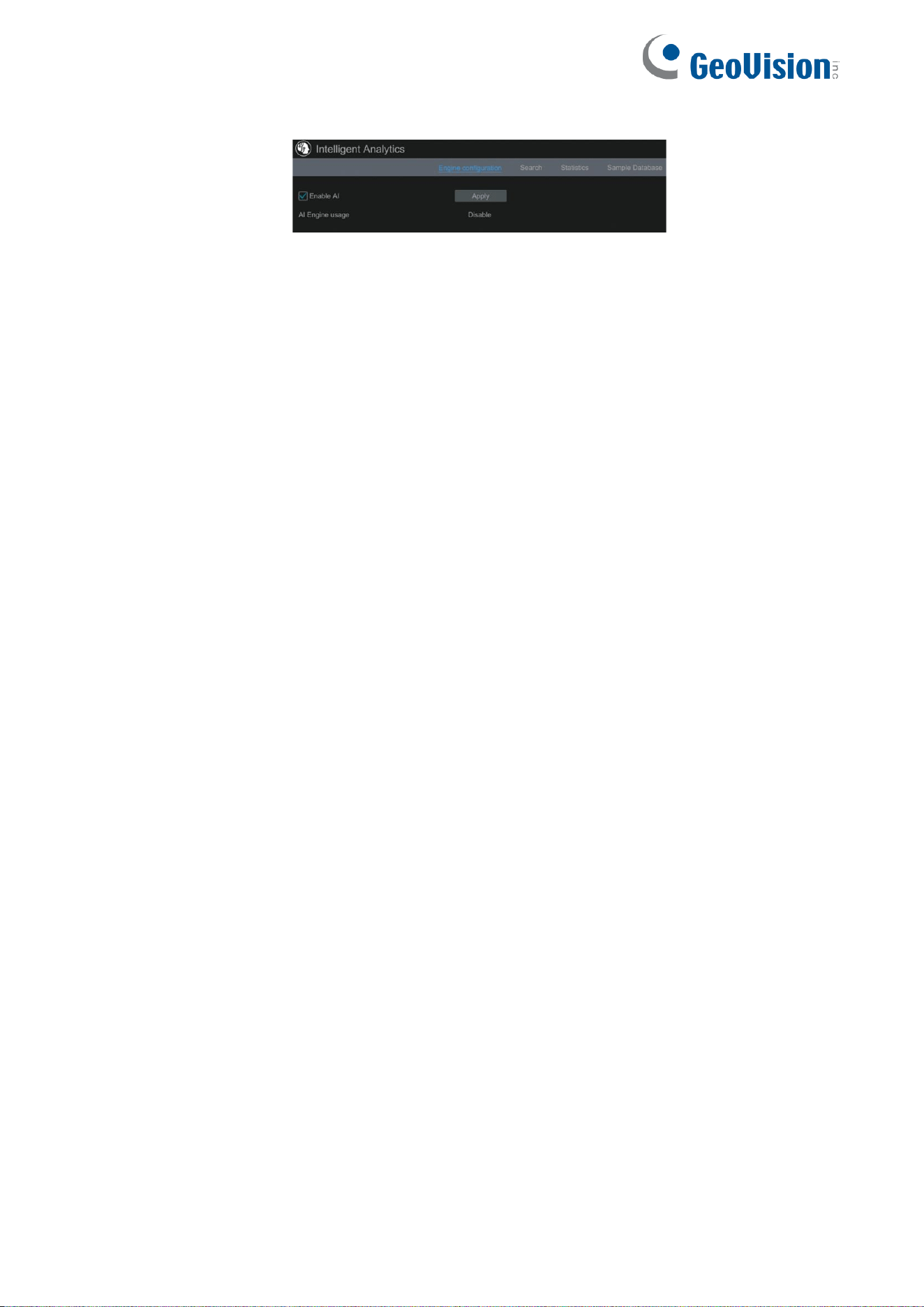

9 AI Event Management
For compatible AI cameras, the enabled event category (Face or Smart Event) is processed
directly by the camera, while the non-enabled category falls back to the NVR AI engine. For
compatible non-AI cameras, all AI features are processed by the NVR AI engine.
NVR Engine Enabled
NVR Engine Disabled
Compatible
AI Cameras
Enabled Category
(Face or Smart)
AI by Camera
Enabled Category
(Face or Smart)
AI by Camera
Non-Enabled
Category
(Face or Smart)
AI by NVR
Non-Enabled
Category
(Face or Smart)
No Function
Compatible
Non-AI Cameras
Face Event
AI by NVR
No Function
Smart Event
AI by NVR
For the complete list of compatible AI cameras, see the datasheet.
For details on enabling event categories, see 9.1 Face Detection below.
For details on enabling the NVR engine, see 10.4 Enabling AI Mode.
Note: For compatible non-AI cameras, some AI by NVR features may not be fully supported at
this stage. Additional support will be provided in future releases.

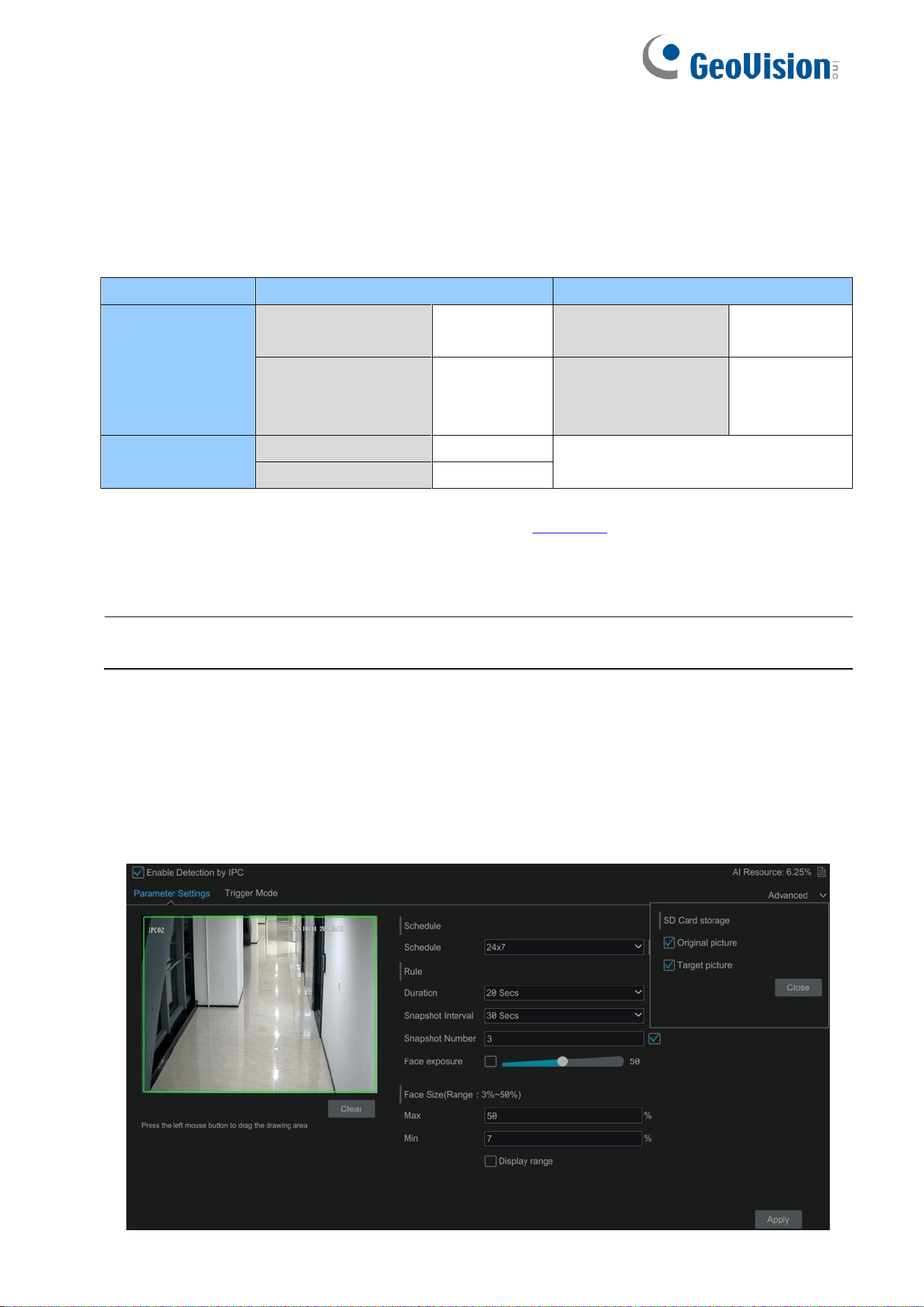

9.1 Face Detection
9.1.1 Face Detection Settings

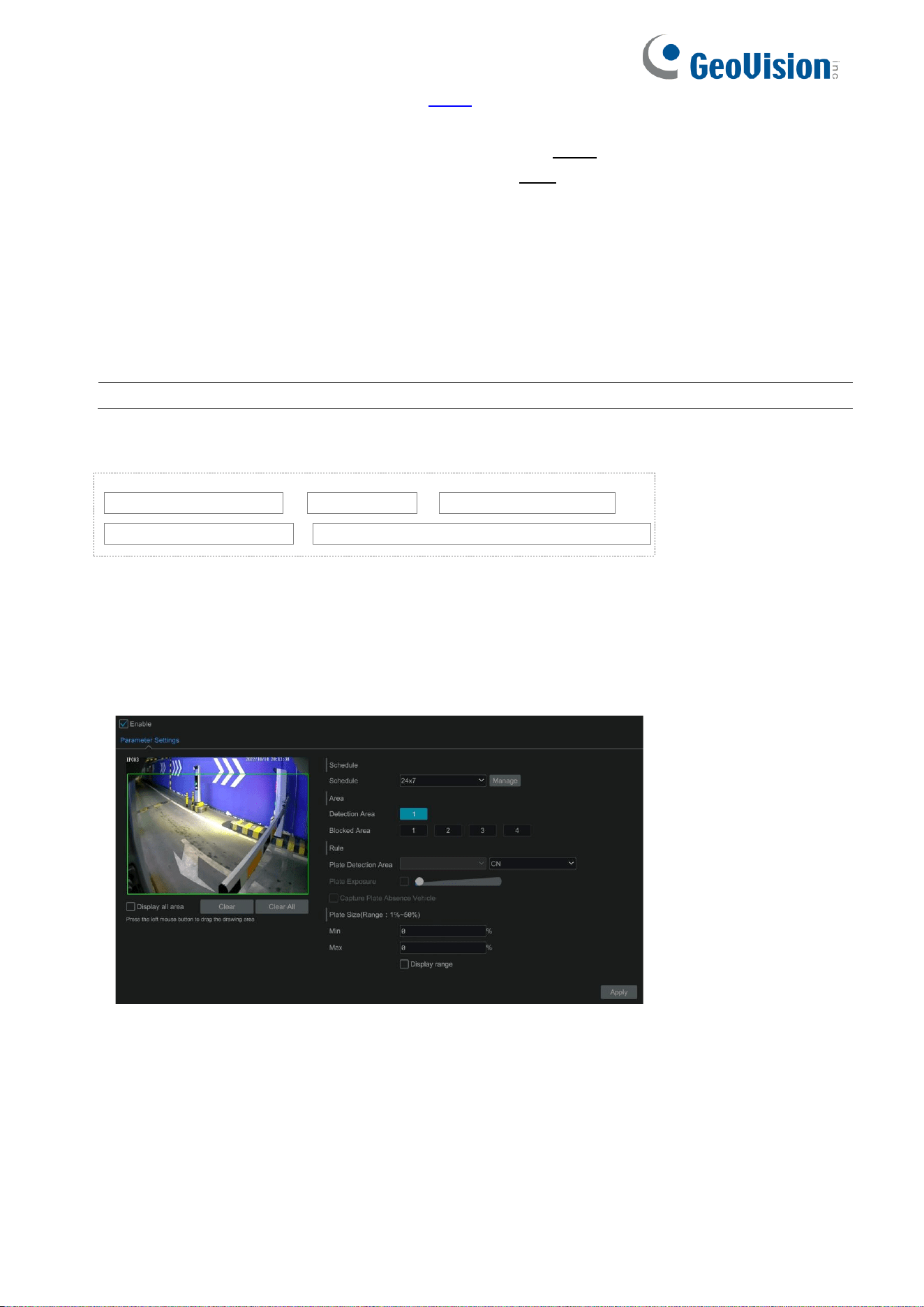

Face Detection: Alarms will be triggered if someone intrudes into the pre-defined alarm areas.
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
Face Detection to go to the following interface.
70
② Select the camera, check “Enable Detection by IPC” and set the duration.
Note: 1. Some models may support face detection by NVR. For these models, the camera without
AI function also can be added and used to detect faces through NVR. However, if face detection
by NVR is enabled for a camera (without AI), people/vehicle perimeter detection cannot be
enabled simultaneously, and vice-versa.

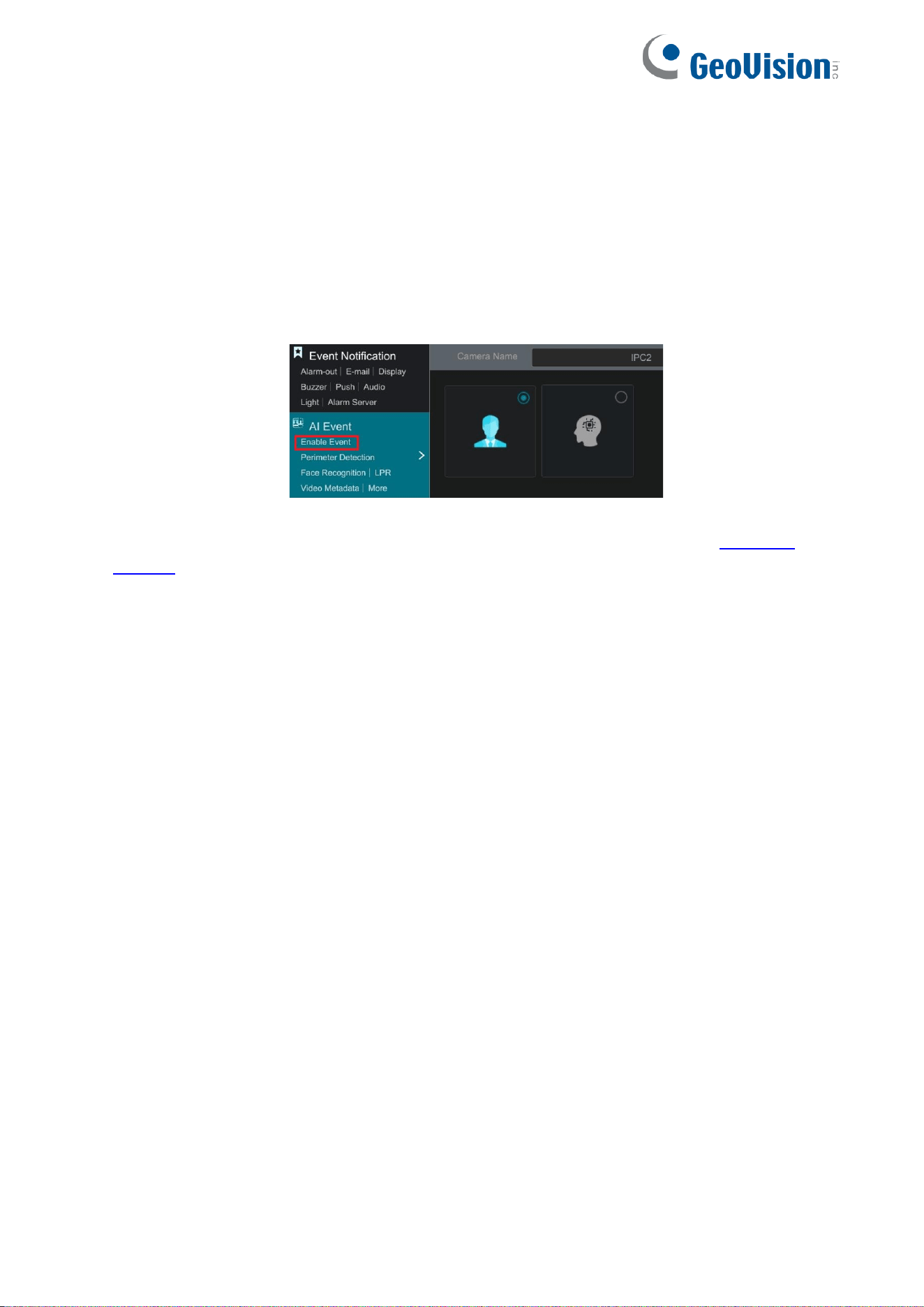

2. Some AI cameras support event type classification. If the event type is not face event,
you need to select face event by clicking Start→Setting→AI/Event→Enable Event. After the
camera restarts, face detection of the IPC can be enabled.
③ Set the schedule. Click “Manage” to set the desired schedule. Please refer to Schedule
Settings for details.
④ Set the snapshot interval and snapshot number. The snapshot interval refers to the time
interval that the camera captures the same face during its continuous tracking period. The
snapshot number refers to the picture number of the same face captured during its continuous
tracking period (For example: the snapshot interval is set to “30 seconds” and the snapshot
number is set to “3”; then the camera will capture the same face once every 30 seconds and it will
capture this face 3 times at most during its continuous tracking period).
⑤ Enable face match exposure as needed. When the brightness of the captured face is not
enough, it can be enabled. (Only some IPCs support this function)
⑥ Set the alarm area. Drag the mouse to draw a detection area. Click “Clear” to delete the alarm
area. Then set the detectable face size by defining the maximum value and the minimum value
(The default size range of a single face image occupies from 3% to 50% of the entire image).
⑦ Enable “Original picture” or/and “Target picture” as needed. If enabled, the system will
automatically save the corresponding images on the SD card.
⑧ Click “Apply” to save the settings.
⑨ Click “Trigger Mode” to go to face detection alarm linkage setting interface:
71

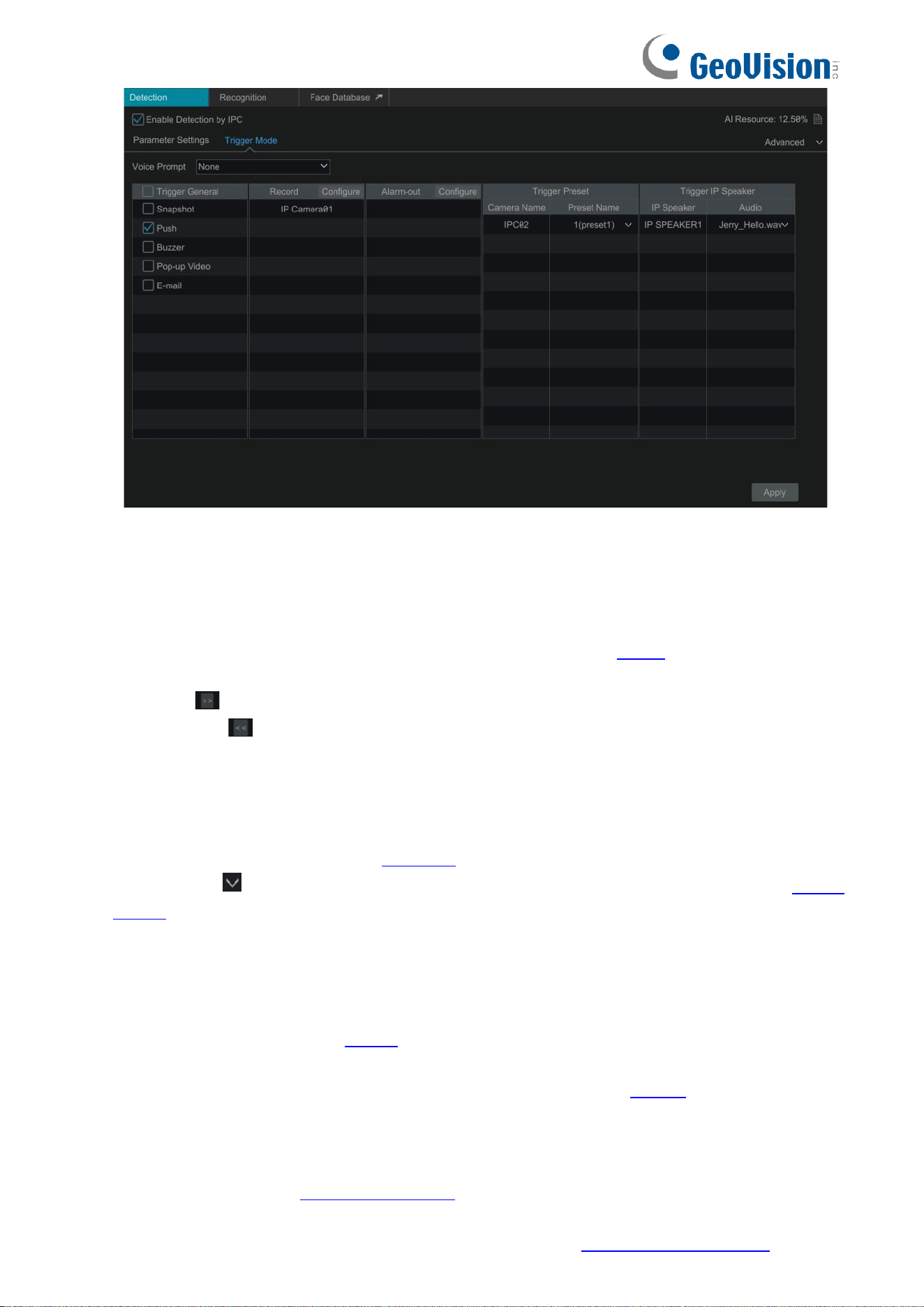

Face Detection Alarm Linkage Configuration:
⚫ Trigger “Voice Prompt”, “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up
Video” , “E-mail”, and “IP Speaker” as needed.
Voice Prompt: Please upload the audio file in local audio alarm interface first (click
Start→Settings→AI/Event→Event Notification→Audio). Please see Audio for details.
Record: Click the “Configure” button to open the window. Select a camera on the left side and
then click to set the camera as the trigger camera. Select a trigger camera on the right side
and then click to cancel the trigger camera. Click “OK” to save the settings. The trigger
cameras will record automatically when faces are detected.
Alarm-out: Click the “Configure” button to open the window. Then the “Trigger Alarm-out” window
will pop up automatically. Configure the trigger alarm-out in the window. The system will trigger
the alarm-out automatically when faces are detected. You need to set the delay time and the
schedule of the alarm outputs. See Alarm-out for details.
Preset: Click and then select the preset for each camera. To add presets, please see Preset
Setting for details.
Snapshot: If it is enabled, the current camera will capture images automatically when faces are
detected.
Push: If it is enabled, the system will send messages when faces are detected.
Buzzer: if it is enabled, the system will begin to buzz when faces are detected. To set the delay
time of the buzzer, please see Buzzer for details.
Pop-up Video: if it is enabled, the system will open the corresponding video automatically when
faces are detected. To set the duration time of the video, please see Display for details.
E-mail: if it is enabled, the system will send an e-mail when faces are detected. In the meanwhile,
it will attach the captured face picture and the original picture so that you can view the whole
scene when the alarm occurs. Before you enable the email, please configure the recipient’s
e-mail address first (see E-mail Configuration for details).
IP-Speaker: After you add IP speaker to the NVR and link the corresponding camera, you can
select the IP speaker to play the selected local audio file. See IP Speaker Management for IP
72
speaker adding and camera linkage. See Audio for local audio import setup.
Enable “IPC_Audio” or “IPC_Light” as needed (only some IPCs support these two functions). To
set the IPC voice and its times and volume, please refer to Audio for details. To set the light
flashing time and frequency of the IPC, please refer to Light for details.
⑩ Click “Apply” to save the settings.
9.2 License Plate Recognition
Please add an ANPR camera before you using this function. If your camera doesn’t support this
function, please skip the following instructions.
Note: License Plate Recognition only works with GV-LPR4913 (coming soon).
When setting up an LPR for the first time, please use the following procedures:
Enable and set plate detection → Add plate group → Add plates to the plate group →
Enable license plate recognition → Set successful recognition (or strange plate) alarm linkage
9.2.1 License Plate Detection Settings
Click Start
→
AI/Event
→
AI Event
→
LPR to go to the following interface. Select an ANPR camera
and click the “Detection” tab as shown below.
⚫ Set the schedule.
⚫ Set the area and plate exposure as needed.
Set the alarm area. Drag the mouse to draw a detection area. Click “Clear” to delete the alarm
area.
Set the blocked area. Select the number and then draw a blocked area. Up to 4 areas can be
set up. After you set the blocked area, this area will not be detected.
Click “Display all area” to view all blocked and detection areas.
Click “Clear All” to clear all blocked and detection areas.
⚫ Check “Capture plate absence vehicle” as needed.
73
⚫ Set the plate size by defining the maximum value and the minimum value (The default size
range of a single plate occupies from 5% to 50% of the entire image).
⚫ Display range: if enabled, the set maximum detection box and the minimum detection box can
be displayed on the left window.
⚫ Click “Advanced” to set the recognition mode as needed (only some LPR cameras support).
9.2.2 Plate Database Management
In the LPR interface, click the “Plate Database” tab to go to the plate database management
interface as shown below.

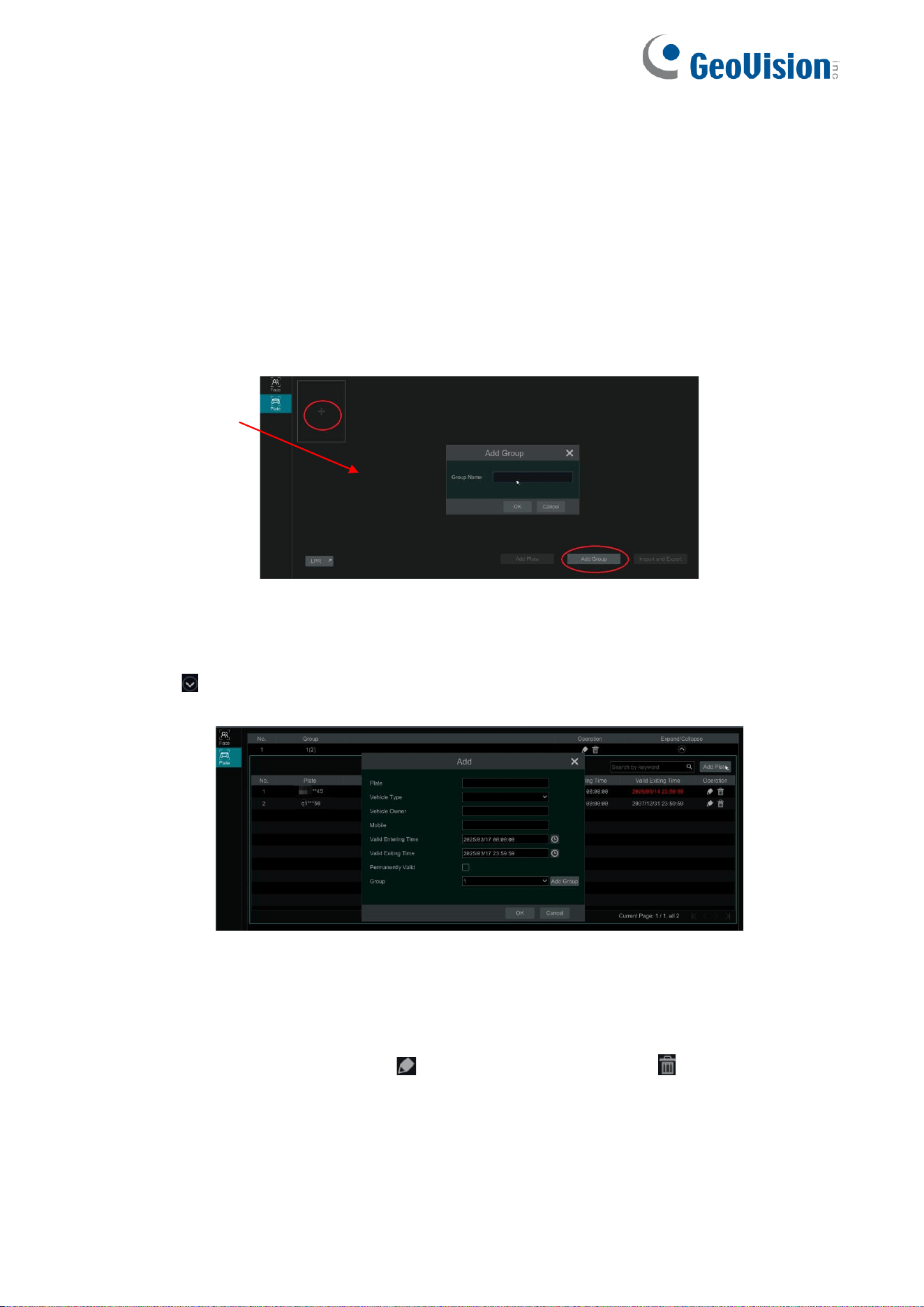

For the first time, you can click “+” or “Add Group” to add groups.
Add plates to each group:

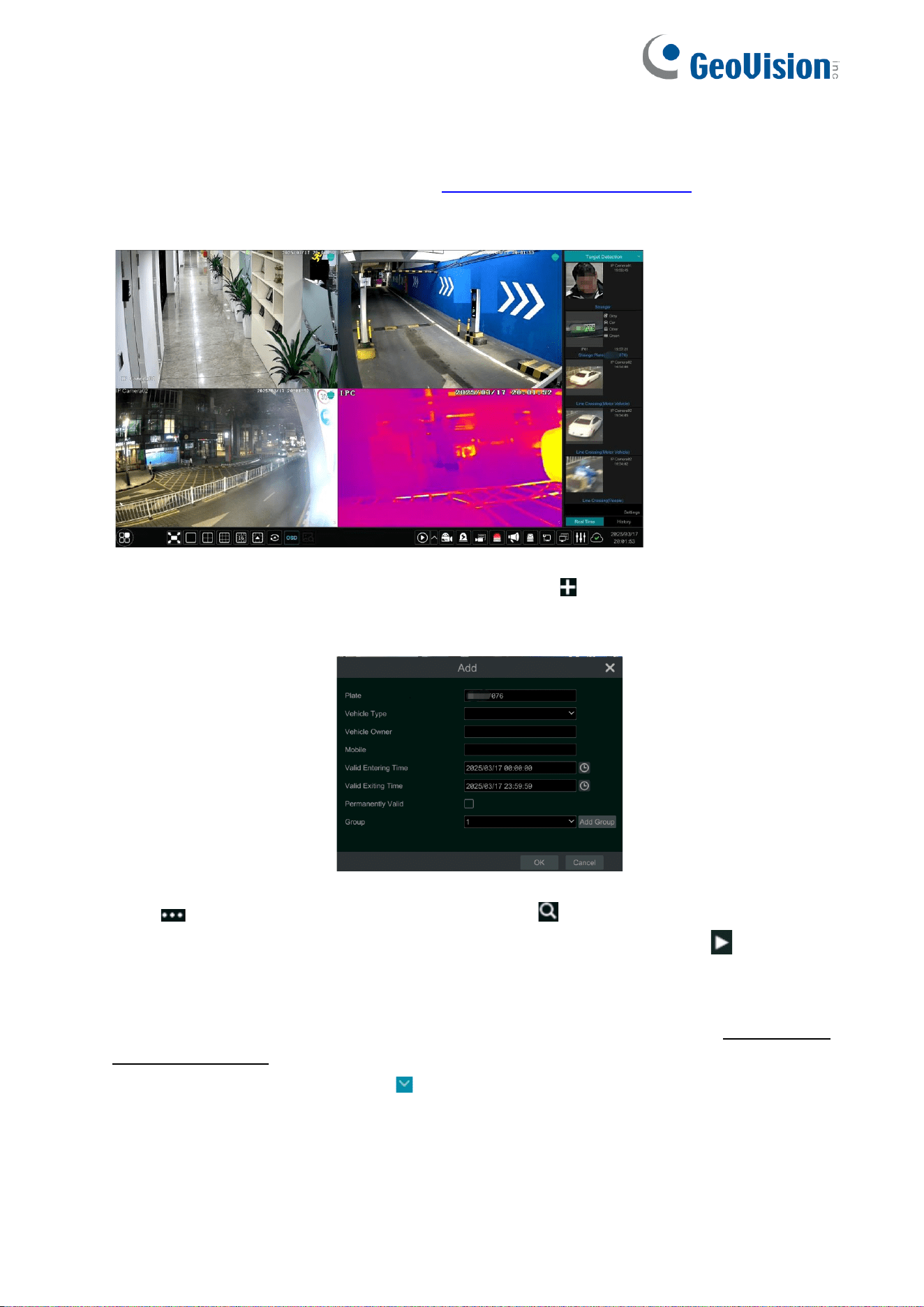

① Click to extend the group. Click “Add Plate” to display the following window.
② Enter the plate, vehicle owner, valid entering/exiting time and mobile phone number.
③ Select the vehicle type and group.
④ Finally, click “OK” to complete.
Select the added plate and then click to modify its information; click to delete this plate.
The plates can be imported and exported in bulk by clicking “Import and Export”. You can click
“Plate Information Description” to view the detailed information about how to import or export the
plate list.
9.2.3 License Plate Recognition Settings

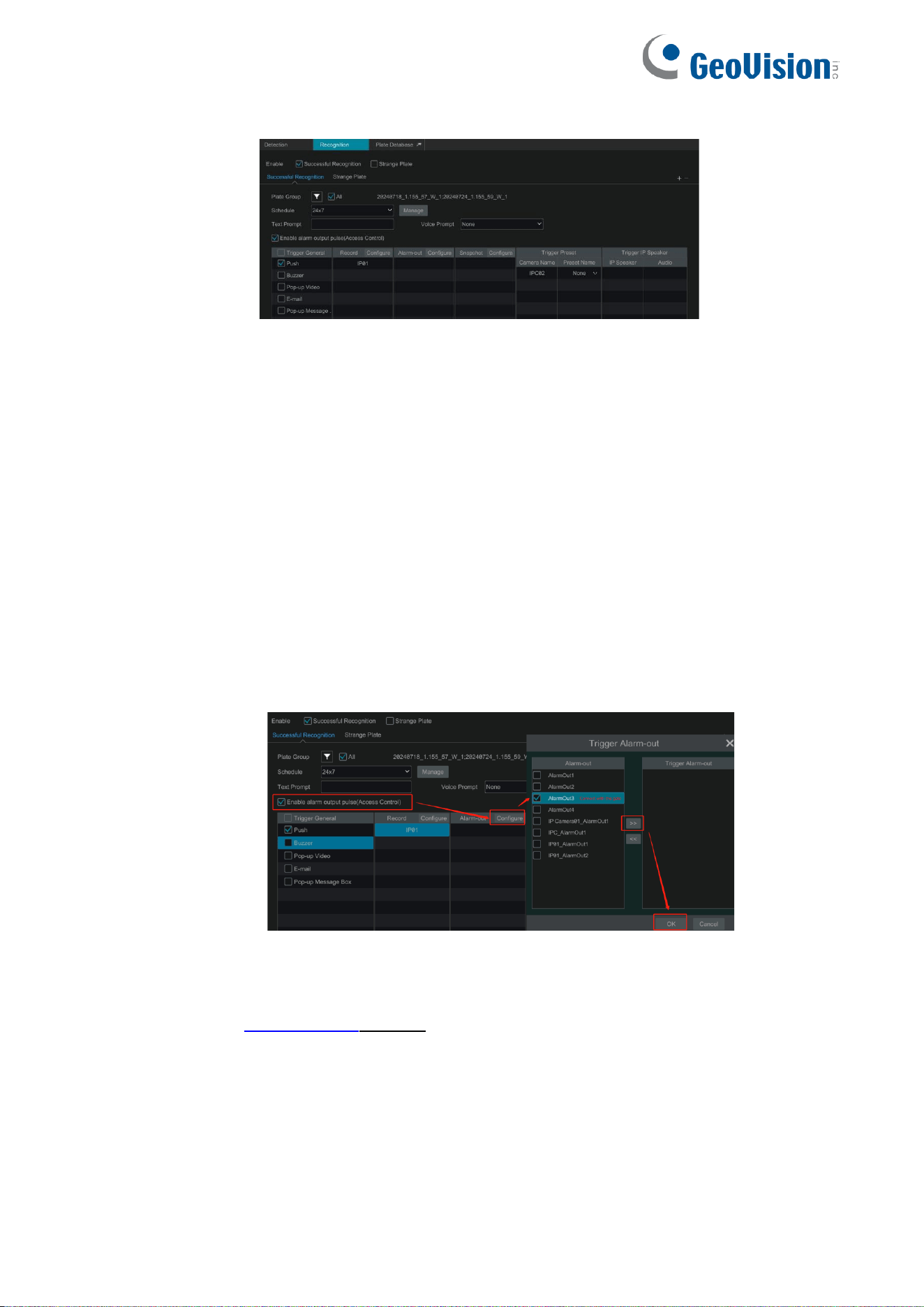

① In the LPR interface, click the “Recognition” tab. Then enable “Successful Recognition” or
74
“Strange Plate”.
② Set the successful recognition alarm linkage.
⚫ Select one or more plate groups and then choose the schedule. Click “Manage” to set the
schedule.
⚫ Set the text prompt. When the captured plate is matched successfully, the text will appear
on the right of the live view interface.
Enable alarm output pulse (access control). Enable alarm output pulse (access control) as
needed. Should you wish to enable alarm output pulse, you must configure the
corresponding alarm output of NVR/IPC (you can choose the alarm output of NVR or IPC
according to the actual application scenario). Once a license plate is successfully matched,
the pulse signal will be sent via the corresponding alarm output. Take the NVR with four
alarm outputs for example: The gate can connect with one of 4 alarm outputs. Configure
Alarm-out, choose the alarm out that is connected by the gate. When the license plate is
detected in front of the gate, the gate should open immediately.
⚫ Trigger record, snapshot, alarm-out, buzzer, push, pop-up video, E-mail, pop-up message
box, and IP speaker as needed. The alarm linkage settings are similar to the face detection
alarm (See Face Detection Settings for details).
③ Set the strange plate alarm linkage. When the captured plate picture doesn’t match the plates
in the plate database or their similarity is lower than the set value, the captured plate will be
regarded as a strange plate.
9.3 Video Metadata
Only some IPCs support this function. If the camera you added doesn’t support this function,
please skip the following instructions.
Video Metadata: People, motor vehicle and non-motor vehicle in the video can be classified,
75
counted and captured and the relevant features can be extracted and displayed on the live
interface.
Note: Video Metadata only works with compatible AI GV-IP cameras that provide video metadata.
For the list of supported cameras, see this document.
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
Video Metadata to go to the following interface.

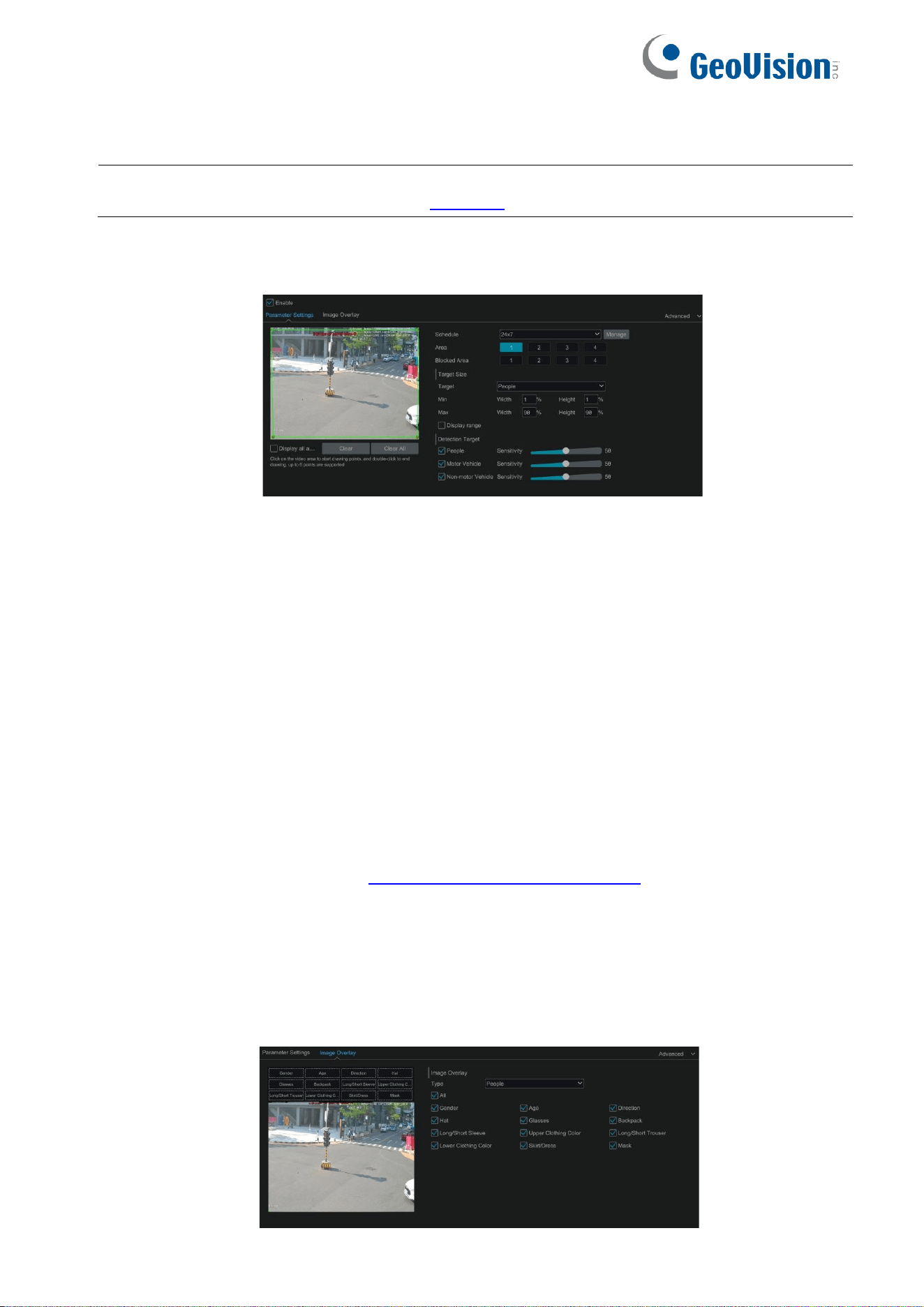

② Enable video metadata and then set the schedule.
③ Set the detection area and blocked area.
Detection Area: 4 detection areas can be set. Targets that enter the pre-defined detection area
will be counted and captured.
Blocked Area: 4 blocked areas can be set. Targets that enter the pre-defined blocked area will
not be counted and captured.
To set detection area: Select the number and then set the detection area. Then click around the
area where you want to set as the alarm area on the image (the alarm area should be a closed
area).
To set blocked area: Select the number and then set the blocked area. The setting steps are
the same as detection area settings.

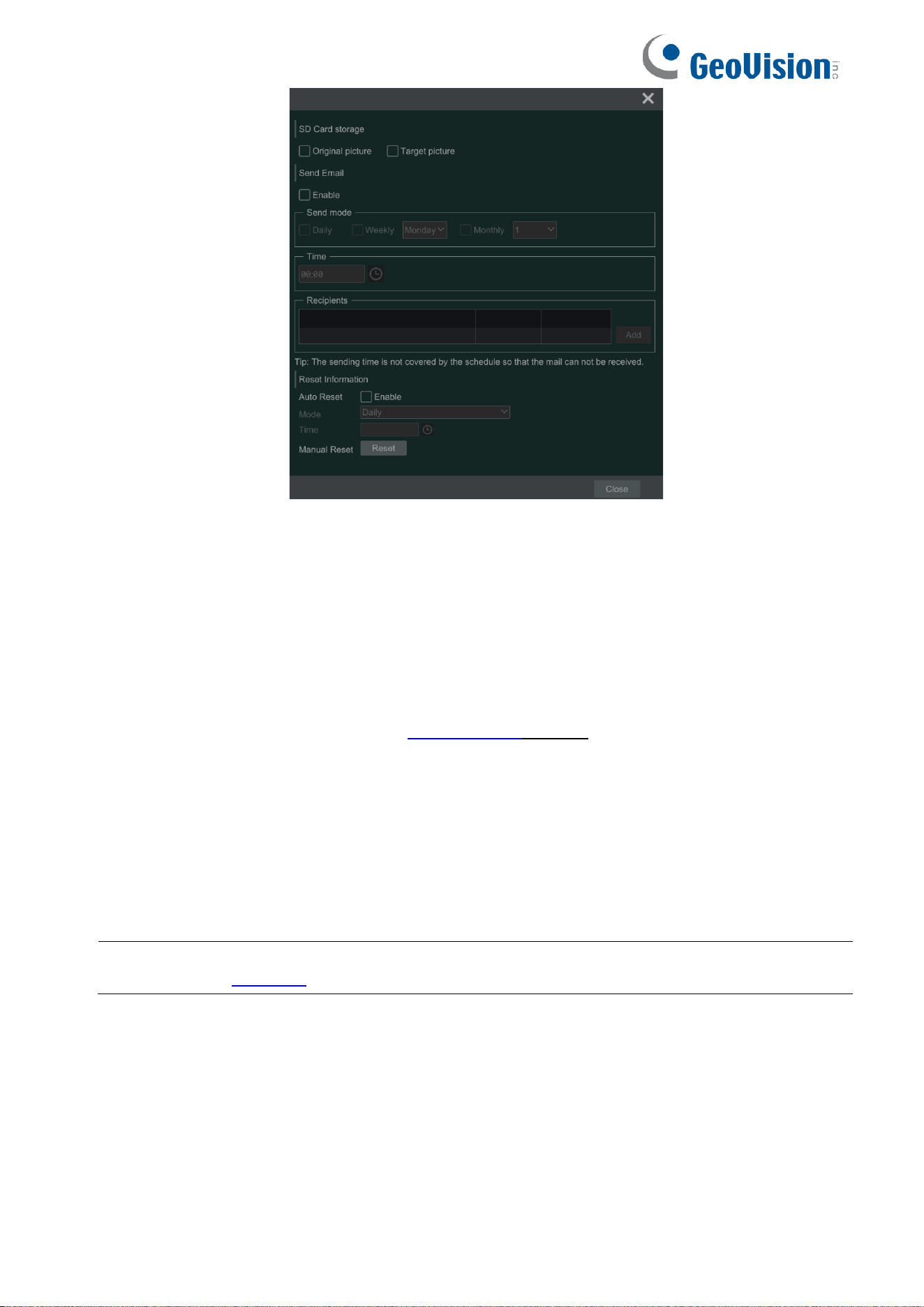

④ Advanced settings. Click “Advanced” to enter the advanced setting interface. Select SD card
storage type and the reset information. Auto reset or manual reset can be set as needed.
⑤ Set target size. Please refer to the target size setup of line crossing for details. Note that only
some IPCs support target size settings. If the added camera doesn’t support this function, please
skip this step.
⑥ Set the detection target and sensitivity.

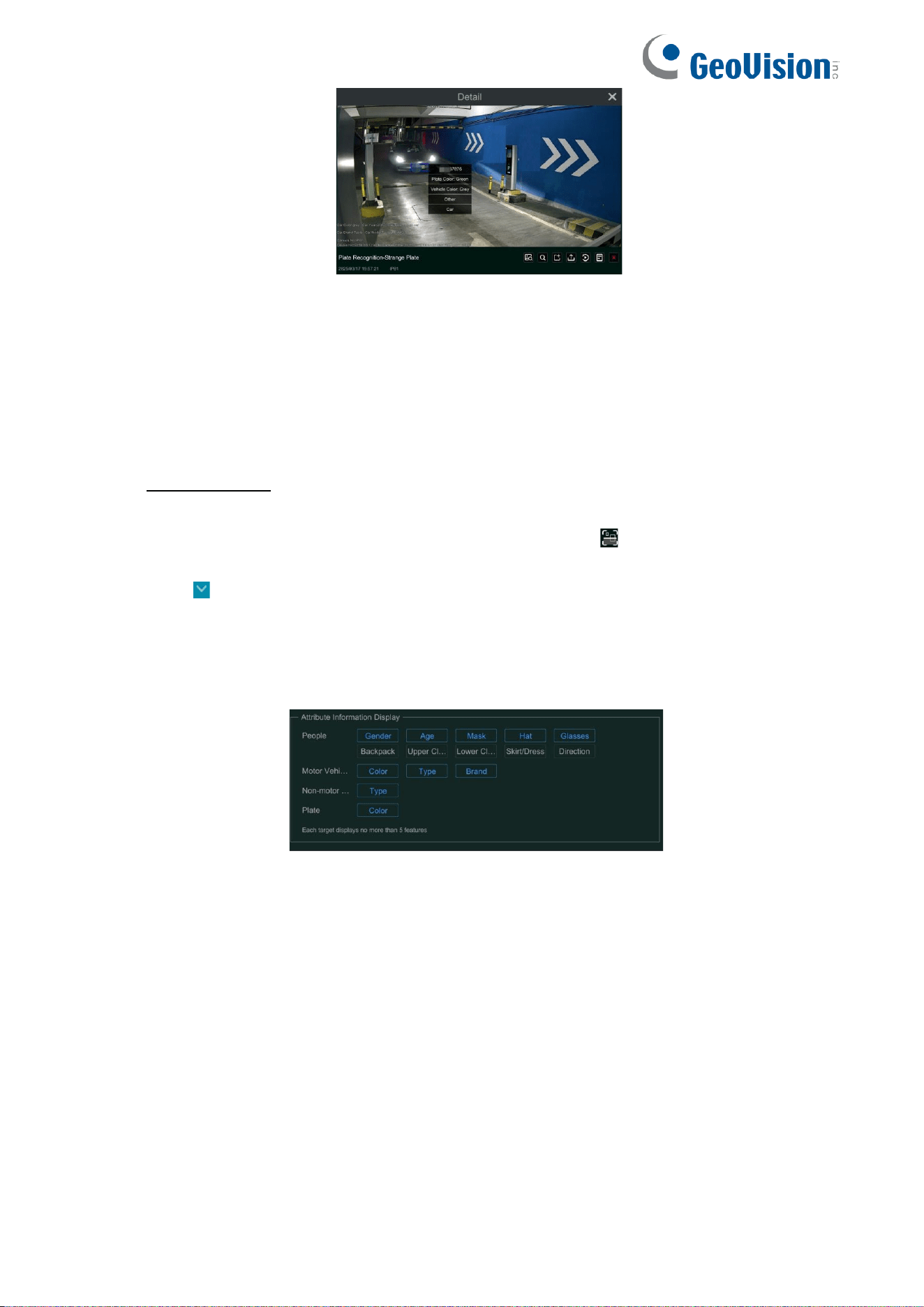

⑦ Select the attribute information of the target. Click “Image Overlay” to select the attributes of
people/motor vehicle/non-motor vehicle.
76
For people, you can select the above attribute information.
For Motor Vehicle, color, type and brand can be selected.
For Non-motor Vehicle, only type can be selected.
When a target is detected, the information you select will be displayed beside the captured image.
⑧ Click “Apply” to save the settings.
77
9.4 Perimeter Detection
Note:
1. Some models may support perimeter detection (line crossing, region intrusion/entrance/exiting)
by NVR. For these models, the camera without AI function also can be added and used to detect
line crossing, region intrusion, region entrance and region exiting events through NVR. However, if
perimeter detection by NVR is enabled for a camera (without AI), face detection cannot be enabled
simultaneously, and vice-versa.
2. Some AI cameras support event type classification. If the event type is face event, you need to
select by clicking Start→Setting→AI/Event→Enable Event. After the camera restarts,
perimeter detection of the IPC can be enabled.

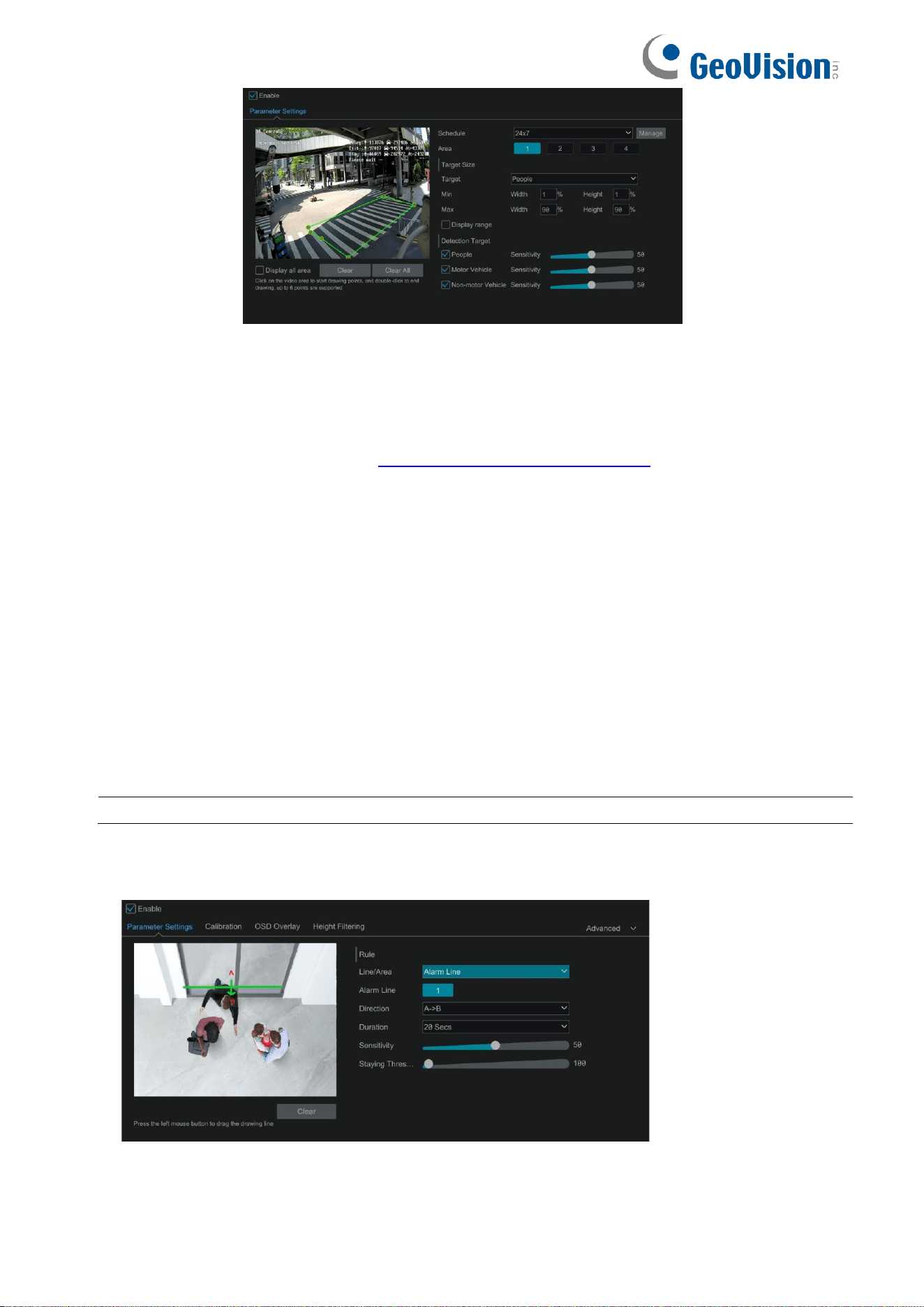

9.4.1 Line Crossing Detection
Tripwire/Line Crossing Detection Configuration:
Alarms will be triggered if the people or vehicles cross the pre-defined alarm line.
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
Perimeter Detection
→

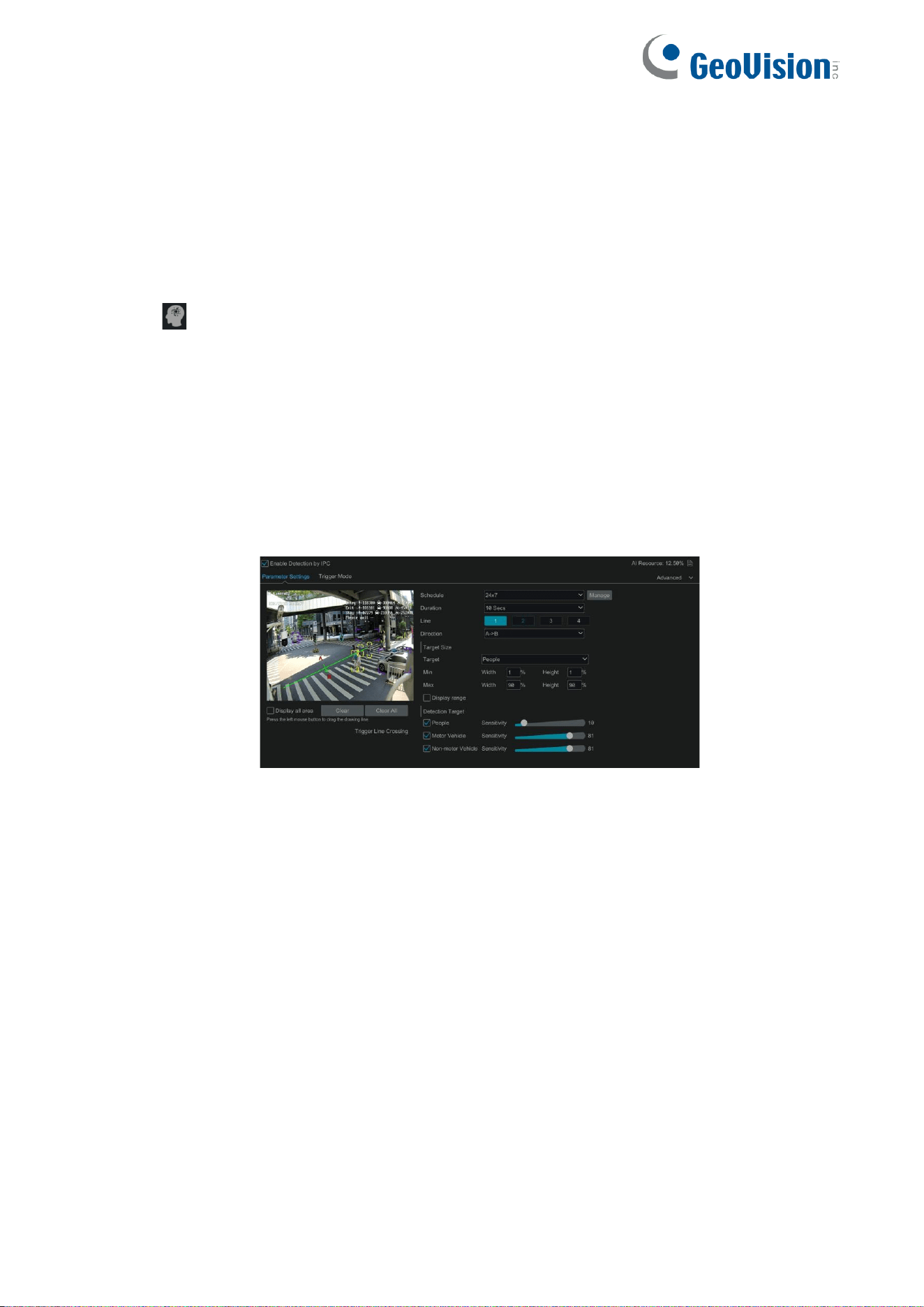

Line Crossing to go to
the following interface.

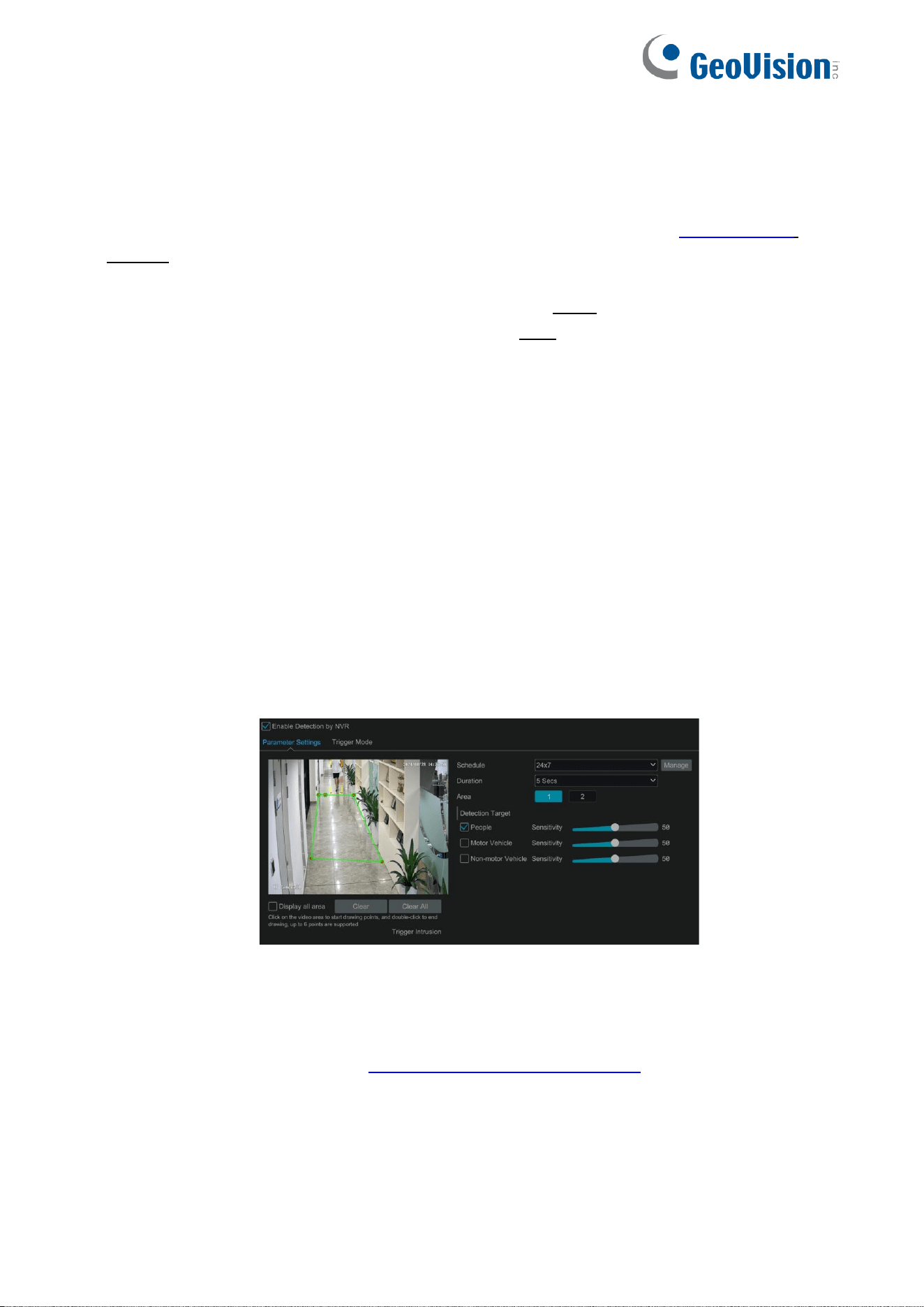

② Select the camera, enable line crossing detection by IPC and set the duration (alarm holding
time).
Note: Some models may support line crossing detection by NVR.
③ Set the schedule.
④ Select the direction.
Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the target that crosses
over the alert line.
A<->B: the alarm triggers when the target crosses over the alert line from B to A or from A to B.
A->B: the alarm triggers when the target crosses over the alert line from A to B.
A<-B: the alarm triggers when the target crosses over the alert line from B to A.
⑤ Draw line. Refer to the interface as shown above. Drag the mouse in the image to draw an
alert line. Click the “Clear” to delete the alert line.
⑥ Set target size. Check “Display range” and then select target. Enter the width and height value
to set the size; click the set min./max. box and then four dots will be shown at the four corners of
the min./max. box. Now, drag one of the four lines of the min./max to change its position. Note
that only some IPCs support target size settings. If the added camera doesn’t support this
function, please skip this step.
⑦ Click “Detection Target” to choose the detection target and the sensitivity. The detection target
78
includes people, motor vehicle and non-motor vehicle. Only some IPCs can detect people or
vehicle separately. If the camera doesn’t support this function, please skip this step.
⑧ Click “Advanced” to choose “Save original picture” or “Save target picture” on the SD card of
the camera. (If your camera doesn’t support this function, please skip this step).
⑨ Click “Trigger Mode” to configure line crossing alarm linkage items.
⚫ The alarm linkage settings are the same as the face detection alarm (see Face Detection
Settings for details).
⚫ Enable “IPC_Audio” or “IPC_Light” as needed (only some IPCs support these two functions). To
set the IPC voice and its times and volume, please refer to Audio for details. To set the light
flashing time and frequency of the IPC, please refer to Light for details.
⑩ Click “Apply” to save the settings.

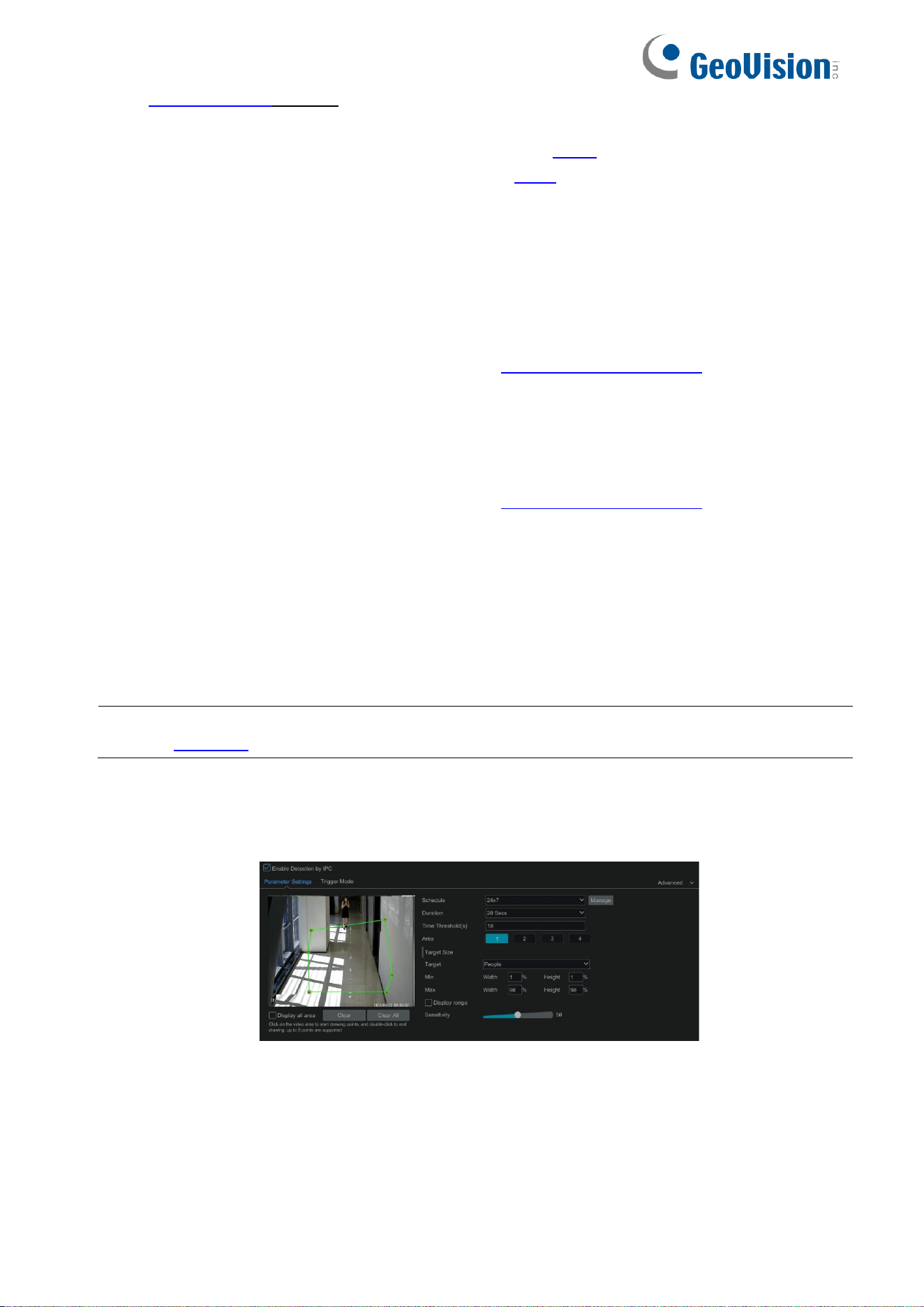

9.4.2 Region Intrusion Detection
Region Intrusion Detection Configuration:
Alarms will be triggered if the people or vehicles intrude into the pre-defined area.
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
Perimeter Detection
→
Region Intrusion to go
to the following interface.
② Select the camera, enable region intrusion detection by IPC and set the duration.
Note: Some models may support region intrusion detection by NVR.
③ Set the schedule.
④ Select the alarm area. Up to 4 alarm areas can be set up. Draw the alarm area of region
intrusion detection. Refer to the interface as shown below. Click around the area where you want
to set as the alarm area in the image (the alarm area should be a closed area).
Note: Some thermal network camera supports blocked area settings (a maximum 4 block areas
can be set.
⑤ Set target size. Please refer to the target size setup of line crossing for details. Note that only
some IPCs support target size settings. If the added camera doesn’t support this function, please
skip this step.
⑥ Click “Detection Target” to choose the detection target and the sensitivity. The detection target
includes people, motor vehicle and non-motor vehicle.
⑦ Click “Trigger Mode” to configure intrusion detection alarm linkage items.
⚫ Trigger “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video” “E-mail”
and “IP Speaker” as needed. The alarm linkage settings are the same as the face detection alarm
79
(see Face Detection Settings for details).
⚫ Enable “IPC_Audio” or “IPC_Light” as needed. (only some IPCs support these two functions). To
set the IPC voice and its times and volume, please refer to Audio for details. To set the light
flashing time and frequency of the IPC, please refer to Light for details.
⑧ Click “Copy To” to copy all settings to other cameras.
⑨ Click “Apply” to save the settings.
9.4.3 Region Entrance Detection
Region Entrance: Alarms will be triggered if the target enters the pre-defined areas.
Click Start
→
Settings
→
AI/Event
→
AI Event
→
Perimeter Detection
→
Region Entrance . The
setup steps are the same as Region Intrusion. See Region Intrusion Detection for details.
9.4.4 Region Exiting Detection
Region Exiting: Alarms will be triggered if the target exits from the pre-defined areas.
Click Start
→
Settings
→
AI/Event
→
AI Event
→
Perimeter Detection
→
Regional Exiting. The
setup steps are the same as Region Intrusion. See Region Intrusion Detection for details.
9.5 Loitering Detection
Only some IPCs support this function. If the camera you added doesn’t support this function,
please skip the following instructions.
Loitering Detection: When someone entering and loitering in a pre-defined area exceeds the
threshold, alarms will be triggered until the object leaves this area.
Note: Loitering Detection only works with compatible AI GV-IP Cameras that support this feature
(see the datasheet for compatible AI cameras).
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→
Loitering Detection to go to the
following interface.
② Set the schedule, duration, time threshold and sensitivity. (Some cameras support trigger
mode setup)
Sensitivity: The higher the value is, the easier the alarm can be triggered.
Time Threshold: the time that a person is allowed to stay in the area. If a person staying and
moving in the specified area exceeds the threshold, alarms will be triggered until this person
leaves or stops moving.
For example: Set the threshold to “60seconds; when a person staying and moving in the
80
specified area exceeds 60seconds, an alarm is triggered and continues. 2 minutes later, this
person stops moving in the specified area, and then the alarm stops. However, the alarm will
continue once this person moves again in the specified area unless the person leaves this area.

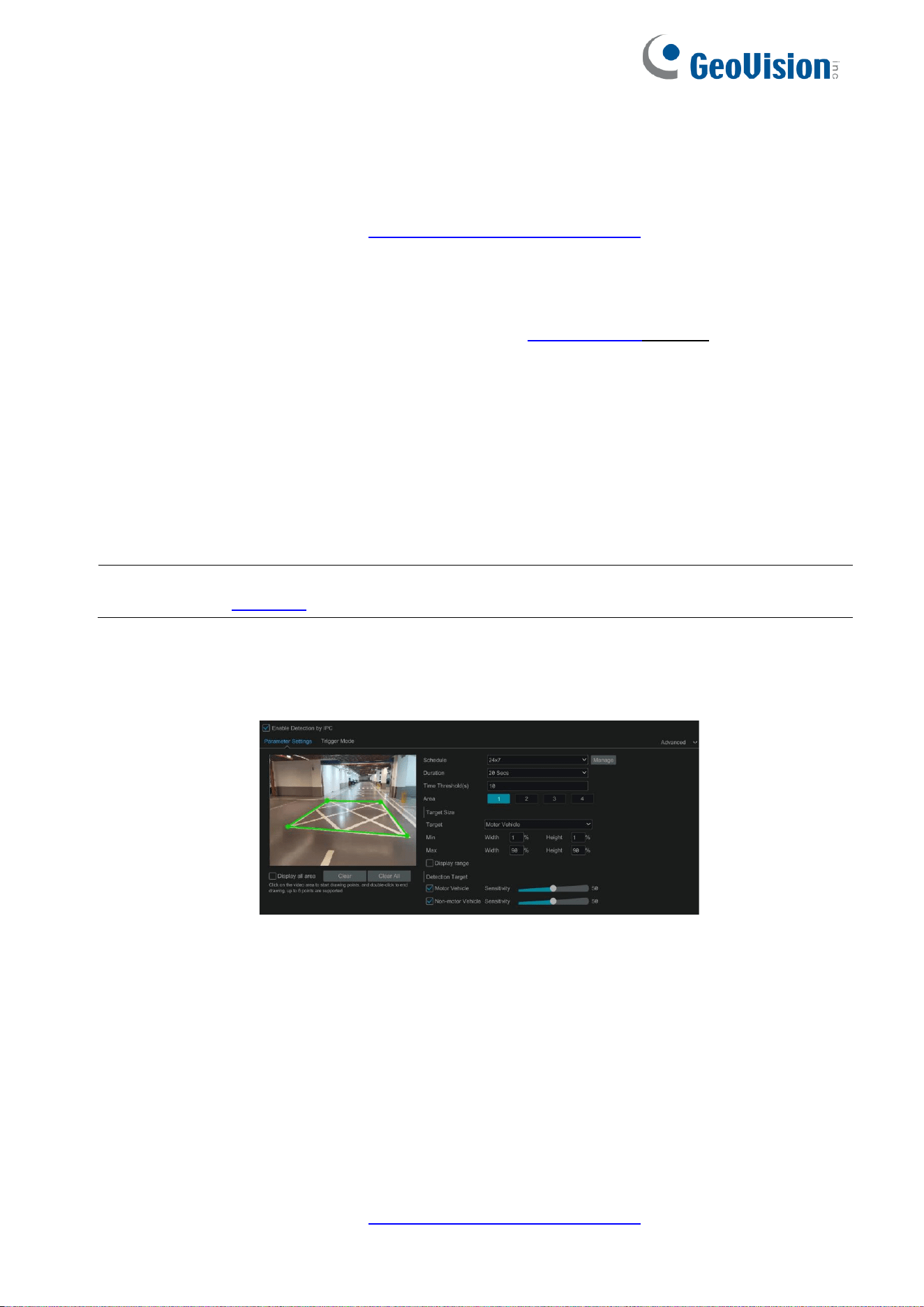

③ Set the alarm area. Up to four alarm areas can be set. Click around the area where you want to
set as the alarm area in the image (the alarm area should be a closed area).
④ Set target size. Please refer to the target size setup of line crossing for details. Note that only
some IPCs support target size settings. If the added camera doesn’t support this function, please
skip this step.
⑤ Click “Trigger Mode” to configure loitering detection alarm linkage items. The alarm linkage
settings are the same as the face detection alarm (see Face Detection Settings for details).
⑥ Click “Apply” to save the settings.
9.6 Illegal Parking Detection
Only some IPCs support this function. If the camera you added doesn’t support this function,
please skip the following instructions.
Illegal Parking Detection: When a vehicle (like a car, truck, motorcycle, etc.) staying in a
no-parking zone exceeds the threshold, alarms will be triggered until the vehicle is driven away.
Note: Illegal Parking Detection only works with compatible AI GV-IP Cameras that support this
feature (see the datasheet for compatible AI cameras).
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→
Illegal Parking Detection to go to the
following interface.
② Set the schedule, alarm duration and time threshold.
Duration: it is the time that the alarm extends after the overstaying vehicle leaves.
Time Threshold: the time that a vehicle is allowed to stay in the specified area. If a vehicle
staying in the area exceeds the threshold, alarms will be triggered until it is driven away. For
example, the time threshold is set to 30s. When the system detects a vehicle stopping in the set
no-parking zone, it will start counting. Alarms will be triggered after it stays for more than 30s.
And the illegal parking alarm will not stop until the vehicle is driven away from the non-parking
zone.
③ Set the alarm area. Up to four alarm areas can be set. Click around the area where you want to
set as the alarm area in the image (the alarm area should be a closed area).
④ Set target size. Please refer to the target size setup of line crossing for details. Note that only
some IPCs support target size settings. If the added camera doesn’t support this function, please
81
skip this step.
⑤ Click “Trigger Mode” to configure exception alarm linkage items. The alarm linkage settings are
the same as the face detection alarm (see Face Detection Settings for details).
9.7 Target Counting by Line
Only some IPCs may support this function.
Note: Target Counting by Line only works with compatible AI GV-IP Cameras that support this
feature (see the datasheet for compatible AI cameras).
⚫ People/Motor Vehicle/Non-Motor Vehicle Counting
The information of people/motor vehicle/non-motor vehicle can be calculated and sent by day, by
week and by month, so that you can receive and analyze these statistics on time.
Only some IPCs support this function. If your camera doesn’t support this function, please skip
the following instructions.
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→

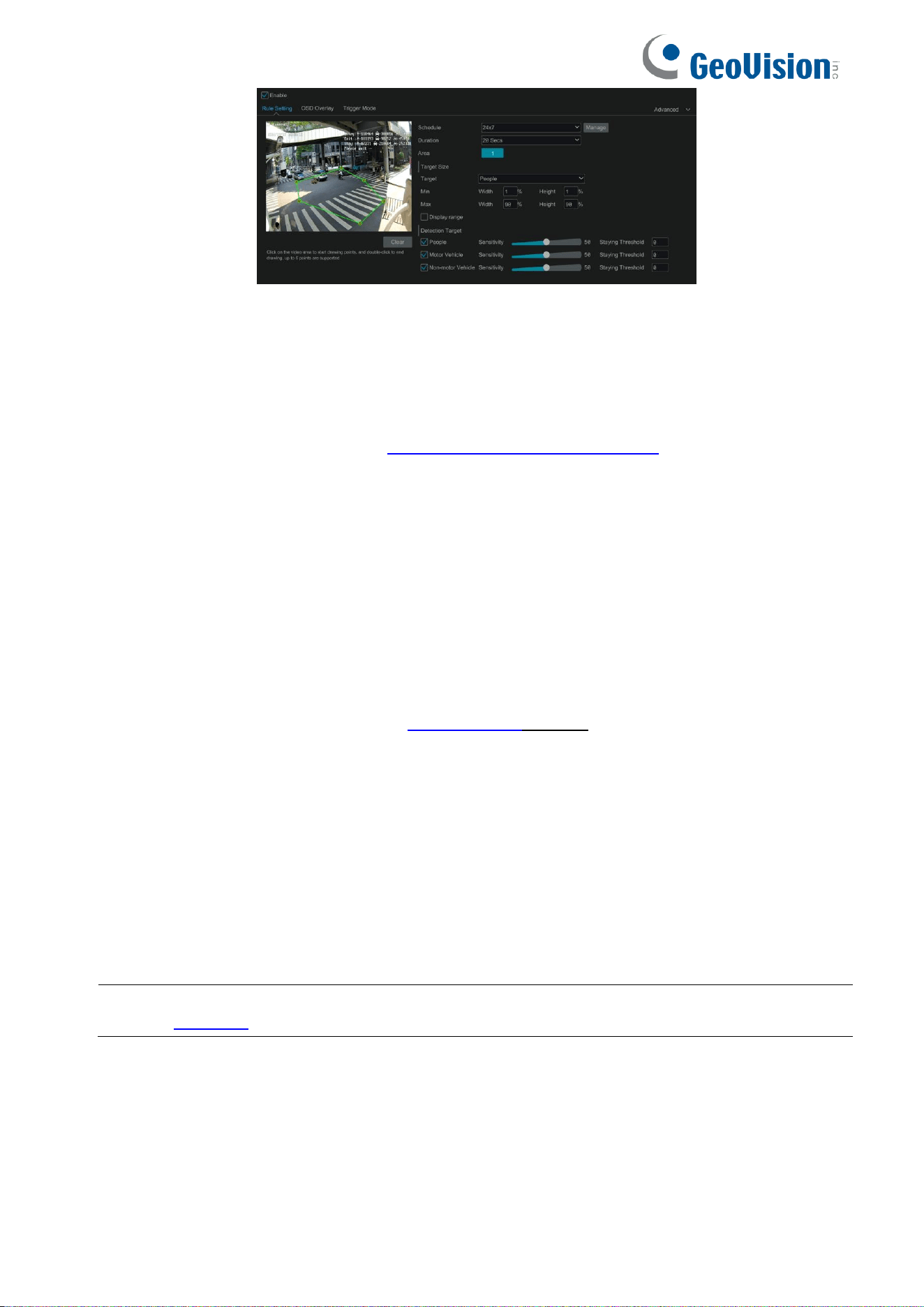

Target Counting by Line to go to the
following interface.
② Enable target counting by line and set the duration.
③ Set the schedule.
④ Select the direction and drag the mouse on the small window to draw the crossing line. Click
“Clear” to delete the alert line.
Direction: A->B and A<-B are optional. It is the crossing direction of the target that crosses over
the alert line.
⑤ Set target size. Please refer to the target size setup of line crossing for details. Note that
only some IPCs support target size settings. If the added camera doesn’t support this function,
please skip this step.
⑥ Click the “Detection Target” tab to set the detection target, including people, motor vehicle
and non-motor vehicle.
⑦ Click “Advanced” to open a window. You can select “Original picture” or “Target picture”, and
set reset information manually or enable “Auto Reset” as needed.
82
In the above interface, you can send Email to a specified person on a daily/weekly/monthly basis
regarding the target counting. Click “Add” to add the recipient”, and then enable “Send Email” and
select “Send mode” and time.
⑧ Click “OSD Overlay” to set the OSD information. If enabled, the statistical information will be
displayed on the live view interface.
⑨ Configure the alarm linkage items for target counting. The alarm linkage settings are the
same as the face detection alarm (see Face Detection Settings for details).
⑩ Click “Apply” to save the settings.

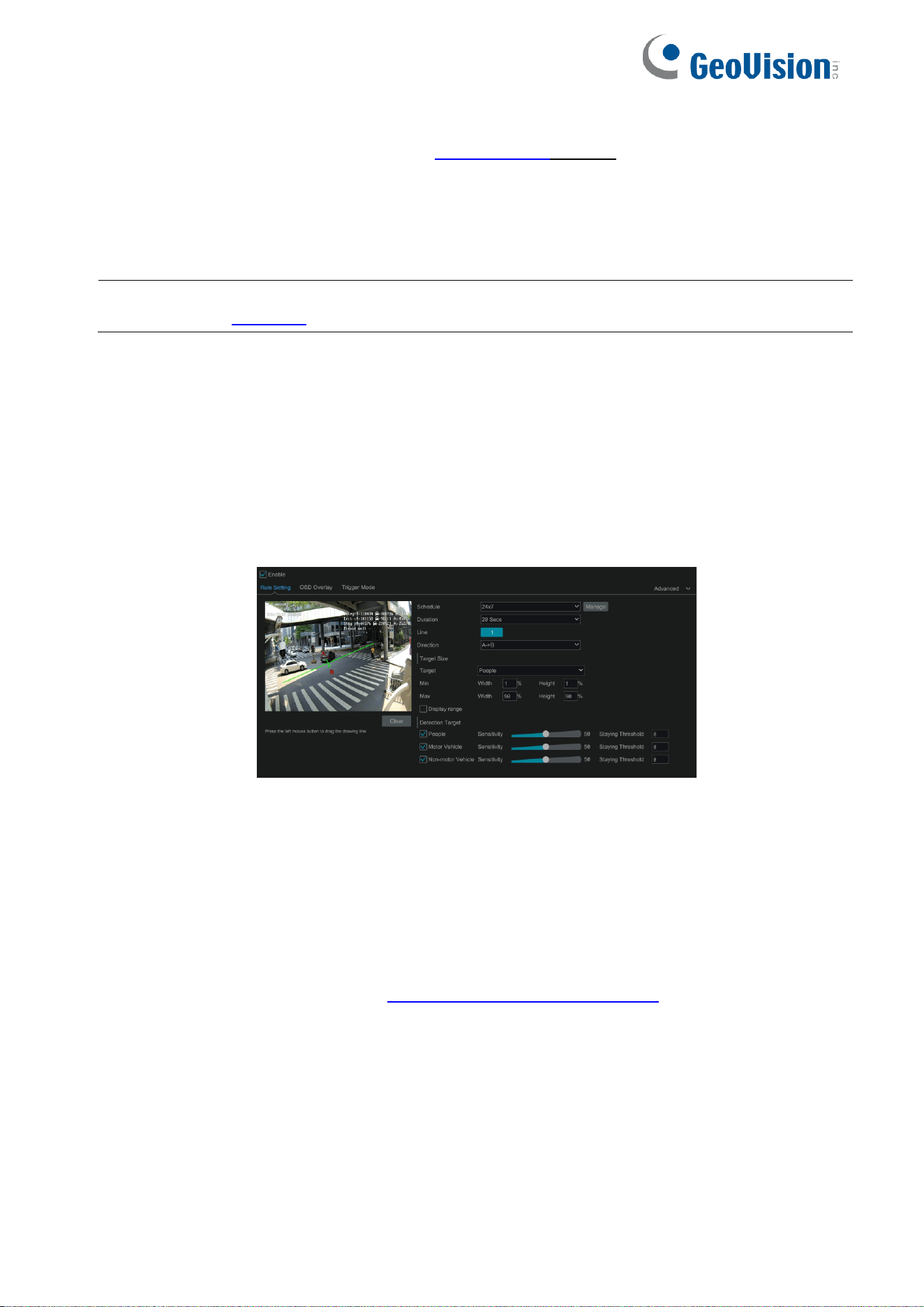

9.8 Target Counting by Area
Only some IPCs may support this function.
Target Counting by Area: This function is used to detect, track and count the number of people
or vehicles intruding into a pre-defined area.
Note: Target Counting by Area only works with compatible AI GV-IP Cameras that support this
feature (see the datasheet for compatible AI cameras).
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→
Target Counting by Area to go to the
following interface.
83
② Enable target counting by area and set the duration.
③ Set the schedule.
⑩ Draw the area. Refer to the interface as shown above. Click around the area where you want
to set as the counting area in the image (the area should be a closed area).
④ Set target size. Please refer to the target size setup of line crossing for details. Note that
only some IPCs support target size settings. If the added camera doesn’t support this function,
please skip this step.
⑤ Click the “Detection Target” tab to set the detection target, including people, motor vehicle
and non-motor vehicle.
⑥ Click “Advanced” to open the following window. You can select “Original picture” or “Target
picture”, and set reset information manually or enable “Auto Reset” as needed.
⑦ Click “OSD Overlay” to set the OSD information. If enabled, the statistical information will be
displayed on the live view interface.
⑧ Configure the alarm linkage items for target counting. The alarm linkage settings are the
same as the face detection alarm (see Face Detection Settings for details).
⑨ Click “Apply” to save the settings.
9.9 Fire Detection
Only when the security thermal cameras are connected, can the fire detection be available.
Please note this is only intended as a supplement to official fire detection methods and should
not be relied on as a primary alert source.
Fire Detection: Alarms will be triggered when the camera detects a fire source through the
thermal imaging.
Note: Fire Detection only works with compatible thermal GV-IP Cameras that support this feature
(see the datasheet for compatible AI cameras).
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→
Fire Detection to go to the following
interface.
84

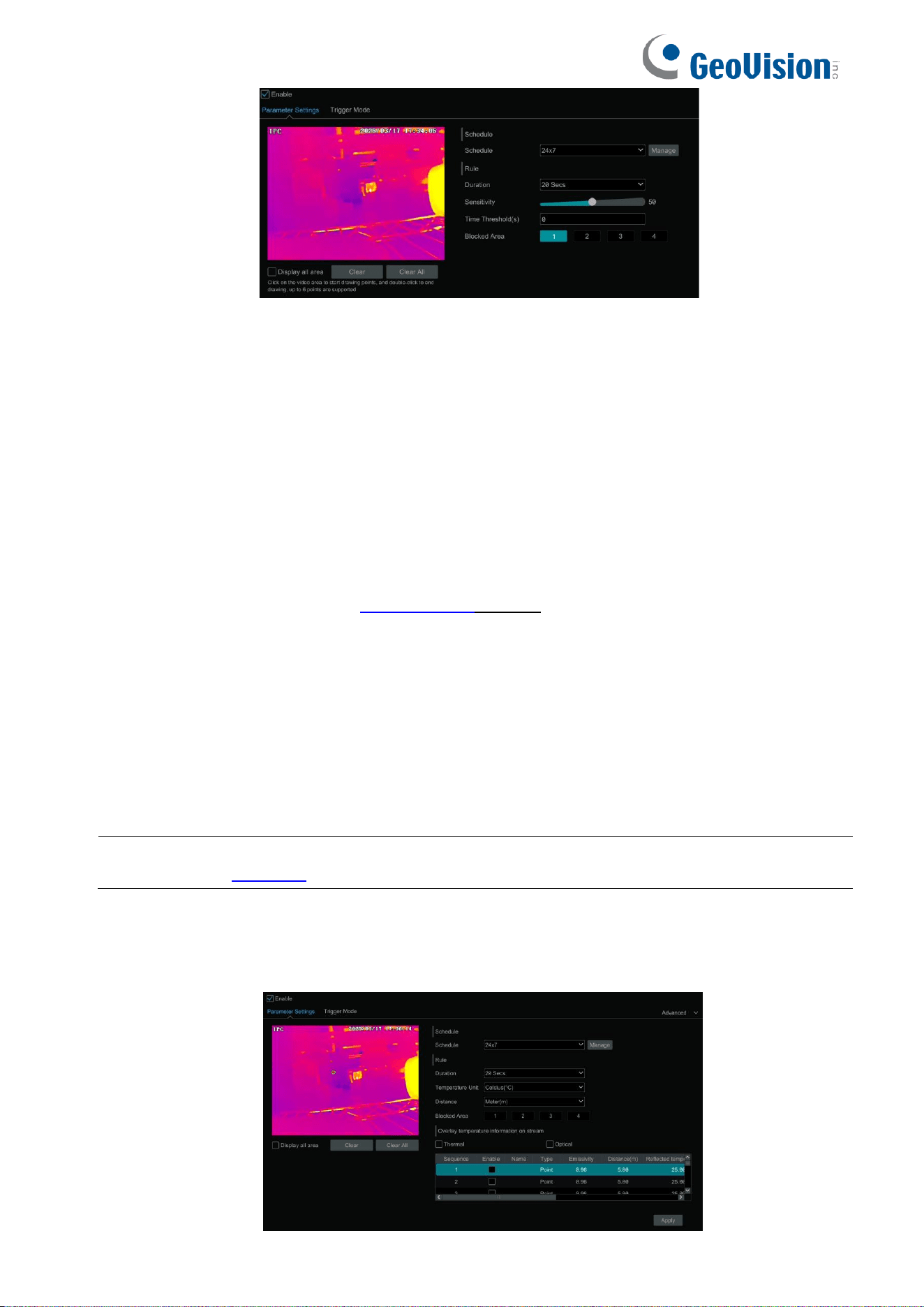

② Set the schedule and the alarm duration time.
③ Set the sensitivity and time threshold.
Some models may support fire point detection or flame detection.
Sensitivity: the higher the value is, the easier a fire can be detected, but the false rate is higher.
Please adjust the sensitivity as needed.
Time threshold: For example: set it to“2 seconds”；Alarms will be triggered when the fire source
is detected for 2 seconds, or alarms will not be triggered.
④ Set the block area as needed. A maximum of 4 block areas can be set. (Only some thermal
network cameras support this function).
⑤ Click “Trigger Mode” to configure alarm linkage items. The alarm linkage settings are the same
as the face detection alarm (see Face Detection Settings for details).
⑥ Click “Apply” to save the settings.
9.10 Temperature Detection
Only when the security thermal cameras are connected, can the temperature detection be
available.
Temperature Measurement: When a temperature of the pre-defined point/line/area exceeds
the temperature threshold value, alarms will be triggered.
Note: Temperature Detection only works with compatible thermal GV-IP Cameras that support this
feature (see the datasheet for compatible AI cameras).
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→
Temperature Detection to go to the
following interface.
85
② Set the schedule, the alarm duration time, temperature unit and distance.
③ Set the block area as needed. A maximum of 4 block areas can be set. (Only some thermal
network cameras support this function).
④ Overlay temperature information on stream.
Thermal/optical: if enabled, the temperature information will overlay on the video stream. When
playing the live video or the recorded video, you can view the temperature information.
⑤ Advanced settings. Click “Advanced” on the top right corner.
Temperature Bar: if enabled, a color reference temperature bar will appear on the right of the
thermal image.
Enable Temp Reading by Clicking: if enabled, you can read the real-time temperature of any
point you click on the thermal image in the single channel display mode.
Emissivity: Set the emissivity of the target. The emissivity of each object is different.
Distance: The distance between the target and the camera.
Reflected temperature: If there is any object with high emissivity in the scene, set the reflective
temperature to correct the ambient temperature. The reflective temperature should be set the
same as the temperature of the high emissivity object.
Highest temperature: if checked, the Max. Temperature in the set area/line will be displayed in
real time.
Average temperature: if checked, the Avg. Temperature in the set point/area/line will be
displayed in real time.
Lowest Temperature: if checked, the Min. Temperature in the set area/line will be displayed in
real time.
⑥ Set thermography rule. Select the rule type, including Point, Line and Area.
Set the point, line or area on the small window.
Point setup: After the type is set to “Point”, click on the image to set the point. Up to 10 points
can be set in the above interface.
Line setup: After the type is set to “Line”, drag the mouse on the image to draw a line. To ensure
the accuracy of temperature measurement, it is recommended to set not more than two lines at
the same time.
Area setup: Click around the area where you want to set as the alarm area on the image (the
alarm area should be a closed area). To ensure the accuracy of temperature measurement, it is
recommended to set not more than two areas at the same time.
Set the alarm rule, alarm temperature and alarm output. For example, select Alarm Rule as
Above (Average Temperature), set the alarm temperature to 100°C and check alarm output.
Alarms will be triggered when the average temperature of the target is higher than 100°C.
⑦ Click “Trigger Mode” to configure alarm linkage items. The alarm linkage settings are the same
as the face detection alarm (see Face Detection Settings for details).
⑧ Click “Apply” to save the settings.
9.11 Abandoned/Missing Object Detection
Only some IPCs may support this function.
Note: Abandoned/Missing Object Detection only works with compatible AI GV-IP Cameras that
support this feature (see the datasheet for compatible AI cameras).
86
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→

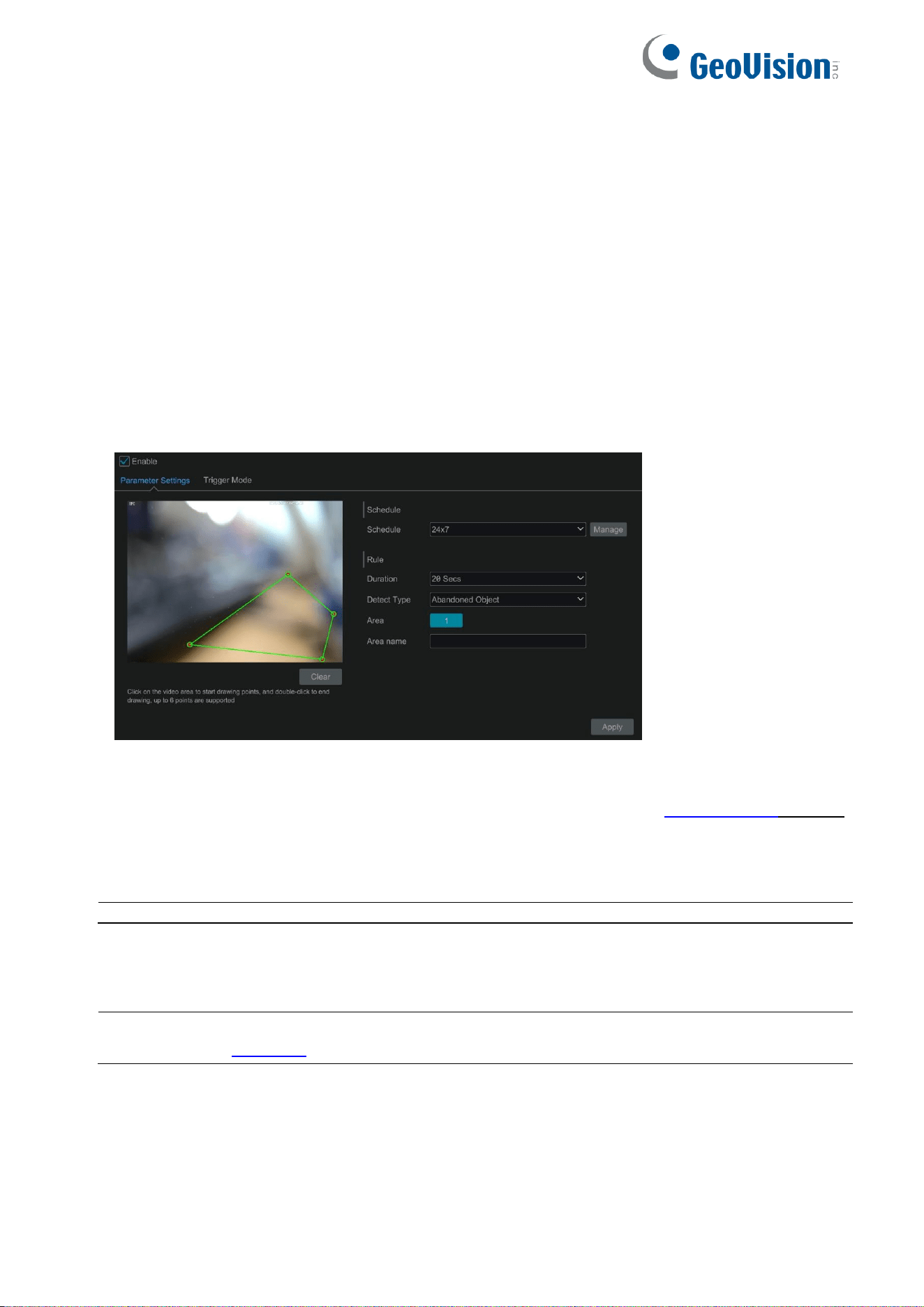

Object Abandoned/Missing to go to
the following interface.
② Set the schedule.
③ Select the camera, enable the object detection and set the duration and detect type. There are
two detection types: Abandoned object and missing object.
Abandoned object: Alarms will be triggered if there are items left in the pre-defined detection
area.
Missing object: Alarms will be triggered if items are missing in the detection area drew by the
users.
④ Select the alarm area and area name. A maximum of 4 alarm areas can be set.
⑤ Draw the alarm area of the object detection. Refer to the interface as shown below. Click
around the area where you want to set as the alarm area in the image (the alarm area should be a
closed area). Click the “Clear” to delete the alarm area.
⑥ Click “Trigger Mode” to configure abandoned/missing object detection alarm linkage items.
The alarm linkage settings are the same as the face detection alarm (see Face Detection Settings
for details).
⑦ Click “Apply” to save the settings.
9.12 Crowd Density Detection
Only some IPCs may support this function.
Note: Crowd Density Detection only works with compatible AI GV-IP Cameras that support this
feature (see the datasheet for compatible AI cameras).
Crowd Density Configuration:
Alarms will be triggered if the crowd density exceeds the set threshold value in the pre-defined
area.
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→

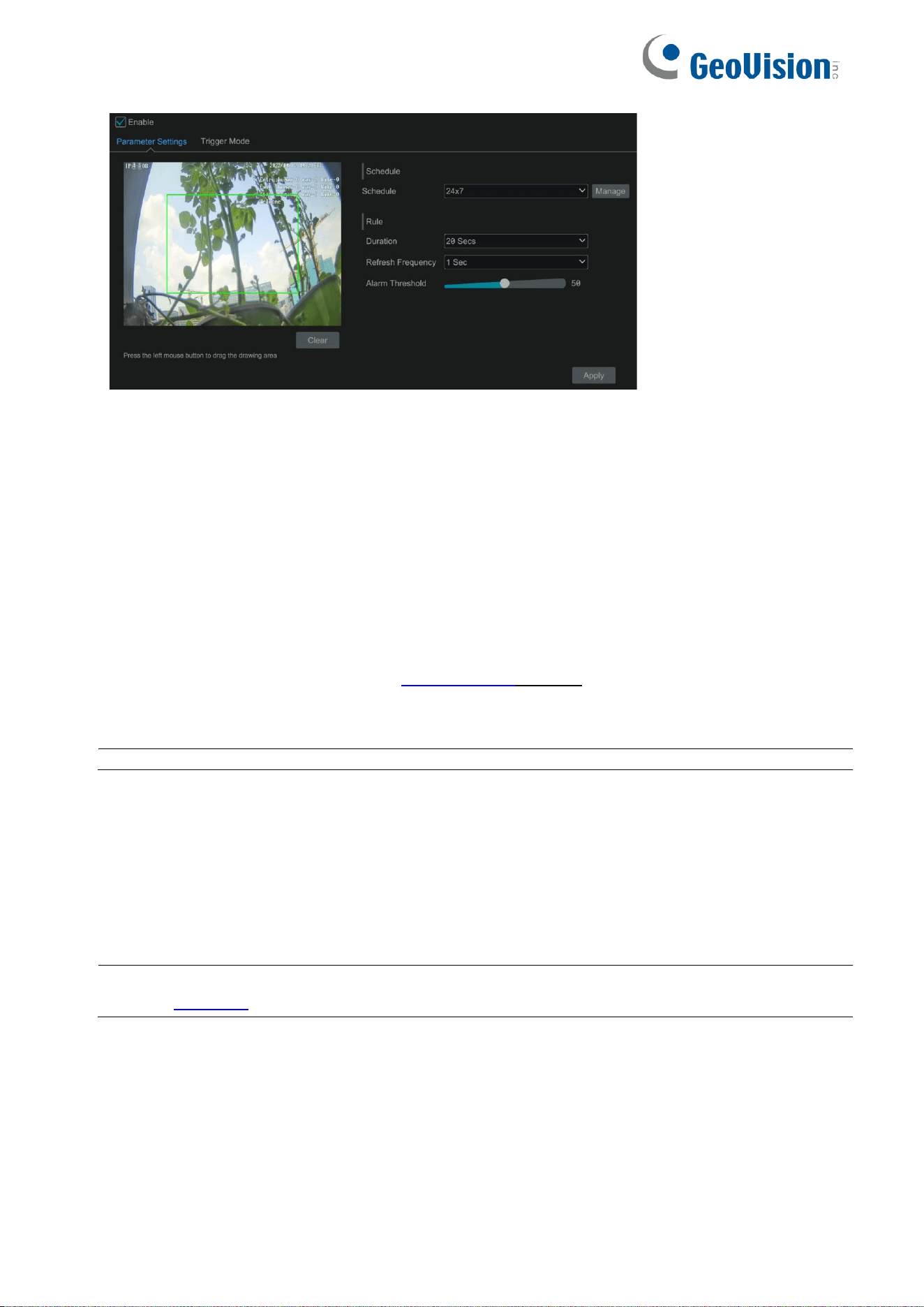

Crowd Density to go to the following
interface.
87
② Select the camera, enable crowd density detection and set the schedule, duration, refresh
frequency and alarm threshold.
Refresh Frequency: Refers to the refresh time of the detection result report.
Alarm Threshold: Alarms will be triggered once the percentage of the crowd density in a
specified area exceeds the pre-defined threshold value.
③ Select the alarm area. Draw the alarm area for the crowd density detection. Refer to the
interface as shown above. Drag the mouse to draw a rectangle area. Click the “Clear” to delete the
alarm area.
④ Configure crowd density detection alarm linkage items. The alarm linkage settings are the
same as the face detection alarm (see Face Detection Settings for details).
⑤ Click “Apply” to save the settings.
9.13
9.13 Audio Exception
Only some IPCs support this function. If the camera you added doesn’t support this function,
please skip the following instructions.
Audio Exception: Alarms will be triggered when the abnormal sound is detected in the
surveillance scene, such as the sudden increase/decrease of the sound intensity.
Note: Audio Exception only works with compatible AI GV-IP Cameras that support this feature
(see the datasheet for compatible AI cameras).
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→
Audio Exception to go to the following
interface.
88

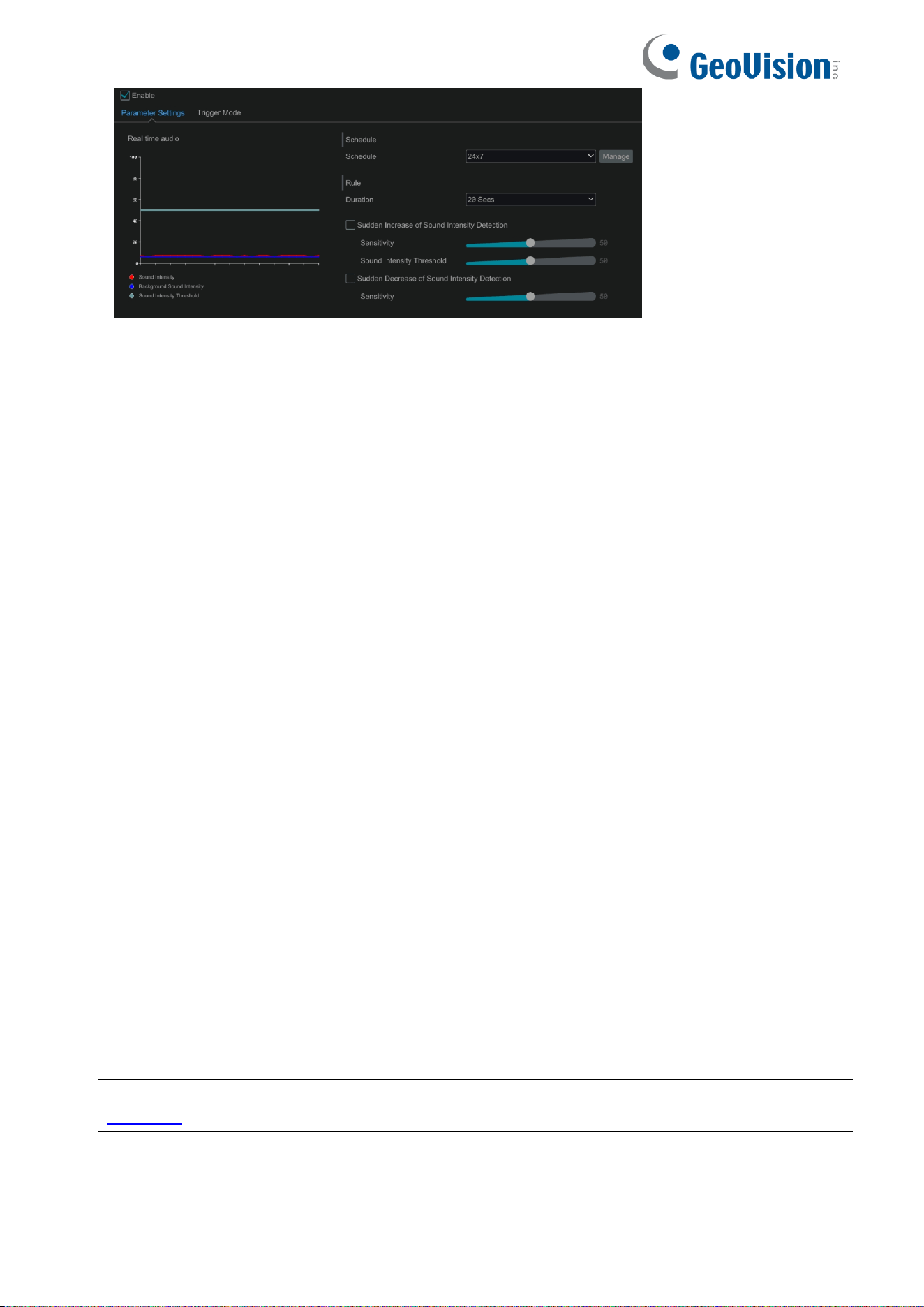

② Set the schedule and alarm duration.
Sudden Increase of Sound Intensity Detection: Detect sudden increase of sound intensity. If
enabled, sensitivity and sound intensity threshold are configurable. Alarms will be triggered when
the detected sound intensity exceeds the sound threshold.
Sensitivity: The higher the value is, the easier the alarm will be triggered.
Sound Intensity Threshold: It is the sound intensity reference for the detection. The lower the
value is, the easier the alarm will be triggered. It is recommended to set the average sound
intensity in the environment. The louder the environment sounds, the higher the value should be.
Please adjust it according to the actual environmental condition.
Sudden Decrease of Sound Intensity Detection: Detect sudden decrease of sound intensity.
Please set the sensitivity as needed. The higher the value is, the easier the alarm will be
triggered.
Real-time audio graphic:
Red wavy line stands for the current detected sound intensity.
Navy blue line stands for the environment (background) sound intensity.
Green line stands for the sound intensity threshold.
In order to reduce false alarms, it is recommended to set the sensitivity and sound intensity
threshold according to the real-time audio graphic.
③ Click “Trigger Mode” to configure audio exception alarm linkage items. The alarm linkage
settings are the same as the face detection alarm (see Face Detection Settings for details).
④ Click “Apply” to save the settings.
9.14 Heat Map
Only some IPCs support this function. If the camera you added doesn’t support this function,
please skip the following instructions.
Heat Map: This function is to display the flow distribution of people/vehicles in pre-defined areas
by different colors.
Note: Heat Map only works with compatible AI GV-IP Cameras that support this feature (see the
datasheet for compatible AI cameras).
① Click Start
→
Settings
→
AI/Event
→
More
→
Heat Map to go to the following interface.
89
② Set the schedule.
③ Select the area. Up to 4 alarm areas can be set up. Click around the area where you want to
set as the detection area in the image (the detection area should be a closed area).
④ Set target size. Please refer to the target size setup of line crossing for details. Note that only
some IPCs support target size settings. If the added camera doesn’t support this function, please
skip this step.
⑤ Click “Detection Target” to choose the detection target and the sensitivity. The detection
target includes people, motor vehicle and non-motor vehicle.
9.15 People Counting
Only some IPCs support this function. If the camera you added doesn’t support this function,
please skip the following instructions.
People Counting: This function is to calculate the number of the people entering or exiting from
the detected area through detecting, tracking and counting the head shapes of the people.
Note: People Counting only works with GV-3D People Counter V3.
① Click Start
→
Settings
→
AI/Event
→
More
→
People Counting to go to the following interface.
② Enable people counting and click “Advanced” to set the SD card storage information and the
reset information.
Original picture: If it is enabled, the detected original pictures will be captured and saved to the
90
SD card when the staying threshold exceeds the set value.
Auto Reset: The current number of the people counting can be reset. You can choose to reset
the counting daily, weekly or monthly. Click “Reset” to manually reset the current number of
people counting.
③ Set detection rule. Two detection rules can be selected. Please select one of them as needed.
⚫ To set alarm line
Set the alarm line number and direction. Only one line can be added.
Direction：A->B and A<-B can be optional. The direction of the arrow is entrance.
Drag the mouse in the image to draw a line. Click the “Clear” button to delete the line.
Click the “Apply” button to save the settings.
If the target crosses the line along the direction of the arrow, it is counted as one entering target.
If the target crosses the line along the reverse direction of the arrow, it is counted as one exiting
target.
⚫ To set detection area
Select the area number and direction.
Direction: A->B and A<-B can be optional. For example: “A->B” is selected. If the target enters
from area A to area B, it is counted as one entering target. If the target enters from area B to area
A, it is counted as one exiting target.
Click the “Draw A Area” or “Draw B Area” button and then click around the area where you want
to set as the detection area in the image on the left side (the area should be a closed area). Click
the “Stop Draw” button to stop drawing. Click the “Clear” button to delete the alarm area. After
both area A and B are set and make sure these two areas don’t overlap, click the “Save” button
to save the settings.
Sensitivity: The higher the value is, the easier the false detection will occur. The lower the value
is, the camera is easier to miss the target.
Staying Threshold: When the targets staying in the specified area exceed the threshold, alarms
will be triggered.
④ Set the camera calibration. Auto calibration and manual calibration are selectable.
⚫ Auto Calibration
Select “Auto” and draw a box in the middle of the image. After that, click “Calibrate”. The camera
will return the lens height automatically. Compare the returned lens height with the actual
measurement height. If the height from the lens to the ground is within 4m, the margin of error
within ±15cm is allowed. If the height from the lens to the ground is 4m ~6m, the margin of error
within ±25cm is allowed. If exceeding the above-mentioned value, repeat the above steps or use
manual calibration.
⚠ Caution:
✓ Please select the flat ground as the calibration area.
✓ The calibration area with adequate and even light is recommended, avoiding overexposure
area or reflective surface.
✓ Please select the middle of the image as the calibration area.
⚫ Manual Calibration
Manually measure the height from the lens to the ground.
Select “Manual”, enter the lens height value and click “Calibrate”.
⑤ OSD overlay. If disabled, the statistical information will not be displayed in the live view
91
interface.
Check “Display OSD” and move the red OSD to change the position of the statistical information
displayed on the screen. The statistical OSD information can be customized as needed.
Children counting: Please set its name as needed. Before using this function, please enable
children counting and set the height of children counting first
⑥ Height filtering settings.
Height Filtering: Enable the function and set a height value. The target whose height is lower
than the set value will not be counted.
Children Counting: Enable the function and set a height value. The target whose height is
higher than the set value will not be counted.
Note: In order to get more accurate statistics, it is suggested to disable height filtering and
children counting if the installation height of the camera ranges from 210 to 250cm. When the
installation height of the camera ranges from 251~600cm, it is recommended to check height
filtering and children counting.
⑦ Click “Apply” to save the settings.
9.16 Video Exception
Only some IPCs may support this function.
Note: Exception Detection only works with compatible AI GV-IP Cameras that support this feature
(see the datasheet for compatible AI cameras).

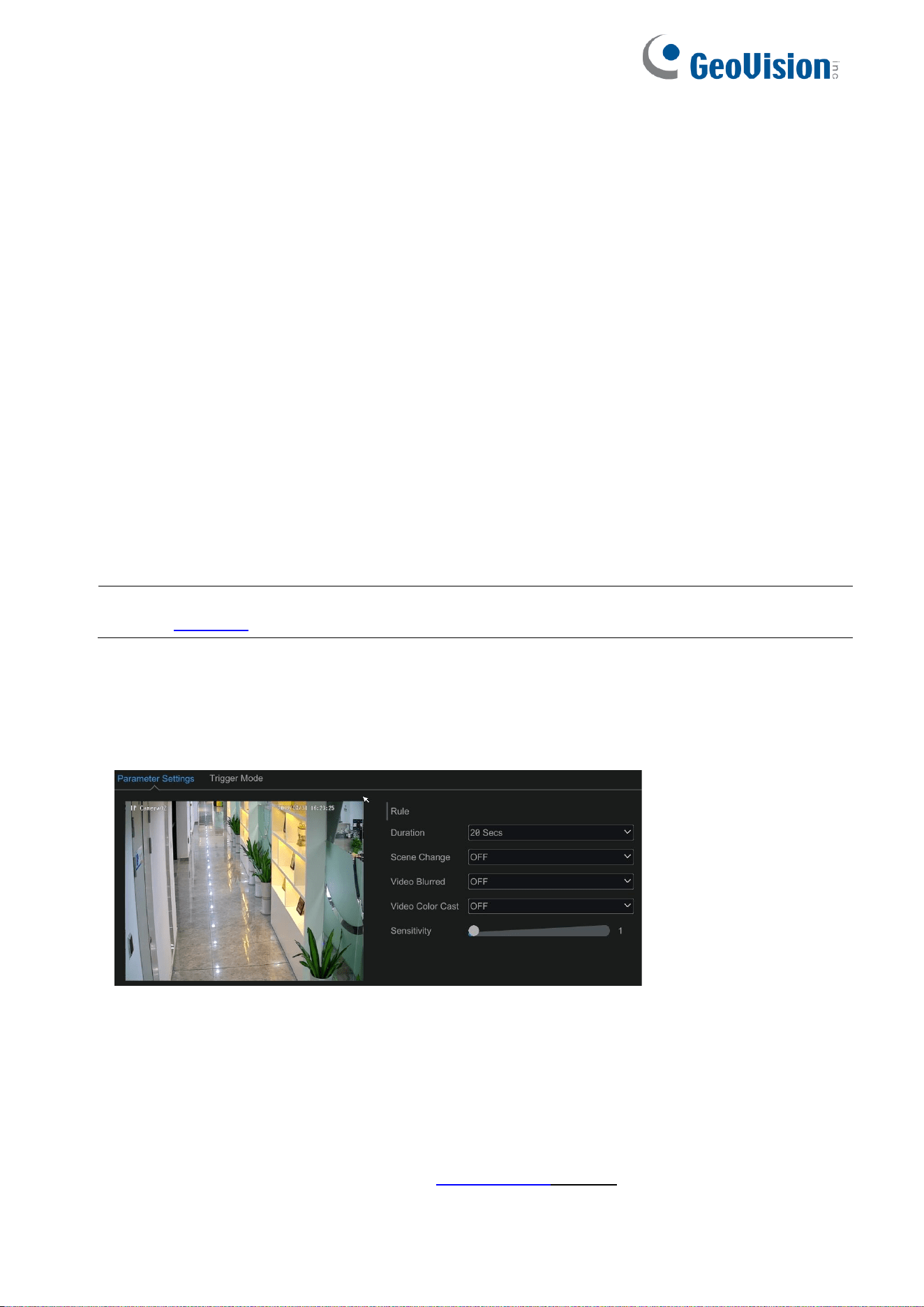

Video Exception Configuration:
① Click Start
→
Settings
→
AI/Event
→
AI Event
→
More
→
Video Exception to go to the following
interface.
② Select the camera and detection duration and then enable the relevant detection as needed.
Scene Change: Alarms will be triggered if the scene of the monitor video has changed.
Video Blurred: Alarms will be triggered if the video becomes blurry.
Video Color Cast: Alarms will be triggered if the image is abnormal caused by color deviation.
③ Set the sensitivity of the exception detection.
④ Click “Trigger Mode” to configure exception alarm linkage items. The alarm linkage settings are
the same as the face detection alarm (see Face Detection Settings for details).
⑤ Click “Apply” to save the settings.
92
10 Intelligent Analytics
10.1 Target Detection View
Only some models support target detection view. If your device doesn’t support it, please skip the
following instructions.
10.1.1 People/Vehicle Detection View
Only when the camera supports people/vehicle detection, can you view the real-time captured
pictures of people or vehicles. The setting steps are as follow:
① Enable the Line crossing/Region Intrusion/Region Entrance/Region Exiting/Loitering
Detection/Target counting/Video Metadata function of IPCs/NVR, draw the line or area and choose
the detection target (see the corresponding sections for details).
② Go to live view interface and then click to go to the target detection interface of this
channel. In this interface, you can switch the channel on the top right. You can also click on
the top right corner of the live view interface and then choose the target detection tab to go to the
target detection interface of multi-channel as shown below. Note that only some models support
multi-channel target detection function. Click the captured picture on the right of the live interface
to see the snapshot detailed information.
In the above detail window, you can view captured people/vehicle pictures, original picture,
snapshot time, camera, event type, target type, etc. Move the mouse to the detailed image
window. The target snapshot will be shown on the left/right top of the detail window and
“Previous/Next” will appear. Click “Previous/Next” to view the previous/next snapshot. Click
to go to the people/vehicle search interface; click to export the captured original picture and
target picture; click to go to the playback interface; click to view the target ID information;
click to exit the detail window.
93
10.1.2 License Plate Detection/Recognition View
Only when the ANPR camera is added and enabled, can license plates be captured and matched.
The setting steps are as follows
① Enable the plate detection function (See License Plate Detection Settings for details).
Then you can see the captured plates displayed in the live view interface as shown below.
Put the cursor on the captured plate picture and then click to register this plate as shown
below.
Click to view the captured detail information. Click to quickly enter the vehicle search
interface. You can search the matched plate information in this interface. Click to go to the
smart playback interface.
② Enable license plate recognition function and set the alarm linkage items (see License Plate
Recognition Settings for details).
③ Go to live view interface and click on the top right corner of the live view interface and then
choose the target detection tab to go to the target detection interface of multi-channel as shown
below. When a plate is captured, it will be displayed on the right panel. A strange plate will show
“Strange plate” under the plate picture.
94
Click the captured plate picture and then it will open a detailed information window. You can view
the snapshot picture, original picture, snapshot time, camera, vehicle attributes, etc. Click the
corresponding buttons to search/register/export/playback/view the ID information of the target.
10.1.3 Object Attribute View
① Enable video metadata function and then select the detection target and display attributes
(see Video Metadata for details).
② Go to live view interface and click on an AI camera channel (which supports video metadata
function). This will bring a toolbar under the channel. Then click to go to the target detection
interface of this channel. In this interface, you can switch the channel on the top right. You can
also click on the top right corner of the live view interface and then choose the target
detection tab to go to the target detection interface of multi-channel.
Click “Settings” at the bottom right to select the attribute information of people/motor
vehicle/non-motor vehicle/plate you want to view under the captured picture.
Click the captured picture to view the details. In the detail interface, you can view the captured
picture, original picture, object attributes, etc.
10.2 Smart Search
10.2.1 Face Search
Only some models support this function. If your device doesn’t support it, please skip the
following instructions.
① Click Start
→
Intelligent Analytics
→
Search
→
People
→
Face to go to the following interface.
Set the time and date by clicking the Today tab.
② Choose face detection cameras.
95

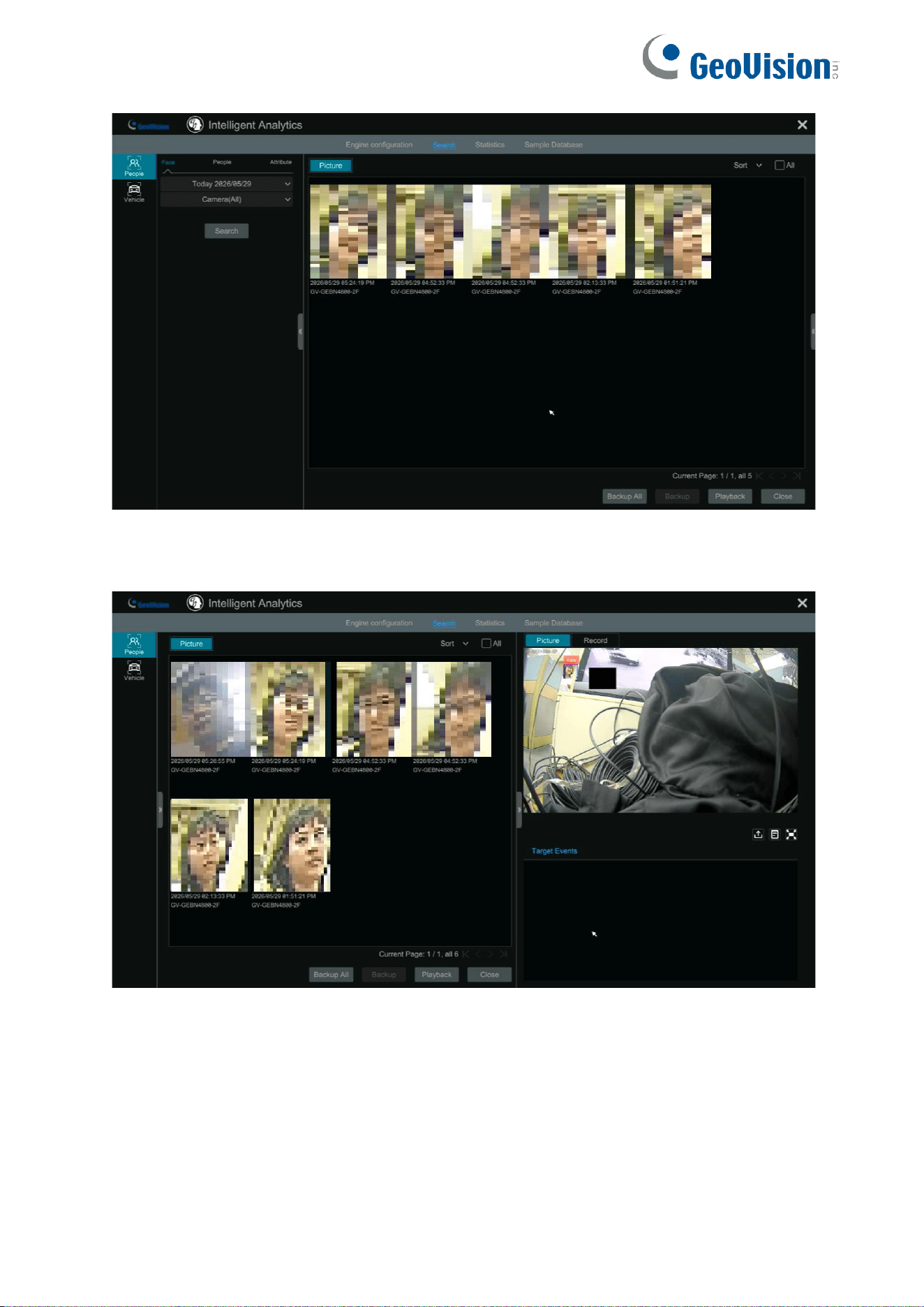

③ Click “Search”.
④ Click “Sort” to search the match picture by time or camera. Click the searched picture to view
the face details.
96
In the above interface, you can view the target events. In the Target Events list, click the capture
picture to play the record in the small window. Or click “Record” to play.
You can set the playback time and perform the corresponding operations as needed.

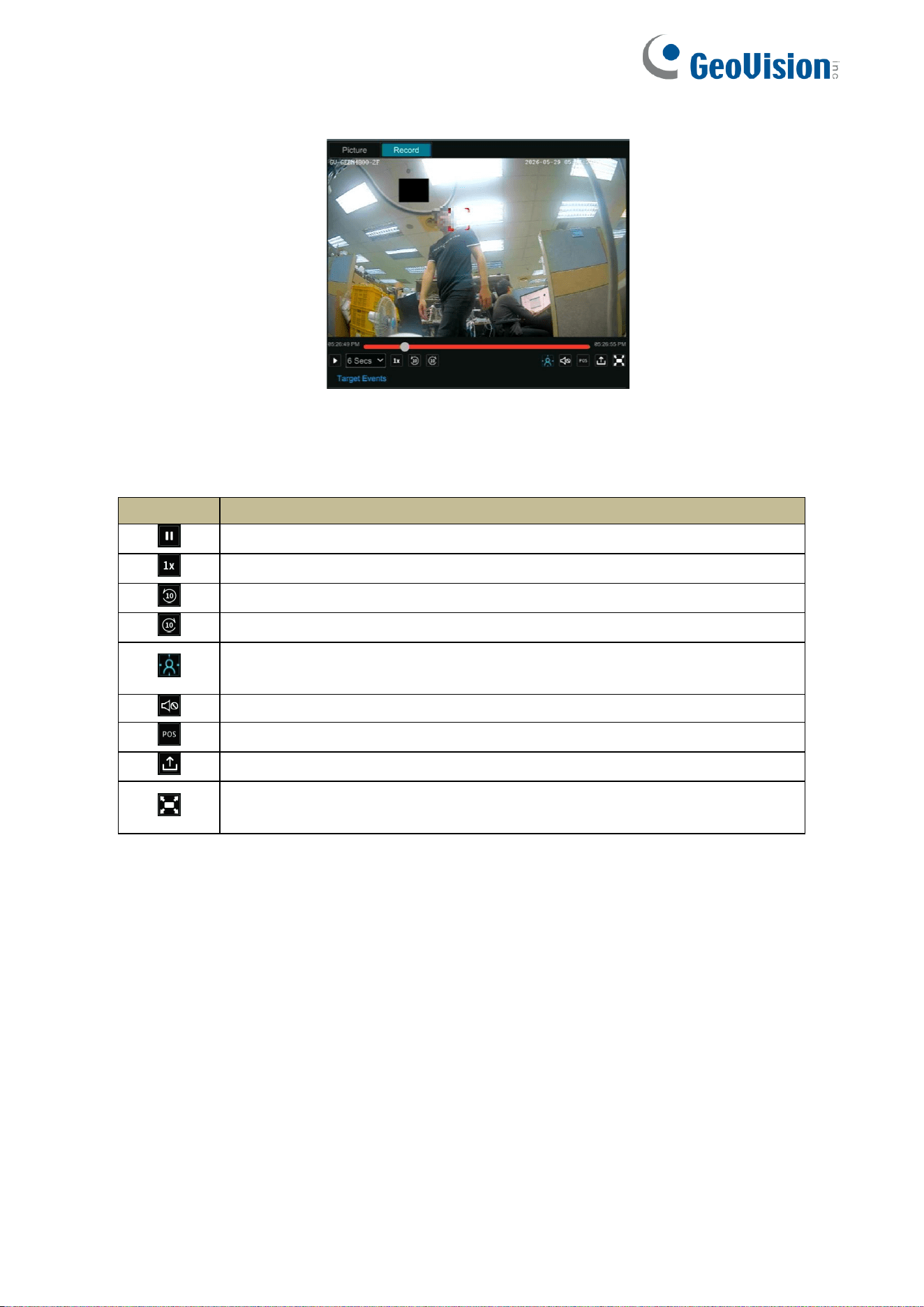

Descriptions of the buttons on the small playback window
Button
Description
Stop
Click to choose the play speed.
Click to step backward 30s
Click to step forward 30s
Click to close smart information (for example: click it to close the face
detection box)
Click to enable audio
Click to view the POS information
Click to back up.
Full screen button. Click to show full screen; click it again to exit the full
screen.
⑤ Hover your cursor over the desired image in the search results and select the checkbox at the
top left of the image. Click “Backup” to back up the selected pictures. Click “Backup All” to back
up all searched pictures. Click “Playback” to go to the playback interface.
97
10.2.2 People Search
Click Start
→
Intelligent Analytics
→
Search
→
People
→
People to go to the people search
interface.

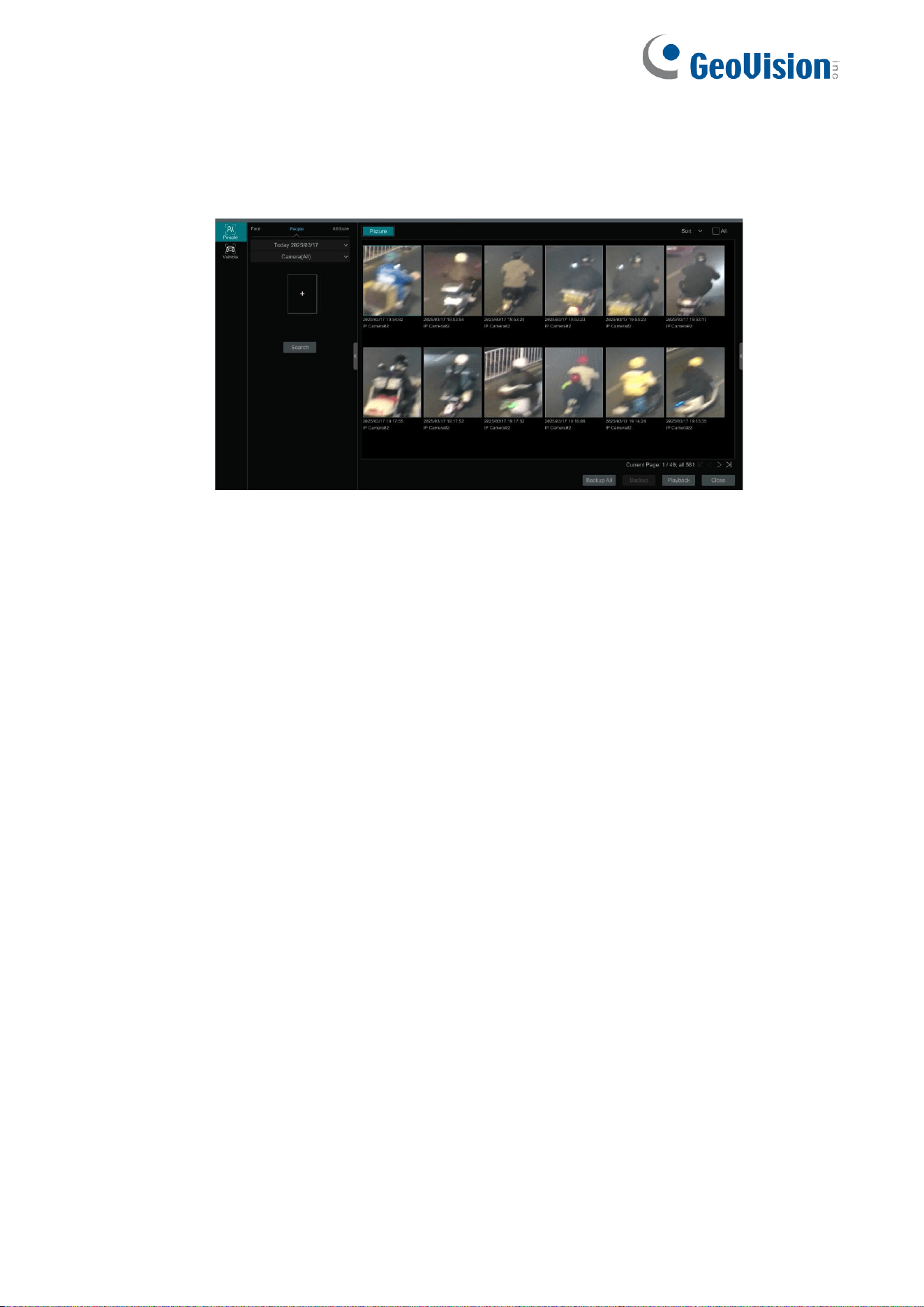

Select the search time, camera and then click “Search” to view the searched pictures.
10.2.3 Human Attribute Search
Click Start
→
Intelligent Analytics
→
Search
→
People
→
Attribute to go to the human attribute
search interface. You can select the attributes of people to filter (like gender, age, mask-wearing
status, glasses-wearing status, color of clothes, etc.). Note that only the searched camera with
video metadata function can filter attributes.
Click a searched picture to view the details (including target events, snapshot picture and
records).
10.2.4 Vehicle Search
Click Start
→
Intelligent Analytics
→
Search
→
Vehicle to go to the vehicle search interface.
You can search motor vehicle, non-motor vehicle and plate separately.
⚫ Motor Vehicle/Non-motor Vehicle Search
Select the time, camera, and attribute. Then click “Search” to search vehicles.
Attributes of motor vehicles: including color, brand or type.
Attributes of non-motor vehicles: you can select the type as needed.
Note that only the searched camera with video metadata function can filter attributes.
You can view vehicle pictures by time or by camera.
98

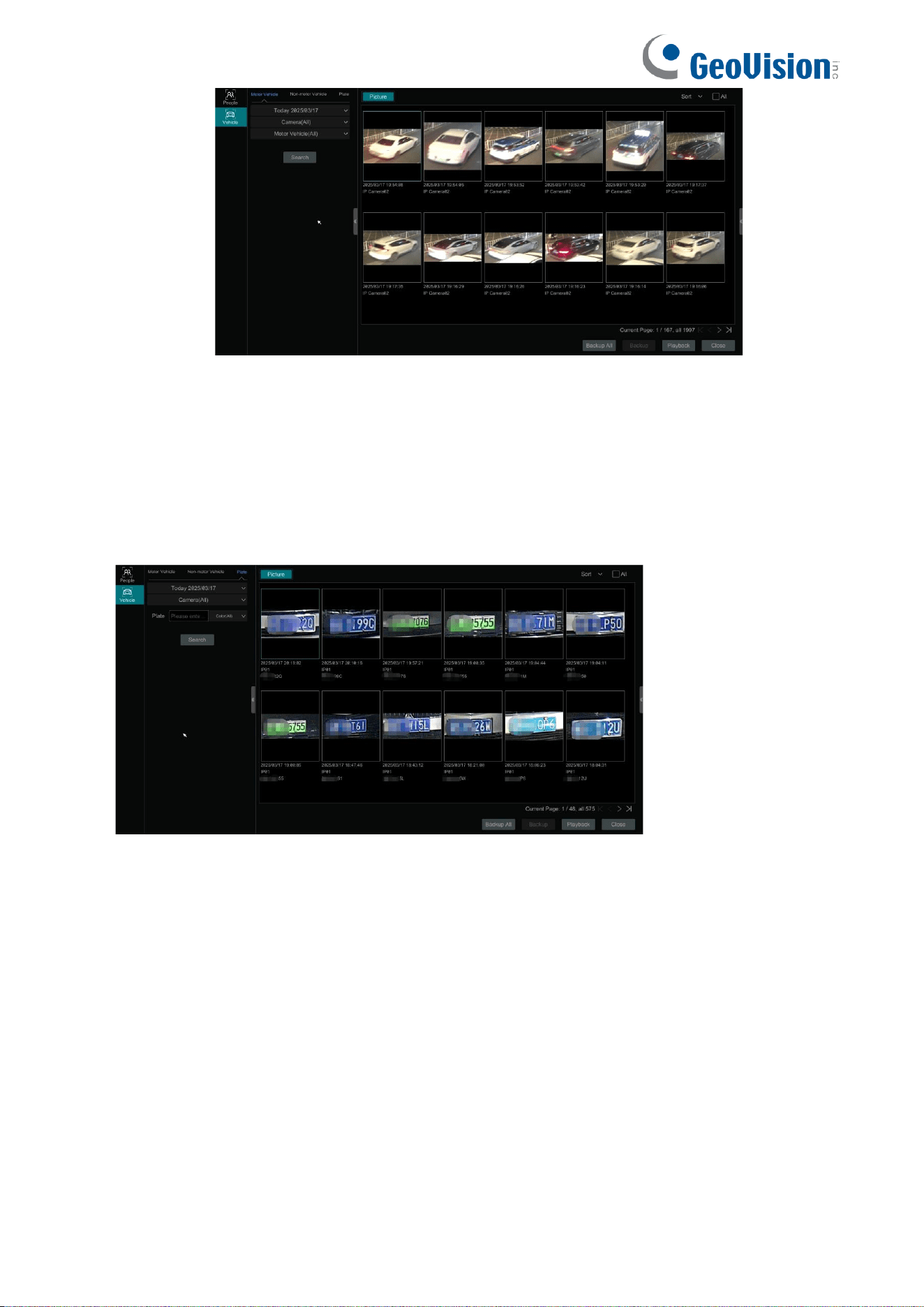

Click a searched vehicle picture to view its details on the left. You can view the picture and play
the records as needed.
⚫ Plate Search
Click the “Plate” tag and select the time, camera to search vehicles. You can also enter the plate
number to search the plate pictures.
10.3 View Statistical Information
Click Start
→
Intelligent Analytics
→
Statistics to go to the following interface. Through this
interface, you can view the statistical information for people and vehicles, and you can customize
the statistical information.
99

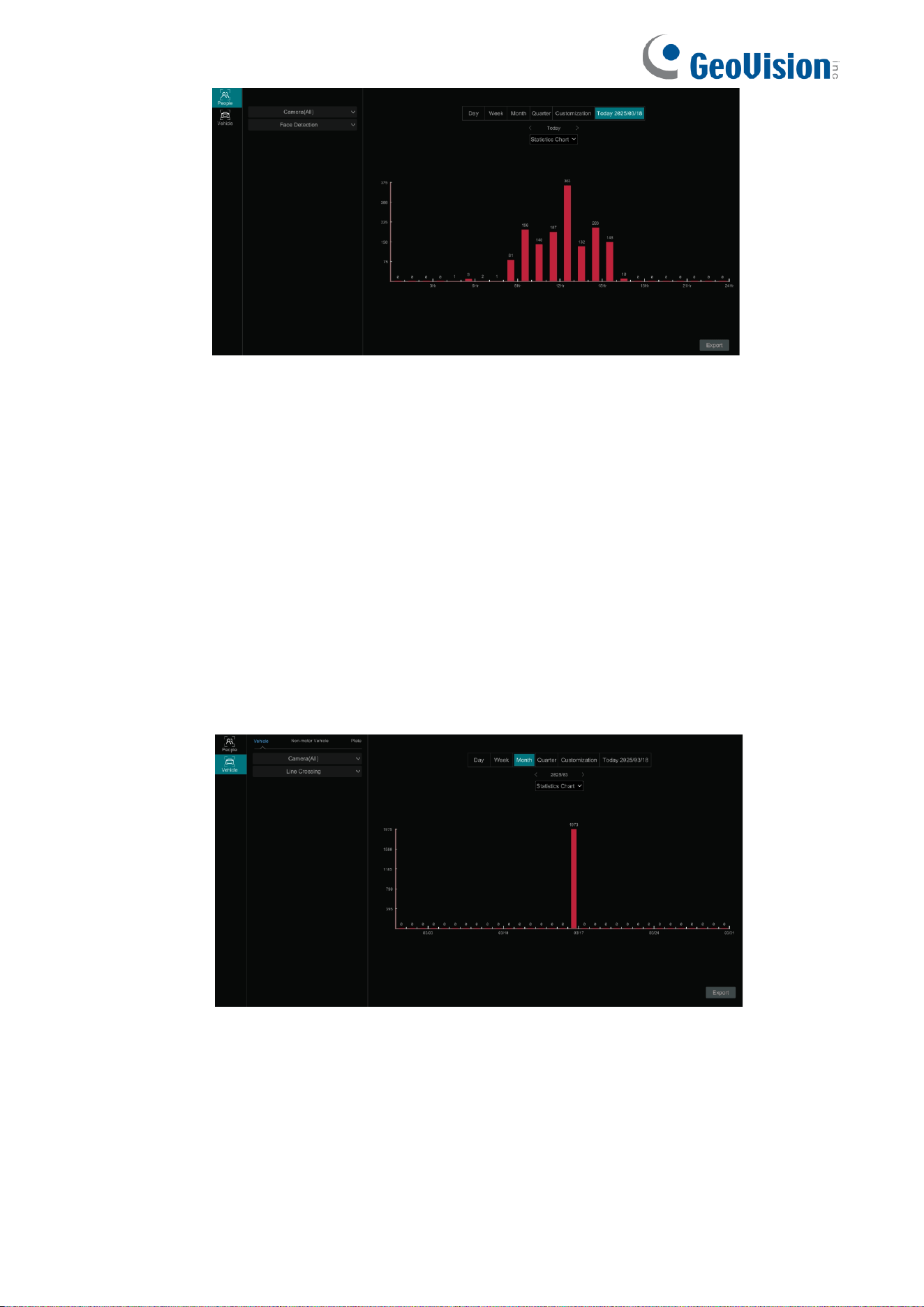

View People Information:
Note: The person information includes face information and figure information.
① Select the time.
② Select cameras.
③ Select events as needed, such as face detection, region intrusion, region entrance, region
exiting, loitering detection, line crossing, target counting, etc.
View Vehicle Information:
⚫ Click “Vehicle”
⚫ Select “Vehicle”, “No-motor Vehicle” or “Plate” as needed.
⚫ Select the time and cameras.
⚫ Select events as needed.
If “Plate” is selected and “Remove duplicate license plate numbers” is checked, the duplicate
statistics of the same license plate in the same day will not be displayed in the chart.
10.4 Enabling AI Mode
Only some models support this function.
For these models, the IP camera without AI function added to the NVR may realize AI functions,
like face detection, line crossing and region intrusion by enabling AI mode in the NVR. If AI mode
is enabled, the secondary output will be disabled for some models. Click Start
→
Intelligent
100
Analytics
→
Engine Configuration.
101
11 General Event Management
11.1 Motion Alarm
Motion Alarm: when a motion object appears in the specified area, it will trigger the alarm. You
should enable the motion of each camera first and then set the alarm handling of the camera to
complete the whole configuration of the motion alarm.
11.1.1 Motion Configuration
① Click Start
→
Settings
→
Camera
→
Motion
→
Motion Settings to go to the following interface.

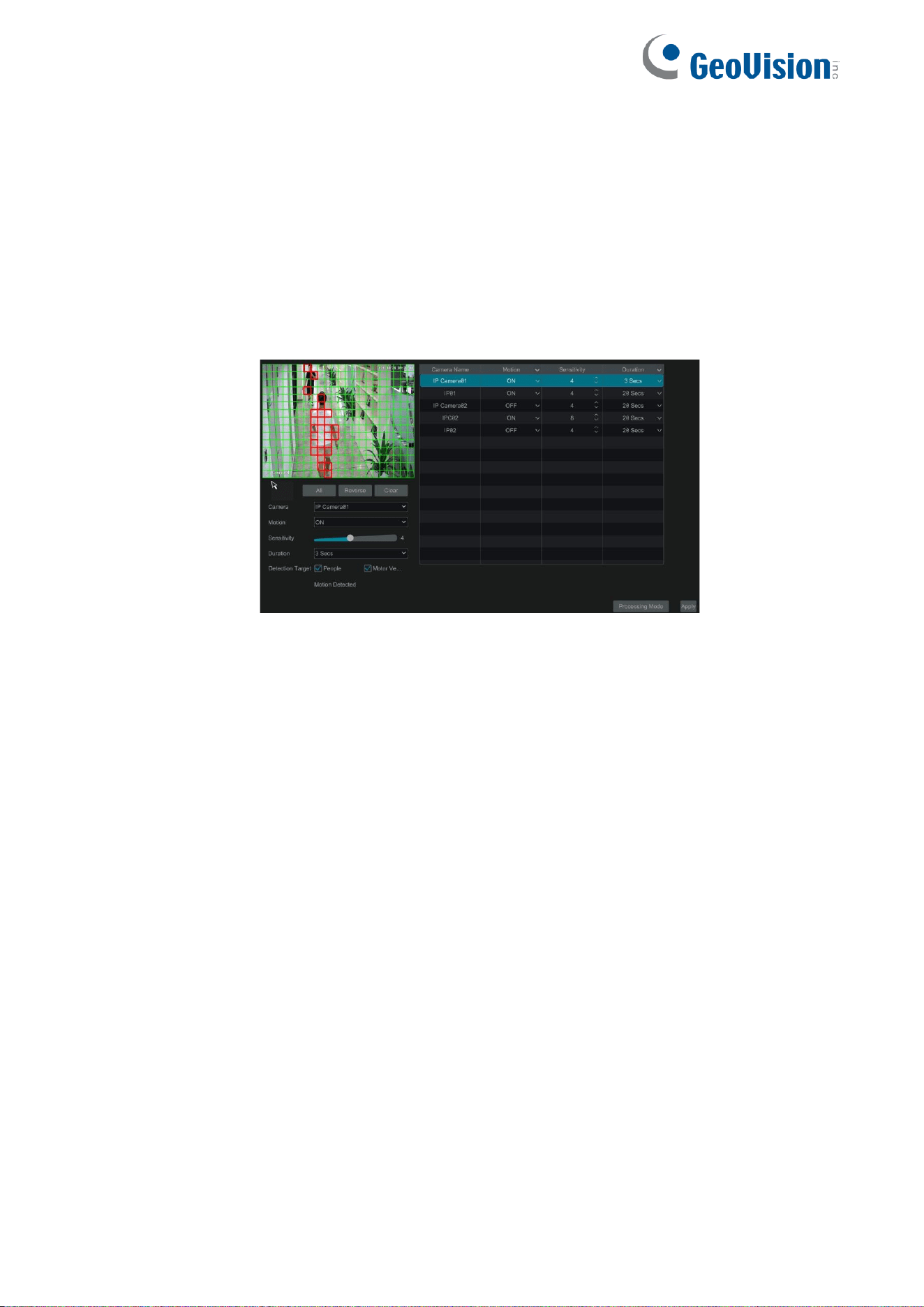

② Select a camera, enable motion and set the sensitivity and duration of the camera.
Sensitivity: the higher the value is, the more sensitive it will be to motion. You should adjust the
value according to the practical conditions since the sensitivity is influenced by background color
and time (day or night).
Duration: The interval time between adjacent motion detections. For instance, if the duration time
is set to 10 seconds, once the system detects a motion, it will trigger the alarm and will not detect
any other motion (specific to that camera) for 10 seconds. If there is another motion detected
during this period, it will be considered as continuous movement.
Detection Target: For the camera with SMD function, you can check the detection target as
needed. If “People/Motor Vehicle” is enabled, the camera will only detect the movement of
people/motor vehicle. If no target is enabled, alarms will be triggered when the moving object
appears on the image, including people, vehicle or other moving objects.
③ Drag the camera image to set the motion area. You can set more than one motion area. Click
“All” to set the whole camera image as the motion area. Click “Reverse” to swap the motion area
and the non-motion area. Click “Clear” to clear all the motion areas.
④ Click “Apply” to save the settings. Click “Processing Mode” to go to the alarm handling
configuration interface of the motion alarm.
11.1.2 Motion Alarm Handling Configuration
① Click Start
→
Settings
→
AI Event
→
General Event
→
Motion to go to the following interface.
102

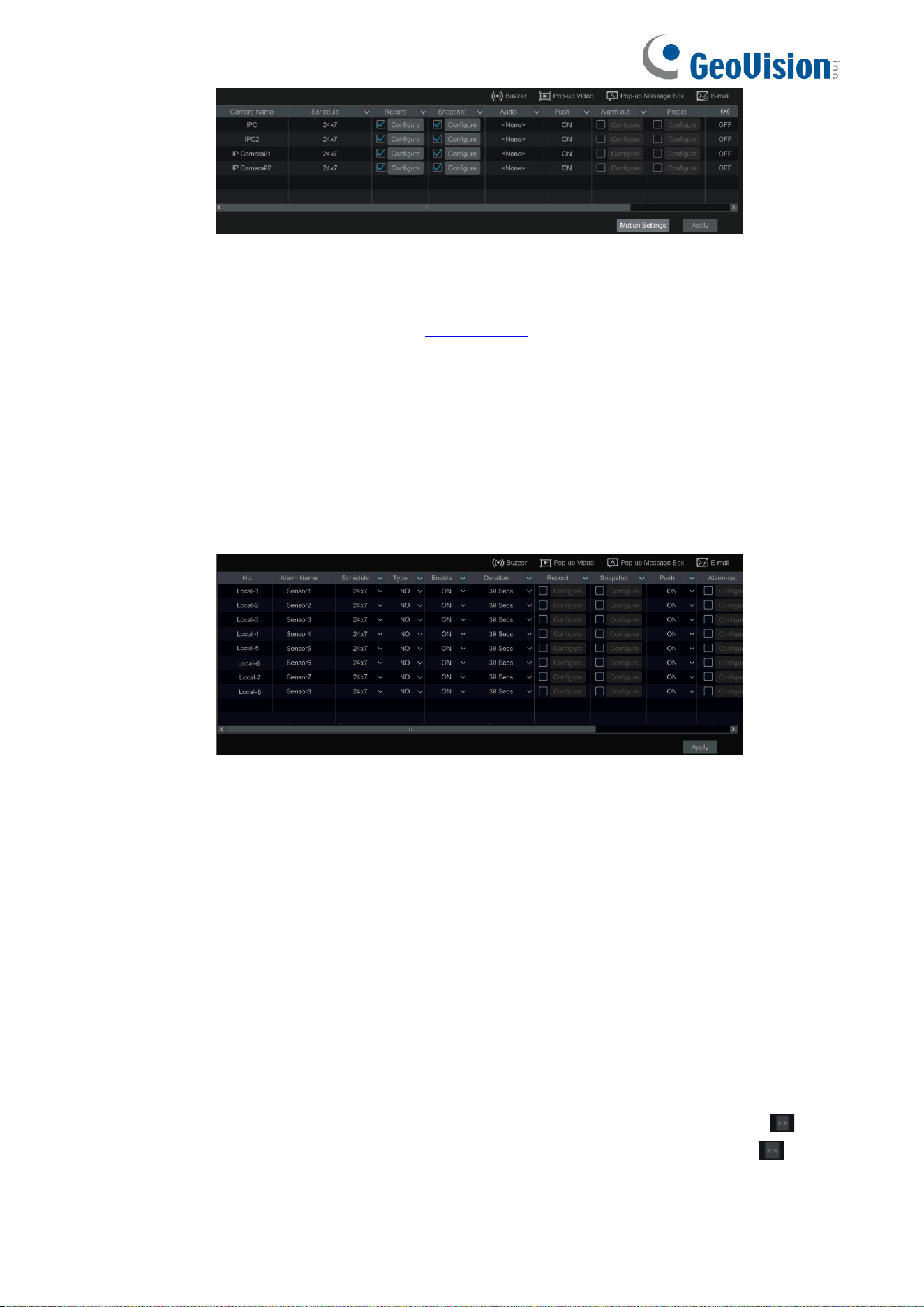

② Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Audio”, “Preset”, “Buzzer”,
“Pop-up Video”, “Pop-up Message Box” and “E-mail”. The alarm handling setting of motion alarm
is similar to that of the sensor alarm (see Sensor Alarm for details).
③ Click “Apply” to save the settings. You can click “Motion Settings” to go to the motion
configuration interface.
11.2 Sensor Alarm
To ensure complete setup of the Sensor Alarm function, you should enable the sensor alarm of each camera and then
immediately set up the alarm handling for that camera.
① Click Start
→
Settings
→
AI Event
→
General Event
→
Sensor to go to the following interface.
② Select the alarm type (NO or NC) according to trigger type of the sensor.
③ Enable the sensor alarm of each camera and select the schedule.
④ Check the “Duration”, “Record”, “Snapshot”, “Push”, “Alarm-out” and “Preset” and enable or
disable the “Buzzer”, “Pop-up Video”, “Pop-up Message Box” and “E-mail” as needed.
⑤ Click “Apply” to save the settings.
The configuration steps of the above mentioned alarm linkages are as follows.
Duration: it refers to the interval time between the adjacent motion detections. For instance, if the
duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would
not detect any other motion (specific to camera) in 10 seconds. If there is another motion
detected during this period, it will be considered as continuous movement; otherwise it will be
considered as a single motion.
Record: If checked, the “Trigger Record” window will open automatically (you can also click the
“Configure” button to open the window). Select a camera on the left side and then click to set
the camera as the trigger camera. Select the trigger camera on the right side or click to
cancel the trigger camera. Click “OK” to save your settings. The trigger camera will record
automatically when the sensor alarm is triggered.
Snapshot: If checked, the “Trigger Snapshot” window will open automatically. You can configure
103
the trigger camera in this window. The trigger camera will capture images automatically when the
sensor alarm is activated.
Push: If checked, choose ON or OFF. If ON, the system will send messages when the sensor
alarm is triggered.
Alarm-out: If checked, the “Trigger Alarm-out” window will open automatically. The system will
trigger the alarm-out automatically when the sensor alarm is tripped. You need to set the delay
time and the schedule of the alarm outputs. See Alarm-out for details.
Preset: If checked, the “Trigger Preset” window will open automatically. Here you can configure
the trigger preset for each camera. To add presets, please see Preset Setting for details.
Buzzer: if enabled, the system will emit an audible buzz when the sensor alarm is triggered. To
set the delay time of the buzzer, please see Buzzer for details.
Pop-up Video: After camera setup, the corresponding video will pop up automatically when the
sensor alarm is triggered. To set the duration time of the video, please see Display for details.
Pop-up Message Box: if enabled, the system will pop up the corresponding alarm message box
automatically when the sensor alarm is triggered. To set the duration time of the message box,
please see Display for details.
E-mail: if enabled, the system will send an e-mail when the sensor alarm is triggered. Before you
enable email, please configure the recipient’s e- mail address first (see E-mail Configuration for
details).
Virtual alarm: This function should be used with API server. If you want to enable it, please make
sure the API Server is enabled first (Start
→
Network
→
Port) and then set the authentication as
“Digest”.

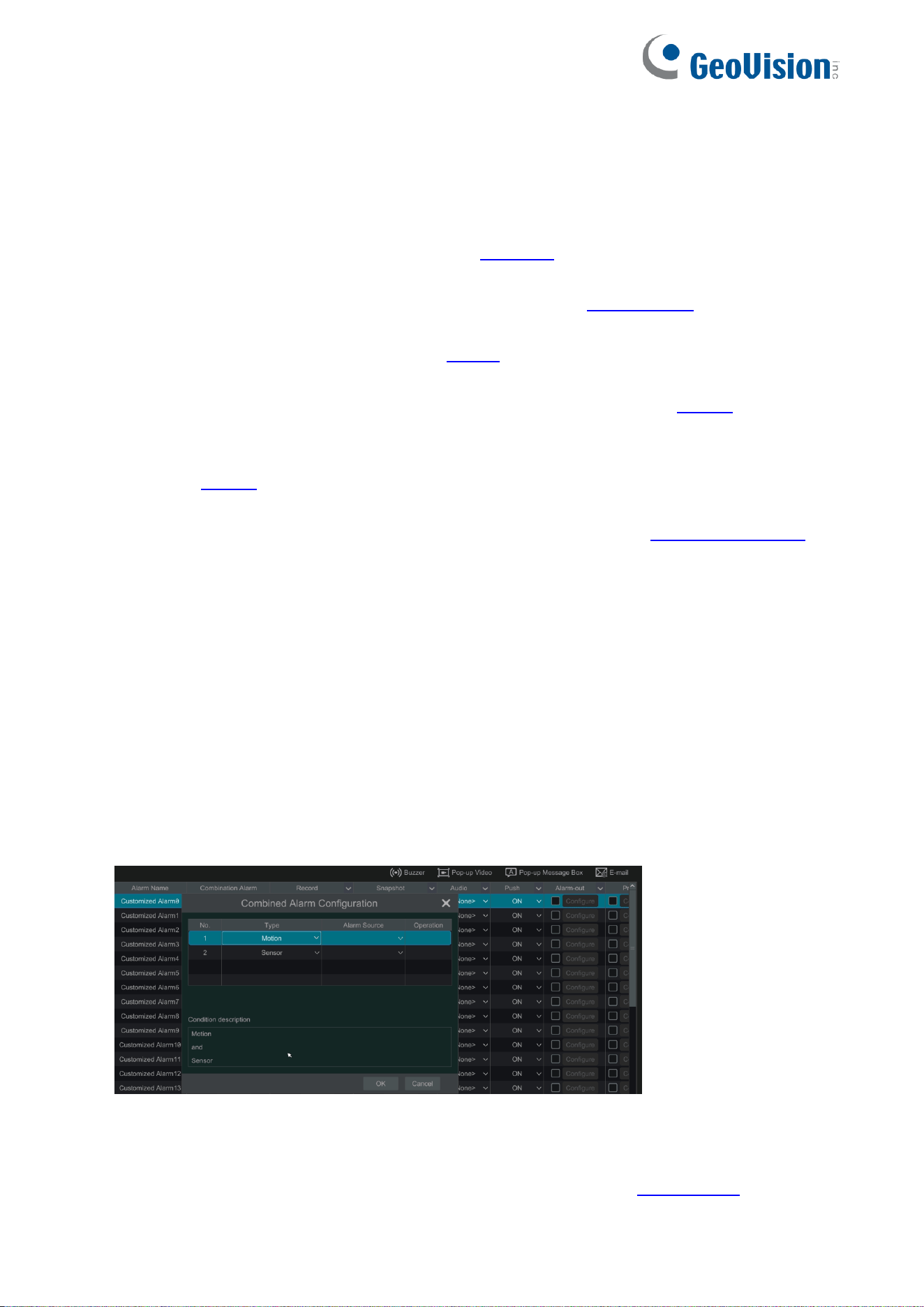

11.3 Combination Alarm
① Click Start
→
Settings
→
AI Event
→
General Event
→
Combination Alarm to go to the following
interface.
② Customize combination alarm. Set alarm name and click “Configure” under the Combined
Alarm Configuration item (motion/sensor/intrusion/line crossing). Then select alarm type and
alarm source. Finally, click “OK” to save the settings.
③ Enable or disable “Record”, “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Audio”,
“Pop-up Video”, “Pop-up Message Box”, “E-mail”, “IPC_audio” and “IPC_light”. The alarm handling
setting of combination alarm is similar to that of the sensor alarm (see Sensor Alarm for details).
Click “Apply” to save the settings.
104

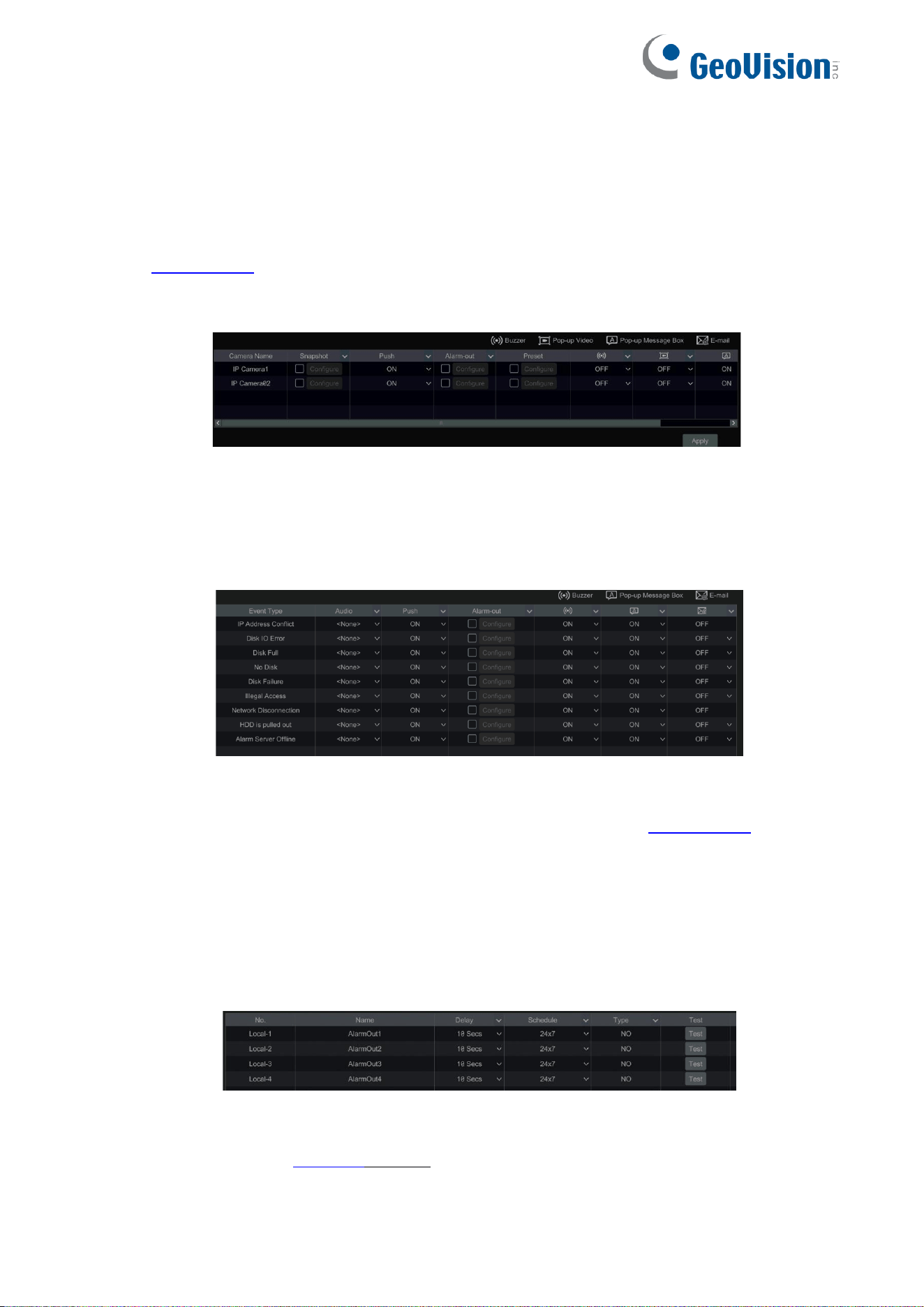

11.4 Exception Alarm
11.4.1 Camera Offline Settings
① Click Start
→
Settings
→
AI/Event
→
General Event
→
Camera Offline to go to the interface as
shown below.
② Enable or disable “Snapshot”, “Push”, “Alarm-out”, “Preset”, “Buzzer”, “Pop-up Video”, “Pop-up
Message Box” and “E-mail”. The camera Offline Settings are similar to that of the sensor alarm
(see Sensor Alarm for details).
③ Click “Apply” to save the settings.
11.4.2 Exception Alarm Settings
① Click Start
→
Settings
→
AI/Event
→
General Event
→
Exception Alarm to go to the interface
as shown below.
② Enable or disable “Push”, “Alarm-out”, “Buzzer”, “Pop-up Message Box” and “E-mail”. The
exception handling settings are similar to that of the sensor alarm (see Sensor Alarm for details).
③ Click “Apply” to save the settings.
11.5 Alarm Event Notification
11.5.1 Alarm-out
① Click Start
→
Settings
→
Al/Event
→
Event Notification to go to the following interface.
② Set the delay time the schedule and type of each alarm-out. You can click “Edit Schedules” to
edit the schedules (see Schedule Settings for details).
③ Click “Apply” to save the settings. You can click “Test” to test the alarm output.
105
11.5.2 E-mail
Click Start
→
Settings
→
AI/Event
→
Event Notification
→
E-mail to go to the e-mail configuration
interface. Set the e-mail address of the recipients. See E-mail Configuration for details.

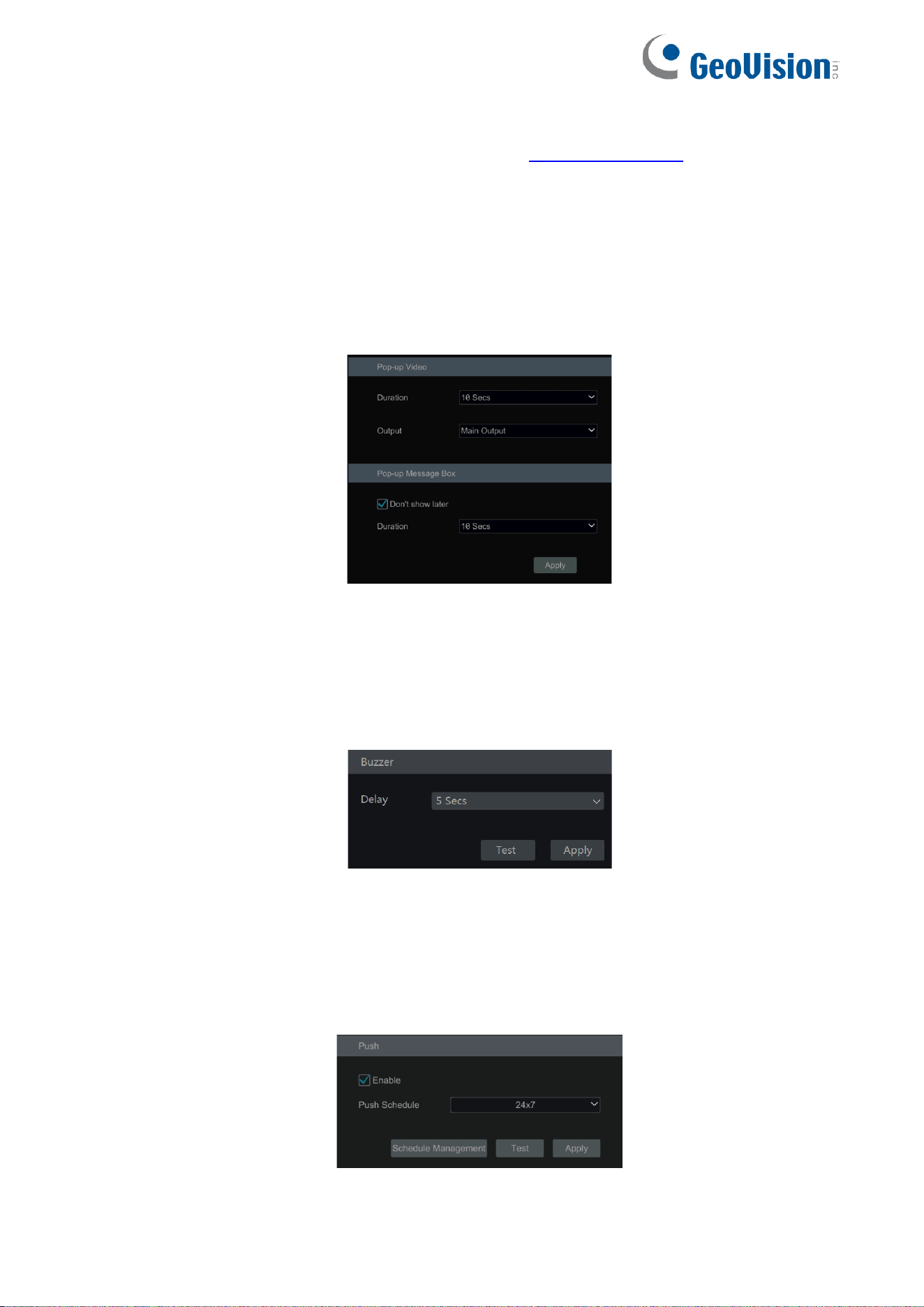

11.5.3 Display
Click Start
→
Settings
→
AI/Event
→
Event Notification
→
Display to go to the display
configuration interface. Set the duration time of the pop-up video and the pop-up message box. If
you device support two outputs, please set the output of the pop-up video as needed. After that,
click “Apply” to save the settings.
11.5.4 Buzzer
Click Start
→
Settings
→
AI/Event
→
Event Notification
→
Buzzer to go to the buzzer configuration
interface. Set the delay time of the buzzer and then click “Apply” to save the setting. You can click
“Test” to test the buzzer.
11.5.5 Push
Click Start
→
Settings
→
AI/Event
→
Event Notification
→
Push to go to the interface as shown
below. Check “Enable”, select the schedule and then click “Apply” to save the settings. If Push
Server is online, it will push text to the mobile clients according to the set schedule.
11.5.6 Audio
Click Start
→
Settings
→
AI/Event
→
Event Notification
→
Audio to go to the interface as shown
106
below.

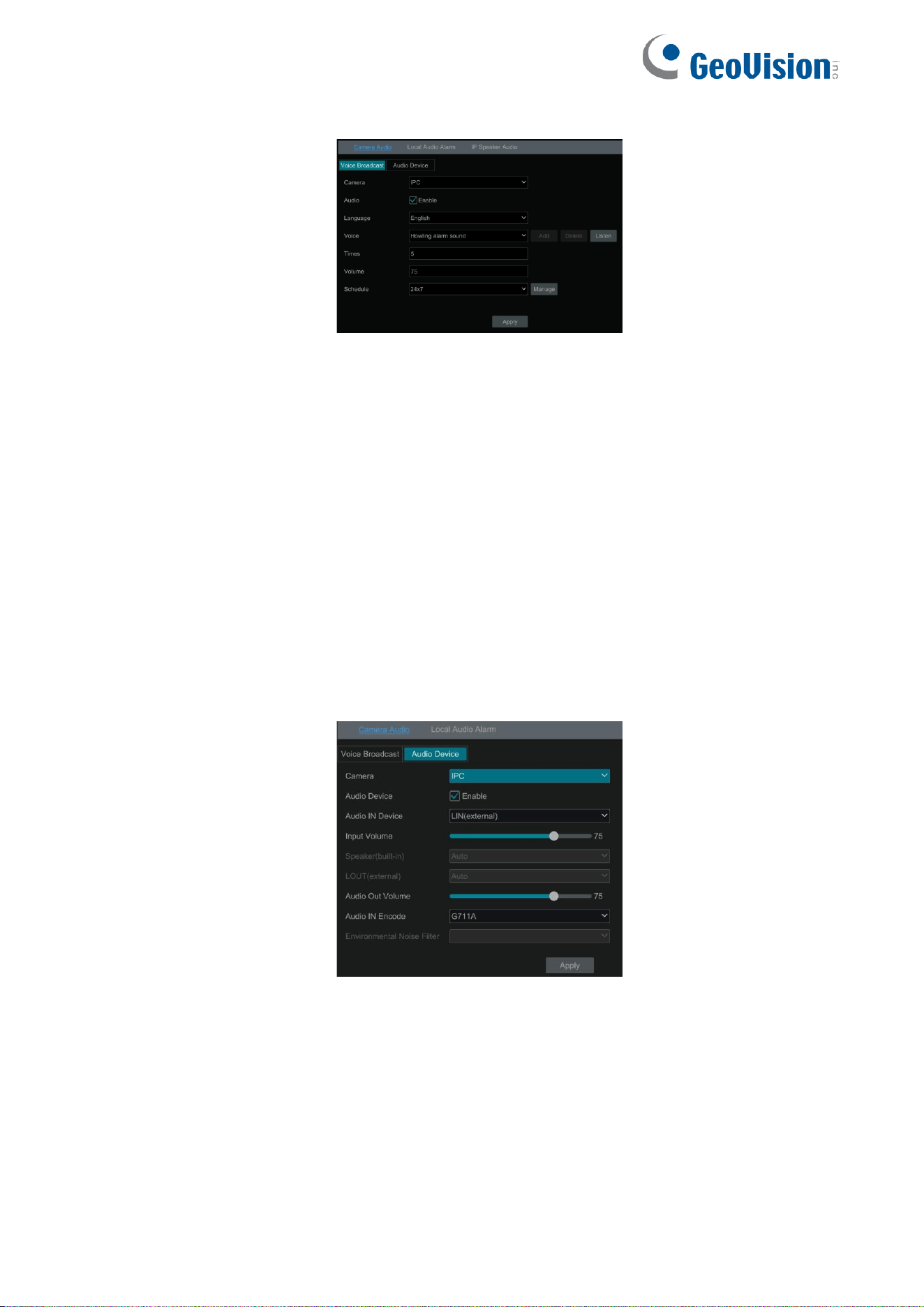

Camera audio settings:
For perimeter alert cameras, voice broadcast can be set up. Select the camera, voice, broadcast
times, volume, language, and schedule. Then click “Apply” to save the settings. When an alarm is
triggered, the camera will broadcast the voice you set.
Audio: please enable or disable as needed. If your camera doesn’t support this switch, this
function is not available.
Voice: click “Add” to add the alarm voice in WAV format. Click “Listen” to listen to the uploaded
audio.
Schedule: Set the schedule of audio linkage alarm. After the schedule is set, the audio alarm will
be triggered by events within the schedule.
Note: Only some perimeter alert cameras support schedule settings for audio alarm linkage.
Click “Audio Device” to set the audio of the camera.
Select the camera and then enable audio device.
Audio IN Device: Please select it according to the actual device configuration.
Speaker (built-in): Please select its function as needed.
LOUT (external line output): Select the function of the external audio device as needed.
Audio Input Encode: G711A/G711U
Note: The speaker (built-in) and LOUT (external) cannot be enabled simultaneously for
some cameras. Please select it as needed.
Environmental Noise Filter: Choose “Normal” or “Enhanced” mode as needed. Only some
cameras support this function.
107

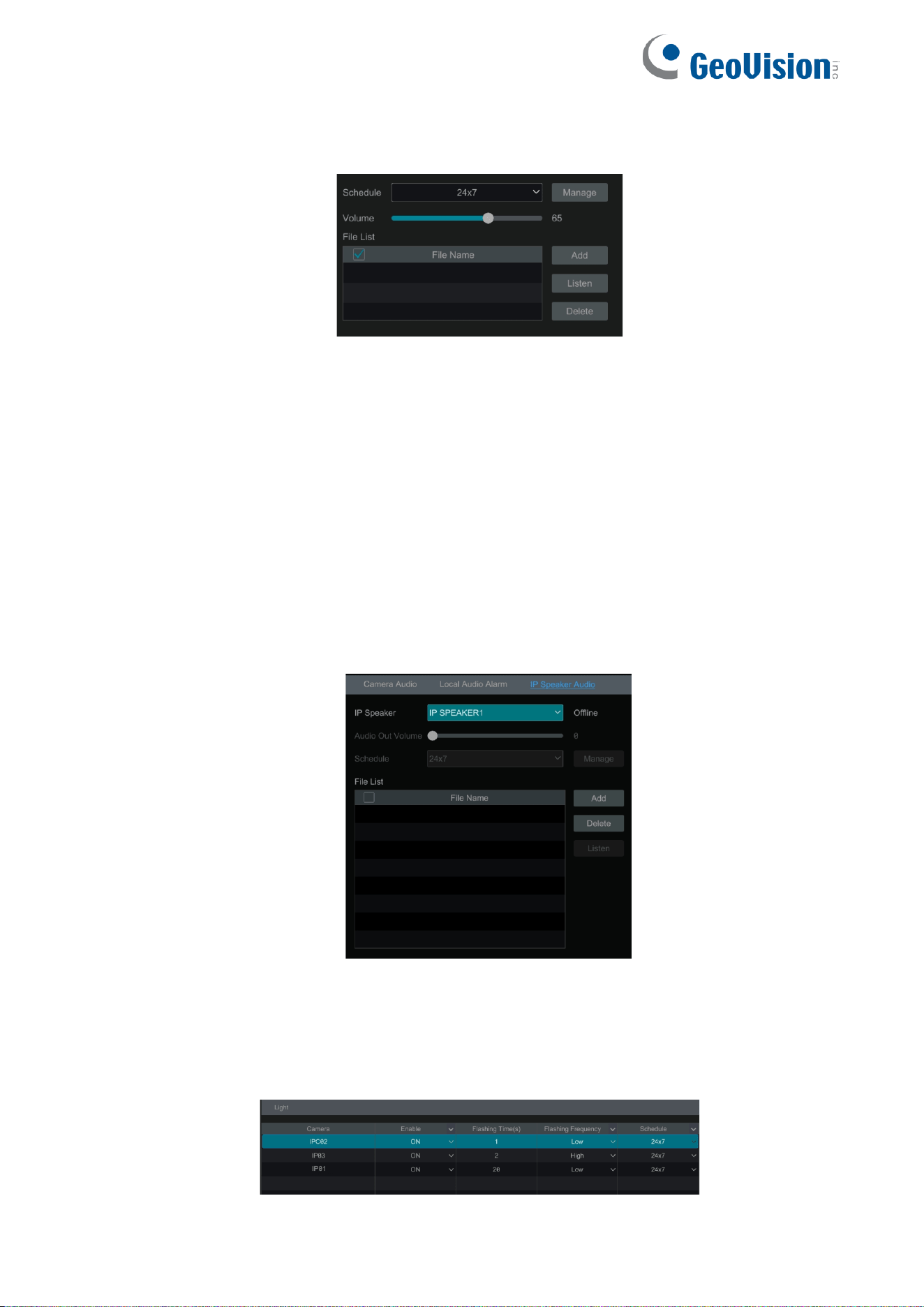

Local Audio Alarm
Set the audio alarm of local NVR.
In this interface, you can set the schedule and volume of the local audio alarm. Click “Add” to
upload the audio file (.mp3/.wav format). Note that only some models support MP3 audio files.
Choose the uploaded audio file and then click “Listen” to listen to it; click “Delete” to delete this
file.
⚫ IP Speaker Audio
1. Select the IP Speaker you have added.
2. Set the audio out volume, schedule and add an audio as needed.
3. Click “Add” to upload the audio file (.wav format). Choose the uploaded audio file and then click
“Listen” to listen to it; click “Delete” to delete this file.
The local wav audios also can be listed here.
11.5.7 Light
Click Start
→
Settings
→
AI/Event
→
Event Notification
→
Light to go to the interface as shown
below.
In this interface, you can enable and set the light flashing time and frequency when an alarm is
108
triggered.
Schedule: Set the schedule of light linkage alarm. After the schedule is set, the light alarm will be
triggered by events within the schedule.
Note: Only some perimeter alert cameras support schedule settings for light alarm linkage.
11.5.8 Alarm Server
Go to Start
→
Settings
→
AI/Event
→
Event Notification
→

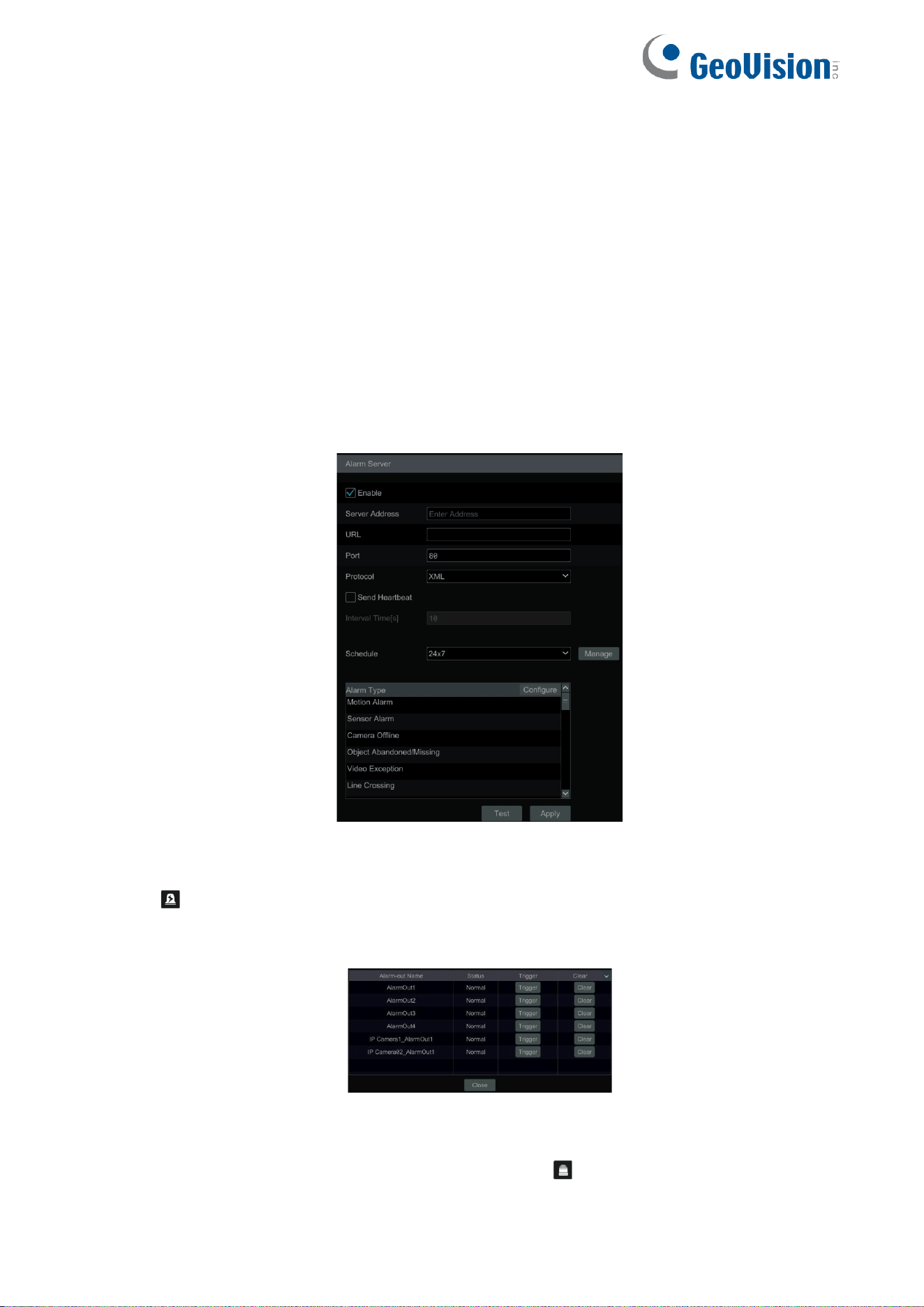

Alarm Server interface as shown
below.
Enable the alarm server and enter the server address, URL and port of the alarm server. Next,
select the protocol. If “Send Heartbeat” is enabled, set the interval times. After that, test the
effectiveness of the alarm server. After a successful test, please click “Apply”. When an alarm
occurs, the device will transfer the alarm event to the alarm server. If an alarm server is not
needed, there is no need to configure this section.
11.6 Manual Alarm
Click on the tool bar at the bottom of the live view interface to open a window. Click “Trigger”
to start alarm. Click “Clear” to stop alarm.
11.7 View Alarm Status
Click Start
→
Settings
→
AI/Event
→
Alarm Status or click on the tool bar at the bottom of the
live view interface to view the alarm status.
109

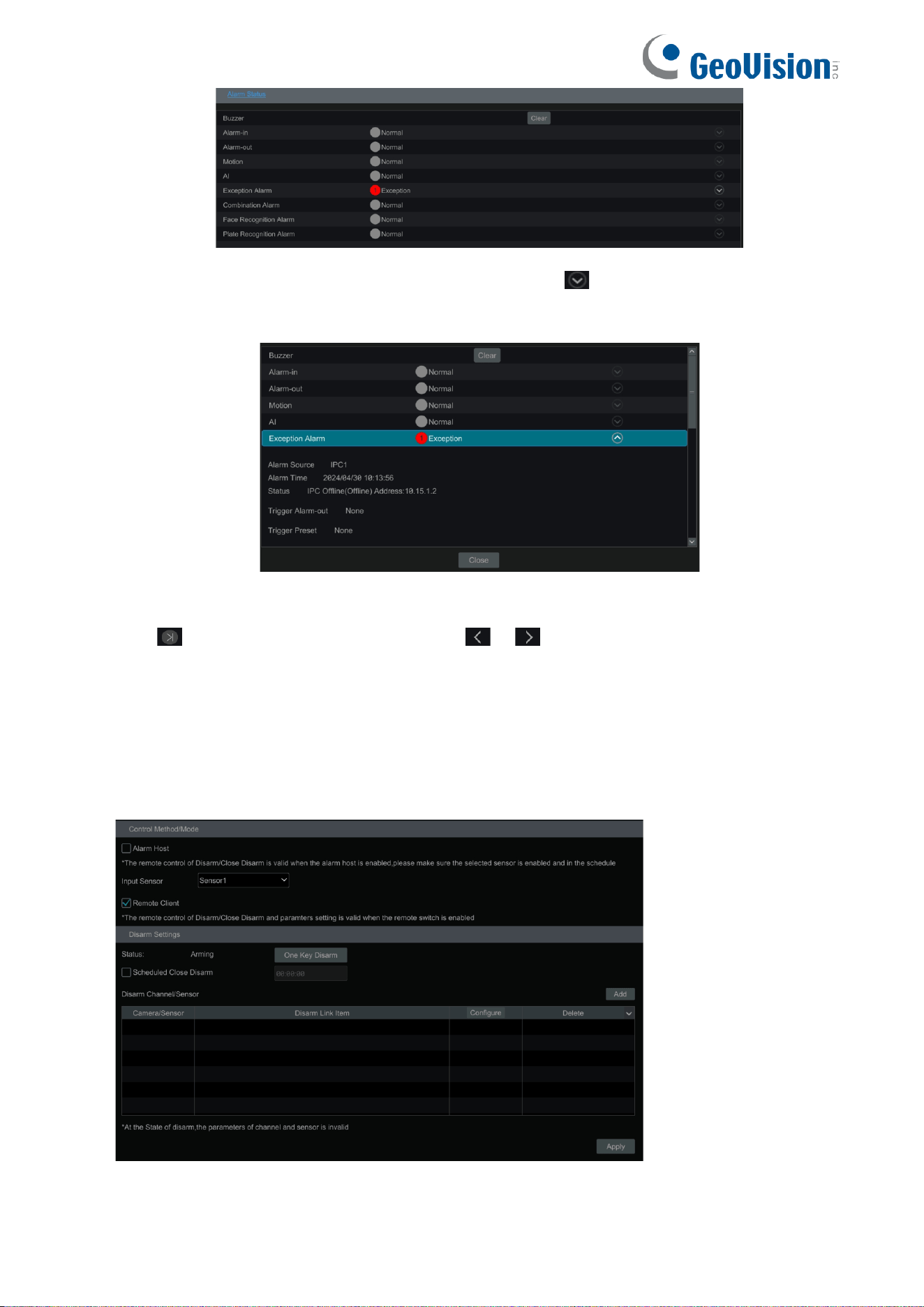

Click “Clear” to stop the buzzer when a buzzer alarm is triggered. Click to view the detailed information as
shown below.
If the exception information is more than one page, you can enter the number in the box and then
click to jump to the specified page. Click / to view the exception alarm information
in the previous/next page.
11.8 System Disarming
Click Start
→
Settings
→
AI/Event
→
System Disarm. You can quickly disarm the device through
the alarm host or a remote client (such as the mobile app).
You can self-define the channels and sensors you want to disarm by clicking “Add”. Only the
selected channels and sensors can be disarmed by clicking “One Key Disarm”.
110
Note: If you want to control system disarm by a client, you must check “Remote client” in the
above interface, or “One key disarm” function cannot be used in the client (like Web/APP client).
Scheduled Close Disarm: if enable and set the time, the system will close disarming in the set
time point.
111
12 Application
12.1 Parking Lot Settings
You can manage the parking lot through the NVR. Before using this function, please add the
professional ANPR camera.
Note: Parking Lot Settings only works with GV-LPR4913 (coming soon).
Click Start
→
Application
→
Parking Lot Management to go to the parking lot setting interface.

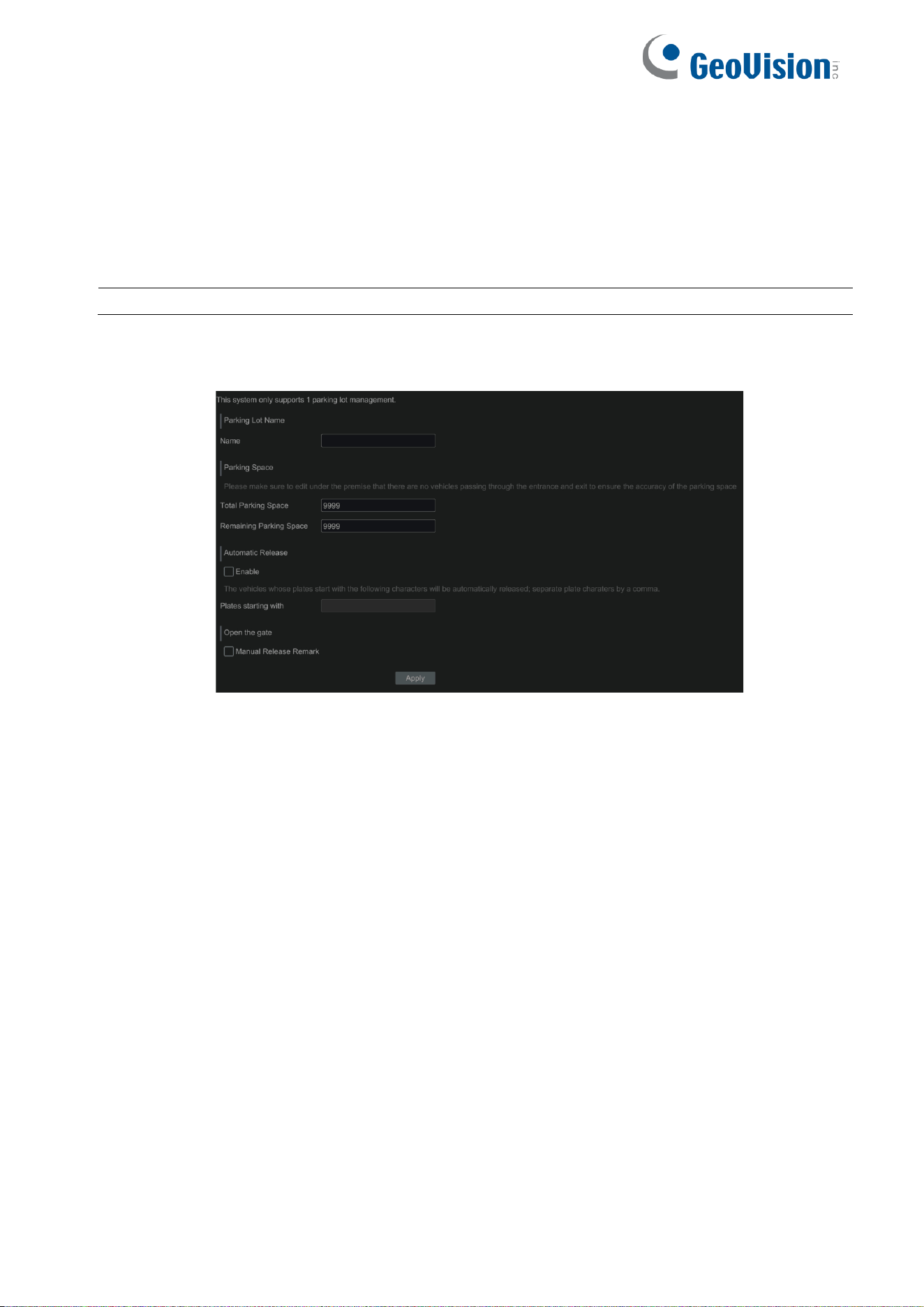

12.1.1 Basic Settings
The recorder only supports one parking lot management. Please enter the parking lot name, total
parking spaces and remaining parking spaces as needed. To ensure the accuracy of the parking
spaces, please enter the parking space information when there are no vehicles entering or
exiting.
Automatic Release: The barrier gate can be automatically opened for special vehicles after
enabling automatic release and entering the special characters. If you want to automatically
release multiple vehicle types whose plates starting with special characters, you can enter and
separate them with commas (,).
Manual Release: If “Manual Release Remark” is checked, each time you check “Correct and
Open” or “Open the gate-channel name”, you can enter the reason for opening the gate.
12.1.2 Parking Space Settings
Only the vehicles added into the plate database are allowed to pass through automatically. You
can set the parking spaces according to the vehicle groups or directly use the total parking
spaces. For the block list, you can set “No parking allowed”. After that, set the schedule and Email
as needed.
112

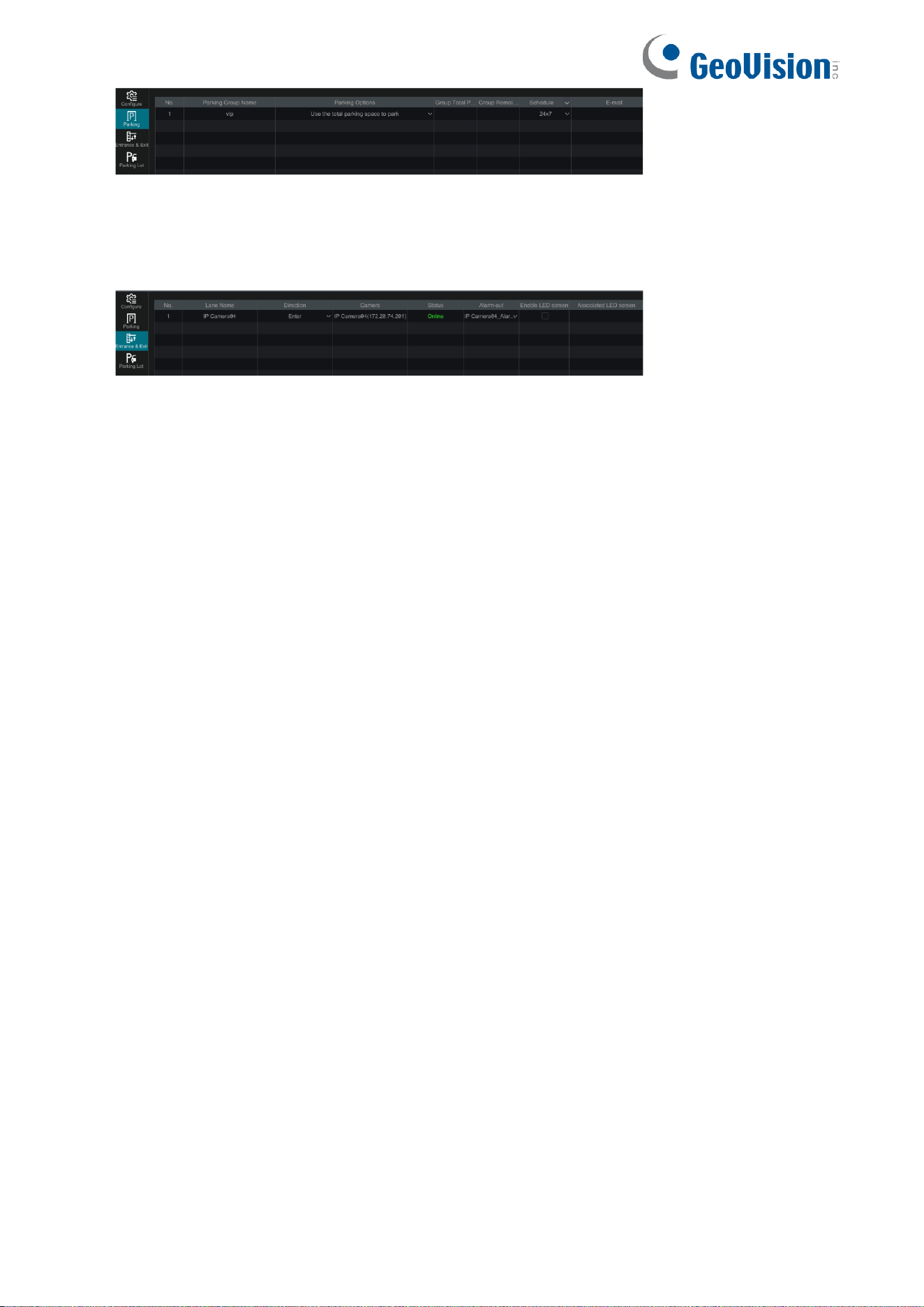

12.1.3 Entrance/Exit Management
Set the passing direction of vehicles (Enter/Exit/Enter and Exit) and bind LED screen as needed.
Direction: choose “Close”, “Enter”, “Exit” or “Enter and Exit” as needed.
If “Close” is selected, the LPR/ANPR camera is only used to recognize plates and doesn’t trigger
the relevant parking management function.
If you want to manage vehicles entering and leaving a park by one LPR/ANPR camera, it is
suggested to select “Enter and Exit”. In this way, vehicles entering the park trigger alarms by
default, but vehicles leaving the park don’t trigger alarms. Vehicles entering/leaving are classified
by recognition mode of the LPR/ANPR camera (recognizing when approaching or driving away).
When there is a vehicle approaching, the LPR/ANPR camera captures and reports its license
plate, the direction is recognized as “Enter” and the NVR analyzes whether the parking spaces
are full. If there are remaining parking spaces, the parking system opens the gate barrier and
reduces a remaining parking space. If the parking spaces are full, the gate barrier cannot be
opened. When a vehicle is been driving away, the barrier gate can be controlled by the ground
sense coil, the LPR/ANPR camera captures and reports its license plate, the direction is
recognized as “Exit/Leave” and the NVR increases a parking space.
Note: Only some LPR/ANPR cameras can simultaneously manage the entry and exiting of
vehicles.
If “Enter” or “Exit” is selected, the set direction shall prevail.
12.1.4 Parking Lot Management
After the above settings are completed, click “Parking Lot” on the left menu to go to the following
interface.
113

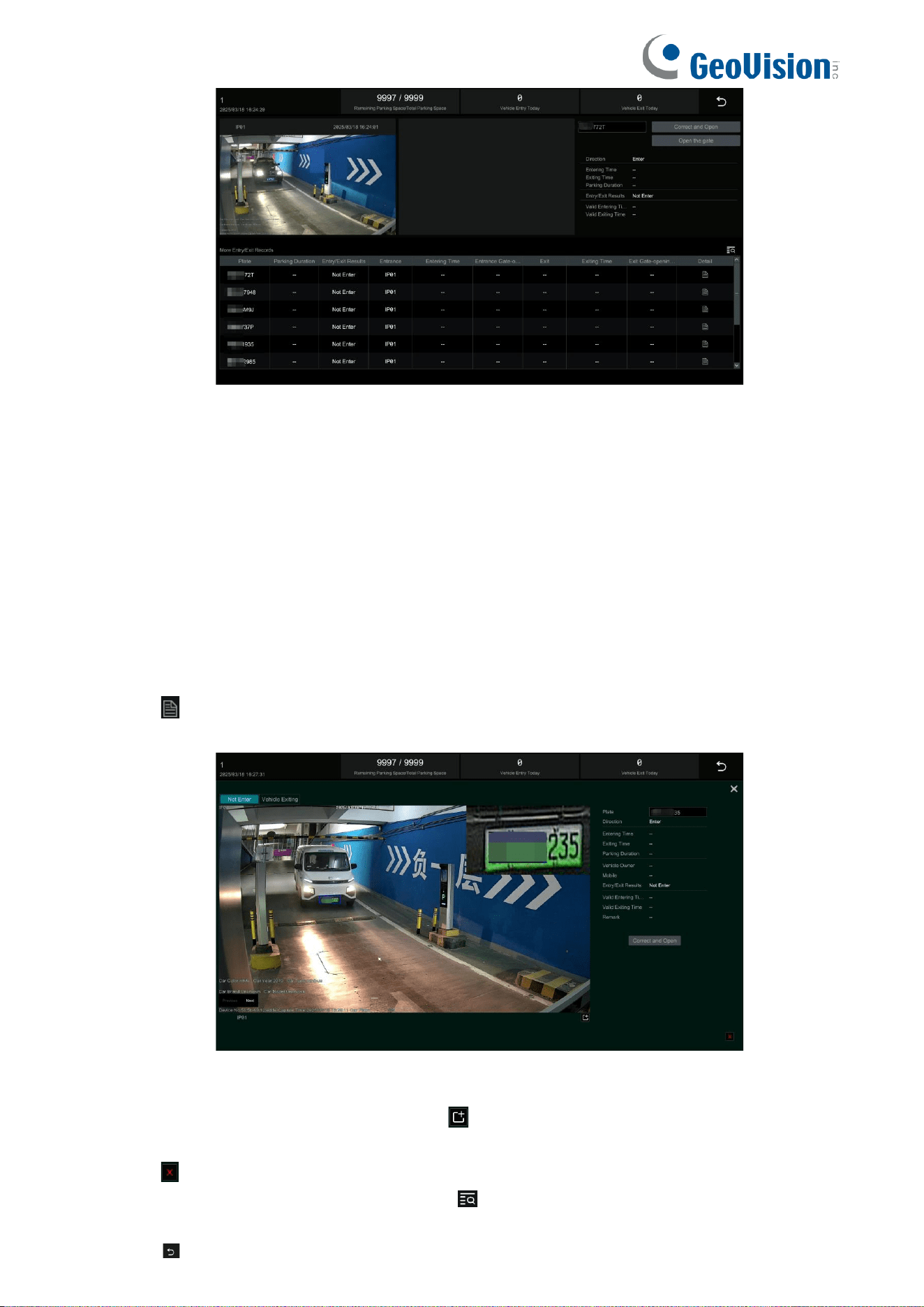

In this interface, you can view the detailed information of the parking lot, including the total
parking space, remaining parking space, number of vehicle entering today, number of vehicle
exiting today, valid entering/exiting time, and vehicle entry/exit records.
Only vehicles added into the plate database are allowed to pass automatically. If the vehicle is a
stranger/unknown vehicle, it cannot be allowed to enter. You can release it manually by clicking
“Open the gate”. If the plate number captured is not matched with the actual one, you can click
“Correct and Open” to correct it and open the gate manually. If “Manual Release Remark” is
checked in the configuration interface, the release reason also can be entered. For a strange
vehicle or when the gate cannot be automatically opened because of other reasons, you can click
“Open the gate” to manually open the gate. If “Manual Release Remark” is checked, you can click
the camera name and enter the manual release reason for subsequent tracing.
Click to view the detail information of vehicle entry/exiting.
Put the cursor onto the image to view the captured plate picture.
If the capture plate is a stranger plate, click to add it to the plate database.
Click “Previous/Next” to view the previous/next entering/exiting record of this vehicle.
Click to exit the detailed entering/exiting page.
In the parking lot management window, click to go to search the records of vehicles
entering/exiting.
Click “ ” to return to the live view interface.
114

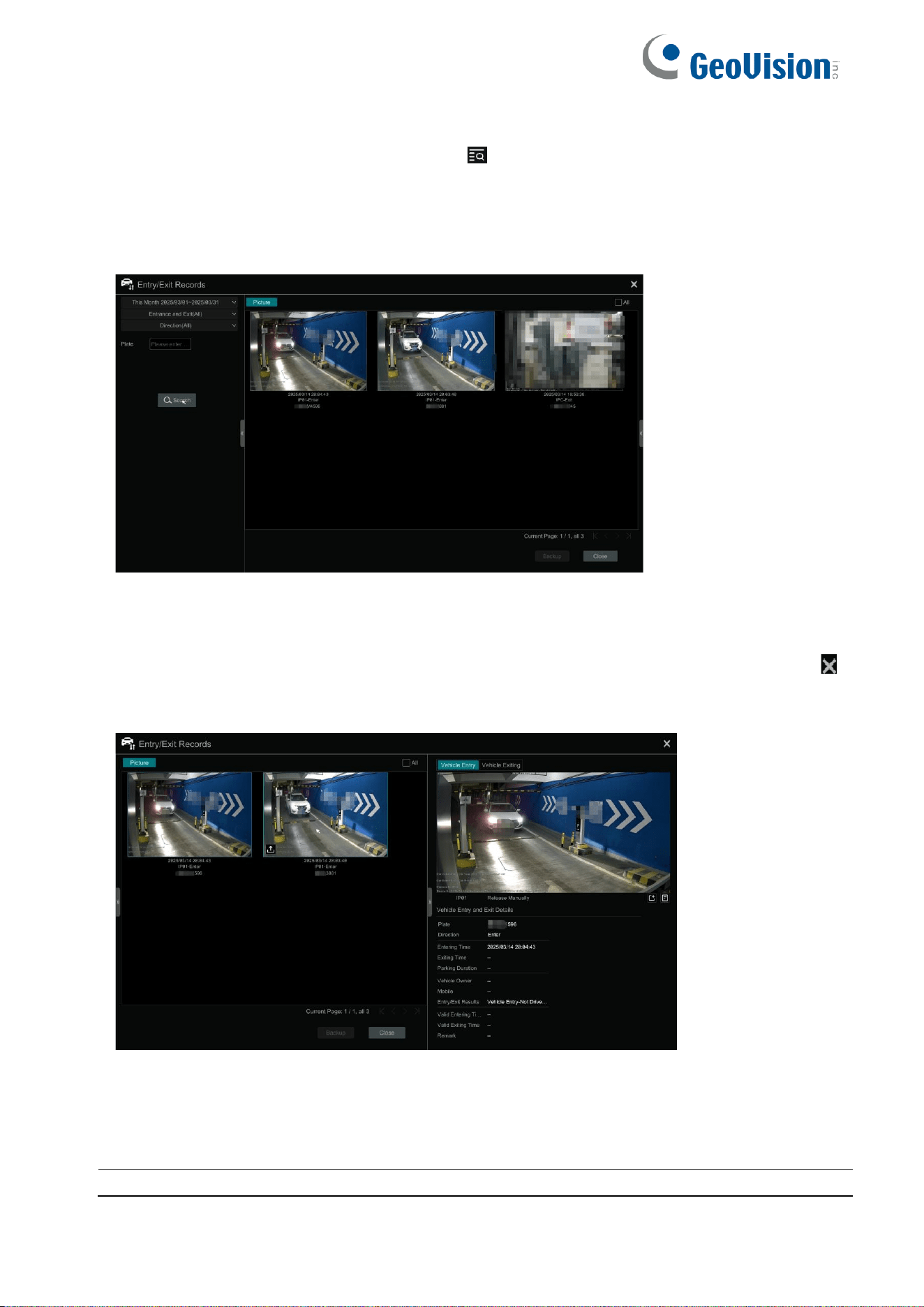

12.1.5 Search Vehicle Entry/Exiting Records
In the parking lot management interface, click to search the records of vehicles
entering/exiting the park lot.
You can search these records by setting filtering conditions (including time/direction/license
plate).
Select the image and click “Backup” to export the searched picture.
Click the searched vehicle to view the detailed vehicle entry/exiting records as shown below. In
addition, you can add the stranger vehicle and view the target ID as needed. Click “Close” or
to return to the parking lot management interface.
12.2 Access Control Management
The recorder supports access control parameter configuration and remote door opening.
Note: Access Control Management is currently not supported.
115
Before using the access control function, please add access control devices (face recognition &
access control terminal/panel). Go to Start
→
Settings
→
Camera
→
Add Camera interface to add
devices.
12.2.1 Access Control Settings
Click Start
→
Application
→
Access Control Management to go to the following interface.

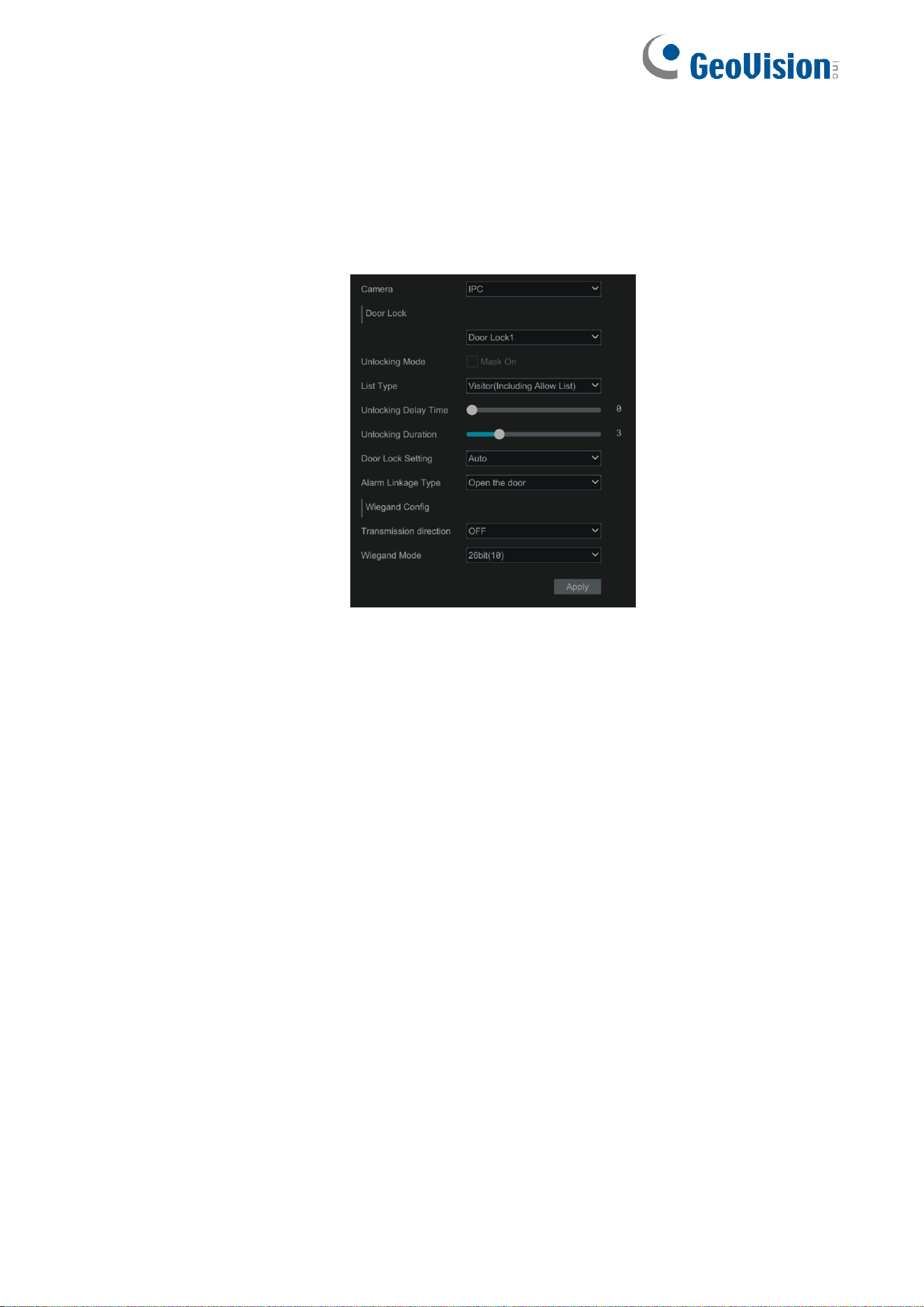

Select the access control device you want to configure the parameters.
Lock: Choose the lock you want to control.
Unlocking Mode: if “Mask On” is selected, the door will be opened when the matched person
wearing a mask.
List Type: Allow list, visitor (including allow list), stranger (including visitor and allow list).
Unlocking Delay Time: Set the door unlocking delay time. The time range is from 0 to 10 seconds.
For example, the unlocking mode is “Face only” and the delay time is set to “2” seconds; the door
will be opened 2 seconds later after face recognition.
Unlocking Duration: Set the unlocking duration. The time range is from 0 to 10 seconds. For
example, the unlocking mode is “Face only” and the duration is set to “3” seconds; the door will be
opened after successful face comparison, but the opening door will be automatically locked 3
seconds later.
Door Lock Setting: Choose “Auto”, “NO” or “NC”. Please select it according to your door lock type.
Alarm Linkage Type: Open/close the door
Wiegand Config: Wiegand Input, Wiegand Output or Off can be selected. If the card reader is
connected to the Wiegand interface, please select “Wiegand Input”. If the access controller is
connected to the Wiegand interface, please select “Wiegand Output”.
Wiegand Mode: 26bit(8), 26bit(10), 34bit, 37bit, 42bit, 46bit, 58bit or 66bit can be selectable.
After clicking “Apply”, the configuration will be synchronized with the camera.
When someone wants to enter, the access control device will open the door according to the set
condition.
12.2.2 Open the Door Manually
In the live view interface, select an access control camera. Right click on the window to show a
116
dropdown list. Select “Manually Open the Door” to open the door via the NVR.
If you want to view the real-time face snapshots and comparison of access control devices,
please enable face detection or comparison function as needed. Then the corresponding results
will display under the target detection tab in the live interface.
12.3 People Flow
After the people counting cameras are accessed and configured, you can go to the people
counting interface to view the detailed counting data.
Note: People Flow only works with GV-3D People Counter V3.
Before viewing the people flow data, please set the people counting function first (See people
counting section for details).
① Go to Start→Application→People Flow→Configure interface to set the statistical channel and
reset information.
117
Select the people counting channel you want to view the statistical information.
Set the reset information as needed. Auto or manual reset can be set.
Auto Reset: The current number of the people counting can be reset. You can choose to reset the
counting daily, weekly or monthly.
Click “Reset” to manually reset the current number of people counting.
After that, click “Apply” to save the settings.

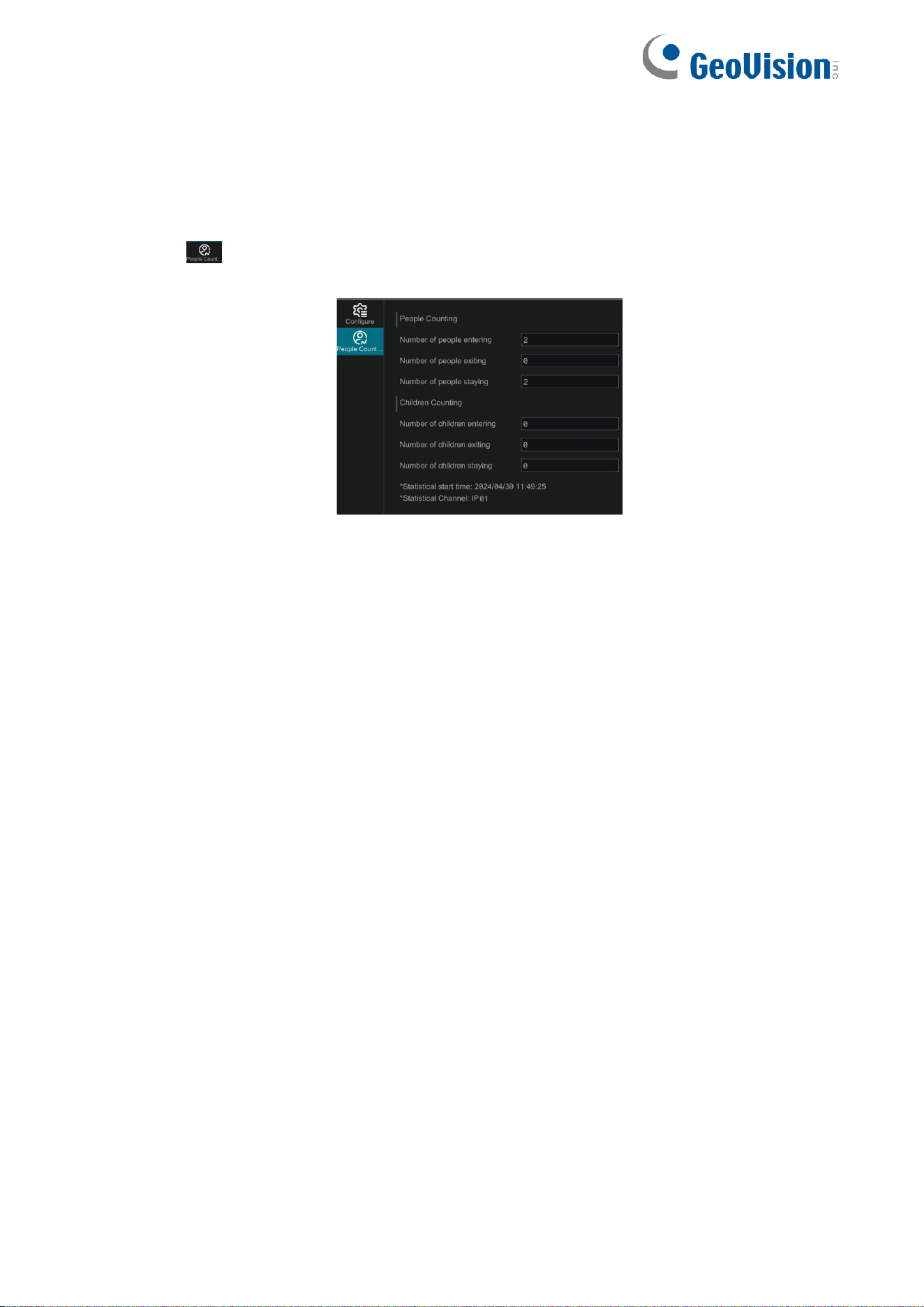

② Click to view the detailed statistical information as shown below.
118
13 Account & Permission Management
13.1 Account Management
Click Start
→
Settings
→
Account and Authority
→
Account
→
Edit User to go to the interface as
shown below.

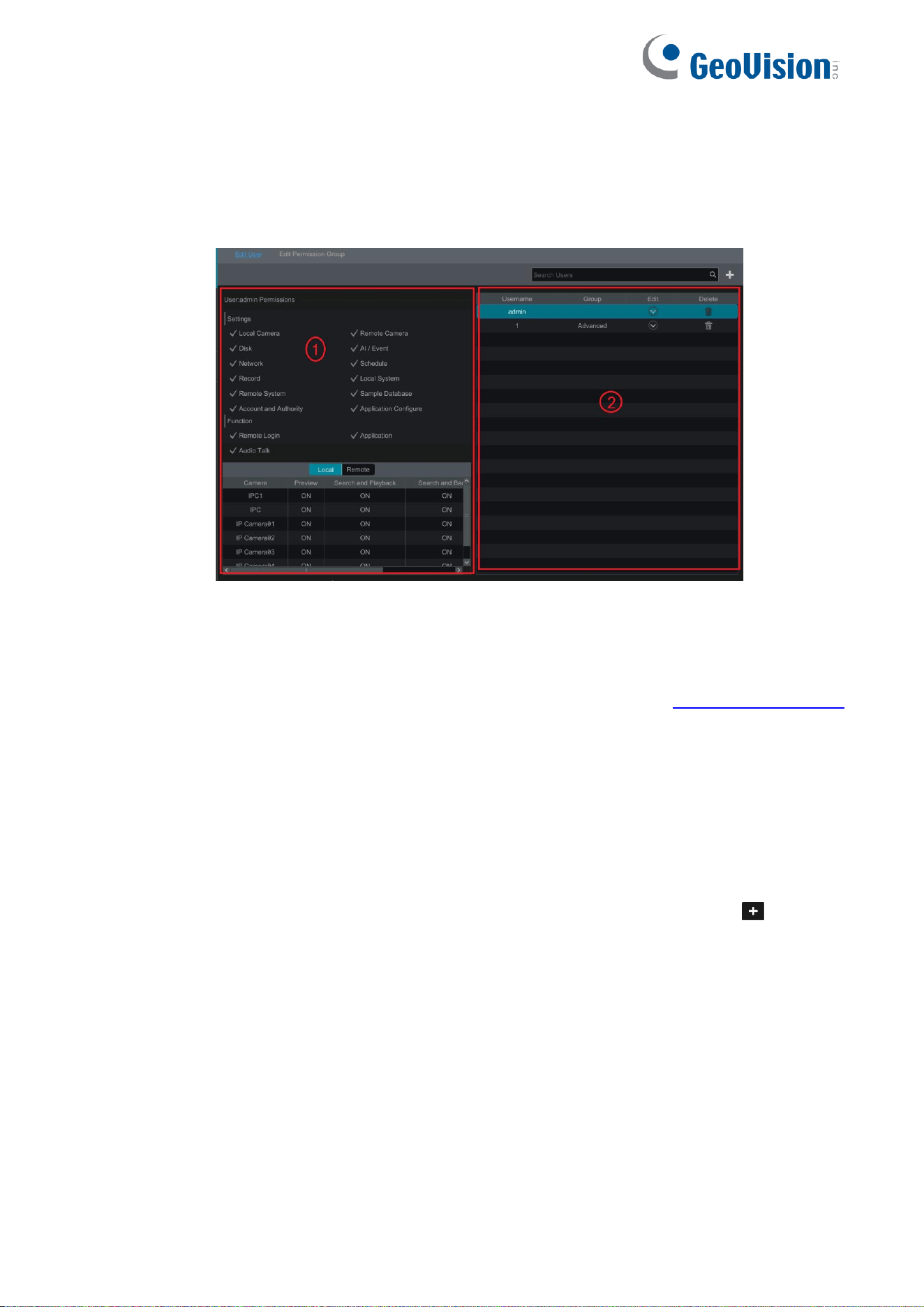

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to
display its user permissions in area ①.
There are three default permission groups (“Administrator”, “Advanced” and “Common”) available
when adding accounts. You can manually add new permission group (see Add Permission Group
for details).
Only admin and the users that have the “Account and Authority” permission can manage the
system’s accounts. Group “Administrator” owns all the permissions displayed in area ① except
“Account and Authority” and its permissions cannot be changed while the permissions of
“Advanced” and “Common” can be changed.
13.1.1 Add User
① Click Start
→
Settings
→
Account and Authority
→
Account
→
Add User or click beside
the search box to open a window as shown below.
119

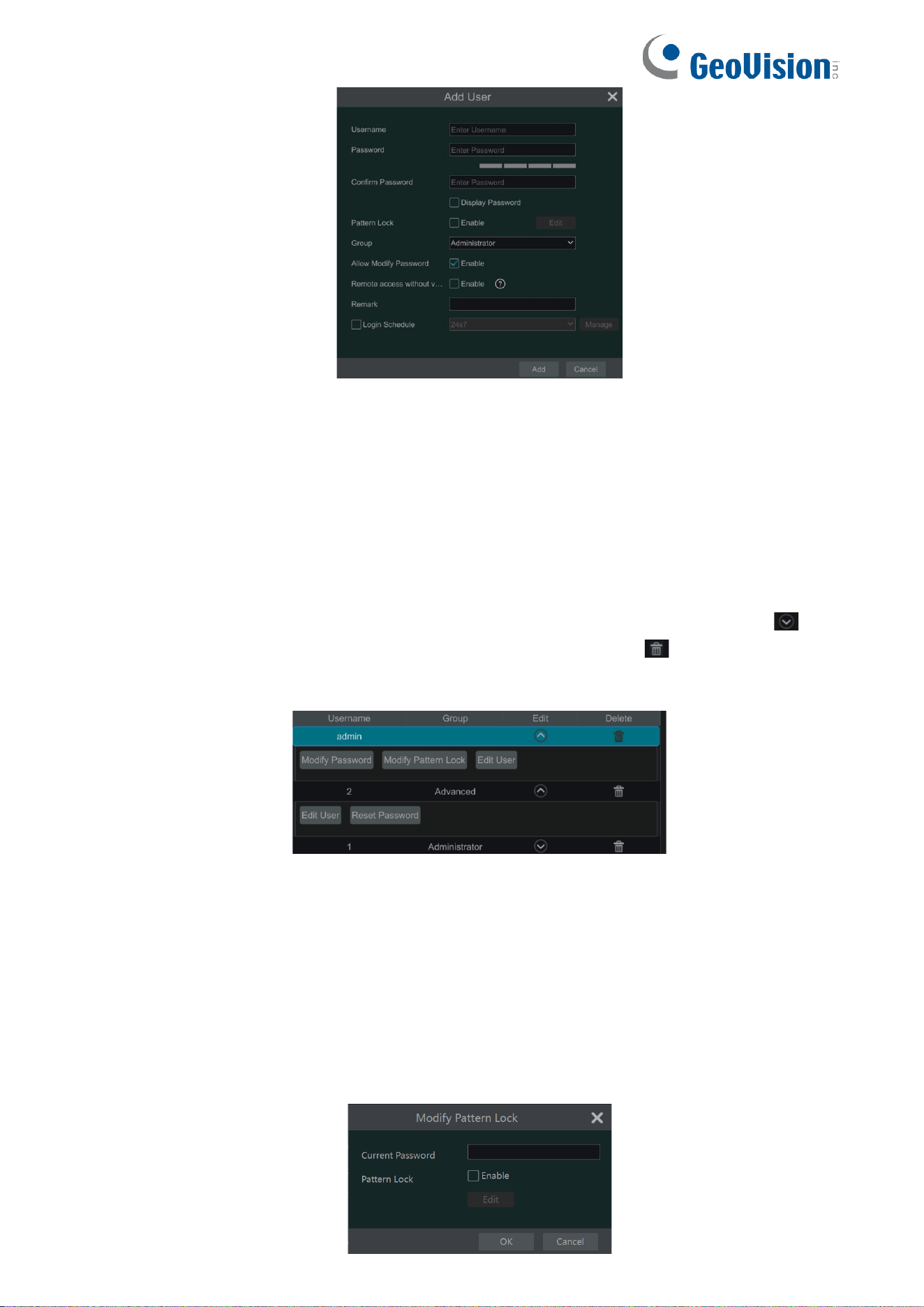

② Set the username, password, group and login schedule. Enable or disable “Allow modify
password” or “Remote access without verification code”. User can also set the pattern lock and
e-mail address as needed. Click “Add” to add the user.
Login Schedule: If enabled, the added user has access to the NVR within the scheduled period.
Remote access without verification code: If enabled, there is no need for you to enter the
verification code when using the mobile app after the device is bound.
13.1.2 Edit User
Click Start
→
Settings
→
Account and Authority
→
Account
→
Edit User and then click in
the user list or double click the user to edit the user information. Click to delete the user (the
user admin cannot be deleted).
➢ Modify Password
The password of admin can be modified. Click “Modify Password” to pop up a window. Enter the
current password and then set new password. Click “OK” to save the settings.
In addition, the admin user can modify the common/advanced user’s password.
➢ Modify Pattern Lock
Some models may not support this function.
Click “Modify Pattern Lock” to pop up a window.
120
Input current password and then check “Enable” to set pattern lock.
➢ Edit User
Click “Edit User” to pop up the window as shown below. The admin is enabled, its permission is
closed and permission group cannot be changed by default. You can open or close permission
control (if closed, the user will get all the permissions which admin has) and set their permission
groups. Click “OK” to save the settings.
13.2 User Login & Logout
Login: Click Start
→
Login or directly click the preview interface and then select username and
enter the password in the popup window. Click the “Login” button to log in the system.
Logout: Click Start
→
Logout or click Start
→
Shutdown to pop up the “Shutdown” window.
Select “Logout” in the window and then click “OK” to log out the system.
13.3 Permission Management
13.3.1 Add Permission Group
Click Start
→
Settings
→
Account and Authority
→
Account
→
Edit Permission Group to go to
the interface as shown below.
121
Click to add permission group. Set the group name, check the permissions as needed and
then set the “Local” and “Remote” permissions. Click “Add” to save the settings.
13.3.2 Edit Permission Group
Go to “Edit Permission Group” interface and then click in the group list to edit the permission
group (the operations of the “Edit Permission Group” are similar to that of the “Add Permission
Group”, please see Add Permission Group for details). Click to save the group as another
group. Click to delete the permission group. The three default permission groups
(“Administrator”, “Advanced” and “Common”) cannot be deleted.
13.4 Black and White List
① Click Start
→
Settings
→
Account and Authority
→
Security to go to the following interface.
122

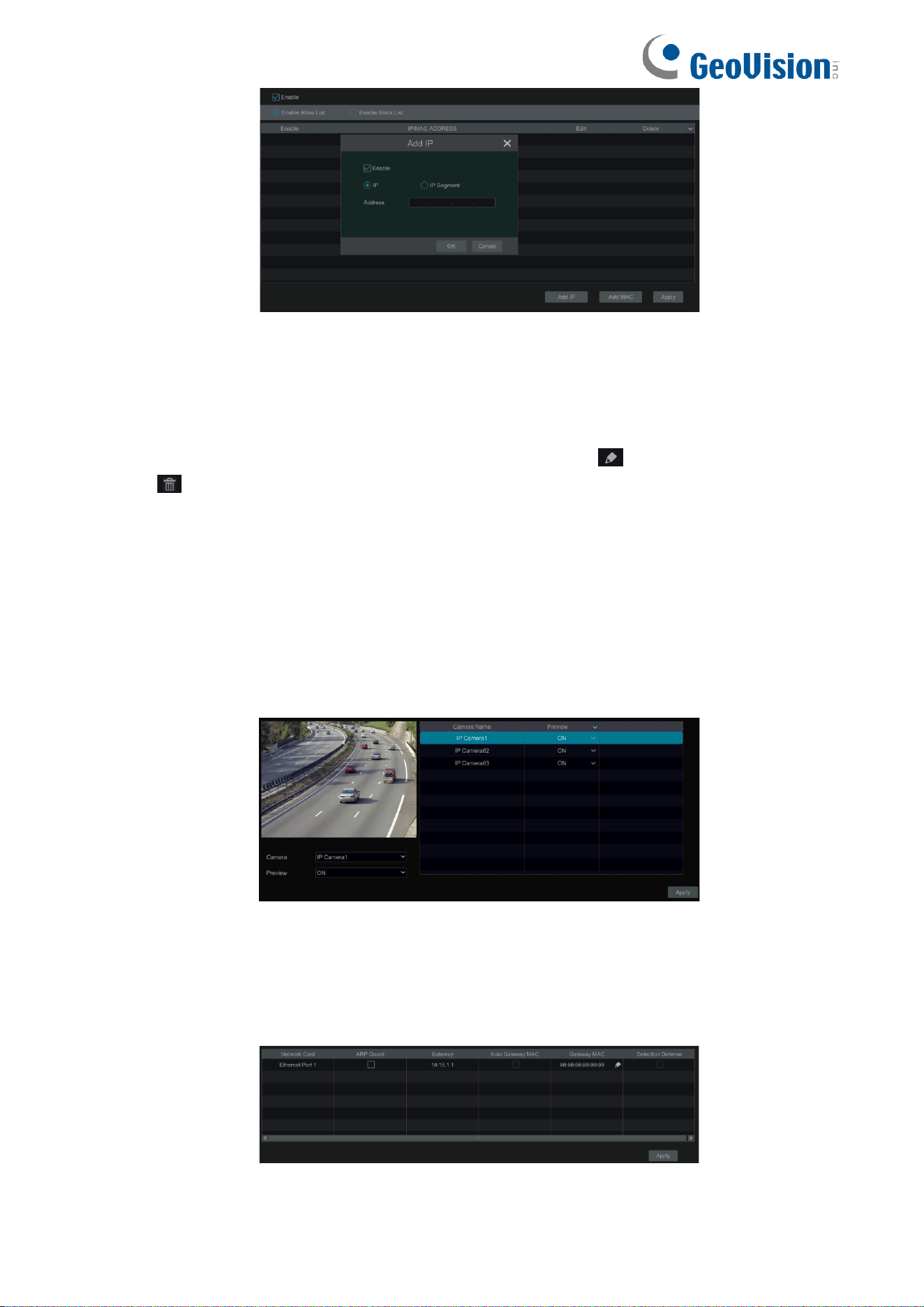

② Check “Enable” and then choose “Enable Allow List (white list)” or “Enable Block List (black
list)” (the PC client of which the IP address is in the white list can access NVR remotely while the
PC client in the black list cannot).
③ Add IP/IP segment/MAC. Click “Add IP” or “Add MAC” and then check “Enable” in the popup
window (only if you check it can the IP/IP segment/MAC you add be effective). Enter the IP/IP
segment/MAC and then click “OK”. In the above interface, click to edit IP/IP segment/MAC,
click to delete it. Click “Apply” to save the settings.
13.5 Preview on Logout
Click Start
→
Settings
→
Account and Authority
→
Security
→
Preview on Logout to go to the
following interface.
Set a camera and then enable or disable the preview permission on logout as needed. If a
camera’s preview permission on logout is “ON”, you can view the live image of the camera when
the system is logged out, or the live image of the camera cannot be seen when logged out.
13.6 Network Security
Click Start
→
Settings
→
Account and Authority
→
Security
→
Network Security to go to the
following interface. You can enable APR Guard.
ARP (Address Resolution Protocol) Guard: This function can protect the LAN from ARP
attacks and increase the network stability. If it is enabled, you can enable auto gateway MAC
123
or manually set gateway MAC. Additionally, detection defense also can be enabled as
needed.

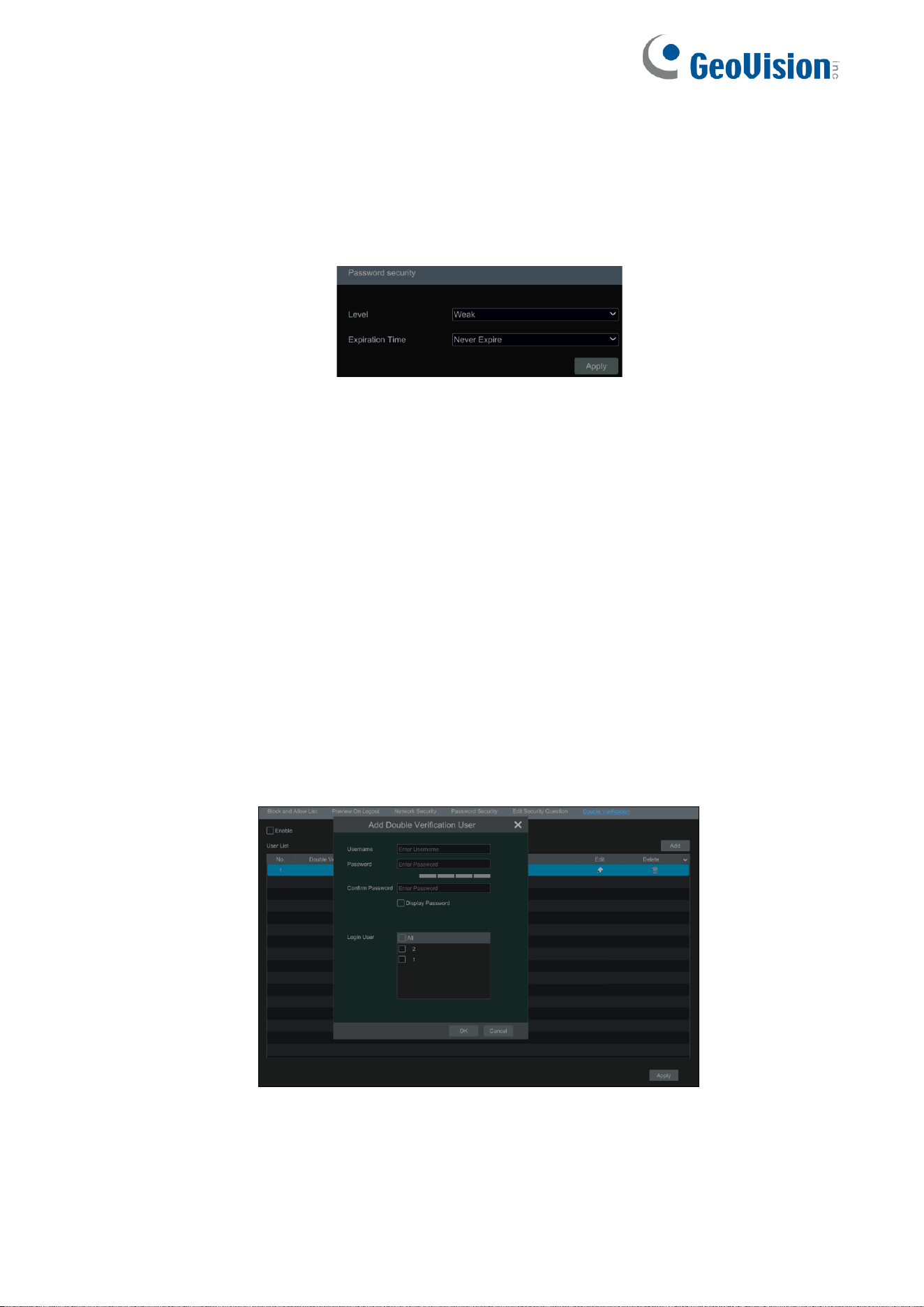

13.7 Password Security
Click Start
→
Settings
→
Account and Authority
→
Security
→
Password Security to go to the
following interface.
In this interface, you can set the security level and expiration time of the password. It’s
recommended to force a new password periodically to enhance system security.
13.8 Password Retrieval Settings
You can reset your admin password by E-mail or security question. Click
Start→Settings→Account and Authority→Edit Security Question to enter the password
retrieval setting interface. You can set reset the password via E-mail or security question. If
you forget your admin password, you can click “Retreve Password” in the login interface to
reset your password.
13.9 Double Verification
This device allows you to create a double verification user. That’s to say, you can create a
user who want to log in must be verified by the other specified user.
Click “Add” to add a double verification user. Enter the username and password and select the
login user. When you use the login user set above to log in the NVR, the user you added in the
double verification interface must be verified, or the login failure will occur.
124
13.10 View Online User
Click Start
→
Settings
→
Account and Authority
→
User Status to view the online user
information (you can view the online user name, login type, IP address and login time; click to
open a window showing the preview occupied channel number and playback occupied channel
number).
125
14 Device Management
14.1 Network Configuration
14.1.1 TCP/IP Configuration
Click Start
→
Settings
→
Network
→
TCP/IP to go to the following interface. By default, Obtain an
IP address automatically and Obtain DNS automatically are enabled, allowing the NVR to obtain
IPv4/IPv6 (if IPv6 is enabled) addresses and DNS information automatically. Optionally disable
these settings and enter the network addresses manually.
Note: When DHCP is disabled, the network interface uses the default IP address 192.168.0.100.
You can modify the MTU value according to the network condition (MTU, Maximum Transmission
Unit, can be modified according to network condition for higher network transmission efficiency).
Click “Apply” to save your settings.
Additionally, if you want to configure multiple IP addresses for a single network card (for example:
add devices from different network segments under the same switch), you can click “Advanced” to
set a secondary IP address.
Note:
Internal Ethernet Port

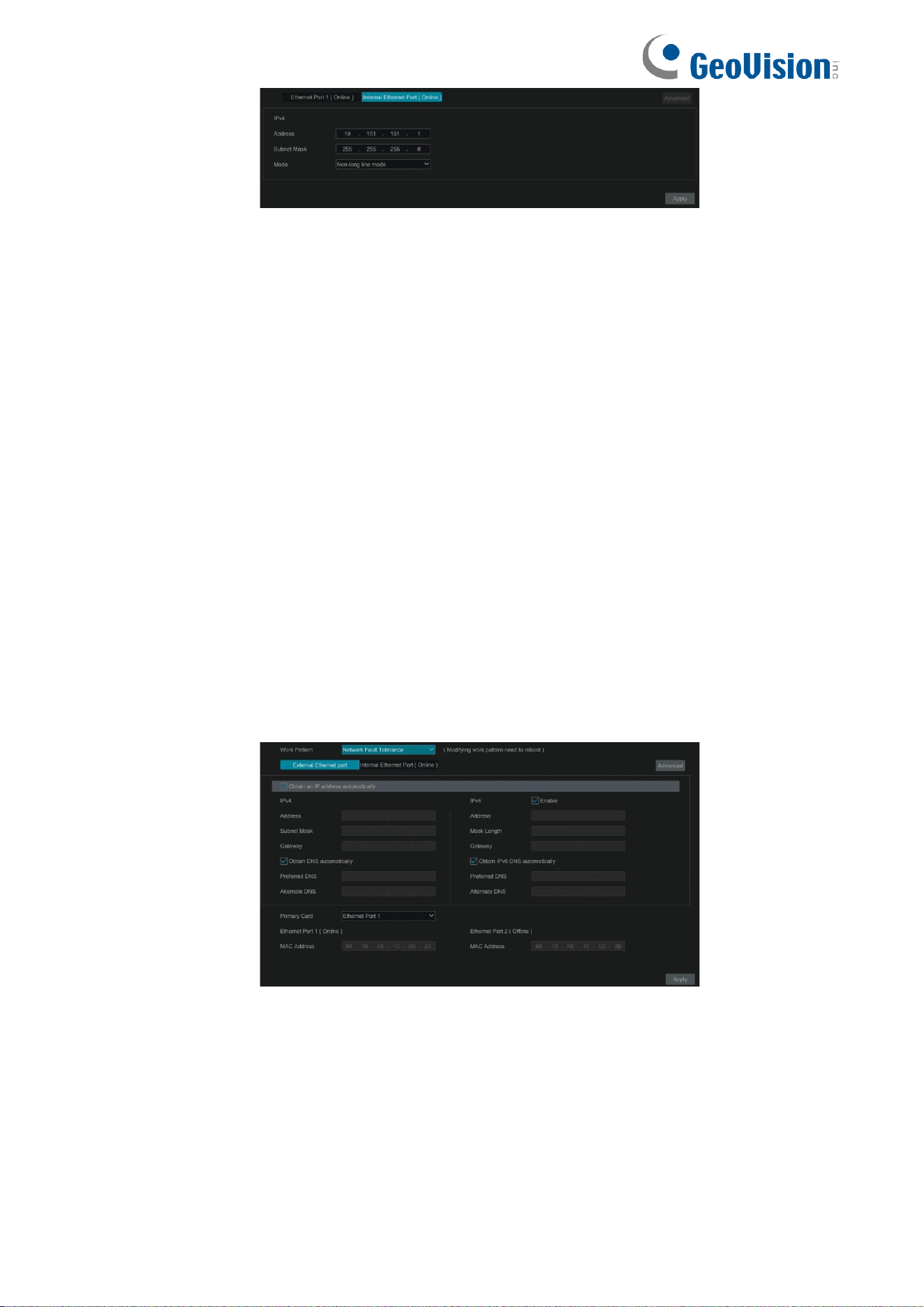

If you use an NVR with PoE network ports, click “Internal Ethernet Port” to go to the interface
below.
The internal Ethernet port is the port which connects all PoE ports with the NVR system. The PoE
ports are available if the internal Ethernet port is online; if it is offline, all the PoE ports will be
unavailable and it’s possible there’s an issue with the Ethernet port. The network address of the
internal Ethernet port can be changed to be in the same network segment as IP cameras which
are directly connected to the PoE ports of the NVR (Note that it is not recommended to change
the network address of the internal Ethernet port).
Mode: Non-long line mode or long line mode can be selectable. The non-line mode is the default
setting. If you want to run your PoE cameras longer than the standard 100M distance, you can
choose long line mode. The tradeoff will be that your network speed on all PoE ports will drop to
10MBPs.
126
⚫ Multiple Ethernet Ports Setting
If the NVR has two network ports or above, you can select the network work pattern as required.
TOE: Some models may support TOE mode. It is a technology for improving the network
transmission speed. Please enable it according to the actual network situation. If TOE is enabled,
it shall be high speed mode. Then multiple address setting or network fault tolerance can be
chosen and configured. If TOE is not enabled, it shall be compatible mode. Then the network fault
tolerance cannot be selected and set up.
Network Fault Tolerance:
The two network ports will be bound to one IP address if you select the “Network Fault Tolerance”
pattern. There are many advantages of this work pattern: 1. increase the bandwidth; 2. form a
network redundant array to share the load. When a failure happens to one network port, the other
port will take over the entire load immediately. The takeover process is seamless and the network
service will not be broken off.
Refer to the figure as shown below. If “Network Fault Tolerance” is selected, check “Obtain an
IPv4 address automatically”, and “Obtain DNS automatically” to get the network addresses
automatically, or manually enter IPv4/IPv6(if IPv6 is enabled) address select one Ethernet port as
the primary card and then click “Apply” to save the settings.
Multiple Address Setting:
If “Multiple Address Setting” is selected, the IP addresses of the two Ethernet ports should be set
respectively. Refer to the picture as shown below.
Check “Obtain an IP address automatically” and “Obtain DNS automatically” to get the network
addresses automatically, or manually enter IPv4/IPv6(if IPv6 is enabled) address; select one
Ethernet port as the default route and then click “Apply” to save the settings.
127
Note: The above interface may be different for different models. The above picture are for
reference only.
14.1.2 Port Configuration
Click Start
→
Settings
→
Network
→
Port to go to the interface as shown below. Enter the HTTP
port, HTTPS port, server port and POS port of the NVR, and then click “Apply” to save the
settings. You can also enable and set RTSP port (please check “Anonymous” as required).
HTTP Port: the default HTTP port of the NVR is 80. The port number can be changed to another
number such as 81. The port is mainly used for web client access. If you want to access the NVR
through a web browser, you should enter the IP address plus HTTP port in the address bar of the
web browser like http://192.168.11.61:81.
Note: The HTTP port and server port of the NVR should be mapped to the router before you
access the NVR via WAN.
HTTPS Port: the default HTTPs port of the NVR is 443.
HTTPs provides authentication of the web site and protects user privacy. You can enter IP
address plus HTTPs port in the address bar of the web browser. Then enter username and
password to log in. Click Functional Panel→Network→HTTPS to go to the following interface.
There are three ways to enable HTTPs service.

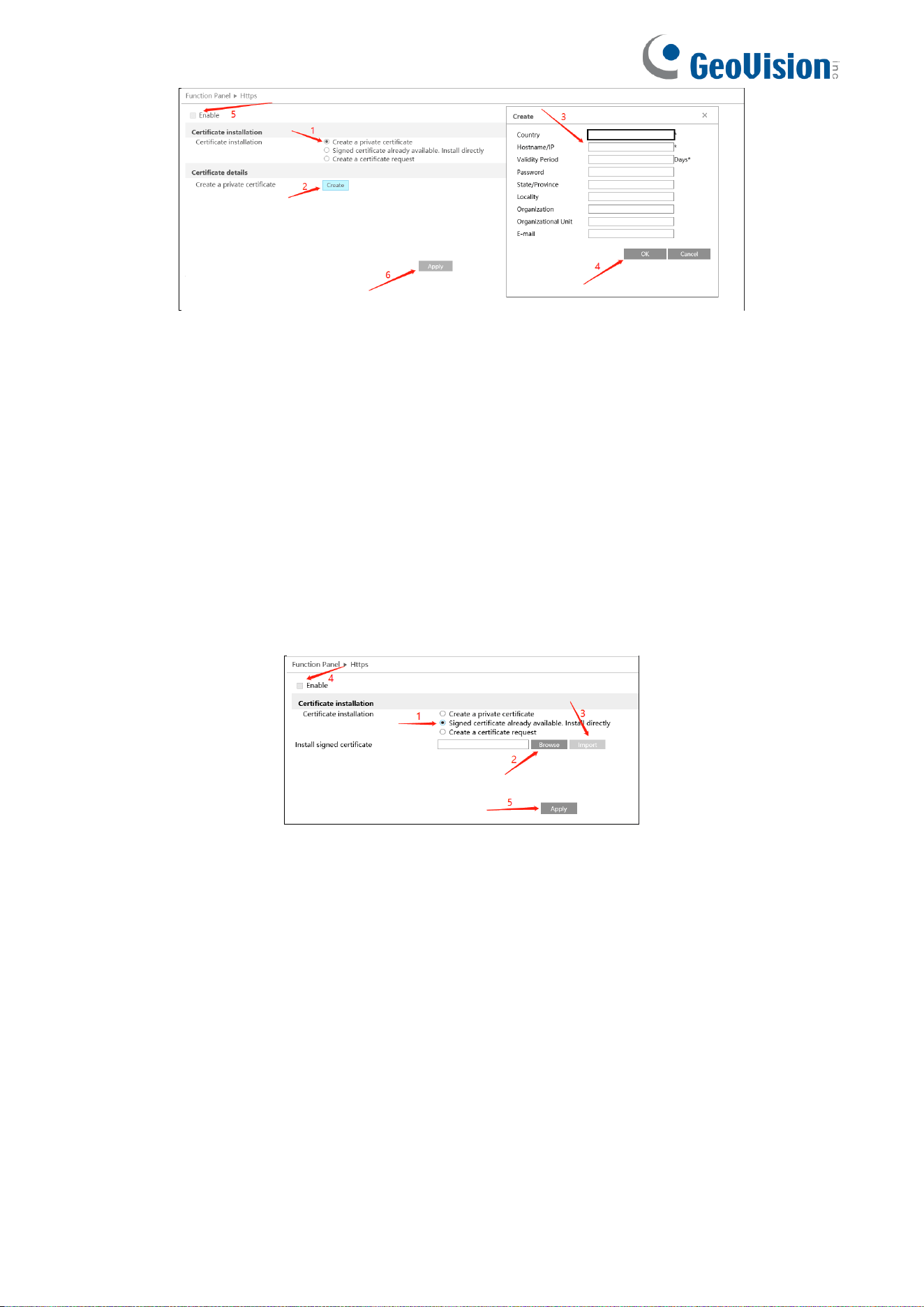

A. Create a private certificate.
128
① Select “Create a private certificate”.
② Click “Create”.
③ Fill out the corresponding information in the above creation box. Enter the country (only two
letters available), domain (NVR’s IP address/domain), validity date, password, province/state,
region and so on.
④ Click “OK”.
⑤ Check “Enable” checkbox.
⑥ Click “Apply” to save the setting.
B. Install a signed certificate
① Check “Signed certificate already….”.
② Click “Browse” to select the certificate you want to import.
③ Click “Import”.
④ Check “Enable”.
⑤ Click “Apply” to save the settings.
Please note that the certificate uploaded here shall be a certificate with private key.
To attach the private key to the certificate, please open the certificate and the private key files with
an editor (like Notepad++) and then copy the private key to the certificate.

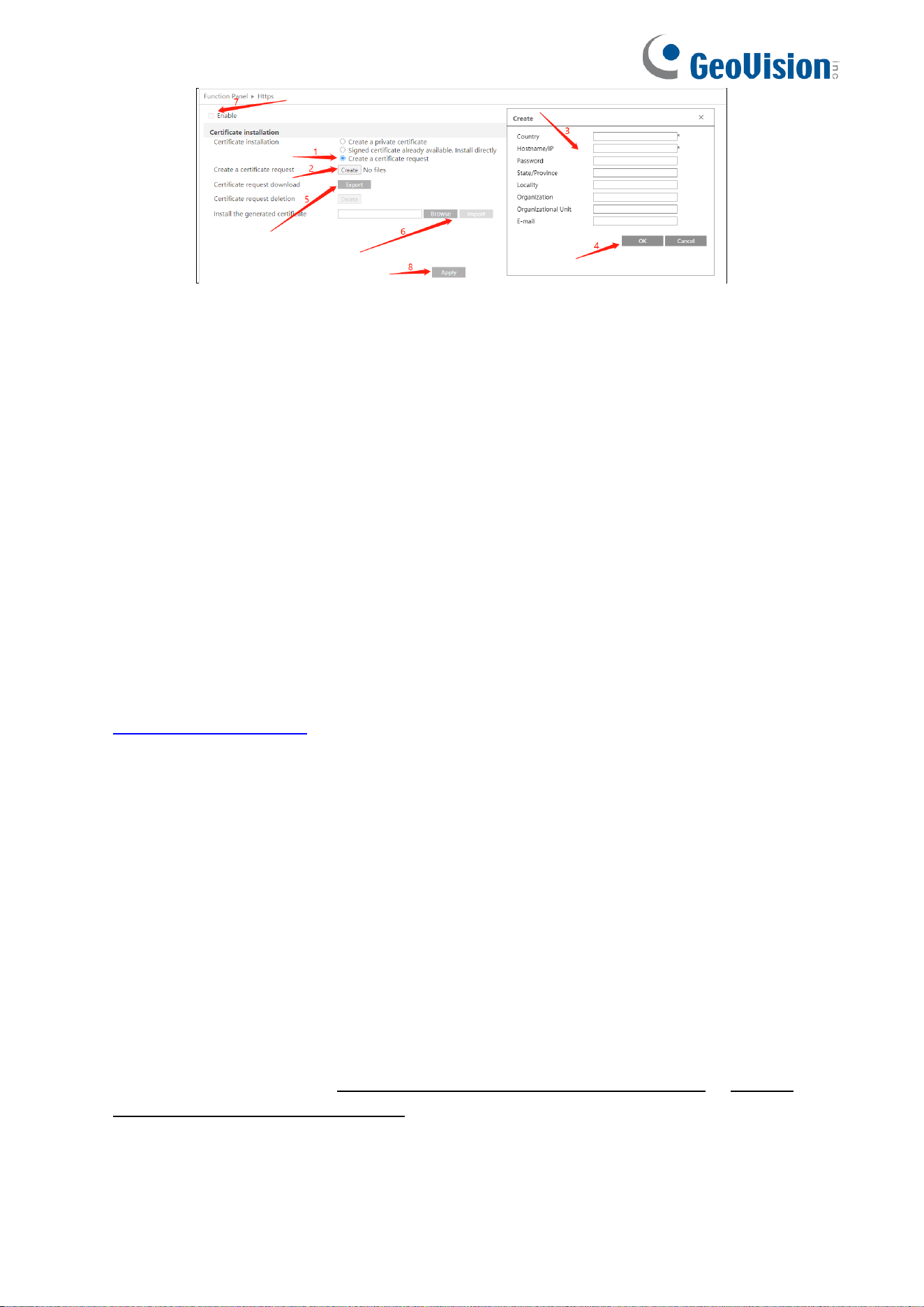

C. Create a certificate request
129
① Check “Create a certificate request”.
② Click “Create”.
③ Fill out the corresponding information in the above creation box. Enter the country (only two
letters available), domain (NVR’s IP address/domain), validity date, password, province/state,
region and so on.
④ Click “OK”. Then a certificate request file (CSR) will be created.
⑤ Click “Export” to export the certificate request file. Then send this file to the trusted third-party
CA to apply a signed certificate.
⑥ Click “Browse” and select the signed certificate issued by the CA and then import this
certificate.
⑦ Click “Enable”.
⑧ Click “Apply” to save the settings.
After that, the device can be accessed by entering https://IP: https port via the web browser (eg.
https://192.168.1.201:443).
Server Port: the default server port of the NVR is 6036. The server port number can be changed
as needed. The port is mainly used in network video management system.
POS Port: the default POS port of the NVR is 9036.
Auto Report Port: the default auto report port of the NVR is 2009. The server port number can
be changed as needed. This port is used when the IPCs automatically report to the NVR.
API Server: You can log into a media player which supports the RTSP protocol. Moreover, the
third-party can further develop performance through an API service.
Authentication: Basic authentication and digest authentication are optional.
RTSP Port: RTSP real-time stream protocol can be used to control the transfer of real-time data. .
Through a media player which supports the RTSP real-time stream protocol (Such as VLC player),
you can view live images synchronously. The default RTSP port is 554 and it can be changed as
needed. (The address format: rtsp://IP address:554/chID=1&streamType=main or rtsp://IP
address:554/chID=1&streamType=sub; main indicators main stream; sub indicators sub stream;
chID indicators channel ID).
Examples: Enable RTSP and “Anonymous”. Then open the VLC player and enter the address
(for example: rtsp://192.168.1.88:554/chID=1&streamType=main) in the network address bar of
the VLC player. Then you can view the video of channel 1.
130

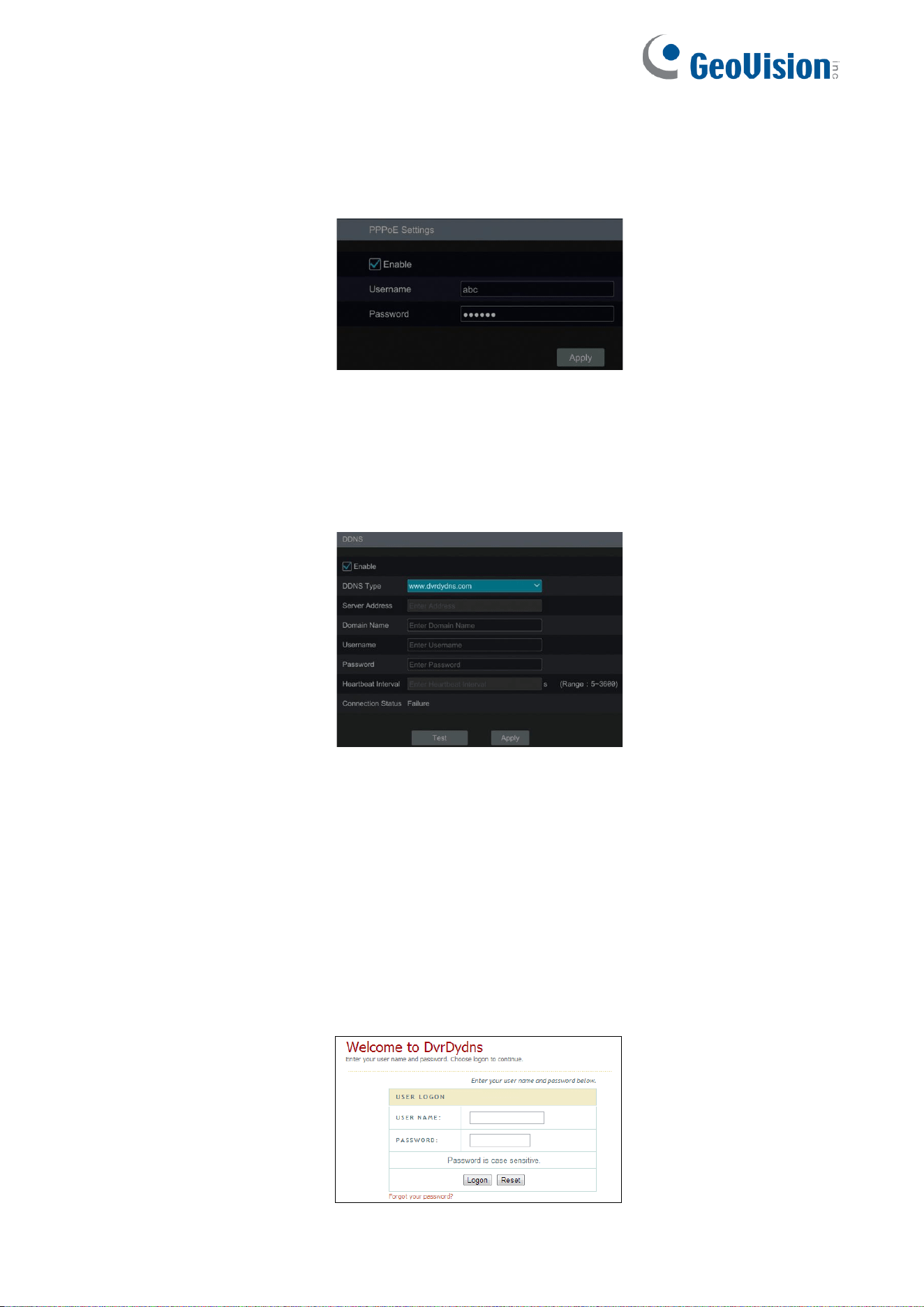

14.1.3 PPPoE Configuration
Click Start
→
Settings
→
Network
→
PPPoE to go to the interface as shown below. Check “Enable”
in “PPPoE Settings” and then enter the username and password obtained from the dealer. Click
“Apply” to save the settings.
14.1.4 DDNS Configuration
The DDNS is used to control the dynamic IP address through a domain name. You can access to
the NVR easily if the DDNS is enabled and configured.
Click Start
→
Settings
→
Network
→
DDNS to go to the interface as shown below.
Check “Enable” and then select the DDNS type. Enter the server address, domain name,
username and password according to the selected DDNS type. Click “Test” to test
the effectiveness of the input information. Click “Apply” to save the settings. After that, the
successful connection status can be viewed.
Note: Only when the DDNS type is “dyndns”, can the heartbeat interval be configurable.
You will have to enter the server address and domain name if some DDNS types are selected. Go
to the relative DNS website to register domain name and then enter the registered domain
information here). Now we take www.dvrdydns.com for example.
① Enter www.NVRdydns.com in the address bar to visit its DNS website.

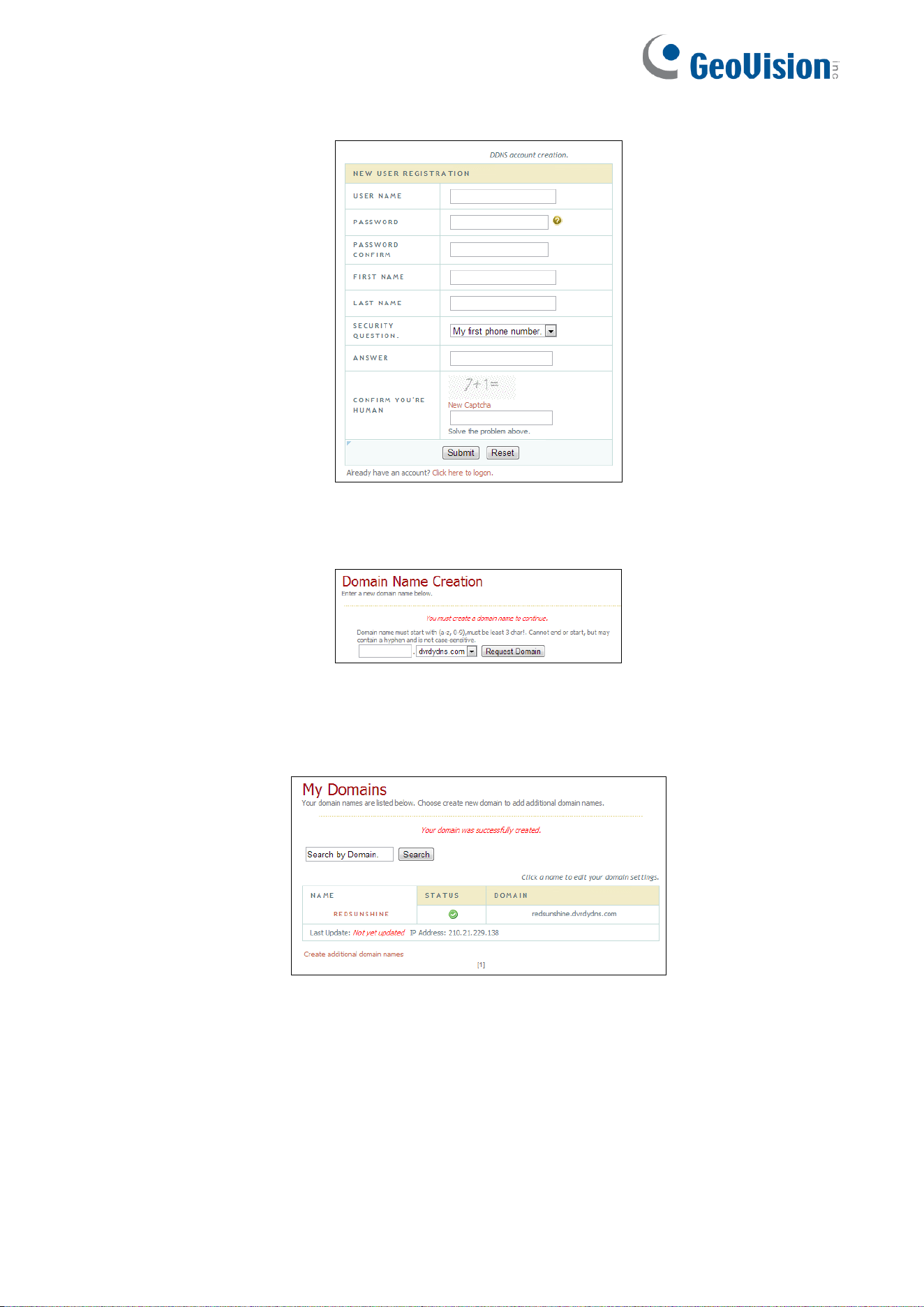

② Click Registration to go to the interface as shown below. Set the DDNS account information
131
(username, password and so on) and then click Submit to save the account.
③ Create domain name and then click Request Domain.
④ After you successfully request your domain name, you will see your domain name information
in the list.
⑤ Click Start
→
Settings
→
Network
→
DDNS to go to DDNS setting interface. Enable DDNS and
then select the www.dvrdydns.com DDNS type. Enter the registered username, password and
domain name and then click “Apply”.
⑥ Map the IP address and HTTP port in the router (you can skip this step if UPnP function is
enabled).
⑦ Enter the registered domain name plus HTTP port like http://www.xxx.dvrdydns.com:81 in
the address bar and then press Enter key to go to the web client.
132
14.1.5 E-mail Configuration
Click Start
→
Settings
→
Network
→
E-mail to go to the following interface.
Enter the sender’s name, e-mail address, SMTP server and SMTP port (you can click
“Default” to reset the SMTP port to the default value) and then enable or disable the SSL and
attaching image.
Attaching Image: Choose “NO”, “A Picture” or “Multiple Pictures”. If “A Picture” or “Multiple
Pictures” is selected, snapshot image or original image can be selected to attach.
Select the username (the username list will be updated automatically according to the email
address you input) and enter the password of the sender and then click “Apply” to save your
settings (you don’t have to enter the username and password if “Anonymous Login” is
enabled). Click “Test” to open a window. Enter the e-mail address of the recipient in the
window and then click “OK.” The e-mail address of the sender will send an e-mail to the
recipient. If the e-mail is sent successfully, it indicates that the e-mail address of the sender
is configured correctly.
Click “Edit Recipient” to go to the following interface:
Click “Add” and then enter the recipient’s e-mail address and select the schedule (if a
schedule is selected, the system will send the alarm email and the recipient will receive it
only in the selected schedule time) in the popup window. Click “Add” in the window to add
the recipient. You can also change the recipient’s receiving schedule by clicking in the
“Schedule” column. Click to delete the recipient in the list. Click “Apply” to save your
settings. Click “Edit Sender” to go to the e-mail configuration interface of the sender.
133

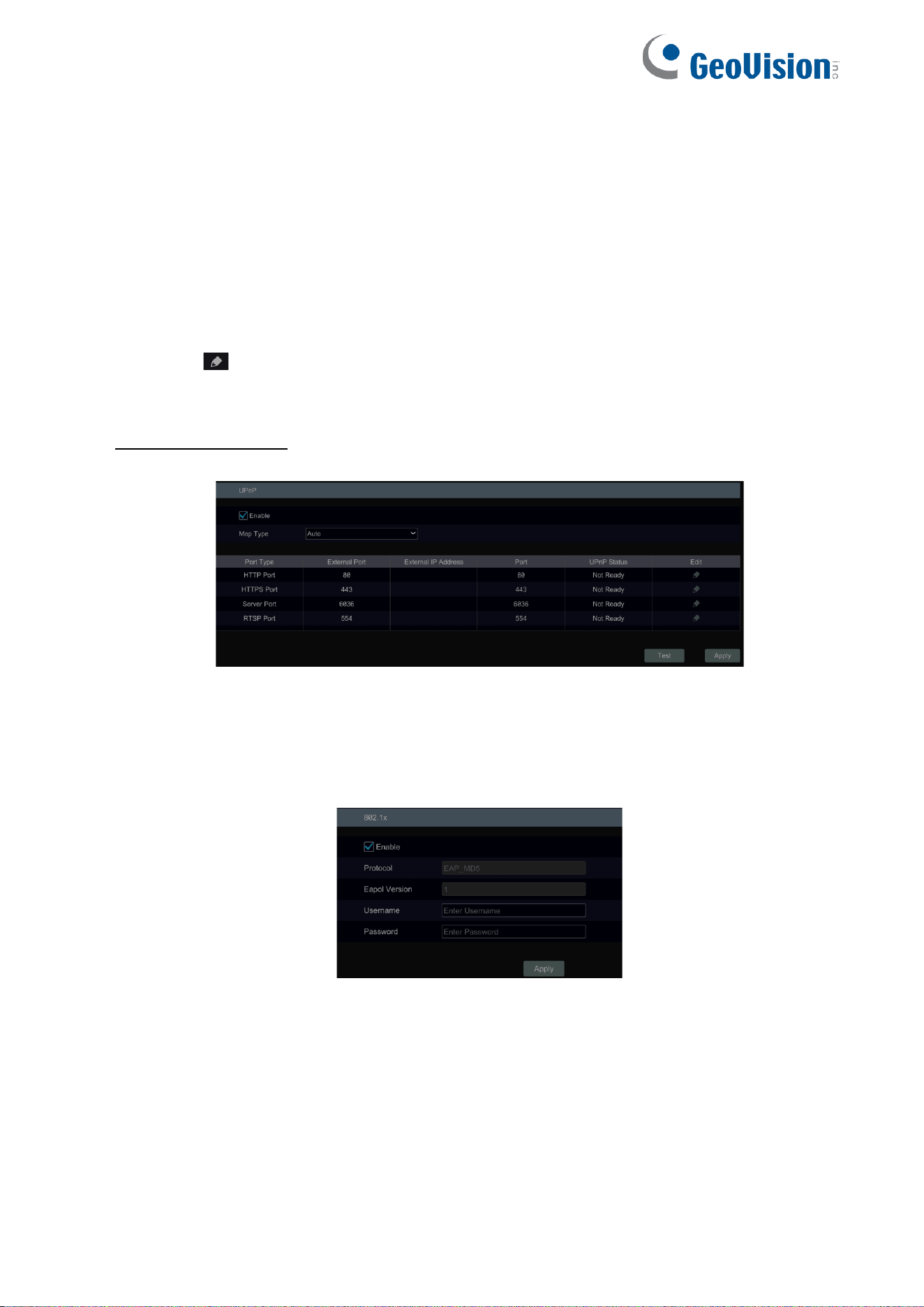

14.1.6 UPnP Configuration
By UPnP you can access the NVR through the web client which is on the WAN via a router
without port mapping.
① Click Start
→
Settings
→
Network
→
UPnP to go to the following interface.
② Make sure the router supports UPnP function and the UPnP is enabled in the router.
③ Set the NVR’s IP address, subnet mask and gateway and so on corresponding to the router.
④ Check “Enable” in the interface as shown below and then click “Apply”.
Click “Refresh” button to refresh the UPnP status. If the UPnP status is still “Invalid UPnP”
after refreshing, the port number is wrong. Please change the mapping type to “Manual” and
then click to modify the port until the UPnP status turns to “Valid UPnP”. Refer to the
picture below. You can view the external IP address of the NVR. Enter the external IP
address plus port in the address bar of your browser to access the NVR (example:
http://183.17.254.19:81).
14.1.7 802.1X
If it is enabled, the NVR data can be protected. When the NVR is connected to the network
protected by the IEEE 802.1X, user authentication is needed.
To use this function, the NVR shall be connected to a switch supporting the 802.1x protocol. The
switch can be considered as an authentication system to identify the device in a local network. If
the NVR connected to the network interface of the switch has passed the authentication of the
switch, it can be accessed via the local network.
Protocol type and EAPOL version: Please use the default settings.
User name and password: The user name and password must be the same with the user name
and password applied for and registered in the authentication server.
134
14.1.8 Mobile App
You can scan this QR code with the GV-Eye mobile app to remotely view the NVR. For details,
see GV-Relay QR Code in the GV-Eye Installation Guide.
1. Click Start→Settings→Network→Mobile App.
2. By default, “Enable” is selected. Verify that it remains enabled, and click “Apply” if any
changes are made.
14.1.9 FTP Configuration
Some models may not support this function.
Click Start
→
Settings
→
Network
→
FTP to go to the interface for FTP configuration. Check
“Enable” and enter the server name, port, username and password, max file size and remote
directory.
Please enable “Resume Uploading” as needed.
After that, you can choose the camera, set the schedule and then select the video records,
images and alarm information to upload as needed in this interface.
135

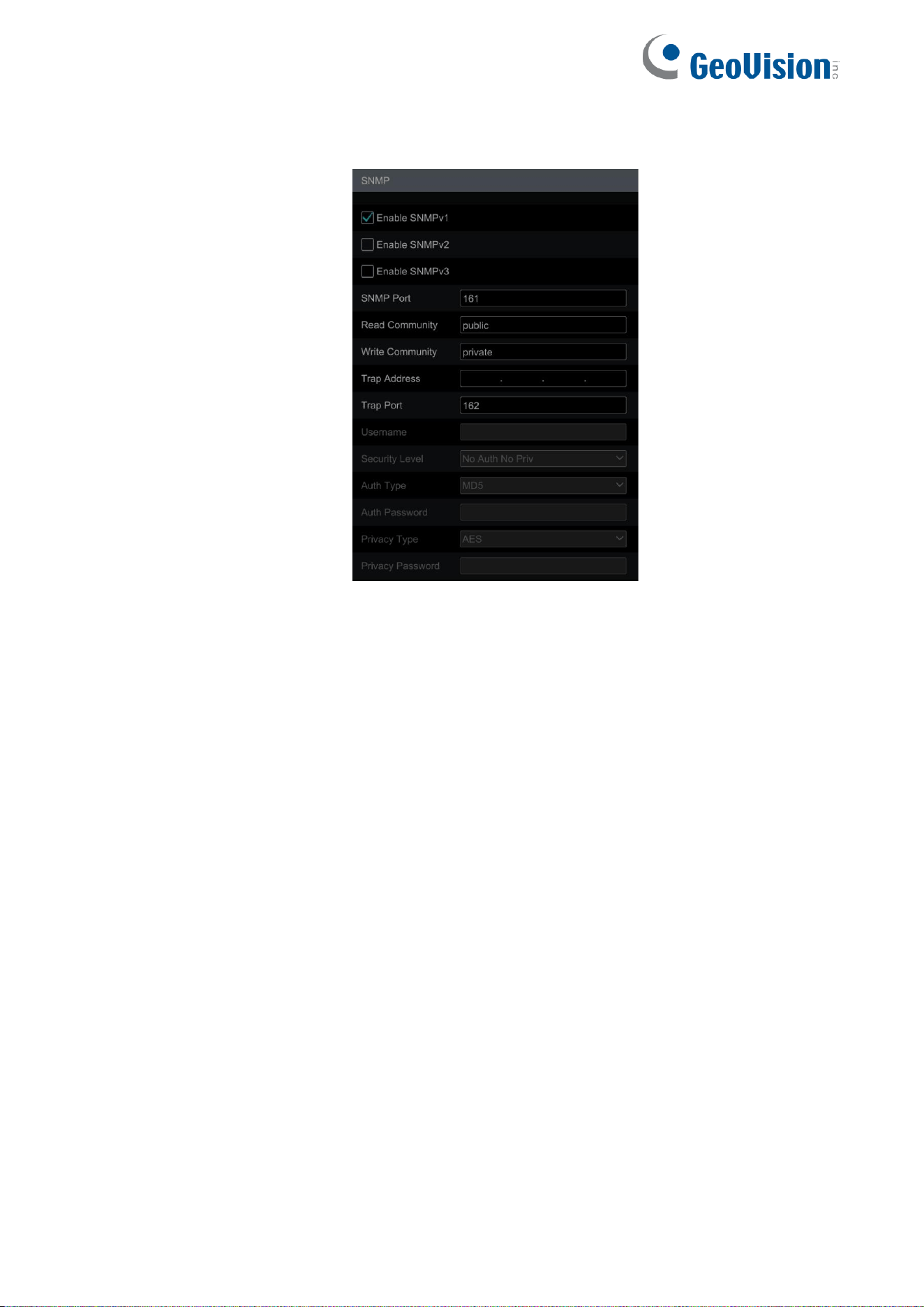

14.1.10 SNMP
① Click Start
→
Settings
→
Network
→
SNMP to go to the interface for SNMP configuration.
② Check SNMPv1, SNMPv2 or SNVMPv3 to enable this function.
③ Set the port of the SNMP.
④ Set the trap address and the trap port.
⑤ Click “Apply” to save the settings.
Trap Address: The IP address of SNMP host.
Trap Port: The port of SNMP host.
Tips: Before setting the SNMP, please download the SNMP software and manage to receive the
device information via SNMP port. By setting the trap address, the device is allowed to send the
alarm event and exception message to the monitoring center.
136

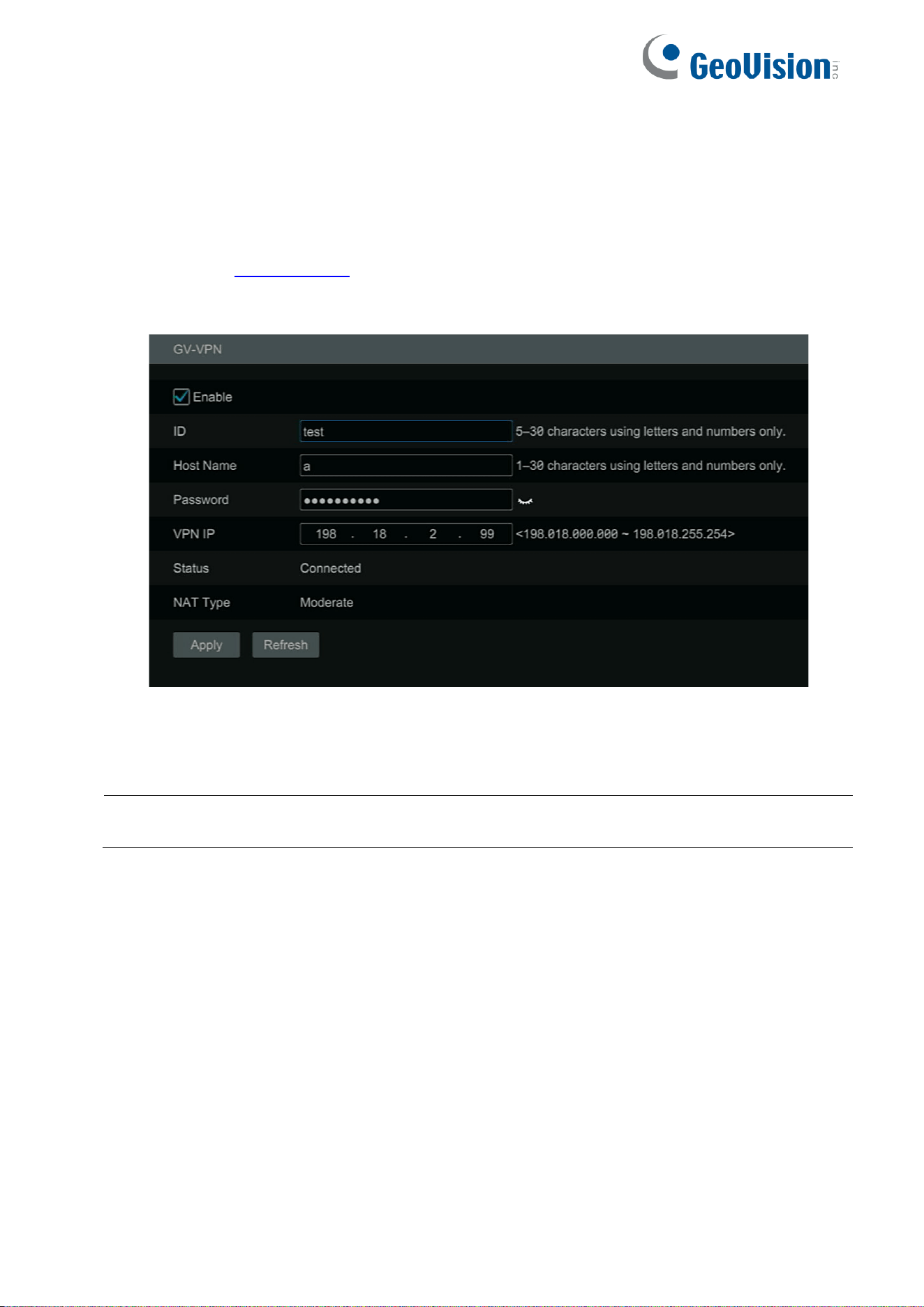

14.1.11 GV-VPN
GV-VPN is an application powered by P2P VPN technology and the cloud-based GV-Cloud
platform. It enables users to create a secure virtual private network (VPN) environment that
connects multiple NVRs. With GV-VPN, there is no need for complex router configurations — the
NVRs are seamlessly linked within the same virtual network.
For details, see GV-VPN Guide.
1. Click Start→Settings→Network→GV-VPN.
2. Check “Enable”, fill in the information, and click “Apply” for the changes to take effect.
3. Click “Refresh” to refresh the wireless hotspot list.
Note: The Host Name must be 1-30 characters long. It can contain the following three character
classes: lowercase letters (a-z), numbers (0-9), and hyphens (-, not at the beginning and end).
137

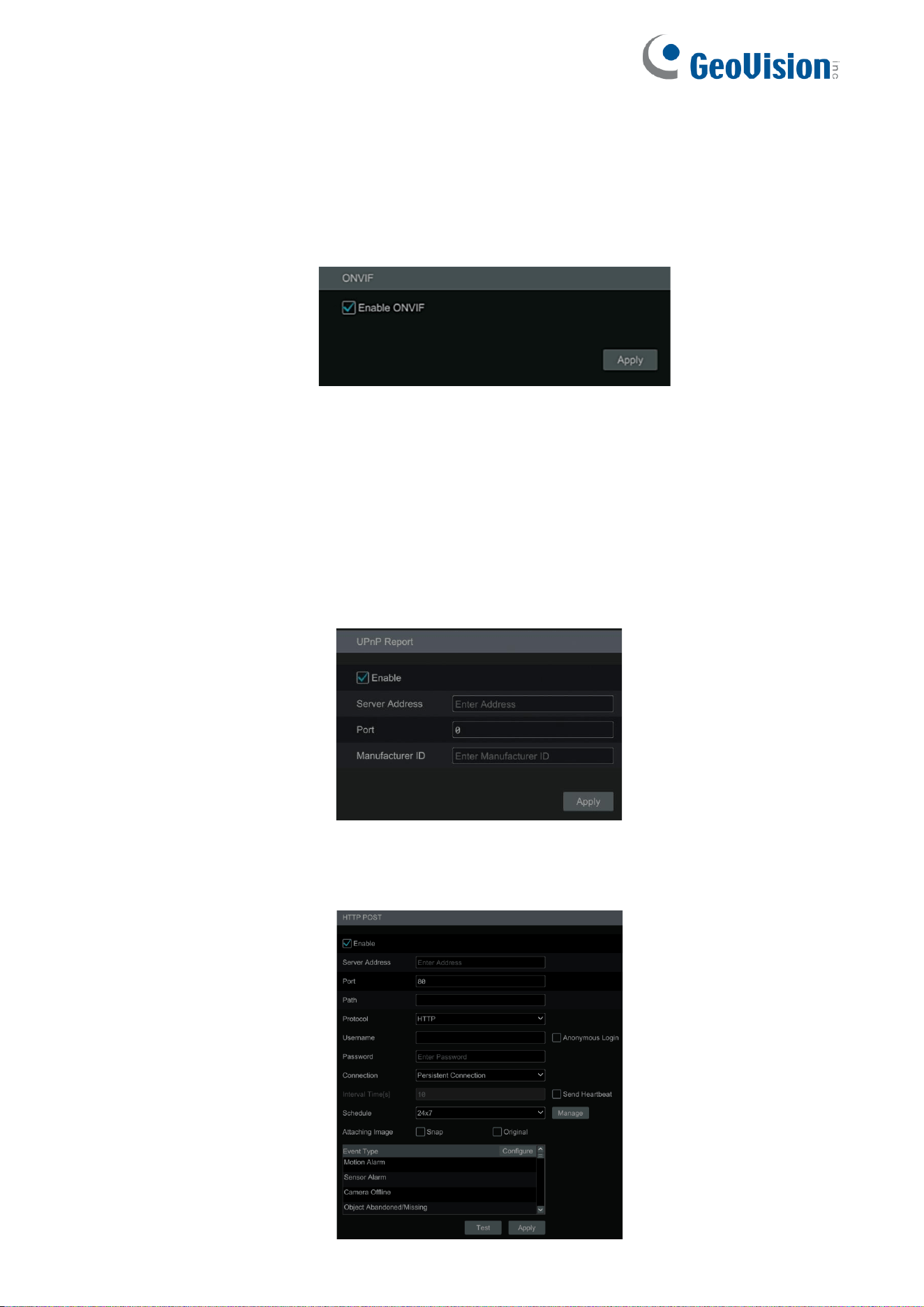

14.1.12 ONVIF
The device supports ONVIF (Profile G/T/S), and the model name can be searched on the ONVIF
official website. When ONVIF is enabled, third-party platforms can discover and connect to the
device via the ONVIF protocol.
1. Click Start→Settings→Network→Integration→ONVIF to enter the interface.
2. By default, “Enable ONVIF” is selected. Verify that it remains enabled before adding the
device to a third-party platform via ONVIF, and click “Apply” if any changes are made.
14.1.13 UPnP Report Access
In this interface, you can also access the third-party platform by UPnP Report. Click
Start
→
Settings
→
Network
→
Integration
→
UPnP Report. If this one is enabled, please enter the
server address, port and manufacturer ID.
14.1.14 HTTP POST
138
Server Address: the IP address of the third-party platform.
Server port: the server port of the third-party platform.
Path: enter the subdomain of the above server, for example, the URL of alarm information push:
“/SendAlarmStatus”.
Protocol type: HTTP
Username and password: Please enable and enter as needed.
Connection: Persistent connection or non-persistent connection.
Enable “Send heartbeat” and set heartbeat interval, schedule, and attaching image as needed.
Click “Configure” to set the event type. After that, click “Apply” to save the settings. Then click
“Test” to test the connection of the URL. Then the camera will automatically connect to the
third-party platform. After the camera is successfully connected, it will send the selected alarm
data to the third-party platform once the selected smart alarm is triggered.
14.1.15 Network Status
Click Start
→
Settings
→
Network
→
Network Status to view the network status or click on the
tool bar at the bottom of the live view interface to view network status conveniently.
Click Start
→
Settings
→
Network
→
Network Status Detection. Enter the IP address and then
click “Test” to check the network connection status (like network delay, packet loss).
14.2 Basic Configuration
14.2.1 Common Configuration
Click Start
→
Settings
→
System
→
Basic
→
General Settings to go to the following interface. Set
the device name, device No., language, video format and main output. Enable or disable wizard,
“Log In Automatically”, “Log Out Automatically” (if checked, you can set the wait time), “App Live
Self-Adaption” and “Dwell Automatically” (if checked, you can set the wait time). Click “Apply” to
save the settings.
Device Name: The name of the device. It may display on the client end or CMS to help users to
139
recognize the device remotely.
Video Format: Two modes: PAL and NTSC. Select the video format according to the camera.
Dwell Automatically: Switch automatically. Check it and set “wait time”. The system will
sequence automatically if it is not operated during the time you set.
Main Output: Enable “Fixed display resolution” and then select the main output as needed.
Note: You can set the resolutions of the main output, secondary output (varies by models)
respectively if the NVR has multiple outputs.
You can check “Support 8K” as needed for some models.
14.2.2 Date and Time Configuration
Click Start
→
Settings
→
System
→
Basic
→
Date and Time to go to the interface as shown below.
Set the system time, date format, time format and time zone of the NVR. The default time zone is
GMT+08 Beijing, Hong Kong, Shanghai, Taipei. If the selected time zone includes DST, the DST
of the time zone will be checked by default. Click “Apply” to save the settings.
You can manually set the system time or synchronize system time with network through NTP.
Manual: select “Manual” in the “Synchronous” option and then click after the “System Time”
option to set the system time.
NTP: select “NTP” in the “Synchronous” option and then enter the NTP server.
14.2.3 Recorder OSD Settings
Click Start
→
Settings
→
System
→
Basic
→
Recorder OSD settings to go to recorder OSD setting
interface. OSD name and icon can be enabled here.
14.2.4 PoE Power Management
Click Start
→
Settings
→
System
→
Basic Settings
→
PoE Power Management to go to the
following interface. This function is only available for the POE device.
140
In this interface, you can view the the current power consumption of the added POE camera/panel.
The PoE power supply of the PoE camera/panel can be enabled or disabled by selecting “ON” or
“OFF” as needed.
⚫ PoE Plug-and-Play Settings
The PnP function of each PoE port is enabled by default. You can directly connect the PoE IPC to
the PoE port of the NVR with a network cable.
Note: PoE Plug-and-Play only works with compatible AI GV-IP Cameras that support this feature
(see the datasheet for compatible AI cameras).
You can also connect the PoE IPC to the NVR via a PoE switch by referring to the following steps.
1. Go to Start→Settings→System→PoE Settings→PoE Plug-and-Play Settings interface. Disable
the PnP function of a PoE Port.
2. Connect the PoE switch to this PoE port of the NVR with a network cable.
3. Connect the PoE IPCs to the PoE switch with network cables.
4. Go to Start→Settings→Network→Internal Ethernet Port interface. Set the IP address segment
and mode as needed.
5. Go to Start→Settings→Camera→Edit Camera interface. Click “Add Camera” to add these PoE
IPCs manually. Note that the IP address of these cameras must be in the same local network
segment as the internal Ethernet port.
Note: If the above-mentioned PoE IPCs are added to the NVR successfully, the corresponding
number of PoE ports will be occupied. For example, if the NVR has 16 PoE ports and one of them
is used to connect a PoE switch which 8 PoE IPCs are connected to, then only 8 PoE ports of the
NVR can be used to directly connect PoE cameras.

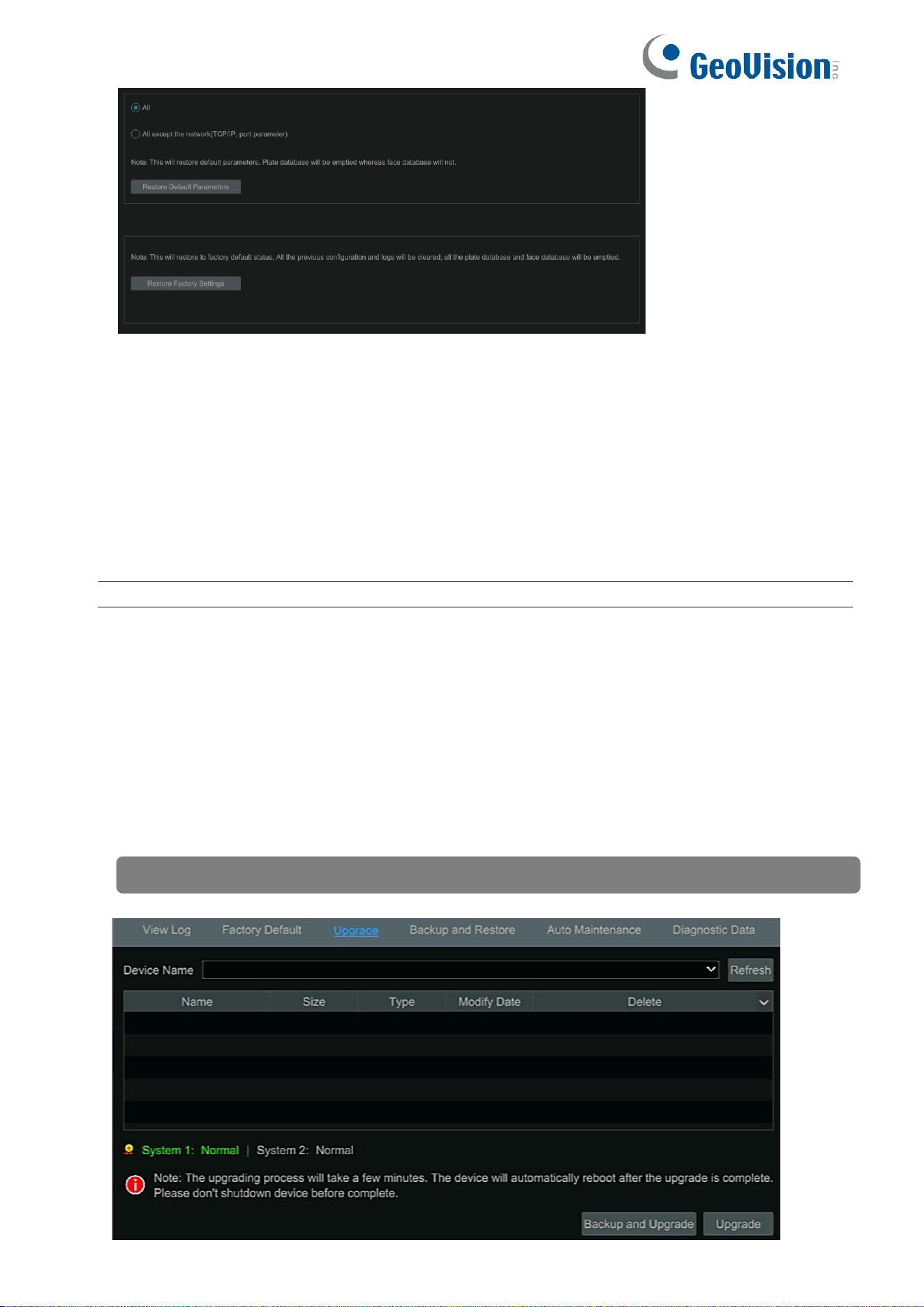

14.3 Factory Default
Click Start
→
Settings
→
System
→
Maintenance
→
Factory Default to go to the following interface.
Please choose the item as needed.
141
Note: Restoring default parameters will not change time zone and video format, except that, the
password of the admin will be preserved.
14.4 Device Software Upgrade
⚫ Upgrade
You can click Start
→
Settings
→
System
→
Information
→
Basic to view MCU, kernel version and
firmware version and so on. Before upgrade, please get the upgrade file from your dealer.
Note: Firmware upgrade is supported through both the Local Interface and Web Browser.
The upgrade steps are as follows:
① Copy the upgrade software onto the USB storage device.
② Insert the USB storage device into the USB interface of the NVR.
③ Click Start
→
Settings
→
System
→
Maintenance
→
Upgrade to go to “Upgrade” interface.
Select the USB device in “Device Name” option and go to the path where the upgrade software
resides. Select the upgrade software and then click “Upgrade”. The system may automatically
restart during upgrading. Please wait for the upgrade to finish and it’s critical to not power off the
NVR during the upgrade process.
Note: The file system of the USB mobile device which is used for upgrade, backup and restoration should be FAT32/NTFS format.
142
14.5 Backup and Restore
You can back up the configuration file of the NVR and export the file to other storage devices; in this way, you can
implement the configuration to other NVRs of the same model and save setup time.
Insert the USB storage device into a USB interface on the NVR and then click
Start
→
Settings
→
System
→
Maintenance
→
Backup and Restore to go to the interface.
⚫ Backup
Select the USB device in “Device Name” option; go to the path where you want to store the
configuration backup file and then click “Backup”; finally, click “OK” in the popup window.
⚫ Recover
Select the USB device in “Device Name” option; find the configuration backup file and then click
“Recover”; finally, click “OK” in the popup window.

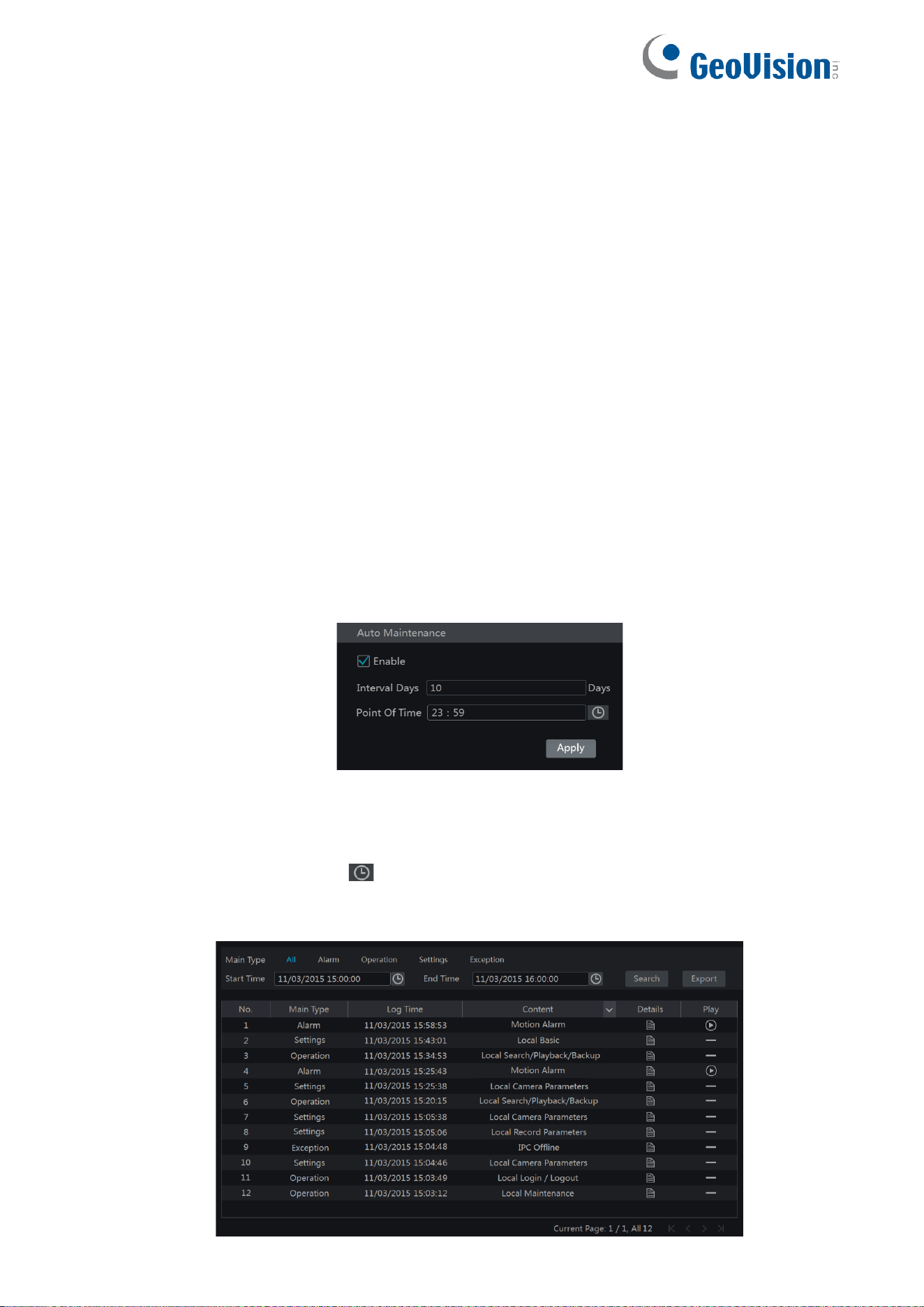

14.6 Restart Automatically
You can set the automatic restart time for the NVR to maximize performance. Click
Start
→
Settings
→
System
→
Maintenance
→
Auto Maintenance to go to the interface as shown
below. Enable auto maintenance, set the interval days and point of time and then click “Apply” to
save the settings. The NVR will restart automatically at the pointed time every *interval* days.
14.7 View Log
Click Start
→
Settings
→
System
→
Maintenance
→
View Log to go to the log view interface.
Select the log main type, click to set start time and end time and then click “Search”. The
searched log files will be displayed in the list.
143
Choose the log file in the list and then click “Export” button to export the log file. Click on the
“Content” title bar to pop up a menu list. Using the check box, check contents on the menu list and
then the log list will show only the checked log contents. Click to play the video log.
14.8 View System Information
Click Start
→
Settings
→
System
→
Information and then click the corresponding menu to view
the “Basic”, “Camera Status”, “Alarm Status”, “Record Status”, “Network Status” and “Disk”
information of the system.

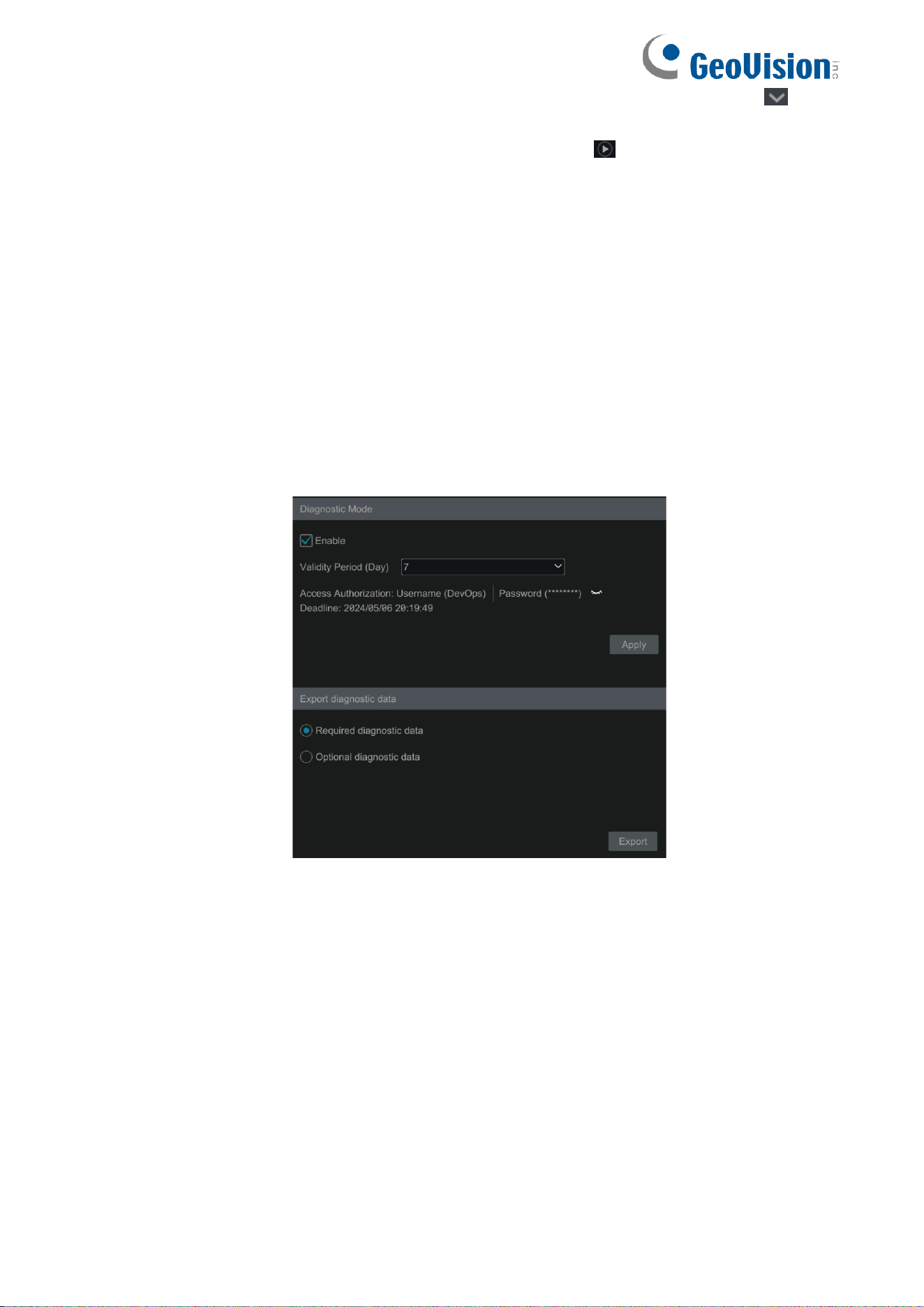

14.9 Diagnostic Data
Admin (default administrator) can enable diagnostic mode. An authorized account and password
can be generated, which can be used to visit the web client for the collection of diagnostic data.
Check “Enable”, set the validity period and click “Apply” to generate an authorized account.
The required diagnostic data or optional diagnostic data can be exported within the validity period
by using the authorized account.
Note: When the NVR is bound by the APP, the verification code is not needed to log in the P2P
web by using the authorized account generated above.
144
15 Remote Surveillance
15.1 Web LAN Access
① Click Start
→
Settings
→
Network
→
TCP/IP to go to the “TCP/IP” interface. Set the IP address,
subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Open a web browser on your computer, enter the IP address of the NVR in the address bar
(192.168.0.100 by default) and then press enter to go to the login interface as shown below. You
can change the display language on the top right corner of the login interface. Enter the
username and password of the NVR in the interface and then click “Login” to go to the live view
interface.
15.2 Web WAN Access
➢ PPPoE Access
① Click Start
→
Settings
→
Network
→
PPPoE to go to the “PPPoE” interface. Check “Enable” in
the “PPPoE settings” and then enter the username and password you get from your ISP. Click
“Apply” to save the settings.
② Click Start
→
Settings
→
Network
→
Network Status to view the IP address of the NVR.
③ Open a web browser on your computer, enter the IP address of the NVR like
http://210.21.229.138 in the address bar and then press enter to go to the login interface. Enter
the username and password of the NVR in the interface and then click “Login” to go to the live
view interface.
➢ Router Access
① Click Start
→
Settings
→
Network
→
TCP/IP to go to the “TCP/IP” interface. Set the IP address,
subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
Notes: 1. Please make sure that the IP address of the NVR and the computer are both
in the same local network segment. For example, supposing that the IP address of the
computer is 192.168.1.41, the IP address of the NVR shall be set to 192.168.1.XXX.
2. If the HTTP port of the NVR is not 80, but another number, you need to enter
the IP address plus port number in the address bar when accessing the NVR
over a network. For example, the HTTP port is 81. You should enter
http://192.168.1.42:81 in the address bar.
145
② Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80
might be taken up) and enable UPnP function in both the NVR and the router. If the UPnP
function is not available in the router, you need to forward the LAN IP address, HTTP port and
server port of the NVR to the router. Port mapping settings may be different in different routers, so
please refer to the user manual of the router for details.
③ Get the WAN IP address of the NVR from the router. Open a web browser on your computer,
enter the WAN IP address plus HTTP port like http://116.30.18.215:100 in the address bar and
then press enter to go to the login interface. Enter the username and password of the NVR in the
interface and then click “Login” to go to the live view interface.
15.3 Web Remote Control
The NVR supports web client access with or without a plug-in. The plug-in for HTML5 browsers
offers improved features and performance.

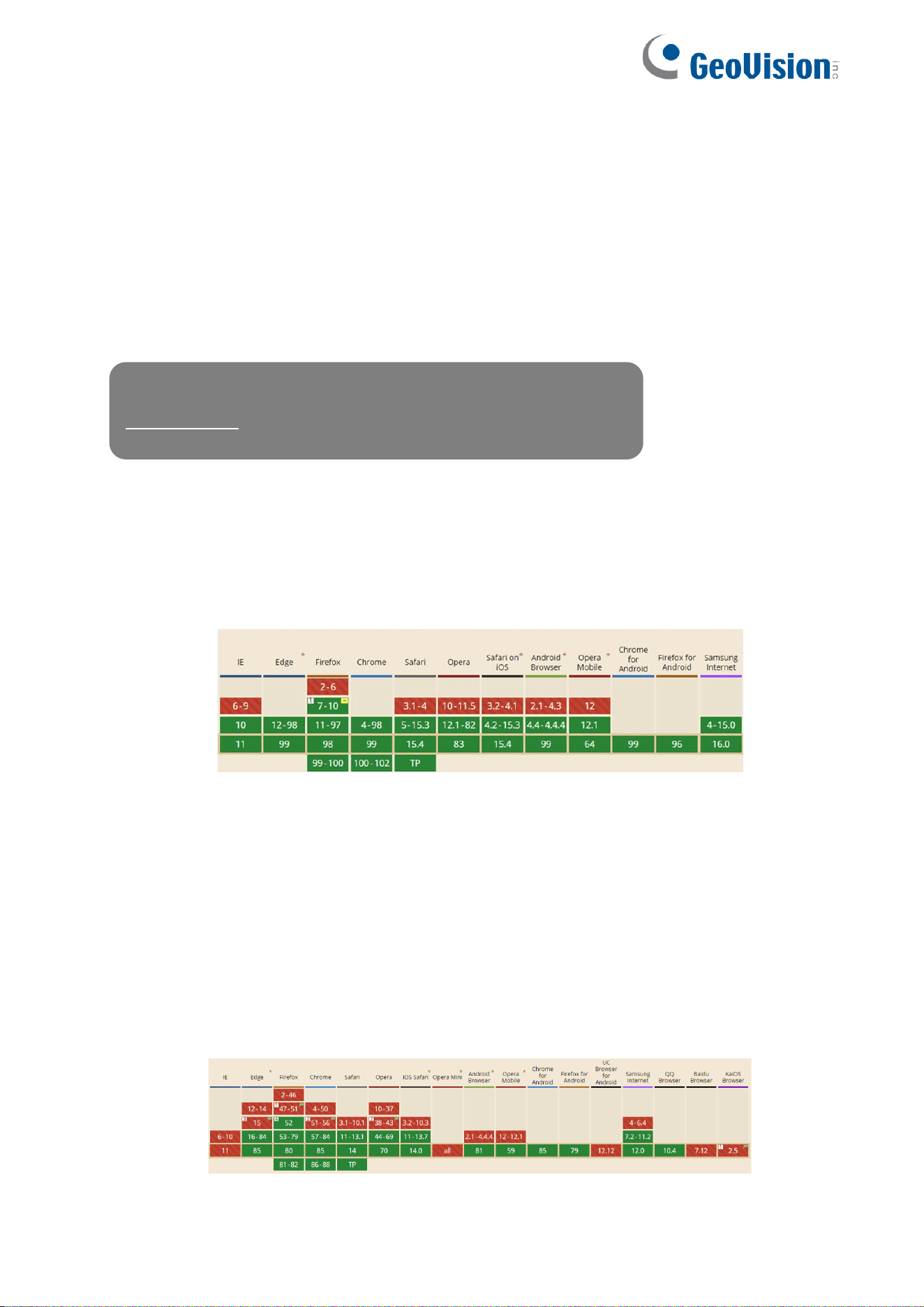

The supported browsers (green color) for remote access with the plug-in are as follows. The red
color versions are not supported.
When you access the NVR through the above web browser for the first time, the browsers need to
download and install the relative components for normal preview and playback.
If your browser asks for permission on the configuration modifications after the plug-in runs,
please allow it, or the interface will not display normally; if the relevant ports of the plug-in (port
11563; port 12863; port 13863) are occupied, the system will tell you which program currently
occupies the port. Please stop the occupying program.
The supported browsers (green color) for remote access without the plug-in are as follows. The
red color versions are not supported.
Please refer to the tips in the remote interfaces for details. The buttons and icons on the top right
corner of the remote interface are introduced as follows.
Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the
domain name to access the NVR. Click Start
→
Settings
→
Network
→
DDNS to set DDNS (see
DDNS Configuration for details). By using DDNS function you can use the domain name
plus HTTP port like http://sunshine.NVRdydns.com:100 to access the NVR via the Internet.
146
admin: the current login username.
Logout: click to log out and return to the login interface.
Modify Password: click to change the password of the currently active user. Enter the current
password and then set a new password in the popup window. Click “OK” to save the new
password.

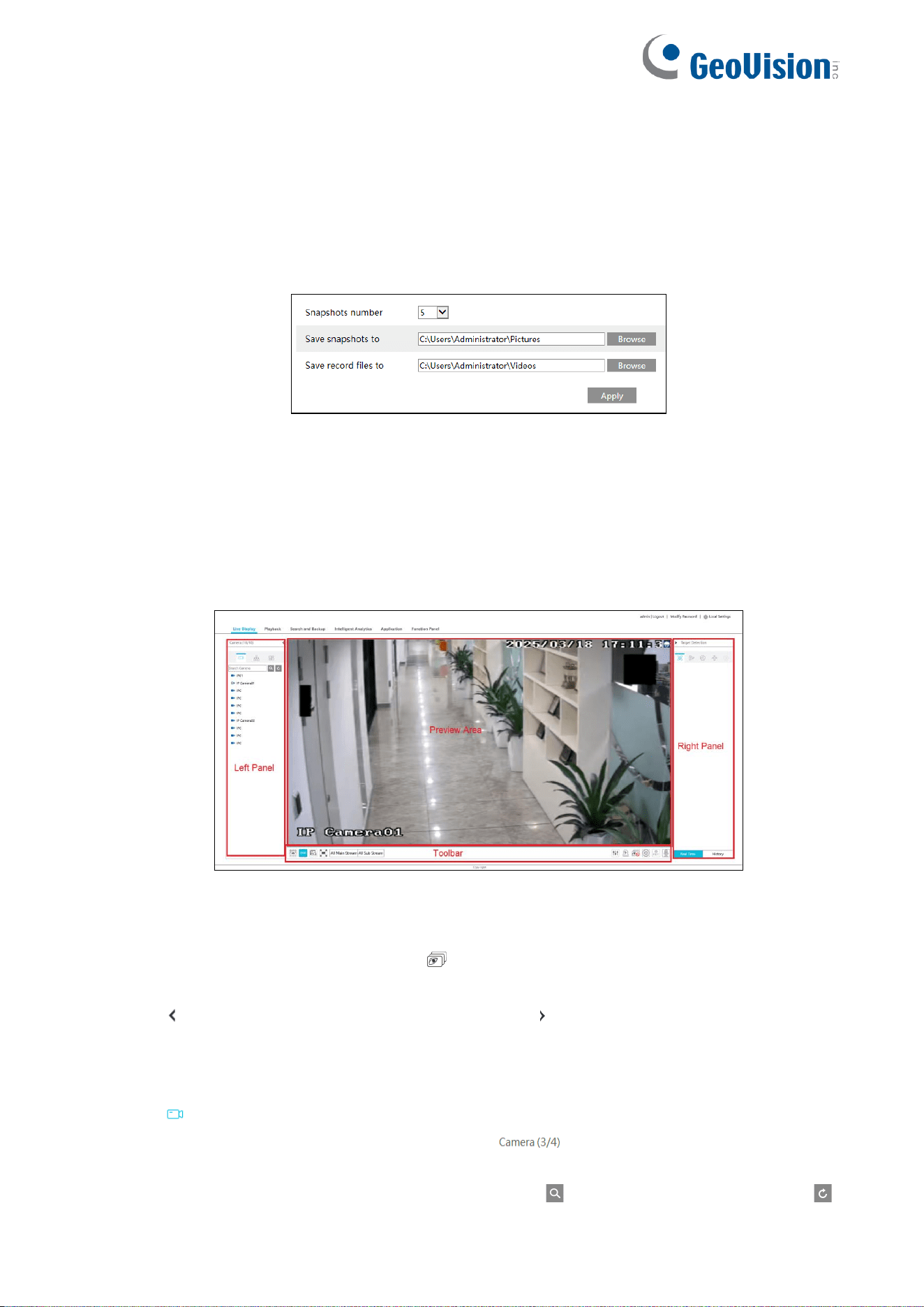

Local Settings: click to change the local settings. Set the snapshot number and click “Browse” to
set the snapshot path and record path as shown below. Click “Apply” to save the settings.
Below as an introduction is a web browser with the applicable plug-in installed.
15.3.1 Remote Preview
Click “Live Display” in the remote interface to go to the preview interface.
The preview interface consists of the four areas marked in the following picture.
➢ Start Preview
Select a window in the preview area and then click one online camera on the left panel to preview
the camera in the window. You can click in the tool bar to preview all the cameras.
➢ Left Panel Introduction
Click on the left panel to hide the panel and click to show the panel. You can view all
the added cameras and groups on the left panel.
⚫ View Camera
Click to view the cameras. You can view the number of all the added cameras and the
online cameras. For instance, the left number 3 in on the left panel stands for the
number of online cameras; the right number 4 stands for the number of all the added cameras.
Enter the camera name in the search box and then click to search for the camera. Click
to refresh the camera list.
147
⚫ View Group
Click to view the groups. The top side of the left panel displays all the groups and the bottom
displays all the cameras in the group.
⚫ View Scheme
Click to view the scheme. All schemes can be shown in the left panel. Double click the
scheme name to invoke it quickly.

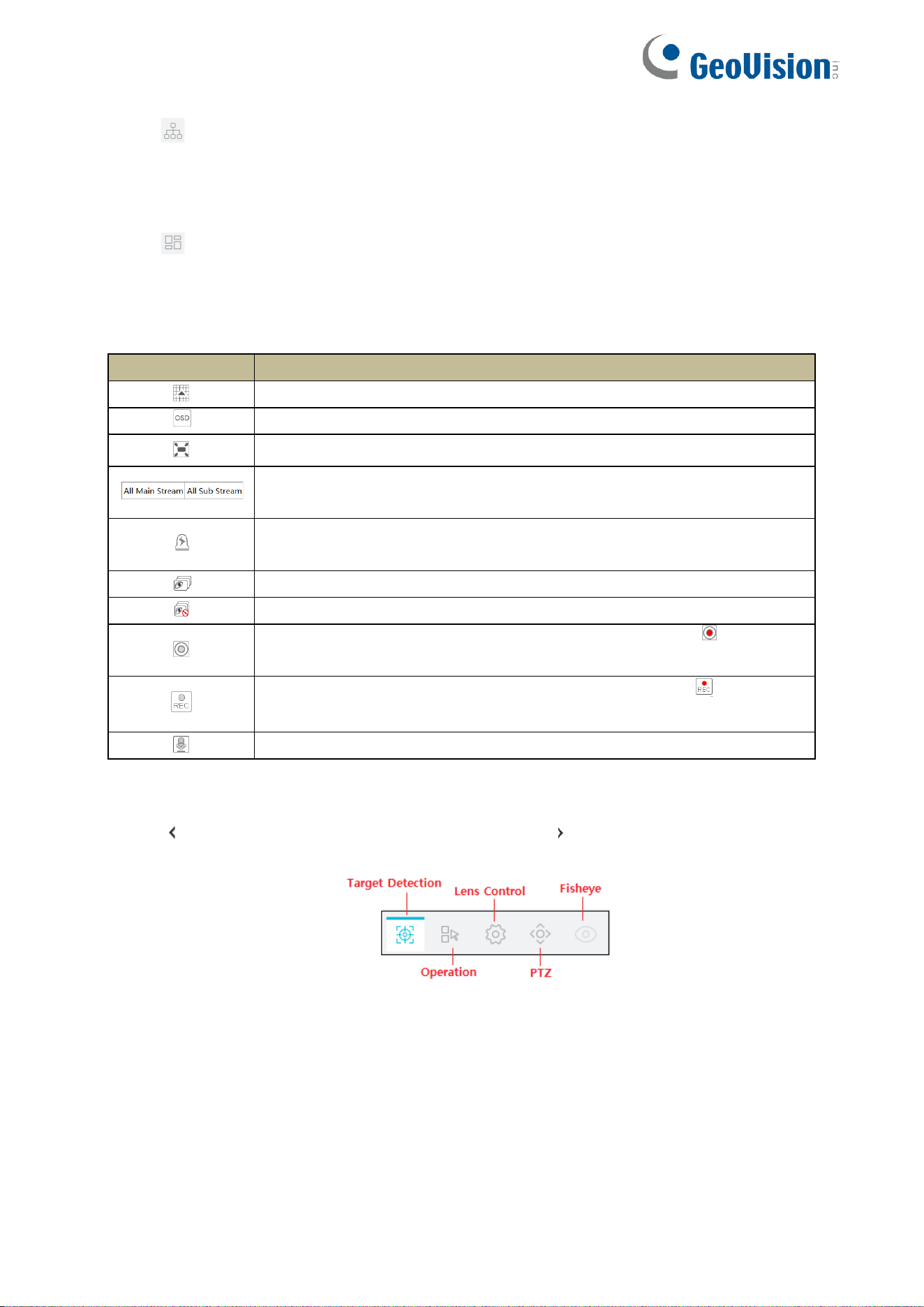

➢ Tool Bar Introduction
Button
Meaning
Screen mode button.
Click to enable/disable OSD.
Click to show full screen. Right click on the full screen to exit full screen.
Click “All Main Stream” or “All Sub Stream” to set the stream of all the
cameras.
Manual alarm button. Click to open a window and then trigger and clear
the alarm-out in the window manually.
Click to preview all cameras.
Click to close all the preview cameras.
Click to start recording for all cameras to computer. Click to stop
recording.
Click to start recording for all cameras to the NVR. Click to stop
recording.
Click to enable talk through the NVR.
➢ Right Panel Introduction
Click on the right panel to show the panel and click to hide the panel.
148
Operation panel introduction:
Button
Meaning
Click to take snapshots
Click to start recording to computer
Click to start recording to the NVR.
Click to zoom in the image of the camera and then drag the mouse on the
camera image to view the hidden area.
Click to zoom out the image of the camera.
Click to start two-way talk.
The 3D zoom in function is designed for P.T.Z. Click the button and then
drag the image to zoom in or zoom out the image; click the image on
different areas to view the image of the dome omni-directionally.
Click to close the preview camera.
Click to display original size
Click to enable audio and then drag the slider bar to adjust the volume. You
can listen to the camera audio by enabling audio.
Click one camera window in the preview area and then click to set the camera’s live
preview stream and record stream to main stream in manual record mode; click to set the
camera’s live preview stream and record stream to sub stream. In sub stream tab, set the
resolution, FPS and bitrate and then click “Apply” to save the settings.
PTZ panel introduction:
Button
Meaning
Click / / / / / / / to rotate the
dome; click to stop rotating the dome.
Drag the slider to adjust the rotating speed of dome.
Click / to zoom in/out camera image.
Click / to increase/ decrease the focal length.
149
Button
Meaning
Click / to increase/decrease the iris of the dome.
Preset
Click to view the preset list and then click the button in the list to call the
preset. Click to add a preset; click to save the preset setting;
click to delete the selected preset
Cruise
Click to view the cruise list. Click to add a cruise; click to play
the cruise; click to stop cruise.
Cruise Group
Click to view the cruise group list. Click to add a cruise group; click
to play the cruise group; click to stop cruise group.
Trace
Click to view the trace list. Click to add a trace; click to play
the trace click to start record.
If the camera you added is motorized lens camera, click the lens control icon to adjust the lens.
If the camera you added is a fisheye camera, click the fisheye icon to set the relevant parameters
as needed.
15.3.2 Remote Playback
Click “Playback” in the remote interface to go to the playback interface.
① Check the record event types and cameras on the left panel. Click to select “Normal
Playback” or “Event Playback”. Set the record date on the calendar beside the time scale.
② Click to search the record data and then click or directly click the time scale
to play the record.
The operation of the playback time scale is similar to that of the time scale in the main program of
the NVR. Please refer to Playback Interface Introduction for details.
Introduction of playback control buttons:
Button
Meaning
Stop button.
Rewind button. Click to play video backwards.
Play button. Click to play video forwards.
Pause button.
Deceleration button. Click to decrease the playing speed.
Acceleration button. Click to increase the playing speed.
Previous frame button. It works only when the forward playing is paused in single
screen mode.
Next frame button. It works only when the forward playing is paused in single screen
mode.
Select the time (for example: 30s); click it to step backward 30s
Select the time (for example: 30s); click it to step forward 30s.
Backup start time button. Click the time scale and then click to set the backup start
time.
Backup end time button. Click the time scale and then click to set the backup end time.
Backup button.
150
Button
Meaning
Play strategy
More operations (water mark/POS/backup status)
15.3.3 Remote Search and Backup
Click “Search and Backup” in the remote interface to go to the backup interface. You can back up
the record by event or by time.
➢ By Event
Click to set the start time and end time on the left side of the interface; check the cameras;
click to select the desired events and then click “Search” to search the record (the searched
record data will be displayed in the list); check the record data in the list and then click “Backup” to
backup the record.
➢ By Time
Click to set the start time and end time on the left side of the interface; check the cameras
and then click on the right side to backup the record.
Image Management: Click “Image Management” to go to image management interface. The
system will display all captured images automatically in the list. Click to delete the image.
Click to open the “Export” window. Click to open the “View Image” window. Click to
export the image.
View Backup Status: Click “Backup Status” to view the backup status. Click “Pause” to pause;
click “Resume” to continue the backup; click “Delete” to delete the task.
15.3.4 Intelligent Analysis
Click “Intelligent Analysis” in the remote interface to configure smart search, statistics and sample
database. All of these settings are similar to that of the NVR. See the configurations of the NVR for
details.
15.3.5 Application
The application of this system includes parking lot management and people flow statistics. All of
these settings are similar to that of the NVR. See the configurations of the NVR for details.
15.3.6 Remote Configuration
Click “Function Panel” in the remote interface and then configure the camera, record, alarm, disk,
network, account and authority and system of the NVR remotely. All of these settings are similar
to that of the NVR. See the configurations of the NVR for details.
➢ Jumping to IPC Web Client
Except for IPCs that access with RTSP protocol, the IPC can be directly jumped from the NVR
web client to the IPC web client by clicking in the above-mentioned interface.
151

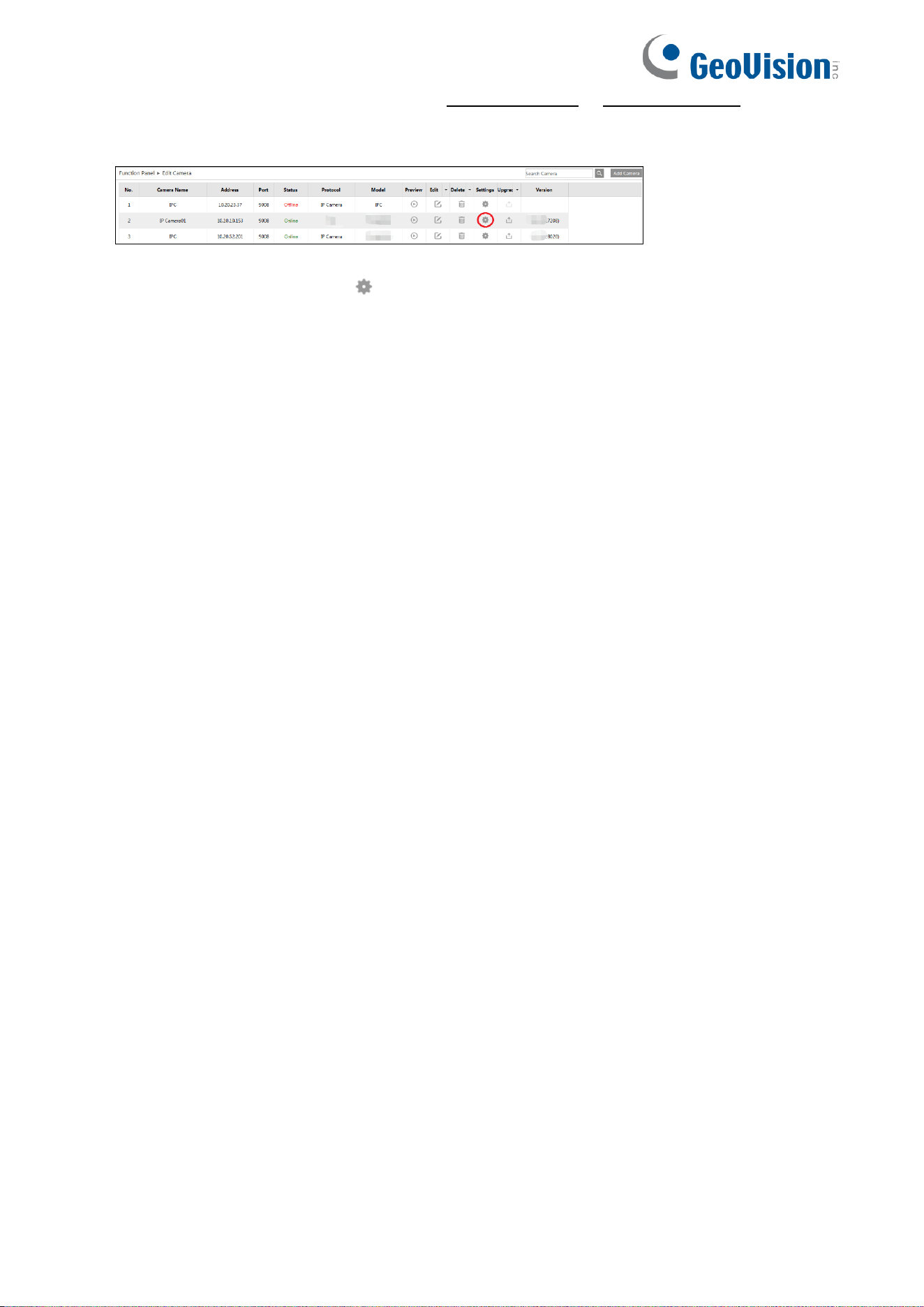

1. Please login the Web Client of NVR (See Web LAN Access or Web WAN Access for details).
2. Click Function Panel
→
Camera
→
Edit Camera to go to the following interface.
3. Select the camera and click to log into the web client of the camera. From there, you can
set the parameters of the camera as needed.
152
16 Service

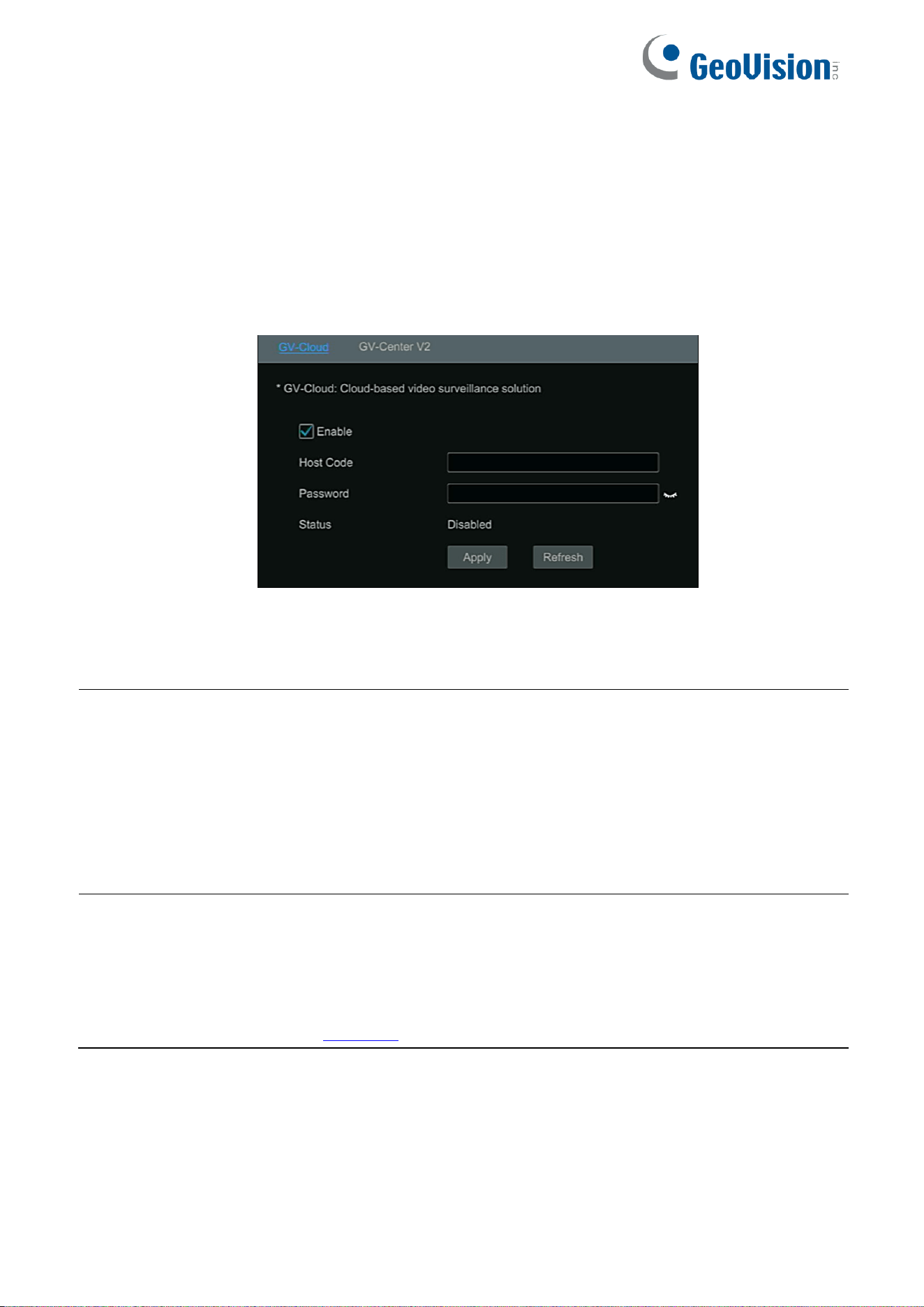

16.1 GV-Cloud VMS
The GV-Cloud VMS service is a cloud-based data center and video surveillance solution.
Thousands of on-site videos, alarm devices, and AI events can be monitored and managed from
a single platform. With GV-Cloud VMS, you can easily search for events and watch live streams
or recordings from anywhere using a web browser.
Click Start→Settings→Service→GV-Cloud.
It is required to sign up and log in GV-Cloud first to create a host for the camera.
1. Enable the function and fill in the Host Code and Password created on GV-Cloud.
2. Click “Apply” and “Refresh” to set up and refresh the connection.
IMPORTANT:
1. GV-GNVR supports connecting IP cameras to either GV-Cloud VMS or GV-Center V2, but not
both at the same time.
2. While connecting IP cameras to GV-Cloud VMS through GV-GNVR, video playback is currently
not supported.
3. If the GV-GNVR is connected to a GV-Cloud IP camera (a G-series model with a 9 in its model
name) and you also want to connect the NVR to GV-Cloud VMS, you must disable the cloud
service on the camera (Config > Service > GV-Cloud) to avoid conflicts.
Note:
1. See 6. Connecting to GV-Cloud VMS in the Quick Start Guide for detailed steps.
2. When motion occurs, the NVR can send snapshots to GV-Cloud VMS. It also transmits the
following AI events from AI-capable GV-IP cameras, varying by model: Intrusion / Cross Line /
Enter Area / Leave Area / Loitering. For details, see 2. AI Search: GV-IP Cameras via
GV-GNVRC0810-P in this document.
153

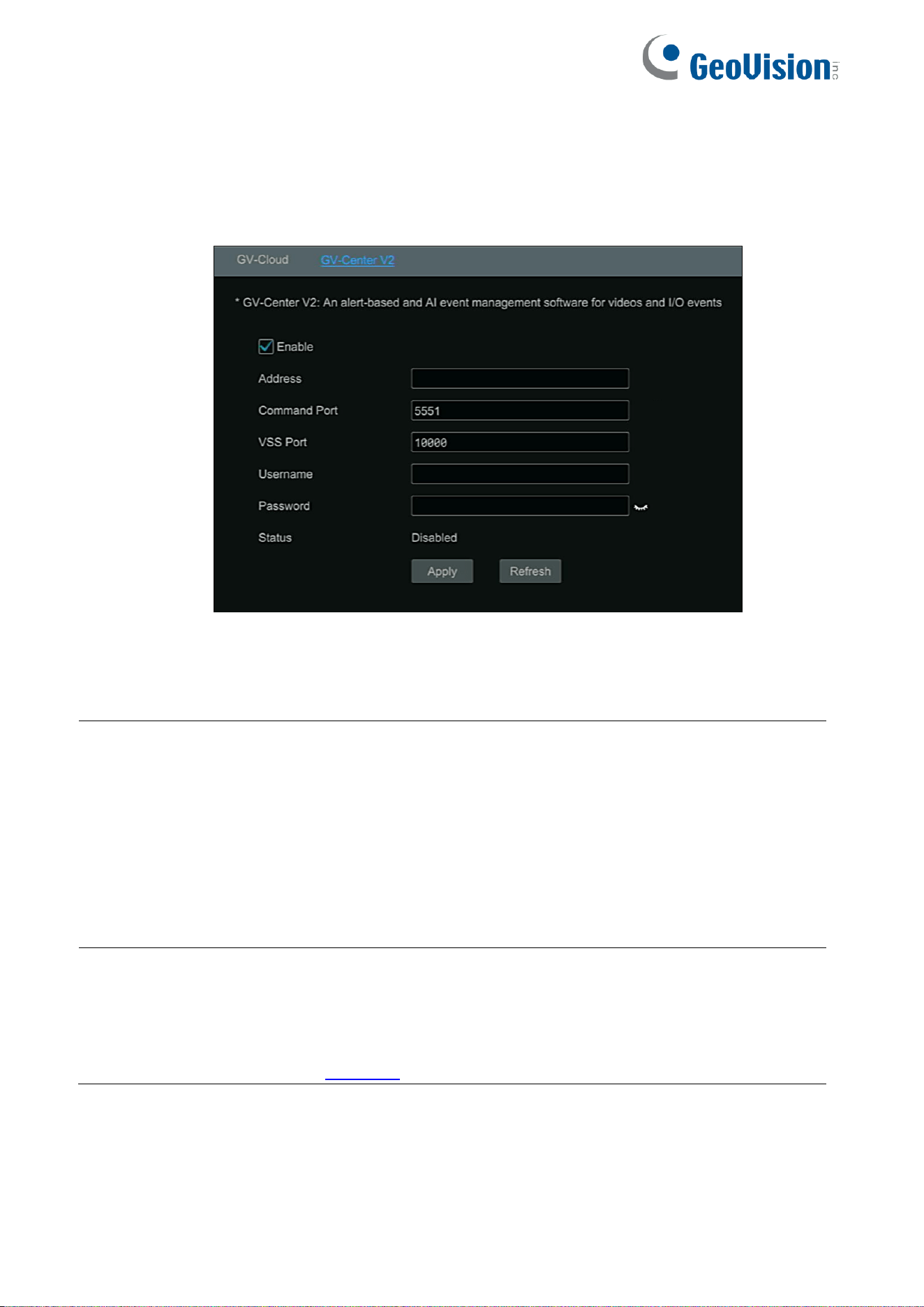

16.2 GV-Center V2
GV-Center V2 is a Central Monitoring System (CMS) software that allows users to monitor,
receive, and record events from IP cameras and surveillance systems on a single platform.
During alert events, GV-Center V2 receives live view and messages with attached recordings,
allowing users to track any abnormalities on the premises.
Click Start→Settings→Service→GV-Center V2.
1. Enable the function and fill in the connection information.
2. Click Apply and Refresh to set up and refresh the connection.
IMPORTANT:
1. GV-GNVR supports connecting IP cameras to either GV-Cloud VMS or GV-Center V2, but
not both at the same time.
2. While connected to GV-Center V2 and GV-Dispatch Server,
⚫ GV-Center V2 Standard / Pro used alone, or GV-Center V2 Pro used with GV-Dispatch
Server Standard, do not support AI events.
⚫ GV-Center V2 AI used with GV-Dispatch Server AI supports AI events.
3. If the GV-GNVR is connected to a GV-Cloud IP camera (a G-series model with a 9 in its
model name) and you also want to connect the NVR to GV-Center V2, you must disable the
GV-Center V2 service on the camera (Config > Service > GV-Center V2) to avoid conflicts.
Note:
1. See 7. Connecting to GV-Center V2 in the Quick Start Guide for detailed steps.
2. The NVR transmits the following AI events from compatible IP cameras, varying by model:
Intrusion / Cross Line / Enter Area / Leave Area. Currently, only AI events processed by the
NVR AI engine are supported. For details, see 2. AI Search: GV-IP Cameras via
GV-GNVRC0810-P in this document.
154
Appendix A FAQ
Q1. Why can’t I find the HDD?
a. Please check the power and SATA data cables of the HDD to make sure they are properly
connected.
b. For some NVRs with the 1U or small 1U case, the power of the adapter may not be enough for
operating your HDD. Please use the power adaptor supplied along with your specific NVR.
c. Please make sure the HDD is compatible with the NVR. The GV-GNVR supports HDDs up to
10 TB and also supports validated HDD models over 10 TB listed in the GV-SNVR HDD
Compatibility Table.
d. The HDD may be defective. Try replacing it with a known working HDD.
Q2. Why are there no images in some or all the camera windows?
a. Please make sure the resolutions of the cameras are supported by the NVR.
b. Please make sure the network cables of the IP camera and NVR are both connected properly
and the network parameters are set correctly.
c. Please make sure the network and the switch both work normally.
Q3. Why does my screen have no output after booting the NVR normally?
a. Please make sure the screen, HDMI or VGA cables are functioning and properly connected.
b. Please make sure the screen supports the resolution of 1280*1024, 1920*1080 or 3840*2160
(4K*2K). The NVR cannot self-adapt to a screen of which the resolution is lower than 1280*1024,
In that event, the screen will remind you that the resolution is not supported by the NVR or just not
display anything. Please change the screen to 1280*1024, 1920*1080 or 3840*2160 resolution
before booting the NVR.
Q4. What do I do if I have forgotten my password?
a. The password for admin can be reset using one of the following methods:
⚫ Security Question: Click “Retrieve Password” in the login window and answer the
configured security questions. After all questions are answered correctly, you can reset
the admin password.
⚫ Dynamic Password: If the security questions are unavailable or the answers are
forgotten, contact GeoVision technical support at [email protected].tw for
assistance. A dynamic password can be generated using a dedicated tool to reset the
admin password.
Note: For security reasons, password reset operations can only be performed locally on the
device.
b. The passwords of other users can be reset by admin, please refer to Edit User for details.
Q5. Why will my NVR not accept the maximum number of IP cameras?
Take a 16 CH NVR as an example. Some 16 CH NVRs support a maximum of 120Mbps
bandwidth input (please take the real device as a standard). Refer to the picture below. The
155
remaining bandwidth should be larger than the bandwidth of the IP camera you want to add, or
you would fail to add an IP camera. You should lower the added cameras’ bitrate to relieve the
bandwidth. It is recommended to add cameras by “Quickly Add” for batch adding.
Q6. Why is an IP camera connected directly to the PoE port of my NVR not displayed
automatically in the camera list?
a. Please check whether a PoE port is occupied by another IP camera that may have been added
through the network (including a PoE switch).
⚫ Take a 16 CH NVR with 8 PoE ports as an example. The resource distribution of the 16 CH IP
cameras is shown in the picture below.
When you add IP cameras through network, the IP cameras will occupy the resource from CH1,
CH2, CH3, CH4…in the sequence they are added; if you directly connect IP cameras to the PoE
ports of the NVR, the IP cameras will occupy ports from CH9 to CH16 according to the number of
the PoE port each IP camera is connecting to.
Let’s say 12 IP cameras have been added to the NVR through the network and no IP cameras
have been directly connected to a PoE port. The 12 CH IP cameras occupy the 8 network
resources from CH1 to CH8 and 4 PoE resources from CH9 to CH12 which otherwise would have
been occupied by connecting the IP cameras directly. In this situation, if you directly connect one
IP camera to PoE5, PoE6, PoE7 or PoE8, the IP camera will be displayed in the camera list
automatically; if you connect it to PoE1, PoE2, PoE3 or PoE4, it won’t be displayed in the camera
list and will show a resource conflict; if you need to connect it to PoE1, PoE2, PoE3 or PoE4, you
should first delete the IP camera which occupies the PoE port resource and then reconnect your
camera to the PoE port.
⚫ Take a 8 CH NVR with 8 PoE ports as another example. The resource distribution of the 8 CH
IP cameras is shown in the picture below and the addition rules of the IP cameras are similar to
the rules mentioned above. Please refer to the above for details.
b. Please make sure that the internal Ethernet port and an IP camera which directly connects to a
PoE port through the ONVIF protocol are in the same network segment, or you will fail to add the
156
camera.
Log into the IP camera’s Web client and then enable DHCP (to obtain an IP address
automatically); or manually change the IP address of the IP camera to put it in the same network
segment as the internal Ethernet port.
c. Check whether the number of the added IP camera exceeds the maximum allowed.
If the number of IP cameras exceeds the maximum allowed, the system will alert you that the IP
camera count is exceeds the limit.
Q7. Why do I have no image output on an IP camera directly connected to the PoE port of
my NVR using the ONVIF protocol, even though it’s shown on the camera list?
Please make sure the username and password of the IP camera are correct. The IP camera’s
username and password can be modified through the two ways mentioned below.
① Click “Edit Camera” in the Camera module of the setup panel to go to the interface. Click
to modify the username and password of the IP camera (enter the correct username and
password of the IP camera in the popup window and then click “OK”).
② Go to the live view interface and then click in the preview window of the IP camera to edit
the IP camera’s username and password.
Q8. Why is my system not recording?
a. Make sure the HDD was formatted prior to use.
b. The recording schedule has not been set in customization mode. Please refer to Schedule
Settings for details.
c. It’s possible your HDD is full and the NVR is not able to record. Check HDD information from
Disk Management and if required, please enable the recycle function (please see Advanced
Configuration for details).
d. There is no disk in the disk group, so please add at least one disk to the group. Refer to
Storage Mode Configuration for details.
e. The HDD could have gone bad. Please change another one.
Q9. Fail to access the NVR remotely through a Web browser.
a. Check whether the PC firewall or antivirus software is blocking access. Try to access the NVR
again after you disable the firewall and stop the antivirus software.
b. The Allow List and Block List settings may have been configured in Account and Authority
Settings. A PC whose IP address is in the Block List or not included in the Allow List cannot
access the NVR remotely.
Q10. How do I play a backup file?
a. Recorded video backed up by NVR: insert the USB device with the recorded video backup files
unto the USB interface of a PC, and then open the USB device path. The recorded video can be
157
backed up in the private format and AVI format by NVR.
⚫ If you select the private format when backing up recorded video by NVR, a RPAS compression
package will be backed up to the USB device automatically along with the recorded video data.
Uncompress the “RPAS.zip” and then click “RPAS.exe” to set up RPAS. After the setup is
completed, open RPAS player and then click “Open Folder” in the middle of the interface to select
the record data. Refer to Fig 11-1.
Select a camera in the resource tree on the left side of the interface to play the camera record.
Click on the tool bar under the camera image to enable audio. Refer to Fig 11-2.
⚫ If you select the AVI format when backing up recorded video by NVR, the recorded video
backup data can be played by a video player that supports this format.
b. Recorded video backed up through web. The recorded video can only be backed up using AVI
format. The recorded video can be backed up to PC and played by the video player which
supports this format.
Fig 11-1
Note: The record will not have audio output if you disable the audio when recording by
NVR. Please see Mode Configuration and Encode Parameters Settings for details.
158
Fig 11-2
Q11. HTTPs service cannot work normally after directly installing the signed certificate.
a. When importing the certificate, the private key is not attached to the certificate.
b. When importing the certificate, the private key is attached to the certificate, but it is encrypted.
At present, the NVR doesn’t support the certificate with the encrypted private key.
Q12. You are prompted with the unsafe statements/tips when using HTTPs service.
a. Please make sure your certificate is trusted.
b. Make sure whether the Common Name (domain information) of the certificate matches with
the domain name of the visiting website.
c. Whether the certificate is within the period of validity.
159
Appendix B Calculate Recording Capacity
The recording capacity is mainly up to the record resolution, record stream and bitrate. Different
image quality parameters decide different disk capacity occupation under equal circumstances.
The higher the recording resolution, recording stream and recording bitrate is, the more disk
capacity is taken up under equal circumstances. The calculation format of the recording capacity
is shown as below.
Recording Capacity(MB) = Bitrate(Kbps) ÷1024 ÷ 8 × 3600 × Recording hours per day ×
Record Storage Days × channel numbers
3600 means record for an hour(1TB=1024GB，1GB=1024MB，1MB=1024KB，1Byte=8bit).
Record Bitrate
(Kbps)
Used Space
(MB/H)
Used Space
(MB/D)
10240
4500
108000
8192
3600
86400
6144
2700
64800
4096
1800
43200
3072
1350
32400
2048
900
21600
1024
450
10800
768
337.5
8100
512
225
5400
384
168.75
4050
256
112.5
2700
The table below shows the recording capacity requirements for record storage in 30 days.
Record
Bitrate
(Kbps)
Recording Capacity(TB)
1CH
4CH
8CH
16CH
32CH
64CH
10240
3.09
12.36
24.72
49.44
98.88
197.7
6
8192
2.48
9.89
19.78
39.56
79.11
158.2
1
6144
1.86
7.42
14.84
29.67
59.33
118.6
6
4096
1.24
4.95
9.89
19.78
39.56
79.11
3072
0.93
3.71
7.42
14.84
29.67
59.33
2048
0.62
2.48
4.95
9.89
19.78
39.56
1024
0.31
1.24
2.48
4.95
9.89
19.78
768
0.24
0.93
1.86
3.71
7.42
14.84
512
0.16
0.62
1.24
2.48
4.95
9.89
384
0.12
0.47
0.93
1.86
3.71
7.42
256
0.08
0.31
0.62
1.24
2.48
4.95
160
For instance, there is a 32CH NVR recording 24 hours per day and the recordings are stored for
30 days and the NVR adopts dual stream recording. If the main stream is 4096Kbps and the sub
stream is 1024Kbps, then the total recording capacity is 49.45TB (39.56TB + 9.89TB).
Considering the format loss of the disk is about 10%, the required disk capacity will be 55TB
(49.45TB ÷ (1-10%)).
