FOREWORD
- This manual was drawn up to provide the Customer with information concerning
t
he machine and applicable standards, as well as instructions on operati
on and
m
aintenance to ensure the optimal use and durability of the device.
- This manual is intended for operators authorized to use the machine and
execute routine maintenance.
LIST OF CONTENTS
PART 1 - ABOUT THE MACHINE 4
1.1 - General precauti
ons
1.2 - The machine’s safety device
s
1.3 - Description of the machin
e
1.3.1 - Overview
1.3.2 - Structural characteristics
1.4 - Intended use
1.5 - Unintended use
1.6 - Master data
1.7 - Protective and safety device
s
1
.8 - Machine composition

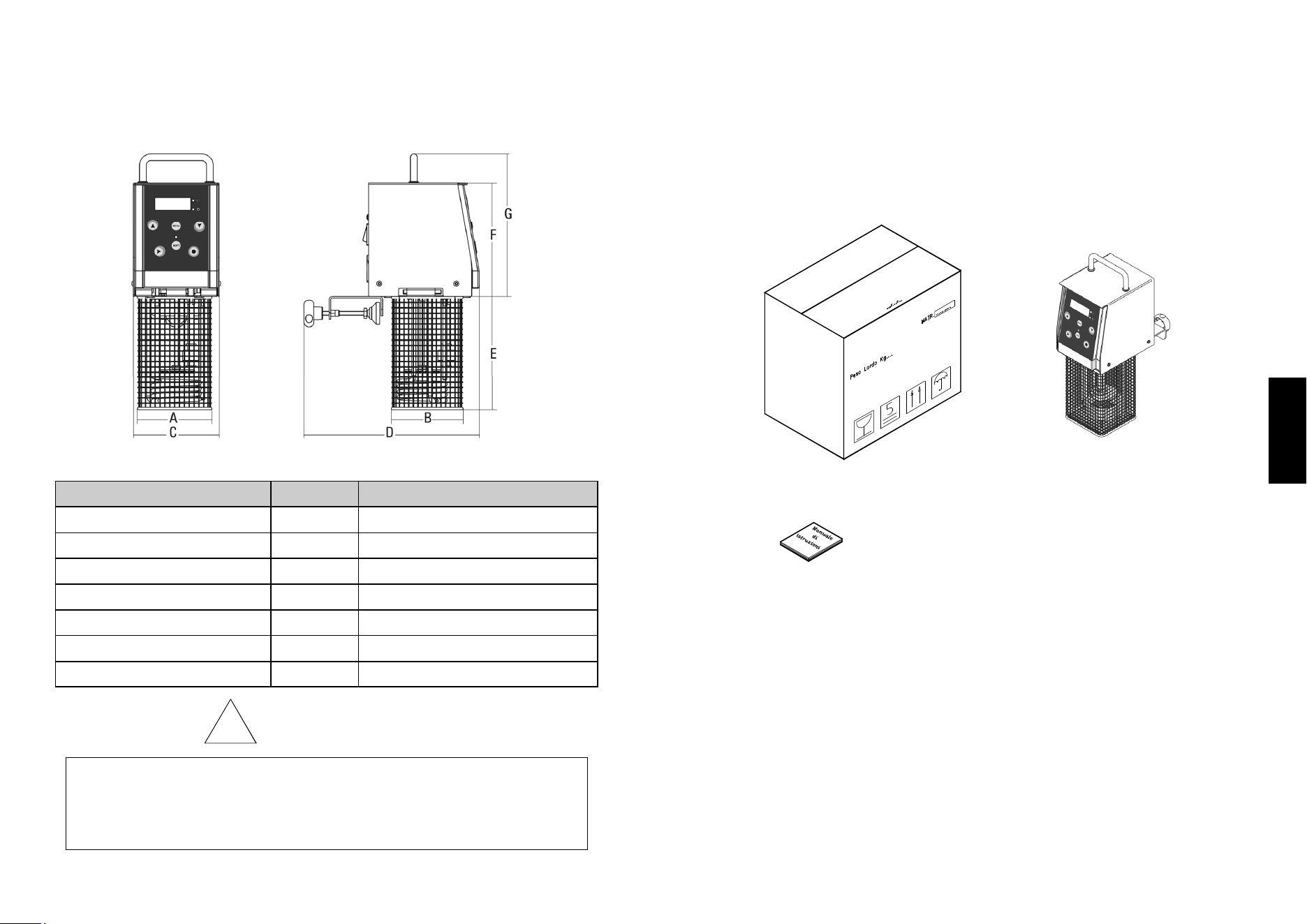

PART 2 - TECHNICAL DATA 8
2.1 - Size, weight, properties...
PART 3 - RECEIPT OF THE MACHINE 9
3.1 - Delivery of the machin
e
3.2 - Checking the pack on receipt
3.3 - Disposal of the packaging
PART 4 - INSTALLATION 10
4.1 - Positioning of the machin
e
4.2 - Connection to the main
s
4.
3 - Wiring diagram
PART 5 - MACHINE USE 11
5.1 - Controls
PART 6 - CLEANING THE MACHINE 13
6.1 - General point
6.2 - Maintenance of the element
PART 7 - MAINTENANCE 14
7.1 - General point
7.2 - Power cabl
e
PART
8 - DISMANTLING 14
8.1 - Putting out of servic
e
8.
2 - Disposal
8.3 - WEEE Waste electrical and electronic equipment
4
PART 1 - ABOUT THE MACHINE
1
.1 - GENERAL PRECAUTIONS
- The SOFTCOOKER must only ever be used by a trained operator who has read
and
understood the safety instructions in this manual.
- In the case of shifts, make sure all the operators are suitably trained.
- Do not touch the heating elements with bare hands.
- Always unplug the machine before cleaning or maintenance.
- Always take the residual risks into account when servicing or cleaning the machine
(and therefore when removing the protective devices).
- Always focus on the work in hand when executing maintenance or cleaning.
- Check the condition of the power cable on a regular basis; a worn or damaged
cabl
e can pose serious electrical risks.
- If there are any signs the machine is not working properly or you have reason to
believe it is malfunctioning, you are advised to not use it and to contact the Assis-
tance Centre immediately.
- Do not execute any repairs directly. Always contact an authorized repairman.
The user must never, for any reason, tamper with the machine. Always contact th
e
M
anufacturer in the event of a fault. Any attempt by the user or unauthorized op-
erator to dismantle, change or tamper with a component of the machine shall for-
feit the
Declaration of Conformity drawn up in accordance with EEC Directive 2006/
42
and
invalidate the warranty. The Manufacturer Firm cannot assume liability for
damage due to tampering.
Moreover, the Manufacturer cannot be held liable for:
- Improper use or tampering with the machine by poorly trained operators;
- Poor or insufficient maintenance;
- Use of spare parts that are not original or type-approved;
- Failure to comply with some or all of the instructions in this manual;
- Treatment of the machine’s surfaces with unsuitable products.
1.2 - THE MACHINE’S SAFETY DEVICES
The electrical and mechanical safety devices conform to directives 2006/95 and
2006/42, and standard 60335-1.
The Softcooker protects against electrical and mechanical risks during operation as
well as cleaning and maintenance.
There are however some RESIDUAL RISKS that cannot be fully eliminated. These
are headed ATTENTION
and concern the risk of burns or bruises when loading and
unloading the product and cleaning the machine.
13
Table of preset programs
Program P
01
P
02 P03 P04
P
05
Te
mperature 58°C 66°C
74°C 85°C
50°C
Time 40 min. 40 min. 4 ore 6 ore 10 min.
Once the SOFTCOOKER reaches the selected temperature, independently of whether
you have or have not set the time and at the end of the work cycle, it will emit a
SOUND SIGNAL.
When the work cycle has ended, press the STOP button to turn off the
machine.
Unplug the machine. Disconnect the machine from the tank. Empty the tank.
The Softcooker gives an error message when:
- The level of water in the container is too low ( ERR ), in which case the machine will
a
lso emit a SOUND SIGNAL.
-
The electronic components in the machine start to overheat
( ERR ),
- The temperature probes do not detect the same temperature as one of the two
probes is faulty ( ERR ).
PART 6 – CLEANING THE MACHINE
AT
TENTION!
Always unplug the machine before cleaning it to ensure it is no
longer live.
6.1 – General point
- Clean the machine with a cloth soaked in a normal detergent at ambient
temperature.
- Clean thoroughly all parts of the machine that come in contact with the product.
- Do not use high-pressure water jet machine or pressurized water spray.
- Do not use tools, brushes or other that could damage the surface of the machine.
- Do not put any of the components in the dishwasher.
6.2 – Maintenance of the element
To protect the element and all the components that are immersed in the tank, you are
advised to add some vinegar in the tank with the water for each work cycle.
12

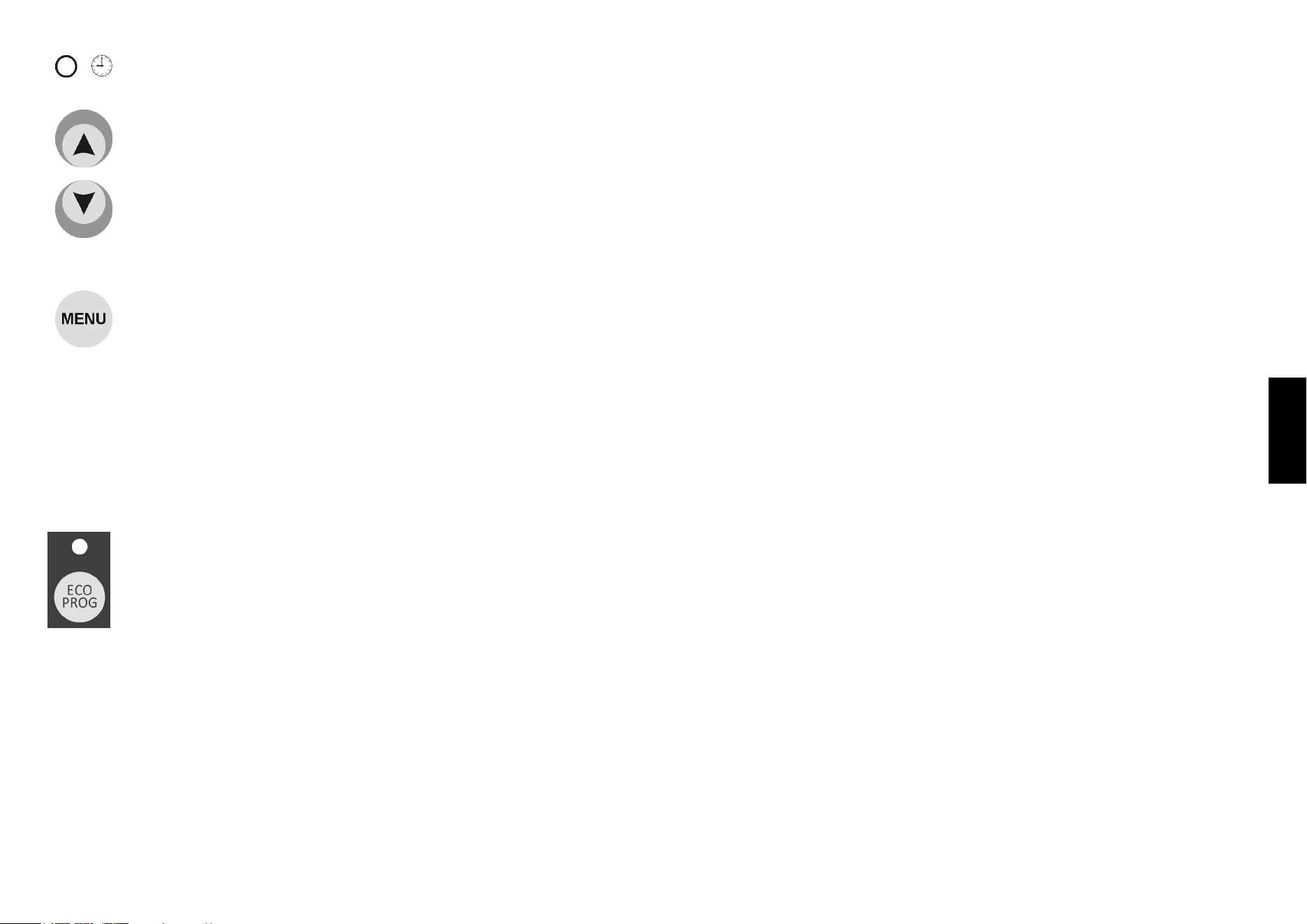

Timer Led: this is at the side of the display and lights up when the work
time is shown on the display during the work cycle.
UP and DOWN buttons (+/-): use these to configure the temperature and
time. Press the start button to start the work cycle.
With the machine switched to STOP, by pressing UP, you will directly
access the preset programs.
Use the UP and DOWN b uttons to scroll the list of programs.
With the machine switched on, by pressing the UP and DOWN buttons
you can modify the set temperature and time.
MENU button: press to set the work cycle.
- By pressing the MENU button once, the section where you can set the
t
emperature will be displayed on screen. Use the UP eand DOWN
buttons to select the desired temperature.
- Press the MENU button to skip to time adjustment.
- The display will show the time in setting mode.
- Use the UP and DOWN buttons to select the desired cooking time.
- Press the START button to start the work cycle.
With the machine switched to STOP, by pressing the MENU button three
times, you will directly access the preset programs.
Use the MENU button to scroll the list of programs.
ECO / PROG button: Press this button to shift the work cycle to economy
mode. When the mode is activated (the LED will go on), the work cycle
will run at its lowest consumption range.
With the machine switched to STOP, hold this button down until “PROG
1” appears on the display. In this way, you will access the menu to
modify the preset programs.
Use the UP and DOWN buttons to scroll the list of preset programs.
Use the MENU button to access the page where you can modify the
selected program.
By pressing MENU once, the display will show the temperature in setting
mode. Use the UP and DOWN buttons to select the desired temperature
The display will show the time in setting mode.
Use the UP and DOWN buttons to select the desired cooking time. Any
changes made of the settings will be automatically saved after 10 sec. Or
by pressing the “OFF” button.
English
5
1.3 - DESCRIPTION OF THE MACHINE
1.3.1 - Overview
Our firm designed and constructed the Softcooker to guarantee the following:
- the sturdiness and stability of all the components;
- easy handling, with a stainless steel handle so it can be carried with convenience;
- high precision heating control;
- a circulation fan for excellent mixing of the product;
- a max work depth of 16.5 cm;
- optimal operation up to 43 litres;
- an operating temperature of between 24 and 99°, at a precision of +/- 0.3°C.
The models stated in this manual are constructed in conformity with EEC Directi
ve
2006/
42 and subsequent amendments.
The manufacturer cannot assume any liability for accidents if the machine has been
changed, tampered with, used without its safety devices or put to a use for which it
was not intended.
1.3.2 - Structural characteristics
The Softcooker was made entirely of AISI 304 stainless steel to ensure hygiene and
resistance to acids and salts, as well as excellent resistance to oxidisation.
-
T
he heating element consists of a electro-polished coated spiral element devised
especially for immersion in water.
-
A
stainless steel handle for convenient handling of the machine.
-
A
motor circuit breaker that detects overvoltage and overheating.
1.4 - Intended use
The Softcooker is designed for indirectly cooking food packed under vacuum in bags
and immersed in water at a controller temperature (vacuum-packed food).
It does not cook food in any other way or heat liquids other than water.
Use the Softcooker only with the appropriate Gastronorm tanks equipped with a cover.
If used with other containers, close the container with a suitably shaped cover so as to
limit the escape of water vapour as far as possible.
1.5 - Unintended use
The machine must be put to the sole use intended by the manufacturer; in particular:
- Do not use the machine unless it has been installed correctly and all the protective
devices are in good condition and properly fitted, in order to prevent the risk of seri-
ous harm to yourself
.
- Do not touch the electrical components without having first unplugged the machine:
risk of electrocution.
- Do not start up the machine when this is not working properly.
- Before using the machine, make sure the machine is perfectly safe and that any
dangerous conditions have been eliminated in an appropriate manner. If there are
any irregularities, stop the machine and request the assistance of a maintenance
technician.
- Do not allow unauthorized operators to use the machine.
Emergency action in the event of electrical accidents first of all, remove the victim from
the conductor (as he is likely to be unconscious). This operation is dangerous.
The victim in this case is a conductor: touching him is to risk electrocution.
6
It is advisable therefore to disconnect the contacts directly from the line supply valve,
or if this is not possible, move the victim away using insulation materials (pieces of
wood or PVC, cloth, leather, etc.).
The victim should be given immediate medical attention and taken to a
hospital.
1.6 - Master data
Please state the machine’s exact "Model", "Serial number" and "Year of manufac-
ture" when contacting our assistance service. This will help us give you a quick and
efficient response.
We will ask you to state the machine model and serial number whenever you contact
us, so make sure to check this on the data plate, pictured in fig. 1.
1.7 – Protective and safety devices
ATTENTION!
Make sure the safety devices are in good condition and correctly installed before using
the machine.
Check these before each work shift to ensure they are fitted and in order.
If they are not, you should inform the person responsible for maintenance.
- A
Element protective cell: this prevents contact with the element and fan which can
seriously wound the operator.
- B
Automatic protective device in the case of dry operation:
the machine stops and an error (ERR) message appears on the screen when the
level of the water falls below the minimum permitted (75 mm from the top of the
immersion tank).
- C
Disabling device: the machine stops and an error (HIGH) message appears on
the screen when there is a fault with one of the probes and their temperature
readings are different.
Matr. __________
A. ______ Hz.
_______ Volt
_____ Kg.
LA FELSINEA SRL via L. Einaudi
35016 Piazzola sul Brenta PD ITALY
A
B
C
D
E
F
_______Watt
G
A
= machine model
B = serial number
C = motor power in Watts
D = Ampére
E = motor frequency in Volts
F = machine weight in Kg
G = producer
Fig. 1
11

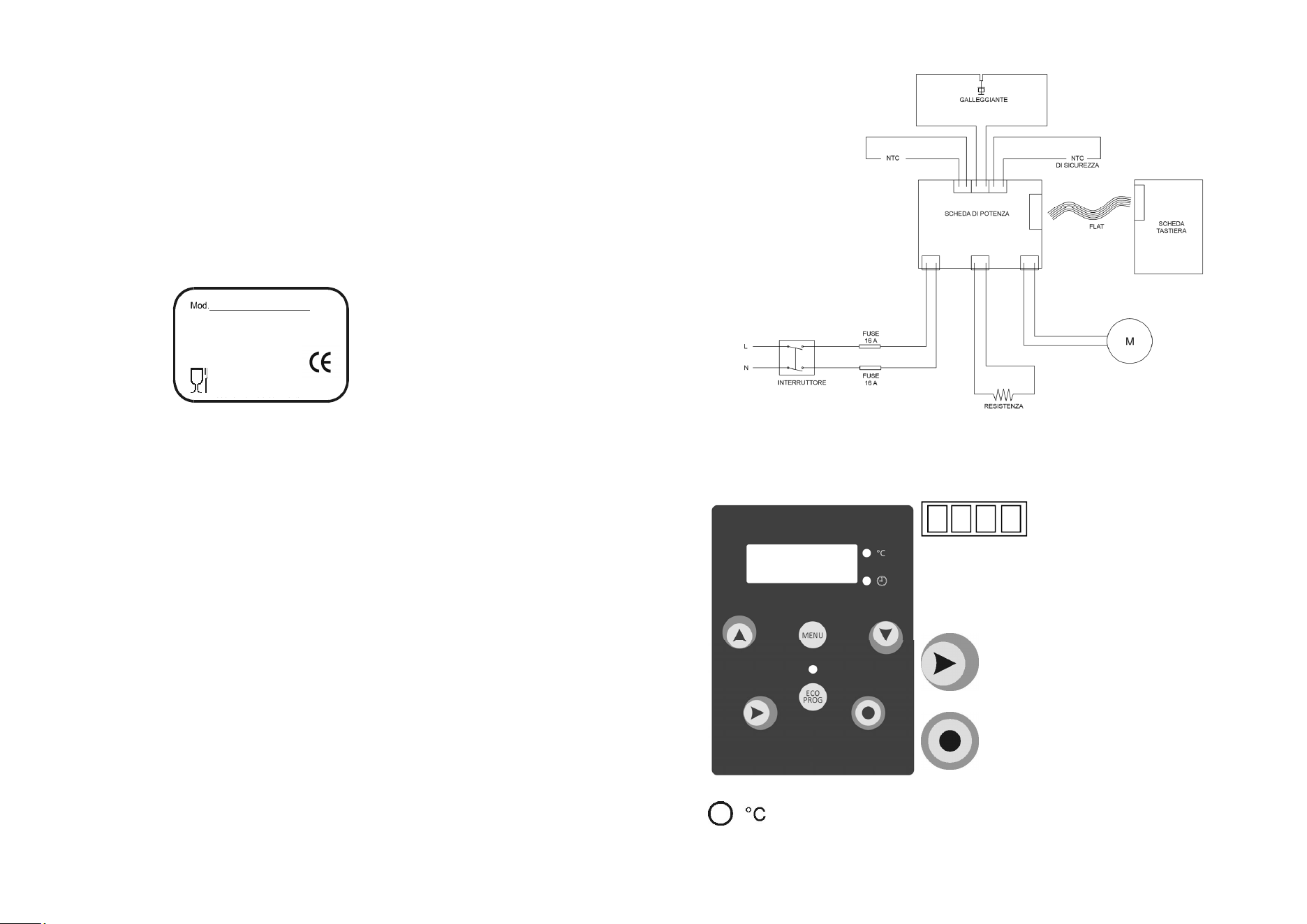

4.3 - Wiring diagram
P
ART 5 - MACHINE USE
5.1 - Controls
Display: a four-digit display that gives the
temperature and time, with alternate every 5
seconds, and a description of the various pre-
configured programs.
START button: press to start the work
cycle.
OFF button: press to stop the work cycle.
Temperature LED: this is at the side of the display and lights up when the
work temperature is shown on the display during the work cycle.
Fig. n°6
10
PART 4 - INSTALLATION
4.
1 - Positioning of the machine
Fill the water tank. Make sure you put in more than the minimum amount required for
machine operation (75 mm from the top of the tank) but do not exceed the maximum
level (20 mm from the top of the tank).
Connect the Softcooker to the immersion tank by means of the connector behind the
machine.
Make sure the liquid does not enter the machine.
4.2 - Connection to the mains
A 3x1.5 mm² power cable 1.5 m in length and CEI plug is provided with the appliance.
Connect the machine to a 230 Volt 50 Hz power supply.
Check the data on the technical – serial number plate is the same as that stated in the
delivery and accompanying documents. Make sure also that the switch and socket are
easy to access when the appliance is in use.
Fig. n°5
English
7

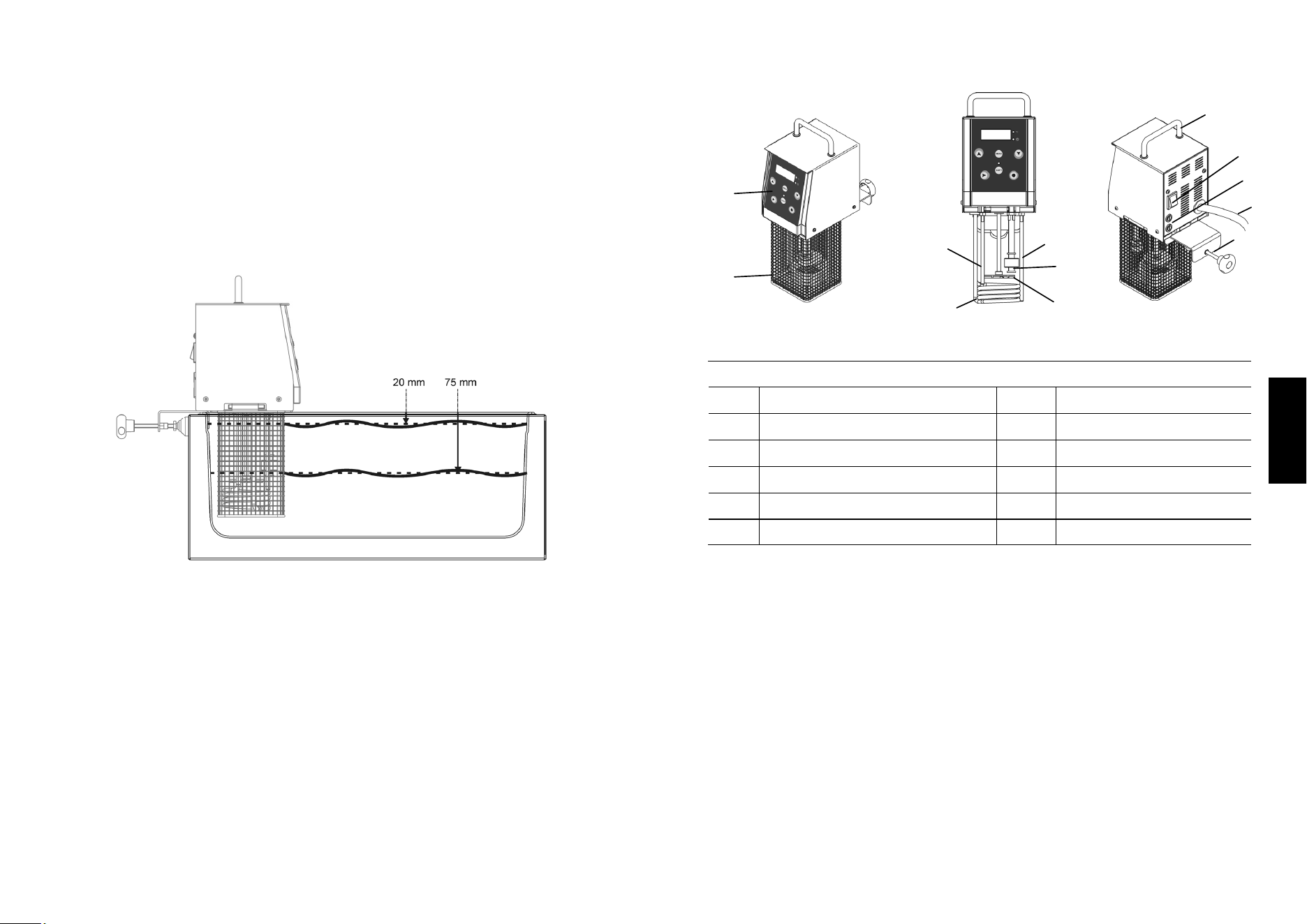

1.8 - Machine composition
LEGEND
1 Front 7 Rotor
2 Protective cell on element 8 Handle
3 Element 9 Terminal
4 Float 10 Fuses
5 Probe 11 Cable
6 Safety probe 12 ON-OFF switch
1
2
3
8
9
12
11
4
5
6
7
10
8
PART 2 - TECHNICAL DATA
2
.1 - Size, weight, properties...
Fig.n°2 – Dimensions and max size of the machine
!
THE EL
ECTRICAL PROPERTIES OF THE MACHINE ARE STATED ON A
PLATE ON ITS BACK; BEFORE CONNECTING THE MACHINE, REFER TO THE
SECTION:
“ CONNECTION TO THE MAINS.”
ATTENTION
Model Measure Softcooker
Power watt 2.000
Current 230V/50Hz
Temperature °C 24 to 99
A x B mm 110 x 105
C x D mm 130 x 260
E / F / G mm 170 / 170 / 210
Net weight kg 4.5
Fig. n°3
English
9
PART 3 - RECEIPT OF THE MACHINE
3.
1 - Delivery of the machine (refer to Fig.n°3)
The machinery is carefully packed before it leaves our warehouses.
The pack contains:
- A sturdy cardboard box with inside padding;
- The machine;
- This manual.
3.2 – Checking the pack upon receipt
When you receive the pack containing the machine, check the packaging carefully for
any signs of damage it may have sustained during transport.
If the outer packaging looks as if it has been treated roughly, knocked or dropped,
within three days of the date of delivery, as stated in the documents, and write a
precise report on any damage the machine has sustained.
3.3 - Disposal of the packaging
All the packaging (cardboard, plastic support and polyurethane foam) is classified as
solid urban waste; it can be disposed of without difficulty.
If the machine is installed in a country where there are specific regulations, you should
dispose of the packaging in accordance with those regulations in force.
Fig. n°4
