72 mm (2.83 in)
63 mm (2.48 in)
41 mm (1.61 in)
39 mm
(1.54 in)

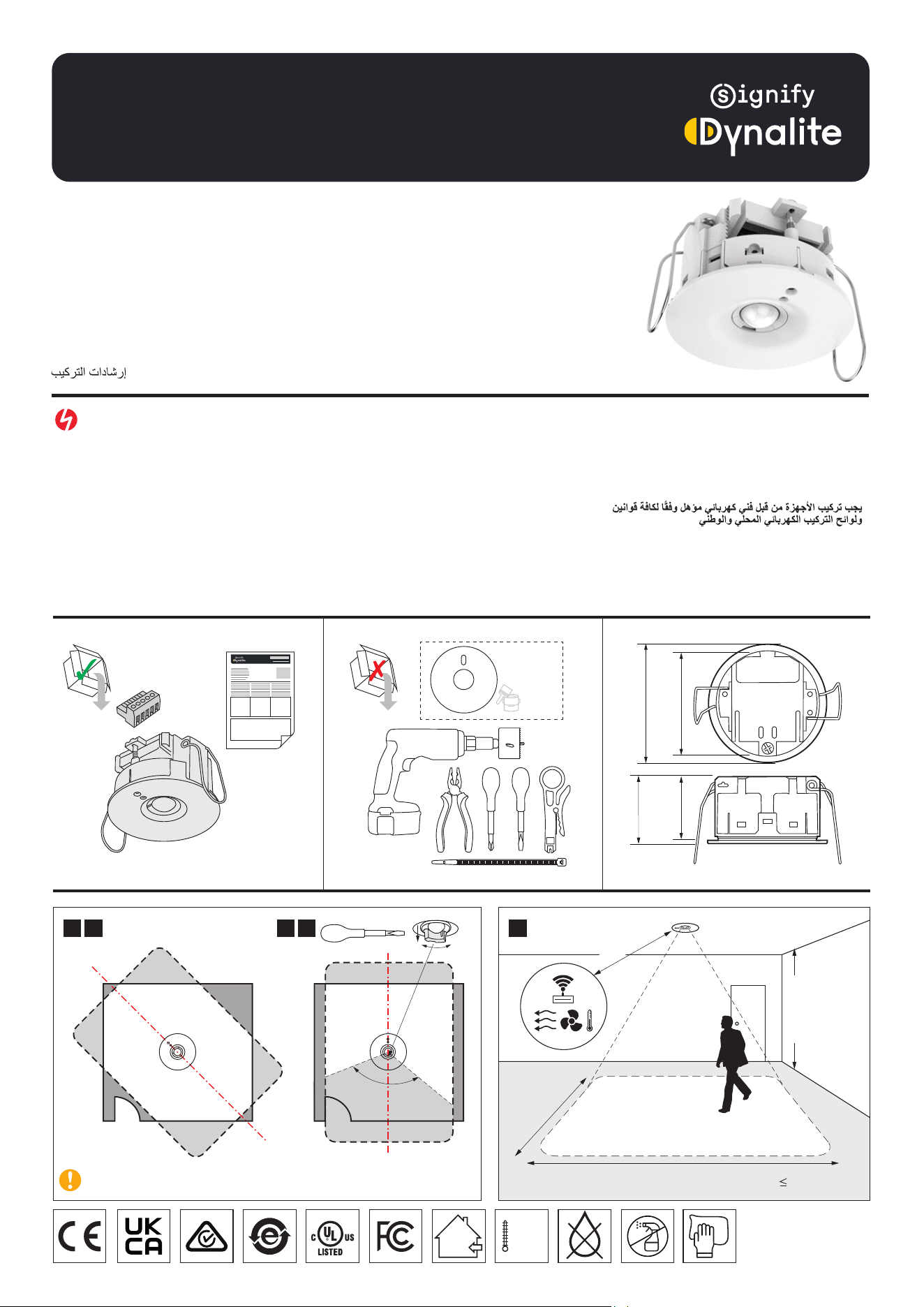

Installation Instructions
DNS360CCA
2
120°
IEC Pollution Degree II
PIRPIR
2.1 - 4.0 m (6.9 - 13.1 ft)
7 m (23 ft)*
2.4 m (7.9 ft)*
5.5 m (18 ft)*
25˚ C (77˚ F)*
> 2 m (6.5 ft)
1 A 1 B
DNS360LB-CR-PIR-DYNET
DNS360LB-CR-PIR-DYNET-RAL9005
Installation Instructions
Instructions d’installation
Installationsanweisungen
Instrucciones de instalación
Istruzioni per l’installazione
Installatie-instructies
インストール 手 順
安装指南
DNS360LB-CR-PIR-DYNET
Multifunction Sensor
45° C (113° F)
0° C (32° F)
≤90%
Devices must be installed by a
qualied electrician in accordance with
all national and local electrical and
construction codes and regulations.
Les appareils doivent être installés par un
électricien diplômé conformément à tous les codes
et réglementations électriques et de construction
nationaux et locaux.
Die Geräte sind von einem qualizierten Elektriker
in Übereinstimmung mit allen geltenden
Vorschriften zu installieren.
Los dispositivos deben ser instalados por un
electricista calicado y cumpliendo todas las
normas y regulaciones, tanto nacionales como
locales, sobre instalaciones eléctricas y obras.
I dispositivi devono essere installati da un
elettricista qualicato in conformità con le norme
locali e nazionali vigenti in materia di costruzioni
edilizie e installazione di impianti elettrici.
De apparaten moeten worden aangebracht
door een gekwaliceerde elektricien en in
overeenstemming met alle nationale en
plaatselijke elektriciteits- en bouwvoorschriften.
装置を取り付ける際は、資格のある電気技師に依頼し、
国および地域の電気および建設に関するすべての法令に
従 ってくだ さい 。
根据国家/地区及当地的电气与建筑规范和法规，该设
备必须由有资质的电工进行安装。
.
0.5 Nm
4.4 Lb-in

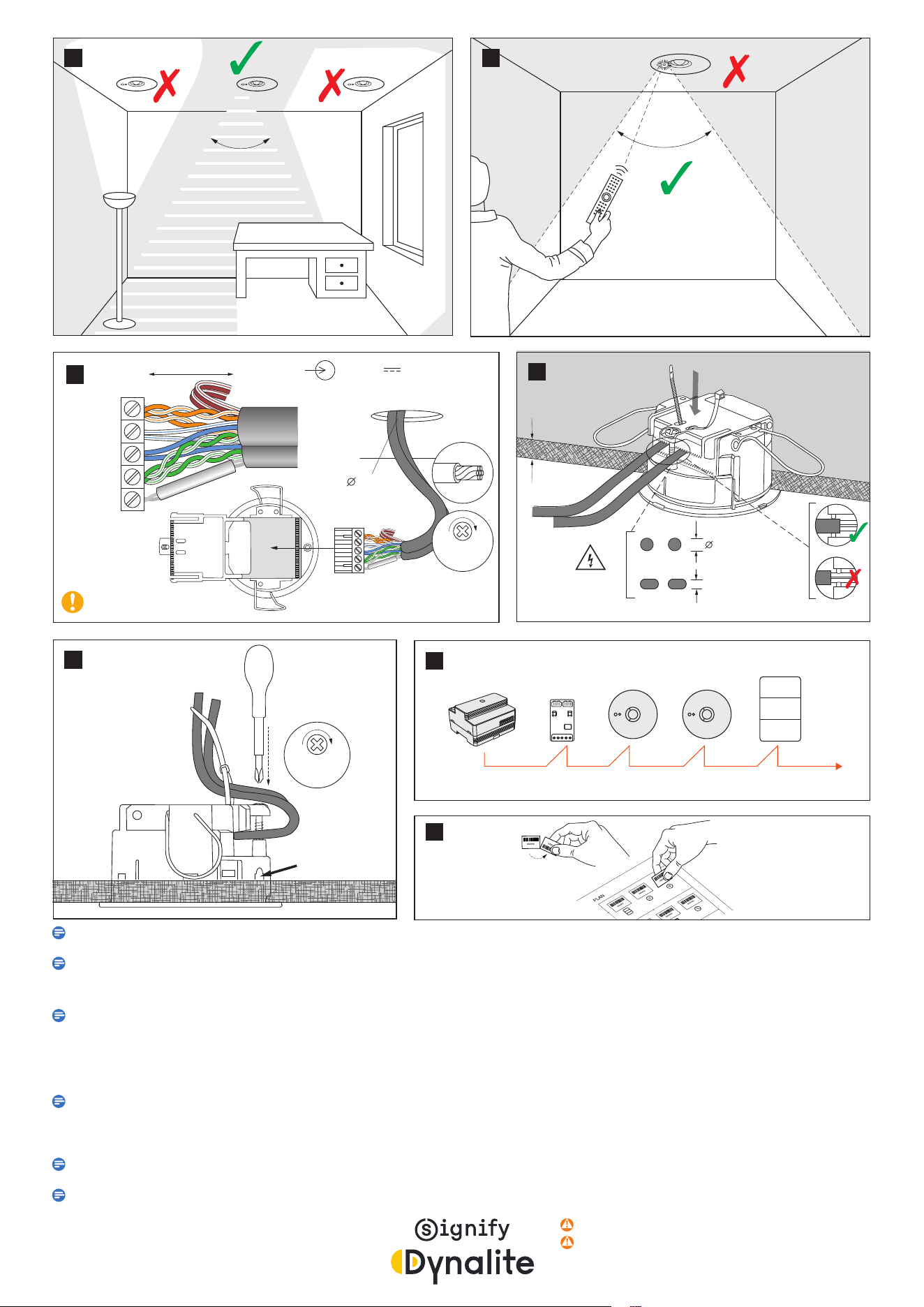

Reset Switch
12 - 24 V 5 mA
RS-485 DyNet
SELV/Class 2 (UL)
12-24 V
D-
≤ 20 mm (0.79 in)
D+
GND
SHLD
0.3-2.5 mm
2
22-12 AWG
0.4 Nm
3.5 Lb-in
64 mm
(2.5 in)
+V
D-
D+
GND
SHLD
≤ 2 A
6.5 mm (0.26 in)
4.5 mm (0.18 in)
3 – 25 mm (0.12 – 0.98 in)
4.5 mm (0.18 in)
64 mm
(2.5 in)
DALI Insulation: Basic
DA
DA
DALI
ELV 12 - 22.5 V 5 mA
0.4 Nm
3.5 Lb-in
≤ 1 mm
2
16+ AWG
x2
60°
60°
3 4
8
9
RS-485 DyNet
PE IR
5
6
7
IEC Overvoltage Category II
AZZ 626 0526 Pr05
© 2026 Signify Holding. All rights reserved. Specifications are
subject to change without notice. No representation or warranty
as to the accuracy or completeness of the information included
herein is given and any liability for any action in reliance thereon
is disclaimed. Trademarks are owned by Signify Holding or their
respective owners.
www.dynalite.com
FCC Radiation Exposure Statement – This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated
with a minimum distance 20cm between the radiator and your body.
ISED Radiation Exposure Statement – This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Cet équipement
respecte les limites d’exposition aux rayonnements ionisants fixées pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20cm entre le
radiateur et votre corps. Cet émetteur ne doit pas être localisé ou fonctionner en conjonction avec une autre antenne ou un autre émetteur.
Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice – This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between
the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician
for help. Any modifications not approved by the manufacturer of this device could void the user’s authority to operate this device.
This device complies with part 15 of the FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareil contient des
émetteurs/récepteurs exemptés de licence qui sont conformes aux RSS exemptés de licence d’innovation, sciences et développement économique Canada. Le fonctionnement est soumis aux
deux conditions suivantes: (1) Cet appareil ne peut pas causer d’interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un fonctionnement
indésirable de l’appareil.
This Class B digital apparatus complies with Canadian ICES-003: CAN ICES-003(B)/NMB-003(B). Cet appareil numerique de la Classe B est conforme a la norme
NMB-003 du Canada: CAN ICES-003(B)/NMB-003(B).
Installation of a home and building automation and control system shall comply with IEC 60364 (all parts). The temperature limits and current-carrying capacities for the communication wires
specified in IEC 60364-5-52 shall not be exceeded. the communication wires specified in IEC 60364-5-52 shall not be exceeded.
Refer to Service Guide for full cleaning recommendations.
Do not connect inputs to mains.
