Before using
Product features....................................................
Operation guide.....................................................
Product structure..................................................
Parts.........................................................................
Cautions..................................................................
Application scope and attention items............
Battery installation...............................................
Time and date setting..........................................
Unit setting.............................................................
Measuring method
Using method of cuff...........................................
Measuring posture................................................
Start measuring.....................................................
Blood pressure range indicator..........................
Memory function...................................................
Auxiliary measuring function.............................
LCD display ............................................................
Static mode............................................................
Common problems
Common questions of blood Pressure measurement......
Common fault and trouble shooting................
Maintenance .........................................................
Features and technical parameters .................
01
Contents

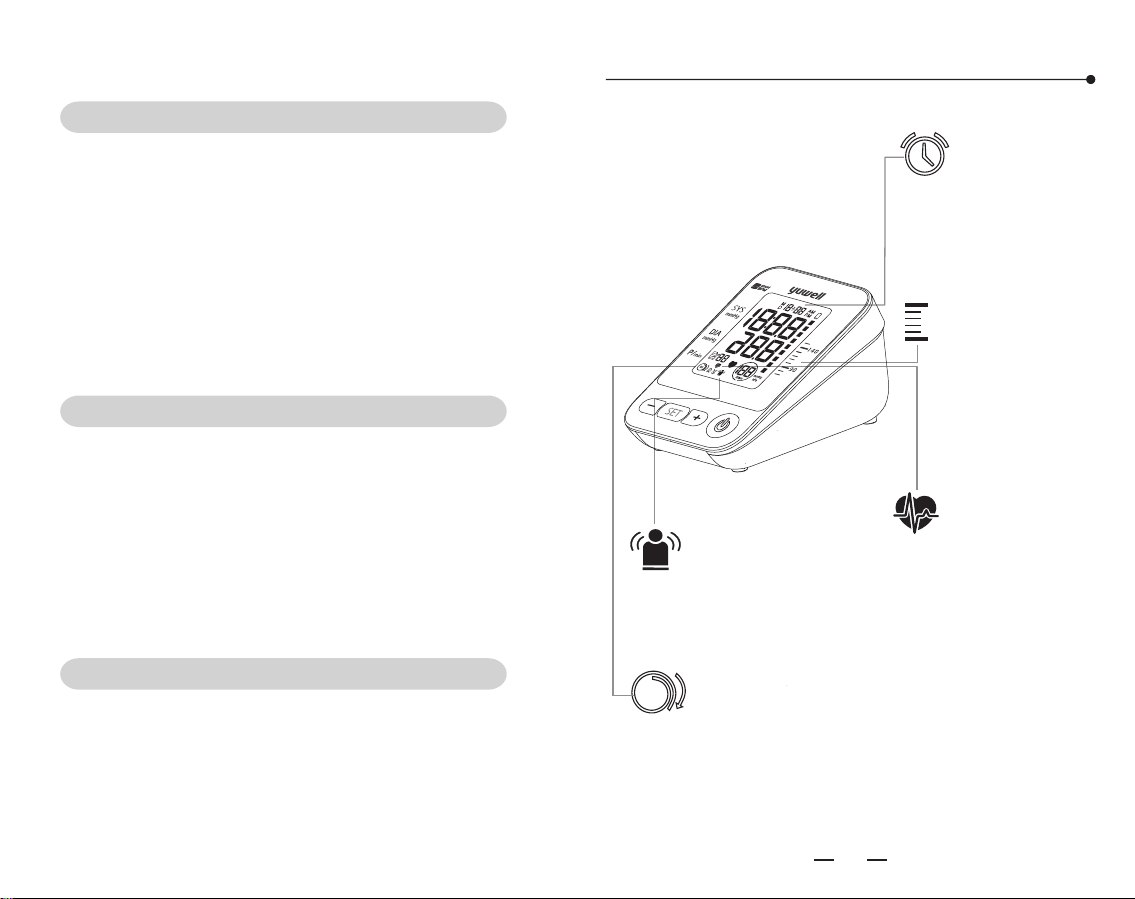

Product Features
01
02
05
06
09
10
12
13
15
16
18
19
23
24
27
28
29
31
36
37
39
140
90
OK
Clock Display
Function
Range of
Blood
pressure
display
IHB (Irregular
Heartbeat)
Prompt
Cuff
Wrapping Detection
Body Movement
Detection
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
0302

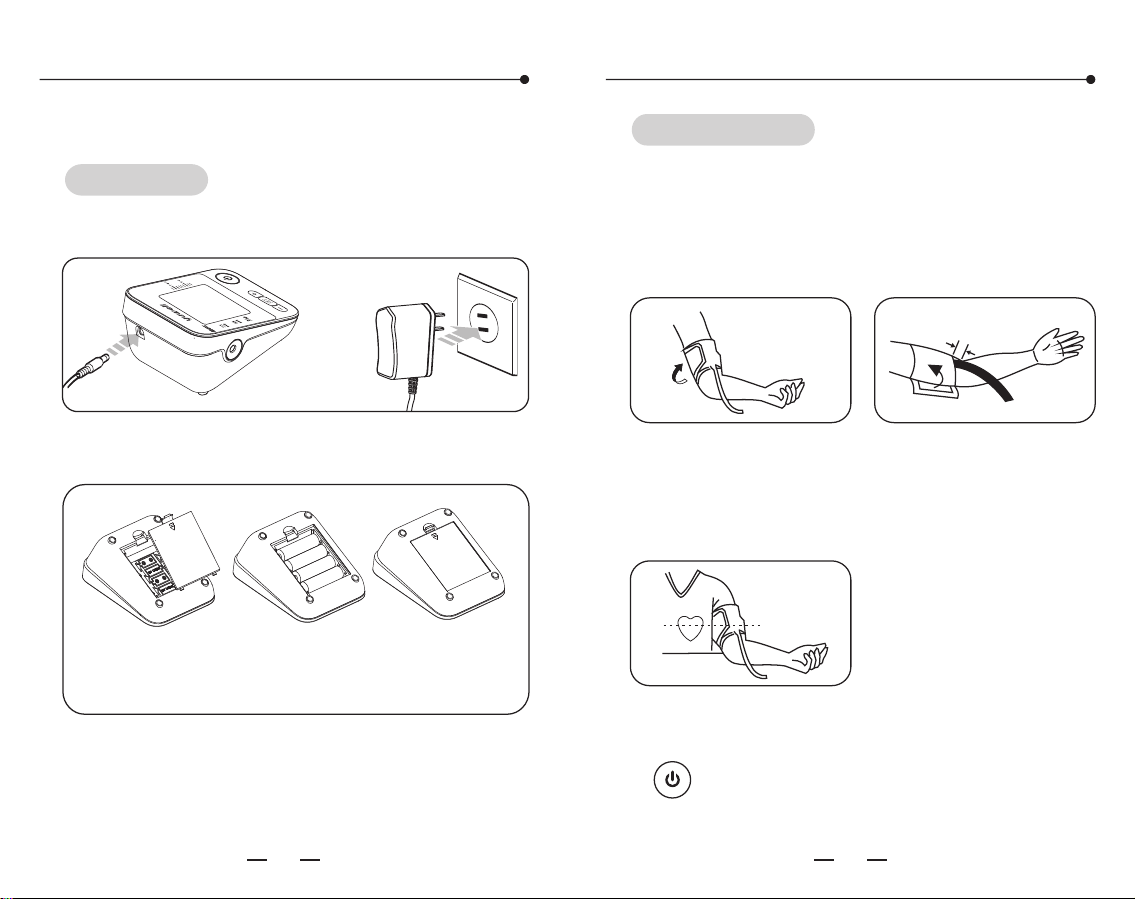

Operation guide
Please follow the steps as shown below
Or install four AA batteries
Connect the power source
( Please turn to page 12 for details)
Open the
battery cover
Install the batteries
properly
Close the
battery cover
Power-on
Operation guide
1. Using method of cuff
Wearing the cuff and make the lower edge
2~3cm above the elbow, keep the air tube
inside of the arm.(Please turn to page 17 for
details)
2-3cm
Measurement
2 Measuring posture
Sit straightly, keep the center of cuff and heart
at the same level.(please turn to page 18 for
details)
.

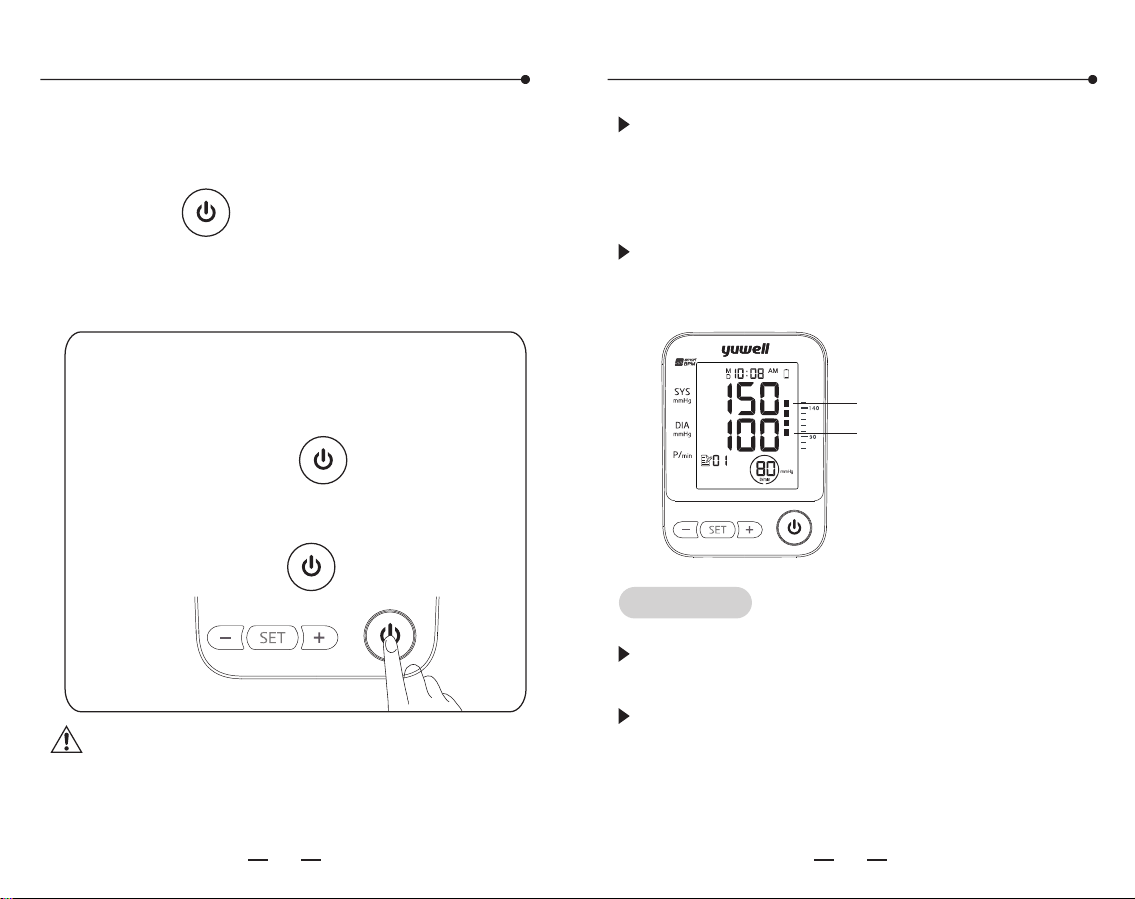

3 Start measuring
Sit still for 5 minutes and then Press the
" " Button to measure
.
( Please turn to page 19 for details)
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
0504
Press the button of " " " " to check
the measuring records.
This monitor can display the average
measurement an d stor e 6 0 reco rds .
(Please turn to page 25 for details)
or
Check the records
Operation guide

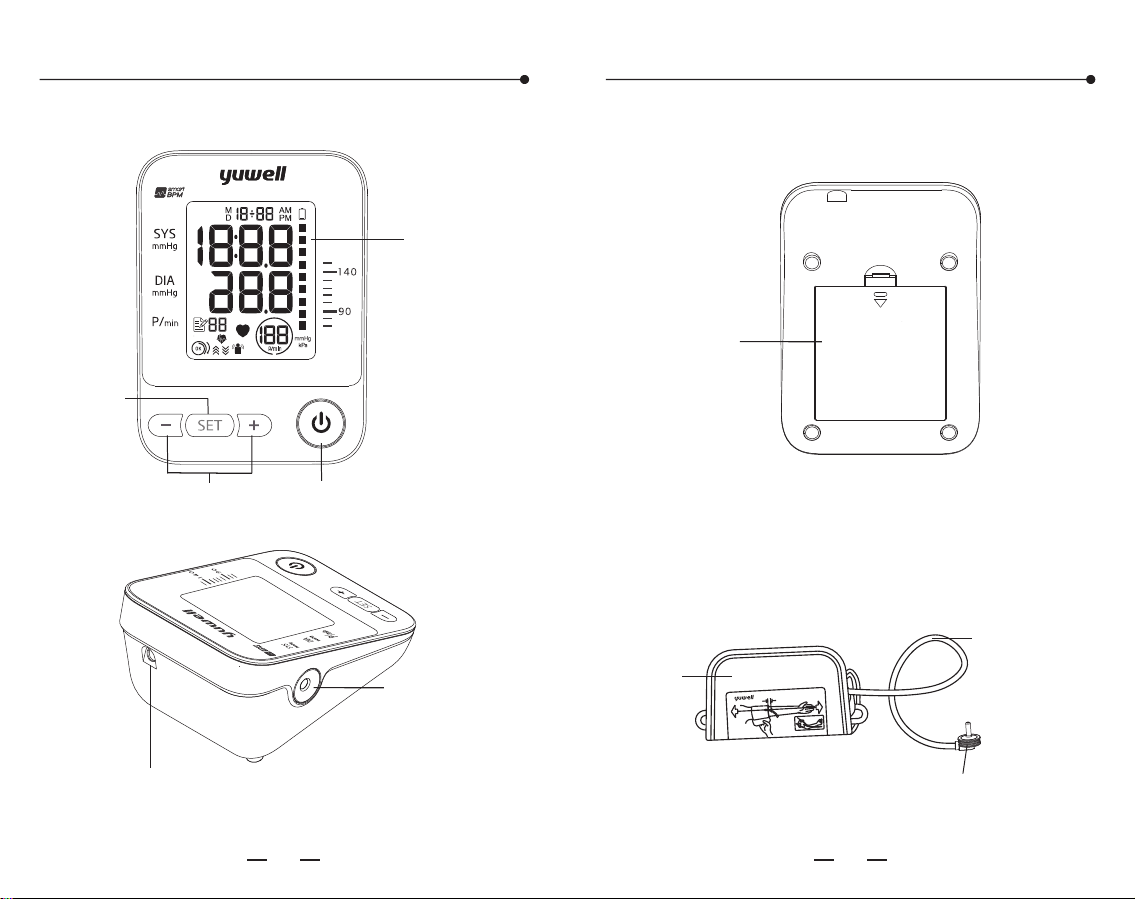

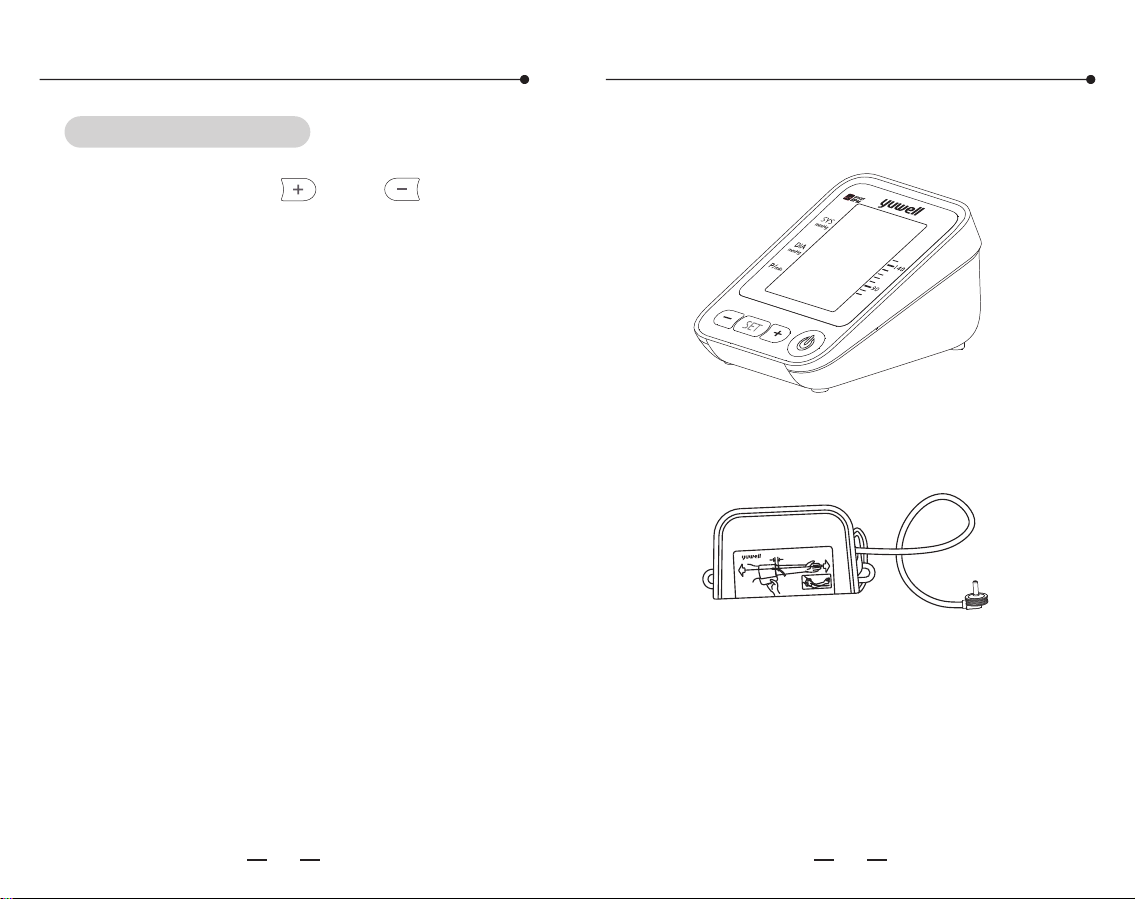

1. Main part
2. Cuff
3. Accessories
User's manual, Warranty card, 4 AA batteries
Product structure
22~45cm
2~3cm
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
0706
1. Main part
2. Cuff
The suitable upper-arm circumference of the
cuff is 22cm~ cm45
Power adapter
socket
Battery cover
Plug port
Air plug
Rubber air
tube
Cuff
Parts
Parts
22~45cm
2~3cm
Display
Setting
button
Memory
button
Start/Stop
button
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
0908
Symbol
Description
Attention! It might cause damage
Prohibited
Obligatory
Type BF application part
Class II device
Consult the manual
Keep Upright
Fragile
Keep Dry
Pay attention with the symbols shown here to
prevent harm or damage to the user.
Cautions

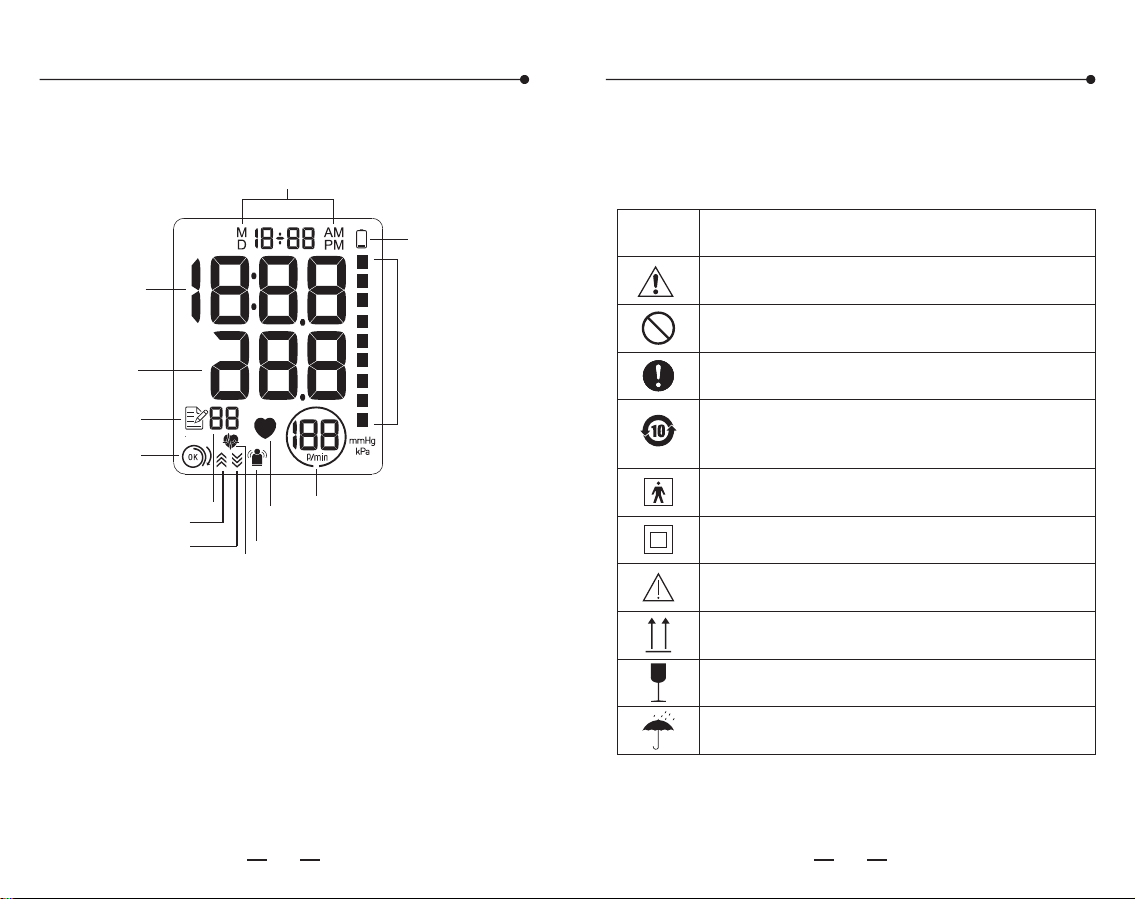

3. Display
Parts
Safety and environmental protection
use periodFor 10 years
SYS(systolic)
DIA(diastolic)
Pulse rate
Low voltage
Inflation
Deflation
Memory
Heartbeat
Cuff
Detection
Wrapping
Body Movement Detection
Records number
Blood pressure
level display
Time and date
IHB Prompt
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
1110
1. Range of application
2. Attention items
Application scope and attention items
The monitor is used for measuring blood
pressure of human body (adult older than 12,
not suitable for new born baby)!
Caution: Pay attention to the following
points when measuring or it may cause the
incorrect results.
Sit still for 5 minutes before measuring to
ensure quiet and stable mode.
Do not take the measurement while
standing, walking or having body pressed.
Do not take the measurement after smoking,
drinking wine or coffee (black tea).
Do not take the measurement after sport or
bath.
Do not speak or move while measuring.
Do not move, shake arm or bend fingers
while measuring.
Do not take the measurement at extreme
temperature condition or the varied severely
environment.
Do not take the measurement in a moving
vehicle.
Do not measure continuously. (2~3 minutes
or more should be spared between two
measurements).
Do not measure within 1 hour after meal.
Do not use mobile phone near the monitor.
Please reinstall the batteries and start again
if cannot measure.
For patient of arrhythmia, measuring results
may not be accurate.
Do not keep the cuff in the aerated state for
a long time.
N o t e : D o n o t d i a g n o s e w i t h t h e
measurement, Please follow doctor's
instruction.
Statement: If the monitor has not been
stored in the required temperature and
humidity range, it may not conformance to
specification.
Application scope and attention items
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)

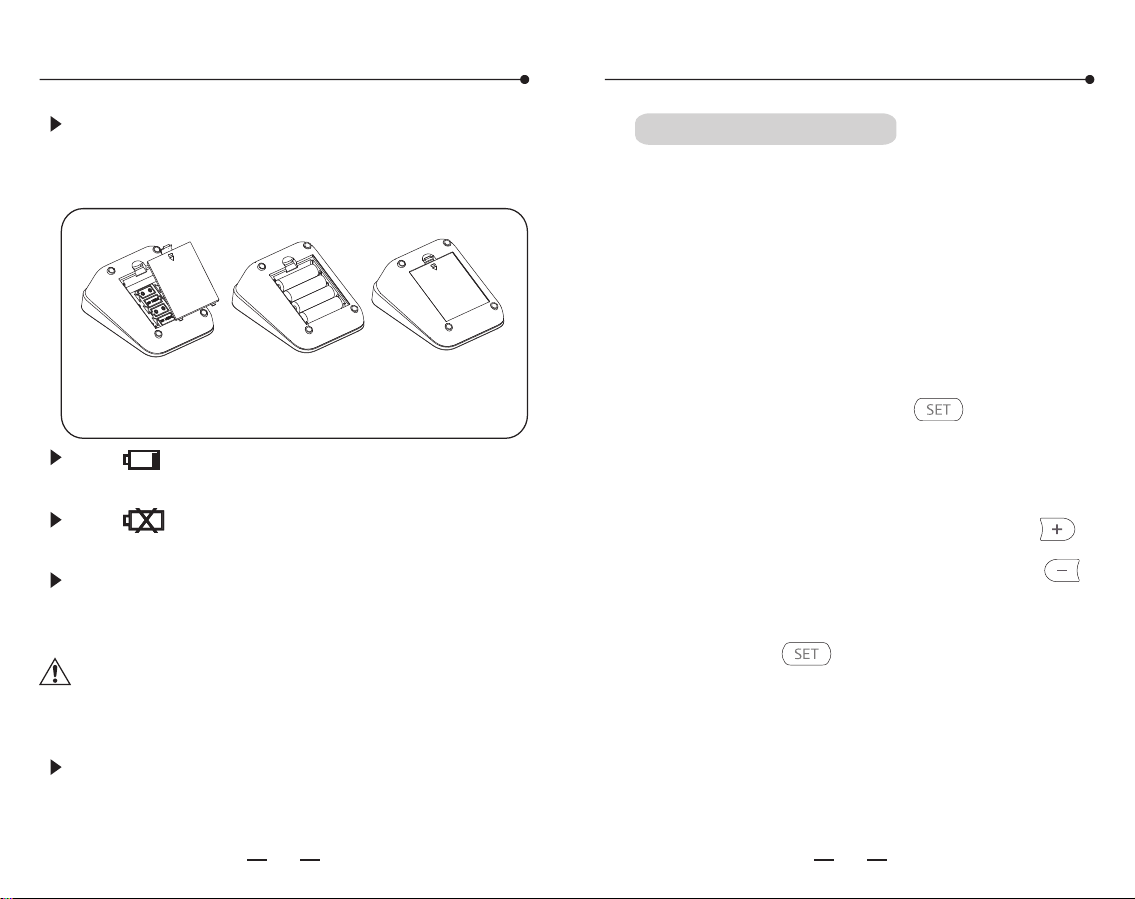

Open the battery cover and install four AA
batteries properly. Then close the cover with a
click sound.
The" "icon appearing means the battery is
low.
The" "icon appearing means the battery is
running out. Please replace all the batteries.
Please take out the batteries if the monitor
will not be used for a long time (over three
months).
Note: 6V/600mA DC external power can be
connected to the monitor. (Please use the
power adapter supplied by us.)
Please take out the batteries if use the DC
external power for a long time.
1312
Battery installation
Open the
battery cover
Install the batteries
properly
Close the
battery cover
1. Year setting: Press the" " button for
more than 3 seconds till the number starts
flashing.
2. The year increase once press the " "
button, and decrease once press the" "
button.
3. Press the " " button to switch to the
month setting.
4. Using the same way for other settings.
The monitor will store the measuring results
automatically by the management system.
It is necessary to reset time and date after
installing new batteries or connecting to DC
power. Please operate as following steps. (For
example: setting the date as 2016-1-15 and
time as 08:28)
Time and date setting
Time and date setting
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
1514
Year character blink Month character blink
Date character Hour character blink
Minute character blink
Time and date setting
pressing the " " button to enter the
mmHg/kPa unit setting. Press the " "
button to switch between these two units.
Finish by pressing the " "button.
After finishing the time and date setting,
Unit setting
After unit setting, press the " "button
to shut down.
Unit setting
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
17

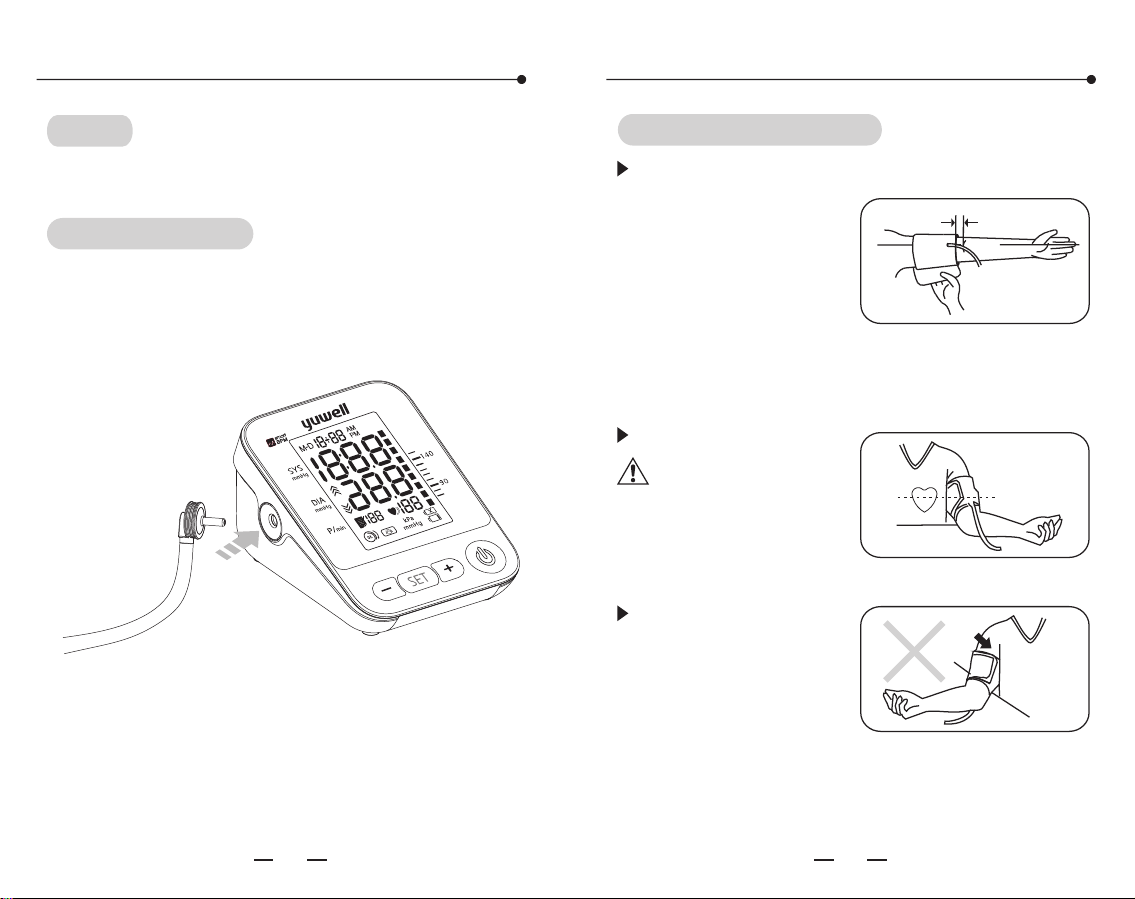

Using method of cuff
Tips!
Either of arms can be measured.
Cuff connecting
Connect the air connector of the cuff to the
socket which on the left side of the monitor.
16
Using method of cuff
Sit straight and flat
the arm on table with
palm up, also keep
the center of cuff
and heart at the
sa m e level . Also
please ensure the air
tube not twisted.
Wind the cuff around the upper arm. ( as shown
Stick the cuff tightly.
Note : Th e c u f f
should be wearing
comfortably, avoiding
too tight or loose.
Using method of cuff
In the picture) Keep
the lower edge of the
cuff at the position
above 2-3cm to the
elbow joint, keep the
air tube inside of the
arm.
2~3 mc
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
18 19

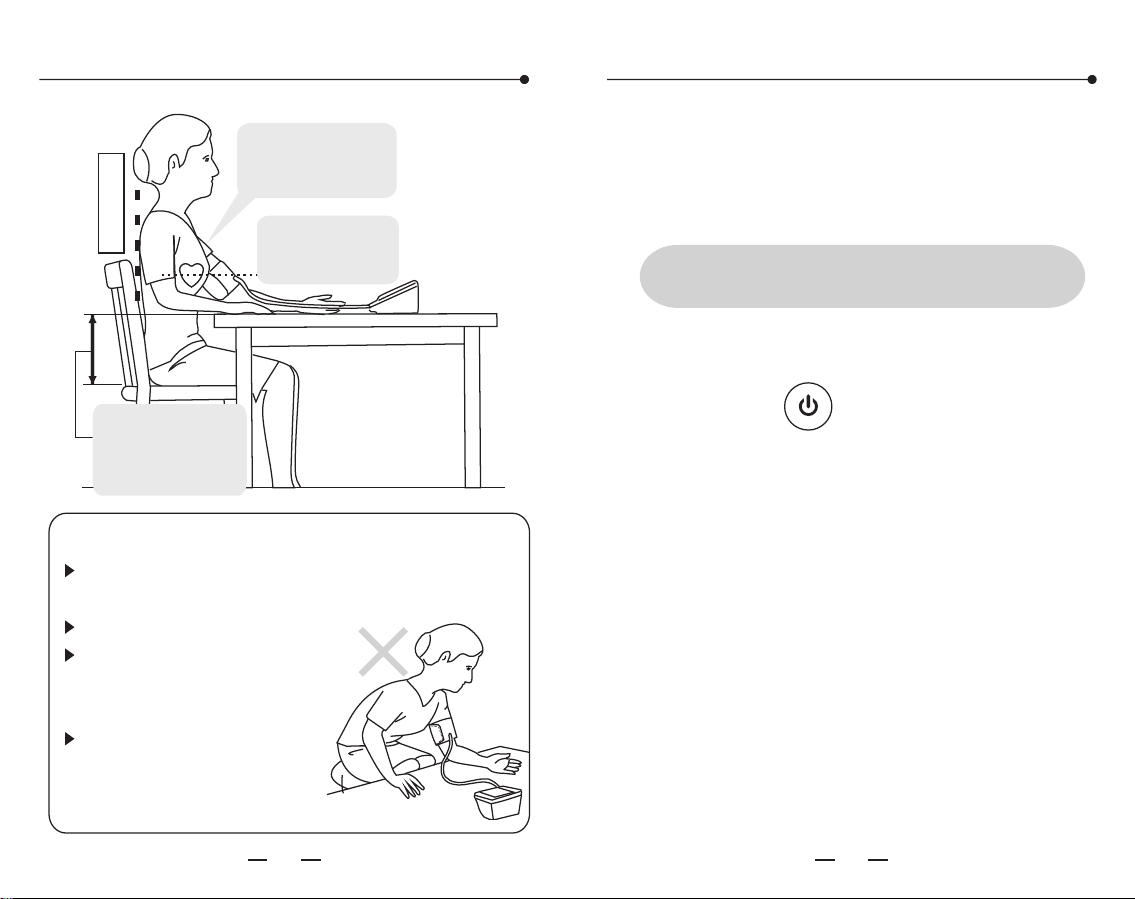

Measuring posture
Sit straight
Ke e p t h e upper
arm bareness or
wearing thin clothes
Keep the center
of cuff and heart
at the same level
Wrong measurement postures
Do not bend down or body
bend forward.
Do not sit with legs crossed.
Do not sit on a sofa.(Belly
pressure may increase the
blood pressure)
Do not put the arm on the
low table.(May increase the
blood pressure)
The ideally height
difference between
table and chair is
25-30cm
Don't eat, smoke, drink, take bath or do any
high impact sport within half an hour before
measuring. Measurements shall be taken at
the same time every day.
Sit still for 5 minutes before the
measurement

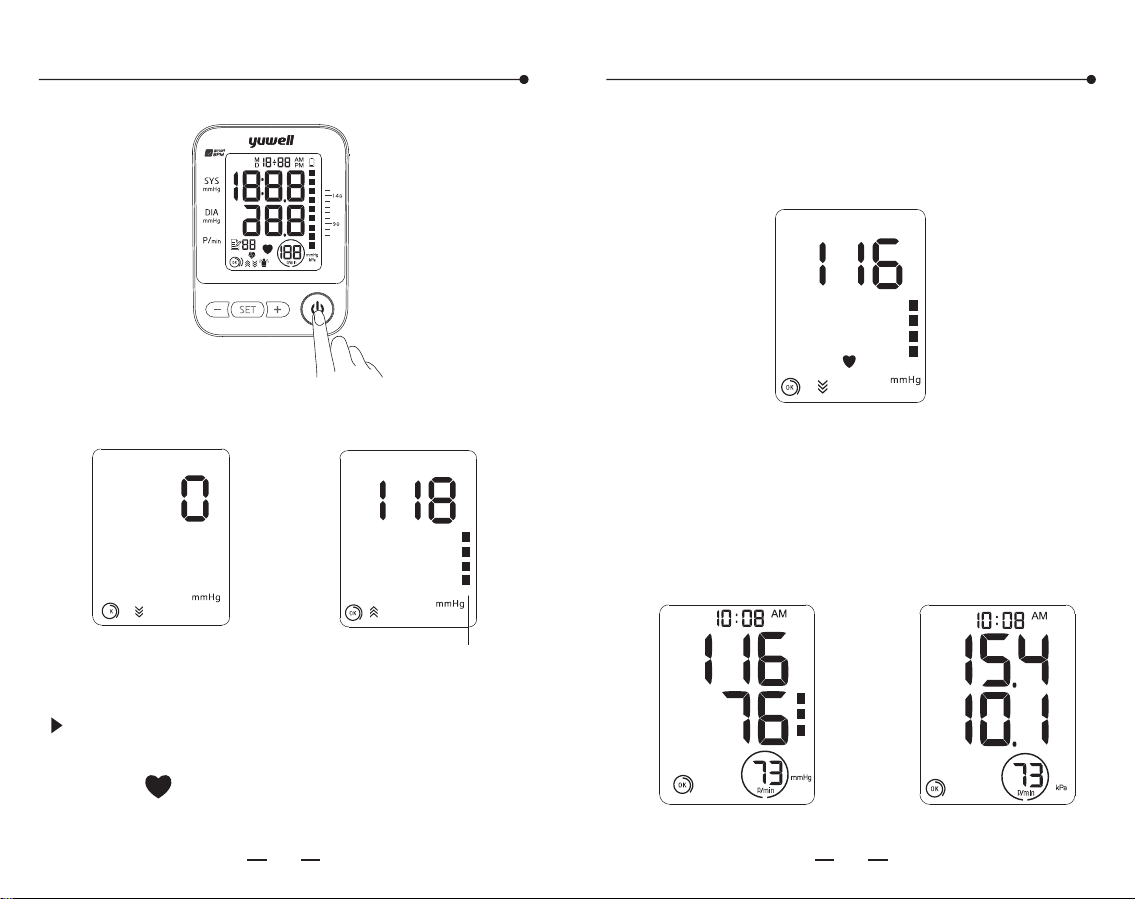

All icons on screen appear for 1 sec after
pressing the" "button, then disappear.
After that the deflation icon flickers which
means the system is in zero testing. Several
seconds later the inflation icon flashes which
means the zero testing is finished. Then
inflation starts.
1. Measurement
Start measuring
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
20
21
Start measuring
The zeroing state
The monitor starts measuring automatically
after inflation finished, and the measuring
icon " " starts to flicker, pressure release
value starts to decrease gradually.
The inflation state
3. Measurement finished
After measurement, the monitor will show the
SYS, DIA and pulse rate, then inflate the air
automatically.
Start measuring
The measuring state
Please maintain the position during the
measurement and don't speak or move body
or hand.
Full screen display state
Increase with
the pressure
mmHg display kPa display
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
22 23
Start measuring
5. Shut down
Press the" "button to shut down. Also it
will power off automatically in 3 minutes
without any operation.
4. Take off the cuff
If the SYS is higher than 139mmHg or DIA
higher than 89mmHg means having high
blood pressure. Please contact with doctor for
advice.
Also the Blood pressure range indicator can
show the blood pressure intuitively.
Tips!
The time interval between two measurements
should be at least 2~3 minutes or longer.
Estimate the blood pressure condition
according to the BP classification table, and
consult the doctor.
Blood pressure range indicator
If the measurement need stoping for
uncomfortableness or other reasons,
please press the " " button, the
measurement will stop immediately and
air releases fast. Take off the cuff
manually if the " "button is not
working.
Emergency stop during measurement
Warning: Upper limit pressure of air inflation
is 300mmHg/40.0kPa. Don't keep the inflated
state for a long time to avoid damage.
Higher than 139mmHg
Higher than 89mmHg
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
Tips!
The monitor will store the measurement data
automatically (including time, date, blood
pressure and pulse), and the upper limit of
records is 60. Press the " "or" "button
to check the records.
Memory function
24 25
1. Press the " "button for the records.
A. Press the" "button to show the average
value of the latest 3 times measurement.
B. Repress the" "button to display the 1st
group of memory, the serial number is displayed
as "1" to "60". "1" is the latest group and the "60"
is the earliest one.
The th data may be replaced by the th
when the memory capacity is full.The 1st data
may be replaced by the new data.
60 59
Memory function
Tips!
The average value The 1st group of memory
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
26
27
press the both " " button and " "
button until the display shown as the
following picture, which means the recorded
data is cleared.
Press the " " button
to turn off the monitor
after deleting.
Note: This operation will delete all the
recorded data.
C. Read the recorded data by pressing the
" "button as the sequence: "1", "2"
......"60"(max). Then return to the 1st.
Holding the " " button to search the data
quickly.
D. Press the " " button to shut off the
monitor.
2. Delete the recorded data
Memory function
Auxiliary measuring function
If the cuff winded properly, it will show the
" "icon. Otherwise it will show the" "
icon, then press the " " button to stop and
wind properly to measure again.
It will show the " " icon, if body moves when
measuring. Please measure again or it will
show inaccurate results.
Cuff Wrapping Detection
Body Movement Detection
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
28 29
LCD display
Press the " " button and it will show the
current time, as shown blew:
Press the " "button again and it will show
the current date, time and pressure unit, as
shown blew:
Press the " " button to shut down the
monitor.
Static mode
This function is mainly for professional
personnel to enter the static mode to test the
monitor through standard pressure gauge.
Warning: Normal users don't need to know
this function and also do not operate. The
company will not take any responsibility for
damage caused by this operation.
Press the" "button after battery
installation, then the screen will show the " "
icon, which means the system is in restore
testing. Several seconds later, the " " icon
disappears and the air pump starts inflating at
the same time, which indicates the test ended.
Then press the " "button to stop
inflating and take out the batteries to enter
the next step.
Note: It must restore the system before
entering the static mode, otherwise it may
cause inaccurate results.
System restores
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
30
31

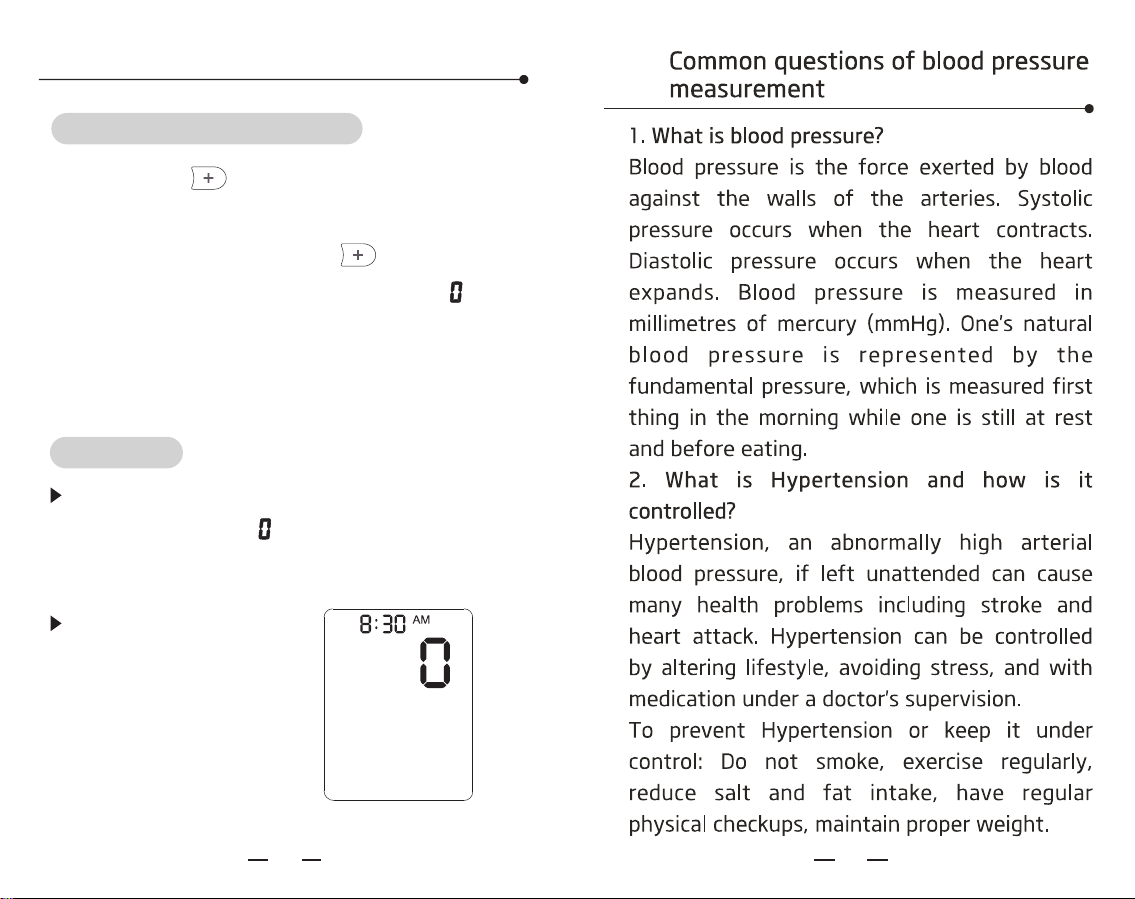

Static mode
Press the " "button and hold, meanwhile
install the batteries. Hold on for about 3
seconds then release the" " button. Then
screen will show the pressure value " " , the
date and time. Now the system has restored
and entered the static mode. Now can take
the static test.
Entering the static mode
After entering the static mode, if the screen
still doesn't show " ", please operate again as
the System restore. Please contact with the
local distributor if it still does not work.
The static mode
The monitor will
automatically power
off if there is no
operation in 4
minutes.
Tips!
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
3332

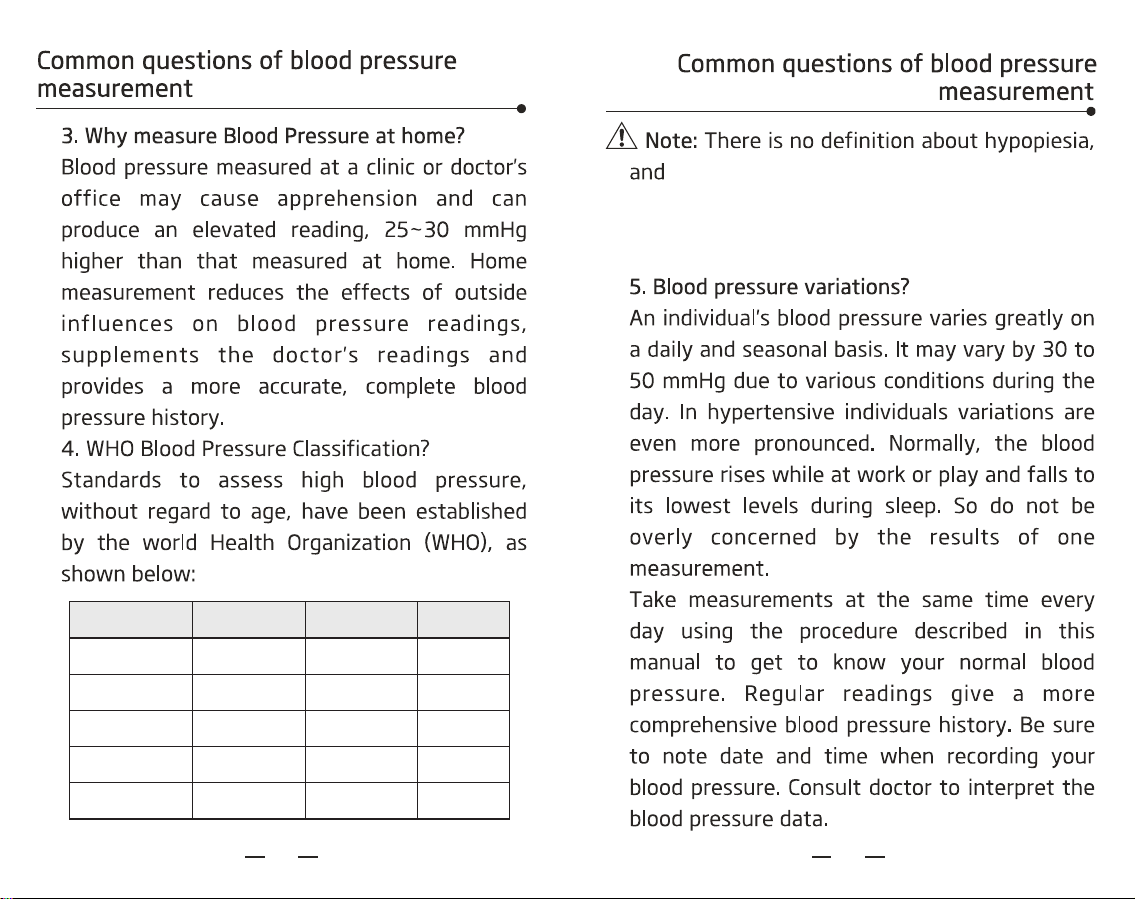

Range
Hypotension
Ortho-arteriotony
Mild hypertension
Medium hypertension
Severe hypertension
Counter-
measures
Consult dr.
Self check
Consult dr.
Consult dr.
Danger! Go to
hospital as soon
as possible
＜8.0/60
8.0/60~11.9/89
12.0/90~13.2/99
13.3/100~14.5/109
≥14.7/110
＜12.0/90
12.0/90~18.5/139
18.7/140~21.2/159
21.3/160~23.9/179
≥24.0/180
Systolic pressure
kPa/mmHg
Diastolic pressure
kPa/mmHg
generally SYS (systolic pressure) less than
90mmHg or DIA (diastolic pressure) less than
hypotension. 60mmHg is called
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
3534

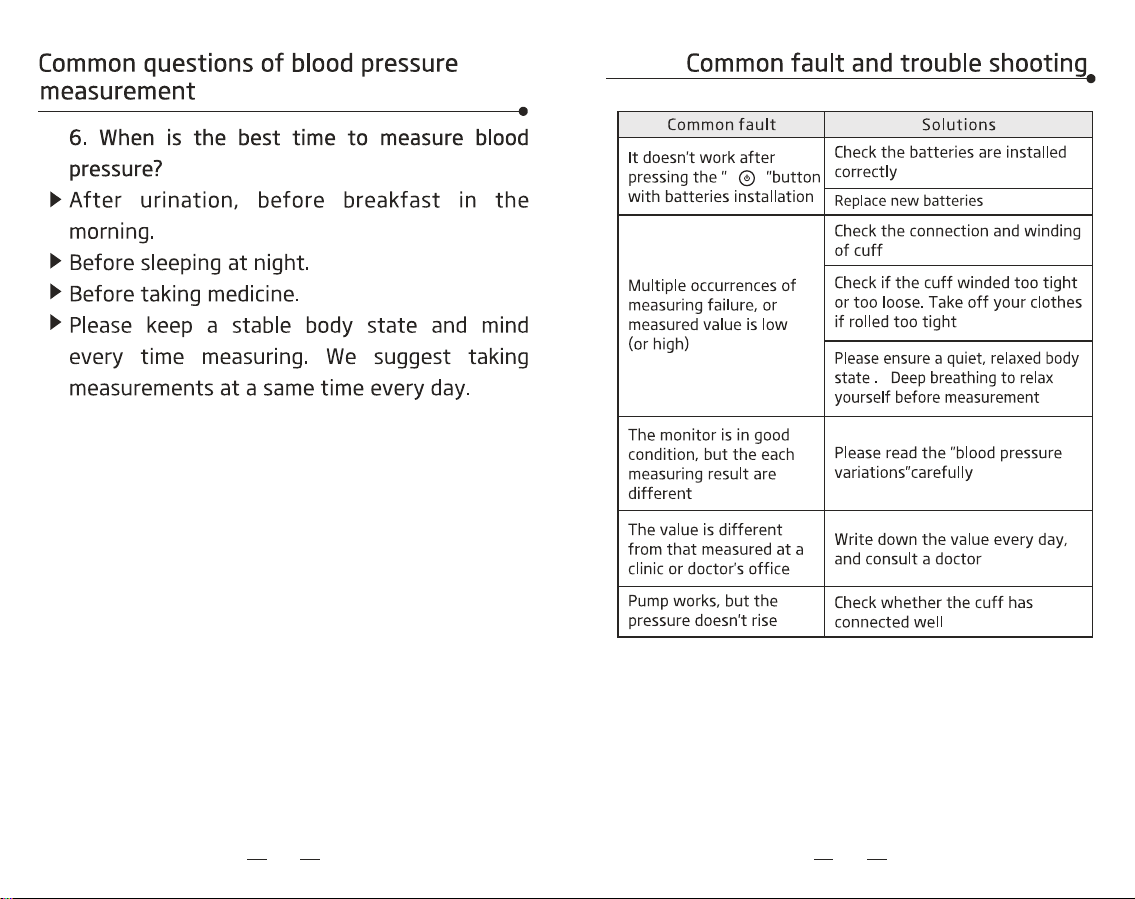

YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
3736

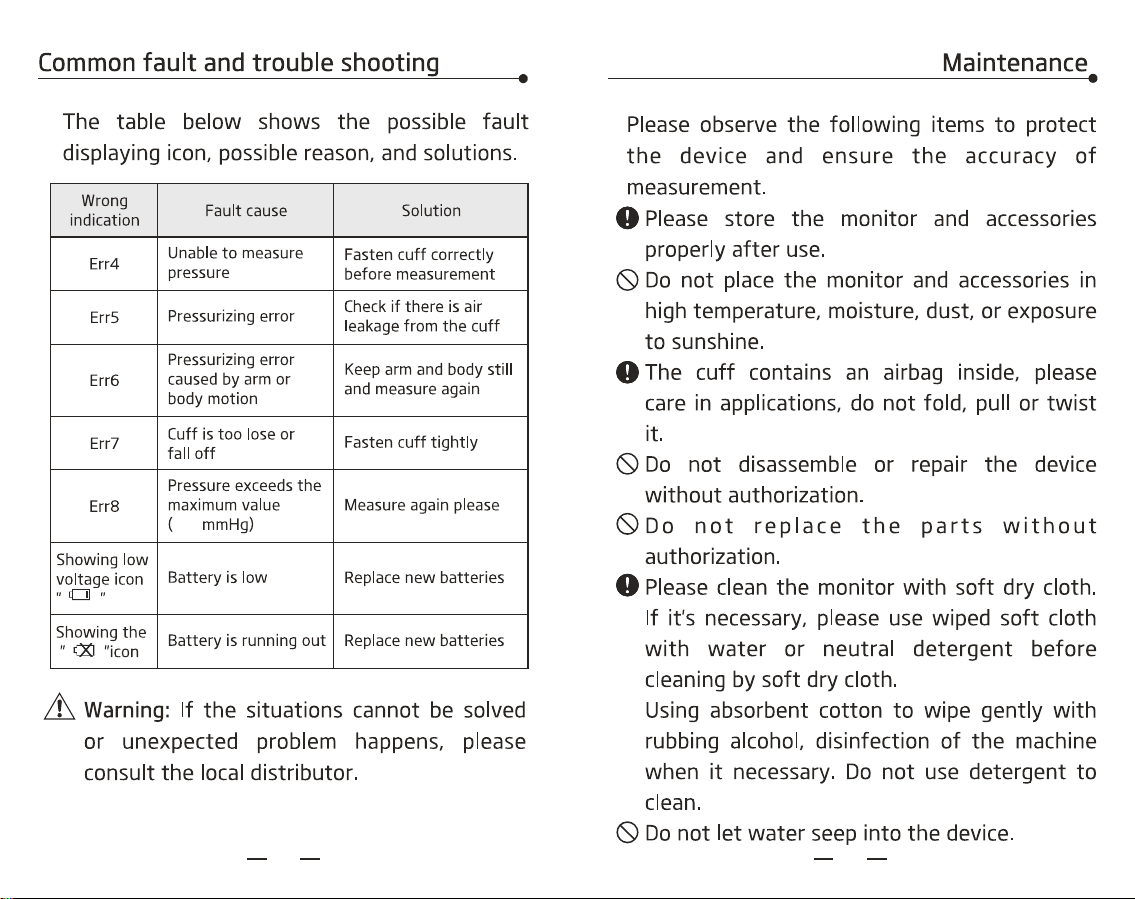

300
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
3938
±
±

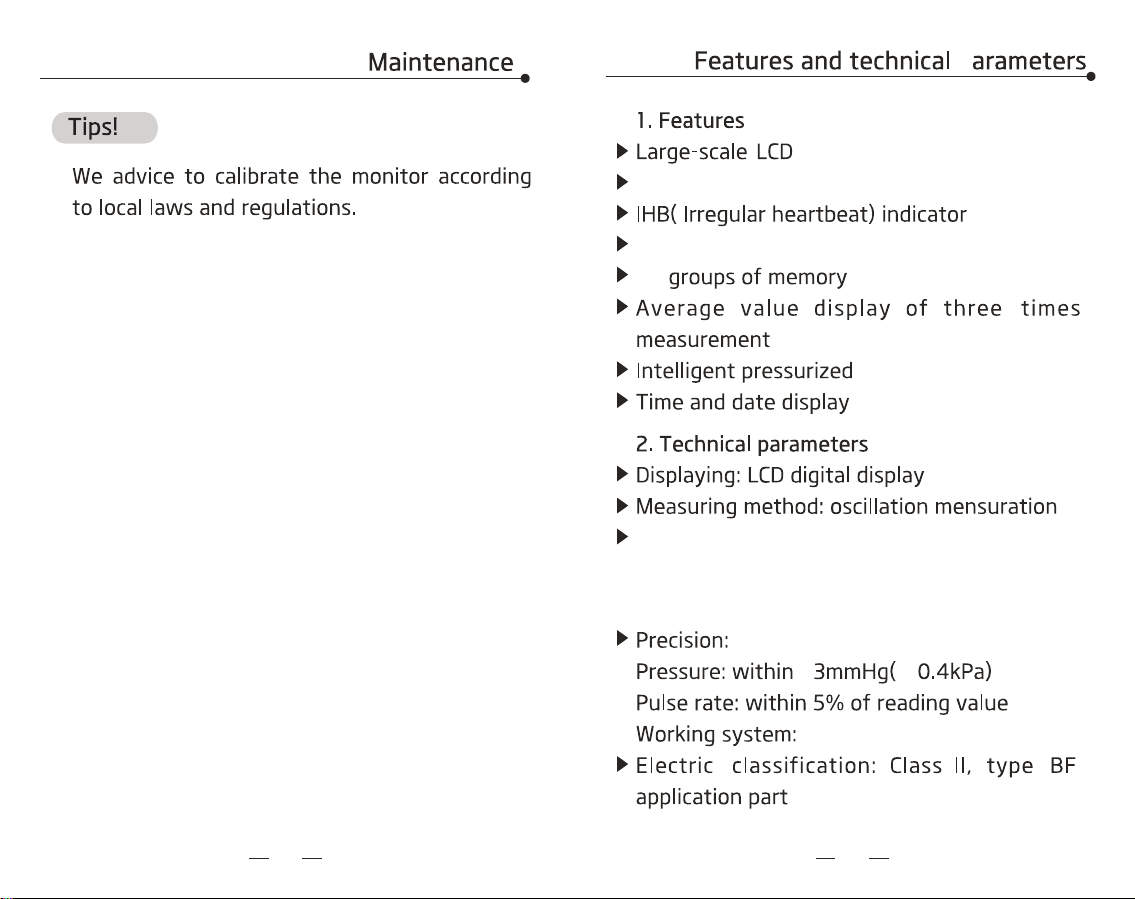

Cuff Wrapping Detection
60
Body Movement Detection
Continuous operation
Pressure measurement range:
0~300mmHg(0~40.0kPa)
Pulse rate:40~200 times/min
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
4140

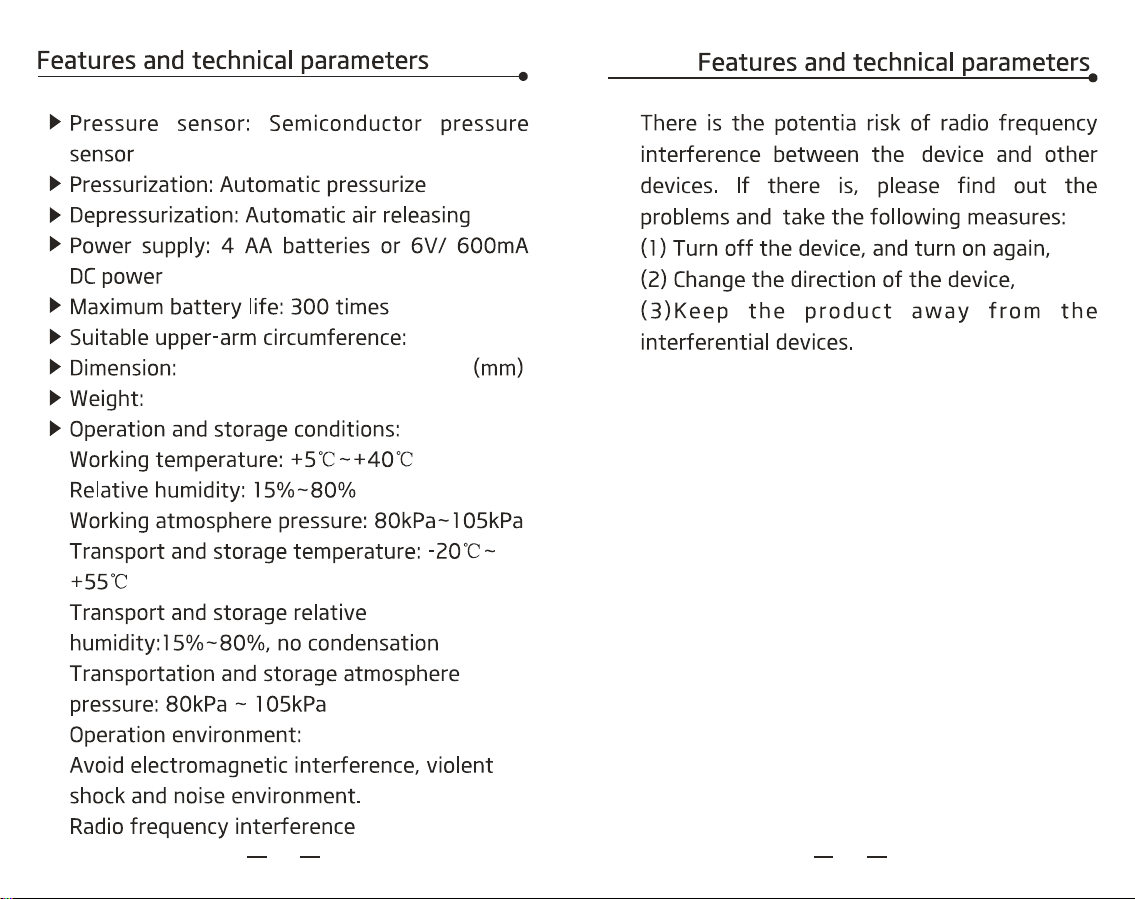

22-45cm
267g
127X93X74
Approximately
YE650A(smart)
尺寸：180X142.5mm 色彩：准确、单色，层次分明
纸张：105克双铜纸 印后加工：对折装订
电子血压计说明书印刷要求
( Please turn to page 17 for details)
