Liebherr ICNSD 7603 PURE NOFROST Integrated fridge-freezer User Manual

home.liebherr.com/

fridge-manuals

Operating and in‐

stallation instruc‐

tions

ORIGINAL OPERATOR'S MANUAL

Contents

1 General safety information................................... 3

1.1 Intended use................................................................. 3

1.2 User group..................................................................... 3

1.3 Warning notices – Risks for the user........................ 3

1.4 Faults, damage and repairs........................................ 4

1.5 Information concerning disposal.............................. 4

1.6 Conformity..................................................................... 4

1.7 Climate classes............................................................ 4

1.8 SVHC substances in accordance with the REACH

Regulation..................................................................... 4

1.9 EPREL database........................................................... 4

1.10 Open source licences.................................................. 5

1.11 Spare parts.................................................................... 5

1.12 Warning levels.............................................................. 5

2 Appliance at a glance............................................ 5

2.1 Scope of delivery.......................................................... 5

2.2 Overview of the appliance and equipment.............. 5

2.3 SmartDevice.................................................................. 5

3 Setting up and connecting.................................... 6

3.1 Installation requirements........................................... 6

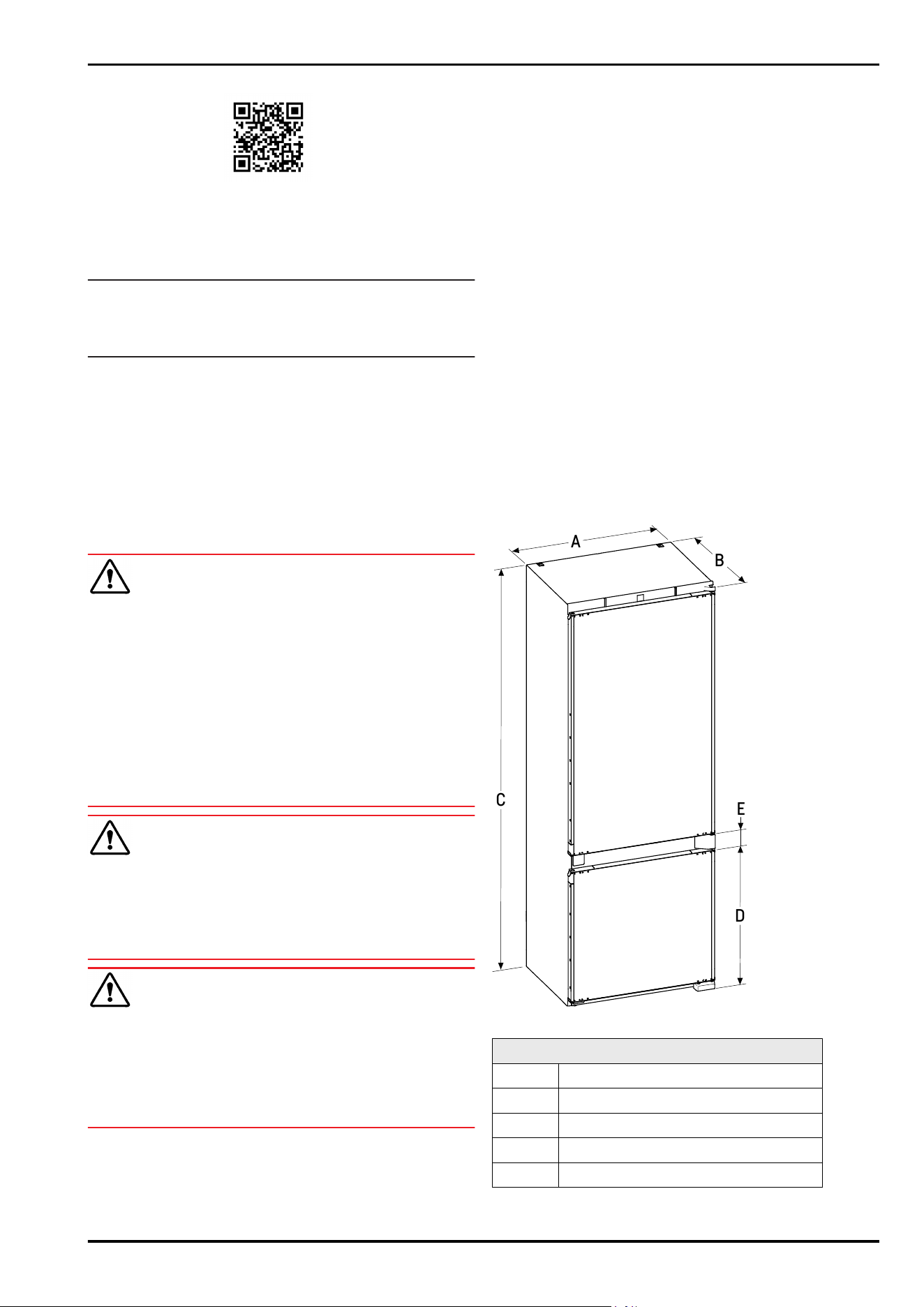

3.2 Appliance dimensions................................................. 6

3.3 Recess dimensions...................................................... 7

3.4 Transporting the appliance........................................ 7

3.5 Unpacking the appliance............................................ 7

3.6 Explanation of symbols used..................................... 7

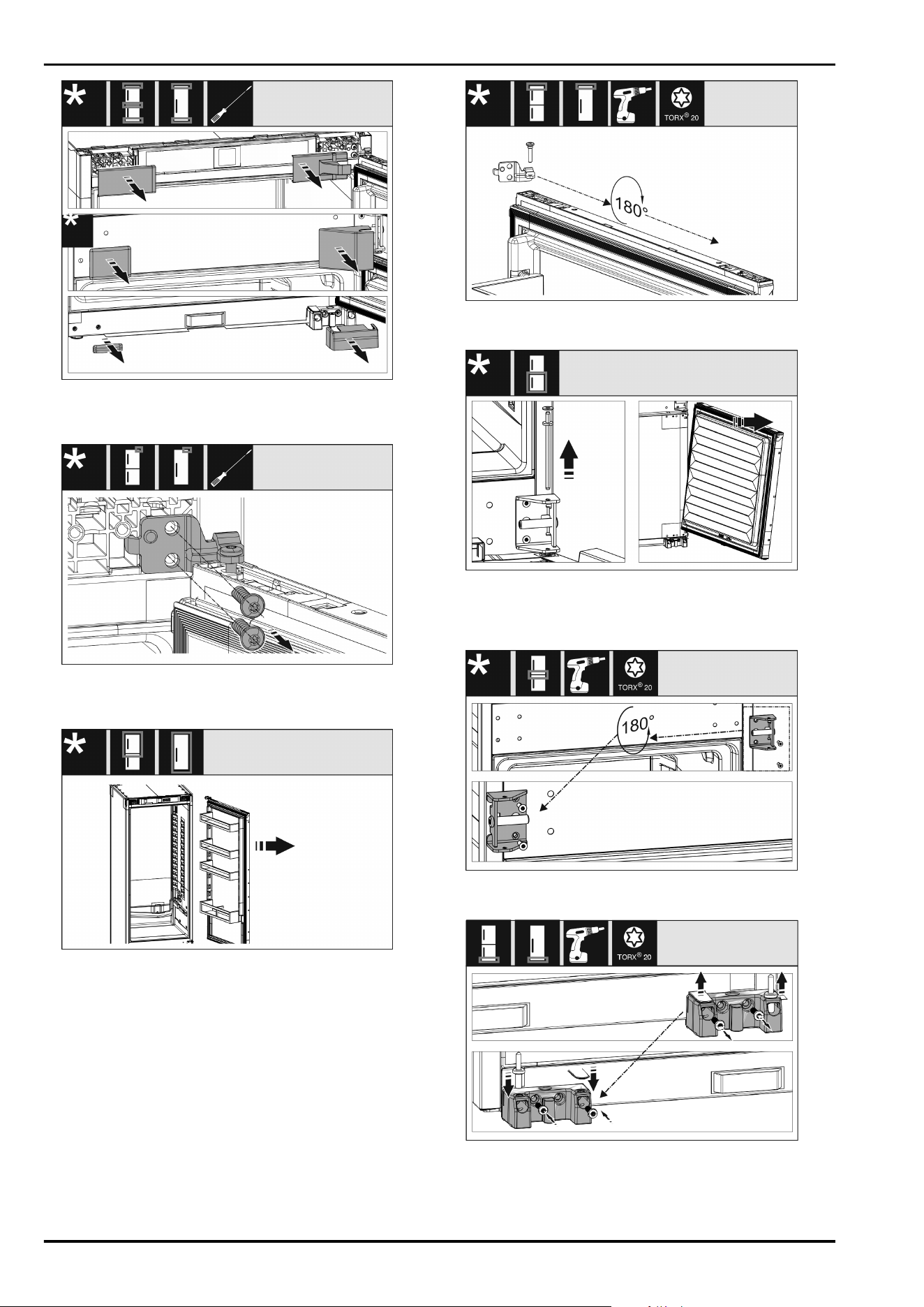

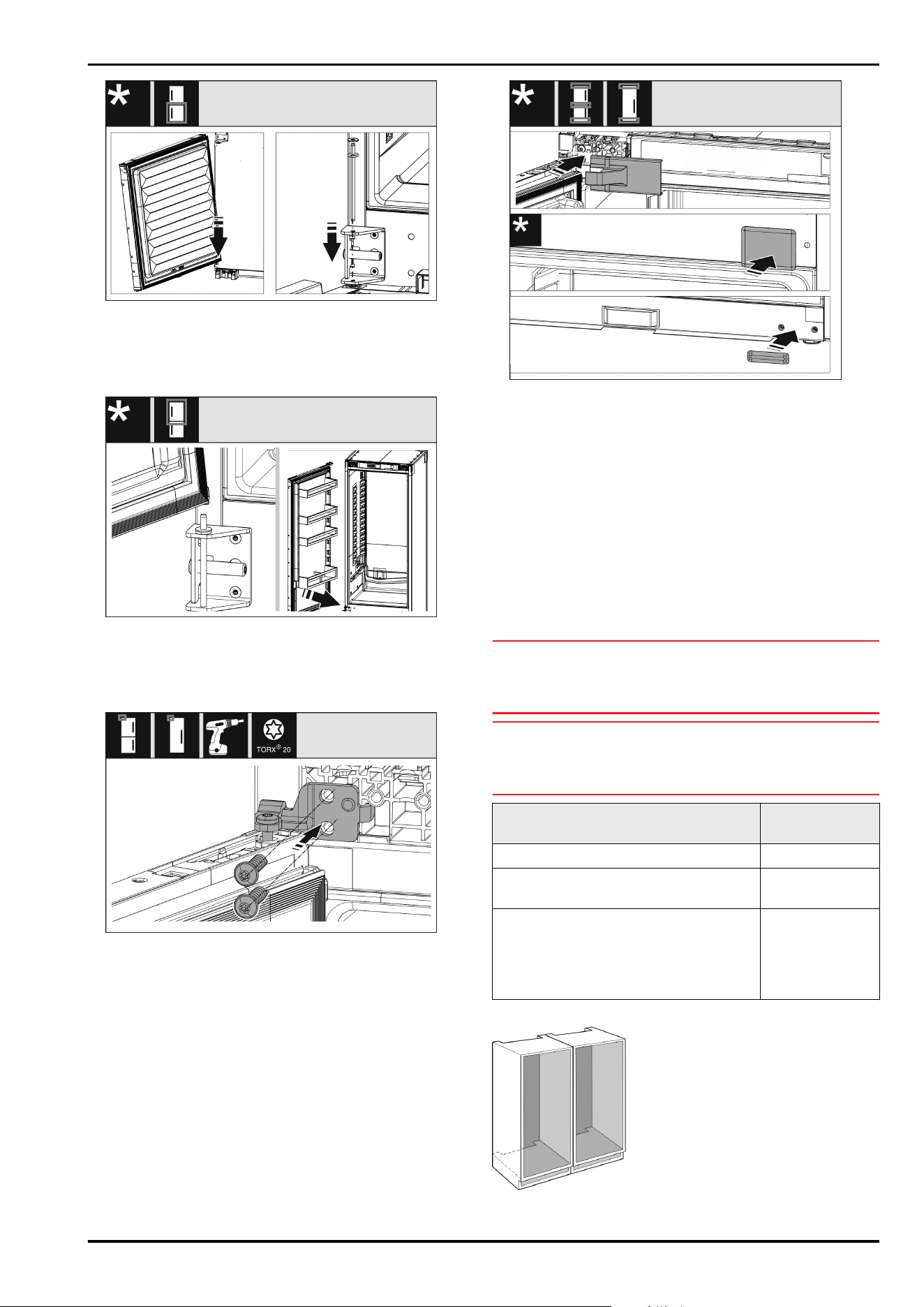

3.7 Changing the door direction...................................... 8

3.8 Installing multiple appliances.................................... 10

3.9 Installation in the niche.............................................. 11

3.10 After installation.......................................................... 17

3.11 Connecting the appliance to the power supply...... 17

3.12 Disposing of packaging............................................... 18

4 Functionality of the Touch display....................... 18

4.1 Navigation and symbol explanation......................... 18

4.2 Menus............................................................................. 19

4.3 Sleep mode................................................................... 19

5 Putting into operation........................................... 19

5.1 Switching on appliance (first use)............................ 19

6 Storage.................................................................. 20

6.1 Information regarding storage................................... 20

6.2 Fridge compartment.................................................... 20

6.3 EasyFresh..................................................................... 20

6.4 Freezer compartment.................................................. 20

6.5 Storage times............................................................... 21

7 Saving energy........................................................ 21

8 Controls................................................................. 21

8.1 Controls and displays.................................................. 21

8.1.1 Status display............................................................21

8.1.2 Display symbols........................................................ 21

8.2 Appliance functions..................................................... 22

8.2.1 Notes on the appliance functions......................... 22

Switching the appliance off and on..................... 22

Switching temperature zone off and on.............. 22

Temperature............................................................. 22

D-Value...................................................................... 23

SuperCool..................................................................23

PowerCool ................................................................24

SuperFrost................................................................ 24

PartyMode ................................................................25

HolidayMode.............................................................25

SabbathMode........................................................... 26

E-Saver ..................................................................... 26

CleaningMode...........................................................27

Input lock...................................................................27

Reminder................................................................... 27

Temperature unit..................................................... 28

Display brightness.................................................. 28

WiFi............................................................................ 28

Device information.................................................. 29

Software....................................................................29

Start defrosting cycle............................................. 30

Door alarm................................................................ 30

Demo mode.............................................................. 30

Resetting to factory settings................................. 31

8.3 Messages...................................................................... 31

8.3.1 Overview of warnings...............................................31

8.3.2 Ending warnings....................................................... 32

8.3.3 Overview of reminders.............................................32

8.3.4 Ending reminders......................................................33

9 Features................................................................. 33

9.1 Door rack....................................................................... 33

9.2 Shelves.......................................................................... 34

9.3 Drawers.......................................................................... 35

9.4 Compartment lid for EasyFresh Safe........................ 35

9.5 Glass shelves................................................................ 36

9.6 VarioSpace.................................................................... 36

9.7 Bottle holder................................................................. 36

10 Maintenance.......................................................... 37

10.1 FreshAir carbon filter................................................... 37

10.2 Removing / inserting the bottle holder.................... 37

10.3 Disassembling / assembling pull-out systems...... 37

10.4 Compartment lid for EasyFresh Safe........................ 37

10.5 Defrosting the appliance............................................ 38

10.6 Cleaning the appliance............................................... 38

11 Customer help....................................................... 39

11.1 Technical specifications............................................. 39

11.2 Operating noise............................................................ 39

11.3 Technical fault.............................................................. 40

11.4 Customer Service......................................................... 41

11.5 Model plate................................................................... 41

12 Shutting down....................................................... 41

2 * Depending on model and options

13 Disposal................................................................. 41

13.1 Preparing the appliance for disposal........................ 41

13.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 41

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

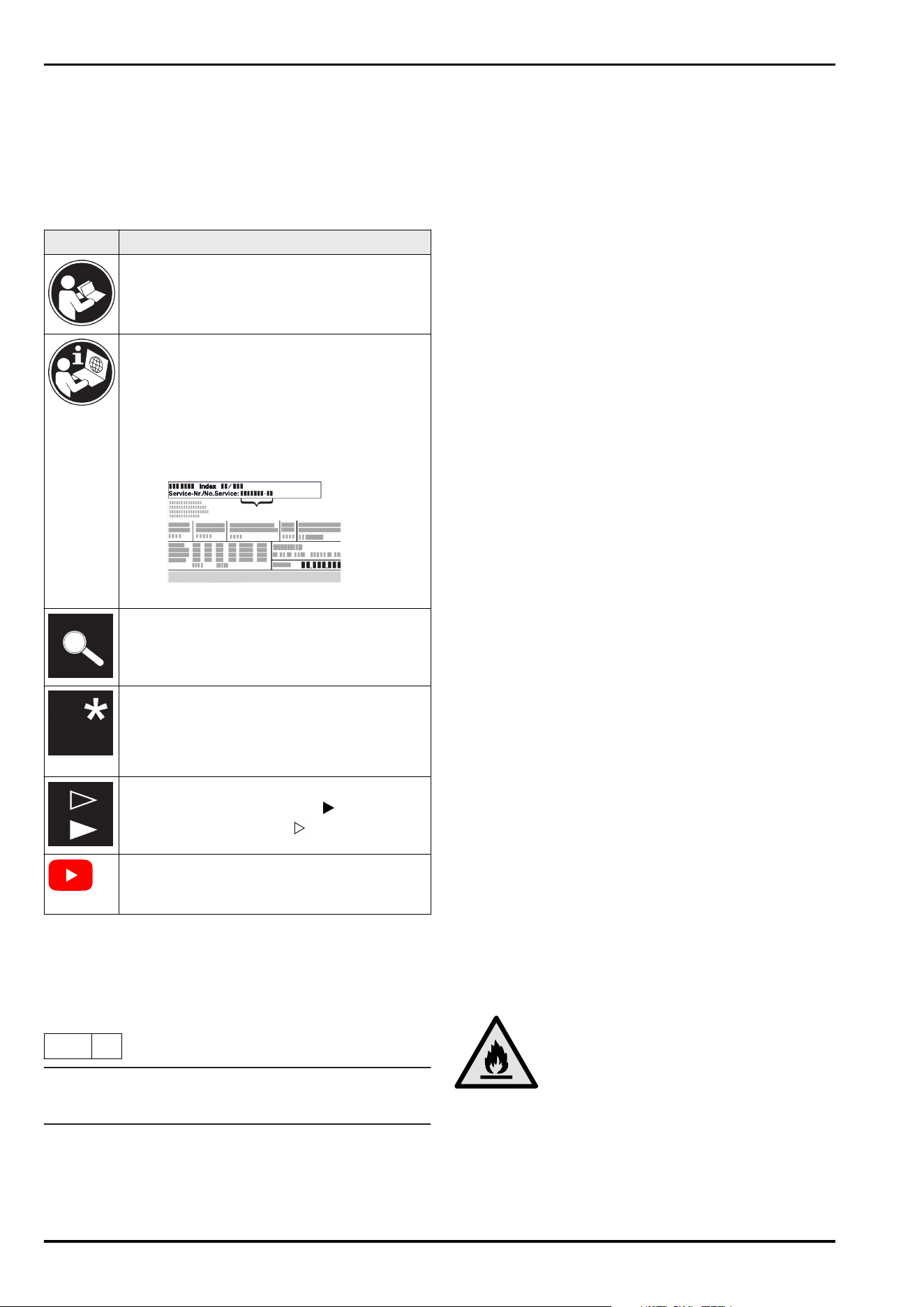

Symbol Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

This user information applies to the following appliances:

ICNS..

76..

Note

If your appliance has an N in its appliance designation, it is

a NoFrost appliance.

1 General safety information

Keep this user information in a safe place so that you can

refer to it at any time.

If you pass on the appliance, pass this user information on

to subsequent owners.

To use the appliance properly and safely, read this user

information carefully before installation and use. Always

follow the instructions, safety instructions and warnings

contained therein. They are important so that you can install

and operate the appliance safely and properly.

1.1 Intended use

This appliance is intended for household use and similar

applications such as:

•

in staff kitchen areas in shops, offices and other work

areas

•

in agriculture and by guests in hotels, motels and

other accommodation

•

bed and breakfasts

•

in catering and similar wholesale operations

Further uses:

•

All other types of application are impermissible.

1.2 User group

This appliance must not be used by persons (including

children) with reduced physical, sensory or mental capa‐

bilities, or by persons with a lack of experience and

knowledge, unless they are supervised by a person

responsible for their safety or have been given instruc‐

tions on how to use the appliance. Children must be

supervised to ensure that they do not play with the appli‐

ance.

Children aged between 3 and 8 are allowed to load and

unload the fridge-freezer.

1.3 Warning notices – Risks for the user

WARNING: Keep ventilation openings in the equipment

housing or in installations clear of obstructions.

WARNING: Do not use any mechanical devices or other

means to speed up the defrosting process other than

those recommended by the manufacturer.

WARNING: Do not damage the coolant circuit.

WARNING: Do not operate electrical appliances inside the

refrigerator/freezer compartment that are not of the type

recommended by the manufacturer.

WARNING: When installing the appliance, ensure that the

mains lead is not trapped or damaged.

WARNING: Do not place portable multiple sockets or

power supply units at the rear of the appliance.

Once the appliance has been installed, it must still be

possible to disconnect it from the mains.

Accessible mains plug (above, below or next to the appli‐

ance)

Tripping of the fuse in the building’s electrical installation

in accordance with the installation regulations.

WARNING: Fire hazard/flammable

substances.

The symbol is located on the compressor

and may also appear in other places on the

appliance. It marks the danger posed by

flammable substances. Do not remove the

sticker.

The more refrigerant there is in the appliance, the larger

than room must be in which it is located. In rooms that

are too small, a leak can product a flammable gas/air

mixture. For every 8g of refrigerant, the installation room

must be at least 1m

in size. Information on the refrig‐

General safety information

* Depending on model and options 3

erant contained is given on the type plate inside the

appliance.

Clean regularly surfaces that can come in contact with

food and accessible drainage systems.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

If the fridge-freezer is left empty for a long period, switch

it off, defrost it, clean it, dry it and leave the door open to

prevent mould from forming.

Avoid prolonged skin contact with cold surfaces or with

cold food. Use gloves for protection, for example.

Alcoholic beverages and other containers bearing alcohol

must be sealed tight for storage. Any leaking alcohol may

ignite due to electrical parts.

Only open the door for a short time. This prevents the

temperature inside the appliance from rising.

Do not reach between the door and the appliance when

opening and closing. Fingers may become trapped.

Do not place any items in the front section of the bottom

glass shelf to ensure that the appliance door closes

properly. (see6.2 Fridge compartment) (see 9.1 Door rack)

WARNING: This appliance must be secured in accordance

with the instruction manual to prevent any risks arising

from a lack of stability.

Follow the instructions regarding installation, fixing,

required dimensions and connections. (see3 Setting up

and connecting)

1.4 Faults, damage and repairs

Mains connection with cooling appliance plug:

If the mains lead of this appliance is damaged, it must be

replaced with a special connection line available from the

manufacturer or its customer service department. The

customer may make the change.

Repairs and interventions on the appliance may only be

carried out by the customer service or by other qualified

personnel trained for this purpose.

In the event of malfunctions and appliance faults, pull

out the mains plug or switch off the fuse. Always hold

the plug when pulling out the mains plug. Never tug on

the cable.

1.5 Information concerning disposal

The crossed-out rubbish bin symbol is

a note that the appliance must not be

disposed of with unsorted household waste

and must be placed in a separate collec‐

tion. It contains recyclable materials and

may be reusable.

The symbol may be found on the

compressor. It pertains to the oil in the

compressor and indicates the following

danger: Can be fatal if swallowed or with

penetration of the respiratory tract. This

information is only significant for recycling.

No risk exists with normal use.

This or a similar sticker may be on the rear

of the appliance. It indicates that there are

vacuum insulation panels (VIP) or perlite

panels in the door and/or housing. This

information is only significant for recycling.

Do not remove the sticker.

The old appliance must be properly and therefore profes‐

sionally disposed of in accordance with the local appli‐

cable regulations and legislation. When transporting the

old appliance do not damage the refrigerant circuit, so

that the refrigerant inside (information on the type plate)

and the oil do not leak out uncontrolled.

Please note that it is the customer’s responsibility to

delete any personal data that may be held.

For Germany: The appliance can be disposed of free of

charge via the class 1 collection containers at the local

recycling/reusable material centres. When purchasing a

new refrigerator/freezer and a sales area >400m

, the

old appliance is also taken back free of charge via the

trade.

EU: Please check with your local authorities to find out

how to dispose of old appliances.

1.6 Conformity

The coolant circuit has been tested for leak-tightness. When

installed, the appliance complies with the relevant safety

regulations and directives.

For the EU

market:

The appliance complies with Directive

2014/53/EU.

For GB market: The appliance complies with the Radio

Equipment Regulations 2017 SI 2017 No.

1206.

The full text of the EU Declaration of Conformity is available

at the following web address: www.liebherr.com

1.7 Climate classes

Depending on its climate class, the appliance is designed

for operation within certain ambient temperature limits. The

climate class for your appliance is printed on the type plate.

Note

► In order to guarantee fault-free operation comply with

the specified ambient temperatures.

Climate class for ambient temperatures from

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

1.8 SVHC substances in accordance

with the REACH Regulation

You can use the following link to check whether your

appliance contains SVHC substances in accordance with

the REACH Regulation:

https://go.liebherr.com/z3eewm

1.9 EPREL database

From 1 March 2021, the information on energy labelling

and eco-design requirements will be available in the

European product database (EPREL). The product data‐

base can be accessed via the following link https://

eprel.ec.europa.eu/. Here, you are asked to enter the

model identifier. You will find the model identifier on the

type plate.

General safety information

4 * Depending on model and options

1.10 Open source licences

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here:

home.liebherr.com/open-source-licences

1.11 Spare parts

The spare parts availability for functional parts and

stockable parts of the equipment is 15 years.

1.12 Warning levels

DANGER

Identifies an immediately

dangerous situation that will

result in death or serious bodily

injuries if it is not prevented.

WARNING

Identifies a dangerous situation

that could result in death or

serious bodily injury if it is not

prevented.

CAUTION

Identifies an immediately

dangerous situation that could

result in slight or moderate injuries

if it is not prevented.

ATTENTION Identifies a hazardous situation

that could result in property

damage if it is not prevented.

Note Identifies useful information and

tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see11.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”*

Service Brochure

2.2 Overview of the appliance and

equipment

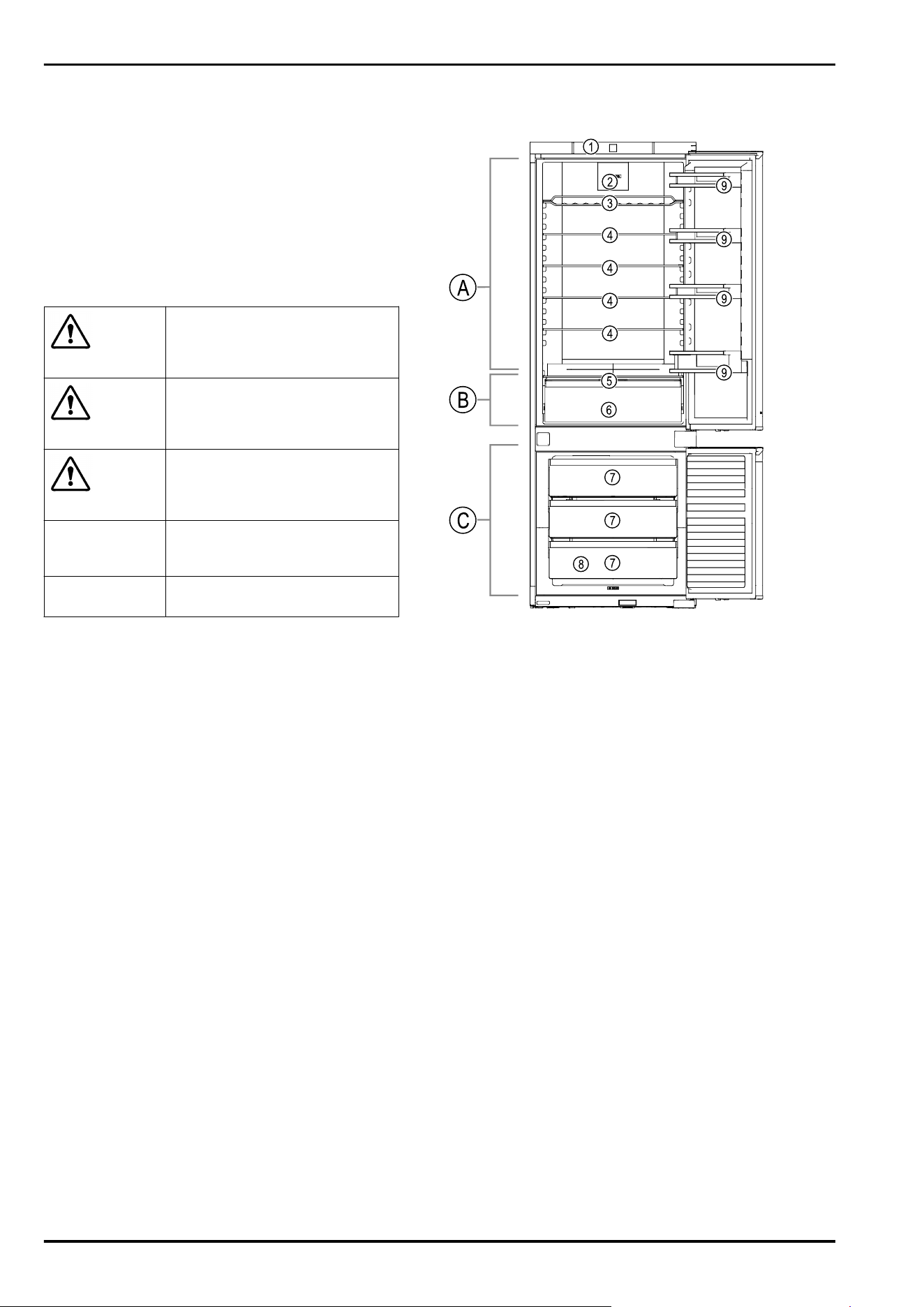

Fig. 1 Example illustration

Temperature range

(A)

Fridge section (C) Freezer section

(B) EasyFresh

Equipment

(1)

Controls (6) EasyFresh Safe

(2) Fan with FreshAir acti‐

vated charcoal filter

(7) Drawer

(3) Bottle rack (8) Type plate

(4) Shelf (9) Door rack

(5) Compartment lid for

EasyFresh Safe

2.3 SmartDevice

SmartDevice is the networking solution for your fridge-

freezer.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

compatible appli‐

ance:

Your appliance is compatible for use

with the SmartDeviceBox. You must

first purchase and install the Smart‐

DeviceBox. In order to connect your

appliance to the WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Purchasing the

SmartDeviceBox

in the Liebherr-

Hausgeräte store:

home.liebherr.com/shop/de/deu/

smartdevicebox.html

Appliance at a glance

* Depending on model and options 5

Downloading the

SmartDevice app:

After installing and configuring

the SmartDevice app, you can

connect your appliance to your Wi-Fi

(seeWiFi) using the SmartDevice app

and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

3 Setting up and connecting

3.1 Installation requirements

The installation conditions are crucial to ensure that you

can operate your appliance safely, efficiently and without

problems.

Observe all safety instructions.

Consider the location and position in the room.

WARNING

Danger of fire due to incorrect positioning!

If the mains cable or plug touches the back of the appli‐

ance, the vibration can damage the mains cable or the plug

resulting in a short circuit.

► Make sure the mains cable is not trapped under the appli‐

ance when you position the appliance.

► Stand the appliance so that it is not touched by connec‐

tors or main cables.

► Do not connect any appliances to sockets in the area of

the back of the appliance.

► Do not place and operate multi-sockets/power distribu‐

tors and other electronic devices (such as halogen trans‐

formers) at the back of the appliances.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause

short circuits.

► The appliance is designed for use in enclosed areas. Do

not operate the appliance outdoors or in areas where it is

exposed to splash water or damp conditions.

WARNING

Risk of fire due to leaking refrigerant and oil!

The refrigerant inside the appliance is environmentally

friendly, but flammable. The oil it contains is also flam‐

mable. Escaping refrigerant and oil can ignite in high

concentrations and in contact with an external heat source.

► Do not damage the refrigerant circuit pipes or the

compressor.

3.1.1 Installation site

Only set up and use the appliance in enclosed spaces.

Only operate the appliance when it is installed.

If the appliance is installed in a very damp environment,

condensation may form on the appliance exterior.

Always make sure there is good ventilation and aeration

at the installation site.

The more refrigerant there is in the appliance, the larger

than room must be in which it is located. In rooms that

are too small, a leak can product a flammable gas/air

mixture. For every 8g of refrigerant, the installation room

must be at least 1m

in size. Information on the refrig‐

erant contained is given on the type plate inside the

appliance.

The floor on which the appliance stands must be hori‐

zontal and level.

3.1.2 Position in space

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

You can install the appliance directly next to an oven.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Only fit the appliance into solid units.

Use in hazardous areas is not permitted.

3.2 Appliance dimensions

Fig.2

IC(B)NS.. 76..3

A (mm) 691

B (mm) 545

C (mm) 1938

D (mm) 669

E (mm) 67

Setting up and connecting

6 * Depending on model and options

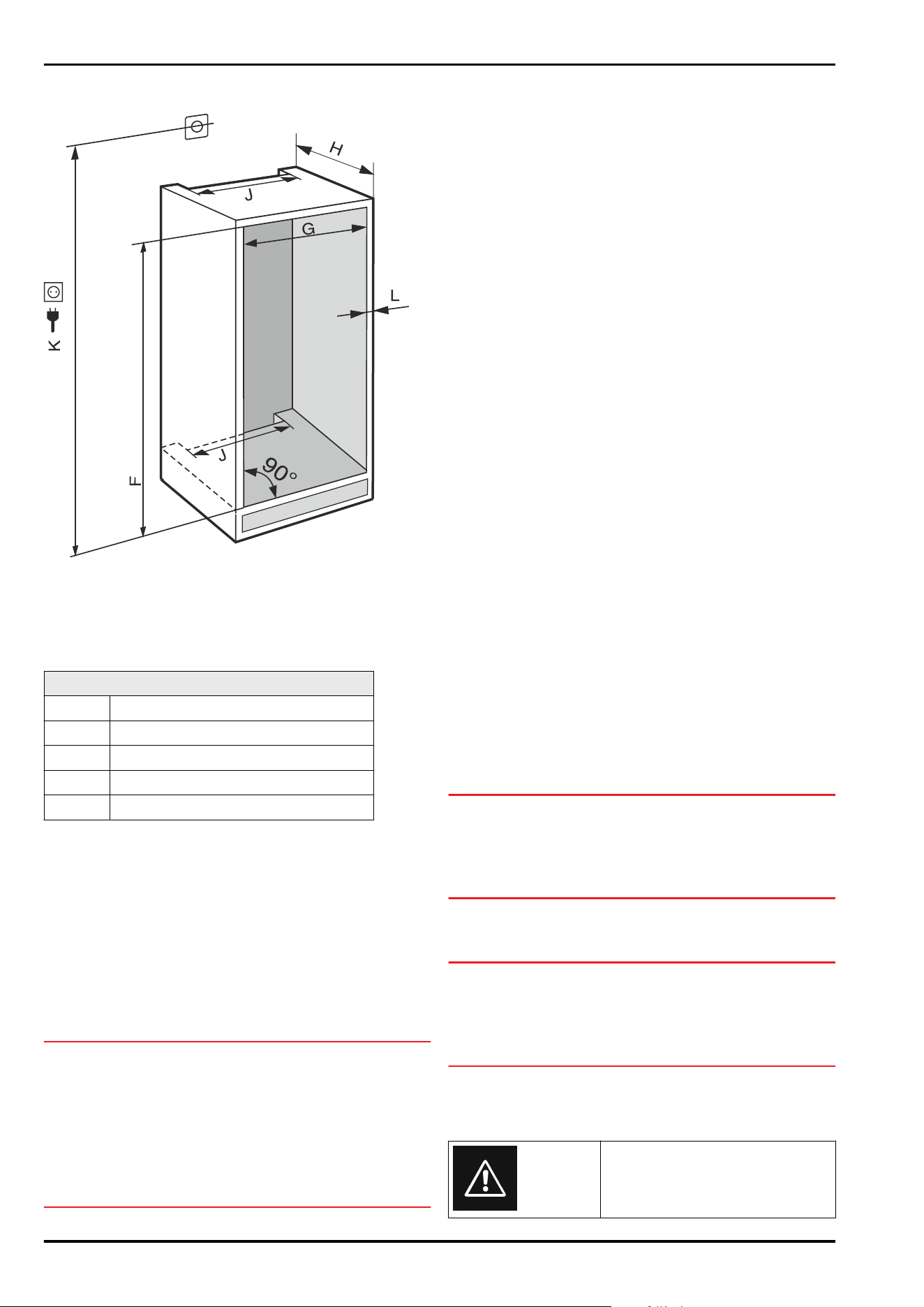

3.3 Recess dimensions

Fig.3(K): max. 2100mm

Observe the following information for appliances with a

fixed water connection:

Water connection

Connecting the appliance to the water supply

ICN(S)..76.. / IC(B)N(S)..(i) 76..

F (mm) 1940 to 1950

G (mm) 710 to 720

H (mm) min.560

J (mm) min.500

L (mm) max. 19

The specified energy consumption was determined with a

kitchen unit depth of 560mm.

► Check the wall thickness of adjacent cabinets: They must

have a minimum of 16mm.

► Only fit the appliance into stable, solid kitchen units.

Secure the unit against tipping.

► Align the cabinets with a spirit level and a try square. If

necessary, level them by putting something underneath

them.

► Make sure that the floor and the side panels of the

cabinet are at right angles to each other.

3.3.1 Ventilation requirements

NOTICE

Covered vents!

Damage. Appliance can overheat, which can reduce the

service life of various parts of the appliance and lead to

operational impairments.

► Always make sure there is good ventilation.

► Always keep vents or ventilation grids in the appliance

housing and in the kitchen furniture (fully integrated

appliance) unobstructed.

► Always keep the fan air vents unobstructed.

Always follow the required ventilation gaps:

The depth of the ventilation shaft at the back of the

cabinet must be at least 38mm.

At least 200cm

is required for the ventilation gap cross

sections in the plinth and the housing cabinet.

As a rule, the larger the ventilation cross-section, the

more efficiently the appliance will run.

Sufficient ventilation is required for the operation of the

appliance. The ventilation grids provided ensure an effec‐

tive ventilation cross-section on the appliance of 200cm

If you replace the ventilation grids with a cover plate the

ventilation cross-section must be as least as large as the

ventilation grid provided by the manufacturer.

3.4 Transporting the appliance

3.4.1 Transporting the appliance for initial use

Ensure that the following requirements are met:

❑

The appliance is packaged.

❑

The appliance is upright.

► Transport the appliance with the help of two people.

► Unpacking the appliance. (see 3.5 Unpacking the appli‐

ance)

3.4.2 Transporting the appliance after initial

use

Observe the following instructions if you wish to transport

or move the appliance again after initial use.

Ensure that the following requirements are met:

❑

The appliance is emptied.

❑

The appliance is upright.

❑

Appliance with door(s): Door is secured against acci‐

dental opening.

❑

Appliance with telescopic unit: The telescopic unit is

secured against accidental opening.

❑

Appliance is removed.

► Transport the appliance with the help of two people.

3.5 Unpacking the appliance

NOTICE

Risk of damage if the unit is moved!

If you move the unit across the floor without any protection,

it may damage the floor.

► Make sure you cover the floor properly before removing

the packaging from the unit.

► Check the appliance and packaging: If you suspect that

the goods have been damaged in transit, please contact

the supplier before connecting them.

NOTICE

Damage to property caused by pointed or sharp objects!

Using pointed or sharp objects when removing packaging

material may damage the appliance.

► Do not use any pointed or sharp objects to remove the

packaging material.

► Remove the packaging materials.

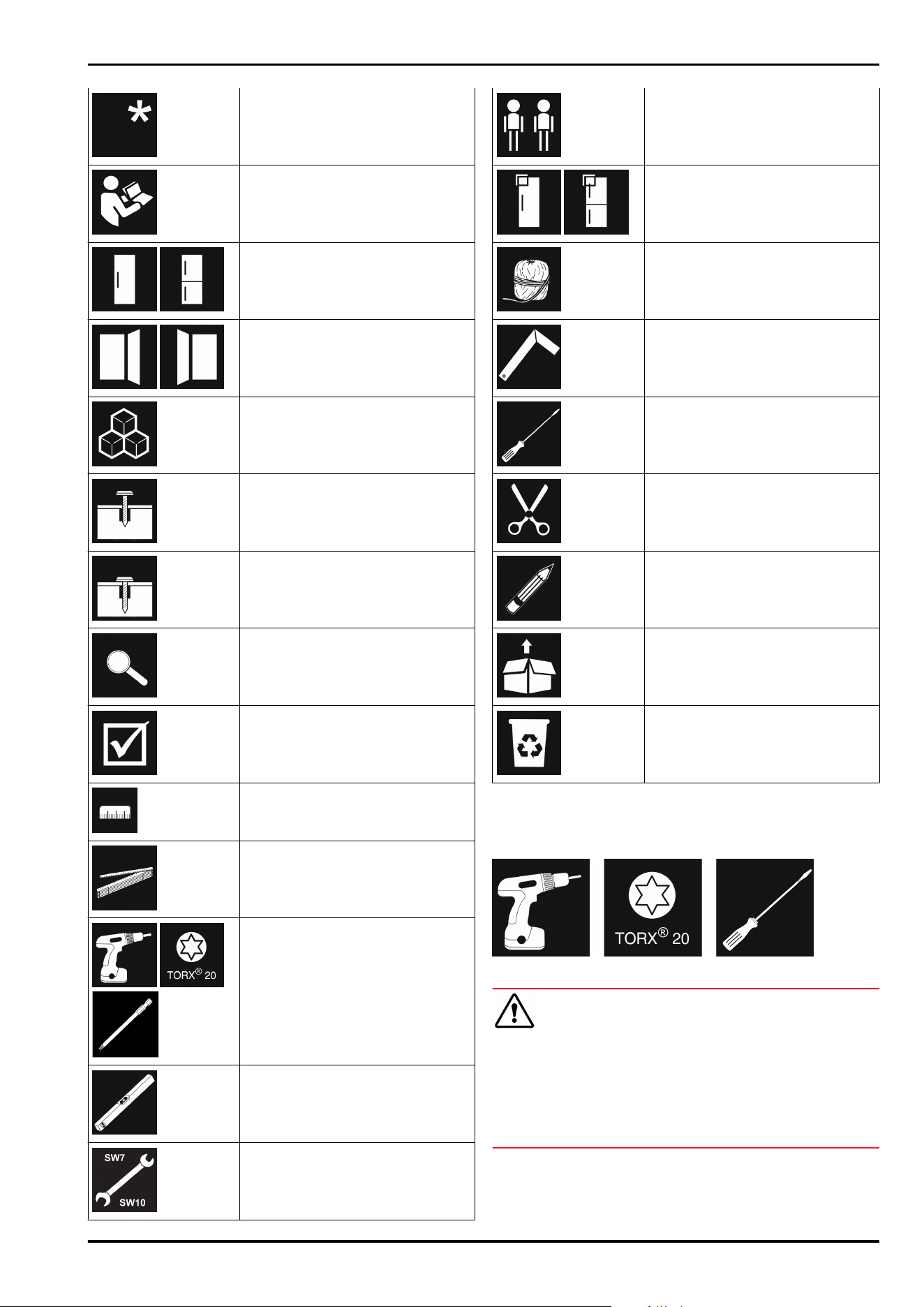

3.6 Explanation of symbols used

There is a danger of injury during

this step! Observe the safety

instructions!

Setting up and connecting

* Depending on model and options 7

The instruction is valid for several

models. Only perform this step if it

applies to your appliance.

For installation, please refer to the

detailed description in the text

section of the instructions.

Section is valid for either a single-

door appliance or a double-door

appliance.

Choose between the following

options: Appliance with door hinge

on the right or appliance with door

hinge on the left.

Installation step required for

IceMaker and/or InfinitySpring.

Only loosen or lightly tighten the

screws.

firmly tighten the screws.

Check whether the following step

is necessary for your model.

Check that the components used

are correctly installed/fitted.

Measure the specified dimension

and correct if necessary.

Tool for installation: Metre stick

Tool for installation: Cordless

screwdriver and use

A lengthwise bit insert is recom‐

mended for good access to the

screws.

Tool for installation: Spirit level

Tool for installation: Open-end

wrench with AF 7 and AF 10

Two people are required for this

step.

The step takes place at the marked

location on the appliance.

Aid for installation: String

Aid for installation: Protractor

Aid for installation: Screwdriver

Aid for installation: Scissors

Aid for installation: Marking pen,

wipeable

Included: Remove components

Dispose of components that are no

longer required in accordance with

local regulations.

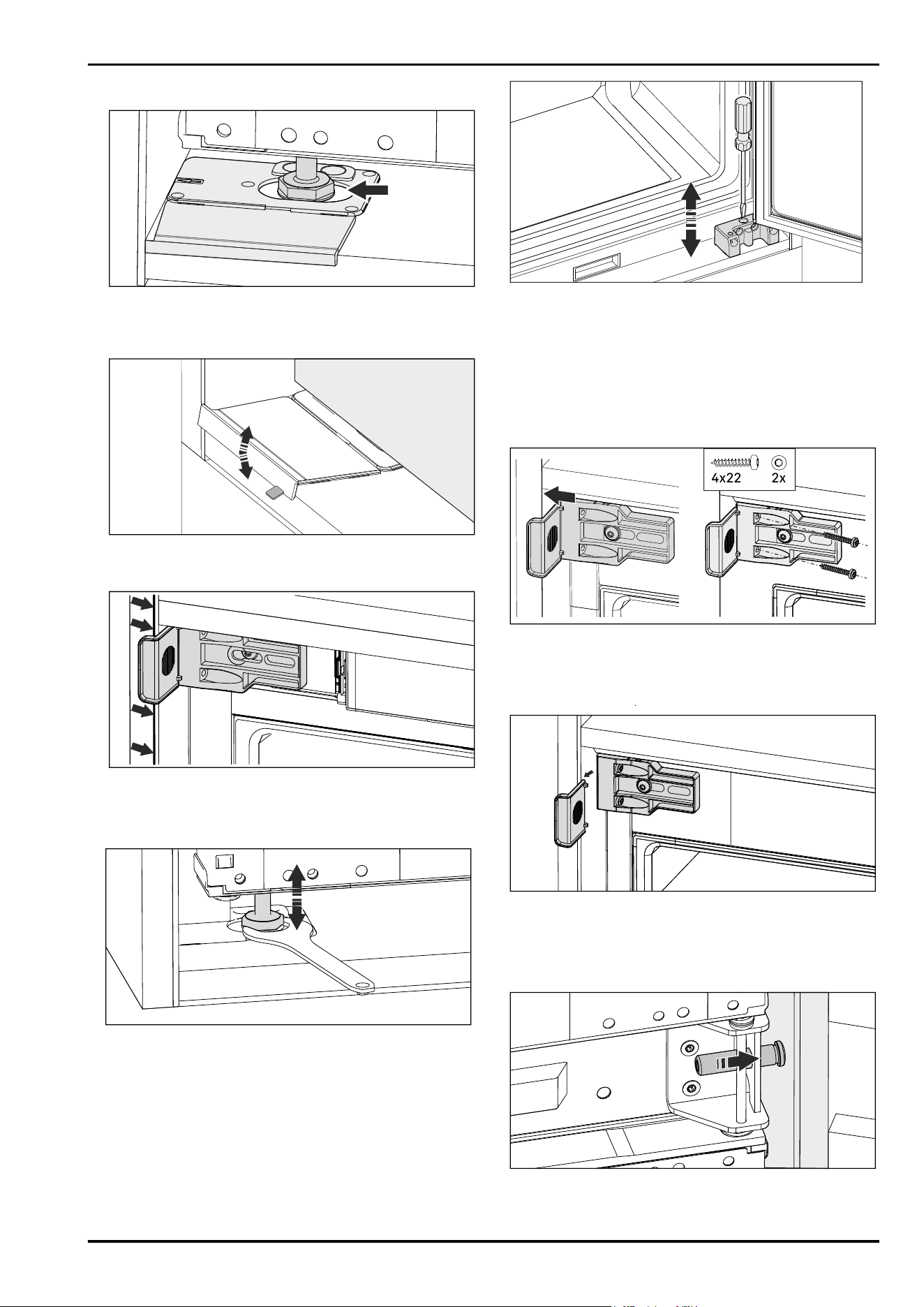

3.7 Changing the door direction

Tool

Fig.4

WARNING

Danger of injury if the door falls out!

If the fixing parts are not screwed in sufficiently the door

may fall off. This may lead to serious injuries. In addition,

the door may not close, thus impairing the cooling perform‐

ance of the appliance.

► Screw the upper and lower bearing brackets firmly to

4Nm.

Setting up and connecting

8 * Depending on model and options

Fig.5

► Remove any mounted covers, if necessary, use a slotted

screwdriver to lift them off.

Fig.6

► Loosen the screws on the bearing block. Secure the door

against falling out.

Fig.7

► Remove the door together with the still screwed-on

bearing bracket.

Fig.8

► Turn and shift the bearing block by 180°.

Fig.9

► Remove the lower door: Pull out the middle bearing bolt

with the disc. Secure the door against tipping out. Lift the

door up.

Fig. 10

► Shift the middle bearing block and screw it tightly.

Fig.11

► Shift the bottom bearing block and screw it tightly.

Setting up and connecting

* Depending on model and options 9

Fig.12

► For combined units: Mount the lower door: Place on the

hinge bolt at the bottom and rotate into place at the top.

Insert the middle bearing bolt into the door from above

through the middle bearing block.

Fig.13

► For combined units: Mounting the top door: Place at the

bottom of the middle bearing bolt.

► For single-door appliances: Fitting the door: Place it on

the bearing pin at the bottom.

Fig. 14

► Screw the top bearing block to the housing.

Fig. 15

► Refit the covers on the handle side. Reinstall the covers

on the hinge side only once the appliance is installed in

the cabinet.

► Check all screws and retighten if necessary.

3.8 Installing multiple appliances

The appliances have been developed for different installa‐

tion methods. If you wish to install several appliances next

to each other or on top of each other, ensure that the

following requirements are met:

❑

Only install appliances next to or on top of each other if

they have been developed for this.

❑

Observe notices and the following table.

NOTICE

Risk of damage due to condensate!

► Do not place the appliance directly next to another

cooling/refrigeration unit.

NOTICE

Risk of damage due to condensation!

► Do not place the appliance directly on top of another

cooling/refrigeration unit.

Model Installation

method

All models Standalone

Models with a model designation

starting with S....

Side-by-Side

(SBS)

Models up to a maximum niche height

of 880mm and with a heated ceiling

can be installed “on top of each other”.

Top appliance: up to a maximum niche

height of 140mm

On top of each

other

Models and their installation method

Fig. 16

Setting up and connecting

10 * Depending on model and options

Install each appliance into a separate unit niche.

3.9 Installation in the niche

The appliance is installed in the niche per these main steps:

Provide tools.

Check the mounting parts in the accessory pack.

Prepare the niche.

Prepare the mains connection.

Prepare the appliance.

Align the appliance.

Secure the appliance.

Insert the levelling rail.

Fit the unit fronts.

Check the installation.

Attaching the covers.

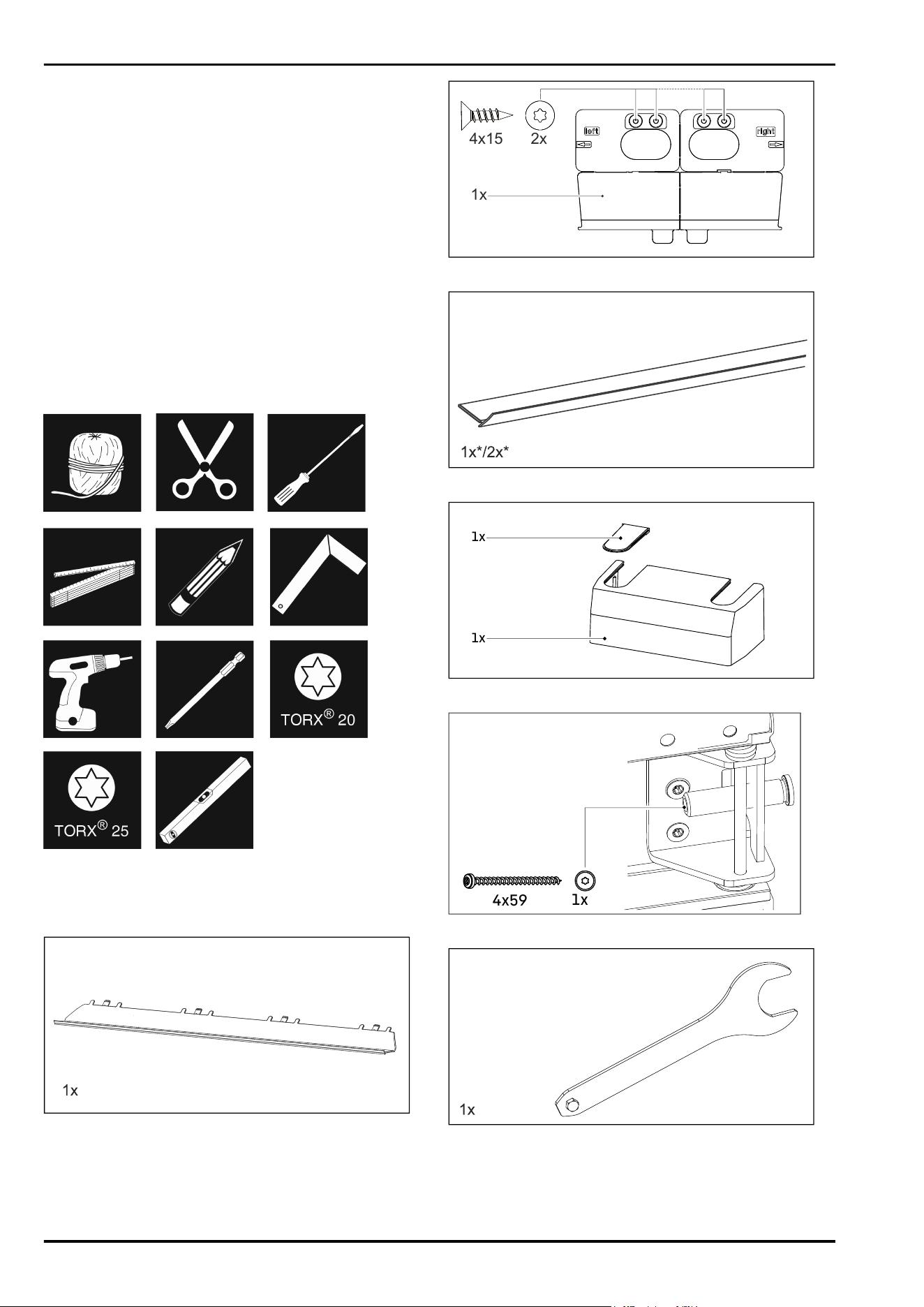

3.9.1 Provide tools

Fig.17

3.9.2 Check the mounting parts in the acces‐

sory pack

Fig. 18

4x15

Fig. 18

4x59

Fig. 19*

Fig.20

Setting up and connecting

* Depending on model and options 11

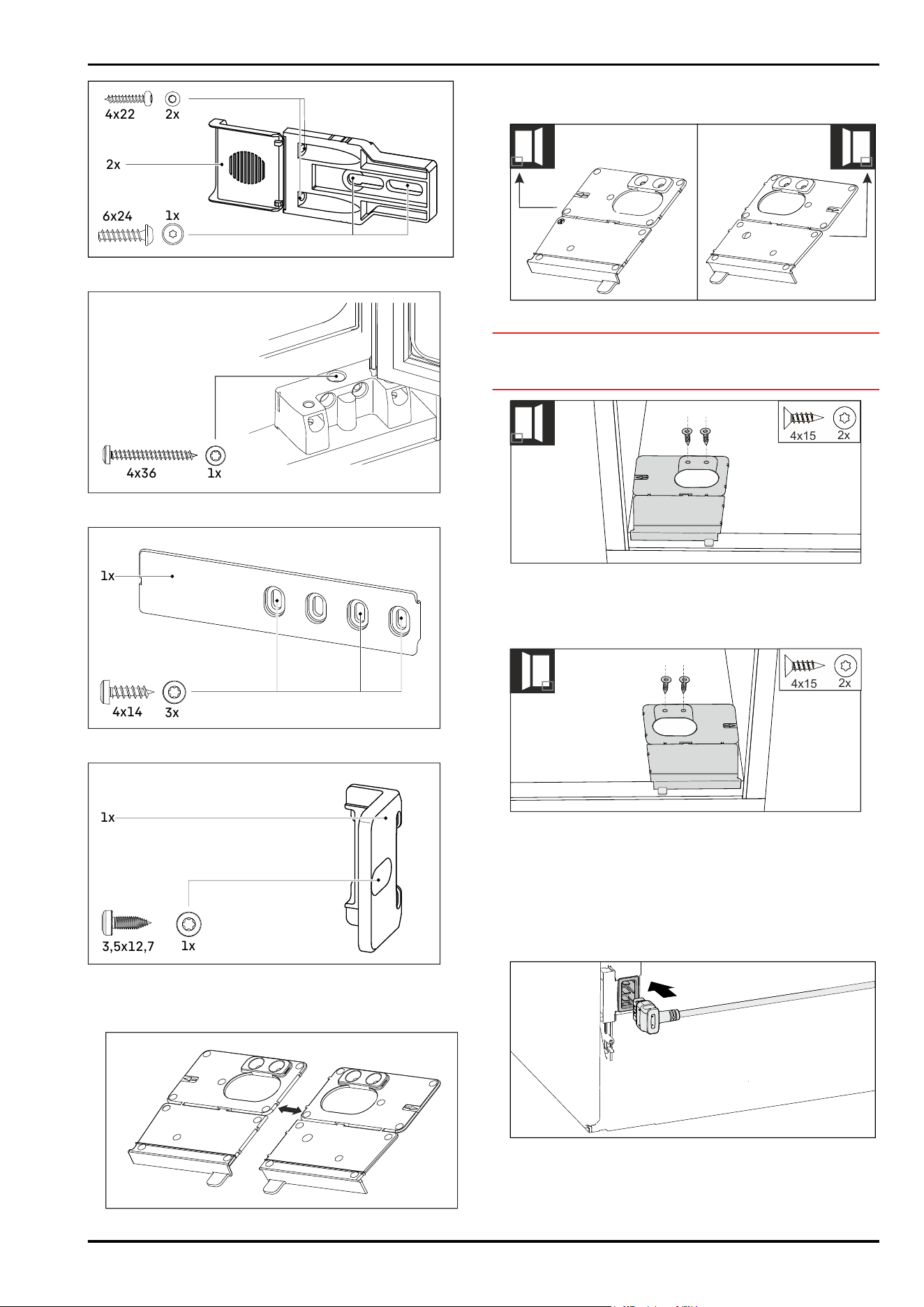

4x22

6 4x2

Fig.21

4x36

Fig.22

4x14

Fig.23

3,5x12,7

Fig. 24

3.9.3 Preparing the niche

Fig.25

► Separate the installation aid at the perforation.

Fig. 26

NOTICE

Incorrect installation depth of the appliance.

► When you install the appliance: Use the installation aid.

4x15

Fig.27

Door hinge on the right:

► Screw the installation aid to the left on the base of the

recess.

4x15

Fig.28

Door hinge left:

► Screw the installation aid to the right onto the base of

the recess.

▷ Mounting bracket sits flush against the cabinet side

panel.

3.9.4 Preparing the mains connection

Fig.29

► Remove the mains cable from the package.

► Plug the mains cable’s IEC socket completely into the

appliance plug on the back of the appliance.

▷ The IEC socket is firmly seated in the appliance plug.

Setting up and connecting

12 * Depending on model and options

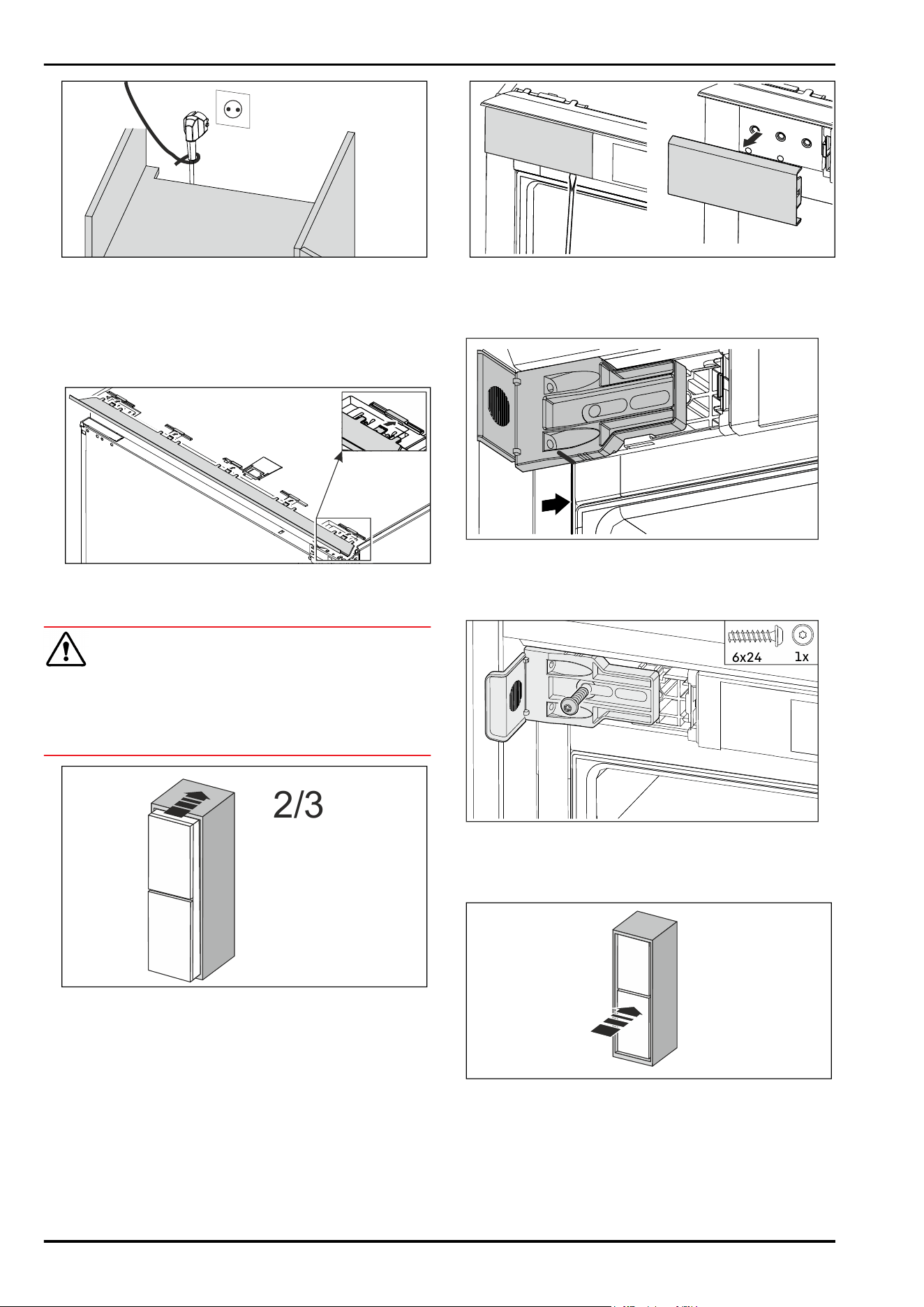

Fig.30

► Use a cord to route the mains connection cable to a

freely accessible socket.

▷ The mains connection cable can be plugged into the

socket after the appliance has been installed.

3.9.5 Preparing the appliance

Fig.31

► Insert the finishing trim on the top of the appliance.

▷ The trim panel can be moved to both sides.

WARNING

Risk of fire due to short circuit!

► When you push the appliance into the niche: do not kink,

jam or damage the mains cable.

► The appliance must not be operated with a defective

mains cable.

2/3

Fig.32

► Push the appliance two thirds of the way into the niche.

Fig.33

► Open the door.

► Unlatch the cover at the top left.

► Remove the cover.

Fig.34

► Position the mounting bracket.

▷ The lower marking of the mounting bracket is on the joint

of the housing.

6 4x2

Fig.35

► Screw on the bracket loosely.

▷ The bracket can be moved.

► Close the door.

Fig.36*

► Push the appliance completely into the recess.

Setting up and connecting

* Depending on model and options 13

3.9.6 Aligning the appliance

Fig.37

► Position the adjustable foot in the recess of the installa‐

tion aid.

► Open the door.

Fig.38

► Release the installation aid by moving it.

► If necessary, tear it off with pliers.

Fig. 39

► Check that the appliance is level in the niche.

▷ The mounting bracket at the top left rests firmly against

the side wall of the niche.

Fig.40

Fig. 41

The inclination of the appliance can be adjusted using the

adjustable feet.

► Screw the adjustable foot out:

▷ The appliance tilts backwards.

► Screw the adjustable foot in:

▷ The appliance tilts forwards.

3.9.7 Securing the appliance

4x22 2x

Fig. 42

► Press the mounting bracket onto the side wall of the

niche.

► Firmly tighten the screws.

Fig.43

► Separate the stop from the bracket.

► Dispose of the stop.

Fasten the appliance on the hinge side via the centre swap

bearing block in the recess:*

Fig.44*

Setting up and connecting

14 * Depending on model and options

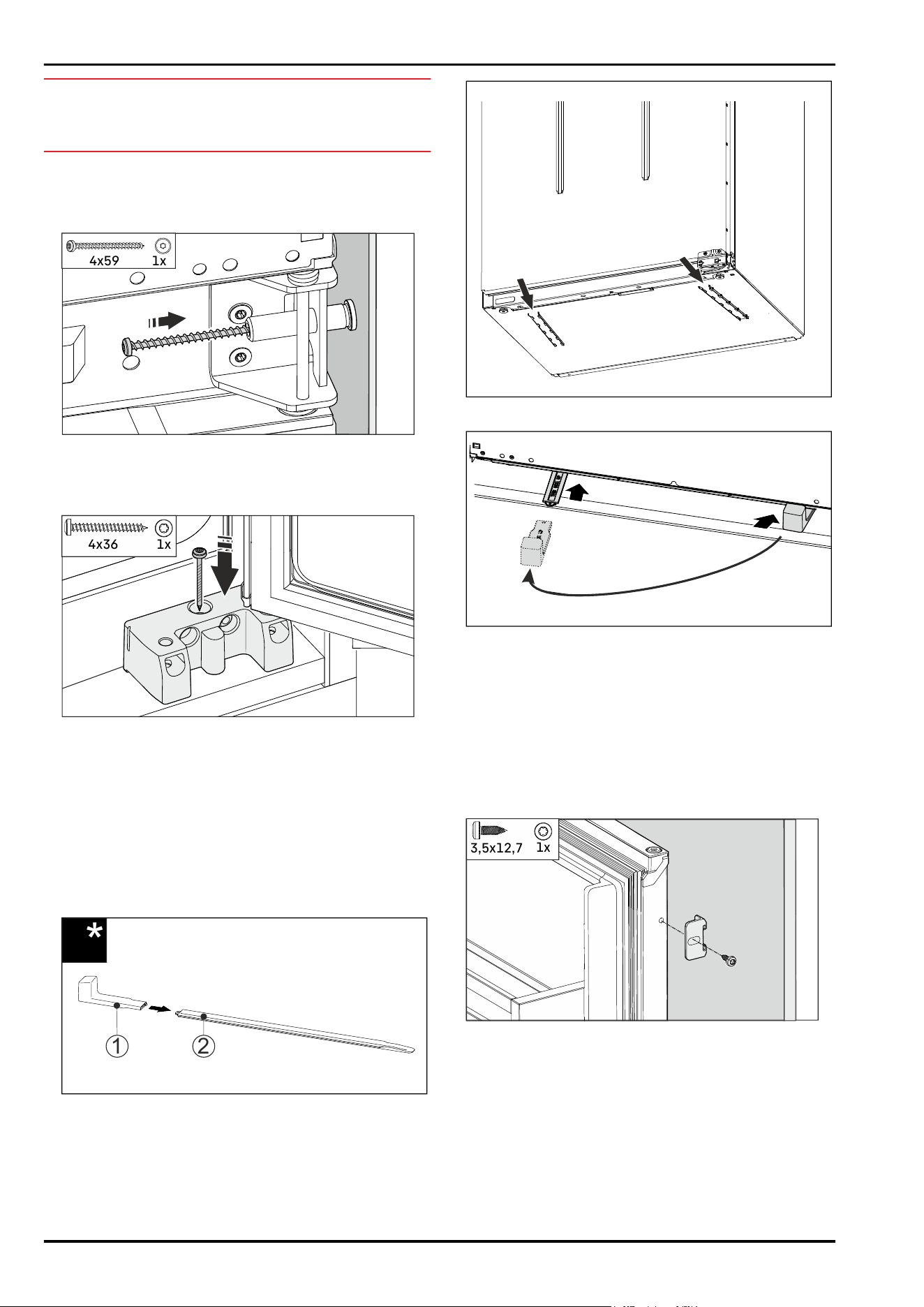

NOTICE

Damage to the cabinet side panel.*

► When you install the appliance in the niche: Do not turn

the adjusting screw too far.

► Unscrew the adjusting screw in the centre swap bearing

block in the direction of the cabinet side panel.*

▷ Appliance sits firmly in the niche.*

▷ Cabinet side panel is not damaged.*

4x59

Fig.45*

► Screw the screw from the accessory pack into the

adjusting screw.*

► Screw the appliance to the cabinet side panel.*

4x36

Fig.46

► Screw the screw from the accessory pack into the upper

centre opening of the swap bearing bracket.

► Screw the appliance into the niche via the lower swap

bearing block.

3.9.8 Insert the levelling rails

You must installed levelling rails under the appliance from

a niche height of 1400mm. The levelling rails reduce the

noise level. Two levelling rails and an installation handle are

enclosed from a niche height of 1400mm.

1 2

Fig. 47

► Attach the installation handle Fig. 47(1) to the levelling

rail Fig. 47(2).

Fig.48

Fig. 49

► Push the levelling rail into the guide under the appliance

base until it reaches the stop.

► Remove the installation handle and attach it to the

second levelling rail.

► Push the second levelling rail into the guide under the

appliance base until it reaches the stop.

► Remove the installation handle.

▷ The appliance is now levelled.

3.9.9 Fitting the unit fronts

3,5x12,7

Fig.50

► Open door to maximum.

► Mount the bracket on the appliance door.

Fasten the cabinet front:

Setting up and connecting

* Depending on model and options 15

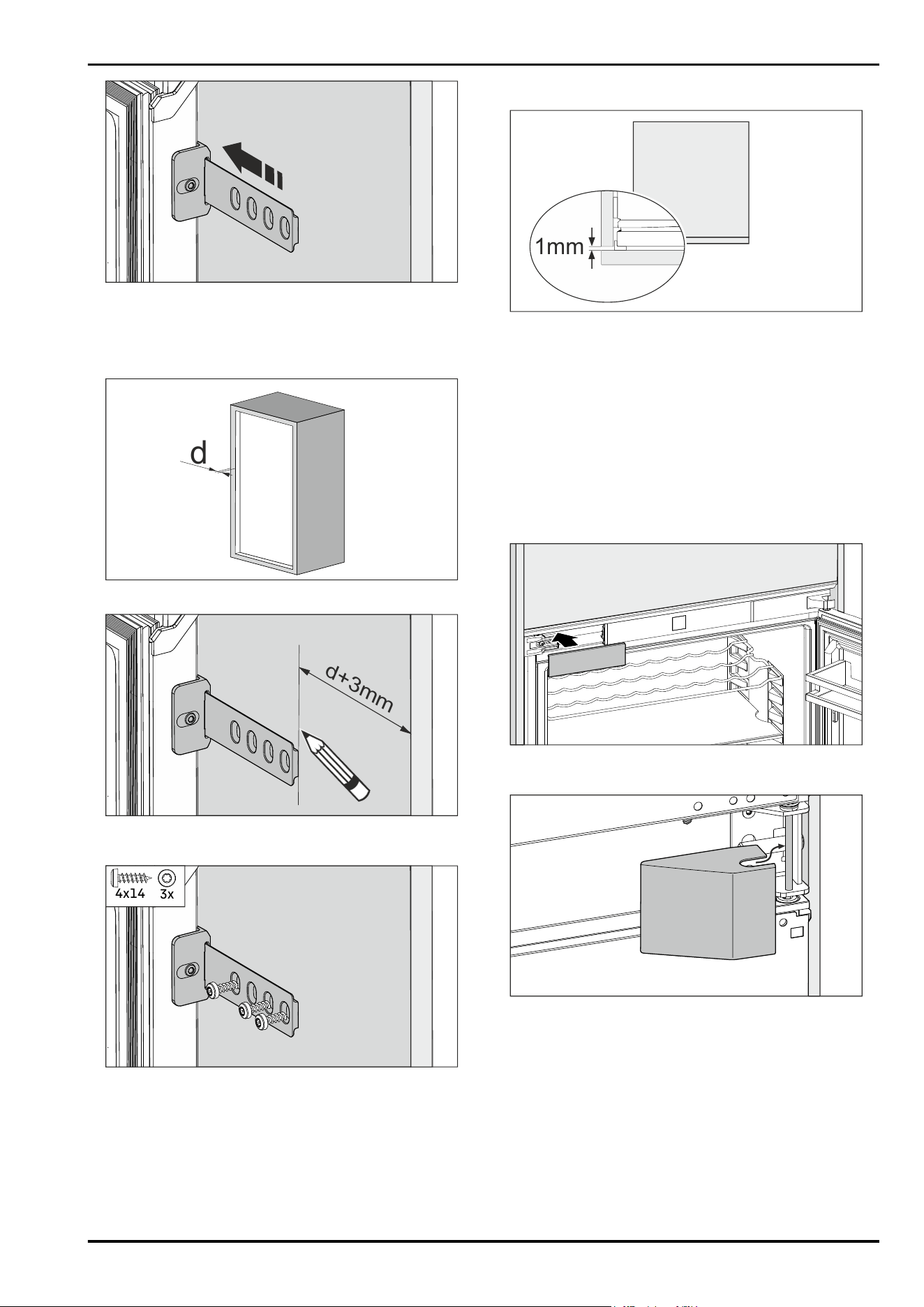

Fig.51

► Slide the rail into the mounting bracket.

▷ Distance between the end of the rail and the outer edge

of the unit door: Thickness of the cabinet side panel +

3mm.

Fig.52

d+3mm

Fig.52

► Mark the distance with a wash-off pen.

4 14x

Fig.53

► Slide the rail up to the marking.

► Screw the rail to the unit door.

► Close the door.

3.9.10 Check the installation

1mm

Fig.54

► Check the distance between the unit door and the

cabinet carcass.

► Check all screws.

► If necessary: Screw the screws tight.

▷ The door closes properly.

▷ The unit door does not fit snugly against the cabinet

carcass.

▷ Distance between unit door and cabinet carcass all round

at least 1mm.

3.9.11 Attaching the covers

► Open the door.

Fig.55

► Attach the cover at the top left.

Fig.56*

► Place the cover on the centre hinge.*

Setting up and connecting

16 * Depending on model and options

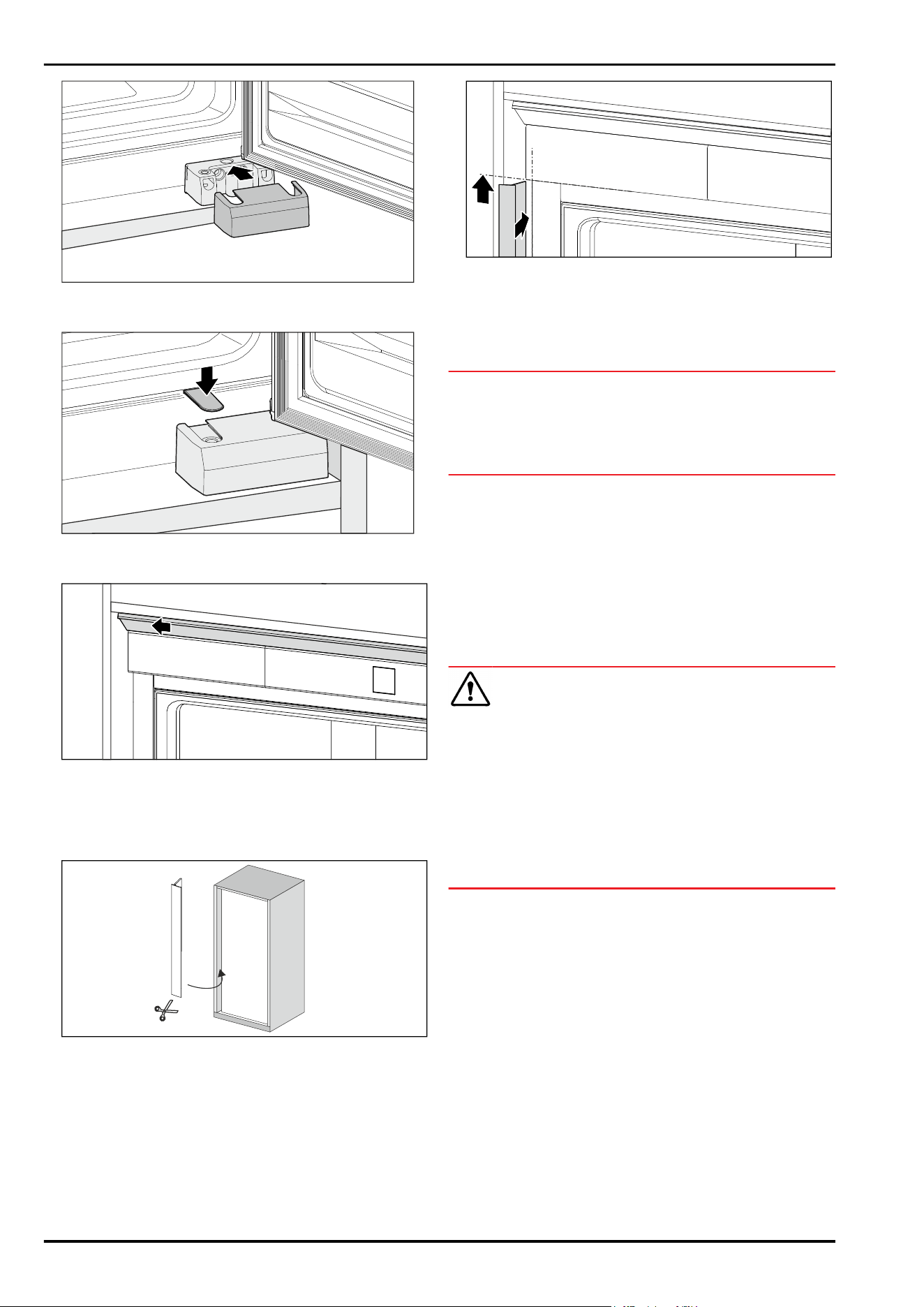

Fig.57

► Place the cover on the lower hinge.

Fig.58

► Place the cover on the lower swap bearing block.

Fig. 59

► Move the trim panel towards the handle side.

▷ The trim panel fits snugly against the side panel of the

cabinet.

Attach the magnetic piping:

Fig.60

► If necessary: Cut the piping to the required length with

sharp scissors.

Fig.61

► Place the piping below the top left cover and press down.

3.10 After installation

► Remove all transport safety fittings from the interior.

NOTICE

Damage to property caused by pointed or sharp objects!

Using pointed or sharp objects when removing packaging

material may damage the appliance.

► Do not use any pointed or sharp objects to remove the

packaging material.

► Remove protective films from the interior: Peel the film

off flat along the surface of the component to minimise

its adhesive force.

► Clean the appliance. (see 10.6Cleaning the appliance)

► Note down the type (model, number), appliance name,

appliance/serial number, date of purchase and retailer’s

address.

3.11 Connecting the appliance to the

power supply

WARNING

Danger of electric shock and injury due to damaged appli‐

ance or damaged mains cable!

Danger of cuts and fatal injuries. If the appliance or the

mains cable is damaged during transport, you may be elec‐

trocuted. You could also cut yourself on damaged parts of

the appliance housing.

► Check the appliance and the mains cable for damage

after transport.

► Never put the appliance into operation if the appliance or

the mains cable are damaged.

► Contact Customer Service.

You can connect your appliance to the mains using the

power cable supplied separately. The mains power cable

has an appliance coupler at one end and a mains plug at the

other end.

Make sure that the following requirements are fulfilled:

The appliance and power cable are undamaged.

The appliance is installed in accordance with the regula‐

tions. (see 3.9 Installation in the niche)

Requirements for the electrical connection are met.

Dimensions for connection in accordance with regula‐

tions are known and observed.

Mains voltage and frequency correspond to the specifica‐

tions on the type plate.

The socket is earthed according to the regulations and

fused.

The fuse tripping current is between 10A and 16A.

The socket is easily accessible and is not behind the

appliance. (see 3.3 Recess dimensions)

Setting up and connecting

* Depending on model and options 17

NOTICE

Danger of damage to incorrect operation!

Damage to the electrical components of the appliance.

► Only use the supplied mains cable.

WARNING

Danger of fire due to incorrect connection!

Burns.

Damage to the appliance.

► Do not use an extension cable.

► Do not use distributor blocks.

NOTICE

Danger of damage to incorrect connection!

Damage to the appliance.

► Do not connect the appliance to a stand-alone inverter,

e.g. solar power systems and petrol generators.

► Connect the mains cable plug to the power supply.

Ensure that the plug is tightly in the socket.

▷ The Liebherr logo appears in the display.

▷ The display switches to the standby symbol.

▷ If no action occurs within 60 seconds: The standby

symbol fades or disappears.

▷ The appliance is connected. For information regarding

first use, see the following section or the operating

instructions.

3.12 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic

film!

► Do not allow children to play with packing material.

The packaging is made of recyclable materials:

corrugated board/cardboard

expanded polystyrene parts

polythene bags and sheets

polypropylene straps

nailed wooden frame with polyethylene panel*

► Take the packaging material to an official collecting

point.

4 Functionality of the Touch

display

You operate your appliance using the Touch display. You

select appliance functions in the Touch display (hereafter

referred to as display) by tapping them. If you do not

perform any action on the display for 10seconds, the

display either jumps back to the higher-level menu or

directly to the status display.

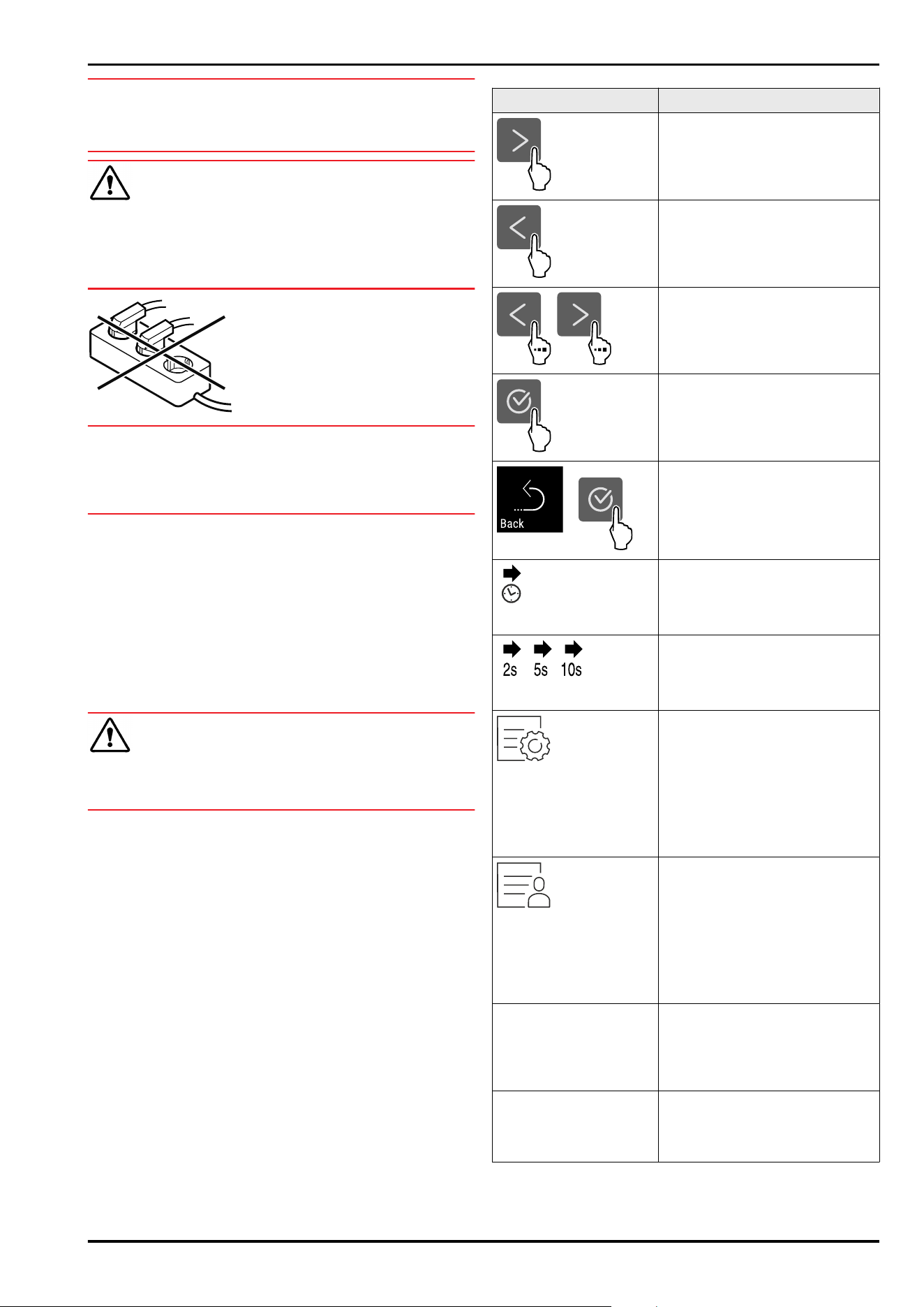

4.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Press the Next navigation

arrow:

Navigates to the next option in

the menu.

Press the Back navigation

arrow:

Jumps back one option in the

menu.

Press the navigation arrow

several times in succession:

Navigates in the menu to the

desired function.

Press the Confirm symbol:

Activates/deactivates function.

Opens submenu.

Press the Confirm symbol

together with the back icon:

Jumps back one menu level.

Arrow with clock:

It takes more than 10seconds

for the following message to

appear in the display.

Arrow with a time indication:

It takes the specified amount of

time until the following message

appears in the display.

“Open Settings menu” symbol:

Navigates to the Settings menu

and opens the settings menu.

If necessary: Navigate to the

desired function in the Settings

menu.

(see4.2.1 Opening the Settings

menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu

and opens the advanced menu.

If necessary: Navigate to the

desired function in the Advanced

menu.

(see4.2.2 Opening the Advanced

menu)

No action for

10seconds

If you do not perform any action

on the display for 10seconds,

the display either jumps back to

the higher-level menu or directly

to the status display.

Close the door and open

it again.

If you close the door and imme‐

diately open it again, the display

jumps directly back to the status

display.

Note: Illustrations of the display are shown in the English

version.

Functionality of the Touch display

18 * Depending on model and options

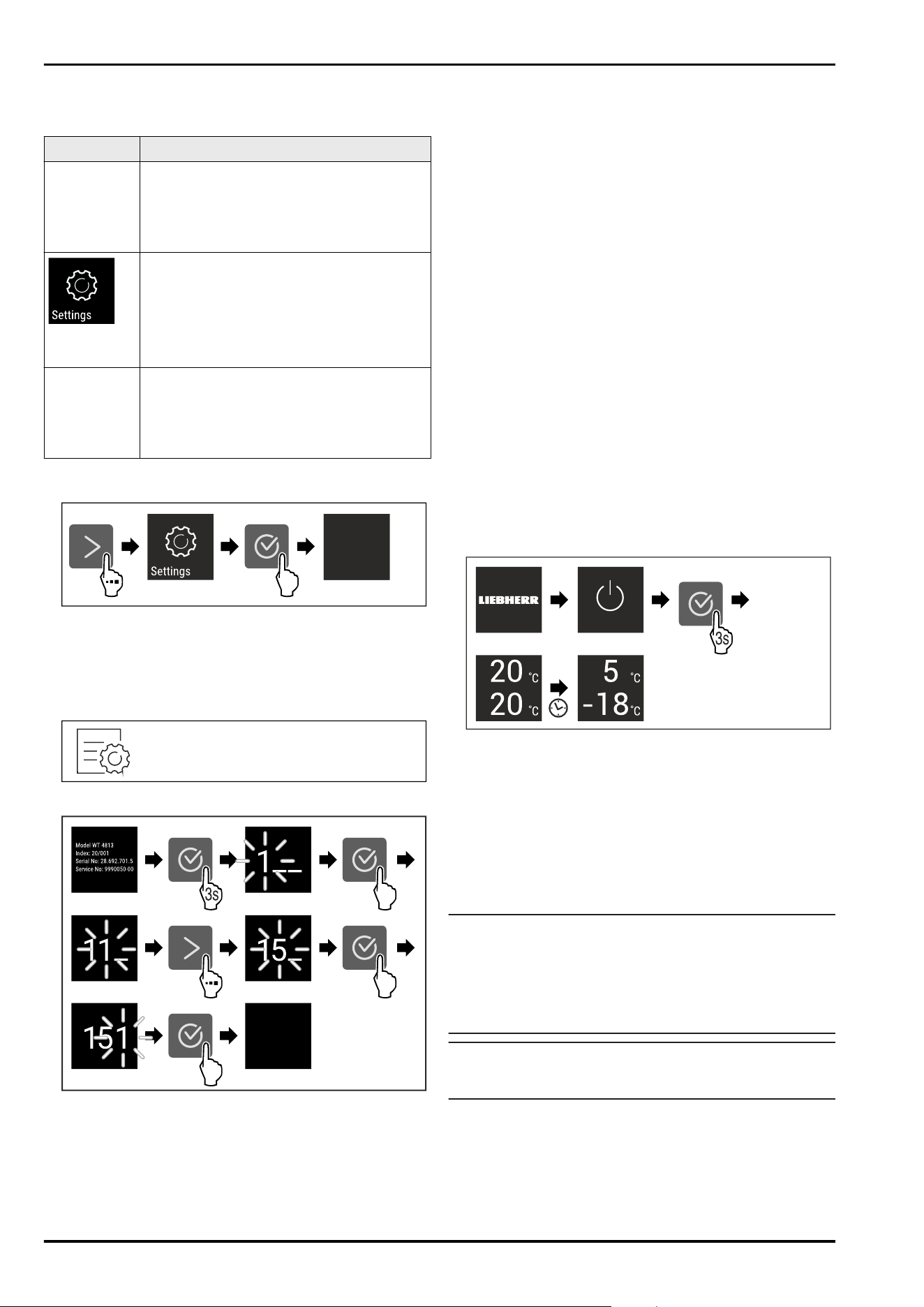

4.2 Menus

The appliance functions can be found in various menus.

Menu Description

Main menu When you switch the appliance on, you are

automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced menu.

Settings

The Settings menu contains additional

appliance functions for setting up your

appliance.

(see4.2.1 Opening the Settings menu)

Advanced

The advanced menu contains special appli‐

ance functions for setting up your appli‐

ance. Access to the Advanced menu is

protected by the numerical code 151.

(see4.2.2 Opening the Advanced menu)

4.2.1 Opening the Settings menu

Fig. 62 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

4.2.2 Opening the Advanced menu

Fig.63

Fig. 64 Example illustration, access with numerical code

151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

4.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

4.3.1 Ending sleep mode

► Press any navigation key.

▷ Sleep mode is ended.

5 Putting into operation

5.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the Touch

display. (see4 Functionality of the Touch display)

Switch on the appliance using the Touch display:

► If the display is in sleep mode: Press the confirmation

symbol.

► Carry out action steps according to the illustration.

Fig. 65 Example illustration

▷ Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Store frozen foods at -18°C or colder.

► Observe the notes on storing food. (see6.1 Information

regarding storage)

Note

Sie erhalten Zubehör im Liebherr-Hausgeräte-Shop unter

go.liebherr.com/47wtc4.

Putting into operation

* Depending on model and options 19

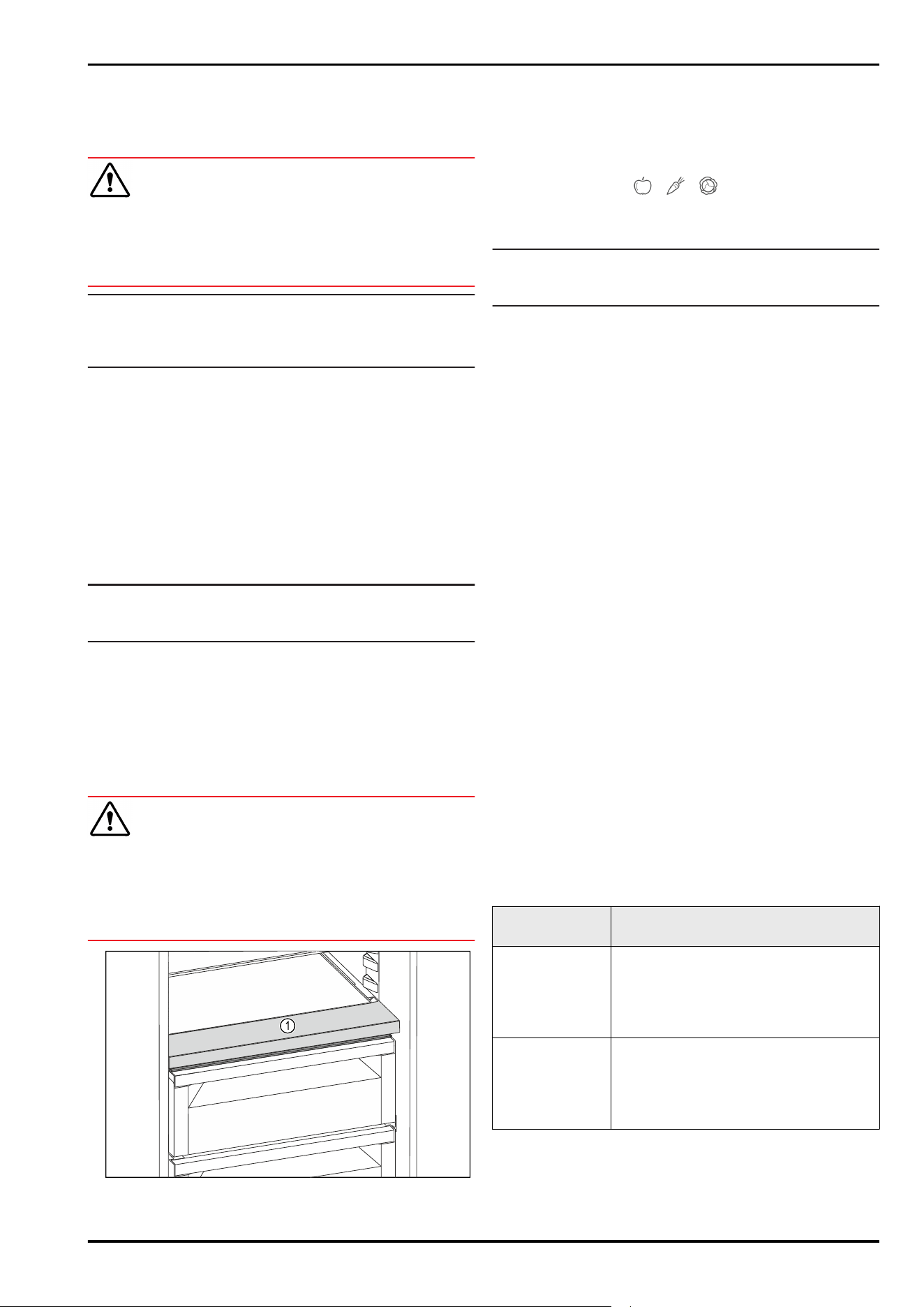

6 Storage

6.1 Information regarding storage

WARNING

Fire hazard from electrical appliances!

If you use electrical appliances in the food area of your

appliance, they can cause a fire.

► Do not use electrical appliances in the food area of the

appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Keep the air vents on the fan free.

In the freezer compartment: Package food properly.

Package or cover foods that readily take on or give off

odours or taste in closed containers.

Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

6.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see2.2 Overview of

the appliance and equipment)

6.2.1 Arranging your food properly

CAUTION

Risk of injury and damage to the appliance due to incor‐

rectly stored food or objects!

If you place food or objects on the bottom glass shelf, the

door may not close properly. This could cause the door racks

to break, food or objects to fall out and cause injury.

► Keep the front area of the bottom glass shelf clear.

Fig. 66 Example illustration

(1)

Front area

► Upper area and door: Store butter, cheese, tinned food

and tubes.

► Coldest temperature zone: Store perishable foods such

as pre-cooked meals, meat and lunch meats.

► Bottom shelf: Store raw meat or fish.

6.3 EasyFresh

EasyFresh is great for non-packaged foods, such as fruit

and vegetables.

Note

► Store sliced citrus fruit (e.g. lemon or orange slices) in a

container.

The humidity inside the drawer depends on the humidity

content of the food inside it, and the frequency at which it

is opened. The humidity can be regulated. (see 9.4 Compart‐

ment lid for EasyFresh Safe)

6.3.1 Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

6.4 Freezer compartment

Here, a dry, frosty storage climate is created at -18°C. A

frosty storage climate is suitable for storing frozen food for

several months, for making ice cubes or freezing fresh food.

6.4.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can

freeze within 24 hours is specified on the type plate

(see 11.5 Model plate) under “Freezing capacity ... kg/24h”.

To ensure that food quickly freezes through, adhere to the

following quantities per package:

Fruit and vegetables up to 1 kg

Meat up to 2.5 kg

Freezing food using SuperFrost

Depending on the quantity to be frozen, you can activate

SuperFrost before freezing in order to achieve lower freezing

temperatures. (see SuperFrost)

► Activate SuperFrost if the amount of food you have to

freeze is more than approx. 2 kg.

The time at which you activate SuperFrost depends on the

amount of food you have to freeze:

Freezing quan‐

tity

Time at which you should activate

SuperFrost

Small amount of

food to freeze

Activate SuperFrost about 6 hours

before freezing.

As soon as the appliance automatically

deactivates SuperFrost, you can rear‐

range the food.

Maximum

amount of food

to freeze

Activate SuperFrost about 24 hours

before freezing.

As soon as the appliance automatically

deactivates SuperFrost, you can rear‐

range the food.

Storage

20 * Depending on model and options

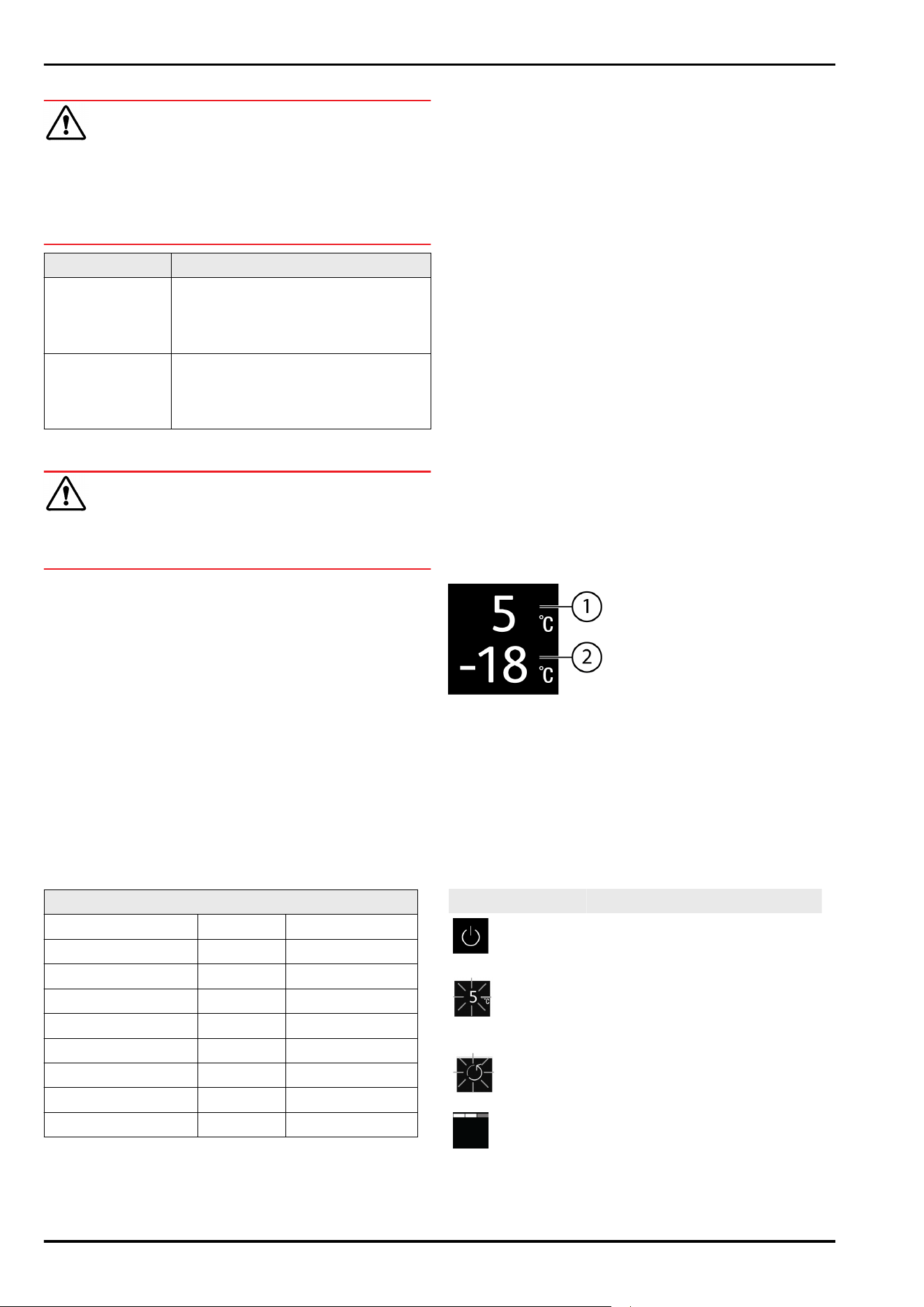

Arranging your food properly

CAUTION

Risk of injury from broken glass!

Bottles and cans with beverages can burst during freezing.

This applies in particular to carbonated beverages.

► Only freeze bottles and cans with beverages if you have

activated the BottleTimer function in the SmartDevice

app.

Freezing quantity Arranging your food properly

Small amount of

food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the back

of the drawer near the rear wall.

Maximum amount

of food to freeze

Distribute packaged groceries

throughout all drawers.

If possible, place groceries at the back

of the drawer near the rear wall.

6.4.2 Defrosting food

WARNING

Risk of food poisoning!

► Do not re-freeze thawed food.

► Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

In the fridge compartment

In the microwave

In the oven/fan-assisted oven

At room temperature

► Take out only as much food as necessary.

6.5 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

6.5.1 Fridge section

Always follow the best-before date stated on the packaging.

6.5.2 Freezer compartment

Recommended storage period for various types of food

Ice cream at -18°C 2 to 6 months

Sausages, ham at -18°C 2 to 3 months

Bread, baked goods at -18°C 2 to 6 months

Game, pork at -18°C 6 to 9 months

Fatty fish at -18°C 2 to 6 months

Lean fish at -18°C 6 to 8 months

Cheese at -18°C 2 to 6 months

Poultry, beef at -18°C 6 to 12 months

Vegetables, fruit at -18°C 6 to 12 months

7 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature . A warmer ambient

temperature can increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it

doesn’t warm up too much.

Inserting warm food: allow to cool down to room temper‐

ature first.

Thaw frozen food in the refrigerator.

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

8 Controls

8.1 Controls and displays

8.1.1 Status display

Fig. 67

(1)

Temperature display of

the fridge section

(2) Freezer compartment

temperature display

The Status display shows the set temperature and is the

home display. From there, you can navigate to the options

and settings.

8.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol

Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set value is

reached.

Flashing symbol

Appliance is working. Setting is

made.

Bar grows steadily

Function is activated.

Saving energy

* Depending on model and options 21

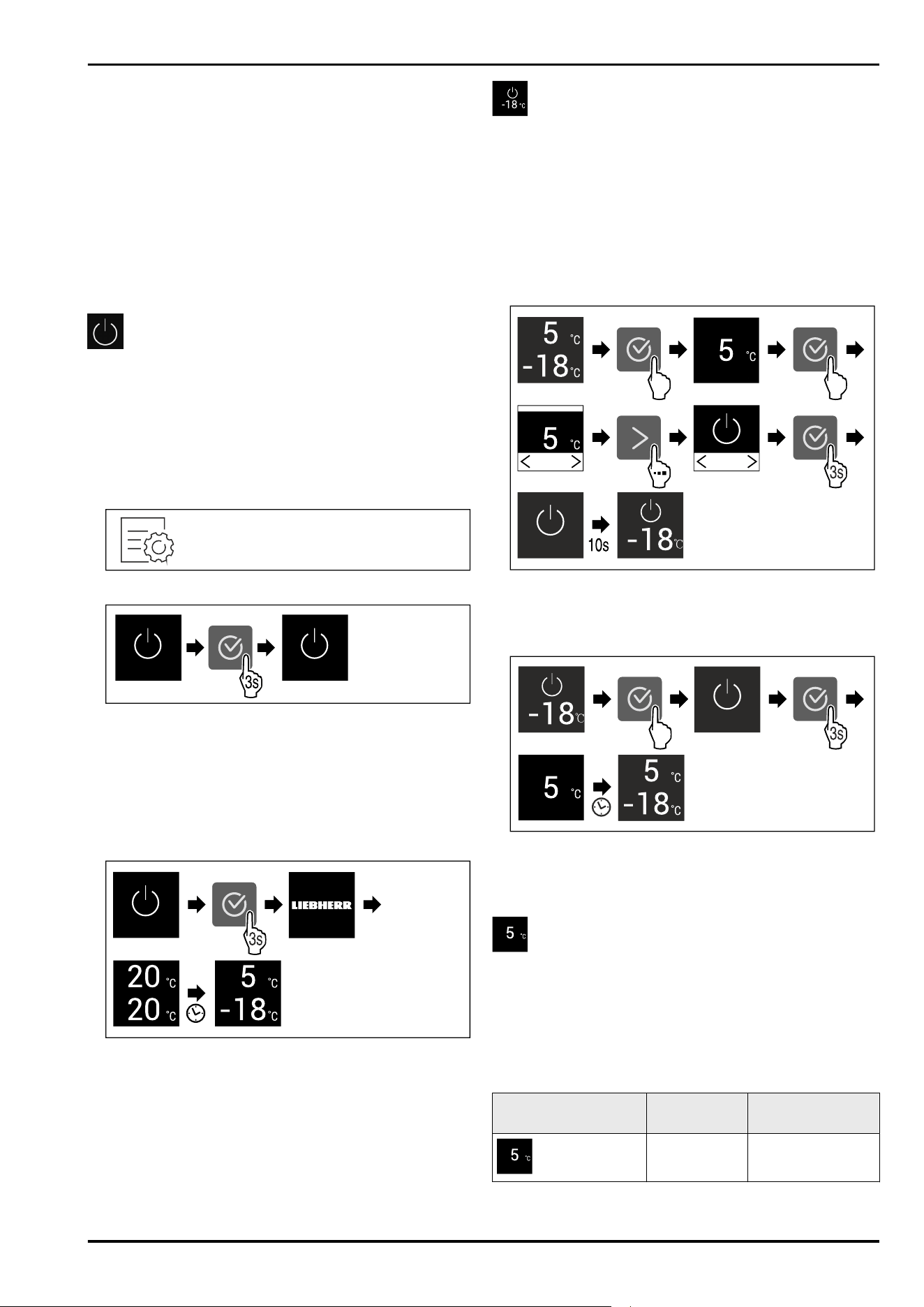

8.2 Appliance functions

8.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of how

the display works. (see4 Functionality of the Touch

display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see12Shutting down) are carried

out.

Fig.68

Fig. 69

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Press any navigation key.

Fig. 70 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

Switching temperature zone off and on

You can switch temperature zones of the appliance off inde‐

pendently.

Application:

Cleaning

Defrosting

Switching the fridge compartment off

Make sure that the following requirements are fulfilled:

❑

Refrigerator compartment has been emptied.

Fig. 71 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched off.

Switching the fridge compartment on

Fig. 72 Example illustration

► Carry out action steps according to the illustration.

▷ Refrigerator compartment is switched on.

▷ The appliance cools to the last set temperature.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone

Factory-set

temperature

Recommended

setting

Fridge section

5°C 4°C

Controls

22 * Depending on model and options

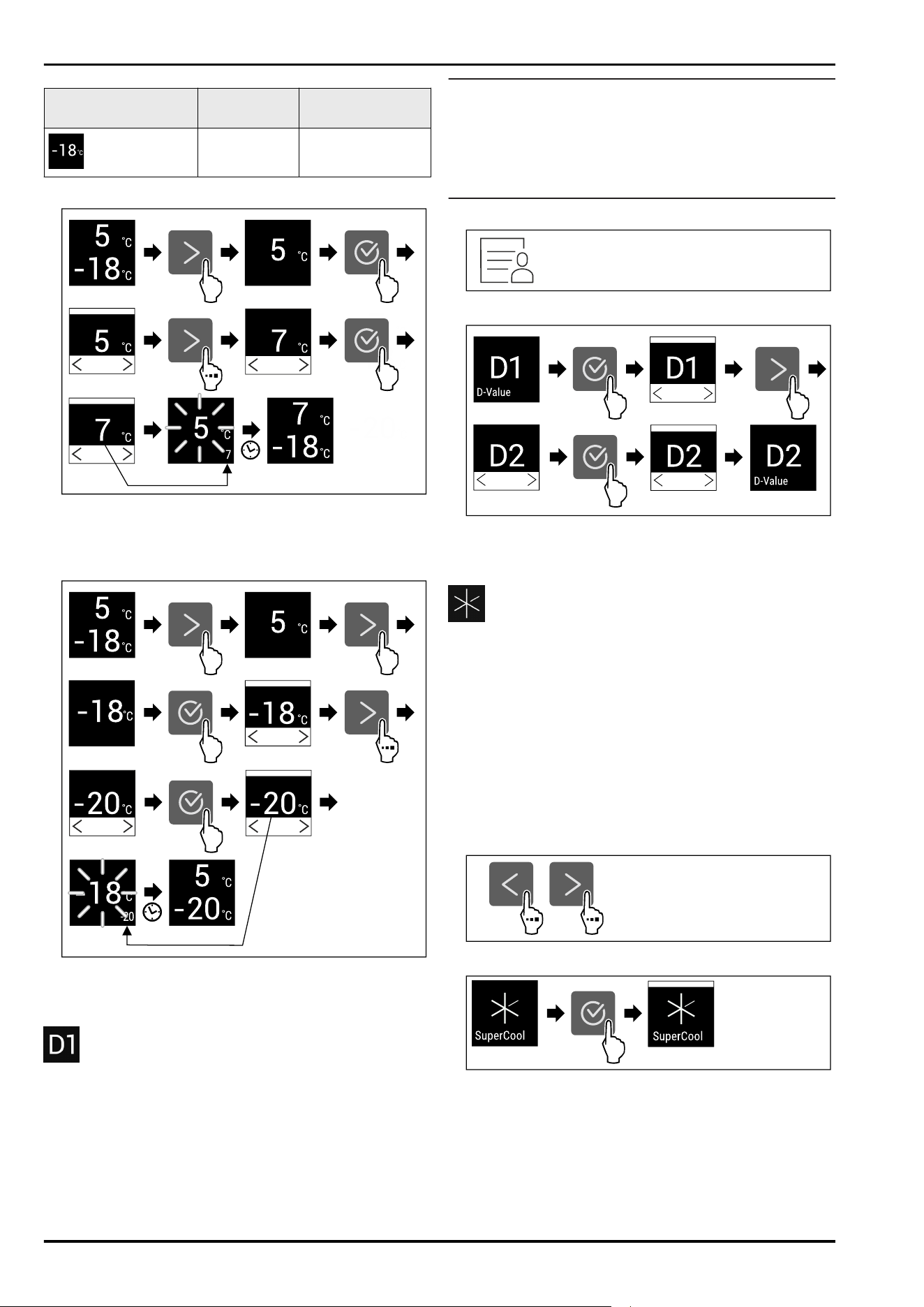

Temperature zone Factory-set

temperature

Recommended

setting

Freezer section

-18°C -18°C

Setting the temperature in the fridge section

Fig. 73 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in the freezer section

Fig. 74 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

D-Value

Use this function to set the D-Value.

The D-Value specifies whether you are operating your fridge

section with a dry rear wall or without a dry rear wall. The

rear wall is installed in the appliance as delivered. The D-

Value is pre-set to D1.

You can remove the rear wall for cleaning.

(see 10.6.3 Cleaning the dry rear panel) In order to operate

the appliance without a rear wall, you must set the D-Value

to D2.

Note

The declared energy consumption was determined without

a dry rear wall. The appliance is fully functional with a dry

rear wall but its energy consumption will be slightly higher.

Liebherr recommends:

► Operate the appliance with a dry rear wall in order to

prevent visible condensate and the food freezing.

Setting the D-Value

Fig.75

Fig. 76 Example illustration: Switch from D1 to D2.

► Carry out action steps according to the illustration.

▷ The D-Value is set.

SuperCool

You can use this function to activate or deactivate Super‐

Cool. If SuperCool is activated, then the appliance increases

the cooling capacity. It allows you to achieve lower cooling

temperatures. You can activate SuperCool when you would

like to cool a large quantity of food quickly.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

Fig.78

Fig.79

► Carry out action steps according to the illustration.

▷ SuperCool is activated.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours.

However, you can also deactivate SuperCool manually at

any time:

Controls

* Depending on model and options 23

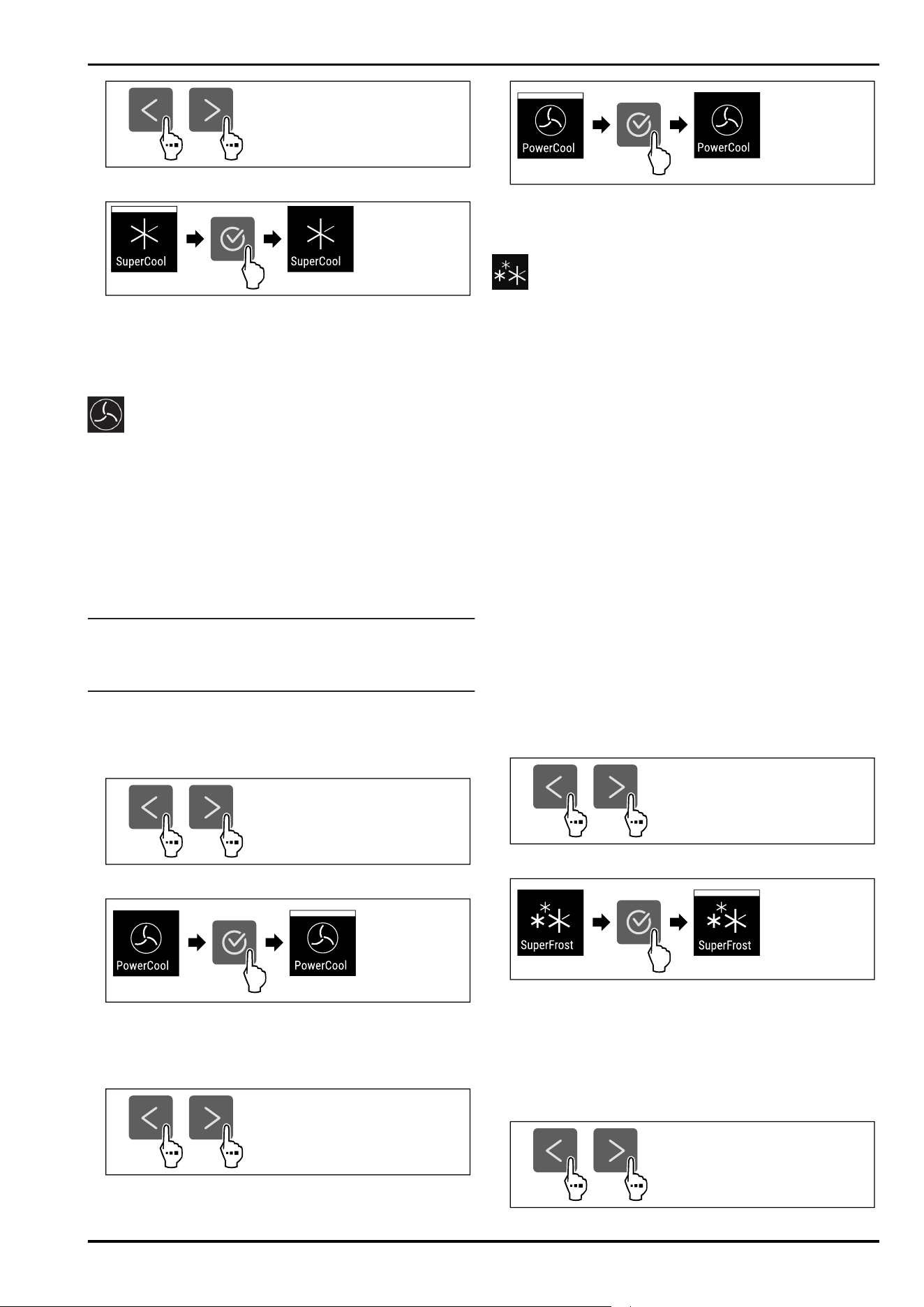

Fig.80

Fig.81

► Carry out action steps according to the illustration.

▷ SuperCool is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

PowerCool

You can use this function to activate or deactivate Power‐

Cool. PowerCool ensures optimised temperature layers for

cooling your food.

The function applies to the fridge section.

Application:

At higher room temperatures (as of approx.35°C)

At high humidity, e.g. on summer days

When storing moist food, in order to prevent condensate

forming in the interior

Note

The fan may also run even if the function is deactivated.

It therefore ensures even temperature distribution in the

appliance.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PowerCool

Fig.82

Fig.83

► Carry out action steps according to the illustration.

▷ PowerCool is activated.

Deactivating PowerCool

Fig.84

Fig.85

► Carry out action steps according to the illustration.

▷ PowerCool is deactivated.

SuperFrost

You can use this function to activate or deactivate

SuperFrost. If SuperFrost is activated, then the appliance

increases the freezing capacity. It allows you to achieve

lower freezing temperatures.

Application:

Quickly freeze fresh food through to the core.

This ensures that the nutrition, appearance and taste of

frozen food is maintained.

Increase the cold reserve in stored frozen food before

defrosting the appliance.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

If the door is open for too long, e.g. because you are

putting food in, the appliance automatically checks whether

the actual temperature in the appliance matches the set

temperature. If the difference exceeds a certain value, the

appliance automatically cools more vigorously. As a result,

the temperature shown on the display may be higher than

the actual temperature in the appliance. This is normal and

your appliance is working correctly.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

❑

Freezing quantity and time for activation of SuperFrost

are taken into account. (see Freezing food using

SuperFrost)

Fig.86

Fig. 87

► Carry out action steps according to the illustration.

▷ SuperFrost is activated.

Deactivating SuperFrost

SuperFrost is automatically deactivated after 56 to 72 hours

depending on the quantity of the food inserted. However,

you can also deactivate SuperFrost manually at any time:

Controls

24 * Depending on model and options

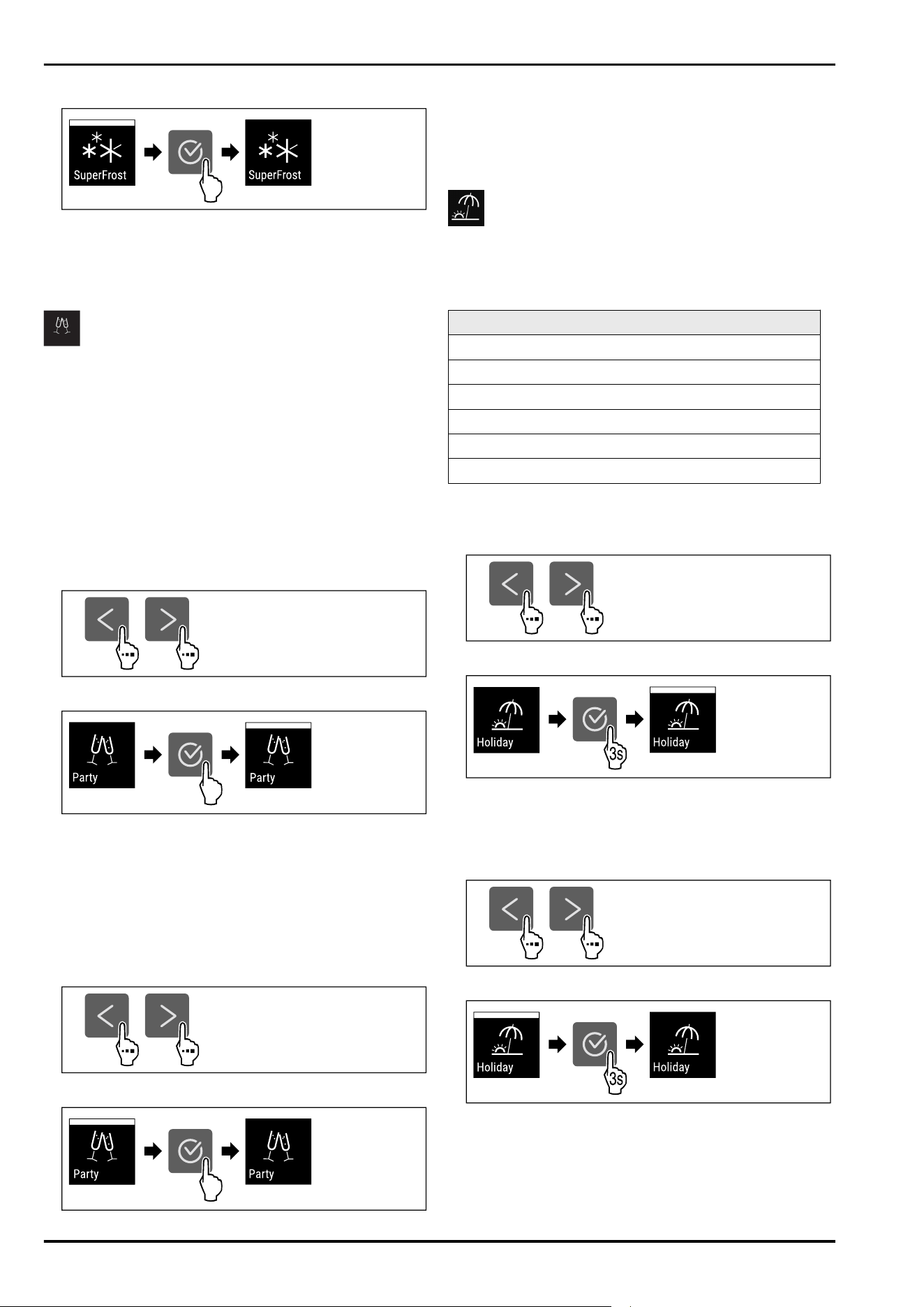

Fig.88

Fig.89

► Carry out action steps according to the illustration.

▷ SuperFrost is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

SuperFrost (see SuperFrost)

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PartyMode

Fig.90

Fig. 91

► Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

Fig.92

Fig. 93

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

HolidayMode

You can use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode, the fridge section is set

to 15°C. This saves you energy during longer periods of

absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

EasyFresh cools to 15°C.

The set temperature is maintained in the freezer section.

PartyMode is deactivated.

SuperCool is deactivated.

PowerCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty EasyFresh completely.

Fig. 94

Fig.95

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display shows HolidayMode symbol.

Deactivating HolidayMode

Fig.96

Fig.97

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance cools to the temperature set previously.

Controls

* Depending on model and options 25

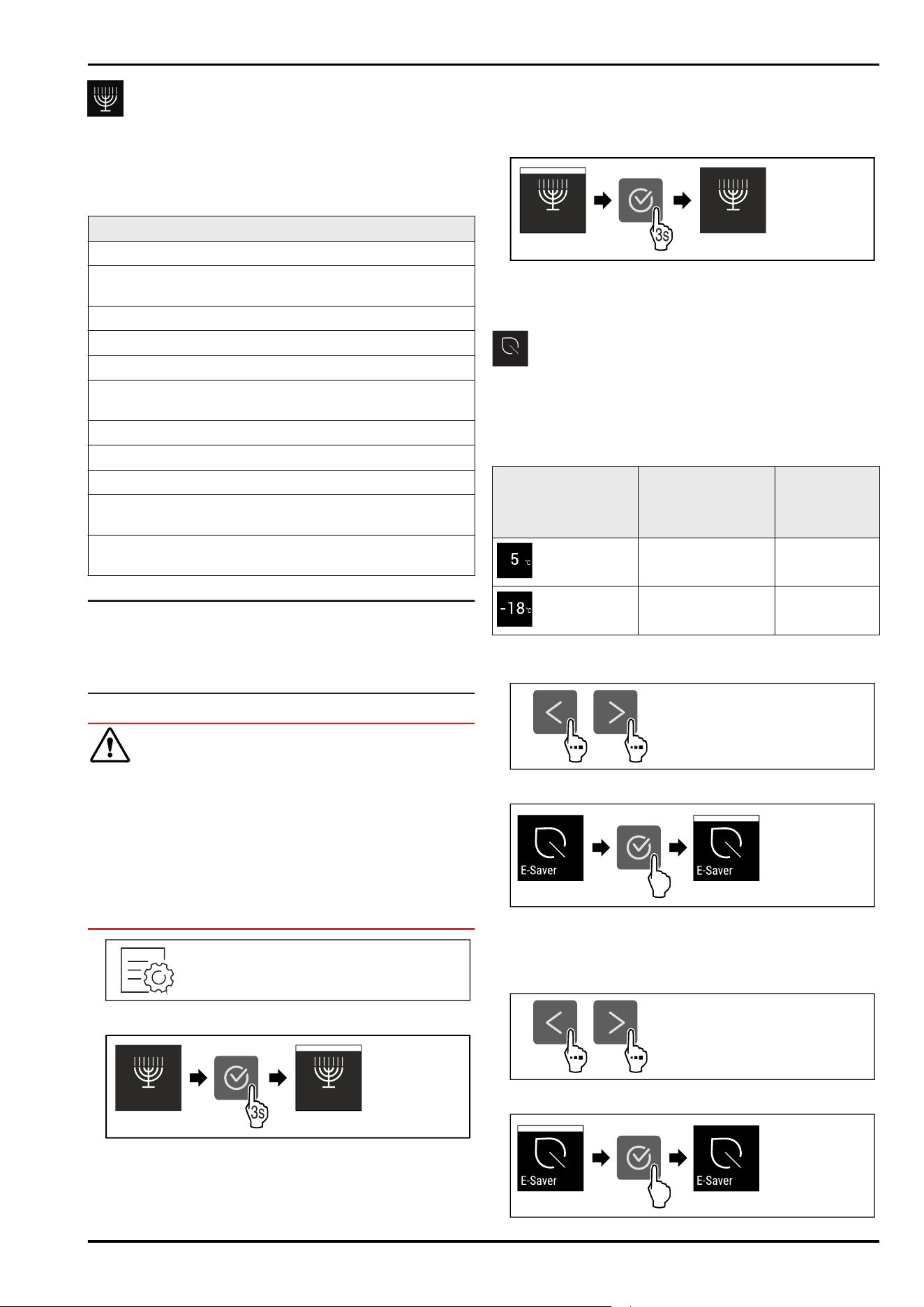

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig.98

Fig.99

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Fig. 100

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

E-Saver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Temperature zone

Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

with active E-

Saver

Fridge section

4°C 7°C

Freezer section

-18°C -16°C

Temperatures

Activating E-Saver

Fig. 101

Fig. 102

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating E-Saver

Fig. 103

Controls

26 * Depending on model and options

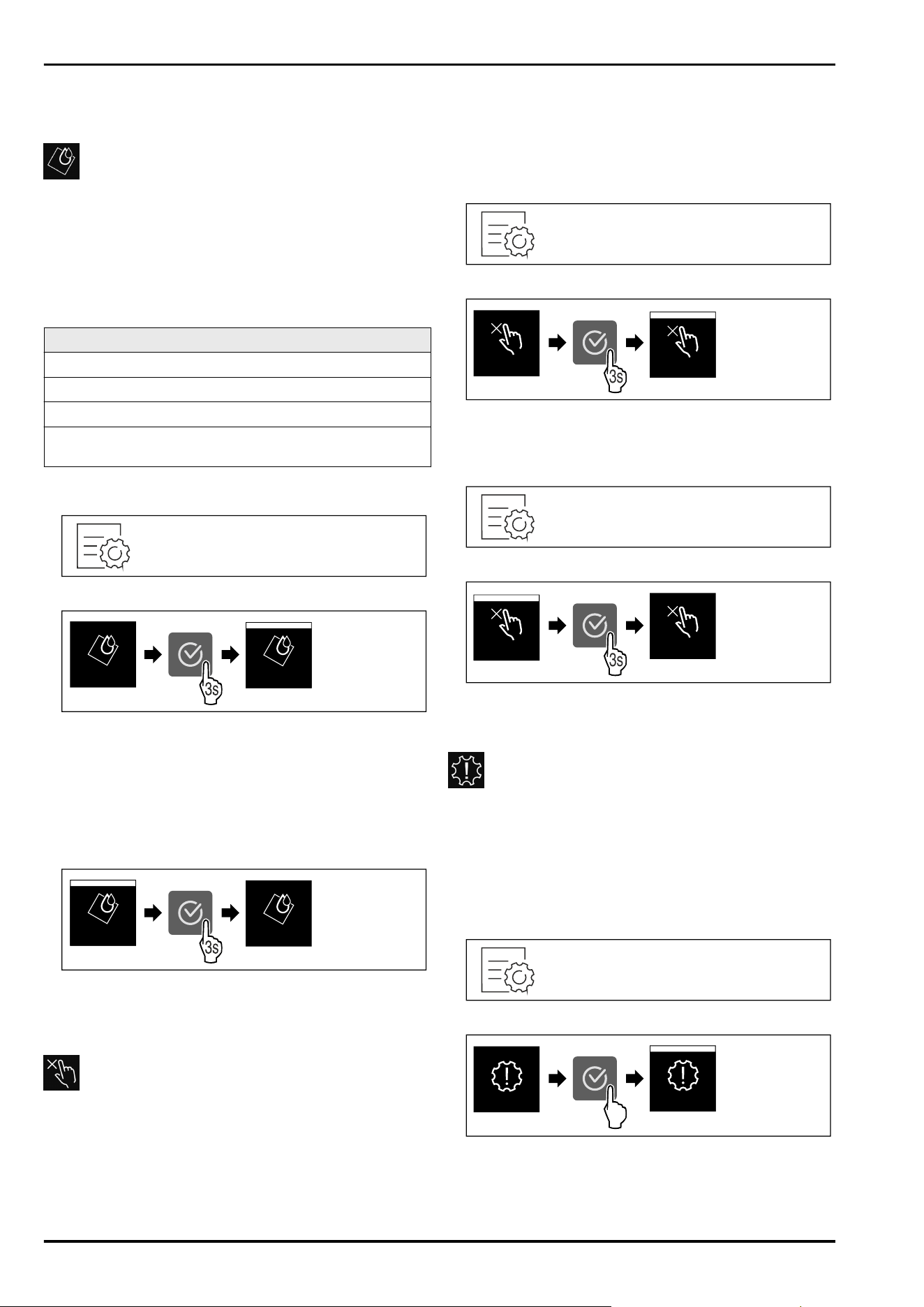

Fig. 104

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

CleaningMode

You can use this function to activate or deactivate Cleaning‐

Mode. CleaningMode enables the appliance to be cleaned

conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 10.6Cleaning the appli‐

ance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal

tone sounds.

Device status

Activating CleaningMode

Fig. 105

Fig. 106

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after

60 minutes. However, you can also deactivate Cleaning‐

Mode manually at any time:

Fig. 107

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance cools to the temperature set previously.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig. 108

Displ. Lock

Fig. 109

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig. 110

Displ. Lock

Fig.111

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

If the function is activated, the following reminders will

appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig.112

Fig.113

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Controls

* Depending on model and options 27

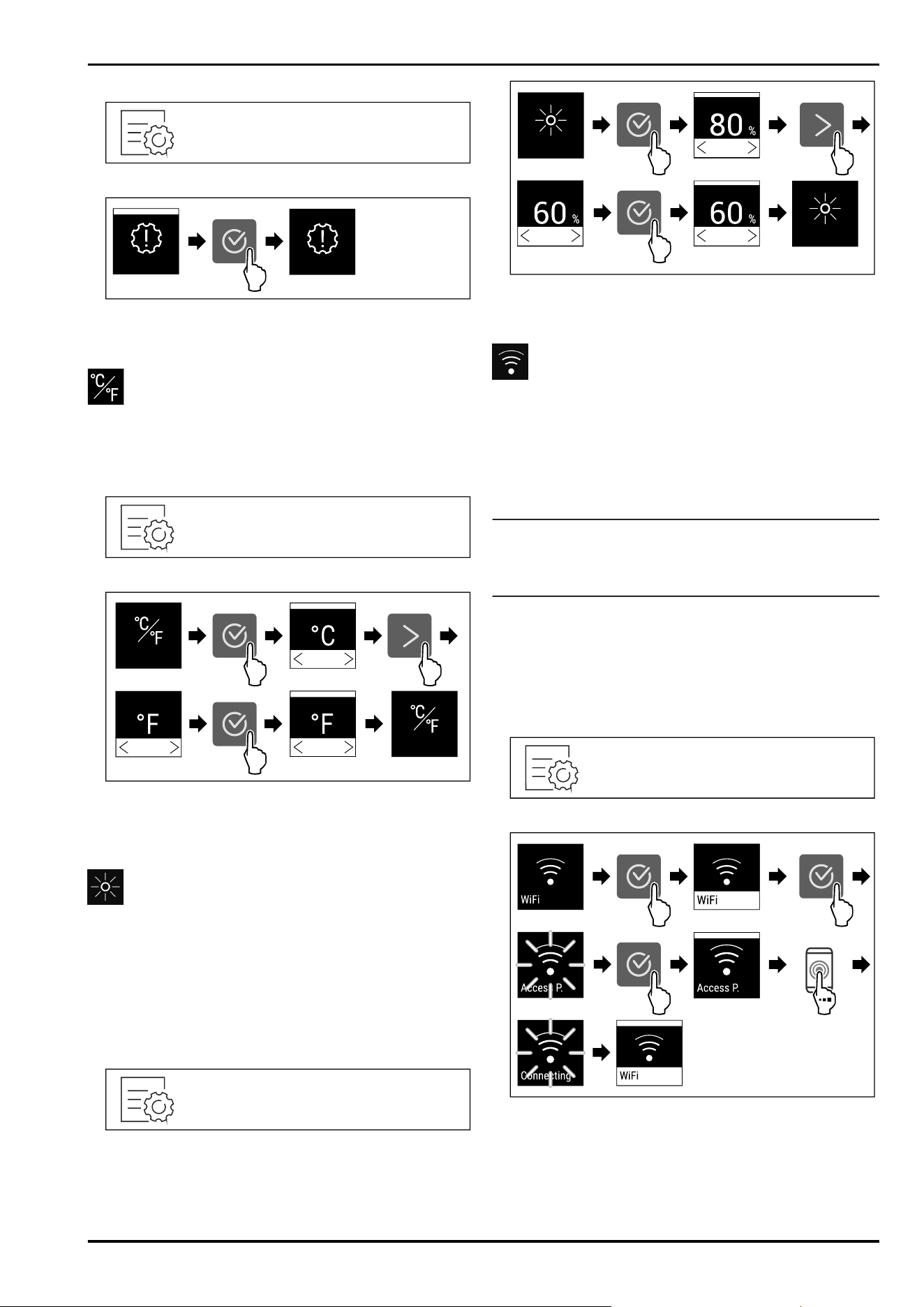

Deactivating the reminder

Fig. 114

Fig. 115

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig. 116

Fig. 117 Example illustration: Switch from degreesCelsius

to degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Fig. 118

Fig. 119 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

To connect your device to WiFi, you need the SmartDevi‐

ceBox.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have purchased and inserted a SmartDeviceBox.

(see 2.3 SmartDevice)

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig.120

Fig.121

► Carry out action steps according to the illustration.

▷ Connection is established.

Controls

28 * Depending on model and options

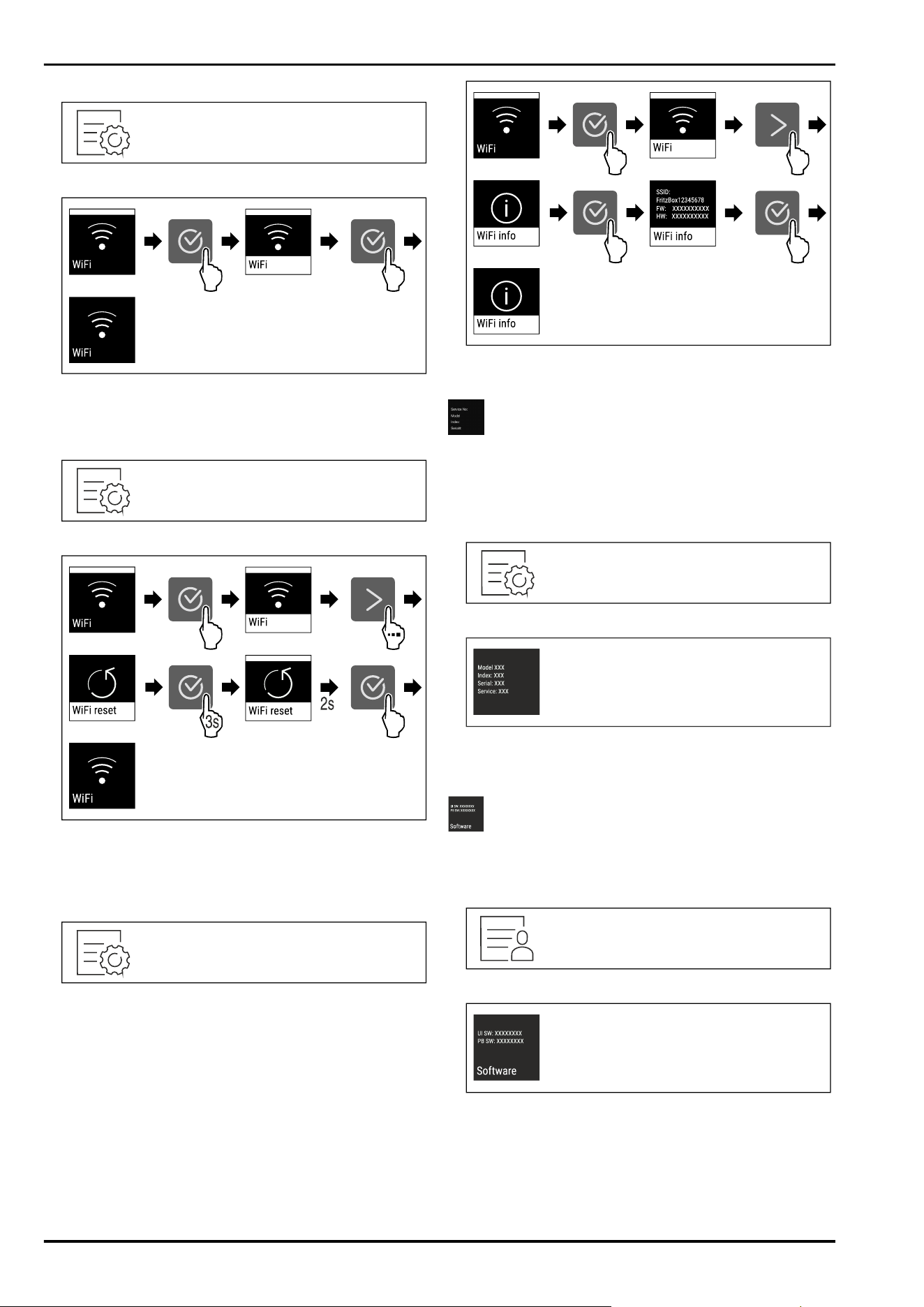

Disconnecting from the WiFi

Fig.122

Fig.123

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig. 124

Fig.125

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Showing information about the WiFi connection

Fig. 126

Fig.127

► Carry out action steps according to the illustration.

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see11.4 Customer Service)

Indicating the device information

Fig.128

Fig.129

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig.130

Fig.131

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Controls

* Depending on model and options 29

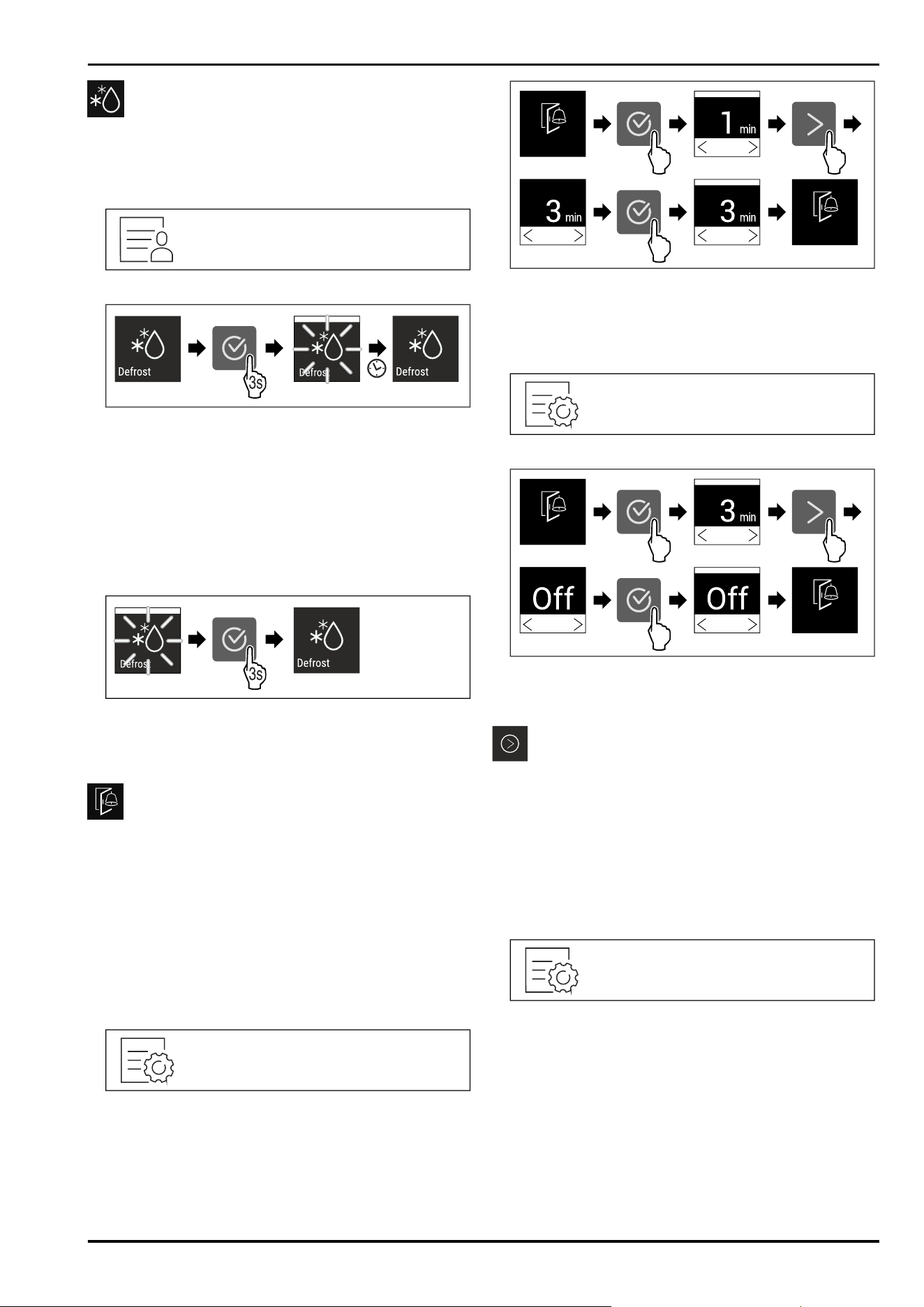

Start defrosting cycle

Use this function to start the automatic defrosting cycle

manually if it does not start automatically in the event of a

fault.

Starting defrosting cycle

Fig.132

Fig.133

► Carry out action steps according to the illustration.

▷ Defrosting cycle has started: Icon flashes until defrosting

cycle is automatically completed.

▷ When defrosting cycle is finished: The device continues

to run in normal mode.

Cancelling defrosting cycle

The defrosting cycle will be stopped automatically. However,

you can also cancel the defrosting cycle at any time during

the defrosting process:

Fig.134

► Carry out action steps according to the illustration.

▷ Defrosting cycle is cancelled.

▷ The device continues to run in normal mode.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.135

Fig. 136 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig.138

Fig. 139

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig. 140

Controls

30 * Depending on model and options

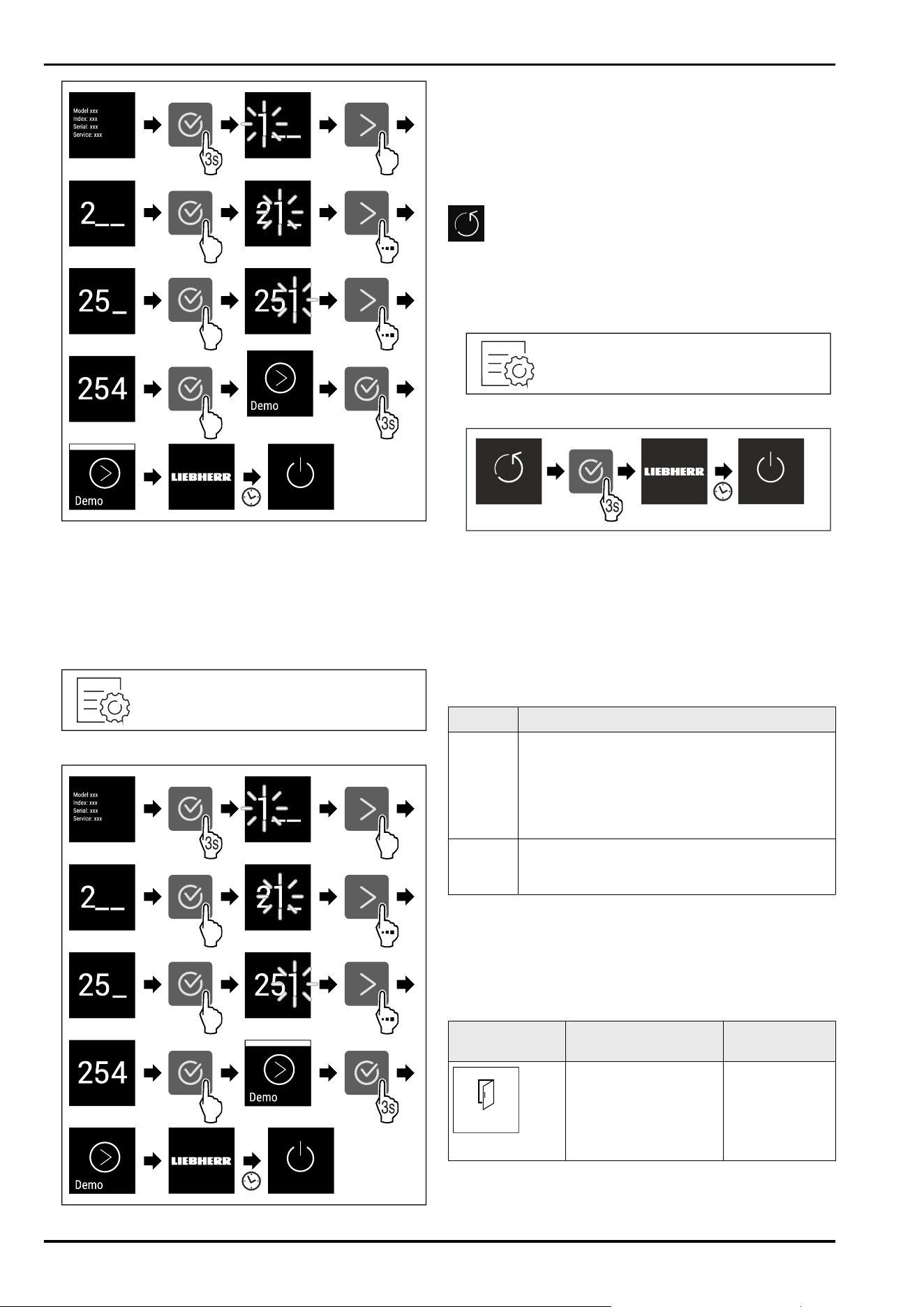

Fig. 141

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 5.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig. 142

Fig. 143

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 5.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig. 144

Fig. 145

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 5.1 Switching on appliance (first

use))

8.3 Messages

There are two categories of messages:

Category

Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see11.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

8.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the

message

Door alarm

The message appears

if the door is open for

too long.

Carry out action

steps.

(seeDoor

alarm)

Controls

* Depending on model and options 31

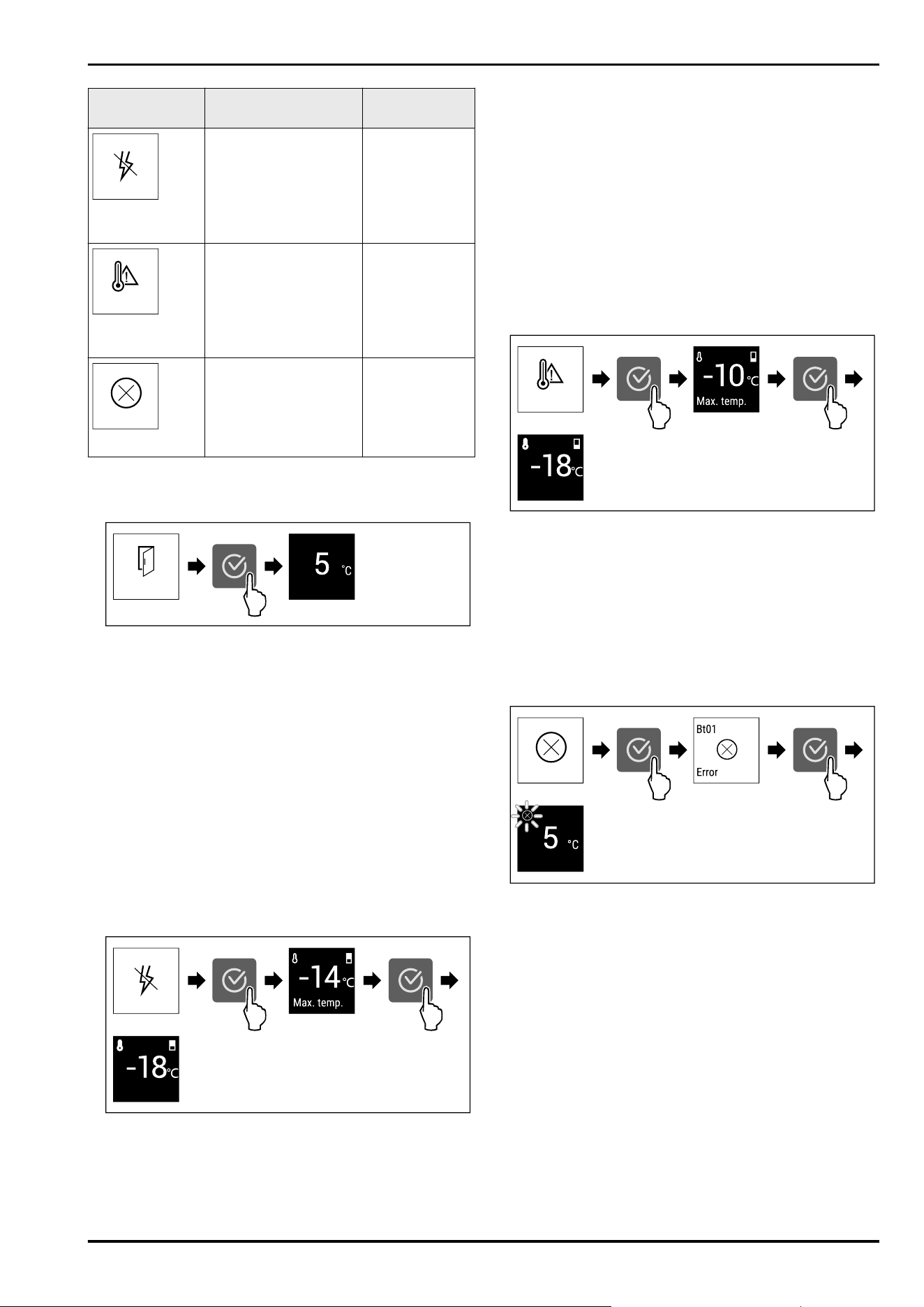

Message Cause Exit the

message

Power outage

alarm

The message appears

if the freezing temper‐

ature has risen due to

a power failure.

Carry out action

steps.

(see Power

outage alarm)

Temperature

alarm

The message appears

if the freezing temper‐

ature does not corre‐

spond to the set

temperature.

Carry out action

steps.

(see Tempera‐

ture alarm)

Error

The message appears

if there is an appliance

error. A component of

the appliance has a

fault.

Carry out action

steps.

(see Error)

8.3.2 Ending warnings

Door alarm

Fig. 146 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

▷ The appliance cools more vigorously, which means that

the temperature shown on the display may be higher

than the actual temperature inside the appliance.

▷ Appliance noises can be louder.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Power outage alarm

When the power failure has ended, the appliance will auto‐

matically cool down to the previously set target tempera‐

ture without you having to confirm the message. However,

for the message to disappear from the display, you must

confirm it.

Fig. 147 Example illustration

► Press the confirmation symbol.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9°C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

►

Check the food.

► Press the confirmation symbol.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Temperature alarm

Temperature differences can be caused by:

You have put in warm, fresh food.

Too much warm air has got in while you were sorting out

the freezer or removing items.

There has been a longer power failure.

The appliance is faulty.

► Eliminate causes.

▷ The appliance cools to the target temperature set previ‐

ously.

Fig. 148 Example illustration

► Press the confirmation symbol.

▷ Warmest freezing temperature is displayed.

▷ If the freezing temperature was below -9°C: Food can

still be consumed.

If the freezing temperature has risen above -9°C:

► Check the food.

► Press the confirmation symbol.

▷ The display returns to the status indicator: Current

temperature and target temperature are displayed.

Error

Fig. 149 Example illustration

► Press the confirmation symbol.

▷ Error code is displayed.

► Note the error code.

► Press the confirmation symbol.

▷ The display returns to the status indicator.

► Contact Customer Service. (see11.4 Customer Service)

8.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

The following reminders can be deactivated (seeDeacti‐

vating the reminder) :

Replace the FreshAir activated carbon filter

Controls

32 * Depending on model and options

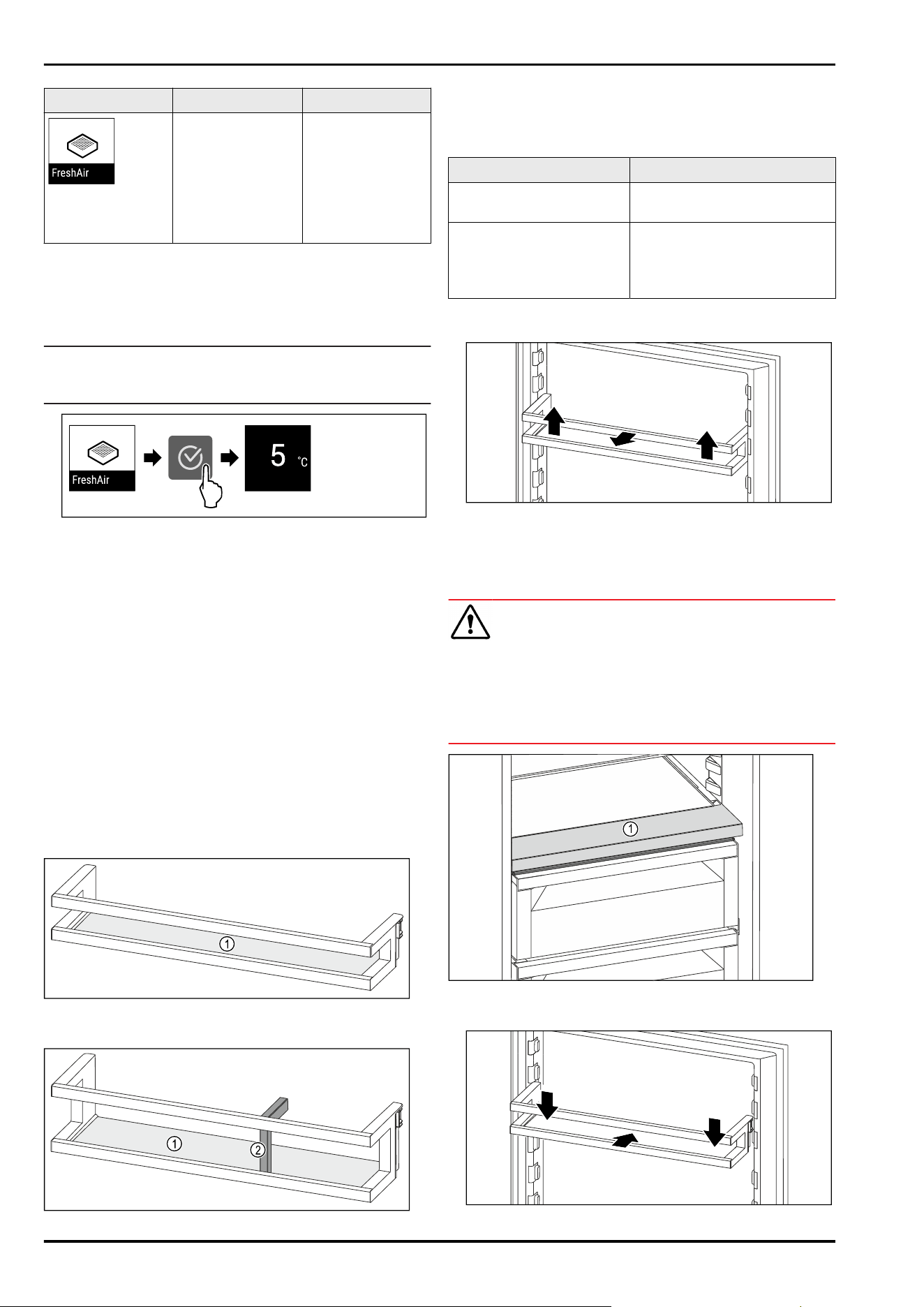

Message Cause Exit the message

Replace the Fres‐

hAir activated

carbon filter

The message

appears when

the FreshAir acti‐

vated carbon filter

needs to be

replaced.

Carry out

action steps.

(see Replace the

FreshAir activated

carbon filter)

8.3.4 Ending reminders

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated

carbon filter every 6 months.

Note

Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-

Hausgeräte-Shop unter go.liebherr.com/47wtc4.

Fig. 150 Example illustration

► Press the confirmation symbol.

► Replace the activated carbon filter. (see 10.1 FreshAir

carbon filter)

▷ Activated carbon filter ensures optimum air quality in the

cooling unit.

▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐

tivate it. (see Deactivating the reminder)

9 Features

9.1 Door rack

Door racks are suitable for storing drinks and food. You can

move door racks for your own individual use and take them

apart for cleaning. However, Liebherr recommends using the

door racks in the position in the door as delivered from the

factory.

Fig. 151 Example illustration, Door rack

(1)

Shelf

Fig. 152 Example illustration, Door rack with bottle holder

(1) Shelf (2) Bottle holder

The following table shows examples of what can be stored

in each door rack.

Door rack Food

Door rack (see Fig. 151) Butter, cheese, tinned food,

tubes

Door rack with bottle

holder (see Fig. 152)

Bottles

The sliding bottle holder

secures the bottles in the

door rack.

9.1.1 Removing the door rack

Fig. 153 Example illustration

► Push the door rack upwards.

► Pull the door rack forward.

9.1.2 Inserting the door rack

CAUTION

Risk of injury and damage to the appliance due to incor‐

rectly stored food or objects!

If you place food or objects on the bottom glass shelf, the

door may not close properly. This could cause the door racks

to break, food or objects to fall out and cause injury.

► Keep the front area of the bottom glass shelf clear.

Fig. 154 Example illustration

(1)

Front area

Features

* Depending on model and options 33

Fig. 155 Example illustration

► Slide in the door rack.

► Press the door rack down.

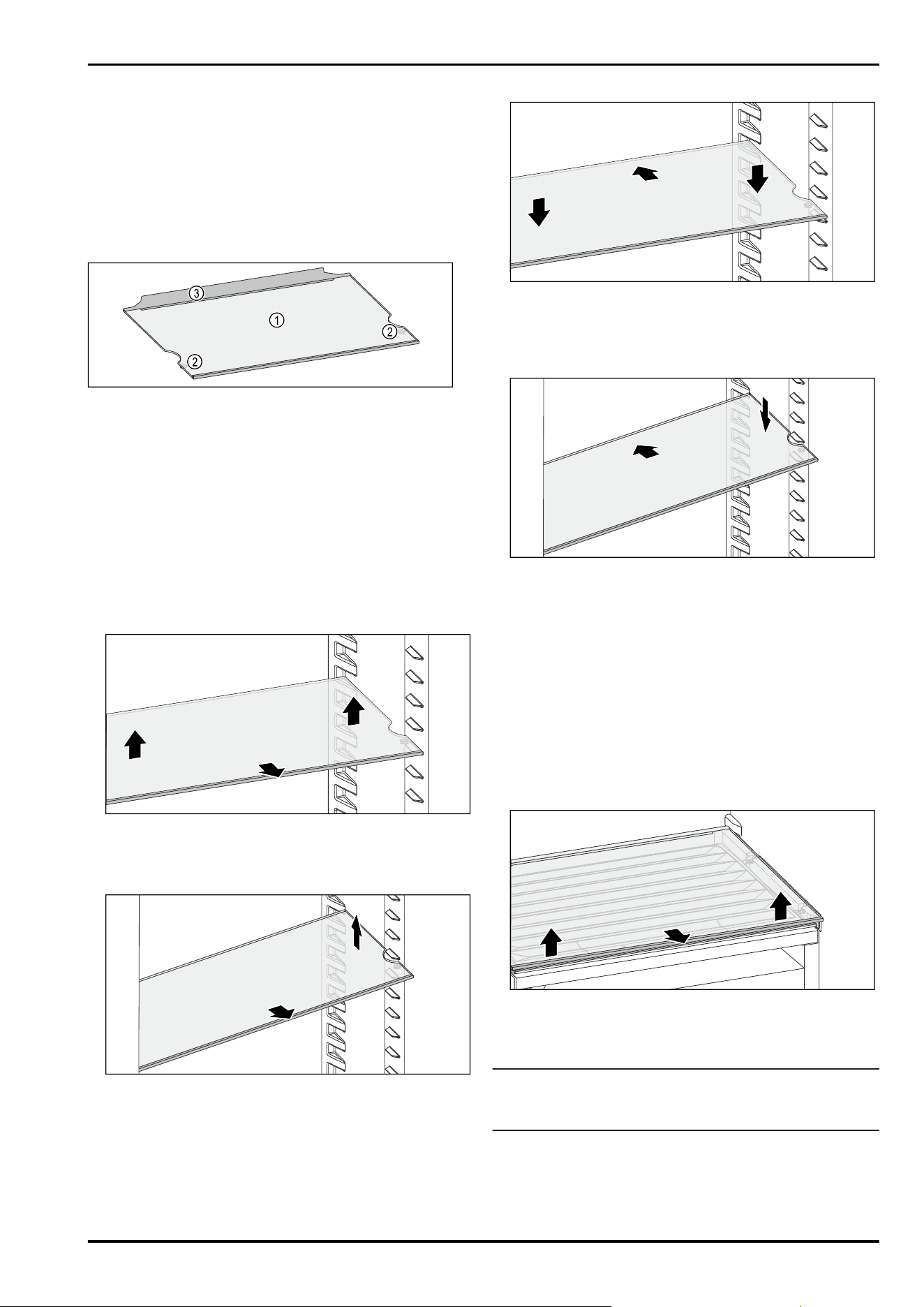

9.2 Shelves

There are different storage areas depending on the type of

appliance:

Single-piece shelf

Shelf above the EasyFresh Safe

Fig. 156 Example illustration, Shelf with stop edge

(1)

Shelf (3) Stop edge

(2) Drawer stop

9.2.1 Using the shelves in the fridge section

The shelves can either be adjusted in height, or removed

completely or for cleaning.

Ensure that the following requirements are met:

❑

Shelves are empty.

Removing the shelf

The shelves are secured against accidental pulling out by

means of drawer stops.

Fig. 157

► Raise the shelf.

► Pull out the shelf forwards.

-or-

Fig. 158

► Easier removal: Tilt the shelf and pull it out forwards.

▷ Shelves have been removed.

▷ The shelves can be positioned at a different height.

Inserting the shelf

Fig. 159

When the drawer stop points downwards:

► Pull the shelf out as far as it will go.

► Lower the shelf.

-or-

Fig. 160

► Slide the shelf in at an angle and lower it.

▷ The drawer stops are located behind the front support

surface.

9.2.2 Removing/inserting the shelf above the

EasyFresh Safe

The shelf above the EasyFresh Safe can be removed for

cleaning.

Removing the shelf

Ensure that the following requirements are met:

❑

Shelf is empty.

Fig. 161

► Lift the shelf forwards.

► Pull out the shelf forwards.

▷ The compartment lid is visible.

Note

Liebherr recommends:

Do not place any items on the compartment lid below.

Features

34 * Depending on model and options

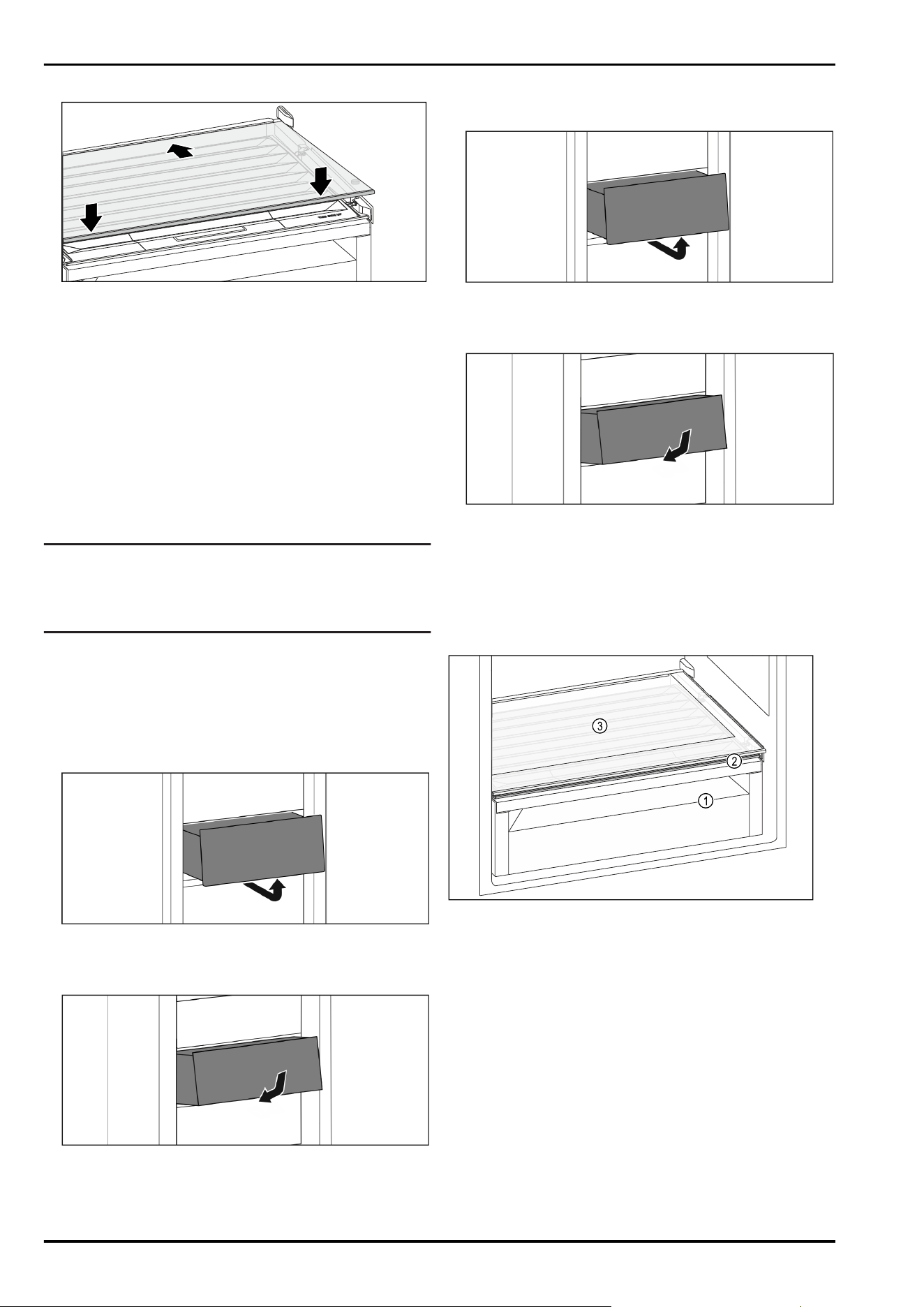

Inserting the shelf

Fig. 162

When the drawer stop points downwards:

► Place the shelf at an angle, sloping it downwards and

backwards.

► Lower the front section.

▷ The drawer stops are located behind the front support

surface.

9.3 Drawers

You can remove the drawers for cleaning.

You can remove the drawers to use VarioSpace.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Leave the bottom drawer inside the appliance.

► Always keep the inside vents at the rear wall clear.

9.3.1 Drawer on appliance base or glass shelf

The drawer runs directly on the appliance base or on a glass

shelf. There are no rails.

When you remove the drawers, you can use the glass

shelves below them as storage shelves.

Removing drawer

Fig. 163

► Remove drawer as shown in the illustration.

Inserting drawer

Fig. 164

► Insert drawer as shown in the illustration.

9.3.2 Drawer on rails

Removing drawer

Fig. 165

► Remove drawer as shown in the illustration.

Inserting drawer

Fig. 166

► Insert drawer as shown in the illustration.

9.4 Compartment lid for EasyFresh Safe

The compartment lid ensures constant levels of humidity.

The compartment lid is directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 167 Example illustration, compartment lid for EasyFresh

Safe

(1)

EasyFresh Safe (3) Shelf

(2) Compartment lid for

EasyFresh Safe

Features

* Depending on model and options 35

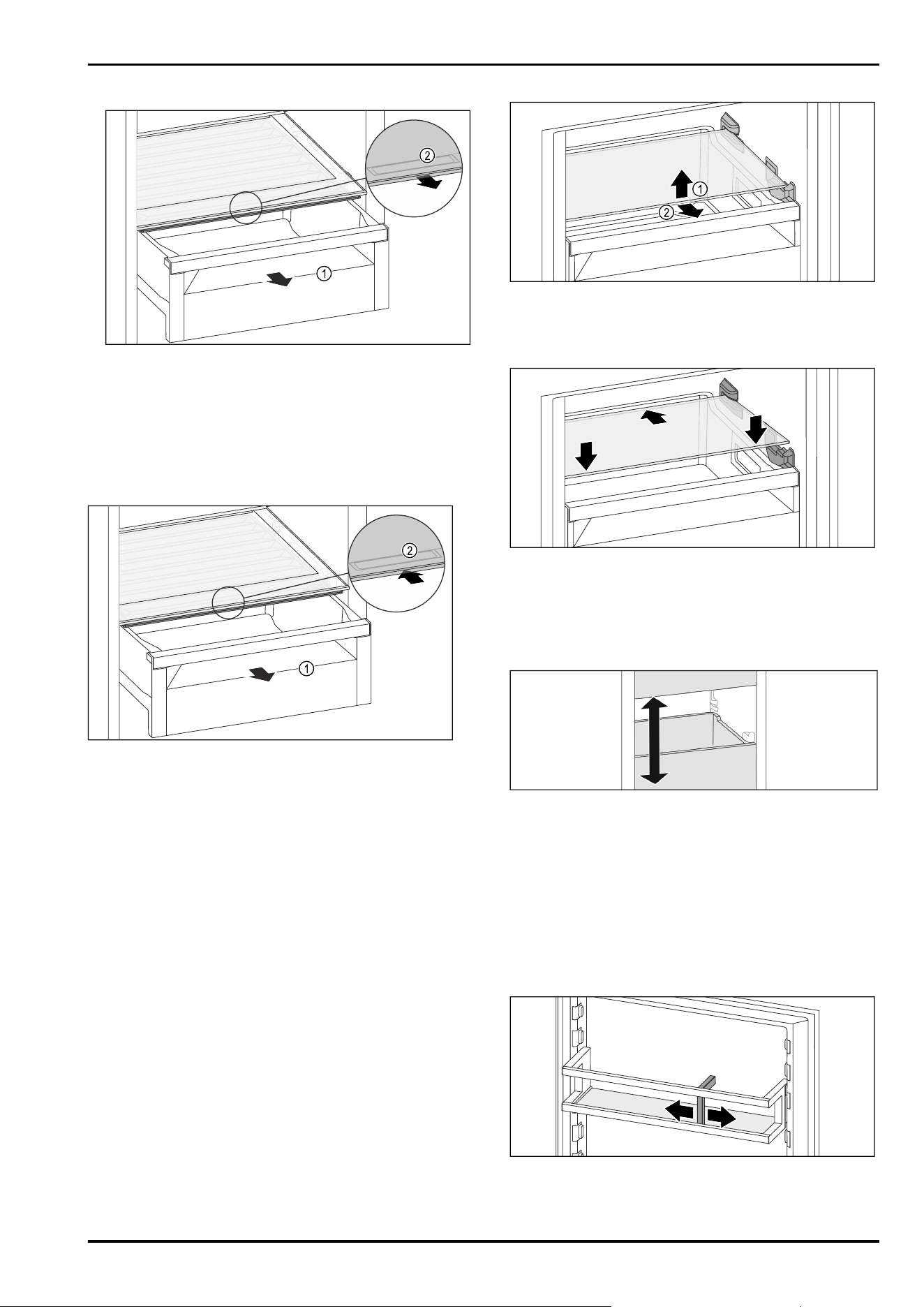

9.4.1 Reducing the air humidity in the drawer

Fig. 168

► Pull out the drawer Fig. 168(1).

► Grasp the recessed grip Fig. 168(2) on the compartment

lid and pull the compartment lid forwards at the same

time.

▷ When the drawer is closed, there is a small gap between

the compartment lid and the drawer.

9.4.2 Increasing the air humidity in the drawer

Fig. 169

► Pull out the drawer Fig. 169(1).

► Grasp the recessed grip Fig. 169(2) on the compartment

lid and push the compartment lid backwards at the same

time.

▷ When the drawer is closed, the compartment lid seals

with the drawer.

9.5 Glass shelves

You can remove the glass shelves under the drawers for

cleaning.

You can remove the glass shelves under the drawers to use

VarioSpace.

9.5.1 Removing / inserting the glass shelf

Make sure that the following requirements are fulfilled:

❑

Glass shelf under the drawer: The drawer has been

removed. (see 9.3 Drawers)

Removing glass shelf

Fig. 170 Example illustration, glass shelf

► Lift the glass shelf forwards.

► Remove the glass shelf forwards.

Inserting glass shelf

Fig. 171 Example illustration, glass shelf

► Place the glass shelf at an angle behind the stoppers.

► Lower glass shelf.

► Slide in glass shelf to the back.

9.6 VarioSpace

Fig.172

You can remove drawers and glass panels from your appli‐

ance. This provides more room for large food items such as

poultry, joints of meat, large game, and tall baked products.

You can then freeze these items whole for later preparation.

► Note the weight limits on the drawers and glass panels

(see11.1 Technical specifications) .

9.7 Bottle holder

9.7.1 Using the bottle holder

Fig.173

► Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

Features

36 * Depending on model and options

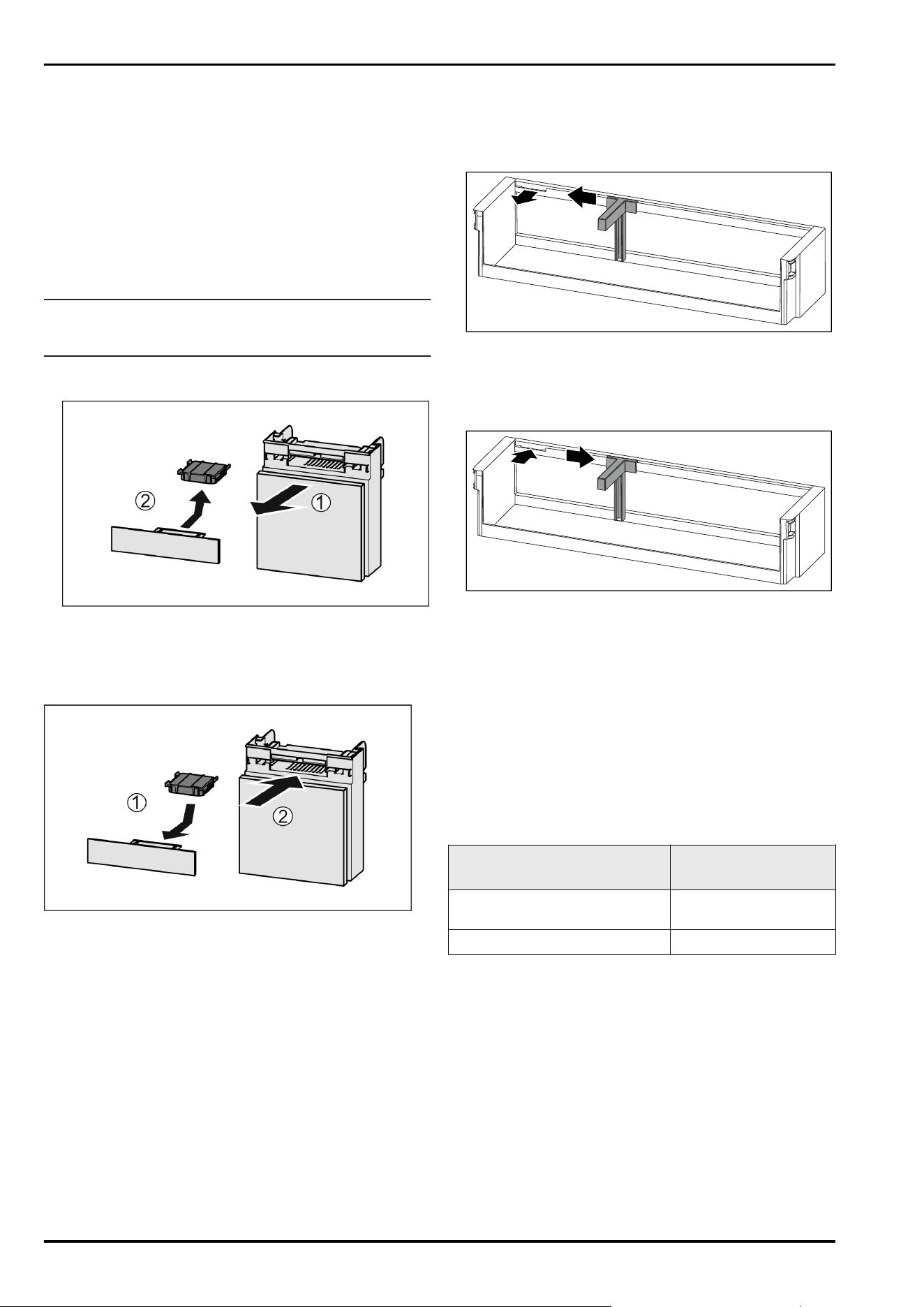

10 Maintenance

10.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the

fan.

It guarantees the best air quality.

❑

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

The carbon filter can be disposed of with the regular

household waste.

Note

Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-

Hausgeräte-Shop unter go.liebherr.com/47wtc4.

10.1.1 Removing the FreshAir carbon filter

Fig. 174

► Pull out the compartment Fig. 174(1).

► Remove the carbon filter Fig. 174(2).

10.1.2 Inserting the FreshAir carbon filter

Fig.175

► Insert the carbon filter as shown in the diagram

Fig.175(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig.175(2).

▷ The carbon filter is now ready for use.

10.2 Removing / inserting the bottle

holder

10.2.1 Removing the bottle holder

Fig. 176

► Slide the bottle holder to the side as far as the recess.

► Remove the bottle holder forwards.

10.2.2 Inserting the bottle holder

Fig.177

► Insert the bottle holder in the recess.

► Push the bottle holder to the desired position to the side.

10.3 Disassembling / assembling pull-

out systems

10.3.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Drawer on appliance base or

glass shelf

cannot be disassembled

Drawer on rails cannot be disassembled

10.4 Compartment lid for EasyFresh

Safe

You can remove the compartment lid for cleaning.

10.4.1 Removing the compartment lid

Ensure that the following requirements are met:

❑

The shelf directly above the drawer has been removed.

(see 9.2 Shelves)

❑

The drawer directly below the compartment lid has been

removed. (see 9.3 Drawers)

Maintenance

* Depending on model and options 37

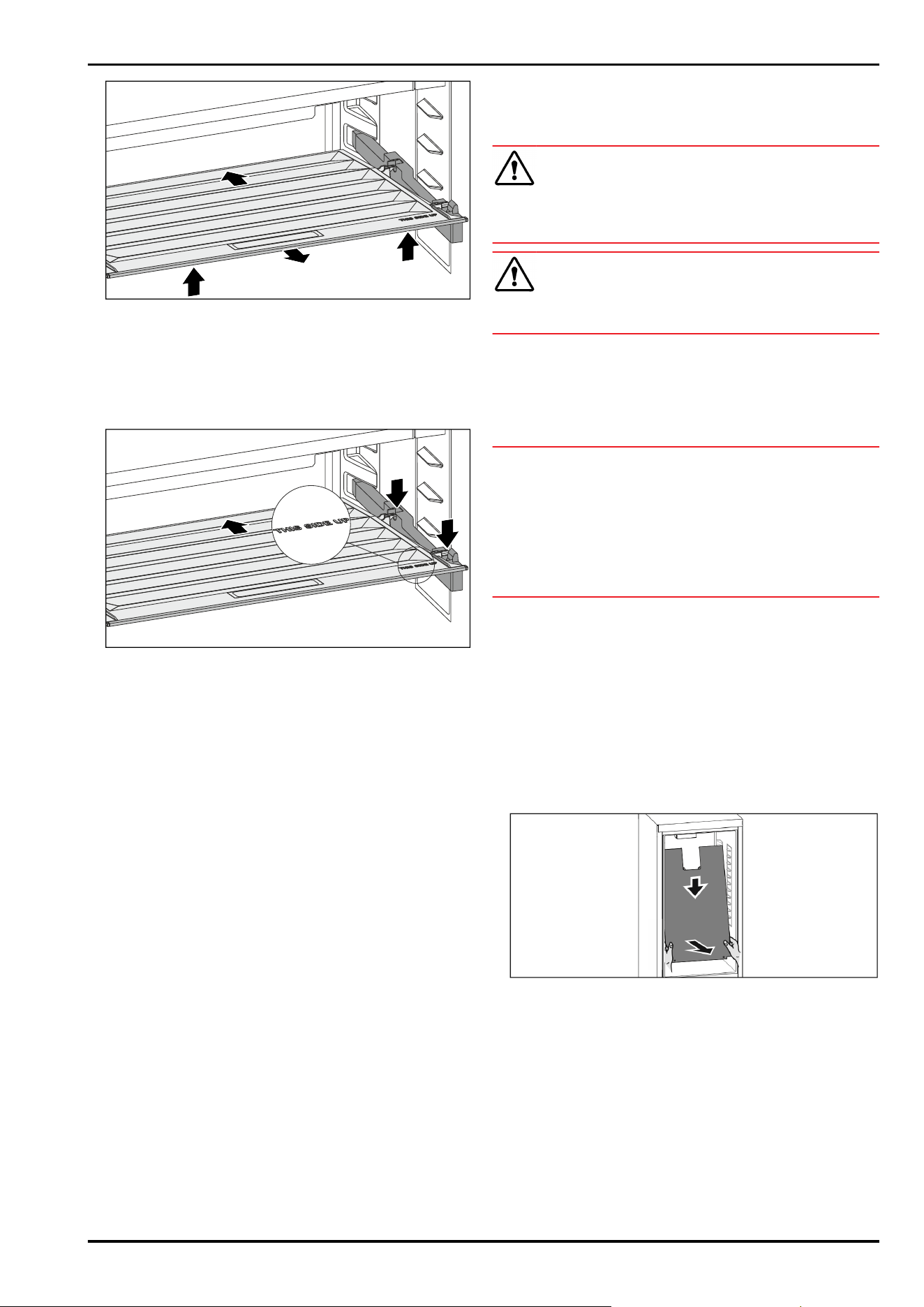

Fig.178

► Push the compartment lid backwards.

► Lift the compartment lid forwards.

► Remove the compartment lid forwards and upwards at an

angle.

10.4.2 Inserting the compartment lid

Fig.179

If the THIS SIDE UP lettering is at the top:

► Insert the rear retaining parts into the relevant rear open‐

ings.

► Push the compartment lid backwards.

► Lower the compartment lid forwards and engage the

front retaining parts into the openings.

► Move the compartment lid into the required position.

10.5 Defrosting the appliance

10.5.1 Defrosting the fridge compartment

Defrosting is performed automatically. The water from the

thawing process drains through the outlet and evaporates.

► Clean the drain opening at regular intervals.

(see 10.6Cleaning the appliance)

10.5.2 Defrosting the freezer compartment

with NoFrost

Defrosting is performed automatically with the NoFrost

system. The moisture is deposited on the evaporator, is peri‐

odically defrosted and evaporates.

The appliance does not have to be defrosted.

10.6 Cleaning the appliance

10.6.1 Preparation

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Danger of fire!

► Do not damage the refrigeration circuit.

►

Empty the appliance.

► Unplug the mains plug.

-or-

► Activate the CleaningMode. (seeCleaningMode)

10.6.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove deposits using a thin item (for

example a cotton bud).

10.6.3 Cleaning the dry rear panel

You can remove the dry rear panel for cleaning.

Removing the rear panel

► Remove all equipment parts.

Fig. 180

► Hold the rear panel with both hands at the bottom and

pull downward vigorously at the same time.

► Pull the rear panel out to the front by the bottom end.

▷ The rear panel has been removed.

If you want to continue operating the appliance with the

rear panel removed:

► Set the D-Value to D2. (see D-Value)

Maintenance

38 * Depending on model and options

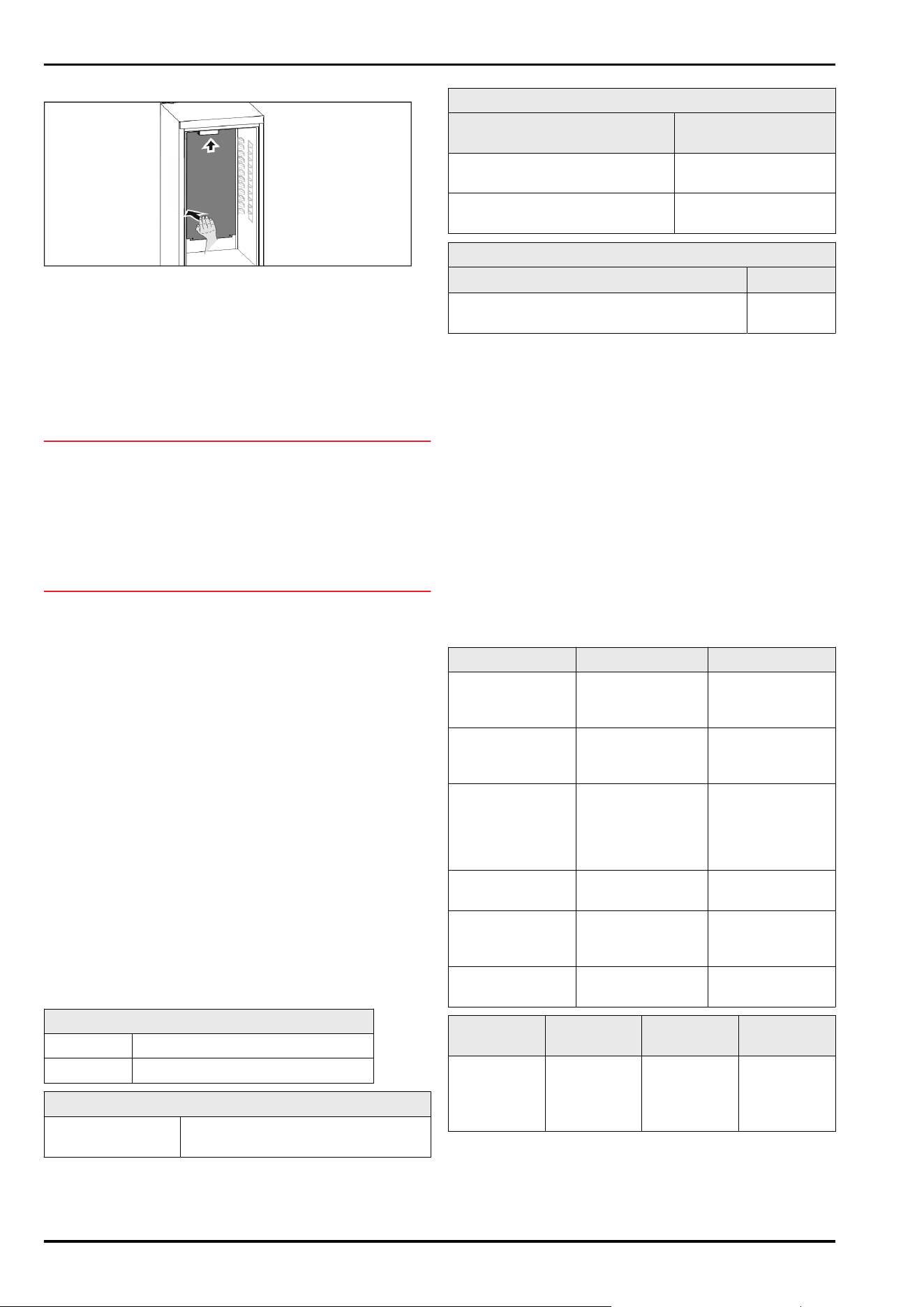

Inserting the rear panel

Fig. 181

► Make sure the appliance is completely empty.

► Slide in the rear panel from below to the top.

► Press back vigorously on the left-hand side of the rear

panel.

▷ The rear panel clicks into place.

► Insert the equipment parts.

► Set the D-Value to D1. (see D-Value)

10.6.4 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Door rack

- Shelf

- Compartment lid for EasyFresh Safe

- Drawer

Wash in the dishwasher up to 60°C:

- Bottle rack

► To disassemble components: see the relevant section.

► Clean the components.

10.6.5 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

► Activate SuperFrost (see8.2Appliance functions) .

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

11 Customer help

11.1 Technical specifications

Temperature range

Cooling 2°C to 9°C

Freeze -26°C to -15°C

Maximum ice cube quantity / 24 hours

Freezer compart‐

ment

see type plate under “Freezing

capacity …/ 24 h”

Maximum loading weight for the freezer drawer

Drawer Maximum loading

weight

Top and middle drawers (drawers

on a glass shelf)

18 kg

Bottom drawer (drawer on the

appliance base)

12 kg

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

11.2 Operating noise

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

With high cooling capacity, food is cooled more quickly.

The sound is louder.

Examples:

•

Functions on (see8.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

installation

Defective

noise

Check the

installation.

Level the

appliance.

Customer help

* Depending on model and options 39

Noise Possible

cause

Type of noise Lifting

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

11.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

11.3.1 Appliance function

Defect Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

► Safeguarding food: Place cold packs on top of food or

use another freezer if the power cut lasts longer.

► Do not re-freeze defrosted food,

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.

→ The ambient temperature is too

high.

► Problem solution: (see 1.7 Climate classes)

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see11.4 Customer

Service)

→ Too much fresh food was placed

inside without SuperFrost.

► Solution: (see SuperFrost)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

→ The appliance was not correctly

installed in the recess.

► Check if the appliance was installed correctly and that

the door closes properly.

The temperature

shown on the

display is higher

than the actual

temperature in the

appliance.

→ Appliance door was open for a long

time and the door alarm was trig‐

gered automatically. This causes

the appliance to cool more vigo‐

rously.

► Close appliance door.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see11.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

Customer help

40 * Depending on model and options

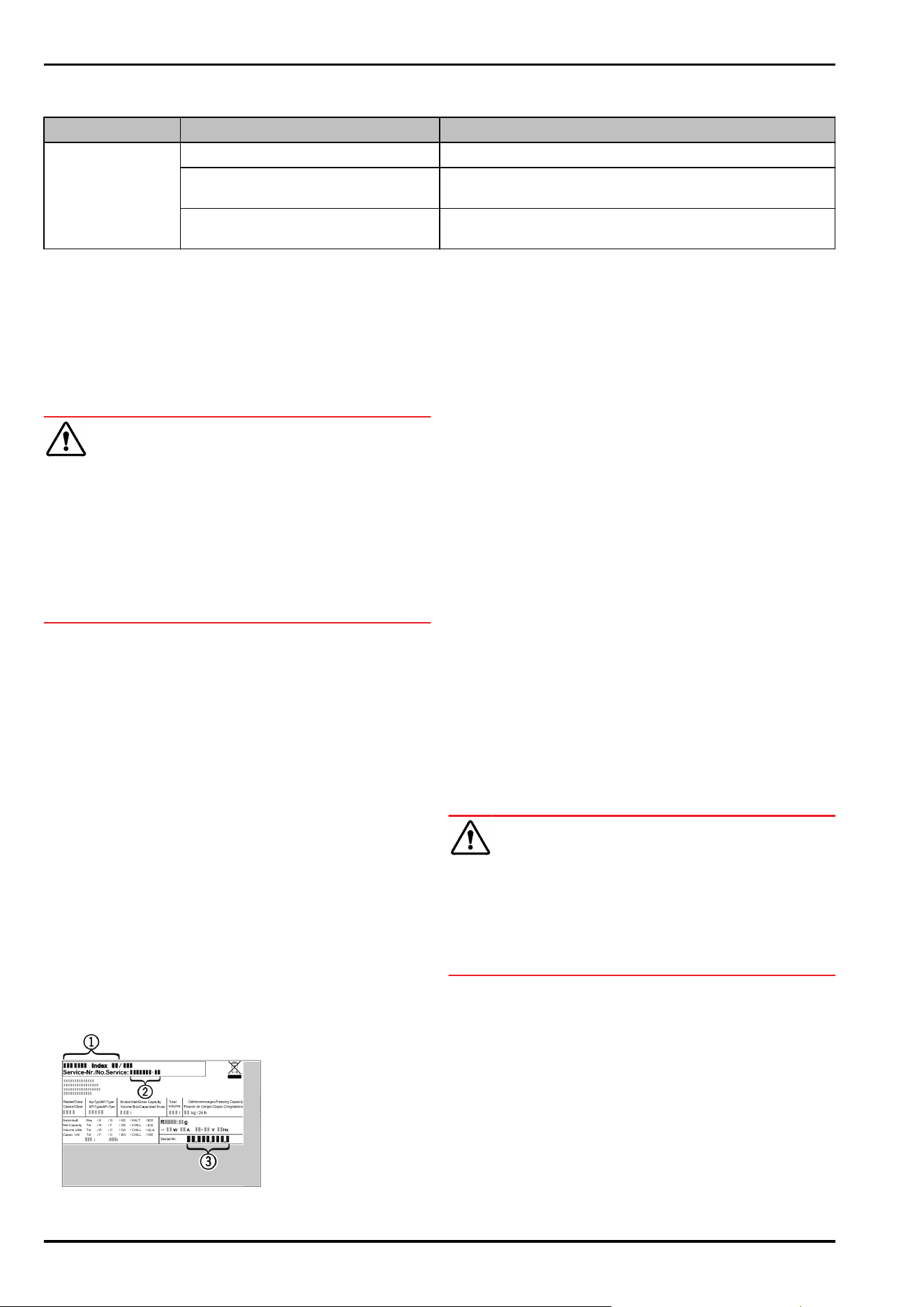

11.3.2 Features

Defect Cause Remedy

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see11.4 Customer Service)

11.4 Customer Service

First check whether you can rectify the fault yourself

(see11 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see 10 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

11.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance designation (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 11.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

11.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

Fig. 182

(1)

Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

12 Shutting down

► Empty the appliance.

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 10.6Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

13 Disposal

Ensure that the following requirements are met:

❑

Meaning of the symbols on the appliance: are familiar.

❑

Notes on disposal are familiar. (see 1.5 Information

concerning disposal)

13.1 Preparing the appliance for

disposal

► Shutting your appliance down. (see12Shutting down)

13.2 Disposing of the appliance in an

environmentally friendly manner

WARNING

Risk of fire due to leaking refrigerant and oil!

The refrigerant inside the appliance is environmentally

friendly, but flammable. The oil it contains is also flam‐

mable. Escaping refrigerant and oil can ignite in high

concentrations and in contact with an external heat source.

► Do not damage the refrigerant circuit pipes or the

compressor.

► Observe the notes on transporting the appliance.

(see 3.4 Transporting the appliance)

► Remove the appliance without damaging it.

► Dispose of appliance according to specifications.

Shutting down

* Depending on model and options 41

Scan QR Code and find

digital operating and

installation instructions.

⸺

home.liebherr.com

1 2 3





20260729 

7088647-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

Liebherr ICNSD 7603 PURE NOFROST Integrated fridge-freezer with EasyFresh and NoFrost

Product's Documents

Operating instructions

Specifications

Liebherr ICNSD 7603 PURE NOFROST Questions and Answers

Related Products

Liebherr ICNH 5133 Integrated Fridge-Freezer EasyFresh and NoFrost Technology for Fresh Food Preservation ICNH 5133 PLUS NOFROST

Liebherr ICNC 5123 Integrated Fridge-Freezer EasyFresh and NoFrost Efficiency ICNC 5123 PLUS NOFROST

Liebherr IC5110IMPC Integrated fridge-freezer with EasyFresh and NoFrost

Liebherr ICNBSD 5173 Integrated fridge-freezer with EasyFresh and NoFrost

Liebherr ICNS 5103 Integrated Fridge-Freezer EasyFresh Technology and NoFrost Convenience ICNS 5103 PURE NOFROST

Liebherr ICNH 5173 Integrated Fridge-Freezer EasyFresh Technology and NoFrost Convenience ICNH 5173 PEAK NOFROST
