Foldable Multi-burner
Propane Griddle
USER MANUAL
THANK
YOU!
Thank You for Purchasing from
Made in China
NOTE:
To continuously improve its products, reserves the right to
modify this information without prior notification.
For any questions regarding assembly, please watch the video on the
product page or contact our customer service. Our customer service will
Thank you for using products in your home!
USER MANUAL
HOW-TO
Foldable Multi-burner
Propane Griddle
CONTENTS
Important Safeguards .................................................3

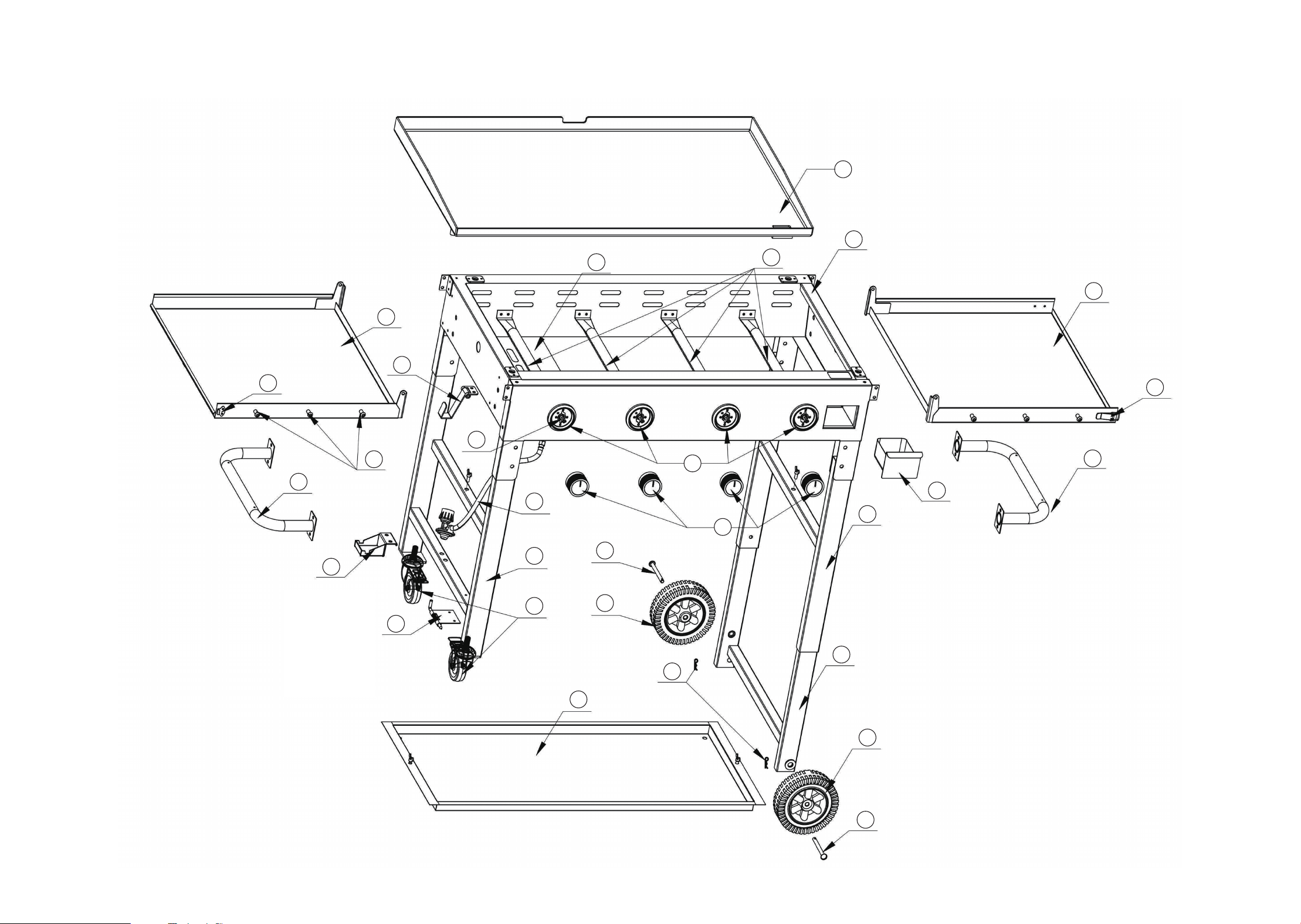

Expanded View & Hardware ...................................8
Assembly Instructions ..............................................12
Transporting & Storage Instructions .................18
Installing LP Gas Tank ...............................................29
Operating Instructions .............................................31
Cleaning and Care ......................................................36
Troubleshooting .........................................................42
Warranty ..........................................................................47
IMPORTANT:
After each use, always season your griddle per "Seasoning
Griddle" section.
1 2
The use and installation must conform with local codes or, in the
absence of local codes, with either the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code,
CSA B149.1, or Propane Storage and Handling Code, B149.2.
THIS INSTRUCTION BOOKL ET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFER-
ENCE.
If you are assembling this unit for someone else, give this manual
to them to read and save for future reference.
1.
2.
3.
4.
5.
6.
7.
Improper installation, adjustment, alteration, service or main-
tenance can cause injury or property damage.
Read the installation, operation, and maintenance instructions
thoroughly before installing or servicing this equipment.
Failure to follow these instructions could result in fire or
explosion, which could cause property damage, personal
injury, or death.
This instruction manual contains important information neces-
sary for the proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before assem-
bling and using the appliance.
Follow all warnings and instructions when using the appliance.
Keep this manual for future reference.
Warning
For your safety:
1.
2.
3.
4.
Shut off gas to the appliance.
Extinguish any open flame.
Open lid.
If odor continues, keep away from the appliance and immedi-
ately call your gas supplier or your fire department.
Danger
If you smell gas
Made from 75% Bagasse (an environmentally friendly by-
product of sugar cane pulp)
NOT be stored in the vicinity of this or any other appliance.
1.
2.
Do NOT store or use gasoline or other flammable liquids or
vapors in the vicinity of this or any other appliance.
An LP cylinder not connected for use shall.
Warning
This product can expose you to chemicals, including carbon mon-
oxide and soot, which are known to the State of California to
cause cancer, birth defects, and other reproductive harm.
Warning
FOR YOUR SAFETY: For Outdoor Use Only (outside any enclosure)
Warning
Danger
Never operate this appliance unattended.
3 4
SECTION A
Important Safeguards
Danger
Failure to follow the dangers, warnings, and cautions in this
manual may result in serious bodily injury or death, or in a fire or
an explosion causing damage to property.
1.
2.
3.
4.
5.
6.
7.
8.
This griddle is for outdoor use only, and should not be used in
a building, garage, or any other enclosed area.
Do NOT operate, light, or use this appliance within ten feet
(3.05 m) of walls, structures, or buildings.
For residential use only. This griddle is NOT for commercial use.
This griddle is not intended for and should never be used as a
heater. TOXIC fumes can accumulate and cause asphyxiation.
This griddle is safety certified for use in the United States
and/or Canada only. Do NOT modify for use in any other loca-
tion. Modification will result in a safety hazard and will void
your warranty.
This griddle is for use with liquid propane (LP) gas only. The
conversion to or attempted use of natural gas in this LP gas
griddle is dangerous, may cause bodily harm, and will void
your warranty.
LP gas characteristics:
a. LP gas is flammable and hazardous if handled improperly.
Become aware of the characteristics before using any LP gas
product.
b. LP gas is explosive under pressure, heavier than air, and
settles/ pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an
odorant is added that smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.
Apartment dwellers: Check with management to learn the
requirements and fire codes for using a LP gas griddle in your
apartment complex. If allowed, use outside on the ground
floor with a ten-foot (3.05 m) clearance from any structure. Do
NOT use on or under balconies.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
LP gas cylinder needed to operate. Only cylinders marked
"propane" may be used.
The LP gas cylinder must be constructed and marked in
accordance with the Specifications for LP-gas Cylinders of the
U.S. Department of Transportation (D.0.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders, Spheres, and
Tubes for the Transportation of Dangerous Goods; and Com-
mission.
LP gas cylinder must be arranged for vapor withdrawal.
The LP gas cylinder must have a listed overilling prevention
device (OPD).
Only use LP gas cylinders equipped with a cylinder connec-
tion device compatible with the connection for outdoor
cooking appliances.
The LP gas cylinder must have a cylinder collar to protect the
cylinder valve.
Never use an LP gas cylinder with a damaged body, valve,
collar or footing.
Dented or rusted LP gas cylinders may be hazardous and
should be checked by your LP gas supplier prior to use.
The LP gas cylinder should not be dropped or handled roughly.
LP gas cylinders must be stored outdoors out of the reach of
children and must not be stored in a building, garage, or any
other enclosed area.
Your cylinder must never be stored where temperatures can
reach over 125°F.
Do NOT insert any tool or foreign object into the valve outlet
or safety relief valve. You may damage the valve and cause a
leak. Leaking propane may result in an explosion, fire, severe
personal injury or death.
Do NOT block holes in the sides or back of the griddle.
Never keep an LP gas cylinder in a hot car or trunk. Heat will
cause the gas pressure to increase, which may open the relief
valve and allow gas to escape.
Place the dust cap on the cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on the
cylinder valve outlet that is provided with the cylinder valve.
Other types of caps or plugs may result in leakage of propane.
If the griddle is not in use, the gas must be turned off at the
supply cylinder and disconnected.
Do NOT store a spare LP gas cylinder under or near this
appliance.
Warning
5 6
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
Never fill the cylinder beyond 80 percent full.
If the information above is not followed exactly,a fire causing
death or serious injury could occur.
A fire causing serious injury or damage to property may occur
if the above is not followed exactly.
Never attempt to attach this griddle to the self-contained LP
gas system of a camper trailer, motor home, or house.
Never use charcoal, lighter fluid, lava rocks, gasoline, kero-
sene, or alcohol with this product.
Your griddle has been checked at all factory connections for
leaks. Re-check all connections as described in the "Operating
Instructions" section, as shipping can loosen connections.
Check for leaks even if your unit was assembled for you by
someone else.
Do NOT operate if a gas leak is present. Gas leaks may cause a
fire or explosion.
You must follow all instructions in the "Checking for Leaks"
section before operating. To prevent fire or explosion hazards
when testing for a leak:
a. Always perform a leak test before lighting the griddle and
each time the cylinder is connected for use.
b. No smoking. Do NOT use or permit sources of ignition in
the area while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do NOT use matches, lighters, or a flame to check for leaks.
e. The use of alcohol, prescription, or non-prescription drugs
may impair the consumer's ability to properly assemble or
safely operate the appliance.
f. Strong odors, colds, sinus congestion, etc. may prevent the
detection of propane. Use caution and common sense when
testing for leaks.
g. Do NOT use a griddle until any and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP gas supply.
Call a gas appliance serviceman or your local LP gas supplier.
This griddle is designed to operate at an inlet pressure of 11
inches in the water column.
Do NOT store or use gasoline or other flammable liquids or
vapors within 25 feet (7.62 m) of this appliance.
Do NOT use in an explosive atmosphere. Keep griddle area
clear and free from combustible materials, gasoline, and other
flammable vapors and liquids.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
Minimum clearance from sides and back of unit to combusti-
ble construction is 36 inches (91.4 cm). Do NOT use this appli-
ance under any type of overhang or roof.
It is essential to keep the griddle's valve compartment, burn-
ers and circulating air passages clean.
Inspect the griddle before each use.
Do NOT alter the griddle in any manner. Any alteration will
void your warranty.
Do NOT use the griddle unless it is COMPLETELY assembled
and all parts are securely fastened and tightened.
Do NOT build this model of griddle in any built-in or slide-in
construction. lgnoring this warning could cause a fire or an
explosion that can damage property and cause serious bodily
injury or death.
This griddle should be thoroughly cleaned and inspected on a
regular basis.
Clean and inspect the hose before each use of the appliance.
If there is evidence of abrasion, wear, cuts or leaks, the hose
must be replaced prior to operation.
Use only the regulator and hose assembly provided.
The use of any part that is not factory-authorized can be dan-
gerous and will void your warranty.
Do NOT operate this appliance without reading "Operating
Instructions" in this manual.
Do NOT touch metal parts of griddle until they have com-
pletely cooled to avoid burns, unless you are wearing protec-
tive gear (pot holders, gloves, BBQ mittens, etc.).
Do NOT install or use in or on boats or recreational vehicles.
When cooking, fire extinguishing materials should be readily
accessible. In the event of an oil/grease fire, do NOT attempt
to extinguish with water. Use type BC dry chemical fire extin-
guisher or smother with dirt, sand or baking soda.
Do NOT use the griddle in high winds.
Never lean over the griddle when lighting.
Do NOT leave a lit griddle unattended. Keep children and
pets away from the griddle at all times.
Do NOT leave the griddle unattended while preheating or
burning off food residue on high. If the griddle has not been
cleaned, a grease fire can occur that may damage the product.
7 8
SECTION B
Expanded View & Hardware
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
Do NOT place empty cooking vessels on the appliance while
in operation.
Use caution when placing anything on the griddle while the
appliance is in operation.
Do NOT attempt to move the griddle when in use. Allow the
griddle to cool before moving or storing.
LP gas cylinder must be properly disconnected and removed
prior to moving this griddle.
Storage of griddle indoors is permissible only if the cylinder is
disconnected, removed from the griddle and properly stored
outdoors.
The LP gas cylinder must have a cylinder connection device
compatible with the connection for outdoor cooking appli-
ances.
An appliance is considered to be outdoors if installed with a
shelter no more inclusive than with walls on three sides, but
with no overhead cover. All openings must be permanently
open; sliding doors, garage doors, windows, or screened open-
ings are not considered permanent openings.
An appliance is considered to be outdoors if installed with a
shelter no more inclusive than within a partial enclosure that
includes an overhead cover and no more than two sidewalls.
The sidewalls may be parallel, as in a breezeway, or at right
angles to each other; all openings must be permanently open.
Sliding doors, garage doors, windows, or screened openings
are not considered permanent openings" and must have a
cylinder connection device compatible.
An appliance is considered to be outdoors if installed with
shelter no more inclusive than within a partial enclosure that
includes an overhead cover and three sidewalls, as long as
30% or more of the horizontal is permanently open; sliding
doors, garage doors, windows, or screened openings are not
considered as permanent openings.
Do NOT attempt to disconnect the gas regulator from the
cylinder or any gas fitting while the griddle is in use.
Always place your griddle on a hard, non-combustible, level
surface. An asphalt or blacktop surface may not be acceptable
for this purpose.
Move gas hoses as far away as possible from hot surfaces and
dripping hot grease.
Keep all electrical cords away from a hot griddle.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
After a period of storage and/or nonuse, check for leaks and
burner obstructions and inspect for any abrasion, wear, or
cuts to the hose.
Failure to open side shelves while igniting the griddle's burn-
ers, or not waiting 5 minutes to allow the gas to clear if the
griddle does not light, may result in an explosive flame-up.
Always use a meat thermometer to ensure food is cooked to a
safe temperature.
Use protective gloves when assembling this product.
Do NOT force parts together, as this can result in personal
injury or damage to the product.
Never cover the entire cooking area with aluminum foil.
Deaths, serious injury, or damage to property may occur if the
above is not followed exactly.
This gas griddle is not to be installed in or on boats. This
appliance is not to be installed in or on recreational vehicles.
The minimum ambient operating temperature for safe use of
the appliance is -20°C(-4°F)
This griddle must not be used under overhead combustible
construction.
Hardware
A
Screw M6x14
4pcs
B
Cap Nut M6
4pcs
C
Butterfly Screw M6x16
2pcs
D
Bolt
2pcs
E
Lock Nut M8
2pcs
F
A Hook
6pcs
G
Screw M6x12
14pcs
H
Allen Key
1pc
I
#2 Phillips
Head Screwdriver
1pc
9 10
19
26
Expanded View
1
2
5
8
4
3
6
7
8
9
10
11
14
15
16
18
13
17
12
20
21
24
25
22
22
23
23
13
11 12
Parts List
1 Griddle Surface *1 14 Control Knob *4
2 Griddle Body *1 15 Reguloter *1
3 Fireproof Board *1 16 Left Cart Frame *1
4 Burner *4 17 Locking Wheel *2
5 Right Side Shelf 18 Lower LP GasTank Support *1
6 Left Side Shelf 19 Leg Locking Assembly *1
7 Upper LP Gas Tank Support *1 20 Upper Right Cart Frame *1
8 Safty Lock(SS) *2 21 Lower Right Cart Frame *1
9 Screw *6 22 Wheel *2
10 Griddle Gas Control Valve *4 23 Latch *2
11 Main Control Knob Bezel *4 24 "B" Pin *2
12 Grease Box *1 25 Bottom Shelf *2
13 Side Handle *2
SECTION C
Assembly Instructions
1.
2.
3.
4.
Select an area where you will assemble this product. To
protect components, choose a smooth surface that's free of
cracks or openings.
Spread out all parts.
Tighten all hardware connections by hand first. Then, before
completing each step, go back and fully tighten all hardware.
Be careful not to overtighten. That could damage surfaces or
strip threads.
For best results, complete each step in the order presented.
1.
2.
Leak detection solution (instructions on how to make the
solution are included in the "Operating Instructions" section of
this manual).
Precion-filled LP gas grill tank with Acme Type 1 external
threaded valve connection (standard grill size) (not included).
To complete assembly you will need:
Typical assembly is approximately one hour.
Assembly Tips
Two (2) people are required for assembly.
Caution
13 14

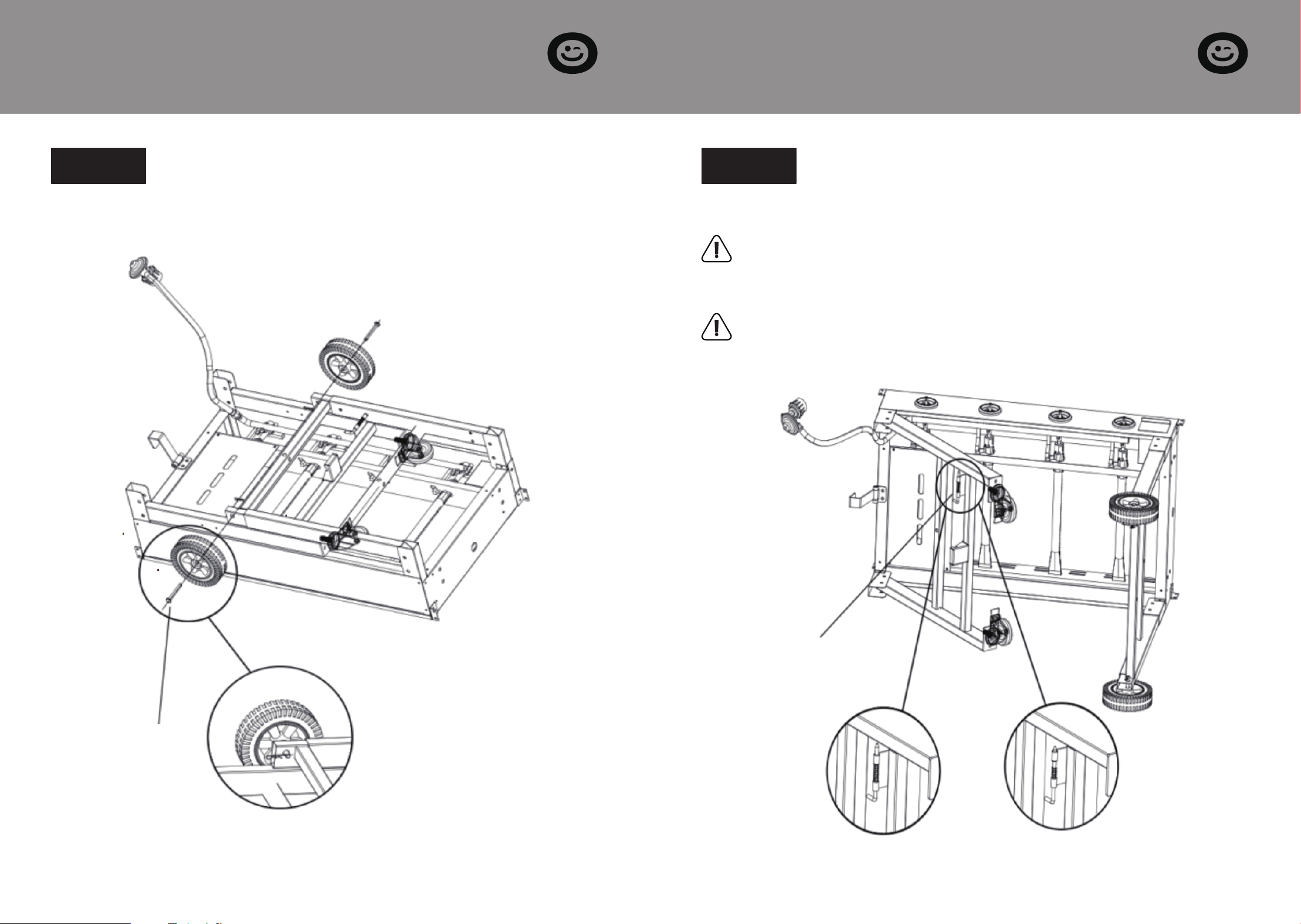

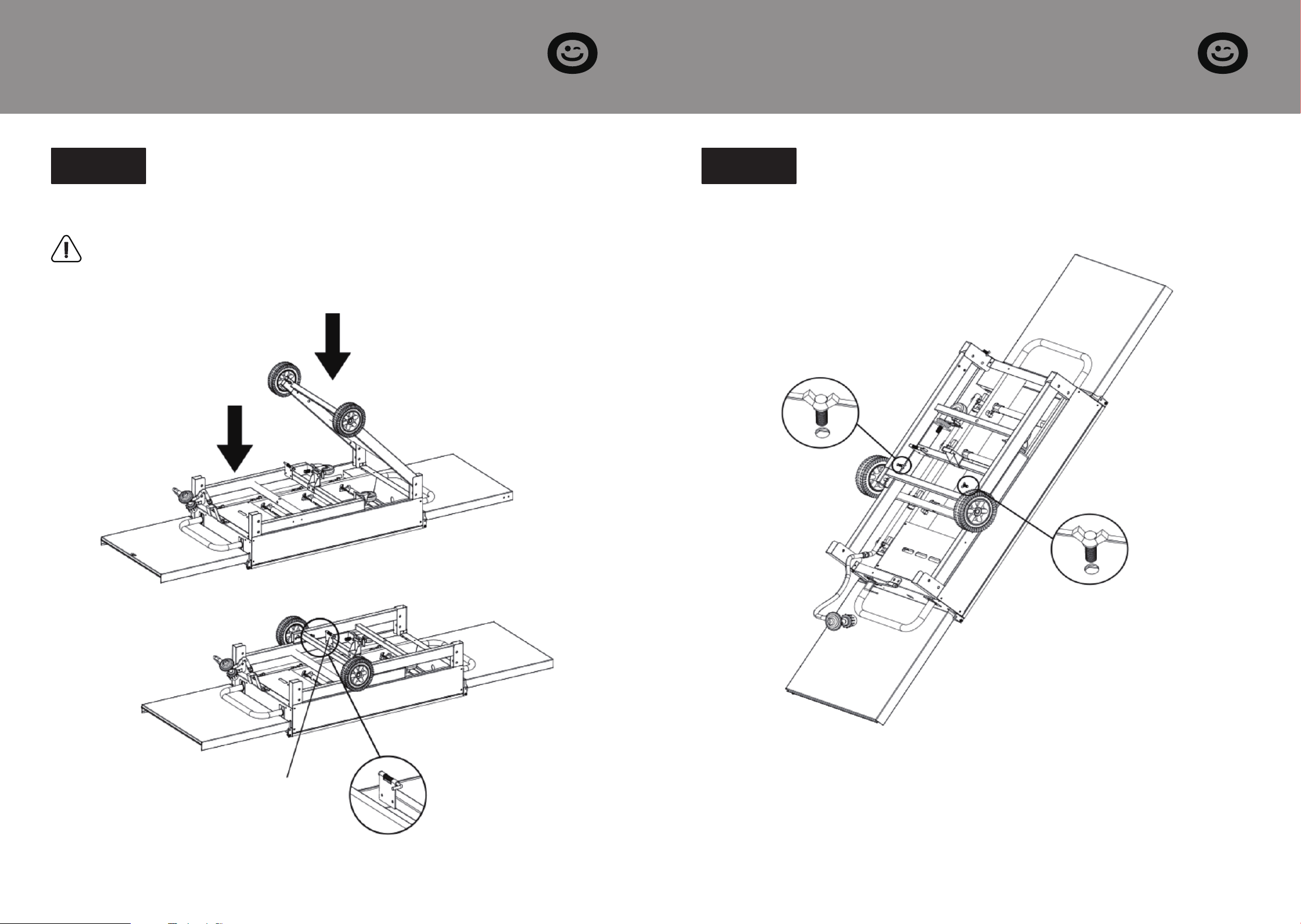

STEP 1
SECTION C
Assembly Instructions
Install Wheel Using "B"pin

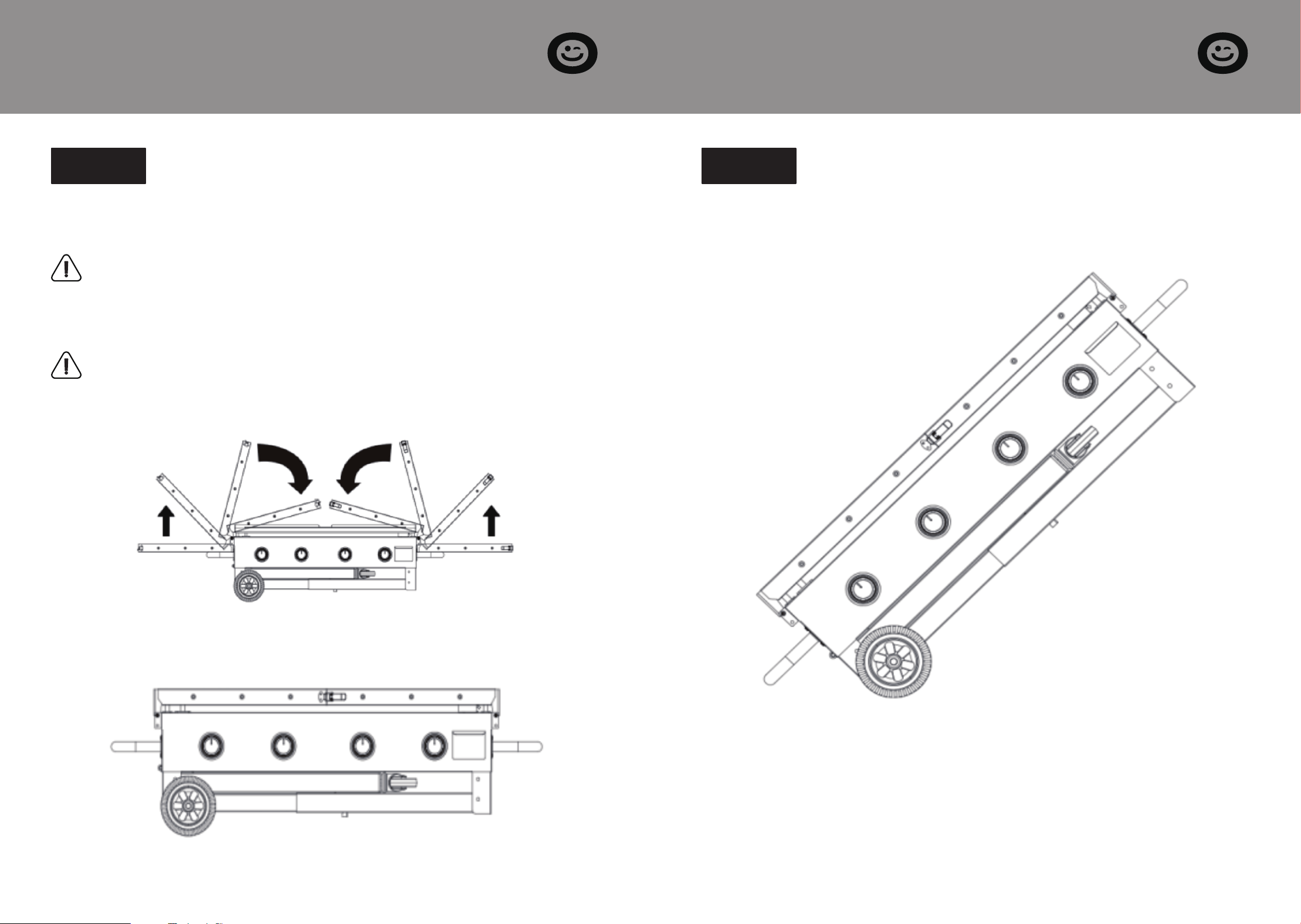

STEP 2
SECTION C
Assembly Instructions
Open Legs
Two (2) people will be required to lay griddles on the back.
Caution
Open Right Legs First.
Note
23/24
19
15 16

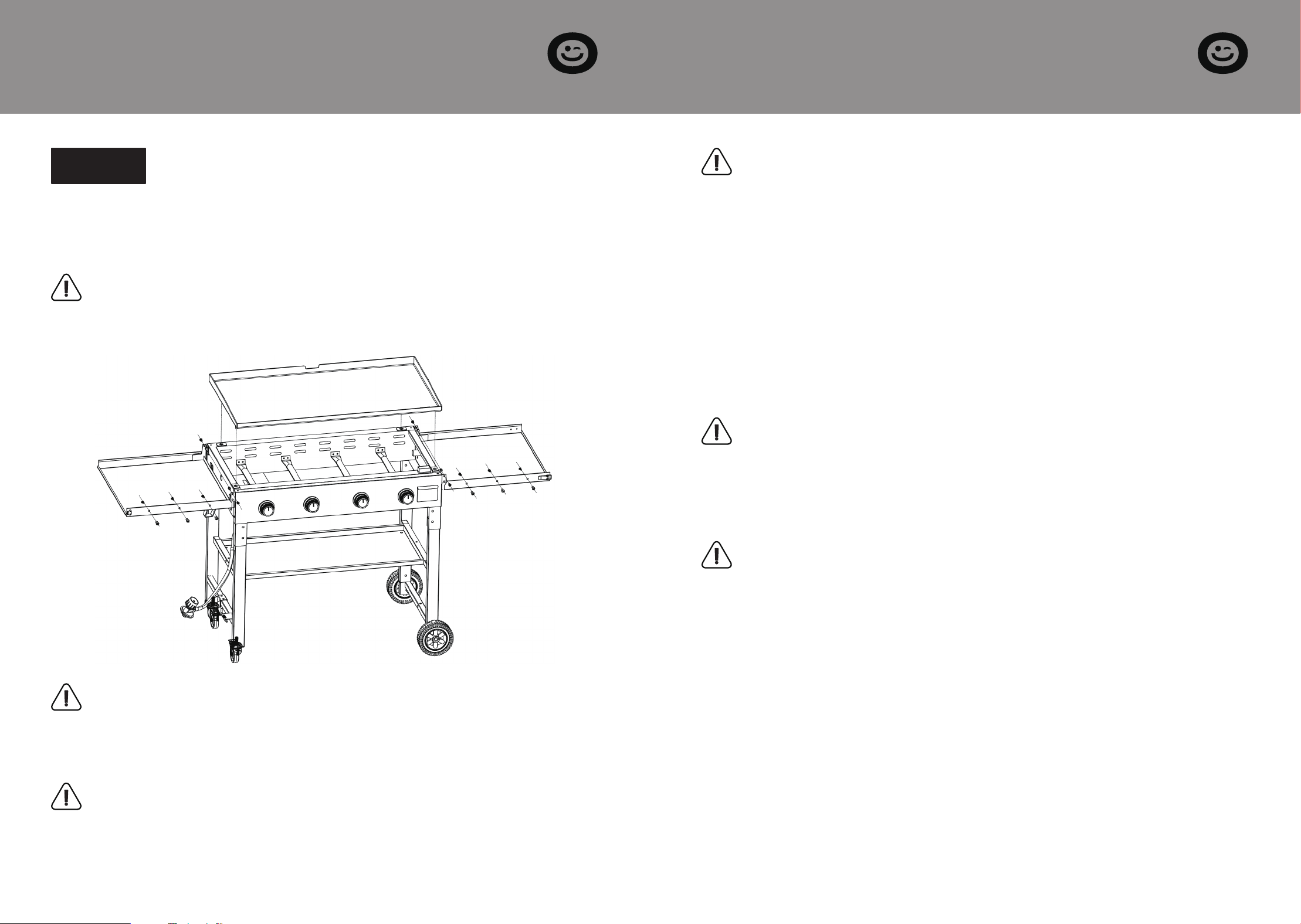

STEP 3
SECTION C
Assembly Instructions
Attach Bottom Shelf.

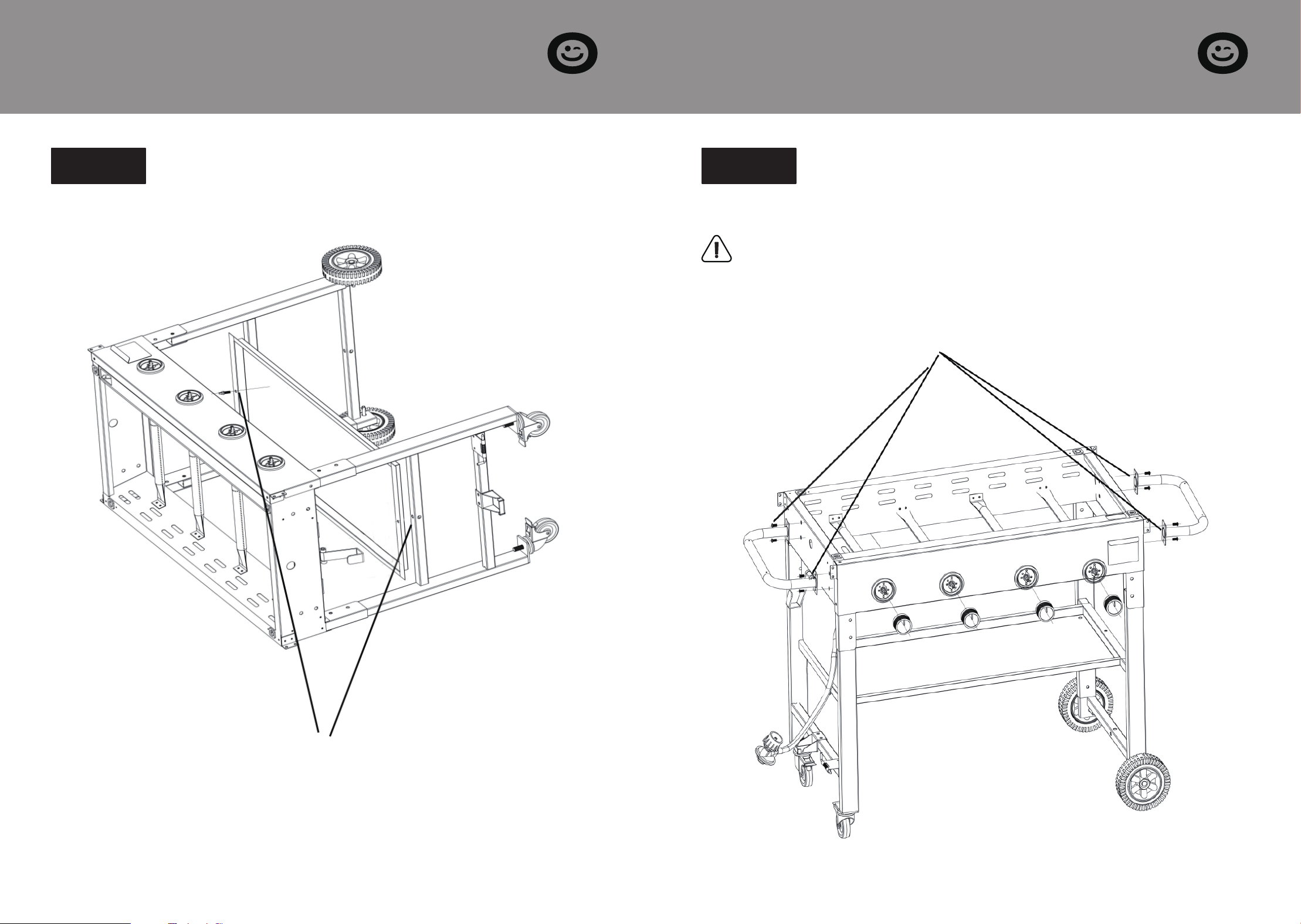

STEP 4
SECTION C
Assembly Instructions
Attach Side Handles and Insert Control Knobs.
Two (2) people will be required to stand griddle upright.
Caution
C
A
17 18
a.
b.
c.
d.
e.
f.
Always season the griddle per "Seasoning Griddle" section.
Always clean the griddle per "Cleaning Instructions" section.
Always wait until griddle is cool.
Always turn griddle off per "Turning Off" section.
Always disconnect tank per "Disconnecting LP Gas Tank"
section.
Always empty and properly dispose of all items in the
grease cup.
Two (2) people will be required to prepare for transportation
and/or storage.
Caution
Before transporting or storing this griddle:
Warning
When transporting or storing this unit, always follow the instruc-
tions found in this section.
Warning
STEP 5
SECTION C
Assembly Instructions
SECTION D
Transporting & Storage
Instructions
Maximum side shelf weight is 33 lbs (15 kg).
Install the left and right side shelves, then place the grill pan, and
use M6*12 screws to secure the hooks.
Caution
The replacement hose assembly shall be specified by the
manufacturer.
Before first use and after each use, always season your griddle per
the "Seasoning Griddle" section.
Important
19 20
STEP 1
SECTION D
Transporting & Storage
Instructions

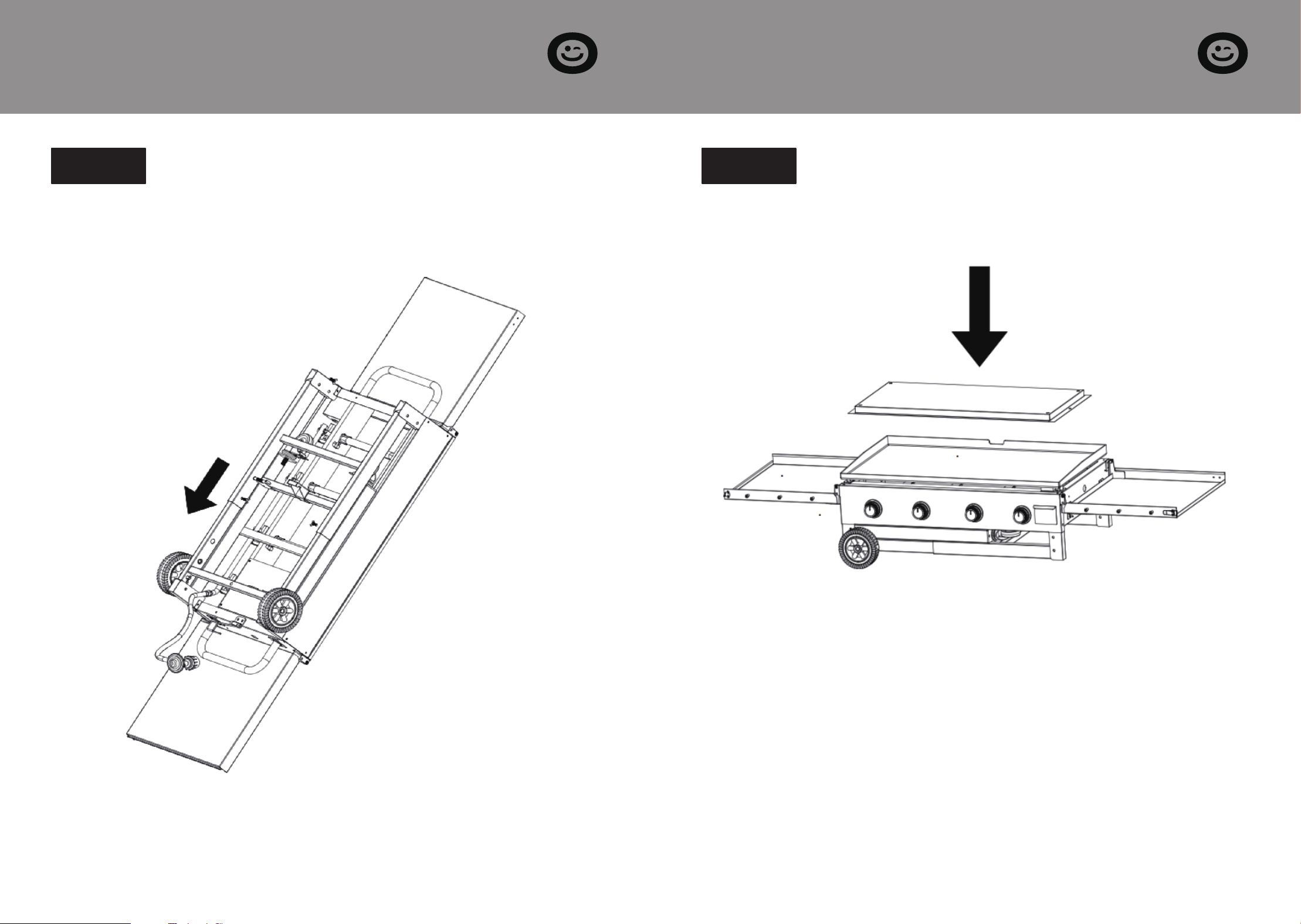

Remove Griddle Surface.

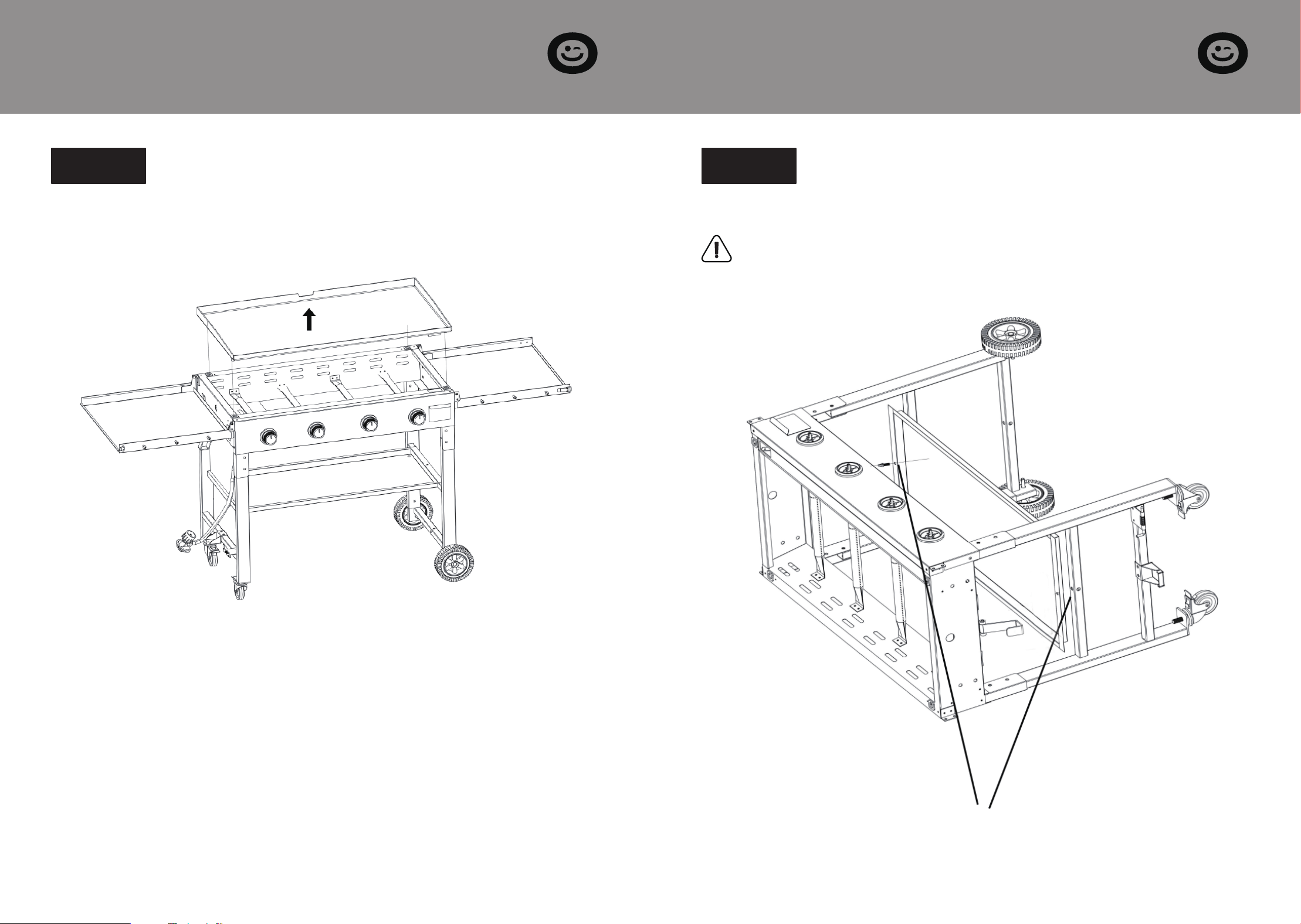

STEP 2
SECTION D
Transporting & Storage
Instructions
Remove Bottom Shelf.
Two (2) people will be required to lay griddles on their backs.
Caution
C
21 22
STEP 3
SECTION D
Transporting & Storage
Instructions
Close Legs
STEP 4
SECTION D
Transporting & Storage
Instructions
Unscrew the Right Leg.
Close Left Leg First.
Note
19
23 24
STEP 5
SECTION D
Transporting & Storage
Instructions
Pull the right leg, fixing the screw to the second hole.
STEP 6
SECTION D
Transporting & Storage
Instructions
Place The Griddls Sureface.
25 26
STEP 7
SECTION D
Transporting & Storage
Instructions
Place the Griddls Sureface
Close left side shelf first,then right side shelf.
Hold the side shelf securely while opening. Do NOT release until
fully colsed.
Caution
Maximum side shelf weight is 33 lbs (15 kg).
Caution
Lock Side Shelves
STEP 8
SECTION D
Transporting & Storage
Instructions
Transport or Store your Griddle.
27 28

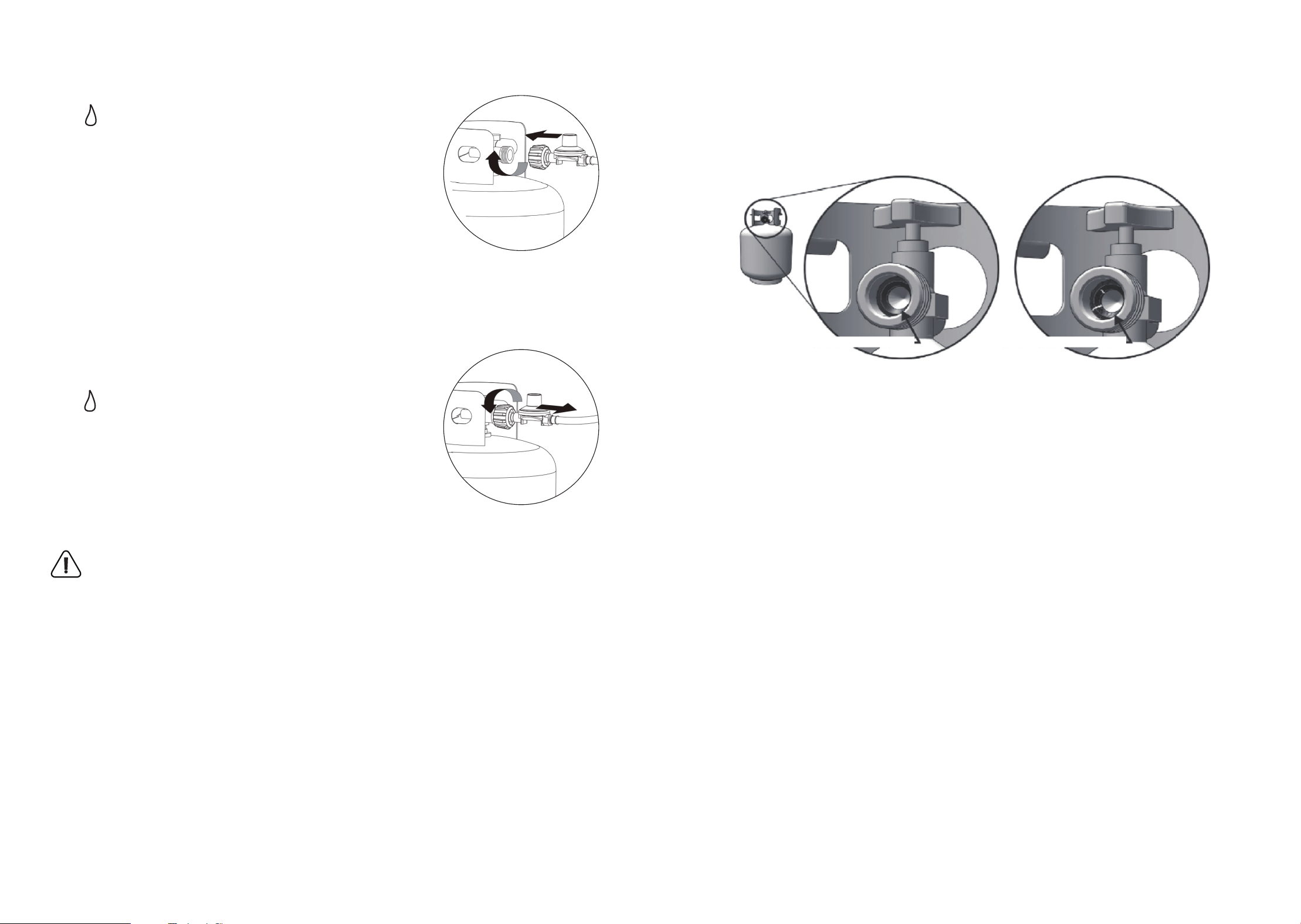

Comparison of a seal in good condition (left) to one that is dam-
aged (right)
Figure 3
Example of good rubber seal Example of damaged rubber seal
1.
2.
3.
4.
Make sure the control knobs are in the
" OFF" position.
Before connecting, be sure there is no
debris caught in the head of the LP gas
tank, head of the regulator valve, or in the
head of the burner or burner ports.
Connect the regulator/hose assembly to
the tank by turning the knob clockwise
until it stops.
Perform a leak test per "Checking for
Leaks" section.
Connecting The LP Gas Tank
1.
2.
3.
Make sure the control knobs are in the
" OFF" position (Figure 2)
Before disconnecting, make sure the LP gas
tank valve is "CLOSED".
Disconnect the regulator/hose assembly
from the LP gas tank by turning the knob
counterclockwise until it is loose.
4. Place the protective cap cover on the LP tank and store the
tank outdoors in a well ventilated area out of direct sunlight.
The elastomeric face seal element on these devices could,
over time, show marked and visible damage or deterioration
that might cause a leak even with the connection tightened. A
visual inspection for the seal must be carried out every time an
LP gas cylinder is replaced or refilled. Any LP gas cylinder
showing signs of damage or deterioration, such as those illus-
trated in Figure 3, including visible cracks and pitting, must be
returned unused to the seller.
Disconnecting The LP Gas Tank
Caution
LP gas tank must be properly disconnected and removed prior to
moving this griddle.
29 30
Inserting and Securing LP Gas Tank
SECTION E
Installing LP Gas Tank
To operate, you will need one precision-filled standard barbecue
grill LP gas tank with external valve threads. This product is used
with 20lb gas cylinders.
LP gas tank must be properly disconnected and removed prior to
moving this griddle.
Caution
20 Ib
9 Kg
12.2 in./31.0cm
17.9 in./45.5cm
1.

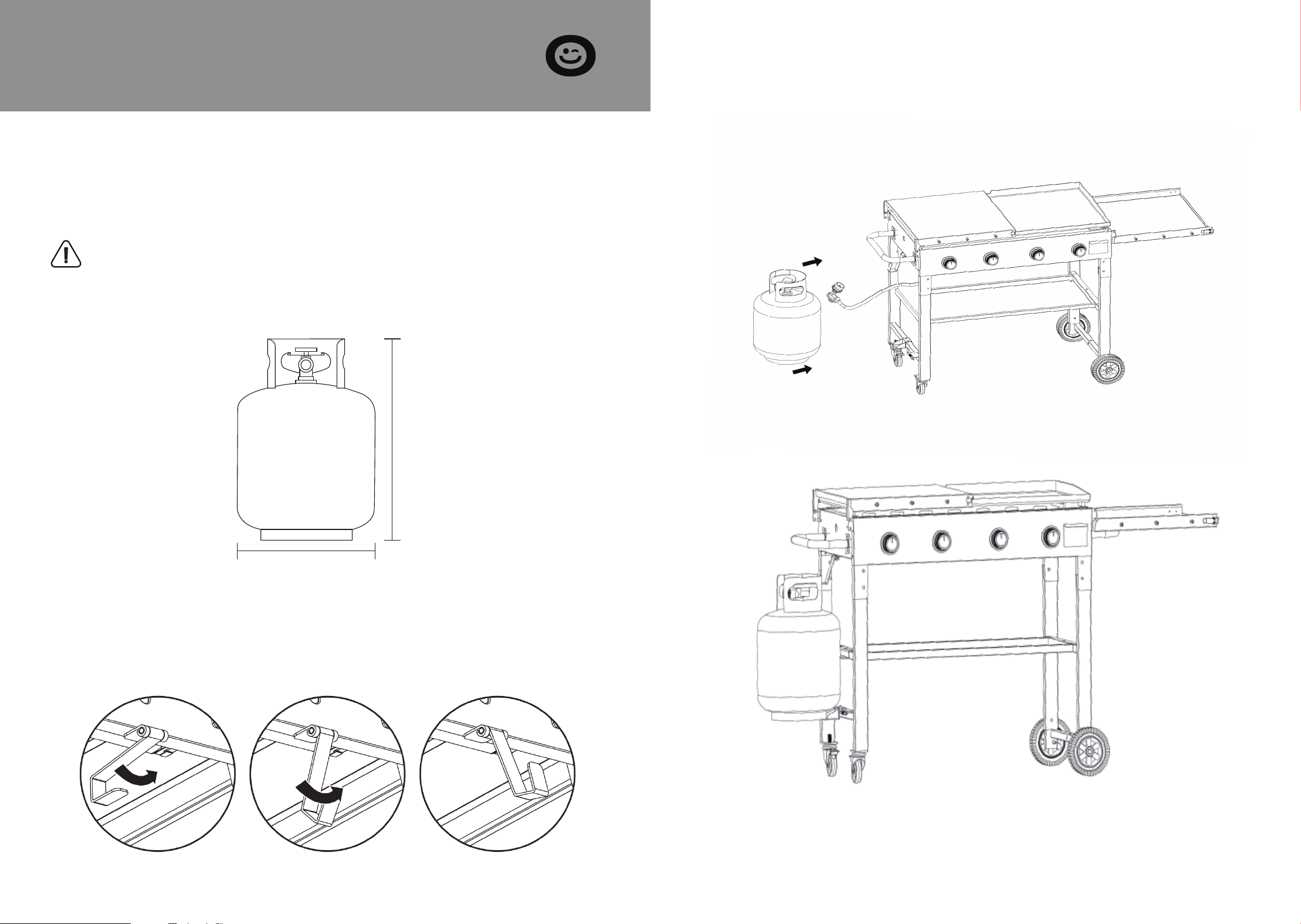

Unfold the upper LP gas tank support.
2. Place the precision-filled LP gas tank upright onto the upper
and lower LP gas tank supports so the tank valve is facing the
gas line connection.
31 32
SECTION F
Operating Instructions
1.
2.
3.

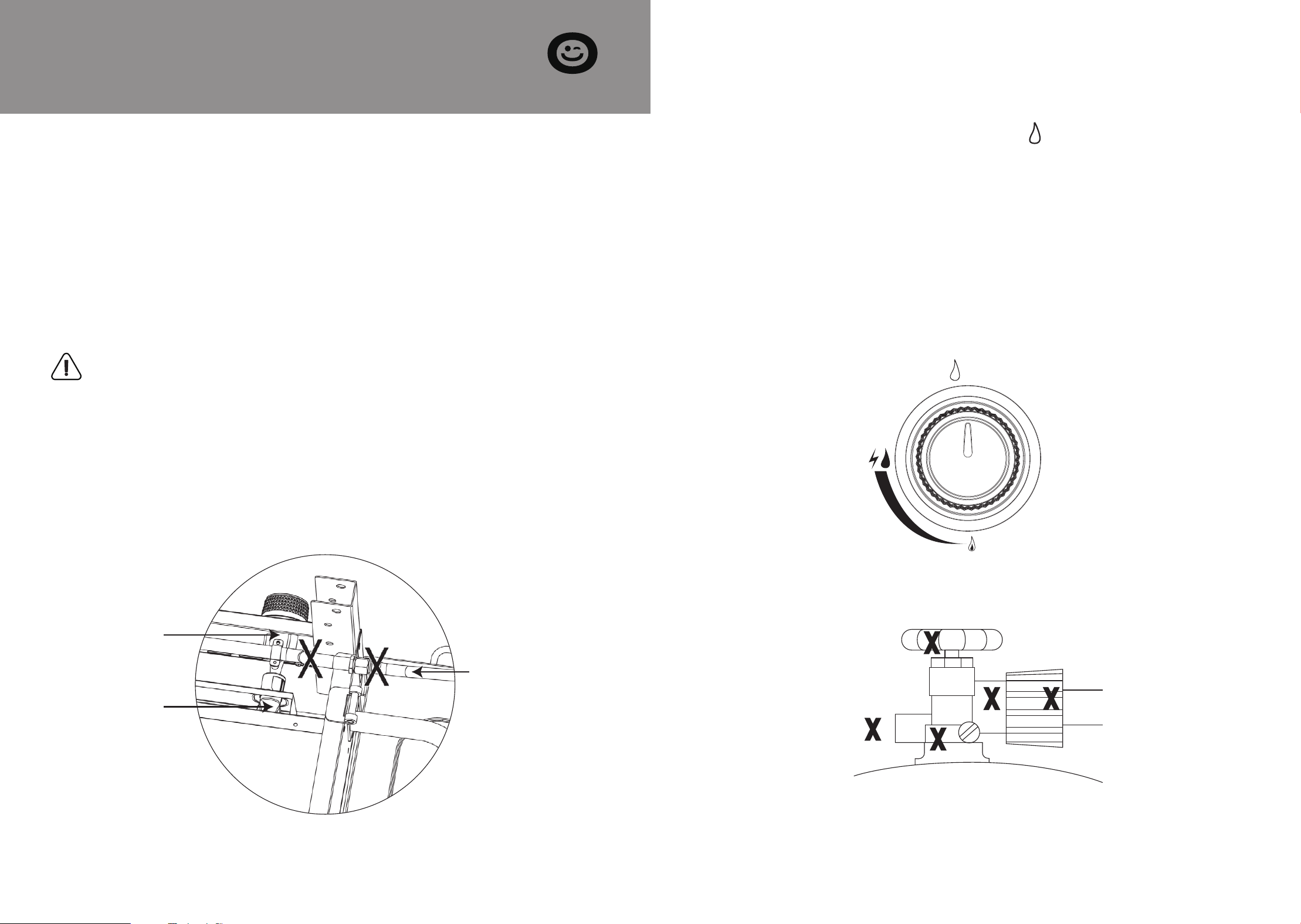

Make sure the regulator hose and valve connections are
securely fastened to the burner and the tank.
Visually check the connection between the burner/venturi
tube and orifice.
Make sure the burner/venturi tube fits over the orifice.
4.
5.

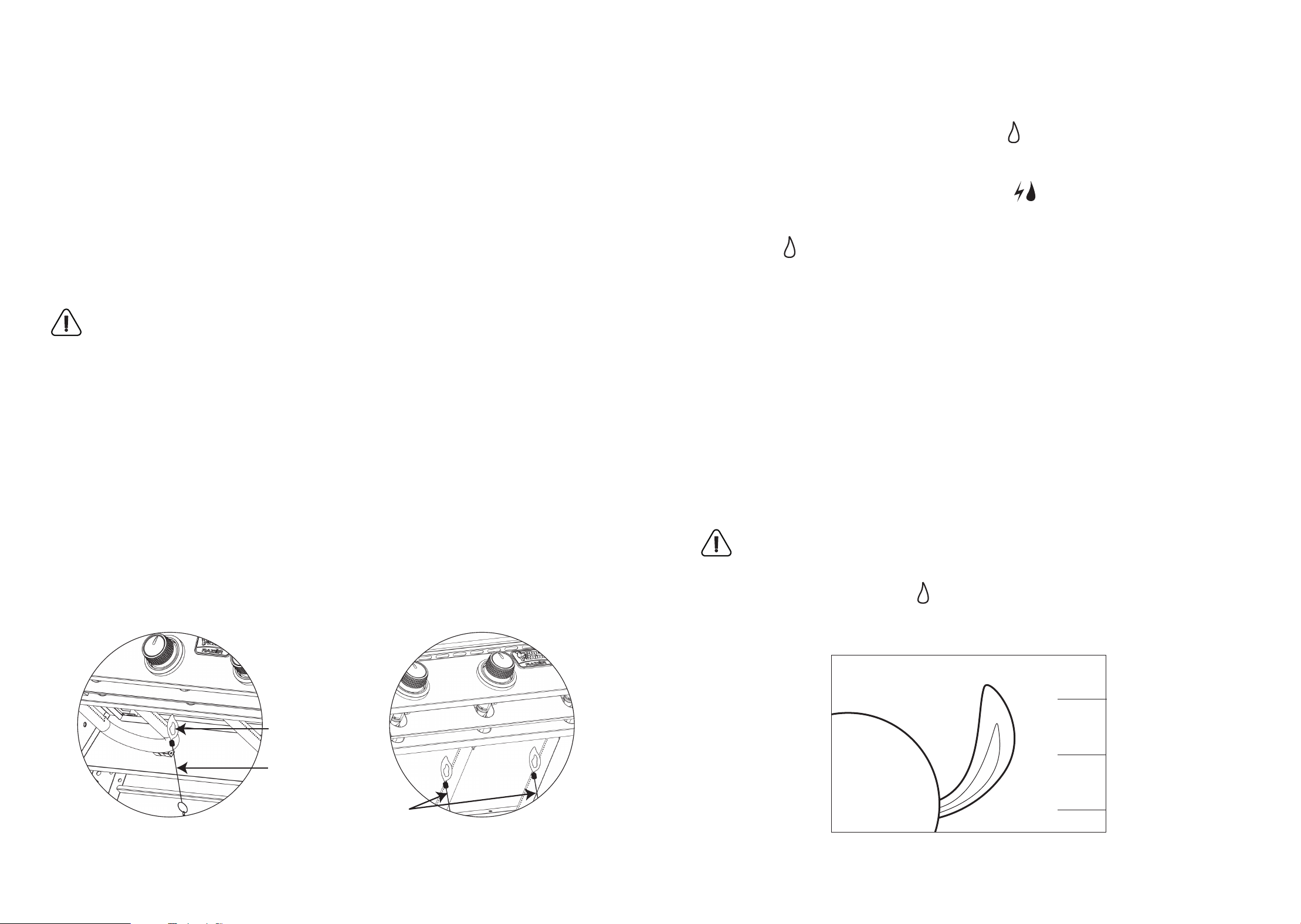

Please refer to the diagram for proper installation (Figure 1)
If the burner/venturi tube does not rest flush to the orifice, as
shown, please contact us for assistance.
Burner Connections
Checking for Leaks
1.
2.
3.
4.
5.
Make 2-3 0Z of leak detection solution by mixing one part
liquid dishwashing soap with three parts water.
Make sure control knobs are in the '' OFF'' position (Figure 2)
Connect LP gas tank per ''Installing LP Gas Tank'' section.
Turn LP gas tank valve to ''OPEN''.
Spoon several drops of solution, or use a squirt bottle, at all ''X''
locations (Figures 1 and 3).
a. If any bubbles appear, turn LP gas tank valve to "CLOSED",
reconnect and re-test.
b. If you continue to see bubbles after several attempts, turn
LP gas tank valve to ''CLOSED'' and disconnect LP gas tank.
c. If no bubbles appear after one minute, turn LP gas tank valve
to "CLOSED", wipe away the solution and proceed.
Tank/Gas Line Connection
Failure to inspect this connection or follow these instructions
could cause a fire or an explosion, which can cause death, serious
bodily injury, or damage to property.
Warning
Figure 1
LP Gas
Valve with
Orifice
Burner/
Venturi
Tube
LP Gas
Connection
OFF
APAGADO
Figure 3
Figure 2
33 34
Figure 6
1.
2.
3.
4.
Make sure all labels, packaging and protective films have been
removed from the griddle.
Light griddle per "Lighting" section.
Remove manufacturing oils before cooking on this griddle for
the first time.
Season your griddle per "Seasoning Griddle" section.
1.
2.
3.
4.
Open side shelves
Check for obstructions of airflow to the burners. Spiders,
insects, and webs can clog the burner/venturi tube. A clogged
burner tube can lead to a fire.
All control knobs must be in the " OFF" position (Figure 2).
Connect LP gas tank per "Installing LP Gas Tank" section.
9. After lighting, observe the burner flame Make sure all burner
ports are lit and flame height matches ilustration (Figure 6).
First Use
Lighting
Operating Main Burners
Figure 4 Figure 5
Match
Lighting
Hook
Lighting
Hook
Match
Match
Keep outdoor gas cooking appliance area clear and free from
combustible materials, gasoline and other flammable vapors and
liquids.
Do NOT obstruct the flow of combustion and ventilation air.
Check and clean burner/venturi tubes for insects and insect
nests. A clogged tube can lead to fire.
Do NOT use non-stick cooking sprays because they contain a lot
of water and can burn onto the griddle, damaging the surface.
Do NOT use corn oil as it contains a high level of sugar, which can
carmelize and burn onto the surface.
Caution
Important: Always use the Lighting Hook (included) when lighting
burners with a match.
Note: Each burner lights independently - repeat steps 5-9 for the
other burmers.
If burner flame goes out during operation, immediately turn
the control knobs to the " OFF" position, turn the LP gas tank
valve to "CLOSED" and open the lid to let the gas clear for 5 min-
utes before re-lighting.
Caution
5.
6.
7.
8.
Tum LP gas tank valve to "OPEN"
Push and turn any control knob to (HIGH). The burner
should light. If it does not, repeat up to three times.
If ignition does not occur in 5 seconds, turn the burner control
knob " OFF," wait 5 minutes, and repeat the lighting
procedure.
If the igniter does not light the burner, use a lit match secured
with the Lighting Hook (included with the griddle) to light
bumers. Access the burners from under the griddle. Position lit
match near side of bumer (Figures 4 and 5).
Dark
Slight
Slight
Burner
Flame
Yellow
Blue
Blue
35 36
SECTION G
Cleaning and Care
Caution
1.
2.
3.
4.
Tum LP gas tank valve to "CLOSED"
Turn all control knobs clockwise to the " OFF" position
(Figure 2)
Note: A "poof" sound is normal as the last of the LP gas is
burned Disconnect LP gas tank per "Disconnecting LP Gas
Tank" section
Season your griddle per "Seasoning Griddle" section.
Turning Off
Controlling Flare-ups
If a grease fire develops, turn control knobs to the " OFF" posi-
tion and LP gas tank valve to "CLOSED". Do NOT use water on a
grease fire. This can cause the grease to splatter and could result
in serious burns, bodily harm or other damage.
Do NOT leave griddle unattended while preheating or burning off
food residue on or (HIGH). If griddle has not been cleaned,
a grease fire can occur.
Caution
When cooking, fire extinguishing materials should be readily
accessible. In the event of an oil/grease fire, use type BC dry
chemical fire extinguisher or smother with dirt, sand, or baking
soda. Do NOT attempt to extinguish with water.
Flare-ups are a part of cooking meat on a griddle and add to the
unique flavor of grilling.
Excessive flare-ups can over-cook your food and be dangerous.
Important: Excessive flare-ups result from the build-up of grease
in the grease cup.
If a grease fire occurs, turn the control knob(s) to " OFF" until the
grease burns out.
If excessive flare-ups occur, do not pour water onto the flames.
Warning
1.
2.
3.
Trim excess fat from meats prior to cooking.
Cook high fat content meats on (LOW) setting or indirectly.
Ensure that your griddle is on a hard, level, non-combustible
surface and the grease is allowed to drain into grease
receptacle.
1.
2.
3.
AlI cleaning and maintenance should be done when griddle is
cool and with the fuel supply disconnected.
Do NOT clean any griddle part in a self-cleaning oven. The
extreme heat will damage the finish.
Do NOT enlarge valve orifices or burner ports when cleaning
the valves or burners.
Notices
1.
2.
3.
This griddle should be thoroughly cleaned and inspected on a
regular basis.
Abrasive cleaners will damage this product.
Never use oven cleaner to clean any part of griddle.
Minimize Flare-ups:
37 38
Before Each Use:
1.
2.
3.
4.
5.
6.
Keep the griddle area clean and free from any combustible
materials, gasoline, and other flammable vapors and liquids.
Do NOT obstruct the flow of the combustion of LP gas and the
ventilation of air.
Keep the ventilation opening(s) of the LP gas tank area free
and clear from debris.
Visually check the burner flames to make sure your griddle is
working properly (Figure 11).
See sections below for proper cleaning and seasoning
instructions.
Check for obstructions of airflow to the burners. Spiders,
insects and webs can clog the burner/venturi tube. A clogged
burner tube can lead to a fire.
Cleaning Cart Surfaces
1.
2.
3.
4.
Wipe surfaces clean with mild dish washing detergent or
baking soda mixed with water.
For stubborn surfaces, use a citrus-based degreaser and a
nylon scrubbing brush.
Rinse clean with water.
Allow to air dry.
Cleaning Main Burners
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Turn LP gas tank valve to "CLOSED".
Turn all control knobs clockwise to the " OFF" position.
Note: A "poof" sound is normal as the last of the gas is burned.
Disconnect LP gas tank per "Disconnecting LP Gas Tank"
section.
Remove griddle by lifting it off the cart.
Remove burners by removing the fasteners, which secure the
bumers to the frame bottom.
Lift burners up and away from gas valve orifice.
Disconnect wire from spark electrode.
Clean venturi of each burner with a small bottle brush or com-
pressed air.
Remove all residue and dirt from burner surface.
Clean any clogged ports with a stiff wire (such as an opened
paper clip).
Inspect burners for any damage (cracks or holes). If damage is
found, replace with new burner(s) from manufacturer.
Re-install burner(s) Checking to insure that gas valve orifice is
correctly positioned inside each burner/venturi tube Also,
check position of spark electrode.
Connect wire to spark electrode.
Replace griddle.
Connect LP gas tank per "Installing LP Gas Tank" section.
Perform leak test per "Checking for Leaks" section.
Use this chart to see if your burmners need to be cleaned.
Normal: Soft blue flames with yellow tips between 1 in - 2 in.
height.
Need cleaning: Noisy with hard blue flames.
Need to be replaced: Wavy with yellow flames.

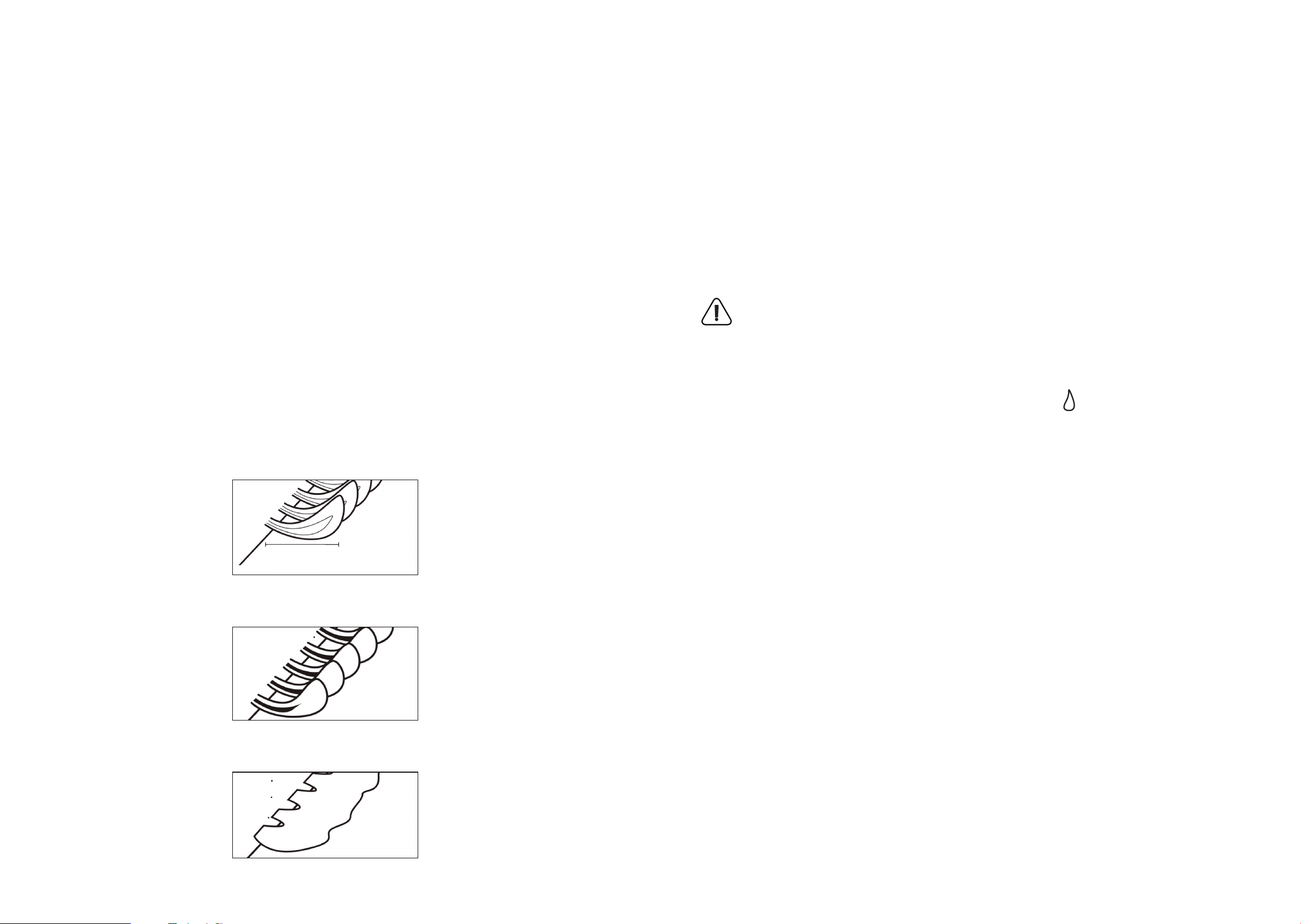

Burner Flame Conditions
1-2in/25.4-50.8mm
Figure 11
Two (2) people will be required to remove griddle.
Caution
39 40
Before Storing
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Turn the LP gas tank valve to "CLOSED".
Turn all control knobs clockwise to the " OFF" position.
Note: A "poof" sound is normal as the last of the gas is burned
Disconnect LP gas tank per "Disconnecting LP Gas Tank"
section.
Clean all surfaces.
Lightly coat the burner(s) with cooking oil to prevent excess
rusting.
Season your griddle per "Seasoning Griddle" section.
If storing the griddle indoors, disconnect the LP tank per "Dis-
connecting LP Gas Tank" section.
Place the protective cap cover on the LP tank and store the
tank outdoors in a well ventilated area out of direct sunlight.
If storing the griddle indoors, cover the griddle and store in a
cool, dry place.
If storing the griddle outdoors, cover the griddle with a griddle
cover for protection from the weather.
Tools needed for seasoning:
1.
2.
3.
4.
5.
Metal scraper or metal spatula.
Cooking oil, such as vegetable oil or extra virgin olive oil.
Paper towels.
BBQ stone or steel wool.
Finishing oil such as flaxseed oil.
First Use
1.
2.
3.
4.
5.
6.
7.
Light griddle per "Lighting" section.
Keep burners on and (HIGH) for 15 minutes.
Turn griddle off per the "Turning Off" section.
Allow the griddle to cool, but still be slightly warm.
Wipe off the griddle surface and inner and outer walls with
paper towels until clean.
Note: While drying, you may notice the towel may have some
discoloration. This is normal.
Apply finishing oil to the griddle surface, inner and outer walls,
and evenly coat with rolled-up paper towels.
Repeat this process at least twice.
After Each Use
1.
2.
3.
Turn griddle off per "Turning Off" section.
While the griddle is still warm, gently scrape off all food resi-
due with a scraper.
Wipe down griddle surface, inner and outer walls with a towel
or paper towels.
Important: season your griddle every time you use it.
Griddle chefs at Japanese steakhouses and short-order restau-
rants season their griddles all the time, and it is critical for you to
do it too, Seasoning helps prolong the life of your griddle, makes
the cooking surface non-stick and helps prevent rust.
For more information, please visit lumbregril.com/Lumbre
grillFAQ.
Seasoning Griddle
Do NOT use corn oil as it contains a high level of sugar, which can
carmelize and burn onto the surface.
Caution
41 42
4.
5.
6.
7.
8.
9.
10.
11.
For stubborn food residue:
a. Light griddle per "Lighting" section
b. Apply cooking oil to griddle surface
c. Allow oil to "boil" food residue off
d. Repeat steps 1 through 3
e. If necessary, use a BBQ stone and scrub the food residue off
f. Continue with "Seasoning Griddle" instructions
Wipe off griddle surface, inner and outer walls with paper
towels until clean.
Note: While drying, you may notice the towel has some discol-
oration This is normal.
Apply finishing oil to griddle surface, inner and outer walls, and
evenly coat with rolled up paper towels.
Light griddle per "Lighting" section.
Keep burners on and (HIGH) for 15 minutes or until fin-
ishing oil starts to smoke.
Turn griddle off per "Turning Off" section.
Repeat steps 6-9 a minimum of 2 additional times.
Following "Before Storing" section.
Refurbish the Griddle Surface
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
If griddle is off, light per "Lighting" section for 10 minutes. Then
turn griddle off per "Turning Off" section.
If griddle is on, turn griddle off per "Turning Off" section.
While the griddle is still warm, use a scraper or metal spatula
to remove as much rust and food residue as you can from
griddle surface, inner and outer walls.
Apply a liberal amount of cooking oil to the griddle surface.
Using a BBQ stone, scrub the griddle surface. Apply additional
cooking oil as needed.
Wipe off griddle surface, inner and outer walls with paper
towels.
Repeat steps 3-5 until paper towels no longer show any rust.
Apply finishing oil to the griddle surface, inner and outer walls
and evenly coat with rolled up paper towels.
Light griddle per "Lighting" section
Keep burners onand(HIGH) for 15 minutes or until
finishing oil starts to smoke.
Turn griddle off per "Turning Off" section.
Repeat steps 7-10 until the surface has a nice dark color.
Following "Before Storing" section.
SECTION H
Troubleshooting
Problem Possible Cause Solutions
The burner will
not light using
igniter
The LP gas tank
valve is closed
Make sure the regulator is
securely attached to the
the LP gas tank per "Installing
the LP Gas Tank", then turn
the LP gastank valve to
"OPEN"
The LP gas tank is
low or empty
Exchange, refill, or replace
the LP gas tank
Wires or electrode
covered with
cooking residue
Clean the wire and/or
electrode with rubbing
alcohol
The Electrode and
burners are wet
Wipe dry with cloth
The electrode is
cracked/broken-
sparks at crack
Replacement part(s) may be
needed-contact VIVOHOME
at email
The Wire is shorting
(sparking) between
igniter and
electrode
Replacement part(s) may be
needed-contact VIVOHOME
at email
Bad igniter Replacement part(s) may be
needed-contact VIVOHOME
at email
The LP gas leaks 1.
2.
3.
Turn the LP gas tank valve
to "CLOSED"
Wait 5 minutes for gas
to clear
Follow "Checking for
Leaks" section
43 44
SECTION H
Troubleshooting
Problem Possible Cause Solutions
The burner will
not light with
match
No gas flow Check if LP gas tank is empty
A.
B.
If empty, exchange, refill,
or replace LP gas tank
If not, refer to "Sudden
drop in gas flow or
reduced flame height"
(see below)
The LP gas leaks 1.
2.
3.
Turn the LP gas tank valve
to "CLOSED"
Wait 5 minutes for gas to
clear
Follow "Checking for
Leaks" section
0bstruction of
gas flow
1.
2.
Clear the burner/venturi
tube
Check for bent or kinked
hose
The LP gas tank is
low or empty
Exchange, refill, or replace
the LP gas tank
The coupling nut
and regulator are
not fully connected
Turn the coupling nut about
one-half to three-quarters
additional turn until a solid
stop; Tighten by hand only-
do NOT use tools
Disengagement of
the valve from the
burner
Re-engage the burner and
valve
Burner ports
clogged or blocked
Clean the burner ports
Spider webs or
insect nest in
venturi
Clean the burner/venturi
tube
SECTION H
Troubleshooting
Problem Possible Cause Solutions
Sudden drop
in gas flow or
reduced
flame height
Out of gas Exchange, refill, or replace
the LP gas tank
Irregular flame
pattern, flame
does not run
the full length
of the burner
Burner ports are
clogged or blocked
Clean the burner ports
The flame is
yellow
or orange
New burner may
have residual
manufacturing oils
Burn the griddle for 15
minutes onand (HIGH)
with the lid closed
Spider webs or inse-
ect nest in venturi
Clean the venturi
Overfilling
prevention device
may have been
activated
1.
2.
3.
a.
b.
c.
d.
e.
f.
g.
Turn the control knobs
to " OFF"
Wait 30 seconds and light
the griddle
If flames are still too low,
reset the overfilling
prevention device:
Turn the control knob(s)
" OFF"
Turn the LP gas tank valve
to "CLOSED"
Disconnect the regulator
Turn the control knobs to
and(HIGH)
and wait 1 minute
Turn the control knobs to
" OFF"
Reconnect the regulator
and leak check connec-
tions, being careful not to
fully open the valve
Light the griddle
45 46
SECTION H
Troubleshooting
Problem Possible Cause Solutions
The flame is
yellow
or orange
Food residue,
grease, etc on
burners
Clean burner
The flame goes
out
High or gusting
winds
Do not use the griddle in
high winds
Flare-up
Grease buildup Remove and clean all
griddle parts per "Cleaning
and Care" section
Persistent
grease fire
Excess fat in meat Trim fat from meat before
cooking
Excessive cooking
temperature
Adjust to lower cooking
temperature
Low on LP Gas Exchange, refill, or replace
the LP gas tank
Overfilling
prevention device
may have been
activated
Refer to "Sudden drop in
gas flow or reduced flame
height" (see above)
Poor alignment of
the valve to the
burner/venturi
tube
Ensure the burner/venturi
tube is properly engaged
with valve
1.
2.
3.
4.
Turn the control knobs to
" OFF"
Turn the LP gas tank valve
to "CLOSED"
Leave the lid in closed
position and let fire burn
out
After the griddle cools,
remove and clean all parts
per "Cleaning and Care"
section
Grease trapped by
food buildup
around burner
system
SECTION H
Troubleshooting
Problem Possible Cause Solutions
Flashback
(fire in burner
tube(s))
The burner and/or
burner/venturi
tube are blocked
Clean the burners and/or
burner/venturi tube
Griddle Surface
The griddle has
started to rust
With use the griddle surface
will rust, this is normal;
Season your griddle surface
The griddle surface
looks dull
The cooking surface has
gotten too hot, and is no
longer seasoned, so seaon
your griddle surface
47 48
SECTION I
Warranty
The VIVOHOME warranty program is our commitment to you.
We are committed to providing you with a high-quality product
that meets your needs and expectations. To demonstrate our
confidence in the durability and performance of our products,
we offer the following warranty.
This warranty program applies to any orders, purchases, receipts,
or use of any products sold by VIVOHOME and is valid for a
period of 1 year from the date of purchase. However, please note
that this warranty period is only valid for the original order. If
you receive a replacement order during the warranty period, it
will not include a separate warranty period.
WARRANTY COVERAGE
This warranty does not cover damage resulting from misuse,
accident, unauthorized modification, or any other circumstances
not directly related to the manufacturing and design of the
product, including but not limited to:
Parts lost during use.
Normal wear and tear of products or parts.
Incorrect installation (such as using the wrong voltage) or
assembly.
Exceeding the bearing capacity of the product.
Use under extremely harsh conditions.
WARRANTY EXCLUSIONS
●
●
●
●
●
SECTION I
Warranty
VIVOHOME will provide technical support, replacement, refund,
or other solutions based on the nature of the issue. If you wish
to return the original package for any reason, please contact us
for confirmation before proceeding. You can expect to receive a
response within 48 hours.
Thank you for choosing VIVOHOME. We are committed to en-
suring the quality and satisfaction of your purchase. If you have
any questions or need assistance, please do not hesitate to con-
tact our customer service team.
If you find any defects that affect the use of the product or if the
product stops working and cannot be repaired during the war-
ranty period, please contact our customer service team at our
email or via Amazon & app’s direct messaging service as soon as
possible. Provide the following information to expedite the
process:
HOW TO MAKE A WARRANTY CLAIM
Order number
Images and/or videos illustrating the issue
A detailed description of the problem
●
●
●
Improper cleaning or maintenance.
Damage caused by any reason other than the intended use
of the product.
Indirect loss or damage caused by the product.
●
●
●
