Creality MAGE S 3D Printer User Manual

V1.0

HALOT-MAGE S

Create reality，achieve dreams

3D Printer User Manual

Dear Consumers,

Thank you for choosing our products.For the best experience,please read the instructions before operating the Printer. Our

teams are always ready to render you the best services. Please contact us via the phone number or e-mail address provided

at the end when you encounter any problem with the Printer.

For a better experience in using our product, you can also access how to use the printer in the following ways:

View the accompanied instructions and videos in the U disk.

Visit our oﬃcial website www.creality.com to ﬁnd relevant software/hardware information,contact details and operation and

maintenance instructions.

Firmware/Software Downloads and Upgrades

The Printer already supports the following slicing software, and further functions are on the development roadmap.

Download the ﬁrmware and HALOT BOX slicing software at: https://www.creality.com

Download the CHITUBOX slicing software at: https://www.chitubox.com

NOTES

Do not use the printer any way other than described to avoid personal injury or property damage.

Do not place the printer near any heat source or ﬂammable or explosive objects. We suggest placing it in a well-ventilated, low-dust environment.

Do not expose the printer to violent vibration or any unstable environment, as this may cause poor print quality.

Please use recommended resin in case damage to machine.

Do not use any other power cable except the one supplied. Always use a grounded three-prong power outlet.

Please do not open the plastic cover during usage, otherwise the printing will be interrupted.

Do not wear cotton gloves when operating the printer. Such cloths may become tangled in the printers moving parts leading to burns, possible bodily injury, or printer damage.

Please wait after the print is ﬁnished. please wear gloves to take out the print tools.

Children under 10 years should not use the printer without supervision.

Tips Do not plug or unplug the power cord when power on.

Clean the printer frequently. Always turn the power oﬀ when cleaning, and wipe with a dry cloth to remove dust, adhered printing plastics or any other material oﬀ the frame,

guide rails, or wheels. Use glass cleaner or isopropyl alcohol to clean the print surface.

Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety

obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any.

Contents

01-01

Product appearance

02-02Equipment Parameters

03-03Packing list

04-21Operating guidance

22-22Troubleshooting

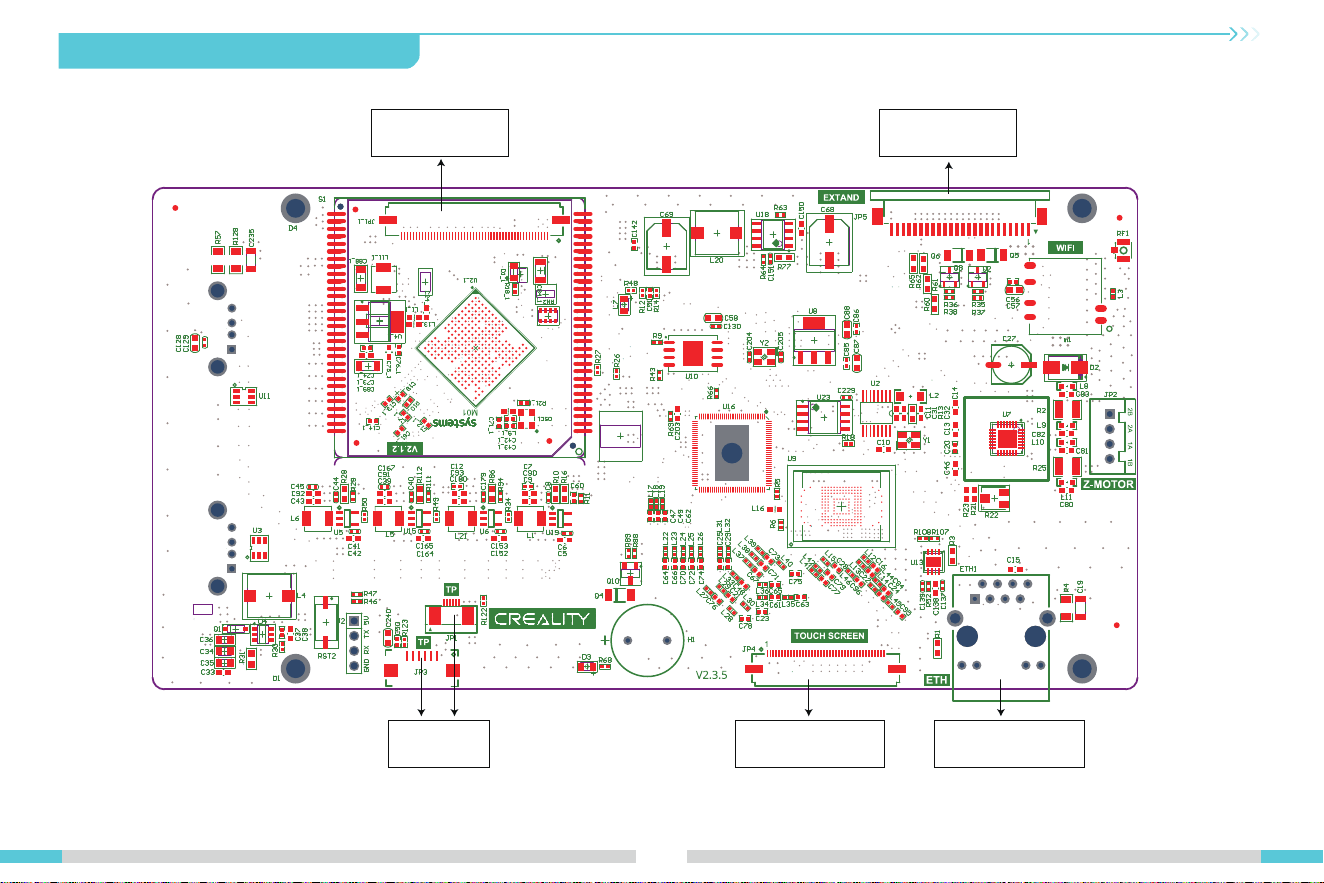

23-24Circuit board wiring diagram

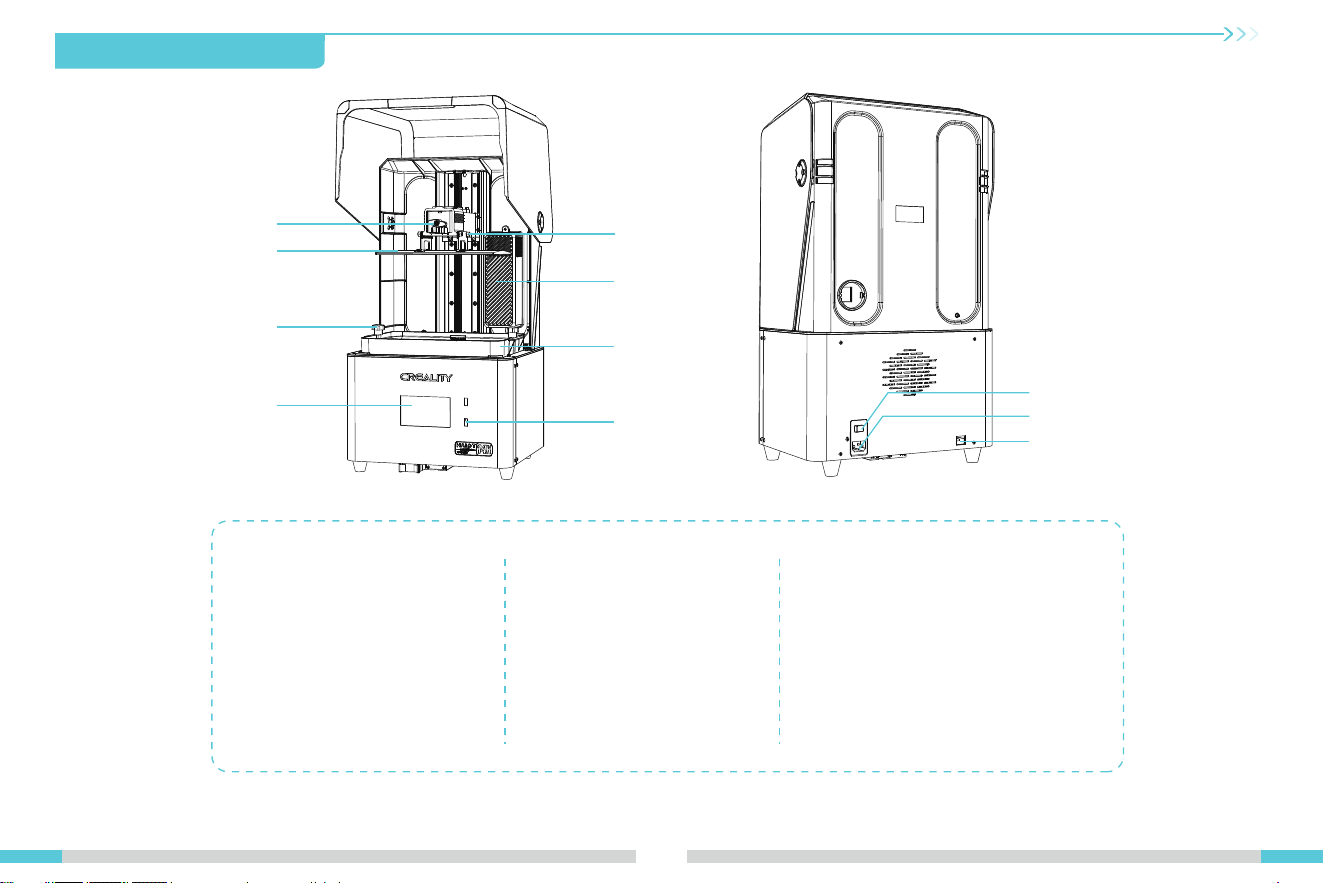

Thumb screw

Forming platform

Hexalobular socket screw

Touch screen

Leveling screw

USB port

Power port

Power switch

Air ﬁlter

Resin vat

RJ45 interface

0101

1. Product appearance

Model Name

HALOT-MAGE S

223*126*230mm（length*width * height)

13320*5120

16.8*24.8μm

45mm/h（0.05mm layer thickness）

0.05-0.2mm

USB Disk，Creality Cloud App, Creality Cloud Online, WiFi Print

中文(简/繁)/ English/ Español/ Deutsche/ Français/ Pусский/ Português/ Italiano/ Türk/Nederlands/Polskie/日本語/한국어

Window 7 and above 64-bit operating systems and Mac systems

Resins with wavelength of 405nm, such as high-speed resins, normal rigid resins, standard resins, elastic resins, high

hardness, high-toughness resins, dental cast resins.

3rd generation LCD integral light source

100-240V~，50/60Hz

100WRated Power

Compatible Resin

Machine Language

Print Method

Slicing Software Operation System

Build Size

Screen resolution

Print screen

Light Source Type

Rated Voltage

Pixel size

Print Speed

Layer Thickness

10.1" print screen

0102

2. Equipment parameters

Basic Parameters

0103

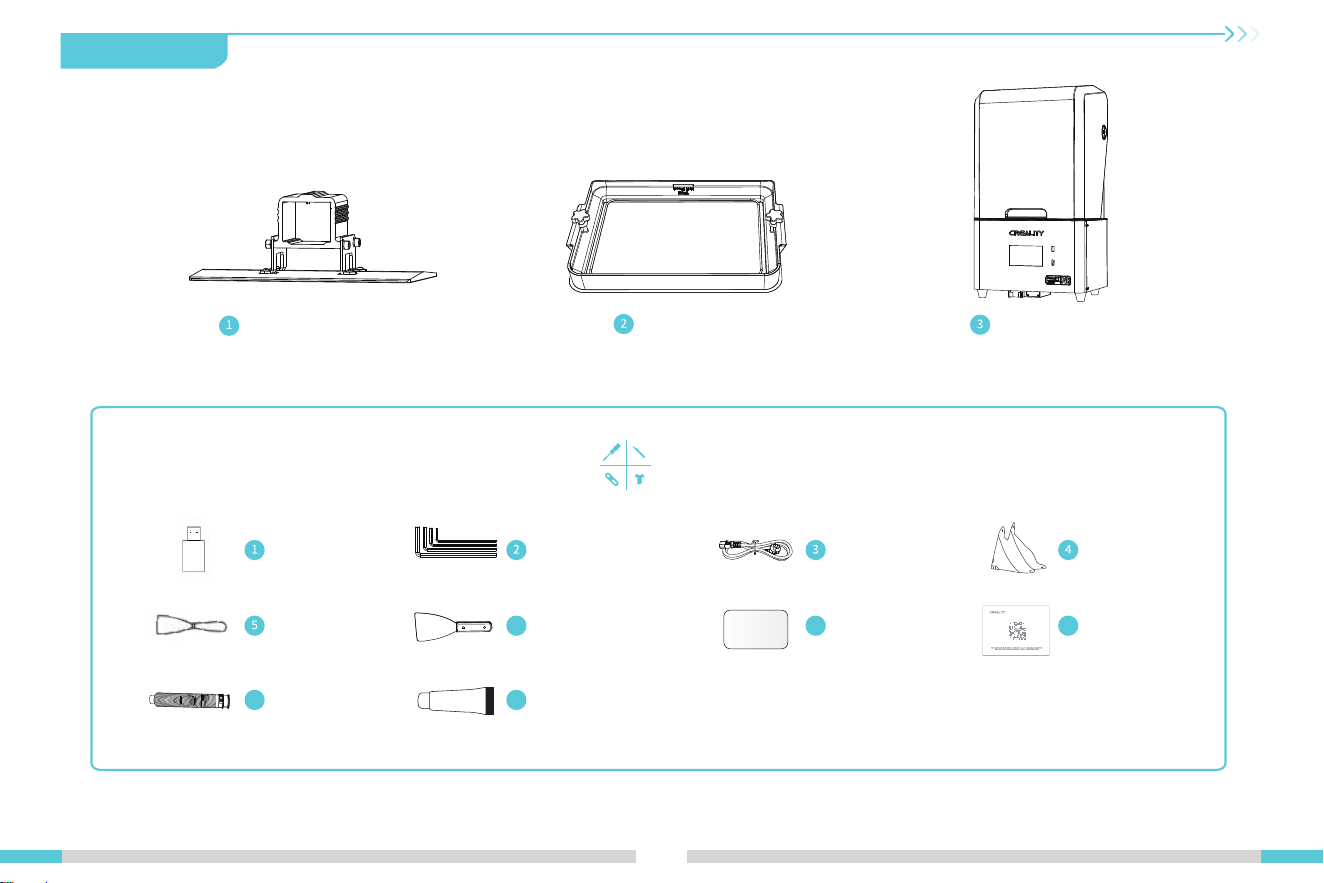

3. Packing list

Print platform ×1

Resin vat ×13D printer ×1

Tips: the above accessories are for reference only lease refer to the physical accessories !

Tool list

U disk ×1

Paper funnelPower cable ×1

Release ﬁlm ×1

Plastic blade ×1

Screwdrivers ×1set

Metal blade ×1Calibration

card ×1

Vent-pipe ×1

Grease ×1

0104

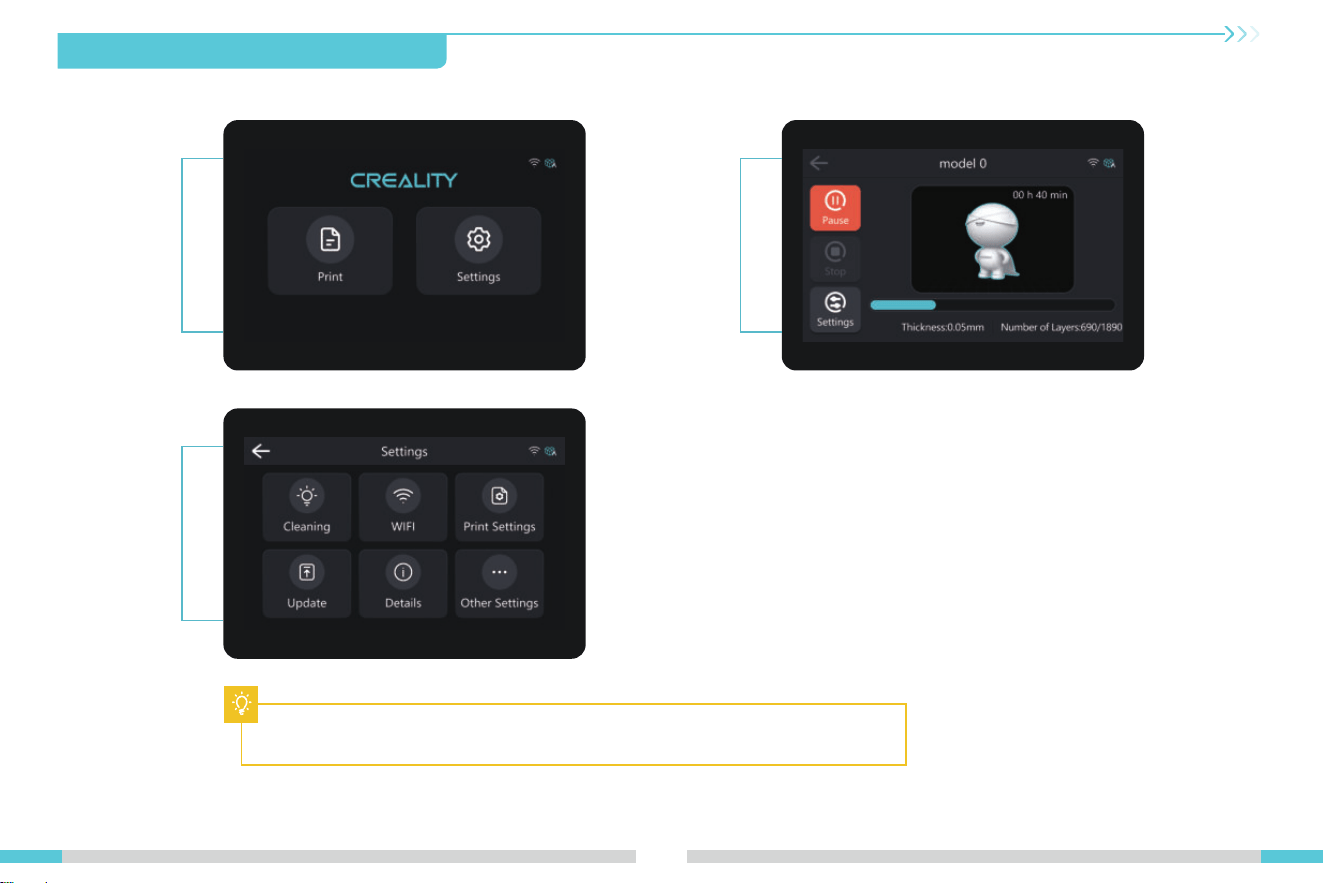

4. Information about the interface

0104

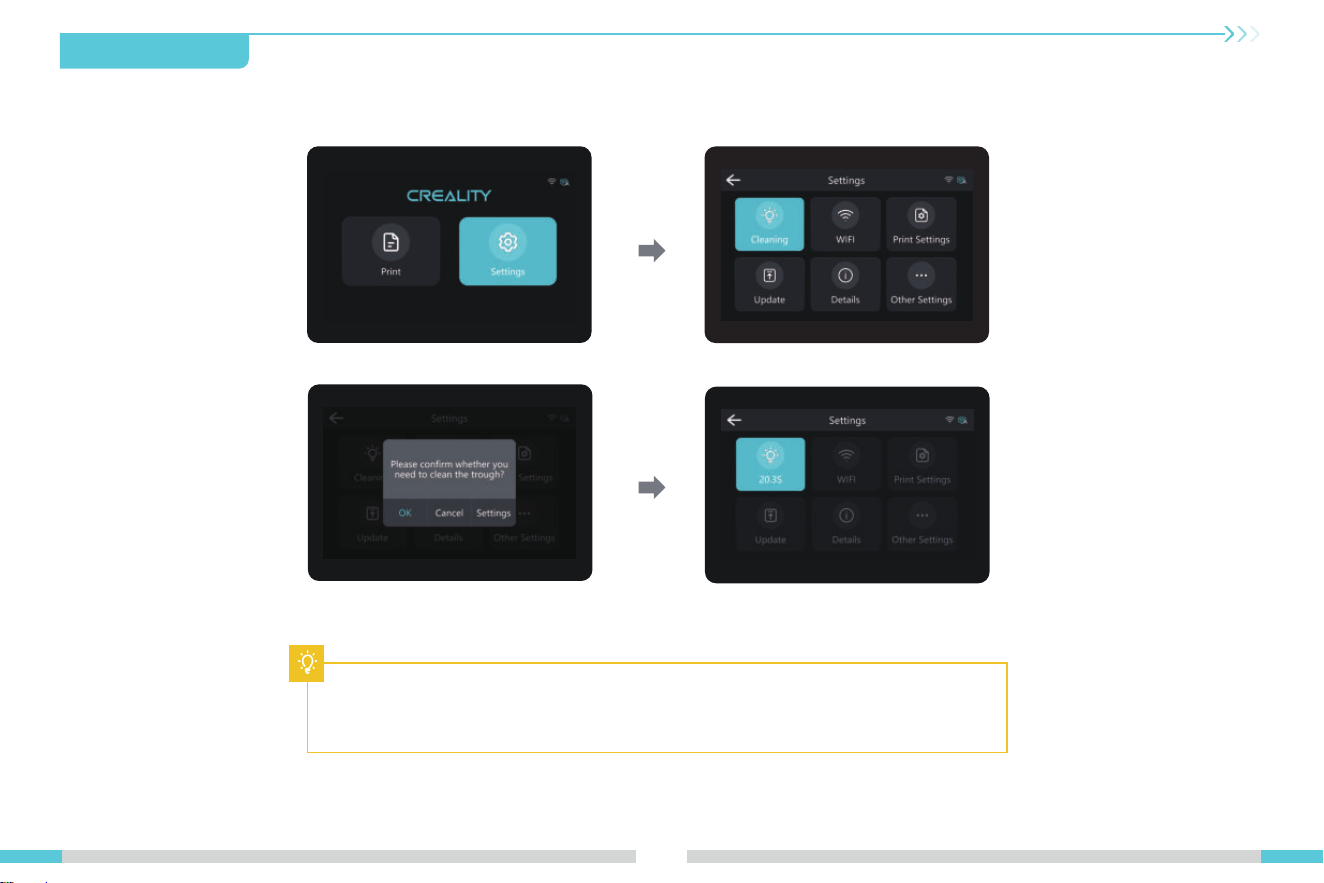

Home

System

interface

Cleaning: click to clean the chute;

WLAN: click to set WALN;

Print Settings： click to set the print parameters, Z-axis movement,

machine control, print mode, purge system, feed system and so on;

Update： click to upgrade the ﬁrmware version (local & online upgrade);

Details：click to bundle with Creality Cloud and view information about the device;

Other Settings：click to set language and locale settings, custom skins,

restore factory settings, time-lapse photography settings, device

maintenance settings and other functional settings.

The current interface is for reference only. Due to the continuous upgrading of functions,

it shall be subject to the latest software/ﬁrmware UI published on the oﬃcial website.

0105

5. Device Check

Note: Check that the light source is working properly.

The current interface is for reference only. Due to the continuous upgrading of functions,

it shall be subject to the latest software/ﬁrmware UI published on the oﬃcial website.

0106

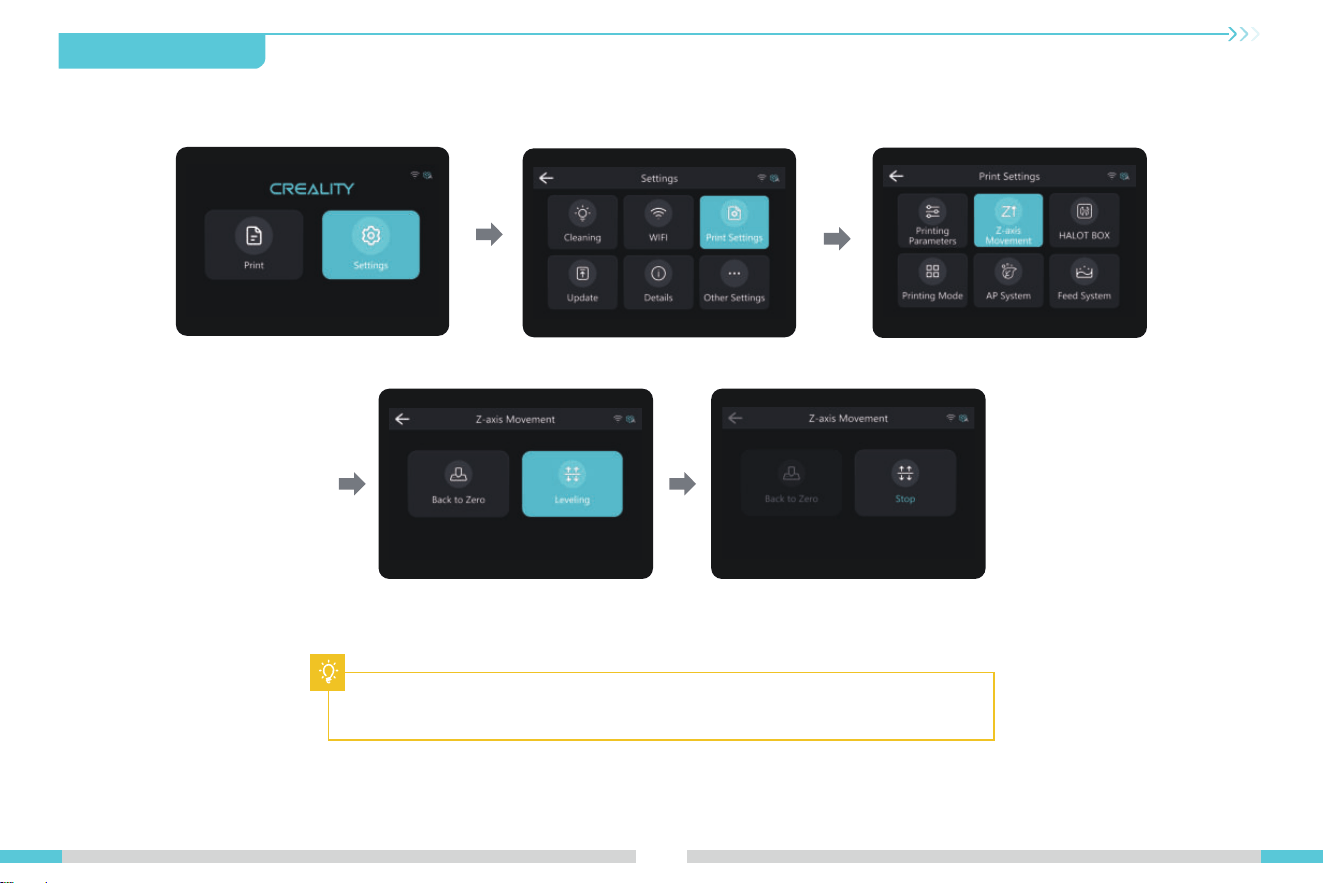

6. Leveling Guide

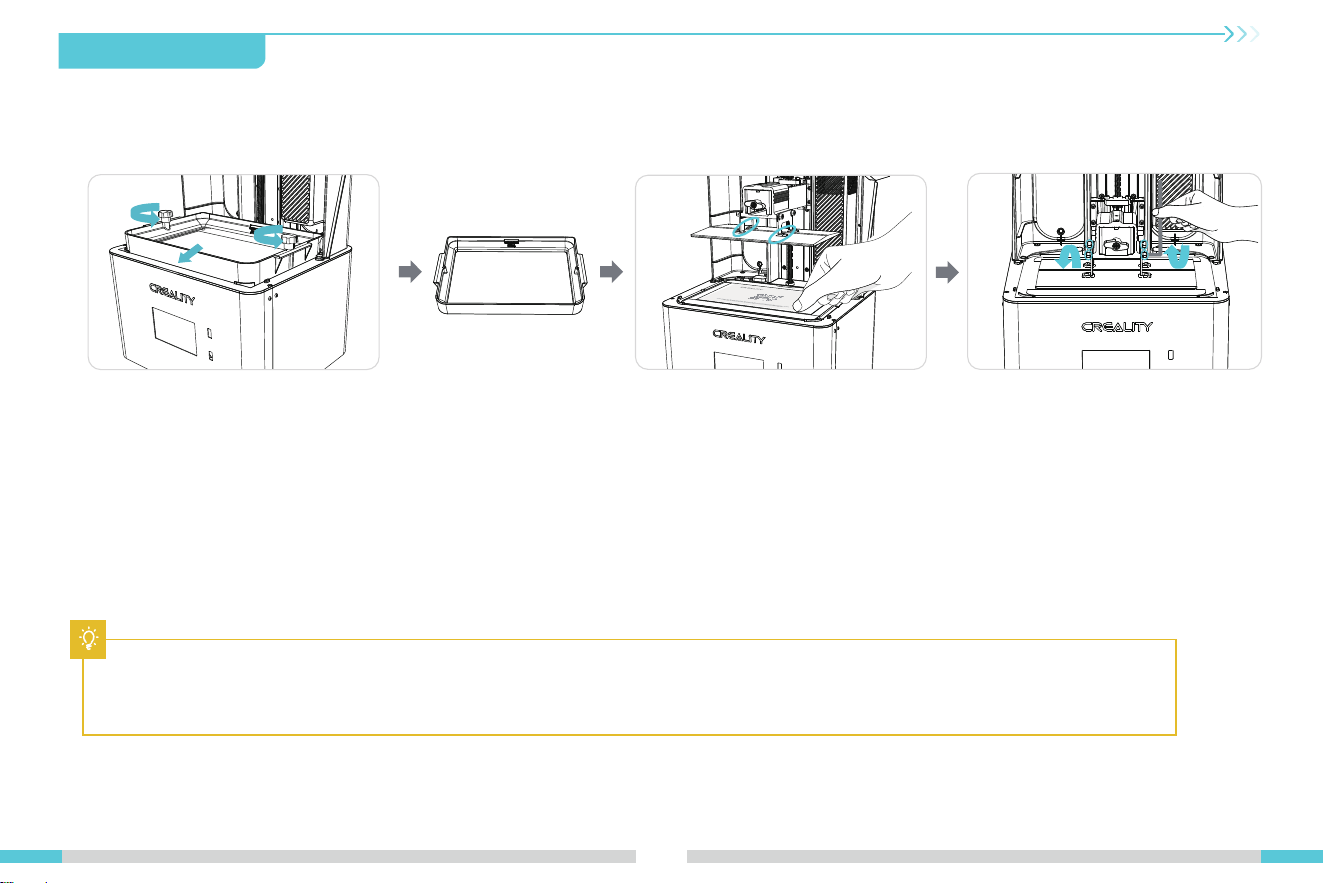

1. Raise the platform, loosen rubber screws on the left

and right sides of the resin vat, and take out the resin vat.

2. Loose the four screws on the

connecting plate on molding platform

plate, attach calibration card on the

printing screen, press Settings →Print

Settings→ Z axis movement →Leveling,

Check whether the platform ﬁts evenly

with the paper by referring to the steps on

Page 7.

3.After conﬁrming that the calibration

card ﬁt evenly, lock the four screws of the

platform.

Note: The platform has been leveled at the factory. If it needs leveling due to transportation or other reasons, please follow the steps below to

adjust the printing platform.

0107

6. Leveling Guide

The current interface is for reference only. Due to the continuous upgrading of functions,

it shall be subject to the latest software/ﬁrmware UI published on the oﬃcial website.

0108

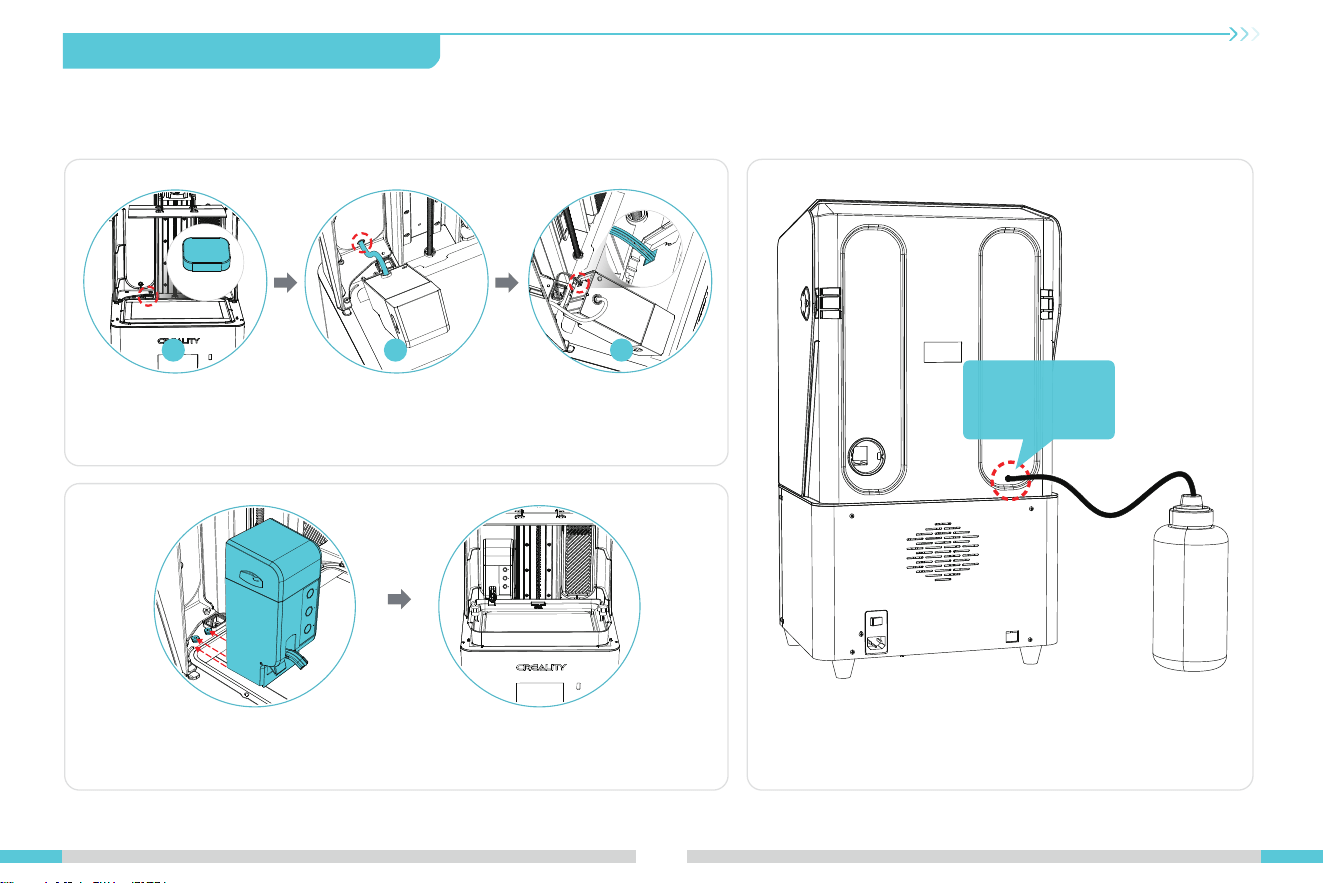

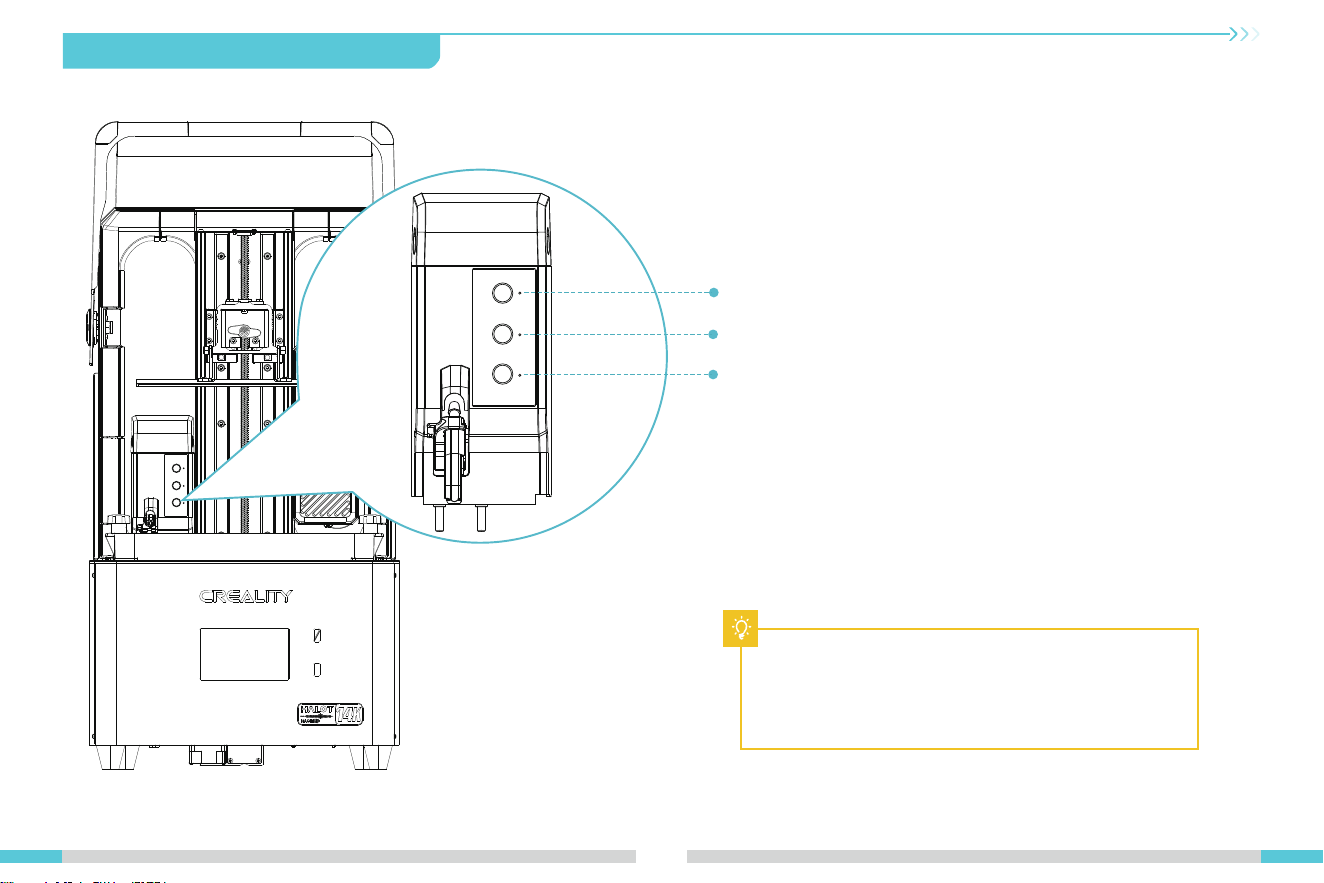

7. Guidance on the use of the puriﬁcation system/module

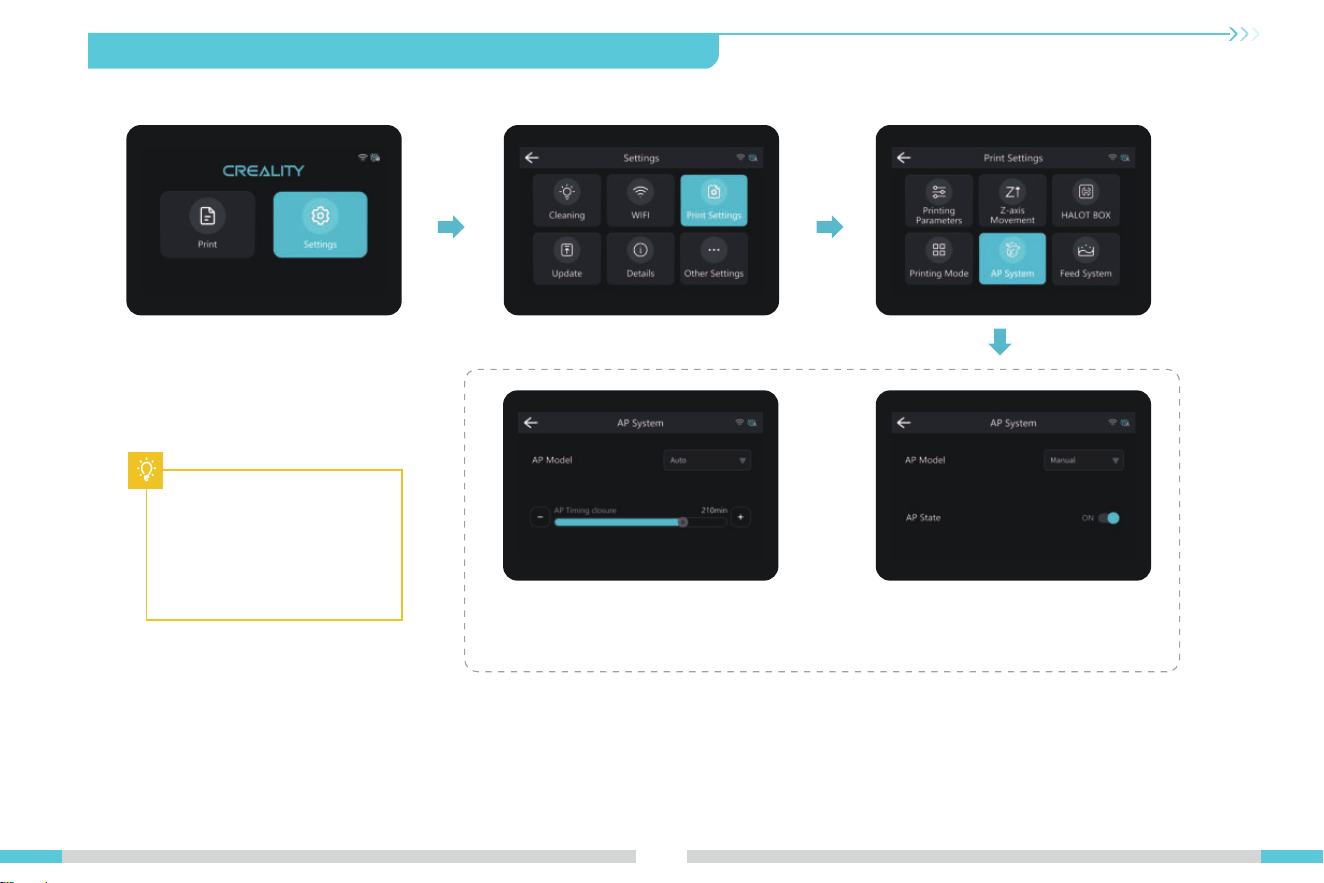

Click to SWITCH mode, and the timed

puriﬁcation in [Auto] mode is based

on the working state of the device,

according to the set time;

The working status of the puriﬁcation

module is controlled by switching in

the [Manual] mode.

The current interface is for

reference only. Due to the

continuous upgrading of

functions, it shall be subject to

the latest software/ﬁrmware

UI published on the oﬃcial

website.

0109

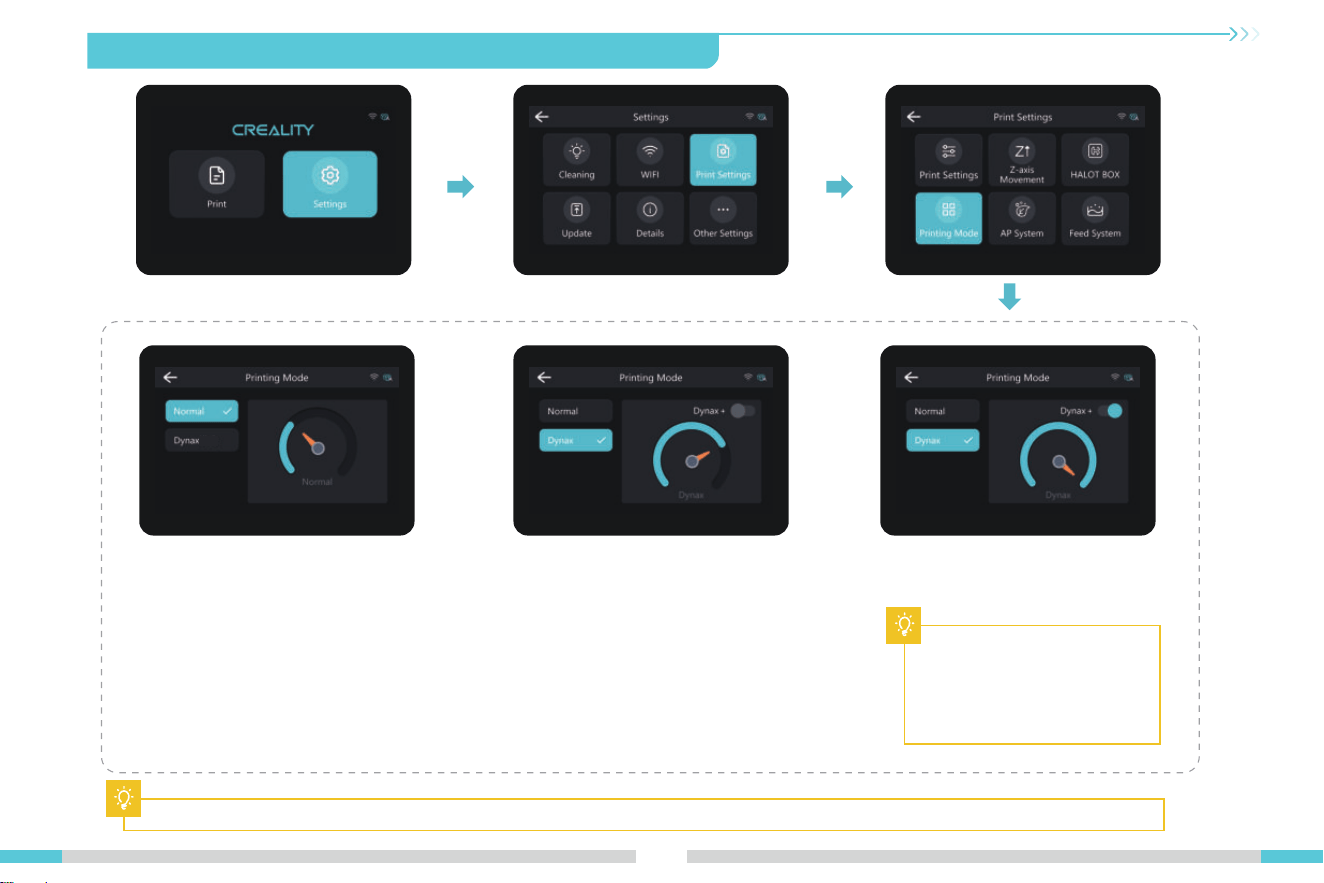

8. Guidance on the use of Dynax mode (high-speed mode)

The current interface is for reference only. Due to the continuous upgrading of functions, it shall be subject to the latest software/ﬁrmware UI published on the oﬃcial website.

[Normal] Description: This mode limits

the printing speed of the device and

some parameter settings;

[Dynax] Description: In this mode, the

upper limit of the device's printing speed

is increased and some parameter settings

are unlocked.

Description of Dynax Mode:

1. [Buﬀer Layer] Parameter description: to limit the speed of the device within this setting and to

prevent resin splashing;

2. When the mode is not unlocked, the slice ﬁle is executed only in the maximum value of the normal

mode using the high-speed parameter;

3. The [Normal Mode] is the default for new devices and device resets.

4. [Dynax+] Mode: When this mode is turned on, the printing speed will be pushed to the maximum. But

the surface of the printed model may not be as delicate as in other modes.

Note: There are some

requirements for Dynax mode

to be operated by the user.

Please contact the oﬃcial

customer service if you have

any questions during use.

0110

Size： 286*198mm

Thickness： 0.3mm

Light Transmittance

92%

5 6

Tear oﬀ the release ﬁlm protective ﬁlm

Position the release ﬁlm and the ﬁxing plate (Note: When i

nstalling, distinguish the front and back of the release ﬁlm

according to the label instructions on the release ﬁlm).

Tips: ① The diagram is a reference for the ﬁlm change procedure, please refer to the physical product; if there are excess edges after installation of the

release ﬁlm, you will need to cut them oﬀ.

② It is recommended to replace the release ﬁlm when it has been used for more than 200 hours.

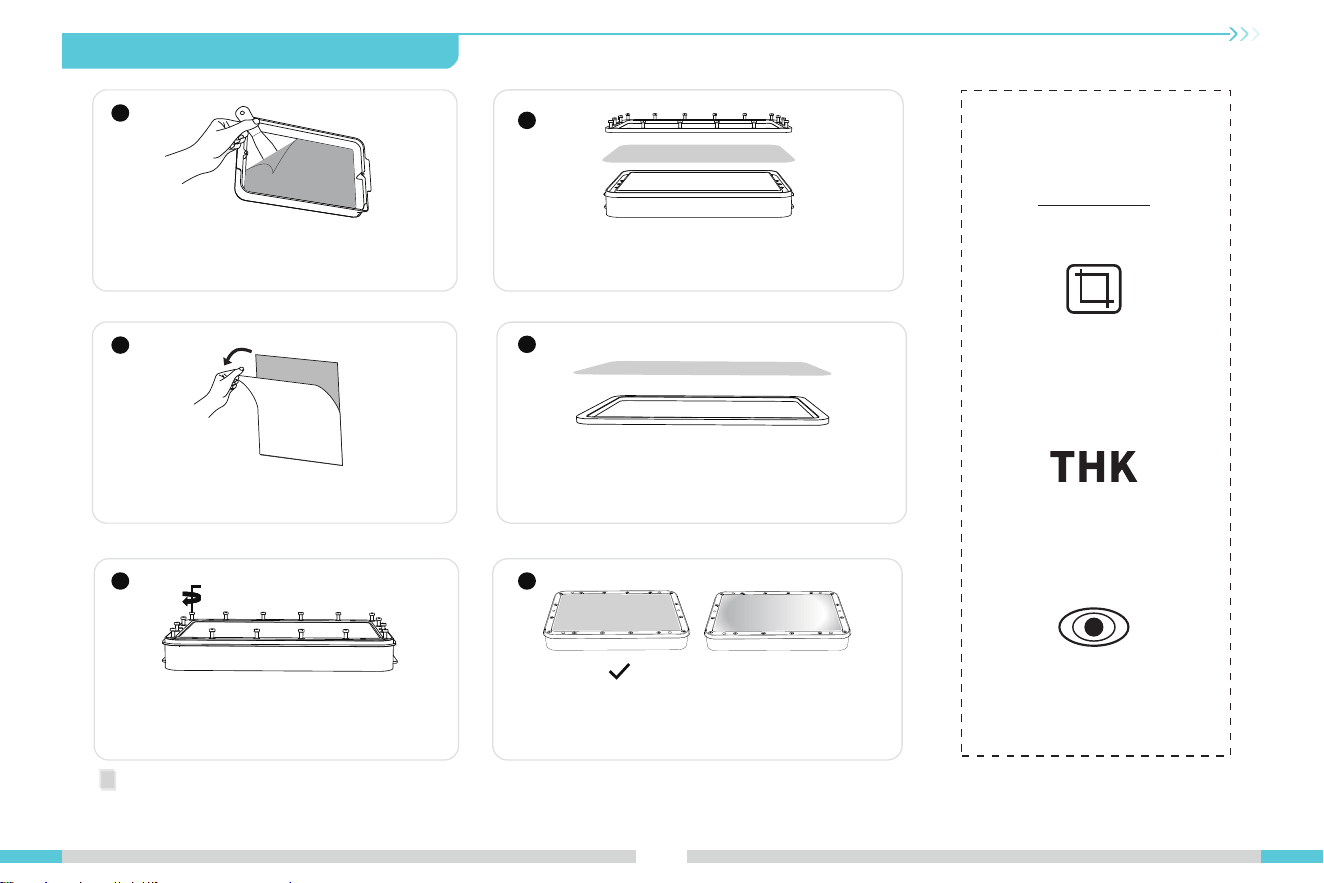

9. Release Film (FEP) Replacement

Recycle the resin in the resin vat back into the

original bottle , then clean up. (Note: Please make

sure there are no residue matter left inside the Vat)

Remove all the screws at the bottom of the resin vat, take

out the ﬁxing plate and the release ﬁlm. (Note: The ﬁxing

plate andthe vat bottom need to be cleaned)

Press into the bottom of the vat, and tighten the

screws diagonally across from each other one at

a time. (Note: Make sure there are no debris

between the ﬁxing plate and release ﬁlm)

Make sure the release ﬁlm is ﬂat and tight after installation.

(Note: If not ﬂat or loose, please check whether the screws

are locked or the release ﬁlm is abnormal)

Parameters

0111

1000ml

500ml

10. Resin in

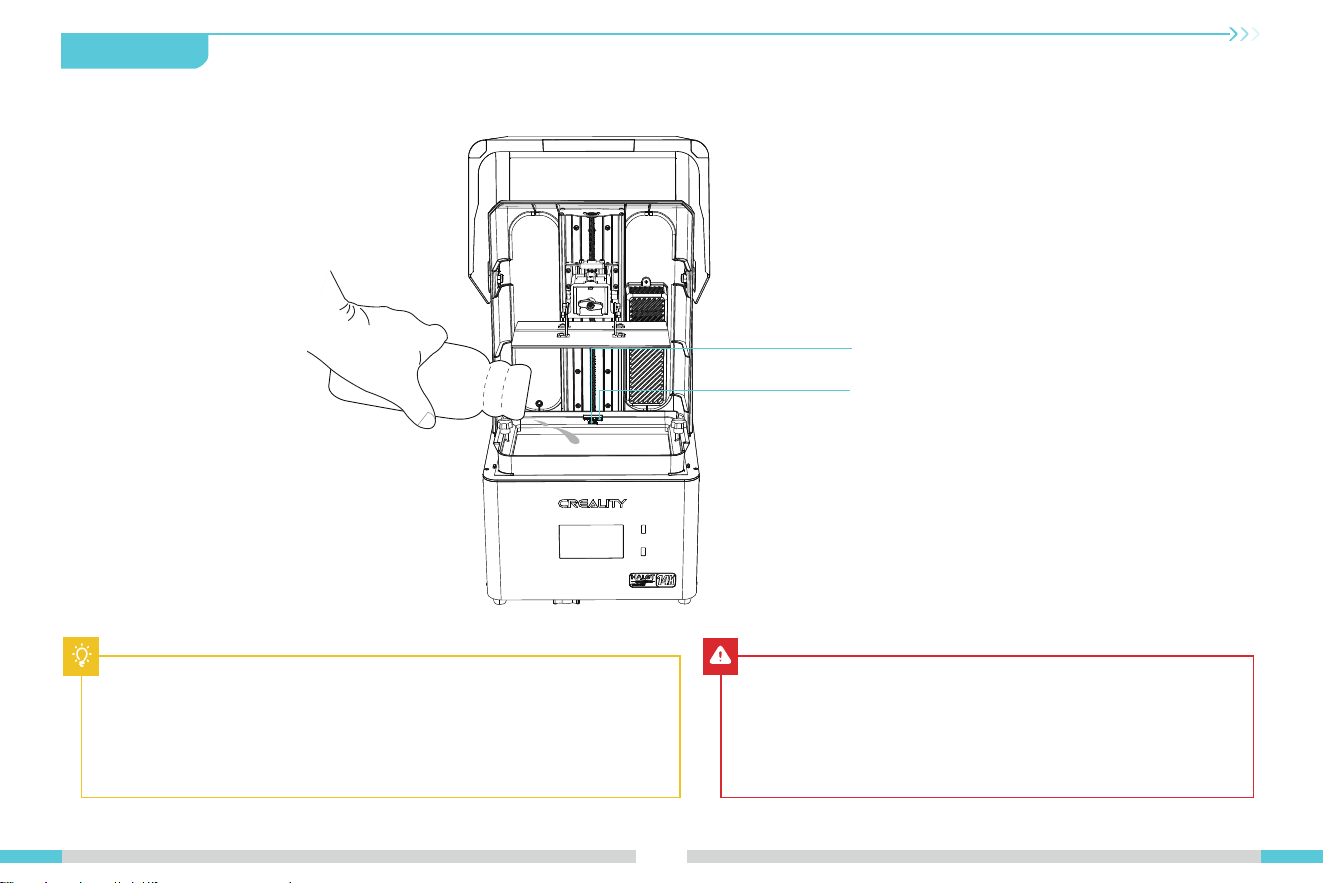

Pour the UV photosensitive resin into the resin vat. The slot capacity is 500ml/1000ml。

Caution:

① Resin may cause skin irritation or an allergic skin reaction.

Please wear gloves before use to avoid direct contact with the skin.

② Do not exceed the maximum capacity scale of the tray when

pouring in ﬁlaments to prevent them from overﬂowing during the

printing process

Tips: How to change resin?

Take out the resin vat slowly, pour out the remaining resin into the container,

clean the resin vat, pour in new resin,and then install the resin vat to the

machine.

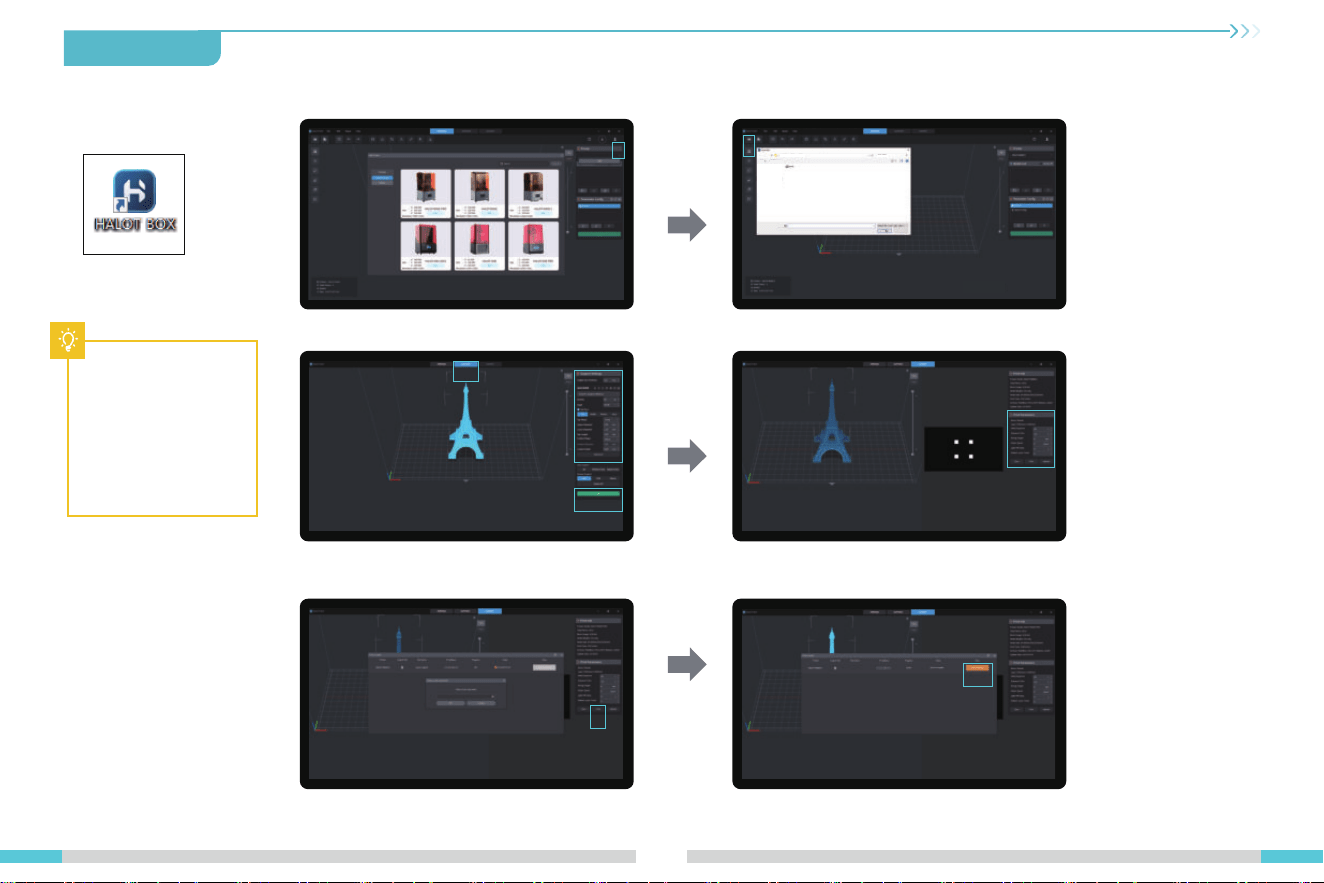

1. Open the HALOT BOX software, click the icon ① in the upper

right corner to add the printer;

4. After the slicing is completed, the printing parameters can

be set according to the model requirements.

0112

①

3. If a support needs to be added to the model, click the icon

① above and set the corresponding parameters ②. Then click

"Slice" ③ to start slicing;

①

②

③

2. Click the icon ① in the upper left corner to open the model

ﬁle;

①

11. USB Disk Printing

1. Slicer

Note: The published UI of slicing software shall prevail for the interfaces of HALOT BOX, and CHITUBOX.

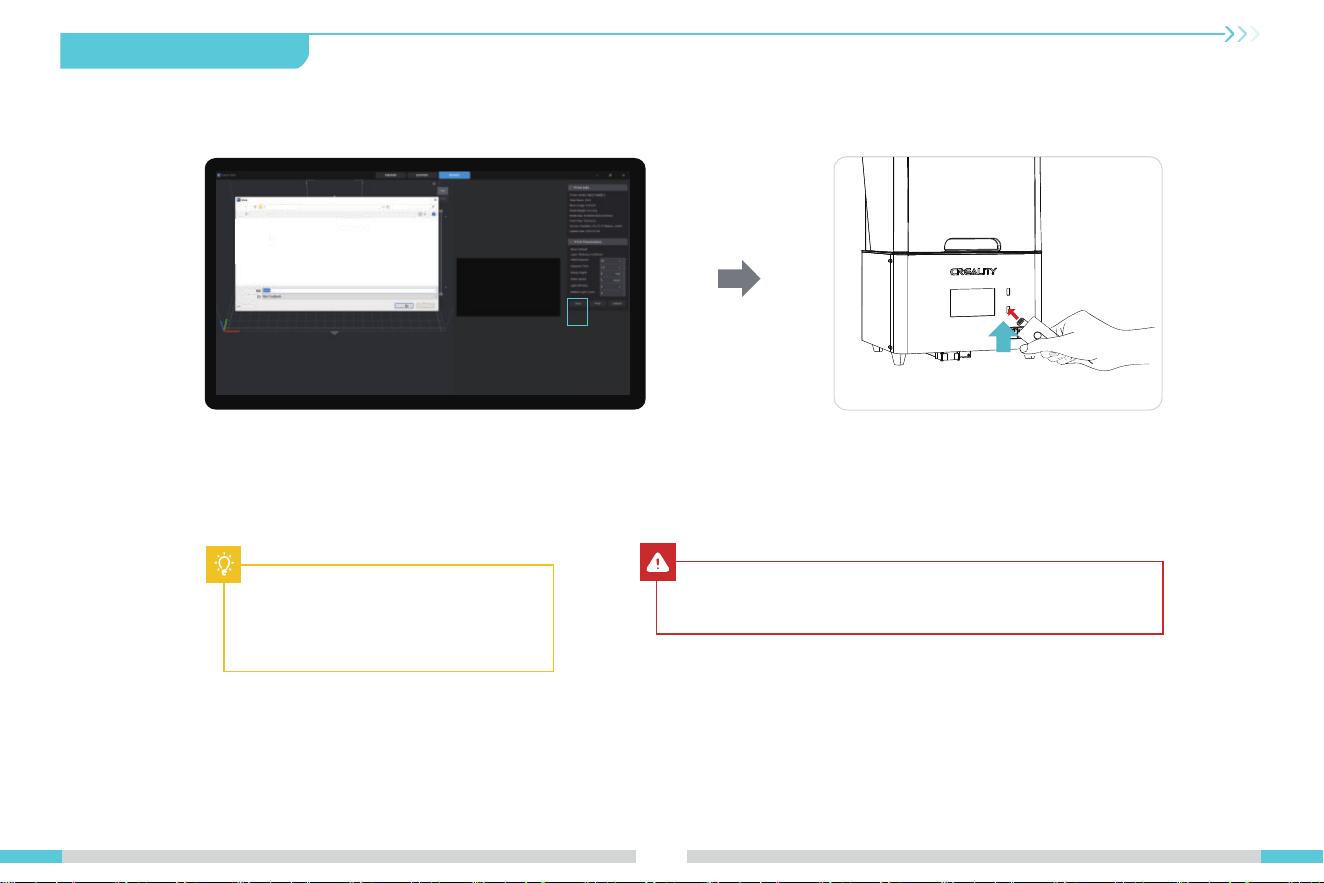

1. Click Save ① to save the generated cxdlp type ﬁle to a USB drive.

0113

①

11. USB Disk Printing

2. Print

2. Insert the USB ﬂash disk, which can

be pulled out after the ﬁle import is ﬁnished.

USB port

Warning: During the printing process the machine can’t be

shaken, so as not to avoid inﬂuencingaﬀect the printing quality.

The current interface is for reference only.

Due to the continuous upgrading of

functions, it shall be subject to the latest

software/ﬁrmware UI published on the

oﬃcial website.

0114

11. USB Disk Printing

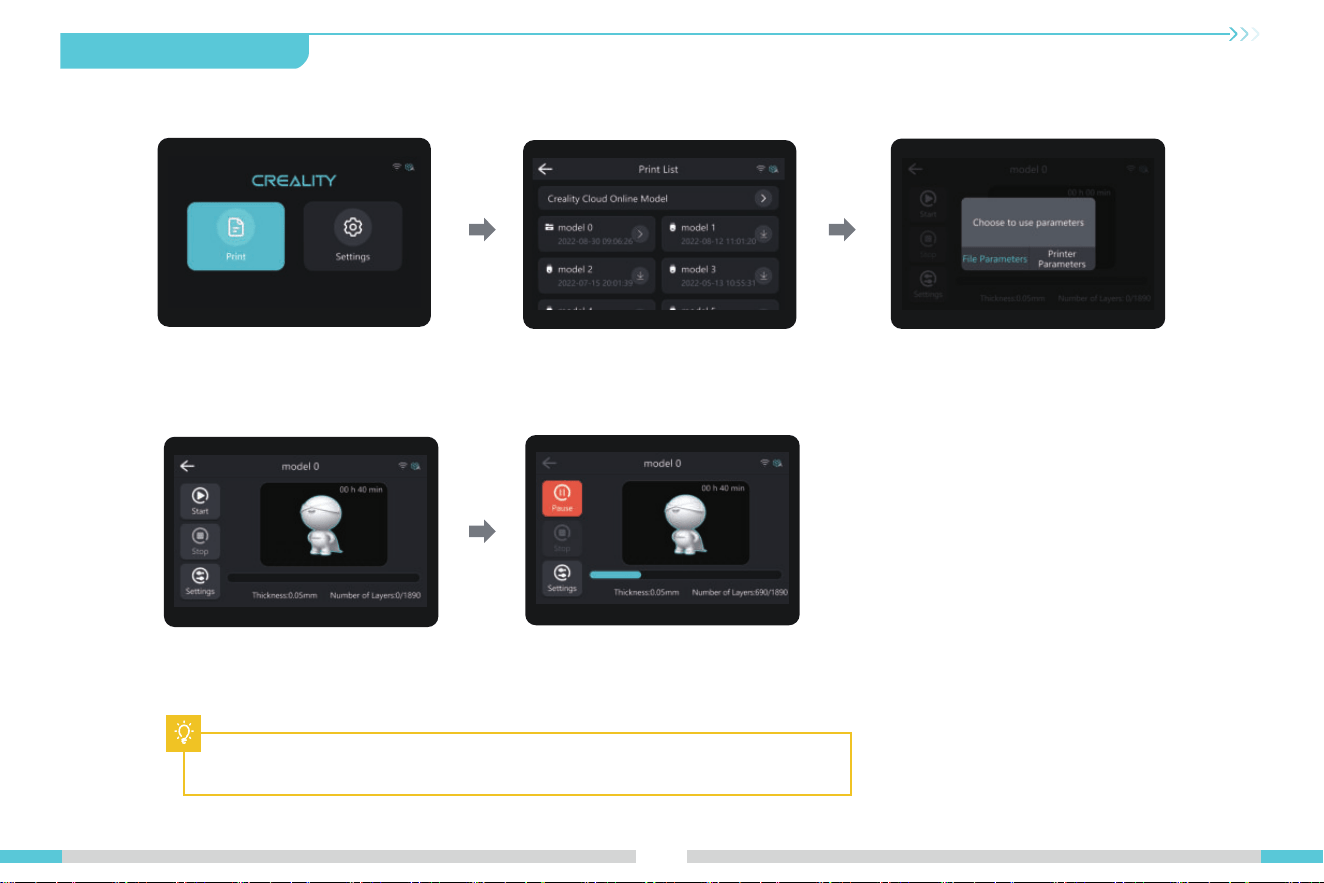

1. Select USB disk ﬁles;2. Choose to use parameters；

3. Press "Start" button；4. Printing···

The current interface is for reference only. Due to the continuous upgrading of functions,

it shall be subject to the latest software/ﬁrmware UI published on the oﬃcial website.

0115

12. Creality Cloud Online

Make sure WiFi is correctly connected before using online printing

Steps: Settings → WiFi → Select the corresponding WiFi.

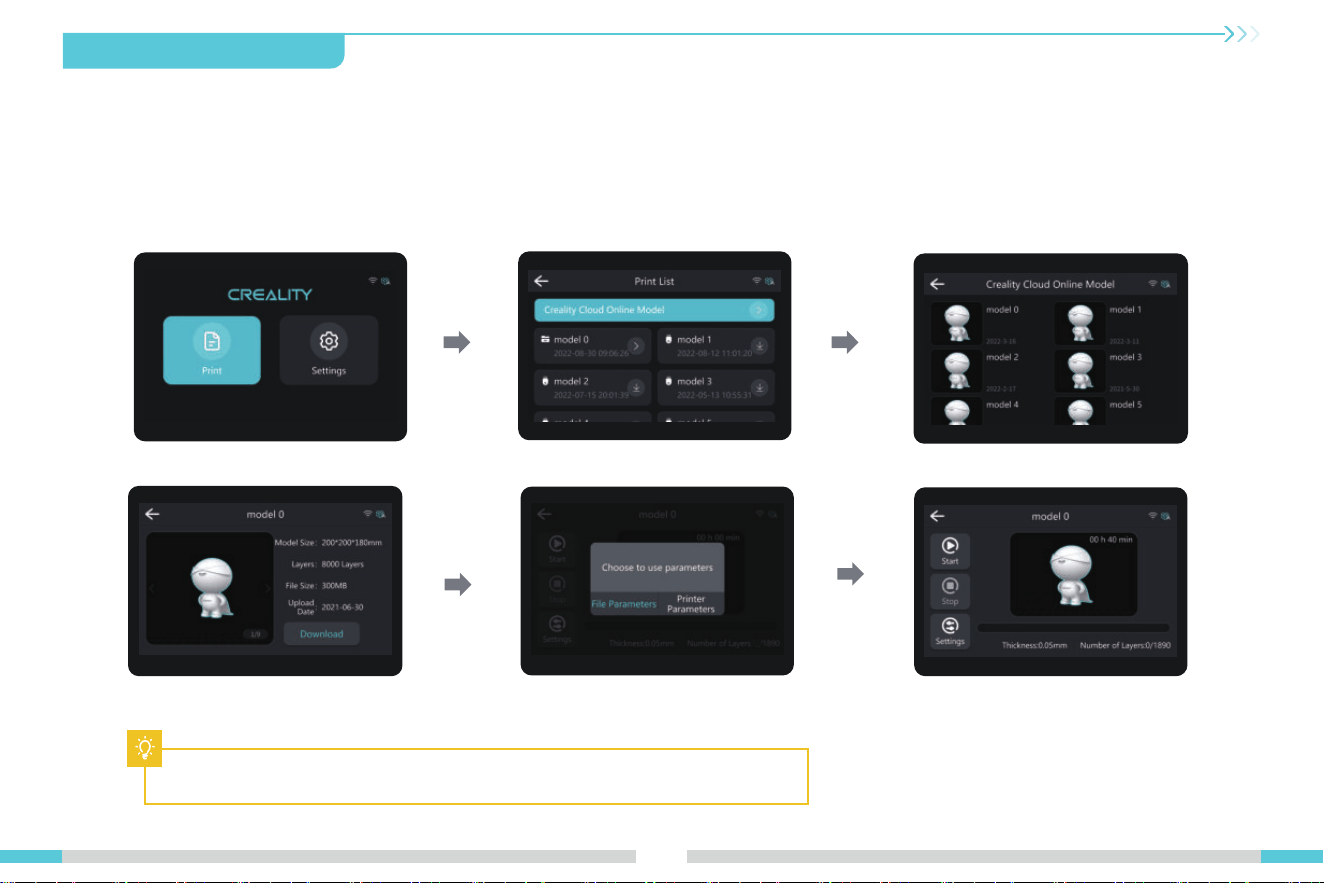

1. Click Creality Cloud online model；2. Select the model;

3. Download the model;

4. Choos to use parameters；5. Click "Start" to print.

Warm Tips: ① Only 2.4GHz WiFi is applicable to the 3D printer, and it cannot be connect to 5GHz WiFi routers;

② Only WPA-PSK/WPA2-PSK security protocol is applicable to the 3D printer, and other protocols may result in the failure to

connect the printer to WiFi properly. To change the security protocol, users may change it in setting interface of the router.

The current interface is for reference only. Due to the continuous upgrading of functions,

it shall be subject to the latest software/ﬁrmware UI published on the oﬃcial website.

0116

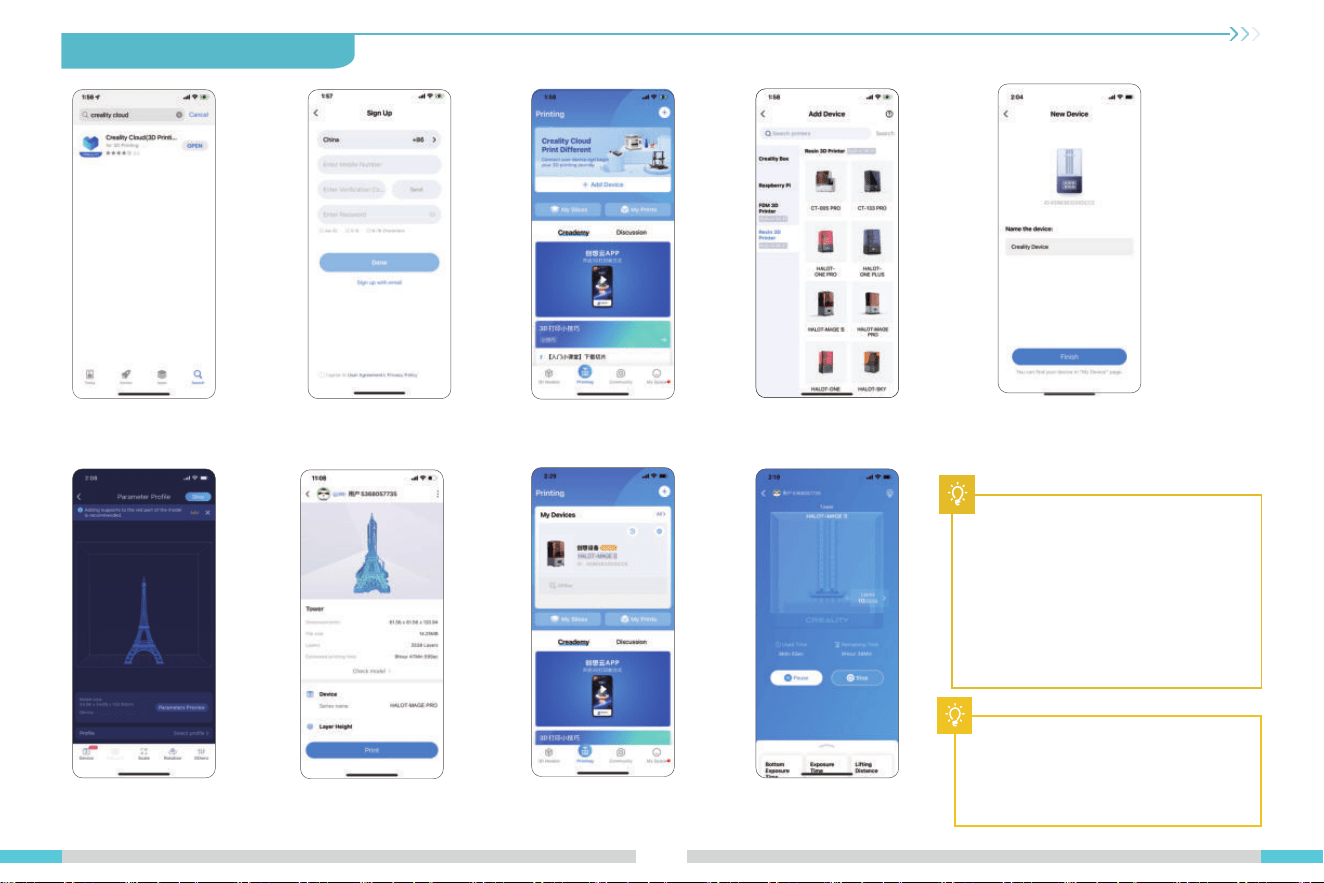

13. Creality Cloud App Print

2.Register4. Scan QR Code

Settings → Detail →

Connect to Creality Cloud → QR code

8. Select device

5. Device naming 1.Download3. Add equipment

9. Print progress6. Select model, set the printer and

parameters, and click "Slice".

7. Upon completion of

slicing, click "Printer".

巴黎铁塔

Notes:

1. The steps for adding devices vary for

diﬀerent mobile phone operating

systems;

2. Set the correct area in "Settings - Other

Settings - Language and Area".

3.Make sure WiFi is correctly connected

before using online printing.

HALOT-MAGE S

The current interface is for reference

only. Due to the continuous upgrading

of functions, it shall be subject to the

latest software/ﬁrmware UI published

on the oﬃcial website.

0117

4. After the slicing is completed, the printing parameters

can be set according to the model requirements.

14. WIFI Print

1. Slicer

1. Open the HALOT BOX software, click the icon ① in the

upper right corner to add the printer;

5. Click Print ①, enter the password and click Start Transfer.

6. Once the transmission is over, select the ﬁle on the

machine to start printing①。

ctb(.ctb)

1、Before printing, make sure HALOT BOX and the printer are connected to the same WIFI.

2、Enter password before transfering the ﬁle, Be consistent with the password set on the printer.

(Click “Print Settings → HALOT BOX → Password”)

①

2. Click the icon ① in the upper left corner to open the

model ﬁle;

①

3. If a support needs to be added to the model, click the

icon ① above and set the corresponding parameters ②.

Then click "Slice" ③ to start slicing;

①

②

③

①

The current interface

is for reference only.

Due to the continu-

ous upgrading of

functions, it shall be

subject to the latest

software/ﬁrmware UI

published on the

oﬃcial website.

0118

15. Machine Function Description

① Installation steps:

1. Guidance on the use of the feed system/module (Optional Function):

Step 3： Lastly, connect the feeding tube at the back of the

machine to the resin bottle.

Step 1： A. First, remove the material tray and the wire hole cover. B. Then, thread the

feeding tube of the feeding module through the machine's back tube hole. C. Next,

connect the feeding module's wire as shown.

Step 2： Finally, align the feeding module with the middle board's ﬁxed screws in the

direction indicated by the arrows and push it in to secure it. After installing and securing

the feeding module, reinstall the material tray.

Wire hole

cover

进料/IN

退料/OUT

暂停/S

TOP

进料/IN

退料/OUT

暂停/STOP

Tips：

If you need to remove the

feeding module, you can

simply pull out the feeding

tube from here.

进料/IN

退料/OUT

暂停/STOP

0119

进料/IN

退料/OUT

暂停/STOP

15. Machine Function Description

【进料/IN】：click to suck in the resin, and then stop when the resin level rises

to the sensing height; click again to stop it;

【暂停/STOP】：click to stop the module functioning;

【退料/OUT】：click to perform resin extraction, and click again to stop.

③ Instructions for the LEDs:

1. The LED is always ON to indicate that the functionality is being performed;

2. LED3 is always ON to indicate that the module is not working;

3. Three ﬂashing LEDs indicate that it is in [Auto Mode].

② Interface Deﬁnition:

Note:

① Before opening [Auto Mode], please make sure that the

resin bottle and tank levels are normal.

② If there is no response when clicking [退料/OUT], you

must click the button again to stop.

0120

15. Machine Function Description

[Auto Mode]： By selecting this mode,

you can sense the resin level for feeding

in real time during the printing process,

and you can set the feeding delay time to

suit your preference; you can also set the

retreat function after printing is done;

[Feed in]: click on this mode to perform

the same function as 【进料/IN】.

[Feed out]: click on this mode to perform

the same function as 【退料/OUT】.

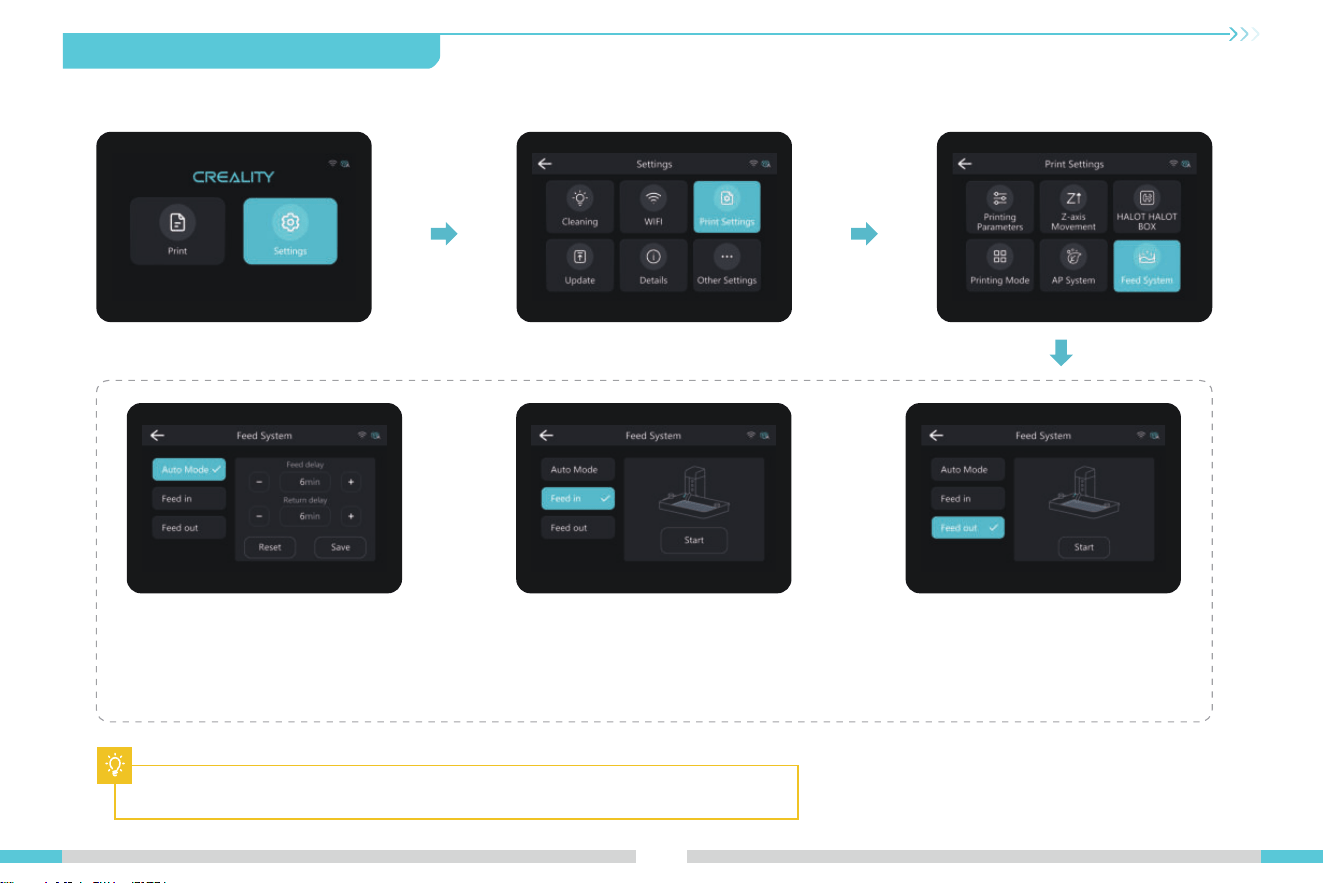

④ Instructions for use： Intelligent control is possible by clicking on the Halot OS function module.

The current interface is for reference only. Due to the continuous upgrading of functions,

it shall be subject to the latest software/ﬁrmware UI published on the oﬃcial website.

0121

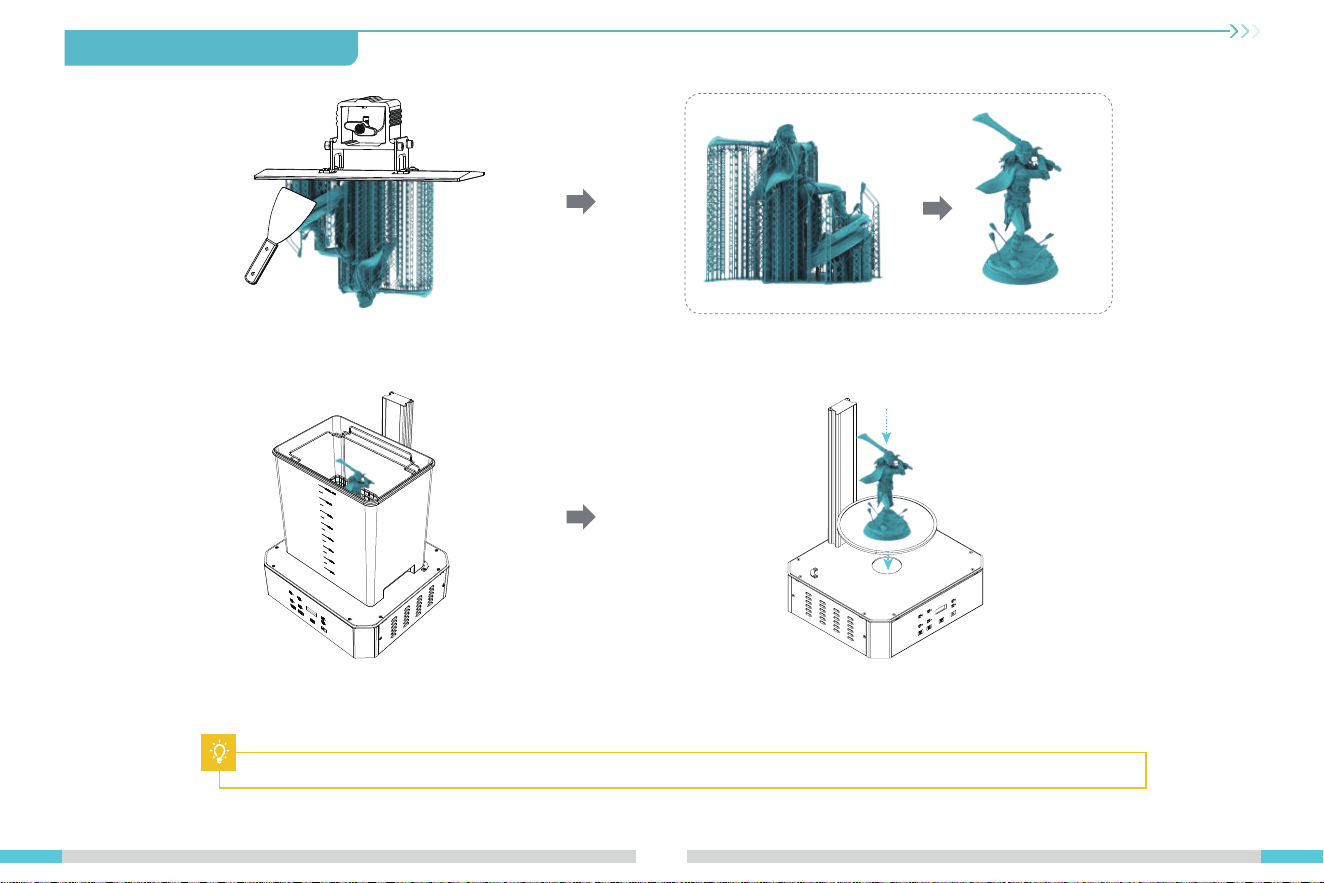

1. Remove the printed model with a blade;2. Remove the support from the surface of the model;

4. Cure the model;3. Clean the model;

Please dismantle the model with reference to this process and consult the oﬃcial customer service if you have any questions.

16. Post-processing Guide

0122

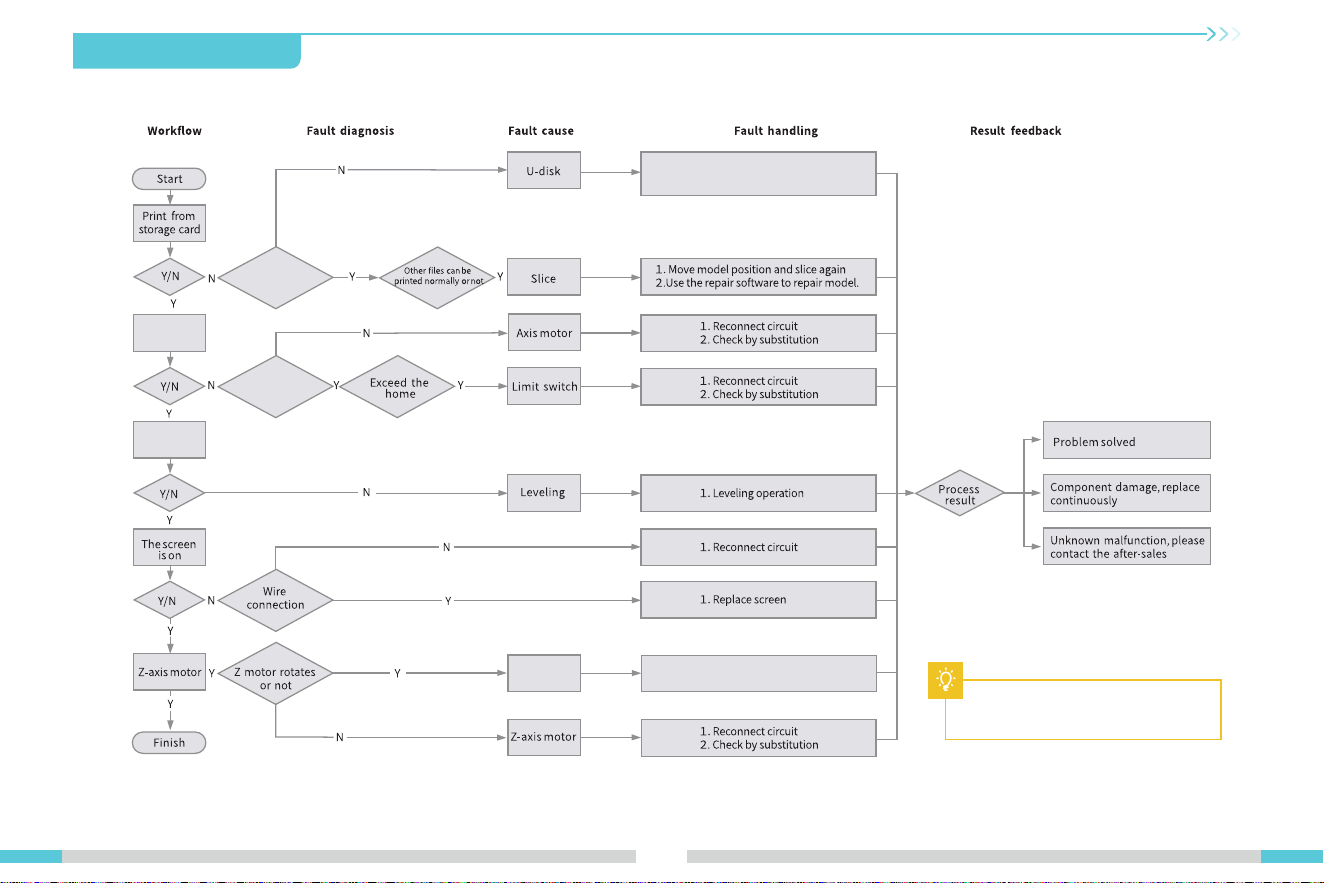

17. Troubleshooting

Auto homing

Is ﬁle identiﬁed

or not

Move or not

Coupling

Attach to the

printing screen

tightly

Fasten coupling

1. Wipe USB disk

2. Format USB disk

3. Replace USB disk

For any questions, please contact

the oﬃcial customer service.

0123

18. Circuit board wiring diagram

Mainboard circuit wiring diagram

Print screen portPinboard port

Touch screen portEthernet interfaceTP port

0124

18. Circuit board wiring diagram

Light panel

DC 24V input

Light panel cooling fan

Pinboard circuit wiring diagram

Air ﬁltration fanLimit switchAuto feedingZ axis motor

Light panel

cooling fan

Mainboard port

0125

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

FCC warning:

Any Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment oﬀ and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

FCC WARNING
