Liebherr IRBBI 5650 PRIME BIOFRESH Refrigerator User Manual

home.liebherr.com/

fridge-manuals

Operating and in‐

stallation instruc‐

tions

ORIGINAL OPERATOR'S MANUAL

Contents

1 General safety information................................... 3

1.1 Intended use................................................................. 3

1.2 Foreseeable erroneous use........................................ 3

1.3 User group..................................................................... 3

1.4 Warning notices – Risks for the user........................ 3

1.5 Faults, damage and repairs........................................ 4

1.6 Information concerning disposal.............................. 4

1.7 Conformity..................................................................... 4

1.8 Climate classes............................................................ 4

1.9 SVHC substances in accordance with the REACH

Regulation..................................................................... 5

1.10 EPREL database........................................................... 5

1.11 Open source licences.................................................. 5

1.12 Spare parts.................................................................... 5

1.13 Warning levels.............................................................. 5

2 Appliance at a glance............................................ 5

2.1 Scope of delivery.......................................................... 5

2.2 Overview of the appliance and equipment.............. 5

2.3 SmartDevice.................................................................. 5

3 Setting up and connecting.................................... 6

3.1 Installation requirements........................................... 6

3.2 Appliance dimensions................................................. 6

3.3 Recess dimensions...................................................... 7

3.3 Ventilation requirements............................................ 7

3.4 Unit front weights........................................................ 7

3.5 Transporting the appliance........................................ 7

3.6 Unpacking the appliance............................................ 7

3.7 Removing the transport lock...................................... 8

3.8 Explanation of symbols used..................................... 8

3.9 Reversing the door....................................................... 9

3.10 Installing multiple appliances.................................... 11

3.11 Installing the appliance in the recess...................... 11

3.12 Unit fronts..................................................................... 18

3.13 After installation.......................................................... 19

3.14 Connecting the appliance to the power supply...... 19

3.15 Disposing of packaging............................................... 19

4 Functionality of the Touch&Swipe display......... 20

4.1 Navigation and symbol explanation......................... 20

4.2 Menus............................................................................. 20

4.3 Sleep mode................................................................... 21

5 Putting into operation........................................... 21

5.1 Switching on appliance (first use)............................ 21

6 Storage.................................................................. 21

6.1 Information regarding storage................................... 21

6.2 Fridge compartment.................................................... 21

6.3 BioFresh......................................................................... 22

6.4 Storage times............................................................... 22

7 Saving energy........................................................ 23

8 Controls................................................................. 23

8.1 Controls and displays.................................................. 23

8.1.1 Status display........................................................... 23

8.1.2 Display symbols........................................................23

8.2 Appliance functions..................................................... 23

8.2.1 Notes on the appliance functions......................... 23

Switching the appliance off and on..................... 23

Temperature............................................................. 24

BioFresh B-Value .....................................................24

D-Value......................................................................25

SuperCool................................................................. 25

PartyMode ................................................................25

HolidayMode.............................................................25

SabbathMode........................................................... 26

EnergySaver .............................................................27

CleaningMode...........................................................27

Input lock...................................................................27

Reminder...................................................................28

Language.................................................................. 28

Temperature unit..................................................... 28

Display brightness...................................................29

WiFi............................................................................ 29

Device information..................................................30

Software................................................................... 30

Door alarm................................................................ 30

Demo mode............................................................... 31

Resetting to factory settings................................. 31

8.3 Messages...................................................................... 32

8.3.1 Overview of warnings.............................................. 32

8.3.2 Ending warnings....................................................... 32

8.3.3 Overview of reminders.............................................32

8.3.4 Ending reminders......................................................32

9 Features................................................................. 33

9.1 Door rack....................................................................... 33

9.2 Shelves.......................................................................... 34

9.3 VarioSafe ...................................................................... 36

9.4 Adjustable bottle shelf................................................ 38

9.5 Drawers.......................................................................... 39

9.6 Compartment lid for Fruit & Vegetable Safe........... 40

9.7 Butter dish.................................................................... 40

9.8 Egg rack......................................................................... 41

9.9 Bottle holder................................................................. 41

9.10 FlexSystem.................................................................... 41

10 Maintenance.......................................................... 42

10.1 FreshAir carbon filter................................................... 42

10.2 Dismantling the door rack.......................................... 42

10.3 Assembling the door rack........................................... 43

10.4 Disassembling / assembling pull-out systems...... 43

10.5 Removing / inserting the variable bottle rack........ 43

10.6 Compartment lid for Fruit & Vegetable Safe........... 43

10.7 Defrosting the appliance............................................ 44

10.8 Cleaning the appliance............................................... 44

11 Customer help....................................................... 45

11.1 Technical specifications............................................. 45

11.2 Operating noise............................................................ 45

11.3 Technical fault.............................................................. 45

11.4 Customer Service......................................................... 46

11.5 Model plate................................................................... 47

2 * Depending on model and options

12 Shutting down....................................................... 47

13 Disposal................................................................. 47

13.1 Preparing the appliance for disposal........................ 47

13.2 Disposing of the appliance in an environmentally

friendly manner............................................................ 47

The manufacturer is continually working on the further

development of all types and models. Please be aware that

we reserve the right to make changes to the shape, equip‐

ment and technology.

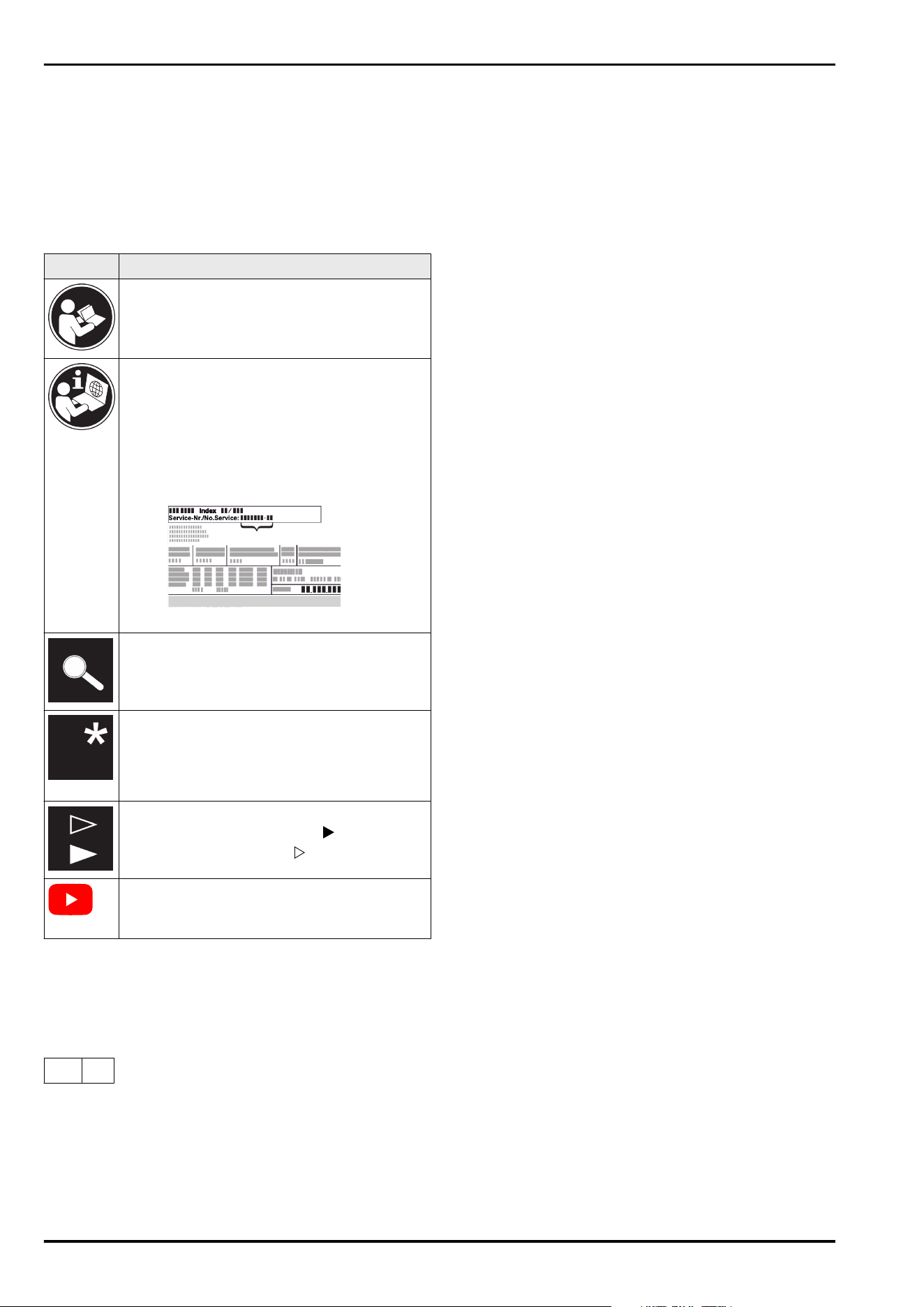

Symbol Explanation

Read instructions

Please read the information in these instruc‐

tions carefully to understand all of the benefits

of your new appliance.

Additional information on the Internet

The digital manual with additional informa‐

tion and in other languages can be found

via the QR code on the front of the

manual or by entering the service number at

home.liebherr.com/fridge-manuals.

The service number can be found on the serial

tag:

Fig.Example illustration

Check appliance

Check all parts for transport damage. If you

have any complaints, please contact your

agent or customer service.

Differences

These instructions apply to a range of models,

so differences are possible. Sections that

apply to certain models only are marked with

an asterisk (*).

Instructions and results

Instructions are marked with a .

Results are marked with a .

Videos

Videos about the appliances are available on

the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here: home.liebherr.com/

open-source-licences

This user information applies to the following appliances:

IRB..

56..

1 General safety information

Keep this user information in a safe place so that you can

refer to it at any time.

If you pass on the appliance, pass this user information on

to subsequent owners.

To use the appliance properly and safely, read this user

information carefully before installation and use. Always

follow the instructions, safety instructions and warnings

contained therein. They are important so that you can install

and operate the appliance safely and properly.

1.1 Intended use

This appliance is intended for household use and similar

applications such as:

•

in staff kitchen areas in shops, offices and other work

areas

•

in agriculture and by guests in hotels, motels and

other accommodation

•

bed and breakfasts

•

in catering and similar wholesale operations

Further uses:

•

This appliance is not suitable for freezing food.

•

All other types of application are impermissible.

1.2 Foreseeable erroneous use

The following applications are expressly prohibited:

•

Storage and cooling of:

•

Chemically unstable, flammable or corrosive

substances

•

Explosive substances, such as aerosol containers

with flammable propellant gas

•

Medication, blood plasma, laboratory compounds

or similar substances and products subject to the

Medical Device Directive 2007/47/EC

•

Use in explosive areas

Improper use of the appliance will result in damage or

spoilage of the stored foods.

1.3 User group

This appliance must not be used by persons (including

children) with reduced physical, sensory or mental capa‐

bilities, or by persons with a lack of experience and

knowledge, unless they are supervised by a person

responsible for their safety or have been given instruc‐

tions on how to use the appliance. Children must be

supervised to ensure that they do not play with the appli‐

ance.

Children aged between 3 and 8 are allowed to load and

unload the fridge-freezer.

1.4 Warning notices – Risks for the user

WARNING: Keep ventilation openings in the equipment

housing or in installations clear of obstructions.

WARNING: Do not use any mechanical devices or other

means to speed up the defrosting process other than

those recommended by the manufacturer.

WARNING: Do not damage the coolant circuit.

WARNING: Do not operate electrical appliances inside the

refrigerator/freezer compartment that are not of the type

recommended by the manufacturer.

WARNING: When installing the appliance, ensure that the

mains lead is not trapped or damaged.

WARNING: Do not place portable multiple sockets or

power supply units at the rear of the appliance.

Once the appliance has been installed, it must still be

possible to disconnect it from the mains.

Accessible mains plug (above, below or next to the appli‐

ance)

Tripping of the fuse in the building’s electrical installation

in accordance with the installation regulations.

General safety information

* Depending on model and options 3

WARNING: Fire hazard/flammable

substances.

The symbol is located on the compressor

and may also appear in other places on the

appliance. It marks the danger posed by

flammable substances. Do not remove the

sticker.

The more refrigerant there is in the appliance, the larger

than room must be in which it is located. In rooms that

are too small, a leak can product a flammable gas/air

mixture. For every 8g of refrigerant, the installation room

must be at least 1m

in size. Information on the refrig‐

erant contained is given on the type plate inside the

appliance.

Clean regularly surfaces that can come in contact with

food and accessible drainage systems.

Package raw meat or fish in clean, closed containers.

This will prevent meat or fish from touching or dripping

onto other food.

If the fridge-freezer is left empty for a long period, switch

it off, defrost it, clean it, dry it and leave the door open to

prevent mould from forming.

Avoid prolonged skin contact with cold surfaces or with

cold food. Use gloves for protection, for example.

Alcoholic beverages and other containers bearing alcohol

must be sealed tight for storage. Any leaking alcohol may

ignite due to electrical parts.

Only open the door for a short time. This prevents the

temperature inside the appliance from rising.

Do not reach between the door and the appliance when

opening and closing. Fingers may become trapped.

Do not place any items in the front section of the bottom

glass shelf to ensure that the appliance door closes

properly. (see6.2 Fridge compartment) (see 9.1 Door rack)

WARNING: This appliance must be secured in accordance

with the instruction manual to prevent any risks arising

from a lack of stability.

Follow the instructions regarding installation, fixing,

required dimensions and connections. (see3 Setting up

and connecting)

1.5 Faults, damage and repairs

Mains connection with cooling appliance plug:

If the mains lead of this appliance is damaged, it must be

replaced with a special connection line available from the

manufacturer or its customer service department. The

customer may make the change.

Repairs and interventions on the appliance may only be

carried out by the customer service or by other qualified

personnel trained for this purpose.

In the event of malfunctions and appliance faults, pull

out the mains plug or switch off the fuse. Always hold

the plug when pulling out the mains plug. Never tug on

the cable.

1.6 Information concerning disposal

The crossed-out rubbish bin symbol is

a note that the appliance must not be

disposed of with unsorted household waste

and must be placed in a separate collec‐

tion. It contains recyclable materials and

may be reusable.

The symbol may be found on the

compressor. It pertains to the oil in the

compressor and indicates the following

danger: Can be fatal if swallowed or with

penetration of the respiratory tract. This

information is only significant for recycling.

No risk exists with normal use.

This or a similar sticker may be on the rear

of the appliance. It indicates that there are

vacuum insulation panels (VIP) or perlite

panels in the door and/or housing. This

information is only significant for recycling.

Do not remove the sticker.

The old appliance must be properly and therefore profes‐

sionally disposed of in accordance with the local appli‐

cable regulations and legislation. When transporting the

old appliance do not damage the refrigerant circuit, so

that the refrigerant inside (information on the type plate)

and the oil do not leak out uncontrolled.

Please note that it is the customer’s responsibility to

delete any personal data that may be held.

For Germany: The appliance can be disposed of free of

charge via the class 1 collection containers at the local

recycling/reusable material centres. When purchasing a

new refrigerator/freezer and a sales area >400m

, the

old appliance is also taken back free of charge via the

trade.

EU: Please check with your local authorities to find out

how to dispose of old appliances.

1.7 Conformity

The coolant circuit has been tested for leak-tightness. When

installed, the appliance complies with the relevant safety

regulations and directives.

For the EU

market:

The appliance complies with Directive

2014/53/EU.

For GB market: The appliance complies with the Radio

Equipment Regulations 2017 SI 2017 No.

1206.

The full text of the EU Declaration of Conformity is available

at the following web address: www.liebherr.com

The BioFresh compartment fulfils the requirements of a

chiller compartment in accordance with DIN EN 62552:2020.

1.8 Climate classes

Depending on its climate class, the appliance is designed

for operation within certain ambient temperature limits. The

climate class for your appliance is printed on the type plate.

Note

► In order to guarantee fault-free operation comply with

the specified ambient temperatures.

Climate class for ambient temperatures from

SN 10°C to 32°C

N 16°C to 32°C

ST 16°C to 38°C

T 16°C to 43°C

SN-ST 10°C to 38°C

SN-T 10°C to 43°C

General safety information

4 * Depending on model and options

1.9 SVHC substances in accordance

with the REACH Regulation

You can use the following link to check whether your

appliance contains SVHC substances in accordance with

the REACH Regulation:

https://go.liebherr.com/z3eewm

1.10 EPREL database

From 1 March 2021, the information on energy labelling

and eco-design requirements will be available in the

European product database (EPREL). The product data‐

base can be accessed via the following link https://

eprel.ec.europa.eu/. Here, you are asked to enter the

model identifier. You will find the model identifier on the

type plate.

1.11 Open source licences

The appliance contains software components that use

open source licences. Information on the open source

licences used can be found here:

home.liebherr.com/open-source-licences

1.12 Spare parts

The spare parts availability for functional parts and

stockable parts of the equipment is 15 years.

1.13 Warning levels

DANGER

Identifies an immediately

dangerous situation that will

result in death or serious bodily

injuries if it is not prevented.

WARNING

Identifies a dangerous situation

that could result in death or

serious bodily injury if it is not

prevented.

CAUTION

Identifies an immediately

dangerous situation that could

result in slight or moderate injuries

if it is not prevented.

ATTENTION Identifies a hazardous situation

that could result in property

damage if it is not prevented.

Note Identifies useful information and

tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your

dealer or customer service in the event of complaints.

(see11.4 Customer Service)

Your new appliance comes with the following parts:

Built-in appliance

Features (depending on the model)

Installation materials (depending on the model)

“Quick Start Guide”

“Installation Guide”*

Service Brochure

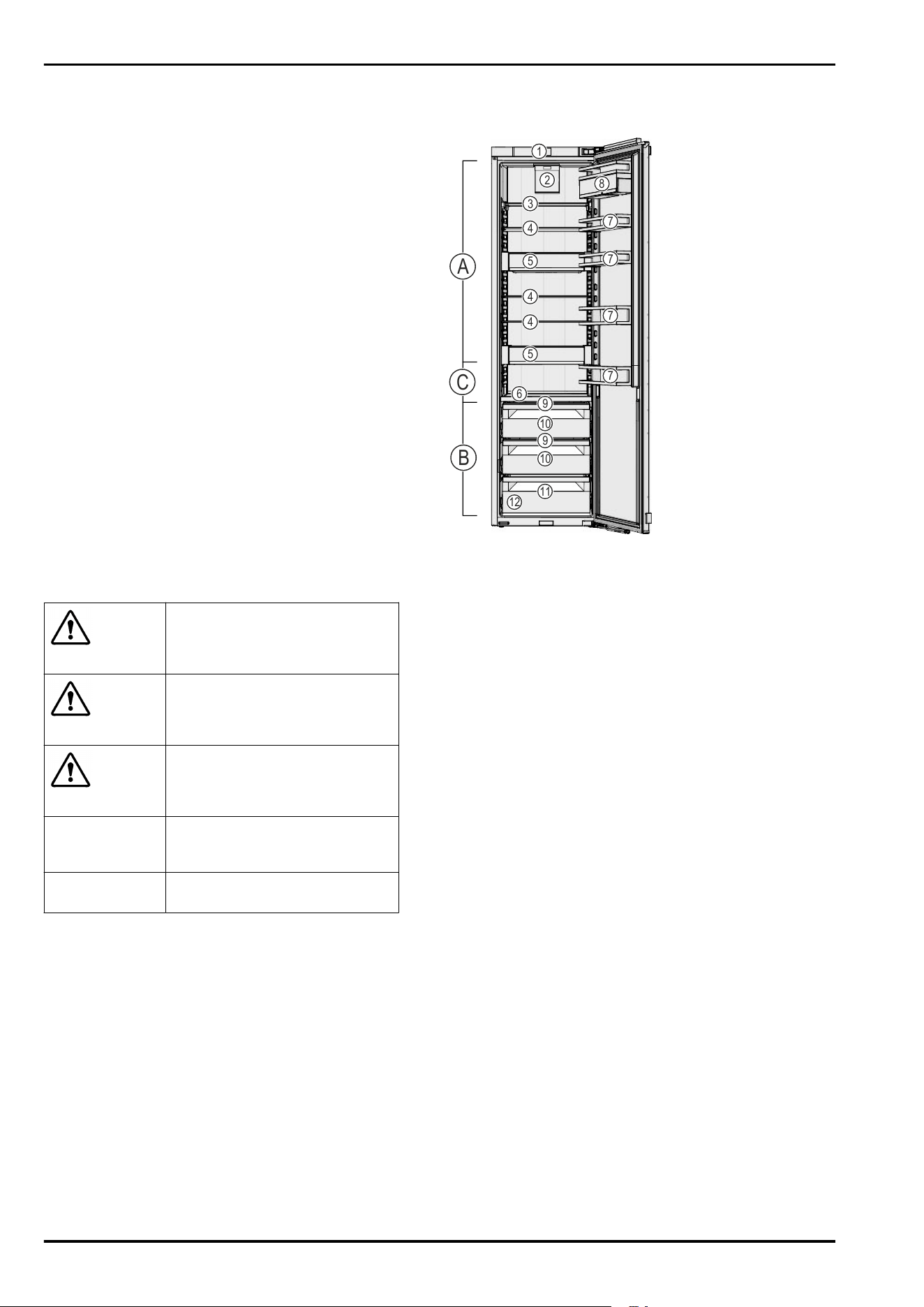

2.2 Overview of the appliance and

equipment

Fig. 1 Example illustration

Temperature range

(A)

Fridge section (C) Coldest area

(B) BioFresh

Equipment

(1)

Controls (7) Door rack

(2) Fan with FreshAir acti‐

vated charcoal filter

(8) VarioBoxes

(3) Divisible shelf (9) Compartment lid for

Fruit & Vegetable Safe

(4) Shelf (10) Fruit & Vegetable Safe

(5) VarioSafe (11) Meat & Dairy Safe

(6) Variable bottle rack (12) Type plate

2.3 SmartDevice

SmartDevice is the networking solution for your refrigerator.

If your appliance SmartDevice-enabled or compatible, you

can quickly and easily connect your appliance to your

WiFi. With the SmartDevice app, you can operate your appli‐

ance from a mobile device. Additional functions and setting

options are available in the SmartDevice SmartDevice app.

SmartDevice-

enabled appliance:

Your appliance is capable of being a

SmartDevice. To be able to connect

your device to WiFi, you need to

download the SmartDevice app.

More information

about SmartDe‐

vice:

smartdevice.liebherr.com

Appliance at a glance

* Depending on model and options 5

Downloading the

SmartDevice app:

After installing and configuring

the SmartDevice app, you can

connect your appliance to your Wi-Fi

(seeWiFi) using the SmartDevice app

and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

3 Setting up and connecting

3.1 Installation requirements

The installation conditions are crucial to ensure that you

can operate your appliance safely, efficiently and without

problems.

Observe all safety instructions.

Consider the location and position in the room.

WARNING

Danger of fire due to incorrect positioning!

If the mains cable or plug touches the back of the appli‐

ance, the vibration can damage the mains cable or the plug

resulting in a short circuit.

► Make sure the mains cable is not trapped under the appli‐

ance when you position the appliance.

► Stand the appliance so that it is not touched by connec‐

tors or main cables.

► Do not connect any appliances to sockets in the area of

the back of the appliance.

► Do not place and operate multi-sockets/power distribu‐

tors and other electronic devices (such as halogen trans‐

formers) at the back of the appliances.

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause

short circuits.

► The appliance is designed for use in enclosed areas. Do

not operate the appliance outdoors or in areas where it is

exposed to splash water or damp conditions.

WARNING

Risk of fire due to leaking refrigerant and oil!

The refrigerant inside the appliance is environmentally

friendly, but flammable. The oil it contains is also flam‐

mable. Escaping refrigerant and oil can ignite in high

concentrations and in contact with an external heat source.

► Do not damage the refrigerant circuit pipes or the

compressor.

3.1.1 Installation site

Only set up and use the appliance in enclosed spaces.

Only operate the appliance when it is installed.

If the appliance is installed in a very damp environment,

condensation may form on the appliance exterior.

Always make sure there is good ventilation and aeration

at the installation site.

The more refrigerant there is in the appliance, the larger

than room must be in which it is located. In rooms that

are too small, a leak can product a flammable gas/air

mixture. For every 8g of refrigerant, the installation room

must be at least 1m

in size. Information on the refrig‐

erant contained is given on the type plate inside the

appliance.

The floor on which the appliance stands must be hori‐

zontal and level.

3.1.2 Position in space

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

You can install the appliance directly next to an oven.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Only fit the appliance into solid units.

Use in hazardous areas is not permitted.

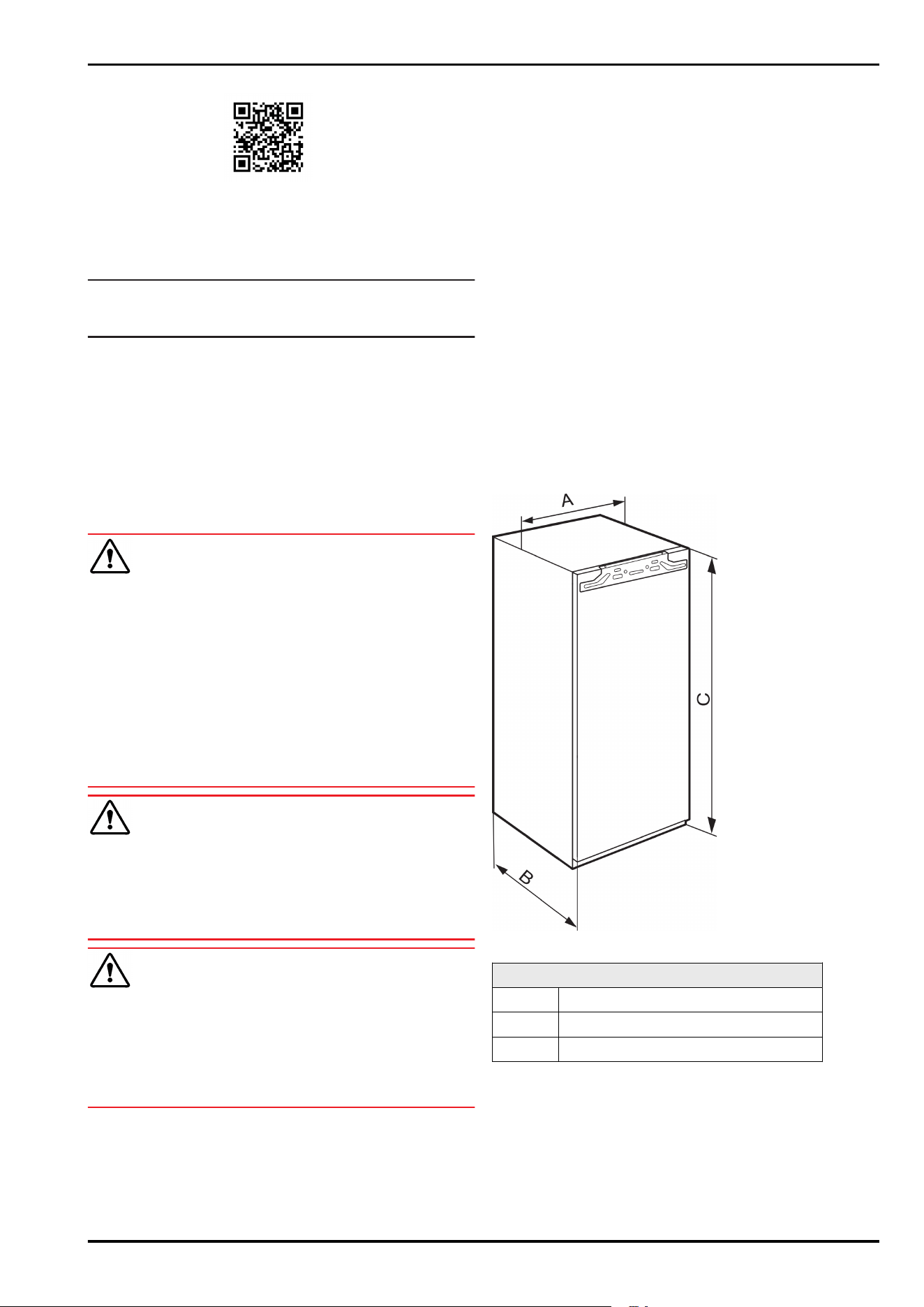

3.2 Appliance dimensions

Fig.2

IRB..(i)56..

A (mm) 559

B (mm) 546

C (mm) 1938

Setting up and connecting

6 * Depending on model and options

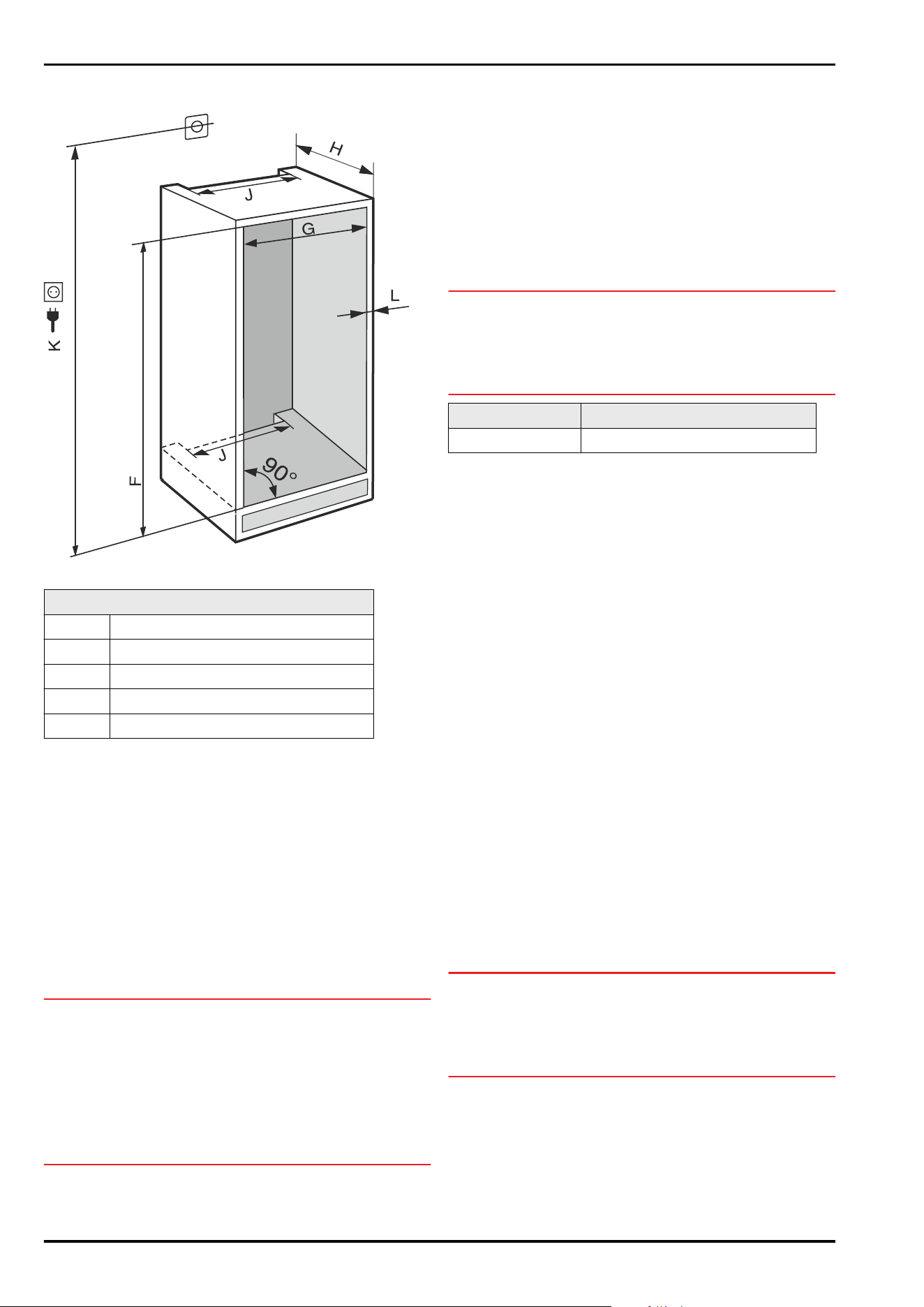

3.3 Recess dimensions

Fig.3(K): max. 2100mm

ICN 56.. / IC(B)N..(i) 56.. / IRB..(i).56..

F (mm) 1940 to 1950

G (mm) 560 to 570

H (mm) min. 550, recommended560

J (mm) min.500

L (mm) max. 19

The specified energy consumption was determined with a

kitchen unit depth of 560mm. The appliance will work prop‐

erly at a kitchen unit depth of 550mm, but with a slightly

higher energy consumption.

► Check the wall thickness of adjacent cabinets: They must

have a minimum of 16mm.

► Only fit the appliance into stable, solid kitchen units.

Secure the unit against tipping.

► Align the cabinets with a spirit level and a try square. If

necessary, level them by putting something underneath

them.

► Make sure that the floor and the side panels of the

cabinet are at right angles to each other.

3.3 Ventilation requirements

NOTICE

Covered vents!

Damage. Appliance can overheat, which can reduce the

service life of various parts of the appliance and lead to

operational impairments.

► Always make sure there is good ventilation.

► Always keep vents or ventilation grids in the appliance

housing and in the kitchen furniture (fully integrated

appliance) unobstructed.

► Always keep the fan air vents unobstructed.

Always follow the required ventilation gaps:

The depth of the ventilation shaft at the back of the

cabinet must be at least 38mm.

At least 200cm

is required for the ventilation gap cross

sections in the plinth and the housing cabinet.

As a rule, the larger the ventilation cross-section, the

more efficiently the appliance will run.

Sufficient ventilation is required for the operation of the

appliance. The ventilation grids provided ensure an effec‐

tive ventilation cross-section on the appliance of 200cm

If you replace the ventilation grids with a cover plate the

ventilation cross-section must be as least as large as the

ventilation grid provided by the manufacturer.

3.4 Unit front weights

NOTICE

A heavy unit front may pose a risk of damage!

If the unit front is too heavy, the hinges may be damaged,

leading to malfunctions.

► Before fitting the unit front, check the maximum weight

limit and do not exceed it.

Niche height (mm) Maximum weight of unit front ( kg)

1940 26

Single-door fridge-freezers 600mm Width

3.5 Transporting the appliance

3.5.1 Transporting the appliance for initial use

Ensure that the following requirements are met:

❑

The appliance is packaged.

❑

The appliance is upright.

► Transport the appliance with the help of two people.

► Unpacking the appliance. (see 3.6 Unpacking the appli‐

ance)

3.5.2 Transporting the appliance after initial

use

Observe the following instructions if you wish to transport

or move the appliance again after initial use.

Ensure that the following requirements are met:

❑

The appliance is emptied.

❑

The appliance is upright.

❑

Appliance with door(s): Door is secured against acci‐

dental opening.

❑

Appliance with telescopic unit: The telescopic unit is

secured against accidental opening.

❑

Appliance is removed.

► Transport the appliance with the help of two people.

3.6 Unpacking the appliance

NOTICE

Risk of damage if the unit is moved!

If you move the unit across the floor without any protection,

it may damage the floor.

► Make sure you cover the floor properly before removing

the packaging from the unit.

► Check the appliance and packaging: If you suspect that

the goods have been damaged in transit, please contact

the supplier before connecting them.

Setting up and connecting

* Depending on model and options 7

NOTICE

Damage to property caused by pointed or sharp objects!

Using pointed or sharp objects when removing packaging

material may damage the appliance.

► Do not use any pointed or sharp objects to remove the

packaging material.

► Remove the packaging materials.

3.7 Removing the transport lock

► Remove the transport lock

from the appliance door.

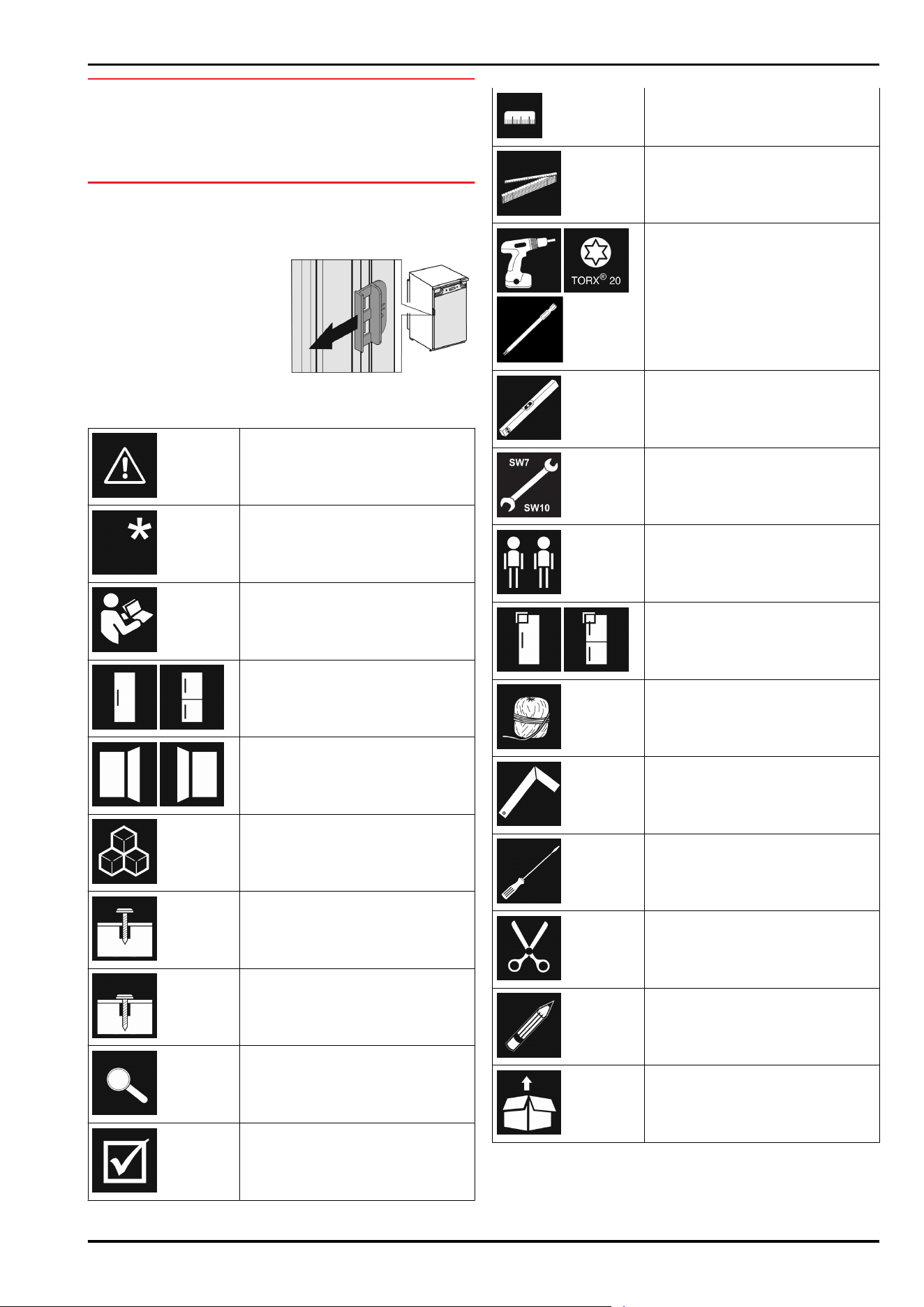

3.8 Explanation of symbols used

There is a danger of injury during

this step! Observe the safety

instructions!

The instruction is valid for several

models. Only perform this step if it

applies to your appliance.

For installation, please refer to the

detailed description in the text

section of the instructions.

Section is valid for either a single-

door appliance or a double-door

appliance.

Choose between the following

options: Appliance with door hinge

on the right or appliance with door

hinge on the left.

Installation step required for

IceMaker and/or InfinitySpring.

Only loosen or lightly tighten the

screws.

firmly tighten the screws.

Check whether the following step

is necessary for your model.

Check that the components used

are correctly installed/fitted.

Measure the specified dimension

and correct if necessary.

Tool for installation: Metre stick

Tool for installation: Cordless

screwdriver and use

A lengthwise bit insert is recom‐

mended for good access to the

screws.

Tool for installation: Spirit level

Tool for installation: Open-end

wrench with AF 7 and AF 10

Two people are required for this

step.

The step takes place at the marked

location on the appliance.

Aid for installation: String

Aid for installation: Protractor

Aid for installation: Screwdriver

Aid for installation: Scissors

Aid for installation: Marking pen,

wipeable

Included: Remove components

Setting up and connecting

8 * Depending on model and options

Dispose of components that are no

longer required in accordance with

local regulations.

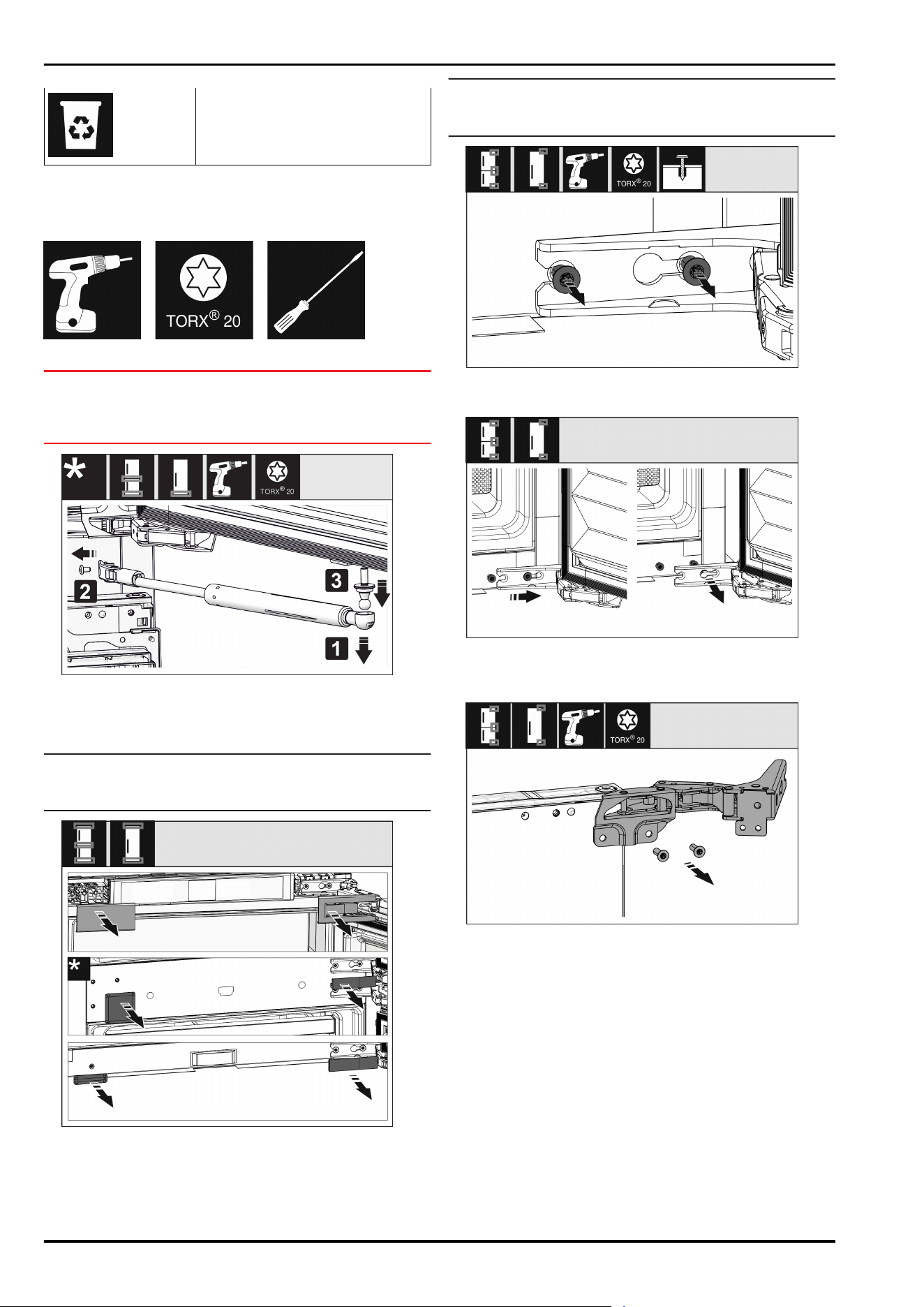

3.9 Reversing the door

Tool

Fig.4

NOTICE

Live parts!

Damage to electrical components.

► Remove the mains plug before you reverse the door.

Fig.5

► Removing the soft stop damper: Remove the soft stop

damper from the ball stud (1). Unscrew the retainer (2).

Remove the ball stud with a screwdriver (3).

Note

If the closing damper is only slightly above the floor, you

can only remove the ball pins when the door is removed.

Fig.6

► Remove covers.

Note

When removing the covers, ensure that the surface does

not get scratched.

Fig.7

► Loosen the screws on all hinges but do not remove them.

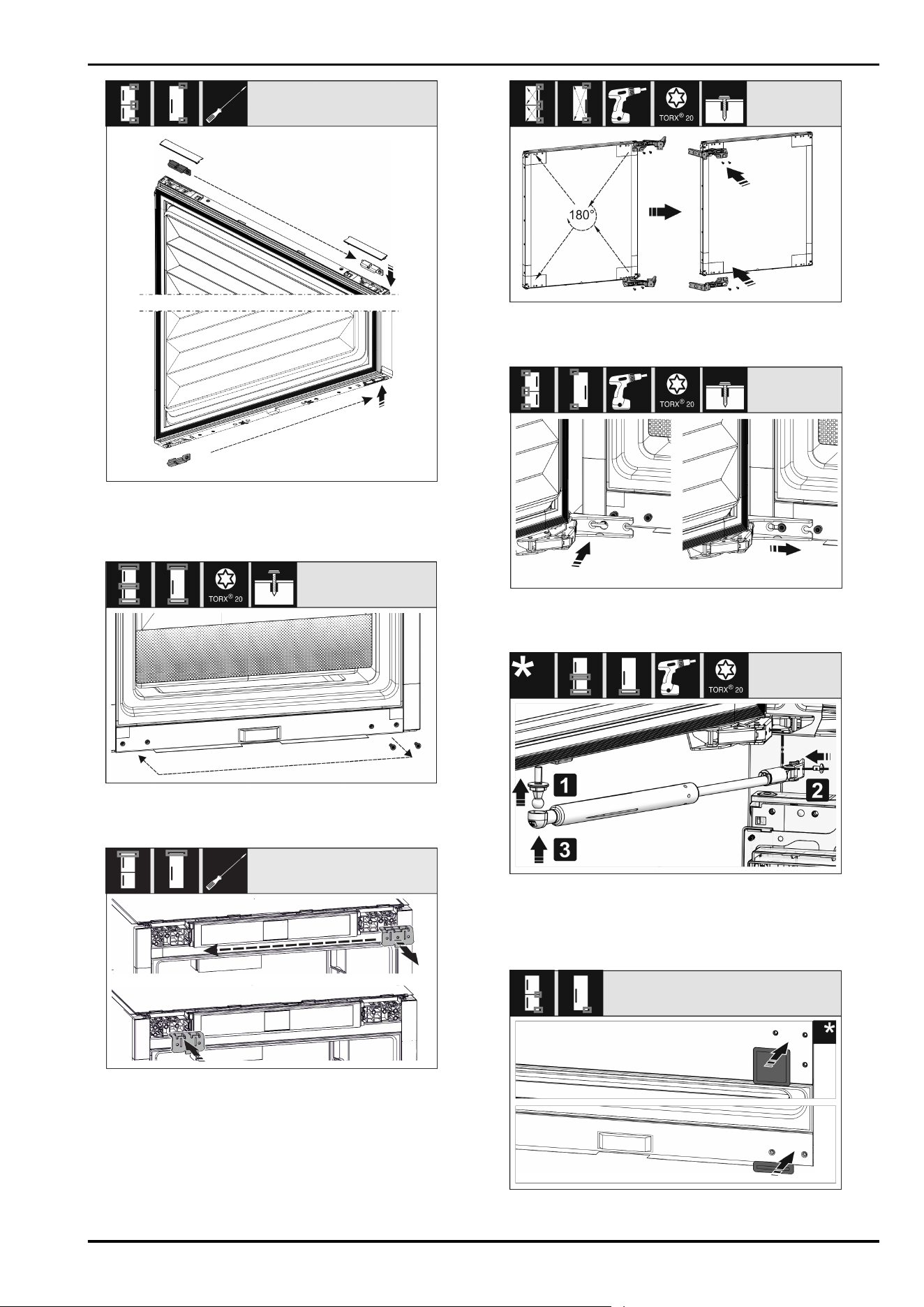

Fig.8*

► Removing the door: Push the door forward and then out,

unhang it and put it to one side.

Fig.9

► Unscrew all hinges and set aside together with the

screws.

Setting up and connecting

* Depending on model and options 9

Fig. 10

► Loosen and shift the bracket at the top and bottom of the

door. The bracket must be shifted so you can screw on

the hinges.

Fig.11

► Shift the screws to fasten the hinge. Do not screw tightly

after shifting – you need to hang the hinges later.

Fig.12

► Move the fixing bracket to the opposite side.

Fig.13

► Turn all hinges 180° to the opposite side and screw

firmly.

Fig. 14*

► Refitting the door: Hang the door with its hinges and

tighten the screws.

Fig. 15

► Refitting the closing dampers: Screw in the ball studs (1),

tighten the bracket (2) and hang the closing dampers in

the ball studs.

► Check all screws and retighten if necessary.

Fig. 16

Setting up and connecting

10 * Depending on model and options

► Reassemble the bottom and centre cover. Only replace

the remaining covers after installing the appliance back

into the cabinet.

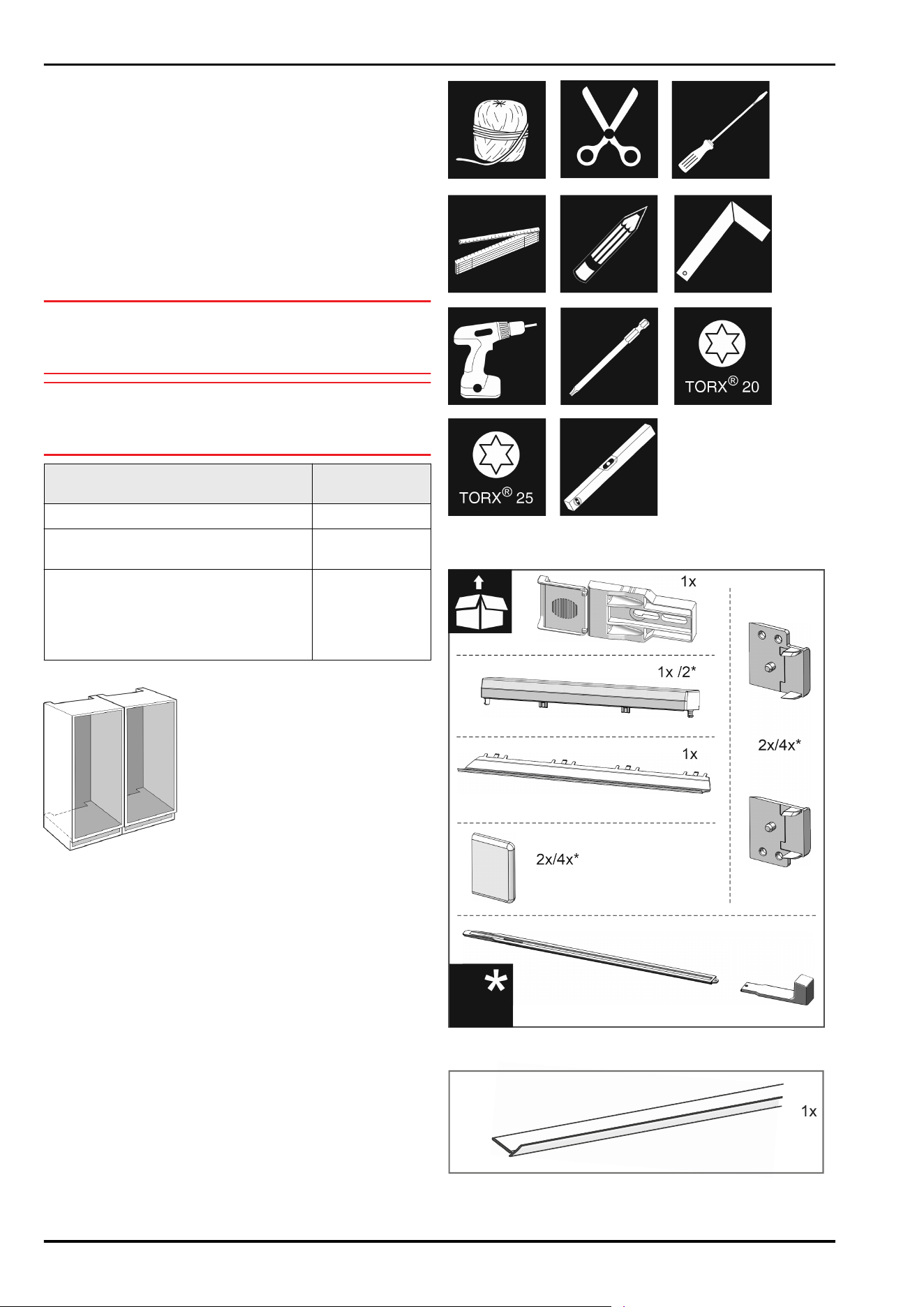

3.10 Installing multiple appliances

The appliances have been developed for different installa‐

tion methods. If you wish to install several appliances next

to each other or on top of each other, ensure that the

following requirements are met:

❑

Only install appliances next to or on top of each other if

they have been developed for this.

❑

Observe notices and the following table.

NOTICE

Risk of damage due to condensate!

► Do not place the appliance directly next to another

cooling/refrigeration unit.

NOTICE

Risk of damage due to condensation!

► Do not place the appliance directly on top of another

cooling/refrigeration unit.

Model Installation

method

All models Standalone

Models with a model designation

starting with S....

Side-by-Side

(SBS)

Models up to a maximum niche height

of 880mm and with a heated ceiling

can be installed “on top of each other”.

Top appliance: up to a maximum niche

height of 140mm

On top of each

other

Models and their installation method

Fig.17

Install each appliance into a separate unit niche.

3.11 Installing the appliance in the

recess

Tool

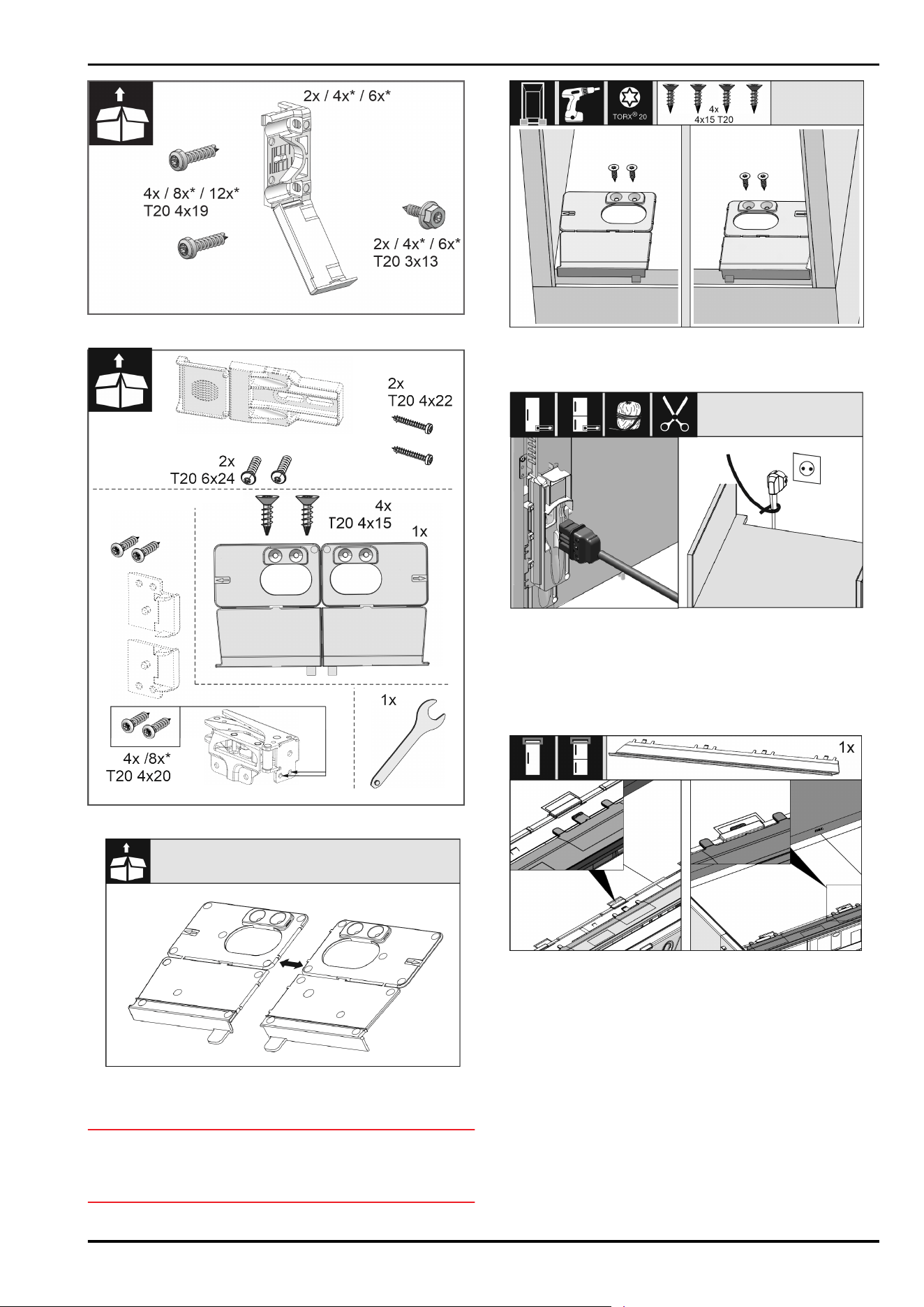

Fig. 18

Supplied assembly parts

Fig. 19

Fig.20

Setting up and connecting

* Depending on model and options 11

Fig.21

Fig.22

Fig.23

► Disconnect the base installation bracket at the perfora‐

tion.

NOTICE

Correct installation depth of the appliance.

► Using the mounting bracket ensures the correct installa‐

tion depth of the appliance.

Fig. 24

► Screw the mounting brackets on the left and right of the

recess floor, flush to the side wall.

Fig.25

► Remove the mains cable from the package.

► Plug the mains cable’s IEC socket completely into the

appliance plug on the back of the appliance. Ensure that

the IEC socket is tight.

► Use a cord to lay the mains plug to a freely accessible

socket.

Fig. 26

► Insert the adapter panel on the top of the appliance. The

panel can be moved to both sides.

Setting up and connecting

12 * Depending on model and options

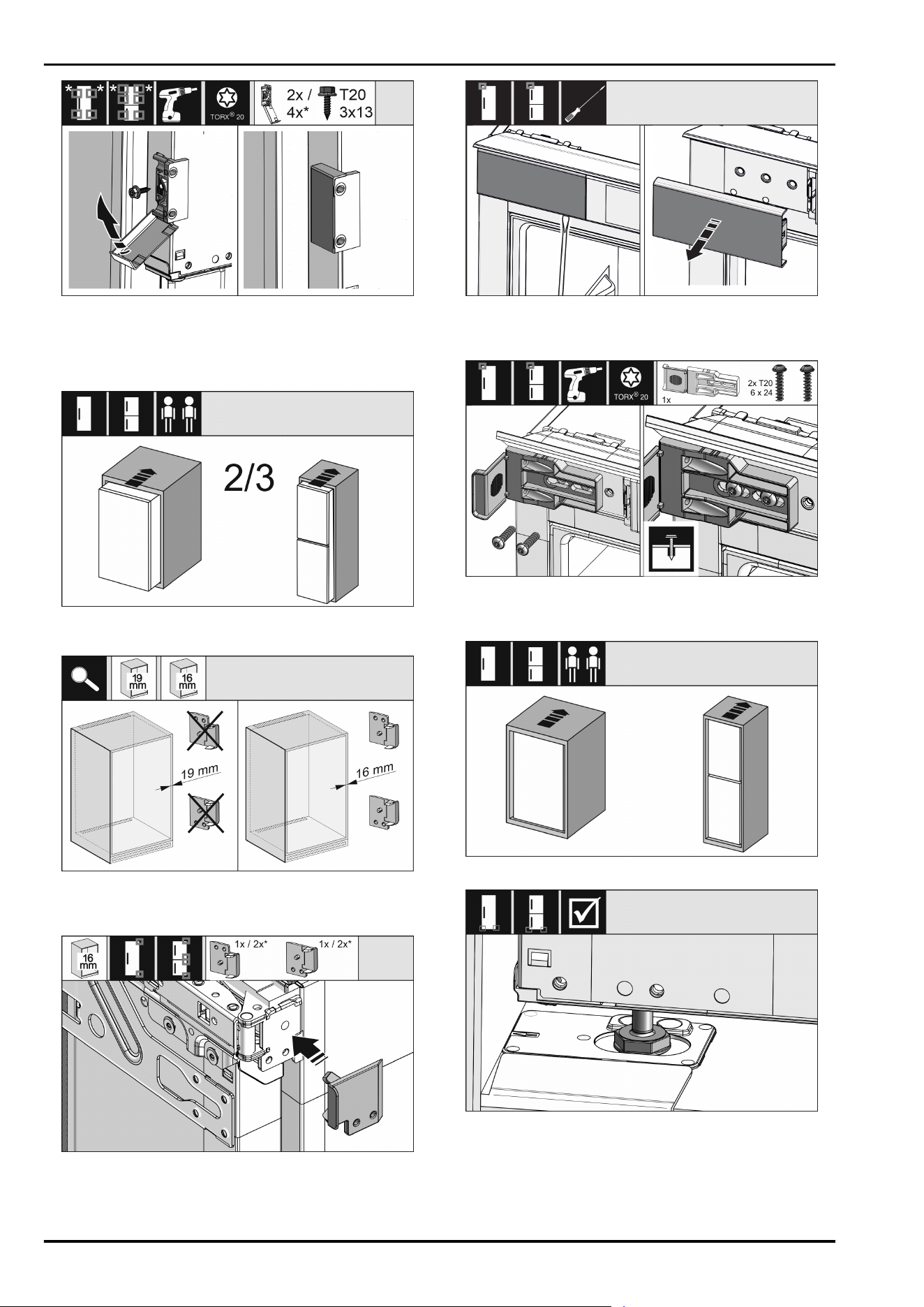

Fig.27

► Fit the mounting bracket. Attach the mounting bracket at

the height of the custom door panel handle. For a large

door, use four mounting brackets.

► After assembly, fold the covers onto the bracket.

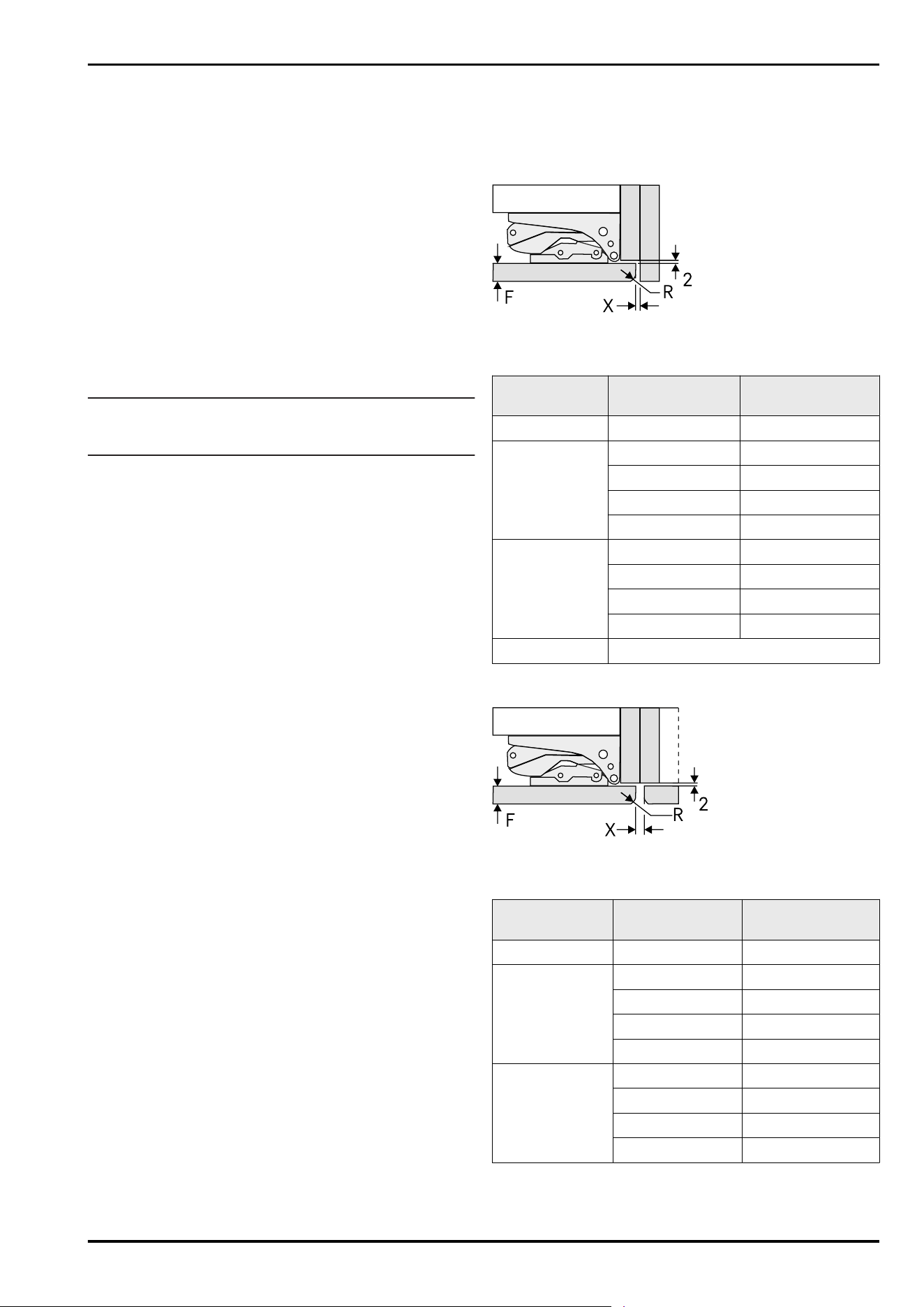

Fig.28

► Insert the appliance 2/3 of the way into the recess.

Fig.29

► Check whether the unit side wall is 16mm or 19mm

thick.

Fig.30

► 16mm thick unit side walls: Put a spacer on all hinges.

► 19mm thick unit side walls: You do not need a spacer.

Fig.31

► Use a screwdriver to loosen the cover at the top left and

remove it.

Fig.32

► Loosely tighten the mounting bracket screw. The bracket

should still be easy to move.

Fig.33

Fig.34

Setting up and connecting

* Depending on model and options 13

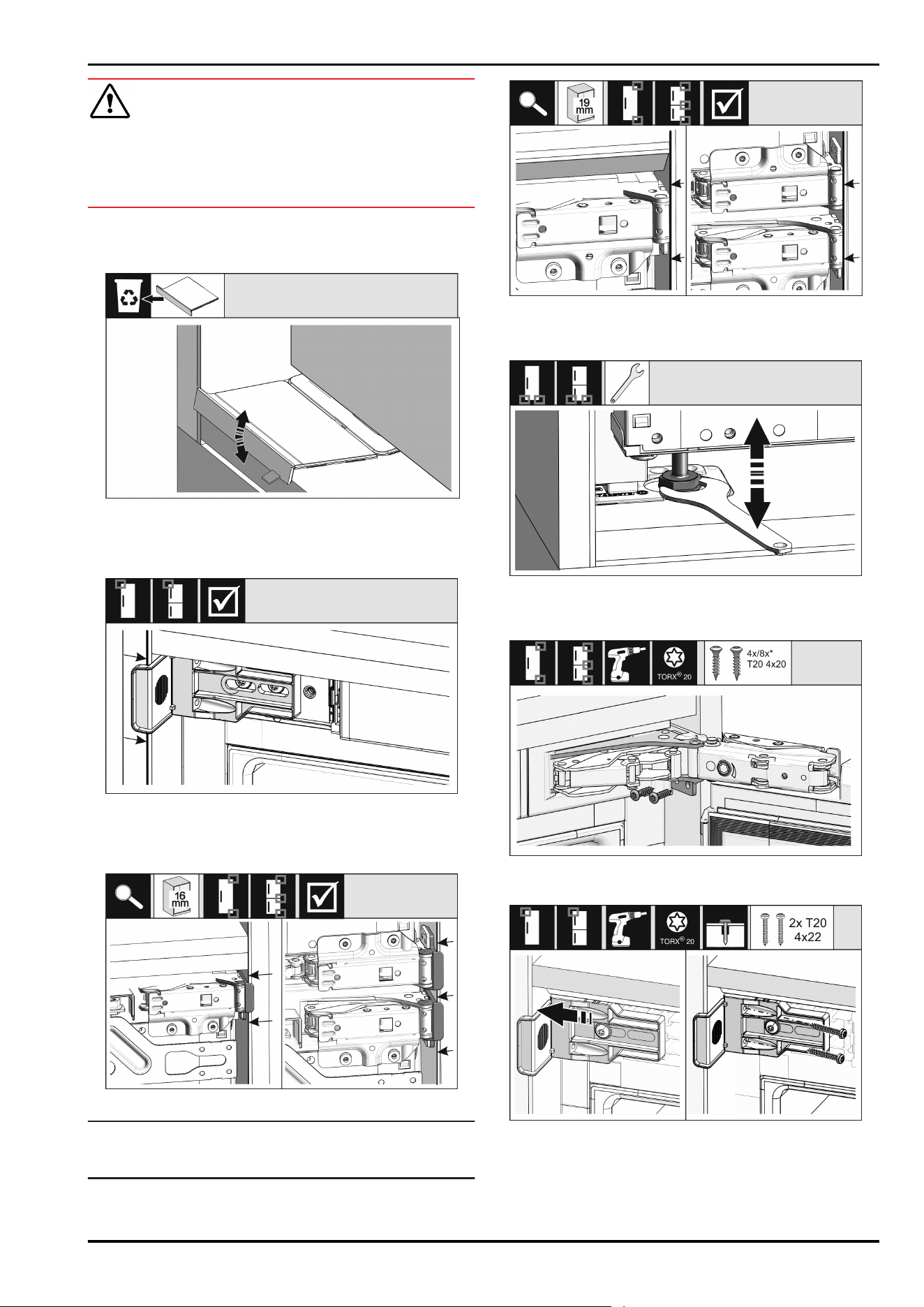

WARNING

Risk of fire due to short circuit!

► When you push the appliance into the niche: do not kink,

jam or damage the mains cable.

► The appliance must not be operated with a defective

mains cable.

► Push the appliance all the way into the unit recess. The

adjustable feet must rest in the recesses in the brackets

on both sides.

Fig.35

► Remove the floor mounting bracket stopper. Loosen the

stopper by moving it and, if necessary, pull it off using

pliers.

Fig.36

► Check that the appliance is flush in the cabinet recess.

The mounting bracket must be attached to the side wall

of the cabinet recess.

Fig.37

Note

With 16mm unit side walls, the spacers fit against the unit

recess on the hinge side.

Fig.38

► 19mm thick unit side walls: Align the front of the hinges

flush with the unit side wall.

Fig. 39

► If necessary, use the adjustable feet to correct the tilt of

the appliance.

Fig.40

► Screw on the appliance on the hinge side.

Fig. 41

► Move the bracket so it sits flush on the side wall of the

cabinet recess.

► Tighten all the screws securely.

Setting up and connecting

14 * Depending on model and options

Fig. 42

► Remove the stop from the bracket on the handle side and

dispose of it.

Fig.43

► Put covers into position.

Fig.44

► Slide the panel so that it sits flush with the side of the

cabinet wall.

Fig.45

► If necessary: Shorten the sealing strip as necessary with

a sharp pair of scissors.

► Position the sealing strip below the top cover and press it

in. The sealing strip is magnetic.

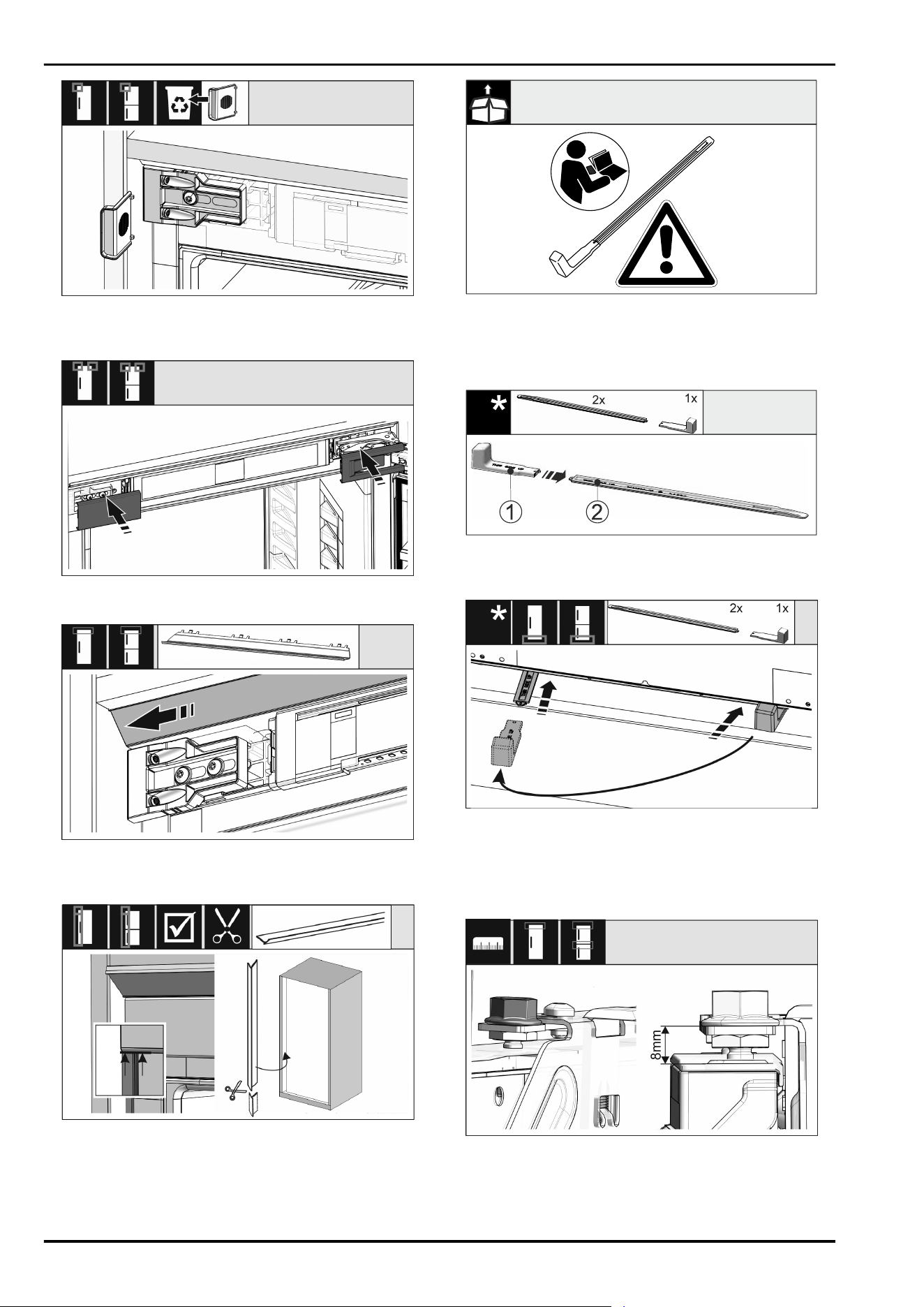

From a niche height of 1400mm, install levelling rails:

Fig.46

You must installed levelling rails under the appliance from

a niche height of 1400mm. The levelling rails reduce the

noise level. Two levelling rails and an installation handle are

enclosed as standard from a niche height of 1400mm.

Fig. 47

► Attach the installation handle Fig. 47(1) to the levelling

rail Fig. 47(2).

Fig.48

► Push the levelling rail into the guide under the appliance

base until it reaches the stop.

► Remove the installation handle and attach it to the

second levelling rail.

► Proceed in the same way for the second levelling rail.

Fig. 49

► Close the door.

► Check the preset of 8mm from the upper edge of the

appliance door to the crosspiece support.

Setting up and connecting

* Depending on model and options 15

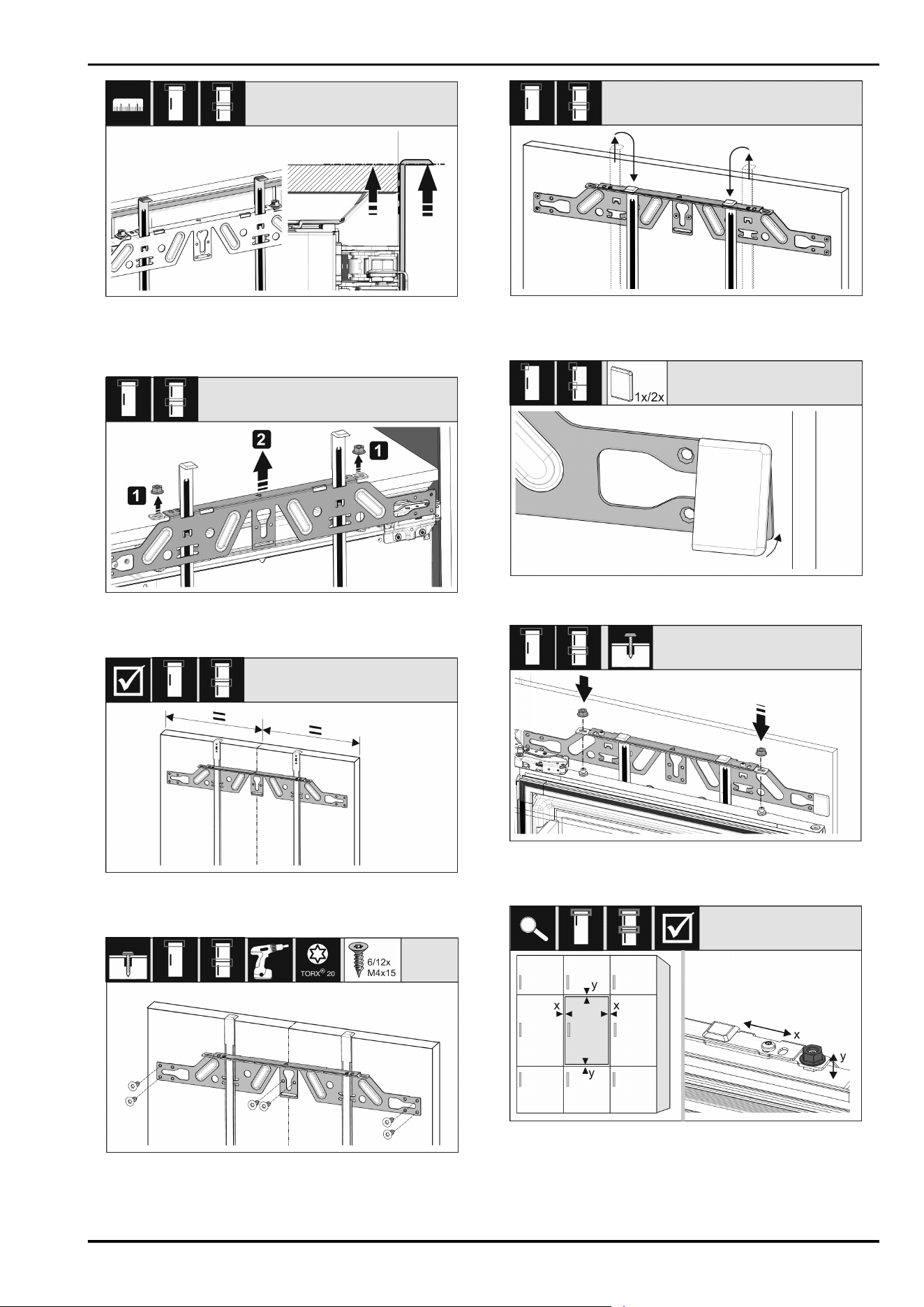

Fig.50

► Push the assembly aids to the unit door height. Lower

stop edge of the assembly aid = upper edge of the door

to be assembled.

Fig.51

► Loosen locknuts Fig.51(1).

► Remove crosspiece Fig.51(2).

Fig.52

► Hang the crosspiece on the inside of the unit door and

make sure it is central.

Fig.53

► Fix the crosspiece using at least 6 screws for chipboard

doors and at least 4 screws for panel doors.

Fig.54

► Remove the fitting aids, turn round and insert into the

adjacent opening.

Fig.55

► Put the cover on the crosspiece on the handle side.

Fig.56

► Attach the custom panel and loosely screw the lock nuts

onto the adjusting bolts.

Fig.57

► Align the custom panel in the X and Y direction using the

adjusting bolts.

Setting up and connecting

16 * Depending on model and options

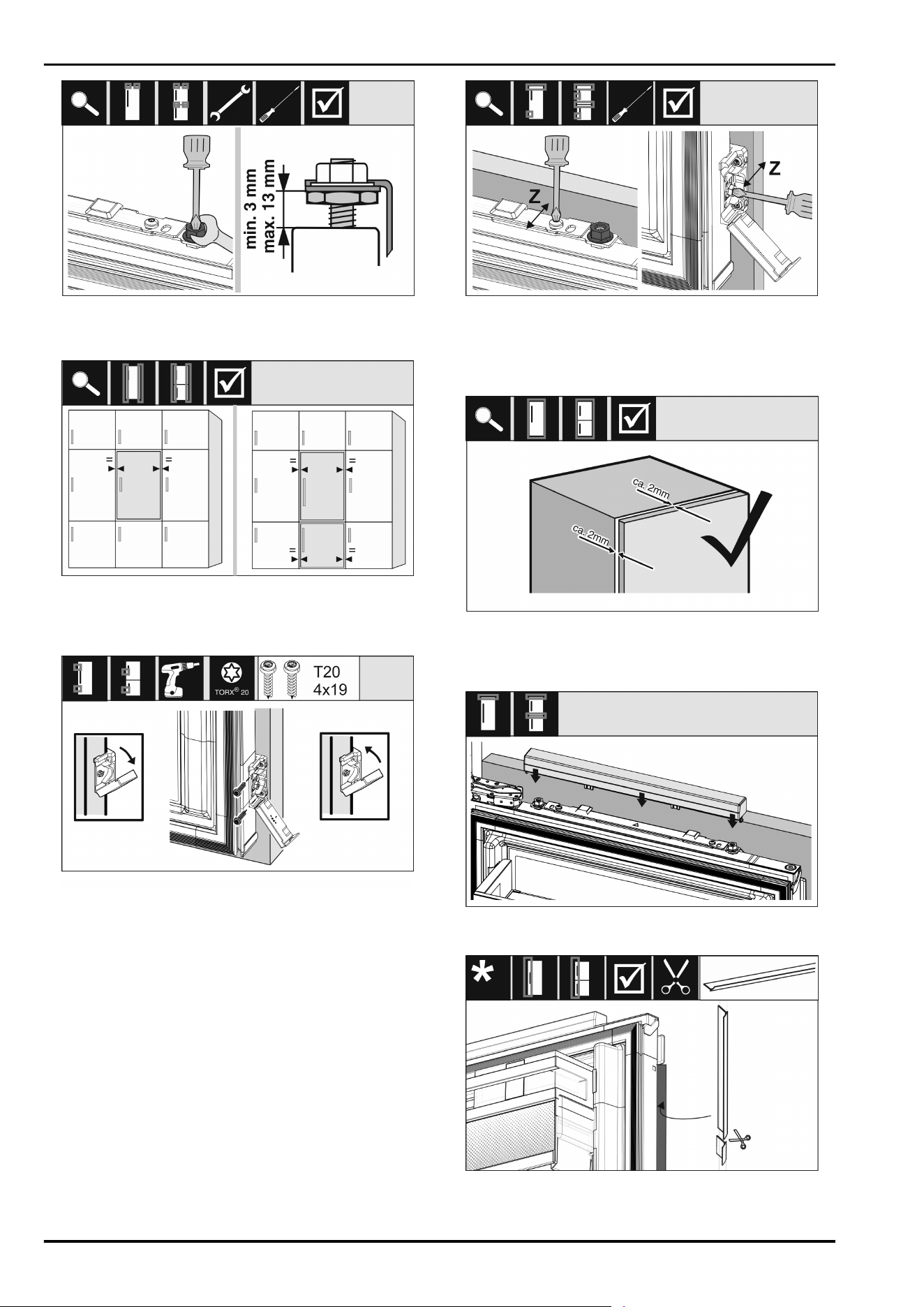

Fig.58

► Tighten the lock nuts.

► Check the adjusted height.

Fig. 59

For front panels thicker than 19mm:

► Check the dimensions, weights and information in the

following sections: (see 3.12 Unit fronts)

Fig.60

Mounting the fastening bracket on the custom panel:

► Open the cover.

Mounting the fastening bracket on the custom panel:

► Align the front edge of the mounting bracket parallel with

the custom door panel edge and screw the bracket down

tightly.

Mounting the fastening bracket on the custom panel:

► Fold up the cover.

Fig.61

Align the custom panel in the Z direction:

► Loosen the adjusting screw on the crosspiece and the

screw on the mounting bracket.

► Move the door.

Fig. 62

► Check the gap between the custom panel and the unit

body.

► Check all the screws and tighten them if necessary.

Fig.63

► Put on the top cover.

Fig.64

► Cut the sealing strip to the required length.

Setting up and connecting

* Depending on model and options 17

► Insert the sealing strip between the front panel and the

appliance door.

To make sure the appliance is correctly installed and there

will not be any icing up, condensation or malfunctions, the

following criteria apply:

- The door must close properly.

- The custom door panel must not touch the body of the

unit.

- The seal on the upper corner on the handle side must be

fitted securely.

► Check recess installation according to the criteria above.

3.12 Unit fronts

3.12.1 Dimensions

You require one unit door or two unit doors depending on

the appliance variant. The size of the applicable unit door(s)

depends on the total niche size and the unit body thickness.

Note

Observe the corresponding appliance and niche dimensions,

and installation sketches.

General specifications:

Please note our appliance-specific recommendations on

size and weight for fixed door installation.

The unit body thickness should be at least 16mm and no

more than 19mm.

Additional unit door above, below or adjacent:

The vertical gap dimension between the unit doors must

be 4mm.

The horizontal gap dimension between the unit doors

must be 4mm. Check the collision properties here.

(see 3.12.3 Adjusting the joint gap without collisions)

Weight and hinges:

If the unit fronts are heavy, the stress on the hinge is

very high. The hinge may be damaged. Please note the

maximum weight specification for your appliance in the

chapter Furniture front weights .

If the unit front exceeds the maximum permissible

weight, an appliance with sliding door technology can

help, as the weight is divided over several concealed

hinges on the unit.

If you use long unit fronts that extend a long way over

the appliances, we recommend an additional hinge (e.g.

Kamat) that has exactly the same pivot point as the

fixed door hinge used on your appliance. Using a further

hinge (Kamat) divides the weight over several points.

We recommend using a milled compensation fitting for

high unit fronts, in order to counteract warping (convex/

concave).

3.12.2 Fitting the unit front(s)

Note the following when installing:

- The unit front must be installed symmetrically to the

fridge door.

- The adjacent unit front is on the exact same level.

- The adjacent unit front has the same edge radius as the

appliance front.

- The unit front is level and not strained.

- The unit front has a minimum depth setting of around

2mm to the body.

► Install the appliance in the niche. (see 3.11 Installing the

appliance in the recess)

► Fasten the unit front to the appliance door.

(see 3.11 Installing the appliance in the recess)

► Adjust the gap.

► Check the unit front for collisions. (see 3.12.3 Adjusting

the joint gap without collisions)

3.12.3 Adjusting the joint gap without colli‐

sions

3.12.3 Joint gap with adjoining furniture side

panel

Fig. 65 Joint gap with adjoining furniture side panel

(F)

Front thickness (X) Min. joint gap

(R) Unit front corner radius

Front thickness

F [mm]

Unit front corner

radius R [mm]

Min. joint gap X

(vertical) [mm]

16 to 20 0 to 3 3

22 0 4

1 4

2 3

3 3

24 0 8

1 7

2 6

3 6

26 Not recommended.

3.12.3 Joint gap with adjoining unit door

Fig. 66 Joint gap with adjoining unit door

(F)

Front thickness (X) Min. joint gap

(R) Unit front corner radius

Front thickness F

[mm]

Unit front corner

radius R [mm]

Min. joint gap X

(vertical) [mm]

16 to 20 0 to 3 2

22 0 4

1 3

2 3

3 2

24 0 6

1 5

2 5

3 4

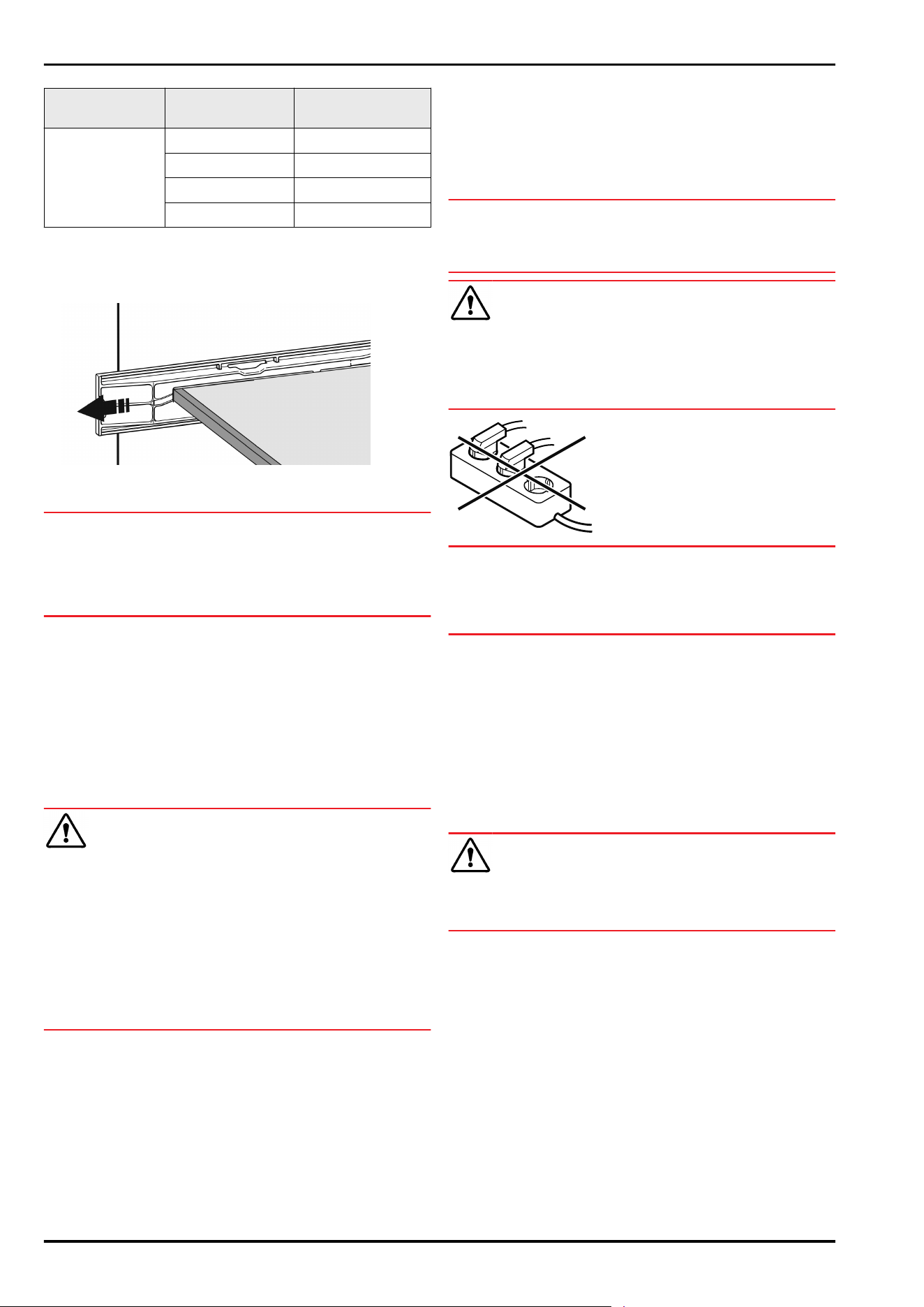

Setting up and connecting

18 * Depending on model and options

Front thickness F

[mm]

Unit front corner

radius R [mm]

Min. joint gap X

(vertical) [mm]

26 0 8

1 7

2 7

3 6

3.13 After installation

► Remove all transport safety fittings from the interior.

Fig. 67

► Remove transport safety fittings from the shelves.

NOTICE

Damage to property caused by pointed or sharp objects!

Using pointed or sharp objects when removing packaging

material may damage the appliance.

► Do not use any pointed or sharp objects to remove the

packaging material.

► Remove protective films from the interior: Peel the film

off flat along the surface of the component to minimise

its adhesive force.

► Clean the appliance. (see 10.8Cleaning the appliance)

► Note down the type (model, number), appliance name,

appliance/serial number, date of purchase and retailer’s

address.

3.14 Connecting the appliance to the

power supply

WARNING

Danger of electric shock and injury due to damaged appli‐

ance or damaged mains cable!

Danger of cuts and fatal injuries. If the appliance or the

mains cable is damaged during transport, you may be elec‐

trocuted. You could also cut yourself on damaged parts of

the appliance housing.

► Check the appliance and the mains cable for damage

after transport.

► Never put the appliance into operation if the appliance or

the mains cable are damaged.

► Contact Customer Service.

You can connect your appliance to the mains using the

power cable supplied separately. The mains power cable

has an appliance coupler at one end and a mains plug at the

other end.

Make sure that the following requirements are fulfilled:

The appliance and power cable are undamaged.

The appliance is installed in accordance with the regula‐

tions. (see 3.11 Installing the appliance in the recess)

Requirements for the electrical connection are met.

Dimensions for connection in accordance with regula‐

tions are known and observed.

Mains voltage and frequency correspond to the specifica‐

tions on the type plate.

The socket is earthed according to the regulations and

fused.

The fuse tripping current is between 10A and 16A.

The socket is easily accessible and is not behind the

appliance. (see 3.3 Recess dimensions)

NOTICE

Danger of damage to incorrect operation!

Damage to the electrical components of the appliance.

► Only use the supplied mains cable.

WARNING

Danger of fire due to incorrect connection!

Burns.

Damage to the appliance.

► Do not use an extension cable.

► Do not use distributor blocks.

NOTICE

Danger of damage to incorrect connection!

Damage to the appliance.

► Do not connect the appliance to a stand-alone inverter,

e.g. solar power systems and petrol generators.

► Connect the mains cable plug to the power supply.

Ensure that the plug is tightly in the socket.

▷ The Liebherr logo appears in the display.

▷ The display switches to the standby symbol.

▷ If no action occurs within 60 seconds: The standby

symbol fades or disappears.

▷ The appliance is connected. For information regarding

first use, see the following section or the operating

instructions.

3.15 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic

film!

► Do not allow children to play with packing material.

The packaging is made of recyclable materials:

corrugated board/cardboard

expanded polystyrene parts

polythene bags and sheets

polypropylene straps

nailed wooden frame with polyethylene panel*

► Take the packaging material to an official collecting

point.

Setting up and connecting

* Depending on model and options 19

4 Functionality of the

Touch&Swipe display

You operate your appliance using the Touch & Swipe display.

You select appliance functions in the Touch&Swipe display

(hereafter referred to as display) by tapping them. If you

do not perform any action on the display for 10seconds,

the display either jumps back to the higher-level menu or

directly to the status display.

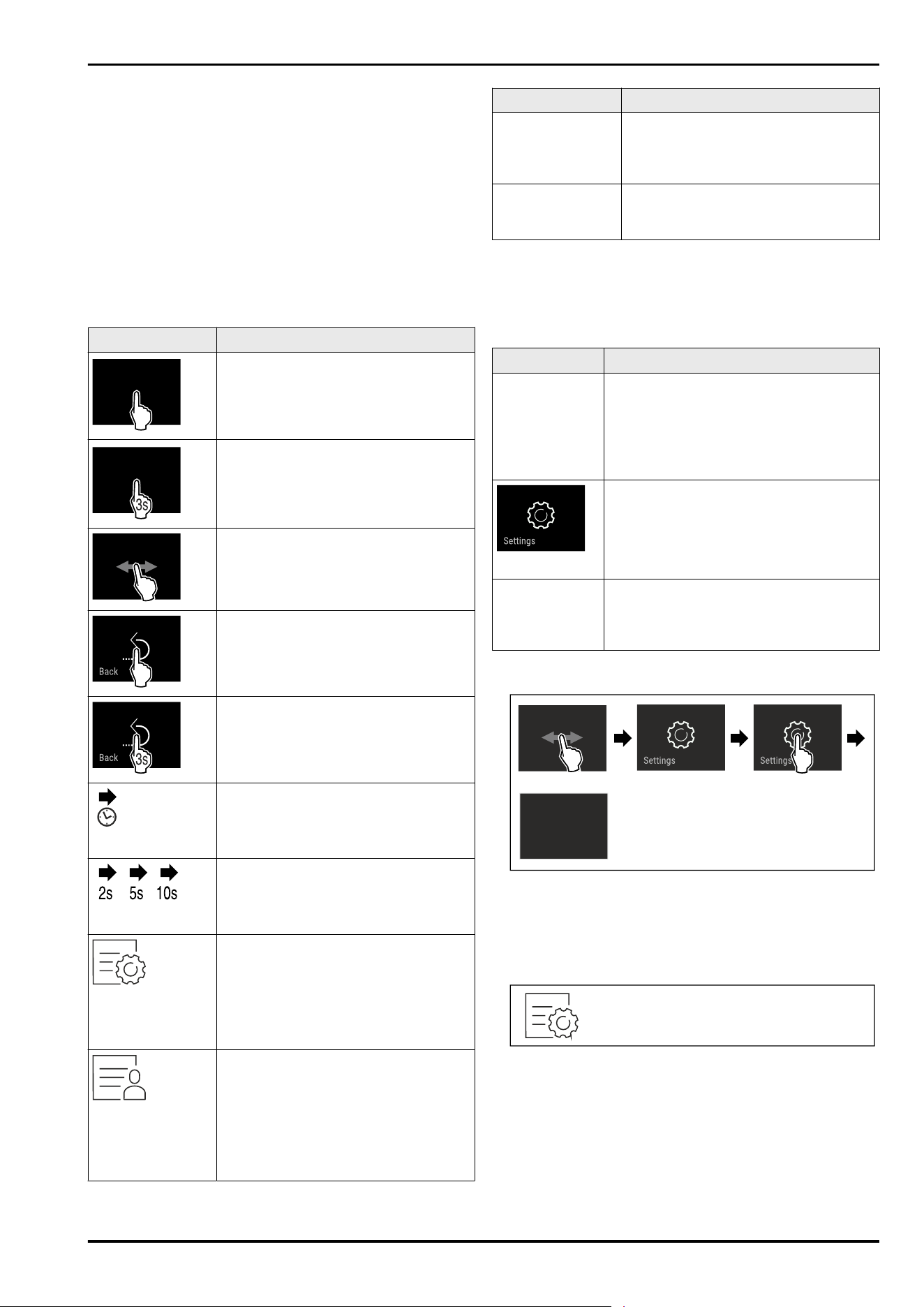

4.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate

the display. The following table describes these symbols.

Symbol

Description

Briefly touch the display:

Activates/deactivates function.

Confirms selection.

Opens submenu.

Touch the display for a specified time

(e.g. 3seconds):

Activates/deactivates function or

value.

Swipe left or right:

Navigate in the menu.

Briefly touch the Back symbol:

Jumps back one menu level.

Press and hold the Back symbol for

3seconds:

Jumps back to the status display.

Arrow with clock:

It takes more than 10 seconds for the

following message to appear in the

display.

Arrow with a time indication:

It takes the specified amount of time

until the following message appears in

the display.

“Open Settings menu” symbol:

Navigates to the Settings menu and

opens the settings menu.

If necessary: Navigate to the desired

function in the Settings menu.

(see4.2.1 Opening the Settings menu)

“Open Advanced menu” symbol:

Navigates to the Advanced menu and

opens the advanced menu.

If necessary: Navigate to the desired

function in the Advanced menu.

(see4.2.2 Opening the expanded

menu)

Symbol Description

No action for

10seconds

If you do not perform any action on

the display for 10seconds, the display

either jumps back to the higher-level

menu or directly to the status display.

Close the door

and open it again.

If you close the door and immedi‐

ately open it again, the display jumps

directly back to the status display.

Note: Illustrations of the display are shown in the English

version.

4.2 Menus

The appliance functions are distributed over various menus:

Description

Main menu When you switch the appliance on, you

are automatically in the main menu.

From here you can navigate to the most

important appliance functions, to the

Settings menu and to the Advanced

menu.

Settings menu

The Settings menu contains additional

appliance functions for setting up your

appliance.

Advanced menu The advanced menu contains special

appliance functions for setting up your

appliance. Access to the Advanced menu

is protected by the numerical code 151.

4.2.1 Opening the Settings menu

Fig. 68 Example illustration

► Carry out action steps according to the illustration.

▷ Settings menu is open.

► If necessary: Navigate to the desired function.

4.2.2 Opening the expanded menu

Fig. 69

Functionality of the Touch&Swipe display

20 * Depending on model and options

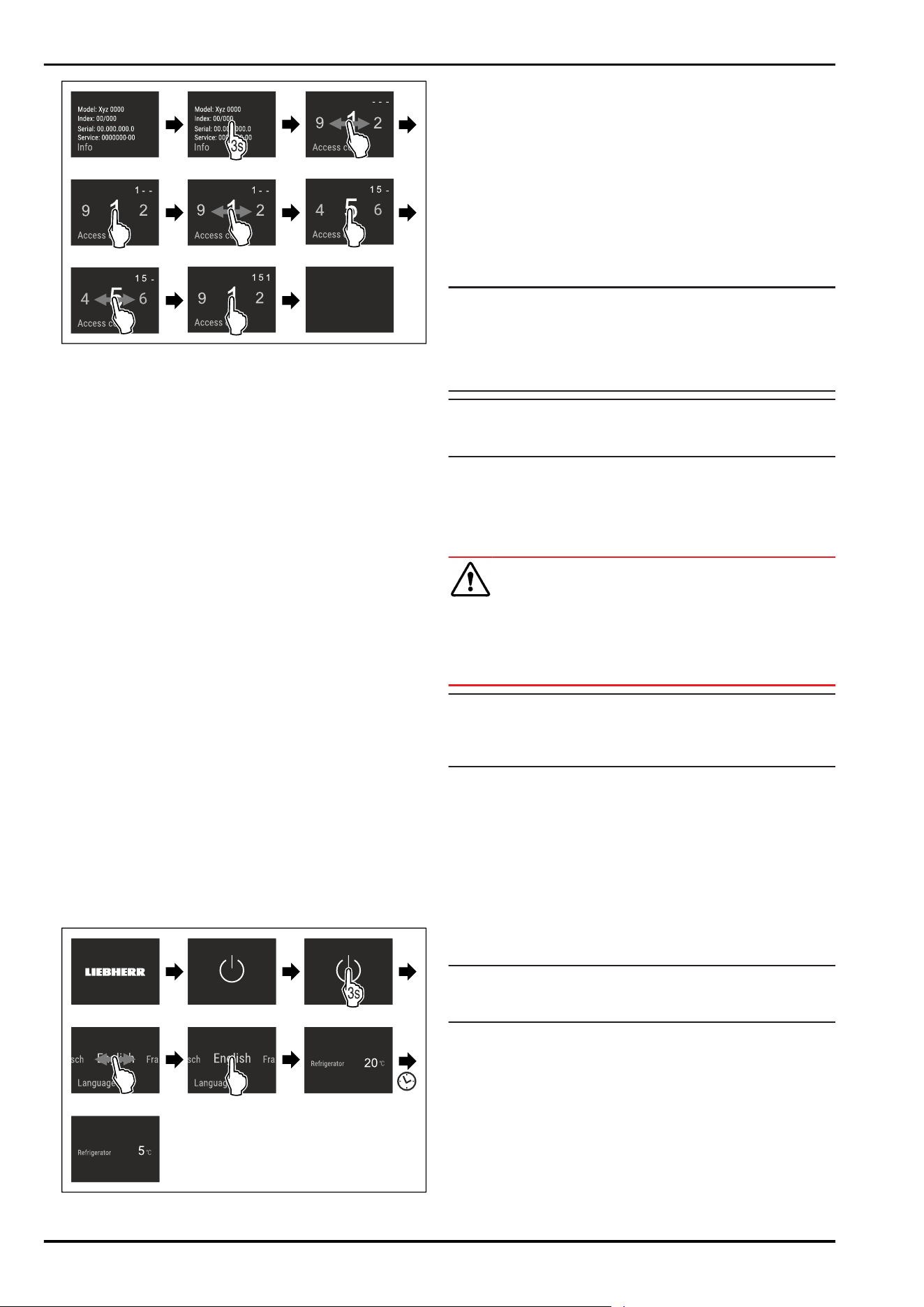

Fig. 70 Example illustration, access with numerical code

151

► Carry out action steps according to the illustration.

▷ The expanded menu is open.

► If necessary: Navigate to the desired function.

4.3 Sleep mode

If you do not touch the display for 1 minute, the display

switches to sleep mode. In sleep mode, the display bright‐

ness is dimmed.

4.3.1 Ending sleep mode

► Touch the display briefly with your finger.

▷ Sleep mode is ended.

5 Putting into operation

5.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

❑

The appliance is properly installed and connected

according to the installation instructions.

❑

All adhesive strips, adhesive and protective films and

transport locks are removed from inside and on the appli‐

ance.

❑

All marketing leaflets are removed from the drawers.

❑

You are familiar with the functionality of the

Touch & Swipe display. (see4 Functionality of the

Touch&Swipe display)

Switch on the appliance using the Touch&Swipe display:

► If the display is in sleep mode: Briefly touch the display.

► Carry out action steps according to the illustration.

Fig. 71 Example illustration

▷

Status display appears.

▷ The appliance cools to the temperature set at the factory.

▷ The appliance starts in demo mode (status display with

DEMO appears): If the appliance starts in demo mode,

you can deactivate demo mode within the next 5 minutes.

(seeDemo mode)

More information:

When you start up the appliance, the status light (status

display) is deactivated by default. Activate the status

light.

Start the SmartDevice for the first time. (see 2.3 Smart‐

Device) and (seeWiFi)

Note

The manufacturer recommends:

► Stock with food: Wait for around 6 hours until the set

temperature is reached.

► Observe the notes on storing food. (see6.1 Information

regarding storage)

Note

Sie erhalten Zubehör im Liebherr-Hausgeräte-Shop unter

go.liebherr.com/47wtc4.

6 Storage

6.1 Information regarding storage

WARNING

Fire hazard from electrical appliances!

If you use electrical appliances in the food area of your

appliance, they can cause a fire.

► Do not use electrical appliances in the food area of the

appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep air slots clear.

Observe the following specifications for storage:

Keep the air vents on the fan free.

Package or cover foods that readily take on or give off

odours or taste in closed containers.

Keep liquids in closed containers.

Leave space between goods to ensure good air circula‐

tion.

Store food according to the instructions on the pack‐

aging.

Always observe the best-before date indicated on the

packaging.

Note

Failure to follow these guidelines can lead to foodstuffs

spoiling.

6.2 Fridge compartment

The air circulation in the appliance creates different temper‐

ature zones. You will find the different temperature zones in

the appliance and equipment overview. (see2.2 Overview of

the appliance and equipment)

Putting into operation

* Depending on model and options 21

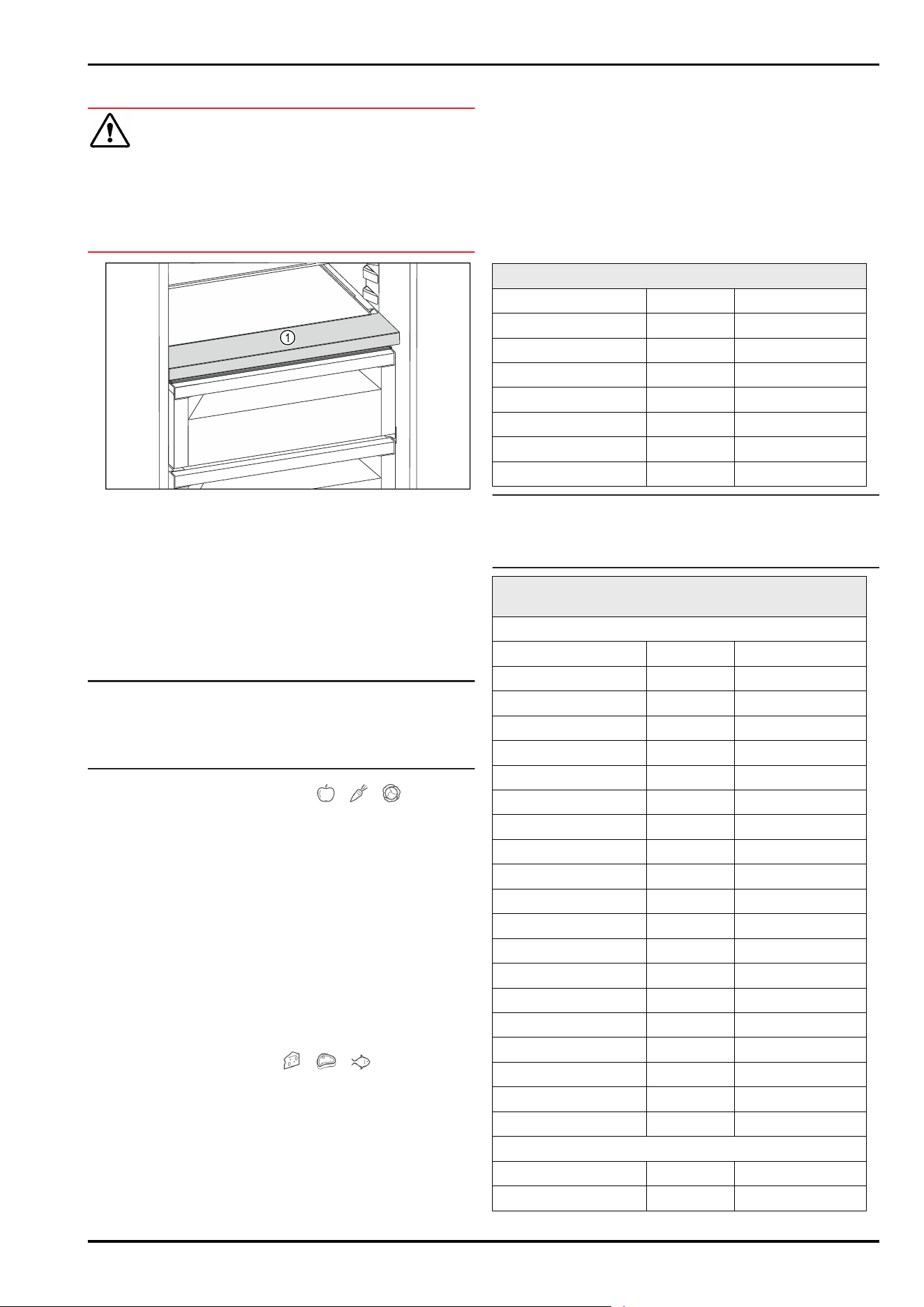

6.2.1 Arranging your food properly

CAUTION

Risk of injury and damage to the appliance due to incor‐

rectly stored food or objects!

If you place food or objects on the bottom glass shelf, the

door may not close properly. This could cause the door racks

to break, food or objects to fall out and cause injury.

► Keep the front area of the bottom glass shelf clear.

Fig. 72 Example illustration

(1)

Front area

► Upper area and door: Store butter, cheese, tinned food

and tubes.

► Coldest temperature zone: Store perishable foods such

as pre-cooked meals.

6.3 BioFresh

BioFresh will extend the storage time for some fresh foods

compared to traditional refrigeration.

Note

If the temperature drops below 0°C foods may freeze.

► Store cold-sensitive produce such as cucumbers, auber‐

gines, courgettes and tropical fruit in the fridge compart‐

ment.

6.3.1 Fruit & Vegetable safe

This safe creates a storage climate of close to 0°C. The

compartment lid ensures constant levels of humidity. This

storage climate is suitable for storing unpackaged food with

high intrinsic moisture (for example, lettuce, vegetables,

fruit).

The humidity in the compartment depends on the moisture

content of the chilled goods placed in it, and also depends

on how often the compartment is opened. You can regulate

the humidity level.

Arranging your food properly

► Store unpackaged fruit and vegetables.

If the humidity is too high:

► Regulate the humidity.

6.3.2 Meat & Dairy safe

This safe creates a storage climate of close to 0°C. This

storage climate is suitable for more sensitive foods (e.g.

dairy products, meat, fish, sausage).

Arranging your food properly

► Store dry or packaged food.

6.4 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date

indicated on the packaging still applies.

6.4.1 Fridge section

Always follow the best-before date stated on the packaging.

6.4.2 BioFresh

Recommended storage periods in the Meat & Dairy-Safe

Butter at 1°C up to 90 days

Hard cheese at 1°C up to 110 days

Milk at 1°C up to 12 days

Sausage, cold meats at 1°C up to 8 days

Poultry at 1°C up to 6 days

Pork at 1°C up to 6 days

Beef at 1°C up to 6 days

Game at 1°C up to 6 days

Note

► Remember that high-protein foods perish quicker; shell‐

fish and crustaceans do not last as long as fish, and fish

does not last as long as meat.

Recommended storage periods in the Fruit & Vegetable-

Safe

Vegetables, salads

Artichokes at 1°C up to 14 days

Celery at 1°C up to 28 days

Cauliflower at 1°C up to 21 days

Broccoli at 1°C up to 13 days

Chicory at 1°C up to 27 days

Lettuce at 1°C up to 19 days

Peas at 1°C up to 14 days

Kale at 1°C up to 14 days

Carrots at 1°C up to 80 days

Garlic at 1°C up to 160 days

Turnip at 1°C up to 14 days

Lettuce at 1°C up to 13 days

Herbs at 1°C up to 13 days

Leeks at 1°C up to 29 days

Mushrooms at 1°C up to 7 days

Radishes at 1°C up to 10 days

Brussels sprouts at 1°C up to 20 days

Asparagus at 1°C up to 18 days

Spinach at 1°C up to 13 days

Savoy at 1°C up to 20 days

Fruit

Apricots at 1°C up to 13 days

Apples at 1°C up to 80 days

Storage

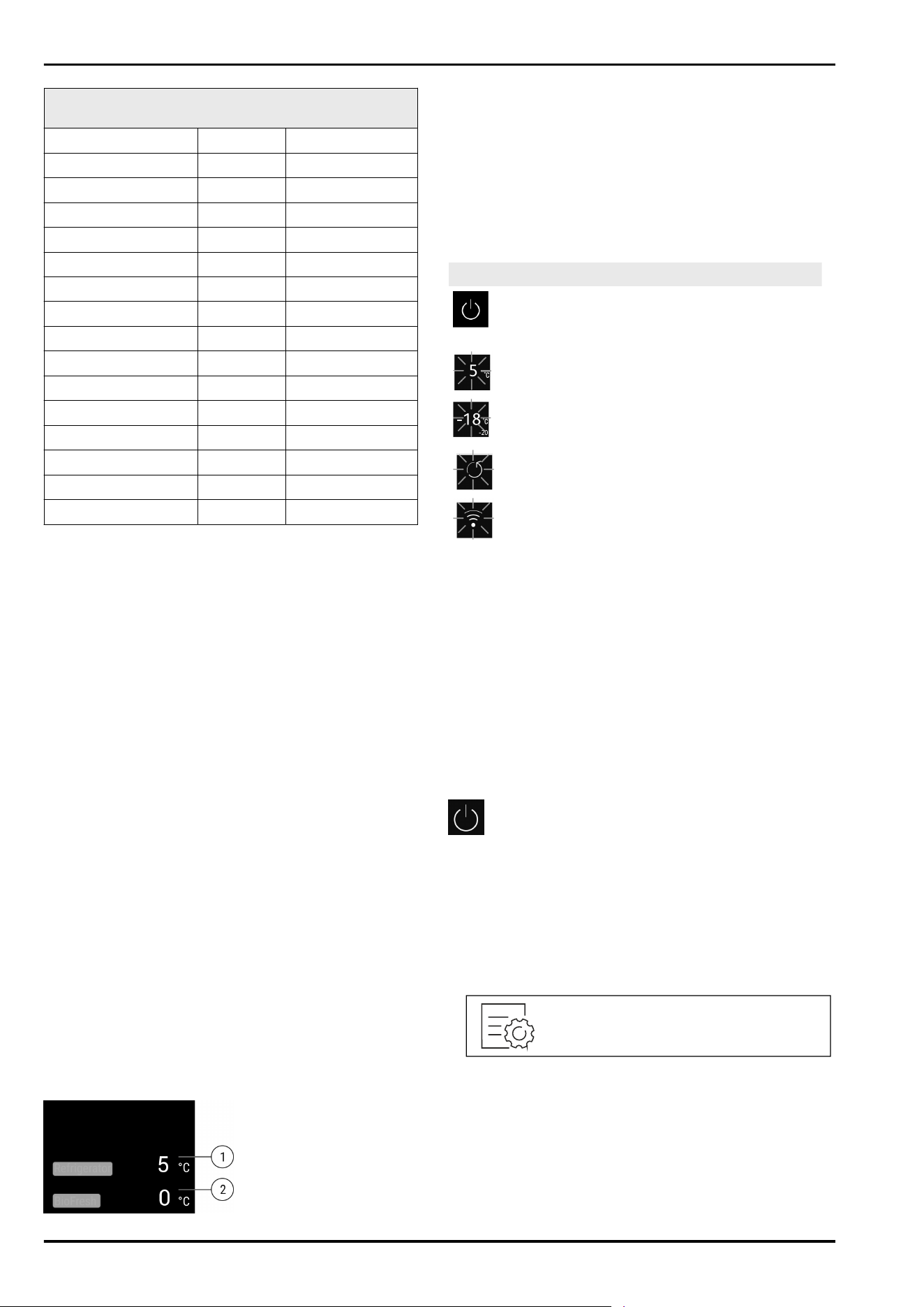

22 * Depending on model and options

Recommended storage periods in the Fruit & Vegetable-

Safe

Pears at 1°C up to 55 days

Blackberries at 1°C up to 3 days

Dates at 1°C up to 180 days

Strawberries at 1°C up to 7 days

Figs at 1°C up to 7 days

Blueberries at 1°C up to 9 days

Raspberries at 1°C up to 3 days

Currants at 1°C up to 7 days

Sweet cherries at 1°C up to 14 days

Kiwis at 1°C up to 80 days

Peaches at 1°C up to 13 days

Plums at 1°C up to 20 days

Cranberries at 1°C up to 60 days

Rhubarb at 1°C up to 13 days

Gooseberries at 1°C up to 13 days

Grapes at 1°C up to 29 days

7 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight or near

radiators or similar sources of heat.

If the appliance is installed directly next to an oven,

the energy consumption may increase slightly. This is

dependent on the service life and usage intensity of the

oven.

Energy consumption depends on the installation condi‐

tions, e.g. the ambient temperature . A warmer ambient

temperature can increase the energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Sort your food: home.liebherr.com/food.

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it

doesn’t warm up too much.

Inserting warm food: allow to cool down to room temper‐

ature first.

For longer periods of absence, use HolidayMode

(seeHolidayMode) .

8 Controls

8.1 Controls and displays

8.1.1 Status display

Fig. 73 The status display shows the actual temperature.

(1) Temperature display of

the fridge section

(2) Temperature display

BioFresh

The status display shows the actual temperature and is the

initial display. Navigation to the functions takes place from

there.

8.1.2 Display symbols

Display symbols provide information on the current appli‐

ance status:

Symbol Appliance status

Standby

The appliance or temperature zone

is switched off.

Flashing number

Appliance is working. Temperature

flashes until the set temperature is

reached.

Flashing symbol

Appliance is working. Setting is

made.

8.2 Appliance functions

8.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your

appliance is fully functional.

Before you alter, activate or deactivate the device functions,

make sure that the following requirements are met:

❑

You have read and understood the descriptions of

how the display works. (see4 Functionality of the

Touch&Swipe display)

❑

You have familiarised yourself with the operating and

display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously

saved settings are saved.

Make sure that the following requirements are fulfilled:

❑

Handling instructions (see12Shutting down) are carried

out.

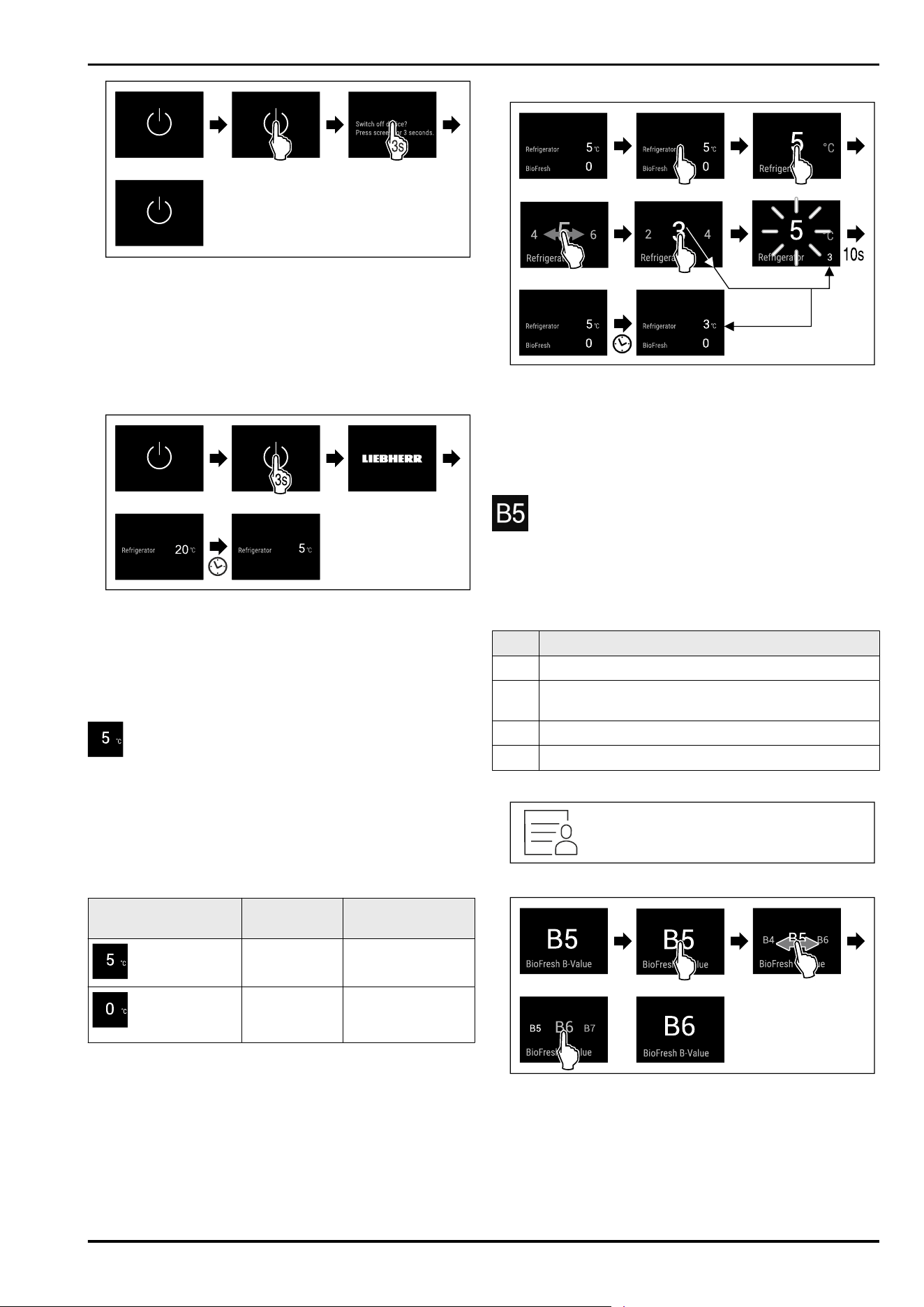

Fig. 74

Saving energy

* Depending on model and options 23

Fig.75

► Carry out action steps according to the illustration.

▷ Appliance is switched off.

▷ The standby symbol appears in the display.

▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

► Briefly touch the display.

Fig. 76 Example illustration

► Carry out action steps according to the illustration.

When the appliance starts in demo mode:

► Deactivating demo mode. (see Deactivating demo mode)

▷ The appliance is switched on.

▷ Previous settings are restored.

▷ The appliance cools to the target temperature set.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

Frequency of door opening

Duration of door opening

Room temperature of the installation site

Type, temperature and quantity of food

Temperature zone

Factory-set

temperature

Recommended

setting

Fridge section

5°C 4°C

BioFresh

0°C B-Value

(see BioFresh B-

Value )

Setting the temperature in the fridge section

Fig. 77 Example illustration

► Carry out action steps according to the illustration.

▷ Temperature is set.

Setting the temperature in BioFresh

Set the temperature using the BioFresh B-Value.

(see BioFresh B-Value )

BioFresh B-Value

Use this function to set the BioFresh B-Value. With the

BioFresh B-Value, you can set BioFresh slightly warmer or

colder if necessary due to higher or lower ambient temper‐

atures. The BioFresh B-Value is pre-set to valueB5 as deliv‐

ered. If you change the B-Value, refer to the following table:

Value

Description

B1 Lowest temperature

B1-B4 The temperature can drop below 0°C which means

foods can easily freeze.*

B5 Pre-set temperature

B9 Highest temperature

Setting the BioFresh B-Value

Fig.78

Fig. 80 Example illustration: Switch from B5 to B6.

► Carry out action steps according to the illustration.

▷ The BioFresh B-Value is set.

▷ Status display shows target temperature.

Controls

24 * Depending on model and options

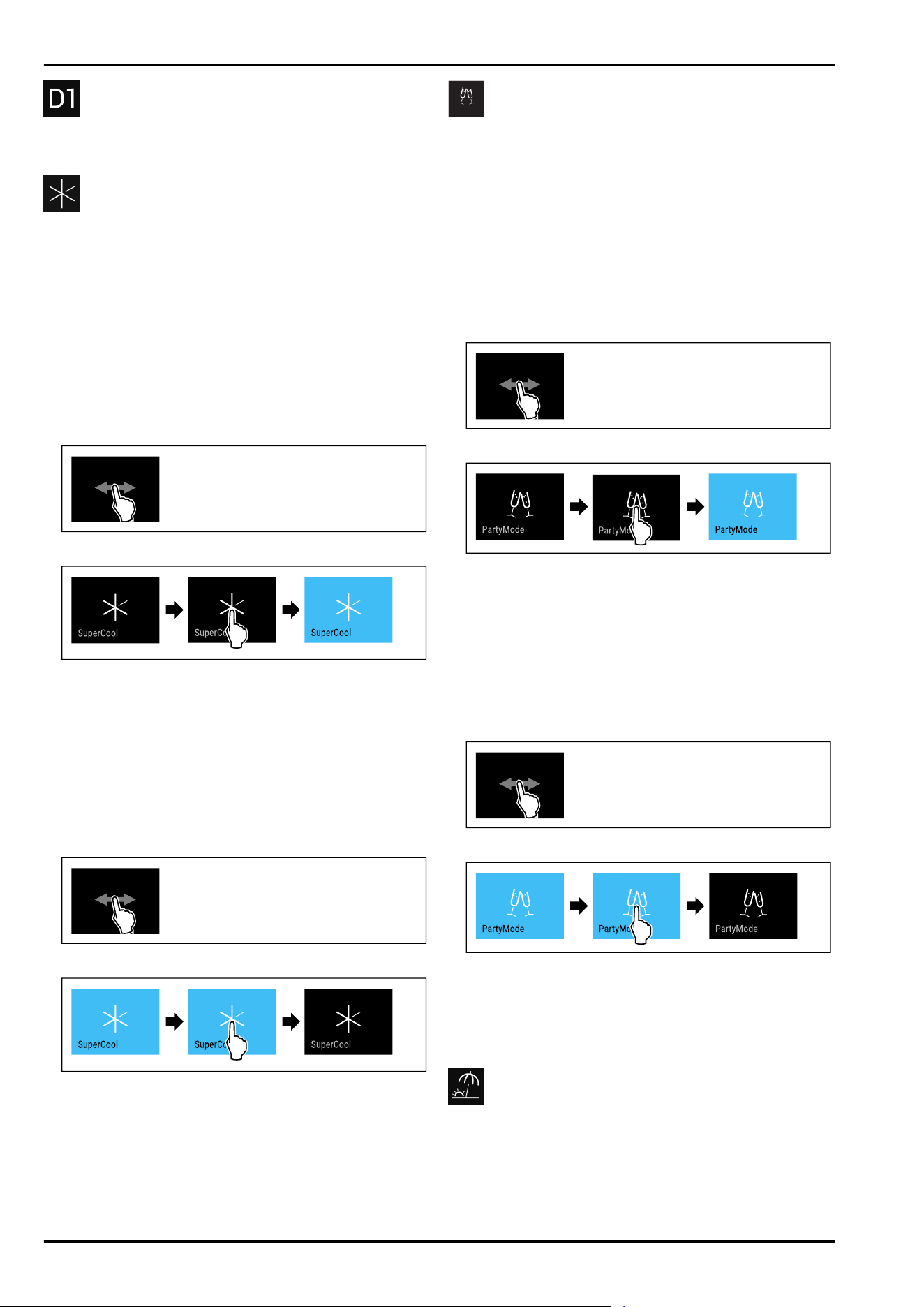

D-Value

The D-Value is pre-set for your appliance and is not

permitted to be changed.

SuperCool

You can use this function to activate or deactivate Super‐

Cool. If SuperCool is activated, then the appliance increases

the cooling capacity. It allows you to achieve lower cooling

temperatures. You can activate SuperCool when you would

like to cool a large quantity of food quickly.

If the function is active, the appliance operates at higher

power. As a result, the appliance's operating noise may be

temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

When you would like to store fresh food in the fridge

section: Activate the function when inserting food.

Fig.81

Fig.82

► Carry out action steps according to the illustration.

-or-

► Activate with the SmartDevice app.

▷ SuperCool is activated.

▷ The temperature display turns blue.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours.

However, you can also deactivate SuperCool manually at

any time:

Fig.83

Fig.84

► Carry out action steps according to the illustration.

-or-

► Deactivate with the SmartDevice app.

▷ SuperCool is deactivated.

▷ The appliance continues to run in normal mode.

▷ The appliance cools to the temperature set previously.

PartyMode

You can use this function to activate or deactivate Party‐

Mode. PartyMode activates various functions that are useful

for a party.

PartyMode activates the following functions:

SuperCool (seeSuperCool)

You can adjust all listed functions individually and flexibly.

When you deactivate PartyMode, all changes are discarded.

If the function is active, the device operates at higher

power. As a result, the device's operating noise may be

temporarily louder and energy consumption will increase.

Activating PartyMode

Fig.85

Fig.86

► Carry out action steps according to the illustration.

▷ PartyMode and the associated functions are activated.

▷ The temperature display turns blue.

▷ The current temperature flashes until the target tempera‐

ture is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after

24 seconds. However, you can also deactivate PartyMode

manually at any time:

Fig. 87

Fig.88

► Carry out action steps according to the illustration.

▷ PartyMode is deactivated.

▷ The appliance cools to the temperature set previously:

The current temperature flashes until the target tempera‐

ture is reached.

HolidayMode

You can use this function to activate or deactivate Holiday‐

Mode. If you activate HolidayMode, the fridge section is set

to 15°C. This saves you energy during longer periods of

absence and prevents bad odours and growth of mould.

Controls

* Depending on model and options 25

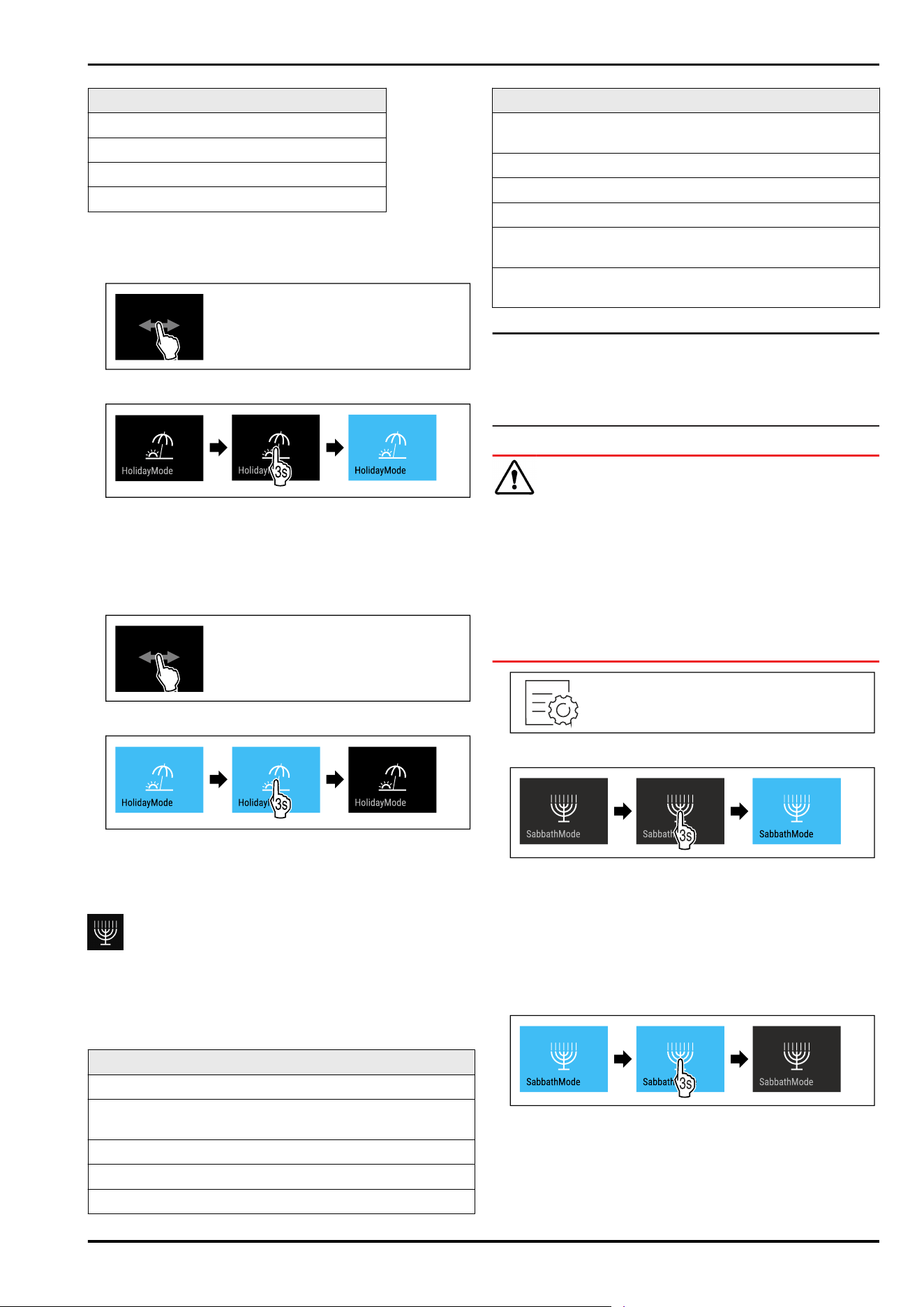

Appliance status when HolidayMode is active

Fridge section cools to 15°C.

BioFresh cools to 15°C.

PartyMode is deactivated.

SuperCool is deactivated.

Activating HolidayMode

► Empty the fridge section completely.

► Empty BioFresh completely.

Fig.89

Fig.90

► Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display turns blue and shows HolidayMode

symbol.

Deactivating HolidayMode

Fig. 91

Fig.92

► Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

▷ The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate

SabbathMode. If you activate this function, some electronic

functions are switched off. As a result, your device meets

the religious requirements for Jewish holidays such as

Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the

Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Device status when SabbathMode is active

Reminders are not implemented. The set time interval

stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrosting cycle operates only for the specified time,

without considering the appliance consumption.

After a power failure, the appliance returns to

SabbathMode.

Device status

Note

This appliance has certification from the “Institute for

Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at

www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure

occurs, no message appears in the status display about the

power failure. Once the power is restored, the appliance

continues to operate in SabbathMode. The power failure

may mean that food spoils and the consumption of this food

could lead to food poisoning.

After a power failure:

► Do not consume food that was frozen and has thawed

out.

Fig. 93

Fig. 94

► Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after

80 hours. However, you can also deactivate SabbathMode

manually at any time:

Fig.95

► Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

Controls

26 * Depending on model and options

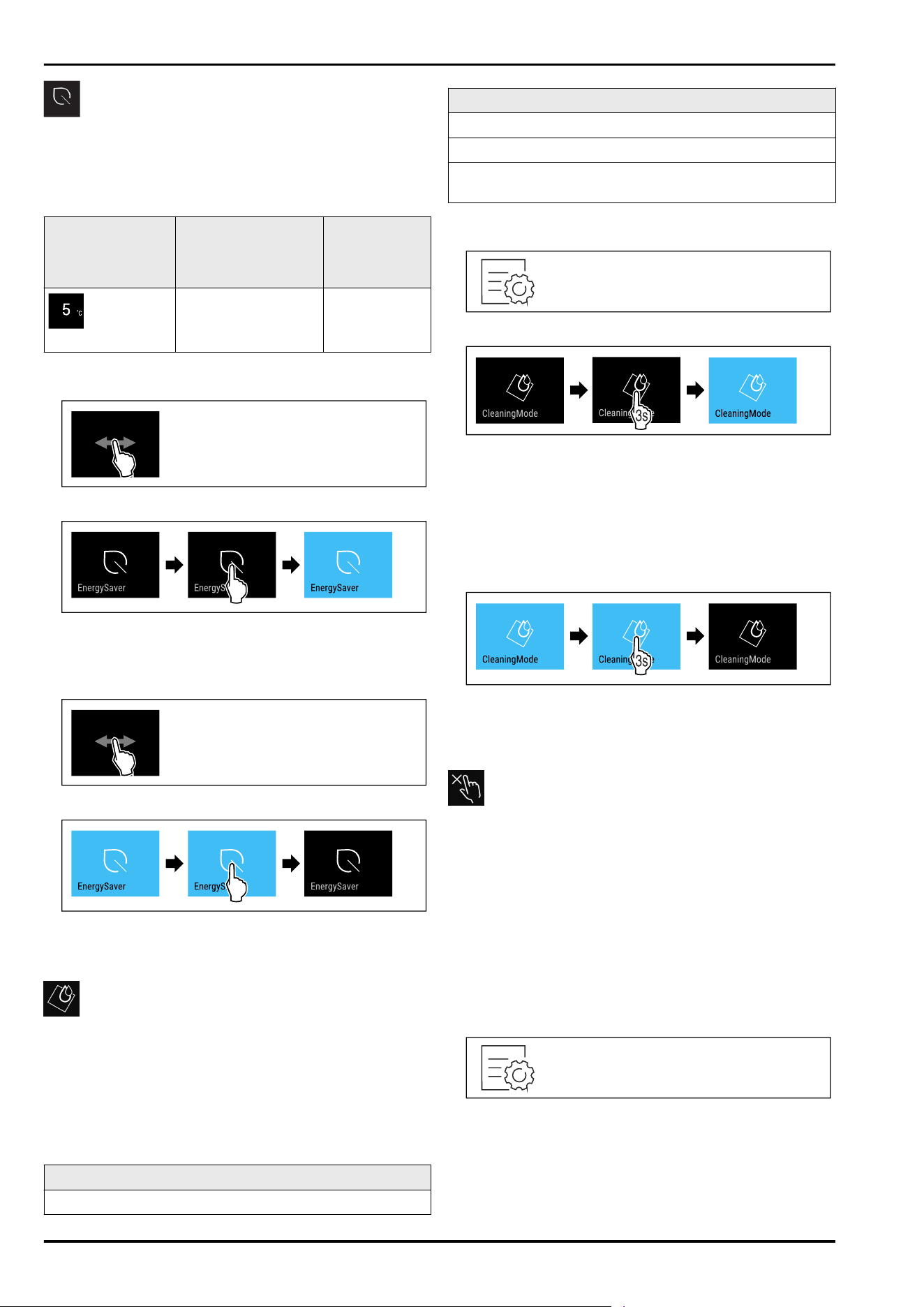

EnergySaver

You can use this function to activate or deactivate Energy

saving mode. If energy saving mode is activated, the energy

consumption decreases and the temperature in the device

increases. The food remains fresh, but the shelf life is short‐

ened.

Temperature zone Recommended

setting (see Setting

the temperature in

the fridge section)

Temperature

with active

EnergySaver

Fridge

section

4°C 7°C

Temperatures

Activating EnergySaver

Fig.96

Fig.97

► Carry out action steps according to the illustration.

▷ Energy saving mode is activated.

Deactivating EnergySaver

Fig.98

Fig.99

► Carry out action steps according to the illustration.

▷ Energy saving mode is deactivated.

CleaningMode

You can use this function to activate or deactivate Cleaning‐

Mode. CleaningMode enables the appliance to be cleaned

conveniently.

This setting applies to the fridge section.

Application:

Clean the fridge section. (see 10.8Cleaning the appli‐

ance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

Device status when CleaningMode is active

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal

tone sounds.

Device status

Activating CleaningMode

Fig. 100

Fig. 101

► Carry out action steps according to the illustration.

▷ CleaningMode is activated.

▷ The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after

60 minutes. However, you can also deactivate Cleaning‐

Mode manually at any time:

Fig. 102

► Carry out action steps according to the illustration.

▷ CleaningMode is deactivated.

▷ The appliance cools to the temperature set previously.

Input lock

You can use this function to activate or deactivate the input

lock. The input lock prevents the appliance being operated

accidentally, e.g. by children.

Application:

Avoid unintentional modification of functions.

Avoid unintentional switching off of the device.

Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate

in the menus but you cannot select or change other func‐

tions.

Fig. 103

Controls

* Depending on model and options 27

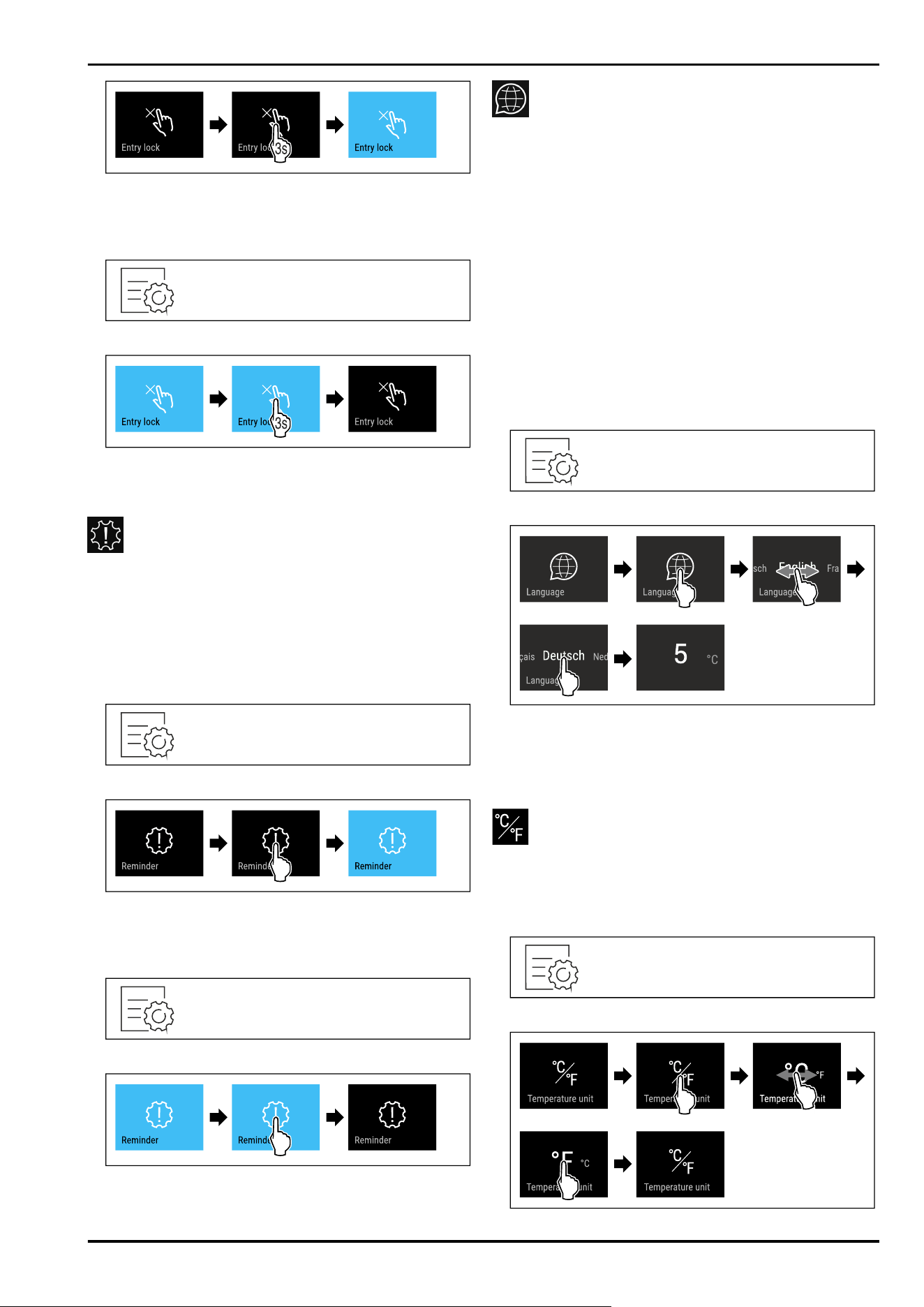

Fig. 104

► Carry out action steps according to the illustration.

▷ Input lock is activated.

Deactivating the input lock

Fig. 105

Fig. 106

► Carry out action steps according to the illustration.

▷ Input lock is deactivated.

Reminder

Use this function to activate or deactivate the reminders.

The function is activated on delivery.

If the function is activated, the following reminders will

appear:

Replace the FreshAir activated carbon filter (see Replace

the FreshAir activated carbon filter)

Activating the reminder

Fig. 107

Fig. 108

► Carry out action steps according to the illustration.

▷ Reminder is activated.

Deactivating the reminder

Fig. 109

Fig. 110

► Carry out action steps according to the illustration.

▷ Reminder is deactivated.

Language

Use this function to set the display language.

You can select the following languages:

Deutsch

English

Français

Español

Italiano

Nederlands

Čeština

Polski

Português

Bulgarian

Русский

温度单位

Setting the language

Fig.111

Fig. 112 Example illustration depending on the language

and temperature

► Carry out action steps according to the illustration.

▷ The language is set.

▷ The display returns to the status display.

Temperature unit

Use this function to set the temperature unit. You can set

degrees Celsius or degrees Fahrenheit as the temperature

unit.

Setting the temperature unit

Fig.113

Controls

28 * Depending on model and options

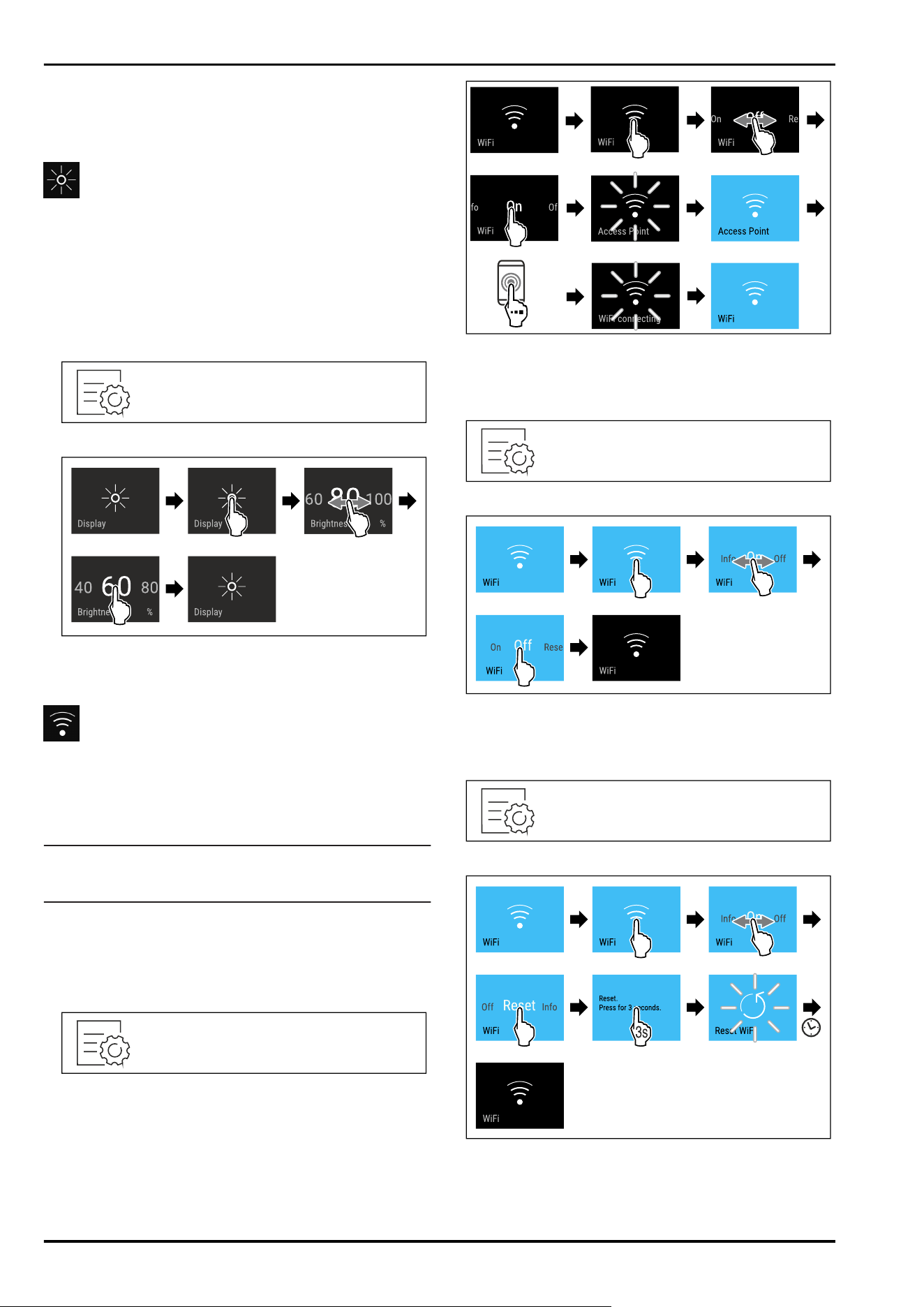

Fig. 115 Example illustration: Switch from degreesCelsius

to degrees Fahrenheit.

► Carry out action steps according to the illustration.

▷ The temperature unit is set.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

40%

60%

80%

100 % (pre-setting)

Setting the brightness

Fig. 116

Fig. 117 Example illustration: Switch from 80 % to 60%.

► Carry out action steps according to the illustration.

▷ The brightness is set.

WiFi

Use this function to connect your appliance to WiFi. You can

then operate it via the SmartDevice app on a mobile device.

You can also use this function to disconnect or reset the

WiFi connection.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following

countries: Russia, Belarus, Kazakhstan.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

❑

You have installed the SmartDevice app (see

apps.home.liebherr.com).

❑

Registration in the SmartDevice app is completed.

Fig. 118

Fig. 119

► Carry out action steps according to the illustration.

▷ Connection is established.

Disconnecting from the WiFi

Fig.120

Fig.121

► Carry out action steps according to the illustration.

▷ There is no connection.

Resetting the WiFi connection

Fig.122

Fig.123

► Carry out action steps according to the illustration.

▷ WiFi connection and other WiFi settings are reset to

factory settings.

Controls

* Depending on model and options 29

Showing information about the WiFi connection

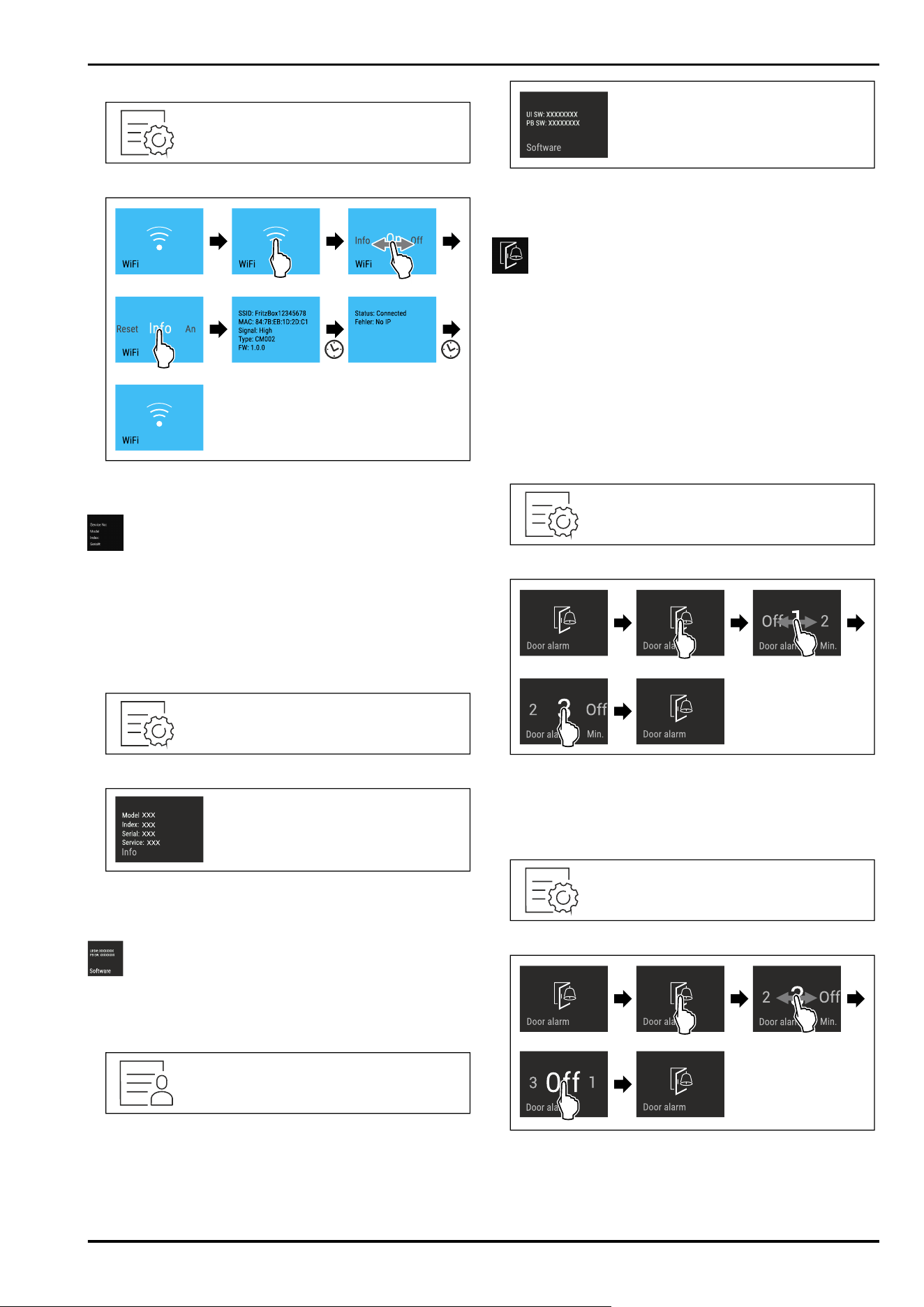

Fig. 124

Fig.125

► Carry out action steps according to the illustration.

Device information

Use this function to indicate the model name, index, serial

number and service number of your device. You will need

the device information when you contact customer service.

(see11.4 Customer Service)

This function also opens the Advanced menu. (see4 Func‐

tionality of the Touch&Swipe display)

Indicating the device information

Fig. 126

Fig.127

► Carry out action steps according to the illustration.

▷ Display indicates device information.

Software

Use this function to indicate the software version of your

device.

Indicating the software version

Fig.128

Fig.129

► Carry out action steps according to the illustration.

▷ Display indicates software version.

Door alarm

Use this function to activate or deactivate the door alarm.

The door alarm sounds if the door is open for too long. The

door alarm is activated on delivery. You can set how long

the door may be open before the door alarm sounds.

The following values can be set:

1 minute

2 minutes

3 minutes

Off

Setting the door alarm

Fig.130

Fig. 131 Example illustration: Change door alarm from

1 minute to 3 minutes.

► Carry out action steps according to the illustration.

▷ The door alarm is set.

Deactivating the door alarm

Fig.133

Fig.134

► Carry out action steps according to the illustration.

▷ The door alarm is deactivated.

Controls

30 * Depending on model and options

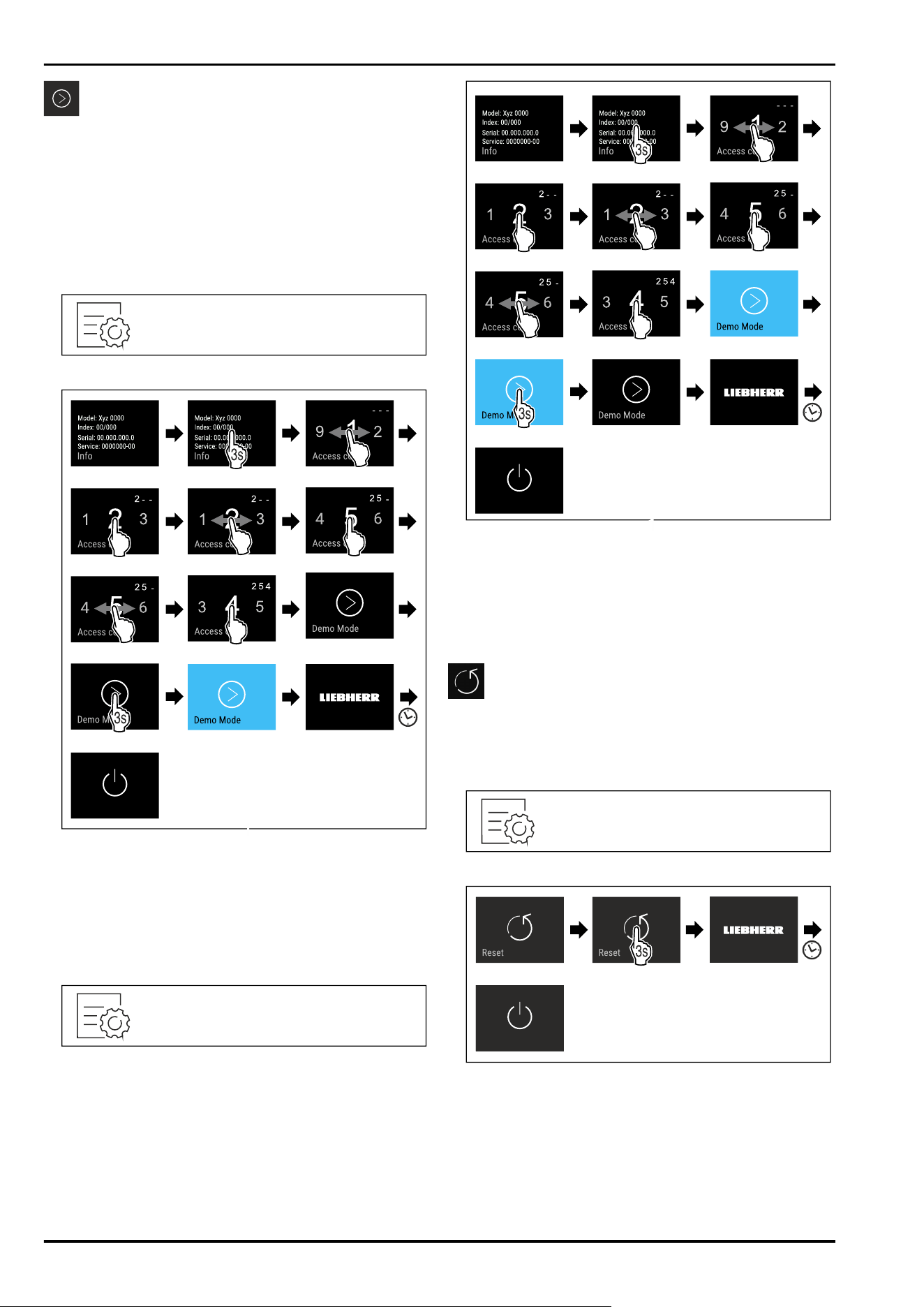

Demo mode

Demo mode is a special feature for dealers who want to

demonstrate appliance features. If you activate demo mode,

all refrigeration functions are deactivated.

If you switch on your appliance and “Demo” appears in the

status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appli‐

ance will be reset to factory defaults. (see Resetting to

factory settings)

Activating demo mode

Fig.135

Fig.136

► Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

► Switch on the appliance. (see 5.1 Switching on appliance

(first use))

▷ “DEMO” appears in the status display.

Deactivating demo mode

Fig.137

Fig.138

► Carry out action steps according to the illustration.

▷ Demo mode is deactivated.

▷ Appliance is switched off.

► Switch on the appliance. (see 5.1 Switching on appliance

(first use))

▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults.

All settings you have made so far are reset to their original

settings.

Performing a reset

Fig. 139

Fig. 140

► Carry out action steps according to the illustration.

▷ Device is reset.

▷ Device is switched off.

► Restart the device. (see 5.1 Switching on appliance (first

use))

Controls

* Depending on model and options 31

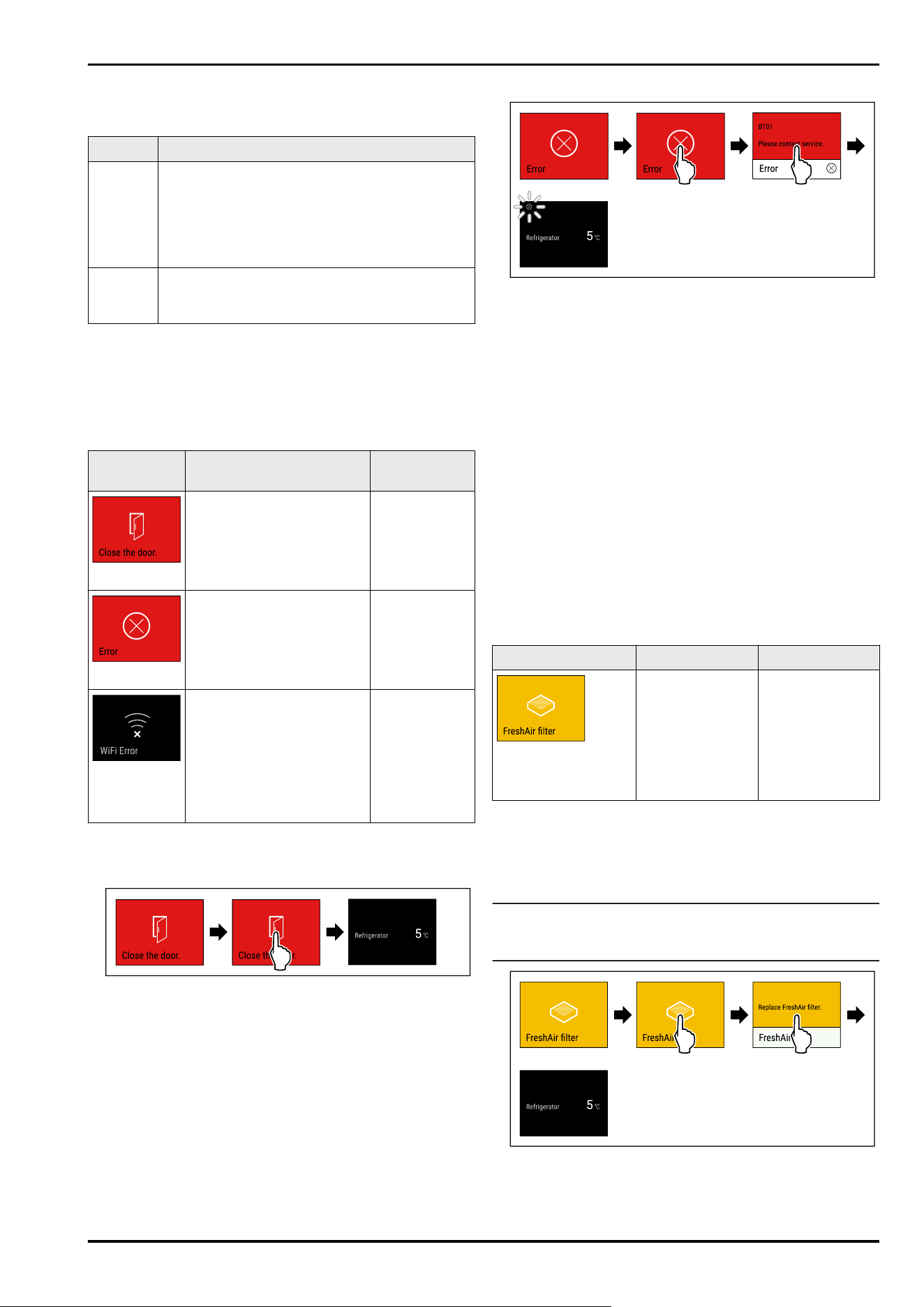

8.3 Messages

There are two categories of messages:

Category Importance

Warning Warnings appear in the event of a door alarm or

malfunction.

Simple warnings can be cancelled by yourself.

In the event of serious malfunctions, you must

contact customer service. (see11.4 Customer

Service)

Reminder Reminders remind you of general processes.

You can carry out these operations to end the

message.

8.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

Warning appears in red on the display.

The alarm tone sounds at an ever-increasing volume.

The interior lighting pulsates for some warnings.

Message

Cause Exit the

message

Door alarm

The message appears if

the door is open for too

long.

Carry out

action steps.

(seeDoor

alarm)

Error

The message appears if

there is an appliance error.

A component of the appli‐

ance has a fault.

Carry out

action steps.

(see Error)

WLAN error

The message appears if

the appliance could not be

connected to the WLAN.

(see Establishing the WiFi

connection for the first

time) The message only

appears during the initial

setup.

Carry out

action steps.

(seeWLAN

error)

8.3.2 Ending warnings

Door alarm

Fig. 141 Example illustration

► Carry out action steps according to the illustration.

-or-

► Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door

alarm sounds. (see Setting the door alarm)

Error

Fig. 142 Example illustration

► Briefly touch the display.

▷ Error code is displayed.

► Note the error code.

► Briefly touch the display.

▷ The display returns to the status indicator.

► Contact Customer Service. (see11.4 Customer Service)

WLAN error

► Check WLAN connection.

► Reconnect the appliance to the WLAN. (seeWiFi)

8.3.3 Overview of reminders

Behaviour of the appliance during reminders:

Reminder appears yellow on the display.

Alarm tone sounds.

The interior lighting pulsates for some reminders.

The following reminders can be deactivated (seeDeacti‐

vating the reminder) :

Replace the FreshAir activated carbon filter

Message

Cause Exit the message

Replace the Fres‐

hAir activated

carbon filter

The message

appears when

the FreshAir acti‐

vated carbon

filter needs to be

replaced.

Carry out action

steps.

(see Replace the

FreshAir acti‐

vated carbon

filter)

8.3.4 Ending reminders

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated

carbon filter every 6 months.

Note

Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-

Hausgeräte-Shop unter go.liebherr.com/47wtc4.

Fig. 143 Example illustration

► Briefly touch the display.

▷ Display shows reminder information.

► Briefly touch the display.

Controls

32 * Depending on model and options

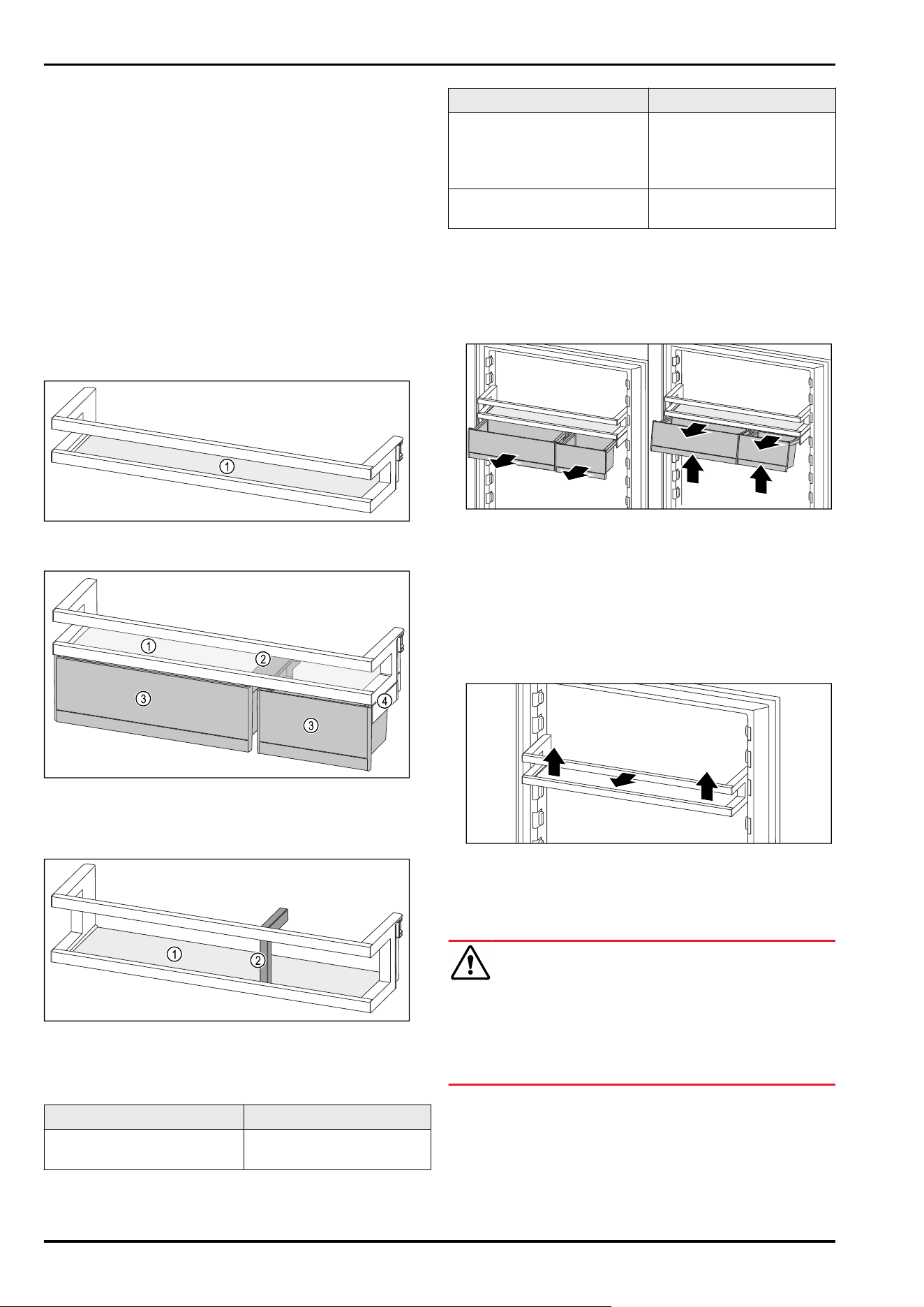

► Replace the activated carbon filter. (see 10.1 FreshAir

carbon filter)

▷ Activated carbon filter ensures optimum air quality in the

cooling unit.

▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deac‐

tivate it. (see Deactivating the reminder)

9 Features

9.1 Door rack

Door racks are suitable for storing drinks and food. You can

move door racks for your own individual use and take them

apart for cleaning. However, Liebherr recommends using the

door racks in the position in the door as delivered from the

factory.

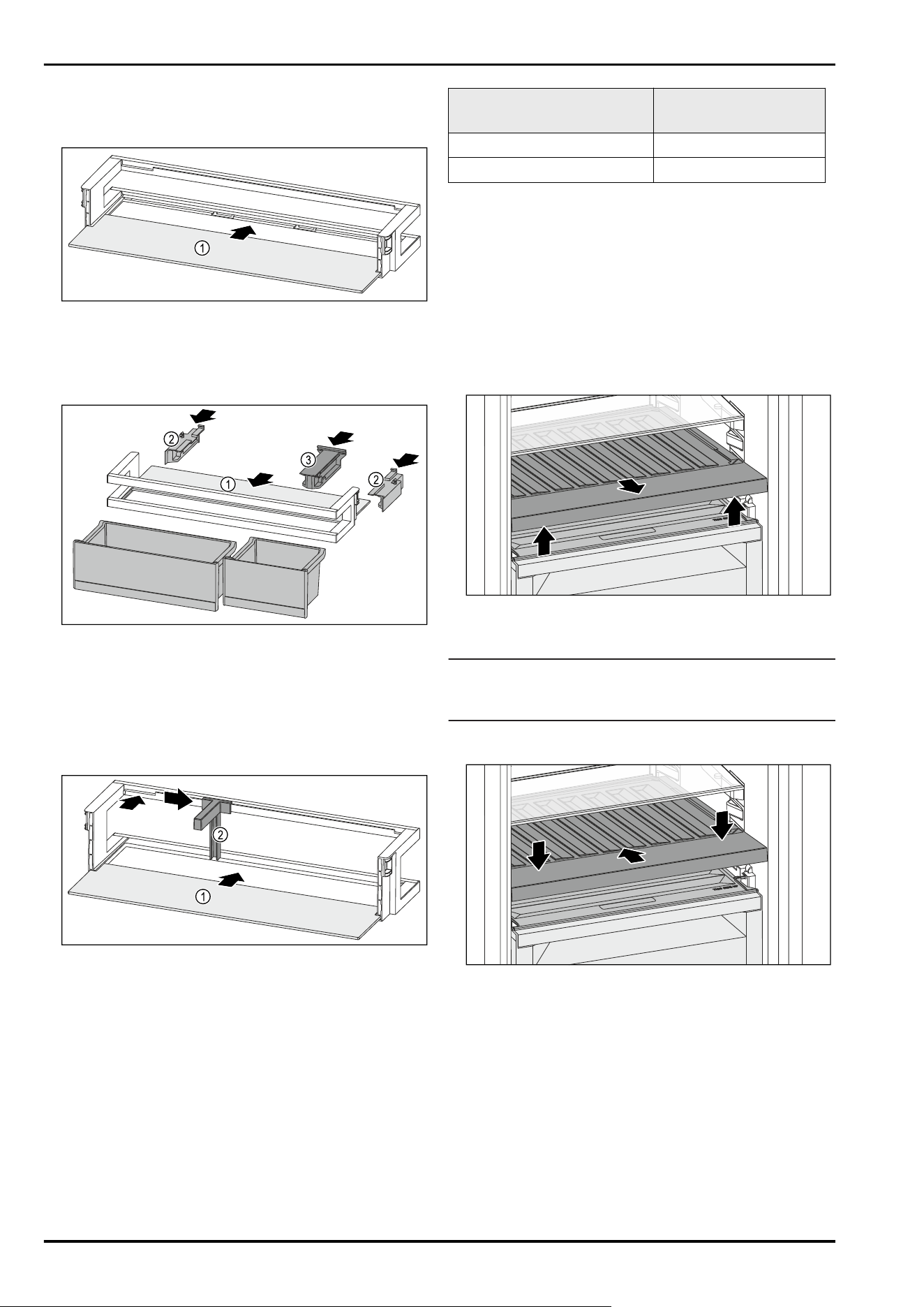

Fig. 144 Example illustration, Door rack

(1)

Shelf

Fig. 145 Example illustration, Door racks with VarioBoxes

(1)

Shelf (3) VarioBoxes

(2) Holding part for Vario‐

Boxes

(4) Side part

Fig. 146 Example illustration, Door rack with bottle holder

(1)

Shelf (2) Bottle holder

The following table shows examples of what can be stored

in each door rack.

Door rack

Food

Door rack (see Fig. 144) Butter, cheese, tinned food,

tubes

Door rack Food

Door rack with bottle holder

(see Fig. 146)

Bottles

The sliding bottle holder

secures the bottles in the

door rack.

Door rack with VarioBoxes

(see Fig. 145)

small food items

9.1.1 Removing VarioBoxes

Either one or both VarioBoxes can be used. If you want to

store particularly tall bottles in the door rack under the

door rack with VarioBoxes, you can remove one or both Vari‐

oBoxes.

Fig. 147

► Pull out VarioBox to the end stop.

► Lift VarioBoxes out forwards.

► Take VarioBox out forwards.

9.1.2 Removing the door rack

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see 9.1.1 Removing Vari‐

oBoxes)

Fig. 148 Example illustration

► Push the door rack upwards.

► Pull the door rack forward.

9.1.3 Inserting the door rack

CAUTION

Risk of injury and damage to the appliance due to incor‐

rectly stored food or objects!

If you place food or objects on the bottom glass shelf, the

door may not close properly. This could cause the door racks

to break, food or objects to fall out and cause injury.

► Keep the front area of the bottom glass shelf clear.

Features

* Depending on model and options 33

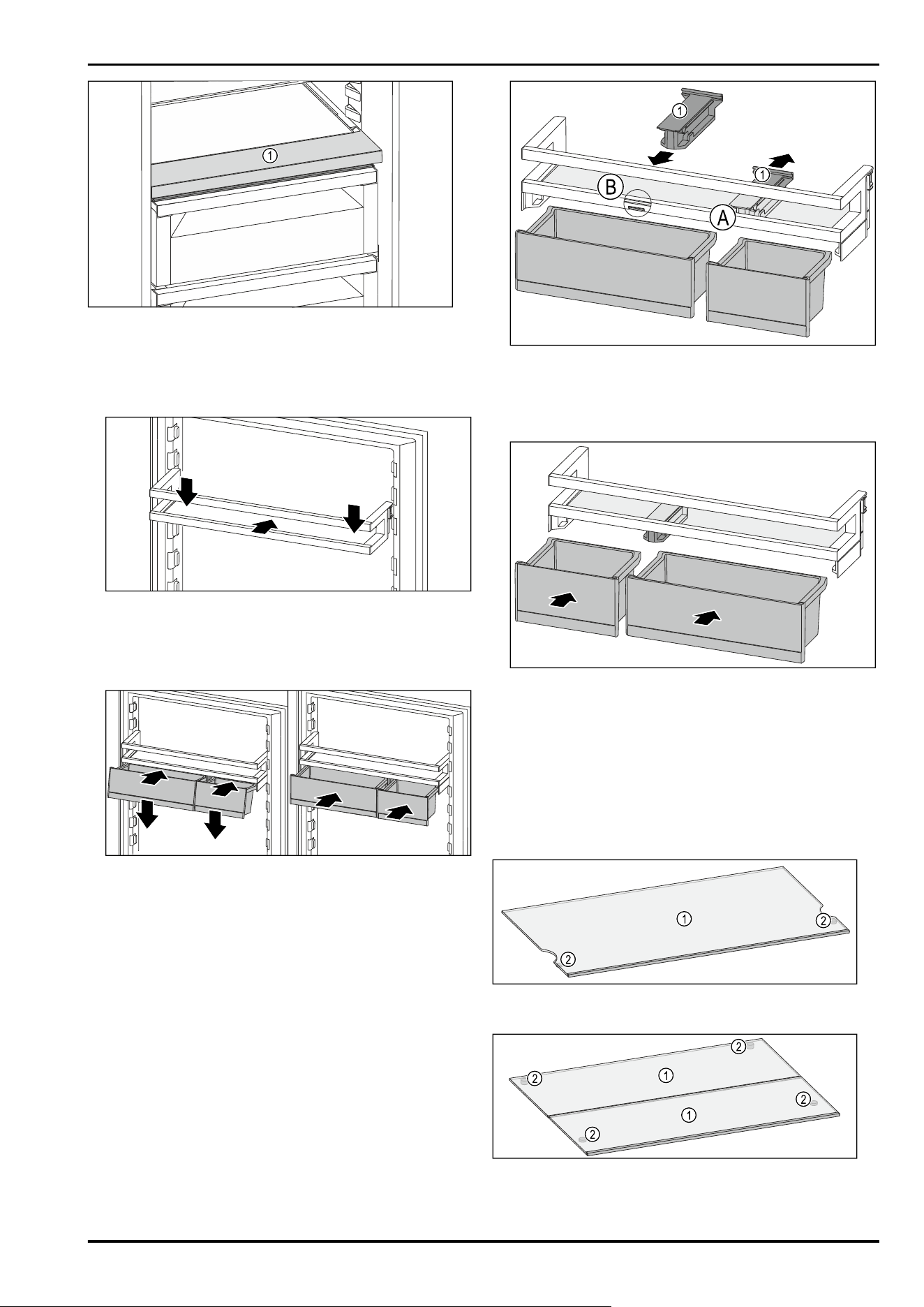

Fig. 149 Example illustration

(1)

Front area

Ensure that the following requirements are met:

❑

VarioBoxes have been removed. (see 9.1.1 Removing Vari‐

oBoxes)

Fig. 150 Example illustration

► Slide in the door rack.

► Press the door rack down.

9.1.4 Inserting VarioBoxes

Fig. 151

► Place VarioBoxes at an angle on the rib of the door rack.

► Lower VarioBoxes.

► Push in the VarioBoxes.

9.1.5 Converting VarioBoxes

Ensure that the following requirements are met:

❑

VarioBoxs have been removed. (see 9.1.1 Removing Vario‐

Boxes)

❑

Door rack has been removed. (see 9.1.2 Removing the

door rack)

Fig. 152

► Take off the holding part Fig. 152(1) in position Fig. 152(A)

backwards.

► Insert the holding part Fig. 152(1) in position Fig. 152(B).

► Insert the door rack. (see 9.1.3 Inserting the door rack)

Fig. 153

► Insert the VarioBoxes in reverse order. (see Fig. 153)

9.2 Shelves

There are different storage areas depending on the type of

appliance:

Single-piece shelf

Divisible shelf

Variable bottle rack (see 9.4 Adjustable bottle shelf)

Fig. 154 Example illustration, shelf

(1)

Shelf (2) Drawer stop

Fig. 155 Example illustration, divisible shelf

(1)

Shelf (2) Drawer stop

Features

34 * Depending on model and options

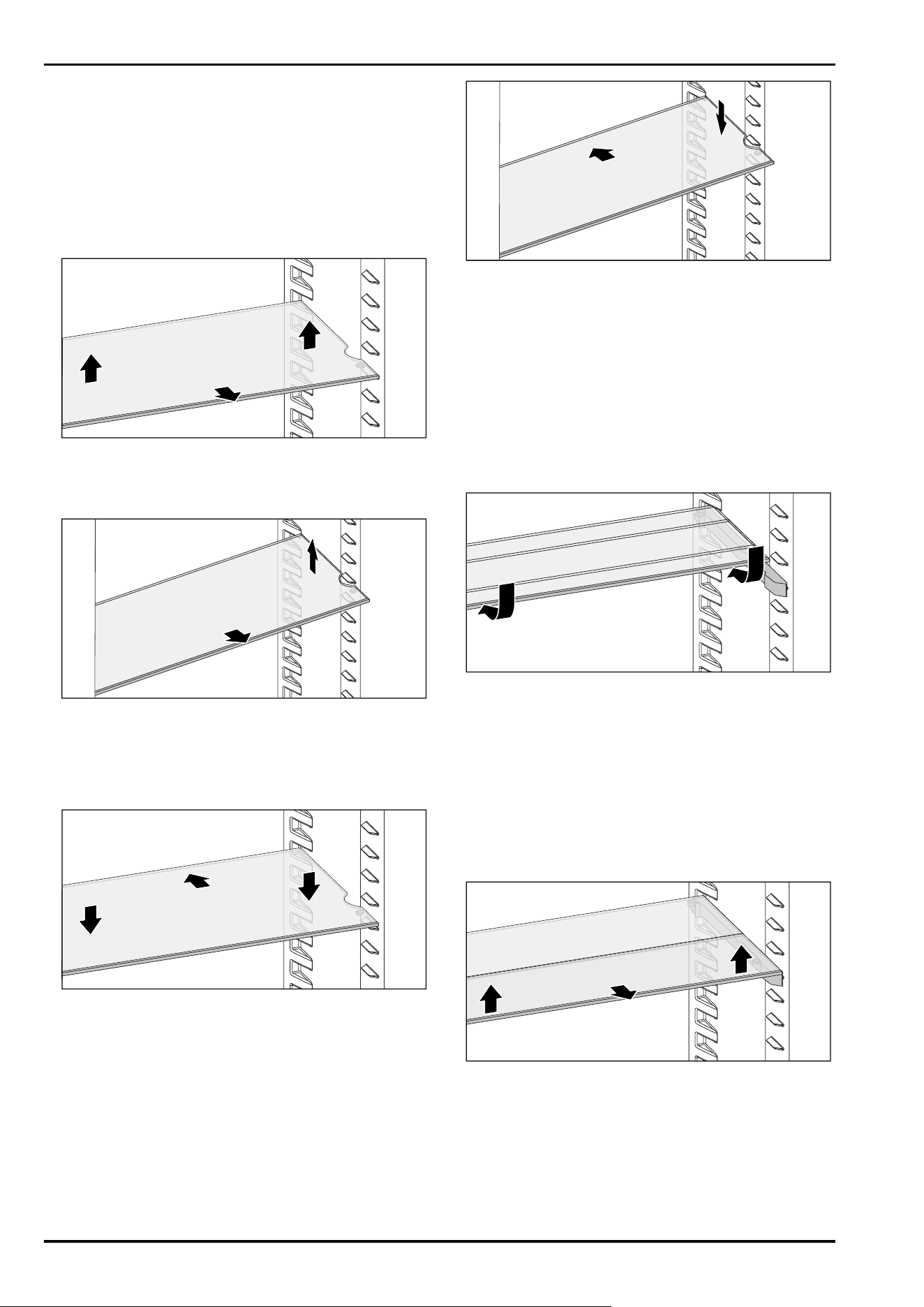

9.2.1 Using shelves

The shelves can either be adjusted in height, or removed

completely or for cleaning.

Ensure that the following requirements are met:

❑

Shelves are empty.

Removing the shelf

The shelves are secured against accidental pulling out by

means of drawer stops.

Fig. 156

► Raise the shelf.

► Pull out the shelf forwards.

-or-

Fig. 157

► Easier removal: Tilt the shelf and pull it out forwards.

▷ Shelves have been removed.

▷ The shelves can be positioned at a different height.

Inserting the shelf

Fig. 158

When the drawer stop points downwards:

► Pull the shelf out as far as it will go.

► Lower the shelf.

-or-

Fig. 159

► Slide the shelf in at an angle and lower it.

▷ The drawer stops are located behind the front support

surface.

9.2.2 Using modular shelves

The divisible shelf can be pushed together in its factory-set

position, adjusted in height, or removed for cleaning.

Ensure that the following requirements are met:

❑

Shelves are empty.

Pushing the divisible shelf together

Fig. 160

► Slide the front shelf into place as shown in the illustra‐

tion.

▷ The divisible shelf is pushed together.

▷ There is space for taller items on the shelf below.

Using both divisible shelves

► Grasp the pull-out shelf with one hand and pull it

forwards.

▷ The trim strip is at the front.

▷ The drawer stops point downwards.

Adjusting the height of the divisible shelves

Fig. 161

► Lift the front shelf forwards.

► Pull out the front shelf forwards.

Features

* Depending on model and options 35

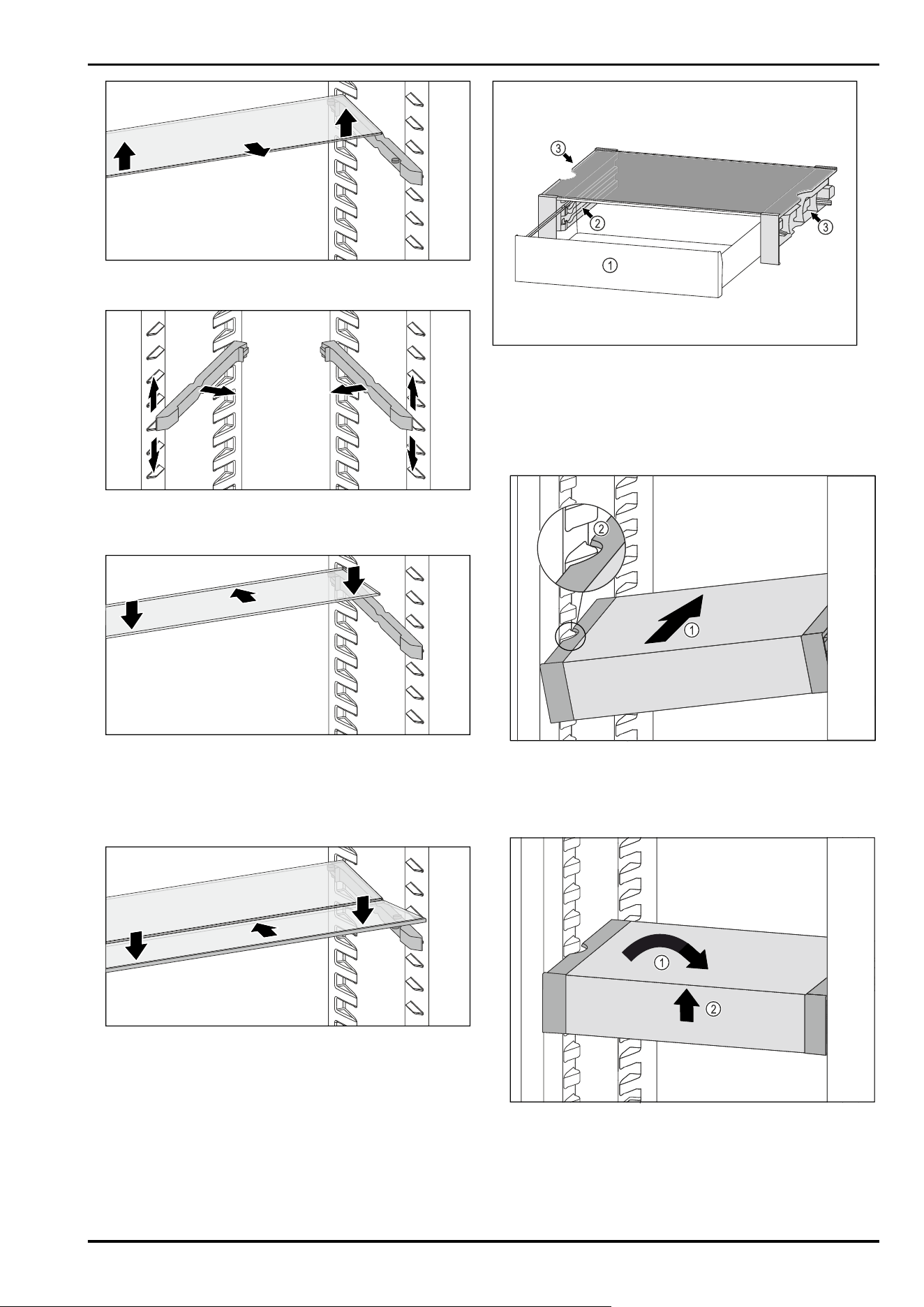

Fig. 162

► Repeat these steps for the rear shelf as well.

Fig. 163

► Pull out the support rails.

► Insert the support rails at the desired height.

Fig. 164

► Push the storage shelf, with the high drawer stops, all

the way in.

► Lower the shelf.

▷ The drawer stops are located behind the rear support

surface.

Fig. 165

► Repeat these steps for the front shelf as well.

Removing the divisible shelf

The divisible shelves can be removed by moving them into

position. (see Adjusting the height of the divisible shelves)

9.3 VarioSafe

The VarioSafe offers space in the refrigerator compartment

for small groceries, packages, tubes and jars, for example.

Fig. 166

(1)

VarioSafe drawer (3) Recesses on the left and

right side panel

(2) Side panels with ribs

for VarioSafe drawer

9.3.1 Inserting the VarioSafe

Fig. 167

► Insert the VarioSafe into the fridge section at an angle

Fig. 167(1) until the recesses in the side Fig. 167(2) of the

VarioSafe are at the level of the support rib in the fridge

section.

Fig. 168

► Set VarioSafe straight. Fig. 168(1)

► Lift VarioSafe at the front. Fig. 168(2)

Features

36 * Depending on model and options

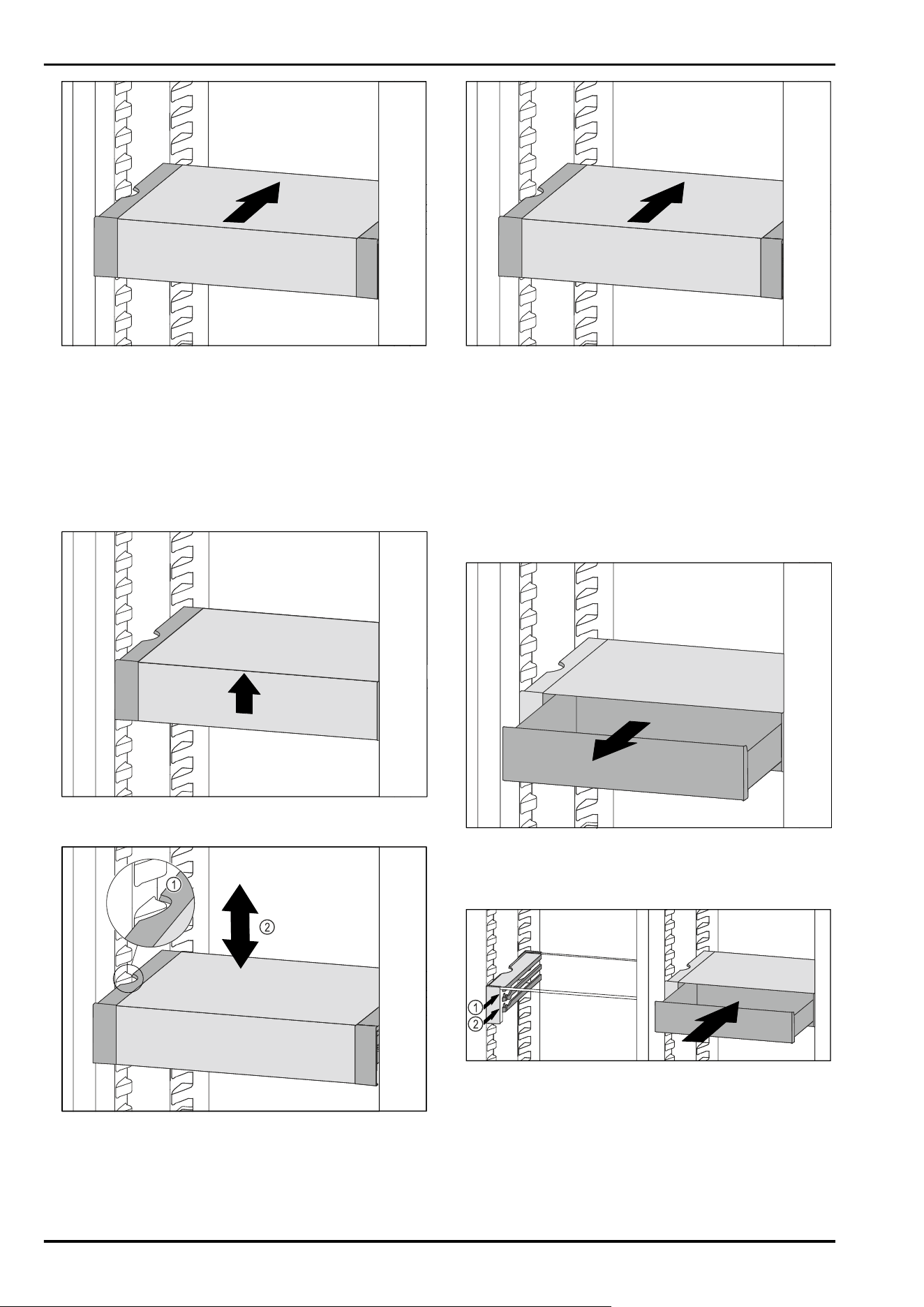

Fig. 169

► Lift VarioSafe up toward the front.

► Push VarioSafe in to the rear.

► Lower VarioSafe.

▷ VarioSafe audibly engages.

▷ VarioSafe is inserted.

9.3.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator

compartment.

Fig.170

► Lift VarioSafe at the front.

Fig.171

► Pull VarioSafe forwards until the recesses in the side of

the VarioSafe are at the level of the support rib in the

refrigerator compartment. Fig.171(1)

► Move VarioSafe up or down in the refrigerator compart‐

ment until the desired height is reached. Fig.171(2)

Fig.172

► Lift VarioSafe at the front.

► Push VarioSafe in to the rear.

▷ VarioSafe audibly engages.

▷ VarioSafe is offset in height.

9.3.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights.

If you would like to store taller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the bottom rib. If

you would like to store smaller foodstuffs in the VarioSafe

drawer, slide the VarioSafe drawer in on the top rib.

Fig.173

► Pull out the VarioSafe drawer as far as it will go.

► Lift the VarioSafe drawer up at the front.

► Remove the VarioSafe drawer to the front.

Fig. 174

► Lift the VarioSafe drawer up at the front.

► Place the VarioSafe drawer behind the stoppers on

desired rib Fig. 174(1) or Fig. 174(2).

▷ VarioSafe drawer is offset in height.

9.3.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Features

* Depending on model and options 37

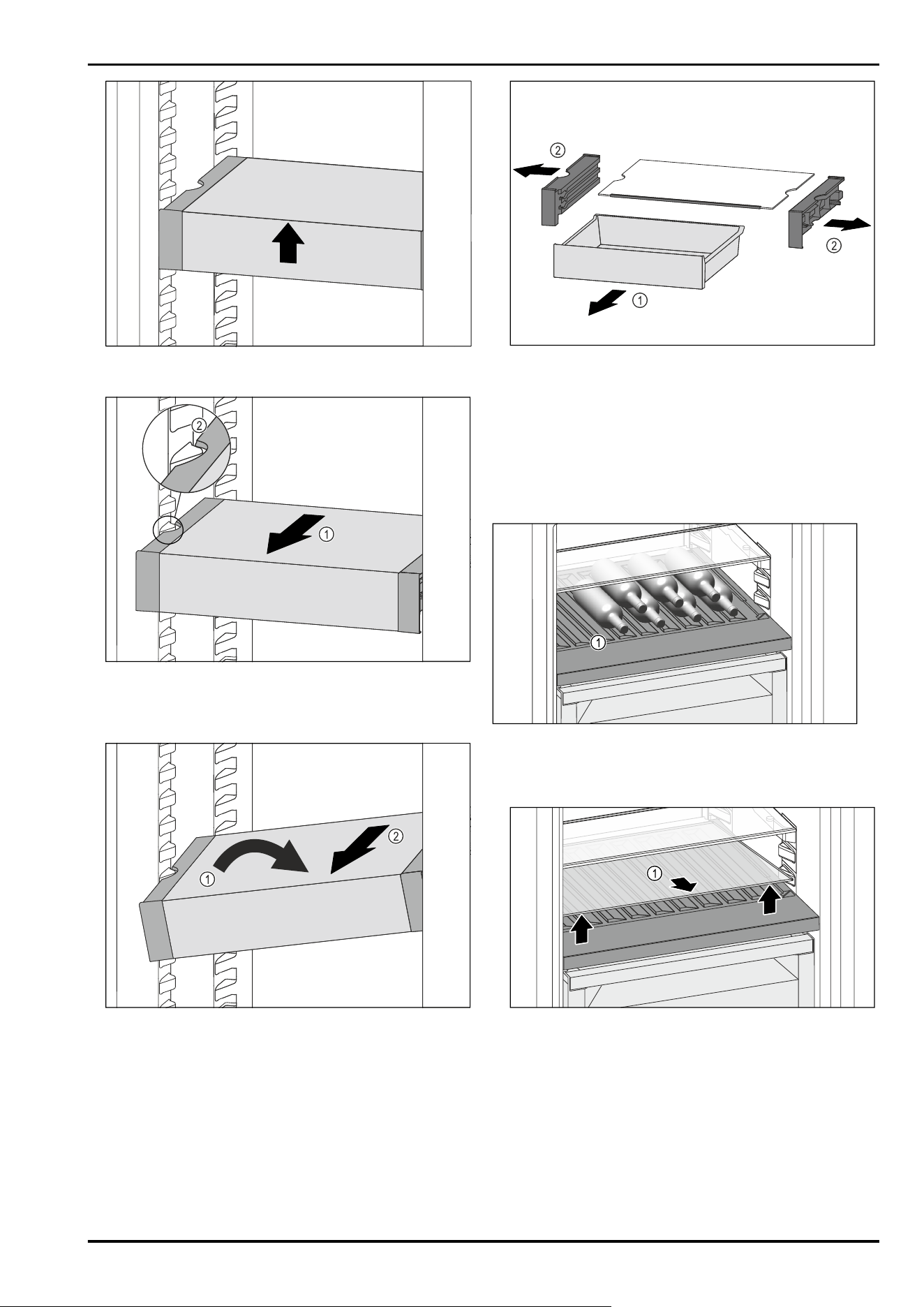

Fig.175

► Lift VarioSafe at the front.

Fig. 176

► Pull VarioSafe forwards Fig. 176(1) until the recesses in

the side of the VarioSafe are at the level of the support

rib in the fridge section. Fig. 176(2)

Fig.177

► Set VarioSafe in refrigerator compartment at an angle.

Fig.177(1)

► Take VarioSafe out to the front. Fig.177(2)

▷ VarioSafe is removed.

9.3.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if

you want to clean the VarioSafe or if you need to install or

remove parts.

Fig.178

► Remove VarioSafe as a whole. (see 9.3.4 Removing the

VarioSafe )

► Disassemble VarioSafe according to the illustration.

9.4 Adjustable bottle shelf

Either the glass shelf or the variable bottle rack can be used

in the bottom section of the refrigerator. The glass shelf is

inserted at delivery.

Fig. 179 Example illustration

(1)

Variable bottle rack

9.4.1 Using the variable bottle rack

Fig. 180

► Lift the glass shelf Fig. 180(1) at the front and remove.

► Store the glass shelf Fig. 180(1) in a safe place outside

the appliance.

► Insert the glass shelf(2) under the variable bottle rack.

Features

38 * Depending on model and options

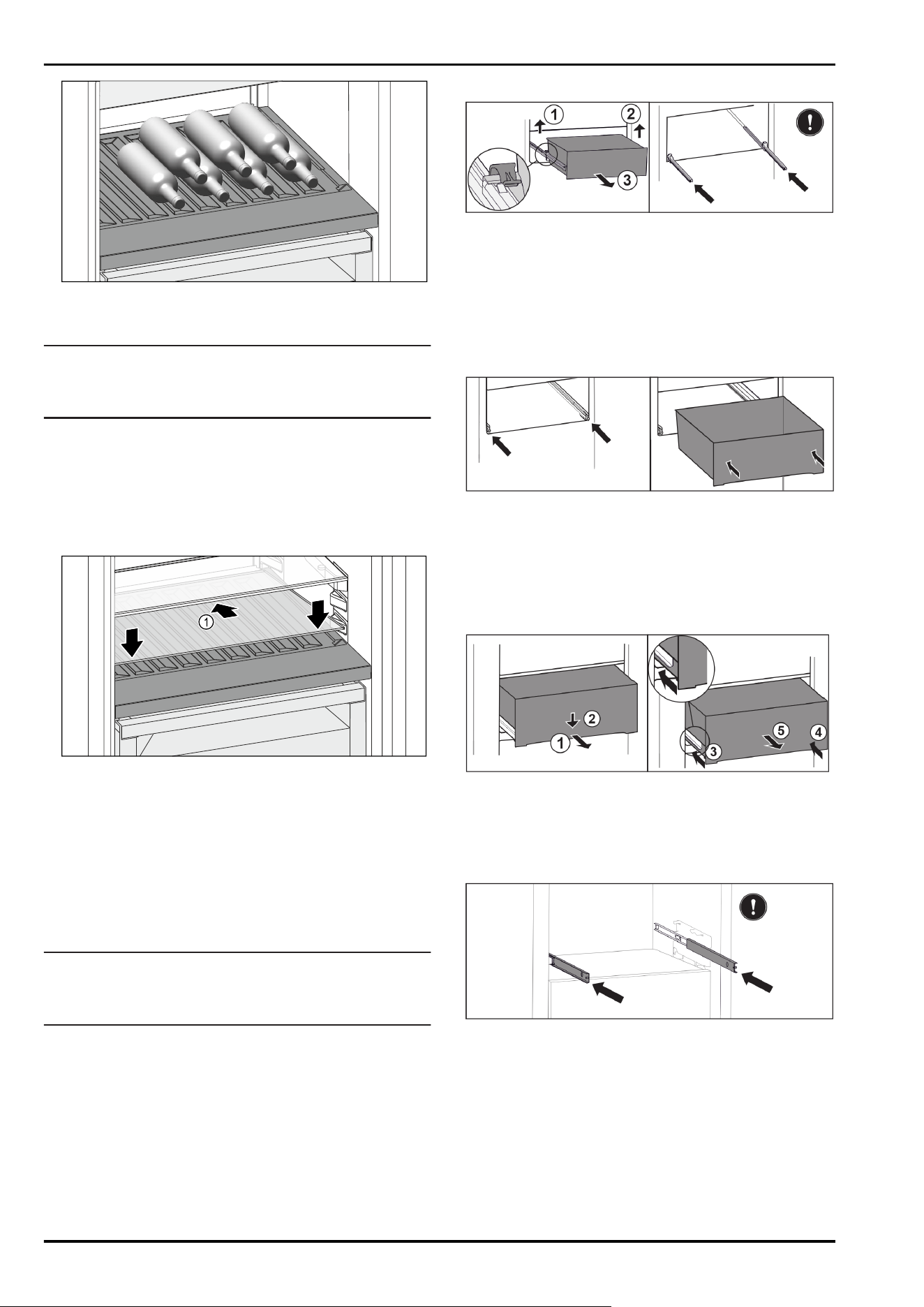

Fig. 181 Example illustration

► Place bottles in the back row with their bases against the

back wall. (see Fig. 181)

Note

When the bottles protrude over the variable bottle rack at

the front:

► Set the lower door rack one position higher.

9.4.2 Using the glass shelf

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Variable bottle rack has been cleaned.

(see 10.5 Removing / inserting the variable bottle rack)

(see 10.8.3 Clean the components)

Fig. 182

► Place the glass shelf Fig. 182(1) at an angle, sloping it

downwards and backwards.

► Lower the glass shelf Fig. 182(1) at the front.

9.5 Drawers

You can remove the drawers for cleaning.

The way to remove/insert the drawers varies depending

on the pull-out system. Your appliance can contain various

pull-out systems.

Note

The energy consumption increases and the cooling power

goes down if ventilation is not sufficient.

► Always keep the inside vents at the rear wall clear.

9.5.1 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There

are fully extendible telescopic rails and telescopic rails with

partial pull-out. Drawers which are fully extendible can be

pulled out fully from the appliance. Drawers with partial

pull-out cannot be removed fully from the appliance. The

system in your appliance depends on the type of appliance.

Fully extendible*

If you have fully extendible rails, there is a clamp located at

the back on the left and right of the rail.

Removing drawer

Fig. 183

► Pull out drawer as far as it will go.

► Lift left clamp and simultaneously pull drawer forwards

on the left. Fig. 183(1)

► Lift right clamp and simultaneously pull drawer forwards

on the right. Fig. 183(2)

► Remove drawer to the front. Fig. 183(3)

► Slide rails in.

Inserting drawer

Fig. 184

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

▷ Drawer latches in audibly at the back.

Partial pull-out fridge compartment*

Removing drawer

Fig. 185

► Pull out drawer half-way. Fig. 185(1)

► Push the drawer down at the front. Fig. 185(2)

► Push the left rail in by about 2cm. Fig. 185(3)

► Push the right rail in by about 2cm. Fig. 185(4)

► Remove drawer to the front. Fig. 185(5)

Fig. 186

If the rails are not yet fully inserted after removing the

drawer:

► Push rails in completely.

Features

* Depending on model and options 39

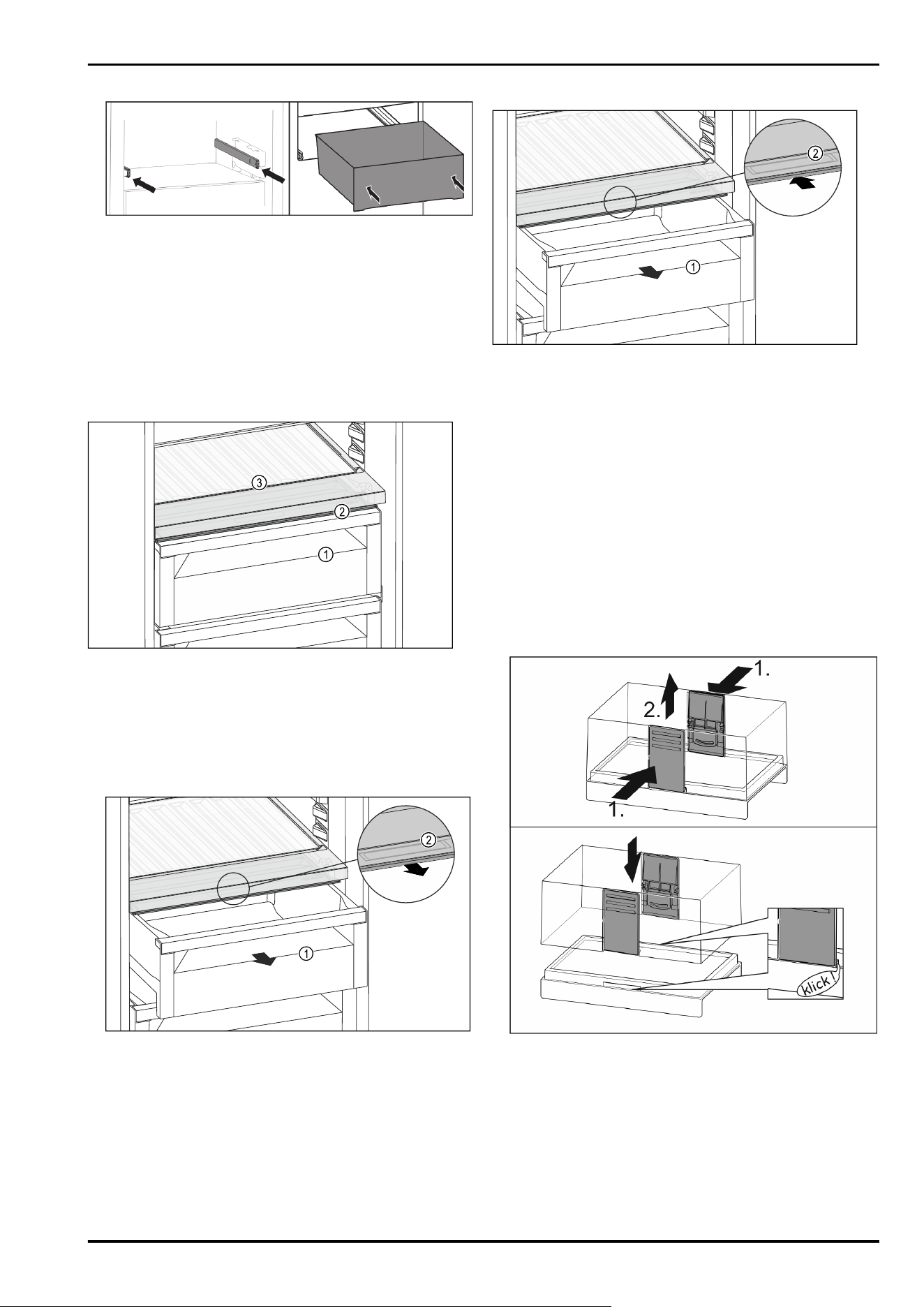

Inserting drawer

Fig. 187

► Slide rails in.

► Place drawer on rails.

► Slide in drawer to the back.

9.6 Compartment lid for Fruit & Vege‐

table Safe

The compartment lid ensures constant levels of humidity.

The compartment lid is directly on the drawer and can be

covered by shelves or additional drawers.

Fig. 188 Example illustration, compartment lid for

Fruit & Vegetable Safe

(1)

Fruit & Vegetable Safe

(2) Compartment lid for

Fruit & Vegetable Safe

(3) Variable bottle rack

9.6.1 Reducing the air humidity in the drawer

Fig. 189

► Pull out the drawer Fig. 189(1).

► Grasp the recessed grip Fig. 189(2) on the compartment

lid and pull the compartment lid forwards at the same

time.

▷ When the drawer is closed, there is a small gap between

the compartment lid and the drawer.

9.6.2 Increasing the air humidity in the drawer

Fig. 190

► Pull out the drawer Fig. 190(1).

► Grasp the recessed grip Fig. 190(2) on the compartment

lid and push the compartment lid backwards at the same

time.

▷ When the drawer is closed, the compartment lid seals

with the drawer.

9.6.3 Using Fruit & Vegetable Safe as

Meat & Dairy Safe

You can use the Fruit & Vegetable Safe as Meat&Dairy

Safe. To do this, you must reduce the humidity in the drawer.

(see 9.6.1 Reducing the air humidity in the drawer)

9.7 Butter dish

9.7.1 Opening/closing the butter dish

Fig. 191

9.7.2 Dismantling the butter dish

You can take the butter dish apart for cleaning.

Features

40 * Depending on model and options

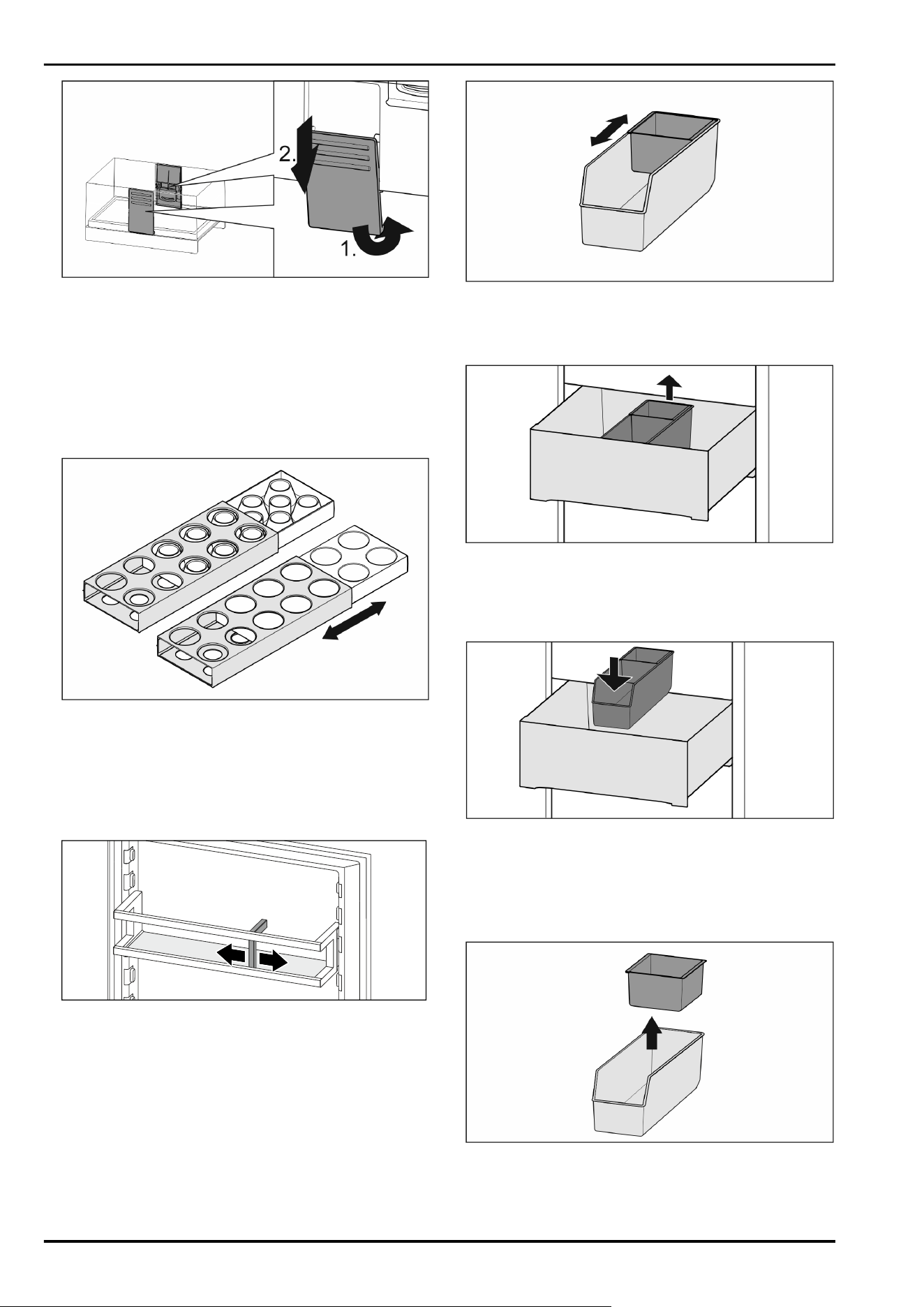

Fig. 192

► Disassembling the butter dish.

9.8 Egg rack

You can pull out and turn the egg rack. You can use both

sides of the egg rack so you can label specifics like the

purchase date.

9.8.1 Using the egg rack

Fig. 193

► Top layer: for storing hen eggs.

► Bottom layer: for storing quail eggs.

9.9 Bottle holder

9.9.1 Using the bottle holder

Fig. 194

► Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

9.10 FlexSystem

9.10.1 Using the FlexSystem

The FlexSystem helps you store and organise your food in

a clear and flexible way. It lets you clearly divide your food

into fruit, vegetables or by use-by dates, for example.

Fig. 195

► Move the inner shell.

9.10.2 Removing the FlexSystem

Fig. 196

► Lift the FlexSystem from the back.

► Pull up and out.

9.10.3 Inserting the FlexSystem

Fig. 197

► Insert the FlexSystem front-first.

► Lower the rear part.

9.10.4 Disassembling the FlexSystem

You can take the FlexSystem apart for cleaning.

Fig. 198

► Disassembling the FlexSystem

Features

* Depending on model and options 41

10 Maintenance

10.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the

fan.

It guarantees the best air quality.

❑

Replace the carbon filter every 6 months.

When the reminder is set, a message on the display

prompts you to change it.

❑

The carbon filter can be disposed of with the regular

household waste.

Note

Sie erhalten den FreshAir-Aktivkohlefilter im Liebherr-

Hausgeräte-Shop unter go.liebherr.com/47wtc4.

10.1.1 Removing the FreshAir carbon filter

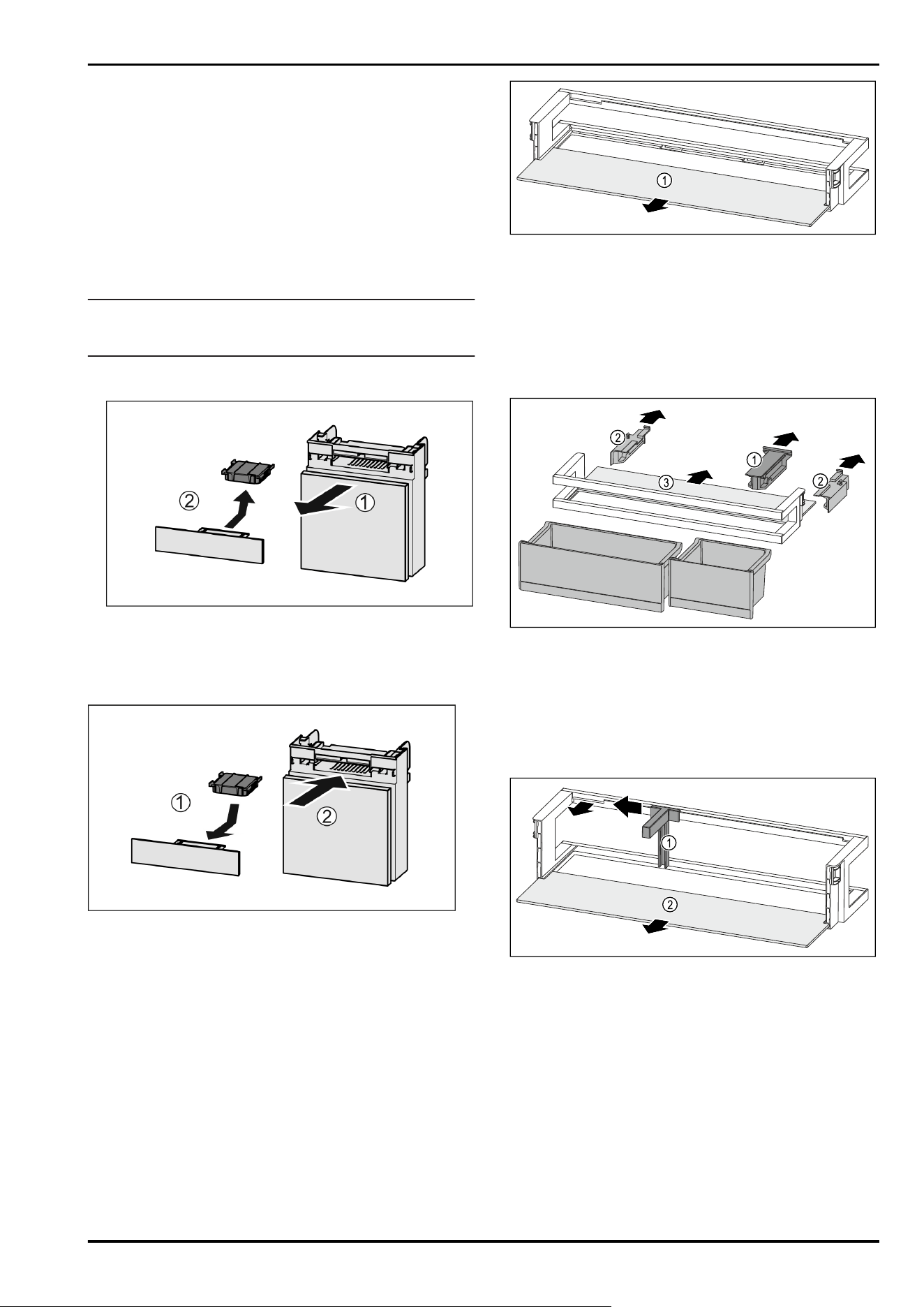

Fig. 199

► Pull out the compartment Fig. 199(1).

► Remove the carbon filter Fig. 199(2).

10.1.2 Inserting the FreshAir carbon filter

Fig.200

► Insert the carbon filter as shown in the diagram

Fig.200(1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

► Push the compartment in Fig.200(2).

▷ The carbon filter is now ready for use.

10.2 Dismantling the door rack

It is possible to dismantle some of the door racks if you

want to clean them or install or remove spare parts.

10.2.1 Dismantling the door rack

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 9.1.2 Removing the

door rack)

Fig. 201 Door rack with shelf

► Remove the shelf Fig.201(1).

10.2.2 Dismantling the door rack with Vario‐

Boxes

Ensure that the following requirements are met:

❑

Door rack has been removed. (see 9.1.2 Removing the

door rack)

Fig.202

► Remove the VarioBoxes. (see 9.1.1 Removing VarioBoxes)

► Pull off the holding part Fig.202(1).

► Pull off the side parts Fig.202(2).

► Remove the shelf Fig.202(3).

10.2.3 Dismantling the door rack with bottle

holder

Fig. 203 Door rack with bottle holder and shelf

► Slide the bottle holder Fig.203(1) to the side as far as the

recess.

► Remove the bottle holder Fig.203(1).

► Remove the shelf Fig.203(2).

Maintenance

42 * Depending on model and options

10.3 Assembling the door rack

10.3.1 Assembling the door rack

Fig. 204 Door rack with shelf

► Push the shelf Fig.204(1) into the side recesses.

10.3.2 Assembling the door rack with Vario‐

Boxes

Fig.205

► Push the shelf Fig.205(1) into the side recesses.

► Insert the side parts Fig.205(2).

► Insert the holding part Fig.205(3).

► Insert the VarioBoxes. (see 9.1.4 Inserting VarioBoxes)

10.3.3 Assembling the door rack with bottle

holder

Fig. 206 Door rack with shelf

► Push the shelf Fig.206(1) into the side recesses.

► Insert the bottle holder Fig.206(2) in the recess.

► Push the bottle holder Fig.206(2) to the desired position

to the side.

10.4 Disassembling / assembling pull-

out systems

10.4.1 Notes on disassembly

You can disassemble some of the pull-out systems for

cleaning. Your appliance can contain a variety of pull-out

systems.

The following pull-out systems can be disassembled or

cannot be disassembled:

Pull-out system

can be disassembled/

cannot be disassembled

Fully extendible* cannot be disassembled*

Fridge section partial pull-out* cannot be disassembled*

10.5 Removing / inserting the variable

bottle rack

The variable bottle rack can be removed for cleaning.

10.5.1 Removing the variable bottle rack

Ensure that the following requirements are met:

❑

Bottles have been removed.

❑

Glass shelf has been removed. (see 9.4.1 Using the vari‐

able bottle rack)

Fig.207

► Lift the variable bottle rack at the front and pull it out.

▷ The compartment lid is visible.

Note

Liebherr recommends:

Do not place any items on the compartment lid below.

10.5.2 Inserting the variable bottle rack

Fig.208

► Push the variable bottle rack in to the end stop and press

it down.

▷ The connectors at the back of the variable bottle rack are

connected via automated processes.

▷ LED lights up.

► Insert the glass shelf. (see 9.4.2Using the glass shelf)

-or-

► Use the variable bottle rack for bottles.

10.6 Compartment lid for Fruit & Vege‐

table Safe

You can remove the compartment lid for cleaning.

Maintenance

* Depending on model and options 43

10.6.1 Removing the compartment lid

Ensure that the following requirements are met:

❑

The glass shelf directly above the variable bottle rack has

been removed.

❑

The variable bottle rack has been removed.

❑

The drawer directly below the compartment lid has been

removed. (see 9.5 Drawers)

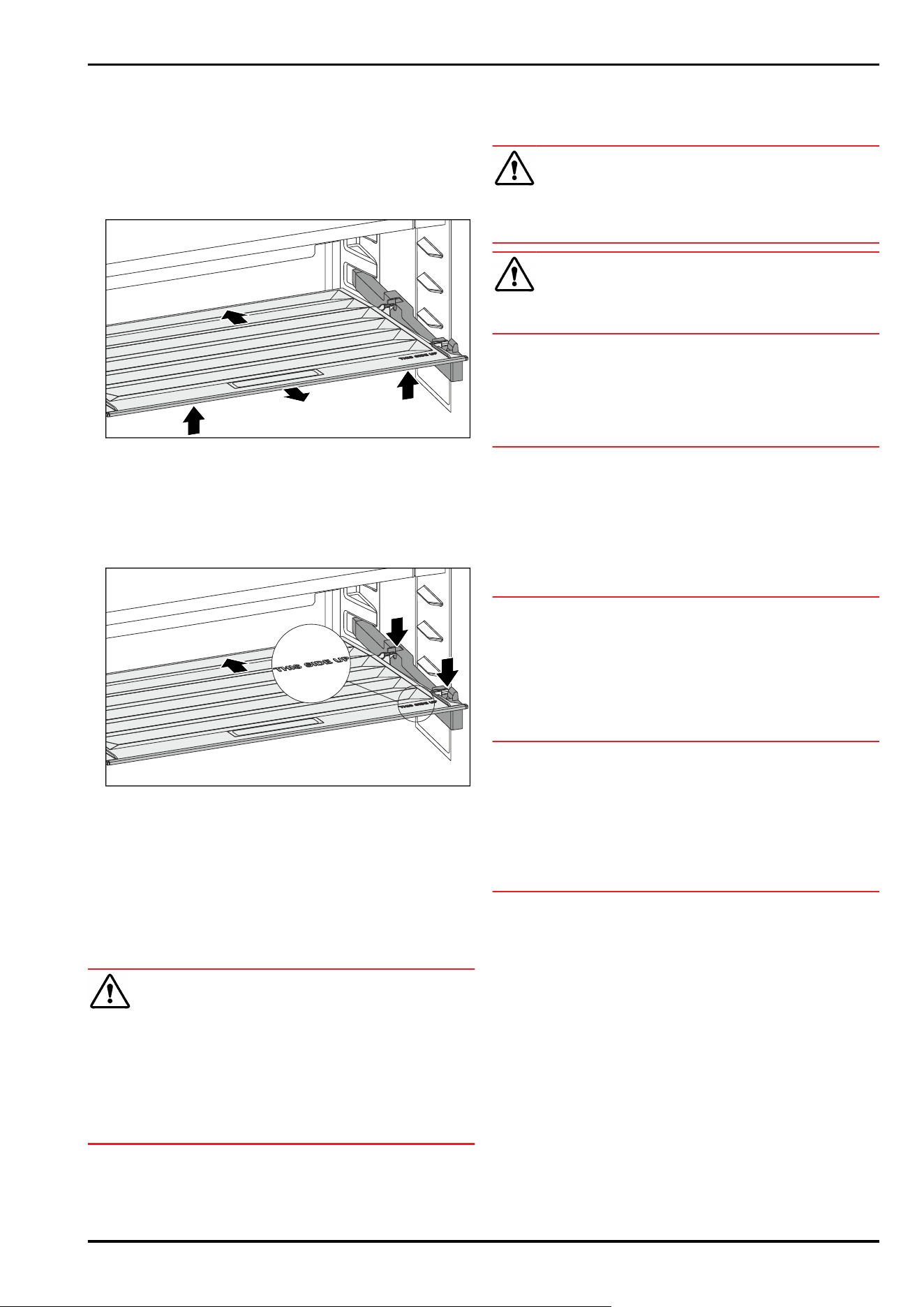

Fig.209

► Push the compartment lid backwards.

► Lift the compartment lid forwards.

► Remove the compartment lid forwards and upwards at an

angle.

10.6.2 Inserting the compartment lid

Fig. 210

If the THIS SIDE UP lettering is at the top:

► Insert the rear retaining parts into the relevant rear open‐

ings.

► Push the compartment lid backwards.

► Lower the compartment lid forwards and engage the

front retaining parts into the openings.

► Move the compartment lid into the required position.

10.7 Defrosting the appliance

WARNING

Improper defrosting of the appliance!

Injuries and damage.

► Do not use mechanical equipment or other methods to

speed up the defrosting process other than those recom‐

mended by the manufacturer.

► Do not use electrical heating or steam-cleaning appli‐

ances, naked flames or defroster sprays to defrost.

► Do not use sharp objects to remove ice.

Defrosting is performed automatically. The water from the

thawing process drains through the outlet and evaporates.

► Clean the drain opening at regular intervals.

(see 10.8Cleaning the appliance)

10.8 Cleaning the appliance

10.8.1 Preparation

WARNING

Danger of electric shock!

► Remove the refrigerator connector or interrupt the power

supply.

WARNING

Danger of fire!

► Do not damage the refrigeration circuit.

►

Empty the appliance.

► Unplug the mains plug.

-or-

► Activate the CleaningMode. (seeCleaningMode)

10.8.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

► Plastic surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Metal surfaces: clean by hand with a soft clean cloth,

lukewarm water and a little detergent.

► Drain hole: remove deposits using a thin item (for

example a cotton bud).

10.8.3 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

► Only use soft cleaning cloths and ph-neutral all-purpose

cleaners.

► Do not uses abrasive sponges or steel wool which may

cause scratches.

► Do not use any sharp or abrasive cleaning agents, nor

any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some

detergent:

- Shelf

- Dividing shelf

- VarioSafe

- Compartment lid for Fruit & Vegetable Safe

- Drawer

- Adjustable bottle shelf

- FlexSystem

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrica‐

tion and must not be removed!

Wash in the dishwasher up to 60°C:

- Door rack

- VarioBox

- Bottle rack

- Holder of the dividing shelf

Maintenance

44 * Depending on model and options

- Egg rack

- Butter dish

► To disassemble components: see the relevant section.

► Clean the components.

10.8.4 After cleaning

► Wipe the appliance and the components dry.

► Connect and switch on the appliance.

The temperature is cold enough:

► Place the food inside.

► Repeat cleaning regularly.

11 Customer help

11.1 Technical specifications

Temperature range

Cooling 3°C to 9°C

BioFresh 0°C to 3°C

Lighting

Class

Light source

This product contains one or more energy

efficiency class G light sources.

LED

The appliance may contain light sources with different

energy efficiency classes. The lowest energy efficiency class

is indicated.

For appliances with a WiFi connection:

Frequency specification

Frequency band 2.4GHz

Maximum radiated

power

< 100 mW

Purpose of the

wireless equipment

Integration in the local WiFi network

for data communication

11.2 Operating noise

The appliance makes different noises when it is on.

At higher temperatures the appliance uses less energy

but works for longer. It is quieter.

With high cooling capacity, food is cooled more quickly.

The sound is louder.

Examples:

•

Functions on (see8.2Appliance functions)

•

Fan running

•

Food recently added

•

High ambient temperature

•

Door open for a while

Noise

Possible cause Type of noise

Bubbling and

splashing

Coolant flowing

into the cooling

circuit.

Normal operating

noise

Hissing Coolant sprays

into the cooling

circuit.

Normal operating

noise

Humming The appliance

is cooling. The

volume depends

on the cooling

output.

Normal operating

noise

Suction noises Soft-closing door

is being opened

and closed.

Normal operating

noise

Humming and

rustling

The fan is running. Normal operating

noise

Clicking Components are

switched on and

off.

Normal switching

noise

Rattling or

humming

Valves or flaps are

working.

Normal switching

noise

Noise Possible

cause

Type of noise Lifting

Vibration Improper

installation

Defective

noise

Check the

installation.

Level the

appliance.

Rattling Components,

items inside

the appliance

Defective

noise

Secure

components.

Leave

enough

space

between the

items.

11.3 Technical fault

Your appliance is designed and built to ensure it works reli‐

ably and has a long service life. In the unlikely event that

a fault occurs during operation, please check whether it is

due to an operating error. If so, you will be charged for the

callout and repair costs even if it falls within the warranty

period.

You can fix the following faults yourself.

11.3.1 Appliance function

Defect

Cause Remedy

The appliance is

not working.

→ The appliance is not switched on. ► Switch the appliance on.

→ The power plug is not properly

plugged into the socket.

► Check the power plug.

→ There is something wrong with the

power outlet fuse.

► Check the fuse.

→ Power cut ► Keep the appliance closed.

Customer help

* Depending on model and options 45

Defect Cause Remedy

→ The IEC socket is not plugged into

the appliance correctly.

► Check the IEC socket.

Temperature is not

cold enough.

→ The appliance door is not closed

properly.

► Close the appliance door.

→ Not enough ventilation. ► Keep ventilation grille clear, and clean it.

→ The ambient temperature is too

high.

► Problem solution: (see1.8 Climate classes)

→ The appliance was opened too

many times or for too long.

► Wait to see if the required temperature corrects itself.

If not, contact Customer Service. (see11.4 Customer

Service)

→ The temperature is set incorrectly. ► Turn down the temperature and check after 24 hours.

→ The appliance is too close to a heat

source (oven, radiator, etc).

► Move the appliance or the heat source.

→ The appliance was not correctly

installed in the recess.

► Check if the appliance was installed correctly and that

the door closes properly.

The door seal is

defective or needs

to be replaced for

another reason.

→ The door seal can be replaced. It

can be replaced without the need

for special tools.

► Contact Customer Service. (see11.4 Customer Service)

The appliance

builds up too much

ice or condensa‐

tion.

→ The door seal may have slipped out

of its groove.

► Check that the door seal is well fitted in the groove.

11.3.2 Features

Defect Cause Remedy

The internal light

does not come on.

→ The appliance is not switched on. ► Switch the appliance on.

→ The door was open for longer than

15 minutes.

► Interior lighting switches off automatically after

about 15 minutes when the door is open.

→ The LED interior light is faulty or

the lid is damaged.

► Contact Customer Service. (see11.4 Customer Service)

11.4 Customer Service

First check whether you can rectify the fault yourself

(see11 Customer help) . If you cannot rectify the problem,

contact Customer Service.

You can find the address in the enclosed brochure “Liebherr-

Service” or at home.liebherr.com/service.

WARNING

Unprofessional repair!

Injuries.

► Have any repairs and action - not expressly specified -

on the appliance and mains cable carried out by service

personnel only. (see 10 Maintenance)

► A damaged mains cable may only be replaced by the

manufacturer, the manufacturer’s Customer Service or a

similarly qualified person.

► In the case of appliances with an IEC connector, the

change may be made by the customer.

11.4.1 Contacting Customer Service

Make sure that the following appliance information is avail‐

able:

❑

Appliance designation (model and index)

❑

Service no. (Service)

❑

Serial no. (S no.)

► Call up the appliance information via the display.

(see Device information)

-or-

► Refer to the type plate for appliance information.

(see 11.5 Model plate)

► Note down the appliance information.

► Notify customer service: Report errors and the appliance

information.

▷ This will help us to provide you with a faster, more accu‐

rate service.

► Follow further instructions from Customer Service.

Customer help

46 * Depending on model and options

11.5 Model plate

The model plate is behind the drawers on the inside of the

appliance.

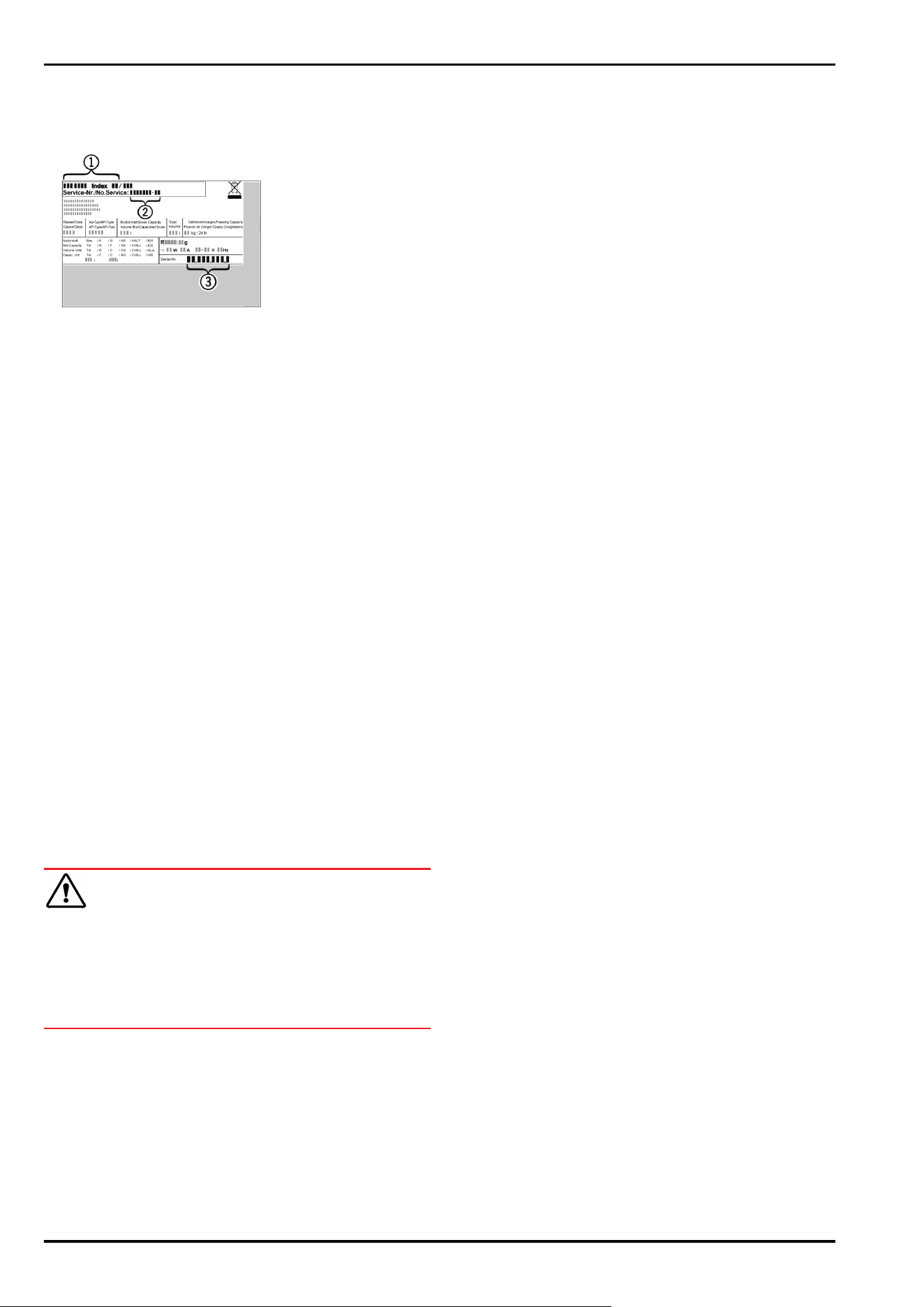

Fig.211

(1)

Appliance description (3) Serial no.

(2) Service no.

► Note the data on the model plate.

12 Shutting down

► Empty the appliance.

► Switch off appliance. (see Switching the appliance off

and on)

► Pull the mains plug out of the socket.

► Remove the IEC socket if required: Pull the IEC socket out

of the appliance plug and move it to the left and right at

the same time.

► Clean appliance. (see 10.8Cleaning the appliance)

► Leave the door open, so that no unpleasant odours arise.

13 Disposal

Ensure that the following requirements are met:

❑

Meaning of the symbols on the appliance: are familiar.

❑

Notes on disposal are familiar. (see1.6 Information

concerning disposal)

13.1 Preparing the appliance for

disposal

► Shutting your appliance down. (see12Shutting down)

13.2 Disposing of the appliance in an

environmentally friendly manner

WARNING

Risk of fire due to leaking refrigerant and oil!

The refrigerant inside the appliance is environmentally

friendly, but flammable. The oil it contains is also flam‐

mable. Escaping refrigerant and oil can ignite in high

concentrations and in contact with an external heat source.

► Do not damage the refrigerant circuit pipes or the

compressor.

► Observe the notes on transporting the appliance.

(see 3.5 Transporting the appliance)

► Remove the appliance without damaging it.

► Dispose of appliance according to specifications.

Shutting down

* Depending on model and options 47

Scan QR Code and find

digital operating and

installation instructions.

⸺

home.liebherr.com

1 2 3





20260806 

7088636-00

Liebherr-Hausgeräte GmbH

Memminger Straße 77-79

88416Ochsenhausen

Deutschland

Liebherr IRBBI 5650 PRIME BIOFRESH Refrigerator with BioFresh for integrated use

Product's Documents

Operating instructions

Specifications

Liebherr IRBBI 5650 PRIME BIOFRESH Questions and Answers

Related Products

Liebherr EKB 9671 111 Refrigerator with BioFresh for integrated use

Liebherr EKB 9471 111 Refrigerator with BioFresh for integrated use

Liebherr IKB 51VC50I Refrigerator with BioFresh for integrated use

Liebherr ICBND 5653 PRIME BIOFRESH NOFROST Combined refrigerator-freezer with BioFresh and NoFrost for integrated use

Liebherr MRB3010L Monolith Integrated Refrigerator 15 cu. ft. BioFresh Energy Star Left Hinge Panel Ready

Liebherr IRBP5170 Fully Integrated Refrigerator
