User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 General safety instructions.......................... 3
2 The appliance at a glance............................. 5
2.1 Delivered contents.............................................. 5
2.2 Overview of appliances and equipment.......... 5
2.3 SmartDevice......................................................... 6
2.4 Range of appliance use...................................... 6
2.5 Conformity............................................................ 6
2.6 Spare parts........................................................... 7
3 Functionality of the Touch&Swipe display. 7
3.1 Navigation and symbol explanation................ 7
3.2 Menus.................................................................... 7
3.3 Sleep mode.......................................................... 8
4 Start-up......................................................... 8
4.1 Switching on appliance (first use)................... 8
5 Storage.......................................................... 9
5.1 Information regarding storage.......................... 9
5.2 Fridge compartment........................................... 9
5.3 BioFresh................................................................ 9
5.4 Storage times...................................................... 10
6 Energy saving................................................ 11
7 Use................................................................. 12
7.1 Controls and displays......................................... 12
7.1.1 Status display...................................................12
7.1.2 Display symbols............................................... 12
7.2 Appliance functions............................................ 12
7.2.1 Notes on the appliance functions.................12
Switching appliance off and on....................12
WiFi....................................................................13
Temperature.....................................................14
Temperature unit.............................................14
BioFresh B-Value ............................................ 14
D-Value............................................................. 15
SuperCool.........................................................15
PartyMode ....................................................... 15
HolidayMode.................................................... 16
SabbathMode...................................................16
EnergySaver .................................................... 17
CleaningMode.................................................. 17
Display Brightness..........................................18
Door alarm........................................................18
Input lock..........................................................19
Language..........................................................19
Appliance information....................................19
Software.......................................................... 20
Reminder..........................................................20
Demo mode..................................................... 20
Resetting to factory settings........................ 21
7.3 Messages.............................................................. 22
7.3.1 Overview of warnings..................................... 22
7.3.2 Ending warnings.............................................. 22
7.3.3 Overview of reminders....................................22
7.3.4 Ending reminders.............................................23
8 Equipment...................................................... 23
8.1 Shelves................................................................. 23
8.2 Split shelf............................................................. 23
8.3 Variable bottle shelf........................................... 24
8.4 Drawers................................................................. 25
8.5 Lid for Fruit & Vegetable-safe........................... 25
8.6 Glass shelves....................................................... 26
8.7 Butter dish............................................................ 27
8.8 Egg rack................................................................ 27
8.9 FlexSystem........................................................... 27
9 Maintenance.................................................. 28
9.1 FreshAir carbon filter.......................................... 28
9.2 Disassembling / assembling pull-out
systems................................................................. 28
9.3 Removing / inserting the variable bottle
shelf....................................................................... 29
9.4 Lid for Fruit & Vegetable-safe........................... 29
9.5 Defrosting the appliance................................... 30
9.6 Cleaning the appliance...................................... 30
10 Customer support......................................... 31
10.1 Technical specifications.................................... 31
10.2 Operating noises................................................. 31
10.3 Technical faults................................................... 32
10.4 Customer Service................................................ 33
10.5 Rating plate.......................................................... 33
11 Decommissioning.......................................... 34
12 Disposal......................................................... 34
12.1 Preparing the appliance for disposal............... 34
12.2 Disposing of the appliance in an
environmentally friendly manner..................... 34
2 * Depending on model and options
Congratulations on the purchase of your new appli‐
ance. With this purchase, you have chosen all the
advantages of the latest refrigeration technology, guar‐
anteeing you a high-quality appliance with a long life
span and high operating safety.
The equipment of your appliance gives you the highest
level of day-to-day ease of operation.
Together we are making an active contribution to the
conservation of our environment by purchasing this
appliance which is manufactured in an environmentally
friendly process with the use of recyclable materials.
We hope you enjoy your new appliance.
The manufacturer is constantly working to improve all
types and models. Therefore, please be aware that we
reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol
Explanation
Read instructions
Please read the information in these
instructions carefully to understand all of
the benefits of your new appliance.
Additional information online
The digital manual with supplemental
information can be found online by scan‐
ning the QR code on the front page of this
manual or by entering the service number
at home.liebherr.com/fridge-manuals.
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of
models, so there may be differences.
Sections that apply to certain models only
are indicated by an asterisk (*).
Instructions and results
Instructions are marked with a
.
Results are marked with a
.
Videos
Videos about the appliances are available
on the YouTube channel of Liebherr-Hausg‐
eräte.
Open-source licenses:
The appliance includes software components that
make use of open-source licenses. You can find
information on the open-source licenses to be used
here: home.liebherr.com/open-source-licenses
These operating instructions apply to:
IRBP5170
1 General safety instructions
Please keep these operating instructions in a safe
place so you can refer back to them at any time.
If you pass the appliance on, please hand these oper‐
ating instructions to the new owner.
Read and follow these instructions. They contain
safety information which is important for safe and
problem-free installation and operation. Always read
and follow the safety information.
Dangers for the user:
-
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance. Cleaning and user maintenance must
not be performed by children unless they are super‐
vised. Children between the ages of 3 and 8 may
load and unload the appliance. Children under the
age of 3 must be kept away from the appliance
unless they are constantly supervised.
-
IMPORTANT: The power plug must be easily acces‐
sible so that the appliance can be disconnected
from the mains quickly in an emergency. It must not
be behind the back of the appliance.
-
The socket must be easily accessible so that the
appliance can be disconnected quickly from the
electricity in an emergency. It must not be located in
the area behind the appliance.
-
Always hold the appliance at the plug when discon‐
necting it from the household power. Do not pull on
the cable.
-
Disconnect the power plug or fuse if there is a
malfunction.
-
Do not damage the power cable. Do not operate the
appliance with a faulty power cable. If the supply
cord is damaged, it must be replaced by the manu‐
facturer, its service agent or similarly qualified
persons in order to avoid a hazard. For Plug and Play
connections, the change may be carried out by the
customer.
-
Repairs and work on the appliance may only be
carried out by Customer Service or other specifically
trained qualified personnel.
-
Only install, connect and dispose of the appliance in
accordance with the instructions.
-
Only operate the appliance after it has been
installed.
Risk of fire:
-
The refrigerant contained within the appliance
(specifications on the identification plate) is environ‐
mentally friendly, but flammable. Leaking refrigerant
can ignite.
•
WARNING: Do not damage the refrigerant circuit.
•
Do not handle ignition sources inside the appli‐
ance.
General safety instructions
* Depending on model and options 3
•
WARNING: Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer (e.g. steam cleaning appliances,
heating appliances, ice cream makers).
•
If refrigerant leaks: Remove naked flames or igni‐
tion sources located near the area of the leak.
Ventilate the room well. Contact Customer
Service.
-
Do not operate the appliance near explosive gases.
-
Do not store or use gasoline or other flammable
gases and liquids near the appliance.
-
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
You can recognize such spray cans by the printed list
of contents or by a flame symbol. Any leaking gases
can be ignited by electrical components.
-
Alcoholic beverages or other containers holding
alcohol must always be tightly sealed for storage
purposes. Any leaking alcohol can be ignited by elec‐
trical components.
Risk of falling or toppling over:
-
WARNING: To avoid a hazard due to instability of the
appliance, it must be fixed in accordance with the
instructions.
-
Do not stand on the base, drawers, doors etc. or use
them as improper supports. This applies in particular
to children.
Danger of poisoning:
-
Do not consume spoiled food.
Danger of frostbite, feeling of numbness and pain:
-
Avoid prolonged skin contact with cold surfaces or
chilled/frozen food or take protective measures, e.g.
wear gloves.
Risk of injury and damage:
-
Hot steam may cause injuries. Do not use any elec‐
trical heating or steam cleaning equipment, naked
flames or defrosting sprays for defrosting measures.
-
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
-
Do not remove ice using sharp objects.
-
WARNING: Keep clear of obstruction all ventilation
openings in the appliance enclosure or in the struc‐
ture for building-in.
-
WARNING: Risk of child entrapment. Before you
throw away your old refrigerator or freezer:
•
Take off the doors.
•
Leave the shelves in place so that children may
not easily climb inside.
Risk of crushing:
-
Do not hold onto the hinge when opening and
closing the door. Fingers may become trapped.
California Proposition 65
-
WARNING: This product can expose you to chemi‐
cals including Diisononyl Phthalate (DINP), which is
known to the State of California to cause cancer,
and Di-isodecyl Phthalate (DIDP), which is known to
the State of California to cause birth defects or
other reproductive harm. For more information, go to
www.P65Warnings.ca.gov
FCC Warning
-
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC information
-
This appliance has been tested and found to comply
with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference from an installation in residen‐
tial areas. This appliance generates, uses and can
radiate radio-frequency energy and, if not installed
and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this appliance
does cause harmful interference to radio or televi‐
sion reception, which can be determined by
switching the appliance on and off, the user should
try to correct the interference by one or more of the
following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the distance between the appliance and
receiver.
•
Connect the appliance to an outlet on a circuit
different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV
technician for help.
FCC Radio Frequency Exposure Statement
-
This appliance is found to comply with FCC radio
frequency (RF) exposure limits set for an uncon‐
trolled environment. This transmitter must not be set
up or operated in conjunction with another antenna
or another transmitter.
-
This appliance should be installed and operated with
a minimum space of 200 mm (7 7/8 in) between the
antenna and your body. The user must follow the
specific operating instructions to ensure compliance
with RF exposure.
IC information
-
This appliance has license-exempt transmitters/
receivers, which comply with the license-exempt
Radio Standards Specification (RSS) of Innovation,
Science and Economic Development Canada. Opera‐
tion is subject to the following two conditions:
•
This appliance may not cause interference.
•
This device must accept any interference,
including interference that may cause undesired
operation of the device.
IC Radio Frequency Exposure Statement
-
This appliance meets the IC RSS-102 limits for radia‐
tion exposure, which were defined for an uncon‐
trolled environment. This appliance should be
General safety instructions
4 * Depending on model and options
installed and operated so that there is a minimum
space of 200mm(7 7/8in) between the antenna and
your body.
Symbols on the device:
The symbol may be located on the
compressor. It refers to the oil in the
compressor and refers to the following
danger: Can be fatal if swallowed or
inhaled. This notice only applies for
recycling. There is no danger during
normal operation.
WARNING: Risk of fire / flammable
materials. The symbol is located on the
compressor and indicates the danger
from flammable materials. Do not
remove the label.
This label or a similar one may be
located on the rear of the appliance.
This label indicates that there are
vacuum insulation panels (VIP) or perlite
panels in the door and/or housing. This
notice only applies for recycling. Do not
remove the label.
Observe the warning messages and other detailed
information in the other sections:
DANGER
Indicates an immediately
hazardous situation, which if
not avoided, will result in death
or serious injury.
WARNING Indicates a hazardous situa‐
tion, which if not avoided,
could result in death or serious
injury.
CAUTION Indicates a hazardous situa‐
tion, which if not avoided,
could result in minor or
moderate injury.
NOTICE Indicates a hazardous situa‐
tion, which if not avoided,
could result in damage to prop‐
erty.
Note Indicates useful advice and
tips.
2 The appliance at a glance
2.1 Delivered contents
Check all parts for transport damage. If you have any
complaints, please contact the retailer or customer
service. (see 10.4 Customer Service)
Delivery contains the following parts:
-
Integrated appliance
-
Equipment (depending on your model)
-
Installation parts (depending on your model)
-
User Guide
-
Installation Guide
-
Warranty documents
2.2 Overview of appliances and equip‐
ment

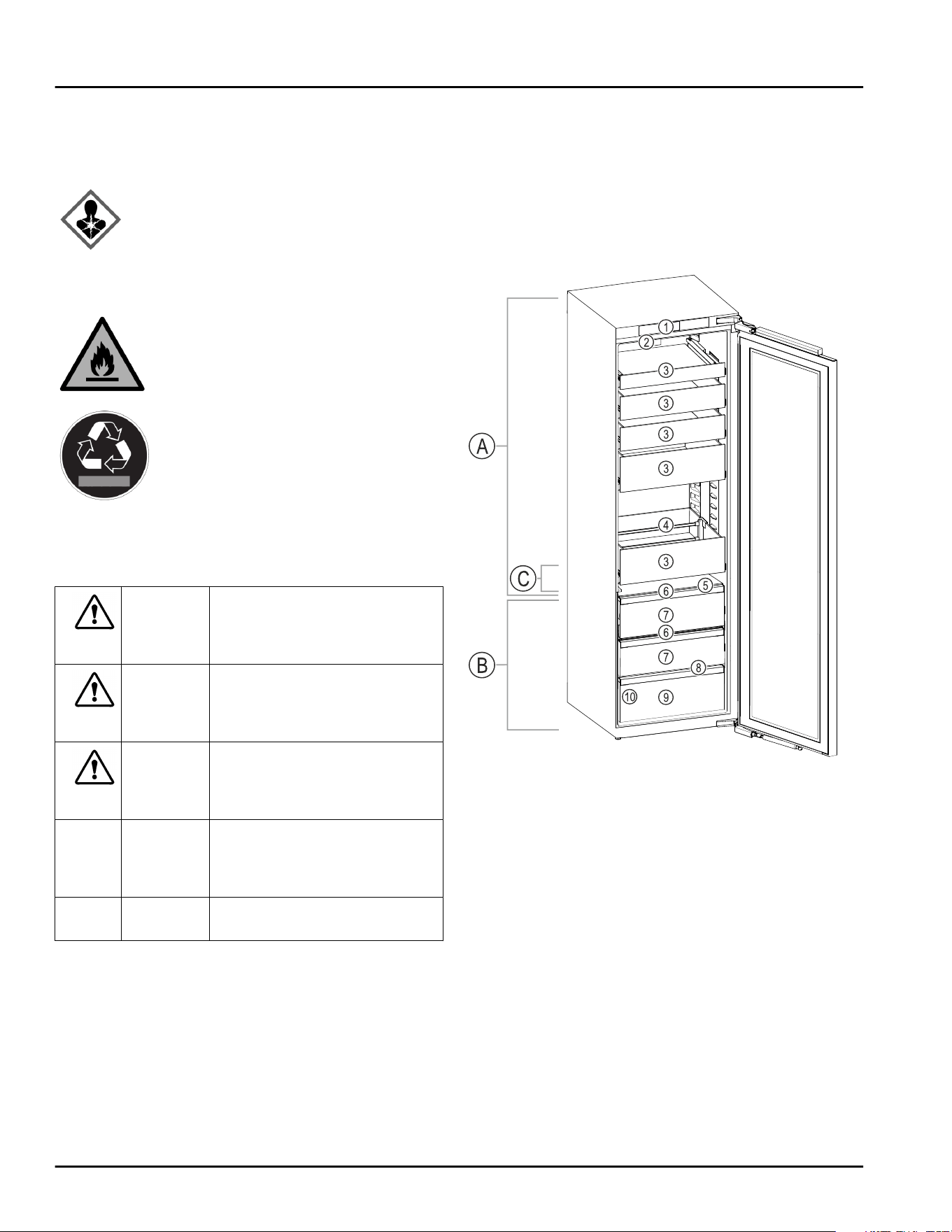

Fig. 1 Example illustration
Temperature range
(A)
Fridge compartment (C) Coldest zone
(B) BioFresh
Equipment
(1)
Controls (6) Cover for Fruit & Vege‐
table-Safe
(2) Fan with FreshAir
activated charcoal
filter
(7) Fruit & Vegetable-Safe
(3) Glass drawer (8) Drain hole
(4) Bottle holder (9) Meat & Dairy-Safe
(5) Variable bottle rack (10)Nameplate
The appliance at a glance
* Depending on model and options 5
Notes on loading

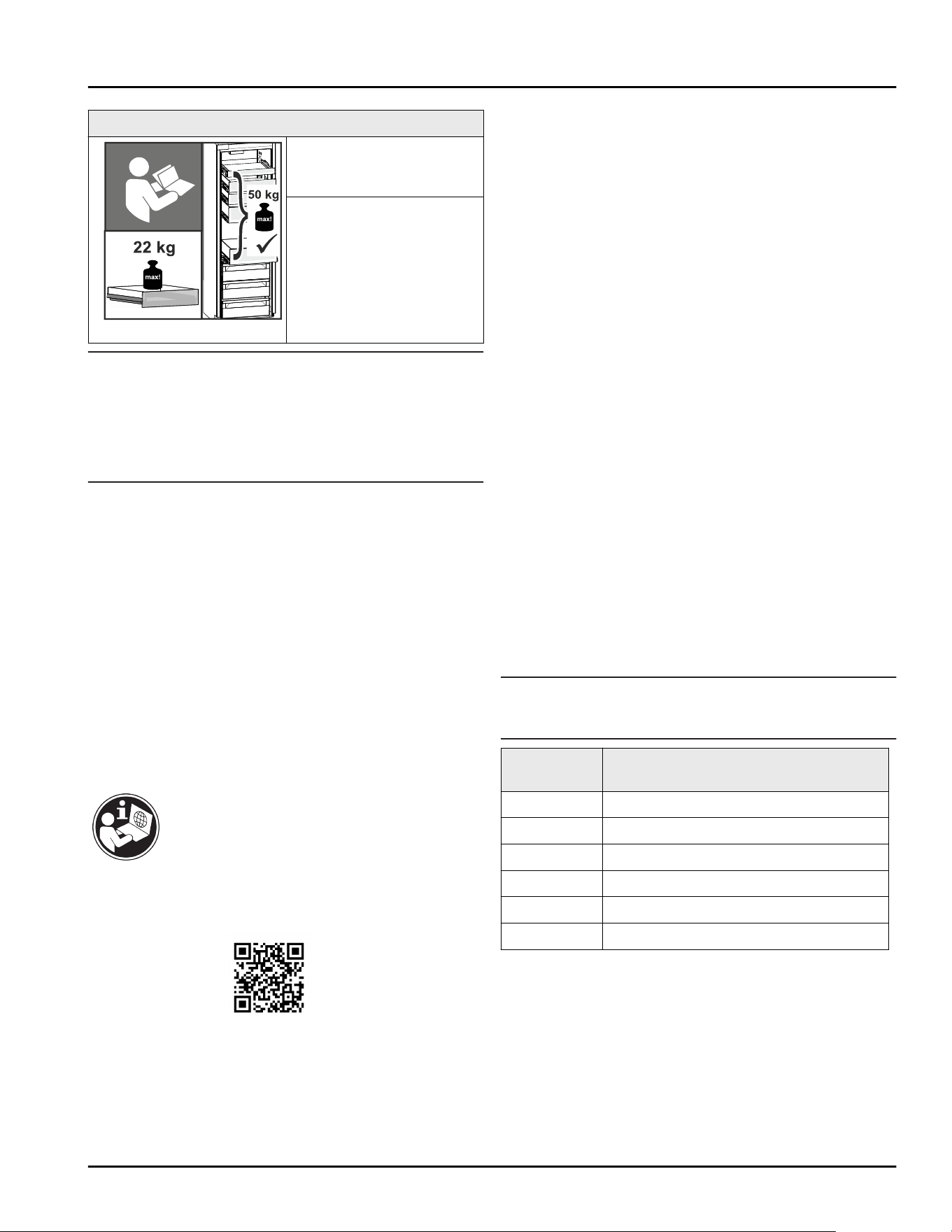

Fig.2
One separate drawer can
hold a maximum load of
22 kg(48lb).
The total load is a
maximum of 50 kg(110lb)
if you pull all the drawers
out at the same time.
Note
► The shelves, drawers, and baskets are arranged for
optimal energy efficiency in the factory configura‐
tion. However, changes to the arrangement within
the given insertion options – for example the
arrangement of shelves in the fridge compartment –
have no effect on energy consumption.
2.3 SmartDevice
SmartDevice is the networking solution for your refrig‐
erator.
If your appliance is SmartDevice-enabled or compat‐
ible, you can quickly and easily connect your appliance
to your WiFi. With the SmartDevice app, you can
operate your appliance from a mobile device. Addi‐
tional functions and setting options are available in the
SmartDevice app.
SmartDevice-
enabled appli‐
ance:
Your appliance is capable of being
a SmartDevice. To be able to
connect your device to WiFi, you
need to download the SmartDevice
app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Downloading the
SmartDevice
app:
After installing and configuring the
SmartDevice app, you can connect
your appliance to the WiFi using
the SmartDevice app and the WiFi
appliance function (seeWiFi) .
2.4 Range of appliance use
Normal use
This appliance is intended to be used in household and
similar applications such as,
-
staff kitchen areas in shops, offices and other
working environments;
-
farm houses and by clients in hotels, motels and
other residential type environments;
-
bed and breakfast type environments;
-
catering and similar non-retail applications.
The appliance is not suitable for freezing food;
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-
Storage and cooling of medication, blood plasma,
laboratory preparations or similar substances and
products in accordance with the CMDCAS and FDA
510(k)
-
Use outdoors
-
Use in moist areas exposed to the rain
-
Use in outdoor areas with very high humidity
-
Use in areas at risk of explosion
Incorrect appliance use can cause damage to the
stored products or cause them to spoil.
Climate ratings
The appliance is set to operate within specific ambient
temperature limits according to its climate rating The
climate rating for your appliance is printed on the
rating plate
Note
► To guarantee trouble-free operation, comply with the
indicated ambient temperatures.
Climate
rating
for ambient temperatures from
SN 10°C(50°F) to 32°C(90°F)
N 16°C(61°F) to 32°C(90°F)
ST 16°C(61°F) to 38°C(100°F)
T 16°C(61°F) to 43°C(109°F)
SN-ST 10°C(50°F) to 38°C(100°F)
SN-T 10°C(50°F) to 43°C(109°F)
2.5 Conformity
The refrigerant circuit has been tested for leaks. When
installed, the appliance complies with the applicable
safety regulations and with the corresponding direc‐
tives.
The BioFresh compartment meets the requirements of
a cold storage compartment as set out in EN ISO 8561.
The appliance at a glance
6 * Depending on model and options
2.6 Spare parts
Spare parts for functional and storable parts of the
equipment are available for 15 years.
3 Functionality of the
Touch&Swipe display
You operate your appliance using the Touch & Swipe
display. You select appliance functions in the
Touch & Swipe display (hereafter referred to as display)
by tapping them. If you do not perform any action on
the display for 10 seconds, the display either jumps
back to the higher-level menu or directly to the status
display.

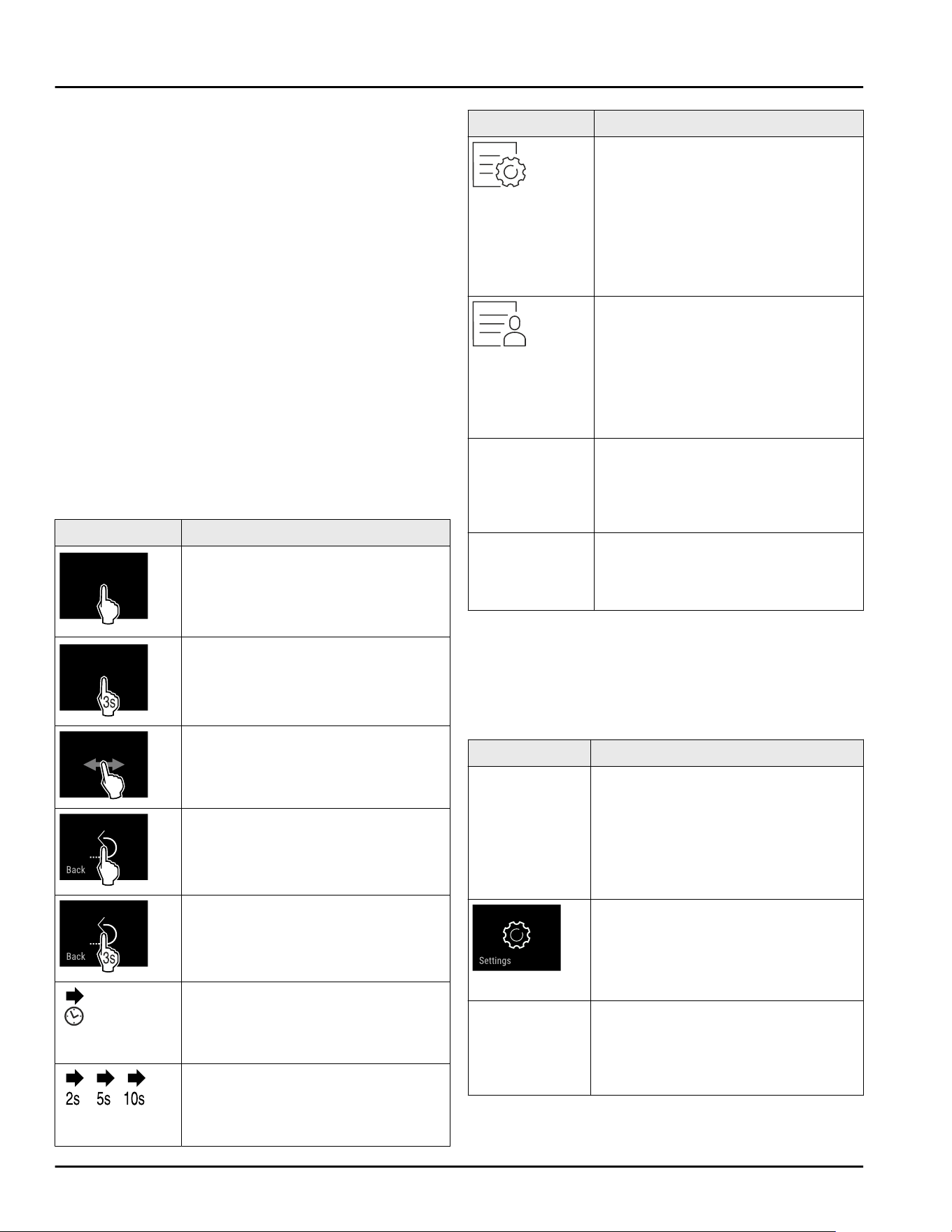

3.1 Navigation and symbol explana‐
tion
In the illustrations, different symbols are used to navi‐
gate the display. The following table describes these
symbols.
Symbol
Description
Briefly touch the display:
Activates/deactivates function.
Confirms selection.
Opens submenu.
Touch the display for a specified
time (e.g. 3seconds):
Activates/deactivates function or
value.
Swipe left or right:
Navigate in the menu.
Briefly touch the Back symbol:
Jumps back one menu level.
Press and hold the Back symbol for
3seconds:
Jumps back to the status display.
Arrow with clock:
It takes more than 10 seconds for
the following message to appear in
the display.
Arrow with a time indication:
It takes the specified amount of
time until the following message
appears in the display.
Symbol Description
“Open Settings menu” symbol:
Navigates to the Settings menu and
opens the settings menu.
If necessary: Navigate to the
desired function in the Settings
menu.
(see 3.2.1 Opening the Settings
menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu
and opens the advanced menu.
If necessary: Navigate to the
desired function in the Advanced
menu.
(see 3.2.2 Opening expanded menu)
No action for
10seconds
If you do not perform any action on
the display for 10 seconds, the
display either jumps back to the
higher-level menu or directly to the
status display.
Open door and
close it again.
If you open the door and immedi‐
ately close it again, the display
jumps directly back to the status
display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions are distributed over various
menus:
Menu
Description
Main menu When you switch the appliance on,
you are automatically in the main
menu.
From here you can navigate to the
most important appliance functions,
to the Settings menu and to the
Advanced menu.
Settings menu
The Settings menu contains addi‐
tional appliance functions for
setting up your appliance.
Advanced
menu
The advanced menu contains
special appliance functions for
setting up your appliance. Access to
the Advanced menu is protected by
the numerical code 151.
Functionality of the Touch&Swipe display
* Depending on model and options 7
3.2.1 Opening the Settings menu

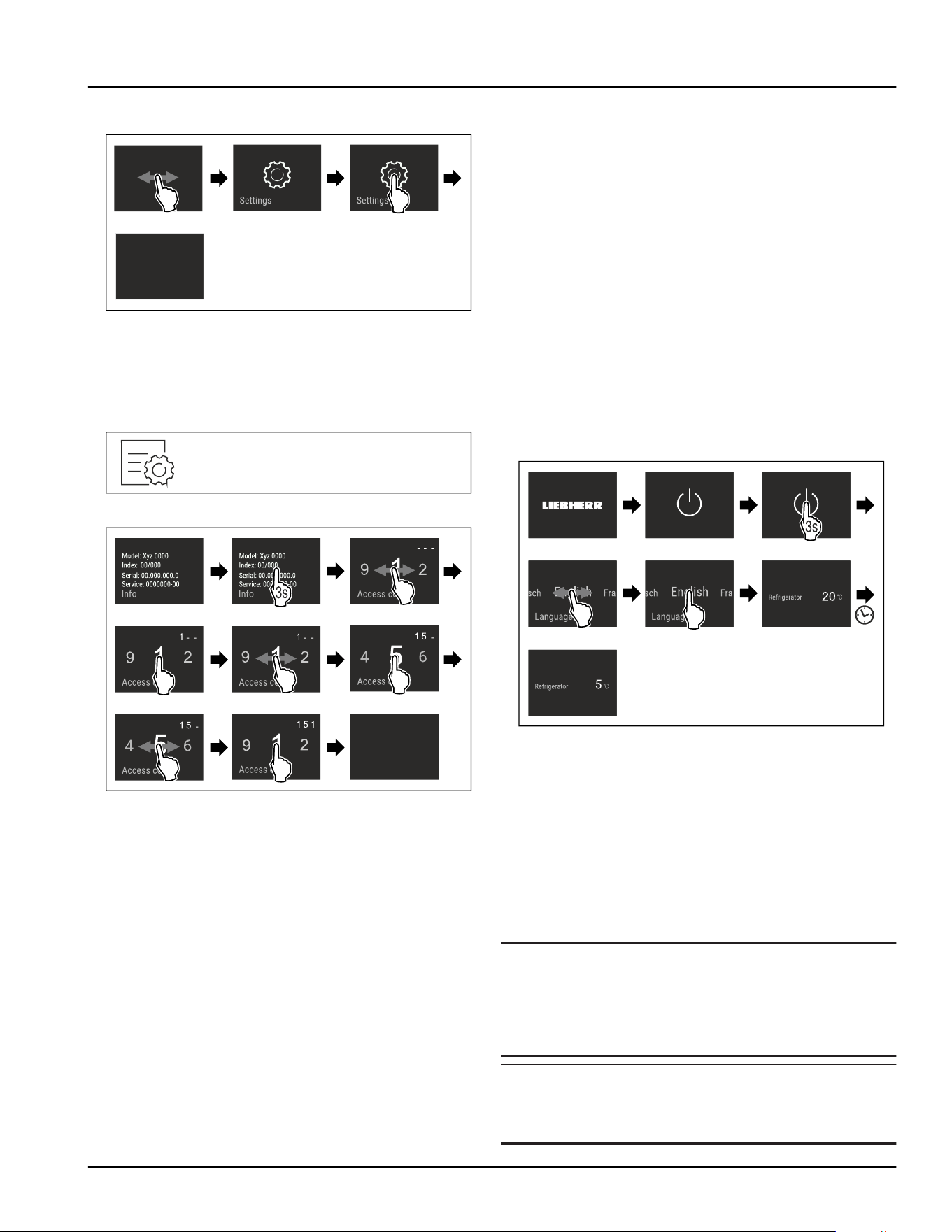

Fig. 3 Example illustration
► Carry out action steps according to the illustration.
▷ Settings menu is open.
► If necessary: Navigate to the desired function.
3.2.2 Opening expanded menu
Fig.4
Fig. 5 Example illustration, access with numerical code 151
► Carry out action steps according to the illustration.
▷ Expanded menu is open.
► If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display
brightness is dimmed.
3.3.1 Ending sleep mode
► Touch the display briefly with your finger.
▷ Sleep mode is ended.
4 Start-up
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
❑
The appliance is properly installed and connected
according to the installation instructions.
❑
All adhesive strips, adhesive and protective films
and transport locks are removed from inside and on
the appliance.
❑
All marketing leaflets are removed from the drawers.
❑
You are familiar with the functionality of the
Touch & Swipe display. (see 3 Functionality of the
Touch&Swipe display)
Switch on the appliance using the Touch & Swipe
display.
► If the display is in sleep mode: Briefly touch the
display.
► Carry out action steps according to the illustration.
Fig. 6 Example illustration
▷ Status display appears.
▷ The appliance cools to the temperature set at the
factory.
▷ The appliance starts in demo mode (status display
with DEMO appears): If the appliance starts in demo
mode, you can deactivate demo mode within the
next 5 minutes. (seeDemo mode)
More information:
-
Start the SmartDevice for the first time.
(see 2.3 SmartDevice) and (seeWiFi)
Note
The manufacturer recommends:
► Stock with food: Wait for around 6 hours until the
set temperature is reached.
► Observe the notes on storing food. (see 5.1 Informa‐
tion regarding storage)
Note
Accessories can be purchased from the Liebherr
Service Center. The address for your respective country
can be found on the back of the instructions.
Start-up
8 * Depending on model and options
5 Storage
5.1 Information regarding storage
WARNING
Risk of fire from electrical appliances!
If you use electrical devices in the food area of your
appliance, they may case a fire.
► Do not use electrical devices in the food area of the
appliance if they have not been recommended by the
manufacturer.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating
performance
► Always keep the air slots unobstructed.
Observe the following specifications for storage:
-
Keep the air vents on the fan free.
-
Package or cover foods that readily take on or give
off odors or taste in closed containers.
-
Package raw meat or fish in clean, closed
containers. This will prevent meat or fish from
touching or dripping onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air
circulation.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on
the packaging.
Note
Failure to follow these guidelines can lead to food‐
stuffs spoiling.
5.2 Fridge compartment
The air circulation in the appliance creates different
temperature zones. You will find the different tempera‐
ture zones in the appliance and equipment overview.
(see2.2 Overview of appliances and equipment)
5.2.1 Arranging your food properly
Note
Maximum load of a single drawer in the fridge compart‐
ment: 22 kg(48lb)
Maximum load of the fridge compartment when all
drawers are pulled out at the same time: 50 kg(110lb)
(see2.2 Overview of appliances and equipment)

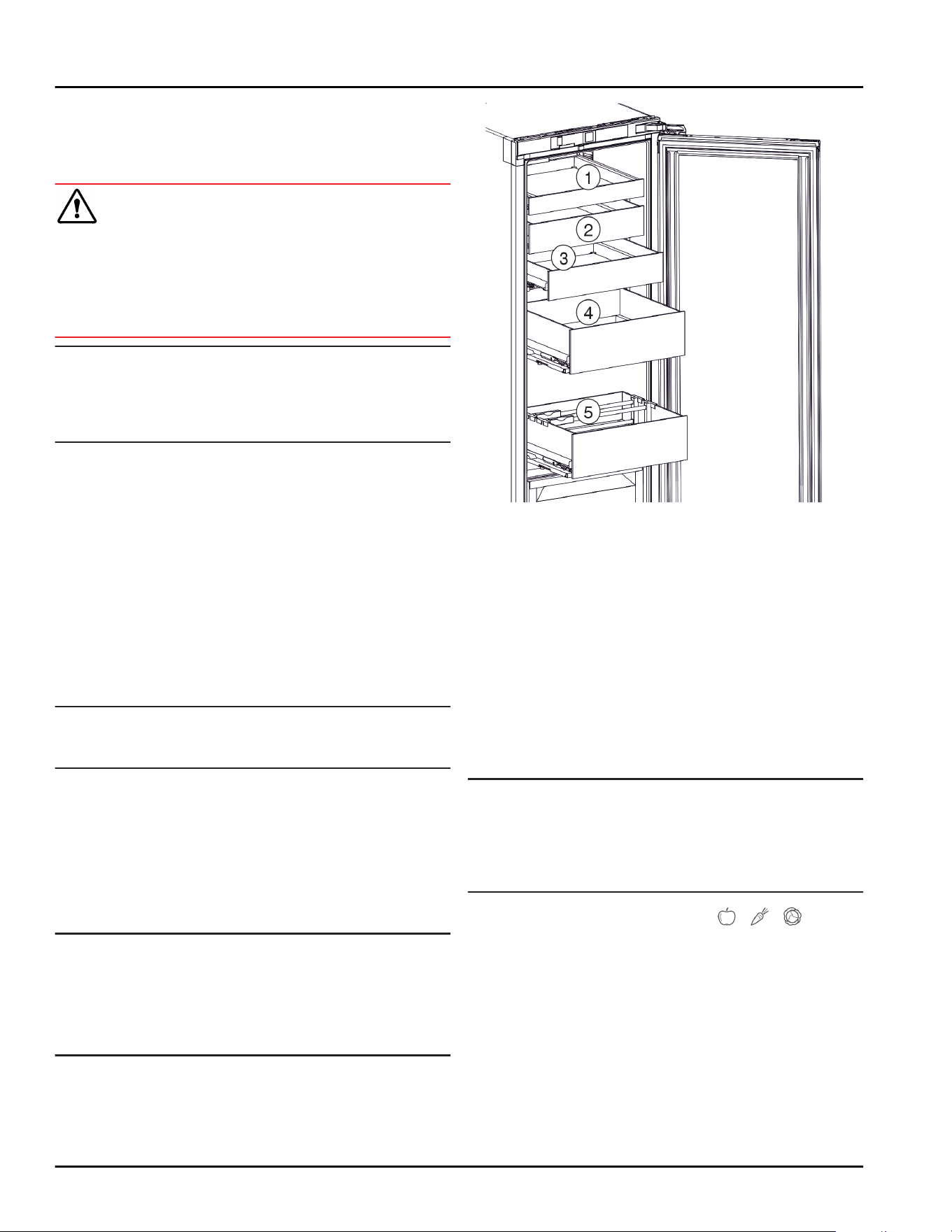

Fig. 7 Storage examples
(1)
Butter, eggs (4) Canned food, tins
(2) Yoghurt, quark (5) Bottles, Tetra Paks
(3) Foodstuffs in small
jars or in small cans
► Load drawers according to the size of the groceries.
5.3 BioFresh
BioFresh will extend the storage time for some fresh
foods compared to traditional refrigeration.
Taste, freshness and nutritional value (vitamin groups
B and C) are largely retained. Less spoilage and shriv‐
eling of fruit and vegetables. The food keeps fresher
and retains its natural goodness.
Note
The temperature can drop to 0 °C (32 °F) which means
foods could easily freeze.
► Store cold-sensitive produce such as cucumbers,
eggplants, zucchinis and tropical fruit in the fridge
compartment.
5.3.1 Fruit & Vegetable safe
This safe creates a climate of close to 0°C(32°F). The
compartment lid ensures constant levels of humidity.
This storage climate is suitable for storing unpackaged
food with high intrinsic moisture (for example, lettuce,
vegetables, fruit).
The humidity in the compartment depends on the
moisture content of the chilled goods placed in it, and
also depends on how often the compartment is
opened. You can regulate the humidity level.
Arranging your food properly
► Store unpackaged fruit and vegetables.
Storage
* Depending on model and options 9
If the humidity is too high:
► Regulate the humidity.
5.3.2 Meat & Dairy safe
This safe creates a storage climate of close to
0 °C (32 °F). This storage climate is suitable for more
sensitive foods (e.g. dairy products, meat, fish,
sausage).
Arranging your food properly
► Store dry or packaged food.
5.4 Storage times
The storage times given are guidelines
Food with a “use by” date must still be consumed by
the date indicated on the package
5.4.1 Fridge
The best-before date stated on the packaging applies.
5.4.2 BioFresh
Guideline storage times for the Meat & Dairy-Safe
Butter at
1 °C
(34°F)
up to 90 days
Hard cheese at
1 °C
(34°F)
up to 110 days
Milk at
1 °C
(34°F)
up to 12 days
Sausage, cold cuts at
1 °C
(34°F)
up to 8 days
Poultry at
1 °C
(34°F)
up to 6 days
Pork at
1 °C
(34°F)
up to 6 days
Beef at
1 °C
(34°F)
up to 6 days
Game at
1 °C
(34°F)
up to 6 days
Note
► Note that higher-protein foods spoil more quickly So,
shellfish and crustaceans perish faster than fish,
and fish perishes faster than meat.
Guideline storage times for the Fruit & Vegetable-
Safe
Vegetables, lettuce
Artichokes at
1 °C
(34°F)
up to 14 days
Celery at
1 °C
(34°F)
up to 28 days
Cauliflower at
1 °C
(34°F)
up to 21 days
Broccoli at
1 °C
(34°F)
up to 13 days
Endives at
1 °C
(34°F)
up to 27 days
Mâche at
1 °C
(34°F)
up to 19 days
Peas at
1 °C
(34°F)
up to 14 days
Kale at
1 °C
(34°F)
up to 14 days
Carrots at
1 °C
(34°F)
up to 80 days
Garlic at
1 °C
(34°F)
up to 160 days
Cabbage turnip at
1 °C
(34°F)
up to 14 days
Iceberg lettuce at
1 °C
(34°F)
up to 13 days
Herbs at
1 °C
(34°F)
up to 13 days
Leeks at
1 °C
(34°F)
up to 29 days
Mushrooms at
1 °C
(34°F)
up to 7 days
Storage
10 * Depending on model and options
Guideline storage times for the Fruit & Vegetable-
Safe
Radishes at
1 °C
(34°F)
up to 10 days
Brussels sprouts at
1 °C
(34°F)
up to 20 days
Asparagus at
1 °C
(34°F)
up to 18 days
Spinach at
1 °C
(34°F)
up to 13 days
Savoy cabbage at
1 °C
(34°F)
up to 20 days
Fruit
Apricots at
1 °C
(34°F)
up to 13 days
Apples at
1 °C
(34°F)
up to 80 days
Pears at
1 °C
(34°F)
up to 55 days
Blackberries at
1 °C
(34°F)
up to 3 days
Dates at
1 °C
(34°F)
up to 180 days
Strawberries at
1 °C
(34°F)
up to 7 days
Figs at
1 °C
(34°F)
up to 7 days
Blueberries at
1 °C
(34°F)
up to 9 days
Raspberries at
1 °C
(34°F)
up to 3 days
Red currants at
1 °C
(34°F)
up to 7 days
Cherries, sweet at
1 °C
(34°F)
up to 14 days
Guideline storage times for the Fruit & Vegetable-
Safe
Kiwi at
1 °C
(34°F)
up to 80 days
Peaches at
1 °C
(34°F)
up to 13 days
Plums at
1 °C
(34°F)
up to 20 days
Cranberries at
1 °C
(34°F)
up to 60 days
Rhubarb at
1 °C
(34°F)
up to 13 days
Gooseberries at
1 °C
(34°F)
up to 13 days
Grapes at
1 °C
(34°F)
up to 29 days
6 Energy saving
-
Always ensure good ventilation. Keep clear of
obstruction all ventilation openings in the appliance
enclosure or in the structure for building-in.
-
Never block air slits in the fan.
-
Do no install the appliance in an area with direct
sunlight, next to a heating unit or similar.
-
If you install the appliance directly next to an oven,
its energy consumption may increase slightly. This
depends on the service life and how often the oven
is used.
-
Energy consumption depends on installation condi‐
tions such as the ambient temperature
(see2.4 Range of appliance use) . A warmer ambient
temperature can increase the energy consumption.
-
Avoid opening the appliance door for any longer then
necessary
-
The lower the temperature is set the higher the
energy consumption.
-
Sort your food items: home.liebherr.com/food.
-
All food stored in the appliance should be well
wrapped and covered. This prevents frost buildup.
-
Only take food out for as long as necessary so that it
does not get too warm.
-
Insertion of warm foods: first let the food cool down
to room temperature.
-
For longer periods of absence, use HolidayMode
(seeHolidayMode) .
Energy saving
* Depending on model and options 11
7 Use
7.1 Controls and displays
7.1.1 Status display

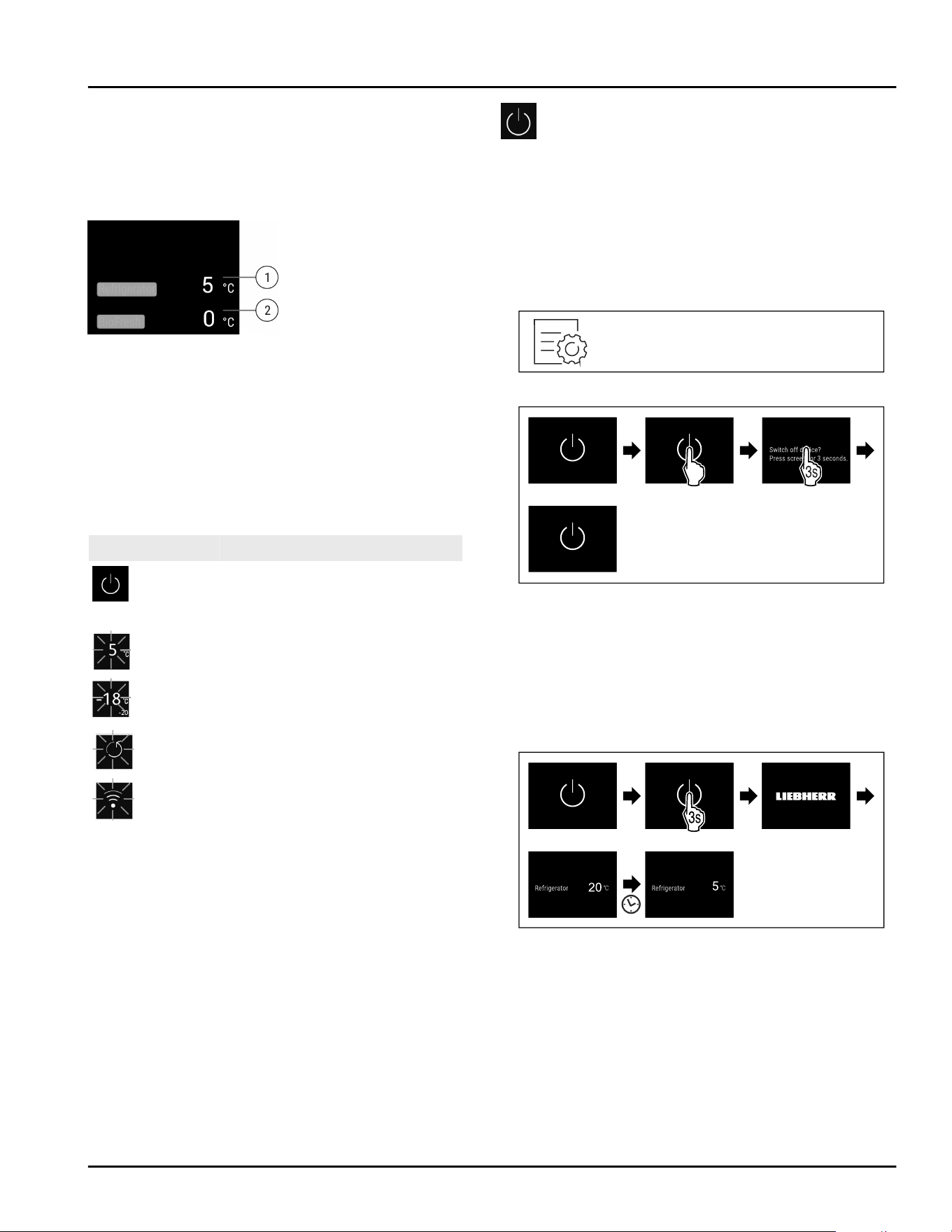

Fig. 8 Status display shows the actual temperature.
(1)
Fridge compartment
temperature display
(2) Temperature display
BioFresh
The status display shows the actual temperature and
is the initial display. You can navigate from there to the
functions and settings.
7.1.2 Display symbols
The display symbols provide information about the
current appliance status.
Symbol
Appliance status
Standby
The appliance or temperature
zone is turned off.
Flashing number
Appliance is working. Tempera‐
ture flashes until the set
temperature is reached.
Flashing symbol
Appliance is working. Setting is
made.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that
your appliance is fully functional.
Before you alter, activate or deactivate the appliance
functions, make sure that the following requirements
are met:
❑
You have read and understood the descriptions of
how the display works. (see 3 Functionality of the
Touch&Swipe display)
❑
You have familiarized yourself with the operating
and display elements of your appliance.
Switching appliance off and on
This function switches the entire appliance on and off.
Switching off the appliance
If you switch off the appliance, the settings that were
made before remain stored.
Make sure that the following requirements are fulfilled:
❑
Handling instructions (see 11 Decommissioning)
have been completed.
Fig.9
Fig. 10
► Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ Standby symbol appears in the display.
▷ Display turns black.
Switching on the appliance
If the display is in sleep mode:
► Briefly touch the display.
Fig. 11 Example illustration
► Carry out action steps according to the illustration.
If the appliance starts in demo mode:
► Deactivate demo mode. (see Deactivating demo
mode)
▷ Appliance is switched on.
▷ Previously made settings are re-established.
▷ The appliance cools to the set target temperature.
Use
12 * Depending on model and options
WiFi

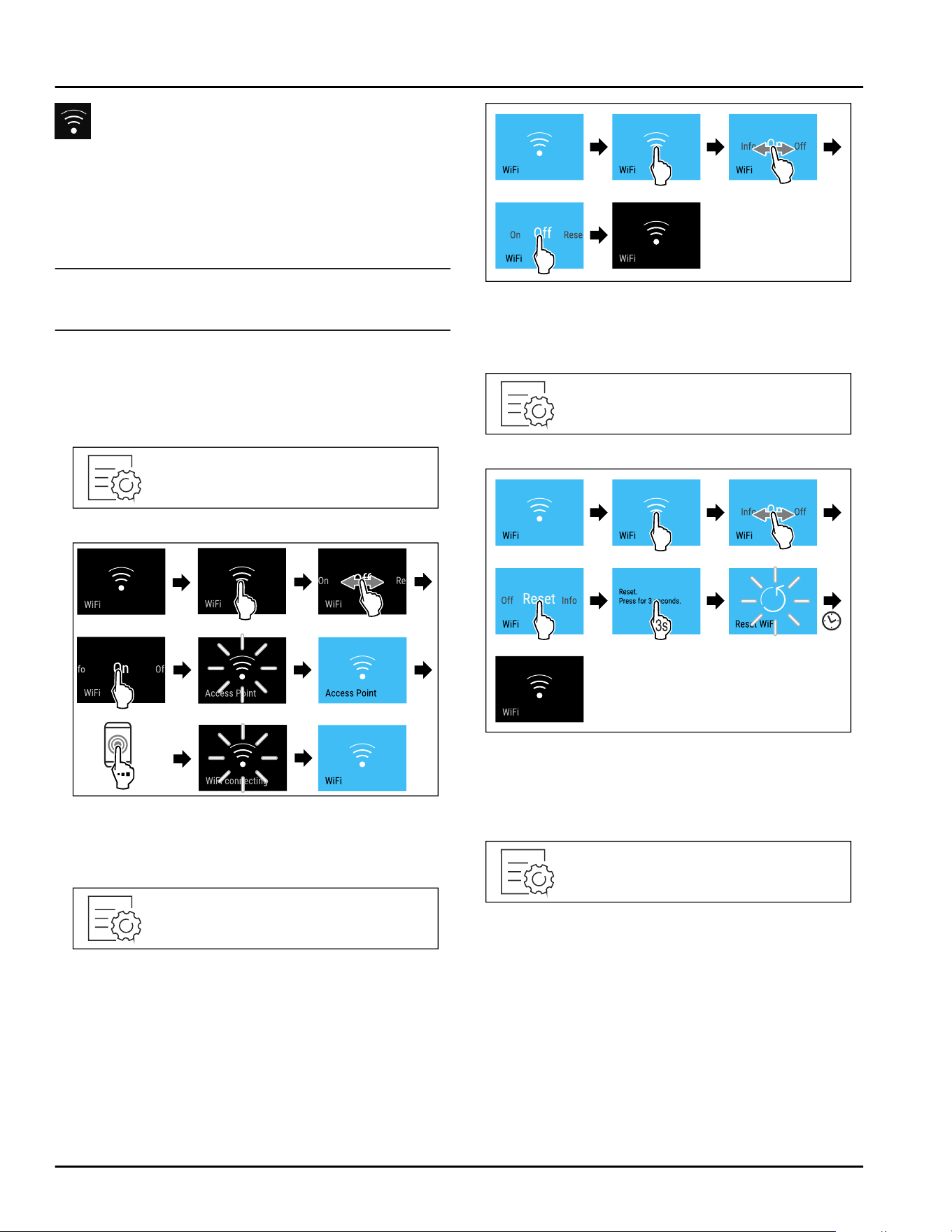

Use this function to connect your appliance to WiFi.
You can then operate it via the SmartDevice app on a
mobile device. You can also use this function to
disconnect or reset the WiFi connection.
More information on the SmartDevice: (see 2.3 Smart‐
Device)
Note
The SmartDevice function is not available in the
following countries: Russia, Belarus, Kazakhstan.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
❑
You have installed the SmartDevice app (see
apps.home.liebherr.com).
❑
Registration in the SmartDevice app is completed.
Fig.12
Fig.13
► Carry out action steps according to the illustration.
▷ Connection is established.
Disconnecting from the WiFi
Fig. 14
Fig. 15
► Carry out action steps according to the illustration.
▷ There is no connection.
Resetting the WiFi connection
Fig. 16
Fig.17
► Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 18
Use
* Depending on model and options 13
Fig. 19
► Carry out action steps according to the illustration.

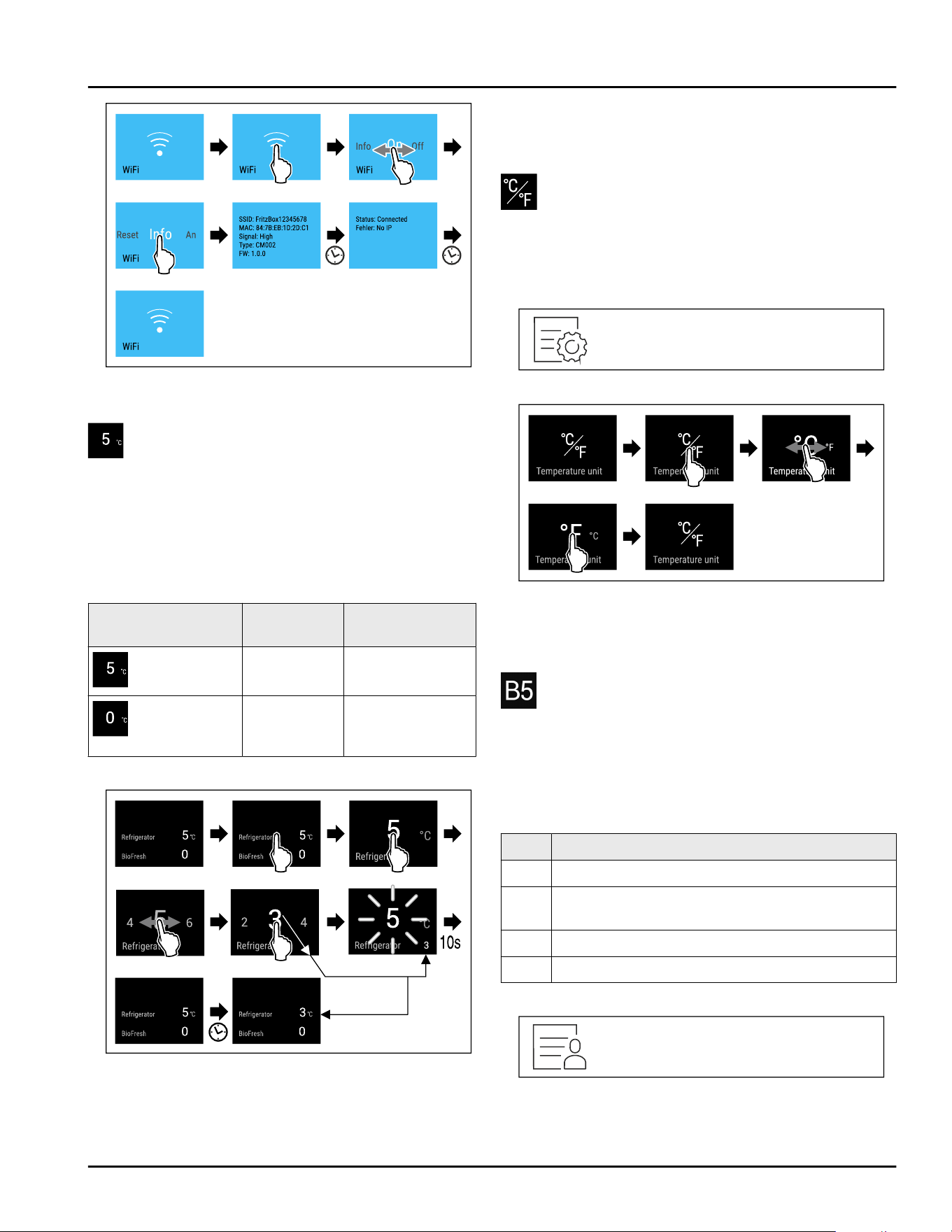

Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open
-
The room temperature of the installation site
-
Type, temperature and amount of food
Temperature zone
Factory-set
temperature
Recommended
setting
Fridge section
5°C(41°F) 4°C(39°F)
BioFresh
0°C(32°F) B-Value (see
BioFresh B-
Value )
Setting the temperature in the fridge section
Fig. 20 Example illustration
► Carry out action steps according to the illustration.
▷ Temperature is set.
Setting the temperature in BioFresh
You set the temperature using the BioFresh B-Value.
(see BioFresh B-Value )
Temperature unit
Use this function to set the temperature unit. You can
set the temperature unit in either degrees Celsius or
degrees Fahrenheit.
Setting the temperature unit
Fig.21
Fig. 23 Example illustration: Switching between
degrees Celsius or degrees Fahrenheit.
► Carry out action steps according to the illustration.
▷ Temperature unit is set.
BioFresh B-Value
Use this function to set the BioFresh B-Value. Use the
BioFresh B-Value to adjust BioFresh slightly warmer or
colder if a higher or lower ambient temperature makes
it necessary. Upon delivery, the BioFresh B-Value is set
to the value B5. If you adjust the B-Value, please
observe the following table:
Value
Description
B1 Lowest temperature
B1-B4 The temperature can drop to 0°C(32°F) which
means foods could easily freeze.
B5 Pre-set temperature
B9 Highest temperature
Setting the BioFresh B-Value
Fig. 24
Use
14 * Depending on model and options
Fig. 26 Example illustration: Switching from B5 to B6.
► Carry out action steps according to the illustration.
▷ The BioFresh B-Value is set.
▷ Status display shows the target temperature.
D-Value
The D-Value is preset for your appliance and must not
be changed.

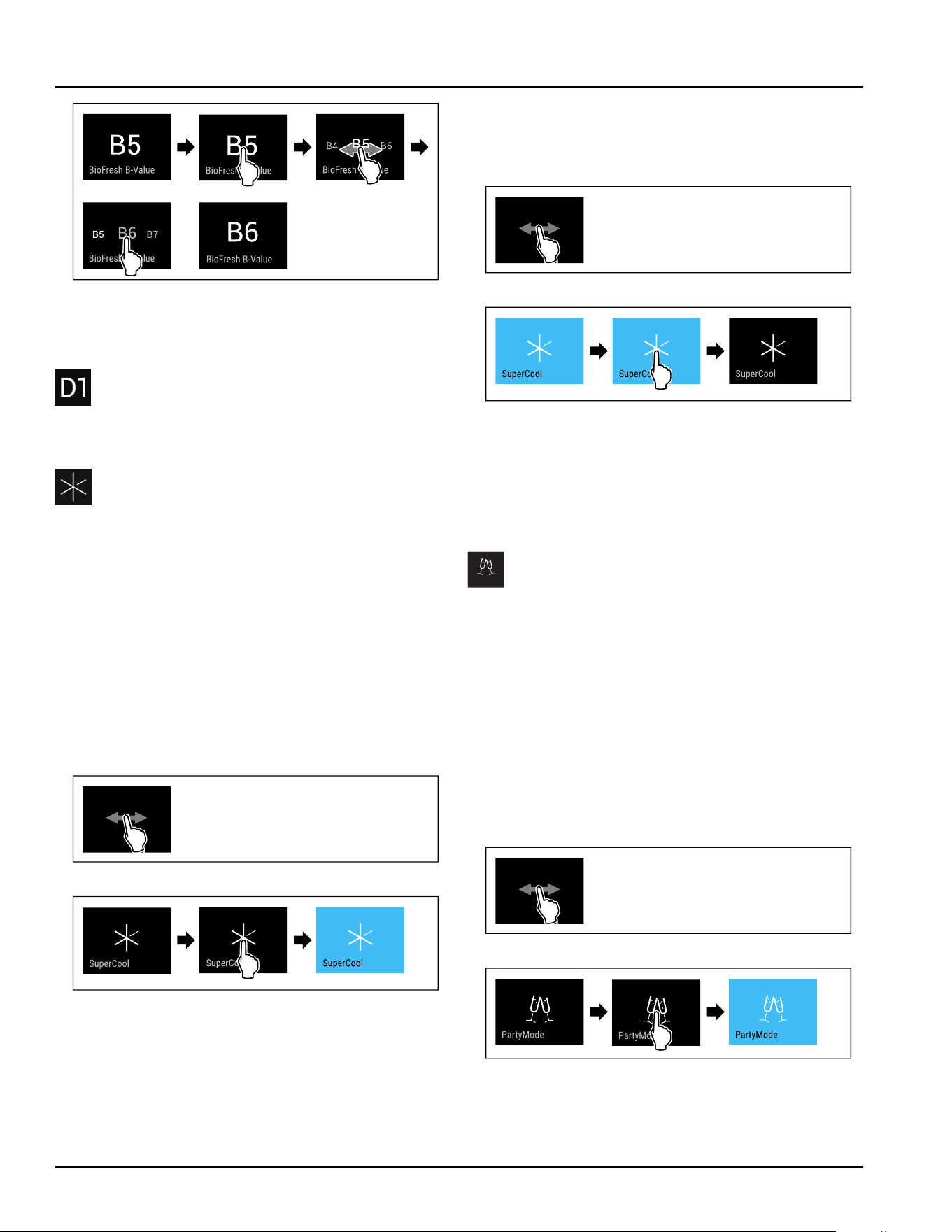

SuperCool
This function activates or deactivates SuperCool. If you
activate SuperCool the appliance increases the cooling
capacity. This allows you to achieve lower cooling
temperatures. You can activate SuperCool if you want
to quickly cool large volumes of food.
If the function is active, the appliance operates at a
higher output. As a result, the operating noise of the
appliance may be temporarily louder, while energy
consumption increases.
Activating SuperCool
Time for activating the function:
-
If you want to store fresh food in the fridge section:
Activate the function when storing food.
Fig.27
Fig.28
► Carry out action steps according to the illustration.
-or-
► Activating with the SmartDevice app.
▷ SuperCool is activated.
▷ Temperature display turns blue.
Deactivating SuperCool
SuperCool is automatically deactivated after 18 hours.
However, you can also manually deactivate SuperCool
at any time:
Fig.29
Fig.30
► Carry out action steps according to the illustration.
-or-
► Deactivating with the SmartDevice app.
▷ SuperCool is deactivated.
▷ Appliance continues to run in normal operation.
▷ The appliance first cools to the set temperature.

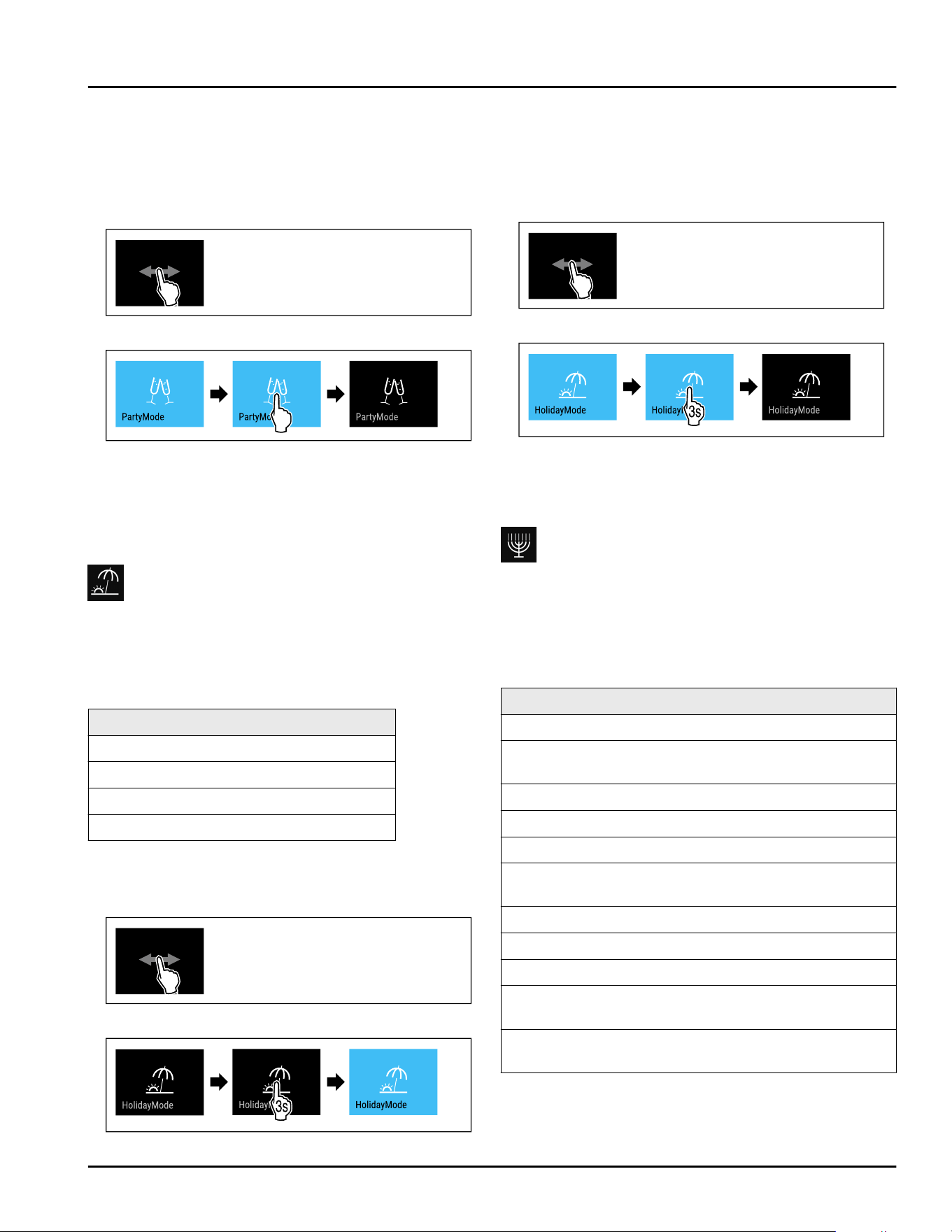

PartyMode
This function activates and deactivates PartyMode.
PartyMode activates different functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperCool (seeSuperCool)
You can set all listed functions individually and flexibly.
By deactivating PartyMode all changes are discarded.
If the function is active, the appliance operates at a
higher output. As a result, the operating noise of the
appliance may be temporarily louder, while energy
consumption increases.
Activating PartyMode
Fig.31
Fig.32
► Carry out action steps according to the illustration.
▷ PartyMode and the corresponding functions are acti‐
vated.
▷ Temperature display turns blue.
Use
* Depending on model and options 15
▷ The current temperature flashes until the target
temperature is reached.
Deactivating PartyMode
PartyMode is automatically deactivated after 24 hours.
However, you can also manually deactivate PartyMode
at any time:
Fig.33
Fig.34
► Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
▷ The appliance first cools to the set temperature: The
current temperature flashes until the target temper‐
ature is reached.
HolidayMode
Use this function to activate or deactivate Holiday‐
Mode. If you activate HolidayMode the fridge section is
set to 15 °C (59 °F). This helps you save energy if you
are away for a longer period of time and avoid bad
smells and mold formation.
Appliance status with active HolidayMode
Fridge section cools to 15°C(59°F).
BioFresh cools down to 15°C(59°F).
PartyMode is deactivated.
SuperCool is deactivated.
Activating HolidayMode
► Empty the fridge section completely.
► Empty BioFresh completely.
Fig.35
Fig.36
► Carry out action steps according to the illustration.
▷ HolidayMode is activated.
▷ Temperature display turns blue and shows the Holi‐
dayMode symbol.
Deactivating HolidayMode
Fig.37
Fig.38
► Carry out action steps according to the illustration.
▷ HolidayMode is deactivated.
▷ The appliance first cools to the set temperature.
SabbathMode
This function activates and deactivates SabbathMode.
If you activate this function, some electronic functions
are switched off. Your appliance thereby meets the reli‐
gious requirements of Jewish holidays such as the
Sabbath and complies with STAR-K Kosher certifica‐
tion.
Appliance status with active SabbathMode
The status display continuously shows SabbathMode.
All functions in the display except the Deactivating
SabbathMode function are disabled.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Memories are not listed. The set time interval is
stopped.
Memories and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The defrost cycle operates only for the specified time
without taking into account the appliance usage.
After a power failure, the device returns to
SabbathMode.
Appliance status
Use
16 * Depending on model and options
Note
This appliance has certification from the “Institute for
Science and Halacha”. (www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display
about the power failure. Once the power is restored,
the appliance continues to operate in SabbathMode.
The power failure may mean that food spoils and the
consumption of this food could lead to food poisoning.
After a power failure:
► Do not consume food that has been frozen and
thawed.

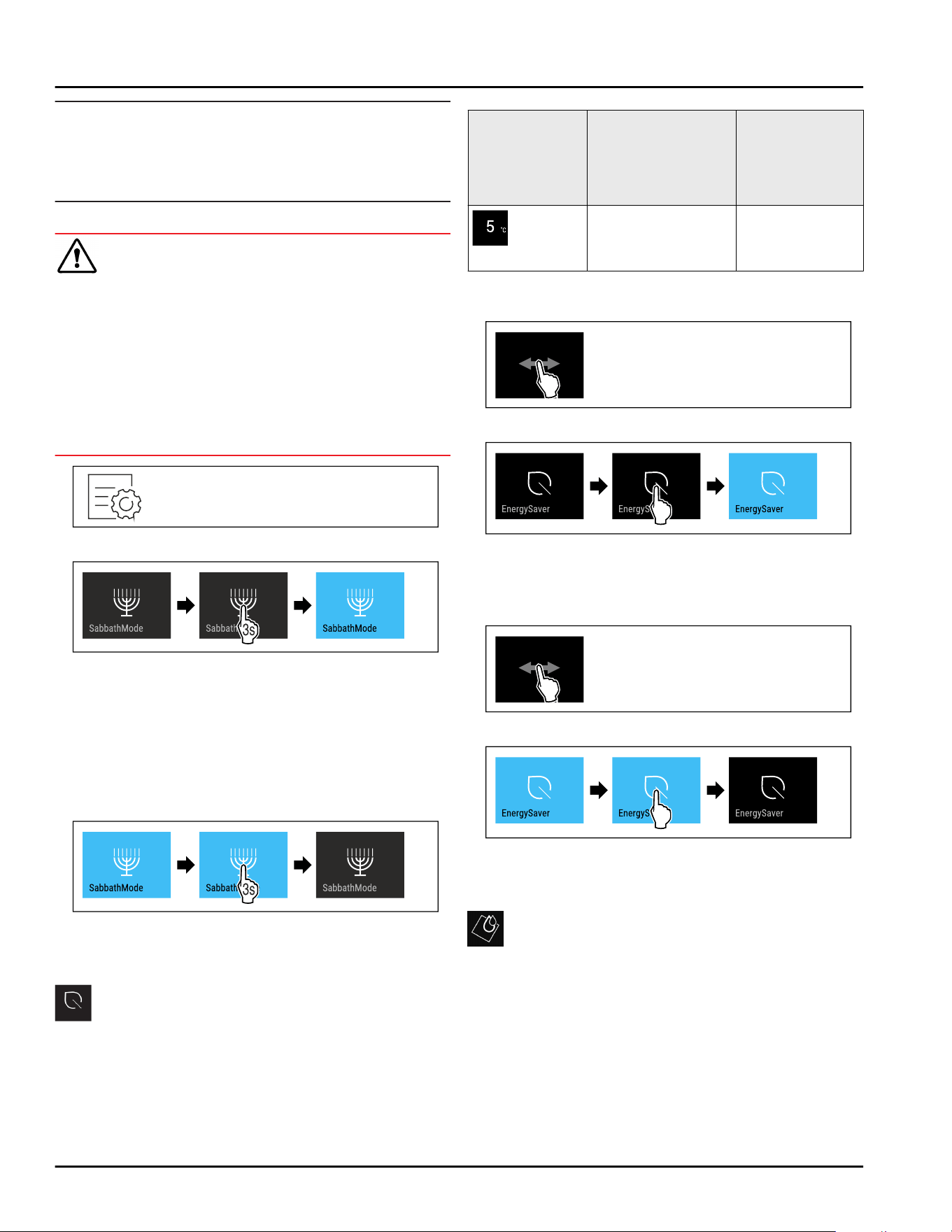

Fig. 39
Fig.40
► Carry out action steps according to the illustration.
▷ SabbathMode is activated.
▷ Status display continuously shows SabbathMode.
Deactivating SabbathMode
SabbathMode is automatically deactivated after
80 hours. However, you can also manually deactivate
SabbathMode at any time:
Fig. 41
► Carry out action steps according to the illustration.
▷ SabbathMode is deactivated.
EnergySaver
Use this function to activate or deactivate energy
saving mode. If you activate energy saving mode,
energy consumption drops and the temperature in the
appliance increases. Food remains fresh, but shelf life
is reduced.
Temperature
zone
Recommended
setting
(see Setting the
temperature in the
fridge section)
Temperature
while Ener‐
gySaver is
active
Fridge
section
4°C(39°F) 7°C(45°F)
Temperatures
Activating EnergySaver
Fig. 42
Fig.43
► Carry out action steps according to the illustration.
▷ Energy saving mode is activated.
Deactivating EnergySaver
Fig.44
Fig.45
► Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.

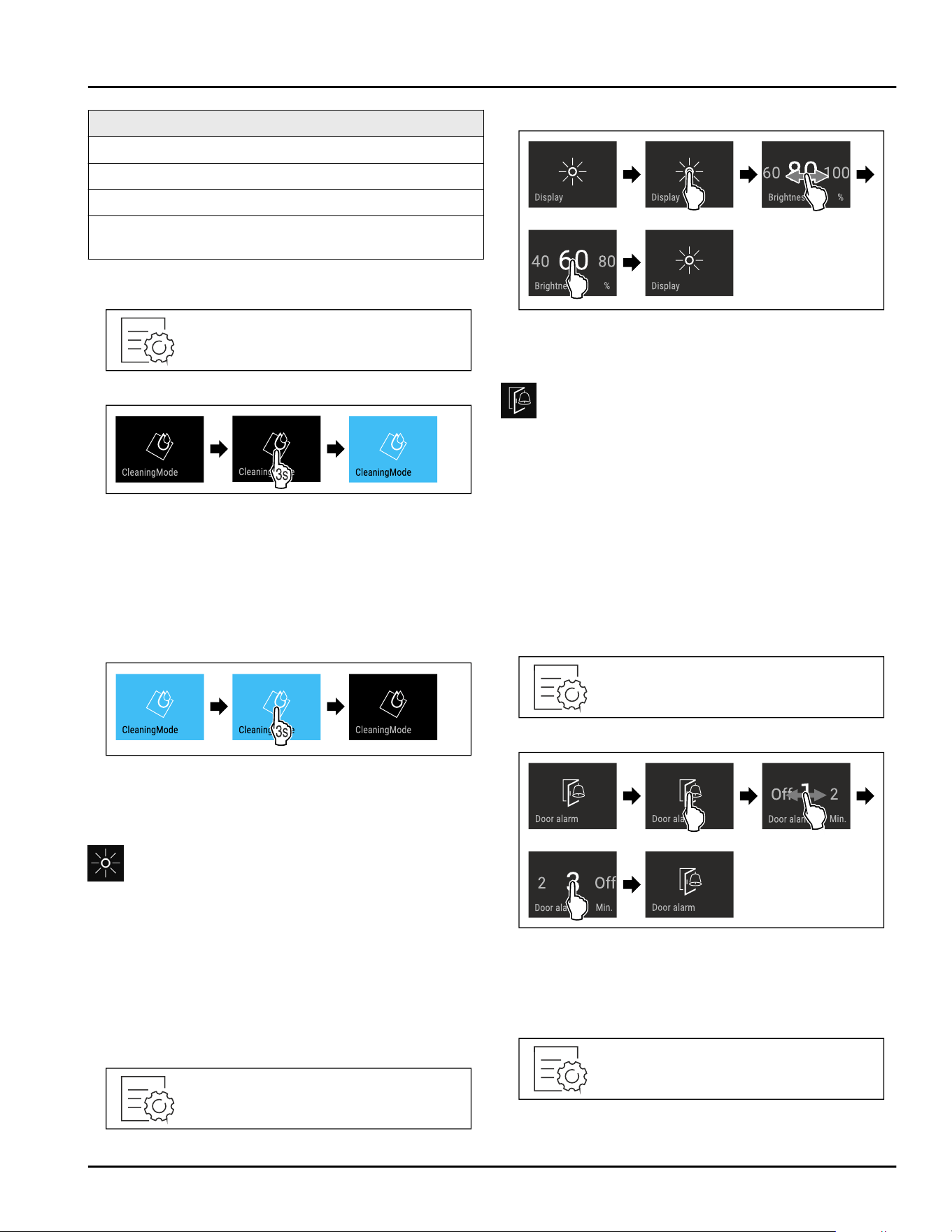

CleaningMode
This function activates and deactivates CleaningMode.
CleaningMode enables you to comfortably clean the
appliance.
This setting relates to the fridge compartment.
Application:
-
Clean the fridge compartment. (see 9.6 Cleaning the
appliance)
Use
* Depending on model and options 17
Appliance status with active CleaningMode
The status display continuously shows CleaningMode.
The fridge section is switched off.
The interior lighting is activated.
Reminders and warnings are not displayed. No signal
tone is sounded.
Appliance status
Activating CleaningMode
Fig.46
Fig. 47
► Carry out action steps according to the illustration.
▷ CleaningMode is activated.
▷ Status display continuously shows CleaningMode.
Deactivating CleaningMode
CleaningMode is automatically deactivated after
60 minutes. However, you can also manually deactivate
CleaningMode at any time:
Fig.48
► Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance first cools to the set temperature.
Display Brightness
Use this function to set the brightness of the display
gradually.
You can set the following brightness levels:
-
40%
-
60%
-
80%
-
100% (default setting)
Setting the brightness
Fig. 49
Fig. 50 Example illustration: Switching from 80 % to 60%.
► Carry out action steps according to the illustration.
▷ Brightness is set.
Door alarm
Use this function to activate or deactivate the door
alarm. The door alarm sounds if the door is open for
too long. The door alarm is activated upon delivery. You
can set how long to door can remain open until the
door alarm sounds.
You can set the following values:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.51
Fig. 52 Example illustration: Changing the door alarm from
1 minute to 3 minutes.
► Carry out action steps according to the illustration.
▷ Door alarm is set.
Deactivating door alarm
Fig.54

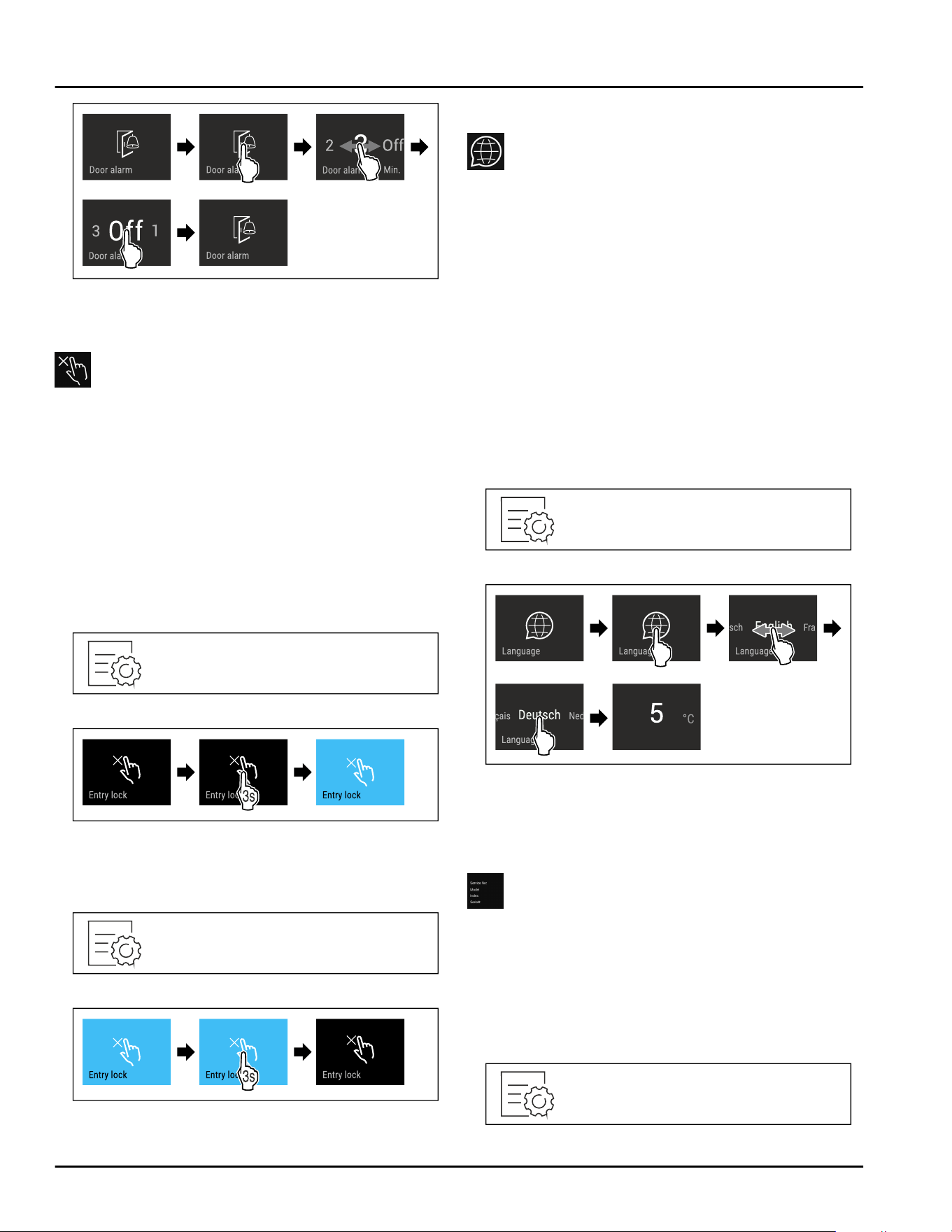

Use
18 * Depending on model and options
Fig.55
► Carry out action steps according to the illustration.
▷ Door alarm is deactivated.
Input lock
This function activates and deactivates the input lock.
The input lock prevents the appliance from being oper‐
ated accidentally, e. g. by children.
Application:
-
Prevent unintentional changes of functions.
-
Prevent switching off of the appliance.
-
Prevent unintentional temperature setting.
Activating the input lock
If you activate the input lock, you can continue to navi‐
gate in the menus, however you cannot select or
modify other functions.
Fig.56
Fig.57
► Carry out action steps according to the illustration.
▷ Input lock is activated.
Deactivating the input lock
Fig.58
Fig. 59
► Carry out action steps according to the illustration.
▷
Input lock is deactivated.
Language
Use this function to set the display language.
You can set the following languages:
-
German
-
English
-
French
-
Spanish
-
Italian
-
Dutch
-
Czech
-
Polish
-
Portuguese
-
Bulgarian
-
Russian
-
Chinese
Setting the language
Fig.60
Fig. 61 Example illustration depending on the language and
temperature
► Carry out action steps according to the illustration.
▷ Language is set.
▷ Display jumps back to the status display.
Appliance information
Use this function to display the model name, index,
serial number and service number of your appliance.
You will need the appliance information when you
contact customer service. (see 10.4 Customer Service)
You also use this function to open the expanded menu.
(see3 Functionality of the Touch&Swipe display)
Display appliance information
Fig. 62
Use
* Depending on model and options 19

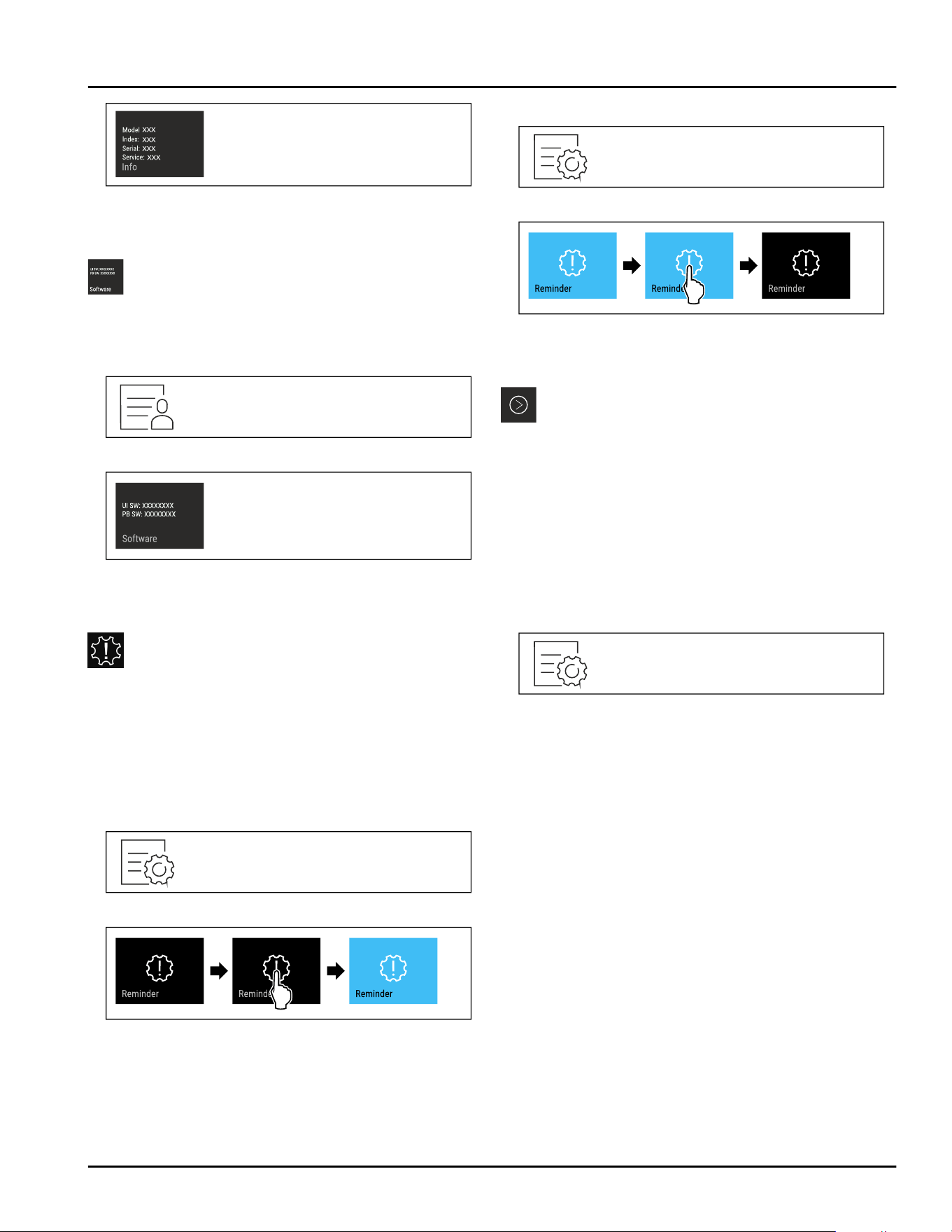

Fig.63
► Carry out action steps according to the illustration.
▷ Display shows the appliance information.
Software
Use this function to display the software version of
your appliance.
Display software version
Fig.64
Fig.65
► Carry out action steps according to the illustration.
▷ Display indicates the software version.
Reminder
Use this function to activate or deactivate reminder.
This function is activated upon delivery.
The following reminders will then appear if the func‐
tion is activated:
-
Replace the FreshAir activated charcoal filter
(see Replace FreshAir activated charcoal filter)
Activating reminder
Fig.66
Fig. 67
► Carry out action steps according to the illustration.
▷ Reminder is activated.
Deactivating reminder
Fig.68
Fig. 69
► Carry out action steps according to the illustration.
▷ Reminder is deactivated.
Demo mode
Demo mode is a special feature for dealers who want
to demonstrate appliance features. If you activate
demo mode, all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in
the status display, then demo mode is already acti‐
vated.
If you activate and then deactivate demo mode, the
appliance will be reset to factory defaults. (see Reset‐
ting to factory settings)
Activating demo mode
Fig.70

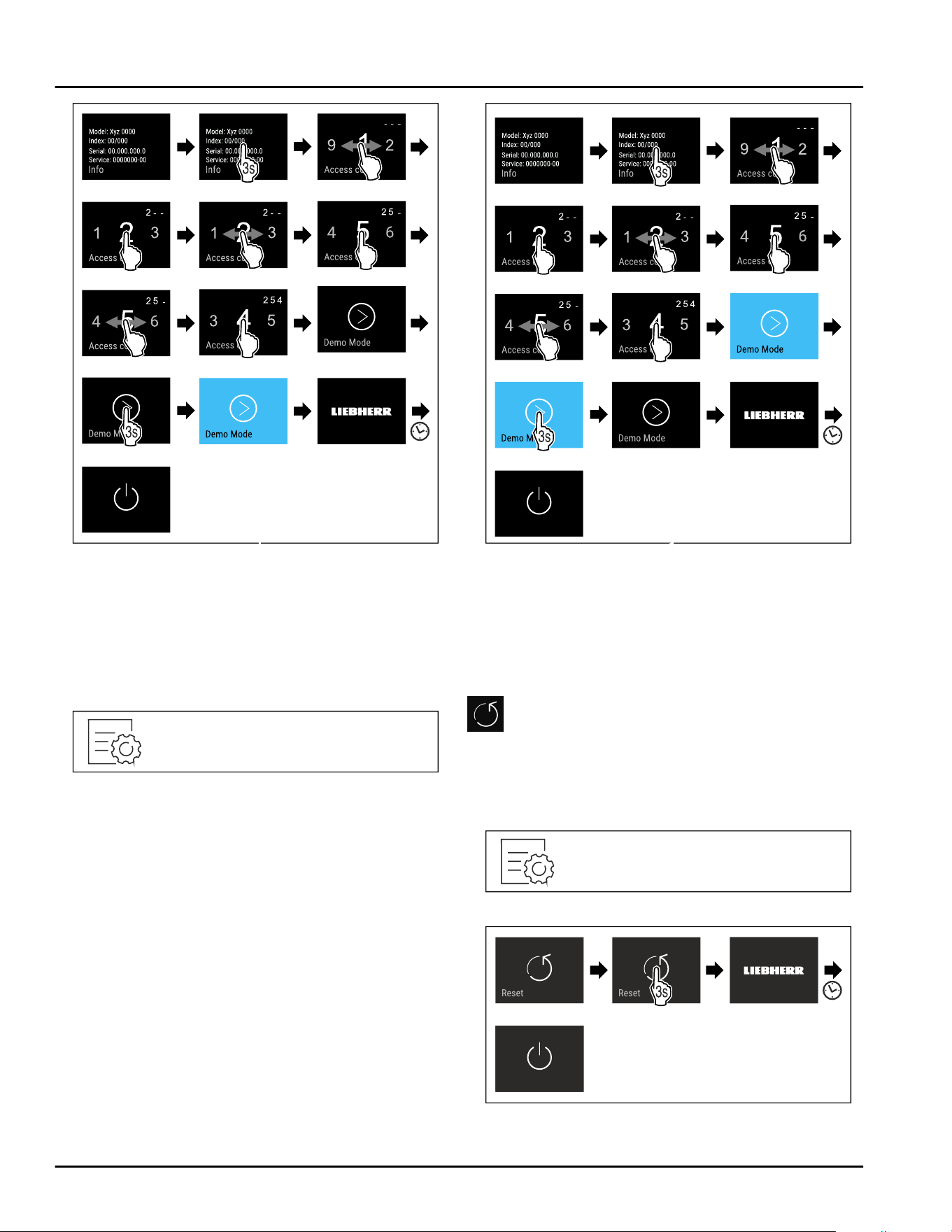

Use
20 * Depending on model and options
Fig.71
► Carry out action steps according to the illustration.
▷ Demo mode is activated.
▷ Appliance is switched off.
► Switch on the appliance. (see4.1 Switching on appli‐
ance (first use))
▷ “DEMO” appears in the status display.
Deactivating demo mode
Fig.72
Fig.73
► Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
► Switch on the appliance. (see4.1 Switching on appli‐
ance (first use))
▷ Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory
settings. All settings you have made so far are reset to
their original settings.
Performing a reset
Fig. 74
Fig.75
► Carry out action steps according to the illustration.

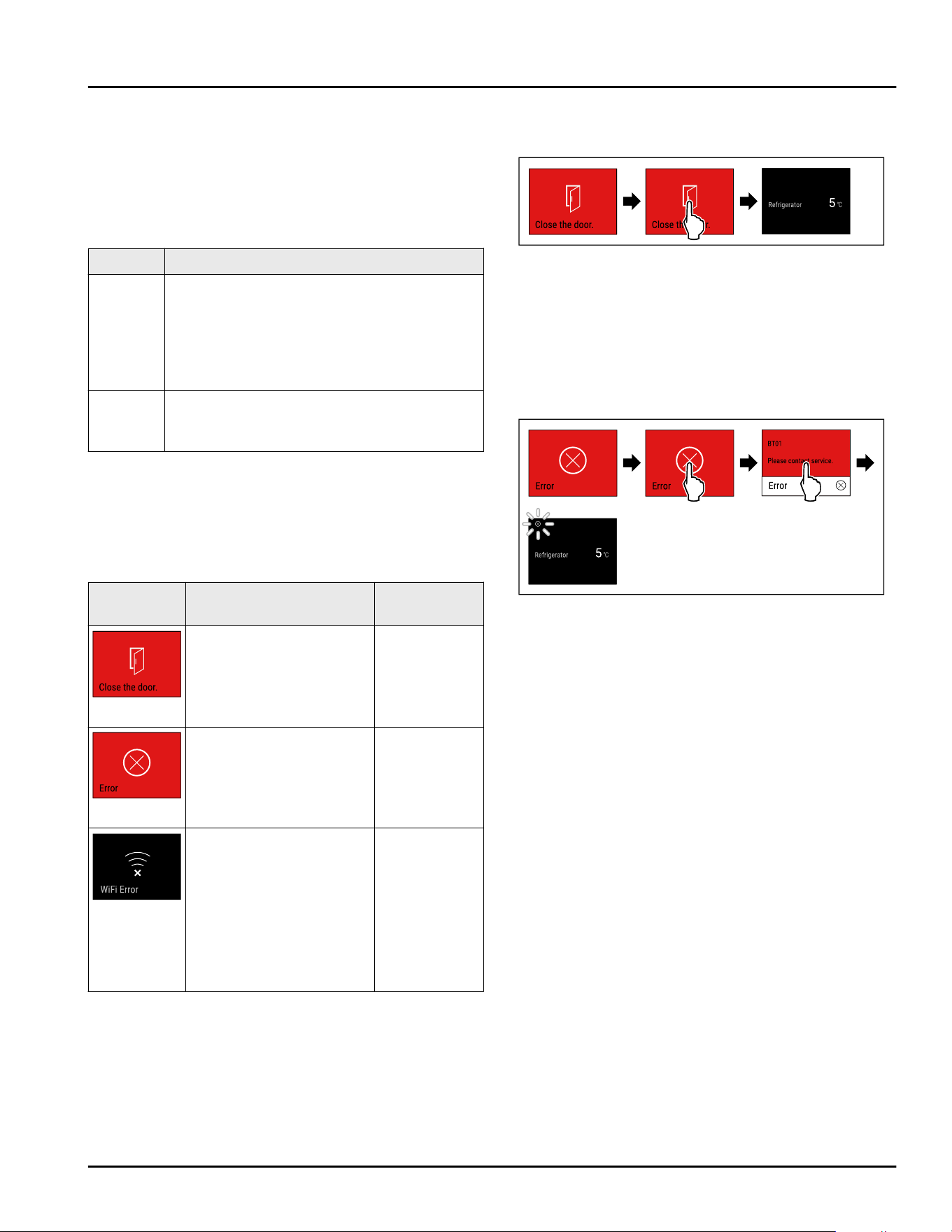

Use
* Depending on model and options 21
▷ Appliance is reset.
▷ Appliance is switched off.
► Restart the appliance. (see 4.1 Switching on appli‐
ance (first use))
7.3 Messages
There are two categories of messages:
Category Meaning
Warning Warnings are displayed if there is a door
alarm or a malfunction.
You can easily end warnings yourself. For
any major malfunction, you must contact
Customer Service. (see 10.4 Customer
Service)
Reminder Reminders remind you of general
processes. You can perform these
processes and end the message doing so.
7.3.1 Overview of warnings
The appliance’s behavior in the event of a warning:
-
Warning appears in the display in red.
-
Alarm sounds in increasing volume.
-
For some warnings the interior lighting pulses.
Message
Cause Ending the
message
Door alarm
The message appears if
the door is open for too
long.
Carry out
action steps
(see Door
alarm) .
Error
This message appears if
there is an appliance
error. An appliance
module indicates an
error.
Carry out
action steps
(see Error) .
WLAN error
This message appears if
the appliance could not
be connected to WLAN.
(see Establishing the
WiFi connection for the
first time) This message
only appears the first
time the appliance is set
up.
Carry out
action steps
(see WLAN
error) .
7.3.2 Ending warnings
Door alarm
Fig. 76 Example illustration
► Carry out action steps according to the illustration.
-or-
► Close the door.
▷ Display skips to status display.
You can set how long to door may remain open until
the door alarm sounds. (see Setting the door alarm)
Error
Fig. 77 Example illustration
► Briefly touch the display.
▷ Error code is displayed.
► Make a note of the error code.
► Briefly touch the display.
▷ Display skips to status display.
► Contact Customer Service. (see 10.4 Customer
Service)
WLAN error
► Check the WLAN connection.
► Connect the appliance to the WLAN again.
(seeWiFi)
7.3.3 Overview of reminders
The appliance’s behavior in the event of a reminders:
-
Reminder appears in the display in yellow.
-
Alarm tone sounds.
-
For some reminders the interior lighting pulses.
You can deactivate the following reminders (see Deac‐
tivating reminder) :
-
Replace FreshAir activated charcoal filter
Use
22 * Depending on model and options

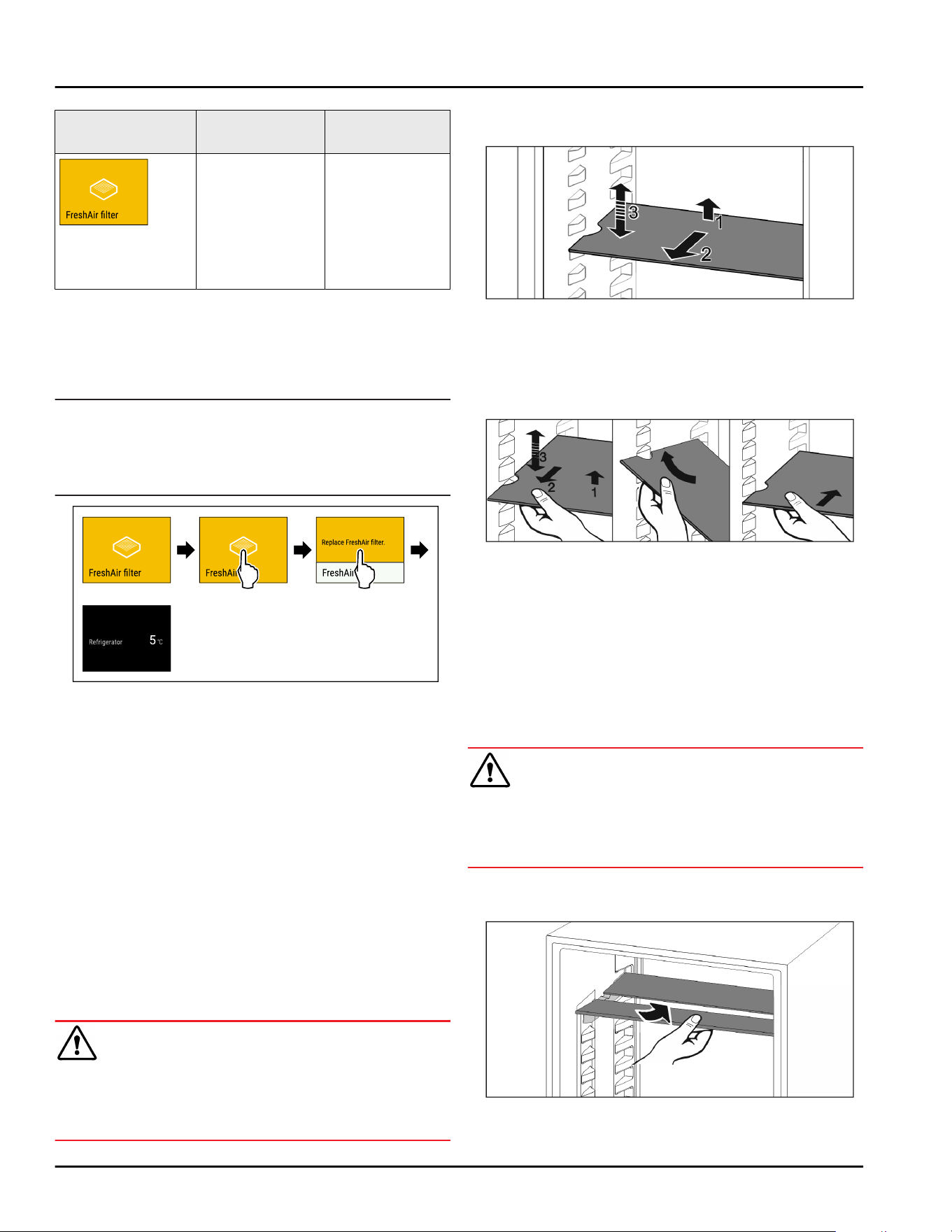

Message Cause Ending the
message
Replace FreshAir
activated char‐
coal filter
This message
appears if you
have to replace
the FreshAir
activated char‐
coal filter.
Carry out action
steps
(see Replace
FreshAir acti‐
vated charcoal
filter) .
7.3.4 Ending reminders
Replace FreshAir activated charcoal filter
Liebherr recommends: Replace the FreshAir activated
charcoal filter every 6 months.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr Service Center. The address for your
respective country can be found on the back of the
instructions.
Fig. 78 Example illustration
► Briefly touch the display.
▷ Display shows information about the reminder.
► Briefly touch the display.
► Replace activated charcoal filter. (see 9.1 FreshAir
carbon filter)
▷ The activated charcoal filter ensures optimum air
quality in the refrigerator.
▷ Reminder appears again after 6 months.
If you no longer want to keep this reminder, you can
deactivate the reminder. (see Deactivating reminder)
8 Equipment
8.1 Shelves
8.1.1 Moving/removing shelves
CAUTION
Broken shelves!
Danger of cuts.
► Only remove storage shelves when there is nothing
on them
Extension stops secure the shelves against being acci‐
dentally pulled out
Fig.79
► Lift the shelf and pull to the front.
▷ Side recess to shelf position.
► Reposition the shelf: Lift up or lower to the desired
height and insert.
-or-
Fig.80
► Take out the shelf completely: Pull out to the front.
► Easier removal: Set the shelf at an angle.
► Reinsert the shelf: Push it in to its stop limit.
▷ Pull-out stoppers are pointing down.
▷ Pull-out stoppers are behind the front shelf.
8.2 Split shelf
8.2.1 Using the split shelf
CAUTION
Broken shelves!
Danger of cuts.
► Only remove storage shelves when there is nothing
on them
Extension stops secure the shelves against being acci‐
dentally pulled out
Fig.81
► Push the split shelf underneath as in the illustration
Equipment
* Depending on model and options 23

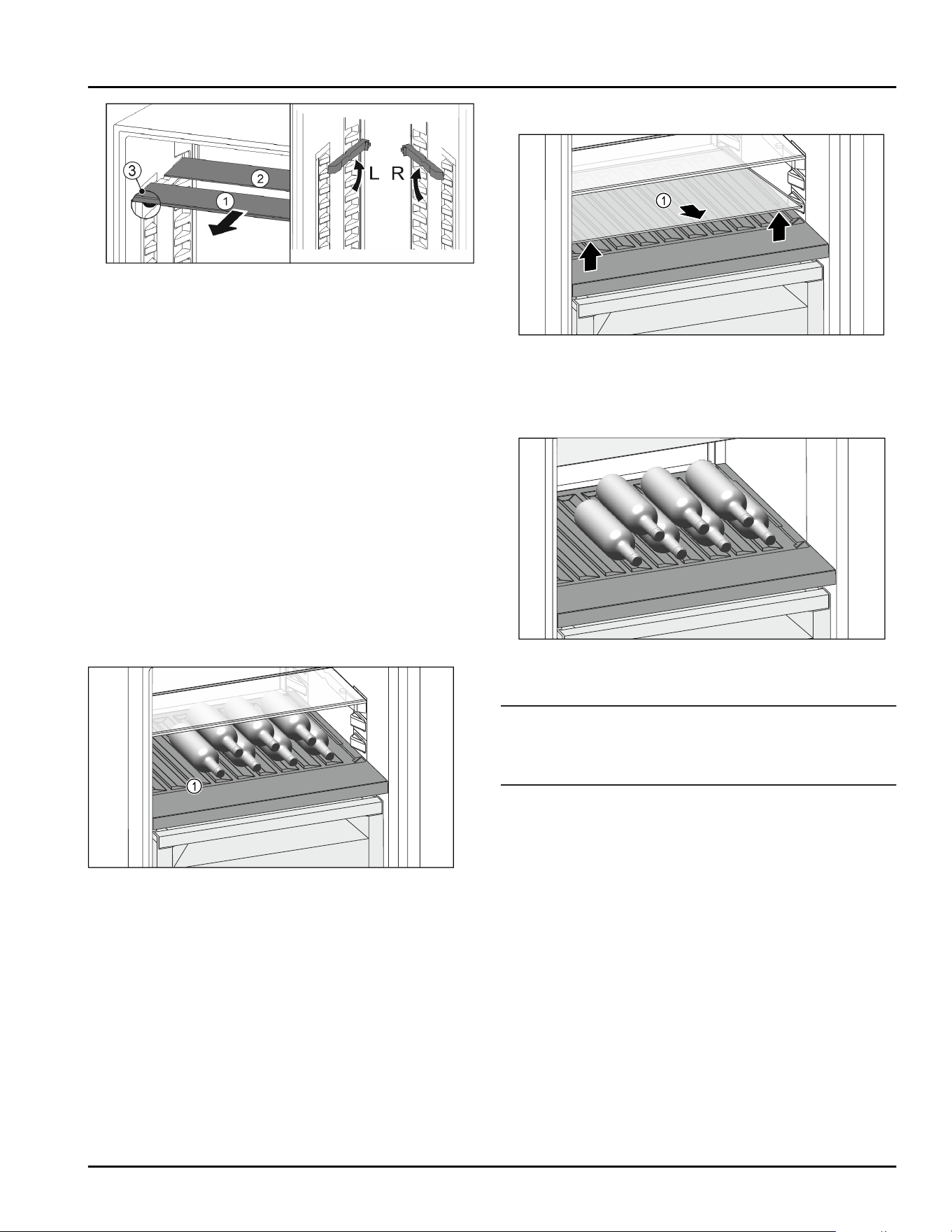

Fig.82
Adjusting heights:
► Pull the glass panels out Fig. 82 (1) from the front,
one at a time.
► Pull the support rails out of their retainers and snap
into place at the height you want them.
► Slide in the glass panels one at a time.
▷ Flat pull-out stoppers at the front, right behind the
support rail.
▷ Taller pull-out stoppers at the back.
Using both shelves:
► Hold the bottom glass panel with one hand and pull
it to the front.
▷ The glass panel Fig. 82 (1) with the trim strip is at the
front.
▷ The stops Fig.82(3) point downward.
8.3 Variable bottle shelf
You can use either the glass shelf or the variable bottle
shelf on the floor of the fridge section. The glass shelf
is inserted upon delivery.
Fig. 83 Example illustration
(1)
Variable bottle rack
8.3.1 Using the variable bottle shelf
Fig.84
► Lift the glass shelf Fig.84(1) in the front at the recess
and pull it out.
► Store the glass shelf Fig. 84 (1) somewhere safe
outside of the appliance.
Fig.85
► Insert the bottles facing backwards towards the rear
wall. (see Fig.85)
Note
If the bottles protrude towards the front over the vari‐
able bottle shelf:
► Set the lower door rack one position higher.
8.3.2 Using the glass shelf
Make sure that the following requirements are fulfilled:
❑
Bottles are removed.
❑
The variable bottle shelf has been cleaned.
(see 9.3 Removing / inserting the variable bottle
shelf)
(see 9.6.3 Cleaning the equipment)
Equipment
24 * Depending on model and options

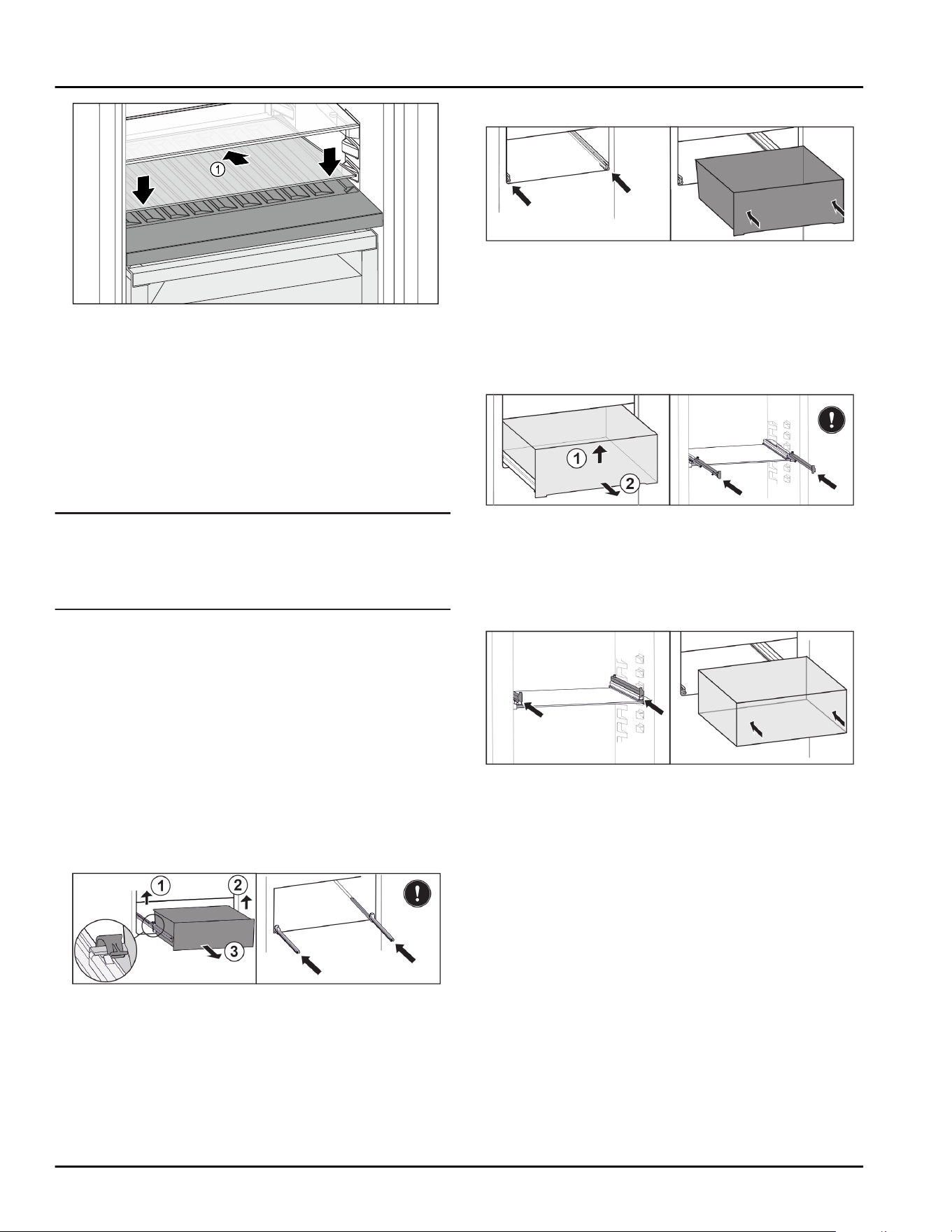

Fig.86
► Place the glass shelf Fig. 86 (1) at an angle, tilted
back and down.
► Lower the glass shelf Fig.86(1) at the front.
8.4 Drawers
You can remove the drawers for cleaning.
The way to remove/insert the drawers varies
depending on the pull-out system. Your appliance can
contain a variety of pull-out systems.
Note
Insufficient ventilation results in an increase in energy
consumption and reduction of the refrigerating
performance.
► Never obstruct the vents on the interior rear wall!
8.4.1 Drawer on telescopic rails
The drawer runs on full-extension rails (telescopic
rails). There are full-extension telescopic rails and tele‐
scopic rails with partial pull-out. Drawers which are full
extension can be pulled out fully from the appliance.
Drawers with partial pull-out cannot be pulled out fully
from the appliance. The system in your appliance
depends on the type of appliance.
Full extension*
If you have full-extension rails, there is a clamp located
at the back on the left and right of the rail.
Removing drawer
Fig. 87
► Pull out drawer as far as it will go.
► Lift left clamp and simultaneously pull drawer
forwards on the left. Fig. 87(1)
► Lift right clamp and simultaneously pull drawer
forwards on the right. Fig. 87(2)
► Remove drawer to the front. Fig. 87(3)
► Slide rails in.
Inserting drawer
Fig.88
► Slide rails in.
► Place drawer on rails.
► Slide in drawer to the back.
▷ Drawer latches in audibly at the back.
Full-extension glass drawer*
Removing drawer
Fig.89
► Pull out drawer as far as it will go.
► Lift up drawer at the front. Fig.89(1)
► Remove drawer to the front. Fig.89(2)
► Slide rails in.
Inserting drawer
Fig.90
► Slide rails in.
► Place drawer on rails.
► Slide in drawer to the back.
▷ Drawer latches in.
8.5 Lid for Fruit & Vegetable-safe
The lid ensures constant levels of humidity.
The lid is located directly on the drawer and can be
covered by shelves or additional drawers.
Equipment
* Depending on model and options 25

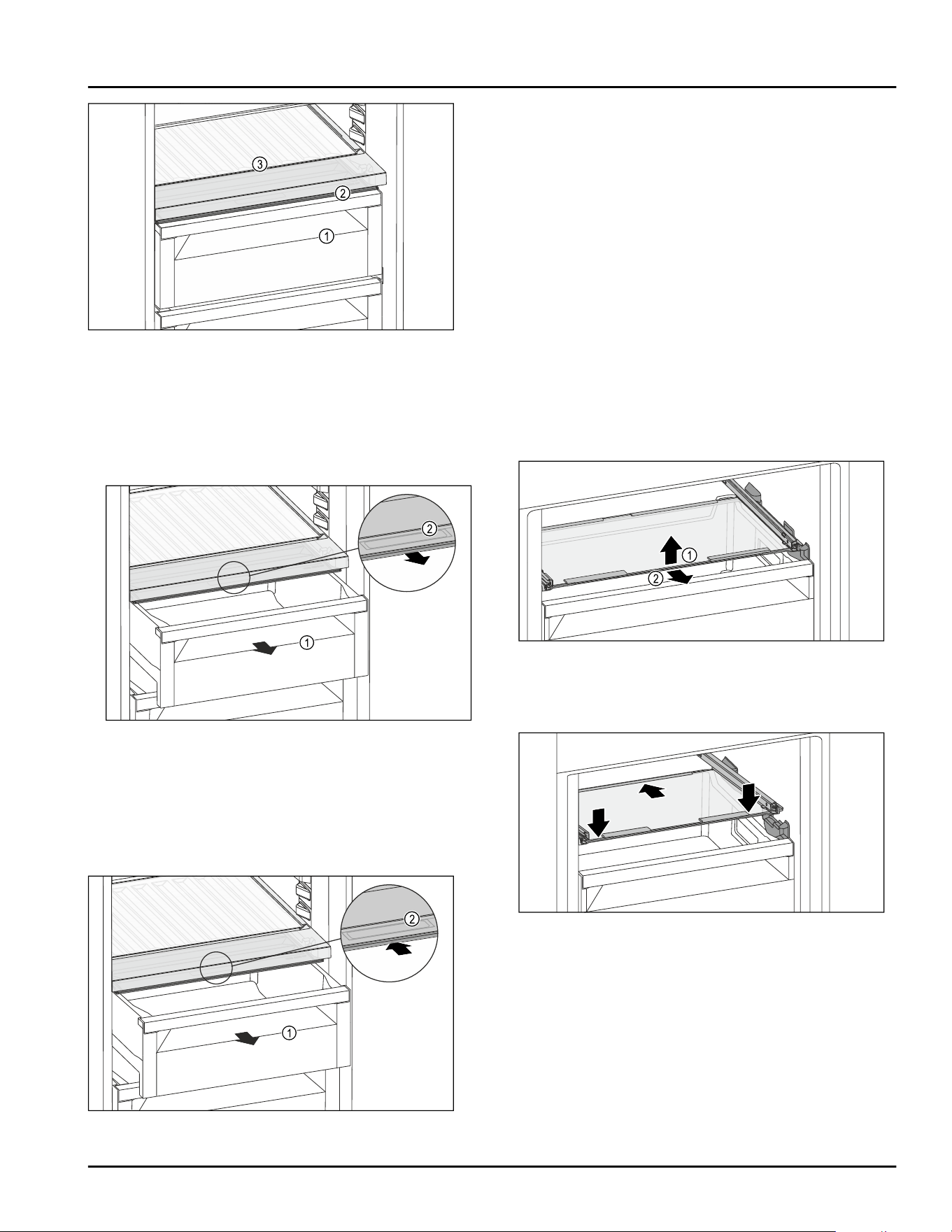

Fig. 91 Example illustration of the lid for Fruit & Vegetable-safe
(1)
Fruit & Vegetable-
safe
(2) Lid for Fruit & Vege‐
table-safe
(3) Variable bottle rack
8.5.1 Reducing humidity in the drawer
Fig.92
► Pull out the drawer Fig.92(1).
► Grip the handle recess Fig. 92 (2) on the lid while
pulling the lid forward at the same time.
▷ When the drawer is closed, there is a small gap
between the lid and the drawer.
8.5.2 Increasing humidity in the drawer
Fig. 93
► Pull out the drawer Fig. 93(1).
►
Grip the handle recess Fig. 93 (2) on the lid while
pulling the lid backward at the same time.
▷ When the drawer is closed, the lid closes tightly with
the drawer.
8.5.3 Using Fruit & Vegetable-safe as a
Meat & Dairy-safe
You can use the Fruit & Vegetable-safe as a
Meat & Dairy-safe. To do so, you must reduce the mois‐
ture in the drawer. (see 8.5.1 Reducing humidity in the
drawer)
8.6 Glass shelves
You can remove the glass shelf under the drawers for
cleaning.
8.6.1 Removing / inserting the glass shelf
Removing glass shelf
Fig. 94 Example illustration of the glass shelf
► Lift the front of the glass shelf.
► Remove the glass shelf from the front.
Inserting the glass shelf
Fig. 95 Example illustration of the glass shelf
► Set down the glass shelf diagonally behind the stop‐
pers.
► Lower glass shelf.
► Slide in glass shelf to the back.
Equipment
26 * Depending on model and options

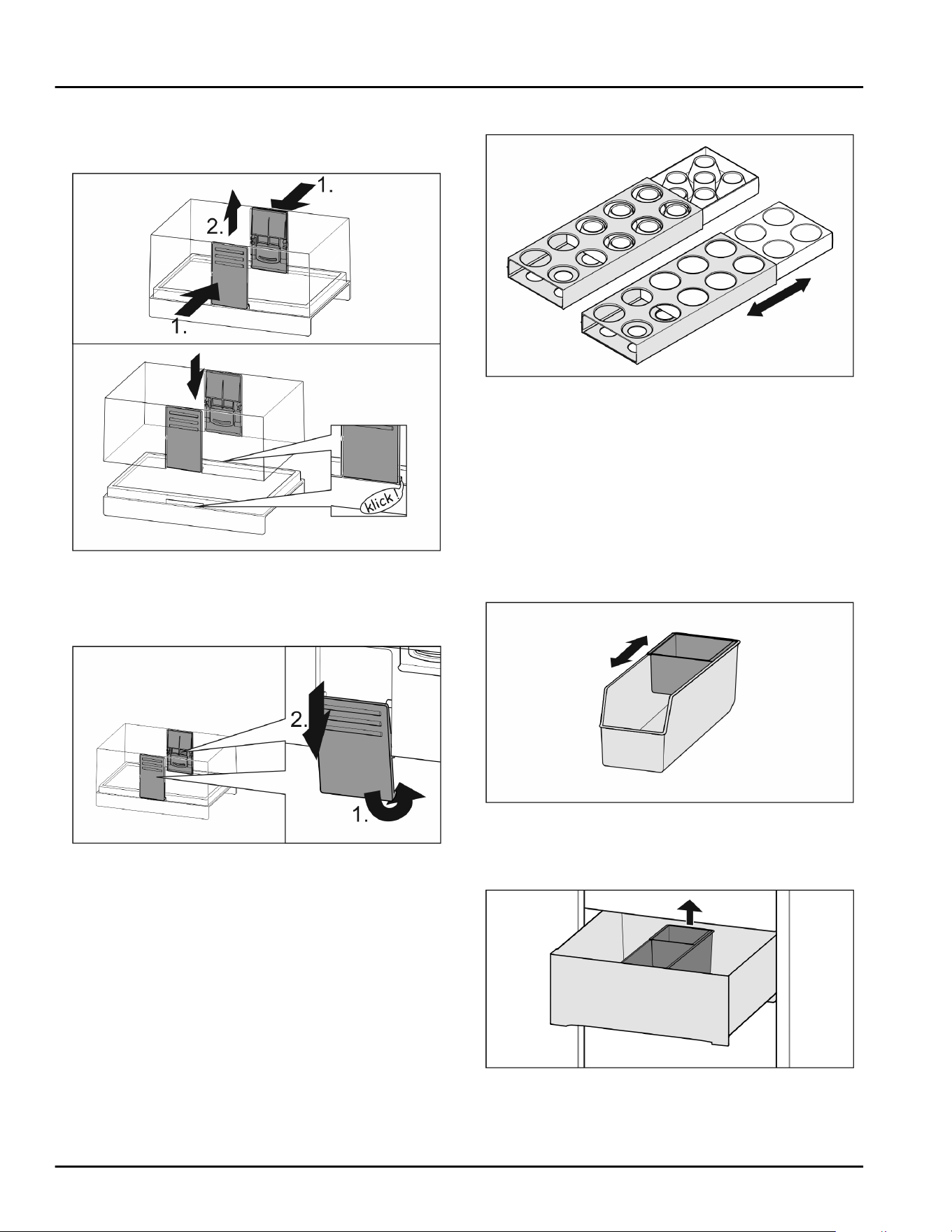

8.7 Butter dish
8.7.1 Opening/closing the butter dish
Fig.96
8.7.2 Dismantling the butter dish
You can disassemble the butter dish for cleaning.
Fig.97
► Disassemble the butter dish.
8.8 Egg rack
You can pull out and turn the egg rack. You can use
both sides of the egg rack so you can label specifics
like the purchase date.
8.8.1 Using the egg rack
Fig.98
► Top section: store hen eggs.
► Bottom section: store quail eggs.
8.9 FlexSystem
8.9.1 Using the FlexSystem
The FlexSystem helps you store and arrange food
clearly and in the way you want. It lets you clearly
divide your food into fruit, vegetables or by use-by
dates, for example.
Fig.99
► Move the inside tray.
8.9.2 Removing the FlexSystem
Fig. 100
► Lift the FlexSystem at the back.
► Pull up and out.
Equipment
* Depending on model and options 27

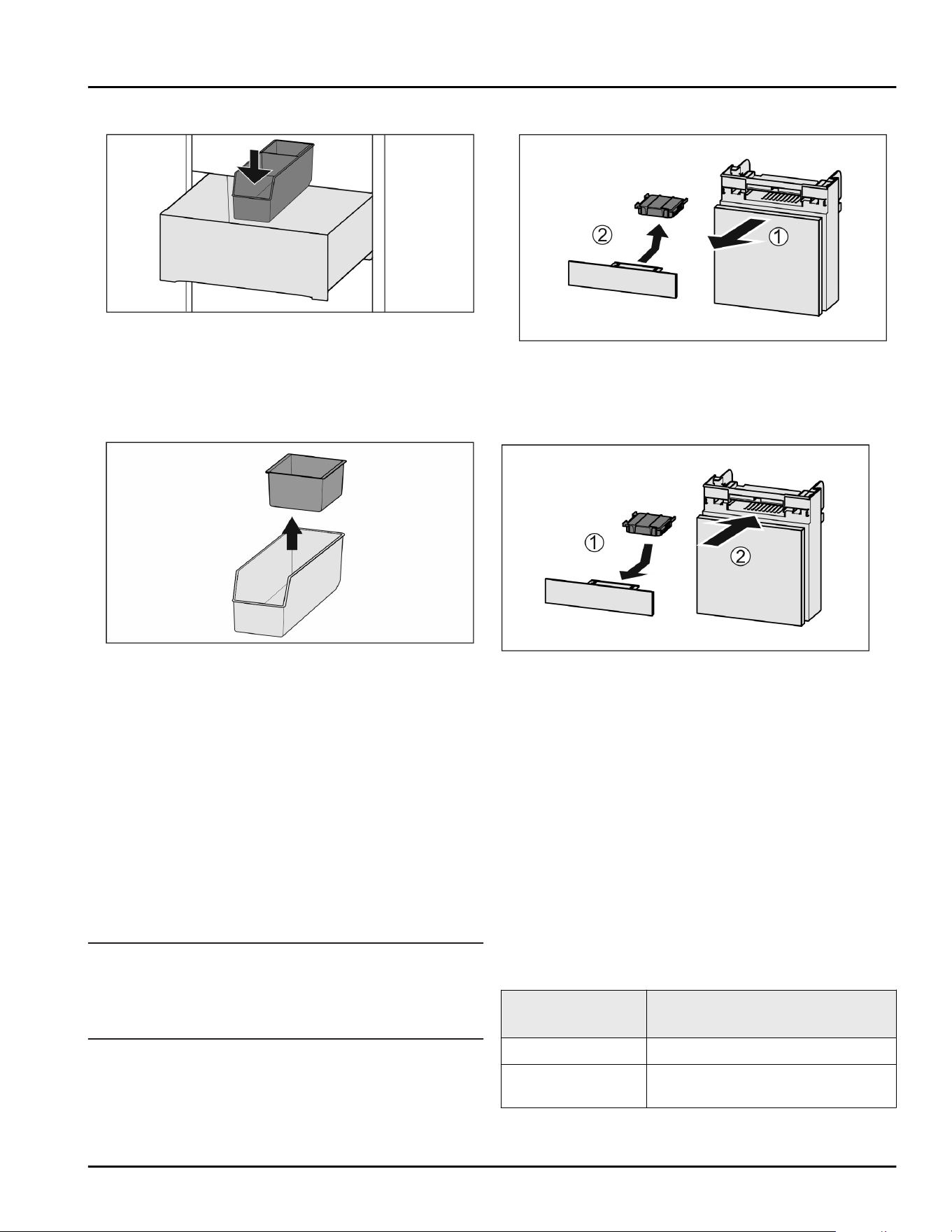

8.9.3 Inserting the FlexSystem
Fig. 101
► Insert front of the FlexSystem first.
► Lower the back part.
8.9.4 Disassembling the FlexSystem
The FlexSystem can be dismantled for cleaning.
Fig. 102
► Dismantling the FlexSystem.
9 Maintenance
9.1 FreshAir carbon filter
The FreshAir carbon filter is located in the compart‐
ment above the fan.
It guarantees the best air quality.
❑
Change the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
❑
You can dispose of the carbon filter with the regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr Service Center. The address for your
respective country can be found on the back of the
instructions.
9.1.1 Removing the FreshAir carbon filter
Fig. 103
► Pull out the compartment Fig. 103(1).
► Remove the carbon filter Fig. 103(2).
9.1.2 Inserting the FreshAir carbon filter
Fig. 104
► Insert the carbon filter as shown in the diagram
Fig. 104(1).
▷ The carbon filter clicks into place.
If the carbon filter is pointing downwards:
► Push the compartment in Fig. 104(2).
▷ The carbon filter is now ready for use.
9.2 Disassembling / assembling pull-
out systems
9.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-
out systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Full extension* cannot be disassembled*
Full-extension
glass drawer*
can be disassembled (see Full-
extension glass drawer*) *

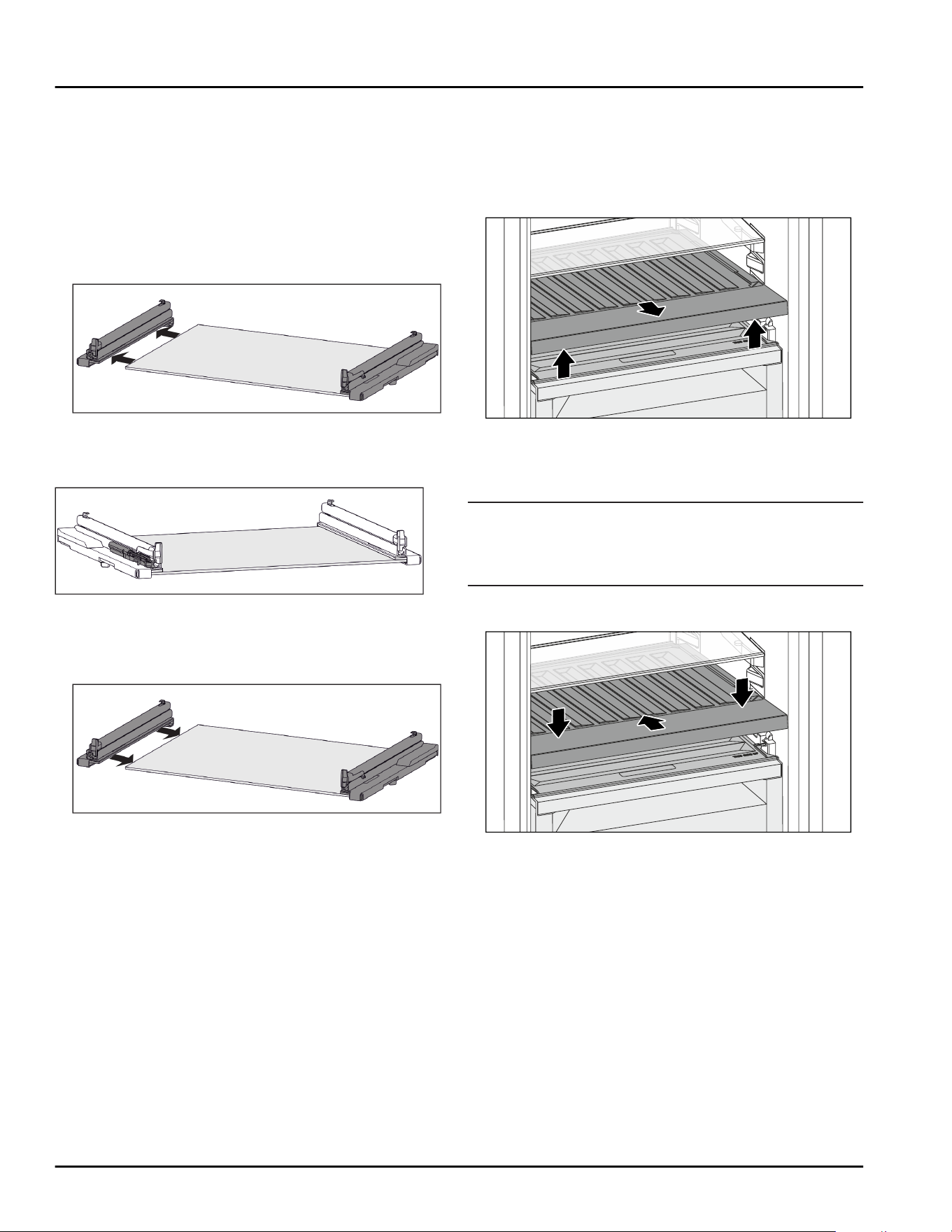

Maintenance
28 * Depending on model and options
9.2.2 Drawer on telescopic rails
Full-extension glass drawer*
Disassembling pull-out system
Make sure that the following requirements are fulfilled:
❑
Drawer has been removed. (see Full-extension glass
drawer*)
❑
Glass shelf has been removed. (see 8.6 Glass
shelves)
Fig. 105 Glass shelf with rails
► Remove rail from glass shelf sideways.
Installing pull-out system
Fig. 106Damping mechanism
The damping mechanism is attached to the left rail.
(see Fig. 106) There is no damping mechanism
attached to the right rail.
Fig. 107 Glass shelf with rails
Install rail with damping mechanism:
► Push rail as far as it will go onto the left side of the
glass shelf.
Install rail without damping mechanism:
► Push rail as far as it will go onto the right side of the
glass shelf.
9.3 Removing / inserting the variable
bottle shelf
You can remove the variable bottle shelf for cleaning.
9.3.1 Removing the variable bottle shelf
Make sure that the following requirements are fulfilled:
❑
Bottles are removed.
❑
Glass shelf is removed. (see 8.3.1 Using the variable
bottle shelf)
Fig. 108
► Lift the variable bottle shelf from the front and pull it
out.
▷ The compartment lid is visible.
Note
Liebherr recommends:
Do not store any product on the compartment lid below
it.
9.3.2 Inserting the variable bottle shelf
Fig. 109
► Push in the variable bottle shelf as far as it goes and
press it down.
▷ The back plugs on the variable bottle shelf are
connected automatically.
▷ LED light ups.
► Insert the glass shelf. (see 8.3.2 Using the glass
shelf)
-or-
► Use the variable bottle shelf for bottles.
9.4 Lid for Fruit & Vegetable-safe
You can remove the lid for cleaning.
Maintenance
* Depending on model and options 29

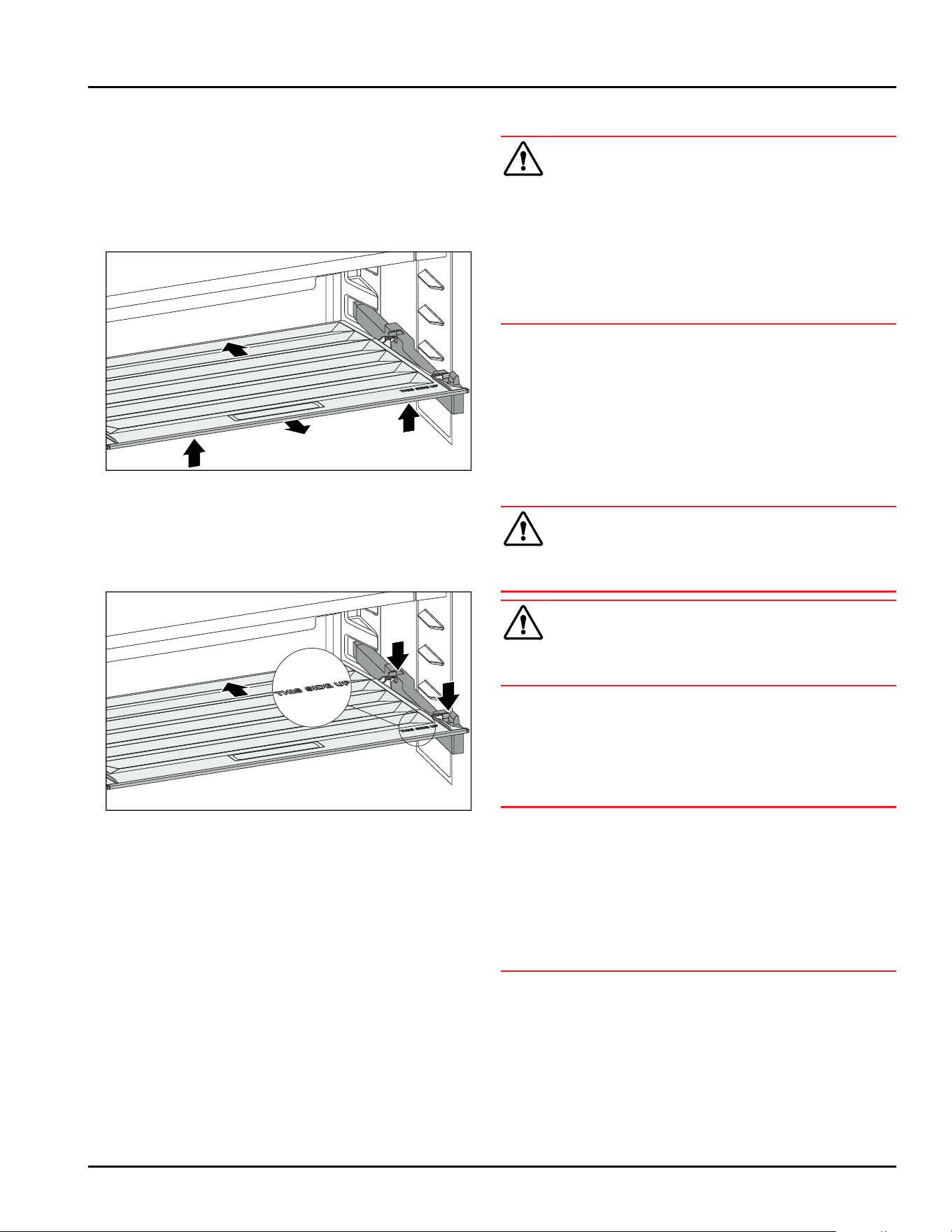

9.4.1 Removing the lid
Make sure that the following requirements are fulfilled:
❑
The glass plate directly above the variable bottle
rack has been removed.
❑
The variable bottle rack has been removed.
❑
The drawer directly below the lid has been removed.
(see8.4 Drawers)
Fig. 110
► Push the lid backward.
► Lift up the lid forward.
► Remove the front lid by lifting it up at an angle.
9.4.2 Inserting the lid
Fig.111
If the lettering THIS SIDE UP is on top:
► Insert the rear bracket retainers in the corresponding
rear openings.
► Push the lid backward.
► Lower the lid at the front and latch the front bracket
retainers in the openings.
► Bring the lid to the desired position.
9.5 Defrosting the appliance
WARNING
Appliance incorrectly defrosted!
Injuries and damage.
► Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
► Do not use any electrical heating or steam cleaning
equipment, naked flames or defrosting sprays.
► Do not remove ice with sharp objects.
Defrosting is performed automatically. The water from
the thawing process runs out via the drain opening and
is evaporated.
► Clean the drain hole regularly. (see 9.6 Cleaning the
appliance)
9.6 Cleaning the appliance
9.6.1 Preparation
WARNING
Danger of electric shock.
► Unplug refrigerator or disconnect power.
WARNING
Danger of fire
► Do not damage the refrigerant circuit.
► Empty appliance.
► Pull out the power plug.
-or-
► Activate CleaningMode. (seeCleaningMode)
9.6.2 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
► Do not use steel wool or sponges that scour or
scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
► Plastic surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
► Metal surfaces: clean by hand with a soft clean
cloth, lukewarm water and a little detergent.
► Drain hole: remove any deposits with a thin item
such as a cotton bud.
Maintenance
30 * Depending on model and options
9.6.3 Cleaning the equipment
NOTICE
Improper cleaning!
Damage to the appliance.
► Only use soft cleaning cloths and ph-neutral all-
purpose cleaners.
► Do not use steel wool or sponges that scour or
scratch.
► Do not use caustic or abrasive cleaning materials or
those containing sand, chloride, or acids.
Clean with a soft, clean cloth, lukewarm water and a
little washing up liquid:
- Shelf
- Split shelf
- Lid for Fruit & Vegetable-safe
- Drawer
- Variable bottle shelf
- FlexSystem
Clean with a damp cloth:
- Retracting rails
Please note: the grease in the tracks is there for
lubrication purposes and must not be removed!
Clean in the dishwasher up to 60°C(140°F):
- Holder for the split shelf
- Egg rack
- Butter dish
► Disassemble the equipment: see the relevant
section.
► Clean the equipment.
9.6.4 After cleaning
► Wipe dry the appliance and items of equipment
► Connect and switch on the appliance.
When the temperature is sufficiently cold
► Place the food inside.
► Repeat cleaning regularly.
10 Customer support
10.1 Technical specifications
Temperature zone
Cool: 3°C(36°F) to 9°C(46°F)
BioFresh 0°C(32°F) to 3°C(37°F)
Max. equipment capacity
Equipment Appliance
width
550 mm
(21 5/8in)
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
600 mm
(23 1/2in)
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Appliance
width
700 mm
(27 9/16in)
(see
installa‐
tion
instruc‐
tions,
appliance
dimen‐
sions)
Glass drawer,
height
59mm(2 5/16in)
15 kg
(33.07lb)
-- --
Glass drawer,
height
100 mm
(3 15/16in)
15 kg
(33.07lb)
-- --
Glass drawer,
height
150 mm
(5 15/16in)
20 kg
(44.09lb)
-- --
For appliances with a WiFi connection:
Frequency specification
Frequency band 2.4GHz
Maximum radi‐
ated power
< 100 mW
Purpose of the
wireless equip‐
ment
Integration in the local WiFi
network for data communication
10.2 Operating noises
The appliance makes noises while in operation.
-
At less cooling output the appliance saves energy
but takes longer to cool items. The volume is lower.
-
At a higher cooling output the food cools more
quickly. The volume is higher.
Examples:
•
Activated functions (see 7.2Appliance functions)
•
Running fan
•
Freshly sorted food
•
High ambient temperature
•
Door opened for long periods
Noise
Possible cause Type of noise
Bubbling and
splashing
Coolant is
flowing into the
cooling circuit.
Normal noise
Customer support
* Depending on model and options 31
Noise Possible cause Type of noise
Spitting and
hissing
Coolant is
spraying into the
cooling circuit.
Normal noise
Humming The appliance
cools. The
volume depends
on the cooling
output.
Normal noise
Sipping noises The self-closing
door is being
opened and
closed.
Normal noise
Whirring and
murmuring
The fan is
running.
Normal oper‐
ating noise
Clicking Components are
being switched
on and off.
Normal
switching noise
Rattling or
humming
Valves are
active.
Normal
switching noise
Noise Possible
cause
Type of
noise
How to
resolve
Vibration Unsuitable
installation
Error noise Check
installation.
Set up the
appliance.
Noise Possible
cause
Type of
noise
How to
resolve
Clattering Equipment,
Objects
inside the
appliance
Error noise Secure
equipment
parts.
Leave a gap
between
items.
10.3 Technical faults
Your appliance is designed and manufactured for reli‐
able operation and a long service life. If a malfunction
nonetheless occurs during operation, please check
whether the malfunction is due to an operating error. In
this case, you will have to be charged for the costs
incurred, even during the warranty period.
You may be able to rectify the following faults yourself.
10.3.1 Appliance function
Defect
Cause Remedy
The appliance
does not work.
The appliance is not switched on. ► Switch on the appliance.
The power plug is not properly
inserted in the wall socket.
► Check the power plug.
The powerfuse in the wall socket
is not OK.
► Check the fuse.
Power failure. ► Keep the appliance closed.
The IEC socket is not correctly
plugged into the appliance.
► Check the IEC socket.
The temperature
is not cold
enough
This means that the door of the
appliance is not closed properly
► Close the appliance door
Insufficient ventilation ► Clear and clean the ventilation grille.
The ambient temperature is too
high
► Problem solution: (see2.4 Range of appliance use)
The appliance was opened too
frequently or for too long
► Wait to see if the required temperature corrects
itself. If not, contact Customer Service.
(see 10.4 Customer Service)
Customer support
32 * Depending on model and options
Defect Cause Remedy
The temperature is incorrectly set ► Set to a colder temperature and check after 24
hours.
The appliance is too near to a heat
source (stove, heater etc).
► Change location of appliance or the heat source.
The appliance was not properly
installed in the recess.
► Make sure the appliance was installed correctly
and the door closes properly.
The door seal is
defective or
should be
replaced for
other reasons.
The door seal is interchangeable.
You can replace it without the use
of any special tools.
► Contact Customer Service. (see 10.4 Customer
Service)
The appliance is
iced up or
condensation is
building.
The door seal may have slipped
out of its groove.
► Check the door seal is well placed in the groove.
10.3.2 Equipment
Defect Cause Remedy
The interior light
does not turn on.
The appliance is not switched on. ► Switch on the appliance.
The door was open for more than
15 minutes.
► If the door is open, the interior lighting switches
off automatically after about 15 minutes.
The LED interior light is faulty or
the lid is damaged.
► Contact Customer Service. (see 10.4 Customer
Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer support) . If you cannot rectify the
problem, contact Customer Service.
You can find the address in the enclosed brochure
“Liebherr-Service” or at home.liebherr.com/service.
WARNING
Unprofessional repair!
Injuries.
► A damaged power cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service
or a similarly qualified person.
► For appliances with plug and play connection cables,
the change can be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is
available:
❑
Appliance name (model and index)
❑
Service no. (service)
❑
Serial no. (S no.)
► Call up the appliance information via the display.
(see Appliance information)
-or-
► Refer to the type plate for appliance information.
(see 10.5 Rating plate)
► Take note of the appliance information.
► Notify customer service: Report errors and the appli‐
ance information.
▷ This will help us give you fast and accurate support.
► Follow further instructions from Customer Service.
10.5 Rating plate
The nameplate is located behind the drawers on the
inside of the appliance.
Customer support
* Depending on model and options 33

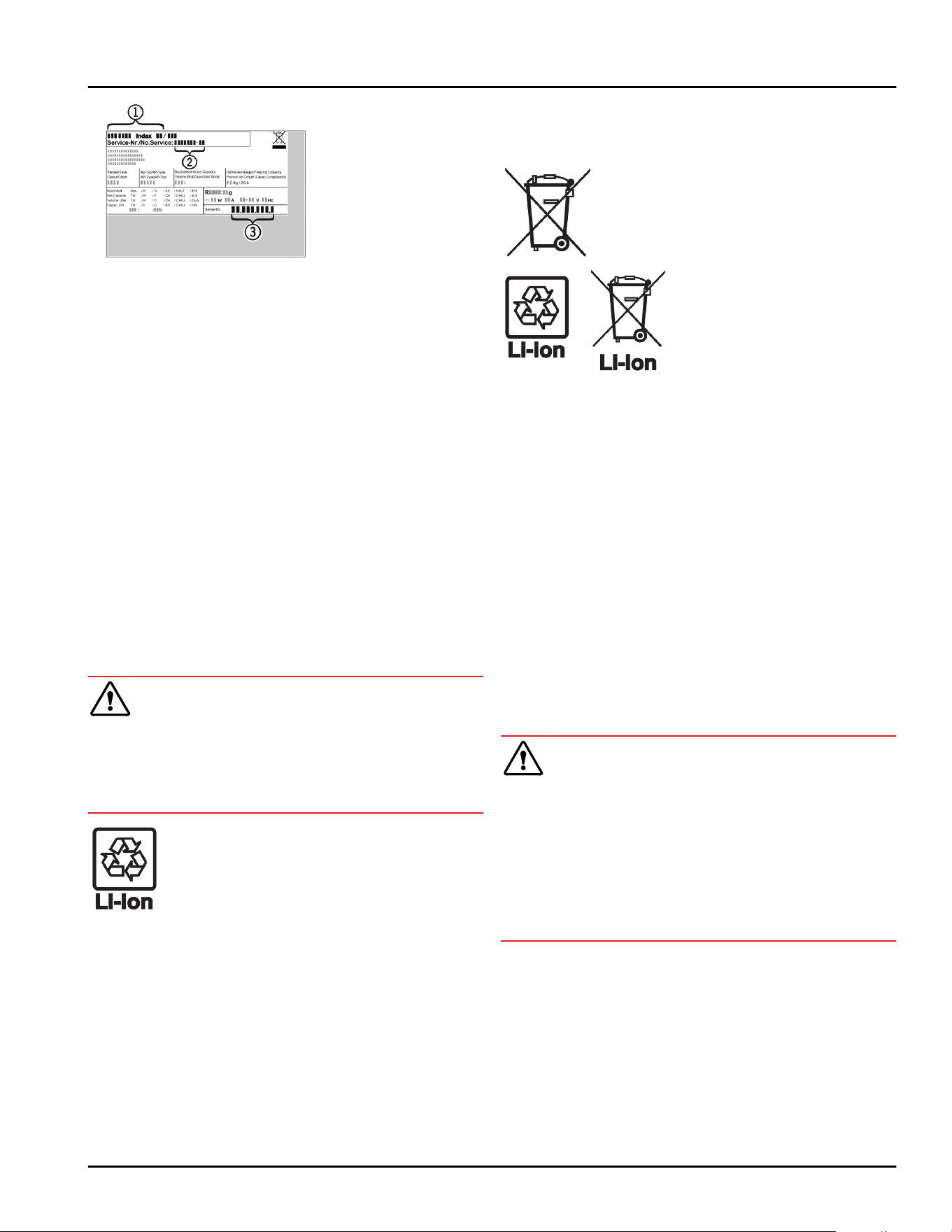

Fig.112
(1) Appliance name (3) Serial no.
(2) Service no.
► Information from the nameplate.
11 Decommissioning
► Empty appliance.
► Switch off appliance. (see Switching appliance off
and on)
► Pull the power plug from the outlet.
► If necessary, remove the IEC socket: Pull the IEC
socket out of the appliance plug while turning it to
the left and right at the same time.
► Clean appliance. (see 9.6Cleaning the appliance)
► Leave the door open to prevent unpleasant odors.
12 Disposal
12.1 Preparing the appliance for
disposal
WARNING
Risk of child entrapment!
Before you throw away your old refrigerator or freezer:
► Take off the doors.
► Leave the shelves in place so that children may not
easily climb inside.
Liebherr uses batteries in some of its appli‐
ances. You should remove these before
disposal of the old appliance for environ‐
mental reasons. If your appliance contains
batteries, a corresponding notice is
attached to the appliance.
Lamps If you can remove the lamps yourself
without destroying them, also remove these
before disposal.
► Take the appliance out of operation.
► If possible: Remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be collected separately from
unsorted municipal waste so
it can be recycled.
Dispose of batteries sepa‐
rately from the old appliance.
Certain batteries should NOT
go in household garbage or
recycling bins. Waste
batteries can always be recy‐
cled or taken to household
hazardous waste collection
points. To prevent fires from
lithium-ion batteries, tape
battery terminals and/or
place batteries in separate
plastic bags and never put
these batteries in household
garbage or recycling bins.
Lamps
Dispose of removed lamps via
the respective collection
systems.
For USA: Check the Responsible Appli‐
ance Disposal (RAD) program
to find a RAD partner near
you.
For Canada: Follow your local guidance
about recycling and disposal
capabilities near you.
WARNING
Leaking refrigerant and oil!
Fire. The refrigerant contained within the appliance is
environmentally friendly, but flammable. The oil
contained within the appliance is flammable. Escaping
refrigerant and oil can ignite if they are of high enough
concentration and are exposed to an external heat
source.
► Do not damage the pipelines of the coolant circuit
and the compressor.
► Observe the notes on appliance transport.
► Transport the appliance away without damaging it.
► Dispose of batteries, lamps, and the appliance
according to the above specifications.
Decommissioning
34 * Depending on model and options
Disposal
* Depending on model and options 35
home.liebherr.com/fridge-manuals
Built-in refrigerator with BioFresh
Issue date: 20250715
Part number index:7088458-00
For Service in the U.S.: Liebherr Service Center
Toll Free: 1-866-LIEBHER or 1-866-543-2437
Service-appliances.us@liebherr.com
PlusOne Solutions, Inc.
3501 Quadrangle Blvd, Suite 120
Orlando, FL 32817
For Service in Canada: Liebherr Service Center
Toll Free: 1-888-LIEBHER or 1-888-543-2437
www.euro-parts.ca
EURO-PARTS CANADA
39822 Belgrave Road, Belgrave, Ontario, N0G 1E0
Phone: (519) 357-3320 | Fax: (519) 357-1326
