8-1/4″ Compact Table Saw WITH Rack & Pinion Fence
Model
HE761
WARNING: To prevent serious injury, User must read and understand
Owner’s Manual. SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and undamaged.
If any parts are missing or broken, please visit harborfreight.com/customer‑support/contact‑us
as soon as possible. Reference 71278.
®
Owner’s Manual &
Safety Instructions
26i
Page 2
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
IMPORTANT SAFETY INFORMATION
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result
in electric shock, fire and/or serious injury. Save all
warnings and instructions for future reference.
Save all warnings and instructions
for future reference.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
Electrical safety

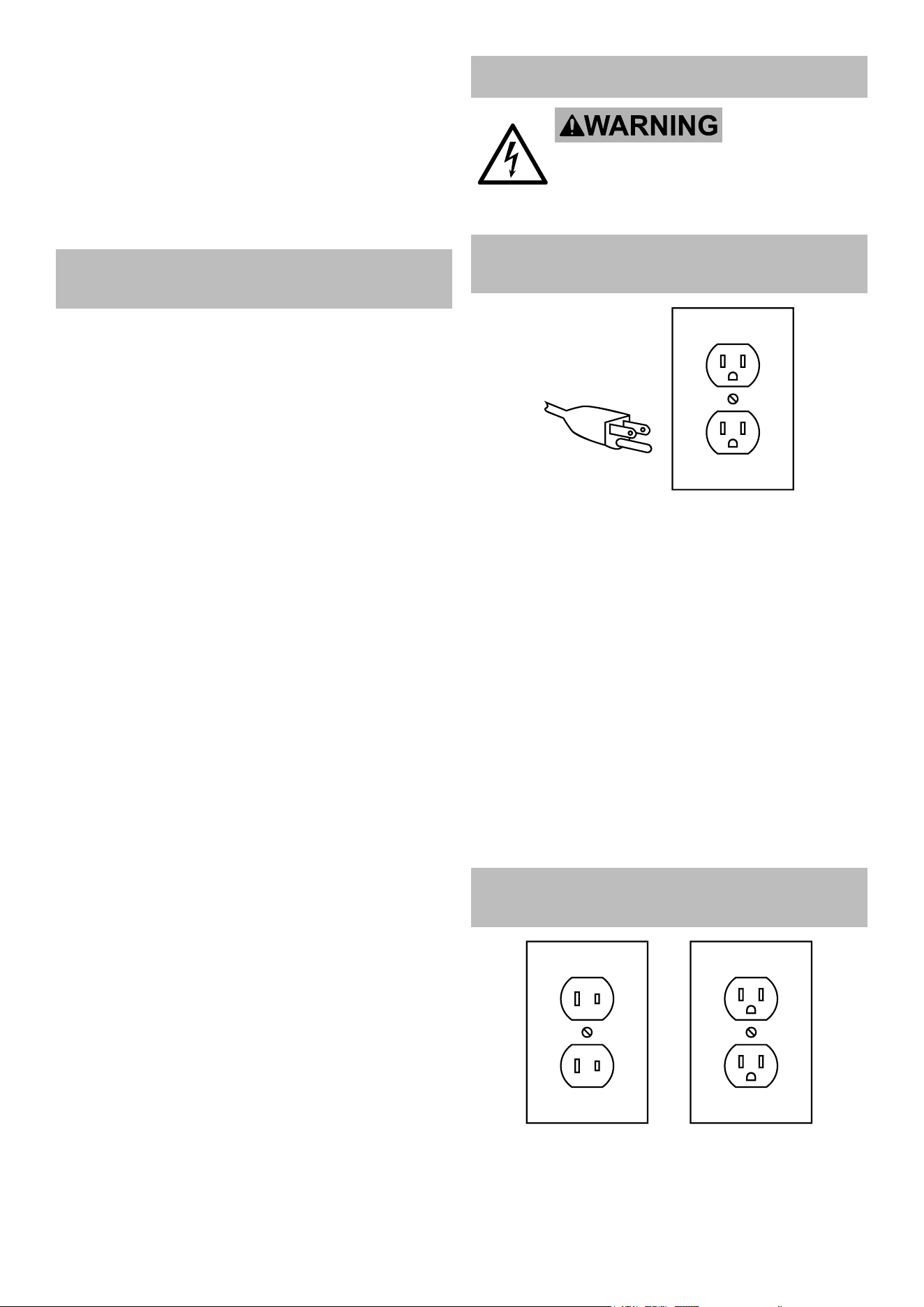

1. Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
4. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
5. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor
use reduces the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of
a GFCI reduces the risk of electric shock.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while operating
power tools may result in serious personal injury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energizing power
tools that have the switch on invites accidents.
4. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
9. Only use safety equipment that has been approved
by an appropriate standards agency. Unapproved
safety equipment may not provide adequate
protection. Eye protection must be ANSI‑approved
and breathing protection must be NIOSH‑approved
for the specific hazards in the work area.
10. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
11. Do not leave the tool unattended when it is plugged
into an electrical outlet. Turn off the tool, and
unplug it from its electrical outlet before leaving.
12. This product is not a toy.
Keep it out of reach of children.
Page 3
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
In addition, people with pacemakers should:
• Avoid operating alone.
• Do not use with Power Switch locked on.
• Properly maintain and inspect to avoid
electrical shock.
• Properly ground power cord.
Ground Fault Circuit Interrupter (GFCI)
should also be implemented – it prevents
sustained electrical shock.
14. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
3. Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools and accessories.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
Service
1. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
2. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Guarding related warnings
1. Keep guards in place. Guards must be in
working order and be properly mounted. A
guard that is loose, damaged, or is not functioning
correctly must be repaired or replaced.
2. Always use saw blade guard, riving knife and
anti-kickback device for every through-cutting
operation. For through-cutting operations where
the saw blade cuts completely through the
thickness of the workpiece, the guard and other
safety devices help reduce the risk of injury.
3. After completing a non-through cut such
as rabbeting, resawing, or dadoing, restore
the riving knife to the extended-up position.
With the riving knife in the extended-up position,
reattach the blade guard and the anti-kickback
pawls. The guard, riving knife, and anti-kickback
device help to reduce the risk of injury.
4. Make sure the saw blade is not contacting
the guard, riving knife or the workpiece
before the switch is turned on. Inadvertent
contact of these items with the saw blade
could cause a hazardous condition.
5. Adjust the riving knife as described in
this instruction manual. Incorrect spacing,
positioning and alignment can make the riving
knife and anti-kickback device ineffective
in reducing the likelihood of kickback.
6. For the riving knife and anti-kickback
device to work, they must be engaged in the
workpiece. The riving knife and anti-kickback
device are ineffective when cutting workpieces
that are too short to be engaged with the riving
knife and anti-kickback device. Under these
conditions a kickback cannot be prevented by
the riving knife and anti-kickback device.
7. Use the appropriate saw blade for the riving
knife. For the riving knife to function properly, the
saw blade diameter must match the appropriate
riving knife and the body of the saw blade must
be thinner than the thickness of the riving knife
and the cutting width of the saw blade must be
wider than the thickness of the riving knife.
Page 4
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
Cutting procedures warnings
1. DANGER: Never place your fingers or hands In
the vicinity or in line with the saw blade. A moment
of inattention or a slip could direct your hand towards
the saw blade and result in serious personal injury.
2. Feed the workpiece into the saw blade only
against the direction of rotation. Feeding the
workpiece in the same direction that the saw blade is
rotating above the table may result in the workpiece,
and your hand, being pulled into the saw blade.
3. Never use the miter gauge to feed the workpiece
when ripping and do not use the rip fence as a
length stop when cross cutting with the miter
gauge. Guiding the workpiece with the rip fence
and the miter gauge at the same time increases
the likelihood of saw blade binding and kickback.
4. When ripping, always keep the workpiece in
full contact with the fence and always apply the
workpiece feeding force between the fence and
the saw blade. Use a push stick when the distance
between the fence and the saw blade is less than
150 mm, and use a push block when this distance is
less than 50 mm. “Work helping” devices will keep
your hand at a safe distance from the saw blade.

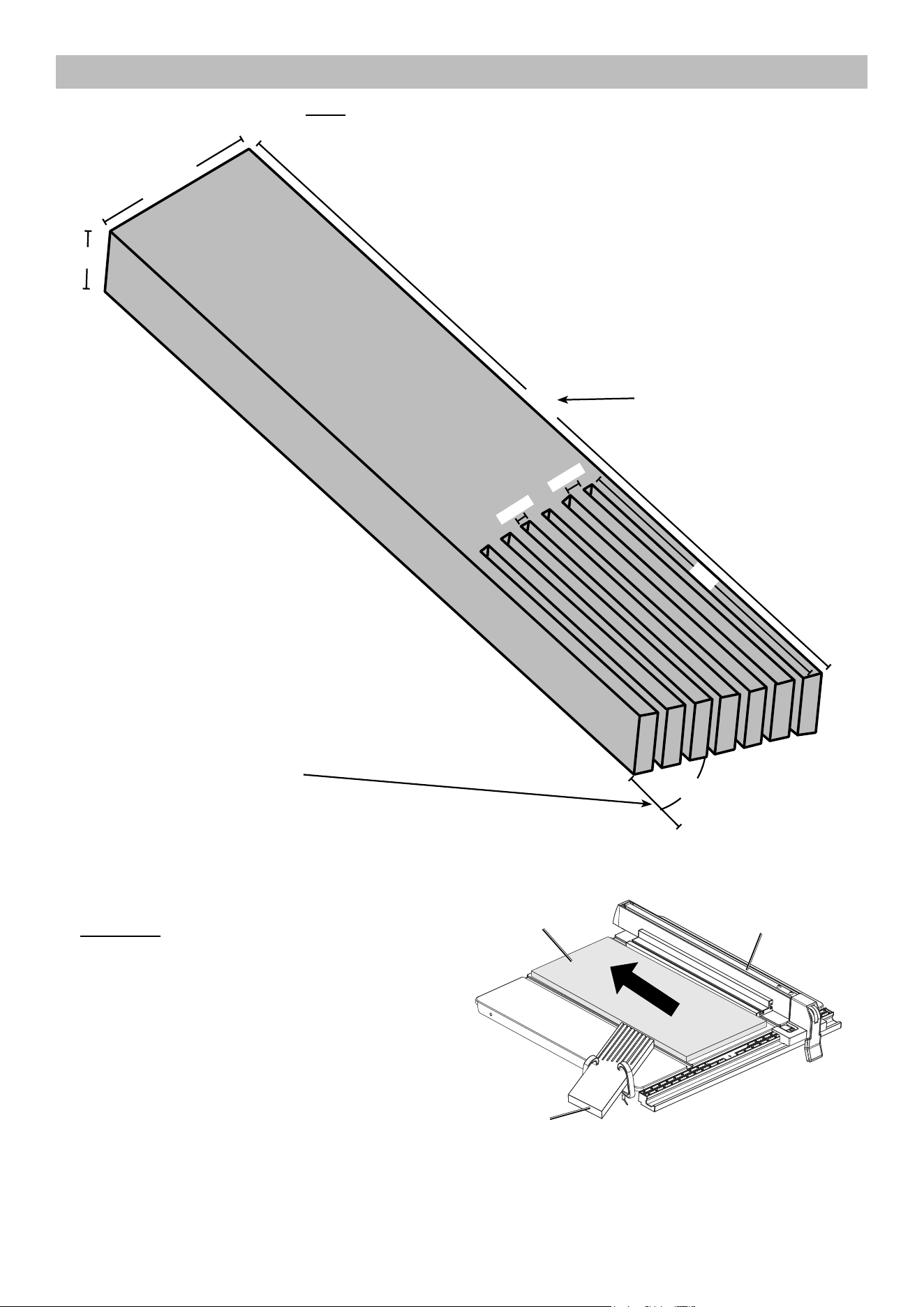

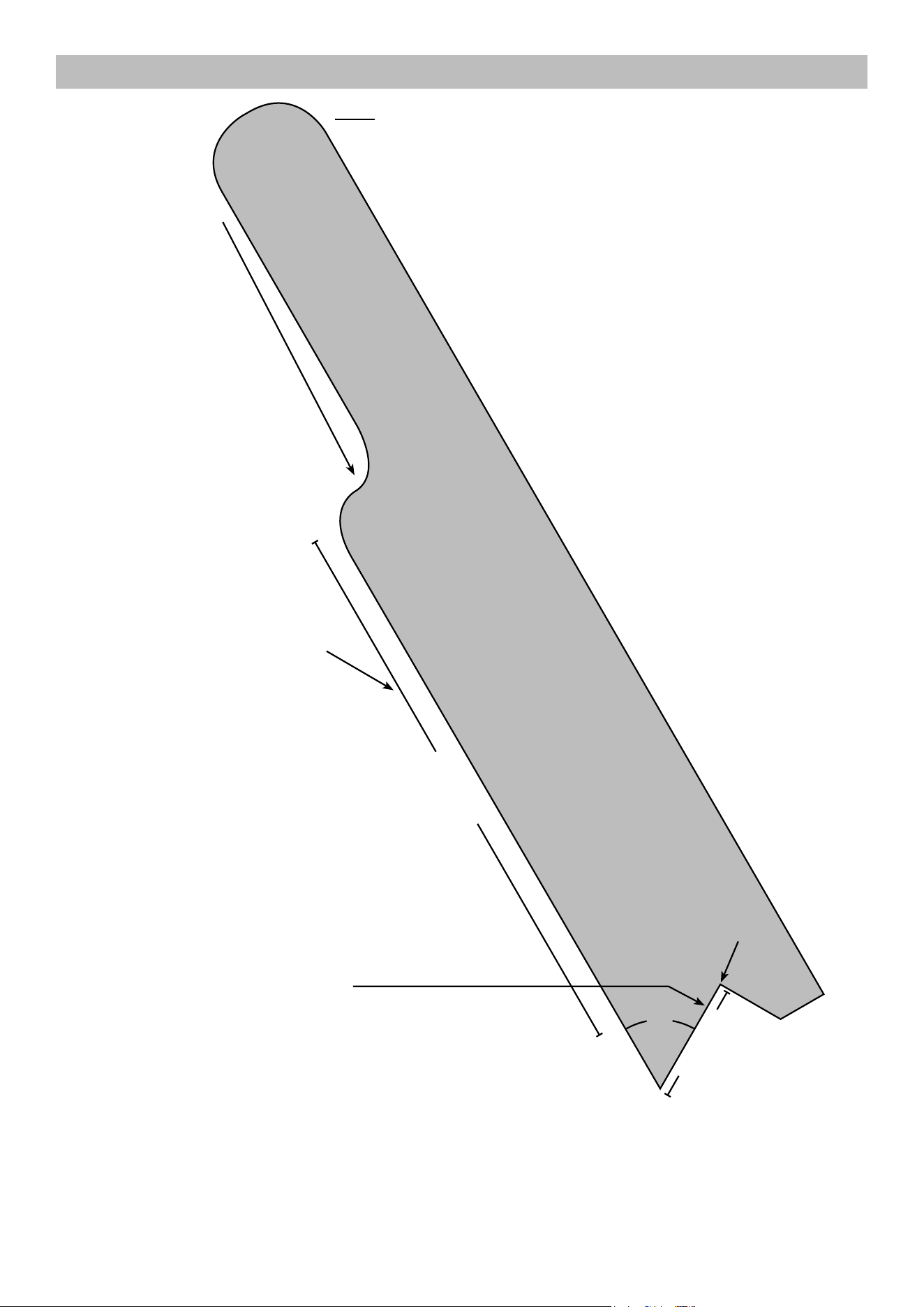

5. Use only the push stick provided by the
manufacturer or constructed in accordance
with the instructions. This push stick provides
sufficient distance of the hand from the saw blade.
6. Never use a damaged or cut push stick.
A damaged push stick may break causing
your hand to slip into the saw blade.
7. Do not perform any operation “freehand”.
Always use either the rip fence or the miter
gauge to position and guide the workpiece.
“Freehand’ means using your hands to support
or guide the workpiece, in lieu of a rip fence
or miter gauge. Freehand sawing leads to
misalignment, binding and kickback.
8. Never reach around or over a rotating saw
blade. Reaching for a workpiece may lead to
accidental contact with the moving saw blade.
9. Provide auxiliary workpiece support to the
rear and/or sides of the saw table for long
and/or wide workpieces to keep them level.
A long and/or wide workpiece has a tendency
to pivot on the table’s edge, causing loss of
control, saw blade binding and kickback.
10. Feed workpiece at an even pace. Do not bend
or twist the workpiece. If jamming occurs, turn
the tool off Immediately, unplug the tool then
clear the jam. Jamming the saw blade by the
workpiece can cause kickback or stall the motor.
11. Do not remove pieces of cut-off material while
the saw is running. The material may become
trapped between the fence or inside the saw blade
guard and the saw blade pulling your fingers into
the saw blade. Turn the saw off and wait until
the saw blade stops before removing material.
12. Use an auxiliary fence in contact with the
table top when ripping workpieces less
than 2mm thick. A thin workpiece may wedge
under the rip fence and create a kickback.
Kickback causes and
related warnings
o a pinched, jammed saw blade or misaligned line
of cut in the workpiece with respect to the saw blade
or when a part of the workpiece binds between the
saw blade and the rip fence or other fixed object.
Most frequently during kickback, the workpiece is
lifted from the table by the rear portion of the saw
blade and is propelled towards the operator.
Kickback is the result of saw misuse and/or incorrect
operating procedures or conditions and can be avoided
by taking proper precautions as given below.
1. Never stand directly in line with the saw blade.
Always position your body on the same side of
the saw blade as the fence. Kickback may propel
the workpiece at high velocity towards anyone
standing in front and in line with the saw blade.
2. Never reach over or in back of the saw blade
to pull or to support the workpiece. Accidental
contact with the saw blade may occur or kickback
may drag your fingers into the saw blade.
3. Never hold and press the workpiece that is being
cut off against the rotating saw blade. Pressing
the workpiece being cut off against the saw blade
will create a binding condition and kickback.
4. Align the fence to be parallel with the saw
blade. A misaligned fence will pinch the workpiece
against the saw blade and create kickback.
5. Use a featherboard to guide the workpiece
against the table and fence when making
non-through cuts such as rabbeting, dadoing
or resawing cuts. A featherboard helps to control
the workpiece in the event of a kickback.
6. Use extra caution when making a cut into blind
areas of assembled workpieces. The protruding
saw blade may cut objects that can cause kickback.
7. Support large panels to minimise the risk
of saw blade pinching and kickback. Large
panels tend to sag under their own weight.
Support(s) must be placed under all portions
of the panel overhanging the table top.
8. Use extra caution when cutting a workpiece that
is twisted, knotted, warped or does not have
a straight edge to guide it with a miter gauge
or along the fence. A warped, knotted, or twisted
workpiece is unstable and causes misalignment of
the kerf with the saw blade, binding and kickback.
9. Never cut more than one workpiece, stacked
vertically or horizontally. The saw blade could
pick up one or more pieces and cause kickback.
Page 5
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
10. When restarting the saw with the saw blade in
the workpiece, center the saw blade in the kerf so
that the saw teeth are not engaged in the material.
If the saw blade binds, it may lift up the workpiece
and cause kickback when the saw is restarted.
11. Keep saw blades clean, sharp, and with
sufficient set. Never use warped saw blades
or saw blades with cracked or broken
teeth. Sharp and properly set saw blades
minimize binding, stalling and kickback.
Table saw operating
procedure warnings
1. Turn off the table saw and disconnect the power
cord when removing the table insert, changing
the saw blade or making adjustments to the
riving knife, anti-kickback device or saw blade
guard, and when the machine Is left unattended.
Precautionary measures will avoid accidents.
2. Never leave the table saw running unattended.
Turn it off and don’t leave the tool until it
comes to a complete stop. An unattended
running saw is an uncontrolled hazard.
3. Locate the table saw in a well-lit and level area
where you can maintain good footing and
balance. It should be installed in an area that
provides enough room to easily handle the
size of your workpiece. Cramped, dark areas,
and uneven slippery floors invite accidents.
4. Frequently clean and remove sawdust
from under the saw table and/or the dust
collection device. Accumulated sawdust
is combustible and may self-ignite.
5. The table saw must be secured. A table saw that
is not properly secured may move or tip over.
6. Remove tools, wood scraps, etc. from the
table before the table saw is turned on.
Distraction or a potential jam can be dangerous.
7. Always use saw blades with correct size and
shape (diamond versus round) of arbor holes.
Saw blades that do not match the mounting hardware
of the saw will run off-center, causing loss of control.
8. Never use damaged or incorrect saw blade
mounting means such as flanges, saw blade
washers, bolts or nuts. These mounting
means were specially designed for your saw,
for safe operation and optimum performance.
9. Never stand on the table saw, do not use it as a
stepping stool. Serious injury could occur if the tool
is tipped or if the cutting tool is accidentally contacted.
10. Make sure that the saw blade is installed
to rotate in the proper direction. Do not
use grinding wheels, wire brushes, or
abrasive wheels on a table saw. Improper
saw blade installation or use of accessories not
recommended may cause serious injury.
GROUNDING
TO PREVENT ELECTRIC SHOCK AND
DEATH FROM INCORRECT
GROUNDING WIRE CONNECTION READ
AND FOLLOW THESE INSTRUCTIONS:
Grounded Tools: Tools with
Three Prong Plugs
3-Prong Plug and Outlet
1. Tools marked with “Grounding Required” have a three
wire cord and three prong grounding plug. The plug
must be connected to a properly grounded outlet.
If the tool should electrically malfunction or break
down, grounding provides a low resistance path to
carry electricity away from the user, reducing the risk
of electric shock. (See 3-Prong Plug and Outlet.)
2. The grounding prong in the plug is connected through
the green wire inside the cord to the grounding
system in the tool. The green wire in the cord must
be the only wire connected to the tool’s grounding
system and must never be attached to an electrically
“live” terminal. (See 3-Prong Plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance with
all codes and ordinances. The plug and outlet should
look like those in the preceding illustration.
(See 3-Prong Plug and Outlet.)
Double Insulated Tools: Tools
with Two Prong Plugs
Outlets for 2-Prong Plug
Page 6
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies
OSHA requirements and complies with
the applicable standards of Underwriters
Laboratories, Inc., the Canadian Standard
Association, and the National Electrical Code.
2. Double insulated tools may be used in either of the
120 volt outlets shown in the preceding illustration.
(See Outlets for 2-Prong Plug.)
Extension Cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See Table A.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See Table A.)
4. When using more than one extension cord to make
up the total length, make sure each cord contains at
least the minimum wire size required. (See Table A.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See Table A.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W‑A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
TAbLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS* (120/240 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 ‑
12.1 – 16.0 14 12 10 ‑ ‑
16.1 – 20.0 12 10 ‑ ‑ ‑
* based on limiting the line voltage drop to five volts at
150% of the rated amperes.
Vibration Safety
This tool vibrates during use. Repeated or long‑term
exposure to vibration may cause temporary or permanent
physical injury, particularly to the hands, arms and
shoulders. To reduce the risk of vibration‑related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check‑ups
to ensure medical problems are not being caused
or worsened from use. Pregnant women or
people who have impaired blood circulation to
the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
3. Use tools with the lowest vibration when there
is a choice between different processes.
4. Include vibration‑free periods each day of work.
5. Grip workpiece as lightly as possible (while still
keeping safe control of it). Let the tool do the work.
6. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
Page 7
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278

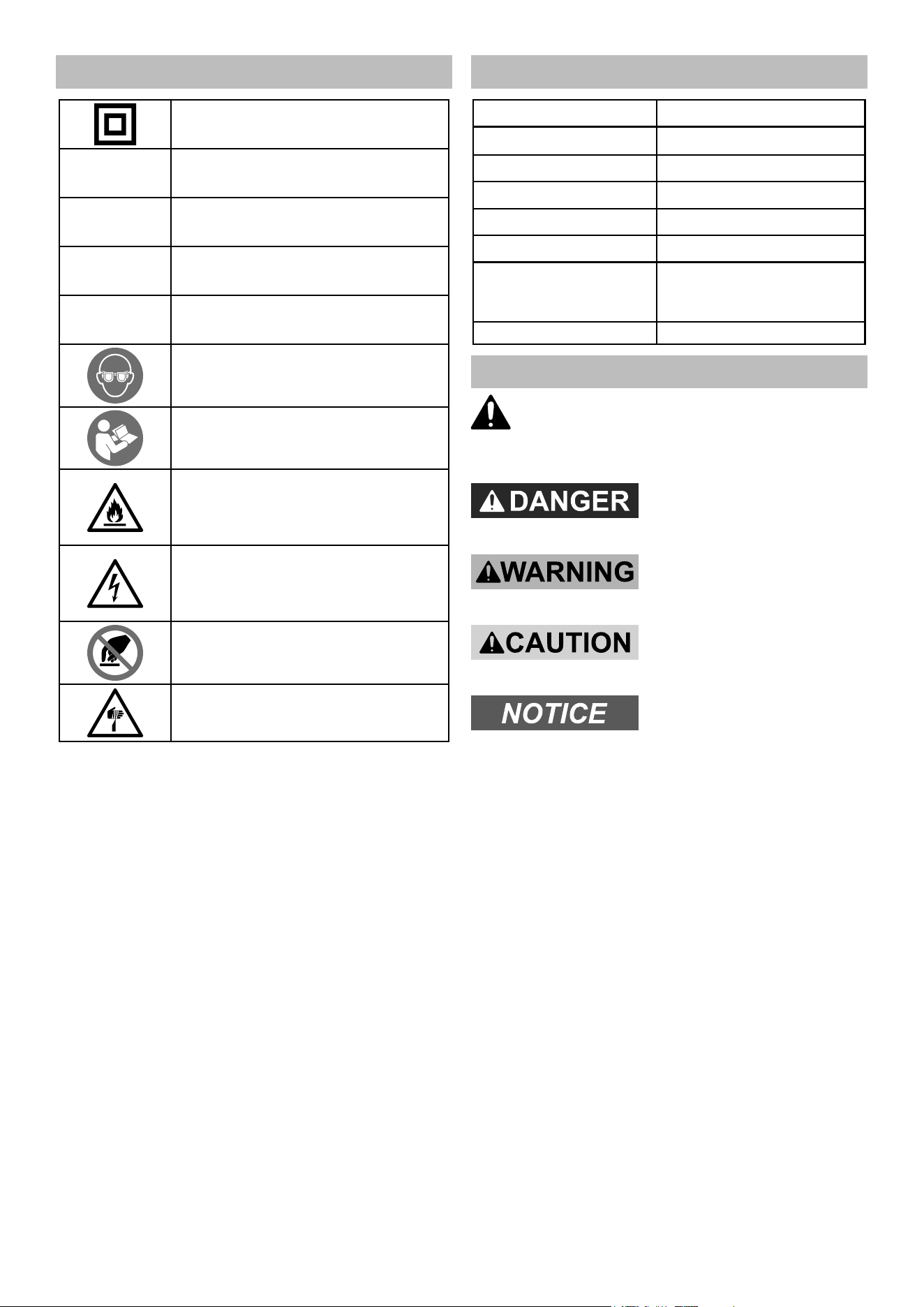

Symbology
Double Insulated
V
Volts
~
Alternating Current
A
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI‑approved
safety goggles with side shields.
Read the manual before
set‑up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keep flammable objects away.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
Keep hands clear of fence area.
DANGER marking concerning
Risk of Amputation.
Keep hands well clear of cutting area.
Specifications
Electrical Rating 120VAC / 60Hz / 15A
Rated No. Load Speed n
0
: 5800/min
Cutting Capacity at 0° 2-9/16″
Cutting Capacity at 45° 1-3/4″
Maximum Bevel 45°
Maximum Miter 30° Left and Right
Saw Blade
8-1/4″ (210mm) Diameter,
5/64″ Wide
5/8″ Diamond Arbor
Weight 52.5 lb
Warning Symbols and Definitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to
avoid possible injury or death.
Indicates a hazardous
situation which, if not
avoided, will result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in death or serious injury.
Indicates a hazardous
situation which, if not
avoided, could result in minor or moderate injury.
Addresses practices not
related to personal injury.
Page 8
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
SETUP - BEFORE USE
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and unplug the tool from its electrical outlet before performing any
procedure in this section.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Power Supply Requirements
Connect to grounded 120VAC, 20A receptacle.

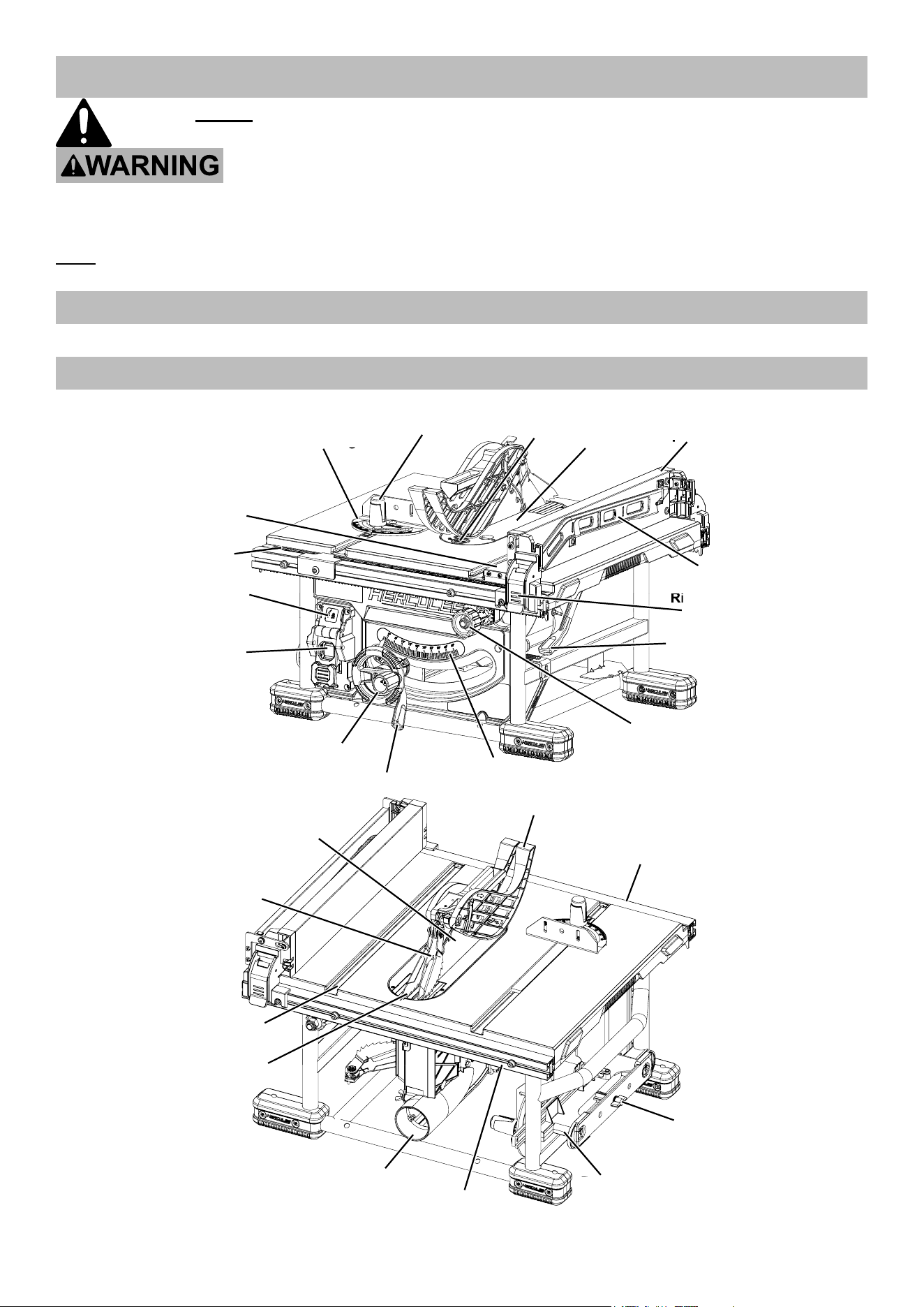

Functions
Table
Insert
Miter Gauge
Lock Knob
Insert
Lock
Rip Fence
Lock
Rip Fence
Miter Gauge
Scale
Power
Switch
Push Stick
Rail Lock
bevel Scale
bevel Lock
Handle
Rip Fence
Knob
Miter Gauge
Miter Gauge
Power
Rip Fence
Rip Fence
blade Guard
Saw blade
Riving
Knife
Miter Gauge
Groove
Anti-kickback
Pawls
Dust Port
Rear Rail
Power Cord
Storage
Front Rail
blade Wrench
Storage
Power Cord
Auxiliary
Fence
Safety
Lock
Page 9
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278

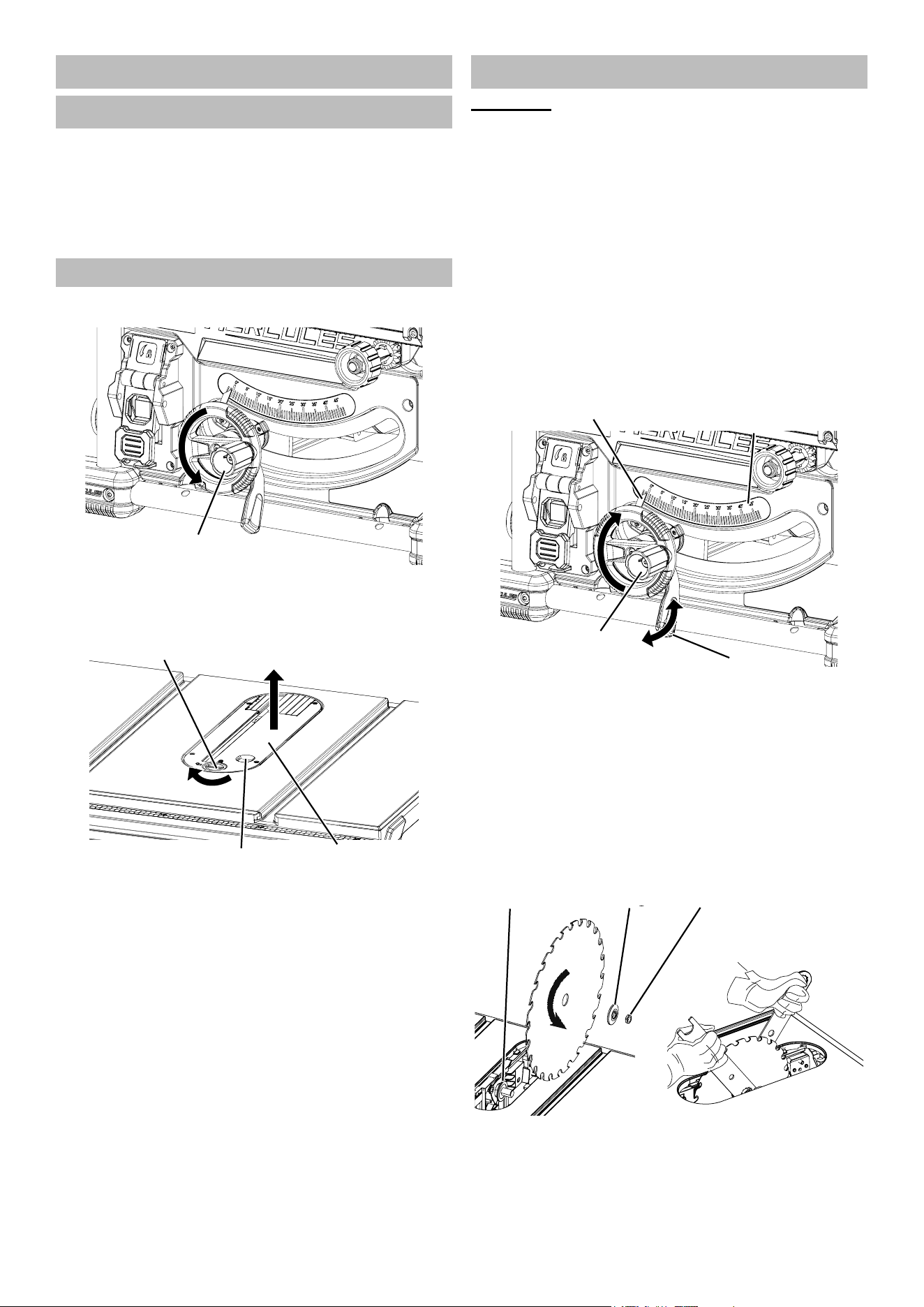

Assembly
Saw Blade Selection
1. Any saw blade that will be used must be
marked as suitable for the material to be cut.
2. Match the saw blade diameter, kerf width
and body dimensions to the riving knife.
3. Use only saw blades that are marked with a speed
equal or higher than the speed marked on the tool.
Removing Work Table Insert
1. Lower Blade by turning Handle counterclockwise.
Handle
2. To remove Work Table Insert, turn the Insert
Lock clockwise. Using finger hole, pull up and
forward to expose the inside of the saw.
Work Table
Insert
Insert Lock
Finger Hole
3. To reinstall the Work Table Insert: Push insert down
in place and turn the Insert Lock counterclockwise.
Removing and Installing the Blade
WARNING! TO PREVENT SERIOUS INJURY: Make
sure that the saw blade is installed to rotate in the proper
direction. Do not use grinding wheels, wire brushes, or
abrasive wheels on a table saw. Improper saw blade
installation or use of accessories not recommended may
cause serious injury.
Only use a 8-1/4″ saw blade with a 5/8″ diamond arbor,
rated to at least 5,800 RPM and intended for woodcutting.
1. Remove Work Table Insert.
2. Loosen Bevel Lock by turning counterclockwise.
Slide Handle to left until Bevel Scale Indicator
points to 0° on Bevel Scale. Tighten
Bevel Lock by turning clockwise.
3. Raise Blade to maximum height by
turning Handle clockwise.
Handle
bevel Lock
bevel Scale Indicator
bevel Scale
4. Remove included Blade Wrenches from storage area.
5. Use one Wrench to hold the Outer Flange
and the other to loosen the Blade Nut.
6. Remove Blade Nut and Outer Flange.
Leave Inner Flange in place.
7. Wearing heavy‑duty work gloves, install Blade with
rotation arrow on blade matching rotation arrow
on saw. Replace Outer Flange and Blade Nut,
then, tighten Blade Nut. DO NOT overtighten.
blade
Nut
Outer
Flange
Inner
Flange
Flange
8. Replace Work Table Insert.
Page 10
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278

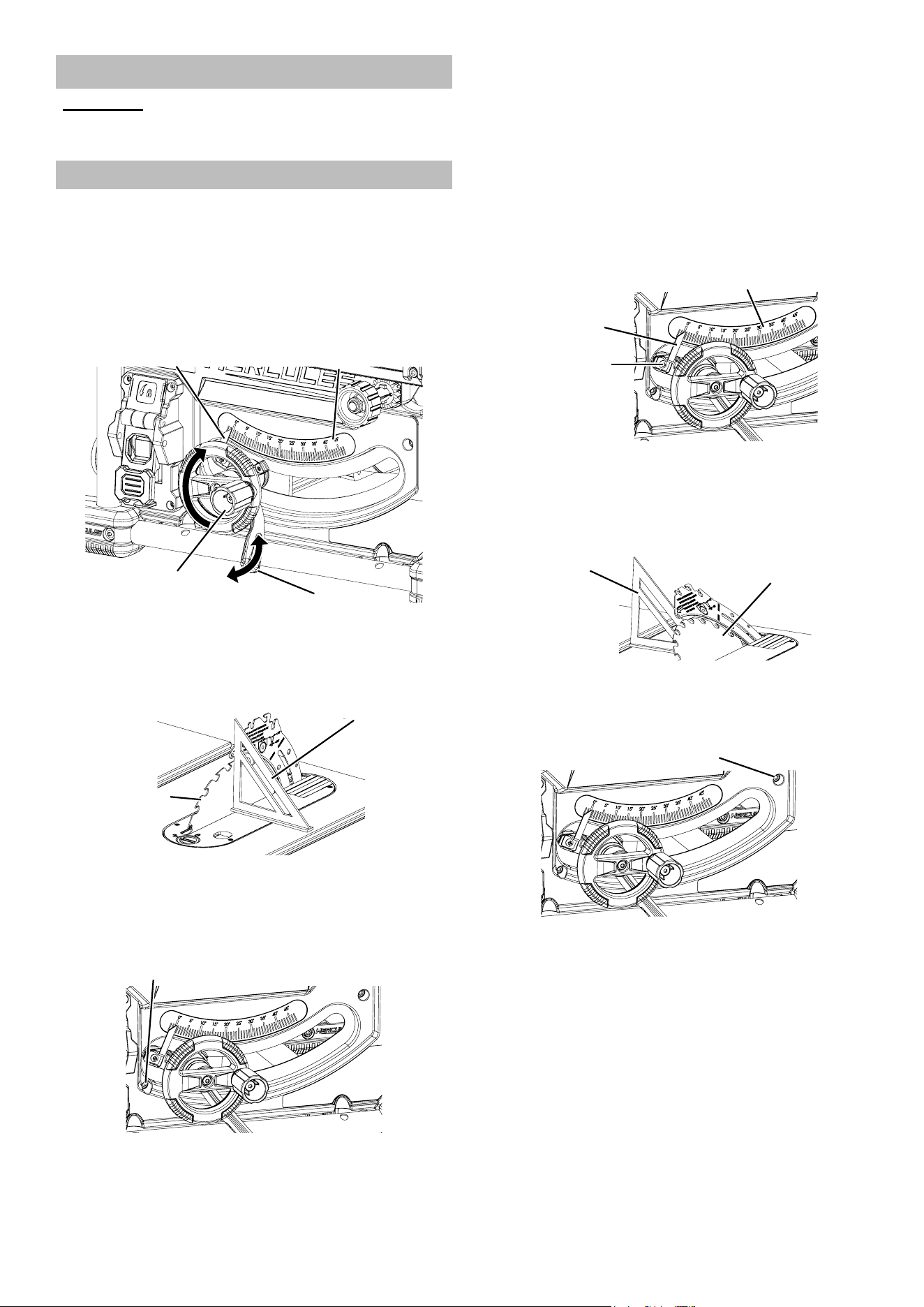

Checking / Adjusting Blade Alignment
WARNING! TO PREVENT SERIOUS INJURY: To
prevent dangerous kickback, follow all adjustment
procedures in this section bEFORE using table saw.
Bevel Angles
1. Remove Blade Guard if installed.
2. Loosen Bevel Lock by turning counterclockwise.
Slide Wheel to left until Bevel Scale Indicator
points to 0° on Bevel Scale. Tighten
Bevel Lock by turning clockwise.
3. Raise Blade to maximum height by
turning Handle clockwise.
Handle
bevel Lock
bevel Scale Indicator
bevel Scale
4. Place a speed square (sold separately) against
the Work Table and in between teeth of Blade.
5. Check if Blade is square.
Speed
Square
blade
Square
6. If blade is not square:
a. Loosen Bevel Lock.
b. Loosen 0° Stop slightly with hex
wrench (sold separately).
0° Stop
0° Stop
c. Using gloved hand, push blade against square
until flat against square and 90° to Work Table.
d. Tighten 0° Stop, do not overtighten.
Slide Handle to right 5°, then slide to
left to 0° and lock Bevel Lock.
e. Adjust and check blade alignment with speed
square until Blade is square to Work Table.
f. Confirm Bevel Scale Indicator points to 0° If not,
loosen Screw on Indicator then move Indicator
to point to 0° on the Scale. Tighten Screw.
bevel Scale
Indicator
Screw
Scale
7. Loosen Bevel Lock. Set bevel angle to 45° by
sliding Handle to the right. Tighten Bevel Lock.
8. Place a speed square against the Work
Table and in between teeth of Blade.
Speed
Square
blade
9. If blade adjustment is needed:
a. Loosen Bevel Lock.
b. Loosen 45° Stop slightly with hex wrench.
45° Stop
c. Using gloved hand, push blade against square
until flat against square and 45° to Work Table.
d. Tighten 45° Stop, do not overtighten.
e. Adjust and check blade alignment with speed
square until Blade is 45° to Work Table.
10. Replace Blade Guard.
Page 11
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278

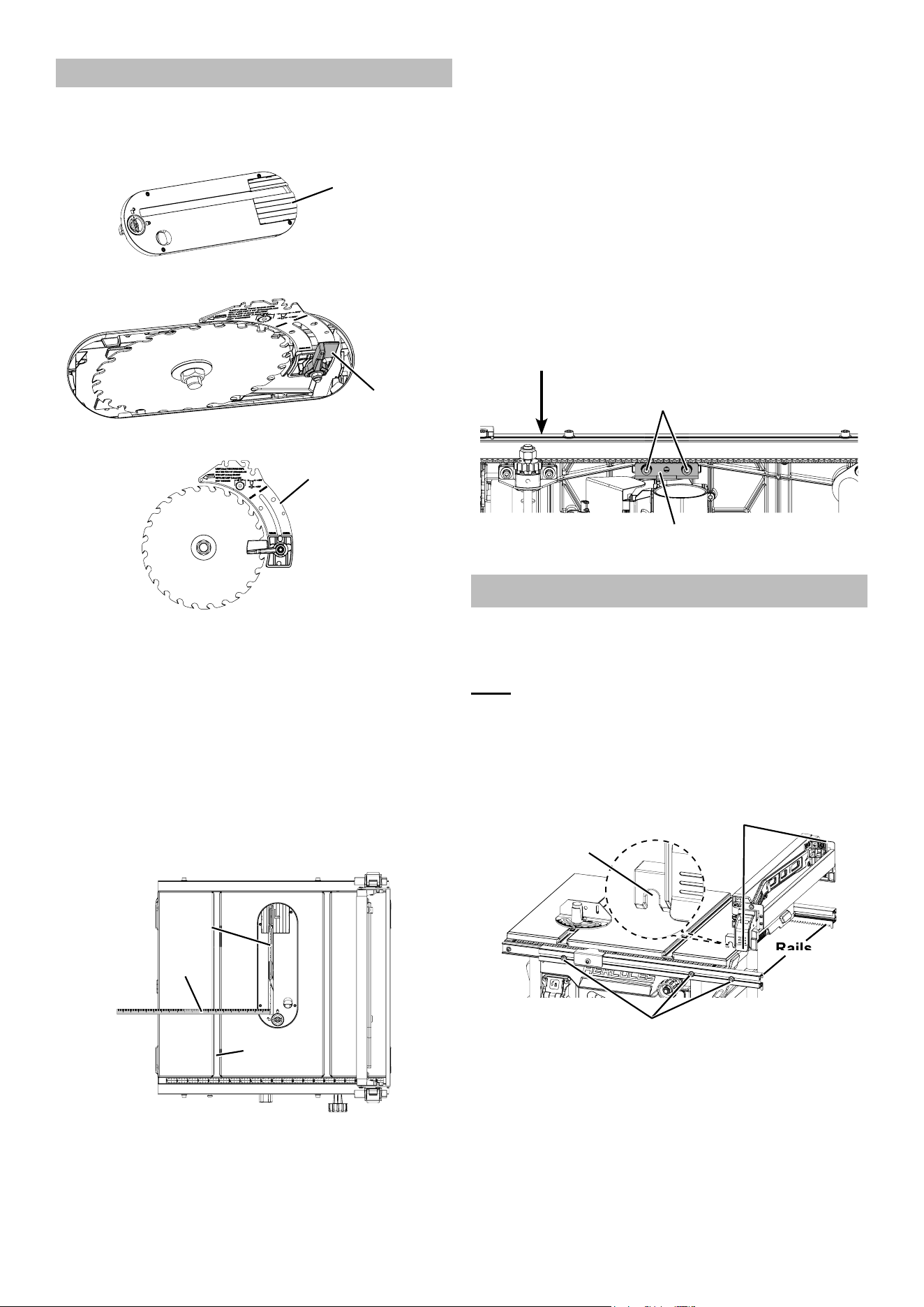

Blade Parallel
1. Remove Blade Guard if installed.
2. Turn Handle to raise Blade completely.
3. Remove Work Table Insert using hole.
Table
Insert
4. Raise Riving Knife Lock.
Riving
Knife Lock
5. Adjust Riving Knife to highest position.
Riving Knife
Riving Knife
6. Lower Riving Knife Lock and
replace Work Table Insert.
7. Loosen Bevel Lock. Set bevel angle to 0° by
sliding Wheel to left. Tighten Bevel Lock.
8. Mark a tooth on the Blade with a pen, rotate
Blade until mark is at front of Work Table.
9. Use a ruler (sold separately) to measure distance
between marked tooth on Blade and inside of
left Miter Gauge Groove, noting the distance.
10. Rotate Blade until marked tooth is at rear of the
Work Table surface. Measure distance between
marked tooth and inside of left Miter Gauge Groove.
blade
Miter Gauge
Groove
Ruler
11. Compare measurements. Front and rear
measurements for left Miter Gauge Groove
should be the same, and front and rear
measurements for right Miter Gauge Groove
should be the same. If not, adjust Blade.
12. blade Adjustment:
a. Loosen Bevel Lock.
b. Turn Handle to lower Blade
completely. Turn Table Saw over.
c. Locate the Mounting Bracket at the rear,
bottom area of interior of Table Saw.
d. Loosen Hex Screws on Mounting Bracket.
Carefully move Bracket right or left the exact
distance determined by measurements.
e. Tighten Hex Screws.
f. Turn Table saw over and tighten Bevel Lock.
g. Check measurements again and
repeat above if necessary.
Mounting bracket
Hex Screws
Rear of Table
13. Replace Blade Guard.

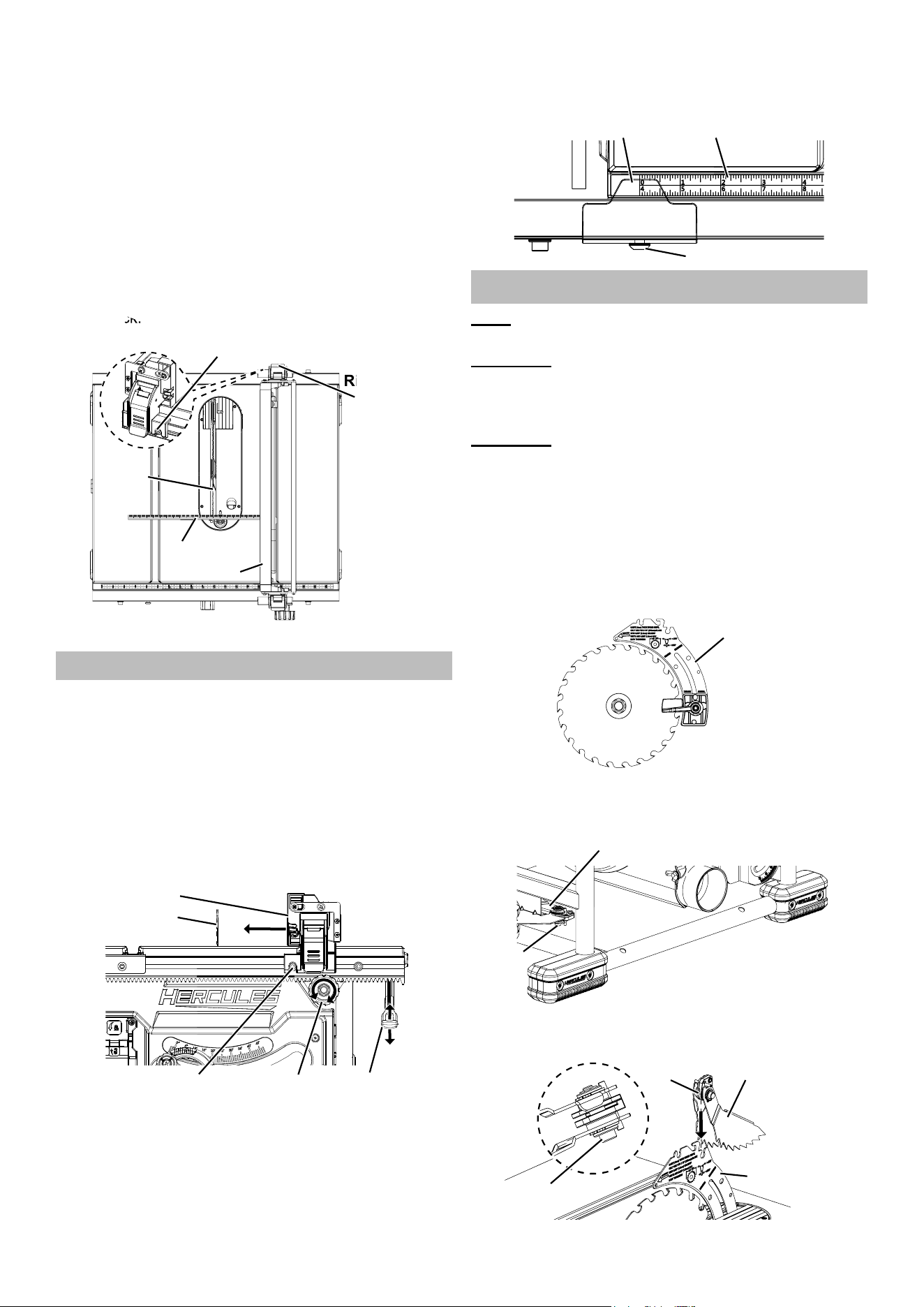

Checking/Adjusting Rip Fence
1. Raise Rip Fence Locks.
2. Align the slot on Rip Fence with the
corresponding Set Screw.
Note: There are three Set Screws located on
both the Front & Rear Rails. The Set Screws
will be used to attach Rip Fence to rails.
3. Place Rip Fence on the rails so that the slots
latch onto Set Screws and secure Fence to
Rails by pushing Fence Locks down.
Rip Fence
Locks
Set Screw
Slot
Rails
Rails
4. Remove Blade Guard if installed, and adjust
Riving Knife to its highest position.
5. Loosen Bevel Lock. Set bevel angle to 0° by
sliding Handle to left. Tighten Bevel Lock.
6. Turn Handle to raise Blade completely.
7. Mark a tooth on the Blade with a pen, rotate Blade
until mark is at front of Work Table surface.
8. Use a ruler (sold separately) to measure distance
between marked tooth and inside of Rip Fence.
Page 12
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
9. Rotate Blade until marked tooth is at rear of
the Work Table surface. Measure distance
between marked tooth and inside of Rip
Fence. Front and rear measurements should
be the same. If not, adjust Rip Fence.
10. Rip Fence Adjustment:
a. Raise rear Rip Fence Lock.
b. Loosen rear Set Screw with hex
wrench (sold separately).
c. Using ruler, adjust Rip Fence
until parallel to Blade.
d. Tighten Set Screw. Lower rear Rip Fence
Lock. Verify Rip Fence is parallel to Blade.
Lock. Verify Rip Fence is parallel to Blade.
blade
Rip Fence
Ruler
Rip Fence
Lock
Set Screw
Rip Fence
11. Replace Blade Guard.

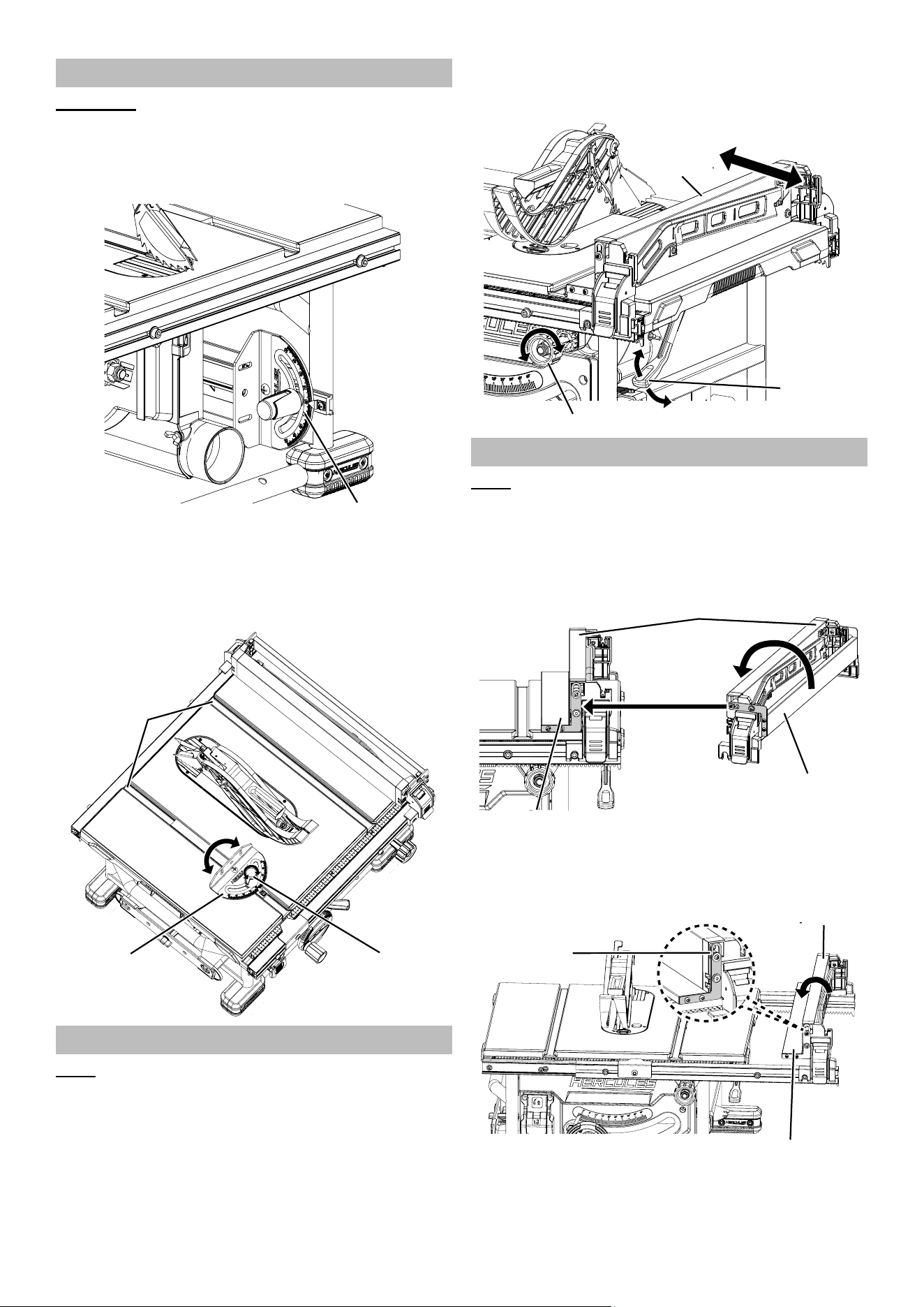

Checking Rip Fence Indicator
1. Raise Rip Fence Locks.
2. Place Rip Fence on Work Table with
Hooks over Set Screws closest to right
side of Blade on front and rear Rails.
3. Lower Rip Fence Locks.
4. Pull up Rail Lock to unlock Rail.
5. Turn Rail Fence Knob counterclockwise to move Rip
Fence towards Blade until it is touching the Blade.
6. Press down Rail Lock to lock Rail.
Rail Lock
Rail Fence
Knob
blade
Rip Fence
Set Screw
7. Confirm Rip Fence Indicator points to 0 on the
Scale. If not, loosen Screw on Indicator and adjust
Indicator to point to 0 on the Scale. Tighten Screw.
Rip Fence Indicator
Scale
Screw
Installing Anti-Kickback Pawls
Note: Anti‑kickback pawls should only
be installed for through cuts.
WARNING! TO PREVENT SERIOUS INJURY:
Make sure that the pawls are reinstalled
immediately after finishing any non‑through cut
operations which require their removal.
WARNING! TO PREVENT SERIOUS INJURY:
Replace dull or damaged anti‑kickback pawls. Dull or
damaged anti‑kickback pawls may not stop a kickback,
increasing the risk of serious personal injury.
1. Loosen Bevel Lock by turning counterclockwise.
Slide Handle to left until Bevel Scale Indicator
points to 0° on Bevel Scale. Tighten
Bevel Lock by turning clockwise.
2. Place Riving Knife in its highest position.
Riving Knife
Riving Knife
3. Remove Pawls from storage compartment by
pushing the Pin in, and pulling the Pawls off
their mounting bracket in the rear of saw.
Anti-kickback Pawls
Pin
4. Press Pin and secure Pawls into Slot
on Riving Knife, then release Pin.
Pin
Anti-kickback
Pawls
Riving Knife
Slot
Page 13
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
Note: Pull up on Pawls assembly to make
sure it is secured to Riving Knife.
WARNING! TO PREVENT SERIOUS INJURY: Use
extra caution when cutting wood with slippery surface
as the anti‑kickback pawls may not always be effective.

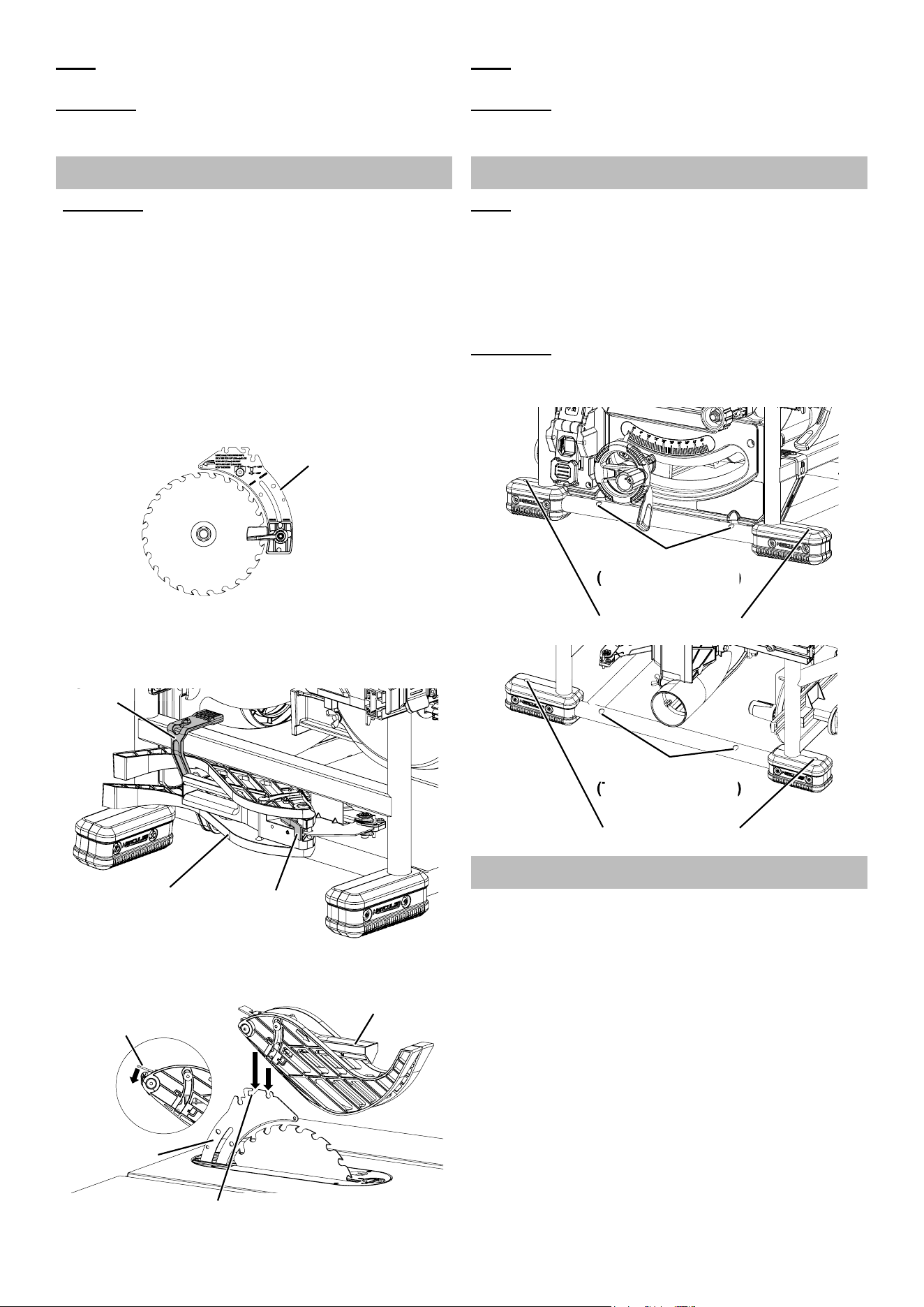

Installing Blade Guard
WARNING! TO PREVENT SERIOUS INJURY:
Always use Saw blade Guard and Riving
Knife for every through-cutting operation. For
through-cutting operations where the Saw
blade cuts completely through the thickness
of the workpiece, the Guard and other safety
devices help reduce the risk of serious injury.
1. Loosen Bevel Lock by turning counterclockwise.
Slide Handle to left until Bevel Scale Indicator
points to 0° on Bevel Scale. Tighten
Bevel Lock by turning clockwise.
2. Place Riving Knife in its highest position.
Riving Knife
Riving Knife
3. Remove Blade Guard from storage compartment
pulling Strap up and off its catch, and then pushing
the Blade Guard Lock in and pulling the Blade
Guard off its mounting bracket on the side of saw.
blade
Guard Lock
blade Guard
Strap
4. Press Blade Guard Lock and secure Blade Guard
fully into Slot on Riving Knife, then release Lock.
Riving Knife
blade
Guard Lock
blade Guard
Slot
Note: Pull up on Blade Guard to make
sure it is secured to Riving Knife.
WARNING! TO PREVENT SERIOUS INJURY: After
the installation, check the blade guard to ensure that it is
properly placed and working before operation of the saw.
Mounting
Note: Table Saw MUST be mounted
onto a surface for proper use.
1. Select a table saw stand or other appropriate
surface capable of supporting the weight
of the Table Saw and workpiece.
2. Mount the Table Saw to the surface using
appropriate 3/8″ hardware (sold separately).
WARNING! TO PREVENT SERIOUS INJURY:
Verify that installation surface has no hidden
utility lines before drilling or driving screws.
Mounting Holes
(Universal Table Stand)
Mounting Holes
(Table / Flat Surface)
Mounting Holes
(Universal Table Stand)
Mounting Holes
(Table / Flat Surface)
(Table / Flat Surface)
(Table / Flat Surface)
(Table / Flat Surface)
(Table / Flat Surface)
Dust Extraction Setup
Attach dust collection system (sold separately)
to Dust Port on back of Table Saw.
Page 14
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
Essential Straight Push-Stick Features and Functions
Note: Straight style (traditional) stick shown. A different stick design
may be used if it properly protects against all hazards.
Diagram not to scale.
• Push‑sticks must be made from sturdy, defect‑free, plywood or
normal wood to prevent unexpected breakage. Material must
be at least 1/4″ thick, but no thicker than the finished wood.
• Inspect push‑stick before use and do not use
a damaged or deteriorated push‑stick.
• Push‑stick dimensions will vary depending
on the application and user.
Handle Notch
• Must be far
enough down
the stick to allow
a comfortable
and firm grip.
• Must be deep
enough to prevent
hand from slipping
down the stick.
• Do not cut more than
halfway into the stick
to prevent weakening.
• Corners may
be rounded to
increase comfort.
Stick Length
• Must be long enough
to keep hand
clear of blade.
• At least 6″ from end
of handle to closest
part of notch.
Notch
• Must be right (90°) angle, cut at 30°- 40° from the angle
of the stick to keep hands out of the line of the blade.
• The lower lip of the notch must be no
longer than the workpiece is thick.
At Least 6″
Less than
workpiece
thickness
NOT TO SCALE.NOT TO SCALE.
90°
30°-40°30°-40°
Page 15
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
Essential Featherboard Features and Functions
~12″
NOT TO SCALE.NOT TO SCALE.
70°70°
~2-1/2″
~3/4″
~4″
~1/4″
~1/8″
Note: Typical featherboard shown. A different featherboard design may
be used if it properly protects against all hazards.
Diagram not to scale.
• Featherboards must be made from sturdy, defect‑free wood
to prevent unexpected breakage. Plywood, OSB, and
other manufactured woods are not suitable materials.
Material should be approximately 3/4″ thick.
• Inspect featherboard before use and do not use
a damaged or deteriorated featherboard .
• Featherboard dimensions will vary
depending on the application and user.
Featherboard Dimensions
• Must be long and wide enough
to engage workpiece while
clamped to Work Table.
Angled Slotted End
• Approximate (70°) angle on
slotted end of featherboard for a
friction hold on the workpiece.
Featherboard
Workpiece
Rip Fence
Featherboard Use
• WARNING! TO PREVENT SERIOUS INJURY:
Featherboard must be mounted in
FRONT of blade against uncut portion of
workpiece ONLY to prevent kickback.
• Lower Saw Blade.
• Position Rip Fence as desired and lock in place.
• Place workpiece over Saw Blade
and against Rip Fence.
• Place featherboard to place friction against
workpiece in FRONT of Blade ONLY.
• Clamp featherboard in place on
Work Table with C‑Clamp(s).
Page 16
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278

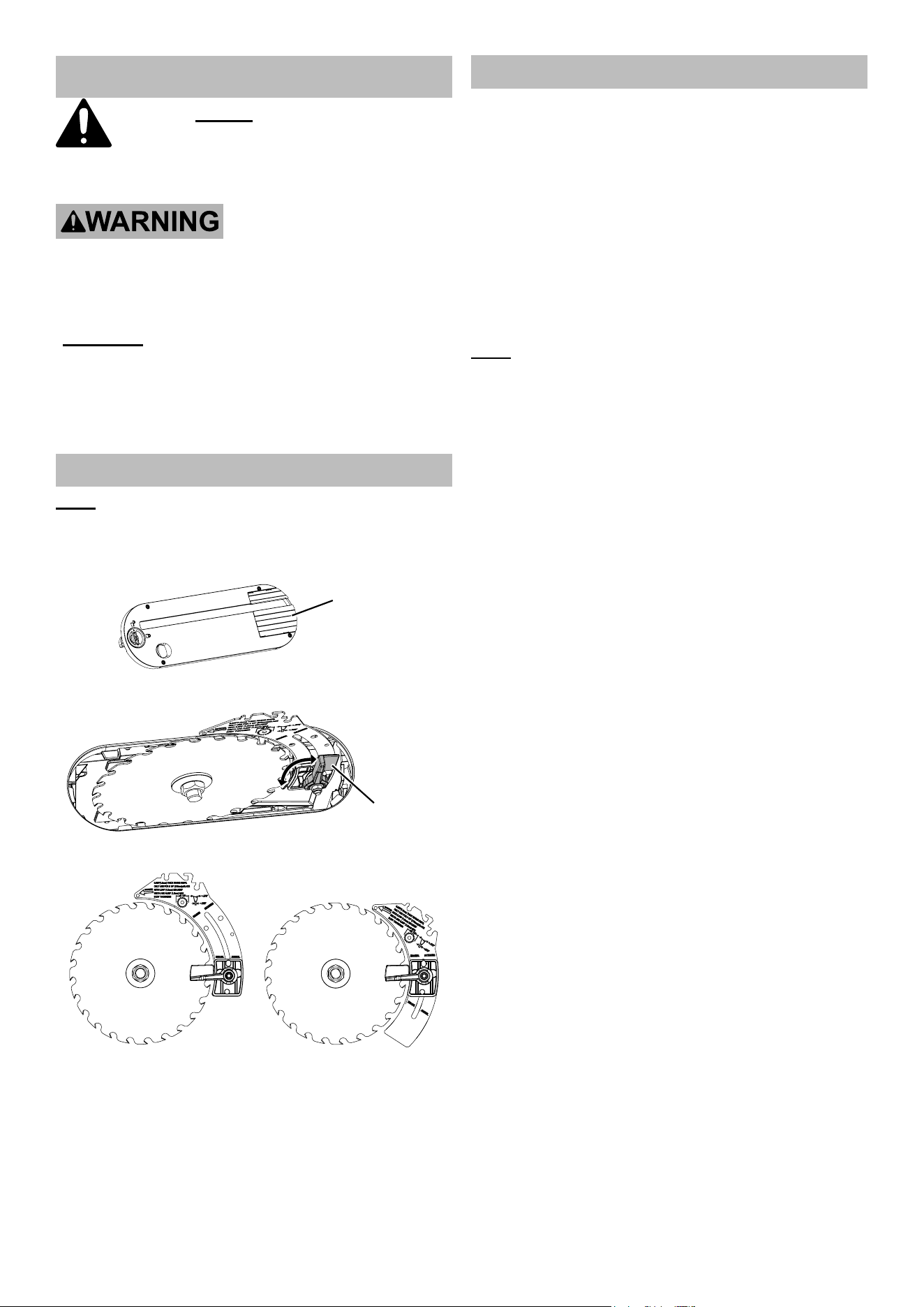

OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
TO PREVENT SERIOUS INJURY:
Wear ANSI-approved safety goggles and hearing
protection during operation. Wear heavy-duty
work gloves when handling saw blades.
WARNING! TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Make sure that the Power Switch is in
the off-position and unplug the tool from
its electrical outlet before performing
any procedure in this section.

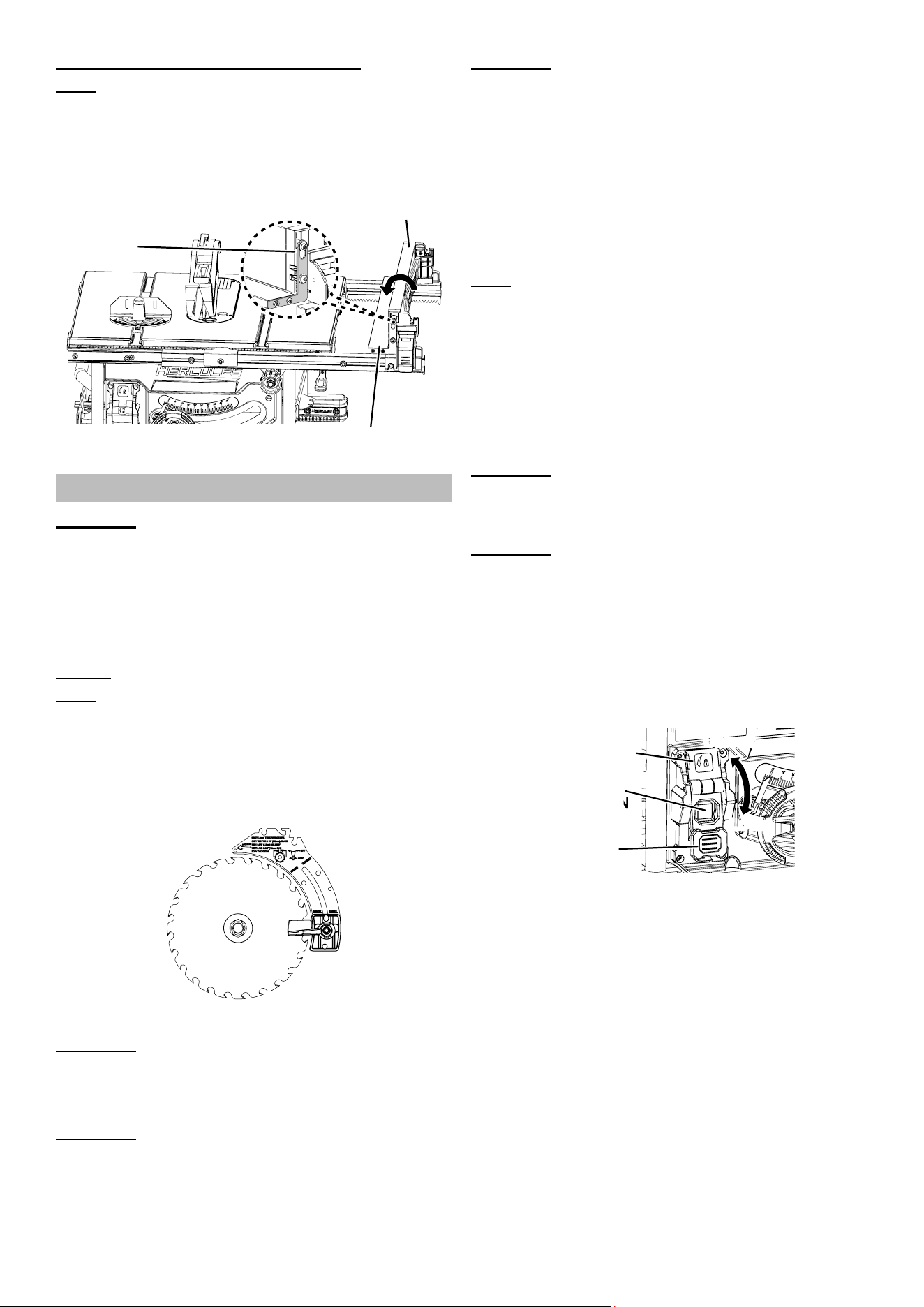

Riving Knife Adjustment
Note: Riving Knife is permanently installed. It comes
in its lowest position for shipping. Reposition the
Riving Knife according to type of cut before use.
1. Remove Work Table Insert, pull up by using hole.
Table
Insert
2. Raise Riving Knife Lock.
Riving
Knife Lock
3. Adjust Riving Knife to proper position for type of cut:
Through Cut Non-Through Cut
4. Lower Riving Knife Lock and
replace Work Table Insert.
Workpiece and Work Area Set Up
1. Designate a work area that is clean and well lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the power cord along a safe route to reach
the work area without creating a tripping hazard or
exposing the power cord to possible damage. The
power cord must reach the work area with enough
extra length to allow free movement while working.
3. There must not be objects, such as utility lines,
nearby that will present a hazard while working.
4. Cut only the following materials:
Dimensional lumber, plywood, particle board.
Note: Use caution to avoid overheating the cutting tips.
5. Allow room on both sides of saw
for extended workpieces.
6. Use additional supports if needed to ensure
the stability of the workpiece. Use additional
supports to provide a surface on the same level
as the saw Work Table. If the work surface
and any workpiece supports are not level, and
on the same level, unwanted bevel angles will
appear in the cuts resulting in poor joinery.
Page 17
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
General Instructions for Use
SAWS CAN QUICKLY AMPUTATE FINGERS IF MISUSED.
Keep hands well clear of cutting area.
DO NOT OPERATE WITH ANY GUARD DISAbLED, DAMAGED, OR REMOVED.
Moving guards must move freely and close instantly.
INSTALL GUARD bEFORE USE.

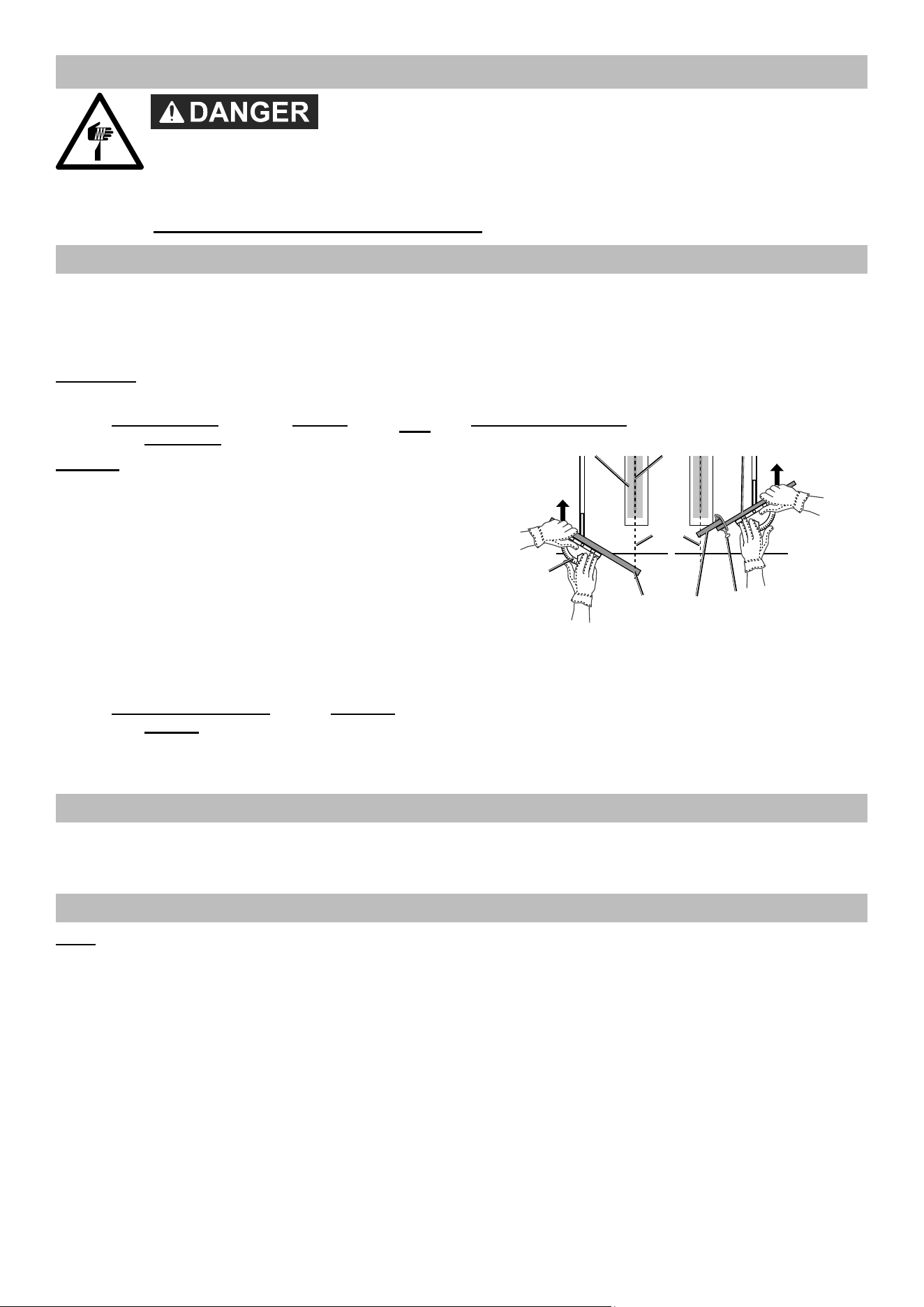

Proper Placement Of Hands During the Cutting Process
1. Review Safety warnings at the beginning of the manual before performing any
cutting procedure. Keep all guards in place and in working order.
2. Do not pass hands directly over Saw Blade when cutting workpiece. Push workpiece into Saw Blade using a
Push‑Stick, or hold workpiece against the Miter Gauge.
WARNING! TO PREVENT SERIOUS INJURY: SAFE CUTTING PROCEDURES VARY DEPENDING
ON THE TYPE OF CUT. TO PREVENT SERIOUS INJURY FROM KICKbACK:
Use Rip Fence for every Rip Cut
(cut along with the grain).
Rip Cuts
1. Rip cuts are straight cuts made parallel to
(along with) the grain of the wood by sliding
the workpiece along the Rip Fence.
2. For pieces wider than 6″, hold the workpiece,
staying clear of the Saw Blade. For pieces between
up to 6″, use the included Push‑Stick or make a
push‑stick as described in Essential Straight Push-
Stick Features and Functions on page 14.
3. When ripping, always use the Rip Fence.
This improves the accuracy of the cut, and
reduces the chance for Saw Blade binding.
Do not use Rip Fence for any crosscut
(cut against the grain).
Crosscuts/Miter Cuts
blade Guard
Saw blade
Miter
Gauge
Workpiece
Clamp
Scrap Wood
Cut
Line
1. Adjust the Miter Gauge to the needed angle and
place it in the right or left slot on the Work Table.
2. Hold the workpiece against the Miter Gauge,
and slide them together to make the cut.
Clamp smaller pieces to a piece of scrap wood
that can reach beyond the Miter Gauge and
hold the scrap against the Gauge while making
the cut. Keep the clamp clear of the Saw Blade.
Bevel Angle Setting
1. Loosen Bevel Lock.
2. Set bevel angle by Sliding Handle left or right until
Bevel Scale Indicator points to desired angle.
3. Tighten Bevel Lock.
Blade Depth Adjustment
Note: Blade depth should be set so teeth
of Blade are higher than workpiece.
Turn Handle to raise or lower Blade
until desired depth is achieved.
bUT
Page 18
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
Using the Miter Gauge
WARNING! TO PREVENT SERIOUS INJURY:
Remove Rip Fence when using Miter Gauge.
1. Remove Miter Gauge from storage
compartment by sliding it out from its
mounting bracket in the rear of saw.
Miter Gauge
2. Place Miter Gauge in left or right Groove.
3. Loosen Lock Knob.
4. Adjust Miter Gauge to desired angle on scale.
5. Tighten Lock Knob.
Miter Gauge
Groove
Lock Knob
Using the Rip Fence
Note: The Rail Lock and Rip Fence Knob
allows the customer to adjust Rip Fence
position by moving the Rail itself.
1. Pull up Rail Lock to unlock Rail.
2. Turn Rail Fence Knob clockwise or counterclockwise
to move Rip Fence right or left to desired position.
3. Press down Rail Lock to lock Rail.
Rip Fence Knob
Rail Lock
Rip Fence
Rip Fence
Rip Fence
Using the Auxiliary Fence
Note: Use Auxiliary Fence for rip cutting thin workpieces
or removing thin amounts of material from the workpiece
when Rip Fence cannot be positioned close enough
to Blade without interfering with Blade Guard.
1. Flip Auxiliary Fence over from
stowed position for use.
Rip Fence
Auxiliary Fence
(in use)
Auxiliary Fence
(stowed)
2. For work on a narrow workpiece, keep Auxiliary
Fence in the high position and extend Rip Fence.
Rip Fence
Rip Fence
High
Position
Auxiliary Fence
Page 19
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
Using Auxiliary Fence as Extension Table
Note: The Auxiliary Fence can be used to support
a workpiece that extends in size beyond the
working table, or for a very narrow workpiece.
3. To support a workpiece that extends beyond
the working table, flip Auxiliary Fence over
from stowed position in the low position.
Low
Position
Auxiliary Fence
(extension table use)
Position
Rip Fence
Rip Fence
Making a Through Cut
WARNING! TO PREVENT SERIOUS INJURY: Always
use Push-Sticks, and/or featherboards appropriately
when making through cuts to reduce the risk of
serious injury.
Throughout the cut, keep all body parts a safe
distance from the spinning blade.
The tool will restart automatically if stalled.
Rip Cut
Note: For long or large workpieces, place
support(s) the same height as the Work Table
surface behind and on the sides of the Table
Saw as needed for support of the workpiece.
1. Unplug Saw and remove Blade Guard.
2. Place Riving Knife in Through Cut position.
3. Replace Blade Guard.
WARNING! TO PREVENT SERIOUS INJURY:
After installation, check that Blade Guard is properly
installed and working before operation of the saw.
4. Confirm Anti‑Kickback Pawls are installed.
WARNING! TO PREVENT SERIOUS INJURY:
Replace dull or damaged anti‑kickback pawls. Dull or
damaged anti‑kickback pawls may not stop a kickback,
increasing the risk of serious personal injury.
WARNING! TO PREVENT SERIOUS INJURY: Use
extra caution when cutting wood with slippery surface
as the anti‑kickback pawls may not always be effective.
5. Loosen Bevel Lock. Slide Handle left or right to set
Blade to desired bevel angle. Tighten Bevel Lock.
6. Turn Handle to raise or lower Blade
until desired depth is achieved.
7. Raise Rip Fence Locks.
8. Align the slots on Rip Fence with the
corresponding Set Screws.
Note: There are three Set Screws located
on both the Front & Rear Rails.
9. Place Rip Fence on the rails so that the slots
latch onto Set Screws and secure Fence to
Rails by pushing Fence Locks down.
10. Pull up Rail Lock to unlock Rail.
11. Turn Rail Fence Knob clockwise or counterclockwise
to move Rip Fence right or left to desired position.
12. Press down Rail Lock to lock Rails.
WARNING! TO PREVENT SERIOUS INJURY: Avoid
bevel ripping on beveling side of Saw Blade.
Do not place Rip Fence on left (beveling) side
of Blade to avoid dangerous kickback.
WARNING! TO PREVENT SERIOUS INJURY:
To prevent kickback, make sure Rip Fence is
parallel to the blade and locked in place.
13. Make sure that the Power Switch is in the
OFF position and Safety Key is rotated to
the LOCKED (down) position. Plug the
Table Saw into a grounded 120V outlet.
14. Rotate Safety Key to the UNLOCK (up)
position and press the Power Switch on.
Safety Key
Power
Switch ON
Power
Switch OFF
Unlock
Lock
Lock
Switch ON
15. Allow the Blade to reach full speed before
moving the workpiece into the Blade.
16. At the start of the cut, the hand closest to Rip Fence
holds the workpiece firmly against Work Table and
Rip Fence, and the other hand using a Push‑Stick
pushes the workpiece toward the turning Saw Blade.
Keep both hands out of the path of the Saw Blade.
17. After the cut is under way, use the Push‑Stick
to continue guiding the workpiece forward.
Just before the cut is completed, move the hand
closest to the Rip Fence safely farther away from
the workpiece and the Saw Blade. Continue
pushing the workpiece into the Saw Blade with
the Push‑Stick until the cut is complete.
Page 20
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
18. Once the cut is complete, continue to maintain
control of the workpiece. Turn Power Switch off.
Then, wait until the Saw Blade completely stops
rotating before removing the workpiece.
19. To prevent accidents, turn off the Table Saw, rotate
Safety Key to the LOCKED (down) position, and
disconnect its power supply after use. Clean, then
store the Saw indoors out of children’s reach.

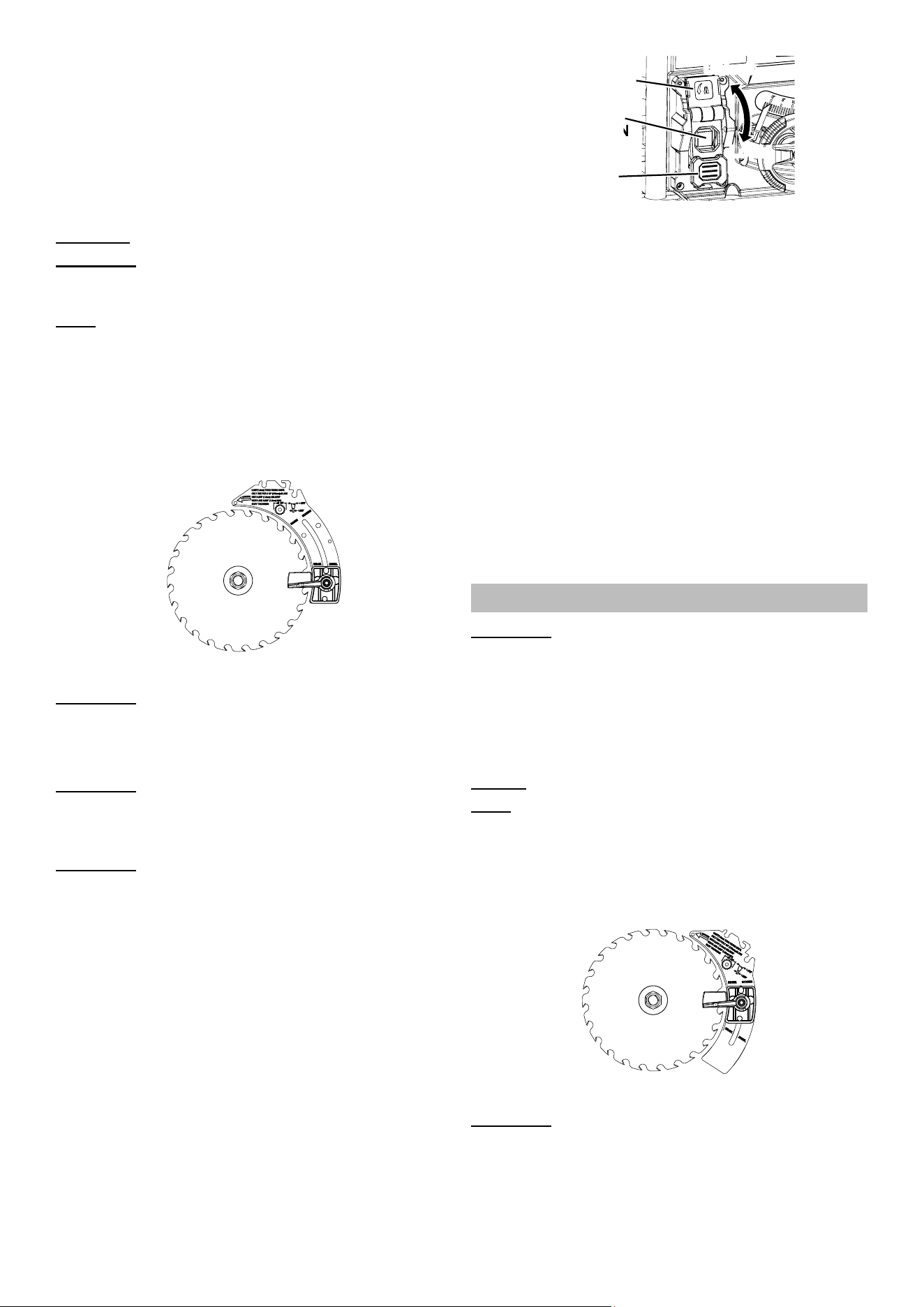

Cross Cut
WARNING! TO PREVENT SERIOUS INJURY:
Do not use Rip Fence when cutting
across wood grain (cross cutting).
Note: For long or large workpieces, place
support(s) the same height as the Work Table
surface behind and on the sides of the Table
Saw as needed for support of the workpiece.
1. Unplug Saw and remove Blade Guard.
2. Remove Rip Fence.
3. Place Riving Knife in Through Cut position.
4. Replace Blade Guard.
WARNING! TO PREVENT SERIOUS INJURY:
After installation, check that Blade Guard is properly
installed and working before operation of the saw.
5. Confirm Anti‑Kickback Pawls are installed.
WARNING! TO PREVENT SERIOUS INJURY:
Replace dull or damaged anti‑kickback pawls. Dull or
damaged anti‑kickback pawls may not stop a kickback,
increasing the risk of serious personal injury.
WARNING! TO PREVENT SERIOUS INJURY: Use
extra caution when cutting wood with slippery surface
as the anti‑kickback pawls may not always be effective.
6. Loosen Bevel Lock. Slide Handle left or right to set
Blade to desired bevel angle. Tighten Bevel Lock.
7. Turn Handle to raise or lower Blade
until desired depth is achieved.
8. Place Miter Gauge into desired Miter Gauge Groove.
9. Loosen Lock Knob on Miter Gauge and rotate Miter
Gauge to desired angle. Tighten Lock Knob.
10. Make sure that the Power Switch is in the
OFF position and Safety Key is rotated to
the LOCKED (down) position. Plug the
Table Saw into a grounded 120V outlet.
11. Rotate Safety Key to the UNLOCK (up)
position and press the Power Switch on.
Safety Key
Power
Switch ON
Power
Switch OFF
Unlock
Lock
Lock
Switch ON
12. Allow the Blade to reach full speed before
moving the workpiece into the Blade.
13. At the start of the cut, the hand furthest from
Blade holds the workpiece firmly against
Work Table and Miter Gauge, and the other
hand grasping the Miter Gauge knob pushes
the workpiece toward the turning Saw Blade.
Keep both hands out of the path of the Saw Blade.
14. Continue pushing the workpiece into the
Saw Blade until the cut is complete.
15. Once the cut is complete, continue to maintain
control of the workpiece. Turn Power Switch off.
Then, wait until the Saw Blade completely stops
rotating before removing the workpiece.
16. To prevent accidents, turn off the Table Saw, rotate
Safety Key to the LOCKED (down) position, and
disconnect its power supply after use. Clean, then
store the Saw indoors out of children’s reach.
Making a Non-Through Cut
WARNING! TO PREVENT SERIOUS INJURY: Always
use Push-Sticks, and/or featherboards appropriately
when making through cuts to reduce the risk of
serious injury.
Throughout the cut, keep all body parts a safe
distance from the spinning blade.
The tool will restart automatically if stalled.
Rip Cut
Note: For long or large workpieces, place
support(s) the same height as the Work Table
surface behind and on the sides of the Table
Saw as needed for support of the workpiece.
1. Unplug Saw and remove Blade Guard.
2. Place Riving Knife in Non‑Through Cut position.
3. Remove Anti‑Kickback Pawls.
WARNING! TO PREVENT SERIOUS INJURY:
Make sure that the Pawls are reinstalled
immediately after finishing any non‑through cut
operations which require their removal.
4. Loosen Bevel Lock. Set bevel angle to 0° by
sliding Handle to left. Tighten Bevel Lock.
Page 21

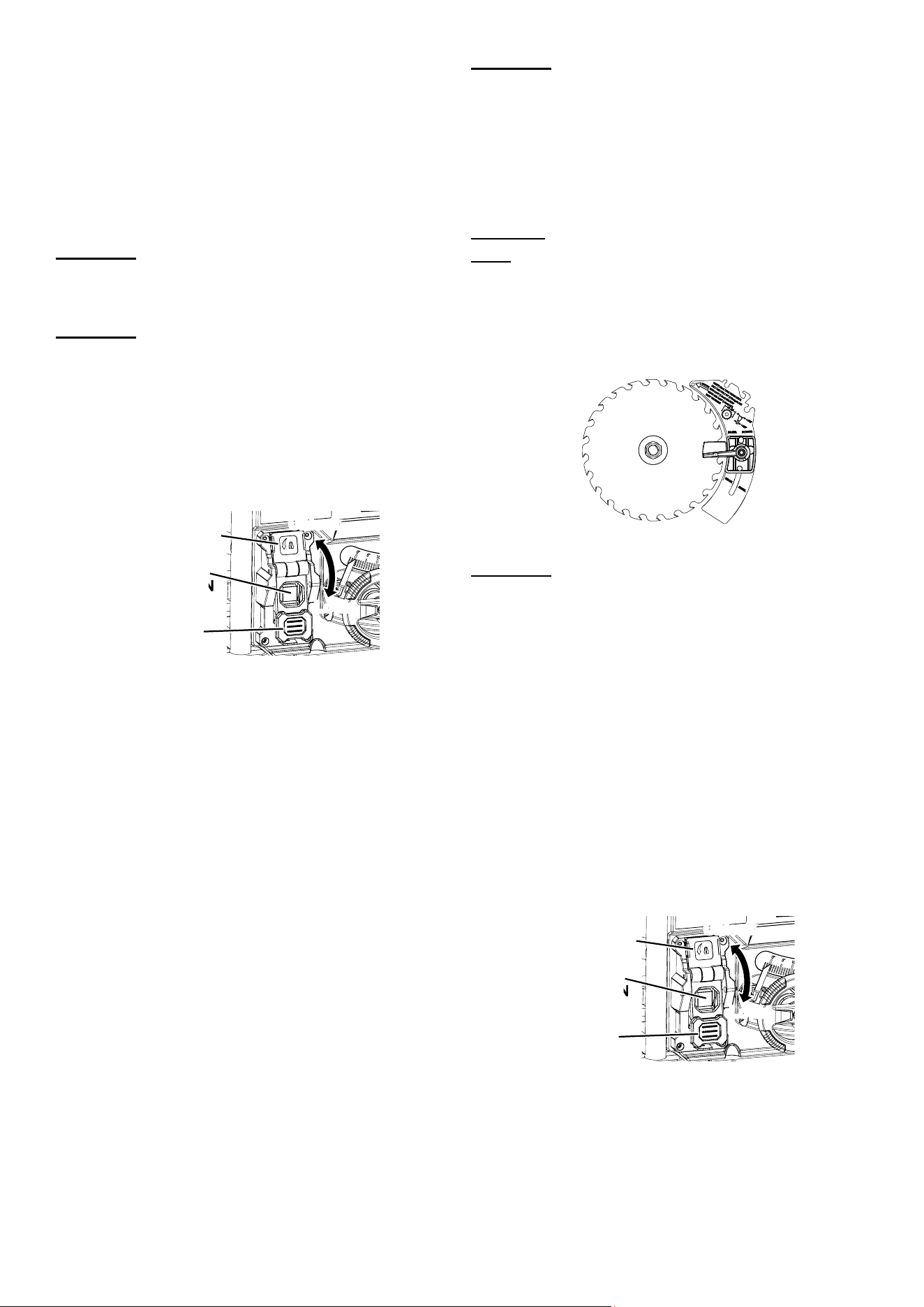

For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
5. Turn Handle to raise or lower Blade
until desired depth is achieved.
6. Place Rip Fence on the rails so that the slots
latch onto Set Screws and secure Fence to
Rails by pushing Fence Locks down.
7. Pull up Rail Lock to unlock Rail.
8. Turn Rail Fence Knob clockwise or counterclockwise
to move Rip Fence right or left to desired position.
9. Press down Rail Lock to lock Rails.
WARNING! TO PREVENT SERIOUS INJURY: Avoid
bevel ripping on beveling side of Saw Blade.
Do not place Rip Fence on left (beveling) side
of Blade to avoid dangerous kickback.
WARNING! TO PREVENT SERIOUS INJURY:
To prevent kickback, make sure Rip Fence is
parallel to the blade and locked in place.
10. Make sure that the Power Switch is in the
OFF position and Safety Key is rotated to
the LOCKED (down) position. Plug the
Table Saw into a grounded 120V outlet.
11. Rotate Safety Key to the UNLOCK (up)
position and press the Power Switch on.
Safety Key
Power
Switch ON
Power
Switch OFF
Unlock
Lock
Lock
Switch ON
12. Allow the Blade to reach full speed before
moving the workpiece into the Blade.
13. At the start of the cut, the hand closest to Rip Fence
holds the workpiece firmly against Work Table and
Rip Fence, and the other hand using a Push‑Stick
pushes the workpiece toward the turning Saw Blade.
Keep both hands out of the path of the Saw Blade.
14. After the cut is under way, use the Push‑Stick
to continue guiding the workpiece forward.
Just before the cut is completed, move the hand
closest to the Rip Fence safely farther away from
the workpiece and the Saw Blade. Continue
pushing the workpiece into the Saw Blade with
the Push‑Stick until the cut is complete.
15. Once the cut is complete, continue to maintain
control of the workpiece. Turn Power Switch off.
Then, wait until the Saw Blade completely stops
rotating before removing the workpiece.
16. To prevent accidents, turn off the Table Saw, rotate
Safety Key to the LOCKED (down) position, and
disconnect its power supply after use. Clean, then
store the Saw indoors out of children’s reach.
WARNING! TO PREVENT SERIOUS INJURY:
Reposition Riving Knife and reinstall Blade Guard
before doing any other type of cut and after use,
even if you intend to do more non‑through cuts at
another time. The Blade Guard is a critical safety
component and must be used whenever practical.
After installation, check that it is properly installed
and working before operation of the saw.
Cross Cut
Note: For long or large workpieces, place
support(s) the same height as the Work Table
surface behind and on the sides of the Table
Saw as needed for support of the workpiece.
1. Unplug Saw and remove Blade Guard.
2. Place Riving Knife in Non‑Through Cut position.
3. Remove Anti‑Kickback Pawls.
WARNING! TO PREVENT SERIOUS INJURY:
Make sure that the Pawls are reinstalled
immediately after finishing any non‑through cut
operations which require their removal.
4. Loosen Bevel Lock. Set bevel angle to 0° by
sliding Handle to left. Tighten Bevel Lock.
5. Turn Handle to raise or lower Blade
until desired depth is achieved.
6. Set Miter Gauge into desired Miter Gauge Groove.
7. Loosen Lock Knob on Miter Gauge and rotate Miter
Gauge to desired angle. Tighten Lock Knob.
8. Make sure that the Power Switch is in the
OFF position and Safety Key is rotated to
the LOCKED (down) position. Plug the
Table Saw into a grounded 120V outlet.
9. Rotate Safety Key to the UNLOCK (up)
position and press the Power Switch on.
Safety Key
Power
Switch ON
Power
Switch OFF
Unlock
Lock
Lock
Switch ON
10. Allow the Blade to reach full speed before
moving the workpiece into the Blade.
11. At the start of the cut, the hand furthest from
Blade holds the workpiece firmly against
Work Table and Miter Gauge, and the other
hand grasping the Miter Gauge knob pushes
the workpiece toward the turning Saw Blade.
Keep both hands out of the path of the Saw Blade.
Page 22
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
12. Continue pushing the workpiece into the
Saw Blade until the cut is complete.
13. Once the cut is complete, continue to maintain
control of the workpiece. Turn Power Switch off.
Then, wait until the Saw Blade completely stops
rotating before removing the workpiece.
14. To prevent accidents, turn off the Table Saw, rotate
Safety Key to the LOCKED (down) position, and
disconnect its power supply after use. Clean, then
store the Saw indoors out of children’s reach.
WARNING! TO PREVENT SERIOUS INJURY:
Reposition Riving Knife and reinstall Blade Guard
before doing any other type of cut and after use,
even if you intend to do more non‑through cuts at
another time. The Blade Guard is a critical safety
component and must be used whenever practical.
After installation, check that it is properly installed
and working before operation of the saw.
MAINTENANCE AND SERVICING
Procedures not specifically explained
in this manual must be performed
only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL OPERATION:
Turn the Power Switch of the tool off and unplug the
tool from its electrical outlet before performing any
procedure in this section.
TO PREVENT SERIOUS INJURY FROM TOOL
FAILURE:
Do not use damaged equipment.
If abnormal noise or vibration occurs, have
the problem corrected before further use.
Cleaning, Maintenance,
and Lubrication
1. bEFORE EACH USE, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces
of the tool with clean cloth.
3. Remove cut-off pieces and scraps from the Work
Table before starting the Table Saw. Switch off the
tool. While the Saw Blade is completely stopped;
unplug the machine, remove the Blade, and remove
all debris. With a brush, soft cloth, or vacuum,
remove all sawdust from the Table Saw.
Allowing sawdust, scraps, or other debris
to accumulate can cause a fire, resulting in
severe personal injury or property damage.
4. Do not use solvents to wipe off the Table Saw, as
damage may result. If necessary, wipe with a damp
cloth. You may use a mild detergent.
Do not introduce water into the electric
motor through the motor vents.
5. Once clean, lubricate all moving parts with a light oil.
6. When storing, keep the Table Saw
covered with a cloth cover.
7. WARNING! TO PREVENT SERIOUS INJURY:
If the plug or the supply cord of this power
tool is damaged, it must be replaced only
by a qualified service technician.
Page 23
For product assistance, please visit harborfreight.com/customer-support/contact-us
Item 71278
Troubleshooting
Problem Possible Causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear.
(Carbon brushes or
Power Switch, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker.
If breaker is tripped, make sure circuit is right
capacity for tool and circuit has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool operates slowly. 1. Forcing tool to work too fast.
2. Extension cord too long or cord
diameter too small.
1. Allow tool to work at its own rate.
2. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 5.
Performance
decreases over time.
Carbon brushes worn or damaged. Have qualified technician replace brushes.
Excessive noise
or rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Blocked motor housing vents.
3. Motor being strained by long or
small diameter extension cord.
1. Allow tool to work at its own rate.
2. Wear ANSI‑approved safety goggles and
NIOSH‑approved dust mask/respirator while
blowing dust out of motor using compressed air.
3. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 5.
Cut is not
square / straight.
1. Blade is not parallel with
Miter Gauge groove.
2. Rip Fence is not
parallel with Blade.
3. Miter Gauge not adjusted to 0°
(perpendicular to Blade) correctly.
1. Adjust Blade parallel with Miter Gauge groove
as described in Blade Parallel on page 11.
2. Adjust Rip Fence parallel to Blade as described in
Checking/Adjusting Rip Fence on page 1111.
3. Adjust Miter Gauge to 0° as described in
Using the Miter Gauge on page 18.
Bevel cut angle
not correct.
Bevel angle 0° and 45°
Stops and / or Bevel Scale
Indicator not set correctly.
Adjust bevel angle 0° and 45° Stops and Bevel Scale
Indicator as described in Bevel Angles on page 10.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect power supply before service.
Record Product’s Date Code Here:
Note: If product has no date code, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175542502 when ordering parts.
®
26677 Agoura Road • Calabasas, CA 91302 • 1-800-444-3353
Visit our website at: https://www.harborfreight.com
Email our technical support at: [email protected]
For product assistance, please visit harborfreight.com/customer-support/contact-us
Copyright
©
2026 by Harbor Freight Tools
®
. All rights reserved. No portion of this manual or
any artwork contained herein may be reproduced in any shape or form without the express
written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn
